USER MANUAL SGH-C100 SAMSUNG

* Some of the contents in this manual may differ from your phone, depending on the software installed or your service provider.

DUAL BAND

GPRS TELEPHONE

SGH-C100

ELECTRONICS

Printed in Korea

World Wide Web

Code No.: GH68-03883A

http://www.samsungmobile.com

English. 07/2003. Rev. 1.0

©

©

Contents

Network Selection (Menu 6.4).... 108

Caller ID (Menu 6.5) 109

Closed User Group (CUG) (Menu 6.6) ...... 109

Fun Box.... 111

Games (Menu 7.1) 111

WAP Browser (Menu 7.2) 112

Downloads (Menu 7.3).... 119

Solving Problems 121

Access Codes 124

Phone Password.... 124

PIN 125

PUK.... 125

PIN2.... 126

PUK2 126

Barring Password 127

Health and Safety Information 128

Exposure to Radio-Frequency

Energy (SAR Information) 128

Precautions When Using Batteries.... 130

Road Safety 132

Operating Environment 134

Electronic Devices 134

Potentially Explosive Atmospheres.... 136

Emergency Calls 137

Other Important Safety Information 138

Care and Maintenance 139

Glossary 141

Index 145

Quick Reference Card.... 151

Important Safety Precautions

Read these guidelines before using your mobile phone. Failure to comply with them may be dangerous or illegal. For more detailed safety information, see "Health and Safety Information" on page 128.

Road Safety at All Times

Do not use a hand-held phone while driving; park the vehicle first.

Switching Off When Refuelling

Do not use the phone at a refuelling point (service station) or near fuels or chemicals.

Switching Off in Aircraft

Mobile phones can cause interference. Using them in aircraft is both illegal and dangerous.

Switching Off in Hospitals

Switch off your phone near medical equipment. Follow any rules or regulations in force.

Interference

All mobile phones may be subject to interference, which may affect their performance.

Special Regulations

Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example).

©

©

Key Description (continued)

Makes or answers a call.

When held down in idle mode, recalls the last number dialled or received.

In the menu facility, selects a menu option or stores information that you have entered (such as a name) in the phone or SIM memory.

Ends a call.

When held down, switches the phone on and off.

In the menu facility, cancels your input and returns to the idle mode.

When held down in idle mode, accesses your voice mail.

Enter numbers, letters and some special characters.

Enter special characters.

Perform various functions.

(on the side of the phone)

During a call, adjust the earpiece volume.

In idle mode, adjust the key volume.

In the menu facility, scroll through the menu options and phonebook memory.

Display

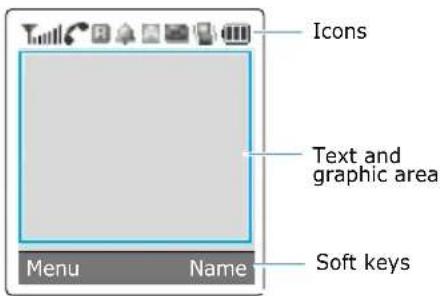

Display Layout

The display comprises three areas.

Icons Text and graphic area Soft keys Menu Name

Area Description

First line Displays various icons (see page 14).

Middle lines Display messages, instructions and any information that you enter (number to be dialled, for example).

Last line Shows the functions currently assigned to the two soft keys.

Icons

Icon Description

Shows the received signal strength. The greater the number of bars, the better the signal strength.

Appears when a call is in progress.

Appears when you are connected to the GPRS network.

Appears when the silent mode is active or you set the Alert Type menu option (Menu 3.3), so that the phone vibrates when you receive a call; for further details, see page 28 and page 79.

Appears when a new text message has been received.

Appears when a new voice mail message has been received.

Appears when you are entering text to indicate the current text input mode.

Appears when you set the alarm.

Shows the level of your battery. The more bars you see, the more power you have left.

Appears when the IrDA port is active. For details, see page 83.

Icon Description (continued)

Appears when the mute mode is active.

Appears when you are out of your home area and have registered with a different network; for example, when travelling in other countries.

Appears when the keys are locked.

Backlight

The display and keypad are illuminated by a backlight. When you press any key, the backlight turns on and remains on for a given period of time, depending on the Back Light menu option (Menu 4.7.2). Then it dims and finally switches to the digital clock, conserving your battery power.

To specify the length of time for which the backlight is active, set the Back Light menu option (Menu 4.7.2); see page 90 for further details.

Service Light

The service light is top left on the phone. It flashes when services are available on the phone.

To activate or deactivate use of the service light, set the Service Light menu option (Menu 4.7.3); see page 90 for further details.

Getting Started

Installing the SIM Card

When you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, any optional services available and so on.

Important! The plug-in SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling, inserting or removing the card.

Keep all SIM cards out of the reach of small children.

1. If necessary, switch off the phone by holding down the key until the power-off image is displayed.

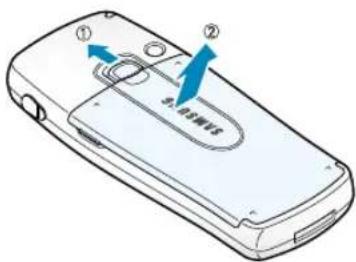

2. Remove the battery. To do so:

① Pull the battery catch on the back of the phone and hold it in that position.

② Lift the battery away, as shown.

Diagram of a mobile phone showing labeled parts with arrows indicating connection or movement, marked as ① and ②.

Getting Started

1. Slide the SIM card into the SIM card holder so that the holder locks the card in position. Make sure that the cut corner is top right and the gold contacts of the card face into the phone.

Diagram of a mobile phone casing showing internal components and a close-up view of the internal structure (no text or symbols)

Note: When you need to remove the SIM card, slide it, as shown below, and take it out of the holder.

Diagram of a mobile phone casing with internal compartments and a highlighted component (no text or symbols)

1. Place the battery so that the tabs on the end align with the slot at the bottom of the phone.

Line drawing of a mobile phone showing the open lid and internal components (no text or symbols)

©

©

Call Functions

Call Functions

Making a Call

When the idle screen is displayed, key in the area code and phone number, and press the key.

Note: If you have checked the Auto Redial option in the Extra Settings menu (Menu 4.8), the number is redialled automatically up to ten times when the person does not answer the call or is already on the phone; see page 91 for further details.

Making an International Call

1. Press and hold down the key. The + character appears.

2. Key in the country code, area code and phone number and press the key.

Correcting the Number

To clear... Then...

The last digit displayed	Press the key.
Any other digit in the number	Press the or key until the cursor is immediately to the right of the digit to be cleared. Press the key. You can also insert a missing digit simply by pressing the appropriate key.
The whole display	Hold down the key for more than one second.

Ending a Call

When you have finished your call, briefly press the key.

Redialling the Last Number

The phone stores the numbers you dialled, received or missed if the callers are identified; see "Call Records" on page 74 for further details.

To recall any of these numbers, proceed as follows.

1. If you have typed any characters on the display, clear the display by holding down the key for more than one second.
2. Press the key to display a list of the last numbers in the order in which the calls were made.
3. Use the and keys to scroll through the numbers until the required number is highlighted.

4. To... Then...

Dial the number highlighted	Press the key.
Edit the number highlighted	Press the Options soft key, select the Edit option and change the number as required.
Delete the number highlighted	Press the Options soft key and select Delete.
Delete all numbers in the list	Press the Options soft key and select Delete All. For details, see page 75.

©

Viewing Missed Calls

If you are unable to answer a call for any reason, you can find out who was calling you, provided that this service is available. In this way, you can call the person back, if necessary.

The number of missed calls is displayed on the idle screen immediately after a call was missed.

To view the missed call immediately, proceed as follows.

1. Press the View soft key.

The number corresponding to the most recent missed call is displayed, if available.

1. To... Then press the...

Scroll through the missed calls

or key.

Call the number displayed

key.

Edit or delete a missed call number

Select soft key (see next page).

Editing a Missed Call Number

Note: If the number corresponding to the missed call is not available, the Edit option is not displayed.

1. Press the Options soft key.
2. Press the or key to highlight the Edit option.
3. Press the Select soft key.

4. Change the number as required.

5. To... Then press the...

Call the number key.

Store the number Save soft key and enter the name and location required (for further details, refer to page 31).

Deleting a Missed Call

1. Press the Options soft key.
2. If necessary, press the or key to highlight the Delete option.
3. Press the Select soft key.

You can press the key at any time to exit the Missed Call feature.

Note: You can access the Missed Call feature at any time by selecting the Missed Calls menu option (Menu 2.1); for further details, see page 74.

Switching Quickly to the Silent Mode

The silent mode is convenient when discretion is required and you wish to stop the phone from making any noise, in a theatre for example.

In idle mode, to switch your phone quickly to the silent mode, simply press and hold down the key until the "Silent Mode" message and vibration icon () are displayed.

In the silent mode, your phone changes the sound settings as follows.

Option New Setting

Alert Type (Menu 3.3) Vibration

Keypad Tone (Menu 3.4) O f f

SMS Tone (Menu 3.5.1) Light Only

Power On/Off Tone (Menu 3.6) Off

Extra Tones (Menu 3.7) O f f

To exit the silent mode and reactivate the previous sound settings, press and hold down the key again until "Exit Silent Mode" appears. The vibration icon () is no longer displayed.

Selecting Functions and Options

Your phone offers a set of functions that allow you to customise your phone. These functions are arranged in menus and sub-menus, accessed via the two soft keys marked and . Each menu or sub-menu allows you to view and alter the settings of a particular function.

The roles of the soft keys vary according to the current context; the label on the bottom line of the display just above each key indicates its current role.

Example :

Service Provider

05:17

Sat 02 Oct

Press the left soft key to access the menu facility.

Press the right soft key to access the Phonebook feature.

©

©

©

4. To... Then press the...
View the high-lighted entry	View soft key.
Select a different entry	or key until the required entry is high-lighted.
Look for a name starting with a different letter	key to clear the letters already entered and then press the key labelled with the required letter.

1. Once you have found the required entry, press the key to dial the number, or press the Options soft key to access the phonebook entry options; for further details, see page 34.

Searching for a Number by Caller Group

1. When the idle screen is displayed, press the Name soft key.

2. Scroll to Group Search by pressing the or key and press the Select soft key.

3. Enter the first few letters of the group name that you want to find.

The caller groups are listed, starting with the first group matching your input.

1. Scroll to the required group by pressing the or key and press the View soft key.

The phonebook entries in the selected caller group are listed.

5. To... Then press the...
View the high-lighted entry	View soft key.
Select a different entry	— or —key until the required entry is highlighted.

1. Once you have found the required entry, press the key to dial the number, or press the Options soft key to access the phonebook entry options; for further details, see page 34.

Editing a Caller Group

1. When the idle screen is displayed, press the Name soft key.

2. Scroll to Group Edit by pressing the or key and press the Select soft key.

3. Scroll through the group list by pressing the or key.

4. When the required group is highlighted, press the Options soft key.

5. Select each option and change the settings, as required. The following options are available.

Call ring tone: allows you to select the ring tone to be used when you receive a voice call from a person in the group.

SMS tone: allows you to select the ring tone to be used when you receive a text message from a person in the group.

Graphic: allows you to select the graphic icon to be displayed when you receive a voice call from a person in the group.

Group Name: allows you to assign a name to the group; for information on how to enter characters, see page 42.

1. When you have finished, press the or ^① key.

Speed-Dialling

Once you have stored phone numbers in the SIM card, you can set up to eight speed-dial entries and then dial them easily whenever you want, simply by pressing the associated number key.

Setting Up Speed-Dial Entries

1. When the idle screen is displayed, press the Name soft key.
2. Scroll to Speed Dial by pressing the or key and press the Select soft key.
3. Select the key to which you wish to assign the speed-dialling feature (keys to) and press the OK soft key.

Note: If you have already assigned a number to the key, the Options soft key replaces the OK soft key. Go to Step 6.

1. Select the required phonebook entry from the list and press the View soft key.

2. Select the required number if the entry has more than one number, by pressing the or key and press the Select soft key.

3. Once you have assigned a number to the selected key, four options are available when you press the Options soft key.

Change: allows you to assign a different number to the key.

Delete: allows you to clear the setting so that no number is assigned to the key.

Delete All: allows you to clear the settings for all keys so that no numbers are assigned to any of the keys.

Number: allows you to view the number assigned to the key.

1. When you have finished, press the or key.

Speed-Dialling from the Phonebook

To speed-dial the numbers assigned to keys 2 ABC to 9, press and hold down the appropriate key.

Note: Memory location 1 is reserved for your Voice Mail server number.

Deleting All Phonebook Entries

You can delete all entries in either the phone or SIM card memory or in both memories together.

1. When the idle screen is displayed, press the Name soft key.
2. Scroll to Delete All by pressing the or key and press the Select soft key.
3. To... Then press the...

Select the

Mark soft key.

memory(ies)

to be cleared

Cancel the selection Unmark soft key.

Delete all entries

Delete soft key.

in the selected

memory(ies)

1. Enter the phone password and press the OK soft key.
   Note: The password is preset to 00000000. To change it, see page 88.
2. When the confirmation message is displayed, press the Yes soft key.
3. When you have finished, press the or key.

Checking the Memory Status

You can check how many names and numbers are stored in the phonebook (SIM card and phone memories) or how many free locations remain.

1. When the idle screen is displayed, press the Name soft key.
2. Select the Memory Status option by pressing the or key and press the Select soft key.
3. Press the or key to view the number of entries in the card and phone memories in relation to the total capacity of each memory.
4. When you have finished checking, press the or key.

Entering Text

When using your phone, you will often need to enter text. For example, when storing a name in the phonebook, creating your personal greeting or scheduling events in your calendar. You can enter alphanumeric characters by using your phone's keypad.

You are provided with the following text input modes.

- T9 mode

This mode allows you to enter words with only one keystroke per letter. Each key on the keypad has more than one letter – when you press the 5- key once, J, K or L may be displayed. The T9 mode automatically compares your keystrokes with an internal linguistic dictionary to determine the correct word, thus requiring far fewer keystrokes than the traditional upper/ lower-case character modes.

• Upper/lower-case character modes

These modes allow you to enter letters by pressing the key labelled with the required letter once, twice, three or four times until the letter is displayed.

- Symbol mode

This mode allows you to enter symbols, such as punctuation marks.

- Number mode

This mode allows you to enter numbers.

Entering Text

Changing the Text Input Mode

When you are in a field that allows characters to be entered, you will notice the text input mode indicator in the display.

Example: Writing a text message

Text input mode indicator Options 918 ↑

To select the...	Then press the soft key until...
T9 mode is displayed.	See page 44.
Upper-case character mode	is displayed.See page 46.
Lower-case character mode	is displayed.See page 46.
Symbol mode is displayed.	See page 47.
Number mode is displayed.	See page 47.

Using the T9 Mode

The T9 predictive text input mode allows you to key in any character using single keystrokes. This text input mode is based on a built-in dictionary.

1. When you are in the T9 predictive text input mode, start entering a word by pressing keys to . Press each key only once for one letter.

Example: To enter Hello in the T9 mode, press , , , and .

The word that you are typing appears in the display. It may change with each key that you press.

1. Enter the whole word before editing or deleting the keystrokes.

2. If the word is correct, start entering the next word.

Otherwise, press the , or key repeatedly to display alternative word choices for the keys that you have pressed.

Example: Both Of and Me have the sequence, . The phone displays the most commonly used choice first.

1. Complete each word with a space by pressing the key.

- To type words not found in the T9 mode, change the text input mode to the upper/lower-case character input mode.

- To enter full stops, hyphens or apostrophes, press the key. The T9 mode applies grammar rules to ensure that the correct punctuation is used.

Example: is used twice to display two punctuation marks:

Let's eat.

- To change the case in the T9 mode, use the key. There are two cases:

Lower case

Upper case

- You can move the cursor by using the and keys. To delete letters, press the key. Press and hold down the key to clear the display.

Using the Upper/Lower-Case Character Modes

Use the to 0+ keys to enter your text.

1. Press the key labelled with the required letter:

2. Once for the first letter

3. Twice for the second letter

4. And so on

5. Select the other letters in the same way.

Note: The cursor moves to the right when you press a different key. When entering the same letter twice or a different letter on the same key, just wait for a few seconds for the cursor to move right automatically, and then select the next letter.

Refer to the table below for more information about the characters available.

Key	Characters in the Order Displayed
	Upper Case	Lower Case
1	Space . 1 ! ? & i ¿ §	.% @ _ £ $ ¥ α §
2	A B C 2 Ä Å Æ Ç Γ	a b c 2 à ä å æ Γ
3	D E F 3 É Δ Φ	d e f 3 è é Φ
4	G H I 4 Θ Ψ	g h i 4 i Ψ
5	J K L 5 Λ	j k l 5 Λ
6	M N O 6 ň ∅ Ö ö	m n o 6 ň ∅ ò ö
7	P Q R S 7 Π Σ Ξ	p q rs 7 β Σ Ξ
8	T U V 8 Ū ū	t u v 8 ů ū
9	W X Y Z 9 Ω	w x y z 9 Ω
0	0 * # , ; ‘ “ =	/ : - + ( ) < >

• To insert a space, press the key.
- You can move the cursor by using the ( and ) keys. To delete letters, press the ☑️ key. Press and hold down the ☑️ key to clear the display.

Using the Symbol Mode

The Symbol mode enables you to insert symbols in a text message.

" = / : - + ( ) <> i ! ?&*S%@ _£$¥# OK 918 ↑

Use the navigation keys to scroll to the required symbol and then press the OK soft key to insert the highlighted symbol into your message.

Using the Number Mode

The Number mode enables you to enter numbers in a text message (a telephone number for example). Press the keys corresponding to the required digits before manually switching back to the appropriate text input mode.

Options During a Call

Your phone provides a number of control functions that you can use during a call.

Putting a Call on Hold

You can place the current call on hold whenever you want. You can make another call while you have a call in progress if this service is supported by the network. Of these two calls, one is active and the other is on hold and you can swap between the calls.

To place a call on hold, simply press the Hold soft key. You can reactivate the call whenever you want, by pressing the Unhold soft key.

To make a call while you have a call in progress, proceed as follows.

1. Key in the phone number that you wish to dial or look it up in the phonebook.

2. Press the key to dial the second call.

The first call is automatically put on hold.

Or alternatively, proceed as follows.

1. Put the current call on hold by pressing the Hold soft key.

2. Make the second call in the normal way.

To swap between the two calls, simply press the Swap soft key.

The current call is placed on hold and the call on hold is reactivated so that you can continue conversing with the other party.

When you have finished, end each call normally by pressing the key.

Switching the Microphone Off (Mute)

You can temporarily switch your phone's microphone off, so that the other party cannot hear you.

Example : You wish to say something to another person in the room but do not want the other party to hear you.

To switch the microphone off temporarily, proceed as follows.

1. Press the Options soft key.

2. If necessary, press the key to highlight the Mute option.

3. Press the OK soft key.

The other party can no longer hear you.

To switch the microphone back on, proceed as follows.

1. Press the Options soft key.

2. If necessary, press the key to highlight the Unmute option.

3. Press the OK soft key.

The other party can hear you again.

Muting/Sending Key Tones

These options allow you to turn the key tones off or on. If the Mute keys option is selected, your phone does not transmit the key tones. It allows you to press keys without hearing annoying key tones during a call.

Note: To communicate with answering machines or computerised telephony systems, the Send keys option must be selected.

Sending DTMF Tones

You can send the DTMF (dual tone multi-frequency) tones corresponding to a number entered during a call.

This option is helpful when submitting a password or account number to an automated system, like a banking service.

To send DTMF tones, proceed as follows.

1. When you are connected to the teleservice system, press the Options soft key.
2. Press the key to highlight the Send DTMF option.
3. Press the OK soft key.
4. Enter the number you wish to send and press the OK soft key. The tones corresponding to the number displayed are sent.
   Note: You can also search for a number in the phonebook by pressing the Name soft key. For a more detailed description of the Phonebook feature, refer to page 31.

Searching for a Number in the Phonebook

You can search for a number in the phonebook during a call.

1. Press the Options soft key.
2. Press the key to highlight the Phonebook option.

3. Press the OK soft key.
   The phonebook entries are listed.

4. Enter the name that you wish to find.

If you enter the start of the name, the phonebook entries are listed, starting with the first entry matching your input. The entry is also highlighted.

1. Scroll to an entry by pressing the -or key, and press the View soft key to view the highlighted entry.

For a more detailed description of the Phonebook feature, refer to page 31.

Using the SMS Service

If you receive an SMS (Short Message Service) message during a call, the message icon flashes in the display. The SMS Service option enables you to use this feature.

For further details on the SMS service, refer to page 62.

Answering a Second Call

You can answer an incoming call while you have a call in progress, if this service is supported by the network and you have set the Call Waiting menu option (Menu 6.3) to Activate (see page 107). You will be notified of an incoming call by a call waiting tone.

To answer a call while you have a call in progress, proceed as follows.

1. Press the key to answer the incoming call. The first call is automatically put on hold.

2. To switch between the two calls, press the Swap soft key.

To end a held call, press the Options soft key and select the End Held Call option.

1. To end the current call, press the key

Making a Multiparty Call

A multiparty call is a network service that allows up to six people to take part simultaneously in a multiparty or conference call. For more information, contact your service provider.

Setting up the Multiparty Call

1. Call the first participant in the normal way.
2. Call the second participant in the normal way. The first call is automatically put on hold.

3. To join the first participant to the multiparty call, press the Options soft key and select the Join option.

4. To add a new person to the multiparty call, call the person in the normal way, then press the Options soft key and select the Join option.

You can add incoming callers by answering the call and pressing Options, followed by Join. Repeat as required.

Having a Private Conversation With One Participant

1. Press the Options soft key and choose the Select one option.

The list of call participants appears.

1. Highlight the required person, by pressing the or key, followed by the Select soft key or the Key.

2. Select the Private option.

Now you can talk privately with that person. The other participants can continue to converse with each other.

1. To return to the multiparty call, press the Options soft key and select Join.

All of the multiparty call participants can now hear each other.

©

©

2. Call Records (continued)

2.5 Call Time

2.5.1 Last Call Time

2.5.2 Total Sent

2.5.3 Total Received

2.5.4 Reset Timers

2.6 Call Cost

2.6.1 Last Call Cost

2.6.2 Total Cost

2.6.3 Max Cost

2.6.4 Reset Counters

2.6.5 Set Max Cost

2.6.6 Price/Unit

3. Sound Settings (see page 78)

3.1 Ring Tone

3.2 Ring Volume

3.3 Alert Type

3.3.1 Light Only

3.3.2 Melody

3.3.3 Vibration

3.3.4 Vibra+Melody

3.4 Keypad Tone

3.4.1 Off

3.4.2 Cool

3.4.3 Piano

3.4.4 Tone

3.4.5 Beep

3.5 Message Tone

3.5.1 SMS Tone

3.5.2 SMS-CB Tone

3.6 Power On/Off

3.6.1 Off

3.6.2 Classical

3.6.3 Cheerful

3.7 Extra Tones

3.7.1 Error Tone

3.7.2 Minute Minder

3.7.3 Connect Tone

4. Phone Settings (see page 83)

4.1 Infrared Activate

4.2 My Settings

4.2.1 Wallpaper

4.2.2 Menu Style

4.2.3 Auto Key Lock

4.3 Greeting Message

4.4 Own Number

4.4.1 Number 1

4.4.2 Number 2

4.4.3 Number 3

4.5 Language

4.6 Security

4.6.1 PIN Check

4.6.2 Change PIN

4.6.3 Phone Lock

4.6.4 Change Password

4.6.5 SIM Lock

4.6.6 FDN Mode *

4.6.7 Change PIN2

4.7 Display Settings

4.7.1 Brightness

4.7.2 Back Light

4.7.3 Service Light

4.7.4 Graphic Logo

4.8 Extra Settings

4.8.1 Auto Redial

4.8.2 Anykey Answer

4.9 Short Cut

4.9.1 Key up

4.9.2 Key down

4.9.3 Key right

4.9.4 Key left

4.10 Reset Settings

5. Organiser (see page 93)

5.1 Calendar
5.2 To Do List
5.3 Time & Date

5.3.1 Set Time
5.3.2 Set Date
5.3.3 World Time
5.3.4 Time Format

5.4 Alarm

5.4.1 Once Alarm
5.4.2 Daily Alarm
5.4.3 Morning Call
5.4.4 Remove Alarm
5.4.5 Autopower

5.5 Calculator

5.6 Currency Exchange

6. Network Services (see page 103)

6.1 Call Diverting

6.1.1 Divert Always
6.1.2 Busy
6.1.3 No Reply
6.1.4 Unreachable
6.1.5 Cancel All

6.2 Call Barring

6.2.1 All Outgoing
6.2.2 International
6.2.3 International Except to Home
6.2.4 All Incoming
6.2.5 Incoming While Abroad
6.2.6 Cancel All
6.2.7 Change Barring Password

6.3 Call Waiting

6.3.1 Voice Calls
6.3.2 Fax Calls
6.3.3 Data Calls
6.3.4 Cancel All

6.4 Network Selection

6.4.1 Automatic
6.4.2 Manual

6. Network Services (continued)

6.5 Caller ID

6.5.1 Default
6.5.2 Hide Number
6.5.3 Send Number

6.6 Closed User Group

6.6.1 Index List
6.6.2 Outside Access
6.6.3 Default Group
6.6.4 Deactivate

7. Fun Box (see page 111)

7.1 Games

7.1.1 Honey Ball
7.1.2 Hamster Box

7.2 WAP Browser

7.2.1 Home
7.2.2 Favorite
7.2.3 http://
7.2.4 Settings
7.2.5 Clear Cache

7.3 Downloads

7.3.1 Games & More
7.3.2 Sounds
7.3.3 Pictures
7.3.4 DNS Setting

Messages

The SMS (Short Message Service) function is a network service and may not be supported by your network. Messages can be sent by text, fax, E-mail and paging messaging systems, provided that these services are supported by your network. To send text messages by phone, you must obtain the number of the SMS centre from your service provider.

When the message icon appears, you have received new text messages. If the message memory is full, an error message is displayed and you cannot receive any new messages. Use the Delete option in your inbox and outbox to delete obsolete messages.

When you receive a new message in the key lock mode, you cannot view it without unlocking the keypad. To do so, press the Unlock soft key and the key.

Inbox (Menu 1.1)

The inbox is used to store the messages that you have received.

When you select this menu, the list of messages in the inbox is displayed with the senders' phone numbers or names, if available in your phonebook.

1. Select the message you wish to read from the list and press the View soft key to view the message contents.
2. To scroll through the message, press the or key.
3. To scroll to the previous or next message, press the *or key.*

Messages

While reading a message, you can choose the following options by pressing the Options soft key.

Delete: allows you to delete the message.

Send: allows you to resend the message. For further information on how to send a message, see page 65.

Reply: allows you to reply to the sender by sending a text message.

Call Back: allows you to call the sender back.

Cut Address: allows you to extract URL or E-mail addresses or phone numbers from the message text, so that you can save them in the phone memory.

Move To Phone: allows you to move the message from the SIM card to the phone memory. This option is only available when you select a message stored in the SIM card.

Move To Sim: allows you to move the message from the phone memory to the SIM card. This option is only available when you select a message stored in the phone memory.

Select Objects: allows you to save media objects, such as sounds or images, from the message into your phone. You can then use the objects when writing a message; for details, see page 66.

Outbox (Menu 1.2)

The outbox is used to store the messages that you have already sent or will send.

When you select this menu, the list of messages in the outbox is displayed with the recipients' phone numbers or names, if available in your phonebook.

Messages

Messages

1. Select the message you wish to read from the list and press the View soft key to view the message contents.
2. To scroll through the message, press the or key.
3. To scroll to the previous or next message, press the or key.

While reading a message, you can choose the following options by pressing the Options soft key.

Delete: allows you to delete the message.

Send: allows you to (re)send the message. For further information on how to send a message, see page 65.

Cut Address: allows you to extract URL or E-mail addresses or phone numbers from the message text, so that you can save them in the phone memory.

Move To Phone: allows you to move the message from the SIM card to the phone memory. This option is only available when you select a message stored in the SIM card.

Move To Sim: allows you to move the message from the phone memory to the SIM card. This option is only available when you select a message stored in the phone memory.

Select Objects: allows you to save media objects, such as sounds or images, from the message into your phone. You can then use the objects when writing a message; for details, see page 66.

Write New (Menu 1.3)

Via this menu, you can write and send a text message.

Note: You can enter up to 918 alphanumeric characters for your message. If you add media objects to the message, the number of characters you can enter is decreased.

Creating a Simple Text Message

1. Create your message as required.

Note: For information on how to enter characters, refer to page 42.

1. When you have completed your message, press the Options soft key. The following options are available.

Send: allows you to send the message. The message will be deleted after sending.

Save and Send: allows you to save a copy of the message in the specified memory and then send the message to the required destination. You can read the message in your outbox.

Save: allows you to save the message to the specified memory so that it can be sent later. You can read the message in your outbox.

For information about the Text Formatting, Add Objects, Add Templates, Add Phonebook, Add Bookmark and Language options, see “Creating a Message Using the Options” on page 66.

1. Select Send or Save and Send, and press the Select soft key.

©

©

©

Broadcast (Menu 1.10)

This network service allows you to receive text messages on various topics, such as the weather or traffic. Messages are displayed immediately they are received, provided that:

• The phone is in idle mode
• The Receive option is set to Enable
- The message channel is currently active in the channel list

The following options are available.

Read: lets you view the message. Volatile displays the messages from the network, but loses its contents as soon as the phone is switched off. Scroll through the message using the and keys. While reading a message, press the Save soft key to store the message in the Archive box for later retrieval.

Receive: allows you to enable or disable the reception of broadcast messages.

Channel List: allows you to indicate the channels from which you wish to receive broadcast messages. The following options are available.

Select: used to enable or disable channels in the list by marking or unmarking them respectively.

Add Channel: used to declare the ID and title for a new channel.

Delete: used to remove a channel from the list.

Edit: used to change the ID and title of an existing channel.

Language: allows you to select your preferred language to be used when displaying cell broadcast messages.

Please contact your service provider for more information.

Call Records

Call Records

Via this menu, you can view the:

• Missed, received or dialled calls
• Length of a call you made or received
- Cost of your calls

Note: You can access all numbers in the three types of call records by pressing the ⬤ key in idle mode.

Missed Calls (Menu 2.1)

This option lets you view the last 20 unanswered calls.

The number and name, if available, are displayed, together with the date and time at which the call was received. By pressing the Options soft key, you can:

• Delete the call from the list
• Edit the number, if available, and save it in the phonebook

You can also dial the number by pressing the key.

Received Calls (Menu 2.2)

This option lets you view the last 20 phone calls answered.

The number and name, if available, are displayed, together with the date and time at which the call was received. By pressing the Options soft key, you can:

• Delete the call from the list
• Edit the number, if available, and save it in the phonebook

You can also dial the number by pressing the key.

Dialled Calls (Menu 2.3)

This option lets you view the last 20 numbers dialled.

The number and name, if available, are displayed, together with the date and time at which the call was made. By pressing the Options soft key, you can:

• Delete the number
• Edit the number and save it in the phonebook
  You can also dial the number by pressing the key.

Delete All (Menu 2.4)

You can delete all numbers stored in each call record.

To... Then press the...
Select the type(s) of calls to be deleted	or key, followed by the Mark soft key.
Cancel the selection Unmark soft key.
Delete all calls of the selected type	Delete soft key.

When the confirmation message is displayed, press the Yes soft key to confirm.

Call Time (Menu 2.5)

This option lets you view the timers for calls made and received.

Note: The actual time invoiced for calls by your service provider may vary, depending on network features, such as rounding-off for billing purposes.

The following timers are available.

Last Call Time: length of the last call.

Total Sent: total length of all calls made since the timer was last reset.

Total Received: total length of all calls received since the timer was last reset.

Reset Timers: option used to reset the call timers; you must first enter the phone password (see page 124) and then press the OK soft key.

Call Cost ^* (Menu 2.6)

This feature lets you view the cost of calls. Depending on your SIM card, this menu option may not be shown.

The following timers are available.

Last Call Cost: cost of the last call made.

Total Cost: total cost of all calls made since the cost counter was last reset. If the total cost exceeds the maximum cost set via the Set Max Cost option, you can no longer make any calls until you reset the counter.

Max Cost: maximum cost set via the Set Max Cost option (see below).

Reset Counters: option used to reset the cost counter; you must first enter your PIN2 (see page 126) and then press the OK soft key.

Set Max Cost: option used to enter the maximum cost that you authorise for your calls; you must first enter your PIN2 (see page 126) and then press the OK soft key.

Price/Unit: option used to set the cost of one unit; this price per unit is applied when calculating the cost of your calls; you must first enter your PIN2 (see page 126) and then press the OK soft key.

Sound Settings

You can use the Sound Settings feature to customise various settings, such as the:

• Ring melody, volume and type
- Sounds made when you press a key, make an error or receive a message

Note : When the phone is in the silent mode (see page 28), you cannot change the sound settings.

Ring Tone (Menu 3.1)

This option allows you to select the required ring melody.

You can choose between many different melodies. Each time you select a melody, it is played for a few seconds. If you have downloaded any sounds from the Internet or EasyGPRS program, you can view the list in this menu.

Ring Volume (Menu 3.2)

This option allows you to adjust the ring volume to one of five levels.

Use the and keys or the and▲ keys on the left side of the phone.

Sound Settings

Alert Type (Menu 3.3)

This option allows you to specify how you are to be informed of any incoming calls.

The following options are available.

Light Only: only the backlight is switched on; the phone neither rings nor vibrates.

Melody: the phone rings using the ring melody selected via the Ring Tone menu option (Menu 3.1); see page 78.

Vibration: the phone vibrates but does not ring.

Vibra+Melody: the phone first vibrates three times and then starts ringing.

Keypad Tone (Menu 3.4)

This option allows you to select the tone that the keypad generates when you press a key.

The following options are available.

Off: the keys do not make any sound.

Cool: each key, when pressed, generates a pure sound.

Piano: each key, when pressed, generates a different note in the musical scale.

Tone: each key, when pressed, makes a different sound.

Beep: each key, when pressed, makes the same sound.

Message Tone (Menu 3.5)

This option allows you to select how the phone informs you that a new message has been received.

SMS Tone (Menu 3.5.1)

This option allows you to select how the phone informs you that a new SMS message has been received.

The following options are available.

Off: the phone does not use the SMS tone.

Light Only: the service light on the top left of the phone flashes.

Vibration: the phone vibrates.

Single Beep: the phone beeps once.

SMS ToneX: the phone uses an SMS tone. You are provided with several SMS tones.

SMS-CB Tone (Menu 3.5.2)

This option allows you to select how the phone informs you that a new cell broadcast (CB) message has been received.

The following options are available.

Off: the phone does not use the CB tone.

Light Only: the service light on the top left of the phone flashes.

Vibration: the phone vibrates.

Single Beep: the phone beeps once.

SMS-CB ToneX: the phone uses a CB tone. You are provided with several CB tones.

Power On/Off (Menu 3.6)

This option allows you to turn on or off the sounds that the phone generates when it is switched on and off.

The following options are available.

Off: when you switch the phone on and off, you do not hear a jingle.

Classical: when you switch the phone on and off, you hear the default jingle.

Cheerful: when you switch the phone on and off, you hear a cheerful jingle.

©

My Settings (Menu 4.2)

You can change the background image and the menu display style according to your preference.

Wallpaper (Menu 4.2.1)

This option allows you to change the background image (wallpaper) to be displayed in idle mode.

To change the background image, proceed as follows.

1. Scroll through the list by pressing the or key. You have various preset images available. You can also select a blank background or any images downloaded from the Internet or the EasyGPRS program.

2. Press the View soft key when the required image is highlighted. The selected image is displayed.

3. After viewing the image, press the Select soft key to display it on the idle screen.

4. To display the... Press the...
Current date and time on top of the wallpaper image	Yes soft key.
Wallpaper image only No soft key.

Menu Style (Menu 4.2.2)

This option allows you to select the menu display style. You can choose between Bar Style and Zoom Style.

Auto Key Lock (Menu 4.2.3)

This menu option allows you to set the phone to automatically lock the keys if no key is pressed within a given period of time. This feature is useful to avoid pressing keys by mistake.

To use this feature, select the length of time for which the phone waits before it locks the keypad. 15 Sec , 30 Sec , 1 Min and 2 Min are available.

If you do not want to use this feature, select Off.

Note : You can manually lock the keypad. For further details, see page 21.

Greeting Message (Menu 4.3)

This option allows you to set a greeting message to be displayed briefly when the phone is switched on. When you select this menu option, the current message is displayed.

To... Then press the...
Clear the existing message	# IC key and hold it down until the message is cleared.
Enter a new message	Appropriate alphanumeric keys.
Change the text input mode	soft key.

For information on how to enter characters, refer to page 42.

©

Once the correct password has been entered, you can use the phone until you switch it off.

The following options are available.

Disable: you are not asked to enter the phone password when you switch the phone on.

Enable: you are required to enter the phone password when you switch the phone on.

Change Password (Menu 4.6.4)

The Change Password feature allows you to change your current phone password to a new one. You must enter the current password before you can specify a new one.

The password is factory set to 00000000. Once you have entered a new password, you are asked to confirm it by entering it again.

SIM Lock (Menu 4.6.5)

When the SIM Lock feature is enabled, your phone only works with the current SIM. You must enter the SIM lock code.

Once you have entered the SIM lock code, you are asked to confirm it by entering it again.

To unlock the SIM, you must enter the SIM lock code.

FDN Mode (Menu 4.6.6)

The FDN (Fixed Dial Number) mode, if supported by your SIM card, allows you to restrict your outgoing calls to a limited set of phone numbers.

The following options are available.

Disable: you can phone any number.

Enable: you can only call phone numbers stored in the phonebook. You must enter your PIN2.

Note: Not all SIM cards have a PIN2. If your SIM card does not, this menu option is not displayed.

To change your PIN2, refer to the Change PIN2 menu option (Menu 4.6.7) below.

Change PIN2 (Menu 4.6.7)

The Change PIN2 feature allows you to change your current PIN2 to a new one. You must enter the current PIN2 before you can specify a new one.

Once you have entered a new PIN2, you are asked to confirm it by entering it again.

Note: Not all SIM cards have a PIN2. If your SIM card does not, this menu option is not displayed.

©

Phone Settings

Short Cut (Menu 4.9)

The navigation keys can be used as shortcut keys. When held down in idle mode, they allow you to access specific menu options directly.

To assign a shortcut to a key, proceed as follows.

1. Select the key to be used as a shortcut key by pressing the or key, followed by the Select soft key.

Key up ( )

Key down ( )

Key right ( )

Key left ( )

1. Select the menu option to be assigned to the key by pressing the or key.

Note : To deactivate a shortcut key, select the None option.

1. Press the Select soft key to save the selection.

Reset Settings (Menu 4.10)

You can easily reset your phone to its default settings. To do so, proceed as follows.

1. Select the Reset Settings menu option.

2. Enter the 8-digit phone password and press the OK soft key.

Note : The password is preset to 00000000. To change this password, refer to page 88.

©

©

To Do List (Menu 5.2)

This feature allows you to:

• Draw up a list of tasks to be done
• Assign a priority and deadline to each task
• Sort the tasks by priority and status mark

Creating the To Do List

1. Press the New soft key.
2. Enter the first task.

Note: You can enter up to 40 characters. For information on how to enter characters, see page 42.

1. Press the OK soft key.
2. Select high, normal or low priority using the or key and press the Select soft key.
3. Enter your deadline.

If you do not want to set a deadline, press the Skip soft key.

1. Press the OK soft key.

Editing the To Do List

If tasks are already defined in the To Do List when you select the To Do List menu option

(Menu 5.2), the current contents are displayed with a status mark and priority (for high, for normal and for low).

The following options are available.

To... Then...

View the details for a specific task

• Highlight the task.
• Press the View soft key.
• Scroll through the tasks using the and keys, if necessary.

Change the status of a specific task

• Highlight the task.

• Press the key to mark the task as completed as of the current date and time. or

• Highlight the task.

• Press the Options soft key.
• Select the Mark option.
• Select the appropriate status (Done or Undo).

Create a new task

• Press the Options soft key.
• Select the New option.
• Enter the text, priority and deadline for the task.

Edit an existing task

• Highlight the task.
• Press the Options soft key.
• Select the Edit option.
• Change the text, priority and deadline for the task.

To... Then...
Sort the existing tasks by priority or status	Press the Options soft key.Select the Sort option.Select the sort criterion (High, Low, Done or Undo).
Copy a task • Highlight the task.	Press the Options soft key.Select the Copy option.Change the text, priority and deadline for the task as required.
Copy a task to the calendar	Highlight the task.Press the Options soft key.Select the Copy to calendar option.Change the text and deadline for the task and set the alarm as required.
Delete a task • Highlight the task.	Press the Options soft key.Select the Delete option.
Delete all tasks • Press the Options soft key.Select the Delete all option.Confirm the deletion by pressing OK.
Exit the To Do List • Press the Options soft key.Select the Exit option.

Time & Date (Menu 5.3)

This option allows you to change the current time and date displayed. You can also check the current time for Greenwich Mean Time (GMT) and 21 major cities around the world.

The following options are available.

Set Time: allows you to enter the current time. You can choose the time format via the Time Format menu option (Menu 5.3.4).

Note: Before setting the time, you must specify your time zone, in the World Time menu option (Menu 5.3.3).

Set Date: allows you to enter the day, month and year.

World Time: allows you to check the current time for Greenwich Mean Time (GMT) and 21 major cities around the world, using the (and) keys.

The screen shows the:

• City name
• Current date and time
• Time difference between the selected city and your city if you have set the local time (see below for further details) or GMT (by default)

To select the time zone in which you are located, proceed as follows.

1. Select the city corresponding to your time zone by pressing the (or )key one or more times. The local date and time are displayed.

2. Press the Set soft key.

Time Format: allows you to change the time format to 24 Hours or 12 Hours.

Alarm (Menu 5.4)

This feature allows you to:

- Set the alarm to ring at a specific time

- Set the phone to switch on automatically and ring the alarm even if the phone is switched off (Autopower menu option set to Enable)

The following options are available.

Once Alarm: the alarm rings only once and is then deactivated.

Daily Alarm: the alarm rings every day at the same time.

Morning Call: the alarm rings to wake you up in the morning.

To set the alarm, proceed as follows.

1. Choose the type of alarm to be set.

2. Enter the required time.

3. Press the OK soft key.

4. If you select Morning Call in Step 1, select the repeat option: Monday to Friday or Monday to Saturday.

Remove Alarm: deactivates all alarm settings.

Autopower: if this option is set to Enable, the alarm will ring at the specified time, even when the phone is switched off. If the menu option is set to

Disable and the phone is switched off at the specified time, the alarm will not ring.

To stop the alarm when it rings, press the Exit soft key or the key.

Note: You can also stop the alarm even if your phone is in the key lock mode. Your phone returns to the key lock mode after the specified period of time selected in the Auto Key Lock menu option (Menu 4.2.3).

When setting or viewing an alarm, the following options are available when you press the Options soft key.

Remove Alarm: allows you to deactivate the current alarm.

Alarm Sound Set: allows you to select the alarm melody.

Calculator (Menu 5.5)

With this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions: addition, subtraction, multiplication and division.

Using the Calculator

1. Enter the first number using the numeric keys.

2. Press the right soft key until the required arithmetic symbol appears: + (add), - (subtract), * (multiply), / (divide).

3. Enter the second number.

4. Repeat Steps 1 to 3 as many times as required.

Notes:

- To erase any mistakes and clear the display, press the ☐/☐ key.

- To include a decimal point or a bracket, press the left soft key until the required symbol is displayed.

1. To calculate the result, press the key.

Organiser

Currency Exchange (Menu 5.6)

Using this menu option, you can make currency conversions.

1. Enter the current exchange rate of your source currency and press the OK soft key.

You can insert a decimal point by pressing the key.

1. Enter the amount for which you wish to conduct the currency conversion and press the OK soft key.

The local currency amount you entered and the equivalent value in the foreign currency are displayed.

1. Press the Exit soft key to exit the currency convertor.

Network Services

These menu functions are network services. Please contact your service provider to check their availability and subscribe to them, if you so wish.

Call Diverting (Menu 6.1)

This network service enables incoming calls to be rerouted to the number that you specify.

Example : You may wish to divert your business calls to a colleague while you are on holiday.

Call diverting can be set up in the following ways.

Divert Always: all calls are diverted.

Busy: calls are diverted if you are already on the phone.

No Reply: calls are diverted if you do not answer the phone.

Unreachable: calls are diverted if you are not in an area covered by your service provider.

Cancel All: all call diverting options are cancelled.

You can specify individual diverting options for each of the following call types:

- Voice calls only

- Fax calls only

- Data calls only

©

©

WAP Browser (Menu 7.2)

Your phone is equipped with a WAP (Wireless Application Protocol) Browser to allow you to access and navigate the Wireless Web via your phone.

Home (Menu 7.2.1)

This option allows you to connect the phone to the network and load the homepage of the Wireless Web service provider.

The content of the WAP Browser startup homepage depends on your Wireless Web service provider. To scroll through the screen, use the and keys.

Note: To access the startup homepage from any other screen in the WAP Browser, use the option. For more information on the WAP Browser menus, see page 113.

Navigating the WAP Browser

To... Then...
Scroll through and select browser items	Press the or key until the symbol points to the required item or the item is highlighted, and then press the OK soft key to confirm the selection.
Select a numbered item	Press the corresponding numeric key.
Return to the previous page	Press the Back soft key or the key.
Return to the startup homepage	Select the Home menu option; for more information on this option, see page 113.

To... Then...
Change text entry modes	Press the key one or more times.
Enter a space	Press the [IMAGE] key.
Edit text	1 Set the cursor to the right of the character(s) to be corrected.2 Press the key as required.3 Enter the correct character(s).

Note: For further details about the text entry modes, see page 42.

Exiting the WAP Browser

To exit the browser at any time, simply press the key. ^①

Selecting and Using Browser Menu Options

Various menu options are available when you are using the WAP Browser to navigate the Wireless Web.

To access a menu option, proceed as follows.

1. Press the key. A menu is display

2. Highlight the required menu option by pressing the and keys.

3. Select the option by pressing the √ soft key.

4. If necessary, select the secondary option using the and keys, and press the √ soft key to confirm.

Note: The menus may vary, depending on your version of the WAP Browser.

The following menu options are available.

Back: reloads the previous page in the history.

Home: takes you back at any time to the homepage of the Wireless Web service provider.

Exit: lets you exit the WAP Browser.

Mark Site: allows you to set a bookmark for most pages so that you can access them directly from any Web page.

Bookmarks: allows you to load a bookmarked Web page directly.

Inbox: displays all Web alerts.

Save Image: allows you to save the displayed image on the current page. You can see the saved image in the Pictures menu option (Menu 7.3.3).

Reload: reloads the current page.

Settings: gives you access to the following setting features.

Homepage: allows you to change the startup homepage manually.

Proxy: allows you to change the proxy server without ending the current WAP session.

Circuit Prompt: allows you to indicate whether you wish to be informed each time a WAP session is

opened. Select ON to display the prompt, or OFF not to display it.

Circuit Linger: allows you to set how long the phone waits before ending the attempt for connection when there is no answer from the network. It is preset to 60 sec.

Scroll Mode: lets you select the scroll mode between Block and Smooth.

Scroll Speed: allows you to set the speed for scrolling to the next screen. You can select Fast, Medium or Slow.

Key Press Timeout: allows you to set how long the phone waits after you have pressed a key in the text entry mode before moving the cursor to the right. You can select Fast, Medium or Slow.

Security: displays all security-related information, such as Connection Prompt, Secure Prompt, Current Certificate and Encryption.

Advanced: displays the current URL address and restarts the browser without exiting it.

About: provides you with information about the version of the Mobile Browser software and the WIM (WAP Identity Module).

Favorite (Menu 7.2.2)

This option allows you to store the URL addresses of your favourite Web sites. You can access this menu directly by pressing and holding down the key while using the WAP Browser.

To store a URL address, proceed as follows.

1. Select an empty location and press the Options soft key.
2. Enter the address and press the Enter soft key.
3. Enter a name for your favourite Web site and press the OK soft key.

After saving your favourites, you can use the following options by pressing the Options soft key.

Goto URL: quickly accesses the site.

Edit: edits the selected address.

Delete: deletes the selected address.

http:// (Menu 7.2.3)

This option allows you to manually enter the URL address of the Web site that you wish to access. You can access this menu directly by pressing and holding down the key in the WAP Browser.

For further details about the text entry modes, see page 42.

Settings (Menu 7.2.4)

This option allows you to set up five proxy servers for the WAP Browser. Contact your service provider for details about the parameters to be declared.

For each server, the following parameters are available.

Parameter Description

Profile Name	Name that you wish to assign to the HTTP proxy server.
Homepage URL	Address of your startup homepage.When the default homepage is displayed, you can delete it using the key and enter your own choice.
Security	Data transmission mode. Choose Secure to protect your data against unauthorised access; otherwise, choose Non-Secure.
IP Address	WAP gateway address required to connect to the Internet.
Bearer	Bearer to be used for each type of network address accessed: GPRS or Data.

The remaining options depend on the Bearer setting, as indicated below.

When the bearer is set to

Data

Parameter Description

Login Name	PPP server login ID.
Password	PPP server password.

©

PIN2

The PIN2 (4 to 8 digits), supplied with some SIM cards, is required to access specific functions, such as setting the maximum cost of a call. These functions are available if supported by your SIM card.

If you enter an incorrect PIN2 three times in succession, the code is disabled and you cannot access the functions until you re-enable it by entering the PUK2.

To change the PIN2, refer to page 89 (Menu 4.6.7).

PUK2

The 8-digit PUK2 (PIN Unblocking Key 2), supplied with some SIM cards, is required to change a disabled PIN2. If you lose the code, contact your service provider.

To re-enable your PIN2, proceed as follows.

1. Key in the PUK2 and press the OK soft key.
2. Enter a new PIN2 of your choice and press the OK soft key.
3. When the Confirm PIN2 message is displayed, key in the same code again and press the OK soft key.

If you enter an incorrect PUK2 ten times in succession, you will not be able to access the functions requiring the PIN2. Contact your service provider for a new card.

Barring Password

The 4-digit barring password is required when you use the Call Barring function. You obtain the password from your service provider when you subscribe to this function. You can change this password in the Call Barring menu option (Menu 6.2). See page 106 for further details.

Precautions When Using Batteries

Your phone is powered by a rechargeable Li-ion standard battery.

• Never use any charger or battery that is damaged in any way.
• Use the battery only for its intended purpose.
• If you use the phone near the network's base station, it uses less power; talk and standby times are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.
• Battery charging times depend on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.
• If left unused, a fully charged battery will discharge itself over time.
• Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.

• Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.

• Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and life-time of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).

• Do not short-circuit the battery. Accidental short circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the back of the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuit.
• Dispose of used batteries in accordance with local regulations. Always recycle. Do not dispose of batteries in a fire.

©

GSM (Global System for Mobile Communication)

International standard for cellular communication, guaranteeing compatibility between the various network operators. GSM covers most European countries and many other parts of the world.

Java

Programming language generating applications that can run on all hardware platforms, whether small, medium or large, without modification. It has been promoted for and geared heavily to the Web, both for public Web sites and Intranets. When a Java program runs from a Web page, it is called a Java applet. When it is run on a mobile phone or pager, it is called a MIDlet.

Line Identification Services (Caller ID)

Services allowing subscribers to view or block the telephone numbers of callers.

Multiparty Calling

Ability to establish a conference call involving up to five additional parties.

Phone Password

Security code used to unlock the phone when you have selected the option to lock it automatically each time it switches on.

PIN (Personal Identification Number)

Security code that protects the phone/SIM against unauthorised use. The PIN is supplied by the service provider with the SIM card. It may be a four to eight-digit number and can be changed, as required.

PUK (PIN Unblocking Key)

Security code used to unlock the phone when an incorrect PIN has been entered three times in succession. The eight-digit number is supplied by the service provider with the SIM card.

Roaming

Use of your phone when you are outside your home area (when travelling for example).

SDN (Service Dialling Numbers)

Telephone numbers supplied by your network provider and giving access to special services, such as voice mail, directory inquiries, customer support and emergency services.

SIM (Subscriber Identification Module)

Card containing a chip with all the information required to operate the phone (network and memory information, as well as the subscriber's personal data). The SIM card fits into a small slot on the back of the phone and is protected by the battery.

Glossary

SMS (Short Message Service)

Network service sending and receiving messages to and from another subscriber without having to speak to the correspondent. The message created or received can be displayed, received, edited or sent.

Soft Keys

Two keys marked and on the phone, the purpose of which:

• Varies according to the function that you are currently using
• Is indicated on the bottom line of the display just above the corresponding key

Voice Mail

Computerised answering service that automatically answers your calls when you are not available, plays a greeting (optionally in your own voice) and records a message.

Index

A

Access codes 124

Accessories 9

Alarm (5.4) 100

Alert Type (3.3) 79

Animations 66, 70

Answering

a call 25

a second call 52

Anykey Answer 91

Auto Key Lock (4.2.3) 85

Auto Redial 91

Autopower 100

B

Background image 84

Backlight 15, 90

brightness 90

Barring

calls (6.2) 105

password 106, 127

Battery

charging 18

low battery indicator 19

precautions 130

Brightness (4.7.1) 90

Broadcast (1.10) 72

Browser

WAP (7.2) 112

C

Calculator (5.5) 101

Calendar (5.1) 93

Caller

groups 35, 36, 37

ID (6.5) 109

Calls

answering

a call 25

a second call 52

barring (6.2) 105

cost (2.6) 76

dialled (2.3) 75

diverting (6.1) 103

emergency 137

ending 23

holding 48

international 22

making 22

missed (2.1) 26, 74

multiparty 52

received (2.2) 74

records (2) 74

redialling 23

automatically 91

rejecting 25

speed-dialling 38

time (2.5) 76

via phonebook 35

waiting (6.3) 107

Card

installing the SIM 16

Care 139

Changing

barring password 106

password (4.6.4) 88

PIN (4.6.2) 87

PIN2 (4.6.7) 89

text entry modes 43

Characters

changing mode 43

entering 42

Charging batteries 18

Closed User Group (6.6) 109

Conference call 52

Connect

to voice server 71

tone 82

Copying

memos 95

phonebook numbers 34

tasks 98

Correcting numbers 22

Cost of calls (2.6) 76

CUG 109

Currency Exchange (5.6)

102

D

Date setting (5.3.2) 99

Deleting

call records 27, 75

memos 93, 95

messages 63, 64, 69

missed calls 27, 74

phonebook

numbers 34, 40

tasks 98

Dialled calls (2.3) 75

Display 13

brightness 90

icons 14

language (4.5) 86

settings (4.7) 90

Diverting calls (6.1) 103

Downloads (7.3) 119

DTMF tones

sending 50

E

Earpiece volume 24

Editing

caller groups 37

memos 95

messages 62

missed calls 27, 74

phonebook

numbers 34

tasks 97

Electronic devices 134

Emergency calls 137

Error tone 82

Explosive atmospheres 136

Extra Settings (4.8) 91

Extra Tones (3.7) 82

F

FDN mode (4.6.6) 89

Fixed Dial Number mode 89

Fun Box (7) 111

Functions

selecting 29

G

Games (7.1) 111

Graphic Logo (4.7.4) 91

Greeting Message (4.3) 85

Groups

caller 35, 36, 37

user 109

H

Health information 128

Hearing aids 135

Holding calls 48

I

Icons 14

Identifying callers 35, 36,

37, 109

Images

background 84

messages 66, 70

Inbox (1.1) 62

Incoming text messages 62

Infrared Activate (4.1) 83

Internet 112

IrDA port 83

K

Key tones

adjusting volume 24

muting 50

selecting (3.4) 79

sending 50

Keypad Tone (3.4) 79

Keys

auto lock 85

description 11

location 10

locking 21, 85

shortcut 92

soft 29

L

Language (4.5) 86

Last number redial 23

Length of calls 76, 82

Letters

changing mode 43

entering 42

Light

backlight 15, 90

service 15,90

Locking

keys 21, 85

phone (4.6.3) 87

SIM card (4.6.5) 88

Logo

graphic (4.7.4) 91

Low battery indicator 19

Lower-case characters

entering 46

M

Maintenance 139

Medical devices 135

Melodies 66, 70, 78

Memory status

message (1.8) 71

phonebook 41

Memos

copying 95

deleting 93,95

editing 95

writing 94

Menus

list 56

scrolling 55

shortcuts 56

style 84

Messages 62

broadcast (1.10) 72

deleting (1.6) 69

greeting (4.3) 85

inbox (1.1) 62

memory status (1.8) 71

objects 70

outbox (1.2) 63

settings (1.5) 68

templates (1.4) 67

tone (3.5) 80

voice mail (1.9) 71

write new (1.3) 65

Microphone mute 49

Minute Minder 82

Missed Calls (2.1) 26, 74

Morning Call 100

Multiparty calls

dropping 54

making 52

private conversation 53

Muting

key tones 50

microphone 49

My Objects (1.7) 70

My Settings (4.2) 84

N

Names

entering 42

searching/dialling 35

storing 31

Network Selection (6.4) 108

Network Services (6) 103

Numbers

adding phonebook 35

copying

phonebook 34

correcting 22

deleting 34

editing phonebook 34

fixed dial 89

mode 47

own 86

pasting phonebook 34

redialling 23

searching/dialling 35

storing 31

voice server 71

0

Objects

message 66,70

Operator logo 91

Options

selecting 29

Dual Band SGH-C100 GPRS Telephone
Quick Reference Card

Switch On/Off Press and hold the key.
Make a Call 1 Enter the number.2 Press the key
End a Call Briefly press the key.
View Missed CallsImmediately After Missing Them	1 Press the View soft key.2 Scroll with the and keys through the missed calls.3 To return the call, press the key.

Access the Menu Functions	1Press the Menu soft key.2Scroll with the and keys through the list of the menus until you reach the required menu.3Press the Select soft key.4Scroll with the and keys through the list of the options until the required one is selected.5Press the Select soft key.
Each of the two soft keys ( and ) perform the function indicated by the text above it on the bottom line of the display.
