USER MANUAL 55SV685D TOSHIBA

Leading Innovation >>>

REGZA

SV6**D Digital Series

REGZA

Simple line icon of an open book with a lowercase 'i' inside, no text or symbols present.

Contents

INSTALLING YOUR TV

Safety Precautions 4

Installation and important information 5

The remote control 6

Inserting batteries and effective range of the remote 7

CONNECTING YOUR TV

Connecting external equipment 8

Connecting an HDMI ^™ or DVI device to the HDMI input 9

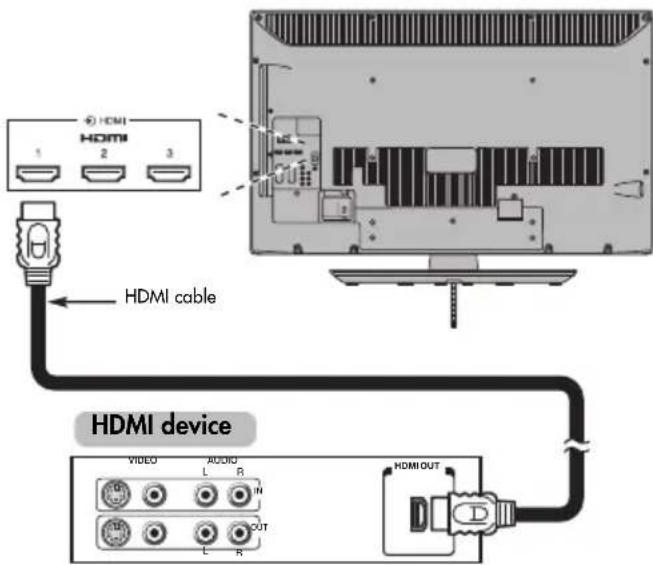

To connect an HDMI device 9

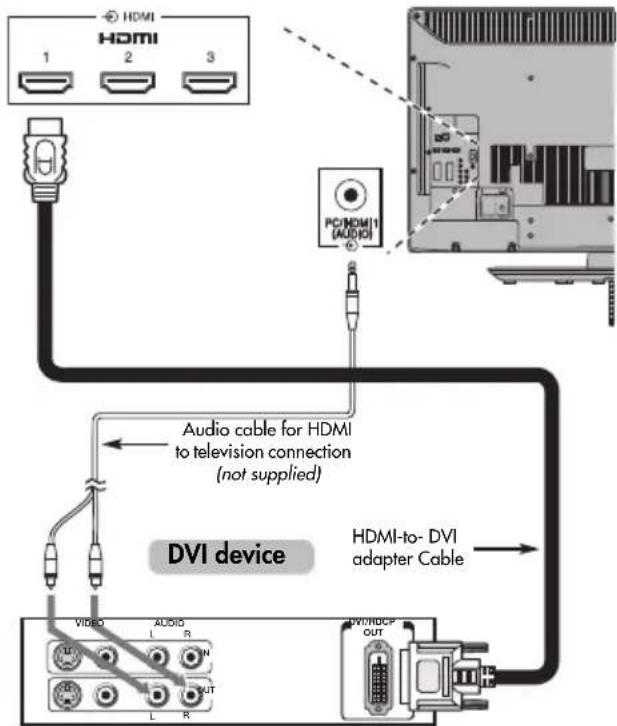

To connect a DVI device 9

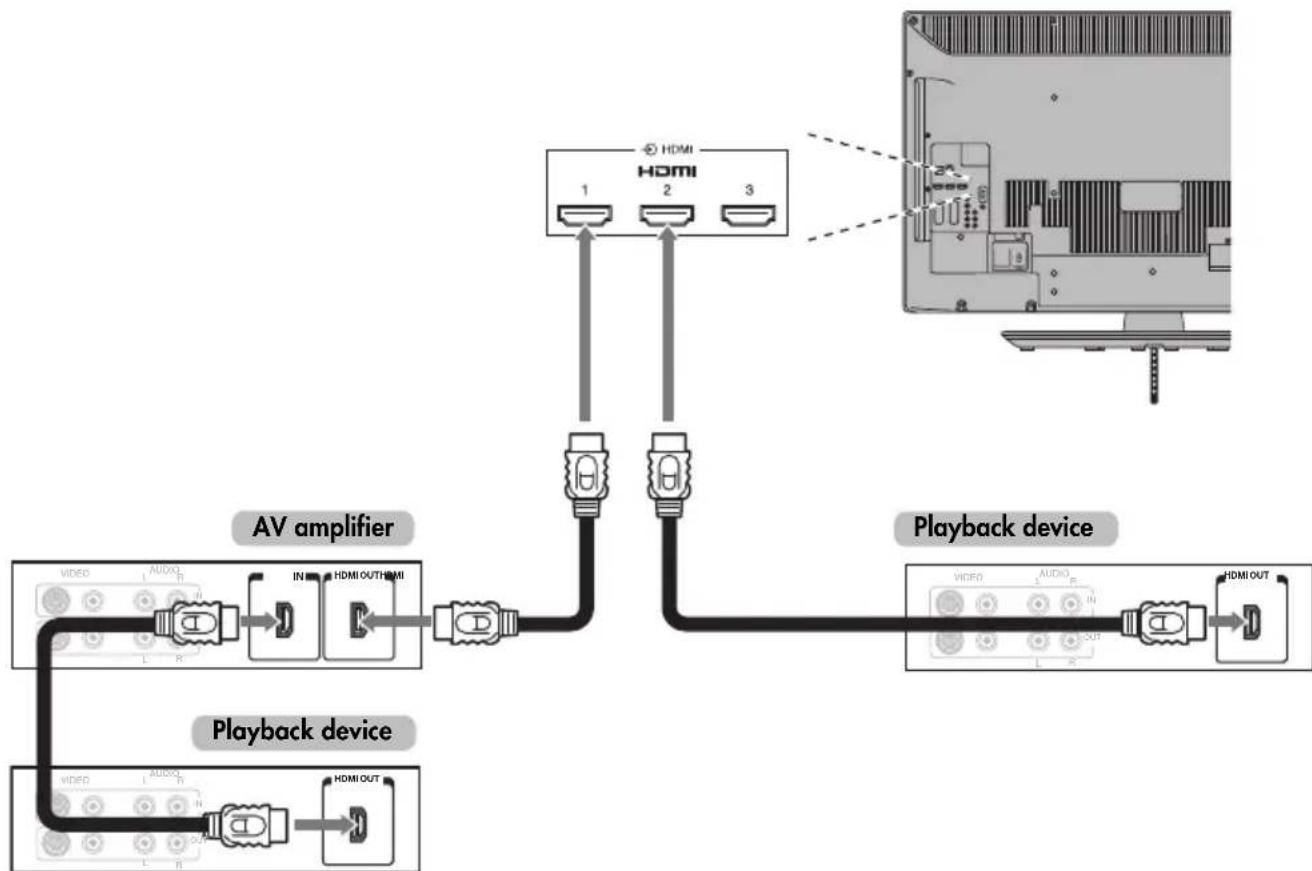

REGZA-LINK connection ....10

Connecting a computer ....11

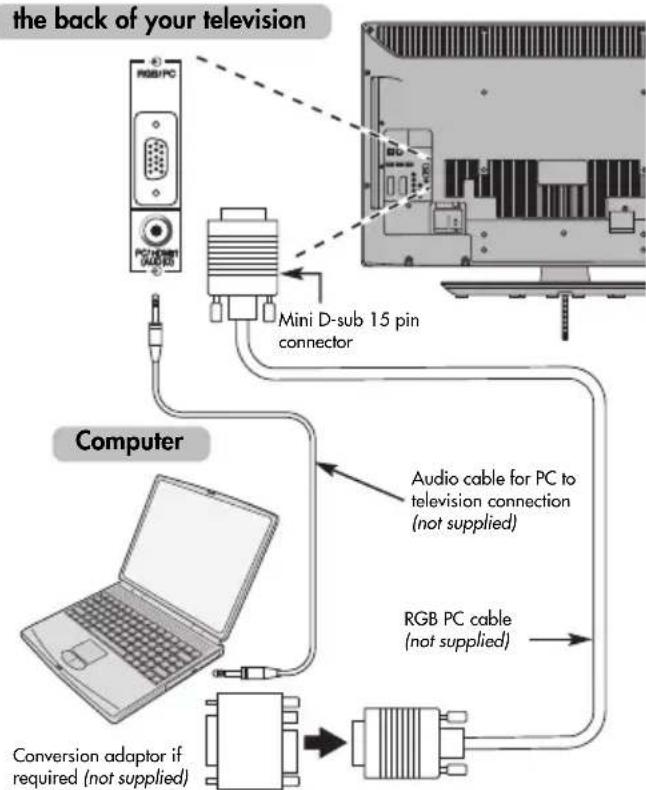

To connect a PC to the RGB/PC terminal .....11

To connect a PC to the HDMI terminal .....11

Connecting a home network 12

To connect the TV to a home network .....12

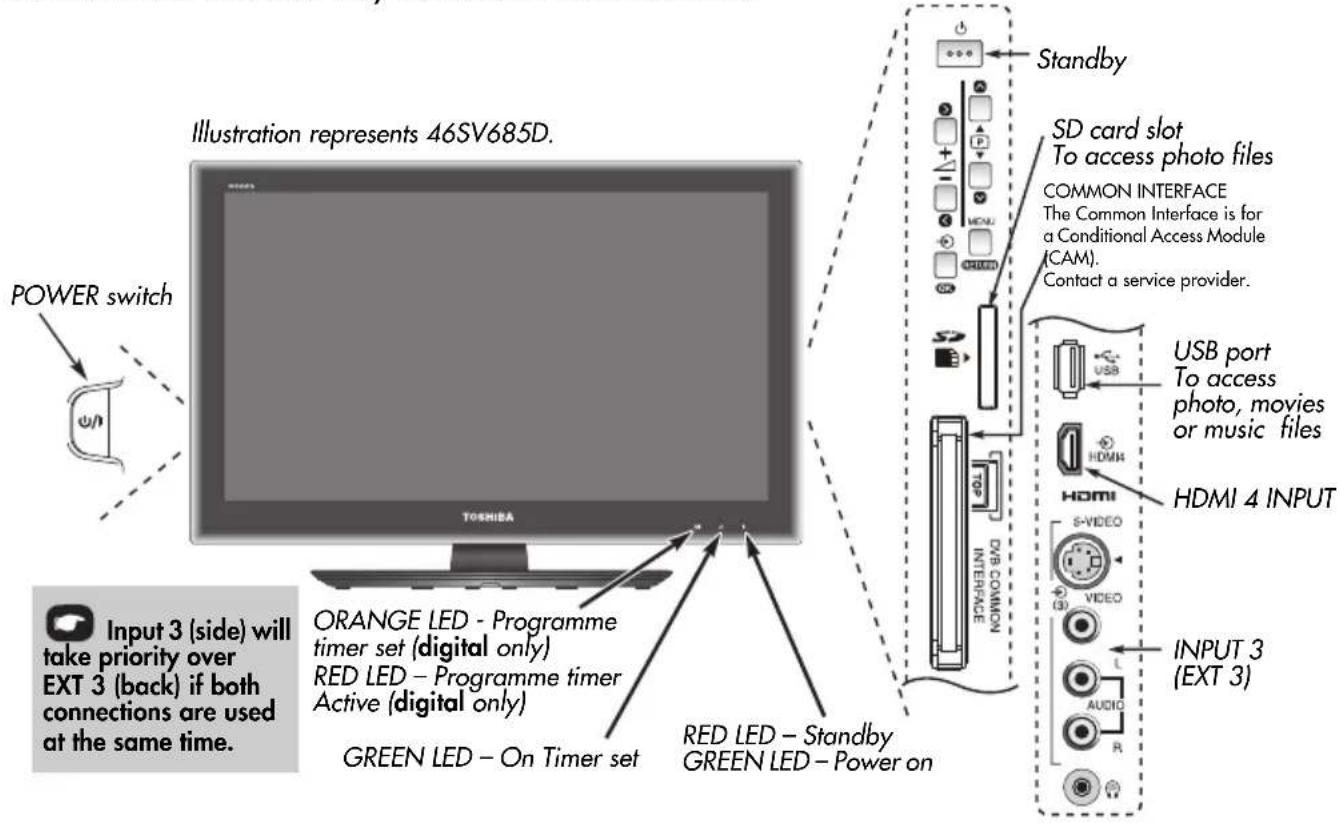

Controls and input connections ....13

Switching on 13

Using the remote control ....13

Using the controls and connections .....13

SETTING UP YOUR TV

Startup Application 14

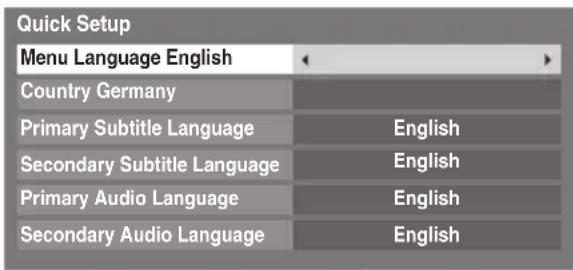

Quick Setup 14

Ant/Cable In (if available) 15

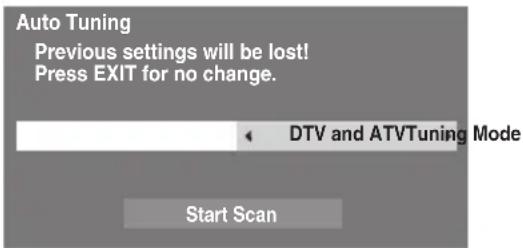

Auto Tuning 16

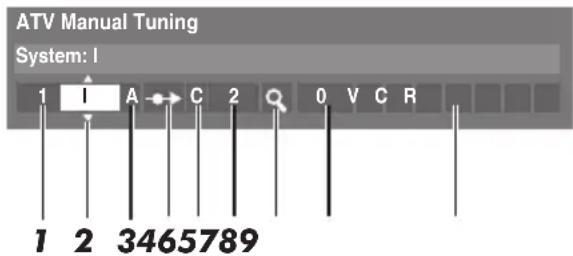

ATV Manual Tuning 16

Tuning 16

Skip 18

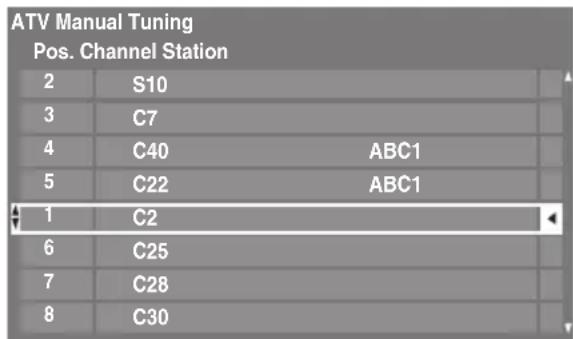

Sorting positions ....18

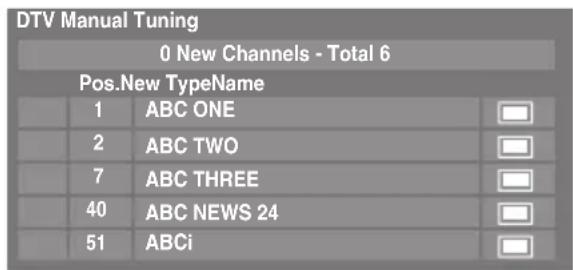

DTV Manual Tuning 19

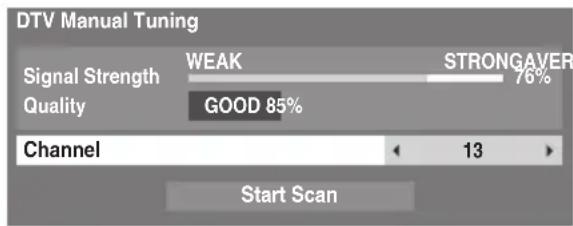

Manual Tuning 19

Manual Tuning for DVB-C 19

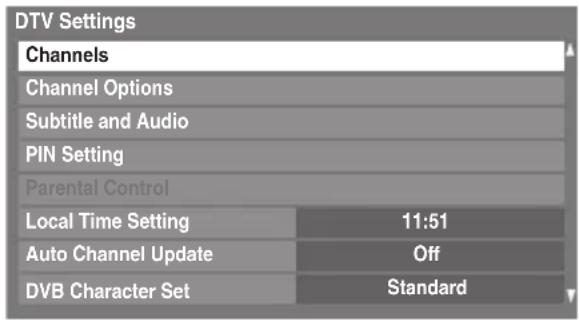

DTV Settings 19

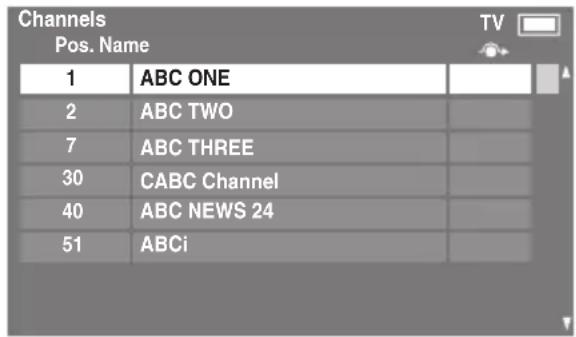

Channels 19

Auto Channel Update ....20

DVB Character Set 20

Dynamic Scan 20

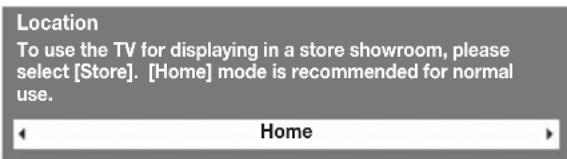

Location setting 20

Analogue switch-off 20

CONTROLS AND FEATURES

General controls 21

Quick Menu 21

Selecting positions 21

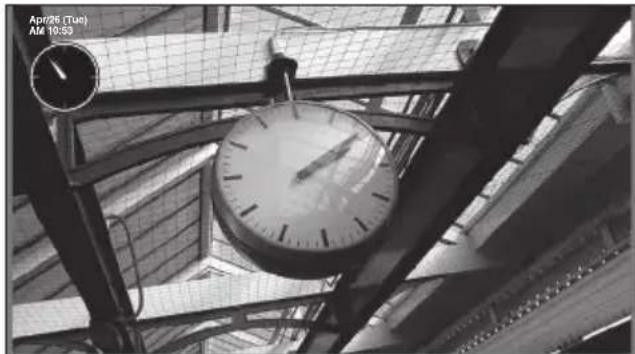

The Time Display – analogue only ...... 21

Stereo and Bilingual transmissions 21

Sound controls 22

Volume controls and mute sound 22

Dual 22

Bass, Treble and Balance 22

Advanced Sound Settings 23

Dolby Volume ^® 23

Dynamic Range Control 23

Audio Level Offset 23

Headphone Settings 23

Audio Description 24

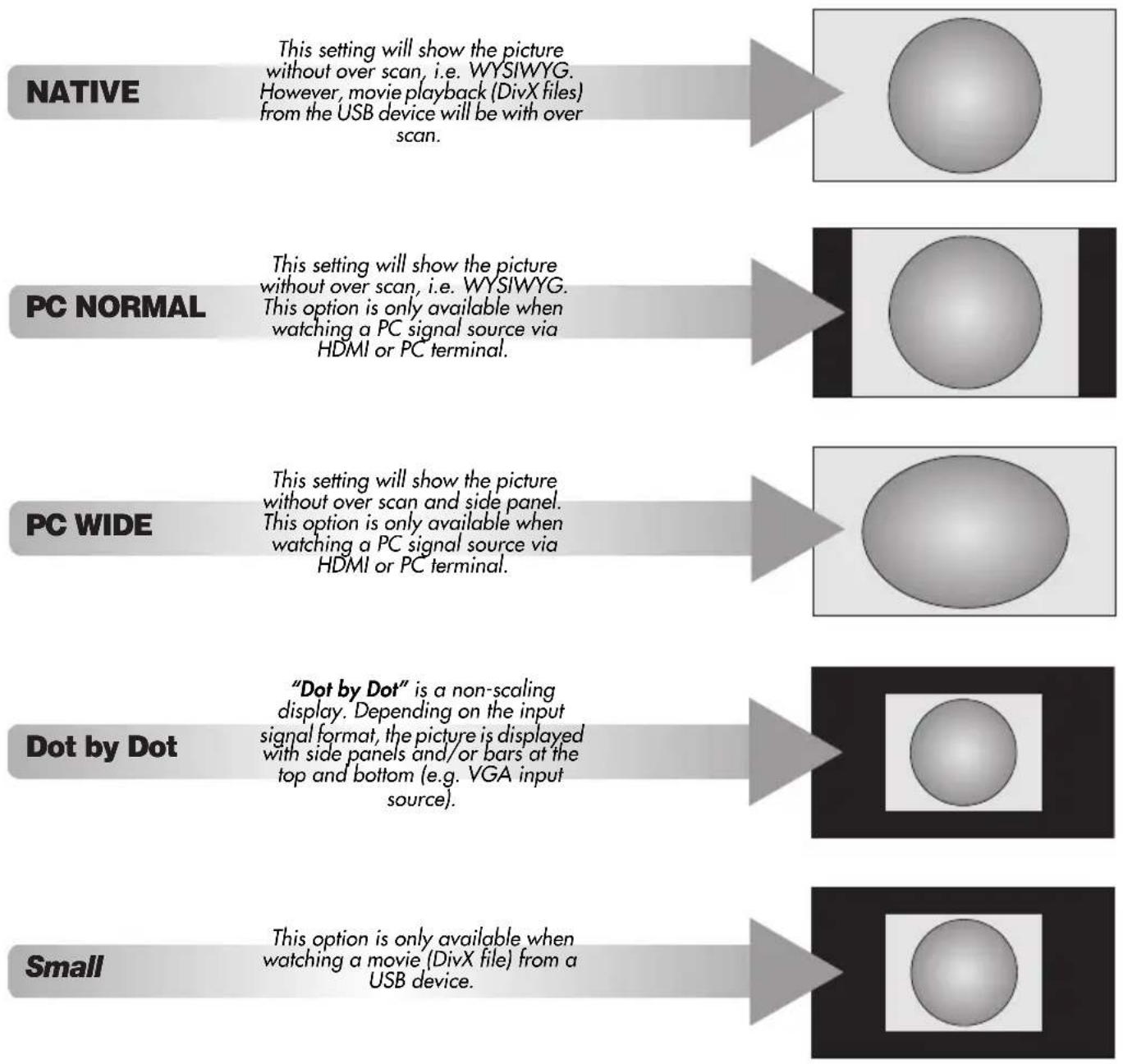

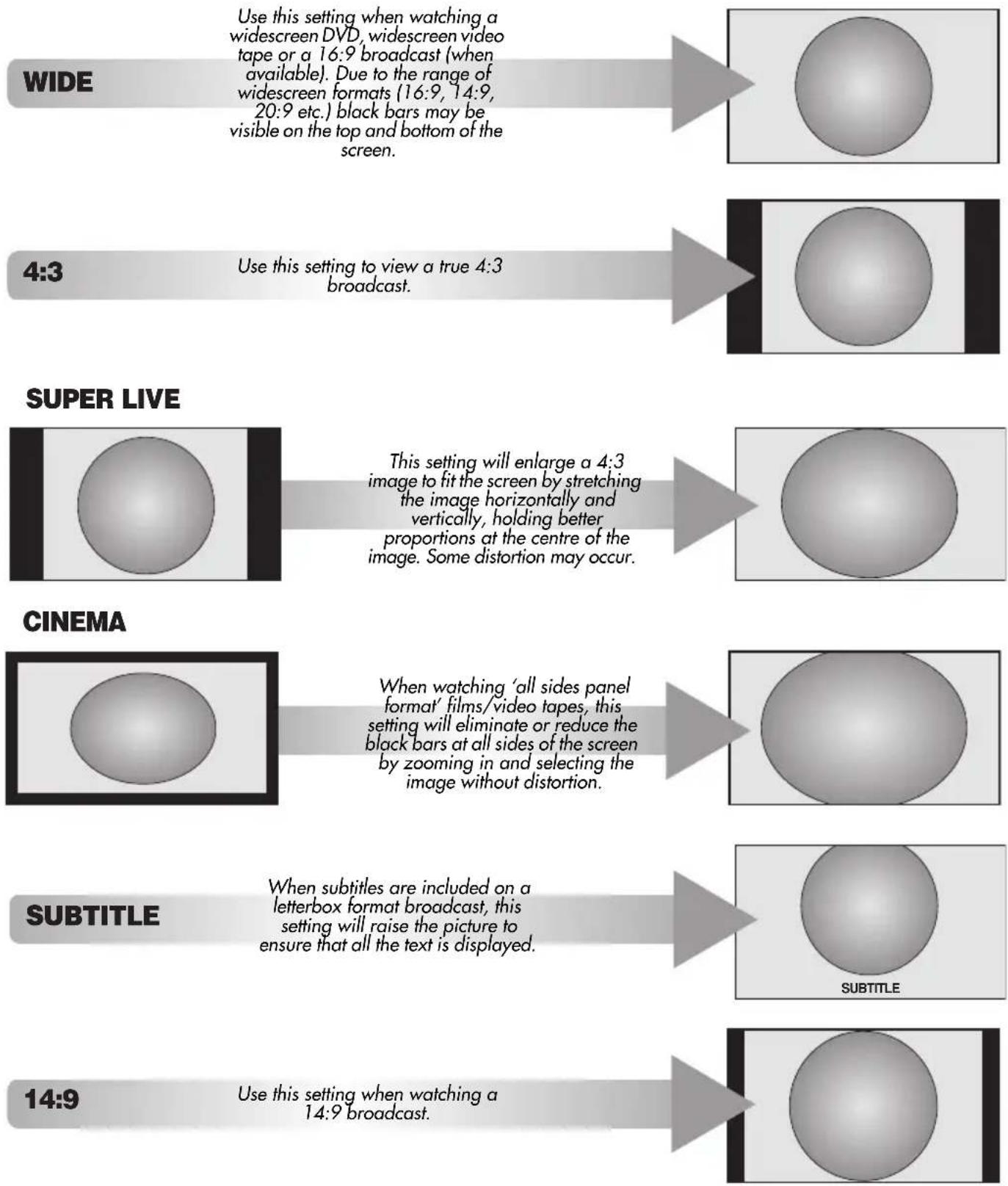

Widescreen viewing 25

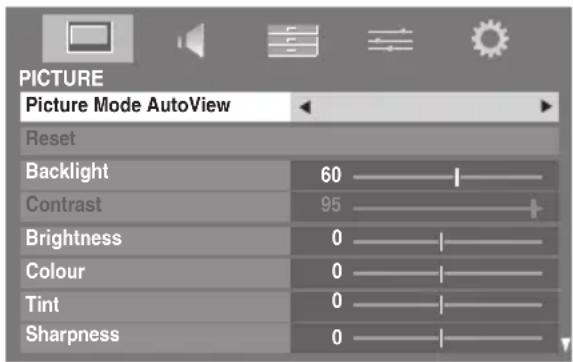

Picture controls 27

Picture Position 27

Picture Mode 27

Picture preferences 27

Reset 28

3D Colour Management 28

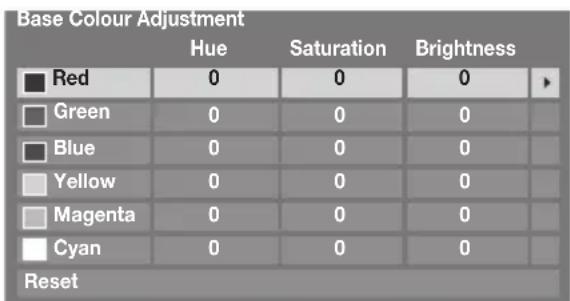

Base Colour Adjustment 28

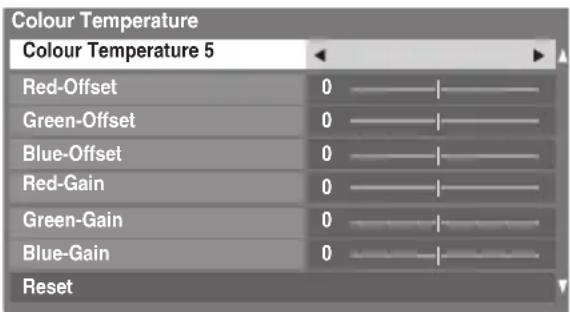

Colour Temperature 28

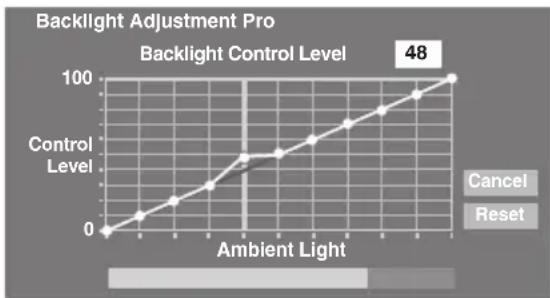

Auto Brightness Sensor Settings 29

LED Backlight Control 29

Black/White Level 29

Static Gamma 29

MPEG NR - Noise Reduction 29

DNR - Digital Noise Reduction 29

Resolution+ 30

Active Vision M200 30

Film Stabilization 30

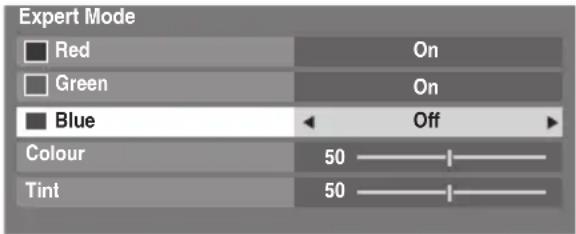

Expert Mode 30

Resetting the advanced picture settings 30

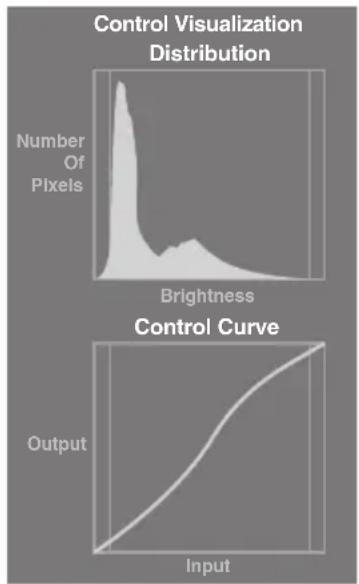

Control Visualization 31

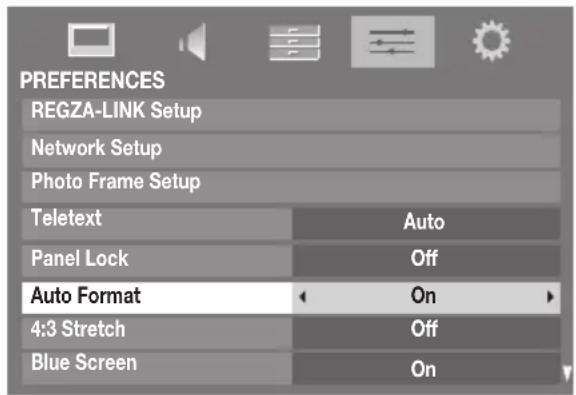

Automatic Format (Widescreen) 31

4:3 Stretch 31

Blue Screen 31

Side panel adjustment 31

Picture still 31

HDMI Information Display 31

Using the Media Player 32

To select the Auto Start function 32

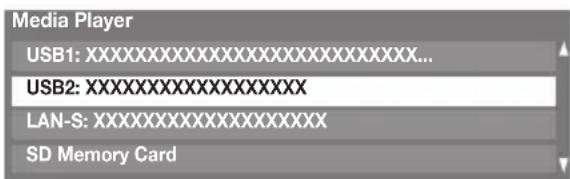

To open the Media Player 32

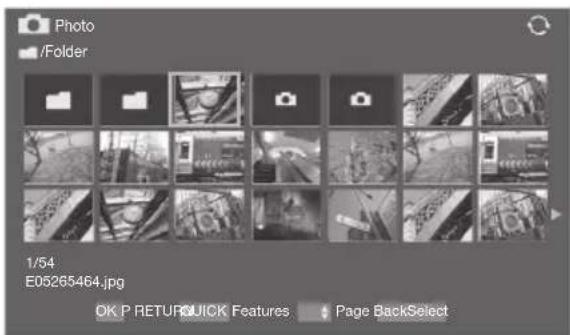

Viewing photo files 33

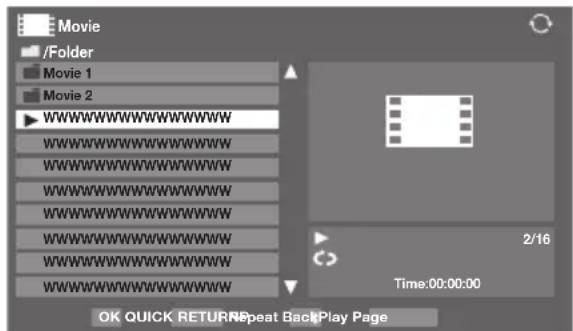

Viewing movie files 34

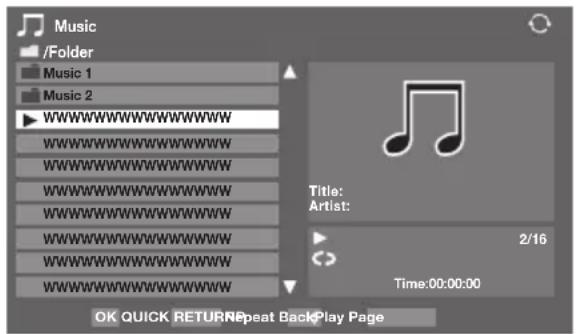

Playing music files 35

Using a networked server PC 36

To open the Media Player 36

Using the Photo Frame feature ....38

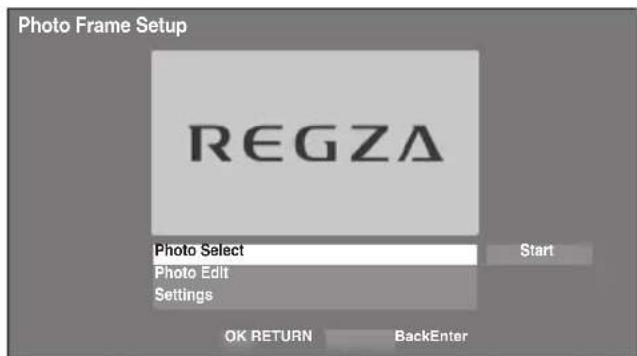

To open Photo Frame 38

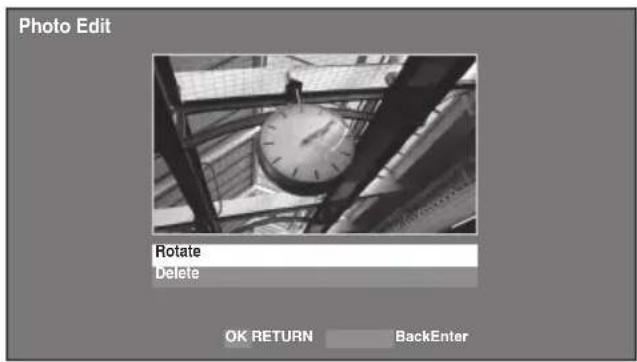

Setting the features 38

Other features 40

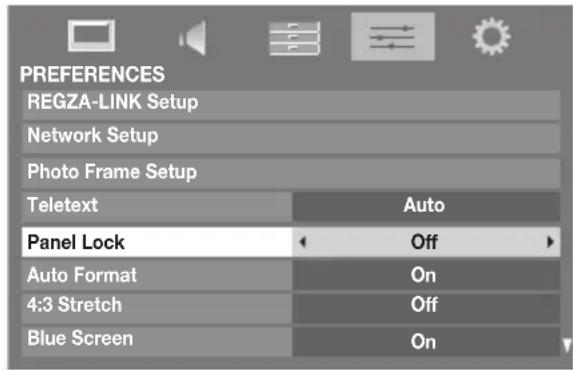

Panel Lock 40

TOSHIBA Illumination ....40

The timers 40

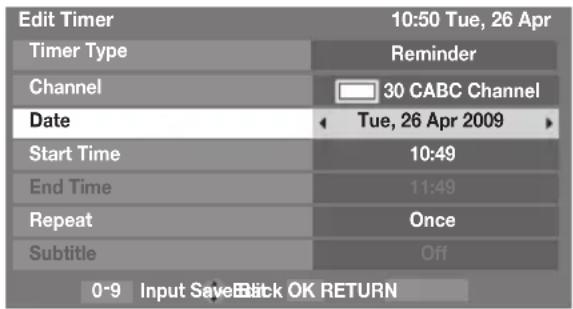

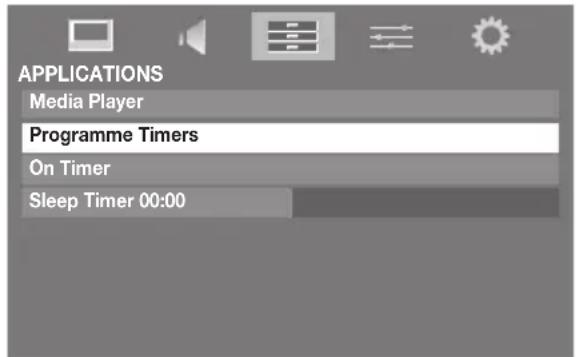

Programme Timers - digital only 40

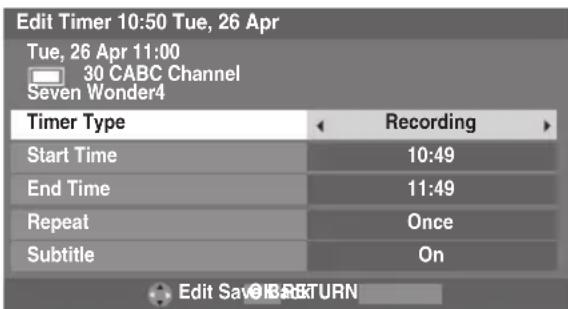

On Timer 41

Sleep Timer 41

Digital on-screen information and Programme

Guide 42

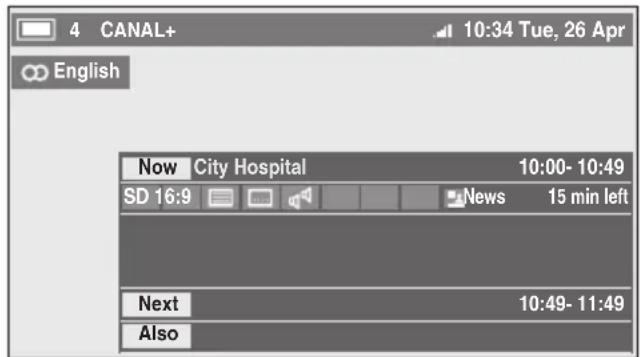

Information 42

Guide 43

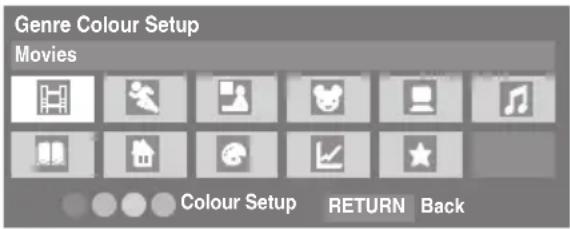

Genre selection/searching 43

Digital settings - parental control ....44

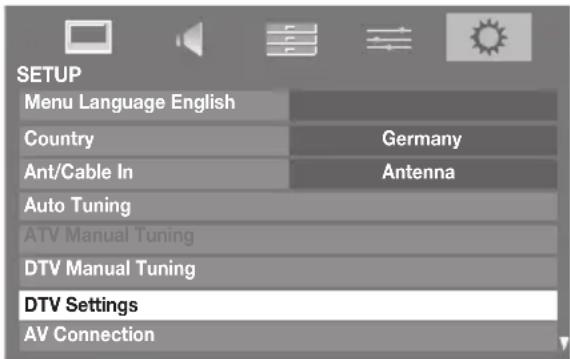

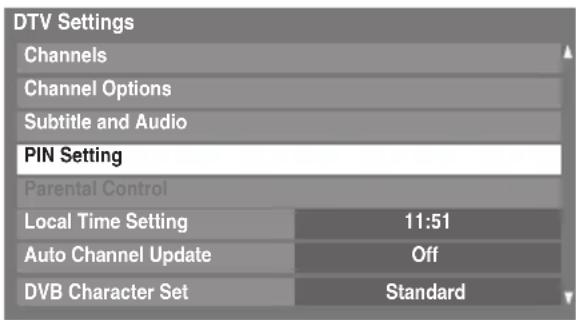

Setting the PIN 44

Parental Setup 44

Digital settings - Channel Options 45

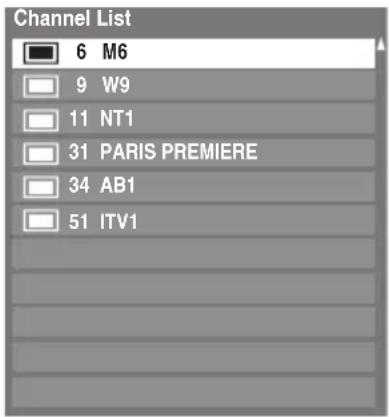

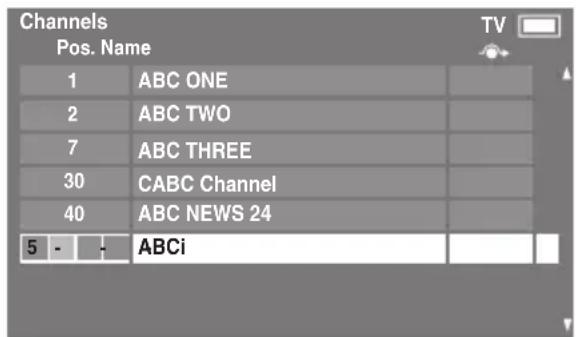

Channel List 45

Skipping channels 45

Locking channels 45

Digital settings - other settings ....46

Subtitles 46

Audio languages 46

Common Interface 46

Software Upgrade and Licenses 47

Auto Upgrade 47

Searching for New Software 47

Software Licenses 47

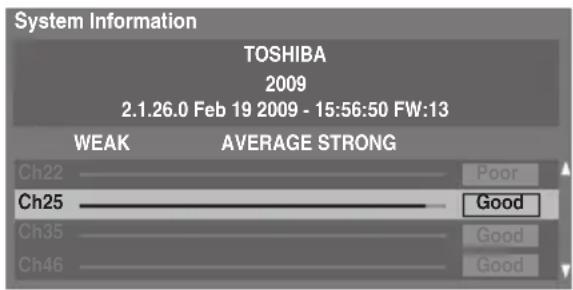

System Information and Reset TV 47

System Information 47

Automatic Power Down 47

Reset TV 47

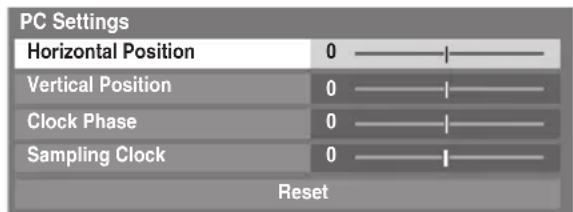

PC Settings 48

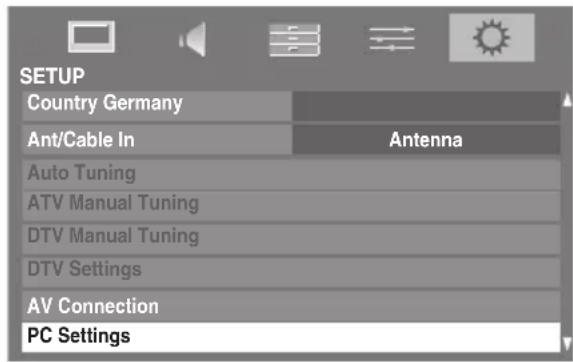

Horizontal and Vertical Position ....48

Clock Phase 48

Sampling Clock 48

Reset 48

Input selection and AV connections .....49

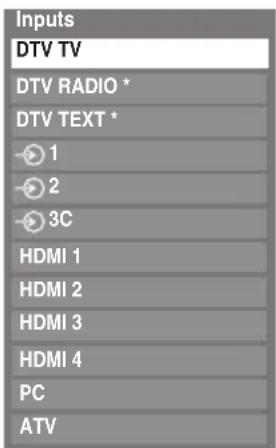

Input selection 49

External input skip 49

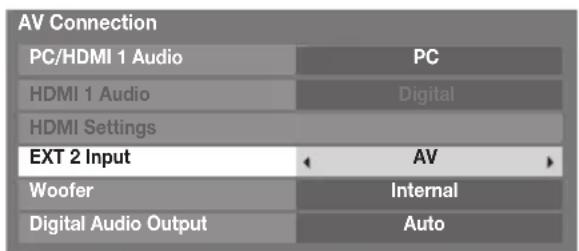

Input signal selection 49

Woofer setting 49

PC Audio 50

HDMI 1 Audio ....50

HDMI Settings 50

Digital Audio Output ....50

Using REGZA-LINK 51

Enable REGZA-LINK 51

TV Auto Power On 51

Auto Standby 51

Amplifier Control 51

Speaker Preference 51

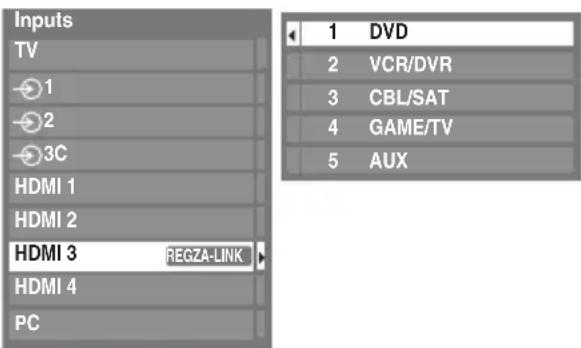

REGZA-LINK input source selection 51

REGZA-LINK playback device control 52

REGZA-LINK one touch play 52

REGZA-LINK system standby 52

REGZA-LINK system audio control 52

REGZA-LINK PC link 52

Setting up the network address for the LAN port .... 53

Auto Setup 53

Manual Setup 53

TEXT SERVICES

Text services 54

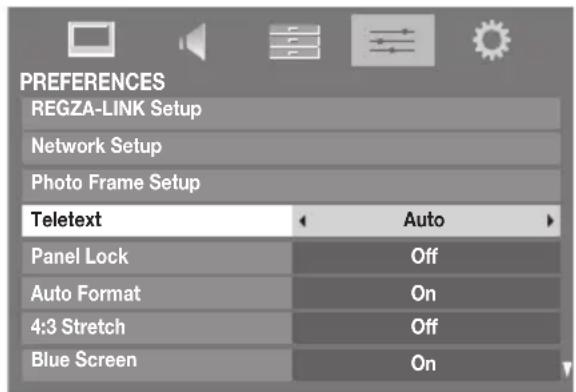

Selecting modes 54

Text information 54

Navigating pages using Auto 54

Navigating pages using LIST 54

Control buttons 55

PROBLEM SOLVING

Questions and Answers 56

INFORMATION

License Information 59

Information 60

Specifications and accessories 62

Safety Precautions

This equipment has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature and are intended to help with all electronic consumer products. Some points may not apply to the goods you have just purchased.

Air Circulation

Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.

Heat Damage

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5^ C ( 41^ F) min. and 35^ C ( 94^ F) max.

Mains Supply

The mains supply required for this equipment is 220-240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. Use only the supplied lead.

DO NOT cut off the mains plug from this equipment. The plug incorporates a special Radio Interference Filter, the removal of which will impair its performance.

IF IN DOUBT, PLEASE CONSULT A COMPETENT ELECTRICIAN.

Do

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between pieces of equipment) are properly made and in accordance with the manufacturers' instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

DO be careful with glass panels or doors on equipment.

DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND 'LIVE' PARTS.

THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

Do not

DO NOT obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DO NOT allow electrical equipment to be exposed to dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.

DO NOT place hot objects or naked flame sources, such as lighted candles or nightlights, on or close to equipment. High temperatures can melt plastic and lead to fires.

DO NOT use makeshift stands and NEVER fix legs with wood screws. To ensure complete safety, always fit the manufacturers' approved stand, bracket or legs with the fixings provided according to the instructions.

DO NOT leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, and make sure your family knows how to do this. Special arrangements may need to be made for people with disabilities.

DO NOT continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.

WARNING – excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL – NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

NEVER guess or take chances with electrical equipment of any kind – it is better to be safe than sorry.

Installation and important information

Where to install

Locate the television away from direct sunlight and strong lights, soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.

Place the TV on a stable, level surface that can support the weight of the TV. In order to maintain stability and prevent it falling over, secure the TV to the level surface using the strap located under the table top stand, or to a wall using a sturdy tie to the clip on the back of the table top stand.

The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

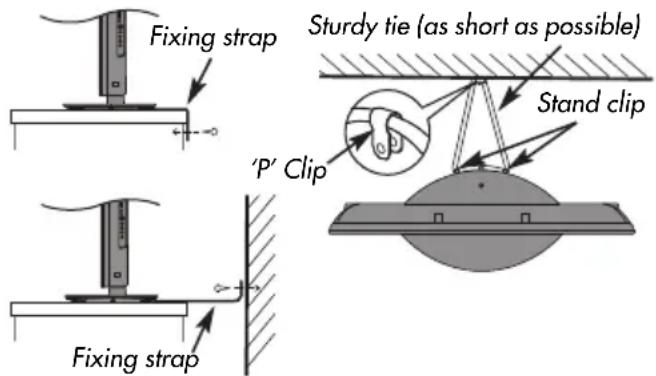

Fixing strap Sturdy tie (as short as possible) Stand clip 'P' Clip Fixing strap

Stand style is dependent on model

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen. Also please be certain that small items cannot be inserted into slots or openings in the case.

Cleaning the screen and cabinet...

Turn off the power, and clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Please take note

The digital reception function of this television is only effective in the countries listed in the "Country" section of the "SETUP" menu. Depending on country/area, some of this television's functions may not be available. Reception of future additional or modified services can not be guaranteed with this television.

If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on screen menus, etc. are left on the television screen for any length of time, they could become conspicuous. It is always advisable to reduce both the brightness and contrast settings.

Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at the 4:3 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer's warranty. Regular use of other size modes (eg: Super Live) and varying the "side panel" brightness (if available on the model) will prevent permanent retention.

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

i) fire;
ii) earthquake;
iii) accidental damage;
iv) intentional misuse of the product;
v) use of the product in improper conditions;
vi) loss and/or damage caused to the product whilst in the possession of a third party;
vii) any damage or loss caused as a result of the owner's failure and/or neglect to follow the instructions set out in the owner's manual;
viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

NOTE: A Toshiba wall bracket or stand, where available, must be used.

The remote control

Simple at-a-glance reference for your remote control.

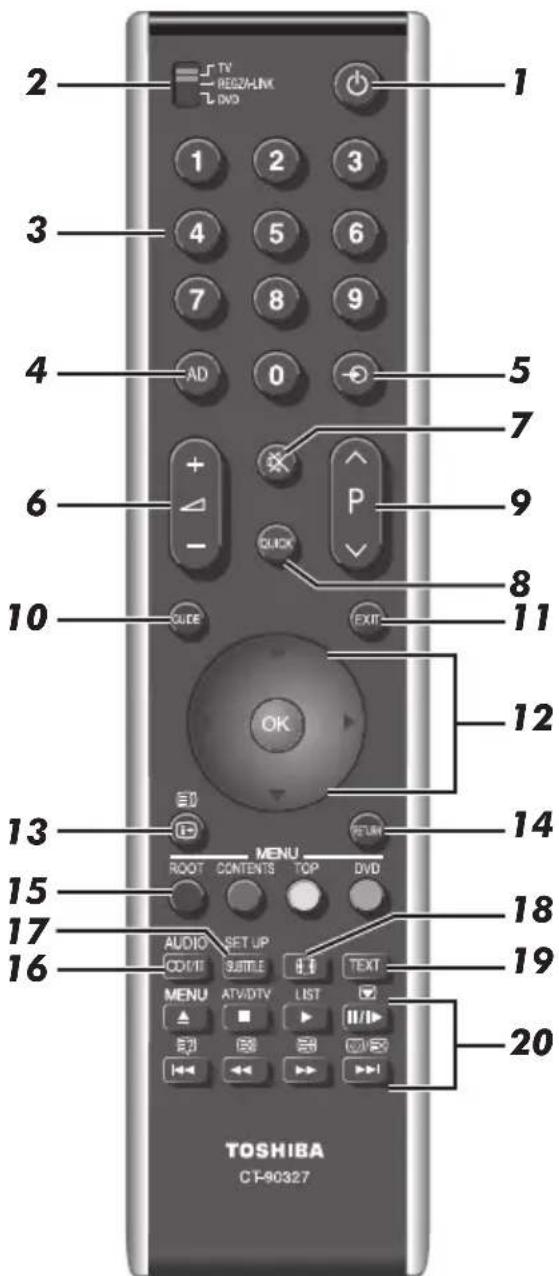

2 TV REG/LINK DVD 1 2 3 4 5 6 7 8 9 AD 0 5 7 6 + - P QUICK 10 CUBE EXIT 8 11 12 13 MENU ROOT CONTENTS TCP DVD 14 15 AUDIO SET UP CD/IT SUTILE TEXT 16 MENU ATVIDTV LIST 20 TOSHIBA CT-90327

1 For On/Standby mode (T/R/D)*
2 To select device mode (T/R/D)
3 Number buttons (T/R/D)
4 Switch the Audio Description On/Off (T)
5 To select external input sources (T) To select line input (R/D)
6 To alter the TV volume (T/R/D)
7 To mute the TV sound (T/R/D)
8 To access Quick Menu (T)
9 To change programme positions (T/R) To change text pages (T)

10 To display the digital on-screen Programme Guide (T)
11 To exit menus (T)
12 When using menus, the arrows move the cursor on the screen up, down, left or right. Press OK to confirm your selection (T/R/D)
13 To display on-screen information (T/R/D) To access index page in Text mode (T)
14 To return to previous menu (T/R/D)
15 Colour buttons Text and interactive service control buttons (T)

ROOT To display Root Menu (R)

CONTENTS To display Contents Menu (R)

TOP To access Top Menu (R/D)

DVD DVD Menus (R/D)

16 OI/II Stereo/bilingual transmissions (T)
AUDIO To access Audio menu (R/D)
17 SUBTITLE Digital Subtitles or Analogue TEXT Subtitle pages if available (T)
SET UP To access Setup menu (R/D)
18 Widescreen viewing (T/R/D)
19 To call up text services (T)
20 When in TV mode:

MENU On-screen menus

ATV/DTV To switch between ATV (analogue television) and DTV (digital television)

LIST To switch between TV and Radio programmes when in digital mode

Picture still Analogue time display

When in Text mode:

≡? To reveal concealed text
To hold a wanted page
To enlarge text display size
To select a page whilst viewing a normal picture

When using the Programme Guide:

• 24 hours
  ▶+24hours
  ◀ - 1 page
  ▶ + 1 page

REGZA-LINK or DVD mode:

press ▲ to EJECT
press ■ to STOP
press ▶ to PLAY
press II/II▶ to PAUSE/STEP
press ◀◀ to SKIP-BACK
press ◀◀ to REWIND
press ▶▶ to FAST FORWARD
press ▶▶ to SKIP-FORWARD

* T=TV mode, R=REGZA-LINK mode, D=DVD mode

Inserting batteries and effective range of the remote

Line drawing of a remote control unit with two batteries and a battery pack (no text or symbols)

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the proper way. Suitable battery types for this remote are AAA, IEC R03 1.5V.

Do not combine a used, old battery with a new one or mix

battery types. Remove dead batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in accordance with instructions on page 59 of this manual. Warning: batteries must not be exposed to excessive heat such as sunshine, fire or the like.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced, the batteries may need replacing.

Connecting external equipment

Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.

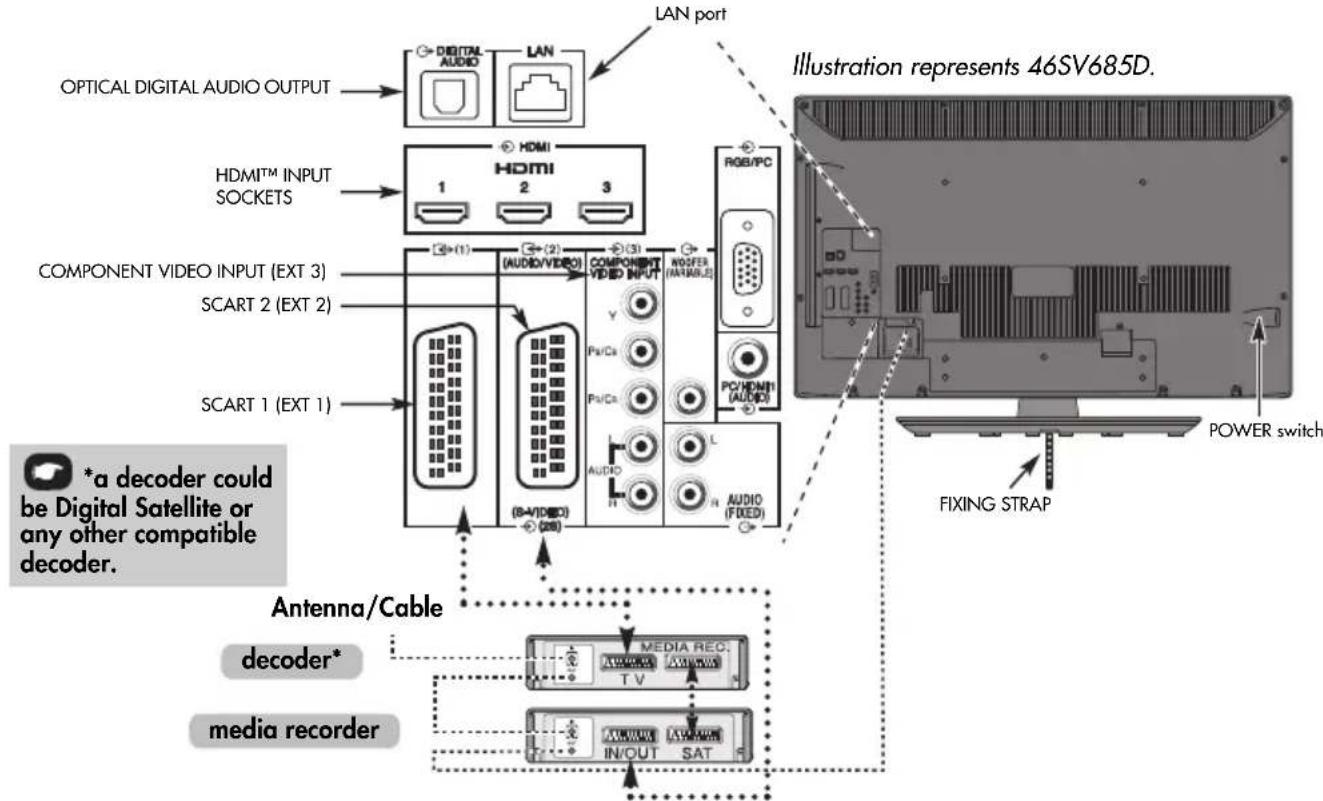

LAN port OPTICAL DIGITAL AUDIO OUTPUT HDMI HDMI 1 2 3 HDMI™ INPUT SOCKETS COMPONENT VIDEO INPUT (EXT 3) SCART 2 (EXT 2) SCART 1 (EXT 1) (AUDIO/VIDEO) COMPONENT VIDEO INPUT V Pu/Ca Pu/Ca AUDIO N AUDIO (FIXED) RGB/PC POWER switch FIXING STRAP * a decoder could be Digital Satellite or any other compatible decoder. Antenna/Cable decoder* media recorder MEDIA REC. TV IN/OUT SAT

Aerial cables:

Connect the aerial to the socket on the rear of the television. If you use a decoder* and/or a media recorder, it is essential that the aerial cable is connected through the decoder and/or through the media recorder to the television.

SCART leads:

Connect the video recorder IN/OUT socket to the television. Connect the decoder TV socket to the television. Connect the media recorder SAT socket to the decoder MEDIA REC. socket.

Before running Auto Tuning, put your decoder and media recorder to Standby.

The phono sockets alongside the COMPONENT VIDEO INPUT sockets will accept L and R audio signals.

The Digital Audio Output socket enables the connection of a suitable surround sound system. NOTE: this output is always active.

HDMI™ (High-Definition Multimedia Interface) is for use with a DVD decoder or electrical equipment with digital audio and video output.

For acceptable video or PC signal formats through the HDMI terminals, see page 61.

NOTE: Although this television is able to connect to HDMI equipment, it is possible that some equipment may not operate correctly.

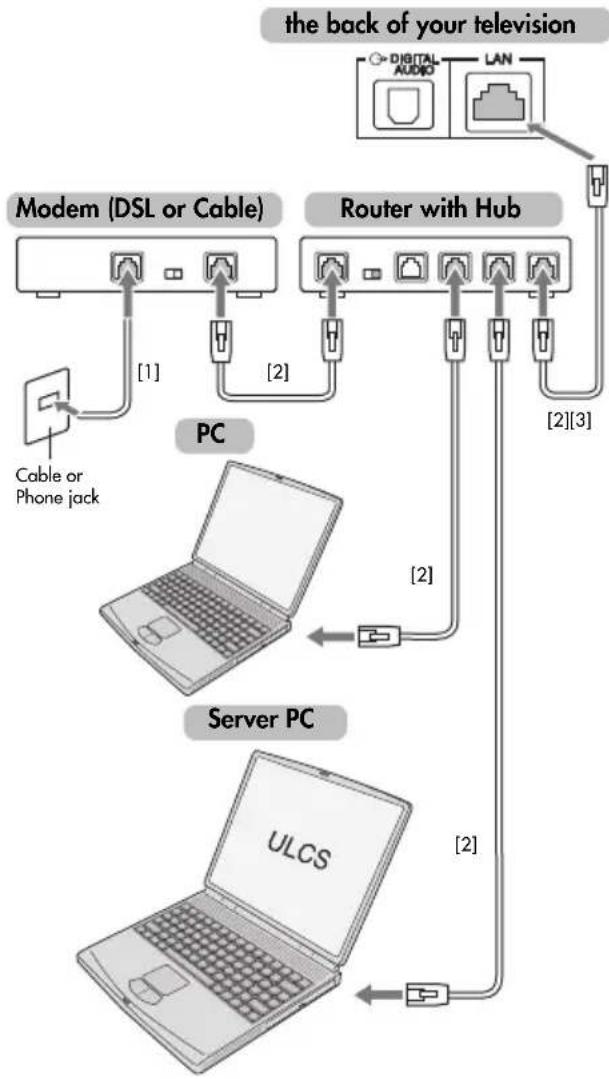

LAN port is used to connect the TV to your home network.

A wide variety of external equipment can be connected to the back of the television; therefore, the relevant owner's manuals for all additional equipment must be referred to for exact instructions.

We recommend SCART 1 for a decoder and SCART 2 for a media recorder.

If connecting S-VIDEO equipment, set the INPUT for EXT 2. See page 49.

If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press ⏻ to select between DTV, EXT 1, EXT 2, EXT 3, HDMI 1, HDMI 2, HDMI 3, HDMI 4, PC or ATV.

When the external input mode is selected while viewing DTV mode, the SCART socket does not output video/audio signals. The SCART output will also be muted in EPG mode.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

INSTAPORT™ and INSTAPORT logo are trademarks of Silicon Image, Inc. in the United States and other countries.

Connecting an HDMI™ or DVI device to the HDMI input

The HDMI input on your television receives digital audio and uncompressed digital video from an HDMI source device or uncompressed digital video from a DVI (Digital Visual Interface) source device.

This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) programme material in digital form from EIA/CEA-861-D-compliant [1] consumer electronic devices (such as a set-top box or DVD player with HDMI or DVI output). For acceptable video signal formats, see page 61.

NOTE:

• Some early HDMI equipment may not work properly with your latest HDMI TV, due to the adoption of a new standard. Please unplug your HDMI cable first and then try setting the following options (Lip Sync, INSTAPORT™) to "Off". Your early HDMI source should operate properly with your television. See page 50.
• Supported Audio format: Linear PCM, sampling rate 32/44.1/48kHz.

To connect an HDMI device

Connect an HDMI cable (type A connector) to the HDMI terminal.

For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo (HDMI

• If your HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 50Hz, you will need a Category 2 cable. Conventional HDMI/DVI cable may not work properly with this mode.
• HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration).
  • See "HDMI 1 Audio" on page 50.

The HDMI 4 terminal is located on the side of the television.

HDMI 1 2 3 HDMI cable HDMI device VIDEO AUDIO L R IN C OUT L R HDMI OUT

To view the HDMI device video, press the ⬤ button to select HDMI 1, HDMI 2, HDMI 3 or HDMI 4 mode.

To connect a DVI device

Connect an HDMI-to-DVI adapter cable (HDMI type A connector) to the HDMI 1 terminal and audio cables to the PC/HDMI1 (AUDIO) socket (see illustration).

• The recommended HDMI-to-DVI adapter cable length is 6.6 ft (2m).
• An HDMI-to-DVI adapter cable transfers video only. Separate analogue audio cables are required.
  • See "HDMI 1 Audio" on page 50.

HDMI 1 2 3 PC/HDMI(1) (AU)(O) Audio cable for HDMI to television connection (not supplied) DVI device HDMI-to- DVI adapter Cable VIDEO AUDIO L R IN L OUT DW/RDCP OUT

NOTE:

To ensure that the HDMI or DVI device is reset properly, it is recommended that you follow these procedures:

• When turning on your electronic components, turn on the television first, and then the HDMI or DVI device.
• When turning off your electronic components, turn off the HDMI or DVI device first, and then the television.

[1] EIA/CEA-861-D compliance covers the transmission of uncompressed digital video with high-bandwidth digital content protection, which is being standardized for reception of high-definition video signals. Because this is an evolving technology, it is possible that some devices may not operate properly with the television. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

REGZA-LINK connection

You can control the basic functions of connected audio/video devices using the television's remote control if you connect a REGZA-LINK compatible AV amplifier or playback device. For an explanation of setup and operations, see pages 51–52.

For the setup shown above, you will need three HDMI cables (see page 9).

NOTE:

• If several devices are connected, the REGZA-LINK feature may not operate properly.
• For proper operation, it is recommended that you use HDMI cables with the HDMI Logo ( HDMI
• The HDMI 4 terminal is located at the side of the television.
• This function is available with one PC and one AV amplifier.
  This function is available when one PC and one AV amplifier are connected separately. However, it may not operate properly if the PC is connected via the AV amplifier.

Before controlling the device(s):

• After completing the above connections, set the REGZA-LINK Setup menu as you desire (see page 51).
• The connected devices must also be set. For details, see the operation manual for each device.
• The REGZA-LINK feature uses CEC technology as regulated by the HDMI standard.
• This feature is limited to models incorporating Toshiba's REGZA-LINK. However, Toshiba is not liable for those operations. Refer to individual instruction manuals for compatibility information.

Connecting a computer

With either an RGB/PC or an HDMI connection, you can watch your computer's display on the television and hear the sound from the television's speakers.

To connect a PC to the RGB/PC terminal

When connecting a PC to the RGB/PC terminal on the television, use an analogue RGB (15-pin) computer cable and a PC audio cable for the PC/HDMI1 (AUDIO) socket. Select PC from the PC/HDMI 1 Audio options in the AV Connection menu located in the SETUP menu.

the back of your television RGB/PC PC Mini D-sub 15 pin connector Computer Audio cable for PC to television connection (not supplied) RGB PC cable (not supplied) Conversion adaptor if required (not supplied)

To use a PC, set the monitor output resolution on the PC before connecting it to the television. For acceptable PC signal formats, see page 60.

To display the optimum picture, use the PC setting feature (see page 48).

NOTE:

- The PC audio input terminal on the television is shared with the HDMI 1 analogue audio input terminal (see page 50).

- Some PC models cannot be connected to this television.

- An adapter is not needed for computers with a compatible mini D-sub15-pin terminal.

- Depending on the DVD's title and the specifications of the PC on which you are playing the DVD-Video, some scenes may be skipped or you may not be able to pause during multi-angle scenes.

- A band may appear at the edges of the screen or parts of the picture may be obscured. This is due to scaling of the picture by the set, it is not a malfunction.

- When PC input mode is selected, some of the television's features will be unavailable e.g. Manual Settings in the SETUP menu, Colour, Tint, Sharpness and Black/White Level in the PICTURE menu.

- If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.

To connect a PC to the HDMI terminal

When connecting a PC to the HDMI terminal on the television, use an HDMI-to-DVI adapter cable and an analogue audio cable.

If connecting a PC with an HDMI terminal, use an HDMI cable (type A connector). A separate analogue cable is not necessary (see page 9).

the back of your television

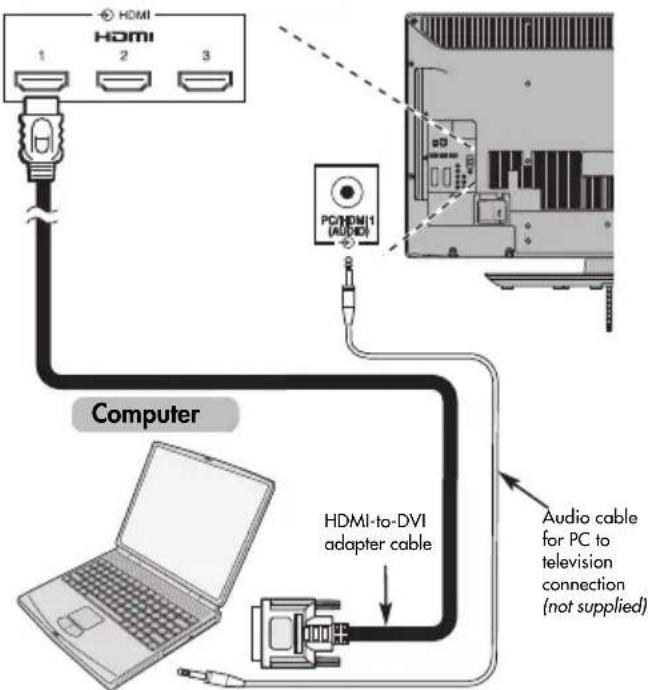

HDMI 1 2 3 PC/HDMI(1 AUDIO) Computer HDMI-to-DVI adapter cable Audio cable for PC to television connection (not supplied)

For acceptable PC and video signal formats, see page 61.

NOTE:

• The edges of the images may be hidden.

- If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.

Connecting a home network

The LAN port allows your Toshiba TV to connect to your home network. You can use this revolutionary home entertainment networking system to access photo, video and audio files that are stored on a DLNA server and play/display them on your TV. For supported formats, see page 36.

Installing the ULCS application

In order for your TV to play files stored on a PC, if you do not have the DLNA server you can do with your PC which is installed ULCS application (supplied). ULCS is software that allows files to be shared between playback equipment and a home network, or between two or more PCs.

Install the ULCS software Limited Edition (supplied). To operate the PC as a DLNA server, follow the instructions in the installation manual on the CD-ROM.

The software on the supplied CD is a Limited Edition without any customer support. For more information and to upgrade it to a full professional version please visit:

http://www.transtechnology.co.jp/products/soft/ucs/

NOTE:

• The TV's home network feature is compatible with Microsoft® Windows® XP/Vista.
• The TV's home network connection allows access to file sharing only. You will NOT be able to use the TV to access the Internet.
• If you use a hub or switch to connect the TV to your home network, you may not be able to use the automatic setup and have to manually set up the network address. See page 53.
• If you use a router with built-in DHCP functionality, use the automatic setup. Manual setup may not work.
• If you connect the TV and PC directly, use Ethernet crossover cable.

To connect the TV to a home network

[1] Coaxial or telephone cable (depending on your modem type)

[2] Standard LAN cable

[3] Do NOT connect a phone jack directly to the TV's LAN port.

Controls and input connections

A wide variety of external equipment can be connected to the input sockets on the side of the television. Whilst all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions.

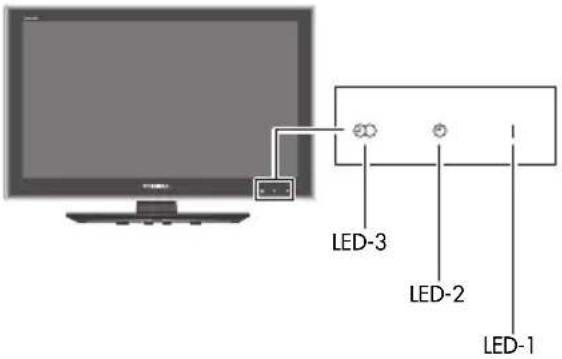

Illustration represents 46SV685D. POWER switch ORANGE LED - Programme timer set (digital only) RED LED - Programme timer Active (digital only) GREEN LED - On Timer set RED LED - Standby GREEN LED - Power on Standby SD card slot To access photo files COMMON INTERFACE The Common Interface is for a Conditional Access Module (CAM). Contact a service provider. USB port To access photo, movies or music files HDMI 4 INPUT s-VIDEO VIDEO OUTPUT 3 (EXT 3) USB COMMON INTERFACE

Switching on

If the RED LED is unlit, check that the mains plug is connected to the power supply and press the ⏻/I(POWER) button on the left side of the television to switch the television on. If the picture does not appear, press ⏻ on the remote control. It may take a few moments. The GREEN LED will be lit.

To put the television into Standby, press ⏻ on the remote control. To view the television, press ⏻ again. The picture may take a few seconds to appear.

Using the remote control

Press MENU on the remote control to display the menu.

The menu appears as a list of five topics. As each symbol is selected by pressing ◀ or ▶ on the navigation ring on the remote control, its respective options will appear below.

NOTE: The same menu is displayed in DTV (Digital TV) and ATV (Analogue TV) modes; however, some items are greyed out in each case.

To operate the menu, press ▲ and ▼ on the remote control to move up and down and press ◀ or ▶ to select your desired setting. Follow the on-screen instructions. The functions of each menu are described in detail throughout the manual.

Using the controls and connections

To alter the volume press - ∠ +.

To alter the programme position press ▼ P ▲.

Press MENU and<,>,^ or ∨ to control the sound and picture options.

Press MENU to finish.

An S-video cable provides better picture performance than a composite video cable. If you connect an S-Video cable to EXT 3, be sure to disconnect the standard (composite) video cable or the picture performance will be unacceptable.

Media Player feature provides access to photos, movies or music files stored on a USB storage device, SD memory card (for photos only) or networked server PC connected via the LAN port.

To select an external input, press ⬤ until the appropriate input source is selected as described on page 49.

Please always refer to the owner's manual of the equipment to be connected for full details.

NOTE: Interactive video games that involve shooting a "gun" at an on-screen target may not work with this TV.

- DivX ^ is a registered trademark of DivX, Inc., and is used under license.

SD Logo is a trademark

Startup Application

Before switching on the television, put your decoder and media recorder, if applicable, to Standby.

To set up the television, use the buttons on the remote control as detailed on page 6.

Quick Setup

1 Press the ⏻ button. The Quick Setup screen will appear. This screen will appear the first time that the television is switched on and each time Reset TV is selected.

Quick Setup Menu Language English Country Germany Primary Subtitle Language English Secondary Subtitle Language English Primary Audio Language English Secondary Audio Language English

2 Highlight Menu Language and press ◀ or ▶ to select the menu language.
3 Press ▼ to highlight Country and ◀ or ▶ to select. The television is now set up to tune the stations for the selected country.

NOTE:

• The following display menus will differ slightly according to the country you selected.
• If there is not a country that you want to select in the list or you want to view DTV programmes but DTV is not selectable, select Others.

4 Press OK, and the Location screen will appear.

Location To use the TV for displaying in a store showroom, please select [Store]. [Home] mode is recommended for normal use. Home

5 Press ◀ or ▶ to select Home or Store. For normal home use, select Home (skip step 6).
6 Press OK. If Store is selected in step 5, the Auto Demo screen will appear. Press ◀ or ▶ to select On to use the demo.
7 Press OK. If the Ant/Cable In screen appears, press ◀ or ▶ to select Antenna or Cable.

Ant/Cable In Antenna

8 Press OK, and the Auto Tuning start up screen will appear with the option to select between DTV and ATV, DTV or ATV if available. Use ◀ or ▶ to select the appropriate mode.
9 Press ▼ or ▲ to highlight Start Scan, and then press OK.

Auto Tuning DTV and ATV Tuning Mode Start Scan

NOTE: If Cable is selected in step 7, additional setting options appear in the Auto Tuning screen. See "Ant/Cable In" section.

The television will start to search for available DTV and/or ATV channels. The progress bar will indicate the scan status.

You must allow the television to complete the search.

Auto Tuning Progress Found DTV Tune 3% 2 ATV Tune Waiting... Channel: C7

When the search is complete, the television will automatically select position one.

The Auto Tuning screen will display the total number of services found.

10 Press ◀ or ▶ to view the DTV (digital channel) or ATV (analogue channel) lists.
11 Use ▼ or ▲ to move through the list to select a channel, and then press Ⓞ to view.

In ATV mode, some areas may receive duplicate stations. There may not be a clear picture or the signal may be weak, so the station order can be changed using ATV Manual Tuning.

REMEMBER: Press ATV/DTV at any time to select between ATV and DTV (DTV TV/DTV RADIO/DTV TEXT if available) modes.

NOTE: The time will be set automatically by transmission but can be advanced or decreased by using Local Time Setting in the DTV Settings screen.

PLEASE NOTE

The Reset TV menu can also be accessed at any time from the SETUP menu.

Ant/Cable In (if available)

From this menu, you can set the RF input configuration to cable.

1 Press MENU, and select SETUP menu.

2 Use ▼ to highlight Ant/Cable In and use ◀ or ▶ to select Antenna or Cable.

NOTE: When you attempt to change the Ant/Cable In setting, a warning message will appear followed by PIN entry (if PIN has been set) and a prompt for Auto Tuning.

3 When Ant/Cable In is set to Cable, the following setting options will be provided in the Auto Tuning screen.

Press ▲ or ▼ to select an item, and then press ◀ or ▶ to select your desired option.

Auto Tuning DTV and ATV Tuning Start Scan DTV Quick ScanScan Ty AutoStart Freq AutoEnd Freq AutoModulation AutoSymbol Rat AutoNetwork ID

With the exception of DTV Scan Type and DTV Modulation items, all of the following items will have 2 operating modes. The first is Auto where the values for each item are preset by the system. The second is an Input mode where you will be able to enter a single value in place of the pre-set value. If no channel is currently tuned and the Input state is chosen, a system default value will be shown. However, if a channel is currently tuned when the item is accessed, the value of the current channel will be displayed.

DTV Scan Type:

This item determines whether a Quick Scan or a Full Scan will be executed.

The Quick Scan is a simplified version of the Full Scan that is designed to complete in less time.

DTV Start Frequency:

This sets the frequency from which the scan will begin.

DTV End Frequency:

This sets the frequency at which the scan will end.

* Valid entry range for frequency items is 113.000-858.00 for C-Book/Other and 114.000-858.00 for Nordig-C. If numbers outside of this range are entered, the values will automatically be set to the min. or max. valid value as appropriate.

DTV Modulation:

You can choose from five QAM modulation settings.

DTV Symbol Rate:

This is the baud rate (KS/s) of the scan.

* Valid entry range for Symbol Rate is 4000-7200. If a number outside of this range is entered, the value will be automatically set to the min. or max. valid value as appropriate.

DTV Network ID:

This is the Network ID to be utilized for the scan. This item is greyed out when DTV Scan Type is set to "Full Scan".

* Valid entry range for Network ID is 1-65535. If a number outside of this range is entered, the value will be automatically set to the min. or max. valid value as appropriate.

Auto Tuning

NOTE: As new services are broadcast, it will be necessary to re-tune the television in order to view them.

Auto Tuning will completely re-tune the television and can be used to update the channel list. It is recommended that Auto Tuning is run periodically to ensure that all new services are added. All current channels and settings, i.e. locked channels, will be lost.

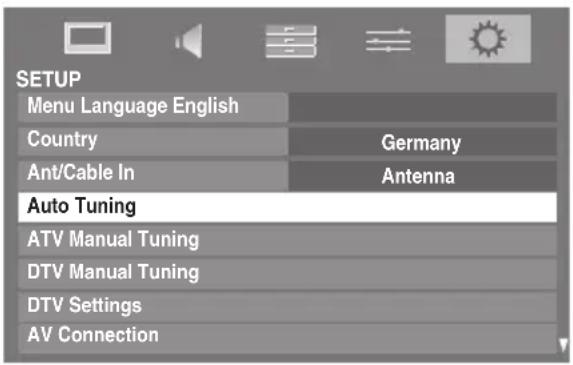

1 Press MENU and use ◀ or ▶ to select SETUP menu. Use ▼ to highlight Auto Tuning. Press ⓄK.

SETUP Menu Language English Country Germany Ant/Cable In Antenna Auto Tuning ATV Manual Tuning DTV Manual Tuning DTV Settings AV Connection

2 A screen will appear warning that previous programmes and settings will be deleted.

Auto Tuning Previous settings will be lost! Press EXIT for no change. DTV and ATV Tuning Mode Start Scan

Use ◀ or ▶ to select DTV and ATV, DTV or ATV, if available, then highlight Start Scan and press OK to continue with the Auto Tuning.

NOTE: If you have selected "Others" for the Country field in the SETUP menu, and select a tuning mode other than "DTV", choose the optimum ATV broadcasting system (B/G, I, D/K or L).

The television will start to search for all available DTV and/or ATV services.

You must allow the television to complete the search.

When the search is complete, the Auto Tuning screen will display the services found.

3 Use ▼ or ▲ to move through the list to select a channel, and then press Ⓞ to view.

ATV Manual Tuning

Tuning

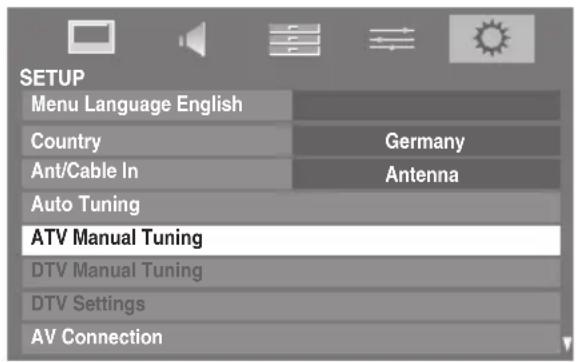

The television can be tuned-in manually using ATV Manual Tuning. For example, you might use the feature if the television cannot be connected to a media recorder/decoder with a SCART lead or when you want to tune-in a station on another System.

Use ◀ and ▶ to move across the screen and select any of the ATV Manual Tuning options. Then use ▲ or ▼ to adjust the settings.

ATV Manual Tuning System: I 1 A C 2 0 V C R 1 2 3465789

1 Position:

The number to be pressed on the remote control to tune the channel.

2 System:

Specific to certain areas.

3 Colour System:

Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source.

4 Skip:

Set Skip to On (→) or Off (→) for the selected channel. See page 18

5 Signal Class:

The channel classification.

6 Channel:

The channel number on which a station is being broadcast.

7 Search:

Search up and down for a signal.

8 Manual Fine Tuning:

Only used if interference/weak signal is experienced. See page 56.

9 Station:

Station identification. Use the ▲ or ▼ and ◀ or ▶ buttons to enter up to seven characters.

To allocate a position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder, press PLAY, and then manually tune.

1 Press MENU and using ◀ or ▶ select the SETUP menu. With ▼ highlight ATV Manual Tuning and press Ⓞ to select.

SETUP Menu Language English Country Germany Ant/Cable In Antenna Auto Tuning ATV Manual Tuning DTV Manual Tuning DTV Settings AV Connection

2 Use ▲ or ▼ to highlight the desired position. We suggest Pos. 0 for a media recorder.

1	C2
2	S10
3	C7
4	S40
5	C22
6	C25
7	C28
8	C30

Different Channel numbers may be displayed.

3 Press OK to select. If the channel chosen for the media recorder is set to skip, Skip should be removed before storing.
4 Press ▶ to select System and use ▲ or ▼ to change if required.

ATV Manual Tuning System: I 1 I A C 2 0

5 Then press ▶ to select Search.
6 Press ▲ or ▼ to begin the search. The search symbol will flash.

ATV Manual Tuning Search: 1 C 2 0 I A

7 Each signal will show on the television. If it is not your media recorder, press ▲ or ▼ again to restart the search.
8 When your media recorder signal is found, press ▶ to move along to Station. With ▲, ▼, ◀ and ▶ put in the required characters, e.g. VCR.

ATV Manual Tuning Station: VCR 1 A C 2 0 V C R

9 Press OK to save.

10 Repeat for each position you want to tune, or press RETURN to return to the list of channels and select the next number to tune.
11 Press EXIT when you have finished.
12 To name external equipment, e.g. DVD on EXT 2, press ➕ to select ➕2, then select Manual Settings from the SETUP menu.
13 Press ▶ to select Label then using ▲, ▼, ◀ and ▶ put in the required characters, and then press OK to save.

Manual Settings Label: DVD EXT 2 A D V D

PLEASE NOTE

This television has direct channel entry if the channel numbers are known. Select the ATV Manual Tuning screen in Step 3. Enter the Position number, the System, then C for standard (terrestrial) channels or S for cable channels and the Channel number. Press OK to save.

Skip

To prevent certain channels from being viewed, positions can be skipped.

1 Select ATV Manual Tuning from the SETUP menu.
2 Use ▲ or ▼ to highlight the position to be skipped and press OK to select.

ATV Manual Tuning Pos. Channel Station
1	C2
2	S10
3	C7
4	S40 ABC1
5	ABC1C22
6	C25
7	C28
8	C30

3 Press ▶ to select Skip.
4 Use ▲ or ▼ to turn Skip on. Press OK.

→ on the screen indicates a skipped position.

ATV Manual Tuning Skip: On 1 A C 2 0 I

5 Press RETURN and repeat from Step 2 or press EXIT.

Each position has to be individually selected. To turn Skip off, repeat the procedure for each position.

Skipped positions cannot be selected by P^ and P\~ or by the controls on the television but can still be accessed by the number buttons on the remote control.

Sorting positions

Channels may be moved and saved to the position of your choice.

1 Select ATV Manual Tuning from the SETUP menu.
2 With the list of channels showing, use ▲ or ▼ to highlight the channel you want to move and press ▶.

ATV Manual Tuning Pos. Channel Station 2 S10 3 C7 4 C40 ABC1 5 C22 ABC1 1 C2 6 C25 7 C28 8 C30

3 Use ▲ or ▼ to move through the list to your preferred position. As you do so, the other channels will move to make room.
4 Press ◀ to save your move.

Repeat as necessary, and then press EXIT.

DTV Manual Tuning

NOTE: This feature varies depending on the Ant/Cable In setting.

Manual Tuning

This feature is available for service engineers or can be used for direct channel entry if the multiplex channel is known.

1 Select DTV Manual Tuning from the SETUP menu and press OK.

DTV Manual Tuning Signal Strength WEAK STRONGAVER Quality GOOD 85% Channel 13 Start Scan

2 Enter the multiplex number using the number buttons or use ◀ or ▶ to adjust the number up or down.
3 Highlight Start Scan, and then press OK. The television will automatically search for that multiplex.

DTV Manual Tuning 0 New Channels - Total 6 Pos.New TypeName 1 ABC ONE 2 ABC TWO 7 ABC THREE 40 ABC NEWS 24 51 ABCi

When the multiplex is found, any channels that are not currently in the channel list will be added and the channel information at the top of the screen will be updated.

4 Repeat as necessary. Press EXIT to finish.

Manual Tuning for DVB-C

When Ant/Cable In is set to Cable, DTV Manual Tuning items are as follows:

Frequency - input a specific frequency to be scanned

Modulation - choose from one of five QAM modulation options

Symbol Rate - input a specific baud rate (KS/s) to be used for the manual scan

DTV Settings

Channels

The channel order may be changed to suit your personal preference.

1 Select DTV Settings from the SETUP menu and press OK.
2 Select Channels and press OK.

DTV Settings Channels Channel Options Subtitle and Audio PIN Setting Parental Control Local Time Setting 11:51 Auto Channel Update Off DVB Character Set Standard

3 With the list of channels showing, use ▼ or ▲ to highlight the channel you want to move and press ▶.

Channels Pos. Name TV 1 ABC ONE 2 ABC TWO 7 ABC THREE 30 CABC Channel 40 ABC NEWS 24 51 ABCi

4 Use ▼ or ▲ to move through the list to your preferred position. As you do so, the other channels will move to make room.
5 Press ◀ to save your move. Repeat as necessary, then press EXIT.

To renumber for the highlighted channel, press the RED button on the remote control.

Edit the channel number using the number buttons and press OK.

Channels Pos. Name 1 ABC ONE 2 ABC TWO 7 ABC THREE 30 CABC Channel 40 ABC NEWS 24 5 - - ABCi

Auto Channel Update

If the Auto Channel Update is set to On, when the TV is in standby mode, Digital Tuning is automatically executed and any new channels are saved.

1 Select DTV Settings from the SETUP menu and press OK.

2 Press ▼ to select Auto Channel Update and use ◀ or ▶ to select On.

DVB Character Set

This feature allows you to manually set the character set (Standard = Table 0, West = Table 5 or Latin alphabet 9) to be used for DVB-C or DVB-T channels.

1 Select DTV Settings from the SETUP menu and press OK.

2 Press ▼ to select DVB Character Set and use ◀ or ▶ to select Standard, West or Latin alphabet 9.

Dynamic Scan

If the broadcast information has changed in your DVB-T receiving area, the TV screen will display the message "Broadcast information has changed. Would you like to rescan now?" please follow the message.

1 Select DTV Settings from the SETUP menu and press OK.

2 Press ▼ to select Dynamic Scan and use ◀ or ▶ to select On.

Location setting

You can select either Home or Store mode. Home is recommended for normal home use. Select Store when using the television for displaying in a shop, etc.

1 Select Location from the SETUP menu.

2 Press ◀ or ▶ to select Home or Store.

Analogue switch-off

This is a digital television which is integrated to allow the use of both digital and analogue services. However, during the lifetime of this set it is very likely that analogue services will be switched off to allow for more new digital services.

This 'switch-off' will happen in a number of phases, which will be advertised in your area well in advance. It is recommended that at each phase the television is re-tuned to ensure that existing and new digital services can be viewed without disruption.

General controls

Quick Menu

Quick Menu helps you access some options quickly, such as Picture Mode, Picture Size, More Information, Sleep Timer etc.

Press QUICK to display the Quick Menu and use ▲ or ▼ to select the option.

Quick Menu
Picture Mode	AutoView
Picture Size	Super Live
More Information
Sleep Timer	00:00
Media Player
Photo Frame
Speaker Preference	TV Speakers
Headphone Level	0
System Information

NOTE: Quick Menu items are different depending on the current mode.

Mode Quick menu item	Description
When viewing a TV programme or pictures from the external input	Picture Mode See page 27.
	Picture Size See page 25.
	More Information See page 43.
	Sleep Timer See page 41.
	Media Player See page 32.
	Photo Frame See page 38
	Headphone Level See page 23.
	Speaker Preference See page 51. Headphone Level
	System Information See page 47.
When using EPG Genre Colour See page 43.
When using Media Player (Photo Multi View)	Device Information See page 36.
When using Media Player (Photo Single View, Slide Show)	Picture Size See page 25.
	Interval Time See page 33.
	Repeat See page 33.
When using Media Player (Movie List)	Sort See page 37.
	Repeat See page 34.
	Device Information See page 36.

Mode Quick menu item	Description
When using Media Player (Movie Play)	PICTURE	See page 27.
	Picture Size See page 25.
	SOUND	See page 22.
	Repeat	See page 34.
When using Media Player (Music List)	SOUND	See page 22.
	Sort	See page 37.
	Repeat	See page 35.
	Device Information	See page 36.
Photo Frame	Picture Size See page 25.

Selecting positions

To select a position, use the numbered buttons on the remote control.

Positions can also be selected using P^ and P∨.

To display on-screen information such as position, input mode or stereo/mono signal, press i+ Press again to cancel.

The Time Display – analogue only

The time display facility allows the current (text service) time to be seen on the television screen.

Press Ⓐ/☐☒ whilst watching a normal television broadcast to see the time display from the broadcaster. It will remain on screen for about 5 seconds.

NOTE: This display may not be available in some cases.

Stereo and Bilingual transmissions

For ATV programmes

If stereo or dual language broadcasts are transmitted, the word Stereo or Dual will appear on the screen each time positions are changed, disappearing after a few seconds. If the broadcast is not in stereo, the word Mono will appear.

Stereo... Press / to select Stereo or Mono.

Bilingual... Bilingual transmissions are rare. If they are transmitted, the word Dual will be displayed. Choose the required programme number and if the word Dual appears press ⒶI/II to select Dual 1, Dual 2 or Mono.

For DTV programmes

For stereo or dual mono broadcasts, press ⒶI/Ⅱ and use ▲ or ▶ to select settings.

Mode Display Pressing ▶
○○ Stereo	Stereo → Left → Right
●○ Dual mono Dual 1	→ Dual 2 → Dual
○ Mono -
○○ Multichannel -

For multi-audio track broadcasts, press ⒶI/Ⅱ repeatedly to change the audio language (see 'Audio language' on page 46).

Sound controls

Volume controls and mute sound

Volume

Press or to adjust the volume.

Sound Mute

Press once to turn the sound off and again to cancel.

Dual

If a programme or film is being broadcast with a soundtrack in more than one language, the DUAL feature allows selection between them.

1 Press MENU and ◀ or ▶ to select SOUND.
2 Use ▼ to highlight Dual, and then press ◀ or ▶ to choose between Dual 1 or Dual 2.

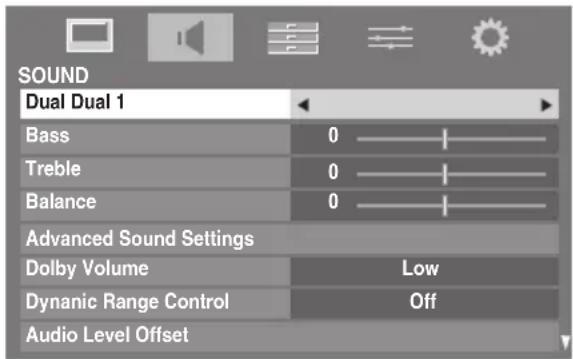

SOUND Dual Dual 1 Bass 0 Treble 0 Balance 0 Advanced Sound Settings Dolby Volume Low Dynamic Range Control Off Audio Level Offset

Bass, Treble and Balance

The sound controls are accessible in digital and analogue modes.

1 Select the SOUND menu.
2 Press ▼ to highlight Bass, Treble or Balance and ◀ or ▶ to change the setting.

Advanced Sound Settings

Surround, Voice Enhancement, and Dynamic Bass Boost help to create an enhanced surround sound experience with deep, rich bass from stereo sound sources. Your TV's audio will sound fuller, richer, and wider.

1 In the SOUND menu, press ▼ to highlight Advanced Sound Settings, and then press OK.
2 Press ▼ to highlight Surround, and then press ◀ or ▶ to select Off, Spatial or Cinema.

Advanced Sound Settings
Surround	Off
Voice Enhancement	On
Dynamic Bass Boost	High

3 Press ▼ to highlight Voice Enhancement, and then press ◀ or ▶ to select On.

4 Press ▼ to highlight Dynamic Bass Boost and using ◀ or ▶ select the desired bass expansion level (Off, Low or High).

NOTE: Ext. Woofer is displayed instead of Dynamic Bass Boost when Woofer is set to External in the AV Connection menu. See 'Woofer setting' section on page 49.

Dolby Volume®

This feature provides a consistent sound volume regardless of programmes, channels or input sources.

1 In the SOUND menu, press ▼ to highlight Dolby Volume.

2 Press ◀ or ▶ to select Low, High or Off.

NOTE:

• The Dolby Volume setting influences the Dynamic Range Control and Digital Audio Output settings.
• If Dynamic Range Control is set to On, this feature will be disabled.

Dynamic Range Control

This feature allows control of audio compression for some digital TV programmes (MPEG-1 and MPEG-2 audio programmes are not supported).

1 In the SOUND menu, press ▼ to highlight Dynamic Range Control.

2 Press ◀ or ▶ to select On or Off.

NOTE: This feature is disabled when Dolby Volume is set to Low or High.

Audio Level Offset

Sometimes there can be large changes in volume when switching from a DTV 5.1ch to a DTV 2ch, an ATV channel, or an external input. Using the Audio Level Offset feature reduces these volume differences.

1 Set the volume level usually used when watching a DTV 5.1ch programme.

2 Tune to a channel which is DTV 2ch or ATV or an external input.

3 In the SOUND menu, press ▼ to highlight Audio Level Offset and press OK.

4 Press ▼ to highlight an option, then use ◀ or ▶ to adjust the volume level.

• The available item changes depending on the current input source. For example, while watching a DTV 2ch programme, only DTV 2ch is available and the other two items are greyed out in the menu. This allows you to easily adjust according to each condition.
• When watching a DTV 5.1ch programme, this feature is not available.

Headphone Settings

This setting is used to set the sound output when headphones are connected.

Speaker Link	Headphone Speakers
On Sound is	output(∠-+ is available.)	No sound
Off Sound is	output(Headphone level menu is available.)	Sound is output(∠-+ is available.)

1 In the SOUND menu, press ▼ to highlight Headphone Settings, and then press OK.

2 Press ▼ to highlight Speaker Link and use ◀ or ▶ to select On or Off.

3 If you select Off, then highlight Headphone Level and use ◀ or ▶ to adjust the headphone sound.

Headphone Settings
Speaker Link	Off
Headphone Level	50 ———|—

Audio Description

Audio Description is an additional narrative sound track for visually impaired individuals to understand and enjoy the story line more fully. If this function has been activated by pressing the AD key, the letters AD will be displayed in the channel banner when programmes contain AD content. You can choose to hear sound from the TV speakers and the headphone output or only from the headphone output.

1 From the SOUND menu, select Audio Description and press OK.
2 Highlight Audio Description, and then press ◀ or ▶ to select On.

Audio Description Audio Description On Mixing Level 50 Speaker Out Off

3 To adjust the level of the audio description sound to the main sound, highlight Mixing Level and use ◀ or ▶.
4 Highlight Speaker Out, and then press ◀ or ▶ to select On or Off.

On: sound from both the headphone output and speakers.

Off: sound from the headphone output.

See "Headphone Settings" to adjust the headphone sound.

NOTE: This feature also applies to the sound from the DIGITAL AUDIO output and FIXED AUDIO output.

Widescreen viewing

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats.

Press QUICK, highlight Picture Size, and then press OK to display the list of available widescreen formats. Use ▲ and ▼ to highlight the required format and OK to select.

AV format PC format

Picture Size

Wide

Super Live

Cinema

4:3

Subtitle

14:9

Native

Picture Size

PC Normal

PC Wide

Dot by Dot

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

Picture controls

Most of the picture controls and functions are available in both digital and analogue modes. PLEASE NOTE: features not available will be greyed out.

Picture Position

The picture position may be adjusted to suit personal preference and can be particularly useful for external inputs.

In the SETUP menu, press ▼ until Picture Position is highlighted.

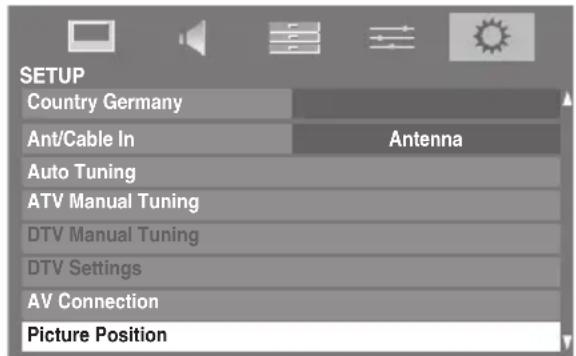

SETUP Country Germany Ant/Cable In Antenna Auto Tuning ATV Manual Tuning DTV Manual Tuning DTV Settings AV Connection Picture Position

2 Press Ⓒ to view the options available for the picture format that has been selected.
3 Press ▲ and ▼ to select an option, then ◀ or ▶ to adjust the settings.

The options alter depending on the currently selected widescreen format and the input signal.

In Cinema mode:

Picture Position Horizontal Position 0 —— Vertical Position 0 —— Reset

To return to the original factory settings, select Reset in the Picture Position menu and press OK.

Picture Mode

This television offers the choice of personalising the picture style.

AutoView, Dynamic, Standard, Movie, Store, Game and PC are preset options and affect many features/settings within the television.

NOTE:

• Because the AutoView mode automatically adjusts picture settings based on ambient light conditions and input signal content, the Auto Brightness Sensor and Expert Mode menus are greyed out when it is selected.
• Store mode is only available when Location is set to Store.
• Game mode is available in external input mode (other than aerial input). When you select Game mode, suitable widescreen formats will be selected.
• PC mode is available in RGB/PC input mode or HDMI input mode.

1 In the PICTURE menu, press ▼ to select Picture Mode.

PICTURE Picture Mode AutoView Reset Backlight 60 Contrast 95 Brightness 0 Colour 0 Tint 0 Sharpness 0

2 Press ◀ or ▶ to select the picture mode you prefer and press OK.

NOTE: The picture mode you select affects the current input only. You can select a different picture mode for each input.

Picture preferences

You can customise current picture mode settings as desired. For example, while selecting "Dynamic", if you change the following items, such as Backlight, Contrast, Brightness, Colour, Tint, Sharpness and the Advanced Picture Settings items, your new settings are saved for "Dynamic" picture mode.

1 In the PICTURE menu press ▼ to select either Backlight, Contrast, Brightness, Colour, Tint or Sharpness and press OK.
2 Press ◀ or ▶ to adjust the settings.

Reset

This feature resets all picture settings to the factory settings except Picture Mode.

NOTE: If no picture settings have been changed, Reset is not available.

1 In the PICTURE menu, press ▼ to select Reset and press OK.
2 A confirmation message will appear. Press ◀ or ▶ to select Yes and press OK.

3D Colour Management

When 3D Colour Management is set to On, it allows the 'Base Colour Adjustment' feature to become available.

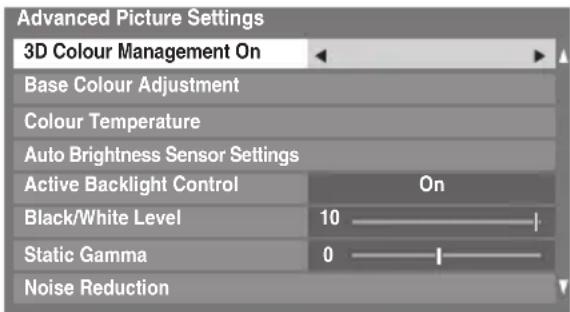

1 In the PICTURE menu, press ▼ to select Advanced Picture Settings and press ⓄK.
2 Press ▼ to select 3D Colour Management.

Advanced Picture Settings 3D Colour Management On Base Colour Adjustment Colour Temperature Auto Brightness Sensor Settings Active Backlight Control On Black/White Level 10 Static Gamma 0 Noise Reduction

3 Press ◀ or ▶ to select On or Off, and then press OK.

Base Colour Adjustment

The Base Colour Adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful when using an external source.

1 In the Advanced Picture Settings menu, press ▼ to select Base Colour Adjustment, and then press OK.
2 Press ▲ or ▼ to select an option, and then press ▶ to move to the adjustment window.

Base Colour Adjustment Hue Saturation Brightness Red 0 0 0 Green 0 0 0 Blue 0 0 0 Yellow 0 0 0 Magenta 0 0 0 Cyan 0 0 0 Reset

3 Press ◀ or ▶ to select Hue, Saturation or Brightness, and then press ▲ or ▼ to adjust the settings as required.

Hue Saturation Brightness 0Red 0 -1

4 Press OK to return to the previous menu.

To return to the factory settings, select Reset and press OK.

Colour Temperature

Colour Temperature increases the 'warmth' or 'coolness' of the picture by increasing the red or blue tint.

1 In the Advanced Picture Settings menu, press ▼ to select Colour Temperature and press OK.
2 Press ◀ or ▶ to select the Colour Temperature setting (0 (warm) -10 (cool)).

Colour Temperature Colour Temperature 5 Red-Offset 0 Green-Offset 0 Blue-Offset 0 Red-Gain 0 Green-Gain 0 Blue-Gain 0 Reset

3 Press ▲ or ▼ to select an option you want to adjust, and then press ◀ or ▶ to adjust the settings.
4 Press OK to return to the previous menu.

To return the Colour Temperature settings to the factory defaults, select Reset and press OK.

NOTE: If Picture Mode is set to AutoView, you can adjust Colour Temperature only and the range will be -5 to +5.

Auto Brightness Sensor Settings

When the Auto Brightness Sensor is activated, it will automatically optimise the backlighting levels to suit ambient light conditions.

1 In the Advanced Picture Settings menu, press ▼ to select Auto Brightness Sensor Settings and press OK.

2 Press ◀ or ▶ to select On and press OK.

Auto Brightness Sensor Settings Auto Brightness Sensor On Backlight Adjustment Pro

3 Press ▼ to select Backlight Adjustment Pro and press OK.

4 The Backlight Adjustment Pro window will appear. Press OK again to display the adjustment window.

5 Press ◀ or ▶ to select a point and press ▲ or ▼ to adjust the level.

6 Press OK to fix the adjustment.

To cancel the adjustment when selecting a point, select Cancel and press OK.

To return the adjustments of all points to the factory defaults, select Reset and press OK.

LED Backlight Control

When LED Backlight Control is activated, it will automatically optimise the backlighting levels for dark scenes.

1 In the Advanced Picture Settings menu, press ▼ to select LED Backlight Control.

2 Press ◀ or ▶ to select On or Off.

Black/White Level

Black/White Level increases the strength of dark areas of the picture to improve the definition.

1 In the Advanced Picture Settings menu, press ▼ to select Black/White Level.

2 Press ◀ or ▶ to adjust the level. The effect depends on the broadcast and is most noticeable on dark colours.

Static Gamma

The static gamma feature allows you to adjust the levels of black in the picture.

1 In the Advanced Picture Settings menu, press ▼ to select Static Gamma.

2 Press ◀ or ▶ to adjust the level.

MPEG NR - Noise Reduction

When watching a DVD, the compression may cause some words or picture elements to become distorted or pixelated. Using the MPEG NR feature reduces this effect by smoothing out the edges.

In the Advanced Picture Settings menu, press ▼ to select Noise Reduction and press OK.

2 Press ▼ to select MPEG NR.

Noise Reduction MPEG NR Low DNR Auto

3 Press ◀ or ▶ to select Low, Middle, High or Off to suit your preference.

DNR – Digital Noise Reduction

DNR allows you to 'soften' the screen representation of a weak signal to reduce the noise effect.

1 Select DNR from the Noise Reduction menu.

2 Use ◀ or ▶ to select Low, Middle, High, Auto or Off. The differences may not always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).

Resolution+

The Resolution+ feature allows you to adjust the clarity levels for your desired picture settings.

In the Advanced Picture Settings menu, press ▼ to select Resolution+ and press OK.

2 In the Resolution+ field, select On.

Resolution+ Resolution+ On Level 3

3 Press ▼ to highlight Level, and then press ◀ or ▶ to adjust the level.

NOTE:

• This feature may not work properly depending on the content.
• Adjustable range varies according to the Picture Mode you set.
• Noise may appear in the picture depending on the device connected to the TV (e.g. a device with a specific enhancer function).

Active Vision M200

This feature will reduce picture blur without decreasing image brightness, or adding flicker.

1 In the Advanced Picture Settings menu, press ▼ to select Active Vision M200.

2 Press ◀ or ▶ to select On or Off.

NOTE: When Picture Mode is set to Game, this feature will be greyed out and automatically set to Off.

Film Stabilization

The Film Stabilization feature allows the adjustment of motion smoothness.

1 In the Advanced Picture Settings menu, press ▼ to select Film Stabilization.

2 Press ◀ or ▶ to select Standard, Smooth or Off.

NOTE: When Picture Mode is set to AutoView, the Film Stabilization feature will have an additional "Auto" mode.

Expert Mode

This feature allows you to turn the colours red, green, and blue On/Off individually in order to adjust each colour more accurately.

NOTE: This feature is not available when Picture Mode is set to AutoView.

1 In the Advanced Picture Settings menu, press ▼ to select Expert Mode and press OK.

2 Press ▲ or ▼ to select either Red, Green or Blue you and press ◀ or ▶ to select On. Select Off for the other two colours.

Expert Mode Red On Green On Blue Off Colour 50 Tint 50

3 Press ▼ to select Colour or Tint, and then press ◀ or ▶ to adjust.

Resetting the advanced picture settings

This feature allows you to reset the current Advanced Picture Settings to the default values.

1 In the Advanced Picture Settings menu, press ▼ to select Reset.

2 Press OK.

Control Visualization

This feature displays the brightness histogram and control curve of each scene.

In the PICTURE menu, press ▼ to select Control Visualization and press OK. The histogram window will appear.

2 Press RETURN to return to the previous menu.

Automatic Format (Widescreen)

When this television receives a true Widescreen picture and Auto format is On, it will automatically be displayed in Widescreen format irrespective of the television's previous setting.

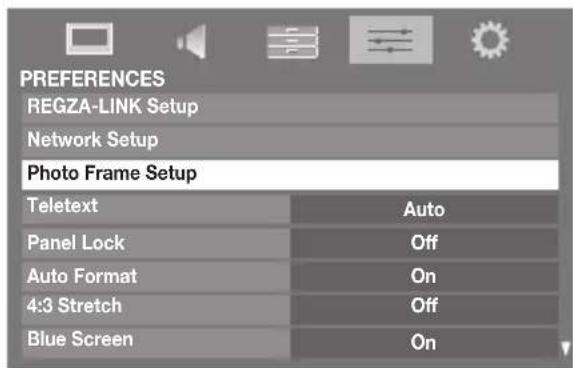

1 Press MENU and ◀ or ▶ to select the PREFERENCES menu.
2 Press ▼ to highlight Auto Format, then ◀ or ▶ to select On or Off.

PREFERENCES REGZA-LINK Setup Network Setup Photo Frame Setup Teletext Auto Panel Lock Off Auto Format On 4:3 Stretch Off Blue Screen On

4:3 Stretch

When 4:3 Stretch is activated, the size switching system changes 4:3 programmes into full screen picture.

1 In the PREFERENCES menu, press ▼ to highlight 4:3 Stretch.
2 Press ◀ or ▶ to select On or Off.

Blue Screen

When Blue Screen is selected the screen will turn blue and the sound will be muted on analogue channels and external input modes when no signal is received.

1 In the PREFERENCES menu, press ▼ to highlight Blue Screen.
2 Press ◀ or ▶ to select On or Off.

Side panel adjustment

The Side Panel feature lightens or darkens the band on each side of the screen when in 4:3 or 14:9 format. This helps prevent image retention of the band and can also make viewing in bright or dark conditions more comfortable.

1 In the PREFERENCES menu, and press ▼ to select Side Panel.
2 Press ◀ or ▶ to adjust (1-3).

Picture still

This feature is used to hold a still image on the screen.

Press ▼ to hold an image on the screen, press ▼ again to cancel.

HDMI Information Display

When the HDMI Information Display feature is On and you are watching a HDMI input source, pressing the button displays the HDMI signal information banner.

1 In the PREFERENCES menu, and press ▼ to select HDMI Information Display.
2 Press ◀ or ▶ to select On.

HDMI signal information is as follows: Resolution, Scan Type, Frame Rate, Aspect, Colour Depth, Colour Space, RGB/YUV and Chroma Format.

Using the Media Player

You can enjoy photos, movies or music contents stored on a USB storage device or SD memory card (for photos only).

Photo Viewer specifications

Data type: JPEG Exif ver2.2

File format: JPEG

Maximum photo size: 9 MB

Maximum number of files: 2000 / folder

Maximum photo resolution: 4096 × 4096 (HW decode), 16384 × 16384 (SW decode)

Movie Viewer specifications

File format: Video: DivX

Audio: MP3

Maximum video resolution: 720 × 480 (30 fps). 720 × 576 (25fps)

Maximum number of files: 500 / folder

Music Player specifications

File format: MP3

Sampling frequency: 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz

Bit rate: from 8 to 320 kbps

Maximum number of files: 500 / folder

PLEASE NOTE

• Gently insert the USB device into the port and do not remove while viewing Media Player.
• USB device: USB Mass Storage Class device (MSC)
• Connectivity is not guaranteed for all devices.
• Connect the USB device to the TV directly.
• Do not use a USB hub.
• You must obtain any required permission from copyright owners to use copyright content. Toshiba cannot and does not grant such permission.

To select the Auto Start function

1 Press MENU and ◀ or ▶ to select the APPLICATIONS menu.
2 Press ▼ to select Media Player, and then press OK.
3 Press ▼ or ▲ to select Auto Start.
4 Press ◀ or ▶ to select On or Off. See the Media Player menu at right.

NOTE: The Auto Start function does not operate for the LAN port.

To open the Media Player

There are two kinds of methods to open the Media Player.

Automatically open

Gently insert a supported USB storage device to the USB port or SD memory card into the SD card slot on the side of the TV. A prompt will appear.

NOTE: If you repeatedly insert and remove the USB connector, the prompt may not appear.

2 Press ◀ or ▶ to select Yes, and then press OK. When the Auto Start function is On, the Media Player menu will appear. When you select No, nothing happens.

USB device was connected to TV. Do you want to open Media Player?

No Yes

NOTE: The prompt will disappear after about 6 sec.

Manually open

1 Press MENU and ◀ or ▶ to select the APPLICATIONS menu.
2 Press ▼ to select Media Player, and then press OK.
3 Press ▼ or ▲ to select Photo, Movie or Music then press OK.

Media Player Photo Movie Music Auto Start On DivX® VOD

4 Press ▼ or ▲ to select the active device if the selection window appears, and then press OK.

Media Player USB1:XXXXXXXXXXXXXXXXXXXXX... USB2:XXXXXXXXXXXXXX LAN-S:XXXXXXXXXXXXXX SD Memory Card

The thumbnail view (for Photo) or list of files (for Movie and Music) will appear.

NOTE:

• The viewer will also open even if there are no photo, movie or music files.
• While the Media Player is active, the main menus cannot be displayed.

Viewing photo files

There are three types of view modes.

Multi View

This view allows you to search for photos in a grid format. These pictures are displayed using thumbnail data in each image file.

Photo /Folder 1/54 E05265464.jpg OK P RETURN QUICK Features Page BackSelect

The initial highlighted position will be on the top left thumbnail in the Multi View.

1 Press ▲▼◀▶ to move the highlight in one window. If all of the photos will not fit in one screen, when pressing ◀ at the top left thumbnail, the screen will move to the previous page. Conversely, when pressing ▶ at the bottom right thumbnail, the screen will move to the next page.

P∧P∨ buttons can be used to page up/down the photo list when there are more photos than will fit onto one screen. When the P∧P∨ buttons are pressed, the highlight shall be on the photo at the top left of Previous/Next list.

2 When you select a folder, press OK to move to the next layer. Press RETURN to move back to the previous layer.

3 Press OK to view the selected photo in Single View mode.

Single View

In this view mode, only files located in the selected directory shall be displayed. This view allows you to change the photo content manually. When moving from Multi View to the Single View, the currently selected photo shall be displayed.

1 Press ▶ to view the next photo. Press ◀ to view the previous photo.

2 Press ▲ to rotate the image 90° clockwise. Press ▼ to rotate the image 90° counterclockwise.

3 Press to display file status information (file number, photo title, date and time taken, resolution etc.). The information display will time out (after

about 6 seconds) or you can close by pressing again.

Slideshow

This view allows you to watch a slideshow of the photos. In this mode, only files located in the selected directory will be played.

1 To start slideshow, press OK in the Single View mode.

2 Press ◀ / ▶ to view the previous/next photo.

3 Press ▲ or ▼ to rotate the photo.

4 Press to display file status information. The information display will time out (after about 6 seconds) or you can close by pressing again.

To set Interval Time and Repeat settings:

1 Press QUICK to open the Quick Menu.

2 Press ▲ or ▼ to select either Interval Time or Repeat.

3 Press ◀ or ▶ to adjust the setting and press Ⓞ.

To close the Photo Viewer

1 Press EXIT. The television will return to the last viewed channel or external input.

Viewing movie files

You can select movies from a list of available files.

Movie /Folder Movie 1 Movie 2 WWWWWWWWWWWWWW WWWWWWWWWWWWWW WWWWWWWWWWWWWW WWWWWWWWWWWWWW WWWWWWWWWWWWWW WWWWWWWWWWWWWW WWWWWWWWWWWWWW 2/16 Time:00:00:00 OK QUICK RETURN Repeat BackPlay Page

1 Press ▲▼ to select a file or folder. P^P∨ buttons can be used to page up/down the movie list when there are more files than will fit onto one screen.
2 When you select a folder, press OK to move to the next layer. Press RETURN to move back to the previous layer.
3 With the desired file selected, press OK or PLAY (▶) to start playback.
4 Press ■ to stop playback.

NOTE:

• The Media Player memorizes the location where playback is stopped. The file resumes playback from the location where playback was stopped when you press PLAY(▶) next time. To start playback from the beginning regardless of the location where playback was stopped, press ■ twice.
• If playback finishes before ■ is pressed, the next file will automatically start to play from the beginning.
• Depending on the file size, it may take some time for playback to begin.

During playback:

• Press II/II▶ to pause.
• To resume normal playback, press PLAY(▶).
• To play in fast reverse or fast forward directions, press ◀◀◀ or ▶▶ during playback. Each time you press the ◀◀◀ or ▶▶, the playback speed will change.
• To locate a specific file, press◀◀ or ▶▶ repeatedly.

NOTE: If the previous or next file is not compatible, it will be skipped automatically.

- Press to display the file status information (content number, movie title, progress time etc.). The information display will time out (after about 6 seconds) or you can close by pressing again.

NOTE: During playback, you can adjust the PICTURE, Picture Size and SOUND menu functions from the QUICK menu.

To select subtitle and audio languages

• Press SUBTITLE repeatedly to select your preferred subtitle language.
• Press AUDIO repeatedly to select your preferred audio language.

To set the repeat mode

1 Press QUICK to open the Quick Menu.
2 Press ◀ or ▶ to select Off, All or 1.
3 Press RETURN.

To close the Movie Viewer

1 Press EXIT.

To register your TV to a DivX® account

This TV allows you to play back files purchased or rented from DivX® VOD Video-On Demand (VOD) services. When you purchase or rent DivX® VOD files on the internet, you will be asked to enter a registration code.

1 In the APPLICATIONS menu, press ▼ to highlight Media Player, and then press OK.
2 Press ▲ or ▼ to highlight DivX®VOD, and then press OK.

DivX® VOD DivX® VOD Registration DivX® VOD Deactivation

3 Press ▲ or ▼ to highlight DivX® VOD Registration, and then press OK.
4 The DivX ^® VOD window will appear and you will see the registration code. For details on registration, please visit the DivX ^® website at http://vod.divx.com.
5 Copy the activation file to a memory device and play it on the TV.

To deactivate your device

1 In step 3 above, highlight DivX ^ VOD Deactivation, and then press OK.
2 A confirmation message will appear. Select Yes, and then press OK.
3 The DivX ^® VOD window will appear and you will see the deactivation code. For details on registration, please visit the DivX ^® website at http://vod.divx.com.

Playing music files

You can listen to music from a list of available files.

Music /Folder Music 1 Music 2 WWWWWWWWWWWWWW WWWWWWWWWWWWWW WWWWWWWWWWWWWW WWWWWWWWWWWWWW WWWWWWWWWWWWWW WWWWWWWWWWWWWW WWWWWWWWWWWWWW Title: Artist: 2/16 Time:00:00:00 OK QUICK RETURN Repeat BackPlay Page

1 Press ▲▼ to select a file or folder. P^P∨ buttons can be used to page up/down the music list when there are more files than will fit onto one screen.
2 When you select a folder, press OK to move to the next layer. Press RETURN to move back to the previous layer.
3 With the desired file selected, press OK or PLAY (▶) to start playback.
4 Press ■ to stop playback.

NOTE:

• The Media Player memorizes the location where playback is stopped. The file resumes playback from the location where playback was stopped when you press PLAY(▶) next time. To start playback from the beginning regardless of the location where playback was stopped, press ■ twice.
• If playback finishes before ■ is pressed, the next file will automatically start to play from the beginning.
• Depending on the file size, it may take some time for playback to begin.

During playback:

• Press II/II▶ to pause.
• To resume normal playback, press PLAY(▶).
• To play in fast reverse or fast forward directions, press ◀◀ or ▶▶ during playback. Each time you press the ◀◀ or ▶▶, the playback speed will change.
• To locate a specific file, press◀◀ or ▶▶ repeatedly.

NOTE:

• If the previous or next file is not compatible, it will be skipped automatically.
• During playback, you can adjust the SOUND menu functions from the QUICK menu.

To set the repeat mode:

1 Press QUICK to open the Quick Menu.
2 Press ◀ or ▶ to select Off, All or 1.
3 Press RETURN.

To close the Music Player:

1 Press EXIT.

Using a networked server PC

This TV is a DLNA CERTIFIED™ Player. This TV can play digital content stored on a DLNA CERTIFIED product with server function.

To play the files from your PC on the TV, you have to first complete the following:

• Home network connection (page 12)
- ULCS application installation (supplied CD-ROM), if you do not have the DLNA server (page 12)
- IP Address/Subnet Mask setup (page 53)

Photo Viewer specifications

Data type: JPEG Exif ver.1.x or later, JFIF 1.02

File format: JPEG

Maximum photo size: 6 MB

Maximum number of files: 2000 / folder

Maximum photo resolution: 4096 x 4096 pixels

Movie Viewer specifications

File format: Video: MPEG2(PS) PAL, MPEG2(PS) NTSC, MPEG2(TS) Audio: LPCM / MPEG1-Layer1 / MPEG1-Layer2 / MPEG2-Layer2 / AC3

Maximum number of files: 1000 / folder

Music Player specifications

File format: MP3, LPCM

Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

Bit rate: from 32 to 320 kbps

Maximum number of files: 1000 / folder

To open the Media Player

Display the Select Device menu following the section "Manually open" on page 32, select the Server device, and then press OK.

To display device information

1 While the Photo list, Movie list or Music list is on the screen, press QUICK to open the Quick Menu.

2 Press ▲ or ▼ to highlight Device Information, and then press OK.

DLNA ^® , the DLNA Logo and DLNA CERTIFIED ^™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Contents Functions Description
Photo	Photo list (Multi view) See page 33.
	SortingTo sort the folders and files1 Press QUICK to open the Quick Menu from Multi View mode.2 Press ▲ or ▼ to select Sort.3 Press ◀ or ▶ to select File Name, New or Old to set the sorting rule.File Name--File sorting rules:1 Unicode priority2 (0, 1, ..., 9), capital alphabet (A, B, ..., Z), small alphabet (a, b, ..., z), Chinese3 Increasing orderNew--From new to old according to the date and time when the picture was taken.Old--From old to new according to the date and time when the picture was taken.
	Device Information display See page 36.
	Single view mode See page 33.
	Slide Show mode See page 33.
	Skip to previous/next photo See page 33.
	Rotation See page 33.
	Slideshow Repeat play See page 33.
	Slideshow Interval Time see page 33. selection
	Picture Size selection See page 25.

Contents	Functions	Description
Movie	Movie list (title list)	See page 34.
	SortingTo sort the folders and files1Press QUICK to open the Quick Menu in the movie list mode.2Press ▲ or ▼ to select Sort.3Press ◀ or ▶ to select File name, New or Old to set the sorting rule.
	Device Information display See page 36.
	Playback See page 34.NOTE: When a file is highlighted, playback will begin automatically in the preview window. Press OK or PLAY ( ▶) to start full screen playback.
	Pause See page 34.
	Stop See page 35.NOTE: If STOP is pressed in full screen playback, you will go back to the preview window and playback will start again from the beginning of the file.If a file plays to the end in full screen mode, you will also go back to the preview window and the file will play from the beginning.
	Rewind / Fast Forward See page 34.
	Skip to previous/next video	See page 34.
	Repeat play See page 34.
	Subtitle / Audio Language selection	See page 34.
	Picture Size selection See page 25.
	PICTURE Settings See page 27.
	SOUND Settings See page 22.

Contents	Functions	Description
Music	Music list (title list)	See page 35.
	SortingTo sort the folders and files1Press QUICK to open the Quick Menu.2Press ▲ or ▼ to select Sort.3Press ◀ or ▶ to select File name, New or Old to set the sorti?g rule.
	Device Information display See page 36.
	Playback See page 35.
	Resume playback See page 35.
	Pause See page 35.
	Stop See page 35.
	Skip See page 35.
	Rewind / Fast Forward See page 35.
	Repeat play See page 35.
	SOUND Settings See page 22.

NOTE: Sorting, Rewind, Fast Forward, Time bar display, Total Time display may not be available in all cases.

Using the Photo Frame feature

You can use the TV screen as a digital picture frame. One image (pre-installed or user-installed) can be displayed. Date and time info can also be superimposed, if desired.

You can overwrite the photo file with a file on the USB storage device or SD card.

To open Photo Frame

Open from Menu

1 Press MENU and ◀ or ▶ to select the PREFERENCES menu.

2 Press ▼ to select Photo Frame Setup, and then press OK.

PREFERENCES REGZA-LINK Setup Network Setup Photo Frame Setup Teletext Auto Panel Lock Off Auto Format On 4:3 Stretch Off Blue Screen On

The preview screen will appear.

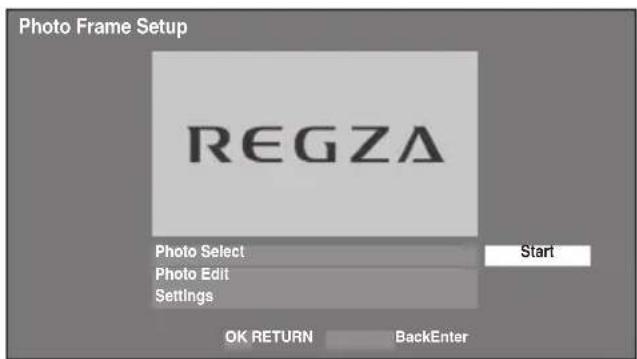

Photo Frame Setup REGZA Photo Select Photo Edit Settings Start OK RETURN BackEnter

3 Press ▶ to select Start, and then press OK to open Photo Frame.

REGZA

To open from the Quick Menu

1 Press QUICK to open the Quick Menu.

2 Press ▲ or ▼ to select Photo Frame, and then press OK to open Photo Frame.

To close the Photo Frame:

1 Press EXIT.

Setting the features

In the preview screen, you can set various settings for Photo Frame.

Photo Select

1 In the Photo Frame Setup menu, press ▲ or ▼ to select Photo Select, and then press OK.

Photo Frame Setup REGZA Photo Select Start Photo Edit Settings OK RETURN BackEnter

2 If the device selection screen appears, press ▲ or ▼ to select the appropriate device, and then press OK.

3 Press ▲▼◀▶ to select the photo you want to copy from the USB storage device or SD card to the TV's flash memory, and then press OK.

Photo Select /Folder 1/54 E05265464.jpg 06:36 Tue, 26 Apr 1920 x 1080 OK P. RETURN Page BackSelect

Photo Edit

1 Press ▲ or ▼ to select Photo Edit, and then press OK.

2 Press ▲ or ▼ to select Rotate or Delete.

Photo Edit Rotate Delete OK RETURN BackEnter

3 Set the following items as required.

- Rotate — Press (OK) to rotate the image 90°clockwise.

- Delete — Press ◀ or ▶ to select YES, and then press OK.

4 Press RETURN.

Settings

1 Press ▲ or ▼ to select Settings, and then press OK.

2 Press ▲ or ▼ to select Clock, Position or Auto Power Off.

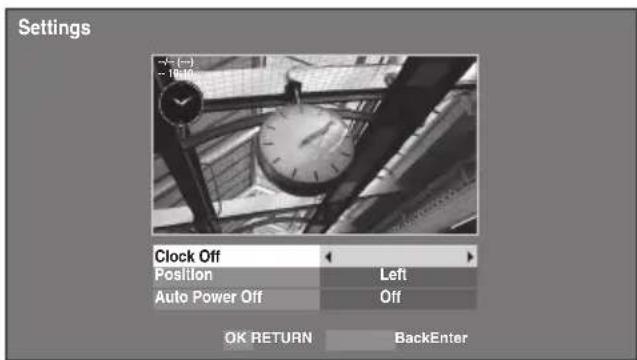

Settings Clock Off Position Left Auto Power Off Off OK RETURN BackEnter

3 Set the following items as required.

• Clock — Press ◀ or ▶ to select Off, Digital Clock, Analogue Clock or Analogue + Digital.
• Position — Press ◀ or ▶ to select Left or Right.
  • Auto Power Off — Press ◀ or ▶ to select Off, 00:30, 01:00, 02:00, 04:00, 06:00 or 12:00.

If the Photo Frame window is left open, the TV will automatically turn off after the set length of time (maximum 12 hours).

4 Press RETURN.

5 Select Start, and then press OK.

Black-and-white photo of a large wall-mounted clock suspended between steel beams, with no visible text or symbols.

NOTE:

• The clock display will only appear when time from a digital broadcast is available.
• The Photo and Settings items are moved by 4 dots every 5 minutes to prohibit screen burn-in.
• The pre-installed photo file is stored in the TV's flash memory before shipment.
• Picture Size selection (Normal/ Dot by Dot) is available by pressing the QUICK button.

Other features

Panel Lock

Panel Lock disables the buttons on the television. All buttons on the remote control can still be used.

1 From the PREFERENCES menu, select Panel Lock and choose On or Off using ◀ or ▶.

PREFERENCES REGZA-LINK Setup Network Setup Photo Frame Setup Teletext Auto Panel Lock Off Auto Format On 4:3 Stretch Off Blue Screen On

When Panel Lock is On, a reminder will appear when the buttons on the television are pressed. If the standby button is pressed, the television will switch off and can only be brought out of standby by using the remote control.

TOSHIBA Illumination

You can set the illumination mode of the TOSHIBA logo located on the front panel to On or Off.

1 In the PREFERENCES menu, press ▼ to select TOSHIBA Illumination.
2 Press ◀ or ▶ to select either On or Off.

The timers

Programme Timers – digital only

This feature will set the television to go to a specific channel at a certain time. It can be used to view a particular programme, or by setting the mode to daily or weekly, can be used to view a series of programmes.

1 Press MENU and ◀ or ▶ to select the APPLICATIONS menu.

APPLICATIONS Media Player Programme Timers On Timer Sleep Timer 00:00

2 Press ▼ to select Programme Timers, and then press OK.
3 Press ▼ if necessary to select an open timer position, then press OK. The Edit Timer menu will now appear on screen.
4 Press ▲ and ▼ to go through the list adding the details of the programme by using the number buttons and ◀ and ▶ to make selections.

Edit Timer 10:50 Tue, 26 Apr Timer Type Reminder Channel 30 CABC Channel Date Tue, 26 Apr 2009 Start Time 10:49 End Time 11:49 Repeat Once Subtitle Off 0-9 Input Save Back OK RETURN

5 When all of the details have been entered, press OK to save the timer.

The ORANGE/RED programme timer indicator on the front of the television will be lit (see page 58 for details).

PLEASE NOTE: When a timed programme is about to start, an information screen will appear offering the option of watching or cancelling the programme. The menus and other channels will not be available during the timed programme unless the programme timer is cancelled. The programme timer you set is not performed when the TV is turned off with the ⏻/I POWER switch.

On Timer

The feature allows you to set the television to turn on automatically to a preset channel at a certain time of day or after a certain length of time. When On Timer is set to On, the green On Timer indicator on the front of the television is lit.

1 In the APPLICATIONS menu, press ▼ to select On Timer and press OK.

2 Press ▲ or ▼ to select Enable On Timer, and then press ◀ or ▶ to select On.

On Timer
Enable On Timer	On
Enable DTV Clock	On
Power On Time	00:00
Repeat	Once
Input	DTV
Channel	12 ABC
Volume	20
Time until Power On	00:00

3 Press ▼ to select Enable DTV Clock, and then press ◀ or ▶ to select On or Off.

4 Press ▲ or ▼ to go through the list adding the details of the On Timer by using the number buttons and ◀ and ▶ to make selections.

Power On Time (only for DTV Clock On mode): Set the time you prefer with the number buttons.

Repeat (only for DTV Clock On mode): Select the desired On Timer operation (Once, Everyday, Mon-Fri, Mon-Sat, Sat-Sun).

Input: Select a video input source (ATV, DTV, EXT 1, EXT 2, EXT 3, HDMI 1, HDMI 2, HDMI 3, HDMI 4 or PC).

Channel: Set the channel that will be tuned when the television turns on.

NOTE: When an external input is selected in the Input field, a channel cannot be selected.

Volume: Set the volume that will be applied when the television turns on.

Time until Power On (only for DTV Clock Off mode): Set the amount of time from now until the TV turns on using the number buttons (maximum of 12 hours and 50 minutes).

To cancel the On Timer

1 In the On Timer menu, select Enable On Timer

2 Press ◀ or ▶ to select Off.

Sleep Timer

The television can be set to turn itself Off after a certain length of time.

In the APPLICATIONS menu, press ▼ to select Sleep Timer. Use the number buttons to set the desired time. For example, to switch the television off in one and a half hours enter 01:30, or press ▶/◀ to increase/decrease in steps of 10 minutes.

2 Press EXIT to finish.

3 To cancel the Sleep Timer, enter all zeros for the above setting.

Digital on-screen information and Programme Guide

When viewing in digital mode, the on-screen information and programme guide provide access to programme details for all available channels.

Information

1 Press, the information screen will appear giving details of the channel and programme currently being viewed.

4 CANAL+ 10:34 Tue, 26 Apr English Now City Hospital 10:00- 10:49 SD 16:9 News 15 min left Next 10:49- 11:49 Also

2 Press ▲ or ▼ to select the "Now", "Next" or "Also" information guide.
3 To record the next scheduled programme, select "Next" and press OK. The Edit Timer screen will appear.

Edit Timer 10:50 Tue, 26 Apr Tue, 26 Apr 11:00 30 CABC Channel Seven Wonder4 Timer Type Recording Start Time 10:49 End Time 11:49 Repeat Once Subtitle On Edit Save OB RETURN

4 The details of the programme will already have been added to the timer. Press OK to save.

To indicate that a Recording Timer has been set, a clock icon will be displayed in the Next and Also fields of the information screen. A check mark will appear if the timer is a Reminder Timer.

5 Press ▼ to select Also. Details of programmes that have started on other channels will be provided. Use ◀ or ▶ to change the display contents.

On-screen Information icons

	Icon	Description
Service info		Service type (TV, Radio, TEXT)
		Skip
Audio info		Mono
		Stereo
		Dual mono
		Multichannel
		Dolby Digital
		Dolby Digital+
Audio/Subtitle info		For Hard of Hearing
Event info	HD, SD	Video format (HD, SD)
	16:9, 4:3	Video Aspect
		Teletext
		Subtitle (Single, Multi)
		Multi-audio track
	0, 4 - 18	Parental rating
		Encrypted
Timer info		Recording
		Reminder

Guide

1 Select the on-screen guide by pressing GUIDE, the guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear.

Thu 6 TV	18:00 18:30 19:00 19:30 20:00
6 M6	LES SIM **LES SIM... TOP MODEL
9 W9	SUMMERLAND SUMMERLAND LES SIM...
11 NT1	Nicky La... Street fight... Dragon B... Dragon B...K 2000
31 PARIS PREMIERE	MA SORCIE... HAPPY DAYS HAPPY DAYS
34 AB1	Evamag 2721 jump street Jerry Springer Show City guys 17L...
800 FlowerGd 6Mbs
801 FlowerGd 4Mbs
802 FlowerGd 2Mbs
804 Codec 4:3
806 ITV1
807 ITV3
808 ITV2
809 ITV4

You can switch the time scale to 1.25 or 2.5 hours by pressing the GREEN button.

NOTE: Channels are displayed in groups by service type (TV, Radio, Text). Pressing the ATV/DTV button will switch the service type.

2 Press ◀ or ▶ for information on other programmes scheduled for the channel selected. To highlight the first programme in the genre grid, press the RED button.
3 For details of other programmes currently available, press ▲ and ▼ to scroll up and down the channel list. As channels are selected, details of the programme currently being broadcast will appear. Press ◀ or ▶ to view information for future programmes.
4 For information on a highlighted programme, press i+.
5 To set the timer for that programme, press the BLUE button to bring up the Programme Timers menu.

NOTE: In order for the recording operation to work properly, the media recorder must be set to the same time as the TV. Regarding the process for recording, please refer to the owner's manual of the recording equipment.

6 Press P ∨ to advance to the next page, or press P ∧ to go back to the previous page.

Genre selection/searching

From the guide screen, you can use the genre selection and search features.

1 Press the QUICK button from the guide screen.
2 Press ▼ or ▲ to highlight Genre Colour in the Quick Menu, then press OK.

Genre Colour Setup Movies Colour Setup RETURN Back

3 With the focus on a particular genre, press the desired colour key to assign. Four colours will be available to set. Press RETURN to go back to the guide screen.
4 Press the YELLOW button to access the Genre Search screen.

Genre Search10:50 Tue, 6 AprMovies
34 AB1	Hard Rain	Wed,27 Apr 0:15- 1:45
31 PARIS PREMIERE	Red Corner	Wed,27 Apr 22:15- 23:55
11 NT1	The Lawnmower Man	Thu,28 Apr 1:20- 3:00
9 W9	A Vow to Kill	Fri,29 Apr 1:30- 3:00
34 AB1	Parenthood	Sat,30 Apr 0:45- 2:40
11 NT1	Body and Soul	Sat,30 Apr 1:15- 3:00
31 PARIS PREMIERE	The Nun’s Story	Sat,30 Apr 15:00- 17:30
9 W9	Red Corner	Sat,30 Apr 23:20- 1:15
11 NT1	The Real Blonde	Sun,1 May 0:40- 2:00
31 PARIS PREMIERE	Critters	Sun,1 May 0:40- 2:20
11 NT1	Indiana Jones and the Temple of Doom	Sun,1 May 21:10- 23:20
11 NT1	The jackal	Sun,1 May 23:20- 1:15
34 AB	Coup De Ville	Mon,1 May 1:10- 3:00

Genre Search10:50 Tue, 6 AprMovies
34 AB1	Hard Rain	Wed,27 Apr 0:15- 1:45
31 PARIS PREMIERE	Red Corner	Wed,27 Apr 22:15- 23:55
11 NT1	The Lawnmower Man	Thu,28 Apr 1:20- 3:00
9 W9	A Vow to Kill	Fri,29 Apr 1:30- 3:00
34 AB1	Parenthood	Sat,30 Apr 0:45- 2:40
11 NT1	Body and Soul	Sat,30 Apr 1:15- 3:00
31 PARIS PREMIERE	The Nun’s Story	Sat,30 Apr 15:00- 17:30
9 W9	Red Corner	Sat,30 Apr 23:20- 1:15
11 NT1	The Real Blonde	Sun,1 May 0:40- 2:00
31 PARIS PREMIERE	Critters	Sun,1 May 0:40- 2:20
11 NT1	Indiana Jones and the Temple of Doom	Sun,1 May 21:10- 23:20
11 NT1	The jackal	Sun,1 May 23:20- 1:15
34 AB	Coup De Ville	Mon,1 May 1:10- 3:00

5 Press ◀ or ▶ to select the genre. Programmes listed will change for the new genre. Press ▲ or ▼ to highlight a particular programme.
6 When a current programme is selected, pressing Ⓑ will tune to that programme. When a future programme is selected, pressing Ⓑ will open the Edit Timer menu.
7 For information on a highlighted programme press i+
8 To exit the Genre Search and go back to the guide screen, press the YELLOW button.

Digital settings – parental control

In order to prevent viewing of unsuitable films and programmes, channels and menus can be locked in digital mode. These can then only be accessed with a security code PIN.

Setting the PIN

1 Press MENU and ▶ to select the SETUP menu.
2 Use ▼ to select DTV Settings, and then press OK.

SETUP Menu Language English Country Germany Ant/Cable In Antenna Auto Tuning ATV Manual Tuning DTV Manual Tuning DTV Settings AV Connection

3 Press ▼ to highlight PIN Setting, and then press OK.

DTV Settings Channels Channel Options Subtitle and Audio PIN Setting Parental Control Local Time Setting 11:51 Auto Channel Update Off DVB Character Set Standard

4 Using the number buttons enter a four digit number. Once entered you will be prompted to confirm by entering again.

PIN Setting New PIN: * * * * Confirm PIN:

The PIN number is now set.

If the PIN code has been set, when Auto Tuning and Reset TV are executed, entering the PIN will be necessary.

Parental Setup

The Parental Control feature allows you to block programmes according to their rating levels. If a PIN has been set, you will need to enter it before adjusting the level.

1 In the DTV Settings menu, press ▼ to select Parental Control, and then press OK.
2 Use ◀ or ▶ to choose an option (None or an age setting (4-17)).

Parental Control Parental Setup None

To view blocked programmes, enter the PIN. To reactivate the Parental Control, turn the TV off and then on again.

Digital settings – Channel Options

Channel List

1 Press the LIST button to open the Channel List.
2 The Channel List will appear.

Press ▲ or ▼ to highlight a channel and press Ⓞ to watch.

Channel List 6 M6 9 W9 11 NT1 31 PARIS PREMIERE 34 AB1 51 ITV1

Skipping channels

This feature allows you to set channels that will be skipped when P∨ or P∧ are used to tune.

1 From the DTV Settings menu, press ▼ to select Channel Options and press OK.
2 Press ▲ or ▼ to select a channel position to be skipped. Press OK to set the one desired. A tick will appear in the box.

Channel Options Channel 1119 ABC ONE TV

3 Press EXIT.

NOTE: Skipped channels cannot be selected by P∨ or P∧ but can still be accessed by direct number entry (when tuned the 🔗 icon will be displayed in the banner to indicate as a skipped channel).

Locking channels

Locking Channels stops the viewing of digital channels. They can only be accessed by entering the PIN.

1 From the DTV Settings menu, press ▼ to select Channel Options and press OK.
2 Press ▶ to select the Locked Channel list.
3 Press ▲ or ▼ to select a channel position to be locked. Press OK to set the lock. A tick will appear in the box.

If a PIN has already been set, PIN entry will be required to set the locked channels.

4 Press EXIT.
5 From this point on, when any of the channels in the Locked Channel list are selected, the PIN must be entered before they can be accessed.

Digital settings – other settings

Subtitles

In digital mode, this feature will show subtitles on the screen in the selected language provided they are being broadcast.

1 In the DTV Settings menu, press ▼ to select Subtitle and Audio and press OK.
2 Press ▼ to select Subtitle Type and use ◀ or ▶ to select Normal or For Hard of Hearing.

Subtitle and Audio
Subtitle Type	Normal
Primary Subtitle Language	English
Secondary Subtitle Language	French
Audio Type	Normal
Primary Audio Language	English
Secondary Audio Language	French

3 Press ▼ to select Primary Subtitle Language or Secondary Subtitle Language and use ◀ or ▶ to select an option.

The SUBTITLE button can be used to select subtitle ON or OFF, and to select the subtitle language if more than one subtitle is available.

Audio languages

This feature allows a programme or film to be viewed with a choice of soundtrack language, provided multiple language tracks are being broadcast.

In the Subtitle and Audio menu, press ▼ to select Audio Type and use ◀ or ▶ to select Normal or For Hard of Hearing.
2 Press ▼ to select Primary Audio Language or Secondary Audio Language and use ◀ or ▶ to select an option.

If more than one soundtrack is available, use the I/II button to select between them.

Common Interface

The Common Interface Slot, situated on the side of the television, enables the insertion of a CAM (Conditional Access Module) and card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed. For information, see a service provider.

1 Insert the CAM and card into the Common Interface Slot, following the instructions provided with the CAM. A box will appear on screen to confirm that the CAM has been inserted.
2 In the DTV Settings menu, press ▲ or ▼ to select Common Interface and press Ⓞ.
3 Details of the CAM should now be available.

Software Upgrade and Licenses

Auto Upgrade

When Auto Upgrade is set to On (default setting), the television will automatically upgrade while in standby if new software is available.

1 From the SETUP menu, press ▲ or ▼ to select Software Upgrade and press OK.
2 Press ▼ to select Auto Upgrade.
3 Use ◀ or ▶ to select On or Off.

Searching for New Software

If preferred, software upgrades can be searched for manually using Search for New Software.

1 In the Software Upgrade menu, press ▲ or ▼ to select Search for New Software.
2 Press OK. The television will automatically start searching for a software upgrade, the progress bar will move along the line.

SEARCHING FOR NEW SOFTWARE

Searching for a new software upgrade for this TV. Searching

If an upgrade is found, the television will automatically start downloading. If not, a screen will appear stating that an upgrade is unavailable.

Software Licenses

The Licenses for the software used in this television are available for viewing.

1 In the SETUP menu, press ▲ or ▼ to select Software Licences and press Ⓞ.

A screen will appear displaying all the licensing information required for the televisions software.

System Information and Reset TV

System Information

This feature can be used to check the version of software currently installed. When in DTV mode, it includes additional diagnostic information such as signal strength, signal quality, centre frequency, modulation, etc.

1 From the SETUP menu, press ▲ or ▼ to select System Information.
2 Press OK to display the System Information.

System Information TOSHIBA 2009 2.1.26.0 Feb 19 2009 - 15:56:50 FW:13 WEAK AVERAGE STRONG Ch22 Poor Ch25 Good Ch35 Good Ch46 Good

3 For information about the signal quality of a particular multiplex, press ▲ or ▼ to select that multiplex.
4 Press OK for a screen showing detailed technical information about the selected multiplex.

Automatic Power Down

The TV will automatically turn itself off (standby) after approximately 4 hours, if you don't touch the control buttons on the remote control or on the TV control panel.

1 In the SETUP menu, press ▼ until Automatic Power Down is highlighted.
2 Use ◀ or ▶ to select On.

Reset TV

Selecting Reset TV will reset all TV settings, including saved channels, to their original factory values.

1 In the SETUP menu, press ▼ until Reset TV is highlighted.
2 Press OK to select. A screen will appear warning that all settings will be lost. Press OK to continue.

When the set powers back on, the Quick Setup screen will appear. Press (OK) to advance the setup and perform an auto tune. (See 'Quick Setup' section on page 14.)

PC Settings

Horizontal and Vertical Position

Connect the PC (as shown in the 'Connecting a PC' section) and ensure that a picture is showing on the television screen. The picture position may now be adjusted to suit personal preference.

1 Press ➕ to select PC, and then select PC Settings from the SETUP menu.

SETUP Country Germany Ant/Cable In Antenna Auto Tuning ATV Manual Tuning DTV Manual Tuning DTV Settings AV Connection PC Settings

2 Press OK. Press ▲ and ▼ to select an option, then ◀ or ▶ to adjust the settings.

PC Settings Horizontal Position 0 ——1— Vertical Position 0 ——1— Clock Phase 0 ——1— Sampling Clock 0 ——1— Reset

Clock Phase

The Clock Phase matches the PC signal with the LCD display. Adjusting this can clear horizontal stripes and picture blur.

1 In the SETUP menu, press ▼ until PC Settings is highlighted.
2 Press OK to select, and then ▼ to highlight Clock Phase.
3 Use ◀ or ▶ to adjust until the picture clears.

Sampling Clock

Adjusting the Sampling Clock alters the number of pulses per scan, this will clear vertical lines on the screen.

1 In the SETUP menu, press ▼ until PC Settings is highlighted.
2 Press OK to select, and then ▼ to highlight Sampling Clock.
3 Use ◀ or ▶ to adjust until the picture clears.

Reset

Use Reset to return all items to the original factory settings.

1 In the SETUP menu, press ▼ until PC Settings is highlighted.
2 Press OK to select, and then ▼ to highlight Reset.
3 Press OK.

NOTE: When a PC is connected using HDMI, none of these functions will be available.

The screen is disrupted momentarily when adjusting PC Settings. This is not a sign of malfunction.

The default settings and adjustment ranges may vary depending on the input signal format.

Input selection and AV connections

See page 8 for a detailed image showing recommended connections.

Most media recorders and decoders send a signal through the SCART lead to switch the television to the correct Input socket.

Alternatively, press the external source selection button ⬤ until the picture from connected equipment is shown.

This button must be used to view equipment connected using the COMPONENT VIDEO INPUT (EXT 3C).

An S in the display e.g. 2S (EXT 2S), indicates the input is set for an S-Video signal.

Input selection

Use the Input Selection window if the television does not switch over automatically.

1 By pressing ➕ on the remote control or TV, a list will appear on screen showing all inputs and external equipment.

Pressing → on the remote control

Pressing ⬤ on the TV right side panel

Inputs TV 1 2 3C HDMI 1 HDMI 2 HDMI 3 HDMI 4 PC

Inputs DTV TV DTV RADIO * DTV TEXT * 1 2 3C HDMI 1 HDMI 2 HDMI 3 HDMI 4 PC ATV

* If radio or text channels are currently available for DTV.

HDMI ^™ displays equipment connected to Input HDMI on the back or side of the television.

PC displays a computer connected to Input RGB/PC on the back of the television.

External input skip

This feature is designed to make input selection more convenient.

1 Press Ⓧ to select the external input to be skipped (e.g. HDMI 1).

2 In the SETUP menu, press ▼ to select Manual Settings and press OK.

3 Press ▲ or ▼ to set Skip on and press OK.

Manual Settings Skip: On HDMI 1

4 Press EXIT.

The input set to Skip is greyed out in the Input Selection window and is skipped over when you press ⏻ on the remote control.

Input signal selection

This specifies the type of signal going into SCART 2 (EXT 2) on the back of the television. Please refer to the manufacturer's instructions for the connected equipment.

In the SETUP menu, press ▼ until AV Connection is highlighted, and then press OK.

2 With ◀ or ▶ select either AV or S-VIDEO as the required input for EXT 2.

AV Connection PC/HDMI 1 Audio PC HDMI 1 Audio Digital HDMI Settings EXT 2 Input AV Woofer Internal Digital Audio Output Auto

If video colour is absent, try the other setting.

Woofer setting

When an active Super Woofer is connected to the Woofer out connection on the back of the television, set the Woofer setting to External.

In the AV Connection menu, press ▼ to highlight Woofer.

2 Press ◀ or ▶ to select External.

PC Audio

In order to receive sound from a connected PC, plug the audio cable into the back of the television (as shown in the 'Connecting a computer' section), and then use the PC/HDMI 1 Audio setting.

In the SETUP menu, press ▼ until AV Connection is highlighted, and then press OK.

2 Highlight PC/HDMI 1 Audio, and then use ▶ to select the PC option.

NOTE: Selecting the PC option will force HDMI 1 Audio to Digital mode.

HDMI 1 Audio

If the connected HDMI source does not support digital audio, plug the audio cable into PC/HDMI 1 (AUDIO) on the back of the television (as shown in the 'Connecting an HDMITM or DVI device to the HDMI input' section), then use the HDMI 1 Audio setting.

1 In the AV Connection menu, press ▼ to highlight PC/HDMI 1 Audio and using ▶ select HDMI 1.

2 Then highlight HDMI 1 Audio, and using ◀ or ▶ select Auto or Analogue.

AV Connection
PC/HDMI 1 Audio	HDMI 1
HDMI 1 Audio	Auto
HDMI Settings
EXT 2 Input	AV
Woofer Internal
Digital Audio Output	Auto

If the sound is absent, try selecting a different setting.

NOTE: HDMI 1 supports digital and analogue sound, HDMI 2, HDMI 3 and HDMI 4 are digital sound only.

Certain DVD disk formats may not output from this TV (32/44.1/48kHz and 16/20/24 bits are acceptable).

HDMI Settings

Some early HDMI equipment may not work properly with your HDMI TV. Please try setting the Lip Sync and INSTAPORT™ options to Off. Adjusting these settings should allow your early HDMI source to operate properly with your television.

In the SETUP menu, press ▼ until AV Connection is highlighted, then press OK.

2 Press ▼ to highlight HDMI Settings and press OK.

NOTE: HDMI Settings is grayed out on non-HDMI inputs.

3 Press ▲ or ▼ to select an item, and then press ◀ or ▶ to select a setting.

HDMI Settings
Lip Sync	On
INSTAPORTTM	On
RGB Range	Auto

- Lip Sync: On

This option activates an audio/video display timing adjustment function that allows HDMI source devices to accurately perform synchronization automatically.

- INSTAPORT™: On

This feature reduces the lag time when switching HDMI sources.

- RGB Range: Auto

This feature adjusts RGB full range signal automatically. When Limit is selected, RGB signal is output in the range from 16 to 235. When Full is selected, RGB signal is output in the range from 0 to 255.

NOTE:

• If your HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 50Hz or supports Deep Colour, you will need a Category 2 cable. Conventional HDMI/DVI cables may not work properly with this mode.
• All of the above HDMI settings need proper HDMI source devices.

If the HDMI source products do not support these features, the television may not work properly by activating these features.

Digital Audio Output

When connecting a surround sound amplifier to the digital audio output (Sony/Philips Digital Interface Format [S/PDIF]), the following options can be selected.

PCM: this mode outputs PCM format to the digital audio output socket.

Auto: this mode outputs Dolby Digital (if available) or PCM to the digital audio output socket.

Dolby Digital → Dolby Digital

Dolby Digital Plus → Dolby Digital

MPEG → PCM

HE-AAC → Dolby Digital

1 In the AV Connection menu, press ▼ to select Digital Audio Output.

2 Use ◀ or ▶ to select PCM or Auto.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

INSTAPORT™ and INSTAPORT logo are trademarks of Silicon Image, Inc. in the United States and other countries.

Using REGZA-LINK

This is a new feature that uses CEC technology and allows you to control Toshiba REGZA-LINK compatible devices from the television remote control via HDMI connection (page 10).

When the Enable REGZA-LINK item in the REGZA-LINK Setup menu is set to On, individual functions also set to On will be activated.

Enable REGZA-LINK

1 Press MENU and ◀ or ▶ to select the PREFERENCES menu.
2 Press ▼ to select REGZA-LINK Setup, and then press OK.
3 Press ▼ to highlight Enable REGZA-LINK, and then ◀ or ▶ to select On.

REGZA-LINK Setup
Enable REGZA-LINK On
TV Auto Power On	On
Auto Standby	On
Amplifier Control	On
Speaker Preference	TV Speakers

NOTE: If you set Enable REGZA-LINK to Off, all other items will be grayed out.

TV Auto Power On

The TV Auto Power On setting allows the television to be automatically switched on if a REGZA-LINK device is turned on.

1 In the REGZA-LINK Setup menu, press ▼ to highlight TV Auto Power On.

2 Press ◀ or ▶ to select On or Off.

Auto Standby

When Auto Standby is enabled, the television, when switched off, will automatically switch off (standby mode) all connected REGZA-LINK equipment.

1 In the REGZA-LINK Setup menu, press ▼ to highlight Auto Standby.

2 Press ◀ or ▶ to select On or Off.

Amplifier Control

When Amplifier Control is set to On, it allows the "Speaker Preference" feature to become available.

1 In the REGZA-LINK Setup menu, press ▼ to highlight Amplifier Control.

2 Press ◀ or ▶ to select On or Off.

Speaker Preference

This feature allows the audio output preference to be set to the TV speakers or AV amplifier speakers. The AV Amplifier option lets the television's remote control adjust or mute the volume of the audio.

1 In the REGZA-LINK Setup menu, press ▼ to highlight Speaker Preference.

2 Press ◀ or ▶ to select TV Speakers or Amplifier.

REGZA-LINK input source selection

If a REGZA-LINK device with HDMI switching capability (e.g. AV amplifier) is connected to the HDMI input, you can select another REGZA-LINK device that is connected to the master HDMI device on the input source list.

1 Press ⬤ and a list will appear on screen showing available input sources.

2 Press ▼ to select the desired input source with REGZA-LINK icon.

3 Press ▶ and a second selection screen will appear showing all connected REGZA-LINK equipment.

Inputs TV 1 2 3C HDMI 1 HDMI 2 HDMI 3 REGZA-LINK HDMI 4 PC 1 DVD 2 VCR/DVR 3 CBL/SAT 4 GAME/TV 5 AUX

4 Press ▲ or ▼ to select the desired input source, and then press ⓄK.

NOTE:

• These functions depend on the device connected.
- If you select the REGZA-LINK input source from the popup window, some REGZA-LINK devices may automatically turn on.
- When the television is switched on it will take a few minutes for the REGZA-LINK icon to appear in the list. When an HDMI cable is removed it will take a few minutes for the icon to disappear.
- If the HDMI cable from connected equipment is changed, Enable REGZA-LINK in the REGZA-LINK Setup menu may need to be reset to On.
- If you change the HDMI lead to a connected device or change an HDMI device setting, reset the Enable REGZA-LINK item on the REGZA-LINK Setup menu from Off to On.

REGZA-LINK playback device control

With the REGZA-LINK mode on your television's remote control, you can control the connected REGZA-LINK playback device you are watching.

To control the REGZA-LINK input source first select the equipment by REGZA-LINK input source selection, then switch the mode on the remote control to REGZA-LINK and press a button.

Device mode switch TV REGZA-LNK DVD

See page 6 for details on available remote control key functions.

NOTE: The available functions depend on the equipment connected. All of the remote control keys may not be available. Please refer to the operation manual for each piece of equipment connected.

REGZA-LINK one touch play

When connected equipment is switched on, REGZA-LINK will automatically detect the television through the input selection. If the television is in standby it will be switched on automatically.

These functions can be enabled or disabled from the REGZA-LINK Setup (see page 51).

NOTE:

• Even if the equipment is showing a menu, the television may automatically show the input source.
• This feature depends on the connected equipment and television state.

REGZA-LINK system standby

If the television is turned off (standby mode), the television will send a message to turn off (standby mode) all of the REGZA-LINK devices connected to the television.

These functions can be enabled or disabled from the REGZA-LINK Setup (see page 51).

NOTE: This feature depends on the connected equipment and television state.

REGZA-LINK system audio control

With your television's remote control, you can adjust or mute the sound volume of the speakers connected to the television via an AV amplifier. First, set the remote control mode switch to REGZA-LINK.

1 Set the Speaker Preference to Amplifier in the REGZA-LINK Setup menu.

2 Confirm that a connected REGZA-LINK device (such as DVD player, etc) is selected for the AV amplifier input source.

NOTE:

• These functions depend on the device connected.
- When you turn on the AV amplifier, change its input source, or adjust the sound volume, the sound will be output from the AV amplifier's speakers even if TV Speakers has been selected. Turn the television off and on again to output the sound from the TV Speakers.
- This feature may not work if the AV amplifier is operated.

REGZA-LINK PC link

This feature automatically adjusts the suitable widescreen formats and picture preferences when connected to a REGZA-LINK PC.

NOTE: This feature depends on the connected equipment state.

Setting up the network address for the LAN port

For information on connecting a home network, see page 12.

1 First, try automatically setting up the network address (below).
2 If the Auto Setup is not successful, you can either retry the Auto Setup or try manually setting up the network address.

NOTE:

• If you used an Ethernet crossover cable to connect your PC directly to the TV, you may not be able to use the automatic setup, and have to manually set up the network address.
• If you used a hub or switch to connect the TV to your home network, you may not be able to use the automatic setup, and have to manually set up the network address.
• If you used a router with built-in DHCP functionality, use the automatic setup. Manual setup may not work.

Auto Setup

1 Press MENU and ◀ or ▶ to select the PREFERENCES menu.

2 Press ▲ or ▼ to highlight Network Setup then press OK.

3 Press ▼ to highlight Auto Setup, and then press ◀ or ▶ to select On (default).

Network Setup
Auto Setup	On
IP Address	133	.	123	.	108
Subnet Mask	255	.	255	.	255
MAC Address

Manual Setup

This setup requires the data listed below. You can get this data from either your ISP or the configuration utility for your DSL/cable modem or router.

1 Press MENU and ◀ or ▶ to select the PREFERENCES menu.

2 Press ▲ or ▼ to highlight Network Setup, and then press OK.

3 Press ▼ to highlight Auto Setup, and then press ◀ or ▶ to select Off.

4 Press ▼ to highlight IP Address field, and then use the Number buttons on the remote control to input the IP Address.

Network Setup
Auto Setup	Off
IP Address	133	.	123	.	108 . 157
Subnet Mask	255	.	255	.	255 . 0
MAC Address

5 Press ▼ to highlight the Subnet Mask field, and then use the Number buttons to input the Subnet Mask.

6 Press OK.

Text services

This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of viewing text – Auto will display Fastext, if available. LIST will save your four favourite pages.

Selecting modes

The text character set will be automatically chosen by the language setting in the SETUP menu.

1 Select Teletext from the PREFERENCES menu.

2 With ◀ or ▶ choose Auto or LIST then press EXIT.

PREFERENCES REGZA-LINK Setup Network Setup Photo Frame Setup Teletext Auto Panel Lock Off Auto Format On 4:3 Stretch Off Blue Screen On

Text information

The TEXT button:

To view text services press TEXT. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Channels cannot be changed until text is cancelled.

The first text page shown will be the initial page.

Any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing P^ to advance to the next page and P∨ to go back to the previous page.

Sub-pages

The pages on the screen will dynamically update as subpages are received.

If you open a page containing sub-pages, the sub-pages are automatically displayed in sequence. To quit automatic sub-page change, press ◀ or ▶.

Once selected, the sub-page you are viewing will be highlighted and, as the television loads any additional sub-pages, the colour of the numbers will change, indicating that these pages have been loaded.

These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.

Navigating pages using Auto

If Fastext is available, four coloured titles will appear at the base of the screen.

To access one of the four given subjects, press the relevant coloured button on the remote control.

For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba dealer.

Navigating pages using LIST

The four coloured choices at the bottom of the screen are numbers - 100, 200, 300 and 400, which have been programmed into the television's memory. To view these pages, press the relevant coloured buttons.

To change these saved pages, press the relevant coloured button and enter the 3 digit number. This number will change in the top left of the screen and in the coloured highlight.

Press OK to save. Whenever OK is pressed, all four page numbers showing at the bottom will be saved and the previous ones will be lost.

If OK is not pressed, the selection will be forgotten when the channel is changed.

Other pages may be viewed by entering the 3 digit page number – but DO NOT press OK or these pages will be saved.

Control buttons

Below is a guide to the functions of the remote control text buttons.

≡i To display the index/initial page:

Press ☐i to access the index/initial page. The one displayed is dependant on the broadcaster.

TEXT To display a page of text:

Press TEXT to display text. Press again to superimpose text over a normal picture. Press again to return to normal television viewing. Channels cannot be changed until this has been done.

≡? To reveal concealed text:

To discover the solutions on quiz and joke pages press the ☑? button.

To hold a wanted page:

At times it is convenient to hold a page of text. Press ☐ and ☐ will appear in the top left of the screen. The page will be held on screen until the button is pressed again.

To enlarge the text display size:

Press ☐ once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size.

☑/☑ To select a page whilst viewing normal picture:

Enter the page number then press ⏻/≡×, normal picture will be displayed. The television will indicate when the page is ready by changing the colour of the page number at the top of the screen. Press TEXT to view the page.

To display news flashes:

Select the news flash page for the chosen text service (see the index page of text service). The news flashes will be displayed as and when they are broadcast.

Remember to cancel text before changing channels - press the TEXT button twice.

Questions and Answers

Below are the answers to some of the most common queries.

For more information go to www.toshiba.co.uk

Why is there no sound or picture?

Check the television is not in standby mode. Check the mains plug and all mains connections.

There is a picture, but why is there little or no colour?

When using an external source, for instance, a poor quality video tape, if there is little or no colour, improvements may sometimes be achieved. The colour is factory set to Auto to automatically display the best colour system.

To check that you have the best colour:

With the external source playing, select Manual Settings from the SETUP menu.

Manual Settings Colour System: Auto EXT 2 A

With ▲ or ▼ choose between Auto, PAL, SECAM, NTSC 4.43 or NTSC 3.58.

Why doesn't the video/DVD being played show on screen?

Make sure the VCR or DVD player is connected to the television as shown on page 8, and then select the correct input by pressing ⬤.

Why is there a picture but no sound?

Check all lead connections.

No sound or unacceptable format sound may be received.

Check the volume has not been turned down or that sound mute has not been selected.

Why is the VCR/DVD picture in black and white?

Check that the correct EXT 2 input setting has been chosen, S-VIDEO or AV. See AV Connection on page 49.

What else can cause a poor picture?

Interference or a weak signal. Try a different television station. Manual Fine Tuning may help.

Select the ATV Manual Tuning menu. Highlight the station and press OK, then press ▶ to select Manual Fine Tuning.

Using ▲ or ▼ adjust to get the best picture and sound. Press Ⓞ and then EXIT.

ATV Manual Tuning Manual Fine Tuning: 0 1 A C 9 0

Why don't the controls of the television work?

Check that Panel Lock is not On.

Why doesn't the remote control work?

Check that the mode switch on the remote control is in TV mode. Check that the batteries aren't dead or inserted incorrectly.

Why is the digital channel locked?

The channel has been selected in Locked Channels (see 'Digital Settings' section).

Why are some of the digital subscription channels unavailable?

Your subscription needs upgrading. Contact your service provider.

Q Why is the soundtrack in English when a different audio language has been selected?

A The programme is currently being broadcast with an English soundtrack only.

Q Why is there incorrect or no sound when in DTV mode?

A Press I / to ensure the hard of hearing option has not been selected.

Q What is DVB-T?

A Digital Video Broadcast via an aerial/antenna.

Q What is DVB-C?

A Digital Video Broadcast via a cable connection.

Q How are radio channels selected?

A Press ATV/DTV on the remote control and select DTV RADIO. Alternatively select from the GUIDE.

Q What can be done if the PIN number has been forgotten?

A Use the Master PIN code of 1276, then change to a number of your choice. Ensure that no-one else can use the Master PIN by removing the Owner's Manual.

Q Why are there vertical stripes on the screen when in PC mode?

A The Sampling Clock may need adjustment. Select PC Settings from the SETUP menu, highlight Sampling Clock and adjust until the lines clear.

Q Why are there horizontal stripes and/or blurred images on the screen when in PC mode?

A The Clock Phase may need adjustment. Select PC Settings from the SETUP menu, highlight Clock Phase and adjust until the picture clears.

Q Why when digital subtitles have been selected are they not showing on screen?

A Subtitles are not currently being transmitted by the broadcaster.

Q Why are there problems with analogue text?

A Good performance of text depends on a good strong broadcast signal. This normally requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail. If further information is needed on how to use text see the text section.

Q Why is a page number visible at the top of the screen but no text?

A Text has been selected but Teletext information is currently unavailable on the current source.

Q Why are the colours wrong when an NTSC source is played?

A Connect the source via a SCART lead and play. Select Manual Settings from the SETUP menu.

1 Set the Colour to Auto and exit.

2 Go to the PICTURE menu and adjust the tint.

Q Why don't the devices connected via HDMI operate properly?

A Make sure to use cables with the HDMI logo HDMI (see page 9).

Some early HDMI equipment may not work properly with the latest HDMI TV products, due to new standard adoption. Try switching the HDMI settings Lip Sync and INSTAPORT™ to Off.

Q Why don't the REGZA-LINK devices work?

A When the connected REGZA-LINK device does not work correctly after you have changed the settings of the device, turn off your television and unplug the power cord, and then plug and turn on again. Unplug the HDMI cable of the REGZA-LINK device and lead again.

Q Why is the REGZA-LINK logo still showing when the equipment has been disconnected?

A If the REGZA-LINK device is disconnected, the logo will disappear after approximately one minute.

What do the LEDs on the front of the television indicate?

Check the table below.

LED-3 LED-2 LED-1

LED indication			Condition Solution
LED-3	LED-2	LED-1
Orange(Solid)	Green(Solid)	Green(Solid)	Power ONOn Timer is setProgramme Timer is set	-
Red(Solid)	Green(Solid)	Green(Solid)	Power ONOn Timer is setProgramme Timer is active	-
OFF Green(Solid)		Green(Solid)	Power ONOn Timer is setProgramme Timer is NOT set	-
Orange(Solid)	OFF Green(Solid)		Power ONOn Timer is NOT setProgramme Timer is set	-
Red(Solid)	OFF Green(Solid)		Power ONOn Timer is NOT setProgramme Timer is active	-
OFF OFF Green(Solid)			Power ONOn Timer is NOT setProgramme Timer is NOT set	-
Orange(Solid)	Green(Solid)	Red(Solid)	Power OFF (Standby)On Timer is setProgramme Timer is set	-

LED indication			Condition Solution
LED-3	LED-2	LED-1
Red(Solid)	Green(Solid)	Red(Solid)	Power ON (Standby)On Timer is setProgramme Timer is active	-
OFF G	Green(Solid)	Red(Solid)	Power OFF (Standby)On Timer is setProgramme Timer is NOT set	-
Orange(Solid)	OFF Red	(Solid)	Power OFF (Standby)On Timer is NOT setProgramme Timer is set	-
Red(Solid)	OFF Red	(Solid)	Power ON (Standby)On Timer is NOT setProgramme Timer is active	-
OFF OFF Red		(Solid)	Power OFF (Standby)On Timer is NOT setProgramme Timer is NOT set	-
OFF OFF Green		(Blinks)	Abnormal operation of BUS line.	Turn OFF the TV and unplug the power cord. Plug the power cord in again and turn ON the TV.
OFF OFF Red		(Blinks)	Power protect detection.
OFF G	Green(Blinks)	OFF Fan stopped.(55SV only)
OFF OFF Orange		(Blinks)	Back Light error.

License Information

- THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (AVC VIDEO) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP//WWW.MPEGLA.COM

- MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Cleaning the screen and cabinet...

Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Disposal...

The following information is only for EU-member states:

Disposal of products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.

The black bar indicates that the product was placed on the market after August 13, 2005.

By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol. By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Information

Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.

Signal information for Mini D-sub 15 pin connector

Pin No.	Signal name	Pin No.	Signal name	Pin No.	Signal name
1	R	6	G	r	o
2	G	7	G	r	o
3	B	8	G	r	o
4	N	C	*	9	N
5	NC	10	Ground	15	NC

* NC = not connected

Acceptable PC signals through the PC terminal

The PC input on this TV only accepts signal formats which are compliant with VESA-DMT as shown in the table below. Since some PCs input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur; incorrect display, false format detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC to conform to a signal in the table below.

Format	Resolution	V. Frequency	H. Frequency	Pixel Clock Frequency	VESA Standard (DMT)
VGA	640 × 480	59.940Hz	31.469kHz	25.175MHz	●
		72.809Hz	37.861kHz	31.500MHz	●
		75.000Hz	37.500kHz	31.500MHz	●
SVGA	800 × 600	56.250Hz	35.156kHz	36.000MHz	●
		60.317Hz	37.879kHz	40.000MHz	●
		72.188Hz	48.077kHz	50.000MHz	●
		75.000Hz	46.875kHz	49.500MHz	●
XGA	1024 × 768	60.004Hz	48.363kHz	65.000MHz	●
		70.069Hz	56.476kHz	75.000MHz	●
		75.029Hz	60.023kHz	78.750MHz	●
WXGA	1280 × 768	59.995Hz	47.396kHz	68.250MHz	●
		59.870Hz	47.776kHz	79.500MHz	●
		74.893Hz	60.289kHz	102.250MHz	●
	1360 × 768	60.015Hz	47.712kHz	85.500MHz	●
SXGA	1280 × 1024	60.020Hz	63.981kHz	108.000MHz	●
		75.025Hz	79.976kHz	135.000MHz	●

Acceptable video or PC signals through the HDMI terminals

The HDMI inputs on this TV only accept VGA, SVGA, XGA, WXGA, and SXGA signal formats which are compliant with VESA as shown in the table below. Since some PCs and HDMI or DVI devices input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur; incorrect display, false format detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC, HDMI or DVI device to conform to a signal in the table below.

Format	Resolution	V. Frequency	H. Frequency	Pixel Clock Frequency	VESA Standard
480i 720	× 480i 59.940/60	0.000Hz 15.734/15.75	0kHz 27.000/27.027MHz
576i 720	× 576i 50.000Hz	15.625kHz 27.000MHz
480p 720	× 480p 59.940/60	0.000Hz 31.469/31.50	0kHz 27.000/27.027MHz
576p 720	× 576p 50.000Hz	31.250kHz 27.000MHz
1080i	1920 × 1080i	59.940/60.000Hz	33.716/33.750kHz	74.176/74.250MHz
1080i	1920 × 1080i	50.000Hz 28.12	5kHz 74.250MHz
720p	1280 × 720p	59.940/60.000Hz	44.955/45.000kHz	74.176/74.250MHz
720p	1280 × 720p 50	0.000Hz 37.500kHz 74	250MHz
1080p	1920 × 1080p	59.940/60.000Hz	67.433/67.500kHz	148.352/148.500MHz
1080p 1920 × 1080p		50.000Hz 56.250kHz	148.500MHz
1080p 1920 × 1080p		24.000Hz 27.000kHz	74.250MHz
VGA	640 × 480	59.940/60.000kHz	31.469/31.500kHz	25.175/25.200MHz	●
		72.809Hz 37.86	1kHz 31.500MHz		●
		75.000Hz	37.500kHz	31.500MHz	●
SVGA	800 × 600	56.250Hz 35.15	6kHz 36.000MHz		●
		60.317Hz	37.879kHz	40.000MHz	●
		72.188Hz 48.07	7kHz 50.000MHz		●
		75.000Hz 46.87	5kHz 49.500MHz		●
XGA	1024 × 768	60.004Hz	48.363kHz	65.000MHz	●
		70.069Hz 56.47	6kHz 75.000MHz		●
		75.029Hz	60.023kHz	78.750MHz	●
WXGA	1280 × 768	59.995Hz	47.396kHz	68.250MHz	●
		59.870Hz	47.776kHz	79.500MHz	●
		74.893Hz 60.28	9kHz 102.2	50MHz	●
	1360 × 768	60.015Hz	47.712kHz	85.500MHz	●
SXGA	1280 × 1024	60.020Hz	63.981kHz	108.000MHz	●
		75.025Hz	79.976kHz	135.000MHz	●

AUDYSSEY EQ Audyssey EQ technology

Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey EQ is a registered trademark of Audyssey Laboratories.

Audyssey EQ is based on the award-winning Audyssey MultEQ technology. It is the first-ever room equalization solution that can achieve optimum sound for a large listening area and it is featured in many high end home theater products. Audyssey EQ is used in the TV tuning process to calculate an equalization solution that corrects time and frequency response problems in TV systems. This results in clear, rich sound with more intelligible dialog.

Specifications and accessories

DVB-T Broadcast systems/channels Broadcast systems/channels

UK UHF 21-68 PAL-I UHF UK21-UK69

France	VHF 05-10 (VHF 01-05)	PAL-B/G UHF E21-E69
	UHF 21-69	VHF E2-E12, S1-S41

Germany VHF 05-12UHF 21-69

SECAM-L UHF F21-F69VHF F1-F10, B-Q

Austria VHF 05-12UHF 21-69

SECAM-D/K

UHF R21-R69VHF R1-R12

Switzerland VHF 05-12UHF 21-69

Italy VHF 05-12 (D,E,F,G,H,H1,H2)

UHF 21-69

Spain UHF 21-69

External connections

EXT 1 Input 21-pin SCART RGB, A/V

EXT 2 Input 21-pin SCART A/V, S-video

EXT 3 Input Phono jacks

Phono jacks

Y, P_B/C_B , P_R/C_R Audio L + R

EXT 3 Input (Side) Phono jack	Video, S-video
Phono jacks	Audio L + R

HDMI 1/2/3 Input HDMI™ (Audio LIP SYNC, INSTAPORT™, RGB Range supported)

HDMI 4

Input (Side)

HDMI ^TM (Audio LIP SYNC,INSTAPORT ^TM , RGB Range supported)

PC Input Mini D-sub 15-pin Analog RGB signal

PC/HDMI 1 Audio

3.5mm mini jack

Audio

Digital Audio Output (S/PDIF) Optical

Output to Active Super Woofer

Phono jack

Fixed Audio Output Phono jacks Audio L + R

LAN port

RJ-45

USB port

Interface version: USB 2.0USB class: Mass StorageFile system: FAT12, FAT16 and FAT32

SD card slot

Interface version: SDHCFile system: FAT12, FAT16 and FAT32

Stereo	Nicam
	2 carrier system

Visible Screen Size (approx.)	Model	46	117cm
		55	140cm

Display

16:9

Sound output(at 10% distortion)

Main 10W + 10W

Power consumption (approx.)	Model	46SV	243W
		55SV	315W

Standby	Model	46SV	0.4W
		55SV	0.4W

Dimensions(approx.)	Model	46SV	78cm (H)	116cm (W)	35cm (D)
		55SV	90cm (H)	136cm (W)	41cm (D)
		(Height dimension includes foot stand)

Weight (approx.)	Model	46SV	34.0kg
		55SV	45.5kg

Headphone socket

3.5mm stereo

Operating condition

Temperature 5^ - 35^ ( 41^ - 94^ ) Humidity 20 - 80% (non-condensing)

Accessories

Remote control2 batteries (AAA, IEC R03 1.5V)ULCS software (Limited Edition) CD-ROMClipCleaning cloth (to clean the cabinet and control panel)

DVB is a registered trademark of the DVB Project

© Toshiba Information Systems (U.K.) Limited

All rights reserved.

Reproduction in whole or part without written permission is strictly prohibited.

Toshiba Information Systems (UK) Ltd

Consumer Products Division,

Weybridge Business Park,

Addlestone Rd,

Weybridge, Surrey, UK

KT15 2UL

Specification is subject to change without notice.
