Safety information

Connect the power cord to a properly grounded electrical outlet that is near the product and easily accessible.

Do not place or use this product near water or wet locations.

CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This product uses a printing process that heats the print media, and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to move it safely.

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or printer damage:

• Turn the printer off using the power switch, and then unplug the power cord from the wall outlet.
• Disconnect all cords and cables from the printer before moving it.
• Lift the printer off of the optional drawer and set it aside instead of trying to lift the drawer and printer at the same time.

Note: Use the handholds located on both sides of the printer to lift it off the optional drawer.

Use only the power cord provided with this product or the manufacturer's authorized replacement.

Use only the telecommunications (RJ-11) cord provided with this product or a 26 AWG or larger replacement when connecting this product to the public switched telephone network.

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system connections) are properly installed in their marked plug-in ports.

This product is designed, tested, and approved to meet strict global safety standards with the use of specific manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not responsible for the use of other replacement parts.

CAUTION—POTENTIAL INJURY: Do not twist, bind, crush, or place heavy objects on the power cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture and walls. If the power cord is misused, a risk of fire or electrical shock results. Inspect the power cord regularly for signs of misuse. Remove the power cord from the electrical outlet before inspecting it.

Refer service or repairs, other than those described in the user documentation, to a professional service person.

CAUTION—SHOCKHAZARD: To avoid the risk of electric shock when cleaning the exterior of the printer, unplug the power cord from the wall outlet and disconnect all cables from the printer before proceeding.

SAVE THESE INSTRUCTIONS.

Learning about the printer

Finding information about the printer

Setup information

Description Where to find
The Setup information gives you instructions for setting up the printer. Follow the set of instructions for local, network, or wireless, depending on what you need.	You can find the Setup information on the side of the printer box or on the Lexmark Web site at www.lexmark.com.

Help

Description Where to find
The Help gives you instructions for using the software.	While in any Lexmark software program, click Help, Tips → Help, or Help → Help Topics.

Customer support

Description	Where to find (North America)	Where to find (rest of world)
Telephone support	Call us at•US: 1-800-332-4120Monday–Friday (8:00 AM–11:00 PM ET)Saturday (Noon–6:00 PM ET)•Canada: 1-800-539-6275Monday–Friday (8:00 AM–11:00 PM ET)Saturday (Noon–6:00 PM ET)•Mexico: 001-888-377-0063Monday–Friday (8:00 AM–8:00 PM ET)Note: Telephone numbers and support times may change without notice. For the most recent telephone numbers available, see the printed warranty statement that came with your printer.	Telephone numbers and support hours vary by country or region.Visit our Web site atwww.lexmark.com. Select a country or region, and then select the Customer Support link.Note: For additional information about contacting Lexmark, see the printed warranty that came with your printer.
E-mail support	For e-mail support, visit our Web site: www.lexmark.com.1 Click SUPPORT.2 Click Technical Support.3 Select your printer type.4 Select your printer model.5 From the Support Tools section, click e-Mail Support.6 Complete the form, and then click Submit Request.	E-mail support varies by country or region, and may not be available in some instances.Visit our Web site at www.lexmark.com. Select a country or region, and then select the Customer Support link.Note: For additional information about contacting Lexmark, see the printed warranty that came with your printer.

Printer configurations

Basic model

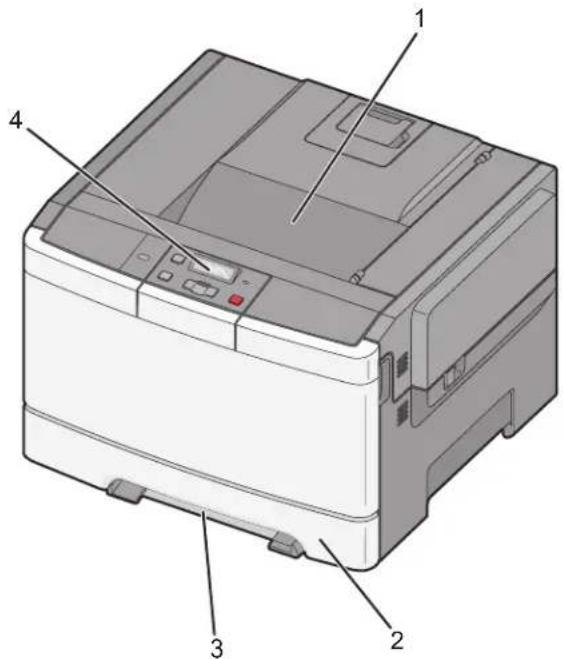

The following illustration shows the basic printer model:

Diagram of a printer with numbered parts labeled 1 to 4, showing internal components and control panel.

1	Standard exit bin
2	Standard 250-sheet tray (Tray 1)
3	Manual feeder
4	Printer control panel

Fully configured model

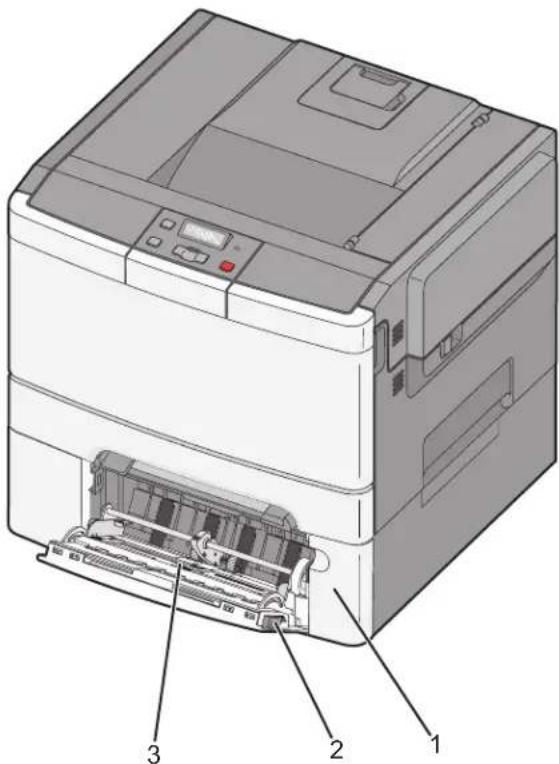

The following illustration shows the fully configured printer model with a 650-sheet duo drawer:

Diagram of a printer with labeled parts showing internal structure and ports

1 650-sheet duo	drawer (Tray 2)
2 Multipurpose	feeder latch
3 Multipurpose	feeder

Selecting a location for the printer

When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any options, leave enough room for them also. It is important to:

• Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard.
- Provide a flat, sturdy, and stable surface.
- Keep the printer:

— Away from the direct airflow of air conditioners, heaters, or ventilators
— Free from direct sunlight, humidity extremes, or temperature fluctuations
—Clean, dry, and free of dust

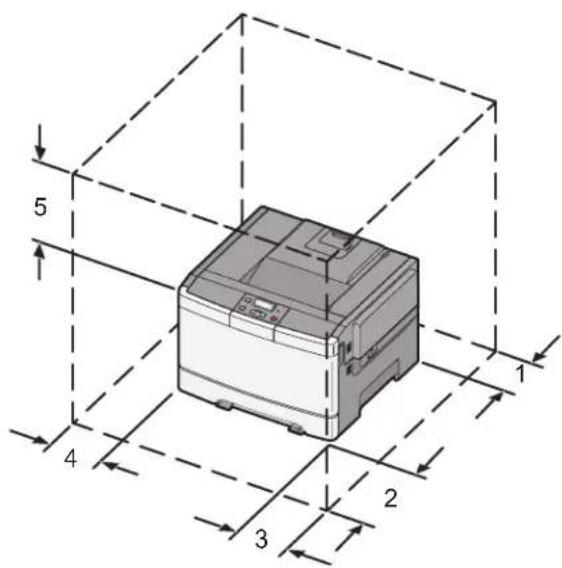

- Allow the following recommended amount of space around the printer for proper ventilation:

5 4 1 2 3

1	304.8 mm (12.0 in.)
2	508 mm (20.0 in.)
3	304.8 mm (12.0 in.)
4	304.8 mm (12.0 in.)
5	508 mm (20.0 in.)

When the printer is set up, allow clearance around it as shown.

Understanding the printer control panel

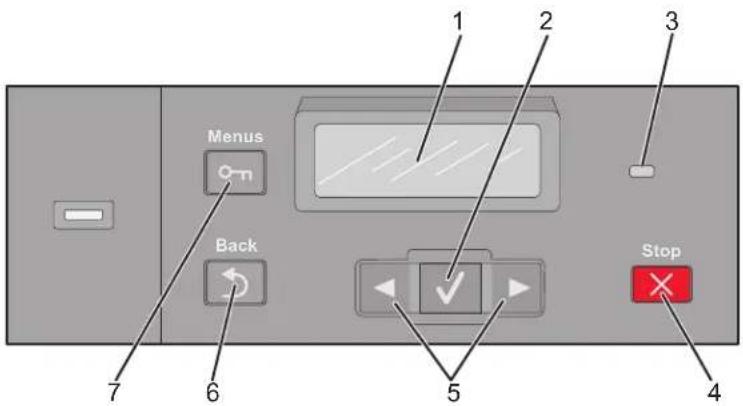

1 2 3 Menus O-n Back Stop 5 6 7 4

Control panel item Description
1	Display	Shows messages that communicate the status of the printer
2	Select	Press to initiate action on a menu item.
3	Indicator light Indicates the printer status:Off—The power is off.Blinking green—The printer is warming up, processing data, or printing.Solid green—The printer is on, but idle.Blinking red—Operator intervention is needed.
4	Stop/Cancel Stops all printer activity	A list of options is offered once Stopped appears on the display.
5	Navigation buttons	Press for to scroll through menu lists.
6	Back Returns the dis	play to the previous screen
7	Menu Opens the menu index	Note: The menus are available only when the printer is in the Ready state.

Additional printer setup

Installing internal options

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

You can customize your printer connectivity and memory capacity by adding optional cards. The instructions in this section explain how to install the available cards; you can also use them to locate a card for removal.

Note: Options are available only for some printer models.

Available options

Note: Certain options are not available on selected printer models.

Memory cards

• Printer memory
• Flash memory
• Font cards

Accessing the system board to install internal options

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Note: This operation requires a #2 Phillips screwdriver.

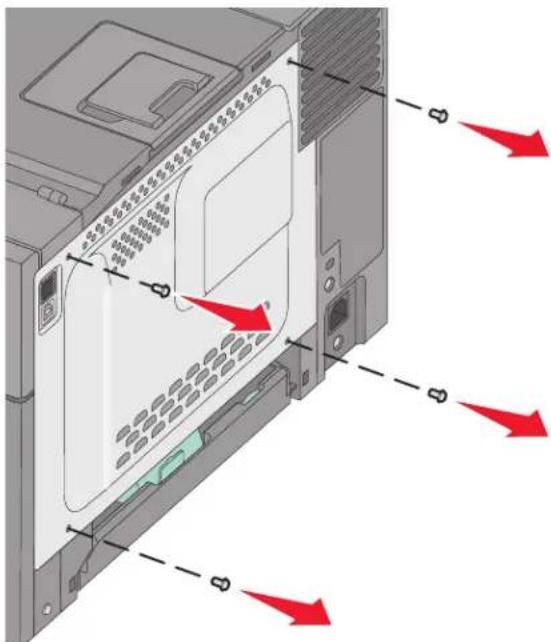

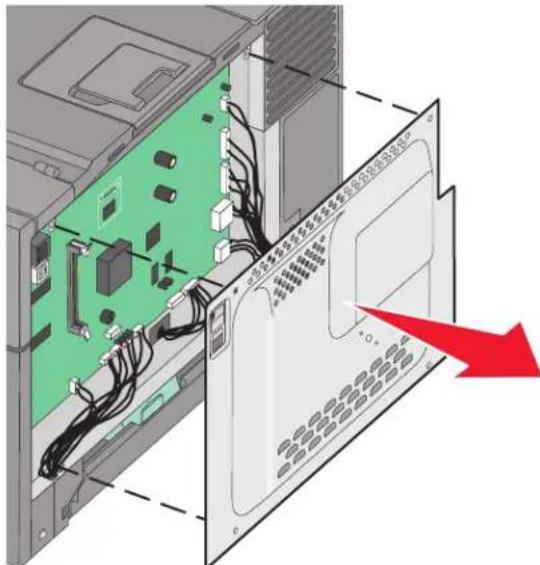

1 Remove the cover.

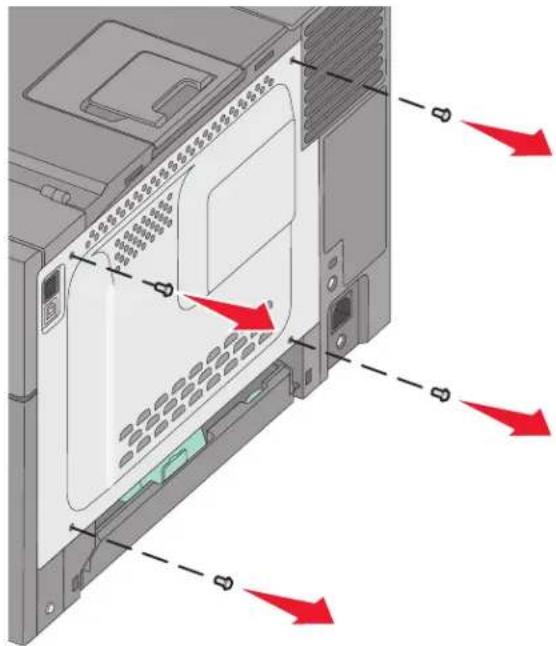

a Turn the screws on the cover counterclockwise, and then remove them.

Diagram of a computer drive showing internal components with red arrows indicating directional flow or movement, labeled with Chinese text.

b Gently pull the cover away from the printer, and then remove it.

Diagram of an internal computer setup showing a green circuit board and connected hardware components, with a red arrow pointing to a device panel (no text or symbols present)

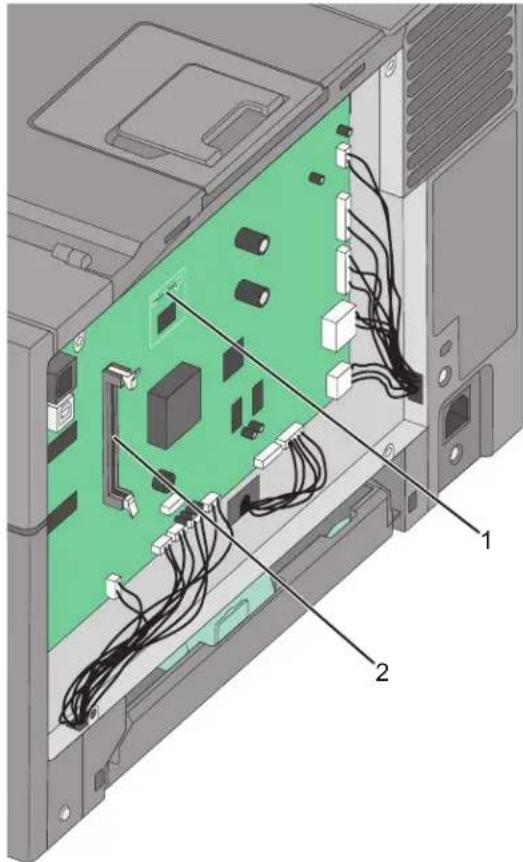

2 Use the illustration below to locate the appropriate connector.

Warning—Potential Damage: System board electrical components are easily damaged by static electricity. Touch something metal on the printer before touching any system board electronic components or connectors.

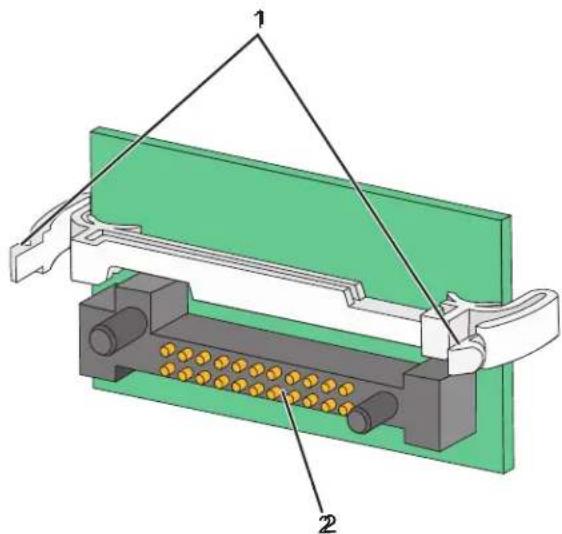

Interior view of a computer drive bay showing internal components and cable routing (no text or labels visible)

1	Flash memory card connector
2	Memory card connector

Installing a memory card

The system board has one connector for an optional memory card.

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

1 Access the system board.

Diagram of a computer drive showing internal components with red arrows indicating directional flow or movement, labeled with numbers 8 and 9.

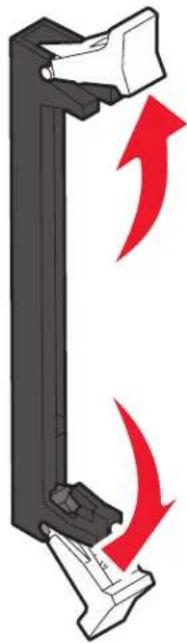

2 Open both latches on the connector completely.

Diagram of a mechanical component with red arrows indicating direction, no text or symbols present

3 Unpack the memory card.

Note: Avoid touching the connection points along the edge of the card.

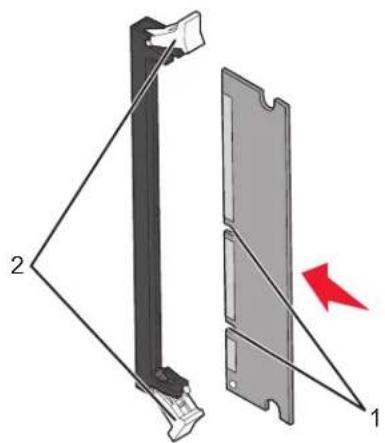

4 Align the notches on the memory card with the ridges on the connector.

5 Push the memory card straight into the connector until it snaps into place. Make sure each latch fits over the notch located on either side of the memory card.

Diagram showing a device with labeled components and directional arrow, likely illustrating a mechanical or electrical assembly.

1	Notch
2	Latch

6 Reinstall the system board access cover.

Diagram showing internal components of a computer drive with red arrows indicating movement or force, and Chinese text labels on the circuit board.

Installing a flash memory card

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

1 Access the system board.

Diagram of a computer monitor rear panel with red arrows indicating ports and control buttons, showing internal layout and ventilation.

Additional printer setup

2 Unpack the memory card.

Note: Avoid touching the connection points along the edge of the card.

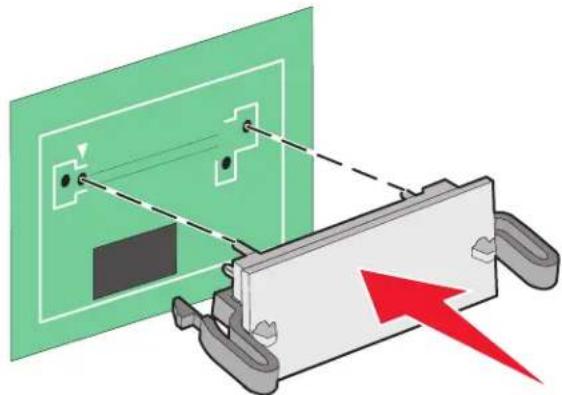

3 Holding the card by its sides, align the plastic pins on the card with the holes on the system board. This ensures the metal pins line up correctly as well.

3D mechanical assembly diagram showing a component with pins and connectors (no text or symbols)

1	Plastic pins
2	Metal pins

4 Push the card firmly into place.

Diagram showing a device with a green panel and a red arrow pointing to a component, no text or symbols present.

Notes:

- The entire length of the connector on the card must touch and be flush against the system board. - Be careful not to damage the connectors.

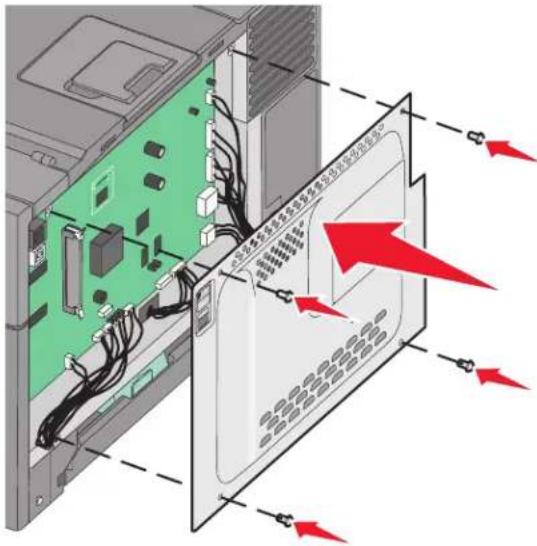

5 Reinstall the system board cover.

Diagram of an internal computer setup showing a green circuit board with cable and ventilation, connected to a device panel with red arrows indicating airflow or movement (no text or symbols present)

Installing hardware options

Installing a 650-sheet duo drawer

The printer supports one optional drawer, which allows an additional 650 sheets of paper to be loaded. The drawer includes a multipurpose feeder.

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the wall outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

1 Unpack the 650-sheet duo drawer, and remove any packing material and the dust cover.

2 Place the drawer in the location chosen for the printer.

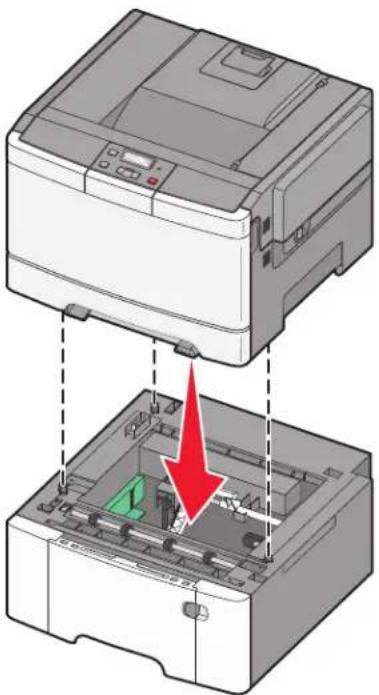

3 Align the printer with the 650-sheet duo drawer, and lower the printer into place.

CAUTION—POTENTIAL INJURY: The printer weight is great than 18 kg (40 lb) and requires two or more trained personnel to move it safely.

Diagram showing a printer with a red arrow indicating a process or operation, no text or symbols present.

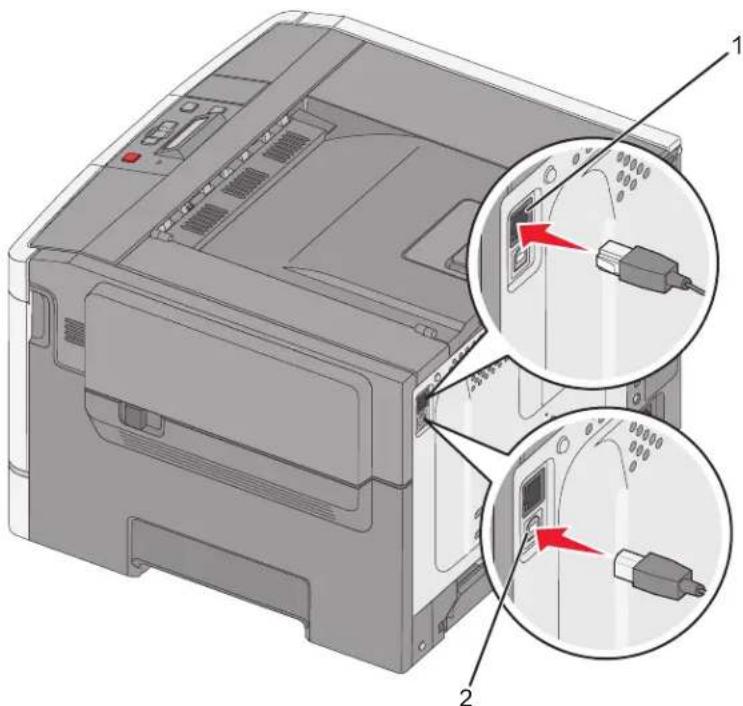

Attaching cables

Connect the printer to the computer using a USB cable or an Ethernet cable. A USB port requires a USB cable. Be sure to match the USB symbol on the cable with the USB symbol on the printer. Match the appropriate Ethernet cable to the Ethernet port.

Technical diagram of a computer with labeled components and zoomed-in insets showing internal connectors and ports.

1	Ethernet port
2	USB port

Verifying printer setup

Once all hardware and software options are installed and the printer is turned on, verify that the printer is set up correctly by printing the following:

- Menu settings pages—Use these pages to verify that all printer options are installed correctly. A list of installed options appears toward the bottom of the page. If an option you installed is not listed, then it is not installed correctly. Remove the option and install it again.

- Network setup page—If your printer is a network model and is attached to a network, print a network setup page to verify the network connection. This page also provides important information that aids network printing configuration.

Printing menu settings pages

Print menu settings pages to review the current menu settings and to verify printer options are installed correctly.

Note: If you have not made any menu item settings changes yet, then the menu settings pages list all the factory default settings. Once you select and save other settings from the menus, they replace the factory default settings as user default settings. A user default setting remains in effect until you access the menu again, choose another value, and save it. To restore the factory default settings, see "Restoring the factory default settings" on page 137.

1 Make sure the printer is on and Ready appears.

2 From the printer control panel, press .

3 Press the arrow buttons until Reports appears, and then press √.
4 Press the arrow buttons until Menu Settings Page appears, and then press √.
After the menu settings pages print, Ready appears.

Printing a network setup page

If the printer is attached to a network, print a network setup page to verify the network connection. This page also provides important information that aids network printing configuration.

1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Reports appears, and then press √.
4 Press the arrow buttons until Network Setup Page appears, and then press √.
After the network setup page prints, Ready appears.

5 Check the first section on the network setup page, and confirm that Status is "Connected."

If Status is "Not Connected," the LAN drop may not be active, or the network cable may be malfunctioning. Consult a system support person for a solution, and then print another network setup page.

Setting up the printer software

Installing printer software

A printer driver is software that lets the computer communicate with the printer. The printer software is typically installed during the initial printer setup. If you need to install the software after setup, follow these instructions:

For Windows users

1 Close all open software programs.
2 Insert the Software and Documentation CD.
3 From the main installation dialog, click Install.
4 Follow the instructions on the screen.

For Macintosh users

1 Close all open software applications.
2 Insert the Software and Documentation CD.
3 From the Finder desktop, double-click the printer CD icon that automatically appears.
4 Double-click the Install icon.
5 Follow the instructions on the screen.

Using the World Wide Web

1 Go to the Lexmark Web site at www.lexmark.com.
2 From the Drivers & Downloads menu, click Driver Finder.
3 Select your printer, and then select your operating system.
4 Download the driver and install the printer software.

Updating available options in the printer driver

Once the printer software and any options are installed, it may be necessary to manually add the options in the printer driver to make them available for print jobs.

For Windows users

1 Do one of the following:

In Windows Vista

a Click
b Click Control Panel.
c Click Hardware and Sound.
d Click Printers.

In Windows XP

a Click Start.
b Click Printers and Faxes.

In Windows 2000

a Click Start.
b Click Settings → Printers.

2 Select the printer.
3 Right-click the printer, and then select Properties.
4 Click the Install Options tab.
5 Under Available Options, add any installed hardware options.
6 Click Apply.

For Macintosh users

In Mac OS X version 10.5

1 From the Apple menu, choose System Preferences.
2 Click Print & Fax.
3 Select the printer, and then click Options & Supplies.

4 Click Driver, and then add any installed hardware options.
5 Click OK.

In Mac OS X version 10.4 and earlier

1 From the Go menu, choose Applications.
2 Double-click Utilities, and then double-click Print Center or Printer Setup Utility.
3 Select the printer, and then from the Printers menu, choose Show Info.
4 From the pop-up menu, choose Installable Options.
5 Add any installed hardware options, and then click Apply Changes.

Setting up wireless printing

Information you will need to set up the printer on a wireless network

Note: Do not connect the installation or network cables until prompted to do so by the setup software.

• SSID—The SSID is also referred to as the network name.
• Wireless Mode (or Network Mode)—The mode will be either infrastructure or ad hoc.
• Channel (for ad hoc networks)—The channel defaults to auto for infrastructure networks.

Some ad hoc networks will also require the auto setting. Check with your system support person if you are not sure which channel to select.

• Security Method—There are three basic options for Security Method:

—WEP key

If your network uses more than one WEP key, enter up to four in the provided spaces. Select the key currently in use on the network by selecting the Default WEP Transmit Key.

or

—WPA or WPA2 passphrase

WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set for the same type on the router and on the printer, or the printer will not be able to communicate on the network.

—No security

If your wireless network does not use any type of security, then you will not have any security information.

Note: Using an unsecured wireless network is not recommended.

If you are installing the printer on an 802.1X network using the Advanced method, then you may need the following:

• Authentication type
• Inner authentication type
  •802.1X username and password
  •Certificates

Note: For more information on configuring 802.1X security, see the Networking Guide on the Software and Documentation CD.

Installing the printer on a wireless network (Windows)

Before you install the printer on a wireless network, make sure that:

• Your wireless network is set up and working properly.
  • The computer you are using is connected to the same wireless network where you want to set up the printer.

1 Connect the power cable, and then turn the printer on.

Diagram showing connection between a device and a wall-mounted power socket, with labeled components 1 and 2.

Illustration of a printer with a cable and power outlet, showing a magnified view of its internal components (no text or symbols present)

Make sure the printer and computer are fully on and ready.

Do not connect the USB cable until instructed to do so on the screen

2 Insert the Software and Documentation CD.

3 Click Install.
4 Click Agree.
5 Click Suggested.
6 Click Wireless Network Attach.

7 Connect the cables in the following order:

a Temporarily connect a USB cable between the computer on the wireless network and the printer.

Diagram showing two steps of inserting a cable into a computer, labeled 1 and 2 with magnified views.

Note: After the printer is configured, the software will instruct you to disconnect the temporary USB cable so you can print wirelessly.

b If your printer has faxing capabilities, then connect the telephone cable.

8 Follow the on-screen instructions to complete the software installation.

9 To allow other computers on the wireless network to use the wireless printer, follow steps 2 through 6 and step 8 for each computer.

Installing the printer on a wireless network (Macintosh)

Prepare to configure the printer

1 Locate the printer MAC address on the sheet that came with the printer. Write the last six digits of the MAC address in the space provided below:

MAC address: ____ ____ ____ ____

2 If your printer has faxing capabilities, then connect the telephone cable.

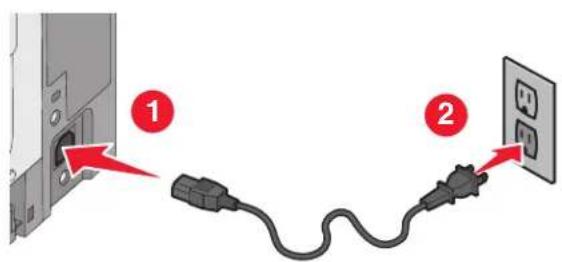

3 Connect the power cable, and then turn the power on.

Diagram showing connection between a device and a wall-mounted power outlet, with labeled components 1 and 2.

Illustration of a printer with a cable and power outlet, showing no text or symbols on the device itself.

Enter the printer information

1 Access the AirPort options.

In Mac OS X version 10.5

a From the Apple menu, choose System Preferences.

b Click Network.

c Click AirPort.

In Mac OS X version 10.4 and earlier

a From the Go menu, choose Applications.
b Double-click Internet Connect.
c From the toolbar, click AirPort.

2 From the Network pop-up menu, select print server xxxxxx, where the x's are the last six digits of the MAC address located on the MAC address sheet.
3 Open the Safari browser.
4 From the Bookmarks drop-down menu, select Show.
5 Under Collections, select Bonjour or Rendevous, and then double-click the printer name.
6 From the main page of the Embedded Web Server, navigate to the page where the wireless settings information is stored.

Configure the printer for wireless access

1 Type the name of your network (SSID) in the appropriate field.
2 Select Infrastructure as your Network Mode if you are using a wireless router.
3 Select the type of security you use to protect your wireless network.
4 Enter the security information necessary for the printer to join your wireless network.
5 Click Submit.
6 Open the AirPort application on your computer:

In Mac OS X version 10.5

a From the Apple menu, choose System Preferences.
b Click Network.
c Click AirPort.

In Mac OS X version 10.4 and earlier

a From the Go menu, choose Applications.
b Double-click Internet Connect.
c From the toolbar, click AirPort.

7 From the Network pop-up menu, select your wireless network.

Configure your computer to use the printer wirelessly

To print to a network printer, each Macintosh user must install a custom PostScript Printer Description (PPD) file and create a printer in the Print Center or Printer Setup Utility.

1 Install a PPD file on the computer:

a Insert the Software and Documentation CD in the CD or DVD drive.
b Double-click the installer package for the printer.
c From the Welcome screen, click Continue.
d Click Continue again after viewing the Readme file.

e Click Continue after viewing the license agreement, and then click Agree to accept the terms of the agreement.
f Select a Destination, and then click Continue.
g From the Easy Install screen, click Install.
h Type the user password, and then click OK.

All necessary software is installed on the computer.

i Click Close when installation is complete.

2 Add the printer:

a For IP printing:

In Mac OS X version 10.5

1 From the Apple menu, choose System Preferences.
2 Click Print & Fax.
3 Click+.
4 Select the printer from the list.
5 Click Add.

In Mac OS X version 10.4

1 From the Go menu, choose Applications.
2 Double-click Utilities.
3 Locate and double-click Printer Setup Utility or Print Center.
4 From the Printer List, choose Add.
5 Select the printer from the list.
6 Click Add.

b For AppleTalk printing:

In Mac OS X version 10.5

1 From the Apple menu, choose System Preferences.
2 Click Print & Fax.
3 Click +.
4 Click AppleTalk.
5 Select the printer from the list.
6 Click Add.

In Mac OS X version 10.4

1 From the Go menu, choose Applications.
2 Double-click Utilities.
3 Locate and double-click Print Center or Printer Setup Utility.
4 From the Printer List, choose Add.
5 Choose the Default Browser tab.
6 Click More Printers.
7 From the first pop-up menu, choose AppleTalk.
8 From the second pop-up menu, select Local AppleTalk zone.

9 Select the printer from the list.

10 Click Add.

Installing the printer on a wired network

Use the following instructions to install the printer on a wired network. These instructions apply to Ethernet and fiber optic network connections.

Before you install the printer on a wired network, make sure that:

- You have completed the initial setup of the printer.

- The printer is connected to your network with the appropriate type of cable.

For Windows users

1 Insert the Software and Documentation CD.

Wait for the Welcome screen to appear.

If the CD does not launch after a minute, then do one of the following:

In Windows Vista

a Click

b In the Start Search box, type D:\setup.exe, where D is the letter of your CD or DVD drive.

In Windows XP and earlier

a Click Start.

b Click Run.

c Type D:\setup.exe, where D is the letter of your CD or DVD drive.

2 Click Install Printer and Software.

3 Click Agree to agree to the License Agreement.

4 Select Suggested, and then click Next.

Note: To configure the printer using a static IP address, using IPv6, or to configure printers using scripts, select Custom and follow the on-screen instructions.

5 Select Wired Network Attach, and then click Next.

6 Select the printer manufacturer from the list.

7 Select the printer model from the list, and then click Next.

8 Select the printer from the list of printers discovered on the network, and then click Finish.

Note: If your configured printer does not appear in the list of discovered printers, click Add Port and follow the on-screen instructions.

9 Follow the on-screen instructions to complete the installation.

For Macintosh users

1 Allow the network DHCP server to assign an IP address to the printer.
2 Print the network setup page from the printer. For information on printing a network setup page, see "Printing a network setup page" on page 26.
3 Locate the printer IP address in the TCP/IP section of the network setup page. You will need the IP address if you are configuring access for computers on a different subnet than the printer.

4 Install the drivers and add the printer.

a Install a PPD file on the computer:

1 Insert the Software and Documentation CD in the CD or DVD drive.
2 Double-click the installer package for the printer.
3 From the Welcome screen, click Continue.
4 Click Continue again after viewing the Readme file.
5 Click Continue after viewing the license agreement, and then click Agree to accept the terms of the agreement.
6 Select a Destination, and then click Continue.
7 From the Easy Install screen, click Install.
8 Type the user password, and then click OK. All the necessary software is installed on the computer.
9 Click Close when installation is complete.

b Add the printer:

- For IP printing:

In Mac OS X version 10.5

1 From the Apple menu, choose System Preferences.
2 Click Print & Fax.
3 Click +.
4 Select the printer from the list.
5 Click Add.

In Mac OS X version 10.4 and earlier

1 From the Go menu, choose Applications.
2 Double-click Utilities.
3 Double-click Printer Setup Utility or Print Center.
4 From the Printer List, click Add.
5 Select the printer from the list.
6 Click Add.

- For AppleTalk printing:

In Mac OS X version 10.5

1 From the Apple menu, choose System Preferences.
2 Click Print & Fax.
3 Click +.
4 Click AppleTalk.

5 Select the printer from the list.
6 Click Add.

In Mac OS X version 10.4 and earlier

1 From the Go menu, choose Applications.
2 Double-click Utilities.
3 Double-click Print Center or Printer Setup Utility.
4 From the Printer List, click Add.
5 Choose the Default Browser tab.
6 Click More Printers.
7 From the first pop-up menu, choose AppleTalk.
8 From the second pop-up menu, select Local AppleTalk zone.
9 Select the printer from the list.
10 Click Add.

Note: If the printer doesn't show up in the list, you may need to add it using the IP address. Contact your system support person for assistance.

Loading paper and specialty media

This section explains how to load the 250-sheet tray and 650-sheet duo drawer, the multipurpose feeder, and the manual feeder. It also includes information about paper orientation, setting the Paper Size and Paper Type, and linking and unlinking trays.

Linking and unlinking trays

Linking trays

Tray linking is useful for large print jobs or multiple copies. When one linked tray is empty, paper feeds from the next linked tray. When the Paper Size and Paper Type settings are the same for any trays, the trays are automatically linked. The Paper Size setting for all trays must be set manually from the Paper Size menu. The Paper Type setting must be set for all trays from the Paper Type menu. The Paper Type menu and the Paper Size menu are both available from the Paper Size/Type menu.

Unlinking trays

Unlinked trays have settings that are not the same as the settings of any other tray.

To unlink a tray, change the following tray settings so that they do not match the settings of any other tray:

- Paper Type (for example: Plain Paper, Letterhead, Custom Type )

Paper Type names describe the paper characteristics. If the name that best describes your paper is used by linked trays, assign a different Paper Type name to the tray, such as Custom Type , or define your own custom name.

•Paper Size (for example: letter, A4, statement)

Load a different paper size to change the Paper Size setting for a tray. Paper Size settings are not automatic; they must be set manually from the Paper Size menu.

Warning—Potential Damage: Do not assign a Paper Type name that does not accurately describe the type of paper loaded in the tray. The temperature of the fuser varies according to the specified Paper Type. Paper may not be properly processed if an inaccurate Paper Type is selected.

Assigning a Custom Type name

Assign a Custom Type name to a tray to link or unlink it. Associate the same Custom Type name to each tray that you want to link. Only trays with the same custom names assigned will link.

1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Paper Menu appears, and then press √.
4 Press the arrow buttons until Size/Type appears, and then press √.
5 Press the arrow buttons, and then press √ to select the tray.
The Paper Size menu appears.

6 Press the arrow buttons until the Paper Type menu appears.

7 Press .

8 Press the arrow buttons until Custom Type or another custom name appears, and then press √. Submitting changes appears, followed by Paper Menu.
9 Press 📄, and then press ⬇ to return to the Ready state.

Setting the Paper Size and Paper Type

Note: Trays with matching Paper Size and Paper Type settings are automatically linked by the printer. When a linked tray runs out of paper, the printer draws from another tray.

To change the Paper Size and Paper Type settings:

1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Paper Menu appears, and then press √.
4 Press the arrow buttons until Size/Type appears, and then press √.
5 Press the arrow buttons until the correct tray appears, and then press √.

6 Press √ when Size appears.

7 Press the arrow buttons until the correct size appears, and then press √. Submitting changes appears, followed by Size.

8 Press the arrow buttons until Type appears, and then press √.

9 Press the arrow buttons until the correct type appears, and then press √. Submitting changes appears, followed by Type.

10 Press ☐, and then press ☑ to return to the Ready state.

Configuring Universal paper settings

The Universal Paper Size is a user-defined setting that lets you print on paper sizes that are not preset in the printer menus. Set the Paper Size for the specified tray to Universal when the size you want is not available from the Paper Size menu. Then, specify all of the following Universal size settings for your paper:

• Units of measure (inches or millimeters)
•Portrait Height and Portrait Width
- Feed Direction

Note: The smallest supported Universal size is 76.2 x 127 mm (3 x 5 in.); the largest is 215.9 x 355.6 mm (8.5 x 14 in.).

Specify a unit of measurement

1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Paper Menu appears, and then press √.
4 Press the arrow buttons until Universal Setup appears, and then press √.

5 Press the arrow buttons until Units of Measure appears, and then press √.

6 Press the arrow buttons until the correct unit of measure appears, and then press √.

Submitting changes appears, followed by the Universal Setup menu.

Specify the paper height and width

Defining a specific height and width measurement for the Universal paper size (in the portrait orientation) allows the printer to support the size, including support for standard features such as duplex printing and printing multiple pages on one sheet.

1 From the Universal Setup menu, press the arrow buttons until Portrait Width or Portrait Height appears, and then press √.

Note: Select Portrait Height to adjust the paper height setting or Paper Width to adjust the paper width setting.

2 Press the arrow buttons to decrease or to increase the setting, and then press √.

Submitting changes appears, followed by the Universal Setup menu.

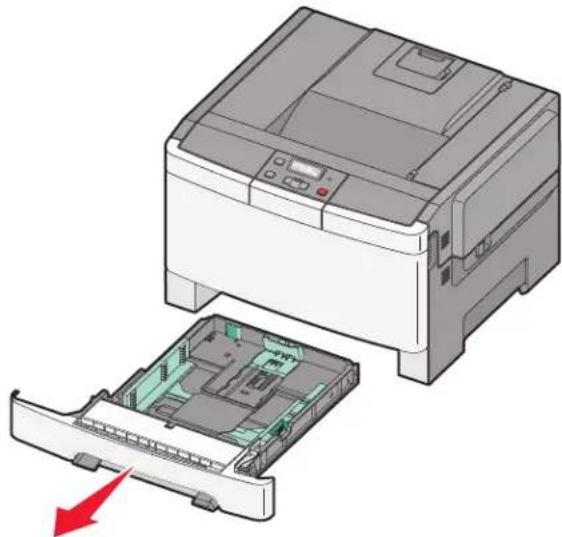

Loading the standard 250-sheet tray

The printer has one standard 250-sheet tray (Tray 1) and may have an optional 650-sheet duo drawer. The 250-sheet tray and 650-sheet duo drawer support the same paper sizes and types.

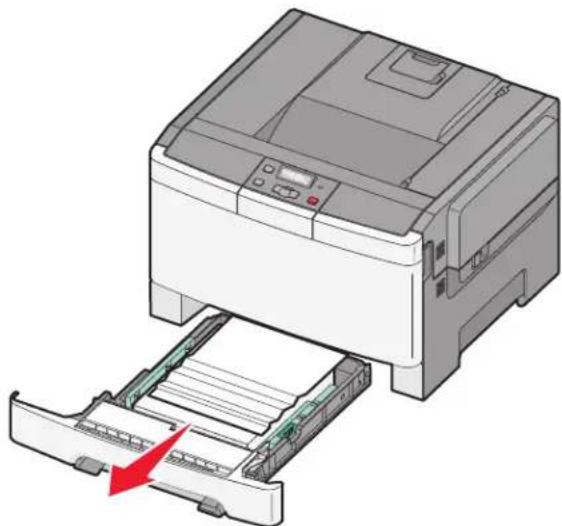

1 Pull the tray out.

Note: Do not remove trays while a job prints or while Busy appears on the display. Doing so may cause a jam.

Illustration of a printer and its internal circuit board assembly, showing no text or symbols

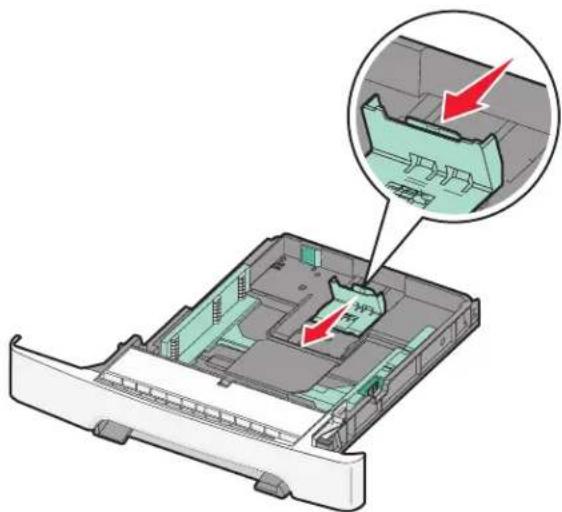

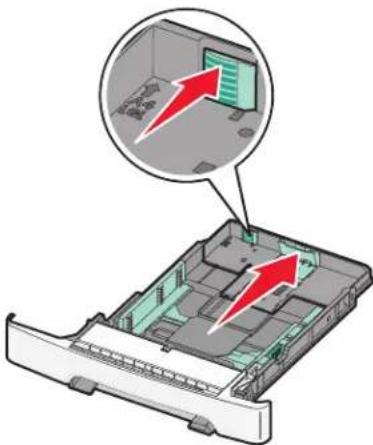

2 Squeeze the length guide tab inward as shown, and slide the guide to the correct position for the paper size being loaded.

Technical diagram of a computer motherboard with highlighted component and red arrows indicating parts of the main structure.

Note: Use the size indicators on the bottom of the tray to help position the guide.

3 If the paper is longer than letter-size paper, push the green tab at the back of the tray to elongate it.

Diagram of a computer motherboard showing internal components and a magnified view of a device with red arrows indicating loading or movement (no text or symbols present)

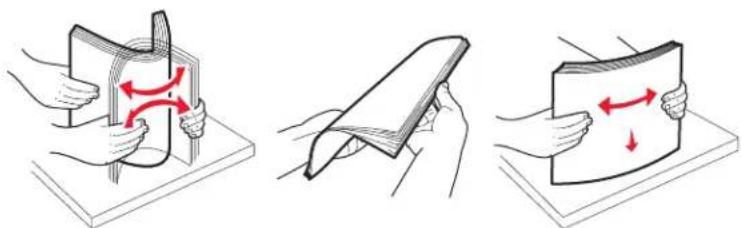

4 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the edges on a level surface.

Three-step illustration showing hands folding a folded paper or document with red directional arrows indicating rotation (no text or symbols)

Loading paper and specialty media

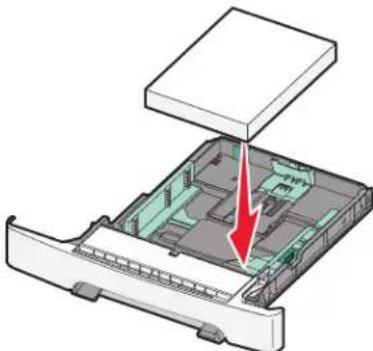

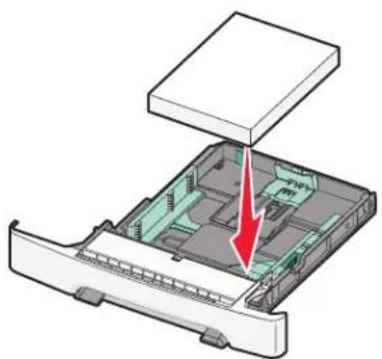

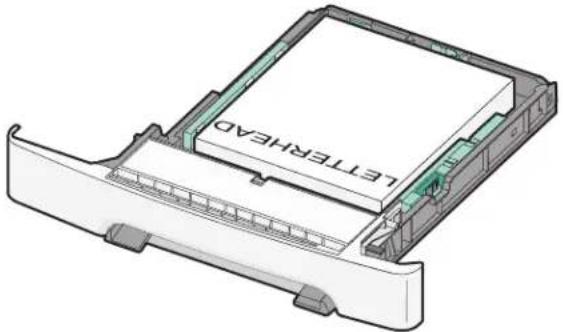

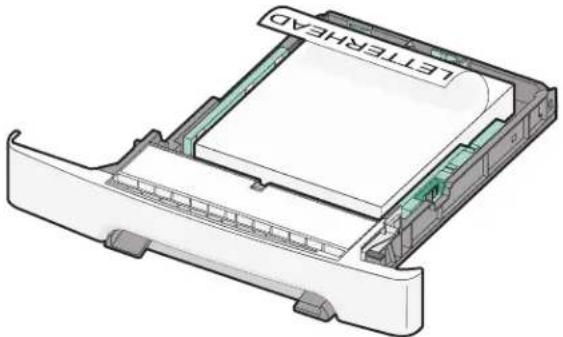

5 Load the paper stack with the recommended print side faceup.

3D diagram of an open computer motherboard with a red arrow indicating compression or disassembly (no text or symbols present)

6 Make sure the paper guides are secure against the edges of the paper.

Note: Make sure that side guides are placed tightly against the edges of the paper so that the image is registered properly on the page.

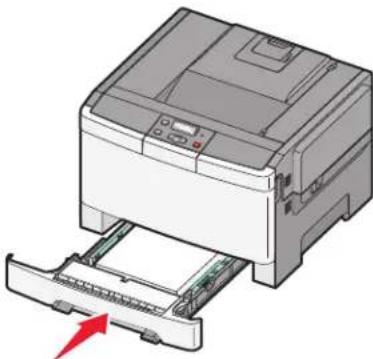

7 Insert the tray.

Illustration of a printer with a paper feed being inserted, showing no text or symbols on the device itself.

8 If a different type or size of paper was loaded than the type or size previously loaded in the tray, change the Paper Type or Paper Size setting for the tray from the printer control panel.

Note: Mixing paper sizes or types in a paper tray may lead to jams.

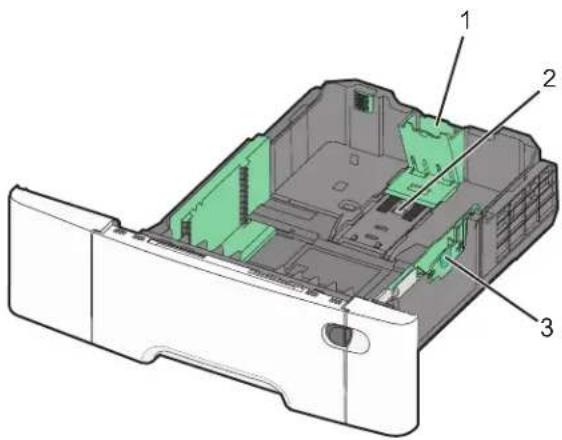

Loading the optional 650-sheet duo drawer

The 650-sheet duo drawer consists of a 550-sheet tray and a 100-sheet multipurpose feeder. This drawer is loaded in the same way that the standard tray is loaded. The only differences are the look of the guide tabs and the location of the paper size indicators, as shown in the following illustration:

Technical diagram of a device casing with labeled components 1, 2, and 3

1	Length guide tabs
2	Size indicators
3	Width guide tabs

Using the multipurpose feeder

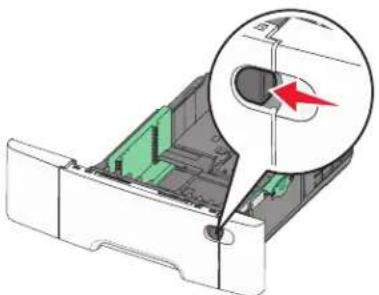

1 Push the multipurpose feeder latch to the left.

3D diagram of a printer internal structure with a magnified inset showing a highlighted component (no text or symbols)

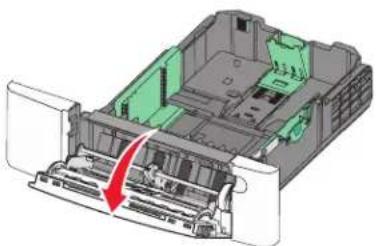

2 Open the multipurpose feeder.

3D diagram of a printer internal structure showing green and red components, no text or symbols present

Loading paper and specialty media

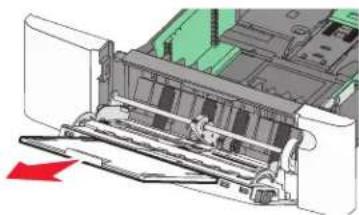

3 Grasp the extension, and pull it straight out until it is fully extended.

Diagram of a computer motherboard showing internal components and a red arrow indicating a loading or movement (no text or symbols present)

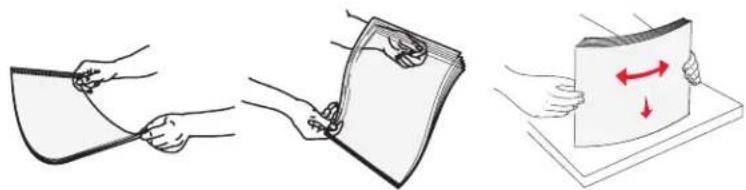

4 Prepare the paper for loading.

- Flex sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the edges on a level surface.

Three-step illustration showing hands folding a folded paper or document with red directional arrows indicating movement (no text or symbols)

- Hold transparencies by the edges and fan them. Straighten the edges on a level surface.

Note: Avoid touching the print side of transparencies. Be careful not to scratch them.

Three-step illustration showing hands holding a curved object, folding, and holding a flat sheet with directional arrows (no text or symbols)

- Flex a stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a level surface.

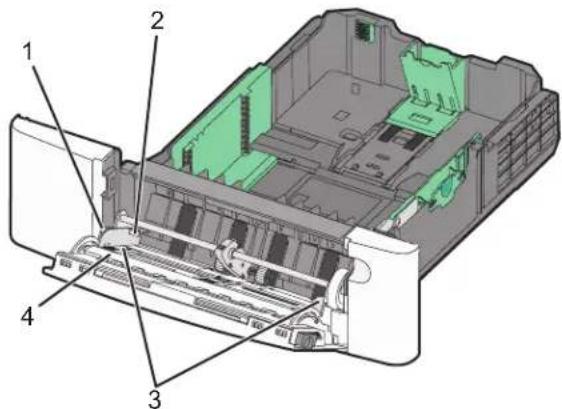

5 Locate the stack height limiter and tab.

Note: Do not exceed the maximum stack height by forcing paper under the stack height limiter.

Technical diagram of a printer internal structure with numbered components

1	Tab
2	Stack height limiter
3	Width guide
4	Size indicators

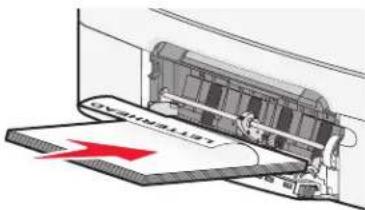

6 Load the paper, and then adjust the width guide to lightly touch the edge of the paper stack.

- Load paper, card stock, and transparencies with the recommended print side facedown and the top edge entering first.

Illustration of a mechanical device with a red arrow indicating force or motion, no visible text or symbols

- Load envelopes with the flap side up.

Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self-stick adhesives. These envelopes may severely damage the printer..

Notes:

• Do not load or close the multipurpose feeder while a job is printing.
• Load only one size and type of paper at a time.

7 Make sure the paper is as far into the multipurpose feeder as it will go with very gentle pushing. Paper should lie flat in the multipurpose feeder. Make sure the paper fits loosely in the multipurpose feeder and is not bent or wrinkled.

8 From the printer control panel, set the Paper Size and Paper Type.

Using the manual feeder

1 Send a manual print job:

For Windows users:

a With a document open, click File → Print.
b Click Properties, Preferences, Options, or Setup.
c Select Manual Paper.
d Click OK.
e Click OK or Print.

For Macintosh users:

a With a document open, click File > Print.
b From the Copies & Pages or General pop-up menu, choose Manual Paper.
c Click OK or Print.

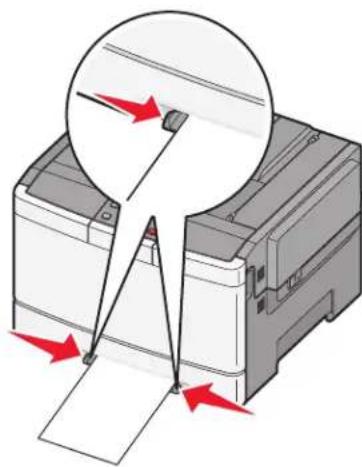

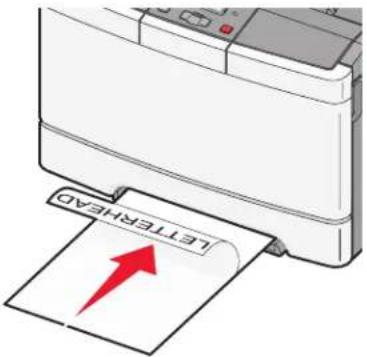

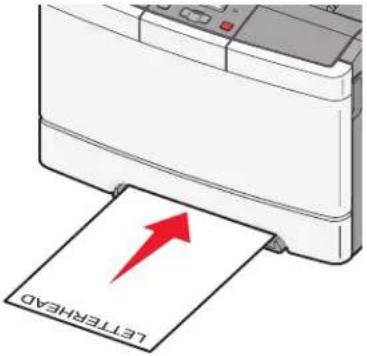

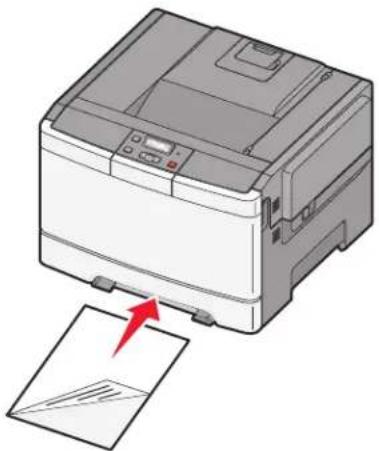

2 When Load Manual appears, load the paper facedown into the manual feeder. Load envelopes with the flap side up.

Illustration of a printer with a paper sheet being inserted, showing no text or symbols on the device itself.

Notes:

• Align the long edge of the paper so that it is flush with the right side of the manual feeder.
  • To achieve the best possible print quality, use only high-quality paper designed for laser printers.

3 Move the width guide until it lightly touches the sheet. Do not force the width guide against the paper, or it could be damaged.

Diagram of a printer with paper being inserted, showing red arrows indicating compression or disassembly (no text or symbols present)

4 Push the paper in until it stops. The printer pulls it in farther.

5 From the printer control panel, set the Paper Size and Paper Type.

Paper and specialty media guide

Additional information for printing on speciality medias may be found in the Cardstock and Label Guide available on Lexmark.com/publications.

Paper guidelines

Paper characteristics

The following paper characteristics affect print quality and reliability. Consider these characteristics when evaluating new paper stock.

Weight

The printer can automatically feed paper weights from 60 to 176 g/m ^2 (16 to 47 lb bond) grain long. Paper lighter than 75 g/m ^2 (20 lb) might not be stiff enough to feed properly, causing jams. For best performance, use 80 g/m ^2 (21 lb bond) grain long paper. For paper smaller than 182 x 257 mm (7.2 x 10.1 in.), we recommend 90 g/m ^2 or heavier paper.

Curl

Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can occur after the paper passes through the printer, where it is exposed to high temperatures. Storing paper unwrapped in hot, humid, cold, or dry conditions, even in the trays, can contribute to paper curling prior to printing and can cause feeding problems.

Smoothness

Paper smoothness directly affects print quality. If paper is too rough, toner cannot fuse to it properly. If paper is too smooth, it can cause paper feeding or print quality issues. Always use paper between 100 and 300 Sheffield points; however, smoothness between 150 and 200 Sheffield points produces the best print quality.

Moisture content

The amount of moisture in paper affects both print quality and the ability of the printer to feed the paper correctly. Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes that can degrade its performance.

Condition paper before printing by storing it in its original wrapper in the same environment as the printer for 24 to 48 hours before printing. Extend the time several days if the storage or transportation environment is very different from the printer environment. Thick paper may also require a longer conditioning period.

Grain direction

Grain refers to the alignment of the paper fibers in a sheet of paper. Grain is either grain long, running the length of the paper, or grain short, running the width of the paper.

For 60 to 176 g/m ^2 (16 to 47 lb bond) paper, use grain long fibers.

Fiber content

Most high-quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the paper with a high degree of stability resulting in fewer paper feeding problems and better print quality. Paper containing fibers such as cotton possesses characteristics that can negatively affect paper handling.

Unacceptable paper

The following paper types are not recommended for use with the printer:

• Chemically treated papers used to make copies without carbon paper, also known as carbonless papers, carbonless copy paper (CCP), or no carbon required (NCR) paper
• Preprinted papers with chemicals that may contaminate the printer
• Preprinted papers that can be affected by the temperature in the printer fuser

• Preprinted papers that require a registration (the precise print location on the page) greater than ± 2.3 mm ( ± 0.9 in.), such as optical character recognition (OCR) forms
  In some cases, registration can be adjusted with a software application to successfully print on these forms.

• Coated papers (erasable bond), synthetic papers, thermal papers

• Rough-edged, rough or heavily textured surface papers, or curled papers
  • Recycled papers that fail EN12281:2002 (European)
  •Paper weighing less than 60 g/m ^2 (16 lb)

•Multiple-part forms or documents

Selecting paper

Using appropriate paper prevents jams and helps ensure trouble-free printing.

To help avoid jams and poor print quality:

•Always use new, undamaged paper.
- Before loading paper, know the recommended print side of the paper. This information is usually indicated on the paper package.
- Do not use paper that has been cut or trimmed by hand.
- Do not mix paper sizes, types, or weights in the same source; mixing results in jams.
- Do not use coated papers unless they are specifically designed for electrophotographic printing.

Selecting preprinted forms and letterhead

Use these guidelines when selecting preprinted forms and letterhead:

• Use grain long for 60 to 176g / m^2 weight paper.
• Use only forms and letterhead printed using an offset lithographic or engraved printing process.
• Avoid papers with rough or heavily textured surfaces.

Use papers printed with heat-resistant inks designed for use in xerographic copiers. The ink must be able to withstand temperatures up to 200^ C ( 392^ F) without melting or releasing hazardous emissions. Use inks that are not affected by the resin in toner. Inks that are oxidation-set or oil-based generally meet these requirements; latex inks might not. When in doubt, contact the paper supplier.

Preprinted papers such as letterhead must be able to withstand temperatures up to 200^ C ( 392^ F) without melting or releasing hazardous emissions.

Storing paper

Use these paper storage guidelines to help avoid jams and uneven print quality:

• For best results, store paper where the temperature is 21^ C ( 70^ F) and the relative humidity is 40%. Most label manufacturers recommend printing in a temperature range of 18 to 24^ C (65 to 75^ F) with relative humidity between 40 and 60%.
• Store paper in cartons when possible, on a pallet or shelf, rather than on the floor.
• Store individual packages on a flat surface.
• Do not store anything on top of individual paper packages.

Supported paper sizes, types, and weights

The following tables provide information on standard and optional paper sources and the types of paper they support.

Note: For an unlisted paper size, select the closest larger listed size.

Paper sizes supported by the printer

Paper size Dimensions 250-sheet		tray(standard)	550-sheet tray(optional)	Optional multipurpose feeder	Manual feeder	Duplex Standard exit tray
A4	210 x 297 mm(8.3 x 11.7 in.)	✓	✓	✓	✓	✓
A5	148 x 210 mm(5.83 x 8.3 in.)	✓	✓	✓	✓	X
JIS B5	182 x 257 mm(7.2 x 10.1 in.)	✓	✓	✓	✓	X
A6	105 x 148 mm(4.1 x 5.8 in.)	XXX		✓	✓
Statement	140 x 216 mm(5.5 x 8.5 in.)	XXX		✓	✓
Letter	216 x 279 mm(8.5 x 11 in.)	✓	✓	✓	✓	✓
Folio	216 x 330 mm(8.5 x 13 in.)	✓	✓	✓	✓	✓
Oficio (Mexico)	216 x 340 mm(8.5 x 13 in.)	✓	✓	✓	✓	✓
Legal	216 x 356 mm(8.5 x 14 in.)	✓	✓	✓	✓	✓
Executive	184 x 267 mm(7.3 x 10.5 in.)	✓	✓	✓	✓	X
*When Universal is selected, the page is formatted for 216 x 356 mm (8.5 x 14 in.) unless the size is specified by the software program.

Paper size Dimensions 250-sheet	tray(standard)	550-sheet tray(optional)	Optional multipurpose feeder	Manual feeder	Duplex Standard exit tray
Universal*	148 x 210 mm(5.8 x 8.3 in.) up to 216 x 356 mm(8.5 x 14 in.)	√	√	√	X	√
	76 x 127 mm(3 x 5 in.) up to 216 x 356 mm(8.5 x 14 in.)	XXX		√	√		√
	210 x 279 mm(8.3 x 11 in.) up to 216 x 356 mm(8.5 x 14 in.)	√	√	√	√	√	√
7 3/4 Envelope(Monarch)	98 x 191 mm(3.9 x 7.5 in.)	XXX		√	√		√
9 Envelope	98 x 225 mm(3.9 x 8.9 in.)	XXX		√	√		√
10 Envelope	105 x 241 mm(4.1 x 9.5 in.)	XXX		√	√		√
DL Envelope	110 x 220 mm(4.3 x 8.7 in.)	XXX		√	√		√
B5 Envelope	176 x 250 mm(6.9 x 9.8 in.)	XXX		√	√		√
C5 Envelope	162 x 229 mm(6.4 x 9 in.)	XXX		√	√		√
Monarch	105 x 241 mm(4.1 x 9.5 in.)	XXX		√	√		√
Other Envelope	98 x 162 mm(3.9 x 6.3 in.) up to 176 x 250 mm(6.9 x 9.8 in.)	XXX		√	√		√

* When Universal is selected, the page is formatted for 216 x 356 mm (8.5 x 14 in.) unless the size is specified by the software program.

Paper types supported by the printer

Paper type Standard	250-sheet tray (Tray 1)	Optional 550-sheet tray (Tray 2)	Optional multipurpose feeder	Manual feeder	Duplex Standard exit bin
Paper	√	√	√	√	√
Card stock X	√	√	√	√
Transparencies* X	X√		√	√
Envelopes X X X			√	√
Paper labels X	√	√	√	√
* Lexmark transparency part numbers 12A8240 and 12A8241 are supported from the standard tray, manual feeder, and the optional multipurpose feeder.

Paper types and weights supported by the printer

Paper type Standard	250-sheet tray (Tray 1)	Optional 550-sheet tray (Tray 2)	Optional multipurpose feeder	Manual feeder
Light1,2	60 to 74.9 g/m2grain long (16 to 19.9 lb bond)	60 to 74.9 g/m2grain long (16 to 19.9 lb bond)	60 to 74.9 g/m2grain long (16 to 19.9 lb bond)	60 to 74.9 g/m2grain long (16 to 19.9 lb bond)
Plain1,2	75 to 89.9 g/m2grain long (20 to 23.8 lb bond)	75 to 89.9 g/m2grain long (20 to 23.8 lb bond)	75 to 89.9 g/m2grain long (20 to 23.8 lb bond)	75 to 89.9 g/m2grain long (20 to 23.8 lb bond)
Heavy1,2	90 to 104.9 g/m2grain long (23.9 to 27.8 lb bond)	90 to 104.9 g/m2grain long (23.9 to 27.8 lb bond)	90 to 104.9 g/m2grain long (23.9 to 27.8 lb bond)	90 to 104.9 g/m2grain long (23.9 to 27.8 lb bond)
Cardstock1,2	105 to 176 g/m2grain long (27.8 to 47 lb bond)	105 to 176 g/m2grain long (27.8 to 47 lb bond)	105 to 176 g/m2grain long (27.8 to 47 lb bond)	105 to 176 g/m2grain long (27.8 to 47 lb bond)
1 Paper types must be set to match the supporting paper weights.2 The duplex supports paper weights between 60–105 g/m2(16–28 lb) grain long bond. The duplex does not support card stock, transparencies, envelopes, and labels.3 For 60 to 176 g/m2(16 to 47 lb bond) paper, we recommend grain long fibers.4 Lexmark transparency part numbers 12A8240 and 12A8241 are supported from the standard tray, manual feeder, and the optional multipurpose feeder.5 The pressure sensitive area must enter the printer first.6 100 percent cotton content maximum weight is 90 g/m2(24 lb) bond.7 105 g/m2(28 lb) bond envelopes are limited to 25 percent cotton content.
Glossy papers Book—	88 to 176 g/m^2 grain long(60 to 120 lb book)Cover—162 to 176 g/m^2 grain long(60 to 65 lb cover)	Book—88 to 176 g/m^2 grain long(60 to 120 lb book)Cover—162 to 176 g/m^2 grain long(60 to 65 lb cover)	Book—88 to 176 g/m^2 grain long(60 to 100 lb book)Cover—162 to 176 g/m^2 grain long(60 to 65 lb cover)	Book—88 to 176 g/m^2 grain long(60 to 120 lb book)Cover—162 to 176 g/m^2 grain long(60 to 65 lb cover)
Card stock—maximum (grain long) ^3	Index Bristol— 120 g/m^2 (67 lb)Tag— 120 g/m^2 (74 lb)Cover— 135 g/m^2 (50 lb)	Index Bristol— 120 g/m^2 (67 lb)Tag— 120 g/m^2 (74 lb)Cover— 135 g/m^2 (50 lb)	Index Bristol— 120 g/m^2 (67 lb) Tag— 120 g/m^2 (74 lb)Cover— 135 g/m^2 (50 lb)	Index Bristol— 120 g/m^2 (67 lb) Tag— 120 g/m^2 (74 lb)Cover— 120 g/m^2 (50 lb)
Card stock—maximum (grain short) ^1	Index Bristol— 163 g/m^2 (90 lb)Tag— 163 g/m^2 (100 lb)Cover— 176 g/m^2 (65 lb)	Index Bristol— 163 g/m^2 (90 lb)Tag— 163 g/m^2 (100 lb)Cover— 176 g/m^2 (65 lb)	Index Bristol— 163 g/m^2 (90 lb Tag— 163 g/m^2 (100 lb)Cover— 176 g/m^2 (65 lb)	Index Bristol— 163 g/m^2 (90 lb) Tag— 163 g/m^2 (100 lb)Cover— 176 g/m^2 (65 lb)
Transparencies ^4	170–180 g/m^2 (45 to 48 lb)	N/A	170–180 g/m^2 (45 to 48 lb)	170–180 g/m^2 (45 to 48 lb)
Labels—maximum ^5	Paper— 131 g/m^2 (35 lb bond)	Paper— 131 g/m^2 (35 lb bond)	Paper— 131 g/m^2 (35 lb bond)	Paper— 131 g/m^2 (35 lb bond)
Envelopes ^6,7	X	X	60 to 105 g/m^2 (16 to 28 lb bond)	60 to 105 g/m^2 (16 to 28 lb bond)
^1 Paper types must be set to match the supporting paper weights. ^2 The duplex supports paper weights between 60–105 g/m^2 (16–28 lb) grain long bond. The duplex does not support card stock, transparencies, envelopes, and labels. ^3 For 60 to 176 g/m^2 (16 to 47 lb bond) paper, we recommend grain long fibers. ^4 Lexmark transparency part numbers 12A8240 and 12A8241 are supported from the standard tray, manual feeder, and the optional multipurpose feeder. ^5 The pressure sensitive area must enter the printer first. ^6 100 percent cotton content maximum weight is 90 g/m^2 (24 lb) bond. ^7 105 g/m^2 (28 lb) bond envelopes are limited to 25 percent cotton content.

Paper capacities

Input capacities

Paper type Standard 250-sheet tray (Tray 1)	Optional 550-sheet tray (Tray 2)	Optional multipurpose tray
Paper	250 sheets^1	550 sheets^1
Labels	100^2	200^2
Transparencies	50	X
Envelopes X X
Other X X
^1 Based on 75 g/m^2 (20 lb) paper ^2 Capacity varies depending on label material and construction. ^3 Capacity varies depending on the weight and type of media.

Output capacity

Paper type	Standard 100-sheet output bin ^2
Paper	100 sheets ^1
^1 Based on 75 g/m ^2 (20 lb) paper ^2 Capacity may vary depending on media specifications and the printer operating environment.

Using recycled paper and other office papers

As an environmentally conscious company, Lexmark supports the use of recycled office paper produced specifically for use in laser (electrophotographic) printers. In 1998, Lexmark presented to the US government a study demonstrating that recycled paper produced by major mills in the US fed as well as non-recycled paper. However, no blanket statement can be made that all recycled paper will feed well.

Lexmark consistently tests its printers with recycled paper (20–100% post-consumer waste) and a variety of test paper from around the world, using chamber tests for different temperature and humidity conditions. Lexmark has found no reason to discourage the use of today's recycled office papers, but generally the following property guidelines apply to recycled paper.

• Low moisture content (4–5%)
• Suitable smoothness (100–200 Sheffield units, or 140–350 Bendtsen units, European)

Note: Some much smoother papers (such as premium 24 lb laser papers, 50–90 Sheffield units) and much rougher papers (such as premium cotton papers, 200–300 Sheffield units) have been engineered to work very well in laser printers, despite surface texture. Before using these types of paper, consult your paper supplier.

• Suitable sheet-to-sheet coefficient of friction (0.4–0.6)
  •Sufficient bending resistance in the direction of feed

Recycled paper, paper of lower weight (<60 g/m ^2 [16 lb bond]) and/or lower caliper (<3.8 mils [0.1 mm]), and paper that is cut grain-short for portrait (or short-edge) fed printers may have lower bending resistance than is required for reliable paper feeding. Before using these types of paper for laser (electrophotographic) printing, consult your paper supplier. Remember that these are general guidelines only and that paper meeting these guidelines may still cause paper feeding problems in any laser printer (for example, if the paper curls excessively under normal printing conditions).

Printing

This chapter covers printing, printer reports, and job cancellation. Selection and handling of paper and specialty media can affect how reliably documents print. For more information, see "Avoiding jams" and "Storing paper."

Printing a document

1 Load paper into a tray or feeder.
2 From the printer control panel Paper menu, set the Paper Type and Paper Size to match the loaded paper.
3 Do one of the following:

For Windows users

a With a document open, click File → Print.
b Click Properties, Preferences, Options, or Setup, and then adjust the settings as needed.

Note: To print on a specific size or type of paper, adjust the paper size or type settings to match the loaded paper, or select the appropriate tray or feeder.

c Click OK, and then click Print.

For Macintosh users

a Customize the settings as needed in the Page Setup dialog:

1 With a document open, choose File > Page Setup.
2 Choose a paper size or create a custom size to match the loaded paper.
3 Click OK.

b Customize the settings as needed in the Print dialog:

1 With a document open, choose File > Print.

If necessary, click the disclosure triangle to see more options.

2 From the Print dialog and pop-up menus, adjust the settings as needed.

Note: To print on a specific paper type, adjust the paper type setting to match the loaded paper, or select the appropriate tray or feeder.

3 Click Print.

Warning—Potential Damage: While printing, do not touch the metal shaft in the area where the printer ejects paper into the standard exit bin.

Printing specialty documents

Additional information for printing on speciality medias may be found in the Cardstock and Label Guide available on Lexmark.com/publications.

Tips on using letterhead

Page orientation is important when printing on letterhead. Use the following table to determine which direction to load the letterhead:

Source or process Print side and paper orientation
•Standard 250-sheet tray•Optional 550-sheet tray•Simplex (one-sided) printing from trays	Printed letterhead design is placed faceup. The top edge of the sheet with the logo is placed at the front of the tray.
Duplex (two-sided) printing from trays	Printed letterhead design is placed facedown. The top edge of the sheet with the logo is placed at the back of the tray.
Note:Check with the manufacturer or vendor to determine whether the chosen preprinted letterhead is acceptable for laser printers.
Manual feeder (simplex printing) Multipurpose feeder	Preprinted letterhead design is placed facedown. The top edge of the sheet with the logo should enter the manual feeder first.
Manual feeder (duplex printing) Multipurpose feeder	Preprinted letterhead design is placed faceup. The top edge of the sheet with the logo should enter the manual feeder last.
Note: Check with the manufacturer or vendor to determine whether the chosen preprinted letterhead is acceptable for laser printers.

Tips on using transparencies

Print samples on the transparencies being considered for use before buying large quantities.

When printing on transparencies:

• Feed transparencies from the 250-sheet tray, manual feeder, or optional multipurpose feeder.
• Use transparencies designed specifically for laser printers. Check with the manufacturer or vendor to ensure transparencies are able to withstand temperatures up to 200°C (392°F) without melting, discoloring, offsetting, or releasing hazardous emissions.
• To prevent print quality problems, avoid getting fingerprints on the transparencies.
• Before loading transparencies, fan the stack to prevent sheets from sticking together.
• We recommend Lexmark part number 12A8240 for letter-size transparencies and Lexmark part number 12A8241 for A4-size transparencies.

Tips on using envelopes

Print samples on the envelopes being considered for use before buying large quantities.

When printing on envelopes:

• Feed envelopes from the manual feeder or optional multipurpose feeder.
• Set the Paper Type to Envelope, and select the envelope size.
• Use envelopes designed specifically for laser printers. Check with the manufacturer or vendor to ensure the envelopes can withstand temperatures up to 200°C (392°F) without sealing, wrinkling, curling excessively, or releasing hazardous emissions.
• For the best performance, use envelopes made from 60g / m^2 (16 lb bond) paper. Use up to 105g / m^2 (28 lb bond) weight for envelopes as long as the cotton content is 25% or less. All-cotton envelopes must not exceed 90g / m^2 (24 lb bond) weight.
• Use only new envelopes.
• To optimize performance and minimize jams, do not use envelopes that:

—Have excessive curl or twist
—Are stuck together or damaged in any way
- Have windows, holes, perforations, cutouts, or embossing
—Have metal clasps, string ties, or folding bars
—Have an interlocking design
—Have postage stamps attached
—Have any exposed adhesive when the flap is in the sealed or closed position
—Have bent corners
—Have rough, cockle, or laid finishes

- Adjust the width guides to fit the width of the envelopes.

Note: A combination of high humidity (over 60%) and the high printing temperature may wrinkle or seal envelopes.

Tips on using paper labels

Print samples on the labels being considered for use before buying large quantities.

Note: Use only paper label sheets.

When printing on labels:

• From MarkVision Professional, the printer software, or the printer control panel, set the Paper Type to Labels.
• Use only letter-, A4-, or legal-size label sheets.

• Use labels designed specifically for laser printers. Check with the manufacturer or vendor to verify that:

• The labels can withstand temperatures up to 200^ (392°F) without sealing, excessive curling, wrinkling, or releasing hazardous emissions.

• Label adhesives, face sheet (printable stock), and topcoats can withstand up to 25 psi (172 kPa) pressure without delaminating, oozing around the edges, or releasing hazardous fumes.

- Do not use labels with slick backing material.

• Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam. Partial sheets also contaminate the printer and the cartridge with adhesive, and could void the printer and cartridge warranties.
• Do not use labels with exposed adhesive.

• Do not print within 1 mm (0.04 in.) of the edge of the label, of the perforations, or between die-cuts of the label.

• Be sure adhesive backing does not reach to the sheet edge. Zone coating of the adhesive at least 1 mm (0.04 in.) away from edges is recommended. Adhesive material contaminates the printer and could void the warranty.

• If zone coating of the adhesive is not possible, remove a 1.6 mm (0.06 in.) strip on the leading and driver edge, and use a non-oozing adhesive.
• Portrait orientation works best, especially when printing bar codes.

Tips on using card stock

Card stock is heavy, single-ply specialty media. Many of its variable characteristics, such as moisture content, thickness, and texture, can significantly impact print quality. Print samples on the card stock being considered for use before buying large quantities.

When printing on card stock:

- From MarkVision Professional, the printer software, or the printer control panel:

1 Set the Paper Type to Card Stock.
2 Set the Paper Weight to Card Stock Weight.
3 Set the Card Stock Weight to Normal or Heavy.

• Be aware that preprinting, perforation, and creasing may significantly affect the print quality and cause jams or other paper handling problems.
• Check with the manufacturer or vendor to ensure the card stock can withstand temperatures up to 200°C (392°F) without releasing hazardous emissions.
• Do not use preprinted card stock manufactured with chemicals that may contaminate the printer. Preprinting introduces semi-liquid and volatile components into the printer.
• Use grain short card stock when possible.

Printing from a flash drive

A USB port is located on the printer control panel of some models. Insert a flash drive to print supported file types. Supported file types include: .pdf, .gif, .jpeg, .jpg, .bmp, .png, .tiff, .tif, .pcx, and .dcx.

Many flash drives are tested and approved for use with the printer. For more information, visit the Lexmark Web site at www.lexmark.com.

Notes:

• Hi-Speed USB devices must support the Full-speed standard. Devices only supporting USB Low-speed capabilities are not supported.
• USB devices must support the FAT (File Allocation Tables) system. Devices formatted with NTFS (New Technology File System) or any other file system are not supported.
• Before printing an encrypted .pdf file, enter the file password from the printer control panel.
• You cannot print files for which you do not have printing permissions.

To print from a flash drive:

1 Make sure the printer is on and Ready or Busy appears.

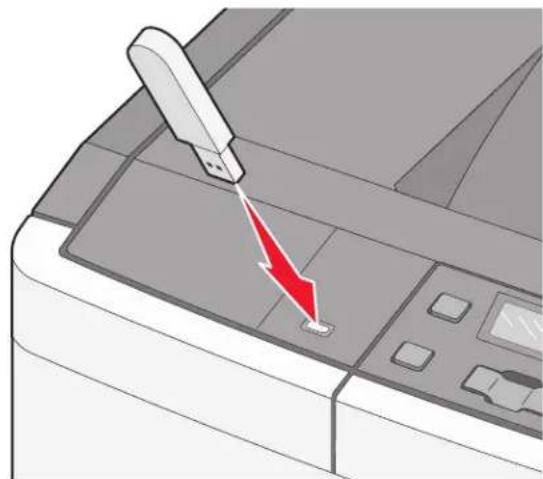

2 Insert a flash drive into the USB port.

Illustration of a printer with a pen tip and red arrow indicating compression or compression action (no text or symbols)

Notes:

• If you insert the flash drive when the printer requires attention, such as when a jam has occurred, the printer ignores the memory device.
• If you insert the flash drive while the printer is printing other jobs, Busy appears.

3 Press the arrow buttons until the document you want to print appears, and then press √.

Note: Folders found on the flash drive appear as folders. File names are appended by the extension type (for example, jpg).

4 Press √ to print one copy, or enter the number of copies using the arrow buttons, and then press √ to initiate the print job.

Note: Do not remove the flash drive from the USB port until the document has finished printing.

Printing information pages

Printing a font sample list

To print samples of the fonts currently available for your printer:

1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Reports appears, and then press √.
4 Press the arrow buttons until Print Fonts appears, and then press √.
After the font sample list prints, Ready appears.

5 Press the arrow buttons until PCL Fonts, PostScript Fonts, or PPDS Fonts appears, and then press √.

Printing a directory list

A directory list shows the resources stored in flash memory or on the hard disk.

1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Reports appears, and then press √.
After the directory list prints, Ready appears.

Printing the print quality test pages

Print the print quality test pages to isolate print quality problems.

1 Turn the printer off.
2 Hold down √ and the right arrow button while turning the printer on.
3 Release the buttons when the dots appear, and wait for CONFIG MENU to appear.
4 Press the arrow buttons until PRINT_QUAL_TXT appears, and then press √.
The print quality test pages print.
5 Press the arrow buttons until Exit Config Menu appears, and then press √.
Resetting the Printer appears briefly, and then Ready appears.

Canceling a print job from the printer control panel

1 Press .X
Stopped appears.

2 Press . √

Canceling a print job from the computer

To cancel a print job, do one of the following:

For Windows users

In Windows Vista:

1 Click .
2 Click Control Panel.
3 Click Hardware and Sound.
4 Click Printers.
5 Double-click the printer icon.
6 Select the job to cancel.
7 From the keyboard, press Delete.

In Windows XP:

1 Click Start.
2 From Printers and Faxes, double-click the printer icon.
3 Select the job to cancel.
4 From the keyboard, press Delete.

From the Windows taskbar:

When you send a job to print, a small printer icon appears in the right corner of the taskbar.

1 Double-click the printer icon.
A list of print jobs appears in the printer window.
2 Select a job to cancel.
3 From the keyboard, press Delete.

For Macintosh users

In Mac OS X version 10.5:

1 From the Apple menu, choose System Preferences.
2 Click Print & Fax, and then double-click the printer icon.
3 From the printer window, select the job to cancel.
4 From the icon bar at the top of the window, click the Delete icon.

In Mac OS X version 10.4 and earlier:

1 From the Go menu, choose Applications.
2 Double-click Utilities, and then double-click Print Center or Printer Setup Utility.
3 Double-click the printer icon.

4 From the printer window, select the job to cancel.
5 From the icon bar at the top of the window, click the Delete icon.

Clearing jams

Avoiding jams

The following hints can help you avoid jams.

Paper tray recommendations

•Make sure the paper lies flat in the tray.
- Do not remove trays while the printer is printing.
- Do not load trays, the multipurpose feeder, or the envelope feeder while the printer is printing. Load them prior to printing, or wait for a prompt to load them.
- Do not load too much paper. Make sure the stack height does not exceed the indicated maximum height.
- Make sure the guides in the paper trays, multipurpose feeder, or envelope feeder are properly positioned and are not pressing too tightly against the paper or envelopes.
- Push all trays in firmly after loading paper.

Paper recommendations

• Use only recommended paper or specialty media. For more information, see "Paper types and weights supported by the printer" on page 50.
• Do not load wrinkled, creased, damp, bent, or curled paper.
  •Flex, fan, and straighten paper before loading it.
• Do not use paper that has been cut or trimmed by hand.
• Do not mix paper sizes, weights, or types in the same stack.
• Make sure all sizes and types are set correctly in the printer control panel menus.
• Store paper per the manufacturer's recommendations.

Envelope recommendations

• To reduce wrinkling, use the Envelope Enhance menu in the Paper menu.
• Do not feed envelopes that:

—Have excessive curl or twist
- Have windows, holes, perforations, cutouts, or embossing
—Have metal clasps, string ties, or folding bars
—Have an interlocking design
—Have postage stamps attached
—Have any exposed adhesive when the flap is in the sealed or closed position
—Have bent corners
—Have rough, cockle, or laid finishes
—Are stuck together or damaged in any way

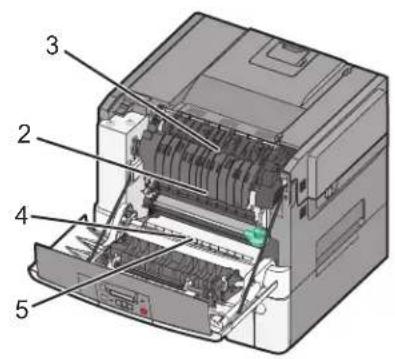

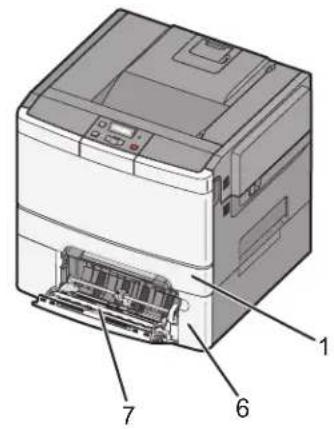

Understanding jam numbers and locations

When a jam occurs, a message indicating the jam location appears. The following illustration and table list the paper jams that can occur and the location of each jam. Open doors and covers, and remove trays to access jam locations.

Labeled diagram of an industrial machine showing internal components and ports

Diagram of a printer with labeled parts including paper, printer, and printer terminals

	Jam number	Jam location Instructions
1	200 Standard	250-sheet tray and manual feeder (Tray 1)	1 Open the front door. Inspect the area behind the front door, and then remove any jams.2 Open the fuser cover. Inspect the area under the cover, and then remove any jams.3 Close the front door.4 Pull Tray 1 out. Inspect the tray area, and then remove any jams.5 Verify that the paper is loaded correctly.6 Reinsert Tray 1.
2	201 Under the	fuser
3	202 In the fuser
4	230 In the duplex
5	235 In the duplexNote: This jam number indicates that the paper being used for a duplex print job is not supported.
6	242	550-sheet tray (Tray 2)	Pull Tray 1 out. Inspect the tray area, and then remove any jams.
7	250 In the multipurpose feeder		1 Inspect the multipurpose feeder, and then remove any jams2 Reinsert Tray 1.

200 paper jam

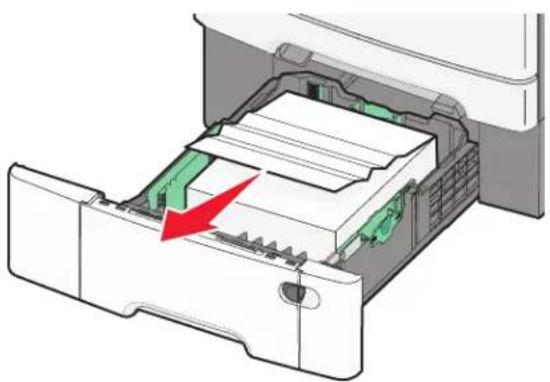

1 Grasp the handle, and pull the standard 250-sheet tray (Tray 1) and manual feeder out.

Illustration of a printer being inserted into a paper holder, with a red arrow indicating the process (no text or symbols present)

2 Remove the jam.

Note: Make sure all paper fragments are removed.

3 Insert the tray.

4 Press

201 paper jam

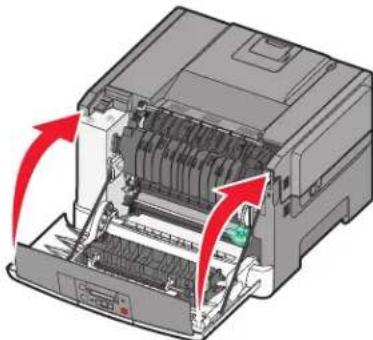

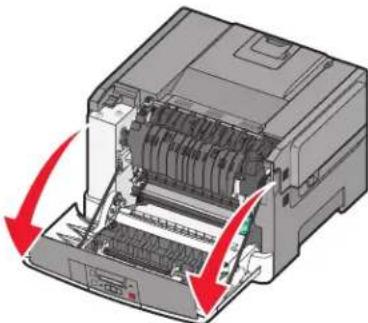

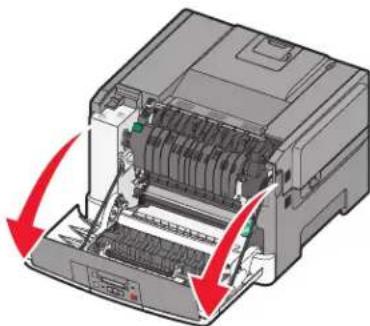

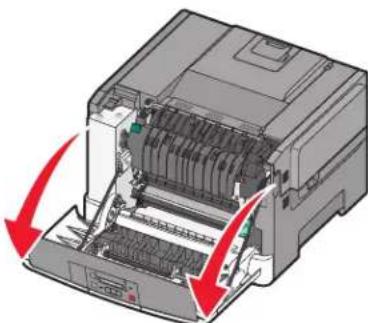

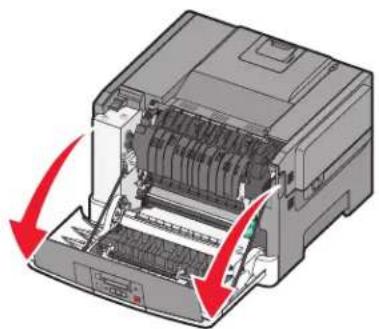

1 Grasp the front door at the side handholds, and then pull it toward you to open it.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

Diagram of a printer with red arrows indicating process flow, showing internal structure without any text or symbols.

Clearing jams

2 Remove the jammed paper.

Diagram of a printer internal structure showing paper feed, paper tray, and paper holder with a red arrow indicating motion (no text or symbols present)

Note: Make sure all paper fragments are removed.

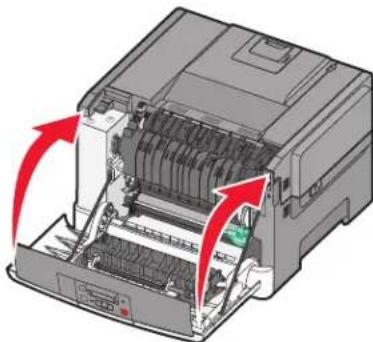

3 Close the front door.

4 Press

202 paper jam

1 Grasp the front door at the side handholds, and then pull it toward you to open it.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

3D diagram of a printer with red arrows indicating process flow (no text or symbols)

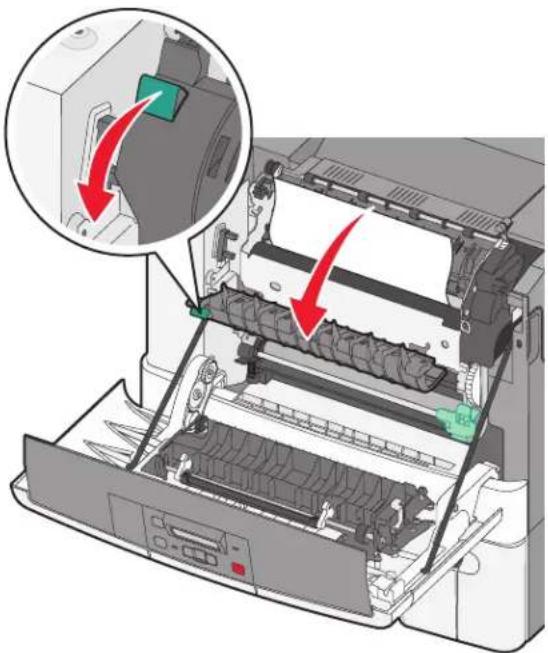

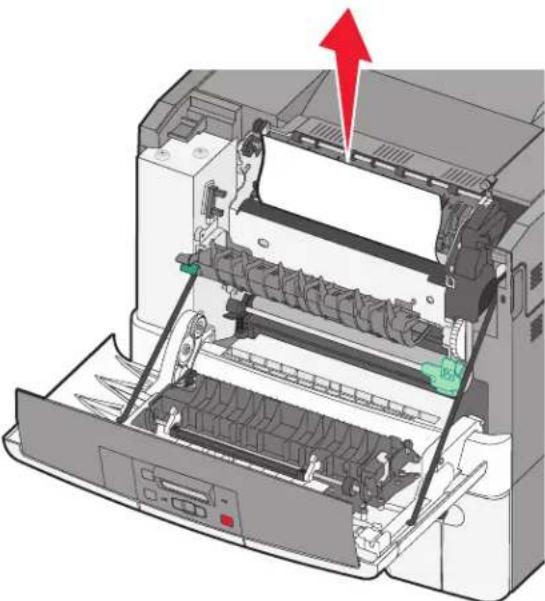

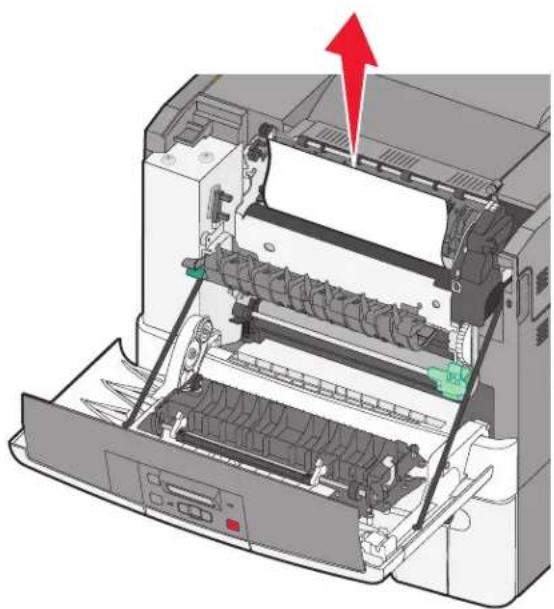

2 Grasp the green lever, and then pull the fuser cover toward you.

3 Hold the fuser cover down, and then remove the jammed paper.

The fuser cover closes when released.

Diagram of a printer's internal structure showing paper feeding into a machine, with red arrows indicating process flow (no text or symbols present)

Diagram of a printer internal structure showing paper feed, paper tray, and paper holder with a red arrow indicating motion (no text or symbols present)

Note: Make sure all paper fragments are removed.

4 Close the front door.

5 Press

230 paper jam

1 Grasp the front door at the side handholds, and then pull it toward you to open it.
2 Remove the jam.
3 Press .

235 paper jam

1 Grasp the front door at the side handholds, and then pull it toward you to open it.
2 Remove the jam.
3 Load the tray with the correct paper size.
4 Insert the tray.
5 Close the front door.
6 Press .

242 paper jam

1 Grasp the handle, and pull the optional 650-sheet duo drawer out.

3D diagram of a printer drawer with internal components and a red arrow indicating a loading or movement (no text or symbols present)

2 If a paper jam is in the multipurpose feeder, push the lever.
3 Remove the jam.

Note: Make sure all paper fragments are removed.

4 Insert the tray.

5 Press .

250 paper jam

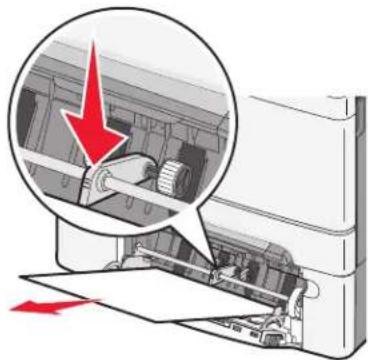

1 Push the lever in the multipurpose feeder to access the paper jammed.

Diagram of a printer or printer with a magnified view showing internal components and a red arrow indicating a downward motion (no text or symbols present)

2 Remove the jam.

Note: Make sure all paper fragments are removed.

3 Insert the tray.

4 Press .

Understanding printer menus

Menus list

	Menu
√	Supplies MenuPaper MenuReportsSettingsNetwork/Ports

A number of menus are available to make it easy for you to change printer settings:

Note: Certain menus are not available on selected printer models.

Supplies Menu Paper Menu Reports Settings

Cyan Cartridge	Default Source	Menu Settings Page	General Settings
Magenta Cartridge	Size/Type	Device Statistics	Setup Menu
Yellow Cartridge	Paper Texture	Network Setup Page	Finishing Menu
Black Cartridge	Paper Weight	Profiles List	Quality Menu
Imaging Kit	Paper Loading	Print Fonts	Utilities Menu
Waste Toner Bottle	Custom Type	Print Directory	PDF Menu
	Universal Setup	Print Defects	PostScript Menu
		Print Demo	PCL Emul Menu
		Asset Report	Image Menu

Network/Ports

Active NIC

Network Menu

Wireless Menu

USB Menu

Supplies menu

Menu item Description
Cyan, Magenta, Yellow, or Black Toner CartridgesEarly WarningLowInvalidReplaceMissing or DefectiveOKUnsupported	Shows the status of the toner cartridgesNote: Replace Cartridge indicates the cartridge is nearly empty, and print quality problems may result.
Imaging KitOKReplace Black Imaging KitReplace Black and Color Imaging KitDefective	Shows the status of the imaging kit
Waste Toner BottleNear FullReplaceMissingOK	Shows the status of the waste toner bottle

Paper menu

Default Source menu

Menu item Description

Default SourceTrayMP FeederManual PaperManual Env

Sets a default paper source for all print jobsNotes:The 650-sheet-duo drawer must be installed in order for MP Feeder or Tray 2 to appear as a menu setting in the Paper Menu.Tray 1 (standard tray) is the factory default setting.Only an installed paper source will appear as a menu setting.A paper source selected by a print job will override the Default Source setting for the duration of the print job.If the same size and type of paper are in two trays and the Paper Size and Paper Type settings match, the trays are automatically linked.When one tray is empty, the job prints using the linked tray.

Paper Size/Type menu

Menu item Description
TraySizeA4A5JIS B5LetterFolioOficio (Mexico)LegalExecutiveUniversal	Specifies the paper size loaded in each trayNotes:Letter is the US factory default setting. A4 is the international factory default setting.If the same size and type of paper are in two trays and the Paper Size and Paper Type settings match, the trays are automatically linked. When one tray is empty, the job prints using the linked tray.
TrayTypePlain PaperGlossy PaperCard StockTransparencyRecycledLetterheadColored PaperLabelsBondPreprintedLight PaperHeavy PaperRough/CottonCustom Type	Specifies the type of paper loaded in each trayNotes:Plain Paper is the factory default setting for Tray 1. Custom Typeis the factory default setting for all other trays.If available, a user-defined name will appear instead of Custom Type.Use this menu item to configure automatic tray linking.
Note: Only installed trays, drawers, and feeders are listed in this menu.
MP Feeder SizeA4A5JIS B5A6StatementLetterFolioOficio (Mexico)LegalExecutiveUniversal7 3/4 Envelope9 Envelope10 EnvelopeDL EnvelopeB5 EnvelopeC5 EnvelopeOther Envelope	Specifies the paper size loaded in the multipurpose feederNotes:The 650-sheet duo drawer must be installed in order for MP Feeder to appear as a menu setting in the Paper menu.Letter is the US factory default setting. A4 is the international factory default setting.The multipurpose feeder does not automatically sense paper size. The paper size value must be set.
MP Feeder TypePlain PaperGlossy PaperCard StockTransparencyRecycledLetterheadColored PaperLabelsBondEnvelopePreprintedLight PaperHeavy PaperRough/CottonCustom Type	Specifies the type of paper loaded in the multipurpose feederNotes:The 650-sheet duo drawer must be installed in order for MP Feeder to appear as a menu setting in the Paper menu.Plain paper is the factory default setting.
Note: Only installed trays, drawers, and feeders are listed in this menu.
Manual Paper SizeA4A5JIS B5A6StatementLetterFolioOficio (Mexico)LegalExecutiveUniversal	Specifies the size of the paper being manually loadedNote:Letter is the US factory default setting. A4 is the international factory default setting.
Manual Paper TypePlain PaperGlossy PaperCard StockTransparencyRecycledLetterheadColored PaperLabelsBondPreprintedLight PaperHeavy PaperRough/CottonCustom Type	Specifies the type of paper being manually loadedNote:Plain Paper is the factory default setting.
Manual Envelope Size7 3/4 Envelope9 Envelope10 EnvelopeDL EnvelopeB5 EnvelopeC5 EnvelopeOther Envelope	Specifies the size of the envelope being manually loadedNote:10 Envelope is the US factory default setting. DL Envelope is the international factory default setting.
Manual Envelope TypeEnvelopeCustom Type	Specifies the type of envelope being manually loadedNote:Envelope is the factory default setting.
Note:Only installed trays, drawers, and feeders are listed in this menu.

Paper Texture menu

Menu item Description
Plain TextureSmoothNormalRough	Specifies the relative texture of the paper loaded in a specific trayNote: Normal is the factory default setting.
Card Stock TextureSmoothNormalRough	Specifies the relative texture of the card stock loaded in a specific trayNotes:Normal is the factory default setting.Settings appear only if card stock is supported.
Transparency TextureSmoothNormalRough	Specifies the relative texture of the transparencies loaded in a specific trayNote: Normal is the factory default setting.
Recycled TextureSmoothNormalRough	Specifies the relative texture of the recycled paper loaded in a specific trayNote: Normal is the factory default setting.
Glossy TextureSmoothNormalRough	Specifies the relative texture of the Glossy paper loaded in a specific trayNote: Normal is the factory default setting.
Labels TextureSmoothNormalRough	Specifies the relative texture of the labels loaded in a specific trayNote: Normal is the factory default setting.
Bond TextureSmoothNormalRough	Specifies the relative texture of the paper loaded in a specific trayNote: Rough is the factory default setting.
Envelope TextureSmoothNormalRough	Specifies the relative texture of the envelopes loaded in a specific trayNote: Normal is the factory default setting.
Letterhead TextureSmoothNormalRough	Specifies the relative texture of the paper loaded in a specific trayNote: Normal is the factory default setting.
Preprinted TextureSmoothNormalRough	Specifies the relative texture of the paper loaded in a specific trayNote: Normal is the factory default setting.
Colored TextureSmoothNormalRough	Specifies the relative texture of the colored paper loaded in a specific trayNote: Normal is the factory default setting.
Light PaperSmoothNormalRough	Specifies the relative texture of the light paper loaded in a specific trayNotes:Normal is the factory default setting.Settings appear only if the custom type is supported.
Heavy PaperSmoothNormalRough	Specifies the relative texture of the heavy paper loaded in a specific trayNotes:Normal is the factory default setting.Settings appear only if the custom type is supported.
Rough/Cotton PaperRough	Specifies the relative texture of the rough/cotton paper loaded in a specific trayNotes:Rough is the factory default setting.Settings appear only if the custom type is supported.
CustomPaperSmoothNormalRough	Specifies the relative texture of the custom paper loaded in a specific trayNotes:Normal is the factory default setting.Settings appear only if the custom type is supported.

Paper Weight menu

Menu items Definition
Plain Weight, Glossy Weight, Bond Weight, Letterhead Weight, Preprinted Weight, or Colored WeightLightNormalHeavy	Identifies the relative weight of the paper loaded in a specific trayNote: Normal is the factory default setting.
Transparency WeightLightNormalHeavy	Identifies the relative weight of the transparencies loaded in a specific trayNote: Normal is the factory default setting.
Recycled WeightLightNormalHeavy	Identifies the relative weight of the recycled paper loaded in a specific trayNote: Normal is the factory default setting.
Labels WeightLightNormalHeavy	Identifies the relative weight of the labels loaded in a specific trayNote: Normal is the factory default setting.
Envelope WeightLightNormalHeavy	Identifies the relative weight of the envelopes loaded in a specific tray or feederNote: Normal is the factory default setting.
Card Stock WeightLightNormalHeavy	Identifies the relative weight of the card stock loaded in a specific trayNotes:Normal is the factory default setting.Settings appear only if card stock is supported.
Light Paper WeightLight	Identifies the relative weight of the light paper loaded in a specific trayNotes:Light is the factory default setting.Settings appear only if light paper is supported.
Heavy Paper WeightHeavy	Identifies the relative weight of the heavy paper loaded in a specific trayNotes:Heavy is the factory default setting.Settings appear only if heavy paper is supported.
Rough/Cotton Paper WeightNormal	Identifies the relative weight of the rough/cotton paper loaded in a specific trayNotes:Normal is the factory default setting.Settings appear only if rough/cotton paper is supported.
CustomLightNormalHeavy	Identifies the relative weight of the custom paper type loaded in a specific trayNotes:Normal is the factory default setting.Settings appear only if custom paper is supported.

Paper Loading menu

Note: Certain options are not available on selected printer models.

Menu item Description
Recycled LoadingDuplexOff	Determines whether 2-sided printing occurs for all jobs that specify Recycled as the paper typeNote: Off is the factory default setting.
Glossy LoadingDuplexOff	Determines whether 2-sided printing occurs for all jobs that specify Glossy as the paper typeNote: Off is the factory default setting.
Bond LoadingDuplexOff	Determines whether 2-sided printing occurs for all jobs that specify Bond as the paper typeNote: Off is the factory default setting.
Letterhead LoadingDuplexOff	Determines whether 2-sided printing occurs for all jobs that specify Letterhead as the paper typeNote: Off is the factory default setting.
Preprinted LoadingDuplexOff	Determines whether 2-sided printing occurs for all jobs that specify Preprinted as the paper typeNote: Off is the factory default setting.
Colored LoadingDuplexOff	Determines whether 2-sided printing occurs for all jobs that specify Colored as the paper typeNote: Off is the factory default setting.
Light Paper LoadingDuplexOff	Determines whether 2-sided printing occurs for all jobs that specify Light Paper as the paper typeNote: Off is the factory default setting.
Heavy Paper LoadingDuplexOff	Determines whether 2-sided printing occurs for all jobs that specify Heavy Paper as the paper typeNote: Off is the factory default setting.
Note: Duplex sets the printer default to 2-sided printing for every print job unless 1-sided printing is selected from Print Properties (in Windows) or the Print dialog (in Macintosh).
Rough/Cotton LoadingDuplexOff	Determines whether 2-sided printing occurs for all jobs that specify Rough/Cotton as the paper typeNote: Off is the factory default setting.
CustomLoadingDuplexOff	Determines whether 2-sided printing occurs for all jobs that specify Customas the paper typeNotes:Off is the factory default setting.CustomLoading is available only if the custom type is supported.
Note: Duplex sets the printer default to 2-sided printing for every print job unless 1-sided printing is selected from Print Properties (in Windows) or the Print dialog (in Macintosh).

Custom Types menu

Menu item Description
Custom TypePaperCard StockTransparencyGlossyLabelsEnvelopeRough/Cotton	Associates a paper or specialty media type with a factory default Custom Type. name or a user-defined Custom Name created from the Embedded Web Server or MarkVisionTM Professional. This user-defined name displays instead of Custom Type.Notes:•Paper is the factory default setting.• The custom media type must be supported by the selected tray or feeder in order for you to print from that source.
RecycledPaperCard StockTransparencyGlossyLabelsEnvelopeCotton	Specifies a paper type when the Recycled setting is selected in other menusNotes:•Paper is the factory default setting.• The Recycled type must be supported by the selected tray or feeder in order for you to print from that source.

Universal Setup menu

These menu items are used to specify the height, width, and feed direction of the Universal Paper Size. The Universal Paper Size is a user-defined paper size setting. It is listed with the other paper size settings and includes similar options, such as support for duplex printing and printing multiple pages on one sheet.

Menu item Description
Units of MeasureInchesMillimeters	Identifies the units of measureNotes:Inches is the US factory default setting.Millimeters is the international factory default setting.
Portrait Width3-14.17 inches76-360 mm	Sets the portrait widthNotes:If the width exceeds the maximum, the printer uses the maximum width allowed.8.5 inches is the US factory default setting. Inches can be increased in 0.01-inch increments.216 mm is the international factory default setting. Millimeters can be increased in 1-mm increments.
Portrait Height3-14.17 inches76-360 mm	Sets the portrait heightNotes:If the height exceeds the maximum, the printer uses the maximum height allowed.14 inches is the US factory default setting. Inches can be increased in 0.01-inch increments.356 mm is the international factory default setting. Millimeters can be increased in 1-mm increments.
Feed DirectionShort EdgeLong Edge	Specifies the feed directionNotes:Short Edge is the factory default setting.Long Edge appears only if the longest edge is shorter than the maximum length supported in the tray.

Reports

Menu Settings Page menu

Menu item Description
Menu Settings Page	Prints a report containing information about paper loaded into trays, installed memory, the total page count, alarms, timeouts, the printer control panel language, the TCP/IP address, the status of supplies, the status of the network connection, and other informationNote:The page prints when this item is selected.

Device Statistics menu

Menu item Description
Device Statistics	Prints a report containing printer statistics such as supply information and details about printed pagesNote: The page prints when this item is selected.

Network Setup Page menu

Menu item Description
Network Setup Page	Prints a report containing information about the network settings, such as TCP/IP address informationNotes:This menu item appears only for printers with a network print server installed.The page prints when this item is selected.

Profile List menu

Menu item Description
Print profiles	Prints a list of profiles stored in the printerNote: The page prints when this item is selected.

Print Fonts menu

Menu item Description
Print FontsPCL FontsPostScript FontsPPDS Fonts	Prints a sample of all the fonts available for the printer language currently set in the printerNote:A separate list is available for PCL, PostScript, and PPDS emulations.

Print Directory menu

Menu item Description
Print Directory	Prints a list of all the resources stored on an optional flash memory cardNotes:The optional flash memory or printer hard disk must be installed correctly and working properly.The page prints when this item is selected.

Print Defects menu

Menu item Description
Print Defects	Prints a diagnostic list of problemsNotes:•The page prints when this item is selected.•The list should be printed on letter- or A4-size paper.

Print Demo menu

Menu item Description
Print Demo	Prints a list of any resident demo pagesNote: The page prints when this item is selected.

Asset Report menu

Menu item Description
Asset Report	Prints an asset report pageNote: The page prints when this item is selected.

Network/Ports

Active NIC menu

Menu item Description
Active NICAutoList of networks	Shows the print serverNote: This menu is available only for network models or printers attached to print servers.

Network menu

Menu item Description
PCL SmartSwitchOnOff	Sets the printer to automatically switch to PCL emulation when a print job requires it, regardless of the default printer languageNotes:On is the factory default setting.When the Off setting is used, the printer does not examine incoming data.When the Off setting is used, the printer uses PostScript emulation if PS SmartSwitch is set to On. It uses the default printer language specified in the Setup menu if PS SmartSwitch is set to Off.
PS SmartSwitchOnOff	Sets the printer to automatically switch to PS emulation when a print job requires it, regardless of the default printer languageNotes:On is the factory default setting.When the Off setting is used, the printer does not examine incoming data.When the Off setting is used, the printer uses PCL emulation if PCL SmartSwitch is set to On. It uses the default printer language specified in the Setup menu if PCL SmartSwitch is set to Off.
NPA ModeOffAuto	Sets the printer to perform the special processing required for bidirectional communication following the conventions defined by the NPA protocolNotes:Auto is the factory default setting.Changing this setting from the printer control panel and then exiting the menus causes the printer to restart. The menu selection is updated.
Network BufferDisabledAuto	Controls the network input bufferNotes:Auto is the factory default setting.The maximum size allowed depends on the amount of memory in the printer, the size of the other link buffers, and whether Resource Save is set to On or Off.Changing this setting from the printer control panel and then exiting the menus causes the printer to restart. The menu selection is updated.
Mac Binary PSOnOffAuto	Sets the printer to process Macintosh binary PostScript print jobsNotes:Auto is the factory default setting.The Off setting filters print jobs using the standard protocol.The On setting processes raw binary PostScript print jobs.
Network SetupReports MenuNetwork Card menuTCIP MenuIPv6 MenuWireless menuAppleTalk menuSE Menu	List all the network setup menus, regardless of the active printer networkNote: Certain options are not available on selected printer models.

Wireless menu

Use the following menu items to view or configure the wireless internal print server settings.

Note: This menu is available only for network models or printers attached to print servers when an optional wireless internal print server is installed in the printer.

Menu item Description
ModeInfrastructureAd hoc	Lets you select a modeNotes:Infrastructure mode makes the printer wireless network accessible through an access point.Ad hoc mode configures the printer for peer-to-peer wireless networking.
Network Name	Lets you select an available network for the printer to use

USB menu

Menu item Description
PCL SmartSwitchOnOff	Sets the printer to automatically switch to PCL emulation when a print job requires it, regardless of the default printer languageNotes:On is the factory default setting.When the Off setting is used, the printer does not examine incoming data.When the Off setting is used, the printer uses PostScript emulation if PS SmartSwitch is set to On. It uses the default printer language specified in the Setup menu if PS SmartSwitch is set to Off.
PS SmartSwitchOnOff	Sets the printer to automatically switch to PS emulation when a print job requires it, regardless of the default printer languageNotes:On is the factory default setting.When the Off setting is used, the printer does not examine incoming data.When the Off setting is used, the printer uses PCL emulation if PCL SmartSwitch is set to On. It uses the default printer language specified in the Setup menu if PCL SmartSwitch is set to Off.
NPA ModeOffAuto	Sets the printer to perform the special processing required for bidirectional communication following the conventions defined by the NPA protocolNotes:Auto is the factory default setting.Changing this setting from the printer control panel and then exiting the menus causes the printer to restart. The menu selection is updated.
USB BufferDisabledAuto	Controls the USB port bufferNotes:Auto is the factory default setting.The maximum size allowed depends on the amount of memory in the printer, the size of the other link buffers, and whether Resource Save is set to On or Off.To increase the maximum size range for the Network Buffer, disable or reduce the size of the parallel, serial, and USB buffers.Changing this setting from the printer control panel and then exiting the menus causes the printer to restart. The menu selection is updated.
Mac Binary PSOnOffAuto	Sets the printer to process Macintosh binary PostScript print jobsNotes:Auto is the factory default setting.The Off setting filters print jobs using the standard protocol.The On setting processes raw binary PostScript print jobs.
ENA Address	Sets the network address information for an external print server that is attached to the printer using a USB cableNote:This menu item is available only if the printer is attached to an external printer server through the USB port.
ENA Netmask	Sets the netmask information for an external print server that is attached to the printer using a USB cableNote:This menu item is available only if the printer is attached to an external print server through the USB port.
ENA Gateway	Sets the gateway information for an external print server that is attached to the printer using a USB cableNote: This menu item is available only if the printer is attached to an external print server through the USB port.

Settings

General Settings menu

Menu item Description
Display LanguageEnglishFrancaisDeutschItalianoEspanolDanskNorskNederlandsSvenskaPortuguesSuomiRussianPolskiMagyarTurkceCeskySimplified ChineseTraditional ChineseKoreanJapanese	Sets the language of the text appearing on the displayNote: All languages may not be available for all printers.
Eco-ModeOffEnergyEnergy/PaperPaper	Allows the printer to conserve energy by turning off the backlight on the display and entering one minute power saverNotes:Off is the factory default setting. Off resets the printer to its factory default settings.The Energy setting minimizes the power used by the printer. Performance may be affected, but print quality is not.Energy/Paper minimizes the use of power and of paper and specialty media.Paper minimizes the amount of paper and specialty media needed for a print job. Performance may be affected, but print quality is not.
Quiet ModeOffOn	Enables the printer to print more slowly and with less noiseNotes:Off is the factory default setting.On configures the printer to produce as little noise as possible.
Run Initial SetupYesNo	Instructs the printer to run the setup wizardNotes:Yes is the factory default setting.After completing the setup wizard by selecting Done at the Country select screen, the default setting becomes No.
AlarmsCartridge AlarmOffSingle	Sets an alarm to sound when the printer requires operator interventionNote:Off is the factory default setting and means no alarm will sound.
Print RecoveryAuto ContinueDisabled5 sec -255 sec	Lets the printer automatically continue printing from certain offline situations when not resolved within the specified time periodNote:Disabled is the factory default setting.
Print RecoveryJam RecoveryOnOffAuto	Specifies whether the printer reprints jammed pagesNotes:Auto is the factory default setting. The printer reprints jammed pages unless the memory required to hold the pages is needed for other printer tasks.On sets the printer to always reprint jammed pages.Off sets the printer to never reprint jammed pages.
Print RecoveryPage ProtectOffOn	Lets the printer successfully print a page that may not have printed otherwiseNotes:Off is the factory default setting. Off prints a partial page when there is not enough memory to print the whole page.On sets the printer to process the whole page so that the entire page prints.
TimeoutsPower SaverDisabled1–240	Specifies the number of minutes of inactivity before some systems begin entering a minimum power state.Note:30 minutes is the factory default setting.
TimeoutsScreen Timeout15–300	Sets the amount of time in seconds the printer waits before returning the printer display to a Ready stateNote:30 seconds is the factory default setting.
TimeoutsPrint TimeoutDisabled1–255	Sets the amount of time in seconds the printer waits to receive an end-of-job message before canceling the remainder of the print jobNotes:90 seconds is the factory default setting.When the timer expires, any partially printed page still in the printer is printed, and then the printer checks to see if any new print jobs are waiting.Print Timeout is available only when using PCL or PPDS emulation. This setting has no effect on PostScript emulation print jobs.
TimeoutsWait TimeoutDisabled15–65535	Sets the amount of time in seconds the printer waits for additional data before canceling a print jobNotes:40 seconds is the factory default setting.Wait Timeout is available only when the printer is using PostScript emulation. This setting has no effect on PCL or PPDS emulation print jobs.
Factory DefaultsDo Not RestoreRestore	Returns the printer settings to the factory default settingsNotes:Do Not Restore is the factory default setting. Do Not Restore keeps the user-defined settings.Restore returns all printer settings to the factory default settings except Network/Ports menu settings. All downloads stored in RAM are deleted. Downloads stored in flash memory or on a printer hard disk are not affected.

Setup menu

Menu item Description
Printer LanguagePS EmulationPCL EmulationPPDS Emulation	Determines which printer language the print server uses to send data to the printerNote: PS Emulation is the factory default setting.
Print AreaNormalFit to PageWhole Page	Sets the print areaNote: Normal is the factory default setting.
Download TargetRAMFlash	Collects permanent resources that have been downloaded on the printer and automatically writes them to the flash driveNote: RAM is the factory default setting.
Resource SaveOnOff	Saves the permanently downloaded resourcesNote: Off is the factory default setting.

Finishing menu

Note: Certain options are not available on selected printer models.

Menu item Description
Duplex2 Sided1 Sided	Specifies whether duplex (2-sided) printing is set as the default for all print jobsNotes:Off is the factory default setting.To set 2-sided printing from the software program: for Windows users, click File → Print, and then click Properties, Preferences, Options, or Setup and adjust the settings; for Macintosh users, click File > Print, and then adjust the settings from the Print dialog and pop-up menus.
Duplex BindLong EdgeShort Edge	Defines the way duplexed pages are bound and how the printing on the back of the page is oriented in relation to the printing on the front of the pageNotes:Long Edge is the factory default setting.Long Edge specifies that binding be placed on the left edge of portrait pages and the top edge of landscape pages.Short Edge specifies that binding be placed on the top edge of portrait pages and the left edge of landscape pages.
Copies1–999	Specifies a default number of copies for each print jobNotes:1 is the factory default setting.To specify the number of copies for a specific print job from the software program: click File → Print, and then click Properties, Preferences, Options, or Setup and adjust the settings; for Macintosh users, click File > Print, and then adjust the settings from the Print dialog and pop-up menus. Software settings always override printer control panel settings.
Blank PagesDo Not PrintPrint	Specifies whether blank pages are inserted in a print jobNote: Do Not Print is the factory default setting.
CollateOn [1, 2, 1, 2, 1, 2]Off [1, 1, 1, 2, 2, 2]	Stacks the pages of a print job in sequence when printing multiple copiesNotes:Off is the factory default setting. No pages will be collated.The On setting stacks the print job sequentially.Both settings print the entire job the number of times specified by the Copy menu setting.
Separator SheetsNoneBetween CopiesBetween JobsBetween Pages	Specifies whether blank separator sheets are insertedNotes:None is the factory default setting.Between Copies inserts a blank sheet between each copy of a print job if Collation is set to On. If Collation is set to Off, a blank page is inserted between each set of printed pages, such as after all page 1's, all page 2's, and so on.Between Jobs inserts a blank sheet between print jobs.Between Pages inserts a blank sheet between each page of the print job. This setting is useful when printing transparencies or inserting blank pages in a document for notes.
Separator SourceTrayMP Feeder	Specifies the paper source for separator sheetsNotes:Tray 1 (standard tray) is the factory default setting.From the Paper menu, Configure MP must be set to Cassette in order for MP Feeder to appear as a menu setting.
N-UpOff2 Up3 Up4 Up6 Up9 Up12 Up16 Up	Specifies that multiple-page images be printed on one side of a sheet of paperNote:The number selected is the number of page images that will print per side.
OrientationAutoLandscapePortrait	Specifies the orientation of a multiple-page sheetNotes:•Auto is the factory default setting. The printer chooses between portrait and landscape.•Long Edge uses landscape.•Short Edge uses portrait.
N-Up BorderNoneSolid	Prints a border around each page imageNote:None is the factory default setting.

Quality menu

Menu item Description
Color CorrectionAutoOffManual	Adjusts the color output on the printed pageNotes:Auto is the factory default setting. Auto applies different color conversion tables to each object on the printed page.Off turns off color correction.Manual allows customization of the color tables using the settings available from the Manual Color menu.Due to the differences in additive and subtractive colors, certain colors that appear on computer monitors are impossible to duplicate on the printed page.
Print Resolution4800 CQ1200 dpi	Specifies the printed output resolution
Toner Darkness1-5	Lightens or darkens the printed outputNotes:4 is the factory default setting.Selecting a smaller number can help conserve toner.If Print Mode is set to Black Only, a setting of 5 increases toner density and darkness to all print jobs.If Print Mode is set to Color, a setting of 5 is the same as a setting of 4.
Enhance Fine LinesOnOff	Enables a print mode preferable for files such as architectural drawings, maps, electrical circuit diagrams, and flow chartsNote:To set Enhance Fine Lines from the software program: for Windows users, click File → Print, and then click Properties, Preferences, Options, or Setup; for Macintosh users, choose File > Print, and then adjust the settings from the Print dialog and pop-up menus.
Color SaverOnOff	Reduces the amount of toner used for graphics and images. The amount of toner used for text is not reduced.Notes:Off is the factory default setting.On overrides Toner Darkness settings.
RGB Brightness-6-6	Adjusts brightness in color outputsNotes:0 is the factory default setting.-6 is the maximum decrease. 6 is the maximum increase.This does not affect files where CMYK color specifications are being used.
RGB Contrast0-5	Adjusts contrast in color outputsNotes:0 is the factory default setting.This does not affect files where CMYK color specifications are being used.
RGB Saturation0-5	Adjusts saturation in color outputsNotes:0 is the factory default setting.This does not affect files where CMYK color specifications are being used.
Color BalanceCyan-5-5Magenta-5-5Yellow-5-5Black-5-5	Adjusts color in printed output by increasing or decreasing the amount of toner being used for each colorNote:0 is the factory default setting.
Color BalanceReset Defaults	Restores the Color Balance factory default settings
Color SamplessRGB DisplaysRGB VividDisplay—True BlackVividOff—RGBUS CMYKEuro CMYKVivid CMYKOff—CMYK	Prints sample pages for each of the RGB and CMYK color conversion tables used in the printerNotes:Selecting any setting prints the sample.Color samples consist of a series of colored boxes along with the RGB or CMYK combination that creates the color observed. These pages can be used to help decide which combinations to use to get the desired printed output.From a browser window, type the IP address of the printer to access a complete list of color sample pages from the Embedded Web Server.
Manual ColorRGB ImageVividsRGB DisplayDisplay—True BlacksRGB VividOffRGB TextVividsRGB DisplayDisplay—True BlacksRGB VividOffRGB GraphicsVividsRGB DisplayDisplay—True BlacksRGB VividOff	Customizes the RGB color conversionsNotes:sRGB Display is the factory default setting for RGB Image. This applies a color conversion table to an output that matches the colors displayed on a computer monitor.sRGB Vivid is the factory default setting for RGB Text and RGB Graphics. sRGB Vivid applies a color table that increases saturation. This is preferred for business graphics and text.Vivid applies a color conversion table that produces brighter, more saturated colors.Display—True Black applies a color conversion table that uses only black toner for neutral gray colors.Off turns off color conversion.
Manual ColorCMYK ImageUS CMYKEuro CMYKVivid CMYKOffCMYK TextUS CMYKEuro CMYKVivid CMYKOffCMYK GraphicsUS CMYKEuro CMYKVivid CMYKOff	Customizes the CMYK color conversionsNotes:US CMYK is the US factory default setting. US CMYK applies a color conversion table that tries to produce output that matches SWOP color output.Euro CMYK is the international factory default setting. Euro CMYK applies a color conversion table that tries to produce output that matches EuroScale color output.Vivid CMYK increases color saturation for the US CMYK color conversion table.Off turns off color conversion.
Color Adjust	Initiates an automatic color adjust calibration.

Utilities menu

Menu item Description
Format FlashNoYes	Formats the flash memory. Flash memory refers to the memory added by installing an optional flash memory card in the printer.Warning—Potential Damage: Do not turn off the printer while the flash memory is formatting.Notes:An optional flash memory card must be installed in the printer and operating properly for this menu item to be available.No cancels the format request.Selecting Yes deletes all data stored in flash memory.
Defragment FlashNoYes	Prepares the flash memory to receive new data by retrieving lost storage spaceWarning—Potential Damage: Do not turn off the printer while the flash memory is defragmenting.Notes:An optional flash memory card must be installed in the printer and operating properly for this menu item to be available. The optional flash memory card must not be Read/Write or Write protected.No cancels the defragment request.Yes reformats the flash memory after transferring all downloads to regular printer memory. When formatting is complete, the downloads are loaded back into flash memory.
Hex TraceActivate	Assists in isolating the source of a print job problemNotes:When Activate is selected, all data sent to the printer is printed in hexadecimal and character representation and control codes are not executed.To exit Hex Trace, turn the printer off or reset the printer.
Coverage EstimatorOffOn	Provides an estimate of the percentage coverage of cyan, magenta, yellow, and black on a page. The estimate is printed on a separator page.Note: Off is the factory default setting.

PDF menu

Note: Certain options are not available on selected printer models.

Menu item Description
Scale to FitYesNo	Scales page content to fit the selected paper sizeNote: No is the factory default setting.
AnnotationsDo Not PrintPrint	Prints annotations in a PDFNote: Do Not Print is the factory default setting.

PostScript menu

Menu item Description
Print PS ErrorOnOff	Prints a page containing the PostScript errorNote: Off is the factory default setting.
Font PriorityResidentFlash	Establishes the font search orderNotes:•Resident is the factory default setting.•A formatted flash memory option card or printer hard disk must be installed in the printer and operating properly for this menu item to be available.•The flash memory option or printer hard disk cannot be Read/Write, Write, or password protected.•Job Buffer Size must not be set to 100%.
Image SmoothingOnOff	Enhances the contrast and sharpness of low-resolution images and smooths their color transitionsNotes:Off is the factory default setting.Image Smoothing has no effect on images that are 300 dpi or higher in resolution.

PCL Emul menu

Menu item Description
Font SourceResidentDownloadFlashAll	Specifies the set of fonts used by the Font Name menu itemNotes:Resident is the factory default setting. It shows the factory default set of fonts downloaded into RAM.Flash settings show all fonts resident in that option.Flash option must be properly formatted and cannot be Read/Write, Write, or password protected.Download shows all the fonts downloaded into RAM.All shows all fonts available to any option.
Font NameCourier	Identifies a specific font and the option where it is storedNotes:Courier is the factory default setting.Courier shows the font name, font ID, and storage location in the printer. The font source abbreviation is R for Resident, F for Flash, and D for Download.
Symbol Set10U PC-812U PC-850	Specifies the symbol set for each font nameNotes:10U PC-8 is the US factory default setting.12U PC-850 is the international factory default setting.A symbol set is a set of alphabetic and numeric characters, punctuation, and special symbols. Symbol sets support the different languages or specific programs such as math symbols for scientific text. Only the supported symbol sets are shown.
PCL Emulation SettingsPoint Size1.00–1008.00	Changes the point size for scalable typographic fontsNotes:12 is the factory default setting.Point Size refers to the height of the characters in the font. One point equals approximately 1/72 of an inch.Point sizes can be increased or decreased in 0.25-point increments.
PCL Emulation SettingsPitch0.08-100	Specifies the font pitch for scalable monospaced fontsNotes:10 is the factory default setting.Pitch refers to the number of fixed-space characters per inch (cpi).Pitch can be increased or decreased in 0.01-cpi increments.For nonscalable monospaced fonts, the pitch appears on the display but cannot be changed.
PCL Emulation SettingsOrientationPortraitLandscape	Specifies the orientation of text and graphics on the pageNotes:Portrait is the factory default setting.Portrait prints text and graphics parallel to the short edge of the page.Landscape prints text and graphics parallel to the long edge of the page.
PCL Emulation SettingsLines per Page1-2556064	Specifies the number of lines that print on each pageNotes:60 is the US factory default setting. 64 is the international default setting.The printer sets the amount of space between each line based on the Lines per Page, Paper Size, and Orientation settings. Select the desired Paper Size and Orientation before setting Lines per Page.
PCL Emulation SettingsA4 Width198 mm203 mm	Sets the printer to print on A4-size paperNotes:198 mm is the factory default setting.The 203-mm setting sets the width of the page to allow the printing of eighty 10-pitch characters.
PCL Emulation SettingsAuto CR after LFOnOff	Specifies whether the printer automatically performs a carriage return (CR) after a line feed (LF) control commandNotes:Off is the factory default setting.Setting alterations are duplicated in the PPDS menu.
PCL Emulation SettingsAuto LF after CROnOff	Specifies whether the printer automatically performs a line feed (LF) after a carriage return (CR) control commandNotes:Off is the factory default setting.Setting alterations are duplicated in the PPDS menu.
Tray RenumberAssign MP FeederOffNone0-199Assign TrayOffNone0-199Assign Manual PaperOffNone0-199Assign Man EnvOffNone0-199	Configures the printer to work with printer software or programs that use different source assignments for trays, drawers, and feedersNotes:Off is the factory default setting.None is not an available selection. It is displayed only when it is selected by the PCL 5 interpreter.None ignores the Select Paper Feed command.0-199 allows a custom setting to be assigned.
Tray RenumberView Factory DefNone	Displays the factory default setting assigned to each tray, drawer, or feeder
Tray RenumberRestore DefaultsYesNo	Returns all tray, drawer, and feeder assignments to the factory default settings

Image menu

Menu item Description
Auto FitOnOff	Selects the optimal paper size, scaling, and orientationNotes:On is the factory default setting.The On setting overrides scaling and orientation settings for some images.
InvertOnOff	Inverts bi-tonal monochrome imagesNotes:Off is the factory default setting.The font size can be increased in 1-point increments.This setting does not apply to GIF or JPEG images.
ScalingAnchor Top LeftBest FitAnchor CenterFit Height/WidthFit HeightFit Width	Scales the image to fit the selected paper sizeNotes:Best Fit is the factory default setting.When Auto Fit is set to On, Scaling is automatically set to Best Fit.
OrientationPortraitLandscapeRev PortraitRev Landscape	Sets the image orientationNote: Portrait is the factory default setting.

PictBridge menu

Note: Certain options are not available on selected printer models.

Menu item Description
Photo SizeAuto is the defaultL2LHagaki PostcardCard Size100 x 150 mm4 x 6 in8 x 10 inLetterA4A5JIS B5	Controls the printed size of each photo printed from a PictBridge-enabled deviceNote:If both the printer and the PictBridge-enabled camera have a value for this setting, the camera value always supersedes the printer value.
LayoutAuto is the defaultOff2 Up3 Up4 Up6 Up9 Up12 Up16 UpIndex Print	Determines the maximum number of images that can print on one side of paperNote:If both the printer and the PictBridge-enabled camera have a value for this setting, the camera value always supersedes the printer value.
QualityNormalDraftFine	Determines which resolution, toner darkness, and color saver values the device uses when printing photos sent from a PictBridge-enabled deviceNote: If both the printer and the PictBridge-enabled camera have a value for this setting, the camera value always supersedes the printer value.
Paper SourceMP FeederTrayManual Paper	Identifies the printer default input source when printing photos from a PictBridge-enabled deviceNote: A photo size larger than the size of the PictBridge default source's installed media cannot be selected.

Flash drive menu

Note: The USB Direct Interface is not available on selected printer models.

Menu item Description
Enable DriveEnableDisable	Enables or disables the USB Direct port
Update CodeEnableDisable	Enables or disables the flash drive's ability to update its firmware code by way of a USB device
Copies1–999	Sets the number of copies the printer should produce for each page contained in a print job
Sides (Duplex)2 sided1 sided	Controls whether printer prints on one side or both sides of the paper

Understanding printer messages

List of status and error messages

Busy

Wait for the message to clear.

Calibrating

The printer is adjusting the color. Wait for the message to clear.

Close door

Close the upper and lower doors.

Check Config ID

The printer configuration ID is invalid. Contact Customer Support.

Check Model Name

Set a valid model name.

Check Serial Num

Set a valid serial number.

Low

Replace the toner cartridge, and then wait for the message to clear.

Defragmenting Flash

The printer is performing the defragmentation operation on flash memory. Wait for the message to clear.

Warning—Potential Damage: Do not turn the printer off while this message appears on the display.

Flushing buffer

Wait for the message to clear.

Formatting Flash

Wait for the message to clear.

Warning—Potential Damage: Do not turn the printer off while this message appears on the display.

Hex Trace

This message appears between status messages and warnings. Wait for the message to clear.

Imaging Kit

Replace the imaging kit, and then press to clear the message and continue printing.

Insert Tray

Insert the specified tray into the printer.

Invalid Engine Code

The engine code is invalid. Contact Customer Support.

Invalid Network Code

The network code is invalid. Contact Customer Support.

Load with

Try one or more of the following:

• Load the specified paper to clear the message and continue printing.
• Press ✗, and then press √ to cancel printing.

Load with

Try one or more of the following:

• Load the paper tray or other source with the correct paper type and size.
• Press ✗, and then press √ to cancel printing.

Load single sheet feeder with

Try one or more of the following:

• Load the manual feeder with the correct paper type and size.
  If no paper is in the manual feeder, load a sheet, and then press √ to clear the message and continue printing.

- Press to clear the message and continue printing.

The printer manually overrides the manual request, and then the job prints from an automatic source.

• Press ✗, and then press √ to cancel printing.
• Define a name for each custom type (Custom 1–6) using the MarkVision utility. When the printer is prompting for one of the custom types, which has been named, then only the custom name is displayed.

Load single sheet feeder with

Try one or more of the following:

- Load the manual feeder with the correct paper type and size.

If no paper is in the feeder, load a sheet, and then press √ to clear the message and continue printing.

- Select the paper type and size to manually override the manual request.

- Press ✗, and then press √ to cancel printing.

Load single sheet feeder with

Try one or more of the following:

- Load the manual feeder with the correct paper type and size.

If no paper is in the feeder, load a sheet of paper, and then press √ to clear the message and continue printing.

- Select the paper type and size to manually override the manual request.

- Press to clear the message and continue printing.

The printer manually overrides the manual request, and then paper prints from an automatic source.

- Press ✗, and then press √ to cancel printing.

Load single sheet feeder with

Try one or more of the following:

- Load the manual feeder with the correct paper type and size.

If no paper is in the feeder, load a sheet, and then select √ to clear the message and continue printing.

- Press to clear the message and continue printing.

The printer manually overrides the manual request, and then paper prints from an automatic source.

- Press ✗, and then press √ to cancel printing.

Output Bin Full

Try one or more of the following:

- Remove paper from the standard exit bin to clear the message and continue printing.

- Press to clear the message and continue printing.

Power Saver

The printer is saving power while it waits for the next print job.

- Send a job to print.

- Press √ to warm the printer to normal operating temperature. Afterwards, Ready appears.

Programming Code

The printer is receiving a file that is a code update. Wait for the message to clear.

Warning—Potential Damage: Do not turn the printer off while this message appears on the display.

Programming Flash

Fonts and macros are being written to flash. Wait for the message to clear.

Ready

The printer is ready to print.

Reload printed pages in Tray

• Press √ to clear the message and continue processing the second side of the sheet.
• Press ✗, and then press √ to cancel printing.

Remote Management Active

The printer is offline while it configures settings. Wait for the message to clear.

Remove paper from standard output bin

Try one or more of the following:

• Remove paper from the standard exit bin to clear the message and continue printing.
• Press to clear the message and continue printing.

Remove packaging material

Check for and remove any packaging materials from the toner cartridges.

Replace cartridge

Replace the toner cartridge, and then press to clear the message and continue printing.

Tray Empty

Try one or more of the following:

• Load the paper tray or other source with the correct paper type and size.
• Press ✗, and then press √ to cancel the current job.

Tray Low

Load the paper tray or other source with the correct paper type and size.

Tray Missing

Insert the specified tray into the printer.

Unsupported USB device, please remove

Remove the unrecognized USB device.

Unsupported USB hub, please remove

Remove the unrecognized USB hub.

Unplug and change mode

Make sure that the camera is in a valid mode for PictBridge

Waiting

The printer has received data to print, but is waiting for an End-of-Job command, a Form Feed command, or additional data.

Try one or more of the following:

• Press to print the contents of the buffer.
• Cancel the current print job.

Waiting, too many events

Wait for the message to clear.

Warning—Potential Damage: Do not turn the printer off while this message appears on the display.

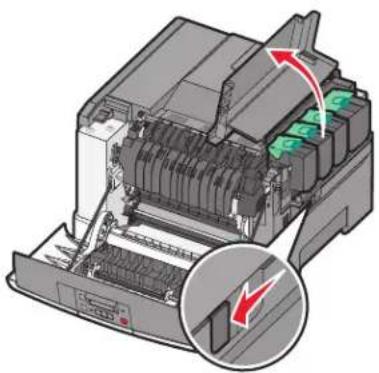

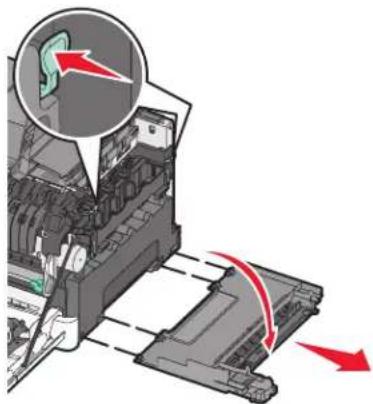

Waste Toner Box

The waste toner bottle is nearly full. Press √ to clear the message and continue printing.

30.yy cartridge missing

Insert the missing toner cartridge to clear the message and continue printing.

31.yy Defective Cartridge

Replace the defective toner cartridge with a new one.

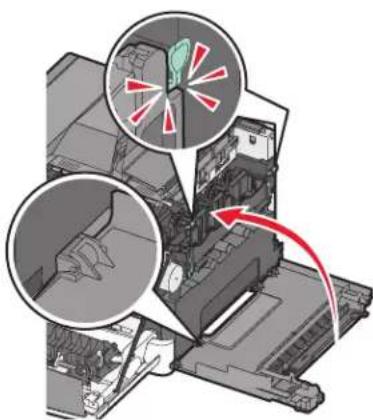

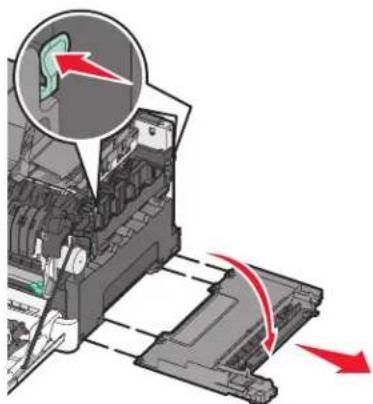

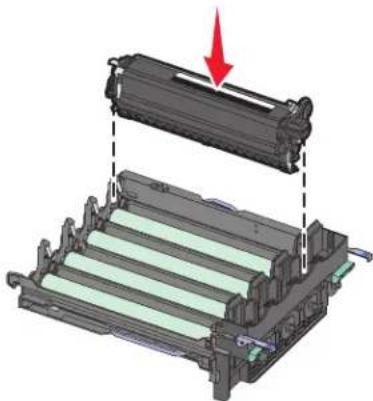

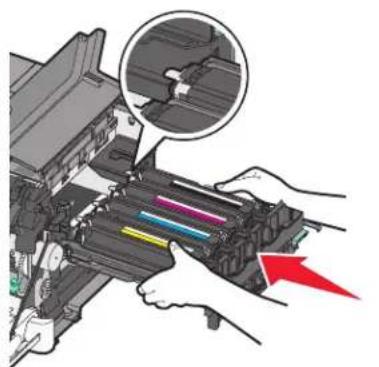

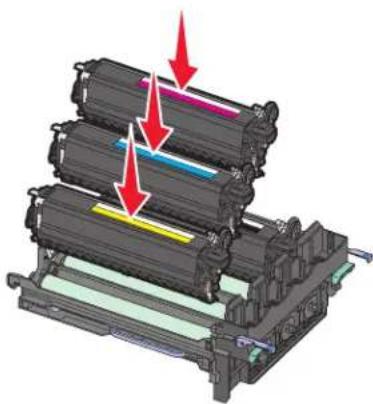

31.yy Defective Imaging Kit

Replace the defective imaging kit with a new one.

32.yy Replace Unsupported Cartridge

Replace the unsupported toner cartridge with a supported one.

34 Short paper

Try one or more of the following:

- Press to clear the message and continue printing.

- Press ✗, and then press √ to cancel printing.

35 Insufficient memory to support Resource Save feature

The printer lacks sufficient memory to save settings. Install additional memory, or press √ to disable Resource Save and continue printing.

37 Insufficient memory to collate job

The printer prints the pages that were spooled prior to the collation message and collates the remainder of the print job.

Try one or more of the following:

- Press to clear the message and continue printing.

- Press ✗, and then press √ to cancel printing.

37 Insufficient memory for Flash memory Defragment operation

The printer cannot defragment flash memory because the memory used to store undeleted flash resources is full.

• To perform the defragment operation, delete fonts, macros, and other data in the memory, or install additional printer memory, and then press to continue printing.
• Press ✗, and then press √ to cancel printing.

38 Memory Full

The printer does not have enough memory available to continue printing. You cannot press √ because of this.

Try one or more of the following:

- Press ✗, and then press √ to cancel printing.

- Simplify the print job by reducing the amount of text or graphics on a page and deleting unnecessary downloaded fonts or macros.

•Install additional printer memory.

39 Complex page, some data may not have printed

The page is too complex to print. Press, and then press to cancel printing.

40 Invalid refill, change cartridge

Replace the toner cartridge with a new one.

50 PPDS Font Error

The printer has encountered a font error because a specific font may not be installed.

Try one or more of the following:

- Press to clear the message and continue printing.

• The printer cannot find the requested font. From the PPDS menu, select Best Fit, and then select On. The printer will find a similar font and reformat the affected text.
• Press ✗, and then press √ to cancel printing.

51 Defective flash detected

Press to clear the message and continue printing.

52 Not enough free space in flash memory for resources

Try one or more of the following:

• Press to clear the message and continue printing.
• Delete fonts, macros, and other data stored in flash memory.
• Upgrade to a larger capacity flash memory.
• Press ✗, and then press √ to cancel printing.

53 Unformatted flash detected

Try one or more of the following:

• Press to clear the message and continue printing.
• Format the flash memory. If the message remains, the flash memory may be defective and require replacing.

54 Standard software error

The printer detects that a network port is installed, but cannot communicate with it. The printer disables all communication to the associated network interface.

Try one or more of the following:

• Press to clear the message and continue printing.
• Turn the power off and then back on to reset the printer.
• Upgrade (flash) the network firmware in the printer or print server.

54 Standard network software error

The printer detects unformatted flash memory when the power is turned on.

Try one or more of the following:

• Press to clear the message and continue printing.
• Turn the power off and then back on to reset the printer.
• Upgrade (flash) the network firmware in the printer or print server.
• Format the flash memory. If the error message remains, the flash memory may be defective and require replacing.

56 Standard USB port disabled

Try one or more of the following:

- Press to clear the message and continue printing.

The printer discards any data received through the USB port.

- Make sure the USB port is not set to Disabled.

58 Too many flash options installed

Too many optional flash memory cards or too many optional firmware cards are installed on the printer.

Try one or more of the following:

• Press to clear the message and continue printing.
• Remove extra flash options:

1 Turn the printer off.
2 Unplug the power cord from the wall outlet.
3 Remove extra flash options.
4 Connect the power cord to a properly grounded outlet.
5 Turn the printer back on.

58 Too many trays attached

1 Turn the printer off.
2 Unplug the power cord from the wall outlet.
3 Remove the additional trays.
4 Connect the power cord to a properly grounded outlet.
5 Turn the printer back on.

59 Incompatible tray

Remove the specified tray.

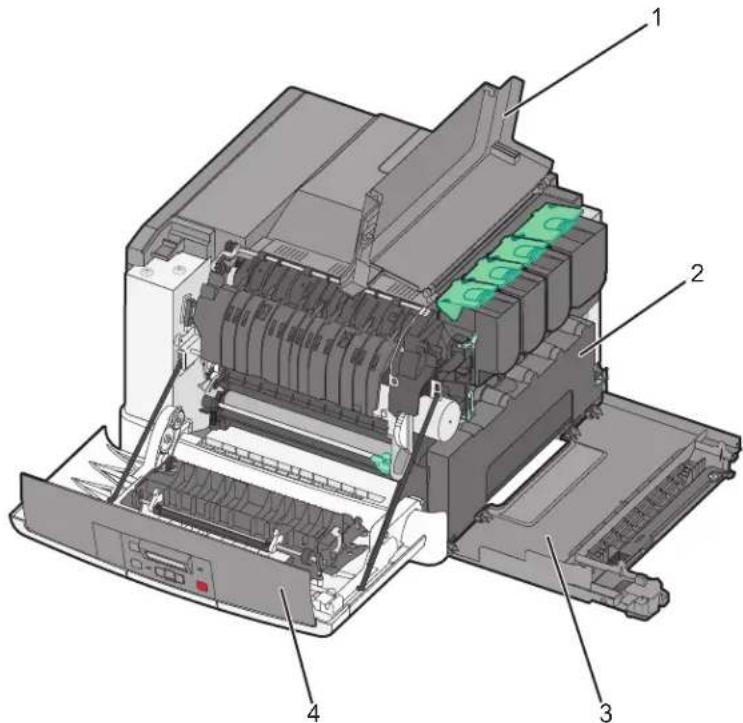

82 Replace waste toner box

Replace the waste toner bottle. For more information, see "Replacing the waste toner bottle" on page 114.

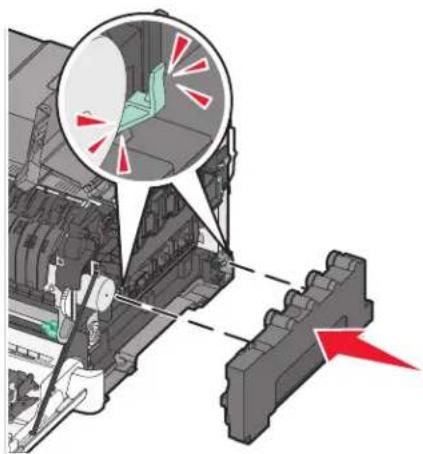

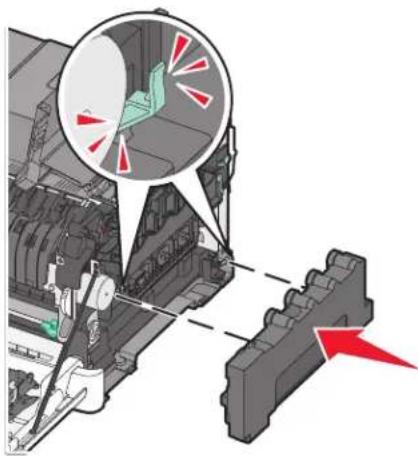

82.yy Waste toner box missing

Replace the waste toner bottle, and then press √ to clear the message and continue printing.

82.yy Waste toner box nearly full

Press to clear the message and continue printing.

88.yy Cartridge is low

Press to clear the message and continue printing.

88.yy Replace Cartridge

Replace the toner cartridge.

200.yy Paper jam

1 Clear the paper path.
2 Press to clear the message and continue printing.

201.yy Paper jam

1 Clear the paper path.
2 Remove the jammed paper below the fuser.
3 Press to clear the message and continue printing.

202.yy Paper jam

1 Clear the paper path.
2 Remove the jammed paper from the fuser.
3 Press to clear the message and continue printing.

230.yy Paper jam

1 Clear the paper path.
2 Open the front door, and then remove the jammed paper.
3 Close the front door.
4 Press to clear the message and continue printing.

Note: When there is more than one jam, the message displays the number of pages jammed.

235.yy Paper jam

1 Clear the paper path.
2 Open the front door, and then remove the jammed paper.
3 Close the front door.
4 Load the tray with the correct paper size.
5 Press to clear the message and continue printing.

Note: When there is more than one jam, the message displays the number of pages jammed.

24x.yy Paper jam

1 Clear the paper path.
2 Pull the tray out.
3 Remove the jammed paper.
4 Insert the tray.
If all jams are cleared, the printer resumes printing.

Note: When there is more than one jam, the message displays the number of pages jammed.

250.yy Paper jam

1 Clear the paper path.
2 Open the front door, and then remove the jammed paper.
3 Hold the fuser cover down, and then remove the jammed paper from inside the fuser.
4 Close the fuser cover, and then close the front door.
5 Press to clear the message and continue printing.

940.01

Press down on the cyan toner cartridge to make sure it is installed properly. Turn the printer off, wait about 10 seconds, and then turn the printer back on

941.01

Press down on the magenta toner cartridge to make sure it is installed properly. Turn the printer off, wait about 10 seconds, and then turn the printer back on.

942.01

Press down on the yellow toner cartridge to make sure it is installed properly. Turn the printer off, wait about 10 seconds, and then turn the printer back on

943.01

Press down on the black toner cartridge to make sure it is installed properly. Turn the printer off, wait about 10 seconds, and then turn the printer back on

940.02

The cyan toner cartridge needs maintenance. Call for service.

941.02

The magenta toner cartridge needs maintenance. Call for service.

942.02

The yellow toner cartridge needs maintenance. Call for service.

943.02

The black toner cartridge needs maintenance. Call for service.

Maintaining the printer

Periodically, certain tasks are required to maintain optimum print quality.

Storing supplies

Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing until you are ready to use them.

Do not expose supplies to:

• Direct sunlight
  •Temperatures above 35°C (95°F)
  •High humidity above 80%
• Salty air
  •Corrosive gases
  •Heavy dust

Conserving supplies

There are some settings you can change from the control panel that will help you conserve toner and paper. For more information, see "Supplies menu," "Quality menu," and "Finishing menu."

If you need to print several copies, you can conserve supplies by printing the first copy and checking it for accuracy before printing the remaining copies.

Checking the status of supplies

A message appears on the display when a replacement supply item is needed or when maintenance is required.

Checking the status of supplies from the printer control panel

You can check the status of printer supplies by printing a menu settings page:

1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Reports appears, and then press √.
4 Press the arrow buttons until Menu Settings Page appears, and then press √.

Checking the status of supplies from a network computer

Note: The computer must be connected to the same network as the printer.

1 Type the printer IP address into the address field of your Web browser.

Note: If you do not know the IP address of the printer, print a network setup page and locate the IP address in the TCP/IP section.

2 Click Device Status. The Device Status page appears, displaying a summary of supply levels.

Ordering supplies

To order supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark authorized supplies dealers in your area. In other countries or regions, visit the Lexmark Web Site at www.lexmark.com or contact the place where you purchased the printer.

Note: All life estimates for printer supplies assume printing on letter- or A4-size plain paper.

Ordering toner cartridges

When 88 Cyan Cartridge Low, 88 Magenta Cartridge Low, 88 Yellow Cartridge Low, or 88 Black Cartridge low appears, order a new cartridge.

When 88 Replace Cyan Cartridge, 88 Replace Magenta Cartridge, 88 Replace Yellow Cartridge, or 88 Replace Black Cartridge appears, you must replace the specified toner cartridge.

Part name	Part number	C540 and C543 series	C544 series
Black Return Program Toner Cartridge	C540A1KG	√	√
Cyan Return Program Toner Cartridge	C540A1CG	√	√
Magenta Return Program Toner Cartridge	C540A1MG	√	√
Yellow Return Program Toner Cartridge	C540A1YG	√	√
Black High Yield Return Program Toner Cartridge	C540H1KG	√	√
Cyan High Yield Return Program Toner Cartridge	C540H1CG	√	√
Magenta High Yield Return Program Toner Cartridge	C540H1MG	√	√
Yellow High Yield Return Program Toner Cartridge	C540H1YG	√	√
Black High Yield Toner Cartridge	C540H2KG	√	√
Cyan High Yield Toner Cartridge	C540H2CG	√	√
Magenta High Yield Toner Cartridge	C540H2MG	√	√
Yellow High Yield Toner Cartridge	C540H2YG	√	√
Black Extra High Yield Return Program Toner Cartridge	C544X1KG Not supported		√
Cyan Extra High Yield Return Program Toner Cartridge	C544X1CG Not supported		√
Magenta Extra High Yield Return Program Toner Cartridge	C544X1MG Not supported		√
Black Extra High Yield Toner Cartridge	C544X2KG Not supported		√
Cyan Extra High Yield Toner Cartridge	C544X2CG Not supported		√
Magenta Extra High Yield Toner Cartridge	C544X2MG Not supported		√
Yellow Extra High Yield Toner Cartridge	C544X2YG Not supported		√

Ordering imaging kits

When Replace black and color imaging kit or Replace black imaging kit appears, order a replacement imaging kit.

Part name Part number
Black and Color Imaging Kit C540X71G
Black Imaging Kit C540X74G

Ordering a waste toner bottle

When 82 Replace Waste Toner appears, order a replacement waste toner box. The waste toner box must be replaced when 82 Replace Waste Toner appears.

Part name Part number
Waste toner bottle C540X75G

Replacing supplies

Replacing the waste toner bottle

Replace the waste toner bottle when 82 Replace waste toner appears. The printer will not continue printing until the waste toner bottle is replaced.

Technical diagram of a printer with labeled parts, showing internal structure and assembly details

1	Top door
2	Waste toner bottle
3	Right side cover
4	Front door

1 Unpack the replacement waste toner bottle.

2 Grasp the front door at the side handholds, and then pull it toward you.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

3 Open the top door.

Diagram of a printer with red arrows indicating process flow (no text or symbols present)

Diagram of a printer's internal structure showing internal components and a magnified view of the printer's base (no text or symbols present)

4 Remove the right side cover.

3D mechanical assembly diagram showing internal components and red directional arrows indicating motion or force (no text or symbols)

5 Press the green levers on each side of the waste toner bottle, and then remove it.

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

6 Place the waste toner bottle in the enclosed packaging. For more information, see "Recycling Lexmark products" on page 136.

7 Insert the new waste toner bottle.

Mechanical assembly diagram showing a disassembly or assembly process with a magnified inset highlighting a red warning symbol (no text or labels present)

8 Replace the right side cover.

Diagram of a mechanical assembly with highlighted components and directional arrows (no text or symbols)

Maintaining the printer

9 Close the top door.

3D rendering of a printer's internal structure showing internal components and a red arrow indicating rotation (no text or symbols present)

10 Close the front door.

Diagram of an open computer printer with red arrows indicating internal components (no text or symbols)

Replacing a black imaging kit

Replace the black imaging kit when Imaging Kit appears.

1 Grasp the front door at the side handholds, and then pull it toward you.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

3D diagram of a printer with red arrows indicating internal components (no text or symbols)

Maintaining the printer

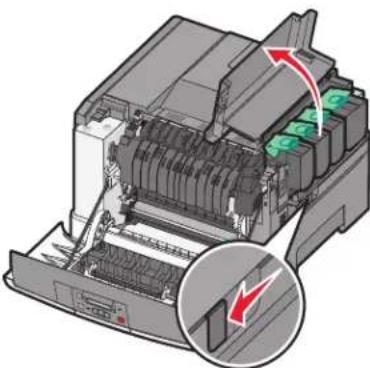

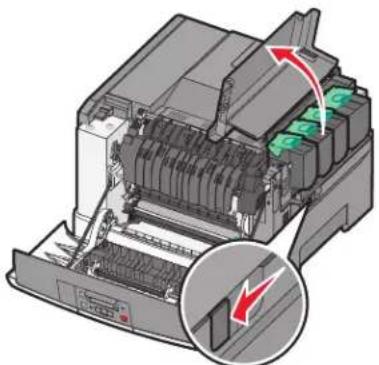

2 Open the top door.

3D illustration of a printer's internal structure with a magnified inset showing internal components (no text or symbols)

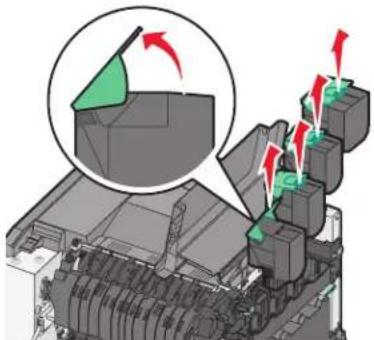

3 Remove the toner cartridges by lifting the handles, and then gently pulling away from the imaging kit.

Mechanical assembly diagram showing a component with green and red directional arrows indicating motion or force (no text or symbols present)

4 Remove the right side cover.

Mechanical assembly diagram showing a device with red arrows indicating motion or force, no visible text or symbols

Maintaining the printer

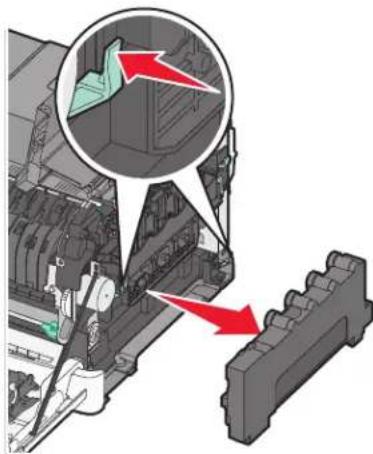

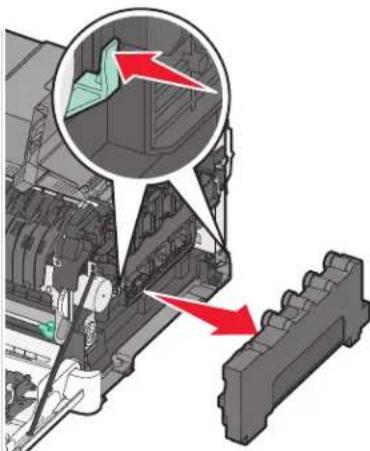

5 Press the green levers on each side of the waste toner bottle, and then remove it.

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

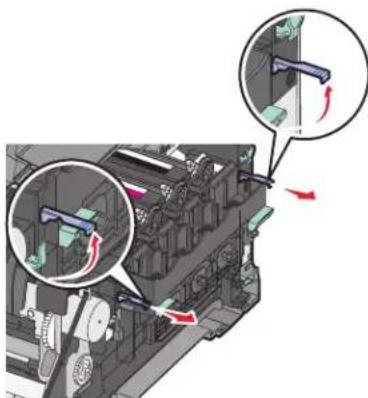

6 Lift the blue levers on the imaging kit, and then pull it toward you.

Mechanical assembly diagram showing internal components and motion arrows (no text or symbols)

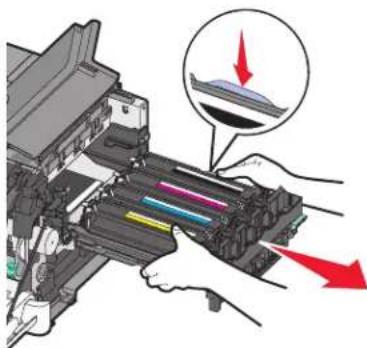

7 Press down on the blue levers, grasp the green handles on the sides, and then pull the imaging kit out.

Warning—Potential Damage: Do not touch the underside of the imaging kit. This could damage the imaging kit.

Illustration of a printer's internal structure with arrows indicating compression or disassembly (no text or symbols present)

Maintaining the printer

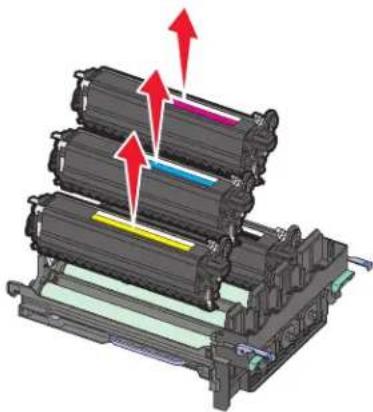

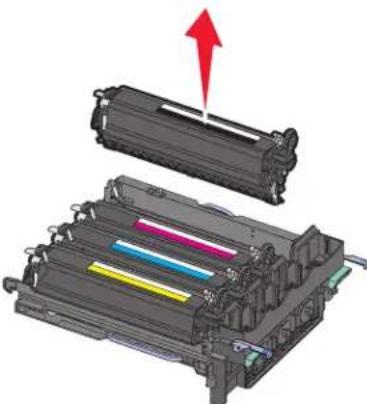

8 Remove the yellow, cyan, and magenta developer units.

Stack of black cylindrical rollers with colored bands and red arrows indicating motion or movement (no text or symbols)

9 Unpack the replacement black imaging kit.

Leave the packaging on the black developer unit.

10 Gently shake the black developer unit side to side.

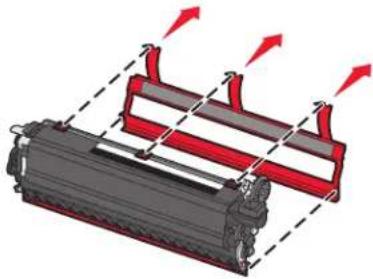

11 Remove the packaging from the black developer unit.

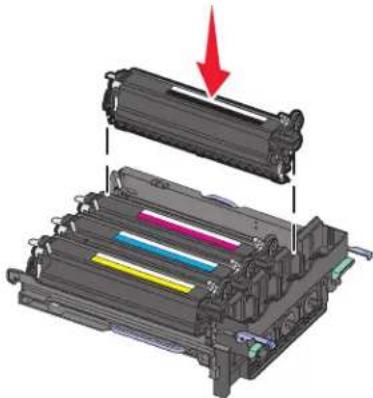

12 Insert the black developer unit.

3D rendering of a mechanical assembly with a cylindrical component and layered green components, showing a red arrow indicating motion (no text or symbols present)

13 Replace the yellow, cyan, and magenta developer units.

Stacked cylindrical electronic components with colored arrows indicating motion or assembly (no text or symbols)

Note: Make sure each developer unit is inserted into a matching color slot.

14 Place the used black imaging kit in the enclosed package. For more information, see Recycling Lexmark Products.

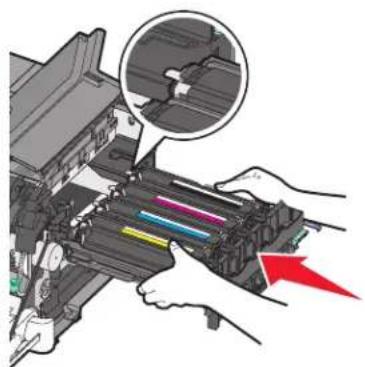

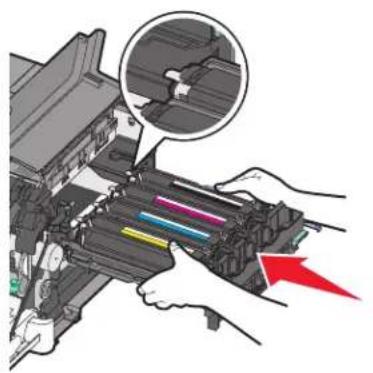

15 Align and insert the imaging kit.

Illustration of hands inserting a component into a machine, with a magnified inset showing internal structure (no text or symbols)

Mechanical assembly diagram showing internal components with red arrows indicating motion or force directions (no text or symbols present)

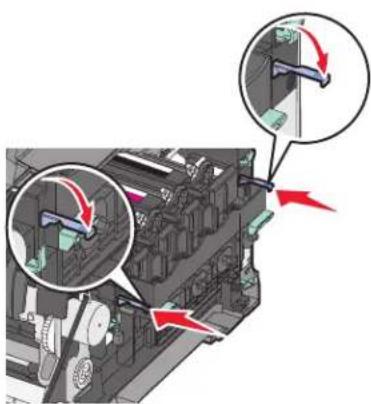

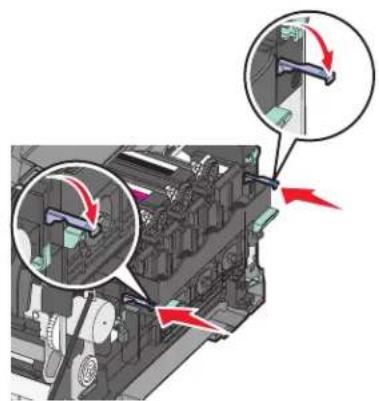

16 Rotate the blue levers down until the imaging kit drops into place.

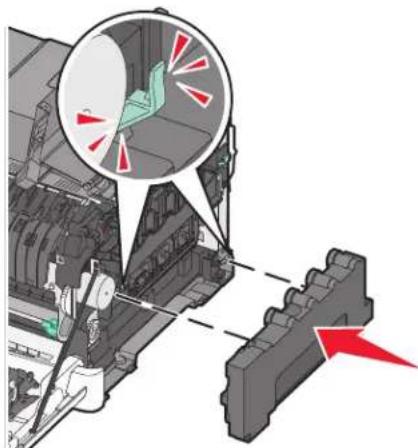

17 Replace the waste toner bottle.

Mechanical assembly diagram showing a gear shift mechanism with no visible text or symbols

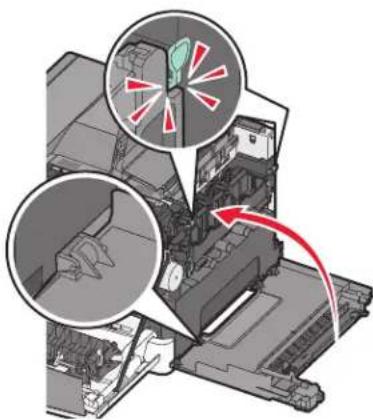

18 Replace the right side cover.

Diagram of a mechanical assembly with highlighted components and directional arrows (no text or symbols)

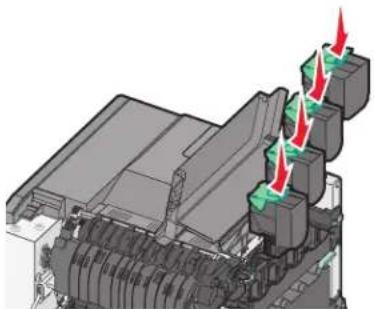

19 Replace the toner cartridges.

3D mechanical assembly diagram showing internal components and red directional arrows indicating flow or movement (no text or symbols)

Maintaining the printer

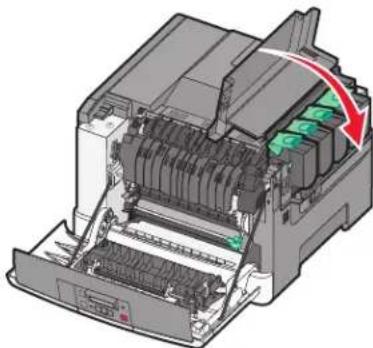

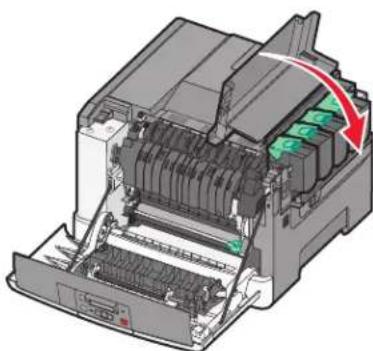

20 Close the top door.

3D rendering of a printer's internal structure showing internal components and a red arrow indicating rotation (no text or symbols present)

21 Close the front door.

3D diagram of an open computer printer with red arrows indicating internal components (no text or symbols)

Replacing a black and color imaging kit

Replace the black and color imaging kit when Imaging Kit appears.

1 Grasp the front door at the side handholds, and then pull it toward you to open it.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

3D diagram of a printer with red arrows indicating internal components (no text or symbols)

Maintaining the printer

2 Open the top door.

3D illustration of a printer's internal structure with a magnified inset showing internal components (no text or symbols)

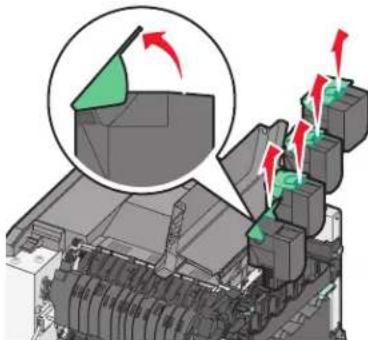

3 Remove the toner cartridges by lifting the handles, and then gently pulling away from the imaging kit.

Mechanical assembly diagram showing a component with green and red directional arrows indicating motion or force (no text or symbols present)

4 Remove the right side cover.

Mechanical assembly diagram showing a printer with red arrows indicating motion or force, no visible text or symbols

Maintaining the printer

5 Press the green levers on each side of the waste toner bottle, and remove it.

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

6 Lift the blue levers on the imaging kit, and then pull it toward you.

Mechanical assembly diagram showing internal components and motion arrows (no text or symbols)

7 Press down on the blue levers, grasp the green handles on the sides, and then pull the imaging kit out.

Warning—Potential Damage: Do not touch the underside of the imaging kit. This could damage the imaging kit.

Illustration of a printer's internal structure with colored modules and a magnified view showing a printer's lid (no text or symbols present)

8 Unpack the replacement black and color imaging kit.

Leave the packaging on the developer units.

9 Gently shake the yellow, cyan, magenta, and black developer units side to side.

Maintaining the printer

10 Remove the packaging from the yellow, cyan, magenta, and black developer units.

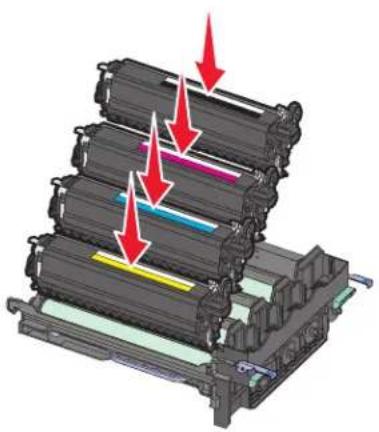

11 Insert the yellow, cyan, magenta, and black developer units.

Stacked cylindrical electronic components with red arrows indicating compression or disassembly (no text or symbols)

12 Place the used black and color imaging kit in the enclosed package. For more information, see "Recycling Lexmark products" on page 136.

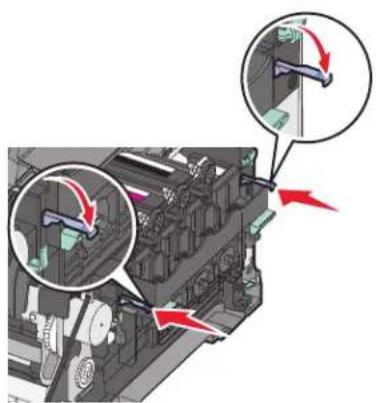

13 Align and insert the imaging kit.

Illustration of hands inserting a color into a device with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

14 Replace the waste toner bottle.

Mechanical assembly diagram showing a disassembly or assembly process with a magnified inset highlighting a component (no text or symbols present)

15 Replace the right side cover.

Diagram of a printer's internal structure with zoomed-in circular insets showing red laser beams (no text or symbols)

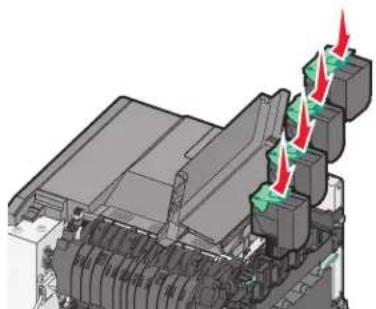

16 Replace the toner cartridges.

3D mechanical assembly diagram showing internal components and red directional arrows indicating flow or movement (no text or symbols)

Maintaining the printer

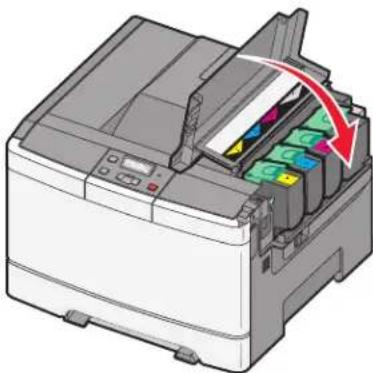

17 Close the top door.

3D rendering of a printer's internal structure showing internal components and a red arrow indicating rotation (no text or symbols present)

18 Close the front door.

3D diagram of a printer internal structure with red arrows indicating motion or movement (no text or symbols)

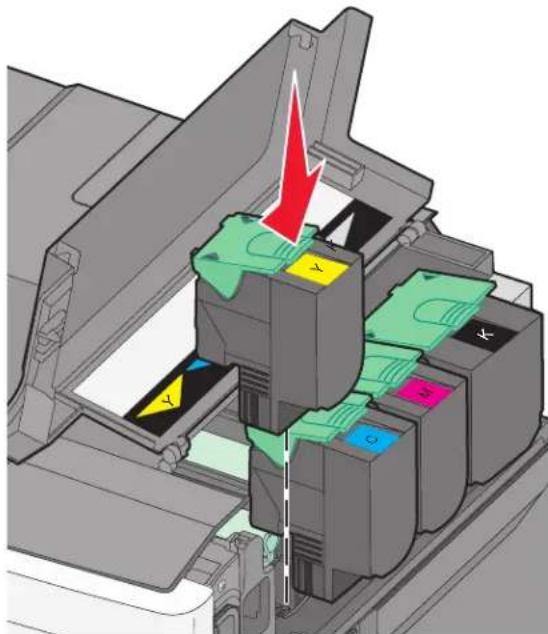

Replacing a toner cartridge

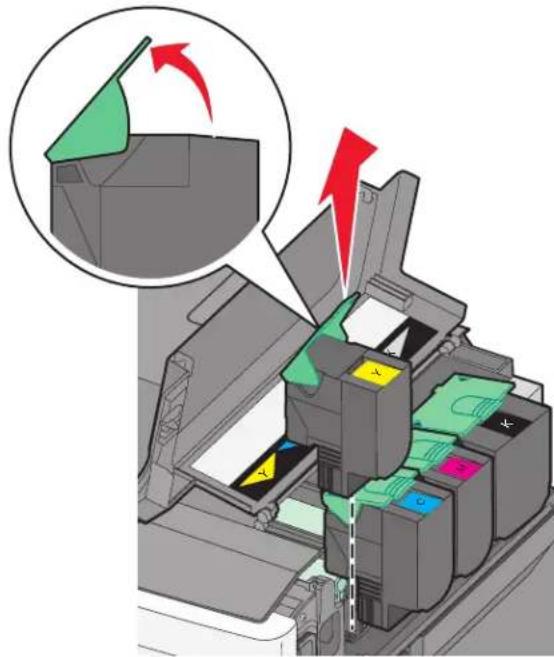

Replace the specified toner cartridge (yellow, cyan, magenta, or black) when 88 Replace Cartridge appears. The printer will not continue printing until the specified cartridge is replaced.

Warning—Potential Damage: Damage caused by use of a non-Lexmark toner cartridge is not covered under warranty.

Note: Degraded print quality may result from using non-Lexmark toner cartridges.

1 Make sure the printer is on and Ready or 88 Replace Cartridge appears.

2 Unpack the new cartridge, and set it near the printer.

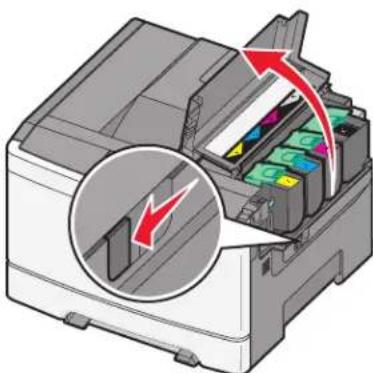

3 Open the top door.

Diagram of a printer internal structure with color-coded slots and a magnified view showing internal components (no text or symbols)

Maintaining the printer

4 Remove the toner cartridge by lifting the handle, and then gently pulling away from the imaging kit.

Diagram of a printer's internal structure showing green and yellow components, with arrows indicating motion (no text or symbols)

5 Align the new toner cartridge, and then press down until it is all the way into the slot.

3D mechanical assembly diagram showing internal components with no visible text or symbols

6 Close the top door.

Illustration of a printer with colorful paper sheets being inserted, showing internal structure and color-coded parts (no text or symbols)

Replacing a developer unit

Replace a developer unit when a print quality defect occurs or when damage occurs to the printer.

Note: When a developer unit is replaced, you must manually calibrate the color. For more information, see "Color misregistration" on page 155.

1 Grasp the front door at the side handholds, and then pull it toward you to open it.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

3D diagram of a printer with red arrows indicating process flow (no text or symbols)

2 Open the top door.

3D rendering of a printer internal structure with highlighted parts (no text or symbols visible)

Maintaining the printer

3 Remove the toner cartridges by lifting the handles and then gently pulling away from the imaging kit.

3D mechanical assembly diagram showing internal components with red arrows indicating motion or force (no text or symbols)

4 Remove the right side cover.

Diagram of a printer or printer with internal components and red arrows indicating motion or flow, no visible text or symbols.

5 Press the green levers on each side of the waste toner bottle, and then remove it.

Mechanical assembly diagram showing a tool interacting with a gear-like component, with no visible text or symbols.

Maintaining the printer

6 Lift the blue levers on the imaging kit, and then pull it toward you.

Mechanical assembly diagram showing internal components and motion arrows (no text or symbols)

7 Press down on the blue levers, grasp the handles on the sides, and then pull the imaging kit out.

Warning—Potential Damage: Do not touch the underside of the imaging kit. This could damage the imaging kit.

Illustration of a printer's internal structure with color-coded slots and a magnified view showing a blue object (no text or symbols present)

8 Remove the used developer unit.

3D rendering of a printer with color swatches and a red arrow indicating compression (no text or symbols)

9 Place the used developer in the enclosed package. For more information, see "Recycling Lexmark products" on page 136.

10 Unpack the replacement developer unit.

Leave the packaging on the developer unit.

11 Gently shake the developer unit side to side.
12 Remove the red shipping cover from the developer unit.

3D diagram of a mechanical assembly with red and gray components, no visible text or symbols

13 Insert the developer unit.

3D rendering of a printer with color bands being inserted, showing a red arrow indicating the process (no text or symbols present)

14 Align and insert the imaging kit.

Illustration of hands inserting a color into a printer case with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

15 Replace the waste toner bottle.

Mechanical assembly diagram showing a gear and motor components with red directional arrows indicating motion (no text or symbols)

16 Replace the right side cover.

3D mechanical assembly diagram showing internal components and a highlighted fan component (no text or symbols)

Maintaining the printer

17 Replace the toner cartridges.

3D mechanical assembly diagram showing internal components with red and green directional arrows indicating flow or movement (no text or symbols)

18 Close the top door.

3D rendering of a printer with internal circuitry and green indicator lights (no text or symbols visible)

19 Close the front door.

3D diagram of a printer with red arrows indicating internal components (no text or symbols)

Cleaning the exterior of the printer

1 Make sure that the printer is turned off and unplugged from the wall outlet.

CAUTION—SHOCK HAZARD: To avoid the risk of electric shock when cleaning the exterior of the printer, unplug the power cord from the wall outlet and disconnect all cables from the printer before proceeding.

2 Remove paper from the standard exit tray.

3 Dampen a clean, lint-free cloth with water.

Warning—Potential Damage: Do not use household cleaners or detergents, as they may damage the finish of the printer.

4 Wipe only the outside of the printer, making sure to include the standard exit tray.

Warning—Potential Damage: Using a damp cloth to clean the interior may cause damage to your printer.

5 Make sure the standard exit tray is dry before beginning a new print job.

Recycling Lexmark products

To return Lexmark products to Lexmark for recycling:

1 Visit our Web site at www.lexmark.com/recycle.
2 Find the product type you want to recycle, and then select your country from the list.
3 Follow the instructions on the computer screen.

Moving the printer

Before moving the printer

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to move it safely.

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or printer damage:

• Turn the printer off using the power switch, and then unplug the power cord from the wall outlet.
• Disconnect all cords and cables from the printer before moving it.
• Lift the printer off of the optional drawer and set it aside instead of trying to lift the drawer and printer at the same time.

Note: Use the handholds located on both sides of the printer to lift it off the optional drawer.

Warning—Potential Damage: Damage to the printer caused by improper moving is not covered by the printer warranty.

Moving the printer to another location

The printer and options can be safely moved to another location by following these precautions:

• Any cart used to move the printer must have a surface able to support the full footprint of the printer. Any cart used to move the options must have a surface able to support the dimensions of the options.
• Keep the printer in an upright position.
• Avoid severe jarring movements.

Shipping the printer

When shipping the printer, use the original packaging or call the place of purchase for a relocation kit.

Administrative support

Restoring the factory default settings

Menu settings marked with an asterisk (*) indicate the active settings. You can restore the original printer settings, often referred to as the factory default settings.

1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Settings appears, and then press √.
4 Press the arrow buttons until General Settings appears, and then press √.
5 Press the arrow buttons until Factory Defaults appears, and then press √.
6 Press the arrow buttons until Restore Now appears, and then press √. Submitting changes appears briefly.
7 Press 📄, and then press ➕ until Ready appears.

The following factory default settings are restored:

• All downloaded resources in the printer memory are deleted. This includes fonts, macros, and symbol sets.
• All settings return to the factory default settings except Printer Language in the Setup menu and custom settings in the Network and USB menus.

Adjusting Power Saver

1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Settings appears, and then press √.
4 Press the arrow buttons until General Settings appears, and then press √.
5 Press the arrow buttons until Timeout appears, and then press √.
6 Press the arrow buttons until Power Saver appears, and then press √.
7 Press the arrow buttons to enter the number of minutes for the printer to wait before entering the Power Saver mode. Available settings range from 1–240 minutes.

8 Press .

Submitting changes appears.

9 Press 📊, and then press ➕ until Ready appears.

Note: Power Saver settings can also be adjusted by typing the printer IP address into the address field of your Web browser.

Using the Embedded Web Server

If the printer is installed on a network, the Embedded Web Server is available for a range of functions:

• Configuring printer settings
• Checking the status of the printer supplies
• Configuring network settings
  •Viewing reports
  •Restoring the factory default settings
  •Viewing the virtual display
• Setting Web page password protect
• Setting Panel PIN protect
• Setting the date and time

To access the Embedded Web Server:

1 Type the printer IP address into the address field of your Web browser.

Note: If you do not know the IP address of the printer, then print a network setup page and locate the IP address in the TCP/IP section.

2 Click one of the tabs to access information about the printer, change settings, or view a report.

Note: If the printer is connected to a computer by a USB or parallel cable, then open the Local Printer Settings Utility for Windows or Printer Settings for Macintosh to access printer menus.

Setting up e-mail alerts

You can have the printer send you an e-mail when the supplies are getting low or when the paper needs to be changed, added, or unjammed.

To set up e-mail alerts:

1 Type the printer IP address into the address field of your Web browser.

Note: If you do not know the IP address of the printer, then print a network setup page and locate the IP address in the TCP/IP section.

2 Click Settings.
3 Under Other Settings, click E-mail Alert Setup.
4 Select the items for notification and type in the e-mail addresses that you want to receive e-mail alerts.
5 Click Submit.

Note: See your system support person to set up the e-mail server.

Configuring supply notifications

You can determine how you would like to be notified when supplies run low or reach their end-of-life.

To configure supply notifications using the Embedded Web Server:

1 Type the printer IP address into the address field of your Web browser.

Note: If you do not know the IP address of the printer, then print a network setup page and locate the IP address in the TCP/IP section.

2 Click Settings.
3 Click Print Settings.
4 Click Supply Notifications.
5 From the drop-down box for each supply, select among the options for notification. Explanations for each option are provided.
6 Click Submit to save your selections.

Copying printer settings to other printers

Using the Embedded Web Server, you can copy printer settings to up to 15 other network printers. To copy printer settings:

1 Type the printer IP address into the address field of your Web browser.
Note: If you do not know the IP address of the printer, then print a network setup page and locate the IP address in the TCP/IP section.
2 Click Copy Printer Settings.
3 To change the language, select a language from the drop-down list, and then click Click here to submit language.
4 Click Printer Settings.
5 Enter the IP addresses of the source and target printers.

Note: To add additional target printers, click the Add Target IP button.

6 Click Copy Printer Settings.

Troubleshooting

Solving basic printer problems

If there are basic printer problems, or the printer is unresponsive, make sure:

• The power cord is plugged into the printer and a properly grounded electrical outlet.
• The electrical outlet is not turned off by any switch or breaker.
• The printer is not plugged into any surge protectors, uninterrupted power supplies, or extension cords.
• Other electronic equipment plugged into the outlet is working.
• The printer is turned on. Check the printer power switch.
• The printer cable is securely attached to the printer and the host computer, print server, option, or other network device.
• All options are properly installed.
  •The printer driver settings are correct.

Once you have checked each of these possibilities, turn the printer off, wait for about 10 seconds, and then turn the printer back on. This often fixes the problem.

Solving printing problems

Printer control panel display is blank or displays only diamonds

The printer self test failed. Turn the printer off, wait about 10 seconds, and then turn the printer back on.

If Ready does not appear, turn the printer off and contact Customer Support.

Error message about reading USB drive appears

Make sure the USB drive is supported. For information regarding tested and approved USB flash memory devices, visit the Lexmark Web site at www.lexmark.com.

Jobs do not print

These are possible solutions. Try one or more of the following:

MAKE SURE THE PRINTER IS READY TO PRINT

Make sure Ready or Power Saver appears on the display before sending a job to print. Press √ to return the printer to the Ready state.

CHECK TO SEE IF THE STANDARD EXIT BIN IS FULL

Remove the stack of paper from the standard exit bin.

CHECK TO SEE IF THE PAPER TRAY IS EMPTY

Load paper in the tray.

MAKE SURE THE CORRECT PRINTER SOFTWARE IS INSTALLED

• Verify that you are using the correct printer software.
• If you are using a USB port, make sure you are running a supported operating system and using compatible printer software.

MAKE SURE YOU ARE USING A RECOMMENDED USB, SERIAL, OR ETHERNET CABLE

For more information, visit the Lexmark Web site at www.lexmark.com.

MAKE SURE PRINTER CABLES ARE SECURELY CONNECTED

Check the cable connections to the printer and print server to make sure they are secure.

For more information, see the setup documentation that came with the printer.

Job takes longer than expected to print

These are possible solutions. Try one or more of the following:

REDUCE THE COMPLEXITY OF THE PRINT JOB

Eliminate the number and size of fonts, the number and complexity of images, and the number of pages in the job.

CHANGE THE PAGE PROTECT SETTING TO OFF

1 From the printer control panel, press .
2 Press the arrow buttons until Settings appears, and then press √.
3 Press the arrow buttons until Setup Menu appears, and then press √.
4 Press the arrow buttons until Print Recovery appears, and then press √.
5 Press the arrow buttons until Page Protect appears, and then press √.
6 Press the arrow buttons until Off appears, and then press √.

Job prints from the wrong tray or on the wrong paper

CHECK THE PAPER TYPE SETTING

Make sure the Paper Type setting matches the paper loaded in the tray.

Incorrect characters print

Make sure the printer is not in Hex Trace mode. If Ready Hex appears on the display, you must exit Hex Trace mode before you can print your job. Turn the printer off and back on to exit Hex Trace mode.

Tray linking does not work

These are possible solutions. Try one or more of the following:

LOAD THE SAME SIZE AND TYPE OF PAPER

• Load the same size and type of paper in each tray to be linked.
• Move the paper guides to the correct positions for the paper size loaded in each tray.

USE THE SAME PAPER SIZE AND PAPER TYPE SETTINGS

• Print a menu settings page and compare the settings for each tray.
• If necessary, adjust the settings from the Paper Size/Type menu.

Note: The multipurpose feeder does not automatically sense the paper size. You must set the size from the Paper Size/Type menu.

Large jobs do not collate

These are possible solutions. Try one or more of the following:

MAKE SURE COLLATE IS SET TO ON

From the printer control panel Finishing menu, Print Properties, or the Print dialog, set Collate to On.

Note: Setting Collate to Off in the software overrides the setting in the Finishing menu.

REDUCE THE COMPLEXITY OF THE PRINT JOB

Reduce the complexity of the print job by eliminating the number and size of fonts, the number and complexity of images, and the number of pages in the job.

MAKE SURE THE PRINTER HAS ENOUGH MEMORY

Add printer memory.

Unexpected page breaks occur

Increase the Print Timeout value:

1 From the printer control panel, press .
2 Press the arrow buttons until Settings appears, and then press √.
3 Press the arrow buttons until General Settings appears, and then press √.
4 Press the arrow buttons until Timeouts appears, and then press √.
5 Press the arrow buttons until Print Timeout appears, and then press √.
6 Press the arrow buttons until the desired value appears, and then press √.

Solving option problems

Option does not operate correctly or quits after it is installed

These are possible solutions. Try one or more of the following:

RESET THE PRINTER

Turn the printer off, wait about 10 seconds, and then turn the printer on.

CHECK TO SEE IF THE OPTION IS CONNECTED TO THE PRINTER

1 Turn the printer off.
2 Unplug the printer.
3 Check the connection between the option and the printer.

MAKE SURE THE OPTION IS INSTALLED CORRECTLY

Print a menu settings page and check to see if the option is listed in the Installed Options list. If the option is not listed, then reinstall it. For more information, see the hardware setup documentation that came with the option, or go to www.lexmark.com/publications to view the option instruction sheet.

MAKE SURE THE OPTION IS SELECTED

From the computer you are printing from, select the option. For more information, see "Updating available options in the printer driver" on page 27.

Drawers

MAKE SURE THE PAPER IS LOADED CORRECTLY

1 Open the paper tray.
2 Check for paper jams or misfeeds.
3 Make sure paper guides are aligned against the edges of the paper.
4 Make sure the paper tray closes properly.
5 Close the door.

RESET THE PRINTER

Turn the printer off. Wait 10 seconds. Turn the printer back on.

Flash memory card

Make sure the flash memory card is securely connected to the printer system board.

Multipurpose feeder

CHECK THE MULTIPURPOSE FEEDER

Make sure the 650-sheet duo drawer (multipurpose feeder) is installed properly.

CLEAR ANY JAMS

Clear any jams in the multipurpose feeder.

CHECK THE POWER CORD CONNECTION

Make sure:

• The power cord is plugged into the printer and a properly grounded electrical outlet.
  •The outlet has power.

CHECK THE PAPER

Use recommended paper and specialty media. For more information, see the chapter about paper and specialty media guidelines.

CHECK THE PAPER GUIDES

Move the guides in the tray to the correct position for the size loaded.

CHECK FOR SERVICE MESSAGES

If a service message appears, turn the printer off, wait about 10 seconds, and then turn the printer back on. If the error recurs, call for service.

Memory card

Make sure the memory card is securely connected to the printer system board.

Solving paper feed problems

Paper frequently jams

These are possible solutions. Try one or more of the following:

CHECK THE PAPER

Use recommended paper and specialty media. For more information, see the chapter about paper and specialty media guidelines.

MAKE SURE THERE IS NOT TOO MUCH PAPER IN THE PAPER TRAY

Make sure the stack of paper you load does not exceed the maximum stack height indicated in the tray or on the multipurpose feeder.

CHECK THE PAPER GUIDES

Move the guides in the tray to the correct positions for the paper size loaded.

THE PAPER MAY HAVE ABSORBED MOISTURE DUE TO HIGH HUMIDITY

• Load paper from a fresh package.
• Store paper in its original wrapper until you use it.

Paper jam message remains after jam is cleared

The paper path is not clear. Clear jammed paper from the entire paper path, and then press √.

Page that jammed does not reprint after you clear the jam

In the Setup menu, Jam Recovery is set to Off. Set Jam Recovery to Auto or On:

1 Press

2 Press the arrow buttons until Settings appears, and then press √.
3 Press the arrow buttons until General settings appears, and then press √.
4 Press the arrow buttons until Print Recovery appears, and then press √.
5 Press the arrow buttons until Jam Recovery appears, and then press √.
6 Press the arrow buttons until On or Auto appears, and then press √.

Solving print quality problems

The information in the following topics may help you solve print quality problems. If these suggestions do not correct the problem, contact Customer Support. You may have a printer part that requires adjustment or replacement.

Isolating print quality problems

To help isolate print quality problems, print the print quality test pages:

1 Turn the printer off.
2 Load letter- or A4-size paper.

3D diagram of an open computer case with a red arrow indicating a component or process, no text or symbols present.

Troubleshooting

3 From the printer control panel, press and hold √ and the right arrow button while turning the printer on.
4 Release both buttons when Performing Self Test appears.

The printer performs its power-on sequence, and then Config Menu appears.

5 Press the arrow buttons until Prt Quality Pgs appears, and then press √.

The pages are formatted. Printing Quality Test Pages appears, and then the pages print. The message remains on the display until all the pages print.

6 After the print quality test pages print, press the arrow buttons until Exit Config Menu appears, and then press √.

Blank pages

Blank white document page with a corner bookmark (no text or symbols)

The printer may need to be serviced. For more information, contact Customer Support.

Characters have jagged or uneven edges

ABC DEF

These are possible solutions. Try one or more of the following:

CHECK THE PRINT QUALITY SETTINGS

• Change the Print Resolution setting in the Quality menu to 600 dpi, 1200 Image Q, 1200 dpi, or 2400 Image Q.
• Enable Enhance Fine Lines in the Quality menu.

MAKE SURE DOWNLOADED FONTS ARE SUPPORTED

If you are using downloaded fonts, then verify that the fonts are supported by the printer, the host computer, and the software program.

Clipped images

These are possible solutions. Try one or more of the following:

CHECK THE GUIDES

Move the width and length guides in the tray to the correct positions for the paper size loaded.

CHECK THE PAPER SIZE SETTING

Make sure the paper size setting matches the paper loaded in the tray:

1 From the printer control panel, check the Paper Size setting from the Paper menu.
2 Before sending the job to print, specify the correct size setting:

• For Windows users, specify the size from Print Properties.
• For Macintosh users, specify the size from the Page Setup dialog.

Dark lines

ABCDE ABCDE ABCDE

The imaging kit may be defective.

If Black and color imaging kit life warning or Black imaging kit life warning appears, replace the imaging kit.

Gray background

ABCDE ABCDE ABCDE

CHECK THE TONER DARKNESS SETTING

Select a lighter Toner Darkness setting:

• From the printer control panel, change the setting from the Quality menu.
• For Windows users, change the setting from Print Properties.
• For Macintosh users, change the setting from the Print dialog.

Incorrect margins

ABC DEF

CHECK THE PAPER GUIDES

Move the guides in the tray to the correct positions for the paper size loaded.

CHECK THE PAPER SIZE SETTING

Make sure the paper size setting matches the paper loaded in the tray:

1 From the printer control panel, check the Paper Size setting from the Paper menu.
2 Before sending the job to print, specify the correct size setting:
- For Windows users, specify the size from Print Properties.
- For Macintosh users, specify the size from the Page Setup dialog.

CHECK THE PAGE SIZE SETTING

Before sending the job to print, specify the correct page size in the Print dialog or the software program.

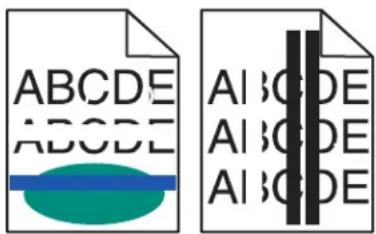

Light colored line, white line, or incorrectly colored line

ABCDE ABCDE A B C D E A B C D E A B C D E

These are possible solutions. Try one or more of the following:

A TONER CARTRIDGE MAY BE DEFECTIVE

Replace the defective toner cartridge.

THE IMAGING KIT MAY BE DEFECTIVE

Replace the imaging kit.

Note: The printer has two types of imaging kits: a black and color imaging kit, and a black imaging kit. The black and color imaging kit contains cyan, magenta, yellow, and black. The black imaging kit contains black only.

Paper curl

These are possible solutions. Try one or more of the following:

CHECK THE PAPER TYPE SETTING

Make sure the Paper Type setting matches the paper loaded in the tray.

HAS THE PAPER ABSORBED MOISTURE DUE TO HIGH HUMIDITY?

• Load paper from a fresh package.
• Store paper in its original wrapper until you use it.

Print irregularities

ABCDE ABCDE ABCDE

These are possible solutions. Try one or more of the following:

THE PAPER MAY HAVE ABSORBED MOISTURE DUE TO HIGH HUMIDITY

• Load paper from a fresh package.
• Store paper in its original wrapper until you use it.

CHECK THE PAPER TYPE SETTING

Make sure the Paper Type setting matches the paper loaded in the tray.

CHECK THE PAPER

Avoid textured paper with rough finishes.

THE TONER MAY BE LOW

When 88 cartridge low appears, order a new cartridge.

Print is too dark

ABC DEF

These are possible solutions. Try one or more of the following:

CALIBRATE THE COLOR

The printer automatically calibrates the colors whenever a new imaging kit is detected. If a cartridge is replaced, then you can calibrate the colors manually:

1 From the printer control panel, press .
2 From the Admin menu, press the arrow buttons until Settings appears, and then press 📄.
3 Press the arrow buttons until Quality menu appears, and then press On.
4 Press the arrow buttons until Color Adjust appears, and then press ☐

Calibrating appears.

CHECK THE DARKNESS, BRIGHTNESS, AND CONTRAST SETTINGS

The Toner Darkness setting is too dark, the RGB Brightness setting is too dark, or the RGB Contrast setting is too high.

• For Windows users: from Print Properties, select Print Quality and then select More Print Quality Options to change these settings.
• From the printer control panel Quality menu, change these settings.
  •For Macintosh users:

1 Choose File > Print.
2 Locate the drop-down box under the Orientation pictures, and then click the down button.
3 Click Printer Features.
4 Change the settings for Toner Darkness, Brightness, and Contrast.

THE IMAGING KIT MAY BE WORN OR DEFECTIVE

Replace the imaging kit.

Note: The printer has two types of imaging kits: a black and color imaging kit, and a black imaging kit. The black and color imaging kit contains cyan, magenta, yellow, and black. The black imaging kit contains black only.

Print is too light

ABC DEF

These are possible solutions. Try one or more of the following:

CALIBRATE THE COLOR

The printer will automatically calibrate the colors whenever a new imaging kit is detected. If a cartridge is replaced, then you can calibrate the colors manually:

1 From the printer control panel, press .
2 From the Admin menu, press the arrow buttons until Settings appears, and then press √.
3 Press the arrow buttons until Quality menu appears, and then press √.
4 Press the arrow buttons until Color Adjust appears, and then press √.

Calibrating appears.

CHECK THE DARKNESS, BRIGHTNESS, AND CONTRAST SETTINGS

The Toner Darkness setting is too light, the RGB Brightness setting is too light, or the RGB Contrast setting is too low.

• For Windows users: from Print Properties, select Print Quality and then select More Print Quality Options to change these settings.
  •For Macintosh users:

1 Choose File > Print.
2 Locate the drop-down box under the Orientation pictures, and then click the down button.
3 Click Printer Features.
4 Change the settings for Toner Darkness, Brightness, and Contrast.

- From the printer control panel Quality menu, change these settings.

THE PAPER MAY HAVE ABSORBED MOISTURE DUE TO HIGH HUMIDITY

• Load paper from a fresh package.
• Store paper in its original wrapper until you use it.

CHECK THE PAPER

Avoid textured paper with rough finishes.

CHECK THE PAPER TYPE SETTING

Make sure the Paper Type setting matches the paper loaded in the tray.

MAKE SURE COLOR SAVER IS SET TO OFF

Color Saver may be set to On.

THE TONER MAY BE LOW

When 88 Cartridge Low appears, order a new cartridge.

A TONER CARTRIDGE MAY BE DEFECTIVE

Replace the toner cartridge.

THE IMAGING KIT MAY BE WORN OR DEFECTIVE

Replace the imaging kit.

Note: The printer has two types of imaging kits: a black and color imaging kit, and a black imaging kit. The black and color imaging kit contains cyan, magenta, yellow, and black. The black imaging kit contains black only.

Repeating defects

Two stylized document icons with colored paper sheets and simple face marks, no text or symbols present.

REPEATING MARKS OCCUR REPEATEDLY ONLY IN ONE COLOR AND MULTIPLE TIMES ON A PAGE

Replace the developer unit if the defects occur every 43.9 mm (1.7 in.)

Replace the imaging kit if the defects occur every:

• 34.6 mm (1.4 in.)
  -94.2 mm (3.71 in.)

Notes:

• The printer has two types of imaging kits: a black and color imaging kit, and a black imaging kit. The black and color imaging kit contains cyan, magenta, yellow, and black. The black imaging kit contains black only.
• The Print Defects menu prints a diagnostic list of problems. For more information, see "Menu Settings Page menu" on page 81.

Skewed print

CHECK THE PAPER GUIDES

Move the guides in the tray to the correct positions for the paper size loaded.

CHECK THE PAPER

Make sure you are using paper that meets the printer specifications.

Solid color pages

Simple graphic of a document with a white top and black bottom, no text or symbols present.

The printer may need to be serviced. For more information, contact Customer Support.

Toner fog or background shading appears on the page

These are possible solutions. Try one or more of the following:

THE IMAGING KIT MAY BE WORN OR DEFECTIVE

Replace the imaging kit.

Note: The printer has two types of imaging kits: a black and color imaging kit, and a black imaging kit. The black and color imaging kit contains cyan, magenta, yellow, and black. The black imaging kit contains black only.

Is there toner in the paper path?

Contact Customer Support.

Toner rubs off

ABC DEF

These are possible solutions. Try one or more of the following:

CHECK THE PAPER TYPE SETTING

Make sure the paper type setting matches the paper loaded in the tray:

1 From the printer control panel, check the Paper Type setting from the Paper menu.
2 Before sending the job to print, specify the correct type setting:
- For Windows users, specify the type from Print Properties.
- For Macintosh users, specify the type from the Print dialog.

CHECK THE PAPER TEXTURE SETTING

From the printer control panel Paper menu, make sure the Paper Texture setting matches the paper loaded in the tray.

Toner specks

ABC DEF

These are possible solutions. Try one or more of the following:

THE IMAGING KIT MAY BE WORN OR DEFECTIVE

Replace the imaging kit.

Note: The printer has two types of imaging kits: a black and color imaging kit, and a black imaging kit. The black and color imaging kit contains cyan, magenta, yellow, and black. The black imaging kit contains black only.

Is there toner in the paper path?

Contact Customer Support.

Transparency print quality is poor

CHECK THE TRANSPARENCIES

Use only transparencies recommended by the printer manufacturer.

CHECK THE PAPER TYPE SETTING

Make sure the paper type setting matches the paper loaded in the tray:

1 From the printer control panel, check the Paper Type setting from the Paper menu.
2 Before sending the job to print, specify the correct type setting:
- For Windows users, specify the type from Print Properties.
- For Macintosh users, specify the type from the Print dialog.

Uneven print density

ABCDE ABCDE ABCDE

Replace the black and color imaging kit.

Solving color quality problems

This section helps answer some basic color-related questions and describes how some of the features provided in the printer control panel Quality menu can be used to solve typical color problems.

Color misregistration

ABCDE ABCDE ABCDE

Color has shifted outside of the appropriate area or has been superimposed over another color area.

These are possible solutions. Try one or more of the following:

REMOVE AND REINSTALL THE TONER CARTRIDGES

Remove the toner cartridges, and then reinstall them.

CALIBRATE THE COLOR

The printer will automatically calibrate the color whenever a new imaging kit is detected.

1 From the printer control panel, press .
2 From the Setting/Quality menu, press the arrow buttons until Color Adj Setting Text appears, and then press √.
3 Press the arrow buttons until Quality menu appears, and then press √.
4 Press the arrow buttons until Color Adjust appears, and then press √. Calibrating appears.

Note: If you have not resolved the issue, calibrate the color again.

FAQ about color printing

What is RGB color?

Red, green, and blue light can be added together in various amounts to produce a large range of colors observed in nature. For example, red and green can be combined to create yellow. Televisions and computer monitors create colors in this manner. RGB color is a method of describing colors by indicating the amount of red, green, or blue needed to produce a certain color.

What is CMYK color?

Cyan, magenta, yellow, and black inks or toners can be printed in various amounts to produce a large range of colors observed in nature. For example, cyan and yellow can be combined to create green. Printing presses, inkjet printers, and color laser printers create colors in this manner. CMYK color is a method of describing colors by indicating the amount of cyan, magenta, yellow, and black needed to reproduce a particular color.

How is color specified in a document to be printed?

Software programs typically specify document color using RGB or CMYK color combinations. Additionally, they allow users to modify the color of each object in a document. For more information, see the software program Help topics.

How does the printer know what color to print?

When a user prints a document, information describing the type and color of each object is sent to the printer. The color information is passed through color conversion tables that translate the color into the appropriate amounts of cyan, magenta, yellow, and black toner needed to produce the desired color. The object information determines the application of color conversion tables. For example, it is possible to apply one type of color conversion table to text while applying a different color conversion table to photographic images.

Should I use PostScript or PCL emulation printer software? What settings should I use for the best color?

The PostScript driver is strongly recommended for best color quality. The default settings in the PostScript driver provide the preferred color quality for the majority of printouts.

Why doesn't the printed color match the color I see on the computer screen?

The color conversion tables used in Auto Color Correction mode generally approximate the colors of a standard computer monitor. However, because of technology differences that exist between printers and monitors, there are many colors that can also be affected by monitor variations and lighting conditions. For recommendations on how the printer color sample pages may be useful in solving certain color-matching problems, see the question, "How can I match a particular color (such as a corporate logo)?"

The printed page appears tinted. Can I adjust the color?

Sometimes a printed page may appear tinted (for example, everything printed seems to be too red). This can be caused by environmental conditions, paper type, lighting conditions, or user preference. In these instances, adjust the Color Balance setting to create a more preferable color. Color Balance provides the user with the ability to make subtle adjustments to the amount of toner being used in each color plane. Selecting positive or negative values for cyan, magenta, yellow, and black (from the Color Balance menu) will slightly increase or decrease the amount of toner used for the chosen color. For example, if a printed page has a red tint, then decreasing both magenta and yellow could potentially improve the color balance.

My color transparencies seem dark when they are projected. Is there anything I can do to improve the color?

This problem most commonly occurs when projecting transparencies with reflective overhead projectors. To obtain the highest projected color quality, transmissive overhead projectors are recommended. If a reflective projector must be used, then adjusting the Toner Darkness setting to 1, 2, or 3 will lighten the transparency. Make sure to print on the recommended type of color transparencies.

What is manual color correction?

When manual color correction is enabled, the printer employs user-selected color conversion tables to process objects. However, Color Correction must be set to Manual, or no user-defined color conversion will be implemented. Manual color correction settings are specific to the type of object being printed (text, graphics, or images), and how the color of the object is specified in the software program (RGB or CMYK combinations).

Notes:

• Manual color correction is not useful if the software program does not specify colors with RGB or CMYK combinations. It is also not effective in situations in which the software program or the computer operating system controls the adjustment of colors.
• The color conversion tables—applied to each object when Color Correction is set to Auto—generate preferred colors for the majority of documents.

To manually apply a different color conversion table:

1 From the Quality menu, select Color Correction, and then select Manual.
2 From the Quality menu, select Manual Color, and then select the appropriate color conversion table for the affected object type.

Manual Color menu

Object type Color conversion tables
RGB ImageRGB TextRGB Graphics	Vivid—Produces brighter, more saturated colors and may be applied to all incoming color formats.sRGB Display—Produces an output that approximates the colors displayed on a computer monitor. Black toner usage is optimized for printing photographs.Display—True Black—Produces an output that approximates the colors displayed on a computer monitor. Uses only black toner to create all levels of neutral gray.sRGB Vivid—Provides an increased color saturation for the sRGB Display color correction. Black usage is optimized for printing business graphics.Off—No color correction is implemented.
CMYK ImageCMYK TextCMYK Graphics	US CMYK—Applies color correction to approximate the SWOP (Specifications for Web Offset Publishing) color output.Euro CMYK—Applies color correction to approximated EuroScale color output.Vivid CMYK—Increases the color saturation of the US CMYK color correction setting.Off—No color correction is implemented.

How can I match a particular color (such as a corporate logo)?

From the printer Quality menu, nine types of Color Samples sets are available. These are also available from the Color Samples page of the Embedded Web Server. Selecting any sample set generates a multiple-page printout consisting of hundreds of colored boxes. Either a CMYK or RGB combination is located on each box, depending on the table selected. The observed color of each box is obtained by passing the CMYK or RGB combination labeled on the box through the selected color conversion table.

By examining Color Samples sets, a user can identify the box whose color is the closest to the desired color. The color combination labeled on the box can then be used for modifying the color of the object in a software program. For more information, see the software program Help topics. Manual color correction may be necessary to utilize the selected color conversion table for the particular object.

Selecting which Color Samples set to use for a particular color-matching problem depends on the Color Correction setting being used (Auto, Off, or Manual), the type of object being printed (text, graphics, or images), and how the color of the object is specified in the software program (RGB or CMYK combinations). When the printer Color Correction setting is set to Off, the color is based on the print job information; and no color conversion is implemented.

Note: The Color Samples pages are not useful if the software program does not specify colors with RGB or CMYK combinations. Additionally, certain situations exist in which the software program or the computer operating system adjusts the RGB or CMYK combinations specified in the program through color management. The resulting printed color may not be an exact match of the Color Samples pages.

What are detailed Color Samples and how do I access them?

Detailed Color Samples sets are available only through the Embedded Web Server of a network printer. A detailed Color Samples set contains a range of shades (displayed as colored boxes) that are similar to a user-defined RGB or CMYK value. The likeness of the colors in the set are dependent on the value entered in the RGB or CMYK Increment box.

To access a detailed Color Samples set from the Embedded Web Server:

1 Open a Web browser.
2 In the address bar, type the network printer IP address.
3 Click Configuration.
4 Click Color Samples.
5 Click Detailed Options to narrow the set to one color range.
6 When the Detailed Options page appears, select a color conversion table.
7 Enter the RGB or CMYK color number.

8 Enter an Increment value from 1–255.

Note: The closer the value is to 1, the narrower the color sample range will appear.

9 Click Print to print the detailed Color Samples set.

Contacting Customer Support

When you call Customer Support, describe the problem you are experiencing, the message on the display, and the troubleshooting steps you have already taken to find a solution.

You need to know your printer model type and serial number. For more information, see the label on the inside top front cover of the printer. The serial number is also listed on the menu settings page.

In the U.S. or Canada, call (1-800-539-6275). For other countries/regions, visit the Lexmark Web site at www.lexmark.com.

Notices

Product information

Product name:

Lexmark C540

Model(s):

210

Product name:

Lexmark C543dn

230

Product name:

Lexmark C544n, dn, dtn

430

Product name:

Lexmark C544dw

43W

Machine type:

5025

Edition notice

June 2008

The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any time.

References in this publication to products, programs, or services do not imply that the manufacturer intends to make these available in all countries in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any existing intellectual property right may be used instead. Evaluation and verification of operation in conjunction with other products, programs, or services, except those expressly designated by the manufacturer, are the user's responsibility.

For Lexmark technical support, visit support.lexmark.com.

For information on supplies and downloads, visit www.lexmark.com.

If you don't have access to the Internet, you can contact Lexmark by mail:

Lexmark International, Inc.

Bldg 004-2/CSC

740 New Circle Road NW

Lexington, KY 40550

© 2008 Lexmark International, Inc.

All rights reserved.

UNITED STATES GOVERNMENT RIGHTS

This software and any accompanying documentation provided under this agreement are commercial computer software and documentation developed exclusively at private expense.

Trademarks

Lexmark, Lexmark with diamond design, and MarkNet are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.

PrintCryption is a trademark of Lexmark International, Inc.

PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company's designation of a set of printer commands (language) and functions included in its printer products. This printer is intended to be compatible with the PCL language. This means the printer recognizes PCL commands used in various application programs, and that the printer emulates the functions corresponding to the commands.

The following terms are trademarks or registered trademarks of these companies:

Albertus	The Monotype Corporation plc
Antique Olive Monsieur	Marcel OLIVE
Apple-Chancery Apple Computer, Inc.
Arial The Monotype Corporation plc
CG Times	Based on Times New Roman under license from The Monotype Corporation plc, is a product of Agfa Corporation
Chicago Apple Computer, Inc.
Clarendon Linotype-Hell AG and/or its subsidiaries
Eurostile Nebiolo
Geneva Apple Computer, Inc.
GillSans The Monotype Corporation plc
Helvetica Linotype-Hell AG and/or its subsidiaries
Hoefler Jonathan Hoefler Type Foundry
ITC Avant Garde Gothic International Typeface Corporation
ITC Bookman International Typeface Corporation
ITC Mona Lisa International Typeface Corporation
ITC Zapf Chancery International Typeface Corporation
Joanna The Monotype Corporation plc
Marigold Arthur Baker
Monaco Apple Computer, Inc.
New York Apple Computer, Inc.
Oxford Arthur Baker
Palatino Linotype-Hell AG and/or its subsidiaries
Stempel Garamond Linotype-Hell AG and/or its subsidiaries
Taffy Agfa Corporation
Times New Roman The Monotype Corporation plc
Univers Linotype-Hell AG and/or its subsidiaries

All other trademarks are the property of their respective owners.

Federal Communications Commission (FCC) compliance information statement

This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

The FCC Class B limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult your point of purchase or service representative for additional suggestions.

The manufacturer is not responsible for radio or television interference caused by using other than recommended cables or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user's authority to operate this equipment.

Note: To assure compliance with FCC regulations on electromagnetic interference for a Class B computing device, use a properly shielded and grounded cable such as Lexmark part number 1021231 for parallel attach or 1021294 for USB attach. Use of a substitute cable not properly shielded and grounded may result in a violation of FCC regulations.

Any questions regarding this compliance information statement should be directed to:

Director of Lexmark Technology & Services

Lexmark International, Inc.

740 West New Circle Road

Lexington, KY 40550

(859) 232–3000

Exposure to radio frequency radiation

The following notice is applicable if your printer has a wireless network card installed.

The radiated output power of this device is far below the FCC radio frequency exposure limits. A minimum separation of 20 cm (8 inches) must be maintained between the antenna and any persons for this device to satisfy the RF exposure requirements of the FCC.

Industry Canada notices

Industry Canada compliance statement

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Standard ICES-003.

Industry Canada radio interference statement

Industry Canada (Canada)

This device complies with Industry Canada specification RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This device has been designed to operate only with the antenna provided. Use of any other antenna is strictly prohibited per regulations of Industry Canada.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF fields in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada's Web site www.hc-sc.gc.ca/rpb.

The term "IC:" before the certification/registration number only signifies that the Industry Canada technical specifications were met.

Industry Canada (Canada)

European Community (EC) directives conformity

This product is in conformity with the protection requirements of EC Council directives 2004/108/EC, 2006/95/EC, and 1999/5/EC on the approximation and harmonization of the laws of the Member States relating to electromagnetic compatibility, safety of electrical equipment designed for use within certain voltage limits and on radio equipment and telecommunications terminal equipment.

Compliance is indicated by the CE marking.

CE

A declaration of conformity with the requirements of the directives is available from the Director of Manufacturing and Technical Support, Lexmark International, S. A., Boigny, France.

This product satisfies the limits of EN 55022; safety requirements of EN 60950; radio spectrum requirements of ETSI EN 300 328; and the EMC requirements of EN 55024, ETSI EN 301 489-1 and ETSI EN 301 489-17.

Česky	Společnost Lexmark International, Inc. tímto prohlašuje, že výrobek tento výrobek je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk	Lexmark International, Inc. erklærer herved, at dette produkt overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch	Hiermit erklärt Lexmark International, Inc., dass sich das Gerät dieses Gerät in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Ελληνική	ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Η ΙΧΜΑΡΚ ΙΝΤΕΝΩΝΑL, INC. ΔΗΛΩΝΕΙ ΟΤΙ ΑΥΤΟ ΤΟ ΠΡΟΪΟΝ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
English	Hereby, Lexmark International, Inc., declares that this type of equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español	Por medio de la presente, Lexmark International, Inc. declara que este producto cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Eesti	Käesolevaga kinnitab Lexmark International, Inc., et seade see toode vastab direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele muudele asjakohastele sätetele.
Suomi	Lexmark International, Inc. vakuuttaa täten, että tämä tuote on direktiivin 1999/5/EY oleellisten vaatimusten ja muiden sitä koskevien direktiivin ehtojen mukainen.
Français	Par la présente, Lexmark International, Inc. déclare que l'appareil ce produit est conforme aux exigences fondamentales et autres dispositions pertinentes de la directive 1999/5/CE.
Magyar	Alulírott, Lexmark International, Inc. nyilatkozom, hogy a termék megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelv egyéb előírásainak.
Íslenska	Hér með lýsir Lexmark International, Inc. yfir því að þessi vara er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Italiano	Con la presente Lexmark International, Inc. dichiara che questo questo prodotto è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski	Ar šo Lexmark International, Inc. deklarē, ka šis izstrādājums atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių	Šiuo Lexmark International, Inc. deklaruoja, kad šis produktas atitinka esminius reikalavimus ir kitas 1999/5/EB direktyvos nuostatas.
Malti	Bil-preženti, Lexmark International, Inc., jiddikjara li dan il-prodott huwa konformi mal-ħtiġijiet essenzjali u ma dispożizzjonijiet oħrajn relevanti li jinsabu fid-Direttiva 1999/5/KE.
Nederlands	Hierbij verklaart Lexmark International, Inc. dat het toestel dit product in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Norsk	Lexmark International, Inc. erklærer herved at dette produktet er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
Polski	Niniejszym Lexmark International, Inc. oświadcza, że niniejszy produkt jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português	A Lexmark International Inc. declara que este este produto está conforme com os requisitos essenciais e outras disposições da Diretiva 1999/5/CE.
Slovensky	Lexmark International, Inc. týmto vyhlasuje, že tento produkt spĺňa základné požiadavky a všetky príslušné ustanovenia smernice 1999/5/ES.
Slovensko	Lexmark International, Inc. izjavlja, da je ta izdelek v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Svenska	Härmed intygar Lexmark International, Inc. att denna produkt står i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

India emissions notice

This device uses very low power low range RF communication that has been tested and found not to cause any interference whatsoever. The manufacturer is not responsible in case of any disputes arising out of requirement of permissions from any local authority, regulatory bodies or any organization, required by the end-user to install and operate this product at his premises.

Static sensitivity notice

This symbol identifies static-sensitive parts. Do not touch in the areas near these symbols without first touching the metal frame of the printer.

Noise emission levels

The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO 9296.

Note: Some modes may not apply to your product.

1-meter average sound pressure, dBA
Printing 48 dBA
Ready Inaudible

Values are subject to change. See www.lexmark.com for current values.

Temperature information

Ambient temperature 15.6-32.2°C (60-90°F)
Shipping and storage temperature -40-433°C (-40-110°F)

Waste from Electrical and Electronic Equipment (WEEE) directive

The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European Union. We encourage the recycling of our products. If you have further questions about recycling options, visit the Lexmark Web site at www.lexmark.com for your local sales office phone number.

Product disposal

Do not dispose of the printer or supplies in the same manner as normal household waste. Consult your local authorities for disposal and recycling options.

ENERGY STAR

Applicable only to models with a duplex unit installed.

Laser notice

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR Subchapter J for Class I (1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1.

Class I laser products are not considered to be hazardous. The printer contains internally a Class IIIb (3b) laser that is a maximum 15 milliwatt gallium arsenide laser operating in the wavelength of 770-795 nanometers. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance, or prescribed service condition.

Laser advisory label

A laser notice label may be affixed to this printer as shown:

Notices

Power consumption

Product power consumption

The following table documents the power consumption characteristics of the product.

Note: Some modes may not apply to your product.

Mode Description Power consumption (Watts)
Printing	The product is generating hard-copy output from electronic inputs.	480 W (C540, C543); 500 W (C544)
Copying	The product is generating hard-copy output from hard-copy original documents.	N/A
Scanning The	product is scanning hard-copy documents. N/A
Ready	The product is waiting for a print job.	34 W (C540, C543); 36 W (C544)
Power Saver	The product is in energy-saving mode.	<18 W (C540); <16 W (C543, C544)
Off The product is plugged into a wall outlet, but the power switch is turned off.		0 W

The power consumption levels listed in the previous table represent time-averaged measurements. Instantaneous power draws may be substantially higher than the average.

Values are subject to change. See www.lexmark.com for current values.

Power Saver

This product is designed with an energy-saving mode called Power Saver. The Power Saver Mode is equivalent to the EPA Sleep Mode. The Power Saver Mode saves energy by lowering power consumption during extended periods of inactivity. The Power Saver Mode is automatically engaged after this product is not used for a specified period of time, called the Power Saver Timeout.

Factory default Power Saver Timeout for this product (in minutes):

30 minutes

By using the configuration menus, the Power Saver Timeout can be modified between 1 minute and 240 minutes. Setting the Power Saver Timeout to a low value reduces energy consumption, but may increase the response time of the product. Setting the Power Saver Timeout to a high value maintains a fast response, but uses more energy.

Off mode

If this product has an off mode which still consumes a small amount of power, then to completely stop product power consumption, disconnect the power supply cord from the wall outlet.

Total energy usage

It is sometimes helpful to calculate the total product energy usage. Since power consumption claims are provided in power units of Watts, the power consumption should be multiplied by the time the product spends in each mode in order to calculate energy usage. The total product energy usage is the sum of each mode's energy usage.

Statement of Limited Warranty

Lexmark C540

Lexmark C543dn

Lexmark C544n, dn, dtn

Lexmark C544dw

Lexmark International, Inc., Lexington, KY

This limited warranty applies to the United States and Canada. For customers outside the U.S., refer to the country-specific warranty information that came with your product.

This limited warranty applies to this product only if it was originally purchased for your use, and not for resale, from Lexmark or a Lexmark Remarketer, referred to in this statement as "Remarketer."

Limited warranty

Lexmark warrants that this product:

—Is manufactured from new parts, or new and serviceable used parts, which perform like new parts

—Is, during normal use, free from defects in material and workmanship

If this product does not function as warranted during the warranty period, contact a Remarketer or Lexmark for repair or replacement (at Lexmark's option).

If this product is a feature or option, this statement applies only when that feature or option is used with the product for which it was intended. To obtain warranty service, you may be required to present the feature or option with the product.

If you transfer this product to another user, warranty service under the terms of this statement is available to that user for the remainder of the warranty period. You should transfer proof of original purchase and this statement to that user.

Limited warranty service

The warranty period starts on the date of original purchase as shown on the purchase receipt and ends 12 months later provided that the warranty period for any supplies and for any maintenance items included with the printer shall end earlier if it, or its original contents, are substantially used up, depleted, or consumed.

To obtain warranty service you may be required to present proof of original purchase. You may be required to deliver your product to the Remarketer or Lexmark, or ship it prepaid and suitably packaged to a Lexmark designated location. You are responsible for loss of, or damage to, a product in transit to the Remarketer or the Lexmark designated location.

When warranty service involves the exchange of a product or part, the item replaced becomes the property of the Remarketer or Lexmark. The replacement may be a new or repaired item.

The replacement item assumes the remaining warranty period of the original product.

Replacement is not available to you if the product you present for exchange is defaced, altered, in need of a repair not included in warranty service, damaged beyond repair, or if the product is not free of all legal obligations, restrictions, liens, and encumbrances.

Before you present this product for warranty service, remove all print cartridges, programs, data, and removable storage media (unless directed otherwise by Lexmark).

For further explanation of your warranty alternatives and the nearest Lexmark authorized servicer in your area contact Lexmark on the World Wide Web at http://support.lexmark.com.

Remote technical support is provided for this product throughout its warranty period. For products no longer covered by a Lexmark warranty, technical support may not be available or only be available for a fee.

Extent of limited warranty

Lexmark does not warrant uninterrupted or error-free operation of any product or the durability or longevity of prints produced by any product.

Warranty service does not include repair of failures caused by:

—Modification or unauthorized attachments
—Accidents, misuse, abuse or use inconsistent with Lexmark user's guides, manuals, instructions or guidance
—Unsuitable physical or operating environment
—Maintenance by anyone other than Lexmark or a Lexmark authorized servicer
—Operation of a product beyond the limit of its duty cycle
—Use of printing media outside of Lexmark specifications
—Refurbishment, repair, refilling or remanufacture by a third party of products, supplies or parts
—Products, supplies, parts, materials (such as toners and inks), software, or interfaces not furnished by Lexmark

TO THE EXTENT PERMITTED BY APPLICABLE LAW, NEITHER LEXMARK NOR ITS THIRD PARTY SUPPLIERS OR REMARKETERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THIS PRODUCT, AND SPECIFICALLY DISCLAIM THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND SATISFACTORY QUALITY. ANY WARRANTIES THAT MAY NOT BE DISCLAIMED UNDER APPLICABLE LAW ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO WARRANTIES, EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. ALL INFORMATION, SPECIFICATIONS, PRICES, AND SERVICES ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE.

Limitation of liability

Your sole remedy under this limited warranty is set forth in this document. For any claim concerning performance or nonperformance of Lexmark or a Remarketer for this product under this limited warranty, you may recover actual damages up to the limit set forth in the following paragraph.

Lexmark's liability for actual damages from any cause whatsoever will be limited to the amount you paid for the product that caused the damages. This limitation of liability will not apply to claims by you for bodily injury or damage to real property or tangible personal property for which Lexmark is legally liable. IN NO EVENT WILL LEXMARK BE LIABLE FOR ANY LOST PROFITS, LOST SAVINGS, INCIDENTAL DAMAGE, OR OTHER ECONOMIC OR

CONSEQUENTIAL DAMAGES. This is true even if you advise Lexmark or a Remarketer of the possibility of such damages. Lexmark is not liable for any claim by you based on a third party claim.

This limitation of remedies also applies to claims against any Suppliers and Remarketers of Lexmark. Lexmark's and its Suppliers' and Remarketers' limitations of remedies are not cumulative. Such Suppliers and Remarketers are intended beneficiaries of this limitation.

Additional rights

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of incidental or consequential damages, so the limitations or exclusions contained above may not apply to you.

This limited warranty gives you specific legal rights. You may also have other rights that vary from state to state.

DEVICE PATENT LICENSE

Lexmark reserves the right to discontinue selling these toner cartridges any time after it discontinues service support for this printer.

IMPORTANT: PLEASE READ BEFORE OPENING: Opening this package, installing the printing device software, or using the products inside confirms your acceptance of the following licenses/agreements:

License: The patented printer inside is licensed for, and designed to work with only genuine Lexmark toner cartridges and developer components for the life of the patented printer. You agree to: (1) use only genuine Lexmark toner cartridges and developer components with this printer except as otherwise provided below, and (2) pass this license/agreement to any subsequent user of this printer. The patented Lexmark toner cartridges and developer components inside are licensed subject to a restriction that they may be used only once. Following their initial use, you agree to return them only to Lexmark for recycling. Lexmark toner cartridges are designed to stop working after delivering a fixed amount of toner. A variable amount of toner may remain in them when replacement is required.

If you do not accept these terms, return the unopened package to your point of purchase. Replacement toner cartridge(s) sold without these terms are available through www.lexmark.com, may be refilled by you, or a third party, as the only cartridge alternative to be used with the licensed printer.

LEXMARK SOFTWARE LIMITED WARRANTY AND LICENSE

AGREEMENTS

PLEASE READ CAREFULLY BEFORE USING THIS PRODUCT: BY USING THIS PRODUCT, YOU AGREE TO BE BOUND BY ALL THE TERMS AND CONDITIONS OF THIS SOFTWARE LIMITED WARRANTY AND LICENSE AGREEMENTS. IF YOU DO NOT AGREE WITH THE TERMS OF THIS SOFTWARE LIMITED WARRANTY AND LICENSE AGREEMENTS, PROMPTLY RETURN THE PRODUCT UNUSED AND REQUEST A REFUND OF THE AMOUNT YOU PAID. IF YOU ARE INSTALLING THIS PRODUCT FOR USE BY OTHER PARTIES, YOU AGREE TO INFORM THE USERS THAT USE OF THE PRODUCT INDICATES ACCEPTANCE OF THESE TERMS.

DEVICE LICENSE AGREEMENT

The patented printer is licensed for, and designed to work with only genuine Lexmark toner cartridges and developer components for the life of the patented printer. Under this patent license, you agree to: (1) use only genuine Lexmark toner cartridges and developer components with this printer except as otherwise provided below, and (2) pass this license/agreement to any subsequent user of this printer. The patented Lexmark toner cartridges and developer components inside are licensed subject to a restriction that they may be used only once. Following their initial use, you agree to return them only to Lexmark for recycling. Lexmark toner cartridges are designed to stop working after a delivering a fixed amount of toner. A variable amount of toner may remain in them when replacement is required. Replacement toner cartridge(s) sold without these terms are available through www.lexmark.com, may be refilled by you, or a third party, as the only cartridge alternative to be used with the licensed printer.

LEXMARK SOFTWARE LICENSE AGREEMENT

This Software License Agreement ("Software License Agreement") is a legal agreement between you (either an individual or a single entity) and Lexmark International, Inc. ("Lexmark") that, to the extent your Lexmark product or Software Program is not otherwise subject to a written software license agreement between you and Lexmark or its suppliers, governs your use of any Software Program installed on or provided by Lexmark for use in connection with your Lexmark product. The term "Software Program" includes machine-readable instructions, audio/visual content (such as images and recordings), and associated media, printed materials and electronic documentation, whether incorporated into, distributed with or for use with your Lexmark product.

1 STATEMENT OF SOFTWARE LIMITED WARRANTY. Lexmark warrants that the media (e.g., diskette or compact disk) on which the Software Program (if any) is furnished is free from defects in materials and workmanship under normal use during the warranty period. The warranty period is ninety (90) days and commences on the date the Software Program is delivered to the original end-user. This limited warranty applies only to Software Program media purchased new from Lexmark or an Authorized Lexmark Reseller or Distributor. Lexmark will replace the Software Program should it be determined that the media does not conform to this limited warranty.

2 DISCLAIMER AND LIMITATION OF WARRANTIES. EXCEPT AS PROVIDED IN THIS SOFTWARE LICENSE AGREEMENT AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, LEXMARK AND ITS SUPPLIERS PROVIDE THE SOFTWARE PROGRAM "AS IS" AND HEREBY DISCLAIM ALL OTHER WARRANTIES AND CONDITIONS, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, TITLE, NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND ABSENCE OF VIRUSES, ALL WITH REGARD TO THE SOFTWARE PROGRAM. TO THE EXTENT LEXMARK CANNOT BY LAW DISCLAIM ANY COMPONENT OF THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, LEXMARK LIMITS THE DURATION OF SUCH WARRANTIES TO THE 90-DAY TERM OF THE EXPRESS SOFTWARE LIMITED WARRANTY.

This Agreement is to be read in conjunction with certain statutory provisions, as that may be in force from time to time, that imply warranties or conditions or impose obligations on Lexmark that cannot be excluded or modified. If any such provisions apply, then to the extent Lexmark is able, Lexmark hereby limits its liability for breach of those provisions to one of the following: providing you a replacement copy of the Software Program or reimbursement of the price paid for the Software Program.

The Software Program may include internet links to other software applications and/or internet web pages hosted and operated by third parties unaffiliated with Lexmark. You acknowledge and agree that Lexmark is not responsible in any way for the hosting, performance, operation, maintenance, or content of, such software applications and/or internet web pages.

3 LIMITATION OF REMEDY. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ANY AND ALL LIABILITY OF LEXMARK UNDER THIS SOFTWARE LICENSE AGREEMENT IS EXPRESSLY LIMITED TO THE GREATER OF THE PRICE PAID FOR THE SOFTWARE PROGRAM AND FIVE U.S. DOLLARS (OR THE EQUIVALENT IN LOCAL CURRENCY). YOUR SOLE REMEDY AGAINST LEXMARK IN ANY DISPUTE UNDER THIS SOFTWARE LICENSE AGREEMENT SHALL BE TO SEEK TO RECOVER ONE OF THESE AMOUNTS, UPON PAYMENT OF WHICH LEXMARK SHALL BE RELEASED AND DISCHARGED OF ALL FURTHER OBLIGATIONS AND LIABILITY TO YOU.

IN NO EVENT WILL LEXMARK, ITS SUPPLIERS, SUBSIDIARIES, OR RESELLERS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, EXEMPLARY, PUNITIVE, OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LOST PROFITS OR REVENUES, LOST SAVINGS, INTERRUPTION OF USE OR ANY LOSS OF, INACCURACY IN, OR DAMAGE TO, DATA OR RECORDS, FOR CLAIMS OF THIRD PARTIES, OR DAMAGE TO REAL OR TANGIBLE PROPERTY, FOR LOSS OF PRIVACY ARISING OUT OR IN ANY WAY RELATED TO THE USE OF OR INABILITY TO USE THE SOFTWARE PROGRAM, OR OTHERWISE IN CONNECTION WITH ANY PROVISION OF THIS SOFTWARE LICENCE AGREEMENT), REGARDLESS OF THE NATURE OF THE CLAIM, INCLUDING BUT NOT LIMITED TO BREACH OF WARRANTY OR CONTRACT, TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY), AND EVEN IF LEXMARK, OR ITS SUPPLIERS, AFFILIATES, OR REMARKETERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY YOU BASED ON A THIRD-PARTY CLAIM, EXCEPT TO THE EXTENT THIS EXCLUSION OF DAMAGES IS DETERMINED LEGALLY INVALID. THE FOREGOING LIMITATIONS APPLY EVEN IF THE ABOVE-STATED REMEDIES FAIL OF THEIR ESSENTIAL PURPOSE.

4 U.S.A. STATE LAWS. This Software Limited Warranty gives you specific legal rights. You may also have other rights that vary from state to state. Some states do not allow limitations on how long an implied warranty lasts or the exclusion of limitation of incidental or consequential damages, so the above limitations may not apply to you.

5 LICENSE GRANT. Lexmark grants you the following rights provided you comply with all terms and conditions of this Software License Agreement:

a Use. You may Use one (1) copy of the Software Program. The term "Use" means storing, loading, installing, executing, or displaying the Software Program. If Lexmark has licensed the Software Program to you for concurrent use, you must limit the number of authorized users to the number specified in your agreement with Lexmark. You may not separate the components of the Software Program for use on more than one computer. You agree that you will not Use the Software Program, in whole or in part, in any manner that has the effect of overriding, modifying, eliminating, obscuring, altering or de-emphasizing the visual appearance of any trademark, trade name, trade dress or intellectual property notice that appears on any computer display screens normally generated by, or as a result of, the Software Program.
b Copying. You may make one (1) copy of the Software Program solely for purposes of backup, archiving, or installation, provided the copy contains all of the original Software Program's proprietary notices. You may not copy the Software Program to any public or distributed network.
c Reservation of Rights. The Software Program, including all fonts, is copyrighted and owned by Lexmark International, Inc. and/or its suppliers. Lexmark reserves all rights not expressly granted to you in this Software License Agreement.
d Freeware. Notwithstanding the terms and conditions of this Software License Agreement, all or any portion of the Software Program that constitutes software provided under public license by third parties ("Freeware") is licensed to you subject to the terms and conditions of the software license agreement accompanying such Freeware, whether in the form of a discrete agreement, shrink-wrap license, or electronic license terms at the time of download or installation. Use of the Freeware by you shall be governed entirely by the terms and conditions of such license.

6 TRANSFER. You may transfer the Software Program to another end-user. Any transfer must include all software components, media, printed materials, and this Software License Agreement and you may not retain copies of the Software Program or components thereof. The transfer may not be an indirect transfer, such as a consignment. Prior to the transfer, the end-user receiving the transferred Software Program must agree to all these Software License Agreement terms. Upon transfer of the Software Program, your license is automatically terminated. You may not rent, sublicense, or assign the Software Program except to the extent provided in this Software License Agreement.

7 UPGRADES. To Use a Software Program identified as an upgrade, you must first be licensed to the original Software Program identified by Lexmark as eligible for the upgrade. After upgrading, you may no longer use the original Software Program that formed the basis for your upgrade eligibility.

8 LIMITATION ON REVERSE ENGINEERING. You may not alter, decrypt, reverse engineer, reverse assemble, reverse compile or otherwise translate the Software Program or assist or otherwise facilitate others to do so, except as and to the extent expressly permitted to do so by applicable law for the purposes of inter-operability, error correction, and security testing. If you have such statutory rights, you will notify Lexmark in writing of any intended reverse engineering, reverse assembly, or reverse compilation. You may not decrypt the Software Program unless necessary for the legitimate Use of the Software Program.

9 ADDITIONAL SOFTWARE. This Software License Agreement applies to updates or supplements to the original Software Program provided by Lexmark unless Lexmark provides other terms along with the update or supplement.

10 TERM. This Software License Agreement is effective unless terminated or rejected. You may reject or terminate this license at any time by destroying all copies of the Software Program, together with all modifications, documentation, and merged portions in any form, or as otherwise described herein. Lexmark may terminate your license upon notice if you fail to comply with any of the terms of this Software License Agreement. Upon such termination, you agree to destroy all copies of the Software Program together with all modifications, documentation, and merged portions in any form.
11 TAXES. You agree that you are responsible for payment of any taxes including, without limitation, any goods and services and personal property taxes, resulting from this Software License Agreement or your Use of the Software Program.
12 LIMITATION ON ACTIONS. No action, regardless of form, arising out of this Software License Agreement may be brought by either party more than two years after the cause of action has arisen, except as provided under applicable law.
13 APPLICABLE LAW. This Software License Agreement is governed by the laws of the Commonwealth of Kentucky, United States of America. No choice of law rules in any jurisdiction shall apply. The UN Convention on Contracts for the International Sale of Goods shall not apply.
14 UNITED STATES GOVERNMENT RESTRICTED RIGHTS. The Software Program has been developed entirely at private expense. Rights of the United States Government to use the Software Program are as set forth in this Software License Agreement and as restricted in DFARS 252.227-7014 and in similar FAR provisions (or any equivalent agency regulation or contract clause).
15 CONSENT TO USE OF DATA. You agree that Lexmark, its affiliates, and agents may collect and use information you provide in relation to support services performed with respect to the Software Program and requested by you. Lexmark agrees not to use this information in a form that personally identifies you except to the extent necessary to provide such services.
16 EXPORT RESTRICTIONS. You may not (a) acquire, ship, transfer, or reexport, directly or indirectly, the Software Program or any direct product therefrom, in violation of any applicable export laws or (b) permit the Software Program to be used for any purpose prohibited by such export laws, including, without limitation, nuclear, chemical, or biological weapons proliferation.
17 AGREEMENT TO CONTRACT ELECTRONICALLY. You and Lexmark agree to form this Software License Agreement electronically. This means that when you click the "Agree" or "I accept" button on this page or use this product, you acknowledge your agreement to these Software License Agreement terms and conditions and that you are doing so with the intent to "sign" a contract with Lexmark.
18 CAPACITY AND AUTHORITY TO CONTRACT. You represent that you are of the legal age of majority in the place you sign this Software License Agreement and, if applicable, you are duly authorized by your employer or principal to enter into this contract.
19 ENTIRE AGREEMENT. This Software License Agreement (including any addendum or amendment to this Software License Agreement that is included with the Software Program) is the entire agreement between you and Lexmark relating to the Software Program. Except as otherwise provided for herein, these terms and conditions supersede all prior or contemporaneous oral or written communications, proposals, and representations with respect to the Software Program or any other subject matter covered by this Software License Agreement (except to the extent such extraneous terms do not conflict with the terms of this Software License Agreement, any other written agreement signed by you and Lexmark relating to your Use of the Software Program). To the extent any Lexmark policies or programs for support services conflict with the terms of this Software License Agreement, the terms of this Software License Agreement shall control.

MICROSOFT CORPORATION NOTICES

1 This product may incorporate intellectual property owned by Microsoft Corporation. The terms and conditions upon which Microsoft is licensing such intellectual property may be found at http://go.microsoft.om/fwlink/?LinkId=52369.
2 This product is based on Microsoft Print Schema technology. You may find the terms and conditions upon which Microsoft is licensing such intellectual property at http://go.microsoft.com/fwlink/?LinkId=83288.

Index

Numerics

200 Paper jam 108

201.yy Paper jam <area

name> 109

202.yy Paper jam <area

name> 109

230.yy Paper jam <area

name> 109

235.yy Paper jam <area

name> 109

24x.yy Paper jam <area

name> 109

250.yy Paper jam <area

name> 110

250-sheet tray (standard)

loading 38

30.yy cartridge

missing 105

31.yy Defective Imaging Kit 105

34 Short paper 105

35 Insufficient memory to support

Resource Save feature 106

37 Insufficient memory for Flash

Memory Defragment

operation 106

37 Insufficient memory to collate job 106

38 Memory Full 106

39 Complex page, some data may not have printed 106

40 Invalid refill, change cartridge 106

50 PPDS Font Error 106

51 Defective flash detected 107

52 Not enough free space in flash memory for resources 107

53 Unformatted flash

detected 107

54 Standard software error 107

54 Standard network software error 107

56 Standard USB port disabled 107

58 Too many flash options installed 107

58 Too many trays attached 108

59 Incompatible tray 108

650-sheet duo drawer installing 23

650-sheet duo drawer (optional) loading 40

82 Replace waste toner box 108

82.yy Waste toner box missing 108

82.yy Waste toner box nearly full 108

88.yy Cartridge is low 108

88.yy Replace

Cartridge 108

940.01 110

940.02 110

941.01 110

941.02 110

942.01 110

942.02 110

943.01 110

943.02 110

A

Active NIC menu 82

Asset Report menu 82

attaching cables 24

B

Black Low 101

Busy 101

C

cables, attaching

Ethernet 24

USB 24

Calibrating 101

calling Customer Support 159

canceling a job

from Macintosh 61

from the printer control panel 60

from Windows 61

card stock

loading 41

tips on using 58

Check Config ID 101

Check Model Name 101

Check Serial Num 101

checking an unresponsive

printer 140

cleaning

exterior of the printer 135

Close Door 101

configuration information

wireless network 28

configurations

printer 11

configuring

multiple printers 139

configuring supply

notifications 138

conserving supplies 111

contacting Customer Support 159

Custom Types menu 79

Cyan Low 101

D

Default Source menu 71

Defective Cartridge 105

Defragmenting Flash 101

Device Statistics menu 81

directory list, printing 60

display troubleshooting

display is blank 140

display shows only

diamonds 140

display, printer control panel 14

documents, printing

from Macintosh computer 54

from Windows 54

E

Embedded Web Server 138

copying settings to other printers 139

setting up e-mail alerts 138

emission

notices 162, 163, 164, 166

envelopes

loading 41,44

tips 57

Ethernet networking

Macintosh 33

Windows 33

Ethernet port 24

exterior of the printer

cleaning 135

e-mail

notice of low supply level 138

notice of paper jam 138

notice of paper needed 138

notice that different paper is needed 138

F

FAQ about color printing 156

FCC notices 162, 163

fiber optic

network setup 33

finding information

customer support 10

publications 10

Finishing menu 89

Flash drive menu 100

flash memory card installing 21

troubleshooting 143

Flushing buffer 101

font sample list printing 60

Formatting Flash 101

G

General Settings menu 86

guidelines

card stock 58

envelopes 57

labels, paper 57

letterhead 55

transparencies 56

H

Hex Trace 102

|

Image menu 98

Imaging Kit 102

imaging kits

ordering 113

replacing 117, 123

Insert Tray 102

installation

wireless network 29, 30

installing

options in driver 27

printer software 26

installing printer software

adding options 27

Invalid Engine Code 102

Invalid Network Code 102

J

jams

avoiding 63

locating doors and trays 64

locations 64

numbers 64

jams, clearing

200 65

201 65

202 66

230 68

235 68

242 68

250 69

L

labels, paper

tips on using 57

letterhead

loading, manual feeder 55

loading, trays 55

tips on using 55

light, indicator 14

linking trays 36

Load 102

Load <custom type

name> 102

Load single sheet feeder with

103

Load single sheet feeder with

102

Load single sheet feeder with

103

Load single sheet feeder with

103

loading

250-sheet tray (standard) 38

650-sheet duo drawer

(optional) 40

card stock 41

envelopes 41, 44

letterhead in manual feeder 55

letterhead in trays 55

manual feeder 44

multipurpose feeder 41

transparencies 41

M

Macintosh

wireless network installation 30

Magenta Low 101

manual feeder

loading 44

memory card

installing 19

troubleshooting 144

menu settings

loading on multiple printers 139

Menu Settings Page menu 81

menu settings pages, printing 25

menus

Active NIC 82

Asset Report 82

Custom Types 79

Default Source 71

Device Statistics 81

diagram of 70

Finishing 89

Flash drive 100

General Settings 86

Image 98

Menu Settings Page 81

Network 83

Network Setup Page 81

Paper Loading 78

Paper Size/Type 72

Paper Texture 75

PCL Emul 96

PDF 95

PictBridge 99

PostScript 95

Print Defects 82

Print Demo 82

Print Directory 82

Print Fonts 81

Profile List 81

Quality 91

Setup 89

Supplies 71

USB 84

Utilities 94

Wireless 84

moving the printer 136

multipurpose feeder

loading 41

N

Network menu 83

network setup page 26

Network Setup Page menu 81

noise emission levels 166

notices 161, 162, 163, 164, 166, 167, 168

0

options

650-sheet duo drawer 23

flash memory card 21

internal 15

memory card 19

memory cards 15

ordering

imaging kits 113

toner cartridges 112

waste toner bottle 113

Output Bin Full 103

P

paper

capacities 52

characteristics 46

letterhead 47

preprinted forms 47

recycled 52

selecting 47

selecting weight 76

setting size 37

setting type 37

storing 48

unacceptable 47

Universal Paper Size 80

Universal size setting 37

paper feed troubleshooting

message remains after jam is cleared 145

paper jams

avoiding 63

Paper Loading menu 78

Paper Size/Type menu 72

paper sizes

supported by the printer 48

Paper Texture menu 75

paper types

duplex support 50

supported by printer 50

where to load 50

paper types and weights

supported by the printer 50

PCL Emul menu 96

PDF menu 95

PictBridge menu 99

PostScript menu 95

Power Saver 103

adjusting 137

Print Defects menu 82

Print Demo menu 82

Print Directory menu 82

Print Fonts menu 81

print job

canceling from Macintosh 61

canceling from the printer control panel 60

canceling from Windows 61

print quality

replacing developer unit 130

replacing imaging kits 117, 123

replacing the waste toner bottle 114

print quality test pages,

printing 60

print quality troubleshooting

blank pages 146

characters have jagged edges 146

clipped images 147

color misregistration 155

dark lines 147

gray background 147

light colored line, white line, or incorrectly colored line 148

poor transparency quality 154

print irregularities 149

print is too dark 150

print is too light 151

print quality test pages 145

repeating defects 152

skewed print 153

solid color pages 153

toner fog or background shading 153

toner rubs off 153

toner specks 154

uneven print density 155

print troubleshooting

error reading USB drive 140

incorrect characters print 141

incorrect margins 148

jammed page does not reprint 145

job prints from wrong tray 141

job prints on wrong paper 141

job takes longer than expected 141

jobs do not print 140

Large jobs do not collate 142

paper curl 149

paper frequently jams 144

tray linking does not work 142

unexpected page breaks occur 142

printer

configurations 11

minimum clearances 12

models 11

moving 136

selecting a location 12

shipping 136

printer control panel 14

printer messages

200 Paper jam 108

201.yy Paper jam 109

202.yy Paper jam 109

230.yy Paper jam 109

235.yy Paper jam 109

24x.yy Paper jam 109

250.yy Paper jam 110

30.yy cartridge missing 105

31.yy Defective Imaging Kit 105

34 Short paper 105

35 Insufficient memory to support Resource Save feature 106

37 Insufficient memory for Flash Memory Defragment operation 106

37 Insufficient memory to collate job 106

38 Memory Full 106

39 Complex page, some data may not have printed 106

40 Invalid refill, change cartridge 106

50 PPDS Font Error 106

51 Defective flash detected 107

52 Not enough free space in flash memory for resources 107

53 Unformatted flash detected 107
54 Standard software error 107
54 Standard network software error 107
56 Standard USB port disabled 107
58 Too many flash options installed 107
58 Too many trays attached 108
59 Incompatible tray 108
82 Replace waste toner bottle 114
82 Replace waste toner box 108
82.yy Waste toner box missing 108
82.yy Waste toner box nearly full 108
88 Replace Cartridge 128
88.yy Cartridge is low 108
88.yy Replace Cartridge 108
940.01 110
940.02 110
941.01 110
941.02 110
942.01 110
942.02 110
943.01 110
943.02 110
Black Low 101
Busy 101
Calibrating 101
Check Config ID 101
Check Model Name 101
Check Serial Num 101
Close door 101
Cyan Low 101
Defective Cartridge 105
Defragmenting Flash 101
Flushing buffer 101
Formatting Flash 101
Hex Trace 102
Imaging Kit 102, 117, 123
Insert Tray 102
Invalid Engine Code 102
Invalid Network Code 102
Load 102
Load 102

Load single sheet feeder with 103

Load single sheet feeder with 102

Load single sheet feeder with 103

Load single sheet feeder with 103

Magenta Low 101

Output Bin Full 103

Power Saver 103

Programming Code 103

Programming Flash 104

Ready 104

Reload printed pages in Tray 104

Remote Management Active 104

Remove packaging material 104

Remove paper from standard output bin 104

Replace cartridge 104

Replace Unsupported Cartridge 105

Tray Empty 104

Tray Low 104

Tray Missing 104

Unplug and change mode 105

Unsupported USB device, please remove 104

Unsupported USB hub, please remove 105

Waiting 105

Waiting, too many events 105

Waste Toner Box 105

Yellow Low 101

printer options troubleshooting drawers 143

flash memory card 143

memory card 144

multipurpose feeder 144

option not working 143

printer problems, solving basic 140

printing

directory list 60

font sample list 60

from Macintosh computer 54

from USB flash memory device 59

from Windows 54

installing printer software 26

menu settings pages 25

network setup page 26

print quality test pages 60

Profile List menu 81

Programming Code 103

Programming Flash 104

Q

Quality menu 91

R

Ready 104

recycled paper

using 52

recycling

Lexmark products 136

WEEE statement 167

Reload printed pages in Tray

104

Remote Management Active 104

Remove packaging material 104

Remove paper from standard output bin 104

Replace cartridge 104

Replace Unsupported

Cartridge 105

restoring factory default

settings 137

S

safety information 9

setting

Active NIC 82

paper size 37

paper type 37

Universal Paper Size 37

setting up the printer

on a wired network

(Macintosh) 33

on a wired network

(Windows) 33

Setup menu 89

shipping the printer 136

standard tray

loading 38

status of supplies, checking 111

storing

paper 48

supplies 111

supplies

conserving 111

status of 111

storing 111

Supplies menu 71

supplies, ordering imaging kits 113

toner cartridges 112

waste toner bottle 113

supply notifications

configuring 138

system board

accessing 16

T

toner cartridges

ordering 112

replacing 128

transparencies

loading 41

tips on using 56

Tray Empty 104

Tray Low 104

Tray Missing 104

tray linking 36

tray unlinking 36

trays

linking 36

unlinking 36

troubleshooting

checking an unresponsive printer 140

contacting Customer Support 159

FAQ about color printing 156

solving basic printer problems 140

troubleshooting, display

display is blank 140

display shows only diamonds 140

troubleshooting, paper feed

message remains after jam is cleared 145

troubleshooting, print

error reading USB drive 140

incorrect characters print 141

incorrect margins 148

jammed page does not reprint 145

job prints from wrong tray 141

job prints on wrong paper 141

job takes longer than expected 141

jobs do not print 140

Large jobs do not collate 142

paper curl 149

paper frequently jams 144

tray linking does not work 142

unexpected page breaks occur 142

troubleshooting, print quality

blank pages 146

characters have jagged edges 146

clipped images 147

color misregistration 155

dark lines 147

gray background 147

light colored line, white line, or incorrectly colored line 148

poor transparency quality 154

print irregularities 149

print is too dark 150

print is too light 151

print quality test pages 145

repeating defects 152

skewed print 153

solid color pages 153

toner fog or background shading 153

toner rubs off 153

toner specks 154

uneven print density 155

troubleshooting, printer options drawers 143

flash memory card 143

memory card 144

multipurpose feeder 144

option not working 143

U

Universal Paper Size 80

setting 37

Universal Setup menu 80

unlinking trays 36

Unplug and change mode 105

Unsupported USB device, please remove 104

Unsupported USB hub, please

remove 105

USB flash memory device 59

USB menu 84

USB port 24

Utilities menu 94

W

Waiting 105

Waiting, too many events 105

waste toner bottle

ordering 113

replacing 114

Waste Toner Box 105

Windows

wireless network installation 29

wired network setup using Windows 33

wired networking using Macintosh 33

Wireless menu 84

wireless network configuration information 28 installation, using Macintosh 30 installation, using Windows 29

Y

Yellow Low 101
