USER MANUAL L 430 C Teufel

Technical Description and Operating Instructions

3D rendering of a rectangular block with circular cutouts and a labeled 'Shaped' section (no other text or symbols)

Center speaker

L 430 C

Teufel

General notes and information

Proper use

Only use the speaker as described in these operating instructions. Any other use will be deemed as not in accordance with the instructions and may lead to damage of property or even persons. The manufacturer accepts no liability for damage caused by use not in accordance with the instructions. The speaker is intended for private use.

Before operating the speaker, please read the safety notes and operating instructions carefully. This is the only way to use all functions safely and reliably. Keep

the operating instructions safe and pass them on to anyone who may own the unit after you.

Notice

The information in this document may change without prior notice and in no way constitutes any liability on the part of Lautsprecher Teufel GmbH. No part of these instructions may be reproduced in any form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written permission of Lautsprecher Teufel GmbH.

Original packaging

If you wish to exercise your eight-week right of return, we ask that you be absolutely sure to hold onto the packaging. We can only accept the return of a device WITH THE ORIGINAL PACKAGING. Empty boxes are not available!

Complaints

In case of a complaint we implicitly need your invoice number and the serial or lot number for processing. The serial number can be found on the back side of the device.

Many thanks for your support!

Contact

For questions, suggestions or criticism please contact our customer service department:

10787 Berlin (Germany)

Phone 00800 - 200 300 40 (free of charge)

Fax: +49 (0)30 / 300 930 930

E-mail: [e-mail]

www.teufelaudio.com

Technical data

Dimensions (WxHxD) 465 mm x 90 mm x 96 mm

Weight 2,5 kg

Nominal impedance 4 - 8 Ω

Technical changes reserved!

You can find further technical data on our website.

This product conforms with Council of the European Union guidelines 2004/108/EC and 2006/95/EC

Caution icons

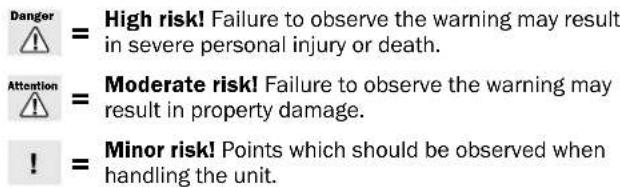

You will find the following caution icons in these instructions:

Danger = High risk! Failure to observe the warning may result in severe personal injury or death. Attention = Moderate risk! Failure to observe the warning may result in property damage. ! = Minor risk! Points which should be observed when handling the unit.

Danger to hearing

Loud noise may lead to hearing loss.

Particularly when the subwoofer has been set

to maximum volume and the unit is activated, very high noise pressure may suddenly be produced. This may have psychological consequences and also cause physical injury. Children and pets are particularly at risk.

• Set your signal source unit volume control to a low setting.
• When the volume is set high, always keep a certain distance from the unit and never place your ear directly on the speaker.
• To avoid damage to health, avoid extended listening at high volume.

Danger Danger to children!

Children can become trapped in the packing film when playing and suffocate.

• Do not allow children to play with the unit or the packing film. Danger of suffocation.
• Ensure that children do not remove small parts from the unit or take them off of the unit (e.g. control knobs or plug adapters). They could swallow the parts and choke. Never allow children to operate electrical devices unsupervised.

Danger Danger of injury/damage!

Incorrect location may result in damage.

• Never use the unit unmounted in vehicles, in unstable locations, on wobbly stands or furniture, on under-dimensioned brackets etc. The speakers could tip or fall down and cause injury to persons or be damaged.
• Place the speakers in such a way that they cannot be knocked over unseen and make sure that the cables do not pose a trip hazard.
• Carefully follow the installation instructions.
• If mounting the speakers on the wall, make sure that the job is carried out by a professional.
• Only use suitable wall holders to mount the speakers. Verify the carrying capacity of the walls.
• Do not place the unit near sources of heat (e.g. heaters, ovens, other heat generating equipment such as amplifiers etc.).

Attention Fire hazard!

Improper use may lead to damage or fire.

• Do not place open flames such as burning candles or similar on the unit.
• Ensure sufficient ventilation.
• Do not place the unit in direct sunlight.
• Only use the unit in indoor areas.
• Do not operate the unit in moist areas and protect it from drops of water and splash water.
  Also take care not to stand vases or other containers filled with liquid on or near the unit in order to avoid liquid getting into the housing.

Product contents

① 1 x center speaker L 430 C
② 1 x tabletop stand

Check to be sure

Check that all items have been delivered and that nothing is damaged.

If the delivery is incomplete or you find damage sustained in transit, do not operate the device; instead contact our service department.

①

3D rendering of a rectangular block with four circular holes and a labeled 'Shield' (no other text or symbols)

②

Setup

Note

Our website contains comprehensive notes for correct setup.

• Select a stable, level base.
  • Make sure that the environment is clean and free from dust.
• Avoid placing the unit close to sources of heat or in direct sunlight.
• Arrange the connector cables so that they do not pose a trip hazard.
• Do not place any heavy objects on the cables or the speaker.
• Place the speaker on the tabletop stand.

Shelf Pensifel

Tabletop stand

The tabletop stand ensures a safe position of the speaker and it minimises vibrations. An assembly is not required: Place the speaker on the tabletop stand such that it rests on all six rubber plates.

Wall mounting

Danger Risk of damage!

Improper assembly may result in damage.

• If mounting the speakers on the wall, make sure that the installation is carried out expertly.
• Before drilling the holes, make sure that no pipes are located within the drilling area using a metal detector.
• Only use suitable screws and dowels to mount the speakers. Verify the carrying capacity of the walls.

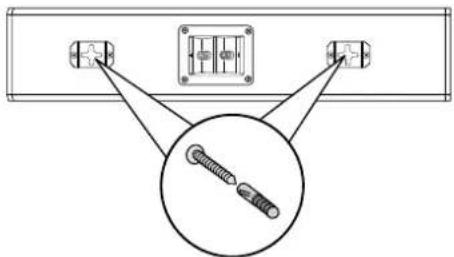

Diagram showing three electrical connectors connected to a central component with a magnified inset of the component.

• Hang the center speaker up on the wall using the keyhole openings on the speaker back side and the screws you previously mounted.
• You can also use these openings for mounting a wall holder. You can find suitable products for this in our web shop.

Connecting

Danger

Danger of injury/damage!

Arrange the cables so that they do not pose a trip hazard.

• Pull the power plug of your AV receiver or multi-channel active subwoofer out of the socket.
• Lay the speaker cables from your AV receiver or multi-channel active subwoofer to the speaker. These cables should be high-quality double-wire speaker cable with marked strands. The cross section should amount to 2.5 mm ^2 .
• A connector comprising two terminals is located on the back side of the speaker, to which you have to connect the speaker cables.
  • The terminal clips are each marked red (+) and black (-).

Make sure the polarity is correct!

Connect the like coloured terminals. Otherwise, the sound quality will suffer.

The speaker connections of your AV receiver or multi-channel active subwoofer should be marked similarly. The strands of the speaker cables are marked with different colours or shapes.

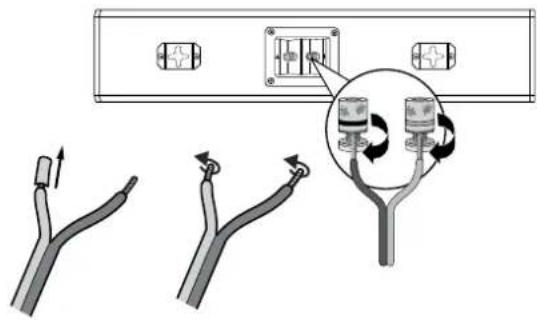

Diagram illustrating cable installation steps with labeled components and directional arrows indicating movement

1. Split the single wire down to approx. 30 mm on both ends and strip approx. 10 mm of insulation off of each cord.
2. Twist the stripped single wire ends together so that no wire protrudes. Tin coating is not necessary.
3. Turn the connector terminal counterclockwise until loose. Run the stripped cable end into the now visible hole. Close the terminal by turning it clockwise. The cable has now been clamped in place.
4. Connect the speaker cable to your AV receiver or multi-channel active subwoofer. The operating instructions of the appliance should contain notes on this.

Crossover frequency

The ideal separation frequency on the AV preamplifier/receiver or Teufel DecoderStation for the center speaker L 430 C is 120 Hz.

Clean the speaker regularly with a soft, damp microfibre cloth. Please be absolutely sure to observe the following notes in the process:

• If possible, only use plain water without any additives. In case of stubborn marks, a mild soap solution may be used.
  • Make sure that no liquid penetrates the unit.

Attention Risk of damage!

Using the wrong cleaning materials may damage the delicate surface of the case.

If possible, only use plain water without any additives. In case of stubborn marks, a mild soap solution may be used. In no circumstances should caustic cleaning products, white spirit, thinners, petrol or similar be used for cleaning.

Troubleshooting

The following notes and further detailed Information on our website should help you to rectify malfunctions. If this does not lead to success, please contact our hotline 00800 - 200 300 40 (free of charge). Please also observe the warranty notes.

Problem Possible cause Solution
Playback is noisy. In general,	the speaker is very low-noise. In most cases, the speaker system with exceptional resolution in the high range area can expose the poor quality of a signal source (e.g. from MP3 files).	Ensure that the source is sending a clear signal.
The sound seems dull. The speaker have been connected with the wrong poles.		Verify the correct connection of the cables for all speakers.

Protecting the environment

Disposal of the unit

Used units must not be disposed of with household waste.

If the unit is no longer operational, every consumer is required by law to dispose of used devices separately from household waste, e.g. at a collec-

tion point run by the communal authority borough. In this way

it is ensured, that used devices are properly recycled and that negative consequences on the environment are avoided. For this reason, electrical equipment is labelled with the displayed symbol.
