Installation & Electrical Connection

GTR1200.1 · GTR2400.1

General Installation Notes

A car audio amplifier is generally mounted in the rear trunk area but can be mounted in any convenient area such as beneath a seat. Please be sure to locate this unit where you have reasonable air circulation and protection from moisture. When considering the mounting location you should minimize the length of the power and speaker leads. Minimizing both leads will yield a more reliable installation. It is also important to ensure that the heat sink fins are not against a panel or a surface, preventing air circulation. Do not install the amplifier on a subwoofer box or on vibrating parts of the vehicle, since the vibrations can cause damage to the amplifiers electrical components.

Installation of the amplifier

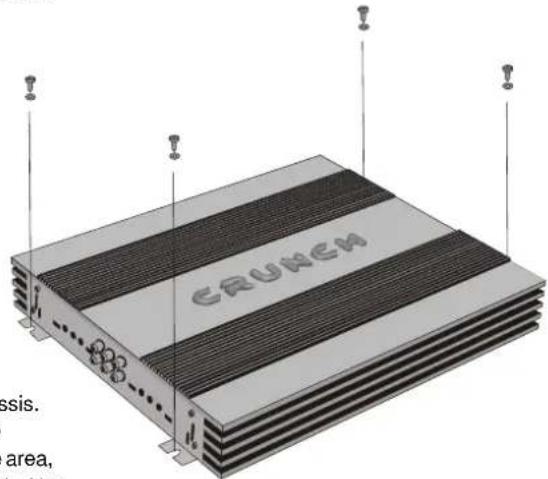

Mark the location for the mounting screw holes by using the amplifier as a template. Drill holes at the marked locations and firmly fasten the amplifier in place with the mounting screws supplied in the accessory kit. Before drilling or cutting any holes, investigate the layout of your automobile thoroughly:

Take care when working near the gas lines or hydraulic lines and electrical wiring of your car.

Electrical Connection

Ground (GND)

This wire is the electrical ground and must be fastened securely to the vehicle chassis. The best method is to use a threading sheet metal screw since the threads cut into bare metal. Ensure that all paint or other insulation is remove from around the hole area, and using self tapping screw, securely affix the bare wire ends to the vehicle chassis. Use as short a piece of cable as possible - use the same gauge as was used for the +12V cable.

Make sure that the connection is safe, a loose connection may result in amplifier noise and fault condition.

3D rendering of a layered electronic device with 'CRUWEI' branding and mounting points (no readable text or symbols beyond branding)

Remote (REM)

Many music sources have an output terminal for connection of the remote turn-on of the power amplifier. If a radio doesn't have a remote turn-on feature, then you can use the antenna relay wire, which activates the antenna motor. Please note, if the power antenna retracts when the radio is operating, then you cannot use the antenna relay wire to operate the remote turn-on.

Battery Connection (+12V)

This wire is usually connected directly to the positive battery terminal. Ensure that the + power supply wire is fused via an assigned fuse in line with the + power supply wire. Please use a sufficient gauge for the installed amplifiers (min 16-25 mm). This connection must be completed using spade lug with insulating sleeve.

Fuses

The integrated amplifier fuses protect the units from short circuit and overload. The fuse rating is for 4 Ohm loads (impedance) of the speakers, for 2 Ohm and 1 Ohm loads the fuses may have to get increased in case of higher power consumption.

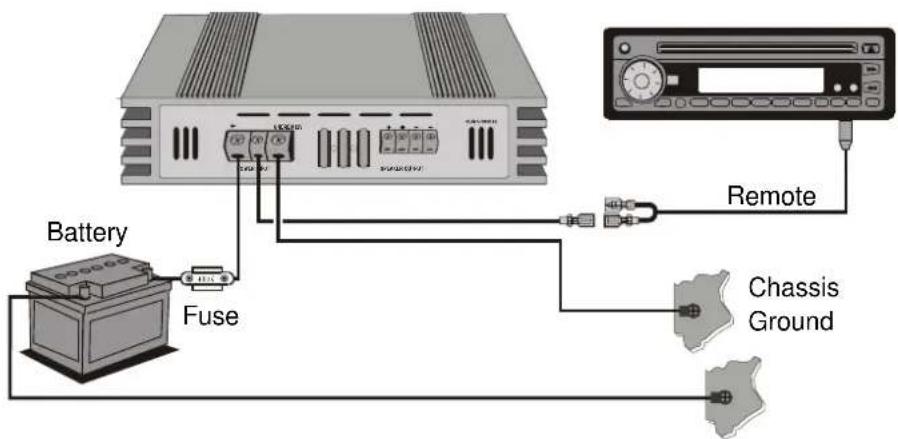

Power / Ground / Remote Connection

Battery Fuse Remote Chassis Ground

Functions & Controls

GTR1200.1

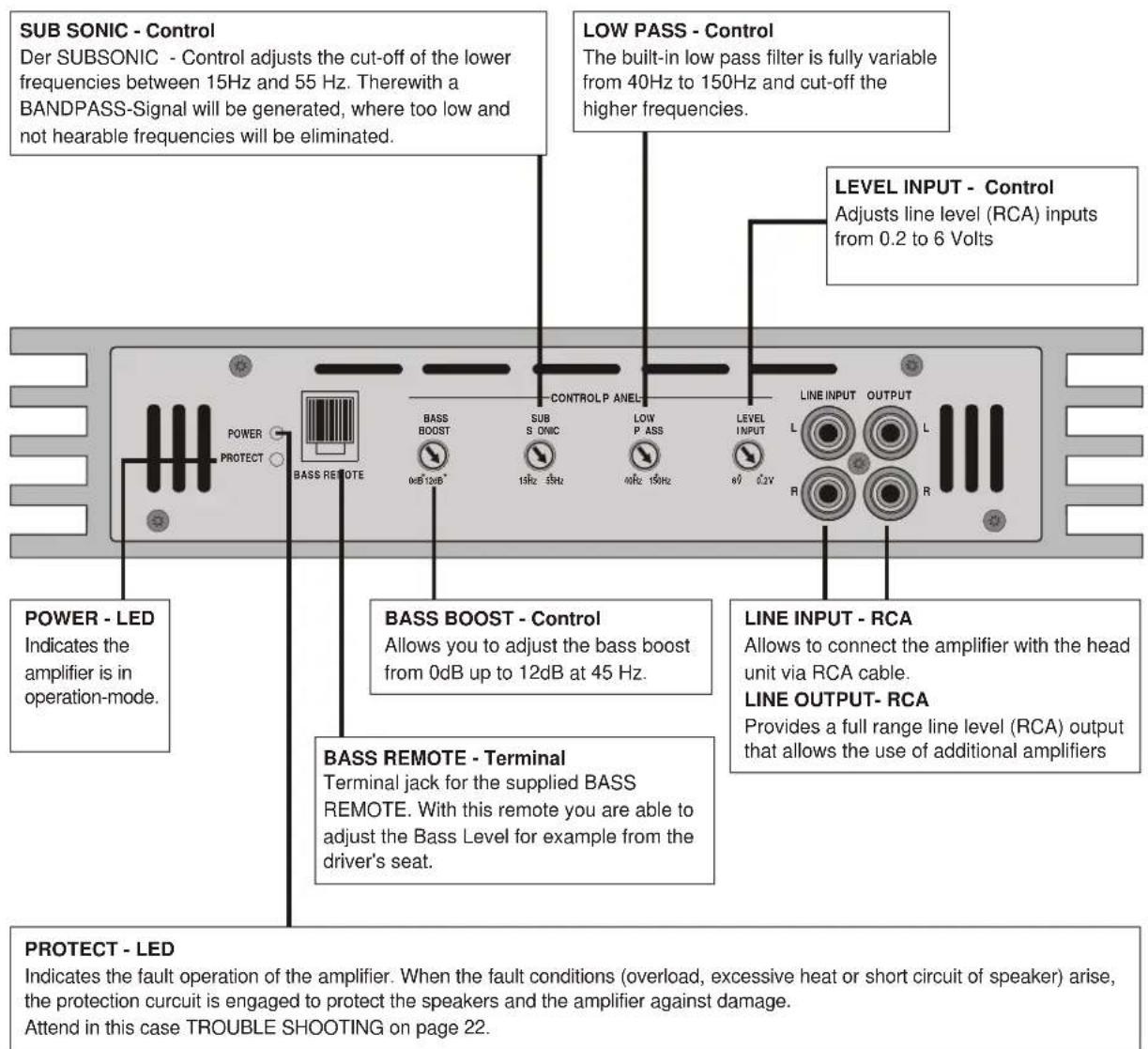

SUB SONIC - Control Der SUBSONIC - Control adjusts the cut-off of the lower frequencies between 15Hz and 55 Hz. Therewith a BANDPASS-Signal will be generated, where too low and not hearable frequencies will be eliminated. LOW PASS - Control The built-in low pass filter is fully variable from 40Hz to 150Hz and cut-off the higher frequencies. LEVEL INPUT - Control Adjusts line level (RCA) inputs from 0.2 to 6 Volts POWER - LED Indicates the amplifier is in operation-mode. BASS BOOST - Control Allows you to adjust the bass boost from 0dB up to 12dB at 45 Hz. BASS REMOTE - Terminal Terminal jack for the supplied BASS REMOTE. With this remote you are able to adjust the Bass Level for example from the driver's seat. LINE INPUT - RCA Allows to connect the amplifier with the head unit via RCA cable. LINE OUTPUT- RCA Provides a full range line level (RCA) output that allows the use of additional amplifiers PROTECT - LED Indicates the fault operation of the amplifier. When the fault conditions (overload, excessive heat or short circuit of speaker) arise, the protection circuit is engaged to protect the speakers and the amplifier against damage. Attend in this case TROUBLE SHOOTING on page 22.

Speaker- & RCA-Connection

GTR1200.1

1-Channel-Mode: 1 Subwoofer / Mono

Top-down line drawing of a car interior with a speaker and seat (no text or symbols)

Cable connection

• Connect INPUT of the amplifier to the head unit line output with good quality RCA cables. By connecting the RCA jacks OUTPUT with a additional amplifier, a full range signal will be provided to the amplifier. If your head unit is equipped with a separate Subwoofer Output it is suggested to use this.
• Connect the subwoofer with the terminal block (SPEAKER OUTPUTS + / -) of the amplifier. As option a additional Subwoofer can also be connected. The minimum total impedance of both Subwoofer must be higher than 1 Ohm.
• Too low speaker loads result in too high heat dissipation and may cause the amplifier run into protection.
• Please observe speaker channel and polarity as printed by the speaker terminal block. Incorrect phasing of the speakers results in total loss of bass response.

Caution

Please avoid to connect speaker (-) to the ground or vehicle chassis.

LOW PASS - Control

- Adjust a frequency between 40Hz - 150Hz, depending on the size and response of the Subwoofer.

SUBSONIC - Control

- The SUBSONIC - Control adjusts the cut-off of the Subsonic-Frequency (lower Frequency cut-off).
Therewith a BANDPASS-Signal will be generated, where too low and not hearable frequencies will be eliminated.
Thereby a clean and powerful Bass-Signal will be generated. The adjustable level depends on the size and response of the subwoofer and should be between 15Hz (no cut-off) and 55Hz (max. cut-off Level).

NOTE: If the SUBSONIC - Level is higher than the LOW PASS - Level, no Sound is hearable.

LEVEL INPUT - Control

• Turn the LEVEL INPUT - Control on the amplifier to "6V" position.
• Turn the head unit volume control to about 80 - 90% of its full setting.
• Turn the LEVEL INPUT - Control clockwise until you hear some distortion.
• Then turn back the LEVEL INPUT - Control slightly until you can hear clean sound.

BASS BOOST - Control

- The BASS BOOST - Control adjusts the bass level at 45 Hz from 0 up to 12dB. Please use the Bass-Boost carefully.

BASS REMOTE

- The BASS REMOTE allows to control the Bass-Level for example from the driver's seat.

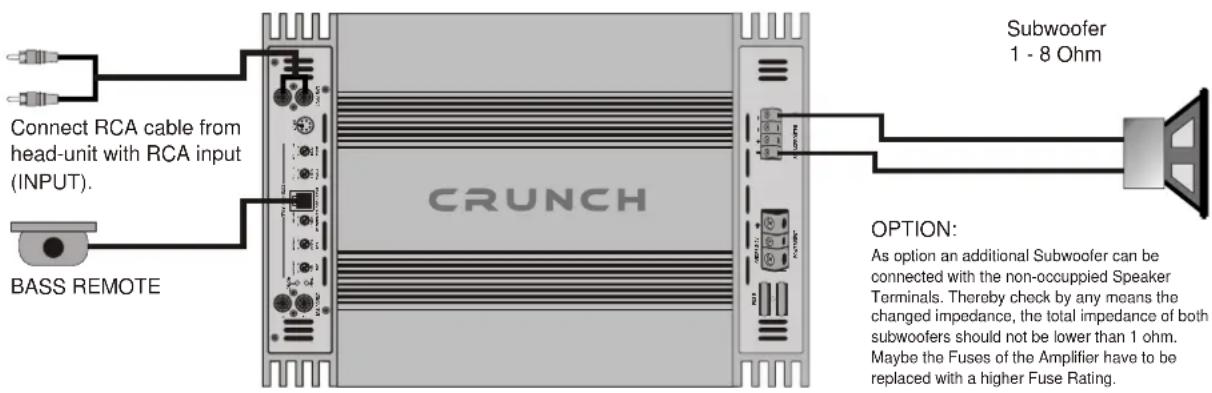

BASS REMOTE CRUNCH Subwoofer 1 - 8 Ohm Connect RCA cable from head-unit with RCA input (INPUT). OPTION: As option an additional Subwoofer can be connected with the non-occupied Speaker Terminals. Thereby check by any means the changed impedance, the total impedance of both subwoofers should not be lower than 1 ohm. Maybe the Fuses of the Amplifier have to be replaced with a higher Fuse Rating.

Functions & Controls

GTR2400.1

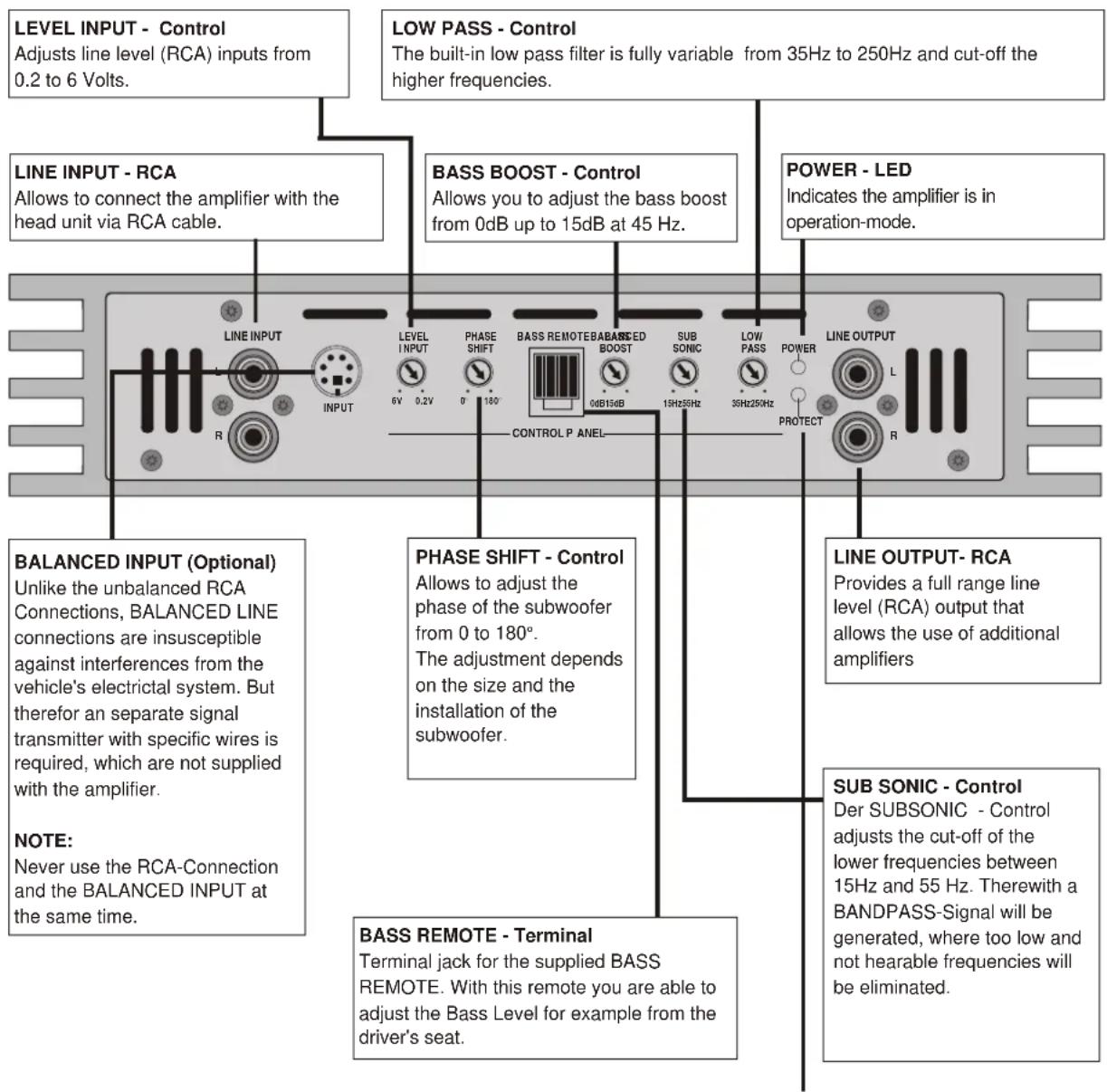

LEVEL INPUT - Control Adjusts line level (RCA) inputs from 0.2 to 6 Volts. LOW PASS - Control The built-in low pass filter is fully variable from 35Hz to 250Hz and cut-off the higher frequencies. LINE INPUT - RCA Allows to connect the amplifier with the head unit via RCA cable. BASS BOOST - Control Allows you to adjust the bass boost from 0dB up to 15dB at 45 Hz. POWER - LED Indicates the amplifier is in operation-mode. BALANCED INPUT (Optional) Unlike the unbalanced RCA Connections, BALANCED LINE connections are insusceptible against interferences from the vehicle's electrical system. But therefor an separate signal transmitter with specific wires is required, which are not supplied with the amplifier. NOTE: Never use the RCA-Connection and the BALANCED INPUT at the same time. PHASE SHIFT - Control Allows to adjust the phase of the subwoofer from 0 to 180°. The adjustment depends on the size and the installation of the subwoofer. LINE OUTPUT- RCA Provides a full range line level (RCA) output that allows the use of additional amplifiers SUB SONIC - Control Der SUBSONIC - Control adjusts the cut-off of the lower frequencies between 15Hz and 55 Hz. Therewith a BANDPASS-Signal will be generated, where too low and not hearable frequencies will be eliminated. BASS REMOTE - Terminal Terminal jack for the supplied BASS REMOTE. With this remote you are able to adjust the Bass Level for example from the driver's seat.

PROTECT - LED

Indicates the fault operation of the amplifier. When the fault conditions (overload, excessive heat or short circuit of speaker) arise, the protection circuit is engaged to protect the speakers and the amplifier against damage.

Attend in this case TROUBLE SHOOTING on page 22.

Speaker- & RCA-Connection

GTR2400.1

1-Channel-Mode: 1 Subwoofer / Mono

Top-down line drawing of a car interior with a speaker and seat (no text or symbols)

Cable connection

• Connect INPUT of the amplifier to the head unit line output with good quality RCA cables. By connecting the RCA jacks OUTPUT with a additional amplifier, a full range signal will be provided to the amplifier. If your head unit is equipped with a separate Subwoofer Output it is suggested to use this.
• Connect the subwoofer with the terminal block (SPEAKER OUTPUTS + / -) of the amplifier. As option a additional Subwoofer can also be connected. The minimum total impedance of both Subwoofer must be higher than 1 Ohm.
• Too low speaker loads result in too high heat dissipation and may cause the amplifier run into protection.
• Please observe speaker channel and polarity as printed by the speaker terminal block. Incorrect phasing of the speakers results in total loss of bass response.

Caution

Please avoid to connect speaker (-) to the ground or vehicle chassis.

LOW PASS - Control

- Adjust a frequency between 35Hz - 150Hz, depending on the size and response of the Subwoofer.

SUBSONIC - Control

- The SUBSONIC - Control adjusts the cut-off of the Subsonic-Frequency (lower Frequency cut-off).
Therewith a BANDPASS-Signal will be generated, where too low and not hearable frequencies will be eliminated.
Thereby a clean and powerful Bass-Signal will be generated. The adjustable level depends on the size and response of the subwoofer and should be between 15Hz (no cut-off) and 55Hz (max. cut-off Level).

NOTE: If the SUBSONIC - Level is higher than the LOW PASS - Level, no Sound is hearable.

LEVEL INPUT - Control

• See page 13.

PHASE SHIFT - Control

- Allows to adjust the Phase of the Subwoofer between "0 - 180°". The adjustment depends on the size and installation of the subwoofer.

BASS BOOST - Control

- The BASS BOOST - Control adjusts the bass level at 45 Hz from 0 up to 15dB. Please use the Bass-Boost carefully.

BASS REMOTE

- The BASS REMOTE allows to control the Bass-Level for example from the driver's seat.

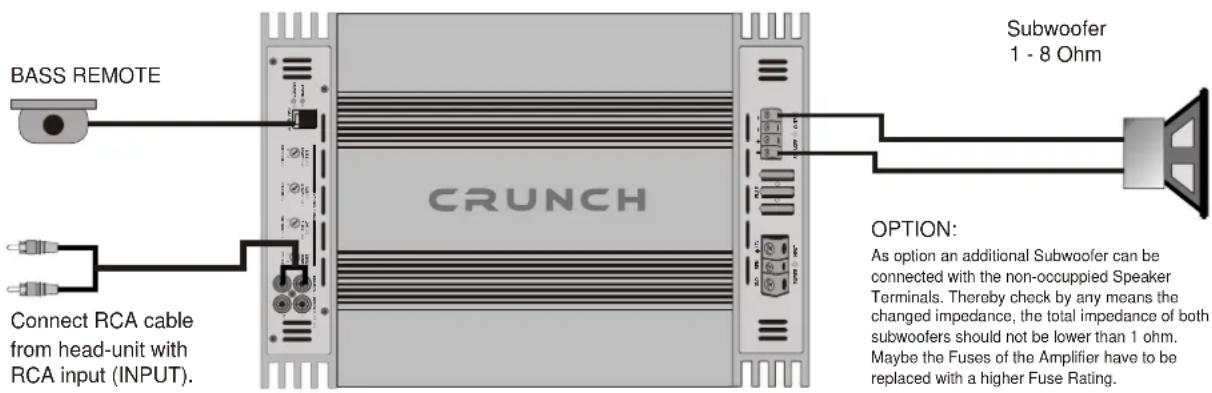

Connect RCA cable from head-unit with RCA input (INPUT). BASS REMOTE CRUNCH Subwoofer 1 - 8 Ohm OPTION: As option an additional Subwoofer can be connected with the non-occupied Speaker Terminals. Thereby check by any means the changed impedance, the total impedance of both subwoofers should not be lower than 1 ohm. Maybe the Fuses of the Amplifier have to be replaced with a higher Fuse Rating.

Trouble Shooting

System does not turn on

1. Check all fuses.
2. Check all connections.
3. Measure the +12 volt and remote turn on voltages at the amplifier terminals. If these are non existent or too low, take voltage measurements at fuse holders, distribution blocks, the head unit's +12 volt and remote leads to localize the problem.

Noise problems

1. Check the speaker wiring
2. Speakers are damaged

No Signal at Channels

1. Set Balance and Fader from head unit on Zero-Position
2. Check wiring (Amplifier, Speakers)
3. Speakers are damaged
4. The SUB SONIC - Control is adjusted too high. Turn the Control back.
5. If you use the separate Subwoofer-Output of your head-unit, the level could be adjusted too low.

Hiss or white noise

1. Speakers are overload
2. High levels of white noise usually occurs when amplifier level controls are turned up too high.
3. Another major problem that can cause excessive hiss, is a noisy head unit - unplug the amplifier input RCA cables, and if the hiss level reduces, the source unit is at fault.

No Stereo-Sound or Low Output

1. Check speaker wiring (- and +)

Amplifier Protect-Mode (the LED lights up red)

1. Speaker cables are shorted
2. Inadequate cooling - relocate or remount to provide better natural airflow. Driving high power levels into low impedances - back off on the volume control, and/or make sure you are not loading the amplifier with less than the recommended loudspeaker impedance.
3. Make sure that the battery voltage, as measured at the amplifier's +12 volt and ground terminals, is 11 volts or more.

Electrical Interferences

The inside of an automobile is a very hostile electrical environment. The multitude of electrical systems, such as the ignition system, alternator, fuel pumps, air conditioners to mention just a few, create radiated electrical fields, as well as noise on the +12 volt supply and ground. Remember to isolate the problem - first unplug amplifier input RCA cables, if the noise is still present, check the speaker leads, if not, plug the RCA's back, and investigate the source driving the amplifier, one component at a time.

A ticking or whine that changes with engine RPM:

1. This problem could be caused by radiation pickup of RCA cables too near to a fuel pump or a distributor, for instance, - relocate cables.
2. Check that the head unit ground is connected straight to the vehicle chassis, and does not use factory wiring for ground.
3. Try to supply the head unit with a clean +12 volt supply directly from the battery +, instead of using a supply from the in dash Wiring/fusebox. This type of noise can be more difficult to pinpoint, but is usually caused by some kind of instability, causing oscillations in the system.

A constant whine:

1. Check all connections, especially for good grounds.
2. Make sure that no speaker leads are shorting to exposed metal on the vehicle chassis.
3. RCA cables are notorious for their problematic nature, so check that these are good, in particular the shield connections.

Caution!

In your amplifier are protection circuits integrated. Short Circuit Protection engaged: The amplifier will turn off and try to come back immediately. The amplifier will cycle like this indefinitely, with "blips" of sound each time. If this is the case, check your speakers and wiring for low impedance and short circuits. Thermal Protection engaged: The amplifier will turn off and several minutes later will come back on. In this case, ensure that there is nothing blocking the normal convective airflow of the amplifier. If the display is still lighting up red, the amplifier is damaged.

Specifications

	GTR1200.1	GTR2400.1
Channels	1	1
Watts RMS/MAX. @ 4 Ohms	1 x 275/550	1 x 550/1100
Watts RMS/MAX. @ 2 Ohms	1 x 450/900	1 x 900/1800
Watts RMS/MAX. @ 1 Ohms	1 x 600/1200	1 x 1200/2400
Damping Factor	>200	>200
S/N Ratio	>90 dB	>90 dB
Channel Separation	>70 dB	>70 dB
THD&N	<0,10 %	<0,10 %
Input Sensitivity	0,2 - 6 Volt	0,2 - 6 Volt
Input Impedance	>47 kOhm	>47 kOhm
Balanced Line Input	-	•
Adjustable Subsonic Filter	15Hz - 55Hz	15Hz - 55Hz
Adjustable Low Pass Filter	40Hz - 150Hz	35Hz - 250Hz
Adjustable Bass-Boost @ 45Hz	0 - 12 dB	0 - 15 dB
Adjustable Phase Shift	-0 - 180°
Fuse Rating	3 x 30 A 2 x 50 A
Dimensions in mm
Width x Height	255 x 53	255 x 53
Length Heatsink	400/430	350/380

All specifications are object to change!
