Product Type	Portable Air Conditioner
Brand	Dantherm
Model	AC 24
Dimensions (W x D x H)	400 x 300 x 700 mm
Weight	23 kg
Power Supply	230 V ~ 50 Hz
Power Consumption (Cooling)	900 W
Cooling Capacity	2.5 kW (approx. 9000 BTU/h)
Functions	Cooling, Dehumidifying, Fan only
Airflow Rate (High)	400 m³/h
Refrigerant	R-290 (propane)
Noise Level	54 dB(A)
Timer	24-hour programmable
Remote Control	Included (battery type: CR2025)
Filter Type	Washable, pre-filter
Installation	Window exhaust kit included
Maintenance	Clean filter every 2 weeks; drain condensate as needed
Safety Features	Auto restart, overheat protection, anti-freeze
Spare Parts Availability	Filters, remote control, exhaust hose, window slider kit
Repairability	User-serviceable parts: filter, condensate drain; professional service for refrigerant
General Information	Compliant with EU regulations; manual available in multiple languages

Frequently Asked Questions - AC 24 Dantherm

How do I install the Dantherm AC 24 air conditioner?

Install the exhaust hose into the window kit, close the window, and plug the unit into a grounded outlet. Ensure the hose is straight and not bent for proper airflow.

Can I use the AC 24 in a room without windows?

No, it requires an exhaust hose to vent hot air outside. Without proper venting, the unit will not cool effectively and may overheat.

How often should I clean the filter?

Clean the filter every two weeks for optimal performance. Use a vacuum or wash with mild soap and water. Dry completely before reinserting.

What does the error code E1 mean?

Error code E1 indicates a temperature sensor failure. Turn off the unit, unplug it for 10 minutes, then restart. If the error persists, contact technical support.

How do I drain the condensate water?

Depending on humidity, water collects in the internal tank. Remove the drain plug at the back and let water flow into a container. Auto-evaporation mode is available for low-humidity conditions.

What is the noise level of the AC 24?

The noise level is approximately 54 dB(A), similar to a normal conversation. Use the sleep mode for quieter operation at night.

Can I use an extension cord?

No, plug the unit directly into a wall outlet. Using an extension cord can cause power loss and create a fire hazard. Use a dedicated 15A circuit.

What is the recommended room size?

The AC 24 is suitable for rooms up to 20 m² (approx. 215 sq ft). For larger rooms, consider a unit with higher cooling capacity.

How do I reset the timer?

Press the Timer button on the remote or control panel. Use +/- to set the desired hours. Press Timer again to confirm. To cancel, set timer to 0.

Where can I find spare parts like the remote control?

Spare parts are available from authorized Dantherm dealers or the official website. Use the model number AC 24 when ordering.

USER MANUAL AC 24 Dantherm

2022

HVAC SOLUTIONS FOR HUMANITARIAN AND DEFENCE

MOBILE HEATING AND MOBILE AIR-CONDITIONING

Dantherm®

CLIMATE SOLUTIONS

About the Dantherm Group

Originally founded in 1954, the Dantherm Group is a European leader in portable and installed climate control solutions for a wide range of industries and uses. Based on the work of more than 500 passionate climate control experts and more than three million installations, our competence centres around Europe design and build exceptional heating, cooling, dehumidification and ventilation units that form the backbone of these climate solutions. In everything they do, they remain focused on creating healthy and comfortable climate surroundings in a sustainable, energy-efficient and cost-effective way.

Five competence centres in Denmark, Germany, Italy, Spain and UK.

Exterior view of a modern building with a hedges and green lawn under a cloudy sky (no signage or text visible)

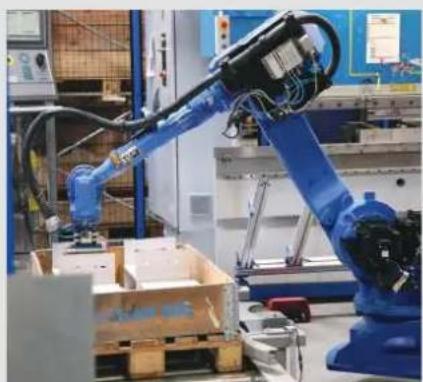

Industrial robotic arm in a factory setting, no visible text or symbols

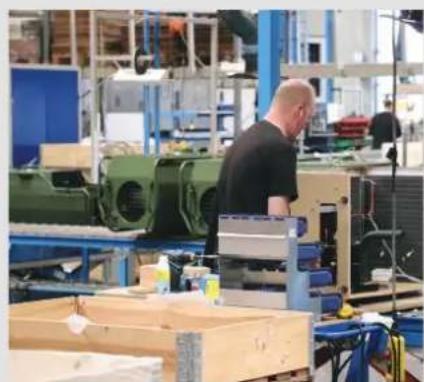

Factory floor with workers operating machinery and green machinery (no visible text or symbols)

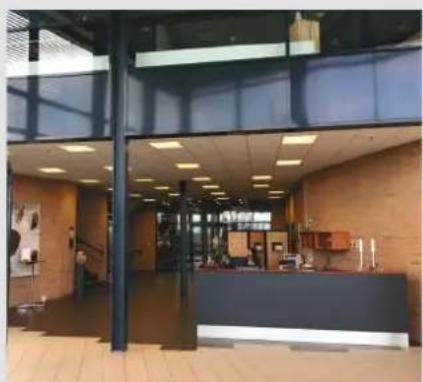

Interior view of a modern glass building with a reception desk and interior space (no visible text or signage)

Humanitarian and Defence

Our climate control solutions have supported military and humanitarian field camps for over 35 years, becoming the NATO standard for field deployable mobile heating, cooling and drying units with more than 30.000 deployed climate controlled units. Complying with advanced NATO requirements, as well as ISO 9001 and 14001 standards, we work closely with tent and container suppliers to develop site-specific solutions that allow military camps, field hospitals and more function in all conditions.

Interior of a modern industrial workshop with workers and machinery (no visible text or symbols)

CONTENT

Based on the extensive knowhow of our climate solution experts across the Group, we have developed an industry-leading range of products and solutions all characterised by reliability, sustainability, efficiency and ease of use.

Being able to source everything from just one supplier will help streamline your purchasing supply lines and reduce your costs for internal handling. To that end, you'll also find our local presence with an extensive network of professional dealers across Europe helpful. It means support in your time zone and language – from people who understand your local market requirements.

Enjoy the read!

Our solutions rest on these four pillars:

Reliability has always been at the heart of everything we do. So we still use long-lasting, solid components that have been through extensive testing.

Sustainability is an integral part of how we work. We aim to create solutions that are at least as good for the environment as any comparable solution.

Efficiency is about delivering impressive performance while generating savings in the form of reduced energy costs.

Usability is key to any solution. Our experts do many usability tests to make sure ours are easy to install and hassle-free to operate.

Exterior view of a military-style tent with a person lying down on the ground (no signage or text visible)

TENT AND SPACE HEATING

P6

Exterior view of a military-style container with black and yellow warning stripes (no visible text or symbols)

CONTAINER AND TENT COOLING

P10

HEATING

Military camps and field hospitals often need to perform in the toughest of conditions. Our rugged and reliable military heaters provide much-needed warmth in typically testing environments.

Designed to provide uninterrupted heating to army tents in temperatures as low as -40°C, our mobile heaters are virtually maintenance free and easy to set up and transport in icy conditions. Plus, for many years our products have been the source of comfort for patients and refugees in Humanitarian camps worldwide.

HEATING SOLUTIONS FOR:

MILITARY CAMPS, FIELD HOSPITALS AND BUILDINGS

APPLICATION
	INDIRECT FUEL FIRED AIR HEATERS	INDIRECT FUEL FIRED AIR HEATERS
MILITARY & FIELD CAMPS
TENT HEATING	●	●
ACCOMMODATION	●	●
SPACE HEATING	●	●
SPOT HEATING	●	●
TEMPORARY STRUCTURES	●	●

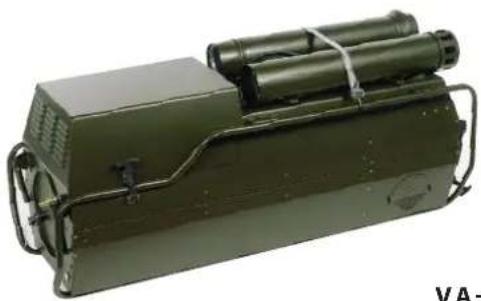

Green military-style equipment with cylindrical components and wiring (no visible text or symbols)

VA-M15MKII

Military vehicle with mounted cannon and wheels (no visible text or symbols)

VA-M40MKII

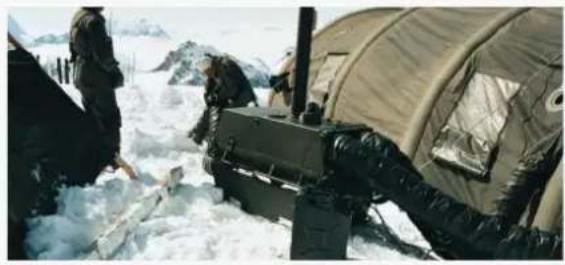

Soldiers handling a large military vehicle in snowy terrain (no visible text or symbols)

• Can operate at temperatures down to -40^
• Creates a comfortable working environment
• Equipment and transportation such as helicopters stay warm and ready for use, reducing wear and tear and ensuring quicker response times
  • Reliable and virtually maintenance free
  • Easy to transport, even over ice and snow
• Can be set up by one person without the use of tools, and is easy to operate
  • Developed in close collaboration with the armed forces of NATO countries
• Chosen as the NATO standard, conforming to all NATO requirements and norms
  • All units are allocated NATO stock numbers (NSN)
• Ideal for open air operation with ducted supply and return air
  • Adjustable fresh-air intake
• The efficient multi-liquid burner accepts almost all diesel fuels

Optional accessories

Remote thermostat with cable 15m-018668

Remote CO sensor with cable 15m-096472

Insulated flexible air duct with spigot ∅225mm x 3m - 295030

Storage bag for flexible duct ∅225mm - 428436

Air distribution ducts ∅225mm x 6m - 295331

Alternative fuel lance for oil drum - 293766

Specifications Units VA-M15MKII VA-M40MKII

Registered NSN number - Yes Yes
Operating temperature range °C -40 - +30 -40 - +30
Heat output kW	18
Air flow
Sound level @ 1.5m
Protection class
Max. fuel consumption
Power supply
Max. power consumption
Air discharge temperature
Flex duct connection
Product size (h x l x w)
Weight

	38
m3/h	1,080	2,200
dB(A)	60	60
	IPX4	IPX4
l/h	1.7	3.6
V/Hz	230/1ph/50	230/1ph/50
W	1,000	1,055
°C	80	80
∅mm	225	225
mm	605 x 1360 x 490	890 x 1400 x 700
kg	93	129

Military-style green portable missile launcher vehicle with mounted cylindrical components (no visible text or symbols)

FH WITH WHEELS AND FORKLIFT POCKETS

Product variants

• Bronze = Unit with built-in wheels
  • Silver = Bronze package + lifting pockets
  • Gold = Silver package + stackable frame

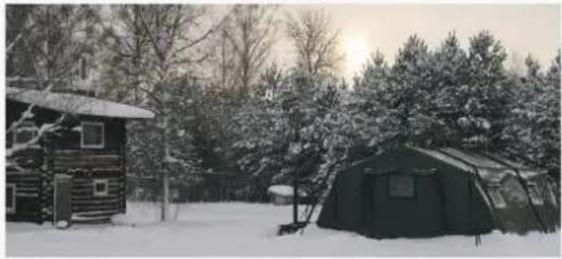

Snow-covered wooden cabins and tents in a winter forest setting (no visible text or symbols)

• Can operate at temperatures down to -40^
• Creates a comfortable working environment
• Equipment and transportation such as helicopters stay warm and ready for use, reducing wear and tear and ensuring quicker response times
• Reliable and virtually maintenance free
• Easy to transport
• Can be set up by one person without the use of tools, and is easy to operate
  • Developed in close collaboration with the armed forces of NATO countries
• Ideal for open air operation with ducted supply and return air
• Adjustable fresh-air intake
  • Large built-in fuel tank
• Efficient multi-liquid burner which accepts almost all diesel fuels
• Innovative 2 stage burning principle, which reduces energy consumption

Optional accessories

Insulated flexible air duct nylon, black
FH 20 - ∅350mm x 3m
4515.371
FH 40 - ∅400mm x 3m
-4515.372

Air distribution ducts, black
FH 20 - ∅350mm x 5m
-4515.380
FH 40 - Ø400mm x /m
4515.381

Forklift pockets
FH 20-4035.740
FH 40-4035.738

Stacking frame
FH20-4035.741
FH 40-4035.739

Consumables pack
FH20-4519.004
FH40-4519.005

Remote CO
sensor with cable
15m-096472

Digital remote
thermostat
TH M with cable
15m-4035.555

Specifications Units FH 20 FH 40

Registered NSN number - Yes Yes
Operating temperature range °C -40 - +30 -40 - +30
Heat output - stage 1/2 kW	21/27	36/49
Air flow	m3/h	1,815	2,555
Sound level (measured with mounted hoses) @ 1.5m	dB(A)	74	70
Protection class		IP44	IP44
Max. fuel consumption	l/h	1.6/2.1	2.9/3.9
Power supply	V/Hz	230/1ph/50	230/1ph/50
Rated current	A	3.8	4.2
Air discharge increasing temperature	°C	37/49	36/49
Flex duct connection	∅mm	350	400
Tank capacity	I	65	105
Product size (h x l x w)	mm	1458 x 614 x 966	1723 x 718 x 1039
Weight - Bronze variant kg	95	125

COOLING

Beating the heat in military camps, field hospitals and more is a top priority, so soldiers, patients and refugees remain comfortable and supported. Our mobile military coolers are exceptionally versatile, rugged and reliable, providing consistent cooling at temperatures up to 60°C.

Easy to set up, maintain and transport to limit your logistics costs, we develop cooling systems specific to your site, with our team always staying up-to-date on emerging needs that impact your team's performance.

COOLING SOLUTIONS FOR:

MILITARY CAMPS, FIELD HOSPITALS, CONTAINERS AND BUILDINGS

APPLICATION
	AC-M5, AC-M10	AC 22, AC-M7, AC-M11, AC 24	AC-M18	EC 30
MILITARY & FIELD CAMPS
TENT COOLING		●	●
CONTAINER COOLING	●
ACCOMMODATION	●	●	●
OUTDOOR COOLING				●
SPACE COOLING		●	●	●
SPOT COOLING		●	●	●
TEMPORARY STRUCTURES		●	●	●
CBRN/COLPRO	●		●
HEPA FILTERING			●

Exterior view of a military equipment unit with ventilation grilles and control panel (no visible text or symbols)

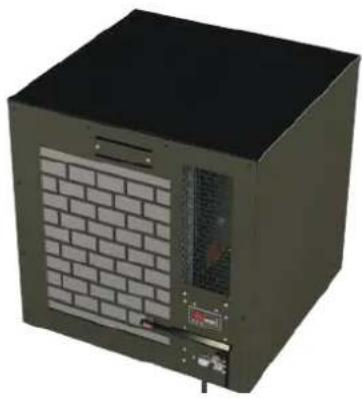

AC-M5MKI

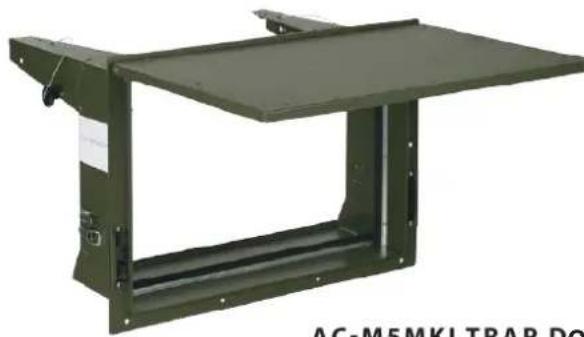

Green metal mechanical device with a flat top and vertical support (no visible text or symbols)

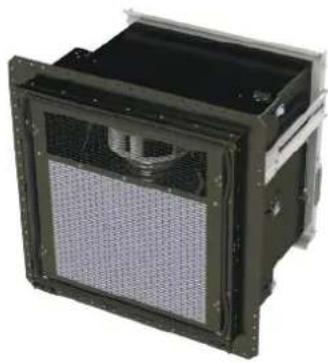

AC-M5MKI TRAP DOOR

Optional accessories

Welding frame for corrugated container - 019502

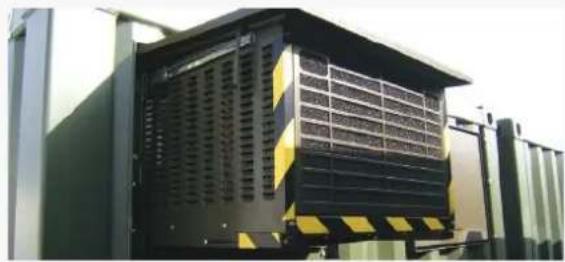

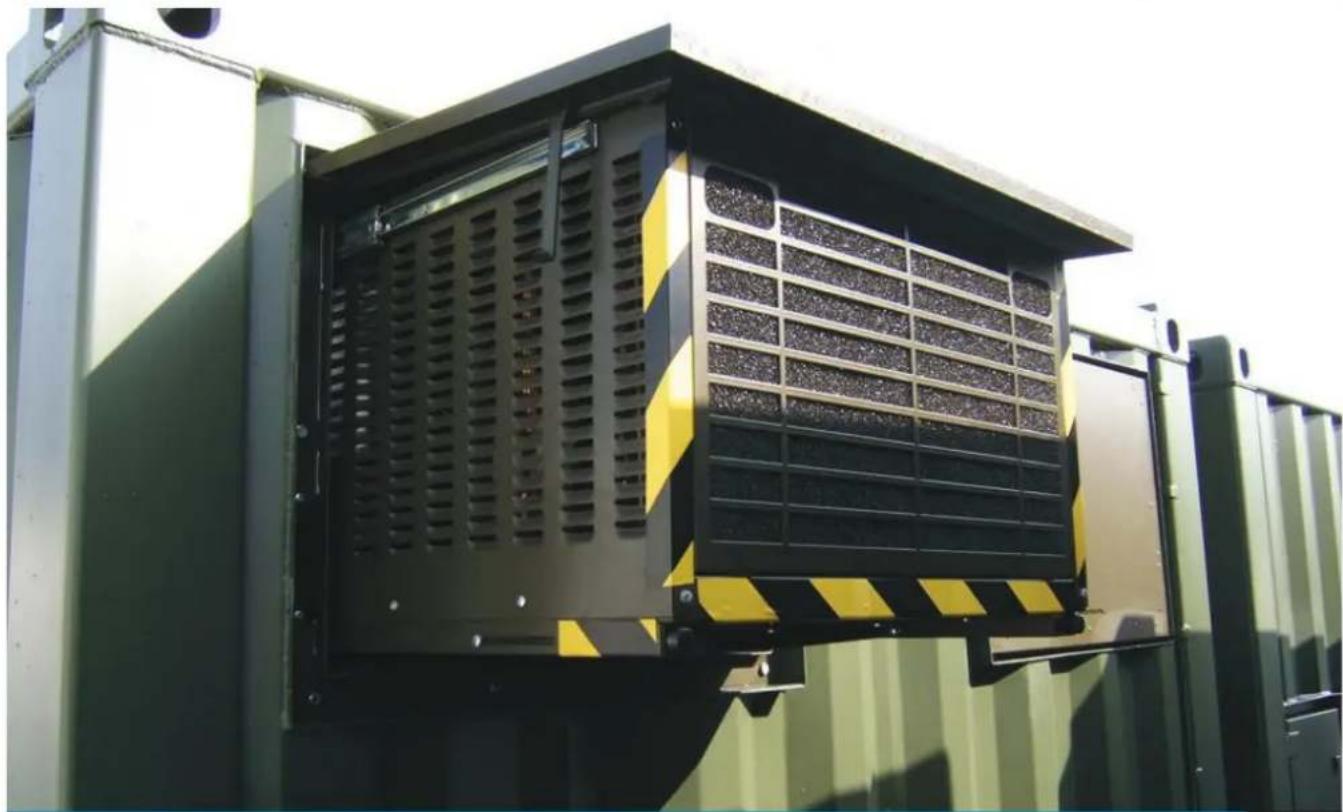

Exterior view of a black industrial equipment unit with yellow warning bars (no visible text or symbols)

• Manufactured from hot dip galvanized and powder coated steel sheet
• Top finish painting is standard NATO green, RAL 6014
- Can provide cooling at ambient temperatures up to +60°C
- Scroll compressor for high degree of reliability and low noise
- HP pressostat switching off the unit at too high ambient temperatures
- Easily controlled by a room thermostat placed inside the container
- Two speed selector for the internal fan
- "VENT-only" option, allowing ventilation without cooling
• Built-in fresh air intake
- Coarse filters in front of internal air intake as well as in front of external air intake and fresh air intake
- During transport the AC-M5W is stored inside the container

Specifications Units AC-M5 MKI (50 Hz)

Registered NSN number - Yes

Operating temperature range, cooling °C +20 – +60

Operating temperature range, heating °C -32 – +20

Air flow m3/h 900

Sound level, fan-speed 1 & 2 @ 1m dB(A)

Protection class

Refrigerant

Nominal cooling capacity

Heating capacity (optional) kW

Power supply

Max. running current, cooling/heating

Locked rotor amperage (LRA)

Max. power consumption cooling/heating

Hose connection

Product size (h x l x w)

Weight

	52/59
	IPX4
	R134a
kW	4.7
2
V/Hz	230/1ph/50
A	9.8/9.3
A	47
W	2,300
∅mm	N/A
mm	482 x 755 x 666
kg	79

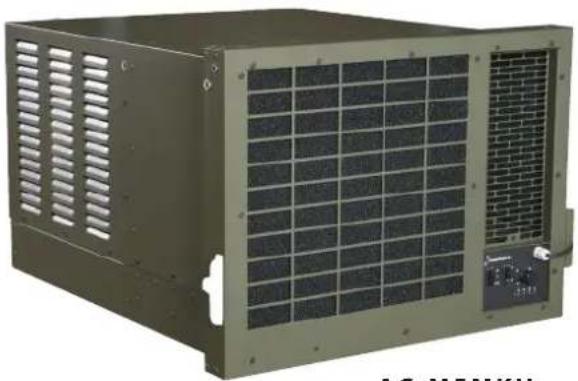

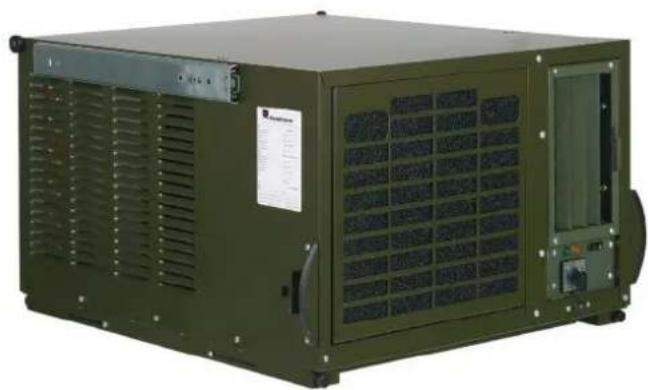

Exterior view of a military-style industrial device with grid panels and ventilation slots (no visible text or symbols)

AC-M5MKII

Green metal frame structure with open top and rectangular base (no text or symbols)

AC-M5MKII TRAP DOOR

Optional accessories

Welding frame for corrugated container - 019502

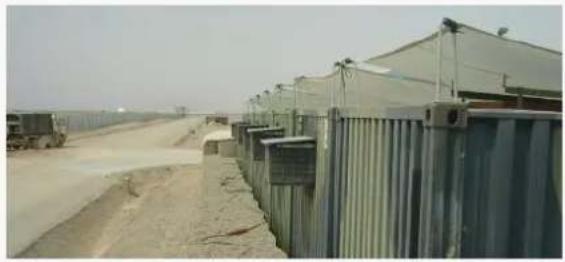

Exterior view of a military-style container yard with corrugated metal structures and trucks in the background (no visible text or symbols)

• Manufactured from hot dip galvanized and powder coated steel sheet
- When in operation and transportation mode the trap door and AC-M5MKII provides an air tight boundary to ambient environment
• The above qualifies for CBRN/COLPRO compatibility
- The trap door unit also serves as protection against rain and extreme sun when the unit is operating
- Provides cooling at ambient temperatures up to +60°C
- NATO green, IR reflective, BS381C285 – optional colours on request
- Scroll compressor for high degree of reliability and low noise
- Easy to operate microprocessor to control temperature and comply with EMC military standard
- Two speed selector for the internal fan
- "VENT-only" option, allowing ventilation without cooling
- Possible to lock the trapdoor with a padlock or positively lock the trapdoor for under-slung transportation by helicopter

Specifications Units AC-M5 MKII AC-M5 MKII (60 Hz)

Registered NSN number - Yes Yes

Operating temperature range, cooling °C +20 - +60 +20 - +60

Operating temperature range, heating °C -32 - +20

Air flow

Sound level, fan-speed 1 & 2 @ 1m

Protection class

Refrigerant

GWP (Global Warming Potential)

Nominal cooling capacity

Heating capacity (optional)

Power supply

Max. running current, cooling/heating

Locked rotor amperage (LRA)

Max. power consumption cooling/heating

Hose connection

Product size (h x l x w)

Weight

-32-+20

900

49/63 49/63

IP55

970

R134a/1.4

1300

IP55

4.7/6,000

2

R134a/1.4

1300

230/1ph/50

9.8/9.3

47

4.7/6,000

2

N/A

482 × 755 × 666

79

208/230/1ph/60

12/9.2

56

2,400

N/A

482 × 755 × 666

74

3D rendering of a black industrial machine with a brick-patterned vent and cooling unit (no text or symbols visible)

AC-M10

Exterior view of a black industrial air conditioning unit with mesh grille and ventilation slots (no text or symbols visible)

Exterior view of a green industrial containerized storage unit with metal railings and support structures (no visible text or symbols)

• Manufactured from hot dip galvanized and powder coated steel sheet
- Can provide cooling at ambient temperatures up to +60°C
- No fresh air intake as to qualify CBRN/COLPRO compliance
- When in operation and transportation mode the trap door and AC-M10 provides an air tight boundary to ambient environment
- Scroll compressor for high degree of reliability and low noise level
- Safety high pressure switch to prevent over pressure
- Easy to operate micro-processor to control temperature
- PPL 15 filtering recirculated air within the shelter
- Easy mounting into the trap door system by means of a forklift
• ErP 2015 compliant

Optional accessories

Door and mounting kit- 322049

Welding frame for corrugated container - 111536

Specifications Units AC-M10 AC-M10 Arctic

Registered NSN number Yes Yes
Operating temperature range, cooling °C -20 - +60 -51 - +60
Operating temperature range, heating °C -32 - +20 -51 - +20
Air flow m^3/h 1,600 1,600
Sound level @ 1.5m	dB(A)	60	60
Protection class		IPX5	IPX5
Refrigerant	Type/kg	R134a/2.5	R134a/2.5
Nominal cooling capacity	kW	10	10
Cooling capacity 35°C outdoor/ 25°C indoor	kW	6.9	6.9
Heating capacity (optional)	kW	4	4
Power supply	V/Hz	400/3ph/50	400/3ph/50
Max. running current	A	10	10
Locked rotor amperage (LRA)	A	48	48
Max. power consumption cooling	W	4,525 4,525
Colour (standard)		BS285 (NATO green)	BS285 (NATO green)
Product size (h x l x w)	mm	800 x 860 x 800	800 x 860 x 800
Weight	kg	139	141

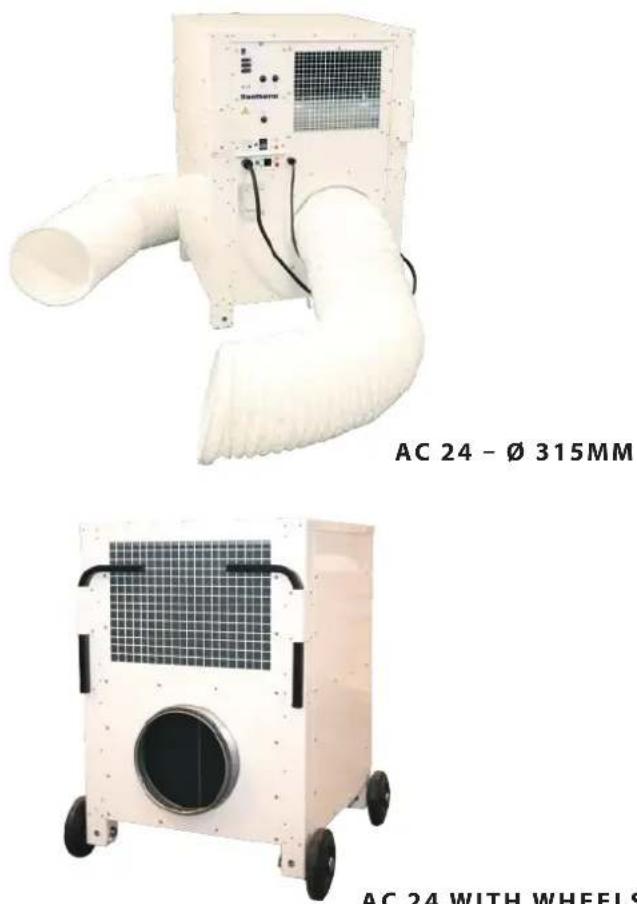

AC 24 WITH WHEELS

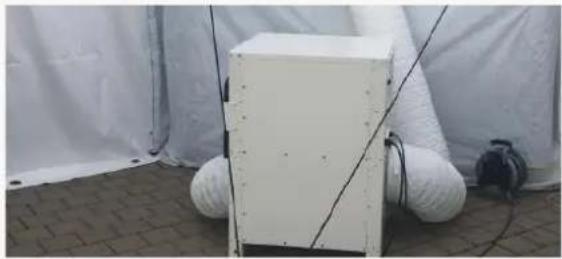

Exterior view of a white industrial equipment box mounted on a paved ground, with a coiled cable and pipe nearby (no visible text or symbols)

• The AC 24 is built into a cabinet manufactured from 0.9-2.5mm galvanized and powder coated steel sheet
  • Top finish painting is pure white, RAL 9010
  • Cooling at outside temperatures up to +55°C
  • Environmentally friendly R134a refrigerant
• High/low pressure switch ensuring a long compressor lifespan
• The unit connects to the mains power supply or to a separate diesel generator via a 10m power cable with a CEE plug
  • Temperature control carried out by a room thermostat hard-wired to the air-conditioner
• Inlet and discharge openings for ∅315mm uninsulated, flexible ducts
• Easy transportation by either forklift or on the four, mounted wheels (accessory)
• Setup and operation can be done by a single person

Optional accessories

Flexible tubes 3m - 097754

Air distribution duct 5m - 097756

Lifting handles and wheel set - 096673

2 extra handles for 2-man lift - 093894

Duct-tie set, 3 pcs - 098108

Specifications Units AC 24

Registered NSN number Yes
Operating temperature range, cooling °C +20 - +55
Operating temperature range, heating °C -
Air flow m3/h 2,180
Sound level @ 1.5m dB(A) 62
Protection class IPX5
Refrigerant R134a
Nominal cooling capacity	kW	6.0
Heating capacity (optional)	kW	-
Power supply	V/Hz	230/1ph/50
Max. running current, cooling	A	14
Locked rotor amperage (LRA)	A	40
Hose connection	∅mm	1 x 315
Product size (h x l x w)	mm	1110 x 919 x 752
Weight	kg	160

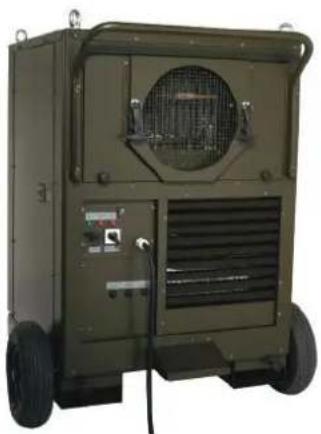

Exterior view of a military-style industrial equipment unit with wheels and ventilation fan (no visible text or symbols)

AC-M7MKII ONE OPENING

Exterior view of a military-style industrial equipment unit with wheels and ventilation ducts (no visible text or symbols)

AC-M7MKII TWO OPENINGS

Optional accessories

Remote thermostat with cable 15m - 064409

Insulated, flexible air duct (incl. bag) Ø315mm x 3m 562409

Insulated flexible air duct Ø225mm x 3m 295030

Storage bag for insulated air duct ∅225mm - 428436

Uninsulated flexible air duct ∅315mm x 5m 428441

Uninsulated flexible air distribution duct Ø315mm x 5m - 428443

Uninsulated flexible air distribution duct ∅225mm x 6m - 295331

Uninsulated flexible air distribution extension duct ∅315mm x 2m - 428442

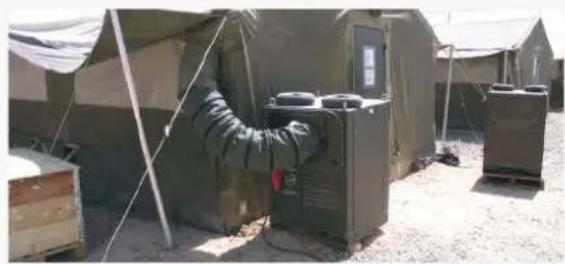

Exterior view of a military-style tent with portable equipment and arched structures (no visible text or symbols)

• Manufactured from hot dip galvanized and powder coated steel sheet
- Can provide cooling at ambient temperatures up to +55°C
- Connect to the mains power supply or a separate diesel generator through a 15m power cable with CEE plug
- "VENT-only" option, allowing ventilation without cooling
- Temperature control by a room thermostat placed inside the tent
- Washable and easy removable coarse filters in front of internal air intake as well as in front of external air intake
- Easy transportation, either by forklift, the four lifting hooks on top of the unit or with the two wheels
- Setup and operation can be done by a single person
- Removable wheels, which can be stowed on top of the unit
- Adjustable fresh air intake
- As operational range, heating: an option can be provided to operate between -32^ to +20^

Specifications Units AC-M7 MKII

Registered NSN number - Yes

Operating temperature range, cooling ^ +20 – +55

Operating temperature range, heating ^ -20 – +20

Air flow m ^3 /h 2,500

Sound level @ 1.5m dB(A) 69

Protection class

Refrigerant

Nominal cooling capacity

Heating capacity (optional) kW

Power supply

Max. running current, cooling/heating

Locked rotor amperage (LRA)

Max. power consumption cooling/heating

Hose connection

Product size (h x l x w)

Weight

	IPX4
	R134a
kW	7.6
7.2
V/Hz	400/3ph/50
A	7.2/13
A	24
W	3,700/7,700
∅mm	1 x 315 or 2 x 225
mm	1150 x 796 x 756
kg	190

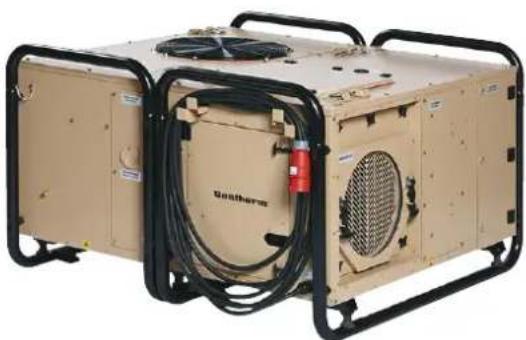

Exterior view of a beige industrial equipment unit with black frame brackets and ventilation ducts (no visible text or symbols)

AC-M11

Optional accessories

Remote thermostat with cable 15m - 064409

Insulated flexible air duct including storage bag ∅315mm x 3m - 039732

Uninsulated flexible air duct ∅315mm x 5m - 428441

Air distribution duct ∅315mm x 5m - 428443

Trolley with wheels - 068459

F7 filter - 068532

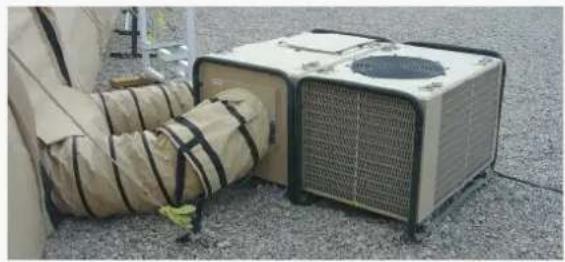

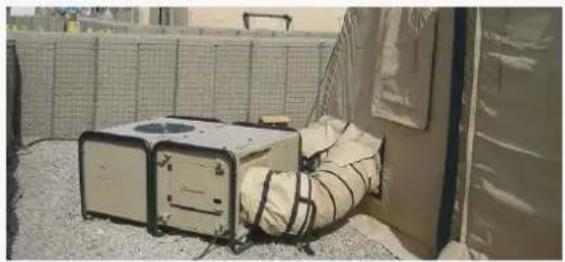

Exterior view of a military-style tent with equipment and a camouflaged blanket, set against a backdrop of a grid-patterned wall (no visible text or symbols)

• Designed for optimal utilization of a standard 20" ISO container (30 pcs)
• The AC-M11 is built into a strong metal frame with insulated panels where relevant, powder coated
• Top finish painting is standard sand colour
• Option with built in heating will heat when ambient temperature is below 20°C
• Scroll compressor for a high degree of reliability and low noise level
  • Automatic phase surveillance
  • Sequential start of units possible
• HP/LP pressostat switches ensuring long compressor lifetime
• Fresh air intake
  • Four way fork lift handling

Specifications Units AC-M11

Registered NSN number Yes
Operating temperature range, cooling °C +20 - +60
Operating temperature range, heating °C -32 - +20
Air flow m3/h 1,700
Sound level @ 1m dB(A) 55
Protection class IPX5
Refrigerant R134a
Nominal cooling capacity	kW	11
Heating capacity (optional)	kW	8
Power supply	V/Hz	400/3ph/50
Max. running current, cooling/heating	A	15/16
Locked rotor amperage (LRA)	A	65.5
Max. power consumption cooling/heating	W	4,200/8,800
Hose connection	∅mm	1 x 315
Product size (h x l x w)	mm	735 x 1140 x 1140
Weight	kg	170

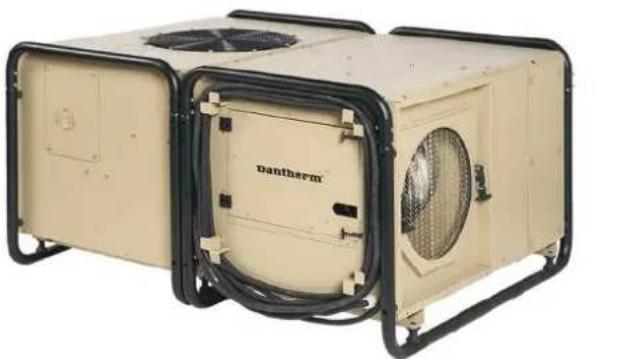

Exterior view of a beige pantherm air conditioning unit with black protective bands and ventilation slots (no visible text or symbols)

AC-M18

Optional accessories

Remote thermostat with cable 15m - 064409

Insulated flexible air duct including storage bag ∅400mm x 3m 030774

Uninsulated flexible air duct including storage bag 0400mm x 5m - 033223

Air distribution duct ∅400mm x 6m - 033224

Trolley with wheels - 075770

F7 filter - 090973

HEPA filter - 323041

Person lying on gravel next to two portable air purifiers with visible heat sinks (no text or symbols)

• Designed for optimal utilization of a standard 20" ISO container (24 pcs)
• The AC-M18 is built into a strong metal frame with insulated panels where relevant, powder coated
• Top finish painting is standard sand colour
• Option with built in heating will heat when ambient temperature is below 20°C
• Scroll compressor for a high degree of reliability and low noise level
  • Automatic phase surveillance
  • Sequential start of units possible
• HP/LP pressostat switches ensuring long compressor lifetime
• Fresh air intake
  • Four way fork lift handling
• Easy strap down on air cargo pallets and stackable (two units on top of each other)

Specifications Units AC-M18 (3x400V/50 Hz) AC-M18 (3x208V/60 Hz) AC-M18 (3x400V/60 Hz)

Registered NSN number - Yes Yes Yes
Operating temperature range, cooling °C +20 - +60 +20 - +60 +20 - +60
Operating temperature range, heating °C -32 - +20 -32 - +20 -32 - +20
Air flow m^3/h	2,500	2,500	2,500
Sound level @ 3m	dB(A)	59	59	59
Protection class		IPX5	IPX5	IPX5
Refrigerant		R134a	R134a	R134a
Nominal cooling capacity	kW/Btu	17.5/60,000	17.5/60,000	17.5/60,000
Heating capacity (optional)	kW	6/16	6/16	6/16
Power supply	V/Hz	400/3ph/50	208/3ph/60	400/3ph/60
Max. running current, cooling/heating	A	13.1/26	33/52	13/26
Locked rotor amperage (LRA)	A	73 164 72
Max. power consumption cooling/heating	W	8,300/variable	8,300/variable	8,300/variable
Hose connection	∅mm	1 x 400	1 x 400	1 x 400
Product size (h x l x w)	mm	780 x 1450 x 1140	780 x 1450 x 1140	780 x 1450 x 1140
Weight	kg	206	206	206

Desert camphouses under heavy dust, no visible text or symbols

• The AC-M18 is built into a strong metal frame with insulated panels where relevant, powder coated
• Top finish painting is standard sand colour
• Scroll compressor for a high degree of reliability and low noise level
  • Automatic phase surveillance
  • Sequential start of units possible
• HP/LP pressostat switches ensuring long compressor lifetime
• Fresh air intake
  • Four way fork lift handling
• Easy strap down on air cargo pallets and stackable (two units on top of each other)

Optional accessories

Remote thermostat with cable 15m - 064409

Insulated flexible air duct including storage bag ∅100mm x 3m - 030774

Uninsulated flexible air duct including storage bag 0400mm x 5m - 033223

Air distribution duct ∅400mm x 6m - 033224

Trolley with wheels - 075770

F7 filter - 090973

HEPA filter - 323041

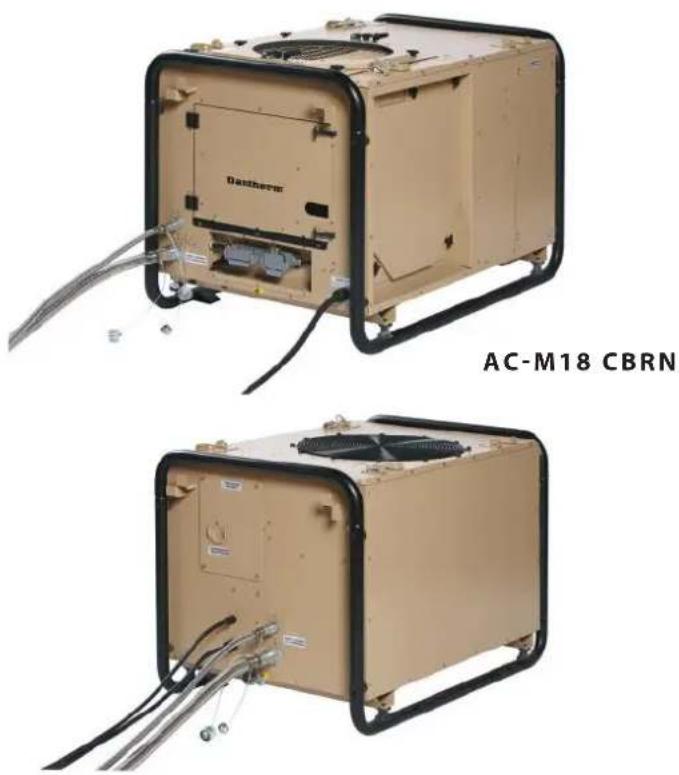

Specifications Units AC-M18 CBRN (50 Hz) AC-M18 CBRN (60 Hz)

Registered NSN number - Yes Yes
Operating temperature range, cooling ^ +20 – +60 +20 – +60
Operating temperature range, heating ^ -32 – +20 -32 – +20
Air flow	m^3/h	2,500	2,500
Sound level @ 1m	dB(A)	54	59
Protection class		IPX5	IPX5
Refrigerant		R134a	R134a
Nominal cooling capacity	kW/Btu	17.5/60,000	17.5/60,000
Heating capacity (optional)	kW	16/20	6/16
Power supply	V/Hz	400/3ph/50	3x208/60
Max. running current, cooling/heating	A	16 (depending heating capacity)	33/52
Locked rotor amperage (LRA)	A	73 179
Max. power consumption cooling/heating	W	8,300/variable	8,300/variable
Hose connection	mm	1 x 400	1 x 400
Product size (h x l x w)	mm	(2x) 780 x 725 x 1140	(2x) 780 x 725 x 1140
Weight	kg	243 112/120

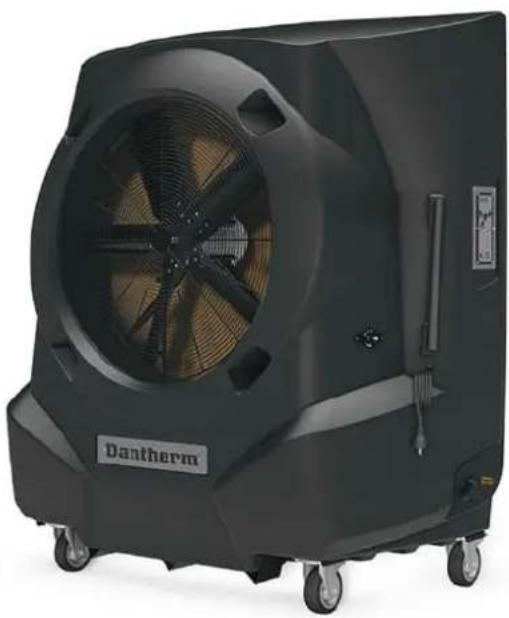

Exterior view of a black Dantherm air conditioner unit with visible fan and wheels (no text or symbols on the device itself)

EC 30

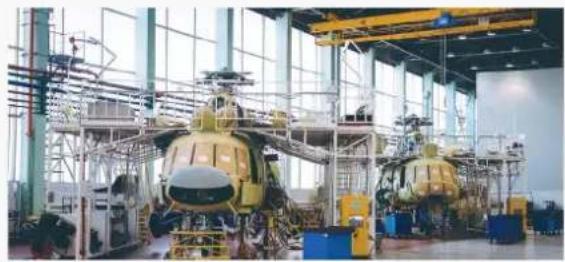

Interior view of a large industrial facility with multiple helicopters under assembly lines (no visible text or symbols)

• Powerful air volume 30,000 m ^-1 /h to cool large working areas
• No installation, no duct work required
• Low running costs
• Easy to maintain
  • Evaporative filter pads, blocking dirt
  • UV lamp, disinfecting the water
• Low energy consumption
• Applications: Workshops and warehouses, plastic, glass, assembly and painting plants, agriculture, greenhouses and aircraft hangars

Specifications Units EC 30
Cooling pad dm ^3 340
Air flow m ^3 /h 30,000
Maximum area m ^2 400
Power consumption W 1,050
Power supply V/Hz 220-240/1ph/50
Rated current A	4.9
Water consumption	l/h	10-15
Tank capacity	l	200
Direct water connection	inch	12
Tank level control		Yes
Product size (l x w x h)	mm	1690 x 920 x 1910
Pallet size (l x w x h)	mm	1000 x 1800 x 2100
Net/gross weight	kg	130
Pallet	pcs	1

Exterior view of a Sunburn air purifier device (no visible text or symbols on body)

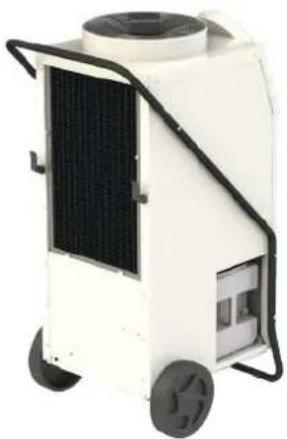

AC 22

White industrial electrical heater with black panel and wheels (no visible text or symbols)

Man in military camouflage uniform operating a computer in a command center (no visible text or symbols)

• High capacity air-conditioning COLD AIR: 24,000 BTU/h (equal to 7.1 kW) with just 1.98 kW electrical supply
• High capacity dehumidifying DRY AIR: 130 l/day water collection with just 1.98 kW electrical supply

- Ducting connections

• Powerful and quiet fans

- Compact and lightweight

- Easy to install

- Heavy-duty casters

- Ideal for emergency and temporary solutions – quick deployment for tents and field hospitals

- Portable spot air-conditioning for a wide range of applications like workshops, data centers, offices, retail premises

Optional accessories

PVC flex tube for cold air
∅31cm, 3m - 4515.572

Flex tube for cold air
∅31cm, 3m, insulated - 4515.370

Nylon flex tube for cold air Ø31cm, 7.6m – 4515.360

Thermostat TAC for cooling - 4250.318

Specifications

Cooling capacity (28°C/55% RH) kW 7.1 -

Drying capacity (30°C/80% RH) l/24h - 130

Air flow m

Operating temperature range

Nominal power supply (28°C/55%)

Nominal current (28°C/55%)

Max. current

Sound level

Refrigerant

Hot air outlet

Cold air outlet (standard)

Cold air outlet (accessory)

Product size (l x w x h) with handle

Box size (l x w x h)

Weight

Units AC 22 Air-conditioner Mode AC 22 Dryer Mode

Btu/h 24,000 -
^3/h 1,020/800		1,020/800
°C +10 - +42		+10 - +42
W	1,980	1,980
A	10	10
A	14	14
dB(A)	55	55
	R1234yf A2L	R1234yf A2L
mm	400 400
mm	2 x 135	2 x 135
mm	300 300
mm	790 x 620 x 1326	790 x 620 x 1326
mm	580 x 700 x 1500	580 x 700 x 1500
kg	98	98

Dantherm A/S

Marienlystvej 65

DK-7800 Skive

Denmark

t.+45 96 14 37 00

Dantherm Ltd.

Unit 12, Galliford Road

Maldon CM9 4XD

United Kingdom

t.+44(0)1621856611

Dantherm GmbH

Oststraße 148

22844 Norderstedt

Germany

t.+49 40 526 8790

Dantherm S.p.A.

Via Gardesana 11

37010 Pastrengo (VR)

Italy

t.+39 045 6770533

Dantherm Sp. z o.o.

ul. Magazynowa 5a

62-023 Gadki

Poland

t.+48 61 65 44 000

Dantherm SP S.A.

C/Calabozos 6

(Polígono Industrial)

28108 Alcobendas, Madrid

Spain

t.+34 91 661 45 00

Dantherm SAS

Baoshang, Shanghai, 201906

China

t.+8621 61486668

AirCenter AG

Täfernstrasse 14

CH-5405 Baden Dättwil

Switzerland

t.+41 43 500 00 50

Heylo GmbH

Im Finigen 9

28832 Achim

Germany

t.+49 4202 97550
