ORYX X600 - Headphones Niceboy - Free user manual and instructions

Product Type	Gaming Headset
Brand	Niceboy
Model	ORYX X600
Connectivity	USB 2.0
Speaker Size	50 mm
Impedance	32 Ω
Sensitivity	103 ±3 dB
Output Sound Pressure	111 ±3 dB
Frequency Response	20 Hz – 20 kHz
Total Harmonic Distortion	<2% @ 1kHz
Operating Current	≤100 mA
Power Source	USB (5V)
Cable Length	2.1 m
Microphone Sensitivity	-42 dB ±3 dB
Microphone Mute	Yes
Vibration Function	Yes
7.1 Surround Sound	Yes
Backlight	Yes (RGB)
Equalizer Modes	3-5 music modes
Operating System Support	Windows XP/Vista/7/8/10
Dimensions (Est.)	20 × 18 × 10 cm
Weight (Est.)	300 g
Care Instructions	Wipe with dry cloth; avoid liquids and extreme temperatures
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 60 °C
Safety Note	Keep away from rain, moisture, and liquids
Spare Parts Availability	Contact manufacturer

Frequently Asked Questions - ORYX X600 Niceboy

How do I connect the Niceboy ORYX X600 to my computer?

Plug the headphones into your computer via the USB connector. Then set the default playback and recording device to 'Niceboy ORYX X600' in Control Panel > Sound.

How do I enable the vibration function?

Press the button labeled with a vibration icon (button 5 on the control panel) to toggle the vibration on or off.

How can I adjust the equalizer settings?

Use the EQ button (button 3) to cycle through the available music modes. There are 3-5 preset EQ modes.

How do I mute the microphone?

Press the microphone button (button 6) to mute or unmute the mic. The mute button (button 7) also functions for muting.

How to turn on the backlight?

Press the backlight button (button 8) to toggle the RGB lighting on or off.

What operating systems are supported?

The Niceboy ORYX X600 supports Windows XP, Vista, 7, 8, and 10.

How do I enable 7.1 surround sound?

Ensure the headphones are selected as the default audio device. 7.1 surround sound is a built-in feature; you may need to enable it in your sound software or via the control panel.

How should I clean the headphones?

Use a soft dry cloth to wipe the surfaces. Avoid using liquids, and do not expose the headphones to moisture or extreme temperatures.

What is the cable length?

The cable length is 2.1 meters.

Why is there no sound coming from the headphones?

Check that the USB connection is secure, the volume is not muted (use volume buttons 1 and 4), and that the headphones are set as the default playback device in your sound settings.

USER MANUAL ORYX X600 Niceboy

Headphones Niceboy ORYX X600

Manual

CONNECTION

Plug the headphones into your computer via the USB connector and switch to the Niceboy ORYX X600 (Control Panel> Sound> Set Default Playback and Recording to „Niceboy ORYX X600“).

SPECIFICATION

Impedance:

32

Ω

Sensitivity: 103 ±3 dB

Frequency response: 20 Hz to 20 kHz

Operating current: ≤100 mA

Speaker unit diameter: 50 mm

Connectivity: USB 2.0

Output sound pressure: 111 ± 3 dB

Harmonic distortion: THD <2 % @ 1kHz

Microphone sensitivity: -42 dB ± 3 dB

Supported OS: Windows XP/Vista/WIN7/WIN8/WIN10

Cord length: 2,1 m

Vibrations:

Yes

7.1 sound:

Yes

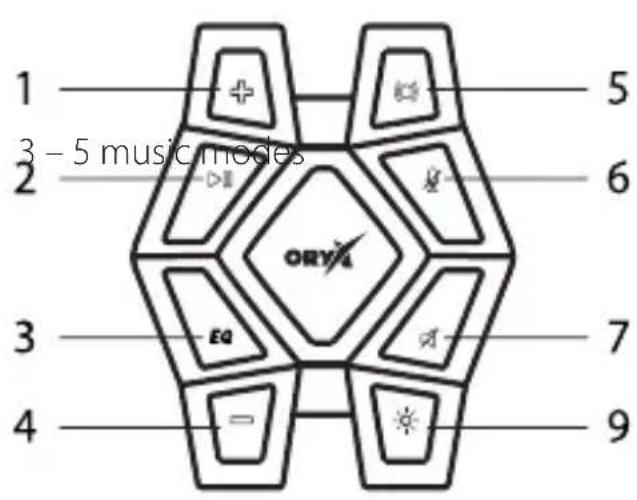

CONTROLL SETTINGS

1	-	Volume
2	-	Pause/Play
4	-	Volume
5	-	Vibration
6	-	Microphone
7	-	Mute
8	-	Backlight

ADDITIONAL INFORMATION

Avoid using the headphones on places exposed to too low or high temperature (0 °C and more/45 °C and more) or humidity (20 % and less/90 % and more)

Avoid storing the headphones on places exposed to too low or high temperature (-20 °C and more/60 °C and more) or humidity (90 % and more)

Keep the product away from rain, moisture, or liquids

This product meets all the main requirements imposed on it by the EU Directive.
