| Product Type | LED Floodlight |
| Model | HL-x9 W QCL |
| Brand | Stairville |
| Power Consumption | 72 W (9 x 8 W) |
| Light Source | 9 x 8 W RGBW LEDs |
| Color Range | RGBW (Red, Green, Blue, White) |
| Beam Angle | 25° (typical) |
| Control Protocols | DMX512 |
| DMX Channels | 4/8/9 channel modes |
| Input Voltage | AC 100-240 V, 50/60 Hz |
| Dimensions (L x W x H) | Approx. 290 x 200 x 140 mm |
| Weight | Approx. 2.5 kg |
| Housing Material | Aluminum |
| Protection Rating | IP65 |
| Cooling | Passive convection |
| Mounting | Floor stand or truss clamp |
| Operating Temperature | -10°C to 45°C |
| Accessories Included | Power cord, mounting bracket, user manual |
| Certifications | CE, RoHS |
| Maintenance | Clean lens with dry cloth; check cables regularly |
| Safety Features | Overheat protection, automatic shut-off |
| Spare Parts Availability | Replacement LEDs and power supplies available |
Frequently Asked Questions - HL-x9 W QCL RGBW Flood 9x8W Stairville
User questions about HL-x9 W QCL RGBW Flood 9x8W Stairville
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lighting in PDF format for free! Find your manual HL-x9 W QCL RGBW Flood 9x8W - Stairville and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HL-x9 W QCL RGBW Flood 9x8W by Stairville.
USER MANUAL HL-x9 W QCL RGBW Flood 9x8W Stairville
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WW Flood 9x8W
LED floodlight
Musikhaus Thomann
Thomann GmbH
1.1 Further information.... 6
1.2 Notational conventions.... 7
1.3 Symbols and signal words.... 7
2 Safety instructions.... 10
3 Features.... 16
4 Installation.... 18
5 Starting up.... 22
6 Connections and operating elements.... 25
7 Operating.... 28
7.1 Starting up the device.... 28
7.2 Main menu.... 28
7.3 Menu overview.... 35
7.4 Functions in 4-channel DMX mode.... 36
7.5 Functions in 6-channel DMX mode.... 36
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
Table of contents
7.6 Functions in 8-channel DMX mode.... 38
8 Technical specifications.... 40
9 Plug and connection assignments.... 43
10 Troubleshooting.... 44
11 Cleaning.... 46
12 Protecting the environment.... 47
th·mann MUSIC IS OUR PASSION
LED floodlight
1 General information
This user manual contains important information on the safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to another user, be sure that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We therefore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the following points:
| Download This manual is also available as PDF file for you to download. | |
| Keyword search | Use the search function in the electronic version to find the topics of interest for you quickly. |
| Online guides | Our online guides provide detailed information on technical basics and terms. |
| Personal consultation For personal consultation please contact our technical hotline. | |
| Service | If you have any problems with the device the customer service will gladly assist you. |
1.2 Notational conventions
This manual uses the following notational conventions:
Letterings
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Displays
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: '24ch', 'OFF'.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
| Signal word Meaning | |
| DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. | |
| WARNING! This combination of symbol and signal word indicates a possible dangerous situation that can result in death or serious injury if it is not avoided. | |
| NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in material and environmental damage if it is not avoided. | |
| Warning signs Type of danger | |
 | Warning – high-voltage. |
 | Warning – dangerous optical radiation. |
Warning signs Type of danger
Warning – suspended load.
Warning – danger zone.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
2 Safety instructions
Intended use
This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the life of the device by regular breaks in operation and avoid switching it on and off frequently. This device is not suitable for continuous use.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or damaged.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW
HL-x9 QCL RGB WWFlood 9x8W
th·mann
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations.
Only operate the device within the ambient conditions specified in the chapter 'Technical specifications' of this user manual. Avoid heavy temperature fluctuations and do not switch the device on immediately after it was exposed to temperature fluctuations (for example after transport at low outside temperatures).
Dust and dirt inside can damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by qualified service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
3 Features
Special features of the device:
■ 9 four-colour LEDs, 8 W each
- HL-x9 Quad Color (item no. 288505): red, green, blue, white
- HL-x9 W QCL RGBW (item no. 418753): red, green, blue, white
- HL-x9 W QCL RGB WW (item no. 418758): red, green, blue, warm white
- HL-x9 QCL RGB WW (item no. 418760): red, green, blue, warm white
■ Stand-alone, master-slave or DMX mode operation
- Operating via buttons and display on the unit
■ Robust metal housing with four adjustable barn doors attached to it
■ Housing colour:
- HL-x9 Quad Color (item no. 288505): black
- HL-x9 W QCL RGBW (item no. 418753): white
- HL-x9 W QCL RGB WW (item no. 418758): white
- HL-x9 QCL RGB WW (item no. 418760): black
The universal mounting bracket allows mounting to wall, ceiling or floor, with optional accessories also on stands or trusses
- Suitable for use in clubs, bars, stages, exhibitions, etc.
For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain.
NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more than 1.5 m (19.7in).
Provide sufficient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW
HL-x9 QCL RGB WWFlood 9x8W
th·mann
For error-free operation make use of dedicated DMX cables and do not use ordinary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or amplifiers.
Mounting options
Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off.
The safety cable must be attached to the bracket.
Please note that this device must not be connected to a dimmer.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
5 Starting up
Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards.

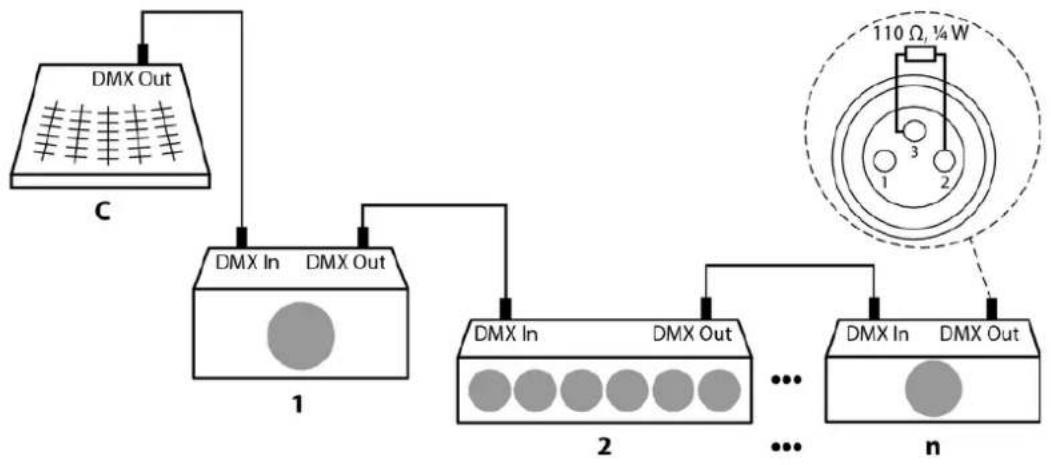

Connections in DMX mode
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W).
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
Connections in master/slave mode
When you configure a group of devices in master/slave mode, the first unit will control the other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on.

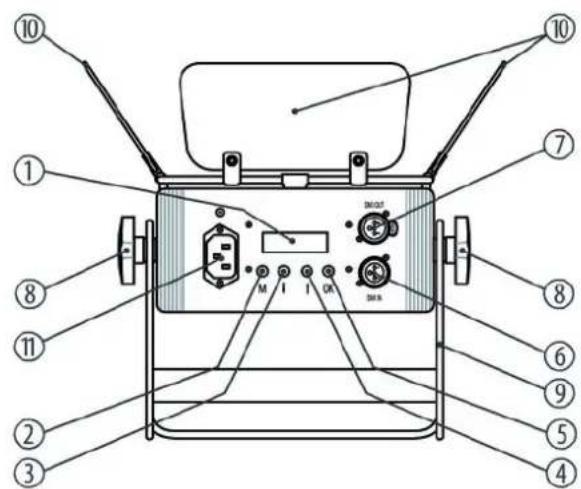

6 Connections and operating elements
Rear panel
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
1 Display.
2 [M] button
Calls the main menu or a submenu.
3,4 ↑, ↓buttons.
Increases / decreases the displayed value by one.
5 [OK] button
Confirms a selected value.
6 [DMX IN]
DMX input.
7 [DMX OUT]
DMX output.
8 Locking screws for the mounting bracket.
9 Bracket for floor placement or hanging.
10 Barn doors.
11 IEC chassis plug for operating voltage supply.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
7 Operating
7.1 Starting up the device
Connect the unit to the power grid to start the operation. After a few seconds, the display shows a running reset. Then the unit is ready for use.
7.2 Main menu

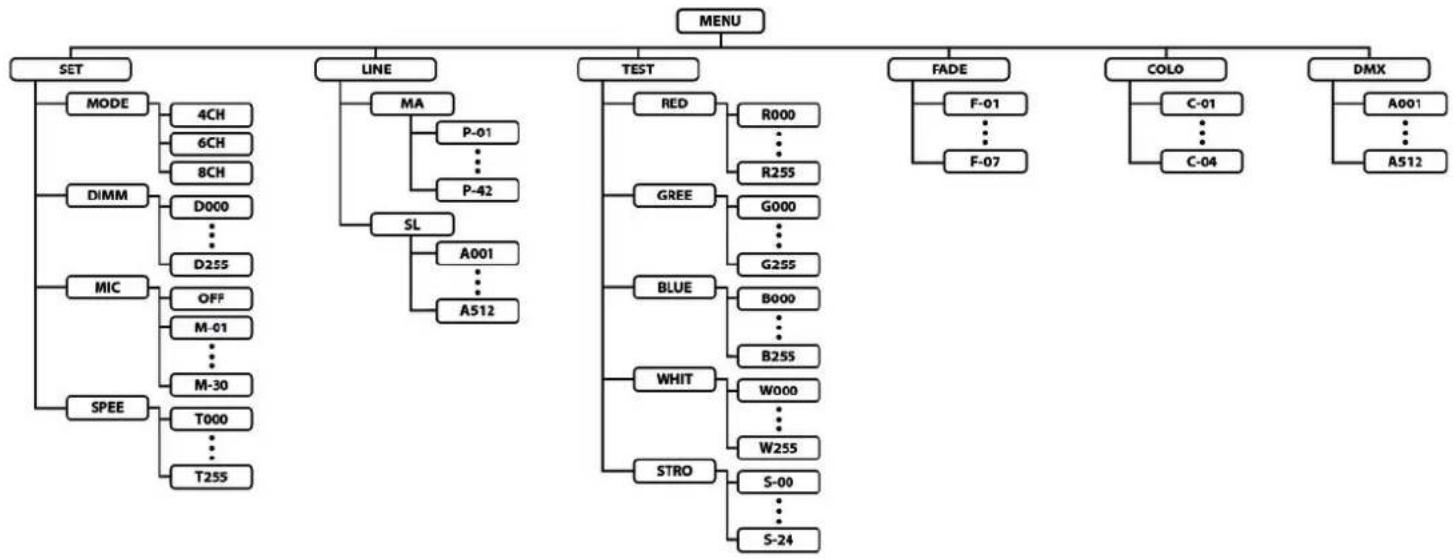

Press [M] to activate the main menu and to select an operating mode. Use the arrow keys to change the respectively indicated value. When the display shows the desired value, press [OK]. If you don't press any button for about 1 minute, the unit returns to the previous mode. The set values are retained even when the device is disconnected from the mains power.
DMX mode
Press [M]. Press one of the arrow keys repeatedly until the display shows 'SET'. Press [OK]. Press one of the arrow keys repeatedly until the display shows 'MODE'. Press [OK]. Now use the arrow keys to select one of the following DMX operating modes:
'4CH' (four channels)
'6CH' (six channels)
■ '8CH' (eight channels)
This setting is only relevant if the unit is controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection, and then [M] to return to the parent menu. To return to the parent menu without any changes, press [M].
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
DMX address
Press [M]. Press one of the arrow keys repeatedly until the display shows 'DMX'. Press [OK]. Now you can set the number of the first DMX channel to be used by the device (DMX address). Select a value between 1 and 512 with the arrow keys (display shows 'A001'... 'A512').
When the display shows the desired value, press [OK] to confirm the selection, and then [M] to return to the parent menu. To return to the parent menu without any changes, press [M].
Make sure that this number matches the configuration of your DMX controller. The following table shows the highest possible DMX address for the various DMX modes.
Mode Highest possible DMX address
| 4-channel 509 |
| 6-channel 507 |
| 8-channel 505 |
Operating mode 'Show/Master'
Press [M]. Press one of the arrow keys repeatedly until the display shows 'LINE'. Press [OK]. Press one of the arrow keys repeatedly until the display shows 'MA'. Press [OK]. Now you can select one of the preprogrammed automatic shows. Use the arrow keys to select a value between 1 and 42 (display shows 'P-01' ... 'P-42').
The automatic show can only be activated on the unit, that operates as Master.
This setting is only relevant if the unit is not controlled via DMX. The device can work in standalone mode or control connected devices of the same type, which must be configured as slave. When the display shows the desired value, press [OK] to confirm the selection, and then [M] to return to the parent menu. To return to the parent menu without any changes, press [M].
Operating mode 'Slave'
Press [M]. Press one of the arrow keys repeatedly until the display shows 'LINE'. Press [OK]. Press one of the arrow keys repeatedly until the display shows 'SL'. Press [OK]. Now you can set the number of the device through which it is addressed as Slave by the Master. Select a value between 1 and 512 with the arrow keys (display shows 'A001'... 'A512').
This setting is only relevant if the unit works as slave controlled by a master, but not via DMX. When the display shows the desired value, press [OK] to confirm the selection, and then [M] to return to the parent menu. To return to the parent menu without any changes, press [M].
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
Operating
Programme speed
Press [M]. Press one of the arrow keys repeatedly until the display shows 'SET'. Press [OK]. Press one of the arrow keys repeatedly until the display shows 'SPEE'. Press [OK]. Now you can set the programme speed for the preprogrammed automatic shows. Select a value between 0 and 255 (display shows 'T000' ... 'T255').
The programme speed can be set only if the microphone sensitivity is set to 'OFF', i.e. the microphone is switched off.
This setting is only relevant if the unit is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection, and then [M] to return to the parent menu. To return to the parent menu without any changes, press [M].
Brightness
Press [M]. Press one of the arrow keys repeatedly until the display shows 'SET'. Press [OK]. Press one of the arrow keys repeatedly until the display shows 'DIMM'. Press [OK]. Now you can set the brightness for the preprogrammed automatic shows. Use the arrow keys to select a value between 0 and 255 (display shows 'D000' ... 'D255').
This setting is only relevant if the unit is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection, and then [M] to return to the parent menu. To return to the parent menu without any changes, press [M].
LED floodlight
Microphone sensitivity
Press [M]. Press one of the arrow keys repeatedly until the display shows 'SET'. Press [OK]. Press one of the arrow keys repeatedly until the display shows 'MIC'. Press [OK]. Now you can adjust the sensitivity of the built-in microphone for the sound control. Use the arrow keys to select either 'OFF' (microphone off) or a value between 1 and 30 (display shows 'M-01'... 'M-30').
This setting is only relevant if the unit is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection, and then [M] to return to the parent menu. To return to the parent menu without any changes, press [M] .
Manual test
Press [M]. Press one of the arrow keys repeatedly until the display shows 'TEST'. Press [OK]. Press one of the arrow keys repeatedly until the display shows 'RED', 'GREE', 'BLUE', 'WHIT' or 'STRO'. Press [OK]. Now you can adjust the brightness of the red, green, blue or white LEDs, each in a range of 0 to 255, or select the flashing speed in a range of 0 to 24.
This operation mode is also suitable to produce constant or flashing light of a colour mixed from the four LED colours without DMX control.
When the display shows the desired value, press [OK] to confirm the selection, and then [M] to return to the parent menu. To return to the parent menu without any changes, press [M].
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
Operating
Fade speed
Press [M]. Press one of the arrow keys repeatedly until the display shows 'FADE'. Press [OK]. Now you can adjust the fade speed of the preprogrammed automatic shows. Select a value between 1 and 7 with the arrow keys (display shows 'F-01' ... 'F-07').
This setting is only relevant if the unit is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection and to return to the main menu. To return to the main menu without any changes, press [M] .
Colour selection
Press [M]. Press one of the arrow keys repeatedly until the display shows 'COLO'. Press [OK]. Now you can set the a basic colour for the preprogrammed automatic shows. Select a value between 1 and 4 with the arrow keys (display shows 'C-01' ... 'C-04').
This setting is only relevant if the unit is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection and to return to the main menu. To return to the main menu without any changes, press [M] .
LED floodlight
7.3 Menu overview
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW
HL-x9 QCL RGB WWFlood 9x8W
th·mann
7.4 Functions in 4-channel DMX mode
| Channel Value Function | |
| 1 0...255 Intensity red (0 % to 100 %) | |
| 2 0...255 Intensity green (0 % to 100 %) | |
| 3 0...255 Intensity blue (0 % to 100 %) | |
| 4 0...255 Intensity white (0 % to 100 %) |
7.5 Functions in 6-channel DMX mode
| Channel Value Function | |
| 1 Operating mode selection | |
| 0...63 Constant colour, colour hue is set via channels 2 to 5 | |
| 64...127 Automatic colour change with 7 colours, channels 2 to 5 without function | |
LED floodlight
| Channel Value Function | |
| 128...191 Automatic colour change with 12 colours, channels 2 to 5 without function | |
| 192...255 Automatic colour change with 4 colours, channels 2 to 5 without function | |
| 20...255 Intensity red (0 % to 100 %), if channel 1 = 0...63 | |
| 30...255 Intensity green (0 % to 100 %), if channel 1 = 0...63 | |
| 40...255 Intensity blue (0 % to 100 %), if channel 1 = 0...63 | |
| 50...255 Intensity white (0 % to 100 %), if channel 1 = 0...63 | |
| 6 Effects speed | |
| 0...10 No automatic colour change | |
| 11...100 Automatic colour change as set via channel 1, decreasing speed from fast to slow | |
| 101...150 No automatic colour change | |
| 151...255 Automatic colour change as set via channel 1, speed randomly changing | |
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
7.6 Functions in 8-channel DMX mode
| Channel Value Function | ||
| 1 0...255 Intensity Red (0 % to 100 %), if channel 5 = 0...15 and channel 7 = 0...31 | ||
| 2 0...255 Intensity Green (0 % to 100 %), if channel 5 = 0...15 and channel 7 = 0...31 | ||
| 3 0...255 Intensity Blue (0 % to 100 %), if channel 5 = 0...15 and channel 7 = 0...31 | ||
| 4 0...255 Intensity White (0 % to 100 %), if channel 5 = 0...15 and channel 7 = 0...31 | ||
| 5 Fixed colour pattern | ||
| 0...15 No fixed colour and movement pattern | ||
| 16...255 One of 31 fixed colour patterns, channels 6 and 7 without function | ||
| 6 Strobe effect | ||
| 0...15 Full brightness, no strobe effect | ||
| 16...255 Strobe effect, increasing speed, if channel 5 = 0...15 | ||
| 7 Operating mode selection | ||
| Channel Value Function | ||
| 0...31 Constant colour, the hue is set by channels 1 to 4 | ||
| 32...63 Fade-out effect, speed controlled by channel 6, channels 1 to 4 define the colour | ||
| 64...95 Fade-in effect, speed controlled by channel 6, channels 1 to 4 define the colour | ||
| 96...127 Fade-in-out effect, speed controlled by channel 6, channels 1 to 4 define the colour | ||
| 128...159 Auto-mix effect, speed controlled by channel 6, channels 1 to 5 without function | ||
| 160...191 Chase (4 colours), speed controlled by channel 6, channels 1 to 5 without function | ||
| 192...223 Chase (12 colours), speed controlled by channel 6, channels 1 to 5 without function | ||
| 224...255 Sound-controlled colour change, increasing microphone sensitivity | ||
| 8 0...255 Dimmer (0 % to 100 %) | ||
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW
HL-x9 QCL RGB WWFlood 9x8W
th·mann
8 Technical specifications
| Light source 9 × 4in1 LED, 8 W each | ||
| HL-x9 Quad Color (item no. 288505): red, green, blue, white | ||
| HL-x9 W QCL RGBW (item no. 418753): red, green, blue, white | ||
| HL-x9 W QCL RGB WW (item no. 418758): red, green, blue, warm white | ||
| HL-x9 QCL RGB WW (item no. 418760): red, green, blue, warm white | ||
| Optical properties Beam angle ca. | 35° | |
| Control DMX | ||
| Buttons and display | ||
| Number of DMX channels 4, 6, 8 | ||
| Input connections Voltage supply | IEC chassis plug C14 | |
| DMX control XLR chassis socket, 3-pin | ||
| Output connections DMX control XLR chassis socket, 3-pin | ||
| Power consumption 76 W | ||
| Supply voltage | 110 – 230 V ~50/60 Hz | |
| Degree of protection IP20 | ||
| Mounting options Hanging, standing | ||
| Dimensions (W ×H ×D), without bracket and barn doors 300 mm × 125 mm × 165 mm | ||
| Height with barn doors 385 mm | ||
| Weight 4.3 kg | ||
| Ambient conditions Temperature range 0 °C...40 °C | ||
| Relative humidity 50 %, non-condensing | ||
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
Further information
| Outdoor-ready No | |
| Colour mixture RGBW | |
| LED type x-in-1 | |
| Base housing Yes | |
| Fanless No | |
| Remote control Not possible | |
| Wireless DMX No | |
| Housing colour Black |
9 Plug and connection assignments
Introduction
This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed.
Please take our tips, because especially in 'Sound & Light' caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or 'just' a not working light show!
DMX connections
Pin Configuration
1 Ground, shielding
2 Signal inverted (DMX-, 'cold signal')
3 Signal (DMX+, 'hot signal')
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
10 Troubleshooting
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordinary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or amplifiers.
In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting:
| Symptom Remedy | |
| The unit does not work, no light. | Check the mains connection and the fuse. |
| No response to the DMX controller. | 1. Check the DMX ports and cables for proper connection. |
| 2. Check the address settings and the DMX polarity. | |
| 3. Try using another DMX controller. | |
| 4. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or interference to DMX interface circuits. |
If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW
HL-x9 QCL RGB WWFlood 9x8W
th·mann
Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
■ Clean with a soft cloth using our lamp and lens cleaner (item no. 280122).
■ Always dry the parts carefully.
Fan grids
The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a regular basis. Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth.
12 Protecting the environment
Disposal of the packaging material
For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging.
Disposal of your old device
This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility.
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
Notes
th·mann MUSIC IS OUR PASSION
LED floodlight
Notes
HL-x9 Quad Color HL-x9 W QCL RGBW HL-x9 W QCL RGB WW HL-x9 QCL RGB WWFlood 9x8W
th·mann MUSIC IS OUR PASSION
Notes
th·mann MUSIC IS OUR PASSION
LED floodlight
