Product Type	Air Purifier
Brand	Electrolux
Model	Flow A4 FA41-400PK
Control Type	Touch icons and sliding gesture on arc
Fan Speed Settings	Adjustable from Low to Max (20s ramp to Max)
Sleep Mode	Yes, low noise operation with indicators off except sleep icon
Filter Type	Multi-layer (replaceable, not washable)
Pre-Filter Care	Wipeable with damp cloth
Filter Change Indicator	Red light flicker (replace soon) or steady (replace immediately)
Filter Reset	Press filter change button for 3 seconds
Power Supply	50/60 Hz compatible, no adaptor needed
Power Cord	Do not use extension cord or adapter; do not damage cord
Safety - Fan Blade	Do not touch when removing filter
Safety - Placement	Do not block intake, discharge, or outlet ports
Safety - Electronic Distance	Keep electrical equipment at least 30 cm away
Cleaning - Exterior	Unplug, use damp cloth or vacuum with soft brush
Cleaning - Plastic Parts	Mild dish soap and water, wring excess cloth
Storage	Cover or return to original carton
Disposal	Contains battery; recycle at official collection point or service center

Frequently Asked Questions - Flow A4 FA41-400PK ELECTROLUX

How do I replace the filter?

Switch off and unplug the device. Open the base by rotating it anticlockwise using the handle at the bottom. Remove the filter from its plastic bag and insert the filter (either end works) ensuring it is centered. Close the base by rotating clockwise until secure.

How do I reset the filter change indicator?

Press the filter change button (the icon with a filter symbol) for 3 seconds. The red light will turn off to confirm reset.

Can I wash the filters?

No, the multi-layer filter cannot be washed; it must be replaced. The pre-filter can be wiped with a damp cloth.

Why is my air purifier making loud noise?

Possible causes: the unit is not on a level surface or the filter is not properly inserted. Place the unit on a flat surface and re-install the filter correctly.

Why is the outgoing air volume reduced?

Check if the outlet is blocked by an object or if the filter needs replacement. Ensure there is enough space around the unit and replace the filter if the indicator is on.

What does the filter change indicator light mean?

A flickering red light means replace the filter soon. A steady red light means replace the filter immediately.

How do I use sleep mode?

Gently touch the sleep mode icon (a speaker symbol). The unit will operate at low noise and all indicators except the sleep icon will turn off.

How do I adjust the fan speed?

You can touch the desired fan speed icon on the control panel or slide your finger across the arc. Default is Low; selecting Max will reach full speed within 20 seconds.

Can I operate the purifier with wet hands?

No, to avoid electric shock, do not operate the unit with wet hands.

How should I clean the air purifier?

Unplug the unit first. Use a damp cloth or a vacuum cleaner with a soft brush for the exterior. For plastic parts, use a cloth dampened in warm water with mild dish soap, wringing excess water before wiping around controls. Never use harsh cleaners.

USER MANUAL Flow A4 FA41-400PK ELECTROLUX

Abstract geometric logo with white circular and petal-like shapes on dark blue background (no text or symbols)

Instruction Book

FLOW A4

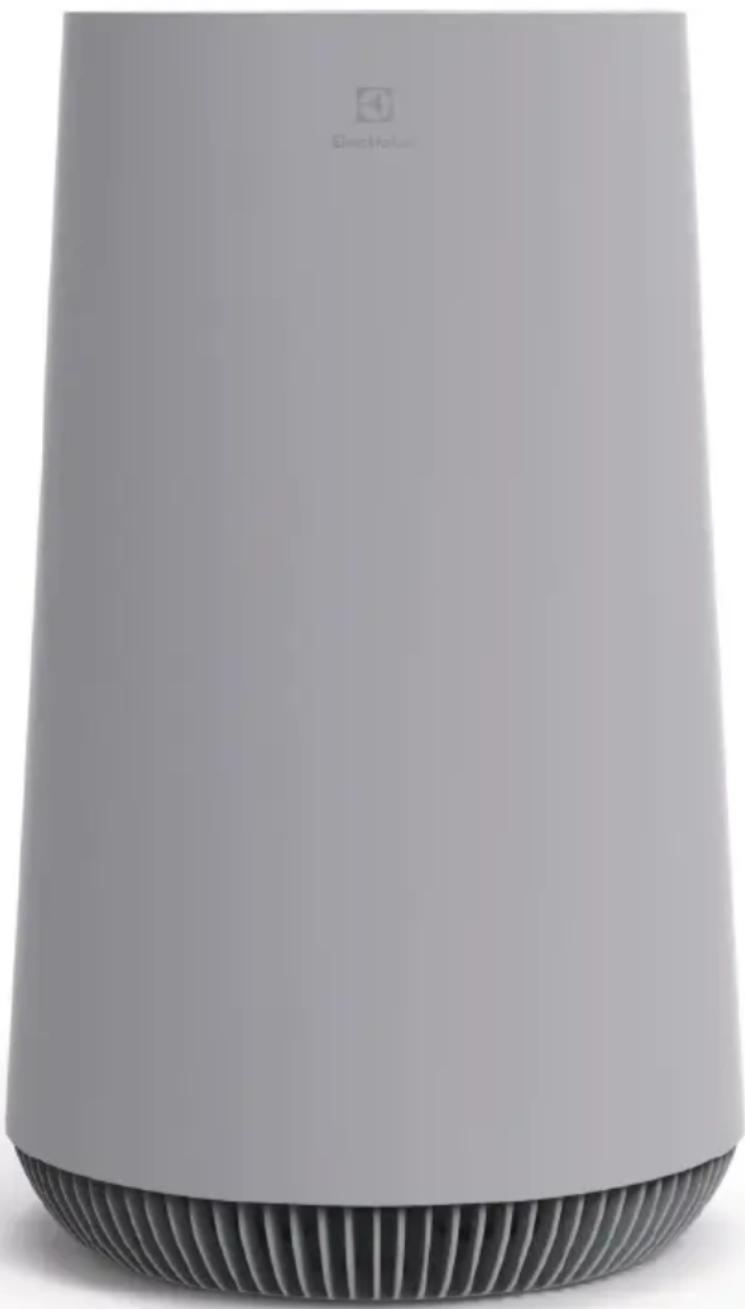

Exterior view of a modern electric air purifier with a curved base and ventilation grille (no text or symbols visible)

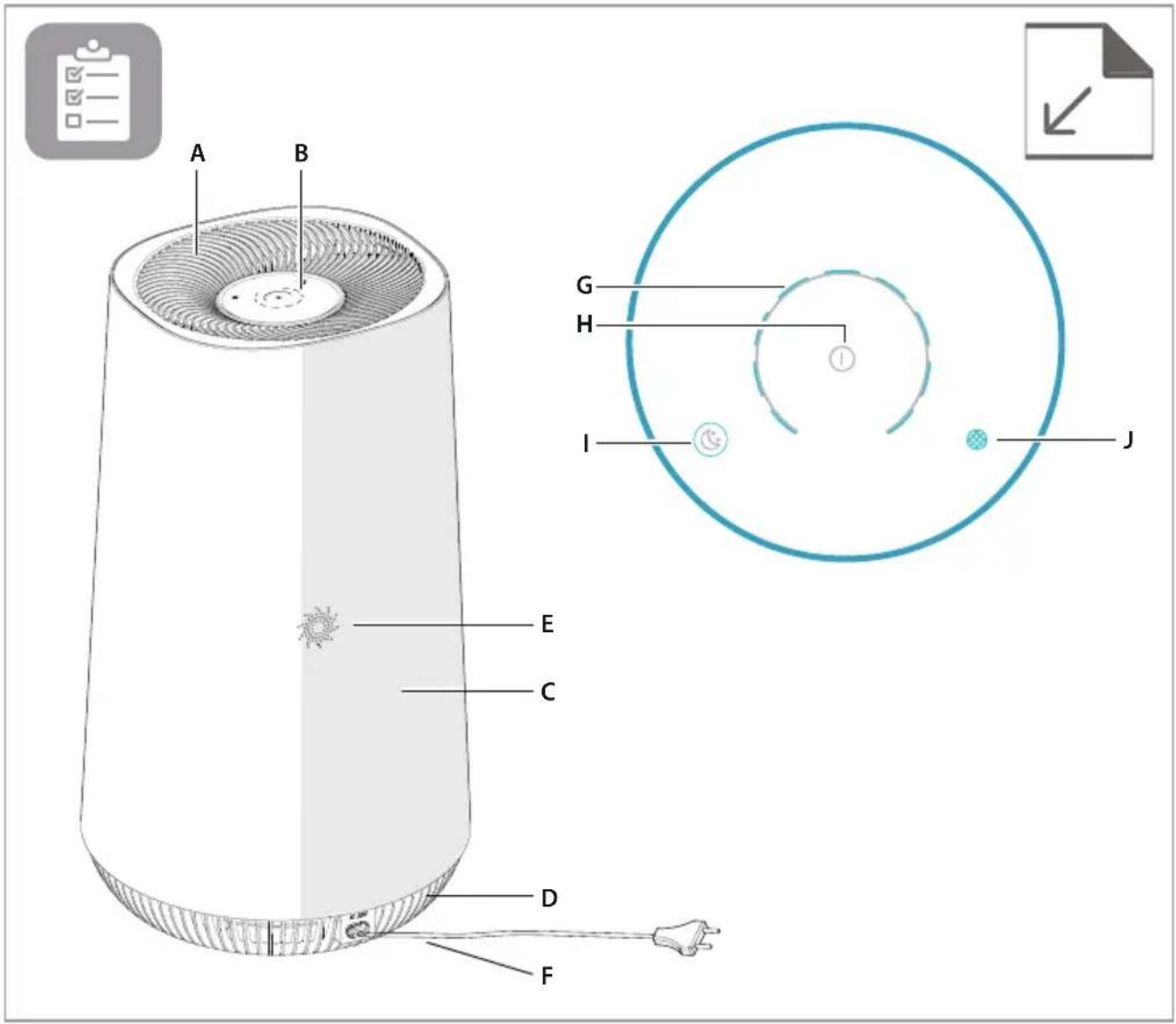

DESCRIPTION OF YOUR AIR PURIFIER FLOW A4

Appliance:

A. Air outlet
B. UI panel
C. Main body
D. Base
E. Decoration holes
F. Power cord

Control panel:

G. Fan speed control
H. Power on/off
I. Sleep mode button & indicator
J. Filter change reminder

Diagram of a cylindrical device with internal components and directional arrows indicating rotation (no text or symbols)

Illustration of a cylindrical container with an upward arrow indicating flow or direction (no text or symbols)

Diagram of a cylindrical device with a blue arrow indicating upward motion, no text or symbols present

Diagram of a cylindrical device with internal components and directional arrows indicating rotation (no text or symbols)

Diagram of a server unit connected to a wall-mounted power outlet with a blue arrow indicating direction (no text or symbols)

SAFETY INFORMATION

This USER MANUAL provides specific operating instructions for your model. Use the unit only as instructed in this USER MANUAL. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

WARNING! Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord. This appliance can be used in 50Hz or 60Hz power supply without any change.

Do not under any circumstances, cut, remove or bypass the grounding prong.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings.

Do not let water or any other liquid or flammable detergent enter the appliance to avoid electric shock and/or a fire hazard.

Do not touch the fan blade when removing the filter.

Children and Vulnerable People Safety

WARNING! Risk of suffocation, injury or permanent disability.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Children under 3 years of age should be kept away from the appliance unless continuously supervised.

Keep all packaging away from children.

If the appliance has a child safety device, we recommend you activate it.

Electrical Information

WARNING! Avoid fire hazard or electric shock.

If you are not sure the outlet is adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper outlet according to the National Electrical Code and applicable local codes and ordinances.

Do not use an extension cord or an adapter plug.

Never unplug the unit by pulling on the power cord.

Always grip the plug firmly and pull straight out from the receptacle.

Do not pinch, bend, or knot the power cord.

Do not cut or damage the power cord. If the power cord is damaged, it should only be replaced by an authorized Electrolux servicer. This unit contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Be sure to unplug the unit before cleaning to prevent shock or fire hazards.

Safety Precautions

CAUTION! Avoid Serious Injury or Death.

Do not insert or place fingers or objects into the air discharge area or front grille of the unit.

Do not start or stop the unit by unplugging the power cord or turning off the power at the electrical box.

In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized Electrolux servicer.

Do not operate the unit with wet hands.

Do not pull on the power cord.

CAUTION! Avoid Injury or damage to the unit or other property.

Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups.

Do not climb on or place objects on the unit.

Do not hang objects off the unit.

Do not place containers with liquids on the unit.

Turn off the unit at the power source when it will not be used for an extended period of time.

Operate the unit with air filter in place.

Do not block or cover the intake grille, discharge area and outlet ports.

Ensure that any electrical/electronic equipment is 30 cm away from the unit.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste..

This symbol on the product or on its packaging indicates that the product may not be treated as household waste.

To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Thank you for choosing the Electrolux air purifier.

Always use original accessories and spare parts to get the best results. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

BEFORE STARTING

• Read this manual carefully.
• Check that all parts described are included.
• Pay special attention to the safety precautions!

SET UP

The filters have to be installed before use.

Caution: Switch off the device before installing filters.

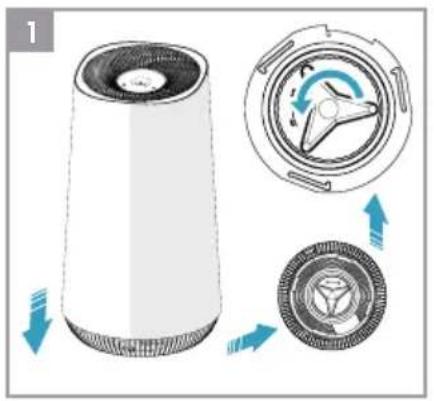

1 Open the base of the filter

Open the product by rotating the base in anticlockwise direction with the handle provided at the bottom till it comes loose (ref. picture 1).

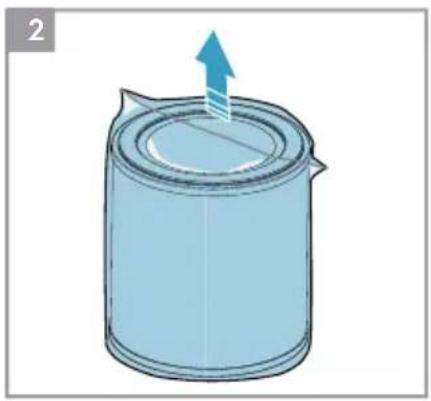

2 Take out the filter and remove the filter bag

Carefully remove the filter incl. plastic packaging from the unit and break open the plastic bag and discard appropriately (ref. picture 2).

3 Install the filter

Carefully insert the filter back into the product without the plastic packaging (either end of the filter works). Take care that the filter is placed in the center of the cavity (ref. picture 3).

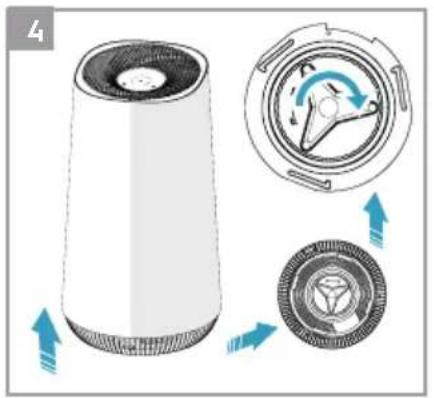

4 Close the base

Close the product by rotating the base in clockwise direction with the handle provided at the bottom till it is securely in place. There two opposing triangular marks on the base of the product to identify the leading edge for turning (ref. picture 4).

OPERATION

Caution: After filter is installed correctly, please ensure product is placed on a level surface before proceeding further. Ensure there is enough free space on top of and around the product.

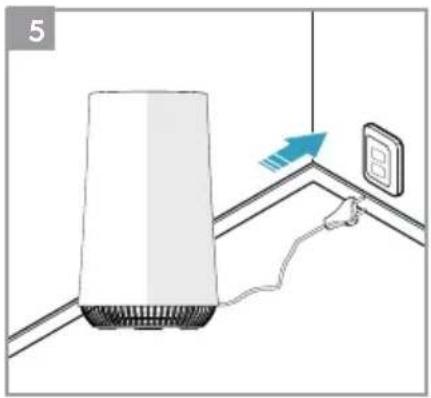

5 Connect the power plug.

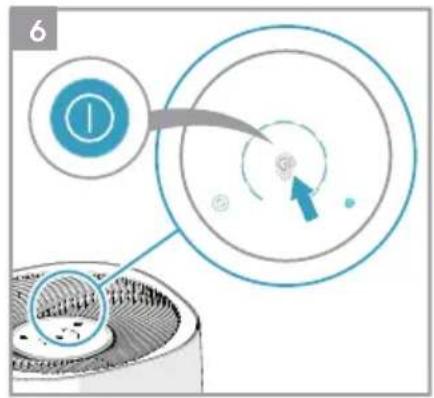

6 Power on

Power on the product by gently touching the ON/OFF icon on the center of the product (ref. picture 6).

7 Air speed control

Change the fan speed by gently touching desired fan speed icon on the product. You can also slide your finger across the arc to change fan speed, Low speed as default setting and if select Max fan speed, it will reach the Max fan speed within 20s. (ref. picture 7).

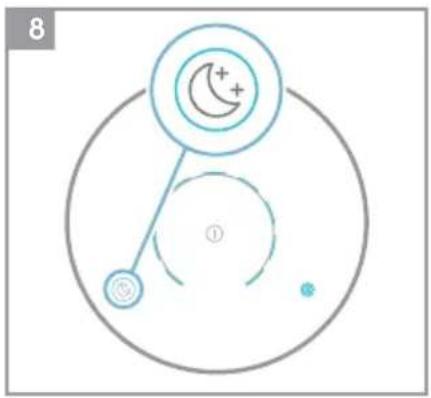

8 Sleep mode

Chose the SLEEP mode by gently touching 🔊 icon on the product. In SLEEP mode unit will operate at the low noise level and all indicators except for SLEEP icon will go off. (ref. picture 8).

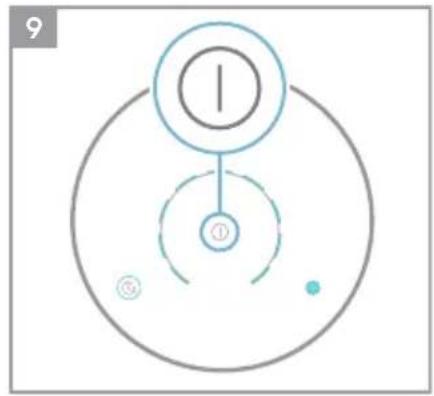

9 Power off

Power down the product by gently touching the ON/OFF icon on the center of the product (ref. picture 9).

FILTER CHANGE INDICATOR

10 The filter change indicator will light up to remind you to change the filter.

• When filter change indicator flicker with red light, please replace the filter and reset the filter change indicator.
• When filter change indicator stop flicker and the red light fix, please replace the filter immediately and reset the filter change indicator.

11 Filter change indicator reset operation

Press the filter change button "for 3s and filter change indicator will reset, then red light will go off.

CARE AND CLEANING

12 Unplug the appliance before cleaning to prevent shock or fire hazards. Use a damp cloth or a vacuum cleaner with soft brush to clean your air purifier.
13 The plastic part of the cabinet and top may be cleaned with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the appliance.
14 Never use harsh cleaners, wax or polish when cleaning the unit.

STORAGE

15 If you are not planning to use the appliance for a long time, cover it with plastic or return it to its carton.

NOTE: The multi-layer filter can not be washed, it can only be replaced.

CAUTION!

Do not touch the fan blade when removing the multi-layer filter.

ERROR CODE

16 Fan failure error code, when fan failure occurs, the light of screen will all go off and the unit can't be operated then.

TROUBLESHOOTING

When fault indicators show that the system is not operating properly, perform the following check.

Commonly Asked Questions & Topics

Carry out the operations below for commonly-occurring questions or faults.

Questions or Faults Corrective	Possible Diagnosis
Can the filters be washed?	NO	Replace the compound filter instead of wash, the pre-filter can be wiped.
The control panel does not seem to work.	Power issue or the filter compartment if unlocked.	Check if the equipment is powered on and confirm whether the filter compartment door is locked.
The equipment emits a lot of noise.	The installation location is not at even level or the filter is not properly inserted.	Install the equipment on a level surface and re-confirm filter installation position and order.
The equipment operates normally but the outgoing air volume is significantly reduced.	The outlet might be blocked by a foreign object or the filter has not been replaced in a timely manner.	Please re-adjust the equipment installation position to ensure enough space is reserved, and confirm that filter have been replaced according to filter replacement indicator status.
If the fault encountered is not listed above, please call the Customer Service Hotline.

The software in the air purifier is partly based on free and open source software. To see the full copyright information and applicable license terms, please visit: www.electrolux.com
