Product Type	Control unit for planar antenna elevation display
Brand	Kathrein
Model	HDS 66
Category	Satellite Receiver Accessory
Compatible Devices	Any receiver or TV with integrated tuner; exclusively with HDZ 60/66 and BAS 60/66
Power Supply	From receiver (no external power required)
Current Consumption	150 mA (excess)
Connectors	Two F-type female connectors (IEC 169-24)
Display	Elevation in 0.1° steps
Backlight	Auto off (power saving) when no elevation change; auto on when change
Mounting	Wall mounting (inner wall of vehicle)
Included Accessories	2 screws, 2 F-type connectors
Cable Preparation	Remove 10 mm outer jacket, 7 mm dielectric
Safety	Ensure no contact between braided shield and inner conductor
Environmental	Dispose as electronic waste per WEEE directive 2002/96/EC
Manufacturer	KATHREIN-Werke KG, Anton-Kathrein-Straße 1-3, 83004 Rosenheim, Germany
Intended Use	Display elevation of BAS 60/66 planar antenna in combination with HDZ 60/66
Installation	Mount near jointed mast, display visible, connectors facing down

Frequently Asked Questions - HDS 66 KATHREIN

How do I install the HDS 66 control unit?

Mount the HDS 66 on an inner wall of the vehicle near the jointed mast using the provided screws. Ensure the display is easily seen and the F-type female connectors face downward to read the display.

What is the power supply requirement for the HDS 66?

The HDS 66 is powered directly from the receiver, requiring no external power supply. It consumes an excess of 150 mA; ensure the receiver can supply this.

Which devices are compatible with the HDS 66?

It is compatible with any receiver or TV with an integrated tuner, but exclusively works with the HDZ 60/66 elevation indicator and BAS 60/66 planar antenna.

How do I attach the F-type connectors to the cable?

Remove 10 mm of the outer plastic jacket, pull back the braided shield, remove 7 mm of dielectric and aluminium foil from the inner conductor, then screw the F-type connector hand-tight onto the cable end. Ensure no contact between braided shield and inner conductor to avoid short circuit.

How do I connect the cables between receiver, HDS 66, and HDZ 60/66?

There are two options: either cut the cable between receiver and elevation indicator and attach F-type connectors to both ends (use solid inner conductor cable), then connect to HDS 66; or connect HDS 66 to HDZ 60/66 with one cable and use a separate coaxial cable (not included) from receiver to HDS 66.

What does the backlight do?

The backlight automatically turns off if there is no change in elevation (power saving mode) and automatically turns on when elevation changes.

Can I use the HDS 66 with any satellite antenna?

No, the HDS 66 is intended exclusively for use with the BAS 60/66 planar antenna in combination with the HDZ 60/66 elevation indicator. Other uses void the warranty.

What should I do if the display does not work?

Check that the cable connections are secure and the F-type connectors are properly attached. Ensure the receiver is supplying power and that the cable inner conductor is solid. If the issue persists, verify compatibility with HDZ 60/66 and BAS 60/66.

How should I dispose of the HDS 66 at the end of its life?

Do not dispose as household waste. According to the WEEE directive (2002/96/EC), take it to an appropriate official collection point for electronic waste.

What is included in the scope of delivery?

The package includes the HDS 66 control unit, 2 screws for wall mounting, and 2 F-type connectors.

USER MANUAL HDS 66 KATHREIN

Lieferumfang

Kabel anschließen


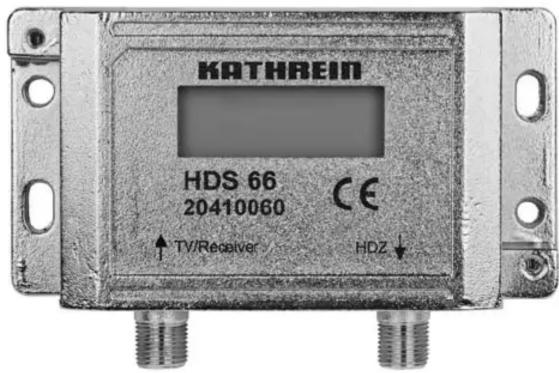

The HDS 66 is a control unit to display the elevation of the BAS 60/66 planar antenna.

■ Compatible with any receiver or TV with an integrated tuner
■ Applicable exclusively in combination with the HDZ 60/66 elevation indicator
■ Power supply from the receiver
■ No external power supply required
■ Two F-type female connectors (IEC 169-24)
■ Backlight turns off automatically if there is no change in elevation (power saving mode)
■ Backlight turns on automatically if there is a change in elevation
■ Easy wall mounting

Scope of delivery

• Control unit
  • 2 screws for wall mounting
• 2 F-type connectors

Intended use

The HDS 66 is a control unit to display the current elevation of the BAS 60/66 planar antenna in 0.1° steps, applicable exclusively in combination with the HDZ 60/66 elevation indicator.

Any other use or failure to comply with these user instructions and the documentation and instructions accompanying the equipment will void the warranty or guarantee.

Keep these instructions for further reference and give them to the next owner if the control unit is sold.

Installation

Mount the HDS 66 control unit on an inner wall of the vehicle in the proximity of the jointed mast using the provided screws. Make sure that the display is easily seen and the F-type female connectors face downward to be able to read the information on the display.

Cable connection

NOTICE

The HDS 66 leads to an excess consumption of 150 mA. Make sure that the receiver is able to supply this excess consumption.

KATHREIN

The elevation indicator and the receiver are connected by means of a cable. The HDS 66 control unit has two F-type female connectors, i.e. two cables are necessary. There are two options to connect the HDS 66 to the receiver and the HDZ 60/66 elevation indicator:

1. Cut the cable between the receiver and the elevation indicator and attach the provided F-type connectors onto both ends of the cable, see Attach the F-type connectors.

NOTICE

Make sure that the cable has a solid inner conductor, otherwise it is not possible to insert the inner conductor into the F-type female connector of the HDS 66 after the F-type connectors have been attached.

1. Connect the HDS 66 control unit and the HDZ 60/66 elevation indicator using the cable at hand. Connect the receiver and the HDS 66 using an additional coaxial cable (not included in the scope of delivery).

Attach the F-type connectors

Only use the enclosed F-type connectors. Do not use any tools to attach the F-type connectors, tighten them hand-tight.

NOTICE

Risk of short circuit!

Material damage due to contact between the wires of the braided shield and the inner conductor.

▶ When attaching the F-type connectors, make sure that there is no contact between the wires of the braided shield and the inner conductor.

1. Remove 10 mm from the outer plastic jacket ①. Cut into it carefully so as not to damage the braided shield ②.

2. Pull the braided shield ② back.

3. Remove 7 mm dielectric and aluminium foil ③ from the inner conductor ④.

4. Screw the F-type connector ⑤ onto the end of the cable until it sits tightly.

Connect the cable

Connect the receiver to the input F-type female connector and the HDZ 60/66 to the output F-type female connector:

Electronic equipment is not domestic waste - in accordance with directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL dated 27th January 2003 on used electrical and electronic appliances, it must be disposed of properly.

At the end of its service life, take this unit for disposal to an appropriate offi cial collection point.

936.4998/--VMPT/0715/GB – Technical data subject to change!

www.kathrein.com

KATHREIN-Werke KG • Anton-Kathrein-Straße 1 – 3 • 83004 Rosenheim • Germany • Phone [phone] • Fax [phone]
