USER MANUAL Crosstrek Premium (2023) SUBARU

Congratulations on choosing a SUBARU vehicle. This Owner's Manual has all the information necessary to keep your SUBARU in excellent condition and to properly maintain the emission control system for minimizing emission pollutants. We urge you to read this manual carefully so that you may understand your vehicle and its operation. For information not found in this Owner's Manual, such as details concerning repairs or adjustments, please contact the SUBARU dealer from whom you purchased your SUBARU or the nearest SUBARU dealer.

The information, specifications and illustrations found in this manual are those in effect at the time of printing. SUBARU CORPORATION reserves the right to change specifications and designs at any time without prior notice and without incurring any obligation to make the same or similar changes on vehicles previously sold. This Owner's Manual applies to all models and covers all equipment, including factory installed options. Some explanations, therefore may be for equipment not installed in your vehicle.

Please leave this manual in the vehicle at the time of resale. The next owner will need the information found herein.

"SUBARU" and the six-star cluster design are registered trademarks of SUBARU CORPORATION.

© Copyright 2022 SUBARU CORPORATION

Vehicle type

This manual describes the following vehicle type.

Line drawing of a modern SUV (no text or symbols present)

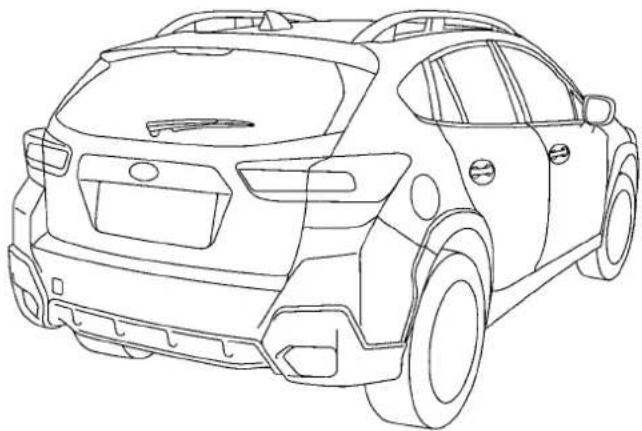

Line drawing of a car rear view showing front and side profiles (no text or symbols)

002096

Warranties

■ Warranties for U.S.A.

SUBARU vehicles distributed by Subaru America, Inc. and sold at retail by an authorized SUBARU dealer in the United States come with the following warranties

• SUBARU Limited Warranties
● Federal Emission Control Systems Warranties
- California Emissions Control Systems Warranties

All warranty information, including applicability, details of coverage and exclusions, is in the "Warranty and Maintenance Booklet". Read these warranties carefully.

■ Warranties for Canada

SUBARU vehicles distributed by Subaru Canada, Inc. and sold at retail by an authorized SUBARU dealer in Canada come with the following warranties:

• SUBARU Limited Warranty
- Emission Control System Warranty

All warranty information, including applicability, details of coverage and exclusions, is in the "Warranty and Service Booklet". Read these warranties carefully.

■ Warranties except for U.S.A and Canada

All warranty information, including details of coverage and exclusions, is in the "Warranty and Maintenance Booklet". Read these warranties carefully.

How to use this Owner's Manual

■ Using your Owner's Manual

Before you operate your vehicle, carefully read this manual. To protect yourself and extend the service life of your vehicle, follow the instructions in this manual. Failure to observe these instructions may result in serious injury and damage to your vehicle.

This manual is composed of fourteen chapters. Each chapter begins with a brief table of contents, so you can usually tell at a glance if that chapter contains the information you want.

Chapter 1: Seat, seatbelt and SRS airbags

This chapter informs you how to use the seat and seatbelt and contains precautions for the SRS airbags.

Chapter 2: Keys and doors

This chapter informs you how to operate the keys, locks and windows.

Chapter 3: Instruments and controls

This chapter informs you about the operation of instrument panel indicators and how to use the instruments and other switches.

Chapter 4: Climate control

This chapter informs you how to operate the climate control.

Chapter 5: Audio

This chapter informs you about your audio system.

Chapter 6: Interior equipment

This chapter informs you how to operate interior equipment.

Chapter 7: Starting and operating

This chapter informs you how to start an operate your SUBARU.

Chapter 8: Driving tips

This chapter informs you how to drive y SUBARU in various conditions and explains some safety tips on driving.

Chapter 9: In case of emergency

This chapter informs you what to do if have a problem, such as a flat tire or engine overheating.

Chapter 10: Appearance care

This chapter informs you how to keep y SUBARU looking good.

Chapter 11: Maintenance and service This chapter informs you when you need to take your SUBARU to the dealer for scheduled maintenance and informs you how to keep your SUBARU running properly.

Chapter 12: Specifications

This chapter informs you about dimensions and capacities of your SUBARU.

Chapter 13: Consumer information and Reporting safety defects

This chapter informs you about Uniform tire quality grading standards and Reporting safety defects.

Chapter 14: Index

This is an alphabetical listing of all that's this manual. You can use it to quickly find something you want to read.

For models with EyeSight system:

For details about the EyeSight system, refer to the Owner's Manual supplement for the EyeSight system.

Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.

■ Safety warnings

You will find a number of WARNINGS, CAUTIONs and NOTES in this manual. These safety warnings alert you to potential hazards that could result in injury to you or others.

Please read these safety warnings as well as all other portions of this manual carefully in order to gain a better understanding of how to use your SUBARU vehicle safely.

WARNING

A WARNING indicates a situation in which serious injury or death could result if the warning is ignored.

CAUTION

A CAUTION indicates a situation in which injury or damage to your vehicle, or both, could result if the caution is ignored.

NOTE

A NOTE gives information or suggestions how to make better use of your vehicle.

■ Safety symbol

000013

You will find a circle with a slash through in this manual. This symbol means "Do not", "Do not do this", or "Do not let this happen", depending upon the context.

■ Abbreviation list

You may find several abbreviations in t manual. The meanings of the abbreviations are shown in the following list.

Abbreviation	Meaning
A/C Air conditioner
ALR/ELR	Automatic locking retractor/Emergency locking retractor
ABS Anti-lock	brake system
AKI Anti knock index
ALR Automatic locking retractor
AWD All-wheel drive
BSD/RCTA	Blind Spot Detection/RearCross Traffic Alert
CVT	Continuously variable trans-mission
DRL Daytime	running light
EBD	Electronic brake force distribution
ELR Emergency locking retractor
GAW	Gross axle weight
GAWR	Gross axle weight rating
GPS	Global positioning system
GVW	Gross vehicle weight
GVWR	Gross vehicle weight rating
INT Intermittent

Abbreviation	Meaning
SLATCH	Lower anchors and tethers for children
LED Light emitting diode
MIL Malfunction indicator light
MMT	Methylcyclopentadienyl man-ganese tricarbonyl
MT	Manual transmission
OBD	On-board diagnostics
RAB	Reverse Automatic Braking
RON	Research octane number
SI-DRIVE	SUBARU Intelligent Drive
SRH	Steering Responsive Head-light
SRS	Supplemental restraint sys-tem
TIN Tire identification number
TPMS	Tire pressure monitoring sys-tem

Vehicle symbols

There are some of the symbols you may see on your vehicle. For warning and indicator lights, refer to "Warning and indicator lights" 23.

Mark Name
	WARNING
	CAUTION
	Read these instructions carefully
	Wear eye protection
	Battery fluid contains sulfuric acid
	Keep children away
	Keep flames away
	Prevent explosions

Safety precautions when driving

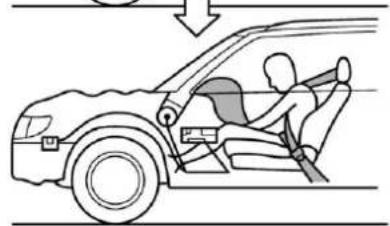

■ Seatbelt and SRS airbag

WARNING

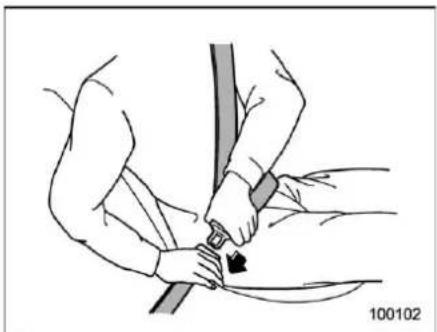

- All persons in the vehicle must fasten their seatbelts BEFORE the vehicle starts to move. Otherwise, the possibility of serious injury becomes greater in the event of a sudden stop or accident.

- To obtain maximum protection in the event of an accident, the driver and all passengers must always wear seatbelts when in the vehicle. The SRS (Supplemental Restraint System) airbag does not do away with the need fasten seatbelts. In combination with the seatbelts, it offers the best combined protection in case of a serious accident.

Not wearing a seatbelt increases the chance of severe injury or death in a crash even when the vehicle has the SRS airbag.

- The SRS airbags deploy with considerable speed and force. Occupants who are out of proper position when the SRS airbag deploys could suffer very serious injuries. Because the SRS airbag needs enough space for deployment, the driver should always sit upright and well back in the seat as far from the steering wheel as practical while still maintaining full vehicle control and the front passenger should move the seat as far back as possible and sit upright and well back in the seat.

For instructions and precautions, carefully read the following sections.

- For the seatbelt system, refer to "Seatbelts" 1-12.

For the SRS airbag system, refer to "SRS airbag (Supplemental Restraint System airbag)" 1-42.

■ Child safety

WARNING

• Never hold a child on your lap in your arms while the vehicle moving. The passenger cannot protect the child from injury in collision, because the child will be caught between the passenger and objects inside the vehicle.
• While riding in the vehicle, infants and small children should always be seated in the REAR seat in a infant or child restraint system which is appropriate for the child's age, height and weight. If a child is too big for a child restraint system, the child should sit in the REAR seat and be restrained using the seatbelts. According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions. Never allow a child to stand up or kneel on the seat.
• Place children in the REAR seat properly restrained at all times in a child restraint system or in a seatbelt. The SRS airbag deploys

or is

a

with considerable speed and force and can injure or even k children, especially if they are restrained or improperly re-strained. Because children are lighter and weaker than adults, their risk of being injured from deployment is greater.
- NEVER INSTALL A CHILD RE-STRAINT SYSTEM IN THE FRONT PASSENGER'S SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLA-CING THE CHILD'S HEAD TOO CLOSE TO THE SRS AIRBAG.
- Always turn the child safety locks to the "LOCK" position when children sit in the rear seat. Serious injury could result if a child accidentally opens the door and falls out. Refer to "Child safety locks" 2-27.
- Always lock the passenger's windows using the lock switch when children are riding in the vehicle. Failure to follow this procedure could result in injury to a child operating the power window. Refer to "Windows" 2-27.
- Never leave unattended children, adults or animals in the vehicle.
kill not

They could accidentally injure themselves or others through inadvertent operation of the vehicle. Also, on hot or sunny days, temperature in a closed vehicle could quickly become high enough to cause severe or possibly fatal injuries to them.

- When leaving the vehicle, close all windows and lock all doors.

For instructions and precautions, carefully read the following sections.

• For the seatbelt system, refer to "Seatbelts" 1-12.
• For the child restraint system, refer to "Child restraint systems" -1-26.
• For the SRS airbag system, refer to "SRS airbag (Supplemental Restraint System airbag)" 1-42.

■ Engine exhaust gas (carbon monoxide)

WARNING

• Never inhale engine exhaust gas. Engine exhaust gas contains carbon monoxide, a colorless and odorless gas which is dangerous, or even lethal, if inhaled.
• Always properly maintain the engine exhaust system to prevent engine exhaust gas from entering the vehicle.
• Never run the engine in a closed space, such as a garage, except for the brief time needed to drive the vehicle in or out of it.
• Avoid remaining in a parked vehicle for a lengthy time while the engine is running. If that is unavoidable, then use the ventilation fan to force fresh air into the vehicle.
  ● Always keep the front ventilator inlet grille free from snow, leaves or other obstructions to ensure that the ventilation system always works properly.
• If at any time you suspect that exhaust fumes are entering the

vehicle, have the problem checked and corrected as soon as possible. If you must drive under these conditions, drive only with all windows fully ope

- Keep the rear gate closed while driving to prevent exhaust gas from entering the vehicle.

■ Drinking and driving

WARNING

Drinking and then driving is very dangerous. Alcohol in the bloodstream delays your reaction time and impairs your perception, judgment and attentiveness. If you drive after drinking – even if you drink a little – it will increase the risk of being involved in a serious or fatal accident, injuring or killing yourself, your passengers and others. In addition, if you are injured in the accident, alcohol may increase the severity of that injury. Please don't drink and drive.

Drunken driving is one of the most frequent causes of accidents. Since alcohol affects all people differently, you may have consumed too much alcohol to drive safely even if the level of alcohol in your blood is below the legal limit. The safest thing you can do is never drink and drive. However if you have no choice but to drive, stop drinking and sober up completely before getting behind the wheel.

■ Drugs and driving

WARNING

There are some drugs (over the counter and prescription) that can delay your reaction time and impair your perception, judgment and attentiveness. If you drive after taking them, it may increase your, your passengers' and other persons' risk of being involved in a serious or fatal accident.

If you are taking any drugs, check with your doctor or pharmacist or read the literature that accompanies the medication to determine if the drug you are taking can impair your driving ability. Do not drive after taking any medications that can make you drowsy or otherwise affect your ability to safely operate a motor vehicle. If you have a medical condition that requires you to take drugs, please consult with your doctor.

Never drive if you are under the influence of any illicit mind-altering drugs. For your own health and well-being, we urge you not to take illegal drugs in the first place and to seek treatment if you are addicted to those drugs.

■ Driving when tired or sleepy

WARNING

When you are tired or sleepy, your reaction time will be delayed and your perception, judgment and attentiveness will be impaired. If you drive when tired or sleepy, your passengers' and other persons' chances of being involved in a serious accident may increase.

Please do not continue to drive but instead find a safe place to rest if you are tired or sleepy. On long trips, you should make periodic rest stops to refresh yourself before continuing on your journey. When possible, you should share the driving with others.

Modification of your vehicle

WARNING

• Do not remove the SUBARU genuine navigation and/or audio system. If the SUBARU genuine navigation and/or audio system is removed, the rear view camera image and help lines (distance marker, dynamic guidelines and vehicle width lines) will no longer be displayed.

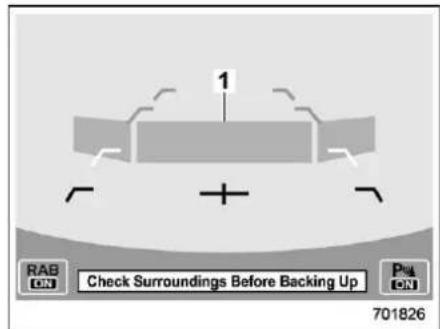

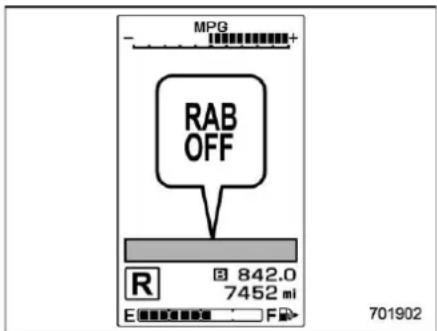

• For some models with Reverse Automatic Braking (RAB) system, even if the Reverse Automatic Braking (RAB) system and object detection warning is ON, the visible alert of Reverse Automatic Braking (RAB) system will not be displayed. However, the audible alert and its function will operate.

CAUTION

Your vehicle should not be modified other than with genuine SUBARU parts and accessories. Other types of modifications could affect its performance, safety or durability, and may even violate governmental

regulations. In addition, damage or performance problems resulting from modification may not be covered under warranties.

■ Use of cell phones/texting and driving

CAUTION

Do not talk on a cell phone or text while driving; it may distract your attention from driving and lead to an accident. If you use a cell phone to talk or text, first pull off the road and park in a safe place. In some States/Provinces, it may be lawful to talk on a phone while driving, but only if the phone is hands-free.

■ Driving vehicles equipped with navigation system

WARNING

Do not allow the monitor to distract your attention from driving. Also, do not operate the controls of the navigation system while driving. The loss of attention to driving could

- CONTINUED -

lead to an accident. If you wish operate the controls of the navigation system, first take the vehicle the road and stop it in a safe location.

■ Driving with pets

Unrestrained pets can interfere with your driving and distract your attention from driving. In a collision or sudden stop, unrestrained pets or cages can be thrown around inside the vehicle and hurt you of your passengers. Besides, the pets can hurt under these situations. It is also for their own safety that pets should be properly restrained in your vehicle. Restrain a pet with a special traveling harm which can be secured to the rear seat via a seatbelt or use a pet carrier which can be secured to the rear seat by routing a seatbelt through the carrier's handle. Never restrain pets or pet carriers in the front passenger's seat. For further information, consult your veterinarian, local animal protection society or pet shop.

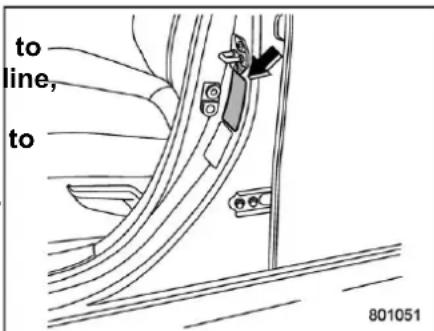

■ Tire pressures

Check and, if necessary, adjust the pressure of each tire and the spare (if equipped) at least once a month and before any long journey.

Check the tire pressure when the tires are cold. Use a pressure gauge to adjust the effective pressures to the values shown on the tire inflation pressure label. For detailed information, refer to "Tires and wheels" 11-21.

WARNING

Driving at high speeds with excessively low tire pressures can cause the tires to deform severely and to rapidly become hot. A sharp increase in temperature could cause tread separation, and destruction of the tires. The resulting loss of vehicle control could lead to an accident.

■ Attaching accessories

WARNING

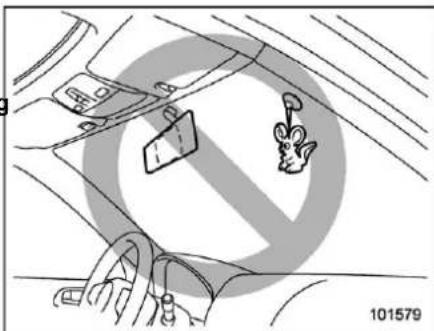

- Do not attach any accessories, labels or stickers (other than properly placed inspection stickers) to the windshield. Such items may obstruct your view.

• If it is necessary to attach an accessory (such as an electronic toll collection (ETC) device or security pass) to the windshield, consult your SUBARU dealer for details on the proper location.
- Do not connect any unauthorized accessories or devices to the data link connector (OBDII port). This connector should be used only with compatible diagnostic devices for inspection and maintenance by an authorized service technician using authorized service tools. Connecting unauthorized devices, such as a driver-behavior tracking device, may adversely affect vehicle systems, including safety systems, or allow others to access information stored in your vehicle. The use of unauthorized devices may also cause unexpected malfunctions, such as a drained battery, or may damage vehicle systems. The manufacturer's warranty will not cover any part that malfunctions, fails, or is damaged due to the use of an unauthorized device with the data link connector.

General information

■ California Perchlorate Advisory

Certain vehicle components such as airbag modules, seatbelt pretensioners and keyless entry transmitter batteries may contain perchlorate material. Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.go-hazardouswaste/perchlorate.

■ Noise from under the vehicle NOTE

You may hear a noise from under the vehicle approximately 5 to 10 hours after the ignition switch is turned to "LOCK"/"OFF" position. However, this does not indicate a malfunction. This noise is caused by the operation of fuel evaporation leakage checking system and the operation is normal. The noise will stop after approximately 15 minutes.

■ Event data recorder

This vehicle is equipped with an event d recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data vehicle or the EDR is needed. In addition that will assist in understanding how a to the vehicle manufacturer, other parties, vehicle's systems performed. The EDR is such as law enforcement, that have the designed to record data related to vehiclespecial equipment, can read the informa-dynamics and safety systems for a short tion if they have access to the vehicle or period of time, typically 30 seconds or less EDR.

The EDR in this vehicle is designed to record such data as:

- How various systems in your vehicle were operating;

- Whether or not the driver and passenger safety belts were buckled/fastened; How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,

the How fast the vehicle was traveling.

These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE:

f EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; who data are recorded by the EDR under

normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access to the

-	-	-	-	-	-	-	-
-	-	-	-	-	-	-	-
-	-	-	-	-	-	-	-
-	-	-	-	-	-	-	-
-	-	-	-	-	-	-	-
-	-	-	-	-	-	-	-
-	-	-	-	-	-
-	-	-	-	-	-	-

Table of contents

Seat, seatbelt and SRS airbags	1
Keys and doors	2
Instruments and controls	3
Climate control	4
Audio	5
Interior equipment	6
Starting and operating	7
Driving tips	8
In case of emergency	9
Appearance care	10
Maintenance and service	11
Specifications	12
Consumer information and Reporting safety defects	13
Index	14

Illustrated index

■ Exterior

1 2 3 4 5 6 7 14 13 12 11 10 9 8

001867

1) Engine hood (page 11-5)
2) Windshield wipers (page 3-79)

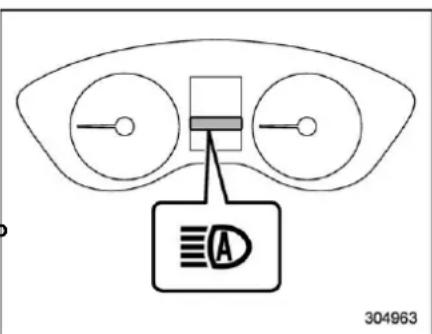

3) Headlights (page 3-69)
4) Replacing bulbs (page 11-38)

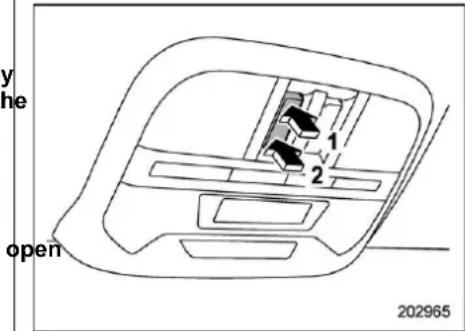

5) Moonroof (page 2-32)
6) Roof rails (page 8-13)
7) Outside mirrors (page 3-90)
8) Door locks (page 2-20)
9) Tire pressure (page 11-23)
10) Flat tires (page 9-5)
11) Snow tires (page 8-10)

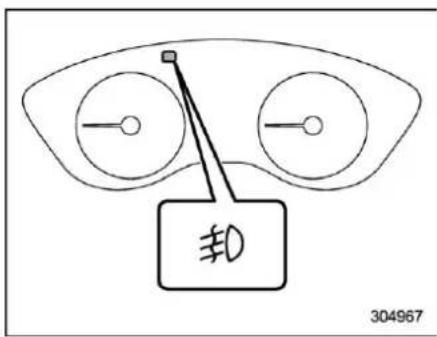

12) Fog lights (page 3-76)
13) Tie-down hooks (page 9-13)

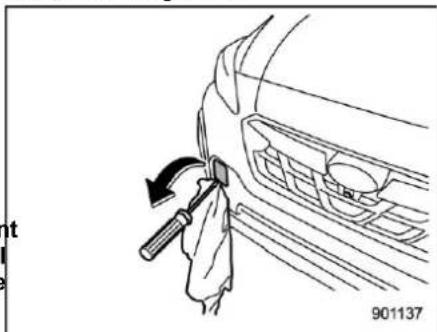

14) Towing hook (page 9-13)

1 2 5 4 3 6 7 8 002097

1) Rear window defogger (page 3-91)
2) Fuel filler lid and cap (page 7-5)
3) Child safety locks (page 2-27)
4) Tie-down hole (page 9-13)

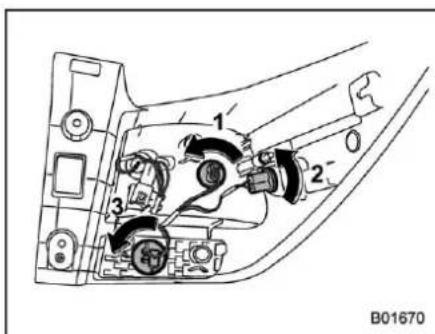

5) Replacing bulbs (page 11-38)
6) Rear gate (page 2-30)

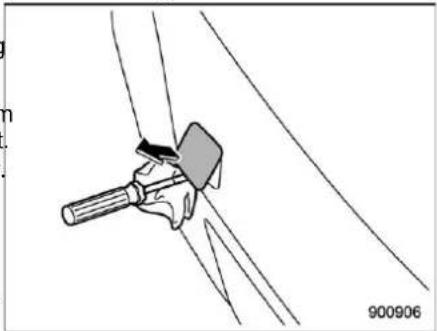

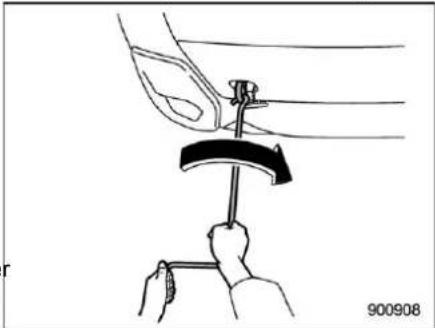

7) Towing hook (page 9-13)

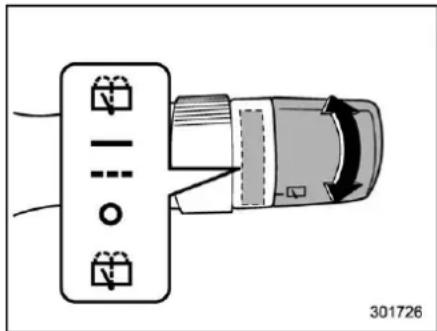

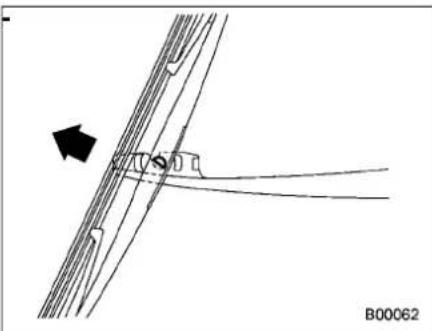

8) Rear window wiper (page 3-81)

Interior

▼ Passenger compartment area

SOS ((i)) 1 2 2 3 4 5 001918

1) Lower anchorages for child restraint system (page 1-37)
2) Seatbelt (page 1-12)

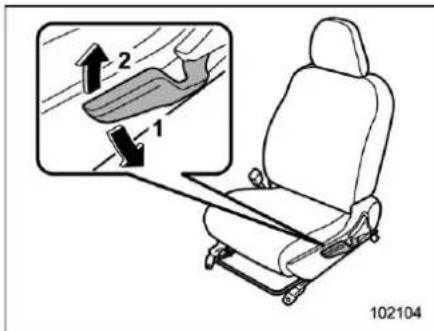

3) Front seat (page 1-2)
4) Rear seat (page 1-2)
5) Buttons for SUBARU STARLINK

NOTE

For models with SUBARU STARLINK: Refer to the Owner's Manual supplement for SUBARU STARLINK.

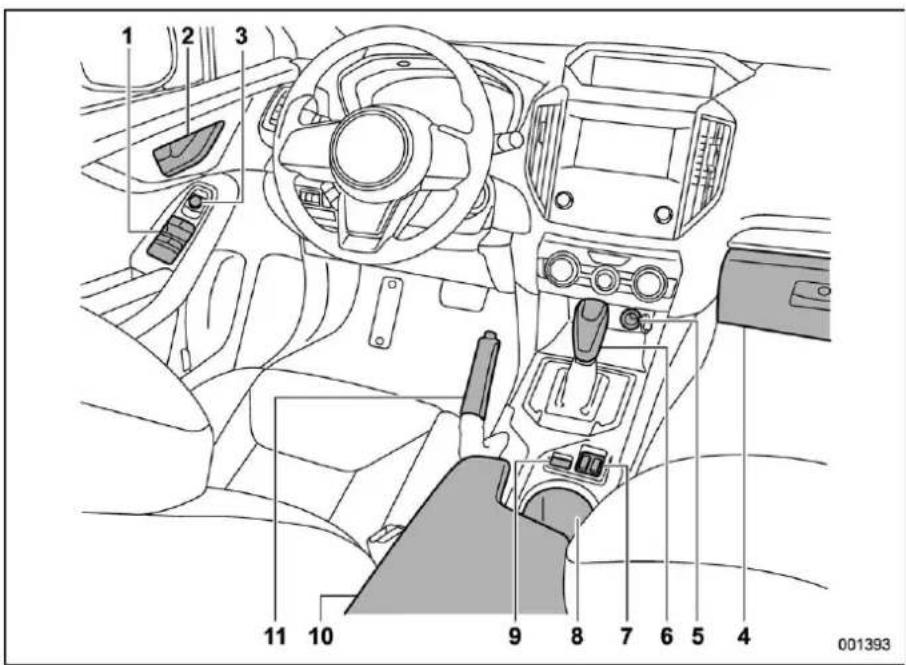

1 2 3 11 10 9 8 7 6 5 4 001393

1) Power window switches (page 2-27)
2) Door locks (page 2-20)
3) Remote control mirror switch (page 3-91)
4) Glove box (page 6-6)
5) Front power supply socket (page 6-7)
6) Shift lever (MT models) (page 7-24)/Select lever (CVT models) (page 7-26)
7) Seat heater switches (page 1-11)
8) Cup holder (page 6-6)
9) X-MODE switch (page 7-44)
10) Center console (page 6-6)
11) Parking brake lever (page 7-48)

■ Instrument panel

1 2 3 4 5 14 13 12 11 10 9 8 7 6 001808

1) Steering Responsive Headlight off switch (page 3-75)
2) Illumination brightness control dial (page 3-12)
3) Combination meter (page 3-8)
4) Multi-function display (black and white) (page 3-42)/Multi-function display (color LCD) (page 3-49)
5) Audio and navigation system*
6) Hazard warning flasher switch (page 3-8)
7) Climate control (page 4-2)
8) USB power supply (page 6-9)
9) Tilt/Telescopic steering (page 3-92)
10) BSD/RCTA OFF switch (page 7-69)
11) Fuse box (page 11-36)
12) Auto Start Stop OFF switch (page 7-57)
13) Hood release knob (page 11-5)
14) Vehicle Dynamics Control OFF switch (page 7-41)
*: For details about how to use the audio and navigation system, refer to the separate navigation/audio Owner's Manual.

NOTE

For models with the EyeSight system: Refer to the Owner's Manual supplement for the EyeSight system.

1 2 3 4 4 11 10 9 8 7 6 5 001868

1) Audio control switches*
2) INFO button for multi-function display (black and white) (page 3-42)/INFO button for multi-function display (color LCD) (page 3-49)

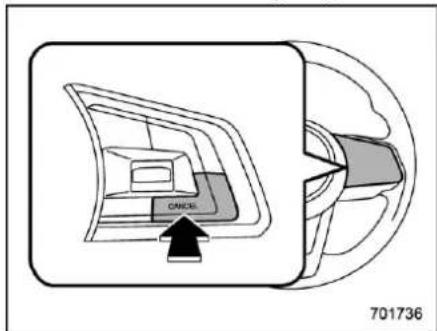

3) Cruise control switches (page 7-53)

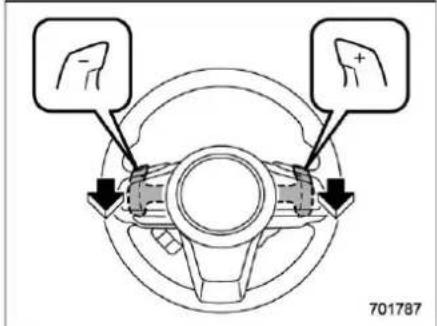

4) Shift paddle (page 7-29)
5) SI-DRIVE switches (page 7-34)
6) VIEW monitor switch (page 6-17)
7) Heated Steering Wheel switch (page 3-93)
8) SRS airbag (page 1-42)
9) Horn (page 3-94)
10) Combination meter display (color LCD) control switches (page 3-34)
11) Talk switch for voice command system*/Hands-free phone switches*
*: For details about how to use the switches, refer to the separate navigation/audio Owner's Manual.

■ Light control and wiper control levers/switches

11 10 9 8 7 6 5 4 3 2 1 000761

1) Windshield wiper (page 3-78)
2) Mist (page 3-79)
3) Windshield washer (page 3-80)
4) Rear window wiper and washer switch (page 3-81)
5) Wiper intermittent time control switch (page 3-80)
6) Wiper control lever (page 3-78)
7) Light control switch (page 3-68)

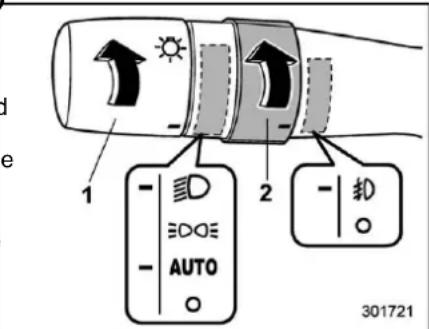

8) Fog light switch (page 3-76)
9) Headlight ON/OFF/AUTO (page 3-69)
10) Headlight flasher High/Low beam change (page 3-71)
11) Turn signal lever (page 3-77)

■ Combination meter

▼ U.S.-spec. models (type A)

1 2 3 4 AT OIL TEMP AND Check ENGINE 6 5 001782

The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

1) Tachometer (page 3-8)
2) Select lever/gear position indicator (page 3-30)
3) Trip meter and odometer (page 3-9)
4) Speedometer (page 3-8)
5) ECO gauge (page 3-10)
6) Fuel gauge (page 3-10)

▼ U.S.-spec. models (type B)

1 2 3 4 5 MPG AVG 22.0 MPG mi 1327.0 1337mi SIDE BRAKE ABS 6 AT OIL TEMP AWC OFF OFF DECK ENGINE 001598

The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

1) Tachometer (page 3-8)
2) Select lever/gear position indicator (page 3-30)

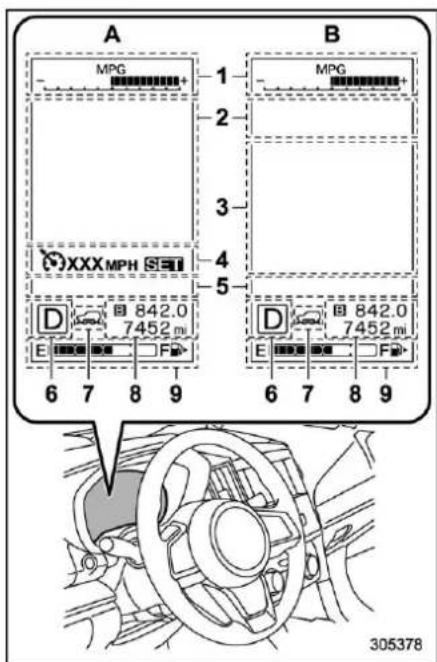

3) Combination meter display (color LCD) (page 3-34)
4) Trip meter and odometer (page 3-9)
5) Speedometer (page 3-8)
6) Fuel gauge (page 3-10)

▼ Except U.S.-spec. models (type A)

1 2 3 4 AT OIL TEMP AWC CHECK ENGINE 6 5 001783

The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

1) Tachometer (page 3-8)
2) Select lever/gear position indicator (page 3-30)
3) Trip meter and odometer (page 3-9)
4) Speedometer (page 3-8)
5) ECO gauge (page 3-10)
6) Fuel gauge (page 3-10)

▼ Except U.S.-spec. models (type B)

1 2 3 4 5 30 1/100km AVG 22.0 φ 100km - km 6 327.0 1337km EDGE (Ω) (Ω) OFF OFF DECK ENGINE 001871

The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

1) Tachometer (page 3-8)
2) Select lever/gear position indicator (page 3-30)
3) Combination meter display (color LCD) (page 3-34)
4) Trip meter and odometer (page 3-9)
5) Speedometer (page 3-8)
6) Fuel gauge (page 3-10)

■ Warning and indicator lights

Mark Name Page
[6DD0]	Seatbelt warning light	3-13
	Front passenger's seatbelt warning light	3-13

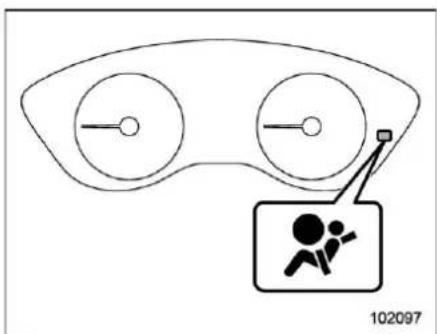

	SRS airbag system warning light	3-14

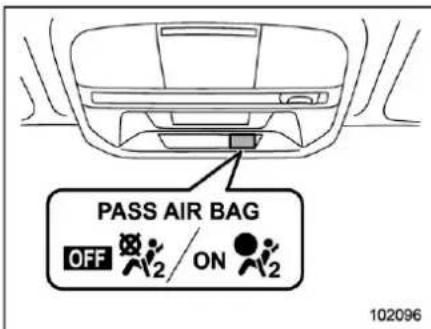

	Front passenger's frontal airbag ON indicator	3-15
	Front passenger's frontal airbag OFF indicator	3-15
	CHECK ENGINE warning light/Malfunction indicator light	3-15
	Coolant temperature low indicator light/Coolant temperature high warning light	3-16
[HKST]	Charge warning light	3-17
	Oil pressure warning light	3-17
	Engine low oil level warning light	3-18

Mark Name Page
AT OIL TEMP	AT OIL TEMP warning light (CVT models)	3-18
ABS / (ABS)	ABS warning light 3-20
BRAKE / (!)	Brake system warning light (red)	3-20
	Door open warning light	3-22
AWD	AWD warning light (CVT models)	3-22
	Power steering warning light	3-22
	Hill start assist warning light/Hill start assist OFF indicator light	3-22
	Vehicle Dynamics Control warning light/ Vehicle Dynamics Control operation indicator light	3-23
	Vehicle Dynamics Control OFF indicator light	3-24
	Turn signal indicator lights	3-31

Mark Name Page
	LED headlight warning light (models with LED headlights)	3-31
	High beam indicator light	3-31
	High beam assist indicator light (if equipped)	3-31
	Automatic headlight beam leveler warning light (models with LED headlights)	3-31
	Steering Responsive Headlight warning light/Steering Responsive Headlight OFF indicator light (if equipped)	3-31
	Front fog light indicator light (if equipped)	3-32
	Access key warning indicator (if equipped)	3-24
	Security indicator light	3-29
	Headlight indicator light (if equipped)	3-32
	Cruise control indicator light (if equipped)	3-31

• CONTINUED -

Mark Name Page
	Cruise control set indicator light (if equipped)	3-31
	X-MODE indicator (if equipped)	3-33
	Hill descent control indicator (if equipped)	3-33
	Low fuel warning light	3-21
	Low tire pressure warning light (U.S.-spec. models)	3-18
	Windshield washer fluid warning light	3-18
	Auto Start Stop warning light/Auto Start Stop OFF indicator light (yellow) (if equipped)	3-32
	Auto Start Stop indicator light (green) (if equipped)	3-32
	Auto Start Stop No Activity Detected indicator light (if equipped)	3-32
[S]	Sport (S) mode indicator (if equipped)	3-30

Mark Name Page
[1]	Intelligent (I) mode indicator (if equipped)	3-30
B_FF	BSD/RCTA warning indicator (if equipped)	3-33
B_FF^OFF	BSD/RCTA OFF indicator (if equipped)	3-33
RAB	RAB warning indicator (if equipped)	3-33
RAB OFF	RAB OFF indicator (if equipped)	3-34
	Icy road surface warning indicator (if equipped)	3-34
	Engine hood open warning light (if equipped)	3-16

Mark Name Page
[1]	Intelligent (I) mode indicator (if equipped)	3-30
B_FF	BSD/RCTA warning indicator (if equipped)	3-33
B_FF^OFF	BSD/RCTA OFF indicator (if equipped)	3-33
RAB	RAB warning indicator (if equipped)	3-33
RAB OFF	RAB OFF indicator (if equipped)	3-34
	Icy road surface warning indicator (if equipped)	3-34
	Engine hood open warning light (if equipped)	3-16

Function settings

■ Function settings and adjustments on the combination meter display (color LCD)

If your vehicle is equipped with a combination meter display (color LCD), setting adjustments to the following items can be manually changed within the display to meet your personal requirements.

NOTE

If your vehicle is not equipped with a combination meter display (color LCD), setting changes to the following items will need to be performed by a SUBARU dealer. Refer to “Function settings and adjustments performed by a dealer” 28.

Item			Available settings	Factory default setting	Page reference for the vehicle system operation
1st menu/vehicle system	2nd menu/adjustable vehicle system setting	3rd menu/selectable vehicle system setting
Screen Settings	Welcome Screen — On/Off On 3-36
	Good-bye Screen — On/Off On 3-36
	Gauge Initial Movement	— On/Off On 3-41
	Units —		km, km/h, Liter/miles, MPH, Gallon	U.S.-spec. models: miles, MPH, GallonOther models: km, km/h, Liter	3-41
	Tire Pressure Units (if equipped)	— kPa/PSi P Si 3-41
	LanguagesMax/Mid/Min Mid	—	English/Espanol/Français/Japanese	U.S.-spec. models: EnglishOther models: Français	3-417-67 and 7-80 For details about EyeSight system, refer to the Owner's Manual supplement for the EyeSight system.
Warning Volume* — —
Rear Seat Reminder (models with combination meter display (color LCD))	— — On/Off	On 1-26
EyeSight (models with EyeSight system)	Lead Vehicle Acquisition Sound	— On/Off On			Refer to the Owner's Manual supplement for the EyeSight system.
	Lead Vehicle Moving Monitor Function	— On/Off On
	Cruise Control Acceleration Characteristics*	—	Lv.4 (Dynamic)/Lv.3 (Standard)/Lv.2 (Comfort)/Lv.1 (Eco)	Lv.3 (Standard)
	Lane Centering (U.S.-spec. models and Canada-spec. models)	— On/Off On
	Select Drive on Left/Drive on Right	—	Drive on Left/Drive on Right	Drive on Right
RAB (if equipped) Sonar	Audible Alarm — On/Off On 7-80
Vehicle Setting	Keyless Entry System	Audible Signal (if equipped)	On/Off On 2-13
		Hazard Warning Flasher	On/Off On 3-41
		Driver Door Unlock (if equipped)	Driver Door Only/All Driver Door Only 2-9
		Rear Gate/Trunk Unlock (if equipped)	Rear Gate/Trunk Only/All	Rear Gate/Trunk Only 3-41
	Defogger — 15 minutes	Continuous 15 minutes	3-91
	Interior Light —		10 seconds/20 seconds/30 seconds/Off	30 seconds	6-3
	Auto Door Lock and Unlock	Auto Door Lock	Vehicle Speed/Shift Into or Out of PARK (CVT models)/Off	Vehicle Speed	2-22
		Auto Door Unlock	Shift Into or Out of PARK (CVT models)/Ignition OFF/Driver Door Open/Off	Driver Door Open	2-22
	Auto Light Sensor (if equipped)	— Min/Low/Mid	Mid	3-69
	Welcome Lighting (if equipped)	Approaching Time Set	30 seconds/60 seconds/90 seconds/Off	30 seconds	3-70
		Leaving Time Set	30 seconds/60 seconds/90 seconds/Off	30 seconds	3-70
	One-touch lane changer	— On/Off On 3-78
Default Settings	—	—	No/Yes	—	3-42

*: You can also set this while driving.

■ Individual settings and adjustments excluding combination meter display (color LCD)

Item Function Available settings Factory default setting Page
Remote keyless entry system Audible signal Operation/Non-operation Operation 2-19
Alarm system Alarm system Operation/Non-operation Operation		2-26

■ Function settings and adjustments performed by a dealer

A SUBARU dealer can change the setting adjustments of the following items to meet your personal requirements. Contact the nearest SUBARU dealer for details.

Item Function Available settings		Factory default setting
Keyless Access (if equipped)	Audible signal volume	Level 1 to 7	Level 5
	Door unlock selection function (driver's door unlock)	Driver's door only/All doors	Driver's door only
	Door unlock selection function (rear gate unlock)	Rear gate only/All doors	Rear gate only
Remote keyless entry system	Audible signal	Operation/Non-operation	Operation
	Audible signal volume	Level 1 to 7	Level 5
Key lock-in prevention	Key lock-in prevention	Operation/Non-operation	Operation
Battery drainage prevention function	Battery drainage prevention function	Operation/Non-operation	Operation
Alarm system	Dome light, cargo area light, and map lights illumination	ON/OFF	OFF
	Monitoring start delay time (after closure of doors)	0 seconds/30 seconds 30 seconds
	Alarm system	Operation/Non-operation	Operation
Auto dimmer cancel (if equipped)	Sensitivity of the operation of the auto dimmer cancel	OFF/Min/Low/Mid/Hi/Max	Mid
Seatbelt warning	Sounds a chime while driving	Operation/Non-operation	Operation
Item Function Available settings Factory default setting
Auto on/off wiper-linked headlights (if equipped)	Auto-on/off wiper-linked Operation/Non-operation Operation
High beam assist function (if equipped)	High beam assist function Operation/Non-operation Operation
Reverse gear interlocked rear wiper	Reverse gear interlocked rear wiper Operation/Non-operation		U.S.-spec. models: Non-operationOther models: Operation

Pure horizontal dashed lines without any text, numbers, or symbols

Seat, seatbelt and SRS airbags

Seats 1-2

Safety tips 1-2

Front seats 1-5

Rear seats 1-6

Head restraints 1-8

Seat heater (if equipped).... 1-11

Safety precautions 1-11

Operation.... 1-11

Seatbelts.... 1-12

Seatbelt safety tips 1-12

Emergency Locking Retractor (ELR)....1-14

Automatic Locking Retractor/Emergency Locking Retractor (ALR/ELR)....1-14

Seatbelt warning light and chime 1-14

Fastening the seatbelt....1-14

Seatbelt maintenance....1-21

Seatbelt pretensioners 1-21

Seatbelt with shoulder belt pretensioner....1-22

Seatbelt with shoulder belt and lap belt pretensioners....1-22

System monitors....1-25

System servicing 1-25

Precautions against vehicle modification....1-25

Rear Seat Reminder (models with combination meter display (color LCD)) 1-26

Child restraint systems 1-26

Safety precautions 1-26

Safety tips for installing child restraint systems .... 1

Where to place a child restraint system ....

Choosing a child restraint system.... 1-31

Installing child restraint systems with ALR/ELR seatbelt 1-31

Installing a booster seat or booster cushion ..... 1-36

Installation of child restraint systems by use of lower and tether anchorages (LATCH) 1-37

Top tether anchorages 1-41

SRS airbag (Supplemental Restraint System airbag) 1-42

General precautions regarding SRS airbag system 1-43

General precautions regarding SRS airbag system for accessories and any objects.... 1-45

General precautions regarding SRS airbag system and children 1-47

Components.... 1-50

SUBARU advanced frontal airbag system.... 1-52

SRS side airbag and SRS curtain airbag 1-63

SRS airbag system monitors.... 1-71

SRS airbag system servicing 1-72

Precautions against vehicle modification 1-73

How to contact the vehicle manufacturer concerning modifications for persons with disabilities that may affect the advanced airbag system.... 1-74

Seats

■ Safety tips

▼ Safety tips for seat

WARNING

• Never adjust the seat while driving, as personal injury or loss vehicle control may occur.
• Before adjusting the seat, ensure nothing is blocking the adjusting mechanism.
• After adjusting the seat, move it back and forth to ensure the seat is securely locked. If it is not, it may move suddenly or the seat-belt may not operate properly.
• Do not put objects under the front seats. They may interfere with the front seat locking mechanism and cause an accident.
• Seatbelts provide maximum restraint when the occupant sits back and upright in the seat. To reduce the risk of sliding under the seatbelt in a collision, the front seatbacks should always be used in the upright position while the vehicle is running. If front seatbacks are not in the
  of
  seat
  , | it
  at-
  |
  front
  the
  To
  er
  m = 311
  m = 311
  n
  f

upright position and a collision occurs, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can result in serious injury or death.

- The SRS airbags deploy with considerable speed and force. Occupants who are not sitting back and upright when the SRS airbag deploys could suffer serious injury. Because the SRS airbag needs enough space for deployment, the driver should always sit upright and well back in the seat as far from the steering wheel as practical while still maintaining full vehicle control, and the front passenger should move the seat as far back as possible and sit upright and well back in the seat.

Illustration of two children sitting in a car seat, one using a seatbelt and the other adjusting its seatbelt (no text or symbols present)

100082

WARNING

Seat children in the rear seat properly restrained at all times. The SRS airbag deploys with considerable speed and force and can injure or even kill children, especially if they are not restrained or improperly restrained. Because children are lighter and weaker than adults, their risk of being injured from deployment is greater. For that reason, we strongly recommend that ALL children (including those in child seats and those that have outgrown child restraint devices) sit in the REAR seat properly restrained at all times in a child restraint device or in a seatbelt, whichever is appropriate

for the child's age, height and weight. Secure ALL types of child restraint devices (including forward facing child seat) in the REAR seats at all times.

NEVER INSTALL A CHILD SEAT IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLACING THE CHILD'S HEAD TOO CLOSE TO THE SRS AIRBAG.

According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions. For instructions and precautions concerning child restraint systems, refer to "Child restraint systems" 1-26.

Illustration of a person seated in a chair using a vertical barbell, with no visible text or symbols.

WARNING

To prevent the passenger from sliding under the seatbelt in the event a collision, always put the seatback in the upright position while the vehicle is in motion. Also, do not place objects such as cushions between the passenger and the seatback. If you do so, the risk of sliding under the lap belt and of the lap sliding up over the abdomen will increase, and both can result in serious injury or death.

Diagram of a hand holding a circular object with a diagonal line, no text or symbols present

WARNING

Do not let rear passengers rest their feet between the front seatback and seat cushion. Doing so may interfere with the proper operation of the following systems and could result in serious injury.

Occupant detection system ing SRS side airbag
- Seat heater (if equipped)
• Power seat (if equipped)

Illustration of a person seated in a car seat with a diagonal bar, no text or symbols present

WARNING

Do not press your feet onto the instrument panel. Doing so may prevent the occupant detection function of the SRS airbag system from functioning correctly, and may result in serious injury or death in the event of an accident.

Line drawing of a person seated in a car seatbelt, wearing a suit and tie (no text or symbols)

WARNING

Seatbelts provide maximum restraint when the occupant sits back and upright in the seat. Do not place cushions or any other materials between occupants and seatbacks or seat cushions. By doing so, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can result in serious injury or death.

Simple line drawing of a person kneeling with a large box, no text or symbols present

WARNING

Never stack luggage or other cargo higher than the top of the seatback cases it could tumble forward and injure passengers in the event of a sudden stop or accident.

▼ Safety tips for head restraint

WARNING

• Never drive the vehicle with the head restraints removed because they are designed to reduce the risk of serious neck injury in the event that the vehicle is struck from the rear. Also, never install the head restraints the opposite way round. Doing so will prevent the head restraints from functioning as intended. Therefore, when you remove the head restraints, you must reinstall all head restraints correctly to protect vehicle occupants.
• All occupants, including the driver, should not operate a vehicle or sit in a vehicle's seat until the head restraints are placed in their proper positions in order to minimize the risk of neck injury in the event of a crash.

■ Front seats

▼ Manual seat (if equipped)
▽ Forward and backward adjustment

Diagram showing car seatbelting instructions with magnified detail view and directional arrows

Pull the lever upward and slide the seat the desired position. Then release the lever and try to move the seat back and forth to make sure that it is securely loc into place.

▽ Reclining the seatback

Illustration of a car seatbelt with a highlighted seatbelt and belt, showing no text or symbols.

Pull the reclining lever up and adjust the seatback to the desired position. Then release the lever and make sure the seatback is securely locked into place.

The seatback placed in a reclined position can spring back upward with force when the lever is pulled. While operating the lever to return the seatback, hold the seatback lightly so that it may be raised back gradually.

▽ Seat height adjustment (driver's seat)

1 2 102104

1) When the lever is pushed down, the seat is lowered.
2) When the lever is pulled up, the seat rises.

The height of the seat can be adjusted by moving the seat adjustment lever up and down.

▼ Power seat (driver's seat - if equipped)

1 2 3 102168

1) Seat position forward/backward control switch To adjust the seat forward or backward move the control switch forward or backward. During forward/backward adjustment of the seat, you cannot adjust the seat cushion height.
2) Seat height control switch To adjust the seat height, pull up or p down the rear end of the control switch
3) Seatback angle (reclining) control switch To adjust the angle of the seatback, move the control switch.

■ Rear seats

▼ Armrest (if equipped)

Line drawing of a car seatbelt with a black arrow indicating clockwise motion (no text or symbols)

To lower the armrest, pull on the top edge of the armrest.

WARNING

To avoid serious injury, passengers must never be allowed to sit on the center armrest.

▼ Folding down the rear seatback

WARNING

• When you fold down the seat-back, check that there are no passengers or objects on the seat. Not doing so creates a of injury or property damage the seatback suddenly folds down.
• Never allow passengers to ride on the folded rear seatback of the cargo area. Doing so may result in serious injury or deal
• Secure all objects and especially long items properly to prevent them from being thrown around inside the vehicle and causing serious injury during a sudden stop, a sudden steering maneuver or a rapid acceleration.

rear risk

Diagram illustrating seatbelt buckle adjustment with directional arrows and a magnified inset showing the wheel assembly.

Unlock the seatback by pulling the lock release knob and then fold the seatback down.

▼ Return the rear seatback

Illustration of a car seatbelt being lifted by a hand, showing two force arrows (no text or symbols)

WARNING

When returning the seatback to its original position, observe the following precaution.

Failure to observe the precaution may damage the seatbelt, impairing its effectiveness, and possibly result in a serious injury.

- When returning the seatback to its original position, pull the seatbelt out towards the vehicle exterior so that it will not be caught between the seatback and the trim.

1 A 2 101642

Lock release knob

1) Unlocked
2) Locked
A) Unlocking marker in red

To return the seatback to its original position, raise the seatback until it locks into place and make sure that the unloc ing marker on the lock release knob is longer visible.

When you return the seatback to its original position, check that the unlocking marker on the lock release knob is not visible. Also, move the seatback back and forth to confirm that it is securely in place. If it is not securely fixed in place, it may suddenly fold down in the event

of sudden braking, or objects may move out from the cargo area. Bot could cause serious injury or death

■ Head restraints

WARNING

The front seat head restraints are designed to be installed into the front seats only. The rear seat head restraints are designed to be installed into the rear seats only. Do not attempt to install the front seat head restraints into the rear seats, the rear seat head restraints into the front seats.

NOTE

It is possible to adjust the angle of front seat head restraints only. When installing the front seat head restraints make sure that the angle of the head restraints can be adjusted.

▼ Front seats

Both the driver's seat and the front passenger's seat are equipped with head restraints. Both head restraints are adjustable in the following ways.

▽ Height adjustment

1 2 102169

1) Head restraint
theRelease button

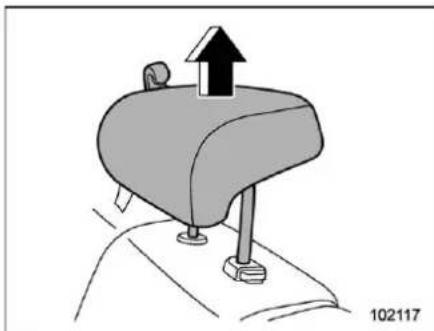

To raise:

Bull the head restraint up.

To lower:

Push the head restraint down while pressing the release button on the top of the seatback.

To remove:

While pressing the release button, pull out the head restraint.

To install:

Install the head restraint into the holes are located on the top of the seatback the head restraint locks. Press and hold the release button to lower the head restraint.

Side profile illustration of a human head and neck with a shaded anatomical region, no text or symbols present

Each head restraint should be adjusted that the center of the head restraint is closest to the top of the occupant's ear

NOTE

When the head restraint cannot be pulled out or installed due to insufficient clearance between the head restraint and the roof, tilt the seat and then perform the installation and removal tasks.

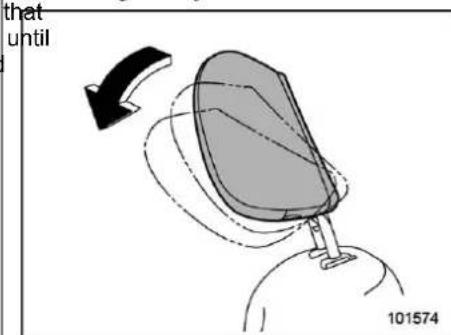

Angle adjustment

that until 101574

The angle of the head restraint can be adjusted in several steps. While maintaining a suitable driving posture, adjust the head restraint to a position where the back of your head is as close to the head restraint as possible.

To tilt:

Tilt the head restraint by hand to the preferred position. A click will be audible when the head restraint is locked.

Tilt the head restraint once as far forwa as it can go. The head restraint will automatically return to the fully upright position. Then, adjust the head restraint again to the preferred angle.

▼ Rear seats

Both the rear window side seats and the rear center seat are equipped with head restraints.

▽ Rear windows side seating position

ck 1 2 101587

1) Head restraint
2) Release button

To remove:

While pressing the release button, pull out the head restraint.

To install:

Install the head restraint into the holes that are located on the top of the seatback until the head restraint locks. Press and hold the release button to lower the head restraint.

After installing the head restraint, make sure it is securely locked.

▽ Rear center seating position

1 2 101588

1) Incorrect (retracted position)

2) Correct (extended position)

CAUTION

The head restraint is not intended be used at the retracted position. Before sitting on the seat, raise the head restraint to the extended position.

1 2 101589

1) Head restraint

2) Release button

To raise:

Pull the head restraint up.

To lower:

Push the head restraint down while pressing the release button on the top of the seatback.

to remove:

While pressing the release button, pull out the head restraint.

To install:

Install the head restraint into the holes that are located on the top of the seatback until the head restraint locks. Press and hold the release button to lower the head restraint.

When the rear-center seating position is occupied, raise the head restraint to the extended position. When the rear center seating position is not occupied, lower the head restraint to improve rearward visibility.

Seat heater (if equipped)

The seat heater is equipped in the front seats.

The seat heater operates when the ignition switch is either in the "ACC" or "ON" position.

■ Safety precautions

CAUTION

• People with delicate skin may suffer slight burns even at low temperatures if they use the seat heater for a long period of time. When using the heater, always be sure to warn the persons concerned.
• Do not put anything on the seat which insulates against heat, such as a blanket, cushion, or similar items. This may cause the seat heater to overheat.
• When the seat is warmed enough or before you leave the vehicle, be sure to turn off the seat heater.

NOTE

Use of the seat heater for a long period of time while the engine is not running can cause battery discharge.

Operation

period ing 1 HI HI 1 2 LO LO 2 A B 1 2 3 102238

1) HI - Rapid heating

2) LO - Normal heating

3) Off

A) Left-hand side

B) Right-hand side

To turn on the seat heater, push the "L" "HI" position on the switch, as desired, depending on the temperature.

Selecting the "HI" position will cause the seat to heat up quicker.

To turn off the seat heater, lightly press opposite side of the current position.

The indicator located on the switch illuminates when the seat heater is in operation.

Seatbelts

■ Seatbelt safety tips

WARNING

All persons in the vehicle must fasten their seatbelts BEFORE the vehicle starts to move. Otherwise, the possibility of serious injury becomes greater in the event of a sudden stop or accident.

• All belts should fit snugly in order to provide full restraint. Loose fitting belts are not as effective in preventing or reducing injury.
• Each seatbelt is designed to support only one person. Never use single belt for two or more persons – even children. Otherwise, in an accident, serious injury or death could result.
• Replace all seatbelt assemblies including retractors and attaching hardware worn by occupants of a vehicle that has been in a serious accident. The entire assembly should be replaced even if damage is not obvious.
• Never use a belt that is twisted

reversed. In an accident, this can increase the risk or severity of injury.

• Keep the lap belt as low as possible on your hips. In a collision, this spreads the force of the lap belt over stronger hip bones instead of across the weaker abdomen.
• Seatbelts provide maximum restraint when the occupant sits well back and upright in the seat. To reduce the risk of sliding under the seatbelt in a collision, the front seatbacks should be always used in the upright position while the vehicle is running. If the front seatbacks are not used in the upright position in a collision, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can result in serious injury or death.
• Do not put cushions or any other materials between occupants and seatbacks or seat cushions. If you do so, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can result in serious injury or death.

Illustration of a person seated in a car seat using a seatbelt, no text or symbols present

WARNING

Never place the shoulder belt under the arm or behind the back. If an accident occurs, this can increase the risk or severity of injury.

CAUTION

Metallic parts of the seatbelt can become very hot in a vehicle that been closed up in sunny weather; they could burn an occupant. Do touch such hot parts until they co

Your vehicle is equipped with a crash sensing and diagnostic module, which record the use of the seatbelt by the passenger when any of the SRS frontal side and curtain airbags deploy.

▼ Infants or small children

Use a child restraint system that is suitable for your vehicle. Refer to "Child restraint systems" 1-26.

▼ Children

WARNING

Seat children in the rear seat properly restrained at all times. The SR airbag deploys with considerable speed and force and can injure or even kill children, especially if they are not restrained or improperly restrained. Because children are lighter and weaker than adults, their risk of being injured from deployment is greater. For that reason, we strongly recommend that ALL children (including those in child seats and those that have outgrown child restraint devices) sit in the REAR seat properly restrained at all times in a child restraint device or in a seatbelt, whichever is appropriate for the child's height and weight.

Secure ALL types of child restraint devices (including forward facing child seats) in the REAR seats at a

times.

NEVER INSTALL A CHILD SEAT IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLACING THE CHILD'S HEAD TOO CLOSE TO THE SRS AIRBAG.

According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions. For instructions and precautions concerning the child restraint system, refer to "Child restraint systems" 1-26.

If a child is too big for a child restraint system, the child should sit in the rear seat and be restrained using the seatbelts. According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions. Never allow a child to stand up or kneel on the seat.

If the shoulder portion of the belt crosses the face or neck, move the child closer to the belt buckle to help provide a good shoulder belt fit. Care must be taken to securely place the lap belt as low as possible on the hips and not on the child's waist. If the shoulder portion of the belt

cannot be properly positioned, a child restraint system should be used. Never place the shoulder belt under the child's arm or behind the child's back.

▼ Expectant mothers

Line drawing of a person seated in a car seat with an infant symbol on the chest (no text or labels)

Expectant mothers also need to use the seatbelts. They should consult their doctor for specific recommendations. The lap should be worn securely and as low as possible over the hips, not over the waist

Emergency Locking Retractor (ELR)

The driver's seatbelt has an Emergency Locking Retractor (ELR).

The emergency locking retractor allows normal body movement but the retractor locks automatically during a sudden stop impact or if you pull the belt very quick out of the retractor.

■ Automatic Locking Retractor Emergency Locking Retractor (ALR/ELR)

Each passenger's seatbelt has an Automatic Locking Retractor/Emergency Locking Retractor (ALR/ELR). The Automatic Locking Retractor/Emergency Locking Retractor normally functions as an Emergency Locking Retractor (ELR). The ALR

"ELR has an additional locking mode "Automatic Locking Retractor (ALR) mode" intended to secure a child restraint system. When the seatbelt is once draw out completely and is then retracted even slightly, the retractor locks the seatbelt in that position and the seatbelt cannot be extended. As the belt is rewinding, clicks will be heard which indicate the retractor functions as an ALR. When the seatbelt retracted fully, the ALR mode is released

When securing a child restraint system the rear seats by the use of the seatbelt, the seatbelt must be changed over to the Automatic Locking Retractor (ALR) mode.

When the child restraint system is removed, make sure that the seatbelt retracts fully and the retractor returned to the Emergency Locking Retractor (ELR) ymode.

For instructions on how to convert the retractor to the ALR mode and restore it to the ELR mode, refer to "Installing child restraint systems with ALR/ELR seatbelt" 1-31.

■ Seatbelt warning light and chime

Refer to "Seatbelt warning light and chime" 3-13.

■ Fastening the seatbelt

Front seatbelts

1. Adjust the seat position according to the following procedure.

Driver's seat: Adjust the seatback to the upright position. Move the seat as far from the steering wheel as practical while still maintaining full vehicle control.

Front passenger's seat: Adjust the seat-back to the upright position. Move the seat as far back as possible.

1. Sit well back in the seat.
2. Pick up the tongue plate and pull the belt out slowly. Do not let it get twisted.

- If the belt stops before reaching the buckle, return the belt slightly and pull out more slowly.

- If the belt still cannot be unlocked, I the belt retract slightly after giving it a strong pull, then pull it out slowly ago

e ll it let a ain. 100103

Illustration of a person adjusting a seatbelt with a belt, no text or symbols present

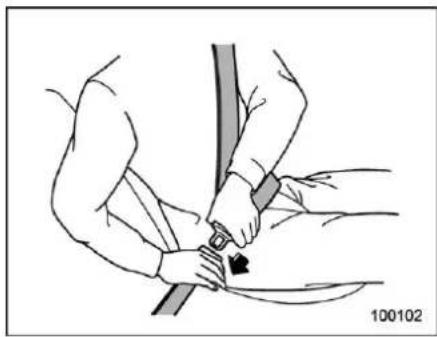

1. Insert the tongue plate into the buckle until you hear a click.

2. To tighten the lap part, pull up on the shoulder belt.

3. Place the lap belt as low as possible the hips, not on the waist.

Adjusting the front seat shoulder belt anchor height

Diagram showing two mechanical components with directional arrows indicating motion, no text or symbols present

Phe shoulder belt anchor height should be adjusted to the position best suited for the driver/front passenger. Always adjust the anchor height so that the shoulder belt passes over the middle of the shoulder without touching the neck.

To raise:

Pull the release knob and slide the anchor up.

To lower:

Pull the release knob and slide the anchor down.

Pull down on the anchor to make sure that it is locked in place.

WARNING

When wearing the seatbelts, make sure the shoulder portion of the webbing does not pass over your neck. If it does, adjust the seatbelt anchor to a lower position. Placing the shoulder belt over the neck may result in neck injury during sudden braking or in a collision.

∇ Unfastening the seatbelt

Illustration of a medical procedure with hands and a numbered arrow indicating point (no text or symbols present)

1) Button

1. Push the button on the buckle.
2. Retract the seatbelt slowly to prevent from getting tangled or twisted.
   Before closing the door, make sure that the

belts are retracted properly to avoid catching the belt webbing in the door.

▼ Rear seatbelts (except rear center seatbelt)

1. Sit well back in the seat.
2. Pick up the tongue plate and pull the belt out slowly. Do not let it get twisted.
3. If the belt stops before reaching the buckle, return the belt slightly and put out more slowly.
4. If the belt still cannot be unlocked, the belt retract slightly after giving it a strong pull, then pull it out slowly again

Illustration of a person adjusting a seatbelt with a belt, showing mechanical assembly (no text or symbols)

1. Insert the tongue plate into the buckle until you hear a click.

the

it et 100103

ain. To tighten the lap part, pull up on the shoulder belt.

1. Place the lap belt as low as possible on the hips, not on the waist.

∇ Unfastening the seatbelt

Line drawing of a medical procedure with hands and instruments, no text or symbols present

1) Button

1. Push the button on the buckle.
2. Retract the seatbelt slowly to prevent from getting tangled or twisted.

Before closing the door, make sure that belts are retracted properly to avoid catching the belt webbing in the door.

▼ Rear center seatbelt

1 2 3 4 101529

1) Center seatbelt tongue plate

2) Anchor tongue plate

3) Anchor buckle

it 4) Center seatbelt buckle

the 101735

WARNING

Fastening the seatbelt with the web-bing twisted can increase the risk or severity of injury in an accident. When fastening the belt after it is pulled out from the retractor, especially when inserting the connector's tongue plate into the mating buckle (on right-hand side), always check that the webbing is not twisted.

Illustration of a person seated in a car seat, wearing a seatbelt (no text or symbols present)

WARNING

• Be sure to fasten both tongue plates to the respective buckles. If the seatbelt is used only as shoulder belt (with the connector's tongue plate not fastened the connector's buckle on the right-hand side), it cannot properly restrain the wearer in position in an accident, possibly resulting in serious injury or death.
• The head restraint is not intended to be used at the lowest position. Before sitting on the seat, raise the head restraint to the extend position. Otherwise, in an accident, serious injury or death could result.

Technical line drawing of a sewing machine component (no text or symbols)

1. Raise the head restraint to the extended position. Do not remove the head restraint.

Diagram of a car seatbelt buckle being adjusted for a hand, showing no text or symbols

1. Remove the tongue plate from the belt holder on the right side of the cargo area and pull out the seatbelt slowly.

Illustration of a hand holding a seatbelt with an inset showing the cable being inserted (no text or symbols present)

1. After drawing out the seatbelt, pass it through the belt guide as follows: First insert one edge of the belt into the open gap in the belt guide; then slide the rest of the belt in, so that the whole belt fits inside.

Illustration of hands using a tool to adjust a component, showing a downward arrow indicating compression (no text or symbols present)

1. After confirming that the webbing is twisted, insert the anchor tongue plate attached at the webbing end into the buckle on the right-hand side until a sound.

- If the belt stops before reaching the buckle, return the belt slightly and pull out more slowly.

- If the belt still cannot be unlocked, give it a strong pull and let it retract slightly, then pull it out slowly again.

Line drawing of a person wearing a seatbelt and adjusting a belt (no text or symbols)

nd. Insert the center seatbelt tongue plate into the center seatbelt buckle marked "CENTER" on the left-hand side until it click.

it 100115

1. To tighten the lap part, pull up on the shoulder belt.

2. Place the lap belt as low as possible on the hips, not on the waist.

∇ Unfastening the seatbelt

Medical illustration showing a surgical procedure with labeled parts (no text or symbols present)

1) Button

1. Push the release button of the center seatbelt buckle (on the left-hand side) to unfasten the seatbelt.

NOTE

When the seatback is folded down for greater cargo area, it is necessary to disconnect the connector.

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

1. Insert a tongue plate or another hard pointed object into the slot in the anchor buckle on the right-hand side and push it in. The anchor tongue plate will then disconnect from the buckle.


Illustration of two hand buttons with a belt buckle, showing step-by-step changes (no text or symbols)

1. Allow the retractor to roll up the belt. You should hold the webbing end and guide it back into the retractor while it is rolling up. Insert the tongue plate into the belt holder.

Technical illustration of a mechanical clamp device with a circular component and a separate clip, no text or symbols present.

CAUTION

• Do not allow the retractor to roll up the seatbelt too quickly. Otherwise, the metal tongue plates may hit against the trim, resulting in damaged trim.
• Have the seatbelt fully rolled up so that the tongue plates are neatly stored. A hanging tongue plate can swing and hit against the trim during driving, causing damage to the trim.

■ Seatbelt maintenance

To clean the seatbelts, use a mild soap lukewarm water. Never bleach or dye the belts because this could seriously affect their strength.

Inspect the seatbelts and attachments including the webbing and all hardware periodically for cracks, cuts, gashes, tea damage, loose bolts or worn areas. Replace the seatbelts even if only minor damage is found.

CAUTION

• Keep the belts free of polishes, oils, chemicals and particularly battery acid.
• Never attempt to make modifications or changes that will prevent the seatbelt from operating properly.

Seatbelt pretensioners

and

The following seatbelts have a seatbelt pretensioner.

• Driver's seatbelt
• Front passenger's seatbelt

The seatbelt pretensioners are designed to be activated in the event of an accident involving a moderate to severe frontal and side collision and rollover accident.

WARNING

• To obtain maximum protection, the occupants should sit in an upright position with their seatbelts properly fastened. Refer to "Seatbelts" 1-12.
• Do not modify, remove or strike the seatbelt retractor assemblies equipped with seatbelt pretensioners or surrounding area. This could result in accidental activation of the seatbelt pretensioners or could make the system inoperative, possibly resulting in serious injury. Seatbelt pretensioners have no user-serviceable parts. For required servicing of seatbelt retractors equipped with seatbelt pretensioners, consult

your SUBARU dealer.

• When discarding seatbelt retractor assemblies equipped with seatbelt pretensioners or scrapping the entire vehicle due to collision damage or for other reasons, consult your SUBARU dealer.

NOTE

• Seatbelt pretensioners are not designed to activate in minor impacts or in rear impacts.
• Pretensioners are designed to function on a one-time-only basis. In the event that a pretensioner is activated, both the driver's and front passenger's seatbelt retractor assemblies should be replaced only by an authorized SUBARU dealer. When replacing seatbelt retractor assemblies, use only genuine SUBARU parts.

- If a seatbelt that has a seatbelt pretensioner does not retract or cannot be pulled out due to a malfunction or activation of the pretensioner, contact your SUBARU dealer as soon as possible.

- If the seatbelt retractor assembly or surrounding area has been damaged, contact your SUBARU dealer as soon

as possible.

- When you sell your vehicle, we ur you to inform the buyer that the ve is equipped with seatbelt pretensioners. Also, notify the buyer of the contents in this section.

■ Seatbelt with shoulder belt pretensioner

NOTE

This section is applicable to the following components.

- Driver's seatbelt

Illustration of a person seated in a car seatbelt with directional arrows indicating movement or force (no text or symbols)

Front seatbelt pretensioner

The pretensioner sensor also serves as follows.

• SRS frontal airbag sensor

- Side impact sensor

Front door impact sensor

hicle Rollover sensor

elf the sensor detects a certain predetermined amount of force during frontal or side collisions or rollover accidents, any seatbelt that has a seatbelt pretensioner quickly drawn back in by the retractor to take up the slack so that the belt more effectively restrains the seat occupant.

The driver's seatbelt pretensioner includes a tension reducing device which limits the peak forces exerted by the seatbelt on the occupant in the event of a collision.

When a seatbelt pretensioner is activated, an operating noise will be heard and a small amount of smoke will be released. These occurrences are normal and not harmful. This smoke does not indicate a fire in the vehicle.

Once the seatbelt pretensioner has been activated, the seatbelt retractor remains locked. Consequently, the seatbelt can not be pulled out and retracted and therefore must be replaced.

In cases of rollover accident, frontal collisions or side collisions, the following components will operate simultaneously

For details, refer to "In cases of rollover accident, frontal collisions or side collisions, the following components will operate simultaneously" 1-24.

■ Seatbelt with shoulder belt and lap belt pretensioners

NOTE

This section is applicable to the front passenger's side seatbelt.

1 2 100666

1) Seatbelt retractor assembly (shoulder belt pretensioner and adaptive force limiter)
2) Lap belt pretensioner

On the front passenger's side, the shoulder belt pretensioner is supplemented by a lap belt pretensioner, which is located at the base of the center pillar. Like the shoulder belt pretensioner, the lap belt pretensioner instantaneously pulls in the belt to eliminate slack if a certain level of frontal collision force is detected. As a result, the seatbelt restrains the front seat occupant more effectively.

The front passenger's seatbelt pretensioner includes a tension reducing device which limits the peak forces exerted by the seatbelt on the occupant in the event of a collision.

The adaptive force limiter will select a reducing load to the suit body size of occupant as detected by the occupant detection sensor.

When a seatbelt pretensioner is activated, an operating noise will be heard and a small amount of smoke will be released. These occurrences are normal and not harmful. This smoke does not indicate a fire in the vehicle.

Once the seatbelt pretensioner has been activated, the seatbelt pretensioner remains locked. Consequently, the seatbelt cannot be pulled out and retracted and therefore must be replaced.

In cases of rollover accident, frontal collisions or side collisions, the following components will operate simultaneously

		Driver's side seatbelt pre-tensioner	Front passen-ger's side shoulder belt pretensioner	Front passen-ger's side lap belt preten-sioner	SRS frontal airbag for dri-ver	SRS frontal airbag for front passenger	SRS curtain airbags	SRS side air-bags
Rollover accidents ○○— — —							○both sides	—
Frontal collisions		○○○○○*				1	—	—
		Offset frontal collisions	○○○○○*			1	○both sides	—
Side collisions ○*		3	○*4	— — —			○impacted side	○*2impacted side
Rear impact — — — — — —		—
Minor impact — — — — — —								—

○: Activated
—: Not activated

*1: This does not operate if the occupant detection system deactivates airbag operation.

*2: When both the satellite safing sensor and any of the center pillar impact sensors/front door impact sensors sense an impact force.

*3: When both the satellite safing sensor and the driver's side front door impact sensor sense an impact force. However, when a center pillar impact sensor detects a signal faster than the front door impact sensor, or both sensors detect signals simultaneously, the seatbelt pretensioner does not activate.

*4: When both the satellite safing sensor and the front passenger's side front door impact sensor sense an impact force. However, when a center pillar impact sensor detects a signal faster than the front door impact sensor, or both sensors detect signals simultaneously, the seatbelt pretensioner does not activate.

■ System monitors

A diagnostic system continually monitors the readiness of the seatbelt pretensioner with the ignition switch in the "ON" position

The seatbelt pretensioners share the control module with the SRS airbag system. Therefore, if any malfunction occurs in a seatbelt pretensioner, the SRS airbag system warning light will illuminate. For details, refer to "SRS a system monitors" 1-71.

■ System servicing

WARNING

• When discarding a seatbelt retractor assembly or scrapping the entire vehicle damaged by collision, consult your SUBARU dealer.
• Tampering with or disconnecting the system's wiring could result in accidental activation of the seatbelt pretensioner and/or SRS airbag or could make the system inoperative, which may result in serious injury. Do not use electrical test equipment on any circuit related to the seatbelt pretensioner and SRS airbag systems. For required servicing of

the seatbelt pretensioner, consult your nearest SUBARU dealer.

CAUTION

For the locations of the sensors SRS airbag control module, refer "Components" 1-50.

If you need service or repair in the areas where the sensors and SRS airbag modules are stored, or near the front seatbelt retractors, have the work performed by your authorized SUBARU dealer.

NOTE

If the front or side part of the vehicle damaged in an accident to the extent that the seatbelt pretensioner does not operate, contact your SUBARU dealer as soon as possible.

■ Precautions against vehicle modification

Always consult your SUBARU dealer if you want to install any accessory parts to your vehicle.

CAUTION

Do not perform any of the following modifications. Such modifications can interfere with proper operation of the seatbelt pretensioners.

• Attachment of any equipment (bush bar, winches, snow plow, skid plate, etc.) other than genuine SUBARU accessory parts to the front end.
- Modification of the suspension system or front end structure.
- Installation of a tire of different size and construction from the tires specified on the vehicle placard attached to the driver's door pillar or specified for individual vehicle models in this Owner's Manual.

Rear Seat Reminder (model with combination meter display (color LCD))

This function prompts the driver to confirm the presence of passengers and cargo in the rear.

This function will be activated when the rear doors are opened and closed.

It alerts the driver by warning messages the combination meter display (color LCD and beeps when the ignition switch is turned from the "ON" position to the "OF" position.

Reminder, Look In Rear Seat 102605

NOTE

- This function does not directly detect passengers and cargo in the rear seat.

This function detects the opening and closing of the rear doors. In this situation, there is the possibility that the following phenomenon may occur.

- It may alert the driver even if there are no passengers or cargo in the rear seat.

- It may not alert the driver even if there are passengers and cargo in the rear seat.

●This function can be turned ON/OFF) using the meter customizing function. Refer to "Function settings and adjustments on the combination meter display (color LCD)" 25.

- The ON/OFF setting will not be changed even if the ignition switch turned to the "OFF" position.

- The ON/OFF setting will be returned to the default setting if the battery removed.

Child restraint systems

■ Safety precautions

Illustration of a child wearing a seatbelt and carrying a bandage, seated in a car seat (no text or symbols)

101656

infants and small children should always be placed in an infant or child restraint system in the rear seat while riding in the vehicle.

You should use an infant or child restraint system that meets Federal Motor Vehicle Safety Standards or Canada Motor Vehicle Safety Standards, is compatible with your vehicle and is appropriate for the child's age and size.

All child restraint systems are designed to be secured in vehicle seats by lap belts or the lap belt portion of a lap/shoulder belt (except those described in "Installation of child restraint systems by use of lower and

tether anchorages (LATCH)" 1-37).

Children could be endangered in an accident if their child restraint systems are not properly secured in the vehicle. When installing the child restraint system, carefully follow the manufacturer's instructions.

According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions.

All U.S. states and Canadian provinces require that infants and small children be restrained in an approved child restraint system at all times while the vehicle is moving.

A 1 2 101642

Lock release knob

1) Unlocked
2) Locked
A) Unlocking marker in red

WARNING

• Before installing a child restraint system, check that the unlocking marker on the seatback lock release knob cannot be seen to confirm that the rear seatback is securely locked in position. If the rear seatback is not locked securely, serious injury may result.
• Do not leave children in the car unattended. High interior temperatures may cause heat stroke and dehydration that result in

serious injury or death.

Illustration of two adults seated in a car seat, viewed from behind (no text or symbols)

WARNING

Never let a passenger hold a child on his or her lap or in his or her arms while the vehicle is moving. The passenger cannot protect the child (or infant) from injury in a collision, because the child will be caught between the passenger and objects inside the vehicle.

Additionally, holding a child in your lap or arms in the front seat exposes that child to another serious danger. Since the SRS airbag deploys with considerable speed and force, the child could be injured or even killed.

Illustration of two children interacting with a vehicle, no text or symbols present

WARNING

• Children should be properly restrained at all times. Never allow a child to stand up, or to kneel any seat. Unrestrained children will be thrown forward during sudden stop or in an accident and can be injured seriously.
• Never allow a child to stand up to kneel on the front passenger's seat, or never hold a child on lap or in your arms. The SRS airbag deploys with considerable force and can injure or even kill the child.

■ Safety tips for installing chil restraint systems

WARNING

- Child restraint systems and seat-belts can become hot in a vehicle that has been closed up in sunny weather; they could burn a small child. Check the child restraint system before you place a child in it.

- Do not use a seatbelt extender. If a seatbelt extender is used when installing a child restraint system, the seatbelt will not securely hold the child restraint system.

on Use of a seatbelt extender could cause death or serious injury to children or other passengers in sudden braking, swerving, or accidents.

- Attach the child restraint system to the anchors properly. your When using the LATCH anchors, be sure that there are no foreign objects around the anchors. Also, the seatbelts should not be caught behind the child restraint system. Make sure the child restraint system is securely at-

d tached. Otherwise it may cause death or serious injury to children or other passengers in sudden braking, swerving, or accidents.
- Do not leave an unsecured child restraint system in your vehicle. Unsecured child restraint systems can be thrown around inside of the vehicle in a sudden stop, turn or accident; they can strike and injure vehicle occupants as well as result in serious injuries or death to the child.

CAUTION

When you install a child restraint system, follow the manufacturer's instructions supplied with it. After installing the child restraint system, check to ensure that it is held securely in position. If it is not held tight and secure, the danger of your child suffering personal injury in the event of an accident may be increased.

■ Where to place a child restraint system

The following descriptions are SUBARU's recommendations on where to place a child restraint system in your vehicle.

WARNING

• Several types of child restraint systems may conceal the buckle of the neighboring seat. If the occupant of the neighboring seat cannot correctly fasten the seatbelt, that person must move to different seat. If the seatbelt can not be correctly fastened, there the risk of serious injury or deal in the event of sudden braking a collision.
• If the child restraint system cannot be correctly installed because it contacts the driver's seat, move the child restraint system to a different seat. If it cannot be installed in a different seat (other than the driver's seat adjust the front seat so that contact does not occur.

B C B A 100127

A: Front passenger's seat

-You should not install a child restraint isystem (including a booster seat) due to the hazard to children posed by the passenger's airbag.

B: Rear seat, window-side seating positions

Recommended positions for all types of child restraint systems.
In these positions, the following equipment is provided for installing a child restraint system.

● Automatic Locking Retractor/Emergency Locking Retractor (ALR/ELR) seat-belts
- Lower anchorages (bars)
• Upper anchorages (tether anchorages)

Some types of child restraint systems might not be able to be secured firmly due to projection of the seat cushion. In this seating position, you should use only a child restraint system that has a bottom base that fits snugly against the contours of the seat cushion and can be securely retained using the seatbelt.

C: Rear seat, center seating position The ALR/ELR seatbelt and an upper anchorage (tether anchorage) are provided in this position.

Some types of child restraint systems might not be able to be secured firmly due to projection of the seat cushion. In this seating position, you should use only a child restraint system that has a bottom base that fits snugly against the contours of the seat cushion and can be securely retained using the seatbelt. When you install a child restraint system in the rear seat's center seating position, raise the center head restraint.

Lower anchorages (bars) for window-side seating positions may be used for a seat in the center seating position if a child restraint system manufacturer's instructions permit and specify using anchors as far apart as those in this vehicle. If a child restraint system is not correctly fixed in place (for example, if a child

- CONTINUED -

restraint system can be moved more than 1 inch (2.5 cm) from side to side), you should install the child restraint system in rear seat, window-side seating position.

WARNING

- Even with advanced airbags, children can be seriously injured by the airbag. Seat children in the rear seat properly restrained at all times. The SRS airbag deploy with considerable speed and force and can injure or even kill children, especially if they are no restrained or improperly restrained. Because children are lighter and weaker than adults, their risk of being injured from deployment is greater.

For that reason, be sure to secure ALL types of child restraint systems (including forward facing child restraint systems) in the REAR seats at all times. You should choose a restraint system which is appropriate for the child's age, height and weight. According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions.

• Do not use lower anchorages (bars) for a seat in the center a seating position unless a child restraint system manufacturer's instructions permit and specify using anchors spaced as far apart as those in this vehicle.
• Do not connect two or more lower hooks onto the same anchorage (bar).

loys

kill not

Medical illustration of a patient undergoing a procedure on a car seatbelt, showing no text or symbols.

WARNING

• SINCE YOUR VEHICLE IS EQUIPPED WITH A PASSENGER'S SRS AIRBAG, NEVER INSTALL A CHILD RESTRAINT SYSTEM IN THE FRONT PAS-

SENGER'S SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLACING THE CHILD'S HEAD TOO CLOSE TO THE SRS AIRBAG.

• Do not allow children to lean their heads or any other parts of their bodies against the door or the area of the seat, front and rear pillars or roof side rails. The SRS side airbags and SRS curtain airbags deploy even if children are seated in the child restraint system, and the impact could cause death or serious injury to the child.
• To secure the child restraint system, be sure to comply with all installation instructions provided by the child restraint system manufacturer. Not doing so could result in death or serious injury to children in a sudden stop or accident.

■ Choosing a child restraint system

Line drawings of three different car seats (no text or symbols)

Choose a child restraint system that is appropriate for the child's age and size (weight and height) in order to provide the child with proper protection. The child restraint system should meet all applicable requirements of Federal Motor Vehicle Safety Standards for the United States or of Canada Motor Vehicle Safety Standards for Canada. It can be identified by looking for the label on the child restraint system the manufacturer's statement of compliance in the document attached to the system.

Also it is important for you to make sure that the child restraint system is compatible with the vehicle in which it will be used.

NOTE

Some sizes of child restraint systems may not fit the vehicle seat. Before purchasing a child restraint system, check whether it fits on the vehicle

■ Installing child restraint systems with ALR/ELR seatbelt

CAUTION

- When you install a child restraint system, follow the manufacturer's instructions supplied with it. After installing the child restraint system, check to ensure that it is held securely in position. If it is not held tight and secure the danger of your child suffering personal injury in the event of accident may be increased.

- When installing a child restraint system in the rear center seating position, set both seatbacks to the original position. Otherwise, the child restraint system cannot

seat be securely restrained, which may result in death or serious injuries in the event of sudden stop, sudden steering maneuver or an accident.

▼ Installing a rearward facing child restraint system

WARNING

- NEVER INSTALL A CHILD RE- n. STRAINT SYSTEM IN THE FRONT PASSENGER'S SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLA- CING THE CHILD'S HEAD TOO CLOSE TO THE SRS AIRBAG.

- Before installing a child restraint system, be sure to confirm that the seatback is securely locked into place. Otherwise, in an accident, serious injury or death could result.

1. Place the child restraint system in the rear seating position.

- CONTINUED -

WARNING

When you intend to install a child restraint system in the rear center seating position, if the child restraint system does not fit snugly against the contours of the rear center seat cushion, install the child restraint system in the window-side seating position to be safe. For details, refer to "Where to place a child restraint system" 1-29.

100503

1. Run the lap and shoulder belt through or around the child restraint system following the instructions provided by its manufacturer.
2. Insert the tongue plate into the buckle until you hear a click.

Illustration of a hand using a tool to lift a car seatbelt, showing motion direction (no text or symbols)

1. Take up the slack in the lap belt.
2. If using the seatbelt in the ALR mode recommended by the manufacturer's instructions supplied with the child restraint system, perform the following procedure.
   (1) Pull out the seatbelt fully from the retractor to change the retractor over from the Emergency Locking Retractor (ELR) the Automatic Locking Retractor (ALR) mode.
   (2) Allow the belt to rewind into the retractor. As the belt is rewinding, clicks will be heard which indicate the retractor functions as ALR.

Diagram of a car seatbelt buckle with directional arrows indicating movement (no text or symbols)

1. Before having a child sit in the child restraint system, try to move it back and forth and right and left to check if it is firmly secured. Sometimes a child restraint system can be more firmly secured by pushing it down into the seat cushion and then tightening the seatbelt. It should not be possible to move the child restraint system more than 1 in (2.5 cm) in any direction along the seatbelt path.
2. If the seatbelt has been set to the ALR mode in step 5, pull at the shoulder portion of the belt to confirm that it cannot be pulled out (ALR properly functioning).

Line drawing of a car seatbelt buckle being lifted, with an inset showing the same seatbelt (no text or symbols present)

1. To remove the child restraint system, press the release button on the seatbelt buckle and allow the belt to retract completely. The belt will return to the ELR mode.

NOTE

When the child restraint system is longer in use, remove it and restore ELR function of the retractor. That function is restored by allowing the seatbelt to retract fully.

▼ Installing a forward facing child restraint system

WARNING

• NEVER INSTALL A CHILD RE-STRAINT SYSTEM IN THE FRONT PASSENGER'S SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLA-CING THE CHILD'S HEAD TOO CLOSE TO THE SRS AIRBAG.

• Before installing a child restraint system, be sure to confirm that the seatback is securely locked into place. Otherwise, in an accident, serious injury or death could result.

• Place the child restraint system in the rear seating position.

the

Diagram showing a component being inserted into a socket, with an inset close-up highlighting the insertion location.

1. Adjust the head restraint as follows. (Except for center seat)

(1) Remove the head restraint of the rear seating position where the child restraint system is to be installed.
(2) Store the removed head restraint in the cargo area.

CAUTION

Do not place the head restraint in the passenger compartment to prevent it from being thrown around in the passenger compartment in a sudden stop or a sharp turn.

Diagram of a mechanical component with an upward arrow and base mount (no text or symbols)

(For center seat)

Raise the head restraint to the extended position. Do not remove the head restraint

WARNING

When you intend to install a child restraint system on the rear center seating position, if the child restraint system does not fit snugly against the contours of the rear center seat cushion, install the child restraint system on the window-side seating position to be safe. For details, refer to "Where to place a child restraint system" 1-29.

101599

1. Run the lap and shoulder belt through 5. Take up the slack in the lap belt. or around the child restraint system follows: Pull out the seatbelt fully from the ring the instructions provided by its manu-retractor to change the retractor over from facturer. the Emergency Locking Retractor (ELR) to

- When a child restraint system is installed on the rear center seating position, pass the rear center seatbelt through the belt guide properly. For details, refer to "Rear center seatbelt" 1-17.

1. Insert the tongue plate into the buckle until you hear a click.

Diagram of a car seatbelt with hand placement and arrow indicating direction (no text or symbols)

1. Take up the slack in the lap belt.
2. Pull out the seatbelt fully from the retractor to change the retractor over from the Emergency Locking Retractor (ELR) to the Automatic Locking Retractor (ALR) function. Then, allow the belt to rewind into the retractor. As the belt is rewinding, clicks will be heard which indicate the retractor functions as ALR.

Line drawing of a car seatbelt with directional arrows indicating movement (no text or symbols)

1. Before having a child sit in the child restraint system, try to move it back and forth and right and left to check if it is secured. Sometimes a child restraint system can be more firmly secured by pushing it down into the seat cushion and then tightening the seatbelt. It should not be possible to move the child restraint system more than 1 in (2.5 cm) in any direction along the seatbelt path.
2. Pull at the shoulder portion of the belt to confirm that it cannot be pulled out (A properly functioning).

Technical diagram of a mechanical assembly with a separate inset showing a gear mechanism and a numbered label (101533) (no text or symbols on the diagram itself)

1. Latch the top tether hook onto the tether anchorage that is located behind fireally seat and tighten the top tether firm. For additional instructions, refer to "Top tether anchorages" 1-41.

and not belt (ALR) 101602

1. To remove the child restraint system,

press the release button on the seatbelt buckle and allow the belt to retract completely. The belt will return to the ELR mode.

If you have installed a child restraint system for the rear center seating position, when you remove the child restraint system, the seatbelt may not be restored to the ELR mode even if the seatbelt is retracted. In this case, lower the head restraint to the retracted position to allow the seatbelt to retract moreover. The seatbelt will return to the ELR mode.

Remember that the head restraint is not intended to be used at the lowest position (retracted position). Therefore, when the rear center seat is occupied (including when a child restraint system is installed) next time, be sure to raise the head restraint to the extended position.

NOTE

When the child restraint system is no longer in use, remove it and restore the ELR function of the retractor. That function is restored by allowing the seatbelt to retract fully.

■ Installing a booster seat or booster cushion

Line drawing of a person seated in a car seat, no text or symbols present

Booster seat

Line drawing of a person seated in a car seat, wearing a seatbelt (no text or symbols)

Booster cushion

1. Adjust the head restraint as follows.

	Window-side seating position	Center seating position
Boost-er seat	Remove Raise
Boost-er cushion	Do not remove	Raise

• Remove the head restraint.
  (1) Remove the head restraint of the rear seating position where the child restraint system is to be installed.
  (2) Store the removed head restraint in the cargo area.

CAUTION

Do not place the head restraint in passenger compartment to prevent it from being thrown around in the passenger compartment in a sudden stop or a sharp turn.

• Raise the head restraint.
  (1) Raise the head restraint to the extended position. Do not remove the head restraint.

Line drawing of a child wearing a car seatbelt, with a magnified inset showing the seatbelt (no text or symbols present)

1. Place the booster seat/cushion in the rear seating position and sit the child on it. The child should sit well back on the booster seat/cushion.
2. Run the lap and shoulder belt through or around the booster seat/cushion and

the child following the instructions provided by its manufacturer. For booster seat/cushion with a belt guide, use the seatbelt through the belt guide.

1. Insert the tongue plate into the buckle until you hear a click. Take care not to twist the seatbelt.

Make sure the shoulder belt is positioned across the center of child's shoulder and that the lap belt is positioned as low as possible on the child's hips.

Line drawing of a person seated in a car seatbelt, showing seatbelt buckle and seatbelt connector (no text or symbols)

1. To remove the booster seat/cushion, press the release button on the seatbelt buckle and allow the belt to retract.

WARNING

• Never use a belt that is twisted or reversed. In an accident, this can increase the risk or severity of injury to the child.
• Never place the shoulder belt under the child's arm or behind the child's back. If an accident occurs, this can increase the risk or severity of injury to the child.
• The seatbelt should fit snugly in order to provide full restraint. Loose fitting belts are not as

effective in preventing or reducing injury.

• Place the lap belt as low as possible on the child's hips. A high-positioned lap belt will increase the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen, and both can result in serious injury or death.
• Make sure the shoulder belt is positioned across the center of child's shoulder. Placing the shoulder belt over the neck may result in neck injury during sudden braking or in a collision.

■ Installation of child restraint systems by use of lower and tether anchorages (LATCH)
▼ Lower and tether anchorages

Diagram illustrating car seatbelt usage with magnified insets showing hand positioning and cable insertion steps

WARNING

Attach the child restraint system to the anchors properly. When using the LATCH anchors, be sure that there are no foreign objects around the anchors. Also, the seatbelts should not be caught behind the child restraint system. Make sure the child restraint system is securely attached. Otherwise it may cause death or serious injury to children or other passengers in sudden braking, swerving, or acci

- CONTINUED -

dents.

Some types of child restraint systems can be installed on the rear seat of your vehicle without use of the seatbelts. Such child restraint systems are secured to the dedicated anchorages provided on the vehicle body. The lower and tether anchorages are sometimes referred to as the LATCH system (Lower Anchors and Tethers for CHildren).

Anchor. Tether. LATCH The next generation of child safety.

101210

Your vehicle is equipped with four lower anchorages (bars) and three upper anchorages (tether anchorages) for accommodating such child restraint systems.

▼ Lower anchorages

Line drawing of a car backseat with seat covers and seatbelt clips (no text or symbols)

WARNING

Do not connect two or more lower hooks onto the same anchorage (bar).

Two lower anchorages (bars) are provided for installing a child restraint system on the rear seat window-side seating positions. Lower anchorages (bars) for window-side seating positions may be used for a seat in the center seating position if a child restraint system manufacturer's instructions permit and specify using anchors as far apart as those in this vehicle. Each lower anchorage is located where the seat cushion meets the seatback.

▽ Tether anchorages

Top-down line drawing of a car backrest with three rear seats and directional arrows indicating traffic or movement (no text or symbols)

The tether anchorages (upper anchorages) are provided at the locations shown in the above illustration. For details, refer to "Top tether anchorages" 1-41.

To install a child restraint system using lower and tether anchorages

To install a child restraint system using lower and tether anchorages, perform the following procedure.

WARNING

Before installing a child restraint system, be sure to confirm that seatback is securely locked into place. Otherwise, in an accident, serious injury or death could res

the

m 101620

ult.2. You will find marks " at the bottoms of the rear seatback. These marks indicate to the positions of the lower anchorages placebars).

1. Move the seatback back and forth to confirm that it is securely locked into place - Check that the red colored unlocking marker which is attached to the bottom of the lock release knob is invisible. For details, refer to "Folding down the rear seatback" 1-7.

Diagram illustrating hand positioning and magnified view of a device with a mouse inside a case

Peel off the anchorage cover completely from the selected side of the rear seat

cushion to expose the anchorages (bars) to be used for installation of the child restraint system.

If it is hard to install the child restraint system because the anchorage cover returns to the original position, press the anchorage cover to the seat cushion until it is flat.

e 102648

1. Remove the rear seat head restraint. For details, refer to "Rear seats" 1-9.
2. Store the head restraint that has been removed in the cargo area.

CAUTION

Do not place the head restraint in the passenger compartment to prevent it from being thrown around in the passenger compartment in a sud-

- CONTINUED -

den stop or a sharp turn.

Line drawing of a car seat with a close-up inset showing the cable being inserted (no text or symbols)

1. While following the instructions supplied by the child restraint system manufacturer, connect the lower hooks onto lower anchorages located at ^TM marks on the bottom of the rear seatback. When hooks are connected, make sure the adjacent seatbelts are not caught.

Line drawing of a car seatbelt with a hand insertion step and magnified detail (no text or symbols)

1. If your child restraint system is a flexible attachment type (which uses tether belts), push the child restraint system in the seat cushion and pull both left and lower tether belts up to secure the child restraint system by taking up the slack the belt.

2. Latch the top tether hook onto the tether anchorage that is located behind rear seat and tighten the top tether firm. For additional instructions, refer to "Top tether anchorages" 1-41.

Line drawing of a car seat assembly with directional arrows indicating movement or force (no text or symbols)

1. Before having a child sit in the child restraint system, try to move it back and forth and right and left to check if it is firmly secured. Sometimes a child restraint system can be more firmly secured by pushing it down into the seat cushion. It should not be possible to move the child restraint system more than 1 in (2.5 cm). To remove the child restraint system, follow the reverse procedures of installation.

SUBARU recommends that you check with a certified Child Passenger Safety Technician to ensure the proper installation of your child restraint system. For more information, and to locate the closest inspection location in the U.S., refer to the National Highway Traffic Safety Adminis-

tration (NHTSA) website. In Canada, check with Transport Canada.

■ Top tether anchorages

Your vehicle is equipped with three top tether anchorages so that a child restraint system having a top tether can be installed in the rear seat. When installing a child restraint system using top tether, proceed as follows, while observing the instructions by the child restraint system manufacturer.

Since a top tether can provide additional stability by offering another connection between a child restraint system and the vehicle, we recommend that you use a tether whenever one is required or available.

▼ Anchorage location

ed s op 1 2 3 102095

1) For left seat

2) For center seat

3) For right seat

Three upper anchorages are installed on the back side of the rear seatback.

▼ To hook the top tether

CAUTION

• Except for the center seating position, remove the head restraint when mounting a child restraint system. Otherwise, it might be possible that the top tether cannot be fastened tightly.
• Store the head restraint that has been removed in the cargo area. Do not place the head restraint in the passenger compartment to prevent it from being thrown around in the passenger compartment in a sudden stop or a sharp turn.
• For the center seating position, raise the center head restraint to the extended position when mounting a child restraint system. Otherwise, it will be impossible to use the seatbelt guide that is attached to the head restraint correctly.
  The seatbelt guide is essential for routing the belt webbing at the center seating position. For information about using the seatbelt guide, refer to "Rear center seatbelt" 1-17.

- CONTINUED -

Technical diagram of a mechanical component with an inset showing a gear mechanism (no text or symbols)

1. Attach the top tether hook to the appropriate upper anchorage.

For the center seating position, route the top tether under the head restraint a illustrated below.

1 2 3 102111

1) Seatbelt guide
2) Seatbelt of the center seating position
3) Top tether

s2. Tighten the top tether securely.

SUBARU recommends that you check with a certified Child Passenger Safety Technician to ensure the proper installation of your child restraint system. For more information, and to locate the clos inspection location in the U.S., refer to National Highway Traffic Safety Administration (NHTSA) website. In Canada, check with Transport Canada.

SRS airbag (Supplemental Restraint System airbag)

The Supplemental Restraint System (SRS) name is used because the airbag system supplements the vehicle's seat-belts.

This vehicle is equipped with a supplemental restraint system which consists of seven airbags.

The configurations are as follows.

• Driver's and front passenger's frontal airbags
• Driver's and front passenger's side airbags
• Curtain airbags (for driver, front passenger, and window-side rear passengers)
• Knee airbag for driver

These SRS airbags are designed only as a supplement to the primary protection provided by the seatbelt.

The system also controls front seatbelt pretensioners. For operation instructions and precautions concerning the seatbelt pretensioner, refer to "Seatbelt pretensioners" 1-21.

■ General precautions regarding SRS airbag system

WARNING

- To obtain maximum protection in the event of an accident, the driver and all passengers must always wear seatbelts when in the vehicle. The SRS airbag is designed only to be a supplement to the primary protection provided by the seatbelt. It does not eliminate the need to fasten seatbelts. In combination with the seatbelts, it offers the best protection in case of a serious accident.

Not wearing a seatbelt increases the chance of severe injury or death in a crash even when the vehicle has the SRS system. For instructions and precautions concerning the seatbelt system, refer to "Seatbelts" 1-12.

- The SRS side airbags and SRS curtain airbags are designed only to be a supplement to the primary protection provided by the seatbelt. They do not eliminate the need to fasten seatbelts. It is also important to wear your seatbelt t

help avoid injuries that can resu when an occupant is not seated in a proper upright position.

Line drawing of a person sitting in a car, holding a steering wheel and belt (no text or symbols)

100155

as possible and sit upright and well back in the seat.

Illustration of a person wearing a seatbelt and holding a belt, with motion lines indicating speed (no text or symbols)

WARNING

The SRS airbags deploy with considerable speed and force. Occupants who are not seated in proper upright position when the SRS airbag deploys could suffer serious injury. Because the SRS airbag needs enough space for deployment, the driver should always sit upright and back in the seat as far from the steering wheel as practical while still maintaining full vehicle control, and the front passenger should move the seat as far back

WARNING

• Do not sit or lean close to either front door. The SRS side airbags are stored in both front seat seatbacks next to the door, and they provide protection by deploying rapidly in the event of a side impact. However, the force of SRS side airbag deployment can injure an occupant whose body is too close to an SRS airbag.
• Since your vehicle is equipped with SRS curtain airbags, do not

sit or lean close to the front or rear door on either side. Do not put body parts out of the window. The SRS curtain airbags on both sides of the cabin are stored in the roof side (between the front pillar and a point behind the rear quarter glass), and they provide protection by deploying rapidly in the event of a side impact rollover or an offset frontal collision. However, the force of its deployment can injure an occupant whose body is too close to an SRS airbag.

- Do not sit or lean unnecessarily close to the SRS airbag. Because the SRS airbag deploys with considerable speed and force to protect in high speed collisions, the force of an airbag can injure an occupant whose body is too close to the SRS airbag.

It is also important to wear seatbelt to help avoid injuries that can result when the SRS airbag contacts an occupant not in their proper position.

Even when properly positioned, there remains a possibility that an occupant may suffer minor injury, such as abrasions and

bruises to the face or arms, because of the SRS airbag deployment force.

Illustration of a person sitting in a car seatbelt, wearing a sash (no text or symbols)

WARNING

• Keep arms away from either front door or its internal trim. They could be injured in the event of SRS side airbag deployment.
• Do not place any objects over or near the SRS airbag cover or between you and the SRS airbag. If the SRS airbag deploys, these objects could interfere with its proper operation and could be propelled inside the vehicle, causing injury.

CAUTION

• When the SRS airbag deploys, some smoke will be released. This smoke could cause breathing problems for people with a history of asthma or other breathing trouble. If you or your passengers have breathing problems after SRS airbag deploys, get fresh air promptly.
• A deploying SRS airbag releases hot gas. Occupants could get burned if they come into direct contact with the hot gas.

NOTE

- When you sell your vehicle, we urge you to inform the buyer that the vehicle is equipped with SRS airbags. Also, notify the buyer of the applicable section in this Owner's Manual. - If the SRS airbag deploys, fuel supply will be cut off to reduce the risk of fire caused by leaking fuel. For details about restarting of the engine, refer to "If your vehicle is involved in an accident" = 9-20.

■ General precautions regarding SRS airbag system for accessories and any objects

Top-down line drawing of a car dashboard and steering wheel (no text or symbols)

Diagram illustrating a hand holding a 'no' symbol, with an inset showing a stopbell and a magnified view of the stopbell.

WARNING

- Do not put any objects (including straps or cords) over the steering wheel pad, column cover, or dashboard.

- These objects could be entangled with the steering wheel, preventing the SRS frontal airbag, etc. from operating properly.

- If the SRS frontal airbag deploys, these objects could be propelled inside the vehicle, causing injury.

- Do not put any objects under the driver's side of the instrument panel. If the SRS knee airbag deploys, those objects could interfere with its proper operation and could be propelled inside the vehicle, causing injury.

- The key must not be attached to heavy, sharp or hard accessories, or another key. If the S knee airbag deploys, those objects could interfere with its proper operation and could be propelled inside the vehicle and cause injury.

Interior view of a car showing a hand holding a seatbelt, a switch, and a circular symbol with a hammer and magnifying glass (no text or symbols present)

WARNING

Do not attach accessories to the windshield, or fit an extra-wide mirror over the inside rear view mirror. If the SRS airbag deploys, those objects could become projectiles that could seriously injure vehicle occupants.

Line drawing of a car interior showing seat, dashboard, and rear seats (no text or symbols)

WARNING

• Do not attach accessories to the door trim or near either SRS side airbags and do not place objects near the SRS side airbags. In the event of SRS side airbag deployment, they could be propelled dangerously toward the vehicle's occupants and cause injuries.
• Do not attach a hands-free microphone or any other accessory to a front pillar, a center pillar, a r pillar, the windshield, a side window, an assist grip, or any other cabin surface that would be near a deploying SRS curtain airbag. A hands-free microphone or other

accessory in such a location could be propelled through the cabin with great force by the curtain airbag, or it could prevent correct deployment of the curtain airbag. In either case, the result could be serious injuries.

Line drawing of a hanger with handle and frame, no text or symbols present

WARNING

Do not hang coat hangers or other hard or pointed objects on the coat hooks. If such items were hanging on the coat hooks during deployment of the SRS curtain airbags, they could cause serious injuries by coming off the coat hooks and being thrown through the cabin or by preventing deployment of the cur-

tain airbags.

Before hanging clothing on the coat hooks, make sure there are no sharp objects in the pockets. Hang clothing directly on the coat hooks without using hangers.

Diagram of a car interior showing steering wheel and dashboard (no text or labels)

WARNING

- Do not put any kind of clothes or other objects over either front seatback and do not attach labels or stickers to the front seat surface on or near the SRS side airbag. They could prevent proper deployment of the SRS side airbag, reducing protection available to the front seat's occupant.

- Do not install a seat cover unless it is a genuine SUBARU seat cover exclusively designed for use with the SRS airbag. Even when using a genuine SUBARU seat cover, the SRS side airbag system may not function normally if the seat cover is not installed correctly.

■ General precautions regarding SRS airbag system and children

Line drawing of two children seated in a car seat, one wearing a seatbelt (no text or symbols)

WARNING

Place children in the rear seat erly restrained at all times. The

rop- SRS

airbag deploys with considerable speed and force and can injure or even kill children, especially if they are not restrained or improperly restrained. Because children are lighter and weaker than adults, their risk of being injured from deployment is greater.

For that reason, we strongly recommend that ALL children (including those in child seats and those that have outgrown child restraint systems) sit in the REAR seat properly restrained at all times in a child restraint device or in a seatbelt, whichever is appropriate for the child's age, height and weight. Secure ALL types of child restraint systems (including forward facing child seats) in the REAR seats at a times.

According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions.

For instructions and precautions concerning the child restraint system, refer to "Child restraint systems" 1-26.

Illustration of a person lying in a car seat with a gear, no text or symbols present

WARNING

NEVER INSTALL A CHILD RE-STRAINT SYSTEM IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD ALBY PLACING THE CHILD'S HEAD TOO CLOSE TO THE SRS AIRBAG.

Illustration of two children interacting near a vehicle, no text or symbols present

WARNING

Never allow a child to stand up or kneel on the front passenger's seat. The SRS airbag deploys with considerable force and can injure or even kill the child.

Illustration of a child sitting on a chair facing an adult, both wearing face-to-face ties (no text or symbols)

WARNING

Never hold a child on your lap or your arms. The SRS airbag deploys with considerable force and can injure or even kill the child.

Illustration of a child sitting in a car seat using a seatbelt, no text or symbols present

Illustration of a person in a seatbelt, standing beside a vehicle (no text or symbols)

WARNING

- Never allow a child to do the following.

• Kneel on any passenger's seat facing the side window.
• Wrap his/her arms around the front seat seatback.
• Put his/her head, arms or other parts of the body out of the window.

In the event of an accident, the force of SRS side airbag and/or SRS curtain airbag deployment could injure the child seriously because his/her head, arms or other parts of the body are too close to the SRS side airbag and/or SRS curtain airbag.

- Since your vehicle is also equipped with a front passenger's SRS frontal airbag, children should be placed in the rear seat anyway and should be properly restrained at all times.

■ Components

1 2 3 4 5 3 102172

1) Driver's SRS frontal airbag
2) Front passenger's SRS frontal airbag
3) SRS side airbag
4) SRS curtain airbag
5) SRS knee airbag

The SRS airbags are stowed in the following locations.

Driver's SRS frontal airbag: in the center portion of the steering wheel A "SRS AIRBAG" mark is located at the pad of the airbag.

Front passenger's SRS frontal airbag: near the top of the dashboard under the "SRS AIRBAG" mark

SRS side airbag: in the door side of each front seat seatback which bears an "SRS AIRBAG" label

SRS curtain airbag: in the roof side (between the front pillar and a point behind the rear quarter glass)

"SRS AIRBAG" marks are located at the top of each center pillar.

SRS knee airbag: under the steering column

A "SRS AIRBAG" mark is located at the door of the airbag.

16 8 6 15 24 21 2 22 18 1 4 14 10 11 23 13 17 19 9 12 26 19 20 25 7 3 5 102216

1) Airbag control module (including impact sensor and rollover sensor)

2) Frontal airbag module (driver's side)

3) Frontal airbag module (front passenger's side)

4) Front sub sensor (left-hand side)

5) Front sub sensor (right-hand side)

6) Side airbag module (driver's side)

7) Side airbag module (front passenger's side)

8) Side airbag sensor (center pillar left-hand side)

9) Side airbag sensor (center pillar right-hand side)

10) Airbag wiring

11) Seatbelt pretensioner (driver's side)

12) Seatbelt pretensioner and adaptive force limiter (front passenger's side)

13) Curtain airbag sensor (rear wheel house right-hand side)

14) Curtain airbag sensor (rear wheel house left-hand side)

15) Curtain airbag module (right-hand side)

16) Curtain airbag module (left-hand side)

17) Seatbelt buckle switch (front passenger's side)

18) Knee airbag module (driver's side)

19) Front passenger's occupant detection system sensors

20) Front passenger's occupant detection control module

21) Front passenger's frontal airbag ON and OFF indicator

22) SRS airbag system warning light

23) Satellite safing sensor (under the rear center seat)

24) Front door impact sensor (left-hand side)

25) Front door impact sensor (right-hand side)

26) Lap belt pretensioner (front passenger's side)

■ SUBARU advanced frontal airbag system

Your vehicle is equipped with a SUBAR advanced frontal airbag system that complies with the new advanced frontal airbag requirements in the amended Federal Motor Vehicle Safety Standard (FMVSS) No. 208.

The SUBARU advanced frontal airbag system automatically determines the deployment force of the driver's SRS front airbag at the time of deployment as well whether or not to activate the front passenger's SRS frontal airbag and, if activated, the deployment force of the SRS frontal airbag at the time of deployment.

WARNING EVEN WITH ADVANCED AIR BAGS • Children can be killed or seriously injured by the air bag • The back meet is the settled place for children • Never put a man-boring child used in the front • Are you meet births and still normal • See owner's manual for more information about all bags AVERTISSEMENT MÈNE AVEC DES COUSSINS GONFLÉES INTELLIGENTS • Let vehicles put the bottle so blanche gourthy part of a carboxy, gourthy • Let berrages written out 'I' instead of plus air pour les fruits. • Have a man boute de 2.7 inches on the airway pour selective parts in carboxy. • Touges after the ventilation de airbags et des disposals d'entre pour wheel • Let me ensure that gasoline pour plus engine regurgements au long des moises gourthy. 102174

Your vehicle has warning labels on the driver's and front passenger's sun visors beginning with the phrase "EVEN WITH

ADVANCED AIR BAGS" and a tag attached to the glove box lid beginning with the phrase "Even with Advanced Air Bags". Make sure that you carefully read the instructions on the warning labels and tag.

Always wear your seatbelt. The SUBARU advanced frontal airbag system is a supplemental restraint system and must be used in combination with a seatbelt. Occupants should wear a seatbelt or be seated in an appropriate child restraint system.

For the locations of the SRS airbags, re to "Components" 1-50.

In a moderate to severe frontal collision the following components deploy.

• SRS frontal airbag for driver
• SRS frontal airbag for front passenger
• SRS knee airbag for driver
- SRS curtain airbag*

*1: When an offset frontal collision that is se enough to deploy the front airbag occurs.

These components supplement the seatbelts by reducing the impact to the occupant's head, chest and knees.

▼ Driver's SRS frontal airbag

The driver's SRS frontal airbag uses a stage inflator. The inflator operates in different ways depending on the severity

of impact.

102097

SRS airbag system warning light

If the SRS airbag system warning light illuminates, immediately stop the vehicle in a safe place, and consult a SUBARU dealer. Unless a technician checks and repairs the system as needed, the seatbelt pretensioners and/or the SRS airbag may not operate properly in the event of a collision, which could result in serious injury or death.

NOTE

The driver's SRS side airbag and SRS curtain airbag are not controlled by the SUBARU advanced frontal airbag system.

▼ Front passenger's SRS frontal air bag

The front passenger's SRS frontal airbag uses a dual stage inflator. The inflator operates in different ways depending on the severity of impact.

Line drawing of a car seat with a triangular load diagram and labeled seat number 102171 (no text or symbols on the diagram itself)

1) Occupant detection system sensors

The occupant detection system sensors are installed between the seat and seat rails, and monitor the physique and posture of the front passenger. Using this information, the occupant detection system determines whether the front passenger's SRS frontal airbag should be deployed or not.

The occupant detection system may not inflate the front passenger's SRS frontal airbag even when the driver's SRS front airbag deploys. This is normal. In this case, although the front passenger's SRS frontal airbag does not operate, the front passenger's seatbelt pretensioner operates with the driver's seatbelt pretensioner. For details about the seatbelt pretensioner, refer to "Seatbelt pretensioners" 1-21.

CAUTION

Observe the following precautions. Failure to do so may prevent the SUBARU advanced frontal airbag system from functioning correctly or cause the system to fail.

• Do not apply any strong impact to the front passenger's seat such as by kicking.
• Do not let rear passengers rest their feet between the front seat-back and seat cushion.
• Do not spill liquid on the front passenger's seat. If liquid is spilled, wipe it off immediately.
• Do not remove or disassemble the front passenger's seat.
• Do not install any accessory (such as an audio amplifier) other than a genuine SUBARU accessory under the front passenger

seat.

• Do not place anything (shoes, umbrella, etc.) under the front passenger's seat.
• Do not place any objects (books, etc.) around the front passenger's seat.
• Do not use the front passenger's seat with the head restraint removed.
• Do not leave any articles on the front passenger's seat or the seatbelt tongue and buckle engaged when you leave your vehicle.
• Do not put sharp object(s) on the seat or pierce the seat upholstery.
• Do not place a magnet near the seatbelt buckle and the seatbelt retractor.
• Do not use front seats with their forward-backward position and seatback not being locked into place securely. If any of them are not locked securely, adjust them again. For adjusting procedure, refer to "Forward and backward adjustment" 1-5 and "Reclining the seatback" 1-5.

102097

SRS airbag system warning light

If the seatbelt buckle switch and/or front passenger's occupant detection system have failed, the SRS airbag system warning light will illuminate. If the SRS airbag system warning light illuminates, immediately stop the vehicle in a safe place, and consult a SUBARU dealer. Unless a technician checks and repairs the system as needed, the seatbelt pretensioners and/or the SRS airbag may not operate properly in the event of a collision, which could result in serious injury or death. If your vehicle has sustained impact, this may affect the proper function of the SUBARU advanced frontal airbag system. Have your vehicle inspected at your SUBARU dealer. Do not use the front passenger's seat while driving the vehicle to your SUBARU dealer.

NOTE

The front passenger's SRS side airbag and SRS curtain airbag are not controlled by the SUBARU advanced frontal airbag system.

▼ Passenger's frontal airbag ON and OFF indicators

PASS AIR BAG OFF ON 102096

ON 📂: Front passenger's frontal airbag ON indicator

OFF: Front passenger's frontal airbag OFF indicator

Refer to "Front passenger's frontal airbag ON and OFF indicators" 3-15.

▼ Occupant detection system

Line drawing of a car seat with a triangular load diagram and labeled seat number 102171 (no text or symbols on the diagram itself)

1) Occupant detection system sensors

The occupant detection system sensors are installed between the seat and seat rails, and monitor the physique and posture of the front passenger. Using this information, the occupant detection system determines whether the front passenger's SRS frontal airbag should be deployed or not.

WARNING

Do not kick the front passenger seat or subject it to severe impact. Otherwise, the SRS airbag system warning light may illuminate to indicate a malfunction of the front passenger occupant detection system. In this

case, contact your SUBARU dealer immediately.

CAUTION

Electrical devices, such as cell phones, laptops, portable music players, or electronic games, especially when connected to the accessory power outlet and placed on the front passenger's seat or used by the person sitting in the front passenger's seat, may affect the operation of the occupant detection system. If either of the following situations occurs when using an electronic device in the vehicle, at first to relocate that device to avoid it creating any interference.

• The SRS airbag system warning light illuminates.
- The front passenger's frontal air-bag ON and OFF indicators operate erratically.

If the device continues to cause interference, the use of that device in the vehicle should be discontinued.

e 102097

a- SRS airbag system warning light If the front passenger's seat cushion is wet, this may adversely affect the ability the system to determine deployment.

Wipe off liquid from the seat, let the se dry naturally and then check the SRS airbag system warning light.

PASS AIR BAG OFF ON 102096

ON 📁2: Front passenger's frontal airbag ON indicator

of OFF Front passenger's frontal airbag OFF indicator

If the front passenger's frontal airbag ON and OFF indicators do not work properly even when the front passenger's seat is dry, do not allow anyone to sit on the front passenger's seat and have the occupant detection system checked by your SUBARU dealer.

PASS AIR BAG OFF ON 102096

Front passenger's frontal airbag ON indicator

: Front passenger's frontal airbag OFF indicator

Also, if luggage or electronic devices are placed on the front passenger's seat, this may adversely affect the ability of the system to determine deployment. This may prevent the front passenger's frontal airbag ON and OFF indicators from working properly. Check that the indicators work properly.

When the OFF indicator turns off and the ON indicator illuminates, the front passenger's frontal airbag may deploy during a collision. Remove luggage and electronic devices from the front passenger's seat.

▼ Conditions in which front passenger's SRS frontal airbag is not activated

The front passenger's SRS frontal airbag will not be activated when any of the following conditions are met regarding the front passenger's seat:

• The seat is empty.
  ● The seat is equipped with an appropriate child restraint system and an infant or a child is restrained in it. (See WARNING that follows.)
• The front passenger's occupant detection system is malfunctioning.

WARNING

NEVER INSTALL A CHILD RE-STRAINT SYSTEM IN THE FRONT SEAT EVEN IF THE FRONT PASSEN GER'S SRS FRONTAL AIRBAG IS DEACTIVATED. Be sure to install it in the REAR seat in a correct manner. Also, it is strongly recommended that any forward facing child seat o booster seat be installed in the REAR seat, and that even children who have outgrown a child restraint system be also seated in the REAR seat. This is because children sitting in the front passenger's seat may b killed or severely injured should the

front passenger's SRS frontal airbag deploy. REAR seats are the safest place for children.

CAUTION

When the front passenger's seat is occupied by an infant in an appropriate child restraint system, observe the following precautions. Failure to do so may interfere with the proper operation of the occupant detection system, activating the front passenger's SRS frontal airbag even though that seat is occupied by the infant in the child restraint system.

• Do not place any article (including electronic devices) on the seat other than the infant in the child restraint system.
• Do not place more than one infant in the child restraint system.

If the front passenger's frontal system.

airbag ON indicator illuminates 4. Turn the ignition switch to the "ON" and the OFF indicator turns off position and make sure that the front even when an infant or a small passenger's frontal airbag ON indicator child is in a child restraint system, turns off and the OFF indicator illuminates them (including booster seat)

PASS AIR BAG OFF ON 102096

ON 📁 Front passenger's frontal airbag ON indicator

OFF Front passenger's frontal airbag OFF indicator

1. Turn the ignition switch to the "LOCK" OFF" position.
2. Remove the child restraint system from the seat.
3. By referring to the child restraint manufacturer's recommendations as well as the child restraint system installation procedures in "Child restraint systems" 1-26, correctly install the child restraint

If still the ON indicator remains illuminate while the OFF indicator turns off, take the following actions.

• Ensure that no article is placed on the seat other than the child restraint system and the child occupant.
• Ensure that the backward-forward position and seatback of front passenger's seat are locked into place securely by moving the seat back and forth.

If the ON indicator still remains illuminate while the OFF indicator turns off after taking relevant corrective actions described above, relocate the child restraint system to the rear seat and immediately contact your SUBARU dealer for an inspection.

NOTE

When a child who has outgrown a restraint system or a small adult is seated in the front passenger's seat, the SUBARU advanced frontal airbag system may or may not activate the front passenger's SRS frontal airbag

depending on the occupant's seating posture. Children should always wear a seatbelt when sitting in the seat irrespective of whether the airbag is deactivated or activated. If the front passenger's SRS frontal airbag is activated (the ON indicator remains illuminated while the OFF indicator turns off), take the following action.

- Ensure that no article is placed on the seat other than the occupant.

If the ON indicator still remains illuminated while the OFF indicator turns off despite the fact that the actions noted above have been taken, seat the child/small adult in the rear seat and immediately contact your SUBARU dealer for an inspection. Even if the system has passed the dealer inspection, it is recommended that on subsequent trips the child/small adult always take the rear seat.

Children who have outgrown a child restraint system should always wear the seatbelt irrespective of whether the airbag childeactivated or activated.

▼ Conditions in which front passenger's SRS frontal airbag is activated

The front passenger's SRS frontal airbag will be activated for deployment upon impact when any of the following conditions are met regarding the front passenger's seat.

• When the seat is occupied by an adult.
• When certain items (e.g. jug of water) are placed on the seat.

If the passenger's frontal airb OFF indicator illuminates and ON indicator turns off even the front passenger's seat is occupied by an adult

PASS AIR BAG OFF ON 102096

ON 🐘2 Front passenger's frontal airbag ON indicator
OFF: Front passenger's frontal airbag OFF indicator

This can be caused by the adult incorre sitting in the front passenger's seat.

1. Turn the ignition switch to the "LOCK" OFF" position.

2. Ask the front passenger to set the seatback to the upright position, sit up straight in the center of the seat cushion, correctly fasten the seatbelt, position his/her legs out forward, and adjust the seat the rearmost position.

3. Turn the ignition switch to the "ON" position.

If the OFF indicator remains illuminated while the ON indicator remains off, take the following actions.

1. Turn the ignition switch to the "LOCK"/"OFF" position.
2. Make sure that the front passenger does not use a blanket, seat cushion, seat cover, seat heater or massager, etc.
3. If wearing excessive layers of clothing, the front passenger should remove any unnecessary items before sitting in the front passenger's seat, or should sit in a rear seat.
4. Turn the ignition switch to the "ON" position and wait 6 seconds to allow the system to complete self-checking. Following the system check, both indicators turn off for 2 seconds. Now, the ON indicator should illuminate while the OFF indicator remains off.

If the OFF indicator still remains illuminated while the ON indicator remains off, ask the occupant to move to the rear seat and immediately contact your SUBARU dealer for an inspection.

▼ Operation

Line drawing of a car interior showing seatbelt and dashboard (no text or symbols)

Line drawing of a car interior showing a person seated in a seatbelt, with no text or symbols present.

101586

A) Driver's side
B) Passenger's side
1) SRS AIRBAGs deploy as soon as a collision occurs.
2) After deployment, SRS AIRBAGs start to deflate immediately so that the driver's vision obstructed.

The SRS airbags can function only when the ignition switch is in the "ON" position.

The SUBARU advanced frontal airbag system is designed to determine the activation or deactivation condition of the front passenger's SRS frontal airbag depending on the characteristic of item(s) or person on the front passenger's seat monitored by the front passenger's occupant detection system sensor. For this reason, only the driver's SRS frontal airbag may deploy in the event of a collision, but this does not mean failure of the system.

If the following sensors detect a predetermined amount of force during a frontal collision, the control module sends signals to the airbag module(s) (only driver's module or both driver's and front passenger's modules) instructing the module(s) to inflate the SRS frontal airbag(s).

• The front sub sensors
- The impact sensors in the airbag control module

On the driver's side, the SRS knee airbag also inflates with the SRS frontal airbag.

The driver's and front passenger's SRS frontal airbags use dual stage inflators. The two inflators of each airbag are triggered either sequentially or simultaneously, depending on the severity of impact, in the case of the driver's SRS frontal airbag and depending on the severity of impact and the characteristic of item(s) or person on the seat in the of the front passenger's SRS frontal airbag.

▼ After deployment

After deployment, the SRS airbag immediately starts to deflate so that the driver vision is not obstructed and the driver's ability to maintain control of the vehicle not impaired. The time required from detecting impact to the deflation of the SRS airbag after deployment is shorter than the blink of an eye.

Both when only the driver's SRS frontal airbag deploys and the driver's and front passenger's SRS frontal airbags deploy, the driver's and front passenger's seat be pretensioners operate at the same time.

When the SRS airbag deploys, a sudden fairly loud inflation noise will be heard a some smoke will be released. These occurrences are a normal result of the deployment. This smoke does not indicate a fire in the vehicle.

CAUTION

Do not touch the SRS airbag system components around the steering wheel and dashboard with bare hands right after deployment. Doing so can cause burns because the components can be very hot as a result of deployment.

▼ Example of the type of accident

The driver's SRS frontal airbag and front passenger's SRS frontal airbag are de-signed as follows.

- To deploy in the event of an accident involving a moderate to severe frontal collision

- To function on a one-time-only basis

The driver's SRS frontal airbag and front passenger's SRS frontal airbag are not designed as follows.

- To deploy in most lesser frontal impacts ^*1

- To deploy in most side or rear impacts or in most rollover accidents*

1*1: Because the necessary protection can be achieved by the seatbelt alone.

*2: Because deployment of only the driver's SRS frontal airbag or both the driver's an front passenger's SRS frontal airbags

would not protect the occupant in those situations.

SRS airbag deployment depends on the level of force experienced in the passenger compartment during a collision. That level differs from one type of collision to another, and it may have no bearing on the visible damage done to the vehicle itself.

Example of accident in which the driver's/driver's and front passenger's SRS frontal airbag(s) will most likely deploy

Line drawing of a car approaching a surface with a broken edge and impact effect (no text or symbols)

101394

A head-on collision against a thick concrete wall at a vehicle speed of 12 to 19 mph (20 to 30 km/h) or higher activates only the driver's SRS frontal airbag or both driver's and front passenger's SRS frontal airbags. The airbag(s) will also be acti-

vated when the vehicle is exposed to a frontal impact similar in fashion and magnitude to the collision described above.

Examples of the types of accidents in which it is possible the driver's/driver's and front passenger's SRS frontal airbag(s) will deploy

Two cartoon illustrations showing a car collision with an explosion and a broken off object, no text or symbols present.

Only the driver's SRS frontal airbag or both driver's and front passenger's SRS frontal airbags may be activated when the vehicle sustains a hard impact in the undercarriage area from the road surface (such as when the vehicle plunges into a deep ditch, is severely impacted or knocked hard against an obstacle on the road such as a curb).

Examples of the types of accidents in which deployment of the driver's and front passenger's SRS frontal airbag(s) is unlikely to

1) The vehicle strikes an object, such as a telephone pole or sign pole. 2) The vehicle slides under the load bed of a truck.

1

4

Two cars with arrows indicating collision or damage, no text or symbols present

2

Diagram of a car being struck by a truck, showing impact and collision (no text or symbols)

5

Top-down line drawing of a car accident scene with two cars and a collision, no text or symbols present

3

101418

3) The vehicle sustains an oblique offset frontal impact.
4) The vehicle sustains an offset frontal collision.
5) The vehicle strikes an object that can move or deform, such as a parked vehicle.

There are many types of collisions which might not necessarily require deployment of driver's/driver's and front passenger's SRS frontal airbag(s). In the event of accidents like those illustrated, the driver's/driver's and front passenger's SRS frontal airbag(s) may not deploy depending on the level of accident forces involved.

Examples of the types of accidents in which the driver's/driver's and front passenger's SF frontal airbag(s) are not designed to deploy in most case

frontal airbags are not designed to deploy in most of the following cases.

3 If the vehicle is struck from the side from behind.

If the vehicle rolls onto its side or roof.

- If the vehicle is involved in a low-speed frontal collision.

yonce either or both of the driver's and front passenger's SRS frontal airbags is/are activated on the first impact, it/they will not be activated on the second impact.

■ SRS side airbag and SRS curtain airbag

Diagram illustrating vehicle collision and damage, showing top-down collision of a car with impact indicated by arrows.

The driver's and front passenger's SRS

1 2 1 101395

1) First impact

2) Second impact

In an accident where the vehicle is impacted more than once, the driver's and/or front passenger's SRS frontal airbag(s) will deploy only once on the impact.

Example: In the case of a double collision first with another vehicle, then against a concrete wall in immediate succession,

Line drawing of two men in a car, one seated and one standing, with no visible text or symbols

▼ SRS side airbag

The SRS side airbag is stored in the door side of each front seat seatback, which bears an "SRS AIRBAG" label.

In a moderate to severe side impact collision, the SRS side airbag on the impacted side of the vehicle deploys between the occupant and the door panel and supplements the seatbelt by reducing the impact on the occupant's chest and waist. The SRS side airbag operates only

for front seat occupants.

▼ SRS curtain airbag

Your vehicle is equipped with a SUBAR SRS curtain airbag system that complies with the Federal Motor Vehicle Safety Standard (FMVSS) No. 226.

The SRS curtain airbag on each side of cabin is stored in the roof side (between the front pillar and a point over the rear seat). An "SRS AIRBAG" mark is located at the top of each center pillar.

In a moderate to severe side impact collision, the SRS curtain airbag on the impacted side of the vehicle deploys between the occupant and the side window and supplements the seatbelt by reducing the impact on the occupant's head.

In a rollover, SRS curtain airbags on bo sides of the vehicle deploy between the occupant and the side window and supp ment the seatbelt by reducing the impac the occupant's head.

In an offset frontal collision, SRS curtain airbags on both sides of the vehicle dep between the occupant and the side window and supplement the seatbelt by reducing the impact to the occupant's head and chest.

▼ Operation

The SRS side airbag and SRS curtain jairbag can function only when the ignition switch is in the "ON" position.

The following airbags deploy independently of each other since each has its own impact sensor.

• Driver's SRS side airbag
• Front passenger's SRS side airbag
  • SRS curtain airbag (right-hand side)
  • SRS curtain airbag (left-hand side)

Therefore, they may not both deploy in the same accident. Also, the SRS side airbag and SRS curtain airbag deploys independently of the driver's and front passenger's SRS frontal airbags in the steering wheel and instrument panel.

An impact sensor, which senses impact force, is located in each of the following locations.

• In the left and right front doors
• In the left and right center pillars
In the left and right rear wheel houses
• Under the rear center seat

A rollover sensor is also located inside the airbag control module.

In cases of rollover accident or side collisions, the following components will operate simultaneously

Impact sensors affected		SRS side airbags SRS c		curtain airbags		Seatbelt pretensioner (shoulder belt pretensioner only)
		Impacted side	Non-impacted side	Impacted side	Non-impacted side	Impacted side	Non-impacted side
Both of the sensors together sense an impact force	Impact sensor in front doors	○—○—	○—
	Impact sensor under rear center seat
Both of the sensors together sense an impact force	Impact sensor in center pillars	○—○—	——
	Impact sensor under rear center seat
Both of the sensors together sense an impact force	Impact sensor in rear wheel houses	——○—	——
	Impact sensor under rear center seat
Rollover sensor in airbag control module		——○○○					○

○: Activated
—: Not activated

▼ After deployment

After the deployment, the SRS side airb immediately starts to deflate. The time required from detection of an impact to deflation of an SRS side airbag after deployment is shorter than the blink of eye.

The SRS curtain airbag remains inflated for a while following deployment then slowly deflates.

The SRS side airbag and SRS curtain airbag deploy even when no one occupies the seat on the side on which an impa applied.

When the SRS side airbag and SRS curtain airbag deploy, a sudden, fairly low inflation noise will be heard and some smoke will be released. These occurrences are a normal result of the deployment. This smoke does not indicate a f in the vehicle.

CAUTION

Do not touch the SRS side airbag system components around the front seat seatback with bare hand right after deployment. Doing so cause burns because the components can be very hot as a result deployment.

After deployment, do not touch any experienced in the passenger compartment of the SRS curtain airbag system during a side impact collision. That tem (from the front pillar to the packet) differs from one type of collision to of the roof side over the rear seat another, and it may have no bearing on the Doing so can cause burns because visible damage done to the vehicle itself.

the components can be very hot result of deployment.

▼ Example of the type of accident

The SRS side airbag and SRS curtain airbag are designed as follows:

- To deploy in the event of an accident involving a moderate to severe side impact collision

- To function on a one-time-only basis

The SRS side airbag and SRS curtain airbag are not designed to deploy in the following cases:

• In most lesser side impact

In most frontal or most rear impacts (because the SRS side airbag and SRS curtain airbag deployment would not protect the occupant in those situations)

The SRS curtain airbags are also designed to deploy when the vehicle is in an extremely inclined state such as during a rollover. They are not designed to deploy in most lesser inclined state.

SRS side airbag and SRS curtain airbag deployment depend on the level of force

^a ▽ Example of the type of accident in which the SRS side airbag will most likely deploy

1

Top-down line drawing of two cars with a lightning bolt indicating collision or damage (no text or symbols)

101369
1) A severe side impact near the front seat.

Examples of the types of accidents in which the SRS curtain airbag likely deploy

1

Top-down line drawing of two cars with arrows indicating collision or movement, no text or symbols present

2

Two identical line drawings of a car with wheels and headrests, shown from different angles (no text or symbols)

3

Simple line drawing of a car with motion lines indicating speed or collision (no text or symbols)

4

Simple line drawing of a car with a battery and lightning bolts above it (no text or symbols)

101789

1) The vehicle is involved in a severe side will impact near the front seat or the rear seat.
2) The vehicle rolls onto its side or the roof. 3) The angle of vehicle tip-up is marginal or the skidding vehicle's tires hit a curbstone laterally.
4) An offset frontal collision that is severe enough to deploy the front airbag.

Examples of the types of accidents in which it is possible that the airbag and the SRS curtain airbag will deploy

Cartoon illustration of a car emitting exhaust smoke, with no text or symbols present

Line drawing of a car on a surface with motion lines indicating speed or impact (no text or symbols)

Diagram showing a car collision with an arrow indicating motion direction (no text or symbols)

102055

1) Hitting a curb, edge of pavement or hard surface
2) Falling into or jumping over a deep hole
3) Landing hard or vehicle falling

It is possible that the SRS side and curtain airbags will deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration.

Examples of the types of accidents in which the SRS side airbag is unlikely to deploy

Simple line drawing of a car collision with an explosion (no text or symbols)

Top-down line drawing of two cars with cracks and a traffic sign, no text or symbols present

Line drawing of a car and a person riding a motorcycle, showing dynamic collision or damage (no text or symbols)

Line drawing of a car with a collision impact symbol (no text or labels)

Two hand-drawn car illustrations showing front and side views with no text or symbols

1) The vehicle is involved in an oblique side-on impact.
2) The vehicle is involved in a side-on impact in an area outside the vicinity of the passenger compartment.
3) The vehicle strikes a telephone pole or similar object.
4) The vehicle is involved in a side-on impact from a motorcycle.
5) The vehicle rolls onto its side or the roof.

There are many types of collisions which might not necessarily require SRS side airbag deployment. In the event of accidents like those illustrated, the SRS side airbag may not deploy depending on the level of accident forces involved.

101319

Examples of the types of accidents in which the SRS curtain airbag is unlikely to deploy

Line drawing of a car collision with impact on the side (no text or symbols)

2

Line drawing of two cars in a collision scenario, showing impact on the side (no text or symbols)

3

Line drawing of a car with a broken head and a starburst symbol (no text or labels)

4

Line drawing of a car and a person riding a motorcycle, no text or symbols present

101480

1) The vehicle is involved in an oblique side-on impact.
2) The vehicle is involved in a side-on impact in an area outside the vicinity of the passenger compartment.
3) The vehicle strikes a telephone pole or similar object.
4) The vehicle is involved in a side-on impact from a motorcycle.

There are many types of collisions which might not necessarily require SRS curtain airbag deployment. In the event of accidents like those illustrated, the SRS curtain airbag may not deploy depending on the level of accident forces involved.

Examples of the types of accidents in which the SRS side airbag and SRS curtain airbag are not designed to deploy in most cases

1 2 3 102056

1) The vehicle is involved in frontal collision with another vehicle (moving or station-

ary).

2) The vehicle is struck from behind.
3) The vehicle pitches end over end.

In the event of accidents like those illustrated, the SRS side airbag and SRS curtain airbag are not designed to deploy in most cases.

2 1 A B 101410

1) First impact
2) Second impact
A) SRS curtain airbag
B) SRS side airbag

In an accident where the vehicle is struck from the side more than once, the SRS side airbag and SRS curtain airbag depolly once on the first impact.

Example: In the case of a double side impact collision, first with one vehicle and immediately followed by another from the

same direction, once the SRS side airbag and SRS curtain airbag are activated on the first impact, they will not be activated on the second.

SRS airbag system monitors

Simple line drawing of a car head with two circular components and a small icon showing a person in motion (no text or symbols)

SRS airbag system warning light

A diagnostic system continually monitors the readiness of the SRS airbag system (including front seatbelt pretensioners) with the ignition switch in the "ON" position. The SRS airbag system warning light will show normal system operation by illuminating for approximately 6 seconds when the ignition switch is turned to the "ON" position.

The following components are monitored by the indicator:

• Front sub sensor
  ● Airbag control module (including impact sensor and rollover sensor)
• Frontal airbag module

- Driver's side

Front passenger's side

- Knee airbag module (driver's side)

- Side airbag sensor

- Front door impact sensor

- Side airbag module

- Curtain airbag sensor

- Curtain airbag module

- Satellite safing sensor (under the rear center seat)

- Seatbelt pretensioner (driver's side)

- Seatbelt pretensioner and adaptive force limiter (front passenger's side)

- Lap belt pretensioner (front passenger's side)

- Seatbelt buckle switch (front passenger's side)

- Front passenger's occupant detection system sensor

- Front passenger's occupant detection control module

- Front passenger's frontal airbag ON and OFF indicator

- All related wiring

WARNING

If the warning light exhibits any of the following conditions, immediately stop the vehicle in a safe plan and consult a SUBARU dealer. Unless a technician checks and repairs the system as needed, the seatbelt pretensioners and/or the SRS airbag will not operate properly in the eve of a collision, which may result in injury.

- Flashing or flickering of the warning light

- No illumination of the warning light when the ignition switch is first turned to the "ON" position

• Continuous illumination of the warning light

- Illumination of the warning light while driving

SRS airbag system servicing

WARNING

- When discarding an airbag module or scrapping the entire vehicle damaged by a collision, consult your SUBARU dealer.

- The SRS airbag has no user-serviceable parts. Do not use electrical test equipment on any circuit related to the SRS airbag, system. For required servicing of the SRS airbag, consult your nearest SUBARU dealer. Tampering with or disconnecting the system's wiring could result in accidental inflation of the SRS airbag or could make the system inoperative, which may result in serious injury.

CAUTION

If you need service or repair in areas indicated in the following list, have the work performed by an authorized SUBARU dealer. The SRS airbag control module, impact sensors and airbag modules are stored in these areas.

- Under the center of the instrument panel

- On both the right and left sides at the front of the vehicle

- Steering wheel and column and nearby areas

- Bottom of the steering column and nearby areas

• Top of the dashboard on front passenger's side and nearby areas
  • Each front seat and nearby area
  • Inside each center pillar
  • Inside each front door
• In each roof side (from the fro pillar to a point over the rear
• Between the rear seat cushion and rear wheel house on each side
  • Under the rear center seat

In the event that the SRS airbag is deployed, replacement of the system should be performed only by an autized SUBARU dealer. When the components of the SRS airbag system are replaced, use only genuine SUBARU parts.

NOTE

In the following cases, contact your SUBARU dealer as soon as possible.

• The front part of the vehicle was involved in an accident in which on the driver's SRS frontal airbag or bo driver's and front passenger's SRS frontal airbags did not deploy.
• The pad of the steering wheel, the cover over the front passenger's SRS

frontal airbag, or either roof side (from the front pillar to a point over the seat) is scratched, cracked, or otherwise damaged.

• The center pillar, front door, rear wheel house or rear sub frame, or a area near these parts, was involved an accident in which the SRS side airbag and SRS curtain airbag did not deploy.
• The fabric or leather of either front seatback is cut, frayed, or otherwise damaged.
• The rear part of the vehicle was involved in an accident in which no SRS airbag was deployed.

Precautions against vehicle modification

WARNING

To avoid accidental activation of the system or rendering the system inoperative, which may result in serious injury, no modifications should be made to any components or wiring of the SRS airbag system

This includes following modifications.
• Installation of custom steering

om wheels

• Attachment of additional trim materials to the dashboard
  • Installation of custom seats
  an • Replacement of seat fabric or in leather
  • Installation of additional fabric or not leather on the front seat
• Attachment of a hands-free microphone or any other accessory to a front pillar, a center pillar, a rear pillar, the windshield, a side window, an assist grip, or any other cabin surface that would be near a deploying SRS curtain airbag.
• Installation of additional electrical/electronic equipment such as a mobile two-way radio on or near the SRS airbag system components and/or wiring is not advisable. This could interfere with proper operation of the SRS airbag system.

CAUTION

Do not perform any of the following modifications. Such modifications can interfere with proper operation

- CONTINUED -

of the SRS airbag system.

• Attachment of any equipment (bush bar, winches, snow plow, skid plate, etc.) other than genuine SUBARU accessory parts to the front end.
• Modification of the suspension system or front end structure.
• Installation of a tire of different size and construction from the tires specified on the vehicle placard attached to the driver's door pillar or specified for individual vehicle models in this Owner's Manual.
• Attachment of any equipment (side steps or side sill protectors etc.) other than genuine SUBARU accessory parts to the side body

Always consult your SUBARU dealer if want to install any accessory parts on vehicle.

■ How to contact the vehicle manufacturer concerning modifications for persons with disabilities that may affect the advanced airbag system

Changing or moving any parts of the front seats, rear seat, seatbelts, front bumper, front side frame, radiator panel, instrument panel, combination meter, steering wheel, steering column, tire, suspension or floor panel can affect the operation of the SUBARU advanced airbag system. If you have any questions, you may contact the following SUBARU distributors.

Subaru of America, Inc. Customer Advocacy Department

One Subaru Drive BRO. Box 9103

Camden, NJ 08101-9877 1-800-SUBARU3 (1-800-782-2783)

Subaru Hawaii 2850-A Pukoloa St., Honolulu, HI 96819

877-215-0338

Shen's Corporation dba Prestige Automobiles

491 East Marine Corps Drive, Dededo, Guam 96929 671-633-2698

ntPuerto Rico> Trebol Motors 296 Marginal JF Kennedy, San Juan, Puerto Rico 787-793-2828

Subaru Canada, Inc.

Consumer Support Department 560 Suffolk Court, Mississauga, Ontario L5R 4J7 1-800-894-4212

There are currently no SUBARU distributors in any other U.S. territories. If you are in such an area, please contact the SUBARU distributor or dealer from which you bought your vehicle.

Keys and doors

Keys 2-2

Key number plate.... 2-2

Keyless access with push-button start system (if equipped) 2-2

Safety precautions 2-3

Locking and unlocking by holding the access key fob 2-6

Unlock using PIN Code Access 2-10

Power saving function 2-11

Power saving function of access key fob .....2-1

Disabling keyless access function.... 2-12

Selecting audible signal operation.... 2-13

Warning chimes and warning indicator.... 2-13

When access key fob does not operate properly ...

Replacing battery of access key fob....2-14

Replacing access key fob 2-14

Certification for keyless access with push-button start system.... 2-14

Immobilizer 2-15

Security indicator light....2-15

Key replacement 2-15

Certification for immobilizer system 2-16

Remote keyless entry system.... 2-17

Locking the doors....2-18

Unlocking the doors....2-18

Unlocking the rear gate....2-18

Vehicle finder function 2-18

Sounding a panic alarm 2-19

Setting audible signal operation (models without "keyless access with push-button start system") 2-19

Replacing the battery.... 2-19

Replacing lost transmitters 2-19

Certification for remote keyless entry system..... 2

Door locks.... 2-20

Locking and unlocking from the outside 2-20

Locking and unlocking from the inside 2-22

Automatic door locking/unlocking.... 2-22

Key lock-in prevention function 2-23

Battery drainage prevention function 2-23

2 Alarm system 2-24

Alarm system operation.... 2-24

Arming the system 2-25

Disarming the system 2-26

2-14 Alarm system setting.... 2-26

If you have accidentally triggered the alarm

system 2-26

Valet mode 2-27

Child safety locks.... 2-27

Windows.... 2-27

Power window operation.... 2-28

Initialization of power window with one-touch auto up/down function 2-30

Rear gate 2-30

Lock/unlock 2-31

Open/close 2-31

Moonroof (if equipped).... 2-32

Moonroof switches 2-32

Sunshade 2-33

Keys

NOTE

For models with "keyless access with push-button start system", refer to "Keyless access with push-button status system" 2-2.

The following keys are provided with the vehicle.

1 1 2 3 203953

1) Master key
2) Sub key
3) Key number plate
A key can be used in the following locations.
- Ignition switch
- Driver's door
- Glove box

NOTE

Locking/unlocking using the remote keyless entry system can also be controlled with the buttons on the key detailed information, refer to "Remo keyless entry system" 2-17.

CAUTION

Do not attach a large key holder of key case to either key. If it bangs against your knees while you are driving, it could turn the ignition switch from the "ON" position to the "ACC" or "LOCK" position, thereby stopping the engine.

■ Key number plate

The key number is stamped on the key number plate attached to the key set. Write down the key number and keep it in another safe place, not in the vehicle. The number is needed to make a replacement key if you lose your key or lock it inside vehicle. Refer to "Key replacement" 2-15.

Keyless access with push-button start system (if equipped)

*The following access key fobs are provided with the vehicle.

or 1 1 2 203954

1) Access key fob

2) Key number plate

The keyless access with push-button start system allows you to perform the following functions when you are carrying the access key fob.

• Locking and unlocking of the doors and rear gate. Refer to "Locking and unlocking by holding the access key fob" 2-6.
• Starting and stopping the engine. For detailed information, refer to "Starting and stopping engine (models with push-button

start system)" 7-12.

- Arming and disarming the alarm system. For detailed information, refer to "Alarm system" 2-24.

NOTE

- Locking/unlocking using the remote keyless entry system can also be controlled with the buttons on the access key fob. For detailed information, refer to "Remote keyless entry system" 2-17. - Carefully store the key number plate supplied with the access key fob. It is necessary for vehicle repair and additional registration of access key fobs. For details, refer to "Key replacement" 2-15.

An emergency key is attached to each access key fob.

1 2 202500

is) Release button
- 2) Emergency key

While pressing the release button of the access key fob, take out the emergency key.

The emergency key is used for the following operations.

- Locking and unlocking the driver's door

- Locking and unlocking the glove box

NOTE

The glove box can be kept locked by you leave your vehicle and the ace key fob (with the emergency key removed) at a parking facility.

■ Safety precautions

WARNING

If you wear an implanted pacemaker or an implanted defibrillator, stay at least 8.7 in (22 cm) away from the transmitting antennas installed on the vehicle.

The radio waves from the transmitting antennas on the vehicle could adversely affect the operation of implanted pacemakers and implanted defibrillators.

If you wear electronic medical equipment other than an implanted pace-maker or an implanted defibrillator, before using the keyless access with push-button start system, refer to "Radio waves used for the keyless access with push-button start system" mentioned later, and contact the electronic medical equipment manufacturer for more infor-

when. The radio waves from the transmitting antennas on the vehicle could adversely affect the operation of the electronic medical equipment.

"Radio waves used for the keyless access with push-button start system"

- The keyless access with push-button start system uses radio waves of the following frequency* in addition to the radio waves used for the remote key-less entry system. The radio waves are periodically output from the antennas installed on the vehicle as shown in the following illustrations.

* Radio frequency: 134 kHz

Technical diagram of a car interior with labeled components and structural layout

Diagram of a car showing two labeled parts (1) with arrows indicating movement or force vectors on the interior body.

1) Antennas

CAUTION

- Never leave or store the access key fob inside the vehicle or within 6.6 ft (2 m) around the vehicle (e.g., in the garage). The access key fob may be locked inside the vehicle, or the battery may discharge rapidly. Note that the push-button ignition switch may not turn on in some cases depending on the location of the access key fob.

- The access key fob contains electronic components. Observe the following precautions to prevent malfunctions.

• It is recommended to have the access key battery replaced at an authorized SUBARU dealer to avoid the risk of damage.
• Do not get the access key fob wet. If the access key fob gets wet, wipe it off immediately and let it dry completely.
• Do not apply strong impacts to the access key fob.
• Never leave the access key fob in direct sunlight or anywhere that may become hot, such as on the dashboard. It

may damage the battery or cause circuit malfunctions.

• Do not wash the access key fob in an ultrasonic washer.
• Do not leave the access key fob in humid or dusty locations. Doing so may cause malfunctions.
• Keep the access key fob aw from magnetic sources.
• Do not leave the access key fob near a personal computer or home electrical appliance.
• Do not leave the access key fob near a battery charger or any electrical accessories.
• Do not apply metallic window tint or attach metallic objects to the windows.
• Do not fit non genuine accessories or parts.

- If the access key fob is dropped, the integrated emergency key inside may become loose. Be careful not to lose the emergency k

- When traveling in an airplane, do not press the button of the access key fob. If any button of access key fob is pressed, radio waves are emitted and may affe

the operation of the airplane. When carrying the access key fob in a bag, take measures to prevent the buttons from being pressed accidentally.

NOTE

• The operational/non-operational setting for the keyless access function can be changed. For the setting procedure, refer to “Disabling keyless access function” 2-12.
• For detailed information about the operation method for the push-button ignition switch while the keyless access function is switched to the non-operational mode, refer to “Access key fob – if access key fob does not open properly” ≈9-17.
• The keyless access with push-button start system uses weak radio waves. The status of the access key fob and environmental conditions may interfere with the communication between the access key fob and the vehicle under the following conditions and it may not be possible to lock unlock the doors or start the engine
• When operating near a facility where strong radio waves are transmitted, such as a broadcast static

and power transmission lines

- When products that transmit radio waves are used, such as an access key fob or a remote transmitter key of another vehicle

- When carrying the access key fob of your vehicle together with the access key fob or the remote transmitter of another vehicle

- When the access key fob is placed near wireless communication equipment such as a cell phone

- When the access key fob is placed near a metallic object

- When metallic accessories are attached to the access key fob

- When carrying the access key fob with electronic appliances such as a laptop computer

- When the battery of the access key fob is discharged

- The access key fob is always communicating with the vehicle and is continuously using the battery.

Although the life of the battery varies depending on the operating conditions, it is approximately 1 to 2 years. If the battery becomes fully discharged, replace it with a new one.

If an access key fob is lost, it is recommended that all of the remaining access key fobs be reregistered. For

- CONTINUED -

reregistration of an access key fob, contact a SUBARU dealer.

• For a spare access key fob, contact SUBARU dealer.
• Up to 7 access key fobs can be registered for one vehicle.
• Do not leave the access key fob in the storage spaces inside the vehicle, such as the door pocket, dashboard, inside the corner of the cargo area. Vibrations may damage the key fob c turn on the switch, possibly resulting a lockout.
• After the vehicle battery is discharged or replaced, initialization of the steering lock system may be required to start the engine. In this can perform the following procedure to initialize the steering lock.

(1) Turn the push-button ignition switch to the "OFF" position. For details, refer to "Switching power status" 3-7.
(2) Open and close the driver's door.
(3) Wait for approximately 10 seconds.

When the steering is locked, the initialization is completed.

- Do not leave the access key fob in the following places.

• On the instrument panel
• On the floor
  a- Inside the glove box
• Inside the door trim pocket
• On the rear seat
• In the cargo area

If you do, the following situations may occur.

- The access key fob is mistakenly or locked inside the vehicle.

g in_ A false warning issues although no malfunction actually occurs.

- No warning issues even when any malfunction occurs.

■ Locking and unlocking by holding the access key fob

When the access key fob is carried within the operating range, the doors and the rear gate can be locked/unlocked just by touching the door handle.

NOTE

The vehicle can also be locked/unlocked with the remote keyless entry system. For details, refer to "Remote keyless entry system" 2-17.

▼ Operating ranges

2 1 2 2 1 2 203154

1) Antennas
2) Operating range (approximately 16 to 32 in (40 to 80 cm))

n ear 1 202501

1) LED indicator

When the access key fob is within either the operating ranges of the front doors, the LED indicator on the access key fob flashes. When the keyless access functions are disabled, the LED indicator does not flash unless a button on the access fob is pressed.

NOTE

- If the access key fob is placed too close to the vehicle body, the keyles access functions may not operate properly. If they do not operate properly, repeat the operation from further away.

- If the access key fob is placed neoperating ranges may be reduced, of the ground or in an elevated location, the keyless access function may not from the ground, even if it is in the operate. indicated operating range, the keyless in such a case, perform the proced access function may not operate prodescribed in "Locking and unlocking erly. 9-18.

- When the access key fob is within. The doors may lock or unlock with the operating range, it is possible for the car is being washed or exposed anyone, even someone who is not significant amount of water that can carrying the access key fob, to operate the door handle while the key the keyless access function. Note that is still in the operating range. the keyless access function can be

operated only by the door handle, door. How to lock and unlock lock sensor, rear gate opener button ltois possible to perform the following rear lock button in the operating range operations when you are carrying the in which the access key fob is detected as key fob.

- It is not possible to lock the doors. Lock and unlock the doors. and rear gate using the keyless access

function when the access key fob is inside the vehicle. However, depending on the status of the access key for the environmental conditions, the access key fob may be locked inside vehicle. Before locking the vehicle, make sure that you have the access key fob.

- When the battery of the access ke dob is discharged, or when operating in a location with strong radio wave noise (e.g., near a radio tower, power plant, broadcast station or an area where wireless equipment is used), while talking on a cell phone, the

operating ranges may be reduced, of the keyless access function may not operate. In such a case, perform the procedure described in "Locking and unlocking 9-18.

- The doors may lock or unlock what the car is being washed or exposed significant amount of water that conretts the door handle while the key ats still in the operating range.

How to lock and unlock It is possible to perform the following ngoperations when you are carrying the eatedss key fob.

s • Unlock and lock the rear gate.

NOTE

- It is not possible to lock the doors and rear gate using the keyless access function when the push-button ignition switch is in the "ACC" or "ON" position. Refer to "Switching power status" 3-

v7.

- If the door handle is gripped with a gloved hand, the door lock may not be released.

- If the door lock sensor is touched three times or more repeatedly, the system will ignore the sensor operation.

- When performing the locking procedure too quickly, locking may not have been completed. After performing the locking procedure, it is recommended to pull the REAR door handle to confirm that the doors have been locked.

- if any of the doors (or the rear gate) are not fully closed, the following will occur to alert you that the doors (or the rear gate) are not properly closed.

- An electronic chirp sounds five times.

- The hazard warning flashers flash five times.

- It is possible to lock the doors even when one of the doors is open. After

performing the locking procedure, close the opened door or rear gate lock it.

• Within 3 seconds after locking the doors and the rear gate by using the keyless access function, it is not possible to unlock doors and/or the rear gate by using the keyless access function.
• When locking, be sure to carry the access key fob to prevent locking the access key fob in the vehicle.
• The setting of the hazard warning flasher operation and the volume of the audible signal can be changed by your SUBARU dealer. Contact your SUBARU

dealer for details. Also, for models the combination meter display (color LCD), the setting of the hazard war flasher operation can be changed by operating the combination meter display (color LCD). For details, refer "Keyless Entry System" 3-41.

▼ Locking with the door lock sensor

to the s- nc the the 1 204282

Door lock sensor

▼ Locking with the rear lock button

Diagram showing a person cleaning a car with visible spray patterns and a close-up of the dashboard labeled '1' (203192).

1) Rear lock button

warry the access key fob, close all door including the rear gate, and touch the cmingk sensor on the door handle. All doy including the rear gate will be locked. A an electronic chirp will sound once and ahazard warning flashers will flash once.

sCarry the access key fob, close all doors including the rear gate and press the rear sock button. The rear gate and all doors will also locked. Also, an electronic chirp will beund once and the hazard warning flashers will flash once.

▼ Unlocking

Illustration of a car with a worker inspecting the front wheel, showing cleaning tools and a magnified inset (no text or symbols)

Carry the access key fob, and grip the following door handle.

• The driver's door handle: Either only the driver's door will unlock, all doors will unlock.
• The front passenger's door handle: All doors and rear gate will be unlocked.

Also, an electronic chirp will sound twice and the hazard warning flashers will flash twice.

▼ Unlocking rear gate

Diagram showing a person using a tool to adjust or install a car's front panel, with an inset highlighting the component '1' and date '203194'.

1) Rear gate opener button

Carry the access key fob, and press the rear gate opener button. Either only the rear gate will unlock, or all doors will unlock. Also, an electronic chirp will sound twice and the hazard warning flashers will flash twice.

▼ Door unlock selection function

When the door is unlocked using the keyless access function, only the doors that were set can be unlocked.

The settings can be changed with the following methods.

• The setting can be changed by operating the combination meter display (color LCD) (if equipped). Refer to "Keyless Entry System" 3-41.
• The setting can be changed by a SUBARU dealer.

■ Unlock using PIN Code Access

When all doors including the rear gate is locked, you can unlock the doors (including rear gate) without a key by pressing rear lock button.

Diagram showing a person cleaning a car with visible spray pattern and component labels, including a zoomed-in view of the front panel.

1) Rear lock button

NOTE

PIN Code Access will be helpful if key fob is accidentally left in the vehicle. It is recommended that a 5-digit security code (PIN code) be re-tered.

▼ Preparation for registering a PIN code

are. Turn off the ignition switch.

-2. Close all doors (including rear gate). 3. Press and hold the 🔒 button on the access key fob. Then all doors (including rear gate) will be locked.

1. Keep the "🔒" button pressed, and press the rear lock button within 5 seconds after step 3.

2. Press and hold the rear lock button more than 5 seconds. Confirm a chirp sound.

3. Release the 🔒 button and rear lock button.

4. Press the 🔒 button on the access ke fob while the chirp sounds.

Then the chirp will stop and the preparation is complete.

NOTE

Press the "button within 30 seconds of step 6 to end the preparation mode and move on to the registration stage

Unless the "button is pressed with 30 seconds after step 6, the PIN co registration will be canceled.

▼ Registration for a PIN code

For example, to register "32468" as the PIN code, perform the following procedure.

1. Press the rear lock button three times.
2. After a chirp sounds once, press the rear lock button twice.
3. After a chirp sounds once, press the rear lock button four times.
4. After a chirp (ding) sounds once, press the rear lock button six times.
5. After a chirp (ding) sounds once, press the rear lock button eight times.
6. Perform steps 1 to 5 again within approximately 30 seconds after the chirp starts sounding intermittently.
7. All doors will be unlocked and locked. Then the PIN code will be registered.

NOTE

- Press the rear lock button ten times [ ]senter "0".

deChange the PIN code frequently to protect your vehicle from theft.

If you have lent your vehicle to another person, confirm that the PIN code has not been changed or deleted. If the PIN code has been changed or deleted, reregister a new PIN code.

- If you make an error during the registration procedure, press the

or "button on the access key fob Unlocking

Then, start over from the procedure described in "Preparation for registering a PIN code".

- To protect your vehicle from theft, you cannot register a string of the five numbers together, such as "00000", nor "12345" as a PIN code

- Do not register your vehicle licens plate number or simple numbers such as "11122" or "12121" as a PIN co-Doing so will increase the risk of vehicle theft.

- When you try to register "22222", registered PIN code will be deleted. Y cannot unlock the doors by PIN Co Access until a new code is registered

- After registering a new PIN code, make sure that you can unlock the doors using the PIN code.

- The PIN code cannot be deleted while the keyless access function is disabled by operating the access ke fob.

- Reregister the PIN code in the following case.

• When you forget the PIN code
• When you want to change the PI code

Perform steps 1 to 5 described in "Reg"tration for a PIN code".

NOTE

same • You cannot unlock by PIN Code Access in the following cases.

- The access key fob is within operating ranges.

- The ignition switch is in the "ACC" or "ON" position.

- If you make an operation error during the unlocking procedure, start over with the unlocking procedure after waiting for 5 seconds or longer.

To protect your vehicle from theft, buzzer will sound if incorrect PIN co are entered five times continuously. this occurs, you cannot unlock the doors by PIN Code Access for 5 minutes.

■ Power saving function

The keyless access function will be disabled in the following cases to protect the access key fob battery and the vehicle battery.

- Case 1: When the keyless access function and the remote keyless entry system have not been used for 2 weeks or longer while all doors are locked.

Operate one of the following items to recover the keyless access function:

• Unlock the doors by operating any procedure other than gripping the front passenger's door handle.
• Lock the doors.
• Open a door and then close it.

the

- Case 2: When the access key fob has been left in the operating range for 10 minutes or longer while all doors are locked.

Operate one of the following items to recover the keyless access function:

- Unlock the doors by gripping the a door handle.

des – Unlock the doors by pressing the If rear gate opener button.

• Lock the doors by touching the door lock sensor.
• Lock or unlock the doors by using the remote keyless entry system.
• Lock or unlock the doors by using the power door locking switch.
• Open either of the front doors.

■ Power saving function of access key fob

This function stops the access key fob from receiving signals and helps minimize the battery consumption of the access key fob.

1. Press the "☐" button twice while holding the 🔒" button.

1 202501

1) LED indicator

1. Confirm that the LED indicator blinks times to notify that the setting is complete. When the access key fob is in the pow save mode, the keyless access function and push-button start system will not be available.

To cancel the power save mode, press of the buttons on the access key fob.

c■ Disabling keyless access function

WARNING

If you wear an implanted pacemaker or an implanted defibrillator, perform the procedure described in "By operating the driver's door" 2-13 to disable the keyless access function. If you perform the procedure described in "By operating the access key fob" 2-12, the operation of an implanted pacemaker or implanted defibrillator may be affected by the radio waves from the transmitter antenna.

When the vehicle is not going to be used for a long time, or when you choose not to use the keyless access function, the keyless access function can be disabled.

NOTE

The locking and unlocking function by the remote keyless entry system not disabled.

- To start the engine while the functions are disabled, perform the procedure described in "Starting engine" 9-18.

▼ Disabling functions

By operating the access key fob If you have registered a PIN code for PIN Code Access, you can disable the keyless access function by operating the access key fob. For details about registering a PIN code, refer to "Preparation for registering a PIN code" 2-10.

s1. Open the driver's door.

1. Rotate the lock lever toward the lock position.

202646

1. Press and hold the " " button and " " button on the access key fob simultaneously for more than 5 seconds.

A chirp sound will be heard, and the function will be disabled.

∇ By operating the driver's door

1. Sit in the driver's seat, and close the door.

Line drawing of a car interior with a highlighted component (no text or symbols)

1. Push "☐" of the power door locking switch.
2. Within 5 seconds after step 2 is performed, open the driver's door.
3. Within 5 seconds after step 3 is performed, push "☐" of the power door locking switch twice while the door is
4. Within 10 seconds after step 4 is performed, close and open the driver's door twice.
5. Within 10 seconds after step 5 is performed, push "☐" of the power door locking switch twice while the door is
6. Within 10 seconds after step 6 is performed, close and open the driver's

door once.

1. Within 5 seconds after step 7 is performed, close the door.

A chirp sound will be heard, and the functions will be disabled.

NOTE

In steps 4 and 6, press the power locking switch slowly. If the switch pressed quickly, the functions may be disabled.

▼ Enabling functions

When the procedure to disable the functions is performed again, a chirp sound be heard, and the functions are enabled

NOTE

- The keyless access function will be enabled only if you perform the procedure in the same manner you disable the function (for example, when disabling by operating the driver's door, the function will not be enabled ever you operate the access key fob).

- Press the push-button ignition switch if you do not know the procedure in which the keyless access function was disabled.

open. - When disabling by operating the driver's door: A chirp will not be heard.

- When disabling by operating the access key fob: A chirp will be heard.

■ Selecting audible signal operation

Using an electronic chirp, the system will give you an audible signal when the doors lock and unlock. If desired, you may turn the audible signal off. For more details, contact a SUBARU dealer.

NOTE

For models with the combination meter display (color LCD), the setting can be changed by operating the combination meter display (color LCD). For details, refer to "Vehicle Setting" 3-41.

■ Warning chimes and warning led indicator

The keyless access with push-button start 'system sounds a warning chime and flashes the access key warning indicator on the combination meter in order to minimize improper operations and help protect your vehicle from theft.

For details, refer to "Warning chimes and warning indicator of the keyless access with push-button start system" 3-24.

■ When access key fob does not operate properly

Refer to "Access key fob - if access key fob does not operate properly" 9-17.

■ Replacing battery of access key fob

Refer to "Replacing battery of access ke fob" 11-46.

■ Replacing access key fob

Access key fobs can be replaced at SUBARU dealers. For more details, contact a SUBARU dealer.

■ Certification for keyless access with push-button start system

• U.S.-spec. models

FCC ID: HYQ14AHK

FCC ID: Y8PFJ16-1

FCC ID: Y8PSSPIMB02

CAUTION

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment.

NOTE

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• Canada-spec. models

NOTE

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

REMARQUE

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

REMARQUE

The immobilizer system is designed to prevent an unauthorized person from starting the engine. Only keys registered with your vehicle's immobilizer system can be used to operate your vehicle. If engine start is attempted with an unregistered access key fob or key, the engine will not start. Even if the engine does start, it will stop after a few seconds. This system, however, is not a 100% anti-theft guarantee.

CAUTION

• Do not place the key under direct sunlight or anywhere it may become hot.
• Do not get the key wet. If the gets wet, wipe it dry with a immediately.
• Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guaranteed.

NOTE

• To protect your vehicle from theft, please pay close attention to the following security precautions:

• Never leave your vehicle unattended with its keys inside.
• Before leaving your vehicle, close all windows and the moon-roof, and lock the doors and rear gate.

- Do not leave spare keys or any record of your key number in the vehicle.

- The vehicle has a maintenance-free type immobilizer system.

■ Security indicator light

Refer to "Security indicator light" 3-29.

Key replacement

Your key number plate will be required if you ever need a replacement key made. Any new key must be registered for use with your vehicle's immobilizer system before it can be used. The maximum number of keys that can be registered for use with one vehicle is as follows.

- Four (models without "keyless access with push-button start system")

- Seven (models with "keyless access with push-button start system")

One key that has already been registered is required in order to register a new key

NOTE

If you lose a key, the lost key's ID still remains in the memory of the vehicle's immobilizer system. For security reasons, the lost key's ID code should be erased from the memory. erase the lost key's ID code, all key that will be used are required.

For details about new key registration and erasing the lost key's ID code, contact your SUBARU dealer.

■ Certification for immobilizer system

• For models with "keyless access with push-button start system": Refer to "Certification for keyless access with push-button start system" 2-14.
• For models without "keyless access with push-button start system":
• U.S.-spec. models

FCC ID: Y8PFJ16-2

CAUTION

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE

This device complies with part 15 of FCC Rules. Operation is subject to following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

- Canada-spec. models

NOTE

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

REMARQUE

Remote keyless entry system

CAUTION

• Do not expose the remote transmitter to severe shocks, such as those experienced as a result of dropping or throwing.
• Do not take the remote transmitter apart except when replacing the battery.
• Do not get the remote transmitter wet. If it gets wet, wipe it dry a cloth immediately.
• When you carry the remote transmitter on an airplane, do not press the button of the remote transmitter while in the airplane. When any button of the remote transmitter is pressed, radio waves are sent and may affect the operation of the airplane. When you carry the remote transmitter in a bag on an airplane, take measures to prevent the buttons of the remote transmitter from being pressed.

1 2 3 4

202502

with Access key fob

1) Lock/arm button
2) Unlock/disarm button
3) Rear gate unlock button
4) PANIC button

1 2 3 4 PANIC 202238

Transmitter

1) Lock/arm button
2) Unlock/disarm button
3) Rear gate unlock button
4) PANIC button

The remote keyless entry system has the following functions.

• Locking and unlocking the doors (and rear gate)
• Unlocking the rear gate
• Sounding a panic alarm
• Arming and disarming the alarm system. For detailed information, refer to "Alarm system" 2-24.

The operable distance of the remote key-less entry system is approximately 30 feet (10 meters). However, this distance will vary depending on environmental condi-

- CONTINUED -

tions. The system's operable distance will be shorter in areas near a facility or electronic equipment emitting strong radio waves such as a power plant, broadcast station, TV tower, or remote controller of home electronic appliances.

NOTE

• For models with "keyless access with push-button start system", the remote keyless entry system will not be activated when the push-button ignition switch is in any position other than the "OFF" position.
• For models without "keyless access with push-button start system", the remote keyless entry system will not be activated when the key is inserted the ignition switch.

• The hazard warning flashers will flash once or twice when the acces key fob/transmitter button is pressed the following cases.

• When locking the doors

• When unlocking the doors
• When unlocking the rear gate

Operation of the hazard warning flashers in the above cases can be to "On" or "Off" by a SUBARU deal. Consult your SUBARU dealer for details.

■ Locking the doors

Press the lock/arm button to lock all c and rear gate. An electronic chirp will sound once and the hazard warning flashers will flash once.

If any of the doors (or the rear gate) are fully closed, the following will occur to all you that the doors (or the rear gate) are properly closed.
- An electronic chirp sounds five times.
- The hazard warning flashers flash five times.
When you close the door, it will automatically lock and then the following will occur • An electronic chirp sounds once.
the hazard warning flashers flash once.

■ Unlocking the doors

Press the unlock/disarm button to unlock the driver's door. An electronic chirp will sound twice and the hazard warning flashers will flash twice. To unlock all do and the rear gate, briefly press the unlock disarm button a second time within 5 seconds.

NOTE

If the interval between the first and second presses of the unlock/disarm

button (for unlocking of all of the doors and the rear gate) is extremely short, the system may not respond.

■ Unlocking the rear gate

Press the rear gate unlock button to unlock the rear gate.
Anotelectronic chirp will sound twice and the hazard warning flashers will flash twice.

■ Vehicle finder function

Use this function to find your vehicle parked among many vehicles in a large parking lot. Provided you are within 30 feet (10 meters) of the vehicle, pressing the lock/arm button three times in a 5-second period will cause your vehicle's horn to sound once and its hazard warning flashers to flash three times.

NOTE

If the interval between presses is too short when you press the lock/arm button three times, the system may not respond to the signals from the remote transmitter.

■ Sounding a panic alarm

To activate the alarm, press the "PANIC" button once.

The horn will sound and the hazard warning flashers will flash.

To deactivate the panic alarm, press any button on the remote transmitter. Unless button on the remote transmitter is pressed, the alarm will be deactivated after approximately 30 seconds.

Diagram of a car interior showing a handle panel with a highlighted component (no text or symbols)

Setting audible signal operation (models without "keyless access with push-button start system")

Using an electronic chirp, the system will give you an audible signal when the door lock and unlock. If desired, you may turn the audible signal off.

Perform the following steps to deactivate the audible signal. You can also use the same steps to restore the function.

1. Sit in the driver's seat and shut all doors and the rear gate.

2. Hold down " of the power door locking switch.

3. While holding down "☐" of the power door locking switch, pull the key out an insert it into the ignition switch at least times within 10 seconds after Step 2.

4. Open and close the driver's door one within 10 seconds after Step 3.

5. The hazard warning flashers flash 3 times to indicate completion of the setting

Your SUBARU dealer can perform the above procedure for you. Also, for models with a combination meter display (color LCD), the setting can be changed using the display. For details, refer to "Vehicle Setting" or 3-41.

■ Replacing the battery

Refer to "Replacing key battery" 11-45.

■ Replacing lost transmitters

If you lose a transmitter or want to purchase additional transmitters (up to four can be programmed), your transmitters should be reprogrammed for security reasons. For details, contact your SUBARU dealer and have the transmitters programmed into the remote keyless entry system.

■ Certification for remote key-less entry system

▼reU.S.-spec. models

FCC ID: CWTB1G077

FCC ID: CWTD1G141

CAUTION

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

▼ Canada-spec. models

NOTE

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

REMARQUE

■ Locking and unlocking from the outside

NOTE

If you unlock the driver's door with a key (including an emergency key) and open the door while the alarm system is armed, the alarm system is triggered and the vehicle's horn sounds. In this case, perform any of the following operations:

- Models with "keyless access with push-button start system":

• Press any button on the access key fob (except when the access key fob battery is discharged).
• Press the push-button ignition switch to "ACC".

- Carry the access key fob and perform either of the following procedures.

• Grip the front door handle.
• Press the rear gate opener button.

- Models without "keyless access with push-button start system":

- Press any button on the remote transmitter (except when the transmitter battery is discharged).

- Insert the key into the ignition direction that the grooved side is facing ▼ Locking using power door locking switch and turn the ignition switch and insert it again.

to "ON".

For details about the alarm system, refer to "Alarm system" 2-24.

▼ How to lock and unlock the vehic by using the key

Technical line drawing of a mechanical clamp or clip assembly (no text or symbols)

1) Rotate the key toward the front to lock. 2) Rotate the key toward the rear to unlock

In this case, only the driver's side door locked.

NOTE

Models with "keyless access with push-button start system":

The emergency key is directional. If key cannot be inserted, change the

▼ How to lock the vehicle without using the key

To lock the door from outside without the key, the following methods are available.

▼ Locking using lock lever

1 2 202958

1) Rotate the lock lever forward. 2) Close the door.

In this way, only the door that was open will be locked.

the

1 2 202959

1) Press the lock side of the power door locking switch.*
2) Close the door.
*: For details about the power door locking switch, refer to "How to operate the power door locking switches" 2-22.

In this case, all closed doors and the rear gate are locked at the same time.

ated NOTE

Make sure that you do not leave the k inside the vehicle when locking the doors from the outside without the key.

■ Locking and unlocking from the inside

▼ How to use the lock lever

1 2 202960

1) Rotate the lock lever rearward to unlock
2) Rotate the lock lever forward to lock.

Always make sure that all doors and the rear gate are closed before starting to drive.

The red mark on the lock lever appears when the door is unlocked.

WARNING

- Keep all doors locked when you drive, especially when small children are in your vehicle. Along with the proper use of

seatbelts and child restraints, locking the doors reduces the chance of being thrown out of the vehicle in an accident. It also helps prevent passengers from falling out if a door is accidentally opened, and intruders from unexpectedly opening doors and entering your vehicle.

- Do not pull the front door handle from inside while driving. The door could open even if it is locked.

▼ How to operate the power door locking switches

All doors and the rear gate can be lock and unlocked using the power door lock switches located at the driver's side and the front passenger's side doors.

1 2 202961

Example

1) Press to lock.
2) Press to unlock.

NOTE

Make sure that you do not leave the key inside the vehicle before locking the doors from the outside using the power door locking switches.

■ Automatic door locking/un-locking

All doors are automatically locked or unlocked under the following conditions.

- For automatic door locking - When the vehicle speed reaches 12 mph (20 km/h) or higher (factory default setting).

- When the select lever is shifted in a position other than the "P" position (CVT models).

• For automatic door unlocking
• When the driver's door is open (factory default setting).
• When the ignition switch is turned the "OFF" position.
• When the select lever is shifted into the "P" position (CVT models).

NOTE

• The automatic door locking/unlocking function can be changed by a SUBARU dealer. Consult your SUBA dealer for details. Also, for models a combination meter display (color LCD), the setting can be changed in the display. For details, refer to "A Door Lock and Unlock" 3-42.
• When locking the door by operating the power door locking switches, automatic door locking will not operate.
• When unlocking the door by operating the power door locking switches automatic door unlocking will not operate.
• When getting out of the vehicle from a rear door, make sure to unlock a doors by pushing the unlock side of power door locking switch. If a rear door is unlocked from the inside door

dever then the door is opened and closed, the Key lock-in prevention function will be triggered. All doors be unlocked, the Key lock-in prevent warning indicator "will appear an the warning chime will also sound. to

Under the following conditions, all the doors will not lock when the power door locking switch is pushed with the front open.

The key is still in the ignition switch (models without "keyless access with push-button start system").
The ignition switch is in the "ACC" or "ON" position (models with "keyless access with push-button start system").

NOTE

- When leaving the vehicle, make you are holding the key before lock, the doors.

The factory setting (default setting) for this function is set as "operatio

This function's operational/non-operational setting can be changed by a SUBARU dealer. Contact a SUBARU dealer for details.

or

▼ Non-operation of key lock-in prevention function

when the system is set so that it does not operate, the doors are locked by the following operation.

• If the lock lever is turned to the front ("LOCK") position with the driver's door open and the driver's door is then closed with the lock lever in that position, the driver's door is locked.
• If the spare key is used to lock the driver's door from the outside of the vehicle, the door is locked.

■ Battery drainage prevention function

If a door or the rear gate is not completely closed, the interior lights will remain illuminated as a result. However, several lights are automatically turned off by the battery drainage prevention function to prevent the battery from discharging. The following interior lights are affected by this function.

al”- Item	Switch position	Automatically turning off
Map lights	DOOR	Approximately 20 minutes later
Dome light	DOOR	Approximately 20 minutes later
Item	Switch position	Automatically turning off
Ignition switch light	—	Approximately 20 minutes later
Cargo area light	DOOR	Approximately 20 minutes later
Rear gate light (if equipped)	DOOR	Approximately 20 minutes later

NOTE

• The default setting for this function is set as "operational". The operation non-operational setting of this function can be changed by a SUBARU deal. Contact your SUBARU dealer to change the setting.
• When leaving the vehicle, please make sure that all doors and the gate are completely closed.
• The battery drainage prevention function does not operate while the key is in the ignition switch.

Alarm system

The alarm system helps to protect your vehicle and valuables from theft. The ho sounds and the hazard warning flashers flash if someone attempts to break into your vehicle.

For models with "keyless access wipush-button start system":

The system can be armed or disarmed with the keyless access function or accnably fob.

The system will not be activated when push-button ignition switch is in the "AC or "ON" position.

For models without "keyless access with push-button start system":

The system can be armed or disarmed with the remote transmitter.

The system will not be activated when key is inserted into the ignition switch.

Your vehicle's alarm system has been set for activation at the time of shipment from the factory. You can set the system for deactivation yourself or have it done by your SUBARU dealer.

■ Alarm system operation

When the alarm system is armed, it is triggered by opening any of the doors, rear gate or engine hood.

The alarm system will activate the following alarms when triggered.

• The vehicle's horn will sound for 30 seconds.
  ● The hazard warning flashers will flash for 30 seconds.

If any of the doors, rear gate or engine hood remains open after the 30-second period, the horn will continue to sound for a maximum of 3 minutes. If the door, rear gate or engine hood is closed while the horn is sounding, the horn will stop sounding with a delay of up to 30 seconds.

NOTE

The alarm system can be set to trigger the illumination of the following interior lights.

● Map lights (illuminates only when the door interlock switch is in the "DOOR" position)

• Dome light (illuminates only when the dome light switch is in the “DOOR” position)
• Cargo area light (illuminates only when the cargo area light switch is in the "DOOR" position)

The notifications regarding the map lights, dome light and cargo area light are deactivated as the factory setting SUBARU dealer can activate the system. Contact your SUBARU dealer for details.

■ Arming the system

The alarm system becomes armed when the following operation is performed.

1. Close all windows and the moonroof equipped) and turn the ignition switch to the "OFF" position.
2. Carry the key and get out of the vehicle.
3. Make sure that the engine hood is closed.

4. Lock the doors using any of the following methods.

5. Locking using the remote keyless entry system. For details, refer to "Remote keyless entry system" 2-17

6. Locking using the keyless access function (if equipped). For details, refer to "Locking with the door lock sensor 2-8.
7. Locking using the power door locking switch. For details, refer to "Lock using power door locking switch" 2-21.

NOTE

Security indicator light

• All doors and the rear gate will lodR an electronic chirp will sound once, the hazard warning flashers will flash once and the security indicator light will sta flashing rapidly.
• If any of the doors or the rear gate not fully closed, an electronic chirp sounds five times, the hazard warning flashers flash five times to alert you to the doors (or the rear gate) are not properly closed. When you close the door, doors will automatically lock.
• Approximately 30 seconds later, the system will enter surveillance state.

When the system is in surveillance state, the security indicator light will then flash slowly (twice approximately every 2 seconds), indicating that the system has been armed for surveillance.

NOTE

- The system can be armed even if the windows and/or moonroof are open. Always make sure that they are fully closed before arming the system.

- The 30-second standby time can be eliminated if you prefer. Have it performed by your SUBARU dealer.

- If any of the following actions is done during the standby period, the system will not switch to the surveillance state.

the- Doors (including the rear gate)
ice, are unlocked using the access key
startfob/remote transmitter.

- Doors (including the rear gate) state are unlocked using the keyless access function (models with "keying less access with push-button start in that system").

- Any door (including the rear gate) is opened.

- The ignition switch is turned to the "ON" position (models without "keyless access with push-button start system").

- Push-button ignition switch is turned to the "ACC" position (mels with "keyless access with pu button start system").

■ Disarming the system

Perform either of the following procedure

• Briefly press a button (for less than 2 seconds) on the access key fob/remote transmitter.

• Carry the access key fob and perform either of the following procedures (mode with "keyless access with push-button start system").

• Grip the front door handle.

• Press the rear gate opener button
• Unlock using the PIN code access

The flashing of the security indicator light will then change slowly (once approximately every 3 seconds from twice approximately every 2 seconds), indicating that the alarm system has been disarmed

▼ Emergency disarming

If you cannot disarm the system using the access key fob/transmitter (i.e. the transmitter is lost, broken or the transmitter battery is too weak), you can disarm the system without using the access key for remote transmitter.

The system can be disarmed if you turn the

ignition switch from the "LOCK"/"OFF" to the "ON" position with a registered key/ success key fob.

NOTE

For models with "keyless access with push-button start system", if the access key fob battery is discharged, perform the procedure described in "Switching power status" 9-18. In such a case, replace the battery immediately. Refer to "Replacing battery of access key fob" 11-46.

■ Alarm system setting

To change the setting of your vehicle's alarm system for activation or deactivation, do the following.

1. Disarm the alarm system. Refer to "Disarming the system" 2-26.
2. Sit in the driver's seat and shut all doors, rear gate and engine hood.
3. Turn the ignition switch to the "ON" position.
4. Hold down "a" of the driver's power door locking switch, open the driver's door within the following 1 second, and wait seconds without releasing the switch. The setting will then be changed as follows.

- Type A combination meter

Setting status	Combination meter display	Horn
Activate	ALon	Once
Deactivate	ALoF	Twice

- Type B combination meter

Setting status	Combination meter display	Horn
Activate	AL ON	Once
Deactivate	AL OFF	Twice

NOTE

You may have the above setting change done by your SUBARU dealer.

■ If you have accidentally triggered the alarm system

▼ To stop the alarm

Do any of the following operations:

• Press any button on the access key fob/remote transmitter.
• Turn the ignition switch to the "ON" position (models without "keyless access with push-button start system").
• Turn the push-button ignition to the "ACC" position (models with "keyless access with push-button start system").

NOTE

Only registered keys will stop the alarm. If the immobilizer transponder is not registered, the alarm will not stop.

■ Valet mode

When you choose the valet mode, the alarm system does not operate. In valet mode, the remote transmitter is used only for locking and unlocking the doors and rear gate and panic activation.

To enter the valet mode, change the setting of your vehicle's alarm system for deactivation mode. Refer to "Alarm system setting" 2-26. The security indicator light will continue to flash once every 3 seconds indicating that the system is in the valet mode.

To exit valet mode, change the setting of your vehicle's alarm system for activation mode. Refer to "Alarm system setting" 26.

Child safety locks

LOCK 202995

Each rear door has a child safety lock. When the child safety lock lever is in the lock position, the door cannot be opened from inside. The door can only be opened from the outside.

WARNING

Always turn the child safety locks the "LOCK" position when children sit in the rear seat. Serious injury could result if a child accidentally opens the door and falls out.

Windows

WARNING

To avoid serious personal injury caused by entrapment, always conform to the following instructions without exception.

• When operating the power windows, be extremely careful to prevent anyone's body parts or any other objects from being caught in the window.
• Always lock the passengers' windows using the lock switch when children are riding in the vehicle.
  ● Always carry the key when you leave the vehicle for safety reasons and never allow an unattended child to remain in the vehicle. Failure to follow this procedure could result in injury to a child operating the power window.

NOTE

- If the power window system detects resistance, an impact or abnormality, the window operation may be automatically stopped to prevent further jam-

- CONTINUED -

ming, entrapment or malfunction.

• The closing window slides down slightly and stops.
• The opening window stops sliding down.

- The power window system may detect resistance, an impact or an abnormality in the following cases.

• A substantial sized object is caught between the window and the window frame.
• A foreign object is caught between the window and the window frame.
• The vehicle drives over a deep pothole.

- The window cannot be closed for few seconds after the window is automatically stopped by the system.

■ Power window operation
▼ Power window switches
- Driver's side power window switches:

1 2 3 4 5 202962

1) For front left window (with one-touch au up and down feature)
2) For front right window (with one-touch auto up and down feature)
3) For rear left window
4) For rear right window
5) Lock switch

All door windows can be controlled by the power window switch cluster at the driver side door.

The switch illuminates when activated.

- Passenger's side power window switches:

Line drawing of a car's side panel with no text or symbols

Each passenger's window can be controlled by the power window switch located on the door.

The switch illuminates when activated.

▼ Operating the window

- With one-touch auto up and down feature:

1 2 3 4 202972

1) Automatically close*
2) Close
3) Open
4) Automatically open*
*: To stop the window halfway, operate the switch to opposite side.

- Without one-touch auto up and down feature:

1 2 202973

1) Close
2) Open

NOTE

Avoid the following.

• Continuously operating a switch in the same direction after the window fully closed or fully opened.
• Continuously operating three or more switches all at once in the direction after the windows are fully closed or fully opened.

Either of the operations described above may cause the power window breaker to operate making it impossible to open or close the window. Be s initialize the power windows. If they

not initialized, the one-touch auto up/down function will not operate. Refer to "Initialization of power window with one-touch auto up/down function" 2-30.

▼ Anti-entrapment function (windows with one-touch auto up/down function)

While closing the window automatically, if the window senses a substantial enough object trapped between the window and the window frame, it automatically moves down slightly and stops.

If a foreign object is caught while the window is opening automatically, the window will stop.

CAUTION • Never attempt to test the power window operation using body is parts. • The anti-entrapment function may not operate properly if so object gets trapped just before the window fully closes.

NOTE

If a window detects an impact similar to that caused by trapping an object (for example, when the vehicle encounters

- CONTINUED -

a deep pothole), the anti-entrapment function may operate.

- The window cannot be operated for few seconds after the anti-entrapmen function operates.

▼ Off delay function (windows with one-touch auto up/down function)

The windows can be operated for approximately 40 seconds even after the ignitic switch is turned to the "ACC" or "OFF" position. If a front door is opened within seconds, the off delay function is canceled.

▼ Locking the passengers' windows

202964 1 2

1) Lock
2) Unlock

When the lock switch is in the lock position, the rear windows cannot be operated by

the driver's side switches. The passenger's side switches and the rear seat switches are not operational either.

When the indicator on the window switches does not illuminate, the window switch cannot be operated.

■ Initialization of power window with one-touch auto up/down function

If the power window automatic function (one-touch auto up and down function) does not operate properly, operate each window according to the following procedure in order to initialize the power wind system.

1. Close the door.
2. Turn the ignition switch to the "ON" position.
3. Open the window completely and then press and hold down the power window switch for approximately 1 second.
4. Close the window completely and then pull and hold the power window switch for approximately 1 second.

Rear gate

WARNING

• To prevent dangerous exhaust gas from entering the vehicle, always keep the rear gate closed while the engine is running.
• Do not attempt to shut the rear gate while holding the recessed grip. Also avoid closing the rear gate by pulling on the recessed grip from inside the cargo space. There is a danger of your hand being caught and injured.

CAUTION

When loading and unloading cargo, be careful not to come in contact with the hot engine exhaust gas or the exhaust pipe, because they could burn you.

NOTE

If the rear gate cannot be unlocked due to a discharged vehicle battery, a malfunction in the door locking/unlocking system or other causes, the rear gate can be unlocked by manually operating

the rear gate lock release lever. For the procedure, refer to "Rear gate if the rear gate cannot be opened" 19.

Lock/unlock

The rear gate can be locked and unlocked using any of the following systems.

• Power door locking switch: Refer to "How to operate the power door locking switches" 2-22.
  ● Keyless access with the push-button start system (if equipped): Refer to "Keyless access with push-button start system 2-2.
• Remote keyless entry system: Refer to "Remote keyless entry system" -2-17.
• Automatic door locking/unlocking: Refer to "Automatic door locking/unlocking" 2-22.

Open/close

e 9- ed 1 203194

1) The rear gate opener button

To open: First unlock the rear gate lock then push the rear gate opener button.

Technical line drawing of a car rear bumper with a black arrow indicating a component (no text or symbols present)

To close:

Lower the rear gate slowly and push down firmly until the latch engages.

The rear gate can be lowered easily if you pull it down holding the recessed grip.

CAUTION

• Do not jam a plastic bag in or place cellophane tape on the rear gate stays or scratch the stays while loading or unloading cargo. Doing so could cause leakage of gas from the stays, which may result in their inability to hold the rear gate open.
• Be careful not to hit your head or face on the rear gate when opening or closing the rear gate and when loading or unloading cargo.

Moonroof (if equipped)

WARNING

Never let anyone's hands, arms, head or any objects protrude from the moonroof. A person could be seriously injured if any of the following conditions occur.

• The vehicle stops suddenly.
• The vehicle turns sharply.
- The vehicle is involved in an accident.
- Body parts protruding from the vehicle are struck by outside objects.

To avoid serious personal injury caused by entrapment, always conform to the following instructions without exception.

• Before closing the moonroof, make sure that no one's hands, arms, head or other objects will be accidentally caught in the moonroof.
  ● Always carry the key when you leave the vehicle for safety reasons and never allow an unattended child to remain in the

vehicle. Failure to follow this procedure could result in injury to a child operating the moon-roof.

- Never try to check the anti-en-trapment function by deliberately placing part of your body in the moonroof.

CAUTION

• Do not sit on the edge of the moonroof.
• Do not operate the moonroof if falling snow or extremely cold conditions have caused it to freeze shut.
• The anti-entrapment function does not operate when the moonroof is being tilted down. Be su to confirm that it is safe to do before tilting the moonroof down
• If the moonroof does not close, have the system checked by a SUBARU dealer.

The moonroof has both tilting and sliding functions.

The moonroof operates only when the ignition switch is in the "ON" position.

Moonroof switches

Tilting moonroof

y he open 1 2 202965

1) Up
2) Down

To raise the moonroof, press and hold the switch in the up side and release. To lower the moonroof, press and hold the switch in the down side.

NOTE

Release the switch after the moonroof has been raised or has been lowered completely. Pressing the switch continuously may cause damage to the moonroof.

▼ Sliding moonroof

1 2 202966

1) Open
2) Close

To open or close the moonroof using automatic function, press and hold the switch toward the open/close side and release.

To stop the moonroof halfway, press a switch on the moonroof switch.

NOTE

- After washing the vehicle or after rains, wipe away water on the roof to opening the moonroof to prevent drops of water from falling into the passenger compartment.

- For the sake of safety, it is recommended that you avoid driving with moonroof fully opened.

▼ Anti-entrapment function

When the moonroof senses a substantial enough object trapped between its glass and the vehicle's roof during closure, it automatically moves back to the fully one position and stops there. The anti-entrapment function may also be activated by a strong shock on the moonroof even when there is nothing trapped.

CAUTION

Never attempt to test this function using fingers, hands or other parts of your body.

it prior

Sunshade

the en a n 202060

The sunshade can be slid forward or backward by hand while the moonroof is closed.

If the moonroof is opened, the sunshade also moves back.

Pure horizontal dashed lines without any text, numbers, or symbols

Instruments and controls

Ignition switch (models without "keyless access with push-button start system") ....

Key positions.... 3-4

Key reminder chime 3-5

Ignition switch light (if equipped) 3-5

Push-button ignition switch (models with "keyless access with push-button start system") 3-6

Safety precautions 3-6

Operating range for push-button start system ..... 3-6

Switching power status.... 3-7

When access key fob does not operate properly .

Hazard warning flasher 3-8

Meters and gauges 3-8

Speedometer 3-8

Tachometer.... 3-8

Odometer.... 3-9

Double trip meter 3-9

Fuel gauge....3-10

ECO gauge (if equipped) 3-10

Combination meter settings 3-11

Illumination brightness control.... 3-12

Auto dimmer cancel function (if equipped) .....3-12

Warning and indicator 3-12

Initial illumination for system check ....3-12

Seatbelt warning light and chime 3-13

SRS airbag system warning light.... 3-14

Front passenger's frontal airbag ON and OFF indicators 3-15

CHECK ENGINE warning light/Malfunction indicator light 3-15

3-4 Coolant temperature low indicator light/Coolant temperature high warning light 3-16

Charge warning light 3-17

Oil pressure warning light 3-17

Engine low oil level warning light.... 3

Windshield washer fluid warning light.... 3-

AT OIL TEMP warning light (CVT models).... 3-18

Low tire pressure warning light (U.S.-spec. models) 3-18

ABS warning light 3-20

3-8 Brake system warning light (red) 3-20

Low fuel warning light 3-21

Hill start assist warning light/Hill start assist OFF indicator light.... 3-22

Door open warning light 3-22

All-Wheel Drive warning light (CVT models) 3-22

Power steering warning light 3-22

Vehicle Dynamics Control warning light/Vehicle Dynamics Control operation indicator light ..... 3-23

Vehicle Dynamics Control OFF indicator light ..... 3-24

Warning chimes and warning indicator of the keyless access with push-button start system (if equipped) 3-24

Security indicator light 3-29

SI-DRIVE indicator light (if equipped) 3-30

Select lever/gear position indicator 3-30

Turn signal indicator lights 3-31

High beam indicator light 3-31

High beam assist indicator light (if equipped) ..... 3-31

Cruise control indicator light (if equipped) 3-31

Cruise control set indicator light (if equipped)...... 3-31

Automatic headlight beam leveler warning light (models with LED headlights)....3-31

LED headlight warning light (models with LED headlights)....3-31

Steering Responsive Headlight warning light/Steering Responsive Headlight OFF indicator light (if equipped)....3-31

Front fog light indicator light (if equipped) ....

Headlight indicator light (if equipped)....3-32

Auto Start Stop warning light/Auto Start Stop OFF indicator light (yellow) (if equipped) ......

Auto Start Stop indicator light (green) (if equipped) 3-32

Auto Start Stop No Activity Detected indicator light (if equipped).... 3-32

X-MODE indicator (if equipped) 3-33

Hill descent control indicator (if equipped) 3-33

BSD/RCTA warning indicator (if equipped).... 3-3\$

BSD/RCTA OFF indicator (if equipped) 3-33

RAB warning indicator (if equipped)....3-33

RAB OFF indicator (if equipped).... 3-34

Icy road surface warning indicator (if equipped) ....

Combination meter display (color LCD)

(if equipped) 3-34

Basic operation....3-35

Welcome screen (opening animation) and Good-bye screen (ending animation) ....3-36

Warning screen....3-36

Telltale screen.... 3-37

Basic screens 3-38

Menu screens 3-40

Multi-function display (black and white).... 3-42

Driving information display.... 3-43

Outside temperature indicator.... 3-47

X-MODE indicator (if equipped) 3-48

Clock.... 3-48

Climate control screen.... 3-48

3-32Multi-function display (color LCD)

(if equipped).... 3-49

Features 3-49

Welcome screen 3-49

Self-check screen 3-49

Interruption screen 3-50

Basic operation 3-51

Basic screens.... 3-51

Setting screen 3-58

How to get the source code using the open source.... 3-65

Clock.... 3-66

Setting the clock manually.... 3-66

Setting the clock automatically 3-67

3-34 Regulatory information 3-68

Light control switch 3-68

Precautions and tips.... 3-68

Headlights 3-69

High/low beam change (dimmer) 3-71

Headlight flasher 3-71

High beam assist function (if equipped) 3-72

Daytime running light system 3-74

Steering Responsive Headlight (SRH)

(if equipped).... 3-75

Instruments and controls

Headlight beam leveler (models with LED headlights).... 3-76

Fog light switch (if equipped) 3-76

Turn signal lever 3-77 One-touch lane changer 3-78

Wiper and washer .... 3-78 Windshield wiper and washer switches .... 3-79 Rear window wiper and washer switch .... 3-81

Mirrors 3-82

Inside mirror.... 3-82

Auto-dimming mirror/compass (if equipped)...... 3-82

Auto-dimming mirror/compass with HomeLink (if equipped) 3-83 Outside mirrors 3-90

Defogger and deicer (if equipped) 3-91

Tilt/telescopic steering wheel 3-92 Heated Steering Wheel system (if equipped) 3-93

Horn 3-94

Ignition switch (models without "keyless access with push-button start system")

WARNING

• Never turn the ignition switch to the "LOCK" position while the vehicle is being driven or towed because that will lock the steering wheel, preventing steering control. And when the engine is turned off, it takes a much great effort than usual to steer.
• Before leaving the vehicle, always remove the key from the ignition switch for safety and never allow an unattended child to remain in the vehicle. Failure to follow this procedure could result in injury to a child or others. Children could operate the power windows, the moonroof or other controls or even make the vehicle move.

Do not attach a large key holder key case to either key. If it bange against your knees or hands while you are driving, it could turn the ignition switch from the "ON" position to the "ACC" or "LOCK" position, thereby stopping the engine. Also, if the key is attached to a holder or to a large bunch of other keys, centrifugal force may act on as the vehicle moves, resulting in unwanted turning of the ignition switch.

PUSH to s. e LOCK ACC ON START 301689

The ignition switch has four positions: LOCK, ACC, ON and START.

NOTE

• Keep the ignition switch in the "LOCK" position when the engine is not running.
• Using electrical accessories for a long time with the ignition switch in the "ON" or "ACC" position can cause the battery to go dead.
  If the ignition switch will not move from the "LOCK" position to the "ACC" position, turn the steering wheel slightly to the left and right as you turn the ignition switch.

■ Key positions

Position	Description
LOCK	The key can only be inserted or removed in this position. The ignition switch will lock the steering wheel when you remove the key.
ACC	In this position the electrical accessories (audio, accessory power outlet, etc.) can be used.
ON	This is the normal operating position after starting the engine.
START	The engine is started in this position.

CAUTION

Do not turn the ignition switch to "START" position while the engine is running.

NOTE

R PUSH LOCK ACC OFF 301690

- To turn the key from the "ACC" to "LOCK" position, the select lever must be in the "P" position (CVT models) and the key must be pushed in and turned. - If your registered key fails to start the engine, pull out the key once (the security indicator light will blink), and then insert the key again and turn it to the "START" position again to restart the engine.

• The engine may not start in the following cases:

Technical line drawing of a mechanical component with concentric rings and a key inserted, no text or symbols present

- The key grip is touching another key or a metallic key holder.

Diagram of a rope knot with a circular head and rope, no text or symbols present

- The key is near another key t contains an immobilizer transpon-

der.

- The key is near or touching another transmitter.

■ Key reminder chime

The reminder chime sounds when the driver's door is opened and the ignition switch is in the "LOCK" or "ACC" position.

The chime stops under the following conditions.

• The ignition switch is turned to the "ON" position.
• The key is removed from the ignition switch.
  The driver's door is closed.

■ Ignition switch light (if equipped)

For easy access to the ignition switch in the dark, the ignition switch light illuminates when the driver's door is opened or when the driver's door is unlocked using the remote keyless entry transmitter.

The light remains illuminated for several tens of seconds and then gradually turns off under the following conditions.

• The driver's door is closed.
  The doors are unlocked using the remote keyless entry transmitter.

The light turns off immediately under the following conditions.

• The ignition switch is turned to the "ON position.
• All doors and the rear gate are locked using the remote keyless entry transmitte

Push-button ignition switch (models with "keyless acce with push-button start sys-tem")

■ Safety precautions

■ Operating range for push-button start system

Refer to "Safety precautions" 2-3.

1 2 1 1 305080

1) Antennas
2) Operating range

NOTE

- If the access key fob is not detected within the operating range of the antennas inside the vehicle, the push-button ignition switch and the engine start

cannot be operated.

Even when the access key fob is outside the vehicle, if it is placed too close to the glass, it may be possible to switch the power or to start the engine.

- Do not leave the access key fob in the following places. It may become impossible to operate the push-button ignition switch and the engine start. It may also cause a false warning to issue although no malfunction actually occurs, or not to issue a warning when any malfunction occurs.

• On the instrument panel
• On the floor
• Inside the glove box
• Inside the door trim pocket
• On the rear seat

- In the cargo area

- When operating the push-button ignition switch or starting the engine, if the access key fob battery is discharged, perform the procedure described in "Access key fob – if access key fob does not operate properly" 9-17. In such a case, replace the battery immediately. Refer to "Replacing battery of access key fob" 11-46.

Switching power status

1 ENGINE START STOP 2 304877

1) Operation indicator
2) Push-button ignition switch

The power is switched every time the push-button ignition switch is pressed.

1. Carry the access key fob, and sit in driver's seat.
2. Shift the select lever (CVT models)/the shift lever (MT models) into the "P"/"N" position.
3. Press the push-button ignition switch without depressing the brake pedal. Every time the button is pressed, the power is switched in the sequence of "OFF", "ACC" "ON" and "OFF". When the engine is stopped and the push-button ignition switch is in "ACC" or "ON", the operation indicator on the push-button ignition switch

illuminates in orange.

Power status	Indicator color	Operation
OFF	Turned off	Power is turned off.
ACC	Orange	The following systems can be used:audio and accessory power outlet.
ON	Orange(while engine is stopped)	All electrical systems can be used.
	Turned off(while engine is running)

the ⚠️ CAUTION

• When the push-button ignition switch is left in "ON" (while the engine is not running) or "ACC for a long time, it may result in vehicle battery discharge.
• Do not spill drinks or other liq on the push-button ignition switch. It may cause a malfunction.
• Do not touch the push-button ignition switch with a hand soiled

with oil or other contaminants. It may cause a malfunction.

• If the push-button ignition switch does not operate smoothly, stop the operation. Contact a SUBARU dealer immediately.
• If the push-button ignition switch does not illuminate even when the instrument panel illumination is turned on, have the vehicle inspected at a SUBARU dealer.
• If the vehicle was left in the hot sun for a long time, the surface of the push-button ignition switch may get hot. Be careful not to burn yourself.

NOTE

• When operating the push-button ignition switch, firmly press it all the way.
• If the push-button ignition switch is pressed quickly, the power may not turn on or off.

- If the indicator light on the push-button ignition switch flashes in green when the push-button ignition switch is pressed, steering is locked. When this occurs, press the push-button ignition switch while turning the steering wheel left and right.

▼ Battery drainage prevention function

When the push-button ignition switch is left in the "ACC" or "ON" position for approximately 1 hour, the push-button ignition switch will be automatically switched to "OFF" to prevent the battery from going dead.

■ When access key fob does not operate properly

Refer to "Access key fob – if access key fob does not operate properly" 9-17.

Hazard warning flasher

Diagram of a vehicle dashboard with directional control buttons and a labeled sensor device, showing left and right orientation.

The hazard warning flasher is used to other drivers when you have to park your vehicle under emergency conditions. The hazard warning flasher works regardless of the position of the ignition switch.

To turn on the hazard warning flasher, push the hazard warning flasher switch the instrument panel. All the turn signal lights and the turn signal indicator lights will flash. To turn off the flasher, push switch again.

NOTE

When the hazard warning flasher is the turn signals do not work.

Meters and gauges

NOTE

Some of the meters and gauges on the combination meter use liquid-crystal displays. You will find their indications hard to see if you wear polarized glasses.

■ Speedometer

The speedometer shows the vehicle speed.

Tachometer

The tachometer shows the engine speed in thousands of revolutions per minute.

CAUTION

Do not operate the engine with the pointer of the tachometer in the red zone. In this range, fuel injection will be cut by the engine control module to protect the engine from overrevving. The engine will resume running normally after the engine speed is reduced below the red zone.

on,

■ Odometer

1 2 000000 miles 3 900 mi 305008

1) TRIP RESET switch
2) Type A combination meter
3) Type B combination meter

This meter displays the odometer when the ignition switch is in the "ON" position. The odometer shows the total distance that the vehicle has been driven.

NOTE

If you press the TRIP RESET switch when the ignition switch is in the "LOCK"/"OFF" or "ACC" position, the odometer/trip meter will light up. The indicators will turn off when:

• The TRIP RESET switch is not operated for approximately 10 seconds.
• The driver's door is opened and then

closed.

■ Double trip meter

1 2 A 888.8 3 A 34.5 305009

1) TRIP RESET switch
2) Type A combination meter
3) Type B combination meter

This meter displays the two trip meters when the ignition switch is in the "ON" position.

The trip meter shows the distance that vehicle has been driven since you last it to zero.

The display can be switched as shown the following sequence by pressing the TRIP RESET switch.

To set the trip meter to zero, select the A trip or B trip meter by pressing the TRIP RESET switch and keep the knob pressed for more than 2 seconds.

To ensure safety, do not attempt to change the function of the indicator during driving, as an accident could result.

NOTE

- If the connection between the combination meter and battery is broken for any reason such as vehicle maintenance or fuse replacement, the data recorded on the trip meter will be lost. - If you press the TRIP RESET switch when the ignition switch is in the "LOCK"/"OFF" or "ACC" position, the odometer/trip meter will light up. It is possible to switch between the A trip meter and B trip meter indications while the odometer/trip meter is lit up. In addition, it is possible to reset the meter by pressing and holding the TRIP

- CONTINUED -

RESET switch.

The indicators will turn off when:

• The TRIP RESET switch is not operated for approximately 10 seconds.
• The driver's door is opened at then closed.

■ Fuel gauge

1 2 E F 3 E F 304954

1) TRIP RESET switch
2) Type A combination meter
3) Type B combination meter

The fuel gauge is displayed when the ignition is in the "ON" position, and it shows the approximate amount of fuel remaining in the tank.

The gauge indication may change slightly during braking, turning or acceleration due

to fuel level movement in the tank.

NOTE

• You will see the “” sign in the gauge. This indicates that the fuel fluid is located on the right side of the vehicle.
• If you press the TRIP RESET switch while the ignition switch is in the "LOCK"/"OFF" or "ACC" position, the fuel gauge will light up and indicate amount of fuel remaining in the tank.

The indicators will turn off when:

• The TRIP RESET switch is not operated for approximately 10 seconds.
• The driver's door is opened at then closed.

■ ECO gauge (if equipped)

fuel iller MPG MPG the k. 304895

1) Type A combination meter
2) Type B combination meter

The ECO gauge shows the difference between the current rate of fuel consumption and the average rate of fuel consumption since the trip meter was last reset.

If the ECO gauge moves towards the + side, this indicates better fuel efficiency.

NOTE

• The ECO gauge shows only an approximate indication of fuel efficiency.
• After resetting the trip meter, the average rate of fuel consumption is not shown until you have driven for 1 mile (or 1 km). Before that time, the ECO

gauge does not operate.

■ Combination meter settings

Meter and vehicle settings can be set on the combination meter.

▼ Type A combination meter

Various adjustments can be made, such as switching units shown on the combination meter and adjusting the warning tone volume.

While the ignition switch is in the "OFF" position, each press of TRIP RESET switch results in items shown in the table below being switched.

Item	Combination meter display	Possible settings
A trip	8888	—
B trip	5555	—
Gauge needle sweep function	1 on	On/Off
Changing the unit*	2 MPH	mile/km
Warning volume*	3Lw2	Lv. 1/Lv. 2/Lv.

*: If available

NOTE

- If you switch the units on the con nation meter, the units on the multi-function display (black and white) as switches accordingly.

- If either of the following conditions is met, the combination meter setting mode will be canceled.

- The driver's door is opened.

- The TRIP RESET switch is not operated for approximately 10 seconds or more.

▽ Switching method

1. Push the ignition switch in the "OFF" position.

1 1 on 1 of 305092

1) TRIP RESET switch

1. Press the TRIP RESET switch repeat

edly until the item you want to change is displayed.

1. Press and hold the TRIP RESET switch while the item to be changed is displayed, the setting of the item will be switched.

▼ Type B combination meter

Meter and vehicle settings can be set on the combination meter display (color LCD). Refer to "Menu screens" 3-40.

Illumination brightness control

Diagram showing car interior with labeled panel and directional arrow, likely indicating movement or adjustment in a vehicle's dashboard.

The illumination brightness of the instrument panel illuminates under the following conditions.

For models without "AUTO" position

- The light switch is in the ☐ or ☐ position.

For models with "AUTO" position:

- The light switch is in the “boe” or “D” position when the ambient light is dark.

- The light control switch is in the "AUT position and the headlights illuminate automatically.

You can adjust the illumination brightness for better visibility.

To brighten, turn the control dial upward. To darken, turn the control dial downward.

NOTE

- When the control dial is turned fully upward, the illumination brightness becomes the maximum and the automatic dimming function does not work at all. - The brightness setting is not canceled even when the ignition switch is turned to the "LOCK"/"OFF" position.

■ Auto dimmer (if equipped)

When the ambient light is bright, the illumination brightness is set to the maximum regardless of the position of the control dial. In this case, you cannot adjust the illumination brightness by using the control dial. When the ambient light is dark, you can dim the illumination brightness as described above.

The operational/non-operational setting and sensitivity of the auto dimmer cance function can be changed by your SUBAR dealer. Contact your SUBARU dealer for details.

Warning and indicator

■ Initial illumination for system check

Several of the warning and indicator lights illuminate when the ignition switch is initially turned to the "ON" position. This permits checking the operation of the bulbs.

Apply the parking brake and turn the ignition switch to the "ON" position. For the system check, several of the following lights illuminate and then turn off after several seconds or after the engine has started.

: Seatbelt warning light: The seatbelt warning light turns off only when the driver fastens the seatbelt.

Front passenger's seatbelt warning park, light: The seatbelt warning light turns s off only when the front seat passenger fastens the seatbelt.

: SRS airbag system warning light

Front passenger's frontal airbag ON indicator

OFF OFF Front passenger's frontal airbag OFF indicator

CHECK: CHECK ENGINE warning light/Mal- function indicator light

Coolant temperature low indicator light/Coolant temperature high warning light

Charge warning light

Oil pressure warning light

Engine low oil level warning light

: Windshield washer fluid warning light

AT OIL: AT OIL TEMP warning light TEMP: (CVT models)

(1): Low tire pressure warning light (U.S.-spec. models)

ABS / (ABS) ABS warning light

BRAKE / (!) Brake system warning light (red)

B: Low fuel warning light

: Hill start assist warning light/Hill star assist OFF indicator light

AWD: AWD warning light (CVT models)

●!: Power steering warning light

: Vehicle Dynamics Control warning Vehicle Dynamics Control operation indicator light

: Vehicle Dynamics Control OFF indicate light
(A): Auto Start Stop warning light/Auto Stop OFF indicator light (yellow) (if equipped)
(A): Auto Start Stop indicator light (green) equipped)
A: Auto Start Stop No Activity Detected indicator light (if equipped)

If any lights fail to illuminate, it indicates burned-out bulb or a malfunction of the corresponding system.

Consult your authorized SUBARU dealer for repair.

■ Seatbelt warning light and chime

Your vehicle is equipped with a seatbelt warning device at the driver's and front-passenger's seat, as required by current safety standards.

With the ignition switch turned to the "ON" position, this device reminds the driver and front passenger to fasten their seatbelts by illuminating the warning lights in the locations indicated in the following illustration and sounding a chime.

t (if a 304955

Driver's warning light

PASS 2 304970

Front passenger's warning light

▼ Operation

If the driver and/or front passenger have has not yet fastened the seatbelt(s) when the ignition switch is turned to the "ON" position, the seatbelt warning light(s) will flash for several seconds, to warn that the seatbelt(s) is/are unfastened. If the driver seatbelt is not fastened, a chime will also sound simultaneously.

NOTE

- If the driver's and/or front passenger's seatbelt(s) are/is still not faster 6 seconds later, the seatbelt warning device operates as follows according to the vehicle speed.

- At speeds lower than approximately 9 mph (15 km/h)

The warning light(s) for unfastene seatbelt(s) will alternate between steady illumination and flashing a 15-second intervals. The chime was not sound.

- At speeds higher than approximately 9 mph (15 km/h)

The warning light(s) for unfastene seatbelt(s) will alternate between flashing and steady illumination a 15-second intervals and the chime will sound while the warning light is/are flashing.

If there is no passenger on the front passenger's seat, the seatbelt warning device for the front passenger's seat will be deactivated. The front passenger's seatbelt warning system monitors whether or not there is a passenger on the front passenger's seat.

Observe the following precautions. Failure to do so may prevent the device from functioning correctly or cause the device to fail.

- Do not install any accessory such as table or TV onto the seatback.

- Do not store a heavy load in the seatback pocket.

- Do not allow the rear seat occupant to place his/her hands or legs on the front passenger's seatback, or allow him/her to pull the seatback.

- Do not use front seats with their backward-forward position and seatback not being locked into place securely. If any them are not locked securely, adjust the again. For adjusting procedure, refer to "Manual seat" 1-5.

If the seatbelt warning device for the front passenger's seat does not function correctly (e.g., it is activated even when the front passenger's seat is empty or it is deactivated even when the front passenger has not fastened his/her seatbelt), tak

the following actions.

- Ensure that no article is placed on the seat other than a child restraint system and its child occupant, although we strongly recommend that all children sit in the rear seat properly restrained.

- Ensure that there is no article left in the seatback pocket.

- Ensure that the backward-forward position and seatback of front passenger's seat are locked into place securely by moving the seat back and forth.

If still the seatbelt warning device for front passenger's seat does not function correctly after taking relevant corrective actions described above, immediately contact your SUBARU dealer for an inspection.

■ SRS airbag system warning light

WARNING

If the warning light exhibits any of the following conditions, immediately stop the vehicle in a safe place, and consult a SUBARU dealer. Unless a technician checks and repairs the system as needed, the seatbelt pretensioners and/or the SRS airbag will not operate properly in the event

of a collision, which may result in injury.

• Flashing or flickering of the warning light
• No illumination of the warning light when the ignition switch is first turned to the "ON" position
• Continuous illumination of the warning light
• Illumination of the warning light while driving

For details about the components monitored by the warning light, refer to "SRS airbag system monitors" 1-71.

■ Front passenger's frontal air bag ON and OFF indicators

PASS AIR BAG OFF ON 102096

ON 📁 Front passenger's frontal airbag ON indicator

OFF: Front passenger's frontal airbag OFF indicator

The front passenger's frontal airbag ON and OFF indicators show you the status the front passenger's SRS frontal airbag. The indicator is displayed near the map lights.

When the ignition switch is turned to the "ON" position, both the ON and OFF indicators illuminate for 6 seconds during which time the system is checked. Following the system check, both indicators turn off for 2 seconds. After that, one of the indicators illuminates depending on the status of the front passenger's SRS fronta airbag determined by the SUBARU advanced frontal airbag system monitoring. If the front passenger's SRS frontal airbag is activated, the passenger's frontal airbag ON indicator will illuminate while the OFF indicator will remain off.

If the front passenger's SRS frontal airbag is deactivated, the passenger's frontal airbag ON indicator will remain off while the OFF indicator will illuminate. With the ignition switch turned to the "ON" position, if both the ON and OFF indicators remain illuminated or off simultaneously even after the system check period, the system is malfunctioning. Contact your SUBARU dealer immediately for an inspection.

■ CHECK ENGINE warning light/Malfunction of indicator light

CAUTION

If the CHECK ENGINE light illuminates while you are driving, have your vehicle checked/ repaired by your SUBARU dealer as soon as possible. Continued vehicle operation without having the emission control system checked and repaired as necessary could cause

- CONTINUED -

serious damage, which may not be covered by your vehicle's warranty.

If this light illuminates steadily or blinks while the engine is running, it may indicate that there is at least one problem or potential problem somewhere in the emission control system.

▼ If the light illuminates steadily If the light illuminates steadily while drive or does not turn off after the engine state an emission control system malfunction has been detected.

You should have your vehicle checked an authorized SUBARU dealer immediately.

NOTE

This light also illuminates when the filler cap is not tightened until it c If you have recently refueled your vehicle, the cause of the CHECK ENGINE warning light/malfunction indicator light illuminating could be a loose or missing fuel filler. Remove the cap and retighten it until it clicks. Make sure nothing is interfering with the sealing of the cap. Tightening the cap will not make the CHECK ENGINE warning light turn off immediately. It may take several driving trips. If the light does not turn off, take your vehicle to your autho ized SUBARU dealer immediately.

▼ If the light is blinking

If the light is blinking while driving, an engine misfire condition has been detected which may damage the emission control system.

To prevent serious damage to the emission control system, you should do the following.

Reduce vehicle speed.

rts, Avoid hard acceleration.

• Avoid steep uphill grades.
• Reduce the amount of cargo, if possible.
• Stop towing a trailer as soon as possible.

The CHECK ENGINE warning light may stop blinking and illuminate steadily after several driving trips. You should have you vehicle checked by an authorized SUBARU dealer immediately.

■ Engine hood open warning light (if equipped)

The warning light illuminates if the engine hood is not fully closed. This function is effective even if the ignition switch is in the "LOCK"/"OFF" or "ACC" position (all models) or the key is removed from the ignition switch (models without "keyless access with push-button start system"). Always make sure this light is not illuminated before you start to drive.

■ Coolant temperature low indicator light/ Coolant temperature high warning light

CAUTION

- After turning the ignition switch to the "ON" position, if this indicator light/warning light behaves in any of the following ways, the electrical system may be malfunctioning. Contact your SUBARU dealer immediately for an inspection.

• It remains blinking in RED.
• It remains illuminated in RED for more than 2 seconds.

- It remains blinking in RED BLUE alternately.

• While driving, if this indicator light/warning light behaves in any of the following ways, take the specified appropriate measure listed below.
• Blinking or illuminated in RED: Safely stop the vehicle as soon as possible, and refer the emergency steps to take the case of engine overheating. After that, have the system checked by your nearest SUBARU dealer. Refer to "Engine overheating" -9-12.
• Blinking in RED and BLUE alternately: The electrical system may be malfunctioning. Contact your SUBARU dealer for an inspection.

This coolant temperature low indicator light/coolant temperature high warning light has the following three functions.

• Illumination in BLUE indicates insufficient warming up of the engine
• Blinking in RED indicates that the engine is close to overheating

and Illumination in RED indicates overheating condition of the engine

For a system check, this indicator light/warning light illuminates in RED for approximately 2 seconds when the ignition switch is turned to the "ON" position. At that, this indicator light/warning light changes to BLUE and maintains illumination in BLUE. This BLUE illuminated light turns off when the engine is warmed up sufficiently.

in If the engine coolant temperature increases over the specified range, the indicator light/warning light blinks in RED At this time, the engine is close to overheating.

If the engine coolant temperature increases further, the indicator light/warning light illuminates in RED continuously. At this time, the engine may be overheating

When the indicator light/warning light blinks in RED or illuminates in RED, sa stop the vehicle as soon as possible, ar refer to the emergency steps to take in case of engine overheating. Refer to "Engine overheating" 9-12. After that, have the system checked by your neare SUBARU dealer.

Also, if the indicator light/warning light

often blinks in RED, the electrical system may be malfunctioning. Contact your SUBARU dealer for an inspection.

NOTE

If the engine is restarted after a certain driving condition, this indicator light/warning light may illuminate in RED. However, this is not a malfunction if the indicator light/warning light turns off after a short time.

■ Charge warning light

If this light illuminates when the engine is running, it may indicate that the charging system is not working properly.

If the light illuminates while driving or does not turn off after the engine starts, stop the engine at the first safe opportunity and check the drive belt. If the belt is loose, 'broken or if the belt is in good condition but the light remains illuminated, contact your nearest SUBARU dealer immediately.

■ Oil pressure warning light

If this light illuminates when the engine is running, it may indicate that the engine oil pressure is low and the lubricating system is not working properly.

- CONTINUED -

If the light illuminates while driving or do not turn off after the engine starts, stop engine at the first safe opportunity and contact your nearest SUBARU dealer immediately.

CAUTION

Do not operate the engine with th oil pressure warning light illuminated. This may cause serious engine damage.

Engine low oil level warning light

This light illuminates when the engine of level decreases to the lower limit.

If the warning light illuminates, check the engine oil level on a level surface. When the engine oil level is not within the norm range, refill with engine oil. Refer to "Engine oil" = 11-8. After adding or changing the engine oil, warm up the engine and stop it on a level surface, then start engine after a lapse of 1 minute or more. Confirm that the warning light has turned off after the engine has started. If the warning light does not turn off after refill the engine oil, or the light illuminates eye though the engine oil level is within the normal range, have the vehicle checked by

es SUBARU dealer.

the NOTE

- The oil level will be detected by system just after turning the ignition switch to the OFF position. If the c level is below the lower limit when ignition switch is turned to the ON position, the engine low oil level waiting light will turn on.

- When the vehicle is parked on a steep slope, the engine low oil level warning light may not illuminate eye the oil level is below the lower limit avoid erroneous lighting.

■ Windshield washer fluid warning light

This light illuminates when the fluid level the windshield washer fluid tank decreases to the lower limit (approximately 0.6 US qt (0.6 liters, 0.5 Imp qt)).

■ AT OIL TEMP warning light (CVT models)

If this light illuminates when the engine running, it may indicate that the transmission fluid temperature is too hot.

en If the light illuminates while driving, im- mediately stop the vehicle in a safe pla

and let the engine idle until the warning light turns off.

the Transmission control system warning

if the "AT OIL TEMP" warning light flashes after the engine has started, it may indicate that the transmission control system is not working properly. Contact your nearest SUBARU dealer for service immediately.

■ Low tire pressure in ifwarning light (U.S.-t to spec. models)

When the ignition switch is turned to the "ON" position, the low tire pressure warning light will illuminate for approximately 2 seconds to check that the tire pressure monitoring system (TPMS) is functioning properly. If there is no problem and all tires are properly inflated, the light will turn off. Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you should determine the proper tire inflation pressure for those tires.)

As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system (TPMS) that illuminate a low tire pressure telltale when one or more of your tires is significantly under-inflated. Accordingly, when the low tire pressure telltale illuminates, you should stop and check your tires as soon as possible, and inflate them to the proper pressure. Driving on a significantly under inflated tire causes the tire to overheat can lead to tire failure. Under-inflation a reduces fuel efficiency and tire tread life and may affect the vehicle's handling and stopping ability.

Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver's responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low pressure telltale.

Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating proper. The TPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, the telltale will flash for approximately 0 minute and then remain continuously illuminated. This sequence will continue upon subsequent vehicle start-ups as long as the malfunction exists. When the malfunction indicator is illuminated, the system may not be able to detect or signal tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function properly.

Should the warning light illuminate steadily after blinking for approximately one minute, have the system inspected by your nearest SUBARU dealer as soon as possible.

WARNING

If this light does not illuminate briefly after the ignition switch is turned on or the light illuminates steadily after blinking for approximately one minute, you should have your Tire Pressure Monitoring System checked at a SUBARU dealer soon as possible.

If this light illuminates while driving, never brake suddenly and keep

driving straight ahead while gradually reducing speed. Then slowly pull off the road to a safe place. Otherwise an accident involving serious vehicle damage and serious personal injury could occur.

If this light still illuminates while driving after adjusting the tire pressure, a tire may have significant damage and a fast leak that causes the tire to lose air rapidly. If you have a flat tire, replace it with a spare tire as soon as possible.

When a spare tire is mounted or a wheel rim is replaced without the original pressure sensor/transmitter being transferred, the Low tire pressure warning light will illuminate steadily after blinking for approximately one minute. This indicates the TPMS is unable to monitor all four road wheels. Contact your SUBARU dealer as soon as possible for tire and sensor replacement and/or system resetting.

If the light illuminates steadily after blinking for approximately one min-asute, promptly contact a SUBARU dealer to have the system inspected.

CAUTION

The tire pressure monitoring system is NOT a substitute for manually checking tire pressure. The tire pressure should be checked periodically (at least monthly) using a tire gauge. After any change to tire pressure(s), the tire pressure monitoring system will not re-check tire inflation pressures until the vehicle is first driven more than 20 mph (3 km/h). After adjusting the tire pressures, increase the vehicle speed to at least 20 mph (32 km/h) to start TPMS re-checking of the tire inflation pressures. If the tire pressures are now above the severe low pressure threshold, the low tire pressure warning light should turn off a few minutes later. Therefore, be sure to install the specified size for the front and rear tires.

■ ABS warning light ABS/(ABS)

CAUTION

- If any of the following conditions occur, we recommend that you have the ABS repaired at the fi available opportunity by your

SUBARU dealer.

• The warning light does not illuminate when the ignition switch is turned to the "ON" position.
• The warning light illuminates when the ignition switch is turned to the "ON" position, but it does not turn off even after the vehicle is started.
• The warning light illuminates during driving.

- When the warning light is on (an the the brake system warning light off), the ABS function shuts down. However, the conventional brake system continues to operate normally.

to The ABS warning light, Vehicle Dynamic control warning light, and brake system warning light illuminate simultaneously if the EBD system malfunctions. For further details of the EBD system malfunction warning, refer to "Electronic Brake Force Distribution (EBD) system warning" 3-21.

NOTE

If the warning light behavior is as first described in the following conditions,

the ABS may be considered normal. - The warning light illuminates when the ignition switch is turned to the "ON" position and turns off approximately 2 seconds after the engine has started. - The warning light illuminates right after the engine is started but turns off immediately, remaining off. - The warning light remains illuminated after the engine has been started, but it turns off while driving. - The warning light illuminates during driving, but it turns off immediately and demains off.

When driving with an insufficient battery voltage such as when the engine is jump started, the ABS warning light may illuminate. This is due to the low battery voltage and does not indicate a malfunction. When the battery becomes fully charged, the slight will turn off.

■ Brake system warning light (red) BRAKE / (!)

This light illuminates with the parking brake applied while the ignition switch is in the "ON" position. It turns off when the parking brake is fully released.

WARNING

- Driving with the brake system

warning light on is dangerous. This indicates your brake syst may not be working properly. the light remains illuminated, have the brakes inspected by SUBARU dealer immediately.

- If at all in doubt about whether brakes are operating properly, not drive the vehicle. Have yo vehicle towed to the nearest SUBARU dealer for repair.

The brake system warning light has the following functions.

▼ Brake fluid level warning BRAKE / (!)

This light illuminates when the brake fluid level has dropped to near the "MIN" level, the brake fluid reservoir with the ignition switch in the "ON" position and with the parking brake fully released.

If the brake system warning light should illuminate while driving (with the parking brake fully released and with the ignition switch positioned in "ON"), it could be a indication of leaking of brake fluid or wo brake pads. If this occurs, immediately stop the vehicle at the nearest safe location and check the brake fluid level. The fluid level is below the "MIN" mark in the reservoir, do not drive the vehicle. Have the vehicle towed to the nearest SUBARU dealer for repair.

▼ Electronic Brake Force Distribution (EBD) system warning

The EBD system may be malfunctioning the brake system warning light 3RAKB(1). Vehicle Dynamics Control warning light and ABS warning lightABS(2) illuminate simultaneously during driving.

Even if the EBD system fails, the conventional braking system will still function. However, the rear wheels will be more prone to locking when the brakes are applied harder than usual and the vehic motion may therefore become somewhat harder to control.

If the brake system warning light BRAKE(1), Vehicle Dynamics Control warning light and ABS warning light ABS(ABS) illuminate simultaneously, take the following steps.

1. Stop the vehicle in the nearest safe, location.
2. Shut down the engine, apply the parking brake and then restart it.

3. Fully release the parking brake.

4. Even if all the warning lights do not come back on, the EBD system may have a possible malfunction. Drive carefully to the nearest SUBARU dealer and have the system inspected.

5. If all the warning lights stay illuminator or come back on after approximately 2 seconds, shut down the engine, apply the parking brake and check the brake fluid level.

If the brake fluid level is not below the "MIN" mark, the EBD system may be malfunctioning. Drive carefully to the nearest SUBARU dealer and have the system inspected.

If the brake fluid level is below the "MIN" mark, DO NOT drive the vehicle. Instead, have the vehicle towed to the nearest SUBARU dealer for repair.

Vacuum pressure system warning The brake system warning light will illuminate when the vacuum pressure sensor is malfunctioning or brake booster pressure is decreasing. If the brake warning light continues to illuminate for several minutes after starting the engine, there may be a malfunction in the vacuum system. In this case, drive the vehicle carefully and have the system inspected by a SUBARU dealer.

■ Low fuel warning light The low fuel warning light illuminates when the tank is nearly empty, at approximately 2.5 US gal (9.5 liters, 2.1 Imp gal). It only operates when the ignition switch is in the "ON" position.

CAUTION

Promptly put fuel in the tank who ever the low fuel warning light illuminates. Engine misfires as a result of an empty tank could ca damage to the engine.

■ Door open warning light

The warning light illuminates if any door the rear gate is not fully closed. This function is effective even if the ignition switch is in the "LOCK"/"OFF" or "ACC" position, or the key is removed from the ignition switch.

■ Hill start assist warning light/Hill start assist OFF indicator light

For some models, only the open doors indicated by the warning lights.

▼ Hill start assist warning light While the engine is running, if there are any malfunctions in the Hill start assist system, the warning light will illuminate.

Always make sure this light is not illuminated before you start to drive.

WARNING When the Hill start assist warning light illuminates, have the vehicle inspected at an authorized SUBARU dealer.

■ All-Wheel Drive warn-AWD ing light (CVT models)

This light blinks if the vehicle is driven tires of differing diameters fitted on the wheels or with an excessively low air pressure in any of the tires.

▼ Hill start assist OFF indicator light While the Hill start assist system is deactivated, the Hill start assist OFF indicator light illuminates continuously to inform the driver that the Hill start assist system is not operational.

WARNING

If the AWD warning light flashes, promptly park in a safe location the check whether all four tires are the same diameter and whether any of the tires has a puncture or has lost air pressure for some other reason. Continuing to drive with the AWD warning light flashing can lead to

powertrain damage.

NOTE

If the temporary spare tire is used, the AWD warning light may flash. Use of the temporary spare tire should therefore be restricted to the minimum time necessary. Replace the temporary spare tire with a conventional tire as soon as possible.

■ Power steering warning light

While the engine is running, this warning light illuminates when a malfunction has been detected in the electric power steering system.

CAUTION

When the power steering warning light is illuminated, there may be more resistance when the steering wheel is operated. Drive carefully to the nearest SUBARU dealer and have the vehicle inspected immediately.

NOTE

If the steering wheel is operated in following ways, the power steering control system may temporarily limit the power assist in order to prevent system components, such as the control computer and drive motor, from overheating.

• The steering wheel is operated frequently and turned sharply while the vehicle is maneuvered at extremely low speeds, such as while frequently turning the steering wheel during parallel parking.
• The steering wheel remains in the fully turned position for a long period time.

At this time, there will be more resistance when steering. However this is not a malfunction. Normal steering force will be restored after the steering wheel is not operated for a while and the power steering control system has an opportunity to cool down. However if the power steering is operated in non-standard way which causes power assist limitation to occur too frequently that may result in a malfunction of power steering control system.

■ Vehicle Dynamics Control warning light/Vehicle Dynamics Control operation indicator thought
▼ Vehicle Dynamics Control warning light

CAUTION

The Vehicle Dynamics Control system provides its ABS control through the electrical circuit of the ABS. Accordingly, if the ABS is inoperative, the Vehicle Dynamics Control system becomes unable to provide ABS control. As a result, Vehicle Dynamics Control system also becomes inoperative, causing the warning light to illuminate. Although both the Vehicle Dynamic Control system and ABS are inoperative in this case, the ordinary functions of the brake system are still available. You will be safe who driving with this condition, but driving carefully and have your vehicle checked at a SUBARU dealer as soon as possible.

NOTE

• If the electrical circuit of the Vehicle Dynamics Control system itself malfunctions, the warning light only illuminates. At this time, the ABS (Anti-lock Brake System) remains fully operational.
• The warning light illuminates when the electronic control system of the ABS/Vehicle Dynamics Control system malfunctions.
• The Vehicle Dynamics Control warning light, ABS warning light, and brake system warning light illuminate simultaneously if the EBD system malfunctions. For further details of the EBD system malfunction warning, refer to "Electronic Brake Force Distribution (EBD) system warning" 3-21.

The Vehicle Dynamics Control system is probably inoperative under any of the following conditions. Have your vehicle checked at a SUBARU dealer immediately.

The warning light does not illuminate when the ignition switch is turned to the "ON" position.

- The warning light illuminates while the vehicle is running.

NOTE

If the warning light behavior is as described in the following examples, the Vehicle Dynamics Control system may be considered normal.

• The warning light illuminates when the ignition switch is turned to the position and turns off approximately seconds after the engine has started
• The warning light illuminates right after the engine is started but turns immediately, remaining off.
• The warning light illuminates after the engine has started and turns of while the vehicle is subsequently be driven.
• The warning light illuminates during driving, but it turns off immediately remains off.
• The warning light illuminates when the engine has stalled and continue to illuminate after the engine has been restarted. However, it will turn off of the vehicle starts moving.

▼ Vehicle Dynamics Control operation indicator light

The indicator light flashes during activation of the skid suppression function and during activation of the traction control function.

NOTE

• The light may remain illuminated for a short period of time after the engine has been started, especially in cold weather. This does not indicate the existence of a problem. The light should turn off as soon as the engine has warmed up.
  • The indicator light illuminates when the engine has developed a problem and the CHECK ENGINE warning light malfunction indicator light is on.

The Vehicle Dynamics Control system is probably malfunctioning under the following condition. Have your vehicle checked at a SUBARU dealer as soon as possible

- The light does not turn off even after lapse of several minutes (the engine has warmed up) after the engine has started

^10 Vehicle Dynamics Control OFF indicator light

The light illuminates when the Vehicle Dynamics Control OFF switch is pressed to deactivate the Vehicle Dynamics Control system.

The Vehicle Dynamics Control system is probably malfunctioning under any of the following conditions. Have your vehicle checked at a SUBARU dealer immedi-

ately.

• The light does not illuminate when the ignition switch is turned to the "ON" position.
• The light does not turn off even once several seconds have elapsed after the ignition switch has been turned to the "ON" position.

■ Warning chimes and warning indicator of the keyless access with push-button start system (if equipped)

ole. the 1. 304958

Access key warning indicator

The keyless access with push-button start system sounds a warning chime and flashes the access key warning indicator

on the combination meter in order to minimize improper operations and help protect your vehicle from theft. When the warning chime sounds and/or the warning indicator flashes, take the appropriate action.

WARNING

Never drive the vehicle if the ind tor on the push-button ignition switch is flashing in green when starting the engine. This indicates the status that the steering wheel not released and could result in accident involving serious injury of death.

CAUTION

• When starting the engine again after the operation indicator on the push-button ignition switch flashes in green, if the operation indicator is still flashing in gre there could be a steering lock malfunction. Contact your SUBARU dealer as soon as possible.
• When the operation indicator on the push-button ignition switch flashes in orange, contact a

SUBARU dealer immediately.

NOTE

• Even when the access key fob is within the operating ranges inside the vehicle, the access key warning for engine start may be provided depending on the status of the access key fob and the environmental conditions.
• When the access key fob is taken out of the vehicle through an open window, the access key fob takeout warning or passenger access key fob takeout warning will not be provided.

▼ List of warnings

CAUTION

When any of the following warnings occurs even if the access key warning indicator does not appear, take the appropriate action.

Inside warning chime	Outside warning chime	Operation indicator on push-button ignition switch	Status Action
Ding, ding ... (intermittent)	—	—	The driver's door was opened while the push-button ignition switch is "ACC" (in CVT models, when the select lever is the "P" position).	Switch the push-button ignition switch to "OFF", or close the driver's door.When exiting the vehicle, be sure to switch the push-button ignition switch to "OFF".
			The push-button ignition switch was switched to "OFF" while the driver's door is open.	Close the driver's door.
Ding	Short beep (2 seconds)	—	Lockout warning:An attempt was made to lock all doors while the access key fob is left inside vehicle.	Take out the access key fob from the vehicle, and lock the doors.The doors cannot be locked while the access key fob is inside the vehicle.A chirp sound will be heard, and all doors will be unlocked.
—	Short beep (2 seconds)	—	Access key fob lock-in warning:The door lock sensor was touched while the push-button ignition switch is "OFF" and the access key fob is inside the vehicle.	Take out the access key fob from the vehicle, and lock the doors.If the access key fob is inside the vehicle, the doors cannot be locked.
—	Beep, beep, beep, beep, beep (5 times)	—	Door ajar warning:The door lock sensor is touched while ignition switch is in the "OFF" position one of the doors including the rear gate opened.	Close the doors securely and lock them. In one of the doors including the rear gate is opened, the doors cannot be locked.
Ding	Long beep (60 seconds max.)	—	Power warning:The door lock sensor was touched while carrying the access key fob, the push-button ignition switch is in a position of than "OFF" (in CVT models, when the select lever is in the "P" position).	Return the access key fob inside the vehicle, or switch the push-button ignition switch to "OFF".The push-button ignition switch is not switched to "OFF", the doors cannot be locked.
Ding, ding ... (7 seconds)	—	—	Access key warning:The vehicle was driven while the access key fob is not inside the vehicle.	Carry the access key fob, and drive the vehicle.
Ding — —			Access key warning for engine start:The push-button ignition switch was pressed while the access key fob is inside the vehicle.	Carry the access key fob, and press the push-button ignition switch.
Ding	Beep, beep, beep (3 times)	—	Access key takeout warning:The driver exited the vehicle with the access key fob and closed the driver's door while the push-button ignition switch is in a position other than "OFF" (in CVT models, when the select lever is in the "P" position).	Switch the push-button ignition switch to "OFF", and get out of the vehicle.
Ding	Beep, beep, beep (3 times)	—	Passenger access key takeout warning:A fellow passenger exited the vehicle the access key fob and closed a door other than the driver's door while the push-button ignition switch is in a position other than "OFF".	Return the access key fob to inside the vehicle, or switch the push-button ignition switch to "OFF".
Long beep (continuous)	Long beep (continuous)	—	Access key takeout without P position warning (CVT models):The driver exited the vehicle with the access key fob and closed the driver's door while the push-button ignition switch is in a position other than "OFF" and select lever is in a position other than "P" position.	Shift the select lever to the "P" position switch the push-button ignition switch to "OFF" and exit the vehicle.
Long beep (continuous)	—	—	Select lever position warning (CVT models):The engine is turned off by pressing the push-button ignition switch and the select lever is in a position other than the "P" position.	Start the engine, shift the select lever to the "P" position, switch the push-button ignition switch to "OFF" and exit the vehicle.
Long beep (continuous)	—	—	Select lever position warning (CVT models):The driver's door was opened while the push-button ignition switch is in a position other than "OFF" and the select lever a position other than the "P" position.	Shift the select lever to the "P" position, switch the push-button ignition switch to "OFF" and exit the vehicle.
Ding — —	The battery of the	access key fob is low. Replace the battery of the access key fob.
Ding —		Flashes in green (15 seconds max.)	Steering lock warning:The engine start procedure was performed, but the steering is still locked.	While turning the steering wheel right and left lightly, depress the brake pedal and press the push-button ignition switch.
Ding —		Flashes in orange (15 seconds max.)	System malfunction warning:A malfunction was detected in the power system or steering lock.	Contact a SUBARU dealer immediately and have the vehicle inspected.

■ Security indicator light

This indicator light shows the status of alarm system. It also indicates operation the immobilizer system.

▼ Alarm system

It blinks to show the driver the operation status of the alarm system. For detailed information, refer to "Alarm system" 2-24.

▼ Immobilizer system

The security indicator light starts blinking in the following conditions.

For models with "keyless access w push-button start system":

- Immediately after the push-button ignition switch is turned to the "OFF" position

- Immediately after the driver's door is opened or closed when all of the follow conditions are met.

- The push-button ignition switch is the "ON" or "ACC" position.

- The engine is not running.

In the event that an unauthorized key is used (for example, the key is unregistered or the ID code does not match), the power is not switched to "ON" and the security indicator light continues blinking.

For models without "keyless access with push-button start system":

the immediately after the key is pulled out.

- Approximately 60 seconds after the ignition switch is turned from the "ON" position to the "ACC" or "LOCK" position.

If the indicator light does not blink in the above conditions, it may indicate that immobilizer system may be malfunctioning. Contact your nearest SUBARU dealer immediately.

In the event that an unauthorized key (for example, an unauthorized duplicate) is used to start the engine, the security indicator light illuminates. For details about the immobilizer system, refer to "Immobilizer" 2-15.

NOTE

The security indicator light remains off in the following conditions. It means that the matching of the ID code is completed and the immobilizer system is deactivated, and it does not indicate a malfunction.

Models with "keyless access with push-button start system":

- While the engine is running - The push-button ignition switch has been turned to the "ON" or

"ACC" position and the driver's door has not been opened or closed

Models without "keyless access with push-button start system":

- While the engine is running - When the ignition switch is in the "ON" position

- For approximately 60 seconds after the ignition switch is turned from the "ON" position to the "ACC" or "LOCK" position

Even if a malfunction occurs, such as the security indicator light flashes irregularly, it will not affect the functionality of the immobilizer system.

■ SI-DRIVE indicator light (if equipped)

1) Intelligent (I) mode indicator
2) Sport (S) mode indicator

This light indicates the current SI-DRIVE mode.

For details of SI-DRIVE mode, refer to "SI-DRIVE" 7-33.

■ Select lever/gear position indicator

307175

Type A

1) Gear position indicator

1 2 2 3 701769

Type B

1) Upshift indicator
2) Downshift indicator
3) Select lever/gear position indicator

This indicator shows the position of the select lever.

For models with manual mode, when the manual mode is selected, the gear position indicator (which shows the current gear selection) and the upshift/downshift indicator light up. Refer to "Continuously variable transmission" 7-26.

■ Turn signal indicator ← → lights

These lights show the operation of the signal or lane change signal. If the indicator lights do not blink or bl rapidly, the turn signal bulb may be but out. Replace the bulb as soon as possible. Refer to "Replacing bulbs" 11-38.

■ High beam indicator light

This light shows that the headlights are the high beam mode. This indicator light also illuminates when the headlight flasher is operated.

■ High beam assist indicator light (if equipped)

This light illuminates when the high beam assist function is activated. For details about the high beam assist function, refer to "High beam assist function" 3-72.

■ Cruise control indicator light (if equipped)

tufhis light illuminates when the cruise control main button is pressed to activate the cruise control function. For details, refer to "To set cruise control" 7-53. blé this light blinks, do not use the cruise control. In addition, if it blinks frequently, contact your SUBARU dealer for an inspection.

CAUTION

If the CHECK ENGINE warning light malfunction indicator light illuminates, the cruise control indicator light flashes at the same time. At time, avoid driving at high speed have your vehicle inspected at a SUBARU dealer as soon as possible.

■ Cruise control set indicator light (if equipped)

This light illuminates when vehicle speed has been set to use the cruise control function. Refer to "To set cruise control" 7-53.

■ Automatic headlight beam leveler warning light (models with LED headlights)

This light illuminates when the automatic headlight beam leveler does not operate normally. If this light illuminates during driving, have your vehicle inspected at your SUBARU dealer.

■ LED headlight warning light (models with LED headlights)

This light illuminates if the LED headlights malfunction. Have your vehicle inspected at a SUBARU dealer as soon as possible.

■ Steering Responsive SRH Headlight warning light/OFF Steering Responsive Headlight OFF indicator light (if equipped)

This light illuminates when the Steering Responsive Headlight OFF switch is pressed to deactivate the Steering Responsive Headlight. Also, the light flashes when a malfunction occurs in the Steering Responsive Headlight. Refer to "Steering

- CONTINUED -

Responsive Headlight (SRH)" 3-75.

■ Front fog light indicator light (if equipped)

This indicator light illuminates while the front fog lights are illuminated.

■ Headlight indicator light (if equipped)

This indicator light illuminates under the following conditions.

- The light switch is turned to the "or "D" position.

- The light control switch is in the "AUT position and the headlights illuminate automatically.

■ Auto Start Stop warning light/Auto Start Stop OFF indicator light (yellow) (if equipped)

▼ Auto Start Stop warning light (yellow low)

CAUTION

- If the Auto Start Stop warning light is flashing in yellow, the may be a malfunction in the Start Stop system. We recom-

mend that you have your vehicle inspected at a SUBARU authorized dealer as soon as possible.

- If the Auto Start Stop warning light is illuminated in yellow at any time other than in the following cases and will not turn off even if the Auto Start Stop OF switch is pushed and held, we recommend that you have your vehicle inspected at a SUBARU dealer as soon as possible.

The Auto Start Stop warning light will illuminate in yellow if you open the engine hood when the engine has been temporarily stopped by the Auto Start Stop system. In this case, to ensure safety, the engine will not be automatically restarted, even you release the brake pedal. Use normal operation to restart the engine.

▼ Auto Start Stop OFF indicator light (yellow)

This light will illuminate in yellow when the Auto Start Stop OFF switch is pressed to prevent the Auto Start Stop system from operating. It will turn off when the Auto Start Stop OFF switch is pressed once more to enable operation of the Auto Start Stop system.

■ Auto Start Stop indicator light (green) (if equipped)

This indicator light illuminates when the engine has been temporarily stopped by the Auto Start Stop system. It will turn off when the engine is restarted.

■ Auto Start Stop No Activity Detected indicator light (if equipped)

When a vehicle is stopped, the indicator light illuminates when the operating condition of the Auto Start Stop system is not met. The light will turn off when the vehicle starts driving.

■ X-MODE indicator (if equipped)

701933

X-MODE indicator (models with 1 mode

1 2 306242

X-MODE indicator (models with 2 modes)
1) DEEP SNOW·MUD mode indicator
2) SNOW·DIRT mode indicator

This indicator appears while the X-MODE is activated. It will disappear when the X-MODE is deactivated. Refer to "To activate/deactivate the X-MODE" 7-44.

■ Hill descent control indicator (if equipped)

This indicator appears while the hill descent control function is in standby. It will flash while the hill descent control function is operating. It will disappear when the descent control function is not available. Refer to "Hill descent control function" 45.

■ BSD/RCTA warning in-☐,”F dicator (if equipped)

This warning indicator appears when the BSD/RCTA is malfunctioning. In this case the BSD/RCTA warning indicator will be shown on the combination meter display (color LCD). When this indicator appears, have your vehicle inspected by your SUBARU dealer as soon as possible.

■ BSD/RCTA OFF indica-☐OFF tor (if equipped)

The indicator appears when the BSD/RCTA OFF switch is pressed to deactivate the BSD/RCTA, or when the BSD/RCTA is suspended temporarily. In this case the BSD/RCTA OFF indicator will be shown on the combination meter display (color LCD). For details, refer to "BSD/RCTA" 7-63.

■ RAB warning indicator (if equipped) RAB

This indicator illuminates if the Reverse Automatic Braking (RAB) system malfunctions. Refer to "Reverse Automatic Braking (RAB) system" 7-72.

■ RAB OFF indicator (if RAB OFF equipped)

This indicator illuminates when the Reverse Automatic Braking (RAB) system is turned OFF, or when the Reverse Automatic Braking (RAB) system is suspend temporarily. Refer to "Reverse Automatic Braking (RAB) system" 7-72.

■ Icy road surface warning indicator (if equipped)

When the outside temperature is 37^ F ( 3^ C) or less, the icy road surface warning will illuminate to inform the driver that the road surface may be frozen.

NOTE

- The outside temperature indicator shows the temperature around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions.

- While parking or driving at low speeds - When the outside temperature changes suddenly (example: when going in and out of an underground parking area or when passing through a tunnel)

- When starting the engine after being parked for a certain period time

- The icy road surface warning screen should be treated only as a guide. sure to check the condition of the surface before driving.

- Once the icy road surface warning screen appears, it will not disappear unless the outside temperature has increased to 41^ (5°C) or higher.

Combination meter display (Color LCD) (if equipped)

Be

WARNING

road

Always pay adequate attention to safe driving when operating the combination meter display (color LCD) while the vehicle is in motion. When operation of the combination meter display (color LCD) interferes with your ability to concentrate on driving, stop the vehicle before performing operations on the screen. Also, do not concentrate on the display while driving. Doing so may cause you to look away from the road and could result in an accident.

Various information will be shown on the combination meter display (color LCD). Also, a warning message will appear on the display if a malfunction is detected. In addition, several settings for the displayed content can be performed.

A MPG 1 2 3 4 5 XXX MPH D 842.0 7452 mi E 6 7 8 9 B MPG 1 2 3 4 5 D 842.0 7452 mi E 6 7 8 9 305378

Combination meter display (color LCD)

1) ECO gauge (Refer to "ECO gauge" 3-10.)
2) Warning screen (Refer to "Warning screen" 3-36.)/Basic screen (Refer to "Basic screens" 3-38.)
3) EyeSight screen
4) Cruise control information display

5) Telltale screen (Refer to "Telltale screen" 2-3-37.)
6) Select lever/gear position indicator (Refer to "Select lever/gear position indicator" 3-30.)
7) X-MODE indicator (if equipped) (Refer to "X-MODE indicator" 3-33.)/SI-DRIVE indicator (if equipped) (Refer to "SI-DRIVE" 7-33.)
8) Odometer (Refer to "Odometer" 3-9.)/ Double trip meter (Refer to "Double trip meter" 3-9.)
9) Fuel gauge (Refer to "Fuel gauge" 3-10.)
A: Deactivating the EyeSight system or models without the EyeSight system
B: Activating the EyeSight system

■ Basic operation

1 2 3 304906

Control switch

1) (Up)
2) i/SET (Enter)
3) ▼ (Down)

By operating “▲” or “▼” of the control switch, the screens and selection items can be switched. When the “I/SET” switch is pulled toward you, the item can be selected and set.

If there are some useful messages, such as vehicle information, warning information, etc., they will interrupt the current screen, and appear on the display accompanied by a beep. If such a screen is displayed, take proper action according to the message shown on the screen.

The warning screen will return to the original screen after a few seconds. While the "i" information reminder is shown on the display, it may be possible to display the warning screen again. To recall the message marked with i" on the display, pull the "i/SET" switch on the steering wheel toward you.

NOTE

When the multi-function display (color LCD) is set to the setting screen, the combination meter display (color LCD) cannot be controlled pulling on the "▲", ▼" and I /SET" on the control switch.

■ Welcome screen (opening animation) and Good-bye screen (ending animation)

When the driver's door is opened and closed after unlocking the door, the welcome screen (opening animation) will appear on the combination meter display (color LCD) for approximately 20 seconds. When the ignition switch is turned to the "LOCK"/"OFF" position, the combination meter display (color LCD) gradually turns off with showing Good-bye screen (ending animation).

NOTE

• The welcome screen and the goodbye screen may differ in the actual words and appearance.
• Once the welcome screen appears, it takes a certain period of time to display it again.
• If the ignition switch is operated after unlocking the driver's door, the welcome screen will not appear even when the driver's door is opened and closed.
• The welcome screen will disappear when you lock the driver's door by using the remote keyless entry system (all models) or the keyless access function (if equipped) while the welcome screen is displayed.
• The welcome screen including the multi-function display (color LCD) (if equipped) and the audio/navigation unit can be set to on or off. For refer to "Welcome Screen" 3-41.
  details,

■ Warning screen

SRS

Airbag System

305010

Example of warning

If there is a warning message or a maintenance notification, it will appear on this screen. Take the appropriate actions based on the messages indicated.

■ Telltale screen

MPG 123MPH SET D 842.0 7452 m E F 305017

1) Telltale screen

When the corresponding situation occurs, the following telltales will be displayed on the telltale screen.

NOTE

When there is warning information to display, it will be displayed in five warning indicators, starting on the let in ascending order of severity. If the are six or more warning information displayed, pull the SET switch and check the item.

Mark Name Page
	Door open warning light	3-22
	LED headlight warning light (models with LED headlights)	3-31
	High beam assist indicator light (if equipped)	3-31
SRH OFF	Steering Responsive Headlight warning light (if equipped)	3-31
	Engine low oil level warning light	3-18
RAB	RAB warning indicator (if equipped)	3-33
RAB OFF	RAB OFF indicator (if equipped)	3-34
	BSD/RCTA warning indicator (if equipped)	3-33
	BSD/RCTA OFF indicator (if equipped)	3-33
	Automatic headlight beam leveler warning light (models with LED headlights)	3-31

Mark Name Page
	Auto Start Stop warning light/Auto Start Stop OFF light (yellow) (if equipped)	3-32
	Auto Start Stop No Activity Detected indicator light (if equipped)	3-32
	Auto Start Stop indicator light (green) (if equipped)	3-32
	Windshield washer fluid warning light	3-18
	Hill descent control indicator (if equipped)	3-33
	Icy road surface warning indicator (if equipped)	3-34
	Engine hood open warning light (if equipped)	3-16

■ Basic screens

By operating the “” or “” switch on the steering wheel, you can change the screen that is always displayed.

Average fuel consumption screen:

AVG A 12.7 MPG ← 100 mi

305011

Average fuel consumption

Driving range on remaining fuel

This screen displays the average rate of fuel consumption since the trip meter was last reset.

NOTE

The driving range on remaining fuel is only a guide. The indicated value may differ from the actual driving range on remaining fuel, so you must immediately fill the tank when the low fuel warning light illuminates.

Current fuel consumption screen:

25.3 MPG

100mi

305013

Current fuel consumption

Driving range on remaining fuel

This screen displays the rate of fuel consumption at the present moment.

NOTE

The driving range on remaining fuel only a guide. The indicated value m

differ from the actual driving range remaining fuel, so you must immediately fill the tank when the low fuel warning light illuminates.

Driving information screen:

99:37

200mi

305012

Journey time

Journey distance

This screen displays the journey time (the time that has elapsed since the ignition switch was turned to the "ON" position) and journey distance (the distance that has been driven since the ignition switch as was turned to the "ON" position).

on

Digital speed screen:

SPEED LIMIT 50 1 2 — 10 MPH 305014

1) Speed limit indicator (if equipped)
2) Vehicle speed

This screen displays the current vehicle speed.

Auto Start Stop screen (if equipped):

01'18" 21 ml 305309

(A): The total amount of time that the engine was stopped by means of the Auto Start Stop system
P: The total amount of fuel saved due to engine being stopped by the Auto Start Stop system

The indicated values are calculated from the most recent reset of the currently displayed trip meter to the current time. The indication ranges are as follows.

• Total amount of time: from 00'00" to 9999h59'59"
  ● Total amount of fuel saved: from 0 ml 9999.999 L

NOTE

- When the trip meter is reset, the corresponding accumulated time and the amount of fuel saving are also

• The time spent with the engine stopped by means of the Auto Start Stop system is also added to the journey time.
  SI-DRIVE mode screen (if equipped):

SI-DRIVE 305795

This screen indicates the current SI-DRIVE mode with its throttle angle.

to

reset.

TPMS screen (U.S.-spec. models):

psi 33 33 22 32 305015

This screen displays each tire pressure. When a tire is deflated, the deflated tire and the tire pressure will be displayed on the screen in yellow.

NOTE

• The tire pressure values are displayed several minutes after driving.
• You can set the tire pressure uni For details about setting the units, to "Tire Pressure Units" ≈3-41.
• Once the tire pressure monitoring system detects the low tire pressure, the tire pressure values will display in yellow until the system detects the normal tire pressure.
• Immediately adjust the tire pressure when the warning light illuminates.

When the tire pressure monitoring system detects the adjusted tire pressure, the warning light will turn off the tire pressure values will turn to white.

- For information about the specified value of the air pressure, refer to "Tires" 12-8.

Menu screen entering screen:

Pull and hold "i/SET" Switch For Menu 305016

While this screen is selected, pull and refer "I/SET" switch to enter the menu screen.

■ Menu screens

Pull and hold the "SET" switch to enter the menu screens when all of the following conditions are satisfied.

• The menu screen entering screen is selected.
• The “i” information reminder is off.

NOTE

• While driving, the setting items available on the combination meter display (color LCD) are limited.
• For function settings and adjustments on the combination meter display, refer to "Function settings and adjustments on the combination meter display (color LCD)" 25.

By operating the “or” switch on the steering wheel, you can select the menu. Pull the “I/SET” switch to enter the selected menu.

hQNOTE

If you enter the "Go Back" menu, the system will return to the previous screen.

▼ Screen Settings

After entering the "Screen Settings" menu, select one of the following menus.

▽ Welcome Screen

The welcome screen can be activated deactivated.

Good-bye Screen

The good-bye screen can be activated deactivated.

▽ Gauge Initial Movement

The movement of the meter needles and gauge needles that occurs when the ignition switch is turned to the "ON" position can be activated or deactivated.

Units

Changes the units displayed in the combination meter display (color LCD), the multi-function display (black and white) and the multi-function display (color LCD).

∇ Tire Pressure Units (if equippe

Changes the units displayed in the Tire Pressure Monitoring system.

▽ Languages

Changes the language displayed in the combination meter display (color LCD) and the multi-function display (color LCD

▼ Warning Volume (if equipped)

Sets the EyeSight warning volume, the BSD/RCTA warning volume and the Reverse Automatic Braking (RAB) warning

volume.

▼ Rear Seat Reminder (models with combination meter display (color LCD))

The Rear Seat Reminder can be activated or deactivated.

▼ EyeSight (models with EyeSight system)

NOTE

For models with the EyeSight system refer to the Owner's Manual supplement for the EyeSight system.

▼ RAB (if equipped)

The Sonar Audible Alarm can be set to or off.

NOTE

For models with Reverse Automatic Braking (RAB) system, refer to "Reverse Automatic Braking (RAB) system" 7-72.

▽ Sonar Audible Alarm

When the Reverse Automatic Braking (RAB) system is in operation, the warning sound to notify that an obstacle is detected in the rear can be activated or deactivated

▼ Vehicle Setting

After entering the "Vehicle Setting" menu, select one of the following menus.

▼ Keyless Entry System

Sets the settings used when the keyless access function was operated.

- Audible Signal (if equipped) Sets the electronic chirp that sounds when the door is locked or unlocked.

Hazard Warning Flasher

Sets the operation of the hazard warning flasher that blinks when the door is locked or unlocked.

- Driver Door Unlock (if equipped) - Select only the driver's door to unlock or all doors to unlock simultaneously when the driver's door is unlocked.

- Rear Gate/Trunk Unlock (if equipped) Select only the rear gate to unlock or all doors to unlock simultaneously when accessing from the cargo area.

Defogger

Sets and customizes the operation of the defogger.

Interior Light

Sets and customizes the interior light off delay timer.

∇ Auto Door Lock and Unlock

Setting conditions for "Auto Door Lock Unlock"

- Auto Door Lock:

Set the condition of the following items lock the door automatically.

- Vehicle Speed: When the vehicle speed reaches more than 12 mph (km/h).

- Shift Into or Out of PARK: When select lever is shifted into a position other than the "P" position (CVT models).

- Off: When the function is set to

- Auto Door Unlock:

Set the conditions of the following items unlock the door automatically.

• Shift Into or Out of PARK: When select lever is shifted into the "P" position (CVT models).
• Ignition OFF: When the ignition switch is turned to OFF.
  – Driver Door Open: When the driver's door is open.
• Off: When the function is set to

Auto Light Sensor (if equipped)

Sets and customizes the sensitivity of the auto light sensor.

Welcome Lighting (if equipped)

anSets the leaving time and approaching time.

- Approaching time set

toSets the illumination time of the headlight that illuminate when you approach the vehicle.

(20) Leaving time set

Sets the time until the headlights turn off when you have moved away from the vehicle.

∇ One-touch lane changer

OFF Sets the one-touch lane changer on/off.

▼ Default Settings

Select "Yes" to use the menu screen to restore customized settings (except the

"Vehicle Setting" of "Keyless Entry System", "Defogger", "Interior Light", "Auto Door Lock and Unlock", "Auto Light Sensor", "Welcome Lighting" and "One-touch lane changer") to the factory default settings. Select "No" to return to the previo

screen without restoring to the factory default settings.

Multi-function display (black and white)

NOTE

For models with multi-function display (color LCD), refer to “Multi-function display (color LCD)” 3-49.

1 2 3 4 5 306207

Multi-function display (black and white)

1) Clock
2) Auto Start Stop system (if equipped) 3) Outside temperature indicator
4) Driving information display
5) Climate control screen

With the ignition switch in the "ACC" position, the clock appears on the display.

With the ignition switch in the "ON" position, the outside temperature indicator,

driving information display and clock all appear on the display.

NOTE

The indicated values vary in accordance with changes in the vehicle's running conditions. Also, the indicate values may differ slightly from the actual values and should thus be treated only as a guide.

■ Driving information display NOTE

You can set the units for both the function display (black and white) a the combination meter at the same time. For details about setting the language and units, refer to "Type combination meter" 3-11 or "Menu screens" 3-40.

▼ How to change the information display

d INFO 1 multi- 304855

1) INFO button

Pressing the INFO button on the steering wheel switches the display in the following sequence.

*1: Models without combination meter display (color LCD)

*2: If equipped

▼ Driving range on remaining fuel

1 93 mi 2 150 km 301994

1) When setting the displayed unit as MPH 2) When setting the displayed unit as km/h

The driving range indicates the distance that can be driven taking into account the amount of fuel remaining in the tank and the average rate of fuel consumption.

1 mi 2 km 301995

1) When setting the displayed unit as MPH 2) When setting the displayed unit as km/h If the driving range is shown as “”, the is only a tiny amount of fuel left in the

^e NOTE

The driving range on remaining fuel only a guide. The indicated value m differ from the actual driving range remaining fuel, so you must immediately fill the tank when the low fue warning light illuminates.

▼ Average fuel consumption

1) Displays the driving range per gallon of fuel

102) Displays the driving range per liter of fuel tank. 3) Displays the fuel consumption per 100 km

This display shows the average rate of fuel consumption since the trip meter was last onset.

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

1

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

Line drawing of a car's seatbelt mechanism with labeled component (no text or symbols beyond label)

1) TRIP RESET switch

Press the TRIP RESET switch to switch between the displays for the average fuel consumption that corresponds to the A tri meter mileage and the average fuel consumption that corresponds to the B trip meter mileage.

When the trip meter displays is reset, the corresponding average fuel consumption value is also reset.

NOTE

- When the trip meter display is reset, the average fuel consumption corresponding to that trip meter display is not shown until the vehicle has subsequently covered a distance of 1 mile (or 1 km).

- The units for measuring average consumption cannot be changed.

▼ Current fuel consumption

- ^1) Displays the driving range per gallon of fuel

2) Displays the driving range per liter of fuel

3) Displays the fuel consumption per 100 km

This indication shows the rate of fuel consumption at the present moment.

Journey time (models without combination meter display (color LCD))

E/T 2:58 301999

The journey time shows the time that has elapsed since the ignition switch was turned to the "ON" position.

E/T 1:00 302000

The journey time indication flashes each

- CONTINUED -

time a complete hour has elapsed. If the display is giving a reading other than the journey time, the display switches to the journey time, flashes for 5 seconds, and returns to its original reading each time complete hour has elapsed.

NOTE

The journey time is reset when the ignition switch is turned to the "AC or "LOCK"/"OFF" position.

▼ Average vehicle speed

1 63 A AVG. MPH 2 102 φ km/h 302001

1) When units in miles is selected
2) When units in km is selected

This display shows the average vehicle speed since the trip meter was last reset. Pressing the TRIP RESET switch toggles the display between the average vehicle speed corresponding to the A trip meter display and the average vehicle speed corresponding to the B trip meter display. When either of the trip meter displays is reset, the corresponding average vehicle speed value is also reset.

NOTE

When either trip meter display is re the average vehicle speed corresponding to that trip meter display is not shown until the vehicle has subsequently covered a distance of 1 mile (or 1 km).

▼ Auto Start Stop time (if equipped)

1 00 h 17:48 A 2 02 h 34:56 302178

1) Total time in conjunction with the trip meter

2) Total time in conjunction with the ignition switch

This display shows the total time that the engine was stopped by the Auto Start Stop system in the following ways.

Total time in conjunction with the trip meter: Displays the total time that the engine was stopped by the Auto Start Stop system, from the last time the currently displayed trip meter was reset until the current time. By pressing the TRIP RESET switch, you can toggle the display between the time the engine was stopped for trip A and the time the engine was stopped for trip B.

NOTE

When the trip meter mileage is reset, the total time in conjunction with the trip meter is not shown until the vehicle has subsequently covered a distance of 1 mile (or 1 km).

Total time in conjunction with the ignition switch: Displays the total time that the engine was stopped by the Auto Start Stop system, from the time when the ignition switch was turned to the "ON" position to the current time.

∇ How to switch the display

Perform the following operation to toggle the display between the total time in conjunction with the trip meter and the

total time in conjunction with the ignition switch.

Top-down line drawing of a car interior with a digital camera module and a small logo, no text or symbols present.

1. Press and hold the "+" button located fusion on the side of the information display. The stopped time will then flash.
2. Within 5 seconds after the stopped time starts flashing, press and hold the “-” button located on the side of the information display. The display will then change and after flashing for 3 seconds, the stopped time selected will be displayed.
3. Each time the “-” button is pressed and held during the 3 seconds that the display is flashing, the display will change and flash for 3 seconds. If the “-” button is not pressed and held during the 3-second period that the display is flashing, the stopped time selected will be displayed.

▼ Turn off display of driving information display

Select the blank space in the menu to the driving information display selection.

NOTE

• The average fuel consumption and average vehicle speed are calculated even while the driving information of play has been turned off.
• Even if you turn off the driving information display, the display will automatically turn on when the battery voltage is disconnected and then reconnected for battery replacement or
  fuse replacement.

a-■ Outside temperature indicator

exit 1 70°F 2 21°C is- ery 301992

1) U.S.-spec. models
2) Except U.S.-spec. models

NOTE

- The outside temperature indicator shows the temperature around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions.

- While parking or driving at low speeds

- When the outside temperature changes suddenly (example: when going in and out of an underground parking area or when passing

- CONTINUED -

through a tunnel)

- When starting the engine after being parked for a certain period time

• The temperature unit cannot be changed.
  ▼ Road surface freeze warning indication

1 37°F 2 3°F 301993

1) U.S.-spec. models
2) Except U.S.-spec. models

When the outside temperature drops to a certain temperature or lower, the temperature indication flashes for 5 seconds to show that the road surface may be frozen. If the display is already indicating that the outside temperature is low when the ignition switch is turned to the "ON" position, the indication does not flash.

NOTE

The outside temperature indication may differ from the actual outside temperature. The road surface freeze warning indication should be treated only as a guide. Be sure to check condition of the road surface before driving.

■ X-MODE indicator (if equipped)

This indicator will be shown while the X-MODE is activated. It will turn off when the X-MODE is deactivated.

Clock

For details about clock setting, refer to "Clock" ≈3-66.

■ Climate control screen

The climate control status is displayed on the multi-function display (black and white) type A.

the

1 2 3 4 5 OUT TEMP 10 AM 25 AVG. FULL AUTO A/C 7 6 306206

Climate control screen

1) Set temperature indicator
2) FULL AUTO indicator
3) AUTO indicator
4) Air conditioner ON indicator
5) Airflow mode indicator
6) Air inlet selection indicator
7) Fan speed indicator

When operating the climate control system, the basic screen switches to the climate control screen. For details about climate control operation, refer to "Climate control panel" 4-2.

Multi-function display (color LCD) (if equipped)

NOTE

For models with multi-function display (black and white), refer to "Multi-function display (black and white)" 3-42

WARNING

Always pay adequate attention to safe driving when operating the multi-function display (color LCD) while the vehicle is in motion. W operation of the multi-function display (color LCD) is disturbing you awareness and ability to concentrate on driving, stop the vehicle a safe place before performing operations on the screen. Also, do concentrate on the display while driving. Doing so may cause you look away from the road and could result in an accident.

■ Features

The multi-function display (color LCD) the following functions.

Description Page
Displays useful messages, such as notification, etc.	3-50
Displays basic screens (e.g. fuel consumption screen, etc.)	3-51
Sets and adjusts maintenance notification	3-64

Also, the multi-function display (color LCD can also be used to set and initialize multi-function display (color LCD) itself.

NOTE

• When the vehicle is in motion, in certain functions and selections may not be available.
  not You can set the language and un for both the multi-function display to color LCD) and the combination me
  at the same time. For details about setting the language and units, refer "Menu screens" 3-40.
• The images displayed in this Owner's Manual are sample images. The actual image may vary depending on the market and vehicle specifications

■ Welcome screen

sWhen the driver's door is opened and closed, the welcome screen will appear for a short time.

NOTE

• The welcome screen will disappear when the ignition switch is turned to the "ON" position while the welcome screen is displayed.
• The welcome screen can be set to or off. For details, refer to "Screen Settings" 3-40.

For a certain period of time after the welcome screen has once appeared, it may not appear again even when the driver's door is opened and closed again. This does not indicate a malfunction.

Self-check screen

NOTE

When the setting is "On", the self-dReck screen appears. For details about this setting, refer to "On/Off setting" 3-64.

When the ignition switch is turned to the "ON" position, the vehicle self-check will be performed. The screens corresponding to the following items will appear one after another for several seconds each.

- CONTINUED -

1 2 3 4 304971

1) Engine oil: Checks the interval of engine oil replacement.
2) Oil filter: Checks the interval of oil filter replacement.
3) Tires: Checks the interval of tire rotation
4) Inspection and maintenance: Checks the interval of inspection and maintenance.

When the checks are performed, the color of the icon corresponding to the checked item will change.

If there is a notification, the message will be displayed. Take the appropriate actions based on the message indicated.

After the self-check is completed, today's date, the stored birthday or the stored anniversary is displayed.

NOTE

• After performing the maintenance, change the setting of the corresponding maintenance item. For details, refer to "Maintenance settings" 3-64.
• The maintenance notification screen will be displayed under either of the following conditions.

- The period of time remaining until the registered notification date is 15 days or less.

- The total driving distance remaining until the registered notification distance is approximately 311 miles (500 km) or less.

- The maintenance notification screer will be displayed until either of the following conditions is satisfied.

- The period of time passed after the registered notification date is days or more.

- The total distance driven after registered notification distance is approximately 311 miles (500 km) more.

■ Interruption screen

Time to change engine oil 305107

Example

Useful messages, such as reminder information, weather information (if equipped) and traffic information (if equipped) may interrupt the current screen and appear on the display accompanied by a beep. Take proper action according to the message.

The interruption screen will return to the original screen after a few seconds. Also, you can press the INFO button to skip the interruption screen.

Basic operation

1 INFO 2 3 4 304959

Control switch
1) INFO button

Press the INFO button on the steering wheel to switch the item displayed on the basic screen. You can operate the items on the setting screen by using the▲", "▼" and 1/SET" switches.

Basic screens

1 10:03 72 AUTO 69 86°F 2 3 4 306485

1) Clock

2) Climate control*

3) Outside temperature

4) Information screen

*: This is not displayed on the multi-function display (color LCD) when the ignition switch

is in the "ACC" position.

While the ignition switch is in the "ACC" or "ON" position, the basic screen will be displayed.

▼ Outside temperature indicator

The outside temperature is displayed on the multi-function display (color LCD).

NOTE

- The outside temperature indicator shows the temperature around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions.

- While parking or driving at low speeds

- When the outside temperature changes suddenly (example: when going in and out of an underground parking area or when passing through a tunnel)

- When starting the engine after being parked for a certain period of time

- The temperature unit cannot be changed.

▼ Climate control screen

The climate control status is displayed the multi-function display (color LCD).

1 10:03 72 FULL AUTO A/C SYNC 9 8 7 6 OUT TEMP 86°F 306486

control panel" 4-2.

on▼ Clock

The clock can be displayed in either 12-hour display or 24-hour display. For details about the setting, refer to "Clock" 3-66.

Climate control screen

1) Set temperature indicator (driver's side)
2) FULL AUTO indicator
3) AUTO indicator
4) Airflow mode indicator
5) Set temperature indicator (passenger's side)*1
6) Air inlet selection indicator
7) SYNC indicator* 1
8) Fan speed indicator
9) Air conditioner ON indicator
*1: Models with the SYNC function only

When operating the climate control system, the basic screen switches to the climate control screen. For details about climate control operation, refer to "Climate

▼ Information screen

Press the INFO button on the steering wheel to switch the item displayed on the information screen.

Content Description Page
Electric components operating status screen	Displays the operating status of the electric components and equipment. 3-54
Prevention safety screen Displays the status	of your vehicle. 3-54
EyeSight screen1	Displays the operating status of EyeSight. 3-55
Favorite screen Displays up to 3 optional items. 3-55
Weather information screen2	Displays weather information. 3-56
Traffic information2/Navigation*3 screen Displays information linked with the navigation system.		3-56
Audio screen	Displays audio system information.	3-57
Fuel consumption screen	Displays fuel consumption information.	3-57
Clock/date screen	Displays the clock.	3-57
Guidance screen	Moves to the setting screen.	3-58

*1: Models with EyeSight system

*2: Models with SiriusXM Satellite Radio

*3: Models with navigation system

▽ Electric components operation screen

1 2 3 4 10:03/72 AUTO 69 OUT TEMP 86°F AUTO RAB 9 8 7 6 5 306487

1) Lane Departure Warning indicator ^4
2) Pre-Collision Braking System indicator*1
3) Stop lights
4) Reverse Automatic Braking (RAB) ^*1
5) BSD/RCTA* 1
6) Headlights* 2
7) Front fog lights*2
8) Turn signals
9) Auto on/off headlights*1
*1: If equipped
*2: The daytime running lights are not displayed.

This screen displays the electric components operation status of the vehicle.

NOTE

• Indicators do not display for functions that are not equipped to the vehicle.
• The indicators of functions that are not operating are displayed in gray.
• For models with auto on/off headlights; If the multi-function display (color LCD) unit, battery, or fuse is removed, the Auto on/off headlights indicator turns off on the multi-function display (color LCD). After reinstalling the removed multi-function display (color LCD) unit, battery, or fuse to vehicle, the Auto on/off headlights indicator will appear once more if the light control switch is turned to the "AUTO" position.
• The exterior lights indicators on the screen do not notify the driver when the bulbs burn out. The indicators on the screen still illuminate.

∇ Prevention safety screen

1 10 03/72 AUTO 69 OUT TOM 86°F 4 3 on the 306488

the

1) Telltale screen
2) Steering angle
3) Vehicle posture
4) Running condition

This screen displays the driving status of the vehicle and the operation status functions. For functions that are operating, the indicator will illuminate or flash.

NOTE

• The vehicle posture indication may differ from the actual vehicle posture.
• When X-MODE has turned on, the screen of the multi-function display is switched to the prevention safety screen.

▽ EyeSight screen (models with EyeSight system)

10:03 72 AUTO 69 86°F 7 6 5 4 3 ACTIVE 307038

1) Lead vehicle indicator
2) Your own vehicle indicator
3) Stop lights
4) Road line indicator
5) Lane indicator
6) Lane Centering indicator (if equipped)
7) Steering wheel indicator (if equipped)

This screen displays the status of the EyeSight system. The lead vehicle indicator moves forward and backward depending on the distance with the vehicle in front. For details, refer to the Owner's Manual supplement for the EyeSight system.

∇ Favorite screen

10:03/72 四时变暖 AUTO 69 86°F Norm Water Temp 154 F Oil Temp 54 MPH AVG Speed 306490

Favorite screen (display example)

This screen displays up to three optional pieces of information that can be selected from the following items.

Item Details

The engine coolant temperature is displayed.

The engine oil temperature is displayed.

The average vehicle speed is displayed.

The accelerator opening ratio is displayed.

The vehicle posture is displayed.

The current rate of fuel consumption is displayed.

The direction of the vehicle is displayed.*1

The weather information is displayed.*2

Item Details
	The posted speed limit of the ro you are currently driving on is displayed.*1
	The calendar is displayed.
	Nothing is displayed.

*1: If equipped
*2: Models with SiriusXM Satellite Radio

NOTE

Some displayed items may be not displayed depending on the model and specifications.

The items shown in the favorite screen be changed. For details, refer to "Favor setting" 3-62.

▽ Weather information screen (if equipped)

10:03/72 69 86°F xxxxxx xxxxxx 306491

1) Weather information for the destination*

2) Weather information for the current location

*: Only when a destination is set in the navigation system

cane weather information is displayed on the screen.

NOTE

- When all of the following condition are satisfied, weather information is displayed.

• The vehicle is equipped with audio and navigation system for SiriusXM satellite radio.

• You have a current SiriusXM satellite radio subscription.

• The weather forecast for the set destination remains displayed until a new destination is set or until you reach the destination.

• Depending on the reception timing of XM, the display of weather information may be delayed.

∇ Navigation screen (models with navigation system)

10:03 72 自动操作 AUTO 69 OUT TEMP 86°F 1.2 mi xxxxxxxxx Ave. 306492

The navigation system information to the destination is displayed on the screen.

NOTE

When a destination is not set in the navigation system, the compass orientation, name, route sign and speed limit of the road the vehicle is traveling on remain displayed on the screen.

Audio screen

22:03/ 72 GON AUTO 69 OUT 86°F FM xxxxxx △△△△ 000 Radio 306493

The screen of the currently selected audio source is displayed.

For details about how to use the audio refer to the separate navigation/audio Owner's Manual.

∇ Fuel consumption screen

10:03 72 AUTO 69 MP 86° 260 miles AVG 30.0 MPG 0 20 40 60 MPG 306440

bio 1) Driving range on remaining fuel 2) Average fuel consumption corresponding to the driving distance of each trip me set 3) Current fuel consumption

The fuel consumption information is displayed on the screen.

NOTE

The driving range on remaining fuel is only a guide. The indicated value may differ from the actual driving range on remaining fuel, so you must immediately fill the tank when the low fuel warning light illuminates.

▽ Clock/date screen

10:03/72 国防雪橇 AUTO 69 24:00 86°F 8/25 Thursday 306494

The time and date are displayed. You can adjust the time and date. For details, refer to "Clock" 3-66.

∇ Guidance screen

10:03 72 国灯需要 AUTO 69 OUT DEAP 86°F Push and hold [INFO]button for selection screen 306495

When the INFO button on the steering wheel is pressed and held on this screen the setting screen can be displayed. For details, refer to "Setting screen" 3-58.

NOTE

Pull and hold "i/SET" Switch For Menu 305016

When the combination meter display (color LCD) is displaying the menu screen entering screen, the system will not move to the setting screen even if the INFO button is pressed and held.

■ Setting screen

1. Press and hold the INFO button on the guidance screen. The top menu is displayed.
2. Operate the “▲” or “▼” switch to select the preferred menu from the top menu.
3. Pull the "I/SET" switch to enter the selected menu.
4. Operate the “▲” or “▼” switch to select the preferred menu from the 2nd menu.
5. Pull the "i/SET" switch to enter the selected menu.

The menu lists are as follows.

Items that can be set when stopped:

Top menu	2nd menu Description Page
Date	Birthday Set a birthday. 3-61
	Anniversary Set an anniversary	day. 3-61
	Go Back Return to the 1st menu. —
Display/Beep	Screen Off Turn the screen off.	Yes or No 3-61
	Favorite	Set and customize the triple meter.		3-62
	Bypass Screen	Set the bypass screen for each item.	On or Off	3-62
	Beep	Adjust the beep sound volume.	High, Low or Off	3-62
	Go Back Return to the 1st menu. —
Camera Settings	Brightness	Set and adjust the brightness of a display.		3-63
	Contrast	Set and adjust the contrast of a display.		3-63
	Camera Shift Link	Set the camera shift link.	On or Off	3-63
	Go Back Return to the 1st menu. —
Maintenance	Engine Oil	Set and adjust the oil maintenance notification date.		3-64
	Oil Filter	Set and adjust the oil filter maintenance notification date.		3-64
	Tires	Set and adjust the tire maintenance notification date.		3-64
	Maintenance Schedule	Set and adjust the vehicle maintenance notification date.		3-64
	ON/OFF	Turn on or off the self-check screen that is activated when the ignition switch is turned to the “ON” position.	On or Off	3-64
	Clear All Settings	Clear all settings for maintenance items.	Yes or No	3-65
	Go Back	Return to the 1st menu.		—
Initialize — Reset all settings to the default settings. Yes or No 3-65
Go Back — Return to the setting screen.				—

Items that can be set while driving:

Menu Description Page
Screen Off Turn the screen off.		3-61
Go Back	Return to the settings screen.	—

For safety reasons, we recommend stopping the vehicle in a safe location while setting.

▼ Date and time settings

You can set the date, time and 12h or format settings.

▽ Current date and time setting For details about clock setting, refer to "Clock" 3-66.

▽ Birthday setting

If a birthday or anniversary is approach a message will be displayed when the ignition switch is turned to the "ON" position. This function can be set to on off. For details, refer to "Bypass screen setting" 3-62.

1. Select "Birthday" from the 2nd menu the setting screen. Refer to "Setting screen" 3-58.

10:03/72 自动报警 AUTO 69 OUT 86°F Birthday Select ▶ 1 01/21 XXXXXX 2 --/-- 3 --/-- i/Set Select Go Back 306496

1. Select from the list the number that

want to register.

24h 10:03 / 72 AUTO 69 OUT TEMP 86°F ▲ Select Birthday I □/Set ▶01 / 21 xxxxxx ▼ Select Set Go Back ng or 306497

1. Enter the date and the text by using incontrol switches.
2. Select "Set" to exit settings. Select Back" to return to the previous screen without applying the setting changes.

NOTE

You can store a maximum of 5 birth-days.

▽ Anniversary setting

1. The procedure for setting an anniversary is the same as "Birthday setting" 61, except that in step 1 "Anniversary" selected.

NOTE

You can store a maximum of 5 anniversaries.

▼ Display/Beep settings

You can set the display settings and volume settings.

▽ Screen OFF setting

1. Select "Screen Off" from the 2nd menu in setting screen. Refer to "Setting screen" 3-58.

the 10:03/72 回灯菜单 AUTO 69 OUT Screen Off Screen Off Turn off screen? Yes No Select f/Set Select 306498

1. Select "Yes" to turn off the screen. Select "No" to return to the previous screen.

Restoring the screen

When the INFO button is operated after

- CONTINUED -

the ignition switch is turned to the "ON" or Select "Set" to exit settings. Select "ACC" position, the screen will be restored back to return to the previous screen. The screen will be restored with the basic without applying the setting changes.

screen that was displayed when the screen was turned off.

NOTE

While the screen is off, the screen switches to the climate control scre only when the climate control syste operated.

∇ Favorite setting

1. Select the "Favorite" from the 2nd menu in setting screen. Refer to "Setting screen" 3-58.

10:03 72 自动器 AUTO 69 OUT Favorite Select i/Set WaterTemp Oil Temp Inst Cons Select Set Go Back 306499

1. Set the desired items by using the control switches. For details about items refer to "Favorite screen" 3-55.

NOTE

• You can display a maximum of the items.
• The same item cannot be selected prior the left, center or right location.
• Weather information for 3 hours later or 6 hours later can be displayed

∇ Bypass screen setting

1. Select "Bypass Screen" from the 2nd menu in the setting screen. Refer to "Setting screen" 3-58.

10:03 72 AUTO 69 OUT Bypass Screen ▲ Select ▶Birthday Reminder On (i)/Set Anniversary Reminder On Traffic Info On ▼ Select Set Go Back 306500

1. Select "On" or "Off" to turn the displ of items on or off by using the control

Gswitches.

1. Select "Set" to exit settings. Select "Go Back" to return to the previous screen without applying the setting changes.

^e NOTE

Traffic information setting is only displayed for the audio unit with SiriusXM satellite radio.

yed. ▽ Beep setting

1. Select "Beep" from the 2nd menu in the setting screen. Refer to "Setting screen" 3-58.

10:03 72 回光隔离 AUTO 69 OUT 86°F Select High 1/Set Select Set Go Back 306501

1. Set the beep volume by using the control switches.

2. Select "Set" to exit settings. Select "Go Back" to return to the previous screen

without applying the setting changes.

▼ Camera Settings (if equipped)

You can set the front camera display settings.

∇ Brightness setting

1. Select "Brightness" from the 2nd menu in the setting screen. Refer to "Setting screen" 3-58.

Brightness Auto Auto Check surroundings directly 305792

1. Select the brightness level by using control switches.
2. Press the "I/SET" button to confirm the setting.

∇ Contrast setting

1. Select "Contrast" from the 2nd menu the setting screen. Refer to "Setting screen" 3-58.

Contrast Check surroundings directly 305793

1. Select the contrast level by using the control switches.
2. Press the "I/SET" button to confirm the setting.

the

▽ Camera shift link setting

in1. Select "Camera Shift Link" from the 2nd menu in the setting screen. Refer to "Setting screen" 3-58.

10:03/72 AUTO 69 86°F Camera Shift Link Select On Set Go Back 306502

1. Select "On" or "Off" by using the control switches.
2. Select "Set" to exit settings. Select "Go Back" to return to the previous screen without applying the setting changes.

▼ Maintenance settings

You can set maintenance reminders.

▽ Engine oil setting

1. Select "Engine Oil" from the 2nd men in the setting screen. Refer to "Setting screen" 3-58.

10:03/72 回划线等 AUTO 69 OUT 86°F Engine Oil Notification Date ▶ --- / --- ---- Notification Distance Remaining 6000miles Select Set Update Go Back T/Set Select Select Set Update Go Back 306503

1. Set the date and distance of the reminder by using the control switches.
2. Select "Set" to exit settings. Select "Update" to change the notification distance to the default value. Select "Go Back" to return to the previous screen without applying the setting changes.

NOTE

- The reminder will be displayed by either date or distance in accordance with the setting.

Even when either "Day" or "Distance" are displayed as " _ " a po screen will appear.

- The reminder will be displayed unt either of the following conditions is satisfied.

• The period of time passed after the registered notification date is days or more.
• The total distance driven after registered notification distance is approximately 311 miles (500 km) more.

Oil filter setting

The setting procedure is the same as "Engine oil setting" 3-64, but select the "Oil Filter" item in step 1.

∇ Tires setting

The setting procedure is the same as "Engine oil setting" 3-64, but select the "Tires" item in step 1.

▽ Maintenance schedule setting

The setting procedure is the same as "Engine oil setting" 3-64, but select the "Maintenance Schedule" item in step 1.

On/Off setting

1. Select "On/Off" from the 2nd menu on the setting screen. Refer to "Setting screen" 3-58.

10:03/72 回灯菜单 AUTO 69 OUT/TEMP 86°F ON/OFF Select Off I/Set Select Set Go Back 306504

1. Select "On" or "Off" to turn the opening screen on or off by using the control switches.
2. Select "Set" to exit settings. Select "Go Back" to return to the previous screen without applying the setting changes.

∇ Clear setting

1. Select "Clear All Settings" from the menu on the setting screen. Refer to "Setting screen" 3-58.

10:03 72 注意电源 AUTO 69 OUT 86°F Clear All Settings ▲ Select Delete all settings? Yes ▶No ○/Set ▼ Select 306505

1. Select "Yes" or "No" by using the control switches.

▼ Initialize

2nd You can initialize the items that have b set to your preference.

1. Select "Initialize" from the 2nd menu the setting screen. Refer to "Setting screen" 3-58.

10:03/72 回光电源 AUTO 69 86°F 选择 I/Set Return to factory settings? Yes ▶No Select 306506

1. Select "Yes" or "No" by using the control switches.

■ How to get the source code using the open source

Free/Open Source Software Information on This product contains Free/Open Source Software (FOSS).

The license information and/or the source code of such FOSS can be found at the following URL.

http://www.globaldenso.com/en/open-source/ivi/subaru/

Clock

For models with a SUBARU genuine navigation and/or audio system, the clock can be adjusted using either auto mode manual mode.

• Auto mode: automatic clock adjustment
• Manual mode: manual clock adjustment

CAUTION

The clock in the multi-function display (color LCD) cannot be adjusted if the SUBARU genuine navigation and/or audio system is removed.

■ Setting the clock manually

▼ Multi-function display (black and white)
_r Turn the ignition switch to “ON”.

Diagram of a car dashboard with a home control panel and a speech bubble containing a house icon, labeled '305148'.

1. Press the button.
2. Select "Settings".
3. Select "Vehicle".
4. Select "Time/Date" and then select "Manual".

Top-down line drawing of a car interior showing dashboard and rearview (no text or symbols)

1. Press the "+" button or the "-" button beside the clock.

Setting 12-hour or 24-hour display

The clock can be set to 12-hour or 24-hour display. Perform the following procedure to switch the display format.

1. Turn the ignition switch in the "LOCK"/"OFF" position.
2. Press and hold the “-” button located near the clock display for approximately 5 seconds. The clock display will then start to flash.

3. While the clock display is flashing, press and hold the "+" button for approximately 2 seconds. The clock format will then change.

4. The clock display will continue to flash for approximately 3 seconds to indicate that the clock display has been changed.

▼ Multi-function display (color LCD)

1. Turn the ignition switch to "ON".

Diagram of car air intake system with labeled component and directional arrow indicator

1. Press the button.
2. Select "Settings".
3. Select "Vehicle".
4. Select "Time/Date" and then select "Manual".

Set the clock manually or auto sync with satellite/smartphone. Mode Manual > Hour 14 + Minute 59 + Month 10 + Day 22 + Year 2020 + Format 24h 306241

1. Set the each items plus and minus.

2. Select √ to complete the clock setting.

Select "Back" to return to the previous screen without saving settings.

NOTE

• Adjust the time, then select 12h display or 24h display from the format.
• The Birthday/Anniversary and maintenance reminder system function are based on the time and date on the multifunction display (color LCD).

■ Setting the clock automatically

1. Turn the ignition switch to "ON".

Diagram of a car dashboard with a home control panel and a speech bubble containing a house icon, labeled '305148'.

1. Press the button.
2. Select "Settings".
3. Select "Vehicle".
4. Select "Time/Date".
5. Select "Auto".

▼ Models with navigation system

The clock will be set automatically where a GPS signal is available.

▼ Models without navigation system

The clock will be set and adjusted automatically when a smartphone is connected via Bluetooth® for transferring phonebook data.

1. Register the smartphone to the audio system. For details, refer to "Bluetooth SETTINGS" in the supplemental Owner's Manual for the audio/navigation system.
2. Transfer phonebook data to the system. For details, refer to "Bluetooth SETTINGS" in the supplemental Owner's Manual for the audio/navigation system. The clock will be adjusted automatically.

NOTE

Depending on the model of smartphone, the settings of the connected smartphone may need to be changed. (ex: For iOS or other models, notification settings may need to be activated.) For details, check the instructions on connecting smartphones.

■ Regulatory information

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

Light control switch

■ Precautions and tips

CAUTION

• Use of any lights for a long period of time while the engine is not running can cause the battery to discharge.
• Before leaving the vehicle, make sure that the lights are turned off. If the vehicle is left unattended for a long time with the lights illuminated, the battery may be discharged.

NOTE

• Even if the key is removed from the ignition switch, the lights can be illuminated by operating the light control switch from the (off) position to the "ooz" or "D" position (models without "keyless access with push-button system").
• Even if the push-button ignition switch is turned off, the lights can be illuminated by operating the light control switch from the “(off) position to the “” or ” position (models with “keyless access with push-button start

system").

- If the driver's door is opened while the lights are illuminated and the key removed from the ignition switch, the chirp sound will inform the driver that the lights are illuminated.

Headlights

301716 AUTO

Except for Canada models

y is at - AUTO OFF 306400

For Canada models

To turn on the headlights, turn the knob the end of the turn signal lever.

“D” position:

Instrument panel illumination, headlights, parking lights, front side marker lights, re side marker lights, tail lights and license plate lights are on.

“ODO” position:

Instrument panel illumination, parking lights, front side marker lights, rear side marker lights, tail lights and license plate lights are on.

"AUTO" position (if equipped):

Auto on/off headlights

When the ignition switch is in the "ON" position, the instrument panel illumination, headlights, parking lights, front side mar-

ker lights, rear side marker lights, tail lights and license plate lights are automatically on or off depending on the level of the ambient light.

NOTE

- The sensitivity of the auto on/off headlights can be changed by a SUBARU dealer. Consult your SUBARU dealer for details. Also, for models with a combination meter display (color LCD), the setting can be changed using the display. For details, refer to "Vehicle Setting" 3-41.

If the light control switch is in the "AUTO" position and the headlights do not turn on when it becomes dark outside, turn the light switch to the "D" position. When this happens, have your vehicle inspected by your SUBARU dealer as soon as possible.

Auto-on/off wiper-linked headlights While the light control switch is in the "AUTO" position, the headlights will automatically turn on when the windshield wipers operate several times. The headlights will automatically turn off when the wipers stop.

NOTE

The ON/OFF setting of this function be changed by a SUBARU dealer. Consult your SUBARU dealer for details.

“O” position (except for Canada moels):

The headlights are all off.

"OFF" position (for Canada models): The headlights are all off. ^2

*1: When the light switch is switched to the "OFF" position while the vehicle is stoppe the lights turn off. Then the light switch v automatically return to the "AUTO" position

*2: The headlights will automatically change the AUTO mode when the following conditions are met:

- The engine is running.

● The parking brake is fully released.

- For CVT models, the select lever is in a position other than the "P" position.

▼ Welcome lighting function (if equipped)

The welcome lighting function turns on t low beam headlight for smooth approach ing to or exiting from the vehicle at night in a dark place.

The function is activated while all of the following conditions are met.

can The light control switch is in the "AUT position.

- It is dark enough to turn on the auto off headlights.

NOTE

If the engine is turned off after turn off the light switch, the welcome logic function may not operate (for Canada models).

When approaching:

While the welcome lighting function is activated, the low beam headlights, parking lights, front side marker lights, rear s marker lights, tail lights and license plate lights will automatically illuminate when unlocking the doors and the rear gate b using the remote keyless entry system.

The lights will remain illuminated for 30 seconds*1 and then turn off. However, if any of the following operations is done, light will turn off.

- The doors are locked.

- The light control switch is turned to a position other than "AUTO".

- The ignition switch is turned to the "O position.

When exiting:

While the welcome lighting function is activated, the low beam headlights, parking lights, front side marker lights, rear side marker lights, tail lights and license plate lights will remain illuminated even when either of the following operation is done.

- The push-button ignition switch is aligned to the "OFF" status (models with keyless access with push-button start system").

- The key is pulled out from the ignition switch (models without "keyless access with push-button start system").

The lights will turn off under any of the following conditions.

- 3 minutes have passed since the light were illuminated by the welcome lighting function.

- 30 seconds have passed since the door is opened and closed!*

- The light control switch is turned to a position other than "AUTO".

- The locking procedure is performed twice. When performing the unlocking procedure after performing the locking procedure, perform the locking procedure twice again.

*1: The setting for the period of time in which the lights remain on by the welcome lighting function can be changed by a SUBARU

dealer. Contact your SUBARU dealer for details.

▼ Sensor for the auto on/off headlights (if equipped)

Technical line drawing of a mechanical component with no visible text or symbols

The sensor is on the instrument panel shown in the illustration.

CAUTION

If any object is placed on or near sensor, the sensor may not detect the level of the ambient light correctly and the auto on/off headlights may not operate properly.

■ High/low beam change (dim-■ Headlight flasher mer)

1 2 304881

1) High beam
2) Low beam

asWhen the headlights are on high beam, high beam indicator light "≡" on the combination meter is also on.

the

Simple line drawing of a cylindrical object with a pointed tip, labeled '301719' at the bottom (no other text or symbols)

CAUTION

Do not hold the lever in the flashing position for more than just a few seconds.

To flash the headlights, pull the lever toward you and then release it. The high beam will stay on for as long as you hold the lever.

When the headlights are on high beam, the high beam indicator light “≡” on the combination meter also illuminates.

■ High beam assist function equipped)

NOTE

• The high beam assist function utilizes the stereo camera installed at position of the front map lights.
• For details on how to handle the stereo camera, refer to the Owner's Manual supplement for the EyeSight system.

The high beam assist function automatically changes the headlight from high beam to low beam (or vice versa).

When all of the following conditions are met, the headlight will change to high beam.

• When the vehicle speed increases to above 20 mph (32 km/h).
• There is no preceding or oncoming vehicle.
  ● The forward area of the vehicle is dar
  ● The road does not have a sharp curv

When any of the following conditions is met, the headlight will change to low be

- When the vehicle speed decreases to or below 10 mph (16 km/h).

- When the forward area of the vehicle bright.

(if When there is a preceding or oncoming vehicle.

- When the EyeSight system is malfunctioning or is temporarily stopped.

theNOTE

- Do not overestimate the capacity of the high beam assist function. The driver always has the responsibility to understand the surrounding situation, to drive safely, and to change the headlight mode manually if necessary. - The factory setting (default setting) for this function is set as “operation”. This setting can be changed to OFF (non-operation) at SUBARU dealers. For more details, contact a SUBARU dealer.

▼ How to use the high beam assist function

The high beam assist function will be activated when all the following conditions are met.

• The light control switch is in the "AUTO position and the low beam headlights are on automatically.
• The turn signal lever is pushed forward.

304963

naHigh beam assist indicator light

When the high beam assist function is activated, the high beam assist indicator light on the combination meter will illuminate.

^st NOTE

If the high beam assist function is malfunctioning or is temporarily stopped, the headlight will be fixed at low beam.

▼ How to temporarily lower the sensitivity of the high beam assist function

The sensitivity of the high beam assist function can be lowered by performing following operations.

1. Before turning the ignition switch to the "ON" position, set the light control switch the "AUTO" position and push the signal lever forward (high beam position).
2. Turn the ignition switch to the "ON" position and within approximately 15 seconds, press the ⚡/▽ (following distance setting) switch more than 10 times consecutively.

When the sensitivity of the high beam assist function is lowered, the high beam assist indicator light[A]" on the combination meter will flash.

NOTE

- The sensitivity of the high beam assist function cannot be lowered in the following conditions.

- Cruise control or Adaptive Cru Control indicator is illuminated. - The EyeSight warning indicator (yellow) is illuminated.

- The sensitivity of the high beam assist function returns to normal level

the next time the ignition switch is turned to the "LOCK"/"OFF" position and the engine is restarted.

▼ How to change the headlight mod manually

Change to the low beam: When you return the turn signal lever to center position, the high beam assist function will turn off and the high beam assist indicator light will turn off.

- Change to the high beam: When you turn the light control switch to the "D" position, the headlight mode will be changed to the high beam. At this time, the high beam assist function will turn off, the high beam assist indicator will turn off and the high beam indicator light will turn on.

NOTE

- After manually changing the head-light mode to the high beam, if you on the high beam assist function, return the light control switch to the stAUTO" position.

- When manually changing the head-light mode to the high beam, if you the light control switch to the "oo" position, the instrument panel illumination, parking lights, front side marker lights, rear side marker lights, tail light

and license plate lights will be on.

▼ Tips for the high beam assist sys-tem

The high beam assist function recognizes the conditions surrounding the vehicle based on the brightness of illumination ahead of your vehicle, etc. Therefore, the headlight mode may switch in some situations that do not match to the driver's sense.
- A bicycle or cargo cycle may not be detected.
- Under the following situations, the brightness of ambient illumination may not be detected correctly and the high beam assist function may not work properly. As a result, the glare of the high beam may disturb the oncoming vehicle or vehicle ahead. Also, the low beam mode may continue although there are no oncoming vehicles and vehicles ahead. In the such cases, change the headlight mode manually.

- In bad weather (fog, snow, sand storm, heavy rain, etc.).

- When the windshield glass is dirty or fogged.

- When the windshield is cracked or damaged.

- When the stereo camera is de- formed or the stereo camera lenses

- CONTINUED -

are dirty.

- If there are lights similar to the headlights or the tail lights in the surrounding area.

- When an oncoming vehicle or vehicle ahead is driven without its headlights and tail lights on.

- If the headlights of an oncoming vehicle or the tail lights of a vehicle ahead are dirty or discolored, or if the light beams are not aimed correctly.

- When a rapid change of brightness continues while driving.

- When driving on a road with man ups and downs or uneven surfaces.

- When driving on a road with man curves.

- When there are some objects that reflect light strongly, such as a road sign or a mirror in vehicle ahead.

- When the rear part of the vehicle ahead, such as a container, reflects light strongly.

- When the headlights of your vehicle are damaged or dirty.

- When your vehicle is tilted, such as in case the vehicle has a flat tire or is being towed.

- Immediately after the engine has started.

- In the following conditions, the head-light mode will not be automatically chan-

ged from the high beam to the low beam.

• When your vehicle passes an on-coming vehicle suddenly in a blind curve.
• When another vehicle passes in front of your vehicle.

- When an oncoming vehicle or vehicle ahead comes in and out of view because of continuous curves, median strips, roadside trees, etc.

• If the stereo camera detects the light of the front fog lights of an oncoming vehicle, the headlight mode may change from the high beam to the low beam automatically
• The headlight mode may change from the high beam to the low beam, or the light beam mode may continue, when affected by a street light, traffic signal, illumination of an advertisement board, or a reflective object such as a road sign and signboard
• The timing of the change of headlight mode may differ due to the following factors.

– Color or brightness of the headlights of an oncoming vehicle or the tail of a vehicle ahead.
- The headlights of the oncoming vehicle or the tail lights of the vehic ahead are covered with mud, snow, etc.
- Movement and direction of an on-coming vehicle or a vehicle ahead.

• When the headlights of an oncoming vehicle or the tail lights of a vehicle ahead illuminate on only one side.
• When the oncoming vehicle or vehicle ahead is a motorcycle.
  – Conditions of a road (slope, curve, road surface, etc.).
  – Number of passengers and weight of loaded cargo.
• Limitation of the detection ability of the stereo camera.

Daytime running light system

WARNING

When the daytime running lights are illuminated, the tail lights do not illuminate. When it becomes dark outside, turn the light switch to the "D" position to illuminate the headlights and tail lights. This will improve visibility and allow other drivers to see your vehicle more easily.

The daytime running lights will automatically illuminate when the following conditions are fulfilled.

● The engine is running.

• The parking brake is fully released.
• The light control switch is in "AUTO" (if equipped), "☐" or "☐" (except for

Canada models).

• The light control switch is in "AUTO", "∞∞" or "OFF" (for Canada models).
• For CVT models, the select lever is in position other than the "P" position.

NOTE

When the light switch is in the " position, the instrument panel illumination, front side marker lights, tail lights and license plate lights are also illuminated.

Steering Responsive Headlight (SRH) (if equipped)

a - nts ni- 1 2 304837

1) The target area of illumination when SRH is activated
2) The target area of illumination when SRH is not activated

SRH is a function that automatically moves the headlight beam to the left or right in accordance with the steering angle and vehicle speed. This function helps to improve the visibility at night by illuminating the road ahead at corners and intersections.

SRH OFF 304998

You can turn the SRH function on or off by pressing the SRH OFF switch.

S 1 SRH OFF 305294

1) SRH OFF indicator light

The SRH OFF indicator light on the combination meter turns off when SRH is turned on.

- CONTINUED -

The SRH OFF indicator light on the combination meter illuminates when SRH is turned off.

If SRH is malfunctioning, the SRH OFF indicator light on the combination meter flashes when the ignition switch is in the "ON" position. It indicates that SRH has been deactivated. Contact a SUBARU dealer for an inspection.

NOTE

• If you turn the ignition switch to "OFF" position with SRH turned off then start the engine again, SRH w automatically turn on.
• When you turn the ignition switch the "ON" position, the SRH OFF indicator light will illuminate and turn after several seconds.
• SRH only activates when the vehicle is traveling forward at the speed of approximately 5 mph (8 km/h) or m
• SRH may not activate when the lever (MT models) is selected in 1st gear.

Headlight beam leveler (models with LED headlights)

The LED headlights produce more light than conventional halogen headlights. When the vehicle is carrying a heavy load and the headlight beams are angled upwards, the driver of an oncoming vehicle may experience glare. To prevent this, the automatic headlight beam leveler adjusts the headlights to the optimum height automatically depending on the load the vehicle is carrying.

For CVT models, in certain circumstances, the headlights may become misaligned, and the headlight beam leveler will not reset them to the proper angle. This may occur after transporting your vehicle on a flat-bed truck, or if the vehicle is parked and restarted on different angles. In such cases, have the headlight alignment checked by a SUBARU dealer.

Fog light switch (if equipped)

1 2 301721

Except for Canada models
1) Headlight switch
2) Fog light switch

1 2 306401

For Canada models

1) Headlight switch
2) Fog light switch

The front fog lights will turn on when the fog light switch is placed in the position while the headlights are in the following condition.

• The headlight switch is in the “D” position with the low beam mode selected.
• For models with the auto on/off headlights, while the headlight switch is in the "AUTO" position and the low beam headlights turn on automatically.

To turn off the front fog lights, perform the following.

- Turn the switch to “O” (except for Canada models).

- Turn the switch to "OFF" (for Canada models).

封 304967

Indicator light

The indicator light on the combination meter will illuminate when the front fog lights are illuminated.

Turn signal lever

1 2 3 4 304856

1) Right turn
2) Lane change right signal
3) Lane change left signal
4) Left turn

If the lever does not return after cornering, return the lever to the neutral position by hand.

To signal a lane change, push the turn signal lever up or down slightly and hold it during the lane change. The lever will return automatically to the neutral position when you release it.

■ One-touch lane changer

To flash the turn signal and turn signal indicator light three times, push the turn signal lever up or down slightly and immediately release it.

NOTE

The operational/non-operational setting of the one-touch lane changer can be changed by a SUBARU dealer. Contact the nearest SUBARU dealer for details. For models with the combination meter display (color LCD), the setting can also be changed by operating the combination meter display (color LCD). For details, refer to "Vehicle Setting" 3-41.

Wiper and washer

WARNING

In freezing weather, do not use the windshield washer until the windshield is sufficiently warmed by the defroster.

er. Otherwise the washer fluid can freeze on the windshield, blocking your view.

CAUTION

• Do not operate the washer continuously for more than 10 seconds, or when the washer fluid tank is empty. This may cause overheating of the washer motor. Check the washer fluid level frequently, such as at fuel stops.

• Do not operate the wipers when the windshield or rear window is dry. This may scratch the glass, damage the blade rubbers and might cause the wiper motor to fail. Before operating the wiper on a dry windshield or rear window, always use the windshield washer.

• In freezing weather, be sure that the blade rubbers are not frozen to the windshield or rear window before switching on the wipers. Attempting to operate the wiper with the blades frozen to the window glass could cause not only the blade rubbers to be damaged but also might cause the wiper motor to fail. If the blade rubbers are frozen to the window glass, be sure to operate the defroster, windshield wiper deicer (if equipped) or rear window defogger before turning on the wiper.

• If the wipers stop during operation because of ice or some other obstruction on the window, this might cause the wiper motor to fail even if the wiper switch is turned off. If this occurs, promptly stop the vehicle in a safe place, turn the ignition switch to the "LOCK"/"OFF" position and clean the window glass to allow proper wiper operation.
• Use clean water if windshield washer fluid is unavailable. In areas where water freezes in winter, use SUBARU Windshield Washer Fluid or the equivalent.

Refer to "Windshield washer fluid" 11-29.

- Do not clean the blade rubbers with gasoline or a solvent, su as paint thinner or benzine. T will cause deterioration of the blade rubbers.

NOTE

- The windshield wiper motor is protected against overloads by a circuit breaker. If the motor operates continuously under an unusually heavy load the circuit breaker may trip to stop motor temporarily. If this happens, p your vehicle in a safe place, turn or wiper switch, and wait for approximately 10 minutes. The circuit break will reset itself, and the wipers will again operate normally.

- Clean your blade rubbers and window glass periodically with a washer solution to prevent streaking, and to remove accumulations of road salt or road film. Operate the windshield washer for at least 1 second so that washer solution will be sprinkled all over the windshield or rear window.

- Grease, wax, insects, or other material on the windshield or the wiper results in jerky wiper operation and

streaking on the glass. If you cannothigh speed operation position. Contact remove the streaks after operating the your SUBARU dealer to have your windshield washer or if the wiper windshield wipers inspected.

operation is jerky, clean the outer surface of the windshield and rear window using a sponge or soft cloth with a neutral detergent or mild-abrasive cleaner. Do not, however, use detergent to clean the blade rubbers. Use only a sponge or soft cloth (and no neutral

detergent or mild abrasive cleaner) when you clean the blade rubbers. If you wipe the rubber of the blade strongly, the black coating component will peel off, which will cause the wipe to judder. Also, after wiping it off, whether that the rubber has not come loose. After cleaning the window glass and wiper blade rubbers, be sure to rinse them with clean water. Rinse the window until the water does not form beads on the glass. This indicates that the glass is clean.

- If you cannot eliminate the streaking even after following this procedure, replace the blade rubbers with new ones. For replacement instructions, refer to "Replacement of wiper blades" 11-30.

If the wipers do not operate when the wiper switch is in the low speed operation position, they may be malfunctioning. In this case, turn the switch to the

Windshield wiper and washer switches

The wiper operates only when the ignition switch is in the "ON" position.

▼ Operating the wiper lever

zipper check 301723

△ : Mist operation (for a single wipe)

O : Off

s : Intermittent operation

▼ : Low speed operation

the : High speed operation

For a single wipe of the wipers, push lever up. The wipers operate until you release the lever.

▼ Wiper intermittent time control

Diagram of a car interior showing a handle with a highlighted section and directional arrows, no text or symbols present.

When the wiper switch is in the “W” position, turn the dial to adjust the operating interval of the wiper. The operating interval can be adjusted in several steps from the shortest interval to the longest.

the▼ Windshield washer

Simple line drawing of a mechanical component with an arrow and a downward arrow, no text or symbols present.

To wash the windshield, pull the wiper control lever toward you. The washer fl sprays until you release the lever. The wipers operate while you pull the lever.

NOTE

304857

d Windshield washer fluid warning light

The windshield washer fluid warning light illuminates when the washer fluid level in the tank has dropped to the lower limit. If the warning light illuminates, refill the tank with fluid. For the refilling procedure, refer to "Windshield washer fluid" 11-29.

■ Rear window wiper and washer switch

Diagram of a connector with ports and an arrow indicating direction (no text or symbols)

: Washer operation (accompanied by wiper operation)

: Continuous operation

: Intermittent operation

: Off

: Washer operation (accompanied by wiper operation)

▼ Rear wiper

With the switch turned to the “” position, the rear wiper will operate intermittently intervals corresponding to the vehicle speed. In this position, when you move the select lever to the “R” position (CVT models) or the shift lever to the reverse position (MT models), the rear wiper will switch to continuous operation. When you move the select lever/shift lever from the “R” (reverse) position to another position, the rear wiper will return to intermittent operation.

Reverse gear interlocked rear wiper:

Even if the rear wiper switch is in the off "O" position, if the front windshield wiper is operating continuously, the rear wiper will operate intermittently when you move the select lever/shift lever to the "R" (reverse) position.

The factory setting (default setting) of the reverse gear interlocked rear wiper is as follows.

• U.S.-spec. models: Non-operational

- Other models: Operational

This setting can be changed by a SUBARU dealer. Consult your SUBARU dealer for details.

CAUTION

Do not attach anything that disturbs the rear wiper operation on the rear gate. Doing so may damage the rear wiper when it operates.

▼ Washer

To wash the rear window, turn the knob to the "☐" position. The washer fluid sprays and the wiper operates until you release the knob.

Mirrors

Always check that the inside and outside mirrors are properly adjusted before you start driving.

■ Inside mirror

2 1 305310

1) Normal position
2) Anti-glare position

Push the tab on the mirror for normal use. To reduce glare from the headlights of the vehicle behind you, pull the tab to the anti-glare position.

■ Auto-dimming mirror/compass (if equipped)

1 2 304865

1) Compass
2) Switch

During nighttime driving, the auto-dimming feature senses distracting glare from vehicle headlights behind you and automatically dims to eliminate the glare and preserve your vision.

▼ To Operate the Auto-Dimming Feature

Press the “switch to turn the auto-dimming feature on/off. The auto-dimming feature is enabled when the switch's green LED indicator is on. The auto-dimming feature will default to on with each ignition cycle.

▼ To Operate the Compass Feature

1. To turn the compass feature on/off, press and hold the ⚙️ switch for more than 3 seconds or until the display turns on/off. The compass feature will default to on with each ignition cycle.
2. If the display reads "C", slowly drive the vehicle in circles until compass is calibrated.

3 4 5 6 7 8 9 10 11 12 13 14 15 304866

Compass calibration zones

1. To adjust for compass zone variance:

(1) Find your current location and zone number on the map.
(2) Press and hold the 1" switch for more than 6 seconds or until a zone number appears in the display.
(3) Once the zone number appears in the display, toggle the "①" switch again until your current location zone number appears. After you stop pressing the switch, your new zone number will be saved. Within a few seconds, the display will show a compass direction.

1. If the vehicle's magnetics have changed or if the compass appears inaccurate recalibrate the compass. Press and hold the ⏻ switch for more than 9 seconds until a "C" appears in the display. Once "C" appears in the display, slowly drive vehicle in circles until compass is calibrated.

■ Auto-dimming mirror/compass with HomeLink(if equipped)

1 2 3 304867

1) Compass or2) HomeLink Buttons a3) Switch the During nighttime driving, the auto-dimming feature senses distracting glare from vehicle headlights behind you and automatically dims to eliminate the glare and preserve your vision.

▼ To Operate the Auto-Dimming Feature

Press the "☐" switch to turn the auto-dimming feature on/off. The auto-dimming feature is enabled when the switch's green LED indicator is on. The auto-dimming feature will default to on with each ignition

cycle.

▼ To Operate the Compass Feature

1. To turn the compass feature on/off, press and hold the ⚙” switch for more than 3 seconds or until the display turns on/off. The compass feature will default to on with each ignition cycle.
2. If the display reads "C", slowly drive the vehicle in circles until compass is calibrated.

3 4 5 6 7 8 9 10 11 12 13 14 15 304866

Compass calibration zones

1. To adjust for compass zone variance:

(1) Find your current location and zone number on the map.
(2) Press and hold the 1" switch for more than 6 seconds or until a zone number appears in the display.
(3) Once the zone number appears in

- CONTINUED -

the display, toggle the "switch again until your current location zone number appears. After you stop pressing the switch, your new zone number will be saved. Within a few seconds, the display will show a compass direction.

1. If the vehicle's magnetics have changed or if the compass appears inaccurate recalibrate the compass. Press and hold the "U" switch for more than 9 seconds until a "C" appears in the display. Once "C" appears in the display, slowly drive the vehicle in circles until compass is calibrated.

▼ HomeLink \* Wireless Control System

The HomeLink Wireless Control System provides a convenient way to replace up three hand-held radio-frequency remotes used to activate devices such as gate operators, garage door openers, entry door locks, security systems, even home lighting. The below steps are generic programming instructions; for Genie and Sommer garage door openers please go directly to the HomeLink website. Additional information and programming videos can be found at www.HomeLink.com and www.youtube.com/HomeLinkGentex.

CAUTION

• Before programming HomeLink to a garage door opener or gate operator, make sure that people and objects are out of the way the device to prevent potential harm or damage.
• When programming a garage door opener, it is advised to outside of the garage.
  Do not use HomeLink with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door that cannot detect an object signaling the door to stop and reverse does not meet current U.S. federal safety standards.
• It is also recommended that a new battery be placed in the handheld remote (garage door opener remote) of the device for quicker and more accurate training.
• Some vehicles may require the ignition switch to be turned to "ON" or "ACC" position for pro-

gramming and/or operation of HomeLink.

- Keep the hand-held remote (gar-age door opener remote) of the device you are programming for use in other vehicles as well as for future HomeLink programming. It is also suggested that upon the sale of the vehicle, the programmed HomeLink buttons be erased for security purposes. Refer to "Erasing HomeLink Buttons" 3-87.

▽ Programming a New HomeLink Button

1 2 306958

the ^1) Indicator Light 2) HomeLink Buttons

1. Press and release the HomeLink button that you would like to program. The HomeLink indicator light will flash orange slowly (if not, refer to "Erasing HomeLink Buttons" 3-87).

1 304869

1. Position the hand-held remote (garage door opener remote) 1 to 3 inches (2 to cm) away from the HomeLink button that you would like to program.

NOTE

Some hand-held remotes (garage door opener remotes) may actually train better at a distance of 6 to 12 inch (15 to 30 cm). Keep this in mind if have difficulty with the programming process.

Line drawing of a hand pressing down on a curved surface with a small object, no text or symbols present

1. While the HomeLink indicator light is flashing orange, press and hold the hand-held remote button. Continue pressing the hand-held remote button until the HomeLink indicator light changes from orange to green. You may now release the hand-held remote button.

NOTE

Some devices may require you to replace this "Programming a New HomeLink Button" step 3 with procedures noted in the "Gate Operator / Canadian Programming" section. Refer to "Gate Operator / Canadian Programming" 3-87.

1 304871

1) Indicator Light

1. Press the HomeLink button that you would like to program and observe the indicator light.

- If the indicator light remains constant green, your device should operate when the HomeLink button is pressed. At this point, if your device operates, programming is complete.

- If the indicator light rapidly flashes green, firmly press, hold for two seconds and release the HomeLink button up to three times to complete the programming process. At this point if your device operates, programming is complete. If the device does not operate, continue with the next step of the programming instructions.

1 304872

1) "Learn" button

1. At the garage door opener motor, (security gate motor, etc.) locate the "Learn", "Smart", or "Program" button. The can usually be found where the hanging antenna wire is attached to the motor-he unit (see the device's manual to identify this button). The name and color of the button may vary by manufacturer.

NOTE

A ladder and/or second person may simplify the following steps.

1. Firmly press and release the "Learn", "Smart", or "Program" button. You now have 30 seconds in which to complete step 7.

Simple line drawing of a finger pointing at a curved surface with a diagonal line, no text or symbols present.

1. Return to the vehicle and firmly pres hold for two seconds and release the HomeLink button up to three times. At point programming is complete and your device should operate when the HomeL button is pressed and released.

1 304874

1) Status Indicators

1. If status indicator arrows appear next to the indicator light, please refer to "Garage Door Two-Way Communication" nk 3-87.

In the event that there are still programming difficulties or questions, additional HomeLink information and programming videos can be found at www.HomeLink.com and www.youtube.com/HomeLinkGentex. For Genie and Sommer garage door openers please go directly to the HomeLink website.

▽ Gate Operator / Canadian Programming

Canadian radio-frequency laws require transmitter remote signals to "time-out" (or quit) after several seconds of transmission, which may not be long enough for HomeLink to pick up the signal during programming. Similar to this Canadian law, some U.S. gate operators are designed to "time-out" in the same manner. The indicator LED on the hand-held remote will go off when the device times out, indicating that it has finished transmitting.

If you live in Canada or you are having difficulties programming a gate operator of garage door opener by using the programming procedures, replace "Programming a New HomeLink Button" step 3 with the following:

While the HomeLink indicator light is flashing orange, press and release ("cycle") your device's hand-held remote ever two seconds until the HomeLink indicator light changes from orange to green. You may now release the hand-held remote button.

NOTE

If programming a garage door opener or gate operator, it is advised to unplug

the device during the "cycling" process to prevent possible overheating.

Proceed with "Programming a New HomeLink Button" step 4 to complete.

▽ Using HomeLink

To operate, simply press and release the programmed HomeLink button. Activation will now occur for the trained device (i.e. garage door opener, gate operator, security system, entry door lock, home/office lighting, etc.). For convenience, the hand-held remote of the device may also be used at any time.

▼ Erasing HomeLink Buttons

To erase programming from the three buttons (individual buttons cannot be erased but can be "reprogrammed" as outlined below), follow the step noted:

Press and hold the two outer HomeLink buttons for at least 10 seconds. The LE indicator will change from continuously lit to rapidly flashing. Release both buttons. Do not hold for longer than 20 seconds. HomeLink is now ready to be programm at any time beginning with "Programming New HomeLink Button" - step 1.

▽ Reprogramming a Single HomeLink Button

To program a previously trained button, follow these steps:

1. Press and hold the desired HomeLink button. DO NOT release the button.

2. The indicator light will begin to slowly flash orange after 20 seconds. The HomeLink button can be released at this point. Proceed with "Programming a New HomeLink Button" - step 3.

3. If you do not complete the programming of a new device to the button, it will revert to the previously stored programming.

▽ Garage Door Two-Way Communication

HomeLink has the capability of communicating with your garage door opener. HomeLink can receive and display "closing" or "opening" status messages from compatible garage door opener systems. At any time, HomeLink can also recall and display the last recorded status communicated by the garage door opener to indicate your garage door being "closed" or "opened".

HomeLink has the capability of receiving this communication from the garage door opener at a range up to 820 feet (250 m).

- CONTINUED -

Range may be reduced by obstacles such online at www.HomeLink.com and as houses or trees. You may have to slow www.youtube.com/HomeLinkGentex.

your vehicle speed to successfully receive the garage door opener communication.

▽ Programming Two-Way Communication

1 304874

1) Status Indicators

Within five seconds after programming a new HomeLink button, both of HomeLink garage door status indicators will flash rapidly green indicating that the garage door two-way communication has been enabled. If your garage door status indicators flashed, two-way communication programming is complete.

If the garage door status indicators do flash, additional HomeLink information and programming videos can be found

∇ Using Two-Way Communication

1 304875

1) Status Indicators

Recall and display (at any time) the last recorded garage door status message communicated to HomeLink by simultaneously pressing HomeLink buttons 1 and 2 for two seconds. HomeLink will display the last recorded status for three seconds

1 2 3 4 304876

1) Garage Door Opener CLOSING (Blinking Orange)
2) Garage Door Opener CLOSED (Solid Green)
3) Garage Door Opener OPENING (Blinking Orange)
4) Garage Door Opener OPENED (Solid Green)

If two-way communication programming is successful, HomeLink will display the status of your garage door opener with Sarrow indicators.

▼ Certification

In the event that there are still programming difficulties or questions, additional HomeLink information and programming videos can be found at www.HomeLink.com, www.youtube.com/HomeLinkGentex, or

by calling the toll-free HomeLink-hotline [phone].

• U.S.-spec. models

CAUTION

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with FCC rules part 15 and Innovation, Science, and Economic Development Canada RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has been tested and complies with FCC and ISED rules.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the device.

This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment. End Users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must be at least 20 cm from the user and must not be co-located or operating in conjunction with any other antenna or transmitter.

306210

• Canada-spec. models

This device complies with FCC rules part 15 and Innovation, Science, and Economic Development Canada RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has been tested and complies with FCC and ISED rules.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the device.

This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment. End Users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must be at least 20 cm from the user and must not be co-located or operating in conjunction with any other antenna or transmitter.

306210

HomeLink® and the HomeLinkhouse are registered trademarks of Gentex Corporation.

WARNING

• When programming the HomeLink® Wireless Control System, you may be operating a garage door opener or other device. Make sure that people and objects are out of the way the garage door or other device to prevent potential harm or damage.
• Do not use the HomeLinkWireless Control System with a garage door opener that lacks the safety stop and reverse feature as required by applicable safety standards. A garage door opener which cannot detect an object, signaling the door to stop and reverse, does not meet these safety standards. Using a garage door opener without these features increases risk of serious injury or death. For more information, consult the HomeLink website at www.homelink.com or call 1-800-355-3515.

■ Outside mirrors

▼ Convex mirror (passenger side)

WARNING

Objects look smaller in a convex mirror and farther away than when viewed in a flat mirror. Do not use the convex mirror to judge the distance of vehicles behind you when changing lanes. Use the inside mirror (or glance backwards) to determine the actual size and distance of objects that you view in convex mirror.

CAUTION

Make sure to adjust the mirrors before driving.

▼ Remote control mirror switch

304882

→: Select side to adjust
→: Direction control

The remote control mirrors operate only when the ignition switch is in the "ON" or "ACC" position.

1. Turn the control switch to the side that you want to adjust. "L" is for the left mirror "R" is for the right mirror.
2. Move the control switch in the direction you want to move the mirror.
3. Return the control switch to the neutral position to prevent unintentional operation.

The mirrors can also be adjusted manually.

Defogger and deicer (if equipped)

1 2 3 301707

1) Rear window defogger

2) Outside mirror defogger (if equipped)

3) Windshield wiper deicer (if equipped)

The vehicle is equipped with the defogger and the deicer (if equipped) system. The defogger and deicer system is activated only when the ignition switch is in the "ON" position.

1 2 306229

Control button

1) Models without outside mirror defogger

2) Models with outside mirror defogger

To activate simultaneously the rear window defogger, outside mirror defogger (if equipped) and windshield wiper deicer (if equipped), press the control button that is located on the climate control panel. The indicator light on the control button illuminates while the defogger and deicer system is activated.

To turn them off, press the control button again. They also turn off when the ignition switch is turned to the "ACC" or "LOCK"/

- CONTINUED -

"OFF" position.

The defogger and deicer system will automatically shut off after approximately 15 minutes. If the rear window and the outside mirrors have been cleared and the windshield blade rubbers have been deiced completely before that time, press the control button to turn them off.

For climate control system, it is possibly for the defogger and deicer system to be set to continuous operation mode by a SUBARU dealer. Consult your SUBARU t dealer for details. Also, for models with an combination meter display (color LCD), it is possible to set the defogger and deicer system for the continuous operation mode. For details, refer to "Vehicle Setting" 3-41.

CAUTION

• To prevent the battery from being discharged, do not operate the defogger and deicer system continuously for any longer than necessary.
• Do not use sharp instruments or window cleaner containing abrasives to clean the inner surface the rear window. They may damage the conductors printed on

the window.

NOTE

- Turn on the defogger and deicer system if the wipers are frozen to windshield.

- If the windshield is covered with snow, remove the snow so that the windshield wiper deicer works effectively.

- While the defogger and deicer system is in the continuous operation amode:

- If the vehicle speed remains at 9 mph (15 km/h) or lower for 15 minutes, the windshield wiper de- cer system automatically stops op- erating. However, the rear window defogger system and outside mirror defogger system maintain continu- ous operation in this condition.

- If the vehicle battery voltage drops below the permissible level, continuous operation of the defogger system and deicer system is canceled and the system stops operating.

of

Tilt/telescopic steering wheel

WARNING

the Do not adjust the steering wheel tilt/telescopic position while driving. This may cause loss of vehicle control and result in personal injury.
- If the lever cannot be raised to the fixed position, adjust the steering wheel again. It is dangerous to drive without locking the steering
9 wheel. This may cause loss of vehicle control and result in personal injury.

1 2 3 304858

1) Tilt adjustment
2) Telescopic adjustment
3) Tilt/telescopic lock lever

1. Adjust the seat position. Refer to "Front seats" 1-5.
2. Pull the tilt/telescopic lock lever down.
3. Move the steering wheel to the desire level.
4. Pull the lever up to lock the steering wheel in place.
5. Make sure that the steering wheel is securely locked by moving it up and do and forward and backward.

■ Heated Steering Wheel system (if equipped)

The Heated Steering Wheel system warms the steering wheel at a constant temperature.

nt 1 2 3 3 3 304900

1) Heated Steering Wheel switch
2) Indicator light
3) Heated area

To turn on the Heated Steering Wheel system, pull the Heated Steering Wheel switch when the ignition switch is in the "ON" or "ACC" position. Then the steering wheel will be warmed and the indicator light on the switch will illuminate. To turn the Heated Steering Wheel system, pull the switch again. Then the indicator light will turn off.

CAUTION

• Use the Heated Steering Wheel system with the engine running. Otherwise, the battery voltage may drop below the permissible level and it may not be possible to start the engine.
• There is a possibility that people with delicate skin may suffer slight burns even at low temperatures if they use the Heated Steering Wheel for a long period of time. When using the Heated Steering Wheel, always be sure to warn the persons concerned.
• Do not cover the Heated Steering Wheel with an object such as a steering wheel cover. Doing so may cause the Heated Steering Wheel to overheat.
• Do not spill liquid on the steering wheel. If liquid is spilled, wipe it off immediately and dry it before using the Heated Steering Wheel system.

NOTE

• If the surface temperature of the steering wheel is approximately above 104^ (40^) when the switch is turn on, the system will not heat the st wheel. Then, the indicator light will continue to illuminate.
• The Heated Steering Wheel system will automatically turn off approximately 30 minutes after the system has been turned on.
  • The temperature of the Heated Steering Wheel system cannot be adjusted.

Horn

ed ering 304901

To sound the horn, push the horn pad.

Climate control

Ventilator control 4-2

Center ventilators 4-2

Side ventilators.... 4-2

Climate control panel 4-2

Type A 4-3

Type B 4-4

Automatic climate control operation.... 4-5

Sensors 4-5

Manual climate control operation.... 4-6

Airflow mode selection.... 4-6

MAX A/C mode 4-7

Temperature control 4-7

Fan speed control 4-8

Air conditioner control 4-8

Air inlet selection.... 4-8

To turn off the climate control system....4-8

Defrosting.... 4-9

Operating tips for heater and air conditioner ..... 4

Cleaning ventilation grille 4-9

Efficient cooling after parking in direct sunlight .....4-9

Lubrication oil circulation in the refrigerant circuit.... 4-10

Checking air conditioning system before summer season 4-10

Cooling and dehumidifying in high humidity and low temperature weather conditions.... 4-10

Air conditioner compressor shut-off when engine is heavily loaded 4-10

Refrigerant for your climate control system 4-10

Air filtration system.... 4-10

Replacing the cabin air filter 4-11

Ventilator control

■ Center ventilators

Diagram of a car interior showing directional arrows and dashboard controls (no text or symbols)

Center ventilators

To adjust the airflow direction, move the To adjust the flow direction, move the tab. tab. To close the ventilator, move the tab all the way down.

■ Side ventilators

1 2 402396

Side ventilators

1) Close
2) Open

Climate control panel

WARNING

• The cooling function operates only when the engine is running.
- Do not leave children or adults who would normally require the support of others alone in your vehicle. Pets should not be left alone either. On hot, sunny days, temperatures in a closed vehicle could quickly become high enough to cause severe or possibly fatal injuries to people or animals.

Type A

1 AUTO ON/OFF 2 A/C 3 4 5 MAX A/C 6 MODE 7 402361

1) Temperature control dial (Refer to "Automatic climate control operation" 4-5 and/or "Temperature control" 4-7.)

2) AUTO button (Refer to "Automatic climate control operation" 4-5.)

3) Air conditioner button (Refer to "Air conditioner control" 4-8.)

4) Air inlet selection button (Refer to "Air inlet selection" 4-8.)
5) MAX A/C button (Refer to "MAX A/C mode" 4-7.)
6) Defroster button (Refer to "Defrosting" 4-9.)
7) Rear window defogger button and outside mirror defogger button (if equipped) (Refer to "Defogger and deicer" 3-91.)
8) Airflow mode selection dial (Refer to "Airflow mode selection" 4-6.)
9) Fan speed control dial (Refer to "Fan speed control" 4-8.)
10) ON/OFF button (Refer to "Automatic climate control operation" 4-5.)

NOTE

The climate control screen is displayed on the multi-function display (color LCD). Refer to "Climate control screen" 3-52.

As for the multi-function display (black and white), refer to "Climate control screen" 3-48.

■ Type B

1 AUTO ON/OFF 2 3 A/C MODE 4 5 MAXA/C SYNC 6 7 8 9 10 11 12 403348

1) Driver's side temperature control dial (Refer to "Automatic climate control operation" 4-5 and/or "Temperature control" 4-7.)

2) AUTO button (Refer to "Automatic climate control operation" 4-5.)

3) Air conditioner button (Refer to "Air conditioner control" 4-8.)

4) Air inlet selection button (Refer to "Air inlet selection" 4-8.)

5) MAX A/C button (Refer to "MAX A/C mode" 4-7.)

6) Defroster button (Refer to "Defrosting" 4-9.)

7) Rear window defogger button and outside mirror defogger button (Refer to "Defogger and deicer" 3-91.)

8) Passenger's side temperature control dial (Refer to "Temperature control" 4-7.)

9) SYNC button (Refer to "SYNC mode (type B)" 4-8.)

10) Fan speed control dial (Refer to "Fan speed control" 4-8.)

11) Airflow mode selection button (Refer to "Airflow mode selection" 4-6.)

12) ON/OFF button (Refer to "Automatic climate control operation" 4-5.)

NOTE

The climate control screen is displayed on the multi-function display (color LCD). Refer to "Climate control screen" 3-52.

Automatic climate control operation

When this mode is selected, the fan spe airflow mode, air-inlet control, and air conditioner operation are automatically controlled. To activate this mode, perform the following.

1. Press the AUTO button. The indicator light "FULL AUTO" on the multi-function display (color LCD)/multi-function display (black and white) illuminates.
2. Set the preferred temperature using the temperature control dial.

NOTE

• Operate the automatic climate control system when the engine is run
• Even when cooling is not necessary the air conditioner will automatically turn on if the temperature is set m lower than the current outlet air ter perature. Even in this case, the "A/ indicator light on the control panel illuminates.

• The air conditioner may not operate in the following cases:

• When the cabin temperature is low

• When the ambient temperature decreases close to 32^ (0°C)

• The controllable temperature range may vary depending on the regional specifications of the vehicle.

• If you operate any of the buttons, the control panel other than the ON/OFF button, rear window defogger button, SYNC button and temperature control dial(s) during FULL AUTO operation, the "FULL" indicator light the multi-function display (color LCD multi-function display (black and white type A will turn off and the "AUTO indicator light will remain illuminated). You can then manually control the system as desired using the button you operated. To change the system back to the FULL AUTO mode, press the AUTO button.

yTo turn off the climate control system, press the ON/OFF button. Then the air jichet selection will be set to the following.

• When the air inlet selection is set to auto mode: Outside air circulation
• When the air inlet selection is set to manual mode: No change

■ Sensors

The sensors are located as follows.

on

Technical diagram showing engine component assembly with labeled parts and directional arrow

402397

1) Interior air temperature sensor
2) Solar sensor

The automatic climate control system employs several sensors. These sensors

- CONTINUED -

are delicate. If they are not treated prop and become damaged, the system may not be able to control the interior temperature correctly. To avoid damaging the sensors, observe the following precautions.

• Do not subject the sensors to impact.
• Keep water away from the sensors.
• Do not cover the sensors.

Manual climate control operation

Airflow mode selection

Select the airflow mode by using the airflow mode selection dial (type A) or airflow mode selection button (type B).

Airflow modes are as follows.

Line drawing of a car interior showing steering wheel, dashboard, and seat (no text or symbols)

Ventilation: Instrument panel outlets

the

Line drawing of a car interior showing steering wheel, dashboard, and seat with directional arrows indicating motion (no text or symbols)

Ventilation 2: Instrument panel outlets and foot outlets

Line drawing of a car interior showing steering wheel, dashboard, and seat with directional arrows indicating motion (no text or symbols)

Bi-level: Instrument panel outlets and foot outlets

Line drawing of a car interior showing steering wheel, dashboard, and seat (no text or symbols)

Heat: Foot outlets, both side outlets of the heat-def: Windshield defroster outlets, instrument panel and some through wind-foot outlets and both side outlets of the shield defroster outlets (A small amount of instrument panel (Refer to "Defrosting" air flows to the windshield and both side 4-9.) windows to prevent fogging.)

Line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

theat-def: Windshield defroster outlets, -foot outlets and both side outlets of the instrument panel (Refer to "Defrosting" e 4-9.)

■ MAX A/C mode

For quicker cooling, press the MAX A/C button.

When the MAX A/C mode is on, the following settings will be changed automatically.

• The air conditioner will turn on.
- The temperature will be set on the lowest.
- The fan speed will be set on the maximum speed.
- The air inlet will be set to recirculation.
- The air flow mode setting will be set to ventilation mode.

To turn off MAX A/C mode and return the previous setting, press the MAX A/C button again.

■ Temperature control

Turn the temperature control dial to set the preferred interior temperature.

NOTE

The controllable temperature range may vary depending on the regional specifications of the vehicle.

▼SYNC mode (type B)

When the SYNC mode is turned on, both the driver's and passenger's side temperatures are synchronized using the driver's side temperature control dial. Press the SYNC button to turn on the SYNC mode. The SYNC button indicator will illuminate.

Press the SYNC button again or turn the passenger's side temperature control dial to cancel the SYNC mode. The SYNC button indicator will not illuminate. In this case, temperature control on the driver's side and passenger's side is separated. The temperature will be controlled individually using the driver's and passenger's temperature control dials.

■ Fan speed control

Select the preferred fan speed by turning the fan speed control dial.

■ Air conditioner control

The air conditioner operates only when engine is running.

Press the air conditioner button while the fan is in operation to turn on the air conditioner. When the air conditioner is on, the "A/C" indicator light illuminates. To turn off the air conditioner, press the button again.

NOTE

For efficient defogging or dehumidifying in cold weather, turn on the air conditioner. If the ambient temperature decreases to approximately 32°F (0°C) the air conditioner and dehumidification system may not operate properly

Air inlet selection

Select the air inlet by pressing the air inlet selection button.

- Recirculation:

When the indicator light on the air inlet selection button illuminates, interior air is recirculated inside the vehicle. Press the air inlet selection button to the ON position in the following cases.

- When driving on a dusty road - When you want cooling performance to increase (for example, in particularly hot weather)

Outside air circulation:

When the indicator light on the air inlet selection button does not illuminate, outside air is drawn into the passenger compartment. Press the air inlet selection button to the OFF position in the following cases.

- When the road is no longer dusty

- When the interior has cooled to a comfortable temperature

WARNING

Continued operation in the ON position may fog up the windows. Switch to the OFF position as soon as the outside conditions are no longer dusty.

NOTE

When outside air circulation is selected, the system may automatically adjust the air inlet setting depending on such factors as the temperature setting, the temperature inside the on vehicle, or conditions outside the vehicle.

■ To turn off the climate control system

To turn off the climate control system, press the ON/OFF button.

Defrosting

Line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

Select the 🎨 or 📋 mode to defrost or dehumidify the windshield and front door windows.

NOTE

- When the “ 🎨 or “ 🎨 mode is selected, the air conditioner operates automatically regardless of the position of the air conditioner button to defrost the windshield more quickly. However the indicator on the air conditioner button may not illuminate. At the same time, the air inlet selection is automatically set to the outside air mode.

- After defrosting the windshield by pressing the defroster button 🎨",

pressing the button again returns the system to the setting that had been selected before the defroster was activated. Operating tips for heater and air conditioner ■ Cleaning ventilation grille

■ Cleaning ventilation grille

Line drawing of a car front view with no text or symbols

1) Front ventilation inlet grille

Always keep the front ventilation inlet grille free of snow, leaves, or other obstructions to ensure efficient heating and defrosting. Since the condenser is located in front of the radiator, this area should be kept clean because cooling performance is impaired by any accumulation of insects and leaves on the condenser.

■ Efficient cooling after parking in direct sunlight

After parking in direct sunlight, drive with the windows open for a few minutes to

- CONTINUED -

allow outside air to circulate into the heated interior. This results in quicker cooling by the air conditioner. Keep the windows closed during the operation of air conditioner for maximum cooling efficiency.

■ Lubrication oil circulation in the refrigerant circuit

Operate the air conditioner compressor a low engine speed (at idle or low drive speeds) a few minutes each month during the off-season to circulate its oil.

- Checking air conditioning system before summer season

Check the air conditioner unit for refrigerant leaks, hose conditions, and proper operation each spring. Have the air conditioning system checked by your SUBARU dealer.

■ Cooling and dehumidifying in high humidity and low temperature weather conditions

Under certain weather conditions (high relative humidity, low temperatures, etc.) a small amount of water vapor emission from the air outlets may be noticed. This condition is normal and does not indicate

any problem with the air conditioning system.

■ Air conditioner compressor shut-off when engine is heavily loaded

To improve acceleration and gas mileage the air conditioner compressor is designed to temporarily shut off during air conditioner operation whenever the accelerators fully depressed such as during rapid acceleration or when driving on a steep upgrade.

■ Refrigerant for your climate control system

Your air conditioner uses ozone friendly refrigerant R-1234yf (HFO-1234yf). Consult your SUBARU dealer for service. Repairs needed as a result of using the wrong refrigerant are not covered under warranty.

Air filtration system

Your vehicle's air conditioning system is equipped with an air filtration system. Replace the cabin air filter according to the replacement schedule found in the "Warranty and Maintenance Booklet". This schedule should be followed to maintain the filter's dust collection ability. Under extremely dusty conditions, the filter should be replaced more frequently. Have your filter checked or replaced by your SUBARU dealer. For replacement, use only a genuine SUBARU air filter kit.

CAUTION

Contact your SUBARU dealer if the following occurs, even if it is not yet time to change the filter:

• Reduction of the airflow through the vents.
• Windshield gets easily fogged or misted.

NOTE

The filter can influence the air conditioning, heating and defroster performance if not properly maintained.

■ Replacing the cabin air filter

1. Remove the glove box.

NOTE

We recommend that you take measure to protect the center console with masking tape first, so that you avoid scratching the center console with the glove box.

(1) Open the glove box.

Diagram of a car interior showing a hand valve mechanism and a magnified inset view (no text or symbols)

(2) Remove the damper shaft from glove box.

er ures id the 402385

(3) Push in the stoppers located on both sides of the glove box and then pull down the glove box as far as it go.

he 402386

(4) Pull out the glove box horizontally and remove the hinge portion. When

doing this, be careful not to damage the hinge.

Technical diagram showing car interior panel with directional arrows and a magnified inset of the engine compartment, labeled 402387.

1. Remove the cabin air filter according to the following procedure in order to prevent dust on the air cleaner from falling to the inside of its housing.

(1) Pinch both tabs and remove the filter cover.
(2) Gently tilt down the end of the filter and slowly pull it out 0.4 in (1 cm).
(3) Slowly pull out the rest of the filter.

Diagram of car air intake system with labeled components and a zoomed-in inset showing internal air flow paths.

1. Replace the cabin air filter with a new 4. Reinstall the glove box, and connect one and then reinstall the cover. the damper shaft.

402389

1. Close the glove box.

CAUTION

The arrow mark on the filter must point UP.

Audio

Antenna 5-2 Roof antenna (for Rod type) 5-2

Roof antenna (for Shark fin type) 5-2 Audio set 5-3

Antenna

■ Roof antenna (for Rod type)

CAUTION

• Be sure to remove the antenna rod before entering garages, parking towers and other locations with low ceilings.
• Remove the antenna rod before washing your car at a car wash. the antenna rod remains attached, it may scratch the roof.
• When reinstalling the removed antenna rod, be sure to fully tighten it.

If 1 2 500627

1) Unscrew
2) Remove

■ Roof antenna (for Shark fin type)

Simple line drawing of a boat on water with a triangular hull, no text or symbols present

The roof antenna is installed on the roof. The roof antenna is installed on the roof. The antenna rod can be removed by unscrewing it from its base.

Audio set

If your vehicle is equipped with a genuine SUBARU navigation system or audio system, refer to the separate navigation/audio Owner's Manual for details.

Pure horizontal dashed lines without any text, numbers, or symbols

Interior equipment

Interior lights.... 6-2

Map lights.... 6-2

Dome light 6-2

Cargo area light 6-3

Rear gate light (if equipped) 6-3

OFF delay timer 6-3

Sun visors 6-4

Sun visor extension plate (if equipped) 6-4

Vanity mirror.... 6-5

Vanity mirror with light (if equipped) 6-5

Storage compartment 6-5

Glove box 6-6

Center console 6-6

Cup holders.... 6-6

Bottle holders 6-7

Accessory power outlets.... 6-7

Use with a cigarette lighter (dealer option) 6-9

USB power supply 6-9

How to use the USB power supply 6-10

Ashtray (dealer option).... 6-11

Floor mat 6-12

Assist grip.... 6-12

Coat hook.... 6-13

Shopping bag hook 6-14

Cargo area cover (if equipped).... 6-14

Using the cover 6-14

To remove the cover housing.... 6-15

Stowage of the cargo area cover.... 6-15

To install the cover housing.... 6-16

Cargo tie-down hooks (if equipped) 6-16

Front View Monitor (if equipped).... 6

How to access the Front View Monitor ....

How to cancel the Front View Monitor.... 6-17

How to adjust the display contrast and brightness 6-18

Range of image on screen 6-18

Guiding line.... 6-19

Handling of camera 6-19

Rear view camera 6-20

Interior lights

CAUTION

When leaving your vehicle, make sure the lights are turned off to avoid battery discharge.

Map lights

DOOR OFF 601779

1) Door interlock switch

To turn on the map light, push the lens. To turn it off, push the lens again.

▼ Automatic illumination

When the door interlock switch is in the "DOOR" position, the map lights illuminate automatically in the following cases.

• Any of the doors other than the rear gate is opened.
• The doors are unlocked using the keyless access function (if equipped). Refer to "Locking and unlocking by holding the access key fob" 2-6.
• The doors are unlocked using the remote keyless entry system. Refer to "Remote keyless entry system" 2-17.
• The ignition switch is turned from the "ACC" position to the "LOCK"/"OFF" position.

■ Dome light

9 1 2 3 600786

The dome light switch has the following positions.

ON: The light remains on continuously.

OFF: The light remains off.

DOOR: The dome light illuminates automatically in the following cases.

• Any of the doors or the rear gate is opened.

• The doors or the rear gate are unlocked using the keyless access function (if equipped). Refer to "Locking and unlocking by holding the access key fob" 2-6.

• The doors or the rear gate are unlocked using the remote keyless entry transmitter. Refer to "Remote keyless entry system" 2-17.

• The ignition switch is turned from the "ACC" position to the "LOCK"/"OFF" position.

■ Cargo area light

1 2 601349

1) DOOR
2) OFF

DOOR: The light illuminates when the gate is opened. The light remains illuminated for several seconds and gradually turns off after the rear gate is closed.

OFF: The light remains off.

■ Rear gate light (if equipped

1 2 602111

1) DOOR
2) OFF

DOOR: The light illuminates when the gate is opened. The light remains illuminated for several seconds and gradually turns off after the rear gate is closed.

OFF: The light remains off.

■ OFF delay timer

The following lights have an automatic illumination function.

• Dome light
• Map light
• Cargo area light
• Rear gate light (if equipped)

When the interior light switch is set to the "DOOR" position, the light will automatically turn on and turn off depending on the locking and unlocking of the doors, the opening and closing of the doors including the rear gate, as well as the position of the ignition switch.

NOTE

The setting for the period of time in which the lights remain on (OFF delay timer) can be changed by a SUBARU dealer. Contact your SUBARU dealer for details. For models with the combination meter display (color LCD), the setting can also be changed by operating the combination meter display (color LCD). For details, refer to "Vehicle Setting" 3-41.

Sun visors

Diagram of a car interior showing a lever mechanism and directional arrows (no text or symbols)

To block out glare, swing down the viso To use the sun visor at a side window, swing it down and move it sideways.

■ Sun visor extension plate equipped)

Line drawing of a handheld device with handle and rectangular body (no text or symbols)

With the sun visor positioned over the s window, you can use the sun visor exten sion plate to prevent glare through the g between the sun visor and center pillar. use the extension plate, pull it toward the rear of the vehicle. When you have finished using it, stow it by pushing it toward the front of the vehicle.

(if

601751 CAUTION

Do not pull out the extension plate with the sun visor positioned over the windshield. The extension plate would obstruct your view of the rearview mirror.

■ Vanity mirror

CAUTION

Keep the vanity mirror cover clo while the car is being driven to being temporarily blinded by the glare of bright light.

Diagram of a car trunk with a handle and seat, showing an arrow indicating direction (no text or symbols)

■ Vanity mirror with light (if equipped)

CAUTION Keep the vanity mirror cover close while the car is being driven to being distracted by the light.

Diagram of a car interior showing a piston and handle mechanism with an arrow indicating direction (no text or symbols)

Storage compartment

CAUTION

● Always keep the storage compartment closed while driving to reduce the risk of injury in the event of a sudden stop or an accident.
- Do not store spray cans, containers with flammable or corrosive liquids or any other dangerous items in the storage compartment.

To use the vanity mirror, swing down the To use the vanity mirror, swing down the sun visor and open the vanity mirror cover. Sun visor and open the vanity mirror cover.

The light beside the vanity mirror illuminates when the mirror cover is opened.

NOTE

Use of the vanity mirror light for a long period of time while the engine is not running can cause battery discharge.

Glove box

Diagram showing a car interior with labeled parts and directional arrows, including a magnified inset of the device's side view.

1) Rotate the key clockwise to lock.
2) Rotate the key counterclockwise to unlock.

To open the glove box, pull the handle. To close it, push the lid firmly upward.

NOTE

• The emergency key is directional. the key cannot be inserted, change direction that the grooved side is far and insert it again.
• For models with the "keyless access with push-button start system", use the emergency key to lock or unlock the glove box.

■ Center console

The center console box provides a storage space.

1 601692

1) Card holder

The top of the console can be used as armrest.

■ Cup holders

the ding CAUTION

• Do not pick up a cup from the holder or put a cup in the home while you are driving, as this distract you and lead to an addent.
  • Take care to avoid spills. Beverages, if hot, might scald you

and/or your passengers. Spilled beverages may also damage upholstery or carpets.

- When a cup in the rear passenger's cup holder contains a beverage, do not fold down the rear seatback. Otherwise, the beverage could spill and, if the beverage is hot, it could scald you and/or your passengers.

Diagram of a car interior showing the dashboard and seat area (no text or symbols)

Front passenger's cup holder cup A dual cup holder is built into the center der console.

Line drawing of a car seat with rear seats and seat tray (no text or symbols)

Rear passenger's cup holder (if equipped) The bottle holder equipped on each door A dual cup holder is built into the armrestim can be used to hold beverage bottles and other items.

Line drawing of a car interior showing a bottle and seatbelt mechanism (no text or symbols)

Accessory power outlets

Electrical power (12 V DC) is available at any of the accessory power outlets when the ignition switch is in either the "ACC" or "ON" position. Accessory power outlets are located in the following places.

Interior view of a car gear shift lever with a highlighted control panel (no text or symbols)

Power outlet below the climate control panel

■ Bottle holders

CAUTION

• Do not pick up a bottle from the bottle holder or put a bottle in the holder while you are driving, as this may distract you and lead to an accident.
• When placing a beverage in a bottle holder, make sure it is capped. Otherwise, the beverage could spill when opening/closing the door or while driving and, if the beverage is hot, it could scald you and/or your passengers.

Diagram of a car interior showing a seatbelt and dashboard with a close-up inset of the dashboard (no text or symbols)

Power outlet in the center console

You can use an in-vehicle electrical appliance by connecting it to an outlet. The maximum power rating of an appliance that can be connected is 120 W.

CAUTION

• Do not attempt to use a cigarette lighter in the accessory power outlets.
• Do not place any foreign objects, especially metal ones such as coins or aluminum foil, into the accessory power outlet. That could cause a short circuit. Always put the cap on the accessory power outlet when it is not use.

- Use only electrical appliances which are designed for 12 V DC. The maximum power rating of an appliance that can be connected is 120 W. Do not use an appliance which exceeds the indicated wattage for each outlet.

- When using appliances connected to two outlets simultaneously, the total power consumed by them must not exceed 120 W. Overloading the accessory power outlet can cause a short circuit. Do not use double adapters or more than one electrical appliance.

- If the plug on your electric appliance is either too loose or too tight for the accessory power outlet, this can result in a poor contact or cause the plug to get stuck. Only use plugs that fit properly.

- Use of an electric appliance in the accessory power outlet for a lo period of time while the engine not running can cause battery discharge.

- Before driving your vehicle, make in sure that the plug and the cord your electrical appliance will not

interfere with your shifting gears and operating the accelerator and brake pedals. If they do, do not use the electrical appliance while driving.

Mechanical assembly diagram showing a rotating component with an arrow indicating rotation (no text or symbols)

NOTE

When the lid of the center console is closed, an opening remains between the center console and the lid to allow the power outlet in the center console to be used. Pass the cord of the electrical appliance through this opening.

on

■ Use with a cigarette lighter (dealer option)

To use the accessory power outlet as a cigarette lighter socket, purchase the cigarette lighter plug, which is an optional accessory. A cigarette lighter plug is available from your SUBARU dealer.

The cigarette lighter operates only when the ignition switch is in the "ON" or "ACC position.

To use the cigarette lighter, push in the knob and wait a few moments. It will automatically spring up when ready for use.

WARNING

To avoid being burned, never grasp the lighter by the end with the heating element. Doing so could result in injury and could also damage the heating element.

CAUTION

• Do not hold the lighter pushed because it will overheat.
• The electrical power socket is originally designed to use a genuine SUBARU cigarette lighter plug. Do not use a non-genuine

cigarette lighter plug in the sock et. Doing so may cause a short- circuit and overheating, resulting in a fire.

- If the socket is ever used for a plug-in accessory such as a cell phone, that may damage the portion of the socket's internal mechanism that causes a cigarette lighter plug to "pop out" aft its lighter element is heated. Therefore, do not place a cigarette lighter plug in a socket that has been used, even once, to power a plug-in accessory. Doing so may cause the plug to stick and overheat, creating a potential fire hazard.

USB power supply

CAUTION

• The specification of a USB terminal that can be used is the A-type. If a different specification of terminal is connected, power supply or charging may not be possible, or the device may malfunction.
• There is a risk that a connected device may malfunction or data may be damaged. The connection of a device shall be performed at your responsibility.
• To avoid an electric shock or a malfunction, observe the following precautions.

- Do not connect a USB hub

- Do not insert any metal or other foreign object into the USB terminal.

- Do not spill water or other liquid on the USB terminal.

- Be careful not to pull the connected cable. Doing so could break the USB terminal and the connected device.

• If a device is connected for a lo time when the engine is not running, the battery may be discharged. Even when the engine running, we recommend that you do not connect a device for an unnecessarily long time.
• Do not connect a malfunctioning device. Doing so may cause the risk of smoke and fire.

When a device that communicates with a PC is connected, power supply or charging may not be possible. When connect a device for charging, disconnect the device promptly after charging is completed.

■ How to use the USB power supply

Use the USB terminal to use or charge an electronic device. When the ignition switch is in the "ACC" or "ON" position, the power can be supplied to the electronic device. Up to DC 5 V can be supplied from each to terminal.

to 21A 601964

Front seat 1 terminal type USB power supply

- DC 5 V/1 A

- Audio devices can be connected and used.

NOTE

- The USB power supply is designed to supply a maximum rated power of 5 V/2.1 A or DC 5 V/1 A. Before connecting a device, be sure to read the instruction manual of the device and check whether or not this specification of the output is supported by device. If a device that requires power exceeding the maximum rating is connected, power supply or charging may not be possible. Even if charging could be completed, the time required for charging may be longer than when it is genuine charger for that device is used. - Depending on the device, charging may be possible only when a special cable is used. In this case, be sure to connect the device using the special cable.

Front seat 2 terminal type USB power supply Ashtray (dealer option)

• DC 5 V/2.1 A*
• Audio devices can be connected and used.
  *: The available electricity of the two USB terminals is a maximum of 4.2 A.

2.1A 602068

Console USB power supply (if equipped)

• DC 5 V/2.1 A*
• Power supply function only
  *: The available electricity of the two USB terminals is a maximum of 4.2 A.

eAshtray (dealer option)

CAUTION

• Do not use ashtrays as waste receptacles or leave a lighted cigarette in an ashtray. This cause a fire.
  ● Always extinguish matches and cigarettes before putting them into the ashtray, and then close the ashtray securely. If you keep the ashtray open, the fire of the cigarette may spread to another cigarette butt and start a fire.
• Do not put flammable material in the ashtray.
• Do not leave a lot of cigarette butts in the ashtray.

NOTE

Particles of ash and tobacco will accumulate around the hinges of the ash-tray's inner lid. Clean them off using a toothbrush or a similar narrow-ended implement.

Diagram of a mechanical device with an open lid and internal components, showing rotational motion (no text or symbols)

601270

The portable ashtray can be installed in each cup holder or bottle holder. For the locations of the cup holders, refer to "Cup holders" 6-6. For the locations of the bottle holders, refer to "Bottle holders" 6-7.

When using the ashtray, open the lid of the ashtray. Fully close the lid after using the ashtray to help reduce residual smoke.

Floor mat

Diagram of a car interior showing foot and pedal mechanism (no text or symbols)

CAUTION

If the floor mat slips forward and interferes with the movement of the pedals during driving, it could cause an accident. Observe the following precautions to prevent the floor ma from slipping forward.

• Be sure to use a genuine SUBARU floor mat or an equivalent designed with grommets in the correct locations.
• Make sure that the driver's floor mat is placed in its proper location and is correctly secured on its retaining pins.

- Do not use more than one floor mat.

Technical line drawing of a mechanical assembly with a bracket and pin (no text or symbols)

Retaining pins are located on the driver side floor.

The floor mat should be properly secure using the built-in grommets, by placing

grommets over the pins and pushing th downward.

Assist grip

Technical illustration of a curved mechanical component with labeled part 1, alongside a wire or fiber structure (no text or symbols present)

1) Assist grip

The assist grip is to be held to support the body of the passengers when they are in the seat and the vehicle is moving.

WARNING

Do not hold the assist grip when getting up from the seat. Holding and pulling the assist grip in the wrong way could break the grip and possibly cause injury.

CAUTION

Do not attach heavy objects to the assist grip. Doing so could break it

and damage the object.

Coat hook

Simple line drawing of a curved object with a small triangular feature, no text or symbols present

A coat hook is attached to the rear passenger's assist grip.

Line drawing of a hanger with handle and frame, no text or symbols present

WARNING

Obey the following instructions.

• Do not hang coat hangers or other hard or pointed objects on the coat hooks. Hang clothing directly on the coat hooks without using hangers.
• Before hanging clothing on the coat hooks, make sure there are no pointed objects in the pockets.

If these instructions are ignored, following may occur in sudden stops or in a collision.

• Serious injuries by the items thrown through the cabin
• Incorrect SRS curtain airbag deployment

CAUTION

Never hang anything on the coat hook that might obstruct the driver's view or that could cause injury in sudden stops or in a collision. And do not hang items on the coat hook that weigh 11 lbs (5 kg) or more.

Shopping bag hook

CAUTION

Do not hang items on the shoppi bag hook that weigh 6 lbs (3 kg) more.

Top-down line drawing of a car's rear intake frame showing vent and side seats (no text or symbols)

A shopping bag hook is attached to each side of the cargo area.

Cargo area cover (if equipped)

The cargo area cover is provided for covering the cargo area and to protect contents from direct sunlight. This cover detachable to make room for additional cargo.

■ Using the cover

Technical line drawing of a car rear view showing structural components and a highlighted section (no text or symbols)

To extend the cover, pull the end of the cover out of the housing, then insert its hooks into the catches as shown. To rewind it, unhook it from the catches and it will rewind automatically. You should hold on to the cover and guide it back into the cover housing while it is rewinding.

WARNING

Do not place anything on the extended cover. Putting excessive weight on the extended cover can break it and an object on the cover could tumble forward in the event of a sudden stop or collision. This could cause serious injury.

CAUTION

Be careful not to scratch the rear gate stays while extending and re-winding the cover.

Scratches on the stays could cause leakage of gas from the stays, which may result in their inability to hold the rear gate open.

■ To remove the cover housing ■ Stowage of the cargo area cover

1. Rewind the cover.

Interior view of a car showing the dashboard and seat area with a hand inserting a device into the seat (no text or symbols visible)

1. Push the cover housing to the right side and shorten it.
2. Take it off the retainer.

The cargo area cover can be stowed in under the cargo floor.

Technical line drawing of a car interior showing a seat and door frame (no text or symbols)

1. Raise and fold the rear end of the floor board.

Top-down line drawing of a car's rear bumper and side-mounted sensors (no text or symbols)

1. Stow the cover housing in the cargo area end.

argo 601416

1. Put the cargo floor board back while hanging two retaining straps on the hooks that are located on the rear wall of cargo area.

- CONTINUED -

■ To install the cover housing Cargo tie-down hooks The right end of the cargo area cover is (if equipped) sliding structure.

601947

1. Insert the right end of the cover into recessed portion with the arrow mark facing upward.
2. Hold the cover housing securely and insert the left end of the cover into the recessed portion.

Diagram of a car interior showing dashboard, grille, and camera insertion (no text or symbols)

The cargo area is equipped with two or four tie-down hooks so that cargo can be secured with a cargo net or ropes. When using the front tie-down hooks, to them down out of the storing recesses.

CAUTION

The cargo tie-down hooks are designed only for securing light cargo. Never try to secure cargo that exceeds the capacity of the hooks. The maximum load capacity is 22 lbs (kg) per hook.

Front View Monitor (if equipped)

Line drawing of a car front view with a close-up inset showing a speaker grille (no text or symbols)

The image from the camera mounted inside the front grille is displayed in the multi-function display (color LCD). This eliminates blind spots and allows the driver to check the forward direction of both sides.

WARNING

- Never rely on only the Front View Monitor when driving the vehicle. The image on the monitor screen may be different from the actual situation. If you drive the vehicle by viewing only the monitor image, a collision or an unexpected

accident may occur. When driving the vehicle, always check the traffic around the vehicle directly with your eyes and the mirrors.

• Always operate the vehicle as you would without the Front View Monitor.
• Do not use the Front View Monitor in the following situations.

- You are driving on a dirt road or a road covered in snow.

- The camera malfunctions (e.g. the lens or bracket is broken).

- If the outside temperature is low, the monitor screen may become dark or the image may become dim. In particular, the image of moving object may be distorted or disappear from the screen. You must always check the trat around the vehicle directly with your eyes when driving it.

■ How to access the Front Monitor

VIEW 1 602063

1) VIEW monitor switch

To change over to the camera screen, perform either of the following operations when the ignition switch is in the "ACC" "ON" position.

• Press the VIEW monitor switch.
• Shift the select lever to the "R" position and then shift into the other position exc the "P" position when the reverse interloc function is on.*
  *1: The reverse interlock function can be switched on or off. Refer to "Camera shift link setting" 3-63.

How to cancel the Front View Monitor

▼ Manual cancellation

▼ Automatic cancellation

• Press the VIEW monitor switch again.
• Press the INFO button on the steering wheel.

If any of the following conditions are met, the Front View Monitor is canceled automatically.

After accessing the Front View Monitor by pressing the VIEW monitor switch:

• Approximately 3 minutes have passed since the last operation.
• The vehicle speed becomes 12.5 mph (20 km/h) or more.*

- The select lever is shifted to the "P" or position.

• The parking brake is applied.
  *: The Front View Monitor can be activated when pressing the VIEW monitor switch, regardless of the vehicle speed.

After accessing the Front View Monitor using the select lever:

• Shift the select lever into the "P" position.

• The vehicle speed becomes 5 mph (8 km/h) or more.*

• Approximately 9 seconds have passed since the last operation.

• The parking brake is applied.
  *: When the Front View Monitor is activated speeds of more than 12.5 mph (20 km/h), cancel the Front View Monitor, the vehicle speed needs to be decreased to less than 12.5 mph (20 km/h) and then increased to more than 12.5 mph (20 km/h).

■ How to adjust the display contrast and brightness

The contrast and brightness of the front view monitor display can be adjusted. For details, refer to "Camera Settings" 3-63.

■ Range of image on screen

A) Traffic intersection with a poor visibility view

B) Parking facing a wall

1) Range of displayed image

2) Obstacles (e.g., buildings, fences or other vehicles)

WARNING

Because the range of the image captured by the camera is limited, always check the traffic around the vehicle directly with your eyes when driving the vehicle.

NOTE

• The range of the displayed image may differ depending on the vehicle status or the road surface status.
• Because the Front View Monitor system uses a specially designed lens, the sense of distance in the displayed image is different from the actual distance.

• The camera image may be difficult to view in the following situations. This is not a malfunction.

• Dark place (at night)
  – High or low temperature around the lens

• Water contacts lens or in high humidity (rainy weather)
• There is foreign materials (such as mud) around the camera.
• Sunlight or headlight beam directly shines towards the camera lens.

- Under an artificial light such as a fluorescent lamp, sodium-vapor lamp or mercury lamp, the lighted portion may look like it is flickering (flicker phenomenon).

- While the display has cooled down, the image may leave traces or be seen darker than usual, causing a difficulty in viewing the screen. Always check traffic around the vehicle directly with your eyes while driving the vehicle. - The following incidents should not be deemed a malfunction.

- The camera lens may become foggy when the humidity is high a rainy day.

- The light from a vehicle or bringing located ahead may be reflected towards the camera image while driving at night.

- In a dark place or while driving night, the camera image may be adjusted to make noises less visible. Therefore, the image may look like a monochromatic image or the image colors may differ from the actual colors. The camera image may be deteriorated in regard to sharpness at the center and four corners of the screen. This is not malfunction.

■ Guiding line

Check surroundings directly 1 2 601959

on) Guiding line
2) Warning message

The guiding line that indicates the width and the front end of your vehicle is displayed on the display.

g at Handling of camera

CAUTION

Observe the following instructions. Otherwise, the system may malfunction.

- Do not apply any strong impact a the camera such as banging it hitting it with an object. The mounting angle may change.

• The camera unit is a waterproof structure. Do not attempt to remove, disassemble or modify the unit.
• Do not rub strongly or polish the camera lens with a hard brush or abrasive compounds. The lens may be scratched resulting in an adverse effect to the camera image.
• The camera lens is made of glass or plastic. Do not allow any organic solvent, body wax, oil film remover or glass coating agent to become attached on the lens surface. If any becomes attached, remove it immediately.
• Do not expose the camera lens to any sudden temperature change, for example, spraying hot water on it in cold weather.
• Do not apply the water jet of a high pressure washer to the camera or the surrounding area when cleaning the vehicle. The impact by the strong water pressure may cause the camera to come off. Also, water may enter inside the camera and cause a malfunction.
• If the camera is exposed to any impact, it may lead to malfunction

of the camera. Have the camera inspected by your SUBARU dealer as soon as possible.Do not use a steam cleaner under any circumstances. Some types of steam cleaners inject hot steam.The camera surface may be damaged by a flying stone.	Rear view cameraRefer to the separate navigation/audio Owner's Manual.
NOTEIf the camera lens is contaminated, no sharp image will be available. When the camera is contaminated with water drops, snow or mud, wash it with water and wipe away any moisture with a soft cloth. If it heavily gets dirty, wash it with a neutral detergent.

Starting and operating

Fuel 7-3

Fuel requirements 7-3

Fuel filler lid and cap 7-5

State emission testing (U.S. only) 7-7

Preparing to drive 7-9

Starting and stopping the engine (models without push-button start system) 7-9

Starting engine 7-10

Stopping the engine.... 7-11

Steering lock 7-12

Starting and stopping engine (models with push-button start system).... 7-12

Safety precautions 7-12

Operating range for push-button start system .....7-12

Starting engine 7-12

Stopping engine....7-14

When access key fob does not operate properly ...

Steering lock 7-15

Remote engine start system (dealer option) .... Remote engine starter transceiver (fob)....7-16

Alternate operation method for models with "keyless access with push-button start system" 7-20

Entering the vehicle while it is running via remote start (models without "keyless access with push-button start system") 7-20

Entering the vehicle while it is running via remote start (models with "keyless access with push-button start system"). 7-21

Entering the vehicle following remote engine start shutdown....7-21

Pre-heating or pre-cooling the interior of the vehicle.... 7-21

Remote transmitter program (Remote engine starter transceiver) 7-21

System maintenance.... 7-22

Certification for remote engine starter.... 7-23

Manual transmission 7-24

Shifting speeds 7-25

Driving tips.... 7-25

Continuously variable transmission 7-26

Continuously variable transmission features...... 7-26

Select lever 7-27

Selection of manual mode (if equipped) 7-29

Selection of "L" (if equipped).... 7-30

Shift lock function 7-31

Driving tips.... 7-32

7 SI-DRIVE (if equipped) 7-33

Intelligent (I) mode.... 7-33

Sport (S) mode 7-33

SI-DRIVE switches 7-34

Power steering.... 7-35

Power steering warning light 7-35

Power steering system features 7-35

Braking 7-36

Braking tips.... 7-36

Brake system 7-36

Disc brake pad wear warning indicators.... 7-37

ABS (Anti-lock Brake System).... 7-37

ABS self-check 7-38

ABS warning light 7-38

Starting and operating

Electronic Brake Force Distribution (EBD)

system 7-38

Steps to take if EBD system malfunctions .....7-39

Vehicle Dynamics Control system.... 7-40

Safety precautions 7-40

System features 7-40

Vehicle Dynamics Control system monitor....7-41

Vehicle Dynamics Control OFF switch 7-41

X-MODE (if equipped) 7-43

To activate/deactivate the X-MODE 7-44

Hill descent control function 7-45

Tire pressure monitoring system (TPMS)

(U.S.-spec. models).... 7-46

Parking your vehicle.... 7-48

Parking brake 7-48

Parking tips 7-48

Hill start assist system.... 7-50

To activate/deactivate the Hill start assist system....7-51

Hill start assist warning light/Hill start assist OFF indicator light 7-52

Cruise control (if equipped) 7-53

To set cruise control 7-53

To temporarily cancel the cruise control....7-55

To turn off the cruise control....7-55

To change the cruising speed 7-55

Cruise control indicator light....7-57

Cruise control set indicator light.... 7-57

Auto Start Stop system (if equipped) 7-57

System operation 7-57

Displaying the Auto Start Stop system status ..... 7-62

System warning.... 7-62

BSD/RCTA (if equipped).... 7-63

System features.... 7-63

System operation 7-65

BSD/RCTA approach indicator light/warning buzzer 7-67

BSD/RCTA OFF indicator 7-68

BSD/RCTA warning indicator 7-69

BSD/RCTA OFF switch.... 7-69

Certification for the BSD/RCTA 7-70

Handling of radar sensors 7-71

Reverse Automatic Braking (RAB) system (if equipped).... 7-72

Reverse Automatic Braking (RAB) system overview.... 7-73

Operating conditions 7-74

Reverse Automatic Braking (RAB) system operation.... 7-77

Canceling the Reverse Automatic Braking (RAB) system operation.... 7-80

Reverse Automatic Braking (RAB) system ON/OFF setting.... 7-80

RAB warning indicator.... 7-82

Handling of the sonar sensors 7-82

Fuel

CAUTION

• Use of a fuel which is low in quality or use of an inappropriate fuel additive may cause damage to the engine and/or fuel syst
• Some gas stations, particularly those in high altitude areas, off fuels posted as regular octane gasoline with an octane rating below 87 AKI (90 RON). Use of those fuels are not recommended.

knocks heavily or persistently.

▽ RON

This octane rating is the Research Octar Number.

▼ AKI

This octane rating is the average of the Research Octane and Motor Octane numbers and is commonly referred to as the Anti Knock Index (AKI).

▼ Unleaded gasoline

The neck of the fuel filler pipe is design to accept only an unleaded gasoline filler nozzle. Under no circumstances should leaded gasoline be used because it will damage the emission control system and may impair driveability and fuel economy

▼ Reformulated gasoline

SUBARU supports the use of reformulate gasoline when available. Reformulated gasoline has been blended to burn more cleanly and reduce vehicle emissions.

MMT

Some gasoline contains an octane-enhancing additive called MMT (Methylcyclopentadienyl Manganese Tricarbonyl). If you use such fuels, your emission control system performance may deteriorate and the CHECK ENGINE warning light/Malfunction indicator light may turn on. If th

happens, return to your authorized SUBARU Dealer for service. If it is determined that the condition is caused by the type of fuel used, repairs may not be covered by your warranty.

▼ Gasoline for cleaner air (2.0 L engine models)

-Your use of gasoline with detergent additives will help prevent deposits from forming in your engine and fuel system. This helps keep your engine in tune and your emission control system working properly, and is a way of doing your part for cleaner air. If you continuously use a high quality fuel with the proper detergent and other additives, you should never need to add any fuel system cleaning agents to your fuel tank.

Many gasolines are now blended with materials called oxygenates. Use of these fuels can also help keep the air cleaner. Oxygenated blend fuels, such as ethanol (ethyl or grain alcohol) may be used in your vehicle, but should contain no more than 15% ethanol for the proper operation of your SUBARU.

Do not use any gasoline that contains more than 15% ethanol, including from any pump labeled E30, E50 or E85 (which are only some examples of fuel containing more than 15% ethanol).

- CONTINUED -

In addition, some gasoline suppliers are now producing reformulated gasolines, which are designed to reduce vehicle emissions. SUBARU approves the use of reformulated gasoline.

If you are not sure what the fuel contain you should ask your service station operators if their gasolines contain detergents and oxygenates and if they have been reformulated to reduce vehicle emissions.

As additional guidance, only use fuels suited for your vehicle as explained in t following.

• Fuel should be unleaded and have an octane rating no lower than that specific in this manual.
• Methanol (methyl or wood alcohol) is sometimes mixed with unleaded gasoline. Methanol can be used in your vehicle ONLY if it does not exceed 5% of the mixture AND if it is accompanied by sufficient quantities of the proper cosolvents and corrosion inhibitors required to prevent damage to the fuel system. Do use fuel containing methanol EXCEPT under these conditions.
• If undesirable driveability problems are experienced and you suspect they may fuel related, try a different brand of gas line before seeking service at your

SUBARU dealer.

- Fuel system damage or driveability problems which result from the use of improper fuel are not covered under the SUBARU Limited Warranty.

Gasoline for cleaner air (2.5 L engine models)

Your use of gasoline with detergent additives will help prevent deposits from forming in your engine and fuel system. This helps keep your engine in tune and your emission control system working properly, and is a way of doing your part for cleaner air. If you continuously use a high quality fuel with the proper deterge and other additives, you should never need to add any fuel system cleaning agents to your fuel tank.

Many gasolines are now blended with materials called oxygenates. Use of these fuels can also help keep the air cleaner. Oxygenated blend fuels, such as ethanol (ethyl or grain alcohol) may be used in y vehicle, but should contain no more than 10% ethanol for the proper operation of your SUBARU.

Do not use any gasoline that contains more than 10% ethanol, including from an pump labeled E15, E30, E50 or E85 (which are only some examples of fuel contain more than 10% ethanol).

In addition, some gasoline suppliers are now producing reformulated gasolines, which are designed to reduce vehicle emissions. SUBARU approves the use of reformulated gasoline.

If you are not sure what the fuel contains, you should ask your service station operators if their gasolines contain detergents and oxygenates and if they have been reformulated to reduce vehicle emissions.

As additional guidance, only use fuels suited for your vehicle as explained in the following.

• Fuel should be unleaded and have an octane rating no lower than that specified in this manual.
• Methanol (methyl or wood alcohol) is sometimes mixed with unleaded gasoline.
• Methanol can be used in your vehicle ONLY if it does not exceed 5% of the fuel mixture AND if it is accompanied by sufficient quantities of the proper cosolvents and corrosion inhibitors required to prevent damage to the fuel system. Do not use fuel containing methanol EXCEPT under these conditions.
• If undesirable driveability problems are experienced and you suspect they may be fuel related, try a different brand of gasoline before seeking service at your

SUBARU dealer.

- Fuel system damage or driveability problems which result from the use of improper fuel are not covered under the SUBARU Limited Warranty.

■ Fuel filler lid and cap

▼ Locations of the fuel filler lid and lid release lever

Line drawing of a car's side profile with a circular arrow pointing to the wheel (no text or symbols)

Fuel filler lid

the 701929

Fuel filler lid release lever

▼ Refueling

Only one person should be involved in refueling. Do not allow others to approach the area of the vehicle near the fuel filler pipe while refueling is in progress. Be sure to observe any other precautions that are posted at the service station.

1. Stop the vehicle and turn the ignition switch to the "LOCK"/"OFF" position and turn off all the other electrical components.
2. To open the fuel filler lid, pull the fuel filler lid release lever up. The lever is on the floor at the left of the driver's seat.

WARNING

Before opening the fuel filler cap, first touch the vehicle body or a metal portion of the fuel pump or similar object to discharge any static electricity that may be present on your body. If your body is carrying an electrostatic charge, there is a possibility that an electric spark could ignite the fuel, which could burn you. To avoid acquiring a new static electric charge, do not get back into the vehicle while refueling is in progress.

1 2

701743

1) Open
2) Close

1. Remove the fuel filler cap by turning slowly counterclockwise.

WARNING

• Gasoline vapor is highly flammable. Before refueling, always turn the ignition switch to the "LOCK"/"OFF" position first and then close all vehicle doors and windows. Make sure that there are no lighted cigarettes, open flames or electrical sparks in the adjacent area. Only handle fuel outdoors. Quickly wipe up any spilled fuel.
• When opening the cap, grasp it

it

firmly and turn it slowly to the Do not remove the cap quickly. Fuel may be under pressure and spray out of the fuel filler neck, especially in hot weather. If you hear a hissing sound while you are removing the cap, wait for the sound to stop and then slowly open the cap to prevent fuel from spraying out and creating a fire hazard.

Diagram showing two mechanical components with a downward arrow indicating motion or change, no text or symbols present.

1. Set the fuel filler cap on the cap ho inside the fuel filler lid.

•

WARNING

- When refueling, insert the fuel nozzle securely into the fuel filler pipe. If the nozzle is lifted or not

left. fully inserted, its automatic stopping mechanism may not function, causing fuel to overflow the tank and creating a fire hazard. - Stop refueling when the automatic stop mechanism on the fuel nozzle activates. If you continue to add fuel, temperature changes or other conditions may cause fuel to overflow from the tank and create a fire hazard.

1. Stop filling the tank after the fuel filler pump automatically stops. Do not add any more fuel.
2. Put the cap back on, turn it clockwise until you hear a clicking noise. Be certain not to catch the tether under the cap while tightening.

CAUTION

Make sure that the cap is tightened until it clicks to prevent fuel spillage in the event of an accident.

1. Close the fuel filler lid completely.

CAUTION

If you spill any fuel on the painted surface, rinse it off immediately.

Otherwise, the painted surface could be damaged.

NOTE

• You will see the “” sign in the gauge. This indicates that the fuel lid is located on the right side of vehicle.
• If the fuel filler cap is not tightened until it clicks or if the tether is caught under the cap, the CHECK ENGINE warning light/malfunction indicator light may illuminate. Refer to “CHECK ENGINE warning light/Malfunction indicator light” 3-15.

CAUTION

• Never add any cleaning agents the fuel tank. The addition of cleaning agent may cause damage to the fuel system.
• After refueling, turn the cap to the right until it clicks to ensure that it is fully tightened. If the cap is not securely tightened, fuel may leak out while the vehicle is being driven or fuel spillage could occur in the event of an accident, creating a fire hazard.
  to a
  the
  that is y being
  C-

fuel filler

the ned ught

• Do not let fuel spill on the exter surfaces of the vehicle. Because fuel may damage the paint, be sure to wipe off any spilled fuel quickly. Paint damage caused by spilled fuel is not covered under the SUBARU Limited Warranty.
  Always use a genuine SUBARU fuel filler cap. If you use the wrong cap, it may not fit or h- proper venting and your fuel ta and emission control system may be damaged. It could also lead to fuel spillage and a fire.
• Immediately put fuel in the tank whenever the low fuel warning light illuminates. Engine misfires as a result of an empty tank cause damage to the engine. Continuing to operate your vehicle at an extremely low fuel level may result in a reduction of engine performance.

State emission testing (U.S. only)

WARNING

Only use a four-wheel dynamometer when testing an All-Wheel Drive (AWD) model.

have Testing of an AWD model must NEVER be performed on a single two-wheel dynamometer. Attempting to do so will result in uncontrolled vehicle movement and may cause an accident or injuries to persons nearby.

could

CAUTION

• At state inspection time, remember to tell your inspection or service station in advance not to place your SUBARU AWD vehicle on a two-wheel dynamometer. Otherwise, serious transmission damage will result.
• Resultant vehicle damage due to improper testing is not covered under the SUBARU Limited Warranty and is the responsibility of the state inspection program or

- CONTINUED -

its contractors or licensees.

California and a number of federal states have Inspection/Maintenance programs to inspect your vehicle's emission control system. If your vehicle does not pass the test, some states may deny renewal of your vehicle's registration.

Your vehicle is equipped with a compute that monitors the performance of the engine's emission control system. Certified emission inspectors will inspect the On-Board Diagnostic (OBDII) system as part of the state emission inspection process. The OBDII system is designed to detect engine and transmission problems that might cause the vehicle emissions to exceed allowable limits. OBDII inspections apply to all 1996 model year and newer passenger cars and trucks. Over 30 states plus the District of Columbia have implemented emission inspection of the OBDII system.

• The inspection of the OBDII system consists of a visual operational check of the "CHECK ENGINE" warning light/malfunction indicator light (MIL) and an examination of the OBDII system with an electronic scan tool.
• A vehicle passes the OBDII system inspection if proper operation of the "CHECK ENGINE" warning light is ob-

served, there are no stored diagnostic trouble codes, and the OBDII readiness monitors are all complete.

• A vehicle fails the OBDII inspection if the "CHECK ENGINE" warning light is properly operating (light is illuminated or not working due to faulty LED [Light Emitting Diode]) or there is one or more diagnostic trouble codes stored in the vehicle's computer.
• A state emission inspection may reject (not pass or fail) a vehicle if the number OBDII system readiness monitors "NOT READY" is greater than one. If the vehicle's battery has been recently replaced or disconnected, the OBDII system inspection may indicate that the vehicle not ready for the emission test. Under the condition, the vehicle driver should be instructed to drive his/her vehicle for a few days to reset the readiness monitor and return for an emission re-inspection.
• Owners of rejected or failing vehicles should contact their SUBARU Dealer for service.

Some states still use dynamometers in their emission inspection program. A dynamometer is a treadmill or roller-like testing device that allows your vehicle's wheels to turn while the vehicle remains in one place. Prior to your vehicle being put

on a dynamometer, tell your emission inspector not to place your SUBARU AWD vehicle on a two-wheel dynamometer. Otherwise, serious transmission damage will result.

The U.S. Environmental Protection Agency (EPA) and states using two-wheel dynamometers in their emission testing program have EXEMPTED SUBARU AWD vehicles from the portion of the testing program that involves a two-wheel dynamometer. There are some states that use four-wheel dynamometers in their testing program. When properly used, this equipment should not damage a SUBARU AWD vehicle.

Under no circumstances should the rear wheels be jacked off the ground, nor should the driveshaft be disconnected in an attempt to bypass AWD for state emission testing. An AWD vehicle must be tested using an AWD dynamometer with all 4 wheels driven and loaded.

Preparing to drive

You should perform the following checks and adjustments every day before you start driving.

1. Check that all windows, mirrors, and lights are clean and unobstructed.
2. Check the appearance and condition of the tires. Also check tires for proper inflation.
3. Look under the vehicle for any sign leaks.
4. Check that no small animals enter t engine compartment.
5. Check that the hood and rear gate fully closed.
6. Check the adjustment of the seat.
7. Check the adjustment of the inside and outside mirrors.
8. Fasten your seatbelt. Check that your passengers have fastened their seatbelts.
9. Check the operation of the warning and indicator lights when the ignition switch is turned to the "ON" position.
10. Check the gauges, indicator and warning lights after starting the engine.

CAUTION

Trapping small animals in the cooling fan and belts of the engine m result in a malfunction. Check that no small animal enters the engine compartment and under the vehicle before starting the engine.

NOTE

Engine oil, engine coolant, brake fluid, washer fluid and other fluid should be checked daily, weekly or fuel stops.

When towing a trailer, refer to "Tler hitch" 8-16.

Starting and stopping the engine (models without push-button start system)

CAUTION

Do not operate the starter motor continuously for more than 10 seconds. If the engine fails to start after operating the starter for 5 to 10 seconds, wait for 10 seconds or more before trying again.

aNOTE

It may be difficult to start the engine when the battery has been disconnected and reconnected (for maintenance or other purposes). This difficulty is caused by the electronically controlled throttle's self-diagnosis function. To overcome it, keep the ignition switch in the "ON" position for approximately 10 seconds before starting the engine.

■ Starting engine

▼ General precautions when starting engine

WARNING

• Never start the engine from outside the vehicle (except when using the remote engine start system). It may result in an ac dent.
• Do not leave the engine running in locations with poor ventilation such as a garage and indoors. The exhaust gas may enter the vehicle or indoors, and it may result in carbon monoxide poisoning.
• Do not start the engine near dry foliage, paper, or other flammable substances. The exhaust pipe and exhaust emissions can create a fire hazard at high temperatures.

CAUTION

- If the engine is stopped during driving, the catalyst may overheat and burn.

- When starting the engine, be sure to sit in the driver's seat (except when using the remote engine start system).

NOTE

• Avoid rapid racing and rapid acceleration immediately after the engine has started.
• After the engine starts, the engine speed will be kept high.
• On rare occasions, it may be diffi to start the engine depending on the fuel and the usage condition (repeat driving of a distance in which the engine has not warmed up sufficient In such a case, it is recommended you change to a different brand of
• On rare occasions, transient knocking may be heard from the engine the accelerator is operated rapidly as a rapid start-up and a rapid acc
• gration. This is not a malfunction.
• The engine starts more easily when the headlights, air conditioner and r window defogger are turned off.
• Do not shift the select lever (CVT models) or shift lever (MT models) while the starter is cranking.

e▼ MT models

1. Apply the parking brake.
2. Turn off unnecessary lights and accessories.
3. Depress the clutch pedal to the floor and shift the shift lever into neutral. Hold the clutch pedal to the floor while starting the engine.
   The starter motor will only operate when the clutch pedal is depressed fully to the floor.
   cult Turn the ignition switch to the "ON" position and check the operation of the Warning and indicator lights. Refer to "Warning and indicator" 3-12.
   (1). Turn the ignition switch to the "START" that position without depressing the acceleration pedal. Release the key immediately after the engine has started.
   When the engine does not start, try the following procedure.

(1) Turn the ignition switch to the "LOCK"/"OFF" position and wait for at least 10 seconds. After checking that the parking brake is firmly set, turn the ignition switch to the "START" position while depressing the accelerator pedal slightly (approximately a quarter of the full stroke). Release the accelerator pedal as soon as the engine starts.
(2) If this fails to start the engine, turn

the ignition switch back to the "LOCK" OFF" position and wait for at least 1 seconds. Then fully depress the accelerator pedal and turn the ignition switch to the "START" position. If the engine starts, quickly release the accelerator pedal.

(3) If this fails to start the engine, turn the ignition switch again to the "LOCK" OFF position. After waiting for 10 seconds or longer, turn the ignition switch to the "START" position without depressing the accelerator pedal.

(4) If the engine still fails to start, contact your nearest SUBARU dealer for assistance.

1. Confirm that all warning and indicator lights have turned off after the engine has started. The fuel injection system automatically lowers the idle speed as the engine warms up.

▼ CVT models

1. Apply the parking brake.

2. Turn off unnecessary lights and accessories.

3. Shift the select lever to the "P" or "N" position (preferably the "P" position).

The starter motor will only operate when the select lever is at the "P" or "N" posi

1. Turn the ignition switch to the "ON"

"position and check the operation of the 10 warning and indicator lights. Refer to I-"Warning and indicator" 3-12.

1. Turn the ignition switch to the "STAR position without depressing the accelerator pedal. Release the key immediately after the engine has started.

If, the engine does not start, try the following procedure.

(1) Turn the ignition switch to the "LOCK"/"OFF" position and wait for at least 10 seconds. After checking that the parking brake is firmly set, turn the ignition switch to the "START" position while depressing the accelerator pedal slightly (approximately a quarter of the full stroke). Release the accelerator pedal as soon as the engine starts. (2) If this fails to start the engine, turn the ignition switch back to the "LOCK" OFF position and wait for at least 1 seconds. Then fully depress the accelerator pedal and turn the ignition switch to the "START" position. If the engine starts, quickly release the accelerator pedal.

(3) If this fails to start the engine, turn the ignition switch again to the "LOCK" OFF position. After waiting for 10 seconds or longer, turn the ignition switch to the "START" position without depressing the accelerator pedal.

(4) If the engine still refuses to start, contact your nearest SUBARU dealer for assistance.

T6. Confirm that all warning and indicator lights have turned off after the engine has started. The fuel injection system automatically lowers the idle speed as the engine warms up.

While the engine is warming up, make sure that the select lever is at the "P" or "N" position and that the parking brake is applied.

CAUTION

If you restart the engine while the vehicle is moving, shift the select lever into the "N" position. Do not attempt to place the select lever of a moving vehicle into the "P" position.

Stopping the engine

The ignition switch should be turned off only when the vehicle is stopped and the engine is idling.

WARNING

Do not stop the engine when the vehicle is moving. This will cause loss of power to the power steering and the brake booster, making steer-

- CONTINUED -

ing and braking more difficult. It could also result in accidental activation of the "LOCK"/"OFF" position on the ignition switch, causing the steering wheel to lock.

■ Steering lock

After stopping the engine and the key is removed from ignition switch, the steering wheel will be locked due to the steering lock function.

When the engine is restarted, the steering lock will be automatically released.

▼ When the steering lock cannot be released

When you cannot unlock the steering wheel, perform the following steps.

1. Check that the parking brake is applied.
2. Turn off unnecessary lights and accessories.
3. Check that the select lever is set in the "P" position.
4. Depress the brake pedal and keep it depressed.
5. Turn the ignition switch to the "ON" position while turning the steering wheel left and right.

If you cannot unlock the steering wheel doing the steps, contact your nearest SUBARU dealer.

Starting and stopping engine (models with push-button start system)

■ Safety precautions

Refer to "Safety precautions" 2-3.

■ Operating range for push-button start system

Refer to "Operating range for push-button start system" 3-6.

■ Starting engine

WARNING

• There are some general precautions when starting the engine. Carefully read the precautions described in "Starting engine" 7-10.
• If the indicator on the push-button ignition switch flashes in green after the engine has started, never drive the vehicle. The steering is still locked, and it may result in an accident.

NOTE

It may be difficult to start the engi when the battery has been disconnected and reconnected (for maintenance or other purposes). This diffi culty is caused by the electronically controlled throttle's self-diagnosis function. To overcome it, keep the ignition switch in the "ON" position for approximately 10 seconds before starting the engine.

CAUTION

• When the operation indicator on the push-button ignition switch flashing in orange, there may malfunction with the vehicle. Contact a SUBARU dealer immediately.
• If the indicator on the push-button ignition switch is flashing i green after the engine has started, it means that the steer is still locked. Depress the brak pedal while moving the steering wheel to the right and left, and press the push-button ignition switch.
• Do not continue pushing the push-button ignition switch for

more than 10 seconds. Doing s could cause a malfunction. If the engine does not start, stop pushing the push-button ignition switch. Instead, press the push-button ignition switch without depressing the brake pedal to switch the power status to "OFF". Wait 10 seconds, and the push the push-button ignition switch to start the engine.

NOTE

• After the engine starts, the engine speed will be kept high.
• When the push-button ignition switch is pressed while depressing the clutch pedal (MT models) or the brake pedal (CVT models), the engine starter operates for a maximum of seconds and after starting the engine in the starter stops automatically.
• When the push-button ignition ring switch is pressed while depressing a kethe clutch pedal (MT models) or the g brake pedal (CVT models), the engine and can be started regardless of the status of the push-button ignition switch.
• If the security indicator light illuminates when you attempt to start the engine but the engine does not start, press the push-button ignition switch

so to switch the power to "OFF" and ther the try to start the engine again.

- if the engine does not start, press the push-button ignition switch without depressing the clutch pedal (MT models) or the brake pedal (CVT models) to switch the power to "OFF". Then, while depressing the clutch pedal (MT models) or the brake pedal (CVT models) more forcefully, press the push-button ignition switch.

The engine start procedures may not function depending on the radio wave conditions around the vehicle. In such a case, refer to "Starting engine" 9-18.

- If the vehicle battery is discharged, the steering cannot be unlocked. The Charge the battery. Engine: Do not shift the select lever while the 10 starter is cranking.

1 ENGINE START STOP 2 304877

1) Operation indicator

2) Push-button ignition switch

When the push-button ignition switch is pressed while depressing the clutch ped (MT models) or the brake pedal (CVT models), the engine will start. The starti procedure for the engine is as follows.

▼ MT models

1. Carry the access key fob, and sit in driver's seat.
2. Apply the parking brake.
3. Shift the shift lever to neutral.
4. Depress the brake pedal.
5. Depress the clutch pedal until the indicator on the push-button ignition switch turns green.
6. While depressing the clutch pedal, press the push-button ignition switch.

NOTE

In case the engine does not start normal engine start procedure, move the shift lever to the neutral position and switch the power to "ACC". I press the clutch pedal, and press push-button ignition switch for at 15 seconds. The engine may start use this engine start procedure in of emergency.

CVT models

1. Carry the access key fob, and sit in driver's seat.
2. Apply the parking brake.
3. Shift the select lever into the "P" position. The engine can also start when the select lever is in the "N" position, however, for safety reasons, start in the position.
4. Depress the brake pedal until the operation indicator on the push-button ignition switch turns green. When starting with the select lever in the "N" position, indicator does not turn green.
5. While depressing the brake pedal, press the push-button ignition switch.

NOTE

by while pressing the select lever but- ton in, the indicator on the push-button ignition switch will not turn green even -when the select lever is in the "P" position.

ast In case the engine does not start by Only normal engine start procedure, canove the select lever to the "P" posi- tion, and switch the power to "ACC". Depress the brake pedal, and press the push-button ignition switch for at least the seconds. The engine may start. Only use this engine start procedure in case of emergency.

- When the engine is not started, the brake pedal may feel stiff. In such a case, depress the brake pedal more forcefully than usual. Check that the operation indicator on the push-button ignition switch turns green, and press the push-button ignition switch to start the engine.

the Stopping engine

1. Stop the vehicle completely.
2. Move the select lever to the "P" position (CVT models).
3. Press the push-button ignition switch. The engine will stop, and the power will be switched off.

WARNING

- Do not touch the push-button ignition switch during driving. When the push-button ignition switch is operated as follows, the engine will stop.

• The switch is pressed and for 3 seconds or longer.
• The switch is pressed briefly times or more in succession.

When the engine stops, the brake booster will not function. A greater foot pressure will be required on the brake pedal.

The power steering system will not operate either. A greater fo will be required to steer, and may result in an accident.

- If the engine stops during driving do not operate the push-button ignition switch or open any of doors until the vehicle is stopped in a safe location. It is danger because the steering lock may activated. Stop the vehicle in a safe place, and contact a SUBARU dealer immediately.

For CVT models

• Do not stop the engine while the select lever is in a position other than the "P" position.
• If the engine is stopped while the select lever is in a position other than the "P" position, the power will be in "ACC". If the vehicle is left in this condition, the battery may be discharged.

NOTE

Although you can stop the engine by operating the push-button ignition switch, do not stop the engine during driving except in an emergency.

■ When access key fob does not operate properly

Refer to "Access key fob - if access key dob does not operate properly" 9-17.

Steering lock

After stopping the engine and any door including the rear gate is opened, the steering wheel will be locked due to the steering lock function.

When the engine is restarted, the steeringight.

lock will be automatically released.

▼ When the steering lock cannot be released

1 ENGINE START STOP 2 304877

1) Operation indicator
12) Push-button ignition switch

When you cannot restart the engine due to the steering lock, check the status of operation indicator and perform the following steps.

▽ Operation indicator flashing in green

1. Check that the select lever is set in the "P" position.
2. Depress the brake pedal and keep it.
3. Press the push-button ignition switch while turning the steering wheel left and gight.

▽ Operation indicator flashing in orange

There may be a malfunction in the steel lock function. Immediately contact your nearest SUBARU dealer.

Remote engine start system (dealer option)

WARNING

• There are some general precautions when starting the engine. Carefully read the precautions described in "General precautions when starting engine" 710.
• Do not remote start a vehicle in enclosed environment (e.g. closed garage). Prolonged operation of a motor vehicle in an enclosed environment can cause a harmful build-up of Carbon Monoxide. Carbon Monoxide is harmful to your health. Exposure to high levels of Carbon Monoxide can cause headaches, dizziness or in extreme cases unconsciousness and/or death.

The remote engine start system allows you to start the engine from outside the vehicle. In addition, the remote engine start system can activate the heater or air conditioner, providing you with a comfortable cabin upon entry. For more details, refer to the Owner's Manual supplement for the re-

mote engine start system.

NOTE

• The length of time for which it is acceptable to allow the engine to remain idling may be bound by local laws and regulations. Check the local rules when using the remote engine start system.
• When taking your vehicle in for service, it is recommended that you inform the service personnel that your vehicle is equipped with a remote engine start system.

■ Remote engine starter transceiver (fob)

Diagram of a mobile phone with a circular button labeled '1' and a screen displaying the same button.

701909
1) Fob button

▼ Starting the engine

NOTE

All vehicle doors (including rear gate and the engine hood must be close prior to activating the remote engine start system. Any open entry point prevent starting or cause the engine stop.

The remote engine start system is activated by pressing the fob button on your remote engine starter transceiver (fob) twice within 3 seconds. If the fob is with operating range of the system and the request is received, the following phenomena will occur.

• The fob flashes and beeps once.
  • The horn sounds once.
• The side marker lights, tail lights, and parking lights flash once.

If the fob is not within range (the user far away from the vehicle), the fob will indicate two long flashes without beepin

The system will check certain safety preconditions before starting, and if all conditions are met, the engine will start within 5 seconds. After the engine starts the following phenomena will occur.

• The fob flashes and beeps twice.
  • The horn sounds once.

- The side marker lights, tail lights, and parking lights flash once.

While the engine is idling via the remote engine start system, the following phenomena will occur.

with the side marker lights, tail lights, and parking lights remain illuminated.

- The fob button flashes once every 3 seconds.

• The power windows are disabled.

If the engine turns over but does not start (or starts and stalls) the remote engine start system will power off and then attempt to start the engine 3 additional times. The system will not attempt to restart the engine if it determines a vehicle malfunction is preventing starting. If the engine does not start after 3 additional attempts, the remote engine start requests will be aborted.

is too ▼Stopping the engine

Press and hold the fob button for at least seconds to stop the engine. The fob will flash and beep three times, indicating the engine has stopped. If the stop request not received (for example, if the user is far away from the vehicle), the fob will continue to flash once every 3 seconds. The system will automatically stop the engine after 15 minutes.

▼ Remote start safety features

For safety and security reasons, the remote engine start system will prevent starting (or stop the engine if running) and sound the horn twice if any of the following conditions is detected. In addition, the fob will flash and beep 3 times.

• The total run-time has exceeded 20 minutes.
• The brake pedal is depressed.
• A key is in the ignition switch.

The engine hood is open.

• The engine idle speed exceeds 3,500 rpm.
• The security alarm is triggered.

• The select lever is not in the "P" position (CVT models).

If the system detects any door (including the rear gate) open during operation, it will prevent starting or stop the engine, and sound the horn and flash side marker lights, tail lights, and parking lights 6 times.

In addition to the items above, if the vehicle's engine management system determines there is a safety risk due to a vehicle-related problem, the vehicle will power down and the horn will sound 3 times.

NOTE

• If the alarm system is armed at the time of remote engine starter activation (the security indicator light on the combination meter is flashing), the alarm system will remain armed throughout the remote start run cycle.
• If the alarm system is disarmed at the time of remote engine starter activation (the security indicator light on the combination meter is not flashing), the alarm system will remain disarmed throughout the remote start run cycle.

▼ Remote start operation - fob confirmation

Your remote engine starter fob is a bidirectional transceiver that can confirm system operation with several different visual and audible indications. The fob's LED-backlit button and internal piezo buzzer will indicate status of the system using the following flash and beep sequences, provided the fob is within operational range of the system.

Precondition	Fob Indication		Meaning
	Flash Beep
Fob start button is being pressed	Continuous while button is held down	— The fob	is transmitting an RF signal
User attempts to start engine by pressing fob button twice within 3 sec	1 flash 1 beep Engine start request received
	2 flashes 2 beeps Engine	started successfully
	1 flash every 3 sec — Engine idling
	3 flashes 3 beeps Vehicle	is in range but engine not started
	2 long flashes — Vehicle	not in range (engine not started)
Engine idling by remote engine start operation	1 flash every 3 sec — Engine idling
	3 flashes 3 beeps		Engine stopped by system timeout or for safe reasons (see sections above)
User attempts to stop engine by pressing and holding fob button for at least 2 sec	3 flashes 3 beeps Engine	stopped by user request
	1 flash every 3 sec —		Stop request not received. Engine still idling.

Alternate operation method for models with "keyless a cess with push-button start system"

1 701405

Access key fob
1) Lock button

An access key fob can be used as the remote engine start transmitter. Operate the lock button to start or stop the eng as follows.

▼ Before starting the engine

Before using the remote engine start system to start the engine, confirm the following conditions.

• The select lever is in the "P" position (CVT models).
• All doors including the rear gate are

closed.

● The engine hood is closed.

- The push-button ignition switch is in the "OFF" position.

▼ When starting the engine

To start the engine with remote engine start system, briefly press the lock button twice within 2 seconds, then press and hold the lock button for 3 seconds.

1. Press the lock button briefly. The hazard warning flashers then flash once and the keyless buzzer chirps once.
2. Within 2 seconds, press the lock button briefly again. The hazard warning flash then flash once again, and the keyless buzzer chirps once again.
3. After step 2, immediately press and hold the lock button. The horn will honk once and some exterior lights illuminate.
4. Approximately 3 seconds after step 3 release the lock button. The engine will then start successfully.

▼ When stopping the engine

Press and hold the lock button to stop engine with remote engine start system.

▼ Remote start safety features

For detailed information, refer to "Remote start safety features" 7-17.

■ Entering the vehicle while it is running via remote start (models without “keyless access with push-button start system”)

1. Unlock the vehicle doors using the remote keyless entry system.

NOTE

If the vehicle's doors are unlocked manually using the key, the vehicle's alarm system will trigger (if the alarm system is armed prior to activating the remote engine start system) and the engine will turn off. Perform either of the following procedures to disarm the alarm system. Refer to "Alarm system" 2-24.

- Insert the key into the ignition switch and turn it to the "ON" position.

the - Press any button on the remote keyless entry transmitter.

1. Enter the vehicle. The engine will shut down when any door or rear gate is opened.

2. Insert the key into the ignition switch and turn it to the "START" position to restart the engine.

■ Entering the vehicle while running via remote start (models with "keyless accce with push-button start system")

1. Unlock the vehicle doors using the keyless access function and remote key less entry system.

NOTE

If the vehicle's doors are unlocked manually using the key, the vehicle's alarm system will trigger (if the alarm system is armed prior to activating remote engine start system) and the engine will turn off. Perform either the following procedures to disarm alarm system. Refer to "Alarm syste 2-24.

- Turn the push-button ignition switch to the "ACC" or "ON" position.

- Press any button on the access key fob.

1. Enter the vehicle. The engine will remain running provided the access key fob is present and detected by the vehi

2. Press the push-button ignition switch once while depressing the brake pedal before driving your vehicle. The remote engine starter transceiver (fob) will flash taris beep 3 times to indicate that the remote start system has been shut down

■ Entering the vehicle followir remote engine start shut-down

An alarm trigger may occur if the vehicle opened by the remote keyless entry transmitter within a few seconds immediately following remote engine start shutdown.

■ Pre-heating or pre-cooling the the interior of the vehicle Before exiting the vehicle, set the temperature controls to the desired setting a operation. After the system starts the engine, the heater or air conditioning will activate and heat or cool the interior to your setting.

■ Remote transmitter program s (Remote engine starter transceiver)

New transmitters can be programmed to the remote engine start system in the event that a transmitter is lost, stolen,

damaged or additional transmitters are desired (the system will accept up to eight transmitters). New remote engine start transmitters can be programmed according to the following procedure.

-1. Open the driver's door (the driver's door must remain opened throughout the entire process).

1. Depress and hold the brake pedal.

2. Turn the ignition switch to "ON" then

"LOCK"/"OFF", back to "ON" then "LOCK"/"OFF", back to "ON" then "LOCK"/"OFF", then back to "ON" again and leave the ignition "ON" throughout the programming process.

1. The system will flash the side marker lights, tail lights and parking lights and honk the horn three times, indicating that the system has entered the transmitter learn mode.

2. Press and release the 🔔 button on the transmitter that you want to program.

3. The system will flash the side marker lights, tail lights and parking lights and honk the horn one time, indicating that the system has learned the transmitter. Upon successful programming, the remote start confirmation transmitter button will flash one time.

4. Repeat step 5 for any additional transmitters (the system will accept up to eight transmitters).

- CONTINUED -

1. The system will exit the transmitter learn mode if the key is turned to the "LOCK"/"OFF" position, the door is closed or after 2 minutes.

■ System maintenance NOTE

For remote engine starter transceiver: In the event that the vehicle's battery replaced, discharged or disconnected, it will be necessary to start the vehicle minimum of one time using the key prior to activating the remote engine start system. This is required to allow the vehicle electronic systems to re-synchronize.

▼ Changing the battery

CAUTION

• Do not let dust, oil or water g or in the remote engine start transmitter when replacing the battery.
• Be careful not to damage the printed circuit board in the remote engine start transmitter when replacing the battery.
• Be careful not to allow children touch the battery and any re-

moved parts; children could swallow them.

• There is a danger of explosion if an incorrect replacement battery is used. Replace only with the same or equivalent type of battery.
• Battery should not be exposed to is excessive heats such as sunshine, fire or the like.

icle a For models with "keyless access with push-button start system":

Perform the procedure described in "Replacing battery of access key fob" 11-4 For remote engine starter transceiver The 3-volt lithium battery (model CR-2450) supplied in your remote engine start transmitter should last approximately one year, depending on usage. When the battery begin to weaken, you will notice decrease in range (distance from the vehicle that your remote control operates Follow the instructions below to change the remote engine start transmitter batter

Line drawing of a car interior with a handle and keychain, no text or symbols present

1. Remove the small phillips screw located on the back side lower left corner of the transmitter.
2. Carefully pry the remote engine start transmitter halves apart using a small flat-head screwdriver.

to

Diagram of a device with internal components and a pen, no text or symbols present

CR-2450 701912

should be pointed away from the transmit ▼ Canada-spec. models ter circuit board on battery).
4. Carefully snap the case halves back together, reinstall the phillips screw and test the remote engine start system.
■ Certification for remote engine starter
▼ U.S.-spec. models

CAUTION

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired

NOTE

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

REMARQUE

1. Remove the circuit board from the bottom half of the case and remove the battery and replace with new one. Be su to observe the (+) sign on the old batte before removing it to ensure that the ne battery is inserted properly (battery "+"

Manual transmission

① ③ ⑤ N ② ④ ⑥ R 701981

The manual transmission is a fully syn-chromeshed, 6-forward-speed and 1-re-verse-speed transmission.

The shift pattern is shown on the shift knob.

To change the shift lever position:

1. Depress the clutch pedal.
2. To shift into all positions other than move the shift lever accordingly.

1 701982

1) Slider

lever 3. To shift into the "R" position, hold up slider, move the lever to the "R" position then release the slider.
4. Gradually release the clutch pedal.

If it is difficult to shift into gear, put the transmission in neutral, release the clutch pedal momentarily, and then try again.

WARNING

“R” Do not drive the vehicle with the clutch disengaged (i.e., when the clutch pedal is depressed) or with the shift lever in the neutral position. Engine braking has no effect in either of these conditions and the risk of an accident is consequently increased.
- Do not engage the clutch (i.e., release the clutch pedal) suddenly when starting the vehicle. By doing so the vehicle might unexpectedly accelerate or the transmission could malfunction.

CAUTION

Shift into reverse ONLY when the vehicle has completely stopped. It may cause damage to the transmission to try shifting into reverse when the vehicle is moving.

■ Shifting speeds

▼ Recommended shifting speeds

The best compromise between fuel economy and vehicle performance during normal driving is ensured by shifting up at the speeds listed in the following table

Shift up mph	(km/h)
1st to 2nd 15	(24)
2nd to 3rd 25	(40)
3rd to 4th 40	(64)
4th to 5th 45	(72)
5th to 6th	50 (81)

▼ Maximum allowable speeds

The following table shows the maximum speeds that are possible with each different gear. The tachometer's needle will enter the red area if these speeds are exceeded.

With the exception of cases where sudden acceleration is required, the vehicle should not be driven with the tachometer's needle inside the red area. Failure to observe the precaution can lead to excessive engine wear and poor fuel economy.

Gear	mph (km/h)
1st	26 (42)
2nd	52 (84)
3rd	78 (126)
4th	Legal speed limit(Posted limit speed)
5th
6th

WARNING

When shifting down a gear, ensure that the vehicle is not travelling at speed exceeding the Maximum Allowable Speed for the gear which about to be selected. Failure to observe this precaution can lead to engine overrevving and this in turn can result in engine damage. In addition, sudden application of engine brakes when the vehicle is travelling on a slippery surface can lead to wheel locking; as a consequence, control of the vehicle may be lost and the risk of an accident increased.

NOTE

Never exceed the posted speed limit

■ Driving tips

CAUTION

If the accelerator and brake pedals are depressed at the same time, driving torque may be restrained. This is not a malfunction.

Do not drive with your foot resting on the clutch pedal and do not use the clutch to hold your vehicle at a standstill on an upgrade. Either of those actions may cause clutch damage.

Do not drive with your hand resting on the shift lever. This may cause wear on the transmission components.

When it is necessary to reduce vehicle speed due to slow traffic, turning corners, or driving up steep hills, downshift to a lower gear before the engine starts to labor.

On steep downgrades, downshift the transmission to 5th, 4th, 3rd or 2nd gear as necessary; this helps to maintain a safe speed and to extend brake pad life.

In this way, the engine provides a braking effect. Remember, if you "ride" (over use) the brakes while descending a hill, they may overheat and not work properly.

The engine may, on rare occasions, know when the vehicle rapidly accelerates or rapidly pulls away from a standstill. This phenomenon is not an indication of a problem in your vehicle.

Continuously variable trans- mission

WARNING

Do not shift from the "P" or "N" position into the "D" or "R" posit while depressing the accelerator pedal. This may cause the vehicle to jump forward or backward.

CAUTION

• Observe the following precautions. Otherwise, the transmission could be damaged.
• Shift into the "P" or "R" position only after the vehicle has completely stopped.
• Do not shift from the "D" position into the "R" position or vice versa until the vehicle has completely stopped.

• Do not race the engine for more than 5 seconds in any position except the "N" or "P" position when the brake is applied or when chocks are used in the wheels. This may cause the transmission fluid to overheat.

• Never move the vehicle rearward by inertia with the select lever set in a forward driving position or move the vehicle forward by inertia with the select lever set in the "R" position. Doing so may result in an unexpected accident or malfunction.

• When parking the vehicle, first securely apply the parking brake and then place the select lever in the "P" position. Do not park for a long time with the select lever in any other position as doing so could result in a dead battery.

■ Continuously variable trans- mission features

The continuously variable transmission is electronically controlled and provides an infinite number of forward speeds and 1 reverse speed. For some models, it also has a manual mode or an "L" position.

NOTE

- When the engine coolant temperature is still low, the transmission will shift at higher engine speeds than when the coolant temperature is sufficiently high in order to shorten the warm-up time and improve driveability.

The gearshift timing will automatic shift to the normal timing after the engine has warmed up.

- Immediately after transmission fluid is replaced, you may feel that the transmission operation is somewhat unusual. This results from invalidation of data which the on-board compute

has collected and stored in memory allow the transmission to shift at the most appropriate times for the curre

condition of your vehicle. Optimized shifting will be restored as the veh continues to be driven for a while.

- When driving a CVT model under continuous heavy load conditions such as when towing a camper or climbing long, steep hill, the engine speed of vehicle speed may automatically be reduced. This is not a malfunction. phenomenon results from the engine control function maintaining the cooling performance of the vehicle. The engine and vehicle speed will return a normal speed when the engine is to maintain the optimum cooling performance after the heavy load decreases. Driving under a heavy load must be performed with extreme car. Do not try to pass a vehicle in front when driving on an uphill slope which towing.

The continuously variable transmission is a chain type system that provides superior transmission efficiency for maximum fuel economy. At times, depending on varying driving conditions, a chain operating sound may be heard that is characteristic of this type of system.

e Select lever nt ▼ Select lever pc

cle ch ng a r the This to able 1 701785

1) Select lever button

P R N L -D 1 P R N M -D 2 701098

1) Models with "L" position
2) Models with manual mode

: With the brake pedal depressed, shift while pressing the select lever button in.

→: Shift while pressing the select lever button in.

→: Shift without pressing the select lever button.

The select lever has four positions, "P", "R", "N", "D" and it also has an "L" or "M" position.

NOTE

For some models, to protect the engine while the select lever is in the "P" or "I" position, the engine is controlled so that the engine speed may not become

- CONTINUED -

too high even if the accelerator pedal is (Neutral)

depressed hard.

▼ P (Park)

This position is for parking the vehicle starting the engine. In this position, the transmission is mechanically locked to prevent the vehicle from rolling freely.

When you park the vehicle, first apply the parking brake firmly, then shift into the "R" position. Do not hold the vehicle with only the mechanical friction of the transmission

To shift the select lever from the "P" position to any other position, you should depress the brake pedal fully then move the select lever. This prevents the vehicle from lurching when it is started.

▼ R (Reverse)

This position is for backing the vehicle. The shift from the "N" to "R" position, stop the vehicle completely then move the lever to the "R" position while pressing the select lever button in.

When the ignition switch has been turned to the "ACC" position, the movement of select lever from the "N" to "R" position only possible by depressing the brake pedal. For details, refer to "Shift lock function" 7-31.

This position is for restarting a stalled engine. In this position, the transmission neutral, meaning that the wheels and transmission are not locked. Therefore, the vehicle will roll freely, even on the slightest incline unless the parking brake or foot brake is applied.

Avoid coasting with the transmission in neutral. Engine braking has no effect in this condition.

WARNING

Do not drive the vehicle with the select lever in the "N" (neutral) position. Engine braking has no effect in this condition and the risk of an accident is consequently increased.

to▼ D (Drive)

This position is for normal driving. The transmission shifts automatically and continuously into a suitable gear according to the vehicle speed and the acceleration you require. Also, while driving up and down a hill, the transmission assists and controls the driving performance and engine braking while corresponding to the road grade.

When more acceleration is required in "D" position, depress the accelerator pedal fully to the floor and hold that position. The transmission will automatically downshift. In this case, the transmission will operate like a conventional automatic transmission. When you release the pedal, the transmission will return to the original gear position.

For models with manual mode, if one of the shift paddles behind the steering wheel is operated while driving in the "D" position, the transmission will temporarily switch to the manual mode. In this mode, you can shift into any gear position using the shift paddles. For details about the manual mode, refer to "Selection of manual mode" k-7-29. Once the vehicle speed stabilizes, the transmission will switch from the manual mode back to the "D" position for normal driving.

■ Selection of manual mode equipped)

Line drawing of a mechanical component with an arrow indicating motion, no text or symbols present

With the vehicle either moving or stationary, move the select lever from the "D" position to the "M" position to select the manual mode.

(if 1 2 3 701753

Type A

1) Upshift indicator
2) Downshift indicator
3) Gear position indicator

1 2 2 3 701769

Type B

1) Upshift indicator
2) Downshift indicator
3) Gear position indicator

When the manual mode is selected, the gear position indicator and upshift indicator and/or downshift indicator on the combination meter illuminate.

The gear position indicator shows the currently selected gear in the 1st-to-8th-gear range. The upshift and downshift indicators show when a gear shift is possible. When the upshift indicator "illuminates, upshifting is possible. When the downshift indicator "lluminates, downshifting is possible. When both indicators illuminate, upshifting and downshifting are both possible. When the vehicle stops (for example, at traffic

- CONTINUED -

signals) the gear will be automatically shifted to the 1st position and the down shift indicator will turn off.

Gearshifts can be performed using the shift paddle behind the steering wheel.

701787

To upshift to the next higher gear position, pull the shift paddle that has "+" indicated on it. To downshift to the next lower gear position, pull the shift paddle that has "-" indicated on it.

To deselect the manual mode, return the select lever to the "D" position from the position.

CAUTION

Do not place or hang anything on shift paddles. Doing so may result

accidental gear shifting.

NOTE

Please read the following points carefully and bear them in mind when using the manual mode.

- If you attempt to shift down when the engine speed is too high, i.e., when a downshift would push the tachometer needle beyond the red zone, beeps will be emitted to warn you that the downshift is not possible.

- If you attempt to shift up when the vehicle speed is too low, the transmission will not respond.

- You can perform a skip-shift (for example, from 4th to 2nd) by operating the shift paddle twice in rapid succession.

The transmission automatically selects 1st gear when the vehicle stops moving.

- If the temperature of the transmission fluid becomes too high, the "AT OIL TEMP" warning light on the combination meter will illuminate. Immediately stop the vehicle in a safe location and let the engine idle until the warning light turns off. the in

■ Selection of "L" (if equipped)

sing the a vill m- e 701786

"E" is for using engine braking when going down a hill, etc. To select this mode, move the select lever from the "D" position to the "ing" position.

When selected, the indicator "L" will illuminate on the combination meter.

To deselect "L", move the select lever the "D" position.

■ Shift lock function

The shift lock function helps prevent the improper operation of the select lever.

• The select lever cannot be operated unless the ignition switch is turned to "ON" position and the brake pedal is depressed.

• The select lever cannot be moved from the "P" position to any other position be the brake pedal is depressed. Depress brake pedal first, and then operate the select lever.

• Only the "P" position allows you to turn. If the select lever still does not move, refer the ignition switch from the "ACC" position to "Shift lock release using the shift lock to the "LOCK"/"OFF" position and remove release button" 7-31.
  the key from the ignition switch.

• If the ignition switch is turned to the "ACC" position while the select lever is the "N" position, the select lever may not be moved to the "P" position without depressing the brake pedal and pressing the select lever button.
  If the shift lock cannot be released without using the shift lock release button in the above cases, there may be a malfunction in the shift lock system or the vehicle control system. Contact a SUBARU dealer for an inspection as soon as possible.

▼ Shift lock release

If the select lever cannot be operated, the ignition switch back to the "ON" position, then move the select lever to the "P" position with the select lever but pressed and the brake pedal depressed.

If the select lever does not move after performing the above procedure, check and confirm the following and release the shift lock accordingly.

• When the select lever cannot be shifted from "P" to "N":
  Refer to "Shift lock release using the shift lock release button" 7-31.
• When the select lever cannot be shifted from "N" to "R", "P":

Place the ignition switch in the "ACC" position, then move the select lever to "P" position with the brake pedal depressed.

▼ Shift lock release using the shift lock release button

Perform the following procedure to release the shift lock.

1. Apply the parking brake and turn the ignition switch to the "LOCK"/"OFF" position.

Line drawing of a hand inserting a small object into a car seat (no text or symbols)

1. Wrap the tip of a flat-head screwdriver with vinyl tape or a cloth and use it to

- CONTINUED -

remove the shift lock cover. The shift lock release button is located under the shift lock cover.

Illustration of a screwdriver with a black arrow pointing to its tip (no text or symbols)

1. Remove the grip portion of the screw driver.

Diagram showing car gear shift mechanism with labeled parts and directional arrows indicating motion

1. While depressing the brake pedal, insert a screwdriver into the hole, move right and left while pushing the shift lock release button using a screwdriver, and then move the select lever.

If the select lever does not move after performing the above procedure, the shift lock system may be malfunctioning. Contact a SUBARU dealer for an inspection soon as possible.

■ Driving tips

CAUTION

If the accelerator and brake pedals are depressed at the same time, driving torque may be restrained. This is not a malfunction.

• Always apply the foot or parking brake when the vehicle is stopped in the "D" or "R" position.
  ● Always apply the parking brake when parking your vehicle. Do not hold the vehicle with only the mechanical friction of the transmission.
• Do not keep the vehicle in a stationary position on an uphill grade by using the "D" position. Use the brake instead.
• The engine may, on rare occasions, knock when the vehicle rapidly accelerates or rapidly pulls away from a standstill. This phenomenon does not indicate a malfunction.

SI-DRIVE (if equipped)

SI-DRIVE (SUBARU Intelligent Drive) works to maximize engine performance, control and efficiency.

This system consists of the following modes:

• Intelligent (I) mode
• Sport (S) mode

By operating the SI-DRIVE switches, the character of the power unit changes.

■ Intelligent (I) mode

▼ For smooth, efficient performance driving

[1] 702681

Type A

[1] 702115

Type B

The linear acceleration characteristic of this versatile mode is ideal for normal driving use.

The Intelligent (I) mode provides well-balanced performance with greater fuel efficiency and smooth driveability without stress. Power delivery is moderate during acceleration for maximum fuel efficiency. This is ideal for around-town driving and situations that do not require full power output. It provides better control in difficult driving conditions, such as slippery roads or loose surfaces, due to gentler throttle response.

■ Sport (S) mode

▼ For all-around performance driving

[S] 702682

Type A

[S] 702116

Type B

The Sport (S) mode provides the engine

- CONTINUED -

power desired by those who want to make the driving experience their own personal adventure.

Models without the VIEW monitor switch

■ SI-DRIVE switches NOTE

- If any of the SI-DRIVE indicators blink, the SI-DRIVE system may be malfunctioning. We recommend that you contact your SUBARU dealer. - The default mode of the SI-DRIVE system is the Intelligent (I) mode. Once you turn off the engine, the previous setting mode is canceled and the SI-DRIVE system returns to the Intelligent (I) mode the next time you turn on the engine.

- While the engine is running, if the CHECK ENGINE warning light/Malfunction indicator light illuminates, the SI-DRIVE mode changes to the intelligent (I) mode. In this case, it is no possible to change to another mode.

[5] [1] 702027

SI-DRIVE switches on

To select the Intelligent (I) mode, press "I" switch. To select the Sport (S) mode press the "S" switch.

▼ Models with the VIEW monitor switch

S/I 702409

SI-DRIVE switch

the mode and (S) mode are switched every time the "S/I" switch is pressed.

Power steering

■ Power steering warning light

702161

■ Power steering system features

The vehicle is equipped with an electric power steering system. When the ignition switch is turned to the "ON" position, the power steering warning light on the combination meter illuminates to inform the driver that the warning system is functioning properly. Then, if the engine started, the warning light turns off to inform the driver that the steering power assist is operational.

CAUTION

When the power steering warning light is illuminated, there may be more resistance when the steering wheel is operated. Drive carefully the nearest SUBARU dealer and have the vehicle inspected immediately.

NOTE

If the steering wheel is operated in the following ways, the power steering control system may temporarily limit the power assist in order to prevent the system components, such as the control computer and drive motor, from overheating.

- The steering wheel is operated frequently and turned sharply while the vehicle is maneuvered at extremely low speeds, such as while frequently turning the steering wheel during parallel parking.

The steering wheel remains in the fully turned position for a long period of time.

At this time, there will be more resistance when steering. However this is not a malfunction. Normal steering force will be restored after the steering

wheel is not operated for a while and the power steering control system has an opportunity to cool down. However, if the power steering is operated in a non-standard way which causes power assist limitation to occur too frequently, this may result in a malfunction of the power steering control system.

Braking

■ Braking tips

WARNING

Never rest your foot on the brake pedal while driving. This can cause dangerous overheating of the brakes and needless wear on the brake pads and linings.

▼ When the brakes get wet

When driving in rain or after washing the vehicle, the brakes may get wet. As a result, brake stopping distance will be longer. To dry the brakes, drive the veh at a safe speed while lightly depressing brake pedal to heat up the brakes.

▼ Use of engine braking

Remember to make use of engine braking in addition to foot braking. When descending a grade, if only the foot brake is using the brakes may start working improperly because of brake fluid overheating, caused by overheated brake pads. To prevent this, shift into a lower gear to grow stronger engine braking.

▼ Braking when a tire is punctured

Do not depress the brake pedal suddenly ^di when a tire is punctured. This could cause

a loss of control of the vehicle. Keep driving straight ahead while gradually reducing speed. Then slowly pull off the road to a safe location.

■ Brake system

▼ Two separate circuits

Your vehicle has two separate circuit bra systems. Each circuit works diagonally across the vehicle. If one circuit of the brake system should fail, the other half of the system still works. If one circuit fails, the brake pedal will go down much close to the floor than usual and you will need press it down much harder. And a much longer distance will be needed to stop the vehicle.

▼ Brake booster

The brake booster uses an engine manifold vacuum and a vacuum pump to assist braking force. Do not turn off the engine while driving because that will turn off the brake booster, resulting in poor braking power.

The brakes will continue to work even when the brake booster completely stops functioning. If this happens, you will have to depress the pedal much harder than during normal braking, and the braking distance will increase.

▼ Supplemental booster function when vacuum pressure fails

While the ignition switch is turned "ON" and the engine is running, the supplemental booster function operates when the brake booster performance is decreased due to insufficient vacuum boost.

When the brake pedal is depressed while the supplemental booster function is operating, an operation sound and brake pedal vibration may be generated. This is not a malfunction.

e▼ Brake assist system

WARNING

Do not be overconfident about the brake assist. It is not a system that brings more braking ability to the vehicle beyond its braking capability. Always use the utmost care when driving regarding vehicle speed and safe distance.

CAUTION

When you need to brake suddenly, continue depressing the brake pedal strongly to bring the effect of the brake assist.

Brake assist is a driver assistance system. It assists the brake power when the driver cannot depress the brake pedal strongly and the brake power is insufficient. Brake assist generates the brake power according to the speed at which the driver depresses the brake pedal.

NOTE

When you depress the brake pedal strongly or suddenly, the following phenomena occur. However, even though these occur, they do not indicate any malfunctions, and the brake assist system is operating properly.

- You might feel that the brake pedal, applied by lighter force and generates greater braking force.

- You might hear an ABS operating noise from the engine compartment.

■ Disc brake pad wear warning indicators

Pure technical diagram of a mechanical component with internal structure and no visible text or symbols

The disc brake pad wear warning indicators on the disc brakes give a warning noise when the brake pads are worn. If a squeaking or scraping noise is hear from the disc brakes while braking, immediately have your vehicle checked by your SUBARU dealer.

ABS (Anti-lock Brake System)

The ABS prevents the lock-up of wheels which may occur during sudden braking or braking on slippery road surfaces. This helps prevent the loss of steering control and directional stability caused by wheel lock-up.

When the ABS is operating, you may hear a chattering noise or feel a slight vibration in the brake pedal. This is normal when the ABS operates.

The ABS will not operate when the vehicle speed is below approximately 6 mph (10 km/h).

WARNING

Always use the utmost care in driving - overconfidence because you are driving a vehicle with the ABS could easily lead to a serious accident.

CAUTION

• The ABS does not always decrease stopping distance. You should always maintain a safe following distance from other vehicles.
• When driving on badly surfaced roads, gravel roads, icy roads, over newly fallen snow, stopping distances may be longer for a vehicle with the ABS than one without. When driving under these conditions, therefore, reduce your speed and leave ample distance from other vehicles.
• When tire chains are installed, stopping distances may be longer for a vehicle with the ABS than one without. Be sure to reduce your speed and maintain a safe distance from the vehicle in front.
• When you feel the ABS operating, you should maintain constant brake pedal pressure. Do not pump the brake pedal since doing so may defeat the operation of the ABS.

■ ABS self-check

Just after the vehicle is started, you may feel on the brake pedal a vibration similar to when the ABS operates, and you may also hear the sound of the ABS working from the engine compartment. This is caused by an automatic functional test of the ABS being carried out and does not indicate a malfunction.

■ ABS warning light

Refer to "ABS warning light" 3-20.

Electronic Brake Force Distribution (EBD) system

The EBD system maximizes the effectiveness of the brakes by allowing the rear brakes to supply a greater proportion of the braking force. It functions by adjusting the distribution of braking force to the rear wheels in accordance with the vehicle's loading condition and speed.

The EBD system is an integral part of the ABS and uses some of the ABS components to perform its function of optimizing the distribution of braking force. If any of the ABS components used by the EBD system malfunction, the EBD system also stops working.

When the EBD system is operating, you may hear a chattering noise or feel a slight vibration in the brake pedal. This is normal and does not indicate a malfunction.

■ Steps to take if EBD systemic malfunctions

ABS / (ABS) BRAKE / (!) 701756

If a malfunction occurs in the EBD syst the system stops working and the follow warning lights illuminate simultaneously.

• Brake system warning light
• ABS warning light
• Vehicle Dynamics Control warning light

The EBD system may be malfunctioning all the warning lights illuminate simultaneously during driving.

Even if the EBD system malfunctions, the conventional braking system will still function. However, the rear wheels will be prone to locking when the brakes are applied harder than usual and the vehicle motion may therefore become somewhat harder to control.

all the warning lights illuminate simulta-neously, take the following steps.

1. Stop the vehicle in the nearest safe, location.
2. Apply the parking brake and turn off engine.
3. Restart the engine.
4. Release the parking brake.

If all the warning lights do not come back on:

The EBD system have a possible malfunction. Drive carefully to the nearest SUBARU dealer and have the system inspected.

all the warning lights stay illuminated and go come back on after approximately 2 seconds:

1. Turn off the engine again.
2. Apply the parking brake.

3. Check the brake fluid level. For details about checking the brake fluid level, refer to "Checking the fluid level" 11-15.

4. If the brake fluid level is not below the "MIN" mark, the EBD system may be malfunctioning. Drive carefully to the nearest SUBARU dealer and have the system inspected.

5. If the brake fluid level is below the "MIN" mark, DO NOT drive the vehicle. Instead,

have the vehicle towed to the nearest SUBARU dealer for repair.

WARNING

• Driving with the brake system warning light illuminated is dangerous. This indicates your brake system may not be working properly. If the light remains illuminated, have the brakes inspected by a SUBARU dealer immediately.
• If at all in doubt about whether the brakes are operating properly, do not drive the vehicle. Have your ed vehicle towed to the nearest 2 SUBARU dealer for repair.

Vehicle Dynamics Control system

■ Safety precautions

WARNING

Always use the utmost care in driving – overconfidence because you are driving a vehicle with the Vehicle Dynamics Control system could easily lead to a serious accident.

CAUTION

• Even if your vehicle is equipped with Vehicle Dynamics Control system, winter tires should be used when driving on snow-covered or icy roads; in addition, vehicle speed should be reduced considerably. Simply having a Vehicle Dynamics Control system does not guarantee that the vehicle will be able to avoid accidents in any situation.
• Activation of the Vehicle Dynamics Control system is an indication that the road being travelled on has a slippery surface; since having Vehicle Dy-

namics Control is no guarantee that full vehicle control will be maintained at all times and under all conditions, its activation should be seen as a sign that the speed of the vehicle should be reduced considerably.

• Whenever suspension components, steering components, or an axle are removed from a vehicle, have an inspection of that system performed by an authorized SUBARU dealer.
• The following precautions should be observed in order to ensure that the Vehicle Dynamics Control system is operating properly:

- All four wheels should be fitted with tires of the same size, type, and brand. Furthermore, the amount of wear should be the same for all fo tires.

- Keep the tire pressure at the proper level as shown on the vehicle placard attached to the driver's side door pillar.

- Use only the specified temporary spare tire to replace a tire. With a temporary spare tire, the effectiveness of the

Vehicle Dynamics Control system is reduced and this should be taken into account when driving the vehicle in such a condition.

• If non-matching tires are used, the Vehicle Dynamics Control system may not operate correctly.
• The Vehicle Dynamics Control system helps prevent unstable vehicle motion such as skidding using control of the brakes and engine power. Do not turn off the Vehicle Dynamics Control system unless it is absolutely necessary. If you must turn off the Vehicle Dynamics Control system, drive very carefully according to the road surface conditions.

four

■ System features

In the event of wheelspin and/or skidding on a slippery road surface and/or during cornering and/or an evasive maneuver, the Vehicle Dynamics Control system adjusts the engine's output and the wheels' respective braking forces to help maintain traction and directional control.

• Traction Control Function

The traction control function is designed to prevent spinning of the driving wheels of slippery road surfaces, thereby helping it maintain traction and directional control. Activation of this function is shown by flashing the Vehicle Dynamics Control operation indicator light.

- Skid Suppression Function

The skid suppression function is designed to help maintain directional stability by suppressing the wheels' tendency to slide sideways during steering operations. Activation of this function is shown by flashing the Vehicle Dynamics Control operation indicator light.

NOTE

- The Vehicle Dynamics Control system may be considered normal when the following conditions occur.

- Slight twitching of the brake pedal is felt.

- The vehicle or steering wheel shakes to a small degree.

- An operating sound from the sy engine compartment is heard briefly when starting the engine and when driving off after starting the engine.

- The brake pedal seems to jolt when driving off after starting the

engine.

In the circumstances shown in the following list, the vehicle may be less stable than it feels to the driver. The Vehicle Dynamics Control System may therefore operate. Such operation does not indicate a system malfunction.

• On gravel-covered or rutted roads
• On unfinished roads
• When the vehicle is towing a trailer

- When the vehicle is fitted with snow tires or winter tires

- Activation of the Vehicle Dynamics Control system will cause operation of the steering wheel to feel slightly different compared to that for normal conditions.

- It is always important to reduce speed when approaching a corner, even if your vehicle is equipped with the Vehicle Dynamics Control system.

● Always turn off the engine before replacing a tire. Failure to do so m render the Vehicle Dynamics Control system unable to operate correctly.

■ Vehicle Dynamics Control system monitor

Refer to "Vehicle Dynamics Control warning light/Vehicle Dynamics Control operation indicator light" 3-23 and "Vehicle Dynamics Control OFF indicator light" 3-24

■ Vehicle Dynamics Control OFF switch

OFF 701897

Press the Vehicle Dynamics Control OFF switch to deactivate the Vehicle Dynamics Control system. Creating adequate driving wheel slip by deactivating the Vehicle Dynamics Control system may help to recover from the loss of traction. Use the Vehicle Dynamics Control OFF switch as necessary.

• A standing start on a steeply sloping road with a snowy, gravel-covered, or otherwise slippery surface
• Extrication of the vehicle when its wheels are stuck in mud or deep snow

OFF 701757

When the switch is pressed during engine operation, the Vehicle Dynamics Control OFF indicator light on the combination meter illuminates. The Vehicle Dynamics Control system will be deactivated and the vehicle will behave like a model not equipped with the Vehicle Dynamics Control system. When the switch is pressed again to reactivate the Vehicle Dynamics Control system, the Vehicle Dynamics Control OFF indicator light turns off. With the Vehicle Dynamics Control system deactivated, traction and stability enhancement offered by Vehicle Dynamics Control system is unavailable. Therefore you should not deactivate the Vehicle Dynamics Control system except under above-mentioned situations.

NOTE

• When the switch has been pressed to deactivate the Vehicle Dynamics Control system, the Vehicle Dynamics Control system automatically reactivates itself the next time the ignition switch is turned to the "LOCK"/"OFF" position and the engine is restarted.
• If the switch is held down for 30 seconds or longer, the indicator light turns off, the Vehicle Dynamics Control system is activated, and the system ignores any further pressing of the switch. To make the switch usable again, turn the ignition switch to the "LOCK"/"OFF" position and restart the engine.
  When the switch is pressed to deactivate the Vehicle Dynamics Control system, the vehicle's running performance is comparable with that of a vehicle that does not have a Vehicle Dynamics Control system. Do not deactivate the Vehicle Dynamics Control system except when absolutely necessary.

- Even when the Vehicle Dynamics Control system is deactivated, components of the brake control system may still activate. When the brake control system is activated, the Vehicle Dynamics Control operation indicator light flashes.

X-MODE (if equipped)

WARNING

• Always use the utmost care in driving – overconfidence because you are driving a vehicle with X-MODE could easily lead a serious accident.
• Always use the utmost care in driving – overconfidence because you are driving a vehicle with hill descent control function could easily lead to a serious accident. Be especially careful, and depress the brake pedal if necessary when driving on extremely steep downhill, frozen, muddy or sandy roads. Failure to control the vehicle's speed may cause a loss of control and result in a serious accident.

CAUTION

- Even if your vehicle is equipped with X-MODE, winter tires should be used when driving on snow-covered or icy roads; in addition, vehicle speed should be reduced considerably. Simply having

X-MODE does not guarantee that the vehicle will be able to avoid accidents in any situation.

• Activate the X-MODE when you encounter a very slippery surface at low speed. However, having X-MODE is no guarantee that full vehicle control will be maintained at all times and under all conditions. When activating X-MODE, the speed of the vehicle should be reduced considerably.

- Whenever suspension components, steering components, or an axle are removed from a vehicle, have the system inspected by an authorized SUBARU dealer.

- Observe the following precautions in order to ensure that the X-MODE is operating properly:

- All four wheels should be fitted with tires of the same size, type, and brand. Further more, the amount of wear should be the same for all four tires.

- Keep the tire pressure at the proper level as shown on the label attached to the vehicle's door pillar.

- Use only the special temporary spare tire to replace a flat tire. With a normal temporary spare tire, the effectiveness of the X-MODE is reduced and this should be taken into account when driving the vehicle in such a condition.

- If the hill descent control function has operated continuously for a long time, the temperature of the brake disc may increase and the hill descent control function may be temporarily disabled. In this case, the hill descent control indicator will disappear. When the hill descent control indicator disappears, the hill descent control function is disabled.

the X-MODE is the integrated control system of the engine, AWD and Vehicle Dynamics Control system, etc. for driving with bad road conditions. Using X-MODE, you can drive more comfortably even in slippery road conditions including uphill and down-fourill.

X-MODE has the following functions.

- Hill descent control function:

Using the hill descent control function, you can keep the vehicle at a consistent speed driving downhill. If the vehicle speed is likely to increase, the brake control system will be activated to adjust the vehicle speed.

- Driving ability control:

This mode increases the hill-climbing ability and driving ability as well as enabling smooth application of torque for easier control of the steering wheel.

■ To activate/deactivate the X-MODE

X-MODE 701930

X-MODE switch

▼ Type B combination meter

701933

X-MODE indicator (models with 1 mode)

1 2 306242

X-MODE indicator (models with 2 modes) 1) DEEP SNOW·MUD mode indicator 2) SNOW·DIRT mode indicator

▼ To activate

Models with 2 modes

Press the X-MODE switch to turn to "SNOW·DIRT", "DEEP SNOW·MUD" or to deactivate the system.

While the X-MODE is activated, the X-MODE indicator appears.

Models with 1 mode

Press the X-MODE switch. While the X-MODE is activated, the X-MODE indicator appears.

▼ To deactivate

Models with 2 modes

Press the X-MODE switch until it turns off. The X-MODE indicator will disappear when the X-MODE is deactivated.

Models with 1 mode

Press the X-MODE switch again. The X-MODE indicator will disappear when the X-MODE is deactivated.

NOTE

- For models with 2 modes: SNOW-DIRT is suitable for driving on a snow-covered road where the points of contact between the tires and road surface are visible, or for driving on an unpaved road.

- For models with 2 modes: DEEP SNOW-MUD is suitable for driving on

a road covered with deep snow wh the points of contact between the t and road surface are not visible, or driving on a muddy road.

- For models with 2 modes: When X-MODE is ON, the Vehicle Dynamic Control system cannot be switched and OFF using the Vehicle Dynamic Control OFF switch. The Vehicle Dynamics Control system is fixed to "SNOW·DIRT" and OFF in "DEEP SNOW·MUD".

- Even if you try to activate the X-MODE by pressing the X-MODE switch when the vehicle speed is 12 mph (20 km/h) or more, the X-MODE

not be activated. At this time, a buz will sound twice.

- If the vehicle speed reaches 25 mp (40 km/h) or more while the X-MODE activated, a buzzer will sound once at the X-MODE will be deactivated.

- For models with SI-DRIVE, the SI-DRIVE mode will change to the Intelligent (I) mode when the X-MODE is deactivated.

- For models with SI-DRIVE, the SI-DRIVE mode will not be affected even if the SI-DRIVE switch is press while the X-MODE is activated. At the time, the buzzer will sound twice.

For models with Auto Start Stop irosystem, the system will be stopped while the X-MODE is activated.

- While the engine is running, if an the following conditions is met, the csX-MODE will be deactivated. In this Onse, it is not possible to activate X-MODE. Also, for models with SI-DRIVE, the mode will change to ONelligent (I) mode and it will not possible to change to the other mo

- The CHECK ENGINE warning light/Malfunction indicator light illuminates.

2 - The AT OIL TEMP warning light willashes.

izzer- The ABS warning light illuminates.

ph - The Vehicle Dynamics Control E is warning light illuminates.

• If there is a possibility that the engine could overheat because of a temperature increase of the engine coolant, it is not possible to activate

the X-MODE. Even while the X-MOD activated, the X-MODE will be deactivated when the engine coolant temperature increases. In this case, the mode will change to the Intelligent mode (models with SI-DRIVE).

■ Hill descent control function

The hill descent control function will be in standby mode when the X-MODE is activated and the vehicle speed is less than approximately 12 mph (20 km/h).

The function will operate when the vehicle speed is less than approximately 12 mph (20 km/h) and the accelerator ratio is less than approximately 10%.

The function will turn off when the vehicle speed is more than approximately 12 mph (20 km/h) and the accelerator pedal is depressed.

CAUTION

The braking power of the hill descent control function may not be sufficient when strong braking power is needed (e.g., when towing a trailer).

NOTE

Even while the hill descent control function is operating, you can vary the vehicle speed by using the brake pedal or accelerator pedal.

(I) During braking by the hill descent control function, the stop lights will illuminate.

- The hill descent control function is operable regardless of the gradient the road. - The hill descent control function may be considered normal when the following conditions occur.

- An operating sound is heard briefly from the engine compartment while the hill descent cont function is operating.

- The sensation of depressing the brake pedal is different, (harder than usual etc.) when the brake pedal is depressed during hill descent control function operation.

▼ Hill descent control indicator

701931

Hill descent control indicator (type B)

This indicator appears while the hill des- ofent control function is in the standby mode. It flashes while the function is operating. It will disappear when the function is in the disabled mode. When this function is changed from operational to non-operational, it will disappear when the vehicle speed reaches more than approximately 18 mph (30 km/h).

Tire pressure monitoring system (TPMS) (U.S.-spec. models)

Diagram of a car dashboard with two circular wheels and a warning symbol (no text or labels)

The tire pressure monitoring system provides the driver with a warning message when tire pressure is severely low. The tire pressure monitoring system will activate only when the vehicle is driven at speeds above 20 mph (32 km/h). Also, this system may not react immediately to a sudden drop in tire pressure (for example, a blow-out caused by running over a sharp object).

WARNING

- If the low tire pressure warning light illuminates while driving, never brake suddenly. Instead, perform the following procedure. Otherwise, an accident involving serious vehicle damage and serious personal injury could occur.

(1) Keep driving straight ahead while gradually reducing speed.
(2) Slowly pull off the road to safe location.
(3) Check the pressure for all tires and adjust the pressure to the COLD tire pressure shown on the tire inflation pressure label. The tire inflation pressure label is located on the door pillar on the driver's side.

Even when the vehicle is driven a very short distance, the tires get warm and their pressures increase accordingly. Be sure to let the tires cool thoroughly before adjusting their pressures to the standard values shown on the tire inflation pressure label. Refer to "Tires and wheels" 11-21.

a

four

The tire pressure monitoring system does not function when the vehicle is stationary. After adjusting the tire pressures, increase the vehicle speed to at least 20 mph (32 km/h) to start the TPMS rechecking of the tire inflation pressures. If the tire pressures are now above the severe low pressure threshold, the low tire pressure warning light should turn off a few minutes later. If this light still illuminates while driving after adjusting the tire pressure, a tire may have significant damage and a fast leak that causes the tire to lose air rapidly. If you have a flat tire, replace it with a spare tire as soon as possible.

- When a spare tire is mounted or a wheel rim is replaced without the original pressure sensor/transmitter being transferred, the low tire pressure warning light will illuminate steadily after blinking for approximately one minute. This indicates the TPMS is unable to monitor all four road wheels. Contact your SUBARU dealer as soon as possible for tire and sensor replacement and/or sys-

tem resetting.

- When a tire is repaired with liquid sealant, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your nearest SUBARU dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire. You may reuse the wheel if there is no damage to it and if the sealant residue is properly cleaned off. Do not inject any tire liquid or aerosol tire sealant into the tires, as this may cause a malfunction of the tire pressure sensors. If the light illuminates steadily after blinking for approximately one minute, promptly contact a SUBARU dealer to have the system inspected.

CAUTION

Do not place metal film or any me parts in the cargo area. This may cause poor reception of the signals from the tire pressure sensors, and the tire pressure monitoring system will not function properly.

NOTE

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Parking your vehicle

me Parking brake

To set the parking brake, depress the brake pedal firmly and hold it down until the parking brake lever is fully pulled up.

the ne 701990

To release the parking brake, pull the le up slightly, press the release button, the lower the lever while keeping the button pressed.

-When the parking brake is set while the engine is running, the parking brake warning light illuminates. After starting the vehicle, be sure that the warning light has turned off before the vehicle is driven. Refer to "Brake system warning light (re 3-20.

CAUTION

Never drive while the parking brake is set because this will cause unnecessary wear on the brake linings. Before starting to drive, always make sure that the parking brake has been fully released.

■ Parking tips

When parking your vehicle, always perform the following items.

• Apply the parking brake firmly.
• For MT models, put the shift lever in the "1" (1st) for upgrade or "R" (Reverse) for a downgrade.
• For CVT models, put the select lever in the "P" (Park) position.

Never rely on the mechanical friction of the transmission alone to hold the vehicle.

Diagram showing a car parked on a tree line next to a side view of a car with windows and a brick wall, no text or symbols present.

When parking on a hill, always turn the steering wheel. When the vehicle is headed up the hill, the front wheels should be turned away from the curb.

Top-down line drawing of a car parked beside two trees and a side view of a brick wall (no text or symbols)

When facing downhill, the front wheels should be turned into the curb.

WARNING

• Never leave unattended children or pets in the vehicle. They could accidentally injure themselves or others through inadvertent operation of the vehicle. Also, on hot or sunny days, the temperature in a closed vehicle could quickly become high enough to cause severe or possibly fatal injuries to people.
• Do not park the vehicle over flammable materials such as dry grass, waste paper or rags, as they may burn easily if they come near hot engine or exhaust system parts.
• Be sure to stop the engine if you take a nap in the vehicle. If engine exhaust gas enters the passenger compartment, occupants in the vehicle could die from carbon monoxide (CO) contained in the exhaust gas.

CAUTION

- If your vehicle has a bumper under guard (optional), pay attention to blocks and other obstruc-

tions on the ground when parking. The underspoiler could be damaged by contact with them.

d. The braking power of the parking brake may not be sufficient when stronger braking power is needed (e.g., when parking on a steep slope while towing a trailer).

Hill start assist system

WARNING

• The Hill start assist system is a device only for helping the driver to START the vehicle on an uphill grade. To prevent accidents when the vehicle is parked on a slope, be sure to firmly set the parking brake. When setting the parking brake, make sure that the vehicle remains stationary when the clutch pedal (MT models) and brake pedal (both MT and CVT models) are released.
• Do not turn the ignition switch to the "LOCK"/"OFF" position while the Hill start assist system is operating. The Hill start assist system will be deactivated and may lead to an accident.
  to

The Hill start assist system is a device make the following vehicle operations easier.

1 II A B 2 701116

1) Starting forward facing uphill
2) Starting backward facing downhill
A) Brake pedal (both MT models and CVT models)
B) Clutch pedal (MT models only)

In both these cases, the Hill start assist system operates under the following con

ditions.

• The clutch pedal is depressed while the brake pedal is also depressed (MT models).
  ● The vehicle has stopped with the brake pedal depressed (CVT models).

Braking power is maintained temporarily (for approximately 2 seconds) by the Hill start assist system after the brake pedal is released. The driver is therefore able to start the vehicle in the same way as on a level grade, just using the clutch pedal (MT models only) and accelerator pedal (all models).

If the braking power of the Hill start assist system is insufficient after the brake pedal is released, apply more braking power by depressing the brake pedal again.

The Hill start assist system may not operate on slight grades. Also, the Hill start assist system does not operate in the following cases.

Two identical illustrations of a car on a slope with trees, showing motion direction (no text or symbols)

• When starting backward facing uphill
• When starting forward facing downhill
  ● While the parking brake is applied
• While the ignition switch is in the "ACC" or "LOCK"/"OFF" position
  ● While the Hill start assist warning light/

Hill start assist OFF indicator light is illuminated. Refer to "Hill start assist warning light/Hill start assist OFF indicator light" 3-22.

- While the Auto Start Stop warning light is illuminated. Refer to "Auto Start Stop warning light/Auto Start Stop OFF indicator light (yellow)" 3-32.

When using the Hill start assist system, a braking effect may be felt even after the brake pedal has been released. However, for MT models, this braking effect should disappear once the clutch pedal is released.

CAUTION

The braking power of the Hill start assist system may not be sufficient when strong braking power is needed (e.g., when towing a trailer).

NOTE

A slight jolt may be felt when the vehicle begins to move forward after being reversed.

■ To activate/deactivate the Hill start assist system

702162

Hill start assist OFF indicator light

CAUTION

When starting on an up hill grade, make sure the Hill start assist OFF indicator light is off.

If the Hill start assist OFF indicator light is on, make sure the parking brake is applied.

To activate or deactivate the Hill start assist system, perform the following steps.

NOTE

If you make an error when performing any steps in the following procedure,

- CONTINUED -

place the ignition switch in the "LO" OFF" position once and then start over again.

▼ To deactivate

1. Park your vehicle in a flat and safe location and apply the parking brake.
2. Turn the ignition switch to the "LOCK" "OFF" position.
3. Restart the engine.

2 3 OFF 1 BRAKE / (①) 4 ABS / (ABS) 701759

1. Confirm the following items.

(1) The brake system warning light illuminates.
(2) The Vehicle Dynamics Control warning light turns off.
(3) The Vehicle Dynamics Control OFF indicator light turns off.
(4) The ABS warning light turns off.

CK" 701897

1. Press and hold the Vehicle Dynamics Control OFF switch for 30 seconds until the Vehicle Dynamics Control OFF indicator light on the combination meter turns on and off.
2. Within 5 seconds, release the Vehicle Dynamics Control OFF switch.
3. Within 2 seconds, press back the Vehicle Dynamics Control OFF switch. The Hill start assist OFF indicator light turns on and off.
4. Turn the ignition switch to the "LOCK"/"OFF" position. Hill start assist is deactivated.

NOTE

When the Hill start assist system is deactivated, the Hill start assist OFF

indicator light illuminates.

▼ To reactivate

To reactivate Hill start assist system, repeat steps 1 to 8. When the Hill start assist system is activated, the Hill start assist OFF indicator light turns off.

■ Hill start assist warning light/ Hill start assist OFF indicator light

Refer to "Hill start assist warning light/Hill start assist OFF indicator light" 3-22.

Cruise control (if equipped)

NOTE

For models with EyeSight system: Refer to the Owner's Manual supplement for the EyeSight system.

Cruise control enables you to maintain constant vehicle speed without holding your foot on the accelerator pedal and operative when the vehicle speed is 20 mph (30 km/h) or more.

WARNING

• Do not use the cruise control under any of the following conditions. These may cause loss of vehicle control.
• Driving up or down a steep grade
• Driving on slippery or winding roads
• Driving in heavy traffic
• Towing a trailer
• When using the cruise control, always set the speed appropriately according to the speed limit, traffic flow, road conditions, and other conditions.

NOTE

Make sure the cruise control system turned off when the cruise control is in use to avoid unintentionally setting of the cruise control.

■ To set cruise control

is 701734

Cruise control main button
1. Press the cruise control main button.

is not 701773

Cruise control indicator light (type A)

701761

Cruise control indicator light (type B) The cruise control indicator light on the combination meter will illuminate. 2. Depress the accelerator pedal until the vehicle reaches the desired speed.

- CONTINUED -

701735

1. Press the "RES/SET" switch to the "SET" side and release it. Then release accelerator pedal.

NOTE

When setting a cruise speed for the first time during a drive, both "SET" and "RES" may be used to set the initial cruise speed.

1 60 MPH 2 96 km/h 701774

Cruise control set indicator light (type the) 1) When setting the displayed unit as "MPH 2) When setting the displayed unit as "km/h

1 60 MPH 2 96 km/h SET 701762

(A) Cruise control set indicator light (type B) 1) When setting the displayed unit as "MPH" 2) When setting the displayed unit as "km/h"

At this time, the cruise control set indicator light is illuminated in the combination meter. The set speed will be shown on the combination meter. You can change the displayed unit by operating the combination meter display.

• For type A meter details, refer to "Combination meter settings" 3-11.
• For type B meter details, refer to "Screen Settings" 3-40.

The vehicle will maintain the desired speed.

Vehicle speed can be temporarily increased while driving with the cruise control activated. Simply depress the

accelerator pedal to accelerate the vehicle. When the accelerator pedal is released, the vehicle will return to and maintain the previous cruising speed.

■ To temporarily cancel the cruise control

The cruise control can be temporarily canceled in the following ways.

CANCEL 701736

• Press the "CANCEL" button.
• Press the X-MODE switch to activate the X-MODE (models with X-MODE).
• Depress the brake pedal.
• Depress the clutch pedal (MT models only).

WARNING

For CVT models, you can cancel cruise control by shifting the self-lever into the "N" position. How do not shift the lever into the "position while driving except in of emergency. If the select lever shifted into the "N" position, the engine brake will no longer work. This could result in an accident.

The cruise control set indicator light in combination meter turns off when the cruise control is canceled.

Diagram of a mechanical component with internal channels and an arrow indicating direction (no text or symbols)

To resume the cruise control after it has been temporarily canceled and with vehicle speed of approximately 20 mph (30 km/h) or more, press the "RES/SET"

switch to the "RES" side to return to the original cruising speed automatically. the cruise control set indicator light in the ct combination meter will automatically illu- veminate at this time.

To turn off the cruise control is There are two ways to turn off the cruise control:

• Press the cruise control main button again.
  the Turn the ignition switch to the "ACC" or "LOCK"/"OFF" position (but only when the vehicle is completely stopped).

■ To change the cruising speed

▼ To increase the speed (by the "RES/SET" switch)

Diagram of a mechanical component with internal channels and an arrow indicating direction (no text or symbols)

• CONTINUED -

Press the "RES/SET" switch to the "RES" side and hold it until the vehicle reaches the desired speed. Then, release the switch. The vehicle speed at that moment will be memorized and treated as the new set speed.

When setting the displayed unit as "MPH":

The set speed can be increased 1 mph (1.6 km/h) each time by pressing the "RES SET" switch to the "RES" side.

When setting the displayed unit as "km/h":

The set speed can be increased 1 km/h (0.6 mph) each time by pressing the "RES/SET" switch to the "RES" side.

"▼ To increase the speed (by accelerator pedal)

1. Depress the accelerator pedal to accelerate the vehicle to the desired speed

701735

1. Press the "RES/SET" switch to the "SET" side once. Now the desired speech set and the vehicle will keep running at speed without depressing the accelerator pedal.

a▼ To decrease the speed (by the "RES/SET" switch)

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Press the "RES/SET" switch to the "SET" side and hold it until the vehicle reaches the desired speed. Then, release the switch. The vehicle speed at that moment will be memorized and treated as the new set speed.

When setting the displayed unit as "MPH":

The set speed can be decreased 1 mph (1.6 km/h) each time by pressing the "RES/SET" switch to the "SET" side.

When setting the displayed unit as "km/h":

The set speed can be decreased 1 km/h (0.6 mph) each time by pressing the "RES/SET" switch to the "SET" side.

▼ To decrease the speed (by brake pedal)

1. Depress the brake pedal to release cruise control temporarily.

Diagram of a mechanical component with a downward arrow indicating a feature, no text or symbols present

1. When the speed decreases to the desired speed, press the "RES/SET" switch to the "SET" side once. Now the desired speed is set and the vehicle will keep running at that speed without depressing the accelerator pedal.

■ Cruise control indicator light Auto Start Stop system (if Refer to "Cruise control indicator light" equipped) 31.

■ Cruise control set indicator light

Refer to "Cruise control set indicator light 3-31.

The Auto Start Stop system is designed to automatically stop and restart the engine when the vehicle is stationary for a short period of time (while waiting for a traffic light or in a traffic jam, etc.) after the engine has warmed up. The system operates in order to reduce fuel consumption and exhaust emissions, as well as undesired idling noise.

■ System operation

CAUTION

The Auto Start Stop system is de- signed to automatically stop and restart the engine for a short period of time during idling. Do not use the system when parking the vehicle normally.

So that it can be used safely and comfortably, in addition to driver operations, the Auto Start Stop system is designed to constantly monitor the vehicle conditions as well as the environment inside and outside the vehicle, in order to control stopping and restarting of the engine. After the vehicle has been completely

- CONTINUED -

stopped by depressing the brake pedal with the select lever in the "D" position, engine will be automatically stopped. If you release the brake pedal with the select lever kept in the "D" position, the engine will be automatically restarted.

701800

Auto Start Stop indicator light (green) (type A)

the (A) 701801

Auto Start Stop indicator light (green) (type B)

If the engine is temporarily stopped by system, the Auto Start Stop indicator light on the combination meter will illuminate green. This indicator light will turn off with the system restarts the engine.

NOTE

• After starting the engine, if the vehicle is left idling without being driven, the Auto Start Stop system not operate.
• Your vehicle is equipped with a special high-performance battery. When replacing the vehicle battery, sure to replace it with a genuine SUBARU battery (or equivalent) designed specifically for use in a veh

equipped with the Auto Start Stop system. For details, we recommend that you consult your SUBARU dealer.

▼ Operational conditions

The Auto Start Stop system will automatically stop the engine when all of the following conditions are met.

• The engine is sufficiently warmed up.
• The engine hood is closed.
• The driver's door is closed.
• The driver's seatbelt is fastened.
  ● The CHECK ENGINE warning light/Malfunction indicator light is off.

Airflow mode selection is set to a mode other than "##" mode.

in The rear window defogger is not in use.
thenThe X-MODE has been turned off (if equipped).

After the vehicle is stopped, the engine will be automatically stopped when the following conditions are met.

willThe steering wheel is in the straight ahead position.
- The steering wheel is not being operated.

be NOTE

- After the vehicle is stopped, the engine may not automatically stop

under the following conditions.

- The vehicle is stopped on a with a steep slope.

- The vehicle is stopped by har braking.

- Negative pressure in the brake booster is not sufficient.

- After the vehicle is stopped, the engine may not automatically stop in the brake pedal is not fully depress. Make sure to depress the brake pel firmly when stopping the vehicle.

- In the following cases, it may take some time for the Auto Start Stop system to operate.

- The battery is discharged because the vehicle has not been for a long period of time, etc.

- The coolant temperature is low - The battery terminals have been reconnected after replacing the battery, etc.

▼ Non-operational conditions

In any of the following cases, the Auto Start Stop system will not operate.

- When the Auto Start Stop warning light Auto Start Stop OFF indicator light (yell is illuminating or flashing

- When the CHECK ENGINE warning light/Malfunction indicator light is illuminating

- When the engine hood is opened when the vehicle is at an altitude of more than approximately 10,000 ft (3,000 lm)

- When the CVT fluid is not sufficiently warmed up

- When the temperature of the CVT fluid is abnormally high

- When the vehicle battery is not in good condition

When using the climate control system the temperature difference between the setting temperature and the temperature inside the vehicle is significant

- When using the climate control system, the amount of air flow is significant

NOTE

The Auto Start Stop system may not operate if the CHECK ENGINE warning light/Malfunction indicator light or other warning lights on the combination meter are illuminating or flashing

▼ Engine restart operational conditions

In any one of the following cases, the engine will be automatically restarted even if the brake pedal is kept depressed.

- When slightly releasing the brake pedal on road with a steep slope and the vehi begins rolling

• When further depressing the brake pedal
• When depressing the accelerator pedal
• When you move the select lever to the "R" position
• When turning the steering wheel
• When airflow mode selection set to "mode"
• When the climate control system can no longer maintain the set temperature
• When unbuckling the driver's seatbelt
• When opening the driver's door
• When turning on the X-MODE
• When activating the rear window defogger

▼ Engine restart non-operational conditions

WARNING

Do not open the engine hood when the Auto Start Stop system is in operation. It may cause the vehicle to move while on a slope, the steering wheel operation may become heavy, or the brakes may not work well, which can create dangerous conditions.

To ensure safety, the engine will not be automatically restarted if you open the

- CONTINUED -

engine hood when the Auto Start Stop system is in operation, even if you release the brake pedal. In this case, check the surrounding area and restart the engine normal operation.

NOTE

- When the Auto Start Stop system is in operation, the brake pedal may feel stiff. However, this is not a malfunction

- In the following conditions, the engine will be automatically restarted even if you keep the brake pedal depressed.

- When the battery is discharged

- When the negative pressure in the brake booster has lowered

- In the following cases, the length time that the engine is temporarily stopped by the Auto Start Stop sys may be shorter.

- When the climate control system is in operation

- When the outside temperature is high, or when it is low (because the climate control system can no longer maintain the set temperature)

- When consumption of electricity by electrical components is high - When the engine is automatically restarted by the Auto Start Stop system, the power provided via the acces-

sory power outlet will be reduced. Depending on the connected appli- ance, the power of the appliance may temporarily turn off.

▼ Auto Start Stop warning light

s el on. A 701800

tem Auto Start Stop warning light (yellow) (type A)

701801

Auto Start Stop warning light (yellow) (type B)

The Auto Start Stop warning light will illuminate in yellow when initially turning the push-button ignition switch to the "ON" position. The light will turn off after the engine has started.

The Auto Start Stop warning light will flash when the Auto Start Stop system is malfunctioning. We recommend that you contact your authorized SUBARU dealer for an inspection.

CAUTION

If the Auto Start Stop warning light does not turn off after the engine has started, the Auto Start Stop system may be malfunctioning. We recommend that you contact your author-

ized SUBARU dealer for an inspection.

▼ Auto Start Stop OFF switch

A OFF 701802

Auto Start Stop OFF switch

701800

Auto Start Stop OFF indicator light (yellow) (type A)

(A) 701801

Auto Start Stop OFF indicator light (yellow) (type B)
If the Auto Start Stop OFF switch is pressed, operation of the Auto Start Stop

system will be disabled. The Auto Start Stop OFF indicator light on the combination meter will then illuminate in yellow. If the switch is pressed once more, the Auto Start Stop system will turn on again. The Auto Start Stop OFF indicator light will then turn off.

While the engine is temporarily stopped by the system, if the Auto Start Stop OFF switch is pressed, the engine will be restarted even if you do not release the brake pedal.

NOTE

• If the engine is restarted when the Auto Start Stop system is not operational and the ignition switch has been turned to the "LOCK"/"OFF" position, the Auto Start Stop system will turn or again.
• Be sure to turn the ignition switch to the "LOCK"/"OFF" position when leaving the vehicle. Failure to do so could result in the battery discharging.

▼ Auto Start Stop No Activity Dete indicator light

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Auto Start Stop No Activity Detected indicator light (type A)

702285

Auto Start Stop No Activity Detected indicator light (type B)

ed the operational conditions are not met (green)" 3-32.

when the vehicle is stopped, the engine does not stop and the Auto Start Stop Activity Detected indicator light will illuminate. It will turn off when the vehicle be to drive.

■ Displaying the Auto Start Stop system status

Approximate indications of the time that the engine has been stopped by the Auto Start Stop system and/or the amount of fuel saved can be displayed on the multi-function display (black and white) or combination meter display (color LCD). For details, refer to "Auto Start Stop time 3-46 or "Basic screens" 3-38.

■ System warning

So that it can be used safely and comfortably, the Auto Start Stop system is designed to constantly monitor the vehicle conditions as well as the environment inside and outside the vehicle in addition to driver operations, and to provide various warnings to the driver via the warning light and/or indicator light illuminating or flashing and a buzzer sounding. For details about the warning light and indicator light refer to "Auto Start Stop warning light/Auto Start Stop OFF indicator light (yellow)" 3-32 and "Auto Start Stop indicator light

No Warning buzzer

The buzzer will sound when the engine hood is opened while the engine is stopped by the Auto Start Stop system. When this occurs, the buzzer will stop sounding when the following operations are performed.

- The engine is restarted by normal operation (refer to "Preparing to drive" to 7-9).

- The ignition switch is turned to the "LOCK"/"OFF" position.

▼ Display of warning messages e" (models with combination meter display (color LCD))

If a warning message is displayed on the combination meter display (color LCD) while the vehicle is being driven, a malfunction may have occurred in the Auto eStart Stop system. In this case, the Auto Start Stop warning light will illuminate or flash in yellow. We recommend that you have your vehicle inspected at a SUBARU dealer as soon as possible.

BSD/RCTA (if equipped)

The BSD/RCTA consists of rear corner radars with Blind Spot Detection and R Cross Traffic Alert.

These functions enable the system to detect objects or vehicles to the rear, drawing attention to the driver when changing a lane or when driving in re

WARNING

The driver is responsible for driving safely. Always be sure to check surroundings with your eyes when changing lanes or reversing the vehicle.

The system is designed to assist driver to change lanes or reverse safely by monitoring the rear and side areas of the vehicle. However, you cannot rely on this system in assuring the safety during a la change or reversing. Overconfidence in this system could result an accident and lead to serious injury or death. Since the system operation has various limitations, the flashing or illumination of the BSD/RCTA approach indicator light may be delayed or it may not op

at all even when a vehicle is prese in a neighboring lane or approaching from either side.

The driver is responsible for paying attention to the rear and side areas of the vehicle.

■ System features

BSD/RCTA consists of the following functions.

- To detect a vehicle in a blind spot on an adjacent lane or a vehicle approaching at high speed while driving the vehicle (Blind,

Spot Detection)

- To detect a vehicle approaching from the right or left while reversing the vehicle (Rear Cross Traffic Alert)

The system uses radar sensors for the above functions.

alo NOTE

The BSD/RCTA radar sensor has been certified by the radio wave related laws in of the U.S. and Canada. When driving in other countries, certification of the country where the vehicle is driven must be obtained. For certification in the U.S. and Canada, refer to "Certification for the BSD/RCTA" 7-70.

eWT Blind Spot Detection (BSD)

The system warns the driver of dangers as follows.

- If the system detects a vehicle existing in the blind spot, the BSD/RCTA approach indicator light(s) on the outside mirror(s) will illuminate.

701784

BSD/RCTA approach indicator light

- If the driver operates the turn signal lever in the direction which the BSD/RC7 approach indicator light is illuminating, the corresponding BSD/RCTA approach indicator light will flash.

▽ Lane Change Assist (LCA)

701406

1) Operating range

The system warns the driver of dangers follows.

- If the system detects a vehicle approaching at a high speed in the neighboring lanes, the BSD/RCTA approach indicator light(s) on the outside mirror(s) will illuminate.

- If the driver operates the turn signal lever in the direction which the BSD/RCT approach indicator light is illuminating, the corresponding BSD/RCTA approach indicator light will flash.

▼ Rear Cross Traffic Alert (RCTA)

701460 1

1) Operating range

The system notifies the driver of another vehicle approaching from either side when driving in reverse. This feature helps the driver check the rear and side areas of the vehicle when moving backward.

If the system detects a vehicle approaching from either side while moving backward, it warns the driver of dangers in the following way.

• The BSD/RCTA approach indicator light(s) on the outside mirror(s) flashes.
● A warning buzzer sounds.
- An icon appears on the rear view camera screen (audio/navigation monitor).

Limitations of the detectability RCTA

Since the detectability of RCTA is limited the RCTA may not operate properly in angled parking.

A 2 B 1 701818

Example 1

1) The detection range of the radar sensors
2) Area out of detection range of the radar sensors
A) Vehicle that may not be detected
B) Parked vehicle

WARNING

An approaching vehicle (A) may not be detected because the detection range is limited by the parked vehicle (B). Always be sure to check the surroundings with your eyes when

f reversing the vehicle.

C 1 701819

Example 2

1) The detection range of the radar sensors
C) Vehicle that may be detected

NOTE

The system may detect that a vehic

(C) is passing in front of your veh. Always be sure to check the surro

ings with your eyes when reversing vehicle.

■ System operation

▼ Operating conditions

The BSD/RCTA will operate when all of the following conditions are met.

• The ignition switch is in the "ON" position.
• The BSD/RCTA warning indicator and BSD/RCTA OFF indicator are turned off.
• The vehicle is driven at speeds above 7 mph (12 km/h) (except when reversing).
• The shift lever/select lever is in the "R" position (when reversing).

The BSD/RCTA will not operate in the following situations.

• The BSD/RCTA OFF indicator is on.
• The vehicle speed is below 6 mph (10 km/h) even when the BSD/RCTA OFF indicator remains off (except when rever-

sing).

NOTE

the following case, the BSD/RCTA will stop operating and the BSD/RCTA warning indicator will appear. If the BSD/RCTA warning indicator appears, have your vehicle inspected at a SUBARU dealer as soon as possible.

- When a malfunction occurs in the system, including the BSD/RCTA approach indicator light

- CONTINUED -

- In the following cases, the BSD/RCTA will temporarily stop operating (or may stop operating) and the BS RCTA OFF indicator will appear.

• When the radar sensor become significantly misaligned (If the orientation of the radar sensor is shifted for any reason, readjustment is required. Have the sense adjusted at a SUBARU dealer.)
• When a large amount of snow ice sticks to the rear bumper surface around the radar sensors
• When the vehicle is driven on a snow-covered road or in an environment in which there are no objects around (such as in a desert) a long time
• When the temperature around the radar sensors increased excessively due to long driving on uphill grades in summer, etc.
• When the temperature around the radar sensors becomes extremely low
• When the vehicle battery voltage lowers
• When the vehicle battery becomes overvoltage

When the above conditions are corrected, the BSD/RCTA will resume op-

eration and the BSD/RCTA OFF indicator will disappear. However, if the BDRCTA OFF indicator has appeared for
prolonged time, have the system in- espected at a SUBARU dealer as so possible.
- The detectability of the radar sensors is restricted. The BSD/RCTA de rtection may be impaired and the sy may not operate properly under the following conditions.
- When the rear bumper around radar sensors is distorted
a - When ice, snow or mud adhered to the rear bumper surface around the radar sensors
t) for When stickers, etc. are affixed the areas of the radar sensors of the rear bumper
- During adverse weather conditions such as rain, snow or fog
- When driving on wet roads such as snow-covered roads and through puddles
- The radar sensors may not detect any may have difficulty detecting the following.
- Small motorcycles, bicycles, pedestrians, stationary objects on the road or road side, etc.
- Vehicles with body shapes that the radar may not reflect (vehicle

ca- with a low body height such as BSD/sports cars or a trailer with no or acargo)

• Vehicles that are not approaching on your vehicle even though they are in the detection area (either on a neighboring lane to the rear or beside your vehicle when reversing) System(The system determines the presence of approaching vehicles based on data detected by the radar the sensors.)
• Vehicles traveling at significantly different speeds
• Vehicles driving in parallel at almost the same speed as your vehicle for a prolonged time
  n - Oncoming vehicles
• Vehicles in a lane beyond the neighboring lane
• Vehicles travelling at a signifi- ch cantly lower speed that you are gh trying to overtake
• On a road with extremely narrow lanes, the system may detect vehicles driving in a lane next to the neighboring lane.
• When the 8-inch audio/navigation system is performing a software update, the RCTA warning icons may not be displayed on the audio/navigation screen until the update is complete.

■ BSD/RCTA approach indicator light/warning buzzer

When the BSD/RCTA is active, the BSD RCTA approach indicator light will operate to alert the driver when there are vehicle in the neighboring lanes. When reversing the vehicle, the BSD/RCTA approach indicator light and warning buzzer will operate to alert the driver that a vehicle approaching from the left or right side.

▼ BSD/RCTA approach indicator light

701784

BSD/RCTA approach indicator light It is mounted in each side of the outside mirrors.

The indicator light will illuminate when a vehicle approaching from behind is detected.

The indicator light will flash to warn the driver of dangers under the following conditions.

• While the indicator light illuminates, if you operate the turn signal lever toward the side in which this light turned on.
• When reversing the vehicle while the system detects a vehicle approaching from either side.

is ▽ BSD/RCTA approach indicator light dimming function

When the headlights are turned on, the brightness of the BSD/RCTA approach indicator light will be reduced.

NOTE

- You may have difficulty recognizing the BSD/RCTA approach indicator light under the following conditions.

- When affected by direct sunlight - When affected by the headlight beams from the vehicles behind

- While the illumination brightness control dial is in the fully upward position, even if the headlights are turned on, the brightness of the BSD/ RCTA approach indicator light will not be reduced. For details about the illumination brightness control dial, refer to "Illumination brightness control" 3-12.

▼ BSD/RCTA approach warning buzzer (only when reversing)

A warning buzzer sounds along with flashing of the BSD/RCTA approach indicator light to warn the driver of dangers.

The setting of the warning buzzer volume can be changed by operating the combination meter display (color LCD). For details, refer to "Menu screens" 3-40.

▼ Safety tips regarding the BSD/RCTA approach indicator light/warning buzzer

- In the following cases, operation of the BSD/RCTA approach indicator light and the warning buzzer may be delayed or the system may fail to issue these warnings.

• When a vehicle moves to the neighboring lane from a lane next to the neighboring lane
• When driving on a steep incline or on repeated sharp uphill and downhill grades
• When going beyond a pass
• When both your vehicle and a vehicle driving on a neighboring lane are driving on the far side of each lane.

- When several narrowly-spaced vehicles are approaching in a row

- In low radius bends (tight bends or when making turns at an intersection)

• When there is a difference in height between your lane and the neighboring lane
• Immediately after the BSD/RCTA is activated by pressing the BSD/RCTA OFF switch

- Immediately after the shift lever/ select lever is shifted to the "R" posit

- When extremely heavy cargo is loaded in the cargo area

- During reversing, operation of the BSD/RCTA approach indicator light and the warning buzzer may be delayed or the system may fail to issue these warnings under the following conditions.

• When backing out of an angled parking space
• When a large-sized vehicle is parked next to your vehicle (That vehicle prevents the propagation of radar waves.)
• When reversing on sloped roads
• When reversing at a high speed

• The BSD/RCTA approach indicator light may illuminate when driving close solid objects on the road or road side (as guardrails, tunnels and sidewalls).
• The BSD/RCTA approach indicator light may flash when turning at an intersection in urban areas or a multilane intersection.
• The BSD/RCTA approach indicator light may flash and the warning buzzer may sound if a building or a wall exists the reversing direction.
• In the following cases, the system may detect a vehicle driving two lanes away from your vehicle.

- When you are driving on the near side of its lane from the corresponding vehicle

- When the vehicle driving two lanes

away is driving on the near side of its lane from your vehicle

■ BSD/RCTA OFF indicator

▼ System temporary stops

MPG 1 BSD/RCTA Disabled OFF R 842.0 7452 mi 702219

1) BSD/RCTA temporary stop message
2) BSD/RCTA OFF indicator

This display appears when the system is used under the following conditions.

inExtremely high or low temperatures
- When abnormal voltage exists for the vehicle battery
- When the radar sensor is significantly misaligned

Once the above conditions are corrected, the system will recover from the temporary stop condition and the indicator will dis-

appear. If the indicator remains displayed for a prolonged time, have the system inspected at a SUBARU dealer.

▼ System temporary stops due to reduced radar sensitivity

MPG 1 BSD/RCTA Disabled Sensor Blocked OFF 2 OFF R 842.0 7452 mi 702220

1) BSD/RCTA temporary stop message due to reduced radar sensitivity
2) BSD/RCTA OFF indicator

This display appears when the detectability of the radar sensors is reduced. Once the condition is corrected, the system will recover from the temporary stop condition and the indicator will disappear. If the indicator remains displayed for a prolonged time, have the system inspected at a SUBARU dealer.

■ BSD/RCTA warning indicator
▼ System malfunction

MPG 1 2 BSD/RCTA Disabled Check 3 Owner's Manual 4 R 842.0 7452 mi 702221

1) BSD/RCTA malfunction message

2) At first, this message will appear

3) Then this message will appear

4) BSD/RCTA warning indicator

This display appears when a malfunction occurs in the system. Contact a SUBARU dealer and have the system inspected.

■ BSD/RCTA OFF switch

OFF 701748

BSD/RCTA OFF switch

OFF 701821

BSD/RCTA OFF indicator

If the BSD/RCTA OFF switch is pressed, the BSD/RCTA OFF indicator appears on the combination meter, and the BSD/

- CONTINUED -

RCTA is deactivated.

Press the switch again to activate the BSD/RCTA. The BSD/RCTA OFF indicator will disappear.

When this occurs, the BSD/RCTA approach indicator light on the side of the rearview mirror illuminates for a few seconds and then turns off.

NOTE

- In the following cases, the system may not operate properly due to blocked radar waves. Press the BSD/RCTA OFF switch to deactivate the system.

- When towing a trailer

- When a bicycle carrier or other carrier item is fitted to the rear of vehicle

- When using a chassis dynamometer or free roller device, etc. - When running the engine and making the wheels rotate while lifting up the vehicle

- If the ignition switch is turned to the "LOCK"/"OFF" position, the last known status of the system is maintained. I example, if the ignition switch is turned to the "LOCK"/"OFF" position with the BSD/RCTA deactivated, the BSD/RCTA will remain deactivated the next time the ignition switch is turned to the

position.

■ Certification for the BSD/RCTA

▼ The U.S. and other FCC compliant countries

FCC ID: OAYSRR3A

CAUTION

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

of the

NOTE

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

he "ON"

▼ Canada-spec. models

NOTE

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may cause undesired operation of the device.

Radiofrequency radiation exposure information:

This equipment complies with radiation exposure limits set forth for an uncontrolled environment. This equipment

should be installed and operated with minimum distance of 20 cm between the radiator and your body.

702692

REMARQUE

■ Handling of radar sensors

Line drawing of a car rear view showing front and side views (no text or symbols)

1) Sensors

The radar sensors, one on each side of vehicle, are mounted inside the rear bumper.

To ensure correct operation of the BSD/RCTA, observe the following precautions.

● Always keep the bumper surface near the radar sensors clean.
- Do not affix any stickers or other items on the bumper surface near the radar sensors.
- Do not modify the bumper near the radar sensors.
- Do not paint the bumper near the radar sensors.
- Do not expose the bumper near the radar sensors to strong impacts. If a

sensor becomes misaligned, a system malfunction may occur, including the inability to detect vehicles entering the detection areas. If any strong shock is applied to the bumper, be sure to contact your SUBARU dealer for inspection.

- Do not disassemble the radar sensors.

NOTE

If the radar sensors require repair or replacement, or the bumper area around the radar sensors requires repair, paintwork or replacement, contact your SUBARU dealer for assistance.

the

Reverse Automatic Braking (RAB) system (if equipped)

Reverse Automatic Braking (RAB) system is a system designed to help avoid collisions or reduce collision damage when reversing the vehicle. If a wall or an obstacle is detected in the reversing direction, the system will notify the driver with a warning sound and may activate the vehicle's brakes automatically.

WARNING

• Reverse Automatic Braking (RAB) system is not a system intended to replace the driver's responsibility to check surrounding areas for vehicles or obstacles to avoid a collision.
• The driver is responsible for driving safely. Before reversing, be sure to first depress the brake pedal and visually check the surroundings.
• There are some cases in which the vehicle cannot avoid collision, because the system operation has limitations. The warning sound or automatic braking may be delayed or may not operate all even when an obstacle is

present.

• The system is not designed to detect people (including children), animals or other moving objects.
• Depending on the vehicle condition or the surrounding environment, the sonar sensor's ability to detect objects may be compromised.

- Do not remove the SUBARU genuine navigation and/or audio system. If the SUBARU genuine navigation and/or audio system is removed, the rear view came image and help lines (distance marker, dynamic guidelines and vehicle width lines) will no long be displayed.

- Even if the Reverse Automatic Braking (RAB) system and object detection warning is ON, the visible alert of Reverse Automatic Braking (RAB) system will not be displayed. However, the audible alert and its function will operate.

at

NOTE

The Reverse Automatic Braking (RAB) system records and stores the following data when automatic braking operates. It does not record conversations, personal information or other audio data.

• Distance from the object
• Vehicle speed
• Accelerator pedal operation status
• Brake pedal operation status
• Select lever position
• Outside temperature
• The sensitivity setting of the sonar sensors

SUBARU and third parties contracted by SUBARU may acquire and use the recorded data for the purpose of vehicle research and development. SUBARU and third parties contracted by SUBARU will not disclose or provide the acquired data to any other third party except under the following conditions.

• The vehicle owner has given his/her consent.
- The disclosure/provision is based on a court order or other legally enforceable request.

- Data that has been modified so that the user and vehicle cannot be identified is provided to a research institution for statistical processing or similar purposes.

■ Reverse Automatic Braking (RAB) system overview

The system detects objects using sonar sensors installed in the rear bumper.

• If the system determines a possible collision with an object in the reversing direction, automatic deceleration will be activated. Also, beeping sounds will activate.
• If the vehicle is further reversed, automatic hard braking will be applied and a continuous beeping sound will activate.

1

702041

1) When reversing
2) When either strong automatic braking or torque control is applied to prevent collision (in this case, short warning beeps or continuous warning beeps will sound)

3) When the vehicle is stopped by the system (in this case, the continuous beep will remain sounding)

4) Object (e.g., a wall)

▼ Detecting range

1 2 3 701721

1) Detecting range (width): Approximately 6 in (15 cm) outside of the vehicle width
2) Range that the system cannot detect: Approximately 20 in (50 cm) behind the rear of the vehicle
3) Detecting range (length): Approximately 5 ft (1.5 m) from the rear of the vehicle

WARNING

If your vehicle is trapped on a road crossing and you are trying escape by reversing through the crossing gate, the system may recognize the crossing gate as an obstacle and the brake may activate. In this case, remain calm and either continue to depress the accelerator pedal or cancel the system. To

cancel the system, refer to "Canceling the Reverse Automatic Braking (RAB) system operation" 7-80.

■ Operating conditions

The Reverse Automatic Braking (RAB) system will operate when all of the following conditions are met.

1) EyeSight warning indicator
2) RAB warning indicator
3) RAB OFF indicator

- The ignition switch is in the "ON" position.

● The EyeSight warning indicator is off.

The RAB warning indicator is off.

• The RAB OFF indicator is off.

● The Reverse Automatic Braking (RAB)

- system is set to on.

• The select lever is in the "R" position.
  ● The vehicle speed is between 1 to 9 mph (1.5 to 15 km/h).

NOTE

- In the following cases, the Reverse Automatic Braking (RAB) system will not operate. Promptly contact a SUBARU dealer to have the system inspected.

- The EyeSight warning indicator is illuminated.

- The RAB warning indicator is illuminated.

- When the RAB OFF indicator is illuminated, the Reverse Automatic Braking (RAB) system cannot be operated.

- In the following cases, the system may not be able to properly detect an obstacle. Promptly contact a SUBARU dealer to have the system inspected.

• A sticker, paint, or a chemical is applied to the sonar sensor or the rear bumper near the sonar sensor.
• The rear bumper is modified.
• The rear bumper has been removed and reattached.
• The ground clearance is changed due to the vehicle's loading condition or modification.

- The sonar sensor and the area near the sonar sensor are being damaged.

- The rear bumper is exposed to strong impact, or the rear bumper deformed.

- When the 8-inch audio/navigation system is performing a software update, the Reverse Automatic Braking (RAB) system may not display the following items on the audio/navigation screen until the update is complete.

- Display Icon on/off Function

- Distance Indicator Image

- Warning Message

- On a steep hill, the system's automatic braking ability will be reduced.

- The system is designed to avoid collisions by automatic hard braking when the vehicle's reversing speed is less than approximately 3 mph (5 km). However, the system does not guarantee that the vehicle will be able to collisions in any situation.

- If the vehicle is reversed at an extremely slow speed, the driver's operation may be prioritized. In this case, automatic braking will not operate.

- The system may not be able to de the following objects.

- Sharp or thin objects such as

poles, fences and ropes which not reflect the sound wave emitted from the sonar sensor.

- Objects that are too close to the isrear bumper when the select level set to the "R" position.

- Objects with a surface which not reflect the sound wave emitted from the sonar sensor such as chain link fence.

on Objects the system is not designed to detect.

Pedestrians

- Moving objects including moving vehicles

- Objects which absorb sound waves such as cloth or snow.

- Objects whose surface has a diagonal angle.

s - Objects that are low to the gro m/h) such as parking blocks.

- Objects that are high above the avoid ground such as objects hanging from above.

- Objects that are out of range the center of the vehicle in the horizontal direction.

- Objects that are not perpendicular to the ground.

- The surface of the object is uneven or wavy.

The system may not be able to properly detect objects or may cause a system malfunction when the following conditions exist.

er is High frequency sound from other sources are nearby:

- Horn sound from another vehicle

- Engine sound from other vehicles

- Sound of an air brake

- Vehicle detection equipment or a sonar from another vehicle

- A sound wave with a frequency similar to the vehicle's system is transmitted nearby.

- A vehicle equipped with the same system is reversing toward your reversing direction.

ound Weather conditions:

- Extremely high or extremely low temperatures in which the area near the sonar sensor becomes too hot or too cold to operate.

- The rear bumper near the sonar sensors is exposed to heavy rain or a significant amount of water.

- Fog, snow or sandstorm, etc.

- Air is moving rapidly such as when a strong wind is blowing.

Parts attached to the rear bumper near the sonar sensor:

- Commercial electronic parts (fog light, fender pole, radio antenna) commercial attachment parts (trailer hitch, bicycle carrier, bumper guard) are attached

- Parts that emit high frequency sound, such as a horn or speaker, are attached.

Vehicle conditions:

- Ice, snow or mud is adhered the rear bumper near the sonar sensor.

- The vehicle is significantly inclined.

- The ground clearance is significantly reduced due to the vehicle's loading condition, etc.

- When the sonar sensor is mis-aligned due to a collision or an accident.

Surrounding environment:

- A cloth banner, flag, hanging branch or railroad crossing bars are present in the reversing direction.

- When reversing on a gravel or grassy area.

- When reversing in an area where

objects or walls are adjacent to vehicle such as narrow tunnels, narrow bridges, narrow roads or narrow garages.

- Wheel tracks or a hole is present in the ground of the reversing direction.

- When reversing over a drainage cover (grate cover).

to e's 702035

the

ne ent 702036

• The path of the reversing direction is inclined such as on a steep uphill.
• A curb is present in the reversing direction.
• When reversing downhill.

Simple line drawing of a car on a road with a right-pointing arrow indicating direction (no text or symbols)

- When reversing on an uneven road.

- In circumstances such as the following, it may not be possible to avoid collision even when the system operates normally.

- Roads are slippery.

- The tire air pressure is not correct.

- The tires have become worn. - Tires which are not the designated size are installed.

- Emergency repairs were performed using a puncture repair kit.

- The suspension was modified.

- Tire chains are installed.

- Vehicle driving is unstable due to accident or malfunction.

- The brake warning light is illuminated.

■ Reverse Automatic Braking (RAB) system operation

When the Reverse Automatic Braking (RAB) system is in operation, the range between the vehicle and the detected object will be indicated on the audio/ navigation monitor. Also, warning sounds will activate in 3 levels to warn the drive a potential collision.

While the Reverse Automatic Braking (RAB) system is operating, a warning message is displayed on the audio/navigation monitor and the combination meter display (color LCD).

Guideline of detecting range

Alert level Range of detected object* Distance indicator Alarm pattern
Long proximity (object detected)	35 in (90 cm) or more	Green No warning sound
Medium proximity alert (approaching the object)	28 to 35 in (70 to 90 cm)	Yellow Short beeps
Short proximity alert (approaching closer to the object)	20 to 28 in (50 to 70 cm)	Orange Rapid short beeps
Closest proximity alert (too close to the object)	20 in (50 cm) or less Red		Continuous beep

*: Range of detection may vary depending on the environmental condition.

▼ Obstacle detected and alert level

1 RAB Check Surroundings Before Backing Up 701825

Long proximity alert (object detected) 1) Green: 35 in (90 cm) or more

1 RAB ON Check Surroundings Before Backing Up Put ON 701826

Medium proximity alert (approaching the object)
1) Yellow: 28 to 35 in (70 to 90 cm)

1 RAB ON Check Surroundings Before Backing Up PAM ON 701827

Short proximity alert (approaching the object closer)
1) Orange: 20 to 28 in (50 to 70 cm)

1 RAB Check Surroundings Before Backing Up 701921

Closest proximity alert (too close to object)
1) Red: 20 in (50 cm) or less

When an object is detected in the reversing direction, the range of detected object will be shown on the audio/navigation monitor.

A warning alarm will sound and, depending on the speed, either torque control to generate engine braking or automatic braking will be applied.

▼ Object close behind warning

RAB Object Close Behind 701828

Automatic braking warning
1) Warning message

If the vehicle continues to go in reverse the system may determine the risk of collision with the object. In this case, sh warning beeps or continuous warning beeps will sound and either strong automatic braking or torque control will be applied to prevent collision.

RAB ON Apply Brake To Hold Position Pd ON 701923

Depress brake pedal warning
1) Warning message

Make sure to depress the brake pedal once the vehicle has been stopped by automatic braking. Until the brake pedal is depressed, a message will be displayed on the audio/navigation monitor and the continuous beep will remain sounding.

At this time, a warning message is also displayed on the combination meter display (color LCD).

NOTE

The Sonar Audible Alarm function and Automatic Braking function are different in operation conditions. Therefore, there are cases in which only one of these functions will activate.

WARNING

Depress the brake pedal immediately after the system stops the vehicle by automatic braking. Depending on the conditions of the road surface and tires, the vehicle may not remain stopped, possibly leading to an unexpected accident.

▼ After the vehicle is stopped by system

MPG RAB OFF R 图 842.0 7452 mi E F 701902

RAB OFF indicator: illuminates when the Reverse Automatic Braking (RAB) system is turned OFF.

After the brake pedal is depressed, the RAB OFF indicator will illuminate and the system will temporarily stop operating. The RAB OFF indicator will turn off when

the select lever is shifted to a position than the "R" position.

The system will operate again the next time the select lever is shifted to "R" position.

NOTE

- Automatic braking only holds the vehicle for 2 seconds. Before the automatic brake is released, a warning sound (3 short beeps followed by a long beep) will activate to alert the driver that the automatic will be released.

- The Reverse Automatic Braking (RAB) system may stop operating te porarily in the following cases and RAB OFF indicator will illuminate.

- Ice, snow or mud is adhered the sonar sensors or the rear b per near the sonar sensor.

- Objects are too close to the bumper when the select lever is to the "R" position.

- The system detects sounds of similar frequency to the Reverse Automatic Braking (RAB) system sonar.

- The Vehicle Dynamics Control OFF is selected.

Other Canceling the Reverse Automatic Braking (RAB) system operation

The Reverse Automatic Braking (RAB) system can be temporarily canceled by any of the following operations.

• While the vehicle is stopped by the operation of automatic braking, the brake pedal is depressed.
• While the vehicle is stopped by the operation of automatic braking, the accelerator pedal is depressed.
• The accelerator pedal is kept depressed. (In this case, limited acceleration will be canceled and the vehicle will thentinue reversing.)
• The select lever is shifted to a position other than the "R" position.

m-NOTE

The system will be canceled if the subject is no longer detected.

■ Reverse Automatic Braking (RAB) system ON/OFF setting

While the select lever is shifted to the "R" position, the below functions of the Reverse Automatic Braking (RAB) system can be set by operating the audio/navigation monitor.

1) ON setting key of Reverse Automatic Braking (RAB)
2) OFF setting key of Reverse Automatic Braking (RAB)
3) ON setting key of the object detection warning beeping sound
4) OFF setting key of the object detection warning beeping sound

When the ON setting key is shown, the corresponding setting is ON.

Touch and hold the ON setting key to the setting OFF.

When the OFF setting is shown, the corresponding setting is OFF.

Touch and hold the OFF setting key to the setting ON.

When the Reverse Automatic Braking (RAB) system is turned OFF, the follow indicator will illuminate.

MPG RAB OFF 842.0 7452 mi E F 701902

RAB OFF indicator: illuminates when the Reverse Automatic Braking (RAB) system is turned OFF.

RAB OFF indicator will turn off when the Reverse Automatic Braking (RAB) system is turned ON.

NOTE

• When the settings cannot be changed, the ON/OFF setting key will be grayed out.
• The ON/OFF setting key may be grayed out if the Reverse Automatic Braking (RAB) system malfunctions,
  teto. In this case, turn the ignition switch to the "LOCK"/"OFF" position and then turn it to the "ON" position again. If the setting cannot be changed even after turning the ignition switch to the "ON"

position again, consult your SUBARU dealer.

- The settings will be restored as follows when the select lever is shifted to the "R" position next time.

- Reverse Automatic Braking (RAB) system settings: default (ON setting)

- Object detection warning beeping sound: the setting selected by operating the combination meter display (color LCD)

Also, the following settings can be changed by operating the combination meter display (color LCD).

• Warning volume
• Sonar Audible Alarm ON/OFF

For details, refer to "Menu screens" 3-40.

■ RAB warning indicator

MPG 1 RAB RAB Disabled 2 RAB 702222

1) RAB malfunction message
2) RAB warning indicator

If the Reverse Automatic Braking (RAB) system malfunctions, the above indicator illuminates on the combination meter. Contact the nearest SUBARU dealer for details.

■ Handling of the sonar sensors

The 4 sonar sensors are located in the bumper. To ensure the proper operation the Reverse Automatic Braking (RAB) system, observe the following precautions.

Line drawing of a car rear view with no visible text or symbols

• Do not affix any stickers or other items on the sonar sensor or the bumper surface near the sonar sensors.
  ● Always keep the sonar sensor and the rear bumper surface near the sonar sensors clean.
• Do not modify the rear bumper.
• Do not paint the bumper near the sonar sensors.
• Do not apply high pressure water to the sonar sensors with a high pressure car-

washing machine.

• Do not apply strong impacts to the rear bumper near the sonar sensors. If a sensor becomes misaligned, a system malfunction may occur, including inability to detect objects in the reversing direction. If any strong impact is applied to the rear bumper, contact a SUBARU dealer to have the system inspected.
• Do not disassemble the sonar sensors.

NOTE

If the sonar sensors require repair or replacement, or if the area of the rear bumper near the sonar sensors requires repair, paintwork or replacement, contact your SUBARU dealer for assistance.

Driving tips

New vehicle break-in driving – the first 1,000 miles (1,600 km) 8-2

Fuel economy hints 8-2

Engine exhaust gas (carbon monoxide) 8

Catalytic converter.... 8-3

Periodic inspections 8-4

Driving in foreign countries 8-4

Driving tips for AWD models 8-4

On-road and off-road driving 8-6

Before driving 8-6

During driving.... 8-6

After driving.... 8-7

Winter driving.... 8-7 Operation during cold weather .... 8-7

Driving on snowy and icy roads 8-9

Corrosion protection.... 8-10

Snow tires 8-10

Tire chains 8-10

Rocking the vehicle 8-11

Loading your vehicle......8-11

Vehicle capacity weight 8-12

GVWR and GAWR (Gross Vehicle Weight Rating and Gross Axle Weight Rating) 8-13

Roof rail 8-13

Roof tent 8-14

Trailer hitch 8-16

Connecting a SUBARU genuine trailer hitch.... 8-17

If not towing a trailer 8-18

Trailer towing 8-18

Warranties and maintenance 8-19

Maximum load limits.... 8-19

Trailer Hitches 8-22

When you do not tow a trailer ....

Connecting a trailer 8-23

Trailer towing tips.... 8-24

New vehicle break-in driving the first 1,000 miles (1,600

The performance and long life of your vehicle are dependent on how you hand and care for your vehicle while it is new. Follow these instructions during the first 1,000 miles (1,600 km):

• Do not race the engine. And do not allow engine speed to exceed 4,000 rpm except in an emergency.
• Do not drive at one constant engine of vehicle speed for a long time, either fast slow.
• Avoid starting suddenly and rapid acceleration, except in an emergency.
• Avoid hard braking, except in an emergency.

The same break-in procedures should be applied to an overhauled engine, newly mounted engine or when brake pads or brake linings are replaced with new ones

Fuel economy hints km)

The following suggestions will help to sa fuel.

Select the proper gear position for the v.speed and road conditions.

• Avoid sudden acceleration or deceleration. Always accelerate gently until you reach the desired speed. Then try to maintain that speed for as long as possible.
• Do not pump the accelerator and avoid racing the engine.
• Avoid unnecessary engine idling.
• Keep the engine properly tuned.
• Keep the tires inflated to the correct pressure shown on the tire inflation pressure label, which is located under the latch on the driver's side. Low pressure increase tire wear and fuel consumption
• Use the air conditioner only when necessary.
• Keep the front and rear wheels in proper alignment.
• Avoid carrying unnecessary luggage or cargo.

Engine exhaust gas (carbon monoxide)

WARNING

• Never inhale engine exhaust gas. Engine exhaust gas contains carbon monoxide, a colorless and odorless gas which is dangerous, or even lethal, if inhaled.
  ● Always properly maintain the engine exhaust system to prevent engine exhaust gas from entering the vehicle.
• Never run the engine in a closed space, such as a garage, except for the brief time needed to drive the vehicle in or out of it.

• Avoid remaining in a parked vehicle for a lengthy time while the engine is running. If that is unavoidable, then use the ventilation fan to force fresh air into the vehicle.
  ● Always keep the front ventilator inlet grille free from snow, leaves or other obstructions to ensure that the ventilation system always works properly.

• If at any time you suspect that exhaust fumes are entering the vehicle, have the problem checked and corrected as soon as possible. If you must drive under these conditions, drive only with all windows fully open

• Keep the rear gate closed while driving to prevent exhaust gas from entering the vehicle.

Catalytic converter

Technical diagram of an automotive engine assembly showing internal components and structural elements (no text or labels)

NOTE

Due to the expansion and contraction of the metals used in the manufacture of the exhaust system, you may hear crackling sound coming from the ex-ehaust system for a short time after the engine has been shut off. This sound normal.

The catalytic converter is installed in the exhaust system. It serves as a catalyst to reduce HC, CO and NOx in exhaust gases, thus providing cleaner exhaust.

To avoid damage to the catalytic converter:

• Use only unleaded fuel. Even a small amount of leaded fuel will damage the catalytic converter.
• Never start the engine by pushing or pulling the vehicle.
• Avoid racing the engine.
• Never turn the ignition switch to the "OFF" position while the vehicle is moving.
• Keep your engine tuned-up. If you feel the engine running rough (misfiring, back-firing or incomplete combustion), have

your vehicle checked and repaired by an authorized SUBARU dealer.

• Do not apply undercoating or rust prevention treatment to the heat shield of catalytic converter and the exhaust system.
• Do not drive with an extremely low fuel level.

WARNING

• Avoid fire hazards. Do not drive or park the vehicle anywhere near flammable materials (e.g., grass, paper, rags or leaves), because the catalytic converter operates at very high temperatures.
• Keep everyone and flammable materials away from the exhaust pipe while the engine is running. The exhaust gas is very hot.

Periodic inspections

To keep your vehicle in the best condit at all times, always have the recommended maintenance services listed in the maintenance schedule in the "Warranty and Maintenance Booklet" performed at the specified time or mileage intervals.

Driving in foreign countries

When planning to use your vehicle in another country:

• Confirm the availability of the correct fuel. Refer to "Fuel requirements" 7-3.
• Comply with all regulations and requirements of each country.

Driving tips for AWD models

WARNING

● Always maintain a safe driving speed according to the road and weather conditions in order to avoid having an accident on a sharp turn, during sudden braking or under other similar conditions.
- Always use the utmost care in driving – overconfidence because you are driving an All-Wheel Drive vehicle could easily lead to a serious accident.
- When replacing or installing tire(s), all four tires must be the same for the following items.

(a) Size
(b) Speed symbol
(c) Load index
(d) Circumference
(e) Construction
(f) Manufacturer
(g) Brand (tread pattern)
(h) Degrees of wear

For items (a) to (c), you must obey the specification that is

printed on the tire inflation pressure label. The tire inflation pressure label is located on the driver's door pillar.

If all the four tires are not the same for items (a) to (h), serious mechanical damage could be caused to the drivetrain of the car, and affect the followings.

• Ride
• Handling
• Braking
• Speedometer/Odometer calibration
• Clearance between the body and tires

It also may be dangerous and lead to loss of vehicle control, and it can lead to an accident.

CAUTION

If you use a temporary spare tire replace a flat tire, be sure to use original temporary spare tire stored in the vehicle. Using other sizes I result in severe mechanical damage to the drive train of your vehicle.

Simple line drawing of a car with four wheels and directional arrows indicating motion (no text or symbols)

All-Wheel Drive distributes the engine power to all four wheels. AWD models provide better traction when driving on slippery, wet or snow-covered roads and when moving out of mud, dirt and sand. shifting power between the front and rear wheels, SUBARU AWD can also provide added traction during acceleration and added engine braking force during deceleration.

Therefore, your SUBARU AWD vehicle may handle differently than an ordinary the wheel drive vehicle and it contains some features unique to AWD. For safety may purposes as well as to avoid damaging the AWD system, you should keep the following tips in mind.

- An AWD model is better able to climb steeper roads under snowy or slippery

conditions than a two wheel drive vehicle. There is little difference in handling, however, during extremely sharp turns or sudden braking. Therefore, when driving down a slope or turning corners, be sure to reduce your speed and maintain an ample distance from other vehicles.

• Always check the cold tire pressure before starting to drive. The recommended tire pressure is provided on the tire inflation pressure label, which is located under the door latch on the driver's side.
• Frequent driving of an AWD vehicle under hard-driving conditions such as steep hills or dusty roads will necessitate more frequent replacement of the following items than that specified in the "Warranty and Maintenance Booklet".

- Engine oil

• Brake fluid
• Rear differential gear oil
• Manual transmission oil (MT models)
• Continuously variable transmission fluid (CVT models)

- Front differential gear oil (CVT models)

there are some precautions that you must observe when towing your vehicle. For detailed information, refer to "Towing" 9-13.

On-road and off-road driving

WARNING

● Always maintain a safe driving speed according to the road and weather conditions in order to avoid having an accident on a sharp turn, during sudden braking or under other similar conditions.
- Always use the utmost care in driving – overconfidence because you are driving an All-Wheel Drive model could easily lead to a serious accident.
- Never attempt to drive through pools and puddles, or roads flooded with water. Water entering the engine air intake or the exhaust pipe or water splashing onto electrical parts may damage your vehicle and may cause it to stall. In this case, contact your SUBARU dealer immediately. Regardless of its depth, it can wash away the ground from under your tires, resulting in possible loss of traction and even vehicle roll-over.

CAUTION

• Frequent driving of an AWD model under hard-driving conditions such as rough roads or off road will necessitate more frequent replacement of the following items than that specified in the maintenance schedule described in the “Warranty and Maintenance Booklet”.
• Engine oil
• Brake fluid
  Remember that damage done to your SUBARU while operating it off-road and not using common sense precautions such as those listed here is not eligible for warranty coverage.
• After driving on gravel roads or rough roads, check the undercarriage of the vehicle body for any damage, deformation, or paint removal. If you notice any irregularities, contact a SUBARU dealer for an inspection as soon as possible.

Because of the AWD feature and higher ground clearance, you can drive your SUBARU on ordinary roads or off-road.

But please keep in mind that an AWD SUBARU is a passenger car and is neither a conventional off-road vehicle nor an all-terrain vehicle. If you do take your SUBARU off-road, certain common sense precautions such as those in the following list should be taken.

■ Before driving

• Make certain that you and all of your passengers are wearing seatbelts.
• Carry some emergency equipment, such as a towing rope or chain, a shovel, wheel blocks, first aid kit and cell phone or citizens band radio.
• Secure all cargo carried inside the vehicle and make certain that it is not piled higher than the seatbacks. During sudden stops or jolts, unsecured cargo could be thrown around in the vehicle and cause injury. Do not pile heavy loads on the roof. Those loads raise the vehicle's center of gravity and make it more prone to tip over.
• Never equip your vehicle with tires larger than those specified in this manual.

■ During driving

General precautions:

- Drive carefully. Do not take unnecessary risks by driving in dangerous areas or over rough terrain.

• Slow down and employ extra caution all times. When driving off-road, you will not have the benefit of marked traffic lanes, banked curves, traffic signs and the like.
• Do not drive across steep slopes. Instead, drive either straight up or straight down the slopes. A vehicle can much easily tip over sideways than it can end over end. Avoid driving straight up or d slopes that are too steep.
• Avoid sharp turning maneuvers, especially at higher speeds.
• Do not grip the inside or spokes of steering wheel. A bad bump could jerk wheel and injure your hands. Instead, drive with your fingers and thumbs on outside of the rim.
• Do not drive or park over or near flammable materials such as dry grass fallen leaves, as they may burn easily. exhaust system is very hot while the engine is running and right after the end stops. This could create a fire hazard.

Precautions when driving under especially dangerous situations:

- If you must rock the vehicle to free it from sand or mud, depress the accelera pedal slightly and move the shift lever/ select lever back and forth between "1" and "R" repeatedly. Do not race the tengine. For the best possible traction, avoid spinning the wheels when trying free the vehicle.

- When the road surface is extremely slippery, you can obtain better traction by starting the vehicle with the transmission 2nd than 1st (both for MT and CVT). For CO/T models, refer to "Selection of manual mode" 7-29.

■ After driving

- Always check your brakes for effectiveness immediately after driving in sand, mud or water. Do this by driving slowly stepping on the brake pedal. Repeat that process several times to dry out the brake discs and brake pads.

- After driving through tall grass, mud, rocks, sand, rivers, etc., check that there no grass, bush, paper, rags, stones, sand. The adhering to or trapped on the underbody. Clear off any such matter from the underbody. If the vehicle is used with the materials trapped or adhering to the underbody, a mechanical breakdown or fire could occur.

- Wash the vehicle's underbody after off-road driving. Suspension components are particularly prone to dirt buildup, so they need to be washed thoroughly.

Winter driving

■ Operation during cold weather

Maintenance

Carry some emergency equipment, such as a window scraper, a bag of sand, flares, a small shovel and jumper cables.

Check the battery and cables. Cold temperatures reduce battery capacity. The battery must be in good condition to provide enough power for cold winter and starts.

it normally takes longer to start the engine in very cold weather conditions. Use an engine oil of a proper grade and viscosity for cold weather. Using heavy summer oil will make it harder to start the engine. Keep the door locks from freezing by squirting them with deicer or glycerin.

Forcing a frozen door open may damage or separate the rubber weather strips around the door. If the door is frozen, use hot water to melt the ice, and afterwards thoroughly wipe the water away.

Use a windshield washer fluid that contains an antifreeze solution. Do not use engine antifreeze or other substitutes because they may damage the paint of

- CONTINUED -

the vehicle.

If you fill the reservoir tank with a fluid a different concentration from the one used previously, purge the old fluid from the piping between the reservoir tank and washer nozzles by operating the washer for a certain period of time. Otherwise, the concentration of the fluid remaining in the piping is too low for the outside temperature, it may freeze and block the nozzles.

CAUTION

• Adjust the washer fluid concentration appropriately for the outside temperature. If the concentration is inappropriate, sprayed washer fluid may freeze on the windshield and obstruct your view, and the fluid may freeze the reservoir tank.
• State or local regulations on volatile organic compounds may restrict the use of methanol, a common windshield washer anti-freeze additive. Washer fluids containing non-methanol anti-freeze agents should be used only if they provide cold weather protection without damaging your vehicle's paint, wiper blade

or washer system.

wit

▼ Before driving your vehicle

Before entering the vehicle, remove any snow or ice from your shoes because that could make the pedals slippery and driving dangerous.

While warming up the vehicle before driving, check that the accelerator pedal, brake pedal, and all other controls operate smoothly.

Clear away ice and snow that has accumulated under the fenders to avoid making steering difficult. During severe winter driving, stop when and where it is safe to do so and check under the fenders periodically.

Parking in cold weather

WARNING

Snow can trap dangerous exhaust gases under your vehicle. Keep snow clear of the exhaust pipe a from around your vehicle if you p the vehicle in snow with the engi running.

CAUTION

• Do not use the parking brake when parking for long periods in cold weather since it could freeze in that position.
• When the vehicle is parked in snow or when it snows, raise the wiper blades off the glass to prevent damage to them.
• When the vehicle has been left parked after use on roads heavily covered with snow, or has been left parked during a snowstorm, icing may develop on the brake system, which could cause poor braking action. Check for snow or ice buildup on the suspension, disc brakes and brake hoses underneath the vehicle. If there is caked snow or ice, remove it, being careful not to damage the disc brakes and brake hoses and ABS harness.

and park When parking for long periods in cold weather, you should observe the following tips.

1. For MT models, place the shift lever in the "1" or "R" position. For CVT models, place the select lever in the "P" position.

2. Use tire stops under the tires to prevent the vehicle from moving.

▼ Refueling in cold weather

To help prevent moisture from forming in the fuel system and the risk of its freeze use of an antifreeze additive in the fuel tank is recommended during cold weather. Use only additives that are specifically designed for this purpose. When an antifreeze additive is used, its effect lasts longer if the tank is refilled whenever the fuel level reaches half empty.

If your SUBARU is not going to be used an extended period, it is best to have the fuel tank filled to capacity.

■ Driving on snowy and icy roads

To prevent skidding and slipping, avoid sudden braking, abrupt acceleration, high-speed driving, and sharp turning when driving on snowy or icy roads.

Always maintain ample distance between your vehicle and the vehicle ahead of you to avoid the need for sudden braking. To supplement the foot brake, use the engine brake effectively to control the vehicle speed. (Shift into a lower gear when necessary.)

Avoid shifting down abruptly. Such behavior can cause the wheels to lock, poss leading to loss of vehicle control.

An anti-lock brake system (ABS) enhances your vehicle's braking performance on snowy and icy roads. For information on braking on slippery surfaces, refer to "ABS (Anti-lock Brake System)" 7-37 and "Vehicle Dynamics Control system" 7-40.

WARNING

For models with cruise control: for Do not use the cruise control on slippery roads such as snowy or roads. This may cause loss of vehicle control.

CAUTION

Avoid prolonged continuous driving in snowstorms. Snow will enter the engine's intake system and may hinder the airflow, which could result in engine shutdown or even breakdown.

▼ Wiper operation when snowing

Before driving in cold weather, make sure the wiper blade rubbers are not frozen to the windshield or rear window.

If the wiper blade rubbers are frozen to the windshield or rear window, perform the following procedure.

• To thaw the windshield wiper blade rubbers, use the defroster with the airflow selection in "W" and the temperature set for maximum warmth until the wiper blade rubbers are completely thawed. Refer to "Climate control" 4-1.
• If your vehicle is equipped with a wiper deicer, use it. It is helpful to thaw the windshield wiper blade rubbers. Refer to "Defogger and deicer" 3-91.
• To thaw the rear wiper blade rubbers, use the rear window defogger. Refer to "Defogger and deicer" 3-91.

When driving in snow, if frozen snow starts to stick on the surface of the windshield despite wiper operation, use the defroster with the airflow selection in "and the temperature set for maximum warmth. After the windshield gets warmed enough to melt the frozen snow on it, wash it away using the windshield washer. Refer to "Windshield washer" 3-80.

Snow stuck on the wiper arm prevents the wiper from working effectively. If snow is stuck on the wiper arm, pull off the road a safe place, then remove it. If you stop vehicle at road side, use the hazard warning flasher to alert other drivers. Refe to "Hazard warning flasher" or 3-8.

■ Corrosion protection

Refer to "Corrosion protection" 10-4.

■ Snow tires

WARNING

- When replacing or installing winter tire(s), all four tires must be the same for the following items.

(a) Size

(b) Speed symbol

(c) Load index

(d) Circumference

(e) Construction

(f) Manufacturer

(g) Brand (tread pattern)

(h) Degrees of wear

For items (a) to (c), you must obey the specification that is printed on the tire inflation pressure label. The tire inflation pres-

e sure label is located on the driver's door pillar.

If all the four tires are not the same for items (a) to (h), serious mechanical damage could be caused to the drivetrain of the car, and affect the followings.

• Ride
• Handling
• Braking
• Speedometer/Odometer calibration
• Clearance between the body and tires

It also may be dangerous and lead to loss of vehicle control, and it can lead to an accident.

- Do not use a combination of radial, belted bias or bias tires since it may cause dangerous handling characteristics and lead to an accident.

Your vehicle is equipped with "all season tires" as original equipment, which are designed to provide an adequate measure of traction, handling and braking performance in year-round driving. In winter, it may be possible to enhance performance through use of tires designed specifically

for winter driving conditions.

When you choose to install winter tires on your vehicle, be sure to use the correct tire size and type. You must install four winter tires that are of the same size, construction, brand and load range and you should never mix radial, belted bias or bias tires since this may result in dangerous handling characteristics. When you choose a tire, make sure that there is enough clearance between the tire and vehicle body.

Remember to drive with care at all times regardless of the type of tires on your vehicle.

■ Tire chains

CAUTION

Tire chains cannot be used on your vehicle because of the lack of clearance between the tires and vehicle body.

NOTE

When tire chains cannot be used, use of another type of traction device (such as spring chains) may be acceptable if use on your vehicle is recommended by the device manufacturer, taking into ac-

count tire size and road conditions. Follow the device manufacturer's instructions, especially regarding maximum vehicle speed.

To help avoid damage to your vehicle drive slowly, readjust or remove the device if it is contacting your vehicle and do not spin your wheels. Damage caused to your vehicle by use of a traction device is not covered under warranty.

Make certain that any traction device you use is an SAE class S device, and use it on the front wheels only. Always use the utmost care when driving with a traction device. Overconfidence because you are using a traction device could easily lead to a serious accident.

■ Rocking the vehicle

If you must rock the vehicle to free it from snow, sand, or mud, depress the accelerator pedal slightly and move the shift lever/select lever back and forth between "1"/"D" and "R" repeatedly. Do not race the engine. For the best possible traction, avoid spinning the wheels when trying to free the vehicle.

When the road surface is extremely slippery, you can obtain better traction by starting the vehicle with the transmission in

2nd than 1st (both for MT and CVT models).

If your vehicle is a CVT model, for information about holding the transmission in the 2nd position, refer to "Selection of manual mode" 7-29.

Loading your vehicle

WARNING

• Never allow passengers to ride on a folded rear seatback in the cargo area. Doing so may result in serious injury.
• Never stack luggage or other cargo higher than the top of the seatback because it could tumble forward and injure passengers in the event of a sudden stop or accident. Keep luggage or cargo low, as close to the floor as possible.

Simple line drawing of a person sitting on the ground next to stacked boxes, with a no-rope symbol in the background (no text or symbols)

100094

WARNING

• When you carry something inside the vehicle, secure it whenever you can to prevent it from being thrown around inside the vehicle during sudden stops, sharp turns or in an accident.
• Do not pile heavy loads on the roof. These loads raise the vehicle's center of gravity and make more prone to tip over.
• Secure lengthy items properly to prevent them from shooting forward and causing serious injury during a sudden stop.
• Never exceed the maximum load limit. If you do, some parts on your vehicle can break, or it can change the way your vehicle handles. This could result in loss of control and cause personal injury. Also, overloading can shorten the life of your vehicle.
• Do not place anything on the extended cargo area cover. Such items could tumble forward in the event of a sudden stop or a collision. This could cause serious injury.

CAUTION

Do not carry spray cans, containers with flammable or corrosive liquids or any other dangerous items inside the vehicle.

NOTE

For better fuel economy, do not carry unneeded cargo.

■ Vehicle capacity weight

Line drawing of a car with two drivers inside, showing no text or symbols

Diagram of a car interior showing cable routing and a valve mechanism (no text or symbols)

Vehicle placard

The load capacity of your vehicle is determined by weight, not by available cargo space. The maximum load you can carry in your vehicle is shown on the vehicle placard attached to the driver's side door pillar. It includes the total weight of the driver and all passengers and their belongings, any optional equipment such as a trailer hitch, roof rack or bike carrier, etc., and the tongue load of a trailer.

■ GVWR and GAWR (Gross hicle Weight Rating and Gross Axle Weight Rating)

Technical line drawing of a mechanical assembly with no visible text or symbols

Certification label

The certification label attached to the bottom of driver's side door pillar shows GVWR (Gross Vehicle Weight Rating) and GAWR (Gross Axle Weight Rating).

The GVW (Gross Vehicle Weight) must never exceed the GVWR. GVW is the combined total of weight of the vehicle, fuel, driver, all passengers, luggage, any optional equipment and trailer tongue load. Therefore, the GVW changes depending on the situation. The GVWR equals Curb Weight (actual weight of yo vehicle – including standard equipment, fluids, emergency tools and spare tire (assembly) plus the vehicle capacity weight.

In addition, the total weight applied to each axle (GAW) must never exceed the GAWR. The front and rear GAWs can be adjusted by relocating luggage inside the vehicle.

Even if the total weight of your luggage is lower than the vehicle capacity weight, either front or rear GAW may exceed the GAWR, depending on the distribution of the luggage.

When possible, the load should be evenly distributed throughout the vehicle.

If you carry heavy loads in the vehicle, should confirm that GVW and front and rear GAWs are within the GVWR and GAWR by putting your vehicle on a vehicle scale, found at a commercial weighing station.

Do not use replacement tires with a lower load range than the originals because they may lower the GVWR and GAWR limitations. Replacement tires with a higher load range than the originals do not increase the GVWR and GAWR limitations.

■ Roof rail

ch e is e y 1 801094

1) Crossbar

yCargo can be carried on the roof after securing the crossbars to the roof rails and installing an appropriate carrying attachment. When installing crossbars and a carrying attachment, follow the manufacturer's instructions. The roof rail system is designed to carry loads (cargo, crossbars and carrying attachment) of no more than 176 lbs (80 kg). Be sure not to exceed your vehicle's GVWR and GAWR.

CAUTION

- When using a carrying attachment, make sure that the total carrying load of the cargo, crossbars and carrying attachment

- CONTINUED -

does not exceed 176 lbs (80) Overloading may cause damage to the vehicle.
- For cargo carrying purposes, the roof rails must be used together with the crossbars and any appropriate carrying attachment that may be needed. The roof rails must never be used alone to carry cargo. Otherwise, damage to the roof or paint, or a dangerous road hazard due to loss of cargo could result.

NOTE

Remember that the vehicle's center of gravity is altered with the weight of load on the roof, thus affecting driving characteristics.

Drive carefully. Avoid rapid starts, ha cornering and abrupt stops. Crosswin effects will be increased.

Roof tent

Line drawing of a car rear view with roof-mounted equipment (no text or symbols)

WARNING

The Adding weight to the vehicle's roof can adversely affect handling, braking, and rollover resistance. The vehicle must never be driven with total roof rail load in excess of 17 lbs (80 kg).

CAUTION

- The roof rail load limit for stationary vehicles (700 lbs (317 applies only when the vehicle parked and the load is evenly distributed left/right and front/rear and the roof crossbars at

roof tent are tightly secured to the vehicle. If these conditions are not met, the load limit will be lower.

- The maximum load limit of the roof crossbars must be obtained from the manufacturer or retailer of the roof rack. When driving the vehicle, the maximum roof rail load is 176 lbs (80 kg) or the crossbar load limit (whichever is lower).

Roof tents may be used under certain conditions at your own risk.

▼ When driving the vehicle

of The total weight on the roof rails, including k- the roof crossbars and roof tent, must not exceed the vehicle's roof rail load of 176 h abs (80 kg), evenly distributed.

kg)) is

C B A 801173

A: Roof rails
B: Roof crossbars
C: Roof tent

B + C < 176 lbs (80 kg)

▼ When the vehicle is parked on ground

D C B A 801174

A: Roof rails
B: Roof crossbars
C: Roof tent
D: Occupants in the roof tent

The total weight on the roof rails – including the roof crossbars, roof tent, and all occupants and contents in the roof tent – must not exceed either the vehicle's roof rail load limit (700 lbs (317 kg)), evenly distributed, or the load limit of the roof crossbars, whichever is lower.

Load limit of the roof rail (A).

B + C + D < 700 lbs (317 kg)

Exceeding this load limit could cause damage to the vehicle or racking system. The vehicle must never be driven with occupants in the roof tent. Before the vehicle is driven, occupants and cargo must be removed from the roof tent and the roof rail load must be restored to within the roof rail load limit of 176 lbs (80 kg). Refer to the user manual that accompanied the roof tent for important safety information and instructions on the proper installation and use of the tent.

Trailer hitch

WARNING

• Never exceed the maximum weight specified for the trailer hitch. Exceeding the maximum weight could cause an accident resulting in serious personal injuries. Permissible trailer weight changes depending on the situation. For possible recommendations and limitations, refer to "Trailer towing" 8-18.
• Trailer brakes are required when the tow load exceeds 1,000 lbs (453 kg). Be sure your trailer has safety chains and that each chain will hold the trailer's maximum gross weight. Towing trailers without safety chains could create a traffic safety hazard if the trailer separates from the hitch due to coupling damage or hitch ball damage.
• Be sure to check the hitch pin an safety pin for positive locking placement before towing a trailer. If the ball mount separates from the receiver the trailer could become loose and create a traffic

safety hazard.

- Although towing regulations for trailer or caravan vehicles vary by state/region, all regulations agree that specifications such as the maximum gross trailer weight must not exceed the lesser of the following:

• Maximum gross trailer weight
• Maximum gross tongue weight
• GVWR
• GAWR

● Failure to comply with the procedures set forth will not only compromise your safety, but will also negate your insurance coverage and/or may violate the staroad and traffic acts and regulations.

• It is recommended to only use the Genuine Subaru Ball Mount developed for use with this trailer hitch available at your Subaru dealership. Use the hitch only a weight carrying hitch. Do not use with any type of weight distributing hitch.
• The standard bumper beam must be installed after you remove the

trailer hitch. Consult a SUBARU dealer for purchase of a standard bumper beam if you do not have the original.

• Safety performance is decreased and there is increased risk of injury to passengers in the case of an accident if the SUBARU genuine trailer hitch or a standard bumper beam is not installed. One of them must always be installed on the vehicle.
• If a trailer hitch is installed, it is not possible to install the rear towing hook.

The maximum gross trailer weight and maximum gross tongue weight are indicated in the following table.

When towing a trailer with brakes

the Maximum gross trailer weight	Maximum gross tongue weight
1,500 lbs (680 kg)	150 lbs (68 kg)

sWhen towing a trailer without brakes

Maximum gross trailer weight	Maximum gross tongue weight
1,000 lbs (453 kg)	100 lbs (45 kg)

When towing a trailer, refer to "Trailer towing" 8-18.

■ Connecting a SUBARU gen ine trailer hitch

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

1) Ball mount

2) Hitch pin

3) Safety pin

A) Hitch receiver tube

-1. Insert the ball mount into the hitch receiver tube.

1. Insert the hitch pin into the hole located on the hitch receiver tube so that the pin passes through the ball mount.
2. Insert the safety pin through the hole located on the hitch pin securely.
3. Check the ball mount assembly by pulling on it to make sure it does not come off the hitch receiver.

1 2 801092

1. Attach a hitch ball. Use only a hitch ball that is appropriate for the ball mount and your trailer. The hitch ball must be securely installed on the ball mount.
2. Connect your trailer to the hitch ball.
3. Connect the trailer and the hitch with

1) Hitch ball installation point

2) Hooks for safety chains

- CONTINUED -

safety chains that will hold the trailer's maximum gross weight.

WARNING

Do not connect safety chains to a part of the vehicle other than the safety chain hooks.

Technical line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

1) Hitch harness connector

1. Connect the hitch wire harness's black four-pin wire connector to the towing trailer's wire harness.
2. Confirm proper function of the hitch electrical wire harness by individually activating the brake, stop and turn signal lights on the trailer.

NOTE

Always disconnect the trailer electric wire harness before launching or retrieving a watercraft.

any

If not towing a trailer

• Remove the ball mount from the hitch receiver tube.
• Place the dust cap over the four-pin connector of the hitch electrical wire harness to protect against possible damage.
• Occasionally lubricate terminals of the four-pin connector using terminal grease

Trailer towing

Your vehicle is designed and intended to be used primarily as a passenger-carrying vehicle. Towing a trailer puts additional loads on your vehicle's engine, drivetrain, brakes, tires and suspension and has an adverse effect on fuel economy.

If you do decide to tow a trailer, your safety and satisfaction depend upon proper use of correct equipment and cautious operation of your vehicle.

Seek the advice of your SUBARU dealer to assist you in purchasing a hitch and other necessary towing equipment appropriate for your vehicle. Do not use towing equipment other than genuine SUBARU towing equipment. In addition, be sure to follow the instructions for proper installation and use provided by the trailer or caravan's manufacturer.

SUBARU assumes no responsibility for injuries or vehicle damage that result from trailer towing equipment, or from any errors or omissions in the instructions accompanying such equipment or for your failure to follow the proper instructions. Regularly check that the hitch mounting bolts and nuts are tightened securely.

■ Warranties and maintenance

SUBARU warranties do not apply to vehicle damage or malfunction caused by trailer towing. If you use your vehicle to a trailer, more frequent maintenance will be required due to the additional load. (Refer to "Maintenance schedule under severe driving conditions" in the "Warrant and Maintenance Booklet".)

Under no circumstances should a trailer towed with a new vehicle or a vehicle v any new powertrain component (engine, transmission, differential, wheel bearings, etc.) for the first 1,000 miles (1,600 km) driving.

■ Maximum load limits

WARNING

Never exceed the maximum load limits explained in the following. Exceeding the maximum load limits could cause personal injury and/or vehicle damage.

CAUTION

- Adequate size trailer brakes are required when the trailer and its cargo exceed 1,000 lbs (453 kg)

total weight.

- Before towing a trailer, check the trailer total weight, GVW, GAWs tow and tongue load. Make sure the load and its distribution in your vehicle and trailer are acceptable.

Total trailer weight

be with of 800211

Total trailer weight

The total trailer weight (trailer weight plus its cargo load) must never exceed the maximum total trailer weight in the following table.

Conditions Maximum total trailer weight
When towing a trailer without brakes. 1,000 lbs (453 kg)
When towing a trailer with brakes. 1,500 lbs (680 kg)
When towing a trailer on a long uphill grade continuously for over 5 miles (8 km) with an outside temperature of 104°F (40°C) or above.	750 lbs (340 kg)

▼ Gross Vehicle Weight (GVW) and Gross Vehicle Weight Rating (GVWR)

Line drawing of a car on a balance scale connected to a moving vehicle, with a speedometer and no visible text or symbols.

Gross Vehicle Weight

The Gross Vehicle Weight (GVW) must never exceed the Gross Vehicle Weight Rating (GVWR).

Gross Vehicle Weight (GVW) is the combined total of the weight of the vehicle, driver, passengers, luggage, trailer hitch, trailer tongue load and any other optional equipment installed on your vehicle. Therefore, the GVW changes depending on the situation. Determine the GVW each time before going on a trip by putting your vehicle and trailer on a vehicle scale.

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

Certification label

GVWR of your vehicle that is given by SUBARU is shown on the certification label located at the bottom of driver's s door pillar of your vehicle.

▼ Gross Axle Weight (GAW) and Gross Axle Weight Rating (GAWR)

800369

Gross Axle Weight

The total weight applied to each axle (GAW) must never exceed the Gross Axle Weight Rating (GAWR). The front and rear GAWs can be adjusted by relocating passengers and luggage inside the vehicle. The front and rear GAWR of your vehicle that is given by SUBARU are also shown on the certification label located at the bottom of driver's side door pillar.

To check both GVWR and GAWR and to confirm that the total weight and weight distribution are within safe driving limits, you should have your vehicle and trailer weighed at a commercial weighing station. Be sure that all cargo is firmly secured to

prevent a change in weight distribution while driving.

▼ Tongue load

Diagram showing a vehicle connected to a water tap and a stopwatch, with no visible text or symbols.

Tongue load

Ensure that the trailer tongue load is from 3% to 11% of the total trailer weight and does not exceed the maximum value. For details about the trailer tongue load, refer to "Trailer hitch" "Trailer hitch" 8-16.

1 2 800370

1) Jack
2) Bathroom scale

The tongue load can be weighed with a bathroom scale as shown in the illustrati above. When weighing the tongue load, sure to position the towing coupler at the height at which it would be during actua towing, using a jack as shown.

F 60% 40% 50% 50% 800216

F: Front

The tongue load can be adjusted by product distribution of the load in the trailer. New load the trailer with more weight in the stack than in the front; approximately 60 percent of the trailer load should be in front and approximately 40 percent in the rear. Also, distribute the load as evenly possible on both the left and right sides. Be sure that all cargo is firmly secured prevent a change in weight distribution while driving.

WARNING

If the trailer is loaded with more weight in the back of trailer's axle than in the front, the load is taken the rear axle of the towing vehicle.

This may cause the rear wheels to skid, especially during braking or when vehicle speed is reduced during cornering, resulting in over-steer, spin out and/or jackknifing.

Trailer Hitches

WARNING

Never drill the frame or under-body of your vehicle to install a commercial trailer hitch. If you do, dangerous exhaust gas, water or mud may enter the passenger compartment through the drilled hole. Exhaust gas contains carbon monoxide, a colorless and odorless gas which is dangerous, or even lethal, if inhaled. Also, drilling the frame or underbody of your vehicle could cause deterioration of strength of your vehicle and cause corrosion around the drilled hole.

CAUTION

- Do not modify the vehicle exhaust system, brake system, or other systems when installing a hitch or other trailer towing off

equipment.

- Do not use axle-mounted hitches as they can cause damage to axle housing, wheel bearings, wheels or tires.

Do not use a trailer hitch other than a genuine SUBARU trailer hitch. A genuine SUBARU trailer hitch is available from your SUBARU dealer.

■ When you do not tow a

CAUTION

• The housing should be kept dirt and corrosion-free at the points of contact. The surfaces only require cleaning with a cloth. Grease or other lubricants should never be used.
• If the ball is not installed, the plastic insert and/or bumper cover should then be installed for protection and to prevent it from getting dirty.

When the ball is not used, place the cap and store securely.

■ Connecting a trailer

the▼ Trailer brakes

WARNING

• Adequate size trailer brakes are required when the trailer and its cargo exceed 1,000 lbs (453 kg) total weight.
• Do not directly connect your trailer's hydraulic brake system to the hydraulic brake system in your vehicle. Direct connection would cause the vehicle's brake performance to deteriorate and could lead to an accident.

If your trailer's total weight (trailer weight plus its cargo weight) exceeds 1,000 lbs (453 kg), the trailer is required to be equipped with its own brake system. Electric brakes or surge brakes are recommended, and must be installed properly. Check that your trailer's brakes conform with Federal, state/province and/or other applicable regulations. Your SUBARU's brake system is not designed to be tapped into the trailer's hydraulic brake system. Please ask your SUBARU dealer and professional trailer supplier for more information about the trailer's brake

system.

▼ Trailer safety chains

WARNING

Always use safety chains between your vehicle and the trailer. Towing trailer without safety chains could create a traffic safety hazard if the trailer separates from the hitch due to coupling damage or hitch ball damage.

In case the trailer hitch connector or hitch ball should break or become disconnected, the trailer could get loose and create a traffic safety hazard. For safety, always connect the towing vehicle and trailer with trailer safety chains. Two chains should be used in total, one to the right side and the other to the left side trailer tongue. Pass the chains crossing each other under the trailer tongue to prevent the trailer from dropping onto the ground in the event the trailer tongue should disconnect from the hitch ball. Allow sufficient slack in the chains taking tight turn situations into account; however, be careful not to let them drag on the ground.

▼ Outside mirrors

Top-down diagram of a car with a vehicle-mounted sensor array and light beam path, no text or symbols present

After hitching a trailer to your vehicle, check that the standard outside mirrors provide a good rearward field of view without significant blind spots. If significant blind spots occur with the vehicle's standard outside mirrors, use towing mirrors that conform with Federal, state/province and/or other applicable regulations.

▼ Trailer lights

CAUTION

Direct splicing or other improper connection of trailer lights may damage your vehicle's electrical system and cause a malfunction your vehicle's lighting system.

Connection of trailer lights to your vehicle electrical system requires modifications to the vehicle's lighting circuit to increase its capacity and accommodate wiring changes. To ensure the trailer lights are connected properly, please consult your SUBARU dealer. Check for proper operation of the turn signals and the brake line each time you connect a trailer to your vehicle.

▼ Tires

WARNING

Never tow a trailer when the temporary spare tire is used. The temporary spare tire is not designed to sustain the towing load. Use of the temporary spare tire when towing can result in failure of the spare tire and/or less stability of the vehicle.

Make sure that all the tires on your vehicle are properly inflated. Refer to "Tires" 12-8.

Trailer tire condition, size, load rating and proper inflation pressure should be in accordance with the trailer manufacturer's specifications. Also check federal, state, province and/or other applicable regulations.

cle's the event your vehicle gets a flat tire o when towing a trailer, ask a commercial its road service representative or profes- sional to repair the flat tire.

If you carry a regular size spare tire in your vehicle or trailer as a precaution against getting a flat tire, be sure that the spare tire is firmly secured.

■ Trailer towing tips

CAUTION

• For models equipped with the BSD (Blind Spot Detection) and RCTA (Rear Cross Traffic Alert) driving support systems, when towing a trailer, press the BSD/RCTA OFF switch to deactivate the system. The system may not operate properly due to the blocked radar waves. For details about the BSD/RCTA OFF switch, refer to "BSD/RCTA OFF switch" 7-69.

• For models equipped with the Reverse Automatic Braking (RAB) system, consult your SUBARU dealer for additional information about towing a trailer.

• Never exceed 45 mph (72 km/h) when towing a trailer in hilly country on hot days.

• When towing a trailer, steering, stability, stopping distance and braking performance will be different when compared to normal operation. For safety's sake, you should employ extra caution when towing a trailer and you should never drive at excessive speeds. You should also keep following tips in mind:
• The braking power of the parking brake may not be sufficient when stronger braking power is needed (e.g., when parking on a steep slope while towing a trailer).

If your vehicle is equipped with SI-DRIV and when towing a trailer on an uphill slope, do not drive in the Intelligent (I) mode. It is recommend that you drive in the Sport (S) mode. However, it is possible tow a trailer in any mode of the SI-DRIV on a downhill slope.

▼ Before starting out on a trip

- Check the towing regulations for trailer or caravan vehicles that vary by state/region. Failure to comply with the procedures set forth will not only compromise your safety, but will also negate your insurance coverage and/or may violate the state road and traffic acts and regulations.

• Check that the vehicle and vehicle-to-hitch mounting are in good condition. If any problems are apparent, do not tow the trailer.
• Check that the vehicle rests horizontally with the trailer attached. If the vehicle is tipped sharply up at the front and down,
  at the rear, check the total trailer weight, GVW, GAWs and tongue load again, then confirm that the load and its distribution are acceptable.
• Check that the tire rating and pressures are correct.
• Check that the vehicle and trailer are connected properly. Confirm that:
  E, – The trailer tongue is connected properly to the hitch ball. – The trailer lights connector is connected properly and trailer's brake lights illuminate when the vehicle's brake pedal is pressed, and that the trailer's turn signal lights flash when the vehicle's turn signal lever is operated.
• The safety chains are connected properly.
  – All cargo in the trailer is secured

safely in position.

- The outside mirrors provide a good rearward field of view without a significant blind spot.

- Sufficient time should be taken to learn the "feel" of the vehicle/trailer combination before starting out on a trip. In an area free of traffic, practice turning, stopping and backing up.

▼ Driving with a trailer

- You should allow for considerably more stopping distance when towing a trailer. Avoid sudden braking because it may result in skidding or jackknifing and loss of control.

• Avoid abrupt starts and sudden accelerations. If your vehicle has a manual transmission, always start out in first gear and release the clutch at moderate engine revolution.
• Avoid uneven steering, sharp turns and rapid lane changes.
• Slow down before turning. Make a larger than normal turning radius because the trailer wheels will be closer than the vehicle wheels to the inside of the turn. In a tight turn, the trailer could hit your vehicle.
• Crosswinds will adversely affect the handling of your vehicle and trailer, causing sway. Crosswinds can be due to weather conditions or the passing of large

- CONTINUED -

trucks or buses. If swaying occurs, firmly grip the steering wheel and promptly begin decelerating your vehicle at a gradual pace.

• When passing other vehicles, considerable distance is required because of the added weight and length caused by attaching the trailer to your vehicle.
• Reversing the vehicle with a trailer can be difficult and requires experience. Never accelerate or steer rapidly, and grip the bottom of the steering wheel with one hand.

Diagram illustrating two steps of a car steering wheel, showing hand movement and head rotation with directional arrows.

To reverse around a corner, perform the following procedure.

1. Reverse slowly and steer in the opposite direction to the way you want to turn

2. Once the trailer begins to swing around, straighten the steering wheel.

3. Turn the wheel in the opposite direction.

4. Steer the vehicle around to be in line with the trailer, then straighten the steering again.

- If the ABS warning light illuminates while the vehicle is in motion, stop towing the trailer and have repairs performed immediately by your nearest SUBARU dealer.

▼ Driving on grades

- Before going down a steep hill, slow down and shift into lower gear (if necessary, use 1st gear) in order to utilize the engine braking effect and prevent overheating of your vehicle's brakes. Do not make sudden downshifts.

• When driving uphill in hot weather, the air conditioner may turn off automatically to protect the engine from overheating.
• When driving uphill in hot weather, pay attention to the following indicators because the engine and transmission are relatively prone to overheating.

: Coolant temperature high warning light

AT OIL-TEMP: AT OIL TEMP warning light (CVT models)

If the coolant temperature high warning light and/or the AT OIL TEMP warning light illuminates, immediately turn off the air

conditioner and stop the vehicle in the nearest safe location. For further instructions and additional information, refer to the following sections.

- “If you park your vehicle in case an emergency” 9-2

"Engine overheating" 9-12

- “Coolant temperature low indicator light/Coolant temperature high warning light” 3-16

- "AT OIL TEMP warning light (CVT models)" 3-18

- For CVT models, avoid using the accelerator pedal to stay stationary on an uphill slope instead of using the parking brake or foot brake. That may cause the transmission fluid to overheat.

▼ Parking on a grade

Always block the wheels under both vehicle and trailer when parking. Apply the parking brake firmly. You should not park on a hill or slope. If parking on a hill or slope cannot be avoided, you should take the following steps:

1. Apply the brakes and hold the pedal down.

2. Have someone place wheel blocks under both the vehicle and trailer wheels.

3. When the wheel blocks are in place, release the regular brakes slowly until the

blocks absorb the load.

1. Apply the regular brakes and then apply the parking brake; slowly release the regular brakes.

of5. Shift into 1st or reverse gear (MT models) or "P" position (CVT models) and shut off the engine.

hill or

Pure horizontal dashed lines without any text, numbers, or symbols

In case of emergency

If you park your vehicle in case of an emergency.... 9-2

Temporary spare tire 9-2

Maintenance tools.... 9-3 Tool locations .... 9-3 Using the jack.... 9-4

Flat tires....9-5 Changing a flat tire....9-5 Tire pressure monitoring system (TPMS) (U.S.-spec. models)....9-8

Jump starting 9-10 How to jump start 9-10

Engine overheating....9-12 If steam is coming from the engine compartment ....9-12 If no steam is coming from the engine compartment ....9-12

Towing 9-13

Towing hooks and tie-down hooks/holes...... 9-13

Using a flat-bed truck 9-16

Towing with all wheels on the ground 9-16

Access key fob - if access key fob does not operate properly 9-17 Locking and unlocking 9-18 Switching power status 9-18 Starting engine 9-18

Rear gate - if the rear gate cannot be opened.... 9-19

Moonroof (if equipped) - if the moonroof does not close 9-20

If your vehicle is involved in an accident.... 9-2 Automatic door locking/unlocking operation when involved in an accident.... 9-20

If you park your vehicle in case of an emergency

305679

The hazard warning flasher should be used in day or night to warn other drivers when you have to park your vehicle under emergency conditions.

Avoid stopping on the road. It is best to safely pull off the road if a problem occurs.

The hazard warning flasher can be activated regardless of the ignition switch position.

Turn on the hazard warning by pushing the hazard warning flasher switch. Turn it off by pushing the switch again.

NOTE

When the hazard warning flasher is the turn signals do not work.

Temporary spare tire

on,

WARNING

• Never tow a trailer when the temporary spare tire is used. The temporary spare tire is not designed to sustain the towing load. Use of the temporary spare tire when towing can result in failure of the spare tire and/or less stability of the vehicle and may lead to an accident.
• When a spare tire is mounted or a wheel rim is replaced without the original pressure sensor/transmitter being transferred, the low tire pressure warning light will illuminate steadily after blinking for approximately one minute. This indicates the tire pressure monitoring system (TPMS) is unable to monitor all four road wheels. Contact your SUBARU dealer as soon as possible for tire and sensor replacement and/or system resetting.

CAUTION

Never use any temporary spare tire other than the original. Using other sizes may result in severe mechanical damage to the drive train of y vehicle.

The temporary spare tire is smaller and lighter than a conventional tire and is designed for emergency use only. Remove the temporary spare tire and reinstall the conventional tire as soon as possible because the spare tire is designed only for temporary use.

Check the inflation pressure of the temporary spare tire periodically to keep the tire ready for use. For the correct press refer to "Temporary spare tires" 12-8.

When using the temporary spare tire, no the following.

• Drive with caution when the temporary spare tire is installed. Avoid hard acceleration and braking, or fast cornering, as control of the vehicle may be lost.
• Do not exceed 50 mph (80 km/h).
• Do not put a tire chain on the temporary spare tire. Because of the smaller tire size, a tire chain will not fit properly.
• Do not use two or more temporary spare tires at the same time.

- Do not drive over obstacles. This tire has a smaller diameter, so road clearance is reduced.

your / 2 1 900231

1) Tread wear indicator bar 2) Indicator location mark

• When the wear indicator appears on the tread, replace the tire.
  The temporary spare tire must be used only on a rear wheel. If a front wheel tire gets punctured, replace the wheel with a rear wheel and install the temporary spare tire in place of the removed rear wheel.

Maintenance tools

Your vehicle is equipped with the following maintenance tools.

• Jack
• Jack handle
• Screwdriver
  • Towing hook (eye bolt)
• Wheel nut wrench

■ Tool locations

e 901167

1) Jack handle

1 2 900901

1) Tool bucket
2) Spare tire

1 2 3 4 901177

1) Wheel nut wrench
2) Screwdriver
3) Jack
4) Towing hook (eye bolt)

A jack handle is stored under the cargo area. Other tools are stored in the tool bucket that is located in the recess of spare tire wheel.

Store the tools in the tool bucket as illustrated in order that all tools are ready for use at any time.

■ Using the jack

1. Park on a hard, level surface, whenever possible, then stop the engine.
2. Apply the parking brake securely and shift the shift lever in reverse (MT models) or the select lever to the "P" (Park) position (CVT models).
3. Turn on the hazard warning flasher and unload all occupants and luggage from the vehicle.

Line drawing of a car with wheels and a ramp, showing motion direction (no text or symbols)

1. Put wheel blocks at the front and rear of the tire diagonally opposite the tire that you are going to replace.
2. Take out the jack and jack handle.

$\ntion\n900875

theJack-up points

1. Place the jack under the side sill at the front or rear jack-up point closest to the tire that you are going to replace.

Mechanical linkage diagram with no visible text or symbols

Turn the jackscrew by hand until the head engages firmly into the jack-up

Line drawing of a car tire being adjusted with a tool, no text or symbols present

k7. Insert the jack handle into the jack-screw, and turn the handle until the tire clears the ground. Do not raise the vehicle higher than necessary.

Flat tires

If you have a flat tire while driving, never brake suddenly; keep driving straight ahead while gradually reducing speed. Then slowly pull off the road to a safe place.

■ Changing a flat tire

WARNING

• Use only the jack and the jack handle provided with your vehicle. The jack supplied with the vehicle is designed only for changing a tire. Never get under the vehicle while supporting the vehicle with this jack.
• Do not jack up the vehicle on an incline or a loose road surface. The jack can come out of the jacking point or sink into the ground and this can result in serious injury or death.
• Before jacking up the vehicle, be sure that there are no occupants or cargo on board.
• Do not jack up the vehicle with an object on or underneath the jack. The jack can be unstable and this

can result in a severe accident.
- Always turn off the engine before raising the flat tire off the grou using the jack. Never swing or push the vehicle supported with the jack. The jack can come out the jacking point due to a jolt this can result in serious injury death.
- All passengers must exit the vehicle before you raise it with the jack. Raising the vehicle with someone inside of it could result in serious injury or death.
- Do not start the vehicle while it supported by the jack. Doing so could result in serious injury or death.

CAUTION

Do not hit and bend the disc rotor backing plate when removing and installing the tire. A bent backing plate may scrape against the disc rotor and cause noise while the vehicle is in motion.

NOTE

Contact a SUBARU dealer when jac dp the vehicle using a garage jack.

1. Park on a hard, level surface, whenever possible, then stop the engine.

d Apply the parking brake securely and shift the shift lever in reverse (MT model or the select lever to the "P" (Park) pos (CVT models).

1. Turn on the hazard warning flasher and unload all occupants and luggage from the vehicle.

Diagram of a car with wheels and a ramp, showing motion direction (no text or symbols)

1. Put wheel blocks at the front and rear of the tire diagonally opposite the flat tire.
2. Take out the jack, jack handle and wheel nut wrench.

The tools and the spare tire are stored under the cargo area. Refer to "Maintenance tools" 9-3.

NOTE

Make sure that the jack is well lubricated before using it.

Technical diagram showing a mechanical component with an inset view highlighting a specific part, labeled with '900780' and partial text 'on'.

1. Take out the tool bucket and turn the attaching bolt counterclockwise, then take the spare tire out.

NOTE

If the spare tire provided in your vehicle is a temporary spare tire, carefully read "Temporary spare tire" 9-2 and strictly follow the instructions.

Technical line drawing of a car wheel with spokes and hub, showing no text or symbols

1. Loosen the wheel nuts using the wheel turn the jackscrew by hand until the jack nut wrench but do not remove the nuts. head engages firmly into the jack-up point

Technical line drawing of a mechanical linkage or frame assembly (no text or symbols)

1. Remove the wheel nuts and the flat tire.

Line drawing of a hand adjusting a car brake caliper on a circular component (no text or symbols)

900875

Jack-up points

1. Place the jack under the side sill at front or rear jack-up point closest to the tire.

Line drawing of a car tire being adjusted with a tool, no text or symbols present

1. Insert the jack handle into the jack-screw, and turn the handle until the tire clears the ground. Do not raise the veh higher than necessary.

Line drawing of a hand fastening a car tire with a ball bearing (no text or symbols)

1. Before putting the spare tire on, clean the mounting surface of the wheel and hub with a cloth.

2. Put on the spare tire. Replace the wheel nuts. Tighten them by hand.

WARNING

Do not use oil or grease on the w studs or nuts when the spare tire installed. This could cause the nuts to become loose and lead to an accident.

1. Turn the jack handle counterclockwise to lower the vehicle.

600192

1. Use the wheel nut wrench to secure tighten the wheel nuts to the specified torque, following the tightening order in the illustration.

For the wheel nut tightening torque, refer16. Store the jack, jack handle and wheel to "Tires" 12-8. Never use your foot onnut wrench in their storage locations.

the wheel nut wrench or a pipe extension on the wrench because you may exceed the specified torque. Have the wheel nut torque checked at the nearest automotive service facility.

1 900781

1) Support holder

1. Store the flat tire in the spare tire compartment. Install with the support holder facing upward and secure the flat tire by firmly tightening the attaching bolt.

NOTE

If you cannot fix the flat tire firmly, turning the support holder upside down.

WARNING

Never place a tire or tire changing tools in the passenger compartment after changing wheels. In a sudden stop or collision, loose equipment could strike occupants and cause injury. Store the tire and all tools in the proper place.

■ Tire pressure monitoring system (TPMS) (U.S.-spec. models)

try 702163

The tire pressure monitoring system provides the driver with the warning message

indicated by sending a signal from a sensor that is installed in each wheel when tire pressure is severely low.

The tire pressure monitoring system will activate only when the vehicle is driven. Also, this system may not react immediately to a sudden drop in tire pressure (example, a blow-out caused running over a sharp object).

WARNING

- If the low tire pressure warning light illuminates while driving, never brake suddenly. Instead, perform the following procedure.

(1) Keep driving straight ahead while gradually reducing speed.
(2) Slowly pull off the road to safe place. Otherwise an accident involving serious vehicle damage and serious personal injury could occur.
(3) Check the pressure for all tires and adjust the pressure to the COLD tire pressure shown on the vehicle placard on the door pillar on the driver's side.

If this light still illuminates while driving after adjusting the tire

pressure, a tire may have significant damage and a fast leak that causes the tire to lose air rapidly. If you have a flat tire, replace it with a spare tire as soon as possible.

When a spare tire is mounted or a wheel rim is replaced without the original pressure sensor/transmitter being transferred, the low tire pressure warning light will illuminate steadily after blinking for approximately one minute. This indicates the TPMS is unable to monitor all four road wheels. Contact your SUBARU dealer as soon as possible for tire and sensor replacement and/or system resetting.
- When a tire is repaired with liquid sealant, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your nearest SUBARU dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire. You may reuse the wheel if there is no damage to it and if the sealant residue is properly

cleaned off.

If the light illuminates steadily after blinking for approximately one minute, promptly contact a SUBARU dealer to have the system inspected.

Jump starting

WARNING

- Battery fluid is SULFURIC ACID. Do not let it come in contact the eyes, skin, clothing or the vehicle.

If battery fluid gets on you, thoroughly flush the exposed area with water immediately. Get medical help if the fluid has entered your eyes.

If battery fluid is accidentally swallowed, immediately drink a large amount of milk or water and obtain immediate medical help.

Keep everyone including children away from the battery.

• The gas generated by a battery explodes if a flame or spark brought near it. Do not smoke light a match while jump start
• Never attempt jump starting if it discharged battery is frozen. It could cause the battery to bur or explode.
• Whenever working on or around a battery, always wear suitable eye

with

protectors, and remove metal objects such as rings, bands other metal jewelry.

• Be sure the jumper cables and clamps on them do not have loose or missing insulation. Do not jump start unless cabl in suitable condition are available.
• A running engine can be dangerous. Keep your fingers, hands, clothing, hair and tools away from the cooling fan, belts and any other moving engine parts. Removing rings, watches and ties is advisable.
• Jump starting is dangerous if it done incorrectly. If you are unsure about the proper procedure for jump starting, consult a competent mechanic.

When your vehicle does not start due to a fun down (discharged) battery, the vehicle may be jump started by connecting your battery to another battery (called the booster battery) with jumper cables.

1

How to jump start

1. Make sure the booster battery is 12 volts and the negative terminal is grounded.
2. If the booster battery is in another vehicle, do not let the two vehicles touch.
3. Turn off all unnecessary lights and accessories.
4. Connect the jumper cables exactly in the sequence illustrated.

Technical diagram showing engine components with labeled parts and wiring connections, including battery terminal A and switch controls.

A) Booster battery

B) Strut mounting nut

(1) Connect one jumper cable to the positive (+) terminal on the discharged battery.
(2) Connect the other end of the jumper cable to the positive (+) terminal of the booster battery.
(3) Connect one end of the other cable to the negative (−) terminal of the booster battery.
(4) Connect the other end of the cable to the strut mounting nut of the vehicle with the discharged battery.

Make sure that the cables are not near any moving parts and that the cable clamps are not in contact with any other metal.

1. Start the engine of the vehicle with the booster battery and run it at moderate speed. Then start the engine of the vehicle that has the discharged battery.
2. When finished, carefully disconnect the cables in exactly the reverse order.

Engine overheating

WARNING

Never remove the radiator cap up the engine has been shut off and fully cooled down. When the eng is hot, the coolant is under pres. Removing the cap while the eng is still hot could release a spray boiling hot coolant, which could burn you very seriously.

CAUTION

If the engine overheats, the engine speed or the vehicle speed may be reduced. Stop the vehicle in a sa place immediately.

& If steam is coming from the engine compartment

• Turn the ignition switch to the "LOCK" "OFF" position and get everyone away from the vehicle until it cools down.
• Contact an authorized SUBARU dealer.

& If no steam is coming from engine compartment

1. Keep the engine running at idling speed.
2. Open the engine hood to ventilate the engine compartment. Refer to "Engine hood" 11-5.
   Confirm that the cooling fan is turning. If the fan is not turning, immediately turn off the engine and contact an authorized SUBARU dealer for repair.
3. After the coolant temperature high warning light that has blinked or illuminated in RED turns off, turn off the engine. For details about the warning light, refer to "Coolant temperature low indicator light/ Coolant temperature high warning light" 2-3-16.
4. After the engine has fully cooled down, check the coolant level in the reserve tank. If the coolant level is below the "LOW" mark, add coolant up to the "FULL" mark.

NOTE

For details about how to check the coolant level or how to add coolant, refer to "Engine coolant" 11-11.

1. If there is no coolant in the reserve tank, add coolant to the reserve tank. Then remove the radiator cap and fill the radiator with coolant.

If the remove the radiator cap from a hot radiator, first wrap a thick cloth around the radiator cap, then turn the cap counterclockwise slowly without pressing down until it stops. Release the pressure from the radiator. After the pressure has been fully released, remove the cap by pressing down and turning it.

Towing

If towing is necessary, it is best done your SUBARU dealer or a commercial towing service. Observe the following procedures for safety.

Three flatbed trucks with a diagonal load symbol overlay, no text or symbols present

WARNING Never tow AWD models with the front wheels raised off the ground while the rear wheels are on the ground, or with the rear wheels raised off the ground while the wheels are on the ground. This cause the vehicle to spin away to the operation or deterioration the center differential.

■ Towing hooks and tie-down hooks/holes

byThe towing hook should be used only in emergency.

CAUTION

Use only the specified towing hooks and tie-down hooks/holes. Never use suspension parts or other parts of the body for towing or tie-down purposes.

▼ Front towing hook

1. Take the towing hook and screwdriver out of the tool bucket. Take the jack handle out of the cargo area.

Line drawing of a car's front bumper with a tool applying material to the side (no text or symbols)

1. Cover the tip of a flat-head screwdriver

with vinyl tape or cloth so that it will not scratch the bumper. Insert the flat-head screwdriver into the cutout of the cover and an pry open the cover.

Line drawing of a car's front bumper with a tool inserted, showing no text or symbols

1. Screw the towing hook into the thread hole until its thread can no longer be seen.

Line drawing of a hand using a tool to clean or repair a car's side panel (no text or symbols)

1. Tighten the towing hook securely using the jack handle.

After towing, remove the towing hook from the vehicle and stow it in the tool bucket. Fit the towing hook cover on the bumper.

WARNING

• Do not use the towing hook except when towing your vehicle.
• Be sure to remove the towing hook after towing. Leaving the towing hook mounted on the vehicle could interfere with proper operation of the SRS airbag system in a frontal collision.

CAUTION To prevent deformation to the bu per and the towing hook, do not apply an excessive load to the t ing hook.

▼ Rear towing hook

1. Take the towing hook and screwdriver out of the tool bucket. Take the jack handle out of the cargo area.

Technical line drawing of a mechanical clamp or tool with diagonal lines and a labeled page number 900906 (no text or symbols on the diagram itself)

1. Cover the tip of a flat-head screwdriver with vinyl tape or cloth so that it will not scratch the bumper. Pry off the cover on the rear bumper using a screwdriver, and you will find a threaded hole for attaching the towing hook.

dle 900907

1. Screw the towing hook into the thread hole until its thread can no longer be seen.

Line drawing of a hand holding a tool with a curved object above, no text or symbols present

1. Tighten the towing hook securely using the jack handle.

After towing, remove the towing hook from ▼ Front tie-down hooks

the vehicle and stow it in the tool bucket Fit the towing hook cover on the bumper

WARNING

• Do not use the towing hook except when towing your vehicle.
• Be sure to remove the towing hook after towing. Leaving the towing hook mounted on the vehicle could interfere with proper operation of the fuel pump shut off function when the vehicle is struck from behind.

CAUTION

To prevent deformation to the bumper and the towing hook, do not apply an excessive load to the towing hook.

Technical diagram of a mechanical assembly with two cross-sectional views (no text or symbols)

The front tie-down hooks are located between each of the front tires and the front bumper.

▼ Rear tie-down holes

Technical diagram showing car interior components with labeled parts and a numbered section view

1) Rear tie-down hole

The rear tie-down holes are located near each of the jack-up reinforcements.

There is a plug in each rear tie-down hole. To use the rear tie-down holes, remove the

- CONTINUED -

plugs. After using the rear tie-down hole return the plugs to their original places.

WARNING

Use the rear tie-down holes only downward anchoring. If they are used to anchor the vehicle in any other direction, cables may slip out of the holes, possibly causing a dangerous situation.

■ Using a flat-bed truck

Line drawing of a flatbed truck with a car on top, no text or symbols present

This is the best way to transport your vehicle. Use the following procedures to ensure safe transportation.

1. Shift the select lever into the "P" position for CVT models. Shift the shift lever into the "1st" position for MT models.

es2. Pull up the parking brake lever firmly 3. Secure the vehicle onto the carrier properly with safety chains. Each safety chain should be equally tightened and o must be taken not to pull the chains so tightly that the suspension bottoms out.

CAUTION

• If your vehicle has a bumper under guard (optional), be careful not to scrape it when placing the vehicle on the carrier and when removing the vehicle from the carrier.
• For CVT models, transport by flat bed truck may cause the headlights to become misaligned. In such a case, have the headlight alignment checked by a SUBARU dealer after transporting the vehicle by flat-bed truck.

■ Towing with all wheels on the ground

900489

-1. Release the parking brake and put the transmission in the neutral position (CVT and MT).
2. The ignition switch should be in the "ON" position while the vehicle is being towed.
3. Take up slack in the towline slowly to prevent damage to the vehicle.

WARNING

- Never turn the ignition switch to the "LOCK"/"OFF" position while the vehicle is being towed because the steering wheel and the direction of the wheels will be

locked.

- Remember that the brake booster and power steering do not function when the engine is not running. Because the engine is turned off, it will take greater effort to operate the brake pedal and steering wheel.

CAUTION

• If transmission failure occurs, transport your vehicle on a flat-bed truck.
• Sometime damaged vehicles cannot be towed because of their damaged condition. In that case, use a flat-bed truck for transportation.
• For CVT models, the traveling speed must be limited to less than 20 mph (32 km/h) and the traveling distance to less than 31 miles (50 km). For greater speeds and distances, transport your vehicle on a flat-bed truck.
• Use a flat-bed truck if there are long distance downgrades or steep slopes. However, do not apply the brake pedal for a long time because the engine braking

will not work while towing. D so could overheat the brake.

• Drive carefully and do not make an impact on the towing rope suddenly starting.
• Use a specific towing rope for towing. If wire ropes and metal chains are needed to be used, towing, wrap the contact portion of the bumper with cloth to protect it from damage.

ngAccess key fob - if access k fob does not operate properly

CAUTION

Keep metallic objects, magnetic sources and signal transmitters away from the area between the access key fob and the push-button ignition switch. They may interfere with the communication between the access key fob and the push-button ignition switch.

The following functions may be inoperable because of strong radio signals in the surrounding area or a low battery condition of the access key fob.

• Locking/unlocking doors (including the rear gate)
• Switching power status
• Starting engine

In such cases, perform the following procedure. When the battery of the access key fob is discharged, replace it with a new one. Refer to "Replacing battery of access key fob" 11-46.

■ Locking and unlocking

1 2 202500

1) Release button 2) Emergency key

While pressing the release button of the access key fob, take out the emergency key.

Lock or unlock the driver's door with the emergency key in the procedure described in "Locking and unlocking from the outside" 2-20.

NOTE

After locking or unlocking, be sure attach the emergency key back to access key fob.

■ Switching power status

1. Apply the parking brake.
2. Shift the shift lever to neutral (MT models) or the select lever to the "P" (Park) position (CVT models).
3. Depress the clutch pedal (MT models or the brake pedal (CVT models).

Line drawing of a car interior showing a hand holding a handheld device, no text or symbols present

1. Hold the access key fob with the buttons facing you, and touch the push-button ignition switch with it. When the communication between the access key fob and the vehicle is completed, a chime (ding) will sound. At the same time, the status of the push-button ignition switch changes to either of the following.

- When the keyless access with push-button start system is deactivated: "ACC" - Under other conditions: "ON"

1. When the keyless access with push-button start system is deactivated, press the push-button ignition switch with the clutch pedal (MT models) or the brake pedal (CVT models) released. The status of the push-button ignition switch then changes to "ON".

NOTE

If the power does not switch even though the above procedure was followed precisely, contact your SUBARU dealer.

■ Starting engine

1. Apply the parking brake.
2. Shift the shift lever to neutral (MT models) or the select lever to the "P" (Park) position (CVT models).
3. Depress the brake pedal.
4. Depress the clutch pedal (MT models).

Line drawing of a car interior showing a hand holding a sensor or sensor device (no text or symbols visible)

1. Hold the access key fob with the buttons facing you, and touch the push-button ignition switch with it. When the communication between the access key fob and the vehicle is completed, a chime (ding) will sound. At the same time, the push-button ignition switch turns to the "ACC" or "ON" position.
2. After the push-button ignition switch turns to the "ACC" or "ON" position, which depressing the brake pedal (all models) and the clutch pedal (MT models), press the push-button ignition switch.

NOTE

If the engine does not start even though the above procedure was followed precisely, contact your SUBARU dealer.

Rear gate - if the rear gate cannot be opened

In the event that you cannot open the gate by operating the rear gate opener button, you can open it from inside the cargo area.

Diagram of a car interior showing a side panel and a directional arrow pointing to a vehicle (no text or symbols present)

1. Remove the access cover at the bottom-center of the rear gate trim using a flat-head screwdriver wrapped with vinyl tape or a cloth.
2. Locate the rear gate open lever behind the rear gate trim panel.

CAUTION

Never operate the rear gate open lever with fingers because doing so may cause an injury. Always use a flat-head screwdriver or a similar tool.

Diagram of a mechanical switch or electrical component with a tool inserted, showing internal components and no text or symbols.

1. To open the rear gate, turn the lever to the right position using a flat-head screw-driver or a similar tool.

Moonroof (if equipped) – if moonroof does not close

If the moonroof does not close, we recommend that you have the system checked by a SUBARU dealer.

If your vehicle is involved an accident

CAUTION

If your vehicle is involved in an accident, be sure to inspect the ground under the vehicle before restarting the engine. If you find the fuel has leaked on the ground, do not try to restart the engine. The system has been damaged and is in need of repair. Immediately contact the nearest automotive service facility. We recommend that you consult your SUBARU dealer.

Your vehicle has a fuel pump shut off system. When the vehicle sustains an impact in an accident, etc., the fuel pump shut off system stops supplying the fuel order to minimize fuel leakage. However, depending on the impact conditions at the time of collision, the fuel pump shut-off system may not operate. Perform the following procedures to restore the engine after the system is activated.

Models without "keyless access with push-button start system":

1. Turn the ignition switch to the "LOCK" or "ACC" position.
2. Restart the engine.

Models with "keyless access with push-button start system":

1. Turn the push-button ignition switch to the "ACC" or "OFF" position.
2. Restart the engine.

■ Automatic door locking/un-locking operation when involved in an accident

When the automatic door locking/unlocking function is ON, all the doors will be locked automatically while driving. For further details, refer to "Automatic door locking/unlocking" 2-22.

When the vehicle sustains a strong impact which may trigger the airbags to deploy, the door locks may be unlocked automatically to enable emergency escape. Generally, an impact sustained from a rear end collision does not trigger the airbags to deploy. However if the impact is strong enough to deploy the airbags, it can also trigger the unlocking function.

Under such circumstance, the automatic

door locking/unlocking function will be suspended and the doors will remain unlocked.

Confirm the safety of the surroundings first and carry out the following to retrieve the automatic door locking/unlocking function.

Models without "keyless access with push-button start system":

1. Turn the ignition switch to the "LOCK" position.
2. Turn the ignition switch to the "ON" position.

Models with "keyless access with push-button start system":

1. Turn the push-button ignition switch to the "OFF" position.
2. Turn the push-button ignition switch to the "ON" position.

NOTE

Depending on the severity of the impact, the emergency unlocking may not function.

CAUTION

If the following occur, there may malfunction in the system.

Have the system inspected by a SUBARU dealer.

• The doors unlock automatically while driving.
• With all doors shut, the doors unlock when pressing the lock side of the power door locking switch.
• The automatic door locking/un-locking function does not operate.

be a

Pure horizontal dashed lines without any text, numbers, or symbols

Appearance care

Exterior care.... 10-2

Washing 10-2

Waxing and polishing....10-3

Cleaning alloy wheels 10-4

Corrosion protection 10-4

Most common causes of corrosion 10-4

To help prevent corrosion ....10-5

Cleaning the interior.... 10-5

Seat fabric.... 10-5

Leather seat materials 10-6

Synthetic leather upholstery 10-6

Seatbelt.... 10-6

Climate control panel, audio panel, instrument panel, console panel, and switches.... 10-6

Monitor.... 10-7

Exterior care

■ Washing

CAUTION

• When washing the vehicle, the brakes may get wet. As a result, the brake stopping distance will be longer. To dry the brakes, drive the vehicle at a safe speed while lightly depressing the brake pedal to heat up the brakes.
• Do not wash the engine compartment and area adjacent to it. If water enters the engine air intake or electrical parts, it will cause engine trouble or a malfunction of electrical equipment.
• When washing inner fenders, underbody, bumpers and protruding objects such as exhaust pipes and exhaust finishers, be careful to prevent injuries from contacting sharp ends.
• Do not use any organic solvents when washing the surface of the bulb assembly cover. However, if a detergent with organic solvents is used to wash the cover surface, completely rinse off the detergent with water. Otherwise,

the cover surface may be damaged.

• Since your vehicle is equipped with a rear wiper, automatic car wash brushes could become tangled around it, damaging the wiper arm and other components. Ask the automatic car wash operator not to let the brushes touch the wiper arm or to fix the wiper arm on the rear window glass with adhesive tape before operating the machine.

- For models with a rod-type roof antenna, remove the antenna rod before washing your car at a car wash. If the antenna rod remains attached, it may scratch the roof. When reinstalling the removed antenna rod, be sure to fully tighten it.

NOTE

• When having your vehicle washed an automatic car wash, make sure beforehand that the car wash is of suitable type.
• The rear view camera lens has a coating to help prevent scratches. However, when washing the vehicle cleaning the camera lens, be careful

to scratch the camera lens. Do not use a washing brush directly on the camera lens. The image quality of the rear view camera may deteriorate.

The best way to preserve your vehicle's beauty is frequent washing. Wash the vehicle at least once a month to avoid contamination by road grime.

Wash dirt off with a wet sponge and plenty of lukewarm or cold water. Do not wash the vehicle with hot water and in direct sunlight.

Salt, chemicals, insects, tar, soot, tree sap, and bird droppings should be washed off by using a light detergent, as required. If you use a light detergent, make certain that it is a neutral detergent. Do not use strong soap or chemical detergents. All cleaning agents should be promptly flushed from the surface and not allowed to dry there. Rinse the vehicle thoroughly with plenty of lukewarm water. Wipe the remaining water off with a chamois or soft cloth. Wear rubber gloves and use a hand brush when washing down underbody, inner fenders and suspension to effectively remove mud and dirt off.

hard

or not

▼ Washing the underbody

Chemicals, salts and gravel used for deicing road surfaces are extremely corrosive, accelerating the corrosion of underbody components, such as the exhaust system, fuel and brake lines, brake cab floor pan and fenders, and suspension. Thoroughly flush the underbody and inside of the fenders with lukewarm or cold water at frequent intervals to reduce the harm effects of such agents.

Mud and sand adhering to the underbo components may accelerate their corrosion.

After driving off-road or on muddy or sa roads, wash the mud and sand off the underbody. Carefully flush the suspensio and axle parts, as they are particularly prone to mud and sand buildup. Do not a sharp-edged tool to remove caked mu

CAUTION

- Be careful not to damage brake hoses, sensor harnesses, and other parts when washing suspension components.

- Be careful not to flush the engine bottom for a long time. It may cause damage of some electrical parts.

es▼ Using a warm water washer

- Keep a good distance of 12 in (30 cm) or more between the washer nozzle and the vehicle.

Do not wash the same area continuously.

If a stain will not come out easily, was by hand. Some warm water washers are the high temperature, high pressure type, and they can damage or deform the resi parts such as moldings, or cause water leak into the vehicle.

■eWaxing and polishing

dAlways wash and dry the vehicle before waxing and polishing.

Use a good quality polish and wax and apply them according to the manufacturer's instructions. Wax or polish when the painted surface is cool.

Be sure to polish and wax the chrome as well as the painted surfaces. Loss of wax on a painted surface leads to loss the original luster and also quickens the deterioration of the surface. It is recom-

emended that a coat of wax be applied at least once a month, or whenever the surface no longer repels water.

If the appearance of the paint has diminished to the point where the luster or tone cannot be restored, lightly polish the surface with a fine-grained compound. Never polish just the affected area, but include the surrounding area as well. Always polish in only one direction. A No. 2000 grain compound is recommended. Never use a coarse-grained compound. Coarse-grained compounds have a smaller grain-size number and could damage the paint. After polishing with a compound, coat with wax to restore the original luster. Frequent polishing with a compound or an incorrect polishing technique will result in removing the paint layer and exposing the undercoat. When in doubt, it is always best to contact your SUBARU dealer or an auto paint specialist.

CAUTION

Do not use any agents with organic solvents on the surface of the bulb assembly cover. However, if a polish or wax with organic solvents is applied to the cover surface, completely wipe off the polish or wax. Otherwise, the cover surface may be

- CONTINUED -

damaged.

NOTE

• Be careful not to block the wind-shield washer nozzles with wax when waxing the vehicle.
• Do not wipe the rear view camera with alcohol, benzine or paint thinner. Otherwise, discoloration may occur. To remove contamination, wipe the camera with a cloth moistened with diluted neutral detergent and then wipe it with a soft, dry cloth.
• When waxing the vehicle, be careful not to apply the wax to the rear view camera. If it comes in contact with the camera, moisten a clean cloth with diluted neutral detergent to remove the wax.

■ Cleaning alloy wheels

• Promptly wipe the alloy wheels clean of any kind of grime or agent. If dirt is left on too long, it may be difficult to clean off.
• Do not use soap containing grit to clean the wheels. Be sure to use a neutral cleaning agent, and later rinse thoroughly with water. Do not clean the wheels with a stiff brush or expose them to a high-speed washing device.

- Clean the vehicle (including the alloy wheels) with water as soon as possible when it has been splashed with sea wa exposed to sea breezes, or driven on roads treated with salt or other agents.

Corrosion protection

ter Your SUBARU has been designed and built to resist corrosion. Special materials and protective finishes have been used on most parts of the vehicle to help maintain fine appearance, strength, and reliable operation.

■ Most common causes of corrosion

The most common causes of corrosion are:

• The accumulation of moisture retaining dirt and debris in body panel sections, cavities, and other areas.
• Damage to paint and other protective coatings caused by gravel and stone chips or minor accidents.

Corrosion is accelerated on the vehicle when:

• It is exposed to road salt or dust control chemicals, or used in coastal areas where there is more salt in the air, or in areas where there is considerable industrial pollution.

• It is driven in areas of high humidity, especially when temperatures range just above freezing.

• Dampness in certain parts of the vehicle remains for a long time, even though other parts of the vehicle may dry.
  ● High temperatures will cause corrosion to parts of the vehicle which cannot dry quickly due to lack of proper ventilation.

■ To help prevent corrosion

Wash the vehicle regularly to prevent corrosion of the body and suspension components. Also, wash the vehicle promptly after driving on any of the following surfaces.

● Roads that have been salted to prevent them from freezing in winter
- Mud, sand, or gravel
- Coastal roads

After the winter has ended, it is recommended that the underbody be given a very thorough washing.

Before the beginning of winter, check the condition of underbody components, such as the exhaust system, fuel and brake lines, brake cables, suspension, steering system, floor pan, and fenders. If any of them are found to be rusted, they should be given an appropriate rust prevention treatment or should be replaced. Contact your SUBARU dealer to perform this kind of maintenance and treatment if you need assistance.

Repair chips and scratches in the paint soon as you find them.

Check the interior of the vehicle for water and dirt accumulation under the floor mat because that could cause corrosion. Occasionally check under the mats to make sure the area is dry.

Keep your garage dry. Do not park your vehicle in a damp, poorly ventilated garage. In such a garage, corrosion can be caused by dampness. If you wash the vehicle in the garage or put the vehicle the garage when wet or covered with snow, that can cause dampness.

If your vehicle is operated in cold weath and/or in areas where road salts and of corrosive materials are used, the door hinges and locks, rear gate lock, and ho latch should be inspected and lubricated periodically.

^d Cleaning the interior

Use a soft, damp cloth to clean the climate control panel, audio equipment, instrument panel, center console, combination meter panel, and switches. (Do not use organic solvents.)

CAUTION

Do not use sharp instruments or window cleaner containing abrasives to clean the inner surface of the rear window. They may damage in the conductors printed on the window.

e■ Seat fabric

Remove loose dirt, dust or debris with a vacuum cleaner. If the dirt is caked on the fabric or hard to remove with a vacuum cleaner, use a soft brush then vacuum it. Wipe the fabric surface with a tightly wrung cloth and dry the seat fabric thoroughly. If the fabric is still dirty, wipe using a solution of mild soap and lukewarm water then dry thoroughly.

If the stain does not come out, try a commercially-available fabric cleaner. Use the cleaner on a hidden place and

- CONTINUED -

make sure it does not affect the fabric adversely. Use the cleaner according to instructions.

CAUTION

When cleaning the seat, do not benzine, paint thinner, or any sin materials. Doing so could damage the surface and cause the color deteriorate.

■ Leather seat materials

The leather used by SUBARU is a high quality natural product which will retain a distinctive appearance and feel for many years with proper care.

Allowing dust or road dirt to build up on surface can cause the material to become brittle and to wear prematurely. Regular cleaning with a soft, moist, natural fiber cloth should be performed monthly, taking care not to soak the leather or allow water to penetrate the stitched seams.

A mild detergent suitable for cleaning woolen fabrics may be used to remove difficult dirt spots, rubbing with a soft, dry cloth afterwards to restore the luster. If your SUBARU is to be parked for a long time in bright sunlight, it is recommended that the seats and head restraints be

covered, or the windows shaded, to pre- itsent fading or shrinkage.

Minor surface blemishes or bald patches may be treated with a commercial leather spray lacquer. You will discover that each leather seat section will develop soft folds or wrinkles, which is characteristic of genuine leather.

■ Synthetic leather upholstery

The synthetic leather material used on the SUBARU may be cleaned using mild soap or detergent and water, after first vacuuming or brushing away loose dirt. Allow the soap to soak in for a few minutes and w off with a clean, damp cloth. Commercial foam-type cleaners suitable for synthetic leather materials may be used when necessary.

CAUTION

Strong cleaning agents such as esolvents, paint thinners, window cleaner or fuel must never be used on leather or synthetic interior ma- terials. Doing so could damage the surface and cause the color to deteriorate.

Seatbelt

For details about how to clean the seatbelt, refer to "Seatbelt maintenance" 1-21.

■ Climate control panel, audio panel, instrument panel, console panel, and switches

Use a soft, damp cloth to clean the climate control panel, audio equipment, instrument panel, center console, combination meter panel, and switches.

CAUTION

Do not use organic solvents such as paint thinners or fuel, or strong cleaning agents that contain those solvents. Doing so could damage the surface and cause the color to deteriorate.

- Do not use chemical solvents that contain silicone on the vehicle audio system, electrical components of the air-conditioner or any switches. If silicone adheres to these parts, it may cause damage to electrical components.

Monitor

To clean the audio/navigation/multi-function display monitor, wipe it with a silicone cloth or with a soft cloth. If the monitor is extremely dirty, clean it with a soft cloth moistened with neutral detergent then carefully wipe off any remaining detergent.

CAUTION

• Do not spray neutral detergent directly onto the monitor. Doing so could damage the monitor's components.
• Do not wipe the monitor with a hard cloth. Doing so could scratch the monitor.
• Do not use cleaning fluid that contains thinner, fuel, or any other volatile substance. Such cleaning fluid could erase the lettering on the switches at the bottom of the monitor.

Pure horizontal dashed lines without any text, numbers, or symbols

Maintenance and service

Maintenance schedule.... 11-3

Maintenance precautions 11-3

Before checking or servicing in the engine compartment 11-4

When checking or servicing in the engine compartment 11-5

When checking or servicing in the engine compartment while the engine is running .....

Engine hood 11-5

Engine compartment overview 11-7

Engine oil.... 11-8

Engine oil consumption 11-8

Locations of the oil level gauge, oil filler cap and oil filter 11-8

Checking the oil level.... 11-8

Changing the oil and oil filter 11-9

Recommended grade and viscosity.... 11-10

Synthetic oil.... 11-10

Cooling system 11-10

Safety precautions 11-10

Cooling fan, hose and connections 11-11

Engine coolant.... 11-11

Air cleaner element.... 11-12

Replacing the air cleaner element.... 11-13

Spark plugs 11-14

Recommended spark plugs.... 11-14

Drive belt 11-14

Manual transmission oil 11-14

Recommended grade and viscosity.... 11-14

Continuously variable transmission fluid ..... 11-15

Front differential gear oil (CVT models) and rear differential gear oil....11-15

Recommended grade and viscosity.... 11-15

Brake fluid....11-15

Checking the fluid level 11-15

Recommended brake fluid 11-16

Clutch fluid (MT models)....11-16

Checking the fluid level 11-16

Recommended clutch fluid 11-17

Brake booster 11-17

Brake pedal 11-18

Checking the brake pedal free play 11-18

Checking the brake pedal reserve distance ..... 11-18

Clutch pedal (MT models)....11-18

Checking the clutch function 11-18

Checking the clutch pedal free play 11-19

Hill start assist system 11-19

Replacement of brake pad and lining....11-19

Breaking-in of new brake pads and linings...... 11-20

Parking brake stroke 11-20

Tires and wheels 11-21

Types of tires 11-21

Tire pressure monitoring system (TPMS)

(if equipped) 11-21

Tire inspection.... 11-23

Tire pressures and wear 11-23

Wheel balance 11-25

Wear indicators 11-25

Rotational direction of tires.... 11-26

Tire rotation.... 11-26

Maintenance and service

Tire replacement 11-27
Wheel replacement 11-28
Alloy wheels 11-28
Windshield washer fluid.... 11-29
Adding the windshield washer fluid.... 11-29
Windshield washer fluid 11-29
Replacement of wiper blades 11-30
Windshield wiper blade assembly.... 11-31
Windshield wiper blade rubber 11-32
Rear window wiper blade assembly.... 11-33
Rear window wiper blade rubber 11-34
Battery 11-35
Fuses 11-36
Installation of accessories 11-38
Replacing bulbs 11-38
Headlights (models with LED headlights) 11-38
Headlights (models with halogen headlights)..... 11-39

Front turn signal light 11-40

Parking light.... 11-40

Front fog light (if equipped) 11-40

Rear combination lights.... 11-40

Backup light 11-42

License plate light 11-43

Map light 11-43

Vanity mirror light (if equipped).... 11-43

Dome light and cargo area light 11-43

Other bulbs 11-44

Adjusting headlight aim (models with LED headlights) 11-44

Replacing key battery 11-45

Safety precautions.... 11-45

Replacing battery of access key fob 11-46

Replacing transmitter battery 11-47

Maintenance schedule

U.S. models

The scheduled maintenance items required to be serviced at regular intervals are shown in the "Warranty and Maintenance Booklet". For details, read the separate "Warranty and Maintenance Booklet".

Canada models

The scheduled maintenance items required to be serviced at regular intervals are shown in the "Warranty and Service Booklet". For details, read the separate "Warranty and Service Booklet".

Except for U.S. and Canada models Some items of your vehicle are required be serviced at scheduled intervals. For details about your maintenance schedule read the separate "Warranty and Maintenance Booklet".

NOTE

For models with a multi-function display (color LCD), you can set a reminder to be displayed when a scheduled maintenance item is almost due. For details, refer to "Maintenance settings" 3-64.

Maintenance precautions

When maintenance and service are required, it is recommended that all work done by an authorized SUBARU dealer.

If you perform maintenance and service yourself, you should familiarize yourself with the information provided in this section on general maintenance and service for your SUBARU.

Incorrect or incomplete service could cause improper or unsafe vehicle operation. Any problems caused by improper maintenance and service performed by you are not eligible for warranty coverage

WARNING

• Always select a safe area when performing maintenance on your vehicle.
• Always be very careful to avoid injury when working on the vehicle. Remember that some of the materials in the vehicle may be hazardous if improperly used or handled, for example, battery acid.
• Your vehicle should only be serviced by persons fully competent to do so. Serious personal injury

may result to persons not experienced in servicing vehicles.

• Always use the proper tools and make certain that they are well maintained.
- Never get under the vehicle supported only by a jack. Always use safety stands to support the vehicle.
- Never keep the engine running in a poorly ventilated area, such as a garage or other closed areas.
- Do not smoke or allow open flames around the fuel or battery. This will cause a fire.
- Because the fuel system is under pressure, replacement of the fuel filter should be performed only by your SUBARU dealer.
- Wear adequate eye protection to guard against getting oil or fluids in your eyes. If something does get in your eyes, thoroughly wash them out with clean water.
- Do not tamper with the wiring of the SRS airbag system or seat-belt pretensioner system, or attempt to take its connectors apart, as that may activate the system or it can render it inop-

erative. NEVER use a circuit tester for this wiring. If your SRS airbag or seatbelt pretensioner needs service, consult your nearest SUBARU dealer.
- Check the inside of the engine compartment to see if there are any cloths and tools left. If they are left inside, they may be a cause of malfunction and fire.

NOTE

SUBARU does not endorse the use of non-SUBARU approved flushing systems and strongly advises against performing these services on a SUBARU vehicle. Non-SUBARU approved flushing systems use chemicals and/or solvents which have not been tested or approved by SUBARU. SUBARU warranties do not cover any part of the vehicle which is damaged adding or applying chemicals and/or solvents other than those approved or recommended by SUBARU.

■ Before checking or servicing in the engine compartment

WARNING

- Always stop the engine and apply the parking brake firmly to prevent the vehicle from moving.

- Always let the engine cool down. Engine parts become very hot when the engine is running and remain hot for some time after the engine has stopped.

- Do not spill engine oil, engine coolant, brake fluid or any other fluid on hot engine components. This may cause a fire.

- When the ignition switch is in the "ON" position, the cooling fan may operate suddenly even when the engine is stopped. If your

by body or clothes come into contact with a rotating fan, that could result in serious injury. To avoid risk of injury, perform the following precautions.

- Models with push-button start system:

Always turn the push-button ignition switch to the "OFF" position and confirm that the

operation indicator on the switch is turned off. Then take the access key fob out from the vehicle.

- Models without push-button start system: Always remove the key from the ignition switch.

- Before performing any servicing on a vehicle equipped with a remote engine start system (a dealer option), temporarily place the remote engine start system in service mode to prevent it from unexpectedly starting the engine.

■ When checking or servicing in the engine compartment

Engine bay diagram showing internal components and engine parts (no text or labels)

CAUTION

- Do not contact the drive belt cover while checking the components in the engine compartment. Doing so may cause your hand slip off the cover and result in unexpected injury.

- Do not touch the oil filter until engine has cooled down completely. Doing so may result in a or other injury. Note that the filter becomes very hot when engine is running and remains hot for some time after the e has stopped.

■ When checking or servicing in the engine compartment while the engine is running

WARNING

A running engine can be dangerous. Keep your fingers, hands, clothing, hair and tools away from the cooling fan, drive belt and any other moving engine parts. Removing rings, tovatches and ties is advisable.

Engine hood

burn

CAUTION

• Be extremely careful not to catch e fingers or other objects when closing the engine hood.
• Do not push the hood forcibly to close it. It could deform the metal.
• Be extremely careful opening the engine hood when the wind is strong. The engine hood could close suddenly, possibly causing injuries from slamming.
• Do not install accessories other than genuine SUBARU parts to the engine hood. If the engine hood becomes too heavy, the stay may not be able to support holding it open.

- Check that the end of the hood stay is inserted into the slot. not inserted properly, the hood may drop and cause injury.

If it

To open the hood:

1. If the wiper blades are lifted off the windshield, return them to their original position.

Interior view of a car dashboard with a highlighted internal component (no text or symbols visible)

1. Pull the hood release knob under the instrument panel.


Line drawing of a car front view with an inset showing a vehicle on a road (no text or symbols)

1. Release the secondary hood release by moving the lever between the front and the hood toward the left.

B02038

1) Grip

1. Lift up the hood, release the hood prop from its retainer and put the end of the hood prop into the slot in the hood. Hold the grip for handling the hood prop.

To close the hood:

1. Lift the hood slightly and remove the hood prop from the slot in the hood and return the prop to its retainer.
2. Lower the hood to a height of approximately 7.8 to 11.8 in (20 to 30 cm) above its closed position and then let it drop.
3. After closing the hood, be sure the hood is securely locked.

grille this does not close the hood, release it from a slightly higher position.

WARNING

Always check that the hood is properly locked before you start driving. If it is not, it might fly open while the vehicle is moving and block your view, which may cause an accident and serious bodily injury.

Engine compartment overview

1 2 10 9 8 7 6 5 4 3 B02244

1) Brake fluid reservoir/Clutch fluid reservoir (MT models) (page 11-15)
2) Fuse box (page 11-36)
3) Battery (page 11-35)
4) Windshield washer tank (page 11-29)
5) Radiator cap (page 11-11)
6) Engine oil filler cap (page 11-8)
7) Engine coolant reservoir (page 11-11)
8) Engine oil filter (page 11-9)
9) Engine oil level gauge (page 11-8)
10) Air cleaner case (page 11-12)

Engine oil

CAUTION

• If the level gauge cannot be pulled out easily, twist the level gauge right and left, then gently pull it out. Otherwise, you may injured accidentally straining yourself.
• Use only engine oil with the recommended grade and viscosity.
• Be careful not to spill engine when adding it. If oil touches exhaust pipe, it may cause a smell, smoke, and/or a fire. If engine oil gets on the exhaust pipe, be sure to wipe it off.

■ Engine oil consumption

Some engine oil will be consumed while driving. The rate of consumption can be affected by such factors as transmission type, driving style, terrain and temperature. Under the following conditions, oil consumption can be increased and thus require refilling between maintenance intervals:

• When the engine is new and within the break-in period
• When the engine oil is of lower quality
• When the incorrect oil viscosity is used
• When engine braking is employed (repeatedly)
• When the engine is operated at high engine speeds (for extended periods of time)
• When the engine is operated under heavy loads (for extended periods of time
• When towing a trailer
• When the engine idles for extended periods of time
  When the vehicle is operated in stop and go and/or heavy traffic situations
• When the vehicle is used under severe thermal conditions
• When the vehicle accelerates and decelerates frequently

Under these or similar conditions, you should check your oil at least every 2nd fuel fill-up and change your engine oil m frequently. Different drivers in the same car may experience different results. If your oil consumption rate is greater than expected, contact your authorized SUBARU retailer who may perform a tes under controlled conditions.

■ Locations of the oil level gauge, oil filler cap and oil filter

1 2 3 B02055

1) Oil level gauge
2) Oil filler cap
3) Oil filter

■ Checking the oil level

1. Park the vehicle on a level surface and turn the ignition switch to the "LOCK"/"OFF" position. If you check the oil level just after turning the ignition switch to the "LOCK"/"OFF" position, wait for at least 5 minutes for the oil to drain back into the oil pan before checking the level.

CAUTION

If the level gauge cannot be pull out easily, twist the level gauge and left, then gently pull it out. Otherwise, you may be injured a dentally straining yourself.

1. Pull out the level gauge, wipe it clean and insert it again.
2. Be sure the level gauge is correctly inserted until it stops.

1 2 3 B01175

1) Full level
2) Low level
3) Approximately 1.1 US qt (1.0 liters, 0.9 Imp qt) from low level to full level

1. Pull out the oil level gauge again.
2. Check the oil levels on both sides level gauge. The engine oil level must

judged by the lowest of the two levels. the oil level is below the low level mark add oil so that the full level is reached.

CAUTION

• Be careful not to touch the eng oil filter when removing the oil filler cap. Doing so may result burn, a pinched finger, or may cause some other injury.
• Use only engine oil with the recommended grade and viscosity.
• Be careful not to spill engine when adding it. If oil touches exhaust pipe, it may cause a smell, smoke, and/or a fire. If engine oil gets on the exhaust pipe, be sure to wipe it off.

To add engine oil, remove the engine oil filler cap and slowly pour engine oil through the filler neck. After pouring oil into the engine, you must use the level gauge to confirm that the oil level is correct.

NOTE

- To prevent overfilling the engine oil, do not add any additional oil above the upper level when the engine is cold.

If After adding or changing the engine oil, warm up the engine and stop it on level surface, then start the engine after a lapse of 1 minute or more. Confirm that the warning light has turned off after the engine has started. Refer to "Engine low oil level warning light" 3-3-18.

in a Changing the oil and oil filter

Change the oil and oil filter according to the maintenance schedule in the "Warranty and Maintenance Booklet".

The engine oil and oil filter must be changed more frequently than listed in the maintenance schedule when driving on dusty roads, when short trips are frequently made, or when driving in extremely cold weather.

NOTE

- Changing the engine oil and oil filter should be performed by a well-trained expert. Contact your SUBARU dealer for changing the engine oil and oil filter Fully trained mechanics are on standby at a SUBARU dealer to utilize the special tools, spare parts and recommended oil for this work, and also, use oils are properly disposed of.

- If performing oil replacement your self, observe the local regulations dispose of waste oil properly.

■ Recommended grade and viscosity

CAUTION

Use only engine oil with the recommended grade and viscosity.

Refer to "Engine oil" 12-4.

NOTE

Engine oil viscosity (thickness) affects fuel economy. Oils of lower viscosity provide better fuel economy. However, in hot weather, oil of higher viscosity is required to properly lubricate the engine.

■ Synthetic oil

You should use synthetic engine oil that meets the same requirements given for conventional engine oil. When using synthetic oil, you must use oil of the same classification, viscosity and grade shown in this Owner's Manual. Refer to "Engine oil" 12-4. Also, you must follow the oil and filter changing intervals shown in the

Warranty and Maintenance booklet.

NOTE

Synthetic oil of the grade and viscos noted in chapter 12 is the recommended engine oil for optimum engine performance. Conventional oil may be used if synthetic oil is unavailable.

Cooling system

■ Safety precautions

WARNING

Never remove the radiator cap until the engine has been shut off and has cooled down completely. Since the coolant is under pressure, you may suffer serious burns from a spray of boiling hot coolant when the cap is removed.

CAUTION

- Vehicles are filled at the factory with SUBARU SUPER COOLANT that does not require the first change for 11 years/137,500 miles (11 years/220,000 km). This coolant should not be mixed with any other brand or type of coolant during this period. Mixing with a different coolant will reduce the life of the coolant. When necessary to top up the coolant for any reason, use only SUBARU SUPER COOLANT. If SUBARU SUPER COOLANT is diluted with another brand or

type, the maintenance interval is shortened to that of the mixing coolant.

- Do not splash the engine coolant over painted parts. The alcohol contained in the engine coolant may damage the paint surface.

SUBARU dealer to check for leaks, damage, or looseness.

■ Engine coolant

▼ Checking the coolant level

WARNING

■ Cooling fan, hose and connections

Your vehicle employs an electric cooling fan which is thermostatically controlled to operate when the engine coolant reaches a specific temperature.

If the radiator cooling fan does not operate even when the coolant temperature high warning light blinks or illuminates in RED the cooling fan circuit may be defective. Refer to "Coolant temperature low indicator light/Coolant temperature high warning light" 3-16.

Check the fuse and replace it if necessary. Refer to "Fuses" -11-36.

If the fuse is not blown, have the cooling system checked by your SUBARU dealer.

If the frequent addition of coolant is necessary between vehicle service visits, it is recommended that you have your vehicle inspected by an authorized

Never remove the radiator cap until the engine has been shut off and has cooled down completely. Since the coolant is under pressure, you may suffer serious burns from a spray boiling hot coolant when the cap is removed.

1 2 y- B02056

1) "FULL" level mark

2) "LOW" level mark

Check the coolant level at each fuel stop. 1. Check the coolant level on the outside of the reservoir while the engine is cool. 2. If the level is close to or lower than the "LOW" level mark, add coolant up to the "FULL" level mark. If the reserve tank is empty, remove the radiator cap and refill coolant up to just below the filler neck as shown in the following illustration.

y of is 1 B01653

1) Fill up to this level

Technical illustration of a mechanical component with concentric rings and directional arrows (no text or symbols)

1. After refilling the reserve tank and the radiator, reinstall the cap and check that the rubber gaskets inside the radiator cap are in the proper position.

CAUTION

• Be careful not to spill engine coolant when adding it. If coolant touches the exhaust pipe, it may cause a bad smell, smoke, and/or a fire. If engine coolant gets on the exhaust pipe, be sure to wipe it off.
• Do not splash the engine coolant over painted parts. The alcohol contained in the engine coolant may damage the paint surface

▼ Changing the coolant

It may be difficult to change the coolant. Have the coolant changed by your SUBARU dealer if necessary.

The coolant should be changed according to the maintenance schedule in the "Warranty and Maintenance Booklet".

Air cleaner element

WARNING

Do not operate the engine with the air cleaner element removed. The air cleaner element not only filters in-take air but also stops flames if the engine backfires. If the air cleaner element is not installed when the engine backfires, you could be burned.

CAUTION

When replacing the air cleaner element, use a genuine SUBARU air cleaner element. If it is not used, there is the possibility of causing a negative effect to the engine.

The air cleaner element functions as a filter screen. When the element is perforated or removed, engine wear will be excessive and engine life shortened.

It is not necessary to clean or wash the air cleaner element.

■ Replacing the air cleaner ment

Replace the air cleaner element according to the maintenance schedule in the "Warranty and Maintenance Booklet". Under extremely dusty conditions, replace it more frequently. It is recommended that you always use genuine SUBARU parts.

Mechanical assembly diagram showing a hand operating a vehicle engine with no visible text or symbols

1) Clips

1. Unsnap the two clips holding the air cleaner case (rear).
2. Open the air cleaner case and pull cover rearward while lifting it up.

Mechanical assembly diagram showing hands installing or adjusting a component with arrows indicating direction (no text or symbols present)

1. Remove the air cleaner element.
2. Clean the inside of the air cleaner case (both front and rear) with a damp cloth and install a new air cleaner element.


Technical line drawing of a mechanical assembly with no visible text or symbols

1. To install the air cleaner case (rear), insert the three projections on the air

cleaner case (rear) into the slits on the air cleaner case (front).

1. Install in the reverse order of removal.

NOTE

Install the air cleaner element so that the surface with "UPR" printed on it faces upward.

Spark plugs

It may be difficult to replace the spark plugs. It is recommended that you have spark plugs replaced by your SUBARU dealer.

The spark plugs should be replaced according to the maintenance schedule in the "Warranty and Maintenance Book let".

CAUTION

Make sure the cables are replaced the correct order.

■ Recommended spark plugs

For the recommended spark plugs, refer "Electrical system" 12-7.

Drive belt

It is unnecessary to check the deflection the drive belt periodically because your engine is equipped with an automatic be tension adjuster. However, replacement of the belt should be done according to the maintenance schedule in the "Warranty and Maintenance Booklet". Consult your SUBARU dealer for replacement. If the drive belt is loose, cracked or wo contact your SUBARU dealer.

in

to

Manual transmission oil

Iofis not necessary to check the transmission oil level. Check that there are no ltracks, damage or leakage. However, the foil inspection should be performed according to the maintenance schedule in the "Warranty and Maintenance Booklet". Consult your SUBARU dealer for details.

■ Recommended grade and viscosity

Each oil manufacturer has its own base oils and additives. Never use different brands together. For details, refer to "Manual transmission, front differential and rear differential gear oil" 12-6.

Continuously variable trans- mission fluid

It is not necessary to check the transmission fluid level. Check that there are no cracks, damage or leakage. However, the fluid inspection should be performed according to the maintenance schedule in the "Warranty and Maintenance Booklet". Consult your SUBARU dealer for details

Front differential gear oil (CVT models) and rear differential gear oil

It is not necessary to check the gear oil level. Check that there are no cracks, damage or leakage. However, the oil inspection should be performed according to the maintenance schedule in the "Warranty and Maintenance Booklet". Consult your SUBARU dealer for details.

■ Recommended grade and viscosity

Each oil manufacturer has its own base oils and additives. Never use different brands together. For details, refer to "Manual transmission, front differential and rear differential gear oil" 12-6.

CAUTION

Using a differential gear oil other than the specified oil may cause decline in vehicle performance.

Brake fluid

- Checking the fluid level

WARNING

• Never let brake fluid contact your eyes because brake fluid can be harmful to your eyes. If brake fluid gets in your eyes, immediately flush them thoroughly with clean water. For safety, when performing this work, wearing eye protection is advisable.
• Brake fluid absorbs moisture from the air. Any absorbed moisture can cause a dangerous loss of braking performance.
• If the vehicle requires frequent refilling, there may be a leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer.

CAUTION

• When adding brake fluid, be careful not to allow any dirt into the reservoir.
• Never splash the brake fluid over painted surfaces or rubber parts.

- CONTINUED -

Alcohol contained in the brake fluid may damage them. - Be careful not to spill brake fluid when adding it. If brake fluid touches the exhaust pipe, it m cause a bad smell, smoke, an a fire. If brake fluid gets on exhaust pipe, be sure to wipe off.

1 A 2 B02015

1) "MAX" level line
2) "MIN" level line
A) The brake fluid level must be checked in this area.

Check the fluid level monthly.

Check the fluid level on the outside of the reservoir. Be sure to check the fluid level for the brake system at the shaded area in the illustration. For MT models, this

reservoir is used for both the brake and clutch systems and has chambers for easystem.

If the fluid level is below "MIN", add the recommended brake fluid to "MAX". Use only brake fluid from a sealed container.

■ Recommended brake fluid Refer to "Fluids" 12-6.

CAUTION

Never use different brands of brake fluid together. Also, avoid mixing DOT 3 and DOT 4 brake fluids even they are the same brand.

Clutch fluid (MT models)

■ Checking the fluid level

WARNING

Never let clutch fluid contact your eyes because clutch fluid can be harmful to your eyes. If clutch fluid gets in your eyes, immediately flush them thoroughly with clean water. For safety, when performing this work, wearing eye protection is advisable.

even if

CAUTION

• Clutch fluid absorbs moisture from the air. Any absorbed moisture can cause improper clutch operation.
• If the vehicle requires frequent refilling, there may be a leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer.
• When clutch fluid is added, be careful not to allow any dirt into the tank.
• Never splash the clutch fluid over painted surfaces or rubber parts.

Alcohol contained in the clutch fluid may damage them.

• Be careful not to spill clutch fluid when adding it. If clutch fluid touches the exhaust pipe, it may cause a bad smell, smoke, and a fire. If clutch fluid gets on the exhaust pipe, be sure to wipe off.
• The fluid level for the clutch system must be checked at the inboard side of the reservoir. It cannot be checked at the outboard side of the reservoir.

Check the fluid level monthly. Check the fluid level on the outside of a reservoir. Because this reservoir is used for both the brake and clutch systems, it has chambers for each system, be sure to check the fluid level for the clutch system at the shaded area in the illustration. The fluid level is below "MIN", add the recommended clutch fluid to "MAX". Use only clutch fluid from a sealed corner.

■ Recommended clutch fluid Refer to "Fluids" 12-6.

1 2 A B02016

1) "MAX" level line
2) "MIN" level line
A) The clutch fluid level must be checked in this area.

Never use different brands of clu fluid together. Also, avoid mixing DOT 3 and DOT 4 brake fluids they are the same brand.

Brake booster

If the brake booster does not operate as described in the following, have it checked by your SUBARU dealer.
With the ignition switch in the "LOCK"/"OFF" position, depress the brake pedal several times, applying the same pedal force each time. The distance the pedal travels should not vary.
2. With the brake pedal depressed, start the engine. The pedal should move slightly down to the floor. 3. With the brake pedal depressed, stop the engine and keep the pedal depressed for 30 seconds. The pedal height should not change.
4. Start the engine again and run for approximately one minute then turn it off. Depress the brake pedal several times to check the brake booster. The brake booster operates properly if the pedal stroke decreases with each depression.

Brake pedal

Check the brake pedal free play and reserve distance according to the maintenance schedule in the "Warranty and Maintenance Booklet".

• Checking the brake pedal free play


1 B00854

1) 0.02 - 0.11 in (0.5 - 2.7 mm)

Turn the ignition switch to the "LOCK"/"OFF" position and firmly depress the brake pedal several times. Lightly pull the brake pedal up with one finger to check free play with a force of less than 2 lbf N, 1 kgf).

If the free play is not within proper specification, contact your SUBARU dealer.

• Checking the brake pedal serve distance


ee 1 B00378

1) More than 2.56 in (65 mm)

Depress the pedal with a force of approximately 66 lbf (294 N, 30 kgf) and measure the distance between the upper surface of the pedal pad and the floor.

When the measurement is smaller than the specification, or when the pedal does not operate smoothly, contact with your 80 BARU dealer. (10)

Clutch pedal (MT models)

Check the clutch pedal free play according to the maintenance schedule in the "Warranty and Maintenance Booklet".

■ Checking the clutch function

Check the clutch engagement and disengagement.

1. With the engine idling, check that there are no abnormal noises when the clutch pedal is depressed, and that shifting into 1st or reverse feels smooth.
2. Start the vehicle by releasing the pedal slowly to check that the engine and transmission smoothly couple without any sign of slippage.

■ Checking the clutch pedal free play

1 B00377

1) 0.16 - 0.43 in (4.0 - 11.0 mm)

Lightly depress the clutch pedal down w your finger until you feel resistance, and check the free play.

If the free play is not within proper specification, contact your SUBARU dealer.

Hill start assist system

Ensure that the Hill start assist system operates properly under the following circumstances.

1. Stop the vehicle on an uphill grade by depressing the brake pedal (all models) and clutch pedal (MT models only), with the engine running.
2. Make sure that the vehicle does not move backward for several seconds after the brake pedal is released.
3. Then make sure the vehicle starts climbing the grade by following the normal starting procedures.

If the Hill start assist system does not operate as described above, contact your SUBARU dealer.

Replacement of brake pad and lining

Technical line drawing of a mechanical component with internal components and motion lines (no text or symbols)

The disc brakes have audible wear indicators on the brake pads. If the brake pads wear close to their service limit, the wear indicator makes a very audible scraping noise when the brake pedal is applied.

If you hear this scraping noise each time you apply the brake pedal, have the brake pads serviced by your SUBARU dealer as soon as possible.

CAUTION

If you continue to drive despite the scraping noise from the audible brake pad wear indicator, it will result in the need for costly brake rotor repair or replacement.

■ Breaking-in of new brake pads and linings

When replacing the brake pad or lining, use only genuine SUBARU parts. After replacement, the new parts must be broken in as follows.

▼ Brake pad and lining

While maintaining a speed of 30 to 40 (50 to 65 km/h), step on the brake peda lightly. Repeat this five or more times.

▼ Parking brake lining

1. Drive the vehicle at a speed of approximately 22 mph (35 km/h).
2. With the parking brake release button pushed in, pull the parking brake lever SLOWLY and GENTLY (pulling with a force of approximately 33.7 lbf [150 N, 15.3 kgf]).

3. Drive the vehicle for approximately 220 yards (200 meters) in this condition.

4. Wait 5 to 10 minutes for the parking brake to cool down. Repeat this procedure.

5. Check the parking brake stroke. If the parking brake stroke is out of the specific range, adjust it by turning the adjusting located on the parking brake lever.

Parking brake stroke:

7 - 8 notches / 45 lbf (200 N, 20.4

WARNING

A safe location and situation should be selected for break-in driving.

nph

CAUTION

Pulling the parking brake lever too forcefully may cause the rear wheel to lock. To avoid this, be certain pull the lever up slowly and gently

Parking brake stroke

eied nut kgf) B01756

Check the parking brake stroke according to the maintenance schedule in the "Warranty and Maintenance Booklet". When the parking brake is properly adjusted, braking power is fully applied by pulling the lever up 7 to 8 notches gently but firmly (approximately 45 lbf [200 N, 20.4 kgf]). If the parking brake lever stroke is not within the specified range, have the brake system checked and adjusted at your SUBARU dealer.

Tires and wheels

■ Types of tires

You should be familiar with type of tires present on your vehicle.

▼ All season tires

All season tires are designed to provide adequate measure of traction, handling and braking performance in year-round driving including snowy and icy road conditions. However all season tires do not offer as much traction performance winter (snow) tires in heavy or loose snow or on icy roads.

All season tires are identified by "ALL SEASON" and/or "M+S" (Mud & Snow) the tire sidewall.

▼ Summer tires

Summer tires are high-speed capability tires best suited for highway driving under dry conditions.

Summer tires are inadequate for driving slippery roads such as on snow-covered icy roads.

If you drive your vehicle on snow-covered or icy roads, we strongly recommend the use of winter (snow) tires.

When installing winter tires, be sure to replace all four tires.

▼ Winter (snow) tires

Winter tires are best suited for driving snow-covered and icy roads. However, winter tires do not perform as well as summer tires and all season tires on road other than snow-covered and icy roads.

■ Tire pressure monitoring system (TPMS) (if equipped)

The tire pressure monitoring system provides the driver with a warning message sending a signal from a sensor that is installed in each wheel when tire pressure is severely low. The tire pressure monitoring system will activate only when the vehicle is driven. Also, this system may react immediately to a sudden drop in tire pressure (for example, a blow-out caused by running over a sharp object).

If you adjust the tire pressures in a warm garage and will then drive the vehicle in cold outside air, the resulting drop in tire pressures may cause the low tire pressure. Warning light to illuminate. To avoid this problem when adjusting the tire pressure in a warm garage, inflate the tires to pressures higher than those shown on the tire inflation pressure label. Specifically, inflate them by an extra 1 psi (6.9 kPa, 0.07 kgf/cm²) for every difference of 10°F (5.6°C) between the temperature in

the garage and the temperature outside. By way of example, the following table shows the required tire pressures that correspond to various outside temperatures when the temperature in the garage is 60^ F ( 15.6^ C).

Example:

Tire size: P225/60R17 98H and 225/55R18 98H

Standard tire pressures:

Front: 33 psi (230 kPa, 2.3 kg/cm) Rear: 32 psi (220 kPa, 2.2 kg/cm) Garage temperature: 60°F (15.6°C)

Outside temperature	Adjusted pressure [psi (kPa, kgf/cm2)]
	Front	Rear
30°F (-1°C)	36 (250, 2.5)	35 (240, 2.4)
10°F (-12°C)	38 (265, 2.65)	37 (255, 2.55)
-10°F (-23°C)	41 (280, 2.8)	39 (270, 2.7)

If the low tire pressure warning light illuminates when you drive the vehicle in scold outside air after adjusting the tire pressures in a warm garage, re-adjust the tire pressures using the method described above. Then, increase the vehicle speed to at least 20 mph (32 km/h) and check to see that the low tire pressure warning light turns off a few minutes later. If the low tire

- CONTINUED -

pressure warning light does not turn off, the tire pressure monitoring system may not be functioning normally. In this event, go to a SUBARU dealer to have the system inspected as soon as possible.

While the vehicle is driven, friction between tires and the road surface causes the tires to warm up. After illumination of the low tire pressure warning light, any increase in the tire pressures caused by increase in the outside air temperature or by an increase in the temperature in the tires can cause the low tire pressure warning light to turn off.

It may not be possible to install TPMS valves on certain wheels that are on the market. Therefore, if you change the wheels (for example, a switch to snow tires), use wheels that have the same pa number as the standard-equipment wheels. Without four operational TPMS valve/sensors on the wheels, the TPMS will not fully function and the warning light on the combination meter will illuminate steadily after blinking for approximately one minute.

WARNING

If the low tire pressure warning lig does not illuminate briefly after the ignition switch is turned on or the

light illuminates steadily after blinking for approximately one minute, you should have your Tire Pressure Monitoring System checked at a SUBARU dealer as soon as possible.

If this light illuminates while driving never brake suddenly and keep driving straight ahead while gradually reducing speed. Then slowly pull off the road to a safe place. Otherwise an accident involving serious vehicle damage and serious personal injury could occur.

If this light still illuminates while driving after adjusting the tire pressure, a tire may have significant damage and a fast leak that cause the tire to lose air rapidly. If you a flat tire, replace it with a spare as soon as possible.

When a spare tire is mounted or a wheel rim is replaced without the original pressure sensor/transmitter being transferred, the low tire pressure warning light will illuminate steadily after blinking for approximately one minute. This indicates the TPMS is unable to monitor all four road wheels. Contact your SUBARU dealer as soon as possible for tire and sensor replacement and

or system resetting. If the light illuminates steadily after blinking for approximately one minute, promptly contact a SUBARU dealer to have the system inspected.

g▼ TPMS valve self-registration

When the wheels are replaced (such as when installing snow tires) or when a new TPMS valve is mounted on a new installed wheel, you will need to perform TPMS valve self-registration. Refer to the following procedure to perform TPMS valve self-registration.

1. Install the wheels with TPMS valves on the vehicle.
2. Adjust the tire pressure to the specified value. For information about the specified value of the tire pressure, refer to "Tires" tire 12-8.
3. Drive at speeds above 25 mph (40 km/h) for at least 4 miles (6 km) or until the low tire pressure warning light turns off.

NOTE

• When installing TPMS valves, use only genuine SUBARU parts.
• Registration of TPMS valves can also be done at a SUBARU dealer. Consult your SUBARU dealer.

■ Tire inspection

Check on a daily basis that the ti are free from serious damage, nails, and stones. At the same time check the tires for abnormal wear. Contact your SUBARU dealer immediately if you find any problem.

NOTE

- When the wheels and tires strike curbs or are subjected to harsh treatment as when the vehicle is driven on a rough surface, they can suffer damage that cannot be seen with the naked eye. This type of damage does not become evident until time has passed. Try not to cover curbs, potholes or on other rough surfaces. If doing so is unavoidable, keep the vehicle's speed down to a walking pace less, and approach the curbs squarely as possible. Also, may sure the tires are not pressed against the curb when you pay the vehicle.

- If you feel unusual vibration while driving or find it difficult steer the vehicle in a straight one of the tires and/or wheels may be damaged. Drive slowly the nearest authorized SUBARU dealer and have the vehicle inspected.

■ Tire pressures and wear

Maintaining the correct tire pressures helps to maximize the tires' service lives and is essential for good running performance. Check and, if necessary, adjust the pressure of each tire and the spare (equipped) at least once a month drive before any long journey.

to line, to 801051

Tire inflation pressure label

Check the tire pressures when the tires are cold. Use a pressure gauge to adjust the tire pressures into the values shown on the tire inflation pressure label. The tire inflation pressure label is located on the door pillar on the driver's side.

Driving even a short distance warms up the tires and increases the tire pressures. Also, the tire pressures are affected by the outside temperature. It is best to check tire pressure outdoors before driving the vehicle.

- CONTINUED -

When a tire becomes warm, the air inside it expands, causing the tire pressure to increase. Be careful not to mistakenly release air from a warm tire to reduce its pressure.

NOTE

• The air pressure in a tire increases by approximately 4.3 psi (30 kPa, 0.3 kg) when the tire becomes warm.
  • The tires are considered cold when the vehicle has been parked for at least three hours or has been driven less than one mile (1.6 km).

WARNING

Do not let air out of warm tires to adjust pressure. Doing so will result in low tire pressure.

Incorrect tire pressures detract from controllability and ride comfort, and they cause the tires to wear abnormally.

1

2

3

B01703

1) Correct tire pressure (tread worn evenly)

Roadholding is good, and steering is responsive. Rolling resistance is low, so fuel consumption is also lower.

2) Under inflated tire (tread worn on shoulders)
Rolling resistance is high, so fuel consumption is also higher.
3) Over inflated (tread worn in the center)
Ride comfort is poor. Also, the tire magnifies the effects of road-surface bumps and dips, possibly resulting in vehicle damage.

If the tire inflation pressure label shows tire pressures for the vehicle when fully loaded, adjust the tire pressures to the values that match the loading conditions.

WARNING

Driving at high speeds with excessively low tire pressures can cause the tires to deform severely and to rapidly heat up. A sharp increase in temperature could cause tread separation, and destruction of the tires. The resulting loss of

vehicle control could lead to an accident.

■ Wheel balance

Each wheel was correctly balanced when your vehicle was new, but the wheels will become unbalanced as the tires become worn during use. Wheel imbalance causes the steering wheel to vibrate slightly at certain vehicle speeds and detracts from the vehicle's straight-line stability. It can also cause steering an suspension system problems and abnormal tire wear. If you suspect that the wheels are not correctly balanced, have them checked and adjusted by your SUBARU dealer. Also have them adjusted after tire repairs and after tire rotation.

CAUTION

Loss of correct wheel alignment causes the tires to wear on one side and reduces the vehicle's running stability. Contact your SUBARU dealer if you notice abnormal tire wear.

NOTE

The suspension system is designed to hold each wheel at certain alignment (relative to other wheels and to the road) optimum straight-line stability and cornering performance.

■ Wear indicators

1 2 3 B00327

a1) New tread e2) Worn tread for Tread wear

Each tire incorporates a tread wear indicator, which becomes visible when the depth of the tread grooves decreases to 0.063 in (1.6 mm). A tire must be replaced when the tread wear indicator appears as a solid band across the tread.

WARNING

When a tire's tread wear indicator becomes visible, the tire

- CONTINUED -

is worn beyond the accepta limit and must be replaced immediately. With a tire in condition, driving at high speeds in wet weather can cause the vehicle to hydroplane. The resulting loss of vehicle control can lead to accident.

NOTE

For safety, inspect tire tread regularly and replace the tires before their tread wear indicat become visible.

ble ■ Rotational direction of tires

this

an

1 ROTATION

B00550

Example of rotational direction marked on the sidewall

1) Front

If the tires have specific rotational direction, refer to the arrow marked on the side wall.

The arrow should be pointing forward direction when the wheels are fitted.

■ Tire rotation
    note right of B
        X
    end
    note left of B
        1
    end
    note right of B
        B
    end
    note bottom of B
        B
    end
    note right of B
        B
    end

Vehicles equipped with 4 non-unidirectional tires

1) Front

Vehicles equipped with unidirectional tires
1) Front

Tire wear varies from wheel to wheel. Move the tires to the positions shown in the illustration each time they are rotated. For the tire rotation schedule, refer to the "Warranty and Maintenance Booklet".

Replace any damaged or unevenly worn tires at the time of rotation. After tire rotation, adjust the tires pressures and make sure the whe nuts are correctly tightened.

After driving approximately 600 miles (1,000 km), check the whee nuts again and retighten any nut that has become loose.

For handling alloy wheels, refer to "Alloy wheels" 11-28.

■ Tire replacement

The wheels and tires are important and integral parts of your vehicle's design; they cannot be changed arbitrarily. The tires fitted as standard equipment are optimally matched to the characteristics of the vehicle and were selected to give the best possible combination of running performance, ride comfort, and service life. It is essential for every tire to have a size and construction matching those shown on the tire inflation pressure label and to have a speed symbol and load index matching those shown on the tire inflation pressure label.

Using tires of a non-specified size detracts from controllability, ride comfort, braking performance, speedometer accuracy and odometer accuracy. It also creates incorrect body-to-tire clearances and inappropriately changes the vehicle's ground clearance.

All four tires must be the same in terms manufacturer, brand (tread pattern), construction, and size. You are advised to replace the tires with new ones that are identical to those fitted as standard equipment.

For safe vehicle operation, SUBARU recommends replacing all four tires at the same time.

WARNING

• When replacing or installing tire(s), all four tires must be the same for the following items.
  (a) Size
  (b) Speed symbol
  (c) Load index
  (d) Circumference
  (e) Construction
  (f) Manufacturer
  (g) Brand (tread pattern)
  (h) Degrees of wear
  For items (a) to (c), you must obey the specification that is printed on the tire inflation pressure label. The tire inflation pressure label is located on the driver's door pillar.
  of If all the four tires are not the same for items (a) to (h), serious

mechanical damage could be caused to the drivetrain of the car, and affect the followings.

• Ride
• Handling
• Braking
• Speedometer/Odometer calibration
• Clearance between the body and tires

It also may be dangerous and lead to loss of vehicle control, and it can lead to an accident.

- Use only radial tires. Do not use radial tires together with belted bias tires and/or bias-ply tires. Doing so can dangerously reduce controllability, resulting in an accident.

■ Wheel replacement

When replacing wheels due, for example, to damage, make sure the replacement wheels match the specifications of the wheels that are fitted as standard equipment. Replacement wheels are available from SUBARU dealers.

WARNING

Use only those wheels that are specified for your vehicle. Wheels not meeting specifications could interfere with brake caliper operation and may cause the tires to against the wheel well housing d ing turns. The resulting loss of vehicle control could lead to an accident.

NOTE

When any of the wheels are removed and replaced for tire rotation or for other reason, always check the tightness of the wheel nuts after driving approximately 600 miles (1,000 km). Any nut is loose, tighten it to the specified torque.

Alloy wheels

Alloy wheels can be scratched and damaged easily. Handle them carefully to maintain their appearance, performance, and safety.

• When any of the wheels are removed and replaced for tire rotation or to change a flat tire, always check the tightness of the wheel nuts after driving approximately 600 miles (1,000 km). If any nut is loose, tighten it to the specified torque.
• Never apply oil to the threaded parts, wheel nuts, or tapered surface of the wheel.
• Never let the wheel rub against sharp protrusions or curbs.
  When wheel nuts, balance weights, or the center cap is replaced, be sure to replace them with genuine SUBARU parts designed for alloy wheels.
• When stacking and storing removed tires, place shock-absorbing material between the tires to protect the wheels from becoming scratched.

Windshield washer fluid

B01681

Windshield washer fluid warning light (type A)

B01704

Windshield washer fluid warning light (type B)

When there is only a small amount of washer fluid remaining, the windshield washer fluid warning light will illuminate. When this occurs, refill the washer fluid

■ Adding the windshield washer fluid

CAUTION

Never use engine coolant as wash fluid because it could cause paint damage.

Diagram of a car engine showing internal components and a central mechanical component with an arrow indicating direction (no text or labels)

Remove the washer tank filler cap, then add windshield washer fluid.

■ Windshield washer fluid

Use windshield washer fluid. If windshield washer fluid is unavailable use clean water.

In areas where water freezes in winter, use an anti-freeze type windshield washer fluid.

If you fill the reservoir tank with a fluid with a different concentration from the one used previously, purge the old fluid from the piping between the reservoir tank and washer nozzles by operating the washer for a certain period of time. Otherwise, if the concentration of the fluid remaining in the piping is too low for the outside temperature, it may freeze and block the nozzles.

CAUTION

• Adjust the washer fluid concentration appropriately for the outside temperature. If the concentration is inappropriate, sprayed washer fluid may freeze on the windshield and obstruct your view, and the fluid may freeze in the reservoir tank.
• State or local regulations on volatile organic compounds may restrict the use of methanol, a common windshield washer anti-

- CONTINUED -

freeze additive. Washer fluids containing non-methanol anti-freeze agents should be used only if they provide cold weat protection without damaging your vehicle's paint, wiper black or washer system.

Replacement of wiper blades

Grease, wax, insects, or other material on the windshield or the wiper blade results in jerky wiper operation and streaking on the glass. If you cannot remove the streaks after operating the windshield washer or if the wiper operation is jerky, clean the outer surface of the windshield and rear window using a sponge or soft cloth with a neutral detergent or mild-abrasive cleaner. Do not, however, use detergent to clean the blade rubbers. Use only a sponge or soft cloth (and no neutral detergent or mild abrasive cleaner) when you clean the blade rubbers. If you wipe the rubber of the blade strongly, the black coating component will peel off, which will cause the wiper to judder. Also, after wiping it off, check that the rubber has not come loose. After cleaning the window glass and wiper blade rubbers, be sure to rinse them with clean water. Rinse the window until the water does not form beads on the glass. This indicates that the glass is clean.

CAUTION

- Do not clean the wiper blades with gasoline or a solvent, such as paint thinner or benzine. This will cause deterioration of the

wiper blades.

• While removing the wiper blades from the wiper arms, do not return the wiper arms to the original positions. Otherwise, the windshield surface may be scratched.
  When returning the raised wiper arms to the original positions, carefully return the wiper arms on the windshield by hand. You should not return the wiper arms to the windshield only by the return spring. Otherwise, the wiper arms may be deformed and/or the windshield surface may be scratched.
• When you are going to raise the passenger-side wiper arm, first raise the driver-side wiper arm. Otherwise, the passenger-side wiper assembly and driver-side wiper assembly will touch each other, possibly resulting in scratches.
• Return the passenger-side wiper arm to its original position before returning the driver-side wiper arm to its original position. Otherwise, the passenger-side wiper assembly and driver-side wiper

assembly will touch each other, possibly resulting in scratches.

If you cannot eliminate the streaking even after following this method, replace the wiper blades using the following procedures.

■ Windshield wiper blade assembly

1. Raise the wiper arm off the windshield.

Line drawing of a car with a hand adjusting the dashboard area, featuring a diagonal no-smoking symbol overlay (no text or symbols on the diagram itself)

CAUTION

Hold the wiper arm when replacing the wiper blade. Holding the wiper blade, may result in blade deformation.

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

1) Lock knob

1. Hold the wiper blade connection by hand, push the lock knob to release the lock, and then pull out the wiper blade assembly.

NOTE

Do not use a hard object to push lock knob. The lock knob may be scratched.

Mechanical assembly diagram showing a bracket with a downward arrow indicating motion (no text or symbols)

1. When installing the wiper blade assembly, align it with the wiper arm connection part and then slide it in the opposite direction of removal to install. After installing the wiper blade assembly, check that the connection part is locked completely.
2. Hold the wiper arm by hand and slowly drawer it in position.

■ Windshield wiper blade rubber

Replace the wiper blade rubber according to the following procedure.

1 (3) (2) (1) B02029

1) Slit

1. Pull the wiper blade rubber from the right side in the order of (1), (2) and (3) until the slit on the wiper blade can be seen position.

Technical diagram showing a curved mechanical component with an arrow indicating direction (no text or symbols present)

1. Pull the end of the wiper blade rubber through the slit to remove it.

Technical diagram of a curved mechanical component with an arrow indicating direction (no text or symbols)

1. Insert a new wiper blade rubber into the slit. Do not insert the wiper blade rubber into the wrong slit.

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

1. Insert the wiper blade rubber into the slit, then return to the tip of the position.
2. Check that the wiper blade rubber is fixed properly. If wiper blade rubbers are not attached properly, they may scratch the windshield.
3. Attach the wiper blade.

NOTE

It may be difficult to perform the wiper blade rubber replacement. We recommend that you contact your SUBARU dealer for wiper blade rubber replacement if necessary.

■ Rear window wiper blade as sembly

1. Raise the wiper arm off the rear window.

B00061

1. Turn the wiper blade assembly counterclockwise.

Pure technical diagram showing intersecting lines and a black arrow, no text or symbols present

1. Pull the wiper blade assembly toward you to remove it from the wiper arm.
2. Install the wiper blade assembly to the wiper arm. Make sure that it locks in place.
3. Hold the wiper arm by hand and slowly lower it in position.

■ Rear window wiper blade rubber

Diagram showing a curved object with an arrow pointing to it, no text or symbols present

1. Pull out the end of the blade rubber assembly to unlock it from the plastic support.


Diagram of a cable or wire with an arrow indicating direction, no text or symbols present

1. Pull the blade rubber assembly out the plastic support.


Technical diagram of a mechanical assembly with labeled component '1' and identifier 'B00505' (no text or symbols beyond labels)

1) Metal spines
3. If the new blade rubber is not provided with two metal spines, remove the metal spines from the old blade rubber and install them in the new blade rubber.

Diagram showing a curved mechanical component with an arrow indicating direction (no text or symbols present)

1. Align the claws of the plastic support with the grooves in the blade rubber assembly, then slide the blade rubber assembly into place.


Line drawing of a mechanical component with no visible text or symbols

Securely retain both ends of the rubber with the stoppers on the plastic support

ends. If the rubber is not retained prop the wiper may scratch the rear window glass.

1. Install the wiper blade assembly to the wiper arm. Make sure that it locks in pla
2. Hold the wiper arm by hand and slow lower it in position.

Battery

WARNING

Before beginning work on or near any battery, be sure to extinguish all cigarettes, matches, and lighters. Never expose a battery to an open flame or electric sparks. Batteries give off a gas which is highly flammable and explosive.

• For safety, in case an explosion does occur, wear eye protection or shield your eyes when working near any battery. Never lean over a battery.
• Do not let battery fluid contact eyes, skin, fabrics, or paint because battery fluid is a corrosive acid. If battery fluid gets on your skin or in your eyes, immediately flush the area with water thoroughly. Seek medical help immediately if acid has entered the eyes.

If battery fluid is accidentally swallowed, immediately drink a large amount of milk or water and seek medical attention immediately.

• To lessen the risk of sparks, remove rings, metal watchbands, and other metal jewelry. Never allow metal tools to contact the positive battery terminal and anything connected to it WHILE you are at the same time in contact with any other metallic portion of the vehicle because a short circuit will result.
- Keep everyone including children away from the battery.
- Charge the battery in a well-ventilated area.
- Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Batteries also contain other chemicals known to the State of California to cause cancer. Wash hands after handling

1 2 3 UPPER LEVEL UPPER LEVEL B00382

1) Cap
2) Upper level
3) Lower level

It is unnecessary to periodically check the battery fluid level or periodically refill with distilled water.

However, if the battery fluid level is below the lower level, remove the cap. Fill to the upper level with distilled water.

For "SUBARU STARLINK Safety and Security" without navigation system:

When the vehicle battery is discharged or replaced, certain internal settings can be restored only by pairing the vehicle to a smartphone via Bluetooth, or by visiting a SUBARU dealer. Until those internal settings are restored, certain convenience features, including the "Service Appointment Scheduler," may be unavailable.

CAUTION

Never use more than 10 amperes when charging the battery because it will shorten battery life.

Fuses

CAUTION

Never replace a fuse with one having a higher rating or with material other than a fuse because serious damage or a fire could result.

NOTE

Fuse rating and using circuit are described on each behind the fuse box cover.

The fuses are designed to melt during an overload to prevent damage to the wiring harness and electrical equipment. The fuses are located in two fuse boxes.

B01666

One is located under the instrument panel behind the fuse box cover on the driver's seat side. To remove the cover, pull it to

B01667

1) Spare fuses

The other one (main fuse box) is housed the engine compartment. Also, the spare fuses are stored in the fuse box cover.

Technical line drawing of an automotive electrical panel with no visible text or symbols

The fuse puller is stored in the main fuse box in the engine compartment.

Pinch the upper part of the fuse puller when removing it from the main fuse box.

in 1 2 B01008

1) Good
2) Blown

If any lights, accessories or other electrical controls do not operate, inspect the corresponding fuse. If a fuse has blown, replace it.

1. Turn the ignition switch to the "LOCK"/"OFF" position and turn off all electrical accessories.
2. Remove the cover.
3. Determine which fuse may be blown. Look at the back side of each fuse box cover.

Technical illustration of a mechanical component with directional arrows indicating movement (no text or symbols)

1. Pull out the fuse with the fuse puller.
2. Inspect the fuse. If it has blown, replace it with a spare fuse of the same rating.
3. If the same fuse blows again, this indicates that its system has a problem. Contact your SUBARU dealer for repairs.

Installation of accessories

Always consult your SUBARU dealer before installing fog lights or any other electrical equipment in your vehicle. Such accessories may cause the electronic system to malfunction if they are incorrectly installed or if they are not suited for the vehicle.

Replacing bulbs

WARNING

Bulbs may become very hot while illuminated. Before replacing bulbs, turn off the lights and wait until bulbs cool down. Otherwise, there a risk of sustaining a burn injury.

CAUTION

Replace any bulb only with a new bulb of the specified wattage. Using a bulb of different wattage could result in a fire. For the specified wattage of each bulb, refer to "Bu chart" 12-9.

NOTE

For models with type B combination meter, if SRH is malfunctioning, the SRH OFF indicator light appears on combination meter when the ignition switch is in the "ON" position. It indicates that SRH has been deactivated. Contact a SUBARU dealer for inspection.

■ Headlights (models with LED headlights)

B01697

LED headlight warning light (type B) The LED headlight warning light illuminates if the LED headlights malfunction. Have your vehicle inspected at a SUBARU dealer as soon as possible.

the

an

■ Headlights (models with halogen headlights)

CAUTION

Halogen headlight bulbs become very hot while in use. If you touch the bulb surface with bare hands of greasy gloves, fingerprints or grease on the bulb surface will develop into hot spots, causing the bulb to break. If there are finger prints or grease on the bulb surface wipe them away with a soft cloth moistened with alcohol.

Technical diagram of a car engine bay with valve and mounting components (no text or labels)

Right-hand side

1. Use a screwdriver to undo the clips the air intake duct, then remove the air intake duct.

Technical line drawing of an engine compartment with hoses and valves (no text or labels)

Technical diagram of a mechanical assembly with no visible text or symbols

Left-hand side

1. Use a screwdriver to remove the secured clip of the washer tank. To make it easy to access the bulb, turn the neck of the washer fluid filler pipe as illustrated.

NOTE

• If headlight aiming is required, consult your SUBARU dealer for proper adjustment of the headlight aim.
• It may be difficult to replace the bulbs. Have the bulbs replaced by your SUBARU dealer if necessary.

Perform the following steps to replace the bulbs.

1 2 B01707

1) Low beam bulb
2) High beam bulb

1. Disconnect the electrical connector from the bulb and remove the bulb from the headlight assembly by turning it counterclockwise.

2. Replace the bulb with new one. At this time, use care not to touch the bulb surface.

3. To install the bulb to the headlight assembly, turn it clockwise until it clicks.
4. Reconnect the electrical connector.
5. Install the air intake duct with clips (right-hand side).
6. Set the washer fluid filler pipe to the original place and secure it by clip (left-hand side).

■ Front turn signal light

It may be difficult to replace the bulbs. Have the bulbs replaced by your SUBARU dealer if necessary.

Parking light

It may be difficult to replace the bulbs. Have the bulbs replaced by your SUBARU dealer if necessary.

■ Front fog light (if equipped)

It may be difficult to replace the bulbs. Have the bulbs replaced by your SUBARU dealer if necessary.

■ Rear combination lights

Anatomical illustration of a joint with surgical hardware (no text or labels)

1. Remove the covers.


B01686

1. Using a Phillips screwdriver, remove the upper and lower screws that secure the rear combination light assembly.

Diagram of a car door handle with an arrow indicating direction (no text or symbols)

1. Slide the rear combination light assembly rearward and remove it from the vehicle.

1 2 3 B01670

1) Tail light
2) Rear side marker light
3) Rear turn signal light

1. Remove the bulb socket from the re combination light assembly by turning it counterclockwise.
2. Pull the bulb out of the bulb socket replace it with a new one.
3. Set the bulb socket into the rear combination light assembly and turn it clockwise until it locks.

1 2 3 B01688

ar7. Put the rear combination light assembly into place while aligning the 2 guide pins and catches with the guide holes and clips on the vehicle.

B01686

1. Tighten the upper and lower screws.
2. Reinstall the covers.

■ Backup light

Line drawing of a car interior showing seat, dashboard, and rear panel (no text or symbols)

1. Insert a flat-head screwdriver into the light cover or rear gate light (if equipped as shown in the illustration, then pry it the rear gate trim.

Technical diagram of a mechanical component with two circular components and directional arrows indicating motion (no text or symbols)

1. For left side light, turn the bulb socket clockwise and remove it.

For right side light, turn the bulb socket counterclockwise and remove it.

Diagram of a hand connecting a cable to a plug with a black arrow indicating direction (no text or symbols)

1. Pull the bulb out of the bulb socket and replace it with a new one.

2. For left side light, turn the bulb socke counterclockwise and install it.
   For right side light, turn the bulb socket clockwise and install it.

3. Install the light cover or rear gate light (if equipped) on the rear gate trim.

■ License plate light

Diagram showing two car interior compartments with directional arrows indicating movement, no text or symbols present

1. The license plate lights must be pushed outwards, and then pulled out to be removed.

Diagram of a connector with a cable and directional arrow indicating rotation (no text or symbols)

1. Turn the bulb socket counterclockwise and pull out the socket.
2. Pull the bulb out of the socket.
3. Install a new bulb.
4. Reinstall the bulb socket and the license plate light cover.

■ Map light

CAUTION Replacing the bulb could cause burns since the bulb may be ve hot. Have the bulb replaced by y SUBARU dealer.

■ Vanity mirror light (if equipped)

CAUTION Replacing the bulb could cause burns since the bulb may be very hot. Have the bulb replaced by your SUBARU dealer.

■ Dome light and cargo area light

Line drawing of a hand holding a pen tip over a dome-shaped object (no text or symbols)

Diagram of a device with a grid pattern and a small inset device, being pointed by a tool (no text or symbols)

Cargo area light

1. Remove the lens by prying the edge the lens with a flat-head screwdriver.
2. Pull the bulb out of the socket.
3. Install a new bulb.
4. Reinstall the lens.

■ Other bulbs

It may be difficult to replace the b Have the bulbs replaced by your SUBARU dealer if necessary.

■ Adjusting headlight aim (models with LED headlights)

2 1 B02007

1) Adjustment screw A
2) Adjustment screw B

▼ Before checking the headlight aiming

1. Make sure the vehicle has a full tank of gasoline and the area around the headlight is not deformed.
2. Park the vehicle on level ground.
3. Sit in the driver's seat.
4. Bounce the vehicle several times.

▼ Headlight aim adjustment

Technical line drawing of a car engine bay with two directional arrows indicating components (no text or symbols present)

Right-hand side

1. Use a screwdriver to undo the clips on the air intake duct, and then remove the air intake duct.

of ht 1 B02008

1) Adjustment direction mark

1. Turn the screw A clockwise or count clockwise to adjust it. Remember the direction of the rotation number of rotations.

Mechanical assembly diagram showing a tool inserted into a car engine compartment (no text or symbols visible)

1. Turn screw B the same number of and in the same direction as step 2.

NOTE

• If the headlight aim cannot be adjusted, contact your SUBARU dealer
• To inspect of the headlight aim position, consult a SUBARU dealer.

Replacing key battery

and The access key fob/transmitter battery may be discharged under the following conditions.

• The operation of the keyless access function is unstable.
• The operating distance of the remote keyless entry system is unstable.
• The transmitter does not operate properly when used within the standard distance.

Replace the battery with a new one.

■ Safety precautions

urns
- Do not let dust, oil or water go or in the access key fob/transfer when replacing battery.
- Before replacing the battery, remove any static electricity.
- Be careful not to touch or damage the printed circuit board in the access key fob/transmitter when replacing the battery.
- Be careful not to allow children touch the battery and any removed parts; children could

CAUTION

swallow them.

• There is a danger of an explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type of the battery.
• Batteries should not be exposed to excessive heat such as bright sunlight, fire or the like.

NOTE

• Replace only with the same or equivalent type of battery recommended by the manufacturer.
• Dispose of used batteries according to local laws.
• Mount the battery in the correct orientation to prevent fluid leakage.
• Be careful not to bend the terminals. If may result in a malfunction.
• It is recommended that the battery be replaced by a SUBARU dealer.
• Use a new battery.
• After replacing the battery, confirm that the transmitter functions properly.

■ Replacing battery of access key fob

CAUTION

When removing or reinstalling the access key fob cover, make sure the plastic part does not come of become misaligned.

Battery: Button battery CR2032 or equivalent

1 2 202500

1) Release button
2) Emergency key

1. Take out the emergency key.

Line drawing of a handheld device with a handle and label 'chat or', no readable text or symbols beyond the label.

1. Wrap a flat-head screwdriver with vinyl4. Insert a new battery with its positive (+) tape or a cloth, and insert it in the gap side facing upward as shown in the figure. remove the cover.

B01568

1. Take out the battery using a flat-head by fitting the projections and recesses screwdriver with vinyl tape or a cloth. together.

Line drawing of a handheld electronic device with a hand operating the button (no text or symbols)

Technical line drawing of a dual-part electronic device casing with mounting holes and internal components (no text or symbols)

1. Attach the cover to the access key fob by fitting the projections and recesses together.

■ Replacing transmitter battery Battery: Button battery CR1620 or equivalent

Diagram of a car interior with directional arrows indicating movement or change (no text or symbols)

1. Wrap a flat-head screwdriver with vinyl tape or a cloth. Open the key head using a flat-head screwdriver.

Line drawing of a hand holding a key inserted into a car key (no text or symbols present)

1. Remove the transmitter case from the key head.

g a 201639

1. Open the transmitter case by releasing the hooks.

Technical diagram of a mechanical component with labeled parts (1 and 201640), no readable text or symbols beyond labels

1) Negative (−) side facing up

1. Replace the old battery with a new battery making sure to install the new battery with the negative (-) side facing up.
2. Put together the transmitter case by fitting the hooks on the case.
3. Reinstall the transmitter case in the key head.
4. Refit the removed half of the key head.

Pure horizontal dashed lines without any text, numbers, or symbols

Specifications

Specifications.... 12-2

Dimensions.... 12-2

Engine 12-3

Fuel 12-3

Engine oil 12-4

Manual transmission, front differential and rear differential gear oil....12-6

Fluids 12-6

Engine coolant.... 12-7

Electrical system 12-7

Tires.... 12-8

Temporary spare tires.... 12-8

Brake disc 12-8

Bulb chart.... 12-9

Safety precautions.... 12-9

Bulb chart 12-10

Vehicle identification 12-13

Specifications

These specifications are subject to change without notice.

Dimensions
in (mm)

Item
Overall length 176.5 (4,485)
Overall width	Models with rear gate light 71.7 (1,820)
	Models without rear gate light 71.0 (1,800)
Overall height 63.6 (1,615)
Wheel base 104.9 (2,665)
Tread	Front 61.0 (1,550)
	Rear 61.2 (1,555)
Ground clearance ^		8.7 (220)

*1: Measured with vehicle empty

■ Engine

Engine model FB20 (2.0 L, DOHC,	non-turbo) FB25 (2.5 L, DOHC, non-turbo)
Engine type	Horizontally opposed, liquid cooled 4 cylinder,4 stroke direct injection gasoline engine	Horizontally opposed, liquid cooled 4 cylinder,4-stroke direct injection gasoline engine
Displacement cu-in (cc) 122 (1,995)	152 (2,498)
Bore × Stroke in (mm)	3.31 × 3.54 (84.0 × 90.0)	3.70 × 3.54 (94.0 × 90.0)
Compression ratio 12.5 : 1 12.0 : 1
Firing order 1 - 3 - 2 - 4		1 - 3 - 2 - 4

Fuel

Fuel requirement Fuel tank capacity
Unleaded gasoline with 87 AKI (90 RON) or higher	16.6 US gal (63 liters, 13.9 Imp gal)

For more details, refer to "Fuel" 7-3.

■ Engine oil

For the checking, adding and replacing procedure or other details, refer to "Engine oil" 11-8.

NOTE

The procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommended that you have this service performed by your SUBARU dealer.

▼ Approved engine oil

Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer. If the approved engine oil is unavailable, use the alternative engine oil described on the next page.

▼ Alternative engine oil

If the SUBARU approved oil is unavailable, the following alternative oil can be used.

NOTE

Each quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors.

Oil grade			SAE viscosity No. and applicable temperature	Engine oil capacity
orMC0886			0W-20 synthetic oil is the required for optimum engine performance and protection. Conventional oil may be used if synthetic oil is unavailable.*: If 0W-20 synthetic oil is not available5W-30 conventional oil may be used if replenishment is needed but should be changed to 0W-20 synthetic oil at the next oil change.	- Adding the oil from low level to oil full level:1.1 US qt (1.0 liters, 0.9 Imp qt)- Changing the oil and oil filter:2.0 L engine models: 4.7 US qt(4.4 liters, 3.9 Imp qt)2.5 L engine models: 4.4 US qt(4.2 liters, 3.7 Imp qt)
API (American Petroleum Institute) classification SN with the words “RESOURCE CONSERVING”, SN PLUS with the words “RESOURCE CONSERVING” or SP with the words “RESOURCE CONSERVING”		ILSAC (International Lubricant Specification Advisory Committee) GF-5 or GF-6A, which can be identified with the ILSAC certification mark (Starburst mark)	ZOM0294

■ Manual transmission, front differential and rear differential gear oil

Oil Manual transmission oil Front differential gear oil (CVT models) Rear differential gear oil
Oil grade	SUBARU Extra MT*3API classification GL-5 (75W-90)*	SUBARU Extra MT*3API classification GL-5 (75W-90)	API classification GL-5 (75W-90)
Oil capacity*1	3.5 US qt (3.3 liters, 2.9 Imp qt)	1.4 US qt (1.3 liters, 1.1 Imp qt)	0.8 US qt (0.8 liters, 0.7 Imp qt)
Remarks*2	"Manual transmission oil" 11-14	"Front differential gear oil (CVT models) and rear differential gear oil" 11-15

*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors. After refilling the gearbox with oil, the oil level should be checked.
*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this type of oil.
*4: You may use this type of manual transmission oil. However, using this type of oil will detract from driveability and fuel efficiency.

Fluids

Fluid Fluid type*	1	Fluid capacity2	Remarks*3
Continuously variable transmission fluid (CVT models)	Consult your SUBARU dealer.	2.0 L engine models: 10.8 US qt (10.2 liters, 9.0 Imp qt)2.5 L engine models: 12.0 US qt (11.3 liters, 10.0 Imp qt)	“Continuously variable trans-mission fluid” 11-15 qt)
Brake fluid	FMVSS No. 116, DOT 3 or DOT 4 fluid	brake — “Brake fluid” 11-15
Clutch fluid (MT models)	FMVSS No. 116, DOT 3 or DOT 4 fluid	brake —	“Clutch fluid (MT models)” 11-16

*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors.
*3: For more details about maintenance and service, refer to the indicated section.

■ Engine coolant

Vehicle model Coolant capacity Coolant type
MT models 8.0 US qt (7.6	liters, 6.7 Imp qt)		SUBARU SUPER COOLANT
CVT models	2.0 L engine models 8.2 US qt (7.8 liters, 6.9 Imp qt)
	2.5 L engine models	8.8 US qt (8.3 liters, 7.3 Imp qt)

The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors. For more details about maintenance and service, refer to "Cooling system" 11-10.

■ Electrical system

Battery type	Models without Auto Start Stop system 75D23L
	Models with Auto Start Stop system Q-85
Alternator	2.0 L engine models 12 V-130 A
	2.5 L engine models 12 V-150 A
Spark plugs	2.0 L engine models DILKAR7B8 (NGK)
	2.5 L engine models	DILKAR7Q8 (NGK)

Tires

Tire size P225/60R17 98H 225/55R18 98H
Wheel size		17 × 7 J	18 × 7 J
Pressure	Front 33 psi (230 kPa, 2.3 kgf/cm)		2)
	Rear 32 psi (220 kPa, 2.2 kgf/cm)		2)
Wheel nut tightening torque		89 lbf·ft (120 N·m, 12 kgf·m)*

*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure, refer to "Changing a flat tire" 9-5.

■ Temporary spare tires

Temporary spare tire size T145/80 D17
Temporary spare tire inflation pressure(recommended cold tire inflation pressure)	60 psi (420 kPa, 4.2 kgf/m)

Brake disc

If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult your SUBARU dealer.

Bulb chart

■ Safety precautions

WARNING

Bulbs may become very hot while illuminated. Before replacing bulbs, turn off the lights and wait until the bulbs cool down. Otherwise, there is a risk of sustaining a burn injury.

CAUTION

Replace any bulb only with a new bulb of the specified wattage. Using a bulb of different wattage could result in a fire.

12-10 Specifications/Bulb chart

Bulb chart

1 A 2 3 4 5 3 B 9 F 10 G 11 C 8 7 D 6 E 14 H 13 12 C00499

NOTE

Lights indicated by letters are the LED (Light Emitting Diode) type. Consult your SUBARU dealer for replacement.

Wattage Bulb No.

1) Front turn signal light 12 V-8/28 W 7444NA
2) High beam headlight (models with halogen headlight) 12 V-60 W HB3 Low beam headlight (models with halogen headlight) 12 V-55 W H11
3) Vanity mirror light (if equipped) 12 V-2 W —
4) Map light 12 V-8 W —
5) Dome light 12 V-8 W —
6) Front side marker light (models with halogen headlight) 12 V-5 W W5W
7) Parking light/Front turn signal light (models with halogen 12 V-8/28 W 7444NA headlight)/Front position light
8) Front fog light (if equipped) 12 V-19 W H16
9) Cargo area light 12 V-5 W W5W
10) Backup light 12 V-21 W W21W
11) Rear side marker light 12 V-5 W W5W
12) Tail light 12 V-5 W W5W
13) Rear turn signal light 12 V-21 W WY21W
14) License plate light 12 V-5 W W5W

12-12 Specifications/Bulb chart

Wattage Bulb No.

A) Low and high beam headlight (models with LED headlight) — —
B) Side turn signal light (if equipped) — —
C) Front fog light (if equipped)/Daytime running light (if equipped) — —
D) Front position light (if equipped)/Daytime running light (if equipped)
E) Front side marker light (models with LED head light) — —
F) High-mounted stop light — —
G) Stop light — —
H) Rear gate light (if equipped) — —

Vehicle identification

8 2 5 3 4 1 7 6 C00444

1) Vehicle identification number (under the floor carpet of the right-hand front seat)
2) Emission control label
3) Tire inflation pressure label (vehicle placard)
4) Certification label
5) Vehicle identification number
6) Model number label
7) Fuel label
8) Air conditioner label

Pure horizontal dashed lines without any text, numbers, or symbols

Consumer information and Reporting safety defec

For U.S.A. 13-2

Tire information.... 13-2

Tire labeling....13-2

Recommended tire inflation pressure 13-4

Glossary of tire terminology....13-5

Tire care - maintenance and safety practices ..... 13-10

Determining compatibility of tire and vehicle load capacities.... 13-10

Adverse safety consequences of overloading on handling and stopping and on tires.... 13-10

Steps for Determining Correct Load Limit...... 13-11

Vehicle load limit – how to determine ....13-11 Calculating total and load capacities varying seating configurations .... 13-12

Uniform tire quality grading standards.... 13-14 TREADWEAR.... 13-15

0 TRACTION AA, A, B, C.... 13-15 TEMPERATURE A, B, C.... 13-15

Reporting safety defects (U.S.A.) 13-16

How to contact Transport Canada in order to report a safety concern relating to the vehicle (Canada).... 13-16

For U.S.A.

The following information has been compiled according to Code of Federal Regulations "Title 49, Part 575".

Tire information

■ Tire labeling

Many markings (e.g. Tire size, Tire Identification Number or TIN) are placed on the sidewall of a tire by tire manufacturers. These markings can provide you with useful information on the tire.

▼ Tire size

Your vehicle comes equipped with P-Metric tire size. It is important to understand the sizing system in selecting the proper tire for your vehicles. Here is a brief review of the tire sizing system with a breakdown of its individual elements.

▽ P Metric

With the P-Metric system, Section Width is measured in millimeters. To convert millimeters into inches, divide by 25.4. The Aspect Ratio (Section Height divided by Section Width) helps provide more dimensional information about the tire size.

Example:

P(1)

205/ (2)

55/ (3)

R(4)

16/ (5)

(1) P = Certain tire type used on light duty vehicles such as passenger cars

(2) Section Width in millimeters

(3) Aspect Ratio (= section height ÷ section width).

(4) R = Radial Construction

(5) Rim diameter in inches

▽ Load and Speed Rating Descriptions

The load and speed rating descriptions will appear following the size designation.

They provide two important facts about the tire. First, the number designation is its load index. Second, the letter designation indicates the tire's speed rating.

Example:

P	205 / 55	R	16	89	V
	Size designation			(6)	(7)

(6) Load Index: A numerical code which specifies the maximum load a tire can carry at the speed indicated by its speed symbol, at maximum inflation pressure.

For example, "90" means 1,323 lbs (600 kg), "89" means 1,278 lbs (580 kg).

WARNING

Load indices apply only to the tire, not to the vehicle. Putting a load rated tire on any vehicle does not mean the vehicle can be loaded up to the tire's rated load.

(7) Speed Rating: An alphabetical system describing a tire's capability to travel at established and prede terminated speeds. For example, "V" means 149 mph (240 km/h)

WARNING

- Speed ratings apply only to the tire, not to the vehicle. Putting a speed rated tire any vehicle does not mean the vehicle can be operated at the tire's rated speed.

- The speed rating is void if the tires are worn out, damaged, repaired, retreaded, or otherwise altered from their original condition. If tires are repaired, re-treaded, or otherwise altered, they may not be suitable for original equipment tire designed loads and speeds.

▼ Tire Identification Number (TIN)

Tire Identification Number (TIN) is marked on the intended outboard sidewall. The TIN is composed of four groups. Here is a brief review the TIN with a breakdown of its

individual elements.

DOT(1)

XX(2)

XX(3)

XXX(4)

XXXX(5)

on(1) DOT symbol*

(2) Manufacturer's Identification Mark

(3) Tire Size Code
(4) Tire Type Code
(5) Date of Manufacture

The first two figures identify the week, starting with “01” to represent the first full week of the calendar year; the second two figures represent the year. For example, 0101 means the 1st week of 2001.

*: The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.

▼ Other markings

The following makings are also placed on the sidewall.

Maximum permissible inflation pressure -BELTED RADIAL" Construction

The maximum cold inflation pressure to which this tire may be inflated. For example, "300 kPa (44 PSI) MAX. PRESS"

▽ Maximum load rating

The load rating at the maximum permissible weight load for this tire For example, "MAX. LOAD 580 kg (1,279 LBS) @ 300 kPa (44 PSI) MAX. PRESS."

WARNING

Maximum load rating applies only to the tire, not to the vehicle. Putting a load rated tire on any vehicle does not mean the vehicle can be loaded up to the tire's rated load.

▽ Construction type

Applicable construction of this tire For example, "TUBELESS STEEL

.BELTED RADIAL"

▽ Construction

The generic name of each cord material used in the plies (both sidewall and tread area) of this tire. For example, "PLIES: TREAD 2 STEEL + 2 POLYESTER SIDE-WALL 2 POLYESTER"

▽ Uniform Tire Quality Grading (UTQG)

For details, refer to "Uniform tire quality grading standards" 13-14.

■ Recommended tire inflation pressure
▼ Recommended cold tire inflation pressure

For recommended cold tire inflation pressure for your vehicle's tires, refer to Tires" 12-8.

▼ Vehicle placard

Technical line drawing of a mechanical assembly with no visible text or symbols

The vehicle placard is attached to the driver's side door pillar.

Example:

TIRE PNEU	SIZE DIMENSIONS	COLD TIRE PRESSURE PRESSION DES PNEUS A FROID	SEE OWNER'S MANUAL FOR ADDITIONAL INFORMATION
FRONT AVANT	PX00X0RXX	XX00PA, XXPSI
REAR ARRIERE	PX00X0RXX	XX00PA, XXPSI	VOIR LE MANUEL DE L'USAGER POUR PLUS DE RENSEIGNEMENTS
SPARE DE SECOURS	TX00X0DXX	XX00PA, XXPSI

The vehicle placard shows original tire size, recommended cold tire inflation pressure on each tire at maximum loaded vehicle weight, seating capacity and loading information.

▼ Adverse safety consequences of under-inflation

Driving at high speeds with excessively low tire pressures can cause the tires to flex severely and to rapidly become hot. A sharp increase in temperature could cause tread separation, and failure of the tire(s). Possible resulting loss of vehicle control could lead to an accident.

▼ Measuring and adjusting air pressure to achieve proper inflation

Check and, if necessary, adjust the pressure of each tire (including the spare) at least once a month and before any long journey. Check the tire pressures when the tires are cold. Use a pressure gauge to adjust the tire pressures to the specific values. Driving even a short distance warms up the tires and increases the tire pressures. Also, the tire pressures are affected by the outside temperature. It is best check tire pressure outdoors before driving the vehicle. When a tire becomes warm, the air inside it expands, causing the tire pressure to increase. Be careful not to mistakenly release air from a warm time to reduce its pressure.

■ Glossary of tire terminology • Accessory weight

The combined weight (in excess of those standard items which may be replaced) of automatic transmission, power steering, power brakes, power windows, power seats, radio

and heater, to the extent that these items are available as factory-installed equipment (whether installed or not).

- Bead

The part of the tire that is made steel wires, wrapped or reinforced poly ply cords and that is shaped to fit the rim.

- Bead separation

A breakdown of the bond between components in the bead.

e. Bias ply tire

A pneumatic tire in which the ply cords that extend to the beads are laid at alternate angles substantially less than 90 degrees to the center-line of the tread.

- Carcass

The tire structure, except tread and sidewall rubber which, when inflated, bears the load.

t Chunking

The breaking away of pieces of the tread or sidewall.

• Cold tire pressure

The pressure in a tire that has been driven less than 1 mile or has been standing for three hours or more.

- Cord

The strands forming the plies in the tire. of

- Cord separation

The parting of cords from adjacent rubber compounds.

- Cracking

Any parting within the tread, sidewall, or inner liner of the tire extending to cord material.

- Curb weight

The weight of a motor vehicle with standard equipment including the maximum capacity of fuel, oil and coolant, and if so equipped, air conditioning and additional weight optional engine.

- Extra load tire

A tire designed to operate at higher loads and higher inflation pressure than the corresponding standard tire.

- Groove

The space between two adjacent tread ribs.

- Innerliner

The layer(s) forming the inside surface of a tubeless tire that contains the inflating medium within the tire.

• Innerliner separation

The parting of the innerliner from cord material in the carcass.

- Intended outboard sidewall

(1) The sidewall that contains a whitewall, bears white lettering or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same molding on the other sidewall of the tire, or (2) The outward facing sidewall of an asymmetrical tire that has particular side that must always face outward when mounting on a vehicle.

• Light truck (LT) tire

A tire designated by its manufacturer as primarily intended for use on lightweight trucks or multipurpose passenger vehicles.

- Load rating

The maximum load that a tire is rated to carry for a given inflation pressure.

• Maximum inflation pressure

The maximum cold inflation pres-

sure to which a tire may be inflated.

• Maximum load rating

The load rating for a tire at the maximum permissible inflation pressure for that tire.

• Maximum loaded vehicle weight The sum of:

(a) Curb weight

(b) Accessory weight

(c) Vehicle capacity weight

The maximum cold inflation pressure to which a tire may be inflated.

- Measuring rim

The rim on which a tire is fitted for physical dimension requirements.

• Normal occupant weight

150 lbs (68 kg) times the number of occupants specified in the second column of Table 1 that is appended to the end of this section.

• Occupant distribution

Distribution of occupants in a vehicle as specified in the third column of Table 1 that is appended to the

end of this section.

- Open splice

Any parting at any junction of trea sidewall, or innerliner that extends to cord material.

- Outer diameter

The overall diameter of an inflated new tire.

- Overall width

The linear distance between the exteriors of the sidewalls of an inflated tire, including elevations due to labeling, decorations, or protective bands or ribs.

- Passenger car tire

A tire intended for use on passenger cars, multipurpose passenger vehicles, and trucks, that have a gross vehicle weight rating (GVWF of 10,000 lbs (4,535 kg) or less.

• Ply

A layer of rubber-coated parallel cords.

- Ply separation

A parting of rubber compound between adjacent plies.

- Pneumatic tire

A mechanical device made of rubber, chemicals, fabric and steel or other materials, that, when mounted on an automotive wheel, provides the traction and contains the gas or fluid that sustains the load.

• Production options weight

The combined weight of those installed regular production options weighing over 5.1 lbs (2.3 kg) in excess of those standard items which they replace, not previously considered in curb weight or accessory weight, including heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special tri

Radial ply tire

A pneumatic tire in which the ply cords that extend to the beads at laid at substantially 90 degrees to the centerline of the tread.

- Recommended inflation pressure

The cold inflation pressure recommended by a vehicle manufacture

- Reinforced tire

A tire designed to operate at higher loads and at higher inflation pressures than the corresponding standard tire.

- Rim

A metal support for a tire or a tire and tube assembly upon which the tire beads are seated.

- Rim diameter

Nominal diameter of the bead seat.

- Rim size designation

Rim diameter and width.

- Rim type designation

^5 The industry of manufacturer's designation for a rim by style or code.

- Rim width

Nominal distance between rim flanges.

- Section width

^2 The linear distance between the exteriors of the sidewalls of an inflated tire, excluding elevations due to labeling, decoration, or protective bands.

- Sidewall

That portion of a tire between the

- CONTINUED -

tread and bead.

- Sidewall separation

The parting of the rubber compound Pulling away of the tread from the from the cord material in the side-tire carcass. wall. • Treadwear indicators (TWI)

- Snow tire

A tire that attains a traction index equal to or greater than 110, compared to the ASTM E1136-93 Sta

dard Reference Test Tire, when using the snow traction test as described in ASTM F-1805-00, Standard Test Method for Single Wheel Driving Traction in a Straight Line on Snow-and Ice-Covered Surfaces, and which is marked with an Alpine Symbol “A” on at least one sidewall.

- Test rim

The rim on which a tire is fitted testing, and it may be any rim lis as appropriate for use with that ti

- Tread

That portion of a tire that comes contact with the road.

- Tread rib

A tread section running circumfer-

entially around a tire.

- Tread separation

Pulling away of the tread from the tire carcass.

• Treadwear indicators (TWI)

The projections within the principal grooves designed to give a visual indication of the degrees of wear the tread.

• Vehicle capacity weight

The rated cargo and luggage load plus 150 lbs (68 kg) times the vehicle's designated seating capacity.

- Vehicle maximum load on the tire Load on an individual tire that is determined by distributing to each axle its share of the maximum loaded vehicle weight and dividing by two.

ad vehicle normal load on the tire Load on an individual tire that is determined by distributing to each side its share of the curb weight, accessory weight, and normal occupant weight (distributed in accordance with Table 1 that is appended

to the end of this section) and dividing by 2.

• Wheel-holding fixture

The fixture used to hold the wheel and tire assembly securely during testing.

Table 1 — Occupant loading and distribution for vehicle normal load for various designated seating capacities

Designated seating capacity, number of occupants	Vehicle normal load, number of occupants	Occupant distribution in a normally loaded vehicle
2 through 4 2	2 in front.
5 through 10 3		2 in front, 1 in second seat.
11 through 15 5		2 in front, 1 in second seat, 1 in third seat, 1 in fourth seat.
16 through 22 7		2 in front, 2 in second seat, 2 in third seat, 1 in fourth seat.

■ Tire care – maintenance an safety practices
- Check on a daily basis that the tires are free from serious damage nails, and stones. At the same tin check the tires for abnormal wear
- Inspect the tire tread regularly and replace the tires before their tread wear indicators become visible. When a tire's tread wear indicator becomes visible, the tire is worn beyond the acceptable limit and must be replaced immediately. With a tire in this condition, driving at even low speeds in wet weather can cause the vehicle to hydroplane. Possible resulting loss of vehicle control can lead to an accident.
- To maximize the life of each tire and ensure that the tires wear uniformly, it is best to rotate the tires every 6,000 miles (10,000 km). For information about the tire rotation order, refer to “Tire rotation” 11-26. Replace any damaged or unevenly worn tires at the time of

rotation. After tire rotation, adjust the tire pressures and make sure the wheel nuts are correctly tightened. For information about the tightening torque and tightening sequence for the wheel nuts, refer to "Flat tires" 9-5.

■ Determining compatibility of tire and vehicle load capacities

The sum of four tires' maximum load ratings must exceed the maximum loaded vehicle weight (“GVWR”). In addition, sum of the maximum load ratings of two front tires and of two rear tires must exceed each axle's maximum loaded capacity (“GAWR”). Original equipment tires are designed to fulfill those conditions.

The maximum loaded vehicle weight is referred to Gross Vehicle Weight Rating (GVWR). And each axle's maximum loaded capacity is referred to Gross Axle Weight Rating (GAWR). The GVWR and each

axle's GAWR are shown on the vehicle certification label located at the bottom of driver's side door pillar.

The GVWR and front and rear GAWRs are determined by not only the maximum load rating of tires but also loaded capacities of the vehicle's suspension, axles and other parts of the body.

Therefore, this means that the vehicle cannot necessarily be loaded up to the tire's maximum load rating on the tire sidewall.

■ Adverse safety consequences of overloading on handling and stopping and on tires

Overloading could affect vehicle handling, stopping distance, and vehicle and tire performance in the following ways. This could lead to an accident and possibly result in severe personal injury.

- Vehicle stability will deteriorate. - Heavy and/or high-mounted

loads could increase the risk of rollover.

• Stopping distance will increase.
• Brakes could overheat and fail.
• Suspension, bearings, axles and other body parts could break or experience accelerated wear that will shorten vehicle life.
• Tires could fail.
• Tread separation could occur.
• Tire could separate from its rim.

■ Steps for Determining Correct Load Limit

1. Locate the statement "The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs." on your vehicle's placard.
2. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
4. The resulting figure equals the available amount of cargo and

luggage load capacity. For example, if the "XXX" amount equals 1,400 lbs. and there will be five lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs. (1,400 - 750 (5 × 150) = 650 lb
5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may safely exceed the available cargo and luggage load capacity calculated in Step 4.
6. If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consu this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle.

Vehicle load limit - how to determine

150

The load capacity of your vehicle is determined by weight, not by available cargo space. The load limit of your vehicle is shown on the vehicle

placard attached to the driver's side door pillar. Locate the statement

The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs" on your vehicle's placard.

The vehicle placard also shows seating capacity of your vehicle.

The total load capacity includes the total weight of driver and all passengers and their belongings, any cargo, any optional equipment such as a trailer hitch, roof rack or bike carrier, etc., and the tongue load of a trailer. Therefore cargo capacity can be calculated by the following method.

Cargo capacity = Load limit - (total weight of occupants + total weight

of optional equipment + tongue of a trailer (if applicable))

For information about vehicle loading, refer to Loading your vehicle" 8-11.

■ Calculating total and load capacities varying seating configurations

Calculate the available load capacity as shown in the following examples:

Example 1A

Line drawing of a car interior showing driver and passenger (no text or symbols)

Vehicle capacity weight of the vehicle is 900 lbs (408 kg), which i aindicated on the vehicle placard with the statement "The combined weight of occupants and cargo should never exceed 900 lbs or 408 kg".

For example, if the vehicle has one occupant weighing 154 lbs (70 kg) plus cargo weighing 662 lbs (300 kg).

1. Calculate the total weight.

Total weight

$$ \begin{array}{l} = \frac {1 5 4 \text { lbs (70 kg) }}{(\text { Occupant })} + \frac {6 6 2 \text { lbs (300 kg) }}{(\text { Cargo })} \ = 8 1 6 \text { lbs (370 kg) } \ \end{array} $$

1. Calculate the available load capacity by subtracting the total weight from the vehicle capacity weight of 900 lbs (408 kg).

Available Load Capacity

$$ = \frac {9 0 0 \text { lbs (408 kg) }}{\text {(Vehicle capacity weight)}} - \frac {8 1 6 \text { lbs (370 kg) }}{\text {(Total weight)}} $$

$$ = 8 4 \text { lbs (38 kg) } $$

is3. The result of step 2 shows that a

further 84 lbs (38 kg) of cargo can be carried.

Example 1B

Side-view line drawing of a car with two people inside, showing interior compartments and seatbelt (no text or symbols)

For example, if a person weighing 176 lbs (80 kg) now enters the same vehicle (bringing the number of occupants to two), the calculations are as follows.

1. Calculate the total weight.

Total weight

$$ = \frac {1 5 4 \text { lbs (70 kg) } + 1 7 6 \text { lbs (80 kg) }}{(\text { Occupant })} $$

$$ + \frac {6 6 2 \text { lbs (300 kg) }}{(\text { Cargo })} $$

$$ = 9 9 2 \text { lbs (450 kg) } $$

1. Calculate the available load capacity.

Available Load Capacity

$$ = \frac {9 0 0 \text { lbs (408 kg) }}{\text {(Vehicle capacity weight)}} - \frac {9 9 2 \text { lbs (450 kg) }}{\text {(Total weight)}} $$

$$ = - 9 2 \text { lbs } (- 4 2 \text { kg }) $$

1. The total weight now exceeds the capacity weight by 92 lbs (42 kg), so the cargo weight must be reduced by 92 lbs (42 kg) or more

Example 2A

Line drawing of a car with driver inside and connected to a small vehicle (no text or symbols)

Vehicle capacity weight of the vehicle is 900 lbs (408 kg), which indicated on the vehicle placard with the statement "The combined weight of occupants and cargo should never exceed 408 kg or 900 lbs".

For example, the vehicle has one occupant weighing 165 lbs (75 kg) plus cargo weighing 375 lbs (170 kg). In addition, the vehicle is fitted with a trailer hitch weighing 22 lbs (10 kg), to which is attached a trailer weighing 1,764 lbs (800 kg). 10% the trailer weight is applied to the

trailer tongue (i.e. Tongue load = 176 lbs (80 kg)).

1. Calculate the total weight.

Total weight

$$ = \frac {1 6 5 \text { lbs (75 kg) }}{(\text { Occupant })} + \frac {3 7 5 \text { lbs (170 kg) }}{(\text { Cargo })} $$

$$ + \frac {2 2 \text { lbs (10 kg) }}{(\text { Trailer hitch })} + \frac {1 7 6 \text { lbs (80 kg) }}{(\text { Tongue load })} $$

$$ = 7 3 8 \text { lbs (335 kg) } $$

1. Calculate the available load capacity.

s Available Load Capacity

$$ = \frac {9 0 0 \text { lbs (408 kg) }}{\text {(Vehicle capacity weight)}} - \frac {7 3 8 \text { lbs (335 kg) }}{\text {(Total weight)}} $$

$$ = 1 6 2 \text { lbs (73 kg) } $$

1. The result of step 2 shows that a further 162 lbs (73 kg) of cargo can be carried.

Example 2B

Line drawing of a car with two people driving inside and connected to a vehicle via a cable (no text or symbols)

For example, if a person weighing 143 lbs (65 kg) and a child weigh 40 lbs (18 kg) now enter the same vehicle (bringing the number of occupants to three), and a child restraint system weighing 11 lbs (kg) is installed in the vehicle for child to use, the calculations are follows.

1. Calculate the total weight.

Total weight

$$ \begin{array}{l} = \frac {1 6 5 \text { lbs (75 kg) } + 1 4 3 \text { lbs (65 kg) }}{(\text { Occupant })} \ + \frac {4 0 \text { lbs (18 kg) }}{(\text { Occupant })} \ + \frac {1 1 \text { lbs (5 kg) }}{(\text { Child restraint })} + \frac {3 7 5 \text { lbs (170 kg) }}{(\text { Cargo })} \ + \frac {2 2 \text { lbs (10 kg) }}{\text {(Trailer hitch)}} + \frac {1 7 6 \text { lbs (80 kg) }}{\text {(Tongue load)}} \ = 9 3 2 \text { lbs (423 kg) } \ \end{array} $$

ing Calculate the available load capacity.

Available Load Capacity

$$ \begin{array}{l} 5 = \frac {9 0 0 \text { lbs (408 kg) }}{\text { (Vehicle }} - \frac {9 3 2 \text { lbs (423 kg) }}{\text { (Total weight) }} \ \begin{array}{c} \text {the capacity weight)} \ \text {as} \end{array} \ = - 3 2 \text { lbs } (- 1 5 \text { kg }) \ \end{array} $$

1. The total weight now exceeds the capacity weight by 32 lbs (15 kg), so the cargo weight must be reduced by 32 lbs (15 kg) or mo

Uniform tire quality grading standards

This information indicates the relative performance of passenger car tires in the area of treadwear, traction, and temperature resistance. This is to aid the consumer in making an informed choice in the purchase of tires.

Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width.

For example:

TREADWEAR 200 TRACTION AA TEMPERATURE A

The quality grades apply to new pneumatic tires for use on passenger cars. However, they do not apply to deep tread, winter type snow tires, space-saver or temporary use spare tires, tires with nominal rim diameters of 12 inches or less, or to some limited production tires.

All passenger car tires must conform to Federal Safety Requirements in addition to these grades

TREADWEAR

The treadwear grade is a comparative rating based on the wear rate the tire when tested under controlled conditions on a specified government test course.

For example, a tire graded 150 would wear one and one-half (1-1/2) times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate.

■ TRACTION AA, A, B, C

The traction grades, from highest to lowest, are AA, A, B and C. Those grades represent the tire's ability to stop on wet pavement as measure under controlled conditions on specified government test surfaces of asphalt and concrete.

A tire marked C may have poor traction performance.

WARNING

The traction grade assigned this tire is based on straight ahead braking traction tests, and does not include acceleration, cornering, hydroplaning, or peak traction characteristics.

■ TEMPERATURE A, B, C

The temperature grades are A (the highest), B, and C, representing the entire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.

Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and

-excessive temperature can lead to sudden tire failure.

The grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Vehicle Safety Standards No. 109.

to Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.

WARNING

The temperature grade for this tire is established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure.

Reporting safety defects (U.S.A.)

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Subaru of America, Inc. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Subaru of America, Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE, West Building, Washington, DC 20590. You can

also obtain other information about motor vehicle safety from http://www.safercar.gov.

How to contact Transport Canada in order to report a safety concern relating to the vehicle (Canada)

Transport Canada - ASFAD

330 Sparks Street

Ottawa, ON K1A 0N5

Telephone: [phone]

(Ottawa-Gatineau area or internationally)

Toll free: 1-800-333-0510 (in Canada)

Online:

http://www.tc.gc.ca/recalls

Transports Canada - ASFAD

330, rue Sparks

Ottawa (Ontario) K1A 0N5

Téléphone: 819-994-3328

ABS (Anti-lock Brake System) 7-37

Warning light 3-20

Access key 2-2

Warning indicator.... 3-24

Access key fob 2-2

Accessories 11-38

Accessory power outlet 6-7

Air cleaner element 11-12

Air conditioner Automatic climate control.... 4-5

Manual climate control.... 4-6

Air filtration system 4-10

Airflow mode 4-6

Alarm system 2-24

All-Wheel Drive warning light 3-22

Alloy wheel 11-28

Cleaning 10-4

Antenna.... 5-2 Roof antenna (for Rod type).... 5-2

Roof antenna (for Shark fin type).... 5-2

Anti-lock Brake System (ABS) 7-37

Arming the system 2-25

Ashtray.... 6-11

Assist grip.... 6-12

AT OIL TEMP warning light 3-18

Audio set 5-3

Auto on/off headlights.... 3-69

Auto Start Stop system.... 7-57

Indicator light 3-32, 7-57

No Activity Detected indicator light 3-32, 7-62

OFF indicator light.... 3-32, 7-61

Warning light 3-32, 7-60

Auto-dimming mirror/compass.... 3-82, 3-83

Automatic climate control operation 4-5

Automatic headlight beam leveler warning light.... 3-31

Automatic Locking Retractor/Emergency Locking

Retractor (ALR/ELR).... 1-14

B

Battery 11-35

Drainage prevention function 2-23

Jump starting.... 9-10

Replacement (access key fob) 11-46

Replacement (transmitter) 11-47

Vehicle battery 11-35

Blind Spot Detection (BSD) 7-63

Booster cushion 1-36

Booster seat 1-36

Bottle holder 6-7

Brake

Assist 7-36

Booster 7-36, 11-17

Disc.... 12-8

Fluid 11-15, 12-6

Pad 11-20

Parking 7-48, 11-20

Pedal 11-18

Brake system.... 7-36

Warning light 3-20

Braking 7-36

Tips.... 7-36

Breaking-in of new brake pads 11-20

BSD/RCTA 7-63

Approach indicator light/warning buzzer.... 7-67

OFF indicator 3-33, 7-68

OFF switch 7-69

Warning indicator.... 3-33, 7-69

Warning volume 7-67

Bulb

Chart.... 12-9

Replacement.... 11-38

C

Cargo area

Cover 6-14

Light.... 6-3, 11-43

Tie-down hooks 6-16

Catalytic converter 8-3

Center console 6-6

Changing

Coolant.... 11-12

Flat tire.... 9-5

Oil and oil filter 11-9

Charge warning light 3-17

CHECK ENGINE warning light/Malfunction indicator light.... 3-15

Checking

Brake pedal free play 11-18

Brake pedal reserve distance 11-18

Clutch function 11-18

Clutch pedal free play 11-19

Coolant level.... 11-11

Fluid level (brake fluid).... 11-15

Fluid level (clutch fluid) 11-16

Fluid level (washer fluid) 11-29

Oil level (engine oil).... 11-8

Child restraint systems.... 1-26

Installation of a booster cushion.... 1-36

Installation of a booster seat.... 1-36

Installation with ALR/ELR seatbelt.... 1-31

Lower and top tether anchorages.... 1-37

Top tether anchorages 1-41

Child safety 5

Locks.... 2-27

Chime

Key 3-5

Light 3-68

Seatbelt 3-13

Cigarette lighter 6-9

Cleaning

Alloy wheels 10-4

Interior 10-5

Ventilation grille 4-9

Climate control system 4-2

Automatic 4-5

Manual.... 4-6

Clock 3-48, 3-52, 3-66

Clutch

Fluid 11-16

Pedal 11-18

Coat hook 6-13

Combination meter display (color LCD).... 3-34

Index

Compass 3-82, 3-83

Continuously variable transmission (CVT).... 7-26 Fluid.... 11-15, 12-6 Oil temperature warning light (AT OIL TEMP).... 3-18

Control switch light 3-68

Coolant.... 11-11, 12-7 Temperature high warning light.... 3-16 Temperature low indicator light.... 3-16

Cooling system.... 11-10

Corrosion protection.... 10-4

Cruise control.... 7-53 Indicator light.... 3-31

Set indicator light 3-31

Cup holder.... 6-6

D

Daytime running light system 3-74

Defogger 3-91

Defrosting 4-9

Deicer 3-91

Differential gear oil Front .... 11-15, 12-6 Rear.... 11-15, 12-6

Dimensions 12-2

Disarming the alarm system.... 2-26

Disc brake pad wear warning indicators 7-37

Dome light 6-2, 11-43

Door Locks 2-20

Open warning light.... 3-22

Drive belt 11-14

Driving

AWD vehicles 8-4

Drinking 6

Drugs.... 6

Foreign countries 8-4

Off road 8-6

Pets.... 8

Snowy and icy roads 8-9

Tips 7-25, 7-32, 8-4

Tired or sleepy.... 7

Winter 8-7

E

ECO gauge 3-10

Electrical system 12-7

Electronic Brake Force Distribution (EBD) system ..... 7-38 Warning ..... 3-21

Emergency Locking Retractor (ELR).... 1-14

Engine 12-3

Compartment overview 11-7 Coolant 11-11, 12-7

Exhaust gas (carbon monoxide).... 6, 8-2

Hood 11-5

Hood open warning light 3-16

Low oil level warning light 3-18 Oil 11-8, 12-4

Overheating.... 9-12 Starting & stopping .... 7-9, 7-12

Event data recorder 9

Exterior care 10-2

F

Flat tires 9-5

Floor mat 6-12

Fluid.... 12-6

Fluid level

Brake 11-15

Clutch.... 11-16

Continuously variable transmission 11-15

Fog light

Bulb 11-40

Indicator light.... 3-32

Switch 3-76

Front

Differential gear oil.... 11-15, 12-6

Fog light indicator light 3-32

Passenger's frontal airbag ON and OFF indicators .. 3-15

Seatbelt pretensioners.... 1-21

Turn signal light 11-40

View Monitor 6-16

Front seats.

Forward and backward adjustment 1-5

Head restraints 1-8

Manual seat 1-5

Power seat.... 1-6

Reclining the seatback 1-5

Seat heater 1-11

Seat height adjustment.... 1-6

Fuel

Consumption indicator.... 3-38

Economy hints.... 8-2

Filler lid and cap 7-5

Gauge.... 3-10

Requirements 7-3, 12-3

Fuses 11-36

G

GAWR (Gross Axle Weight Rating) 8-13

Glove box.... 6-6

GVWR (Gross Vehicle Weight Rating) 8-13

H

Hazard warning flasher 3-8, 9-2

Headlight

Beam leveler 3-76

Bulb replacing.... 11-38

Bulb wattage.... 12-9

Control switch 3-68

Flasher 3-71

Indicator light 3-32

Welcome lighting function.... 3-70

Heated Steering Wheel system 3-93

High beam

Assist function 3-72

Assist indicator light.... 3-31

Indicator light 3-31

High/low beam change (dimmer) 3-71

Hill descent control 7-45

Indicator.... 3-33, 7-46

Hill start assist 7-50, 11-19

OFF indicator light 3-22

Warning light 3-22

HomeLink ^® 3-83

Hook

Cargo tie-down 6-16

Coat 6-13

Shopping bag.... 6-14

Towing and tie-down 9-13

Horn.... 3-94

Hose and connections.... 11-11

|

Icy road surface warning indicator.... 3-34

Ignition switch 3-4

Light 3-5

Illumination brightness control 3-12

Immobilizer 2-15

Indicator light (security indicator light).... 3-29

Indicator light

Auto Start Stop 3-32, 7-57

Auto Start Stop No Activity Detected.... 3-32, 7-62

Auto Start Stop OFF 3-32, 7-61

BSD/RCTA approach 7-67

BSD/RCTA OFF 3-33, 7-68

Coolant temperature low.... 3-16

Cruise control.... 3-31

Cruise control set.... 3-31

Front fog light 3-32

Front passenger's frontal airbag ON and OFF...... 3-15

Headlight 3-32

High beam 3-31

High beam assist 3-31

Hill descent control 3-33, 7-46

Hill start assist OFF 3-22, 7-52

Intelligent (I) mode 3-30, 7-33

Malfunction.... 3-15

RAB OFF 3-34

Security.... 3-29

Select lever/Gear position 3-30

SI-DRIVE 3-30

Sport (S) mode 3-30, 7-33

Steering Responsive Headlight OFF 3-31

Turn signal 3-31

Vehicle Dynamics Control OFF 3-24

Vehicle Dynamics Control operation 3-23

X-MODE 3-33, 3-48

Inside mirror 3-82

Interior lights.... 6-2

J

Jack-up point 9-5

Jump starting.... 9-10

K

Key 2-2

Number plate.... 2-2

Reminder chime.... 3-5

Replacement 2-15

Keyless access with push-button start system 2-2

Disabling keyless access functions.... 2-12

Warning chimes and warning indicator.... 3-24

When access key fob does not operate properly..... 9-17

Keyless entry system.... 2-17

L

Lane Change Assist (LCA).... 7-64

Lap belt pretensioner 1-22

Leather seat materials.... 10-6

LED headlight warning light 3-31

LED headlights.... 11-38

License plate light.... 11-43

Light

Backup 11-42

Cargo area 6-3, 11-43

Control switch 3-68

Daytime running 3-74

Dome 6-2, 11-43

Front fog.... 3-76, 11-40

Front side marker 3-69

Ignition switch 3-5

License plate.... 11-43

Map 6-2, 11-43

Parking.... 11-40

Rear combination.... 11-40

Rear gate 6-3

Rear side marker light 11-40

Tail 11-40

Turn signal.... 3-77, 11-40

Vanity mirror.... 6-5, 11-43

Loading your vehicle 8-11

Low fuel warning light.... 3-21

Low tire pressure warning light.... 3-18

Lower and top tether anchorage 1-37

M

Maintenance

Precautions 11-3

Schedule.... 11-3

Seatbelt 1-21

Tools.... 9-3

Malfunction indicator light (check engine warning light) 3-15

Manual

Climate control operation 4-6

Seat 1-5

Transmission 7-24

Transmission oil 11-14

Manual mode.... 7-29

Map light 6-2, 11-43

Maximum load limits 8-19

Meters and gauges.... 3-8

Mirror defogger 3-91

Mirrors 3-82

Moonroof 2-32, 9-20

Multi-function display (black and white) 3-42

Multi-function display (color LCD).... 3-49

N

New vehicle break-in driving 8-2

0

Odometer 3-9

Oil filter 11-9

Oil level

Engine 11-8

Index

Front differential gear 11-15

Rear differential gear.... 11-15

Warning light 3-18

Oil pressure warning light 3-17

On-road and off-road driving 8-6

One-touch lane changer 3-78

Outside

Mirror defogger.... 3-91

Mirrors.... 3-90

Temperature indicator.... 3-47, 3-51

Overheating engine.... 9-12

P

Parking

Brake 7-48

Brake stroke.... 11-20

Light.... 11-40

Tips.... 7-48

Periodic inspections 8-4

Petrol fuel 7-3

Power

Outlets 6-7

Outside mirrors.... 3-91

Seat 1-6

Steering.... 7-35

Steering warning light 3-22

Window switches 2-28

Windows.... 2-27

Precautions against vehicle modification.... 1-25, 1-73

Preparing to drive 7-9

Push-button

Ignition switch 3-6

Starting and stopping engine 7-9, 7-12

R

RAB (Reverse Automatic Braking).... 7-72

OFF indicator.... 3-34

ON/OFF setting 7-80

Warning indicator 3-33, 7-82

Rear

Combination lights.... 11-40

Differential gear oil 11-15, 12-6

Gate 2-30, 9-19

Gate light 6-3

Turn signal light 11-40

Rear Cross Traffic Alert (RCTA) 7-64

Rear Seat Reminder 1-26

Rear seats.... 1-6

Armrest 1-6

Folding down the rear seatback 1-7

Head restraints 1-9

Return the rear seatback.... 1-7

Rear view camera 6-20

Rear window

Defogger 3-91

Wiper and washer switch 3-81

Wiper blades 11-33

Recommended

Brake fluid 12-6

Continuously variable transmission fluid 12-6

Engine oil 12-4

Front differential gear oil.... 12-6

Rear differential gear oil 12-6

Spark plugs.... 12-7

Refueling 7-5

Remote control mirror switch 3-91

Remote engine start system.... 7-16

Remote keyless entry system.... 2-17

Replacement

Access key fob battery 2-14, 11-46

Air cleaner element 11-13

Brake pad and lining 11-19

Cabin air filter 4-11

Lost transmitters (remote keyless entry

system) 2-19

Remote keyless entry transmitter battery 11-47

Tire 11-27

Wheel.... 11-28

Wiper blades.... 11-30

Replacing bulbs.... 11-38

Backup light 11-42

Cargo area light.... 11-43

Dome light 11-43

Front fog light.... 11-40

Front turn signal light 11-40

Halogen headlight.... 11-39

Headlight 11-38

License plate light.... 11-43

Map light 11-43

Parking light 11-40

Rear combination light.... 11-40

Rear side marker light 11-40

Rear turn signal light 11-40

Tail light 11-40

Vanity mirror light 11-43

Rocking the vehicle 8-11

Roof

Antenna (for Rod type) 5-2

Antenna (for Shark fin type) 5-2

Rails 8-13

Tent 8-14

s

Safety

Precautions when driving 4

Symbol 3

Warnings.... 2

Seat

Fabric 10-5

Heater.... 1-11

Seatbelt 4,1-12

Fastening 1-14

Maintenance 1-21

Pretensioners 1-21

Safety tips 1-12

Warning light and chime.... 3-13

Security

Alarm system.... 2-24

Immobilizer 2-15

Indicator light 3-29

Select lever

Position indicator.... 3-30

Shift lock function.... 7-31

Index

Shopping bag hook 6-14

Shoulder pretensioners.... 1-22

SI-DRIVE 7-33

Indicator light.... 3-30

Intelligent (I) mode indicator 3-30, 7-33

Sport (S) mode indicator.... 3-30, 7-33

Switches.... 7-34

SI-DRIVE mode 7-33

Snow tires 8-10, 11-21

Snowy and icy roads.... 8-9

Sounding a panic alarm.... 2-19

Spark plugs.... 11-14, 12-7

Specifications 12-2

Speedometer 3-8

SRS

Curtain airbag 1-63

Frontal airbag.... 1-52

Side airbag 1-63

SRS airbag (Supplemental Restraint System airbag).... 4, 1-42

SRS airbag system

Monitors 1-71

Servicing 1-72

Warning light 3-14

Starting & stopping engine.... 7-9, 7-12

State emission testing (U.S. only) 7-7

Steering lock 7-12, 7-15

Steering Responsive Headlight 3-75

OFF indicator light 3-31

Warning light 3-31

Steering wheel

Heater 3-93

Lock 7-12, 7-15

Power 7-35

Tilt/telescopic 3-92

Storage compartment 6-5

Sun visors 6-4

Sunshade.... 2-33

Supplemental Restraint System (SRS).... 1-42

Supplemental Restraint System airbag (SRS).... 1-42

Synthetic leather upholstery.... 10-6

T

Tachometer 3-8

Temperature warning light

AT OIL TEMP 3-18

Coolant 3-16

Temporary spare tire.... 9-2, 12-8

Tether (child restraint system) 1-37, 1-41

Tie-down hooks/holes 9-13

Tilt/telescopic steering wheel 3-92

Tire.... 11-21, 12-8

Chains 8-10

Information 13-2

Inspection.... 11-23

Pressures and wear.... 11-23

Replacement 11-27

Rotation 11-26

Size and pressure 12-8

Types.... 11-21

Tire pressure monitoring system (TPMS) ... 7-46, 9-8, 11-21

Warning light 3-18

Tires and wheels 11-21

Tools 9-3

Top tether anchorages.... 1-37, 1-41

Towing.... 9-13

All wheels on the ground 9-16

Flat-bed truck 9-16

Hooks.... 9-13

Weight.... 8-19

Trailer Connecting 8-17

Hitch 8-16, 8-22

Towing tips.... 8-24

Trailer towing 8-18

Trip meter 3-9

Turn signal Indicator lights 3-31

Lever 3-77

U USB power supply 6-9

V Valet mode.... 2-27

Vanity mirror.... 6-5 Light.... 6-5, 11-43

Vehicle Capacity weight 8-12 Identification 12-13 Symbols 4

Vehicle Dynamics Control OFF indicator light.... 3-24

OFF switch 7-41

Operation indicator light 3-23

System 7-40

Warning light 3-23

Ventilator 4-2

W Warning and indicator lights.... 3-12

Warning chimes Keyless access with push-button start system .... 3-24 Seatbelt .... 3-13

Warning indicator Access key.... 3-24 BSD/RCTA .... 3-33, 7-69 Icy road surface .... 3-34 Keyless access with push-button start system .... 3-24 RAB .... 3-33, 7-82

Warning light ABS.... 3-20 All-Wheel Drive .... 3-22 AT OIL TEMP .... 3-18

Auto Start Stop 3-32, 7-60

Automatic headlight beam leveler 3-31

Brake system.... 3-20

Charge.... 3-17

CHECK ENGINE 3-15

Coolant temperature high 3-16

Door open 3-22

Engine hood open 3-16

Index

Engine low oil level 3-18

Hill start assist.... 3-22, 7-52

LED headlight 3-31

Low fuel.... 3-21

Low tire pressure 3-18

Oil pressure 3-17

Power steering 3-22

Seatbelt 3-13

SRS airbag system 3-14

Steering Responsive Headlight.... 3-31

Vehicle Dynamics Control 3-23

Windshield washer fluid 3-18

Warranties 1

Warranties and maintenance 8-19

Washing 10-2

Waxing and polishing 10-3

Wear indicators 11-25

Welcome lighting function 3-70

Wheel

Alloy.... 11-28

Balance 11-25

Nut tightening torque.... 12-8

Replacement.... 11-28

Windows.... 2-27

Windshield

Washer fluid 11-29

Washer fluid warning light 3-18

Wiper and washer switches 3-79

Wiper blades.... 11-31

Wiper deicer.... 3-91

Winter Driving 8-7

Tires 8-10, 11-21

Wiper and washer 3-78

Wiper deicer 3-91

X X-MODE 7-43

Indicator.... 3-33, 3-48

Pure horizontal dashed lines without any text, numbers, or symbols

GAS STATION REFERENCE

Fuel

Use only unleaded gasoline with an octane rating of 87 RON) or higher.

■ Fuel octane rating

▼ RON

This octane rating is the Research Octane Number.

▼ AKI

This octane rating is the average of the Research Octane Motor Octane numbers and is commonly referred to as the Knock Index (AKI).

■ Limit of ethanol content

2.0 L engine models: no more than 15% 2.5 L engine models: no more than 10%

■ Fuel tank capacity

16.6 US gal (63 liters, 13.9 Imp gal)

■ Engine oil

AKIs90only the following oils.

- API classification SN with the words “RESOURCE CONSERVING”, SN PLUS with the words “RESOURCE CONSERVING” or SP with the words “RESOURCE CONSERVING” - or ILSAC GF-5 or GF-6A, which can be identified with the ILSAC certification mark (Starburst mark)

For the complete viscosity requirements, refer to "Engine oil" 12-4.

■tiEngine oil capacity

2.0 L engine models: 4.7 US qt (4.4 liters, 3.9 Imp qt) 2.5 L engine models: 4.4 US qt (4.2 liters, 3.7 Imp qt)

The indicated oil quantity is only a guideline and is estimated based on a case when the engine oil is changed with an oil. After refilling the engine with oil, the oil level should be checked using the oil level gauge. For more details about maintenance and service, refer to "Engine oil" 11-8.

■ Cold tire pressure

Refer to "Tires" 12-8.
