BR-6226n

nLite Wireless Broadband Router

150 Mbps EZview EZmax WISP WIRELESS ON / OFF VISTA MAC

Impressive Data Transmission Rate via IEEE802.11n

Edimax BR-6226n is a high speed solution that compli es with wireless IEEE 802.11b/g, and is compatible with IEEE 802.11n standard. When fine-tuned to operate u sing the wireless 802.11n technology, BR-6226n wireless data transmission rate can reach up to 150Mbps – a c overage 3 times better than a standard 802.11g/b router. BR-6226n is truly a high performance and cost-effective solution for your home and small business environments.

Extensive Internet Connection Sharing

With the built in NAT (Network Address Translation) function, the Edimax BR-6226n allows up to 253 wired or wireless clients to simultaneously share an Internet connection.

Remote or Local Management System

Edimax EZView is a new enhanced management system in BR-6226n that allows you to manage your router locally or recently from the Internet. UPnP compatible devices are automatically detected with information about the device listed in the management interface of the router. Hence, you will be able to directly manage device information such as IP address, bandwidth control, openports and DMZ.

Flexible WISP ( Wireless Internet Service Provider) Connection Mode

Wireless connection from your broadband router to an IS:P's Access Point is also possible. When the BR-6225n is assigned to perform such task, it repeats the signal from a wireless Internet Service Provider to your home or office, simultaneously allowing connection of both wired and wireless stations to the Internet.

Easy & Multilingual Setup Installation CD\*

A unique multilingual Setup Wizard is provided in the installation CD. By simply following the animated installation procedures, connection of your router to the Internet is done within minutes!

Practical Wireless ON/OFF Switch and Hardware WPS (Wi-Fi Protected Setup) Button

Edimax BR-6226n features a control button and WPS button on its rear panel. You can easily switch on/off the Wi-Fi wireless connection and setup a secure wireless network in minutes. When using a wired connection, you can pause the Wi-Fi option by pressing the button without making any extra setting.

FEATURES & TECHNICAL SPECIFICATIONS

FUNCTIONSHARDWARE	INTERFACE MANAGEMENT
Supports AP, AP Client, Bridge, Bridge+ WDS and Universal Repeater modesPort Triggering for special applicationsDDNS and SIPVirtual Server and DMZ hostingMAC/IP filter and URL blockingStatic routingUPnP architectureVPN Pass-Through (IPSec/PPTP)Schedule control	One RJ-45 WAN portFour RJ-45 Fast Ethernet LAN portsLED Indicators: Power, Wireless, WAN, LNK/ACT for LAN3dBi antenna x 2WPS / Reset buttonSwitch for wireless on/off	12-language User InterfaceSupports Remote ManagementSupports EZView ManagementSystem Status and Security Log (Web Interface)Firmware upgradeable
WANSECURITY		OUTPUT POWER & SENSITIVITY GAIN
Supports WISP connection modeSupports RJ-45 cable/xDSL modemWAN protocol: PPPoE/Static IP/PPTP/Dynamic IP/L2TP/Telstra Big Pond	NAT/NAPT IP Sharing64/128-bit WEP Encryption and WPA-PSK, WPA2-PSK securityDHCP Server/ClientQoS for critical operationsSPI Anti-DoS Firewall	11n: 16±1dBm,11g: 16±1dBm11b: 18±1dBm11n (40MHz): -68dBm,11n (20MHz): -71dBm,11g: -74dBm,11b: -87dBm
MEMORYINSTALLATIO	N KIT	HUMIDITY & TEMPERATURE
4 MB NOR Flash16 MB SDRAM	Multilingual EZMax Setup Wizard	10-90% (Non-condensing)0~45°C
POWER ADAPTERDIMENSION	S	CERTIFICATIONS
DC 12V, 1A	179 (W) x 133 (D) x 25 (H) mm	CE, FCC

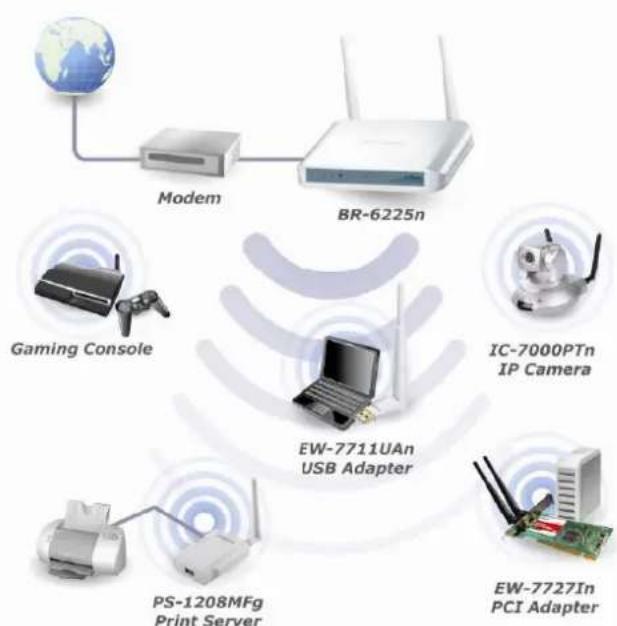

TYPICAL SETUP DIAGRAM AND RELATED PRODUCTS

