USER MANUAL XT-4015 Posiflex

Fan LCD Touch Terminal User's Manual

Rev.: Original

POSIFLEX

Two black electronic monitors on white background, one upright and one tilted (no visible text or symbols)

FCC Notes:

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial l environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures to correct the interference.

Warranty Limits:

Warranty terminates automatically when any person other than the authorized technicians opens the machine. The user should consult his/her dealer for the problem happened. Warranty voids if the user does not follow the instructions in application of this merchandise. The manufacturer is by no means responsible for any damage or hazard caused by improper application.

About This Manual:

Posiflex has made every effort for the accuracy of the content in this manual. However, Posiflex Technology, Inc. will assume no liability for any technical inaccuracies or editorial or other errors or omissions contained herein, nor for direct, indirect, incidental, consequential or otherwise damages, including without limitation loss of data or profits, resulting from the furnishing, performance, or use of this material. This information is provided “as is” and Posiflex Technology, Inc. expressly disclaims any warranties, expressed, implied or statutory, including without limitation implied warranties of merchantability or fitness for particular purpose, good title and against infringement.

The information in this manual contains only essential hardware concerns for general user and is subject to change without notice. Posiflex Technology, Inc. reserves the right to alter product designs, layouts or drivers without notification. The system integrator shall provide applicative notices and arrangement for special options utilizing this product. The user may find the most up to date information of the hardware from: http://www.posiflex.com or http://www.posiflex.com.tw or http://www.posiflexusa.com All data should be backed-up prior to the installation of any drive unit or storage peripheral. Posiflex will not be responsible for any loss of data resulting from the use, disuse or misuse of this or any other Posiflex product.

All rights are strictly reserved. No part of this documentation may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without prior express written consent from Posiflex Technology, Inc. the publisher of this documentation.

© Copyright Posiflex Technology, Inc. 2013

All brand and product names and trademarks are the property of their respective holders.

P/N: 16670900010

ALERT TO OUR HONORABLE CUSTOMERS:

- Please always read thoroughly all the instructions and documents delivered with the product before you do anything about it. Don’t take any premature action before you have a full understanding of the consequences.

- This product contains inside a Lithium battery. Please always follow local environmental protection laws / regulations for disposal of used batteries and always replace only with battery of same type.

- If you have an UPS battery installed in the product:

Temperature above 40^ C must be strictly avoided as it could cause termination of battery life and unexpected result even if the battery is not in work.
Do not power off the system just by shutting off the AC power leaving the battery supporting the whole system till completely exhausted. Repeatedly using it up or improper maintenance reduces the battery life dramatically.
✿ Always fully recharge the UPS battery at least once every 3 months if the battery is not connected.
Always disconnect the UPS battery from the system if the system is to be left OFF for more than 72 hours to prevent possible damage. Only connect the UPS battery back right before you are going to re-power on the system.
Replace the UPS battery as soon as the monitoring software indicates the battery is out of service. Attempt to recharge a dead battery is dangerous!
✧ A separate battery monitor is not required for this series.

DAILY MAINTENANCE GUIDE

For regular cleaning of the XT system, please use only soft haired brush or dry soft cloth. You may use moist soft cloth to remove stains when necessary. Apply only proper amount of mild neutral detergent for obstinate stains. Please note that never use Acryl dissolving solvent or Polycarbonate dissolving solvent. You may apply ammonia-based glass cleaner only on the screen

surface.

CAUTION

Risk of Explosion If Battery Is Replaced By An Incorrect Type Dispose Of Used Batteries According To Local Regulations

INTRODUCTION

PRODUCT PICTURES FOR Gen 7&8 BASE STAND

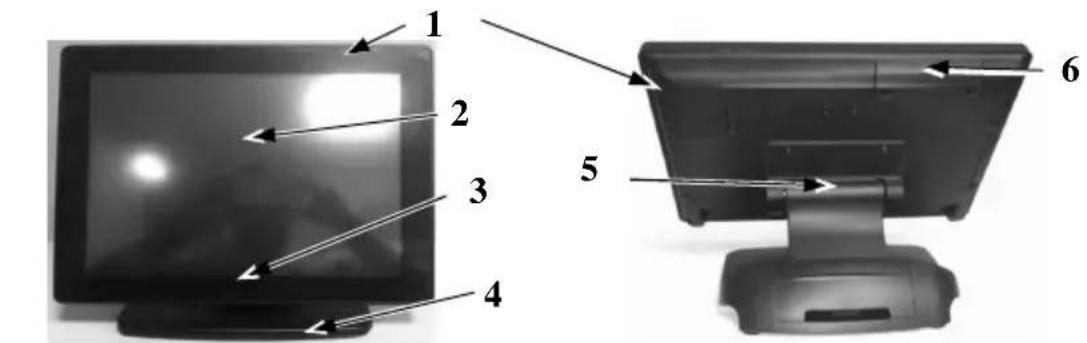

Gen 7 Base
Front View

1 2 3 4 5 6

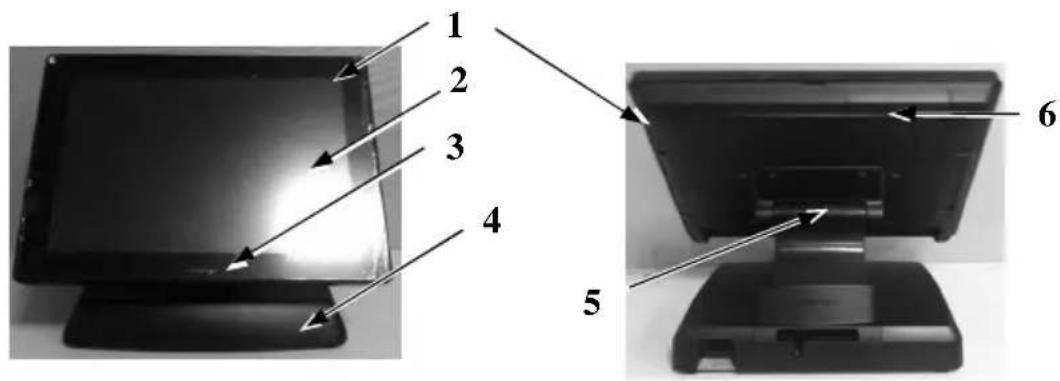

Gen 8 Base

Front View

1 2 3 4 5 6

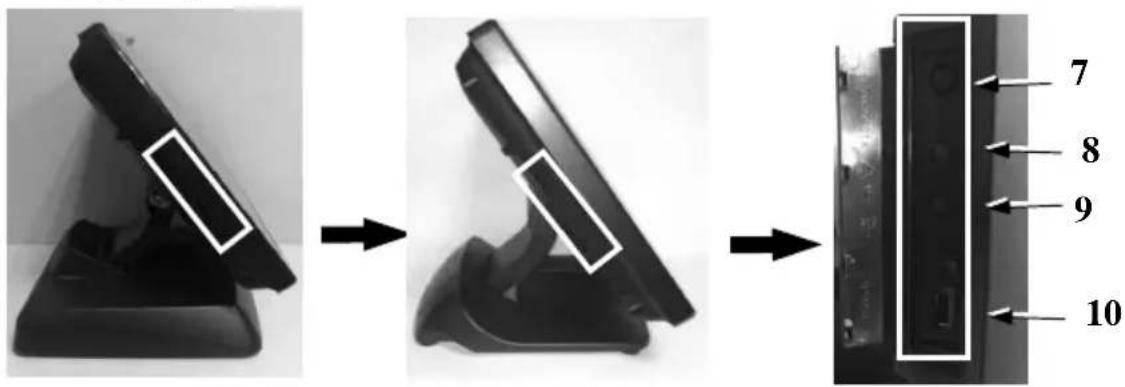

Side View

Diagram showing a device's internal structure transformation from a black component to a display panel, with numbered labels pointing to each step.

1. Main Unit
2. LCD touch panel
3. Power indicator
4. Gen 7 base stand
5. Hinge for LCD terminal
6. HDD cover
7. Power switch
8. Brightness adjust digital push button “+”
9. Brightness adjust digital push button “-”
10. USB port
11. Cable exit
12. Base stand

13. Compression lock for base stand cover

14. Fan Ventilation

15. Bottom plate
16. Rubber feet with bottom plate fixing screw
17. 2^nd HDD cover
18. Base cover

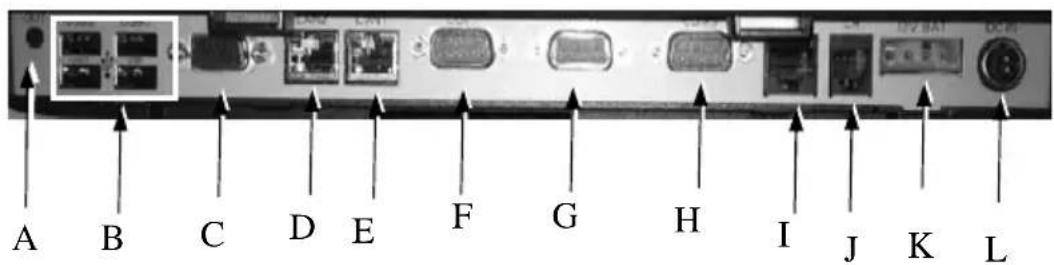

I/O Plate View

A B C D E F G H I J K L

a) CPUUntil Sandy Bridge CPU or Ivory Bridge (socket FCLGA1155).
b) Chipset: IntelH61 or Q67 selectable.
c) Enhanced AMT feature to remote control or monitor.
d) Fan structure with Aluminium diecast main unit casing.
e) Bezel free front panel.
f) Data storage device: 2.5" SATA HDD x 1 in main unit or optional SSD

in main unit.

g) An advanced slim base design that supports storage room for optional 2^nd 2.5" HDD.

h) Support Windows XP Pro / WEPOS / POSReady / Win 7 / Linux.

i) High quality 15" THFTactive matrix LCD panel.

j) LCD panel with easy tilt angle adjustment from 15° to 90°.

k) LCD brightness digital adjust buttons at side of main unit.

1) Durable resistive type touch panel that endures 10 million touches min at same spot or (P-cap touch).

■) Water resistant structure allowing easy cleaning.g.

n) IPI-65 on front panel.

o) Easy maintenance construction.

p) Various I/O ports supported, including:

1. 4 serial ports with 3 of DB9 connectors and one of 10 pin RJ45 type modular connector. The COM1/2/3/4 connectors are supported with capability for +5V DC through BIOS setup.

2. +12V DC power supply for COM 1/2/3/4 through jumper setting.

3. 7 standard USB ports with 1 at side, 4 in I/O area and 2 internal proprietary port for extension device.

4. 2 LAN ports Ethernet 10/100/1000 Base T with LAN status indicators on jack (green for link, orange for data transmission), LAN1 support Intel AMT feature.

5. 1 external VGA monitor port with +12V DC support through software setting.

6. 1 SATA port with one 4 pin power connector at back side window for 2^nd HDD at base stand.

7. LED backlight indicator for systems operation status.

8. 1 built-in internal 2W speaker.

9. 1 CR port capable of controlling 2 cash drawers max.

10. One 4 pin DIN type DC 12 V power input connector.

11. 1 line out connector.

q) Dual display support (per OS capability).

r) VGA memory support DVMT 4.0.

s) Support higher performance DDR3 SDRAM 2 slots with maximum memory size 8GB in one SODIMM.

t) Integrated structure for side mount upgrade kit: SA-105;SA-205/SA-305; back mount display: LM-3010/LM-3014/LM-3015 and PD-6307.

u) Preconditioned power up function – by alarm clock or LAN.

Optional Items:

Note: The underlined items in the following list means that option must be set prior to shipment from the factory. The rest of items can be set by the dealers.

a) DDR3 SODIMM memory expansions up to 16GB max in two SODIMM.

b) Integrated side mount upgrade kit: SA-105: MSR. SA-205: iButton. SA-305: MSR/FP/RFID.

c) Preload Windows POSReady2009 / Win 7 / Linux/POS Ready7.

d) Parallel extension cable and 2nd HDD kit.

e) Wireless LAN port.

f) RJ45 to DB9 serial port conversion cable.

g) Split cable for 2 cash drawer control.

h) Projective capacitive touch panel (non-user-defined).

i) Gen 8 base inside installation: including UPS battery, power USB board, HDD and 150W power adaptor.

j) Standard CPU selection type: G540/2.5G; G2120/3.1G; i3-3220/3.3G; i3550S/3 to 3.7G; i7-3770/3.4G to 3.9G

INSTALLATION GUIDES

CAUTION: Before any installation or cable connection to the set, please always make certain that the system is turned off and the external power source to the set is removed to prevent electric hazard! Never touch any metal pin in the connectors or circuits to avoid high voltage hazard or electrostatic discharge damage unless the operator is well grounded. Failure to do the above will void the product warranty!

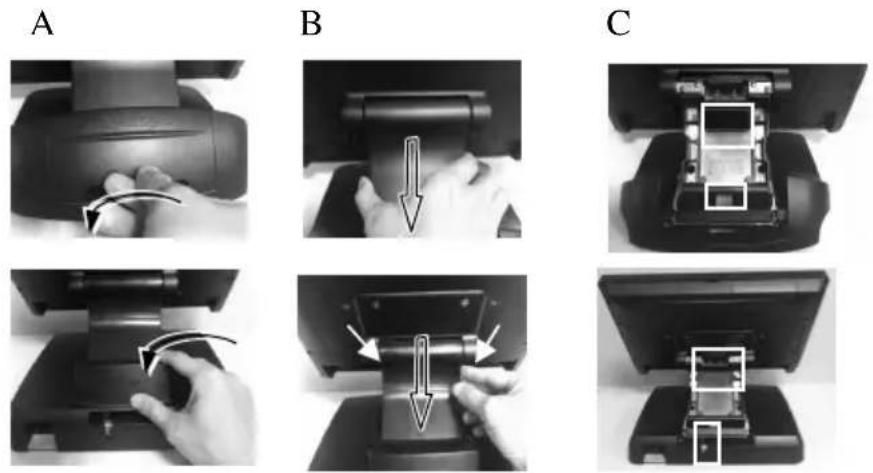

OPENING CABLE COVER

Please follow steps sequentially with reference to pictures below to remove the cable cover for Gen 7 slim base models.

Step A: Release the base cover.

Step B: Release the of compression lock of base stand cover at both sides.

Step C: Route the cable to the circled holes.

DISCONNECTING ALL CABLES

After removal of the cable cover, the connector area will be accessible then. Please first note orientations of every existing cable connection and then disconnect every cable properly before separating the main unit from the adjustable stand assembly. Please note that the click lock spring has to be pressed down prior to pulling out the connector such as the LAN port or the CR port or the alternate RJ45 form COM4 port. Please also note that the fixing screws have to be loosened free prior to disconnection such as the 2 regular DB9 form COM ports or the VGA port. Please always hold the connector head instead of pulling on the cable wire when disconnecting any connector. Failure to do this could damage the cable and jack that is considered as an artificial destruction. Damages due to incorrect disconnection operation are not covered by product warranty!

CABLE PASSAGE FROM BOTTOM For Gen 7&8 Base

Please route all cables through the cable passage to main unit in desktop mount application. Pull the compression lock to open the back cover of base stand. Hold them together with a cable tie. Pass all cables through the cable exit to external connections.

Close-up of a black plastic object with two white arrows pointing to its edges (no text or symbols visible)

Close-up of a mechanical component with a central white rectangular slot and metallic brackets (no visible text or symbols)

Back view of a desktop computer monitor with a stand (no visible text or symbols)

Close-up of a mechanical component with two white arrows pointing to a small circular feature (no text or symbols visible)

Black computer monitor with a stand and cable, no visible text or symbols

Black desktop computer monitor with front and back views (no visible text or labels)

BASE MOUNT UPGRADE KIT

Please follow the instructions on the manual that comes along with the 2^nd customer display LM-3010/LM-3014/LM-3015, and PD-6307 if installed.

1. For Second LCD Display

There are LM-3010/LM-3014/LM-3015 available for 2^nd LCD display, needed to combine with XT4015 with supporting bracket to tighten.

Please refer to 2^nd monitor user manual to assemble properly.

Next, please connect the VGA Cable to the LM VGA port and route the VGA cable through the cable exit of the base stand to the system VGA ports.

Close-up of a kitchen appliance with a circular button and handle (no visible text or symbols)

Note: XT-4015 series is equipped with a standard 120W power adaptor.

CONNECTING CASH DRAWER

The RJ11 connector in I/O area of a XT-4015 system can be used for controlling most of the common cash drawers available on the market. However, it is most recommended to use Posiflex CR-2200 or CR-2210 or CR-3100 or CR-4000 or CR-4100 or CR-6300 for best compliance to operate the opening mechanism and to monitor the drawer open status.

This cable of Cash Drawer has a 6-pole plug at one end and an 8-pole plug at the other. The 8-pole plug should be inserted into the connector of the cash drawer which marked “Signal”. The 6-pole plug should be inserted in the connector marked “CR” which can found in the main connection area in the system.

The user may also purchase the optional 2-in-1 cash drawer control cable to control 2 cash drawers in 1 port. It has a 6-pole plug at one end and two 8-pole plugs at the other. The 6-pole plug should be inserted in the connector marked “CR” found in the I/O area in the system. Each 8-pole plug should be inserted into the connector marked “signal cable from POS Printer” at the rear of one of the cash drawers.

CONNECTING CABLES

To have the re-assembled main unit with stand assembly ready for operation, please connect all required cables to the appropriate connectors. Please make sure that each connector is connected to the correct port with the correct orientation. Damages due to incorrect connection or orientation are not covered by product warranty!

Some connectors like the COM, LAN or CR connector have to be gently inserted until a click sound is heard. It is recommended that connectors such as the COM1/2/3 and VGA connector be screwed into place once seated.

Re-adjust the tilt angle of the screen for best viewing. Connect the cables to appropriate external devices through the cable exit at the bottom of stand assembly. Please make sure that each connector has to be connected to the right device in the right way.

CAUTION: On doing any insertion or extraction of any connector, please always hold the connector head itself instead of pulling on the cable wire. Failure to do this could damage the cable and jack that is considered as an artificial destruction and is not covered by the warranty.

This product is highly professionalized equipment. The installation of an OS into a machine without any preloaded OS could be a major difficulty for average user or obstacle by possibly unintentional negligence even for PC veterans to accomplish such a task. Therefore, OS installation into a system without preloaded OS is highly discouraged. Posiflex Technology, Inc. shall not be responsible for any technical support to questions on this aspect.

APPLICATION ENVIRONMENT

It is very important that you check the following operational guidelines:

Ventilation

This terminal must NOT be operated in an environment with restricted ventilation. There must be at least 25 mm air clearance around any top or side ventilation holes with a free flow of air around the unit at ALL times for the installation.

Operating Environment

The equipment must not be operated or stored in extremes of both temperature

and humidity/moisture. (Operating range 0^ C to 40^ C and up to 80% humidity – non condensing, max. wet bulb 26^ C)

POWER ON/OFF

Touch Open Cover

Please refer to the previous chapter PRODUCT PICTURE during this part in order to find out the buttons. A gentle tap on the touch open cover at left side of the main unit will open the cover and show the power switch at top area. It is preferable to keep this door closed through daily operation.

There must always be at least 10 seconds waiting before switching on again once the system is powered off successfully.

Power Indicator

There is a power indicator LED module serving for several purposes under the logo at

center of lower rim of LCD panel. The relationship between the indicator status and other conditions is summarized in following table:

Indicator Status	System Status	External Power	UPS Battery	Powering Up
Off Off Off Not present				Not possible
Off Off Off Present Not allowed
Green Off On No influence				Allowed
Blue On On No influence				Not required
Blue/flash	On	Off	Activated	Not required
Green/rapid flash	On Off		Running at low capacity	Not required

Hardware Power Switch

The power switch located in the touch open cover of the main unit is a tactile pushbutton switch. This switch controls the power on/off of the system. This switch turns the system on when pushed only when external power is present. This switch turns the system off when pushed again during power on status. However, if the system hangs due to any reason such as software resource conflict a simple push on the switch may fail to turn off the power. In this case, please utilize the forced power off feature by pressing the switch and holding for within 10 seconds. In case the turmoil is so vigorous that some hardware registers may be confused causing trouble for system restart or even this forced power off, please disconnect the UPS battery if installed and the AC power

supply for few minutes. This may reset all hardware registers.

This switch can also be programmed as an ON only switch. That means, if the application program issues a command compliant with the XT series technical manual, this switch will always turn the system on when activated, but will not power off the system when pushed again (the forced power off feature will not work in this mode). When using this feature, please make sure that the software application has the ability to power off the machine. In preloaded Windows, “Posiflex Power Switch Manager” in “Posiflex Tools” in the Program Files helps managing these functions.

Software Support Features

The XT series provides a software power off command for application program maneuvers. The XT also provides a specific means for the software to detect if the system is working on external or UPS battery power. Due to this feature, compatible software applications have the ability to change operating conditions when running on standard/backup power. The software programmer may take reference from the KS technical manual to apply such features.

Enhanced AMT Feature

With robust Active Management Technology (AMT) hardware-based technology feature, XT-4015 may enable user to remotely power up/off, monitor, access or secure PCs. Coupled with on-board Q67 chipset compatible with Intel vPro i5/i7 CPU with enabled AMT functionality, XT-4015 makes it that user can mange remote PCs by accessing available BIOS menu. Please follow steps below to configure AMT feature.

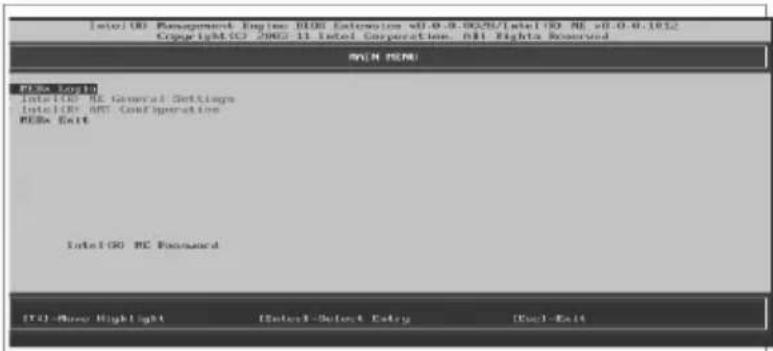

Step A: Enter MEBx Login > Intel (R) AMT Configuration.

Intel (OS) Management Engine DOS Extensives w0.0.0.00/Label DO NE w0.0.0.1012 Copyright:CG 2003-11 Intel Corporation, BHI Rights Reserved. BHI MENU PLA5 Logit Inteitor: NC General Settings Inteitor: NC Configuration PLA6 Exit Total DO NC Password [TD]-Move Highlight [Select]-Select Entry [Del]-Exit

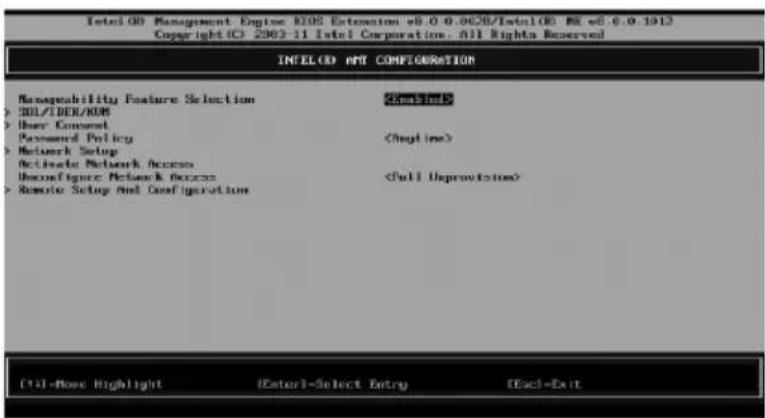

Step B: Enter Manageability Feature Selection and select Enable.

Intel OD Management Engine BIOS Extension v8.0.0.0C2B/Intel(OE) SE v8.0.0.1912 Copyright (C) 2902-11 Intel Corporation, All Rights Reserved INTEL(R) AND CONFIGURATION Manageability Feature Selection > SOL/DER/KOM > User Comment Password Policy > Network Setup Activate Network Access Unconfigure Network Access > Remote Setup And Configuration [14] -Move Highlight [Enter]-Select Entry [Excl]-Exit

Note: 1) Intel is a registered trademark of Intel Corporation.

2) Intel MEBX displays deleted options only if one of more of these options does not appear, ensure that the system supports itself with relevant missing features.

Automatic Power on Control

The XT system may also turn on according to some preset conditions such as Alarm Clock Wake Up or LAN Wake Up.

To utilize Alarm Clock Wake Up function, the user should enter the BIOS setup by pressing “Del” key at system boot up, choose in “Power Management Setup” and enable the “Resume by Alarm” for Alarm Clock Wake Up. Save the configuration and exit the BIOS setup program. The Preset Power On Control will then be ready. For LAN wakeup, the item “PCI Express PM Function” must be enabled in “Power Management Setup” and an operating caller system connected through LAN to the system is required. It also requires a qualified networking technician to check the LAN chip ID of the system for the caller system to wake up.

When the XT system is turned off after a successful boot up, the preset automatic power on functions will keep monitoring for the preset conditions] and turn on the system when the preset conditions are met.

Please note that if the XT system is improperly turned off before a complete boot up procedure, the above preset power on control functions will be disabled until next turning off after a complete boot up.

BRIGHTNESS CONTROL

In the left side of the main unit below the power switch, there are brightness

adjust push button switches and one USB connector. Each single press on the + or - button changes the LCD panel display brightness by a small amount. When you press and hold the button the change will keep on until release or extreme condition matched. For those control buttons, please refer to the previous chapter.

DISPLAY ISSUES

Main LCD Display

For best viewing result, please set your display resolution at 1024 x 768 for 15" LCD. The system Video Memory is shared with system memory, and supports DVMT 4.0.

VGA Port

The VGA port in the XT-4015 system supports either a separately connected LCD monitor or touch monitor. To support the DC power to the Posiflex LCD display, have a qualified technician to set the power supply in XT main unit through the VGA connector according to Posiflex technical information. Do not connect other monitor to this port before the power in this port is disabled.

Note: When 2^nd display is connected, the screen display of system boot up stage and application in some OS will be smaller than usual in both 1^st and 2^nd displays.

SERIAL PORTS – COM1/2/3/4

In XT-4015 system, there are 3 serial ports in form of DB 9 pin male connectors and 1 in form of 10 pin RJ45 type modular connector available. DB 9 serial ports can supply a +5 V and +12V DC after proper BIOS and jumper setup. However, do not connect any other device to this port before the power in this port is disabled.

PARALLEL PORT

In XT-4015 system, the parallel port can be available only through use of the optional conversion cable. It should be connected to the special connector inside the service window as described earlier. The other end of the cable is the normal 25 pin D sub female LPT connector.

TOUCH PANEL

All paragraphs below are applicable for models with touch panel only. The user of those models without touch panel can ignore them and consider this user's manual ends here.

Mouse Emulation

When the touch driver is properly installed, this touch panel works exactly like a standard mouse for each interface. However, if the system is running under safe mode, the touch panel calibration may become unsatisfactory due to disabled drivers. It is recommended to use a standard USB mouse or keyboard in this mode.

All the below mentioned mouse emulation functions can be manipulated through relevant software. The system can give a beep and a click on the left button of a mouse at the point when the touch panel is touched. If the point touched is dragged across the screen surface, it works as the mouse drag and drop feature. If the point is touched, released and touched within a short time interval, it is double-clicking left button of the mouse. To obtain the effect like clicking on the right button of a mouse, touching any point on the screen surface after touching the right-click sticky button results as a click on the right button of the mouse at that point.

Touch Manager

Touch Terminal Manager for each type of touchscreen is available for user to set up touchscreen functions. If your system is preloaded with the OS of your choice, the chances are the Manager is already installed on your system. Nevertheless, you can also download the Manager from our website:

1. Visit us at http://www.posiflex.com, and click Support on the main menu bar.
2. On Support page, click Download on the left to access Download page.
3. In Search by keyword search bar on Download page, type “Touch Terminal Manager”, and then press Enter.
4. In the search results, select and download the Manager that suits the touchscreen type of your system.
