ETG7266GKR - Cooker ELECTROLUX - Free user manual and instructions

Product Type	Table Top Gas Cooker
Brand	Electrolux
Model	ETG7266GKR
Energy Source	LPG (Liquefied Petroleum Gas)
Gas Pressure	30 mbar
Product Dimensions (L x W x H)	700 x 410 x 150 mm
Number of Burners	2
Left Burner Power	4.2 kW
Right Burner Power	3.0 kW
Left Burner Injector Size	0.85 + 0.51 mm (dual ring)
Right Burner Injector Size	0.83 mm
Hob Material	Tempered Glass
Trivet Type	Wire Trivet (left and right different)
Ignition System	Electric igniter (push and turn knob)
Safety Features	Glass breakage shutdown; gas leak instructions; no flame failure device
Installation Clearance	At least 100 mm from side/back walls (non-combustible material required if less)
Gas Connection	Rubber hose with hose clamp (no vinyl hose)
Recommended Pan Size	120 mm to 280 mm diameter
Cleaning Instructions	Glass top: nylon scourer or cream cleanser; burner caps: lift off and dry thoroughly
Ventilation Requirement	Well-ventilated room; not connected to combustion product evacuation

Frequently Asked Questions - ETG7266GKR ELECTROLUX

How do I ignite the burner?

Press the control knob and turn to the full flame setting. The electric igniter will spark and ignite the gas. On first use, you may need to repeat several times to purge air from the gas line.

What should I do if the burner will not light?

Check that the burner cap is correctly fitted. Ensure the gas cylinder is turned on and there is no blockage in the gas line. If the problem persists, contact a qualified technician.

Can I use natural gas instead of LPG?

No, this appliance is set for LPG at 30 mbar. Using other gases may be dangerous. Check the label on the appliance for the specified gas type.

How do I clean the glass top?

Clean with a nylon scourer or cream cleanser. Avoid harsh abrasives, steel wool, or wax polishes. Do not use the glass top as a work surface.

What pan sizes are recommended?

Use pans with a base diameter between 120 mm and 280 mm to ensure flame does not spread beyond the pan base.

Is there a flame failure device on this model?

No, the ETG7266GKR does not have a flame failure device. Models ETG7296GKR and ETG7286GKR include this feature. Always supervise cooking.

How much clearance is needed around the cooker?

A minimum clearance of 100 mm from side and back walls is required. If less, the walls must be protected with non-combustible material.

How do I check for gas leaks?

Apply soapy water to all joints and connections. Turn on the gas. If bubbles appear, there is a leak. Close the gas valve immediately and call a technician.

What should I do if the flame is yellow?

A yellow flame indicates dirt or blockage. Clean the burner cap and ensure the flame ports are clear. If the problem continues, adjust the air door (by a qualified technician).

Where can I get service or support?

Contact the Electrolux Customer Care Center in your country. For Southeast Asia, numbers are listed in the manual: e.g., Indonesia 08041119999, Philippines 1-800-10-845-CARE, Singapore ([phone].

USER MANUAL ETG7266GKR ELECTROLUX

READ THIS MANUAL CAREFULLY BEFORE PUTTING THIS APPLIANCE INTO OPERATION.

Table Top Gas Cooker

User Manual

Enjoy peace of mind. Register your appliance today.

Stay updated on better living services, safety notices and shop for accessories.

1. Open the camera app on your smartphone and point at the QR code to scan.

Product Registration QR code is located on the top surface or underside of your appliance.

1. Tap the notification or link to open the registration form.
2. Complete your details and enjoy peace of mind.

CONGRATULATIONS

Dear customer,

Thanks for choosing and using Electrolux home appliances.

Electrolux Group of Sweden is one of the world's largest home appliance companies, with more than 65 million Electrolux products being used by millions of households worldwide each year. It is also the world's largest manufacturer of kitchen electrical appliances. The group has sold more than 56 million kitchen products, which is equivalent to the combined height of 5 Mount Everests. Besides that, more than 2/3 of the world's star hotels use Electrolux professional kitchen equipment.

Clearly, the excellent achievement of Electrolux over the last 80 years has been recognized by 450 million families all over the world. Now we are pleased to make some of the best products from this renowned brand available to consumers in Southeast Asia. To us, not only is Electrolux one of the most reliable brands in dealing with home appliances, it is also a brand that promises to bring innovative lifestyles to all families through its cutting-edge technologies and excellent designs. Not only to add a touch of elegance to your kitchen, but Electrolux products also make cooking easier, more enjoyable, and something to share with.

Enjoy happy cooking now with Electrolux kitchen appliances.

IMPORTANT INSTRUCTIONS

Before installing or using this appliance, please read this instruction book carefully and pay particular attention to the warnings on the following page.

To avoid the risks that are always present when you use an appliance, it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

SAFETY INSTRUCTIONS

Do not use gas other than that which is specified on the label attached.

Do not place anything (e.g., flame tamer or asbestos mat) between the pan and pan support, as serious damage to the appliance may result.

Do not remove the pan support and enclose the burner with a wok stand, as this will concentrate and deflect the heat onto the hotplate.

Do not use large pots or heavy weights that can bend the pan support or deflect flame onto the hotplate.

Locate pan centrally over the burner so that it is stable and does not overhang the appliance.

Use only a wok support supplied or recommended by the manufacturer of the appliance.

The unit is to be used for cooking only. Do not dry towels, clothes, etc., over it. If this is done, there is danger of fire.

If a gas leak is found, close stopcock, open up all windows and call your dealer. Do refrain from turning an electric switch on or off, lighting a match, smoking or using a lighter.

Use the appliance in a well-ventilated room.

Do not use vinyl gas hose. It is liable to be softened by heat. Use only a rubber hose.

Be sure to turn off the ignition knob and regulator of the cylinder after use.

Avoid touching the burner, pan stand, etc., immediately after use. Otherwise, you will get burnt.

Ensure that the rubber hose does not touch any part of the unit or lie underneath it.

Connect the rubber hose to the gas inlet and fasten it with a hose clamp.

Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.

The adjustment conditions for this appliance are stated on the label.

This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

CAUTION

In the event of the burner flames being accidentally extinguished, turn off the burner control knob and do not attempt to re-ignite the burner for at least 1 minute.

In case of hotplate glass breakage:

- Shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply.

- Do not touch the appliance surface.

- Do not use the appliance.

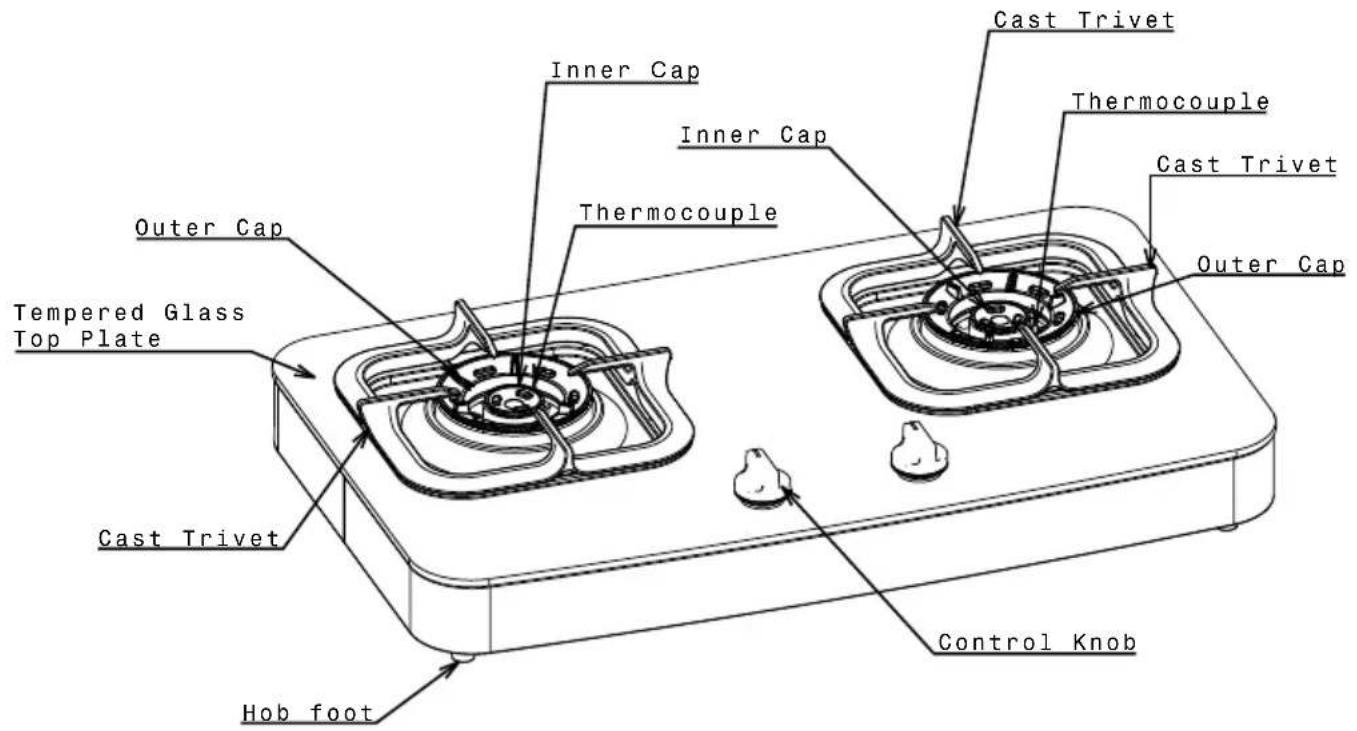

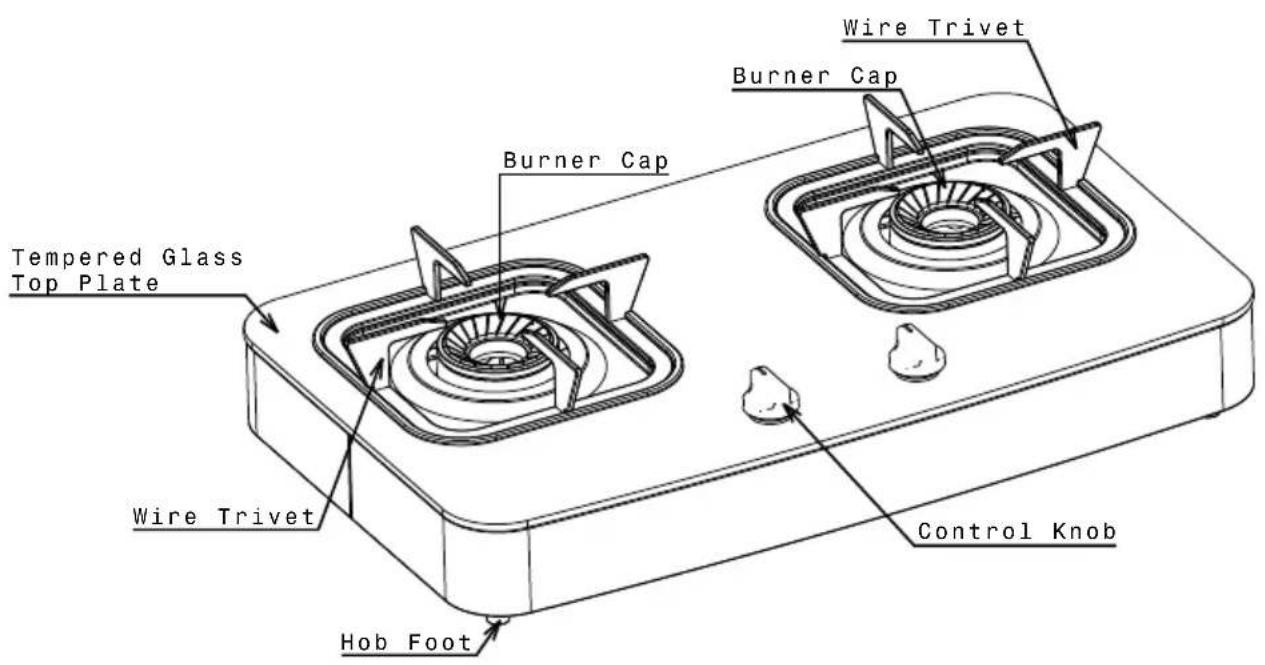

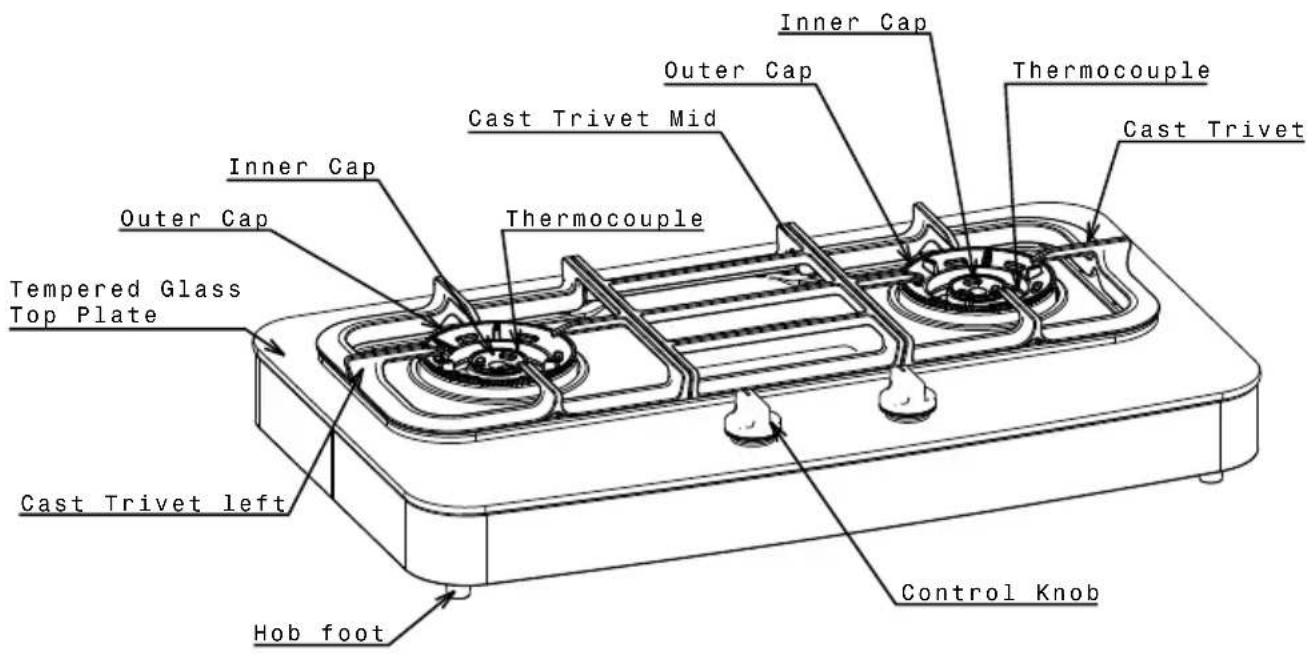

PART IDENTIFICATION

ETG7296GKR

ETG7286GKR

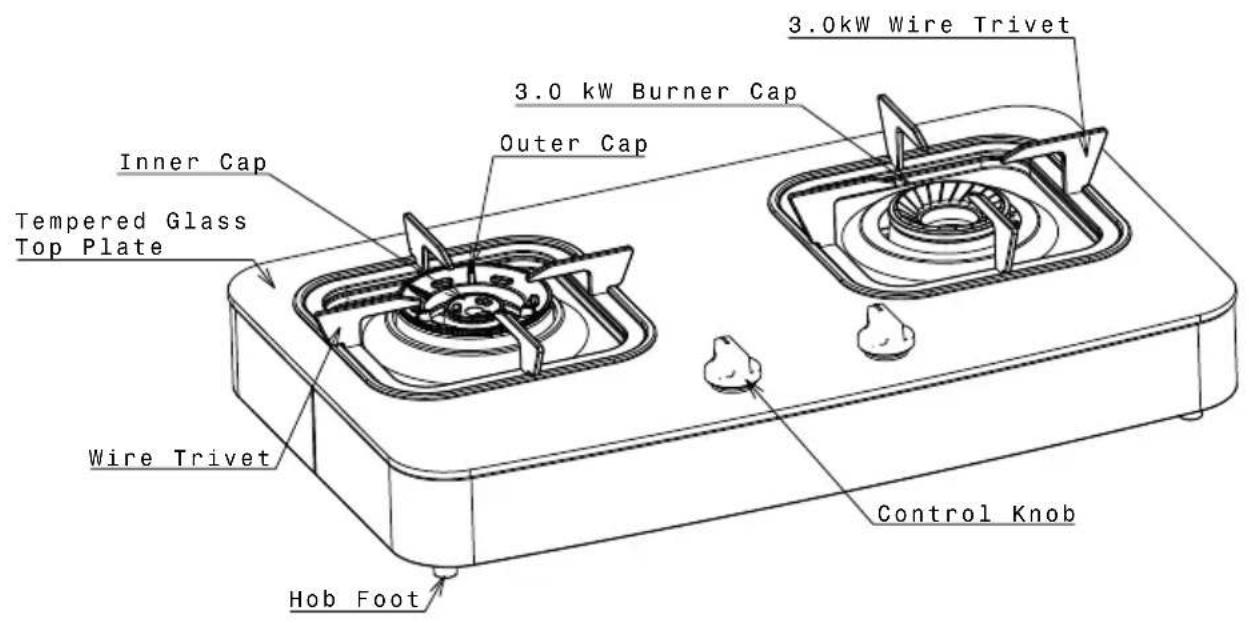

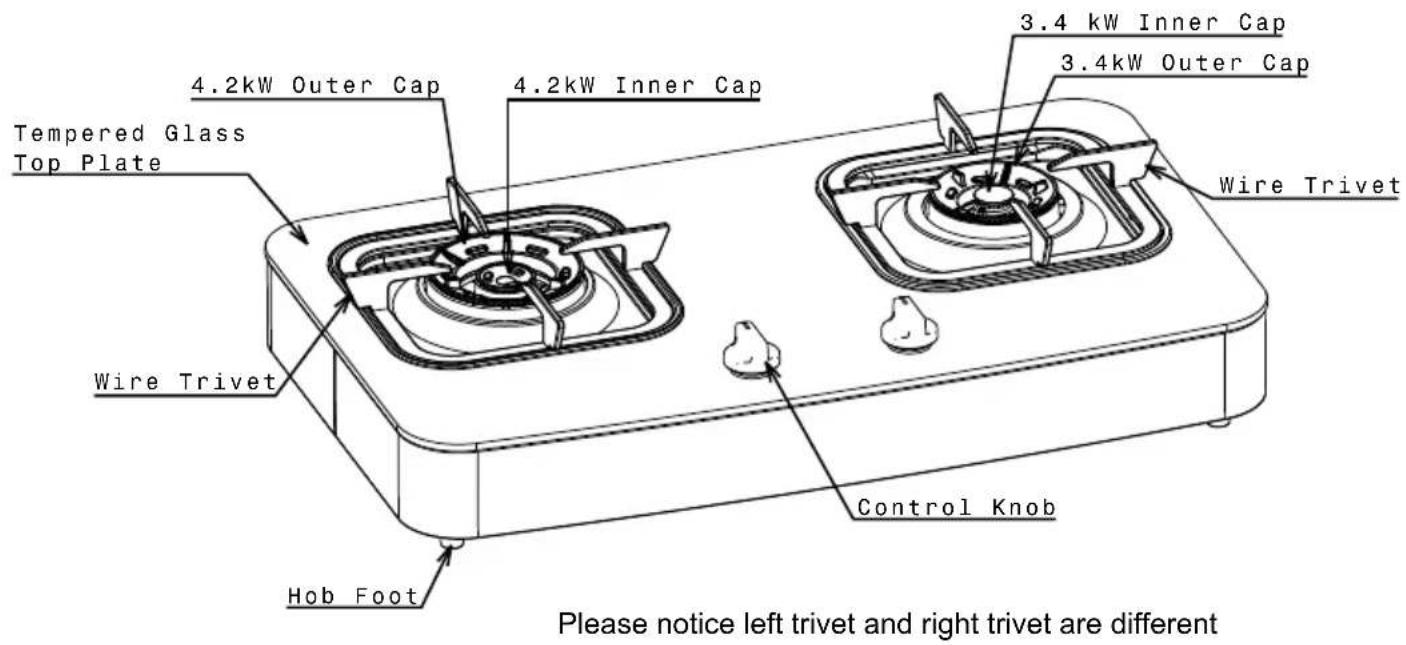

PART IDENTIFICATION

ETG7276GKR

ETG7266GKR

*Please note that the left trivet and right trivet are different.

PART IDENTIFICATION

ETG7256GKR

Installation instructions

Follow the steps below to install the appliance.

1. Open the package, take out the polystyrene foam, and place it on an even surface.

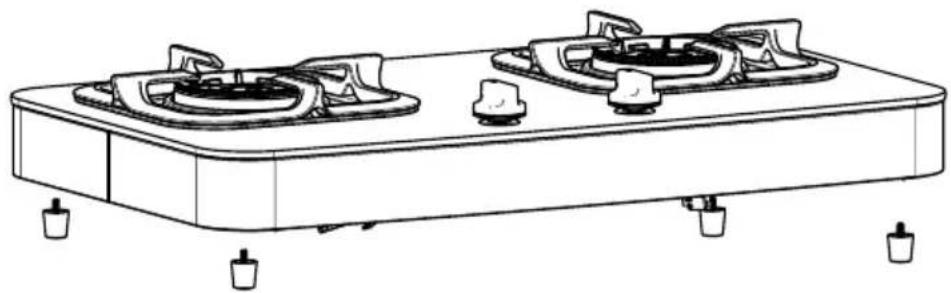

2. Install the 4 hob support legs (supplied in the accessory bag) onto the 4 square yards using the nuts, as shown in the picture below. Make sure the glass panel is well protected when assembling the hob feet, and do not contact any sharp edges.

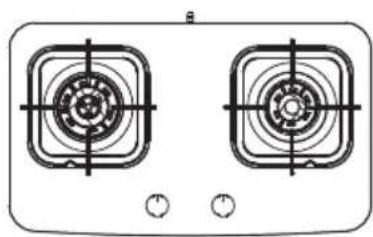

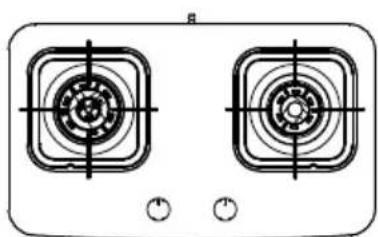

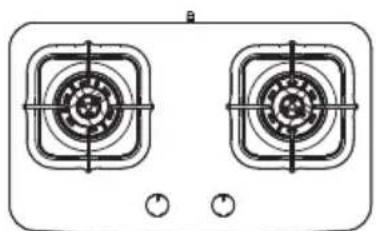

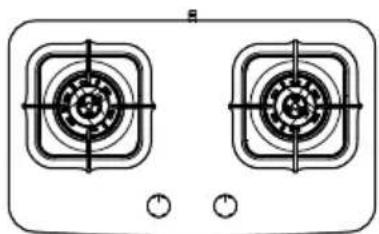

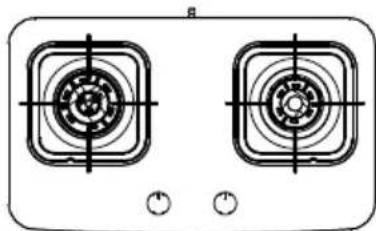

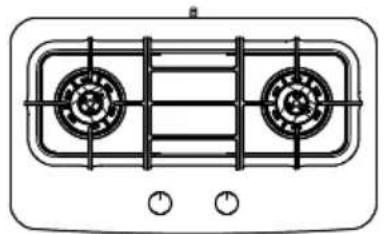

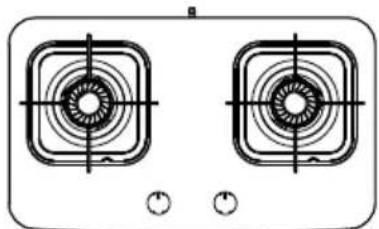

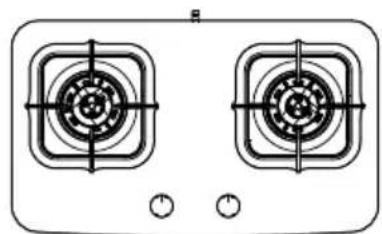

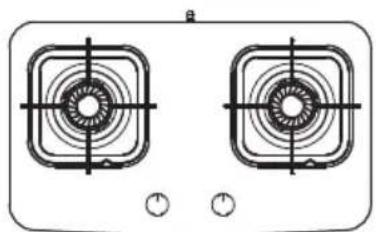

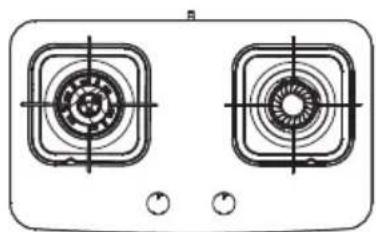

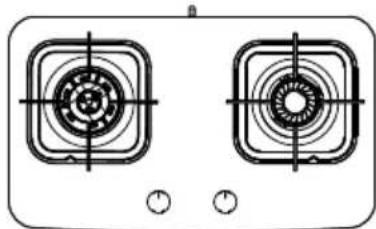

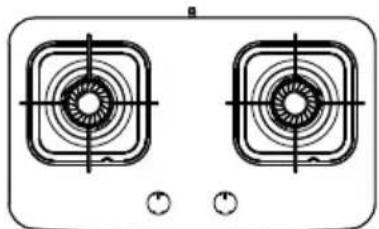

1. Assemble the burner caps in the correct positions, and assemble the trivets in the correct positions.

ETG7296GKR

ETG7286GKR

ETG7276GKR

ETG7266GKR

ETG7256GKR

Please note that on ETG7276GKR and ETG7266GKR, the left trivet and right trivet are not the same. Please note the location when you assemble the trivets.

Location on trivet Location on spill bowl

Please note that on ETG7276GKR, the left burner inner cap and right burner inner cap are not the same. DO NOT MISUSE.

Inner cap left burner

Inner cap right burner

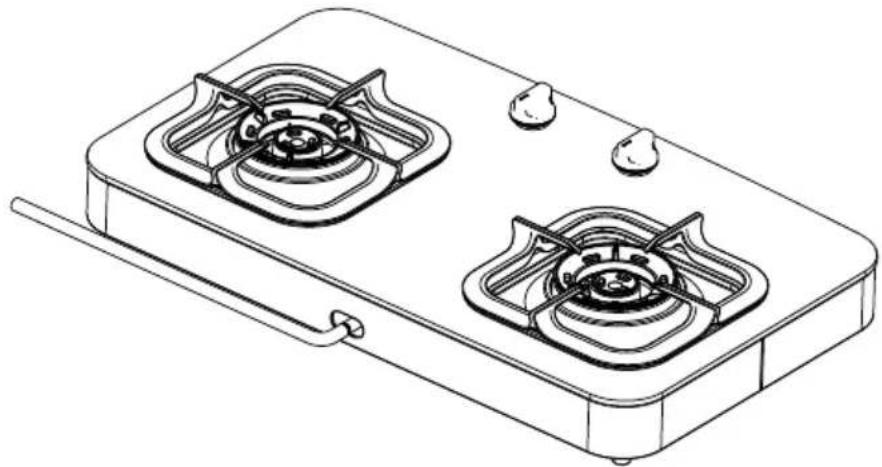

1. Connect the gas pipe to the inlet and fasten the connection by turning the clamp clockwise.

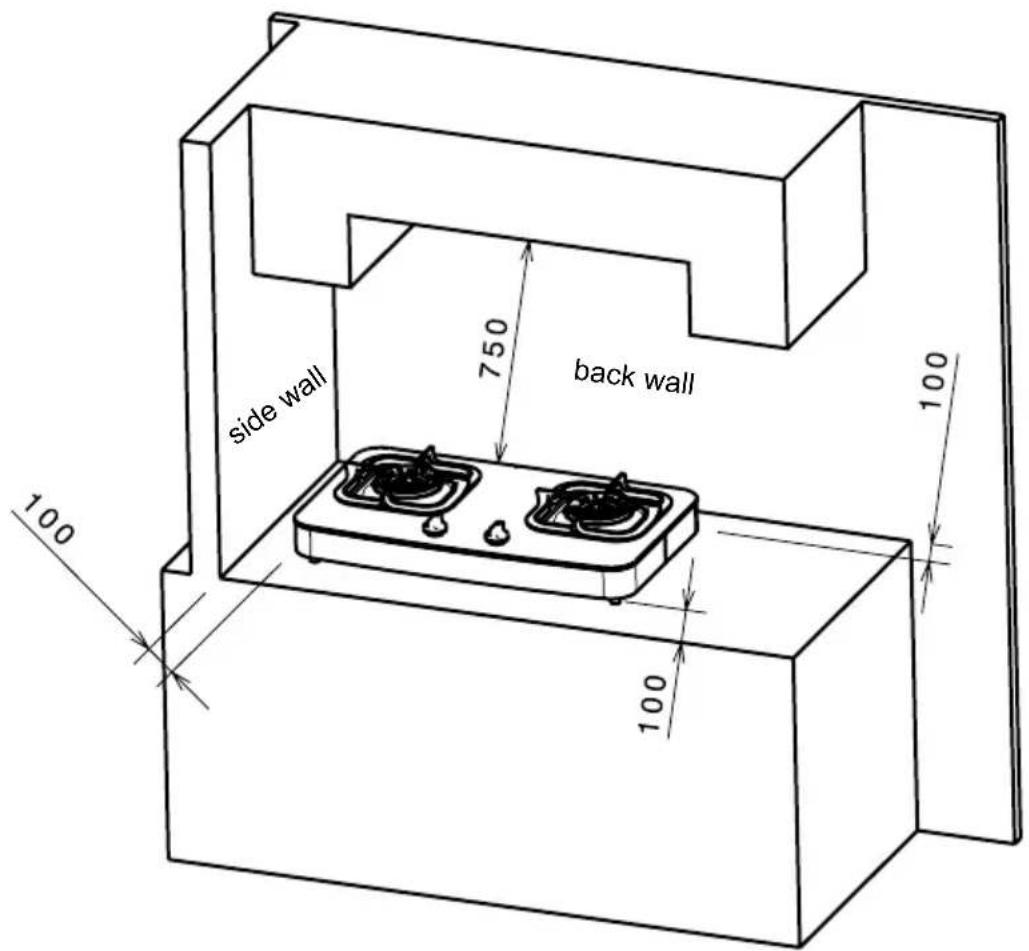

1. If the clearance between side/back walls and the hob is less than 100 mm, the walls must be protected with a non-combustible material. Horizontal surfaces less than 750 mm vertically above the cooktop must also be protected.

1. Check for leaks: Turn the gas on and check for leaks using soap solution and a brush around all joints and connections.

Test and operate

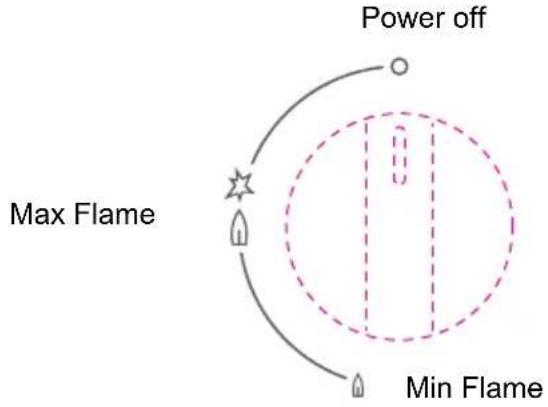

1. Test the appliance

Press the control knob and turn to the full flame setting to activate the electric igniter. The burner will ignite. Adjust the control knob to the desired setting. On initial usage, you may have to repeat this ignition function several times (to allow air to be purged from the gas supply system). No adjustment should be necessary. If any problem occurs, refer to the servicing instructions or the fault finding chart.

Please note that ETG7296GKR and ETG7286GKR have flame failure devices. Push down as far as possible for approximately 5 seconds. If the flame goes out when the knob is released, simply depress the knob again, this time holding it down with slightly more force for the same length of time.

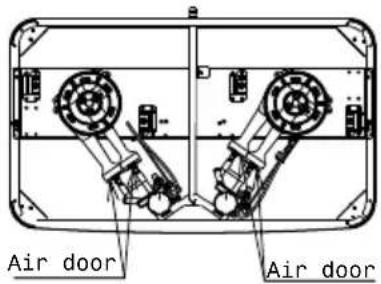

2. Adjust air door

Normal and good performance flame should be blue and very small yellow flame at the flame tip. If you find the flame is too much yellow, you can adjust the valve air door to get the desired flame.

Normal flame

Flame too short Air door open too much

Flame too long Air door open not enough

WARNING

Air door has been set at the factory, it is not recommended the user to adjust by themselves. Ask qualified technician or installer to adjust if necessary. When adjust the air door, make sure the gas pipe is well connected.

Using the hob correctly

To ensure maximum burner efficiency, it is strongly recommended that you use only pots and pans with a bottom fitting the size of the burner used, so that the flame will not spread beyond the bottom of the vessel. Recommended pot size is from 120mm to 280mm.

Technical specifications

Model Gas	Type	Gas Pressure	Product Dimension (LxWxH) mm	Nominal Heat Input(kW)	Injector Size mm
ETG7296GKR LPG 30	mbar 700X41	0X120 Left:4.2		Right:4.2	Left:0.85+0.51Right: 0.85+0.51
ETG7286GKR LPG 30	mbar 700X41	0X120 Left:4.2		Right: 4.2	Left:0.85+0.51Right: 0.85+0.51
ETG7276GKR LPG 30	mbar 700X41	0X150 Left:4.2		Right:3.4	Left:0.85+0.51Right: 0.79+0.42
ETG7266GKR LPG 30	mbar 700X41	0X150 Left:4.2		Right:3.0	Left:0.85+0.51Right: 0.83
ETG7256GKR LPG 30	mbar 700X41	0X150 Left: 3.0		Right: 3.0	Left:0.85+0.51Right: 0.83

Glass top

• Persistent stains may require vigorous rubbing with nylon scourer or creamed powder cleansers. Household enamel cleaners are available, follow the manufacturer instructions in their use. Harsh abrasive cleaners, powder cleaners, steel wool or wax polishes should not be used.
• Do not use the glass top as a work table.

Burner Cap

These can all be lifted off and removed for separate cleaning.

• Ensure burner caps are thoroughly dried after cleaning or spillage.
• When cleaning the burner, ensure that all the flame ports are free of any blockage.

WARNING

When refitting the burner caps, ensure that they are correctly seated. When refitting the trivets, ensure the trivets are correctly seated on the hob.

TROUBLESHOOTING

Phenomenon Reason Solution
Burner will not light... Burner not fitted correctly Fit burner in correct position
Flames uneven or tending to lift	Burner cap incorrectly fitted. Ensure this component is fitted correctly
	Burner cap blocked or wet. Clean or dry burner cap.
Yellow flame Burner cap dirt Clean burner cap
Flames not staying on when knob is released	Knob not held down long enough in ‘Max’ position for flame safeguard to engage.	Repeat lighting procedure and hold knob down for 5 seconds in ‘Max position.
	Dirt or spillage on flame safeguard sensor.	Clean flame safeguard sensor tip.

If you need any technical help or would like more information about our products, please do not hesitate to contact our Customer Care Center, listed below:
