Product Type	Built-in Microwave Oven with Grill
Brand	Mora
Model	VMT 745 B
Power Supply	220-240 V ~ 50 Hz
Input Power	1400 W
Microwave Output Power	900 W
Grill Power	1200 W
Product Dimensions (W x H x D)	595 x 380 x 500 mm

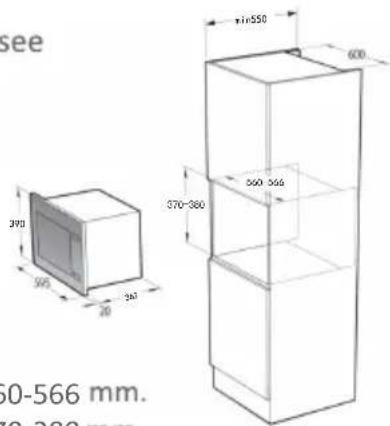

Cabinet Installation Dimensions (W x H x D)	560-566 x 370-380 x min. 550 mm
Weight	18 kg
Control Type	Digital display with keys and knob
Functions	Microwave, Grill, Combination (C-1, C-2), Auto Defrost, Auto Cook (10 menus), Clock/Timer, Child Lock, Eco Mode, Clean Function
Power Levels	5 microwave power levels (P00, P10, P30, P50, P70) + 2 grill levels (G-1, G-2)
Maximum Cooking Time	60 minutes
Interior Accessories	Glass turntable, roller ring, grill rack
Safety Features	Door safety lock system, child lock, automatic shut-off, overheat protection
Cleaning	Clean interior with damp cloth; use mild detergent; avoid abrasives
Installation	Built-in; requires proper ventilation; do not block air vents
Guarantee	Refer to Mora Customer Care leaflet

Frequently Asked Questions - VMT 745 B Mora

How do I set the clock on the Mora VMT 745 B microwave?

Press the ⏻ key. The display will flash. Use the ^ and v keys to set the hours, then press the _ key to set minutes. Press ⏻ again to confirm. The clock must be set after each power connection.

What is the maximum cooking time for microwave mode?

The maximum cooking time for microwave mode is 60 minutes. For grill and combination modes, the maximum is also 60 minutes.

Can I use metal utensils in the microwave?

No, do not use metal pans, dishes with metal handles, or anything with metal trim. Only use microwave-safe utensils. Metal can cause arcing and damage the oven.

How does the child lock work?

To activate, press and hold the _r0 key for 1.5 seconds until the lock indicator lights up. To deactivate, press and hold the same key again until the indicator turns off. In locked mode, all buttons except _r0 are disabled.

How do I defrost food using the auto defrost function?

Press the *O button until dEF appears. Then use the ^ and v keys to set the weight (maximum 2000g, in 100g steps). Press ▶□ to start. The oven will automatically adjust power and time.

What is the Clean function and how do I use it?

The Clean function operates the oven lamp, fan, and turntable for 15 minutes to help loosen food residue. Press the Clean button to display '15:00', then press the same button again to start. After cleaning, wipe interior with a damp cloth.

Why does the microwave not start when I press the start button?

Check that the door is securely closed to engage the safety interlocks. Also ensure the timer is set. If the display is off, the oven may be in Eco mode; press the ⏻ button to wake it. If problems persist, check the fuse or circuit breaker.

How should I clean the microwave?

Unplug the oven before cleaning. Wipe interior with a damp cloth and mild detergent. Do not use abrasive cleaners or steel wool. The glass tray and roller ring can be washed in warm soapy water or a dishwasher. Keep the control panel dry.

What are the installation clearances required?

The microwave must be placed on a horizontal surface strong enough to support 18 kg. Keep at least 20 cm from side walls and 30 cm from the rear wall for proper ventilation. Do not place anything on top of the oven.

How do I use the grill function?

Press the mode button until G-1 (high) or G-2 (low) appears. Set the cooking time (max 60 min) using the ^ and v keys. Press ▶□ to start. Halfway through, the oven will pause and beep twice to remind you to turn the food. Close the door and press ▶□ to resume.

USER MANUAL VMT 745 B Mora

EN Microwave oven Instruction manual

VÁŽENÝ ZÁKAZNÍKU

Line drawing of a microwave oven and its internal structure, showing components and wiring (no text or symbols)

Technical line drawing of two open kitchen cabinets with internal components and mounting holes, shown in two different views (no text or symbols present)

PORUCHY FUNKCE PŘIJÍMAČŮ (INTERFERENCE)

Technical line drawing showing a microwave oven connected to a transparent enclosure with a curved internal structure, no text or symbols present.

Technical line drawing of two open kitchen cabinets with internal components and mounting holes, shown in two different angles (no text or symbols present)

RUŠENIE PRÍJMU RÁDIA

We sincerely thank you for your purchase. We believe you will soon find ample evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual.

The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the first time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report.

We wish you a lot of pleasure with your new household appliance.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

INSTRUCTIONS FOR USE

These instructions are intended for the user.

They describe the cooker and how to use it. They also apply to different types of appliances, therefore you may find some descriptions of functions that may not apply to your appliance.

Never touch the surfaces of heating or cooking appliances. They will become hot during operation. Keep children at a safe distance. There is a risk of burning!

Microwave energy & High voltage! Do not remove the cover.

WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

- WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
• Children should be supervised to ensure that they do not play with the appliance.
• Don't remove oven's feet, do not block air events of the oven.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.

• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not let the cord hang over the edge of the table or worktop.
• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
• Never replace the light bulb inside the oven. It must always be replaced by Mora service.
• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, and abrasive sponges and stain removers.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.

2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.

3. Do not operate the oven when empty. This could damage the oven.

4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.

5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.

6. Do not insert any object into the openings on the outer case.

7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.

8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT - COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

- Do not use metal pans or dishes with metal handles.

- Do not use anything with metal trim.

- Do not use paper covered wire twist-ties on plastic bags.

- Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.

- Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.

- Do not cook in a container with a restricted opening, such as a pop bottle or sealed oil bottle, as they may explode if heated in a microwave oven.

- Do not use conventional meat or candy thermometers.

- There are the thermometers available specifically for microwave cooking. These may be used.

1. Microwave utensils should be used only in accordance with manufacturer's instructions.

2. Do not attempt to deep-fry foods in this oven.

3. Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not

hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

1. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

2. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

3. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

4. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

5. To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from bags before placing bag in oven.
c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

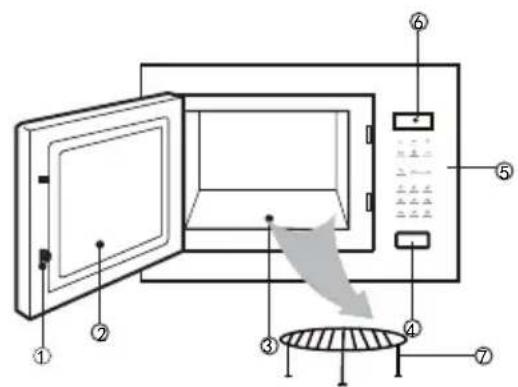

(1) Door Safety Lock System
(2) Oven Window
(3) Wave guide cover
(4) Open door key

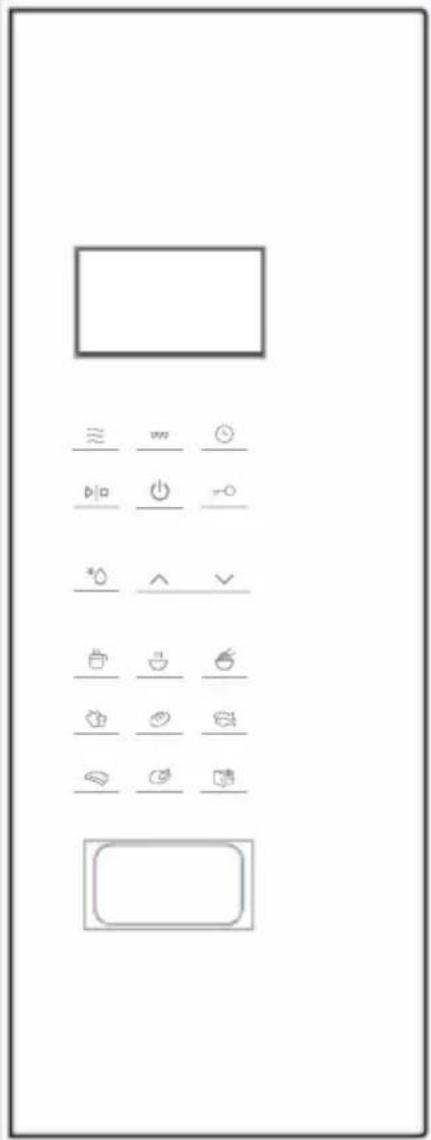

(5) Control panel
(6) Display
(7) Grill rack

Grill rack (Only be used for grill or for combination function and be placed on glass tray).

1. CLOCK

2. TIMER

3. COOKING AND REHEATING WITH MICROWAVES

The oven is fitted with a digital clock. When the oven is in the standby mode, the clock can be set in the 24-hour mode by pressing the Clock/Timer key.

a) Press ⏻ key, the display will flash, set the hours by pressing " " and " " keys
b) Press _ key, set the minutes by pressing "^ _" keys
c) Press to key again the setting.

NOTE: Clock has to be set every time the oven is connected or re-connected to the power mains.

This allows you to set the microwave oven start and finish cooking at pre set time.

The clock must be set before you use this feature.

Example: The current time is 16:30 and you want to start cooking at 18:15 on P70 power for 10 minutes

a) Press " ☐", set the time to "18:15"(same procedure as setting clock)
b) Press " ≈ " to select P70 power.
c) Set cooking time for 10 minutes.
d) Press " ▷|□ ".

If you do not set the power and cooking time and directly press the start button once you have programmed the time, the appliance will only work as a clock.

At 18:15 there will be 10 bleeps and the appliance will be switched off.

2.1. Single Button Heating

Only with a single of a button, you can start simple cooking, it is very convenient and quick to heat a glass of water etc.

Example: To heat a glass of milk

a) Put a glass of milk onto the glass turntable, and close the door.
b) Press the button ▷□, the microwave oven will work on P100 power for 1 minutes.
c) You will hear 5 beeps when cooking is completed

2.2. Microwave Heating

• Manual-operation microwave heatin

For example, suppose you want to cook for 10 minutes at 70% of microwave power(P70)

1. Press ≈ function knob to select power level P70 (70%).

4. GRILL

1. Press keys to select time 10:00.
2. Press the ____ key to start.

There are 5 power levels available (P00, P70, P5, P3 and P10), maximum operating time is 60 minutes.

Grilling is especially suitable for thin slices of meat, escalopes or steaks, meat chops, skewers, sausages, or pieces of chicken. Grilling is also suitable for toasting bread or sandwiches and finishing dishes au gratin. Maximum operating time that can be set for the grill is 60 minutes.

Grill power have 2 settings, and it's G-1 and G-2 from high to low power.

Example: Grilling with G-1 for 20 minutes

a) Press the _ mode until the LED displayed "G-1"
b) Set cooking time "20:00"
c) Press the ▶□ key to start the program.

NOTE: When grilling, the food isn't heated by microwave, heat is radiated from the metal heater at the top of the oven. When grill is working, the cooking time has 2 stages, After the 1st half of the cooking, the program will automatically pause and sound 2 beeps, indicating you to open the oven and turn food over, after turning over, close the door, press ▶□ button, the cooking will continue for the 2nd half. If you do not want to turn the food over, the oven will re-start after 1 min pause.

This appliance offers you a choice of two methods of combination cooking.

Combi power have 2 settings, taking the reference of microwave power. It's C-1 and C-2 from high to low power.

The oven will operate with microwaves 55 percent of the time, and with grill 45 percent of the time. This operating mode is suitable for cooking pudding, soufflés, omelettes, baked potatoes, and poultry. Maximum operating time that can be set is 60 minutes.

Example: Set combined operation C-1 for 25 minutes.

1. Press _ buttonTurn until C-1 appears on the screen.
2. Press ^ ∨ keys to set the time to 25:00.
3. Press the ▶□ key to start the program.

The oven will operate with microwaves 30 percent of the time, and with grill 70 percent of the time. This operating mode is suitable for cooking fish or dishes au gratin. Maximum operating time that can be set is 60 minutes.

Example: Set combined operation C-2 for 25 minutes.

1. Press ____ buttonTurn until C-2 appears on the screen.
2. Press ▶□ keys to set the time to 25:00.
3. Press the ▶□ key to start the program.

The oven allows Auto weight defrosting.

Select the food type and weight, it will automatically help you to adjust the power level and time.

Example: defrost 500g frozen meat.

a) Press the button " *O ", "dEF" will be displayed.
b) Press" ^ √ " button to set the weight 500g.
c) Press "D|O"

The weight of food must be less than 2000g. Each step is 100g.

Note: The weight of food must be less than 2000g. Each step is 100g

For the food in the auto menu, only the type of food and the weight/amount have to be set. The oven will aid you in the setting of power and time.

Example: Auto cooking 400g meat.

a) Press " 🔊" button to choose A-7.
b) Press" ^ ∨ " button to set weight 400g.
c) Press "D|□".

Remark: Noodle in marked by lot, Each lot is around 100-150g.

Touching Times\Weight Menu	A-1	A-2	A-3	A-4	A-b	A-6 A-/ A-3
	MIK	Soup	Noodles Vegetables		Bread	Fish Meat		Chicken
1	250g 1	500g 100g 100g				100g	200g	200g
2		800g500g	2	200g 200g		200g	300g	400g
3				300g	300g	300g	400g	600g
4				400g		400g	500g	800g
5				500g		500g	600g	1000g
6				600g		600g	800g	1200g
7						700g	1000g	1400g
8						800g		1600g
9						900g		1800g
10						1000g		2000g

9. QUICK START

Tips for using the oven

Use this function to rapidly heat (100% microwave power) or cook your food. In the standby mode, press the START key and the oven will operate for 60 seconds.

10. CHILD LOCK

This function is used to prevent uncontrolled or inadvertent use of the oven by children.

To set: In standby or preset mode, hold down the _r0 key for 1.5 seconds, a beep sounds and lock indicator lights. In the locked mode, all buttons are disabled except _r0 key.

To cancel: Hold down the _o button for 1.5 seconds until lock indicator on display goes off.

11. ECO MODE - POWER SAVING

Press ⏻ button in standby state, the display will turn off and the microwave is in the ECO mode which minimizes power usage.

To cancel the ECO mode and turn on the display again, Only press to ⏻ button cancel the ECO mode.and other keys will be invalid.

Oven will automatically enter into the ECO mode after 20s after last use.

12. Clean function

For regular cleaning of your oven the following procedure is recommended: Press the "按钮" button to display "15:00", press the "按钮" button, and only the furnace lamp, fan motor and rotary plate motor will work for 15 minutes.

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters of spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp colth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapours collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
8. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.

ENVIRONMENT

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:
3. Misaligned Door
4. Damaged Door
5. Dents or Holes in Door Window and Screen

6. Dents in Cavity
   If any of the above are visible, DO NOT use the oven.

7. This Microwave Oven weighs 18g and must be placed on a horizontal surface strong enough to support this weight.

8. The oven must be placed away from high temperature and steam.

9. DO NOT place anything on top of the oven.

10. Keep the oven at least 20 cm away from both sidewalls and 30 cm away from rear wall to ensure the correct ventilation.

11. DO NOT remove the turn -table drive shaft.

12. As with any appliance, close supervision is necessary when used by children.

13. Make sure that the AC outlet is easily accessible so that the plug can be removed quickly in an emergency.

Otherwise, it should be possible to disconnect the device using a switch from the circuit. In this case, the existing provisions of the electrical safety standards are considered.

The product has to be correctly installed on earthed socket with a single-phase AC (230 V/50 Hz).

WARNING! THIS APPLIANCE MUST BE EARTHED!

1. This oven requires 1.4 KVA for its input consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by a 250V, 10 Amp Fuse.

SPECIFIKACE

MONTÁŽNÍ ROZMĚRY

INSTALLATION STEPS

Spotřeba el. energie.... 220-240V\~50Hz, 1400W

Výkon 900W

Spirála grilu 1200W

Cabinet Dimensions Requirements (see illustration):

1. Internal width off the cabinet is 560-566 mm.
2. Internal height of the cabinet is 370-380 mm.
3. Depth of the cabinet should not be less than 550 mm.
4. The outer dimension of the cabinet should not be less than 596 mm
5. The thickness of the wooden cabinet top should not be less than 15 mm

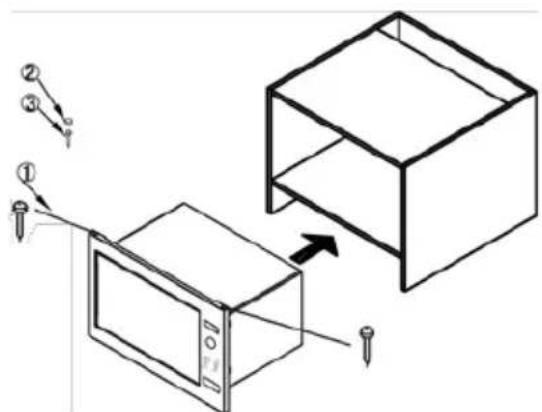

INSTALLATION KIT

1. Bolt 3×20mm 2PCS
2. Screwcover 1PCS
3. Bolt 4×45mm 1PCS

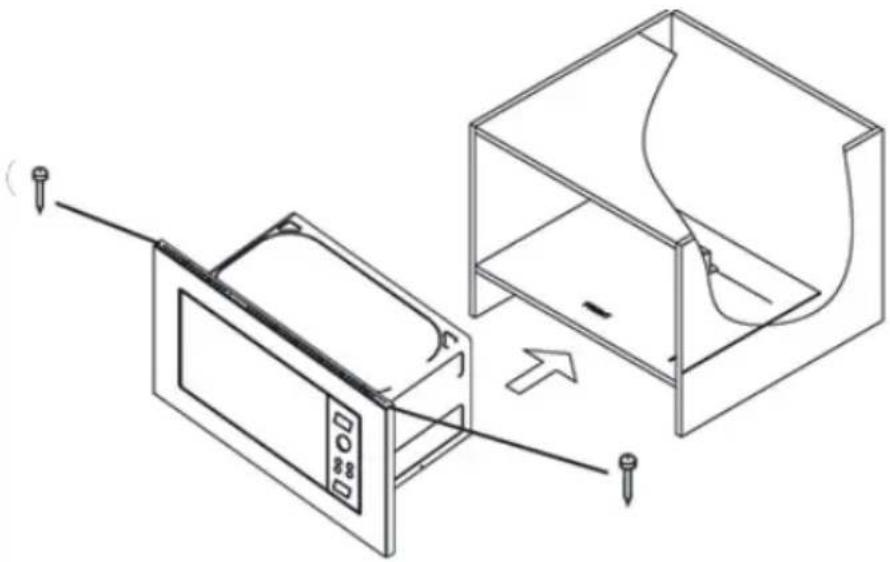

1. Put the microwave in the cupboard. Keep the microwave oven in a horizontal position, the distance from both side walls of the cabinet should be the same. Insert the screws (component 1) into the holes on the top edge of the frame and screw them into the furniture

Line drawing of a microwave oven and its internal casing with screwdriver, showing assembly and mounting (no text or symbols)

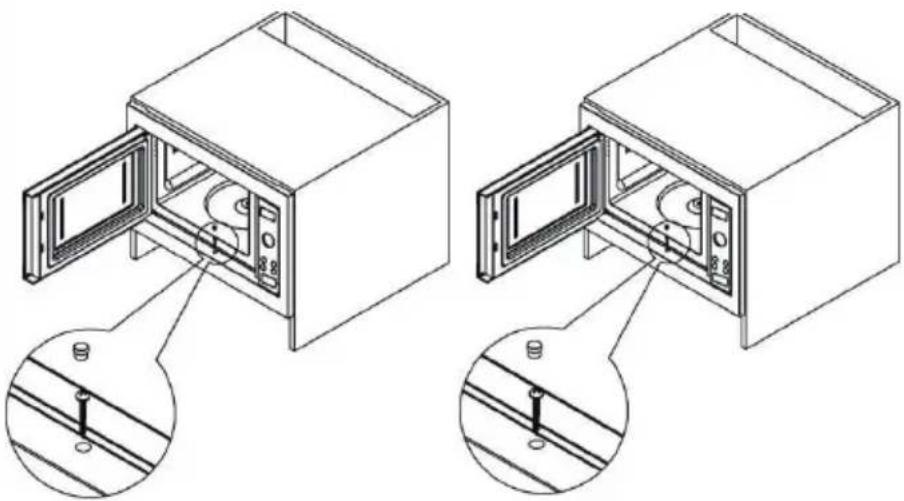

1. Open the microwave door, insert the screw (component 3) into the opening and screw it into the cabinet, then install the screw cover

Technical line drawing of two open kitchen cabinets with internal components and mounting holes, shown in two different angles (no text or symbols present)

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven.
b) Place the radio, TV, etc. as far away from your microwave oven as possible.
c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE.

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the information on the display does not appear or the display disappeared:
   a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
   b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

2. If the microwave power will not function:

a) Check to see whether theimer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

If none of the above rectify the situation, then contact the nearest authorized service agent.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

GUARANTEE & SERVICE

If you need information or if you have a problem, please contact the Mora Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Mora dealer or contact the Service department of Mora domestic appliances.

Eventual mismatches in colour shades between different appliances or components within a single design line may occur due to various factors, such as different angles under which the appliances are observed, different coloured backgrounds, materials, and room illumination.

For personal use only!

WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

MORA
