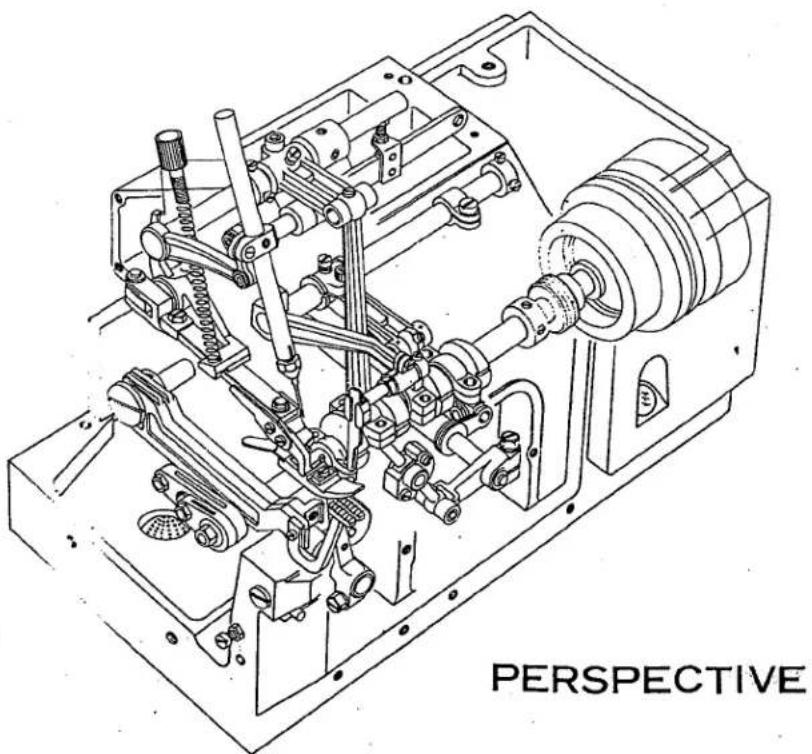

USER MANUAL 600-4 Union Special
MISCELLANEOUS COVER (1) 1
MISCELLANEOUS COVER (2) 2
THREAD EYELET AND BASE 3
MISCELLANEOUS BUSHING AND CRANK SHAFT 4

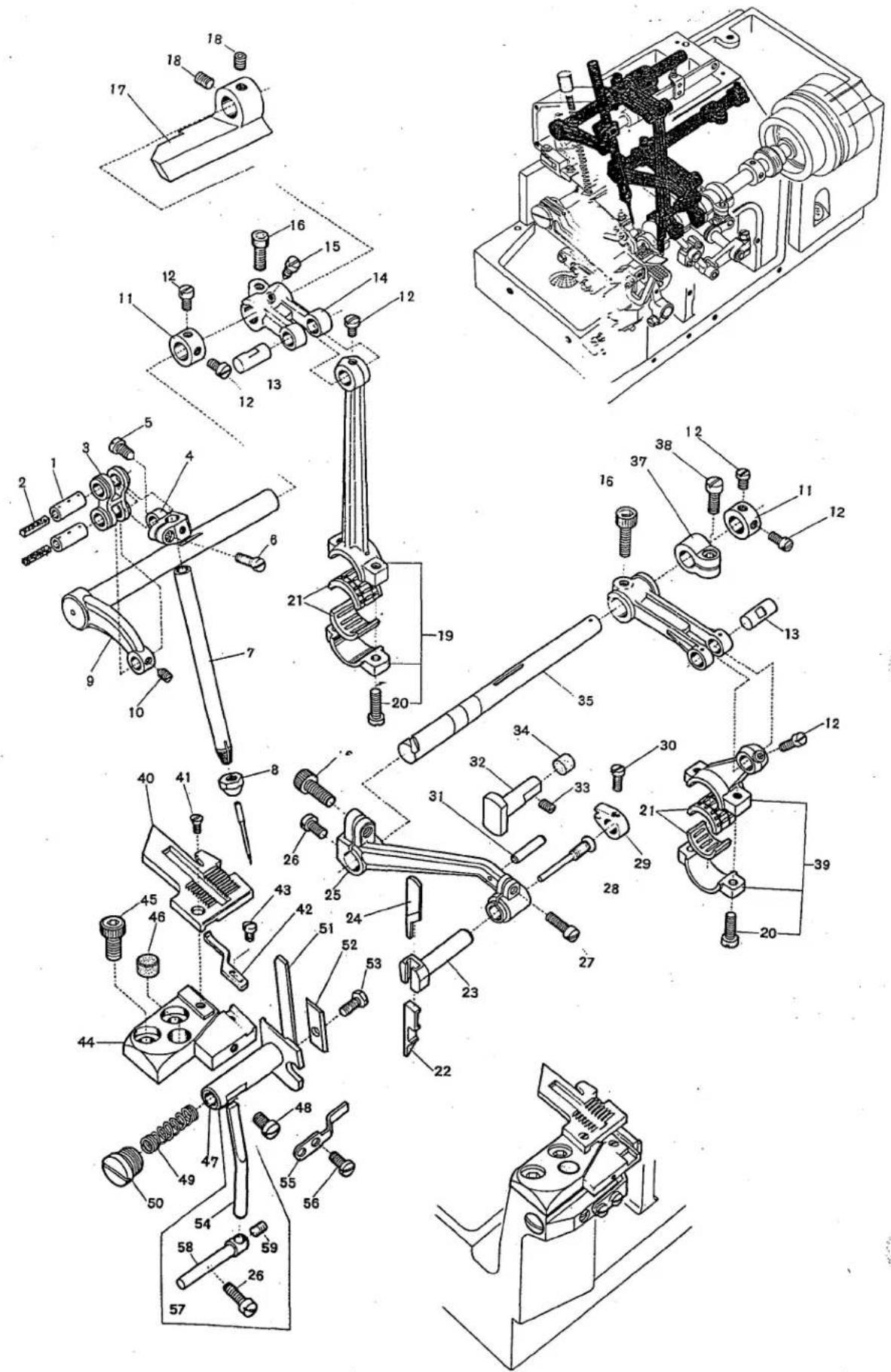

NEEDLE BAR AND KNIFE DRIVING MECHANISM 5

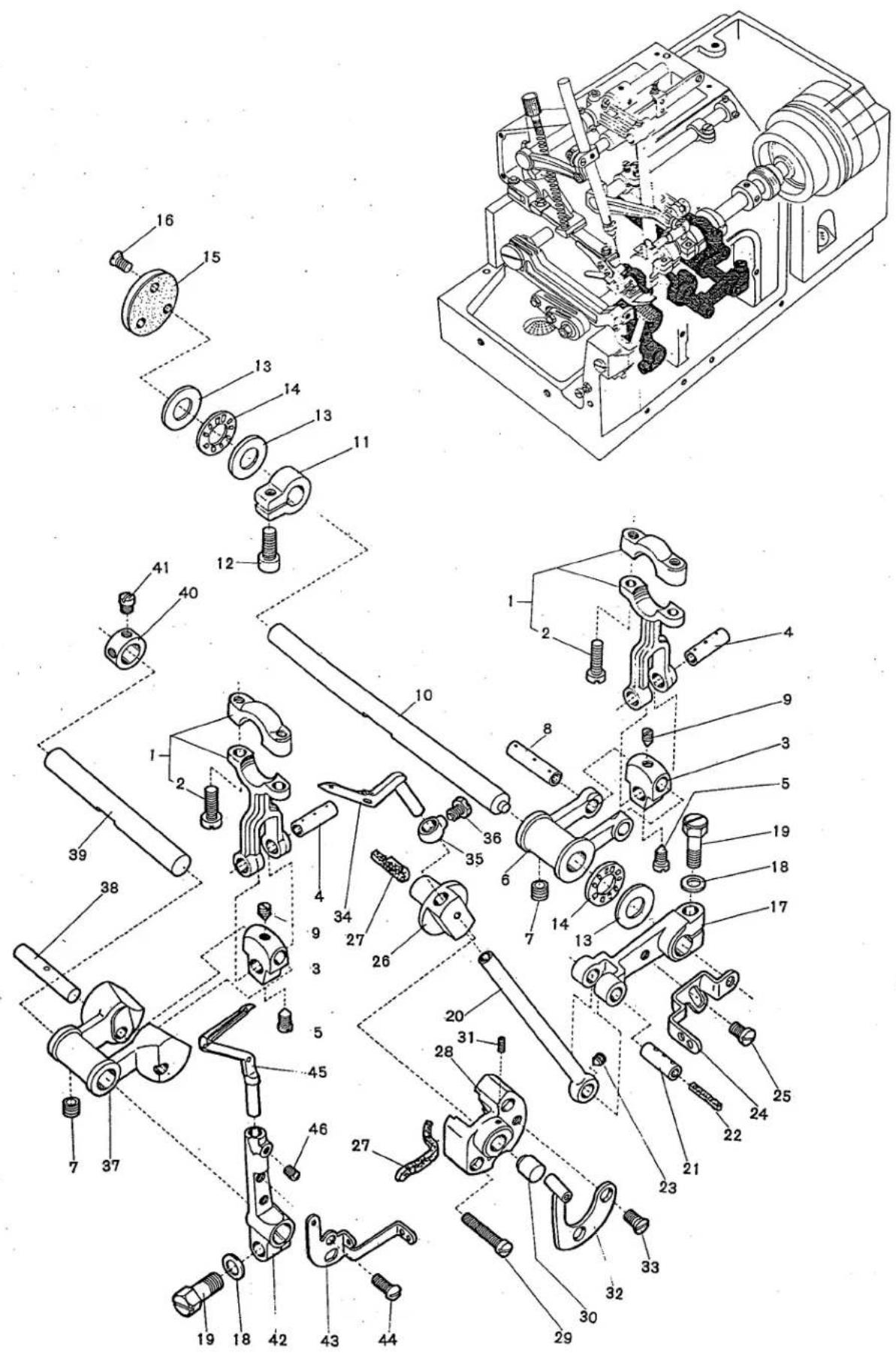

LOOPER DRIVING MECHANISM 6
PRESSER FOOT MECHANISM 7

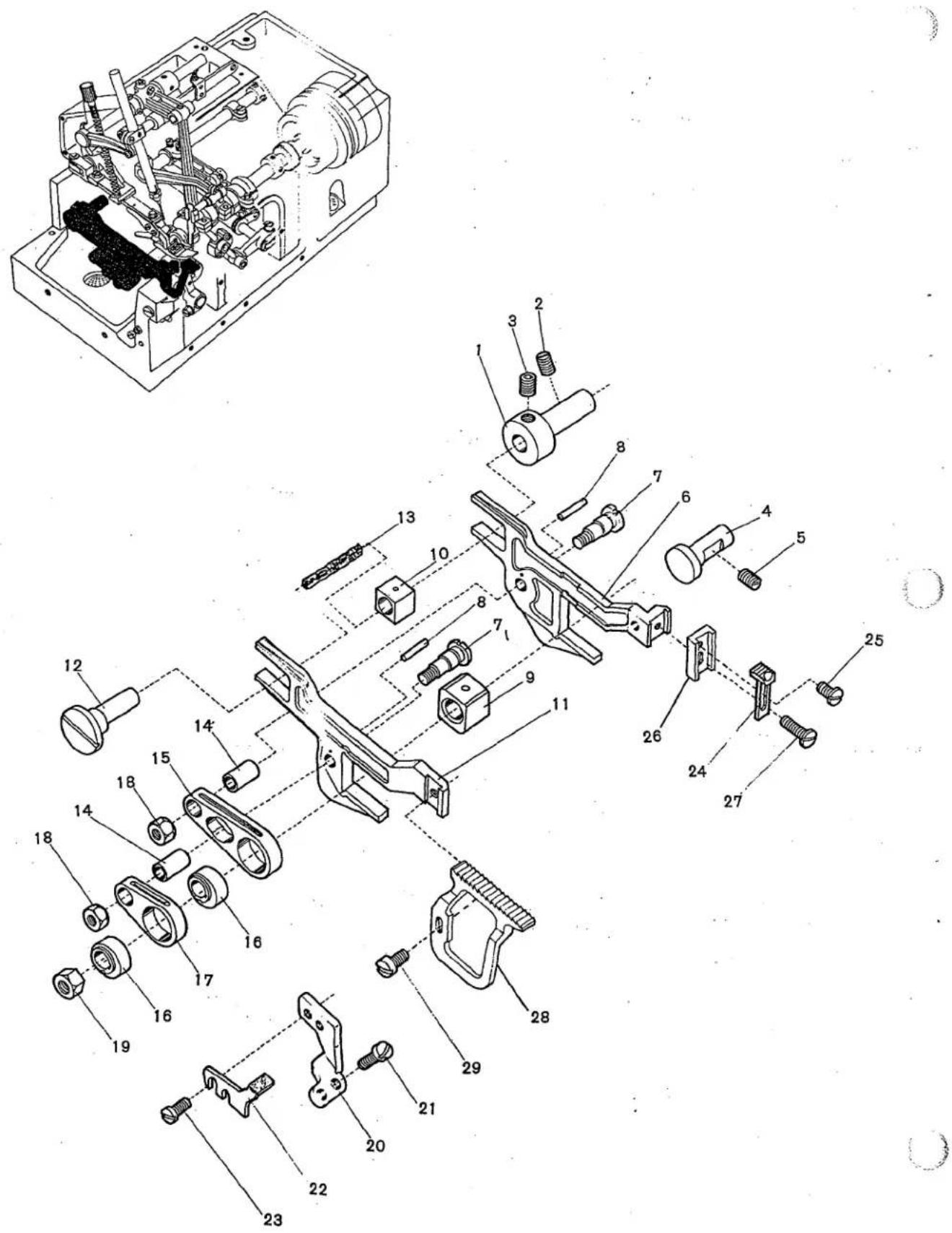

FEED DRIVING MECHANISM 8

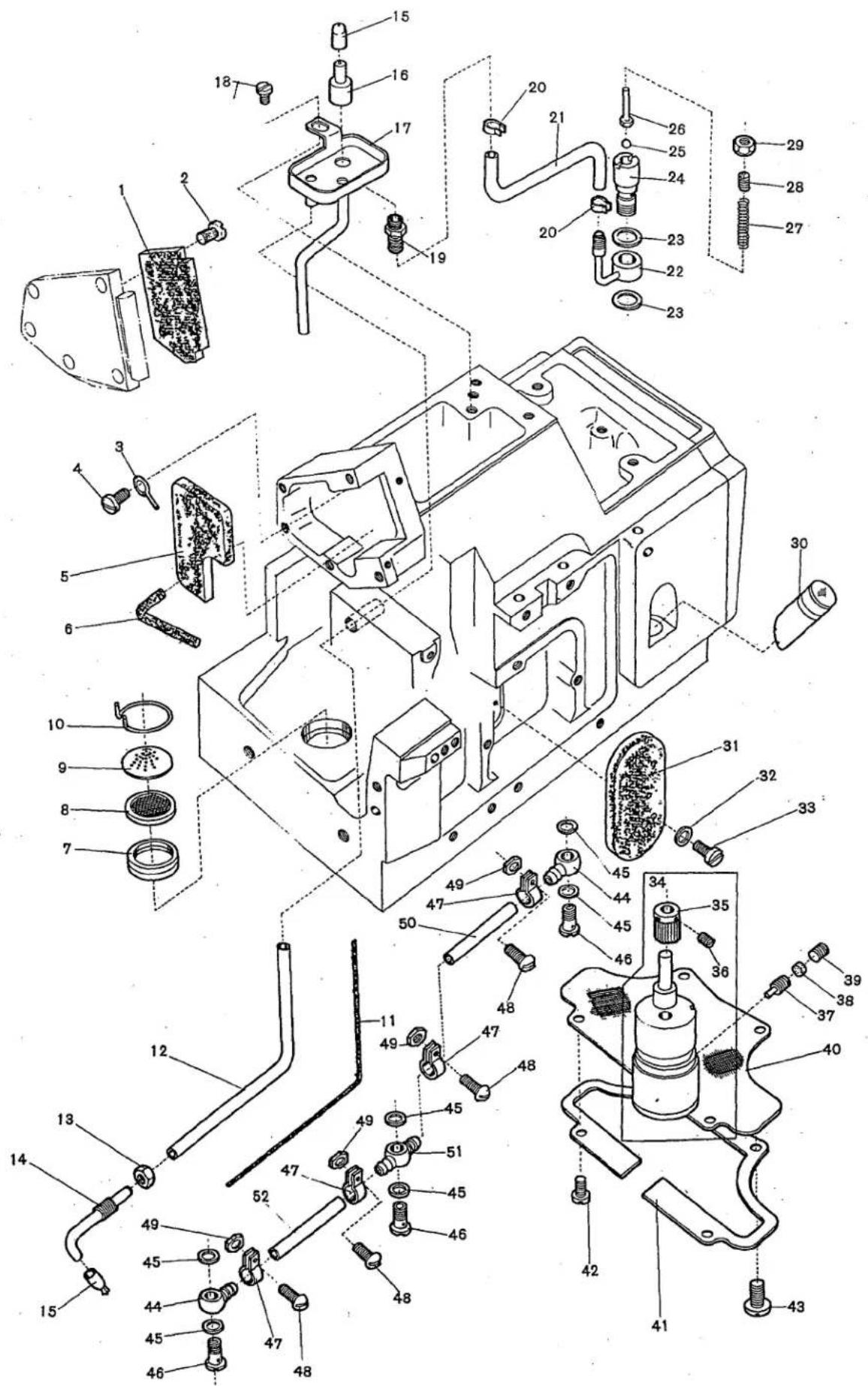

OIL LUBRICATING SYSTEM 9

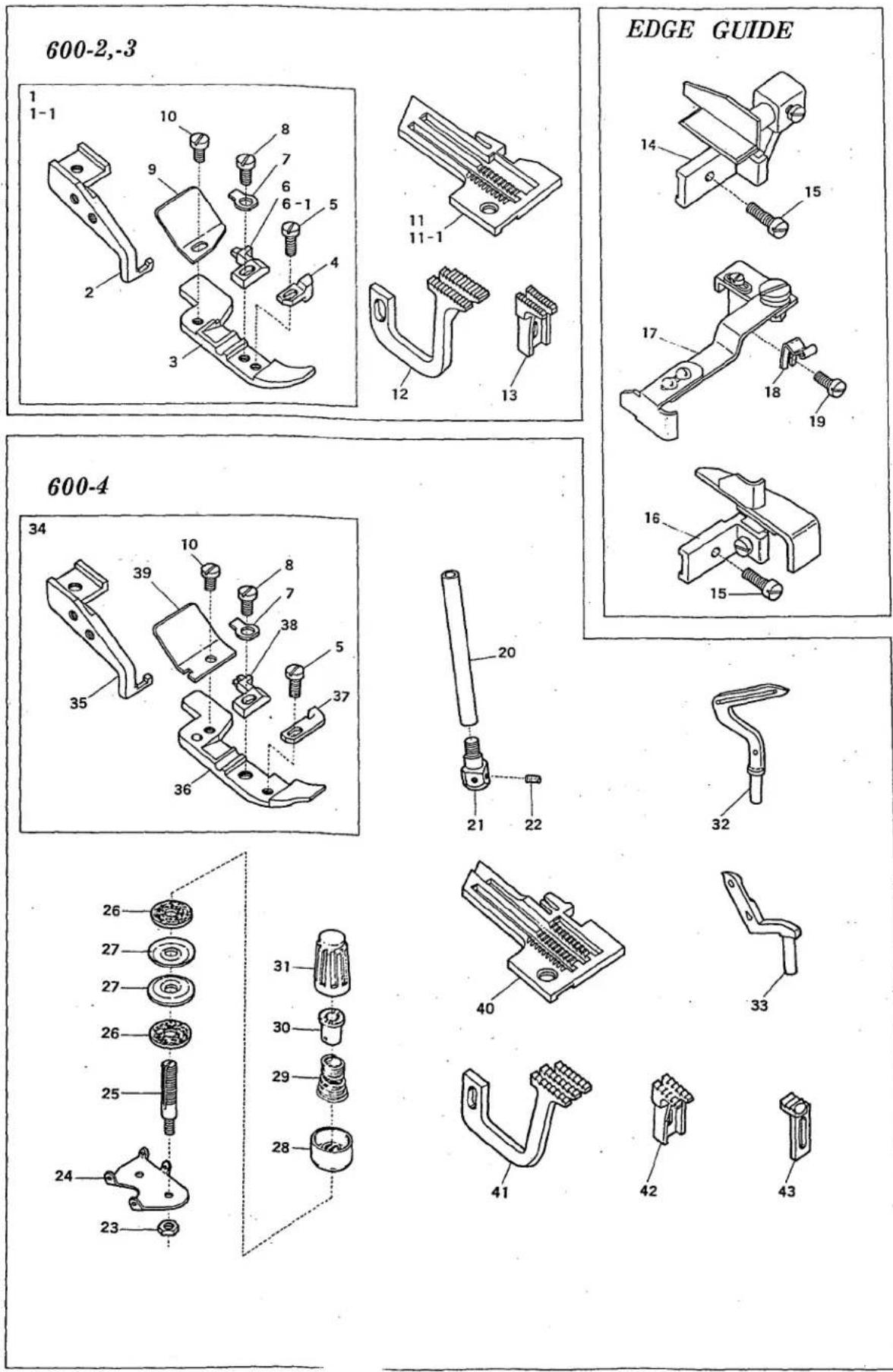

600-2, -3, -4 EXCLUSIVE PARTS 10

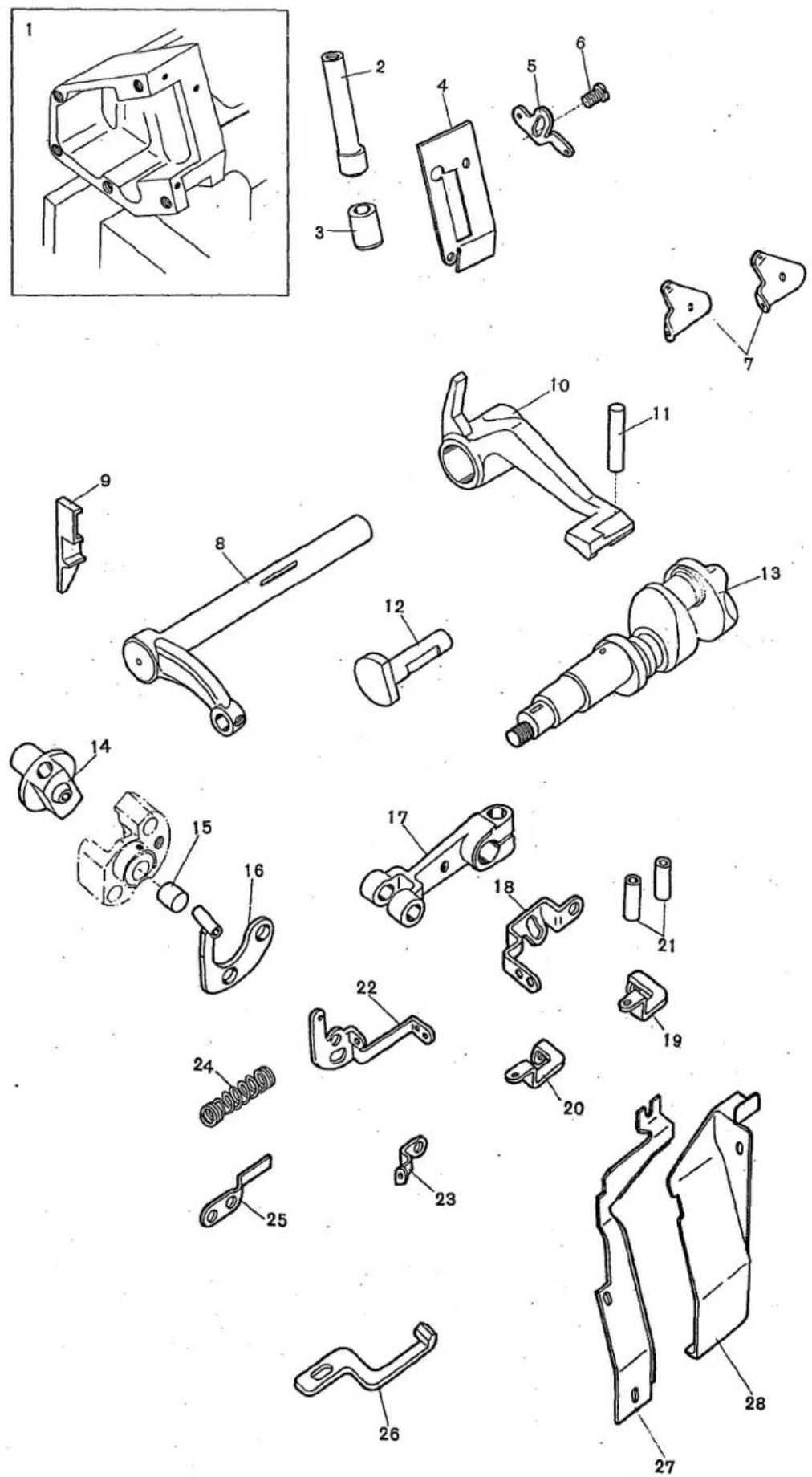

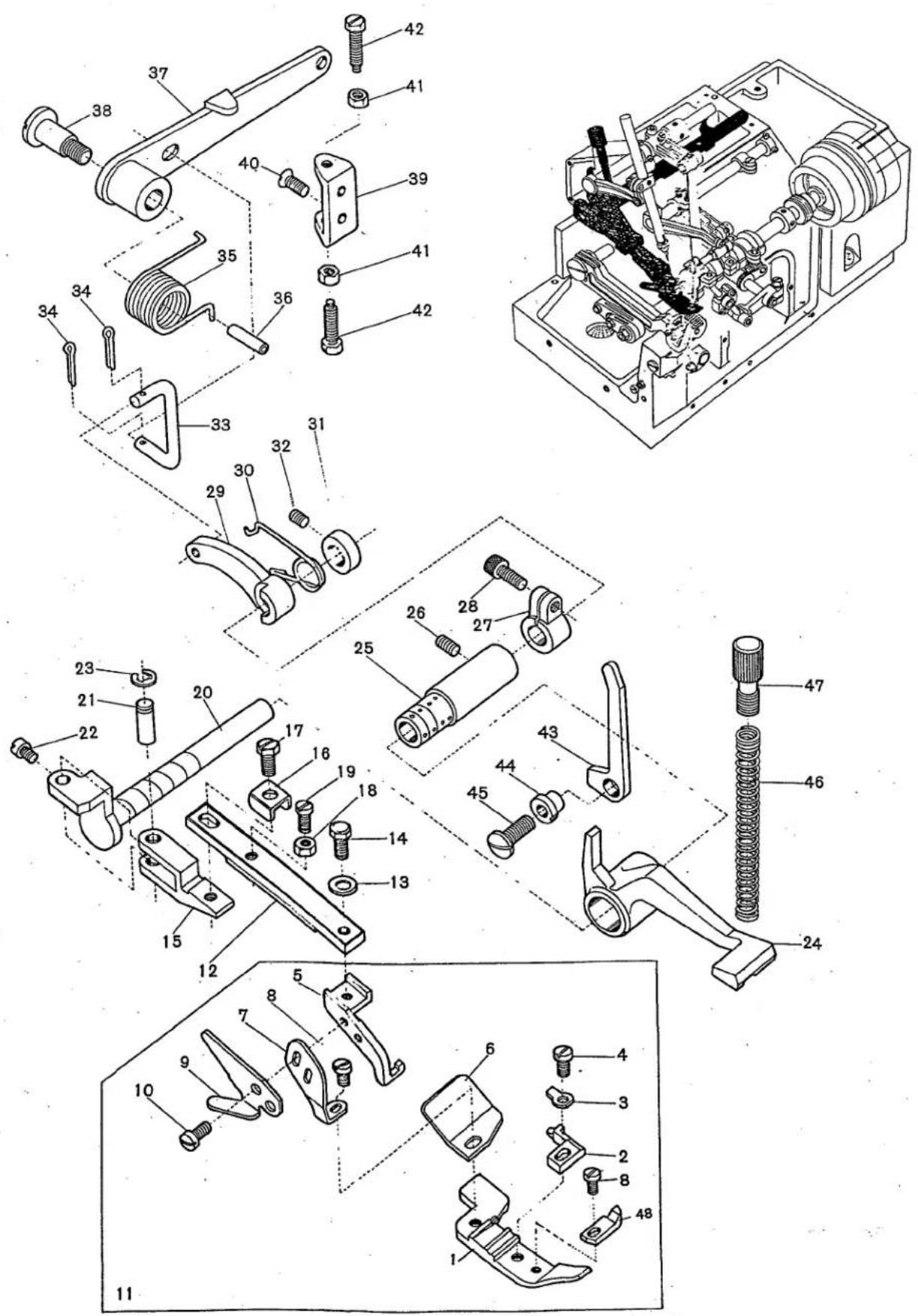

600-4 EXCLUSIVE PARTS 11

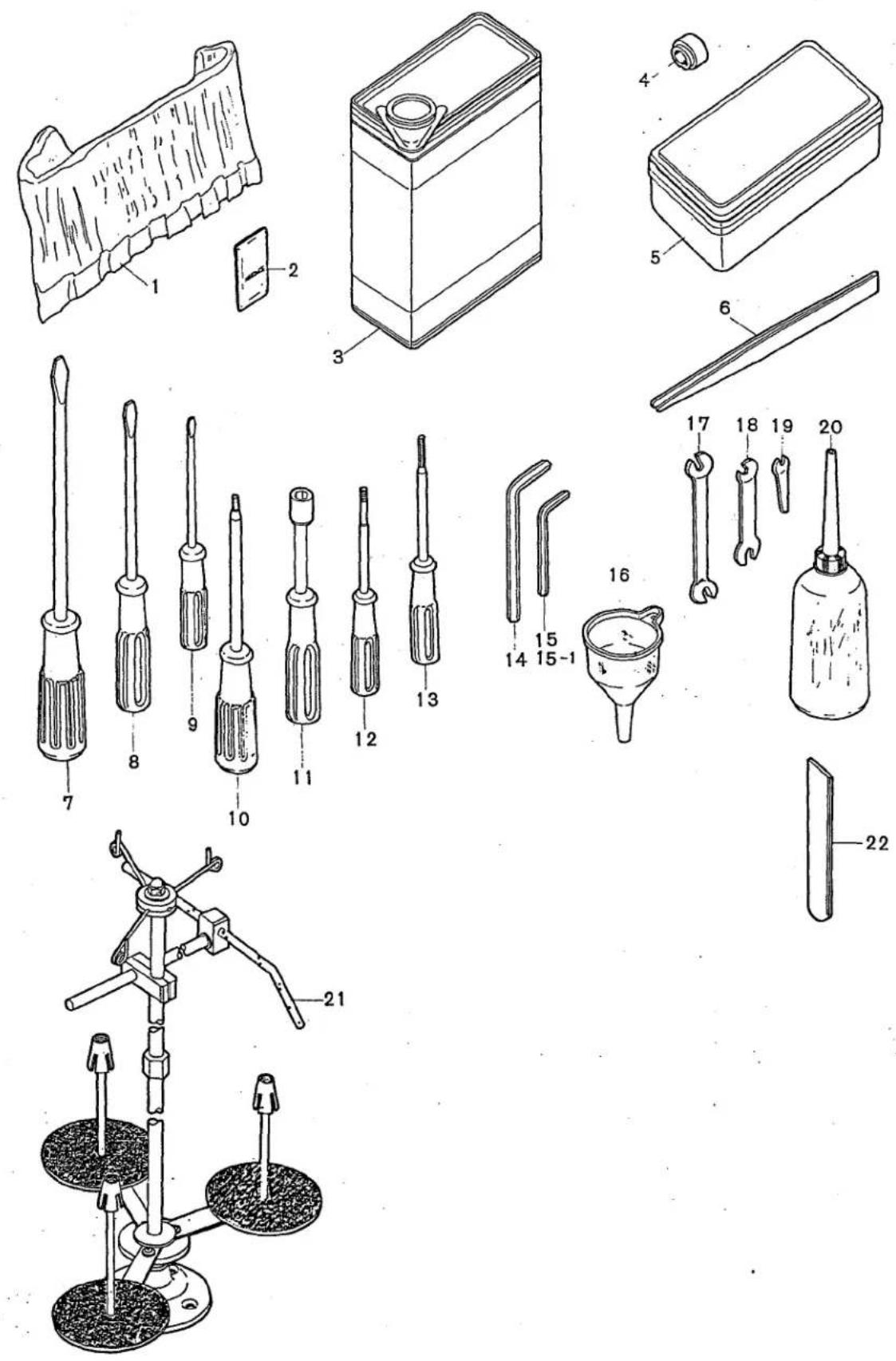

ACCESSORY 12
INDEX 13

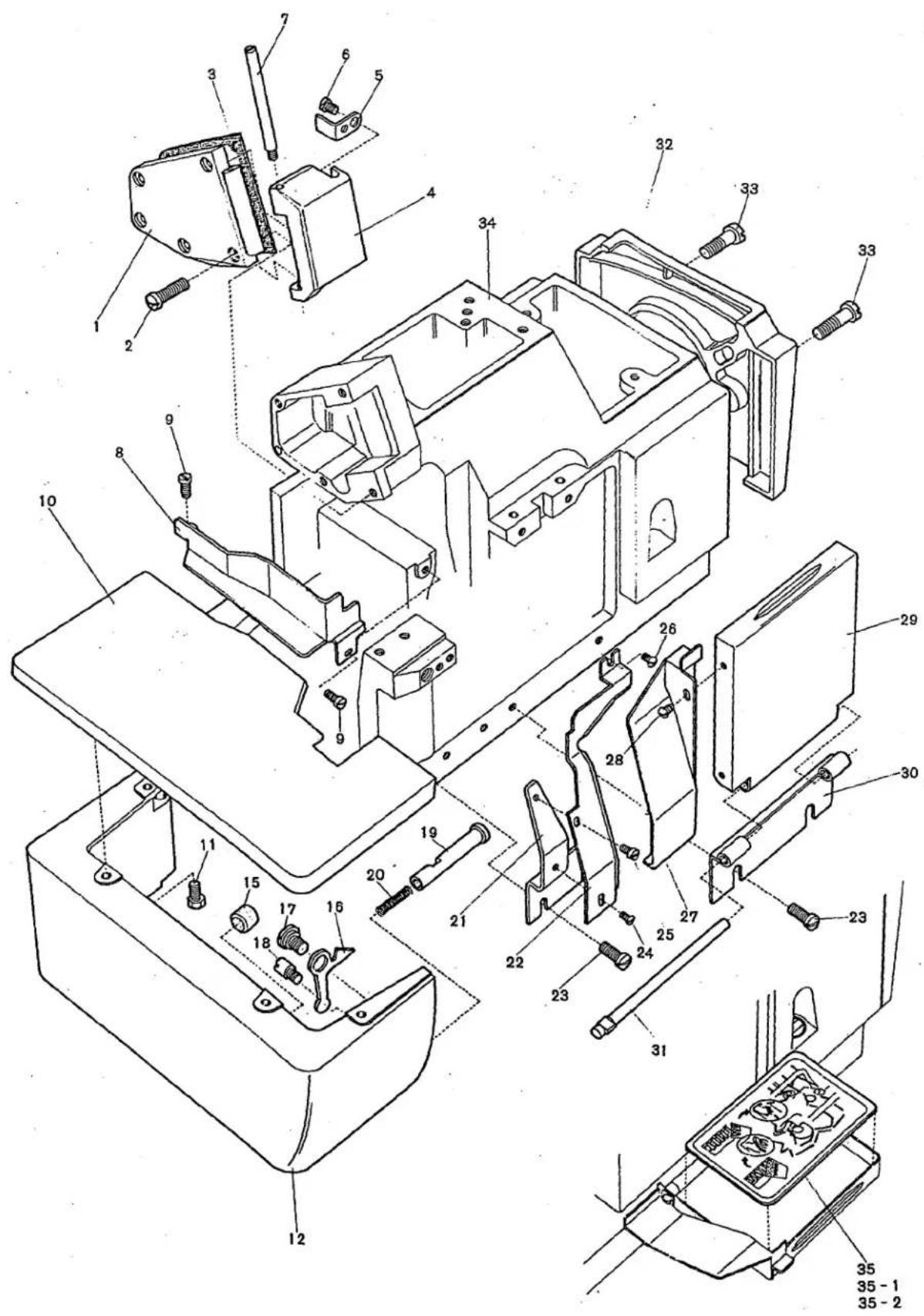

1
| Ref.No. | Parts.No. | Description | Amt.Req. | Remarks |
| 1 | Y32617 | Side Cover | 1 | |
| 2 | Y 9150 | Screws for Y32617 | 5 | |
| 3 | Y32618 | Side Cover Gasket | 1 | |
| 4 | Y32619 | Needle Thread Cover | 1 | |
| 5 | Y32620 | Needle Thread Cover Latch Spring | 1 | |
| 6 | Y 7302 | Screws for Y32620 | 2 | |
| 7 | Y32622 | Needle Thread Cover Pin | 1 | |
| 8 | Y32623 | Fabric Guard | 1 | |
| 9 | Y 4353 | Screws for Y32623 | 2 | |
| 10 | Y32602 | Cloth Plate (Upper) | 1 | |
| 11 | Y 7605 | Screws for Y32602 | 4 | |
| 12 | Y32603 | Cloth Plate (Lower) | 1 | |
| 15 | Y32604 | Cloth Plate Rubber Cushion | 1 | |
| 16 | Y30126 | Cloth Plate Latch | 1 | |
| 17 | Y 6040 | Screw for Y30126 | 1 | |
| 18 | Y 5095 | Stopper for Y30126 | 1 | |
| 19 | Y32628 | Cloth Plate Latch Plunger | 1 | |
| 20 | Y32629 | Cloth Plate Latch Spring | 1 | |
| 21 | Y32640 | Chip Guard Supporter | 1 | |
| 22 | Y32610 | Chip Guard (Fix) | 1 | |
| 23 | Y 4440 | Screws for Y32607, Y32640 | 4 | |
| 24 | Y 1330 | Screw for Y32610 | 1 | |
| 25 | Y 1222 | Screw for Y32610 | 1 | |
| 26 | Y 1326 | Screw for Y32610 | 1 | |
| 27 | Y32611 | Chip Guard (Open) | 1 | |
| 28 | Y 5131 | Screws for Y32611 | 2 | |
| 29 | Y32606 | Front Cover | 1 | |
| 30 | Y32607 | Front Cover Hinge | 1 | |
| 31 | Y32608 | Front Cover Hinge Pin | 1 | |
| 32 | Y34760 | Belt Cover | 1 | |
| 33 | Y 5089 | Screws for Y32477 | 2 | |
| 34 | Y32600 | Frame | 1 | |
| 35 | Y 873 | Threading Chart for 600-1 | 1 | |
| 35-1 | Y 874 | Threading Chart for 600-2,-3 | 1 | |
| 35-2 | Y 875 | Threading Chart for 600-4 | 1 |

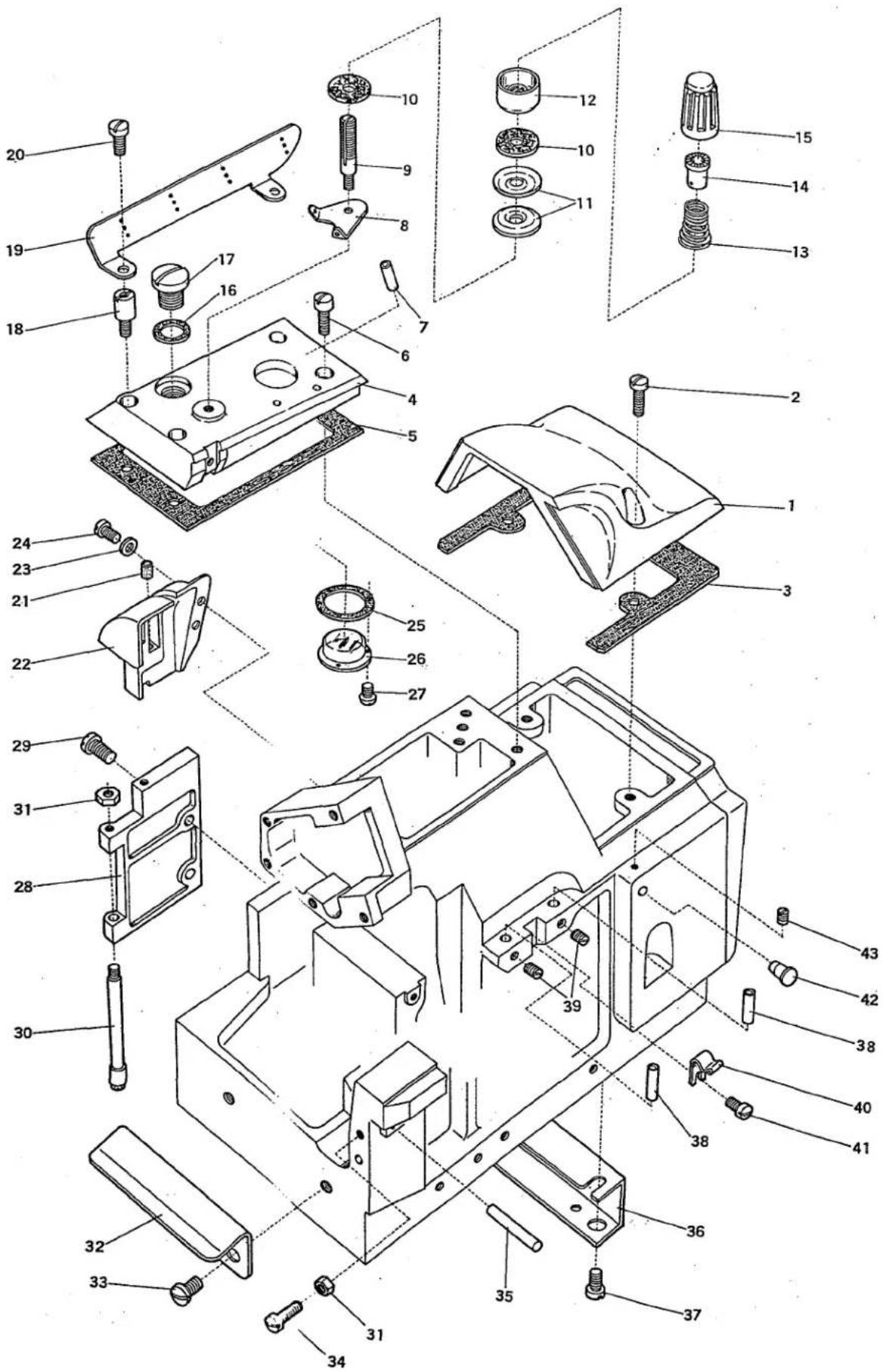

2
| Ref. No. | Parts. No. | Description | Amt. Req. | Remarks |
| 1 | Y34762 | Top Cover (Right) | 1 | |
| 2 | Y 9150 | Screws for Y34762 | 2 | |
| 3 | Y32597 | Top Cover (Right) Gasket | 1 | |
| 4 | Y34761 | Top Cover (Left) | 1 | |
| 5 | Y32615 | Top Cover (Left) Gasket | 1 | |
| 6 | Y 9150 | Screws for Y32615 | 2 | |
| 7 | Y32577 | Looper Thread Tubes (Upper) | 2 | |
| 8 | Y32962 | Tension Disc Eyelet | 1 | |
| 9 | Y 6544 | Needle Thread Tension Post | 1 | |
| 10 | Y 286 | Felts for Y01111 | 2 | |
| 11 | Y01111 | Tension Discs | 2 | |
| 12 | Y37635 | Thread Tension Spring Retainer | 1 | |
| 13 | Y32971 | Needle Thread Tension Spring | 1 | |
| 14 | Y30254 | Tension Spring Bushing | 1 | |
| 15 | Y32965 | Thread Tension Spring Cap | 1 | |
| 16 | Y 610 | Seal for Y5075 | 1 | |
| 17 | Y 5077 | Oil Hole Screw | 1 | |
| 18 | Y 5492 | Screws for Y34761 | 1 | |
| 19 | Y34764 | Thread Lead | 1 | |
| 20 | Y 4351 | Screws for Y34764 | 2 | |
| 21 | Y32365 | Presser Foot Release Lever Cushion | 1 | |
| 22 | Y32624 | Foot Lifter Hinge Cover | 1 | |
| 23 | Y 550 | Washers for Y32624 | 2 | |
| 24 | Y 4440 | Screws for Y32624 | 2 | |
| 25 | Y32924 | Oil Sight Top Window Seal | 1 | |
| 26 | Y32930 | Oil Sight Top Window | 1 | |
| 27 | Y 1333 | Screws for Y32930 | 3 | |
| 287 | Y32605 | Cloth Plate Hinge | 1 | |
| 29 | Y 5089 | Screws for Y32605 | 2 | |
| 30 | Y32586 | Cloth Plate Hinge Pin | 1 | |
| 31 | Y 334 | Nuts for Y1156, Y32586 | 2 | |
| 32 | Y32599 | Frame Hanger | 1 | |
| 33 | Y 7678 | Screws for Y32599 | 2 | |
| 34 | Y 1156 | Stopper Screw for Cloth Plate | 1 | |
| 35 | Y 698 | Cloth Plate Latch Pin | 1 | |
| 36 | Y32484 | Under Pump Oil Filter Screen Supporter | 1 | |
| 37 | Y 4440 | Screws for Y32484 | 2 | |
| 38 | Y32963 | Looper Thread Tubes (Lower) | 2 | |
| 39 | Y 1459 | Screws for Y32963 | 2 | |
| 40 | Y32609 | Front Cover Latch Spring | 1 | |
| 41 | Y 4358 | Screw for Y32609 | 1 | |
| 42 | Y32612 | Front Seal Plug | 1 | |
| 43 | Y 3434 | Screw for Y32614 | 1 |

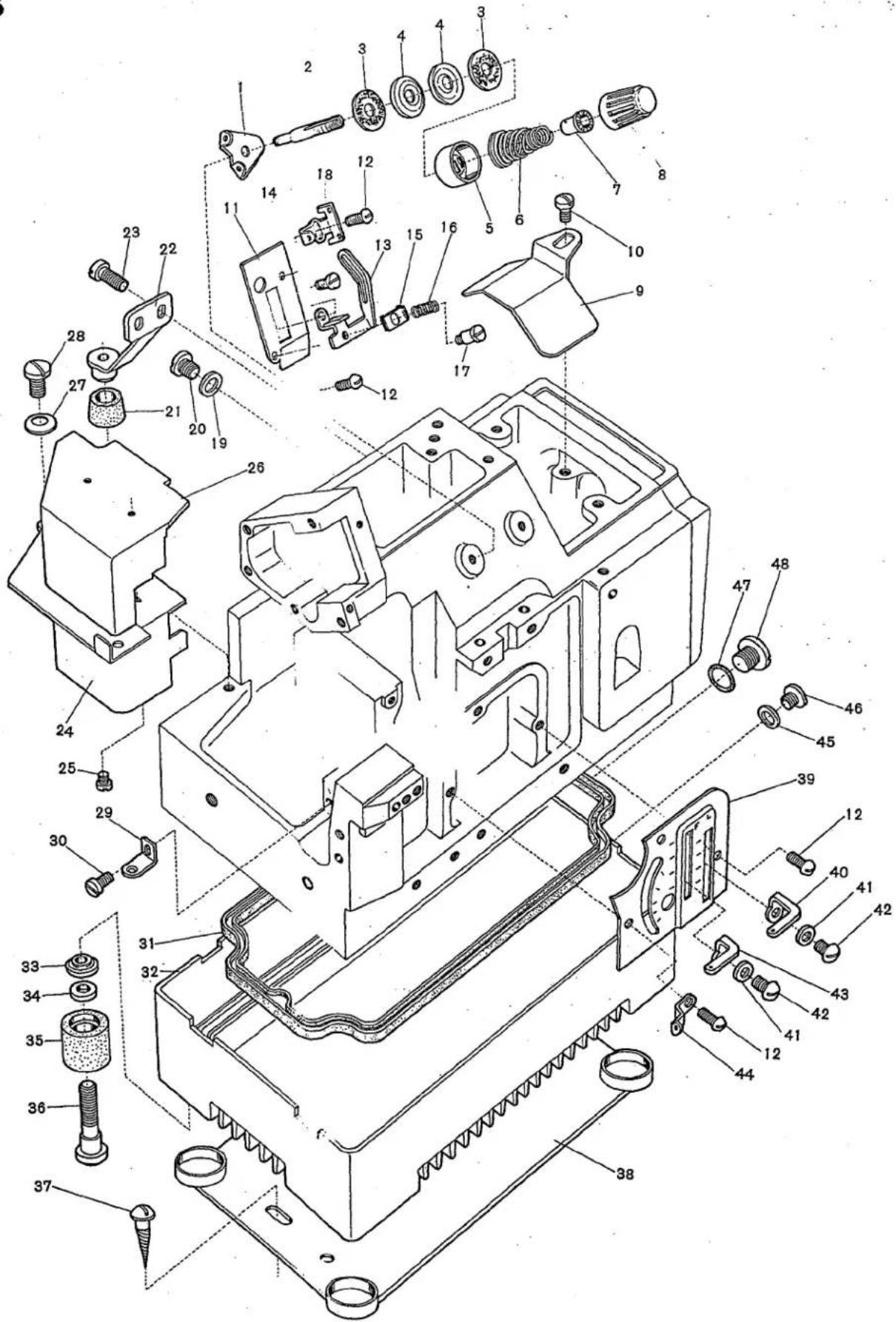

3
| Ref.No. | Parts.No. | Description | Amt.Req. | Remarks |
| 1 | Y32962 | Tension Disc Eyelet for Looper | 2 | |
| 2 | Y 6542 | Looper Thread Tension Posts | 2 | |
| 3 | Y 286 | Felts for Y01111 | 4 | |
| 4 | Y01111 | Tension Discs | 4 | |
| 5 | Y37635 | Thread Tension Spring Retainers | 2 | |
| 6 | Y32952 | Looper Thread Tension Springs | 2 | |
| 7 | Y30254 | Tension Spring Bushings | 2 | |
| 8 | Y32965 | Thread Tension Spring Caps | 2 | |
| 9 | Y32663 | Worm Cover | 1 | |
| 10 | Y 4438 | Screw for Y32663 | 1 | |
| 11 | Y32627 | Needle Bar Connecting Link Cover | 1 | |
| 12 | Y 1326 | Screws for Y32424, Y32627, Y34010 | 5 | |
| 13 | Y32423 | Needle Bar Thread Retainer Bracket | 1 | |
| 14 | Y 7006 | Screw for Y32423 | 1 | |
| 15 | Y32425 | Needle Bar Thread Retainer Plate | 1 | |
| 16 | Y32426 | Needle Bar Thread Retainer Spring | 1 | |
| 17 | Y 1092 | Screw for Y32425 | 1 | |
| 18 | Y32424 | Needle Thread Eyelet | 1 | |
| 19 | Y 567 | Seal for Y5062 | 1 | |
| 20 | Y 5062 | Oil Hole Screw | 1 | |
| 21 | Y32976 | Stay Rubber Cushion | 1 | |
| 22 | Y32977 | Frame Stay | 1 | |
| 23 | Y 9150 | Screws for Y32977 | 2 | |
| 24 | Y32475 | Feed Mechanism Oil Shield | 1 | |
| 25 | Y 1228 | Screws for Y32475 | 2 | |
| 26 | Y32625 | Feed Mechanism Cover | 1 | |
| 27 | Y 10 | Washer for Hinge Screw | 1 | |
| 28 | Y 6004 | Hinge Screw for Y32625 | 1 | |
| 29 | Y32626 | Feed Mechanism Cover Latch Spring | 1 | |
| 30 | Y 4351 | Screw for Y32626 | 1 | |
| 31 | Y32975 | Base Gasket | 1 | |
| 32 | Y32973 | Base | 1 | |
| 33 | Y32375 | Base Oil Seals | 4 | |
| 34 | Y 563 | Washers for Y32973 | 4 | |
| 35 | Y32377 | Base Rubber Cushions | 4 | |
| 36 | Y 6262 | Screws for Y32973 | 4 | |
| 37 | Y 6910 | Wood Screws | 4 | |
| 38 | Y32660 | Rubber Cushion Holder Plate | 1 | |
| 39 | Y34010 | Looper Thread Eyelet Supporter | 1 | |
| 40 | Y32955 | Looper Thread Eyelet (Right) | 1 | |
| 41 | Y 532 | Washers for Y32955, Y32358 | 2 | |
| 42 | Y 1330 | Screws for Y32955, Y32358 | 2 | |
| 43 | Y32358 | Looper Thread Eyelet (Left) | 1 | |
| 44 | Y32960 | Lower Looper Thread Eyelet | 1 | |
| 45 | Y 567 | Drain Hole Seal for Outer | 1 | |
| 46 | Y 9852 | Drain Hole Screw for Outer | 1 | |
| 47 | Y32421 | Drain Hole Seal for Inner | 1 | |
| 48 | Y 5075 | Drain Hole Screw for Inner | 1 |

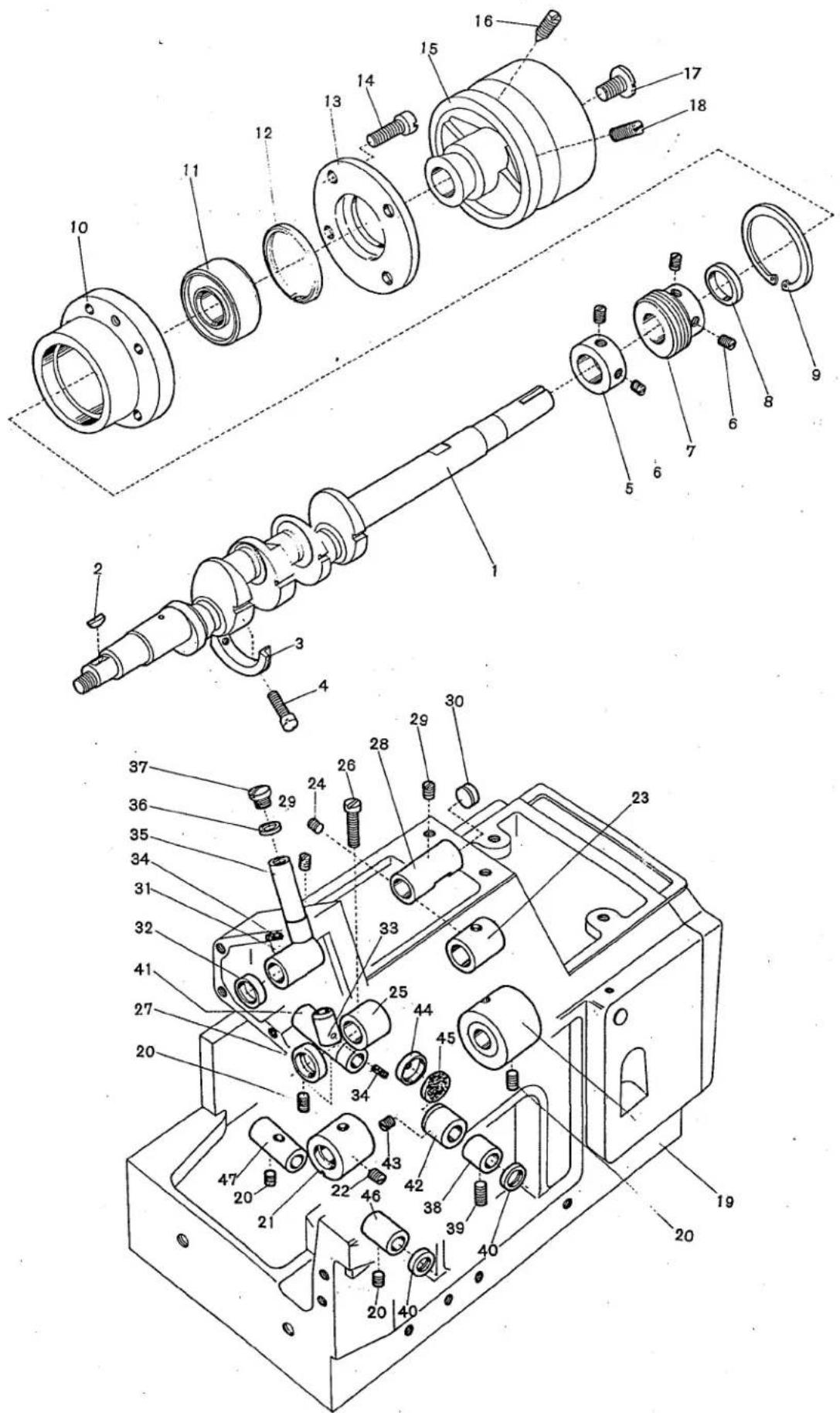

4
| 1 | Y32774 | Crank Shaft | 1 | |
| 2 | Y32780 | Feed Driving Eccentric Key | 1 | |
| 3 | Y32773 | Crank Shaft Counterweight (Middle) | 1 | |
| 4 | Y 7609 | Screws for Y32773 | 2 | |
| 5 | Y32820 | Crank Shaft Thrust Collar | 1 | |
| 6 | Y 7650 | Screws for Y32820, Y32925 | 4 | |
| 7 | Y32925 | Oil Pump Driving Worm | 1 | |
| 8 | Y32779 | Crank Shaft Ball Bearing Retaining Washer | 1 | |
| 9 | Y32778 | Crank Shaft Ball Bearing Retaining Ring (Inner) | 1 | |
| 10 | Y32775 | Crank Shaft Ball Bearing Housing | 1 | |
| 11 | Y32777 | Crank Shaft Ball Bearing | 1 | |
| 12 | Y32818 | Crank Shaft Ball Bearing Retaining Ring (Outer) | 1 | |
| 13 | Y32817 | Crank Shaft Ball Bearing Housing Cap | 1 | |
| 14 | Y 4441 | Screws for Y32817 | 4 | |
| 15 | Y32772 | Pulley | 1 | |
| 16 | Y 3591 | Main Screw for Y32772 | 1 | |
| 17 | Y 4402 | Cap Screw for Y32772 | 1 | |
| 18 | Y 9203 | Sub Screw for Y32772 | 1 | |
| 19 | Y32781 | Crank Shaft Bushing (Inner) | 1 | |
| 20 | Y 9209 | Screws for Y32781, Y32793, Y32794, Y32795 | 4 | |
| 21 | Y32782 | Crank Shaft Bushing (Left) | 1 | |
| 22 | Y 3595 | Screw for Y32782 | 1 | |
| 23 | Y32904 | Upper Knife Driving Shaft Bushing (Right) | 1 | |
| 24 | Y 3654 | Screw for Y32904 | 1 | |
| 25 | Y32905 | Upper Knife Driving Shaft Bushing (Left) | 1 | |
| 26 | Y 2133 | Screw for Y32905 | 1 | |
| 27 | Y32906 | Upper Knife Driving Shaft Oil Seal | 1 | |
| 28 | Y32648 | Needle Bar Driving Crank Bushing (Right) | 1 | |
| 29 | Y 1457 | Screws for Y32647, Y32648 | 2 | |
| 30 | Y32650 | Needle Bar Driving Crank Bushing Plug | 1 | |
| 31 | Y32647 | Needle Bar Driving Crank Bushing (Left) | 1 | |
| 32 | Y32684 | Needle Bar Driving Crank Oil Seal | 1 | |
| 33 | Y32653 | Needle Bar Bushing (Lower) | 1 | |
| 34 | Y 304 | Oil Wicks for Y32652, Y32653 | 2 | |
| 35 | Y32652 | Needle Bar Bushing (Upper) | 1 | |
| 36 | Y 526 | Seal for Y32652 | 1 | |
| 37 | Y 3636 | Cap Screw for Y32652 | 1 | |
| 38 | Y34518 | Upper Looper Driving Shaft Bushing (Front) | 1 | |
| 39 | Y 1435 | Screw for Y34518 | 1 | |
| 40 | Y30291 | Looper Shaft Oil Seals | 2 | |
| 41 | Y32793 | Upper Looper Driving Shaft Bushing (Rear) | 1 | |
| 42 | Y32349 | Upper Looper Bar Guide Bushing | 1 | |
| 43 | Y 1448 | Screw for Y32802 | 1 | |
| 44 | Y32350 | Upper Looper Bar Guide Bushing Cap | 1 | |
| 45 | Y 527 | Oil Felt for Y32868 | 1 | |
| 46 | Y32794 | Lower Looper Driving Shaft Bushing (Front) | 1 | |
| 47 | Y32795 | Lower Looper Driving Shaft Bushing (Rear) | 1 |
5
| 1 | Y90320 | Needle Bar Connection Link Pins | 2 | |
| 2 | Y 282 | Gil Wicks for Y90320 | 2 | |
| 3 | Y90321 | Needle Bar Connection Link | 1 | |
| 4 | Y32651 | Needle Bar Connecting Bracket | 1 | |
| 5 | Y 4313 | Screw for Y90320 (Y32651) | 1 | |
| 6 | Y 4435 | Screw for Y32651 | 1 | |
| 7 | Y37122 | Needle Bar for Single Needle | 1 | |
| 8 | Y 62 | Needle Clamping Nut | 1 | |
| 9 | Y32645 | Needle Bar Driving Crank | 1 | |
| 10 | Y 3311 | Screw for Y90320 (Y32645) | 1 | |
| 11 | Y32646 | Needle Bar Driving Crank Collars | 2 | |
| 12 | Y 9604 | Screws for Y32646, Y32921, Y32900 | 6 | |
| 13 | Y32921 | Connecting Rod Pin | 2 | |
| 14 | Y32644 | Needle Bar Driving Lever | 1 | |
| 15 | Y 9517 | Suo Screws for Y32644 | 1 | |
| 16 | Y 5520 | Main Screws for Y32644, Y32902, Y32910 | 3 | |
| 17 | Y32662 | Needle Bar Driving Crank Counterweight | 1 | |
| 18 | Y 3635 | Screw for Y32662 | 2 | |
| 19 | Y32670 | Needle Bar Connecting Rod | 1 | |
| 20 | Y 5071 | Screws for Y32670, Y32900 | 4 | |
| 21 | Y32819 | Connecting Rod Roller Bearings | 2 | |
| 22 | Y32913 | Upper Knife Clamp | 1 | |
| 23 | Y32911 | Upper Knife Holder | 1 | |
| 24 | Y32914 | Upper Knife | 1 | |
| 25 | Y32910 | Upper Knife Driving Arm | 1 | |
| 26 | Y 4437 | Screws for Y32910, Y33870 | 3 | |
| 27 | Y 1174 | Screw for Y32911 (32910) | 1 | |
| 28 | Y 5508 | Screw for Y32914 | 1 | |
| 29 | Y32912 | Upper Knife Holder Guide | 1 | |
| 30 | Y 7616 | Screw for Y32912 | 1 | |
| 31 | Y 723 | Guide Pin for Y32912 | 1 | |
| 32 | Y32909 | Upper Knife Driving Arm Guide | 1 | |
| 33 | Y 3434 | Screw for Y32909 | 1 | |
| 34 | Y32519 | Upper Knife Driving Arm Guide Plug | 1 | |
| 35 | Y32903 | Upper Knife Driving Shaft | 1 | |
| 36 | Y32902 | Upper Knife Driving Lever | 1 | |
| 37 | Y32920 | Upper Knife Driving Shaft Collar (Left) | 1 | |
| 38 | Y 7311 | Screw for Y32920 | 1 | |
| 39 | Y32900 | Upper Knife Driving Connecting Rod | 1 | |
| 40 | Y32667 | Throat Plate #2 | 1 | |
| 41 | Y 5401 | Screw for Throat Plate | 1 | |
| 42 | Y32655 | Needle Guard (Front) | 1 | |
| 43 | Y 4404 | Screw for Y32655 | 1 | |
| 44 | Y32601 | Throat Plate Supporter | 1 | |
| 45 | Y 6662 | Screws for Y32601 | 2 | |
| 46 | Y32604 | Cloth Plate Rubber Cushion | 1 | |
| 47 | Y32916 | Lower Knife Holder | 1 | |
| 48 | Y 4591 | Screw for Y32916 | 1 | |
| 49 | Y32919 | Lower Knife Holder Spring | 1 | |
| 50 | Y 5074 | Screw for Y32919 | 1 | |
| 51 | Y30421 | Lower Knife | 1 | |
| 52 | Y32917 | Lower Knife Clamp | 1 | |
| 53 | Y 7605 | Screw for Y32917 | 1 | |
| 54 | Y33871 | Needle Guard (Rear) | 1 | |
| 55 | Y32899 | Lower Knife Holder Locking Plate | 1 | |
| 56 | Y 4440 | Screws for Y32899 | 2 | |
| 57 | Y33873 | Needle Guard Complete Set (Rear) | 1 | |
| 58 | Y33870 | Needle Guard Holder | 1 | |
| 59 | Y 3638 | Screw for Y33871 | 1 |
6
| Ref.No. | Parts.No. | Description | Amt.Req. | Remarks |
| 1 | Y32783 | Looper Driving Lever Connecting Rods | 2 | |
| 2 | Y 5071 | Screws for Y32783 | 4 | |
| 3 | Y32785 | Looper Driving Lever Links | 2 | |
| 4 | Y32784 | Looper Driving Lever Link Pins (Short) | 2 | |
| 5 | Y 9506 | Screws for Y32784 | 2 | |
| 6 | Y32787 | Upper Looper Driving.Lever | 1 | |
| 7 | Y 3635 | Screws for Y32787, Y32815 | 4 | |
| 8 | Y32786 | Looper Driving Lever Link Pin (Long) | 1 | |
| 9 | Y 3404 | Screws for Y32786, Y32816 | 2 | |
| 10 | Y34517 | Upper Looper Driving Shaft | 1 | |
| 11 | Y32792 | Upper Looper Driving Shaft Collar | 1 | |
| 12 | Y 5550 | Screw for Y32792 | 1 | |
| 13 | Y32848 | Upper Looper Driving Shaft Thrust Washers | 3 | |
| 14 | Y32849 | Upper Looper Driving Shaft Thrust Rollers | 2 | |
| 15 | Y33013 | Upper Looper Driving Shaft End Cap | 1 | |
| 16 | Y 5345 | Screws for Y33013 | 3 | |
| 17 | Y34104 | Upper Looper Bar Driving Arm | 1 | |
| 18 | Y 520 | Washers for Y34104, Y32789 | 2 | |
| 19 | Y 5500 | Screws for Y34104, Y32789 | 2 | |
| 20 | Y32800 | Upper Looper Bar | 1 | |
| 21 | Y32799 | Upper Looper Bar Driving Arm Pin | 1 | |
| 22 | Y 282 | Oil Wick for Y32799 | 1 | |
| 23 | Y 3311 | Screw for Y32799 | 1 | |
| 24 | Y34224 | Looper Thread Pull-Off (Right) | 1 | |
| 25 | Y 4358 | Screw for Y34224 | 1 | |
| 26 | Y32347 | Upper Looper Bar Guide | 1 | |
| 27 | Y 304 | Oil Wicks for Y32347, Y32800 | 2 | |
| 28 | Y34516 | Upper Looper Bar Guide Retainer | 1 | |
| 29 | Y 5004 | Screws for Y34516 | 2 | |
| 30 | Y32348 | Upper Looper Bar Guide Thrust Pin | 1 | |
| 31 | Y 7650 | Screw for Y32348 | 1 | |
| 32 | Y34226 | Upper Looper Thread Guide | 1 | |
| 33 | Y 9142 | Screws for Y34226 | 2 | |
| 34 | Y32807 | Upper Looper | 1 | |
| 35 | Y32803 | Upper Looper Holder Collar | 1 | |
| 36 | Y 5507 | Screw for Y32803 | 1 | |
| 37 | Y32815 | Lower Looper Driving Lever | 1 | |
| 38 | Y32816 | Lower Looper Driving Lever Pin | 1 | |
| 39 | Y32788 | Lower Looper Driving Shaft | 1 | |
| 40 | Y30228 | Lower Looper Shaft Collar | 1 | |
| 41 | Y 9604 | Screws for Y30228 | 2 | |
| 42 | Y32789 | Lower Looper Holder Arm | 1 | |
| 43 | Y32959 | Looper Thread Pull-Off (Left) | 1 | |
| 44 | Y 1326 | Screws for Y32959 | 2 | |
| 45 | Y32790 | Lower Looper | 1 | |
| 46 | Y 3638 | Screw for Y32790 | 1 |
7
| Ref.No. | Parts.No. | Description | Amt.Req. | Remarks |
| 1 | Y32736 | Presser Foot | 1 | |
| 2 | Y32744 | Presser Foot Stitch Tongue #1 | 1 | |
| 2-1 | Y32743 | Presser Foot Stitch Tongue #2, #3 | 1 | |
| 3 | Y30619 | Presser Foot Hinge Spring | 1 | |
| 4 | Y 5036 | Screw for Stitch Tongue | 1 | |
| 5 | Y32741 | Presser Foot Holder | 1 | |
| 6 | Y34535 | Presser Foot Chain Shield | 1 | |
| 7 | Y 1228 | Screw for Y34535 | 1 | |
| 8 | Y 1230 | Screw for Y32745 | 1 | |
| 9 | Y32706 | Chain Cutting Knife | 1 | |
| 10 | Y 4404 | Screws for Y32706 | 2 | |
| 11 | Y32739 | Presser Foot Complete Set #2 | 1 | |
| 12 | Y32725 | Foot Carrier | 1 | |
| 13 | Y 538 | Washer for Y5509 | 1 | |
| 14 | Y 5509 | Screw for Presser Foot | 1 | |
| 15 | Y32724 | Foot Carrier Hinge | 1 | |
| 16 | Y32728 | Foot Carrier Washer | 1 | |
| 17 | Y 5541 | Screw for Y32725 | 1 | |
| 18 | Y 335 | Nut for Y4357 | 1 | |
| 19 | Y 1170 | Stop Screw for Presser Foot | 1 | |
| 20 | Y32722 | Foot Lifter Lever Shaft | 1 | |
| 21 | Y32723 | Foot Lifter Hinge Pin | 1 | |
| 22 | Y 1186 | Screw for Y32723 | 1 | |
| 23 | Y33024 | Foot Lifter Hinge Pin Retaining Ring | 1 | |
| 24 | Y32721 | Presser Foot Positioning Arm | 1 | |
| 25 | Y32720 | Foot Lifter Bushing | 1 | |
| 26 | Y 2022 | Screw for Y32720 | 1 | |
| 27 | Y32718 | Foot Lifter Latch Collar | 1 | |
| 28 | Y 5550 | Screw for Y32718 | 1 | |
| 29 | Y32717 | Intermediate Lever | 1 | |
| 30 | Y32729 | Intermediate Lever Spring | 1 | |
| 31 | Y32719 | Foot Lifter Small Collar | 1 | |
| 32 | Y 1459 | Screw for Y32719 | 1 | |
| 33 | Y32714 | Foot Lifter Lever Connecting Link | 1 | |
| 34 | Y32715 | Cotter Pins | 2 | |
| 35 | Y32713 | Foot Lifter Lever Spring | 1 | |
| 36 | Y 690 | Latch Pin for Y32713 | 1 | |
| 37 | Y32711 | Foot Lifter Lever | 1 | |
| 38 | Y 6000 | Screw for Y32711 | 1 | |
| 39 | Y32716 | Foot Lifter Lever Stopper | 1 | |
| 40 | Y 9127 | Screws for Y32716 | 2 | |
| 41 | Y 334 | Nuts for Y32711 | 2 | |
| 42 | Y 5505 | Adjust Screws for Y32711 | 2 | |
| 43 | Y32727 | Presser Foot Release Lever | 1 | |
| 44 | Y32420 | Presser Foot Release Lever Bushing | 1 | |
| 45 | Y 4635 | Screw for Y32420 | 1 | |
| 46 | Y32726 | Presser Spring | 1 | |
| 47 | Y 6401 | Presser Spring Adjusting Screw | 1 | |
| 48 | Y32745 | Presser Foot Chip Guard | 1 |
8
| Ref.No. | Parts.No. | Description | Amt.Req. | Remarks |
| 1 | Y34134 | Feed Bar Guide (Rear) | 1 | |
| 2 | Y 3632 | Screw for Y34134 | 1 | |
| 3 | Y 3635 | Screw for Y32866 | 1 | |
| 4 | Y32858 | Feed Bar Guide (Right) | 1 | |
| 5 | Y 9200 | Screw for Y32858 | 1 | |
| 6 | Y32857 | Main Feed Bar | 1 | |
| 7 | Y32864 | Feed Bar Driving Studs | 2 | |
| 8 | Y 722 | Cotters for Y32864 | 2 | |
| 9 | Y32854 | Feed Lifter Block | 1 | |
| 10 | Y32867 | Feed Bar Guide Block | 1 | |
| 11 | Y32856 | Differential Feed Bar | 1 | |
| 12 | Y32866 | Feed Adjusting Pin | 1 | |
| 13 | Oil Wick for Y32866 | 1 | ||
| 14 | Y32853 | Feed Bar Driving Connection Bushings | 2 | |
| 15 | Y32852 | Main Feed Bar Driving Connection | 1 | |
| 16 | Feed Driving Eccentrics (See Below The Table) | 2 | ||
| 17 | Y32851 | Differential Feed Bar Driving Connection | 1 | |
| 18 | Y 451 | Nuts for Y32864 | 2 | |
| 19 | Y 20 | Nut for Feed Driving Eccentric | 1 | |
| 20 | Y32381 | Feed Bar Guide (Left) | 1 | |
| 21 | Y 4440 | Screws for Y32381 | 2 | |
| 22 | Y34059 | Troat Plate Stay | 1 | |
| 23 | Y 5000 | Screws for Y34059 | 2 | |
| 24 | Y32883 | Chaining Feed Dog | 1 | |
| 25 | Y 9730 | Screw for Chaining Feed Dog | 1 | |
| 26 | Y32873 | Auxiliary Feed Dog Holder | 1 | |
| 27 | Y 7609 | Screw for Main Feed Dog | 1 | |
| 28 | Y32871 | Plain Feed Dog | 1 | |
| 29 | Y 4353 | Screw for Differential Feed Dog | 1 |
Feed Driving Eccentrics Table
| Parts No. | Stitches Per Inch |
| Y32821 | 5 |
| Y32822 | 6 |
| Y32835 | 7 |
| Y32823 | 8 |
| Y32824 | 9 |
| Y32825 | 10 |
| Y32836 | 11 |
| Y32826 | 12 |
| Y32827 | 13 |
| Y32828 | 14 |
| Y32837 | 15 |
| Y32838 | 16 |
| Y32829 | 17 |
| Y32839 | 18 |
| Y32830 | 19 |
| Y32840 | 20 |
| Y32841 | 22 |
| Y32842 | 24 |
| Y32832 | 26 |
| Y32843 | 28 |
| Y32844 | 30 |
| Y32845 | 40 |
| Y32833 | 50 |
| Y32846 | 70 |
| Y32847 | 100 |
9
| 1 | Y32685 | Needle Bar Oiling Felt (Left) | 1 | |
| 2 | Y 9853 | Screws for Y32685 | 2 | |
| 3 | Y32812 | Needle Bar Oiling Felt Retainer | 1 | |
| 4 | Y 9604 | Screw for Y32812 | 1 | |
| 5 | Y32649 | Needle Bar Oiling Felt (Right) | 1 | |
| 6 | Oil Wick for Needle Bar Connection Link | 1 | ||
| 7 | Y32934 | Round Oil Filter Holder Ring | 1 | |
| 8 | Y32931 | Round Oil Filter Screen (Fine Mesh) | 1 | |
| 9 | Y32933 | Round Oil Filter Screen (Coarse Mesh) | 1 | |
| 10 | Y32898 | Round Oil Filter Screen Clamp | 1 | |
| 11 | Oil Wick for Feed Driving Eccentric | 1 | ||
| 12 | Y32483 | Feed Bar Driving Connection Oil Tube | 1 | |
| 13 | Y 419 | Nut for Y32480 | 1 | |
| 14 | Y32480 | Feed Bar Driving Connection Oil Nozzle | 1 | |
| 15 | Y37697 | Oil Nozzle Caps | 2 | |
| 16 | Y32479 | Oil Sight Top Nozzle | 1 | |
| 17 | Y32476 | Oil Receiver | 1 | |
| 18 | Y 9604 | Screw for Y32476 | 1 | |
| 19 | Y 9909 | Oil Tube Fitting Nut | 1 | |
| 20 | Y37675 | Oil Tube Clamps (Small) | 2 | |
| 21 | Y32850 | Oil Tube 150 | 1 | |
| 22 | Y32376 | Oil Relief Valve Fitting Tube | 1 | |
| 23 | Y 509 | Seals for Y32376 | 2 | |
| 24 | Y32938 | Oil Relief Valve | 1 | |
| 25 | Y80503 | Oil Relief Ball | 1 | |
| 26 | Y30748 | Oil Relief Valve Spring Guide | 1 | |
| 27 | Y30745 | Oil Relief Valve Spring | 1 | |
| 28 | Y 6861 | Adjust Screw for Y30745 | 1 | |
| 29 | Y 419 | Nut for Y30745 | 1 | |
| 30 | Y32417 | Oil Sight Gauge | 1 | |
| 31 | Y32806 | Upper Looper Bar Oiling Felt | 1 | |
| 32 | Y 550 | Washers for Y32806 | 2 | |
| 33 | Y 4353 | Screws for Y32806 | 2 | |
| 34 | Y32929 | Oil Pump Complete Set | 1 | |
| 35 | Y30711 | Oil Pump Driving Worm Gear | 1 | |
| 36 | Y 1459 | Screws for Y30711 | 2 | |
| 37 | Y 6330 | Screw for Y32929 | 1 | |
| 38 | Y 926 | Seal for Y32929 | 1 | |
| 39 | Y 9503 | Screw for Y32929 | 1 | |
| 40 | Y32935 | Under Pump Oil Filter Screen | 1 | |
| 41 | Y32937 | Under Pump Oil Filter Screen Clamp | 1 | |
| 42 | Y 4358 | Screws for Y32937 | 2 | |
| 42 | Y 4351 | Screws for Y32937 | 2 | |
| 44 | Y37669 | Oil Tube Fittings One Way End | 2 | |
| 45 | Y 567 | Seals for Y37668, Y37669 | 6 | |
| 46 | Y 7668 | Oil Tube Fitting Studs | 3 | |
| 47 | Y32944 | Oil Tube Clamps | 4 | |
| 48 | Y 5133 | Screws for Y32944 | 4 | |
| 49 | Y 331 | Nuts for Y32944 | 4 | |
| 50 | Y32948 | Oil Tube (47mm) | 1 | |
| 51 | Y37668 | Oil Tube Fitting Two Way End | 1 | |
| 52 | Y32949 | Oil Tube (58mm) | 1 |
10
-600-2,-3,-4 EXCLUSIVE PARTS
| Ref.No. | Parts.No. | Description | Amt.Req. | Remarks |
| 1 | Y32747 | Presser Foot Complete Set for 600-2 | 1 | |
| 1-1 | Y32748 | Presser Foot Complete Set for 600-3 | 1 | |
| 2 | Y32741 | Presser Foot Holder | 1 | |
| 3 | Y32708 | Presser Foot for 600-2, -3 | 1 | |
| 4 | Y32710 | Presser Foot Chip Guard | 1 | |
| 5 | Y 1230 | Screw for Y32710 | 1 | |
| 6 | Y32744 | Presser Foot Stitch Tongue for 600-2 | 1 | |
| 6-1 | Y32743 | Presser Foot Stitch Tongue for 600-3 | 1 | |
| 7 | Y30619 | Presser Foot Hinge Spring | 1 | |
| 8 | Y 5036 | Screw for Y30619 | 1 | |
| 9 | Y34535 | Presser Foot Chain Shield | 1 | |
| 10 | Y 1228 | Screw for Y34535 | 1 | |
| 11 | Y32671 | Throat Plate.for 600-2 | 1 | |
| 11-1 | Y32673 | Throat Plate for 600-3 | 1 | |
| 12 | Y33816 | Differential Feed Dog for 600-2, -3 | 1 | |
| 13 | Y33814 | Main Feed Dog for 600-2, -3 | 1 | |
| 14 | Y37948 | Edge Guide Complete Set (Large) | 1 | |
| 15 | Y 4358 | Screw for Y37948, Y37962 | 1 | |
| 16 | Y37962 | Edge Guide Complete Set (Small) | 1 | |
| 17 | Y33751 | Edge Guide Complete Set (Swing) | 1 | |
| 18 | Y33400 | Front Cover Latch Spring | 1 | |
| 19 | Y 7405 | Screw for Y33400 | 1 | |
| 20 | Y37372 | Needle Bar | 1 | |
| 21 | Y37373 | Needle Holder | 1 | |
| 22 | Y 3637 | Screws for Needle | 2 | |
| 23 | Y 340 | Nut for Y6543 | 1 | |
| 24 | Y34763 | Needle Thread Tension Disc Eyelet | 1 | |
| 25 | Y 6543 | Tension Post | 1 | |
| 26 | Y 286 | Felts for Tension Disc | 2 | |
| 27 | Y01111 | Tension Discs | 2 | |
| 28 | Y37635 | Thread Tension Spring Retainer | 1 | |
| 29 | Y32971 | Needle Thread Tension Spring | 1 | |
| 30 | Y30254 | Tension Spring Bushing | 1 | |
| 31 | Y34774 | Thread Tension Spring Cap | 1 | |
| 32 | Y32416 | Lower Looper | 1 | |
| 33 | Y32540 | Upper Looper | 1 | |
| 34 | Y32579 | Presser Foot Complete Set | 1 | |
| 35 | Y32546 | Presser Foot Holder | 1 | |
| 36 | Y32494 | Presser Foot | 1 | |
| 37 | Y32493 | Presser Foot Chip Guard | 1 | |
| 38 | Y32551 | Presser Foot Stitch Tongue | 1 | |
| 39 | Y32746 | Presser Foot Chain Shield | 1 | |
| 40 | Y32571 | Throat Plate | 1 | |
| 41 | Y33819 | Differential Feed Dog (Large Teeth) | 1 | |
| 42 | Y33818 | Main Feed Dog (Large Teeth) | 1 | |
| 43 | Y32557 | Auxiliary Feed Dog (Large Teeth) | 1 |
1 1
600-4 EXCLUSIVE PARTS
| Ref.No. | Parts.No. | Description | Amt.Req. | Remarks |
| 1 | Y32530 | Frame | 1 | |
| 2 | Y32532 | Needle Bar Bushing (Upper) | 1 | |
| 3 | Y32533 | Needle Bar Bushing (Lower) | 1 | |
| 4 | Y32572 | Needle Bar Connecting Link Cover | 1 | |
| 5 | Y32575 | Auxiliary Needle Thread Eyelet | 1 | |
| 6 | Y 4358 | Screw for Y32575 | 1 | |
| 7 | Y32585 | Looper Thread Tension Disc Eyelets | 2 | |
| 8 | Y32534 | Needle Bar Driving Crank | 1 | |
| 9 | Y32556 | Upper Knife Clamp | 1 | |
| 10 | Y32552 | Presser Foot Positioning Arm | 1 | |
| 11 | Y32543 | Presser Spring Guide Pin | 1 | |
| 12 | Y32554 | Upper Knife Driving Arm Guide | 1 | |
| 13 | Y32531 | Crank Shaft | 1 | |
| 14 | Y34515 | Upper Looper Bar Guide | 1 | |
| 15 | Y34587 | Upper Looper Bar Guide Thrust Pin | 1 | |
| 16 | Y32374 | Upper Looper Thread Guide | 1 | |
| 17 | Y34514 | Upper Looper Bar Driving Arm | 1 | |
| 18 | Y32373 | Looper Thread Pull-Off (Right) | 1 | |
| 19 | Y32580 | Looper Thread Eyelet (Right) | 1 | |
| 20 | Y32582 | Looper Thread Eyelet (Left) | 1 | |
| 21 | Y32577 | Looper Thread Tubes | 2 | |
| 22 | Y32583 | Looper Thread Pull-Off (Left) | 1 | |
| 23 | Y32584 | Lower Looper Thread Eyelet | 1 | |
| 24 | Y32490 | Lower Knife Holder Spring | 1 | |
| 25 | Y32488 | Lower Knife Holder Locking Plate | 1 | |
| 26 | Y32545 | Needle Guard (Front) for DCZ-222, -223 | 1 | |
| 27 | Y32576 | Chip Guard (Fix) | 1 | |
| 28 | Y32498 | Chip Guard (Open) | 1 |
12
| Ref.No. | Parts.No. | Description | Amt.Req. | Remarks |
| 1 | Y34767 | Machine Cover | 1 | |
| 2 | Needles DCX1 | 10 | ||
| 3 | Oil | 1 | ||
| 4 | Feed Driving Eccentric | 3 | ||
| 5 | Y34766 | Attachment Box | 1 | |
| 6 | Y37909 | Thread Tweezers | 1 | |
| 7 | Y37901 | Screw Driver (Large) | 1 | |
| 8 | Y37902 | Screw Driver (Medium) | 1 | |
| 9 | Y37903 | Screw Driver (Small) | 1 | |
| 10 | Y37923 | Hexagon Screw Driver (1.98) | 1 | |
| 11 | Y37946 | Socket Wrench (9.52) | 1 | |
| 12 | Y37947 | Feed Driving Eccentric Extractor | 1 | |
| 13 | Y37919 | Hexagon Screw Driver (Two Needle Only) (1.56) | 1 | |
| 14 | Y37922 | Hexagon Wrench Key (Large) (4.76) | 1 | |
| 15 | Y37916 | Hexagon Wrench Key (Small) | 1 | |
| 15-1 | Y37924 | Hexagon Wrench Key (1.56) | 1 | |
| 16 | Y34769 | Funnel | 1 | |
| 17 | Y37945 | Wrench (Large) (7.14X7.94) | 1 | |
| 18 | Y37915 | Wrench (Medium) (7.14X7.14) | 1 | |
| 19 | Y37944 | Wrench (Small) (4.9) | 1 | |
| 20 | Y34768 | Oiler | 1 | |
| 21 | Y34770 | Thread Stand 3 Spool Type Complete Set 600-1 | 1 | |
| Y34771 | Thread Stand 4 Spool Type Complete Set 600-4 | 1 | ||
| 22 | Y30421 | Lower Knife | 1 |
INDEX
| ...ts.No. | Page No. | Ref.No. | Parts.No. | Page No. | Ref.No. | Parts.No. | Page No. | Ref.No. |
| Y 10 | 3 | 27 | 13632 | 8 | 2 | Y 6652 | 5 | 45 |
| Y 20 | 8 | 19 | 13635 | 5 | 18 | Y 6251 | 9 | 28 |
| Y 62 | 5 | 8 | 13635 | 6 | 7 | Y 6910 | 3 | 37 |
| Y 282 | 5 | 2 | 13635 | 8 | 3 | Y 7006 | 3 | 14 |
| Y 282 | 6 | 22 | 13636 | 4 | 37 | Y 7302 | 1 | 6 |
| Y 286 | 2 | 10 | 13637 | 10 | 22 | Y 7311 | 5 | 38 |
| Y 286 | 3 | 3 | 13638 | 6 | 46 | Y 7405 | 10 | 19 |
| Y 286 | 10 | 26 | 13638 | 5 | 59 | Y 7505 | 1 | 11 |
| Y 304 | 4 | 34 | 13654 | 4 | 24 | Y 7603 | 5 | 53 |
| Y 304 | 6 | 27 | 14313 | 5 | 5 | Y 7509 | 4 | 4 |
| Y 331 | 9 | 49 | 14351 | 3 | 30 | Y 7609 | 8 | 27 |
| Y 334 | 2 | 31 | 14351 | 2 | 20 | Y 7616 | 5 | 30 |
| Y 334 | 7 | 41 | 14351 | 9 | 43 | Y 7650 | 4 | 6 |
| Y 335 | 7 | 18 | 14353 | 1 | 9 | Y 7650 | 6 | 31 |
| Y 340 | 10 | 23 | 14353 | 8 | 29 | Y 7652 | 9 | 46 |
| Y 419 | 9 | 13 | 14353 | 9 | 33 | Y 7678 | 2 | 33 |
| Y 419 | 9 | 29 | 14358 | 2 | 41 | Y 9127 | 7 | 40 |
| Y 451 | 8 | 18 | 14358 | 6 | 25 | Y 9142 | 6 | 33 |
| Y 509 | 9 | 23 | 14358 | 9 | 42 | Y 9150 | 1 | 2 |
| Y 520 | 6 | 18 | 14358 | 10 | 15 | Y 9150 | 2 | 2 |
| Y 526 | 4 | 36 | 14358 | 12 | 6 | Y 9150 | 2 | 6 |
| Y 527 | 4 | 45 | 14402 | 4 | 17 | Y 9150 | 3 | 23 |
| Y 532 | 3 | 41 | 14404 | 5 | 43 | Y 9200 | 8 | 5 |
| Y 538 | 7 | 13 | 14404 | 7 | 10 | Y 9203 | 4 | 18 |
| Y 550 | 2 | 23 | 14435 | 5 | 6 | Y 9209 | 4 | 20 |
| Y 550 | 9 | 32 | 14437 | 5 | 26 | Y 9503 | 9 | 39 |
| Y 563 | 3 | 34 | 14438 | 3 | 10 | Y 9506 | 6 | 5 |
| Y 567 | 3 | 19 | 14440 | 1 | 23 | Y 9517 | 5 | 15 |
| Y 567 | 3 | 45 | 14440 | 2 | 24 | Y 9604 | 5 | 12 |
| Y 567 | 9 | 45 | 14440 | 2 | 37 | Y 9604 | 6 | 41 |
| Y 610 | 2 | 16 | 14440 | 5 | 56 | Y 9604 | 9 | 4 |
| Y 690 | 7 | 36 | 14440 | 8 | 21 | Y 9604 | 9 | 18 |
| Y 698 | 2 | 35 | 14441 | 4 | 14 | Y 9730 | 8 | 25 |
| Y 722 | 8 | 8 | 14591 | 5 | 48 | Y 9852 | 3 | 46 |
| Y 723 | 5 | 31 | 14635 | 7 | 45 | Y 9853 | 9 | 2 |
| Y 873 | 1 | 35 | 15000 | 8 | 23 | Y 9909 | 9 | 19 |
| Y 874 | 1 | 35-1 | 15004 | 6 | 29 | Y01111 | 10 | 27 |
| Y 875 | 1 | 35-2 | 15036 | 7 | 4 | Y01111 | 3 | 4 |
| Y 926 | 9 | 38 | 15036 | 10 | 8 | Y01111 | 2 | 11 |
| Y1092 | 3 | 17 | 15036 | 13 | 22 | Y30020 | 12 | 22 |
| Y1156 | 2 | 34 | 15062 | 3 | 20 | Y30081 | 12 | 24 |
| Y1170 | 7 | 19 | 15071 | 5 | 20 | Y30082 | 12 | 25 |
| Y1174 | 5 | 27 | 15071 | 6 | 2 | Y30083 | 12 | 23 |
| Y1186 | 7 | 22 | 15074 | 5 | 50 | Y30126 | 1 | 16 |
| Y1222 | 1 | 25 | 15075 | 3 | 48 | Y30223 | 6 | 40 |
| Y1228 | 7 | 7 | 15077 | 2 | 17 | Y30254 | 2 | 14 |
| Y1228 | 3 | 25 | 15089 | 1 | 33 | Y30254 | 3 | 7 |
| Y1228 | 10 | 10 | 15089 | 2 | 29 | Y30254 | 10 | 30 |
| Y1230 | 7 | 8 | 15095 | 1 | 18 | Y30291 | 4 | 40 |
| Y1230 | 10 | 5 | 15131 | 1 | 28 | Y30421 | 5 | 51 |
| Y1230 | 13 | 19 | 15133 | 9 | 48 | Y30421 | 18 | 26 |
| Y1326 | 1 | 26 | 15345 | 6 | 16 | Y30619 | 7 | 3 |
| Y1326 | 3 | 12 | 15401 | 5 | 41 | Y30619 | 10 | 7 |
| Y1326 | 6 | 44 | 15492 | 2 | 18 | Y30619 | 13 | 21 |
| Y1330 | 1 | 24 | 15500 | 6 | 19 | Y30711 | 9 | 35 |
| Y1330 | 3 | 42 | 15505 | 7 | 42 | Y30745 | 9 | 27 |
| Y1333 | 2 | 27 | 15507 | 6 | 36 | Y30748 | 9 | 26 |
| Y1435 | 4 | 39 | 15508 | 5 | 28 | Y32347 | 6 | 26 |
| Y1448 | 4 | 43 | 15509 | 7 | 14 | Y32348 | 6 | 30 |
| Y1457 | 4 | 29 | 15520 | 5 | 16 | Y32352 | 3 | 43 |
| Y1459 | 2 | 39 | 15541 | 7 | 17 | Y32365 | 2 | 21 |
| Y1459 | 7 | 32 | 15550 | 6 | 12 | Y32373 | 12 | 18 |
| Y1459 | 9 | 36 | 15550 | 7 | 28 | Y32374 | 12 | 16 |
| Y2022 | 7 | 26 | 16000 | 7 | 38 | Y32375 | 3 | 33 |
| Y2133 | 4 | 26 | 16004 | 3 | 28 | Y32376 | 9 | 22 |
| Y3311 | 5 | 10 | 16040 | 1 | 17 | Y32377 | 3 | 35 |
| Y3311 | 6 | 23 | 16262 | 3 | 36 | Y32381 | 8 | 20 |
| Y3404 | 6 | 9 | 16330 | 9 | 37 | Y32416 | 10 | 32 |
| Y3434 | 2 | 43 | 16401 | 7 | 47 | Y32417 | 9 | 30 |
| Y3434 | 5 | 33 | 16542 | 3 | 2 | Y32420 | 7 | 44 |
| Y3591 | 4 | 16 | 16543 | 10 | 25 | Y32421 | 3 | 47 |
| Y3595 | 4 | 22 | 16544 | 2 | 9 | Y32423 | 3 | 13 |
INDEX
| Parts.No. | Page No. | Ref.No. | Parts.No. | Page No. | Ref.No. | Parts.No. | Page No. | Ref.No. |
| Y32424 | 3 | 13 | Y32625 | 3 | 26 | Y32784 | 6 | 4 |
| Y32425 | 3 | 15 | Y32626 | 3 | 29 | Y32785 | 6 | 2 |
| Y32426 | 3 | 16 | Y32627 | 3 | 11 | Y32786 | 6 | 8 |
| Y32475 | 3 | 24 | Y32628 | 1 | 19 | Y32787 | 6 | 6 |
| Y32476 | 9 | 17 | Y32629 | 1 | 20 | Y32788 | 6 | 39 |
| Y32479 | 9 | 16 | Y32640 | 1 | 21 | Y32789 | 6 | 42 |
| Y32480 | 9 | 14 | Y32644 | 5 | 14 | Y32790 | 6 | 45 |
| Y32483 | 9 | 12 | Y32645 | 5 | 9 | Y32792 | 6 | 11 |
| Y32484 | 2 | 36 | Y32646 | 5 | 11 | Y32793 | 4 | 41 |
| Y32488 | 12 | 25 | Y32647 | 4 | 31 | Y32794 | 4 | 46 |
| Y32490 | 12 | 24 | Y32648 | 4 | 28 | Y32795 | 4 | 47 |
| Y32493 | 10 | 37 | Y32649 | 9 | 5 | Y32799 | 6 | 21 |
| Y32494 | 10 | 36 | Y32650 | 4 | 30 | Y32800 | 6 | 20 |
| Y32498 | 12 | 22 | Y32651 | 5 | 4 | Y32802 | 4 | 42 |
| Y32519 | 5 | 34 | Y32652 | 4 | 35 | Y32803 | 6 | 35 |
| Y32530 | 12 | 1 | Y32653 | 4 | 33 | Y32806 | 9 | 31 |
| Y32531 | 12 | 13 | Y32654 | 5 | 54 | Y32807 | 6 | 34 |
| Y32532 | 12 | 2 | Y32655 | 5 | 42 | Y32812 | 9 | 3 |
| Y32533 | 12 | 3 | Y32660 | 3 | 38 | Y32815 | 6 | 37 |
| Y32534 | 12 | 2 | Y32662 | 5 | 17 | Y32816 | 6 | 38 |
| Y32539 | 13 | 33 | Y32663 | 3 | 9 | Y32817 | 4 | 13 |
| Y32540 | 10 | 33 | Y32667 | 5 | 40-1 | Y32818 | 4 | 12 |
| Y32541 | 13 | 31 | Y32670 | 5 | 19 | Y32819 | 5 | 21 |
| Y32542 | 13 | 14 | Y32671 | 10 | 11 | Y32820 | 4 | 5 |
| Y32543 | 12 | 11 | Y32673 | 10 | 11-1 | Y32848 | 6 | 13 |
| Y32544 | 12 | 26 | Y32684 | 4 | 32 | Y32849 | 6 | 14 |
| Y32545 | 12 | 26-1 | Y32685 | 9 | 1 | Y32850 | 9 | 21 |
| Y32546 | 10 | 35 | Y32706 | 7 | 9 | Y32851 | 8 | 17 |
| Y32551 | 10 | 33 | Y32708 | 10 | 3 | Y32852 | 8 | 15 |
| Y32552 | 12 | 10 | Y32710 | 10 | 4 | Y32853 | 8 | 14 |
| Y32554 | 12 | 12 | Y32711 | 7 | 37 | Y32854 | 8 | 9 |
| Y32556 | 12 | 9 | Y32713 | 7 | 35 | Y32856 | 8 | 11 |
| Y32557 | 10 | 43 | Y32714 | 7 | 33 | Y32857 | 8 | 6 |
| Y32558 | 13 | 4 | Y32715 | 7 | 34 | Y32858 | 8 | 4 |
| Y32570 | 13 | 26 | Y32716 | 7 | 39 | Y32864 | 8 | 7 |
| Y32571 | 10 | 40 | Y32717 | 7 | 29 | Y32866 | 8 | 12 |
| Y32572 | 12 | 4 | Y32718 | 7 | 27 | Y32867 | 8 | 10 |
| Y32575 | 12 | 5 | Y32719 | 7 | 31 | Y32868 | 4 | 44 |
| Y32576 | 12 | 27 | Y32720 | 7 | 25 | Y32871 | 8 | 28 |
| Y32577 | 12 | 21 | Y32721 | 7 | 24 | Y32873 | 10 | 27 |
| Y32577 | 2 | 7 | Y32722 | 7 | 20 | Y32873 | 8 | 26 |
| Y32579 | 10 | 34 | Y32723 | 7 | 21 | Y32883 | 8 | 24 |
| Y32580 | 12 | 19 | Y32724 | 7 | 15 | Y32892 | 10 | 25 |
| Y32582 | 12 | 20 | Y32725 | 7 | 12 | Y32898 | 9 | 10 |
| Y32583 | 12 | 22 | Y32726 | 7 | 46 | Y32899 | 5 | 55 |
| Y32584 | 12 | 23 | Y32727 | 7 | 43 | Y32900 | 5 | 39 |
| Y32585 | 12 | 7 | Y32728 | 7 | 16 | Y32902 | 5 | 36 |
| Y32586 | 2 | 30 | Y32729 | 7 | 30 | Y32903 | 5 | 35 |
| Y32597 | 2 | 3 | Y32736 | 7 | 1 | Y32904 | 4 | 23 |
| Y32599 | 2 | 32 | Y32739 | 7 | 11 | Y32905 | 4 | 25 |
| Y32600 | 1 | 34 | Y32741 | 7 | 5 | Y32906 | 4 | 27 |
| Y32601 | 5 | 44 | Y32741 | 10 | 2 | Y32909 | 5 | 32 |
| Y32602 | 1 | 10 | Y32743 | 7 | 2-1 | Y32910 | 5 | 25 |
| Y32603 | 1 | 12 | Y32743 | 10 | 6-1 | Y32911 | 5 | 23 |
| Y32604 | 1 | 15 | Y32744 | 7 | 2 | Y32912 | 5 | 29 |
| Y32604 | 5 | 46 | Y32744 | 10 | 6 | Y32913 | 5 | 22 |
| Y32605 | 2 | 28 | Y32745 | 10 | 10 | Y32914 | 5 | 24 |
| Y32606 | 1 | 29 | Y32745 | 7 | 48 | Y32916 | 5 | 47 |
| Y32607 | 1 | 30 | Y32746 | 10 | 39 | Y32917 | 5 | 52 |
| Y32608 | 1 | 31 | Y32747 | 10 | 1 | Y32919 | 5 | 49 |
| Y32609 | 2 | 40 | Y32748 | 10 | 1 | Y32920 | 5 | 37 |
| Y32610 | 1 | 22 | Y32772 | 4 | 15 | Y32921 | 5 | 13 |
| Y32611 | 1 | 27 | Y32773 | 4 | 3 | Y32924 | 2 | 25 |
| Y32612 | 2 | 42 | Y32774 | 4 | 1 | Y32925 | 4 | 7 |
| Y32615 | 2 | 5 | Y32775 | 4 | 10 | Y32929 | 9 | 34 |
| Y32617 | 1 | 1 | Y32777 | 4 | 11 | Y32930 | 2 | 26 |
| Y32618 | 1 | 3 | Y32778 | 4 | 9 | Y32931 | 9 | 8 |
| Y32619 | 1 | 4 | Y32779 | 4 | 8 | Y32933 | 9 | 9 |
| Y32620 | 1 | 5 | Y32780 | 4 | 2 | Y32934 | 9 | 7 |
| Y32622 | 1 | 7 | Y32781 | 4 | 19 | Y32935 | 9 | 40 |
| Y32623 | 1 | 8 | Y32782 | 4 | 21 | Y32937 | 9 | 41 |
| Y32624 | 2 | 22 | Y32783 | 6 | 1 | Y32938 | 9 | 24 |
INDEX
| Parts.No. | Page No. | Ref.No. | Parts.No. | Page No. | Ref.No. |
| Y32944 | 9 | 47 | Y37697 | 9 | 15 |
| Y32948 | 9 | 50 | Y37301 | 12 | 7 |
| Y32949 | 9 | 52 | Y37302 | 12 | 8 |
| Y32952 | 3 | 6 | Y37303 | 12 | 9 |
| Y32955 | 3 | 40 | Y37307 | 12 | 28 |
| Y32959 | 6 | 43 | Y37309 | 12 | 6 |
| Y32960 | 3 | 44 | Y37311 | 12 | 29 |
| Y32962 | 3 | 1 | Y37312 | 12 | 27 |
| Y32962 | 2 | 8 | Y37315 | 12 | 18 |
| Y32963 | 2 | 38 | Y37316 | 12 | 15 |
| Y32965 | 2 | 15 | Y37319 | 12 | 13 |
| Y32965 | 3 | 8 | Y37322 | 12 | 14 |
| Y32965 | 13 | 13 | Y37323 | 12 | 10 |
| Y32968 | 13 | 5 | Y37324 | 12 | 35 |
| Y32971 | 2 | 13 | Y37344 | 12 | 19 |
| Y32971 | 10 | 29 | Y37345 | 12 | 17 |
| Y32973 | 3 | 32 | Y37346 | 12 | 11 |
| Y32975 | 3 | 31 | Y37347 | 12 | 12 |
| Y32976 | 3 | 21 | Y37348 | 10 | 14 |
| Y32977 | 3 | 22 | Y37362 | 10 | 16 |
| Y33013 | 6 | 15 | Y37303 | 9 | 25 |
| Y33024 | 7 | 23 | Y90320 | 5 | 1 |
| Y33400 | 10 | 18 | Y90321 | 5 | 3 |
| Y33751 | 10 | 17 | |||
| Y33810 | 8 | 28 | |||
| Y33811 | 8 | 26 | |||
| Y33812 | 8 | 28-1 | |||
| Y33813 | 10 | 32 | |||
| Y33814 | 10 | 13 | |||
| Y33816 | 10 | 12 | |||
| Y33817 | 10 | 32-2 | |||
| Y33818 | 10 | 33-1 | |||
| Y33818 | 10 | 42 | |||
| Y33819 | 10 | 41 | |||
| Y33870 | 5 | 58 | |||
| Y33871 | 5 | 54 | |||
| Y33873 | 5 | 57 | |||
| Y34010 | 3 | 39 | |||
| Y34059 | 8 | 22 | |||
| Y34104 | 6 | 17 | |||
| Y34134 | 8 | 1 | |||
| Y34224 | 6 | 24 | |||
| Y34226 | 6 | 32 | |||
| Y34514 | 12 | 17 | |||
| Y34515 | 12 | 28 | |||
| Y34516 | 6 | 28 | |||
| Y34517 | 6 | 10 | |||
| Y34518 | 4 | 38 | |||
| Y34535 | 7 | 6 | |||
| Y34535 | 10 | 9 | |||
| Y34587 | 12 | 15 | |||
| Y34760 | 1 | 32 | |||
| Y32761 | 2 | 4 | |||
| Y34762 | 2 | 1 | |||
| Y34763 | 10 | 24 | |||
| Y34764 | 2 | 19 | |||
| Y34766 | 12 | 5 | |||
| Y34767 | 12 | 1 | |||
| Y34768 | 12 | 20 | |||
| Y34769 | 12 | 16 | |||
| Y34770 | 12 | 21-1 | |||
| Y34771 | 12 | 21-2 | |||
| Y34774 | 10 | 31 | |||
| Y37122 | 5 | 7 | |||
| Y37372 | 10 | 20 | |||
| Y37373 | 10 | 21 | |||
| Y37635 | 2 | 12 | |||
| Y37635 | 3 | 5 | |||
| Y37635 | 10 | 28 | |||
| Y37668 | 9 | 51 | |||
| Y37669 | 9 | 44 | |||
| Y37675 | 9 | 20 |
