USER MANUAL TL-5920 Tadiran

(Typical values @+ 25°C for batteries stored for one year or less)

■ Nominal capacity @ 3 mA, to 2 V 8.5 Ah
■ Rated voltage 3.6 V
■ Maximum recommended continuous current 230 mA
■ Maximum pulse current capability 400 mA
■ Weight 49.5 g (1.75 oz)
Volume
Operating temperature range -55 °C to +85 °C
■ Li metal content approx. 2.5 g
U.L. Component Recognition, MH 12193

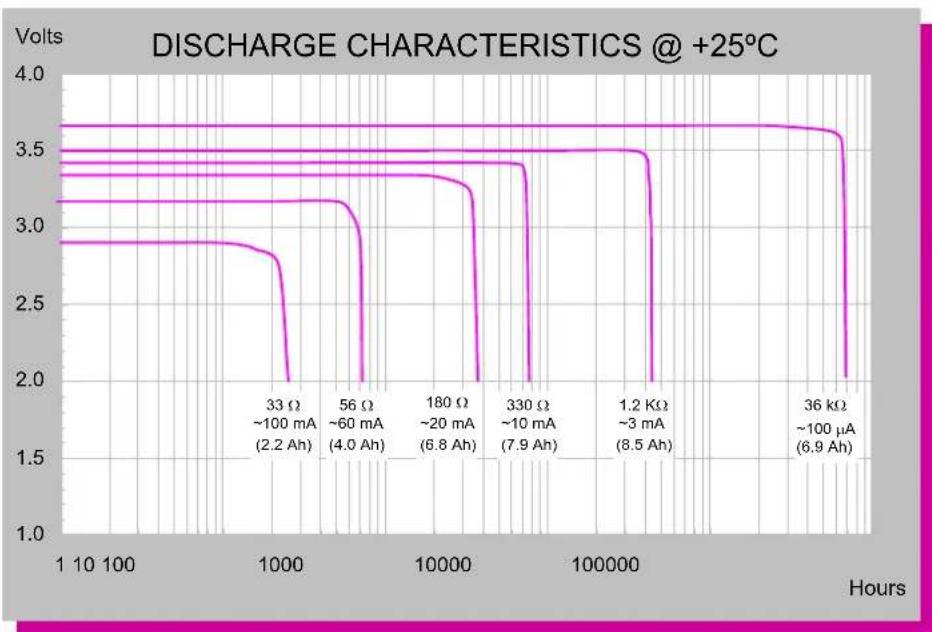

Tadiran TL-5920 - 1

line | Current Range (mA) | Duration (Ah) | Voltage | | ------------------ | ------------- | ------- | | ~100 | 2.2 | 2.9 | | ~60 | 4.0 | 3.2 | | ~20 | 6.8 | 3.4 | | ~10 | 7.9 | 3.5 | | ~3 | 8.5 | 3.5 | | ~100 | 6.9 | 3.6 |

Tadiran TL-5920 - 2

text_image TADIRAN LITHIUM BATTERIES

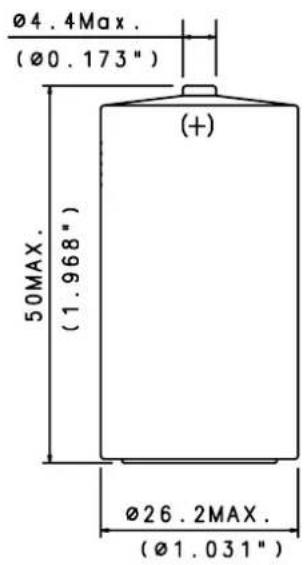

Tadiran TL-5920 - 3

text_image Ø4.4Max. (Ø0.173") (+) 50MAX. (1.968") Ø26.2MAX. (Ø1.031")

TERMINATIONS & ORDERING NO.

SUFFIX-/S STANDARD 15-5920-21500

SUFFIX-/T SOLDER TABS 15-5920-31500

SUFFIX-/P AXIAL PINS 15-5920-41500

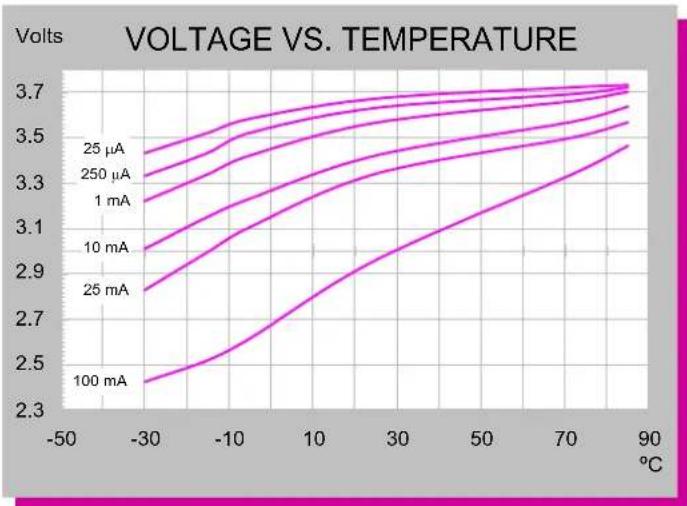

Tadiran TL-5920 - 4

line | Temperature (°C) | 100 mA | 25 mA | 10 mA | 250 mA | 250 mA | | ---------------- | ------ | ----- | ----- | ------ | ------ | | -30 | 2.4 | 2.8 | 3.1 | 3.3 | 3.4 | | -10 | 2.6 | 3.0 | 3.3 | 3.5 | 3.6 | | 0 | 2.8 | 3.2 | 3.5 | 3.6 | 3.7 | | 10 | 3.0 | 3.4 | 3.6 | 3.7 | 3.7 | | 30 | 3.2 | 3.6 | 3.7 | 3.7 | 3.7 | | 50 | 3.4 | 3.7 | 3.7 | 3.7 | 3.7 | | 70 | 3.5 | 3.7 | 3.7 | 3.7 | 3.7 | | 90 | 3.6 | 3.7 | 3.7 | 3.7 | 3.7 |

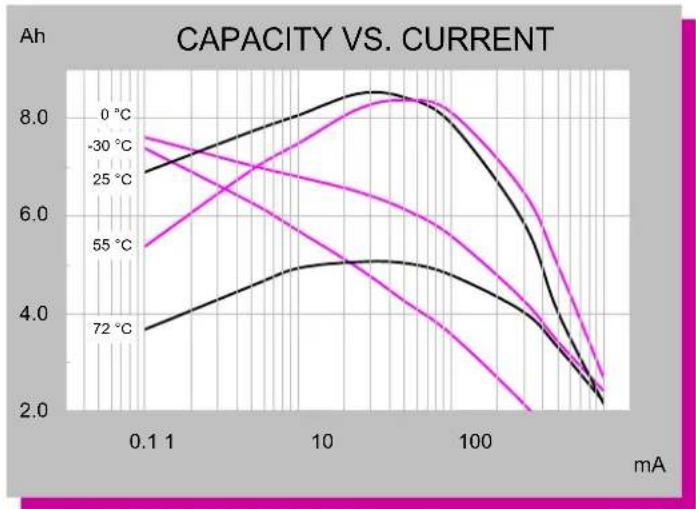

Tadiran TL-5920 - 5

iXtra - Long Term High Performance

Note: Any presentations in this data sheet concerning performance are for information purpose only and are not construed as warranties either expressed or implied, of future performance. ECN 1501879 Rev. B 11/08

CELL FEATURES

3.6 V Primary lithium-thionyl chloride (Li-SOCI2)
■ Fast voltage recovery after long term storage and/or usage
■ High energy density
■ Low self discharge rate
Bobbin construction
■ Hermetic glass-to-metal-sealing
■ Non-flammable electrolyte

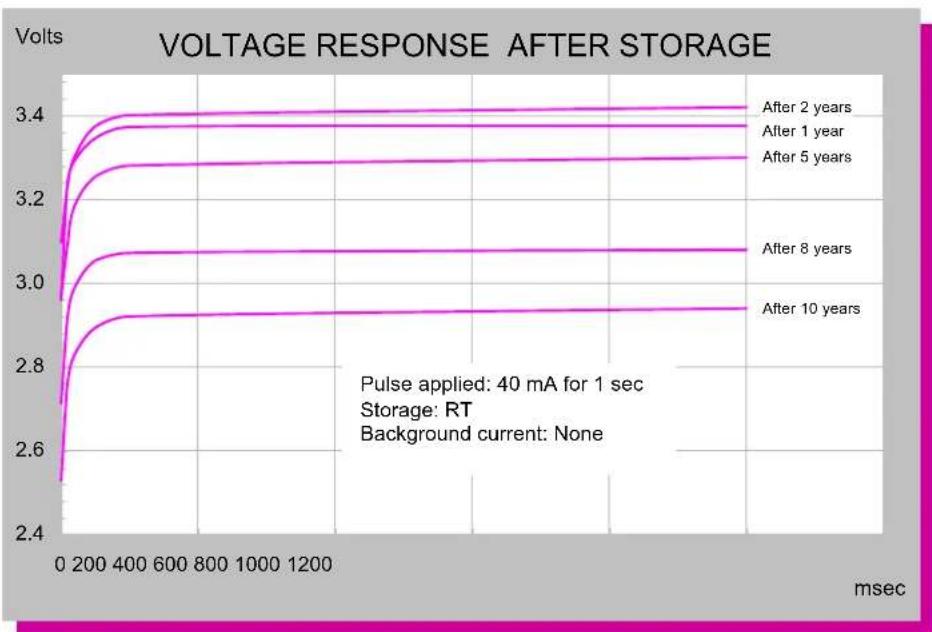

Tadiran TL-5920 - CELL FEATURES - 1

line | Time Point | Voltage (Volts) | | -------------- | --------------- | | After 2 years | 3.4 | | After 1 year | 3.4 | | After 5 years | 3.4 | | After 8 years | 3.4 | | After 10 years | 3.4 |

Tadiran TL-5920 - CELL FEATURES - 2

text_image TADIRAN LITHIUM BATTERIES

MAIN APPLICATIONS

■ Utility meters (elect., water & gas)
■ Automatic meter reading
RF systems
■ Sensors & monitoring systems
- Tracking systems
■ Wireless security systems
■ Automotive electronics
■ Industrial electronics
Ultra Low Power (ULP)

STORAGE CONDITIONS

■ Cells should be stored in a clean & dry (less than 30 % RH) area

For updated information please visit our website www.tadiranbat.com

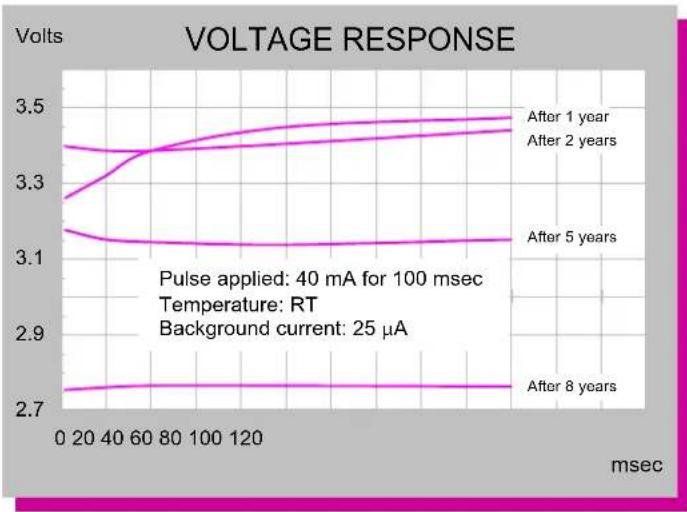

Tadiran TL-5920 - STORAGE CONDITIONS - 1

line | Time (msec) | After 1 year | After 2 years | After 5 years | After 8 years | |-------------|--------------|---------------|---------------|---------------| | 0 | 3.3 | 3.3 | 3.1 | 2.7 | | 20 | 3.35 | 3.35 | 3.1 | 2.7 | | 40 | 3.4 | 3.4 | 3.1 | 2.7 | | 60 | 3.45 | 3.45 | 3.1 | 2.7 | | 80 | 3.45 | 3.45 | 3.1 | 2.7 | | 100 | 3.45 | 3.45 | 3.1 | 2.7 | | 120 | 3.45 | 3.45 | 3.1 | 2.7 |

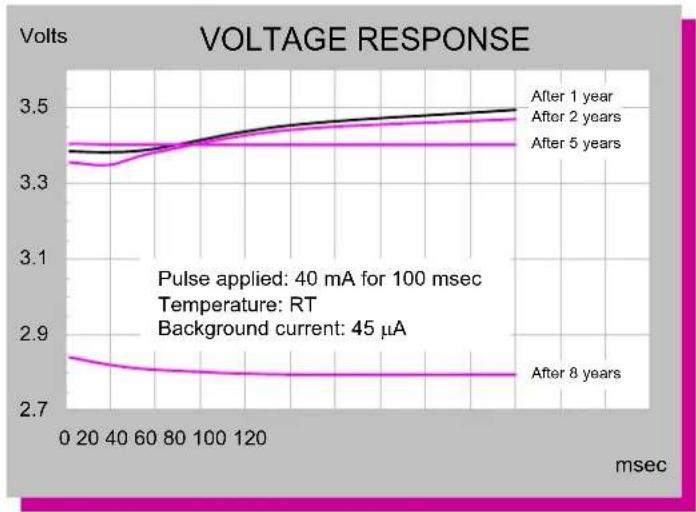

Tadiran TL-5920 - STORAGE CONDITIONS - 2

line | Time (msec) | After 1 year | After 2 years | After 5 years | |-------------|--------------|---------------|---------------| | 0 | 3.4 | 3.4 | 3.4 | | 20 | 3.4 | 3.4 | 3.4 | | 40 | 3.4 | 3.4 | 3.4 | | 60 | 3.4 | 3.4 | 3.4 | | 80 | 3.4 | 3.4 | 3.4 | | 100 | 3.4 | 3.4 | 3.4 | | 120 | 3.4 | 3.4 | 3.4 | | 140 | 3.4 | 3.4 | 3.4 | | 160 | 3.4 | 3.4 | 3.4 | | 180 | 3.4 | 3.4 | 3.4 | | 200 | 3.4 | 3.4 | 3.4 | | 220 | 3.4 | 3.4 | 3.4 | | 240 | 3.4 | 3.4 | 3.4 | | 260 | 3.4 | 3.4 | 3.4 | | 280 | 3.4 | 3.4 | 3.4 | | 300 | 3.4 | 3.4 | 3.4 | | 320 | 3.4 | 3.4 | 3.4 | | 340 | 3.4 | 3.4 | 3.4 | | 360 | 3.4 | 3.4 | 3.4 | | 380 | 3.4 | 3.4 | 3.4 | | 400 | 3.4 | 3.4 | 3.4 | | 420 | 3.4 | 3.4 | 3.4 | | 440 | 3.4 | 3.4 | 3.4 | | 460 | 3.4 | 3.4 | 3.4 | | 480 | 3.4 | 3.4 | 3.4 | | 500 | 3.4 | 3.4 | 3.4 | | 520 | 3.4 | 3.4 | 3.4 | | 540 | 3.4 | 3.4 | 3.4 | | 560 | 3.4 | 3.4 | 3.4 | | 580 | 3.4 | 3.4 | 3.4 | | 600 | 3.4 | 3.4 | 3.4 | | 620 | 3.4 | 3.4 | 3.4 | | 640 | 3.4 | 3.4 | 3.4 | | 660 | 3.4 | 3.4 | 3.4 | | 680 | 3.4 | 3.4 | 3.4 | | 700 | 3.4 | 3.4 | 3.4 | | 720 | 3.4 | 3.4 | 3.4 | | 740 | 3.4 | 3.4 | 3.4 | | 760 | 3.4 | 3.4 | 3.4 | | 780 | 3.4 | 3.4 | 3.4 | | 800 | 3.4 | 3.4 | 3.4 | | 820 | 3.4 | 3.4 | 3.4 | | 840 | 3.4 | 3.4 | 3.4 | | 860 | 3.4 | 3.4 | 3.4 | | 880 | 3.4 | 3.4 | 3.4 | | 900 | 3.4 | 3.4 | 3.4 | | 920 | 3.4 | 3.4 | 3.4 | | 940 | 3.4 | 3.4 | 3.4 | | 960 | 3.4 | 3.4 | 3.4 | | 980 | 3.4 | 3.4 | 3.4 | | 1000 | 3.4 | 3.4 | 3.4 | | Note: Pulse applied: RT; Background current: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: Before TPR, Condition: RT, Background current: After: Before TPR, Pulse applied: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: After: Aulse response, Pulse response, Temperature response, Background response, Background current response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse Response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response, Pulse response

iXtra - Long Term High Performance

Note: Any presentations in this data sheet concerning performance are for information purpose only and are not construed as warranties either expressed or implied, of future performance. ECN 1501879 Rev. B 11/08
