Thank you for choosing the TESLA PowerStar GT400.

Before using the device, please read the rules of safe use carefully and follow all common safety rules.

• read through the instructions for use thoroughly before using
• keep the user manual for future reference
• follow the rules in this manual to reduce the risk of equipment damage or personal injury

IMPORTANT SAFETY INSTRUCTIONS

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.

This appliance is a complex electromechanical device, please pay attention to the following instructions:

- This appliance is intended for domestic use only; The brand bears no responsibility for improper use or use contrary to the instructions for use and is not covered by the warranty.

• The appliance is only intended for indoor use at room temperature (max. 40°C).

- Do not direct the discharged steam at people, animals, electrical appliances or electrical outlets.

- Do not immerse the appliance in water.

- Do not leave the appliance unattended.

- Do not leave the appliance plugged in when not in use.

- Never unplug the appliance by pulling on the power cord.

- Keep the appliance's power cord away from heat, oil and sharp edges.

- Do not pull or carry the appliance by the power cord.

- Do not handle the appliance with wet hands.

- Do not use to clean the pool.

- Do not use the appliance in an enclosed space filled with steam released from oil paints, paint thinner, some moth repellents, flammable dust or other explosive or toxic fumes.

- The appliance emits very hot steam to disinfect the area of use. This means that the steam head and the microfiber cleaning mop become very hot during use.

- Always wear suitable footwear when handling the appliance. Do not wear slippers or shoes with an open toe.

- Never add additives such as perfumes, stain removers or alcohol-containing substances to the water or detergent dispenser. The appliance could be damaged or could become dangerous to the user.

- You should be careful when using this appliance. DO NOT touch any parts that may become hot during use.

- Use only original accessories designed for this model.

- Do not touch the parts that are connected to the mains when your hands are wet.

- Do not open or repair the device, as there is a risk of electric shock and loss of warranty.

- The manufacturer and importer into the European Union are not liable for damages caused by the operation of the device, such as injury, scalding, fire, injury, deterioration of other items, etc.

Do not use on leather, waxed polished furniture or floors, synthetic fabrics, velvet or other delicate steam-sensitive materials. Do not use on any unsealed hard floor surfaces. In addition, on surfaces that have been treated with wax or some wax-free floors, the gloss can be removed by heat and steam. It is always recommended to test the insulated area of the surface to be cleaned before cleaning. We also recommend checking the floor manufacturer's instructions for use and care.

PACKAGE CONTENTS

Carefully check that you have unpacked all the supplied accessories, we recommend that you keep the original paper box, user manual and packing material during the warranty period.

DESCRIPTION

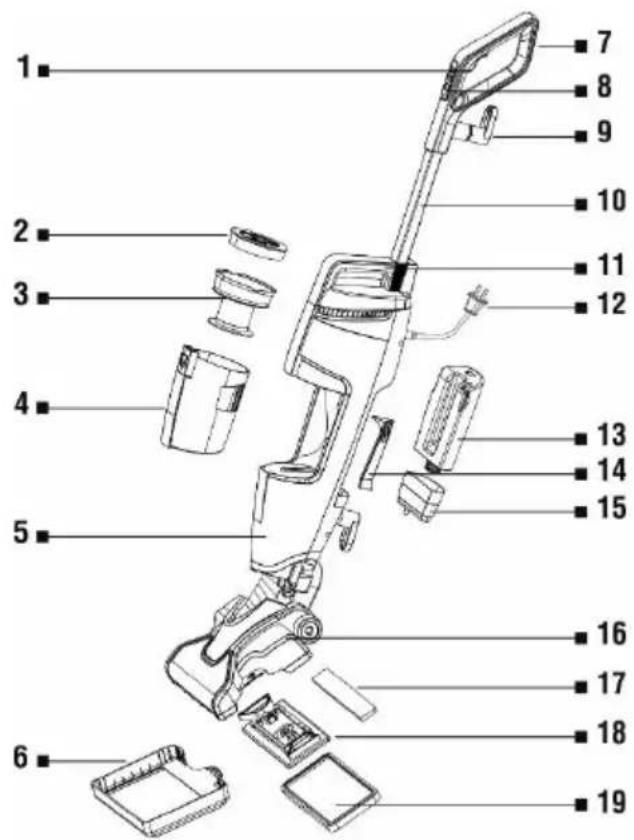

Labeled diagram of a vacuum cleaner with numbered parts for identification

1 Steam release control
2 HEPA filter holder
3 HEPA filter frame
4 Dust container
5 Appliance body
6 Carpet glider
7 Handle
8 Electronic touch control buttons
9 Hook for attaching the power cord
10 Handle
11 Main frame handle
12 Power cable
13 Water tank
14 Air intake plastic cover
15 Water filter
16 Cleaning head
17 Microfiber mop
18 Microfiber mop holder
19 Microfiber mop

BEFORE FIRST USE

Remove all packaging material, appliance and accessories. Remove any transparencies, stickers, or paper. Check that the appliance and any part of it is not damaged.

WARNING: Before carrying out any of the following operations, make sure that the appliance is switched off, unplugged and contains little or no water.

ASSEMBLY OF THE APPLIANCE

Technical diagram showing a vacuum cleaner's internal components and its insertion mechanism, with labeled parts and directional arrows.

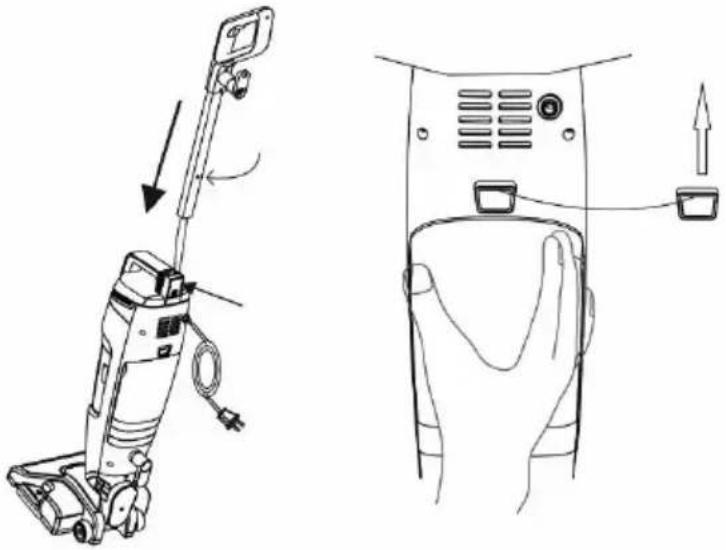

1. Insert the handle into the main body of the appliance until you hear a click. Attach the base to the main body until it clicks into place.

Technical diagram of a vacuum cleaner with labeled parts including pump, cover, and housing

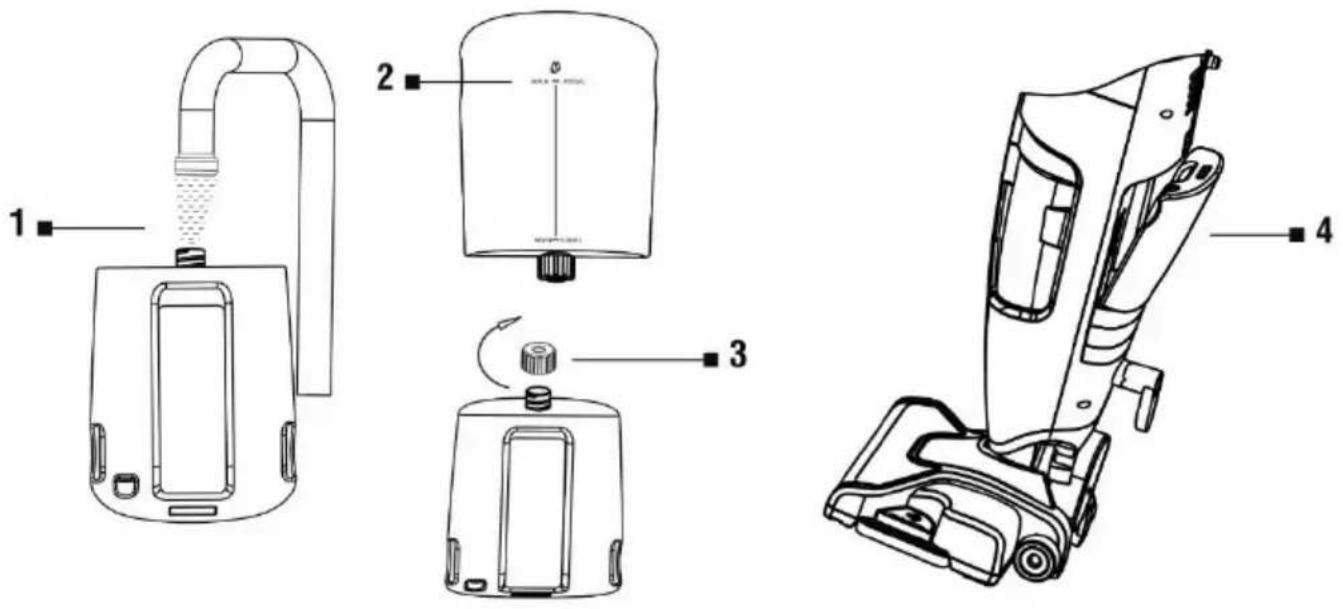

1. Open the water tank and fill it with clean lukewarm water up to the MAX mark, then close and tighten the cover. Do not use any chemicals or other liquids, such as rust removers, aromatics, alcohol, detergent, etc. Insert the water tank into the body of the appliance so that it is justified with the water supply; until it „clicks“ into place.

To perfectly disinfect your floor, clean the area at least three times with a slow, even motion, with the help of hot steam. Never use a steam mop without a properly fitted microfiber mop.

Line drawing of a portable water heater with a handle and spout (no text or symbols)

Make sure that the valve seal is always in place as shown in the figure.

Line drawing of a vacuum cleaner and its internal component (no text or symbols)

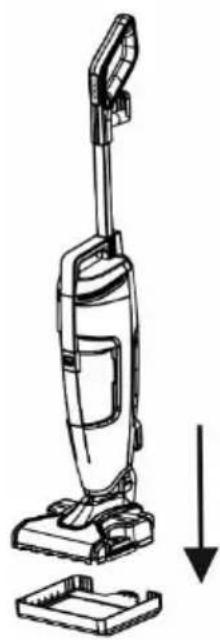

Line drawing of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

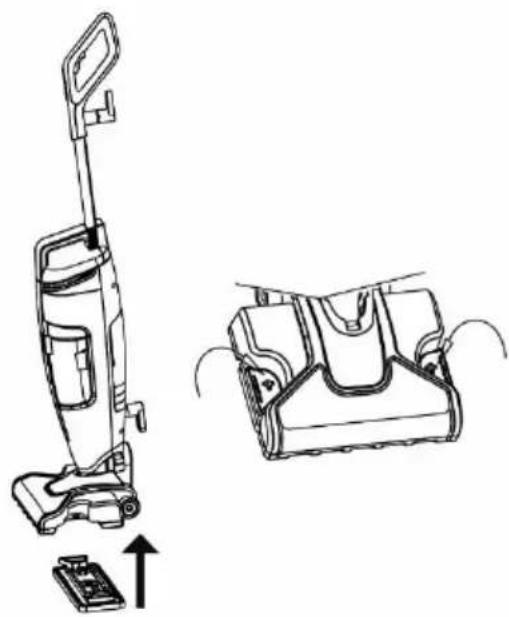

1. Attach the microfiber mop (19) to the holder (18) and snap it into the center of the scrub head (16).
2. Plug the power cord (12) into an electrical outlet.
3. When cleaning the carpet, install the carpet glider (6) to make it easier to clean.

DESCRIPTION OF OPERATION

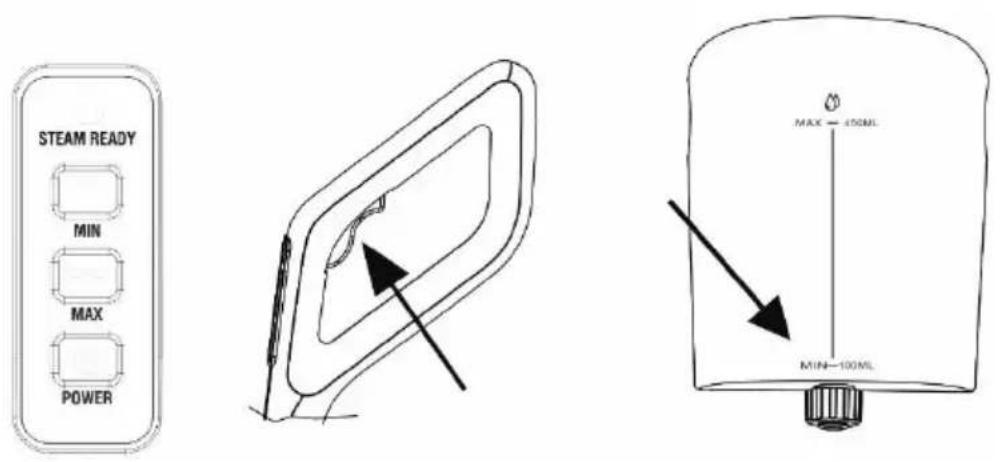

Switching the vacuum cleaner On/Off: press the „POWER“ button. The appliance can be used together with hot steam or separately only as a vacuum cleaner.

Steam discharge intensity: Low - MIN button (for daily cleaning, wooden floor, etc.) or High - MAX button (for durable floors, on greasy surfaces, tiles or stone). Hot steam can be used at the same time as vacuuming the floor or separately only as a steam mop.

Ready to release steam: the „STEAM READY“ indicator flashes during heating. A fully lit indicator indicates that steam can be emitted by pressing the Steam release control button (1).

CAUTION: Water that appears on the floor when using the hot steam cleaning function is part of the normal operation of the appliance.

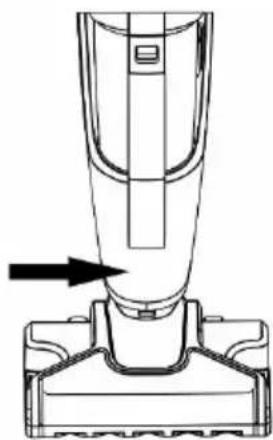

Technical line drawing of a vacuum cleaner component with an arrow indicating assembly direction (no text or symbols)

ATTENTION!

Do not touch the surface shown in the illustration, to avoid scalding.

If the water level reaches below its minimum level or is completely without water, stop using the steam function to prevent damage to the appliance.

CLEANING AND MAINTENANCE

Make sure that the appliance is unplugged and completely cooled down.

Technical diagram showing exploded and assembled views of a blender with labeled parts A, B, C, and D

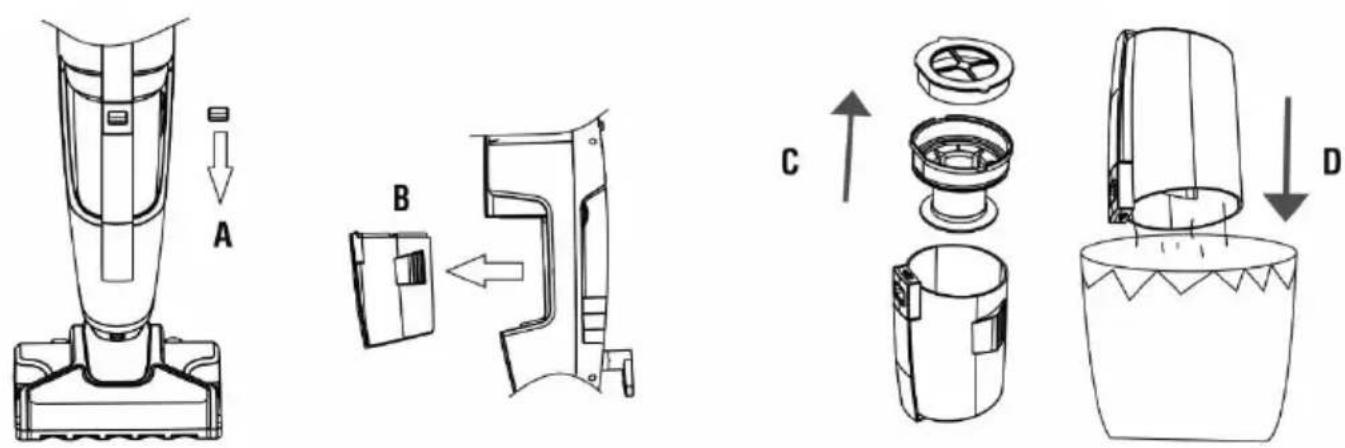

A: Press the switch to release the dust tank.
B, C, D: Remove the dust tank and empty it in the trash bin.

Diagram showing the assembly process of a vacuum cleaner with labeled parts and directional arrows indicating motion.

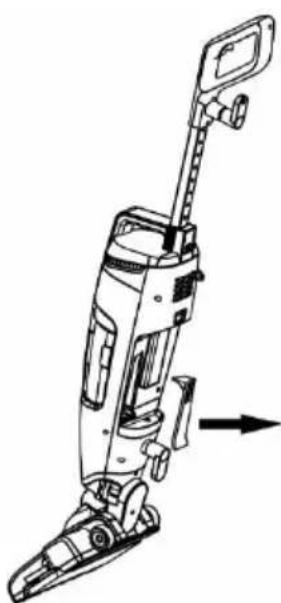

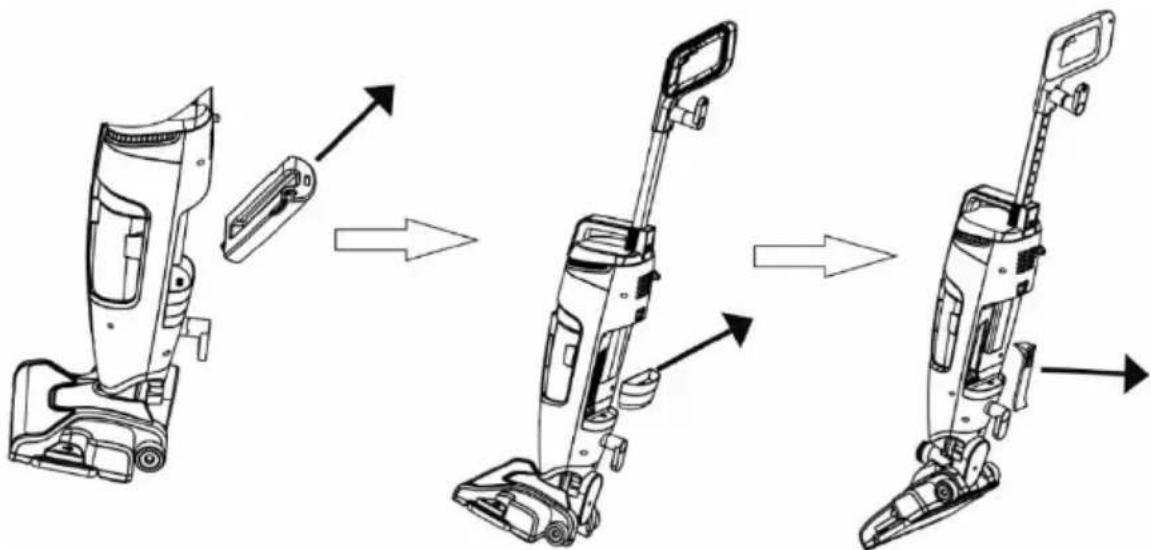

Remove the water tank and pour the water into the sink. Check the water filter (15) regularly. If the water filter is not replaced in time, calcium deposits may start to accumulate in it, causing damage to the appliance or reducing its performance.

Line drawing of a vacuum cleaner with a lever and attached component, showing no text or symbols

Exploded view diagram of a mechanical component showing internal structure (no text or labels)

Cleaning air intake

If the appliance draws in a larger object, it may sometimes be necessary to clean the air intake as well.

After removing the water tank and the filter from the main body, also remove the air intake plastic cover (14), grasp the plastic part in the pliers and pull it out. Clean the air intake and then reinstall the cover.

The appliance should only be operated with the plastic air supply cap installed.

HEPA filter cleaning

Press the dirt tank release button and pull it out of the appliance body. The HEPA filter holder (2) and the HEPA filter frame (3) can be washed in warm soapy water and then allowed to dry completely naturally.

The HEPA filter should be cleaned at least once a month. If dirt accumulates on the filter, it should be cleaned immediately. Dry the filter completely before using it again. The appliance must only be operated with the HEPA filter installed to prevent damage. In the event of heavy soiling or poor vacuum cleaner performance, replace it with a new one. We recommend replacing it at least once every 6 months.

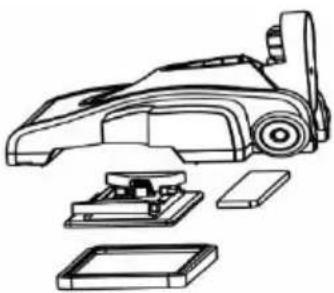

Technical line drawing of a mechanical device with exploded view and assembled parts (no text or symbols)

Replacement and cleaning of microfiber mops

1. Drain the remaining water into the sink.
2. The cleaning microfiber mops can be washed in warm water with a small amount of dish soap if they are dirty.
3. If necessary, wash both microfiber mops in warm soapy water, maximum 30 - 40°C, without bleach or fabric softener. Let them dry naturally, do not use the clothes dryer.

STORAGE

After use, turn off the power to the appliance and unplug the power cord. Remove the water tank and pour out the residual water. Store the appliance in a dry and clean place.

TROUBLESHOOTING

Problem	Cause	Solution
Reduced amount of steam or no steam.	The water tank is empty or incorrectly inserted in the body of the appliance.	Make sure there is enough water in the water tank.
	You have not pressed the steam control knob.	Press the steam release control (1).
	You did not select the steam release rate.	Select the intensity of steam release.
	The steam ready indicator does not light up.	Make sure that the appliance is connected to the mains and wait until the indicator lights up.
The appliance is not powered.	The appliance is not connected correctly or the mains plug is defective.	Connect the appliance to the mains and check the power cord.
The appliance does not vacuum dirt from the floor.	The filter is clogged with dirt.	Clean the filter.
	The suction of the appliance is blocked.	Remove dirt from the suction opening.
	The dust tank is full.	Empty the dirt tank.

WARRANTY REPAIR

For warranty repair, contact the dealer where you purchased the TESLA product.

The warranty DOES NOT APPLY to:

• using the device for other purposes than it was designed to
• normal wear and tear
- failure to observe the "Important safety instructions" stated in the user manual
• electrical or mechanical damage caused by improper use
- damage caused by natural elements such as water, fire, static electricity, power surges etcetera
• damage caused by an unauthorized repair
- unreadable serial number

DECLARATION OF CONFORMITY

We, TESLA Electronics LTD, declare that this device complies with the essential requirements and other relevant provisions of the standards and regulations relevant to the type of equipment.

CE 7

This product complies with the requirements of the European Community.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Due to the fact that the product is being developed and improved, we reserve the right to edit the user manual. You can always find the latest version of the this user manual at www.tesla-electronics.eu.

Design and specification may be changed without prior notice, print errors reserved.
