KOBLENZ0806WD-030 - Washing machine Frilec - Free user manual and instructions

Product Type	Washer-Dryer (freestanding)
Brand	Frilec
Model	KOBLENZ0806WD-030
Washing Capacity	8 kg
Drying Capacity	6 kg
Maximum Spin Speed	1400 rpm

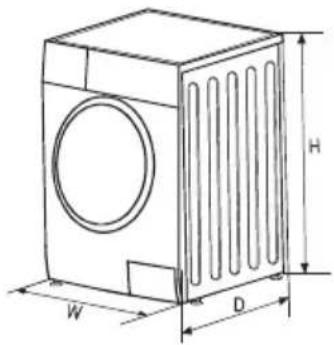

Dimensions (W x D x H)	595 x 475 x 850 mm
Net Weight	65 kg
Power Supply	220-240 V~, 50 Hz
Rated Power	1900 W
Maximum Current	10 A
Water Pressure Range	0.05 - 1 MPa
Energy Efficiency Class (Washing)	A (old scale), B (new scale for wash)
Energy Efficiency Class (Wash & Dry)	E (new scale)
Noise Level (Washing)	57 dB(A)
Noise Level (Spinning)	79 dB(A)
Noise Level (Drying)	62 dB(A)
Programmes	Cotton, Synthetic, Mix, 20°C, Eco 40-60, Quick 15', 1Hour W/D, Wool, Rinse&Spin, Spin Only, Intensive, Wash and Dry, Dry Only, Sport Wear, Jeans
Special Features	Child Lock, Delay Start, My Cycle, Reload, Mute Buzzer
Drum Material	Stainless steel (typical)
Detergent Dispenser	3 compartments (pre-wash, main wash, fabric softener)
Safety Certifications	CE, etc.

Frequently Asked Questions - KOBLENZ0806WD-030 Frilec

How do I install the washing machine?

Remove all packaging and transport bolts. Place the machine on a rigid, level surface. Connect the water inlet hose to a cold water tap (and hot if equipped). Attach the drain hose to a standpipe or sink. Level the feet and tighten lock nuts. Plug into an earthed socket.

What should I do before first use?

Run a complete cycle without laundry to calibrate the machine. Add a small amount of detergent. Select the Intensive programme at 60°C with high spin speed. This cleans the drum and checks for leaks.

How can I resolve error code E30?

E30 indicates the door is not closed properly. Open and close the door firmly, ensuring no clothing is trapped. If the error persists, restart the machine or contact service.

What does error code E10 mean?

E10 means water injection problem. Check that the water tap is open, the inlet hose is not kinked, and the inlet filter is not blocked. Also ensure sufficient water pressure.

How do I clean the drain pump filter?

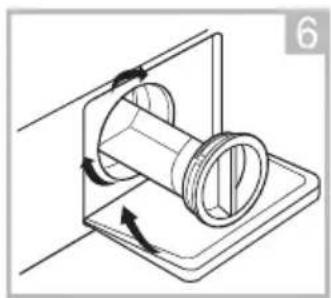

Unplug the machine and let the water cool. Open the lower cover cap, pull out the emergency drain hose (if present) and drain water. Rotate the filter counterclockwise, remove debris, clean it, and reinsert. Tighten securely.

Can I wash and dry a full load at the same time?

Yes, the machine has a Wash and Dry programme. However, for optimal drying, reduce the load to half the washing capacity (e.g., 4 kg for an 8 kg machine). The drying capacity is 6 kg, so a full wash load of 8 kg cannot be dried completely.

How do I use the Child Lock?

Press and hold the Temp. and Speed buttons simultaneously for 3 seconds until a beep sounds. The child lock indicator lights. To unlock, repeat the same action. All buttons except Power and Child Lock are disabled.

Why does the machine not start?

Check that the door is closed properly, the power cord is plugged in, and the water tap is open. Ensure the programme is selected and the Start/Pause button is pressed. If still not starting, check for error codes.

How do I transport the machine?

Reinstall the 4 transport bolts at the back. Drain any water from the drum and hoses. Secure the power cord and drain hose. Lift carefully; do not use the door as a handle.

What type of detergent should I use?

Use low-sudsing, machine-specific detergent. For cold washes, use liquid detergent. For hot washes (60°C+), powder detergent is suitable. Follow the dosage instructions on the detergent package.

USER MANUAL KOBLENZ0806WD-030 Frilec

Simple line drawing of a rectangular frame with a central circular pattern and two intersecting X-shaped lines (no text or symbols)

⚠ Waarschuwing!

Diagram of a box with an arrow pointing upward and a magnified inset showing a 3D structure (no text or symbols)

Hand using a tool to adjust or install a mechanical component, no text or symbols visible

De wasmachine waterpas zetten

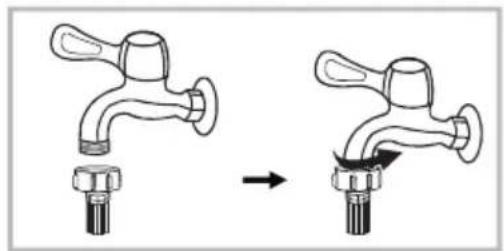

Waarschuwing!

Simple line drawing of a mechanical component with a curved arrow indicating motion (no text or symbols)

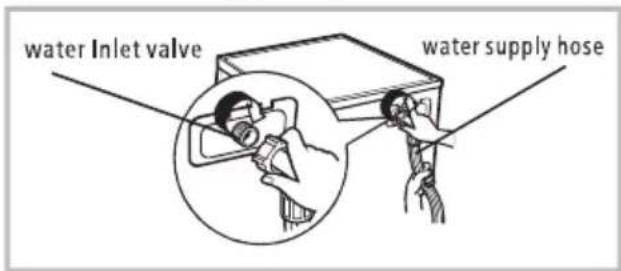

Diagram of a mechanical assembly with a pipe fitting and upward arrow indicating motion (no text or symbols)

Verbinding valtooid

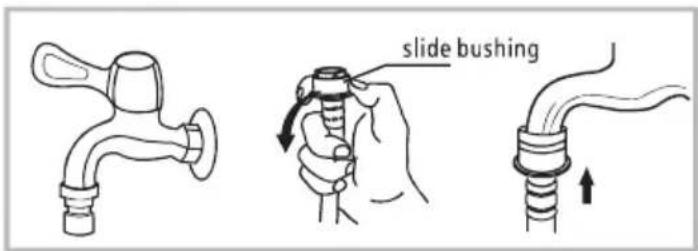

Diagram showing a hand turning a faucet with a valve, before and after (no text or symbols)

Let op!

Line drawing of a kitchen sink with faucet and faucet (no text or symbols)

⚠ Waarschuwing!

Simple line drawing of a sweater with a tag and patterned jacket (no text or symbols)

Simple line drawing of a container with arrows indicating process flow (no text or symbols)

Two handbags with circular designs, one open and one closed, shown in line drawing style (no text or symbols)

Knoop lange stroken vast, dichtritsen of dichtknopen

Simple line drawing of a bag with a bag inside, containing no text or symbols.

Line drawing of a garment with three arms and textured fabric (no text or symbols)

Simple line drawing of a bag being folded into a basket (no text or symbols)

Let op!

Druk [ Start/Pauze] 3 sec.

Textiel inladen

Start/Pauze

Line drawing of a hand washing a washing machine (no text or symbols)

Let op!

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Diagram of a valve mechanism with rotating components (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with a magnified inset showing the internal mechanism (no text or symbols present)

Line drawing of a hand holding a magnifying glass over a screen, mounted on a stand (no text or symbols)

Let op!

Technical line drawing of a mechanical component with internal compartments and a central arrow (no text or symbols)

Line drawing of a person jumping over a wooden boat with visible compartments and legs (no text or symbols)

Line drawing of a hand using a tool to clean or store contents inside a container (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a handle (no text or symbols)

Plaats bakje terug

Let op!

Simple line drawing of a mechanical component with a rotating arrow, no text or symbols present

Line drawing of a kitchen appliance with a plate, sink, and bowl (no text or symbols)

Hand holding a knob pressing a button on a control panel (no text or symbols visible)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Model	KOBLENZ0806WD-030
Washing Capacity	8kg
Drying Capacity	6kg
Spin Speed	1400 rpm
Energy efficiency class 1	A
Energy consumption of per cycle(to wash and dry a full capacity wash load at 60°C)	5.44kWh/Cycle
Water consumption of per cycle(Total)	136 L/cycle
Annual energy consumption(Using the dryer) 2	1088kWh /annual
Annual water consumption(Using the dryer) 2	27200L /annual
Annual energy consumption(Never Using the dryer) 3	176kWh /annual
Annual water consumption(Never Using the dryer) 3	12800L /annual
Washing performance class 4	A
Spin- drying efficiency class 5	B
Standard washing cycle 6	Intensive
Energy consumption of the Intensive 60°C at full load(Washing)	0.88kwh /cycle
Water consumption of the Intensive 60°C at full load(Washing)	64L/cycle
Remaining moisture content of the Intensive 60°C at full load(Washing)	53%
Programme duration of Intensive 60°C at full load(Washing)	310min
Energy consumption of the Dry at full load(Drying)	4.56kwh /cycle
Water consumption of the Dry at full load(Drying)	72L/cycle
Remaining moisture content of the Dry at full load(Drying)	0%
Programme duration of Dry at full load(Drying)	420min
Power consumption of off - mode	0.5W
Power consumption of Left on -mode	1.0W
Noise level of washing	57dB (A)
Noise level of spinning	79dB (A)
Noise level of drying	62dB (A)

Energy test program: Intensive;Speed:The highest speed;Temp.: 60°C;Other as the default.

Supplier's name or trade mark:

Supplier's address (°):

Model identifier: KOBLENZ0806WD-030

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (kg)	Rated capacity ( ^b )	6.0	Dimensions in cm	Height	85
	Rated washing capacity ( ^a )	8.0		Width	60
				Depth	47
Energy Efficiency Index	EEI_w ( ^a )	60.0	Energy efficiency class	EEI_w ( ^a )	B
	EEI_WD ( ^b )	82.0		EEI_WD ( ^b )	E
Washing efficiency index	I_W ( ^a )	1.04	Rinsing effectiveness (g/kg dry textile)	I_R ( ^a )	5.0
	J_W ( ^b )	1.04		J_R ( ^b )	5.0
Energy consumption in kWh per kg per cycle, for the washing cycle of the household washer-dryer, using the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used	0.545		Energy consumption in kWh per kg per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual energy consumption will depend on how the appliance is used	3.768
Water consumption in litre per cycle, for the eco 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	48		Water consumption in litre per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	90
Maximum temperature inside the treated textile ( ^oC )( ^a )	Rated washing capacity	38	Remaining moisture content ( ^a )(%)	Rated capacity	53
	Half	38		Half	53
	Quarter	21		Quarter	53
Spin speed (rpm) ( ^a )	Rated washing capacity	1400	Spin-drying efficiency class ( ^a )	B
	Half	1400
	Quarter	1400
Eco 40-60 programme duration (h:min)	Rated washing capacity	3:38	wash and dry cycle duration (h:min)	Rated capacity	9:30
	Half	2:48		Half	6:40
	Quarter	2:48

Airborne acoustical noise emissions during the spinning phase for the eco 40-60 washing cycle at rated washing capacity	76	Airborne acoustical noise emission class for the spinning phase for the eco 40-60 programme at rated washing	B
Type	[built-in/free-standing]	free-standing
Off-mode (W)	0.50	Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00	Networked standby (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (°):
This product has been designed to release silver ions during the washing cycle		NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Regulation (EU) 2019/2023 is found (b):

^(a) for the eco 40-60 programme.

(b) for the wash and dry cycle

(°) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(d) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Technical line drawing of a washing machine casing with internal vent and side grilles (no text or symbols)

• Programme setting for testing in accordance with applicable standard En60456 for wash.
• Programme setting for testing in accordance with applicable standard En50229 for wash and dry.
• When using the test programmes, wash the specified load using the maximum spin speed.
• The actual parameters will depend on how the applicance is used, and maybe different with the parameters in above mentioned table.
• The household washing machine is equipped with power management system. The duration of the left-on mode time is less than 10 minute.
• The noise emissions during washing/spinning for the standard washing cycle at full load.

Remarks:

The energy efficiency class is from A(highest efficiency) to D (lowest efficiency)
2 Energy consumption per year, based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption per year based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
4 Spin-drying efficiency class from G (least efficient) to A (most efficient).
5 The standard 60°C programme and the standard 40°C programme are the standard washing programmes. These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle emperature.
Please choose the suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption.

Garantie & Servicebepalingen

GARANTIEBEPALINGEN

Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.

CAUTION: HOT SURFACE!

CAUTION: RISK OF FIRE!

SAFETY INSTRUCTIONS

■ Safety Instructions .... 2

INSTALLATION

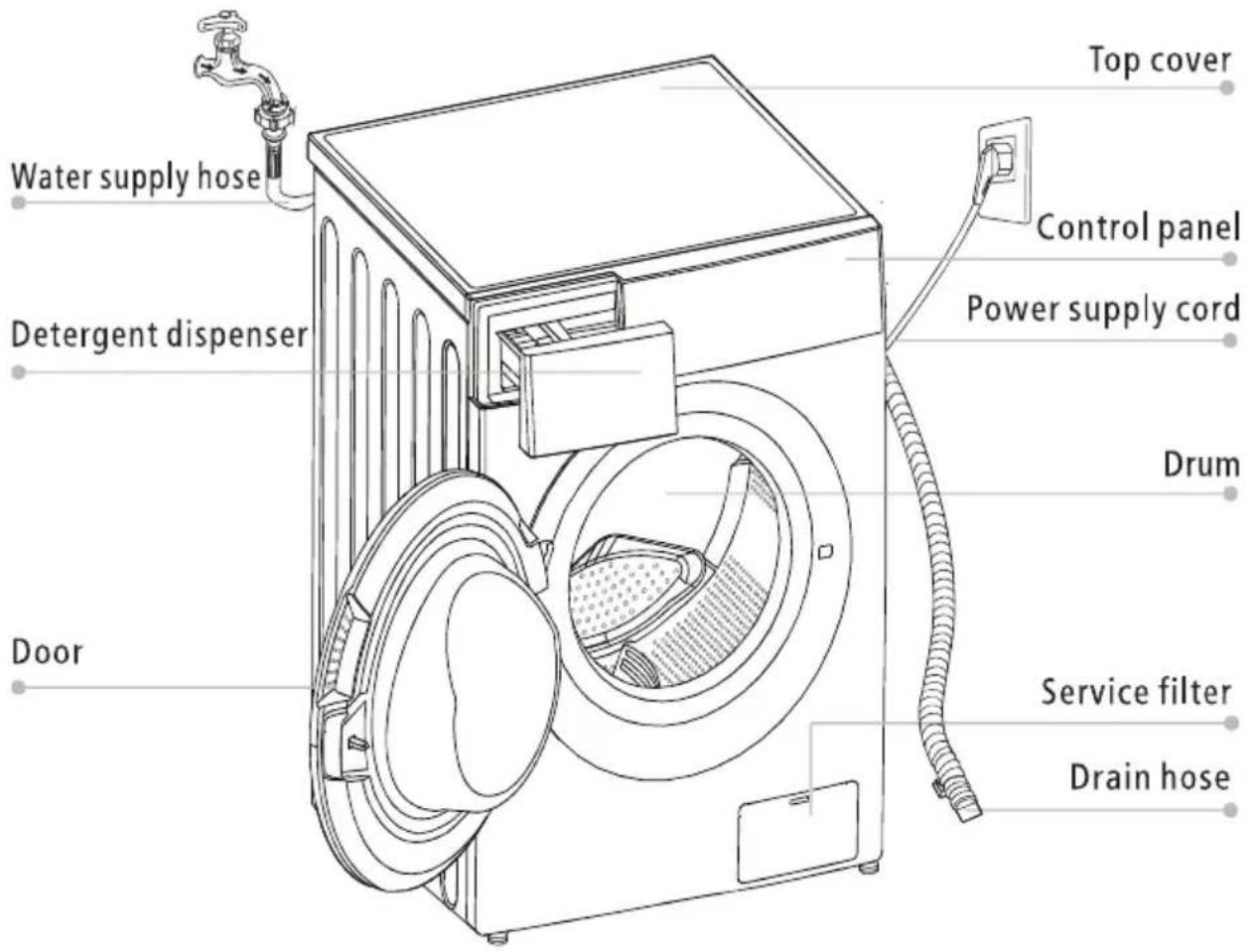

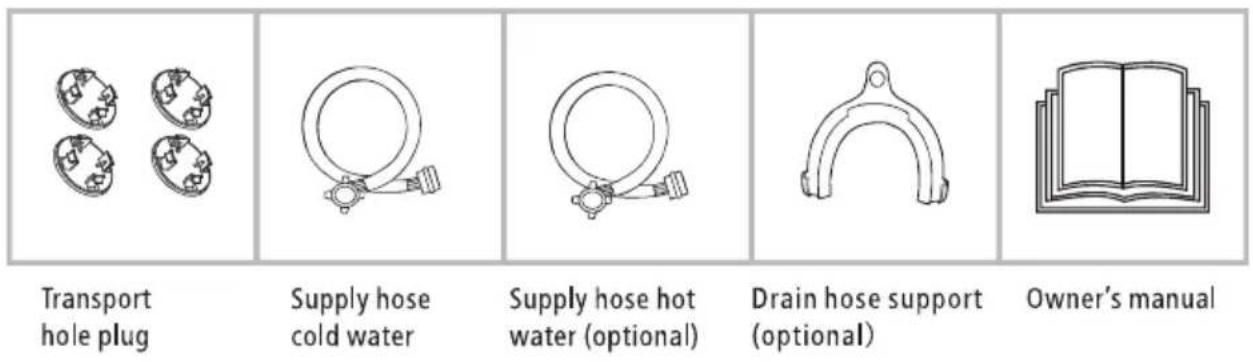

■ Product Description 8

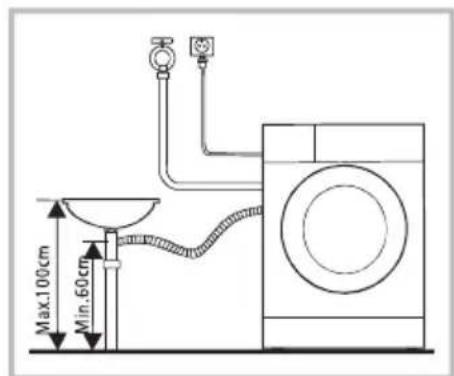

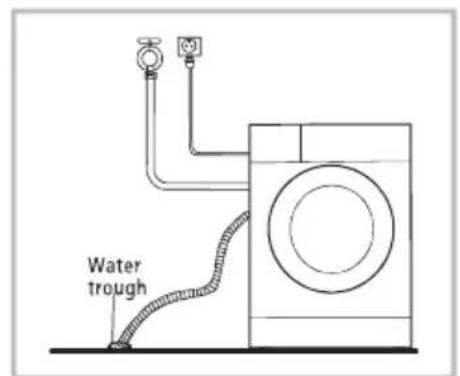

■ Installation 9

OPERATIONS

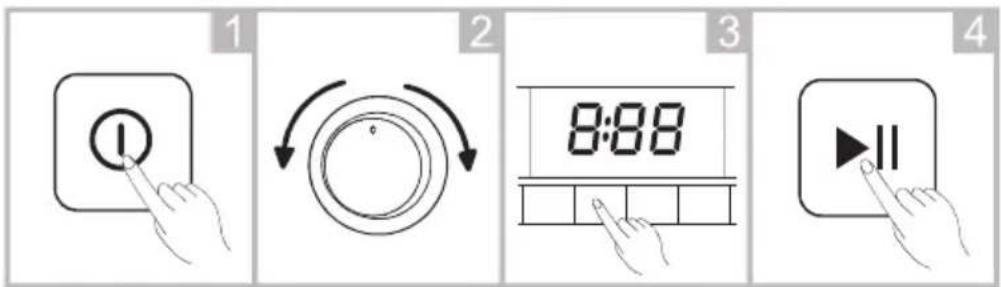

■ Quick Start 12

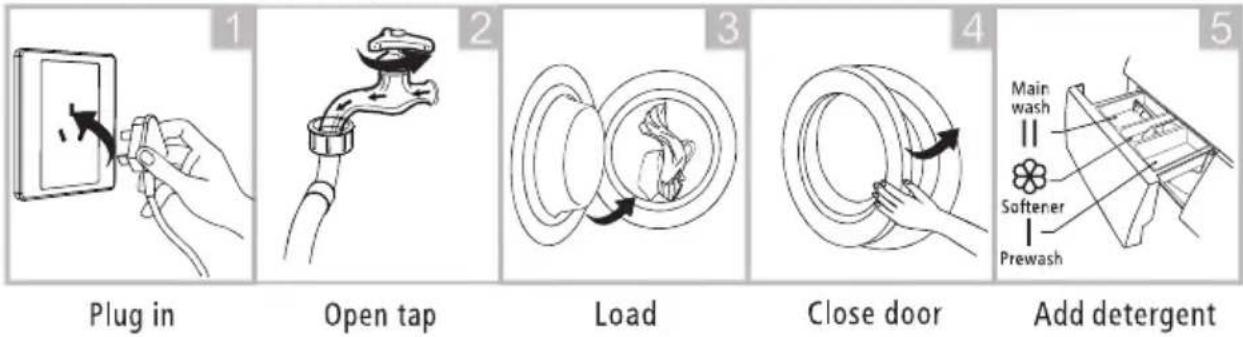

■ Before Each Washing 13

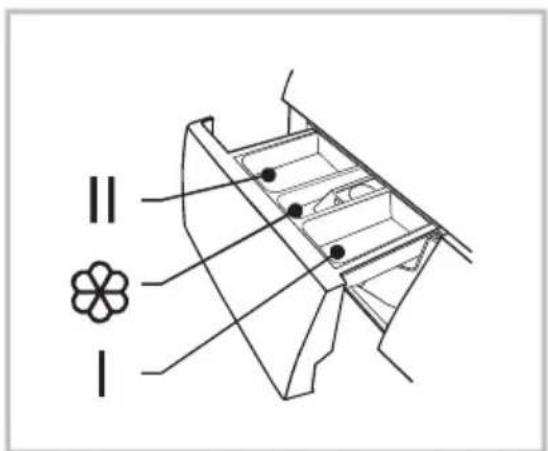

■ Detergent Dispenser 14

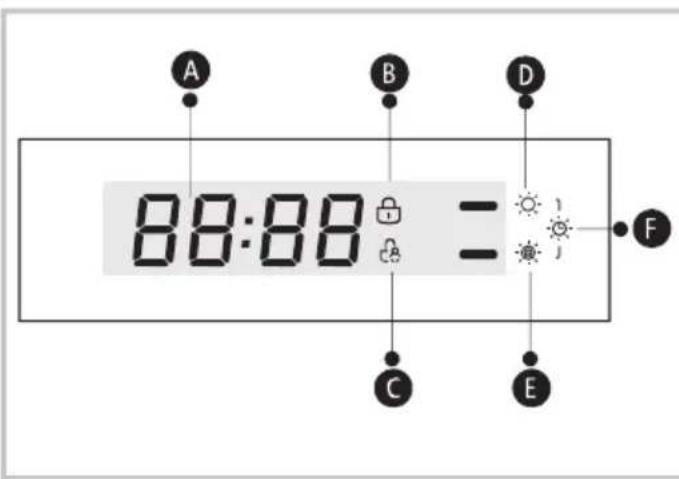

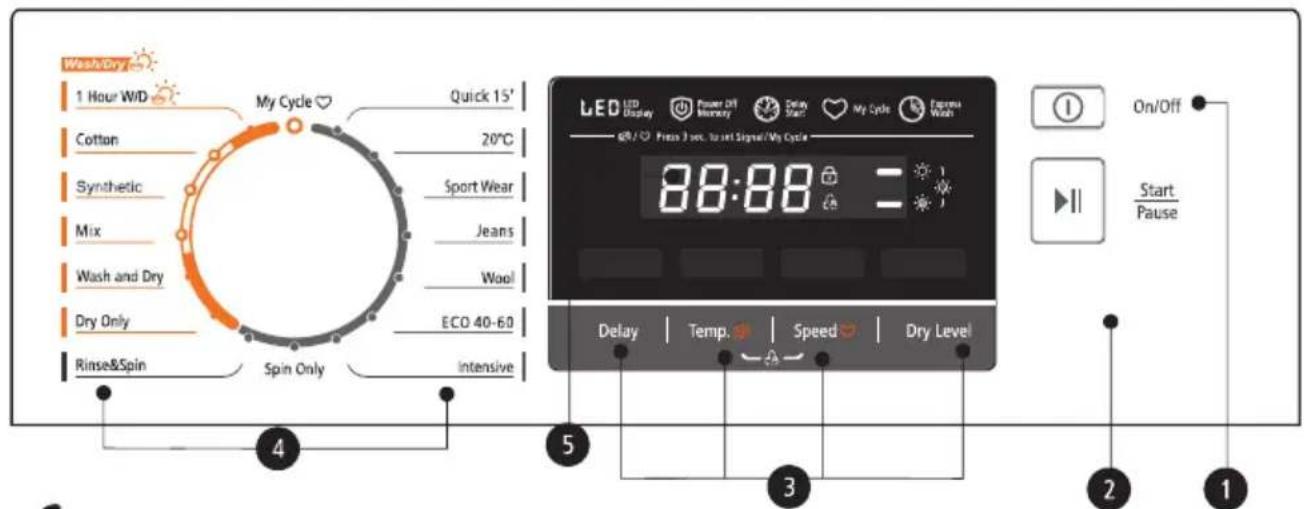

■ Control Panel 15

■ Option.... 16

■ Other Functions .... 18

■ Programmes.... 20

■ Washing Programmes Table 21

MAINTENANCE

■ Cleaning And Care 22

■ Trouble Shooting 25

■ Technical Specifications 26

■ Product Fiches 27

■ Warranty & Services.... 34

■ Safety Instructions

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life.

Explanation of the symbols:

⚠ Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

① Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

Warning!

The electric shock!

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the appliance from the mains.

• Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.
• Pull out its plug from the power socket before cleaning or maintenance.
- Do not use any socket with rated current less than that of appliance. Never pull out power plug with wet hand.
- Please remember to disconnect water and power supply immediately after the clothes are washed.

Risk to children!

• EN countries: the appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Children of less than 3 years should be supervised to ensure that they do not play with appliance.
  • Animals and children may climb into the machine. Check the machine before every operation.

• Kids should be supervised that they do not play with the appliance.

• Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas.

• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.

Risk of explosion!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion.
• The washer dryer is not to be used if industrial chemicals have been used for cleaning.
• The exhaust air must not be discharged into a flue which is for exhausting fumes from appliances burning gas or other fuels.
  • Before hand thoroughly rinse items of washing by hand.

! Caution!

Installing the product!

• This appliance is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
- The appliance shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- The appliance with single inlet valve only can be connected to the cold water supply. The appliance with double inlet valves should be correctly connected to the

hot water and cold water supply.

• Plug must be accessible after installation.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer.

• The appliance shall not be installed at a humid place.

- Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.

Risk of damaging appliance!

• The product is only for home use and is only designed for the textiles suitable for machine washing and drying.

• Do not climb up and sit on top cover of the machine.
  • Do not lean against machine door.
  • Cautions during Handling Machine:

• Transport bolts shall be reinstalled to the machine by a specialized person.

• The accumulated water shall be drained out of the machine.
• Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door can not be used as the handle during the conveyance.
• This appliance is heavy. Transport with care.
• That the hands shall not be inserted into running water extracting tub.

- Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well.

• It is forbidden to wash carpets.

Operating the appliance!

• Before using the wash machine, the product shall be calibrated.
• Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc. Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.
  • Make sure that all pockets are emptied. Sharp and rigid items such as coin, brooch, nail, screw or stone etc. may cause serious damages to this machine.
• Please check whether the water inside the drum has been drained before opening its door. Please do not open he door if there is any water visible.
• Be careful of burning when the product drains hot washing water.
  • After the program is completed, Please wait for two minutes to open the door(Some model).
  • Never refill the water by hand during washing.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products. It be placed in a tumble dryer they should first be washed in hot water with extra detergent, this will reduce, but not eliminate, the hazard.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
  • Do not dry unwashed items in the appliance.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.

• Items such as foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine.

• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The machine whose lid can be opened during water extraction, that it takes 15s or more for complete stop of water extracting chamber tub.
• The final part of a washer dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters and matches before use the appliance.
• WARNING: Never stop a washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Packaging/Old appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

■ Product Description

Note!

- The product line chart is for reference only, please refer to real product as standard.

Accessories

■ Installation

Installation area

Warning!

• Stability is important to prevent the product from wandering!
• Make sure that the product should not stand on the power cord.

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation
   4.Room temperature is above 0°C
4. Keep far away from the heat resources such as coal or gas.

Unpacking the washing machine

⚠ Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

Simple line drawing of a rectangular frame with intersecting diagonal lines and central circles (no text or symbols)

Illustration of a box with an upward arrow and a magnified inset showing a small 3D structure (no text or symbols)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packing. Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with side surface, then remove the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

Warning!

• You must remove the transport bolts from the backside before using the product.
• You'll need the transport bolts again if you move the product, so make sure you keep them in a safe place.

Please take the following steps to remove the bolts:

1. Loosen 4 bolts with spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

Hand using a screwdriver to adjust or install a washing machine (no text or symbols visible)

Levelling the washer dryer

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the floor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady.

1

2

Diagram of a mechanical component with labeled parts, showing a rotating shaft and base (no text or symbols beyond the label)

3

Connect Water Supply Hose

Warning!

• To prevent leakage or water damage, follow the instructions in this chapter!
- Do not kink, crush, modify or sever water inlet hose.
- For the model equips hot valve, connect it to hot water tap with hot water supply hose. Energy consumption will decrease automatically for some program.

Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe. 1. Connection between ordinary tap and inlet hose.

Loosen clamp nut and four bolts

Diagram of a mechanical assembly with pipes and housing (no text or symbols)

Tighten clamp nut
2

Press slide bushing, insert inlet hose into connecting base

Diagram of a mechanical assembly with a pipe fitting and directional arrow (no text or symbols)

Connection finished

1. Connection between screw tap and inlet hose.

Diagram showing a faucet being inserted into a socket, with no text or symbols present

Tap with threads and inlet hose

Special tap for washer dryer

Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

There are two ways to place the end of drain hose:

1. Put it into the water trough.

2. Connect it to the branch drain pipe of the trough.

Note!

- If the machine has drain hose support, please install it like the following.

Line drawing of a kitchen sink with faucet and chain (no text or symbols)

Warning!

• When installing drain hose, fix it properly with a rope.
• If drain hose is too long, do not force it into washing machine as it will cause abnormal noises.

■ Quick Start

① Caution!

• Before washing, please make sure it's installed properly.
• Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows.

Calibration

It's recommend to calibrate the wash machine so that can serve you better.

1 - Empty the wash machine;
2- Plug in;
3- Power on the wash machine and press "Delay" and "Speed" at the same time within 10 seconds then display "t19"
4- Press ▷|| to start the wash machine and wait till display "*****"

1. Before Washing

Note!

- Detergent need to be added in "case I" after selecting pre-washing for machines with this function.

2. Washing

Power On
Select Programme
Select function or default
Start up

Note!

• 1. If default is selected, step 3 can be skipped.
2. The function button line chart is for reference only, please refer to real product as standard.

3. After Washing

Buzzer beep or "End" on display.

■ Before Each Washing

• The working condition of the washer should be(0-40)°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag (no text or symbols)

Check the label

Take out the items out of the pockets

Two handbags with circular cutouts, one open and one closed, drawn in line drawing style (no text or symbols)

Knot the long strips,zip or button

Simple line drawing of a bag with internal objects, no text or symbols present

Put small clothes into the pillow slip

Line drawing of a garment with textured clothing and shoulder clips (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Simple line drawing of a box with an arrow indicating rotation or folding process (no text or symbols)

Separate clothes with different textures

Warning!

• When washing a single clothes, it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.
• Don't washing the clothes touching with kerosene, gasoline, alcohol and other flammable materials.

■ Detergent Dispenser

I Pre wash detergent

II Main wash detergent

Softener

Pull out the dispenser

! Caution!

- Detergent only need to be added in "case I" after selecting pre-washing for machines with this function.

Programme	|	||	✿	Programme	|	||	✿
Quick 15'		●	○	Cotton		●	○
20°C		●	○	Synthetic		●	○
Sport Wear		●	○	Mix		●	○
Jeans		●	○	Wash and Dry		●	○
Wool		●	○	Dry Only
ECO 40-60		●	○	Rinse & Spin			○
Intensive		●	○	Spin Only
1 Hour W/D		●	○

● Means must ○ Means optional

Note!

• As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.
• Please choose suitable type of detergent for the various washing temperature to get the best washing performance with less water and energy consumption.

■ Control Panel

Note!

- The chart is for reference only, Please refer to real product as standard.

1 Off

Product is switched Off.

3 Option

This allows you to select an additional function and will light when selected.

5 Display

2 Start/Pause

Press the button to start or pause the washing cycle.

4 Programmes

Available according to the laundry type.

The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

A Display

Wash Time	Delay Time
125	2h
Speed	Error
100	E30
End	Temp.
End	30

B Door Lock C Child Lock

D Normal Dry E Extra Dry

F Time Dry

Option

Delay

Set the Delay function:

1. Select a programme; 2. Press the Delay button to choose the time (the delaying time is 0-24 H.); 3. Press [Start/Pause] to commence the delay operation

Choose the Programme

Setting time

Start

Cancel the Delay function:

Press the [Delay] button until the display be 0H. It should be pressed before starting the programme. If the programme already started, should switch off programme to reset a new one.

① Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, the program will continue.

My Cycle

To memory the frequently used programme.

After choosing the programme and setting the options, press [Speed] 3 sec. before start to wash. The default setting course is Cotton.

Reload

This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press [Start/Pause] for 3 sec. to reload, and start the clothes adding in the midway function. Please follow the steps as bellow:

1. Wait until the drum stops rotation.
2. The door lock is unlocked.
3. Close the door when the clothes are reloaded and press the [Start/Pause] button.

Press[Start/Pause]3sec.

Reload the clothes

Start

Dry Level

Press the Dry button continuously to choose the dry level: Extra Dry/Normal Dry/Time Dry.

Extra Dry: Need to wear clothes immediately, we can choose this function

Normal Dry: The normal dry procedure

Time Dry: We can choose this function to dry clothes for a specific time.

Note!

- Drying hints

• Clothes could be dried after spinning
• To ensure quality dry the textiles, please classify them according to their kinds and the drying temperature.
• Synthetic should be set the proper drying time.
• If you want to iron the clothes after drying, please put them for a while.

• Clothes not suitable for drying

• Particularly delicate items such as synthetic curtains, woolen and silk, clothes with metal inserts, nylon stockings, bulky clothes, such as anoraks, bedcovers, quilts, sleeping bags and duvets must not be dried.
• Clothes padded with foam-rubber or materials similar to foam-rubber must not be machine dried.
• Fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

■ Other Functions

Temp.

Press the button to regulate the temperature(Cold,20°C,30°C,40°C,60°C,90°C)

Speed

Press the button to change the speed.

1400:0-400-600-800-1000-1200-1400

Programme	Default Speed(rpm)		Programme	Default Speed(rpm)
	1400			1400
Quick 15'	800		Cotton	1400
20°C	1000		Synthetic	1200
Sport Wear	800		Mix	1000
Jeans	800		Wash and Dry	1400
Wool	600		Dry Only	1400
ECO 40-60	1400		Rinse & Spin	1000
Intensive	800		Spin Only	1000
1 Hour W/D	1400

Child Lock

To avoid mis operation by children.

Press [Temp.] and [Speed]

3 sec. till buzzer beep.

Caution!

When child lock is activated and program starts, child lock indicator will switch on, and the CL and remaining time on the display are alternately displayed in 0.5s. Press the other buttons will make child lock indicator flash for 3s. when program finish, CL and END alternate for 10s in 0.5s, then the child lock lights flash for 3s

• Only press and hold the two button can release child lock, even power off, switch off and program end
• The "Child Lock" will lock all buttons except Power button and Child Lock button
• Please release child lock before selecting program and staring washing

Mute the buzzer

Choose the Programme

Press the [Temp.]button for 3sec., the buzzer is mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

• After Muting the buzzer function, the sounds will not be activated any more.

Programmes

Programmes are available according to the laundry type.

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
20°C	20°C default, can choose cold water.
ECO 40-60	Default 40°C, not selectable, suitable for laundry washing at about 40°C-60°C.
Quick 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
1Hour W/D	For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts).
Wool	Hand or machine-washable wool or richwool textiles. Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Rinse&Spin	Extra rinse with spin.
Spin Only	Extra spin with selectable spin speed.
Intensive	To increase the washing effects, washing time is increased.
Dry Only	Select it to dry clothes, the temperature is different .The drying time according to the load .
Wash and dry	The standard energy program.
Sport Wear	Washing the activewear.
Jeans	Specially for jeans.

■ Washing Programmes Table

Programme	Washing/Drying Load (kg)	Default Temp.(°C)	Default Time
	8.0		8.0
Quick 15'	2.0	Cold	0:15
20°C	4.0	20	1:01
Sport Wear	4.0	20	0:45
Jeans	8.0	30	1:35
Wool	2.0	40	1:07
ECO 40-60	8.0	-	3:35
Intensive	8.0	40	3:48
☀ 1 Hour W/D	1.0/1.0	Cold	0:58
☀ Cotton	8.0/6.0	40	3:39
☀ Synthetic	4.0/4.0	40	3:18
☀ Mix	8.0/6.0	40	1:20
☀ Wash and Dry	6.0	40	5:04
☀ Dry Only	-/6.0	-	4:14
Rinse & Spin	8.0	-	0:20
Spin Only	8.0	-	0:12

- Concerning to Regulation(EU) No 1061/2010,

The EU energy efficiency class is: A

Energy test program: Intensive / Dry Only

Intensive: Speed:The highest speed;Temp.: 60°C,Other as the default.

Dry Only: dry level: ✅ Extra dry, Other as the default.

• Concerning to Regulation(EU) 2019/2023,

The EU wash energy efficiency class is: B

The EU wash & dry energy efficiency class is : E (8.0kg), D(10.0kg)

Energy test program: ECO 40-60/Wash & Dry.

ECO 40-60: as the default

Half load for 8.0/10.0Kg machine:4.0Kg.

Quarter load for 8.0/10.0Kg machine:2.0Kg.

Wash and dry : dry level: ✅ Extra Dry, Other as the default.

Note!

- The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

■ Cleaning And Care

Warning!

- Before your maintenance starts, please unplug the machine and close the tap.

Cleaning The Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed.

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Note!

- Formic acid and its diluted solvents or equivalent are forbidden, such as alcohol, solvents or chemical products, etc.

Cleaning The Drum

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. Never use steel wool.

Note!

- Don't put laundry in the washing machine during the drum cleaning.

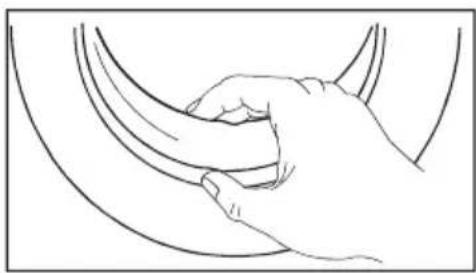

Cleaning The Door Seal And Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leaks. Remove any coins, buttons and other objects from the seal after each wash.

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning The Inlet Filter

Note!

- Inlet filter must be cleaned if there is less water.

Washing the filter in the tap

1. Close the tap.
2. Remove the water supply hose from the tap.
   3.clean the filter.
3. Reconnect the water supply hose.

Washing the filter in washing machine:

1. Screw off the inlet pipe from the backside of the machine.
2. Pull out the filter with long nose pliers and reinstall it back after being washed.
3. Use the brush to clean the filter.
4. Reconnect the inlet pipe.

Diagram of a mechanical valve mechanism with rotating arms and a base (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Hand holding a tool with a magnified inset showing rotational components (no text or symbols)

Line drawing of a hand holding a guitar inside a mirror (no text or symbols)

Note!

• If the brush is not clean, you can pull out the filter washed separately;
• Reconnect, turn on the tap.

Clean The Detergent Dispenser

1. Press down the arrow location on softener cover inside the dispenser drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.
   3.Restore the softener cover and push the drawer into position.

Line drawing of a mechanical device with internal components (no text or symbols)

Pull out the dispenser drawer with press the A

Simple line drawing of a kitchen sink with a faucet (no text or symbols)

Clean the dispenser drawer under water

Line drawing of a hand inserting a component into a device (no text or symbols)

Clean inside the recess with an old toothbrush

Simple line drawing of a mechanical component or housing with no visible text or symbols

Insert the dispenser drawer

Note!

- Do not use alcohol, solvents or chemical products to clean the machine.

Cleaning The Drain Pump Filter

Warning!

• Be careful of the hot water!
• Allow detergent solution to cool down.
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure the normal operation of washing machine.

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Open the lower cover cap

Rotate 90°C and pull out the emergency drain hose, and take off the hose cap

Simple line drawing of a kitchen appliance with a plate, sink, and spoon (no text or symbols)

After water runs out, reset the drain hose

Hand holding a rotary knob on a device panel, no text or symbols visible

Open the filter by turning to the counter clockwise

Remove extraneous matter

Technical line drawing of a mechanical component with rotational arrows indicating motion (no text or symbols)

Close the lower cover cap

① Caution!

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligning to hole plates otherwise water may leak.
• Some machines don't have emergency drain hose, so step 2 and step 3 can be skipped. Rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

■ Trouble Shooting

The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre.

Description	Reason	Solution
Washer cannot start up	Door is not closed properly	Restart after the door is closedCheck if the clothes is stuck
Door can't be opened	Washer's safety protection design is working	Disconnect the power, restart the product
Water leakage	The connection between inlet pipe or outlet hose is not tight	Check and fasten water pipesClean up outlet hose
Detergent residues in the box	Detergent is dampened or agglomerated	Clean and wipe the detergent box
Indicator or display does not light	Disconnect the power PC board or harness has connection problem	Check if the power is shut down and the power plug is connected correctly
Abnormal noise		Check if the fixing (bolts) have been removedCheck it's installed on a solid and level floor

Description	Reason	Solution
E30	Door is not closed properly	Restart after the door is closedCheck if the clothes is stuck
E10	Water injecting problem while washing	Check if the water pressure is too lowStraighten the water pipeCheck if the inlet valve filter is blocked
E21	Overtime water draining	Check if the drain hose is blocked
E12	Water overflow	Restart the washer
EXX	Others	Please try again first, call up service line if there are still troubles

Note!

- After the check, activate the appliance. If the problem occurs or the display shows other alarm codes again, contact the service.

■ Technical Specifications

Power Supply	220-240V~,50Hz
MAX.Current	10A
Standard Water Pressure	0.05MPa~1 MPa

Model	Washing Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
KOBLENZ0806WD-030	8.0kg	595*475*850	65kg	1900W

■ Product Fiches

Model	KOBLENZ0806WD-030
Washing Capacity	8kg
Drying Capacity	6kg
Spin Speed	1400 rpm
Energy efficiency class 1	A
Energy consumption of per cycle(to wash and dry a full capacity wash load at 60°C)	5.44kwh/Cycle
Water consumption of per cycle(Total)	136 L/cycle
Annual energy consumption(Using the dryer) 2	1088kWh /annual
Annual water consumption(Using the dryer) 2	27200L /annual
Annual energy consumption(Never Using the dryer) 3	176kWh /annual
Annual water consumption(Never Using the dryer) 3	12800L /annual
Washing performance class 4	A
Spin- drying efficiency class 5	B
Standard washing cycle 6	Intensive
Energy consumption of the Intensive 60°C at full load(Washing)	0.88kwh /cycle
Water consumption of the Intensive 60°C at full load(Washing)	64L/cycle
Remaining moisture content of the Intensive 60°C at full load(Washing)	53%
Programme duration of Intensive 60°C at full load(Washing)	310min
Energy consumption of the Dry at full load(Drying)	4.56kwh /cycle
Water consumption of the Dry at full load(Drying)	72L/cycle
Remaining moisture content of the Dry at full load(Drying)	0%
Programme duration of Dry at full load(Drying)	420min
Power consumption of off - mode	0.5W
Power consumption of Left on -mode	1.0W
Noise level of washing	57dB (A)
Noise level of spinning	79dB (A)
Noise level of drying	62dB (A)

Energy test program: Intensive;Speed:The highest speed;Temp.: 60°C;Other as the default.

Supplier's name or trade mark:

Supplier's address (°): KOBLENZ0806WD-030

Model identifier:

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (kg)	Rated capacity ( ^b )	6.0	Dimensions in cm	Height	85
	Rated washing capacity ( ^a )	8.0		Width	60
				Depth	47
Energy Efficiency Index	EEI_w ( ^a )	60.0	Energy efficiency class	EEI_w ( ^a )	B
	EEI_WD ( ^b )	82.0		EEI_WD ( ^b )	E
Washing efficiency index	I_W ( ^a )	1.04	Rinsing effectiveness (g/kg dry textile)	I_R ( ^a )	5.0
	J_W ( ^b )	1.04		J_R ( ^b )	5.0
Energy consumption in kWh per kg per cycle, for the washing cycle of the household washer-dryer, using the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used	0.545		Energy consumption in kWh per kg per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual energy consumption will depend on how the appliance is used	3.768
Water consumption in litre per cycle, for the eco 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	48		Water consumption in litre per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	90
Maximum temperature inside the treated textile ( ^oC )( ^a )	Rated washing capacity	38	Remaining moisture content ( ^a )(%)	Rated capacity	53
	Half	38		Half	53
	Quarter	21		Quarter	53
Spin speed (rpm) ( ^a )	Rated washing capacity	1400	Spin-drying efficiency class ( ^a )	B
	Half	1400
	Quarter	1400
Eco 40-60 programme duration (h:min)	Rated washing capacity	3:38	wash and dry cycle duration (h:min)	Rated capacity	9:30
	Half	2:48		Half	6:40
	Quarter	2:48

Airborne acoustical noise emissions during the spinning phase for the eco 40-60 washing cycle at rated washing capacity	76	Airborne acoustical noise emission class for the spinning phase for the eco 40-60 programme at rated washing	B
Type	[built-in/free-standing]	free-standing
Off-mode (W)	0.50	Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00	Networked standby (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (°):
This product has been designed to release silver ions during the washing cycle		NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Regulation (EU) 2019/2023 is found ^(b) :

^(a) for the eco 40-60 programme. ^(b) for the wash and dry cycle ^(c) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369. ^(d) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Note!

• Programme setting for testing in accordance with applicable standard En60456 for wash.
• Programme setting for testing in accordance with applicable standard En50229 for wash and dry.
• When using the test programmes, wash the specified load using the maximum spin speed.
• The actual parameters will depend on how the applicance is used, and maybe different with the parameters in above mentioned table.
• The household washing machine is equipped with power management system. The duration of the left-on mode time is less than 10 minute.
• The noise emissions during washing/spinning for the standard washing cycle at full load.

Remarks:

The energy efficiency class is from A(highest efficiency) to D (lowest efficiency)
2 Energy consumption per year, based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption per year based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
4 Spin-drying efficiency class from G (least efficient) to A (most efficient).
5 The standard 60°C programme and the standard 40°C programme are the standard washing programmes. These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle emperature.
Please choose the suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption.

WARRANTY TERMS & CONDITIONS

1. These warranty conditions apply exclusively to the original buyer and for domestic use of the appliance in the Netherlands. If the appliance is resold from user to user, the warranty becomes null and void.
2. The warranty only applies if, in the event of a warranty claim, this warranty certificate with the original purchase invoice is shown by the original buyer.
3. No guarantee shall apply to defects caused by: damage, rough or injudicious handling, negligence on the part of the user, use of the appliance at an incorrect voltage or use for a purpose other than that for which it was supplied. Nor can the warranty be invoked when the rating plate with serial number has been changed or removed and/or when the device has been worked on by unqualified persons.
4. Not covered under the terms of this warranty: glass(ceramic), lighting, plastic/metal parts and/or accessories (i.e. filters, grills, pan supports), wire baskets and/or separation partitions, lacquer and/or enamel damage.
5. The warranty period commences on the day of purchase and covers: A two-year guarantee on the entire device and its electrical parts such as thermostat, thermal protection, relay, ventilation fan, transformer, switch, etc. with the exception of all parts mentioned under 4.
6. The warranty only covers the replacement of defective- or damaged parts in accordance with the stated responsibility in these warranty conditions.
7. Call-out charges, labour costs, transport and/or packaging costs as well as the transportation risk (for equipment that can only be repaired in our service department) are not covered by the guarantee and will be charged to the user. Please also read the 'Service Terms' below in which, among other things, calculation of call-out charges and labour costs are specified.
   P.S. Repair costs must be paid directly in cash. If invoicing of the mechanic's costs is required, please take into account that additional administration costs will be charged.
8. We are not responsible for any work- and/or repair costs carried out by third parties, not commissioned by by us. Nor are we, at any time, responsible for any (extra) costs and/or any consequences hereof, in any case, directly or indirectly resulting from a malfunction, defect or injudicious use of the device caused by a 3 ^rd party not deployed by Frilec, its importer and/or suppliers.
9. Replacement of parts does not extend the original warranty period.

SERVICE TERMS FRILEC

1. Do not use damaged appliances upon receipt, but report this immediately to your supplier. It is not possible to return damaged, used appliances!

2. During the first 24 months after the date of purchase on the original invoice no costs will be charged for services which are covered by these applicable warranty terms and conditions.

3. After a warranty period of two years, starting on the date of purchase on the original invoice, costs will be charged for:

a. Call-out costs
b. Labour costs
c. All replaced parts

1. In case of a visit to the customer all costs and materials used, must be paid directly in cash in accordance with the stipulations stated in point 7 in the Warranty Terms & Conditions and in points 2-4 in the Service Terms Frilec, regardless of the nature of the work.

2. Dispatch of any parts will always take place under the conditions of cash on delivery, C.O.D.

For service →

FRILEC www.domest.nl - see service
