MWK-03 - Other Small Kitchen Appliances MPM - Free user manual and instructions

Product Type	Kitchen Scale
Brand	MPM
Model	MWK-03
Maximum Capacity	8000 g (8 kg)
Minimum Capacity	2 g
Graduation	1 g
Power Supply	1 x CR2032 3V battery
Display	Electronic display, 56 mm (2.2")
Platform Material	Glass
Functions	On/Off, Zeroing, Tare, Unit selection (g/oz/ml)
Auto-Off	After 2 minutes of inactivity
Non-Slip Feet	Yes
Battery Low Indicator	Battery symbol or flashing "Lo"
Overload Indicator	"EEEE" on display when >8000 g
Intended Use	Domestic indoor use only
Cleaning Method	Wipe with slightly damp cloth; do not immerse
Safety Warning	Not for children under 8 without supervision
Storage	Dry place, protect from shocks and moisture

Frequently Asked Questions - MWK-03 MPM

How do I change the battery?

Ensure the scale is off, turn it over, open the battery compartment (5), replace with a CR2032 3V battery observing correct polarity.

What does 'EEEE' on the display mean?

The 'EEEE' symbol indicates the scale is overloaded above 8000 g. Remove the excess weight immediately.

How do I use the tare function?

Place an empty container (≥100 g) on the scale, press the ON/OFF (2) button to zero the weight, then add ingredients. The 'TARE' symbol appears. To exit, remove container and press ON/OFF again.

How do I change the measurement unit?

Press the UNIT (4) button to toggle between g (grams), oz (ounces), and ml (milliliters). Note: ml is accurate only for water.

How to clean the scale?

Clean with a slightly damp cloth. Do not immerse in water or use abrasive cleaners. Wipe dry after cleaning.

Why is the scale not turning on or showing inaccurate readings?

Check if the battery is properly inserted with correct polarity. If the display shows 'Lo' or battery symbol, replace the battery with a new CR2032.

What is the maximum weight I can measure?

The maximum capacity is 8000 g (8 kg). Do not exceed this limit to avoid damage.

Can I weigh liquids other than water in ml mode?

The ml indication is sufficiently accurate only for water. For other liquids of different density, the reading may be inaccurate.

How does the zeroing function work?

When weighing multiple ingredients (total <100 g), press ON/OFF (2) after each addition to reset the display. The total weight is shown when all items are removed.

What should I do if the scale is unstable?

Place the scale on a hard, flat, and even surface. Avoid soft or uneven surfaces that may cause inaccurate readings.

USER MANUAL MWK-03 MPM

Read carefully this manual before using the appliance for the first time.

The maximum capacity of the scale is 8 kg (weight before tare).

Do not immerse the appliance in water or any other liquids.

Do not place the appliance on hot surfaces.

The scale is powered by one CR 2032 3V battery and operates at low and safe voltage.

Do not use the appliance for the purposes different than it was designed for.

Do not use the appliance if it is damaged - return the appliance for repair to an authorized service centre.

The scale is a precision instrument and must be handled with care. Do not throw it, nor jump on it. Protect from risks of shocks and falls.

Always place the scale on a hard, flat, clean and dry surface.

Protect the scale against water, high or low temperature and moist.

Store in a dry place.

This product has been designed for domestic use only.

Do not use the appliance outdoors.

If the scale is not used for a longer time, remove the batteries from the compartment. Otherwise, they may spill inside the appliance and cause irreparable damage.

If the measurement results are not displayed properly check the connection terminals of the battery.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Store the appliance out of reach of children under 8 years of age.
Children should be supervised to ensure that they do not play with the appliance.
In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING! Do not allow small children to play with the foil as there is a danger of suffocation!

DESCRIPTION OF THE APPLIANCE

The scale has been designed for precise measurement of product weight and, if used under normal conditions, should serve for many years.

The scale is powered by CR 2032 3V battery. The battery is located in the battery compartment (5). When replacing the battery check if it

is properly fitted and observe proper polarity. The scale is equipped with a start button (2) which may also be used for weight tarring. By pressing (4) UNIT you may select the preferred unit of measurement: g - grams, oz - ounces, ml - millilitre. Weight unit converter: 1 oz = 28,35g.

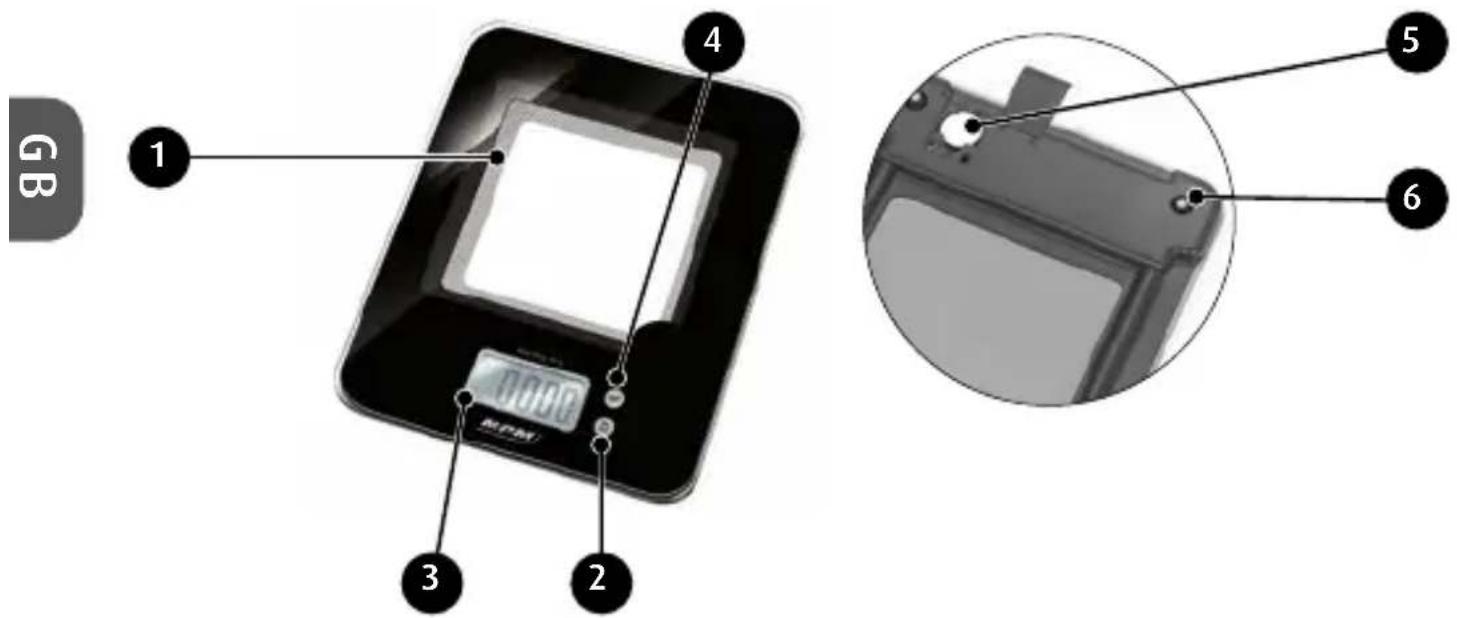

1. Glass scale plate
2. ON/OFF button

3. Electronic display

4. UNIT button - for changing the weight units: g/oz/ml

5. Battery compartment
6. Non-slip feet

BEFORE FIRST USE

Before first use check if the battery polarity is correct (the “+” marking should match the marking on the terminals CR 2032V, 3V).

USING THE APPLIANCE

1. Place the scale on a hard, flat and even surface. Do not place it on soft, unstable surfaces.

2. Press the start button (2). The display (3) will show <<0000>>, then << 0>> with the selected unit.

3. By pressing the button (4) you can select the preferred measurement unit "g" for grams, „oz" for ounces. The display on the top will show a graphic symbol of the currently running function. The indication in millilitres (ml) is sufficiently accurate only when water is measured. When weighing other liquids of different density, the indication may be inaccurate.
4. To start weighing place the product on the scale's surface. The weight is shown on the display. The appliance is also equipped with zeroing and tare function.

Zeroing function:

The zeroing function is activated when the sum of the weights of products does not exceed 100 g. It is particularly useful when adding more components and allows you to specify the weight of individual ingredients without adding the totals in memory.

Example:

Place the product on the scale. Wait until the weight display is stable. Read the weight. Press the ON/OFF (2) button. Then place another product and proceed as above. When all products are removed from the scale the total weight of products will be shown on the display. To return to normal weighing mode, press ON/OFF button (2).

Tare function

The tare function is useful if you want to ignore the weight of the container in which the products are placed.

The tare function is activated when the weight of container in which the products are placed is equal to or greater than 100 g.

Example:

Place an empty container on the scale for weighing e.g. flour, sugar, etc. Wait until the weight display is stable. Press the ON/OFF (2) button. In the lower left corner you will see the "TARE" symbol which indicates tare mode. Place the product in the contain-

er. Read the weight on the display. To return to normal weighing mode, remove the products and press ON/OFF button (2).

1. The maximum weighing capacity is 8000g (8kg), and the minimum capacity is 2 g, the measurement result may be rounded up or down to 1 g.
2. When weighing is completed, the scale will switch off automatically after 2 minutes.
3. To switch off the scale manually press the button (2) and hold it for approx. 2 seconds.

NOTE! The "EEEE" symbol will be shown on the display when the scale is overloaded above 8000g.

If the measurement results are imprecise or illegible this may indicate that the battery is not properly fitted or has been discharged. The battery symbol or, in case of extremely low charge level, the flashing "Lo" will be shown on the display. To replace the battery make sure that the scale is off, then turn it over. The battery compartment (5) is located on the bottom of the appliance. Open the compartment and replace the battery (CR 2032 3V).

CLEANING AND MAINTENANCE

1. Clean the scale with a slightly damp cloth. Do not immerse in water and do not use chemical and abrasive cleaning agents.
2. Do not use wire brush or any other abrasive objects.
3. Clean the scale's components when they come in contact with grease, spices, vinegar and strongly flavoured or colouring agents. Avoid contact with citric acid.
4. After cleaning, wipe the appliance dry using dry, soft cloth.

Technical parameters are indicated on the product nameplate.

Weighing capacity: from 2 g u to 8000 g

Scale graduation 1 g

Electronic display 56 mm (2,2")

NOTE! MPM agd S.A. reserves its right to modify the technical data.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Poland

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

MPM agd S.A.
