USER MANUAL 28-CBM-08Y MPM

Two gray rectangular storage units with ventilation grilles and heat sinks, no visible text or symbols.

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Contents

Explanation of symbols 13

Safety instructions....13

Intended use....15

Technical description 16

Operation 17

Cleaning and maintenance....19

Troubleshooting....19

Technical data 20

1. EXPLANATION OF SYMBOLS

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product:

Action: This symbol indicates that action is required on your part. The required action is described step-by-step.

This symbol describes the result of an action.

2. SAFETY INSTRUCTIONS

2.1. GENERAL SAFETY

DANGER!

On boats: If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker.

WARNING!

Do not operate the device if it is visibly damaged.

This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.
- Store the appliance and its cord out of reach of children under 8 years of age.
Electrical devices are not toys.

Always keep and use the device out of the reach of children.

Children must be supervised to ensure that they do not play with the device.

If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
Do not store any explosive substances such as spray cans with propellants in the device.
To keep your children safe, do not leave any parts of the packaging readily accessible (e.g. plastic bags, cardboard boxes, polystyrene inserts, etc.).
Never let children play with plastic film or bags. Choking/ asphyxiation hazard!
Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
Do not leave the appliance unattended during use.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

CAUTION!

- Disconnect the device from the mains - before each cleaning and maintenance - after every use

Food may only be stored in its original packaging or in suitable containers.

NOTICE!

- Only connect the device as follows: - With the DC cable to a DC plug socket in the vehicle (e.g. cigarette lighter) - Or with the 220-240 V connection cable to the 220-240 V AC mains supply

Check that the voltage specification on the type plate corresponds to that of the energy supply.
The cooling device is not suitable for transporting caustic combustible materials or materials containing solvents.
▶ Never pull the plug out of the socket by the cable.

If the cooler is connected to the DC socket: Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.

Place the appliance in a dry and well-ventilated area. The appliance is intended for operation within the ambient temperature range specified below, depending on the climate class shown on the nameplate. The appliance may malfunction if kept outside the specified ambient temperature range for a long time.

SN (extended – moderate) +10°C to +32°C

N (moderate) +16°C to +32°C

T (tropical) +18°C to +43°C

Do not touch exposed cables with your bare hands. This especially applies when operating the device with an AC mains power supply.

CAUTION!

Before starting the device, ensure that the power supply line and the plug are dry.

NOTICE!

Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
- Ensure that the ventilation openings and fan are not covered.
Do not fill the inner container with ice or fluid.
▶ Never immerse the device in water and other liquid.
Protect the device and the cable against heat and moisture.

3. INTENDED USE

The cooling device is suitable for cooling foodstuffs.

The cooling device is intended to be used in household and similar applications such as:

▶ staff kitchen areas in shops, offices and other working environments
farm houses
▶ clients in hotels, motels and other residential type environments
bed and breakfast type environments
▶ catering and similar non-retail applications

The device is also able to heat using the additional heating feature.

The device is designed for use with:

- a DC vehicle electrics socket of a car (such as a cigarette lighter), boat or caravan (see voltage specification on the type plate)

▶ a 220-240 V AC mains supply.

The appliance may also be used for camping use.

The appliance must not to be exposed to rain.

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.

1. TECHNICAL DESCRIPTION

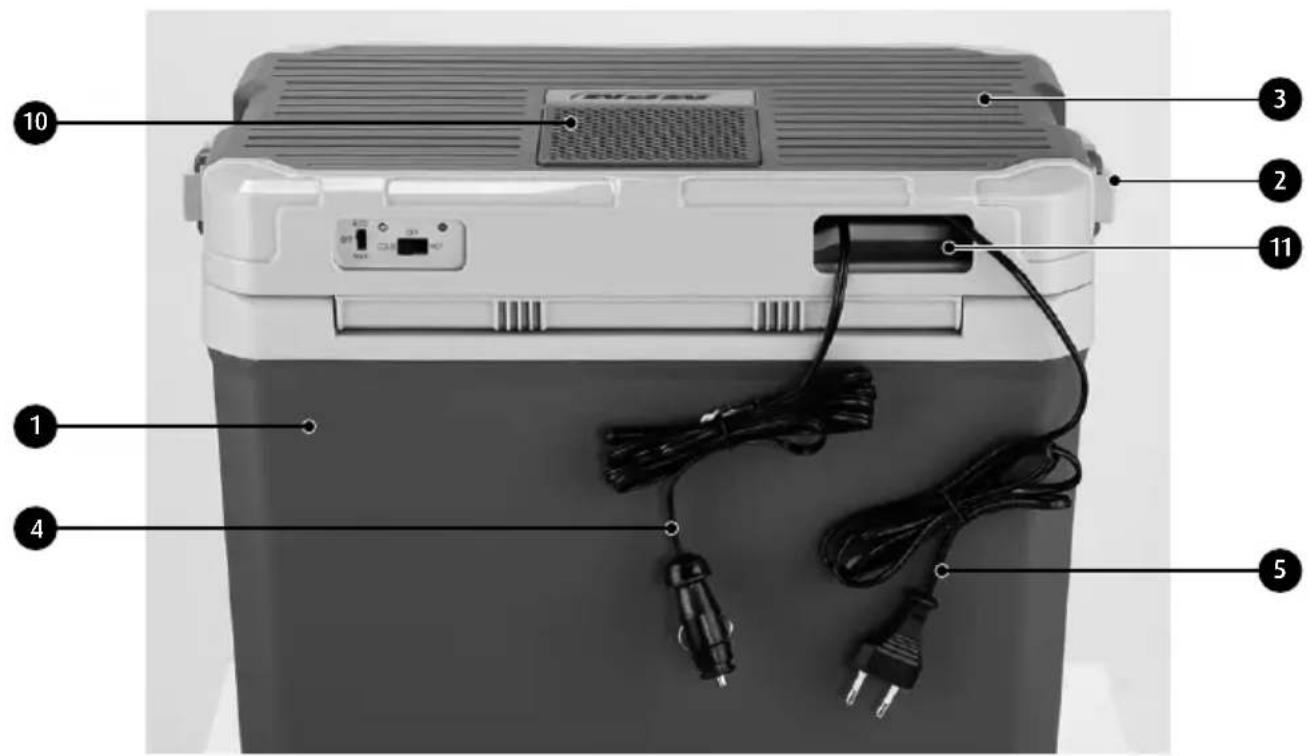

The cooler is portable. It can cool items and keep them cool or heat items and keep them warm to max. 60 °C.

1. Housing
2. Handle
3. Cover
4. DC 12V power cord with plug
5. AC 220-240V power cord with plug

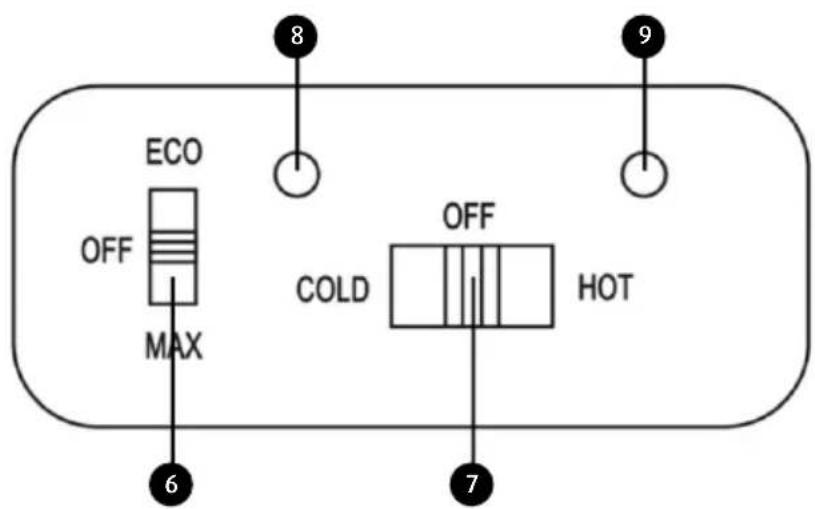

6. Mode switch "MAX"/"ECO"

7. Mode switch heating/OFF/cooling "COLD"/"OFF"/"HOT"

8. Cooling mode indicator lamp (green)
9. Heating mode indicator lamp (red)
10. Fan
11. Power cords container

CAUTION! Health hazard!

Food may only be stored in its original packaging or in suitable containers.

NOTICE! Risk of damage

• Ensure that all objects placed in the cooler are suitable for cooling or heating (with the additional heating feature) to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively refrigerated. Drinks or liquid foods expand when they freeze and can therefore destroy the glass containers.
• Ensure that your cooler is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents and fan.

NOTE

Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter "Cleaning and maintenance" on page 19).
A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.

NOTE For coolers with fold in handles

If the handle is folded back or if the cooler is being carried, the lid is locked. You can only open the lid when the handle is folded forwards.

5.1. ENERGY SAVING TIPS

Choose a well ventilated installation location which is protected against direct sunlight.
If you want to set an increased energy efficiency and a limited cooling capacity for the cooler unit, use the cooler's ECO (for AC 230V supply) mode.
- Allow warm food to cool down first before placing it in the device to keep cool.
Do not open the cooling device more often than necessary.
Do not leave the cooler unit open for longer than necessary.
Remove individual drinks bottles through the bottle hatch, if present.

5.2. USING THE COOLER IN DC MODE

▶ Place the cooler on a firm base.
Connect the DC cable to the cigarette lighter or the DC socket in the vehicle.

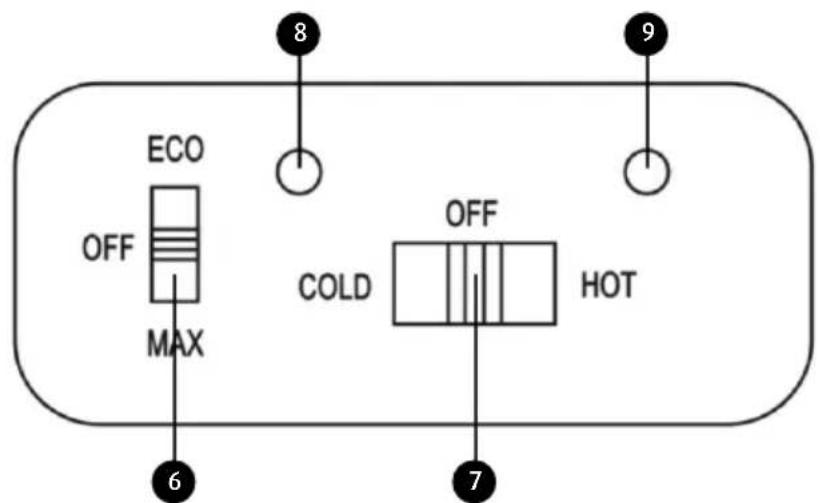

▶ Push the switch on the control panel to HOT or COLD to switch the cooler on.

√ The indicators on the control panel show you the operating mode:

Operating display Operating mode

Red Heating

Green Cooling

√ The cooler starts cooling/heating the interior.
▶ To switch off the cooler,
- push the switch on the control panel from HOT or COLD to the OFF position,
- disconnect the plug.

5.3. USING THE COOLER IN AC MODE

▶ Place the cooler on a firm base.
Connect the 220-240 V connection cable to the AC mains.

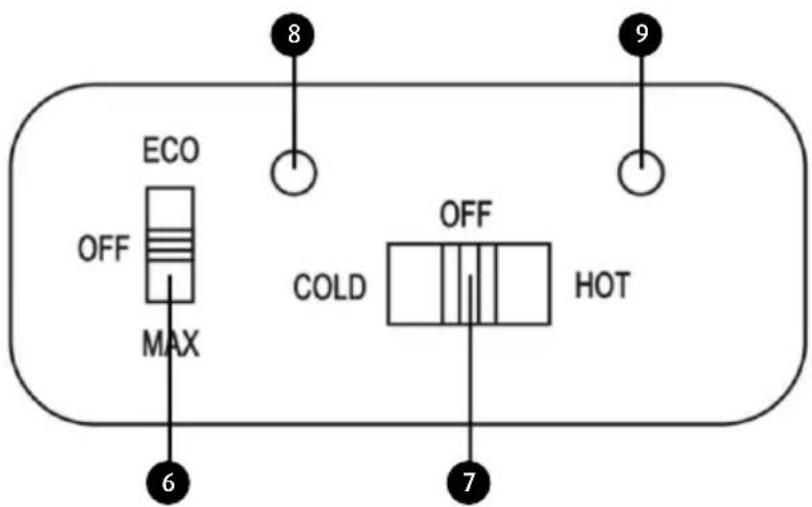

▶ Push the switch on the control panel to HOT or COLD to switch the cooler on.

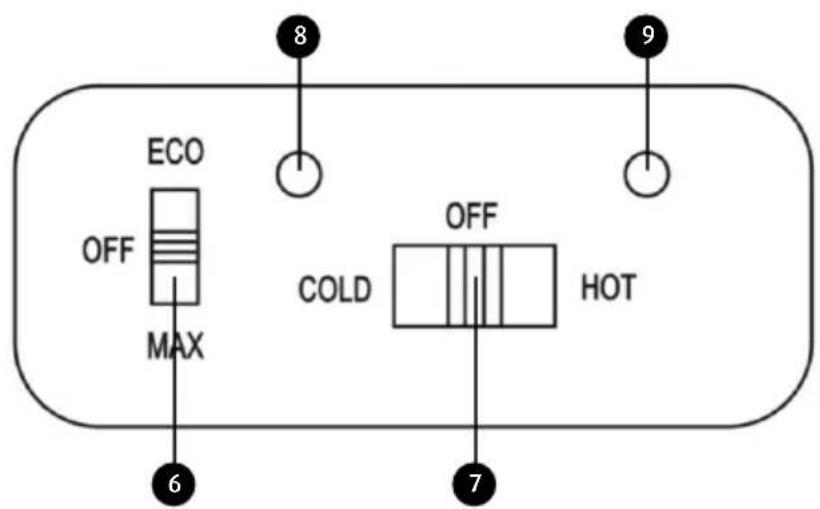

When the cooler is connected to a 220-240 V AC mains supply, it can be used in two different operating modes:
ECO mode (for AC 230V supply): the cooler consumes less energy
MAX mode: the cooler reaches maximum cooling capacity
√ The indicators on the control panel show you the operating mode:

Operating display Operating mode

Red Heating

Green Cooling

√ The cooler starts cooling/heating the interior.

To switch off the cooler, push the switch on the control panel from HOT or COLD to the OFF position.

ATTENTION! Do not switch directly from one operating mode into the other. If you would like to change the operating mode, turn the appliance off. Wait about 30 minutes before you switch it to the other operating mode.

5.4. CONNECTING TO THE CIGARETTE LIGHTER

NOTE

If you connect the cooler to the cigarette lighter, remember that in most vehicles the ignition must be turned on to supply it with power.

ATTENTION! Do not connect both power cords at the same time - the refrigerator can be connected only to one power source.

6. CLEANING AND MAINTENANCE

WARNING!

Always disconnect the device from the mains before you clean and service it.

NOTICE! Risk of damage

▶ Never clean the cooler under running water or in dish water.
Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

▶ Occasionally clean the device interior and exterior with a damp cloth.
Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.

7. TROUBLESHOOTING

Problem Possible cause Suggested remedy

Your device is not working(plug is inserted).	There is no voltage flowing from the DC socket (cigarette lighter) in your vehicle.	The ignition must be switched on in most vehicles to supply current to the cigarette lighter.
	No voltage present in the AC voltage socket.	Try using another plug socket.
	The inner fan or the cooling element is defective.	This can only be repaired by an authorised repair centre.
When operating from the DC socket (cigarette lighter):The ignition is on and the cooler is not working.	The fitting of the DC plug is dirty.This results in a poor electrical contact.	If the plug of your cooler becomes very warm in the DC socket fitting, either the fitting must be cleaned or the plug has not been assembled correctly.
	The fuse of the DC plug has blown. Replace the fuse of the DC plug with one of the same rating.
	The vehicle fuse has blown. Replace the vehicle's DC socket fuse (usually 15 A). Please refer to the operating manual of your vehicle.

8. TECHNICAL DATA

The technical parameters are given on the data plate of the product.

Attention! MPM agd S.A. reserves its rights to modify the technical data.

9. PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Marking on the product indicates that after the service–life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause release of substances that are hazardous to the environment and health. Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
