Brand	Smeg
Model	MIR6NS-1
Product Type	Kitchen Faucet
Installation Type	Deck-mounted
Number of Holes	1
Handle Type	Single lever
Material	Stainless steel
Finish	Chrome
Height	400 mm
Spout Reach	220 mm
Weight	1.5 kg
Flow Rate (at 3 bar)	6 L/min
Cartridge Type	Ceramic disc
Warranty	2 years
Maintenance	Clean with mild soap and water; avoid abrasive cleaners.
Safety	Professional installation recommended to avoid leaks.
Spare Parts	Replacement cartridges and aerators available.

Frequently Asked Questions - MIR6NS-1 SMEG

What is the height of the Smeg MIR6NS-1 faucet?

The total height is approximately 400 mm from the base to the spout outlet.

Can this faucet be installed on a sink with 3 holes?

The MIR6NS-1 is designed for single-hole installation. For 3-hole sinks, an additional deck plate may be required.

What type of cartridge does the faucet use?

It uses a standard ceramic disc cartridge for smooth operation and drip-free performance.

How do I clean the chrome finish?

Wipe with a soft damp cloth and mild soap. Do not use abrasive cleaners or scouring pads.

Is the faucet compatible with low water pressure systems?

Yes, it functions at water pressures as low as 0.5 bar, but optimal performance is above 1 bar.

Does the faucet come with installation hardware?

Yes, the package includes mounting nuts, washers, and flexible supply hoses.

Can I replace the aerator?

Yes, the aerator is removable and replaceable. Standard aerator size is 22 mm.

What is the warranty period?

Smeg offers a 2-year warranty covering manufacturing defects.

How do I replace the cartridge?

Turn off water supply, remove the handle and escutcheon, unscrew the cartridge retaining nut, and replace with a compatible ceramic cartridge.

Is the faucet lead-free?

Yes, the materials comply with lead-free standards for safe drinking water.

USER MANUAL MIR6NS-1 SMEG

Technical diagram of a robotic arm with numbered parts and directional arrows indicating assembly or repair steps.

MIR6 MICOR9

Technical diagram of a mechanical assembly with numbered parts, likely illustrating a turning or disassembly process.

MIR8

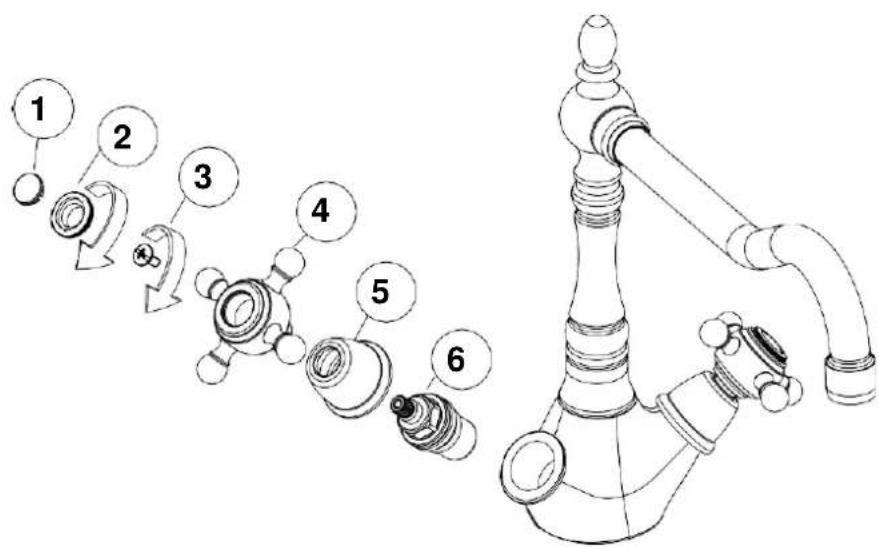

Technical diagram showing a mechanical assembly with numbered components and a detailed view of the pipe fitting.

2 - Cleaning products that can be used without damaging the mixer's finishing

• only use products with a neutral pH value specifically supplied for this type of use;
• never use cleaning materials containing hydrochloric acid, formic acid, chlorine bleach or acetic acid, as they cause considerable damage;
• acid phosphorus detergents can be applied only under certain conditions;
• mixing of different detergents is generally not permitted;
• never use cleaning materials or equipment with an abrasive effect, such as inappropriate cleaning powders, sponges or microfibre cloths;
• the instructions of the detergent manufacturers must be followed carefully;
• cleaning must be carried out with a specific dose of detergent, for an appropriate limited time, related to the objects and adapted to the needs;
  • scale must be removed by regular cleaning;
• when using spray cleaners, spray the cleaning solution onto a soft cloth or sponge, never directly onto the products, as the spray may enter openings and gaps in the product and cause damage;
  • after cleaning, rinse thoroughly with clean water to remove any residual detergent;
• the use of steam cleaners is not permitted. High temperatures can damage the products.

3 - Is there a leak in the mixer?

SOLUTION:

Check whether the leak is at the base of the part (SOLUTION A) or under the lever (SOLUTION B)

SOLUTION A:

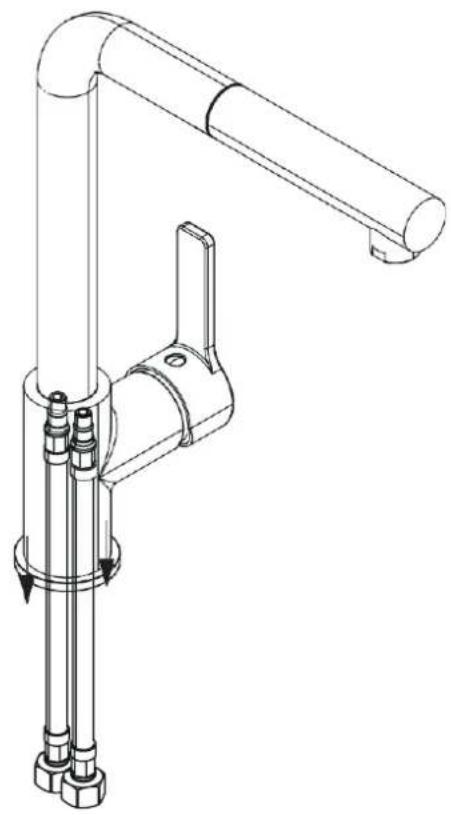

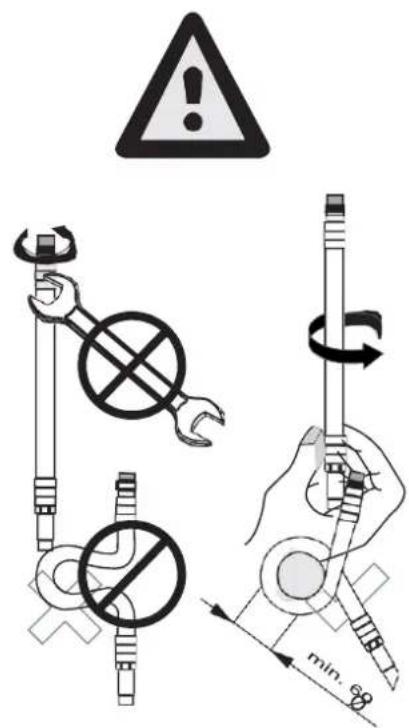

Replacement of hoses:

Technical line drawing of a mechanical lever assembly with no visible text or symbols

Safety warning symbols and correct撓 marks for wrenching tools, including a warning triangle and hand holding pencil.

SOLUTION B:

Replacing the cartridge (SEE POINT 1)

4 - Change the aerator or pull-out spray

Our mixers do not require any particular maintenance, except for periodic cleaning of the aerator, which collects debris and scale on the internal screen, causing a gradual loss of flow over time. To clean the aerator screen, proceed as follows: unscrew the aerator by turning it counter-clockwise. Remove impurities from the filter screen by using running water and/or soaking it in vinegar to dissolve scale (do not immerse chrome-plated or finished parts). Reassemble, checking that the seal is correctly positioned.

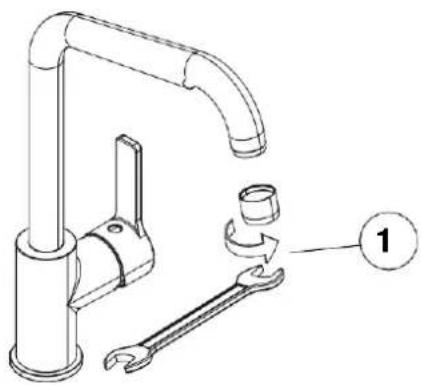

REPLACEMENT OF STANDARD AERATOR:

Technical diagram of a kitchen faucet with labeled parts and a numbered annotation pointing to component 1.

Diagram illustrating a mechanical or electrical component with labeled parts and warning symbols

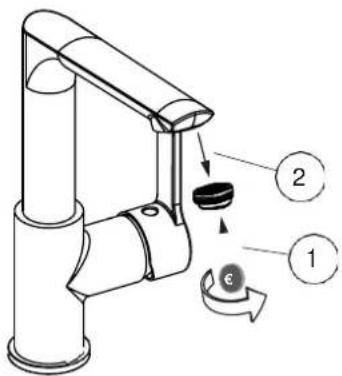

REPLACEMENT OF COIN SLOT AERATOR:

Diagram of a robotic arm with labeled parts and rotation arrow, showing mechanical components and motion indicators.

Simple line drawing of a droplet falling from above, with no text or symbols present.

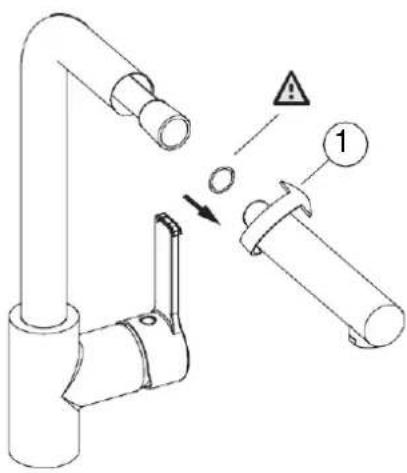

REPLACEMENT OF PULL-OUT SPRAY HEAD:

Line drawing of a kitchen sink with coiled hose and valve (no text or symbols)

Technical diagram showing pipe connection with warning symbol and numbered component

5 - Water flow is reduced even when the lever is fully open Check that there is no dirt inside the aerator filter. Remove the aerator and proceed with cleaning (SEE POINT 4)

6 - Lever is hard during opening/closing

A possible build-up of scale blocks the movement. You need to change the cartridge (SEE POINT 1)
