USER MANUAL HA-1010-AM TOA

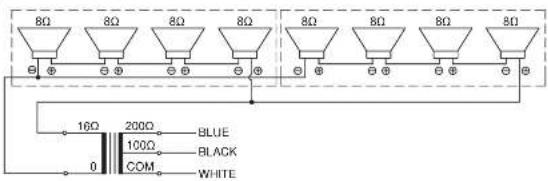

Wiring diagram HA-1010-AM

8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 16Ω 200Ω BLUE 100Ω BLACK COM WHITE

1. SPECIFICATIONS

Model	HA-1010-AS HA-1010-EA HA-1010-AMH A-1010-EB
Rated Input	50W
Rated Impedance	100V line: 200Ω (50W), 330Ω (30W)	70V line: 100Ω (50W), 200Ω (25W)25V line: 100Ω (6W), 200Ω (3W)
Sound Pressure Level	114dB (1W, 1m)
Maximum Sound Pressure Level	131dB (50W, 1m)
Frequency Response	350Hz - 7kHz
Directivity Angle	Horizontal: 90° (2kHz), Vertical: 15° (2kHz)
Speaker Component	Horn speaker unit x 8
Operating Temperature	-20°C to +55°C (-4°F to +131°F)
Water Protection	IPX5
Finish	Case, Panel: Aluminum, salt-resistant, paint, grey
	Front grille: Aluminum, black
	Bracket: Stainless steel (SUS 304), paint, grey
Dimensions	167(w) x 1233(h) x 140.5(d) mm (6.57" x 48.54" x 5.53")
Weight	13.5kg (29.76lb)

Note

- The design and specifications are subject to change without notice for improvement.

- Accessories

Mounting Bracket	2
Hexagonal Boll (M8 x 20)	2
Washer (M8)	4
Spring Washer (M8)	2
Washer (M10)	6
Spring Washer (M10)	4
Nut (M10)	4

TOA Corporation

URL: http://www.toa.com.sg/

133-01-00093-00

TOA

LONG RANGE

SLIM ARRAY SPEAKERS

INSTRUCTION MANUAL

HA-1010-AS

HA-1010-AM

HA-1010-EA

HA-1010-EB

Thank you for purcahsing TOA's LONG RANGE SLIM ARRAY SPEAKERS.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

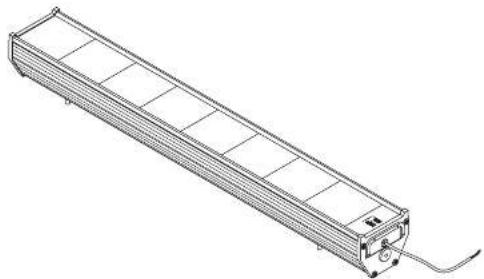

Technical line drawing of a rectangular electronic device with grid-like compartments and a terminal block (no text or symbols)

1. SAFETY PRECAUTIONS

• Be sure to read the instruction manual in this section carefully before use.
• Make sure to observe the instruction in this manual as the convention of safety symbols and messages regarded as very important precautions are included.
  • We also recommend you keep this instruction manual handy for future reference.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could result in death or serious personal injury.

When Installing the Unit

• Install the speaker only in a location that can structurally support the weight of the speaker and the mounting bracket. Doing otherwise may result in the unit falling down and causing personal injury and/or property damage.

CAUTION

Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor personal injury, and/or property damage.

When Installing the Unit

• Do not place heavy object on the speaker as this may cause it to fall or break which may result in personal injury and/or property damage. In addition, the object itself may fall off and cause injury and/or damage.
• Do not stand or sit on, nor hang down from the speaker as this may cause it to fall down or drop, resulting in personal injury and/or property damage.
• Do not operate the speaker for an extend period of time with the sound distorting. Doing so may cause the connected speakers to heat, resulting in a fire.

TOA Corporation

2. FEATURES

The HA-1010 is long range speaker slim array is composed of multiple horn speaker positioned in an array. It features long-range sound coverage further than conventional horn speakers, narrowly focused vertical directivity that allows excessive volume to be controlled at closer proximity, and form a continuous linear sound source, achieving uniform sound pressure with less attenuation due to distance.

3. INSTALLATION PRECAUTIONS3. INSTALLATION PRECAUTIONS

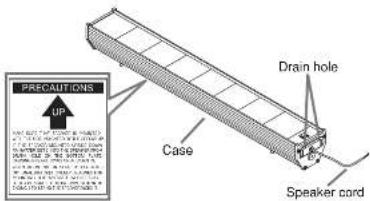

• This long range slim array speakers have feature a drain hole built into same panel that holds the speaker cord. For proper drainage, when installation please ensure that this panel faces down toward the ground or follow the instruction of direction label at the rear case.
• When using the other bracket, please to use TOA's optional bracket solely designed for mounting this speaker or it must have strength enough to stand the speaker weight.

PRECAUTIONS UP Case Drain hole Speaker cord

3. INSTALLATION

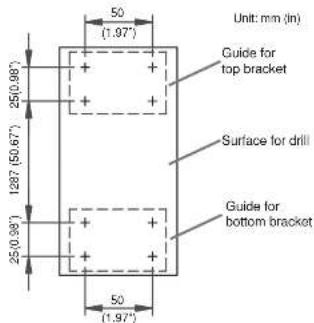

Step 1. Make the sign for drill guide at the surface or location that can structurally support the weight of the speaker. Prepare the proper dyna bolt that suitable with hole of bracket. Dimensions of sign for drill guide and hole of bracket as shown in the picture.

Unit: mm (in) 50 (1.97°) 25(0.98°) Guide for top bracket 1287 (50.67°) Surface for drill 25(0.98°) Guide for bottom bracket 50 (1.97°)

Step 2. Drill the surface that have been marked, install the proper dyna bolt then the both of top and bottom bracket.

Note

Dyna bolts and nuts are not provided.

Mounting surface Nut Mounting Bracket (accessory) Dyna bolt

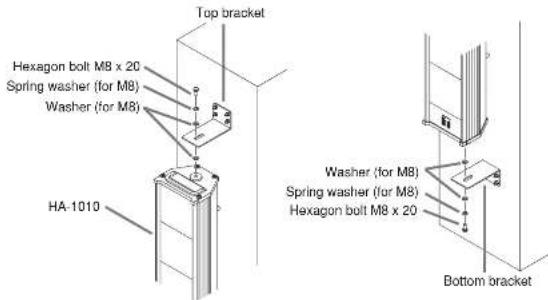

Step 3. Install the long range slim array to the bracket that have been installed to the mounting surface using supplied hexagon bolt, washer, and spring washer to top and bottom bracket.

Top bracket Hexagon bolt M8 x 20 Spring washer (for M8) Washer (for M8) HA-1010 Washer (for M8) Spring washer (for M8) Hexagon bolt M8 x 20 Bottom bracket

Note

When the speaker installation need slope angel, use the optional Q-HA-1100 speaker bracket.

4. SPEAKER CORD COLOR CODING

HA-1010-AM

Line voltage		70V LINE		25V LINE
Rated input		50W	25W	6W	3W
Impedance		100Ω	200Ω	100Ω	200Ω
Cord color coding	HOT	BLACK	BLUE	BLACK	BLUE
	COM	WHITE	WHITE	WHITE	WHITE

HA-1010-AS, HA-1010-EA, HA-1010-EB

Line voltage		100V LINE
Rated input		50W 30W
Impedance		200Ω	330Ω
Cord color coding	HOT	BLACK	BLUE
	COM	WHITE	WHITE

5. WIRING DIAGRAM

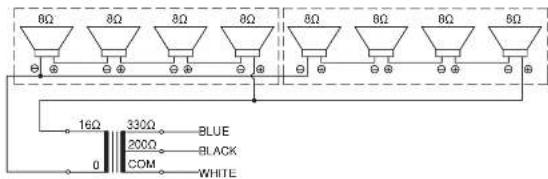

Wiring diagram HA-1010-AS, HA-1010-EA, HA-1010-EB

8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 16Ω 330Ω BLUE 200Ω BLACK COM WHITE
