Product Type	Industrial Rackmount Serial Device Server
Model	NPort 6650-32-48V
Serial Ports	32 RS-232/422/485 ports
Ethernet Ports	2 Gigabit Ethernet ports (RJ45)
Power Input	48 VDC (48V model)
Power Consumption	Maximum 35 W
Dimensions (W x H x D)	440 x 44 x 350 mm (19-inch rackmount, 1U)
Weight	Approximately 4.5 kg
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% non-condensing
Main Functions	Serial-to-Ethernet communication, remote device management, TCP/UDP tunneling, Virtual COM, RFC2217
Configuration	Web-based, Telnet, serial console, Windows utility
Security	SSL/TLS, SSH, HTTPS, IP filtering, user password protection
LED Indicators	Power, Ready, Ethernet link/activity, serial port status
Mounting	19-inch rackmount (brackets included)
Cooling	Fanless design for silent operation
Maintenance	Firmware upgrade via web or utility, SNMP monitoring
Cleaning	Use a dry cloth; avoid solvents
Safety Certifications	UL, CE, FCC Class A
Spare Parts / Repairability	Contact Moxa support for parts; modular design for easy maintenance

Frequently Asked Questions - NPort 6650-32-48V Moxa

How do I assign an IP address to the NPort 6650-32-48V?

Use the NPort Search Utility (Windows) to discover the device on your network and assign a static IP, or configure via DHCP. Alternatively, access the serial console with factory default settings (192.168.127.254).

What serial port modes are supported?

The device supports Real COM, TCP Server, TCP Client, UDP, and RFC2217 modes. Each of the 32 ports can be configured independently.

Can I use the NPort with both RS-232 and RS-422/485 devices?

Yes, each serial port can be individually configured for RS-232, RS-422, or 2-wire/4-wire RS-485 via DIP switches or software settings.

How do I recover the factory default settings?

Press and hold the Reset button on the front panel for 5 seconds while powering on, or use the Reset to Default option in the web interface.

What are the power requirements?

The 48V model requires a 48 VDC power supply. Connect to the terminal block; ensure proper polarity. Power consumption is typically 35 W maximum.

How many Ethernet ports are available?

It features two Gigabit Ethernet ports (RJ45) for redundant network connections or separate LAN/WAN links.

Does the device support secure communications?

Yes, it supports SSL/TLS for encrypted web access, SSH for secure console, and HTTPS for secure configuration. Also supports IP address filtering.

What is the operating temperature range?

The NPort 6650-32-48V operates reliably from 0°C to 60°C (32°F to 140°F), suitable for industrial environments.

How do I update the firmware?

Download the latest firmware from the Moxa website, then upload via the web interface (Maintenance > Firmware Upgrade) or use the NPort Search Utility.

Can I mount the device in a standard 19-inch rack?

Yes, it comes with rackmount brackets and fits a 1U (44 mm) rack space. The width is 440 mm (19 inches).

USER MANUAL NPort 6650-32-48V Moxa

NPort 6600 Series Quick Installation Guide

Version 12.1, January 2021

Technical Support Contact Information www.moxa.com/support

MOXA®

© 2021 Moxa Inc. All rights reserved.

P/N: 1802066500020

Overview

The NPort 6600 series of serial device servers includes 8-port, 16-port, and 32-port models for connecting larger numbers of serial devices to Ethernet. Some applications now also require better security when transmitting data through a network. The NPort 6600 series of device servers use DES, 3DES, and AES data encryption to provide secure network communication.

Package Checklist

Before Installing your NPort 6600 series secure device server, verify that the package contains the following items:

• NPort 6600 device server
  • Power Cord (AC models only)
• Two rack-mount ears
• Documentation
• Quick installation guide (printed)
• Warranty card

• CBL-RJ45M9-150: 8-pin RJ45 to DB9 male connection cable, 150 cm

Optional Accessories

• DK-35A: 35 mm DIN-Rail Mounting Kit
• DIN-Rail Power Supply
- NM-TX01/NM-TX01-T: Network module with one 10/100BaseTX Ethernet port (RJ45 connector; supports cascade redundancy)
- NM-FX01-S-SC/NM-FX01-S-SC-T: Network module with one 100BaseFX single mode fiber port (SC connector; supports cascade redundancy)
- NM-FX02-S-SC/NM-FX02-S-SC-T: Network module with two 100BaseFX single mode fiber ports (SC connectors; supports cascade redundancy)
- NM-FX01-M-SC/NM-FX01-M-SC-T: Network module with one 100BaseFX multiode fiber port (SC connector; supports cascade redundancy)
- NM-FX02-M-SC/NM-FX02-M-SC-T: Network module with two 100BaseFX multi-mode fiber ports (SC connectors; supports cascade redundancy)

NOTE: Please notify your sales representative if any of the above items is missing or damaged.

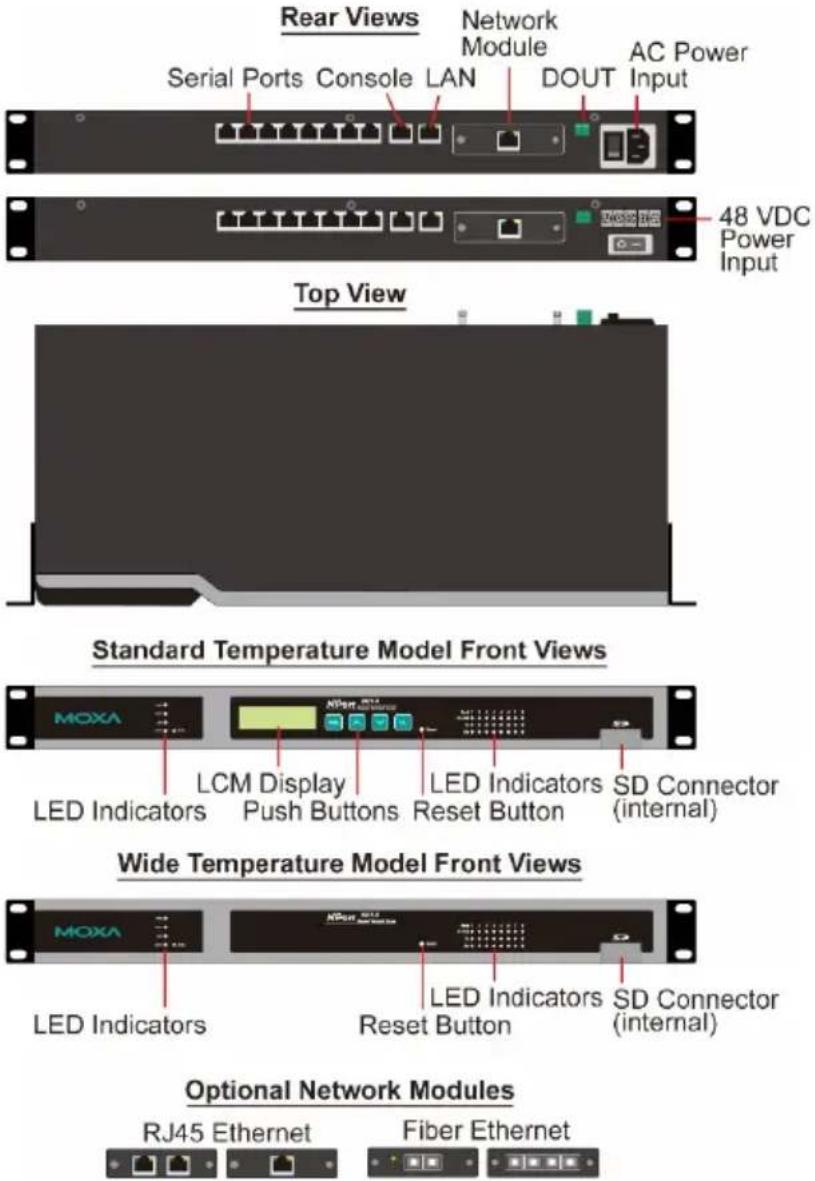

Hardware Introduction

Demonstrated 8 port model to be an example.

Rear Views Serial Ports Console LAN Network Module AC Power Input 48 VDC Power Input Top View Standard Temperature Model Front Views MOXA LCM Display LED Indicators SD Connector (internal) LED Indicators Push Buttons Reset Button LED Indicators Reset Button Wide Temperature Model Front Views MOXA LED Indicators SD Connector (internal) LED Indicators Reset Button Optional Network Modules RJ45 Ethernet Fiber Ethernet

Reset Button

Press the Reset button continuously for 5 second to load factory defaults: Use a pointed object to press the reset button. Release the button after the Ready LED stops blinking.

RS-485 adjustable pull up/down resistor (150/1 KΩ)

The NPort 6650 has 3 DIP Switches associated with each serial port for configuring the pull up/down resistors for RS-485 applications. The switches are located in a recess on the bottom of the NPort 6650. To access the switches, first remove the panel covering the recess.

DIP-Switches

SW	1	2	3
	Pull Up	Pull Down	Terminator
ON	1 KΩ	1 KΩ	120 Ω
OFF	150 KΩ	150 KΩ	-

NOTE For RS-232 applications, all DIP Switches for the port should be set to the OFF position.

Rack Mounting

Use four screws to attach the NPort 6610/6650 to a standard rack.

MOXA =0 =0 =0 0cm NPort MOSA 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 12:12:13:14:15:16:17:18:19:20:21:22:23:24:25:26:27:28:29:30:31:32:33:34:35:36:37:38:39:40:41:42:43:44:45:46:47:48:49:50:51:52:53:54:55:56:57:58:59:60:61:62:63:64:65:66:67:68:69:70:71:72:73:74:75:76:77:78:79:80

LED Indicators

Name	Color	Function
PWR	Red	Power is being supplied to the power input.
Ready	Red	Steady on:	Power is on and the NPort 6600 series is booting up.
		Blinking:	IP conflict, DHCP or BOOTP server not responding, or relay output. Check relay output first. If still blinking, then there is an IP conflict, or the DHCP or BOOTP server did not respond properly.
	Green	Steady on:	Power is on and the NPort 6600 series is functioning normally.
		Blinking:	The device server has been located by the Administrator's Locator function.
	Off	Power is off, or power error condition exists.
Link	Orange	10 Mbps Ethernet connection.
	Green	100 Mbps Ethernet connection.
	Off	Ethernet cable is disconnected, or has a short.
P1-P16 Tx	Green	Serial port is transmitting data.
	Off No data is being transmitted through the serial port
P1-P16 Rx	Orange	Serial port is receiving data..
	Off	No data is being received through the serial port.
FX	Orange	Steady on:	Ethernet fiber connection, but port is idle.
		Blinking:	Fiber port is transmitting or receiving data.
P1-P16 in-use LEDs	Green	Serial port is opened by server side software.
	Off	Serial port is not opened by server side software.
Alarm	Red	The relay Dout is open (exception)
	Off	The relay Dout is Shorted (normal)
Module	Green	Network module is plugged in and detected
	Off	No module present

LCM Display Panel

The NPort 6600 display panel will show the model name, server name, and IP address when powered up

N	P	6	6	1	0	_	6	6	1	0	2
1	9	2	.	1	6	8	.	1	2	7	.	2	5	4

Operating the LCM Panel

There are four push buttons on the NPort 6600's top panel for operating the server's LCM panel. The function of each button is described below:

Button	Action
MENU	Activates the main menu, or returns to a lower level.
^	Scrolls up through a list of items shown on the LCM panel's second line.
∨	Scrolls down through a list of items shown on the LCM panel's second line.
SEL	Selects the option listed on the LCM panel's second line.

Detailed LCM panel operating instructions can be found on the Document and Software CD in the "NPort 6600 Series User's Manual."

NOTE LCM display panel and push buttons only for standard temperature model.

Hardware Installation Procedure

STEP 1: Connect the NPort 6600 device server to a suitable power source. AC models: Connect the 100 to 240 VAC power cord to the NPort 6600's power input.

DC models: Connect the terminal block to a battery.

STEP 2: Connect the NPort 6600 series to a network. Use a standard straight-through Ethernet cable to connect to a hub or switch. Use a cross-over Ethernet cable when connecting to your computer's Ethernet port (e.g., when setting up or testing the NPort 6600 server).

STEP 3: Connect the NPort 6600's serial ports to your serial devices.

Software Installation Information

For the NPort's configuration, the default IP address of the NPort is 192.168.127.254. You may log in with the account name admin and password moxa to change any settings to meet your network topology (e.g., IP address) or serial device (e.g., serial parameters).

For software installation, download the relative utilities from Moxa's website:

https://www.moxa.com/support/support_home.aspx?isSearchShow=1

• Download the NPort Windows Driver Manager and install it as the driver to run with Real COM mode of the NPort Series.
• Execute NPort Windows Driver Manager; then map the virtual COM ports on your Windows platform.
• You may refer to Pin Assignment Async RS-232 port section to loop back pin 4 and pin 5 for the RS-232 interface to carry out a self test on the device.
• Use HyperTerminal or a similar program (you may download Moxa's program, called PComm Lite) to test whether the device is good or not.

Pin Assignments and Cable Wiring

Pin Assignments (NPort 6610/6650)

Pin	RS-232	RS-422, 4-wire RS -485	2-wire RS-485
1	DSR	-	-
2	RTS	TxD+	-
3	GND	GND	GND
4	TxD	TxD-	-
5	RxD	RxD+	Data+
6	DCD	RxD-	Data-
7	CTS	-	-
8	DTR	-	-

Pin Mapping for RS-232 Cables (NPort 6610/6650)

NPort6610/6650			Serial Device
	RJ45		DB9(M)	DB9(F)	DB25(M)	DB25(F)
DSR	1	←	6	4	6	20	DTR
RTS	2	→	7	8	4	5	CTS
GND	3	—	5	5	7	7	GND
TxD	4	→	3	2	2	3	RxD
RxD	5	←	2	3	3	2	TxD
DCD	6	←	1	1	8	8	DCD
CTS	7	←	8	7	5	4	RTS
DTR	8	→	4	6	20	6	DSR

Pin Mapping for RS-422/4W-RS-485 Cables (NPort 6650)

NPort 6650			Serial Device
	RJ45		DB9(M)	DB9(F)	DB25(M)	DB25(F)
TxD+	2	→	7	8	4	5	RxD+
GND	3	—	5	5	7	7	GND
TxD-	4	→	3	2	2	3	RxD-
RxD+	5	←	2	3	3	2	TxD+
RxD-	6	←	1	1	8	8	TxD-

Pin Mapping for 2W-RS-485 Cables (NPort 6650)

NPort 6650			Serial Device
	RJ45		DB9(M)	DB9(F)	DB25(M)	DB25(F)
GND	3	—	5	5	7	7	GND
Data+	5		2	3	3	2	Data+
Data-	6		1	1	8	8	Data-

Japan Regulatory Compliance (VCCI)

The NPort 6000 Series complies with the requirements of VCCI Class A Information Technology Equipment (ITE).

WARNING

If this equipment is used in a domestic environment, radio disturbance may arise. When such problems occur, the user may be required to take corrective action.
