Product Type	Digital Kitchen Scale
Model	Lori 2777
Brand	Eta
Maximum Weighing Capacity	5 kg (11 lb)
Accuracy (Resolution)	1 g
Units of Measurement	g, kg, lb:oz, ml (water/milk), fl'oz (water/milk)
Weighing Modes	Weight, Water Volume, Milk Volume
Special Functions	Tare (Zero), Auto-off (120 sec), Overload Indicator (Err)
Display Type	LCD
Power Source	1 x 3V CR2032 battery (included)
Dimensions (W x D x H)	171 x 221 x 10 mm
Net Weight	Approx. 0.2 kg
Construction Material	Plastic (with stainless steel or glass plate inferred)
Weighing Surface	Plate (glass or plastic, not specified)
Storage	Horizontal or hang using slide-out loop (A7)
Cleaning	Wipe with soft damp cloth; do not immerse, avoid harsh chemicals
Safety Features	Auto shut-off, overload protection, low battery indicator (Lo)
Environmental Protection	Do not dispose with household waste; recycle electronics and battery
Intended Use	Household and similar (not commercial)
Warranty	Refer to warranty terms (not specified here)

Frequently Asked Questions - Lori 2777 Eta

How do I turn on the Eta Lori 2777 scale?

To turn on, simply press on the weighing surface (plate). The display will show 0 when ready.

What does the 'Err' message mean?

'Err' indicates the scale is overloaded. The maximum weight is 5 kg. Remove the excess weight to avoid damaging the scale.

How to change the unit from grams to pounds and ounces?

Press the UNIT button (A6) on the bottom of the scale to switch between metric (g, ml) and avoirdupois (lb:oz, fl'oz) systems.

What does the 'Lo' display mean?

'Lo' means the battery is low and needs to be replaced. Use a 3V CR2032 coin battery.

How to clean the Eta Lori 2777 scale?

Wipe the surface with a soft, damp cloth. Do not immerse in water or use abrasive/chemical cleaners.

Can I measure volume of milk as well as water?

Yes, press the MODE button to cycle between weight, water volume, and milk volume. Milk volume accounts for its higher density.

How does the Tare function work?

Place a container on the scale, press TARE (A4) to zero the display, then add ingredients. The display shows only the added weight. Can be repeated.

What is the auto-off time?

The scale turns off automatically after 120 seconds of inactivity (if display shows 0 or stable weight).

The scale shows a negative value. What should I do?

A negative value appears after removing all items when Tare was used. This is normal. It will reset to 0 after a moment or press Tare again.

How to replace the battery?

Open the battery cover on the bottom, insert a new 3V CR2032 battery observing polarity, and close the cover until it clicks.

USER MANUAL Lori 2777 Eta

Simple diagram with a double-headed arrow and a rectangular block, no text or symbols present.

VI. ÚDRŽBA

Simple diagram with a bidirectional arrow and a square cutout, no text or symbols present

VI. ÚDRŽBA

Digital kitchen scale

eta 2777

Lori

USER MANUAL

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY PRECAUTIONS

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- The appliance can use by people (including children) whose physical, sensual or mental inability or lack of experience and knowledge prevents safe use of the appliance if they are supervised.

- Do not immerse the appliance into water and wash under running water!

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- If the scale was stored in lower temperatures, let it adjust to the room temperature.

- Use the scale horizontally only on places without danger of turning over, keep the appliance sufficiently far from heat power sources (e.g. oven, stove, fireplace, heat radiators) and strong electro-magnetic field (e.g. microwave oven, radio, mobile phone).

- Do not expose the appliance to direct sunlight, low or high temperatures and high moisture.

- Unstable or soft pad under the appliance may influence accuracy of the appliance negatively.

- Protect the scale against dust, moisture, chemicals and abrupt temperature changes.

- Handle the scale with care not to damage it (do not overload and throw it).

- Do not disassemble the scale and do not take any parts out.

- Do not put any objects on the surface of the scale during storing, they could be damaged.

- If you do not intend to use the scale for a long time, remove battery from them.

- If the battery is leaking, remove it immediately; it can damage the scale.

- Dispose of a discharged battery in a suitable way (see par. VII. ENVIRONMENTAL PROTECTION).

- Never use the appliance for any other purpose than for that described in these instructions for use!

- Keep battery and scale out of reach of children and incapacitated people. A person, who would swallow the battery, must seek medical help immediately.

- All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.

– The pictures in instruction manual are only illustrative.

- The manufacturer is neither liable for damage caused by improper use of the appliance (e.g. degradation of foods, damage to the appliance etc.) nor for damage caused by failure to observe the safety precautions by operation of the warranty.

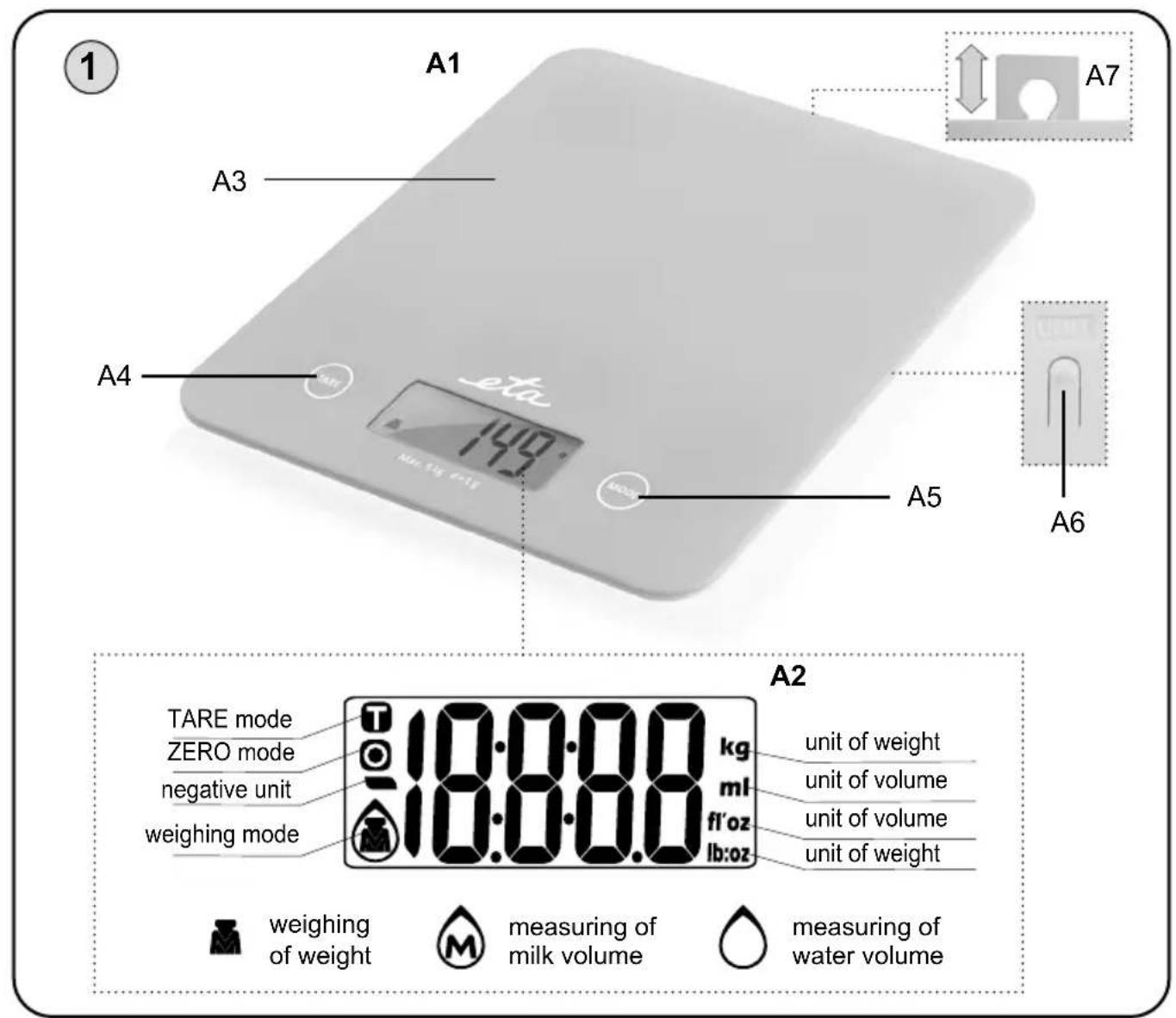

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)

A1 — Unit of scale

A2 — display

A3 — plate

A4 — TARE button – zero function (ZERO and TARE mode)

A5 — MODE button – change the mode of weighing (weight – water volume – milk volume)

A6 — UNIT button – change the units mode (g > lb:oz a ml > fl'oz)

A7 — slide-out loop

III. PREPARATION FOR USE

Unpack the scale from packaging. Before the very first use, wash that part of the appliance that may come in contact with foods.

Installation of battery

Battery: 3V CR2031 (included; if there is an insulation band on the battery, remove it to connect the battery).

To replace battery

Open the battery cover on the bottom of the scale, and attach new battery onto the 3-volt battery snaps. Please take note to the polarity. The other way round replace the battery cover until it engages, an audible click will be heard.

IV. OPERATION INSTRUCTIONS

Results of measuring and readings on the display

Data on display Unit Weighing mode Indication
700 g 700 grams
1.100 kg 1,1 kilograms
1:8.6 lb:oz 1 pound and 8.6 ounces		[9CC2]
1500 ml 1500 milliliters of water		[2DZ4]
1500 ml 1500 milliliters of milk
1.6 fl.oz 1,6 fluid ounces of water
1.6 fl.oz 1,6 fluid ounces of milk		[XCZY]

Note:

In the mode of “g” units, the display shows measurements in grams up to 1 kg. When weight is over 999 g, units change to kilograms.

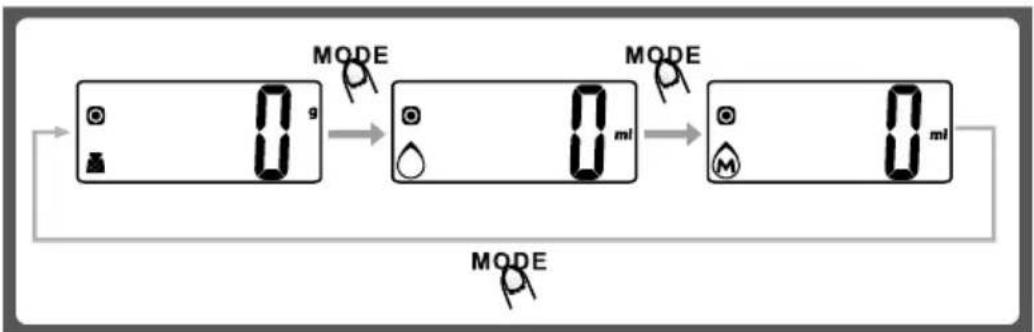

Change of units of weight and volume

The scale features three basic modes of weighing. Press the MODE button to choose between weighing and measuring volume of water and milk.


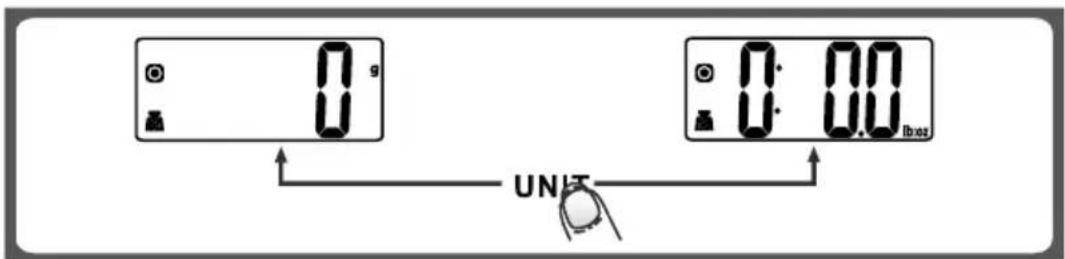

In these modes, you can change the units of weight and volume between the classic metric system (g > ml) and avoirdupois (lb:oz > fl'oz). Press the UNIT button on the bottom side of the scale to switch the measuring system.

Press the MODE button repeatedly to change the units of weighing in the following order:

— In the mode of classic metric system g > ml (water) > ml (milk)
— In the mode of the avoirdupois lb:oz > fl'oz (water) > fl'oz (milk)

Operation (weighing)

1. Put the scale on suitable flat surface (see I. SAFETY PRECAUTIONS).
2. Put the bowl (if you use one) on the scale before switching it on. Do not put things you want to weight on the plate before you turn the appliance on!
3. Turn the scale on by pressing on the weighing surface.
4. When the display shows 0, the appliance is ready for weighing.
5. Pressing the MODE button, choose a mode in which you want to operate (WEIGHT - WATER VOLUME - MILK VOLUME). If you want to change weighing mode (g - lb:oz; ml - fl'oz), press UNIT.
6. Place the weighed item in the middle of the weighing surface A3 and wait for the value on the display to stabilize.
7. The scales turns off automatically after 120 sec. being idle.

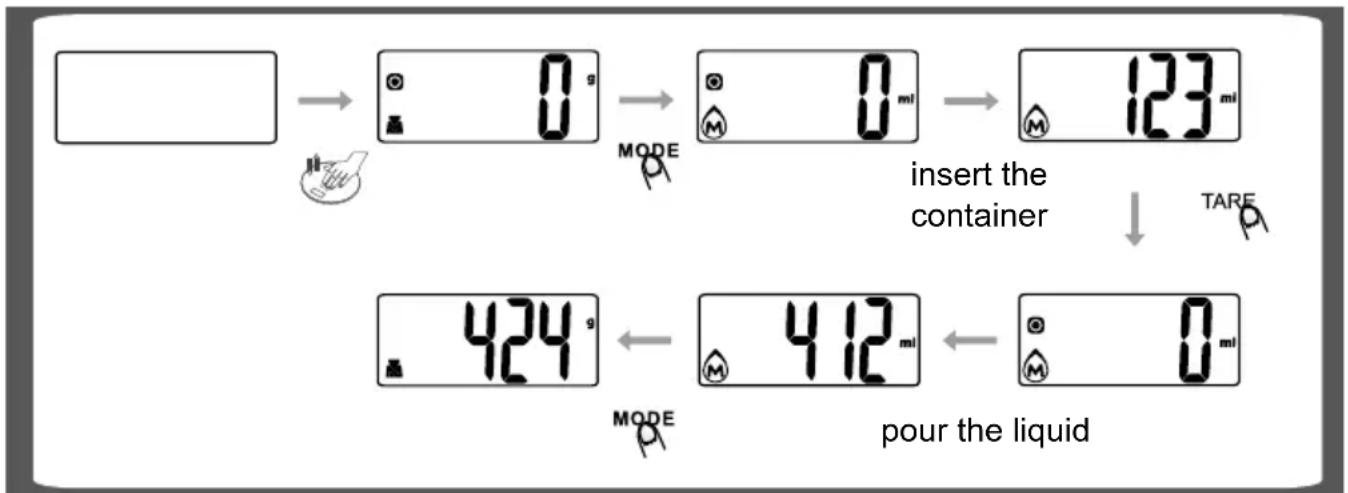

Operation (measuring volume)

1. Put the scale on suitable flat surface (see I. SAFETY PRECAUTIONS).
2. Turn the scale on by pressing on the weighing surface.
3. When the display shows 0 g, the scale is ready for measuring.
4. Pressing the MODE button, choose a mode in which you want to operate (WEIGHT - WATER VOLUME - MILK VOLUME). If you want to change the units mode (g - lb:oz: ml - fl'oz), press the UNIT button.
5. Place the container for liquids in the middle of the weighing surface. Its weight will show. Then press TARE, which will reset the reading (the display will show 0)
6. Pour the liquid into the prepared container and wait until the value on the display stabilizes.
7. The scales turns off automatically after 120 sec. being idle.

Note

• You may put the container for liquids on the scales before turning it on. If you do so, the scale will turn on automatically when reaching 0.
• The results of measuring the volume of milk differ from measuring the volume of water due to their density. Milk has subtly higher density than water (approx. 1.028 x).

„ZERO“ OR „TARE“ FUNCTION

To weigh different loads consecutively without removing loads from the scale. Put first Load on the scale, get weight reading. Press A4 TARE button to reset the LCD reading to „0“ before adding next load. Add another item and the display will read the added weight. You can repeat this operation. If all products are taken away from the weighing plate, a negative value will appear on the display.

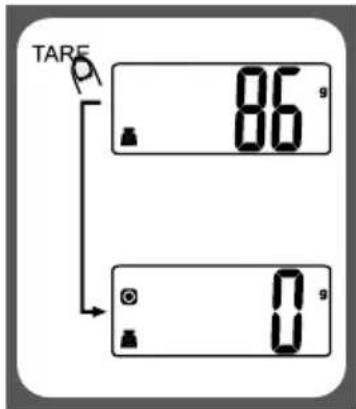

Note 1: „ZERO“ function

When total sum of all loads on scale ≤ 200 g, LCD will show „0“ each time TARE is pressed. Icon „O“ will show on upper left corner of LCD, indicating „ZERO“ function is active. Max. weight capacity remains unchanged.

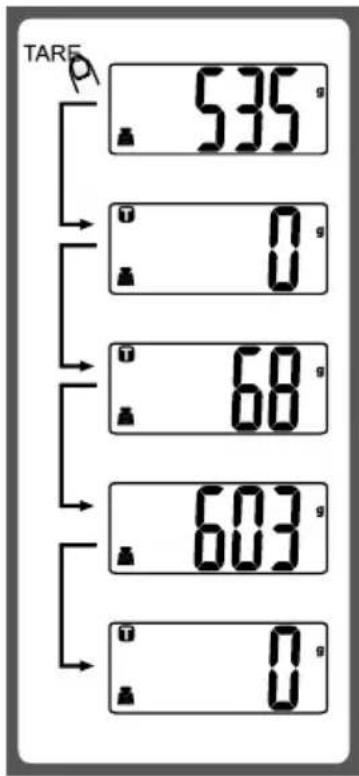

Note 2: „TARE“ function

If the total weight is > 200 g, the display (after pressing the TARE button) will show the icon "T" in the upper left corner of the display, which indicates the activity of the „TARE“ mode. By pressing the TARE button in this mode, you will display the total amount of weights/volumes of all items. If you wish to continue with fine weighing, just press the TARE button again to reset the display to 0. The maximum capacity will decrease by the total weight of all items.

Note:

After removing all items from the weighing surface, the display will show the total number of weights/volumes with the “-” button.

Auto shut off

Auto shut-off occurs if display shows ,0' or shows the same weight reading for 120 sec.

Exceeding loading capacity of the scale

Maximum weight for a product weighing is 5 kg. The display will show Err Error message in case the weight of the product on the plate exceeds 5 kg. It means the product weight exceeds the loading capacity of the scale.

Attention

Remove the excessive weight product from the scales to avoid damage to the appliance.

!

Error messages shown on the scale display

1. Lo — replace the batteries
2. Err — scale overload, the weight exceeds 5 kg

If symptoms such as flashing of the display or erroneous indications appear, remove the scales away from disturbing sources (e.g. microwave oven) or turn off the source for the term of weighing.

V. STORAGE

Store the scale in a horizontal position or you may hang it by the slide-out loop A7 on the back side of the scale.

VI. MAINTENANCE

Clean the scale only after it has cooled down! Do not use coarse or aggressive detergents (e.g. sharp things, thinners or other

Simple diagram with a double-headed arrow and a square cutout, no text or symbols present

solvents)! Wipe the scale surface with a soft wet rag. Pay attention no water penetrates the appliance. DO NOT immerse the scale in water or use chemical/abrasive cleaning agents. All parts should be cleaned immediately after contact with fats, spices, vinegar and strongly flavored/colored foods. Avoid contact with acids citrus juices. Never dry plastic mouldings over a heat source (e.g. heater, electric/gas stove). Some food can colour the accessories in some way. However, this does not affect the function of the appliance and it is not a reason for a claim. This colouring usually disappears after some time.

Expert service must do the large maintenance or to intervene into inside parts of the appliance! Non-observance of the instructions of the manufacturer cancels the right for guarantee repair!

If you are unable to fix the problem, or if you need any further information about the appliance or service centres, please contact your distributor.

VII. ENVIRONMENT

If dimensions permit, all pieces have printed symbols of materials used for production of packing, components and accessories as well as recycling symbols. The symbols on the product or documentation means the electric or electronic parts used in the appliance may not be disposed off together with communal waste. Hand over the electric or electronic part to a waste collection yard for free disposal. Proper disposal of the product will help preserving valuable natural resources and preventing potential negative impacts on environment and human health that would otherwise result from improper waste disposal. For more details, please contact your local authorities or collection yard.

Fines may be imposed for improper disposal of this type of waste pursuant to national directives. Remove flat batteries from the appliance and dispose them off in a suitable way using special collection centres. Do not incinerate the batteries!

VIII. TECHNICAL DATA

Maximum weighing capacity (kg) 5

Accuracy (g) 1

Weight (kg) about 0.2

Protection class of the appliance III.

Size of the product (mm) 171 x 221 x 10

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY.

DO NOT IMMERSE IN WATER.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE
