Product Type	Portable Air Conditioner
Model	Egon EU
Brand	Argoclima
Cooling Capacity	12000 BTU/h
Heating Capacity	None (Cooling Only)
Air Flow	300 m³/h
Noise Level	52 dB(A)
Power Supply	220-240 V ~ 50 Hz
Power Consumption	1200 W
Refrigerant	R290
Dimensions (W x D x H)	460 x 345 x 680 mm
Net Weight	25 kg
Functions	Cool, Fan, Dehumidify
Timer	24-hour Programmable
Remote Control	Yes
Casters	Yes for Easy Mobility
Exhaust Hose	Included (1.5 m)
Filter	Washable Dust Filter
Energy Class	A
Suitable Room Size	Up to 25 m²

Frequently Asked Questions - Egon EU Argoclima

How to clean the filter?

Turn off and unplug the unit. Remove the filter cover, take out the washable dust filter, and rinse it under lukewarm water. Let it dry completely before reinstalling.

What is the recommended room size?

The Egon EU is suitable for rooms up to 25 m² (about 270 sq ft) with a standard ceiling height.

How to install the exhaust hose?

Attach one end of the exhaust hose to the unit's rear outlet and the other to the window kit. Ensure the window is closed securely over the kit for proper ventilation.

Can I use it without a window kit?

The window kit is essential for exhausting hot air. Without it, the unit cannot function effectively and may overheat. Always use the included window kit.

How to set the timer?

Press the Timer button on the remote or control panel. Use the +/- buttons to adjust the desired off time (1-24 hours). The unit will automatically turn off when the set time elapses.

What does the error code mean?

Error codes are displayed as E1, E2, etc. E1 typically indicates a room temperature sensor issue, E2 a water full alarm. Refer to the manual for a complete list.

How to switch between modes?

Press the Mode button repeatedly to cycle through Cool, Fan, and Dehumidify modes. The corresponding indicator light will illuminate.

What maintenance is required?

Regularly clean the air filter every two weeks. Check the drain port for blockages and ensure the exhaust hose is not kinked. Annual professional service is recommended.

How to store the unit in winter?

Drain any remaining water from the unit. Clean the filter and dry it. Store in a cool, dry place away from direct sunlight. Cover to protect from dust.

How to improve energy efficiency?

Close windows and doors, use curtains or blinds to block sunlight, and set the thermostat to a moderate temperature. Clean the filter regularly to maintain airflow.

USER MANUAL Egon EU Argoclima

PORTABLE AIR CONDITIONER (LOCAL)

EGON EU

White industrial air conditioner unit with control panel and indicator lights (no visible text or symbols)

OPERATING INSTRUCTIONS

Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to do so may lead to accidents and/or damage. Store these instructions in a safe place for future reference.

Appliance is filled with flammable gas R290.

Simple line drawing of an open book with no text or symbols visible

Before installing and using the appliance, read the owner manual.

Before installing the appliance, read the installation manual.

Simple line drawing of an open book with a wrench resting on it (no text or symbols)

Any repairs you need, contact the nearest authorized Service Centre and strictly follow manufacturer's Service Manual.

The Refrigerant R290

- To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The refrigerant is the fluoride R290 = 3 GWP (Global warming potential). This refrigerant is flammable and inodorous. It can lead to explosions under certain conditions, however the flammability of this refrigerant is very low and it can be ignited only by fire.

- Compared to other common refrigerants, R290 is a non-polluting refrigerant with no harm to the ozonosphere and a no effect upon the greenhouse effect. R290 has very good thermodynamic features which lead to a really high energy efficiency. The units therefore need less filling.

Warning:

Do not try to accelerate the defrosting process or to clean the appliance in different ways other than those recommended by the manufacturer. Should repair be necessary, contact your nearest authorized Service Centre. Any repairs carried out by unqualified personnel may be dangerous. The appliance has to be stored in a room that doesn't have any continuously operating ignition sources. (for example: open flames, an operating gas appliance or an operating electric heater.) Do not pierce or burn.

Appliance has to be installed, used and stored in a room with a floor area larger than 7m^2 . For repairs, strictly follow manufacturer's instructions only for appliances filled with R290

GENERAL OPERATING AND SAFETY INSTRUCTIONS

• This appliance is a local air conditioner designed for domestic use.
• Only use this air-conditioner as described in this manual.
• Ensure that the required voltage and frequency (220-240V/50 Hz) match the available power source.
• Fuse style 5ET or SMT 250V, the electricity passing through the fuse cannot be above 3.15A.
• This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Ensure that the electricity system is able to deliver the operating current required by the air conditioner, in addition to that normally absorbed by other appliances (household appliances, lighting system, etc.). Please refer to the maximum power input data indicated on the air conditioner's data plate.
• Connection to the electricity grid must take place in accordance with current installation standards.
• Ensure that the automatic switches and system protection valves are able to withstand a start-up current of 6A (normally for less than 1 second).
• The system socket must always be fitted with an efficient earth connection.

• Make sure that the plug is fully inserted. Do not use multiple adapters. Do not touch the plug with wet hands. Make sure that the plug is clean.

• Do not use the plug as a means by which to start/stop the air conditioner: use the ON/OFF button on the remote control or on the control panel.

• Do not install the air conditioner in rooms where it may receive water splashes (e.g. laundry rooms).
• This air conditioner can be used by children of 8 years of age or older, and by persons with reduced physical, sensory and mental abilities or who lack the necessary know-how and experience to operate it, if under the supervision or instruction of a person responsible for their safety, so that they are fully aware of the attendant risks.
• Before moving or cleaning the device, ensure that it is unplugged from the socket.
• Do not move the air conditioner while it is operating; first turn the appliance off, check for any condensate build-up and empty it if necessary.
• To turn the appliance off, set the remote control to OFF and remove the plug from the socket. Pull on the plug only. Do not pull the cord.
• Do not use the appliance if the cord or plug are damaged. If the power supply cord is damaged, it must be replaced by the manufacturer, dealer or a similarly qualified person so as to avoid any safety risks.
• Keep the unit away from fire, possible fire sources, inflammable or explosive objects.
• Do not leave the unit unattended while it's operating, turn the unit off and unplug it.
• If drainage hose is used, the ambient temperature musnt't be lower than 0^ . It can cause water leakage to the air conditioner.
• Do not splash or pour water on the air conditioner

PRECAUTION!

• Do not insert any objects into the air conditioner: this is very dangerous as the fan turns at high speed.
• Ensure that air circulates freely around the unit. Do not cover the air intake and delivery grilles with drapes or any other means.

WARNING!

• The air conditioner must be positioned at least 50 cm from the wall or any other obstacles, on a flat and stable surface so as to avoid water leaks.
• The air conditioner is fitted with a system for protecting the compressor from overload. This means that the compressor only starts 3 minutes after its previous stoppage.
• Please wait at least 3 minutes before starting the unit. This helps prevent the compressor from being damaged.

WARNING!

In the event of an anomaly, switch the appliance off and unplug it from the socket. Do not dismantle or attempt to repair or modify the product. In the event of a malfunction, contact the service centre directly.

WARNING!

• Do not expose the air conditioner to direct sunlight, as the colour of the materials may change; moreover, the appliance may overheat causing the protection mechanism to intervene and switch the appliance off.
• Do not use insecticides, oils, detergents or spray paints near the appliance; do not use aggressive chemical detergents to clean the casing: this may damage the finish and colour.

- Close all open windows to maximise air conditioning efficiency.

The manufacturer will not be held liable if safety and accident prevention rules are not observed.

FRONT VIEW

REAR VIEW

1) UPPER PANEL
2) CONTROL PANEL
3) HANDLE
4) ADJUSTABLE AIR FLOW OUTLET
5) REAR PANEL
6) FRONT PANEL
7) CASTER
8) FRONT PANEL
9) HANDLE
10) CONNECTION FOR AIR EXHAUST PIPE
11) REAR PANEL
12) AIR FILTER
13) CONTINUOUS DRAINAGE HOLE OF CONDENSATE IN DEHUMIDIFICATION MODE
14) AIR FILTER ON EXAHUST
15) CONTINUOUS DRAINAGE HOLE OF CONDENSATE IN COOLING MODE

Min/max operating limits (internal temperature)

Cooling: 7°C DB / 35 °C DB

Dehumidification: 17°C DB / 35 °C DB

Cooling mode room temperature adjustment range: 16 °C DB / 31 °C DB

PRE-OPERATING CHECKS AND OPERATIONS

The following space must be maintained to ensure the operating efficiency of the portable air conditioner.

APPLIANCE START-UP

Open the packaging and pull out the box. Remove the product and the other elements supplied (illustrated in the box below).

Infrared remote control

Type-AAA - LR03 - 1.5 V batteries for remote control. (Not provided)

Flexible pipe inclusive of fitting for unit and end fitting for window

Coiled wire or fiber component with no visible text or symbols

Round fitting for window unit, to be positioned between the end of the tube and the window unit itself

Window unit kit with plug.

Position the product vertically on a flat and stable surface, as close as possible to a window and at least 50 cm from walls or other nearby obstacles.

USE WITH END FITTING FOR WINDOW

1. Stretch the flexible hose sufficiently so that it reaches the outside (max 1.5 m) and hook it to the rear part of the air conditioner.

2. Open the window and lock one of the two leaves with the handle.

Rest the terminal connection on the fixed leaf, bring the other leaf of the window close.

Technical line drawing of a mechanical component and a separate view of a bracket (no text or symbols)

1. Open the window and lock one of the two leaves with the handle.

Rest the terminal connection on the fixed leaf, bring the other leaf of the window close.

1. Avoid tight bends or folds in the flexible pipe.

Line drawing of a portable air conditioner unit with a coiled hose and diagonal line indicating no text or symbols (no text or symbols present)

Line drawing of a portable air conditioner with a coiled hose (no text or symbols)

USE WITH WINDOW UNIT KIT

1. To make the hole in the glass it is advisable to take the porthole kit accessory to the glazier.

Simple line drawing of a two-panel window with a single dot on the left pan (no text or symbols)

1. Insert the round fitting into the retractable flexible pipe and insert the latter with its round fitting into the window unit without the plug.

2. Insert the window unit into the window.

Simple 3D diagram of a window with a spherical object on the left side (no text or symbols)

1. Insert the round fitting onto the flexible pipe.

Diagram of a coiled cylindrical pipe with an arrow indicating direction (no text or symbols)

1. Insert the flexible pipe thus mounted into the rear of the air conditioner.

Close-up of a metallic spiral mechanical component (no text or symbols visible)

If the air conditioner is not used for prolonged periods, disconnect the pipe and plug the window unit.

Connect the power cord to a suitable electric socket (220–240 V). Insert the supplied batteries into the remote control and make sure the poles match. Select the desired operating mode from the remote control.

HOW TO USE THE APPLIANCE

This appliance can be used for cooling, dehumidifying and ventilation purposes.

Before using the appliance, leave it standing erect for at least two hours.

When switching between modes, the fan continues to turn but the compressor stops: the compressor will re-start after 3 minutes. This delay protects the compressor from potential damage.

If the outside temperature is very low and the humidity is very high, the unit enters protection mode and could stop, this to help melt the ice that could form on the heat exchanger. When the conditions are restored, the device continues to operate normally,

There is also a defrost function,

Line drawing of a portable air conditioner with a coiled hose and control panel (no text or symbols)

Cooling, Fan

Line drawing of a rectangular industrial machine with wheels and ventilation grilles (no text or symbols)

Dehumidifying

THE DRAINAGE TUBE MUST BE CONNECTED to the appliance AT ALL TIMES: the only exception is when the appliance is used in dehumidification mode only, in which case the appliance should be left to discharge directly into the room for maximum efficiency (see the “Dehumidification Mode” paragraph).

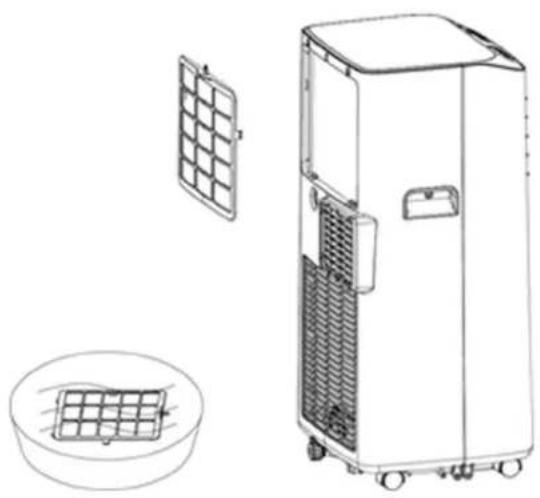

Clean the air filters under the easily removable rear grille regularly to keep the air conditioner working efficiently.

OPERATING MODES

1. COOLING MODE

• The "Cool" LED on the control panel will turn on.
• The temperature can be adjusted to between 16^ and 31^ .
• In this mode, each time the ON/OFF button is pressed the unit switches off, the appliance saves the temperature setting and retains this setting when it is switched on again.
• In this mode, the fan speed can be adjusted and the Timer and SLEEP functions can be set.
• For more silent operation, run the fan at low speed.

2. DEHUMIDIFICATION MODE (DRY)

• Press the MODE button to select the dehumidification mode.
• The temperature is controlled by the electronic board and cannot be adjusted.
• In this mode, each time the ON/OFF button is pressed the unit switches off, the appliance saves the settings and retains them when it is switched on again.
• The fan speed is set to low and cannot be adjusted.

NOTE

The air conditioner does not cool the room when operating as a dehumidifier.

When the appliance is used as a dehumidifier, the flexible pipe must not be connected.

For maximum dehumidification efficiency, leave the rear discharge attachment free to discharge directly into the environment.

The dehumidification mode is recommended during autumn and winter.

If used during summer, it is best to leave the flexible pipe attached so that the hot air is discharged towards the outside rather than into the room.

During dehumidification, continuous drainage should be implemented (see the next chapter, "HOW TO ELIMINATE CONDENSATE").

3. FAN MODE

• Press the MODE button to select ventilation until the corresponding icon appears.
• In this mode, the fan speed can be adjusted.
• The temperature cannot be adjusted.

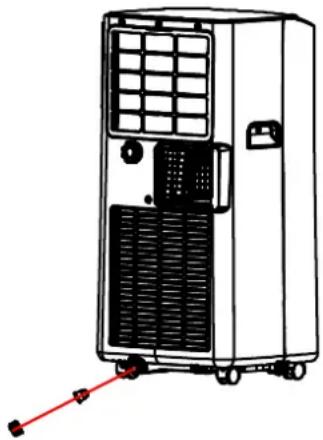

HOW TO ELIMINATE CONDENSATE

Manual drainage

Line drawing of a portable industrial machine with control panel and wheels (no text or symbols)

Cooling

This appliance automatically vaporises condensate in the cooling mode. Ensure that when the unit is operating in cooling mode, the rubber caps closing the drainage holes on the rear of the appliance are properly positioned.

When the air conditioner operates in cooling mode, there is no need for continuous condensate drainage; only in specific weather conditions with very high air humidity levels may water deposit inside the unit. When the container is full, the unit emits a beep and the "Full" LED (full tank) lights up on the control panel to signal that full status and block the appliance's operation.

To empty the container, switch the air conditioner off and unplug it. Remove the cap form the rear drainage hole and direct it over a normal drain. After emptying the container, the unit will automatically resume operation according to the selected settings.

Ensure that the tube is not twisted or bent. The tube must slope downwards.

Re-close the drainage hole with the cap and resume use of the air conditioner.

Continuous drainage

Line drawing of a portable air conditioner unit with a bucket and water inlet (no text or symbols)

Dehumidification

WARNING!

When using the air conditioner in dehumidification mode, it is advisable to always arrange for continuous drainage, so as to maximise dehumidification efficiency.

Connect one end of the PVC pipe (not provided) to the upper discharge hole and place the other end above a drain.

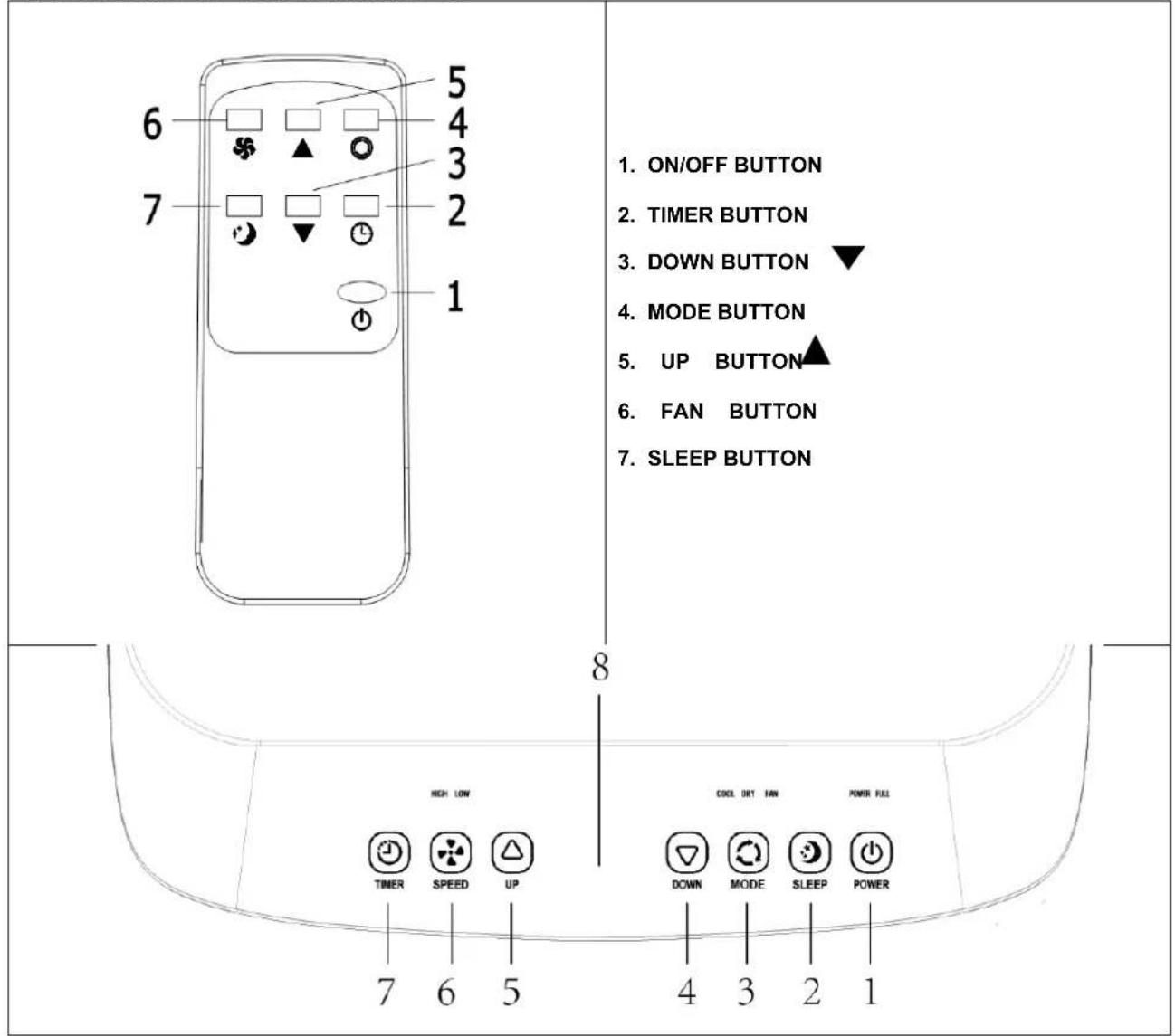

1. Slide the cover open in the direction indicated by the arrow.
2. Insert alkaline batteries (type AAA, LR03/1.5 V - not provided) compliant with Battery Directive no.2006/66/EC and amendments Directive 2013/56/EC into the remote control and make sure the poles match.
3. Put the cover back on.
4. Point the remote control towards the receiver on the air conditioner.
5. The remote control should be positioned within 6 metres from the receiver.
6. There must be no obstacles between the remote control and the receiver.
7. Do not drop or launch the remote control.
8. Do not leave the remote control under strong sunlight or heating devices and other source of heat.
9. Remove the batteries from the remote control when the latter is not used for a long time.
10. If no sound is heard and the transmission symbol on the display does not flash, the batteries must be replaced.
11. If the system resets when the remote control button is pressed, the electrical signal is poor and the batteries must be replaced.
12. Flat batteries must be disposed of correctly.

Technical line drawing of a battery pack assembly with cylindrical batteries and internal components (no text or symbols)

N.B.:

* The image depicts a general remote control, which contains nearly all the function keys. These may be of a slightly different material (depending on the model).

INFORMATION FOR THE CORRECT DISPOSAL OF BATTERIES IN ACCORDANCE WITH EUROPEAN DIRECTIVE 2006/66/EC and amendments Directive 2013/56/EC

Replace batteries when they are depleted. At the end of their life, batteries must be disposed of separately from unsorted waste. They must be taken to designated recycling centres or returned to a retailer providing this service. Separate disposal of batteries prevents potential negative effects on the environment and human health due to inadequate disposal, and also allows for recovering and recycling their constituent materials, resulting in significant savings in terms of energy and resources. The separate disposal obligation is underlined by the crossed-out dustbin symbol appearing on the battery. Illegal disposal of the product by the user implies administrative sanctions applied as per current regulations.

FOR OPTIMAL REMOTE CONTROL OPERATION, POINT THE TRANSMITTER HEAD TOWARDS THE RECEIVER ON THE AIR CONDITIONER.

Upon first start-up, the unit emits an audible signal, and enters stand-by mode.

(1) POWER BUTTON

Press this button to switch the unit on or off.

(2) SLEEP BUTTON

Press this button to activate Sleep mode, then the unit will operate silently and save energy.

(3) MODE BUTTON

When the unit is on, press this button to choose the desired mode in the following sequence: COOLING -> DEHUMIDIFYING -> FAN

(4) DOWN BUTTON

Press this button to adjust the temperature and set the time.

(5) UP BUTTON ▲

Press this button to adjust the temperature and set the time.

(6) SPEED BUTTON

In cooling and fan modes, press this button to adjust the fan speed, Low or High. In dehumidification mode it is not possible to press this button, so the fan will forcibly choose the low fan speed.

(7) TIMER BUTTON

a. When the air conditioner is off, press "TIMER" to set when to switch the unit on. Press ▲ or ▼ to set the time, and press "TIMER" again to confirm.
b. When the air conditioner is on, press "TIMER" to set when to switch the unit off. Press ▲ or ▼ to set the time, and press "TIMER" again to confirm.
c. After setting the time, press "TIMER" to cancel the time setting.

The selectable interval is from 1 to 24 hours.

(8) TEMPERATURE AND ERROR DISPLAY

Problem Cause Solution
FL Tank full of water. Empty the tank.		If the problem persists, contact a service centre.
E1 Room temperature sensor failure. Contact a service centre.
E2 Failure of temperature sensor on the evaporator.		Contact a service centre.

CARE AND MAINTENANCE

WARNING!

Before carrying out any cleaning or maintenance operations, unplug the appliance.

1. Cleaning the air filters

Technical line drawing of a portable air conditioner unit with internal panel structure and circular component (no text or symbols)

The air filters must be checked at least once every two weeks of use. Operating the appliance with dirty or clogged filters will decrease the air conditioner's efficiency and may cause serious problems.

To remove the upper filter, loosen the central screw and pull the grille's lever.

Wash the filter with lukewarm water and some neutral detergent (if necessary), then rinse it thoroughly in cold water and leave it to dry in air before putting it back in place. Once the filter has been replaced, close the grille and resume use of the air conditioner.

2. Cleaning the casing.

Use a damp and soft cloth to clean the outer surface of the appliance.

Do not use excessively hot water, solvents, petrol or other aggressive chemical compounds, talcum powder or brushes: these may damage the surface or colour of the casing.

Remove any stains using lukewarm water with a little neutral detergent.

Do not pour water onto the air conditioner to clean it, as this may damage its internal components or cause a short-circuit.

3. Storage.

When the air conditioner is not expected to be used for a long time, clean the filters before storing it away.

Keep the appliance in a vertical position at all times. Do not place heavy objects on top of the air conditioner. It is advisable to protect the appliance in the original packaging and covered with the plastic bag.

Make sure that the condensate drain pipe and that the air outlet hose are detached from the unit and that they do not have any water residues. Remove the batteries from the remote control. Store the air conditioner in a dry and ventilated place.

4. Transport.

Transport the air conditioner in the vertical position.

Should this not be possible, rest it on its right-hand side; when the appliance reaches its final destination, place it immediately in the vertical position and wait at least 4 hours before operating it in cooling mode.

Diagram showing a car interior with a server unit, a cross symbol, and a cabinet (no text or labels)

1. For complete safety, regularly check the condition of the power cord; should it be damaged as a result of wear, contact the Service Centre to replace it.

TIPS FOR MAXIMISING COMFORT AND MINIMISING CONSUMPTION

CHECK that:

• the unit intake and delivery grilles are always free;
  • the air filters are always clean; a dirty filter will decrease the passage of air and reduce the unit's performance;
• all doors and windows are closed, so as to avoid infiltration of unconditioned air;
• the flexible pipe is correctly positioned, without tight bends or curves;
• the room temperature is above 7°C for the cooling mode, and above 17°C for the dehumidifying mode.

REGULATION (EU) No. 517/2014 - F-GAS

The unit contains R290, a natural greenhouse gas with global warming potential (GWP) = 3 - Kg. 0.13 = 0.00039 Tons CO _2 equiv.

Do not release R290 into the atmosphere.

INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EUROPEAN DIRECTIVE 2012/19/EU

This appliance may not be scrapped with domestic waste at the end of its life cycle. We call your attention to the crucial role played by the consumer in the re-use, recycling and other forms of recovery of such waste. The appliance must be scrapped by a sorted waste disposal centre or by returning it to the retailer (no charge is levied for this service), when you purchase a new equivalent appliance.

Sorted disposal of electric and electronic equipment prevents the negative effects on the environment and human health resulting from improper scrapping, and also allows the materials from which it is made to be recovered and recycled, with significant savings in terms of energy and resources.

The sorted disposal requirement is indicated by the crossed waste bin label affixed to the appliance.

improve your life

www.argoclima.com
