Product Type	Hair Trimmer / Clipper
Brand	Eta
Model	Tommy 4345 90000
Power Source	Rechargeable NiMH battery (cordless) or mains adapter
Charging Time	Approximately 8 hours
Operating Time	Approximately 50 minutes per charge
Adapter Input	100-240 V AC, 50/60 Hz (adapter Class II)
Blade Type	Steel blades with adjustable cut length (0.8 / 1.5 / 2.2 / 2.8 mm)
Attachments Included	6 comb attachments (4-6, 7-9, 10-12, 16-18, 22-24, 28-30 mm), thinning attachment, brush, blade oil, crest
Dimensions (H x W x D)	50 x 190 x 46 mm (without attachments)
Weight	0.22 kg
Noise Level	68 dB(A) re 1pW
Protection Class	III (appliance), II (adapter)
Recommended Use	Household only, for dry hair
Cleaning	Removable head, brush cleaning, oil blades regularly
Safety Features	Auto shut-off if blocked, overcharge protection, do not use near water
Battery Type	NiMH, rechargeable, built-in
Battery Replacement	Only for disposal; unscrew cover to remove
Warranty	24 months (does not cover battery capacity decrease)

Frequently Asked Questions - Tommy 4345 90000 Eta

How long does it take to fully charge the trimmer?

It takes approximately 8 hours for a full charge. Do not exceed this charging time.

Can I use the trimmer while it is charging?

Yes, the trimmer can be operated with the adapter connected, even if the battery is not fully charged.

How do I change the cutting length?

Use the blade cut length switch (A5) on the trimmer to select 0.8, 1.5, 2.2, or 2.8 mm. You can also attach comb attachments (B1-B7) for longer lengths.

How do I clean the blades?

Remove the trimming head (A3), brush the blades with the included brush, and apply one or two drops of the included blade oil. Do not use hair oil or petroleum jelly.

What should I do if the blades get blocked?

Turn off the trimmer immediately and remove the cause of the block. Then clean and oil the blades before using again.

How long does the battery last on a full charge?

The operating time is approximately 50 minutes, depending on the attachment used and workload.

Can I use the trimmer on wet hair?

No, only use the trimmer on dry hair. Do not use on freshly washed hair.

Is the trimmer waterproof?

No, do not immerse the trimmer or adapter in water or other liquids. Avoid using near bathtubs, showers, or sinks.

How do I store the trimmer?

Store in a dry, dust-free place out of reach of children. It is best to keep it in the original packaging.

What is the warranty period?

The trimmer has a 24-month warranty. However, the warranty does not cover the decrease in battery capacity due to use or age.

USER MANUAL Tommy 4345 90000 Eta

Close-up of a white hairbrush with black clip and orange trigger, no visible text or symbols on the device itself.

CZ I. BEZPEČNOSTNÍ UPOZORNĚNÍ 4

II. POPIS SPOTŘEBIČE A PŘÍSLUŠENSTVÍ (obr. 1) 6

III. POKYNY K OBSLUZE 6

IV. ÚDRŽBA 8

V. EKOLOGIE 8

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing

I. SAFETY WARNING

• Before the first use, read the instructions for use carefully, look at the picture and keep the instructions for use.
• Check whether the data on the type label correspond with the voltage in your socket.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the charger from the power socket!
• Do not leave the iron plugged in power supply without supervision!
• If the power cord of the charger is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Never use the appliance if its power cord or charger is damaged, if it does not work properly, if it fell down and was damaged and it is leaking. In this case take the appliance to a special service to check its safety and proper function.
• For additional protection we recommend installation of current protection (RCD) with the nominal release current not exceeding 30 mA. Ask a control technician or an electrician for advice.
• The trimmer with the plugged adapter must not be used at places where it could fall into a bath tub, a wash basin or a swimming pool. If the trimmer fell to water anyway, do not take it out! First of all, unplug the adapter from the socket and only then remove the trimmer. In this case take the appliance to a special service to check its safety and proper function.
• Always unplug the appliance from charger if you leave it unattended.

- The appliance is intended for use in households only and for similar use! It is not designed for use in hair salons or for other commercial use!

- Do not put or take out the plug to or from a socket with wet hands!

- Never immerse the appliance or the adaptor in water or other liquids (not even partly) and never wash in running water!

- Use only the accessories designed for this type. Do not use damaged adapters.

- Never tuck the appliance or the accessories into any body holes.

- Be careful in using the appliance without a set adapter, the blades are sharp.

- Do not use the appliance while having a bath, having a shower or taking a sauna and for trimming wet or artificial hair.

- The appliance is not intended for operation with an exterior time switch or separate remote control system.

- The appliance is not intended for styling animal hairs.

- Never charge the appliance in direct sunlight or close to heat sources and if the temperature is below 10^ or above 40^ . If the appliance is fully loaded, unplug the charging device.

- In case the cutting lath gets blocked, the appliance must be turned off immediately and the cause removed.

- The appliance gets hot when charging which is absolutely normal.

- Charge the battery in temperature close to room temperature.

- Do not dispose the battery into fire. There is a risk of explosion!

- Do not charge a battery which is leaking electrolyte.

- Do not expose the battery to temperatures higher than 50^ to prevent damaging the battery.

- Do not put the trimmer on hot heat sources (e. g. oven, stove, radiator, etc.)

- Also, do not put the trimmer in the on position on soft surfaces (e. g. bed, towels, sheets, carpet); the surfaces or the appliance could get damaged.

- The power cord of the adapter must not be damaged with sharp or hot objects, open fire and it must not be sunk into water.

- The adaptor supplied with this appliance is intended for this appliance only, do not use it for other purposes. Also, use only the supplied adaptor with this appliance, do not use any other adaptor for charging (e.g. from another appliance).

- Never use the appliance for any other purpose than for the intended purpose described in these instructions for use!

- During normal operation, the accumulator batteries are not taken out. Take out the batteries only if the appliance is to be disposed (see par. V. ENVIRONMENTAL PROTECTION).

- The producer is not responsible for any loss caused by improper handling of the appliance and its accessories (e.g. injury, appliance damage, fire, etc.) and its guarantee for the appliance does not apply in the case of non-compliance with the safety instructions above.

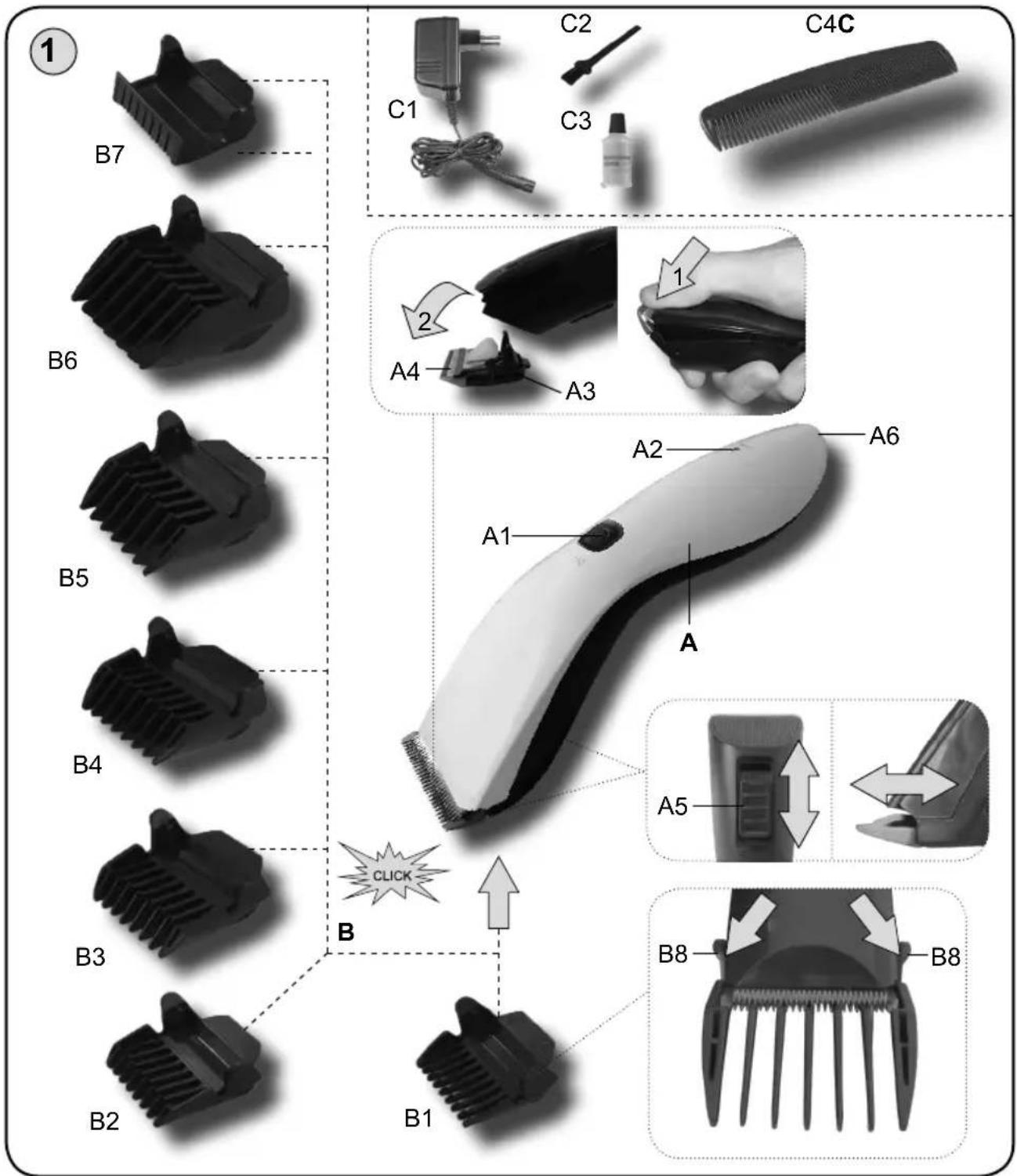

II. DESCRIPTION OF THE APPLIANCE AND ITS ACCESSORIES (fig. 1)

A - trimmer

A1 - switch

A2 – indicator light

A3 – trimming head

A4 - blades

A5 - blade cut length switch (0.8 / 1.5 / 2.2 / 2.8 mm)

A6 – socket for charging

B - attachments

B1 – comb attachment (4–6 mm)

B2 - comb attachment (7-9 mm)

B3 - comb attachment (10-12 mm)

B4 – comb attachment (16–18 mm)

B5 - comb attachment (22-24 mm)

B6 - comb attachment (28-30 mm)

B7 – Thin-out

B8 – attachment locking

C - attachment

C1 – charging adapter

C2 - brush

C3 – blade lubrication oil

C4 - crest

III. INSTRUCTIONS FOR USE

Before you can use the appliance, its batteries must be charged (cordless use).

The operation time for one charge depends on the attachment used and workload.

Attachment is around 50 minutes. When using the cord, a continuous operation should not exceed 30 minutes. Then let the appliance cool off for 30 minutes.

To Charge/Recharge

– Fully charge Clipper before using for the first time or after non-use for a long period of time.
- Battery performance is best if you recharge only when the battery is (almost) completely empty.
- Charging or recharging at temperatures below 10^ or higher than 40^ adversely affects lifespan of the battery.
- Continuously recharging Clipper will reduce lifespan of battery.

1) Be certain Clipper is OFF.
2) Connect the trimmer to the adapter and plug the adapter to the mains.
3) It will take approximately 8 hours to fully charge the Clipper. Do not exceed the set time of charging! Do not exceed the set time of charging! There is an indicator the light A2 begins to red during charging. That is why it is necessary to watch and keep the set time of charging.
4) After charging, unplug the adaptor from the mains first and only then unplug the connector from the appliance.

Optimize the working life of the battery

• After the Clipper has been charged for the first time, do not recharge the Clipper between trimming sessions. Continue using it until the battery is completely empty.
• Do not charge for more than 8 hours.
• Do not keep cord permanently plugged in.
• Discharge / run down the battery completely twice a year by letting the motor run until it stops. Let the battery charge fully afterwards.

Use

The trimmer can be used without the adapter (for cutting contours) or with the selected adapter B1–B7 according to the required cut length. Mount the attachment to the trimmer head so that the B8 lock on both sides fits properly.

Note

When removing the attachment (B1–B7), release the B8 lock with your fingers (see Fig. 1).

Hair clipping

• The trimmer can be operated from the outlet with the adaptor connected (the battery must be recharged partially) or only from the charged battery.
• The trimmer turns on and off with a switch A1. Turn the trimmer on only after all the attachments have been properly placed and you are ready for trimming. Turn the trimmer off immediately after use.
• Before you start clipping, make sure that the head of the person whose hair you are cutting is at the same level as your chest so that all parts of his/ her head are clearly visible and within easy reach.
• Only use the clipper on dry hair.
• Do not use on freshly washed hair.
• Before you begin, comb the hair in the direction of growth.
• To achieve optimal clipping results, always move the clipper slowly through the hair against the direction of hair growth.
• When the battery power reaches minimum. It is a signal to charge the battery.
• In case an blades A4 gets blocked, the appliance must be turned off immediately and the cause of the block removed.

Clipping with hair comb attachment

You may use 5 kinds of comb attachments B for trimming,

1) Put on the desired comb attachment (B1-B7). Then you can turn on the appliance.
2) If you are trimming for the first time, begin by trimming with an attachment of max. length to prevent too short of a cut. When you have familiarized yourself with the settings, use attachments B with lower length.
3) You may also use the blade cut length switch A5 for finer cut setting.
4) Make sure that the flat part of the comb is always in full contact with the scalp to obtain an even result.
5) Move the clipper slowly over the crown from different directions to achieve an even result.
6) Always move the clipper against the direction of hair growth.
7) Make overlapping passes over the head to ensure that all hair that should be cut has been cut.
8) Turn the Clipper off and remove the hair comb often to blow and/or shake out hair that has accumulated.

Contouring without the hair clipping comb attachment

1) Remove the hair comb (if it is attached). Be careful when you are clipping without comb attachment as when the clipper is turned on it will trim every hair it touches.
2) Tilt the clipper in such a way that only one edge of the trimming attachment touches the hair ends when you shape the contours around the ears.
3) To contour the nape of the neck or hairline, turn the clipper and hold it with the trimming attachment pointing downwards.
4) To contour the sideburns, turn the clipper and hold it with the trimming attachment pointing downwards.

Note

You may also use the blade cut length switch A5 for finer cut setting.

IV. MANTENANCE

Do not use rough and aggressive detergents! Wipe the trimmer surface with a wet soft cloth.

Cleaning blades (fig. 5)

Clean the blades with the brush attached. For thorough cleaning, the entire trimming head A3 can be removed. With your thumb, push the A4 blades and remove the trimming head in the direction of the arrow. When you want to re-attach it, put the plastic projection in the rear part of the trimming head into the opening in the trimmer and re-attach the trimming head (snap it in). In order to keep the trimmer in a perfect condition, you have to lubricate the list with blades using one or two drops of oil for sewing machines (figure 5). Do not use hair oil, petroleum jelly or oil mixed with petrol or any other solvent because after evaporation the solid parts of the lubricant could slow down operation of the blades. Insert the trimming head to the trimmer properly, turn on the trimmer and then turn it off and wipe out the excessive oil from the blades.

Storage

Put the trimmer with the accessories back to the original package at a dry and dust free place, out of reach of children and incapacitated people.

V. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are marks of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at the special collection places where they will be received free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or at a collection site. Fines can be afflicted for improper disposal of this type of waste in agreement with the national regulations. The appliance is equipped with rechargeable NiMH batteries with long life. Dispose of the batteries in a suitable and safe way through the special collection networks. Never dispose of the batteries by burning!

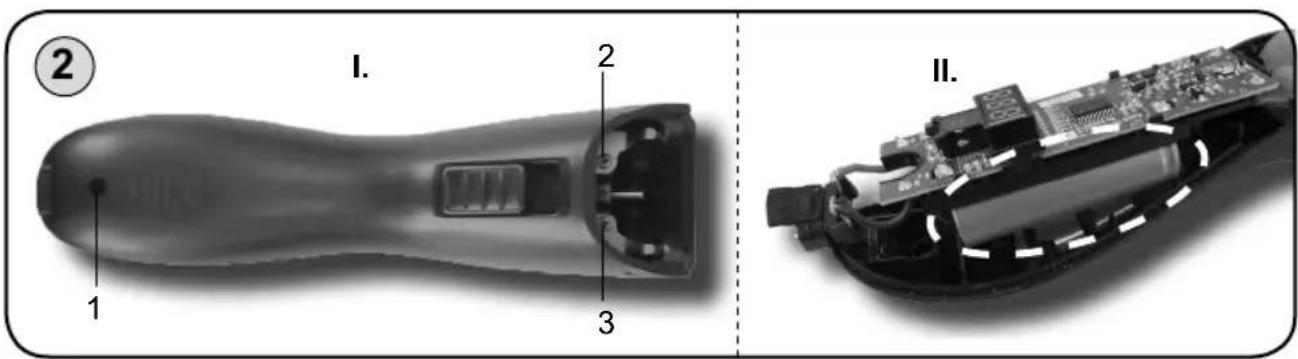

Removing the battery (Fig. 2)

Unscrew the 3 screws and remove the top plastic cover. Remove the battery.

VI. TECHNICAL DATA

Voltage (V) specified on the type label

Trimmer weight (kg) 0.22

Appliance Protection Class III.

Adapter Protection Class II.

Dimensions (H x L x W) 50 x 190 x 46 (without attachments)

Noise level: Acoustic noise level of 68 db(A) re 1pW.

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

Oil: Warning, Avoid contact with eyes, Do not drink, Keep away from children or mental capabilities.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

Do not use the appliance close to bath tubs, showers, bash basins or other water containers.
