CONGRATULATIONS

… On your new Fender ^® electric instrument. You're now part of a worldwide family of Fender musicians inspired by an expansive musical future and connected to more than half a century of heritage. The sound of Fender is heard everywhere. It's the culmination of musical expression that drives the sound of modern music. You can now contribute your sound with unlimited musical imagination and creativity. Pick up your instrument and let it take you where you want to go.

Connect with us and other Fender players worldwide by becoming part of the Fender online community. Create your own profile and receive updates on music news, new products, events, promotions and more. Visit www.fender.com for more information.

Thank you, and enjoy your new Fender instrument!

Yellow Fender Tauti-Amp electric guitar resting on a wooden surface next to an acoustic guitar (no visible text or symbols on the instrument body)

FENDER ELECTRIC INSTRUMENT CO. GUITARS AMPLIFIERS

SINCE 1946...

Your new Fender ^® bass guitar holds more than half a century of musical history.

Fender was founded in 1946 by Clarence Leonidas “Leo” Fender, a Southern California inventor and businessman with a talent and passion for electronics. He started the company in his small radio repair shop in Fullerton, Calif., building solid amplifiers and lap steel guitars that were popular with Western swing bands of the era. A decade later, these modest and earnest beginnings would lead to an explosive intersection with the birth of rock ‘n’ roll and the first of several Fender “golden ages.”

With a tireless and constant commitment to improved sound and design fueled by direct and immediate feedback from professional and influential musicians of the time, Leo and his staff soon embarked on an extraordinary creative streak that began in early 1951 with the world's first solid-body Spanish-style electric guitar, the Telecaster® (and its single-pickup version, the Esquire®). Later that year, Fender introduced the world's first commercially successful solid-body electric bass guitar, the Precision Bass®, soon followed by its companion Bassman® amp. The Twin Amp® appeared in 1952 as the first model in one of the world's most acclaimed and enduring guitar amp families.

Fender unveiled perhaps the most popular and influential electric guitar ever—the Stratocaster®—in 1954. Within a decade, some of rock's greatest artists would start wringing unbelievable sounds from the instrument—sounds never envisioned by Fender designers, or anyone else for that matter. Other classics followed—the Jazzmaster ^® guitar (1958), the Jazz Bass ^® (1960) the Jaguar ^® guitar (1962), and more great amps. By the time it was sold to CBS in 1965, Fender had grown from a fledgling California guitar maker to an industry leader with a stable of acclaimed instruments and amplifiers that revolutionized and profoundly transformed music worldwide. After the CBS years, the modern-era Fender emerged in the mid 1980s to become the iconic brand it is today, with worldwide influence on music and popular culture.

Just as it was when it began, Fender continues to be driven by continuous innovation, passion for music and a commitment to constant input from musicians like you. Thank you for becoming part of this history, and enjoy your new Fender instrument.

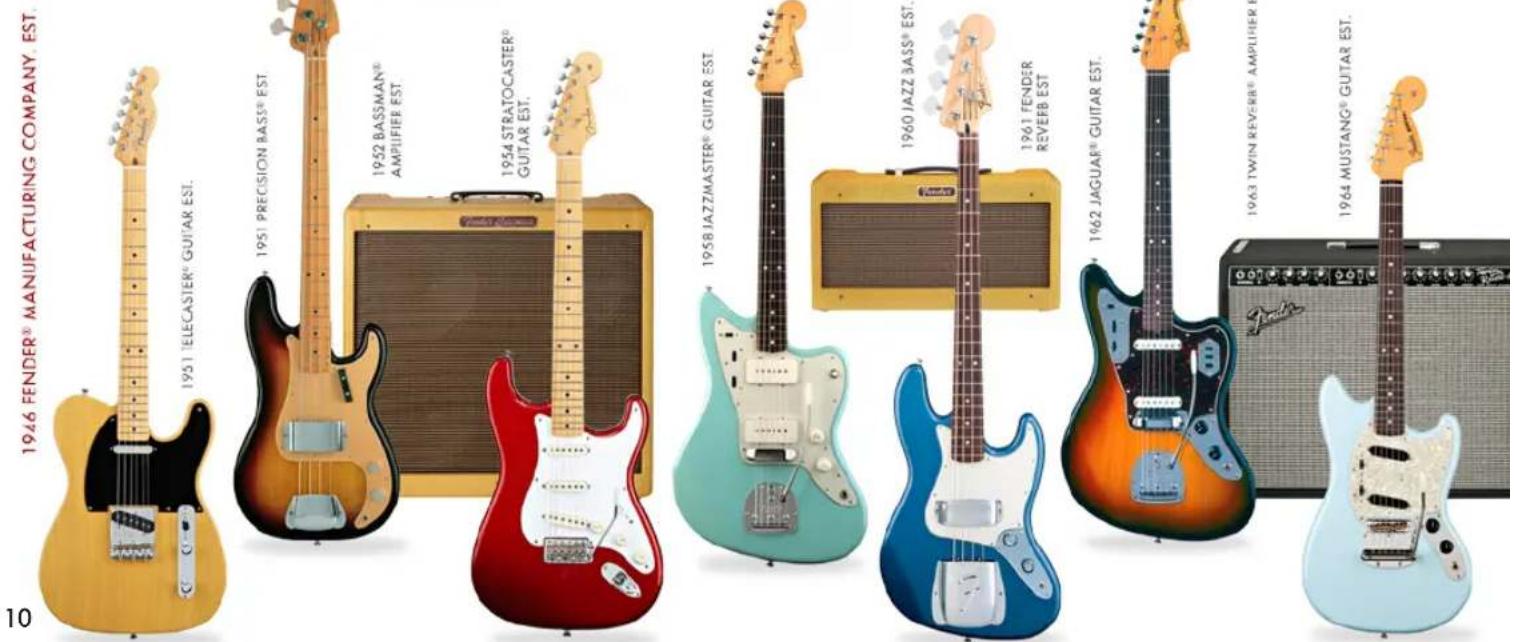

OVER 60 YEARS OF INNOVATION

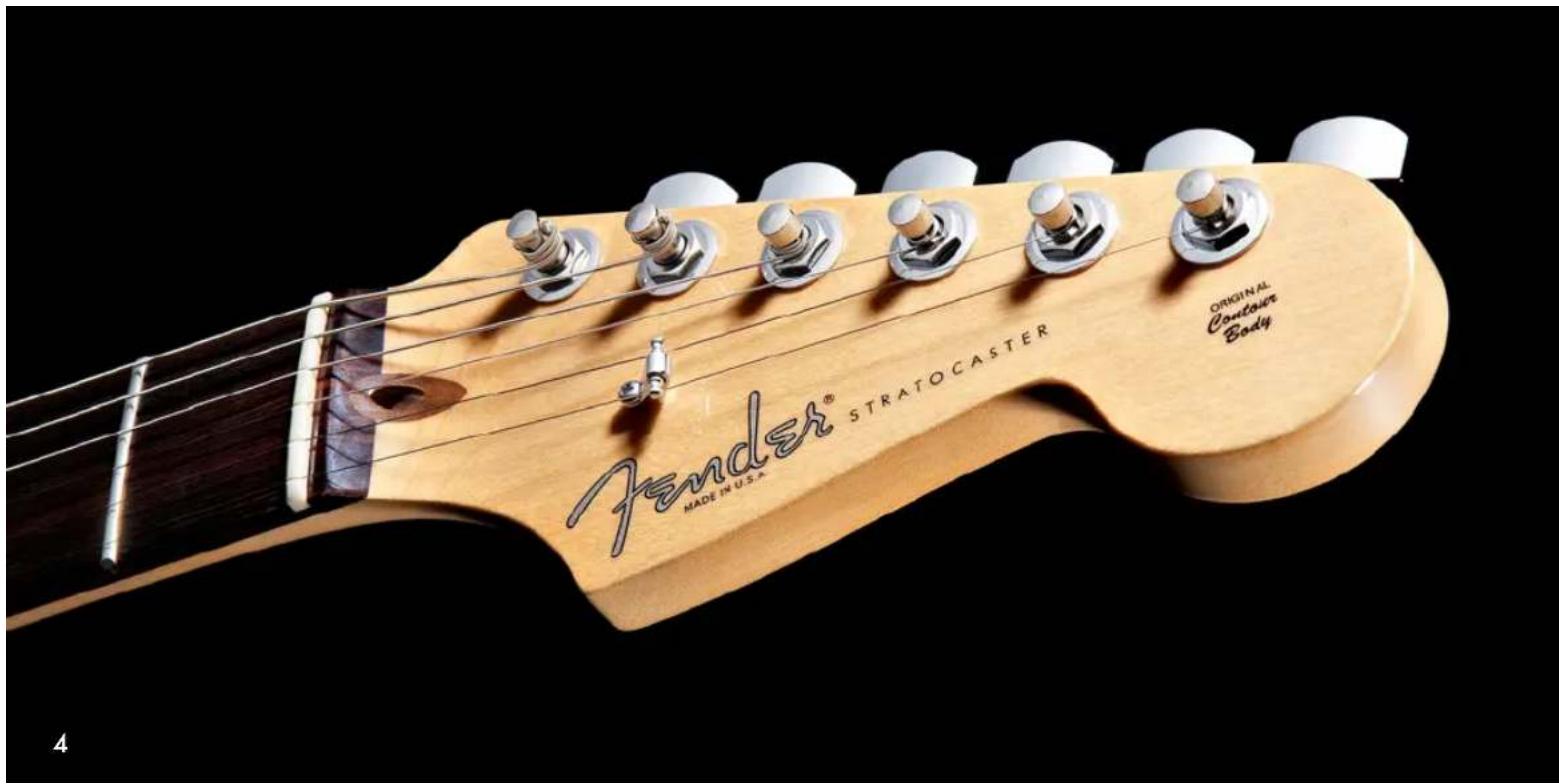

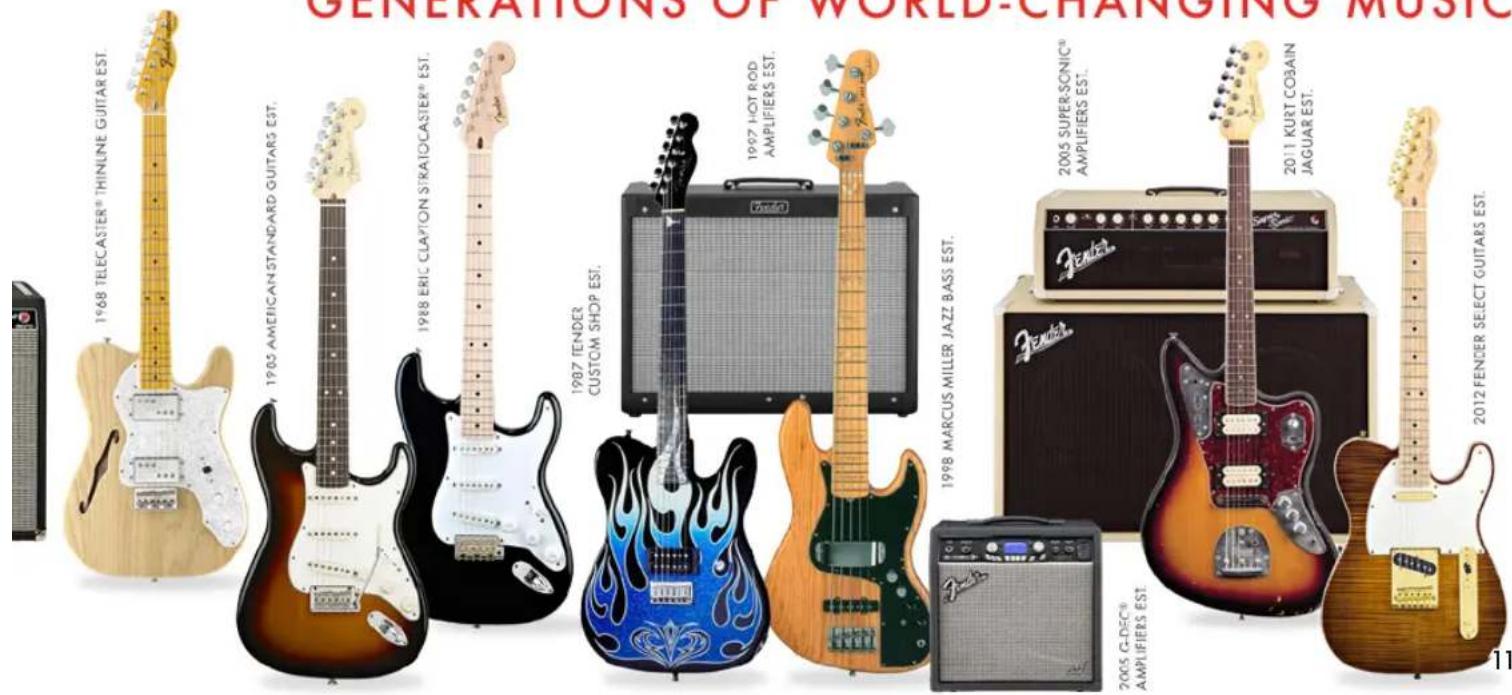

GENERATIONS OF WORLD-CHANGING MUSIC

FEATURES, CONTROLS, AND SPECS

艺 12

Close-up of scattered metal screws on a surface, no text or symbols visible

Close-up of a metallic guitar fretboard with visible screws and metal frame (no text or symbols)

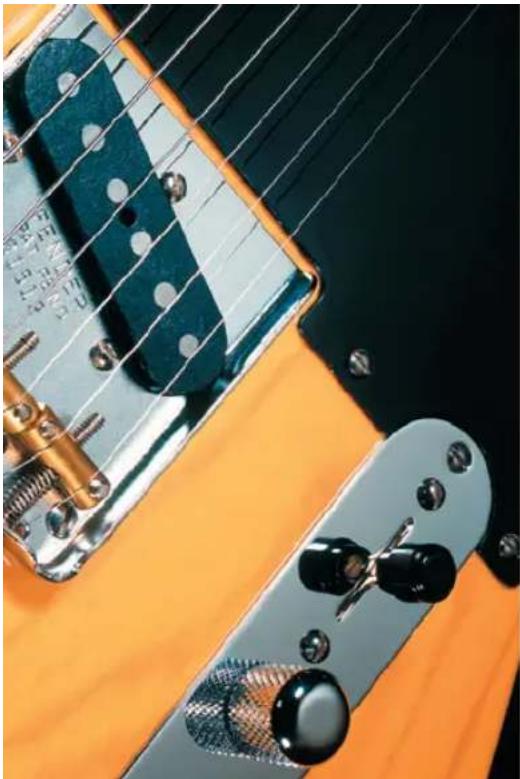

Close-up of a black electric guitar fretboard and orange wood plating (no visible text or symbols)

For details on the features and specifications of your bass guitar model, visit the Products section of fender.com, where each individual guitar listing has a Specs link that provides complete and comprehensive information.

For wiring diagrams, switch/control function diagrams and parts lists for your specific model, visit the Knowledge Base in the Support section of fender.com, where the Service Diagrams link presents detailed information on more than 250 Fender instrument models.

For additional support, please contact us directly by mail, e-mail or telephone at:

Attn: Consumer Relations

Fender Musical Instruments Corp.

Global Headquarters

17600 N. Perimeter Drive, Suite 100

Scottsdale, AZ 85255

[phone]

[e-mail]

FACTORY SPECS AND SET UP

Your guitar is solidly built with the best materials and craftsmanship. As part of its final assembly, we've hand-adjusted it and set it up to Fender® factory specs, which give you the best possible playing action.

Like all instruments made of wood, your may have experienced moderate changes brought about by exposure to different temperatures and humidity levels. This happens naturally with time and with changes in your instrument's geographic location.

The exact condition of the playing action can be affected by:

• Amount of time between final assembly and shipping from Fender.
• Amount of time between shipping from Fender and arrival at shipping destination.
  • Method of shipment—e.g., trucking, shipping, airfreight, etc.
  • Climate conditions during transportation.
  • Climate conditions at shipping destination.
  • Climate conditions at dealer before purchase.

TAKE NOTE

When you first get your guitar, don't be alarmed if the playing action is no longer set to exact factory specs. It is natural for a guitar's setup to change due to the factors just listed. Your guitar is designed to include many adjustment points that allow you to compensate for changes that might have taken place after final assembly but before you received it, or to simply customize the instrument to fit your personal preferred playing style. If the action is higher or lower than you prefer, for example, this manual describes how to set up, adjust and maintain your guitar so that its playing condition is optimal for you. Of course,

if you'd rather not adjust it yourself, you can always take your guitar to an Authorized Fender Service Center for help.

Initial standard setup and adjustment of an instrument and its parts at time of purchase are considered normal dealer product preparation and are not covered by the Fender warranty. On receipt and acceptance of the instrument, the consumer assumes all responsibility for setup, adjustment and maintenance.

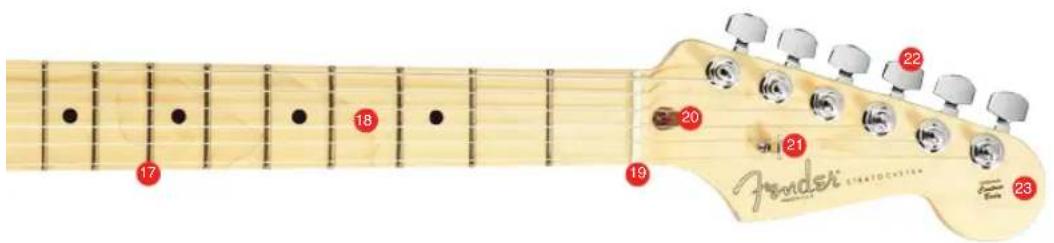

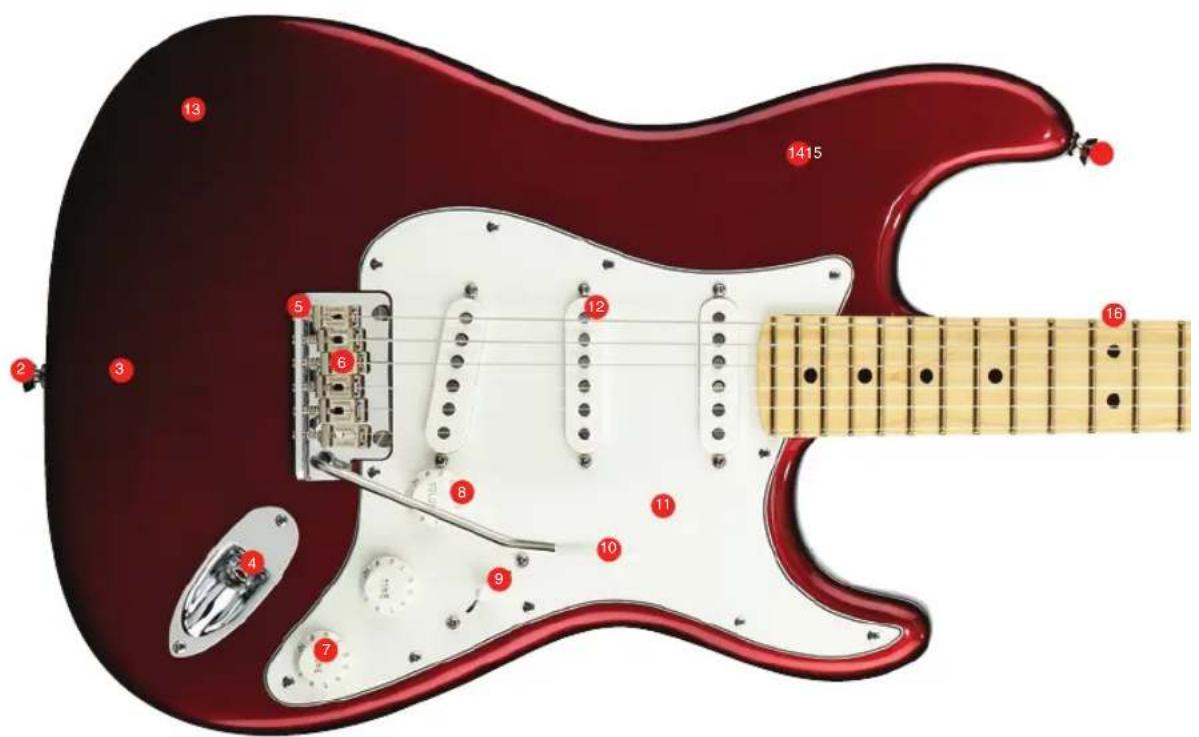

ANATOMY

Simple line drawing of a mechanical device with three vertical rods and a top knob (no text or symbols)

ON BACK OF GUITAR

Labeled diagram of a red electric guitar showing key parts and parts with numbered annotations

17 18 19 20 21 22 23 Fondsi

1. TREMELO CAVITY

2. STRAP BUTTON

3. BODY

4. OUTPUT JACK

5. BRIDGE

6. BRIDGE SADDLE

7. TONE CONTROL

8. VOLUME

9. PICKUP SELECTOR

10. TREMELO BAR

11. PICK GUARD

12. PIC KU P

13. LOWER BOUT

14. UPPER BOUT

15. STRAP BUTTON

16. 12 FRET MARKER

17. FRET

18. FRET BOARD

19. NUT

20. TRUSS ROD

21. STRING TREE

22. TUNING KEY

23. HEADSTOCK

Red-tinted photo of a person operating a fishing machine with visible branding (no readable text or symbols)

Person playing guitar with red lighting, no visible text or symbols

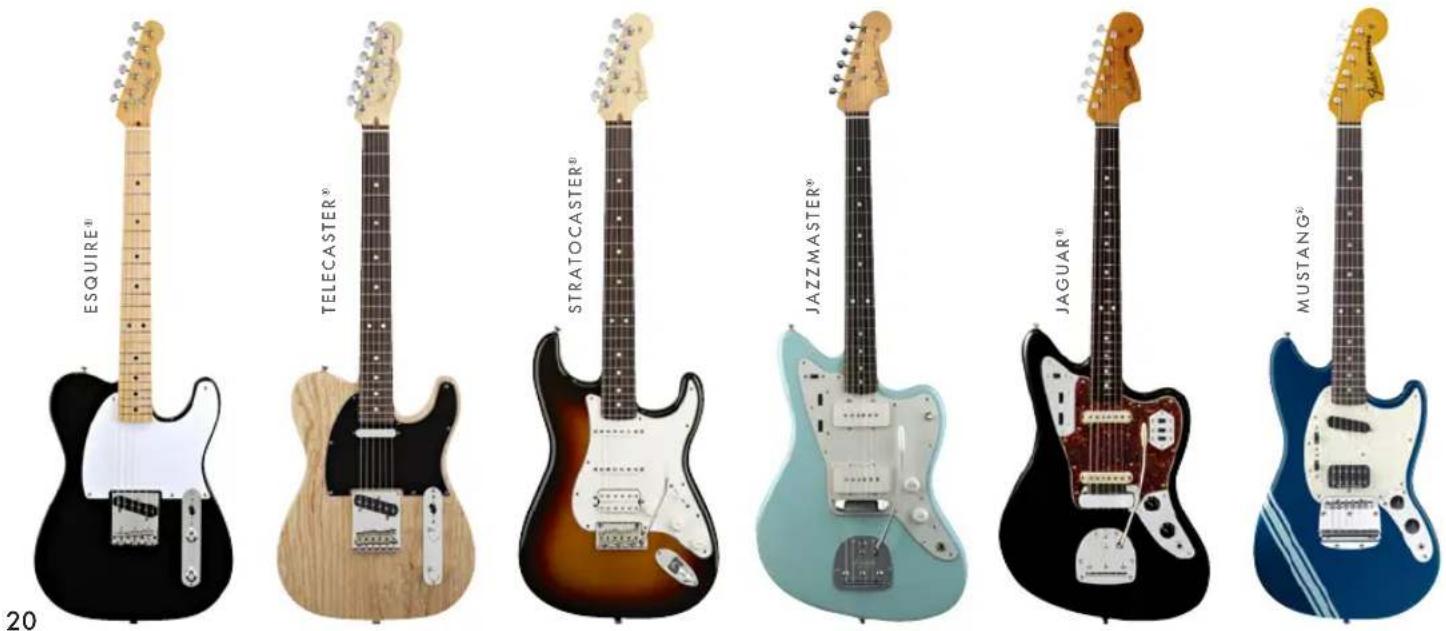

MODELS

ELECTRIC GUITAR SET-UP

Note: The following factory specifications are median specs and are meant only as guidelines. They should not be taken as hard-and-fast rules. If you prefer slightly higher or lower action, adjust it as you like, but please be aware that higher action will make the instrument physically more difficult to play, while lower action may result in excessive fret buzz, depending on your technique or playing style.

FENDER GUITAR STRINGS

To put your guitar in top playing shape, follow the five steps presented here. First, you'll need the right tools:

• Set of automotive feeler gauges (.002-.025)
• 6" ruler (with 1/64" increments) and tape measure
• Set of Allen wrenches
  • Phillips head screwdriver
• Electronic tuner
• Wire cutters
• String winder
  • Light machine oil (3-in-1, model train or gun oil)
• Polish and cloth
• Capo

Close-up of a vintage electric guitar with black wood panel and visible fretboard (no text or symbols)

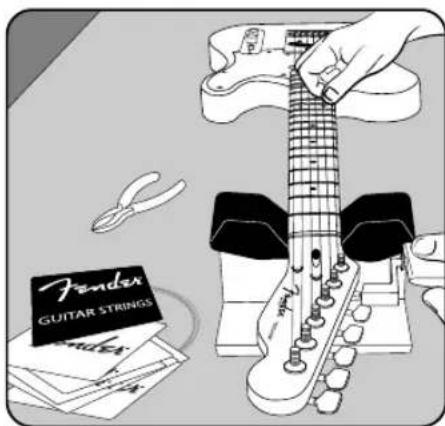

1. CHANGING STRINGS

There is no better, faster or easier way to reinvigorate the sound of your guitar than simply changing the strings. It's easy to tell when strings are old, worn or dirty—they sound dull and lifeless, and they feel rough when you run your fingers along them. Changing strings isn't difficult, but there are several ways to do it depending on what Fender® guitar model you have.

Close-up of a hand using a guitar to adjust strings into a yellow instrument (no visible text or symbols)

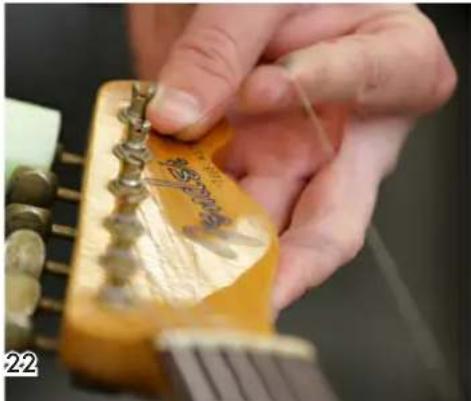

Strings attach at the bridge and to the headstock at the tuning machines. Fender guitar models use a variety of bridges and tuning machines, and different instruments call for different string replacement instructions. Please note the way strings are installed on your guitar before changing the strings.

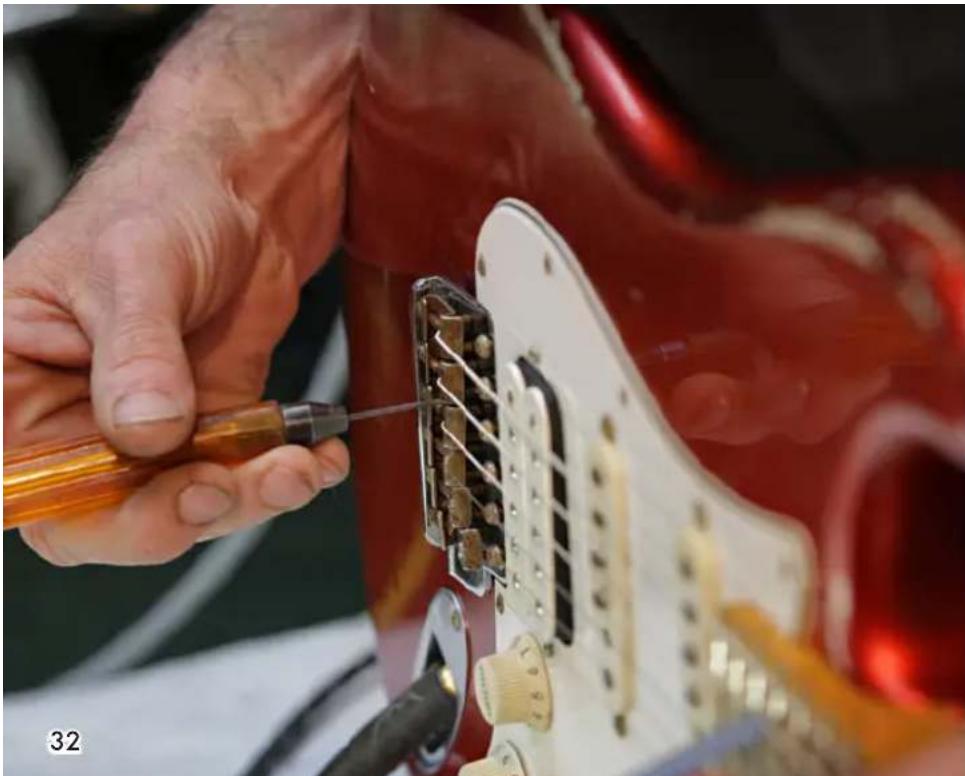

2. SETTING INTONA

Whatever bridge type on your guitar, the main thing is to make sure there's sufficient string break angle (at least 30°) over the bridge saddles. Bridge adjustments such as string height and tremolo float are mostly up to personal preference.

Intonation, however, is a very precise series of measurements. Fear not, though—you can easily preset your guitar's basic intonation. With a tape measure, find the exact scale length of your guitar by measuring from the inside edge of the nut to the center of the 12th fret (the fret wire itself, not the fingerboard space). Double that measurement to determine the scale length of your guitar.

Adjust the first-string bridge saddle to this scale length, measuring from the inside of the nut to the center of the bridge saddle. Now

TION 3. TRUSS ROD

adjust the distance of the second-string saddle back from the first saddle, using the gauge of the second string as a measurement. For example, if the second string is .011" (0.3 mm), you would move the second-string saddle back .011" (0.3 mm) from the first saddle. Move the third saddle back from the second saddle using the gauge of the third string as a measurement. The fourth-string saddle should be set parallel with the second-string saddle. Proceed with the fifth and sixth saddles with the same method used for strings two and three.

Illustration of a hand using a red tool to adjust or install electronic components on an electric guitar body (no text or symbols visible)

The truss rod is the ingenious unseen device inside the neck that counteracts the bending force caused by string tension. An ideally adjusted neck will have a moderate amount of relief (curvature) in it to accommodate the vibrating strings.

To adjust the truss rod, fasten a capo to the first fret; then fret the sixth string (low E) at the last fret. Then measure from the bottom of the string to the top of the 8th fret using the feeler gauge—the gap should be about .010". When you view the neck by sighting down it from the body end toward the headstock, you can see whether the neck is straight or bowed.

Fender guitars use two kinds of truss rod adjustment mechanisms. One is accessible at the headstock and is adjusted using an Allen wrench; the other is accessible at the neck

TIGHTEN

joint and is adjusted using a Phillips head screwdriver. For both types, here's what to do:

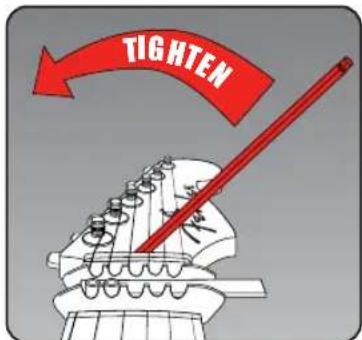

Adjustment at headstock (Allen wrench):

If the neck curvature is too concave, (the guitar in playing position, looking up the neck towards the tuners) turn the truss rod adjustment nut counterclockwise. If

the neck curvature is too convex, turn the truss rod adjustment nut clockwise.

Adjustment at neck joint (Phillips

screwdriver): If the neck curvature is too concave, turn the truss rod adjustment nut clockwise. If the neck curvature is too convex, turn the truss rod adjustment nut counterclockwise. Check your tuning; then check the gap again with the feeler gauge.

You can double-check your adjustments by sighting down the neck and by measuring the gap again to make sure it's around .010".

If you meet excessive truss rod resistance or if you're not comfortable adjusting it yourself, you can always take your guitar to your Authorized Fender Service Center.

4. STRING HEIGHT

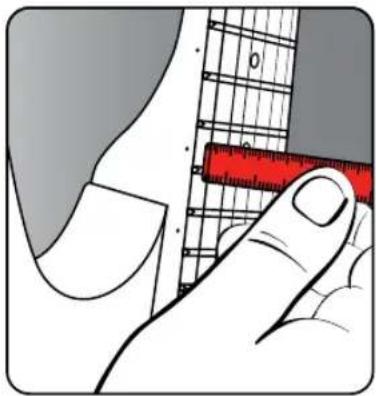

String height is more about personal preference and playing style than a pre-determined spec. Check your tuning first, then use a 6" ruler to measure the distance between the bottom of each string and the top of the 17th fret. That distance should be approximately 4/64", which is Fender's recommended spec, so adjust each bridge saddle accordingly (or the bridge height screws if the saddles are preset). About 4/64" on the treble side is suggested, but string height can be set to whatever feels right for you.

Illustration of a hand using a red tool to cut the guitar fretboard (no text or symbols present)

Close-up of a hand using a red measuring tool to cut a grid, no text or symbols visible

5. PICKUP HEIGHT

Pickups that are set too high can cause many kinds of sonic variables. To set them correctly, fret all the strings at the last fret and use a 6" ruler to measure the distance from the bottom of the first (high E) and sixth (low E) strings to the top of their respective pole pieces. The optimal distances you want will vary depending on what pickups you have, so use the outside pickup mounting screws to adjust those distances according to this chart:

PICKUPS BASS SIDE TREBLE SIDE
Texas SpecialTM	8/64" (3.6 mm) 6/64" (2.4 mm)
Vintage Style 6/64" (2.4mm) 5/64" (2 mm)
NoiselessTM 8/64" (3.6 mm) 6/64" (2.4 mm)
Standard single-coil 5/64" (2mm) 4/64" (1.6 mm)
Humbucking 4/64" (1.6mm) 4/64" (1.6 mm)
Lace Sensor to preference to preference

These distances are generally greatest on the sixth string (low E) at the neck pickup position, and closest on the first string (high E) at the bridge pickup position. Adjust pickup height as preferred around the measurements indicated, with the pickup selector switch in the middle position and the volume and tone controls at their maximum settings.

Close-up of a person playing the Fandoat guitar headstock with visible tuning pegs and strings (no text or symbols on instrument)

Close-up of a Fender Stratocaster electric guitar with its back panel, displayed on a wooden surface (no text or symbols visible on the main objects)

CARE AND MAINTENANCE

Your Fender ^® guitar is precisely crafted to give you years of satisfaction and enjoyment. Occasional routine maintenance will go a long way toward keeping it looking, sounding and playing great for many years. Several helpful tips are listed here:

Keep it clean. Dirt, dust, sweat, skin oil, smoke and other pollutants can prematurely age your bass's finish and hardware. Wipe the strings, neck and bridge often with a lint-free cloth regularly. Use Fender-approved polish on the finished surfaces, and wipe metal parts clean with a soft, dry polishing cloth (visit the Accesories section of fender.com for recommendations).

Oil the fingerboard. The natural oils in unfinished rosewood, ebony and pau ferro fingerboards can dry out. Keep these fingerboards beautiful by periodically hydrating them with lemon oil, boiled linseed oil or other non silicone-based wood/furniture oil. Apply with a lint-free cloth, rub in, let soak, wipe off excess and let dry. And remember—no oil on finished surfaces (including maple fingerboards).

Tighten the strap buttons. They do loosen sometimes. Use a standard Phillips head screwdriver to periodically check and tighten strap buttons.

Set up and adjust. Familiarize yourself with the setup and adjustment procedures in this manual and on www.fender.com, or visit your Authorized Fender Service Center for routine seasonal adjustments.

Avoid climate extremes whenever

possible. Extremes in temperature and humidity can damage your bass. If such exposure can't be helped, however, loosen the strings to minimize damage, and let a cold instrument warm up gradually before opening its case to avoid finish checking.

Lacquer finishes. Lacquer is a natural wood finish long used on fine furniture and musical instruments. If your bass has a lacquer finish, do read the “Lacquer Finishes: Precautions and Care” card that came with it. Try not to expose lacquer finishes for very long to plastics, synthetics and surgical rubber tubing (it’s used on some guitar stands and straps), all of which react adversely with lacquer and can mar the finish. Also note that checking, shrinkage and discoloration are all natural elements of the aging process of lacquer finishes. The lacquer finish on your bass will take on its own distinctive appearance over time from this type of wear, and though preferred by some, it is not covered under the Fender warranty.

LIMITED LIFETIME WARRANTY

Fender Musical Instruments Corporation warrants this Fender brand instrument to be free from defects in materials and workmanship for as long as it is owned by the original retail purchaser, except that pickups, switches, jacks, controls, all other electronic components, tuning machines, hardware, pickguards, plated surfaces, gig bags, cases and case hardware are warranted for a period of one (1) year from the date of original purchase. This warranty applies only to the original retail purchaser when this instrument is purchased from an Authorized Fender Dealer and is subject to the limitations set forth herein.

IMPORTANT: PLEASE RETAIN YOUR ORIGINAL SALES RECEIPT, AS IT IS YOUR PROOF OF PURCHASE VALIDATING THIS LIMITED WARRANTY.

Fender has established a network of independent Authorized Fender Service Centers for warranty service. The Fender Dealer from whom y

purchased your instrument may also be authorized for warranty service and should be the first point of contact when service of any kind is required for your Fender instrument. To receive warranty service, return the complete instrument to an Authorized Fender Service Center, with your sales receipt as proof of purchase, during the applicable warranty period. Defective components that qualify for coverage under this warranty will be repaired or replaced (at Fender's discretion) without charge. Remedies beyond normal service repair of any Fender instrument require both an evaluation and confirmation of the defect and a direct recommendation to Fender from an Authorized Fender Service Center for alternative considerations. All transportation, insurance and freight charges associated with warranty service and repairs on Fender instruments are the responsibility of the purchaser, as is any service initiated for the purpose of customizing setups or adjustments beyond factory specifications. Initial standard setup and adjustment of the instrument and its components at the time of purchase are considered normal Dealer product preparation and are not covered by this warranty.

Limitations and exclusions

The following items are not covered by this warranty.

1. Fret wear, saddle wear, nut wear, strings and batteries.
2. Checking, shrinking, sinking, discoloration and wear of lacquer finishes.
3. Setups, adjustments or routine maintenance of any kind.
4. Damage to finishes or cracks, splitting, or warpage of wood due to changes in temperature or humidity, exposure to or contact with sun, fire, moisture, body salts

and acids of perspiration, guitar straps, guitar stands/hangers made from vinyl, plastic, rubber or other synthetic materials, any other chemicals or non-Fender-approved polishes.

1. Damage, corrosion or rusting of any hardware components caused by humidity, salty air, or exposure to the moisture, body salts and acids of perspiration.
2. Any damage to an instrument resulting from customization or modification.
3. Normal wear and tear on any part of the instrument case or gig bag including jacks, controls, switches, plated surfaces, tuning machines, pickguards, zippers, clasps, handles, latches, case hardware, etc.
4. All other damage and deterioration due to normal usage, wear and tear, aging, accidents, neglect, abuse, or acts of nature.
5. Any instrument, whose serial number is

missing, altered or tampered with in any fashion.

1. Any instrument purchased from anyone other than an Authorized Fender Dealer.
2. Instruments that have been serviced by unauthorized persons (any person other than a Fender Certified Technician at an Authorized Fender Service Center).

THE FOREGOING CONSTITUTES THE ONLY WARRANTY MADE BY FENDER WITH RESPECT TO THE PRODUCTS AND IS MADE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED

Any implied warranties, including without limitation, any implied warranties of merchantability or fitness for any particular purpose, imposed under state law are limited to the duration of this limited warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not be applicable to you.

FMIC ASSUMES NO LIABILITY FOR PROPERTY DAMAGE RESULTING FROM FAILURE OF THIS PRODUCT NOR ANY LOSS OF INCOME, SATISFACTION, OR DAMAGES ARISING FROM THE LOSS OF USE OF SAME DUE TO DEFECTS OR AVAILABILITY OF SAME DURING SERVICE.

This warranty applies only to Fender instruments manufactured after January 1, 1998, and purchased and serviced within the U.S.A. and Canada. Warranties outside these countries are as defined by the authorized Fender Distributor for your country or region, and may vary from the above in terms and/or length.

Fender Musical Instruments Corp. 17600 N. Perimeter Drive, Suite 100 Scottsdale, AZ 85255

Phone: [phone] www.fender.com

Fender ^® , Bassman ^® , Twin Reverb ^® , Super-Sonic ^® , G-DEC ^® , Stratocaster ^® , Strat ^® , Telecaster ^® , Tele ^® , Jaguar ^® , Jazzmaster ^® , Mustang ^® , Precision Bass ^® , P Bass ^® , Jazz Bass ^® , J Bass ^® and the distinctive headstock designs commonly found on these guitars are U.S. registered trademarks of Fender Musical Instruments Corporation. All rights reserved.

IMPORTADO POR: Instrumentos Musicales Fender S.A. de C.V., Calle Huerta # 132, Col. Carlos Pacheco, C.P. 228890, Ensenada, Baja California, Mexico. RFC: IMF870506R5A Hecho en Mexico. Servicio de Cliente: 001-8665045875

NOTICE REGARDING USE OF HISTORIC PATENT NUMBERS/MARKINGS: FENDER® is proud to offer some of the most iconic musical instruments and amplifiers of the past 60 years. Some FENDER products are intentional recreations

or reissues of vintage guitars and amplifiers, and may therefore incorporate markings or text associated with original patents that have since expired. Specific examples of such models include patent numbers on the tremolo plates and decals of the JAGUAR® and JAZZMASTER® guitars, "Pat Pending" on some vintage TELECASTER® guitar bridge plates, and "Design and Circuits Patented" language on the control panels of certain model amplifiers in FENDER Vintage Modified, Vintage Reissue and Custom lines. Such markings are included only for the sake of historical accuracy, and are not intended to denote or imply live patents or ongoing patent protection.

Close-up of a hand holding an orange electric guitar with a black button, against a warm-toned sky (no text or symbols visible)

Two musicians performing on stage with red lighting and smoke, no visible text or symbols

Close-up of hands using a tool to adjust the internal components of an electric guitar body (no visible text or symbols)

SERVICE

For service in the United States and Canada, please contact an Authorized Fender Service Center, which you can find by calling the Fender Consumer Relations Department [phone] or using the Service and Repairs link on the Support section of fender.com.

For service outside the United States and Canada, please contact your authorized dealer or the Fender distributor in your country or region. There is a helpful list of international distributors online at fender.com/distributors.

MODIFIED ACTIVE GUITAR WARNING

WARNING - To maintain product safety:

Batteries and/or the product in which they are installed, shall not be exposed to excessive heat such as sunshine, fire, or the like.

• DO NOT replace batteries with rechargeable types of any kind.
• Replace only with same or equivalent PP3, 9V type battery.
• There may be a danger of fire or explosion if the battery is incorrectly connected/replaced.

Replace the Batteries as soon as they are drained and the power indicator is no longer lit.

ALWAYS UNPLUG YOUR GUITAR

WHEN NOT PLAYING FOR BEST BATTERY LIFE

If used improperly, batteries may explode or leak and cause damage or injury. In the interest of safety, please read and observe the following precautions.

• Incorrect handling of batteries can cause leakage, overheating, fire, or explosion.
• Batteries must never be heated, taken apart, or thrown in water.
• Make sure you observe the correct polarity when installing the batteries.
• Avoid using new batteries mixed with used ones. In addition, avoid mixing different types of batteries.
• Remove the batteries whenever the unit is to remain unused fir ab extended period of time.
• If a battery has leaked, use a soft piece of cloth or paper towel to wipe all remnants of the discharge from the battery compartment. Then install new batteries. To avoid inflammation of the skin, make sure that none of the battery discharge gets onto your hands or skin.
• Exercise the utmost caution so that none of the discharge gets near your eyes. Immediately rinse the affected area with running water if any of the discharge has entered the eyes.

- Never keep batteries together with metallic object such as ballpoints, necklaces, hairpins, etc.

USING THE UNIT SAFELY

• Use a reasonable amount of care when using the unit's knobs and other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.
• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes.
• Do not allow any objects (e.g., flammable materials, coins, pins); or liquids of any kind (water, soft-drinks, etc.) to penetrate the unit.

Person playing a stringed electric guitar with a straw hat (no visible text or symbols)

Person playing a red electric guitar outdoors on gravel ground (no text or symbols visible)

Musician performing on stage with electric guitar under spotlight, surrounded by electronic equipment and a poster (no visible text or symbols)

A person playing electric guitar in a studio with posters on the wall behind him (no visible text or symbols)

Close-up of a red-lit guitar with visible strings and dynamic motion blur (no text or symbols)

Black-and-white photo of a person standing beside a large electric guitar on a paved surface, with no visible text or symbols.

Portrait of a man in formal attire holding a stringed guitar (no visible text or symbols)

Hand-drawn illustration of a blue cartoon penguin playing a guitar on a person's back (no text or symbols)

Silhouette of a person on stage with audience in background under red sky (no visible text or symbols)

Fender® www.fender.com

Register your new Fender electric instrument at www.fender.com/prodreg

P/N 0079380000 REV. C
