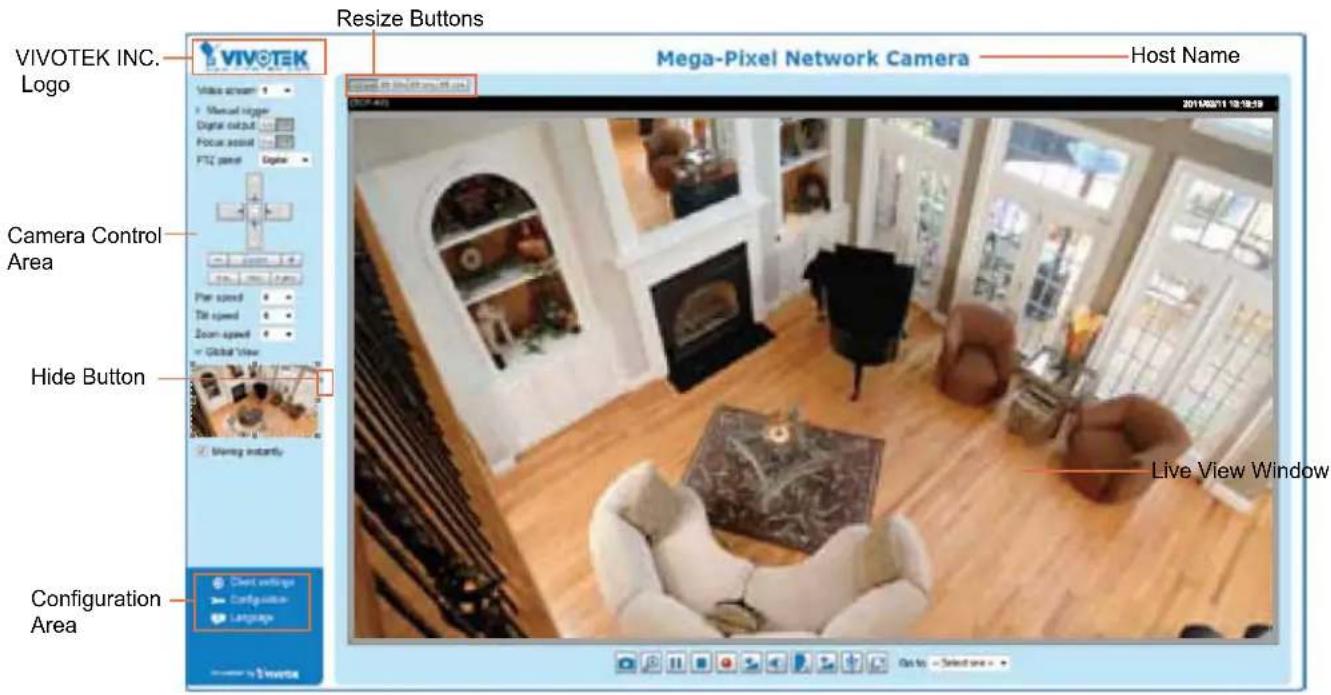

Main Page 20

Client Settings 25

Configuration 27

System > General settings 28

Security > Access List 45

Network > General settings....50

Network > Streaming protocols 58

Network > SNMP 67

Media > Image 68

Media > Video 75

Media >Audio....79

PTZ > PTZ settings 80

Event > Event settings....87

Applications > Motion detection....100

Applications > DI and DO 103

Applications > Tampering detection 103

Recording > Recording settings 104

Local storage > SD card management....109

Local storage > Content management 110

Appendix 112

URL Commands for the Network Camera.... 112

Technical Specifications 179

Technology License Notice....180

Electromagnetic Compatibility (EMC)....181

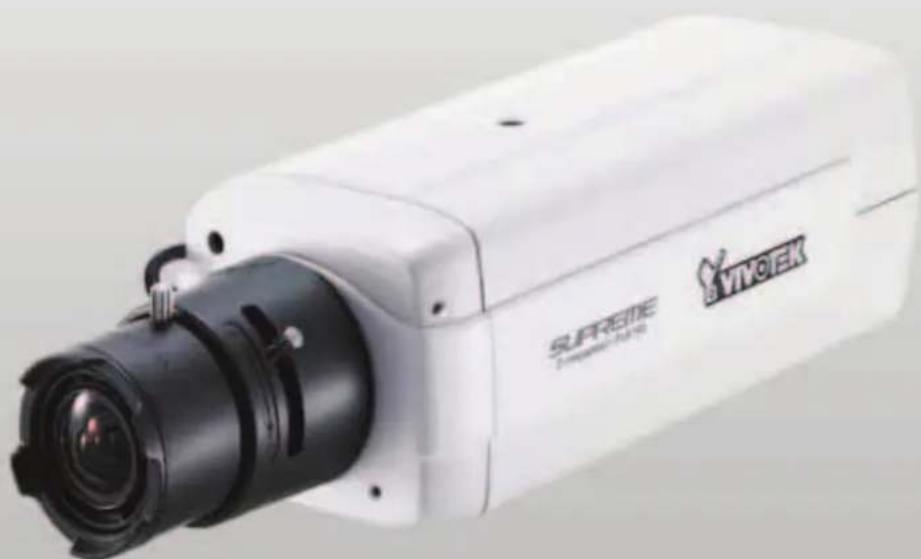

Overview

VIVOTEK IP8162/62P are part of the SUPREME series product line offering 1080p HD resolution with superb image quality. The camera can capture a more comprehensive view than a standard VGA camera, significantly reducing the number of cameras required. It is especially suitable for monitoring wide open spaces such as building entrances, airports, or applications requiring accurate identification.

The IP8162/62P employ many advanced features to allow users to fully enjoy the high definition video. With high performance H.264/MPEG-4/MJPEG compression technology, the camera offers high-quality video in full HD @ 30fps with a minimum of bandwidth consumption. The Video Cropping feature allows a user to only transfer user-defined regions for viewing instead of an entire scene, which can also be used to optimize bandwidth and enhance storage efficiency. The ePTZ function enables users to zoom in and focus on a region of interest in the camera view with only a few clicks, providing an additional level of image enhancement.

Additional value-added functions that give users more flexibility and efficiency of use include WDR Enhancement, which allows users to identify image details in extremely bright and dark environments. The Focus Assist button can aid an installer to precisely adjust the camera. When pressing the Focus Assist button on the camera unit, an indicator will be displayed on screen with detailed focusing information, which will vary in accordance with the manual adjustment. Moreover, holding down the button will zoom in on the target area for fine tuning, resulting in better usability and picture clarity. The IP8162P model comes with an advanced P-Iris lens, which controls the iris opening with extreme precision at an optimal level at all times via the built-in stepper motor, resulting in superior sharpness and depth of field as well as image quality.

As with all VIVOTEK true day/night cameras, the IP8162/62P feature a removable IR-cut filter, maintaining clear images 24 hours a day. Together with WDR Enhancement, users can identify image details in extremely bright as well as dark environments. Also featuring a myriad of other high-end features such as SD/SDHC card slot, PoE, multiple streams, and the included 32-CH recording software, the IP8162/62P is indisputably the top choice for reliable and high performance megapixel surveillance.

Read Before Use

The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system. It is the user's responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.

It is important to first verify that all contents received are complete according to the Package Contents listed below. Take note of the warnings in the Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

The Network Camera is a network device and its use should be straightforward for those who have basic networking knowledge. It is designed for various applications including video sharing, general security/surveillance, etc. The Configuration chapter suggests ways to best utilize the Network Camera and ensure proper operations. For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server.

Package Contents

■ IP8162/62P
■ Power Adapter
■ Camera Stand
■ CS-mount Lens
■ Software CD
■ Warranty Card
■ Quick Installation Guide
■ L-type Hex Key Wretch

Physical Description

Front Panel

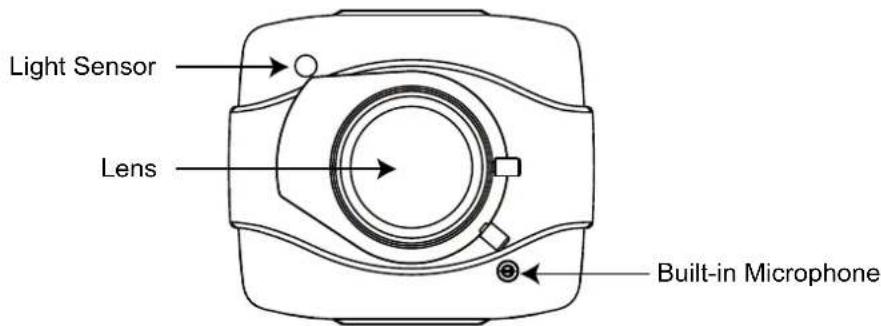

Light Sensor Lens Built-in Microphone

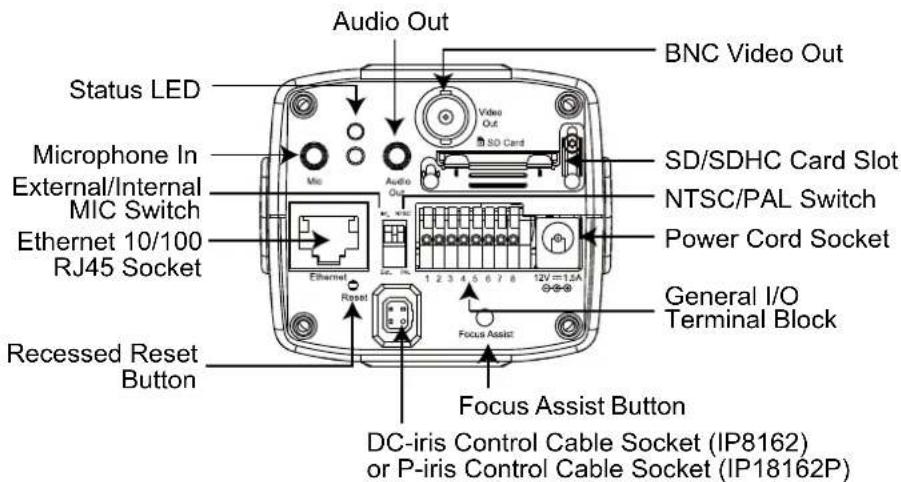

Back Panel

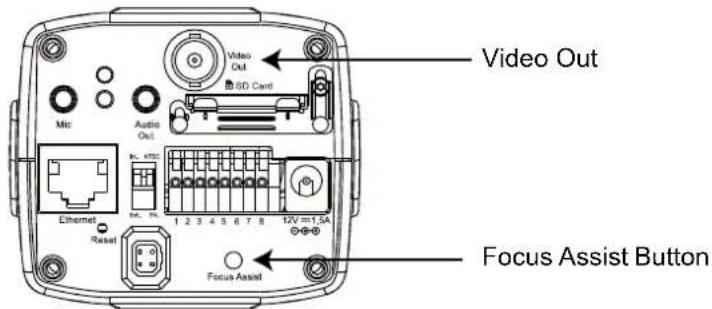

Audio Out Status LED Microphone In External/Internal MIC Switch Ethernet 10/100 RJ45 Socket Recessed Reset Button Audio Out BNC Video Out SD/SDHC Card Slot NTSC/PAL Switch Power Cord Socket General I/O Terminal Block Focus Assist Button DC-iris Control Cable Socket (IP8162) or P-iris Control Cable Socket (IP18162P)

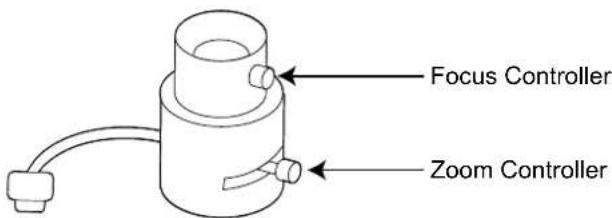

Lens

Focus Controller Zoom Controller

General I/O Terminal Block

This Network Camera provides a general I/O terminal block which is used to connect external input / output devices. The pin definitions are described below.

Pin Name

1 Power +12V

2 Digital Output

3 Digital Input

4 Ground

5 AC 24V input

6 AC 24V input

7 RS-485 +

8 RS-485 -

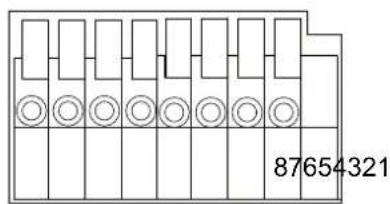

87654321

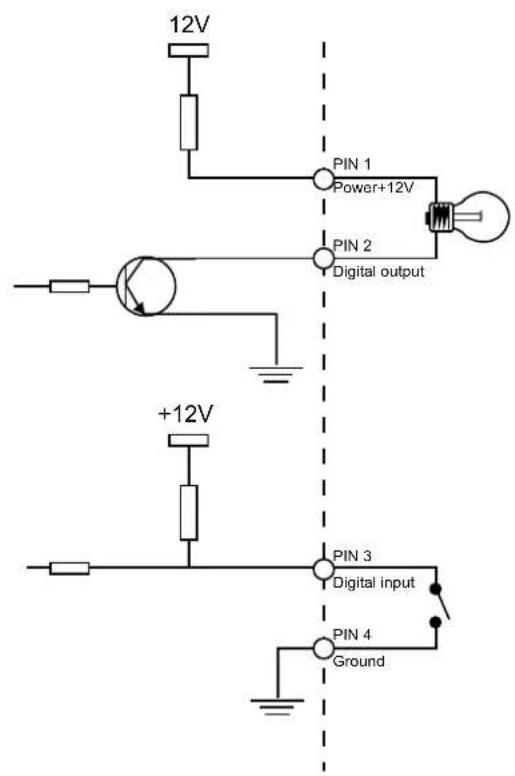

DI/DO Diagram

Please refer to the following illustration for the connection method.

12V PIN 1 Power+12V PIN 2 Digital output +12V PIN 3 Digital input PIN 4 Ground

Status LED

The LED indicates the status of the Network Camera.

Item	LED status Description
1	Steady Red Power on and system booting
	Red LED unlighted Power off
2	Steady Red + Blink Green every 1 sec. Network works (heartbeat)
	Steady Red + Green LED unlighted Network fail
3	Steady Red + Blink Green every 2 sec. Audio mute (heartbeat)
4	Blink Red every 0.15 sec. + Blink Green every 1 sec. Upgrading Firmware
5	Blink Red every 0.15 sec. + Blink Green every 0.15 sec. Restore default

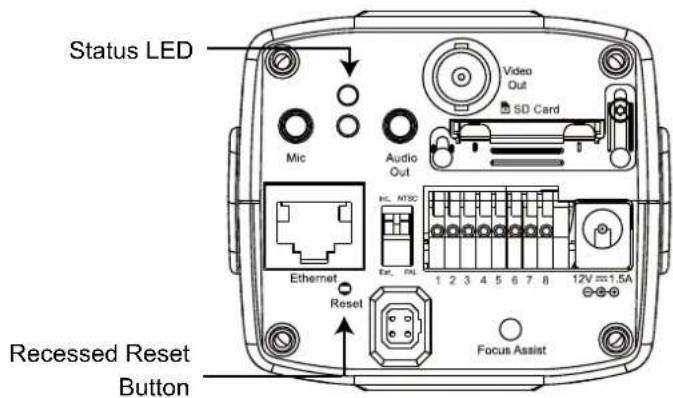

Hardware Reset

Status LED Mic Audio Out SD Card Ethernet Reset Recessed Reset Button Video Out 1 2 3 4 5 6 7 8 12V 1.5A Focus Assist

The reset button is used to reset the system or restore the factory default settings. Sometimes resetting the system can return the camera to normal operation. If the system problems remain after reset, restore the factory settings and install again.

Reset: Press and release the recessed reset button with a paper clip or thin object. Wait for the Network Camera to reboot.

Restore: Press and hold the recessed reset button until the status LED rapidly blinks. Note that all settings will be restored to factory default. Upon successful restore, the status LED will blink green and red during normal operation.

SD/SDHC Card Capacity

This network camera is compliant with SD/SDHC 16GB / 8GB and other preceding standard SD cards.

Installation

Hardware Installation

Follow the steps below to mount the lens to the Network Camera:

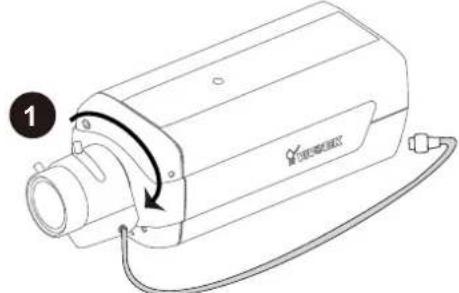

1. Mount the lens by turning it clockwise onto the camera mount until it stops. If necessary, turn the lens counterclockwise slowly until it gets the best attitude.

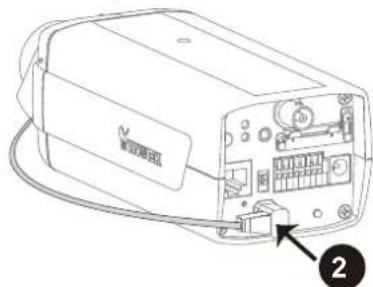

2. Connect the DC-iris control cable to the socket. (IP8162)

Connect the P-iris control cable to the socket. (IP8162P)

Line drawing of a mechanical device with a circular arrow indicating rotation, no text or symbols present

Line drawing of a device with labeled ports and cable, no readable text or symbols present

Network Deployment

Setting up the Network Camera over the Internet

This section explains how to configure the Network Camera to an Internet connection.

1. If you have external devices such as sensors and alarms, connect them to the general I/O terminal block.
2. Connect the camera to a switch via Ethernet cable.
3. Connect the power cable from the Network Camera to a power outlet.

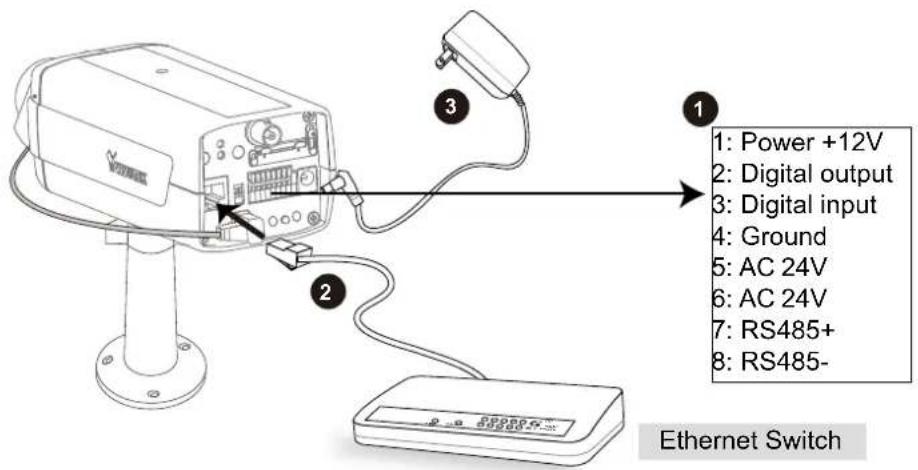

1: Power +12V 2: Digital output 3: Digital input 4: Ground 5: AC 24V 6: AC 24V 7: RS485+ 8: RS485- Ethernet Switch

NOTE

There are two power supply modes-- feed power from the Network Camera to the external DO device or feed power to the external Do device from an external power supply. Please follow the instruction below to connect the external DO device:

1. Feed power by the Network Camera - connect to pin 1 & pin 2

1: Power +12V
2: Digital output
3: Digital input
4: Ground

1. Feed power by an external power supply - connect to pin 2 & pin 4 For 5V Network Camera: < 5V, 100mA; for 12V Network Camera: < 12V, 100mA

1: Power +12V
2: Digital output
3: Digital input
4: Ground

1. Please note that this camera is for indoor use only.

There are several ways to set up the Network Camera over the Internet. The first way is to set up the Network Camera behind a router. The second way is to utilize a static IP. The third way is to use PPPoE.

Internet connection via a router

Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below.

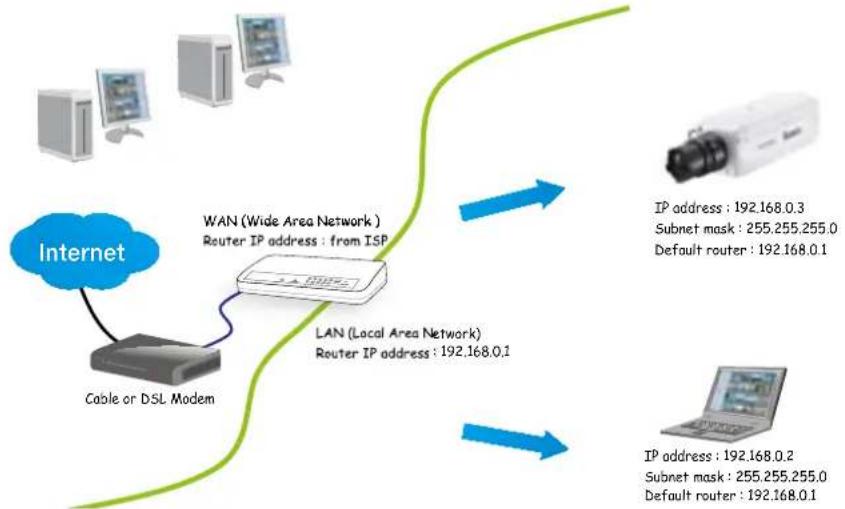

1. Connect your Network Camera behind a router, the Internet environment is illustrated below. Regarding how to obtain your IP address, please refer to Software Installation on page 11 for details.

1. In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192.168.0.3, please forward the following ports for the Network Camera on the router.

■ HTTP port
■ RTSP port
■ RTP port for audio
■ RTCP port for audio
■ RTP port for video
■ RTCP port for video

If you have changed the port numbers on the Network page, please open the ports accordingly on your router. For information on how to forward ports on the router, please refer to your router's user's manual.

1. Find out the public IP address of your router provided by your ISP (Internet Service Provider). Use the public IP and the secondary HTTP port to access the Network Camera from the Internet. Please refer to Network Type on page 50 for details.

Internet connection with static IP

Choose this connection type if you are required to use a static IP for the Network Camera. Please refer to LAN on page 50 for details.

Internet connection via PPPoE (Point-to-Point over Ethernet)

Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to PPPoE on page 51 for details.

Set up the Network Camera through Power over Ethernet (PoE)

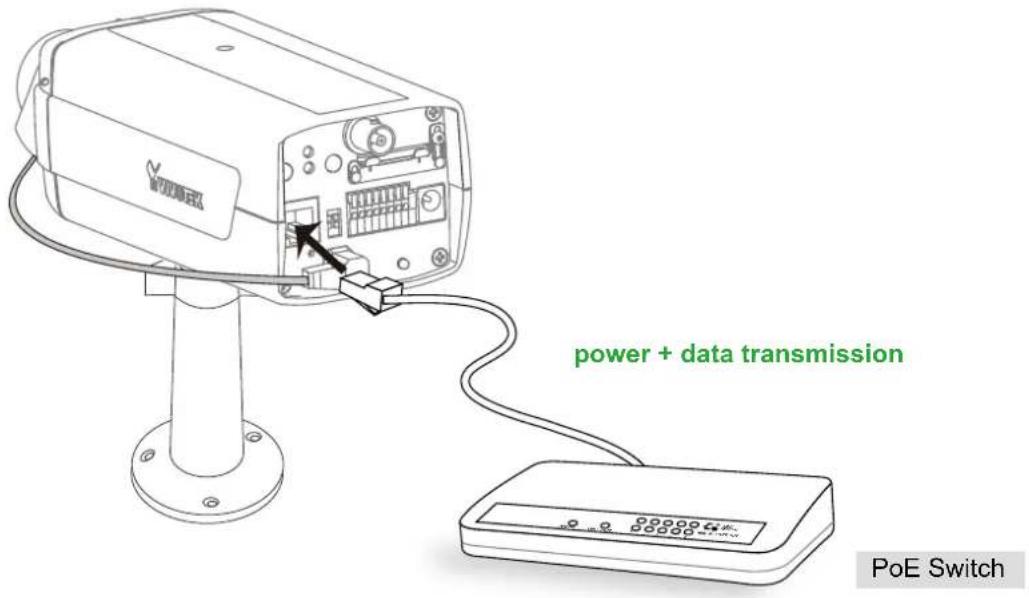

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable.

power + data transmission PoE Switch

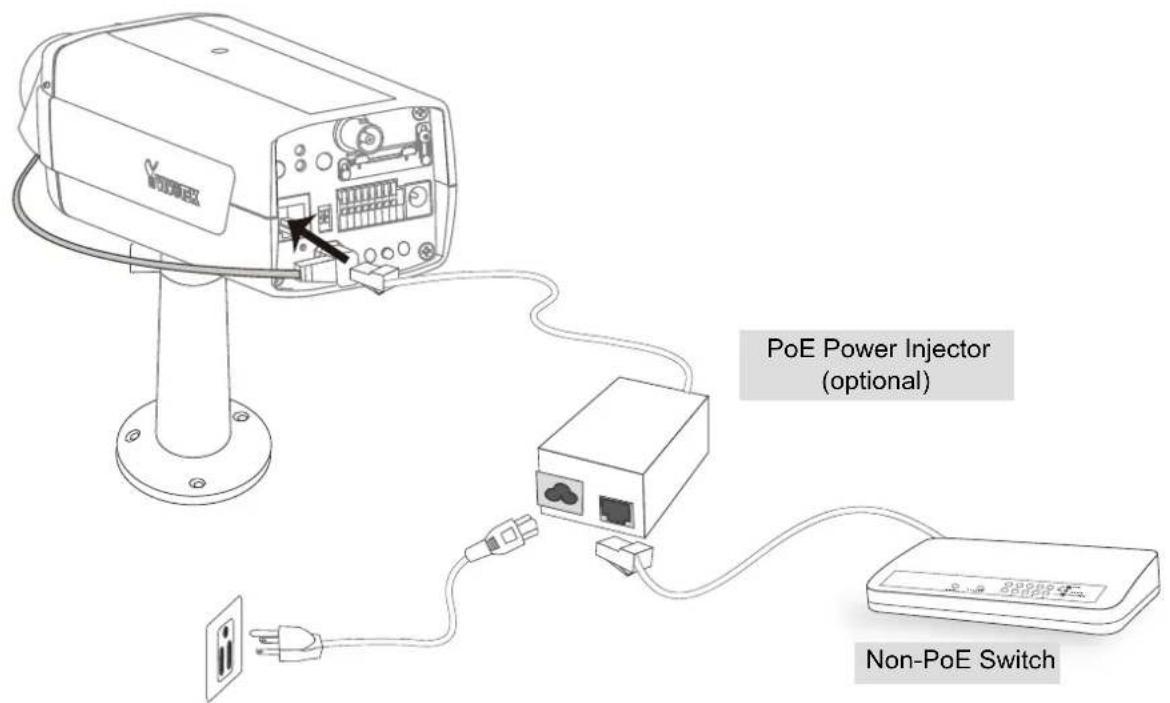

When using a non-PoE switch

If your switch/router does not support PoE, use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch.

PoE Power Injector (optional) Non-PoE Switch

Software Installation

Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up your Network Camera on the LAN.

1. Install IW2 under the Software Utility directory from the software CD. Double click the IW2 shortcut on your desktop to launch the program.

1. The program will conduct an analysis of your network environment. After your network environment is analyzed, please click Next to continue the program.

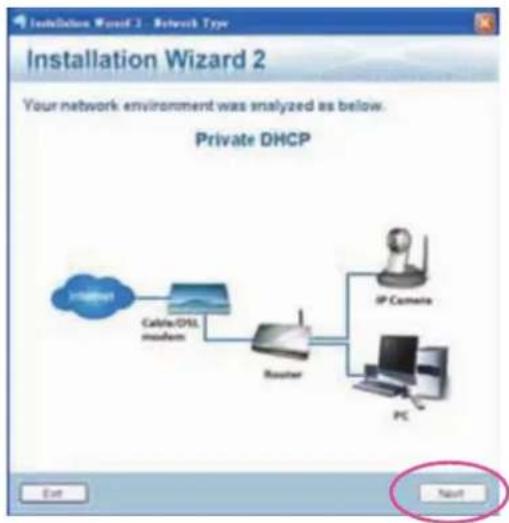

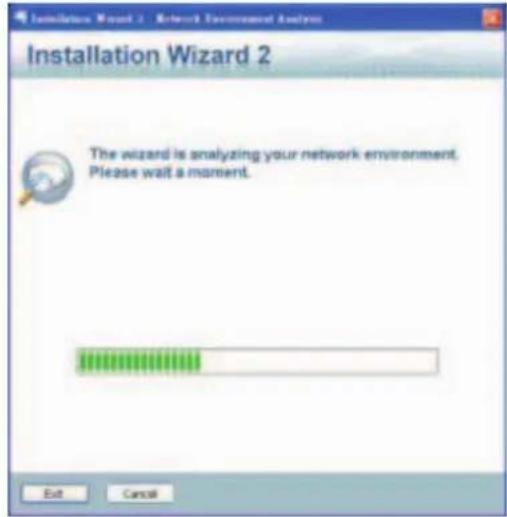

Installation Wizard 2 The wizard is analyzing your network environment. Please wait a moment.

1. The program will search for all VIVOTEK network devices on the same LAN.

2. After searching, the main installer window will pop up. Click on the MAC and model name which matches the product label on your device to connect to the Network Camera via Internet Explorer.

Network Camera VIVOTEK Model No: IP8162P RoHS MAC:0002D1730202 CE N11.04 FC VEI This device consists with part 15 of the FCS Linux. Objectives are subject to the following two conditions: IP8162P device may not be used to perform better than the device may not accept any other means or patterns, including information that may cause additional operation. Pat. 6,930,700 Made in Taiwan

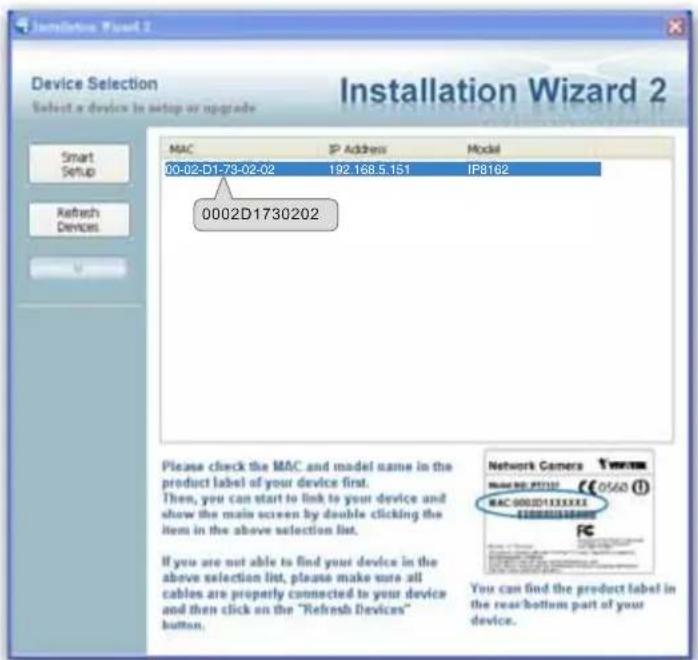

Installations Wizard 2 Device Selection Select a device in setup or upgrade MAC IP Address Model 00-02-D1-73-02-02 192.168.5.151 IP8162 0002D1730202 Please check the MAC and model name in the product label of your device first. Then, you can start to link to your device and show the main screen by double clicking the item in the above selection list. If you are not able to find your device in the above selection list, please make sure all cables are properly connected to your device and then click on the "Refresh Devices" button. Network Camera MAC NO: 057102 MAC 0002D1XXXXXX You can find the product label in the rear/bottom part of your device.

Ready to Use

1. Access the Network Camera on the LAN.
2. Retrieve live video through a web browser or recording software.

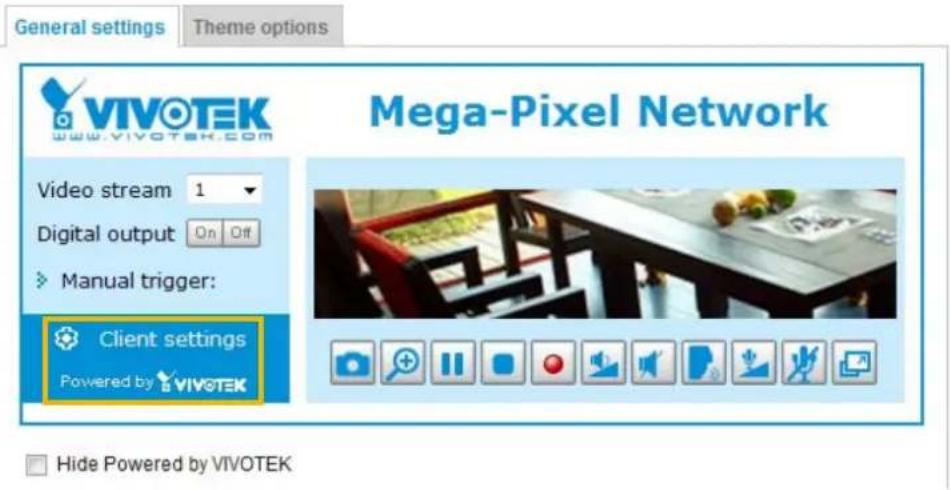

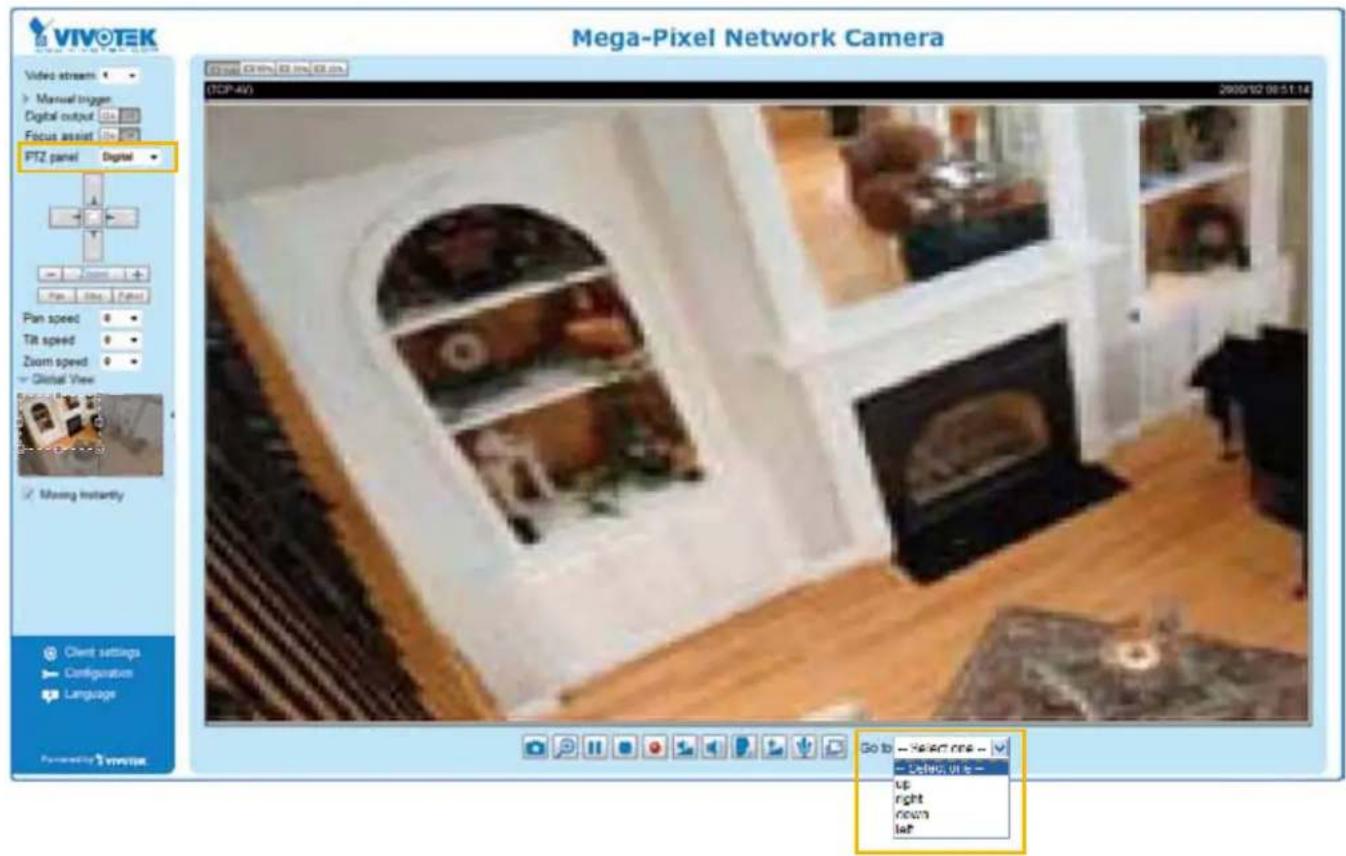

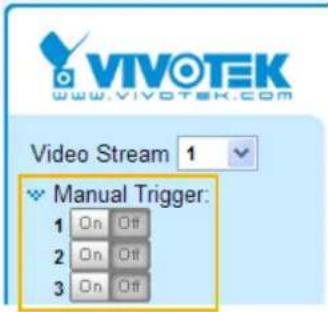

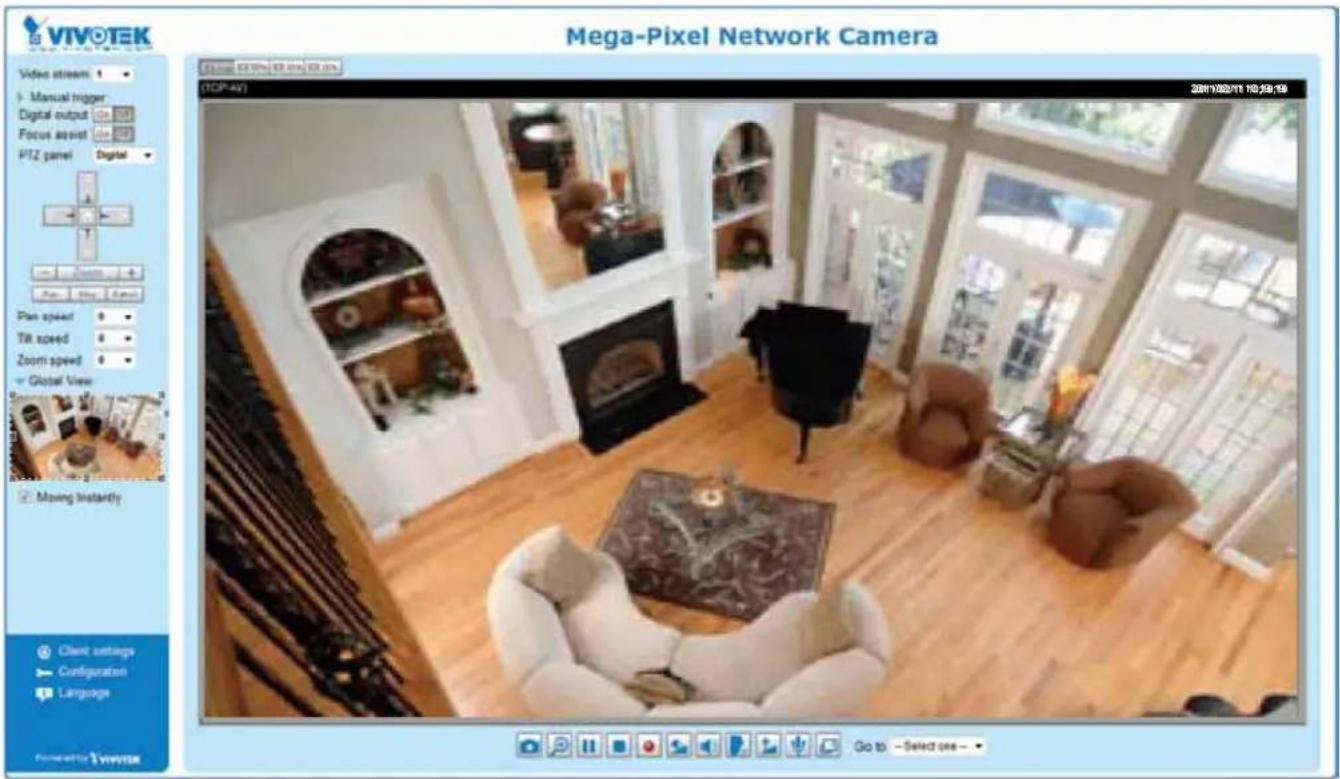

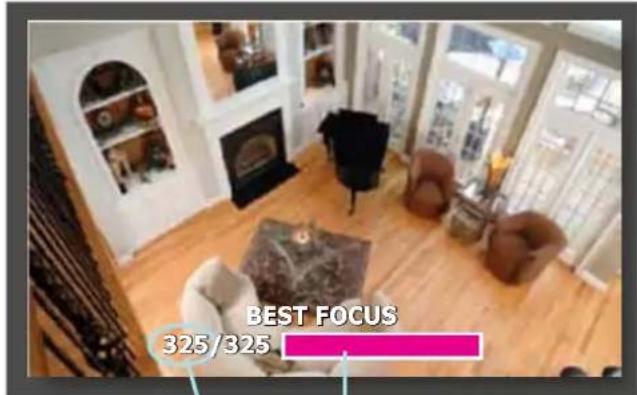

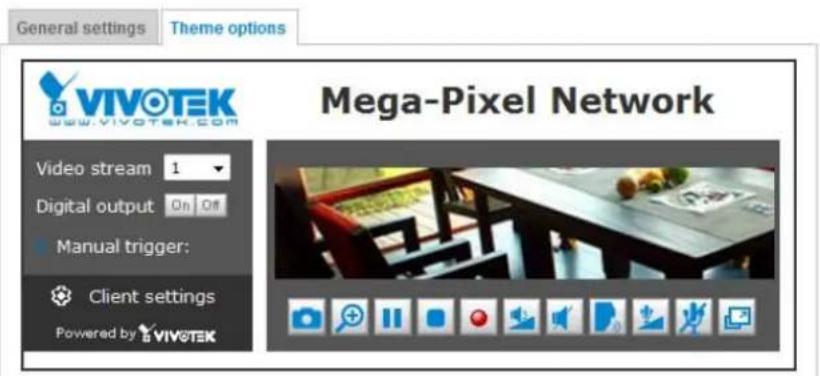

VIVOTEK Video stream Manual trigger Digital output Focus assist PTZ panel Digital Plan speed Tilt speed Zoom speed Global View Moving Instantly Client settings Configuration Language Go to -Select one -

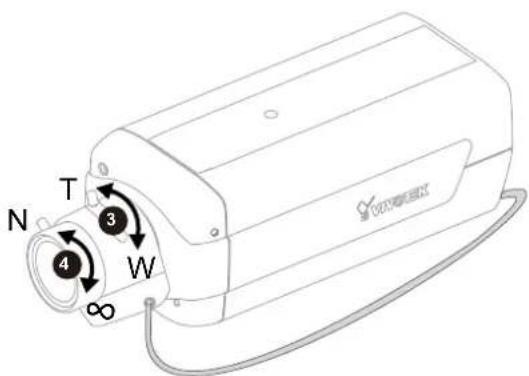

1. Unscrew the zoom controller to adjust the zoom factor. Upon completion, tighten the zoom controller.
2. Unscrew the focus controller to adjust the focus range. Upon completion, tighten the focus controller.

Fine-tune the CS-Mount

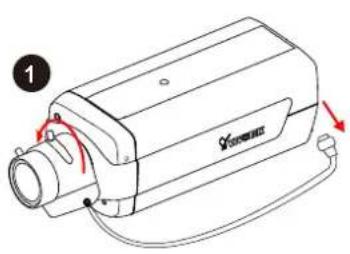

1. Detach the CS-mount lens from the camera body.
2. Turn the right side of the camera body up.
3. Use the supplied L-type hex key wrench to loosen the lens mounting screw; the CS mount ring becomes rotatable.
4. Use a coin to turn the CS-mount ring; fine-tune the distance between the sensor and the lens.
5. When finished, tighten the lens mounting screw to fix the CS-mount ring.
6. Attach the CS-mount lens back to the camera body.

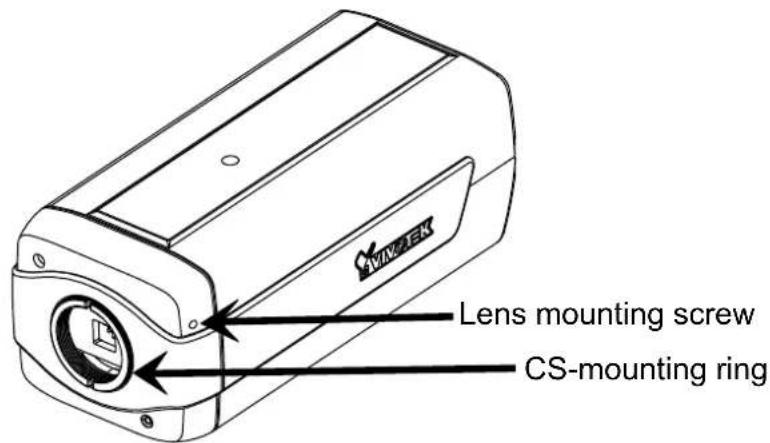

Lens mounting screw CS-mounting ring

1

Technical diagram of a device with labeled parts and red motion arrows indicating rotation or movement.

Chassis ④

NOTE

When choosing the lens for your IP8162/62P, please notice the specifications as below.

1. Flange back length (distance A-B) must be longer than 12.5mm. If the flange back length is too short, the bottom of screw mount may hit the ICR, or result in out of focus when adjusting the focus controller.
2. The screw mount (distance A-C) must be shorter than 4.5mm; in case that the bottom of screw mount may hit the ICR.

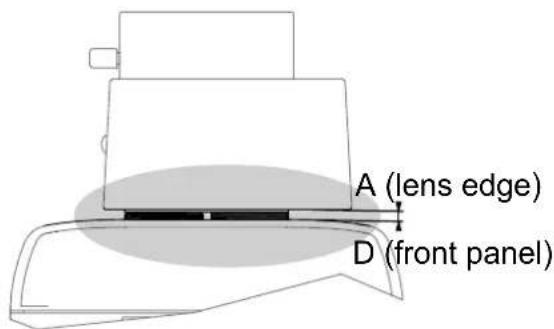

3. The distance between the edge of lens (A) and front panel (D) must NOT be longer than 0.5mm; or, it may hit the front panel when adjusting the focus controller, or result in out of focus.

Simple line drawing of a spray bottle with a circular outline (no text or symbols)

1

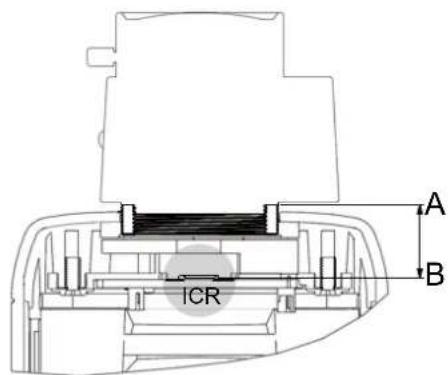

ICR A B

2

Technical line drawing of a mechanical component with labeled points A and C (no text or symbols beyond labels)

3

A (lens edge) D (front panel)

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software.

Using Web Browsers

Use Installation Wizard 2 (IW2) to access to the Network Cameras on the LAN.

If your network environment is not a LAN, follow these steps to access the Network Camera:

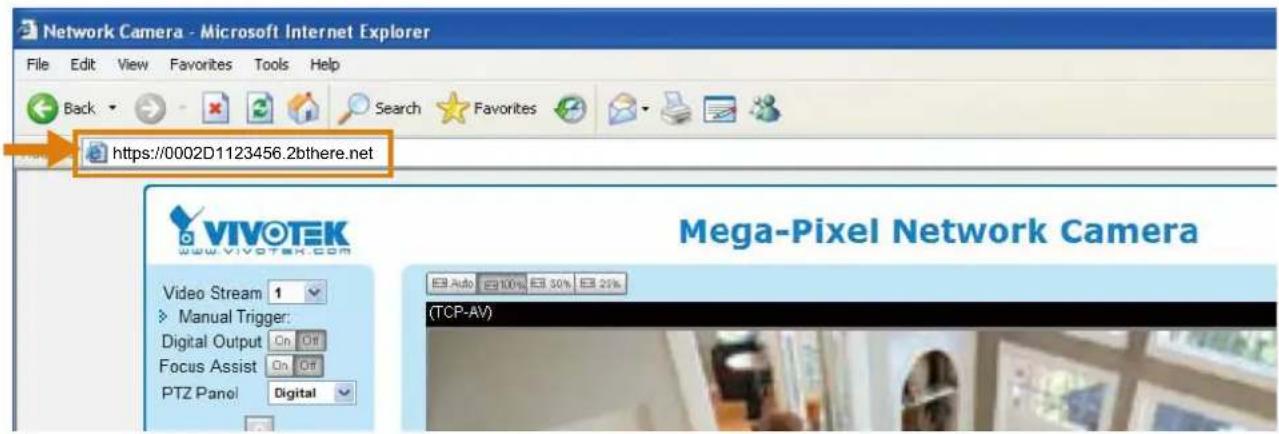

1. Launch your web browser (ex. Microsoft® Internet Explorer, Mozilla Firefox, or Netscape).

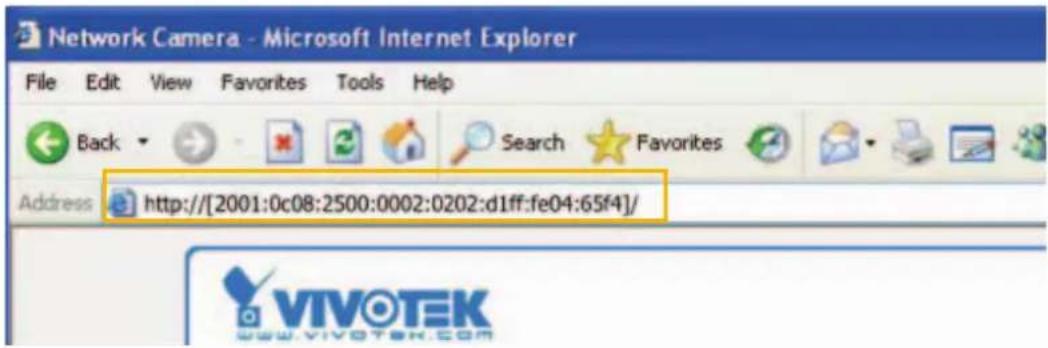

2. Enter the IP address of the Network Camera in the address field. Press Enter.

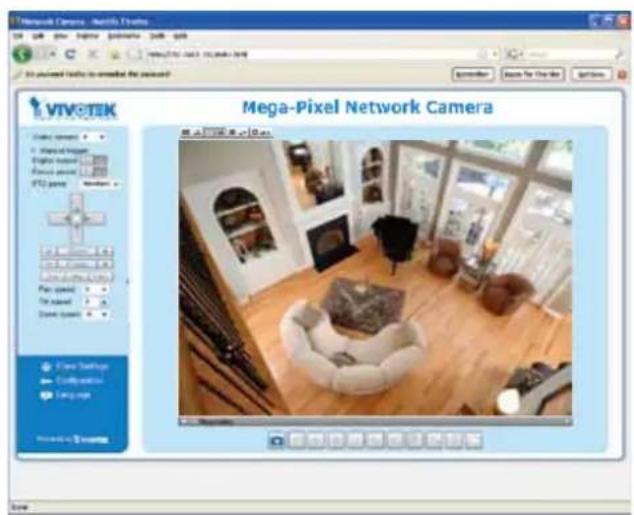

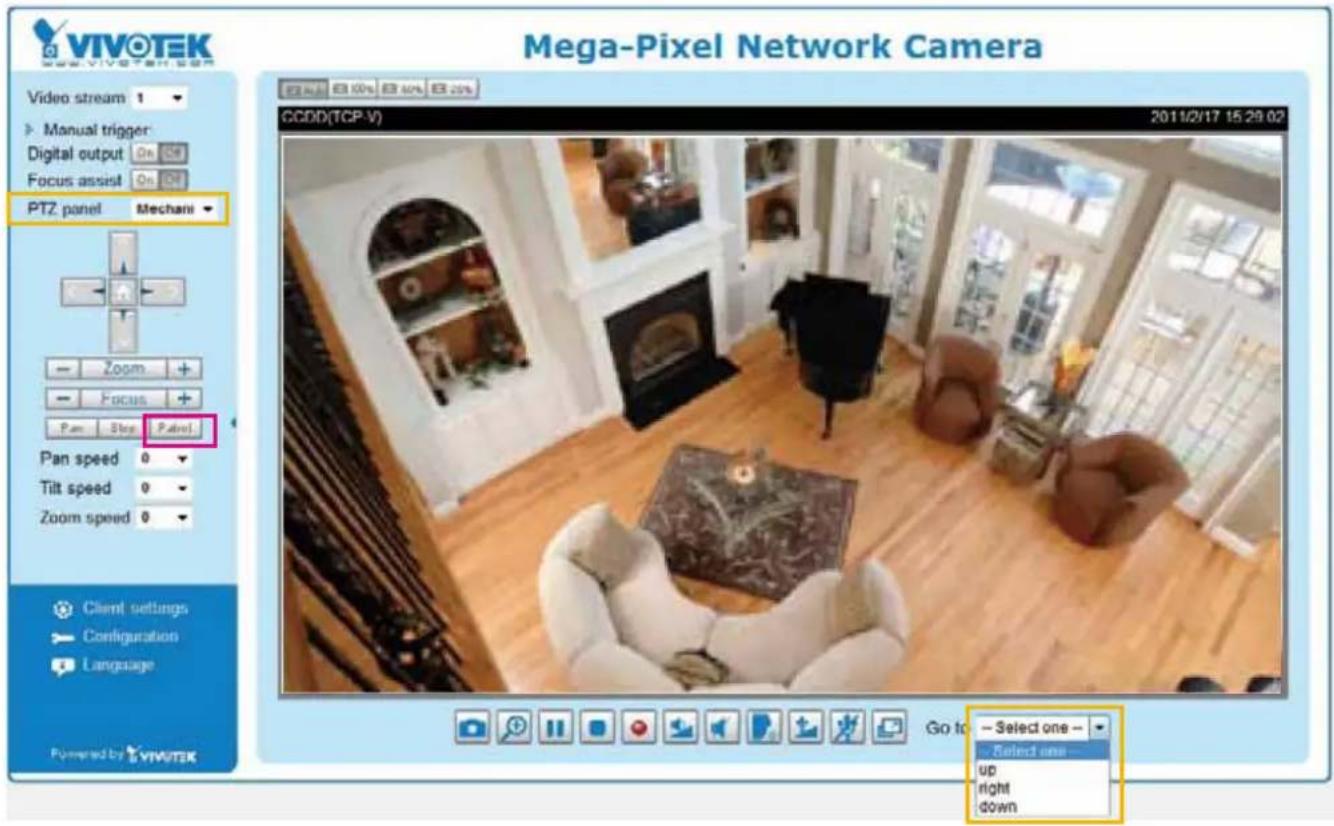

3. The live video will be displayed in your web browser.

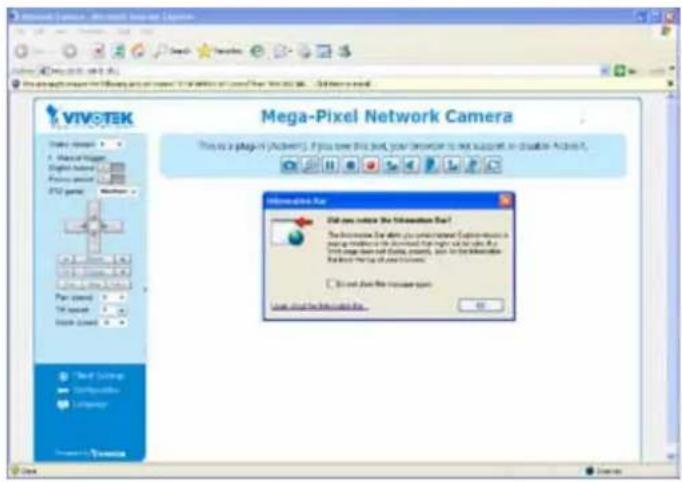

4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below. Follow the instructions to install the required plug-in on your computer.

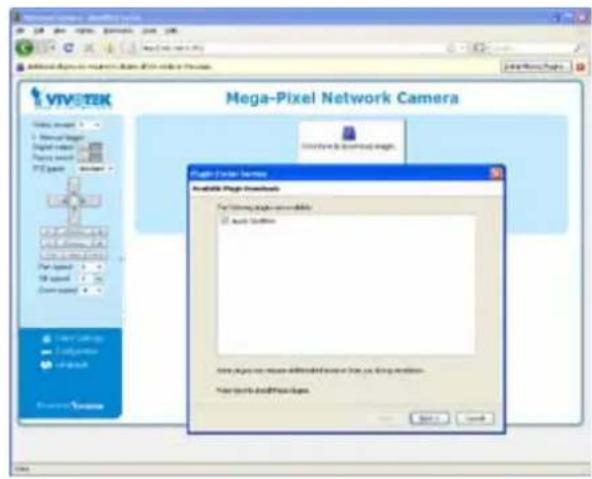

VIVOTEK Mega-Pixel Network Camera This is a plug-in (Active). If you see this book, your computer is not supported in connection. It's Information Help Did you notice the information that? The information for any person is presented on the screen or to be used. It is also available to the website, but it is also available to the other sites. □ Yes and No the request prompt. Use all these instructions.

VIVOTEK Mega-Pixel Network Camera Available Progress Documents For Existing Image not available Auto Tools Any files are required to be installed from the Web page. Your website is installed on the Web page.

NOTE

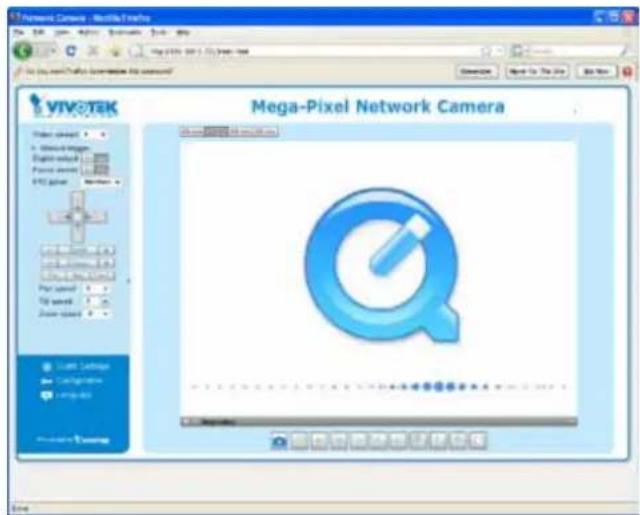

For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream the live video. If you don't have Quick Time on your computer, please download it first, then launch the web browser.

VIVOTEK Mega-Pixel Network Camera

Mega-Pixel Network Camera VIVOTEK Mega-Pixel Network Camera Mega-Pixel Network Camera - Microsoft Visuals File Edit View Help Window Help Tools Help Add to new links to create the network Add to new links to create the network Add to new links to create the network Add to new links to create the network Add to new links to create the network Add to new links to create the network Add to new links to create the network Add to new links to create the network Add to new links to create the network Add to new links to create the network Add to new links to create the network Add to new links to create the network

▶ By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera.

For more information about how to enable password protection, please refer to Security on page 40.

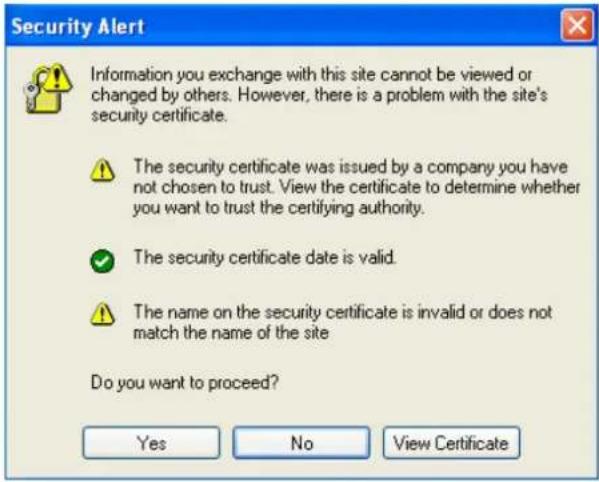

If you see a dialog box indicating that your security settings prohibit running ActiveX Controls, please enable the ActiveX® Controls for your browser.

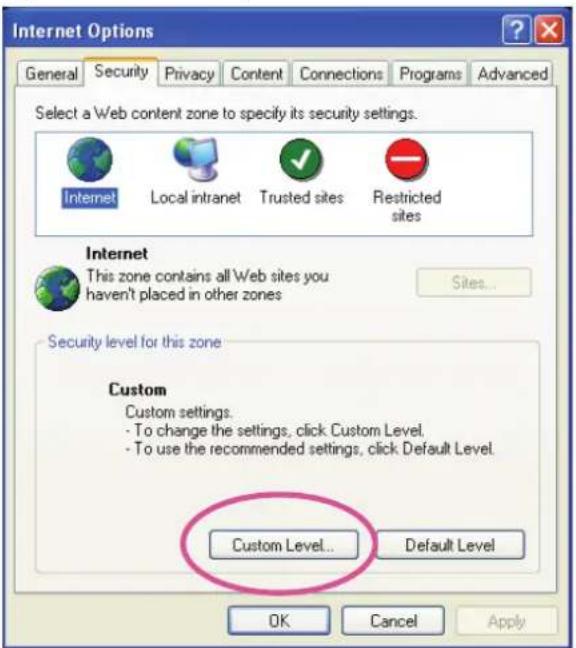

1. Choose Tools > Internet Options > Security > Custom Level.

Internet Options General Security Privacy Content Connections Programs Advanced Select a Web content zone to specify its security settings. Internet Local intranet Trusted sites Restricted sites Internet This zone contains all Web sites you haven't placed in other zones Sites... Security level for this zone Custom Custom settings. - To change the settings, click Custom Level. - To use the recommended settings, click Default Level. Custom Level... Default Level OK Cancel Apply

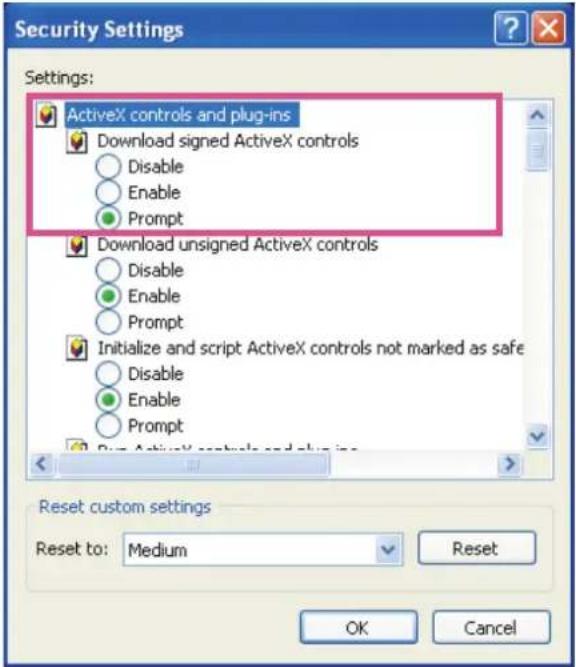

1. Look for Download signed ActiveX® controls; select Enable or Prompt. Click OK.

Security Settings Settings: ActiveX controls and plug-ins Download signed ActiveX controls Disable Enable Prompt Download unsigned ActiveX controls Disable Enable Prompt Initialize and script ActiveX controls not marked as safe Disable Enable Prompt Reset custom settings Reset to: Medium Reset OK Cancel

1. Refresh your web browser, then install the ActiveXcontrol. Follow the instructions to complete installation.

Using RTSP Players

To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming.

Quick Time Player

Real Player

1. Launch the RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. The address format is rtsp://:/

As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 59.

For example:

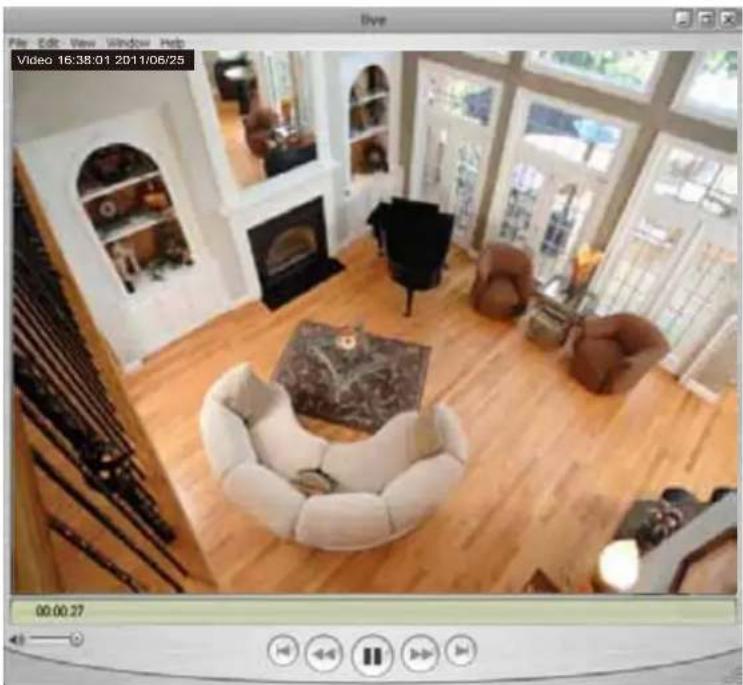

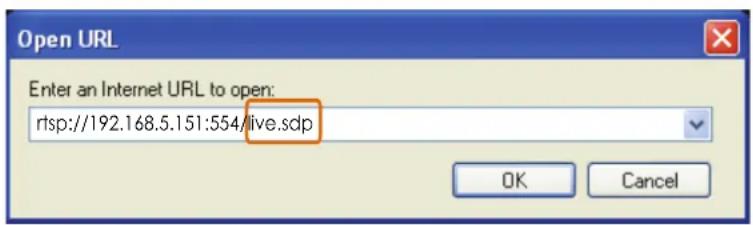

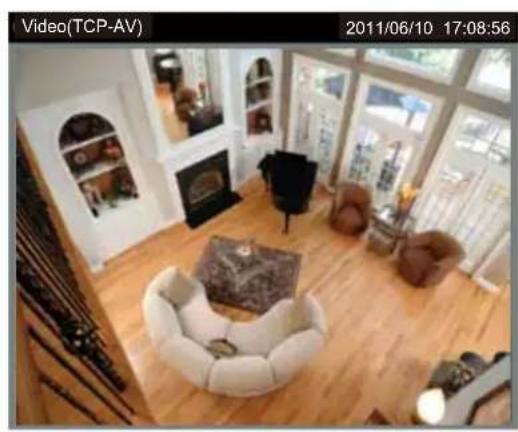

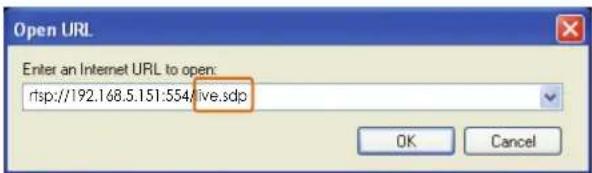

Open URL Enter an Internet URL to open: risp://192.168.5.151:554/live.sdp OK Cancel

1. The live video will be displayed in your player.

For more information on how to configure the RTSP access name, please refer to RTSP Streaming on page 59 for details.

Interior view of a modern living room with wooden flooring, armchairs, and large windows (no visible text or symbols)

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 8.

To utilize this feature, please check the following settings on your Network Camera:

1. Because most players on 3GPP mobile phones do not support RTSP authentication, make sure the authentication mode of RTSP streaming is set to disable. For more information, please refer to RTSP Streaming on page 59.

2. As the bandwidth on 3G networks is limited, you will not be able to use a large video size. Please set the video and audio streaming parameters as listed below. For more information, please refer to Stream settings on page 75.

Video Mode MPEG-4
Frame size 176 x 144
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps
Audio type (GSM-AMR) 12.2kbps

1. As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 59.

2. Launch the player on the 3GPP-compatible mobile devices (ex. Real Player).

3. Type the following URL commands into the player. The address format is rtsp://:/. For example:

Open URL Enter an Internet URL to open: rtsp://192.168.5.151:554/live.sdp OK Cancel

Using VIVOTEK Recording Software

The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user's manual of the software or download it from http://www.vivotek.com.

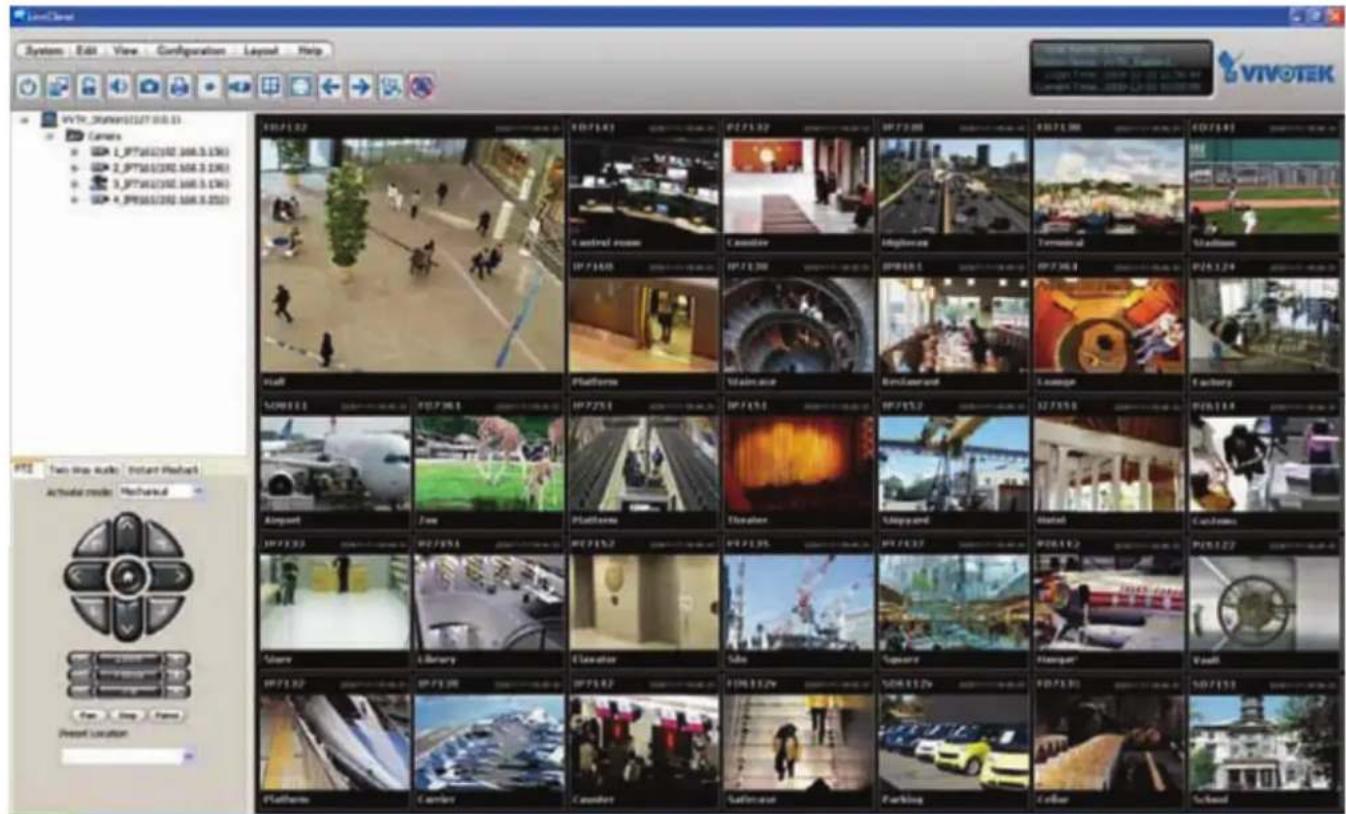

VIVOTEK System Edit View Configuration Layout Help VIVY_0009127 00:03 Camers 1_JPT662(80, 668.5.13N) 2_JPT662(80, 668.5.13N) 3_JPT662(80, 668.5.13N) 4_JPT662(80, 668.5.25N) Multi-View Audio Instant Module Actuarial mode Mechanical Present Location S1021.02 S1071.01 S1271.02 S1271.03 S1271.04 S1271.05 S1271.06 S1271.07 S1271.08 S1271.09 S1271.10 S1271.11 S1271.12 S1271.13 S1271.14 S1271.15 S1271.16 S1271.17 S1271.18 S1271.19 S1271.20 S1271.21 S1271.22 S1271.23 S1271.24 S1271.25 S1271.26 S1271.27 S1271.28 S1271.29 S1271.30 S1271.31 S1271.32 S1271.33 S1271.34 S1271.35 S1271.36 S1271.37 S1271.38 S1271.39 S1271.40 S1271.41 S1271.42 S1271.43 S1271.44 S1271.45 S1271.46 S1271.47 S1271.48 S1271.49 S1271.50 S1271.51 S1271.52 S1271.53 S1271.54 S1271.55 S1271.56 S1271.57 S1271.58 S1271.59 S1271.60 S1271.61 S1271.62 S1271.63 S1271.64 S1271.65 S1271.66 S1271.67 S1271.68 S1271.69 S1271.70 S1271.71 S1271.72 S1271.73 S1271.74 S1271.75 S1271.76 S1271.77 S1271.78 S1271.79 S1271.80 S1271.81 S1271.82 S1271.83 S1271.84 S1271.85 S1271.86 S1271.87 S1271.88 S1271.89 S1271.90 S1271.91 S1271.92 S1271.93 S1271.94 S1271.95 S1271.96 S1271.97 S1271.98 S 00/03/04/05/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06 00/03/04/05/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06/06 00/03/04/05/06/06/06/06/06/06/06/06/06/06 00/03/04/05/06/06/06/06/06/06/06 00/03/04/ 5D/T/S/S

Main Page

This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window.

VIVOTEK INC. Logo Resize Buttons Mega-Pixel Network Camera Host Name Camera Control Area Hide Button Configuration Area Live View Window

VIVOTEK INC. Logo

Click this logo to visit the VIVOTEK website.

Host Name

The host name can be customized to fit your needs. For more information, please refer to System on page 25.

Camera Control Area

Video Stream: This Network Cmera supports multiple streams (stream 1 \~ 4) simultaneously. You can select either one for live viewing. For more information about multiple streams, please refer to page 75 for detailed information.

Manual Trigger: Click to enable/disable an event trigger manually. Please configure an event setting on Application page before enable this function. A total of 3 event settings can be configured. For more information about event setting, please refer to page 83. If you want to hide this item on the homepage, please go to the System > Homepage Layout > General settings > Customized button to uncheck "show manual trigger button".

Digital Output: Click to turn the digital output device on or off.

Focus Assist

There are two options for you to fine-tune the camera focus. You can either connect the camera to an analog display device, or adjust the focus through networking. Please follow the steps below:

Video Out Audio Out Mic Mic, 1.2 3 4 5 6 7 8 12V =1.5A Ethernet Reset Focus Assist Button Video Out SD Card

■ Analog video output (BNC)

1. Connect the analog display device to the Video Out socket (for BNC cable).
2. Push the focus assist button on the back panel of the camera, then a floating indicator will be displayed on screen showing detailed focus information, which will change in accordance with the manual adjustment.

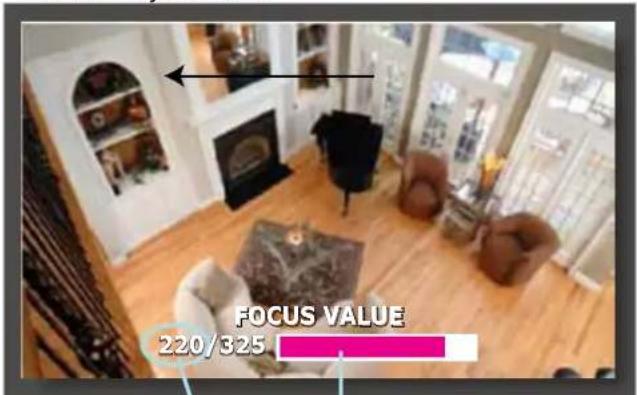

FOCUS VALUE 220/325

The pink bar variates according to current focus value.

BEST FOCUS 325/325

The pink bar reaches the peak while reaching the best focus.

1. Continue pushing the button to zoom in on the target area for fine tuning.
2. Click the "Esc" button to leave the full screen mode.
3. The Video Stream will become "FA" as shown on the right.

■ Networking video output

1. Click "on" to enable the focus assist function, then the Live Video Window will become full screen for precise focus adjustment.
2. Continue pushing the button to zoom in on the target area for fine tuning.
3. Click the "Esc" button to leave the full screen mode.
4. The Video Stream will become "FA" as shown on the right.

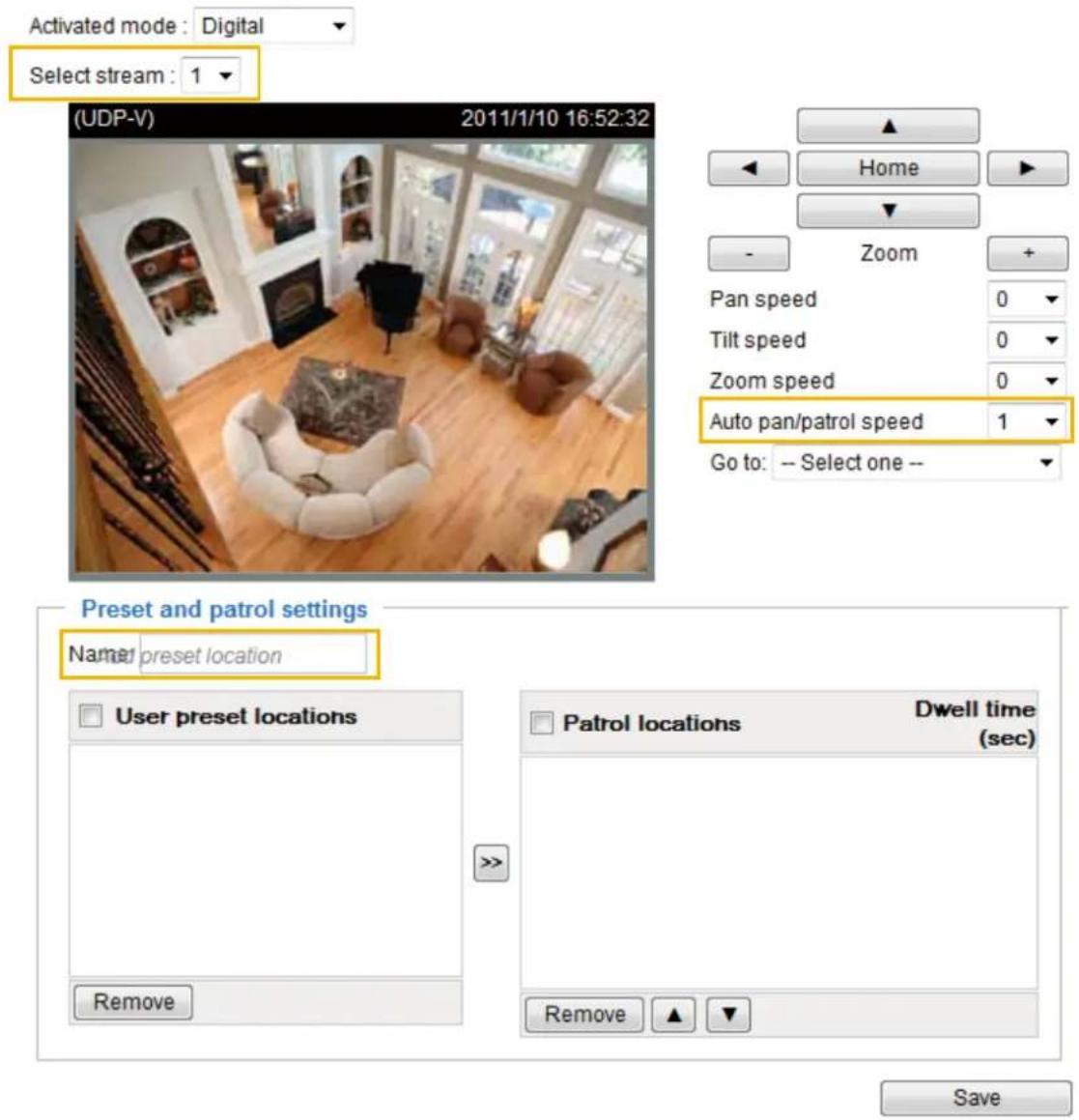

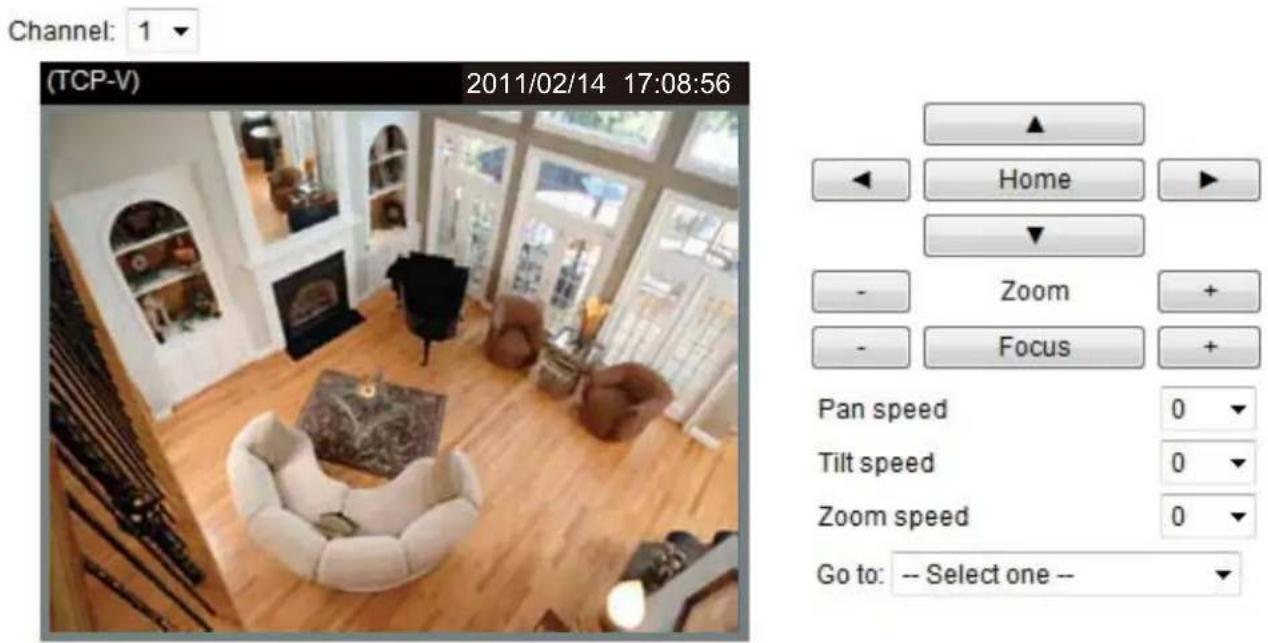

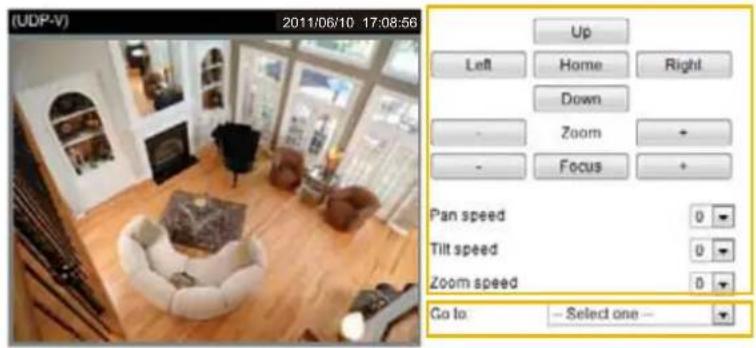

PTZ Panel: This Network Camera supports both "digital" (e-PTZ) and "mechanical" pan/tilt/zoom control. Please refer to PTZ settings on page 80 for detailed information.

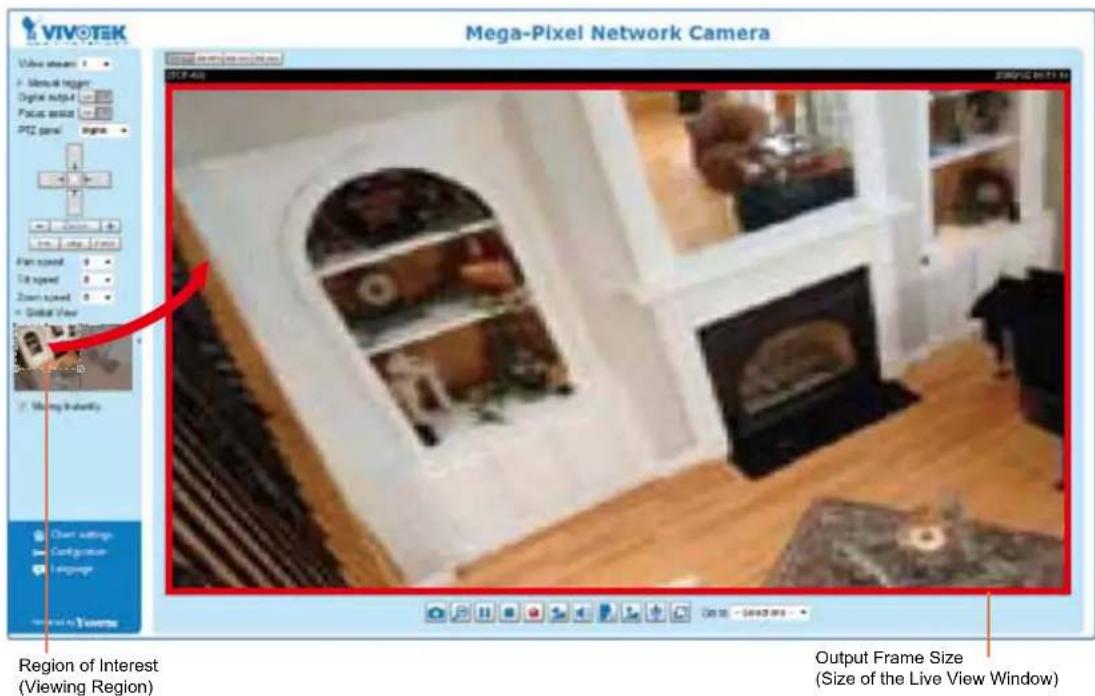

Global View: Click on this item to display the Global View window. The Global View window contains a full view image (the largest frame size of the captured video) and a floating frame (the viewing region of the current video stream). The floating frame allows users to control the e-PTZ function (Electronic Pan/Tilt/Zoom). For more information about e-PTZ operation, please refer to E-PTZ Operation on page 85. For more information about how to set up the viewing region of the current video stream, please refer to

page 75.

Interior view of a modern office with bookshelves and appliances (no visible text or symbols)

The viewing region of the current video stream
√ Moving Instantly
The largest frame size

Configuration Area

Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 25.

Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera. For more information, please refer to Configuration on page 27.

Language: Click this button to choose a language for the user interface. Language options are available in: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文. Please note that you can also change a language on the Configuration page; please refer to page 27.

Hide Button

You can click the hide button to hide the control panel or display the control panel.

Resize Buttons

Click the Auto button, the video cell will resize automatically to fit the monitor.

Click 100% is to display the original homepage size.

Click 50% is to resize the homepage to 50% of its original size.

Click 25% is to resize the homepage to 25% of its original size.

Live Video Window

■ The following window is displayed when the video mode is set to H.264 / MPEG-4:

H.264 / MPEG-4 Protocol and Media Options

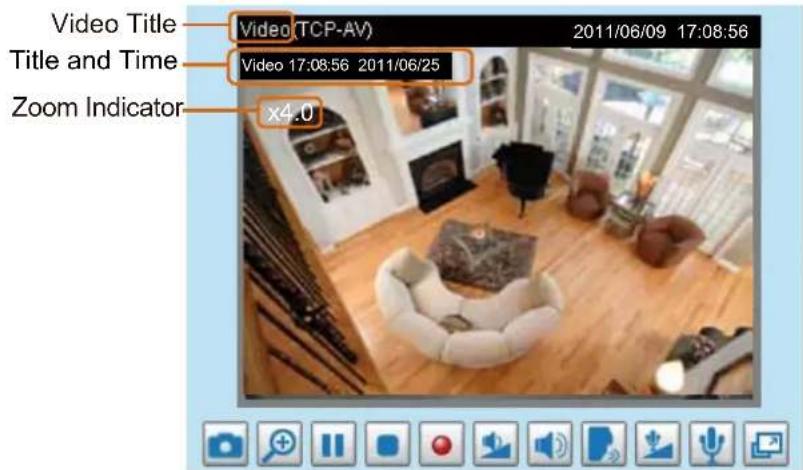

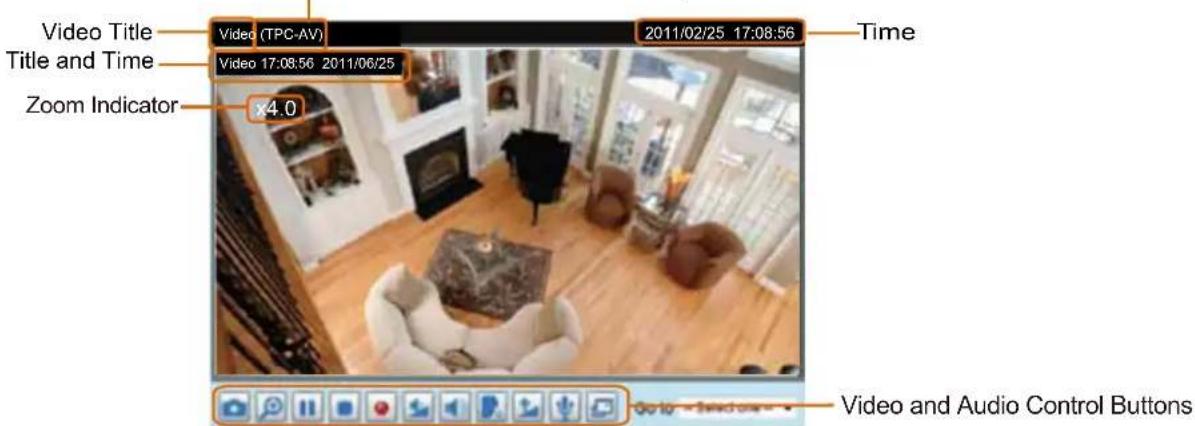

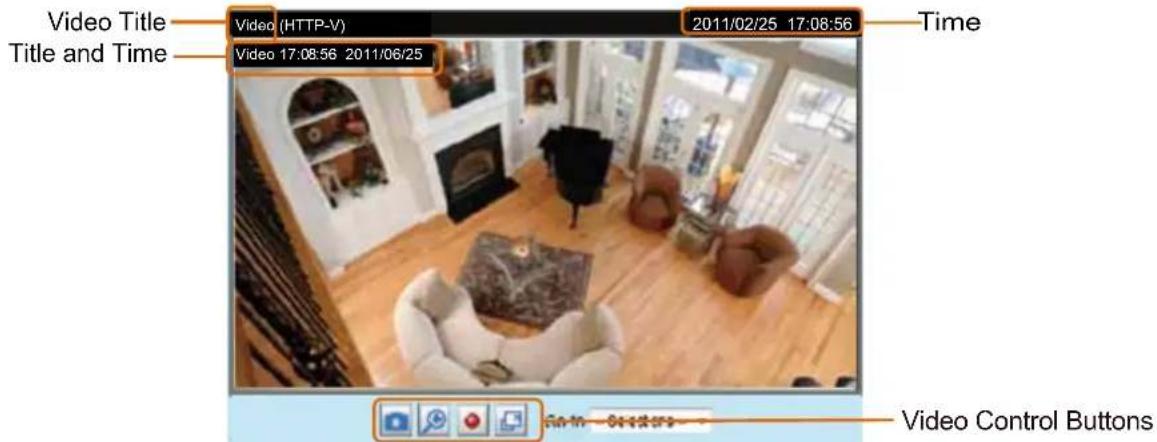

Video Title Title and Time Zoom Indicator x4.0 Video (TPC-AV) 2011/02/25 17:08:56 Video 17:08:56 2011/06/25 Time Video and Audio Control Buttons

Video Title: The video title can be configured. For more information, please refer to Video Settings on page 54.

H.264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H.264 / MPEG-4 video streaming. For further configuration, please refer to Client Settings on page 25.

Time: Display the current time. For further configuration, please refer to Media > Image > Genral settings on page 68.

Title and Time: The video title and time can be stamped on the streaming video. For further configuration, please refer to Media > Image > Genral settings on page 68.

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera

configuration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed

in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.

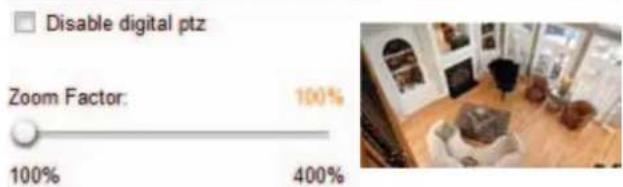

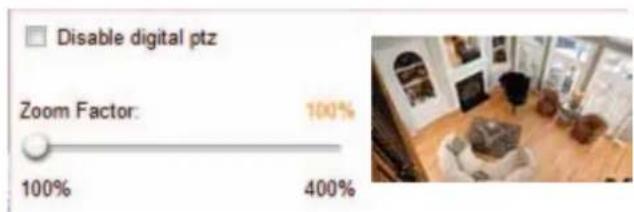

Digital Zoom: Click and uncheck "Disable digital zoom" to enable the zoom operation. The navigation

screen indicates the part of the image being magnified. To control the zoom level, drag the slider bar. To move to a different area you want to magnify, drag the navigation screen.

Disable digital ptz Zoom Factor: 100% 100% 400%

Pause: Pause the transmission of the streaming media. The button becomes the ▶ Resume button

after clicking the Pause button.

Stop: Stop the transmission of the streaming media. Click the ▶ Resume button to continue

transmission.

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.

Press the □ Stop MP4 Recording button to end recording. When you exit the web browser, video

recording stops accordingly. To specify the storage destination and file name, please refer to MP4 Saving

Options on page 26 for details.

Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the

local computer.

Mute: Turn off the volume on the local computer. The button becomes the Audio On button after

clicking the Mute button.

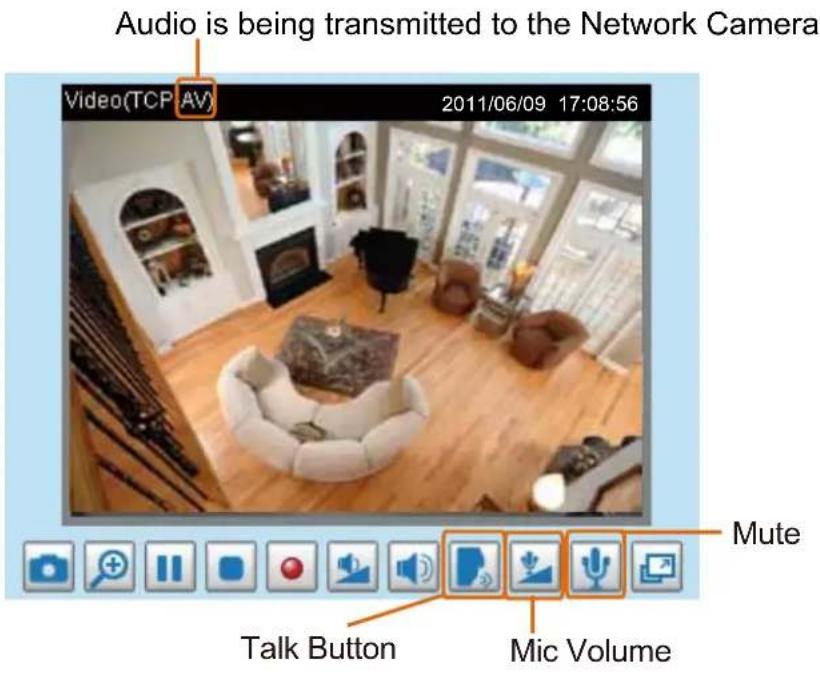

Talk: Click this button to talk to people around the Network Camera. Audio will project from

the external speaker connected to the Network Camera. Click this button again to end talking

transmission.

Mic Volume: When the Mute function is not activated, move the slider bar to adjust the

microphone volume on the local computer.

Mute: Turn off the Mic volume on the local computer. The button becomes the Mic On button

after clicking the Mute button.

Full Screen: Click this button to switch to full screen mode. Press the "Esc" key to switch back to normal

mode.

■ The following window is displayed when the video mode is set to MJPEG:

Video Title Title and Time Video (HTTP-V) 2011/02/25 17:08:56 Video 17:08:56 2011/06/25 Time Video Control Buttons

Video Title: The video title can be configured. For more information, please refer to Media > Image on page 68.

Time: Display the current time. For more information, please refer to Media > Image on page 68.

Title and Time: Video title and time can be stamped on the streaming video. For more information, please refer to Media > Image on page 68.

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.

Digital Zoom: Click and uncheck "Disable digital zoom" to enable the zoom operation. The navigation screen indicates the part of the image being magnified. To control the zoom level, drag the slider bar. To move to a different area you want to magnify, drag the navigation screen.

Disable digital ptz Zoom Factor: 100% 100% 400%

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer. Press the Stop MP4 Recording button to end recording. When you exit the web browser, video recording stops accordingly. To specify the storage destination and file name, please refer to MP4 Saving Options on page 26 for details.

Full Screen: Click this button to switch to full screen mode. Press the "Esc" key to switch back to normal mode.

Client Settings

This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings.

H.264 / MPEG-4 Media Options

H.264/MPEG-4 Media Options

Video and Audio
Video Only
○ Audio Only

Select to stream video or audio data or both. This is enabled only when the video mode is set to H.264 or MPEG-4.

H.264 / MPEG-4 Protocol Options

H.264/MPEG-4 Protocol Options

○ UDP Unicast
UDP Multicast
TCP
HTTP

Depending on your network environment, there are four transmission modes of H.264 or MPEG-4 streaming:

UDP unicast: This protocol allows for more real-time audio and video streams. However, network packets may be lost due to network burst traffic and images may be broken. Activate UDP connection when occasions require time-sensitive responses and the video quality is less important. Note that each unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up to ten simultaneous accesses.
UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients requesting streaming media. This helps to reduce the network transmission load of the Network Camera while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must be configured to enable multicast streaming at the same time. For more information, please refer to RTSP Streaming on page 59.
TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video quality. The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol.
HTTP: This protocol allows the same quality as TCP protocol without needing to open specific ports for streaming under some network environments. Users inside a firewall can utilize this protocol to allow streaming data through.

MP4 Saving Options

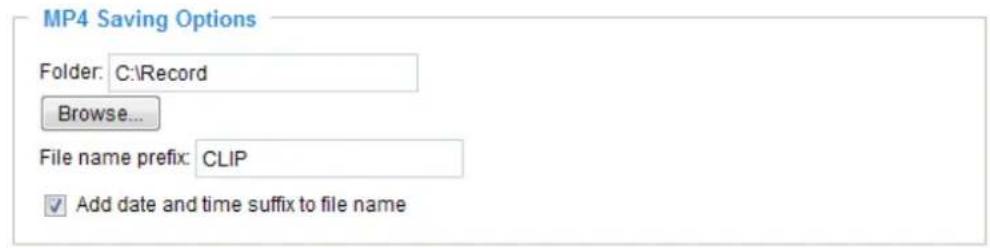

MP4 Saving Options Folder: C:\Record Browse... File name prefix: CLIP ✓ Add date and time suffix to file name

Users can record live video as they are watching it by clicking Start MP4 Recording on the main page. Here, you can specify the storage destination and file name.

Folder: Specify a storage destination for the recorded video files.

File name prefix: Enter the text that will be appended to the front of the video file name.

Add date and time suffix to the file name: Select this option to append the date and time to the end of the file name.

CLIP_20110628-180853 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS

Local Streaming Buffer Time

Local streaming buffer time 0 Millisecond Save

Due to the unsteady bandwidth flow, the live streaming may lag and not be very smoothly. If you enable this option, the live streaming will be stored on the camera's buffer area for a few seconds before playing on the live viewing window. This will help you see the streaming more smoothly. If you enter 3000 Millisecond, the streaming will delay 3 seconds.

Configuration

Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page.

VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort. To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users. Some advanced functions (PTZ/ Event/ Recording/ Local storage) are not displayed in Basic Mode.

If you want to set up advanced functions, please click [Advanced Mode] on the bottom of the configuration list to quickly switch to Advanced Mode.

In order to simplify the user interface, the detailed information will be hidden unless you click on the function item. When you click on the first sub-item, the detailed information for the first sub-item will be displayed; when you click on the second sub-item, the detailed information for the second sub-item will be displayed and that of the first sub-item will be hidden.

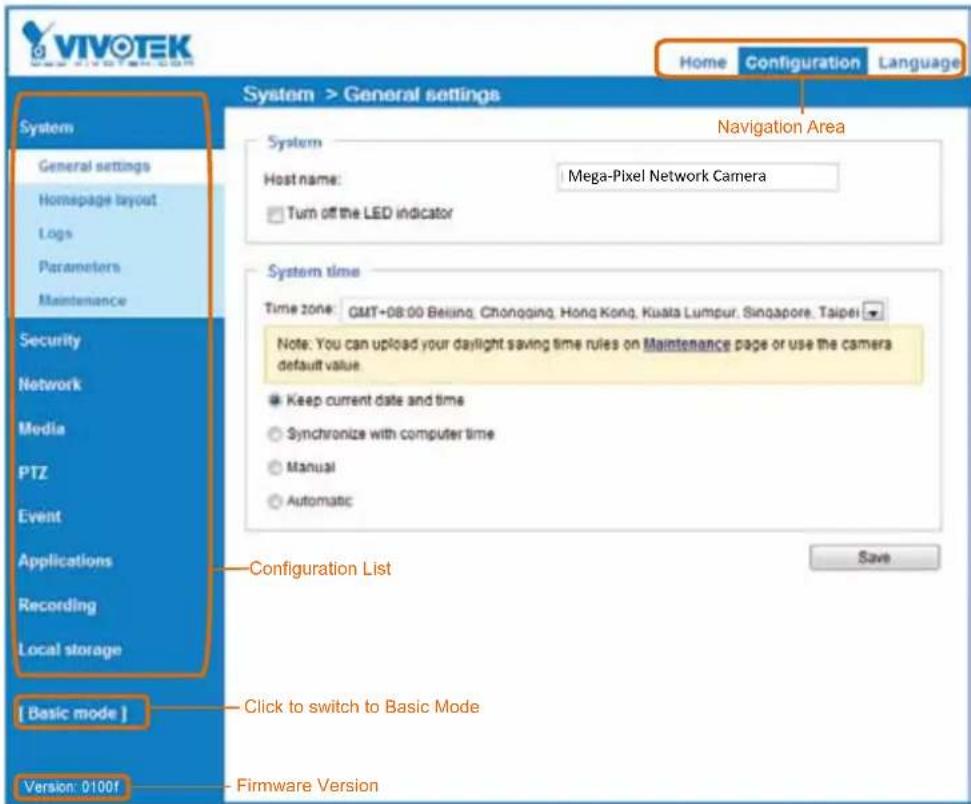

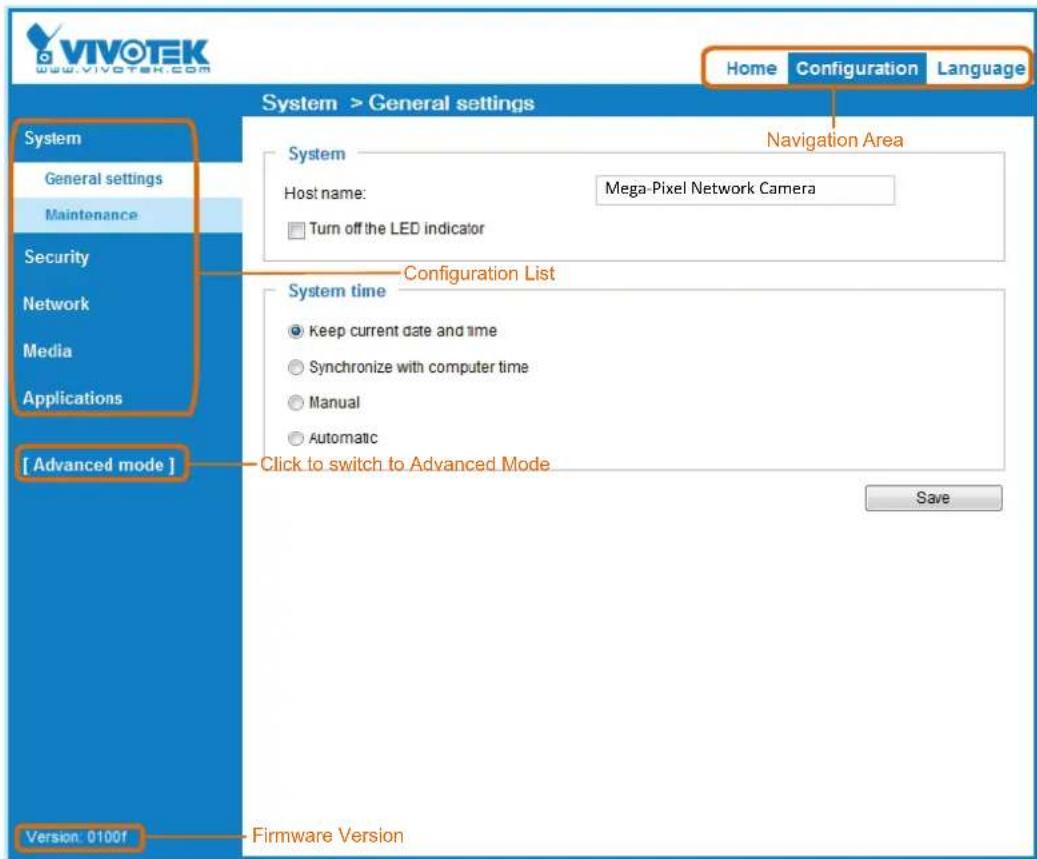

The following is the interface of the Basic Mode and the Advanced Mode:

Basic Mode

VIVOTEK www.vivottek.com Home Configuration Language System > General settings System General settings Maintenance Security Network Media Applications [ Advanced mode ] System > General settings Navigation Area Host name: Mega-Pixel Network Camera Turn off the LED indicator Configuration List System time Keep current date and time Synchronize with computer time Manual Automatic Click to switch to Advanced Mode Save Version: 0100f Firmware Version

Advanced Mode

VIVOTEK Home Configuration Language System > General settings Navigation Area System Host name: Mega-Pixel Network Camera Turn off the LED indicator System time Time zone: GMT+08:00 Beijing, Chongqing, Hong Kong, Kuala Lumpur, Singapore, Taipei Note: You can upload your daylight saving time rules on Maintenance page or use the camera default value Keep current date and time Synchronize with computer time Manual Automatic Configuration List Click to switch to Basic Mode Basic mode Version: 0100f Firmware Version

Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are marked with Advanced Mode. If you want to set up advanced functions, please click [Advanced Mode] on the bottom of the configuration list to quickly switch over.

Navigation Area provides an instant switch among Home page (the monitoring page for live viewing), Configuration page, and multi-language selection.

System > General settings

This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System, and System Time. When finished with the settings on this page, click Save at the bottom of the page to enable the settings.

System

System Host name: Mega-Pixel Network Camera Turn off the LED indicator

Host name: Enter a desired name for the Network Camera. The text will be displayed at the top of the main page.

Turn off the LED indicators: If you do not want others to notice the network camera is in operation, you can select this option to turn off the LED indicators.

System time

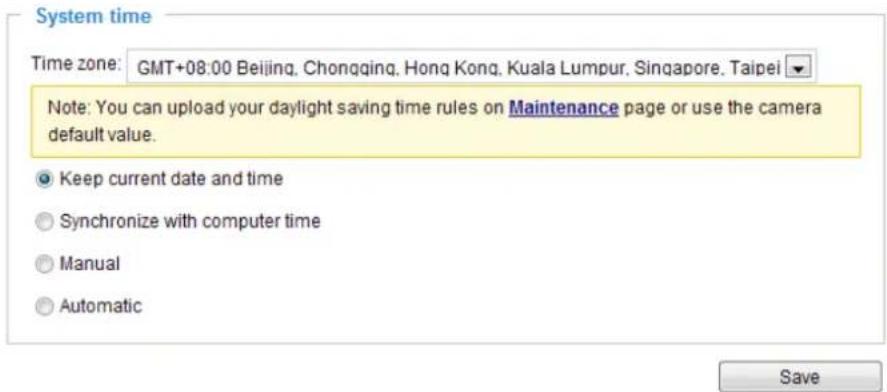

System time Time zone: GMT+08:00 Beijing, Chongqing, Hong Kong, Kuala Lumpur, Singapore, Taipei Note: You can upload your daylight saving time rules on Maintenance page or use the camera default value. Keep current date and time Synchronize with computer time Manual Automatic Save

Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera's internal real-time clock maintains the date and time even when the power of the system is turned off.

Sync with computer time: Select this option to synchronize the date and time of the Network Camera with the local computer. The read-only date and time of the PC is displayed as updated.

Manual: The administrator can enter the date and time manually. Note that the date and time format are [yyyy/mm/dd] and [hh:mm:ss].

Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically querying an NTP Server.

NTP server: Assign the IP address or domain name of the time-server. Leaving the text box blank connects the Network Camera to the default time servers.

Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly basis.

Time zone Advanced Mode: Select the appropriate time zone from the list. If you want to upload Daylight Savings Time rules, please refer to System > Maintenance > Import/ Export files on page 36 for details.

System > Homepage layout Advanced Mode

This section explains how to set up your own customized homepage layout.

General settings

This column shows the settings of your homage layout. You can manually select the background and font colors in Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings:

General settings Theme options VIVOTEK www.vivotek.com Video stream 1 Digital output On Off Manual trigger: Client settings Powered by VIVOTEK Mega-Pixel Network Hide Powered by VIVOTEK

■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage.

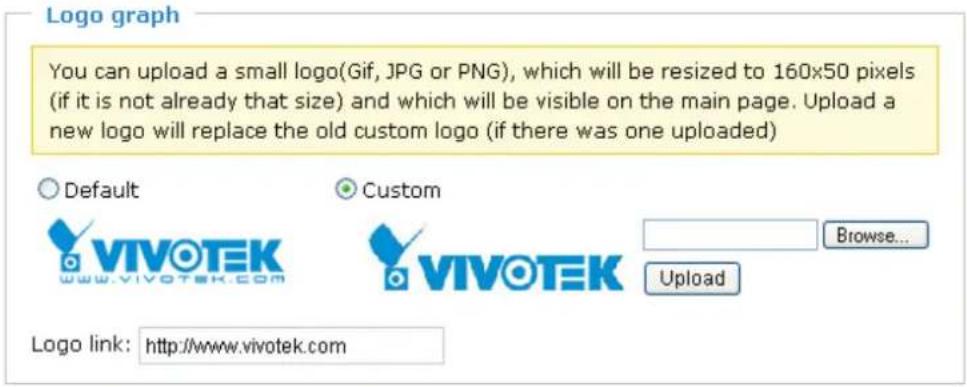

Logo graph

Here you can change the logo at the top of your homepage.

Logo graph You can upload a small logo(Gif, JPG or PNG), which will be resized to 160x50 pixels (if it is not already that size) and which will be visible on the main page. Upload a new logo will replace the old custom logo (if there was one uploaded) Default Custom VIVOTEK Browse... www.vivotek.com VIVOTEK Upload Logo link: http://www.vivotek.com

Follow the steps below to upload a new logo:

1. Click Custom and the Browse field will appear.
2. Select a logo from your files.
3. Click Upload to replace the existing logo with a new one.
4. Enter a website link if necessary.
5. Click Save to enable the settings.

Customized button

If you want to hide manual trigger buttons on the homepage, please uncheck this item. This item is checked by default. Customized button

Customized button ✓ Show manual trigger button

Theme Options

Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.

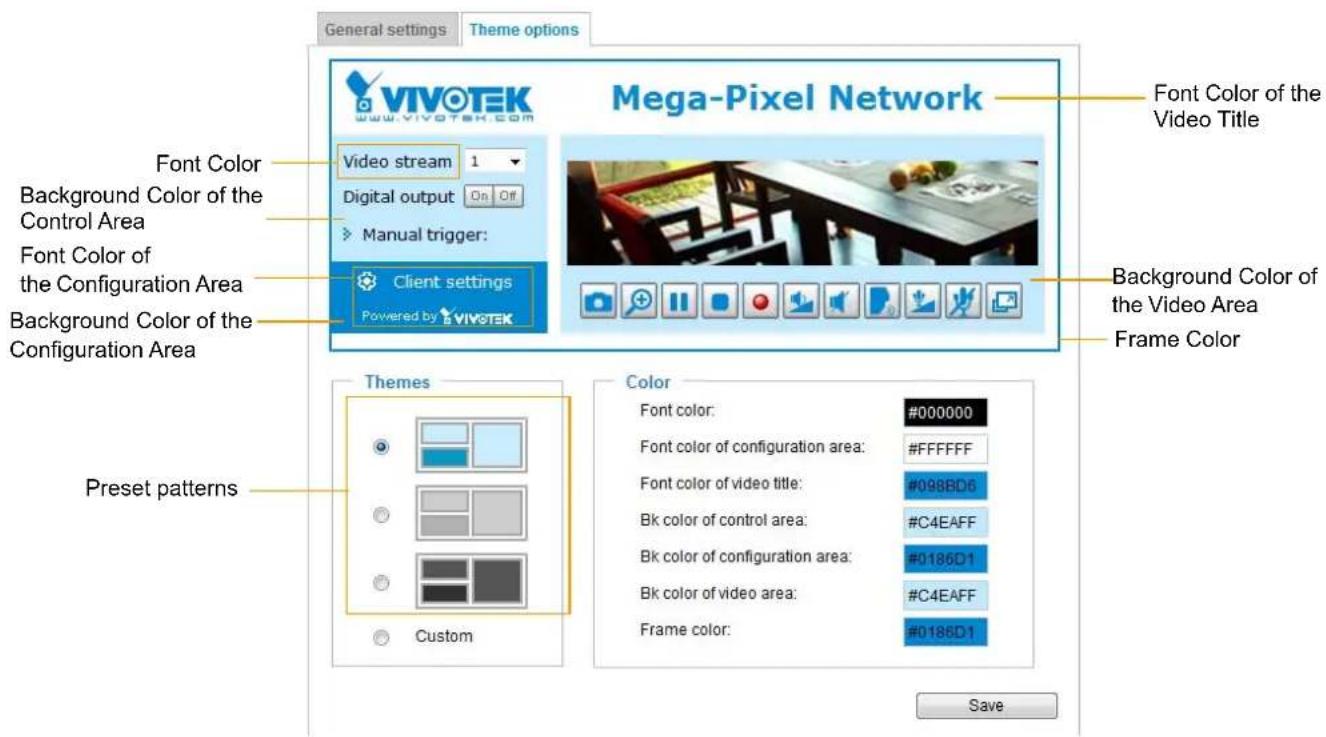

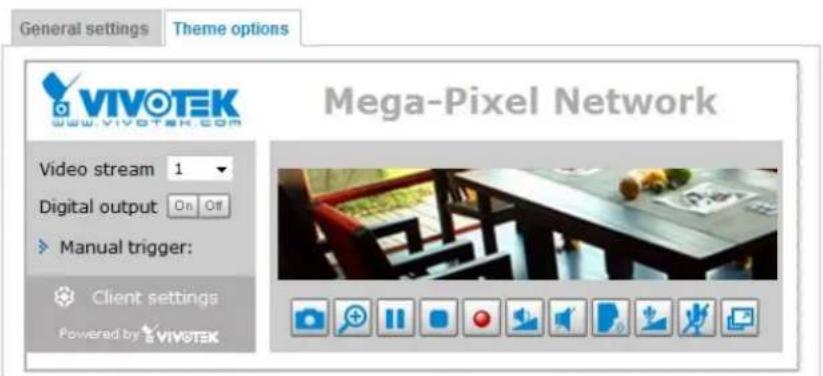

General settings Theme options VIVOTEK www.vivotek.com Mega-Pixel Network Font Color of the Video Title Video stream 1 Digital output On Off Manual trigger: Client settings Powered by VIVOTEK Font Color of the Video Area Background Color of the Control Area Font Color of the Configuration Area Background Color of the Configuration Area Frame Color Background Color of the Video Area Preset patterns Themes Custom Color Font color: #000000 Font color of configuration area: #FFFFFF Font color of video title: #098BD6 Bk color of control area: #C4EAFF Bk color of configuration area: #0186D1 Bk color of video area: #C4EAFF Frame color: #0186D1 Save

General settings Theme options VIVOTEK www.vivotek.com Video stream 1 Digital output On Off Manual trigger: Client settings Powered by VIVOTEK Mega-Pixel Network

General settings Theme options VIVOTEK www.vivotek.com Video stream 1 Digital output On Off Manual trigger: Client settings Powered by VIVOTEK Mega-Pixel Network

■ Follow the steps below to set up the customed homepage:

1. Click Custom on the left column.
2. Click the field where you want to change the color on the right column.

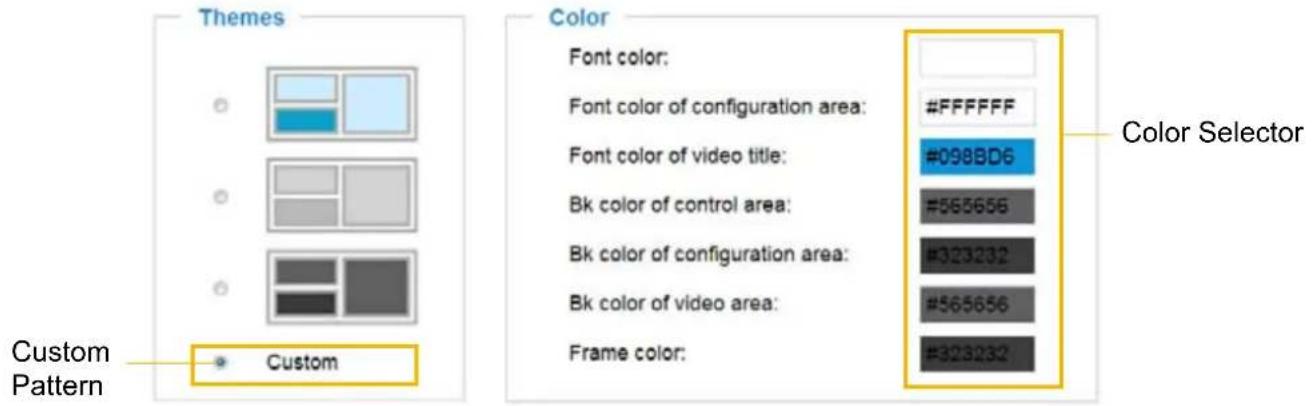

Themes Custom Pattern Color Font color: Font color of configuration area: #FFFFFFF Font color of video title: #098BD6 Bk color of control area: #565656 Bk color of configuration area: #323232 Bk color of video area: #565656 Frame color: #323232 Color Selector

1. The palette window will pop up as shown below.

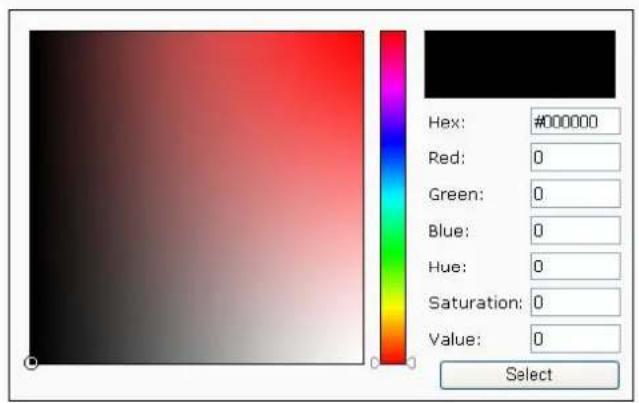

Hex: #000000 Red: 0 Green: 0 Blue: 0 Hue: 0 Saturation: 0 Value: 0 Select

Hex: #23538A Red: 35 Green: 83 Blue: 138 Hue: 212 Saturation: 74.6 Value: 54.1 4 Select

1. Drag the slider bar and click on the left square to select a desired color.
2. The selected color will be displayed in the corresponding fields and in the Preview column.
3. Click Save to enable the settings.

System > Logs Advanced Mode

This section explains how to configure the Network Camera to send the system log to the remote server as backup.

Log server settings

Log server settings Enable remote log IP address: port: 514 Save

Follow the steps below to set up the remote log:

1. Select Enable remote log.
2. In the IP address text box, enter the IP address of the remote server.
3. In the port text box, enter the port number of the remote server.
4. When completed, click Save to enable the setting.

You can configure the Network Camera to send the system log file to a remote server as a log backup. Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log messages from the Network Camera. An example is Kiwi Syslog Daemon. Visit http://www.kiwisyslog.com/kiwi-syslog-daemon-overview/.

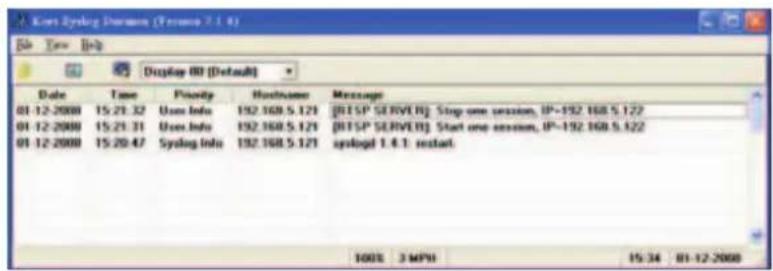

Kort Sylog Domain (Tecno 2.1.4) Date Time Help Display 00 [Default] Date Time Priority Hostname Message 01-12-2000 15:21:32 Uses Info 192.168.5.121 [BTSF SERVER]: Stop one session, IP=192.168.5.122 01-12-2000 15:21:31 Uses Info 192.168.5.121 [BTSF SERVER]: Start one session, IP=192.168.5.122 01-12-2000 15:20:47 Sylog Info 192.168.5.121 sylogd 1.4.1: instant. 100% 3 MPV 15:34 01-12-2000

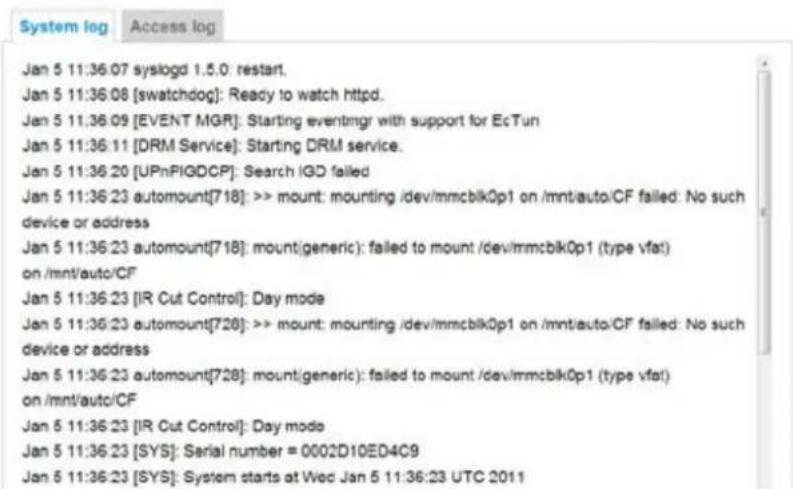

System log

Jan 5 11:36.07 syslogd 1.5.0: restart. Jan 5 11:36.08 [swatchdog]: Ready to watch httpd. Jan 5 11:36.09 [EVENT MGR]: Starting eventmgr with support for EcTun Jan 5 11:36.11 [DRM Service]: Starting DRM service. Jan 5 11:36.20 [UPnPIGDCP]: Search IGD failed Jan 5 11:36.23 automount[718]: >> mount: mounting /dev/mmcblk0p1 on /mnt/auto/CF failed: No such device or address Jan 5 11:36.23 automount[718]: mount generic): failed to mount /dev/mmcblk0p1 (type vfat) on /mnt/auto/CF Jan 5 11:36.23 [IR Cut Control]: Day mode Jan 5 11:36.23 automount[728]: >> mount: mounting /dev/mmcblk0p1 on /mnt/auto/CF failed: No such device or address Jan 5 11:36.23 automount[728]: mount generic): failed to mount /dev/mmcblk0p1 (type vfat) on /mnt/auto/CF Jan 5 11:36.23 [IR Cut Control]: Day mode Jan 5 11:36.23 [SYS]: Serial number = 0002D10ED4C9 Jan 5 11:36.23 [SYS]: System starts at Wed Jan 5 11:36:23 UTC 2011

This column displays the system log in chronological order. The system log is stored in the Network Camera's buffer area and will be overwritten when reaching a certain limit.

Access log

System log Access log

Jan 5 11:36:28 [RTSP SERVER]: Start one session, IP=172.16.2.52
Jan 5 11:49:15 [RTSP SERVER]: Start one session, IP=192.168.4.105
Jan 5 13:11:20 [RTSP SERVER]: Start one session, IP=192.168.4.105

Access log displays the access time and IP address of all viewers (including operators and administrators) in chronological order. The access log is stored in the Network Camera's buffer area and will be overwritten when reaching a certain limit.

System > Parameters Advanced Mode

The View Parameters page lists the entire system's parameters in alphabetical order. If you need technical assistance, please provide the information listed on this page.

Parameters

system_hostname='Network Camera'
system_ledoff='0'
system_lowlight='1'
system_date='2011/01/20'
system_time='16:13:54'
system_datetime='011818452011.59'
system_ntp Her
system_timezoneindex='320'
system_daylight_enable='0'
system_daylight_dstactualmode='1'
system_daylight_auto_begintime='NONE'
system_daylight_auto_endtime='NONE'
system_daylight_timezones='-360,-320,-280,-240,-241,-200,-201,-1'
system_updateinterval='0'
system_info_modelname='IP8162'
system_info_extendedmodelname='IP8162'
system_info_serialnumber='0002D10ED4C8'
system_info_firmwareversion='IP8162-VVTK-0100c'
system_info_language_count='9'
system_info_language_i0='English'
system_info_language_i1='Deutsch'
system_info_language_i2='Español'
system_info_language_i3='Français'
system_info_language_i4='Italiano'
system_info_language_i5='日本語'
system_info_language_i6='Português'
system_info_language_i7='简体中文'
system_info_language_i8='繁體中文'

System > Maintenance

This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc.

General settings > Upgrade firmware

Upgrade firmware

Select firmware file:

Browse

Upgrade

This feature allows you to upgrade the firmware of your Network Camera. It takes a few minutes to complete the process.

Note: Do not power off the Network Camera during the upgrade!

Follow the steps below to upgrade the firmware:

1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format.
2. Click Browse... and specify the firmware file.
3. Click Upgrade. The Network Camera starts to upgrade and will reboot automatically when the upgrade completes.

If the upgrade is successful, you will see "Reboot system now!! This connection will close". After that, re-access the Network Camera.

The following message is displayed when the upgrade has succeeded.

Reboot system now!! This connection will close.

The following message is displayed when you have selected an incorrect firmware file.

Starting firmware upgrade...

Do not power down the server during the upgrade.

The server will restart automatically after the upgrade is completed.

This will take about 1 - 5 minutes.

Wrong PKG file format

Unpack fail

General settings > Reboot

Reboot

Reboot the device

Reboot

This feature allows you to reboot the Network Camera, which takes about one minute to complete. When completed, the live video page will be displayed in your browser. The following message will be displayed during the reboot process.

The device is rebooting now. Your browser will reconnect to http://192.168.5.151:80/ If the connection fails, please manually enter the above IP address in your browser.

If the connection fails after rebooting, manually enter the IP address of the Network Camera in the address field to resume the connection.

General settings > Restore

Restore

Restore all settings to factory default except settings in

Network

Daylight saving time

Custom language

Restore

This feature allows you to restore the Network Camera to factory default settings.

Network: Select this option to retain the Network Type settings (please refer to Network Type on page 50).

Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).

Custom Language: Select this option to retain the Custom Language settings.

If none of the options is selected, all settings will be restored to factory default. The following message is displayed during the restoring process.

The device is rebooting now. Your browser will reconnect to http://192.168.5.151:80/ If the connection fails, please manually enter the above IP address in your browser.

Import/Export files Advanced Mode

This feature allows you to Export / Update daylight saving time rules, custom language file, and configuration file.

General settings

Import/Export files

Export files

Export daylight saving time configuration file

Export

Export language file

Export

Export configuration file

Export

Export server status report

Export

Upload files

Update daylight saving time rules:

Browse...

Upload

Update custom language file:

Browse...

Upload

Upload configuration file:

Browse...

Upload

Export daylight saving time configuration file: Click to set the start and end time of DST.

Follow the steps below to export:

1. In the Export files column, click Export to export the daylight saving time configuration file from the Network Camera.
2. A file download dialog will pop up as shown below. Click Open to review the XML file or click Save to store the file for editing.

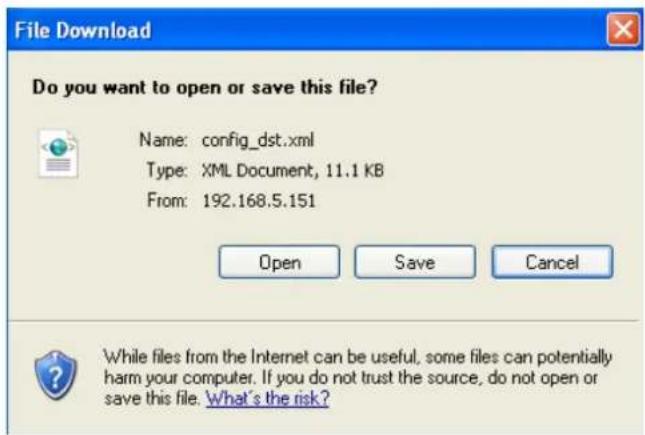

File Download Do you want to open or save this file? Name: config_dst.xml Type: XML Document, 11.1 KB From: 192.168.5.151 Open Save Cancel While files from the Internet can be useful, some files can potentially harm your computer. If you do not trust the source, do not open or save this file. What's the risk?

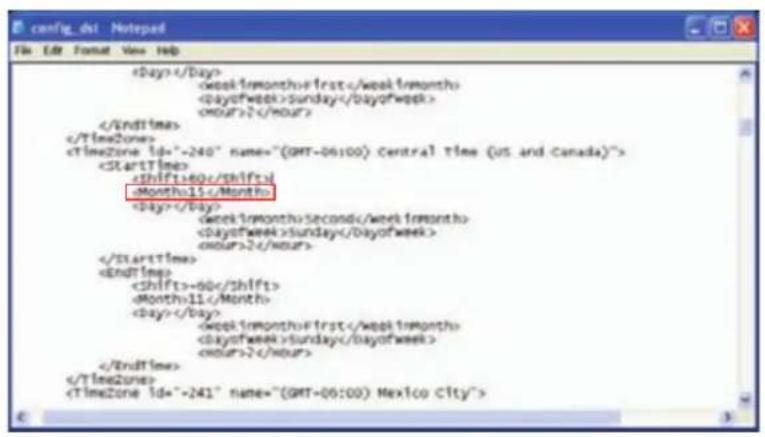

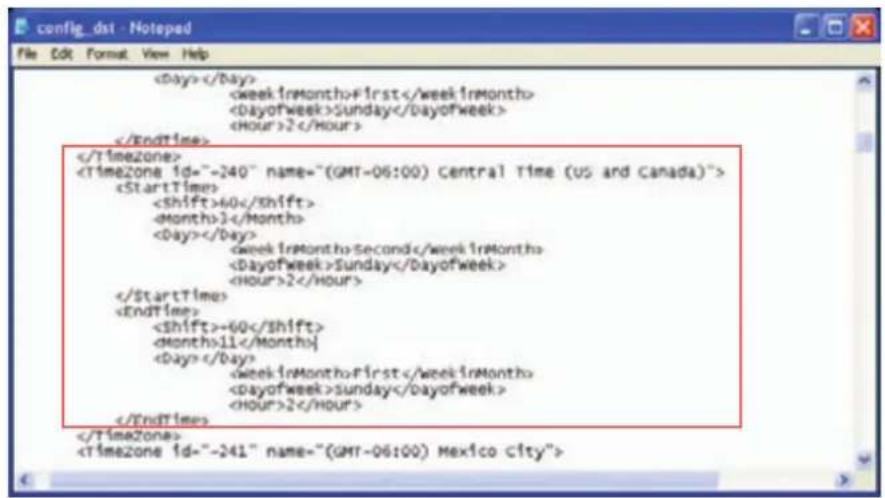

1. Open the file with Microsoft ^ Notepad and locate your time zone; set the start and end time of DST. When completed, save the file.

In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m. on the first Sunday in November.

First Sunday 2 60 1 second Sunday 2 60 11 first sunday 2

Update daylight saving time rules: Click Browse... and specify the XML file to update.

If the incorrect date and time are assigned, you will see the following warning message when uploading the file to the Network Camera.

Screenshot of a web-based configuration file showing daily time and month labels in a script editor interface.

Invalid value in Timeline 10: -240 . . .

The following message is displayed when attempting to upload an incorrect file format.

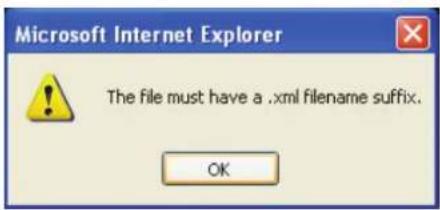

Microsoft Internet Explorer The file must have a .xml filename suffix. OK

Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文.

Update custom language file: Click Browse... and specify your own custom language file to upload.

Export configuration file: Click to export all parameters for the device and user-defined scripts.

Update configuration file: Click Browse... to update a configuration file. Please note that the model and firmware version of the device should be the same as the configuration file. If you have set up a fixed IP or other special settings for your device, it is not suggested to update a configuration file.

Export server staus report: Click to export the current server status report, such as time, logs, parameters, process status, memory status, file system status, network status, kernel message ... and so on.

Security > User Account

This section explains how to enable password protection and create multiple accounts.

Root Password

Root password Root password: Confirm root password: Save

The administrator account name is "root", which is permanent and can not be deleted. If you want to add more accounts in the Manage User column, please apply the password for the "root" account first.

1. Type the password identically in both text boxes, then click Save to enable password protection.
2. A window will be prompted for authentication; type the correct user's name and password in their respective fields to access the Network Camera.

Manage Privilege

Advanced Mode

Manage privilege Operator Viewer Digital output: ✓ ✓ PTZ control: ✓ ✓ Allow anonymous viewing Save

Digital Output & PTZ control: You can modify the manage privilege of operators or viewers. Check or uncheck the item, then click Save to enable the settings. If you give Viewers the privilege, Operators will also have the ability to control the Network Camera through the main page. (Please refer to Configuration on page 27).

Allow anonymous viewing: If you check this item, any client can access the live stream without entering a User ID and Password.

Manage User

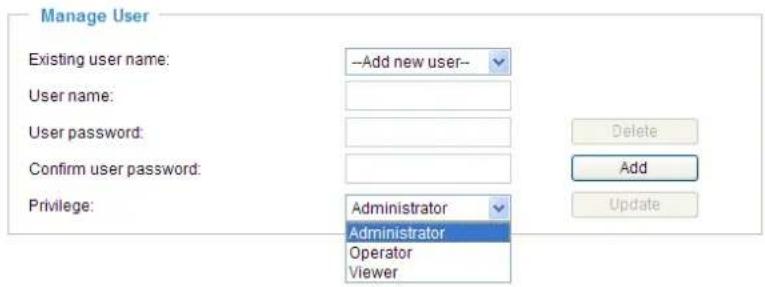

Manage User Existing user name: --Add new user-- User name: User password: Confirm user password: Privilege: Administrator Administrator Operator Viewer Delete Add Update

Administrators can add up to 20 user accounts.

1. Input the new user's name and password.
2. Select the privilege level for the new user account. Click Add to enable the setting.

Access rights are sorted by user privilege (Administrator, Operator, and Viewer). Only administrators can access the Configuration page. Though operators cannot access the Configuration page, they can use the URL Commands to get and set the value of parameters. For more information, please refer to URL Commands of the Network Camera on page 112. Viewers access only the main page for live viewing.

Here you also can change a user's access rights or delete user accounts.

1. Select an existing account to modify.
2. Make necessary changes and click Update or Delete to enable the setting.

Security > HTTPS (Hypertext Transfer Protocol over SSL)

Advanced Mode

This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level.

Create and Install Certificate Method

Before using HTTPS for communication with the Network Camera, a Certificate must be created first. There are three ways to create and install a certificate:

Create self-signed certificate automatically

1. Select this option.
2. In the first column, check Enable HTTPS secure connection, then select a connection option: "HTTP & HTTPS" or "HTTPS only".
3. Click Save to generate a certificate.

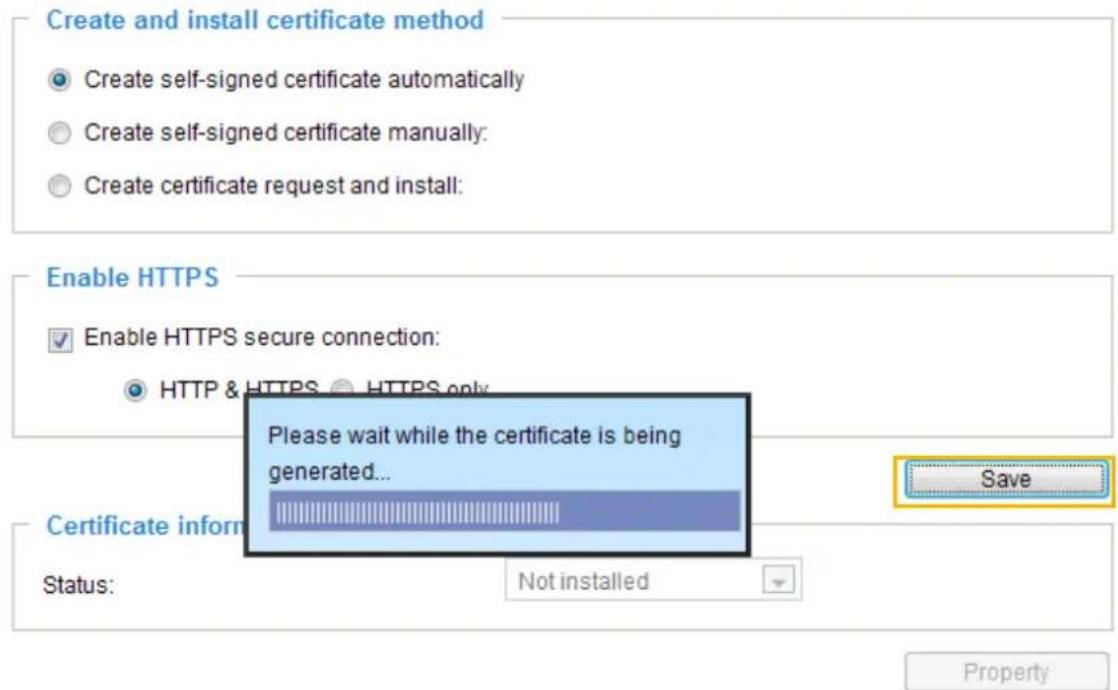

Create and install certificate method Create self-signed certificate automatically Create self-signed certificate manually: Create certificate request and install: Enable HTTPS Enable HTTPS secure connection: HTTP & HTTPS HTTPS only Please wait while the certificate is being generated... Certificate inform Status: Not installed Save Property

1. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to view detailed information about the certificate.

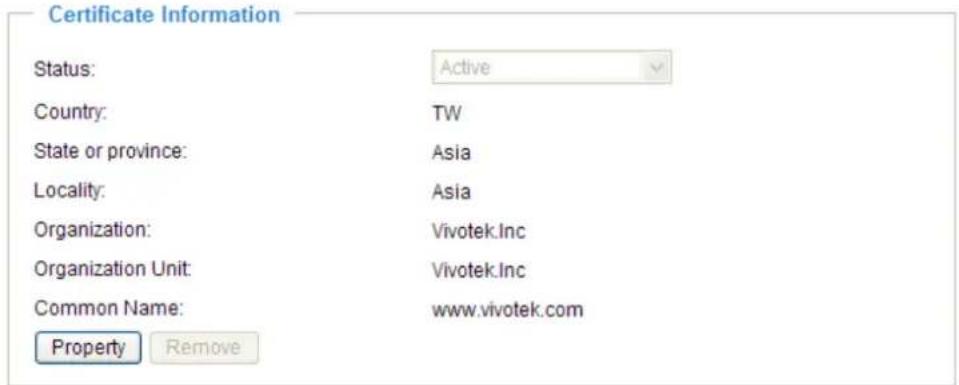

Certificate Information Status: Active Country: TW State or province: Asia Locality: Asia Organization: Vivotek.Inc Organization Unit: Vivotek.Inc Common Name: www.vivotek.com Property Remove

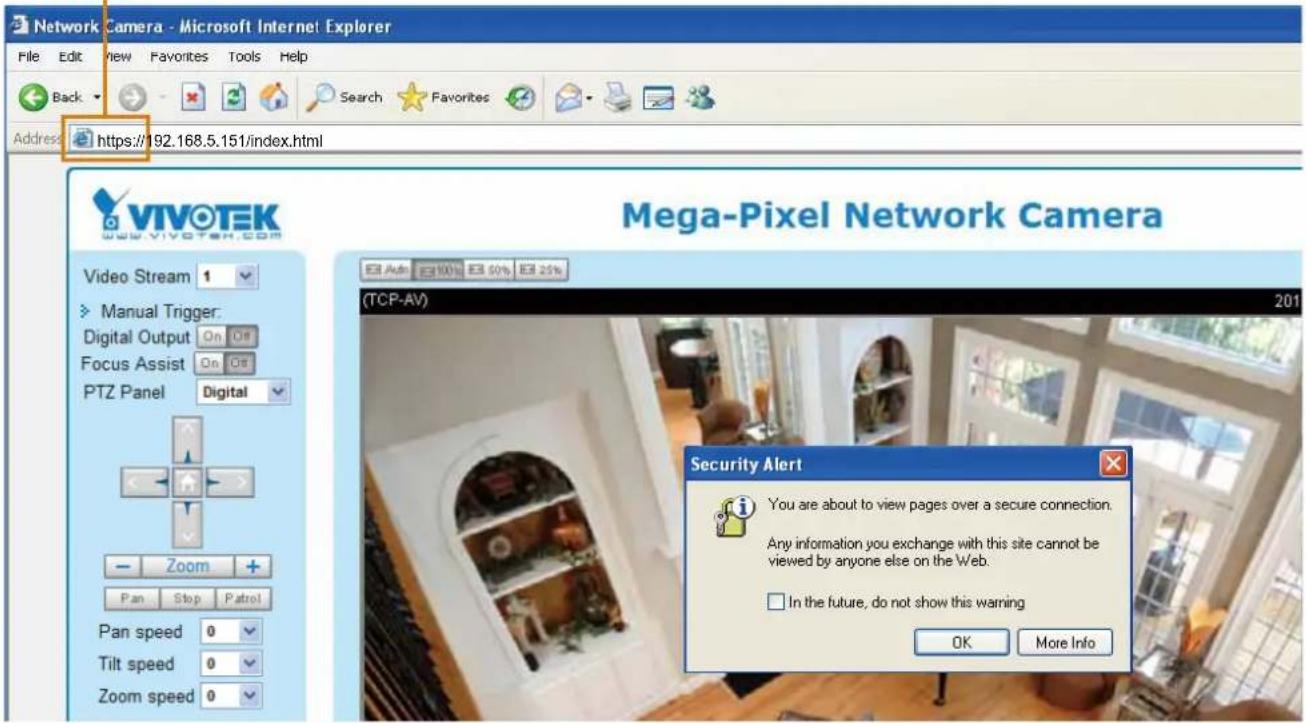

1. Click Home to return to the main page. Change the address from "http://" to "https://" in the address bar and press Enter on your keyboard. Some Security Alert dialogs will pop up. Click OK or Yes to enable HTTPS.

https://

Network Camera - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address https://192.168.5.151/index.html VIVOTEK www.vivotek.com Video Stream 1 Manual Trigger: Digital Output On Os Focus Assist On Os PTZ Panel Digital Zoom + Pan Stop Patrol Pan speed 0 Tilt speed 0 Zoom speed 0 Mega-Pixel Network Camera TCP-AV) 201 Security Alert You are about to view pages over a secure connection. Any information you exchange with this site cannot be viewed by anyone else on the Web. In the future, do not show this warning OK More Info

Security Alert Information you exchange with this site cannot be viewed or changed by others. However, there is a problem with the site's security certificate. The security certificate was issued by a company you have not chosen to trust. View the certificate to determine whether you want to trust the certifying authority. The security certificate date is valid. The name on the security certificate is invalid or does not match the name of the site Do you want to proceed? Yes No View Certificate

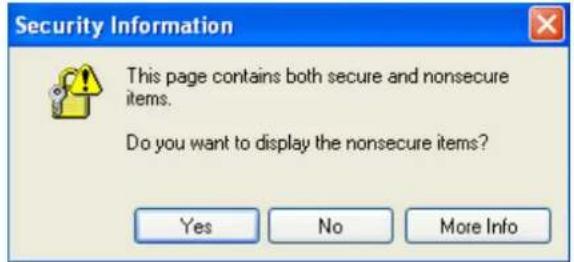

Security Information This page contains both secure and nonsecure items. Do you want to display the nonsecure items? Yes No More Info

Create self-signed certificate manually

1. Select this option.
2. Click Create to open the Create Certificate page.

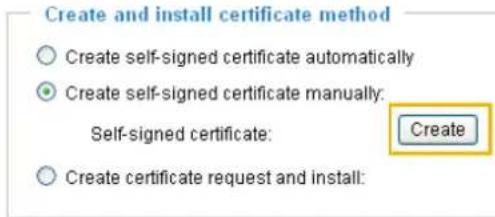

Create and install certificate method ○ Create self-signed certificate automatically ● Create self-signed certificate manually: Self-signed certificate: ○ Create certificate request and install:

1. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate.

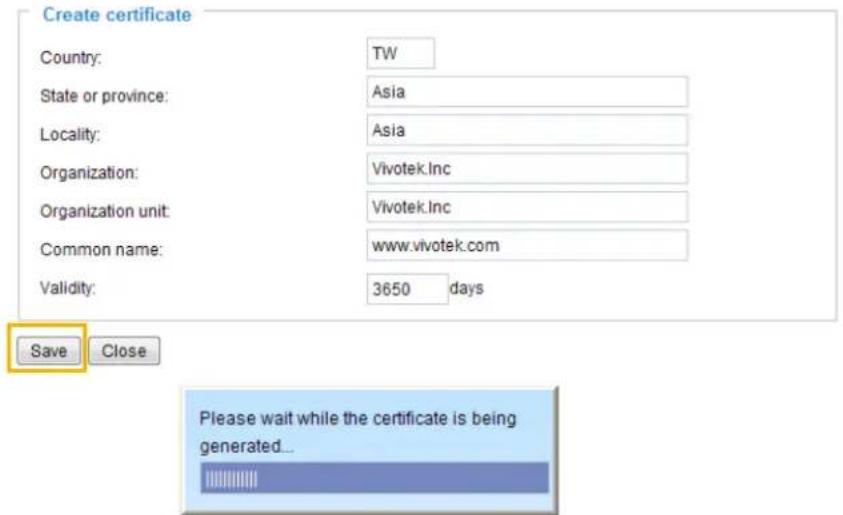

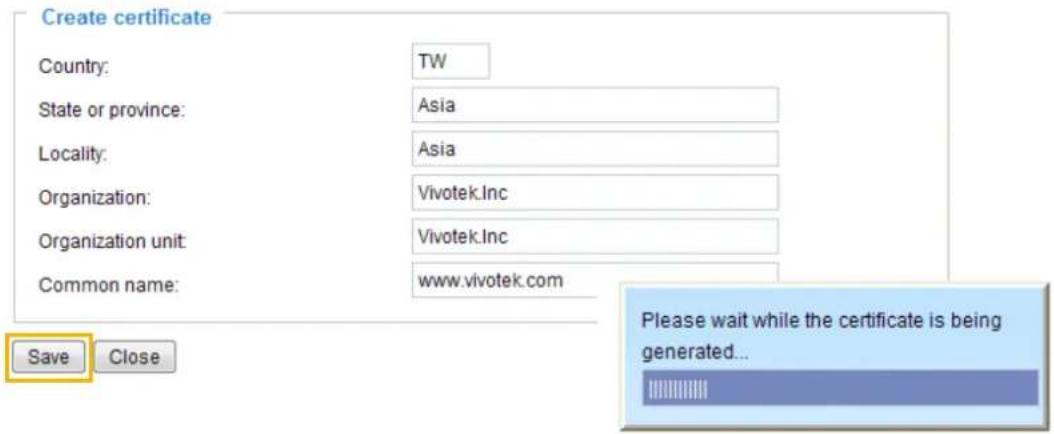

Create certificate Country: TW State or province: Asia Locality: Asia Organization: Vivotek.Inc Organization unit: Vivotek.Inc Common name: www.vivotek.com Validity: 3650 days Save Close Please wait while the certificate is being generated...

1. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate.

Status: Active Country: TW State or province: Asia Locality: Asia Organization: Vivotek.Inc Organization unit: Vivotek.Inc Common name: www.vivotek.com Property Remove

Create certificate and install : Select this option if you want to create a certificate from a certificate authority.

1. Select this option.
2. Click Create to open the Create Certificate page, then click Save to generate the certificate.

Create and install certificate method ○ Create self-signed certificate automatically ○ Create self-signed certificate manually: ● Create certificate request and install: Certificate request: Create Select certificate file: Browse... Upload

Create certificate Country: TW State or province: Asia Locality: Asia Organization: Vivotek.Inc Organization unit: Vivotek.Inc Common name: www.vivotek.com Save Close Please wait while the certificate is being generated...

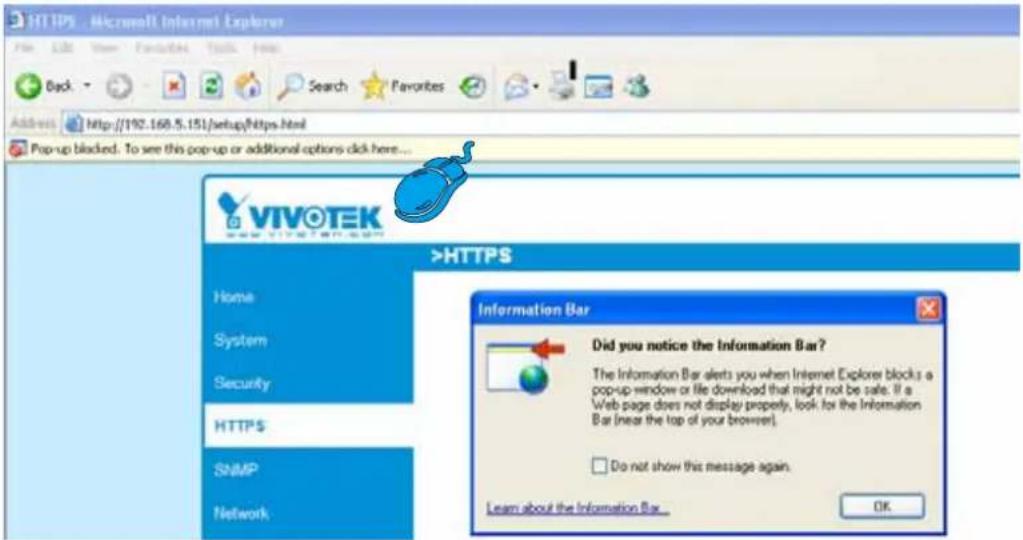

1. If you see the following Information bar, click OK and click on the Information bar at the top of the page to allow pop-ups.

HTTPS - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address http://192.168.5.151/setup/Https.html Pop-up blocked. To see this pop-up or additional options click here... VIVOTEK www.vivotek.com >HTTPS Home System Security HTTPS SNMP Network Information Bar Did you notice the Information Bar? The Information Bar alerts you when Internet Explorer blocks a pop-up window or file download that might not be safe. If a Web page does not display properly, look for the Information Bar (near the top of your browser). Do not show this message again. Learn about the Information Bar... OK

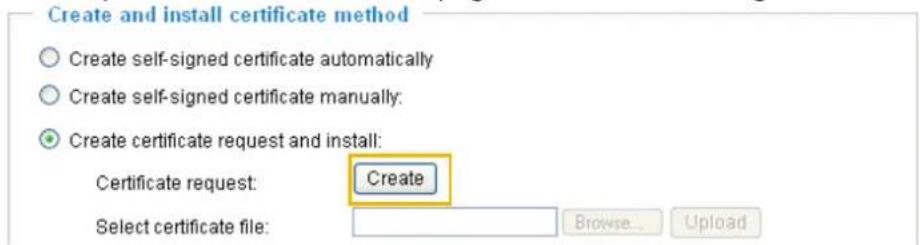

1. The pop-up window shows an example of a certificate request.

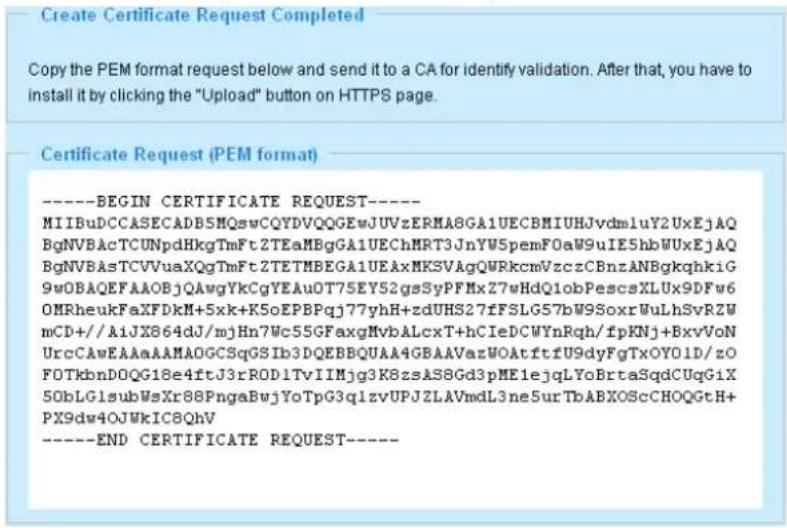

Create Certificate Request Completed Copy the PEM format format below to send it to a CA for identify validation. After that, you have to install it by clicking the "Upload" button on HTTPS page. Certificate Request (PEM format) ----BEGIN CERTIFICATE REQUEST---- MIIBuDCCASECADB5MQswCQYDVQQGEwJUVzERMA8GA1UECBMIUHJvdm1uY2UxEjAQ BgNVBAcTCUNpdHkqTmFtZTEaMBgGA1UEChHRT3JnYW5pemFOaW9uIE5hbWUxEjAQ BgNVBAsTCVVuaXQgTmFtZTETMBEGA1UEAxMKSVAgQWRkcmVzczCBnzANBgkqhkiG 9w0BAQEFAAOBjQAwgYkCgYEAuOT7SEY52gsSyPFMx27wHdQ1obPescsXLUx9DFw6 OMRheukFaXFDKM+5xK+K5oEPBPqj77yhH+zduHS27fFSLG57bW9SoxrWuLhSvRZW mCD+/AiJX864dJ/mjHn7Wc55GFaxgMvbALcxT+hCIeDCWYnRqh/fpKNj+BxvVoN UrcCAwEAAaAAMA0GCSqGSIb3DQEBBQUAA4GBAAVazWOAtftfU9dyFgTxOY01D/zO FOTkbnDOQG18e4ftJ3rROD1TvIIMjg3K8zsAS8Gd3pME1ejqLYoBrtaSqdCUqG1X 50bLGIsubWsXr88PngaBwjYoTpG3qlzvUPJZLAVmdL3neSurTbABXOScCHOQGtH+ PX9dw4OJWkIC8QhV ----END CERTIFICATE REQUEST----

1. Look for a trusted certificate authority that issues digital certificates. Enroll the Network Camera. Wait for the certificate authority to issue a SSL certificate; click Browse... to search for the issued certificate, then click Upload in the second column.

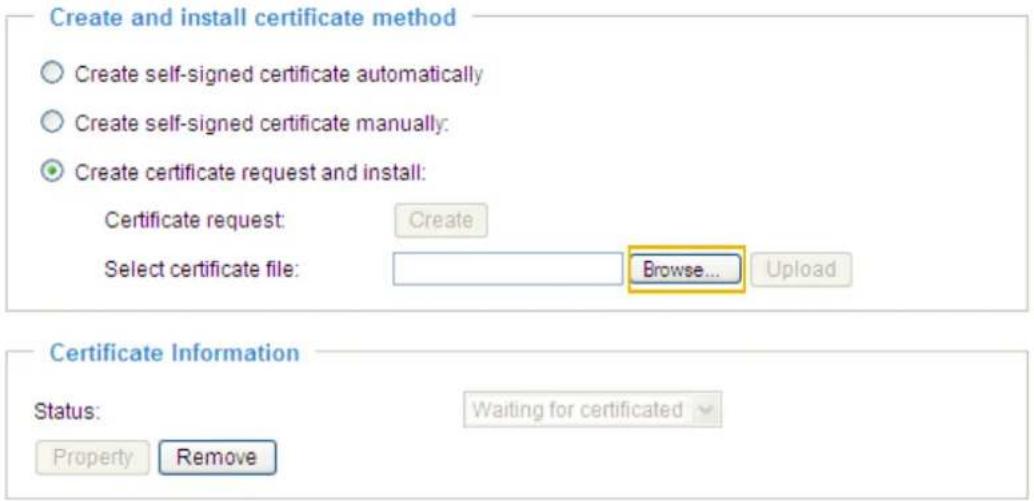

Create and install certificate method ○ Create self-signed certificate automatically ○ Create self-signed certificate manually: ● Create certificate request and install: Certificate request: Create Select certificate file: Browse... Upload Certificate Information Status: Waiting for certificated Property Remove

NOTE

▶ How do I cancel the HTTPS settings?

1. Uncheck Enable HTTPS secure connection in the first column and click Save; a warning dialog will pop up.
2. Click OK to disable HTTPS.

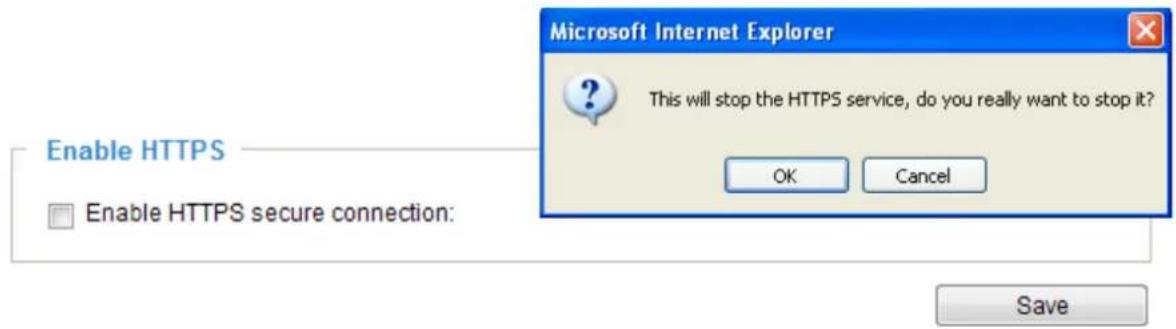

Microsoft Internet Explorer This will stop the HTTPS service, do you really want to stop it? OK Cancel Enable HTTPS Enable HTTPS secure connection: Save

1. The webpage will redirect to a non-HTTPS page automatically.

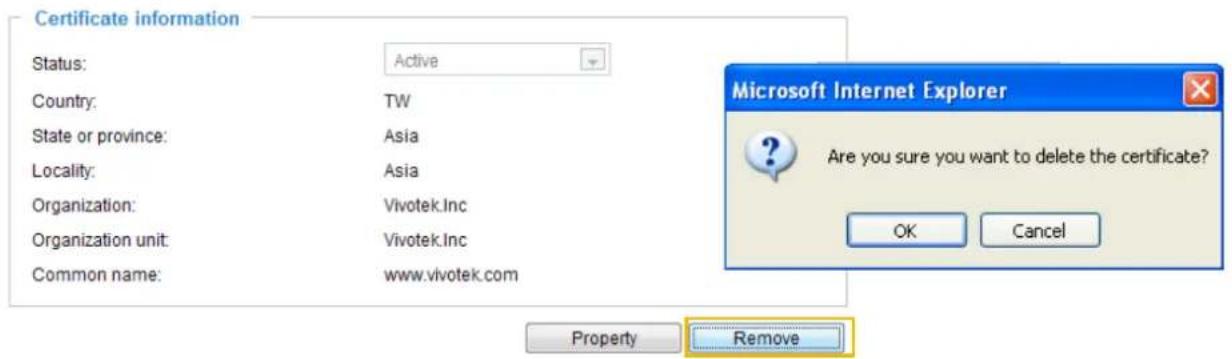

▶ If you want to create and install other certificates, please remove the existing one. To remove the signed certificate, uncheck Enable HTTPS secure connection in the first column and click Save. Then click Remove to erase the certificate.

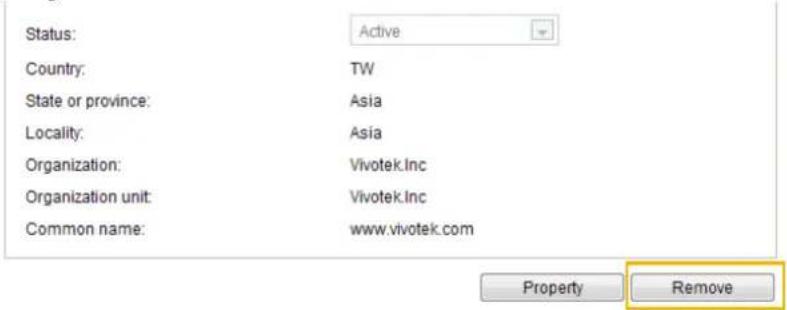

Certificate information Status: Active Country: TW State or province: Asia Locality: Asia Organization: Vivotek.Inc Organization unit: Vivotek.Inc Common name: www.vivotek.com Microsoft Internet Explorer Are you sure you want to delete the certificate? OK Cancel Property Remove

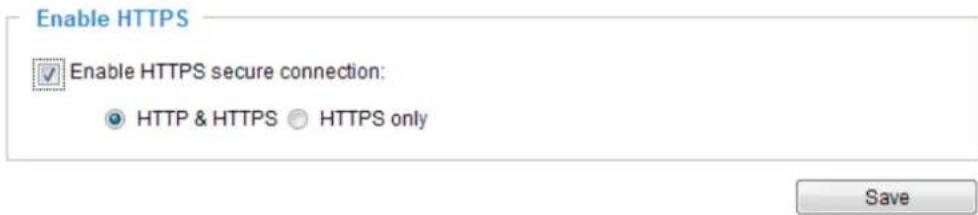

Enable HTTPS

Check this item to enable HTTPS communication, then select a connection option: "HTTP & HTTPS" or "HTTPS only". Note that you have to create and install a certificate first before clicking the Save button.

Enable HTTPS Enable HTTPS secure connection: HTTP & HTTPS HTTPS only Save

Security > Access List Advanced Mode

This section explains how to control access permission by verifying the client PC's IP address.

General Settings

General settings

Maximum number of concurrent streaming:

View Information

Enable access list filtering

Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1\~10 clients (including stream 1 and stream 2). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick Time Player).

View Information: Click this button to display the connection status window showing a list of the current connections. For example:

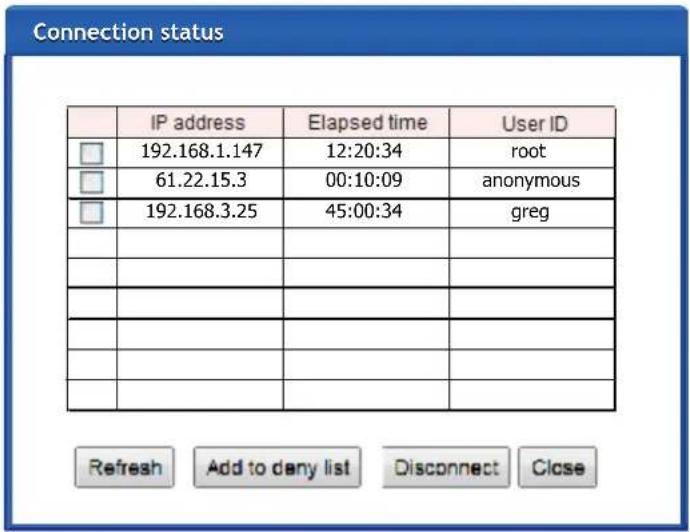

Connection status IP address Elapsed time User ID 192.168.1.147 12:20:34 root 61.22.15.3 00:10:09 anonymous 192.168.3.25 45:00:34 greg Refresh Add to deny list Disconnect Close

■ IP address: Current connections to the Network Camera.
■ Elapsed time: How much time the client has been at the webpage.
■ User ID: If the administrator has set a password for the webpage, the clients have to enter a user name and password to access the live video. The user name will be displayed in the User ID column. If the administrator allows clients to link to the webpage without a user name and password, the User ID column will be empty.

There are some situations which allow clients access to the live video without a user name and password:

1. The administrator does not set up a root password. For more information about how to set up a root password and manage user accounts, please refer to Security > User account on page 39.
2. The administrator has set up a root password, but set RTSP Authentication to "disable". For more information about RTSP Authentication, please refer to RTSP Streaming on page 59.
3. The administrator has set up a root password, but allows anonymous viewing. For more information about Allow Anonymous Viewing, please refer to page 39.

■ Refresh: Click this button to refresh all current connections.
■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player). If you want to enable the denied list, please check Enable access list filtering and click Save in the first column.
■ Disconnect: If you want to break off the current connections, please select them and click this button. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player).

Enable access list filtering: Check this item and click Save if you want to enable the access list filtering function.

Filter

Filter type: Select Allow or Deny as the filter type. If you choose Allow Type, only those clients whose IP addresses are on the Access List below can access the Network Camera, and the others cannot access. On the contrary, if you choose Deny Type, those clients whose IP addresses are on the Access List below will not be allowed to access the Network Camera, and the others can access.

Filter

Filter type: ○ Allow ● Deny

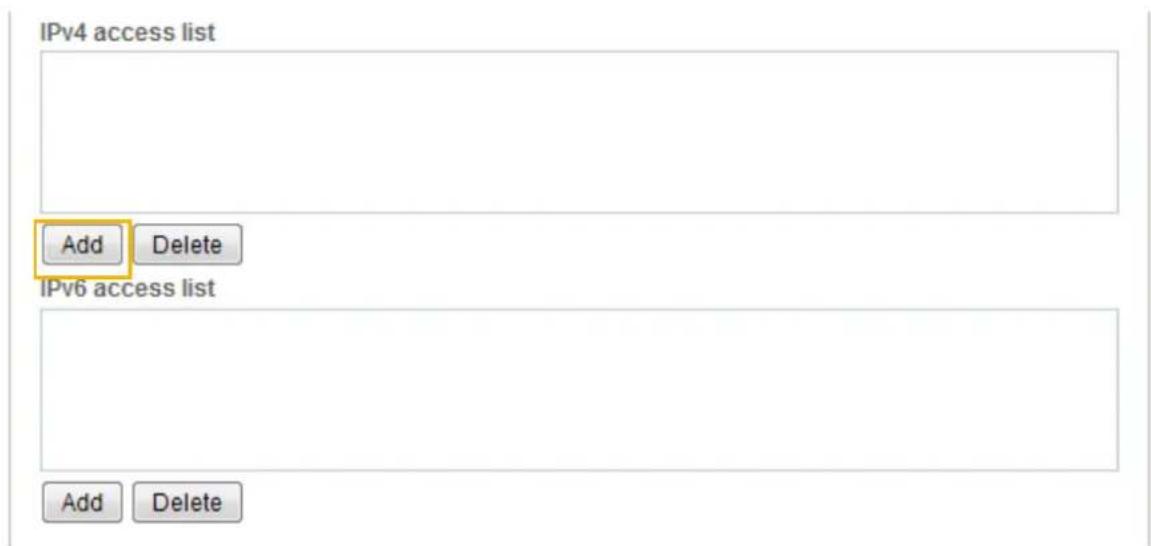

Then you can Add a rule to the following Access List. Please note that the IPv6 access list column will not be displayed unless you enable IPv6 on the Network page. For more information about IPv6 Settings, please refer to Network > General settings on page 50 for detailed information.

IPv4 access list Add Delete IPv6 access list Add Delete

There are three types of rules:

Single: This rule allows the user to add an IP address to the Allowed/Denied list.

For example:

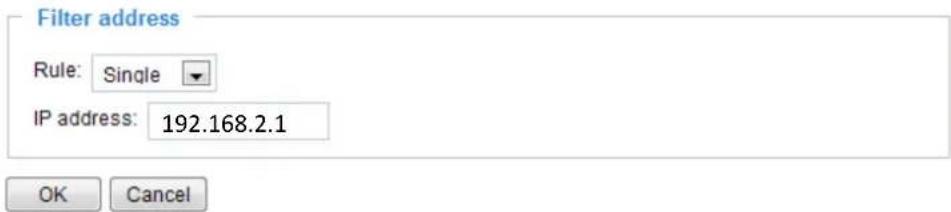

Filter address Rule: Single IP address: 192.168.2.1 OK Cancel

Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List.

For example:

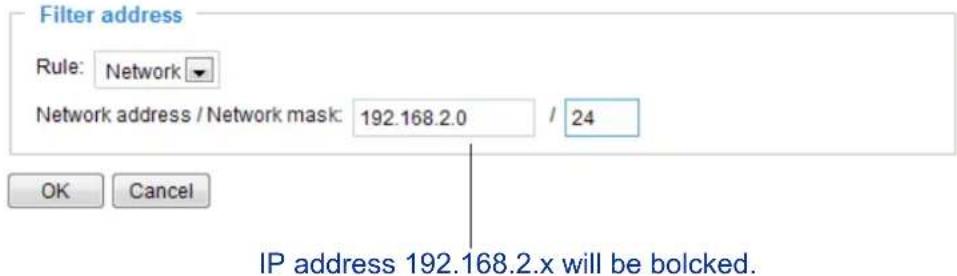

Filter address Rule: Network Network address / Network mask: 192.168.2.0 / 24 OK Cancel IP address 192.168.2.x will be bolcked.

Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List.

Note: This rule is only applied to IPv4.

For example:

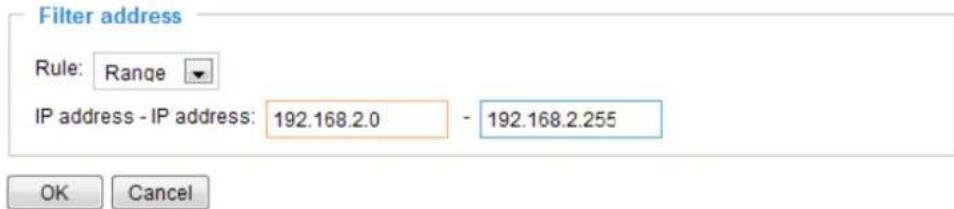

Filter address Rule: Range IP address - IP address: 192.168.2.0 - 192.168.2.255 OK Cancel

Administrator IP address

Always allow the IP address to access this device: You can check this item and add the Administrator's IP address in this field to make sure the Administrator can always connect to the device.

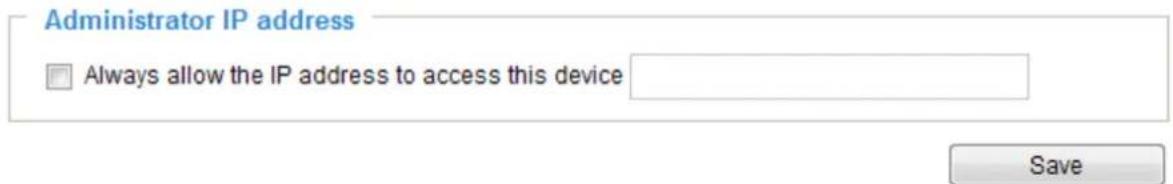

Administrator IP address □ Always allow the IP address to access this device Save

Security > IEEE 802.1X Advanced Mode

Enable this function if your network environment uses IEEE 802.1x, which is a port-based network access control. The network devices, intermediary switch/access point/hub, and RADIUS server must support and enable 802.1x settings.

The 802.1x standard is designed to enhance the security of local area networks, which provides authentication to network devices (clients) attached to a network port (wired or wireless). If all certificates between client and server are verified, a point-to-point connection will be enabled; if authentication fails, access on that port will be prohibited. 802.1x utilizes an existing protocol, the Extensible Authentication Protocol (EAP), to facilitate communication.

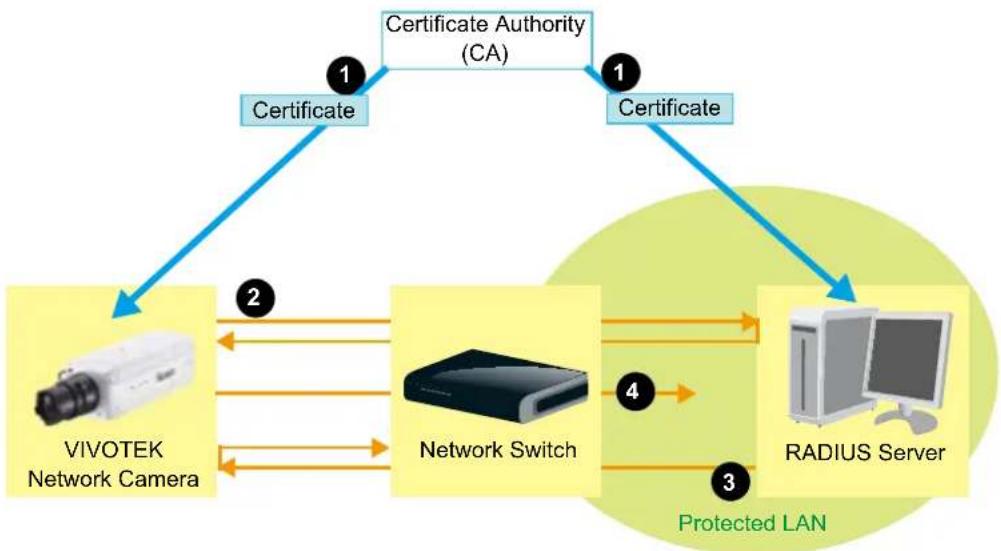

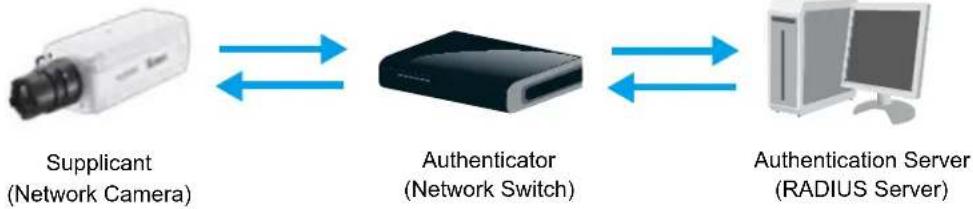

■ The components of a protected network with 802.1x authentication:

1. Supplicant: A client end user (camera), which requests authentication.
2. Authenticator (an access point or a switch): A "go between" which restricts unauthorized end users from communicating with the authentication server.
3. Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user's access request.

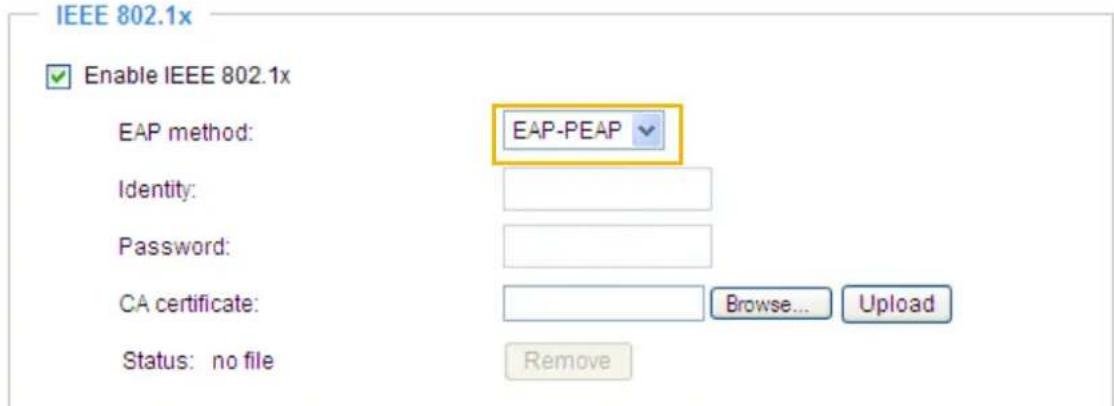

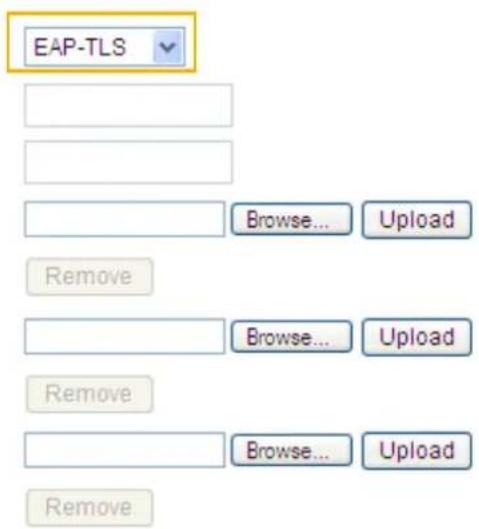

■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP and EAP-TLS.

Please follow the steps below to enable 802.1x settings:

1. Before connecting the Network Camera to the protected network with 802.1x, please apply a digital certificate from a Certificate Authority (ie. MIS of your company) which can be validated by a RADIUS server.

2. Connect the Network Camera to a PC or notebook outside of the protected LAN. Open the configuration page of the Network Camera as shown below. Select EAP-PEAP or EAP-TLS as the EAP method. In the following blanks, enter your ID and password issued by the CA, then upload related certificate(s).

IEEE 802.1x Enable IEEE 802.1x EAP method: EAP-PEAP Identity: Password: CA certificate: Browse... Upload Status: no file Remove

IEEE 802.1x

Enable 802.1x

EAP method:

Identity:

Private key passord:

CA certificate:

Status: no file

client certificate:

Status: no file

Client private key:

Status: no file

EAP-TLS Browse... Upload Remove Browse... Upload Remove Browse... Upload Remove

1. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically.

NOTE

▶ The authentication process for 802.1x:

1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).
2. A Network Camera requests access to the protected LAN using 802.1X via a switch (the authenticator). The client offers its identity and client certificate, which is then forwarded by the switch to the RADIUS Server, which uses an algorithm to authenticate the Network Camera and returns an acceptance or rejection back to the switch.
3. The switch also forwards the RADIUS Server's certificate to the Network Camera.
4. Assuming all certificates are validated, the switch then changes the Network Camera's state to authorized and is allowed access to the protected network via a pre-configured port.

Network > General settings

This section explains how to configure a wired network connection for the Network Camera.

Network Type

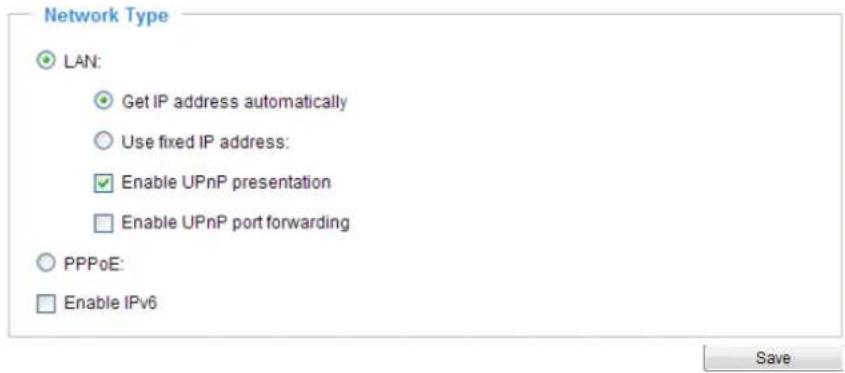

Network Type LAN: Get IP address automatically Use fixed IP address: Enable UPnP presentation Enable UPnP port forwarding PPPoE: Enable IPv6 Save

LAN

Select this option when the Network Camera is deployed on a local area network (LAN) and is intended to be accessed by local computers. The default setting for the Network Type is LAN. Remember to click Save when you complete the Network setting.

Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by the DHCP server each time the camera is connected to the LAN.

Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera.

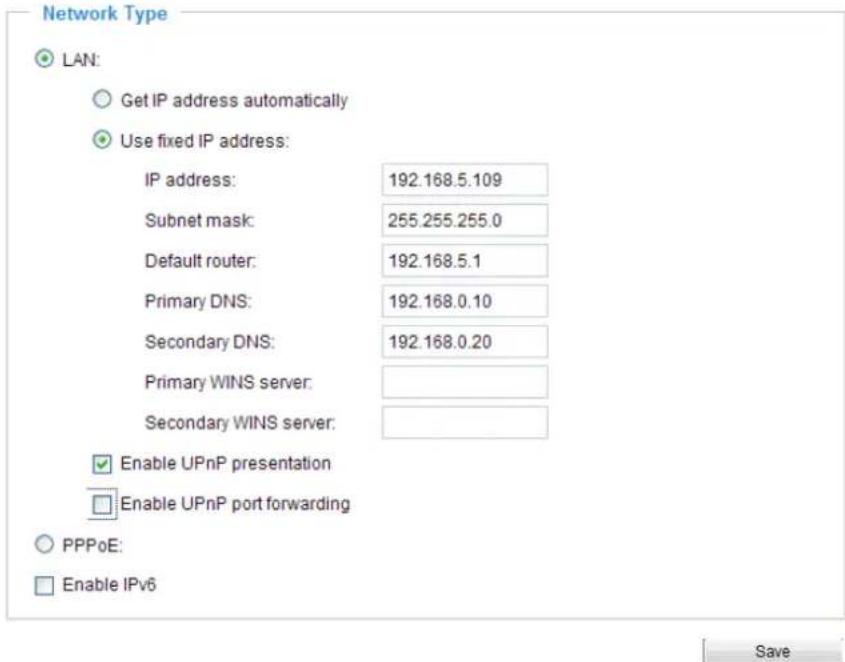

Network Type LAN: Get IP address automatically Use fixed IP address: IP address: 192.168.5.109 Subnet mask: 255.255.255.0 Default router: 192.168.5.1 Primary DNS: 192.168.0.10 Secondary DNS: 192.168.0.20 Primary WINS server: Secondary WINS server: Enable UPnP presentation Enable UPnP port forwarding PPPoE: Enable IPv6 Save

1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 11 for details.
2. Enter the Static IP, Subnet mask, Default router, and Primary DNS provided by your ISP.

Subnet mask: This is used to determine if the destination is in the same subnet. The default value is "255.255.255.0".

Default router: This is the gateway used to forward frames to destinations in a different subnet. Invalid router setting will fail the transmission to destinations in different subnet.

Primary DNS: The primary domain name server that translates hostnames into IP addresses.

Secondary DNS: Secondary domain name server that backups the Primary DNS.

Primary WINS server: The primary WINS server that maintains the database of computer name and IP address.

Secondary WINS server: The secondary WINS server that maintains the database of computer name and IP address.

Enable UPnP presentation: Select this option to enable UPnP ^TM presentation for your Network Camera so that whenever a Network Camera is presented to the LAN, shortcuts of connected Network Cameras will be listed in My Network Places. You can click the shortcut to link to the web browser. Currently, UPnP ^TM is supported by Windows XP or later. Note that to utilize this feature, please make sure the UPnP ^TM component is installed on your computer.

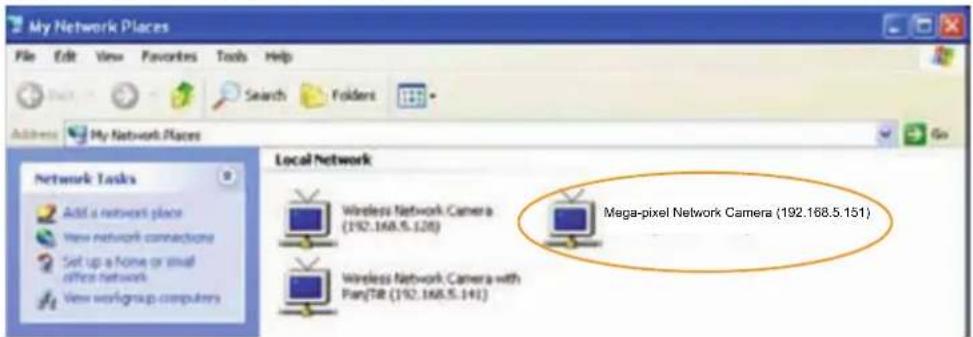

My Network Places File Edit View Favorites Tools Help Address My Network Places Network Tasks Add a network place View network connections Set up a Home or small office network View workgroup computers Local Network Wireless Network Camera (192.168.5.128) Mega-pixel Network Camera (192.168.5.151) Wireless Network Camera with Plan/TIR (192.168.5.141)

Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option to allow the Network Camera to open ports on the router automatically so that video streams can be sent out from a LAN. To utilize of this feature, make sure that your router supports UPnP ^TM and it is activated.

PPPoE (Point-to-point over Ethernet)

Select this option to configure your Network Camera to make it accessible from anywhere as long as there is an Internet connection. Note that to utilize this feature, it requires an account provided by your ISP.

Follow the steps below to acquire your Network Camera's public IP address.

1. Set up the Network Camera on the LAN.

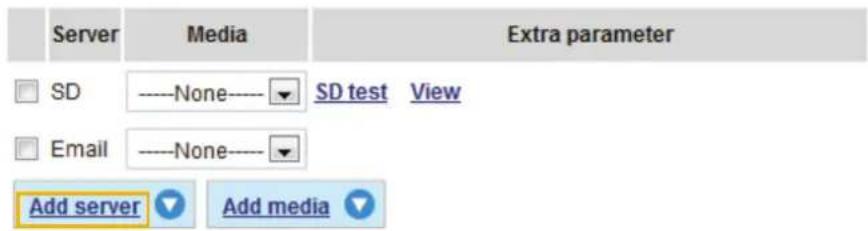

2. Go to Configuration > Event > Event settings > Add server (please refer to Add server on page 90) to add a new email or FTP server.
3. Go to CConfiguration > Event > Event settings > Add media (please refer to Add media on page 95). Select System log so that you will receive the system log in TXT file format which contains the Network Camera's public IP address in your email or on the FTP server.
4. Go to Configuration > Network > General settings > Network type. Select PPPoE and enter the user name and password provided by your ISP. Click Save to enable the setting.

Network type

LAN

PPPoE

User name:

Password:

Confirm password:

Enable IPv6

Save

1. The Network Camera will reboot.
2. Disconnect the power to the Network Camera; remove it from the LAN environment.

NOTE

▶ If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera.

If UPnP ^TM is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.

▶ Steps to enable the UPnP ^TM user interface on your computer: Note that you must log on to the computer as a system administrator to install the UPnP ^TM components.

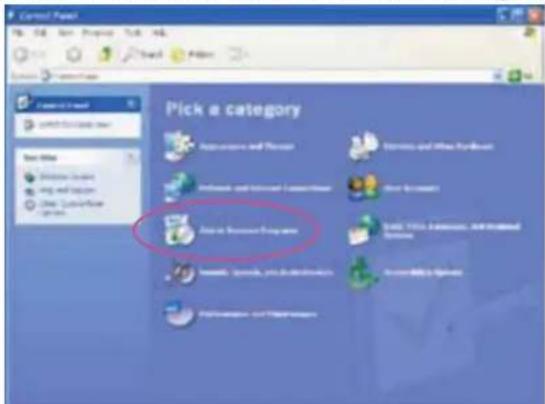

1. Go to Start, click Control Panel, then click Add or Remove Programs.

Control Panel Pick a category Data Science Program Software & Internet Framework Data Science Program Software & Internet Framework Data Science Program Data Science Program

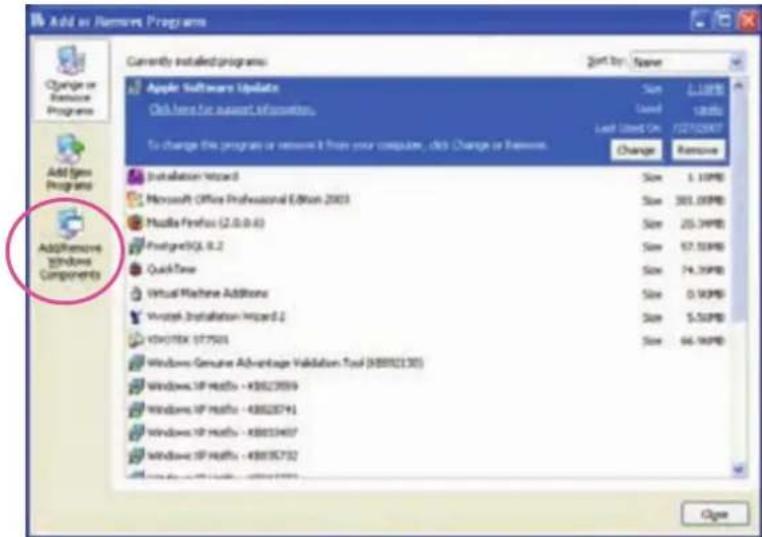

1. In the Add or Remove Programs dialog box, click Add/Remove Windows Components.

Add to Remove Programs Currently installed programs Apple Software Updates Click here for support information. To change this program or remove it from your computer, click Change to Remove. Size Used Last Used On Change Remove Add Spire Programs Add Remove Windows Components Installation Wizard Microsoft Office Professional Edition 2003 Macfile Prefix (2.0.0.6) PostgreSQL 8.2 QuickTime Virtual Machine Additions Virtrost Installation Wizard 2 VITC1TBX 57.7503 Windows Genuine Advantage Validation Tool (48892130) Windows XP Haiti - KB023559 Windows XP Haiti - KB020741 Windows XP Haiti - KB0334607 Windows XP Haiti - KB035732 Close

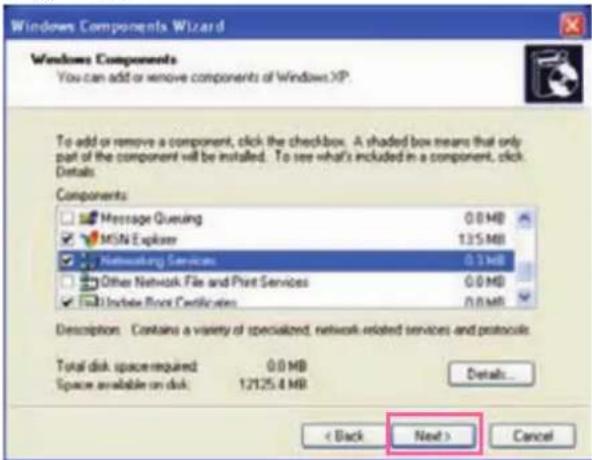

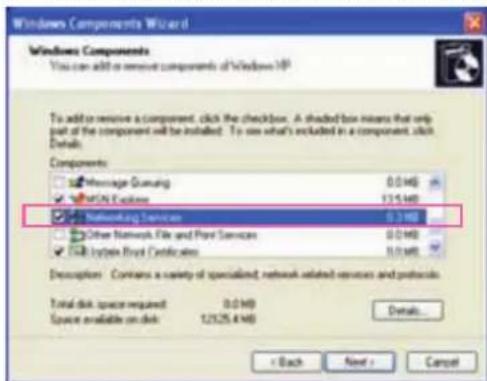

1. In the Windows Components Wizard dialog box, select Networking Services and click Details.

Windows Components Wizard Windows Components You can add or remove components of Windows 10^ To add to receive a component, click the checkbox. A shaded box means that only part of the component will be installed. To use what's included in a component, click Details. Components Message Gaming 0.0 MB WLAN Explorer 174 MB Networking Services 0.3 MB Other Network File and Port Services 0.0 MB Fiber Index Front Certificates 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required 0.0 MB Space available on disk 12325.4 MB Details... < Back Next > Cancel

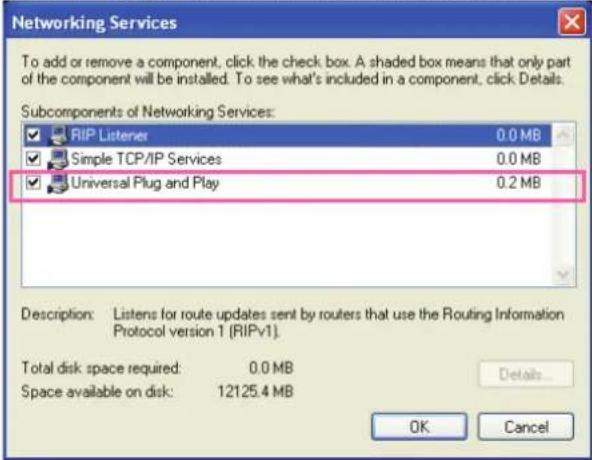

1. In the Networking Services dialog box, select Universal Plug and Play and click OK.

Networking Services To add or remove a component, click the check box. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Subcomponents of Networking Services: RIP Listener 0.0 MB Simple TCP/IP Services 0.0 MB Universal Plug and Play 0.2 MB Description: Listens for route updates sent by routers that use the Routing Information Protocol version 1 (RIPv1). Total disk space required: 0.0 MB Space available on disk: 12125.4 MB Details OK Cancel

1. Click Next in the following window.

Windows Components Wizard Windows Components You can add or remove components of Windows XP. To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details Components Message Queueing 0.0 MB MSN Explorer 135 MB Networking Services 0.1 MB Other Network File and Print Services 0.0 MB Update Front Certificates 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required 0.0 MB Space available on disk 12125.6 MB Details... < Back Next > Cancel

1. Click Finish. UPnP ^TM is enabled.

▶ How does UPnP ^TM work?
UPnP ^TM networking technology provides automatic IP configuration and dynamic discovery of devices added to a network. Services and capabilities offered by networked devices, such as printing and file sharing, are available among each other without the need for cumbersome network configuration. In the case of Network Cameras, you will see Network Camera shortcuts under My Network Places.
▶ Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on the router-not HTTP port-meaning that you have to add the secondary HTTP port number to the Network Camera's public address in order to access the Network Camera from the Internet. For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera's IP address.

From the Internet In LAN

http://203.67.124.123:8080 http://192.168.4.160 or

http://192.168.4.160:8080

▶ If the PPPoE settings are incorrectly configured or the Internet access is not working, restore the Network Camera to factory default; please refer to Restore on page 36 for details. After the Network Camera is reset to factory default, it will be accessible on the LAN.

Enable IPv6

Select this option and click Save to enable IPv6 settings.

Please note that this only works if your network environment and hardware equipment support IPv6. The browser should be Microsoft® Internet Explorer 6.5, Mozilla Firefox 3.0 or above.

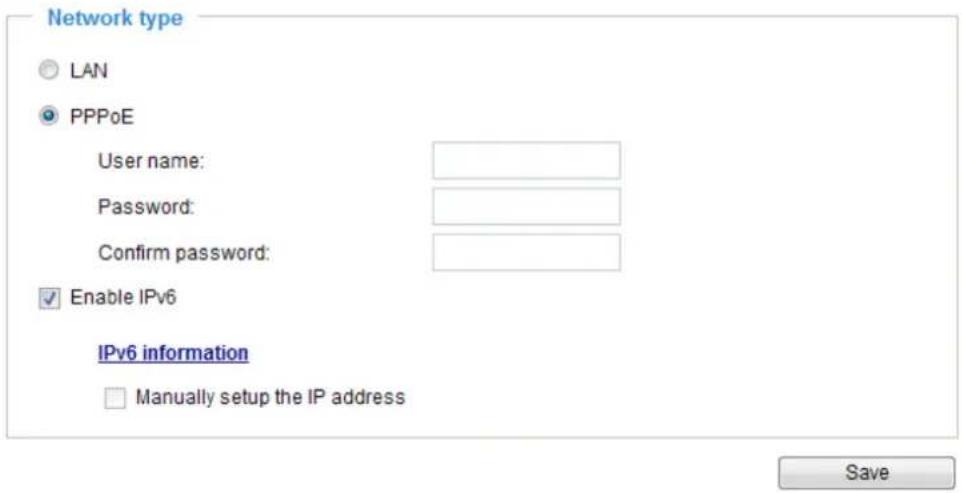

Network type LAN PPPoE User name: Password: Confirm password: Enable IPv6 IPv6 information Manually setup the IP address Save

When IPv6 is enabled, by default, the network camera will listen to router advertisements and be assigned with a link-local IPv6 address accordingly.

IPv6 Information: Click this button to obtain the IPv6 information as shown below.

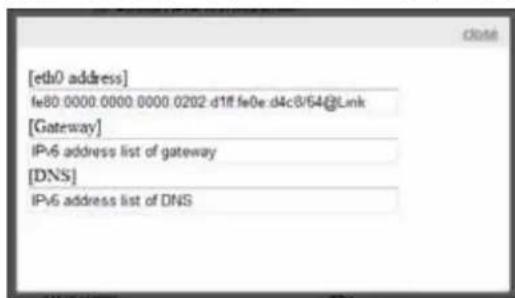

[eth0 address] fe80 0000.0000 0000.0202 d1ff fe0e d4c8f54@Link [Gateway] IPv6 address list of gateway [DNS] IPv6 address list of DNS

If your IPv6 settings are successful, the IPv6 address list will be listed in the pop-up window. The IPv6 address will be displayed as follows:

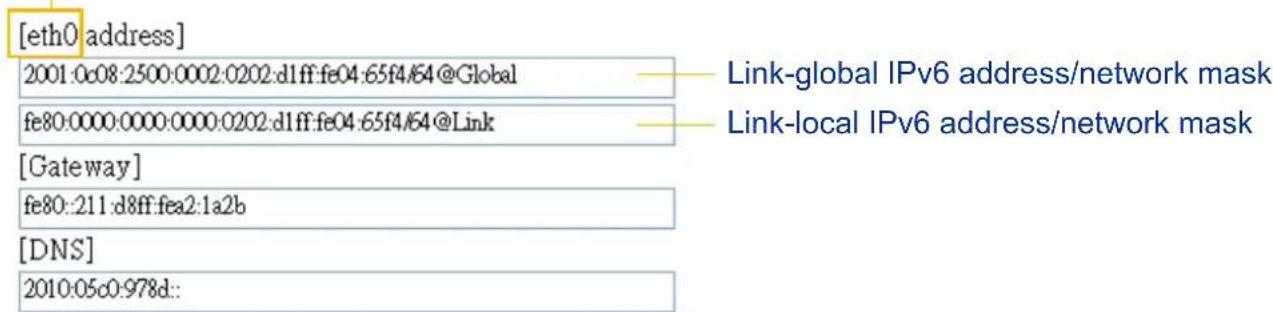

Refers to Ethernet

[eth0 address] 2001:0c08:2500:0002:0202:d1ff:fe04:65f4/64@Global fe80:0000:0000:0000:0202:d1ff:fe04:65f4/64@Link [Gateway] fe80:211:d8ff:fea2:1a2b [DNS] 2010:05c0:978d::

Please follow the steps below to link to an IPv6 address:

1. Open your web browser.
2. Enter the link-global or link-local IPv6 address in the address bar of your web browser.
3. The format should be:

http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address

1. Press Enter on the keyboard or click Refresh button to refresh the webpage. For example:

Network Camera - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ VIVOTEK www.vivotek.com

NOTE

▶ If you have a Secondary HTTP port (the default value is 8080), you can also link to the webpage in the following address format: (Please refer to HTTP streaming on page 58 for detailed information.)

http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/:8080

IPv6 address

Secondary HTTP port

▶ If you choose PPPoE as the Network Type, the [PPP0 address] will be displayed in the IPv6 information column as shown below.

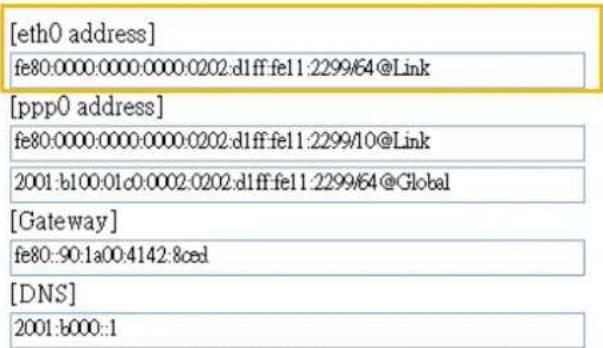

[eth0 address] fe80:0000:0000:0000:0202:d1ff:fe11:2299/64@Link [ppp0 address] fe80:0000:0000:0000:0202:d1ff:fe11:2299/10@Link 2001:b100:01c0:0002:0202:d1ff:fe11:2299/64@Global [Gateway] fe80::90:1a00:4142:8ced [DNS] 2001:b000::1

Manually setup the IP address: Select this option to manually set up IPv6 settings if your network environment does not have DHCPv6 server and router advertisements-enabled routers.

If you check this item, the following blanks will be displayed for you to enter the corresponding information:

Enable IPv6

IPv6 information

√ Manually setup the IP address

Optional IP address / Prefix length

Optional default router

Optional primary DNS

Port

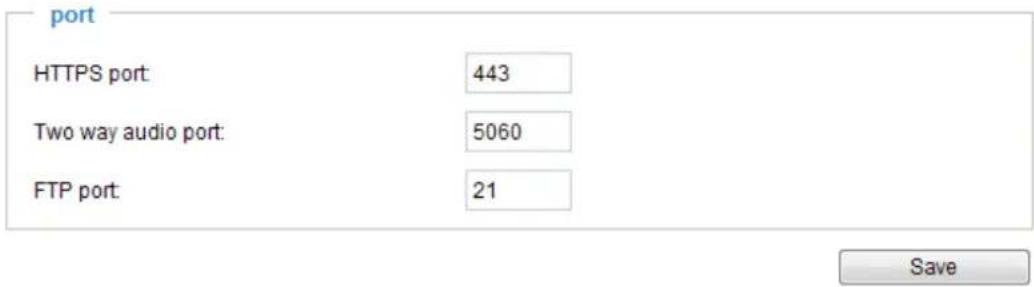

port HTTPS port: 443 Two way audio port: 5060 FTP port: 21 Save

HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535.

Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number between 1025 and 65535.

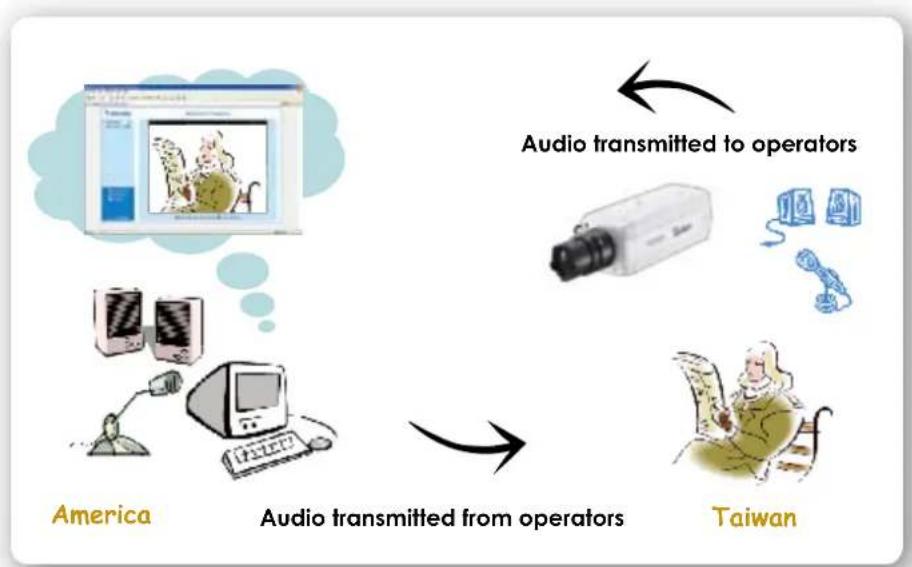

The Network Camera supports two way audio communication so that operators can transmit and receive audio simultaneously. By using the Network Camera's built-in or external microphone and an external speaker, you can communicate with people around the Network Camera.

Note that as JPEG only transmits a series of JPEG images to the client, to enable the two-way audio function, make sure the video mode is set to "MPEG-4" on the Media > Video > Stream settings page and the media option is set to "Media > Video > Stream settings" on the Client Settings page. Please refer to Client Settings on page 25 and Stream settings on page 75.

Audio is being transmitted to the Network Camera Video(TCP AV) 2011/06/09 17:08:56 Mute Talk Button Mic Volume

Click to enable audio transmission to the Network Camera; click to adjust the volume of microphone; click to turn off the audio. To stop talking, click again.

FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535.

Network > Streaming protocols

Advanced Mode

HTTP streaming

To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 39 for details.

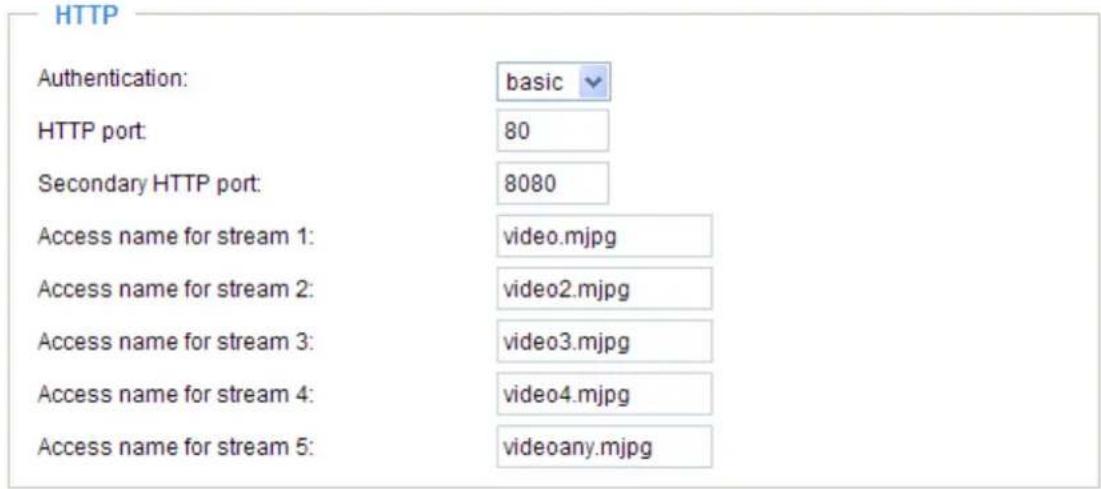

HTTP Authentication: basic HTTP port: 80 Secondary HTTP port: 8080 Access name for stream 1: video.mjpg Access name for stream 2: video2.mjpg Access name for stream 3: video3.mjpg Access name for stream 4: video4.mjpg Access name for stream 5: videoany.mjpg

Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.

If basic authentication is selected, the password is sent in plain text format and there can be potential risks of being intercepted. If digest authentication is selected, user credentials are encrypted using MD5 algorithm and thus provide better protection against unauthorized accesses.

HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP port is set to 8080. They can also be assigned to another port number between 1025 and 65535. If the ports are incorrectly assigned, the following warning messages will be displayed:

Microsoft Internet Explorer HTTP port must be 80 or from 1025 to 65535 OK

Microsoft Internet Explorer Secondary HTTP port must be from 1025 to 69935 OK

To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can be used to access the Network Camera. For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera's IP address.

On the LAN

http://192.168.4.160 or http://192.168.4.160:8080

Access name for stream 1 \~ 5: This Network camera supports multiple streams simultaneously. The access name is used to differentiate the streaming source. Users can click Media > Video > Stream settings to set up the video quality of linked streams. For more information about how to set up the video quality, please refer to Stream settings on page 75.

When using Mozilla Firefox or Netscape to access the Network Camera and the video mode is set to JPEG, users will receive video comprised of continuous JPEG images. This technology, known as “server push”, allows the Network Camera to feed live pictures to Mozilla Firefox and Netscape.

URL command -- http://:/ For example, when the Access name for stream 2 is set to video2.mjpg:

1. Launch Mozilla Firefox or Netscape.
2. Type the above URL command in the address bar. Press Enter.
3. The JPEG images will be displayed in your web browser.

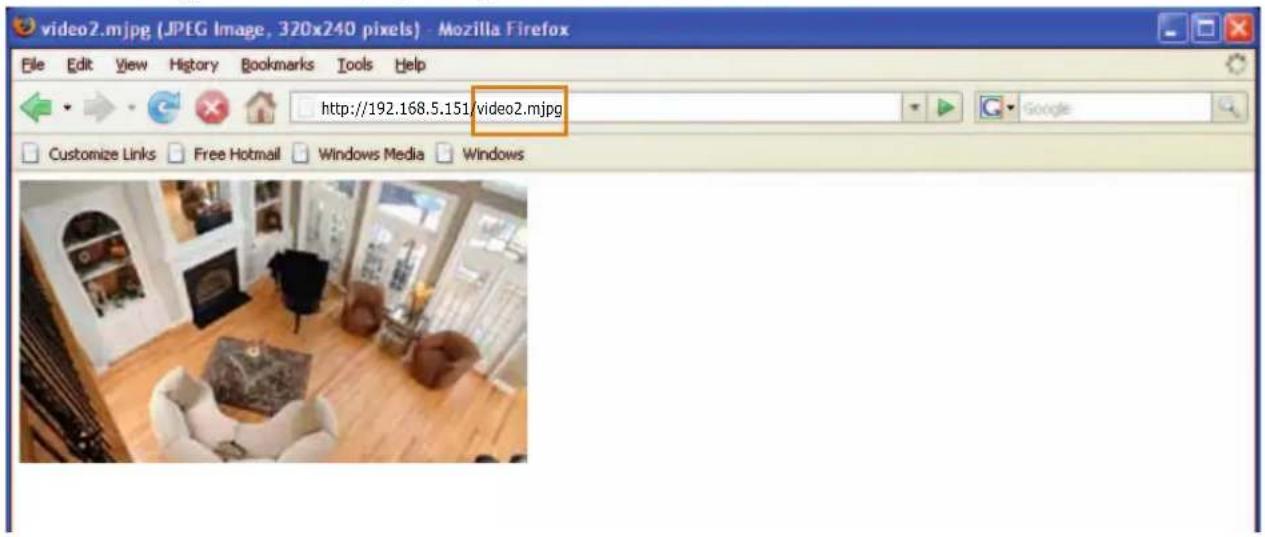

video2.mjpg (JPEG Image, 320x240 pixels) - Mozilla Firefox File Edit View History Bookmarks Tools Help http://192.168.5.151/video2.mjpg Customize Links Free Hotmail Windows Media Windows

NOTE

▶ Microsoft® Internet Explorer does not support server push technology; therefore, using http://:/ will fail to access the Network Camera.
▶ Users can only use URL commands to request the stream 5. For more information about URL commands, please refer to page 112.

RTSP Streaming

To utilize RTSP streaming authentication, make sure that you have set a password for the Network Camera first; please refer to Security > User account on page 39 for details.

RTSP Streaming

Authentication:

Access name for stream 1:

Access name for stream 2:

Access name for stream 3:

Access name for stream 4:

Access name for stream 5:

RTSP port:

RTP port for video:

RTCP port for video:

RTP port for audio:

RTCP port for audio:

disable

live.sdp

live2.sdp

live3.sdp

live4.sdp

liveany.sdp

554

5556

5557

5558

5559

Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest.

If basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted. If digest authentication is selected, user credentials are encrypted using MD5 algorithm, thus providing better protection against unauthorized access.

The availability of the RTSP streaming for the three authentication modes is listed in the following table:

	Quick Time player Real Player
Disable O O
Basic O O
Digest O X

Access name for stream 1 \~ 5: This Network camera supports multiple streams simultaneously. The access name is used to differentiate the streaming source.

If you want to use an RTSP player to access the Network Camera, you have to set the video mode to H.264 / MPEG-4 and use the following RTSP URL command to request transmission of the streaming data.

rtsp://:/

For example, when the access name for stream 1 is set to live.sdp:

1. Launch an RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. Type the above URL command in the text box.
4. The live video will be displayed in your player as shown below.

Open URL Enter an Internet URL to open http://192.168.5.151:554/live.scp OK Cancel

Interior view of a modern living room with wooden flooring, armchairs, and large windows (no visible text or symbols)

RTSP port /RTP port for video, audio/ RTCP port for video, audio

■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port number is set to 554.
■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By default, the RTP port for video is set to 5556 and the RTP port for audio is set to 5558.
■ The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the data by monitoring the Internet traffic volume. By default, the RTCP port for video is set to 5557 and the RTCP port for audio is set to 5559.

The ports can be changed to values between 1025 and 65535. The RTP port must be an even number and the RTCP port is the RTP port number plus one, and thus is always an odd number. When the RTP port changes, the RTCP port will change accordingly.

If the RTP ports are incorrectly assigned, the following warning message will be displayed:

Microsoft Internet Explorer Invalid port number. RTP video port must be an even number. OK

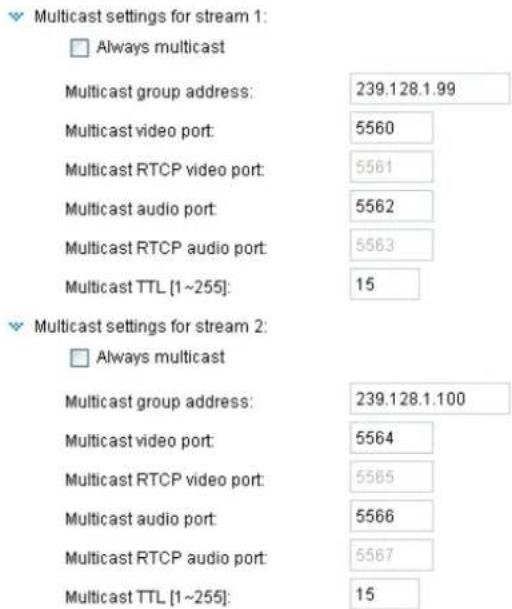

Multicast settings for stream 1 \~ 4: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for stream 1 \~ 4.

Multicast settings for stream 1: □ Always multicast Multicast group address: 239.128.1.99 Multicast video port: 5560 Multicast RTCP video port: 5561 Multicast audio port: 5562 Multicast RTCP audio port: 5563 Multicast TTL [1~255]: 15 Multicast settings for stream 2: □ Always multicast Multicast group address: 239.128.1.100 Multicast video port: 5564 Multicast RTCP video port: 5565 Multicast audio port: 5566 Multicast RTCP audio port: 5567 Multicast TTL [1~255]: 15

Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address. Therefore, enabling multicast can effectively save Internet bandwidth.

The ports can be changed to values between 1025 and 65535. The multicast RTP port must be an even number and the multicast RTCP port number is the multicast RTP port number plus one, and thus is always odd. When the multicast RTP port changes, the multicast RTCP port will change accordingly.

If the multicast RTP video ports are incorrectly assigned, the following warning message will be displayed:

Microsoft Offshore Explorer Invalid port number - Multiple streams x video port result for an even number. OK

Multicast TTL [1\~255]: The multicast TTL (Time To Live) is the value that tells the router the range a packet can be forwarded.

Network > QoS (Quality of Service) Advanced Mode

Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.

The following are the main benefits of a QoS-aware network:

■ The ability to prioritize traffic and guarantee a certain level of performance to the data flow.
■ The ability to control the amount of bandwidth each application may use, and thus provide higher reliability and stability on the network.

Requirements for QoS

To utilize QoS in a network environment, the following requirements must be met:

■ All network switches and routers in the network must include support for QoS.
■ The network video devices used in the network must be QoS-enabled.

QoS models

CoS (the VLAN 802.1p model)

IEEE802.1p defines a QoS model at OSI Layer 2 (Data Link Layer), which is called CoS, Class of Service. It adds a 3-bit value to the VLAN MAC header, which indicates the frame priority level from 0 (lowest) to 7 (highest). The priority is set up on the network switches, which then use different queuing disciplines to forward the packets.

Below is the setting column for CoS. Enter the VLAN ID of your switch (0\~4095) and choose the priority for each application (0\~7).

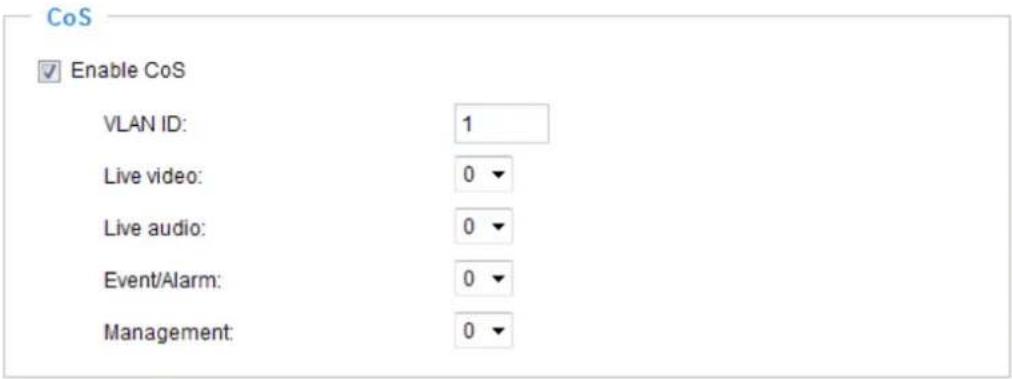

CoS Enable CoS VLAN ID: 1 Live video: 0 Live audio: 0 Event/Alarm: 0 Management: 0

If you assign Video the highest level, the switch will handle video packets first.

NOTE

The VLAN Switch (802.1p) is required. The web browsing may fail if the CoS setting is incorrect.
▶ Class of Service technologies do not guarantee a level of service in terms of bandwidth and delivery time; they offer a "best-effort." Users can think of CoS as "coarsely-grained" traffic control and QoS as "finely-grained" traffic control.
▶ Though CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees since it is based on L2 protocol.

QoS/DSCP (the DiffServ model)

DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs. It gives an indication of how a given packet is to be forwarded, known as the Per Hop Behavior (PHB). The PHB describes a particular service level in terms of bandwidth, queueing theory, and dropping (discarding the packet) decisions. Routers at each network node classify packets according to their DSCP value and give them a particular forwarding treatment; for example, how much bandwidth to reserve for it.

Below are the setting options of DSCP (DiffServ Codepoint). Specify the DSCP value for each application (0\~63).

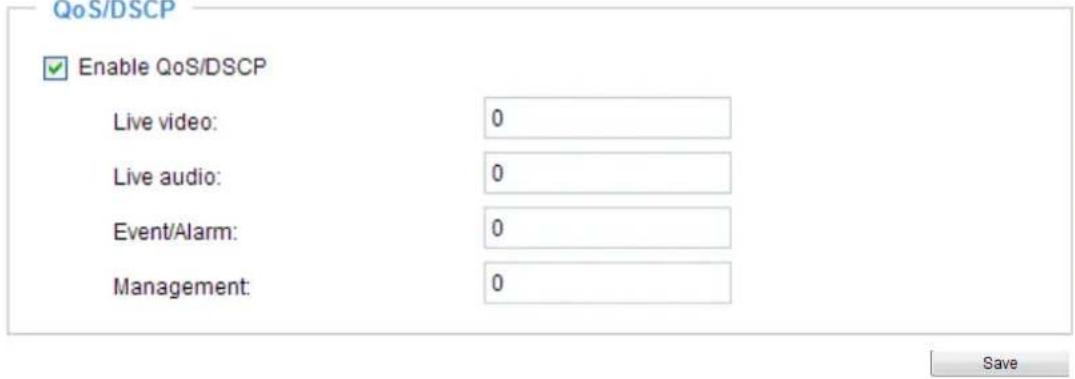

QoS/DSCP Enable QoS/DSCP Live video: 0 Live audio: 0 Event/Alarm: 0 Management: 0 Save

Network > DDNS

This section explains how to configure the dynamic domain name service for the Network Camera. DDNS is a service that allows your Network Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name.

Express link

Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address. This service will check out if the host name is valid and automatically open a port on your router. Unlike DDNS, the user has to manually check out UPnP port forwarding, Express Link is more convenient and easy to set up.

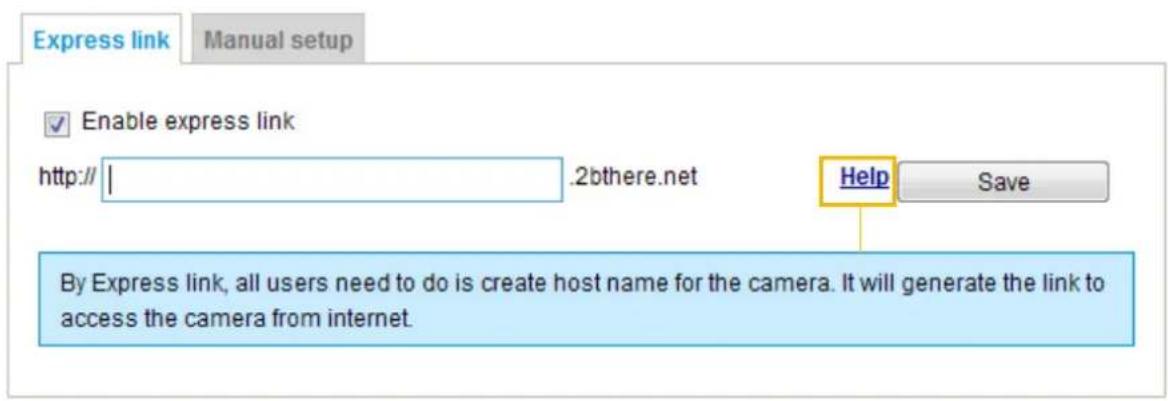

Express link Manual setup Enable express link http:// | .2bthere.net Help Save By Express link, all users need to do is create host name for the camera. It will generate the link to access the camera from internet.

Please follow the steps below to enable Express Link:

1. Make sure that your router supports UPnP port forwarding and it is activated.
2. Check Enable express link.
3. Enter a host name for the network device and click Save. If the host name has been used by another device, a warning message will show up. If the host name is valid, it will show a message as shown below.

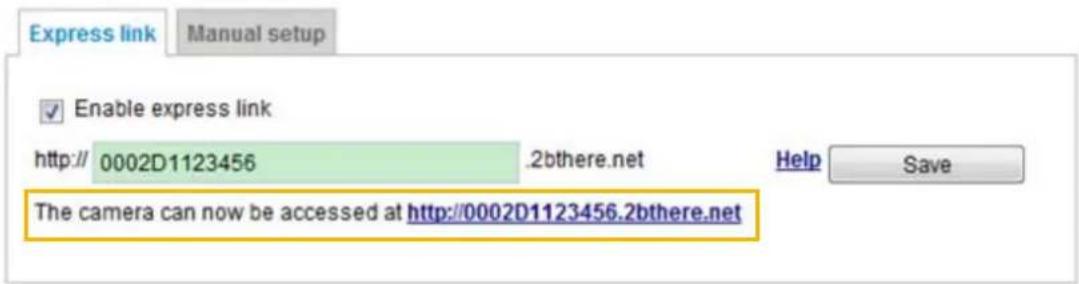

Express link Manual setup Enable express link http:// 0002D1123456 .2bthere.net The camera can now be accessed at http://0002D1123456.2bthere.net Help Save

Network Camera - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites https://0002D1123456.2bthere.net VIVOTEK www.vivotek.com Video Stream 1 Manual Trigger: Digital Output On Off Focus Assist On Off PTZ Panel Digital Mega-Pixel Network Camera EB Auto 100% EB 30% EB 25% (TCP-AV)

Manual setup

DDNS: Dynamic domain name service

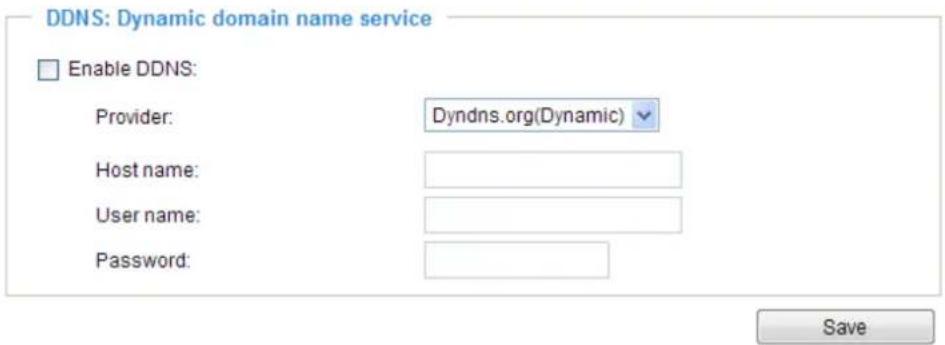

DDNS: Dynamic domain name service Enable DDNS: Provider: Dyndns.org(Dynamic) Host name: User name: Password: Save

Enable DDNS: Select this option to enable the DDNS setting.

Provider: Select a DDNS provider from the provider drop-down list.

VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK's Network Cameras from the Internet. Additionally, we offer other DDNS providers, such as Dyndns.org(Dynamic), Dyndns.org(Custom), TZO.com, DHS.org, CustomSafe100, dyn-interfree.it.

Note that before utilizing this function, please apply for a dynamic domain account first.

■ Safe100.net

1. In the DDNS column, select Safe100.net from the drop-down list. Click I accept after reviewing the terms of the Service Agreement.
2. In the Register column, fill in the Host name (xxxx.safe100.net), Email, Key, and Confirm Key, and click Register. After a host name has been successfully created, a success message will be displayed in the DDNS Registration Result column.

Register Host name: VVTK:safe100.net Email: [e-mail] Key: ••••• Forget key Confirm key: ••••• To apply for a domain name for the camera, or to modify the previously registered information, fill in the following fields and then click "Register". Register DDNS Registration Result: [Register] Successfully Your account information has been mailed to registered e-mail address Upon successful registration, you can click copy to automatically upload relevant information to the DDNS form or you can manually fill it in. Then, click "Save" to save new settings.

1. Click Copy and all the registered information will automatically be uploaded to the corresponding fields in the DDNS column at the top of the page as seen in the picture.

DDNS: Dynamic domain name service

Enable DDNS:

Provider:

Host name:

Email:

Key:

Safe100.net VVTK.safe100.net [e-mail] [*.safe100.net]

Save

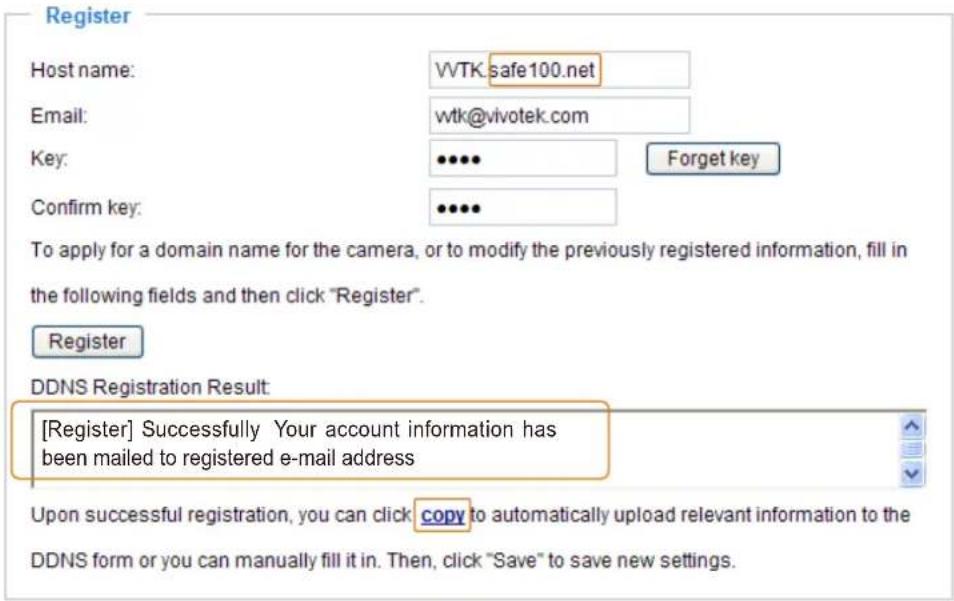

Register

Host name:

Email:

Key:

Confirm key:

WTK.safe100.net

[e-mail]

...

...

Forget key

To apply for a domain name for the camera, or to modify the previously registered information, fill in the following fields and then click "Register".

Register

DDNS Registration Result:

[Register] Successfully Your account information has been mailed to registered e-mail address

Upon successful registration, you can click copy to automatically upload relevant information to the DDNS form or you can manually fill it in. Then, click "Save" to save new settings.

1. Select Enable DDNS and click Save to enable the setting.

■ CustomSafe100

VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.

1. In the DDNS column, select CustomSafe100 from the drop-down list.
2. In the Register column, fill in the Host name, Email, Key, and Confirm Key; then click Register. After a host name has been successfully created, you will see a success message in the DDNS Registration Result column.
3. Click Copy and all for the registered information will be uploaded to the corresponding fields in the DDNS column.
4. Select Enable DDNS and click Save to enable the setting.

Forget key: Click this button if you have forgotten the key to Safe100.net or CustomSafe100. Your account information will be sent to your email address.

Refer to the following links to apply for a dynamic domain account when selecting other DDNS providers:

■ Dyndns.org(Dynamic) / Dyndns.org(Custom): visit http://www.dyndns.com/
■ TZO.com: visit http://www.tzo.com/
■ DHS.org: visit http://www.dhs.org/
■ dyn-interfree.it: visit http://dyn-interfree.it/

Network > SNMP (Simple Network Management Protocol)

Advanced Mode

This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.

■ The SNMP consists of the following three key components:

1. Manager: Network-management station (NMS), a server which executes applications that monitor and control managed devices.
2. Agent: A network-management software module on a managed device which transfers the status of managed devices to the NMS.
3. Managed device: A network node on a managed network. For example: routers, switches, bridges, hubs, computer hosts, printers, IP telephones, network cameras, web server, and database.

Before configuring SNMP settings on the this page, please enable your NMS first.

SNMP Configuration

Enable SNMPv1, SNMPv2c

Select this option and enter the names of Read/Write community and Read Only community according to your NMS settings.

Enable SNMPv1, SNMPv2c

SNMPv1, SNMPv2c Settings Read/Write community: Private Read only community: Public

Enable SNMPv3

This option contains cryptographic security, a higher security level, which allows you to set the Authentication password and the Encryption password.

■ Security name: According to your NMS settings, choose Read/Write or Read Only and enter the community name.
■ Authentication type: Select MD5 or SHA as the authentication method.
■ Authentication password: Enter the password for authentication (at least 8 characters).
■ Encryption password: Enter a password for encryption (at least 8 characters).

Enable SNMPv3

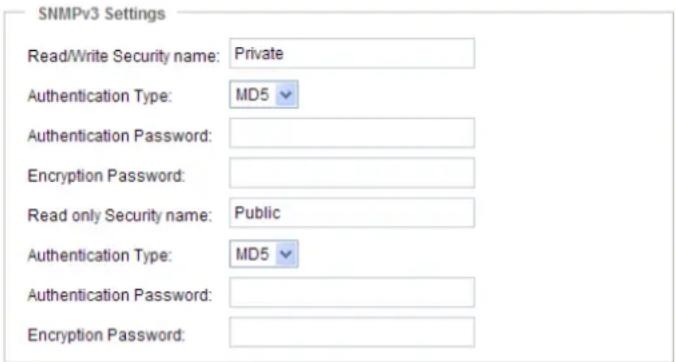

SNMPv3 Settings Read/Write Security name: Private Authentication Type: MD5 Authentication Password: Encryption Password: Read only Security name: Public Authentication Type: MD5 Authentication Password: Encryption Password:

Media > Image

Advanced Mode

This section explains how to configure the image settings of the Network Camera. It is composed of the following four columns: General settings, Preference, Exposure, and Privacy mask.

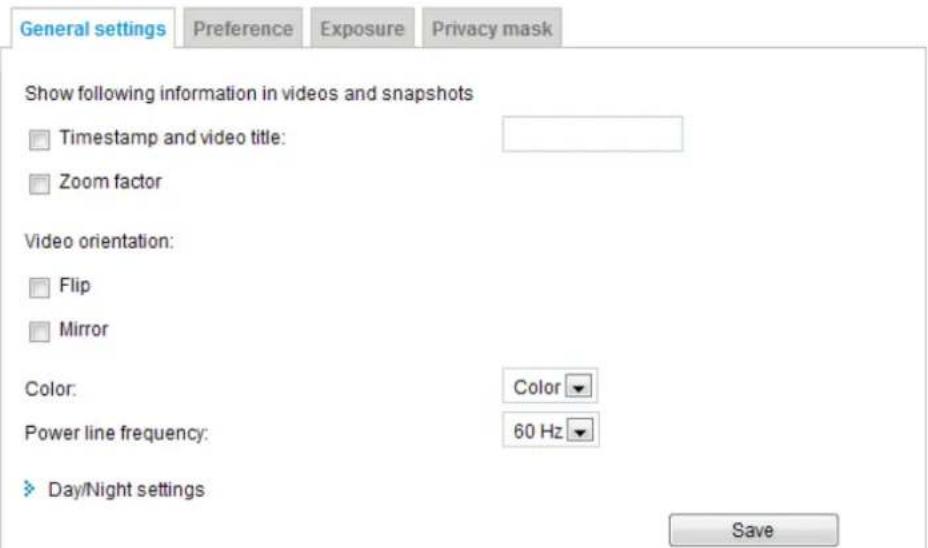

General settings

General settings Preference Exposure Privacy mask Show following information in videos and snapshots Timestamp and video title: Zoom factor Video orientation: Flip Mirror Color: Color Power line frequency: 60 Hz Day/Night settings Save

Timestamp and video title: Enter a name that will be displayed on the title bar of the live video as the picture shown below.

Zoom factor: If you check this item, the zoom indicator will be displayed on the Home page when you zoom in/out the live viewing window as the picture shown below. You may zoom in/out the image by scrolling the mouse inside the live viewing window, and the maximum zoom in will be up to 4 times.

Video Title Title and Time Zoom Indicator x4.0 Video (TCP-AV) 2011/06/09 17:08:56 Video 17:08:56 2011/06/25

Video orientation: Flip--vertically reflect the display of the live video; Mirror--horizontally reflect the display of the live video. Select both options if the Network Camera is installed upside-down (ex. on the ceiling) to correct the image orientation. Please note that the preset locations will be cleared after flip/mirror.

Color: Select to display color or black/white video streams.

Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image flickering associated with fluorescent lights. Note that after the power line frequency is changed, you must disconnect and reconnect the power cord of the Network Camera in order for the new setting to take effect.

Day/Night Settings

Day/Night settings Switch to B/W in night mode IR cut filter: Auto mode Light sensor sensitivity: Normal Save

Switch to B/W in night mode

Select this to enable the Network Camera to automatically switch to B/W during night mode.

IR cut filter

With a removable IR-cut filter, this Network Camera can automatically remove the filter to let IR light into the sensor during low light conditions.

■ Auto mode
The Network Camera automatically removes the filter by judging the level of ambient light.
■ Day mode
In day mode, the Network Camera switches on the IR cut filter at all times to block infrared light from reaching the sensor so that the colors will not be distorted.
■ Night mode
In night mode, the Network Camera switches off the IR cut filter at all times for the sensor to accept infrared light, thus helping to improve low light sensitivity.
■ Synchronize with digital input
The Network Camera automatically removes the IR cut filter when DI triggers.

■ Schedule mode

The Network Camera switches between day mode and night mode based on a specified schedule. Enter the start and end time for day mode. Note that the time format is [hh:mm] and is expressed in 24-hour clock time. By default, the start and end time of day mode are set to 07:00 and 18:00.

Light sensor sensitivity

Select Low, Normal, or High sensitivity for the light sensor.

Preference

On this page, you can tune the White balance, Image adjustment and WDR enhanced.

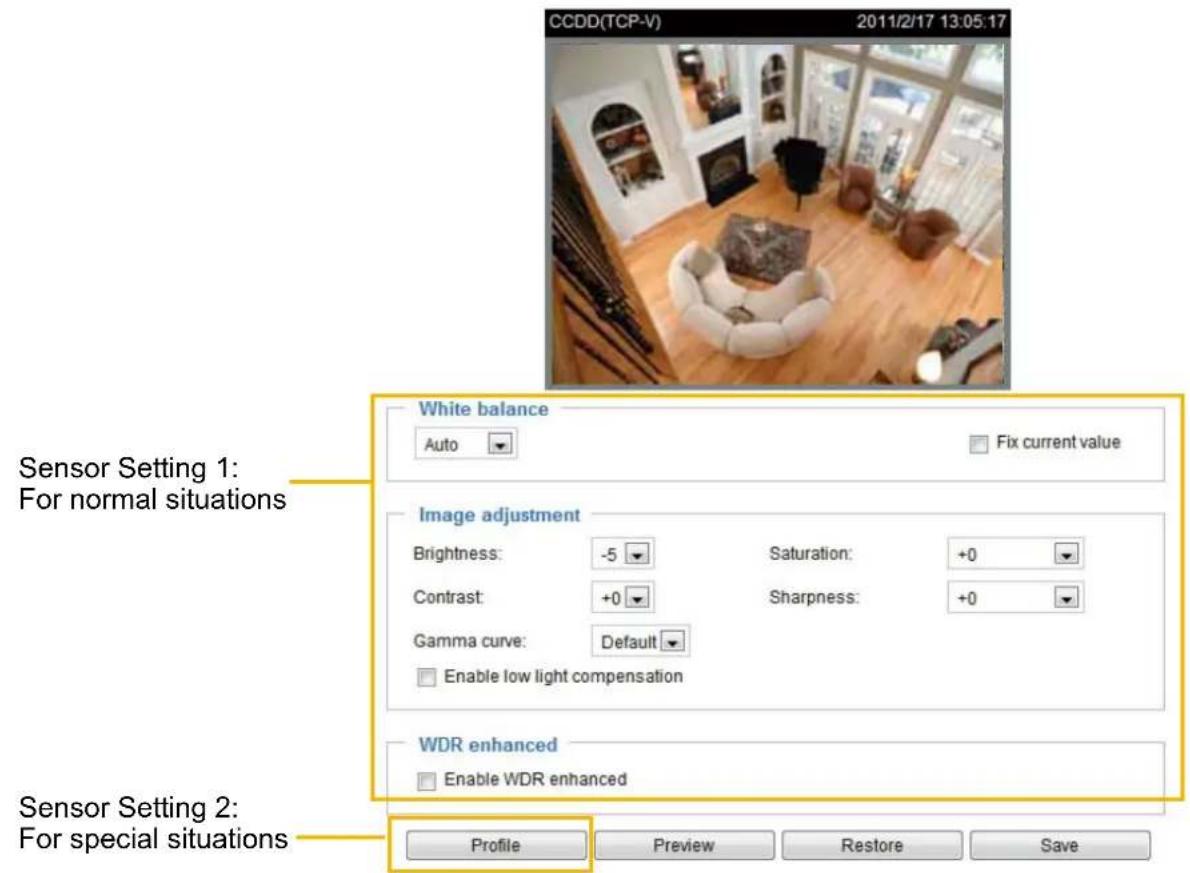

CCDD(TCP-V) 2011/2/17 13:05:17 Sensor Setting 1: For normal situations White balance Auto Fix current value Image adjustment Brightness: -5 Saturation: +0 Contrast: +0 Sharpness: +0 Gamma curve: Default Enable low light compensation WDR enhanced Enable WDR enhanced Sensor Setting 2: For special situations Profile Preview Restore Save

White balance: Adjust the value for the best color temperature.

■ Auto: It will automatically adjust the color temperature of the light in response to different light sources. You may follow the steps below to adjust the white balance to the best color temperature.

1. Set the White balance to Auto.

2. Place a sheet of white paper in front of the lens, then allow the Network Camera to adjust the color temperature automatically.

3. Check Fix current value to confirm the setting while the white balance is being measured.

■ Manual: This item allows user to input the R gain & B gain manually.

Image Adjustment

■ Brightness: Adjust the image brightness level, which ranges from -5 to +5.
■ Saturation: Adjust the image saturation level, which ranges from -5 to +5. You can also select Customize and manually enter a value.
■ Contrast: Adjust the image contrast level, which ranges from -5 to +5. Please note that this function will be disabled if you enable WRD enhancement in the column below.
■ Sharpness: Adjust the image sharpness level, which ranges from -3 to +3. You can also select Customize and manually enter a value.
■ Gamma curve: This function is for user to select a proper gamma curve value to adjust the gray-scale of the monitor.
■ Enable low light compensation: Select this option in low light mode, and the values of sharpness and brightness will change automatically as the noise reduction function.

WDR enhanced: This function allows users to identify more objects in the high contrast environment especially details in the dark. You may check Enable WDR enhanced, and then adjust the sensitivity (low, high) and the strength (low, medium, high) to reach the best image quality.

WDR enhanced Enable WDR enhanced Sensitivity: Low Strength: Medium

Profile Preview Restore Save

You can click Preview to fine-tune the image, or click Restore to recall the original settings without incorporating the changes. When completed with the settings on this page, click Save to enable the setting. You can also click on Profile to adjust all settings above in a pop-up window.

General settings Enable and apply this profile to Day mode Night mode Schedule mode

General settings: Select the applied mode: Day mode, Night mode, or Schedule mode. Please manually enter a range of time if you choose Schedule mode. Then check Save to take effect.

Exposure Advanced Mode

On this page, you can set the Measurement window, Exposure level, Exposure mode, Exposure time, and Gain control settings. Please note that if you set Exposure Mode as Auto, the Exposure time and Gain control will be not configurable since the sensor library will automatically adjust the value according to the ambient light.

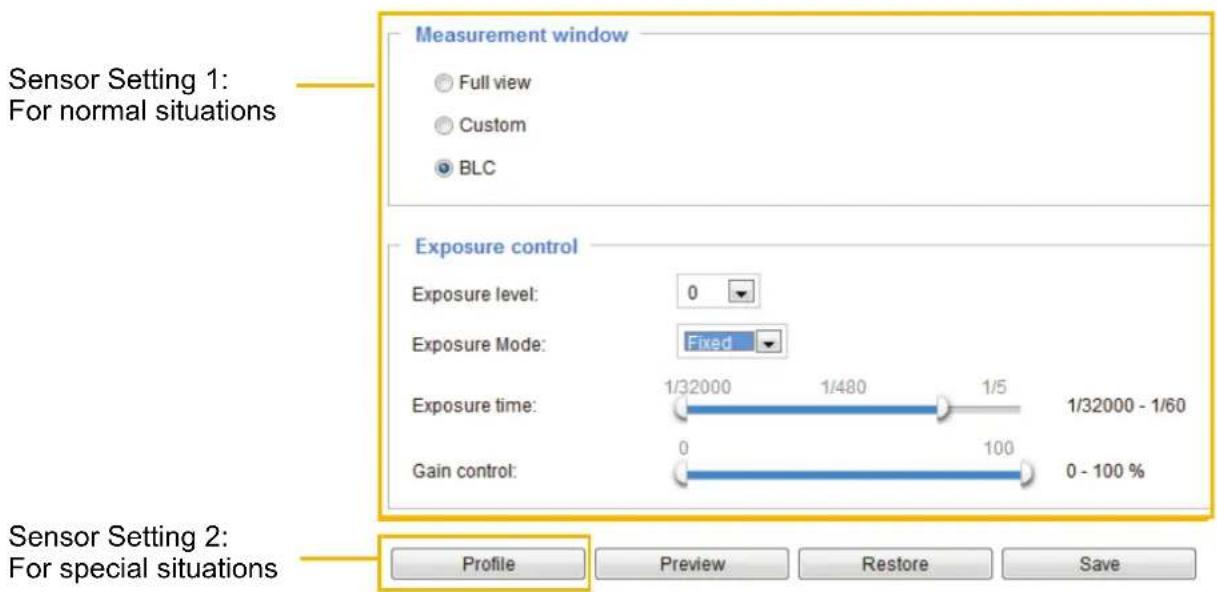

Sensor Setting 1: For normal situations Measurement window Full view Custom BLC Exposure control Exposure level: 0 Exposure Mode: Fixed Exposure time: 1/32000 1/480 1/5 1/32000 - 1/60 Gain control: 0 100 0 - 100 % Sensor Setting 2: For special situations Profile Preview Restore Save

Measurement Window: This function allows user to set measurement window(s) for low light compensation.

■ Full view: Calculate the full range of view and offer appropriate light compensation.

■ Custom: This option allows you to manually add customized windows as inclusive or exclusive regions. A total of 10 windows can be set. The inclusive window refers to "weighted window"; the exclusive window refers to "ignored window". It adopts the weighted averages method to calculate the value.

■ BLC (Back Light Compensation): This option will automatically add a "weighted region" in the middle of the window and give the necessary light compensation.

Exposure control:

■ Exposure level: You can manually set the Exposure level, which ranges from -2.0 to +2.0 (dark to bright).

■ Exposure mode (Auto): Select Auto to set a proper maximum exposure time (second) according to the light source of the surroundings. You can set iris mode as "indoor" or "outdoor" to reach the best image quality. You may also adjust iris sensitivity from 1 to 10.

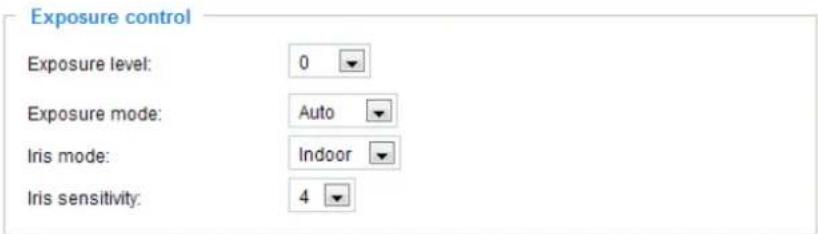

Exposure control Exposure level: 0 Exposure mode: Auto Iris mode: Indoor Iris sensitivity: 4

■ Exposure mode (Fixed): Select Fixed to set a fixed exposure time and gain. Shorter exposure times result in less light. Then, tune the slider bar to set the Exposure time and Gain Control to the best image quality. High gain control value would generate a certain amount of noise. Noted that this function is only for IP8162.

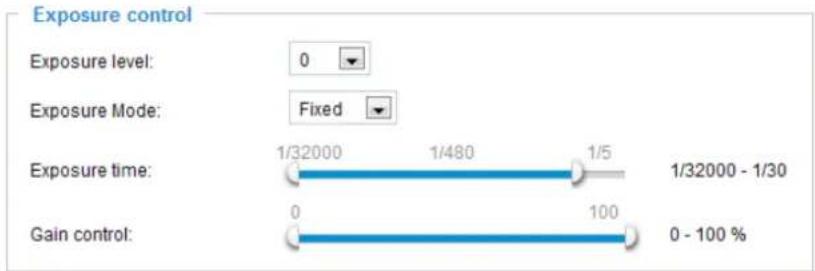

Exposure control Exposure level: 0 Exposure Mode: Fixed Exposure time: 1/32000 1/480 1/5 1/32000 - 1/30 Gain control: 0 100 0 - 100 %

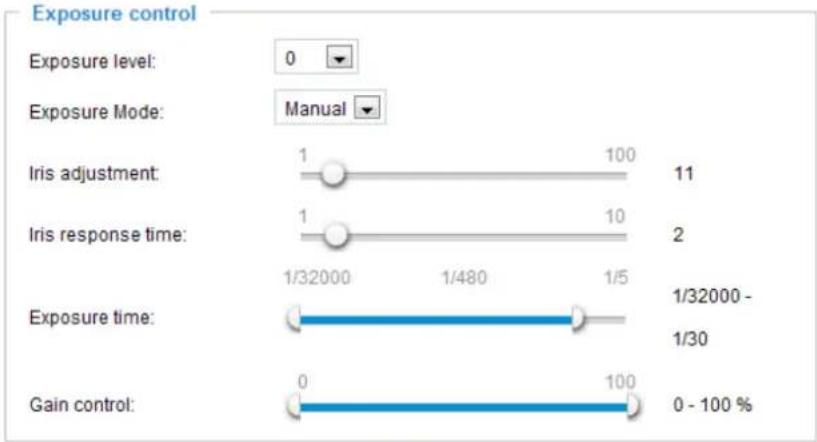

■ Exposure mode (Manual): This mode allows user to fine-tune the value of iris opening manually, which ranges from 1 (narrow) to 100 (wide). The Response time is for adjusting the opening or closing speed of the iris from 1 (quick) to 10 (slow) steps. In addition, if you choose manual mode, you can manually adjust the Exposure time and Gain control according to the ambient light. Noted that this function is only for IP8162P.

Exposure control Exposure level: 0 Exposure Mode: Manual Iris adjustment: 1 100 11 Iris response time: 1 10 2 1/32000 1/480 1/5 1/32000 - Exposure time: 1/30 Gain control: 0 100 0 - 100 %

You can click Preview to fine-tune the image, or click Restore to recall the original settings without incorporating the changes. When completed with the settings on this page, click Save to enable the settings.

If you want to configure another sensor setting for day/night/schedule mode, please click Profile to open the Profile of exposure settings page as shown below.

Interior view of a modern living room with wooden flooring, white furniture, and large windows (no visible text or symbols)

Activated period

√ Enable and apply this profile to

○ Day mode
Night mode
○ Schedule mode:

Please follow the steps below to setup a profile:

1. Check Enable this profile.
2. Select the applied mode: Day mode, Night mode, or Schedule mode. Please manually enter a range of time if you choose Schedule mode.
3. Configure Exposure control settings in the following columns. Please refer to the last page for detailed information.
4. Click Save to enable the setting and click Close to exit the page.

Privacy mask

Advanced Mode

Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns.

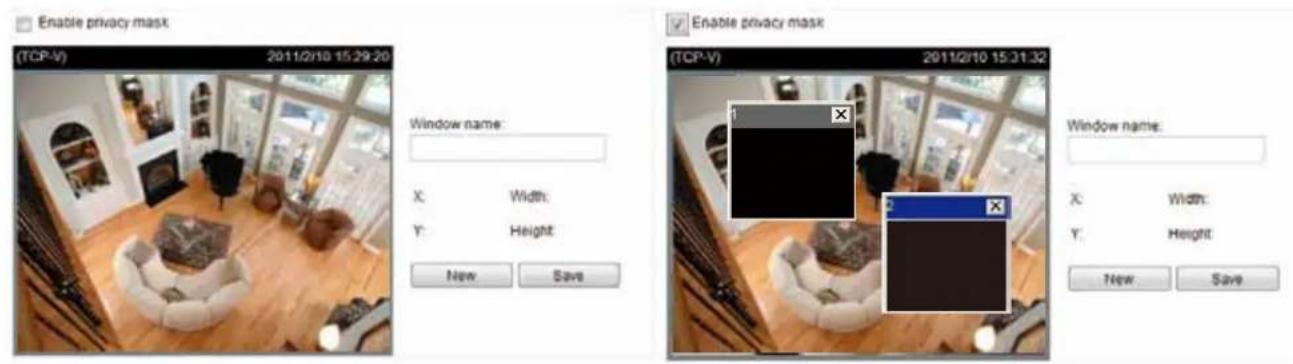

■ To set the privacy mask windows, follow the steps below:

1. Click New to add a new window.
2. Use the mouse to size and drag-drop the window, which is recommended to be at least twice the size of the object (height and width) you want to cover.
3. Enter a Window Name and click Save to enable the setting.
4. Check Enable privacy mask to enable this function.

NOTE

▶ Up to 5 privacy mask windows can be set up on the same screen.
▶ If you want to delete the privacy mask window, please click the 'x' on the upper right corner of the window.

Media > Video

Stream settings Advanced Mode

Stream settings

Enable time shift caching stream

Stream

Video settings for stream 1 Viewing Window
Video settings for stream 2 Viewing Window
Video settings for stream 3 Viewing Window
Video settings for stream 4

Enable time shift caching stream : Select one stream as the time shift cache stream. This function enable the time shift cache stream on the Network Camera, which will store video in the camera's embedded memory for a period of time depending on the cache memory of each Network Camera. This function can work seamlessly with VIVOTEK's ST7501 recording software. When an event occurs, the recording software can request time shift cache stream from the camera, which allows the user to get an earlier video data.

This Network Camera supports multiple streams with frame size ranging from 176 x 144 to 1920 x 1080.

The definition of multiple streams:

■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame Rate" (size of the live view window).
■ Stream 2: Users can define the "Region of Interest" (viewing region) and the "Output Frame Rate" (size of the live view window).
■ Stream 3: Users can define the "Region of Interest" (viewing region) and the "Output Frame Rate" (size of the live view window).
■ Stream 4 (Global view stream): This stream captures the full view of the video and users can also define the "Output Frame Rate" (size of the live view window).

Click Viewing Window to open the viewing region settings page. On this page, you can set the Region of Interest and the Output Frame Size for stream 1 \~ 3.

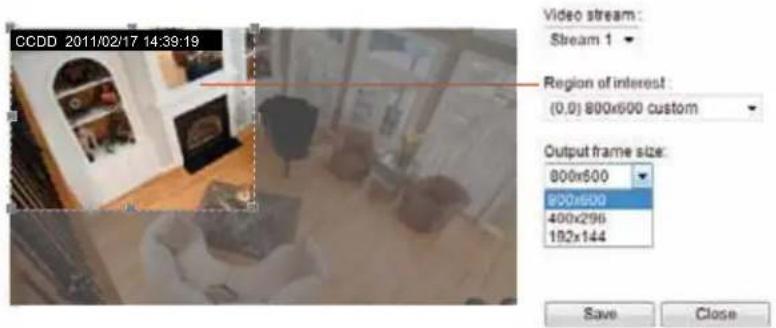

CCDD 2011/02/17 14:39:19 Video stream: Stream 1 Region of interest: (0,0) 800x600 custom Output frame size: 800x500 900x600 400x296 192x144 Save Close

Please follow the steps below to set up those settings for a stream:

1. Select a stream which you want to set up the viewing region.
2. Select a Region of Interest from the drop-down list. The floating frame, the same as the one in the Gloabl View window on the home page, will resize accordingly. If you want to set up a customized viewing region, you can also resize and drag the floating frame to a desired position with your mouse.
3. Choose a proper Output Frame Size from the drop-down list according to the size of your monitoring device.

NOTE

▶ All the items in the “Region of Interest” should not be greater than the “Output Frame Size” (current maximum resolution).

■ The parameters of the multiple streams:

	Region of Interest Output frame size
Stream 1 1920 X 1080 ~ 176 x 144 (Selectable)	1920 X 1080 ~ 176 x 144 (Selectable)
Stream 2 1920 X 1080 ~ 176 x 144 (Selectable)	1920 X 1080 ~ 176 x 144 (Selectable)
Stream 3 1920 X 1080 ~ 176 x 144 (Selectable)	1920 X 1080 ~ 176 x 144 (Selectable)
Stream 4 1920 X 1080 (Fixed)	1920 X 1080 ~ 176 x 144 (Selectable)

When completed with the settings in the Viewing Window, click Save to enable the settings and click Close to exit the window. The selected Output Frame Size will immediately be applied to the Frame size of each video stream. Then you can go back to the home page to test the e-PTZ function. For more information about the e-PTZ function, please refer to page 85.

VIVOTEK Mega-Pixel Network Camera View stream - Simulated trigger Digital output Focus session PTZ panel bgms PCF 468 200/10/2013.10 Top view Top speed Top speed Zoom speed Global View Level Mount settings Configuration Language Region of Interest (Viewing Region) Output Frame Size (Size of the Live View Window)

Click the stream item to display the detailed information. The maximum frame size will follow your settings in the above Viewing Window sections.

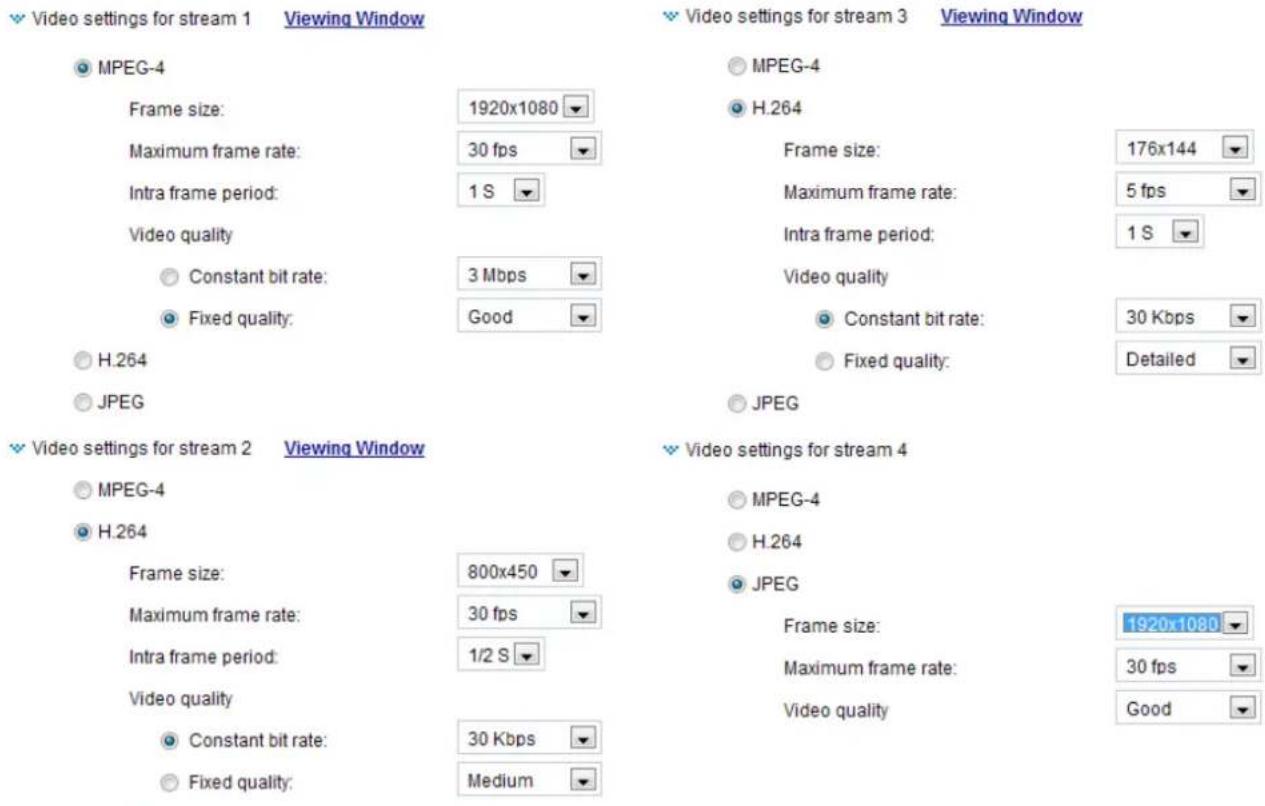

Video settings for stream 1 Viewing Window MPEG-4 Frame size: 1920x1080 Maximum frame rate: 30 fps Intra frame period: 1 S Video quality Constant bit rate: 3 Mbps Fixed quality: Good H.264 JPEG Video settings for stream 2 Viewing Window MPEG-4 H.264 Frame size: 800x450 Maximum frame rate: 30 fps Intra frame period: 1/2 S Video quality Constant bit rate: 30 Kbps Fixed quality: Medium Video settings for stream 3 Viewing Window MPEG-4 H.264 JPEG Frame size: 176x144 Maximum frame rate: 5 fps Intra frame period: 1 S Video quality Constant bit rate: 30 Kbps Fixed quality: Detailed JPEG Video settings for stream 4 MPEG-4 H.264 JPEG Frame size: 1920x1080 Maximum frame rate: 30 fps Video quality Good

JPEG

This Network Camera offers real-time H.264, MPEG-4 and MJEPG compression standards (Triple Codec) for real-time viewing.

If H.264 / MPEG-4 mode is selected, the video is streamed via RTSP protocol. There are four parameters for you to adjust the video performance:

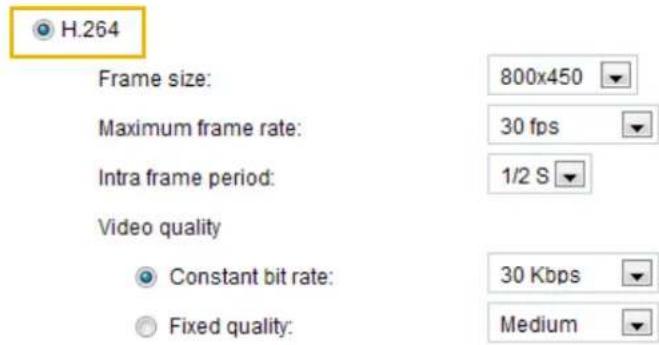

H.264 Frame size: 800x450 Maximum frame rate: 30 fps Intra frame period: 1/2 S Video quality Constant bit rate: 30 Kbps Fixed quality: Medium

■ Frame size

You can set up different video resolution for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers. Note that a larger frame size takes up more bandwidth.

■ Maximum frame rate

This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video quality.

If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps. You can also select Customize and manually enter a value. The frame rate will decrease if you select a higher resolution.

■ Intra frame period

Determine how often to plant an I frame. The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.

■ Video quality

A complex scene generally produces a larger file size, meaning that higher bandwidth will be needed for data transmission. Therefore, if Constant bit rate is selected, the bandwidth utilization is fixed at a selected level, resulting in mutable video quality performance. The bit rates are selectable at the following rates: 20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps, 4Mbps, 6Mbps, and 8Mbps. You can also select Customize and manually enter a value.

On the other hand, if Fixed quality is selected, all frames are transmitted with the same quality; bandwidth utilization is therefore unpredictable. The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent. You can also select Customize and manually enter a value.

If JPEG mode is selected, the Network Camera continuously sends JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. Because the media contents are a combination of JPEG images, no audio data is transmitted to the client. There are three parameters provided in MJPEG mode to control the video performance:

JPEG Frame size: 1920x1080 Maximum frame rate: 30 fps Video quality Good

■ Frame size

You can set up different video resolution for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers. Note that a larger frame size takes up more bandwidth.

■ Maximum frame rate

This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video quality.

If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps. You can also select Customize and manually enter a value. The frame rate will decrease if you select a higher resolution.

■ Video quality

The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent. You can also select Customize and manually enter a value.

NOTE

▶ Video quality and fixed quality refers to the compression rate, so a lower value will produce higher quality.
▶ Converting high-quality video may significantly increase the CPU loading, and you may encounter streaming disconnection or video loss while capturing a complicated scene. In the event of occurrence, we suggest you customize a lower video resolution or reduce the frame rate to obtain smooth video.

Media > Audio

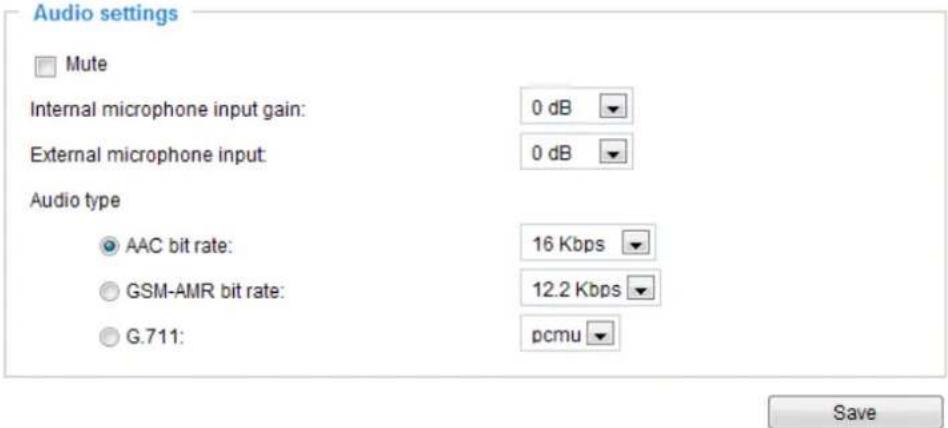

Audio Settings

Audio settings Mute Internal microphone input gain: 0 dB External microphone input: 0 dB Audio type AAC bit rate: 16 Kbps GSM-AMR bit rate: 12.2 Kbps G.711: pcmu Save

Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if mute mode is turned on, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page. In that case, the following message is displayed:

Warning The media type has been changed to video only because the media from server contains no audio OK

Internal microphone input gain: Select the gain of the internal audio input according to ambient conditions. Adjust the gain from +21 db (most sensitive) \~ -33 db (least sensitive).

External microphone input: Select the gain of the external audio input according to ambient conditions. Adjust the gain from +21 db (most sensitive) or -33 db (least sensitive).

Audio type: Select audio codec AAC or GSM-AMR and the bit rate Advanced Mode

■ AAC provides good sound quality at the cost of higher bandwidth consumption. The bit rates are selectable from: 16Kbps, 32Kbps, 48Kbps, 64Kbps, 96Kbps, and 128Kbps.
■ GSM-ARM is designed to optimize speech quality and requires less bandwidth. The bit rates are selectable from: 4.75Kbps, 5.15Kbps, 5.90Kbps, 6.7Kbps, 7.4Kbps, 7.95Kbps, 10.2Kbps, and 12.2Kbps.
■ G.711 also provides good sound quality and requires about 64Kbps. Select pcmu ( -Law) or pcma (A-Law) mode.

When completed with the settings on this page, click Save to enable the settings.

NOTE

The Network Camera offers two inputs to capture audio - internal microphone or external microphone. The internal/external microphone switch is located on the back panel of the Network Camera.

PTZ > PTZ settings Advanced Mode

This section explains how to control the Network Camera's Pan/Tilt/Zoom operation.

There are two ways to enable the function:

1. Mechanical: Connect the Network Camera to a PTZ driver or scanner via RS485 interface.
2. Digital: Control the e-PTZ operation. It allows users to quickly move the focus to a target area for close-up viewing without moving the camera physically. Please refer to page 85 for detailed instruction.

Mechanical PTZ Operation

RS485 settings

If you select "Mechanical", the RS485 Settings section will be displayed as shown below:

Activated mode : Mechanical RS485 settings Disable PTZ camera Transparent HTTP tunnel

■ Disable: Select this option to disable this function.
■PTZ camera: Select this option to enable PTZ operation.

To utilize this feature, please connect the Network Camera to a PTZ driver or scanner via RS485 interface first. Then you can configure the PTZ driver and RS485 port with the following settings.

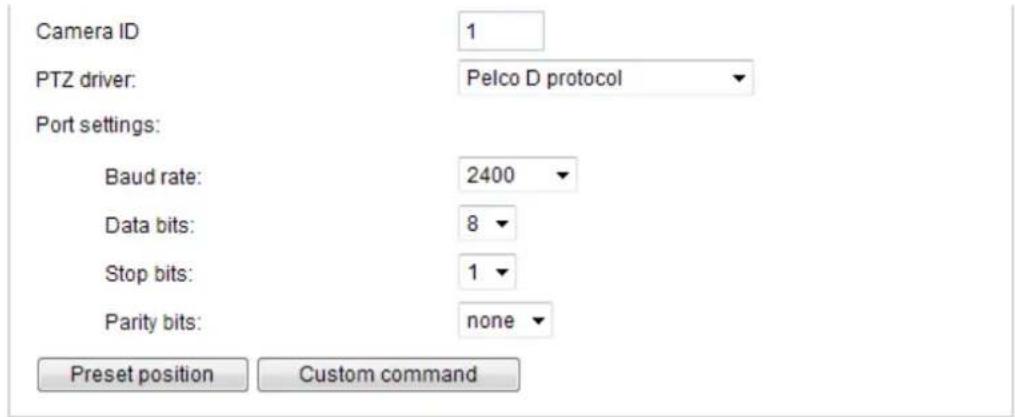

Camera ID 1 PTZ driver: Pelco D protocol Port settings: Baud rate: 2400 Data bits: 8 Stop bits: 1 Parity bits: none Preset position Custom command

VIVOTEK offers three PTZ drivers: DynaDome/SmartDOME, Lilin PIH-7x00, Pelco D protocol, Pelco P protocol, and Samsung scc643 protocol. If none of the above PTZ drivers is supported by your PTZ scanner, please select Custom camera (scanner). Please refer to the user's manual of your PTZ scanner to determine the Camera ID, PTZ driver, and Port settings. The Camera ID is necessary to control multiple cameras. If you click Save to enable this function, the camera control panel will be displayed on the main page. Please refer to the illustration on page 83.

■Transparent HTTP Tunnel: If you want to use your own RS-485 device, you can use UART commands to build a Transparent HTTP Tunnel. The UART commands will be sent through HTTP tunnel established between the RS-485 device and the linked camera. For detailed application notes, please refer to URL Commands on page 112 or http://www.vivotek.com/downloadfiles/faq/videoserver/UART_HTTP_Tunnel.pdf.

Transparent HTTP tunnel

Port settings:

Baud rate:

Data bits:

Stop bits:

Parity bits:

Preset positions

If you select DynaDome/SmartDOME, Lilin PIH-7x00, or Pelco D, Pelco P protocol, Samsung scc643 protocol protocol as the PTZ driver and click the Save button, the Preset Position button will be enabled. Click Preset Position to open the settings page. You can also select preset positions for the camera to patrol. A total of 20 preset positions can be configured.

Please follow the steps below to preset a position:

1. Adjust the shooting area to the desired position using the buttons on the right side of the window. The default Home position is set as the center position.
2. Enter a name for the preset position, which allows up to forty characters. Click Add to enable the settings. The preset positions will be displayed under User preset locations.
3. To add additional preset positions, please repeat steps 1\~2.
4. Select the preset positions and click on Save to enable the settings.
5. The positions saved will show up in Go to drop down list on the Home page.
6. To remove a preset position from the list, select it and click Remove.

(UDP-V) 2011/06/10 17:08:56 Up Left Home Right Down Zoom Focus Pan speed 0 Tilt speed 0 Zoom speed 0 Go to: - Select one -

1 Functions are the same as the Control Panel on the home page

5

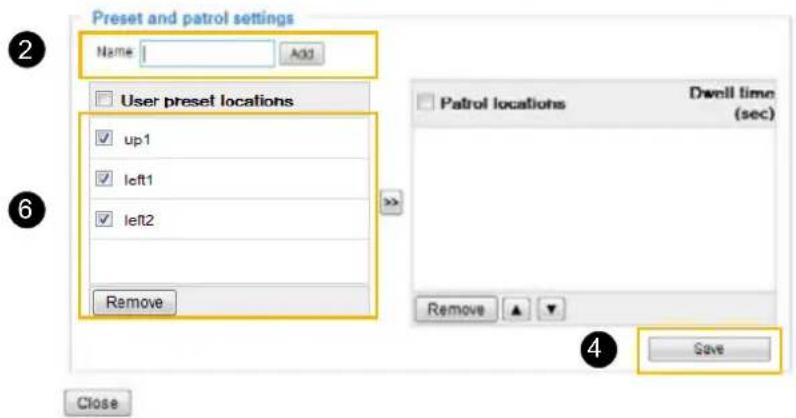

Preset and patrol settings Name Add User preset locations up1 left1 left2 Remove Dwell time (sec) Remove Save Close

Patrol settings

You can select some preset positions for the Network Camera to patrol.

Please follow the steps below to set up a patrol schedule:

1. Select the preset locations on the list, and click >>.
2. The selected preset locations will be displayed on the Patrol locations list.
3. Set the Dwelling time for the preset location during auto patrol.
4. If you want to delete a preset location from the Patrol locations list, select it and click Remove.
5. Select a location and click ▲ ▼ to rearrange the patrol order.
6. Select patrol locations you want to save in the list and click Save to enable the patrol settings.
7. To implement the patrol schedule, please go to homepage and click on Patrol button. (See page 83).

Channel: 1 (TCP-V) 2011/02/14 17:08:56 Pan speed 0 Tilt speed 0 Zoom speed 0 Go to: -- Select one --

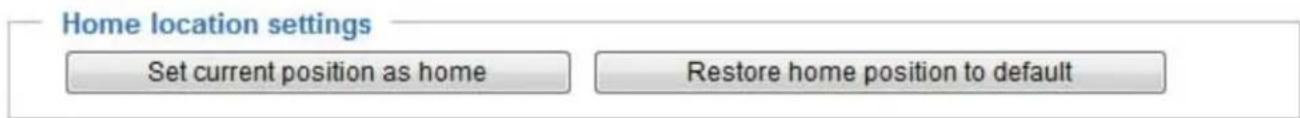

Home location settings Set current position as home Restore home position to default

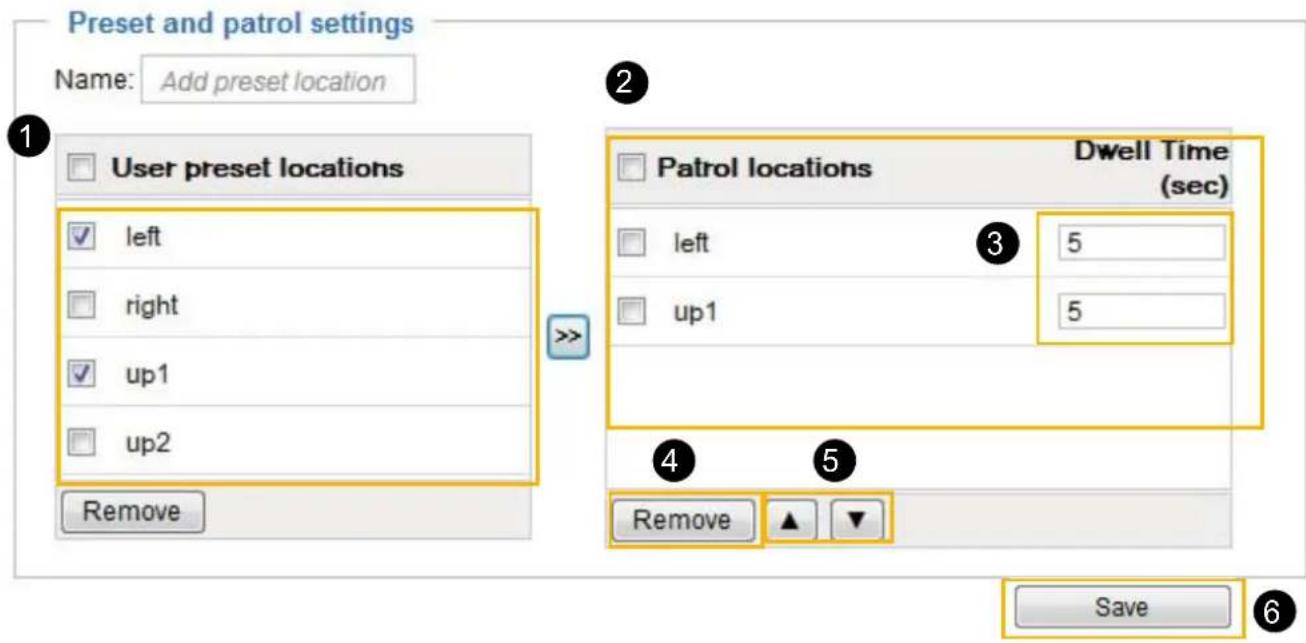

Preset and patrol settings Name: Add preset location User preset locations left right up1 up2 Remove Dwell Time (sec) left up1 5 5 Remove Save

Home page in Mechanical PTZ Mode

The preset positions and Patrol will also displayed on the Home page.

VIVOTEK Video stream 1 Manual trigger Digital output On Ctrl Focus assist On Ctrl PTZ panel Mechani Zoom + Focus + Pan Stop Patrol Pan speed 0 Tilt speed 0 Zoom speed 0 Client settings Configuration Language Powered by VIVOTEK Mega-Pixel Network Camera CCDD(TCP-V) 2011/2/17 15:29:02 — Select one — — Select one — up right down

NOTE

The Preset Positions will also be displayed on the home page. Select one from the Go to drop-down list, and the Network Camera will move to the selected preset position.
▶ Click Patrol: The Network Camera will patrol among the selected preset positions continuously. Please refer to page 82 to see more details.

Custom command

If Custom Camera (scanner) is selected as the PTZ driver, the Preset Position and PTZ Control Panel on the main page will be disabled. You will need to configure command buttons to control the PTZ scanner. Click Custom Command to open the Custom Command page to set the commands in the Control Settings session. Please refer to your PTZ scanner user's manual to enter the commands in the following fields. Click Save to enable the settings and click Close to exit the page.

Custom command

Leaving the "Button name" field empty means the command button will not be displayed in the homepage.

	Button name
Command 1:
Command 2:
Command 3:
Command 4:
Command 5:

Command

Save

Close

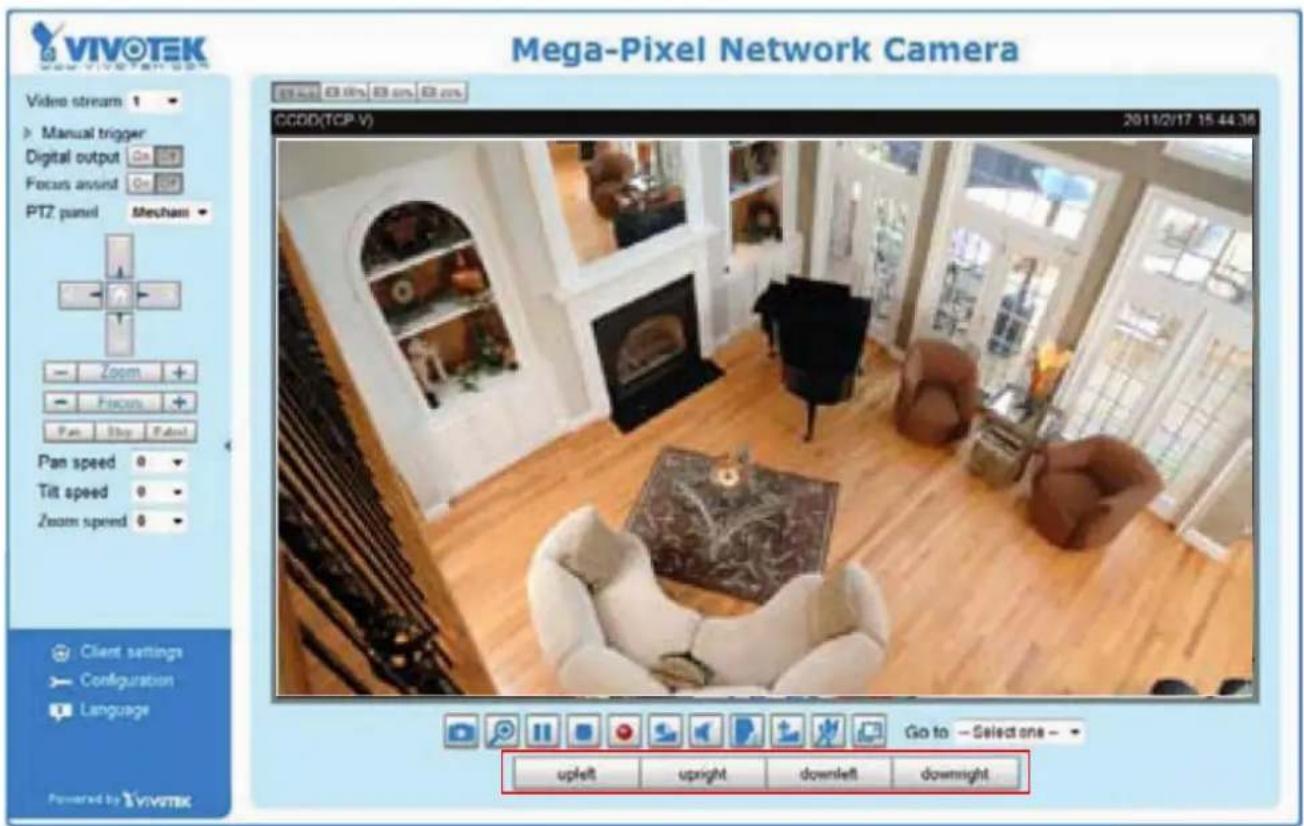

▶ The command buttons will be displayed on the main page:

VIVOTEK Video stream 1 Manual trigger Digital output On Focus assind On PTZ panel Mesham Zoom + Fracem + Pan Stop Fainl Pan speed 0 Tilt speed 0 Zoom speed 0 Client settings Configuration Language Powered by Vivitek Mega-Pixel Network Camera CCDD(TCP-V) 2011/2/17 15:44:36 upleft upright downleft downward Go to Select one

Digital PTZ Operation (E-PTZ Operation)

If you select "Digital", the e-PTZ control settings section will be displayed as shown below:

Activated mode : Digital Select stream : 1 (UDP-V) 2011/1/10 16:52:32 Pan speed 0 Tilt speed 0 Zoom speed 0 Auto pan/patrol speed 1 Go to: -- Select one -- Preset and patrol settings Name: preset location User preset locations Remove Dwell time (sec) Remove ▲ ▼ Save

Select Stream: Select one of the stream 1\~3 to set up the e-PTZ control. Please note that each stream can be set up with its own preset and patrol settings. For detailed information about how to set up preset and patrol settings, please refer to page 81\~83.

Auto pan/patrol speed: Select the speed from 1\~5 (slow/fast) to set up the Auto pan/patrol speed control.

When completed with the settings of e-PTZ, click Save to enable the settings on this page.

Home page in E-PTZ Mode

VIVOTEK Video streams Manual trigger Digital output Focus assist PTZ panel Digital TCP-4V 2000/02 08:51:14 Client settings Configuration Language Go to - Select one - Select use - up right down left

■ The e-Preset Positions will also be displayed on the home page. Select one from the drop-down list, and the Network Camera will move to the selected e-preset position.
■ If you have set up different e-preset positions for stream 1\~3, you can select one of the video streams to display its separate e-preset positions.

Global View

In addition to using the e-PTZ control panel, you can also use the mouse to drag or resize the floating frame to pan/tilt/zoom the viewing region. The live view window will also move to the viewing region accordingly.

Moving Instantly

If you check this item, the live view window will switch to the new viewing region instantly after you move the floating frame.

Click on Image

The e-PTZ function also supports "Click on Image". When you click on any point of the Global View Window or Live View Window, the viewing region will also move to that point.

Event > Event settings

Advanced Mode

This section explains how to configure the Network Camera to responds to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explains that an event can be triggered by many sources, such as motion detection or external digital input devices. When an event is triggered, you can specify what type of action that will be performed. You can configure the Network Camera to send snapshots or videos to your email address or FTP site.

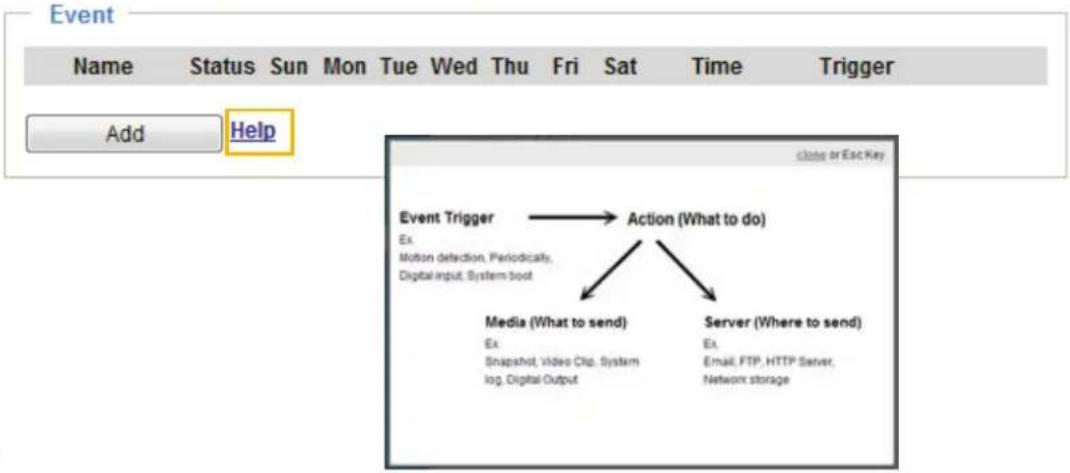

Event Name Status Sun Mon Tue Wed Thu Fri Sat Time Trigger Add Help Event Trigger → Action (What to do) Ex Motion detection, Periodically, Digital input, System boot Media (What to send) Server (Where to send) Ex Snapshot, Video Clip, System log, Digital Output Ex Email, FTP, HTTP Server, Network storage

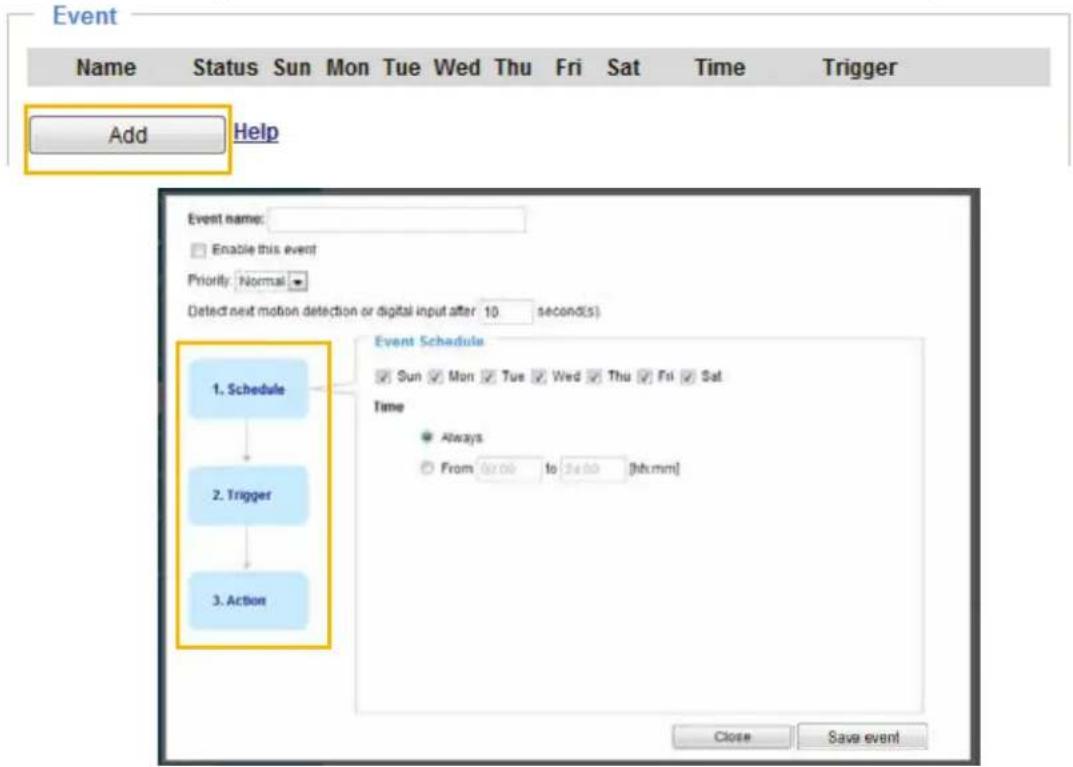

Event

To set an event with recorded video or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated. An event is an action initiated by a user-defined trigger source. In the Event column, click Add to open the event settings window. Here you can arrange three elements -- Schedule, Trigger, and Action to set an event. A total of 3 event settings can be configured.

Event Name Status Sun Mon Tue Wed Thu Fri Sat Time Trigger Add Help Event name: Enable this event Priority Normal Detect next motion detection or digital input after 10 seconds(s) 1. Schedule 2. Trigger 3. Action Event Schedule Sun Mon Tue Wed Thu Fri Sat Time Always From 00:00 to 24:00 [hh:mm] Close Save event

■ Event name: Enter a name for the event setting.
■ Enable this event: Select this option to enable the event setting.
■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
■ Detect next event after □ seconds: Enter the duration in seconds to pause motion detection after a motion is detected.

1. Schedule

Specify the period for the event. Please select the days of the week and the time in a day (in 24-hr time format) for the recording schedule.

2. Trigger

This is the cause or stimulus which defines when to trigger the Network Camera. The trigger source can be configured to use the Network Camera's built-in motion detection mechanism or external digital input devices.

There are several choices of trigger sources as shown on next page. Select the item to display the detailed configuration options.

■ Video motion detection

This option makes use of the built-in motion detection mechanism as a trigger source. To enable this function, you need to configure a Motion Detection Window first. For more information, please refer to Motion Detection on page 100 for details.

Video motion detection

Normal: □ door

Profile: hallway

Note: Please configure Motion detection first

■ Periodically

This option allows the Network Camera to trigger periodically for every other defined minute. Up to 999 minutes are allowed.

Periodically

Trigger every other 1 minutes

■ Digital input

This option allows the Network Camera to use an external digital input device or sensor as a trigger source. Depending on your application, there are many choices of digital input devices on the market which helps to detect changes in temperature, vibration, sound, and light, etc.

■ System boot

This option triggers the Network Camera when the power to the Network Camera is disconnected.

■ Recording notify

This option allows the Network Camera to trigger when the recording disk is full or when recording starts to rewrite older data.

■ Camera tampering detection

This option allows the Network Camera to trigger when the camera detects that is is being tampered with. To enable this function, you need to configure the Tampering Detection option first. Please refer to page 103 for detailed information.

Camera tampering detection Enable camera tampering detection Trigger duration 10 seconds [10~600]

■ Manual Trigger

This option allows user to enable event triggers manually by clicking the on/off button on the homepage. Please configure 1 \~ 3 events before using this function.

VIVOTEK www.vivOTEK.com Video Stream 1 Manual Trigger: 1 On Off 2 On Off 3 On Off

3. Action

Define the actions to be performed by the Network Camera when a trigger is activated.

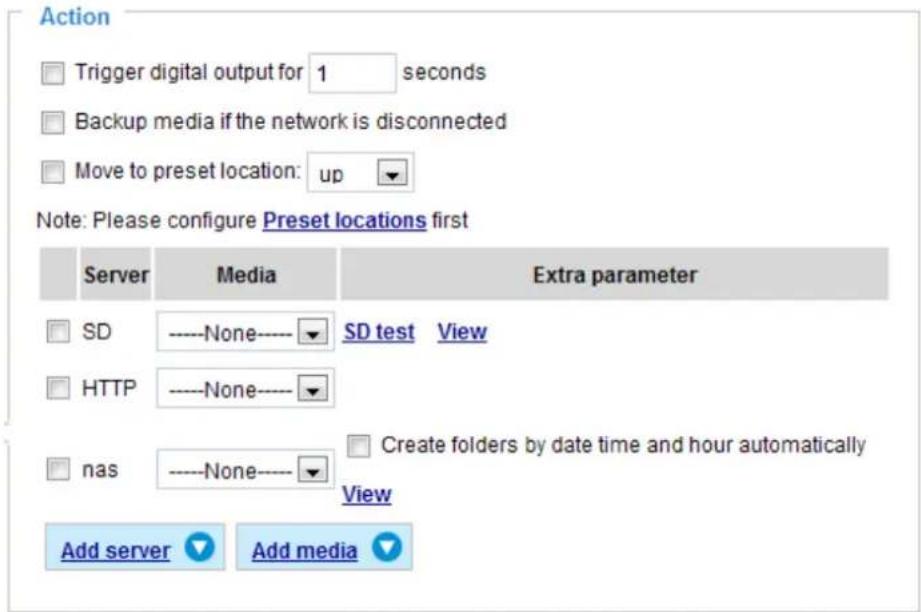

Action Trigger digital output for 1 seconds Backup media if the network is disconnected Move to preset location: up Note: Please configure Preset locations first Server Media Extra parameter SD ----None---- SD test View HTTP ----None---- nas ----None---- Create folders by date time and hour automatically View Add server Add media

■ Trigger digital output for □seconds

Select this option to turn on the external digital output device when a trigger is activated. Specify the length of the trigger interval in the text box.

■ Backup media if the network is disconnected

Select this option to backup media file on SD card if the network is disconnected. This function will only be displayed after you set up the network storage (NAS).

■ Move to preset location

Select a preset location you've configured. Note that please configure Preset locations first. To know more details, please go to page 81\~83.

Add server

To set an event with recorded video or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated. Click Add server to open the server setting window. You can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured.

There are four choices of server types available: Email, FTP, HTTP, and Network storage. Select the item to display the detailed configuration options. You can configure either one or all of them.

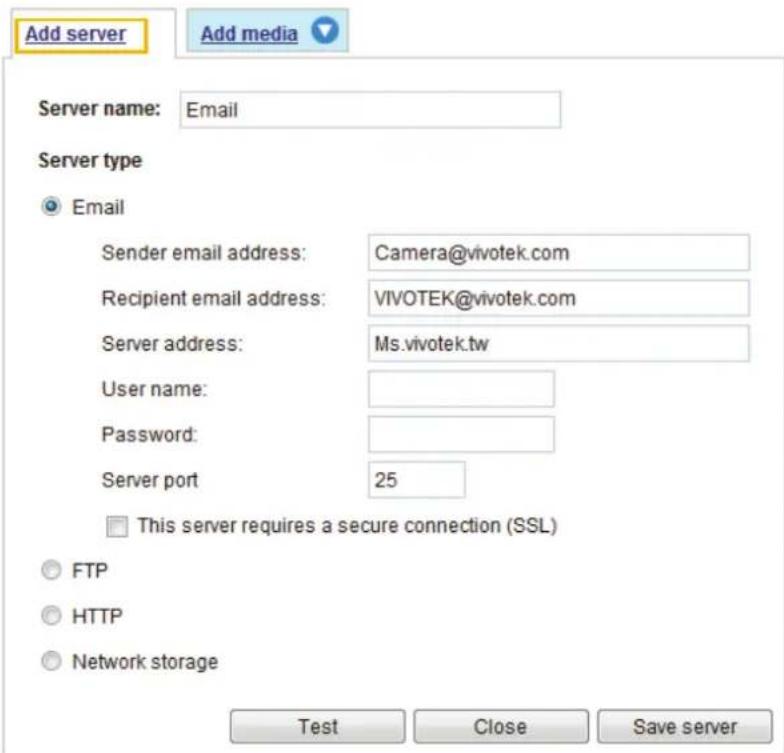

Add server Add media Server name: Email Server type Email Sender email address: [e-mail] Recipient email address: [e-mail] Server address: Ms.vivotek.tw User name: Password: Server port 25 This server requires a secure connection (SSL) FTP HTTP Network storage Test Close Save server

Server type - Email

Select to send the media files via email when a trigger is activated.

■ Server name: Enter a name for the server setting.
■ Sender email address: Enter the email address of the sender.
■ Recipient email address: Enter the email address of the recipient.
■ Server address: Enter the domain name or IP address of the email server.
■ User name: Enter the user name of the email account if necessary.
■ Password: Enter the password of the email account if necessary.
■ Server port: The default mail server port is set to 25. You can also manually set another port.

If your SMTP server requires a secure connection (SSL), check This server requires a secure connection (SSL).

To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result.

The email can be sent meanwhile.

live is ending email.

Click Save server to enable the settings.

To note that after you set up the first event server, a new item for event server will automatically show up on the Server list. If you wish to add other server options, click Add server.

Server Media Extra parameter SD —None— ▼ SD test View Email —None— ▼ Add server Add media

Server type - FTP

Select to send the media files to an FTP server when a trigger is activated.

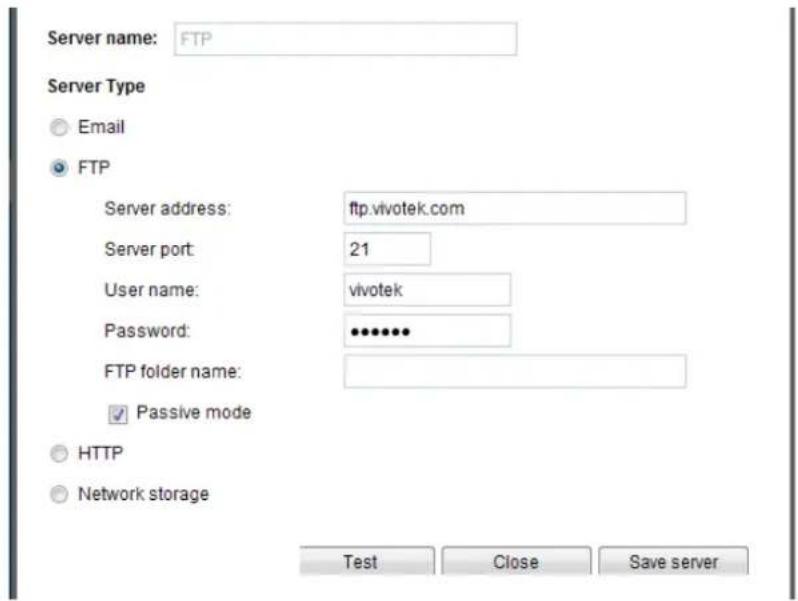

Server name: FTP Server Type Email FTP Server address: ftp.vivotek.com Server port: 21 User name: vivotek Password: ••••••• FTP folder name: Passive mode HTTP Network storage Test Close Save server

■ Server name: Enter a name for the server setting.
■ Server address: Enter the domain name or IP address of the FTP server.
■ Server port: By default, the FTP server port is set to 21. It can also be assigned to another port number between 1025 and 65535.
■ User name: Enter the login name of the FTP account.
■ Password: Enter the password of the FTP account.
■ FTP folder name

Enter the folder where the media file will be placed. If the folder name does not exist, the Network Camera will create one on the FTP server.

■ Passive mode

Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall.

To verify if the FTP settings are correctly configured, click Test. The result will be shown in a pop-up window as shown below. If successful, you will also receive a test.txt file on the FTP server.

http://192.168.5.121.aspx/abs/abs/abs/abs/abs/abs ftp transmission successfully.

ftp transmission failed.

Click Save server to enable the settings.

Server type - HTTP

Select to send the media files to an HTTP server when a trigger is activated.

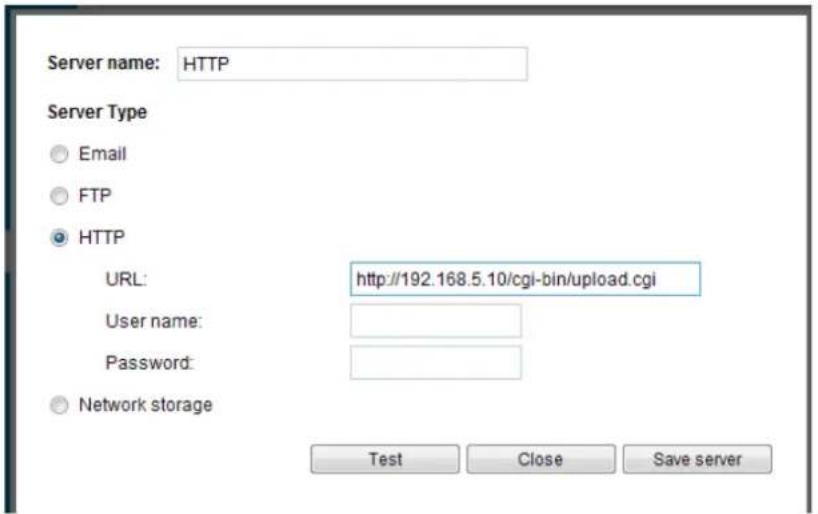

Server name: HTTP Server Type ○ Email ○ FTP ● HTTP URL: http://192.168.5.10/cgi-bin/upload.cgi User name: Password: ● Network storage Test Close Save server

■ Server name: Enter a name for the server setting.
■ URL: Enter the URL of the HTTP server.
■ User name: Enter the user name if necessary.
■ Password: Enter the password if necessary.

To verify if the HTTP settings are correctly configured, click Test. The result will be shown in a pop-up window as below. If successful, you will receive a test.txt file on the HTTP server.

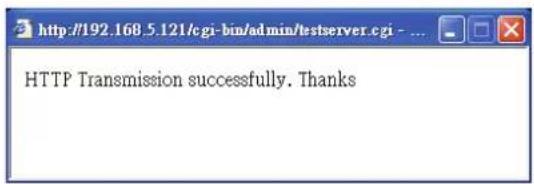

HTTP Transmission successfully. Thanks

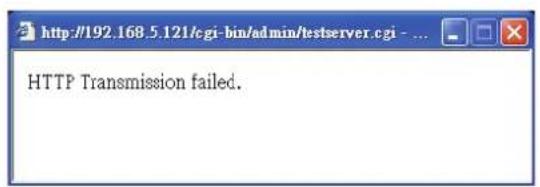

HTTP Transmission failed.

Click Save server to enable the settings.

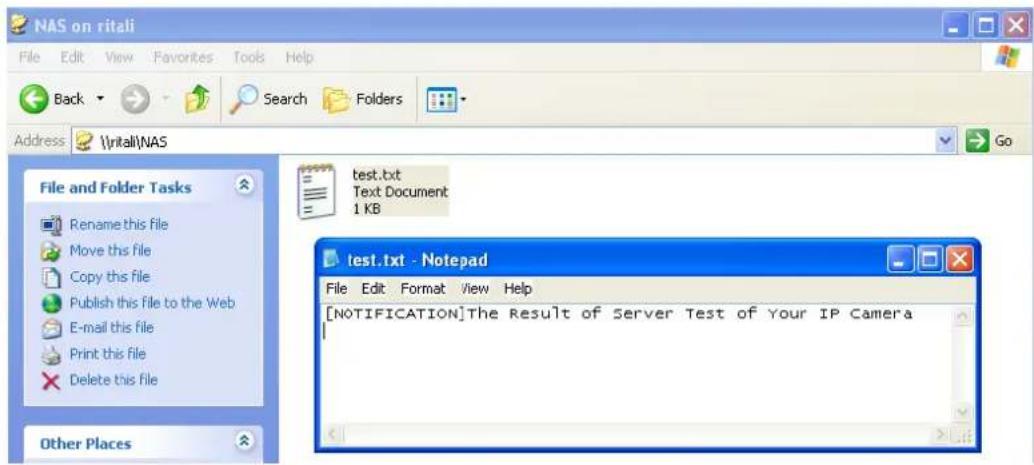

Network storage:

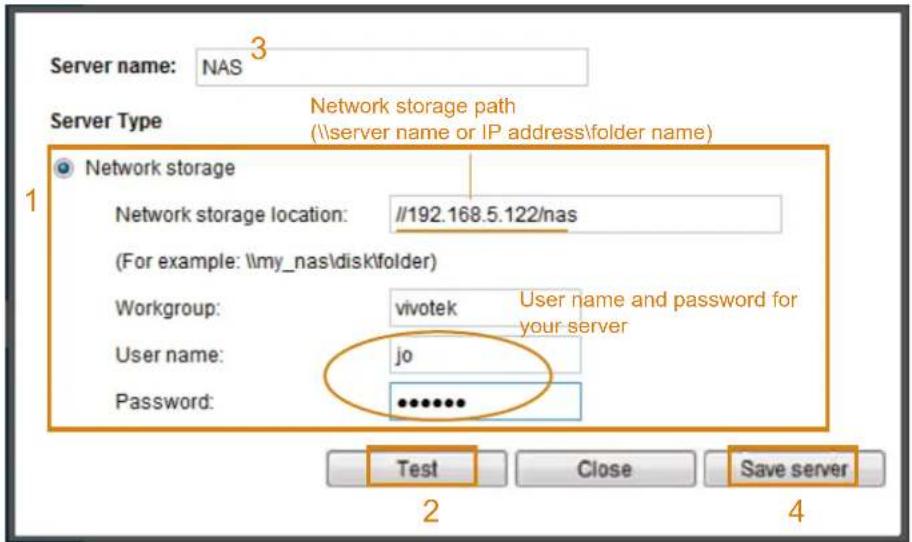

Select to send the media files to a network storage location when a trigger is activated. Please refer to NAS server on page 107 for details.

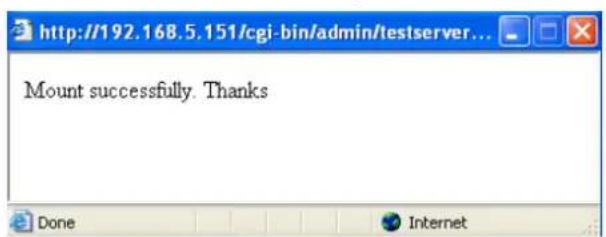

Click Save server to enable the settings.

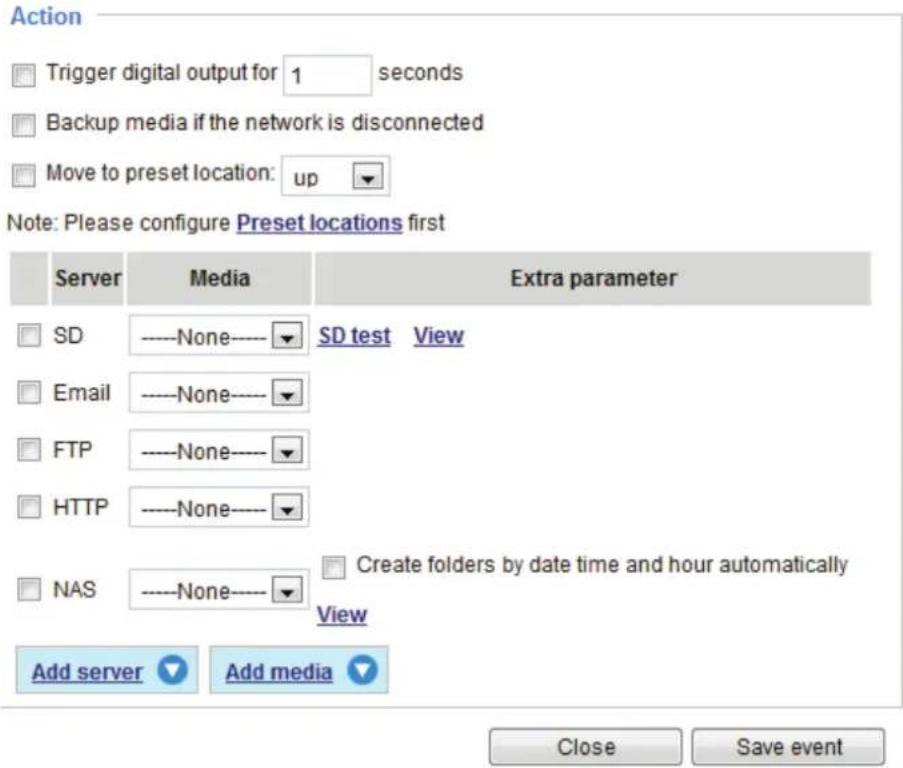

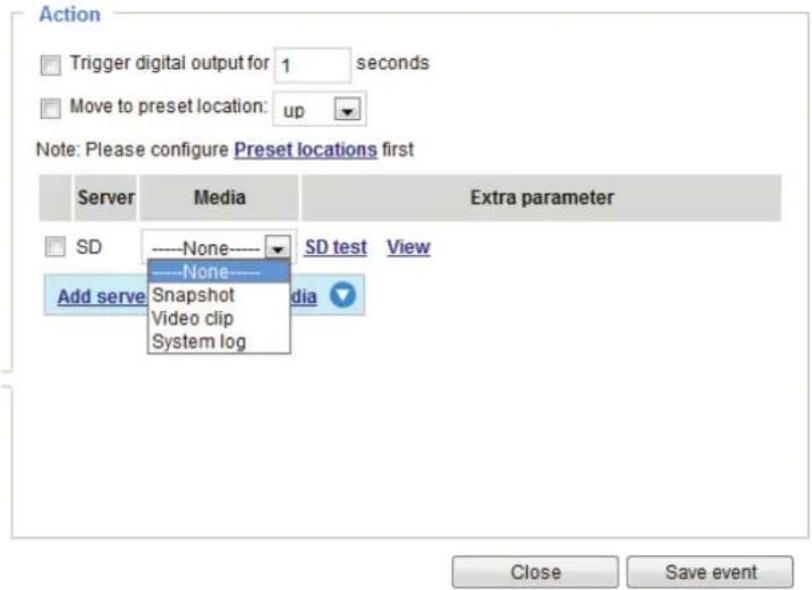

Action Trigger digital output for 1 seconds Backup media if the network is disconnected Move to preset location: up Note: Please configure Preset locations first Server Media Extra parameter SD ----None---- SD test View Email ----None---- FTP ----None---- HTTP ----None---- NAS ----None---- Create folders by date time and hour automatically View Add server Add media Close Save event

■ SD Test: Click to test your SD card. The system will display a message indicating success or failure. If you want to use your SD card for local storage, please format it before use. Please refer to page 95 for detailed information.
■ View: Click this button to open a file list window. This function is only for SD card and Network Storage. If you click View button of SD card, a Local storage page will pop up for you to manage recorded files on SD card. For more information about Local storage, please refer to page 109. If you click View button of Network storage, a file directory window will pop up for you to view recorded data on Network storage. For detailed illustration, please refer to the next page.
■ Create folders by date, time, and hour automatically: If you check this item, the system will generate folders automatically by date.

The following is an example of a file destination with video clips:

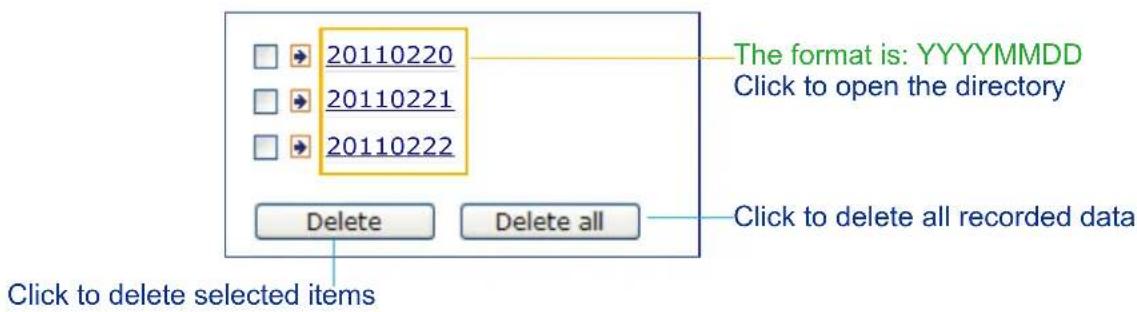

20110220 20110221 20110222 The format is: YYYYMMDD Click to open the directory Delete Delete all Click to delete all recorded data Click to delete selected items

Click 20110220 to open the directory:

The format is: HH (24r)

Click to open the file list for that hour

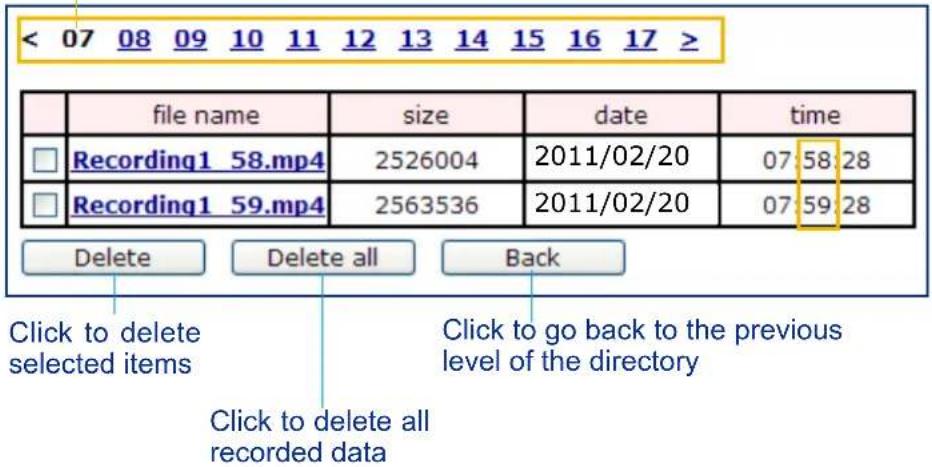

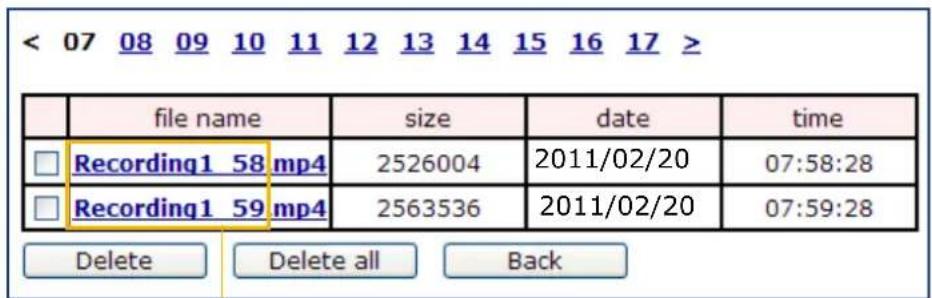

< 07 08 09 10 11 12 13 14 15 16 17 > file name size date time Recording1_58.mp4 2526004 2011/02/20 07:58:28 Recording1_59.mp4 2563536 2011/02/20 07:59:28 Delete Delete all Back Click to delete selected items Click to go back to the previous level of the directory Click to delete all recorded data

< 07 08 09 10 11 12 13 14 15 16 17 ≥ file name size date time Recording1 58 mp4 2526004 2011/02/20 07:58:28 Recording1 59 mp4 2563536 2011/02/20 07:59:28 Delete Delete all Back

The format is: File name prefix + Minute (mm)

You can set up the file name prefix on Add media page.

Please refer to next page for detailed information.

Add media

Click Add media to open the media setting window. You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log. Select the item to display the detailed configuration options. You can configure either one or all of them.

Add server Add media Media name: Media type Attached media: Snapshot Source: Stream 1 Send 1 pre-event image(s) [0~7] Send 1 post-event image(s) [0~7] File name prefix: Snapshot_ ✓ Add date and time suffix to file name Video clip System log Close Save media

Media type - Snapshot

Select to send snapshots when a trigger is activated.

■ Media name: Enter a name for the media setting.
■ Source: Select to take snapshots from stream 1 \~ 4.
■ Send □ pre-event images

The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide how many images to capture before a trigger is activated. Up to 7 images can be generated.

■ Send □ post-event images

Enter a number to decide how many images to capture after a trigger is activated. Up to 7 images can be generated.

For example, if both the Send pre-event images and Send post-event images are set to 7, a total of 15 images are generated after a trigger is activated.

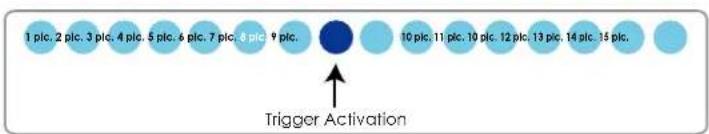

1 plc. 2 plc. 3 plc. 4 plc. 5 plc. 6 plc. 7 plc. 8 plc. 9 plc. 10 plc. 11 plc. 10 plc. 12 plc. 13 plc. 14 plc. 15 plc. Trigger Activation

■ File name prefix

Enter the text that will be appended to the front of the file name.

■ Add date and time suffix to the file name

Select this option to add a date/time suffix to the file name.

For example:

Snapshot_20110313_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS

Click Save media to enable the settings.

To note that after you set up the first media server, a new column for media server will automatically show up on the Media list. If you wish to add more other media options, click Add media.

Media type - Video clip

Select to send video clips when a trigger is activated.

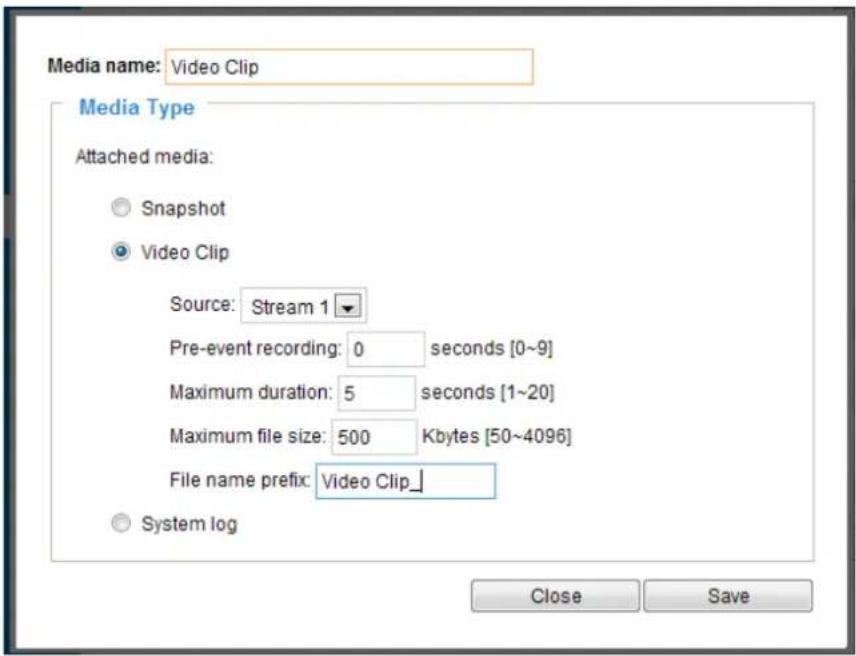

Media name: Video Clip Media Type Attached media: Snapshot Video Clip Source: Stream 1 Pre-event recording: 0 seconds [0~9] Maximum duration: 5 seconds [1~20] Maximum file size: 500 Kbytes [50~4096] File name prefix: Video Clip_ System log Close Save

■ Media name: Enter a name for the media setting.
■ Source: Select the source of video clip.
■ Pre-event recording

The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide the duration of recording before a trigger is activated. Up to 9 seconds can be set.

■ Maximum duration

Specify the maximum recording duration in seconds. Up to 10 seconds can be set.

For example, if pre-event recording is set to five seconds and the maximum duration is set to ten seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.

1 sec, 2 sec, 3 sec, 4 sec, 5 sec, 6 sec, 7 sec, 8 sec, 9 sec, 10 sec. Trigger Activation

■ Maximum file size

Specify the maximum file size allowed.

■ File name prefix

Enter the text that will be appended to the front of the file name.

For example:

Video_20110313_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS

Click Save media to enable the settings.

Media type - System log

Select to send a system log when a trigger is activated.

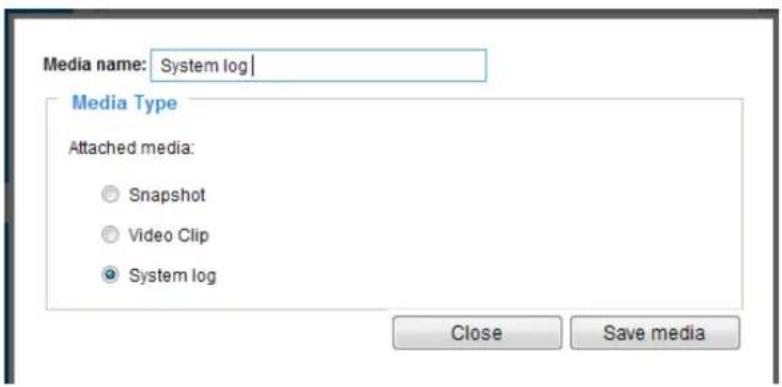

Media name: System log Media Type Attached media: ● Snapshot ○ Video Clip ● System log Close Save media

Click Save media to enable the settings, then click Close to exit the page.

Action Trigger digital output for 1 seconds Move to preset location: up Note: Please configure Preset locations first Server Media Extra parameter SD ----None ---- SD test View Add serve Snapshot Video clip System log Add serve media Close Save event

In this column, it shows the Server and Media you've set; please select it to enable the action.

When completed, click Save event to enable the settings and click Close to exit Event Settings page. The new Event / Server settings / Media will appear in the event drop-down list on the Event setting page.

Please see the example of the Event setting page below:

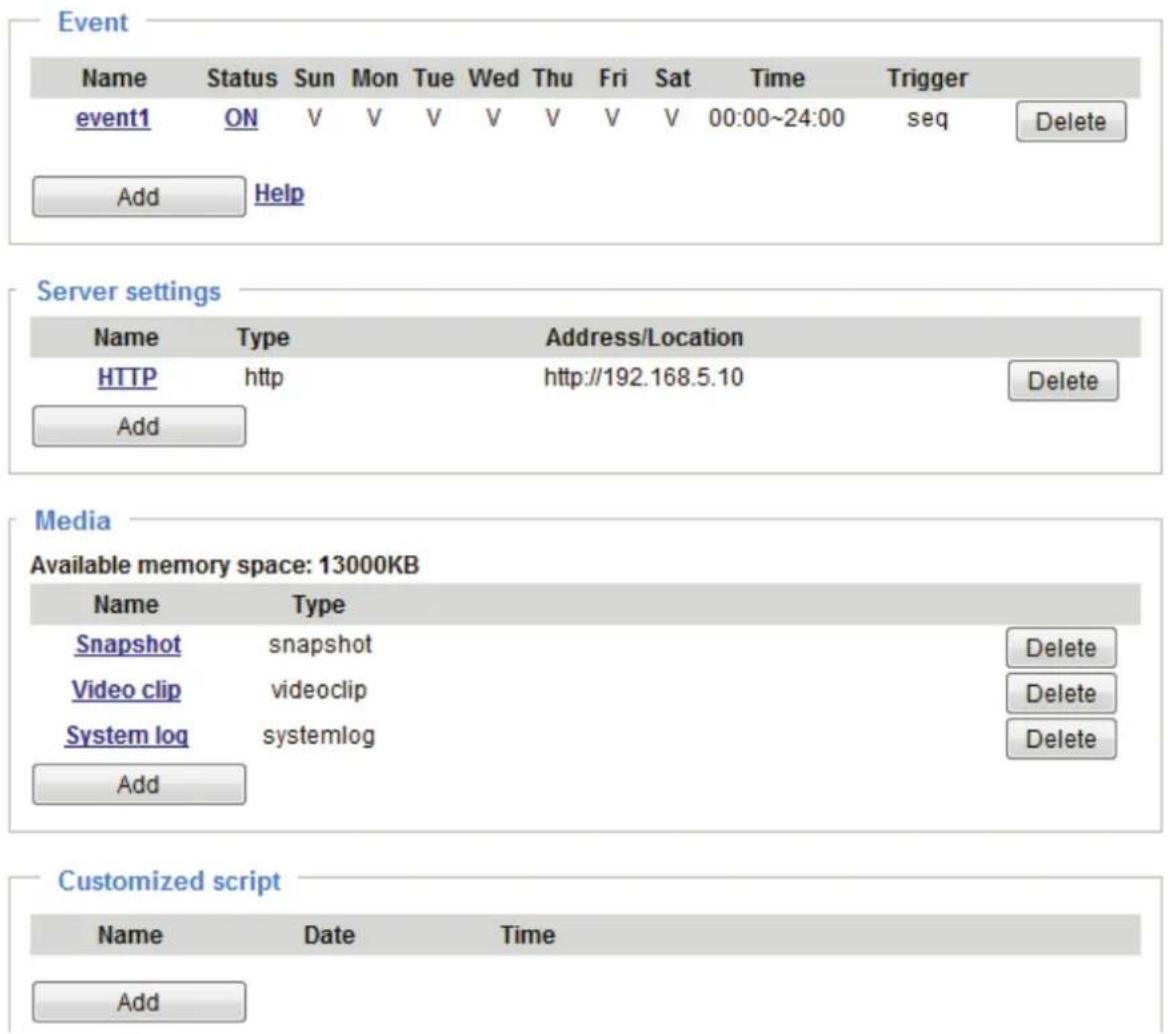

Event Name Status Sun Mon Tue Wed Thu Fri Sat Time Trigger event1 ON V V V V V V V 00:00~24:00 seq Delete Add Help Server settings Name Wayt Address/Location HTTP http http://192.168.5.10 Delete Add Media Available memory space: 13000KB Name Wayt Snapshot snapshot Delete Video clipvideoclip Delete System logsystemlog Delete Add Customized script Name(Date Time Add

When the Event Status is ON, once an event is triggered by motion detection, the Network Camera will automatically send snapshots via e-mail.

If you want to stop the event trigger, you can click ON to turn it to OFF status or click Delete to remove the event setting.

To remove a server setting from the list, select a server name from the drop-down list and click Delete. Note that only when the server setting is not being applied to an event setting can it be deleted.

To remove a media setting from the list, select a media name from the drop-down list and click Delete. Note that only when the media setting is not being applied to an event setting can it be deleted.

Customized Script

This function allows you to upload a sample script (.xml file) to the webpage, which will save your time on configuring the settings. Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will pop up. If you need more information, please ask for VIVOTEK technical support.

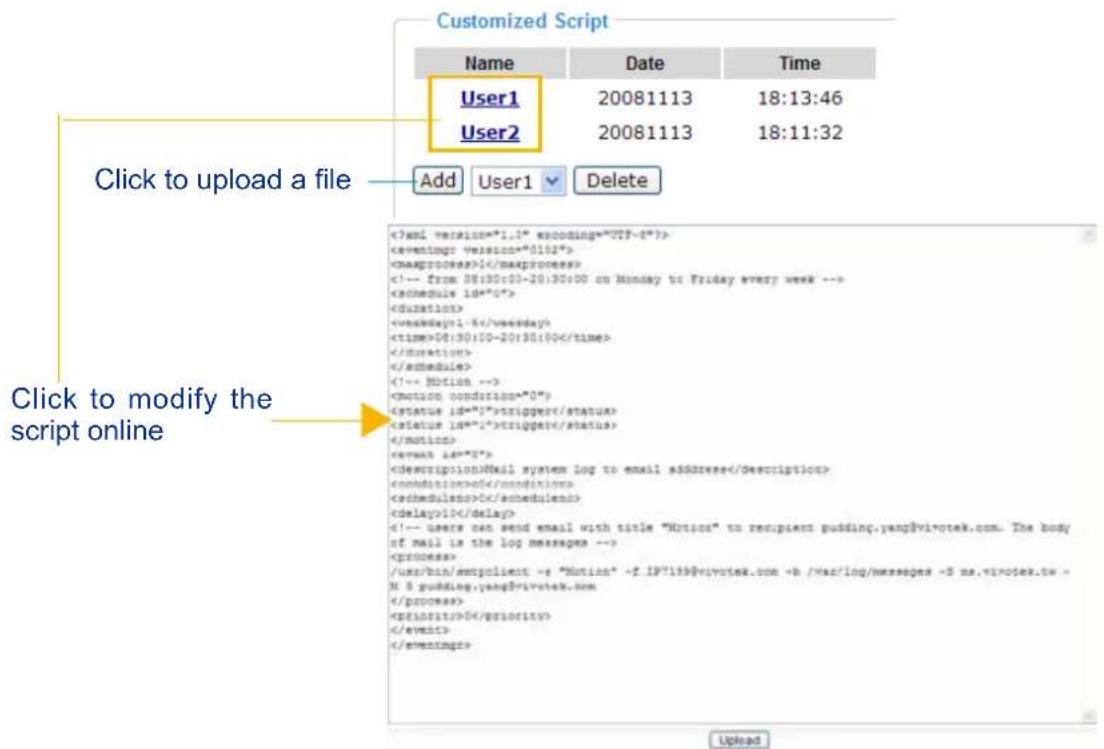

Customized Script Name Date Time User1 20081113 18:13:46 User2 20081113 18:11:32 Click to upload a file Add User1 Delete Click to modify the script online 1 1-5 00:30:00-20:30:00 trigger//status> trigger//status> Mail system log to email address 0 0 1> /usr/bin/empolimit -> "Motion" ->f IP"[e-mail] ->b /War/log/Message& ->3 ns.vi-otek.tw -N 8 [e-mail] <0 Upload

Applications > Motion detection

This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured.

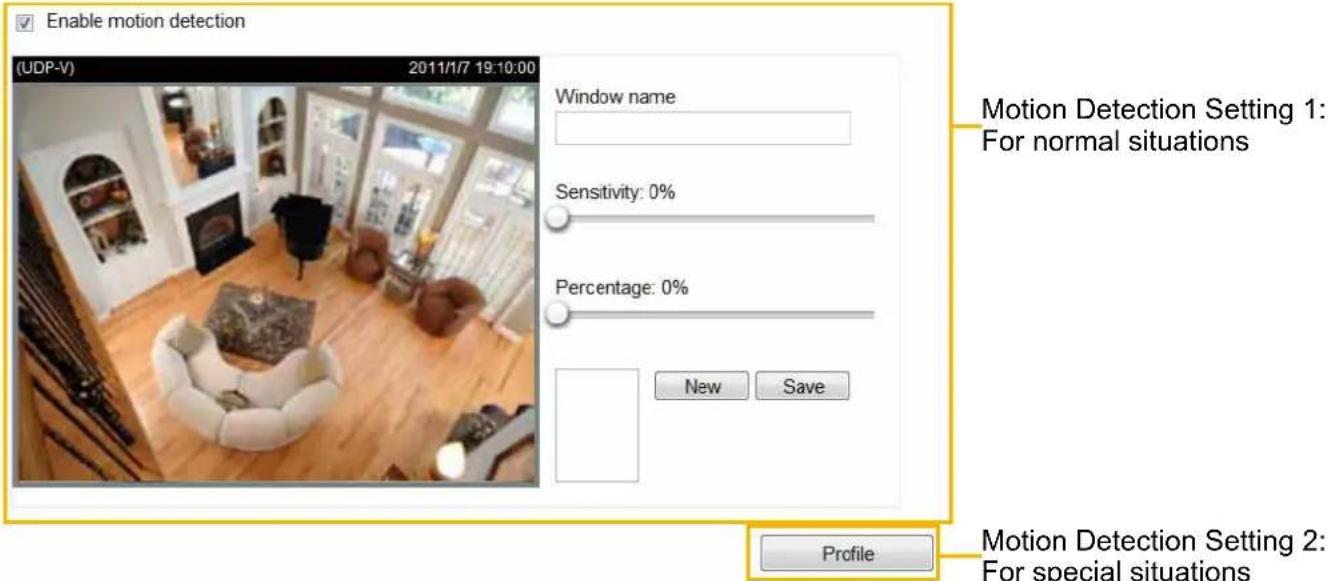

Enable motion detection (UDP-V) 2011/1/7 19:10:00 Window name Sensitivity: 0% Percentage: 0% New Save Motion Detection Setting 1: For normal situations Profile Motion Detection Setting 2: For special situations

Follow the steps below to enable motion detection:

1. Click New to add a new motion detection window.
2. In the Window Name text box, enter a name for the motion detection window.

■ To move and resize the window, drag and drop your mouse on the window.
■ To delete window, click X on the top right corner of the window.

1. Define the sensitivity to moving objects and the space ratio of all alerted pixels by moving the Sensitivity and Percentage slider bar.
2. Click Save to enable the settings.
3. Select Enable motion detection to enable this function.

For example:

√ Enable motion detection

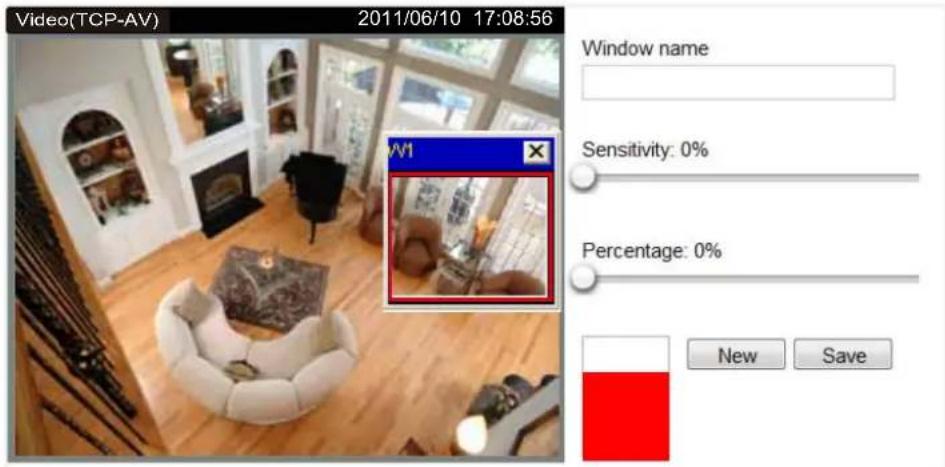

Video(TCP-AV) 2011/06/10 17:08:56 Window name Sensitivity: 0% Percentage: 0% New Save

Profile

The Percentage Indicator will rise or fall depending on the variation between sequential images. When motions are detected by the Network Camera and are judged to exceed the defined threshold, the red bar rises. Meanwhile, the motion detection window will be outlined in red. Photos or videos can be captured instantly and configured to be sent to a remote server (Email, FTP) by utilizing this feature as a trigger source. For more information on how to set an event, please refer to Event settings on page 87.

A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold.

Simple rectangular shape with a white top and green bottom (no text or symbols)

Two-color block image with white top half and red bottom half (no text or symbols)

If you want to configure other motion detection settings for day/night/schedule mode, please click Profile to open the Motion Detection Profile Settings page as shown below. A total of three motion detection windows can be configured on this page as well.

Interior view of a modern living room with wooden flooring, framed furniture, and large windows (no visible text or symbols)

Window name Sensitivity: 0% Percentage: 0% New Save

General settings

Enable this profile

This profile is applied to:

Day mode

Night mode

Schedule mode:

Close

Save

Please follow the steps beolw to set up a profile:

1. Create a new motion detection window.
2. Check Enable this profile.
3. Select the applicable mode: Day mode, Night mode, or Schedule mode. Please manually enter a time range if you choose Schedule mode.
4. Click Save to enable the settings and click Close to exit the page.

This motion detection window will also be displayed on the Event Settings page. You can go to Event > Event settings > Trigger to choose it as a trigger source. Please refer to page 105 for detailed information.

NOTE

▶ How does motion detection work?

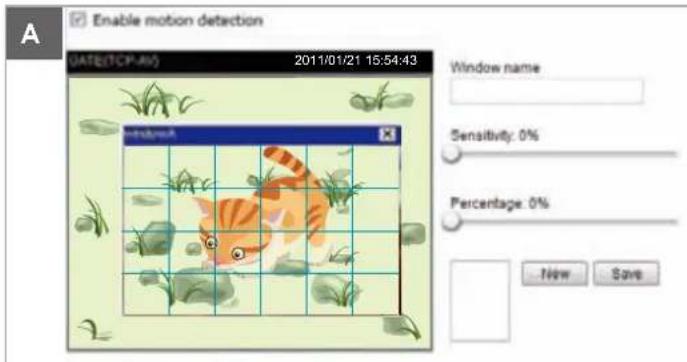

Enable motion detection DATE(FCIP-AY) 2011/01/21 15:54:43 Window name Sensitivity: 0% Percentage: 0% New Save

Illustration of a cat and a striped cat on a grid background (no text or symbols)

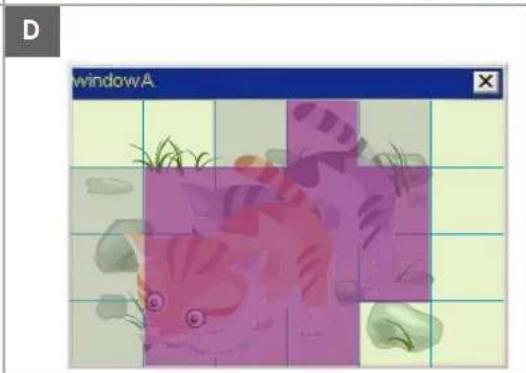

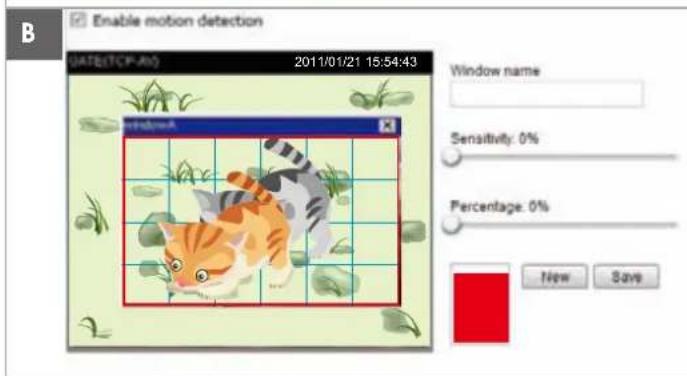

B Enable motion detection UATE(TCP-RS) 2011/01/21 15:54:43 Window name Sensitivity: 0% Percentage: 0% New Save

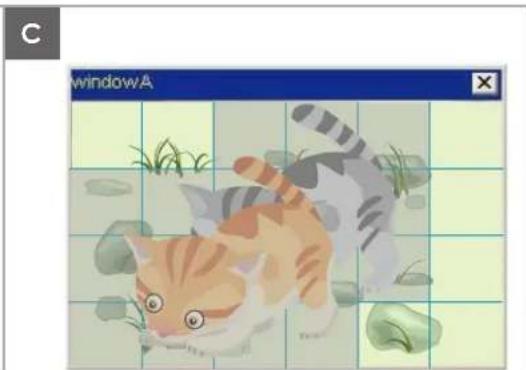

Illustration of a cat with fish and grass on a grid background, no text or symbols present

There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity is a value that expresses the sensitivity to moving objects. Higher sensitivity settings are expected to detect slight movements while smaller sensitivity settings will neglect them. When the sensitivity is set to 70%, the Network Camera defines the pixels in the purple areas as “alerted pixels” (frame D).

Percentage is a value that expresses the proportion of “alerted pixels” to all pixels in the motion detection window. In this case, 50% of pixels are identified as “alerted pixels”. When the percentage is set to 30%, the motions are judged to exceed the defined threshold; therefore, the motion window will be outlined in red.

For applications that require a high level of security management, it is suggested to use higher sensitivity settings and smaller percentage values.

Applications > DI and DO Advanced Mode

DI and DO

Digital input: The active state is Low; the current state detected is High

Digital output: The active state is Grounded; the current state detected is Open

Save

Digital input: Select High or Low to define normal status for the digital input. The Network Camera will report the current status.

Digital output: Select Grounded or Open to define normal status for the digital output. The Network Camera will show whether the trigger is activated or not.

Applications > Tampering detection

This section explains how to set up camera tamper detection. With tamper detection, the camera is capable of detecting incidents such as redirection, blocking or defocusing, or even spray paint.

Camera tampering detection

Enable camera tampering detection

Trigger duration 10 seconds [10\~600]

Save

Please follow the steps below to set up the camera tamper detection function:

1. Check Enable camera tampering detection.
2. Enter the tamper trigger duration. (10 sec. \~ 10 min.) The tamper alarm will be triggered only when the tampering factor (the difference between current frame and pre-saved background) exceeds the trigger threshold.
3. Set up the event source as Camera Tampering Detection on Event > Event settings > Trigger. Please refer to page 105 for detailed information.

Recording > Recording settings Advanced Mode

This section explains how to configure the recording settings for the Network Camera.

Recording Settings

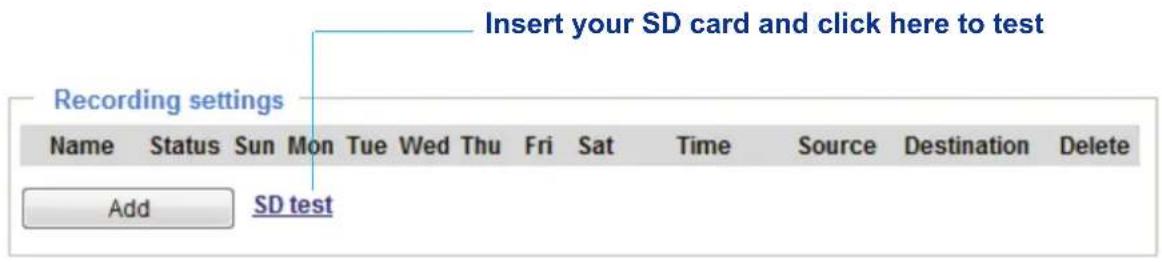

Insert your SD card and click here to test Recording settings Name Status Sun Mon Tue Wed Thu Fri Sat Time Source Destination Delete Add SD test

NOTE

▶ Please remember to format your SD card when using for the first time. Please refer to page 109 for detailed information.

Recording Settings

Click Add to open the recording setting window. On this page, you can define the adaptive recording, recording source, recording schedule, and recording capacity. A total of 2 recording settings can be configured.

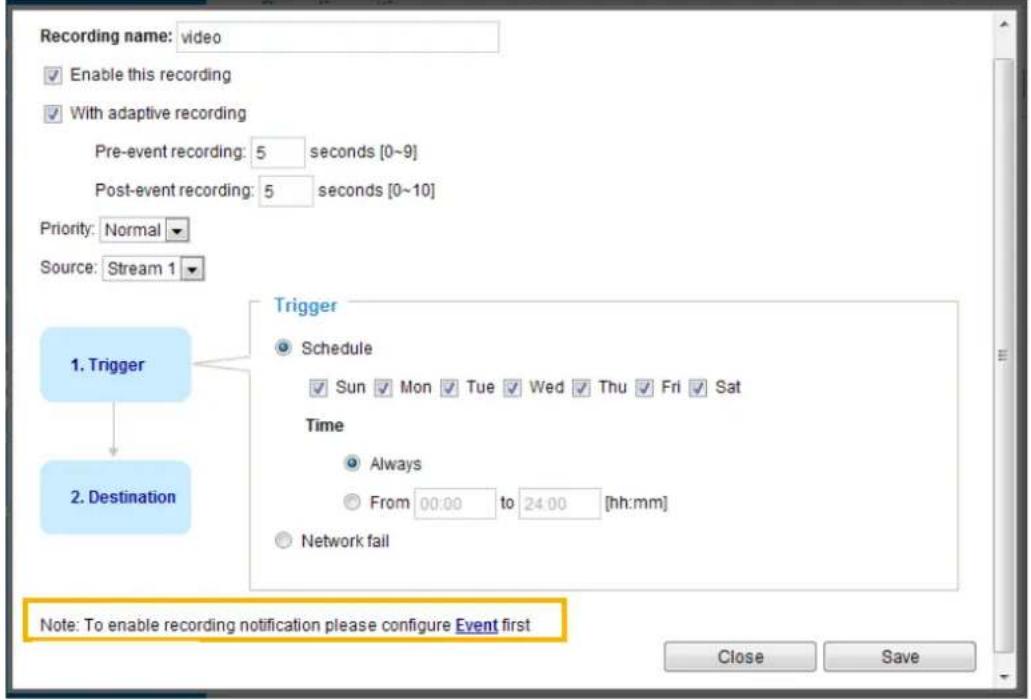

Recording name: video Enable this recording With adaptive recording Pre-event recording: 5 seconds [0~9] Post-event recording: 5 seconds [0~10] Priority: Normal Source: Stream 1 1. Trigger 2. Destination Trigger Schedule Sun Mon Tue Wed Thu Fri Sat Time Always From 00:00 to 24:00 [hh:mm] Network fail Note: To enable recording notification please configure Event first Close Save

■ Recording name: Enter a name for the recording setting.
■ Enable this recording: Select this option to enable video recording.
■ With adaptive recording:

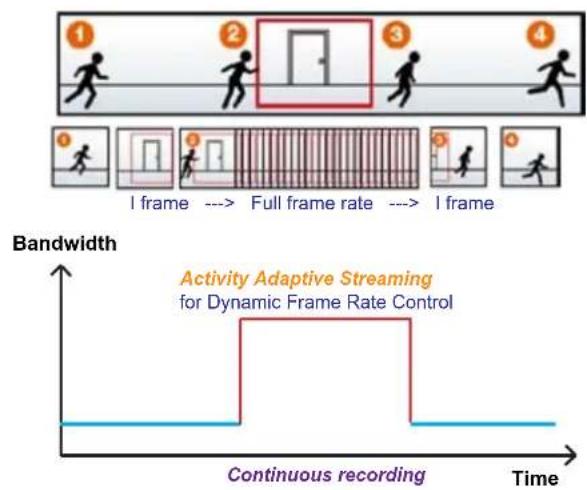

Select this option will activate the frame rate control according to alarm trigger.

The frame control means that when there is alarm trigger, the frame rate will raise up to the value you've set on Video quality page. Please refer to page 78 for more information.

If you enable adaptive recording and enable time-shift cache stream on Camera A, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidths and storage.

NOTE

▶ To enable adaptive recording, please make sure you've set up the trigger source such as Motion Detection, DI Device, or Manual Trigger.
▶ When there is no alarm trigger:
- JEPE mode: record 1 frame per second.
- H.264 mode: record I frame only.
- MPEG-4 mode: record I frame only.
▶ When the I frame period is >1s on Video settings page, it should force to make the I frame period to 1s when adaptive recording is activated.

The alarm trigger includes: motion detection and DI detection. Please refer to Event Settings on page 87.

■ Pre-event recording and post-event recording
The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide the duration of recording before and after a trigger is activated.
■ Priority: Select the relative importance of this recording (High, Normal, or Low). Recording with a higher priority setting will be executed first.
■ Source: Select stream for the recording source.

NOTE

▶ To enable adaptive recording, please also enable time shift caching stream and select a caching stream on Media > Video > Stream settings. Please refer to page 75 for detailed instruction.
▶ To enable recording notification please configure Event settings first. Please refer to page 87.

Please follow the steps below to set up the recording.

1. Trigger

Select a trigger source.

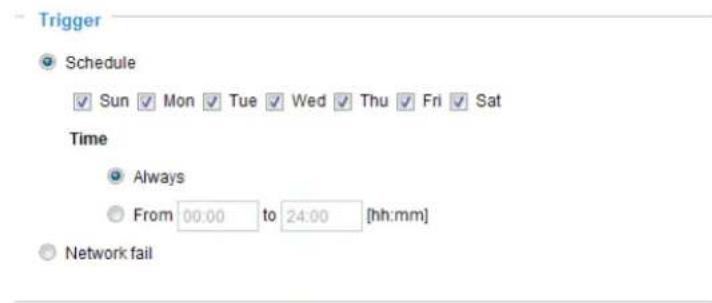

Trigger Schedule Sun Mon Tue Wed Thu Fri Sat Time Always From 00:00 to 24:00 [hh:mm] Network fail

■ Schedule: The server will start to record files on the local storage or network storage (NAS).
■ Network fail: Since network fail, the server will start to record files on the local storage (SD card).

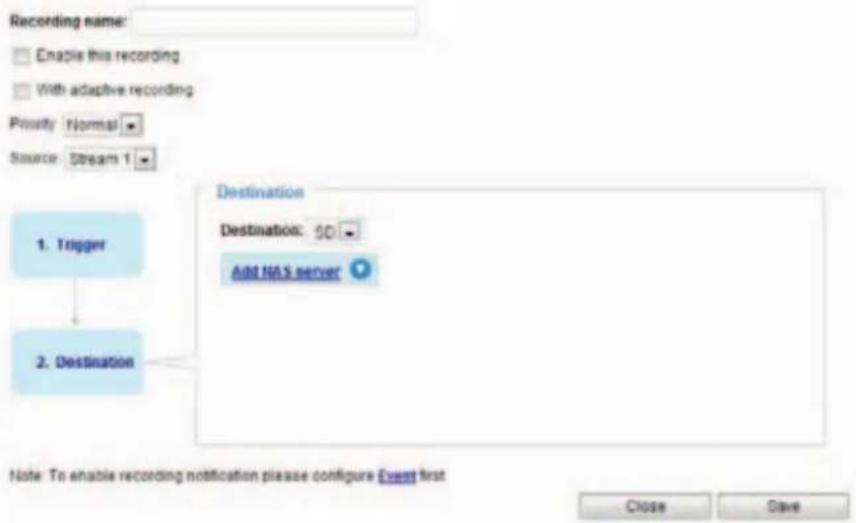

2. Destination

You can select the SD card or network storage (NAS) for the recorded video files.

NAS server

Click Add NAS server to open the server setting window and follow the steps below to set up:

1. Fill in the information for your server.

For example:

Server name: NAS Server Type Network storage path (\server name or IP address\folder name) 1 Network storage Network storage location: //192.168.5.122/nas (For example: \my_nas\disk\tfolder) Workgroup: vivotek User name and password for your server User name: jo Password: ******** Test Close Save server 2 4

1. Click Test to check the setting. The result will be shown in the pop-up window.

http://192.168.5.151/cgi-bin/admin/testserver... Mount successfully. Thanks Done Internet

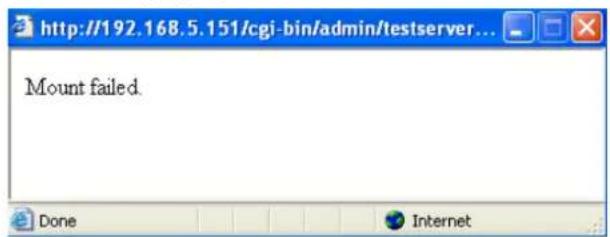

http://192.168.5.151/cgi-bin/admin/testserver... Mount failed. Done Internet

If successful, you will receive a test.txt file on the network storage server.

NAS on ritali File Edit View Favorites Tools Help Back Search Folders Address \ritali\NAS File and Folder Tasks Rename this file Move this file Copy this file Publish this file to the Web E-mail this file Print this file Delete this file Other Places test.txt Text Document 1 KB test.txt - Notepad File Edit Format View Help [NOTIFICATION]The Result of Server Test of Your IP Camera

1. Enter a server name.
2. Click Save to complete the settings and click Close to exit the page.

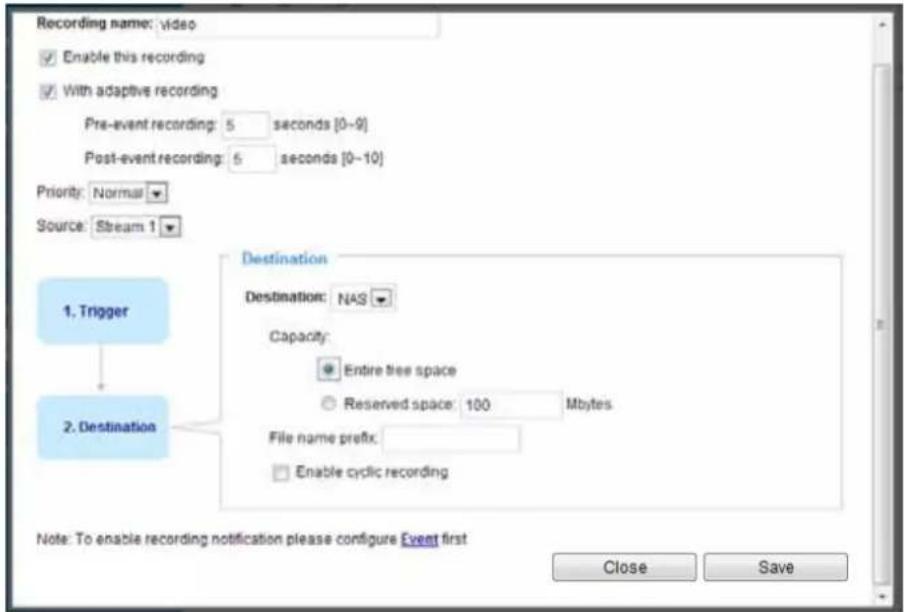

Recording name: video Enable this recording With adaptive recording Pre-event recording: 5 seconds [0-9] Post-event recording: 5 seconds [0-10] Priority: Normal Source: Stream 1 1. Trigger Destination Destination: NAS Capacity: Entire tree space Reserved space: 100 Mbytes File name prefix: Enable cyclic recording 2. Destination Note: To enable recording notification please configure Event first Close Save

■ Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording.
■ File name prefix: Enter the text that will be appended to the front of the file name.
■ Enable cyclic recording: If you check this item, when the maximum capacity is reached, the oldest file will be overwritten by the latest one. The reserved amount is reserved for cyclic recording to prevent malfunction. This value must be larger than 15 MBytes.

f you want to enable recording notification, please click Event to set up. Please refer to Event > Event settings on page 84 for more details.

When completed, select Enable this recording. Click Save to enable the setting and click Close to exit this page. When the system begins recording, it will send the recorded files to the network storage. The new recording name will appear in the drop-down list on the recording page as shown below.

To remove a recording setting from the list, select a recording name from the drop-down list and click Delete.

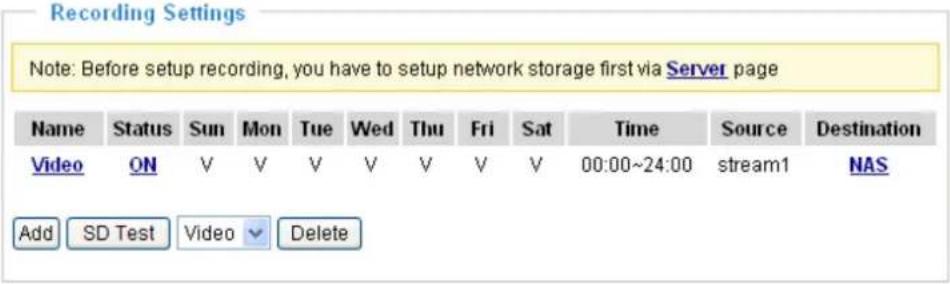

Recording Settings Note: Before setup recording, you have to setup network storage first via Server page Name Status Sun Mon Tue Wed Thu Fri Sat Time Source Destination Video ON V V V V V V V 00:00~24:00 sream1 NAS Add SD Test Video Delete

■ Click Video (Name): Opens the Recording Settings page to modify.
■ Click ON (Status): The Status will become OFF and stop recording.
- Click NAS (Destination): Opens the file list of recordings as shown below. For more information about folder naming rules, please refer to page 93 for details.

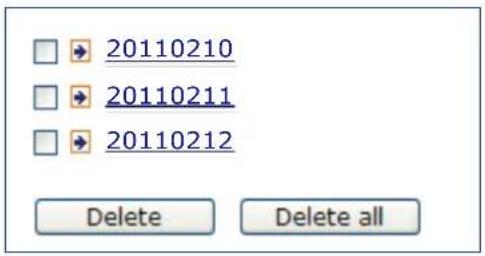

20110210 20110211 20110212 Delete Delete all

Local storage > SD card management Advanced Mode

This section explains how to manage the local storage on the Network Camera. Here you can view SD card status, and implement SD card control.

SD card staus

This column shows the status and reserved space of your SD card. Please remember to format the SD card when using for the first time.

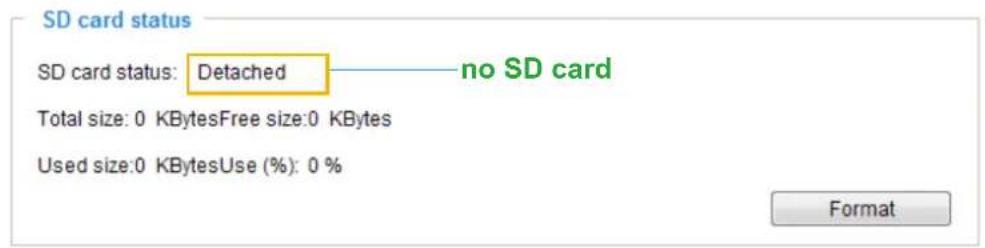

SD card status SD card status: Detached — no SD card Total size: 0 KBytesFree size:0 KBytes Used size:0 KBytesUse (%): 0 % Format

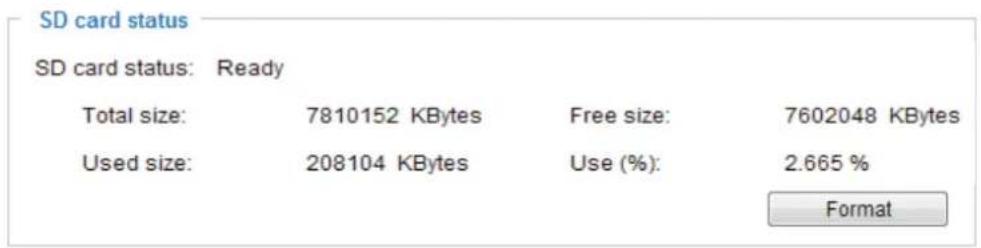

SD card status SD card status: Ready Total size: 7810152 KBytes Free size: 7602048 KBytes Used size: 208104 KBytes Use (%): 2.665 % Format

SD card control

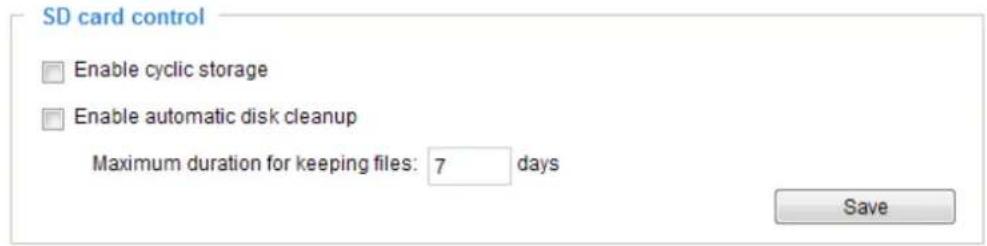

SD card control Enable cyclic storage Enable automatic disk cleanup Maximum duration for keeping files: 7 days Save

■ Enable cyclic storage: Check this item if you want to enable cyclic recording. When the maximum capacity is reached, the oldest file will be overwritten by the latest one.
■ Enable automatic disk cleanup: Check this item and enter the number of days you wish to retain a file. For example, if you enter "7 days", the recorded files will be stored on the SD card for 7 days.

Click Save to enable your settings.

Local storage > Content management

Advanced Mode

This section explains how to manage the content of recorded videos on the Network Camera. Here you can search and view the records and view the searched results.

Searching and Viewing the Records

This column allows the user to set up search criteria for recorded data. If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results cloumn.

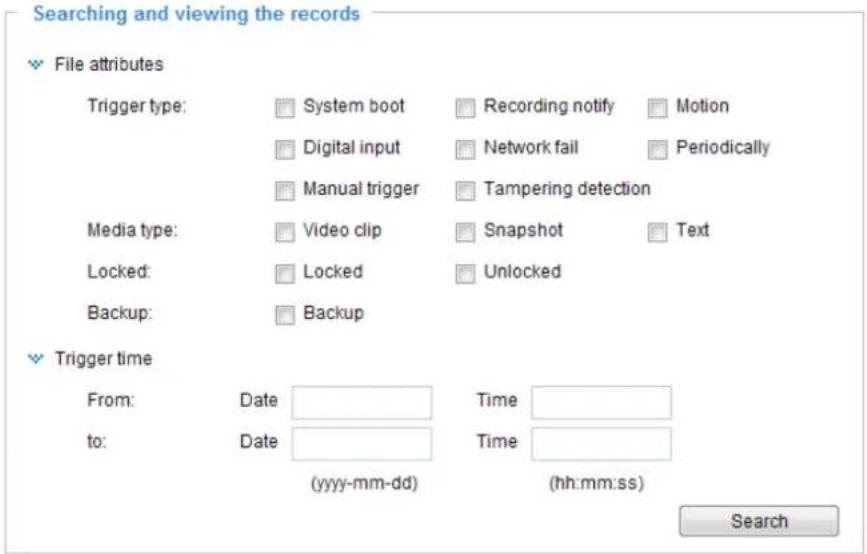

Searching and viewing the records File attributes Trigger type: System boot Recording notify Motion Digital input Network fail Periodically Manual trigger Tampering detection Media type: Video clip Snapshot Text Locked: Locked Unlocked Backup: Backup Trigger time From: Date Time to: Date Time (yyyy-mm-dd) (hh:mm:ss) Search

■ File attributes: Select one or more items as your search criteria.
■ Trigger time: Manually enter the time range you want to search.

Click Search and the recorded data corresponding to the search criteria will be listed in Search Results window.

Search Results

The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click to sort the search results in either direction.

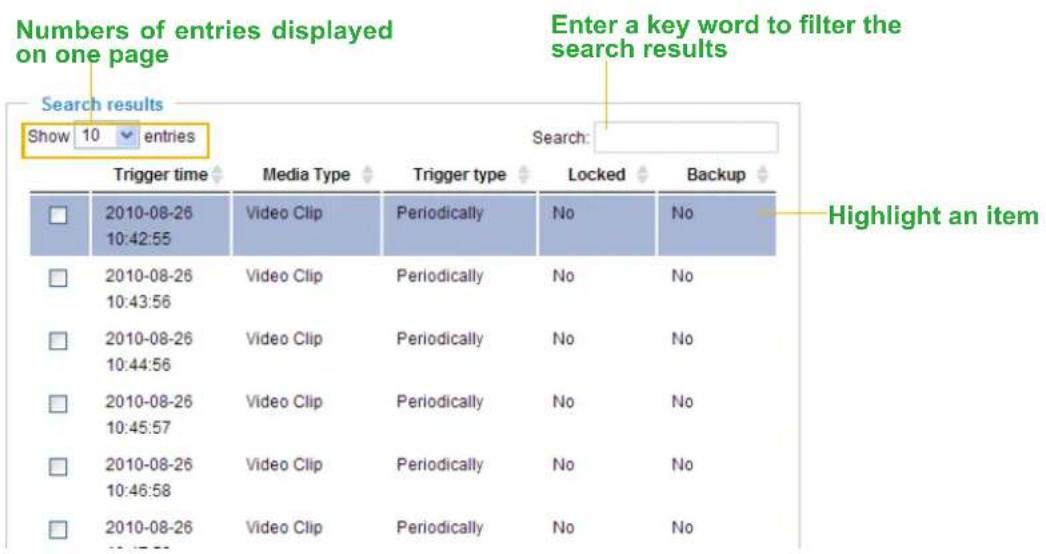

Numbers of entries displayed on one page Enter a key word to filter the search results Show 10 entries Search results Show: Search: Trigger time Media Type Trigger type Locked Backup 2010-08-26 Video Clip Periodically No No 10:42:55 2010-08-26 Video Clip Periodically No No 10:43:56 2010-08-26 Video Clip Periodically No No 10:44:56 2010-08-26 Video Clip Periodically No No 10:45:57 2010-08-26 Video Clip Periodically No No 10:46:58 2010-08-26 Video Clip Periodically No No

■ View: Click on a search result which will highlight the selected item in purple as shown above. Click the View button and a media window will pop up to play back the selected file.

For example:

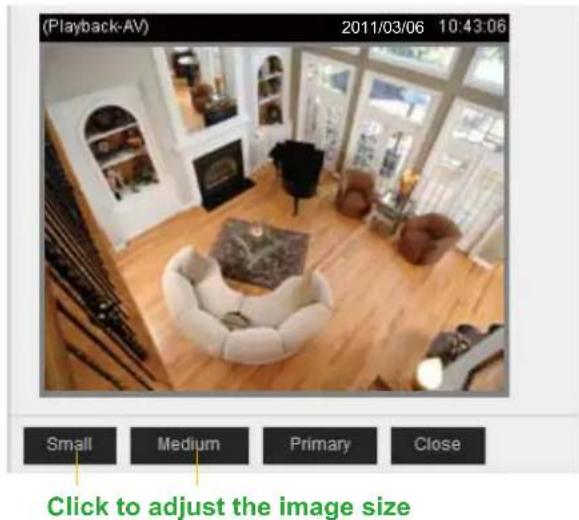

(Playback-AV) 2011/03/06 10:43:06 Small Medium Primary Close Click to adjust the image size

■ Download: Click on a search result to highlight the selected item in purple as shown above. Then click the Download button and a file download window will pop up for you to save the file.
■ JPEGs to AVI: This functions only applies to "JPEG" format files such as snapshots. You can select several snapshots from the list, then click this button. Those snapshots will be converted into an AVI file.
■ Lock/Unlock: Select the desired search results, then click this button. The selected items will become Locked, which will not be deleted during cyclic recoding. You can click again to unlock the selections. For example:

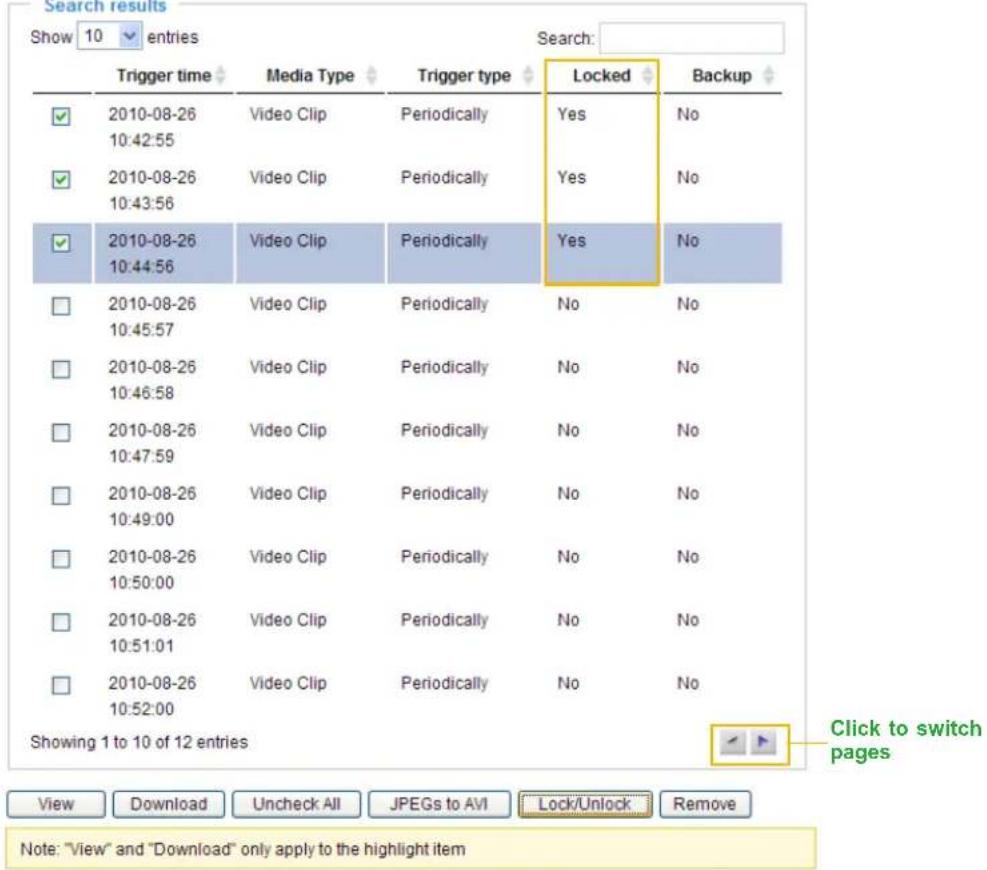

Search results Show 10 entries Search: Trigger time Media Type Trigger type Locked Backup ✓ 2010-08-26 Video Clip Periodically Yes No 10:42:55 ✓ 2010-08-26 Video Clip Periodically Yes No 10:43:56 ✓ 2010-08-26 Video Clip Periodically Yes No 10:44:56 □ 2010-08-26 Video Clip Periodically No No 10:45:57 □ 2010-08-26 Video Clip Periodically No No 10:46:58 □ 2010-08-26 Video Clip Periodically No No 10:47:59 □ 2010-08-26 Video Clip Periodically No No 10:49:00 □ 2010-08-26 Video Clip Periodically No No 10:50:00 □ 2010-08-26 Video Clip Periodically No No 10:51:01 □ 2010-08-26 Video Clip Periodically No No 10:52:00 Showing 1 to 10 of 12 entries Click to switch pages View Download Uncheck All JPEGs to AVI Lock/Unlock Remove Note: "View" and "Download" only apply to the highlight item

■ Remove: Select the desired search results, then click this button to delete the files.

Appendix

URL Commands for the Network Camera

1. Overview

For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface. The HTTP-based camera interface provides the functionality to request a single image, control camera functions (PTZ, output relay etc.), and get and set internal parameter values. The image and CGI-requests are handled by the built-in Web server.

2. Style Convention

In URL syntax and in descriptions of CGI parameters, text within angle brackets denotes content that is to be replaced with either a value or a string. When replacing the text string, the angle brackets should also be replaced. An example of this is the description of the name for the server, denoted with in the URL syntax description below, that is replaced with the string myserver in the URL syntax example further down in the page.

URL syntax is denoted with the word "Syntax:" written in bold face followed by a box with the referenced syntax as shown below. For example, name of the server is written as and is intended to be replaced with the name of the actual server. This can either be a name, e.g., "mywebcam" or "thecam.adomain.net" or the associated IP number for the server, e.g., 192.168.0.220.

Syntax:

http:///cgi-bin/viewer/video.jpg

Description of returned data is written with "Return:" in bold face followed by the returned data in a box. All data is returned in HTTP format, i.e., each line is separated with a Carriage Return and Line Feed (CRLF) printed as \r\n.

Return:

HTTP/1.0 \r\n

URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box with the example.

Example: request a single snapshot image

http://mywebserver/cgi-bin/viewer/video.jpg

3. General CGI URL Syntax and Parameters

CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory. The file extension .cgi is required.

Syntax:

http://<servername>/cgi-bin/<subdir>[/<subdir>...]/<cgi>.<ext>
[?<parameter>=<value>[&<parameter>=<value>...]]

Example: Set digital output #1 to active

http://mywebserver/cgi-bin/dido/setdo.cgi?do1=1

4. Security Level

SECURITY LEVEL	SUB-DIRECTORY	DESCRIPTION
0 anonymous Unprotected.
1 [view] anonymous, viewer, dido, camctrl		1. Can view, listen, talk to camera.2. Can control DI/DO, PTZ of the camera.
4 [operator] anonymous, viewer, dido, camctrl, operator		Operator access rights can modify most of the camera's parameters except some privileges and network options.
6 [admin] anonymous, viewer, dido, camctrl, operator, admin		Administrator access rights can fully control the camera's operations.
7	N/A	Internal parameters. Unable to be changed by any external interfaces.

5. Get Server Parameter Values

Note: The access right depends on the URL directory.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>]
[&<parameter>...]

http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>]
[&<parameter>...]

http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>][&<parameter>...]
http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>][&<parameter>...]

Where the should be [_] or [.]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only , the parameters of the related group will be returned.

When querying parameter values, the current parameter values are returned.

A successful control request returns parameter pairs as follows:

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>

where <parameter pair> is
<parameter>=<value>\r\n
[<parameter pair>]

is the actual length of content.

Example: Request IP address and its response

Request:
http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n

6. Set Server Parameter Values

Note: The access right depends on the URL directory.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value>[&<parameter>=<value>...][&update=<value>][&return=<return page]

http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value>[&<parameter>=<value>...][&update=<value>] [&return=<return page]

http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value>[&<parameter>=<value>...][&update=<value>] [&return=<return page]

http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>[&<parameter>=<value>...][&update=<value>] [&return=<return page>]

PARAMETER VALUE	DESCRIPTION
	value to assigned	Assignto the parameter.
update		Set to 1 to update all fields (no need to update parameter in each group).
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.(Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>

where <parameter pair> is
<parameter> = <value>\r\n

[<parameter pair>]

Only the parameters that you set and are readable will be returned.

Example: Set the IP address of server to 192.168.0.123:

Request:
http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n

Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n

7. Available parameters on the server

Valid values:

VALID VALUES DESCRIPTION
string[]	Text strings shorter than `n' characters. The characters '', <,>,& are invalid.
string[n~m]	Text strings longer than `n' characters and shorter than `m' characters. The characters '', <,>,& are invalid.
password[]	The same as string but displays '*' instead.
integer Any number between (-231-1) and (231-1).
positive integer Any number between 0 and (232-1).
	Any number between `m' and `n'.
domain name[]	A string limited to a domain name shorter than `n' characters (eg. www.ibm.com).
email address []	A string limited to an email address shorter than `n' characters (eg. [e-mail]).
ip address	A string limited to an IP address (eg. 192.168.1.1).
mac address	A string limited to contain a MAC address without hyphens or colons.
boolean	A boolean value of 1 or 0 represents [Yes or No], [True or False], [Enable or Disable].
	Enumeration. Only given values are valid.
blank	A blank string.
everything inside <>	A description
integer primary key	SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by the server.
text	SQLite data type. The value is a text string, stored using the database encoding (UTF-8, UTF-16BE or UTF-16-LE).
coordinate	x, y coordinate (eg. 0,0)
window size	window width and height (eg. 800x600)

NOTE: The camera should not be restarted when parameters are changed.

7.1 system

Group: system

NAME	VALUE	SECURITY(get/set)	DESCRIPTION
hostname string[40] 1/6 Host name of server			(Network Camera, Wireless Network Camera, Video Server, Wireless Video Server).
ledoff		6/6	Turn on (0) or turn off (1) all led indicators.
lowlight		6/6	Turn on white light LED under all conditions. Only turn on white light LED in low light conditions. (product dependent)
dateDD>, keep, auto		6/6 Current date of system. Set to 'keep' to keep date unchanged. Set to 'auto' to use NTP to synchronize date.
times>, keep, auto		6/6 Current time of the system. Set to 'keep' to keep time unchanged. Set to 'auto' to use NTP to synchronize time.
datetimemmYYYY.ss>		6/6 Another current time format of the system.
ntpname>,,,	6/6 NTP server.*Do not use "skip to invoke default server" for default value.
timezoneindex	-489 ~ 529	6/6	Indicate timezone and area.-480: GMT-12:00 Eniwetok, Kwajalein-440: GMT-11:00 Midway Island, Samoa-400: GMT-10:00 Hawaii-360: GMT-09:00 Alaska-320: GMT-08:00 Las Vegas, San_Francisco, Vancouver-280: GMT-07:00 Mountain Time, Denver-281: GMT-07:00 Arizona-240: GMT-06:00 Central America, Central Time, Mexico City, Saskatchewan-200: GMT-05:00 Eastern Time, New York, Toronto-201: GMT-05:00 Bogota, Lima, Quito, Indiana-180: GMT-04:30 Caracas-160: GMT-04:00 Atlantic Time, Canada, La Paz,Santiago-140: GMT-03:30 Newfoundland-120: GMT-03:00 Brasilia, Buenos Aires,Georgetown, Greenland-80: GMT-02:00 Mid-Atlantic-40: GMT-01:00 Azores, Cape_Verde_IS.0: GMT Casablanca, Greenwich Mean Time: Dublin,Edinburgh, Lisbon, London40: GMT 01:00 Amsterdam, Berlin, Rome, Stockholm,Vienna, Madrid, Paris41: GMT 01:00 Warsaw, Budapest, Bern80: GMT 02:00 Athens, Helsinki, Istanbul, Riga81: GMT 02:00 Cairo82: GMT 02:00 Lebanon, Minsk83: GMT 02:00 Israel120: GMT 03:00 Baghdad, Kuwait, Riyadh, Moscow, St.Petersburg, Nairobi121: GMT 03:00 Iraq140: GMT 03:30 Tehran160: GMT 04:00 Abu Dhabi, Muscat, Baku,Tbilisi, Yerevan180: GMT 04:30 Kabul200: GMT 05:00 Ekaterinburg, Islamabad, Karachi,Tashkent220: GMT 05:30 Calcutta, Chennai, Mumbai, New Delhi230: GMT 05:45 Kathmandu240: GMT 06:00 Almaty, Novosibirsk, Astana, Dhaka,Sri Jayawardenepura260: GMT 06:30 Rangoon280: GMT 07:00 Bangkok, Hanoi, Jakarta, Krasnoyarsk320: GMT 08:00 Beijing, Chongging, Hong Kong, KualaLumpur, Singapore, Taipei360: GMT 09:00 Osaka, Sapporo, Tokyo, Seoul,Yakutsk380: GMT 09:30 Adelaide, Darwin400: GMT 10:00 Brisbane, Canberra, Melbourne,Sydney, Guam, Vladivostok440: GMT 11:00 Magadan, Solomon Is., New Caledonia480: GMT 12:00 Auckland, Wellington, Fiji, Kamchatka,Marshall Is.520: GMT 13:00 Nuku'Alofa
daylight_enable		6/6	Enable automatic daylight saving time in time zone.
daylight_dstactualmode		6/7	Check if current time is under daylight saving time.(Used internally)
daylight_auto_begintime	string[19]	6/7	Display the current daylight saving start time.
daylight_auto_endtime	string[19]	6/7	Display the current daylight saving end time.
daylight_timezones	string	6/6	List time zone index which support daylight saving time.
updateinterval 0,	3600,86400,604800,2592000	6/6 0 to Disable automatic time adjustment, otherwise, it indicates the seconds between NTP automatic update intervals.
restore 0,		7/6 Restore the system parameters to default values afterseconds.
reset 0,		7/6 Restart the server afterseconds ifis non-negative.
restoreexceptnetvalue>		7/6 Restore the system parameters to default values except(ipaddress, subnet, router, dns1, dns2, pppoe).This command can cooperate with other"restoreexceptXYZ" commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results.
restoreexceptdst	value>	7/6 Restore the system parameters to default values exceptall daylight saving time settings.This command can cooperate with other"restoreexceptXYZ" commands. When cooperating with others, the system parameters will be restored to default values except for a union of combined results.
restoreexceptlang		7/6 Restore the system parameters to default values exceptthe custom language file the user has uploaded.This command can cooperate with other"restoreexceptXYZ" commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results.

7.1.1 system.info

Subgroup of system: info (The fields in this group are unchangeable.)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
modelname	string[40]	0/7	Internal model name of the server (eg. IP7139)
extendedmodelname	string[40]	0/7	ODM specific model name of server (eg. DCS-5610). If it is not an ODM model, this field will be equal to "modelname"
serialnumber	address>	0/7	12 characters MAC address (without hyphens).
firmwareversion	string[40]	0/7	Firmware version, including model, company, and version number in the format:
language_count		0/7	Number of webpage languages available on the server.
language_i<0~(count-1)>	string[16]	0/7	Available language lists.
customlanguage_maxcount		0/6	Maximum number of custom languages supported on the server.
customlanguage_count		0/6	Number of custom languages which have been uploaded to the server.
customlanguage_i<0~(maxcount-1)>	string 0/6	Custom language name.

7.2 status

Group: status

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
videoactualmodulation	ntsc, pal	4/7	The actual modulation type (videoin.type=0).
di_i<0~(ndi-1)>		1/7	0 => Inactive, normal1 => Active, triggered(capability.ndi > 0)
do_i<0~(ndo-1)>		1/7	0 => Inactive, normal1 => Active, triggered(capability.ndo > 0)
daynight	day, night	7/7	Current status of day, night.
onlinenum_rtsp	integer	6/7	Current number of RTSP connections.
onlinenum_httppush	integer	6/7	Current number of HTTP push server connections.
eth_i0		1/7	Get network information from mii-tool.
vi_i<0~(nvi-1)>		1/7	Virtual input0 => Inactive1 => Active(capability.nvi > 0)

7.3 digital input behavior define

Group: di_i<0\~(ndi-1)>(capability.ndi > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
normalstate high,	low	1/1 Indicates	open circuit or closed circuit (inactive status)

7.4 digital output behavior define

Group: do_i<0\~(ndo-1)>(capability.ndo > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
normalstate open,	grounded	1/1 Indicate open circuit or closed circuit (inactive status)

7.5 security

Group: security

NAME VALUE SECURITY		(get/set)	DESCRIPTION
privilege_do	view, operator, admin	6/6 Indicate	which privileges and above can control digital output(capability.ndo > 0)
privilege_camctrl	view, operator, admin	6/6 Indicate	which privileges and above can control PTZ(capability.ptzenabled > 0 or capability.eptz > 0)
user_i0_name string[64]	6/7 User name of root
user_i<1~20>_name string[64]	6/7 User name
user_i0_pass	password[64]	6/6	Root password
user_i<1~20>_pass	password[64]	7/6	User password
user_i0_privilege	viewer, operator, admin	6/7 Root privilege
user_i<1~20>_privilege	viewer, operator, admin	6/6 User privilege

7.6 network

Group: network

NAME	VALUE	SECURITY(get/set)	DESCRIPTION
preprocess		7/6	An 32-bit integer, each bit can be set separately as follows:Bit 0 => HTTP service;Bit 1=> HTTPS service;Bit 2=> FTP service;Bit 3 => Two way audio and RTSP Streaming service;To stop service before changing its port settings. It'srecommended to set this parameter when change a service port to the port occupied by another service currently. Otherwise, the service may fail.Stopped service will auto-start after changing port settings.Ex:Change HTTP port from 80 to 5556, and change RTP port for video from 5556 to 20480.Then, set preprocess=9 to stop both service first."/cgi-bin/admin/setparam.cgi?network_preprocess=9&network_http_port=5556&network_rtp_videoport=20480"
type lan,	pppoe	6/6 Network connection type.
resetip		6/6	1 => Get ipaddress, subnet, router, dns1, dns2 from DHCP server at next reboot.0 => Use preset ipaddress, subnet, rounter, dns1, and dns2.
ipaddress		6/6 IP address of server.
subnet		6/6 Subnet mask.
router		6/6 Default gateway.
dns1		6/6 Primary DNS server.
dns2		6/6 Secondary DNS server.
wins1		6/6 Primary WINS server.
wins2		6/6 Secondary WINS server.

7.6.1 802.1x

Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable6/6	Enable/disable IEEE 802.1x
eapmethod eap-peap,	eap-tls	6/6 Selected	EAP method
identity_peap	String[64]	6/6	PEAP identity
identity_tls	String[64]	6/6	TLS identity
password	String[254]	6/6	Password for TLS
privatekeypassword	String[254]	6/6	Password for PEAP
ca_exist		6/6	CA installed flag
ca_time		6/7	CA installed time. Represented in EPOCH
ca_size		6/7	CA file size (in bytes)
certificate_exist		6/6	Certificate installed flag (for TLS)
certificate_time		6/7	Certificate installed time. Represented in EPOCH
certificate_size		6/7	Certificate file size (in bytes)
privatekey_exist		6/6	Private key installed flag (for TLS)
privatekey_time		6/7	Private key installed time. Represented in EPOCH
privatekey_size		6/7	Private key file size (in bytes)

7.6.2 QOS

Subgroup of network: qos_cos (capability.protocol.qos.cos > 0)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		6/6	Enable/disable CoS (IEEE 802.1p)
vlanid	1~4095	6/6	VLAN ID
video	0~7	6/6	Video channel for CoS
audio	0~7	6/6	Audio channel for CoS(capability.naudio > 0)
dependent>
eventalarm	0~7	6/6	Event/alarm channel for CoS
management	0~7	6/6	Management channel for CoS
eventtunnel	0~7	6/6	Event/Control channel for CoS

Subgroup of network: qos_dscp (capability.protocol.qos.dscp > 0)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		6/6	Enable/disable DSCP
video	0~63	6/6	Video channel for DSCP
audio	0~63	6/6	Audio channel for DSCP(capability.naudio > 0)
eventalarm	0~63	6/6	Event/alarm channel for DSCP
management 0~63	6/6 Management channel for DSCP
eventtunnel	0~63	6/6	Event/Control channel for DSCP

7.6.3 IPV6

Subgroup of network: ipv6 (capability.protocol.ipv6 > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable		6/6	Enable IPv6.
addonipaddress <ip address> 6/6 IPv6 IP address.
addonprefixlen	0~128	6/6	IPv6 prefix length.
addonrouter		6/6	IPv6 router address.
addondns		6/6	IPv6 DNS address.
allowoptional		6/6	Allow manually setup of IP address setting.

7.6.4 FTP

Subgroup of network: ftp

NAME VALUE SECURITY		(get/set)	DESCRIPTION
port	21, 1025~65535	6/6	Local ftp server port.

7.6.5 HTTP

Subgroup of network: http

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
port	80, 1025 ~ 65535	1/6	HTTP port.
alternateport	1025~65535	6/6	Alternate HTTP port.
authmode	basic,digest	1/6 HTTP authentication mode.
s0_accessname	string[32]	1/6	HTTP server push access name for stream 1.(capability.protocol.spush_mjpeg =1 andcapability.nmediastream >0)
s1_accessname	string[32]	1/6	HTTP server push access name for stream 2.(capability.protocol.spush_mjpeg =1 andcapability.nmediastream >1)
s2_accessname	string[32]	1/6 Http server push access name for stream 3(capability.protocol.spush_mjpeg =1 andcapability.nmediastream >2)
s3_accessname	string[32] 1/6	Http server push access name for stream 4(capability.protocol.spush_mjpeg =1 and capability.nmediastream >3)
s4_accessname	string[32] 1/6	Http server push access name for stream 5(capability.protocol.spush_mjpeg =1 and capability.nmediastream >4)For some models, it is used for anystream.(capability.protocol.spush.mjpeg = 1 and capability.nanystream = 1)
anonymousviewing		1/6 Enable anonymous streaming viewing.

7.6.6 HTTPS port

Subgroup of network: https_port (capability.protocol.https > 0)

NAME VALUE SECURITY	(get/set)	DESCRIPTION
port 443, 1025 ~65535	1/6 HTTPS port.

7.6.7 RTSP

Subgroup of network: rtsp (capability.protocol.rtsp > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
port	554, 1025 ~ 65535	1/6	RTSP port.(capability.protocol.rtsp=1)
anonymousviewing		1/6	Enable anonymous streaming viewing.
authmode	disable,basic,digest	1/6	RTSP authentication mode.(capability.protocol.rtsp=1)
s0_accessname		1/6	RTSP access name for stream1.(capability.protocol.rtsp=1 and capability.nmediastream >0)
s1_accessname		1/6	RTSP access name for stream2.(capability.protocol.rtsp=1 and capability.nmediastream >1)
s2_accessname		1/6	RTSP access name for stream3(capability.protocol.rtsp=1 and capability.nmediastream >2)
s3_accessname		1/6	RTSP access name for stream4(capability.protocol.rtsp=1 and capability.nmediastream >3)
S4_accessname		1/6	RTSP access name for stream5(capability.protocol.rtsp=1 andcapability.nmediastream > 4)For some models, it is used for anystream.(capability.protocol.rtsp=1 and capability.nanystream = 1)
s0_audiotrack	1/6 Enable audio for stream1.
s1_audiotrack		1/6	Enable audio for stream2.
s2_audiotrack		1/6	Enable audio for stream3.
s3_audiotrack		1/6	Enable audio for stream4.
S4_audiotrack		1/6	Enable audio for stream5.

7.6.7.1 RTSP multicast

Subgroup of network_rtsp_s<0\~(n-1)>: multicast, n is stream count (capability.protocol.rtp.multicast > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
alwaysmulticast <boolean> 4/4 Enable always multicast.
ipaddress		4/4	Multicast IP address.
videoport	1025 ~ 65535	4/4	Multicast video port.
audioport <product dependent>	1025 ~ 65535	4/4	Multicast audio port.(capability.naudio > 0)
ttl	1 ~ 255	4/4	Mutlicast time to live value.

7.6.8 SIP port

Subgroup of network: sip (capability.protocol.sip>0)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
port	1025 ~ 65535	1/6	SIP port.

7.6.9 RTP port

Subgroup of network: rtp

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
videoport	1025 ~ 65535	6/6	Video channel port for RTP.(capability.protocol.rtp_unicast=1)
audiport	1025 ~ 65535	6/6	Audio channel port for RTP.(capability.protocol.rtp_unicast=1)

7.6.10 PPPoE

Subgroup of network: pppoe (capability.protocol.pppoe > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
user string[128] 6/6	PPPoE account user	name.
pass password[64] 6/6	PPPoE account pa	ssword.

7.7 IP Filter

Group: ipfilter

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable		6/6	Enable access list filtering.
admin_enable		6/6	Enable administrator IP address.
admin_ip	String[44]	6/6	Administrator IP address.
maxconnection	1~10	6/6	Maximum number of concurrent streaming connection(s).
type	0, 1	6/6	Ipfilter policy :0 => allow1 => deny
ipv4list_i<0~9>	Single address:Network address:Rangeaddress:	6/6	IPv4 address list.
ipv6list_i<0~9>	String[44]	6/6	IPv6 address list.

7.8 Video input

Group: videooin

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
cmosfreq	50, 60	4/4	CMOS frequency.(capability.videoin.type=2)
whitebalance	auto, manual	4/4	"auto" indicates auto white balance."manual" indicates keep current value.
exposurelevel	0~12	4/4	Exposure level
autoiris		4/4	Enable auto Iris. (not used in IP8162)
irismode	fixed, indoor, outdoor	4/4 Video Iris for DC Iris.
enablewdr		4/4	Enable/disable wield dynamic range. (not used in IP8162)
enableblc		4/4	Enable backlight compensation.
agc	0,1,2	4/4	Set auto gain control to normal level or MAX level. 0->2x, 1->4x, 2->8x (not used in IP8162)
color 0, 1 4/4 0 => monochrome			1 => color
flip		4/4	Flip the image.
mirror 4/4 Mirror the image.
ptzstatus		1/7	A 32-bit integer, each bit can be set separately as follows:Bit 0Bit 1Bit 2Bit 3Bit 4 => Support zoom operation; 0(not support), 1(support)Bit 5
text	string[16]	1/4	Enclose caption.
imprinttimestamp		4/4	Overlay time stamp on video.
maxexposure	1, 15, 30, 60, 120, 240, 480product dependent>	4/4 Maximum	exposure time.
options	quality, framerate, crop	4/4 Video input option:(1) video quality first mode(2) video frame rate first mode(3) cropping mode
enablepreview		1/4	Usage for UI of exposure settings. Preview settings of video profile.

7.8.1 Video input setting per channel

Group: videoin_c<0\~(n-1)> for n channel products, and m is stream number

NAME VALUE SECURITY		(get/set)	DESCRIPTION
cmosfreq	50, 60 4/4 CMOS frequency.		(capability.videoin.type=2)
whitebalance	auto, manual	4/4	"auto" indicates auto white balance."manual" indicates keep current value.
rgain	0~100	4/4	Manual set rgain value of gain control setting.
bgain	0~100	4/4	Manual set bgain value of gain control setting.
exposurelevel	0~12	4/4	Exposure level
autoiris	0~1	4/4	set 1 to enable auto iris, set 0 to disable auto iris.(not used in IP8162)
irismode	fixed, indoor, outdoor	4/4 Video Iris for DC Iris.
enablewdr		4/4	Enable/disable wield dynamic range. (not used in IP8162)
enableblc	0~1	4/4	Enable backlight compensation
agc	0,1,2	4/4	Set auto gain control to normal level or MAX level.0->2x,1->4x,2->8x(not used in IP8162)
agcmode	auto, fixed	4/4	Set auto gain control mode.
maxgain	0~100	4/4	Manual set maximum gain value.
mingain	0~100	4/4	Manual set minimum gain value.
color	0, 1	4/4	0 => monochrome1 => color
flip		4/4	Flip the image.
mirror		4/4	Mirror the image.
ptzstatus		1/7	A 32-bit integer, each bit can be set separately as follows:Bit 0Bit 1Bit 2Bit 3Bit 4 => Support zoom operation; 0(not support), 1(support)Bit 5
text	string[16]	1/4	Enclose caption.
imprinttimestamp		4/4	Overlay time stamp on video.
exposuremode auto, fixed 4/4	Exposure mode
maxexposure 1~32000 4/4	Maximum exposure time.
maxexposure 1~32000 4/4	Maximum exposure time.
options quality,	framerate, crop	4/4 Video input option:(1) video quality first mode(2) video frame rate first mode(3) cropping mode(not used in IP8162)
preoptions quality,	framerate, crop	4/4 Record the previous video options.(not used in IP8162)
enablepreview		1/4	Usage for UI of exposure settings. Preview settings of video profile.
crop_position(x,y)1/4 Crop left-top corner coordinate.(not used in IP8162)	(x,y)	1/4 Crop left-top corner coordinate.(not used in IP8162)
crop_size(WxH)1/4 Crop width and height.(width must be 16x or 32x and height must be 8x)(not used in IP8162)	(WxH)	1/4 Crop width and height.(width must be 16x or 32x and height must be 8x)(not used in IP8162)
crop_preview	< boolean >	1/4	Usage for UI of crop setting(not used in IP8162)
s<0~(m-1)>_codetype	mpeg4, mjpeg, h264product dependent>	1/4 Video codec type.
s<0~(m-1)>_resolution	Reference capability_vide oin_resolution	1/4 Video resolution in pixels.
s<0~(m-1)>_mpeg4_intrap period	250, 500, 1000, 2000, 3000, 4000	4/4	Intra frame period in milliseconds.
s<0~(m-1)>_mpeg4_rate controlmode	cbr, vbr 4/4 cbr, constant bitratevbr, fix quality
s<0~(m-1)>_mpeg4_quant	1~599, 100	4/4 Quality of video when choosing vbr in "ratecontrolmode".99 is the customized manual input setting.1 = worst quality, 5 = best quality.100 is percentage mode.
s<0~(m-1)>_mpeg4_qvalue	2~31	4/4	Manual video quality level input.(s<0~(m-1)>_mpeg4_quant = 99)
s<0~(m-1)>_mpeg4_qpercent	1~100	4/4	Manual video quality level input.(s<0~(m-1)>_mpeg4_quant = 100)
s<0~(m-1)>_mpeg4_bitrate	1000~16000000	4/4	Set bit rate in bps when choosing cbr in"ratecontrolmode".
s<0~(m-1)>_mpeg4_maxframe	1~25,26~30 (onlyfor NTSC or60Hz CMOS)	1/4 Set maximum frame rate in fps (for MPEG-4).
s<0~(m-1)>_h264_intraperiod	250, 500,1000, 2000,3000, 4000	4/4 Intra frame period in milliseconds.
s<0~(m-1)>_h264_ratecontrolmode	cbr, vbr 4/4 cbr, constant bitratevbr, fix quality
s<0~(m-1)>_h264_quant 1~599, 100	4/4 Quality of video when choosing vbr in "ratecontrolmode".99 is the customized manual input setting.1 = worst quality, 5 = best quality.100 is percentage mode.
s<0~(m-1)>_h264_qvalue	0~51	4/4	Manual video quality level input.(s<0~(m-1)>_h264_quant = 99)
s<0~(m-1)>_h264_qpercent	1~100	4/4	Manual video quality level input.(s<0~(m-1)>_h264_quant = 100)
s<0~(m-1)>_h264_bitrate	1000~1600000	4/4 Set bit rate in bps when choosing cbr in "ratecontrolmode".
s<0~(m-1)>_h264_maxframe	1~25,26~30 (onlyfor NTSC or60Hz CMOS)	1/4	Set maximum frame rate in fps (for h264).
s<0~(m-1)>_h264_profile	0~2 1/4 Indicate H264 profiles		0: baseline1: main profile2: high profile
s<0~(m-1)>_mjpeg_quant	1~599, 100	4/4 Quality of JPEG video.99 is the customized manual input setting.1 = worst quality, 5 = best quality.100 is percentage mode.
s<0~(m-1)>_mjpeg_qvalue	2~97	4/4 Manual video quality level input.(s<0~(m-1)>_mjpeg_quant = 99)
s<0~(m-1)>_mjpeg_qpercent	1~100	4/4	Manual video quality level input.(s<0~(m-1)>_mjpeg_quant = 100)
s<0~(m-1)>_mjpeg_maxframe	1~25,26~30 (onlyfor NTSC or	1/4 Set maximum frame rate in fps (for JPEG).
	60Hz CMOS)
piris_mode manual, indoor,	outdoor	1/4 P-Iris mode.
piris_sensitivity	1~10	4/4	P-Iris sensitivity for indoor and outdoor mode.
piris_response	1~10	4/4	P-Iris response time for indoor and outdoor mode.
piris_position	1~100	1/4	P-Iris position for manual mode.
wdrc_mode 0~3 4/4 WDR enhanced.			0: off1: auto2: always on3: keep current value
wdrc_strength 0~2 4/4 WDR enhanced.			0: low1: medium2: high

7.8.1.1 Alternative video input profiles per channel

In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime).

Group: videoin_c0_profile_i<0\~(m-1)> (capability. nvideoinprofile > 0)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		4/4	Enable/disable this profile setting
policy	day, night, schedule	4/4	The mode which the profile is applied to.
begintime	hh:mm	4/4	Begin time of schedule mode.
endtime	hh:mm	4/4	End time of schedule mode.
exposuremode	auto, fixed	4/4	Exposure Mode
minexposure	1~32000	4/4	Minimum exposure time.
maxexposure	1~32000	4/4	Maximum exposure time.
enableblc		4/4	Enable backlight compensation.
exposurelevel	0~12	4/4	Exposure level
agc	0,1,2	4/4	Set auto gain control to normal level or MAX level. 0->2x, 1->4x, 2->8x (not used in IP8162)
agcmode	auto, fixed	4/4	Set auto gain control mode.
maxgain 0~100 4/4	Manual set maximum gain value.
mingain 0~100 4/4	Manual set minimum gain value.
autoiris		4/4	Enable auto Iris.(not used in IP8162)
enablewdr		4/4	Enable/disable wield dynamic range. (not used in IP8162)
whitebalance	auto, manual	4/4	"auto" indicates auto white balance."manual" indicates keep current value.
rgain	0~100	4/4	Manual set rgain value of gain control setting.
bgain	0~100	4/4	Manual set bgain value of gain control setting.
irismode	fixed, indoor, outdoor	4/4 Video Iris for DC Iris.
piris_mode manual, indoor, outdoor		1/4 P-Iris mode.
piris_sensitivity	1~10	4/4	P-Iris sensitivity for indoor and outdoor mode.
piris_response	1~10	4/4	P-Iris response time for indoor and outdoor mode.
piris_position	1~100	1/4	P-Iris position for manual mode.
wdrc_mode	0~3	4/4	WDR enhanced.0: off1: auto2: always on3: keep current value
wdrc_strength	0~2	4/4	WDR enhanced.0: low1: medium2: high

7.9 Video input preview

The temporary settings for video preview

Group: videooinpreview

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
exposuremode	auto, fixed	4/4	Exposure Mode
minexposure	1~32000	4/4	Minimum exposure time.
maxexposure	1~32000	4/4	Maximum exposure time.
exposurelevel	0~12	4/4	Exposure level
enableblc		4/4	Enable backlight compensation.
enablewdr		4/4	Enable/disable wield dynamic range. (not used in IP8162)
irismode	fixed, indoor, outdoor	4/4 Video Iris	for DC Iris.
piris_mode manual, in	door, outdoor	1/4 P-Iris mode.
piris_sensitivity	1~10	4/4	P-Iris sensitivity for indoor and outdoor mode.
piris_response	1~10	4/4	P-Iris response time for indoor and outdoor mode.
piris_position	1~100	1/4	P-Iris position for manual mode.
wdrc_mode 0~3 4/4	WDR enhanced.		0: off1: auto2: always on3: keep current value
wdrc_strength 0~2 4/4 WDR enhanced.			0: low1: medium2: high
agc	0,1,2	4/4	Set auto gain control to normal level or MAX level.0->2x,1->4x,2->8x(not used in IP8162)
agcmode	auto,fixed	4/4	Set auto gain control mode.
maxgain	0~100	4/4	Manual set maximum gain value.
mingain	0~100	4/4	Manual set minimum gain value.
autoiris		4/4	Enable auto Iris.(not used in IP8162)

7.10 IR cut control

Group: ircutcontrol (capability.nvideoinprofile > 0)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
mode	auto, day, night, di, schedule	6/6	Set IR cut control mode
daymodebegintime	00:00~23:59	6/6	Day mode begin time
daymodeendtime	00:00~23:59	6/6	Day mod end time
bwmode		6/6	Switch to B/W in night mode if enabled
sensitivity	low, normal,high	6/6	Sensitivity of light sensor

7.11 Image setting per channel

Group: image_c<0\~(n-1)> for n channel products

NAME VALUE SECURITY		(get/set)	DESCRIPTION
brightness	-5~5 4/4 Adjust brightness of settings.		image according to mode settings.
saturation	-5~5,100	4/4	Adjust saturation of image according to mode settings.100 for saturation percentage mode.
saturationpercent	0~100	4/4	Adjust saturation value of percentage when saturation=100
contrast -5 ~ 5 4/4 Adjust contrast of image according to mode settings.
sharpness	-3~3,100	4/4	Adjust sharpness of image according to mode settings.
sharpnesspercent	0~100	4/4	Adjust sharpness value of percentage when sharpness=100
gammacurve 0~100 4/4 Gamma curve.
lowlightmode		4/4	Enable/disable low light mode.
profile_i0_enable		4/4	Enable/disable this profile setting
profile_i0_policy	day,night,schedule	4/4	The mode which the profile is applied to.
profile_i0_begintime	hh:mm	4/4	Begin time of schedule mode.
profile_i0_endtime	hh:mm	4/4	End time of schedule mode.
profile_i0_contrast	-5 ~ 5	4/4	Adjust contrast of image according to mode settings.
profile_i0_sharpness	-3~3	4/4	Adjust sharpness of image according to mode settings.
profile_i0_sharpnesspercent	0~100	4/4	Adjust sharpness value of percentage when sharpness=100
profile_i0_gammacurve	0~100	4/4	Gamma curve
profile_i0_lowlightmode		4/4	Enable/disable low light mode.
profile_i0_wdrcstrength	0~2	4/4	WDR enhanced0: low1: medium2: high
profile_i0_wdrcmode	0~3	4/4	WDR enhanced0: off1: auto2: always on3: keep current value

7.12 Image setting for preview

Group: imagepreview_c<0\~(n-1)> for n channel products

NAME VALUE SECURITY		(get/set)	DESCRIPTION
brightness	-5~5	4/4	Adjust brightness of image according to mode settings.
saturation	-5~5,100	4/4	Adjust saturation of image according to mode settings. 100 for saturation percentage mode.
saturationpercent	0~100	4/4	Adjust saturation value of percentage when saturation=100
contrast	-5 ~ 5	4/4	Adjust contrast of image according to mode settings.
sharpness	-3~3,100	4/4	Adjust sharpness of image according to mode settings.
sharpnesspercent	0~100	4/4	Adjust sharpness value of percentage when sharpness=100
gammacurve 0~100	4/4 Gamma curve
lowlightmode		4/4	Enable/disable low light mode.

Group: imagepreview

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
videoin_whitebalance	auto, manual	4/4	Preview of adjusting white balance of image according to mode settings
videoin_restoreatwb	0, 1~	4/4	Restore of adjusting white balance of image according to mode settings
videoin_rgain	0~100	4/4	Manual set rgain value of gain control setting.
videoin_bgain	0~100	4/4	Manual set bgain value of gain control setting.

7.13 Exposure window setting per channel

Group: exposure_c<0\~(n-1)> for n channel products

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
modewin_i<0~9>_enable	auto, custom, blc	4/44/4	The mode indicates how to decide the exposure. auto: Use full view as the only one exposure window. custom: Use inclusive and exclusive window. blc: Use BLC.Enable or disable the window.
win_i<0~9>_policy	0~1	4/4	0: Indicate exclusive.1: Indicate inclusive.
win_i<0~9>_home		4/4	Left-top corner coordinate of the window.
win_i<0~9>_size		4/4	Width and height of the window.

Group: exposure_c<0\~(n-1)>_profile for m profile and n channel product

NAME VALUE SECURITY		(get/set)	DESCRIPTION
i<0~(m-1)>_mode	auto, custom, blc	4/4	The mode indicates how to decide the exposure.auto: Use full view as the only one exposure window.custom: Use inclusive and exclusive window.blc: Use BLC.
i<0~(m-1)>_win_i<0~9>_enable		4/4	Enable or disable the window.
i<0~(m-1)>_win_i<0~9>_policy	0~1	4/4	0: Indicate exclusive.1: Indicate inclusive.
i<0~(m-1)>_win_i<0~9>_home		4/4	Left-top corner coordinate of the window.
i<0~(m-1)>_win_i<0~9>_size		4/4	Width and height of the window.

7.14 Audio input per channel

Group: audioin_c<0\~(n-1)> for n channel products (capability.audioin>0)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
source	micin,linein	4/4	micin => use built-in microphone input.linein => use external microphone input.
mute	0, 1	4/4	Enable audio mute.
gain	9~108	4/4	Gain of input.(audioin_c<0~(n-1)>_source = linein)
boostmic	9~108	4/4	Enable microphone boost.0 => +0dB1 => +20dB2 => +40dBOrGain of input.(audioin_c<0~(n-1)>_source = micin)
s<0~(m-1)>_codectype	aac4, gamr,g711	4/4	Set audio codec type for input.
s<0~(m-1)>_aac4_bitrate	16000,32000,48000,64000,96000,128000	4/4	Set AAC4 bitrate in bps.
s<0~(m-1)>_gamr_bitrateproduct dependent>	4750,5150,5900,6700,7400,7950,10200,12200	4/4 Set AMR	bitrate in bps.
s<0~(m-1)>_g711_modeproduct dependent>	pcmu,pcma	4/4 Set G.711	mode.

7.15 Time Shift settings

Group: timeshift, c for n channel products, m is stream number (capability.timeshift > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable	4/4 Enable time shift streaming.
c<0~(n-1)>_s<0~(m-1)>_allow		4/4	Enable time shift streaming for specific stream.

7.16 Motion detection settings

Group: motion_c<0\~(n-1)> for n channel product

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable		4/4	Enable motion detection.
win_i<0~2>_enable		4/4	Enable motion window 1~3.
win_i<0~2>_name	string[14]	4/4	Name of motion window 1~3.
win_i<0~2>_left	0 ~ 320	4/4	Left coordinate of window position.
win_i<0~2>_top	0 ~ 240	4/4	Top coordinate of window position.
win_i<0~2>_width	0 ~ 320	4/4	Width of motion detection window.
win_i<0~2>_height	0 ~ 240	4/4	Height of motion detection window.
win_i<0~2>_objsize	0 ~ 100	4/4	Percent of motion detection window.
win_i<0~2>_sensitivity	0 ~ 100	4/4	Sensitivity of motion detection window.

Group: motion_c<0\~(n-1)> profile for m profile and n channel product (capability.nmotionprofile > 0)

NAME	VALUE	SECURITY(get/set)	DESCRIPTION
i<0~(m-1)>_enable		4/4	Enable profile 1 ~ (m-1).
i<0~(m-1)>_policy day,	night,schedule	4/4 The mode	which the profile is applied to.
i<0~(m-1)>_begintime	hh:mm	4/4	Begin time of schedule mode.
i<0~(m-1)>_endtime	hh:mm	4/4	End time of schedule mode.
i<0~(m-1)>_win_i<0~2>_enable		4/4	Enable motion window.
i<0~(m-1)>_win_i<0~2>_name	string[14]	4/4	Name of motion window.
i<0~(m-1)>_win_i<0~2>_left	0 ~ 320	4/4	Left coordinate of window position.
i<0~(m-1)>_win_i<0~2>_top	0 ~ 240	4/4	Top coordinate of window position.
i<0~(m-1)>_win_i<0~2>_width	0 ~ 320	4/4	Width of motion detection window.
i<0~(m-1)>_win_i<0~2>_height	0 ~ 240	4/4	Height of motion detection window.
i<0~(m-1)>_win_i<0~2>_objsize	0 ~ 100	4/4	Percent of motion detection window.
i<0~(m-1)>_win_i<0~2>_sensitivity	0 ~ 100	4/4	Sensitivity of motion detection window.

7.17 Tempering detection settings

Group: tampering_c<0\~(n-1)> for n channel product (capability.tampering > 0)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		4/4	Enable or disable tamper detection.
threshold	0 ~ 255	4/4	Threshold of tamper detection.
duration	10 ~ 600	4/4	If tampering value exceeds the 'threshold' for more than 'duration' second(s), then tamper detection is triggered.

7.18 DDNS

Group: ddns (capability.ddns > 0)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		6/6	Enable or disable the dynamic DNS.
provider	Safe100, DyndnsDynamic, DyndnsCustom, TZO, DHS, DynInterfree, CustomSafe100, PeanutHull, IODATA, DO_JP,	6/6	Safe100 => safe100.net DyndnsDynamic => dyndns.org (dynamic) DyndnsCustom => dyndns.org (custom) TZO => tzo.com DHS => dhs.org DynInterfree =>dyn-interfree.it CustomSafe100 => Custom server using safe100 method PeanutHull => PeanutHull IODATA => iodata.jp

	MYDNS_JP,customizeddyndns,DP21,NetHome,ADAMA LAND,AddressNet,Luna_VC,Mars_VC,Planex_VC,Sun_VC,Nexus_Control,DO_JP_FREE,EPolice,PCCW,MegaChips,DLink,DLinkCNLogitec,GE_Security,HUAGAI,3322,ALARM,ChangeIP,NOIPSWISSCOMCustomizedTZO	DO JP => ddo.jpMYDNS JP => mydns.jpCustomizeddyndns => Custom server using dyndns methodDP21 => dp-21.netNetHome => NetHome Co.,LtdADAMA LAND => non-functional service providerAddress.net => non-functional service providerLuna_VC => cybergate ddnsMars_VC => cybergate ddnsPlanex_VC => cybergate ddnsSun_VC => cybergate ddnsNexus_Control => nexus controlDO_JP_FREE => dp-21.net (free)Epolice => epolice.com.twPCCW => pccw.comMegaChips => megachips.co.jpDlink => D-LINKDlinkCN => D-LINK CNLogitec => logitec.co.jpGE_Security => GE SecurityHUAGAI => huagai.com3322 => 3322.netALARM => alarm.comChangeIP => TOSHIBANOIP => TOSHIBASWISSCOM => swiss.comCustomizedTZO => Customized server using TZO method
	string[128] 6/6 Your DDNS hostname
	string[64] 6/6 Your user name or email to login to the DDNS service username email
	string[64] 6/6 Your password or key to login to the DDNS service passwordkey
	string[128] 6/6 The server name for safe100.

7.19 Express link

Group: expresslink

PARAMETER	VALUE	SECURITY(get/set)	DESCRIPTION
enable6/6 Enable or disable express link.
state onlycheck,onlyoffline,checkonline,badnetwork		6/6 Camera will check the status of network environment and express link URL
url string[64] 6/6 The url user define to link to camera

7.20 UPnP presentation

Group: upnppresentation

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable		6/6	Enable or disable the UPnP presentation service.

7.21 UPnP port forwarding

Group: upnpportforwarding

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		6/6	Enable or disable the UPnP port forwarding service.
upnpnatstatus	0~3	6/7	The status of UPnP port forwarding, used internally.0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no need for port forwarding

7.22 System log

Group: syslog

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enableremotelog		6/6	Enable remote log.
serverip		6/6	Log server IP address.
serverport	514, 1025~65535	6/6 Server port used for log.
level	0~7	6/6	Levels used to distinguish the importance of the information:0: LOG_EMERG1: LOG_ALERT2: LOG_CRIT3: LOG_ERR4: LOG_WARNING5: LOG_NOTICE6: LOG_INFO7: LOG_DEBUG
setparamlevel	0~2	6/6	Show log of parameter setting.0: disable1: Show log of parameter setting set from external.2. Show log of parameter setting set from external and internal.

7.23 camera PTZ control

Group: camctrl (capability.camctrl.htptunnel > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enablehttptunnel		4/4	Enable HTTP tunnel for camera control.

Group: camctrl_c<0\~(n-1)> for n channel product (capability.ptzenabled)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
panspeed -5 ~ 5 1/4 Pan speed
tiltspeed -5 ~ 5 1/4 Tit speed
zoomspeed	-5 ~ 5	1/4	Zoom speed
focusspeed	-5 ~ 5 1/4 Auto focus speed
patrolseq	string[64]	1/4	(For external device)The indexes of patrol points, separated by “,”
patroldwelling	string[128]	1/4	(For external device)The dwelling time of each patrol point, separated by “,”
preset_i<0~(npreset-1)>_name	string[40]	1/4 Name of the preset location.
preset_i<0~(npreset-1)>_dwelling	0 ~ 999	1/4	The dwelling time of each preset location
uart	0 ~ (m-1), m is UART count	1/4 Select corresponding uart(capability.nuart>0).
cameraid	0~255	1/4	Camera ID controlling external PTZ camera.
isptz	0 ~ 2	1/4	0: disable PTZ commands.1: enable PTZ commands with PTZ driver.2: enable PTZ commands with UART tunnel.
disablemdonptz		1/4	Disable motion detection on PTZ operation.

7.24 UART control

Group: uart (capability.nuart > 0)

NAME	VALUE	SECURITY(get/set)	DESCRIPTION
ptzdrivers_i<0~19, 127>_name	string[40] 1/4 Name of the PTZ driver.
ptzdrivers_i<0~19, 127>_location	string[128] 1/4 Full path of the PTZ driver.
enablehttptunnel		4/4	Enable HTTP tunnel channel to control UART.

Group: uart_i<0\~(n-1)> n is uart port count (capability.nuart > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
baudrate 110,300,600	1200,2400,3600,4800,7200,9600,19200,38400,57600,115200	4/4 Set baud rate of COM port.
databit 5,6,7,8	6,7,8	4/4 Data bits in a character frame.
paritybit	none,odd,even	4/4 For error checking.
stopbit	1,2	4/4	12-1.5 , data bit is 52-2
uartmode	rs485,rs232	4/4 RS485 or RS232.
customdrvcmd_i<0~9>	string[128] 1/4 PTZ command for custom camera.
speedlink_i<0~4>_name	string[40] 1/4 Additional PTZ command name.
speedlink_i<0~4>_cmd	string[128] 1/4 Additional PTZ command list.
ptzdriver 0~19,	127 (custom),128 (no driver)	4/4 The PTZ driver is used by this COM port.

7.25 SNMP

Group: snmp (capability.snmp > 0)

NAME	VALUE	SECURITY(get/set)	DESCRIPTION
v2	0~1	6/6	SNMP v2 enabled. 0 for disable, 1 for enable
v3	0~1	6/6	SNMP v3 enabled. 0 for disable, 1 for enable
secnamerw string[31]	6/6 Read/write	security name
secnamero string[31]	6/6 Read only se	security name
authpwrw string[8~128]	6/6 Read/write authentication password
authpwro	string[8~128]	6/6	Read only authentication password
authtyperw MD5,SHA	6/6 Read/write authentication type
authtypero	MD5,SHA	6/6	Read only authentication type
encryptpwrw	string[8~128]	6/6	Read/write passwd
encryptpwro	string[8~128]	6/6	Read only password
encrypttyperw	DES	6/6	Read/write encryption type
encrypttypero	DES	6/6	Read only encryption type
rwcommunity	string[31] 6/6 Read/write community
rocommunity	string[31]	6/6	Read only community
syslocation	0~128	6/6	System location
syscontact	0~128	6/6	System contact

7.26 Layout configuration

Group: layout (New version)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
logo_default		1/6	0 => Custom logo1 => Default logo
logo_link	string[40]	1/6	Hyperlink of the logo
logo_powerbyvvtk_hidden		1/6	0 => display the power by vivotek logo1 => hide the power by vivotek logo
custombutton_manualtrigger_show		1/6	Show or hide manual trigger (VI) button in homepage0 -> Hidden1 -> Visible
theme_option	1~4	1/6	1~3: One of the default themes.4: Custom definition.
theme_color_font	string[7]	1/6	Font color
theme_color_configfont	string[7]	1/6	Font color of configuration area.
theme_color_titlefont	string[7]	1/6	Font color of video title.
theme_color_controlbackground	string[7] 1/6	Background	color of control area.
theme_color_configbackground	string[7]	1/6	Background color of configuration area.
theme_color_videobackground	string[7]	1/6	Background color of video area.
theme_color_case string[7] 1/6	Frame color

7.27 Privacy mask

Group: privacymask_c<0\~(n-1)> for n channel product

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable		4/4	Enable privacy mask.
win_i<0~4>_enable		4/4	Enable privacy mask window.
win_i<0~4>_name	string[14]	4/4	Name of the privacy mask window.
win_i<0~4>_left	0 ~ 320/352	4/4	Left coordinate of window position.
win_i<0~4>_top	0 ~ 240/288	4/4	Top coordinate of window position.
win_i<0~4>_width	0 ~ 320/352	4/4	Width of privacy mask window.
win_i<0~4>_height	0 ~ 240/288	4/4	Height of privacy mask window.

7.28 Capability

Group: capability

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
api_httpversion		0/7	The HTTP API version.
bootuptime		0/7	Server bootup time.
nir	0,	0/7	Number of IR interfaces.(Recommend to use ir for built-in IR and extir for external IR)
	integer>
npir	0,	0/7	Number of PIRs.
	integer>
ndi	0,	0/7	Number of digital inputs.
	integer>
nvi	0,	0/7	Number of virtual inputs (manual trigger)
ndo 0,		0/7 Number of digital outputs.
naudioin 0,		0/7 Number of audio inputs.
naudioout 0,		0/7 Number of audio outputs.
nvideoin	integer>	0/7 Number of video inputs.
nmediastream	integer>	0/7 Number of media stream per channels.
nvideosetting	integer>	0/7 Number of video settings per channel.
naudiosetting	integer>	0/7 Number of audio settings per channel.
nuart 0,		0/7 Number of UART interfaces.
nvideoinprofile	integer>	0/7	Number of video input profiles.
nmotionprofile 0,	integer>	0/7 Number of motion profiles.
ptzenabled 0,	integer>	0/7 An 32-bit integer, each bit can be set separately as follows:Bit 0 => Support camera control function;0(not support), 1(support)Bit 1 => Built-in or external camera;0(external), 1(built-in)Bit 2 => Support pan operation, 0(not support), 1(support)Bit 3 => Support tilt operation; 0(not support), 1(support)Bit 4 => Support zoom operation;0(not support), 1(support)Bit 5 => Support focus operation;0(not support), 1(support)Bit 6 => Support iris operation;0(not support), 1(support)
			Bit 7 => External or built-in PT; 0(built-in), 1(external)Bit 8 => Invalidate bit 1 ~ 7;0(bit 1 ~ 7 are valid),1(bit 1 ~ 7 are invalid)Bit 9 => Reserved bit; Invalidate lens_pan,Lens_tilt, lens_zoon, lens_focus, len_iris.0(fields are valid),1(fields are invalid)
evctrlchannel		0/7	Indicate whether to support HTTP tunnel for event/control transfer.
joystick		0/7	Indicate whether to support joystick control.
storage_dbenabled		0/7	Media files are indexed in database.
ptzenabledclient		0/7	Indicate whether to support ptz client
protocol_https	< boolean >	0/7	Indicate whether to support HTTP over SSL.
protocol_rtsp	< boolean >	0/7	Indicate whether to support RTSP.
protocol_sip		0/7	Indicate whether to support SIP.
protocol_maxconnection		0/7 The maximum allowed simultaneous connections.
protocol_maxgenconnection		0/7 The maximum general streaming connections .
protocol_maxmegaconnection		0/7 The maximum megapixel streaming connections.
protocol_rtp_multicast_scalable		0/7	Indicate whether to support scalable multicast.
protocol_rtp_multicast_backchannel	<boolean> 0/7 Indicate whether to support backchannel multicast.
protocol_rtp_tcp		0/7	Indicate whether to support RTP over TCP.
protocol_rtp_http		0/7	Indicate whether to support RTP over HTTP.
protocol_spush_mjpeg		0/7	Indicate whether to support server push MJPEG.
protocol_snmp		0/7	Indicate whether to support SNMP.
protocol_ipv6		0/7	Indicate whether to support IPv6.
videoin_type	0, 1, 2	0/7	0 => Interlaced CCD1 => Progressive CCD2 => CMOS
videoin_resolution		0/7 Available resolutions list.
	commas>
videoin_maxframerateofavailablemaximum framereate separated by commas>videoin_codec mpeg4. mjpeg,	ofavailablemaximum framereate separated by commas>videoin_codec mpeg4. mjpeg,	0/7 Available maximum frame list.
	h264videoout_codec	0/7 Available codec list.
		0/7 Available codec list.
audio_aec		0/7	Indicate whether to support acoustic echo cancellation.
audio_extmic		0/7	Indicate whether to support external microphone input.
audio_linein		0/7	Indicate whether to support external line input.(It will be replaced by audio_mic and audio_extmic.)
audio_lineout		0/7	Indicate whether to support line output.
audio_headphoneout		0/7	Indicate whether to support headphone output.
audioin_codec aac4, gamr, g711	11	0/7 Available codec list for audio input.
audioout_codec g711		0/7 Available codec list for SIP.
camctrl_httptunnel		0/7	Indicate whether to support httptunnel.
camctrl_httptunnelclient		0/7	Indicate whether to support httptunnel client.
camctrl_privilege		0/7	Indicate whether to support "Manage Privilege" of PTZ control in the Security page.1: support both /cgi-bin/camctrl/camctrl.cgi and /cgi-bin/viewer/camctrl.cgi0: support only /cgi-bin/viewer/camctrl.cgi
uart_httptunnel		0/7	Indicate whether to support HTTP tunnel for UART transfer.
transmission_mode Tx,	Rx,Both	0/7 Indicate transmission mode of the machine: TX = server, Rx = receiver box, Both = DVR.
network_wire		0/7	Indicate whether to support Ethernet.
network_wireless		0/7	Indicate whether to support wireless.
wireless_s802dot11b		0/7	Indicate whether to support wireless 802.11b+.
wireless_s802dot11g		0/7	Indicate whether to support wireless 802.11g.
wireless_encrypt_wep		0/7	Indicate whether to support wireless WEP.
wireless_encrypt_wpa		0/7	Indicate whether to support wireless WPA.
wireless_encrypt_wpa2		0/7	Indicate whether to support wireless WPA2.
wireless_beginchannel	1 ~ 14	0/7	Indicate the begin channel of wireless network
wireless_endchannel	1 ~ 14	0/7	Indicate the end channel of wireless network
derivative_brand		0/7	Indicate whether to support the upgrade function for the derivative brand. For example, if the value is true, the VVTK product can be upgraded to VVXX. (TCVV<->TCXX is excepted)
npreset	0,	0/7 Number of preset locations
eptz	0,	0/7 A 32-bit integer, each bit can be set separately as follows:Bit 0 => stream 1 supports ePTZ or not.Bit 1 => stream 2 supports ePTZ or not.The rest may be deduced by analogy
nanystream	0,	0/7 number of any media stream per channel
iva		0/7	Indicate whether to support Intelligent Video analysis
tampering		0/7	Indicate whether to support tampering detection.
test_ac		0/7	Indicate whether to support test ac key.
version_onvifdaemon		0/7	Indicate ONVIF daemon version
image_wdrc		0/7	Indicate whether to support WDR enhanced.
image_iristype		0/7	Indicate iris type.
image_focusassist		0/7	Indicate whether to support focus assist.

7.29 Customized event script

Group: event_customtaskfile_i<0\~2>

PARAMETER VALUE SECURITY		(get/set)	DESCRIPTION
name	string[41]	6/7	Custom script identification of this entry.
date	string[17]	6/7	Date of custom script.
time	string[17]	6/7	Time of custom script.

7.30 Event setting

Group: event_i<0\~2>

PARAMETER VALUE SECURITY		(get/set)	DESCRIPTION
name string[40] 6/6 Identification of this entry.
enable 0, 1 6/6 Enable or disable this event.
priority	0, 1, 2	6/6	Indicate the priority of this event:"0" = low priority"1" = normal priority"2" = high priority
delay	1~999	6/6	Delay in seconds before detecting the next event.
trigger	boot,di,motion,seq,recnotify,tampering,visignal,vi	6/6 Indicate	the trigger condition:"boot" = System boot"di" = Digital input"motion" = Video motion detection"seq" = Periodic condition"visignal" = Video input signal loss."recnotify" = Recording notification."tampering" = Tamper detection."vi" = Virtual input (Manual trigger)
triggerstatus	String[40]	6/6	The status for event trigger
di		6/6	Indicate the source id of di trigger.This field is required when trigger condition is "di".One bit represents one digital input. The LSB indicates DI 0.
mdwinmdwin06/6		6/6	Indicate the source window id of motion detection.This field is required when trigger condition is "md".One bit represents one window.The LSB indicates the 1^st window.For example, to detect the 1^st and 3^rd windows, set mdwin as 5.Similar to mdwin. The parameter takes effect when profile 1 of motion detection is enabled.
vi		6/6	Indicate the source id of vi trigger.This field is required when trigger condition is "vi".One bit represents one digital input. The LSB indicates VI 0.
inter	1~999	6/6	Interval of snapshots in minutes.This field is used when trigger condition is "seq".
weekday	0~127	6/6	Indicate which weekday is scheduled.One bit represents one weekday.bit0 (LSB) = Saturdaybit1 = Fridaybit2 = Thursdaybit3 = Wednesdaybit4 = Tuesdaybit5 = Mondaybit6 = SundayFor example, to detect events on Friday and Sunday, set weekday as 66.
begintime	hh:mm	6/6	Begin time of the weekly schedule.
endtime	hh:mm	6/6	End time of the weekly schedule.(00:00 ~ 24:00 sets schedule as always on)
lowlightcondition	0, 1	6/6	Switch on white light LED in low light condition0 => Do action at all times1 => Do action in low-light conditions
action_do_i<0~(ndo-1) >_enable	0, 1	6/6	Enable or disable trigger digital output.
action_do_i<0~(ndo-1) >_duration	1~999	6/6	Duration of the digital output trigger in seconds.
action_goto_enable		6/6	Enable/disable ptz goto preset position on event triggered.
action_goto_name	string[40]	6/6	Specify the preset name that ptz goto on event triggered.
action_cf_enable		6/6	Enable or disable sending media to SD card.
action_cf_folder	string[128]	6/6	Path to store media.
action_cf_media	NULL, 0~4	6/6	Index of the attached media.
action_cf_datefolder		6/6	Enable this to create folders by date, time, and hour automatically.
action_cf_backup		6/6	Enable or disable the function that send media to SD card for backup if network is disconnected.
action_server_i<0~4>_enable	0, 1 6/6 Enable or disable this server action.
action_server_i<0~4>_media	NULL, 0~4 6/6	Index of the	attached media.
action_server_i<0~4>_datefolder		6/6	Enable this to create folders by date, time, and hour automatically.
action_patrol_enable(only for VS series)		6/6	Enable/disable ptz patrol when event triggered.
action_ patrol _server(only for VS series)	0~255	6/6	Indicate the target servers to which the snapshots taken during patrol dwelling time should be sent.One bit represents one application server (server_i0~i4).bit0 (LSB) = server_i0.bit1 = server_i1.bit2 = server_i2.bit3 = server_i3.bit4 = server_i4.For example, enable server_i0, server_i2, and server_i4 as notification servers; the notifyserver value is 21.

7.31 Server setting for event action

Group: server_i<0\~4>

PARAMETER VALUE SECURITY		(get/set)	DESCRIPTION
name string[40] 6/6 Identification of this entry
type email,	ftp,http,ns	6/6 Indicate	the server type:"email" = email server"ftp" = FTP server"http" = HTTP server"ns" = network storage
http_url	string[128]	6/6	URL of the HTTP server to upload.
http_username	string[64]	6/6	Username to log in to the server.
http_passwd	string[64]	6/6	Password of the user.
ftp_address	string[128] 6/6	FTP server address.
ftp_username	string[64]	6/6	Username to log in to the server.
ftp_passwd	string[64]	6/6	Password of the user.
ftp_port	0~65535	6/6	Port to connect to the server.
ftp_location	string[128]	6/6	Location to upload or store the media.
ftp_passive	0, 1	6/6	Enable or disable passive mode.0 = disable passive mode1 = enable passive mode

email_address string[128]	6/6 Email server address.
email_sslmode 0, 1 6/6	Enable support SSL.
email_port	0~65535	6/6 Port to connect to the server.
email_username string[64]	6/6 Username to log in to the server.
email_passwd string[64]	6/6 Password of the user.
email_senderemail	string[128]	6/6 Email address of the sender.
email_recipientemail	string[128]	6/6 Email address of the recipient.
ns_location	string[128]	6/6 Location to upload or store the media.
ns_username	string[64]	6/6 Username to log in to the server.
ns_passwd	string[64]	6/6 Password of the user.
ns_workgroup	string[64]	6/6 Workgroup for network storage.

7.32 Media setting for event action

Group: media_i<0\~4> (media_freespace is used internally.)

PARAMETER	VALUE	SECURITY (get/set)	DESCRIPTION
name	string[40]	6/6	Identification of this entry
type	snapshot, systemlog, videoclip, recordmsg	6/6 Media type to send to the server or store on the server.
snapshot_source		6/6	Indicate the source of media stream.0 means the first stream.1 means the second stream and etc.2 means the third stream and etc.3 means the fourth stream and etc.
snapshot_prefix	string[16]	6/6	Indicate the prefix of the filename.media_i0=> Snapshot1_media_i1=> Snapshot2_media_i2=> Snapshot3_media_i3=> Snapshot4_media_i4=> Snapshot5_
snapshot_datesuffix	0, 1	6/6	Add date and time suffix to filename:1 = Add date and time suffix.0 = Do not add.
snapshot_preevent	0 ~ 7	6/6	Indicates the number of pre-event images.
snapshot_postevent	0 ~ 7	6/6	The number of post-event images.
videoclip_source		6/6	Indicate the source of media stream.0 means the first stream.1 means the second stream and etc.2 means the third stream and etc.3 means the fourth stream and etc.
videoclip_prefix	string[16]	6/6	Indicate the prefix of the filename.
videoclip_preevent	0 ~ 9	6/6	Indicates the time for pre-event recording in seconds.
videoclip_maxduration	1 ~ 20	6/6	Maximum duration of one video clip in seconds.
videoclip_maxsize	50 ~ 4096	6/6	Maximum size of one video clip file in Kbytes.

7.33 Recording

Group: recording_i<0\~1>

PARAMETER VALUE SECURITY		(get/set)	DESCRIPTION
name	string[40]	6/6	Identification of this entry.
trigger	schedule, networkfail	6/6 The event	trigger type schedule: The event is triggered by schedule networkfail: The event is triggered by the failure of network connection.
enable	0, 1	6/6	Enable or disable this recording.
priority	0, 1, 2	6/6	Indicate the priority of this recording:"0" indicates low priority."1" indicates normal priority."2" indicates high priority.
source	0~3	6/6	Indicate the source of media stream.0 means the first stream.1 means the second stream and so on.
limitsize	0,1	6/6	0: Entire free space mechanism1: Limit recording size mechanism
cyclic	0,1	6/6	0: Disable cyclic recording1: Enable cyclic recording
notify	0,1	6/6	0: Disable recording notification1: Enable recording notification
notifyserver	0~31	6/6	Indicate which notification server is scheduled.One bit represents one application server (server_i0~i4).bit0 (LSB) = server_i0.bit1 = server_i1.bit2 = server_i2.bit3 = server_i3.bit4 = server_i4.For example, enable server_i0, server_i2, and server_i4 as notification servers; the notifyserver value is 21.
weekday	0~127	6/6	Indicate which weekday is scheduled.One bit represents one weekday.bit0 (LSB) = Saturdaybit1 = Fridaybit2 = Thursdaybit3 = Wednesdaybit4 = Tuesdaybit5 = Mondaybit6 = SundayFor example, to detect events on Friday and Sunday, set weekday as 66.
begintime	hh:mm	6/6	Start time of the weekly schedule.
endtime	hh:mm	6/6	End time of the weekly schedule.(00:00~24:00 indicates schedule always on)
prefix	string[16]	6/6	Indicate the prefix of the filename.
cyclesize	200~	6/6	The maximum size for cycle recording in Kbytes when choosing to limit recording size.(not used in IP8162)
reserveamount 0~		6/6 The reserved amount in Mbytes when choosing cyclic recording mechanism.
dest	cf,0~4	6/6	The destination to store the recorded data."cf" means local storage (CF or SD card)."0" means the index of the network storage.
cffolder	string[128]	6/6	Folder name.
adaptive_enableproduct dependent>	0,1	6/6	Indicate whether the adaptive recording is enabled
adaptive_preeventproduct dependent>	0~9	6/6	Indicate when is the adaptive recording started before the event trigger point (seconds)
adaptive_posteventproduct dependent>	0~10	6/6	Indicate when is the adaptive recording stopped after the event trigger point (seconds)

7.34 HTTPS

Group: https (capability.protocol.https > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable		6/6	To enable or disable secure HTTP.
policy		6/6	If the value is 1, it will force HTTP connection redirect to HTTPS connection
method auto,	manual, install	6/6	auto => Create self-signed certificate automatically. manual => Create self-signed certificate manually. install => Create certificate request and install.
status -3 ~ 1 6/7	Specify the https status.		-3 = Certificate not installed-2 = Invalid public key-1 = Waiting for certificate0 = Not installed1 = Active
countryname	string[2]	6/6	Country name in the certificate information.
stateorprovincename	string[128]	6/6	State or province name in the certificate information.
localityname	string[128]	6/6	The locality name in the certificate information.
organizationname	string[64]	6/6	Organization name in the certificate information.
unit	string[32]	6/6	Organizational unit name in the certificate information.
commonname	string[64]	6/6	Common name in the certificate information.
validdays	0 ~ 3650	6/6	Valid period for the certification.

7.35 Storage management setting

Currently it's for local storage (SD, CF card)

Group: disk_i<0\~(n-1)> n is the total number of storage devices. (capability.storage.dbenabled > 0)

PARAMETER	VALUE	SECURITY (get/set)	DESCRIPTION
cyclic_enabled		6/6	Enable cyclic storage method.
autocleanup_enabled		6/6	Enable automatic clean up method.Expired and not locked media files will be deleted.
autocleanup_maxage		6/6	To specify the expired days for automatic clean up.

7.36 Region of interest

Group: roi_c<0\~(n-1)> for n channel product, and m is the number of streams which support ROI. (capability.eptz > 0)

PARAMETER VALUE SECURITY		(get/set)	DESCRIPTION
s<0~(m-1)>_home		6/6	ROI left-top corner coordinate.
s<0~(m-1)>_size	6/6 ROI width and height. The width value must be multiples of 16 and the height value must be multiples of 8	6/6 ROI width and height. The width value must be multiples of 16 and the height value must be multiples of 8	6/6 ROI width and height. The width value must be multiples of 16 and the height value must be multiples of 8

7.37 ePTZ setting

Group: eptz_c<0\~(n-1)> for n channel product. (capability.eptz > 0)

PARAMETER VALUE SECURITY		(get/set)	DESCRIPTION
osdzoom		1/4	Indicates multiple of zoom in is "on-screen display" or not
smooth		1/4	Enable the ePTZ "move smoothly" feature
tiltspeed -5 ~ 5 1/7 Tilt speed			(It should be set by eCamCtrl.cgi rather than by setparam.cgi.)
panspeed	-5 ~ 5	1/7	Pan speed(It should be set by eCamCtrl.cgi rather than by setparam.cgi.)
zoomspeed	-5 ~ 5	1/7	Zoom speed(It should be set by eCamCtrl.cgi rather than by setparam.cgi.)
autospeed	1 ~ 5	1/7	Auto pan/patrol speed(It should be set by eCamCtrl.cgi rather than by setparam.cgi.)

Group: eptz_c<0\~(n-1)>_s<0\~(m-1)> for n channel product and m is the number of streams which support ePTZ. (capability.eptz > 0)

PARAMETER VALUE SECURITY		(get/set)	DESCRIPTION
patrolseq	string[120]	1/4	The patrol sequence of ePTZ. All the patrol position indexes will be separated by ","
patroldwelling	string[160]	1/4	The dwelling time (unit: second) of each patrol point, separated by ",".
preset_i<0~19>_name	string[40]	1/7	Name of ePTZ preset.(It should be set by ePreset.cgi rather than by setparam.cgi.)
preset_i<0~19>_pos		1/7	Left-top corner coordinate of the preset.(It should be set by ePreset.cgi rather than by setparam.cgi.)

preset_i<0~19>_size

1/7 Width and height of the preset.(It should be set by ePreset.cgi rather than by setparam.cgi.)

8. Useful Functions

8.1 Drive the Digital Output (capability.ndo > 0)

Note: This request requires Viewer privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>][&do3=<state>][&do4=<state>]

Where state is 0 or 1; "0" means inactive or normal state, while "1" means active or triggered state.

PARAMETER VALUE DESCRIPTION
do	0, 1	0 – Inactive, normal state
		1 – Active, triggered state

Example: Drive the digital output 1 to triggered state and redirect to an empty page.

http://myserver/cgi-bin/dido/setdo.cgi?do1=1

8.2 Query Status of the Digital Input (capability.ndi > 0)

Note: This request requires Viewer privileges

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3]

If no parameter is specified, all of the digital input statuses will be returned.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[di0=<state>]\r\n
[di1=<state>]\r\n
[di2=<state>]\r\n
[di3=<state>]\r\n

where can be 0 or 1.

Example: Query the status of digital input 1.

Request:
http://myserver/cgi-bin/dido/getdi.cgi?di1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
\r\n
di1=1\r\n

8.3 Query Status of the Digital Output (capability.ndo > 0)

Note: This request requires Viewer privileges

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]

If no parameter is specified, all the digital output statuses will be returned.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[do0=<state>]\r\n
[do1=<state>]\r\n
[do2=<state>]\r\n
[do3=<state>]\r\n

where can be 0 or 1.

Example: Query the status of digital output 1.

Request:
http://myserver/cgi-bin/dido/getdo.cgi?do1

Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
\r\n
do1=1\r\n

8.4 3D Privacy Mask

Note: This request requires admin user privilege

You can set privacy mask only at zoom 1x. To go back to zoom 1x directly, please send this cgi command:

"/cgi-bin/camctrl/camposition.cgi?setzoom=0"

Method: GET/POST

Syntax:

http:///cgi-bin/admin/setpm3d.cgi?method=&name=&[maskheight=&maskwidth=&return=]

PARAMETER VALUE	DESCRIPTION
method	add	Add a 3D privacy mask at current location
	delete Delete a 3D privacy mask
	edit Edit a 3D privacy mask
maskname string[40] 3D privacy mask name
maskheight integer 3D privacy mask height
maskwidth integer 3D privacy mask width
return		Redirect to pageafter the 3D privacy mask is configured. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.5 Capture Single Snapshot

Note: This request requires Normal User privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>][&quality=<value>][&streamid=<value>]

If the user requests a size larger than all stream settings on the server, this request will fail.

PARAMETER	VALUE	DEFAULT	DESCRIPTION
channel	0~(n-1)	0	The channel number of the video source.
resolution		0	The resolution of the image.
quality	1~5	3	The quality of the image.
streamid	0~(m-1)		The stream number.

The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size and quality of the image will be set according to the video settings on the server.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: image/jpeg\r\n
[Content-Length: <image size>\r\n]
<binary JPEG image data>

8.6 Account Management

Note: This request requires Administrator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>][&privilege=<value>][...][&return=<return_page>]

PARAMETER VALUE	DESCRIPTION
method	Add	Add an account to the server. When using this method, the "username" field is necessary. It will use the default value of other fields if not specified.
	Delete	Remove an account from the server. When using this method, the "username" field is necessary, and others are ignored.
	edit	Modify the account password and privilege. When using this method, the "username" field is necessary, and other fields are optional. If not specified, it will keep the original settings.
username		The name of the user to add, delete, or edit.
userpass		The password of the new user to add or that of the old user to modify. The default value is an empty string.
Privilege		The privilege of the user to add or to modify.
	viewer	Viewer privilege.
	operator Operator privilege.
	admin	Administrator privilege.
Return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.7 System Logs

Note: This request require Administrator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/syslog.cgi

Server will return the most up-to-date system log.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <syslog length>\r\n
\r\n
<system log information>\r\n

8.8 Upgrade Firmware

Note: This request requires Administrator privileges.

Method: POST

Syntax:

http://<servername>/cgi-bin/admin/upgrade.cgi

Post data:

fimage=<file name>[&return=<return page>]\r\n\r\n<multipart encoded form data>

Server will accept the file named to upgrade the firmware and return with if indicated.

8.9 Camera Control (capability.ptzenabled)

Note: This request requires Viewer privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/viewer/camctrl.cgi?[channel=<value>][&camid=<value>]
[&move=<value>] - Move home, up, down, left, right
[&focus=<value>] - Focus operation
[&iris=<value>] - Iris operation
[&auto=<value>] - Auto pan, patrol
[&zoom=<value>] - Zoom in, out
[&zooming=<value>&zs=<value>] - Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] - Shift without stopping, used for joystick

[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] - Click on image
(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>][&speedlink=<value>]] - Set speeds
[&return=<return page>]

Example:

http://myserver/cgi-bin/viewer/camctrl.cgi?channel=0&camid=1&move=right
http://myserver/cgi-bin/viewer/camctrl.cgi?channel=0&camid=1&zoom=tele
http://myserver/cgi-bin/viewer/camctrl.cgi?channel=0&camid=1&x=300&y=200&resolution=704x480&videosize=704x480&streach=1

PARAMETER VALUE	DESCRIPTION
channel	<0~(n-1)>	Channel of video source.
camid	0,	Camera ID.
move	home	Move to camera to home position.
	up Move camera up.
	down Move camera down.
	left Move camera left.
	right Move camera right.
speedpan -5 ~ 5	Set the pan speed.
speedtilt	-5 ~ 5	Set the tilt speed.
speedzoom	-5 ~ 5	Set the zoom speed.
speedfocus	-5 ~ 5 Set the focus speed.
speedapp -5 ~ 5	Set the auto pan/patrol speed.
auto	pan	Auto pan.
	patrol	Auto patrol.
	stop	Stop camera.
zoom	wide	Zoom larger view with current speed.
	tele	Zoom further with current speed.
stop	Stop zoom.
zooming	wide or tele	Zoom without stopping for larger view or further view with zs speed, used for joystick control.
zs	0 ~ 60 ~ 15	Set the speed of zooming, "0" means stop.
vx		The slope of movement = vy/vx, used for joystick control.
vy
vs 0 ~ 7	0 ~ 15	Set the speed of movement, “0” means stop.
x		x-coordinate clicked by user.It will be the x-coordinate of center after movement.
y		y-coordinate clicked by user.It will be the y-coordinate of center after movement.
videosize		The size of plug-in (ActiveX) window in web page
resolution		The resolution of streaming.
stretch		0 indicates that it usesresolution(streaming size) as the range of the coordinate system.1 indicates that it usesvideosize(plug-in size) as the range of the coordinate system.
focus	auto	Auto focus.
	far	Focus on further distance.
	near Focus on closer distance.
iris	auto	Let the Network Camera control iris size.
	open	Manually control the iris for bigger size.
	close	Manually control the iris for smaller size.
speedlink	0 ~ 4	Issue speed link command.
gaptime	0~32768	The gaptime between two consecutive ptz commands for device. (unit: ms)
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.10 ePTZ Camera Control (capability.eptz > 0)

Note: This request requires camctrl privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value>
[&move=<value>] - Move home, up, down, left, right
[&auto=<value>] - Auto pan, patrol
[&zoom=<value>] - Zoom in, out
[&zooming=<value>&zs=<value>] - Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] - Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] - Click on image

(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>] ] - Set speeds
[&return=<return page>]

Example:

http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=0&move=right
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&vx=2&vy=2&vz=2
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&x=100&y=100&videosize=640x480&resolution=640x480&stretch=0

PARAMETER VALUE	DESCRIPTION
channel	<0~(n-1)>	Channel of video source.
stream <0~(m-1)	> Stream.
move	home	Move to home ROI.
	up Move up.
	down Move down.
	left Move left.
	right Move right.
auto pan Auto pan
		patrol
		stop
zoom	wide	Zoom larger view with current speed.
	tele	Zoom further with current speed.
zooming	wide or tele	Zoom without stopping for larger view or further view with zs speed, used for joystick control.
zs	0 ~ 6	Set the speed of zooming, "0" means stop.
vx		The direction of movement, used for joystick control.
vy
vs	0 ~ 7	Set the speed of movement, "0" means stop.
x		x-coordinate clicked by user.It will be the x-coordinate of center after movement.
y		y-coordinate clicked by user.It will be the y-coordinate of center after movement.
videosize		The size of plug-in (ActiveX) window in web page
resolution		The resolution of streaming.
stretch		0 indicates that it usesresolution(streaming size) as the range of the coordinate system.1 indicates that it usesvideosize(plug-in size) as the range of the coordinate system.
speedpan -5 ~ 5	Set the pan speed.
speedtilt	-5 ~ 5	Set the tilt speed.
speedzoom	-5 ~ 5	Set the zoom speed.
speedapp 1 ~ 5	Set the auto pan/patrol speed.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path.

8.11 Recall (capability.ptzenabled)

Note: This request requires Viewer privileges.

Method: GET

Syntax:

http://<servername>/cgi-bin/viewer/recall.cgi?
recall=<value>[&channel=<value>][&return=<return page>]

PARAMETER VALUE	DESCRIPTION
recall	Text string less than 30 characters	One of the present positions to recall.
channel	<0~(n-1)>	Channel of the video source.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.12 ePTZ Recall (capability.eptz > 0)

Note: This request requires camctrl privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>&recall=<value>[&return=<return page>]

PARAMETER VALUE DESCRIPTION
channel	<0~(n-1)>	Channel of the video source.
stream <0~(m-1)> Stream.
recall	Text string less than 40 characters	One of the present positions to recall.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path.

8.13 Preset Locations (capability.ptzenabled)

Note: This request requires Operator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>]
[&addpos=<value>][&delpos=<value>][&return=<return page>]

PARAMETER VALUE DESCRIPTION
addpos	ng less than30 characters>	Add one preset location to the preset list.
channel	<0~(n-1)>	Channel of the video source.
delpos		Delete preset location from preset list.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.14 ePTZ Preset Locations (capability.eptz > 0)

Note: This request requires Operator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/operator/ePreset.cgi?channel=<value>&stream=<value>[&addpos=<value>][&delpos=<value>][&return=<return page>]

PARAMETER VALUE DESCRIPTION

channel	<0~(n-1)>	Channel of the video source.
stream <0~(m-1)> Stream.
addpos	ing less than40 characters>	Add one preset location to the preset list.
delpos	ing less than40 characters>	Delete preset location from the preset list.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path.

8.15 IP Filtering

Note: This request requires Administrator access privileges.

Method: GET/POST

Syntax:

http://cgi-bin/admin/ipfilter.cgi?type[=]http://cgi-bin/admin/ipfilter.cgi?method=add&ip=[&index=][&return=]http://cgi-bin/admin/ipfilter.cgi?method=del&index=[&return=]
PARAMETER VALUE DESCRIPTION
type NULL	Get IP filter type
	allow, deny	Set IP filter type
method	addv4	Add IPv4 address into access list.
	addv6	Add IPv6 address into access list.
	delv4	Delete IPv4 address from access list.
	delv6	Delete IPv6 address from access list.
ip		Single address:Network address:Range address:
index		The start position to add or to delete.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.16 UART HTTP Tunnel Channel (capability.nuart > 0)

Note: This request requires Operator privileges.

Method: GET and POST

Syntax:

http://<servername>/cgi-bin/operator/uartchannel.cgi?[channel=<value>]

GET /cgi-bin/operator/uartchannel.cgi?[channel=<value>]

x-sessioncookie: string[22]

accept: application/x-vvtk-tunnelled

pragma: no-cache

cache-control: no-cache

POST /cgi-bin/operator/uartchannel.cgi

x-sessioncookie: string[22]

content-type: application/x-vvtk-tunnelled

pragma : no-cache

cache-control : no-cache

content-length: 32767

expires: Sun, 9 Jam 1972 00:00:00 GMT

User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in GET and POST should be the same to be recognized as a pair for one session. The contents of upstream should be base64 encoded to be able to pass through a proxy server.

This channel will help to transfer the raw data of UART over the network.

Please see UART tunnel spec for detail information

PARAMETER VALUE DESCRIPTION
channel	0 ~ (n-1)	The channel number of UART.

8.17 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0)

Note: This request requires Administrator privileges.

Method: GET and POST

Syntax:

http://<servername>/cgi-bin/admin/ctrlevent.cgi
GET /cgi-bin/admin/ctrlevent.cgi
x-sessioncookie: string[22]
accept: application/x-vvtk-tunnelled

pragma: no-cache

cache-control: no-cache

POST /cgi-bin/admin/ ctrlevent.cgi

x-sessioncookie: string[22]

content-type: application/x-vvtk-tunnelled

pragma : no-cache

cache-control : no-cache

content-length: 32767

expires: Sun, 9 Jam 1972 00:00:00 GMT

User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in GET and POST should be the same to be recognized as a pair for one session. The contents of upstream should be base64 encoded to be able to pass through the proxy server.

This channel will help perform real-time event subscription and notification as well as camera control more efficiently. The event and control formats are described in another document.

See Event/control tunnel spec for detail information

8.18 Get SDP of Streams

Note: This request requires Viewer access privileges.

Method: GET/POST

Syntax:

http://<servername>/<network_rtsp_s<0~m-1>_accessname>

"m" is the stream number.

"network_accessname_<0\~(m-1)>” is the accessname for stream "1" to stream "m". Please refer to the "subgroup of network: rtsp" for setting the accessname of SDP.

You can get the SDP by HTTP GET.

When using scalable multicast, Get SDP file which contains the multicast information via HTTP.

8.19 Open the Network Stream

Note: This request requires Viewer access privileges.

Syntax:

For HTTP push server (MJPEG):

http://<servername>/<network_http_s<0~m-1>_accessname>

For RTSP (MP4), the user needs to input the URL below into an RTSP compatible player.

|rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname>

"m" is the stream number.

For details on streaming protocol, please refer to the "control signaling" and "data format" documents.

8.20 Senddata (capability.nuart > 0)

Note: This request requires Viewer privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/viewer/senddata.cgi?
[com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>]

PARAMETER VALUE	DESCRIPTION
com 1 ~	com port number>	The target COM/RS485 port number.
data	[,]	Theis a series of digits from 0 ~ 9, A ~ F. Each comma separates the commands by 200 milliseconds.
flush	yes,no	yes:Receive data buffer of the COM port will be cleared before read.no: Do not clear the receive data buffer.
wait	1 ~ 65535	Wait time in milliseconds before read data.
read	1 ~ 128	The data length in bytes to read. The read data will be in the return page.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <system information length>\r\n
\r\n
<hex decimal data>\r\n

Where hexadecimal data is digits from 0 \~ 9, A \~ F.

8.21 Storage managements (capability.storage.dbenabled > 0)

Note: This request requires administrator privileges.

Method: GET and POST

Syntax:

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>...]

The commands usage and their input arguments are as follows.

PARAMETER VALUE	DESCRIPTION
cmd_type	Required.	Command to be executed, including search, insert, delete, update, and queryStatus.

Command: search

PARAMETER VALUE	DESCRIPTION
label	Optional.	The integer primary key column will automatically be assigned a unique integer.
triggerType	Optional.	Indicate the event trigger type.Please embrace your input value with single quotes.Ex. mediaType='motion'Support trigger types are product dependent.
mediaType	Optional.	Indicate the file media type.Please embrace your input value with single quotes.Ex. mediaType='videoclip'Support trigger types are product dependent.
destPath	Optional.	Indicate the file location in camera.Please embrace your input value with single quotes.Ex. destPath='/mnt/auto/CF/NCMF/abc.mp4'
resolution	Optional.	Indicate the media file resolution.Please embrace your input value with single quotes.Ex. resolution='800x600'
isLocked	Optional.	Indicate if the file is locked or not.0: file is not locked.1: file is locked.A locked file would not be removed from UI or cyclic storage.
triggerTime	Optional.	Indicate the event trigger time. (not the file created time)Format is "YYYY-MM-DD HH:MM:SS"Please embrace your input value with single quotes.Ex. triggerTime='2008-01-01 00:00:00'If you want to search for a time period, please apply "TO" operation.Ex. triggerTime='2008-01-01 00:00:00'+TO+'2008-01-01 23:59:59'is to search for records from the start of Jan 1^st 2008 to the end of Jan 1^st 2008.
limit		Optional.Limit the maximum number of returned search records.
offset		Optional.Specifies how many rows to skip at the beginning of the matched records.Note that the offset keyword is used after limit keyword.

To increase the flexibility of search command, you may use "OR" connectors for logical "OR" search operations. Moreover, to search for a specific time period, you can use "TO" connector.

Ex. To search records triggered by motion or di or sequential and also triggered between 2008-01-01 00:00:00 and 2008-01-01 23:59:59.

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=search&triggerType='motion'+OR+'di'+OR+'seq'&triggerTime='2008-01-01 00:00:00'+TO+'2008-01-01 23:59:59'

Command: delete

PARAMETER VALUE	DESCRIPTION
label		Required.Identify the designated record.Ex. label=1

Ex. Delete records whose key numbers are 1, 4, and 8.

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=delete&label=1&label=4&label=8

Command: update

PARAMETER VALUE	DESCRIPTION
label		Required.Identify the designated record.Ex. label=1
isLocked		Required.Indicate if the file is locked or not.

Ex. Update records whose key numbers are 1 and 5 to be locked status.

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5

Ex. Update records whose key numbers are 2 and 3 to be unlocked status.

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=0&label=2&label=3

Command: queryStatus

PARAMETER VALUE	DESCRIPTION
retType xml or javascript	Optional.	Ex. retype=javascriptThe default return message is in XML format.

Ex. Query local storage status and call for javascript format return message.

http://<servername>/cgi-bin/admin/Isctrl.cgi?cmd=queryStatus&retType=javascript

8.22 Virtual input (capability.nvi > 0)

Note: Change virtual input (manual trigger) status.

Method: GET

Syntax:

http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>]
[&return=<return page>]

PARAMETER	VALUE	DESCRIPTION
vistate[(duration)nstate]Where "state" is 0, 1. "0" means inactive or normal state while "1" means active or triggered state.Where "nstate" is next state after duration.		Ex: vi0=1Setting virtual input 0 to trigger state
		Ex: vi0=0(200)1Setting virtual input 0 to normal state, waiting 200 milliseconds, setting it to trigger state.Note that when the virtual input is waiting for next state, it cannot accept new requests.
return		Redirect to the pageafter the request is completely assigned. Thecan be a full URL path or relative path according the current path. If you omit this parameter, it will redirect to an empty page.

Return Code Description
200	The request is successfully executed.
400	The request cannot be assigned, ex. incorrect parameters.Examples:setvi.cgi?vi0=0(10000)1(15000)0(20000)1No multiple duration.setvi.cgi?vi3=0VI index is out of range.setvi.cgi?vi=1No VI index is specified.
503	The resource is unavailable, ex. Virtual input is waiting for next state.Examples:setvi.cgi?vi0=0(15000)1setvi.cgi?vi0=1Request 2 will not be accepted during the execution time(15 seconds).

8.23 Open Timeshift Stream (capability.timeshift > 0,

timeshift\_enable=1, timeshift\_c\_s\_allow=1)

Note: This request requires Viewer access privileges.

Syntax:

For HTTP push server (MJPEG):

http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<value>&forcechk&minsft=<value>]

For RTSP (MP4 and H264), the user needs to input the URL below into an RTSP compatible player.

rtsp://<servername>/<network_rtsp_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<value>&forcechk&minsft=<value>]

n" is the channel index.

m" is the timeshift stream index.

For details on timeshift stream, please refer to the "TimeshiftCaching" documents.

PARAMETER	VALUE	DEFAULT	DESCRIPTION
maxsft	positiveinterger>	0 Request cached stream at most how many seconds ago.
tsmode normal,adaptive	adaptive	normal Streaming mode:normal => Full FPS all the time.adaptive => Default send only I-frame for MP4 and H.264, and send 1 FPS for MJPEG. If DI or motion window are triggered, the streaming is changed to send full FPS for 10 seconds.(*Note: this parameter also works on non-timeshift streams.)
reftime mm:ss	The time	camera receives the request.	Reference time for maxsft and minsft.(This provides more precise time control to eliminate the inaccuracy due to network latency.)Ex: Request the streaming from 12:20rtsp://10.0.0.1/live.sdp?maxsft=10&reftime=12:30
forcechk	N/A	N/A	Check if the requested stream enables timeshift, feature and if minsft is achievable.If false, return "415 Unsupported Media Type".
minsft	<positive0How many seconds of cached stream client can accept at least.interger> (Used	0by forcechk)	How many seconds of cached stream client can accept at least.

Return Code Description
400 Bad Request	Request is rejected because some parameter values are illegal.
415 Unsupported Media Type	Returned, if forcechk appears, when minsft is not achievable or the timeshift feature of the target stream is not enabled.

8. 24 Open Anystream (capability.nanystream > 0)

Note: This request requires Viewer access privileges.

Syntax:

For HTTP push server (MJPEG):

http://<servername>/videoany.mjpg?codectype=mjpeg[&resolution=<value>&mjpeg_quant=<value>&mjpeg_qv
value=<value>&mjpeg_maxframe=<value>]

For RTSP (MPEG4), the user needs to input the URL below into an RTSP compatible player.

rtsp://<servername>/liveany.sdp?codetype=mpeg4[&resolution=<value>&mpeg4_intraperiod=<value>&mpeg4_ratecontrolmode=<value>&mpeg4_quant=<value>&mpeg4_qvalue=<value>&mpeg4_bitrate=<value>&mpeg4_maxframe=<value>]

For RTSP (H264), the user needs to input the URL below into an RTSP compatible player.

rtsp://<servername>/liveany.sdp?codectype=h264[&resolution=<value>&h264_intraperiod=<value>&h264_ratecontrolmode=<value>& h264_quant=<value>& h264_qvalue=<value>& h264_bitrate=<value>&h264_maxframe=<value>]

PARAMETER	VALUE	DEFAULT	DESCRIPTION
codectype mjpeg, mpeg	4, h264	N/A Set code	type for Anystream.
solution	capability_videoin_resolution		Video resolution in pixels.
mjpeg_quant	0, 1~599, 1~5	3	Quality of JPEG video.0,99 is the customized manual input setting.1 = worst quality, 5 = best quality.
mjpeg_qvalue	10~2002~97	50	Manual video quality level input.(This must be present if mjpeg_quant is equal to 0, 99)
mjpeg_maxframe	1~25,26~30 (only for NTSC or60Hz CMOS)	15	Set maximum frame rate in fps (for JPEG).
mpeg4_intraperiod	250, 500, 1000, 2000, 3000, 4000	1000	Intra frame period in milliseconds.
mpeg4_ratecontrolmode	cbr, vbr vbr cbr: constant bitrate		vbr: fix quality
mpeg4_quant 0, 1~5	99, 1~5	3 Quality of video when choosing vbr in "mpeg4_ratecontrolmode".0,99 is the customized manual input setting.1 = worst quality, 5 = best quality.
mpeg4_qvalue 1~31	2~31	7	Manual video quality level input.(This must be present if mpeg4_quant is equal to 0, 99)
mpeg4_bitrate 1000~80	000001000~4000000	512000	Set bit rate in bps when choosing cbr in "mpeg4_ratecontrolmode".
mpeg4_maxframe 1~25,26~30 (only for NTSC or 60Hz CMOS)		1015	Set maximum frame rate in fps (for MPEG-4).
h264_intraperiod	250, 500, 1000, 2000, 3000, 4000	1000	Intra frame period in milliseconds.
h264_ratecontrolmode	cbr, vbr	vbr	cbr: constant bitratevbr: fix quality
h264_quant 0, 1~5	99, 1~5	3 Quality of video when choosing vbr in "h264_ratecontrolmode".0,99 is the customized manual input setting.1 = worst quality, 5 = best quality.
h264_qvalue 0~51		30	Manual video quality level input.(This must be present if h264_quant is equal to 0, 99)
h264_bitrate 1000~800	00001000~4000000	512000	Set bit rate in bps when choosing cbr in "h264_ratecontrolmode".
h264_maxframe 1~25,26~30 (only for NTSC or 60Hz CMOS)		1015	Set maximum frame rate in fps (for H264).

Technical Specifications

System

· CPU: TI DM368 SoC
- Flash: 128MB
· RAM: 256MB
- Embedded OS: Linux 2.6

Lens

CS-mount, vari-focal, f = 3.1 8 mm, F1.2, auto iris (IP8162)
· CS Mount lens, f = 3.1 \~ 8 mm, F1.2, vari-focal, P-iris (IP8162P)
- Removable IR-cut filter for day & night function

Angle of View

• 42.2°\~105.4° (horizontal)
• 23.8°\~57.9" (vertical)
  · 48.3°-123.1° (diagonal)

Shutter Time

· 1/5 sec. to 1/32,000 sec.

Image Sensor

1/2.7" CMOS sensor in 1920 x 1080 resolution

Minimum Illumination

· 0.06 Lux / F1.2 (Color)
- 0.001 Lux / F1.2 (B/W)

Video

• Compression: H.264, MJPEG & MPEG-4
- Streaming:

Multiple simultaneous streams

H.264 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS

• Supports activity adaptive streaming for dynamic frame rate control
• Supports video cropping for bandwidth saving
• Supports ePTZ for data efficiency
• Supports 3GPP mobile surveillance
- Frame rates:

H.264

Up to 30 fps at 1280x720
Up to 30 fps at 1920x1080
MPEG-4

Up to 30 fps at 1280x720

Up to 27 fps at 1920x1080

MJPEG:

Up to 30 fps at 1280x720
Up to 30 fps at 1920x1080

- Interface:

BNC connector for video output
NTSC/PAL video output switch
Focus assist button

Image Settings

• Adjustable image size, quality and bit rate
  · Time stamp and text caption overlay
• Flip & mirror
• Configurable brightness, contrast, saturation, sharpness, white
  balance and exposure
• AGC, AWB, AES
  · WDR enhanced
  • Automatic, manual or scheduled day/night mode
  · BLC (Backlight Compensation)
• Supports privacy masks

Audio

- Compression:

GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, μ-Law, or A-Law mode selectable

- Interface:

Built-in microphone
External microphone input
Audio output
External/Internal microphone switch
Supports two-way audio
Supports audio mute

Networking

• 10/100 Mbps Ethernet, RJ-45
• Onvif support
• Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP.
  DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1x

Alarm and Event Management

• Triple-window video motion detection
• Tamper detection
• One D/I and one D/O for external sensor and alarm
• Event notification using HTTP, SMTP or FTP
• Local recording of MP4 file

On-board Storage

• SD/SDHC card slot
• Stores snapshots and video clips

Security

• Multi-level user access with password protection
• IP address filtering
• HTTPS encrypted data transmission
• 802.1X port-based authentication for network protection

Users

• Live viewing for up to 10 clients

Dimension

- 154 mm (D) x 72 mm (W) x 62 mm (H)

Weight

- IP8162P Net: 611 g (Without lens)

LED Indicator

• System power and status indicator
• System activity and network link indicator

Power

• 12V DC
• 24V AC
• Power consumption: Max. 4.92W
• 802.3af compliant Power-over-Ethemet (Class 3)

Approvals

- CE, LVD, FCC, VCCI, C-Tick

Operating Environments

• Temperature: -10 \~ 50 °C (14 \~ 122 °F)
• Humidity: 90% RH

Viewing System Requirements

• OS: Microsoft Windows 7/Vista/XP/2000
• Browser: Mozilla Firefox, Internet Explorer 6.x or above
• Cell phone: 3GPP player
• Real Player: 10.5 or above
• Quick Time: 6.5 or above

Installation, Management, and Maintenance

• RS-485 interface for scanners, pan/tilts
  • Installation Wizard 2
• 32-CH ST7501 recording software
• Supports firmware upgrade

Applications

- SDK available for application development and system integration

Warranty

- 36 months

All specifications are subject to change without notice. Copyright ©2011 VIVOTEK INC. All rights reserved.

Technology License Notice

MPEG-4 AAC Technology

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.

MPEG-4 Visual Technology

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. PLEASE REFER TO HTTP://WWW.MPEGLA.COM.

AMR-NB Standard

THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS' PATENTS MAY APPLY:

TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA CORPORATION: US PAT. 5946651; 6199035. VOICEAGE CORPORATION: AT PAT. 0516621; BE PAT. 0516621; CA PAT. 2010830; CH PAT. 0516621; DE PAT. 0516621; DK PAT. 0516621; ES PAT. 0516621; FR PAT. 0516621; GB PAT. 0516621; GR PAT. 0516621; IT PAT. 0516621; LI PAT. 0516621; LU PAT. 0516621; NL PAT. 0516621; SE PAT 0516621; US PAT 5444816; AT PAT. 819303/AT E 198805T1; AU PAT. 697256; BE PAT. 819303; BR PAT. 9604838-7; CA PAT. 2216315; CH PAT. 819303; CN PAT. ZL96193827.7; DE PAT. 819303/DE69611607T2; DK PAT. 819303; ES PAT. 819303; EP PAT. 819303; FR PAT. 819303; GB PAT. 819303; IT PAT. 819303; JP PAT. APP. 8-529817; NL PAT. 819303; SE PAT. 819303; US PAT. 5664053. THE LIST MAY BE UPDATED FROM TIME TO TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR'S WEBSITE AT HTTP://WWW.VOICEAGE.COM.

Electromagnetic Compatibility (EMC)

FCC Statement

This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.

■ This device may not cause harmful interference, and
■ This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partial installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.

Shielded interface cables must be used in order to comply with emission limits.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

VCCI Warning

VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
