Tripod T99UWS1 - Projection screen Elite Screens - Free user manual and instructions

Product Type	Portable Tripod Projection Screen
Brand	Elite Screens
Model	T99UWS1
Diagonal Screen Size	99 inches
Aspect Ratio	16:9 (assumed)
Screen Material	Vinyl or matte white fabric
Weight	Approximately 12 lbs
Dimensions (Case)	Approximately 96 x 4 x 4 inches
Power Source	None (manual operation)
Setup Type	Freestanding tripod with telescoping extension
Height Adjustment Range	Adjustable via vertical extension bar and locking sleeve
Keystone Correction	Built-in Keystone Eliminator to tilt screen forward
Carrying Handle	Integrated carrying handle with height adjustment lock
Screen Retraction	Manual retract into case with locking mechanism
Maintenance	Clean with soft dry cloth; avoid sharp objects
Safety Precautions	Extend legs fully; place on stable surface
Spare Parts Availability	Contact Elite Screens or authorized dealers
Warranty	Limited warranty (check manufacturer website)
Manual Format	PDF quick start guide included

Frequently Asked Questions - Tripod T99UWS1 Elite Screens

How do I set up the tripod screen?

Place the screen upright with legs towards ground, extend tripod legs by pushing down on the tripod junction, then rotate the casing to horizontal position. Fully extend legs for stability and hook the screen handle onto the top hook.

How do I adjust the screen height?

Unlock the vertical locking sleeve ring by turning counterclockwise, raise the vertical extension bar to desired height, then tighten the ring clockwise. For lower adjustment, pull the screen height adjustment lock tab and slide the handle.

What is the Keystone Eliminator and how does it work?

The Keystone Eliminator is a built-in feature that tilts the screen forward to prevent the keystone effect (trapezoid distortion) caused by projecting at a downward angle.

How do I take down the screen?

Unlock the adjustment handle, slide it down, hold the extension bar while unlocking the vertical sleeve ring, lower the bar, unhook the screen, and slowly retract it. Then turn the casing vertically and lock the top hook pin into the end cap hole before closing legs.

How do I clean the screen surface?

Clean the screen surface with a soft dry cloth when needed. Do not fold the screen or use sharp objects that could damage the material.

Why is my screen showing a trapezoid shape?

This is known as the keystone effect. Use the Keystone Eliminator by sloping the screen forward to correct the image distortion.

Can I use this screen outdoors?

Yes, but ensure the tripod legs are fully extended and placed on a stable, level surface. Avoid windy conditions to prevent tipping.

What is the maximum height adjustment?

The height is adjustable via the vertical extension bar, but exact maximum height is not specified in the manual. Typically, tripod screens adjust from about 4 to 8 feet from floor to top hook.

How do I store the screen after use?

Retract the screen fully into the case, lock the top hook pin into the end cap hole, close the legs, and tighten the locking sleeve ring. Store in a dry place.

Where can I get replacement parts or support?

Visit www.elitescreens.com for technical support, local contacts, and spare parts availability.

USER MANUAL Tripod T99UWS1 Elite Screens

ELITE SCREENS

Tripod Portable Projection Screen

Tripod Series / Tripod Pro Series

USER'S GUIDE

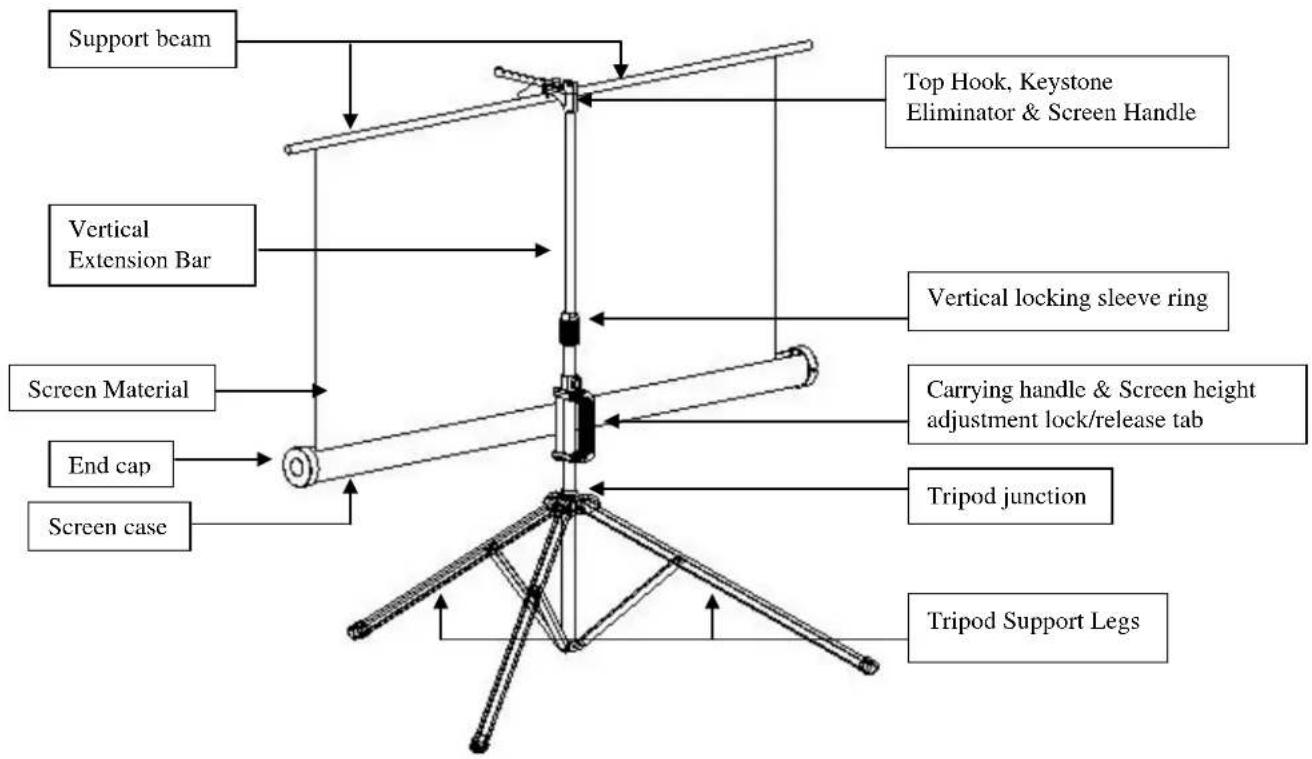

Tripod Screen Parts Identification

Using the Screen

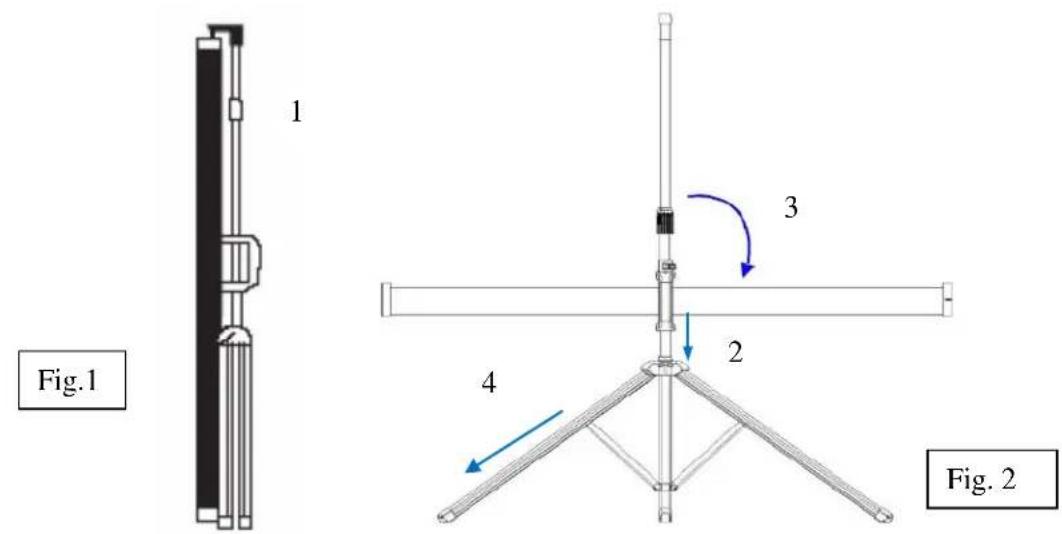

A. Setting up the screen:

Follow the steps below and Fig. 1 & 2.

1. Place the screen in an upright position (fig.1) with the legs toward the ground.

2. Deploy the Tripod Support legs by pushing down on the Tripod Junction.

3. Turn the tripod's screen casing in a 90-degree horizontal position so that the screen casing is now parallel to the ground with the screen handle facing the bottom of the top hook.

4. Completely extend the legs as much as possible so they are stable and position them away from objects that may interfere with their balance. DO NOT stand the tripod on an unstable platform to avoid an injury should the tripod screen collapse.

Fig.1 1 3 2 4 Fig. 2

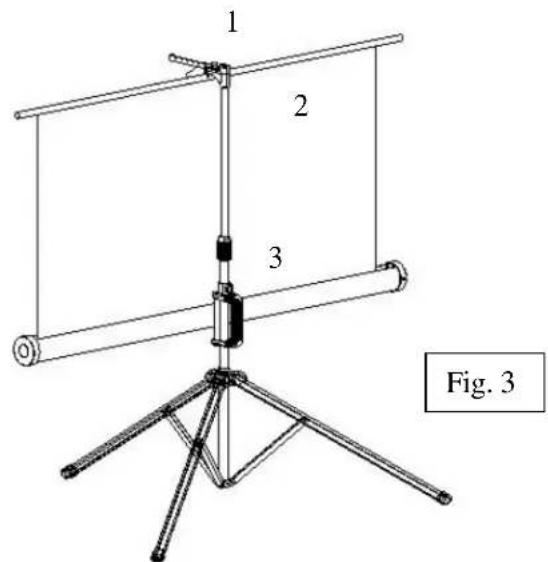

B. Preparing the tripod screen for projection:

Follow the steps below and Fig. 3.

1. Pull the screen handle up vertically and hook the screen handle on the Top Hook.

*Note: Use the Keystone Eliminator to prevent “Keystone Effect” from occurring. Keystone Effect is caused when a projector presents its image at a downward angle causing a trapezoid-shaped image to appear on the screen. The Keystone Eliminator is designed to eliminate that effect by sloping the screen forward.

1. Twist the Vertical Locking Sleeve Ring counterclockwise to unlock the current position of the Vertical Extension Bar and raise it as necessary to the desired height.

2. Pull the Screen Height Adjustment Lock/Release tab out (to the left) located just above the Carrying Handle to raise or lower the bottom of the. Once the desired height has been set, push the tab in to lock the position in place.

1 2 3 Fig. 3

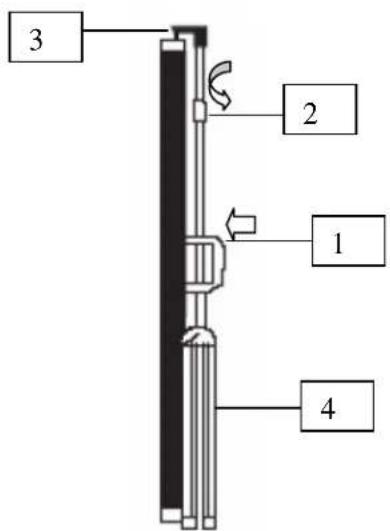

C. Disassembling the screen:

Follow the steps below and Fig. 4.

1. Unlock the Adjustment Handle by pulling the locking tab to the left and slowly slide the handle all the way down to bring down the position of the screen's case.
2. Hold the Extension Bar and twist the Vertical Locking Sleeve Ring counter-clockwise to unlock and release the position of the extension bar. Once the extension bar has been brought all the way down, unhook the screen material from the Top Hook and slowly retract the screen back into the case.

* Note: It is very important to remember to hold the extension bar first and then unlock the sleeve to prevent the extension bar from slamming and damaging the screen.

1. Turn the screen's case vertically clockwise and insert the Top Hook's bottom pin to lock into the screen's end cap hole.
2. Close the tripod legs by pushing them in. Lastly, tighten the Vertical Locking Sleeve Ring by twisting it clockwise.

3 2 1 4

Fig. 4

Note:

o To ensure the screen is stable, extend the tripod's legs as much as possible.
o Do not fold the screen or allow any sharp objects to touch the screen's surface.
o Clean the screen surface often when needed.
o Careful use will extend the lifetime of this product.

For more information, technical support or your local Elite Screens contact, please visit www.elitescreens.com
