OB-202Ae - Security Camera Brickcom - Free user manual and instructions

Product Type	Security Camera (IP)
Brand	Brickcom
Model	OB-202Ae
Dimensions (approx.)	70 mm x 70 mm x 130 mm
Weight (approx.)	350 g
Power Supply	PoE (802.3af) or DC 12V, 1A
Power Consumption	Max. 6 W
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	Up to 1920x1080 (Full HD)
Lens Type	Fixed focal, 2.8 mm / 4 mm optional
Night Vision	IR LEDs, range up to 30 m
Main Functions	Motion detection, false alarm filter, dual-stream, ONVIF support
Storage	MicroSD slot (up to 128 GB) or NAS
Network Interface	RJ-45 10/100Mbps Ethernet
Audio	Built-in mic, optional external speaker (via I/O)
Ingress Protection	IP67 (weatherproof)
Operating Temperature	-30°C to 60°C
Mounting Type	Ceiling / wall mount bracket included
Included Accessories	Mounting kit, power adapter (if non-PoE), quick start guide
Maintenance & Cleaning	Gently clean lens with soft dry cloth; avoid harsh chemicals
Safety Precautions	Use only certified power supply; install in accordance with local regulations
Spare Parts & Repairability	Contact Brickcom support for replacement parts; repair by authorized technician recommended
General Information	Compatible with major VMS software; firmware upgrade via web interface

Frequently Asked Questions - OB-202Ae Brickcom

How do I reset the Brickcom OB-202Ae to factory defaults?

Press and hold the Reset button (located near the Ethernet port) for about 10 seconds until the camera reboots. The IP address will revert to 192.168.0.100.

What is the default IP address and login credentials?

Default IP is 192.168.0.100. Username: admin. Password: admin (or blank). Change these immediately after first login.

How can I access the camera remotely over the internet?

Set up port forwarding on your router for ports 80 (HTTP) and 554 (RTSP). Alternatively, use the Brickcom DDNS service or a compatible NVR/VMS with cloud access.

Why is the infrared (IR) night vision not working?

Check if the camera is in Day/Night auto mode. Ensure the IR LEDs are not blocked by dirt or obstructions. If still not working, reset camera or update firmware.

Can I use a PoE injector with the OB-202Ae?

Yes, the camera supports PoE (802.3af). Use a PoE injector or a PoE switch. Alternatively, you can use the included 12V DC power adapter.

How do I update the firmware on the OB-202Ae?

Download the latest firmware from the Brickcom website. Access the camera's web interface, go to System > Firmware Upgrade, and upload the file. Do not power off during upgrade.

What is the maximum microSD card capacity supported?

The camera supports microSD cards up to 128 GB (Class 10 or better recommended). Insert the card into the slot on the side of the camera.

The camera shows a blurry image. What should I do?

Clean the lens with a soft dry cloth. Ensure the camera is not behind glass (IR reflection). Check the focus ring if available; otherwise, adjust the camera position.

How do I configure motion detection on the OB-202Ae?

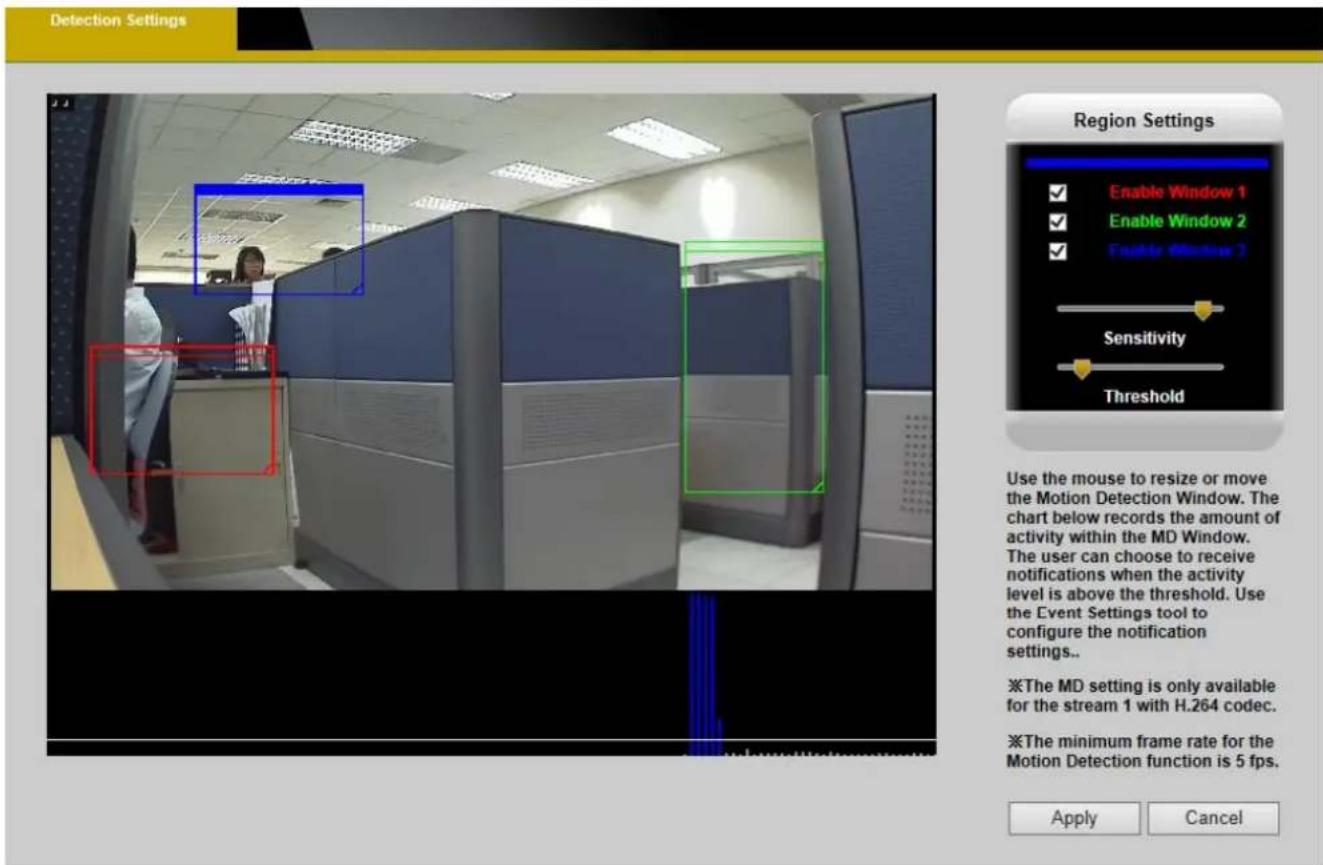

Log into the camera's web interface, go to Events > Motion Detection, enable it, and draw areas on the video. Adjust sensitivity and schedule as needed.

Is the Brickcom OB-202Ae compatible with ONVIF?

Yes, it is ONVIF Profile S compliant. This allows integration with third-party NVRs, VMS software, and other ONVIF-compatible devices.

USER MANUAL OB-202Ae Brickcom

Brickcom Software User's Manual

For Firmware Release V3.2.x.x

Product name: Network Camera v3.2.3.5.6 Firmware

Release Date: 2014/11

Manual Revision: V3.0.

Web site: www.brickcom.com

Email: [e-mail]

[e-mail]

Editor: Tracy Cho

© 2014 Brickcom Corporation. All Rights Reserved

Table of Contents

Log in the Camera....3

Installing the Plug-In....4

Live View 5

Image Dewarping (MD-500Ap-360P, MD-300Np-360P, and CB-500Ap-360P Only) ......6

Status Icons 10

Configuration 13

Camera/Video/Audio 13

Camera 13

Video....17

Advanced Setting 20

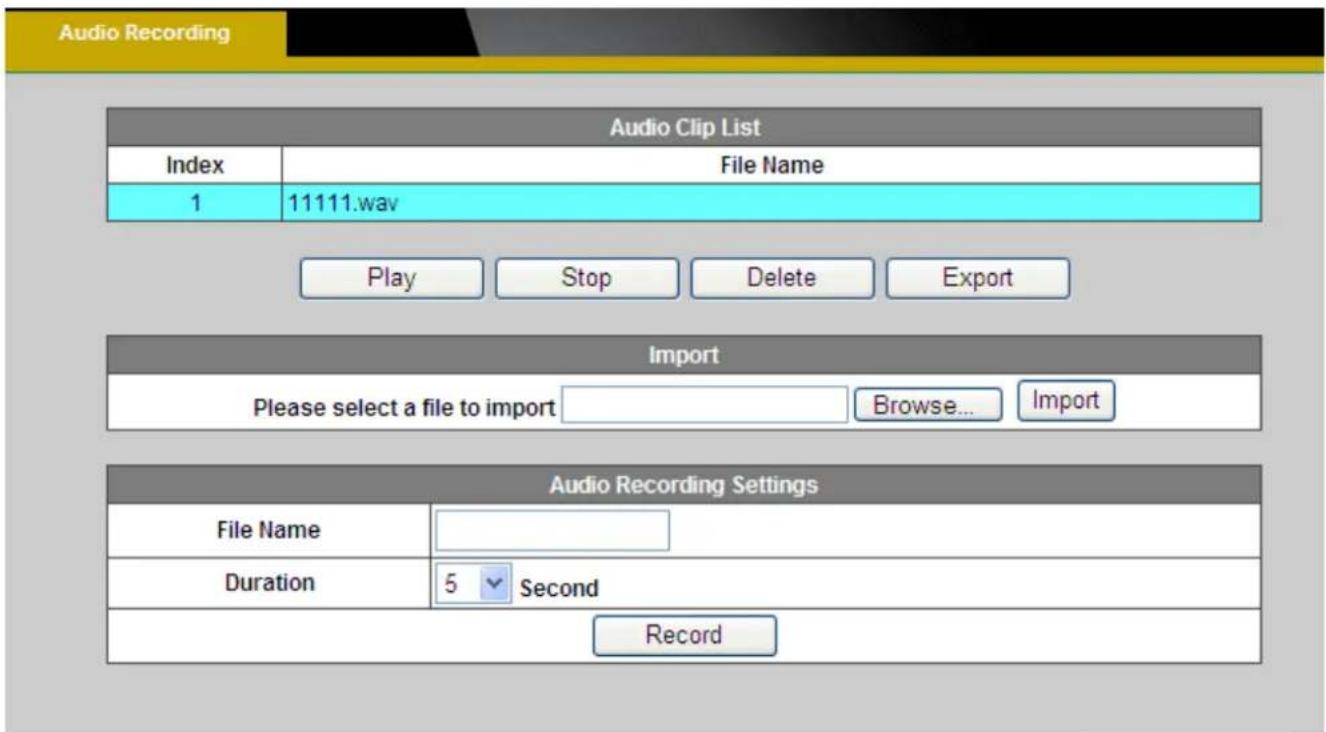

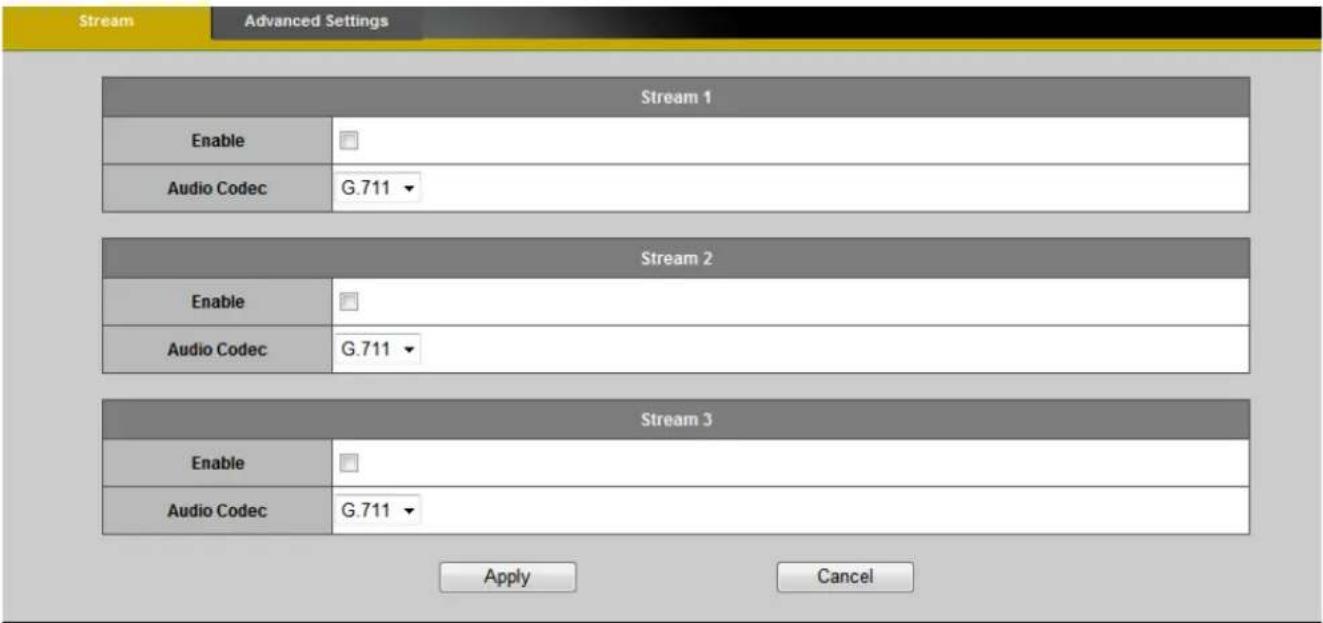

Audio 20

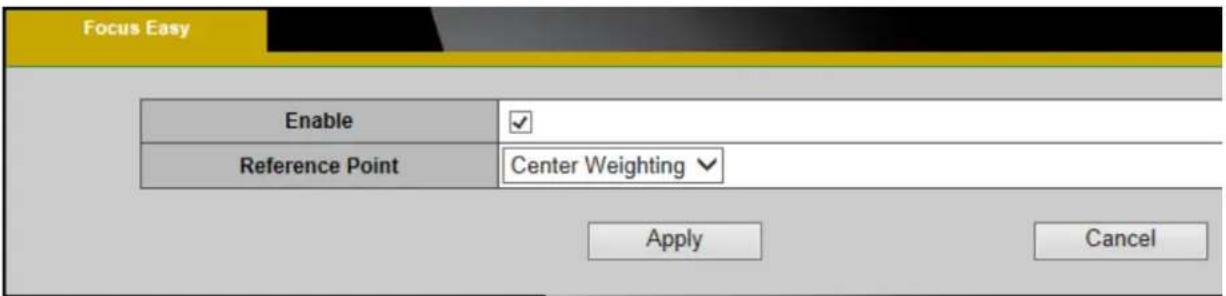

Focus Easy (*)....22

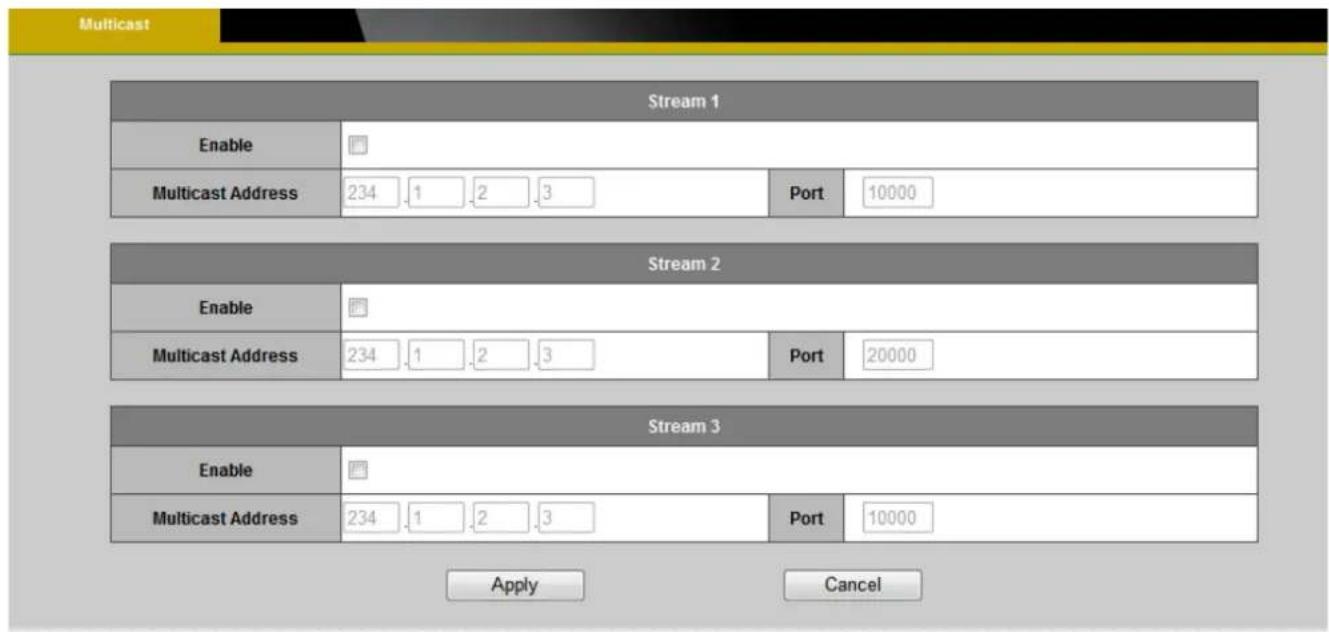

Multicast....23

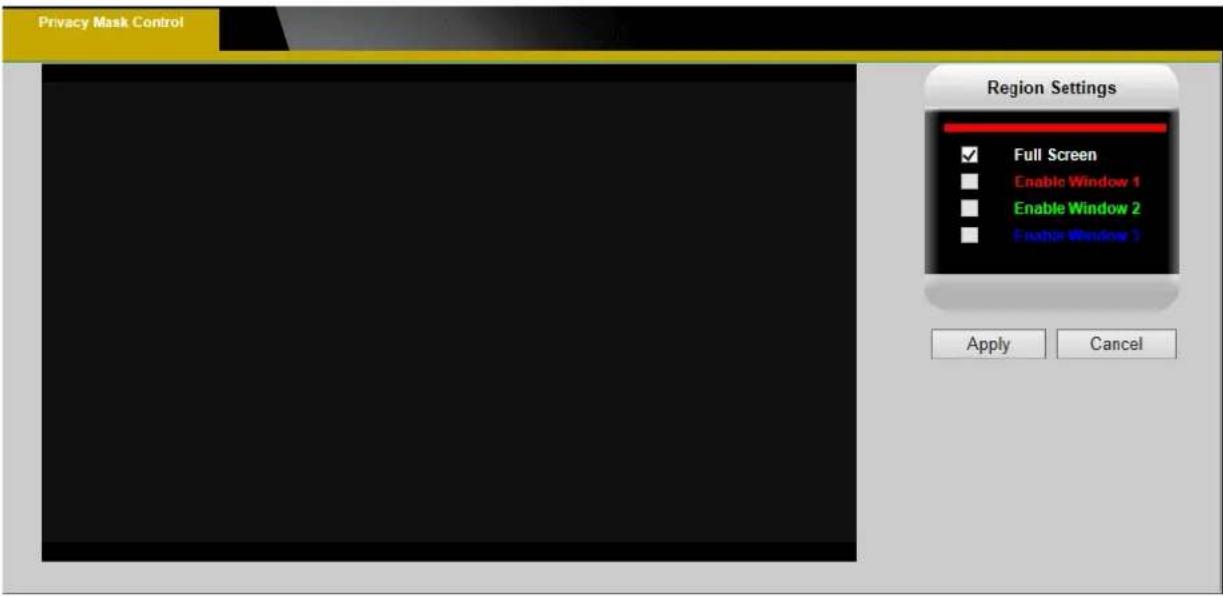

Privacy Mask Control 24

Camera Control....25

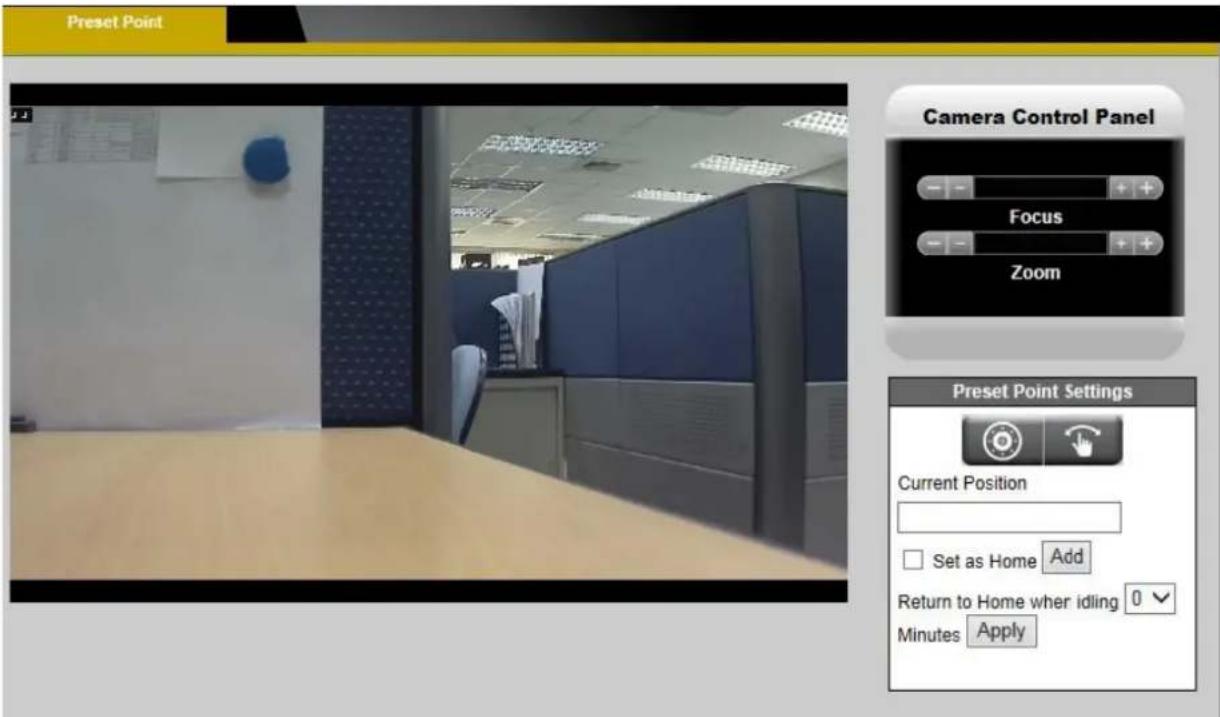

Preset Point....25

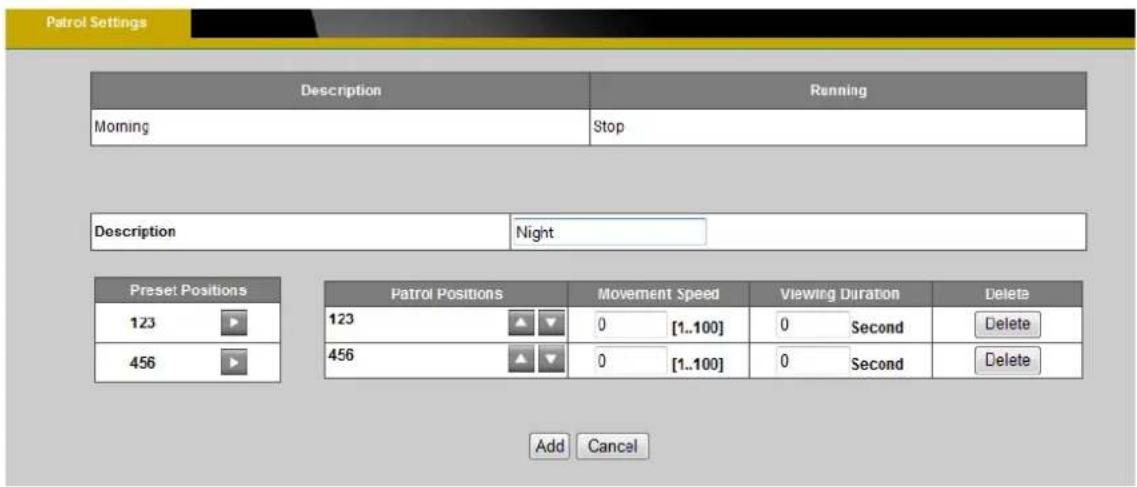

Patrol Settings 26

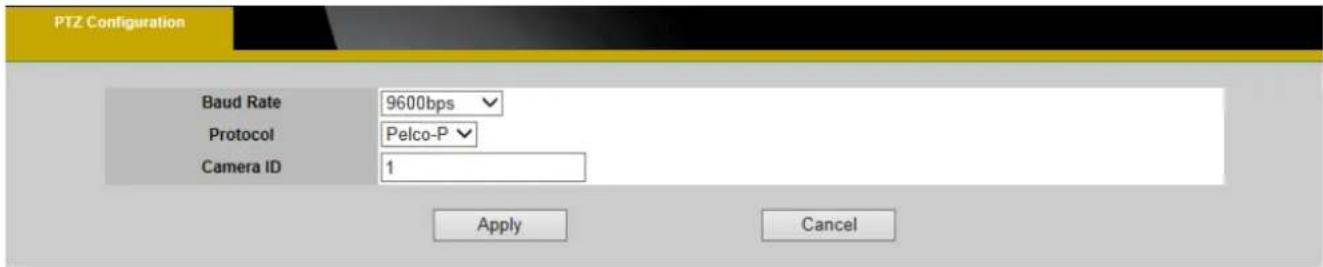

PTZ Configuration 27

Network 28

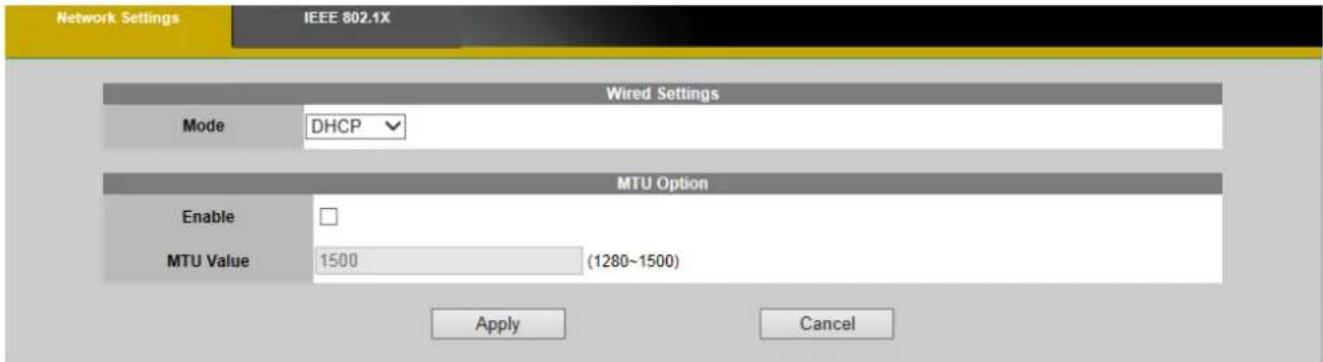

Network Settings 28

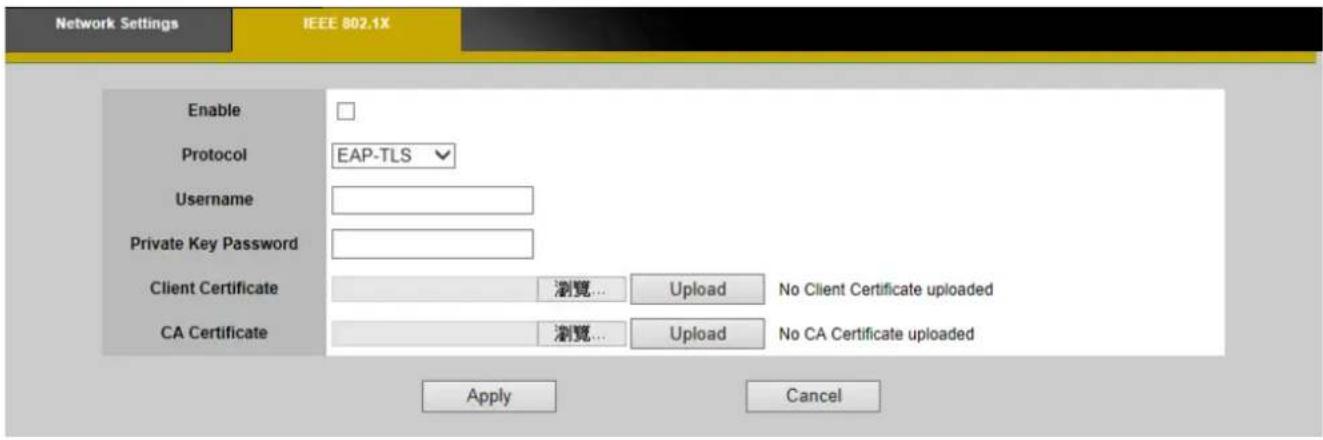

IEEE 802.1X....32

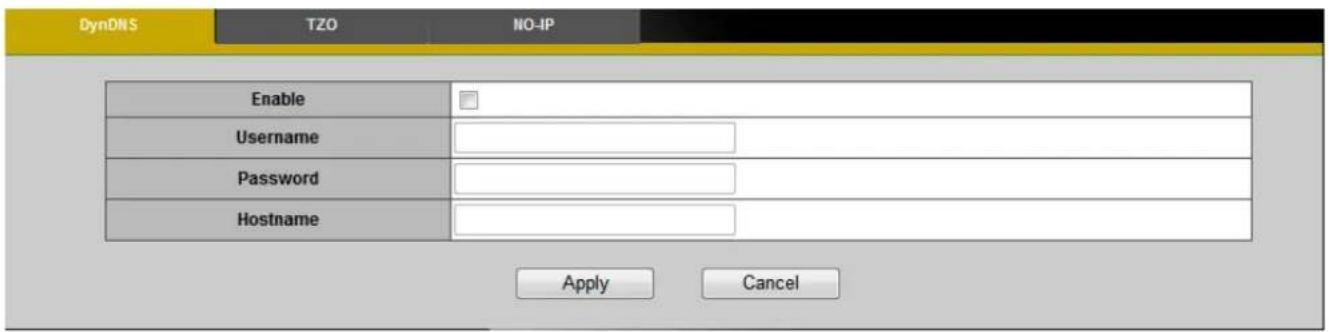

UPnP 32

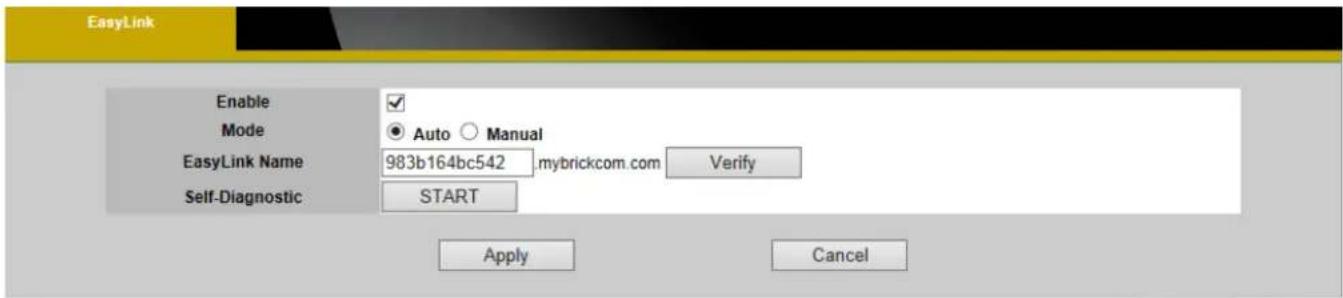

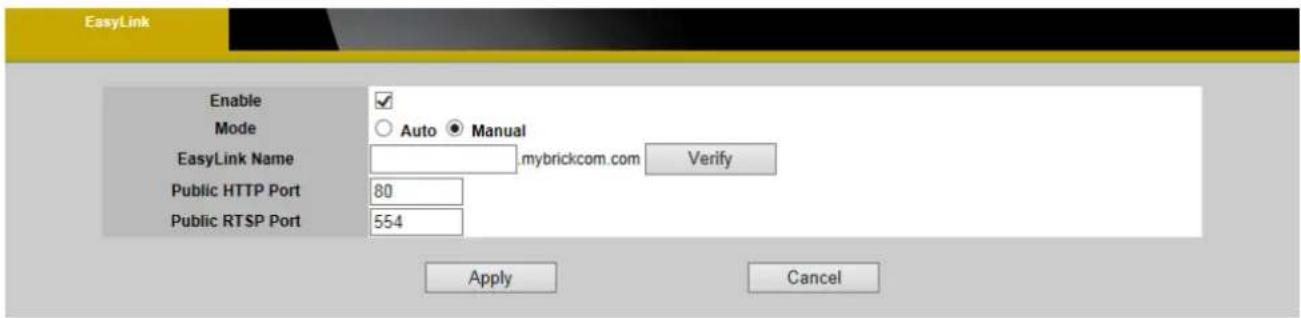

EasyLink™ 35

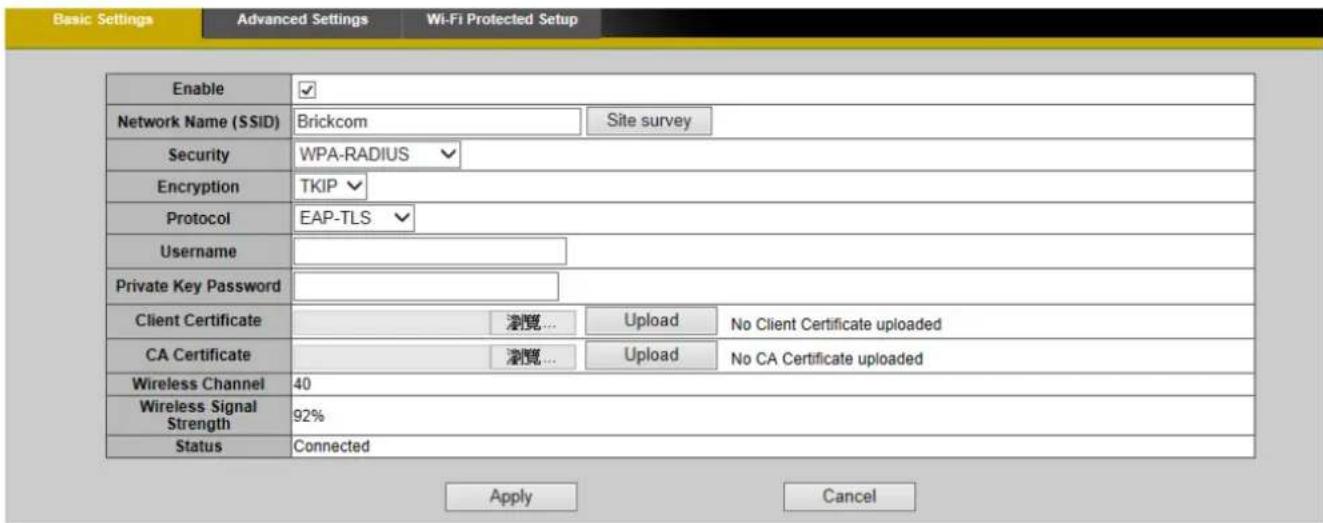

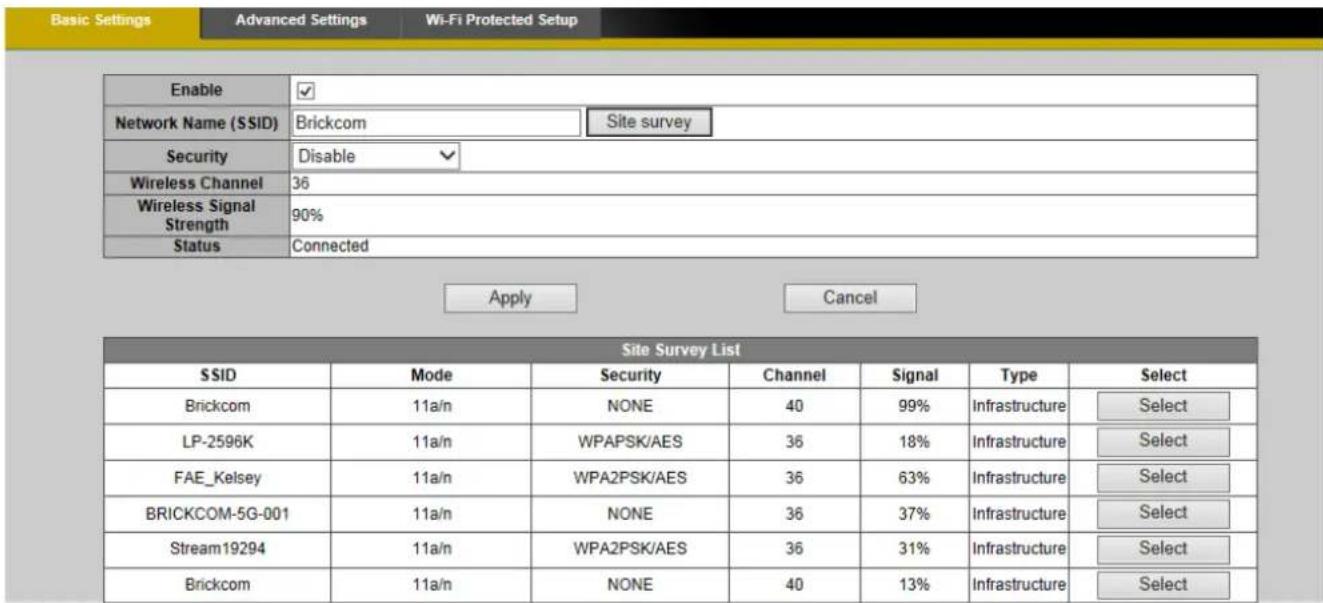

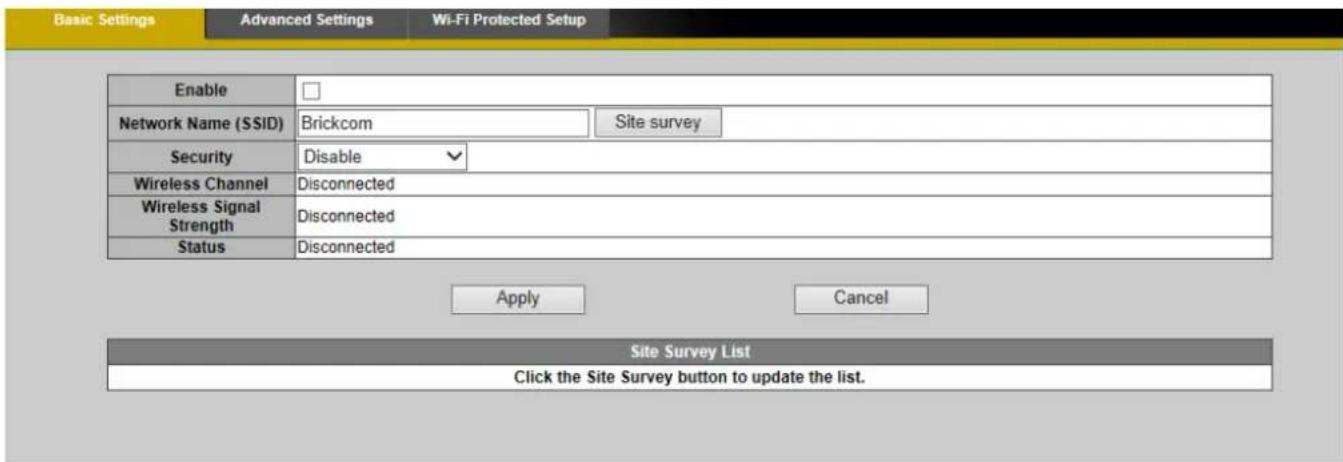

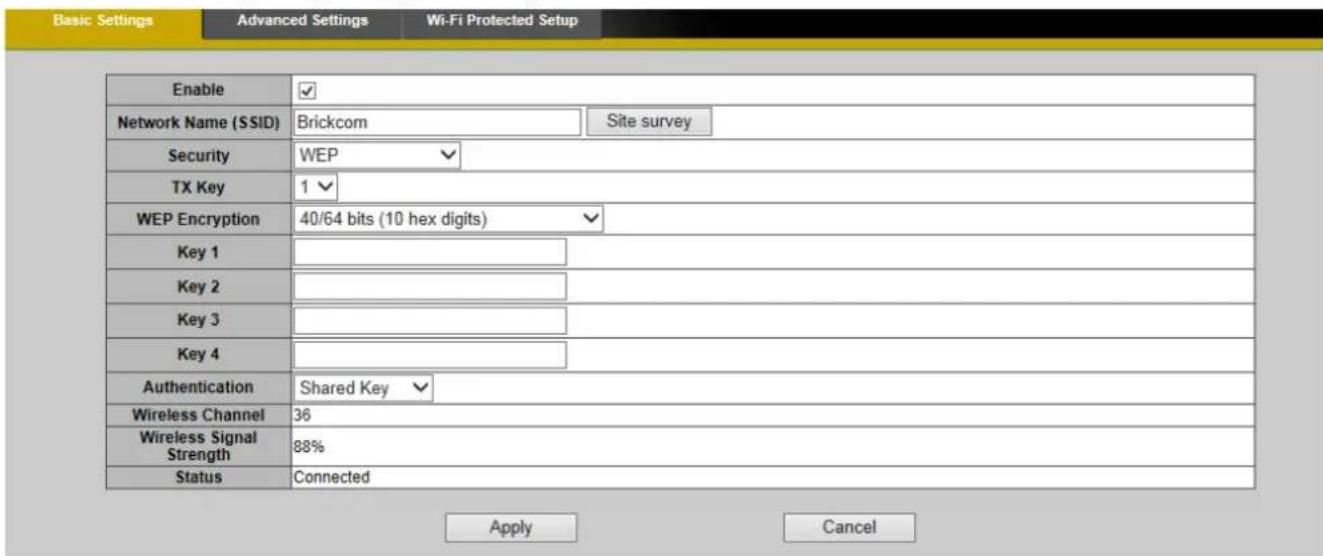

Wireless....37

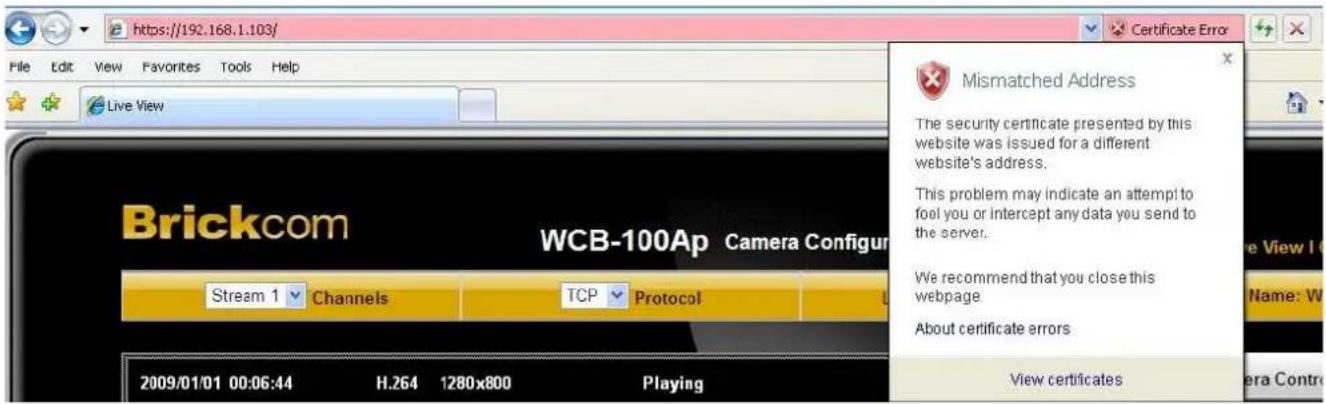

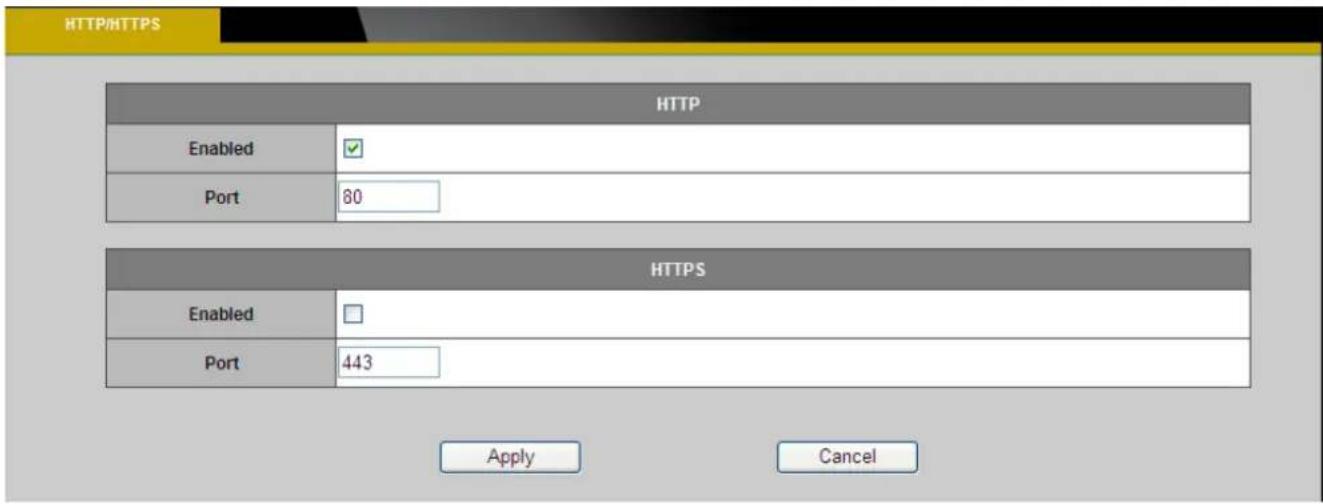

HTTP/HTTPS 45

Event....47

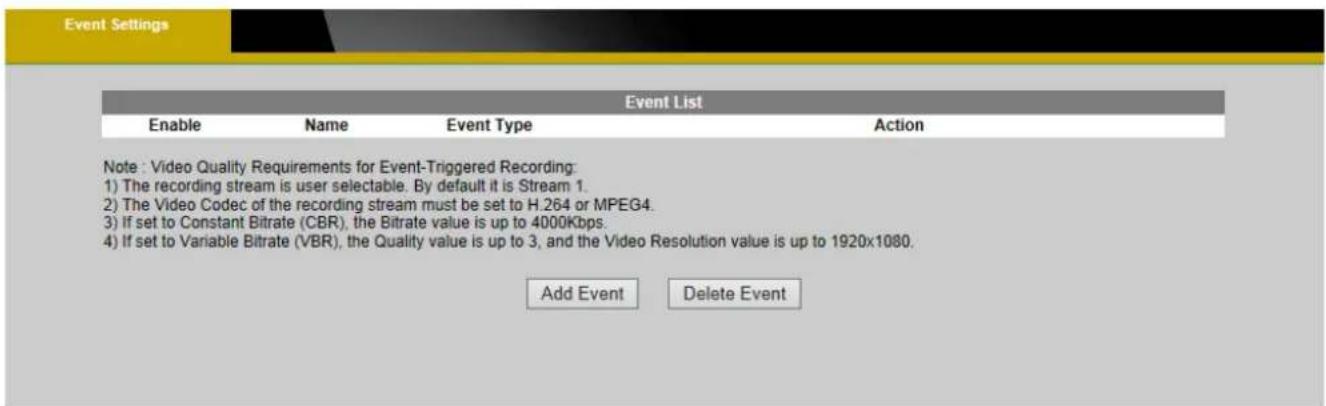

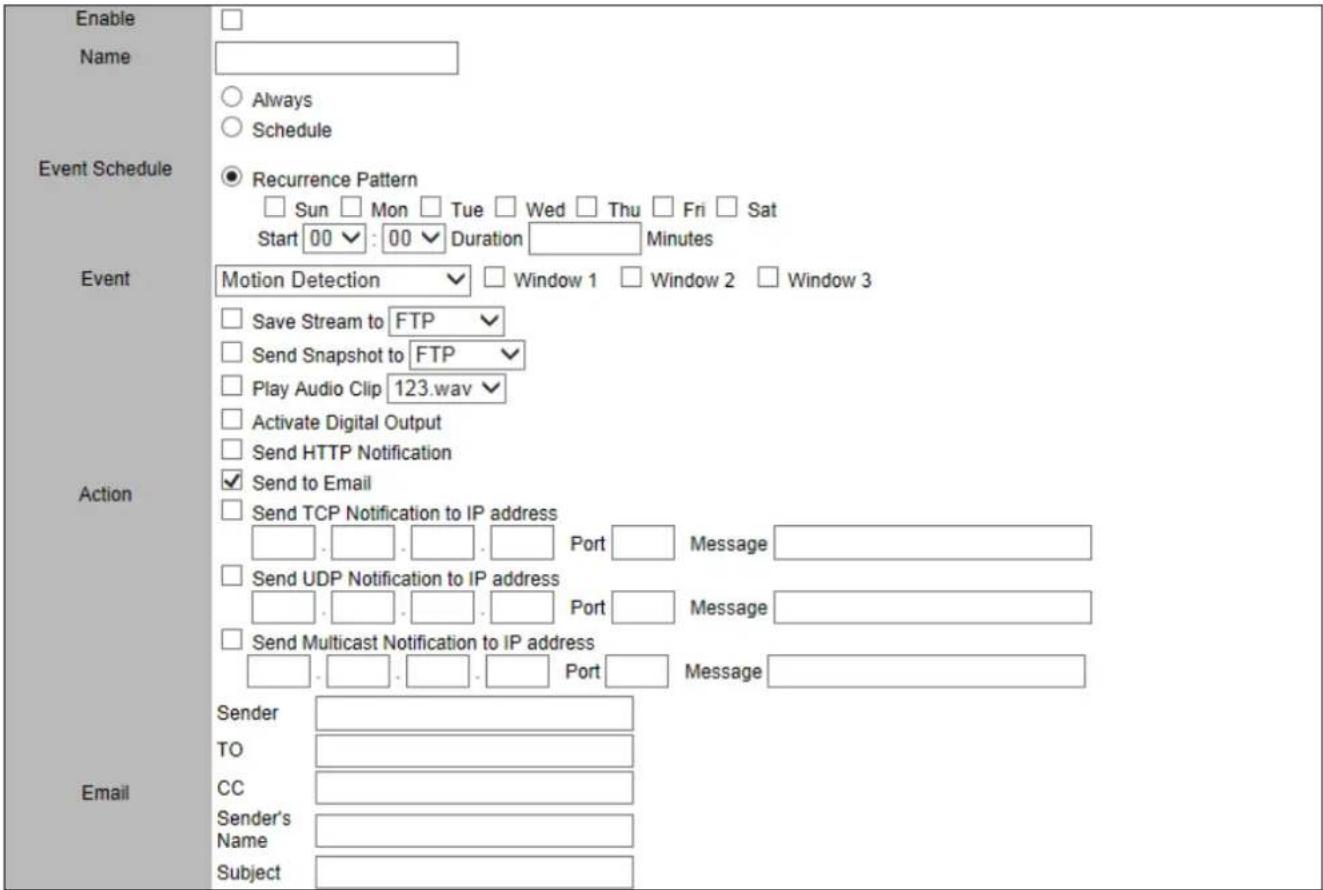

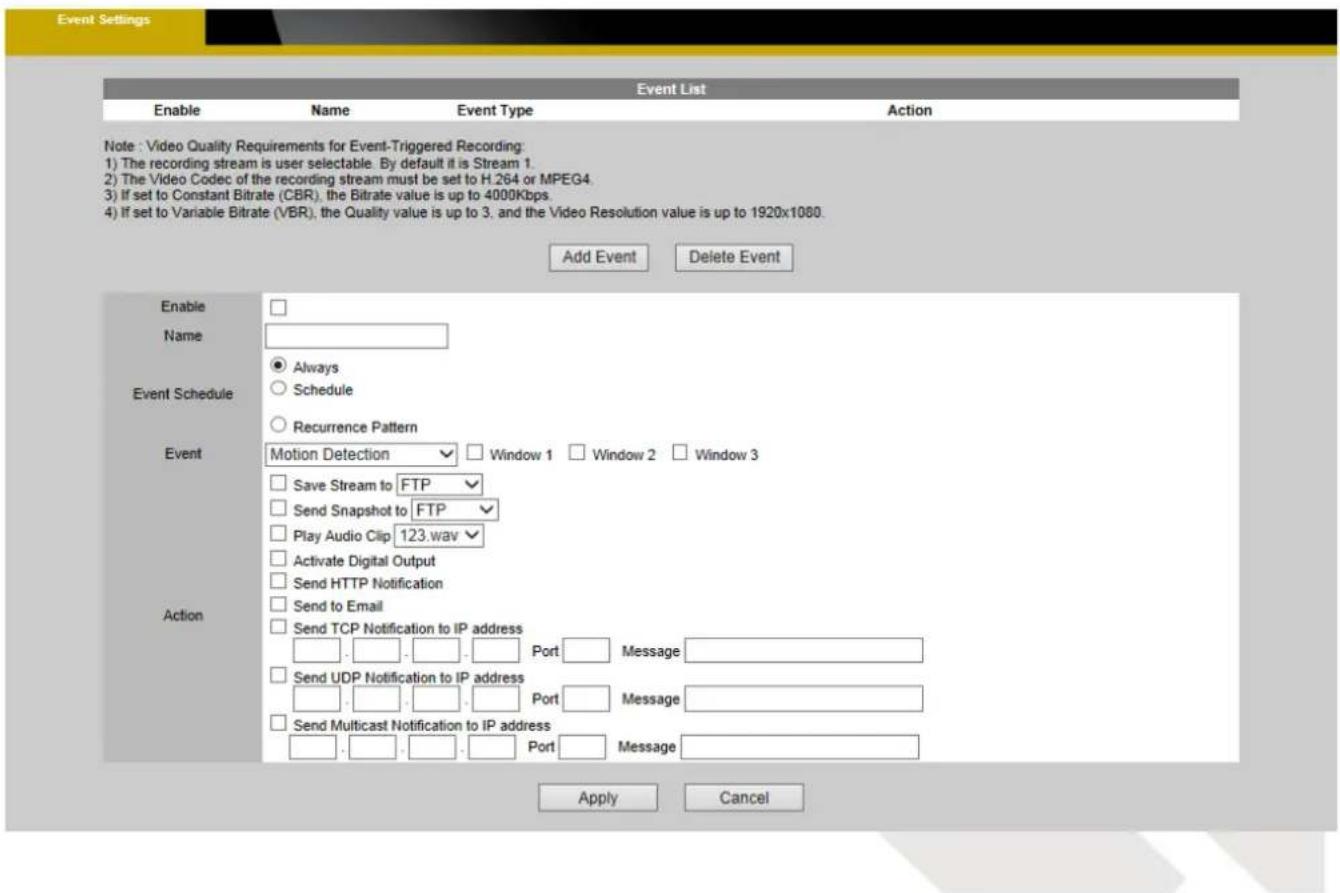

Event Settings......47

Motion Detection....51

Digital Input....52

Audio Detection 52

Temperature Detection....53

PIR (Professional Cube Only) 53

Notifications....54

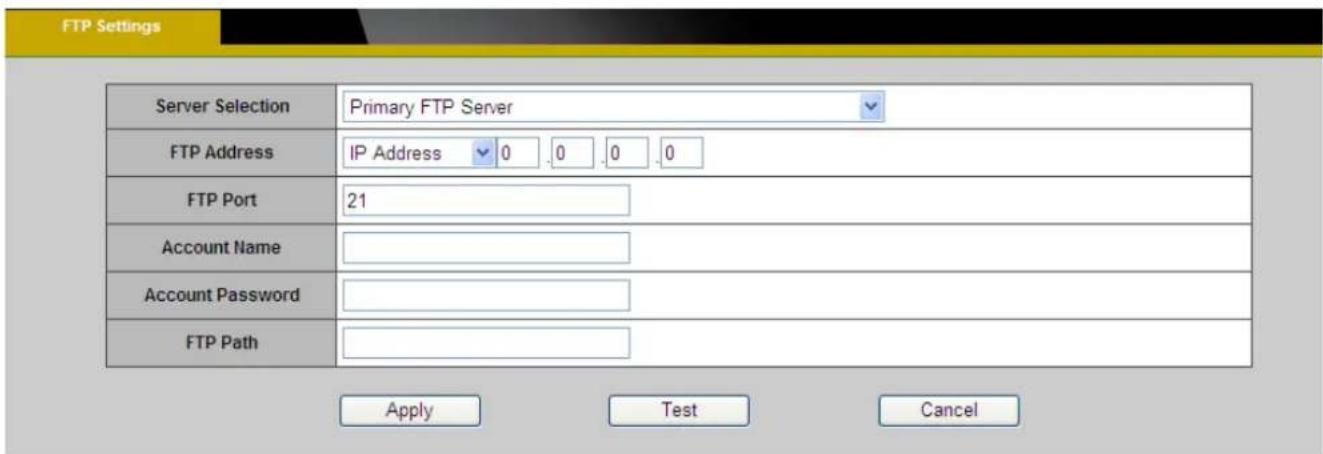

FTP Settings....54

E-mail Settings....55

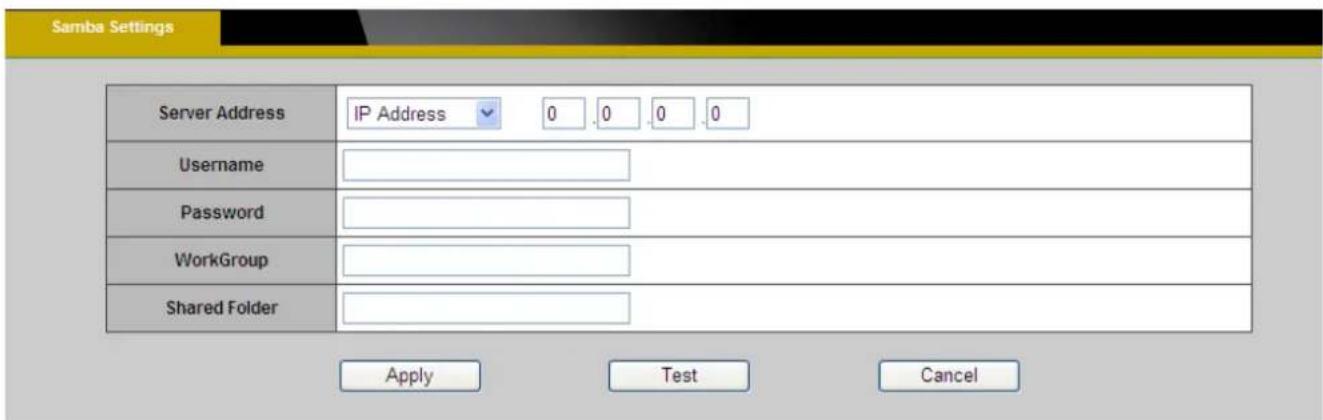

Samba Settings....56

BRICKCOM.COM | BLOCK UP YOUR SECURITY

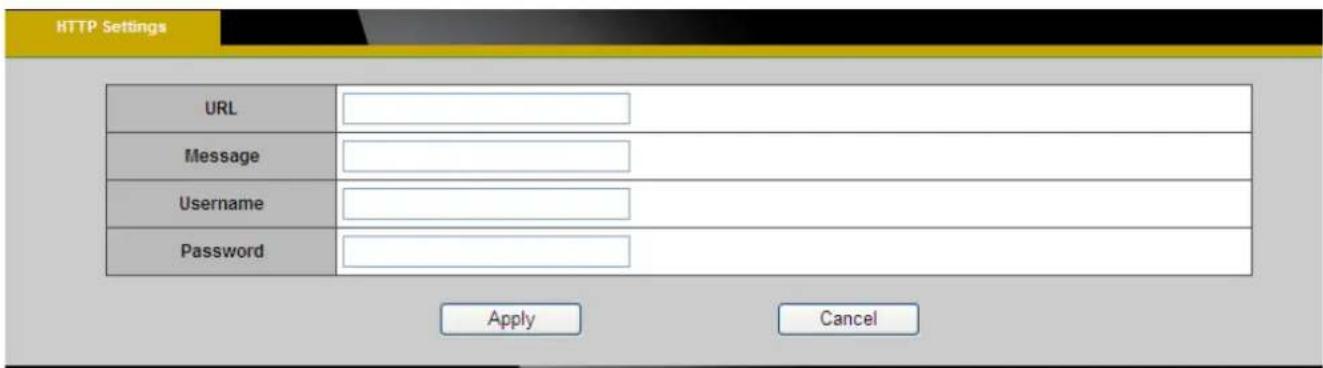

HTTP Settings 57

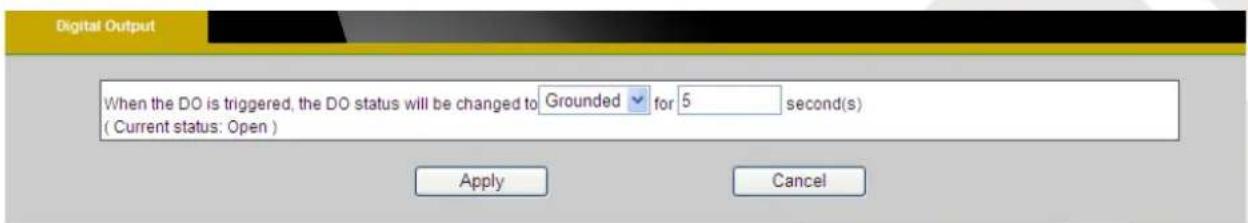

Digital Output (DO) 57

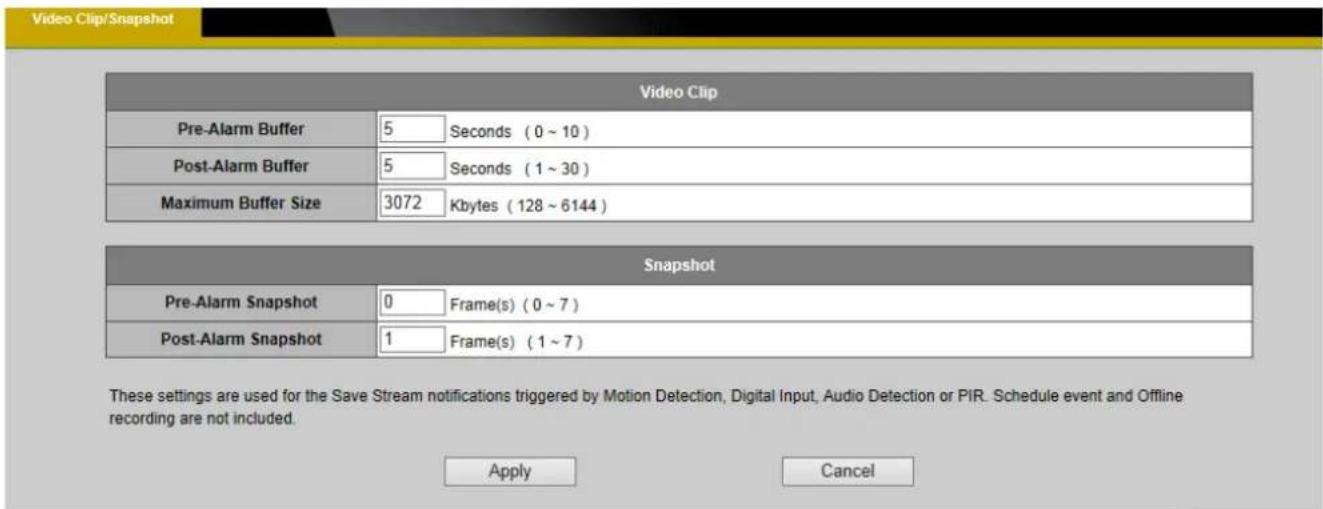

Video Clip/Snapshot....58

LED Light (Professional Cube Only) 60

System....61

System Log 61

Date and Time 63

Time Synchronization....63

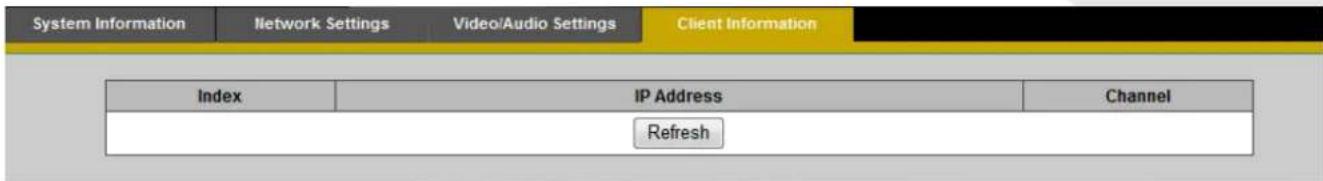

Device Information 64

Storage Management....66

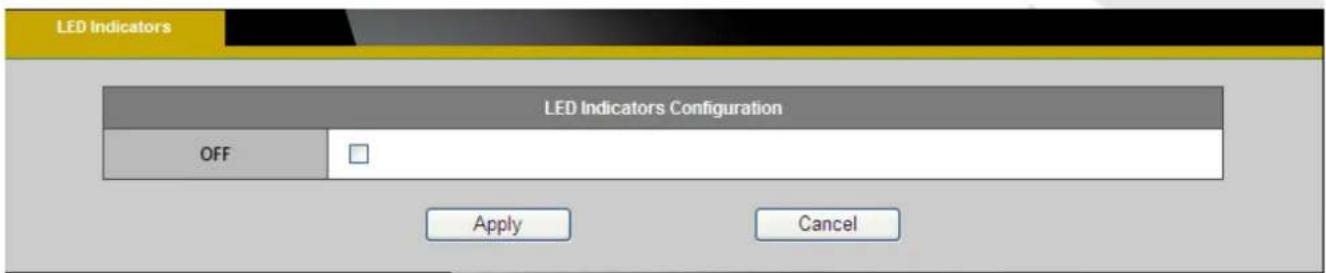

LED Indicators 67

VMS Compatibility 68

VMS Compatibility 68

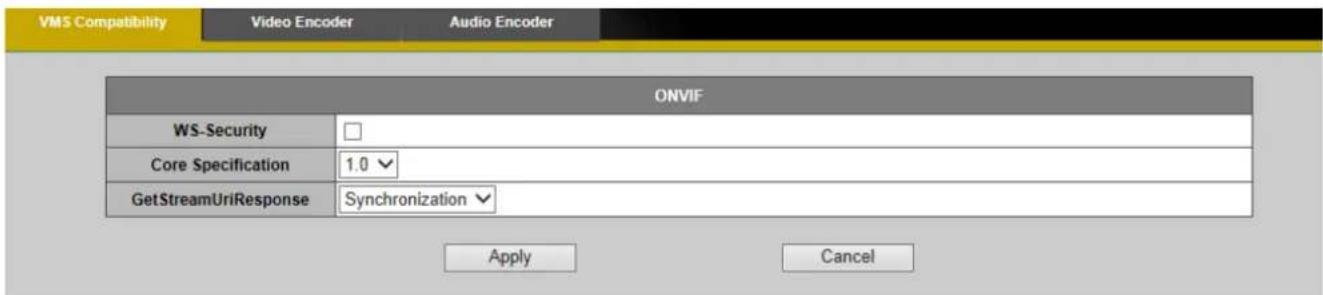

ONVIF 68

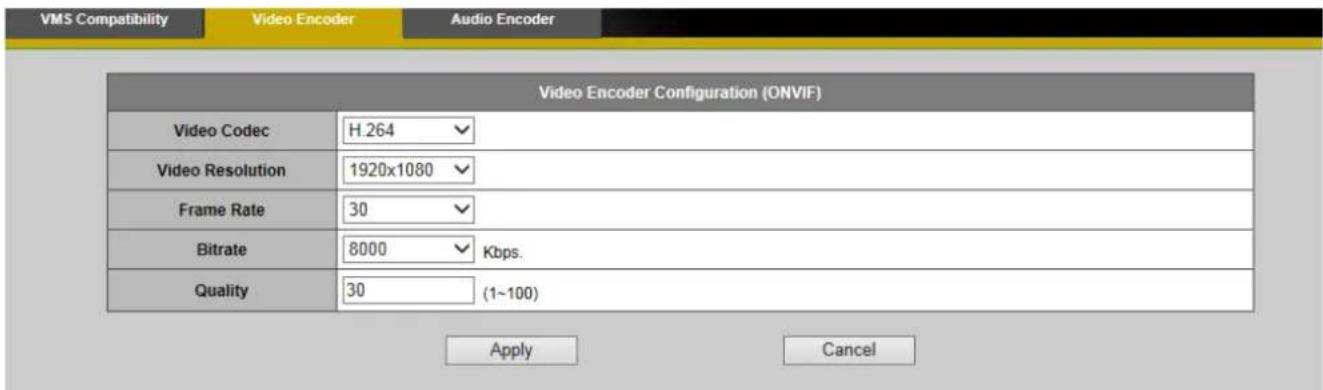

Video Encoder Configuration (ONVIF) 68

Maintenance....69

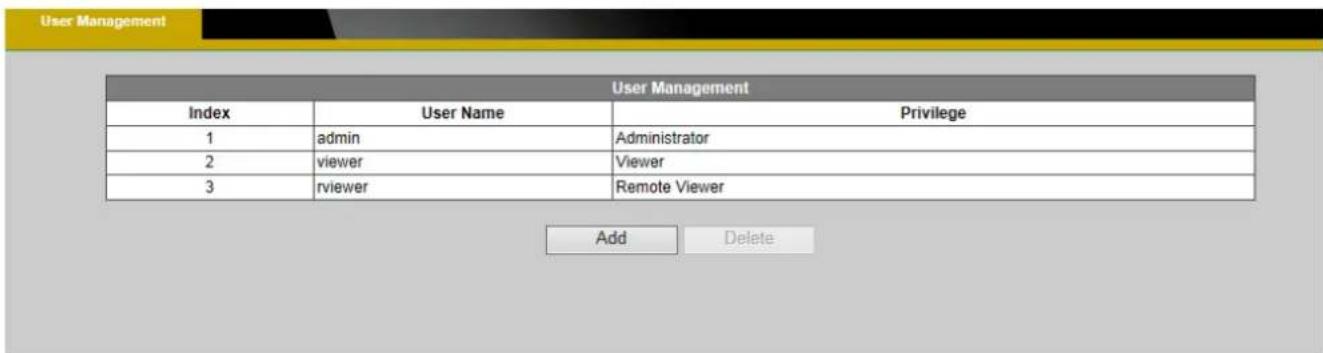

User Management....69

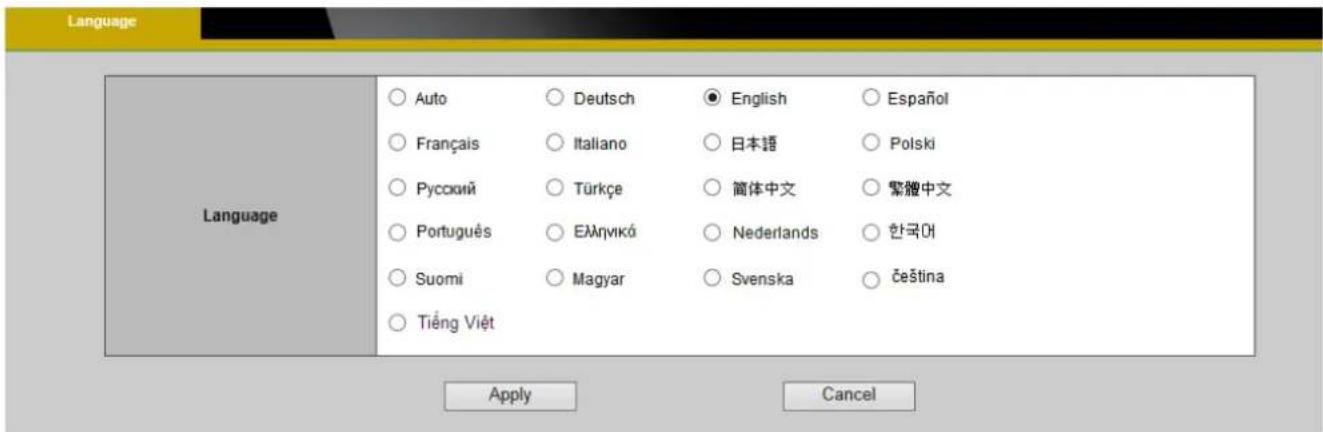

Language....70

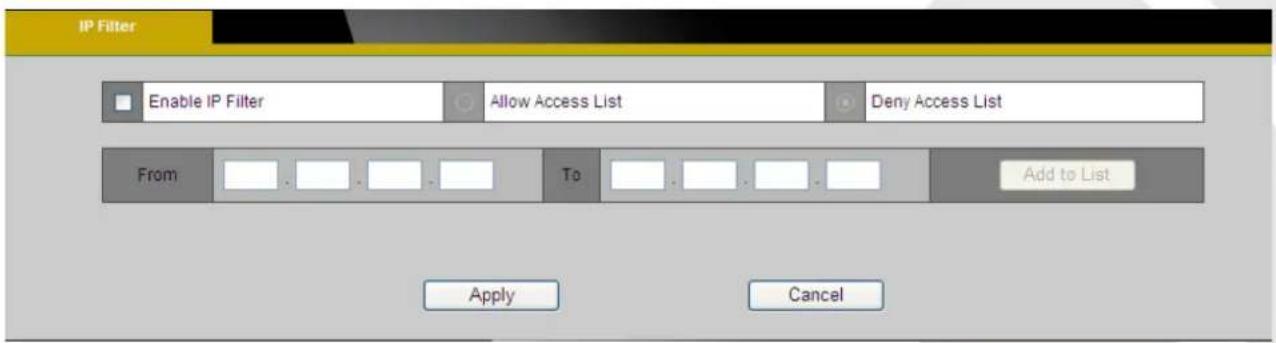

IP Filter 70

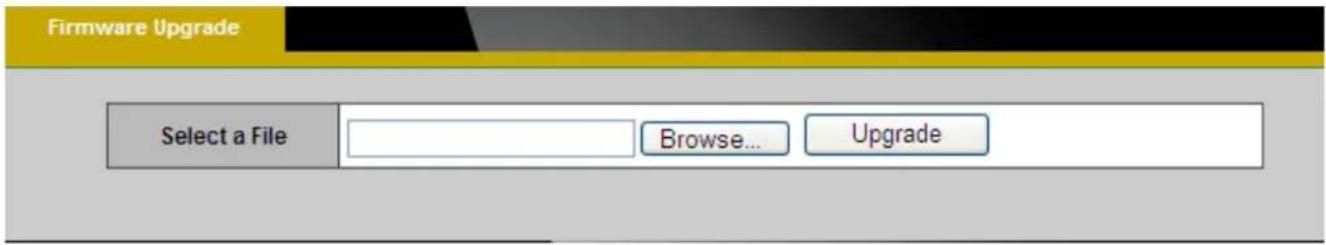

Firmware Upgrade....71

Configuration 71

Reset to Default 72

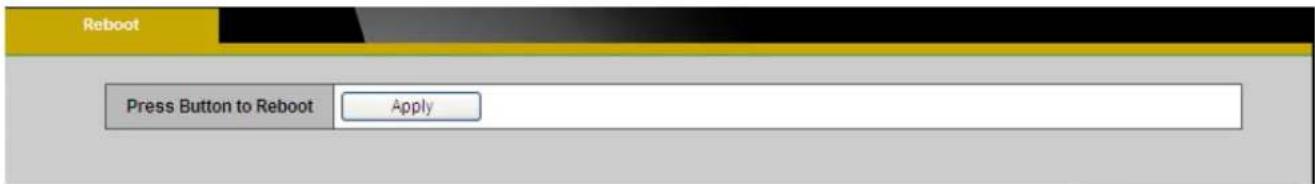

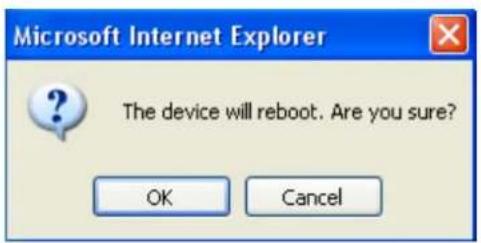

Reboot 72

Log in the Camera

To access the camera's live view, open a web browser and enter the IP address of the camera. The log-in window will pop requesting a username and password. As stated on the previous page, for the default username and password are "admin" and "admin". For accounts other than the administrator's account, the user can choose to remember the password for future convenience. It is not recommended to check this box when viewing the camera feed from a public computer.

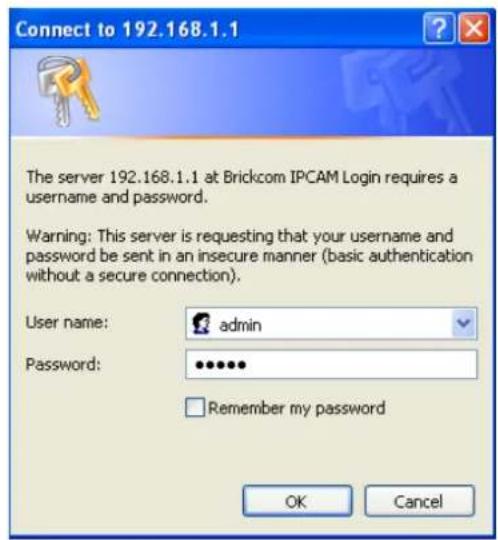

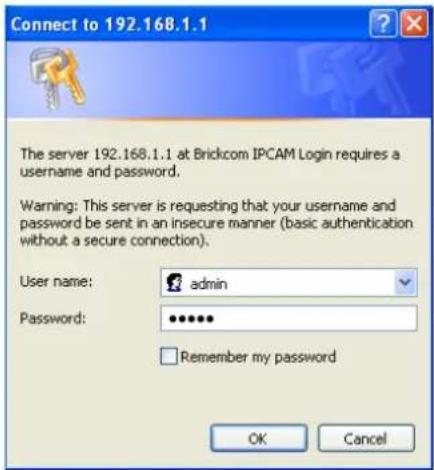

Connect to 192.168.1.1 The server 192.168.1.1 at Brickcom IPCAM Login requires a username and password. Warning: This server is requesting that your username and password be sent in an insecure manner (basic authentication without a secure connection). User name: admin Password: •••••• Remember my password OK Cancel

BRICKCOM.COM | BLOCK UP YOUR SECURITY

Installing the Plug-In

For the initial access to the camera in Windows, the web browser may prompt the administrator for permission to install the plug-in for Internet Explorer. Permission request depends on the Internet security settings of the user's PC or notebook. If the highest security level is set, the computer may prohibit any installation and execution attempt. This plug-in has been registered for certificate and is used to display the video in the browser. Click to proceed. If the web browser does not allow the

administrator to continue the installation, check the Internet security option and lower the security levels or contact the networking supervisor or IT for help.

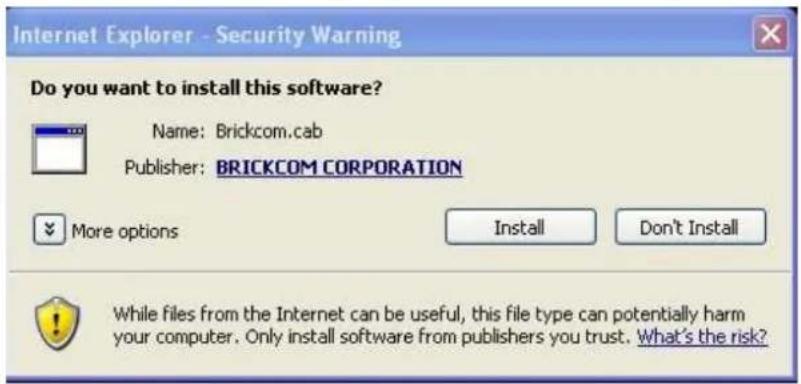

Internet Explorer - Security Warning Do you want to install this software? Name: Brickcom.cab Publisher: BRICKCOM CORPORATION More options Install Don't Install While files from the Internet can be useful, this file type can potentially harm your computer. Only install software from publishers you trust. What's the risk?

NOTE – If an error occurred or the plug-in fails to install, it is because the version of the Electronic Signature is newly released and the VeriSign has not been submitted to Microsoft Windows update for validation. Therefore, plug-in will not have its root certificate. If IE discovers that there is no root certificate after the user's PC connects to the camera, it will automatically redirect to VeriSign Web site to download and install the latest root certificate to make the installation successfully. If the user's computer is able to connect to camera but unable to access the internet, then the installation will fail since the computer will not be able to download the latest root certificate. This problem can be resolved if computer can be connect to the internet and the camera at the same time and will not recur when Windows update patches become available.

BRICKCOM.COM | BLOCK UP YOUR SECURITY

Live View

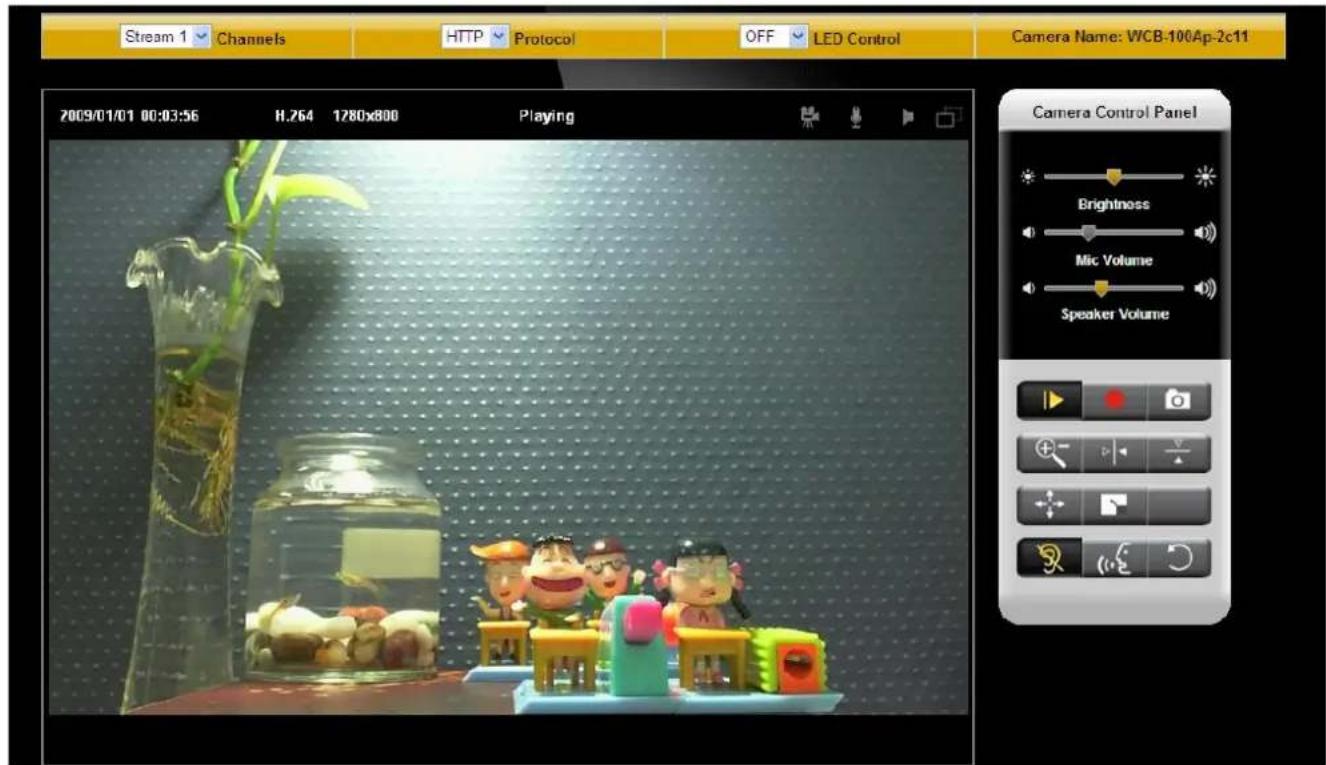

Stream 1 Channels HTTP Protocol OFF LED Control Camera Name: WCB-100Ap-2c11 2009/01/01 00:03:56 H.264 1280x800 Playing Camera Control Panel Brightness Mic Volume Speaker Volume

NOTE - (*) These are optional features. Please refer to the Product List for the full list of optional features available for the product.

Live View is the default page that opens when accessing the camera. Live video is displayed directly in the browser window.

- Channels

The network camera offers simultaneous multiple streams. This drop-down list allows the user to switch between different video channels. For further detail, please go to Configuration → Camera/Video/Audio → Video.

- Protocol

HTTP – This unicast method can be used to traverse firewalls. Firewalls are commonly configured to allow the HTTP protocol, thus allowing RTP to be tunneled.

BRICKCOM.COM | BLOCK UP YOUR SECURITY

TCP - This protocol guarantees the complete delivery of streaming data and provides better video quality. The downside of using this protocol is that the quality of its real-time effect is less than that of the UDP protocol.

UDP - This protocol allows for more real-time audio and video streams. However, network packets may be lost due to network burst traffic and images may be broken.

Activate UDP connection time-sensitive responses are more important than video quality.

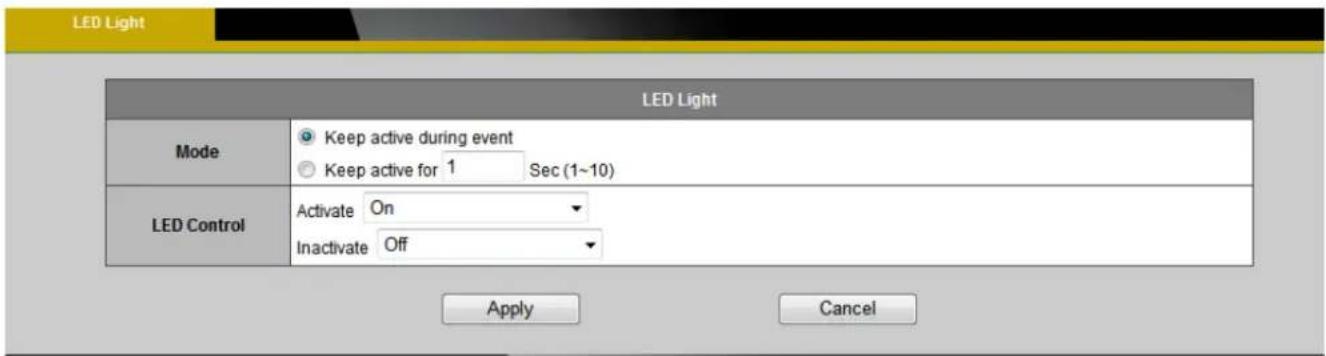

LED Control (CB-series Professional only) – Use the drop-down menu to adjust the brightness of the camera's LED.

Image Dewarping (MD-500Ap-360P, MD-300Np-360P, and CB-500Ap-360P Only)

The image dewarping function is only provided for these cameras on the Live View page with the Internet Explorer.

● Camera Position: Ceiling, Ground, Wall

The Camera Position list box offers 3 modes which reflect where the camera is installed: Ceiling, Ground, and Wall. Please make sure you select the correct Camera Position for the best user experience.

Ceiling – When the camera is fixed on the ceiling, or is installed to shoot in the top-down direction, please choose this mode.

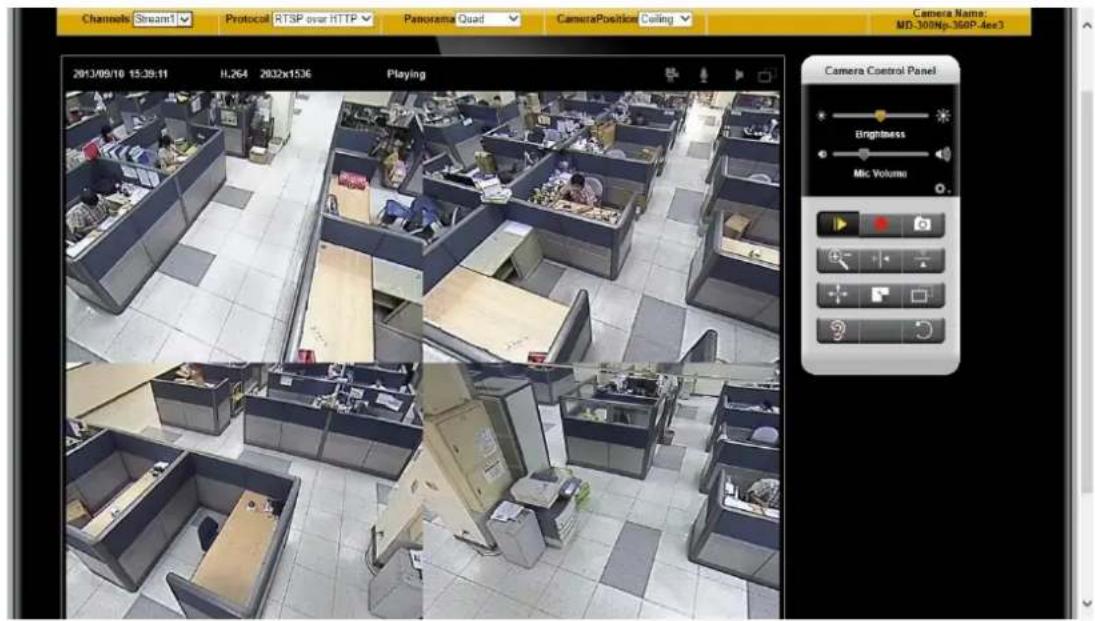

Channels Stream1 Protocol RTSP over HTTP Panorama Quad CameraPosition Casing 2013/09/10 15:39:11 H.264 2832x1536 Playing Camera Name: MD-300Hp-360P-4ec3 Camera Control Panel Brightness Mic Volume

Ground – When the camera is fixed on the ground or table, or is installed to shoot in the bottom-up direction, please choose this mode.

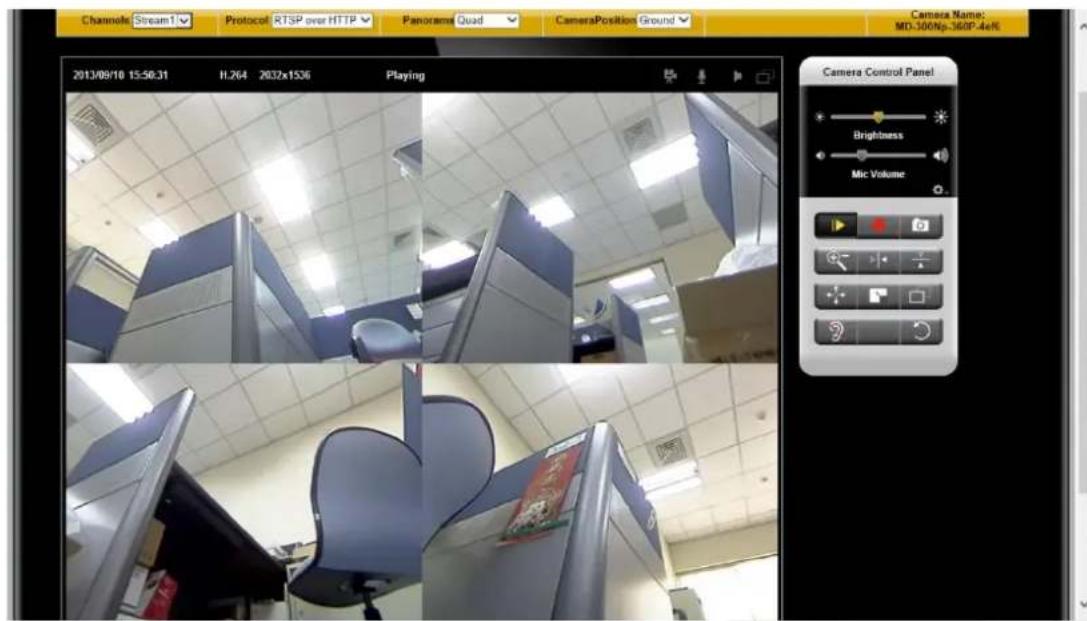

Channels Stream1 Protocol RTSP over HTTP Panorama Quad CameraPosition Ground 2013/09/10 15:50:31 H.264 2032x1536 Playing Camera Name: MD-300Ng-360P.4eN Camera Control Panel Brightness Mic Volume

Wall – When the camera is fixed on the wall, or is installed to shoot in the horizontal direction, please choose this mode.

Channels Stream1 Protocol RTSP over HTTP Panorama Parimator CameraPosition Wall 2013/09/10 15:52:08 H.264 2032x1536 Playing Camera Name: MD-300Np-360P.4eRE Camera Control Panel Brightness Mic Volume

- Panorama: OFF, PTZ, Quad, Perimeter

The Panorama list box offers 4 display modes: OFF, PTZ, Quad, and Perimeter. Please select the display mode that best meets your needs.

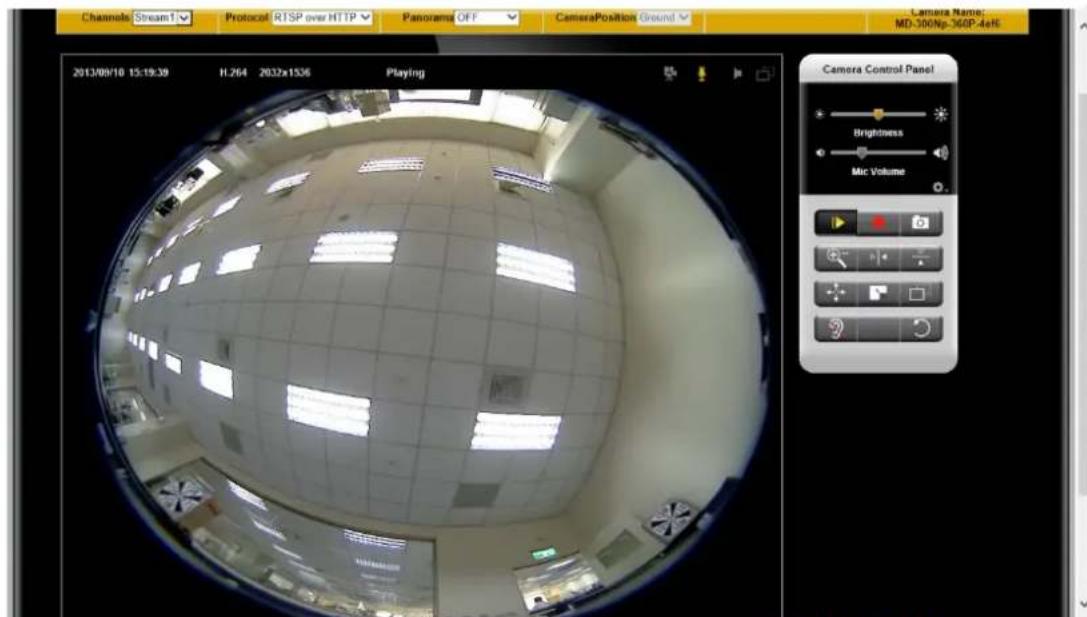

OFF - This is the default display mode, and shows the original elliptical image of the camera.

Channels Stream1 Protocol RTSP over HTTP Panorama OFF CameraPosition Ground Camera Name: MD-300Np-360P-4eH 2013/09/10 15:19:39 H.264 2032x1536 Playing Camera Control Panel Brightness Mic Volume

BRICKCOM.COM | BLOCK UP YOUR SECURITY

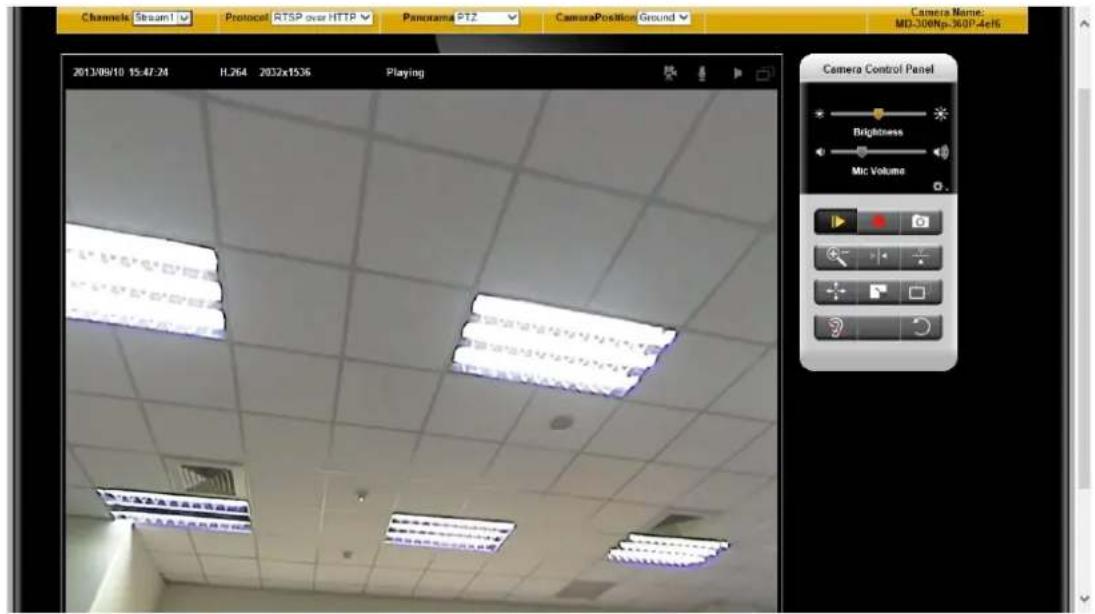

PTZ – This display mode can operate the pan, tilt, and zoom functions via the mouse. Drag the mouse when you want to view in different directions. Scroll the mouse wheel when you want to zoom in and zoom out the view. PTZ is typically used when the camera is installed on the ceiling or ground.

Channels Stream1 Protocol RTSP over HTTP Panorama PTZ CameraPosition Ground 2013/09/10 15:47:24 HL264 2032x1536 Playing Camera Name: MD-300Np-360P-4eHS Camera Control Panel Brightness Mic Volume

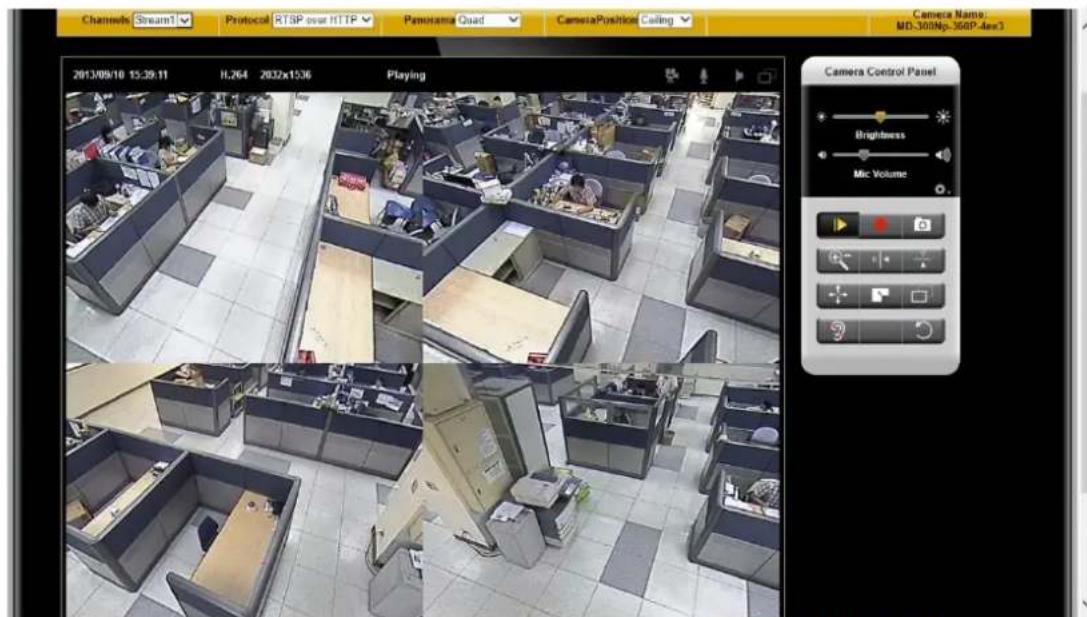

Quad - This display mode shows four separate PTZ windows. Each window can operate the pan, tilt, and zoom functions. Quad is typically used when the camera is installed on the ceiling or ground.

Channels Stream1 Protocol RTSP over HTTP Panorama Quad CameraPosition Calling 2013/09/10 15:39:11 H.264 2032x1536 Playing Camera Name: MD-300Np-360P.4ms3 Camera Control Panel Brightness Mic Volume

BRICKCOM.COM | BLOCK UP YOUR SECURITY

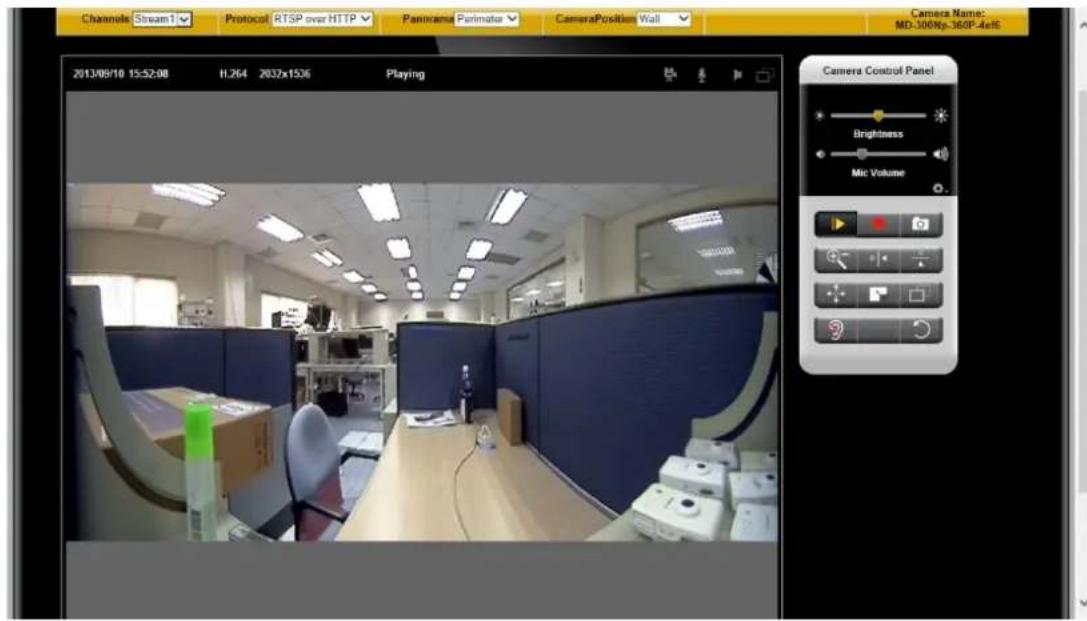

Perimeter - This display mode can dewarp the elliptical image and show the 180-degree view. Perimeter is typically used when the camera is installed on the wall.

Channels Stream1 Protocol RTSP over HTTP Panirame Parimator CameraPosition Wall 2013/09/10 15:52:08 H.264 2032x1536 Playing Camera Name: MD-306Np-360P.4eRE Camera Control Panel Brightness Mic Volume

Status Icons

cording on/off - Displays the status of recording video

C on/off - Displays the status of the MIC volume

Speaker on/off - Displays the status of the Speaker

) on/off - Displays the status of Motion Detection

● Brightness - Drag the slider bar to adjust the image brightness level.
● Mic volume - Drag the slider bar to adjust the microphone volume.
- Speaker volume - The built-in speaker will play sound from an audio clip from the computer microphone when it is enabled.

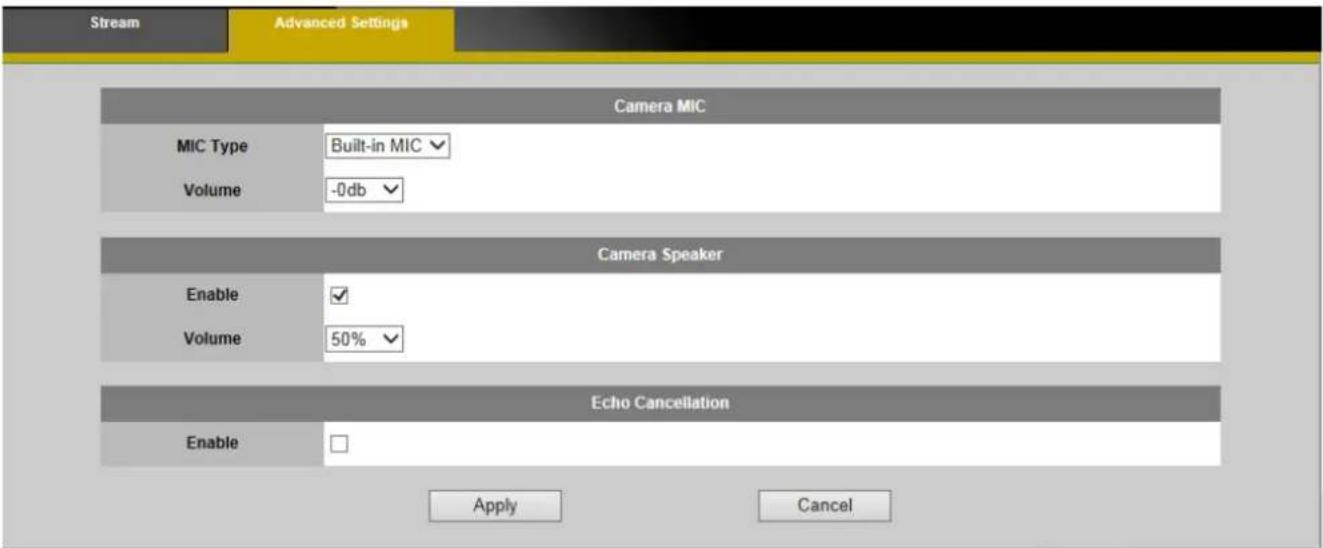

For more Audio settings, please refer to the Audio configuration page.

Play or Stop - Play or stop the video.

BRICKCOM.COM | BLOCK UP YOUR SECURITY

Recording - Record video to a computer.

Snapshot - Capture and save still images.

Digital Zoom - Enable the digital zoom operation.

Mirror - Horizontally reflect the display of the live video.

Flip - Vertically reflect the display of the live video.

Real Size - View the object in real size. Press it again to switch back to node.

Full Screen - Switch to full screen mode. Press the "Esc" key to return to node.

Motion Detection Alert - Enable the motion detection alert function. (Please Motion Detection on P.47)

Mute – Turn off the sound.

Talk (*) – To send the voice from the users side to the camera

Set Default – Reset to default settings.

PTZ Control (OSD series and PZ-040 series only)

Patrol - Enable the patrol function. If a designated patrol has not been set for that time period, the first patrol group on the patrol list will be enabled.

Pan/Tilt Control - Click on the arrows to pan and tilt the camera. Click the center of icon to return to the home position.

Joystick Mode – Scroll over the live view window to move the camera view in the direction of the mouse pointer.

Center Mode - Click on a point in the live view window to center the camera view on that point.

Edit the live view snapshot and video clip saved file folders.

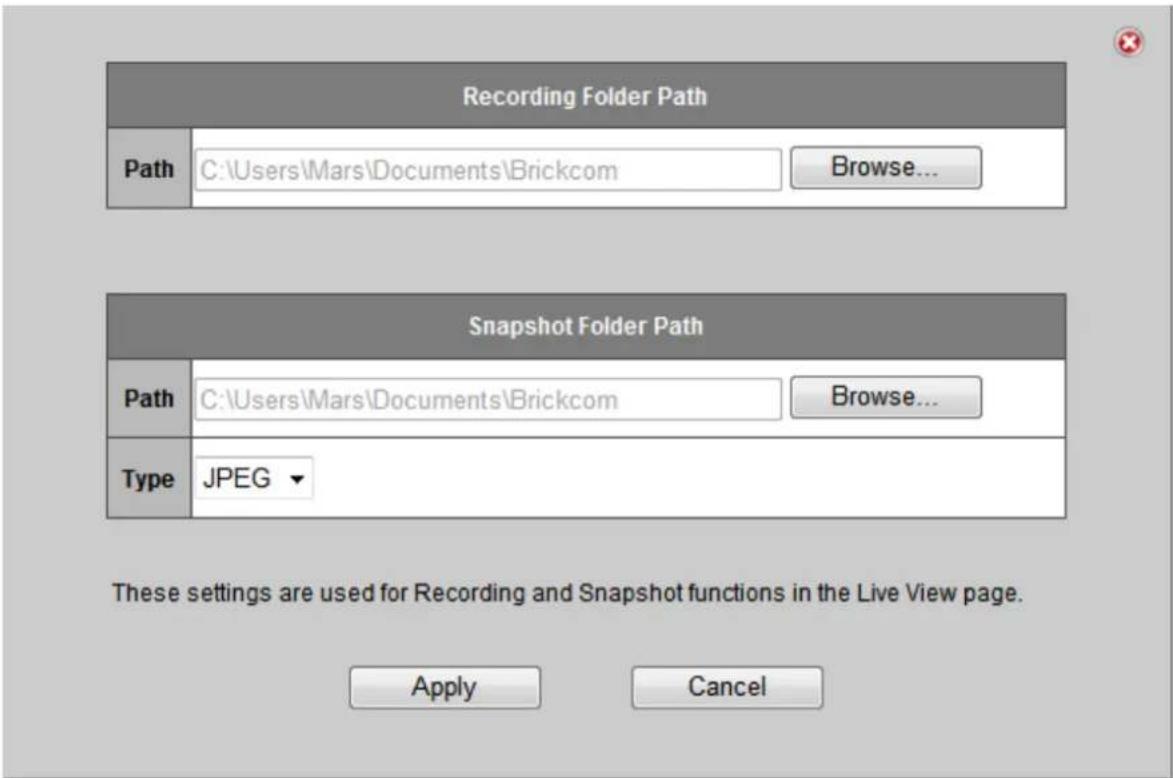

Recording Folder Path Path C:\Users\Mars\Documents\Brickcom Browse... Snapshot Folder Path Path C:\Users\Mars\Documents\Brickcom Browse... Type JPEG These settings are used for Recording and Snapshot functions in the Live View page. Apply Cancel

Recording folder path – Click Browse to specify the full path of the folder for saving the recorded video files.

Snapshot folder path - Select the format from the drop-down menu. Click Browse to specify the full path of the folder for saving the snapshot files.

NOTE

The functions have no effect on the recorded video.

Configuration

Click on the main page to change the camera settings pages.

NOTE - Only Administrators can access the Configuration page.

Camera/Video/Audio

Camera

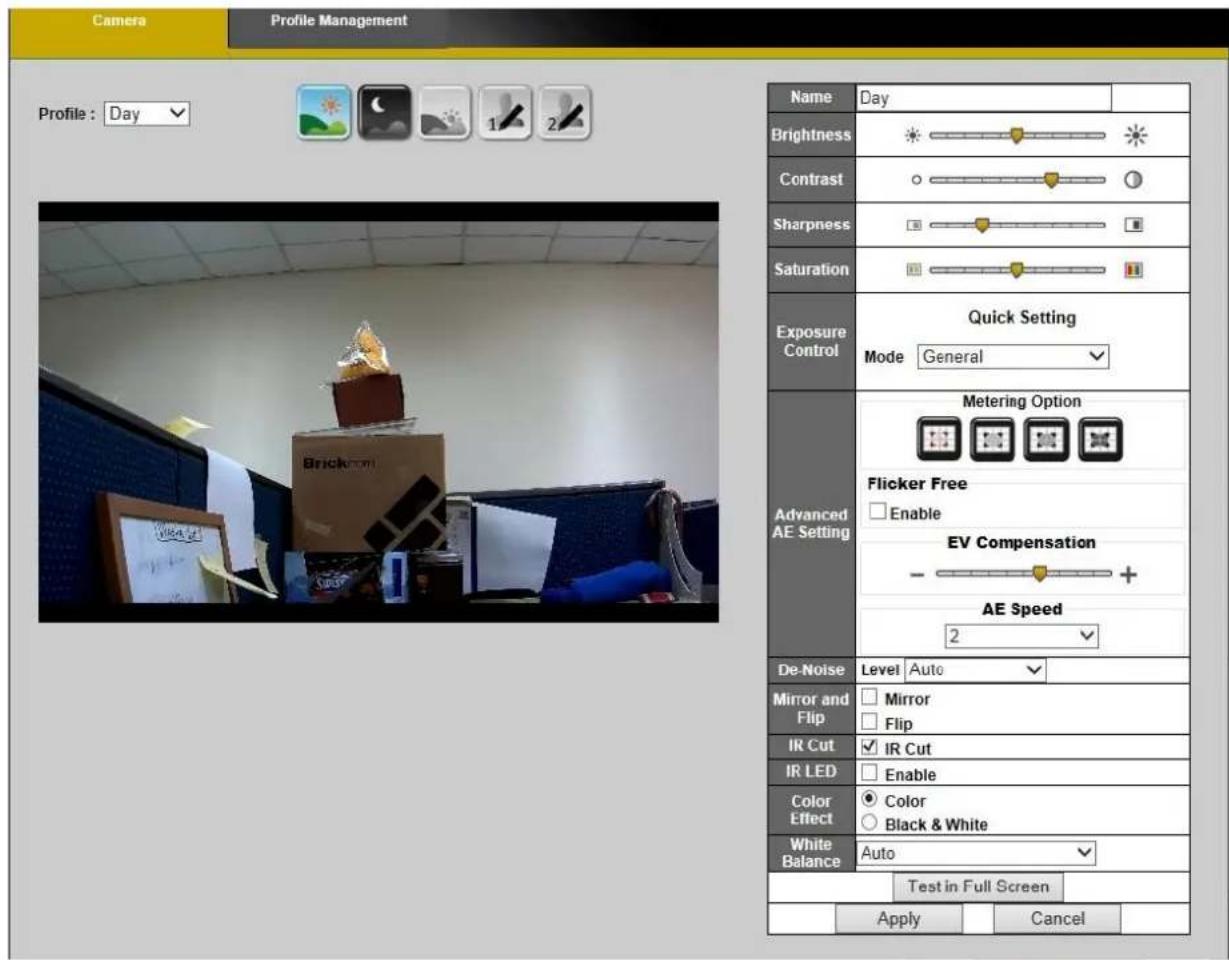

Camera Profile Management Profile : Day Name Day Brightness Contrast Sharpness Saturation Exposure Control Mode General Quick Setting Advanced AE Setting Metering Option Flicker Free Enable EV Compensation AE Speed 2 De-Noise Level Auto Mirror and Flip IR Cut IR Cut IR LED Color Effect Color Black & White White Balance Auto Test in Full Screen Apply Cancel

Profile – Up to five profiles can be used for different lighting environments. Day and night are default profiles and users can create additional profiles. Select a profile from the drop-down menu or select different icons to change profile settings.

Name – Name of the Profile

Brightness - Drag the bar to adjust the image brightness level.

ever. BRICKCOM.COM | BLOCK UP YOUR SECURITY

Contrast - Drag the bar to adjust the image contrast level.

Sharpness - Drag the bar to adjust the image sharpness level.

Saturation - Drag the bar to adjust the image saturation level.

Exposure Control – Five presets are available (General, Indoor, Car Plate, Extremely Low Light, and Shutter Priority) for users to select for different situations. Users can adjust the value of Dynamic Shutter and Dynamic Gain for the best user experience or simply choose Fixed Shutter and Fixed Gain.

Metering Option – Center-weighted average metering.

Flicker-Free – Eliminates the problem of flicker.

EV Compensation –Drag the bar to adjust the EV (exposure value) compensation level.

AE Speed – Automatically control exposure speed from 1 to 3.

Auto Iris – Enable this function if the auto iris lens is used with camera.

De-Noise - De-Noise can be set to auto, or between 1 and 10, with 10 giving the best de-noise effect.

Mirror and Flip

Mirror - Enable to horizontally reflect the display of the live video.

Flip - Enable to vertically reflect the display of the live video.

IR Cut (*) (Only available for models with the IR Cut) - Deactivate or activate the IR cut filter

IR LED (*) (Only available for models with the IR LED) – Enable to turn on the IR LED. The intensity of the IR can be fixed to a certain level from 1 to 10, or Auto.

Color Effect

Color: Select to display color or black and white video streams.

White Balance: White balance is a camera setting that adjusts for lighting in order to make Black & white. White Balance can be simply set to auto, or select the desired level

from the drop-down menu.

BRICKCOM.COM | BLOCK UP YOUR SECURITY

WDR (*): Check "Enable" to see things clearly even if the objects are in strong backlight.

Test in Full Screen: Click to access full screen mode.

Click Apply to apply settings or Cancel to cancel changes.

Profile Management: Profiles can be scheduled to change at scheduled times or under different lightening changes.

Camera Profile Management Always Day&Night Schedule Digital Input Always use: Day Apply Cancel

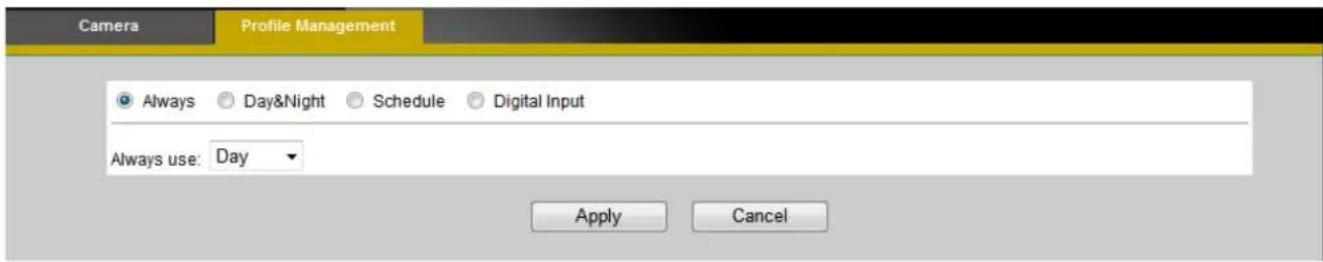

Always- Select Always to use a single profile. Select the profile from the drop down menu.

Camera Profile Management Always Day&Night Schedule Digital Input Day Profile Day Night Profile Night Switch to Day profile if the detected value is higher than 40 for 5 Second Switch to Night profile if the detected value is lower than 10 for 5 Second Current value detected: 155 Apply Cancel

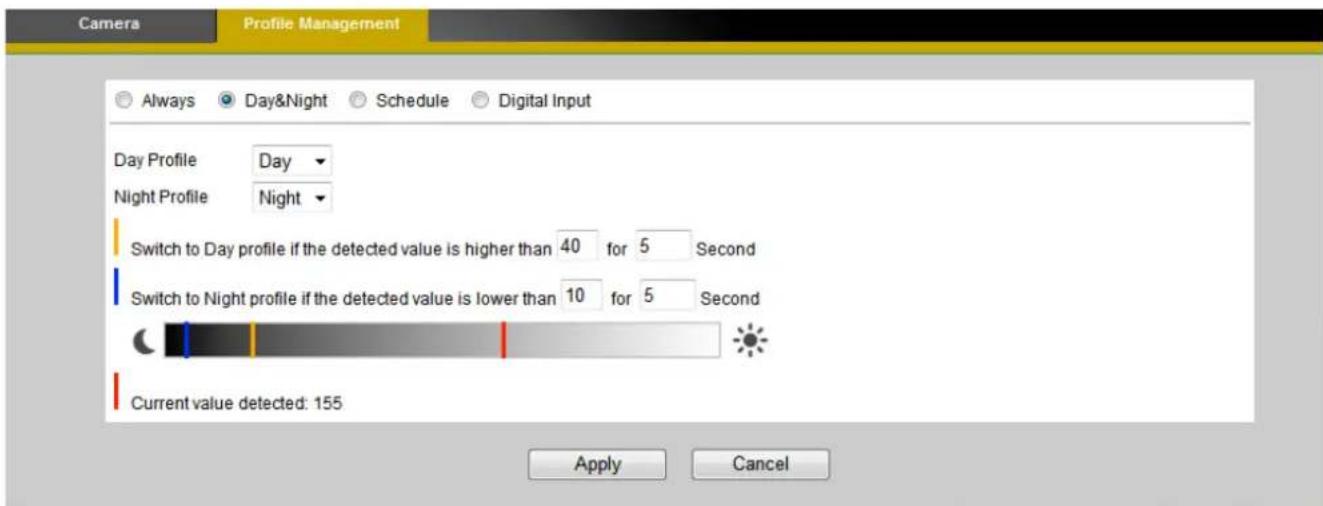

Day & Night (*) (Only available for models with the light sensor) - Select Day & Night to schedule two profiles for day and night. Select profiles from the drop down menu for the Day and Night Profiles.

Camera Profile Management Always Day&Night Schedule Digital Input 0:00 6:00 12:00 18:00 24:00 Sun Mon Tue Wed Thu Fri Sat Apply Cancel

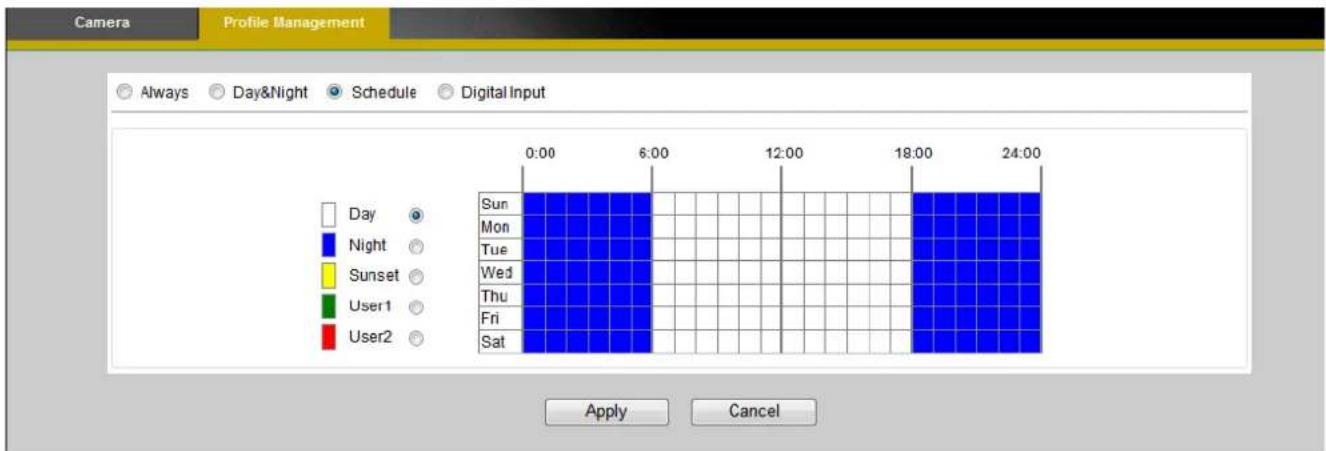

Schedule – Select Schedule to schedule specific time periods for different profiles.

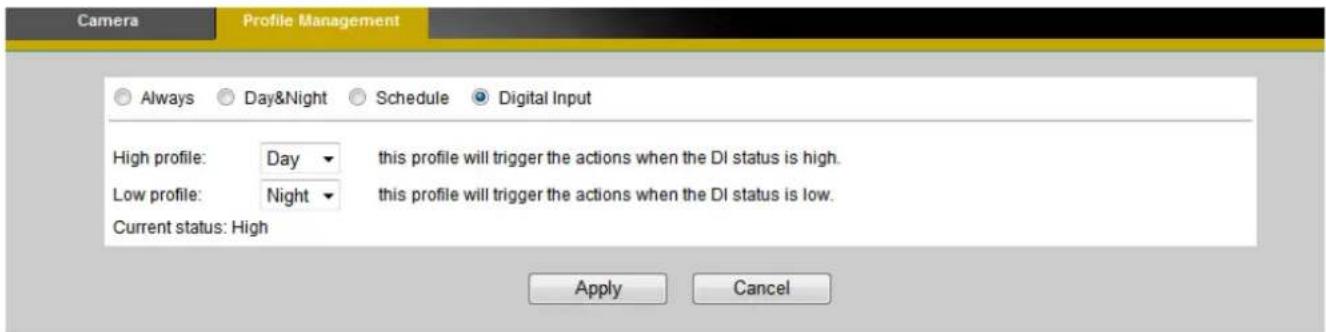

Camera Profile Management Always Day&Night Schedule Digital Input High profile: Day this profile will trigger the actions when the DI status is high. Low profile: Night this profile will trigger the actions when the DI status is low. Current status: High Apply Cancel

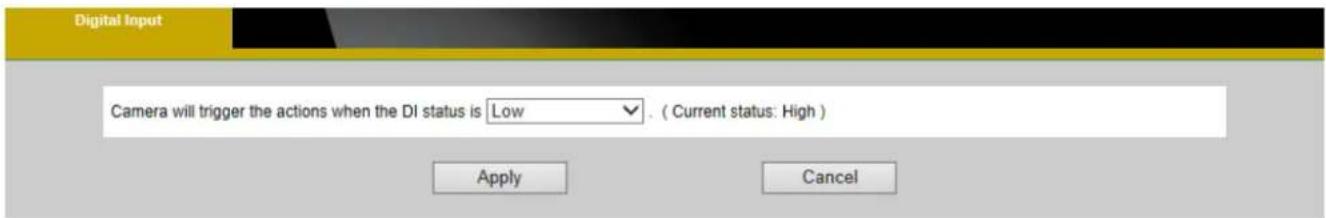

Digital Inputs (*) (Only available for models with the DI interface) - Select Digital Input to have the profile management controlled by an external sensor. Select profiles from the drop down menu. Profiles will be changed depending on the status of DI (Digital Input). Click Apply to apply settings or Cancel to cancel changes.

Video

The Network Camera offers multiple streams for different viewing options.

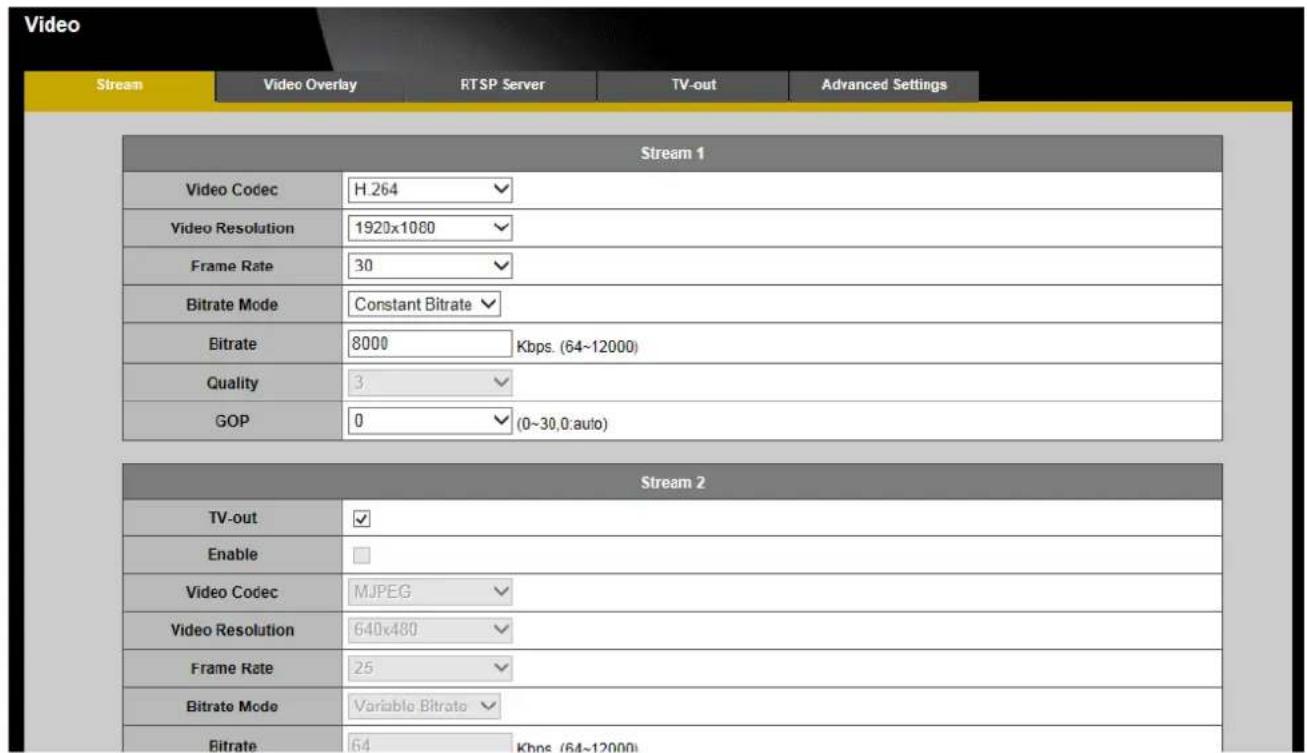

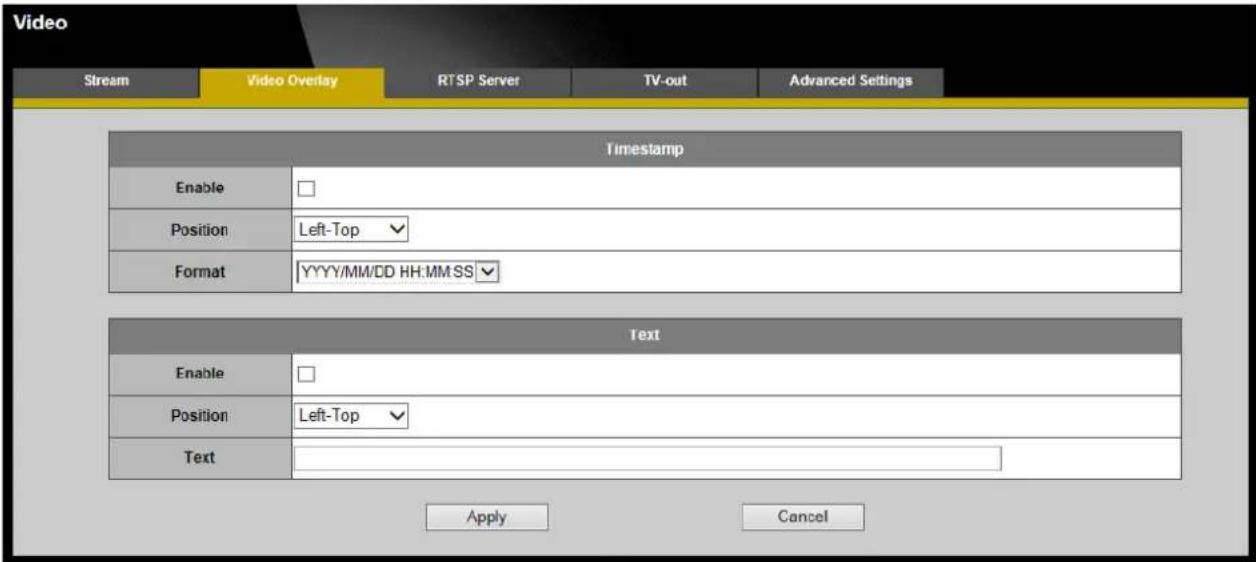

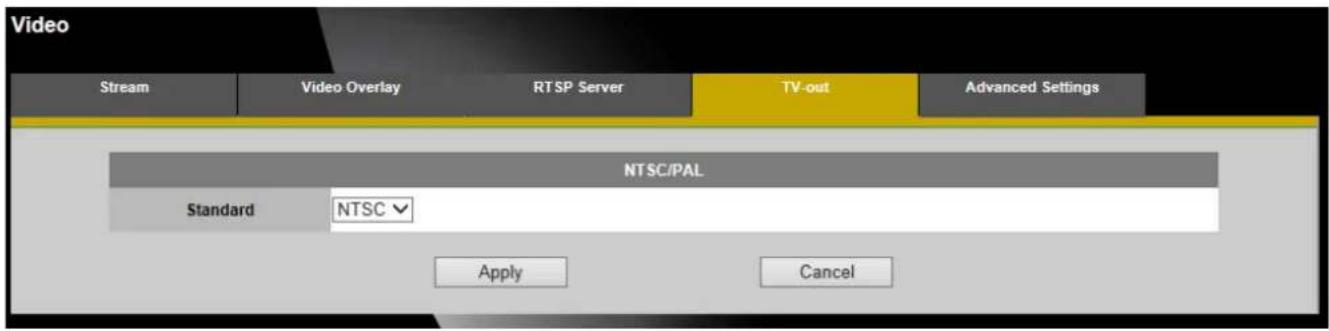

Stream Video Overlay RTSP Server TV-out Advanced Settings Stream 1 Video Codec H.264 Video Resolution 1920x1060 Frame Rate 30 Bitrate Mode Constant Bitrate Bitrate 8000 Kbps. (64~12000) Quality 3 GOP 0 (0~30,0:auto) Stream 2 TV-out Enable Video Codec MJPEG Video Resolution 640x480 Frame Rate 25 Bitrate Mode Variable Bitrate Bitrate 64 Kbps. (64~12000)

For each stream, the following settings are available:

Video Codec - The Network Camera offers three choices of video codec standards for real-time viewing: H.264, MPEG-4 and MJPEG.

Video Resolution - Select from the drop-down menu to choose the best resolution recording settings.

Frame Rate - Select the frame rate from the drop-down menu. Set a higher frame rate for the smoother video.

Bitrate Mode – Select the bitrate mode from the dropdown menu. Select Variable Bitrate to manually configure the video quality. Select Constant Bitrate to manually configure the bitrate. Set the higher bitrate/ quality for the better video.

Quality – Select MJPEG video codec to configure the video streaming using Quality. The video quality can be set between Level 1 to Level 6, with Level 6 producing the best image quality.

BRICKCOM.COM | BLOCK UP YOUR SECURITY

GOP – Set a higher GOP (group of picture) value for the smoother video transmission on the network. Select 0 to have the camera produce one i-frame per second regardless of the frame rate.

NOTE - a higher bitrate will use higher network bandwidth.

NOTE – HTTP Transport is for non-IE browser used only.

Click Apply to apply settings or Cancel to cancel changes.

Video Overlay

Video Stream Video Overlay RTSP Server TV-out Advanced Settings Timestamp Enable □ Position Left-Top Format YYYY/MM/DD HH:MM:SS Text Enable □ Position Left-Top Text Apply Cancel

Timestamp

To display the date and time on the screen during live view, check "Enable" to enable the timestamp function and select the display position from the drop-down menu.

Text

To make a note about the camera, check "Enable" and select the display position from the drop-down menu. Enter a video description in the text box.

Click Apply to apply settings or Cancel to cancel changes.

NOTE – For the 1 megapixel models, the video overlay will only takes effect on stream 1.

BRICKCOM.COM | BLOCK UP YOUR SECURITY

RTSP Server

Video Stream Video Overlay RT SP Server TV-cut Advanced Settings RT SP Server Port 554 Authentication NONE RTP/RTCP RTCP Mode Without SR Apply Cancel

To utilize RTSP authentication, the user must first set a password for the camera. RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default the port number is set to 554.

Authentication - Depending on the network security requirements, the camera provides two types of security settings for streaming via RTSP protocol: NONE, BASIC and DIGEST.

If DIGEST authentication is selected, user credentials are encrypted using MD5 algorithm, thus providing better protection against unauthorized access.

RTP/RTCP-

RTCP without SR - RTCP without SR (Sender Report) is the default option. Under this option, audio and video received from the IP camera are played immediately and independent of each other.

RTCP with SR - RTCP with SR option allows synchronization between video and audio on live viewing. Choose this option if audio and video become unsynchronized. Click Apply to apply settings or Cancel to cancel changes.

TV Out

Video Stream Video Overlay RT SP Server TV-out Advanced Settings NTSC/PAL Standard NTSC Apply Cancel

Both the NTSC and PAL formats are available.

Advanced Setting

Video Stream Video Overlay RT SP Server TV-out Advanced Settings Sequence Parameter Set (SPS) & Picture Parameter Set (PPS) Enable ✓ Interval 1 frames (1~30) Apply Cancel

The setting mainly addresses the compatibility issues, and the default setting works fine in most cases.

Audio

The administrator can set up multiple separate streams for the camera for different viewing devices. The administrator can enable or disable the audio function for each stream. If audio is enabled, select the desirable audio codec from the drop-down menu.

Stream Advanced Settings Stream 1 Enable Audio Codec G.711 Stream 2 Enable Audio Codec G.711 Stream 3 Enable Audio Codec G.711 Apply Cancel

Advanced Settings

Stream Advanced Settings Camera MIC MIC Type Built-in MIC Volume -0db Camera Speaker Enable ✓ Volume 50% ✓ Echo Cancellation Enable □ Apply Cancel

The Network Camera supports two-way audio communication so that operators can transmit and receive audio simultaneously and communicate with people over there.

Camera MIC - Select the desirable type of camera microphone and adjust the volume for the user applications.

Camera Speaker - Check "Enable" and adjust the volume from the drop-down menu.

Echo Cancellation - Check "Enable" to if echo cancellation is required.

Click Apply to apply settings or Cancel to cancel changes

BRICKCOM.COM | BLOCK UP YOUR SECURITY

Focus Easy (\*)

Focus Easy Enable ✓ Reference Point Center Weighting ✓ Apply Cancel

FocusEasy™ is Brickcom's patented technology that makes focusing the camera easy and fast without the help of a monitor. This function is available for the V5 professional manual vari-focal cameras, including the FB-300Np V5, OB-502Ap V5, OB-302Np V5, VD-502Ap V5, VD-302Np V5, etc. This function can be enabled or disabled. When this function is enabled, the user can select either Full Screen or Center Weighting to meet the needs.

NOTE – For the FocusEasy™ supported models, please release the push on immediately after hearing the activation/de-activation sound.

Multicast

Multicast Stream 1 Enable Multicast Address 234 .1 .2 .3 Port 10000 Stream 2 Enable Multicast Address 234 .1 .2 .3 Port 20000 Stream 3 Enable Multicast Address 234 .1 .2 .3 Port 10000 Apply Cancel

Multicast sends a video stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting the video stream from the multicast group address. Therefore, multicast can effectively save Internet bandwidth. The RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media.

Click "Enable" to enable the stream needed. Use different port numbers for different streams. It is recommended to use the default values.

NOTE - Using the IP address of the Network Camera enables access to the video.

Example: rtsp://192.168.1.1/channel1

Click Apply to apply settings or Cancel to cancel changes.

Privacy Mask Control

The camera supports the privacy mask function, which allows users to mask the camera's live view. The user can cover certain areas on the camera image with black to keep privacy in specific circumstances.

Privacy Mask Control Region Settings ✓ Full Screen ■ Enable Window 1 ■ Enable Window 2 ■ Enable Window 3 Apply Cancel

Privacy Mask Control –Region Settings allows the user to select specific area(s) to eliminate from the live view and recording to meet the particular needs.

Click Apply to apply settings or Cancel to cancel changes.

Camera Control (User who use IE11 Brower need to access to the tool menu, then select the compatibility view settings item in the drop-down menu to enable the camera control functions.)

Preset Point

Preset Point Camera Control Panel - - + + Focus - - + + Zoom Preset Point Settings Current Position Set as Home Add Return to Home when idling 0 ✓ Minutes Apply

A preset position is a pre-defined camera view that can be used to quickly move the camera view to a specific location. To create a preset position:

a. Use the Pan, Tilt and Zoom (PTZ) controls to steer the camera view to the required position.
b. Enter a descriptive name under Current Position and click Add.
c. The camera position and focus settings will be saved as a preset position.

NOTE – A total of sixteen preset points can be set.

d. Preset Positions can be assumed at any time by selecting the preset position's name from the available positions drop-down list. One position can be set as the Home position, which is readily accessible by clicking the Home button in the PTZ panel.

NOTE - The name of the preset point set as Home will have (H) added; for example,

Gate (H).

BRICKCOM.COM | BLOCK UP YOUR SECURITY

e. The camera can be configured to return to the Home position when the camera has been inactive for a specified length of time. Select the length of time from the drop-down menu and click Apply. Setting the time to zero prevents the camera from automatically returning to the Home position.

Patrol Settings

Patrol Settings Description Running Morning Stop Description Night Preset Positions 123 456 Patrol Positions Movement Speed Viewing Duration Delete 123 0 [1..100] 0 Second Delete 456 0 [1..100] 0 Second Delete Add Cancel

The camera can be set to patrol a group of preset points. For each patrol group, the user can configure the preset point order, movement speed, and viewing duration.

To create a patrol group:

a. Click on Add and enter a descriptive name in Description.
b. Add preset points to the patrol group by clicking the next to the desired preset point.
c. Use the arrow buttons to change the order of the preset positions by using the Adjust the sequence of positions, and enter Movement Speed and Viewing Duration for each preset point.
d. Click on Apply to save the patrol group.
e. Enable a patrol set by clicking on Start/Stop.

NOTE

1. A total of sixteen preset points can be assigned to a patrol group.
2. A total of four patrol groups can be assigned to a network camera.

PTZ Configuration

PTZ Configuration Baud Rate 9600bps Protocol Pelco-P Camera ID 1 Apply Cancel

PTZ allows users to change the shooting direction and zoom level of the network camera.

The panning, tilting, and zooming functions can be controlled remotely so operators can follow activity and focus in on specific details.

Baud Rate – Select the Baud Rate from the drop-down menu to match the user's needs.

Protocol – Select the Protocol from the drop-down menu (Pelco-P/Pelco-D).

Camera ID – Enter the Camera ID

Network

Network Settings

This section explains how to configure a wired network connection for the camera. There are several ways to setup the camera over the Internet: (1) obtain an available dynamic IP address assigned by a DHCP server, (2) use a static IP, or use PPPoE (Point-to-point over Ethernet). Select the desire setup mode from the IP settings drop-down menu.

Network Settings IEEE 802.1X Wired Settings Mode DHCP MTU Option Enable MTU Value 1500 (1280~1500) Apply Cancel

1. DHCP –If this option is selected, the camera will automatically obtain an available dynamic IP address from the DHCP server each time it connects to the LAN.

MTU (Maximum Transmission Unit) Option – Check “Enable” and adjust the MTU value for the user’s application. In most cases, there is no need to enable this function.

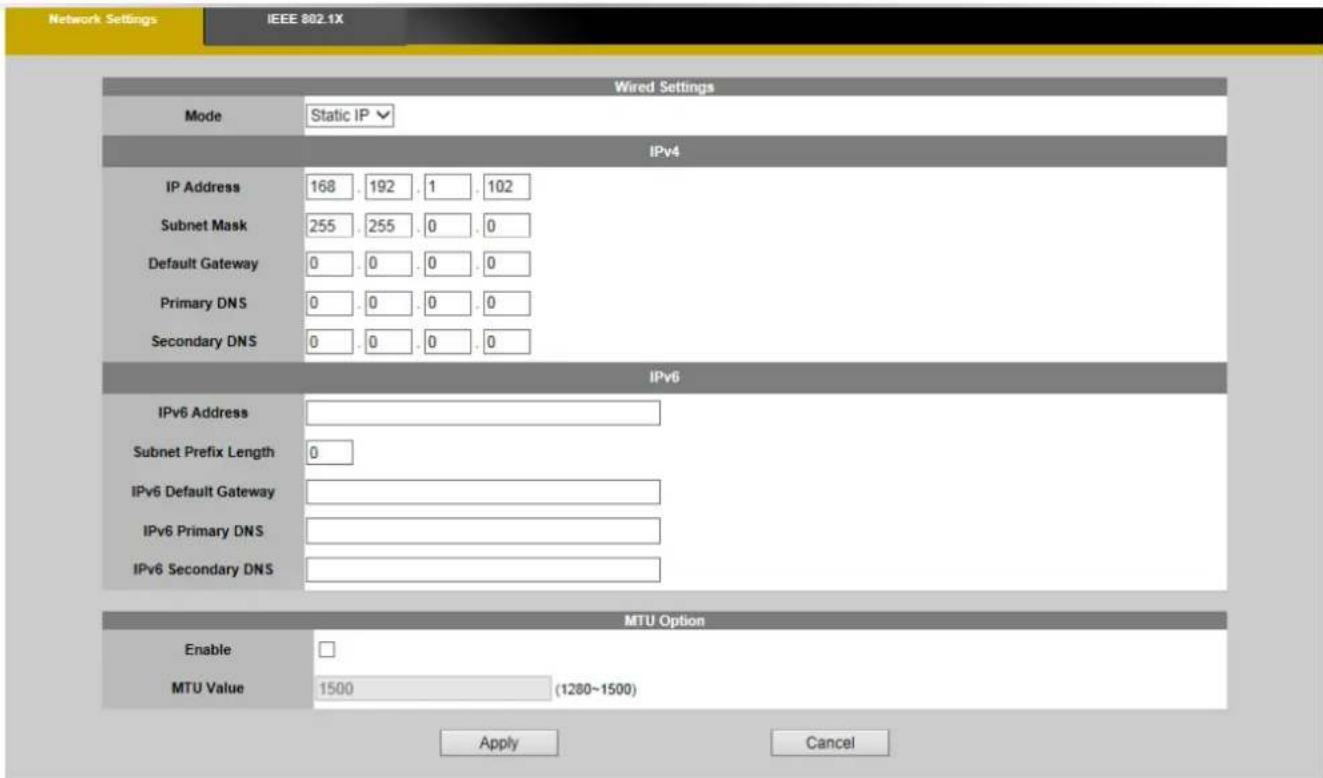

Network Settings IEEE 802.1X Wired Settings Mode Static IP IPv4 IP Address 168..192..1..102 Subnet Mask 255..255..0..0 Default Gateway 0..0..0..0 Primary DNS 0..0..0..0 Secondary DNS 0..0..0..0 IPv6 IPv6 Address Subnet Prefix Length 0 IPv6 Default Gateway IPv6 Primary DNS IPv6 Secondary DNS MTU Option Enable □ MTU Value 1500 (1280~1500) Apply Cancel

1. Static IP - Select this option to manually assign a static IP address to the camera. Enter the static IP address, Subnet mask, Default Gateway, Primary and Secondary DNS provided by the ISP.

MTU (Maximum Transmission Unit) Option – Check “Enable” and adjust the MTU value for the user's application. In most cases, there is no need to enable this function.

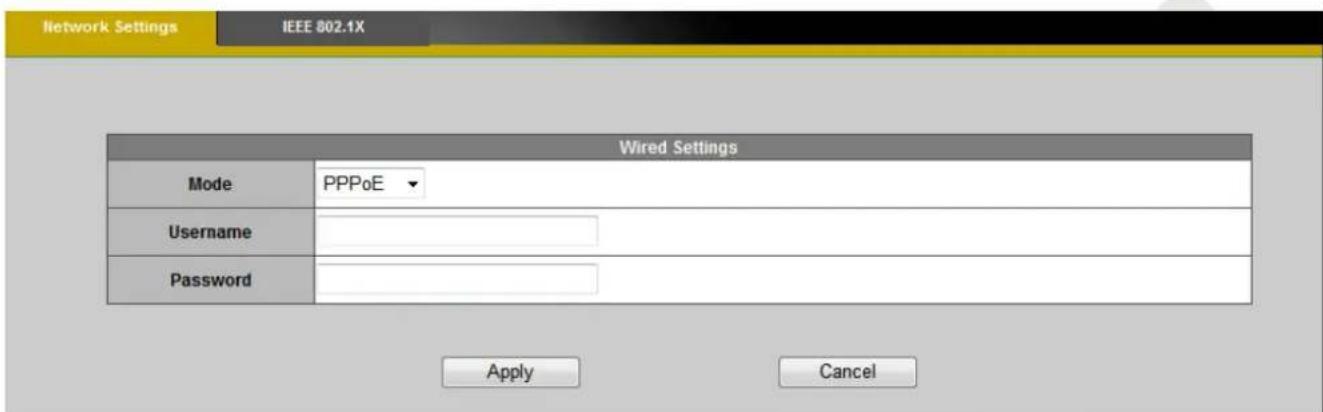

Network Settings IEEE 802.1X Wired Settings Mode PPPoE Username Password Apply Cancel

1. PPPoE (Point-to-point over Ethernet): Use this mode if connecting to the Internet through a DSL Line. NOTE - To utilize this feature, it requires an account provided

Brickcom

by an Internet Service Provider. Enter the user name and password provided by the ISP.

Click Apply to apply settings or Cancel to cancel changes.

1. 3G (*) – Use this option if using a 3G SIM card to set up the wireless connection to transmit the video/audio.

NOTE - This function is only available for the GOB models.

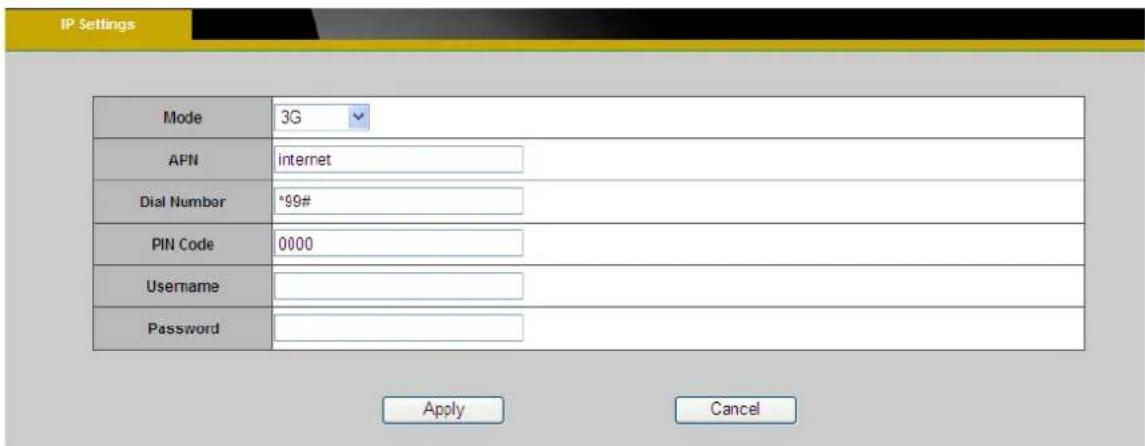

IP Settings Mode 3G APN internet Dial Number *99# PIN Code 0000 Username Password Apply Cancel

a. Enter the APN (Access Point Number), Dial Number, PIN Code, User Name and Password provided by the ISP.

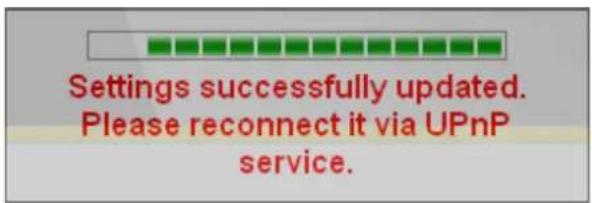

b. Click Apply to apply the settings. The message below will be displayed if the 3G settings were successfully applied.

Settings successfully updated. Please reconnect it via UPnP service.

c. Before disconnecting the network cable of the network camera, please obtain the IP Address by using EasyConfig. The 3G connection IP Address will be displayed in the IP Address column.

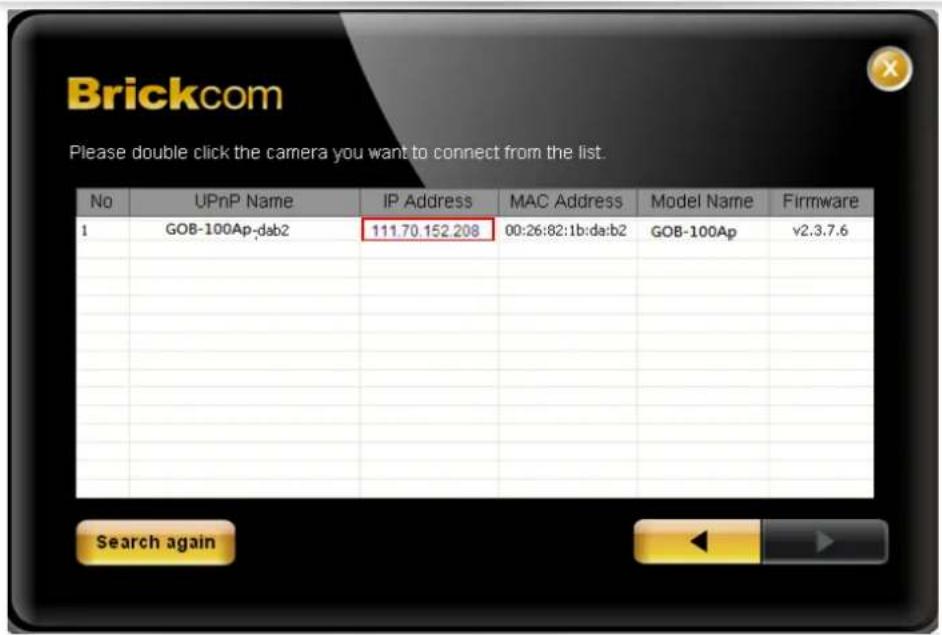

Brickcom Please double click the camera you want to connect from the list. No UPnP Name IP Address MAC Address Model Name Firmware I GOB-100Ap:deb2 111.70.152.208 00:26:82:1b:da:b2 GOB-100Ap v2.3.7.6 Search again

d. The network camera can now be accessed over the 3G network. To access the video feed through the internet, please open the IE browser and enter the network camera's IP address. A dialog window will pop up requesting the username and password. The default username is admin and the default password is admin.

Brickcom OB-100Ap Camera Configuration Utility Stream 1 Channels HTTP Protocol Camera Name: OB.100Ap-83fs 2009/01/01 04:38:13 H.264 1280x800 Playing Camera Control Panel Brightness Mic Volume Speaker Volume Optical Zoom Focus

IEEE 802.1X

IEEE 802.1X is an IEEE Standard for Port-based Network Access Control (PNAC). It provides an authentication mechanism to devices wishing to attach to a LAN or WLAN.

Network Settings IEEE 802.1X Enable Protocol EAP-TLS Username Private Key Password Client Certificate 浏览... Upload No Client Certificate uploaded CA Certificate 浏览... Upload No CA Certificate uploaded Apply Cancel

a. Check "Enable" and select the desired Protocol from the drop-down menu.
b. Enter the Username and Private Key Password.
c. Upload the client certificate and CA Certificate for use with the authentication.

UPnP

Universal Plug and Play (UPnP) simplifies the process of adding a camera to a local area network. Once connected to a LAN, the camera will automatically appear on the intranet. Click “Enable” to enable this function and enter an UPnP name which the camera will appear under on the intranet.

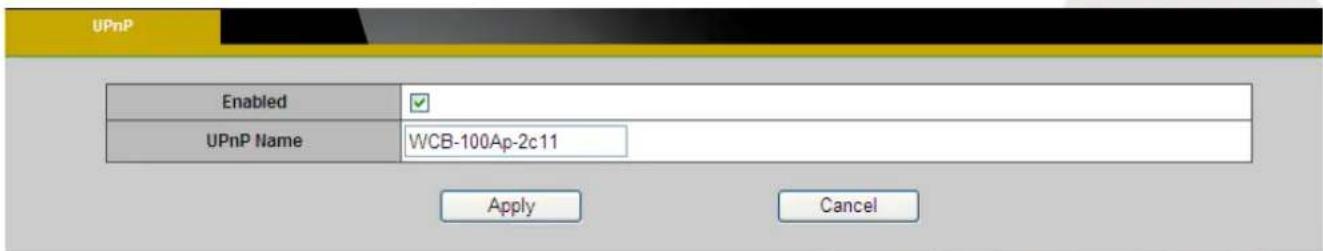

UPnP Enabled ✓ UPnP Name WCB-100Ap-2c11 Apply Cancel

Click Apply to apply settings or Cancel to cancel changes.

DDNS (dynamic domain name service)

DDNS links a domain name to an IP address, allowing users to easily access their camera even with a changing IP address. Brickcom network cameras are compatible with three DDNS service providers (1) DynDNS, (2) TZO, and (3) No-IP. ⚠️NOTE - Before utilizing this function; please apply for a dynamic domain account from a DDNS provider.

DynDNS TZO NO-IP Enable Username Password Hostname Apply Cancel

DynDNS – Enable the DynDNS to allow the camera to have a fixed host and domain name. Refer to the DynDNS website (www.dyndns.com) to apply for a dynamic domain account. When an account has been created, enter the username, password and hostname.

Click Apply to apply settings or Cancel to cancel changes.

TZO

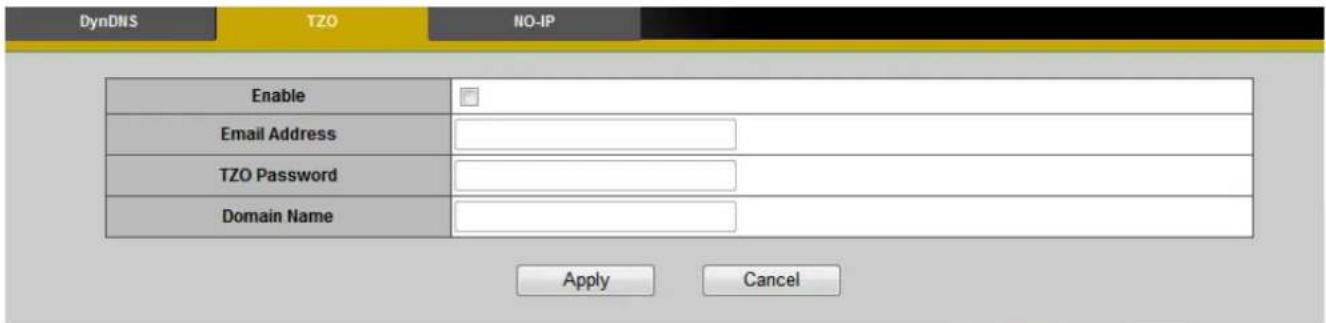

DynDNS TZO NO-IP Enable Email Address TZO Password Domain Name Apply Cancel

TZO is a DDNS provider which allows users to create a dynamic DNS. Refer to the TZO website (http://www.tzo.com/) to apply for a dynamic domain account. When an account has been created, enter the e-mail address, password and domain name.

Click Apply to apply settings or Cancel to cancel changes.

No-IP

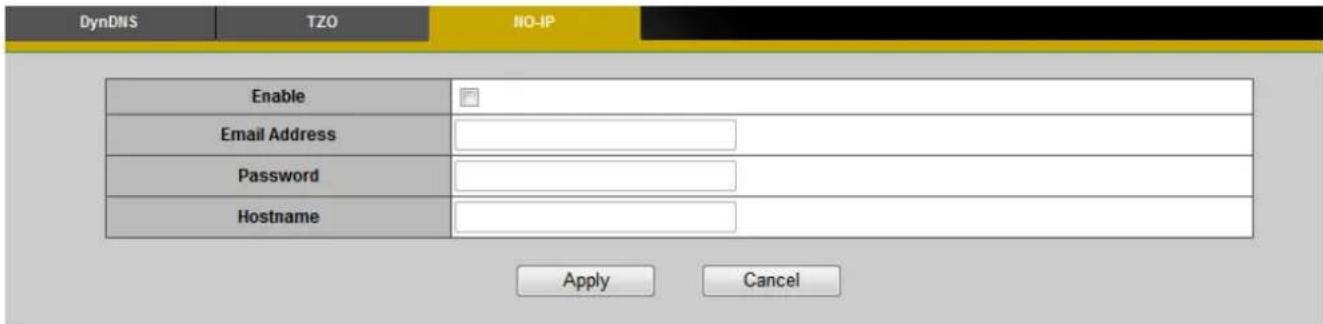

DynDNS TZO NO-IP Enable Email Address Password Hostname Apply Cancel

No-IP is a DDNS provider which offers DNS services, email, network monitoring and SSL certificates. Email services include POP3 email, outbound SMTP email, backup mail services and mail reflection and filtering. Refer to the No-IP website (www.no-ip.com) to apply for a dynamic domain account. When an account has been created, enter the e-mail address, password and domain name.

Click Apply to apply settings or Cancel to cancel changes.

EasyLink™

EasyLink™ is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera's IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses. When this function is enabled, users can log onto [uniqueEasyLinkname].mybrickcom.com to view the camera's web GUI and live view.

1. Check the box to enable EasyLink ^TM .
2. If Auto mode is selected, the following page will be displayed.

NOTE - This mode is recommended.

1. Enter a unique EasyLink name whose length must be between 5-32 characters. Click Verify to test if the EasyLink name is available.

2. Click START to do the Self-Diagnostic.

EasyLink Enable ✓ Mode ● Auto ○ Manual EasyLink Name 983b164bc542 .mybrickcom.com Verify Self-Diagnostic START Apply Cancel

1. If Manual mode is selected, the following page will be displayed.

EasyLink Enable ✓ Mode ○ Auto ● Manual EasyLink Name mybrickcom.com Verify Public HTTP Port 80 Public RTSP Port 554 Apply Cancel

1. Enter a unique EasyLink name whose length must be between 5-32 characters. Click Verify to test if the EasyLink name is available.
2. Manually enter the Public HTTP Port and RTSP Port or leave the default values.

Click Apply to apply settings or Cancel to cancel changes.

NOTE - The following conditions may cause EasyLink fail to work:

1. The camera is behind more than 1 router.
2. The camera's IP address and port setting has a conflict with the router's port forwarding setting.
3. EasyLink uses UPnP to exchange port information with the router. The camera must connect to the internet through a router which supports UPnP.

Wireless

These settings control how a Network Camera interacts with a wireless network. Users can identify the wireless network and enable wireless encryption.

NOTE – This function is only available for WCB, WOB and WMB models.

Basic Settings

Basic Settings Advanced Settings Wi-Fi Protected Setup Enable Network Name (SSID) Brickcom Site survey Security Disable Wireless Channel Disconnected Wireless Signal Strength Disconnected Status Disconnected Apply Cancel Site Survey List Click the Site Survey button to update the list.

Network Name (SSID) - The Service Set Identifier (SSID) is the network name used to identify the wireless signal emitted from a wireless camera. It is case-sensitive and can be up to 32 characters long.

Wireless devices have a default SSID set by the factory. Brickcom wireless products use Brickcom as the default name. Users have to ensure that the SSID setting matches the home network setting to enable the wireless devices.

NOTE - Be careful when including personal information when naming the SSID as it is

viewable by anyone browsing for wireless networks.

Site Survey – Survey the local area for available wireless networks. The user should select their Local Area Network (LAN) from the Site Survey List.

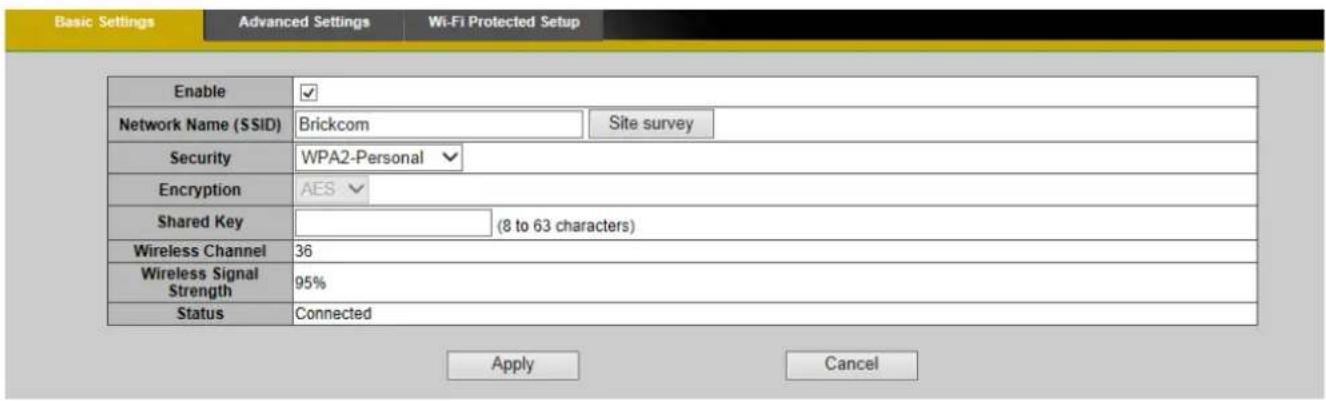

Basic Settings Advanced Settings Wi-Fi Protected Setup Enable ✓ Network Name (SSID) Brickcom Site survey Security Disable ✓ Wireless Channel 36 Wireless Signal Strength 90% Status Connected Apply Cancel Site Survey List SSID Mode Security Channel Signal Type Select Brickcom 11a/n NONE 40 99% Infrastructure Select LP-2596K 11a/n WPAPSK/AES 36 18% Infrastructure Select FAE_Kelsey 11a/n WPA2PSK/AES 36 63% Infrastructure Select BRICKCOM-5G-001 11a/n NONE 36 37% Infrastructure Select Stream19294 11a/n WPA2PSK/AES 36 31% Infrastructure Select Brickcom 11a/n NONE 40 13% Infrastructure Select

Security - Encryption protects data transmitted over a wireless network. WEP (Wired Equivalent Privacy), WPA-Personal (Wi-Fi Protected Access Personal) and WPA2-Personal offer different security levels for the wireless communication. A network encrypted with WPA2-Personal is more secure than WPA-Personal and WEP. To protect the information as it passes through the airwaves, it is recommended to enable the highest level of encryption supported by the network equipment. The WPA-RADIUS and WPA2-Enterprise are for the advanced users.

WEP- Wired Equivalent Privacy (WEP) is a basic encryption method which transmits network broadcast messages by using radio signals.

Basic Settings Advanced Settings Wi-Fi Protected Setup Enable ✓ Network Name (SSID) Brickcom Site survey Security WEP ✓ TX Key 1 ✓ WEP Encryption 40/64 bits (10 hex digits) ✓ Key 1 Key 2 Key 3 Key 4 Authentication Shared Key ✓ Wireless Channel 36 Wireless Signal Strength 88% Status Connected Apply Cancel

Tx Key - Select a key from the drop-down menu.

WEP Encryption - Select the level of WEP encryption that matches the user's wireless network setting.

Key 1-4 - Enter the WEP key(s) manually.

Authentication – Users can select the way of authentication from the drop-down menu that matches the user's application. Click Apply to apply settings or Cancel to cancel changes.

WPA-Personal

Basic Settings Advanced Settings Wi-Fi Protected Setup Enable ✓ Network Name (SSID) Brickcom Site survey Security WPA-Personal ✓ Encryption TKIP ✓ Shared Key (8 to 63 characters) Wireless Channel 36 Wireless Signal Strength 95% Status Connected Apply Cancel

Encryption - Supports two encryption methods with dynamic encryption keys: Temporal Key

Brickcom

Integrity Protocol (TKIP) and Advanced Encryption Standard (AES). Select the algorithm type that matches user's wireless network setting.

Shared Key - Enter a password of 8-63 characters.

Click Apply to apply settings or Cancel to cancel changes.

WPA2-Persona I

Basic Settings Advanced Settings Wi-Fi Protected Setup Enable ✓ Network Name (S$ID) Brickcom Site survey Security WPA2-Personal ✓ Encryption AES ✓ Shared Key (8 to 63 characters) Wireless Channel 36 Wireless Signal Strength 95% Status Connected Apply Cancel

Encryption - WPA2 supports AES encryption method with dynamic encryption keys.

Shared Key - Enter a password of 8-63 characters.

NOTE - If using WPA or WPA2, each device in the wireless network must use the same

WPA or WPA2 method and shared key or else the network will not function properly.

WPA-RADIUS

Basic Settings Advanced Settings Wi-Fi Protected Setup Enable ✓ Network Name (SSID) Brickcom Site survey Security WPA-RADIUS ✓ Encryption TKIP ✓ Protocol EAP-TLS ✓ Username Private Key Password Client Certificate 浏览... Upload No Client Certificate uploaded CA Certificate 浏览... Upload No CA Certificate uploaded Wireless Channel 40 Wireless Signal Strength 92% Status Connected Apply Cancel

Encryption - Supports two encryption methods with dynamic encryption keys: Temporal Key Integrity Protocol (TKIP) and Advanced Encryption Standard (AES). Select the algorithm type that matches user's wireless network setting.

Protocol – Select the type of protocol from the drop-down menu that matches the user's application. While the users select "EAP-PEAP" for protocol, the default inner EAP protocol will set up MS-CHAP v2 automatically.

Username – Enter the username.

Private Key Password – Enter the private key password.

Client certificate - Upload the client certificate for use with the authentication.

CA Certificate - Upload the CA Certificate for use with the authentication.

While the users select “EAP-PEAP” for protocol, the users can check “Validate Server Certificate” to enable the function and upload the CA Certificate for use with the authentication.

Advanced Settings

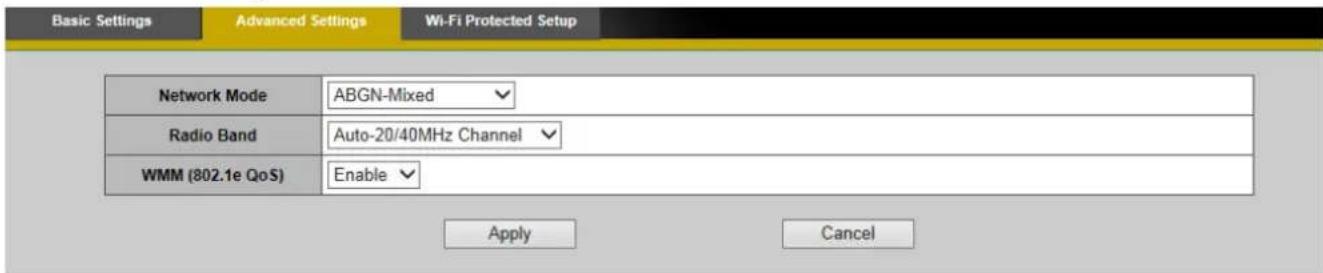

Basic Settings Advanced Settings Wi-Fi Protected Setup Network Mode ABGN-Mixed Radio Band Auto-20/40MHz Channel WMM (802.1e QoS) Enable Apply Cancel

Network Mode - From the drop-down menu, select the wireless standards running on the network

• If there are Wireless-B, Wireless-G and Wireless-N (2.4GHz) devices on the network, select BGN-Mixed.
• If there are Wireless-B and Wireless-G devices on the network, select BG-Mixed.
• If there are only Wireless-B devices on the network, select Wireless-B only.
• If there are only Wireless-G devices on the network, select Wireless-G only.
• If there are only Wireless-N (2.4GHz) devices on the network, select Wireless-N only.
  • (*)If there are Wireless-A and Wireless-N devices on the network, select AN-MIXED.
  • (*)If there are Wireless-A, Wireless-B, Wireless-G and Wireless-N (2.4GHz) devices on the network, select ABGN-Mixed.
• (*)If there are only Wireless-A devices on the network, select Wireless-A only.
  • (*)If there are Wireless-A, and Wireless-N (5GHz) devices on the network, select Wireless-N_5G only.

NOTE - (*) These are optional features. Please refer to the Product List for the full list of optional features available for the product.

Radio Band - The settings are available for the Auto-20/40MHz channel and Standard-20 MHz channel.

Brickcom

Enable WMM (802.1e QoS) - WMM is a wireless Quality of Service feature that improves quality for audio, video, and voice applications by prioritizing wireless traffic. To use this feature, the wireless client devices on the network must support Wireless WMM. The default setting is Enabled. To disable this feature, select Disable.

Click Apply to apply settings or Cancel to cancel changes

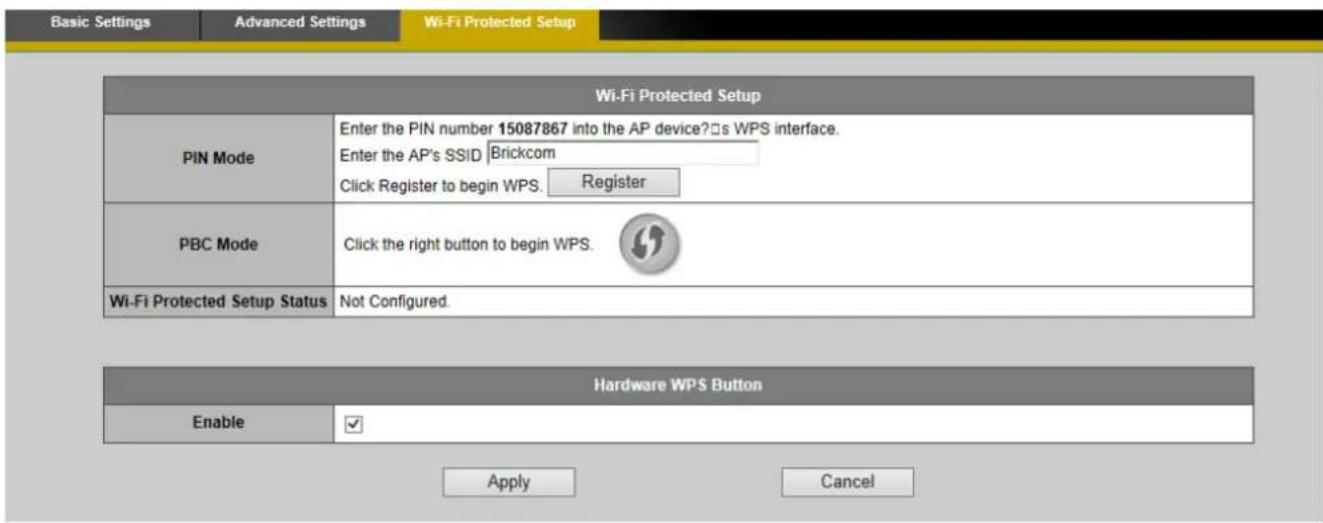

Wi-Fi Protected Setup

Basic Settings Advanced Settings Wi-Fi Protected Setup Wi-Fi Protected Setup PIN Mode Enter the PIN number 15087867 into the AP device?□s WPS interface. Enter the AP's SSID Brickcom Click Register to begin WPS. Register PBC Mode Click the right button to begin WPS. Wi-Fi Protected Setup Status Not Configured. Hardware WPS Button Enable ✓ Apply Cancel

Use this method if the client device has a Wi-Fi Protected Setup PIN number.

1. Enter the AP's SSID from the device in the field.
2. Click to start WPS.
3. Click to start WPS.
4. Click "Enable" to enable the WPS Button. If this feature is not enabled, the user will not be able to use the WPS button.
5. Click Apply to apply settings or Cancel to cancel changes.

HTTP/HTTPS

HTTP Enabled Port 80 HTTPS Enabled Port 443 Apply Cancel

HTTP – (HyperText Transfer Protocol) - This protocol allows for TCP protocol quality without having to open specific ports for streaming. Users inside a firewall can utilize this protocol to allow streaming data through.

HTTPS - (Hypertext Transfer Protocol over SSL) - This protocol allows authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on a higher security level than HTTP.

For HTTPS to work properly, users have to create and install a certificate of their own.

1. Click "Continue to this website" to install.

There is a problem with this website's security certificate.

The security certificate presented by this website was issued for a different website's address.

Security certificate problems may indicate an attempt to fool you or intercept any data you send to the server.

We recommend that you close this webpage and do not continue to this website.

√ Click here to close this webpage.

Continue to this website (not recommended).

More information

1. Enter the User name and Password of the camera.

Connect to 192.168.1.1 The server 192.168.1.1 at Brickcom IPCAM Login requires a username and password. Warning: This server is requesting that your username and password be sent in an insecure manner (basic authentication without a secure connection). User name: admin Password: •••••• Remember my password OK Cancel

1. Click "Certificate Error" on the top right corner of the window to view the certificate.

https://192.168.1.103/ File Edit View Favorites Tools Help Live View Brickcom WCB-100Ap Camera Configur Stream 1 Channels TCP Protocol 2009/01/01 00:06:44 H.264 1280x800 Playing Mismatched Address The security certificate presented by this website was issued for a different website's address. This problem may indicate an attempt to fool you or intercept any data you send to the server. We recommend that you close this webpage About certificate errors View certificates

1. Click "Install Certificate" and follow the steps to finish the installation.

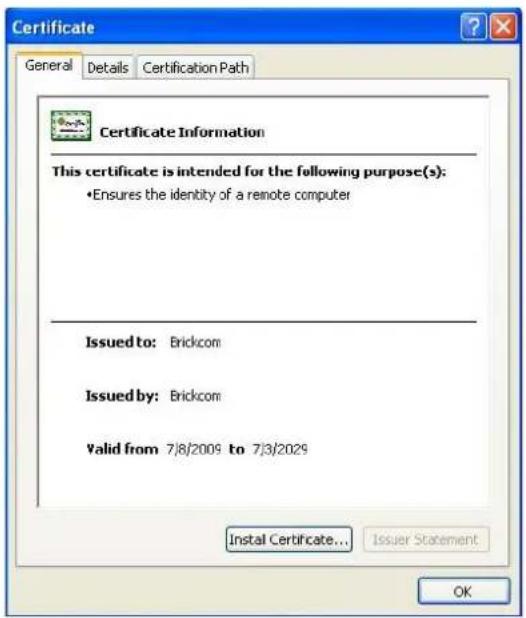

Certificate General Details Certification Path Certificate Information This certificate is intended for the following purpose(s): •Ensures the identity of a remote computer Issued to: Brickcom Issued by: Brickcom Valid from 7/8/2009 to 7/3/2029 Install Certificate... Issuer Statement OK

Event

Event Settings

When an event (such as unauthorized movement) occurs, the camera can be scheduled to perform certain actions. An Event Type is a set of parameters that defines these actions.

This section describes how to configure the camera to perform certain actions when events occur.

Event Settings Event List Enable Name Event Type Action Note : Video Quality Requirements for Event-Triggered Recording: 1) The recording stream is user selectable. By default it is Stream 1. 2) The Video Codec of the recording stream must be set to H.264 or MPEG4. 3) If set to Constant Bitrate (CBR), the Bitrate value is up to 4000Kbps. 4) If set to Variable Bitrate (VBR), the Quality value is up to 3, and the Video Resolution value is up to 1920x1080. Add Event Delete Event

Click on the Event Settings page. The Event Setup page will appear.

Event List Enable Name Event Type Action Note : Video Quality Requirements for Event-Triggered Recording: 1) The recording stream is user selectable. By default it is Stream 1. 2) The Video Codec of the recording stream must be set to H.264 or MPEG4. 3) If set to Constant Bitrate (CBR), the Bitrate value is up to 4000Kbps. 4) If set to Variable Bitrate (VBR), the Quality value is up to 3, and the Video Resolution value is up to 1920x1080. Add Event Delete Event Enable Name ● Always ○ Schedule ○ Recurrence Pattern Event Motion Detection ▼ Window 1 □ Window 2 □ Window 3 □ Save Stream to FTP ▼ □ Send Snapshot to FTP ▼ □ Play Audio Clip 123.wav ▼ □ Activate Digital Output □ Send HTTP Notification Action □ Send to Email □ Send TCP Notification to IP address □ . □ . □ . □ Port □ Message □ □ Send UDP Notification to IP address □ . □ . □ . □ Port □ Message □ □ Send Multicast Notification to IP address □ . □ . □ . □ Port □ Message □ Apply Cancel

How to Set Up an Event Schedule

Event Schedule describes how and when the camera performs certain actions.

1. Check "Enable" and enter a descriptive name for the event schedule.
2. Set Event Schedule to define when the event is activated by selecting from Always (24 hours), Schedule or Recurrence pattern.
   a. If Schedule is selected from the Event Schedule, the following page will be displayed:

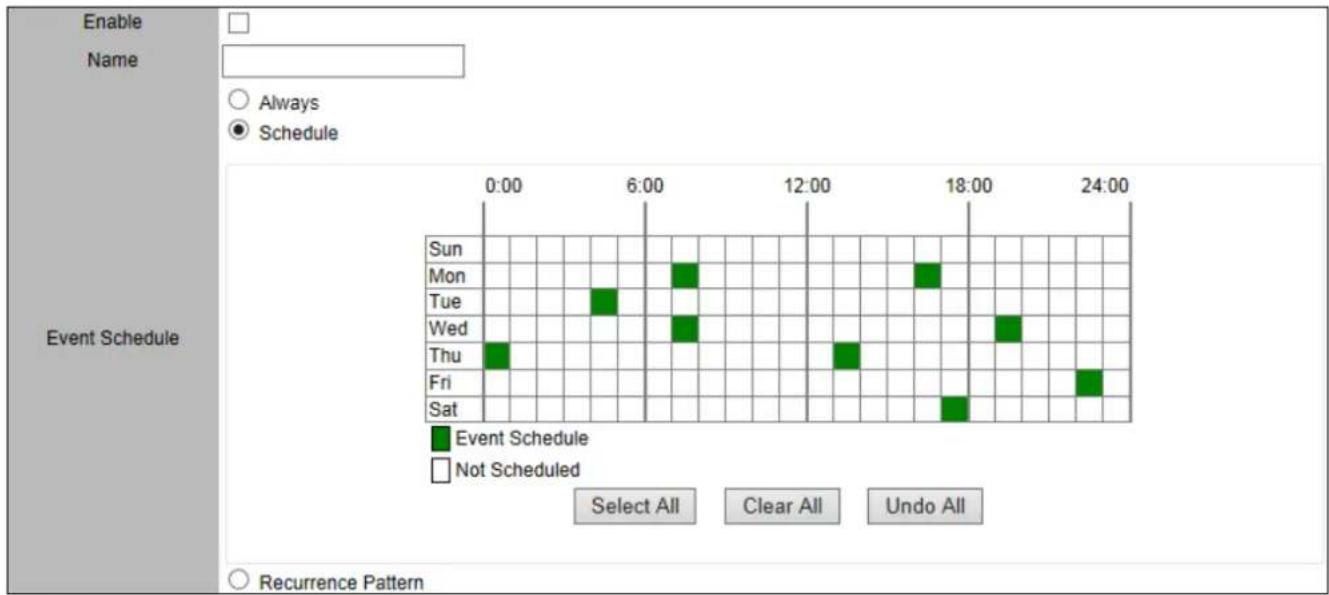

Enable Name ○ Always ● Schedule Event Schedule 0:00 6:00 12:00 18:00 24:00 Sun Mon Tue Wed Thu Fri Sat Event Schedule Not Scheduled Select All Clear All Undo All ○ Recurrence Pattern

A Scheduled Event can be programmed for certain times and day. Click individual boxes to schedule specific times for the camera to detect events.

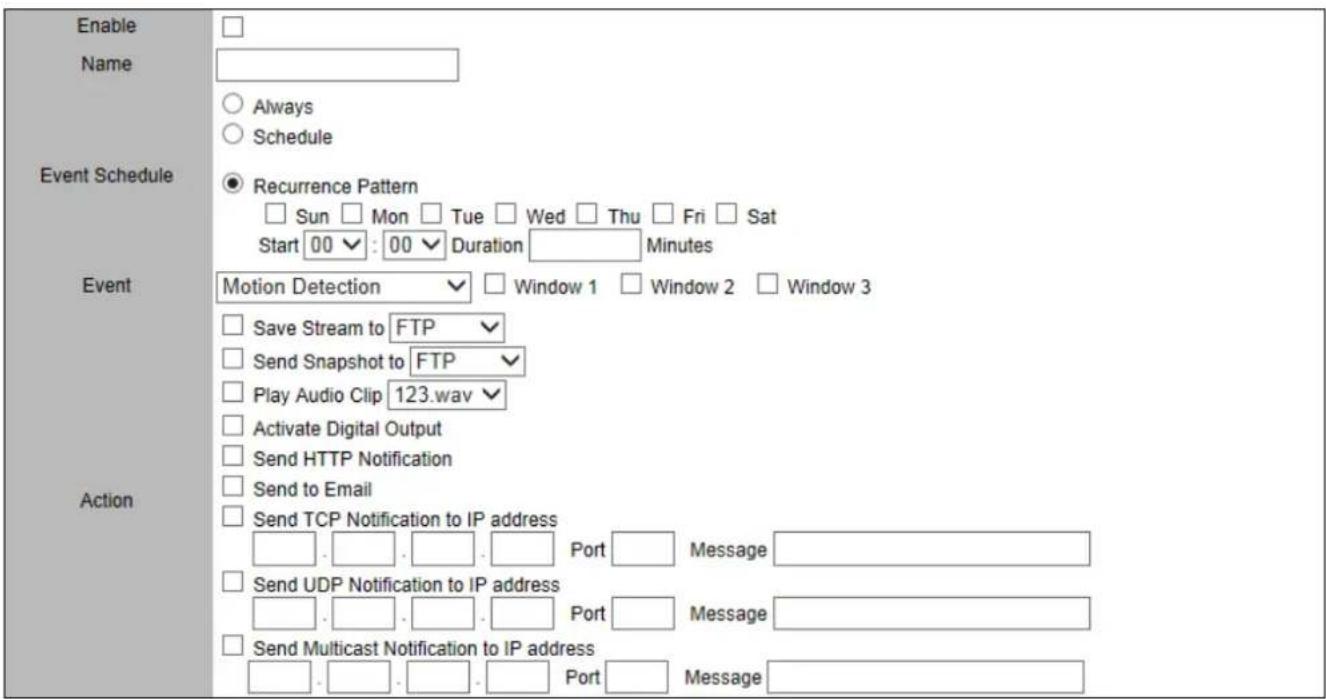

b. If Recurrence Pattern is selected, the following page will be displayed.

Enable Name ○ Always ○ Schedule Event Schedule ● Recurrence Pattern □ Sun □ Mon □ Tue □ Wed □ Thu □ Fri □ Sat Start 00 √ : 00 √ Duration □ Minutes Event Motion Detection √ □ Window 1 □ Window 2 □ Window 3 □ Save Stream to FTP √ □ Send Snapshot to FTP √ □ Play Audio Clip 123.wav √ □ Activate Digital Output □ Send HTTP Notification □ Send to Email □ Send TCP Notification to IP address □ . □ . □ . □ Port □ Message □ □ Send UDP Notification to IP address □ . □ . □ . □ Port □ Message □ □ Send Multicast Notification to IP address □ . □ . □ . □ Port □ Message □

c. An event schedule can be programmed to recur at different times according to the user's needs. Select the days for the event schedule to occur. Select a start time and specify the duration.
d. Define what will trigger an event to occur by selecting an option from the Event drop-down list.
e. Select the Actions that will occur when the event is triggered.

When is selected, the following page will be shown:

Enable Name ○ Always ○ Schedule Event Schedule ● Recurrence Pattern □ Sun □ Mon □ Tue □ Wed □ Thu □ Fri □ Sat Start 00 √ : 00 √ Duration □ Minutes Event Motion Detection √ □ Window 1 □ Window 2 □ Window 3 □ Save Stream to FTP √ □ Send Snapshot to FTP √ □ Play Audio Clip 123.wav √ □ Activate Digital Output □ Send HTTP Notification ✓ Send to Email □ Send TCP Notification to IP address □ . □ . □ . □ Port □ Message □ □ Send UDP Notification to IP address □ . □ . □ . □ Port □ Message □ □ Send Multicast Notification to IP address □ . □ . □ . □ Port □ Message □ Email Sender TO CC Sender's Name Subject

1. Sender - Enter the email address of the sender.
2. Recipient - Enter the email address of the recipient. To enter multiple recipients, separate each by using a comma.
3. Sender's Name – Enter the sender's name that will appear in the recipient's inbox.
4. Subject - Enter the title of the email.

When complete, click Apply to save new event or Cancel to delete the event. The new event will appear on the event list. To edit an event setting, please select the event from the list. To remove an event setting from the list, select an event name from the list and then click . Click to add more events.

NOTE - Refer to the Audio Clip section for more details about the "Play Audio Clip" action.

Motion Detection

Motion can be detected by measuring changes in the speed or vector of bjects in the monitored area. This section explains how to configure the Network Camera to enable motion detection.

Detection Settings Region Settings Enable Window 1 Enable Window 2 Enable Window 3 Sensitivity Threshold Use the mouse to resize or move the Motion Detection Window. The chart below records the amount of activity within the MD Window. The user can choose to receive notifications when the activity level is above the threshold. Use the Event Settings tool to configure the notification settings.. ※The MD setting is only available for the stream 1 with H.264 codec. ※The minimum frame rate for the Motion Detection function is 5 fps. Apply Cancel

Detection Setting – Use this setting to enable and define the motion detection windows. The user can defined up to three areas on the live view window for motion detection.

1. Select , , or to adjust the motion detection window.
2. Check the box to enable the window.
3. Use the mouse to resize or move the motion detection window.
4. Adjust the "Sensitivity" level. Lower sensitivity levels will result in more activity needed to trigger an event.
5. Adjust the "Threshold" level. The higher the threshold is, the more proportion of the region is needed to trigger an event.
6. The chart below the Live View window indicates the activity in the Motion Detection

Brickcom

window. When motion in the motion detection window is detected by the camera, a vertical bar will be displayed in the chart; when the motion is detected and the motion activity level is over the defined threshold, the color of the bar will change. Users can use this feature as a trigger source to send photos or videos to a remote server via email or FTP.

Click Apply to apply settings or Cancel to cancel changes.

Digital Input

Digital Input Camera will trigger the actions when the DI status is Low. ( Current status: High ) Apply Cancel

The users can select the desired DI status from the drop-down menu. When the DI status meets the specified condition, the camera will be triggered to take the corresponding actions.

Audio Detection

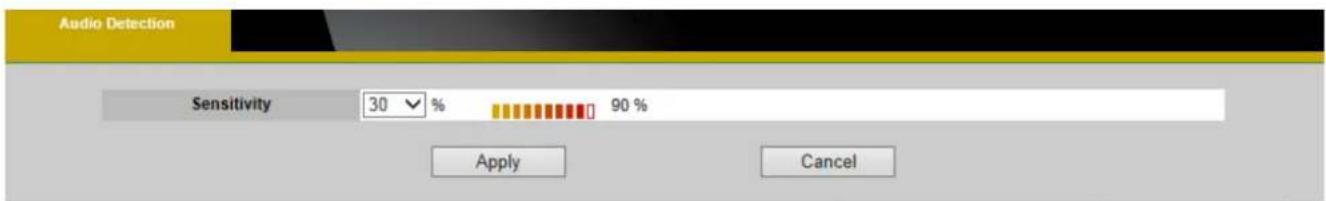

Audio Detection Sensitivity 30 % 90 % Apply Cancel

Users can schedule an event to be triggered if there is a change in the sound level of a monitored area. Audio detection can be used to measure change in the ambient voice. Select the sensitivity from the drop-down menu.

90% Display the current sound level.

Click Apply to apply settings or Cancel to cancel changes.

Temperature Detection

The temperature detection function is used to report the current chamber temperature of the camera. The camera can also be programmed to trigger an event if the current chamber temperature of the camera is higher than the upper bound or lower than the lower bound.

Unit - Set the unit of measurement to Fahrenheit (^) or Celsius (^) .

Upper bound & Lower bound – Set the temperature boundaries. The applicable values range from 0 °C to 100 °C ( 32 °F to 212 °F ).

PIR (Professional Cube Only)

The PIR (Passive InfraRed) sensor measures infrared light radiating from objects in its field of view. This can be used to detect a moving object, such as a person, in dimly lit areas. Sensitivity – Adjust the sensitivity of the PIR Sensor from the drop-down menu. Higher sensitivity levels will increase the range of the PIR Sensor.

Notifications

Use the tools in this section to specify what type of notification will be sent when an event occurs. The camera can send buffered images to an FTP server, Samba, Email, or HTTP.

FTP Settings

File Transfer Protocol (FTP) is used as an application component to automatically transfer files for program internal functions. Select “Primary FTP Server” from the Server Selection drop down menu to send media files to a FTP server when an event is triggered. Enter the FTP IP address or hostname. By default, the FTP port server is set to 21. Enter the account name, password and FTP Path to configure the settings.

FTP Settings Server Selection Primary FTP Server FTP Address IP Address 0.0.0.0 FTP Port 21 Account Name Account Password FTP Path Apply Test Cancel

Click Apply to apply settings or Cancel to cancel changes.

E-mail Settings

Select "Primary Email Server" option from the Server Selection drop down menu to send media files to an email server when an event is triggered.

SMTP Server - Enter the server host name of the email server.

SMTP Port - Enter the port number of the email server; by default, the SMTP port is set to 25.

Authentication - Select the authentication type from the drop-down menu.

Email Account - Enter the user name of the email account if necessary.

Email Password - Enter the password of the email account if necessary.

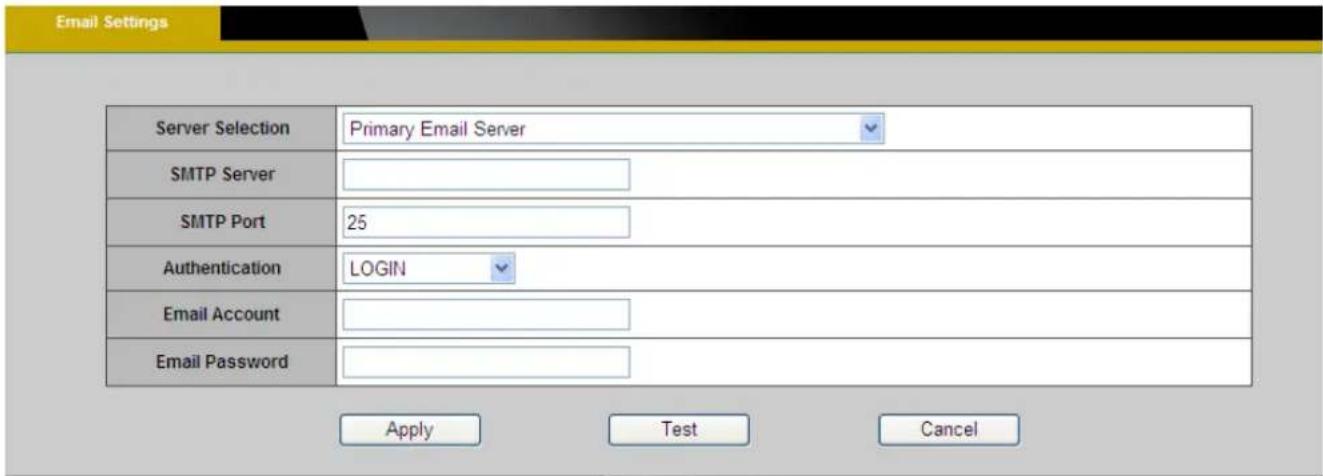

Email Settings Server Selection Primary Email Server SMTP Server SMTP Port 25 Authentication LOGIN Email Account Email Password Apply Test Cancel

Click Apply to apply settings or Cancel to cancel changes.

Samba Settings

Select this option to send the media files via a network neighborhood when an event is triggered.

Server Address - Enter the IP address of the Samba server.

User Name - Enter the user name of the Samba server.

Password - Enter the password of the Samba server.

Work Group - Enter the workgroup of the Samba server.

Shared Folder - Enter the share folder of the Samba server.

Samba Settings Server Address IP Address 0.0.0.0 Username Password WorkGroup Shared Folder Apply Test Cancel

Click Apply to apply settings or Cancel to cancel changes.

HTTP Settings

Select this option to send the notification message via an HTTP connection when an event is triggered.

HTTP Settings URL Message Username Password Apply Cancel

URL –Specify the URL to send HTTP requests. The URL is normally written as:

http://ip_address/ notification.cgi?parameter

ip_address – IP address or host name of the HTTP host.

parameter – the notification parameter(s) to send to the HTTP host, if necessary.

Example

http://192.168.1.1/notification.cgi?event=MD&camera=FB-100A

Message - Enter the message notification that will be sent when an event is triggered.

Enter the user name and password if necessary.

Click Apply to apply settings or Cancel to cancel changes.

Digital Output (DO)

Digital Output When the DO is triggered, the DO status will be changed to Grounded for 5 second(s) (Current status: Open ) Apply Cancel

Brickcom

The DO socket allows the IP camera to send output to an external device. While executing the DO notification action, the status of the camera's DO interface will be changed to the specified setting (OPEN or GROUNDED) for the specified number of seconds to activate the connected external device.

NOTE – Users should select the option according to the specification of their external device.

Video Clip/Snapshot

Video Clip Pre-Alarm Buffer 5 Seconds (0 ~ 10) Post-Alarm Buffer 5 Seconds (1 ~ 30) Maximum Buffer Size 3072 Kbytes (128 ~ 6144) Snapshot Pre-Alarm Snapshot 0 Frame(s) (0 ~ 7) Post-Alarm Snapshot 1 Frame(s) (1 ~ 7) These settings are used for the Save Stream notifications triggered by Motion Detection, Digital Input, Audio Detection or PIR. Schedule event and Offline recording are not included. Apply Cancel

This function is used to determine when video clips or snapshots will be recorded and stored after an event is triggered.

Pre-Alarm Buffer – Up to 10 seconds of video before the event is triggered can be stored in the local storage or uploaded to the server. Enter the desired length of time.

Post-Alarm Buffer – Up to 30 seconds of video after the event is triggered can be stored in the local storage or uploaded to the server. Enter the desired length of time.

Maximum Buffer Size –Specify the maximum file size allowed.

Click Apply to apply settings or Cancel to cancel changes.

Pre-Alarm Snapshot – Up to 7 Snapshot before the event is triggered can be stored in the local storage or uploaded to the server. Enter the desired number of frame.

Post-Alarm Snapshot - Up to 7 Snapshot after the event is triggered can be stored in the local storage or uploaded to the server. Enter the desired number of frame.

Audio Clip

Audio Recording – Audio clips can be recording and played when an event occurs.

Audio Recording Audio Clip List Index File Name 1 11111.wav Play Stop Delete Export Import Please select a file to import Browse....Import Audio Recording Settings File Name Duration 5 Second Record

Click Browse to import a file from a local hard drive or network disk. Select the file and click Import.

NOTE – The camera can only play audio clips which are saved as .wav files with G.711 u-law encoding in 8000 Hz sampling rate.

To record a new clip using the camera's microphone:

Brickcom

1. File Name-Enter a file name.
2. Duration - Enter the number of seconds to record.
3. Click Record to record the new audio clip.
4. The new audio clip will appear on the audio clip list.
5. Select an audio clip file from the Audio Clip List.

a. Play- Select to hear the audio clip
b. Stop- Select to stop playing the audio clip.
c. Delete- Select to delete an audio clip.
d. Export- Select to export the audio clip to a local hard drive or network disk.

LED Light (Professional Cube Only)

LED Light Mode Keep active during event Keep active for 1 Sec (1~10) LED Control Activate On Inactivate Off Apply Cancel

Mode – Select “Keep active during event” or “Keep active for” a specific amount of time when an event is triggered.

LED Control - The LED on the front of the camera can be set to flash at a configurable interval when an event is triggered. From the Activate drop-down menu, select a percentage which the LED will brighten to. When the LED reaches the selected percentage, it can be configured to fade to off or turn off. Select the option from the Inactive menu.

Click Apply to apply settings or Cancel to cancel changes.

System

System Log

Log - Set up the camera to record a system log when an event is triggered.

LOG_WARNING-Wireless :Wireless connection for SSID 'Brickcom' is down, Thu Jan 1 00:00:12 2009 LOG_NOTICE-WebServer :User 'admin' logged in to [web server]. Thu Jan 1 00:02:35 2009 LOG_NOTICE-WebServer :User 'admin' logged in to [web server]. Thu Jan 1 00:02:52 2009 LOG_INFO-stream :Channel [1] started streaming to host [169.254.209.198], Thu Jan 1 00:02:55 2009 LOG_INFO-stream :Channel [1] stopped streaming to host [169.254.209.198], Thu Jan 1 00:09:07 2009 LOG_INFO-stream :Channel [1] started streaming to host [169.254.209.198], Thu Jan 1 00:09:18 2009 LOG_INFO-stream :Channel [1] stopped streaming to host [169.254.209.198], Thu Jan 1 00:09:58 2009 LOG_INFO-Wireless :Wireless connection for SSID 'Brickcom' is up, Thu Jan 1 01:44:31 2009 LOG_WARNING-Wireless :Wireless connection for SSID 'Brickcom' is down, Thu Jan 1 02:44:18 2009 LOG_NOTICE-WebServer :User 'admin' logged in to [web server]. Thu Jan 1 02:48:40 2009 LOG_INFO-stream :Channel [1] started streaming to host [169.254.209.198], Thu Jan 1 02:48:48 2009 LOG_INFO-stream :Channel [1] stopped streaming to host [169.254.209.198], Thu Jan 1 02:52:02 2009 LOG_WARNING-Wireless :Connection to wireless module was lost. Internal module is either down or not responding, Thu Jan 1 03:16:50 2009 LOG_WARNING-Wireless :Wireless connection for SSID 'Brickcom' is down, Thu Jan 1 03:16:56 2009 LOG_WARNING-Wireless :Wireless connection for SSID 'Brickcom' is down, Thu Jan 1 03:17:21 2009 LOG_NOTICE-WebServer :User 'admin' logged in to [web server]. Thu Jan 1 03:18:39 2009 LOG_NOTICE-WebServer :User 'admin' logged in to [web server]. Thu Jan 1 03:24:41 2009 LOG_NOTICE-WebServer :User 'admin' logged in to [web server]. Thu Jan 1 03:24:48 2009 LOG_WARNING-Wireless :Wireless connection for SSID 'Brickcom' is down, Thu Jan 1 03:36:20 2009 LOG_WARNING-Wireless :Wireless connection for SSID 'Brickcom' is down, Thu Jan 1 03:36:46 2009 LOG_NOTICE-WebServer :User 'admin' logged in to [web server]. Thu Jan 1 03:42:10 2009 LOG_INFO-stream :Channel [1] started streaming to host [169.254.209.198], Thu Jan 1 03:42:20 2009 LOG_INFO-Wireless :Wireless connection for SSID 'Brickcom' is up, Thu Jan 1 04:20:37 2009 LOG_WARNING-Wireless :Wireless connection for SSID 'Brickcom' is down, Thu Jan 1 04:31:08 2009 LOG_INFO-stream :Channel [1] started streaming to host [169.254.209.198], Thu Jan 1 04:31:52 2009 LOG_INFO-stream :Channel [1] stopped streaming to host [169.254.209.198], Thu Jan 1 04:33:06 2009 LOG_INFO-stream :Channel [1] stopped streaming to host [169.254.209.198], Thu Jan 1 04:35:54 2009

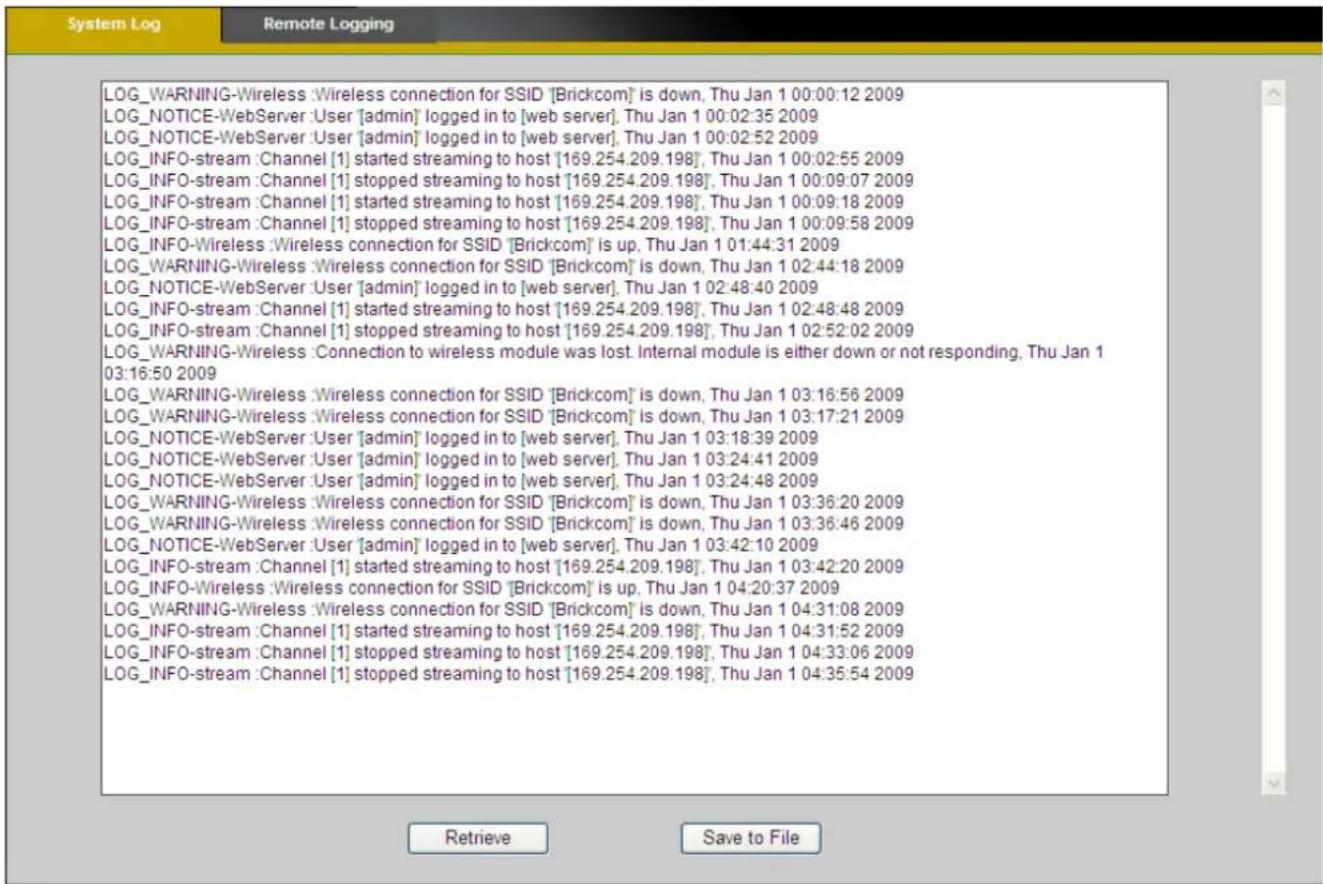

This page displays the system's log in chronological order. The system log is stored in the camera's buffer area and will be overwritten when the buffer area is full.

Click Retrieve to retrieve the log or click Save to file to save the system log.

Remote Logging

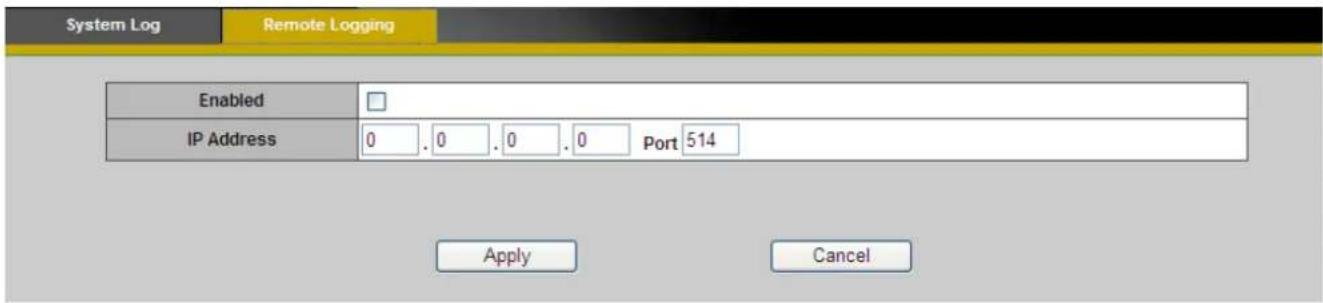

System Log Remote Logging Enabled IP Address 0 . 0 . 0 . 0 Port 514 Apply Cancel

The user can configure the camera to send the system log file to a remote server as a log backup.

Click to enable remote log and enter the IP address of the remote server.

Enter the port number of the remote server.

Click Apply to apply settings or Cancel to cancel changes.

Date and Time

Time Synchronization

Mode

1. Set Manually – The user can enter the desired date and time, or check “Clone” to copy the date and time of the computer to the camera.

Time Synchronization
Mode	● Set Manually ○ Synchronize with NTP server
Date	2014 / 9 / 26 (yyyy/mm/dd)
Time	13 : 23 : 28 (hh:mm:ss)
Clone from PC	□ Clone (Current Time: 2014/9/26 14:19:49)

1. Synchronize with NTP server – NTP is a protocol for synchronizing the clock of a computer system. Enter the address of the desired NTP servers in NTP Server 1 and Server 2.

Time Synchronization
Mode	○ Set Manually ● Synchronize with NTP server
NTP Server1	tick.stdtime.gov.tw
NTP Server2	clock.stdtime.gov.tw

Time Zone - Select the local time zone from drop-down menu, or choose the "User Defined" from drop-down menu and enter the country name and adjust the offset (Hours and Minutes).

TimeZone
TimeZone	(GMT+08:00)Taipei
Country
Offset	Hours: +0 Minutes: 00

Daylight Saving Time - Enable this option to update for Daylight Saving Time.

Daylight Saving Time
Daylight Saving	○ Disable ● Enable Manual √
Type	Date √
Start Date	Month: 1 √ Day: 1 √
End Date	Month: 1 √ Day: 1 √

Click Apply to apply settings or Cancel to cancel changes.

Device Information

System Information – Displays the complete system information of the camera.

LAN MAC Address	98.3B:16.4B:C5:42
Firmware Version	v3.2.3.5.6
Product Name	FB-300Np
UPnP Name	FB-300Np-c542

Network Settings – Displays the complete network settings information of the camera.

System Information	Network Settings	Video/Audio Settings	Client Information
IP Information
IP Setting Type		Static
IPv4
IP Address		192.168.1.102
Subnet Mask		255.255.0.0
Default Gateway		0.0.0.0
Primary DNS		0.0.0.0
Secondary DNS		0.0.0.0
IPv6
IP Address		/0
Default Gateway
Primary DNS
Secondary DNS
Network Services
UPnP		Enable
DynDNS		Disable
TZO		Disable
NO-IP		Disable

Video/Audio Settings – Displays the complete video/audio settings information of the camera.

Stream 1
Video Codec	H.264
Video Resolution	1920x1080
Video Frame Rate	30 fps
Video Bitrate	8000 Kbps
Audio Codec	N/A
Multicast IP	N/A
Stream 2
Video Codec	MJPEG
Video Resolution	640x480
Video Frame Rate	25 fps
Video Quality	3
Audio Codec	N/A
Multicast IP	N/A
Stream 3
Video Codec	H.264
Video Resolution	320x180
Video Frame Rate	30 fps
Video Bitrate	256 Kbps
Audio Codec	N/A
Multicast IP	N/A

Wireless (*) - Displays the complete wireless information of the camera.

System Information	Network Settings	Video/Audio Settings	Wireless
Wireless MAC Address	00:26:82:1B:DB:92
Radio Band	Auto-20/40MHz Channel
Network Mode	BGN-Mixed
Security	Disabled
Network Name (SSID)	Brickcom_MARS
Wireless Channel	6
Wireless Signal Strength	85%
Status	Connected

Client Information- Displays the RTSP Client .You will see a list of RTSP clients with the following information: IP Address and channel.

System Information Network Settings Video/Audio Settings Client Information Index IP Address Channel Refresh

Storage Management

Storage Management is used to view all the recorded files in the inserted memory card. Depending on the model used, the SD/SDHC/SDXC card or the micro-SD/SDHC/SDXC card may be used.

Local Storage Information
Item	SD Card
Total Capacity	7.41GB
Used Space	2.27GB
Available Space	5.14GB
Memory Card Management	Reload Remove Format
Storage Management	sd offline schedule snapshot videoclip

Click Reload to refresh the list of recorded files.

Click Remove to safely remove the memory card.

Click Format to format the memory card.

Left click on the folder to list the recorded files. The user can either play the snapshot of the recorded files by moving the mouse pointer over the file or double click on a file to play it. Right click on the folder to download, play or delete the recorded files.

NOTE – The user may need to install QuickTime multimedia framework to play the video clips.

Advanced Settings

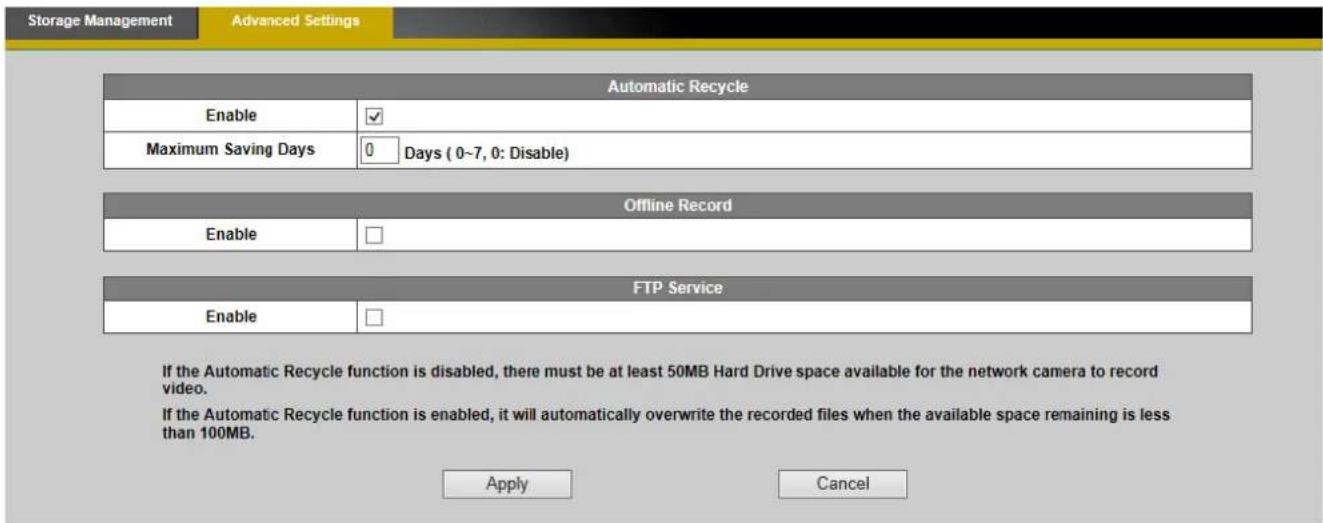

Storage Management Advanced Settings Automatic Recycle Enable ✓ Maximum Saving Days 0 Days ( 0~7, 0: Disable) Offline Record Enable □ FTP Service Enable □ Apply Cancel If the Automatic Recycle function is disabled, there must be at least 50MB Hard Drive space available for the network camera to record video. If the Automatic Recycle function is enabled, it will automatically overwrite the recorded files when the available space remaining is less than 100MB.

Automatic Recycle (*) – Enable to automatically overwrite older files when the available space remaining on the memory card is less than 100MB. If the Automatic Recycle function is disabled, there must be at least 50MB hard drive space available for the camera to be able to record video files. Enter the maximum saving days to fit your needs.

Offline Record – Enable to keep recording if the Network Camera is offline.

FTP Service – Click “Enable” to activate the FTP service of the camera for the users to download the video/snapshot files with an FTP client.

LED Indicators

The LED on the front of the camera can be configured to remain unlit. Check "OFF" to enable this function.

LED Indicators LED Indicators Configuration OFF Apply Cancel

Click Apply to apply settings or Cancel to cancel changes.

VMS Compatibility

VMS Compatibility

VMS Compatibility Video Encoder Audio Encoder ONVIF WS-Security Core Specification 1.0 GetStreamUriResponse Synchronization Apply Cancel

ONVIF

The parameters are used to address the compatibility issues. In most cases, the users can use the default values.

VMS Compatibility Video Encoder Audio Encoder Video Encoder Configuration (ONVIF) Video Codec H.264 Video Resolution 1920x1080 Frame Rate 30 Bitrate 8000 Kbps. Quality 30 (1~100) Apply Cancel

Video Encoder Configuration (ONVIF)

The users can configure the "customized" ONVIF default profile to fit the application.

Video Codec - The Network Camera offers three choices of video codec standards for real-time viewing: H.264, MPEG-4 and MJPEG.

Video Resolution - Select from the drop-down menu to choose the best resolution recording settings.

Frame Rate - Select the frame rate from the drop-down menu. Set a higher frame rate for the smoother video.

Bitrate - Select the Bitrate from the drop-down menu. Set the higher bitrate for the better video.

Quality – Enter the number of quality to fit the user's application.

Maintenance

User Management

This section explains how to enable password protection and create multiple accounts.

User Management Index User Name Privilege 1 admin Administrator 2 viewer Viewer 3 rviewer Remote Viewer Add Delete

The administrator account name is "admin", which is permanent and cannot be deleted.

Click Add to create an account.

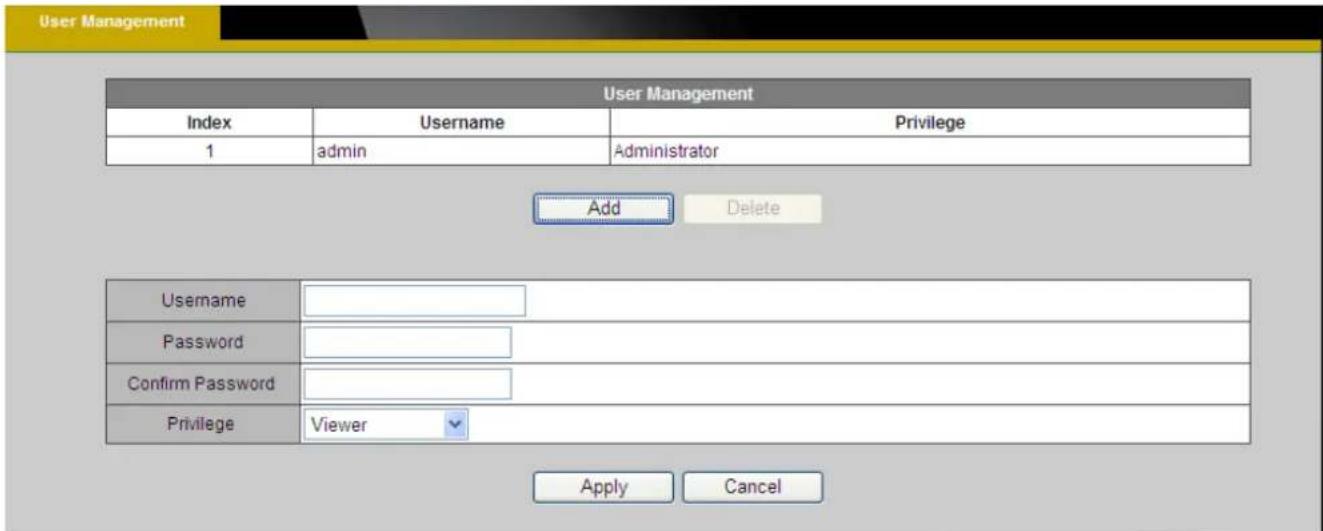

User Management Index Username Privilege 1 adults Administrator Add Delete Username Password Confirm Password Privilege Viewer Apply Cancel

Enter the new user's name, password and confirm password. Administrators can add up to 10 user accounts.

Select the privilege level for the new user account from the drop-down list. Privilege levels can be assigned as:

Brickcom

◆ Administrator - user has access to view and change the Configuration page. Users with administrator privilege can change other user's access rights and delete user's accounts. Click Delete or Update to delete or modify a user's account.
◆ Viewer - user can only access the main page for live viewing.
◆ Remote Viewer - user can only access the main page for live viewing by using TCP protocol.

Language

Select the desired language from the radio button. Click Apply to apply settings or Cancel to cancel changes.

IP Filter

The IP Filter is used to filter the IP addresses which are able to access the network camera. Enable the IP Filter and select to allow or deny a range of IP addresses access to the server. Click Add to list to add the IP range to the IP filter list.

IP Filter Enable IP Filter Allow Access List Deny Access List From To Add to List Apply Cancel

Click Apply to apply settings or Cancel to cancel changes.

Firmware Upgrade

This feature allows the user to upgrade the camera firmware. It will take a few minutes to complete the process.

NOTE - Do not power off the camera or interrupt the camera during the upgrade.

Click Browse and specify the firmware file, then click Upgrade. The camera will be upgraded and reboot automatically when the upgrade is finished.

Firmware Upgrade Select a File Browse... Upgrade

The following message will show during the firmware upgrading process.

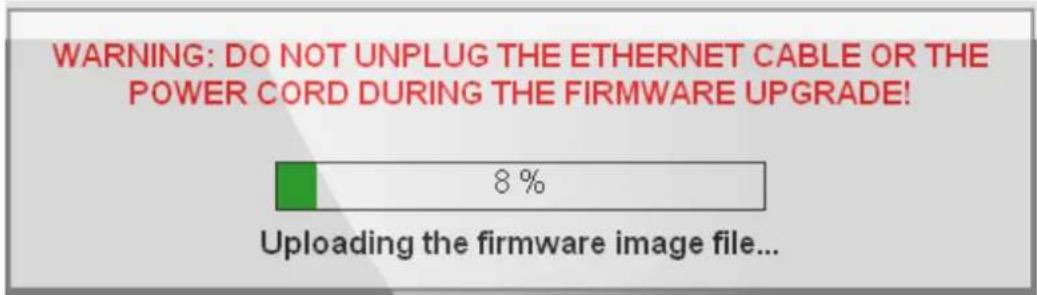

WARNING: DO NOT UNPLUG THE ETHERNET CABLE OR THE POWER CORD DURING THE FIRMWARE UPGRADE! 8 % Uploading the firmware image file...

Configuration

This feature allows the user to export/import the configuration files of the network camera.

Import/Export - Click export to pop up a dialog to indicate the location and file to export.

Click browse to indicate the location and file of the camera configuration and click import to import the configuration file back into the network camera.

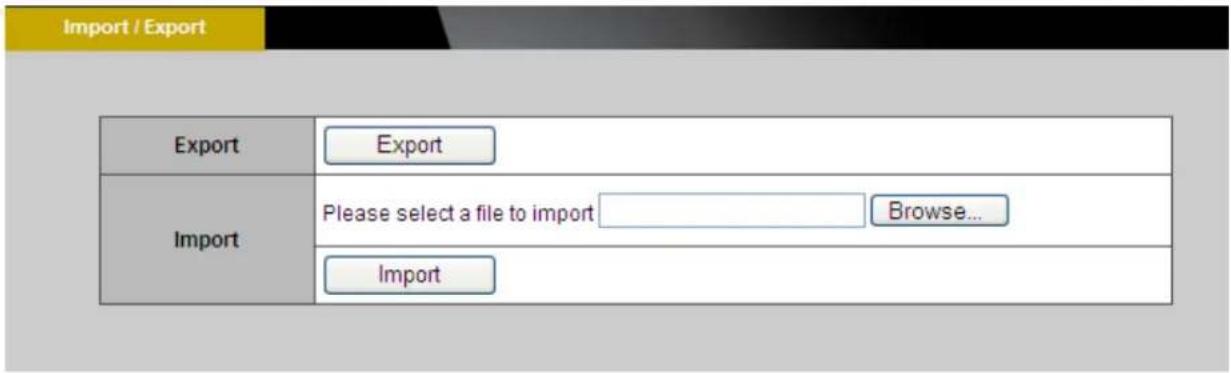

Import / Export Export Export Import Please select a file to import Browse... Import

Reset to Default

This section is used to restore the camera to default factory settings. Check the boxes to preserve the Network settings, Date and Time settings, EasyLink, settings, Language settings and HTTP/HTTPS settings. Click Apply to restore the camera to default factory settings.

Reset to Default Press the Apply button to restore the Network Camera settings to factory default values, except for the following: □ Network settings □ Date and Time settings □ EasyLink settings □ Language settings □ HTTP/HTTPS settings Apply Cancel

Reboot

Reboot Press Button to Reboot Apply

This feature will reboot the camera. Click Apply to begin. A message will pop up asking "The device will reboot. Are you sure?" Click "OK" to continue. The camera will take about one minute to reboot.

Microsoft Internet Explorer The device will reboot. Are you sure? OK Cancel

The following message will show during the rebooting process.

Please wait a moment...

When completed, the live video page will be displayed in the web browser.
