| Product Type | Bluetooth Mono Headset |
| Model | WH-208 (BH-110) |
| Brand | Nokia |
| Connectivity | Bluetooth 2.1 + EDR |
| Supported Profiles | HSP 1.1, HFP 1.5 |
| Wireless Range | Up to 10 meters (33 feet) |
| Battery Type | Internal rechargeable lithium-ion |
| Talk Time | Up to 6 hours |
| Standby Time | Up to 120 hours (5 days) |
| Charging Time | Approximately 2 hours (when fully discharged) |
| Charger Compatibility | Nokia AC-11, AC-3, AC-8, AC-15, DC-4, DC-9 |
| Pairing Capacity | Up to 8 paired devices, 2 simultaneous connections |
| Multi-Point | Yes (connect to two phones at once) |
| Keys | Multifunction key (power, call control) |
| Indicators | Red/green LED for battery and pairing status |
| Microphone | Built-in |
| Earpiece | Mono earbud with earloop |
| Material | Nickel-free surface, magnetic parts |
| Dimensions | Approximately 50 x 20 x 20 mm (earpiece only) |
| Weight | Approximately 10 g |
| Cleaning | Soft, dry cloth only |
| Safety Warnings | Keep away from small children, avoid magnetic media, use approved chargers |
| Compliance | CE, Bluetooth SIG |
| User Guide Languages | English (PDF available for download) |
Frequently Asked Questions - WH-208 NOKIA
User questions about WH-208 NOKIA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Headphones in PDF format for free! Find your manual WH-208 - NOKIA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WH-208 by NOKIA.
USER MANUAL WH-208 NOKIA
Nokia Bluetooth Headset BH-110 User Guide
Introduction
About your headset
With the Nokia Bluetooth BH-110 headset, you can handle calls hands-free, even when you are using two phones at the same time.
The surface of this product is nickel-free.
Warning:
This product may contain small parts. Keep them out of the reach of small children.
Parts of the product are magnetic. Metallic materials may be attracted to the product. Do not place credit cards or other magnetic storage media near the product, because information stored on them may be erased.
Read this user guide carefully before using the product. Also, read the user guide for the device that you connect to the product.
About Bluetooth connectivity
You can use Bluetooth to make a wireless connection to other compatible devices, such as mobile phones.

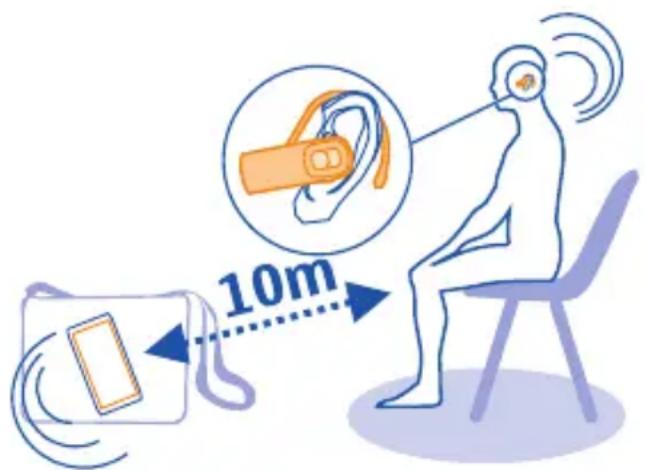

Devices do not need to be in direct line-of-sight, but they must be within 10 metres (33 feet) of each other. The connection may be affected by obstructions such as walls or other electronic devices.
This device is compliant with Bluetooth Specification 2.1 +EDR supporting the following profiles: Headset Profile (HSP) 1.1, Handsfree Profile (HFP) 1.5. Check with the manufacturers of other devices to determine their compatibility with this device.
Get started

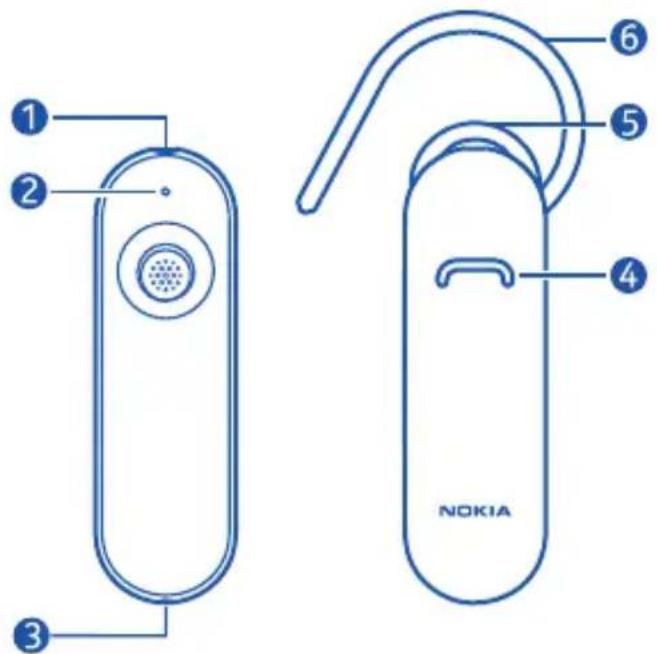

Keys and parts
1 Charger connector
2 Indicator light
3 Microphone
4 Multifunction key
5 Earpiece
6 Earloop
Charge the battery
Before using the headset, you must charge the battery.
Warning:
Use only chargers approved by Nokia for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous. Use of unapproved chargers may present a risk of fire, explosion, or other hazard.
1 Connect the charger to a wall outlet.
2 Connect the charger cable to the charger connector on the headset. The red indicator light turns green when the battery is fully charged.
3 Disconnect the charger from the headset, then from the wall outlet.
When you unplug a charger, hold and pull the plug, not the cord.
The fully charged battery has power for up to 6 hours of talk time or up to 120 hours of standby time.
When the battery charge is low, the headset beeps every 5 minutes, and the red indicator light flashes. When the battery is charging, the red indicator light is on.
Check the battery charge
Make sure the headset is switched on, and press ☐. A green light indicates a sufficient charge level. If the light is yellow, you may need to recharge the battery soon. If the light is red, recharge the battery.
Switch the headset on or off
Switch on
Press and hold □ for 2 seconds. The headset beeps, and a green indicator light flashes once.
The headset connects to the last connected device. If you have never paired the headset with a device, or you have cleared the pairings, pairing mode is activated.
Switch off
Press and hold ☐ for 5 seconds. The headset beeps, and a red indicator light flashes once. All active calls are ended.
If not connected to a device within 30 minutes, the headset switches off.
Pair and connect the headset to your phone
Before using the headset, you must pair and connect it to a compatible phone.
1 To switch the headset off, press and hold ☐ for 5 seconds.
2 Switch on the phone to pair with.
3 If you have never paired the headset with a device, or you have cleared the pairings, switch the headset on.
If you have previously paired your headset with a device, press and hold for 5 seconds.
Pairing mode is activated, and a green indicator light starts to flash quickly.
4 Within 3 minutes, activate Bluetooth on the phone, and set it to search for Bluetooth devices. For details, see the user guide of the phone.
5 Select the headset from the list of found devices.
6 If required, enter the passcode 0000.
You can pair your headset with 8 compatible phones, but you can only connect it to a maximum of 2 phones at the same time.
With some phones, you may need to make the connection separately after pairing.

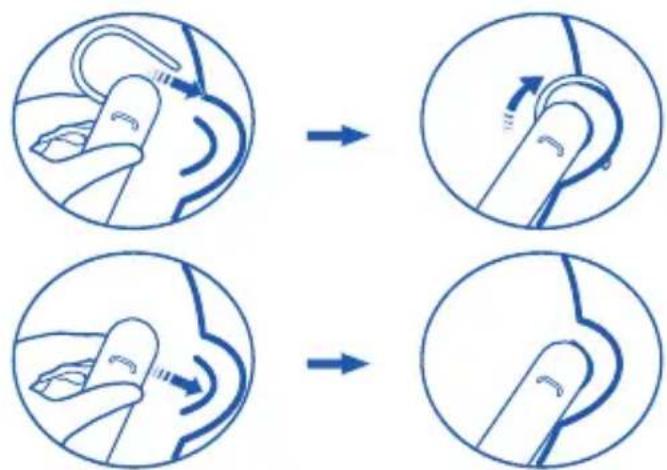

Wear the headset

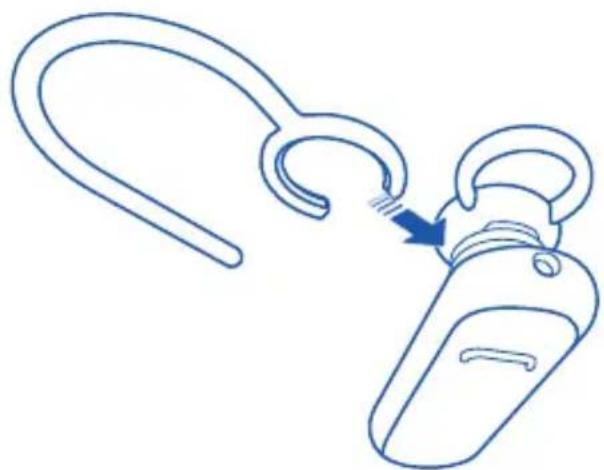

If you want to use the headset with the earloop, attach the earloop to the headset. To detach the earloop, gently pull it from the headset.
Make calls
Make and receive calls
To make and receive calls using your headset, you need to connect it to your phone.
Make a call
Make a call in the normal way.
Answer a call
Press ↘.
End a call
Press ↘.
Reject a call
Press twice.
Switch a call between your headset and phone
Press and hold for 2 seconds.
You can redial the last called number or use voice dialling, if your phone supports these features with the headset.
Redial the last called number
When no call is in progress, press ∩ twice.
Use voice dialling
When no call is in progress, press and hold ☐ for 2 seconds, and follow the instructions in the user guide of your phone.
Change the volume
Set the desired volume level on your connected phone. The selected volume level is saved as the minimum volume level for the phone that is currently connected to the headset.
Pair and connect the headset to two phones
When you use the headset for the first time, it automatically connects to your phone. You can also connect your headset to another phone, and manage calls from, for example, both your personal and your work phone at the same time.
1 To switch the headset off, press and hold
for 5 seconds.
2 To activate pairing mode, press and hold with the second phone.
for 5 seconds, and pair the headset
3 Make sure Bluetooth is activated on both phones, and switch the headset off and back on. The headset connects to both phones.
Handle calls from two phones
If your headset is connected to two phones, you can handle calls from both at the same time.
End an ongoing call, and answer a call on another phone
Press ↘.
Put an ongoing call on hold, and answer a call on another phone
Press and hold for 2 seconds.
Switch between active and held calls
Press and hold for 2 seconds.
End an ongoing call, and activate a held call
Press □.
If you redial or use voice dialling, the call is made on the phone you last had an active call on with the headset.
Settings
Clear device pairings
1 To switch the headset off, press and hold ☐ for 5 seconds.
2 Press and hold — for 9 seconds. The headset beeps twice, and the red and green indicator lights alternate.
After the pairings are cleared, the headset enters pairing mode.
Product and safety information
Battery and charger information
This device has an internal, nonremovable, rechargeable battery. Do not attempt to remove the battery from the device as you may damage the device.
This device is intended for use when supplied with power from the following chargers: AC-11, AC-3, AC-8, AC-15, DC-4, DC-9. The exact charger model number may vary depending on the type of plug. The plug variant is identified by one of the following: E, X, AR, U, A, C, K, or B.
The battery can be charged and discharged hundreds of times, but it will eventually wear out.
Talk and standby times are estimates only. Actual times are affected by, for example, device settings, features being used, battery condition, and temperature.
If the battery has not been used for a long time, to begin charging, you may need to connect the charger, then disconnect and reconnect it.
If the battery is completely discharged, it may take several minutes before the charging indicator is displayed.
When your charger is not in use, unplug it from the electrical plug and the device. Do not leave a fully charged battery connected to a charger, as overcharging may shorten the battery's lifetime. If left unused, a fully charged battery will lose its charge over time.
Always keep the battery between 15^ C and 25^ C ( 59^ F and 77^ F). Extreme temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold battery may not work temporarily.
Do not dispose of batteries in a fire as they may explode. Dispose of batteries according to local regulations. Recycle when possible. Do not dispose as household waste.
Use the charger for its intended purpose only. Improper use or use of unapproved chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. If you believe the charger is damaged, take it to a service centre for inspection before continuing to use it. Never use a damaged charger. Only use the charger indoors.
Take care of your device
Handle your device, charger and accessories with care. The following suggestions help you protect your warranty coverage.
- Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic circuits. If your device gets wet, allow the device to dry.
• Do not use or store the device in dusty or dirty areas. Moving parts and electronic components can be damaged. - Do not store the device in high temperatures. High temperatures can shorten the life of the device, damage the battery, and warp or melt plastics.
- Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture can form inside the device and damage electronic circuits.
- Do not attempt to open the device.
• Unauthorised modifications may damage the device and violate regulations governing radio devices.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and mechanics. - Only use a soft, clean, dry cloth to clean the surface of the device.
- Do not paint the device. Paint can clog moving parts and prevent proper operation.
Recycle
Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials.
Crossed-out wheeled-bin symbol
The crossed-out wheeled-bin symbol on your product, battery, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies in the European Union. Do not dispose of these products as unsorted municipal waste. For more environmental information, see the product Eco profile at www.nokia.com/ecoprofile.
Copyright and other notices
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this BH-110 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/declaration_of_conformity/.
CE0979
© 2011 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and the Nokia Original Accessories logo are trademarks or registered trademarks of Nokia Corporation.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Nokia is under license. The availability of products may vary by region. For more information, contact your Nokia dealer. This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.
/Issue 1.0 EN
