USER MANUAL SUB-1200 Dayton Audio

DAYTON® AUDIO

Warranty Information

Dayton Audio® products are constructed by industry experts, and are thoroughly tested before shipment. Dayton Audio® products are warranted for the period of one year. This warranty is limited to manufacturer defects, either in materials or workmanship. Dayton Audio® is not responsible for any consequential on inconsequential damage to any other unit or component or the cost for installation or extraction of any component of the audio system. In the rare case of a product failure, please contact your place of purchase or call our Customer Support Department at [phone].

Warranty Limitations

There are no other warranties, either express or implied, which extend the foregoing, and there are no warranties of merchantability or fitness for any particular purpose. The warranty will not cover incidental or consequential damage due to defective or improper use of products.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Non-Warranty Service: If non-warranty service is required, the product may be sent to the Company for repair/replacement, transportation prepaid, by calling [phone] for details, complete instructions, and service fee charges.

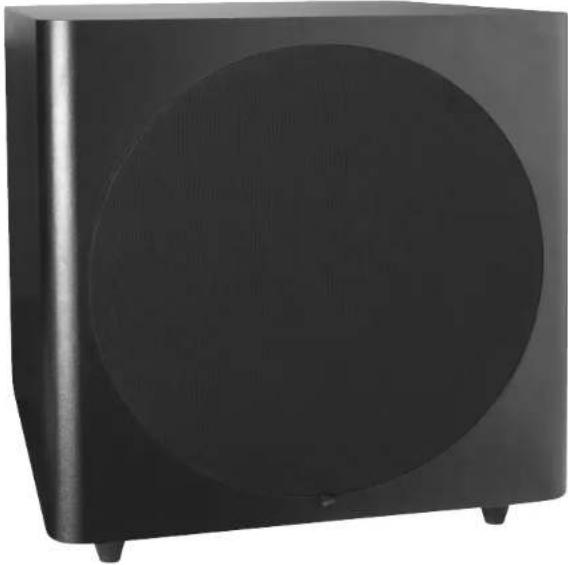

Black rectangular electronic device with a circular vent on top, no visible text or symbols

SUB-1200

12" Subwoofer System User Manual

© Dayton Audio Last Revised: 8/4/2011

daytonaudio.com

Thank you for purchasing the Dayton Audio® SUB-1200 12" Powered Subwoofer. It is the perfect addition to any home theater system. This powered sub features a bottom firing flared port bass reflex design for reduced port noise and increased bass response. It also utilizes a long throw 12" woofer and up to 120 watts of house shaking power. This compact sub is finished in a non-obtrusive black veneer that will complement any decor.

Hookup

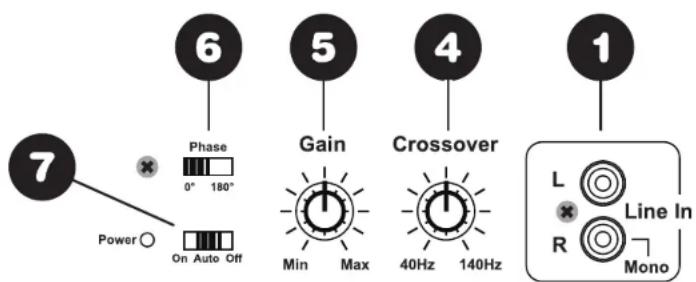

1. Line Level Inputs

The line level inputs are used to connect pre-out or preamplifier outputs directly to the subwoofer amplifier's internal crossover. These inputs are summed to mono. This is the preferred way to connect the subwoofer amplifier. If you have a mono line level signal from a "Pro Logic" or "Dolby Digital" receiver use the right "red" input. Note: If a LFE mono output is connected, set the crossover point to maximum.

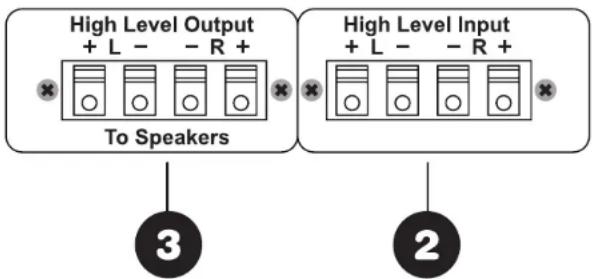

2. High Level Inputs

If preamplifier outputs are not available, use the high-level (speaker) inputs. The speaker level inputs can be connected directly to the amplifier by inserting the speaker wire.

3. High Level Outputs

There are also high level outputs which can be used to connect to main speakers or to another powered subwoofer with high level inputs. Note: High level outputs are paralleled to the high level inputs with no high pass filter.

4. Crossover Frequency Control:

Continuously variable from 40Hz to 140Hz at 12dB/octave. Set the frequency control to where the audio does not sound "muddy", normally between 60-80Hz. Note: If a LFE mono output is connected set the crossover point to maximum.

5. Gain Control:

Adjusts the output level of the subwoofer. Set the level to where the bass frequencies blend with the other speakers. Note: Most people have a tendency to set the level too high which makes the audio sound “boomy”.

6. Phase Switch:

Selectable between 0^ and 180^ . This assists subwoofer placement. The correct position will be the one that provides the most apparent bass output.

7. Power Switch (Auto On/Off):

When the power is in the auto position, the amplifier will automatically turn on when a signal is present. Note: In auto/off mode, the power on LED is always on (red), even when amp is in rest mode (off). The power LED will turn green when the unit is activated.

7 Phase 0° 180° Gain Crossover 1 Power ○ On Auto Off 6 5 4 L Line In R Mono

High Level Output + L - - R + To Speakers High Level Input + L - - R + 2

Room Placement

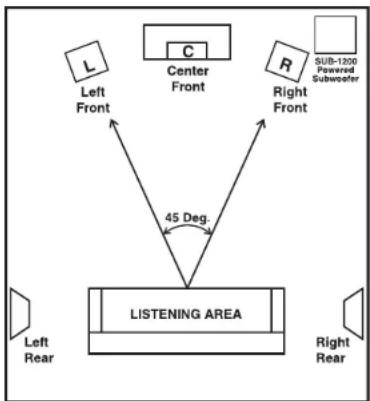

The SUB-1200 Subwoofer System will produce more bass when it is placed in a corner. Choose a corner that is close to the component area and place it at the front of the listening area. See diagram:

Specifications

Dimensions: 16-3/4" H x 16-3/16" W x 17-3/4" D

Frequency Response: 25Hz-140Hz

Woofer: 12" long throw

Power: 120W RMS

Voltage: 120VAC / 60Hz

Net weight: 44 lbs.
