Product Type	Home Theater (DVD/HDD Recorder Receiver System)
Dimensions (Main Unit)	430 x 49 x 350 mm (W x H x D) without foot
Mass (Main Unit)	4.6 kg
Power Requirements	AC 200-240V, 50/60 Hz
Power Consumption	45W
Recording Media	HDD (80GB), DVD-RW, DVD-R, DVD+RW, DVD+R, DVD+R DL
HDD Capacity	80 GB
Playable Discs	DVD-Video, Video CD, Audio CD, CD-R/RW (MP3/WMA/JPEG/DivX)
Audio Formats	Dolby Digital, DTS, Dolby Pro Logic II
Speaker System	5.1 ch (Front L/R, Center, Rear L/R, Subwoofer)
Amplifier Power (Stereo)	100W + 100W (6Ω, THD 10%)
Tuner	FM/AM with RDS
Video Outputs	Composite, S-Video, Component (Pr Pb Y), HDMI
HDMI Output	19 pin (Type A), supports 576i/576p
Memory Card Slots	2 (SD/MMC/SMC/xD/MS/MS Pro and CF/MD)
Accessories Included	Video cable, Audio cable, SCART cable, RF cable, Speaker cables (5), System cable, FM/AM antennas, Remote control, Batteries (AAA x2), Ferrite cores (2)
Safety	Laser Class 1; Do not open enclosure; Power cord caution
Cleaning	Clean discs with soft cloth from center outward; avoid solvents
Operating Temperature	5°C to 35°C
Operating Humidity	5% to 90%

Frequently Asked Questions - LH-RH7505SA LG

How do I clean the disc or the unit?

For discs, use a soft cloth and wipe from the center outward. Do not use strong solvents like alcohol, benzine, or thinner. For the unit, unplug and wipe with a dry cloth; avoid liquids entering the appliance.

What types of discs can I play on this LG home theater?

You can play DVD-Video, Video CD, Audio CD, and CD-R/RW discs containing MP3, WMA, JPEG, or DivX files. Also compatible with DVD-RW, DVD-R, DVD+RW, DVD+R, and DVD+R DL discs.

How do I connect the home theater to my TV?

Use one of the following connections: HDMI (best quality), Component Video (Pr Pb Y), S-Video, or Composite Video. Also connect the audio cables (Left/Right) or use HDMI for audio. Set the TV to the correct input source.

How can I record a TV program?

Select the desired TV channel using the recorder's tuner. Press REC (●) to start recording. Press repeatedly to set recording time. You can also use Timer Recording via the menu. Recordings can be stored on the HDD or a DVD disc.

How do I finalize a DVD so it plays on other players?

Go to Setup > Disc Settings > Finalize. Select Ok to start. Finalization 'fixes' the recordings so the disc can be played on regular DVD players. Note: DVD-R and DVD+R cannot be unfinalized; DVD-RW can be unfinalized.

What is the HDMI output resolution?

The HDMI output supports 576i (when Progressive Scan is OFF) or 576p (when Progressive Scan is ON). It does not support 720p or 1080i.

How do I set parental controls?

Press SETUP, go to Lock (Parental Control), select Rating. Enter a 4-digit password (first time). Choose a rating level from 1 (most restrictive) to 8 (least restrictive) or No Limit. Press ENTER to confirm.

How do I reset the unit if it malfunctions?

Press and hold the POWER button for at least five seconds to force restart. If that fails, unplug the power cord, wait five seconds, and plug it back in. This will restore normal operation.

Can I play DivX files?

Yes, this unit can play DivX movie files. Load a disc containing DivX files or access them from the HOME menu. You may need a DivX Registration Code (found in Setup > Lock > DivX Reg. Code) for rental/purchase from DivX VOD.

How do I set the clock?

Press SETUP, go to General Settings > Clock Set. Choose Auto to set automatically from TV signal, or Manual to enter date and time manually using the arrow buttons. Press ENTER to confirm.

USER MANUAL LH-RH7505SA LG

Recorder Receiver System

OWNER'S MANUAL

MODEL:LH-RH7700S

(Main Unit: LH-RH7700P)

Speakers: LHS-75SA5S, LHS-75SA5C, LHS-75SA5A)

SHOWVIEW®

Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.

Caution: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

CAUTION: This product employs a Laser System.

To ensure proper use of this product, please read this owner's manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service center.

Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit.

This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

SERIAL NUMBER:

You can find the serial number on the back of the unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No. ____

Serial No. ____

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

SHOWVIEW®

SHOWVIEW is a registered trademarks of Gemstar Development Corporation.

The SHOWVIEW System is manufactured under license from Gemstar Development Corporation.

Contents

Introduction 4-10

Symbol Used in this Manual 4

Notes on Discs 4

Recordable and Playable Discs 5

playable Discs 6

Remote Control Operation 6

About the internal hard disk drive .....7

Card useable on this unit 7

Disc-related terms 8

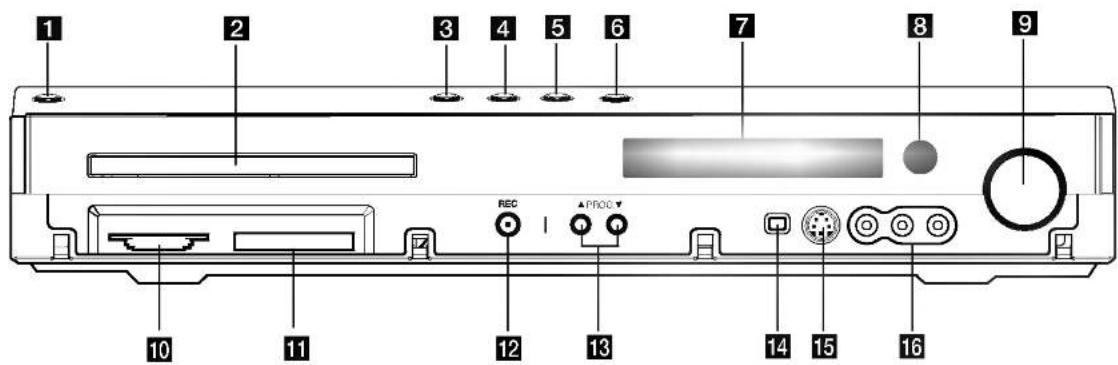

Front Panel....9

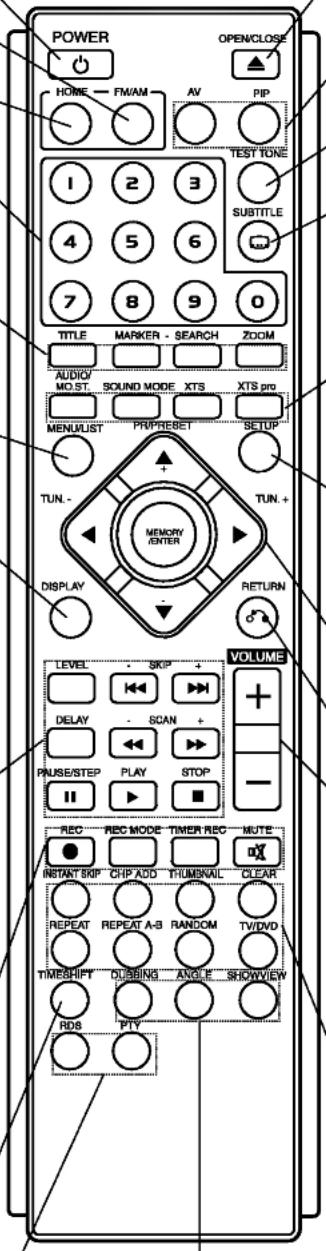

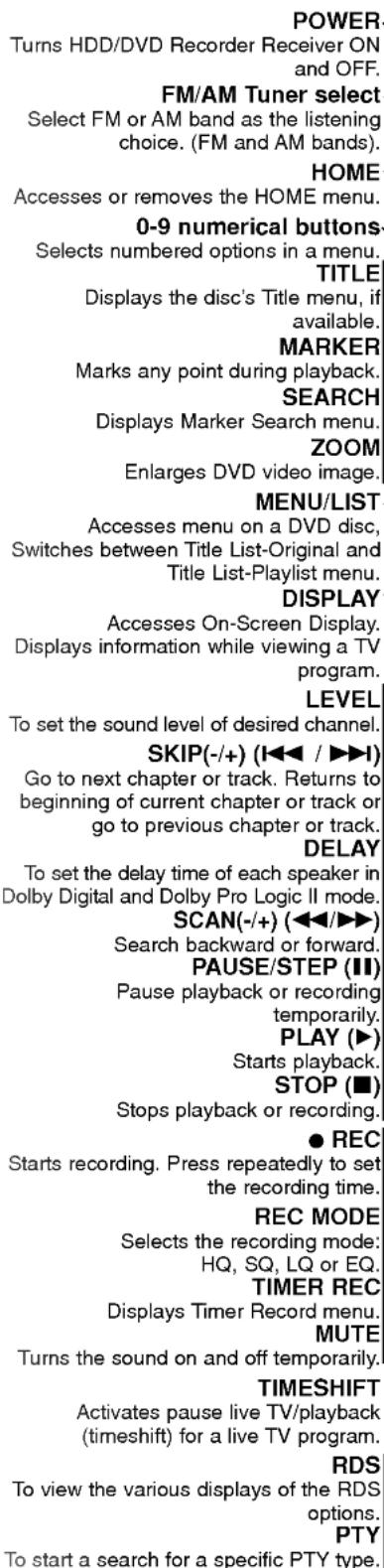

Remote Control 10

Hookup and Settings .....11-31

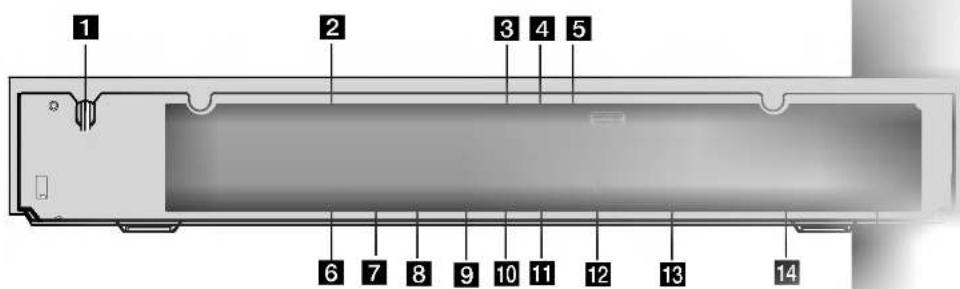

Rear Panel 11

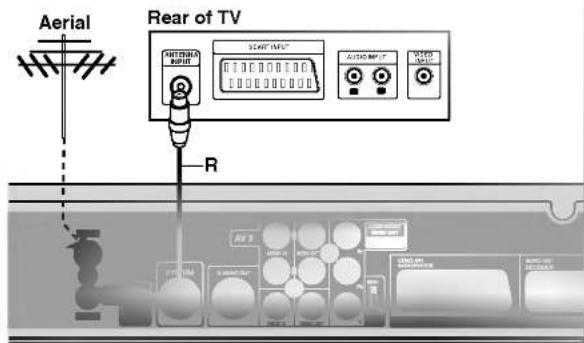

Connecting to the Aerial .....11

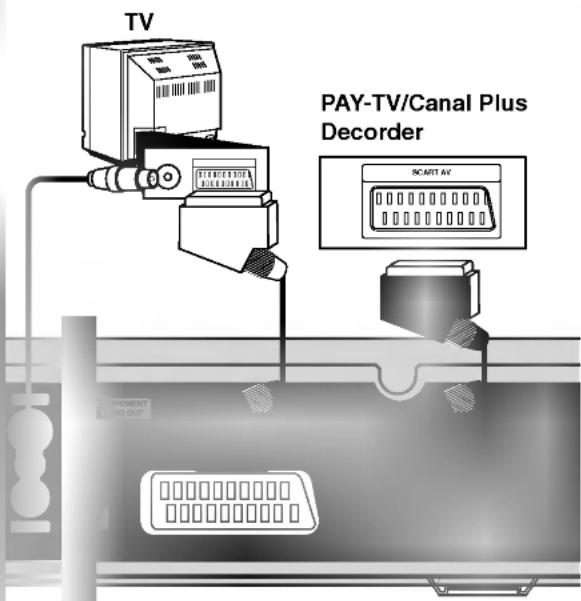

Connections to Your TV 12

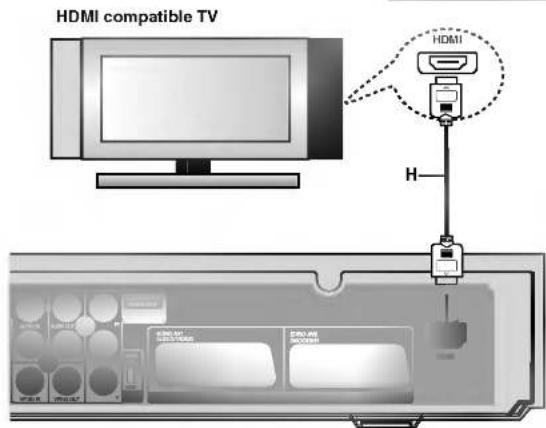

HDMI Connection 13

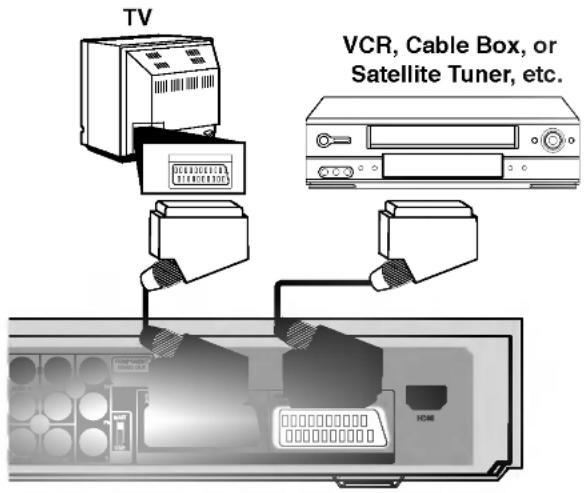

Accessory Audio/Video (A/V) Connections . .14-15

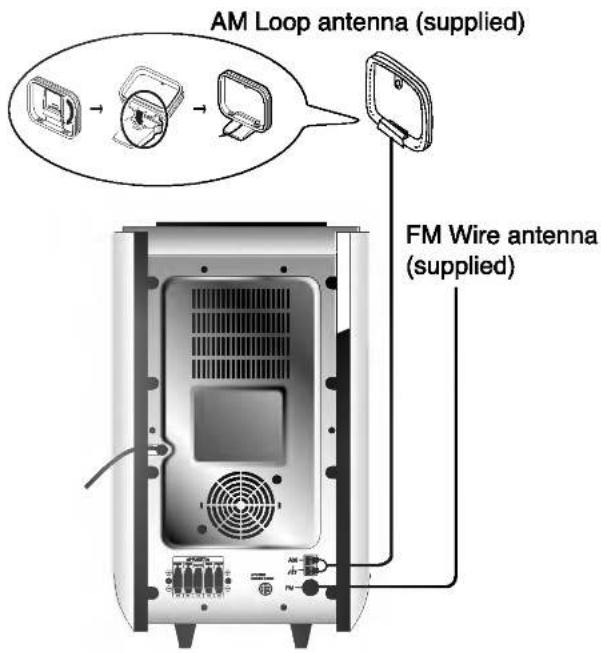

Radio Antenna Connections 16

Speaker System Connections .....17

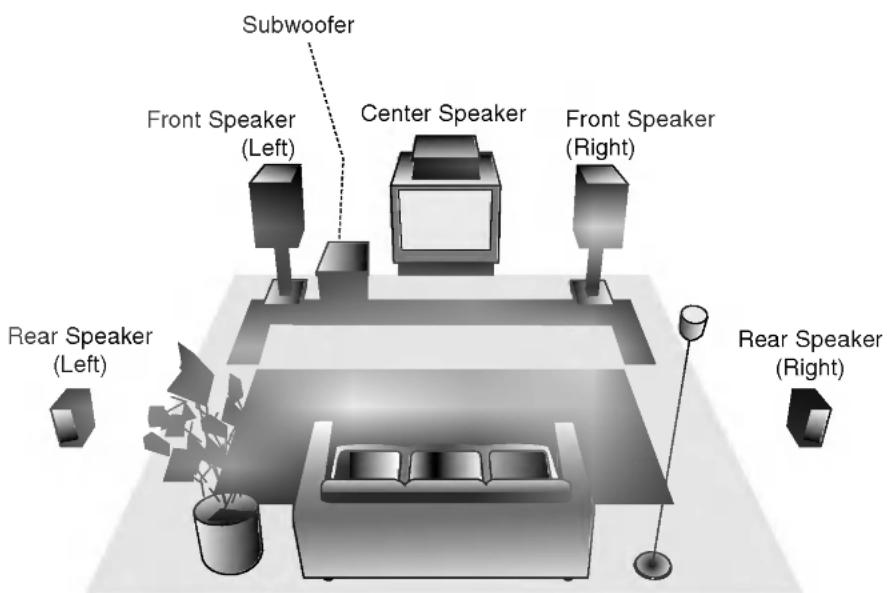

Speaker Positioning 18

Mini Glossary for Sound Mode .....19

Delay Time Setting .....20-21

Sound Level 21

Test Tone 21

XTS (Excellent True Sound) .....21

XTS pro .21

Using the Home Menu 22

Initial Settings 22

General Settings .22-25

Auto Programming 22

Program Edit .23

AV1 Decoder 23

Auto Clock Set 24

Manual Clock Set 24

TV Aspect 24

Display Mode 24

Progressive Scan 25

PBC 25

Initialization 25

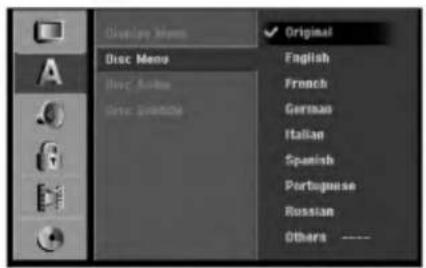

Language Settings .25-26

Audio Settings 26

Dolby Digital 26

DRC (Dynamic Range Control) .....26

Lock (Parental Control) Settings .....27-28

Rating / Set Password / Area Code .....27

DivX Registration Code 28

Recording Settings .28-29

Record Mode Set 28

Record Aspect 28

DV Recording Audio 29

TV Recording Audio .29

Auto Chapter 29

Disc Settings .29-31

Disc Format 29

Finalize / Disc Label / Disc Protect .....30

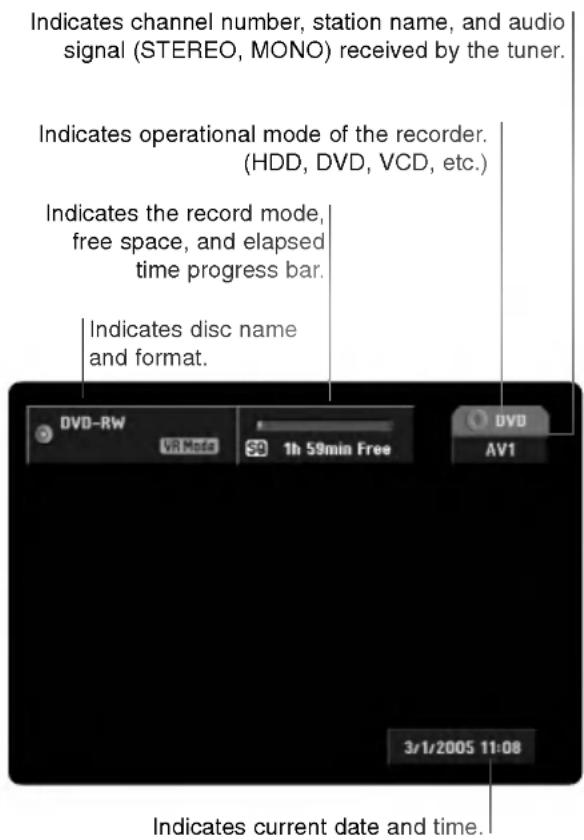

General Explanation of On-Screen Display ....31

Playback 32-44

Playing a HDD, DVD, DivX file or Video CD .32-35

Playing a DivX Movie File .....36-37

Playing an Audio CD or MP3/WMA file .....38-39

Program Playback with Audio CD and

MP3/WMA file 40

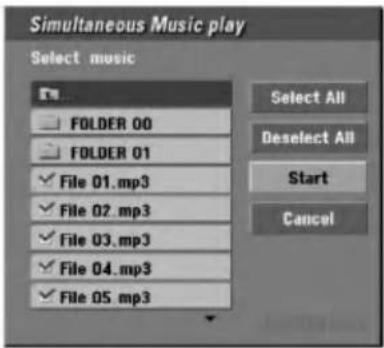

Viewing a JPEG File 41-42

Editing a MP3/WMA, JPEG, DivX file .....43-44

Recording 45-51

About DVD recording 45

About HDD recording 45

Timeshift 46

Basic Recording from a TV 47

Instant Timer Recording 47

Timer Recording 48

Simultaneous recording and playback .....48

Timer Recording with SHOWVIEW® System .....49

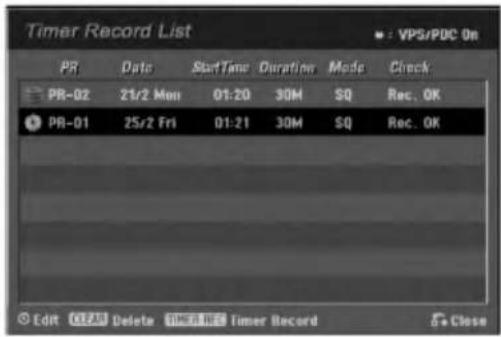

Checking Timer Recording Details .....50

Recording from an External Input ....50

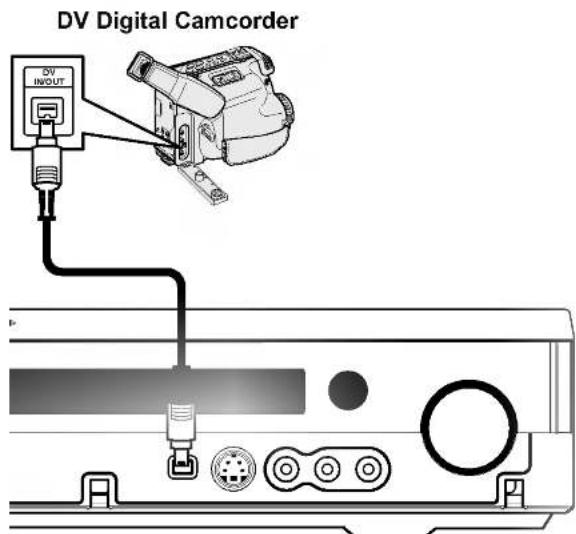

Recording from DV Input 51

Editing .52-58

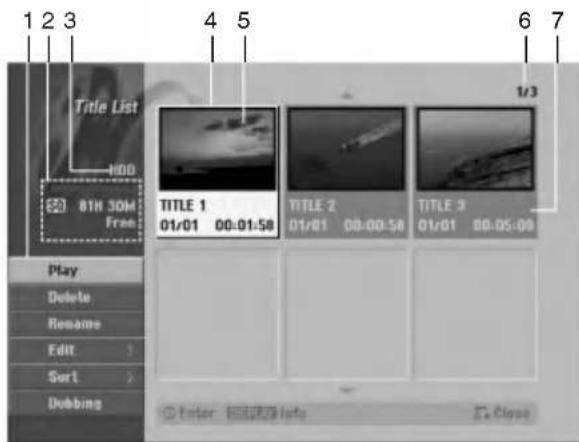

Title List and Chapter List Menu Overview . . . .52

HDD, VR Mode: Original and Playlist Editing . . .53

Adding Chapter Markers .....53

Changing Title Thumbnails .....53

Making a New Playlist ....54

Adding Additional Title/Chapters to the Playlist .54

Deleting an Original or Playlist Title/Chapter . . .55

Deleting a Part .55

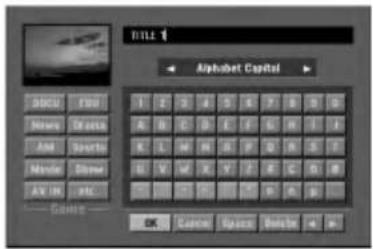

Naming a Title 56

Sort 56

Undoing/Redoing the Last Deletion .....56

Combining Two Titles Into One .....57

Divide One Titles Into Two 57

Combining Two Chapters Into One .....57

Moving a Playlist Chapter .58

Hide a Chapter/Title .....58

Protect a Title .58

Dubbing .....59-61

Before Dubbing 59

Dubbing from HDD to DVD 60

Dubbing from DVD to HDD 60

One Touch Copy (HDD to DVD) 61

One Touch Copy (DVD to HDD) .....61

Reference 62-69

Additional Information 62

Overwriting Recording 62

Viewing Title List menu displayed on other

DVD Recorders or Players 62

Playing Your Recordings on Other DVD

Players (Finalizing a Disc) .....62

Language Codes 63

Area Codes 63

Presseting the Radio Stations .....64

Listening to the Radio 64

RDS Operation 65

Programme Search (PTY) 65

Troubleshooting .66-67

Specifications 68-69

Introduction

To ensure proper use of this product, please read this owner's manual carefully and retain for future reference.

This manual provides information on the operation and maintenance of your recorder. Should the unit require service, contact an authorized service location.

Symbol Used in this Manual

The lightning flash symbol alerts you to the presence of dangerous voltage within the product enclosure that may constitute a risk of electric shock.

The exclamation point alerts you to the presence of important operating and maintenance / servicing instructions.

Indicates hazards likely to cause harm to the unit itself or other material damage.

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols are applicable only to the disc represented by the symbol.

Titles recorded on the HDD

DVD-RW with VR recording mode

DVD-RW with Video recording mode

DVD+RW disc

DVD-R disc

DVD+R disc

DVD-Video disc

Video CDs

Audio CDs

DivX files

MP3 files

WMA files

JPEG files

About the ∅ Symbol Display

“∅” may appear on your TV display during operation and indicates that the function explained in this owner's manual is not available on that specific DVD video disc.

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

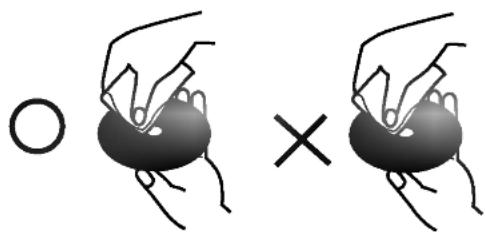

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Illustration of two hands holding a circular object with a cross symbol (no text or labels)

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Moisture Condensation

Never operate this product immediately after moving it from a cold location to a warm location. Leave it for two or three hours without operating it. If you use this product in such a situation, it may damage discs/tapes and internal parts.

Recordable and Playable Discs

DVD-RW (Digital Video Disc - ReWritable):

- DVD-RW discs can be formatted for VR mode recording or Video mode recording. - These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the same Disc.

[VR mode]

• Recordings can be extensively edited
- Playable only on VR mode compatible players (after finalization)
[Video mode]
- Playable on regular DVD players (after finalization)
- Limited editing features

DVD-R (Digital Video Disc - Recordable)

• These Discs can be recorded only once. After you finalize a DVD-R, you cannot record on it or edit it.
• DVD-R discs can be only formatted to Video mode.
- Playable on regular DVD players (after finalization)
• Limited editing features

DVD+RW (Digital Video Disc + ReWritable)

• These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the same Disc.
• Playable on DVD+RW compatible players (automatically finalization)
• The edited contents are playable on DVD+RW compatible players only after finalization
  • Recordings can be edited the title/chapter

DVD+R (Digital Video Disc + Recordable)

• These Discs can be recorded only once. After you finalize a DVD+R, you cannot record on it or edit it any more.
• Playable on DVD+R compatible players (after finalization)
• Any edited contents are not be compatible on DVD+R compatible players. (Hide, chapter combine, added chapter mark, etc.)
• Limited title/chapter editing features.

DVD+R DL (Digital Video Disc + Recordable; Double Layer)

• These Discs can be recorded only once. After you finalize a DVD+R DL, you cannot record on it or edit it any more.
• Storage space is nearly doubled with double layer DVD+R media, allowing consumers to record up to 8.5GB of video on a single DVD+R disc.
• Playable on DVD+R DL compatible players (after finalization)
• Any edited contents are not be compatible on DVD+R DL compatible players. (Hide, chapter combine, added chapter mark, etc.)
• Limited title/chapter editing features.

The recommendable recordable DVD discs

DVD-R	DVD+R	DVD-RW	DVD+RW	DVD+R(DL)
SONY (8x, 16x)	SONY (2.4x, 4x, 8x, 16x)	Victor (1x, 4x)	SONY (2.4x)	Mitsubishi (2.4x)
TDK (4x, 8x)	TDK (4x)	Maxell (1x, 2x, 4x)	TDK (2.4x)	Maxell (2.4x)
Verbatim (4x, 8x)	Mitsubishi (4x, 8x)	TDK (2x)	Philips (4x)	-
Panasonic (2x, 4x)	Ricoh (2x, 4x, 8x)	Mitsubishi (2x)	Ricoh (2.4x)	-
-	-	-	HP (2.4x, 4x)	-

Note:

If a DVD-RW/DVD+RW discs is recorded using a personal computer or other HDD/DVD Recorder Receiver, you cannot format the disc using this recorder. So if you want to use the disc on this recorder, you must format the disc using the original recorder.

playable Discs

DVD (8 cm / 12 cm disc)

• Discs such as movies that can be purchased or rented

Video CD (VCD) (8 cm / 12 cm disc)

• VIDEO CDs or CD-Rs/CD-RWs in VIDEO CD/Super VIDEO CD format

Audio CD (8 cm / 12 cm disc)

- Music CDs or CD-Rs/CD-RWs in music CD format that can be purchased

CD-R/CD-RW (8 cm / 12 cm disc)

- CD-R/CD-RW discs that contain audio titles, DivX, MP3, WMA, or JPEG files.

Notes:

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.
• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). Doing so may result in malfunctions.
• Depending on the recording software & the finalization, some recorded discs (CD-R/RW or DVD±R/RW) may not be playable.
• DVD-R/RW, DVD+R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the Recorder's lens.
• If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

Regional code of the recorder and DVDs

This recorder is designed and manufactured for playback of Region 2 encoded DVD software. The region code on the labels of some DVD discs indicates which type of the recorder can play those discs. This unit can play only DVD discs labeled 2 or ALL. If you try to play any other discs, the message

"Incorrect region code. Can't play back" will appear on the TV screen. Some DVD discs may not have a region code label even though their playback is prohibited by area limits.

Notes on DVDs and Video CDs

Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some playback features of the unit may not be available or other functions may be added.

Refer also to the instructions supplied with the DVDs and Video CDs. Some DVDs made for business purposes may not be played on the unit.

Remote Control Operation

Point the Remote Control at the remote sensor and press the buttons.

Remote Control Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert two R03 (size AAA) batteries with + and - matched correctly.

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

About the internal hard disk drive

The internal hard disk drive (HDD) is a fragile piece of equipment. Please use the recorder following the guidelines below to protect against possible HDD failure.

We recommend that you back up your important recordings onto DVD discs in order to protect against accidental loss.

• Do not move the recorder while it is on.
  • Install and use the recorder on a stable, level surface.
• Do not block the rear vent/cooling fan.
• Do not use the recorder in excessively hot or humid places, or in places that may be subject to sudden changes in temperature. Sudden changes in temperature can cause condensation to form inside the recorder. This can be a cause of HDD failure.
• While the recorder is switched on, do not unplug from the wall socket or switch the electricity off from the breaker switch.

• Do not move the recorder immediately after switching it off. If you need to move the recorder, please follow the steps below:

• After the message POWER OFF is shown in the display, wait at least two minutes.

• Unplug from the wall socket.
• Move the recorder.

- If there's a power failure while the recorder is on there is a chance that some data on the HDD will be lost.

- The HDD is very delicate. If used improperly or in an unsuitable environment, it is possible that the HDD will fail after a few years of use. Signs of problems include playback unexpectedly freezing and noticeable block noise (mosaic) in the picture. However, sometimes there will be no warning signs of HDD failure.

If the HDD fails, no playback of recorded material will be possible. In this case it will be necessary to replace the HDD unit.

Card useable on this unit

• Compact Flash Card (CF)
• Micro Drive (MD)
• Secure Digital Card (SD)
  • Multi Media Card (MMC)
  • SmartMedia Card (SMC)
  • xD-Picture Card (xD)
• Memory Stick (MS)
  • Memory Stick Pro (MS-Pro)
• Compatible with: FAT 12, FAT 16, or FAT 32
• Only use the memory cards recommended above.

Regarding Write Protect

For cards that have a write protect switch, if the switch is on it will not be possible to write, erase or format the card.

Inserting/Removing the Memory Card

Pure graphical element with gradient shading and two vertical lines (no text or symbols)

Insert SD, MMC, SMC, xD, MS, or MS-Pro card

Insert CF or MD

Inserting the card: Insert straight-in until it fits into place.

Removing the card: Withdraw the card carefully.

Notes:

• Keep the memory card out of reach of children. If swallowed, seek medical advice immediately.
• A memory card may not be used for this recorder
• Do not extract the memory card in operating (play, copy, move, etc.).

Using Memory Card

1. Insert a memory card.
2. Press HOME on the remote control.
3. Select [MEMORY CARD] option then press ▶
4. Select [Memory Card 1] or [Memory Card 2] then press ENTER.

HDD DISC MEMORY CARD Select memory MemoryCard1 MemoryCard2

1. Select the [TV(HDD)], [MUSIC], or [PHOTO] option.

Details for the options are on page 22.

Disc-related terms

DVD +R (Double Layer)

Double layer recording technology offers two recordable layers on a single DVD disc, providing nearly double the capacity of 4.7GB single layer DVDs. The greatest, most valuable benefit of double layer recording technology is increased capacity. Storage space is nearly doubled with double layer DVD+R media, allowing consumers to burn up to 8.5GB of video on a single DVD+R disc.

DVD ±R / DVD ±RW

DVD -R and DVD +R are two different standards for recordable DVD drives and discs. This format allows information to be recorded onto the DVD disc only once. DVD +RW and DVD -RW are two standards for re-writable media, meaning the DVD content can be erased and re-recorded. Single-sided discs can hold 4.38 Gigabytes and double-sided discs hold twice as much.

VCD (Video CD)

A VCD holds up to 74 minutes (650 MB disc) or 80 minutes (700 MB disc) of MPEG-1 full-motion video along with quality stereo sound.

MPEG

MPEG is an international standard for video and audio compression. MPEG-1 is used in encoding video for VCD and provides for multichannel surround sound coding such as PCM, Dolby Digital, DTS, MP3 and MPEG audio.

MP3

MP3 is a popular compression format used for digital audio files that yields very high near-CD quality.

WMA

Windows media audio file. A type of coding / decoding developed by Microsoft Corp.

JPEG

Joint Pictures Expert Group. JPEG is a compressed file format that allows you to save images with no limit on the number of colors.

DivX

DivX is the name of a revolutionary new video codec which is based on the new MPEG-4 compression standard for video. You will be able to play DivX movies using this recorder.

PBC: Playback Control (Video CD only)

Playback control is available for Video CD (VCD) version 2.0 disc formats. PBC allows you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc. Video CDs not equipped with PBC (Version 1.1) operate in the same way as audio CDs.

Title (DVD video discs only)

A title is generally a distinct section of a DVD disc. For example the main feature could be title 1, a documentary describing how the film was made could be title 2, and cast interviews could be title 3. Each title is assigned a reference number enabling you to locate it easily.

Chapter (DVD video discs only)

A chapter is a segment of a title such as a scene in a film or one interview in a series. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded.

Scene (VCD)

On a video CD with PBC ( playback control) functions, moving pictures and still pictures are divided into sections called "scenes". Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want. A scene is composed of one or several tracks.

Track

A distinct element of audiovisual information, such as the picture or sound track for a specific language (DVD), or a musical piece on a video or audio CD. Each track is assigned a track number, enabling you to locate the track you want. DVD discs allow one track of video (with multiple angles) and several tracks of audio.

Front Panel

1 2 3 4 5 6 7 8 9 REC PROC 10 11 12 13 14 15 16

1 POWER

Switches the HDD/DVD Recorder Receiver ON or OFF.

2 Disc Tray

Insert a disc here.

3 OPEN/CLOSE (▲)

Opens or closes the disc tray.

4 ▶ / II (PLAY / PAUSE)

Starts playback.

Pause playback or recording temporarily, press again to exit pause mode.

5 ■ (STOP)

Stops playback or recording.

6 HDD/DVD

Set the recorder's mode to HDD or DVD.

7 Display window

Shows the current status of the recorder.

REC: The recorder is recording.

HDD: The recorder is HDD mode.

DVD: The recorder is DVD mode.

HDD ◀▶ DVD: The recorder is dubbing.

MUTE: The speaker sound is muted.

dts, ☐D : Indicates encoding format of the current disc.

□PLII: Indicates sound mode is DOLBY PRO LOGIC or DOLBY PRO LOGIC II.

⑨ : Indicates when the recorder is in timer recording or a timer recording is programmed.

: Indicates clock, total playing time, elapsed time, title number, radio frequency, volume, Surround, chapter/track number, channel, etc.

8 Remote Sensor

Point the recorder remote control here.

9 VOLUME CONTROL

Turn the knob clockwise to increase sound level, counterclockwise to decrease sound level.

10 MEMORY CARD Slot 1

Insert a memory card (SD/MMC/SMC/xD/MS/MS Pro).

11 MEMORY CARD Slot 2

Insert a memory card (CF/MD).

12 ● (REC)

Starts recording. Press repeatedly to set the recording time.

13 PROG. (▲ / ▼)

Scans up or down through memorized channels.

14 DV IN

Connect the DV output of a digital camcorder.

15 S-VIDEO IN

Connect the S-Video output of an external source (TV/ Monitor, VCR, Camcorder, etc.).

16 AV 2 (VIDEO IN/AUDIO IN (Left/Right))

Connect the audio/video output of an external source (Audio system, TV/ Monitor, VCR, Camcorder, etc.).

Remote Control

POWER Turns HDD/DVD Recorder Receiver ON and OFF. FM/AM Tuner select Select FM or AM band as the listening choice. (FM and AM bands). HOME Accesses or removes the HOME menu. 0-9 numerical buttons Selects numbered options in a menu. TITLE Displays the disc's Title menu, if available. MARKER Marks any point during playback. SEARCH Displays Marker Search menu. ZOOM Enlarges DVD video image. MENU/LIST Accesses menu on a DVD disc, Switches between Title List-Original and Title List-Playlist menu. DISPLAY Accesses On-Screen Display. Displays information while viewing a TV program. LEVEL To set the sound level of desired channel. SKIP(-/+) (◄◄◄ / ►►►) Go to next chapter or track. Returns to beginning of current chapter or track or go to previous chapter or track. DELAY To set the delay time of each speaker in Dolby Digital and Dolby Pro Logic II mode. SCAN(-/+) (◄◄◄/►►►) Search backward or forward. PAUSE/STEP (II) Pause playback or recording temporarily. PLAY (►) Starts playback. STOP (■) Stops playback or recording. ● REC Starts recording. Press repeatedly to set the recording time. REC MODE Selects the recording mode: HQ, SQ, LQ or EQ. TIMER REC Displays Timer Record menu. MUTE Turns the sound on and off temporarily. TIMESHIFT Activates pause live TV/playback (timeshift) for a live TV program. RDS To view the various displays of the RDS options. PTY To start a search for a specific PTY type.

POWER HOME — FM/AM AV PIP TEST TONE 1 2 3 SUBTITLE 4 5 6 7 8 9 0 TITLE MARKER - SEARCH ZOOM AUDIO/ MO.ST. SOUND MODE XTS XTS pro MENU/UST PRI/PRESET SETUP TUN - MENORY ENTER TUN + DISPLAY RETURN LEVEL SKIP + DELAY SCAN + PNUSE/STEP PLAY STOP I VOLUME REC REC MODE TIMER REC MUTE INSTANT SKIP CHIP ADD YHUMBINAL CLEAR REPEAT REPEAT A-B RANDOM TV/DVD TIMESHIFT DUBBING ANGLE SHOWVIEW RDS PTY

DUBBING

Copies DVD to HDD (or HDD to DVD).

ANGLE

Selects a DVD camera angle, if available.

SHOWVIEW

To display the program menu for SHOWVIEW System programming.

OPEN/CLOSE

Opens and closes the disc tray.

AV

Changes the input to use for recording. (Tuner, AV1, AV2, OPT, AV 3, AV4 or DV).

PIP

Selects PIP function on or off.

TEST TONE

To adjust the sound balance of the speakers from the listener's position.

SUBTITLE

Selects a subtitle language.

AUDIO/MO.ST.

- Selects an audio language. - Selects STEREO or MONO.

SOUND MODE

Selects sound mode.

XTS

To enjoy great sound effect.

XTS pro

To enjoy more natural and realistic sound.

SETUP

Accesses or removes the Setup menu.

◀ ▶ ▲ ▼ (left/right/up/down)

Selects menu options.

PR/PRESET(+/-)(▲/▼):

Select programme of TV or Radio.

MEMORY/ENTER

- Confirms menu selections. - Stores a radio station's frequency in the tuner's memory.

RETURN (○)

Removes the menu.

VOLUME (+/-)

To adjust speaker volume and TV volume.

INSTANT SKIP

Skips 15 seconds forward on the disc (about the length of a typical TV: commercial).

CHP ADD

Inserts a chapter marker when playing/ recording.

THUMBNAIL

Selects a thumbnail picture for the current title for use in the Title List or Chapter List menu.

CLEAR

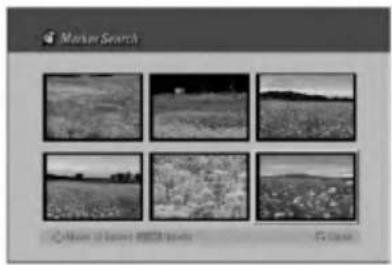

Removes a mark on the Marker Search menu.

REPEAT

Repeat chapter, track, title or all. REPEAT A-B

Repeats sequence between two points (A and B)

RANDOM

Plays tracks in random order.

TV/DVD

To view channels selected by the recorder tuner or by the TV tuner.

Hookup and Settings

1 2 3 4 5 6 7 8 9 10 11 12 13 14

1 AC Power Cord

Plug into the power source.

2 ANT.IN

Connect the aerial to this terminal.

3 AUDIO IN 1 (Left/Right)

Connect the audio output of an external source (Audio system, TV/Monitor, VCR, Camcorder).

4 AUDIO OUT (Left/Right)

Connect to a TV with audio inputs.

5 COMPONENT VIDEO OUT/PROGRESSIVE SCAN (Pr Pb Y)

Connect to a TV with Pr Pb Y inputs.

6 RF. OUT

Passes the signal from the AERIAL to your TV/monitor

7 OPTICAL IN Connector

Connect an optical output of Digital Device.

8 SYSTEM

Connect the SPEAKER SYSTEM at the Active Speaker.

9 S-VIDEO OUT (DVD OUT)

Connect to an S-Video Input on TV.

10 VIDEO IN 1

Connect the video output of an external source (Audio system, TV/Monitor, VCR, Camcorder).

11 VIDEO OUT

Connect to a TV with video inputs.

12 VIDEO OUTPUT Switch

Select either COMPONENT VIDEO OUT/ PROGRESSIVE SCAN or RGB signal of EURO AV1 AUDIO/VIDEO terminal depending on how you connect the recorder to the TV.

13 EURO AV 1 AUDIO/VIDEO

Connect to a TV with SCART jack.

14 EURO AV 2 DECODER

Connect the audio/video output of an external source (Pay-TV decoder, Set Top Box, VCR, etc.).

15 HDMI Connector (Type A)

HDMI output providing a high quality interface for digital audio and video.

Connecting to the Aerial

Remove the aerial cable plug from your TV set and insert it into the aerial socket at the back of the recorder. Plug one end of the aerial cable into the TV socket on the recorder and the other end into the aerial input socket on your TV set.

RF coaxial connection

Connect the RF. OUT jack on the DVD Recorder Receiver to the aerial input jack on the TV using the 75-ohm Coaxial Cable supplied (R). The RF. OUT jack passes the signal through from the AERIAL jack.

Aerial Rear of TV ANTenna OUTPUT START INPUT AUTO OUTPUT AUTO OUTPUT R

Rear of the HDD/DVD Recorder Receiver

Connections to Your TV

• Make one of the following connections, depending on the capabilities of your existing equipment.
- When using the Pr Pb Y jacks, set the VIDEO OUTPUT switch to COMPONENT. When using the SCART jack, set the VIDEO OUTPUT switch to RGB.

Tips

• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the recorder. Use only one of the connections described below.
• Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.

Caution

• Make sure the recorder is connected directly to the TV. Tune the TV to the correct video input channel.
- Do not connect the recorder's AUDIO OUT jack to the phono in jack (record deck) of your audio system.
- Do not connect your recorder via your VCR. The DVD image could be distorted by the copy protection system.

Rear of TV S v A C T SCART INPUT Rear of the HDD/DVD Recorder Receiver DVD Player (or Digital Device, etc) OPTICAL OUT

S-Video connection

Connect the S-VIDEO OUT jack on the recorder to the S-Video in jack on the TV using the S-Video cable (S).

Video connection

Connect the VIDEO OUT jack on the recorder to the video in jack on the TV using the video cable (V).

Audio (Left/Right) Connection

Connect the left and right AUDIO OUT jacks of the recorder to the audio left and right IN jacks on the TV using the audio cables (A). Do not connect the recorder's AUDIO OUT jack to the phono in jack (record deck) of your audio system.

Component Video connection

Connect the Pr Pb Y jacks on the recorder to the corresponding input jacks on the TV using an Y Pb Pr cable (C).

Progressive Scan connection

If your television is a high-definition or "digital ready" television, you may take advantage of the recorder's progressive scan output for the highest video resolution possible. If your TV does not accept the Progressive Scan format, the picture will appear scrambled if you try Progressive Scan on the recorder.

Connect the Pr Pb Y jacks on the recorder to the corresponding in jacks on the TV using the Y Pb Pr cable (C).

Notes:

• Set the Progressive to [ON] on the setup menu for progressive signal, see page 25.
• Progressive scan does not work with the analog video connections (yellow VIDEO OUT jack) or S-VIDEO connection.

Caution

Once the setting for Progressive Scan output is entered, an image will only be visible on a Progressive Scan compatible TV or monitor. If you set Progressive Scan to ON in error, you must reset the recorder. First, remove the disc in the recorder. Next, press STOP (■) and hold it for five seconds before releasing it. The video output will be restored to the standard setting, and a picture will once again be visible on a conventional analog TV or monitor.

SCART connection

Connect the EURO AV1 AUDIO/VIDEO scart jack on the recorder to the corresponding in jacks on the TV using the scart cable (T).

Optical Digital Connection

Connect an optical output of DVD Player (or Digital Device etc) to the OPTICAL IN connector on the recorder using the optical cable (O).

Note:

- When the Optical jack is connected, audio will output from speakers of the main unit amplifier only but the audio output is not available via the HDMI and AV jacks.

HDMI connection

If you have a HDMI TV or monitor, you can connect it to this recorder using a HDMI cable.

1. Connect the HDMI jack on the recorder to the HDMI jack on a HDMI compatible TV or monitor (H).

2. Set the TV's source to HDMI (refer to TV's Owner's manual).

Notes:

- When you use the HDMI connection, the audio's sampling frequency is outputted only with 48KHz even if you select [96KHz].

- The arrow on the cable connector body should face up for correct alignment with the connector on the recorder.

(Type A)

- If there is noise or lines on the screen, please check the HDMI cable.

Audio Channel Selection

The Dolby Digital and DTS sound are not available through the HDMI connection. Set the Dolby Digital to PCM mode in the setup menu (refer to Audio Settings on page 26).

Tip :

When you use HDMI connection, you can change the resolution (576i, 576p) for the HDMI output by setting the [Progressive Scan] option in the setup menu. (See page 25)

• Progressive Scan ON mode: 576p

• Progressive Scan OFF mode: 576i

- The recorder does not support 720p and 1080i resolutions for HDMI.

Caution

Changing the Progressive Scan mode when the recorder is connected with HDMI connector may result in malfunctions. To solve the problem, turn off the recorder and then turn it on again.

HDMI compatible TV H HDMI

Rear of the HDD/DVD Recorder Receiver

About HDMI

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD Players, Set-Top Boxes, and other AV devices.

HDMI was developed to provide the technologies of HDCP (High Definition Contents Protection). HDCP is used to protect digital content transmitted and received.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

Additional Information for HDMI

- When you connect a HDMI or DVI compatible device make sure of the followings:

- Try switching off the HDMI/DVI device and this recorder. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this recorder.

- The connected device's video input is set correctly for this unit.

- The connected device is compatible with 720(1440)x576i or 720x576 progressive video input.

- Not all HDCP-compatible DVI devices will work with this recorder.

- It's impossible copy protected-DVD title's playback in non-HDCP devices.

Accessory Audio/Video (A/V) Connections

Connecting a PAY-TV/Canal Plus Decoder

You can watch or record PAY-TV/Canal Plus programmes if you connect a decoder (not supplied) to the recorder. Disconnect the recorder's mains lead from the mains when connecting the decoder.

To watch or record PAY-TV/Canal Plus programmes, set the program's [Decoder On/Off] option to [On] on the Setup menu. See "Program Edit" (page 23).

Tip:

You do not need to turn on the recorder to view the signals from the connected tuner on your TV.

Note:

If you disconnect the recorder's mains lead, you will not be able to view the signals from the connected decoder.

TV PAY-TV/Canal Plus Decoder SCART AV

Rear of the HDD/DVD Recorder Receiver

Connecting to the EURO AV2 DECODER jack

Connect a VCR or similar recording device to the EURO AV2 DECODER jack of this recorder.

TV VCR, Cable Box, or Satellite Tuner, etc.

Rear of the HDD/DVD Recorder Receiver

Tip:

You do not need to turn on the recorder to view the signals from the connected tuner on your TV.

Notes:

• Pictures containing copy protection signals that prohibit any copying cannot be recorded.
• If you pass the recorder signals via the VCR, you may not receive a clear image on your TV screen. Be sure to connect your VCR to the recorder and your TV in the order shown below. To watch video tapes, watch the tapes through a second line input on your TV.

• When you record to a VCR from this recorder, do not switch the input source to TV by pressing the TV/DVD button on the remote.
• If you are using a B Sky B tuner, be sure to connect the tuner's VCR SCART jack to the EURO AV2 DECODER jack.
• If you disconnect the recorder's mains lead, you will not be able to view the signals from the connected VCR or tuner.

Connecting to the INPUT 3 or INPUT 4 Jacks

Connect the input jacks (AV3, AV4) on the recorder to the audio/video out jacks on your accessory component, using audio/video cables.

Note:

If you use the S-VIDEO IN jack on the front panel, the VIDEO IN jack on the front panel is not available.

Jack panel of Accessory Component (VCR, Camcorder, etc.) Front of the HDD/DVD Recorder Receiver Receiver

Connecting a Digital Camcorder

Using the front panel DV IN jack, it is possible to connect a DV digital camcorder and digitally transfer DV tapes to DVD.

Use a DV cable (not supplied) to connect the DV in/out jack of your DV camcorder to the front panel DV IN jack of this recorder.

Note:

This jack is for connection to DV digital camcorder only. It is not compatible with digital satellite tuners or D-VHS video decks.

DV Digital Camcorder DV INPUT

Front of the HDD/DVD Recorder Receiver

Radio Antenna Connections

Connect the supplied FM/AM antennas for listening to the radio.

• Connect the AM loop antenna to the AM antenna connector.
• Connect the FM wire antenna to the FM antenna connector.

Notes:

• To prevent noise pickup, keep the AM loop antenna away from the HDD/DVD Recorder Receiver System and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as close to horizontal as possible.

AM Loop antenna (supplied) FM Wire antenna (supplied)

About Ferrite Core

Be sure to attach the ferrite core to the System cable and power cord (for connecting to this unit). This ferrite core can reduce noises.

How to attach the ferrite core

1. Press the stopper [a] of the ferrite core to open.
2. Insert the System cable to the ferrite core and wind the power cord once on the ferrite core.
3. Close the ferrite core unit it clicks.

Note:

- Attach the ferrite core near the unit (Refer to the fig.3 and comment.).

1 [a] [a] 2 The length here is short as much as possible.

Speaker System Connections

Connect the SYSTEM to the SYSTEM SELECTOR rear of the Active Subwoofer Speaker, using System cable.

Connect the speakers using the supplied speaker cables.

To obtain the best possible surround sound, adjust the speaker parameters (volume, distance

Center Speaker Active Subwoofer Speaker Front Speaker (Right) Rear Speaker (Right Surround) of the HDD/DVD Recorder Receiver zable

Notes:

• Be sure to match the speaker cable to the appropriate terminal on the components: + to + and - to -. If the cables are reversed, the sound will be distorted and will lack base.
• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.

Speaker Positioning

In the case of normal position use the 6 speakers (2 front speakers, 1 center speaker, 2 rear speakers and subwoofer).

If you want to play the excellent bass sound, DTS digital surround or Dolby Digital surround, you should connect a subwoofer.

- Front speakers

According to your listening position set up the speakers for equal distance. And by hearing position set up the interval between speakers to 45 degree.

- Center speaker

The center speaker and front speakers are ideally the same height. But normally place it above or below the television.

- Rear speakers

Place left and right behind the listening area. These speakers recreate sound motion and atmosphere required for surround sound playback. For best results, do not install the rear speakers too far behind the listening position and install them at or above the level of the listener's ears. It is also effective to direct the rear speakers towards a wall or ceiling to further disperse the sound.

In the case of a smaller room size, if the audience is near to the rear wall set the rear speakers opposite each other, and set the rear speakers above 60 - 90 cm than the listener's ears.

- Subwoofer

This can be placed in any front position.

Subwoofer Front Speaker (Left) Center Speaker Front Speaker (Right) Rear Speaker (Left) Rear Speaker (Right)

Speaker Positioning Example

Mini Glossary for Sound Mode

dts

Allows you to enjoy 5.1(or 6) discrete channels of high quality digital audio from DTS program sources bearing the trademark such as discs, DVD and compact discs, etc. DTS Digital Surround delivers up to 6 channels of transparent audio(which means identical to the original masters) and results in exceptional clarity throughout a true 360 degree sound field. The term DTS is a trademark of DTS Technology, LLC. Manufactured under license from DTS Technology, LLC.

□□DIGITAL

The Dolby Digital surround format lets you enjoy up to 5.1(or 6) channels of digital surround sound from a Dolby Digital program source. If you play DVDs with "P" mark, you can enjoy even better sound quality, greater spatial accuracy, and improved dynamic range.

PROLOGIC (II)

Dolby Pro Logic II creates five full-bandwidth output channels from two-channel sources. This is done using an advanced, high-purity matrix surround decoder that extracts the spatial properties of the original recording without adding any new sounds or tonal colorations.

MOVIE mode:

The Movie mode is for use with stereo television shows and all programs encoded in Dolby Surround. The result is enhanced soundfield directionality that approaches the quality of discrete 5.1-channel sound.

MUSIC mode:

The Music mode is for use with any stereo music recordings, and provides a wide and deep sound space. The Music mode includes controls that allow the sound to be tailored to individual listening tastes.

MATRIX mode:

The Matrix mode is the same as the Music mode except that the directional enhancement logic is turned off. It may be used to enhance mono signals by making them seem "larger." The Matrix mode may also find use in auto systems, where the fluctuations from poor FM stereo reception can otherwise cause disturbing surround signals from a logic decoder. The ultimate "cure" for poor FM stereo reception may be simply to force the audio to mono.

HALL1

When playing recordings of live music and classic, this mode provides a feeling similar to actually being in a small concert hall.

HALL 2

When playing recordings of live music and classic, this mode provides a feeling similar to actually being in a large concert hall.

THEATER

This mode provides a three dimensional effect similar to that of a movie theater.

BYPASS (2CH STEREO)

Outputs the sound from the front left and right speakers and subwoofer.

You can select BYPASS by pressing SOUND MODE on the remote control.

Delay Time Setting

In Dolby Digital or Dolby Pro Logic mode it is assumed that the distance from the listener to each of the speakers is equal. If not then setting the delay times of the center or rear speakers the sound will be heard simultaneously by the listener.

The interval from the speakers to the listener. If the distance from the listener to each speaker is the same, in the Dolby Digital and Dolby Pro Logic mode the delay time of each speaker is as follows

In Dolby Digital mode

Center delay time : 0 \~ 5ms

Rear delay time: 0 \~ 15ms

In Dolby Pro Logic mode

Center delay time : cannot be set

If the rear delay time is set in Dolby Digital mode, in the Dolby Pro Logic mode the delay time will be automatically set.

The delay time is 1 msec per 30 cm.

If the Center and rear speakers are further than the front speakers from the listener, the delay time will be at minimum.

Surround delay time setting

If the distance of Ds is equal to or longer than the DF in the left figure, set the Surround Delay Time as 0ms. Otherwise, change the setting according to the below. Ex) If the distance from front speakers to the listener is 3 m and from rear speakers from the listener is 1.5 m, in the Dolby Digital mode the rear delay time is 5 msec.

3m (DF) - 1.5m (Ds) = 1.5m (B)

1.5m (B) = 150cm / 30cm = 5msec

In Dolby Pro Logic II (Surround delay time):

• Pro Logic: 15 \~ 30msec
• Movie: 10 \~ 25msec
- Music: 0 \~ 15msec
- Matrix: 0 \~ 15msec

Center delay time setting (Dolby Digital mode only)

If the distance of DF is equal to the distance of DC in the left figure, set the Center Delay Time as 0ms. Otherwise, change the setting according to the table below.

Ex) If the distance from the front speakers to the listener is 3m and from the center speaker to the listener is 2.4m, the center delay time is 2msec.

3m (DF) - 2.4m (DC) = 60cm (A)

60cm (A) / 30cm = 2msec

Setting the delay time in the Dolby Digital and Dolby Pro Logic (II) mode

1. Press DELAY.
   The current surround delay time appears in the Display Window.
2. Press ▲/▼ to change the delay time.
3. If setting is complete, press DELAY.

Note:

- You can adjust the center delay time only in the Dolby Digital mode and its delay time appears.

Setting the Sound Effects in the Music mode of Dolby Pro Logic (II)

1. Press SOUND MODE repeatedly to select the Music mode.

Each time you press these buttons, the sound mode is changed in the following order; PRO LOGIC → PLII MOVIE → PLII MUSIC → PLII MATRIX → BYPASS ...

1. Press DELAY.

The current surround delay time appears in the Display Window.

1. Press ◀/▶ to select a desired Sound mode.

Each time you press the ◀/▶ button, it is changed in the following order;

PANO C WIDT DIMEN...

1. Press ▲/▼ to change the steps.

• C WIDT: 0 \~ +7
- DIMEN: -3 \~ +3
- PANO: ON/OFF

1. If setting is complete, press DELAY.

PANO (PANORAMA)

This control extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side-wall imaging. It is particularly effective for recordings which have strong left- or right-channel elements in the mix, as these are detected and accentuated by the Panorama process.

C WIDT (Center Width)

This control allows center-channel sounds to be positioned between the center speaker and the left/right speakers over a range of eight steps. Step "3" uses a combination of all three front speakers to give the best vocal imaging and most seamless soundstage presentation, and is recommended for most recordings. Step "0" places all center sound in the center speaker. Step "7" places all center sound equally in the left/right speakers, just as in conventional stereo.

DIMEN (DIMENSION)

This control allows the user to gradually adjust the sound field either towards the front or the rear. This can be useful to help achieve the desired balance from all the speakers with certain recordings that may contain either too much or too little spatial effect. Step "0" is the recommended setting, which has no effect on the sound. Steps 1, 2, and 3 gradually move the sound forward, and steps -1, -2, and -3 move the sound towards the surrounds.

Sound Level

You can set the sound level of the desired channel.

1. Press LEVEL on the remote control. The level indicator will appear in the Display Window.

2. Press ◀/▶ to select a desired speaker to set. Each time you press the ◀/▶ button, it is changed in the following order; FL (Front Left) → C (Center) → FR (Front Right) → SR (Surround Right) → SL (Surround Left) → SW (Subwoofer) → FL (Front Left) ...

3. Press ▼/▲ to adjust the sound level of the selected channel. (-6dB \~ +6dB)

4. Repeat step 2-3 and adjust the sound level of the other channels.
5. If setting is complete, press LEVEL.

Test Tone

This function allows you to can easily adjust the sound balance of the speakers from the listener's position.

1. Select the test tone mode by pressing TEST TONE.
   A hiss noise comes out for 2 seconds from each speakers in the following order;
   FL (Front Left) → C (Center) → FR (Front Right) → SR (Surround Right) → SL (Surround Left) → SW (Subwoofer) → FL (Front Left) ...

2. You can adjust the sound level while the test tone is operating. First press LEVEL then press the ▼/▲ buttons, so that the sound level from all the speakers is same from the listener's position.

- During the test tone, if you adjust the sound level, it will be paused in the current speaker channel.

1. If setting is complete, press TEST TONE.

XTS (Excellent True Sound)

You can enjoy the vivid stereophonic sound of the digital original source without any signal distortion.

Each time you press XTS during 2 channel mode, the setting changes in the following order.

XTS-1 → XTS-2 → XTS-3 → NORMAL ...

Tips:

• XTS-1: When playing the movie with the weak bass sound relatively to the general music, it enforces the sense of sound at woofer for you to satisfy with.
• XTS- 2: In the mode of 2 CH BYPASS, It creates the high display effect by playing the sound source via the rear speakers same as the front speakers.
• XTS-3: You can operate both XTS-1 and XTS-2 simultaneously and it can complement the relative degrading of the sound pitch of the woofer at the XTS-2 mode.

Note:

- The XTS-2 mode is temporarily disabled when changing from 2.1 CH to 5.1 CH and it is enabled when changing it to 2.1 CH.

XTS pro

The unique sound quality of the LG Technology creates the optimum sound for you to play the perfect playback of the original sound and to feel the living sound source.

Each time you press XTS pro the setting changes in the following order.

From the Home Menu screen you can access all the Media (HDD, DISC, MEMORY CARD) for playback and recording of the recorder.

1. Press HOME to display the Home Menu screen.
2. Use the ▲ / ▼ and ENTER buttons to select a media you want. Options appears.
3. Use the ▲ / ▼ and ENTER buttons to select the option you want.

MEDIA HOME HCC DISC MEMORY CARD TV (HCD) TITLE LIST MOVIE MUSIC PHOTO

1. To exit the HOME menu, press HOME.

2. TV (HDD): Returns to live TV viewing for HDD recording.
   • TV (DVD): Returns to live TV viewing for DVD recording.
   • TITLE LIST: Displays the Title List menu.
   • MOVIE: Plays back the movie of the DVD-Video, Video CD. Or Displays Movie menu.
   • MUSIC: Displays Music (or Audio CD) menu.
   • PHOTO: Displays Photo menu.

Initial Settings

In this menu system, there are several ways to customize the settings provided. Most menus consist of three levels to set up the options, but some require greater depth for the variety of settings.

General Operation

1. Press SETUP and the Setup menu appears.
2. Use ▲ / ▼ to select the desired option.
3. While the desired item is selected, press ▶ to move to the second level.
4. Use ▲ / ▼ to select the second desired option.

5. Press ▶ to move to the third level.

6. Use ▲ / ▼ to select the desired setting then press ENTER to confirm your selection. Some items require additional steps.

7. Press SETUP to exit the Setup menu.

Note:

Press ◀ to go back to the previous level.

General Settings

Auto Programming

This recorder is equipped with a frequency synthesized tuner capable of receiving up to 88 TV channels.

Preparation:

- Connect the recorder to the desired type of aerial, as shown in Connecting to the Aerial on page 11.

Auto Programming Program Edit Clock Set TV Aspect Display Mode Progressive Scan PBC Initialization Germany Start

1. Select the [Auto Programming] option.
2. Press ▶ to move to the third level. [Country] option is highlighted.
3. Use ▲ / ▼ to select a country then press ▶. [Start] icon is highlighted. If your country is not listed, select [Others]
4. Press ENTER to begin the channel search. The tuner will automatically cycle through all available channels in the area and place them in the tuner's memory.

Note:

After you have connected your recorder for the very first time. If you press SETUP for initial setting, you can only set the [Auto Programming] option. Then you can set the other options.

Program Edit

You can edit a channel manually (add, delete, name, move, etc.).

1. Select [Program Edit] option then press ▶.

Auto Programming Program Edit Clock Set TV Aspect Display Mode Progressive Scan PBC Initialization

1. Press ENTER while [Edit] is selected. The Program List menu appears.

PB-12 Program Edit Station Remates Move Delete December DEV/07 PB Cb MF7 Stable 11 3.46 0 11 5.1 +12 14 5.9 +71 15 3.4 -30 16 5.18 +60 17 [phone] © Select 2 Move 25 Close

1. Use ▲ / ▼ to select a PR number then press ENTER.

2. Use ▲ / ▼ to select the program option then press ENTER.

- [Program Edit] Sets the channel manually. See "Program Edit" on the right.

- [Station Rename] Changes the station name. The display for entering characters appears. To enter characters, see page 56.

- [Move] Sorts the programme positions on the Program List. Press ▲ / ▼ to move the selected programme position to a new location.

- [Delete] Disables a programme position you do not need.

- [Decoder On/Off] Sets the channels for the decoder. You need this setting to watch or record PAY-TV/Canal Plus programmes. Press ENTER so [Decoder] appears on the display. Press ENTER again to turn off the setting.

1. Press RETURN (💡) repeatedly to exit Program List menu.

Program Edit

You can perform a search to select and store TV channels manually.

When you select [Program Edit] in step 4 above, the display for setting channels appears.

1. Use ◀ / ▶ to select the item and press ▲ / ▼ to change the setting.

PR 07 Seek Ch. MFT 0

• [PR] indicates the selected programme position

- [Seek] Searches for a channel automatically. Searching stops when the recorder tunes in a channel.

• [Ch.] Changes the channel number.

- [MFT] Fine tunes the channel to obtain a clearer picture.

1. Choose OK then press ENTER to confirm the setting and returns to the Program List menu.

AV1 Decoder

Sets the EURO AV1 AUDIO/VIDEO jack for inputting encoded video signals.

1. Press AV while the Program List menu appears.

PB Ct,MFT Status 01 0.2 -48 02 0.6 -48 03 0.71 9 04 0.75 9 05 06 07 08 09 10 11 Select Move Show

1. Press ENTER to select [On] or [Off]

- Off: Inputs the signals from the EURO AV1 AUDIO/VIDEO jack. Normally select this.

- On: The encoded video signal input from the EURO AV1 AUDIO/VIDEO jack is output to the EURO AV2 DECODER jack for decoding. The decoded signal is then input back through the EURO AV2 DECODER jack so you can record or view PAY-TV/Canal Plus programmes In this case, select [AV1] by pressing AV button

Auto Clock Set

When Channel auto search is completed the actual Time and Date are also set automatically. If the time in the recorder display is not correct, the clock must be set manually.

Auto Programm Programm Lab Clock Set 1V Aspect Display Mode Progressive Strain PSC Initially Select Auto Manual Date 19 / 2 Year 2005 Time 00 : 35

1. Select [Clock set] option then press ▶.
2. Use ▲ / ▼ to select [Auto] option then press ENTER.

Note:

There are cases where the TV station does not send, or sends wrong date and/or time information and the recorder sets the incorrect time.

If this happens, we recommend that you set the clock manually.

Manual Clock Set

1. Select [Clock set] option then press ▶.
2. Use ▲ / ▼ to select [Manual] option then press ENTER.

Auto Programs Program Edit Clock Set TV Aspect Display Mode Progressive Step PDS Saturation Time Auto Manual Date 19 r 7 Year 2005 Time 00:35

1. Enter the necessary information for date and time.
   ◀ / ▶ (left/right): Moves the cursor to the previous or next column.
   ▲ / ▼ (up/down): Changes the setting at the current cursor position.
2. Press ENTER to confirm your setting, then press SETUP to exit the Setup menu.

TV Aspect

Selects the aspect ratio of the connected TV (4:3 standard or wide).

• [4:3] Select this when connecting to a 4:3 screen TV. When you select [4:3], set [Display Mode] below.
  • [16:9] Select this when connecting to a wide-screen TV or TV with a wide mode function.

Auto Programming Program Edit Check Set TV Aspect 4:3 Display Mode 16:9 Program Name PSC Information

Display Mode

Selects how to display a wide picture on the screen when [4:3] is selected in [TV Aspect].

• [Letter Box] Displays a wide picture with bands on the upper and lower portions of the screen.
• [Pan Scan] Automatically displays a wide picture on the entire screen and cuts off the portions that do not fit.

Auto Programming Programme List Check Set TV Aspect Display Mode Progressive Slue PSC Installation Letter Box Pan Scan

Progressive Scan

Progressive Scan Video provides the highest quality pictures with less flickering. If you are using the COMPONENT VIDEO OUT/PROGRESSIVE SCAN or HDMI jacks, but are connecting the recorder to a standard (analog) television, set Progressive Scan to [OFF]. If you are using the COMPONENT VIDEO OUT/PROGRESSIVE SCAN or HDMI jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set Progressive Scan to [ON].

Audio Programming Program Edit Check Set YP Aspect Display Mode Progressive Scan OFF POR ON AutoCAD mode

Note:

Progressive Scan will be disable in the setup menu when the VIDEO OUTPUT switch on the rear panel is set to RGB position.

Caution

Once the setting for Progressive Scan output is entered, an image will only be visible on a Progressive Scan compatible TV or monitor. If you set Progressive Scan to [ON] in error, you must reset the recorder. First, remove the disc in the recorder. Next, press STOP (■) and hold it for five seconds before releasing it. The video output will be restored to the standard setting, and a picture will once again be visible on a conventional analog TV or monitor.

PBC

PBC stands for Playback Control and refers to special menus and navigation features that are available on some Video CDs.

• [ON] Video CDs are played according to the PBC, if available.
  • [OFF] Video CDs are played the same way as Audio CDs.

Auto Programming Pulse Set Clock Set 10 Export Binary Mode Processing Gear PBC OFF Internal System ON

Initialization

You can reset the recorder to its original factory settings and initialize the HDD or Memory Card.

• [Factory Set] If you need to, you can reset the recorder to all its factory settings. Some options cannot be reset. (Rating, Password, and Area Code)
• [HDD format] Initializes the HDD (Hard Disk Drive) everything recorded on the HDD will be erased.

• [M/C format] Initializes the M/C (Memory Card): everything recorded on the Memory Card will be erased.

• Select [Initialize] option then press ▶.

Auto Programming Program List Clock Set TV Aspect Single Mode Progression Mode PBC Factory Set Initialization HDD Format M/C Format

1. Press ▲ / ▼ to select the desired option then press ENTER. The confirm message will appear.
2. Use ◀/▶ to select [Yes] or [No] then press ENTER.

Language Settings

Display Menu

Select a language for the Setup menu and on-screen display.

Display Menu English German German Italiano Spanish Portuguese Elaçivské

Disc Menu/Audio/Subtitle

• [Original]Refers to the original language in which the disc was recorded.
- [Other] To select another language, press number buttons then ENTER to enter the corresponding 4-digit number according to the language code list in the reference chapter (see page 63). If you enter the wrong language code, press CLEAR.
• Off : Turn off Subtitle.

Display Menu Disc Memo Disc Audio Disc Sketch Original English French German Italian Spanish Portuguese Russian Others ----

Audio Settings

Dolby Digital

• [Bitstream]: Select "Bitstream" when enjoying original Dolby Digital Audio (Set to this mode ordinary).
• [PCM]: DVDs encoded in Dolby Digital will be automatically downmixed to two-channel PCM audio (refer to Audio Channel Selection on page 13).

Dolby Digital PCM OBC ✓ Bitstream

DRC (Dynamic Range Control)

With the DVD format, you can hear a program's soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing clarity of sound. Set DRC to [ON] for this effect.

Dummy Digital DRC: OFF ✓ ON

Lock (Parental Control) Settings

Rating

Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated from 1 to 8, depending on the area. DVD video discs may or may not respond to the parental control setting if the Area code of the disc is set wrongly. Some discs offer more suitable scenes as an alternative. Ratings are area dependent. The parental control feature allows you to block access to scenes below the rating you input, thereby preventing your children from being able to view material you believe is unsuitable.

Rating Add (Add) Add Code Add X Reg. Code No Limits 8 (Add) 7 6 5 4 3 2 1 (Kids)

1. Select [Rating] option then press ▶.

2. To access the Rating, Password and Area Code features, you must input the 4-digit security code you created.

If you have not yet entered a security code you are prompted to do so. Input a 4-digit code and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR.

1. Select a rating using the ▲ / ▼ buttons.

[1] - [8]: Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

[No Limit]: If you select [No Limit], parental control is not active and the disc plays in full.

1. Press ENTER to confirm your rating selection, then press SETUP to exit the menu.

Note:

If you set a rating for the recorder, all disc scenes with the same rating or lower are played. Higher rated scenes are not played unless an alternate scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback stops. You must enter the 4-digit password or change the rating level in order to play the disc.

Set Password

Setting Set Password Add Cards Create Copy, Copy Change New Password Delete

1. Select [Set Password] option then press ▶.
2. Follow step 2 as shown "Rating". To change the password, select the [Change], press ENTER and input the new 4-digit code then press ENTER. Input it again to verify. To delete the password, select [Delete] then press ENTER.

If you forget your 4-digit code

If you forget your password, to clear the current password, follow the procedure below.

1. Press SETUP to display the Setup menu.
2. Use the Number buttons to enter the 6-digit number "210499".
3. Select [Yes] then press ENTER. The 4-digit password is cleared. Enter a new code.

Area Code

Enter the code of an area whose standards were used to rate the DVD video disc, referring to the list (See "Area Codes", page 63.).

Rating Set Password Area Code DivX Reg. Code

1. Select [Area Code] option then press ▶.
2. Follow step 2 as shown "Rating".
3. Select the first character using the ▲ / ▼ buttons.
4. Shift the cursor using ▶ buttons and select the second character using ▲ / ▼ buttons.
5. Press ENTER to confirm your area code selection, then press SETUP to exit the menu.

DivX Registration Code

We provide you the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service. For more information, visit www.divx.com/vod.

1. Select [DivX Reg. Code] option then press ▶.
2. Press ENTER while [View] is selected and the registration code will appear.

Your registration code is : YJ32E0KR Yes

1. Use the registration code to purchase or rent the videos from Divx® VOD service at www.divx.com/vod. Follow the instructions and download the video onto a disc for playback on this unit.

Note:

All the downloaded videos from DivX® VOD can only be played back on this unit.

Recording Settings

Record Mode Set

You can set the picture quality for recording; HQ (High Quality), SQ (Standard Quality), LQ (Low Quality), EQ (Extend Quality).

Rec Mode Set Rec Asset DV Rec Audio TV Rec Audio Auto Channels EQ EQ ✓ SQ HQ

1. Select [Rec Mode Set] option then press ▶.
2. Use ▲ / ▼ to select a desired Record Mode (HQ, SQ, LQ or EQ).
3. Press ENTER to confirm your selection, then press SETUP to exit the menu.

Record Aspect

When DVD recording, you can set the recording aspect ratio to suit the material you're recording (16:9 or 4:3).

Rec Aspect 4:3 UV Rec Assets 16:5 TV Rec Assets Auto Cluster

DV Recording Audio

You need to set this if you have a camcorder using 32kHz/12-bit sound connected to the front panel DV IN jack.

Some digital camcorders have two stereo tracks for audio. One is recorded at the time of shooting; the other is for overdubbing after shooting.

On the Audio 1 setting, the sound that was recorded while shooting is used.

On the Audio 2 setting, the overdubbed sound is used.

DV Elec Audio TV Elec Audio Audio 1 Audio 2

TV Recording Audio

When TV recording with bilingual, you can choose audio channel to record.

[Main+Sub] Main language and Sub language [Main] Main language only

[Sub] Sub language only

Rec Minor Set Rec Select RV Rec Audio TV Rec Audio Auto Chapter Main+Sub Main Sub

Auto Chapter

When recording in Video mode, chapter markers are put in specified setting. You can change this interval to 5 minutes, 10 minutes or 15 minutes. If you select [None], switch off automatic chapter marking altogether with the [None] setting.

Auto Chapter None ✓ 5 Min 10 Min 15 Min

Disc Settings

Disc Format

If you load a completely blank disc, the recorder will initialize the disc.

DVD-R: The recorder initialize the disc to Video mode. The recording mode will always be Video mode.

DVD-RW: The recorder initialize the disc to VR or Video mode.

DVD+R (DL): The Initialize menu will appears.

Select "Yes" then press ENTER. (Video mode)

DVD+RW: The recorder initialize the disc to Video mode.

Also, you can reformat the DVD-RW/DVD+RW from the Setup menu as below.

Disc Format Forward Delete Exit

1. Select [Disc Format] option then press ▶
2. Press ENTER while [Start] is selected.

Format Disc menu appears. (DVD-RW)

Disc Format Select a Mode. VR Mode Video Mode

1. Use ◀ / ▶ to select a desired mode (VR Mode or Video Mode) then press ENTER.

Confirm message will appear. For DVD+RWs, go to step 4.

1. Use ◀ / ▶ to select [Ok] then press ENTER. It takes a few moments to initialize the disc.

Caution

If you want to change the disc format, everything recorded on the disc will be erased. (DVD-RW, DVD+RW)

Finalize

Finalizing 'fixes' the recordings in place so that the disc can be played on a regular DVD player or computer equipped with a suitable DVD-ROM drive. Finalizing a Video mode disc creates a menu screen for navigating the disc. This is accessed by pressing MENU/LIST or TITLE.

Caution

Once you have finalized a DVD-R and DVD+R disc, you cannot edit or record anything else on that disc except DVD+RW. However, you can record and edit a DVD-RW disc by choosing [Unfinalize] option.

Close Format Finalize Open, Linked User Project End Substrate

1. Select [Finalize] option then press ▶.
2. Press ENTER while [Finalize] is selected. Finalize menu appears.

Finalize Do you want Realization? Ok Cancel

1. Select [Ok] then press ENTER. The recorder starts finalizing the disc.

Note:

• How long finalization takes depends on the type of disc, how much is recorded on the disc, and the number of titles on the disc.
• DVD+R DL disc can take up to 30 minutes to finalize.

Tips

• If you load a DVD-RW that has already been finalized, you can 'Unfinalize' it by choosing Unfinalize from the Finalize menu. After doing this, you can edit and re-record onto the disc.
• You cannot unfinalize a DVD-R and DVD+R disc.
• If [Disc Protect] option is set to [ON], the finalize is not available. To finalize, set [Disc Protect] option to [OFF].

Disc Label

Use this to enter a name for the disc. This name appears when you load the disc and when you display disc information on-screen.

• The disc name can be up to 32 characters long.
- For discs formatted on a different recorder, you will see only a limited character set.

Text Format Instance Disc Label Edit Movie Protect

1. Select [Disc Label] option then press ▶.
2. Press ENTER while [Edit] is selected. Keyboard menu appears. To enter characters, see page 56.

Disc Protect

When recording in DVD+RW / +R disc or VR mode formatted DVD-RW disc, set to [ON] to prevent accidental recording, editing or deleting of the disc loaded. If you need to unlock the disc to make edits, select [OFF].

Disc Performat Locking Disc Label Disc Protect OFF ON

General Explanation of On-Screen Display

This manual gives basic instructions for operating the recorder. Some DVDs require specific operation or allow only limited operation during playback. When this occurs, the symbol ☑ appears on the TV screen, indicating that the operation is not permitted by the recorder or is not available on the disc.

Displaying Information While Watching TV

During viewing the TV, press ENTER or DISPLAY to display/remove the information displayed on-screen.

e.g., when DVD-RW in VR mode is inserted.

Indicates channel number, station name, and audio signal (STEREO, MONO) received by the tuner. Indicates operational mode of the recorder. (HDD, DVD, VCD, etc.) Indicates the record mode, free space, and elapsed time progress bar. Indicates disc name and format. DVD-RW VR Mode 1h 59min Free DVD AV1 3/1/2005 11:08 Indicates current date and time.

Displaying Disc Information on-screen

You can display various information about the disc loaded on-screen.

1. Press DISPLAY once to show current status. Example: DVD-RW in VR mode

TITLE 4 19/02 ORG SO 0:00:04 / 0:00:22 DVD

1. Press DISPLAY once again to show various playback information. The items displayed differ depending on the disc type or playing status.

DVD-VR 2/2 1/1 0: 00: 13 1.STEREO 00D 2CH OFF Title Have 0-9 Input Enter

1. You can select an item by pressing ▲ / ▼ and change or select the setting by pressing ◀ / ▶. For details about each item, see the pages in parentheses.

• [Title]: Current title (or track) number/total number of titles (or tracks) (page 32)
- [Chapter]: Current chapter number/total number of chapters (page 32)
• [Time]: Elapsed playing time (page 33)
- [Audio]: Selected audio language (DVD VIDEO only) or audio channel (page 34)
• [Subtitle]: Selected subtitle (page 35)

Note:

If no button is pressed for 10 seconds, the on-screen display disappears.

Playback

Playing a HDD, DVD, DivX file or Video CD

Playback Setup

• Turn the TV on and select the video input source connected to the recorder.

• Audio system: Turn the audio system on and select the input source connected to the recorder.

• Load your chosen disc in the tray, with the playback side down.

• Starts playback using HOME menu (see page 22).

If a menu screen is displayed

The menu screen may be displayed first after loading a DVD or Video CD which contains a menu.

DVD

Use the ◀ / ▶ / ▲ / ▼ buttons to select the title/chapter you want to view, then press ENTER to start playback.

Press TITLE or MENU/LIST to return to the menu screen.

VCD

• Use the number buttons to select the track you want to view.
  Press RETURN (💡) to return to the menu screen.

• Menu setting and the exact operating procedures for using the menu may differ depending on the disc. Follow the instructions on the each menu screen. You may also set PBC to [OFF] under Setup menu. See page 25.

• To stop the playback, press STOP ■.

The unit records the stopped point, depending on the disc. "■" appears on the screen briefly.

Press PLAY (▶) to resume playback (from the scene point). If you press STOP (■) again or unload the disc ("■" appears on the screen.), the unit will clear the stopped point.

Press OPEN/CLOSE (▲) to remove the disc. Press OPEN/CLOSE (▲) to close disc tray or press POWER (○), the disc tray closes automatically and unit turns off.

Notes:

- If Parental Control is set and the disc is not within the Rating settings (not authorized), the 4-digit code must be entered and/or the disc must be authorized (see "Rating", on page 27).

- DVDs may have a Region Code. Your recorder will not play discs that have a region code different from your recorder. The region code for this recorder is 2 (two).

- Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.

Moving to another TITLE HDD -RWvr

-RWVideo +RW -R +R DVD DivX

When a disc has more than one title, you can move to another title as follows:

- Press DISPLAY twice then use ▲ / ▼ to select the title icon. Then, press the appropriate numbered button (0-9) or ◀ / ▶ to select a title number.

Moving to another CHAPTER/TRACK

-RWvr -RWVideo +RW -R +R DVD

VCD

When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

• Press SKIP ◀◀◀ or ▶▶◀ briefly during playback to select the next chapter/track or to return to the beginning of the current chapter/track.
• Press SKIP ◀◀ twice briefly to step back to the previous chapter/track.
• To go directly to any chapter during DVD playback, press DISPLAY twice and press ▲ / ▼ to select the chapter/track icon. Then, input the chapter/track number or use ◀ / ▶.

Search HDD -RWVR -RWVideo +RW -R

+R DVD VCD

1. Press SCAN (◀◀ or ▶▶) during playback.
2. Press SCAN (◀◀ or ▶▶) repeatedly to select the required speed. HDD, DVD ; 5 steps (forward and backward) Video CD; 3 steps (forward and backward)
3. To exit SEARCH mode, press PLAY.

Still Picture and Frame-by-Frame Playback

1. Press PAUSE/STEP (Ⅲ) during playback. Advance the picture frame-by-frame by pressing PAUSE/STEP (Ⅱ) repeatedly.

2. To exit still motion mode, press PLAY.

Tip:

You can advance or back up the picture frame-by-frame by pressing ◀ / ▶ repeatedly during PAUSE mode.

The picture frame-by-frame in reverse is not available for Video CD.

Slow Motion HDD -RWVR -RWVideo +RW

-R +R DVD VCD

1. Press PAUSE/STEP (Ⅲ) during playback. The HDD/DVD Recorder Receiver will now go into PAUSE mode.
2. Use the SCAN (◀◀ or ▶▶) to select the required speed. DVD, HDD; 4 steps (forward and backward) Video CD; 3 steps (forward only)
3. To exit Slow Motion mode, press PLAY (▶).

Random Karaoke DVD VCD

1. Press RANDOM during playback. The unit automatically begins Random Playback and "RANDOM" appears on the TV screen.
2. To return to normal playback, press RANDOM until "NORMAL" appears on the TV screen.

Tip:

By pressing SKIP ▶▶ during Random playback, the unit selects another title (track) and resumes Random playback.

Notes:

• This function only works with DVD Karaoke discs or video CDs without PBC.
• On a Video CD with PBC, you must set PBC to OFF in the Setup menu to use the Random function. See page 25.

Repeat HDD -RWVR -RWVideo +RW -R

+R DVD VCD

Press REPEAT to select a desired repeat mode.

• [Chapter] repeats the current chapter. (DVD only)
• [Title] repeats the current title. (DVD, HDD only)
- [All] repeats the all titles/tracks on the VR mode DVD-RW, or Video CD.
• [Track]: repeats the current track. (Video CD only)
• [OFF] does not play repeatedly.

Note:

On a Video CD with PBC, you must set PBC to [OFF] in the Setup menu to use the Repeat function. See page 25.

Repeat A-B HDD -RWvr -RWvideo +RW

-R +R DVD VCD

To repeat a sequence.

1. Press REPEAT A-B at your chosen starting point. "A * " appears briefly on the TV screen.

2. Press REPEAT A-B again at your chosen end point. "A B" appears briefly on the TV screen and the repeat sequence begins.

3. Press REPEAT A-B again to cancel.

Note:

During HDD playback, you cannot select a sequence less than 5 seconds.

Time Search HDD -RWvr -RWVideo +RW

-R +R DVD DivX

To start playing at any chosen time on the disc:

1. Press DISPLAY twice during playback. The time search box shows the elapsed playing time.
2. Press ▲ / ▼ to select the time clock icon and "0:00:00" appears.
3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press ◀ / ▶ to move the under bar (_) to the wrong number. Then enter the correct numbers.
4. Press ENTER to confirm. Playback starts from the selected time.

Zoom HDD -RWVR -RWVideo +RW -R

+R DVD VCD

The Zoom function allows you to enlarge the video image and to move through the enlarged image.

1. Press ZOOM during playback or still playback to activate the Zoom function. Each press of the ZOOM button changes the TV screen in the sequence shown below. x1 size → x2 size → x4 size → x1 size (normal size)
2. Use the ◀/▶/▲/▼ buttons to move through the zoomed picture.
3. To resume normal playback, press CLEAR or press ZOOM repeatedly until the normal picture appears.

Note:

The zoom function may not work for some DVDs.

Marker Search

To enter a Marker

You can start playback from up to six memorized points. To enter a marker, press MARKER at the desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to six markers.

To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH. The marker search menu appears on the screen.
2. Use ◀ / ▶ / ▲ / ▼ to select a marked scene that you want to recall or clear.
3. Press ENTER and playback starts from the marked scene. Or, press CLEAR and the marked scene is erased from the marker search menu.

Marker Search Cultures of latest 2007 years Figure

Checking the Contents of DVD Video Discs: Menus

DVDs may contain menus that allow you to access special features. To open the disc menu, press MENU/LIST. Then, press the appropriate number button to select an option. Or, use the ◀/▶/▲/▼ buttons to highlight your selection, then press ENTER.

Title Menu

1. Press TITLE.
   If the current title has a menu, the menu will appear on the TV screen. Otherwise, the disc menu may not appear.
2. The menu may contain camera angles, spoken language and subtitle options, and chapters for the title.

Disc Menu

1. Press MENU/LIST.
   The disc menu is displayed.
2. To remove the disc menu, press MENU/LIST again.

Camera Angle

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.

- Press ANGLE then press ◀ / ▶ repeatedly during playback to select a desired angle. The number of the current angle appears on the TV screen.

Tip:

The ANGLE indicator will blink on the TV screen at scenes recorded at different angles to indicate that angle switching is possible.

Changing the Audio Soundtrack

Press AUDIO then press ◀ / ▶ repeatedly during playback to hear a different audio language or audio soundtrack if available.

Changing the Audio Channel

Press AUDIO then press ◀ / ▶ repeatedly during playback to hear a different audio channel (STEREO, LEFT or RIGHT).

With DVD-RW discs recorded in VR mode and HDD that have both a main and a Bilingual audio channel, you can switch among Main (L), Sub (R), or Main+sub (L+R) by pressing AUDIO.

Subtitles

Press SUBTITLE then press ◀ / ▶ repeatedly during playback to see the different subtitle languages.

Instant Skip

Each press INSTANT SKIP skips forward 15 seconds.

In HDD playback or Timeshift mode, each press ◀ / ▶ skips forward or reverse 5 minutes.

Note:

If appears, the feature is not available on the disc.

Finding Locations on a Disc

You can directly access any point on a video CD using this function. Use this function only while a video CD is playing. Playback jumps to the point specified.

1. Press SEARCH during playback.
   The progress bar appears on the TV screen.
2. Use ◀ / ▶ to find a start position for playback.
3. Press ENTER to confirm the selected position. Playback starts from the selected position.

Note:

This function works only when no marker is memorized.

Last Condition Memory

This recorder memorizes the user settings for the last disc that you have viewed. Settings remain in memory even if you remove the disc from the recorder or switch off the recorder. If you load a disc that had its settings memorized, the latest stop position is automatically recalled.

Note:

• Settings are stored in memory for use any time.
• This recorder does not memorize settings of a disc if you switch off the recorder before commencing to play it.

PIP (Picture in Picture)

This function enables you to view the stored stations in sub picture during playback.

Line drawing of a space shuttle with an inset showing a cartoon character (no text or symbols)

On and off

Press PIP to switch on the sub picture, press this button again to switch it off.

Input mode selection for sub picture

Press AV to select the input mode for the sub picture. Each time this button is pressed, each input mode for the sub picture is displayed as shown below.

$$ \text { Tuner } \rightarrow \text { AV1 } \rightarrow \text { AV2 } \rightarrow \text { OPT } \rightarrow \text { AV3 } \rightarrow \text { AV4 } $$

Program selection for sub picture

Use ▲/▼ to change the program when sub picture's input is set to tuner. The selected program number is displayed on the TV screen. You can view the selected program by pressing STOP (■).

Sub picture position change

Press ◀ / ▶ repeatedly until desired position is achieved. The sub picture moves clockwise or counterclockwise.

Zoom Sub picture

Press ZOOM repeatedly to enlarge the sub picture, the magnification level increases up to three steps.

Playing a DivX Movie File

The recorder can play Divx files on HDD, CD-R/RW or DVD±R/RW discs. Before playing DivX files, read "About DivX movie files" on page 37.

Note:

This recorder cannot play back the DivX file(s) in the Memory Card.

1. Press HOME.
2. Select a media that contains DivX file(s) then press ENTER.
3. Select [MOVIE] option then press ENTER. The Movie menu appears on the TV screen.

MOMA (0) File File 01 File 02 File 03 File 04 File 05 File 06 File 07 File 08 File 09 File 10 File 11 File 12 File 13 File 14 File 15 File 16 File 17 File 18 File 19 File 20 File 21 File 22 File 23 File 24 File 25 File 26 File 27 File 28 File 29 File 30 File 31 File 32 File 33 File 34 File 35 File 36 File 37 File 38 File 39 File 40 File 41 File 42 File 43 File 44 File 45 File 46 File 47 File 48 File 49 File 50 File 51 File 52 File 53 File 54 File 55 File 56 File 57 File 58 File 59 File 60 File 61 File 62 File 63 File 64 File 65 File 66 File 67 File 68 File 69 File 70 File 71 File 72 File 73 File 74 File 75 File 76 File 77 File 78 File 79 File 80 File 81 File 82 File 83 File 84 File 85 File 86 File 87 File 88 File 89 File 90 File 91 File 92 File 93 File 94 File 95 File 96 File 97 File 98 File 99 File 100

1. Press ▲ / ▼ to select a folder, and press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the Folder list, use the ▲ / ▼ buttons on the remote to highlight ■. and press ENTER.
2. If you want to view a particular file, press ▲ / ▼ to highlight a file and press PLAY. You can use variable playback functions. Refer to pages 32-35.
3. Press STOP to stop the playback. The Movie menu appears.

Notice for displaying the DivX subtitle

Please refer to following notice when the DivX subtitle does not display properly.

1. Find a suitable language for the DivX subtitle on the figure below.

Disc Subtitle Language	Available DivX Subtitle
Original, English	English
French, German, Italian, Spanish, Portuguese	French, German, Italian, Spanish, PortugueseDutch, Swedish
Russian	Russian
Other 6976	Greek
Other 7665	Polish, Hungarian, Czech

1. Press SETUP. The Setup menu appears. Press SETUP ➔ [LANGUAGE] ➔ [Disc Subtitle] then select the language you have found. Refer to "Disc Menu/Audio/Subtitle" on page 26.

Tip:

If the subtitle still does not display properly after the steps 1-2 proceeded, press and hold SUBTITLE about 3 seconds then press ◀ / ▶ to select another language code during playback until the subtitle is displayed properly.

Movie menu options

1. Press ▲ / ▼ to select a folder/file on the Movie menu then press ENTER. Movie menu options appear.

File Edit F:\Users\03 File 02.mpg C: File 02.mpg Resume Move Copy Play Delete 1.46

1. Press ▲ / ▼ / ◀ / ▶ to select an option, and press ENTER.

• [Play] Start playback the selected title.
- [Open] Opens the folder and a list of files in the folder appears
- [Delete] Deletes the file(s) or folder(s) from the media. (HDD only)
- [Rename] Edits the file name. (HDD only) (page 43)
- [Move] Moves the file(s) to another folder or media. (HDD only) (page 44)
• [Copy] Copies the file(s) to another folder or media. (page 44)

About DivX movie files

DivX disc compatibility with this recorder is limited as follows:

• Available resolution size of the DivX file is under 720x576 (W x H) pixel.
• This recorder cannot play back the DivX file(s) in the Memory Card.
• The file name of the DivX subtitle is limited to characters.
• The total number of files and folders on the disc should be less than 1999.
• If the number of the screen frame is over 29.97 frames per second, this unit may not operate normally.
• If the video and audio structure of recorded file is not interleaved, returns to the menu screen.
• If the file is recorded with GMC, the unit supports only 1-point of the record level. * GMC?

GMC is the acronym for Global Motion Compensation. It is an encoding tool specified in MPEG4 standard. Some MPEG4 encoders, like DivX or Xvid, have this option. There are different levels of GMC encoding, usually called 1-point, 2-point, or 3-point GMC.

playable DivX file

“.avi”, “.divx”

playable DivX subtitle

".smi", ".srt",
".sub (Micro DVD format only) ",
".txt (Micro DVD format only)"
- Divx subtitle except those listed above is not displayed on the TV screen.

playable Codec format

"DIV3", "MP43", "DIVX", "XVID", "DX50"

playable Audio format

"AC3", "PCM", "MP2", "MP3", "WMA"

• Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)
• Bit rate: within 8 - 320kbps (MP3), 32 - 192kbps (WMA)

Playing an Audio CD or MP3/WMA file

The recorder can play audio CDs and MP3/WMA files on HDD, Memory Card, CD-ROM, DVD±R/RW or CD-R/RW discs. Before playing MP3/WMA files, read "About MP3/WMA audio files" on page 39.

1. Press HOME.
   The HOME menu appears.
2. Select a media that contains MP3/WMA or audio title then press ENTER.
3. Select [MUSIC] option then press ENTER. The Audio CD or Music menu appears on the TV screen.

Audio CD 播放 1 0:00:40 1.0000 2.0000 3.0000 4.0000 5.0000 6.0000 7.0000 8.0000 9.0000 10.0000 11.0000 12.0000 13.0000 14.0000 15.0000 16.0000 17.0000 18.0000 19.0000 20.0000 21.0000 22.0000 23.0000 24.0000 25.0000 26.0000 27.0000 28.0000 29.0000 30.0000 31.0000 32.0000 33.0000 34.0000 35.0000 36.0000 37.0000 38.0000 39.0000 40.0000 41.0000 42.0000 43.0000 44.0000 45.0000 46.0000 47.0000 48.0000 49.0000 50.0000 51.0000 52.0000 53.0000 54.0000 55.0000 56.0000 57.0000 58.0000 59.0000 60.000

Audio CD Menu

File 01.mtl File 02.mtl File 03.mtl File 04.mtl File 05.mtl File 06.mtl File 07.mtl File 08.mtl File 09.mtl File 10.mtl File 11.mtl File 12.mtl File 13.mtl File 14.mtl File 15.mtl File 16.mtl File 17.mtl File 18.mtl File 19.mtl File 20.mtl File 21.mtl File 22.mtl File 23.mtl File 24.mtl File 25.mtl File 26.mtl File 27.mtl File 28.mtl File 29.mtl File 30.mtl File 31.mtl File 32.mtl File 33.mtl File 34.mtl File 35.mtl File 36.mtl File 37.mtl File 38.mtl File 39.mtl File 40.mtl File 41.mtl File 42.mtl File 43.mtl File 44.mtl File 45.mtl File 46.mtl File 47.mtl File 48.mtl File 49.mtl File 50.mtl File 51.mtl File 52.mtl File 53.mtl File 54.mtl File 55.mtl File 56.mtl File 57.mtl File 58.mtl File 59.mtl File 60.mtl File 61.mtl File 62.mtl File 63.mtl File 64.mtl File 65.mtl File 66.mtl File 67.mtl File 68.mtl File 69.mtl File 70.mtl File 71.mtl File 72.mtl File 73.mtl File 74.mtl File 75.mtl File 76.mtl File 77.mtl File 78.mtl File 79.mtl File 80.mtl File 81.mtl File 82.mtl File 83.mtl File 84.mtl File 85.mtl File 86.mtl File 87.mtl File 88.mtl File 89.mtl File 90.mtl File 91.mtl File 92.mtl File 93.mtl File 94.mtl File 95.mtl File 96.mtl File 97.mtl File 98.mtl File 99.mtl File 100.mtl

Music Menu

1. Use ▲/▼ to select a track then press PLAY (▶). Playback starts.

During playback, the current track's elapsed playing time will appear on the front panel display and menu. Playback will stop at the end of the disc.

Tips:

• Press DISPLAY to view ID3-Tag information for the MP3 file. If ID3-Tag information is not present, "Not Checked" will appear. If you select a folder, the number of subfolders and number of MP3/WMA files in the folder are displayed. Press DISPLAY again to remove the information screen.
• If you want to move to the upper directory, use the ▲ / ▼ to highlight ■. and press ENTER.

• You can also display HOME menu to select another media by pressing RETURN (💡).

• To stop playback at any time, press STOP.

Tip:

You can create new folder. Select [New Album] option on the Music-HDD or Music-Memory Card menu then press ENTER. "NONAME##" folder is created.

Audio CD and Music menu options

1. Press ▲ / ▼ to select a folder/file on the Audio CD or Music menu then press ENTER. The menu options appear.

File 01.mpt FOLDER 01 FOLDER 01 D Filt (01.mpt) D Filt (01.mpt) D Filt (01.mpt) Play Delete Exit Program add Executive Inves Copy

1. Press ▲ / ▼ / ◀ / ▶ to select an option, and press ENTER.

• [Play] Start playback the selected title.
- [Open] Opens the folder and a list of files in the folder appears
- [Delete] Deletes the file(s) from the media. (HDD mode)
- [Rename] Edits the file name. (page 43) (HDD mode)
- [Move] Moves the file(s) to another folder or media. (page 44) (HDD mode)
- [Copy] Copies the file(s) to another folder or media. (page 44)
- [Program Add] Adds the track(s) to Program List. (page 40)

Pause

1. Press PAUSE/STEP (Ⅲ) during playback.
2. To return to playback, press PLAY (▶) or press PAUSE/STEP (■) again.

Moving to Another Track

• Press SKIP ◀◀◀ or ▶▶◀ briefly during playback to go to the next track or to return to the beginning of the current track.
• Press SKIP I◄◄ twice briefly to step back to the previous track.
• On an Audio CD, to go directly to any track, enter the track number using the numbered buttons (0-9) during playback.

Repeat

Audio CDs - Repeat Track/All/Off

Press REPEAT to select a desired repeat mode.

• TRACK: repeats the current track.
• ALL: repeats the all tracks on the disc.
• OFF (No display): does not play repeatedly.

MP3/WMA - Repeat Track/Folder/Off

Press REPEAT to select a desired repeat mode.

• TRACK: repeats the current track.
• FOLDER: repeats the all tracks in the current folder.
• OFF (No display): does not play repeatedly.

Random

1. Press RANDOM during playback or in stop mode. The unit automatically begins Random Playback and "RANDOM" appears on the menu screen.
2. To return to normal playback, press RANDOM repeatedly until "RANDOM" disappears from the menu screen.

Tip:

By pressing SKIP ▶▶ during Random playback, the unit selects another track and resumes Random playback.

Changing the Audio Channel

Press AUDIO repeatedly to hear a different audio channel (stereo, left or right).

Search (Audio CD only)

1. Press SCAN (◀◀ or ▶▶) during playback. The recorder will now go into SEARCH mode.
2. Press SCAN (◀◀ or ▶▶) repeatedly to select the required speed (3 steps).
3. To exit SEARCH mode, press PLAY (▶).

Repeat A-B (Audio CD only)

To repeat a sequence in a track:

1. Press A-B at your chosen start point. Repeat icon and 'A' appears on the menu screen.
2. Press A-B again at your chosen end point. The Repeat icon and 'A - B' appears on the menu screen, and the repeat sequence begins.
3. To exit the sequence and return to normal play, press A-B again. The Repeat icon disappears from the menu screen.

About MP3/WMA audio files

MP3 / WMA file compatibility with this recorder is limited as follows:

• Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)
• Bit rate: within 8 - 320kbps (MP3), 32 - 192kbps (WMA)
• The recorder cannot read an MP3/WMA file that has a file extension other than ".mp3" / ".wma".
• CD-R physical format should be "ISO 9660" and "JOLIET".
• DVD±R/RW physical format should be "ISO 9660 (UDF Bridge format)".
• If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.
• File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.
• They should not contain special letters such as /? * : “ < > | etc.
• The total number of files and folders on the disc should be less than 1999.

This recorder requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Program Playback with Audio CD and MP3/WMA file

Program Playback enables you to make custom playlists of Audio CD or MP3/WMA tracks. Programs can contain up to 99 Audio CD tracks or 256 MP3/WMA files.

1. Use ▲ / ▼ to select a track/file (or folder) on the Audio CD or Music menu. You can select all files and folders on the Music menu by pressing CLEAR button. To cancel the selections, press CLEAR again. (except for Audio CD)

Selecting multiple files/tracks (folders)

1. Press MARKER.

A check mark appears on the file/track or folder. Press MARKER again to cancel the marked file/track or folder.

1. Repeat step 1 to mark additional file/track (folders).

2. Press ENTER.
   The options appear on the left side of the menu.

3. Use ▲ / ▼ to select the [Program Add] option then press ENTER.
4. Repeat steps 1-3 to mark additional tracks.

Note:

If you select a folder for Programmed Playback, all tracks/files in the folder are added to the Program List.

File MS Iraq MP3 Program list File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MSIraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraq File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Iraqi File MS Israeli

1. Use ▶ to move to the Program list. The programmed track you selected last is highlighted on the program list.
2. Use ▲ / ▼ to select the track you want to start playing.
3. Press PLAY (▶) to start. Playback stops after playing the last programmed track in the program list.
4. To exit Program Playback and resume normal playback, select a track on the List and press PLAY (▶).

Tip:

You can access or remove the Program List screen by pressing MENU/LIST.

Program List menu options

1. Press ▲ / ▼ to select a track/file on the Program List then press ENTER. The menu options appear.

File 01.mp3 MP3 Programs list File 04.mp3 File 05.mp3 File 06.mp3 File 07.mp3 File 08.mp3 File 09.mp3 File 10.mp3 File 11.mp3 File 12.mp3 File 13.mp3 File 14.mp3 File 15.mp3 File 16.mp3 File 17.mp3 File 18.mp3 File 19.mp3 File 20.mp3 File 21.mp3 File 22.mp3 File 23.mp3 File 24.mp3 File 25.mp3 File 26.mp3 File 27.mp3 File 28.mp3 File 29.mp3 File 30.mp3 File 31.mp3 File 32.mp3 File 33.mp3 File 34.mp3 File 35.mp3 File 36.mp3 File 37.mp3 File 38.mp3 File 39.mp3 File 40.mp3 File 41.mp3 File 42.mp3 File 43.mp3 File 44.mp3 File 45.mp3 File 46.mp3 File 47.mp3 File 48.mp3 File 49.mp3 File 50.mp3 File 51.mp3 File 52.mp3 File 53.mp3 File 54.mp3 File 55.mp3 File 56.mp3 File 57.mp3 File 58.mp3 File 59.mp3 File 60.mp3 File 61.mp3 File 62.mp3 File 63.mp3 File 64.mp3 File 65.mp3 File 66.mp3 File 67.mp3 File 68.mp3 File 69.mp3 File 70.mp3 File 71.mp3 File 72.mp3 File 73.mp3 File 74.mp3 File 75.mp3 File 76.mp3 File 77.mp3 File 78.mp3 File 79.mp3 File 80.mp3 File 81.mp3 File 82.mp3 File 83.mp3 File 84.mp3 File 85.mp3 File 86.mp3 File 87.mp3 File 88.mp3 File 89.mp3 File 90.mp3 File 91.mp3 File 92.mp3 File 93.mp3 File 94.mp3 File 95.mp3 File 96.mp3 File 97.mp3 File 98.mp3 File 99.mp3 File 100.mp3

1. Use ▲ / ▼ to select an option then press ENTER to confirm your selection.

• [Play] Playback begins in the order in which you programmed the tracks from the selected track.
- [Delete] Deletes the track(s) from the Program List menu.
- [Move] Moves the track(s) to change the program order.
• [Save] Memorizes the program list. (HDD only)

Repeat Programmed Tracks

Press REPEAT to select the desired Repeat mode.

• [TRACK] Repeats the current track.
• [ALL] Repeats all tracks on the Program List.
• [OFF] Cancels Repeat mode (no display).

Erasing a Track from the Program List

1. Select the track you wish to erase from the Program List. Use MARKER button to select multiple tracks.
2. Press ENTER. The menu options appears
3. Select [Delete] option then press ENTER.

Changing Track Order in the Program List

1. Select the track you wish to move on the Program List. Use MARKER button to select multiple tracks.
2. Press ENTER. The menu options appears
3. Select [Move] option then press ENTER.
4. Use ▲ / ▼ to move the yellow bar to the desired location, then press ENTER.

Save Your Program List (HDD only)

This recorder memorizes the user program list that you have programmed.

1. Select a track on the Program List. The menu options appear.
2. Select [Save] option then press ENTER. The Program List is saved in the HDD's PROGRAM folder.

Viewing a JPEG File

The recorder can play JPEG files on the CD-R/RW, DVD±R/RW, HDD, or Memory Card. Before playing JPEG recordings, read "About JPEG image files" on page 42.

1. Press HOME.
   The HOME menu appears.
2. Select a media that contains JPEG file then press ENTER.
3. Select [PHOTO] option then press ENTER. The Photo menu appears on the TV screen.

• If you want to move to the upper directory, use the ▲ / ▼ to highlight ■ - and press ENTER.

• You can also display HOME menu to select another media by pressing RETURN (♂).

• Use ▲ / ▼ to select [Full Screen] then press ENTER. The selected image is displayed in full screen.

• To stop viewing at any time, press STOP. The Photo menu appears.

Black-and-white landscape photo showing a forested hillside with distant buildings and cloudy sky (no visible text or symbols)

Press ENTER to appear or disappear this menu.

Photo menu options

1. Press ▲ / ▼ to select a file on the Program List then press ENTER.

The menu options appear. You can select all files and folders on the menu by pressing CLEAR button. To cancel the selections, press CLEAR again.

Selecting multiple files (folders)

1. Press MARKER. A check mark appears on the file or folder. Press MARKER again to cancel the marked file or folder.

2. Repeat step 1 to mark additional file (folders).

File 000 5/18 File 01 Full Screen Inside State China Exit > Presets Move Copy Image Edit Edit Active View China

1. Use ▲ / ▼ to select an option then press ENTER to confirm your selection.

2. [Open] Opens the folder and a list of files in the folder appears
   • [Full Screen] Shows the selected file as full screen.

3. [Delete] Deletes the selected file from the media (HDD, Memory Card only)
   • [Slide Show] Displays Slide Show menu.
4. [Rename] Edits the file name. (page 43) (HDD, Memory Card only)
5. [Move] Moves the file(s) to another folder (album) or media. (page 44) (HDD, Memory Card only)
6. [Copy] Copies the file(s) to another folder or media. (page 44)

Tip:

You can create new folder in the HDD or Memory Card. Select [New Album] option then press ENTER "NONAME##" folder is created.

Skip Images

While viewing a picture, press SKIP (I◄◄ or ►►►) once to advance to the next file or return to the previous file.

Rotate Images

Use ▲ / ▼ while viewing a picture to flip the picture clockwise or counterclockwise.

View Slide Shows

1. Select [Slide Show] option on the Photo menu (Refer to "Photo menu options" on page 41).
2. Press ENTER. The Slide Show menu appears.

Slide Show Object All Speed Normal Simultaneous Music play Start Cancel

1. Use ◀ / ▶ / ▲ / ▼ to set the options.

[Object] option:

• [Selected] Views slide show only selected files. Use the MARKER button to select multiple files.
  • [All] Views slide show all files.

[Speed] option:

Sets the Slide Show speed to [Slow], [Normal], or [Fast].

1. Select the [Start] option then press ENTER to start the Slide Show.
2. Press STOP to stop the Slide Show and returns to the Photo menu.

To Pause the Slide Show

1. Press PAUSE/STEP (Ⅲ) to pause slide show.
2. When you want to continue slide show, press PLAY (▶).

To listen to music while slide show simultaneously

You can display photo files while listening to MP3 music files recorded on HDD.

1. Select [Slide Show] option on the Photo menu (Refer to "Photo menu options" on page 41).
2. Press ENTER.

The Slide Show menu appears.

1. Select [Simultaneous Music play] option on the Slide Show menu

Slide Show Object All Speed Normal Simultaneous Music play Start Cancel

1. Press ENTER.

Simultaneous Music play menu appears.

1. Press MARKER to select multiple files.

2. Select [Select All] option to select all tracks then press ENTER.

3. Select [Deselect All] option to deselect all selected tracks then press ENTER.

4. Select [Cancel] option to exit this menu then press ENTER.

5. Use ◀/▶/▲/▼ to highlight [Start] option then press ENTER.

Simultaneous Music play Select music FOLDER 00 FOLDER 01 File 01.mp3 File 02.mp3 File 03.mp3 File 04.mp3 File 05.mp3 Select All Deselect All Start Cancel

1. Press STOP to stop the Slide Show and return to the Photo menu.

About JPEG image files

JPEG disc compatibility with this recorder is limited as follows:

• Depending upon the size and number of JPEG files, it could take a long time for the recorder to read the files. If you don't see an on-screen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 4M pixels.
• The total number of files and folders on the disc should be less than 1999.
• Some discs may be incompatible due to a different recording format or the condition of disc.
• Ensure that all the selected files have the ".jpg" extensions when copying into the CD layout.
• If the files have ".jpe" or ".jpeg" extensions, please rename them as ".jpg" file.
• File names without ".jpg" extension will not be able to be read by this recorder. Even though the files are shown as JPEG image files in Windows Explorer.
• Progressive and lossless compression JPEG image files are not supported.

Editing a MP3/WMA, JPEG, DivX file

These descriptions are MP3 file's operation for example, other kind's files are operated same way.

Notes:

• The MP3/WMA, and DivX files on the disc or HDD cannot be copied or moved to Memory Card.
• The DivX file(s) in the memory card is not available.

Erasing a file(s)/folder(s) from the HDD or Memory Card

You can erase MP3/WMA, JPEG or DivX file(s)/folder(s) on the HDD or Memory Card.

1. Select a file you wish to erase on the menu. You can select all files and folders on the menu by pressing CLEAR button. To cancel the selections, press CLEAR again.

Selecting multiple files (folders)

1. Press MARKER.
   A check mark appears on the file or folder. Press MARKER again to cancel the marked file or folder.

2. Repeat step 1 to mark additional file (folders).

3. Press ENTER.

The menu options appear on the menu.

Music MP3 File 01.mp3 MP3 150.000 KB 150.000 KB @ File 01.mp3 @ File 02.mp3 @ File 03.mp3 @ File 04.mp3 @ File 05.mp3 @ File 06.mp3 @ File 07.mp3 Play Delete F8 Program 564 Active: 100% or less MP3 from Save

1. Select [Delete] option then press ENTER. The selected file(s) is deleted from HDD or Memory Card.

Naming a file on the HDD or Memory Card

You can name MP3/WMA files on the HDD or Memory Card independently. Names can be up to 32 characters long.

1. Select a file you wish to rename on the menu.
2. Press ENTER. The menu options appear on the menu.
3. Select [Edit] option then press ENTER. Edit options appears.

File 01.mp3 File2000.01 File2000.01 File US.mp3 File US.mp3 File US.mp3 Play Delete Fill Program add Resume Show Copy Close 02/2000 Have 02/2000.01 From...

1. Select [Rename] option then press ENTER. Keyboard menu appears. To enter characters, see page 56.

Music REY File 01 Audio Control OK Cancel Show Cancel OK

Copying a file(s) to another media or folder

You can copy a file(s)/folder(s) to another media or folder.

1. Select a file you wish to copy on the menu. You can select all files and folders on the menu by pressing CLEAR button. To cancel the selections, press CLEAR again.

Selecting multiple files (folders)

1. Press MARKER.

A check mark appears on the file or folder.

Press MARKER again to cancel the marked file or folder.

1. Repeat step 1 to mark additional file (folders).

2. Press ENTER.

The menu options appear on the menu.

1. Select [Edit] option then press ENTER. Edit options appears.

2. Select [Copy] option then press ENTER. Copy menu appears.

File 01.mp3 File 02.mp3 File 03.mp3 File 04.mp3 File 05.mp3 File 06.mp3 File 07.mp3 File 08.mp3 File 09.mp3 File 10.mp3 File 11.mp3 File 12.mp3 File 13.mp3 File 14.mp3 File 15.mp3 File 16.mp3 File 17.mp3 File 18.mp3 File 19.mp3 File 20.mp3 File 21.mp3 File 22.mp3 File 23.mp3 File 24.mp3 File 25.mp3 File 26.mp3 File 27.mp3 File 28.mp3 File 29.mp3 File 30.mp3 File 31.mp3 File 32.mp3 File 33.mp3 File 34.mp3 File 35.mp3 File 36.mp3 File 37.mp3 File 38.mp3 File 39.mp3 File 40.mp3 File 41.mp3 File 42.mp3 File 43.mp3 File 44.mp3 File 45.mp3 File 46.mp3 File 47.mp3 File 48.mp3 File 49.mp3 File 50.mp3 File 51.mp3 File 52.mp3 File 53.mp3 File 54.mp3 File 55.mp3 File 56.mp3 File 57.mp3 File 58.mp3 File 59.mp3 File 60.mp3 File 61.mp3 File 62.mp3 File 63.mp3 File 64.mp3 File 65.mp3 File 66.mp3 File 67.mp3 File 68.mp3 File 69.mp3 File 70.mp3 File 71.mp3 File 72.mp3 File 73.mp3 File 74.mp3 File 75.mp3 File 76.mp3 File 77.mp3 File 78.mp3 File 79.mp3 File 80.mp3 File 81.mp3 File 82.mp3 File 83.mp3 File 84.mp3 File 85.mp3 File 86.mp3 File 87.mp3 File 88.mp3 File 89.mp3 File 90.mp3 File 91.mp3 File 92.mp3 File 93.mp3 File 94.mp3 File 95.mp3 File 96.mp3 File 97.mp3 File 98.mp3 File 99.mp3 File 100.mp3

1. You can select a album (folder) to copy.

2. After selecting a media then press ENTER. The album (folder) list appears.

3. Select a folder. Also, you can create new album (folder). Select [New Album] option on the Copy menu then press ENTER. "NONAME##" folder is created.

4. Select [Copy] option then press ENTER to begin copying.

File 01.mp3 Copy Select No. of items Copy Cancel New items Save items: f: 100mm © Season 201984-Start, 2019 Free List C:\Create

Moving a file(s)

You can move a file(s)/folder(s) to another media or folder. After moving, the file(s)/folder(s) are deleted from the current location.

1. Follow steps 1-3 as shown left.

2. Press ENTER.

The options appear on the left side of the menu.

1. Select [Move] option then press ENTER. Move menu will appear.

File 01.mp3 File File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 File 01.mp3 F54 Delete Add Program add Browse Move Copy

1. You can select a album (folder) to move.

2. After selecting a media then press ENTER. The album (folder) list appears.

3. Select a folder.

Also, you can create new album (folder). Select [New Album] option on the Move menu then press ENTER.

"NONAME##" folder is created.

1. Select [Move] option then press ENTER to begin moving.

Music File 01 expd Move Select the album Substituted 01 New album Save Cancel New album

Recording

About DVD recording

Notes:

• This recorder cannot make recordings on CD-R or CD-RW discs.
• Our company takes no responsibility for recording failure due to power outages, defective discs, or damage to the Recorder.
• Fingerprints and small scratches on a disc can affect playback and/or recording performance. Please take proper care of your discs.

Disc types and recording formats, modes, and settings

This recorder can play five different kinds of DVD discs: pre-recorded DVD-Video discs, DVD-RW, DVD-R, DVD+RW and DVD+R discs. The disc format for DVD-R, DVD+R, DVD+RW discs is always "Video format"—the same as pre-recorded DVD-Video discs. This means that once finalized, you can play a DVD-R, DVD+R, or DVD+RW in a regular DVD player.

By default, the DVD-RW disc format is Video Recording (VR) format, though you can change this to Video format, if required. (Reinitializing the disc will erase the contents of the disc.)

The recording mode is closely related to the disc format. If the disc format is Video Recording format, then the recording mode is VR mode; if the disc format is Video mode, then the recording mode is Video mode (except for DVD-Video, which is not recordable, and so does not have a recording mode). Within the recording modes (which are fixed for them whole disc) are the record settings. These can be changed as required for each recording and determine the picture quality and how much space the recording will take up on the disc.

About HDD recording

Recording to the internal hard disk drive (HDD) is basically similar to recording to a VR mode DVD-RW disc. You have the full choice of recording quality options, including the manual mode, and of course you can record, erase and re-record as many times as you like. The capacity of the hard disk drive means that you can store many hours of video on it, even in the higher quality recording modes. To help you organize the contents, the HDD is divided into ten genre. You can name and use these genres as you like—for example, you might have a genre for movies, another for TV shows, and one for camcorder recordings.

Note:

• The maximum number of titles that can be recorded on the HDD is 255.
• Using the HDD allows you to record a maximum of 12 hours continuously.

Notes for recording

• The recording times shown are not exact because the recorder uses variable bit-rate video compression. This means that the exact recording time will depend on the material being recorded.
• When recording a TV broadcast, if the reception is poor or the picture contains interference, the recording times may be shorter.

- If you record still pictures or audio only, the recording time may be longer.

- The displayed times for recording and time remaining may not always add up to exactly the length of the disc.

- The recording time available may decrease if you heavily edit a disc.

- If using a DVD-RW disc, make sure you change the recording format (Video mode or VR mode) before you record anything on the disc. See page 29 (Disc Format) for how to do this.

- When using a DVD-R or DVD+R disc, you can keep recording until the disc is full, or until you finalize the disc. Before you start a recording session, check the amount of recording time left on the disc.

- When using a DVD-RW disc in Video mode, recording time available will only increase if you erase the last title recorded on the disc.

- The Delete Title option in the Title List (Original) menu only hides the title, it does not actually erase the title from the disc and increase the recording time available (except for the last recorded title on a DVD-RW disc in Video mode).

- Overwrite recording is available using DVD+RW discs.

- When using a DVD+R/RW, the recorder will execute the Menu-making operation to update the new title and editing when removing the disc from the recorder. So you must remove the disc after selecting the recorder's operation mode to DISC mode.

Recording time and picture quality

There are four preset recording quality modes:

- HQ – Highest quality setting, gives about 1 hour of recording time on a DVD (4.7GB).

- SQ (Standard Quality) – Default quality, sufficient for most applications, gives about 2 hours of recording time on a DVD (4.7GB).

- LQ – Slightly lower video quality, gives about 4 hour of recording time on a DVD disc (4.7GB).

- EQ (Extend Quality) – Lowest video quality, gives about 6 hour of recording time on a DVD (4.7GB).

Timeshift

Do not miss a scene from a live broadcast. If the telephone rings while you are watching your favorite live broadcast, just press "TIMESHIFT" and "PAUSE" before answering the phone. The timeshift function will be activated and the broadcast is then recorded for later viewing.

After the phone call or viewing interruption, press "PLAY" or "SCAN" to watch the program.

Press "STOP" to return to the live broadcast.

Timeshift (Pause, Live TV/Playback)

Operation

You can store a program in the HDD storage cache temporarily.

Press TIMESHIFT while watching a TV program.

The Progress Bar display appears on the screen as shown below. The Progress Bar changes to timeshift icon after 5 seconds.

PLAY 17:45 2 18:45 3 4 5

1. Indicates playback mode.
2. Indicates current Timeshift position.
3. Indicates Timeshift start time.
4. Indicates Timeshift elapsed time.
5. Indicates the time that is one hour from Timeshift start time.

Tips:

• You can use trick play functions (Slow, Scan, etc.) during timeshift. Refer to Playback Operation on pages 32-35.
• You can edit the cached clip during Timeshift to retain the program on the HDD. Refer to Clip Record on the right.

Notes:

• There is not free space on the HDD, the oldest timeshift section of the cache will be incrementally deleted.
• If no button is pressed for 6 hours, the Timeshift will stop automatically.

Marker Search in Timeshift mode

You can mark one in Timeshift mode. Press MARKER at the desired point during Timeshift.

Press SEARCH to recall the marked scene.

Clip Record

You can edit during Timeshift to store the program on the HDD (Hard Disk Drive).

1. During Timeshift, use pause step, search and slow-motion to find the starting point.
2. Press REC at the starting point of the section you want to record. Progress of the edit is indicated in red on the Progress Bar.

1. Use pause step, search and slow-motion to find the ending point.

2. Press REC at the ending point of the section you want to record. Normal playback continues.

3. Repeat steps 1 and 4 to make several Clip Records of a program.

1. Press STOP to stop Timeshift. Confirm message will appear.

2. Use ◀ / ▶ to select [Yes] then press ENTER. Or, press STOP again. The current broadcast is displayed on the screen.

Notes:

• Selected sections are recorded on the HDD.
• If you want to stop Clip recording, press the STOP button. If you press POWER to stop Clip recording, the program may not be recorded on the HDD.
• Clip records cannot be made for sections lasting less than 5 seconds.

Jump to Start or End during Timeshift

1. Press ENTER during timeshift. The menu will appear.
2. Press ◀ and playback starts from the very beginning of the timeshift. Press ▶ and jumps to the very end of the timeshift then goes to pause mode.

To Exit the Timeshift

1. Press STOP to exit Timeshift function.
   Confirm message will appear.
2. Use ◀ / ▶ to select [Yes] then press ENTER. The current broadcast is displayed on the screen.

Basic Recording from a TV

Follow the instructions below to record a TV program. Recording starts immediately and continues until the disc is full or you stop the recording.

Note:

You must load a recordable disc for DVD recording.

1. Press HOME.
   The HOME menu appears.
2. Select a media (HDD or DISC) to record TV program then press ENTER.
3. Select [TV (HDD)] or [TV (DVD)] option then press ENTER.
   Also make sure that the TV input is set to this recorder. If you load a completely blank disc, the recorder takes a short while to initialize the disc.
4. Set a recording mode as necessary by pressing REC MODE repeatedly. (HQ, SQ, LQ, EQ)
5. Use ▲ / ▼ buttons to select the TV channel to record.

Changing TV Audio Channel

You can select the audio channel (language) to listen by pressing AUDIO during viewing TV program. The current audio channel is displayed on-screen.

Stereo or mono broadcast:

Stereo → Left → Right → Mono

Bilingual broadcast:

Main → Sub → Main+Sub

• For TV recording with bilingual, set audio channel from the [TV Rec Audio] in sub-menu of the Setup menu (see page 29).

• If the sound is of poor quality when set to Stereo, you can often improve it by changing to Mono (Left or Right).

• Press REC (●) once.

Recording will start. (The REC indicator lights in the display window.)

• Recording continues until you press STOP (■) or the disc or HDD is full.

• To record for a fixed length of time, see Instant Timer Recording on right.

• Press STOP (■) to stop recording.

To Pause the Recording

1. Press PAUSE/STEP (Ⅲ) to pause recording.
2. When you want to continue recording, press PAUSE/STEP (III).

To record one TV program while watching another

1. Press TV/DVD to select the TV mode during recording. The TV indicator appears.
2. Using the TV, select the channel to be viewed.

Instant Timer Recording

Instant Timer Recording allows you to make a recording easily of a preset length without using the program timer.

1. Follow steps 1-4 as shown left (Basic Recording from a TV).
2. Press REC (●) repeatedly to select the recording time length.

Recording starts after the first press. Each subsequent press increases the recording time within free space (maximum 240 minutes). The recording time is displayed on the TV screen. At the end of the recording, the recorder will stop recording and shut off.

Checking the Recording Time

Press REC (●) once to check the recording time. The recalled setting will automatically return to the TV screen for a moment.

Also, remaining time of recording is shown in the display window.

To Extend the Recording Time

The recording time can be extended anytime by pressing REC (●).

Each subsequent press increases the recording time within free space (maximum 240 minutes).

Caution

If the recorder is unplugged (or there is a power failure) while the recorder is recording, the recording will be lost.

Timer Recording

This recorder can be programmed to record up to 16 programs within a period of 1 month. For unattended recording, the timer needs to know the channels to be recorded, the starting and ending time.

Note:

If you use a completely blank disc for timer recording, you must format the disc before starting timer recording. (Refer to "Disc Format" on page 29.)

1. Press TIMER REC.

The Timer Record menu will appear.

Timer Record 61H 30M Free Media PR Date Start Time End Time Repeat VPS/ PDC HDD AV1 10/2 Sat 01:21 01:51 Once Off Duration : 30 M Enter Timer Record List OK/OK Mode Close

• [Media] Choose a media to record (HDD or DVD).
- [PR] Choose a memorized program number, or one of the external inputs from which to record.
• [Date] Choose a date up to 1 month in advance.
• [Start Time] Set the start time.
• [End Time] Set the end time.
- [Repeat] Choose a desired repeat (Once, Daily (Monday - Friday), or Weekly).
- [VPS/PDC] The VPS/PDC system automatically adjusts the recording time so that even if a program is not running to schedule, you won't miss it. For VPS/PDC to work properly, you must input the correct announced time and date of the program you want to record. Note that VPS/PDC may not work with every station.

Notes:

• Stations that use VPS/PDC typically include VPS/PDC information in the teletext TV guide pages. Please refer to these pages when setting a timer recording.
• When using VPS/PDC, there may be instances where the beginning of the program is not recorded.

2. Enter the necessary information for your timer recording(s).

• ◀ / ▶ (left/right) – move the cursor left/right
• ▲ / ▼ (up/down) – change the setting at the current cursor position
• Press RETURN (♂) to exit the Timer Record menu.
• Press ENTER after filling in all the program information.

• Press TIMER REC to display Timer Record List.

• Set a recording mode as necessary by pressing REC MODE repeatedly. (HQ, SQ, LQ, EQ)

• Press ENTER, the program will be memorized by the recorder.
  To check the programming, the Timer Record List will appear.
  Check field's "Rec. OK" on the Timer Record List indicates that the timer recording is programmed correctly.

• Press RETURN (💡) to exit the Program List.

• Make sure that you load a recordable disc for DVD recording and press POWER to switch your unit to Standby.

Notes:

• The timer indicator lights in the display window when the recorder is in standby with the timer active.
• For TV recording with bilingual, set audio channel from the [TV Rec Audio] in sub-menu of the Setup menu (see page 29).
• You must press POWER to stop the timer recording
• If you set a timer recording to record to DVD but there isn't a recordable DVD loaded at the time of the recording, the Recovery Recording feature will automatically record the program to the HDD for you.

Simultaneous recording and playback

Playback and recording for both DVD and built in hard disk drive (HDD) are completely independent. For example, you can record to either the DVD or HDD source and play back video from the other source at the same time.

1. Start recording.
2. Press HOME to display the Home Menu screen.
3. Use the ▲ / ▼ / ◀ / ▶ and ENTER buttons to select a different media type that you want to play back.
4. Start Playback. The recording will continue while playing back the media from the other mode.

Notes:

• You can't use simultaneous playback and recording while copying.
• You cannot edit programs during simultaneous recording and playback.

Timer Recording with SHOWVIEW® System

This system makes programming timer recordings very simple. Most TV guides publish SHOWVIEW programming numbers with their program details. If you want to make a timer recording of a program, you just input the corresponding SHOWVIEW programming number. The date, start, stop and channel settings are made automatically. All you have to do is tell the recorder the recording mode, and whether it's a once-only recording, or a regular recording.

Up to 16 timer programs can be stored in the recorder.

1. Press SHOWVIEW.

The SHOWVIEW menu will appear.

Press SHOWVIEW again to exit the menu.

Showview Number Repeat Once 0-9 Input © Later (RGB) Delete Close

• [Number] Enter the SHOWVIEW programming number.

• [Repeat] Choose a desired repeat (Once, Daily (Monday - Friday), or Weekly).

• Use the number buttons then press ENTER to enter the SHOWVIEW programming number. To check the programming, the Timer Record menu will appear.

• ◀ / ▶ (left/right) – move the cursor left/right

• If you make a mistake before pressing ENTER, press CLEAR repeatedly to delete password numbers one by one then correct it.

• Use ◀ / ▶ to move the cursor to the Repeat column then use ▲ / ▼ to select [Repeat] option (Once, Daily (Monday - Friday), or Weekly).

• Press ENTER after filling in all the program information.

The program will be memorized by the recorder.

Timer Record 81H 30M Free Media PR Date Start Time End Time Repeat VPS HDD AV1 19/2 Sat 01:21 01:51 Once Off Duration : 30 M Later Timer Record List HCLM Mode Close

1. You can change the information as required using ◀/▶/▲/▼ (Media, VPS/PDC, etc.)

Refer to "Timer Recording" on previous page.

1. Choose a record mode (HQ, SQ, LQ, or EQ).

2. Press ENTER, the program will be memorized by the recorder. To check the programming, the Timer Record List will appear.
   Check field's "Rec. OK" on the Timer Record List indicates that the timer recording is programmed correctly.

3. Press RETURN (💡) to exit the Timer Record menu.
4. Make sure that you load a recordable disc for DVD recording and press POWER to switch your unit to Standby.

Checking Timer Recording Details

Programming can be checked whenever the recorder is turned on. Press TIMER REC twice.

• Use ▲ / ▼ to select a timer recording.
• Press ENTER to edit the selected program. Timer Record menu appears.
• Press CLEAR to delete the selected program from the Timer Record List.

Timer Record List ■: VPS/PDC On PR Date Start Time Duration Mode Check PR-02 21/2 Mon 01:20 30M SQ Rec. OK PR-01 25/2 Fri 01:21 30M SQ Rec. OK Edit Clean Delete Quick Use Timer Record Close

Canceling a Timer Recording

You can clear a timer setting anytime before the recording actually starts.

- Use ▲ / ▼ to select a program you want to erase on the Timer Recorder List. If you want to erase the program, press CLEAR.

Stopping a Timer Recording in Progress

After a timer recording has started, you can still cancel the program.

- Press POWER.

Timer Recording Troubleshooting

Even though the timer is set, the recorder will not record when:

• There is no disc loaded and there is not free space on the HDD.
• A non-recordable disc is loaded and there is not free space on the HDD.
• [Disc Protect] option is set to [ON] in the Setup menu and there is not free space on the HDD. (see page 30).
  • Power is turned on.
• There are already 99 titles (DVD-RW, DVD-R), 49 titles (DVD+R, DVD+RW) recorded on the disc and there are already 255 titles recorded on the HDD.

You cannot enter a timer program when:

• A recording is already underway.
- The time you're trying to set has already passed.
• There are already 16 timer programs set.

If two or more timer programs overlap:

• The earlier program takes priority.
- When the earlier program finishes, the later program starts.
- If two programs are set to start at exactly the same time, the program entered first takes priority.

If the disc is damaged, the recording may not complete successfully. In this case even though the Check field shows "Rec. OK", it may not be.

Recording from an External Input

Recording from External Components

You can record from an external component, such as a camcorder or VCR, connected to any of the recorder's external inputs.

1. Make sure that the component you want to record from is connected properly to the recorder. See page 14-15.
2. Choose a media (HDD or DVD) to record using HOME menu. (see page 22).

3. Press AV repeatedly to select the external input to record from.

4. Tuner: Built-in tuner
   • AV1: EURO AV1 AUDIO VIDEO mounted on back panel

5. AV2: EURO A/V2 DECODER mounted on back panel
6. AV3: AUDIO IN 3 / VIDEO IN 3 mounted on back panel
7. AV4: INPUT 4 (VIDEO, AUDIO (L/R), S-VIDEO IN) mounted on front panel
   • DV: DV IN mounted on front panel

Note :

OPT will not be recorded.

1. Select the recording mode as necessary by pressing REC MODE repeatedly. (HQ, SQ, LQ, or EQ)
2. Press REC (●) once.

Recording will start. (The REC indicator lights in the display window.)

• Recording continues until you press STOP (■) or the disc is full.

• To record for a fixed length of time, see "Instant Timer Recording" on page 47.

• Press STOP (■) to stop recording.

Note:

If your source is copy-protected using CopyGuard, you will not be able to record it using this recorder. See Copyright on page 59 for more details.

Recording from DV Input

Before DV dubbing

You can connect a DV-equipped camcorder to this recorder using a single DV cable for input and output of audio, video, data and control signals.

• This recorder is only compatible with DV-format (DVC-SD, DV25) camcorders. Digital satellite tuners and Digital VHS video recorders are not compatible.
• You cannot connect more than one DV camcorder at a time to this recorder.
• You cannot control this recorder from external equipment connected via the DV IN jack (including two recorders).
• It may not always be possible to control the connected camcorder via the DV IN jack.
• Digital camcorders can usually record audio as stereo 16-bit/48kHz, or twin stereo tracks of 12-bit/32kHz. This recorder can only record one stereo audio track. Set [DV Rec Audio] option to [Audio 1] or [Audio 2] as required (see page 29).
• Audio input to the DV IN jack should be 32 or 48kHz (not 44.1kHz).
• Picture disturbance on the recording may occur if the source component pauses playback or plays an unrecorded section of tape, or if the power fails in the source component, or the DV cable becomes disconnected.

Recording from a Digital Camcorder

You can record from a digital camcorder connected to the DV IN jack on the front panel of this recorder.

Using the recorder's remote, you can control both the camcorder and this recorder.

Before recording, make sure that the audio input for the DV IN jack is set up (see page 29).

Tips:

• The source signal must be DVC-SD format.
• Some camcorders cannot be controlled using this recorder's remote.
• If you connect a second recorder using a DV cable, you cannot control the second DVD from this one.
• You cannot control this unit remotely from a component connected to the DV IN jack.

• You cannot record date and time information from a DV cassette.

• Make sure your digital camcorder is connected to the front panel DV IN jack. See page 14.

• Select [TV(HDD)] or [TV(DVD)] option on the HOME menu then press ENTER. (see page 22).
• Check that the DV audio input is as you require. You can choose between Audio 1 (original audio) and Audio 2 (overdubbed audio).

- DV Input is set from the [DV Rec Audio] in sub-menu of the Setup menu. See "DV Recording Audio" on page 29 for more information.

1. Press AV repeatedly to select the DV input. DV appears in the display window and on the TV screen.
2. Find the place on the camcorder tape that you want to the recording to start from. For best results, pause playback at the point from which you want to record.

- Depending on your camcorder, you can use this recorder's remote to control the camcorder using the STOP, PLAY and PAUSE functions.

1. Press REC (●) once to start recording.

2. Recording is automatically stopped if the recorder detects no signal.

3. You can pause or stop the recording by pressing PAUSE/STEP (■) or STOP (■). You cannot control the camcorder from this remote control during recording.
4. In Video mode, the final frame of the recording may remain displayed on screen for a while after recording stops.
5. For timer recording to work properly on this recorder, the digital camcorder must also be switched on and in operating.

Troubleshooting

If you cannot get a picture and/or audio through the DV IN jack, check the bullet points:

• Make sure the DV cable is properly connected.
• Try switching off the connected equipment then switch back on.
• Try switching the audio input.

Note:

Depending on the connected camcorder, you may not be able to control it using the remote control supplied with this recorder.

Title List and Chapter List Menu Overview

Using the Title List menu you can edit video content. The editing features available in the Title List menu depend on whether you are editing video on DVD, or the HDD, and whether you're editing Original content, or a Playlist.

There are two ways to edit VR mode DVD-RW discs. You can directly edit the Original content of the disc, or you can create and edit a Playlist. The Playlist doesn't actually change any of the content on the disc, but just controls how the content is played back.

Editing material recorded on the HDD is similar to editing the Original content of a VR mode DVD-RW, with similar commands for erasing and naming titles, as well as fine control over the content of chapters within titles for DVD disc.

Note:

During recording, if you display the Title List menu for the HDD, some of the titles may appear with a mark. These titles were recorded with a Line Input setting different to the current setting of the recorder.

During recording, these titles cannot be played.

1. Press MENU/LIST to display the Title List menu. Playback should be stopped when you do this.
2. You can also access it using HOME menu, select [TITLE LIST] option then press ENTER.
3. When selecting titles, use the ▲ / ▼ buttons to display the previous/next page if there are more than six titles.
4. If you are editing a VR mode disc, press MENU/LIST to switch between Original and Playlist menu.

On the left side of the screen are the menu options. The main part of the screen shows thumbnails of the titles (or chapter) on the DVD or HDD. You can change these thumbnails using the THUMBNAIL button—see Changing Title Thumbnails on page 53.

Press DISPLAY to display the information of selected title on the Title List menu.

After selecting a title or chapter on the Title List or Chapter List menu, then press ENTER. The menu options appears on the left side of the menu.

Use ▲ / ▼ to select a option then press ENTER to confirm your selection.

1. To exit the Title List menu, press RETURN (💡) repeatedly.

1 2 3 Title List HDD 8IN 30M Free Play Delete Rename Edit Sort Dobbing TITLE 1 01/01 00:01:58 TITLE 2 01/01 00:00:58 TITLE 3 01/01 00:05:09 Enter Info Close

1. Menu options: To display menu option, select a title or chapter then press ENTER. The options displayed differ depending on the disc type.

• [Chapter] Displays Chapter List of the title.
• [Combine] Combines two titles or chapters into one (page 57).
- [Delete] Deletes the title or chapter. (page 55)
- [Delete Part] Deletes a part of the Title (page 55).
• [Divide] Divides a title into two (page 49).
• [Dubbing] Copies the title to another media. (page 60)
• [Full Play] Starts playback of the selected title including the hidden chapters.
- [Hide (Show)] Hides (or Shows) the selected title or chapter. (page 58)
- [Move] Moves a chapter on the Chapter List-Playlist menu to a position on the menu. (page 58)
• [Play] Start playback of the selected title or chapter. The hidden titles and chapters on the DVD+R/RW cannot be play back.
- [Playlist Add] Adds the title or chapter to the Playlist. (page 54)
- [Protect] Protects accidental recording, editing or deleting of the title. (page 58)
- [Rename (Title Name)] Edits the title name. (page 56)
- [Sort] Lists the programs on the Title List menu by Date, Title, or Category. (page 56)
• [Title] Displays Title List of the chapter.
- [Undo]/[Redo] Un-do/Re-do the last deletion/action. (page 56)

1. Indicates the record mode, free space, and elapsed time progress bar.

2. Current media

3. Currently selected title.
4. Thumbnail
5. Shows the selected title number and total number of titles.
6. Shows the title name, recorded date, and recording length.

HDD, VR Mode: Original and Playlist Editing

Titles, Chapters and Parts

Titles in the disc's original content contain one or more chapters. When you insert a disc's title into the Playlist, all the chapters within that title also appear. In other words, chapters in the Playlist behave exactly as chapters on a DVD-Video disc do. Parts are sections of Original or Playlist titles. From the Original and Playlist menu you can add or delete parts. Adding a chapter or title to the Playlist creates a new title made up of a section (ie., chapter) of an Original title. Deleting a part removes part of a title from the Original or Playlist menu.

Caution

• When editing using the Delete, Add and Move functions, the start and end frames may not be exactly as set in the start and end point display.
• During Playlist playback, you may notice a momentary pause between edits. This is not a malfunction.

Is editing a DVD like editing a video tape?

No. When you edit a video tape you need one video deck to play the original tape and another to record the edits. With DVD, you edit by making a 'Playlist' of what to play and when to play it. On playback, the Recorder plays the disc according to the Playlist.

About word 'Original' and 'Playlist'

Throughout this manual, you will often see the words Original and Playlist to refer to the actual content and the edited version.

• Original: content refers to what's actually recorded on the disc.
• Playlist: content refers to the edited version of the disc — how the Original content is to be played.

Adding Chapter Markers

You can create chapters within a title by inserting chapter marks at the desired points.

Note:

Chapter markers are inserted at regular intervals automatically. You can change this interval from the Initial Setup menu (see "Auto Chapter" on page 29).

During recording or playing back, at the point you want to start a new chapter, press CHP ADD. A chapter marker icon appears on the TV screen.

Changing Title Thumbnails

Each title displayed in the Title List menu is represented by a thumbnail picture taken from the start of that title or chapter.

If you prefer, select a different still picture from within a title.

Press THUMBNAIL to make the currently displayed picture the one that appears in the Title List menu. The still picture that you choose appears in both the Original or Playlist menu.

Tip:

You can also change the thumbnail picture of the title on the Chapter List menu. Select a chapter on the Chapter List menu then press THUMBNAIL. The thumbnail picture of the title that includes the chapter is changed.

Making a New Playlist

Use this function to add an Original title or chapter to the Playlist. When you do this, the whole title is put into the Playlist (you can delete bits you don't need later — see Deleting an Original or Playlist title/chapter on page 55).

The title appears in the Playlist complete with the chapter markers that appear in the Original. However, if you add more chapter markers to the Original later, these are not automatically copied over into the Playlist title.

You can add up to 999 chapters to one disc. If you only want to add a chapter of a title, use the Adding a title/chapter to the Playlist on this page.

1. Choose a title or chapter on the Title List-Original menu or Chapter List-Original menu to put into the Playlist, then press ENTER. The menu options appears on the left side of the menu.

Title: Cut Eventset type: New File Edit View Play Chower Delete Project Fast Product Add Delining TITLE 1 0x00:00 TITLE 2 0x00:00 TITLE 3 0x00:00 TITLE 4 19:42 0:00:00 NEW EDITION RED Payout Gloss

1. Use ▲ / ▼ to select [Playlist Add] option then press ENTER.

Video Cut Dreams 875-201 Play Shower Delete Protect Exit Playset Audio Deciding Select Playlist New Playlist G Add to 100% or 100% or 100% or 100% or 100% or 100% or 100% or 100% or 100% or 100% or 100% or 100% or 100% or 100% or 100% or 100% or 100% or 10 T44

1. Select [New Playlist] then press ENTER. The new title appears in the updated Playlist. All chapters of the title are added to the Playlist.

File List Flueral 08-20 to Ctrl Free WWE 06/21 5:01:44 Close COLDEN REDRPGIC Future

Adding Additional Title/Chapters to the Playlist

You can add an Original title or chapter to add to a Playlist title even if it is already registered.

1. Choose a title or chapter on the Title List-Original menu or Chapter List-Original menu to put into the Playlist, then press ENTER. The menu options appears on the left side of the screen.

1. Choose a Title List-Playlist that is already registered to insert a title or chapter, then press ENTER.

2. Repeat steps 1-3 to add additional title or chapter on the Playlist. You can view the added chapters on the Chapter List-Playlist menu.

Map 1 Start to Edit 6/5 01:00 PMI Project Follow

1. Press RETURN (♂) to exit, or MENU/LIST to go back to the Title List-Original menu.

Deleting an Original or Playlist Title/Chapter

When you erase a title or chapter from the Playlist menu, you only remove it from the Playlist; the title/chapter remains in the Original menu.

If you choose to delete a title or chapter from the Original (title/chapter) menu, the title or chapter is actually deleted from the disc and the remaining time available for recording increases. Titles/chapters deleted from the Original are also removed from the Playlist.

Note:

It may not be possible to delete chapters that are less than 5 seconds long.

1. Use ◀ / ▶ / ▲ / ▼ to choose a chapter or title you want to delete on the Title List or Chapter List menu then press ENTER. The menu options appears on the left side of the screen.

2. Select [Delete] option from the options on the menu.

Example: Title List (HDD)

Tate Curr HDD 02 8th Sce Poo Title 1 01:01 00:01:50 Title 2 01:01 00:00:50 Title 3 01:01 00:05:50 Play Before Sequence Last Next Outlook Monitor 100.00 fps Timeline

1. Press ENTER to confirm.

The confirm message for deleting will appear.

1. Use ◀ / ▶ to select [Yes] then press ENTER. The selected chapter or title is deleted. After pressing ENTER, the new, updated menu is displayed.

2. Repeat steps 1 - 4 to continue to delete from the menu.

3. Press RETURN (💡) repeatedly to exit the menu.

Notes:

- When DVD+RW recording, the deleted title's name is changed to 'Deleted Title'.

- If more than two titles are repeatedly deleted, the titles are combined into one.

- When you are deleting a title or chapter, only the last one on DVD+RW increases remaining recording time.

Deleting a Part

You can delete a part which you do not want in the title.

1. Use ▶/▶/▲/▼ to choose a title you want to delete on the Title List menu then press ENTER. The options appears on the left side of the menu.

2. Select [Delete Part] option then press ENTER. Title Edit (Delete Part) menu appears on the TV screen.

[Start Point] icon is highlighted.

Example: Title Edit (Delete Part) (HDD)

Take Exit Buy the Post Start Post Live Stream Move Stream Cover 00:00:00 © Subject to all other Post. File Edit

1. Starts playback and use pause step, search and slow-motion to find the starting point.

2. Press ENTER at the starting point of the section you want to delete.

'End Point' icon is highlighted.

The part is indicated on the Progress Bar.

1. Use pause step, search and slow-motion to find the ending point.

2. Press ENTER at the ending point of the section you want to delete.

You can cancel the selected point, use ▲ / ▼ to select [Cancel] icon then press ENTER.

Tip:

With HDD recordings, you can delete additional part. Select [Next Part] icon on the menu then press ENTER, then repeat steps 3-6.

1. If you finish to edit, select [Done] icon then press ENTER.

The confirm message for deleting will appear.

Use ◀ / ▶ to select [Yes] then press ENTER.

The selected part is deleted from the title and Title List menu appears.

Note:

It may not be possible to delete parts that are less than 3 seconds long.

Naming a Title

You can name Original and Playlist titles independently. Names can be up to 32 characters long.

1. Choose the title you want to name on the Title List menu, then press ENTER.

The menu options appears on the left side of the menu.

1. Use ▲/▼ to select [Rename (Title Name)] option then press ENTER.

Keyboard menu appears.

BILL 1 Alphabet Capital ABCN FOS Name: TRAVEL AM: SOUTHE Mode: Steel AV IN: APC —— Games — 1 2 3 4 5 6 7 8 9 10 A B C D E F G H I I K L M N O P Q R S T E V W X Y Z E C R B OK Cancel Quick Cancel 4 5

1. Enter a name for the title. Use ◀/▶/▲/▼ to select a character then press ENTER to confirm your selection.

2. Use MENU/LIST button to change keyboard type.

3. OK: Select to finish.
4. Cancel: Cancels all entered characters.
   • Space: Inserts a space at the cursor position.
5. Delete: Deletes the previous character at the cursor position.
   • ◀ / ▶: Moves cursor to left or right.

Tip:

Remote control buttons for entering a name

▶ (PLAY): Inserts a space at the cursor position.
II (PAUSE/STEP): Deletes the after character at the cursor position.
■ (STOP), CLEAR: Deletes the previous character at the cursor position.

I◄◄ / ►►I: Moves cursor to left or right.

Numbers (0-9): Enters the corresponding character at the cursor position.

Tip:

You can add the genre only for HDD title name.

1. Choose OK then press ENTER to fix the name and return to the previous menu screen.
2. Press RETURN (💡) repeatedly to exit the menu.

Notes:

• Names can be up to 32 characters long.
• For discs formatted on a different recorder, you will see only a limited character set.
• When recording on DVD-R, DVD+R or DVD+RW discs, the entered name is displayed on the DVD player only after finalization.

Sort

This function allows you to access show listings organized by Date, Title, or Category on the Title List-HDD menu. So you can find title you want to watch easily.

1. Choose any title on the Title List-HDD menu, then press ENTER.

The menu options appears on the left side of the menu.

1. Use ▲/▼ to select [Sort] option then press ENTER. Sort options appears.

Take Out 100 123 819.32% Name 01:01 03:01:58 01:01 03:01:58 01:01 03:01:58 01:01 03:01:58 01:01 03:01:58 Play Details Showable Load Back Balance Video Video Calgary 01:01 03:01:58 C:\Users\n

1. Use ▲ / ▼ to select [Date], [Title] or [Category] option then press ENTER.

After pressing ENTER, the sorted menu is displayed.

Undoing/Redoing the Last Deletion

If you make a mistake while deleting, you can undo it. There is one level of undo (in other words, you can undo the last one deletion you made).

Use ▲ / ▼ to select [Undo] option then press ENTER. It doesn't matter whether you are currently in the menu screen; the last deletion is undone.

Take List Original BDO. Box SET 100 Free Title 1 Title 2 Title 3 Title 4 Title 5 Title 6 Title 7 Title 8 Title 9 Title 10 Title 11 Title 12 Title 13 Title 14 Title 15 Title 16 Title 17 Title 18 Title 19 Title 20 Title 21 Title 22 Title 23 Title 24 Title 25 Title 26 Title 27 Title 28 Title 29 Title 30 Title 31 Title 32 Title 33 Title 34 Title 35 Title 36 Title 37 Title 38 Title 39 Title 40 Title 41 Title 42 Title 43 Title 44 Title 45 Title 46 Title 47 Title 48 Title 49 Title 50 Title 51 Title 52 Title 53 Title 54 Title 55 Title 56 Title 57 Title 58 Title 59 Title 60 Title 61 Title 62 Title 63 Title 64 Title 65 Title 66 Title 67 Title 68 Title 69 Title 70 Title 71 Title 72 Title 73 Title 74 Title 75 Title 76 Title 77 Title 78 Title 79 Title 80 Title 81 Title 82 Title 83 Title 84 Title 85 Title 86 Title 87 Title 88 Title 89 Title 90 Title 91 Title 92 Title 93 Title 94 Title 95 Title 96 Title 97 Title 98 Title 99 Title100

Notes:

• You can't undo a recording.
• You can't undo anything after ejecting the disc from the recorder or switching the recorder into standby mode.
• You can still undo a deletion even after exiting the menu display.

Tip:

You can redo the last undo action using the [Redo] option.

Combining Two Titles Into One

Use this function to combine two adjacent Original-HDD titles into one.

Notes:

• This function is not available if there is only one titles within the HDD.

• If there are more than 60 titles on the HDD, you cannot combine the titles.

• On the Title List-HDD menu, select the first title of the two titles you want to combine then press ENTER.

The menu options appears on the left side of the screen.

1. Select [Combine] option then press ENTER.

Tsd Out HES STK: 2000 Free TITLE 1 01:49 88:01:58 TITLE 2 03:01 88:02:58 TITLE 3 01:47 03:00:00 Play Delete Remove Falls Sort Delete Continue Delete Part To Save

1. Select the second title of the two titles you want to combine then press ENTER. The confirm message appears.
2. Use ◀ / ▶ to select [Yes] then press ENTER. After pressing ENTER, the updated menu is displayed.

Divide One Titles Into Two

Use this command to split a title up into two new titles.

1. On the Title List menu, select a title you want to divide then press ENTER. The menu options appears on the left side of the screen.
2. Select [Divide] option. Example: Title List (HDD)

759 (LIF) 100 8TH: 3.00 Time Title 1 01:01 02:01:12 Title 2 01:01 02:01:58 Title 3 01:01 02:01:58 Play Delete Reserve Part Start Endings Caddition Drive Delete Part Tg Time

1. Press ENTER.

Title Edit (Divide) menu appears. [Divide] option is highlighted.

Current picture

True Etc 10:30 AM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 10:30 PM 5:12 68 (68x68) 5:12 68 (68x68) 5:12 68 (68x68) 5:12 68 (68x68) 5:12 68 (68x68) 5:12 68 (68x68) 5:12 68 (68x68) 5:12 68 (68x68) 5: 72 Chies

The first title's thumbnail
The second title's thumbnail

1. Use play, pause step, search and slow-motion to find the point you want to divide the title.
2. Select [Divide] option then press ENTER at the point. To reset the point, select [Cancel] option then press ENTER. Repeat from step 3.
3. Choose [Done] option then press ENTER to fix the dividing point. The title is divided into two new titles. It take up to 4 minutes to divide.

Note:

You cannot select dividing point less than 3 seconds.

Combining Two Chapters Into One

Use this function to combine two adjacent Playlist or Original chapters into one.

Note:

This function is not available if there is only one chapter within the title.

1. On the Chapter List menu, select the second chapter of the two chapters you want to combine then press ENTER The menu options appears on the left side of the screen.
2. Use ▲ / ▼ to select [Combine] option. The combine indicator appears between the two chapters you want to combine.

Chapter List Original File 1 0:00:00 3/5 Play Title Balance Comline Played Add Show Adjusted Tenset

1. Press ENTER.

Moving a Playlist Chapter

Use this function to re-arrange the playing order of Playlist chapters on the Title List-Playlist menu.

Note:

This function is not available if there is only one chapter.

1. Select a chapter on the Chapter List-Playlist menu.

2. Press ENTER.

The menu options appears on the left side of the menu.

1. Use ▲ / ▼ to select [Move] option from Playlist options then press ENTER.

Picture1 Picture No.1 Play Title Balance Overview Movie Figure 1 Figure No.1 2.6 Other: Real Impact Details

1. Use ◀/▶/▲/▼ to choose the place you want to move the chapter to then press ENTER. After pressing ENTER, the updated menu is displayed.

Hide a Chapter/Title

You can skip playing chapters or titles without deleting from the disc.

1. Use ▲▼◀▶ to choose a chapter or title you want to hide on the Title List or Chapter List menu, then press ENTER. Options appear on the left side of the screen.

2. Select [Hide] option.

Example: Title List (DVD+RW)

Video Visual 300-400 Hill: 100 Movie Play Full Play Chapter Subtle Product Film Balance Title Frame Subtle films OK/OK/OK

1. Press ENTER to confirm. The chapter's or title's thumbnail will dim.

Tip

If you select a hidden chapter or title on the Title List or Chapter List menu, you can 'show' it by choosing [Show] option on the menu. After doing that, you are able to see the chapter or title.

Protect a Title

Use this function to protect against accidental recording, editing or deleting of the title.

1. Press MENU/LIST to display the Title List menu.

2. Use ▲▼◀▶ to choose a title you want to protect then press ENTER. Options appear on the left side of the screen.

3. Select [Protect] from the options.

Time List Video BDO-401 28:00 Tree Play Pull Play Chapter Details Protect Lack Helping 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/4

1. Press ENTER to confirm. The lock mark will appears on the title's thumbnail.

Tip

If you select a title that has already been protected on the Title List menu, you can 'unprotect' it by choosing [Protect] option from the Title List menu options. After doing that, you can edit and delete the title.

Dubbing

Before Dubbing

Use the copying features of this recorder to:

• Back up important recordings stored on the HDD to a DVD.
• Make a DVD copy of a recording on the HDD to play in another player.
• Transfer video from a DVD to the HDD for editing.
• Transfer edited video from the HDD to DVD.
• A media in NTSC format cannot be copied.

The simplest method of copying is to use the One Touch Copy feature. Using this you can very simply copy the title that's currently playing from HDD to DVD, or the other way around.

Note:

If the title's length is less than 5 seconds, the dubbing is not available. (from HDD to DVD)

What is 'CPRM'?

CPRM is a copy protection system (with scramble system) only allowing the recording of 'copy once' broadcast programs. CPRM stands for Content Protection for Recordable Media.

This Recorder is CPRM compatible, which means that you can record copy-once broadcast programs, but you cannot then make a copy of those recordings. CPRM recordings can only be made on DVD-RW discs formatted in VR mode, and CPRM recordings can only be played on players that are specifically compatible with CPRM.

Copyright

• Recording equipment should be used only for lawful copying and you are advised to check carefully what is lawful copying in the area in which you are making a copy. Copying of copyright material such as films or music is unlawful unless permitted by a legal exception or consented to by the rights owner.
• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision corporation. Reverse engineering or disassembly is prohibited.
• CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 625p HDD/DVD RECORDER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

Fast copying

Copying between DVD and HDD is a completely digital process and therefore involves no loss of quality in the audio or video. This means that you can transfer back and forth without having to worry about the quality getting worse with each copy 'generation'. It also means that copying can be carried out at the maximum speed possible.

When copying from HDD to DVD, the speed of copying depends on the recording mode and the kind of DVD disc you're using.

Dubbing from HDD to DVD

1. On the Title List-HDD menu, select a title you want to dub then press ENTER. The menu options appears on the left side of the screen.

Video List 1/3 TITLE 1 01:01 08:01:59 TITLE 2 01:01 08:00:58 TITLE 3 01:01 03:05:09 Play Delete Remove View Set 1 Locking Off Player: Audio/Fish Info (2.1x7x7)

1. Use ▲ / ▼ to select [Dubbing] option then press ENTER. Dubbing menu appears.

Dubbing 100x Length 90-01:58 From Space 50 mls Rec Mode 102 Start Cancel

1. Use ◀ / ▶ to select record mode (HQ, SQ, LQ, EQ, or Fast), then press ▼. 'Start' icon is highlighted. Fast: See page 59 for more information on Fast copying.

2. When [Start] icon is highlighted, press ENTER. Dubbing starts.

3. To stop dubbing at any other time, press STOP (■).

Notes:

• The recording time of [Fast] mode could be varied depending on data size of source.
  Approximated Time (Example: 4x DVD disc):
• 1 hour contents of LQ: 5-6 minutes
• 1 hour contents of HQ: 12-15 minutes
• Stopping dubbing in [Fast] mode partway through will cancel the recording and any data recorded up to that point will be lost.
• If the remaining space on the disc is insufficient, the [Fast] mode is not available.
• The [Fast] mode is not available for edited HDD title.

Dubbing from DVD to HDD

1. On the Title List menu, select a title you want to dub then press ENTER. Menu options appears on the left side of the screen.

TAY List Original BWO-3x1 IE: the total Free Play Chapter Delete Project Edit Blanked Edit Dealing TITLE 1 05/01 0:05:29 TITLE 2 05/01 0:07:24 TITLE 3 01/01 0:08:09 TITLE 4 Total volume

1. Use ▲ / ▼ to select [Dubbing] option then press ENTER. Dubbing menu appears.

Debbing Title Length 00-01:29 Free Source 2570 mm Rec Mode 00 Start Cancel

1. Use ◀ / ▶ to select record mode (HQ, SQ, LQ, EQ, or Fast), then press ▼. 'Start' icon is highlighted. Fast: Only available when copying VR mode disc to HDD. (See page 59 for more information on Fast copying.)
2. When [Start] icon is highlighted, press ENTER. Dubbing starts.
3. To stop dubbing at any other time, press STOP (■).

Notes:

• Depending on the conditions of the recording equipment or the disc itself, the dubbing may not be capable.
• Stopping dubbing in [Fast] mode partway through will cancel the recording and any data recorded up to that point will be lost.
• The recording time of [Fast] mode can take up to 19 minutes.

One Touch Copy (HDD to DVD)

The One Touch Copy feature copies the currently playing title from the HDD to DVD. The whole title is copied, regardless of where in the title you start copying. The recorder copies at the maximum speed possible.

For One Touch Copy to work, make sure that a recordable DVD disc is loaded.

During HDD playback, press DUBBING to copy the current title to DVD.

The on-screen display indicates that the title is being copied. Playback continues while copying.

- You cannot use the One Touch Copy function to copy a title if any part of the title is copy-once protected.

11%

One Touch Copy (DVD to HDD)

One Touch Copy from DVD to HDD copies a single title to the HDD in real time. When you start copying, playback jumps back to the start of the title, then continues through to the end of the title, when recording automatically stops. The copy will be made in the recording mode (HQ, SQ, LQ, EQ) that is currently set.

During DVD playback, press DUBBING to copy the current title to HDD.

Playback starts again from the beginning of the current title. The on-screen display indicates that the title is being copied.

0 → 16%

Notes:

• Video CD cannot be copied to HDD.
- The copying stops when then recorder detects a badly scratched or copy protected part.
- If some part of the title being copied is copy-protected, copying will start, but the copy-protected portions will not be copied.
- During Playlist title's playback, One Touch Copy is not available.

Tip:

To stop dubbing at any other time, press STOP (■).

Reference

Additional Information

Overwriting Recording

To overwrite a new video recording on a previously recorded title, follow these steps. This feature is not available for DVD+Rs, that always record at the end of the Disc.

1. Select input source you want to record (TV channel, AV1-4, DV).
2. Press MENU/LIST to display the Title List menu.

File List Value 200-800 File List Free TITLE 1 B:041 B:013 TITLE 2 B:143 B:064 TITLE 3 B:155 B:000 Empty Info --- B:000 C:\Users\CL\Other\ -H1 C:\Users

1. Use ▲▼◀▶ to choose a title you want to overwrite.
2. Press REC (●) to start overwrite recording. Overwrite recording starts from the start point of the title.
3. Press STOP (■) to stop the overwrite recording. The new title is created and updated menu is displayed.

Notes:

• This function is not available for a protected title.
- If the overwrite is longer than the recording length of the current title, the next title is overwritten. But if next title is protected, the overwriting stops at the starting point of the title.
- If the selected title's recording length is less than 10 seconds, the next title is overwritten. But if the next title is protected, overwriting stops.

Viewing Title List menu displayed on other DVD Recorders or Players

You can view the Title List menu displayed on the other DVD player that is capable of playing DVD+RW or DVD+R discs.

1. Insert DVD+R or DVD+RW disc recorded already.

2. Press TITLE in Play mode.

Title List menu will appear as shown below.

Tip

You can remove the Title List menu by pressing STOP (■).

Audio-View RGB 1 5/1 0.0173 RGB 2 5/1 0.0024 RGB 3 5/1 0.0025 Delete RGB << S/N >>

1. To play back a title, select the title you want then press ENTER or ▶ (PLAY).

Playing Your Recordings on Other DVD Players (Finalizing a Disc)

Most regular DVD players can play finalized discs recorded in Video mode, finalized DVD+R or DVD+RWs. A small number of players can also play DVD-RW discs recorded in VR mode, finalized or not. Check the manual that came with the other player to check what formats of discs it will play.

Finalizing 'fixes' the recordings and editings in place so that the disc can be played on a regular DVD player or computer equipped with a suitable DVD-ROM drive.

Finalizing a Video mode disc creates a menu screen for navigating the disc. The menu can be accessed by pressing MENU/LIST or TITLE.

To finalize a disc, refer to "Finalize" on page 30.

Notes:

• Unfinalized DVD+RW is playable on regular DVD players.
• The edited contents of a DVD+RW disc is compatible on regular DVD players only after finalization.
• Any edited contents of the DVD+R disc are not compatible on regular DVD players. (Hide, chapter combine, added chapter mark, etc.)
• How long finalization takes depends on the type of disc, how much is recorded on the disc, and the number of titles on the disc.
• DVD+R DL disc can take up to 30 minutes to finalize.

Language Codes

Use this list to input your desired language for the following initial settings:

Disc Audio, Disc Subtitle, Disc Menu.

Language	Code	Language	Code	Language	Code	Language	Code
Abkhazian	6566	Fiji	7074	Lingala	7678	Singhalese	8373
Afar	6565	Finnish	7073	Lithuanian	7684	Slovak	8375
Afrikaans	6570	French	7082	Macedonian	7775	Slovenian	8376
Albanian	8381	Frisian	7089	Malagasy	7771	Somali	8379
Ameharic	6577	Galician	7176	Malay	7783	Spanish	6983
Arabic	6582	Georgian	7565	Malayalam	7776	Sudanese	8385
Armenian	7289	German	6869	Maltese	7784	Swahili	8387
Assamese	6583	Greek	6976	Maori	7773	Swedish	8386
Aymara	6588	Greenlandic	7576	Marathi	7782	Tagalog	8476
Azerbaijani	6590	Guarani	7178	Moldavian	7779	Tajik	8471
Bashkir	6665	Gujarati	7185	Mongolian	7778	Tamil	8465
Basque	6985	Hausa	7265	Nauru	7865	Tatar	8484
Bengali; Bangla	6678	Hebrew	7387	Nepali	7869	Telugu	8469
Bhutani	6890	Hindi	7273	Norwegian	7879	Thai	8472
Bihari	6672	Hungarian	7285	Oriya	7982	Tibetan	6679
Breton	6682	Icelandic	7383	Panjabi	8065	Tigrinya	8473
Bulgarian	6671	Indonesian	7378	Pashto, Pushto	8083	Tonga	8479
Burmese	7789	Interlingua	7365	Persian	7065	Turkish	8482
Byelorussian	6669	Irish	7165	Polish	8076	Turkmen	8475
Cambodian	7577	Italian	7384	Portuguese	8084	Twi	8487
Catalan	6765	Japanese	7465	Quechua	8185	Ukrainian	8575
Chinese	9072	Javanese	7487	Rhaeto-Romance	8277	Urdu	8582
Corsican	6779	Kannada	7578	Rumanian	8279	Uzbek	8590
Croatian	7282	Kashmiri	7583	Russian	8285	Vietnamese	8673
Czech	6783	Kazakh	7575	Samoan	8377	Volapūk	8679
Danish	6865	Kirghiz	7589	Sanskrit	8365	Welsh	6789
Dutch	7876	Korean	7579	Scots Gaelic	7168	Wolof	8779
English	6978	Kurdish	7585	Serbian	8382	Xhosa	8872
Esperanto	6979	Laothian	7679	Serbo-Croatian	8372	Yiddish	7473
Estonian	6984	Latin	7665	Shona	8378	Yoruba	8979
Faroese	7079	Latvian, Lettish	7686	Sindhi	8368	Zulu	9085

Area Codes

Choose an area code from this list.

Area	Code	Area	Code	Area	Code	Area	Code
Afghanistan	AF	Ethiopia	ET	Malaysia	MY	Saudi Arabia	SA
Argentina	AR	Fiji	FJ	Maldives	MV	Senegal	SN
Australia	AU	Finland	FI	Mexico	MX	Singapore	SG
Austria	AT	France	FR	Monaco	MC	Slovak Republic	SK
Belgium	BE	Germany	DE	Mongolia	MN	Slovenia	SI
Bhutan	BT	Great Britain	GB	Morocco	MA	South Africa	ZA
Bolivia	BO	Greece	GR	Nepal	NP	South Korea	KR
Brazil	BR	Greenland	GL	Netherlands	NL	Spain	ES
Cambodia	KH	Islands	HM	Netherlands Antilles	AN	Sri Lanka	LK
Canada	CA	Hungary	HU	New Zealand	NZ	Sweden	SE
Chile	CL	India	IN	Nigeria	NG	Switzerland	CH
China	CN	Indonesia	ID	Norway	NO	Thailand	TH
Colombia	CO	Israel	IL	Oman	OM	Turkey	TR
Congo	CG	Italy	IT	Pakistan	PK	Uganda	UG
Costa Rica	CR	Jamaica	JM	Panama	PA	Ukraine	UA
Croatia	HR	Japan	JP	Paraguay	PY	United States	US
Czech Republic	CZ	Kenya	KE	Philippines	PH	Uruguay	UY
Denmark	DK	Kuwait	KW	Poland	PL	Uzbekistan	UZ
Ecuador	EC	Libya	LY	Portugal	PT	Vietnam	VN
Egypt	EG	Luxembourg	LU	Romania	RO	Zimbabwe	ZW
El Salvador	SV			Russian Federation	RU

Presetting the Radio Stations

You can preset 50 stations for FM and AM (MW). Before tuning, make sure that you have turned down the volume.

1. Press FM/AM on the remote control until FM or AM (MW) appears in the display window.
2. And then every time you press FM/AM, FM and AM (MW) changes alternately.
3. Press and hold TUN.-◀ or TUN.+▶ on the remote control for about three seconds until the frequency indication starts to change, then release. Scanning stops when the Recorder Receiver tunes in a station. "ST" (for stereo program) appear in the display window.
4. Press ENTER on the remote control. A preset number will flash in the display window.
5. Press PR/PRESET + or PR/PRESET - on the remote control to select the preset number you want.
6. Press ENTER on the remote control. The station is stored.
7. Repeat steps 3 to 6 to store other stations.

To tune in a station with a weak signal

Press TUN.-◀ or TUN.+▶ repeatedly in step 3 to tune in the station manually.

To clear all the stored stations

Press and hold ENTER for about five seconds to clear all the stored stations.

Listening to the Radio

Preset radio stations in the 's memory first (see "Presetting radio stations" on the left).

1. Press FM/AM until AM (MW) or FM appears in the display window. The last received station is tuned in.
2. Press PR/PRESET + or PR/PRESET - repeatedly on the remote control to select the preset station you want. Each time you press this button, the Recorder Receiver tunes in one preset station at a time.
3. Adjust the volume by rotating VOLUME on the front panel or by pressing VOLUME + or - on the remote control repeatedly.

To turn off the radio

Press POWER to turn the Recorder Receiver off or select another function mode (DVD, AV 1, AV 2 etc.).

To listen to non-preset radio stations

• Use manual or automatic tuning in step 2.
• For manual tuning, press TUN.- ◀ or TUN.+ ▶ on the remote control repeatedly.
• For automatic tuning, press and hold TUN.-◀ or TUN.+▶ on the remote control for about three seconds on the remote control.

For your reference

• If an FM program is noisy
  Press MO./ST. on the remote control so that "ST" dis-appears in the display window. There will be no stereo effect, but the reception will improve. Press this button again to restore the stereo effect.

• To improve reception

Reorient the supplied antennas.

RDS Operation

This unit is equipped with RDS (Radio Data System), which brings a wide range of information to FM radio. Now in use in many countries, RDS is a system for transmitting station call signs or network information, a description of station programme type text message about the station or specifics of musical selection and the correct time.

RDS Tuning

When a FM station is tuned in and it contains RDS data, the unit will automatically display the station's call sign and the RDS indicator will light in the Display Window as well as indicators for the RDS services programme (PS), programme type recognition (PTY), Radiotext (RT) and Clock Time (CT) if transmitted by the station.

RDS Display Options

The RDS system is capable of transmitting a wide variety of information in addition to the initial call sign that appears when a station is first tuned. In normal RDS operation the display will indicate the station name, broadcast network or call letters. Pressing RDS on the remote control enables you to cycle through the various data types in the sequence:

(PS ↔ FREQUENCY ↔ PTY ↔ RT ↔ CT)

• PS (Programme Service name)- The name of the channel is shown in the Display Window.
• PTY (Programme type recognition)- The name of the programme type is shown in the Display Window.
• RT (Radiotext)- A "text" message contains special information from the broadcast station. Note that this message may scroll across the display to permit message.
• CT (Time controlled by the channel)- Enables the unit to receive the actual time and show it in the Display Window.

Note:

Some RDS stations may not choose to include some of these additional features. If the data required for the selected mode is not being transmitted, the Display Window will show a PTY NONE, RT NONE, CT NONE, PS NONE message.

Programme Search (PTY)

A major benefit of RDS is its ability to encode broadcasts with Programme Type (PTY) codes that indicate the type of material being broadcast. The following list shows the abbreviations used to indicate each PTY along with an explanation of the PTY.

NEWS	News
AFFAIRS	Current Affairs
INFO	Information
SPORT	Sports
EDUCATE	Educational
DRAMA	Drama
CULTURE	Culture
SCIENCE	Science
VARIED	Varied Speech Programme
POP M	Popular Music
ROCK M	Rock Music
EASY M	Easy Listening Music
LIGHT M	Classical Music
CLASSICS	Serious Classical Music
OTHER M	Other Music
WEATHER	Weather Information
FINANCE	Financial Programmes
CHILDREN	Children's Programmes
SOCIAL	Social Affairs Programmes
RELIGION	Religious Broadcasts
PHONE IN	Phone-In Programmes
TRAVEL	Travel and Touring
LEISURE	Leisure and Hobby
JAZZ	Jazz Music
COUNTRY	Country Music
NATION M	National Music
OLDIES	Oldies Music
FOLK M	Folk Music
DOCUMENT	Documentary Programmes
TEST	Station Alarm Test Message
ALARM 1	Emergency Broadcast Information

You may search for a specific Programme Type (PTY) by following these steps:

1. Press FM/AM to select FM mode.
2. Press PTY on the remote control, the display will show the last PTY in use.
3. Press PTY repeatedly to select a desired PTY.
4. When the PTY is selected, press and hold PTY. The unit will go into an automatic search mode. When a station is tuned, the search will stop.

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom	Cause	Solution
No power.	The power cord is disconnected.	Plug the power cord into the wall outlet securely.
No picture.	The TV is not set to receive recorder signal output.	Select the appropriate video input mode on the TV so the picture from the recorder appears on the TV screen.
	The video cable is not connected securely.	Connect the video cable securely.
	The connected TV power is turned off.	Turn on the TV.
No sound.	The equipment connected with the audio cable is not set to receive recorder signal output.	Select the correct input mode on the audio receiver so you can listen to the sound from the recorder.
	The audio cables are not connected securely.	Connect the audio cable securely.
	The power of the equipment connected with the audio cable is turned off.	Turn on the equipment connected with the audio cable.
	The audio connecting cord is damaged.	Replace it with new one.
The playback picture is poor.	The disc is dirty.	Clean the disc.
The recorder does not start playback.	No disc is inserted.	Insert a disc. (Check that the disc indicator in the display window is lit.)
	An unplayable disc is inserted.	Insert a playable disc. (Check the disc type, color system, and regional code.)
	The disc is placed upside down.	Place the disc with the playback side down.
	The disc is not placed within the guide.	Place the disc on the disc tray correctly inside the guide.
	The disc is dirty.	Clean the disc.
	The Rating level is set.	Cancel the Rating function or change the rating level.
The picture from the external input is distorted	The video signal from the external component is copy-protected.	You cannot connect via this recorder. Connect the component directly to your TV.
Some channels are skipped over when using ▲/▼.	Those channels are not stored in the recorder.	Restore channels. See "Program Edit" on page 23.
The picture or sound of broadcasting channel is weak or missing.	Aerial or cables are loose.	Tighten connections or replace cable.
Camcorder image is not shown.	Camcorder is off.	Turn camcorder on and operate properly.
Camcorder image via A/V input or DV IN to recorder is not shown on TV screen.	The recorder's source is incorrect.	Use AV to select input channel (AV1, AV2, DV, etc.)
Radio stations cannot be tuned in.	The antenna is positioned or connected poorly.	Connect the antenna securely.Adjust the antennas and connect an external antenna if necessary.
CHECK CABLE appears in the Display window.	The system cable is connected incorrectly.	Check the status of connection and connect the system cable securely.
Cannot play a disc recorded using this recorder on another player.	The disc was recorded in Video mode.	Finalize the disc. (page 30)
	Some players will not play even a finalized disc recorded in Video mode.	No solution.
	The disc was recorded in VR mode,	The other player must be RW compatible in order to play it.
	Discs recorded with copy-once material cannot be played on other players.	No solution.
Cannot record or did not record successfully.	The remaining blank space on the disc is insufficient.	Use another disc.
	The source you are trying to record is copy protected.	You cannot record the source.
	When setting the recording channel, the channel is tuned on the TV's own tuner.	Select the channel on the recorder's built-in TV tuner.
	When recording to a Video mode disc, programs that are copy-once protected cannot be recorded.	Use a VR mode formatted disc for copy-once material.
Timer recording is not possible.	Clock in recorder is not set to correct time.	Set clock to correct time. See "Clock Set" on page 24.
	Timer has been programmed incorrectly.	Reprogram Timer. See "Timer Recording" on page 48.
	Timer record indicator light does not appear after programming timer.	Reprogram Timer.
Stereo Audio Record and/or Playback is not present.	TV is not Stereo-compatible.	No solution.
	Broadcast program is not in stereo format.	No solution.
	The recorder A/V Out jacks are not connected to TV A/V In jacks.	Make A/V connections. Stereo is available only via A/V output from the recorder.
	The recorder Audio/Video Out is not selected for viewing at the TV.	Select AUX or A/V source as TV input.
	The recorder's TV audio channel is set to mono.	Set TV audio channel mode to Stereo. See "Changing TV audio channel" on page 47.
The remote control does not work properly.	The remote control is not pointed at the remote sensor of the recorder.	Point the remote control at the remote sensor of the recorder.
	The remote control is too far from the recorder.	Operate the remote control within 7 m.
	There is an obstacle in the path of the remote control and the recorder.	Remove the obstacle.
	The batteries in the remote control are exhausted.	Replace the batteries with new ones.

Resetting the recorder

If you observe any of the following symptoms...

• The unit is plugged in, but the power will not turn on or off.
• The front panel display is not working.
  • The recorder is not operating normally.

...you can reset the recorder as follows:

• Press and hold the POWER button for at least five seconds. This will force the unit to power off then turn the unit back on.
• Unplug the power cord, wait at least five seconds, and then plug it in again.

Specifications

General

Power requirements

Power consumption

Dimensions (approx.)

Mass (approx.)

Operating temperature

Operating humidity

Television system

Recording format

AC 200-240V, 50/60 Hz

45W

430 X 49 X 350 mm (w x h x d) without foot

4.6 kg

5^ C to 35^ C

5% to 90%

PAL I, B/G, I/I, SECAM D/K, K1 colour system

PAL

Recording

Recording format

Recordable media

Recordable time

DVD Video Recording, DVD-VIDEO

HDD (80GB), DVD-ReWritable, DVD-Recordable, DVD+ReWritable,

DVD+Recordable, DVD+Recordable (Double Layer)

DVD (4.7GB): Approx. 1 hour (HQ mode), 2 hours (SQ mode), 4 hours (LQ mode), 6 hours (EQ mode)

DVD+R DL (8.5GB): Approx. 3 hour (HQ mode),

3 hours 40 minutes (SQ mode), 7 hours 10 minutes (LQ mode), 10 hours 30 minutes (EQ mode)

HDD (80GB): Approx. 20 hours (HQ mode), 40 hours (SQ mode), 74 hours (LQ mode), 111 hours (EQ mode)

Video recording format

Sampling frequency

Compression format

Audio recording format

Sampling frequency

Compression format

27MHz

MPEG 2 (VBR support)

48kHz

Dolby Digital

Playback

Frequency response

Signal-to-noise ratio

Harmonic distortion

Dynamic range

DVD (PCM 48 kHz): 8 Hz to 20 kHz, CD: 8 Hz to 20 kHz

DVD (PCM 96 kHz): 8 Hz to 44 kHz

More than 100 dB (AUDIO OUT connector)

Less than 0.008% (AUDIO OUT connector)

More than 95 dB (AUDIO OUT connector)

Inputs

AERIAL IN

VIDEO IN

AUDIO IN

DV IN

Aerial input, 75 ohms

1.0 Vp-p 75 ohms, sync negative, RCA jack x 2 / SCART x 2

0 dBm more than 47 kohms, RCA jack (L, R) x 2 / SCART x 2

4 pin (IEEE 1394 standard)

Outputs

VIDEO OUT

COMPONENT VIDEO OUT

HDMI video/audio output

Audio output (digital audio)

Audio output (optical audio)

Audio output (analog audio)

1 Vp-p 75 Ω, sync negative, RCA jack x 1 / SCART x 2

(Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

19 pin (HDMI standard, Type A)

0.5 V (p-p), 75 Ω, RCA jack x 1

3 V (p-p), 75 Ω, Optical connector x 1

2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R) x 1 / SCART x 2

Amplifier

Stereo mode

Surround mode

100W + 100W (6Ω at 1 kHz, THD 10 %)

Front: 100W + 100W (THD 10 %)

Center*: 100W

(* Depending on the sound mode settings and the source, there may be no sound output.)

Surround*: 100W + 100W (6Ω at 1 kHz, THD 10 %)

Subwoofer*: 200W (3Ω at 30 Hz, THD 10 %)

Tuner Specifications

Tuning Range (FM)

Intermediate Frequency (FM)

Signal-to-noise ratio

Tuning Range (AM)

Intermediate Frequency (AM)

Antenna

87.5 - 108 MHz

10.7 MHz

60 dB (Mono)

522 - 1,620 kHz

450 kHz

Wire antenna (FM)

Loop antenna (AM)

Speakers

Satellite (LHS-75SA5S)

Type: 1 Way 1 Speaker

Impedance: 6 Ω

Frequency Response: 100 - 20,000 Hz

Sound Pressure Level: 85 dB/W (1m)

Max. Input Power: 100W

Net Dimensions (WxHxD): 120 x 223 x 151 mm

Net Weight: 1.1 kg

Active Subwoofer (LHS-75SA5A)

Power consumption: 70W

Type: 1 Way 1 Speaker

Impedance: 3 Ω

Frequency Response: 35 - 1,500 Hz

Sound Pressure Level: 83 dB/W (1m)

Max. Input Power: 200W

Net Dimensions (WxHxD): 295 x 432 x 414 mm

Net Weight: 14 kg

Center (LHS-75SA5C)

Type: 1 Way 1 Speaker

Impedance: 6 Ω

Frequency Response: 80 - 20,000 Hz

Sound Pressure Level: 85 dB/W (1m)

Max. Input Power: 100W

Net Dimensions (WxHxD): 301 x 85 x 105 mm

Net Weight: 1.2 kg

Accessories:

Video cable x 1, Audio cable x 1, Scart cable x 1, RF 75-ohm Coaxial cable x 1, Speaker cable x 5, System cable x 1, FM Antenna cable x 1, AM Antenna cable x 1, Remote control x 1, Batteries (AAA) x 2, Ferrite core x 2

- Design and specifications are subject to change without notice.

LG Electronics Inc.
