USER MANUAL 50PK750N LG

Please read this manual carefully before operating your set and retain it for future reference.

Separate purchase

Wall Mounting Bracket

AW-50PG60MS

AW-50PG60M

(50PK7***, 50PK9***)

AW-60PG60MS

AW-60PG60M

or

(60PK7***, 60PK9***)

Optional extras can be changed or modified for quality improvement without any notification.

Contact your dealer for buying these items.

This device only works with compatible LG Plasma TV.

Wireless Media Box

Wireless LAN for

Broadband/

DLNA Adaptor

Two electronic devices shown from front and back views, one with ports and a smaller internal panel (no visible text or labels)

Simple grayscale icon of a USB flash drive (no text or symbols)

(Except for

50/60PK950)

HDMI

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or regis-

tered trademarks of HDMI Licensing LLC.

CONTENTS

PREPARATION

Accessories ......A-1

Front Panel Controls ......A-2

Back Panel Information ......A-3

Stand Installation ......A-4

Back Cover for Wire Arrangement ......A-5

How to remove the Cable Management Clip ..A-5

Not using the Desk-type Stand ......A-6

Swivel Stand ......A-6

Careful Installation Advice ......A-6

Desktop Pedestal Installation ......A-7

Wall Mount: Horizontal Installation ......A-7

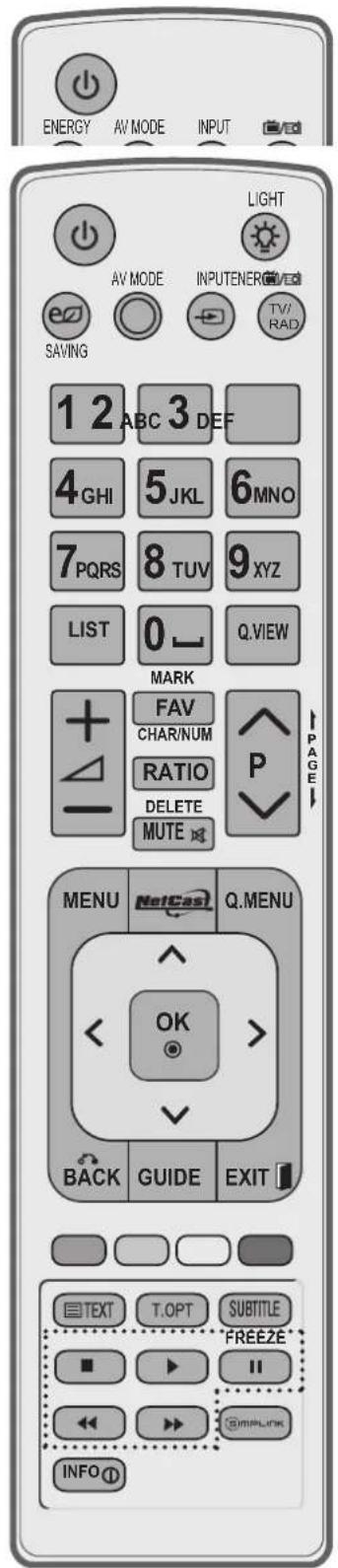

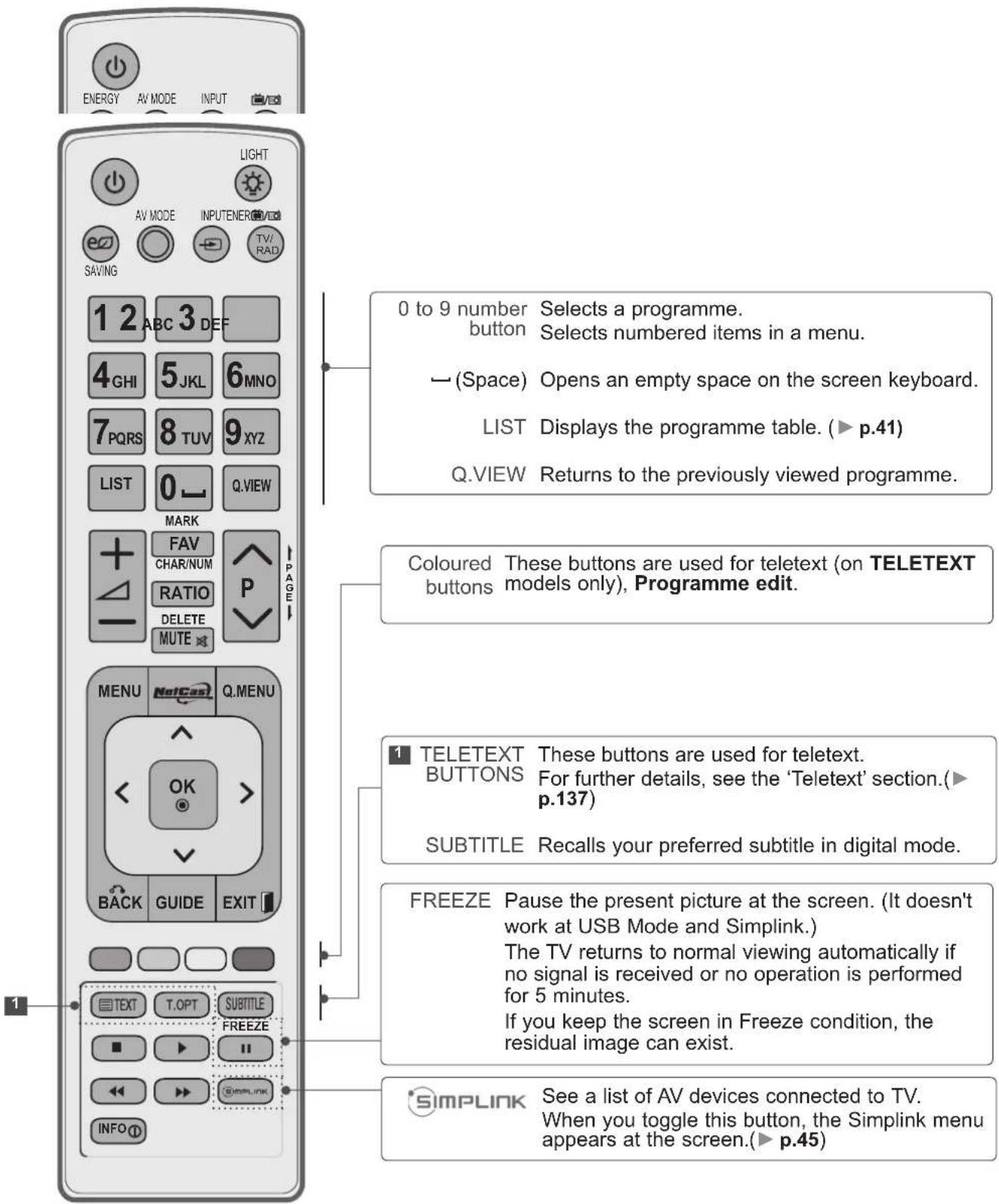

Remote Control Key Functions ......A-8

EXTERNAL EQUIPMENT SETUP

Antenna Connection ....1

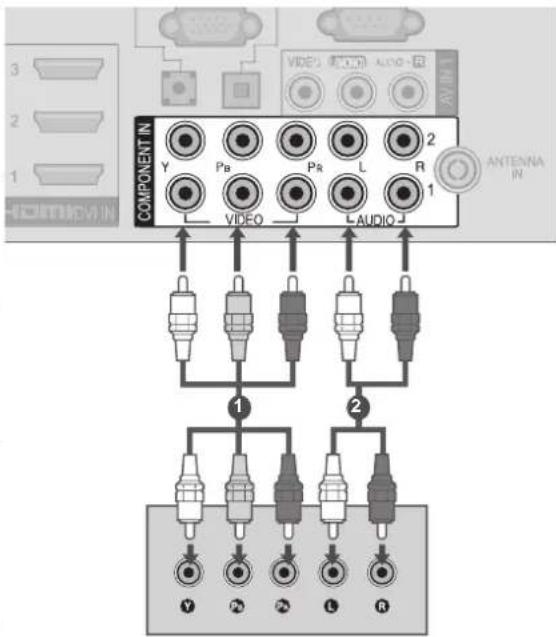

Connecting with a Component cable 2

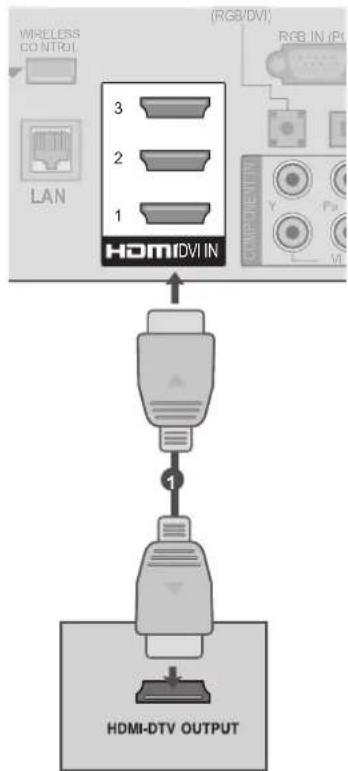

Connecting with an HDMI cable ....3

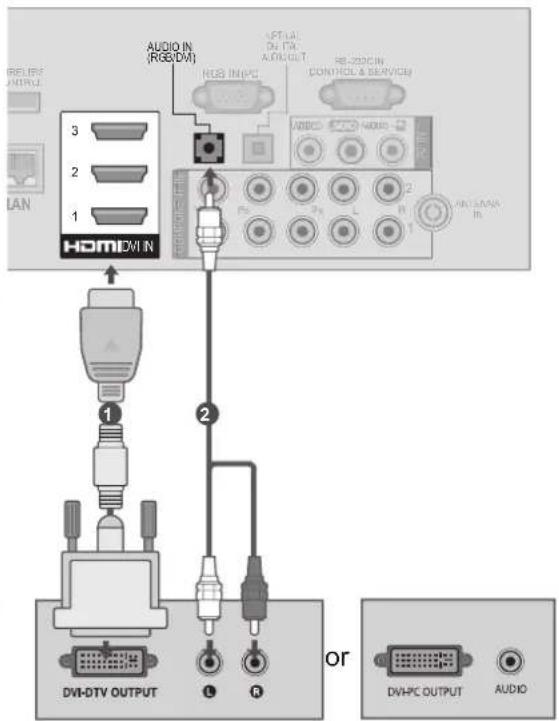

Connecting with an HDMI to DVI cable .....4

USB Setup 4

Connecting with an RF Cable 5

Connecting with an RCA cable 5

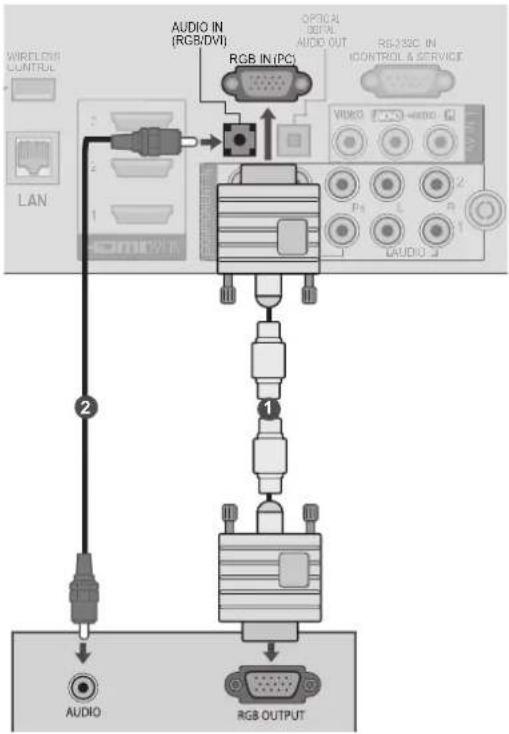

Connecting with a D-sub 15 pin cable ......6

Digital audio out Setup 6

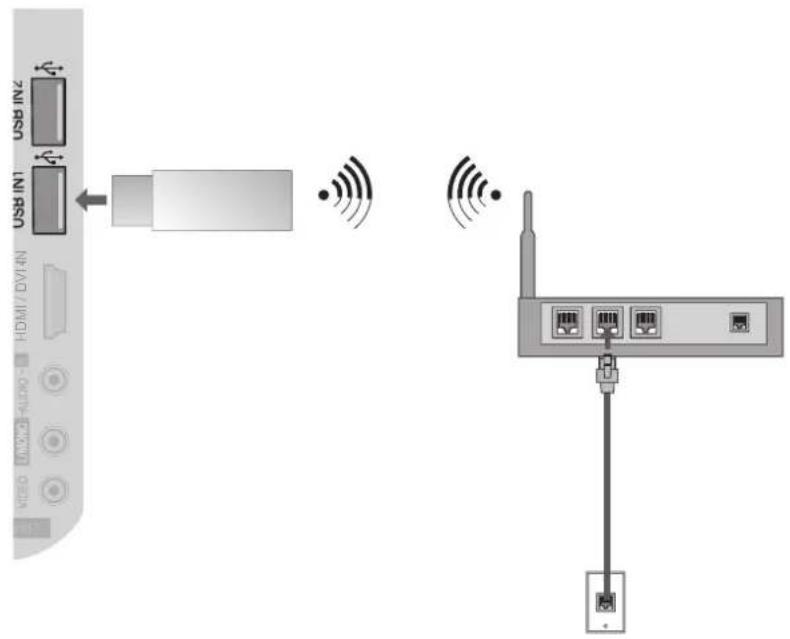

External Equipment Wireless Connection .....7

Supported Display Resolution 8

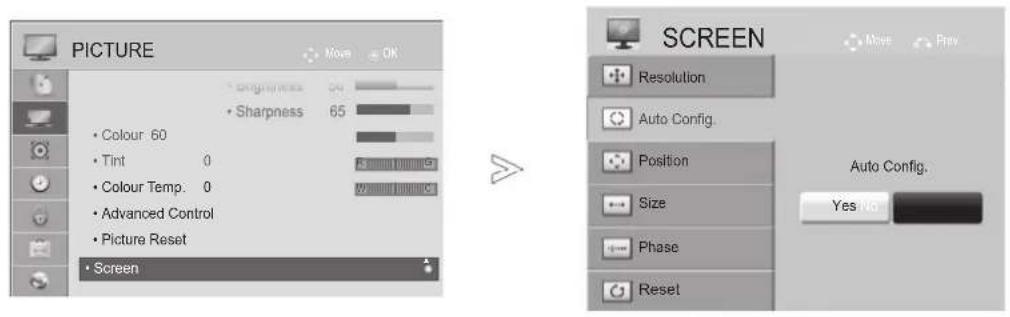

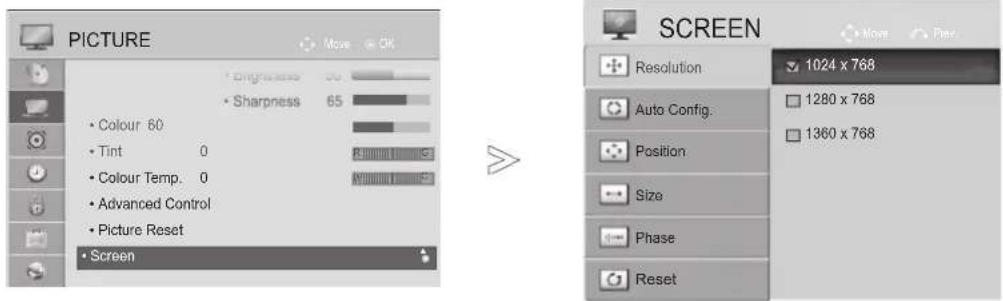

Screen Setup for PC mode 9

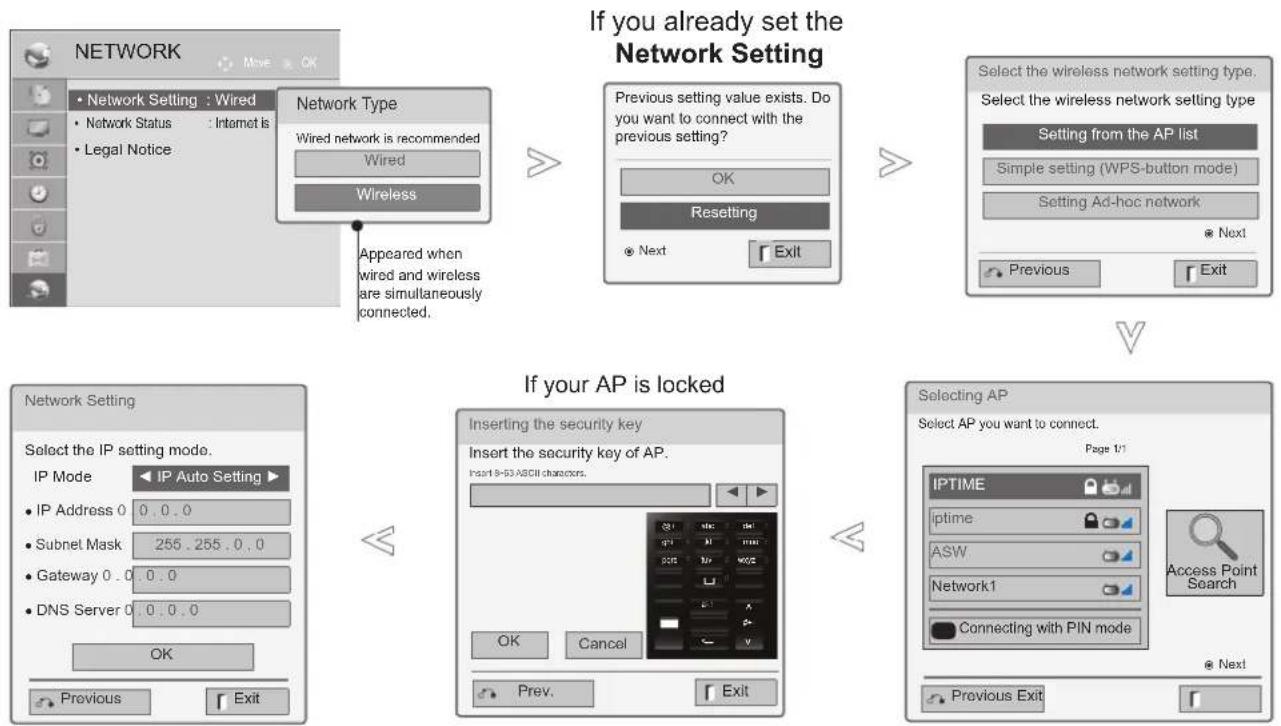

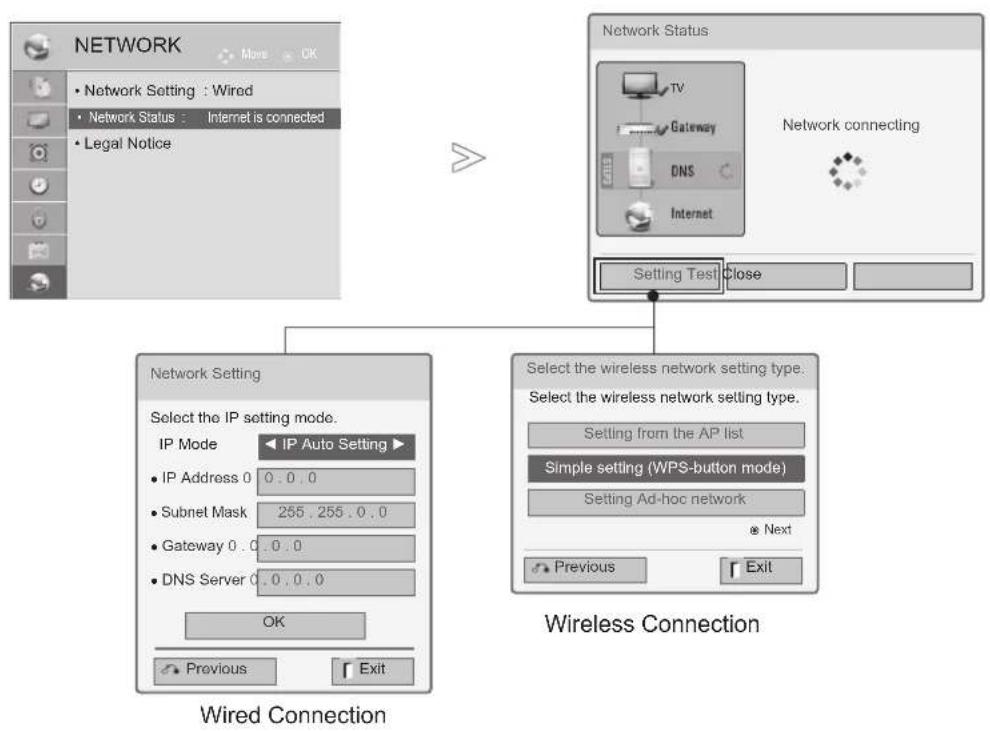

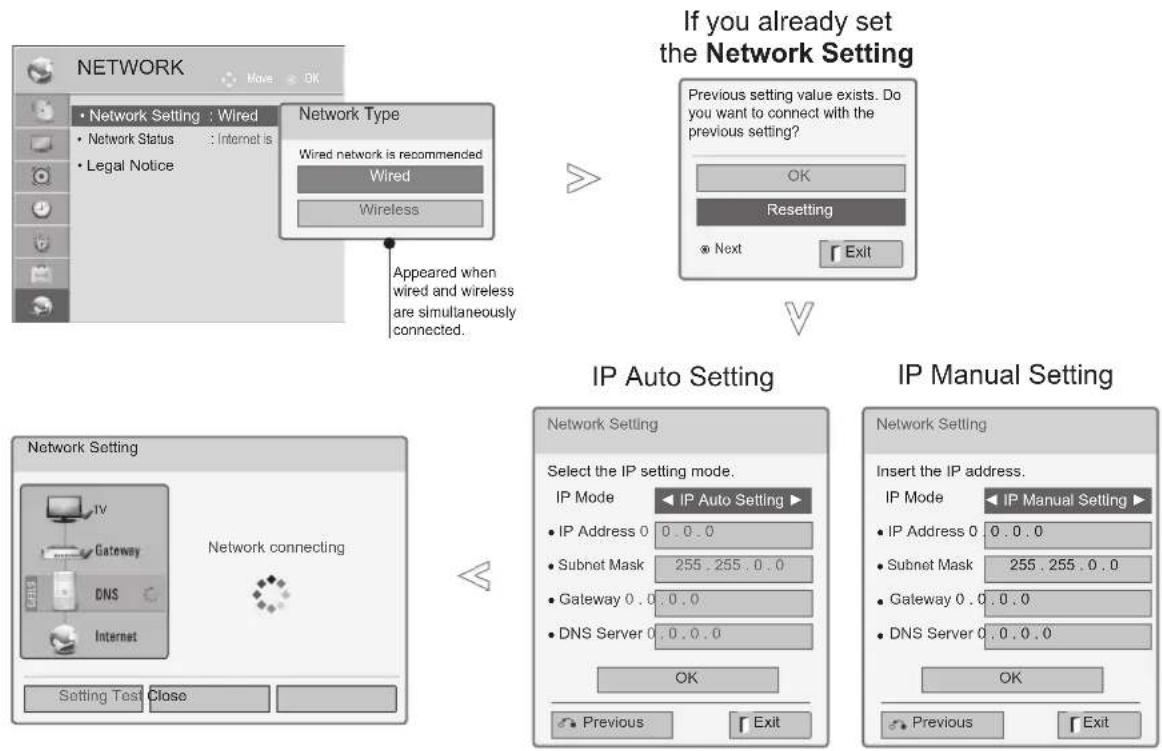

Network Setup 13

WATCHING TV / PROGRAMME CONTROLGame 92

Turning on the TV 23

Initializing Setup 23

Programme Selection 23

Volume Adjustment 23

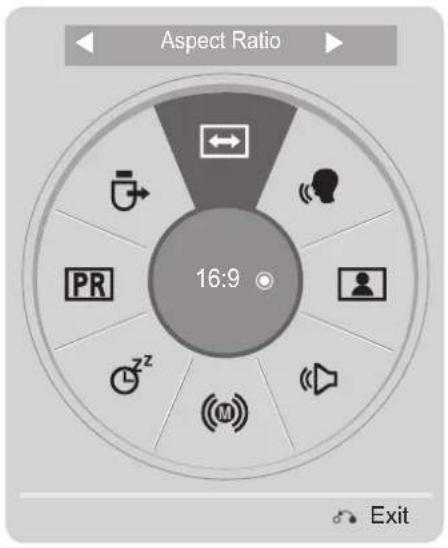

Quick Menu 24

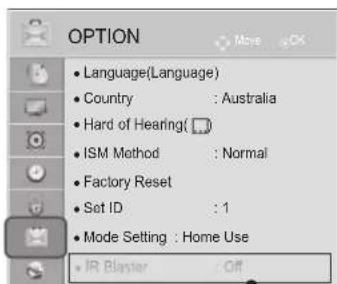

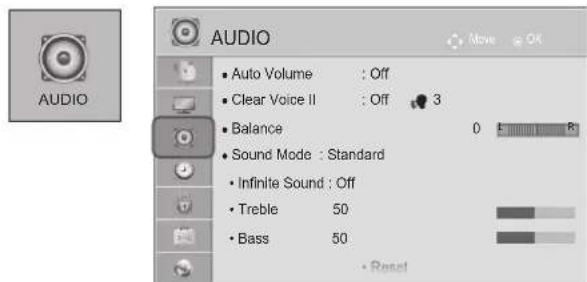

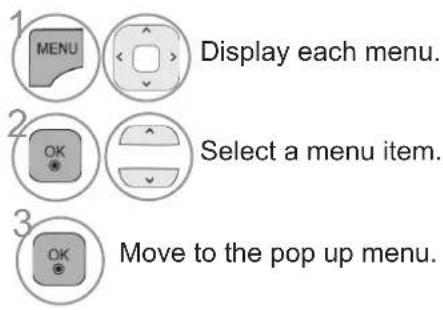

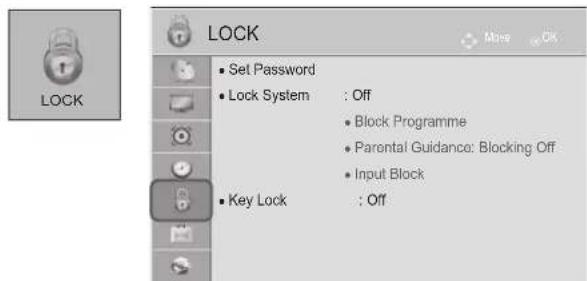

On Screen Menus Selection and Adjustment ...25

Auto Programme Tuning 27

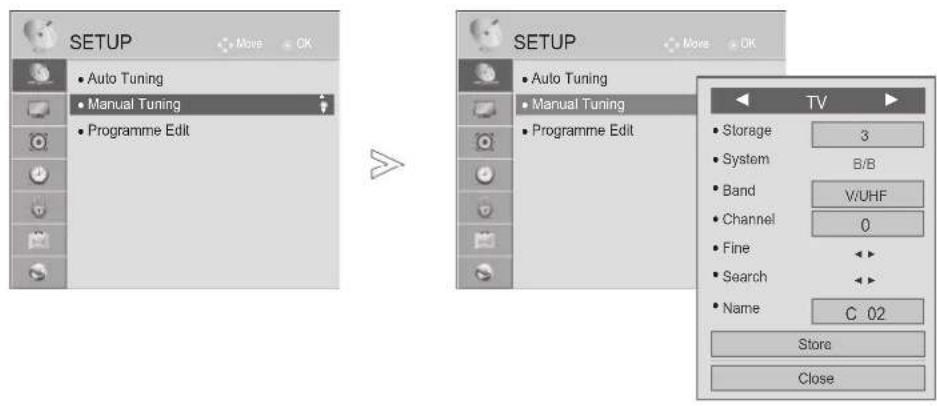

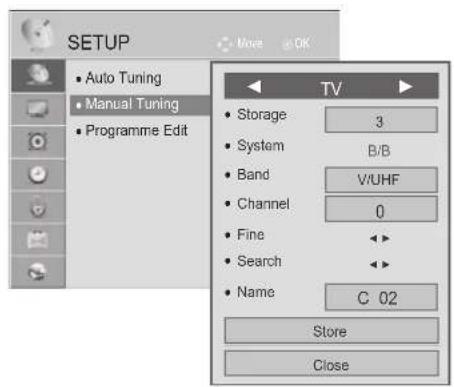

Manual Programme Tuning 28

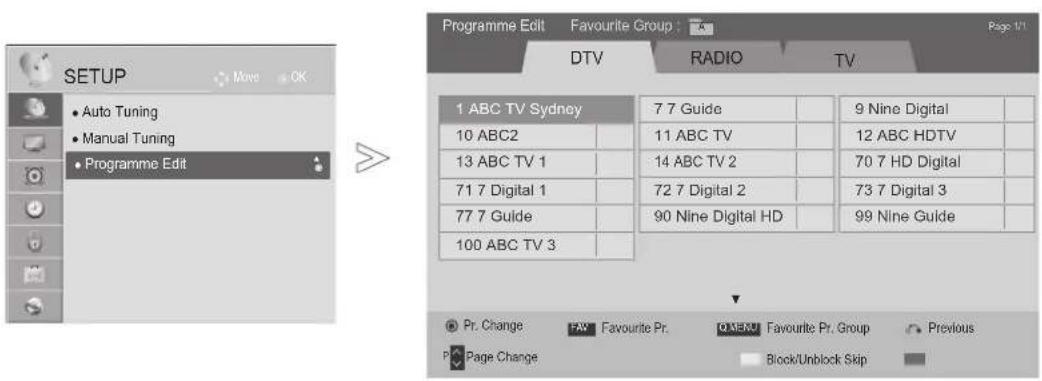

Programme Edit 31

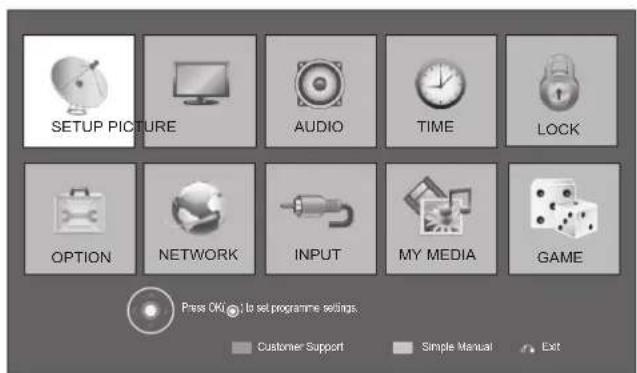

Software Update 35

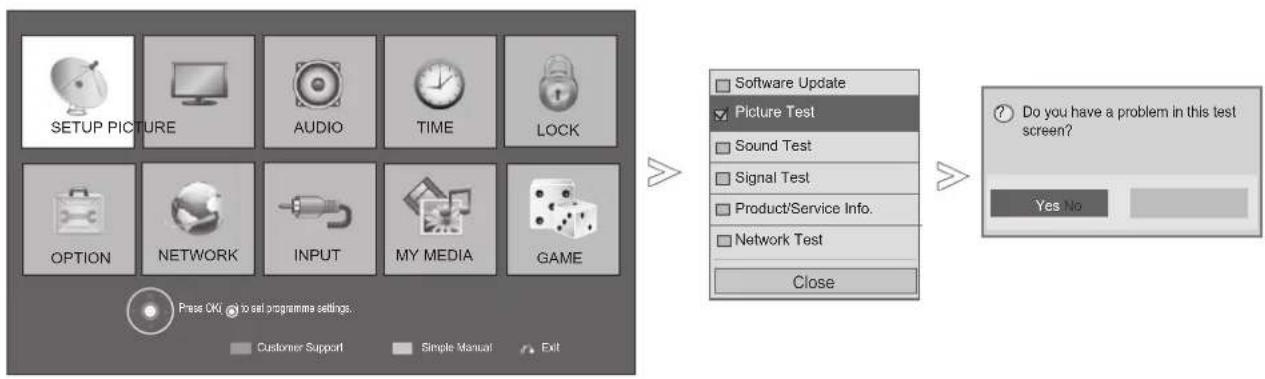

Picture/Sound Test 37

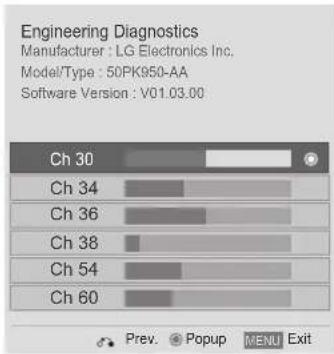

Diagnostics 38

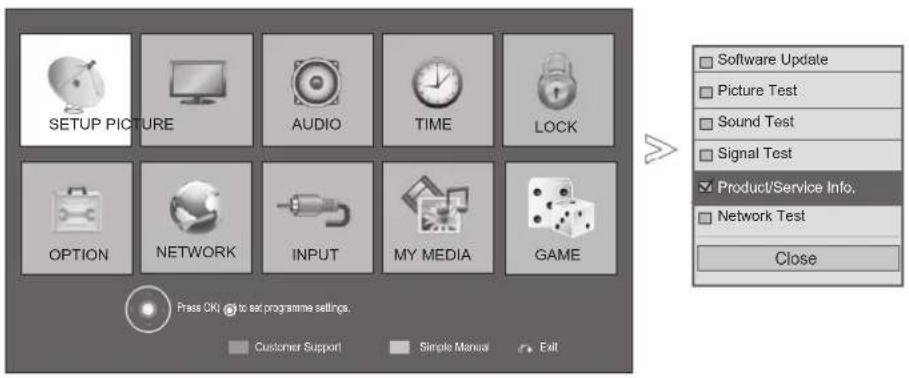

Product/Service Information 39

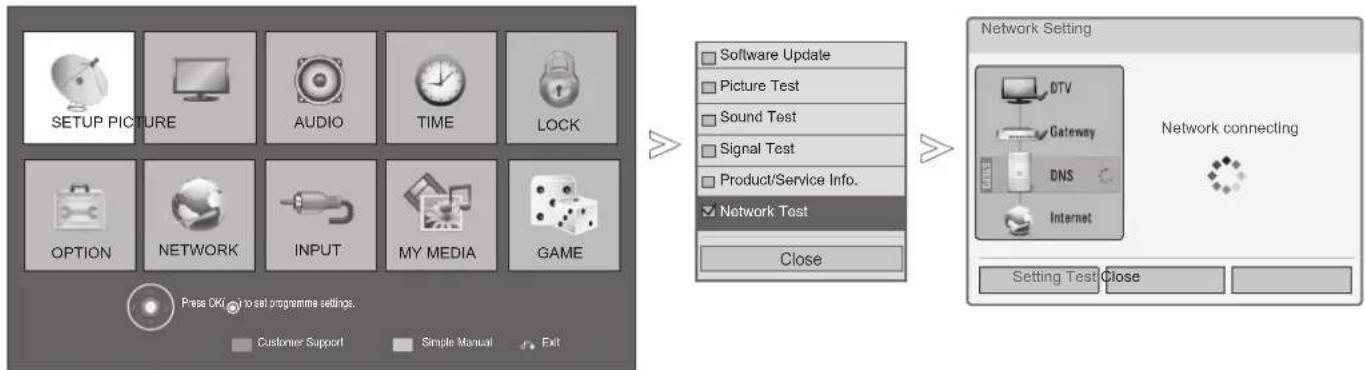

Network Test 39

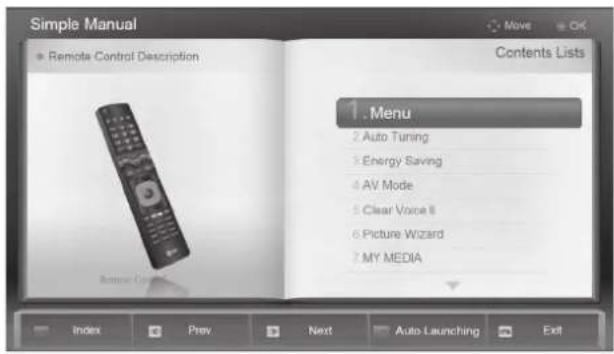

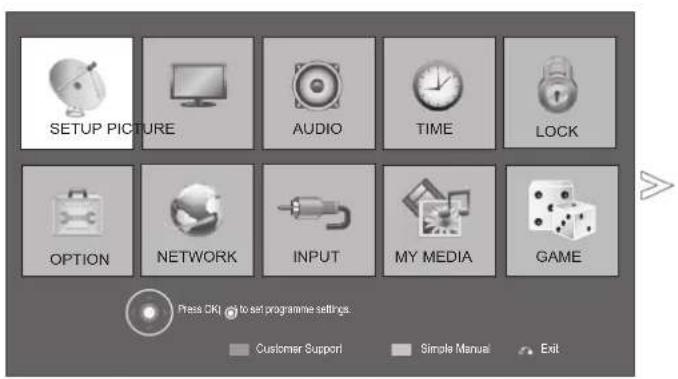

Simple Manual 40

Selecting the Programme List ....41

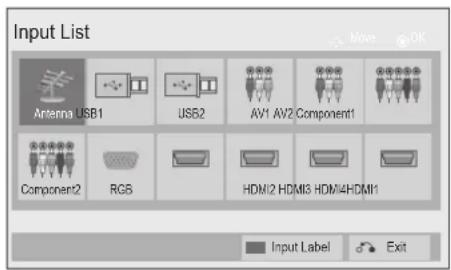

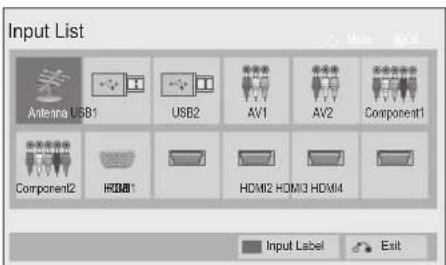

Input List 43

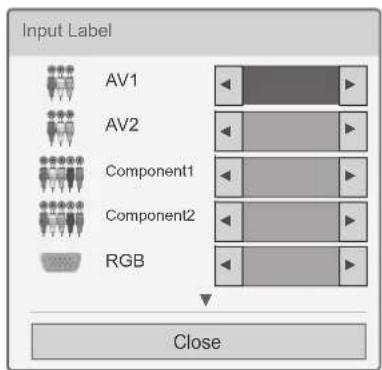

Input Label 44

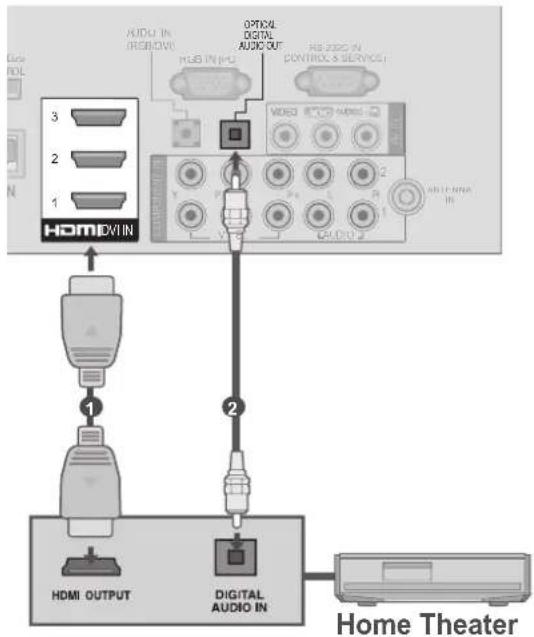

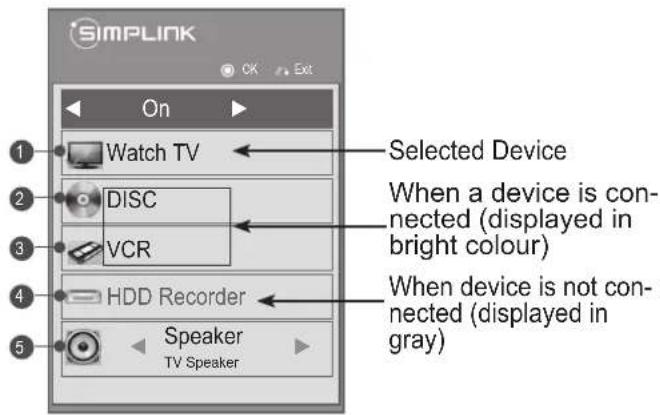

SIMPLINK 45

AV Mode 48

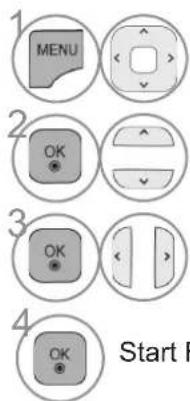

Initializing(Reset to original factory settings) ....49

NETCAST

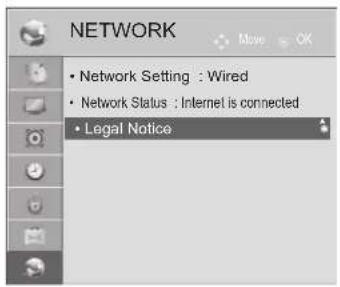

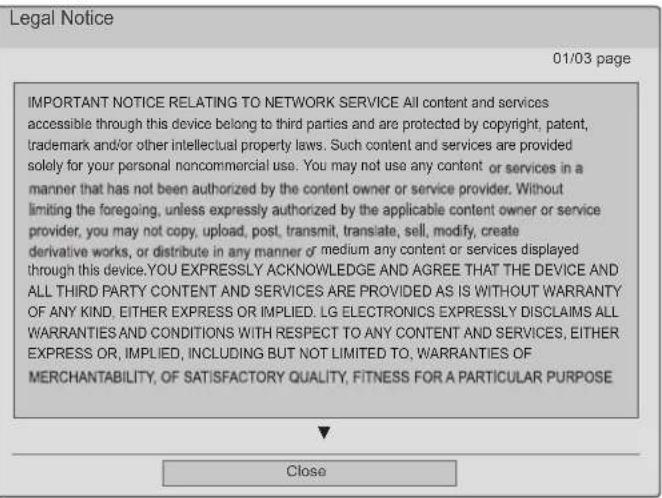

Legal Notice 50

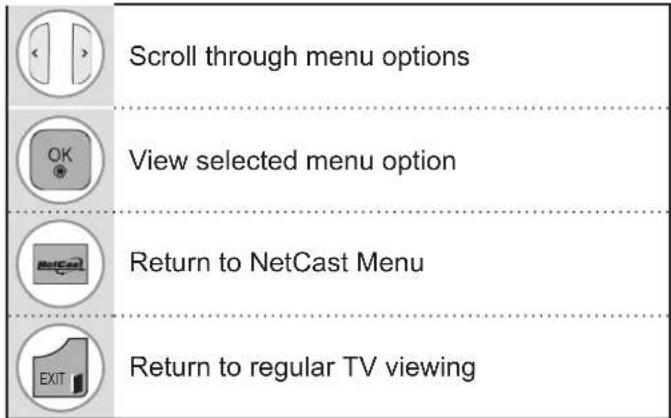

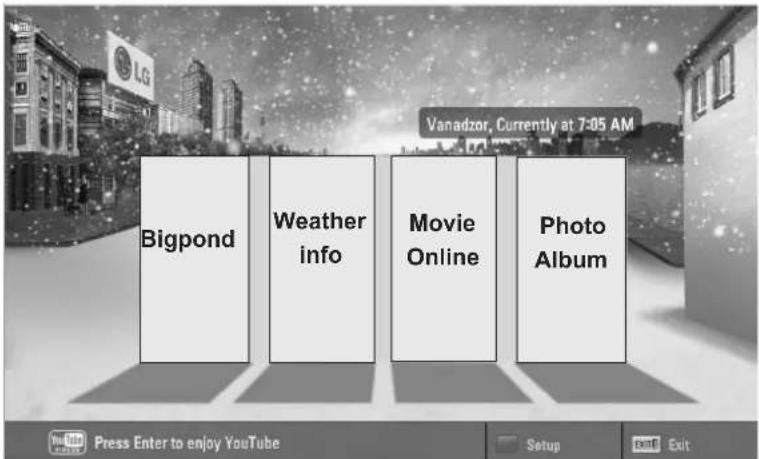

Netcast Menu 52

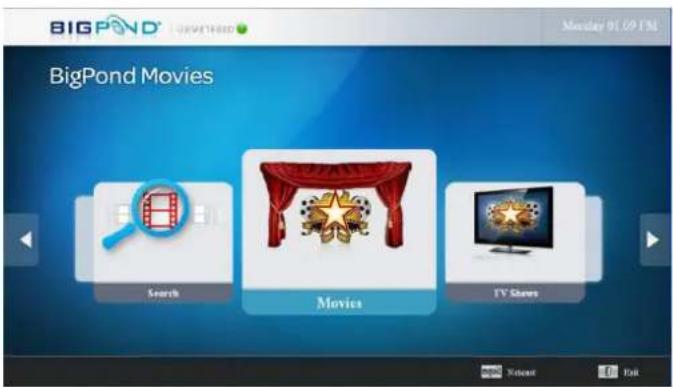

Bigpond 53

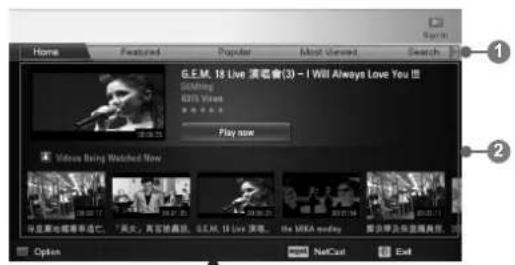

Movie Online 56

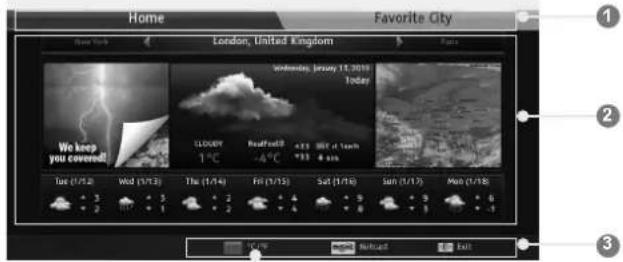

Weather info 58

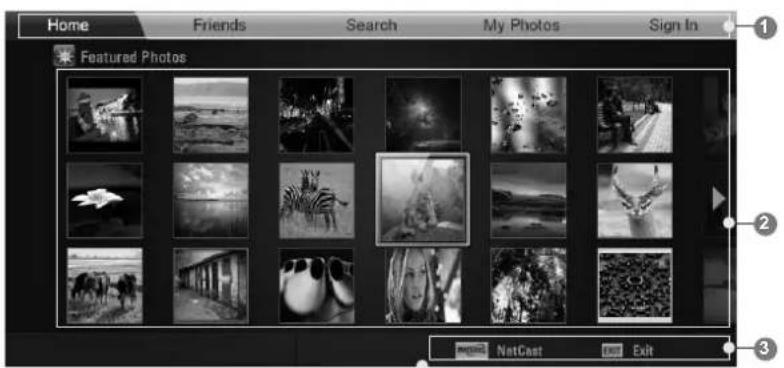

Photo Album 59

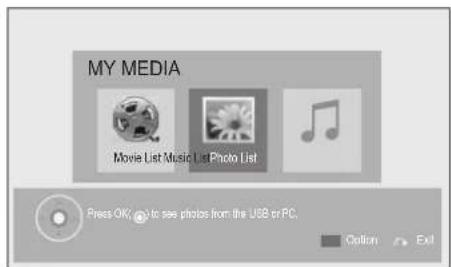

TO USE A USB OR PC DEVICE

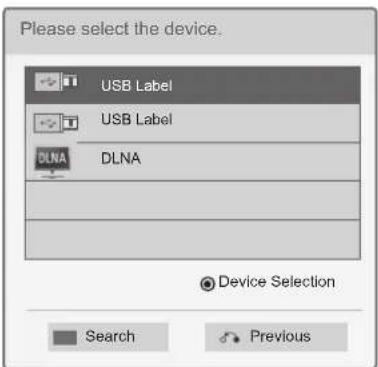

When connecting a USB device 60

DLNA 62

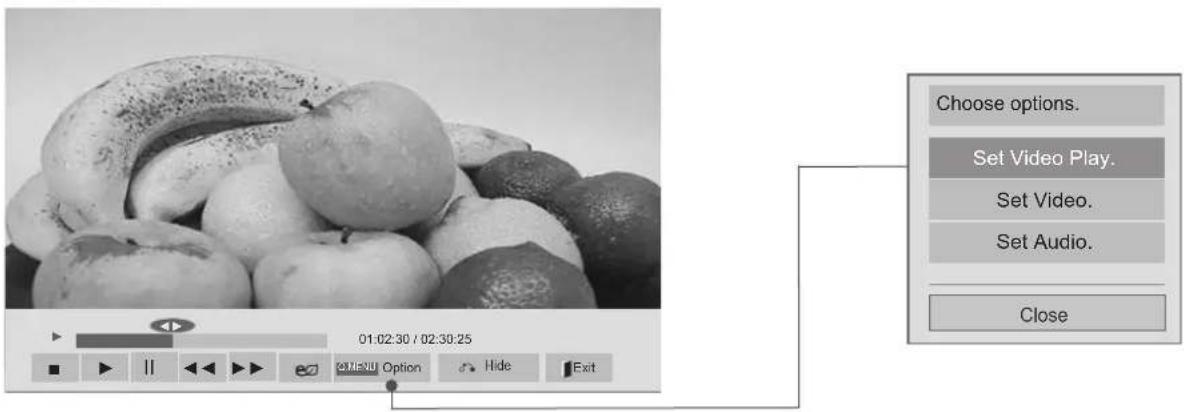

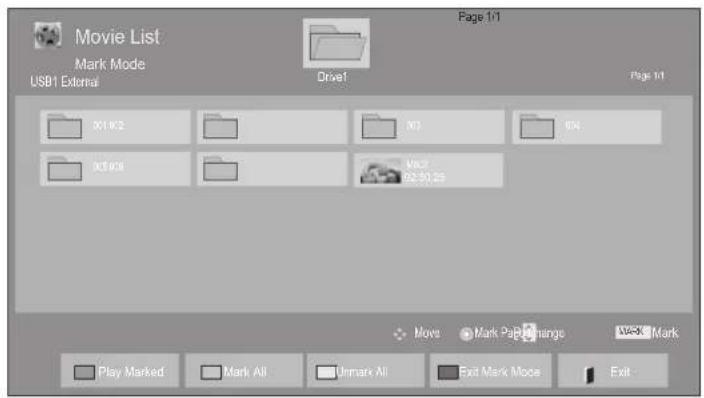

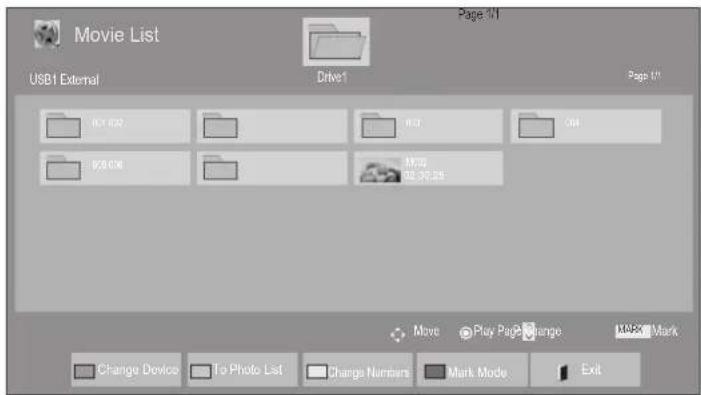

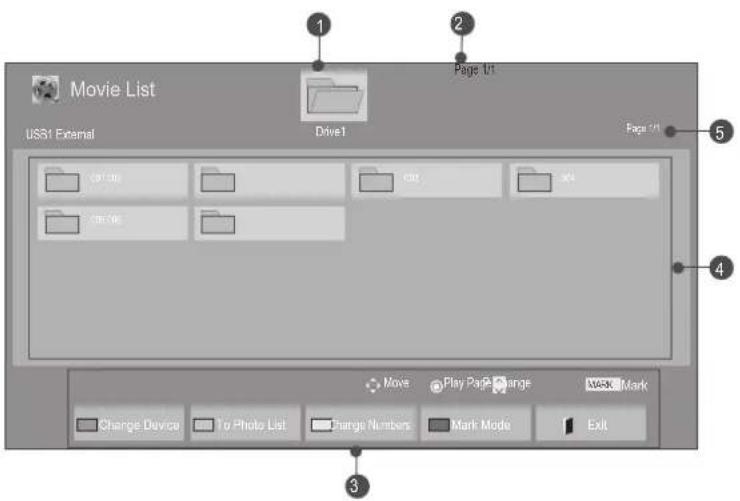

Movie List 66

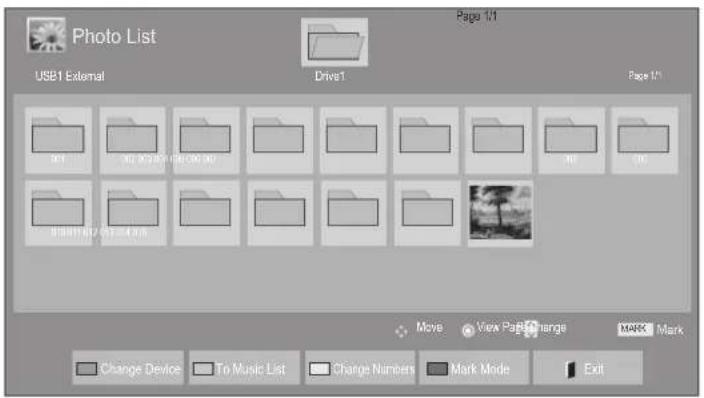

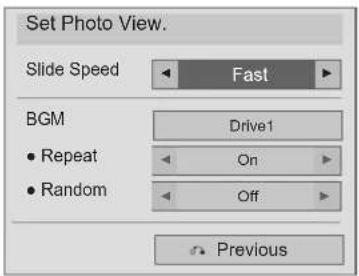

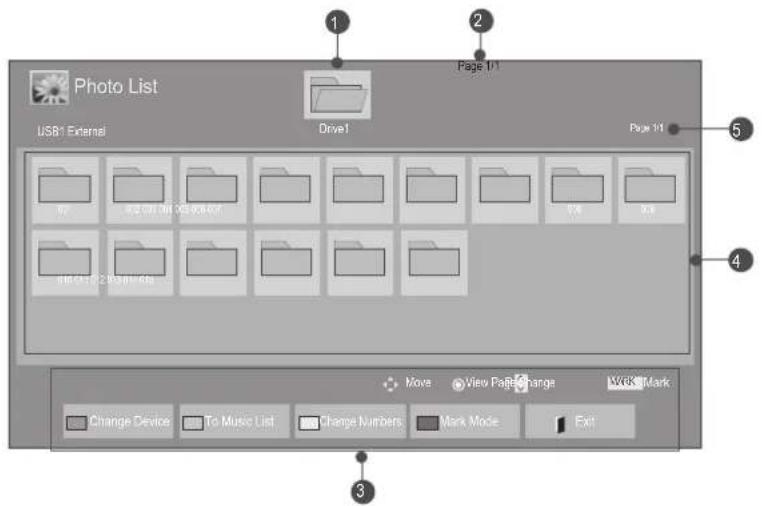

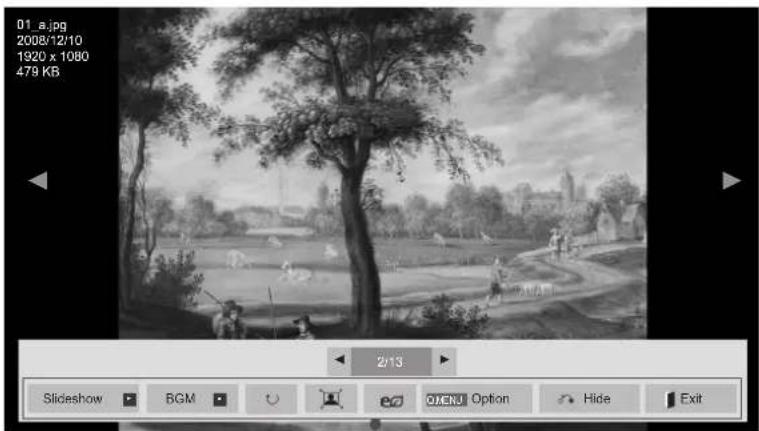

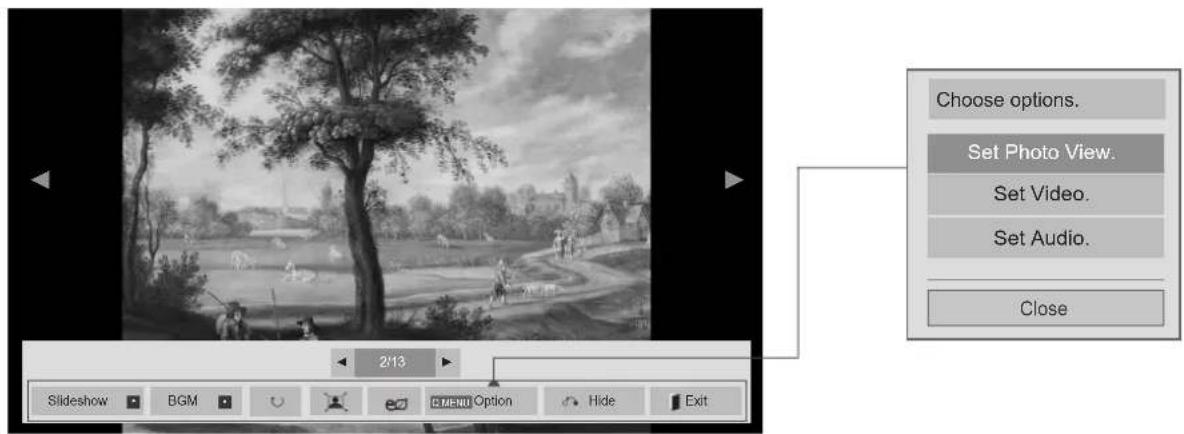

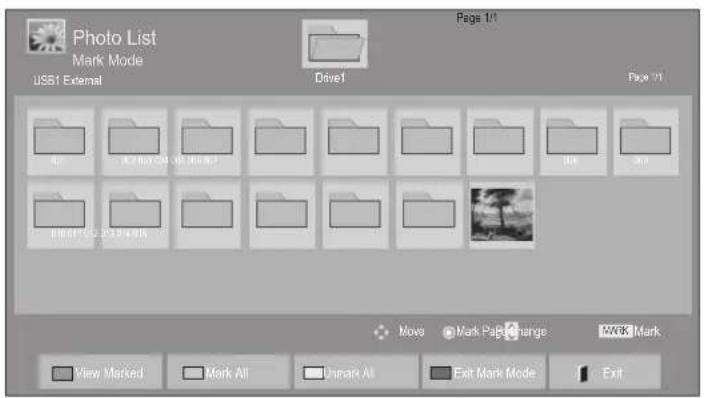

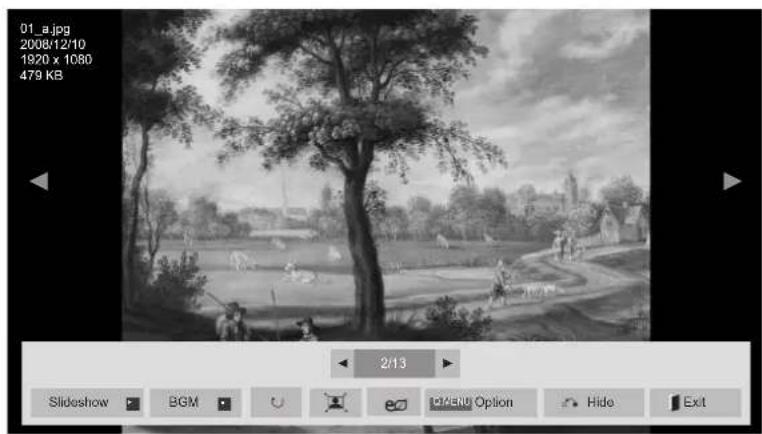

Photo List 76

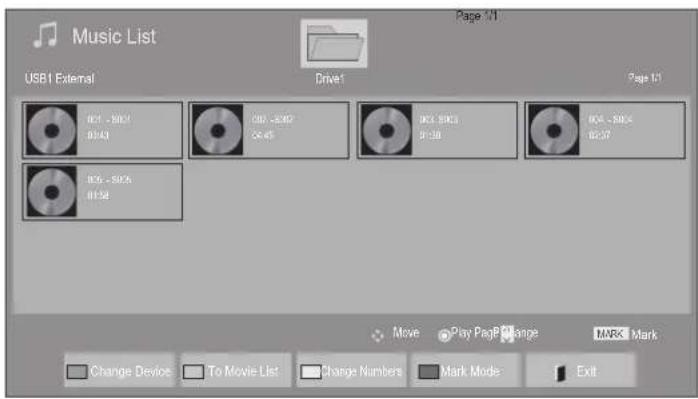

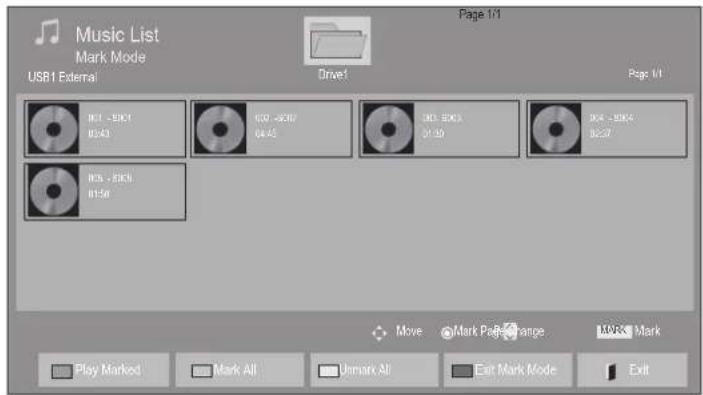

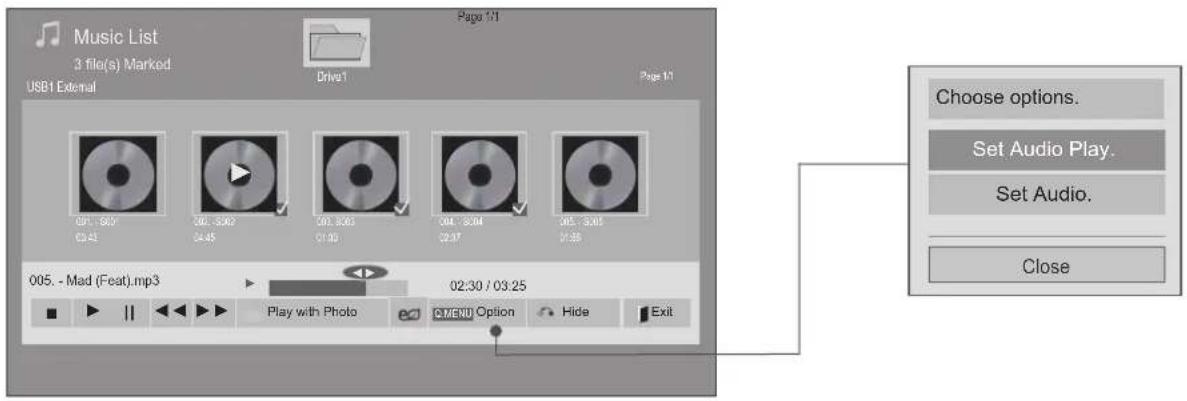

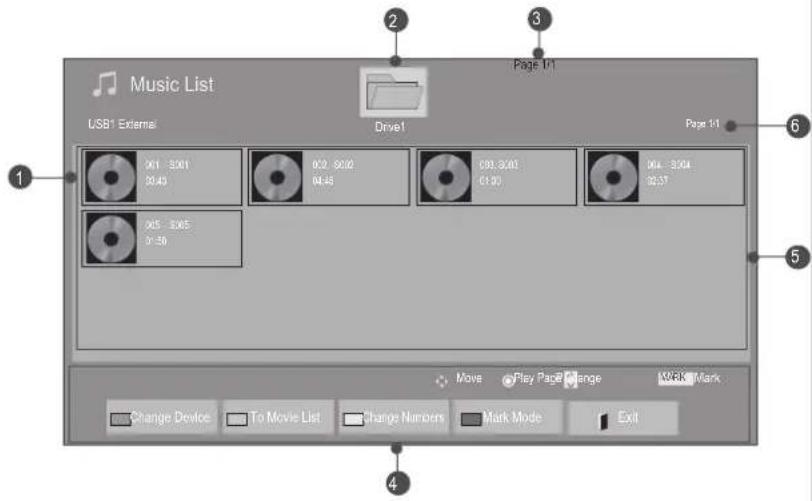

Music List 84

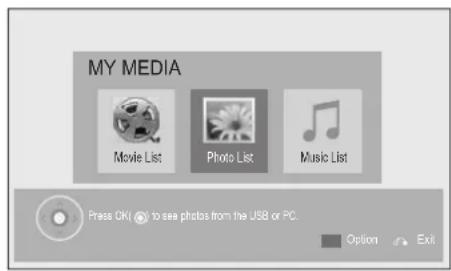

DivX Registration Code 90

Deactivation 91

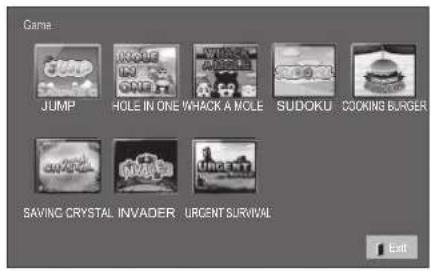

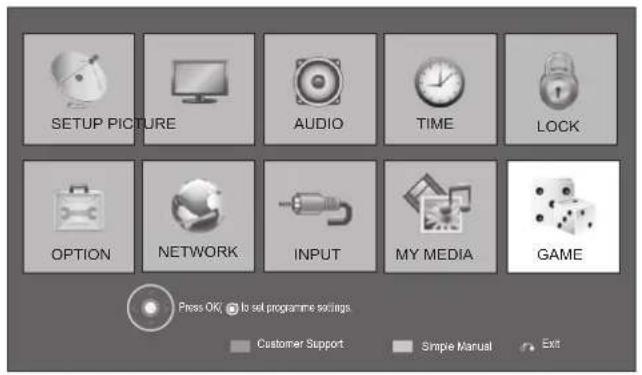

GAME

EPG(ELECTRONIC PROGRAMME GUIDE)(IN DIGITAL MODE)

Switch On/Off EPG 94

Select a Programme 94

Button Function in NOW/NEXT Guide Mode ...94

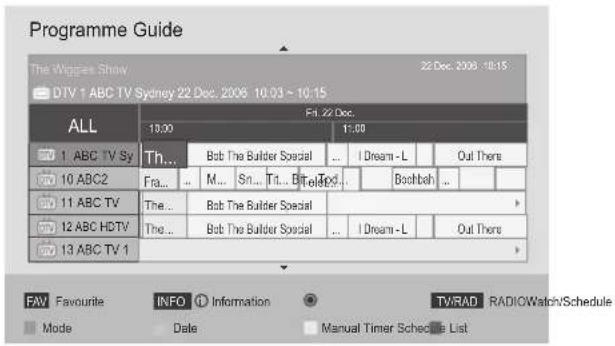

Button Function in 8 Day Guide Mode .....95

Button Function in Date Change Mode .....95

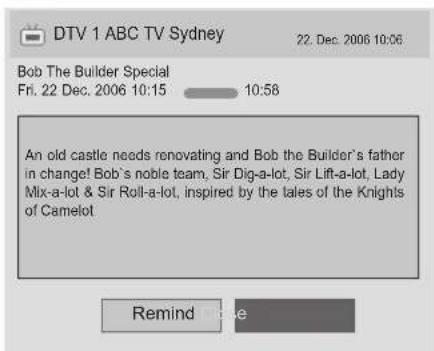

Button Function in Extended Description Box ..95

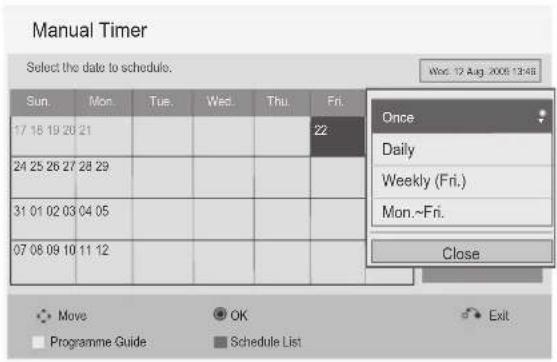

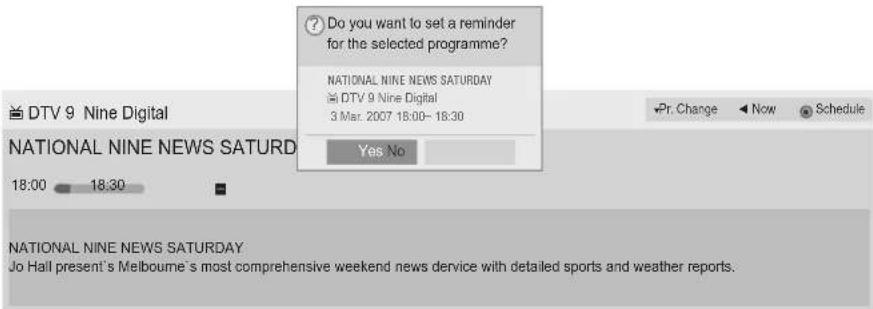

Button Function in Remind Setting Mode .....96

Button Function in Schedule List Mode .....96

CONTENTS

MHEG (MULTIMEDIA AND HYPERMEDIA INFORMATION CODING EXPERT GROUP)(IN DIGITAL MODE)

Switch on MHEG 97

Select a Programme 97

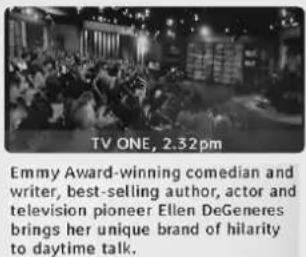

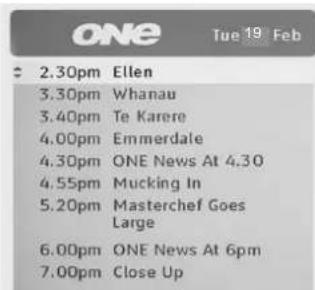

Button Function in Listing Mode .....98

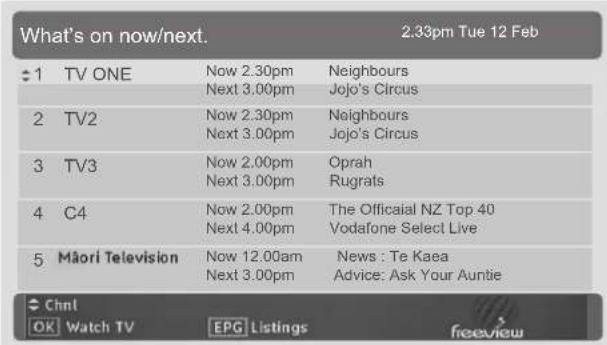

Button Function in NOW/NEXT Mode .....98

PICTURE CONTROL

Picture Size (Aspect Ratio) Control .....99

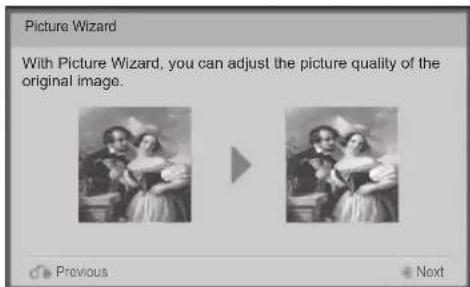

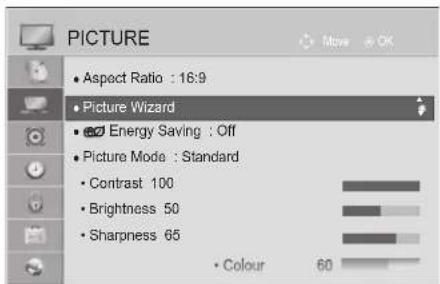

Picture Wizard 101

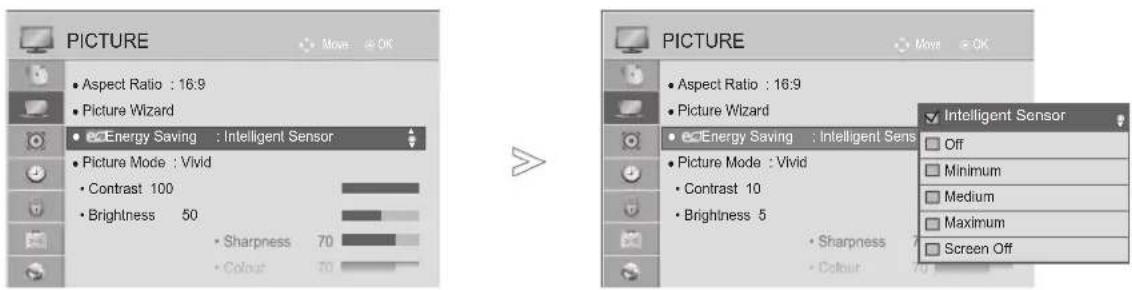

Energy Saving 102

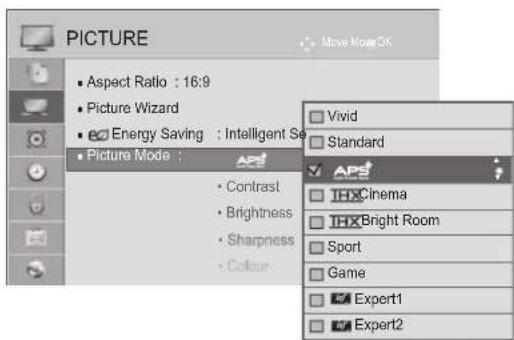

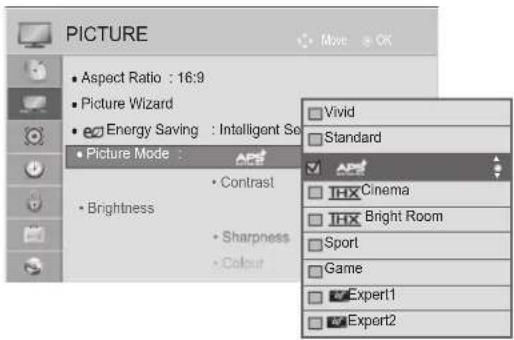

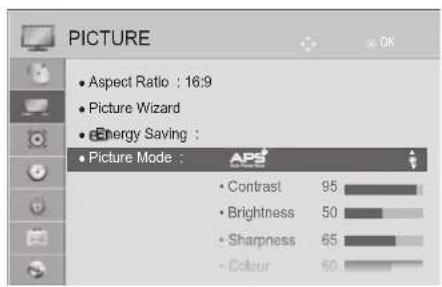

Preset Picture Settings ....103

Manual Picture Adjustment ....105

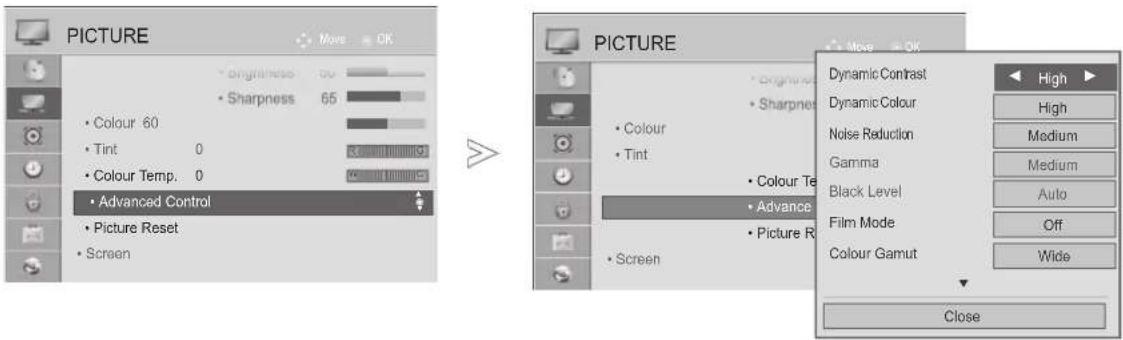

Picture Improvement Technology 106

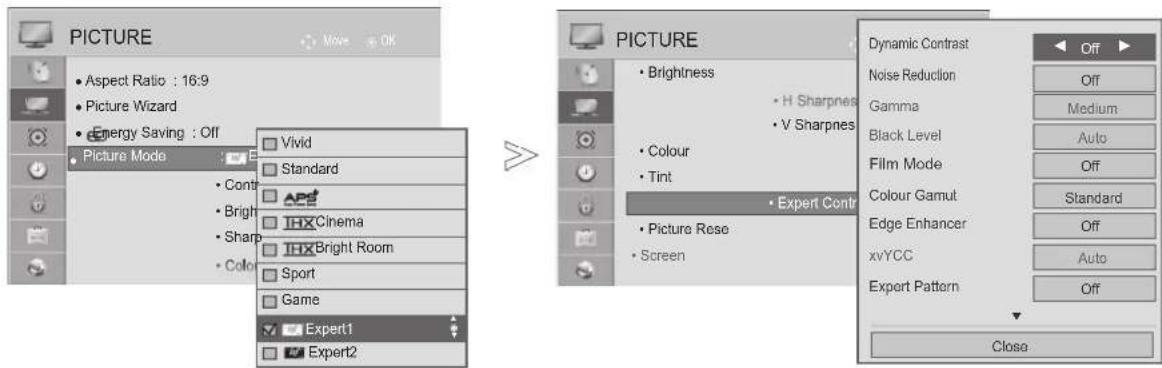

Expert Picture Control 107

Picture Reset 110

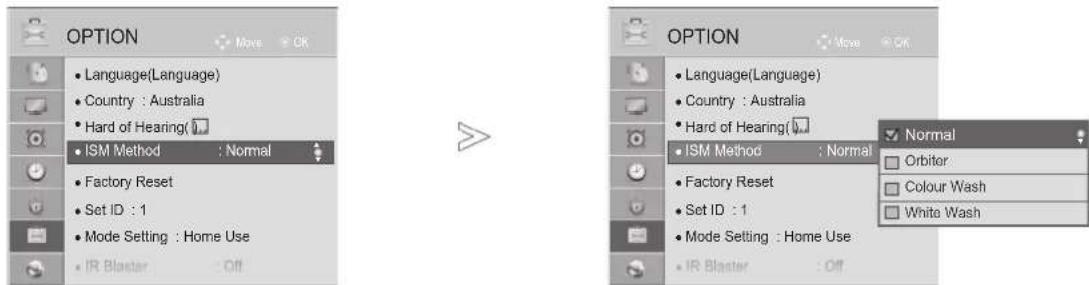

Image Sticking Minimization (ISM) Method .... 111

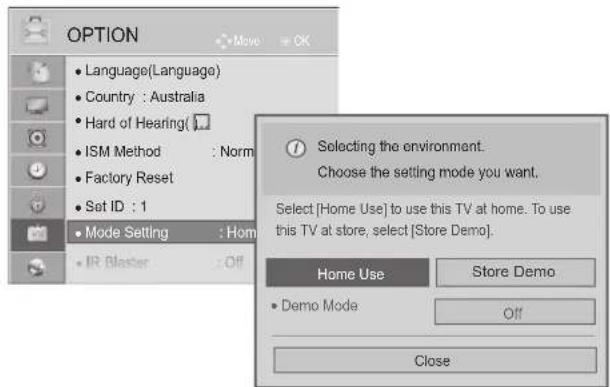

Mode Setting 112

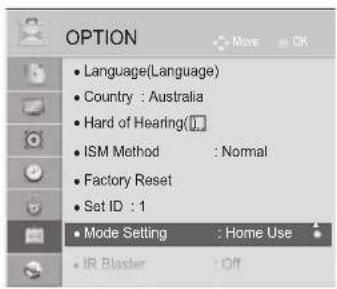

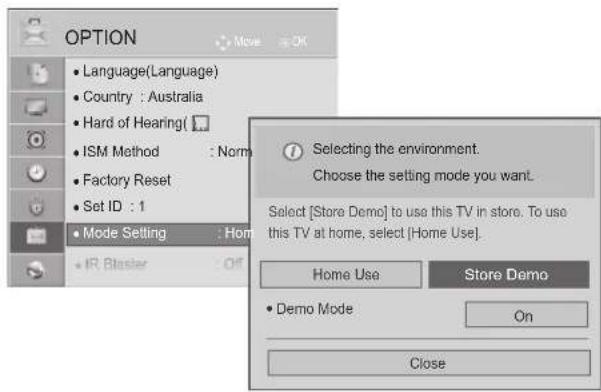

Demo Mode 113

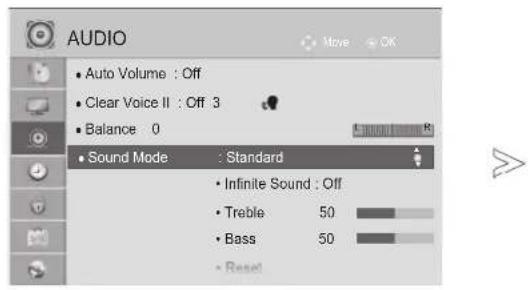

SOUND & LANGUAGE CONTROL

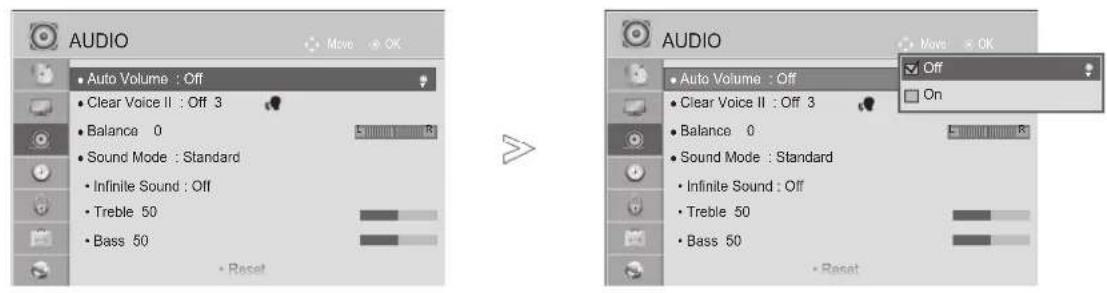

Auto Volume Leveler 114

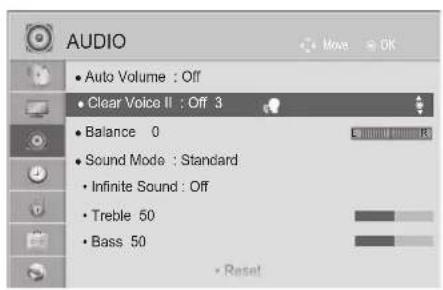

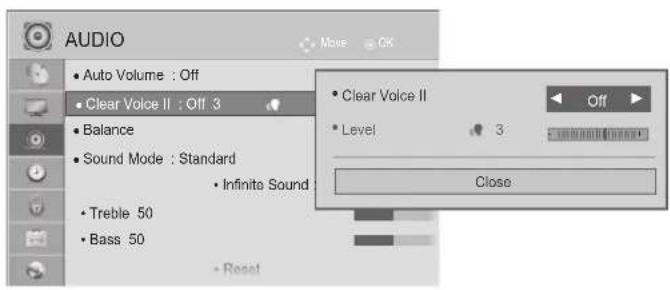

Clear Voice II 115

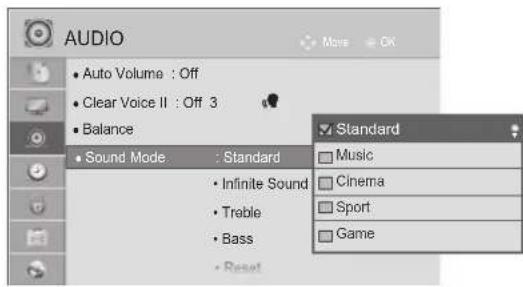

Preset Sound Settings-Sound Mode .....116

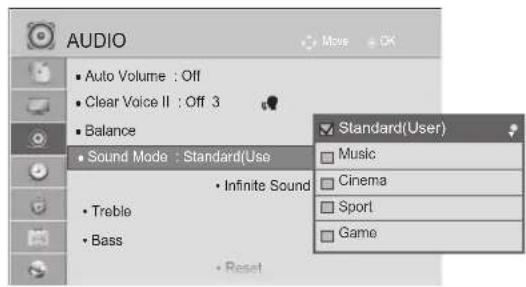

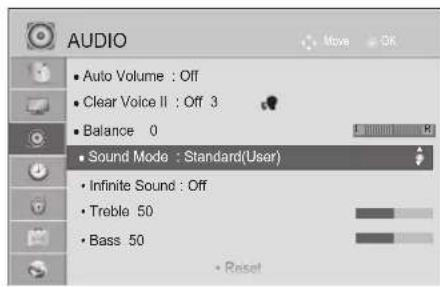

Sound Setting Adjustment -User Mode .....117

Infinite Sound 117

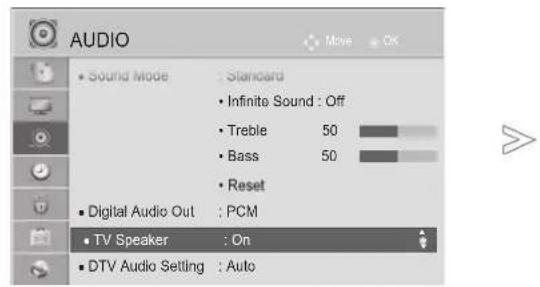

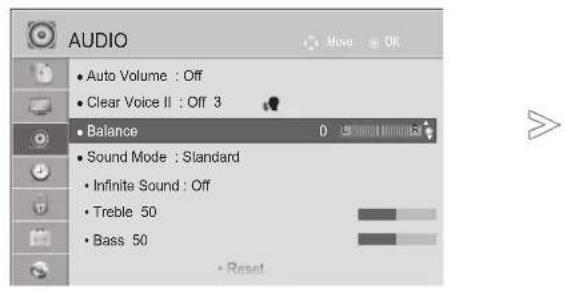

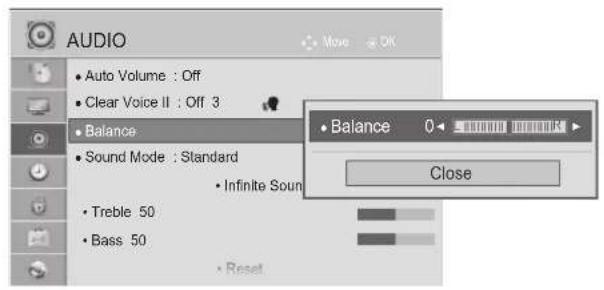

Balance 118

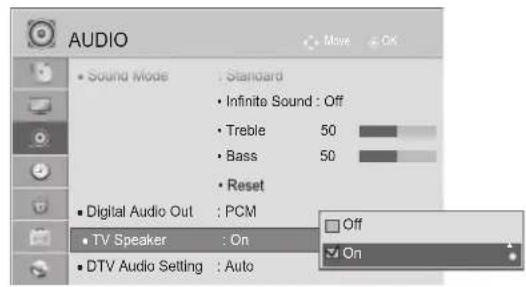

TV Speakers On/ Off Setup 119

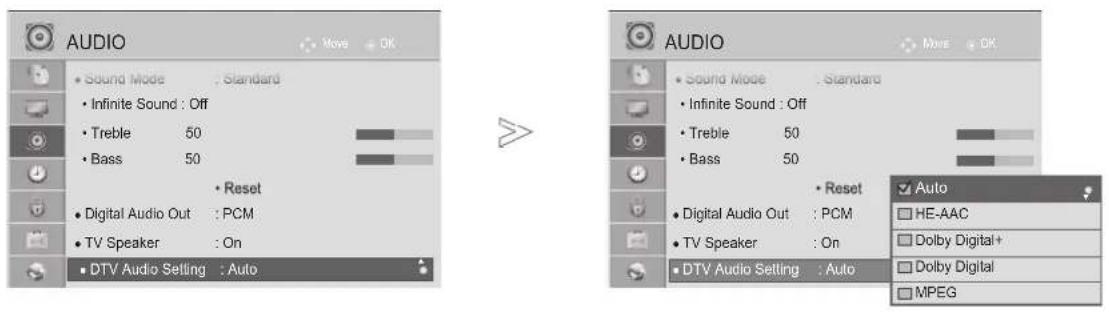

DTV Audio Setting (In digital mode only) .....120

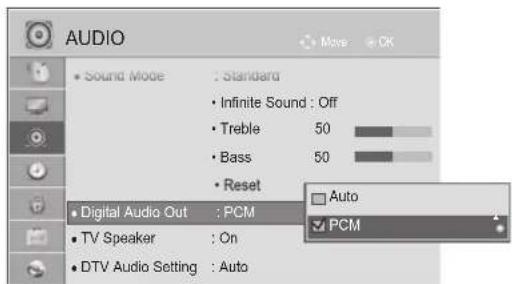

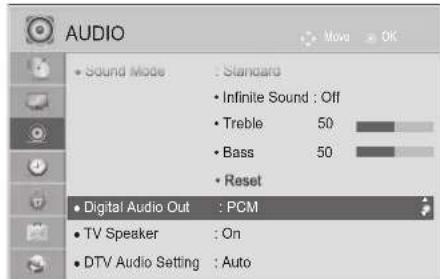

Selecting Digital Audio out ....121

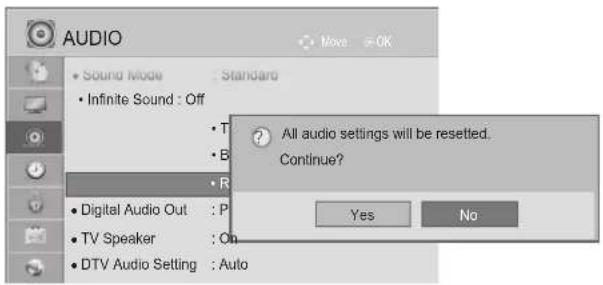

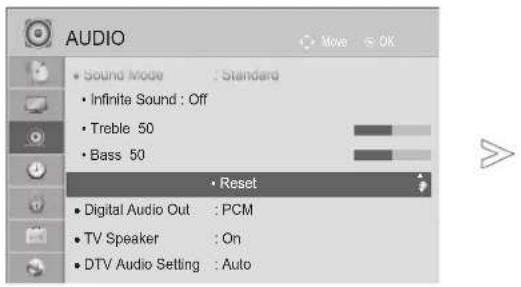

Audio Reset 122

I/II

- Stereo/Dual Reception (In analogue mode only) .....123

- NICAM Reception (In analogue mode only) ..... 124

- Speaker Sound Output Selection ....125

Country Selection ....126

Language Selection (In digital mode only) .....127

TIME SETTING

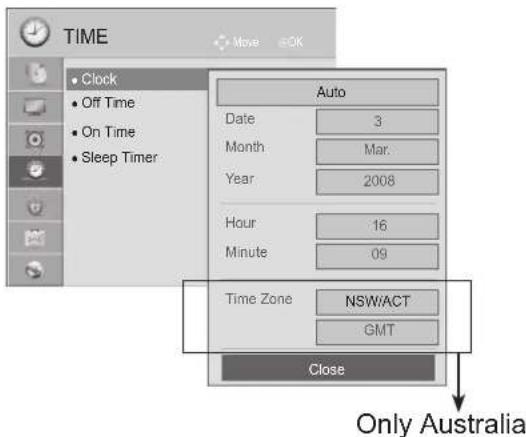

Clock Setup 129

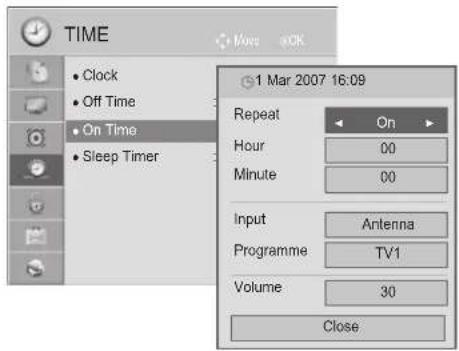

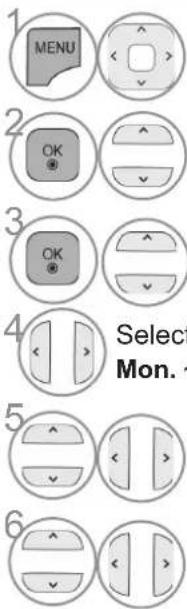

Auto On/Off Time Setting 130

Sleep Timer Setting 131

PARENTAL CONTROL / RATINGS

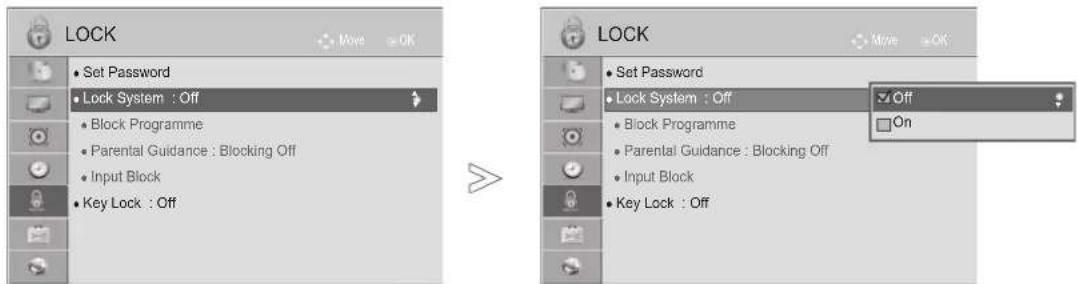

Set Password & Lock System....132

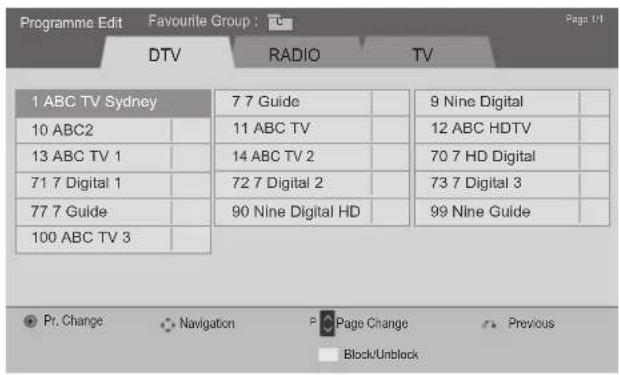

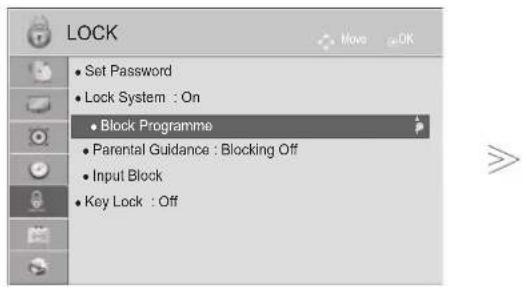

Block Programme 133

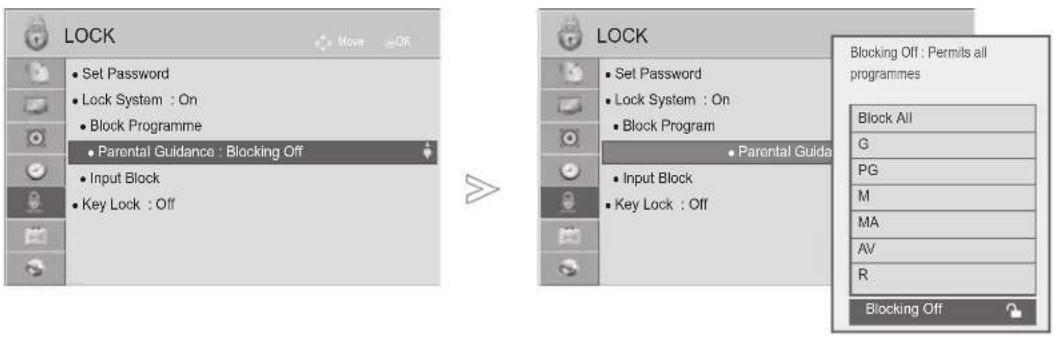

Parental Control (In digital mode only) .....134

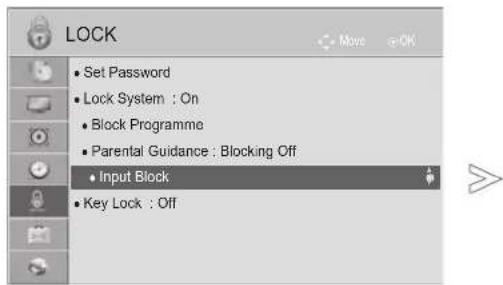

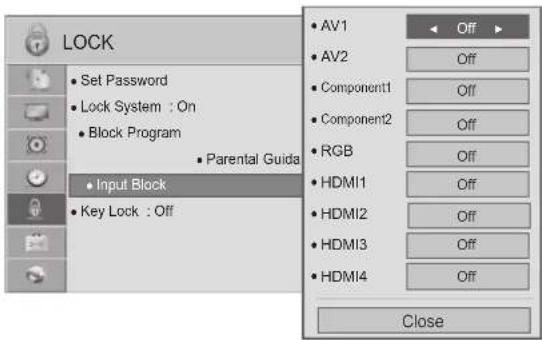

External Input Blocking ....135

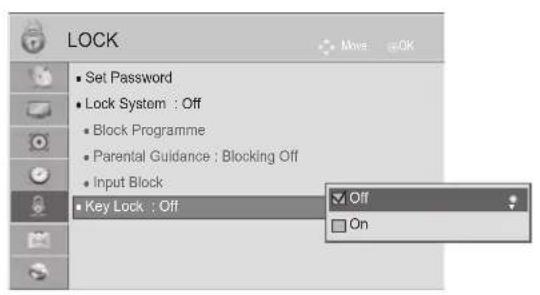

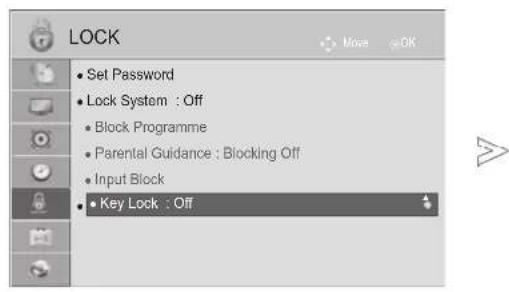

Key Lock....136

TELETEXT

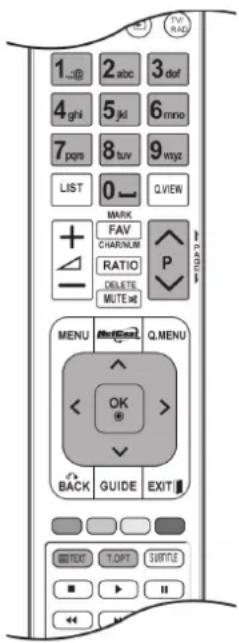

Switch On/Off 137

SIMPLE Text....137

TOP Text....138

FASTEXT 138

Special Teletext Functions ....139

DIGITAL TELETEXT

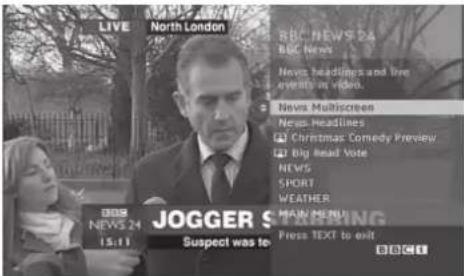

Teletext within Digital Service ....140

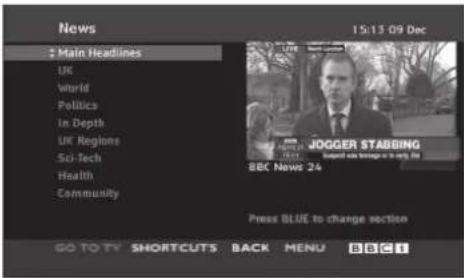

Teletext in Digital Service ....140

APPENDIX

Troubleshooting 141

Maintenance 143

Product Specifications 144

IR Codes 145

External Control Device Setup ....146

Open source software notice ....153

PREPARATION

PLASMA TV Models : 50/60PK7\*\*\*, 50/60PK9\*\*\* ACCESSORIES

Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV.

■ Image shown may differ from your TV.

Owner's Manual

Owner's Manual

Nero MediaHome 4 Essentials CD

Power Cord

1.5V 1.5V

Remote Control Batteries (AAA)

Cable Holder

Cable Management Clip

Protection Cover

M4x28 M4x14 Bolts for stand assembly (Only 50PK7***, 50PK9 ***)

Wireless LAN for Broadband /DLNA Adaptor (Only for 50/60PK950)

This item is not included for all models.

Polishing Cloth Polishing cloth for use on the screen.

* Lightly wipe any stains or fingerprints on the surface of the TV with the polishing cloth.

Do not use excessive force. This may cause scratching or discolouration.

Ferrite Core (This item is not included for all models.)

Ferrite core can be used to reduce the electromagnetic wave when connecting the power plug.

The closer the location of the ferrite core to the power plug, the better it is.

Install the power plug closely.

Ferrite Core (This item is not included for all models.)

Ferrite core can be used to reduce the electromagnetic wave when connecting the LAN cable. Place the ferrite core far from TV and wind the LAN cable in the ferrite core once.

PREPARATION

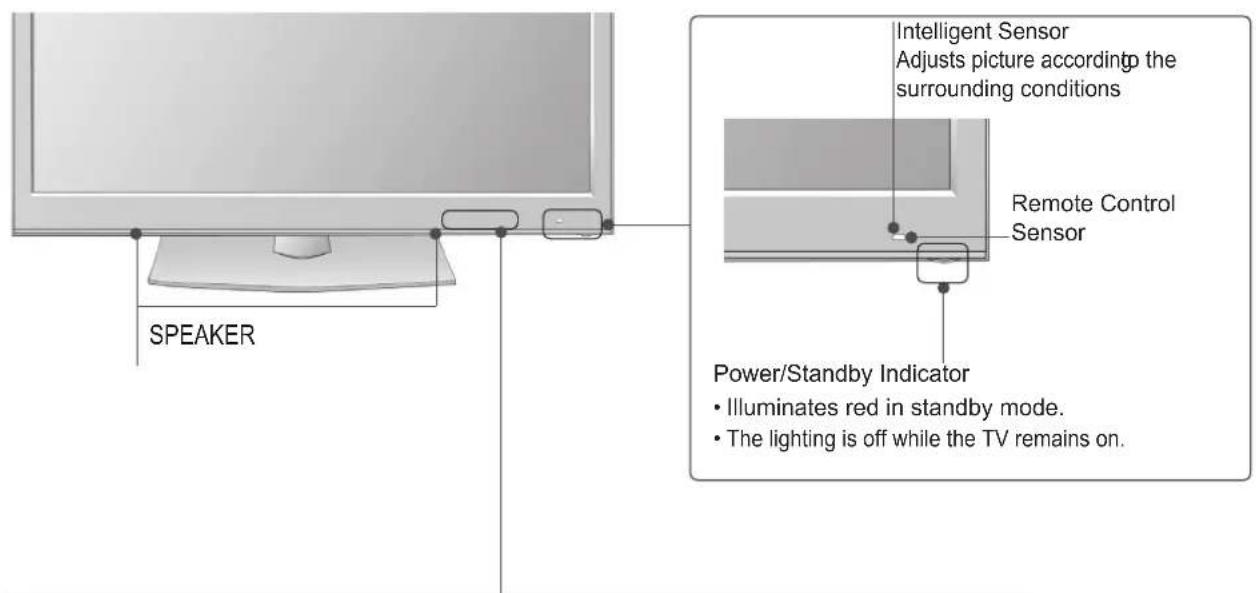

FRONT PANEL CONTROLS

NOTE

▶ TV can be placed in standby mode in order to reduce the power consumption. And TV should be switched off using the power switch on the TV if it will not be watched for some time, as this will reduce energy consumption.

The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

CAUTION

▶ Do not step on the glass stand or subject it to any impact. It may break, causing possible injury from fragments of glass, or the TV may fall.
▶ Do not drag the TV. The floor or the product may be damaged.

■ Image shown may differ from your TV.

SPEAKER Intelligent Sensor Adjusts picture according to the surrounding conditions Remote Control Sensor Power/Standby Indicator • Illuminates red in standby mode. • The lighting is off while the TV remains on.

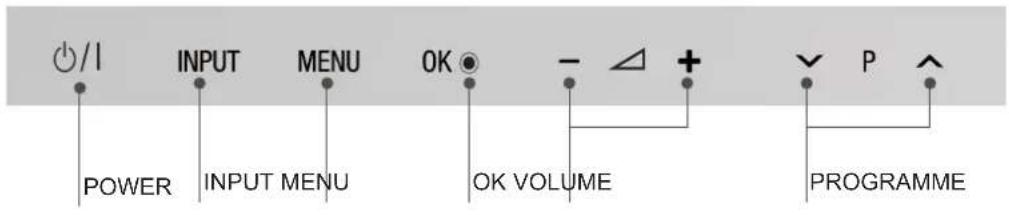

Touch Button

You can use the desired button function by touching.

/I INPUT MENU OK POWER INPUT MENU OK VOLUME P PROGRAMME

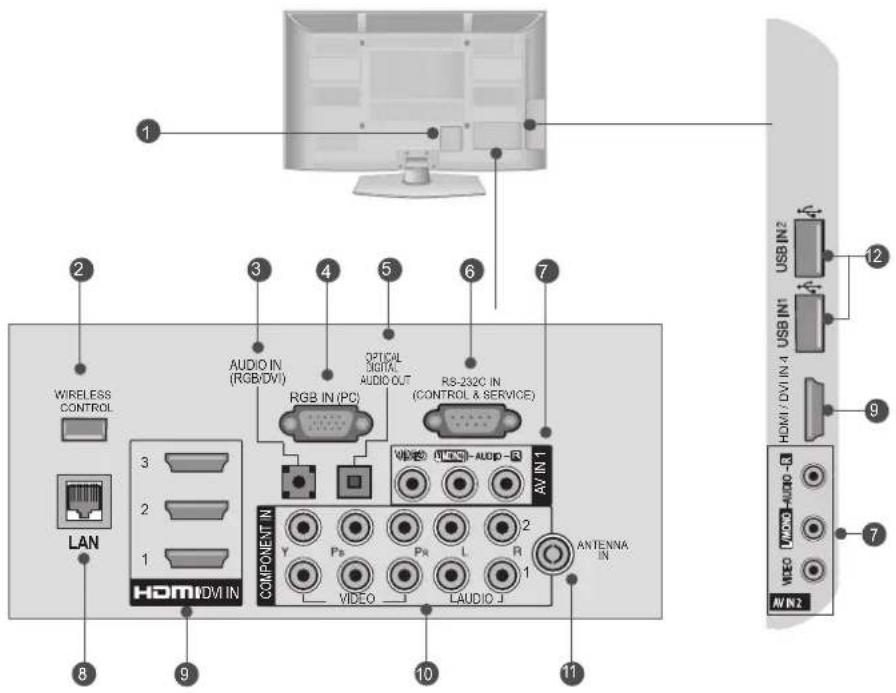

BACK PANEL INFORMATION

■ Image shown may differ from your TV.

1 2 3 4 5 6 7 WIRELESS CONTROL AUDIO IN (RGB/DVI) RGB IN (PC) OPTICAL DIGITAL AUDIO OUT RS-232C IN (CONTROL & SERVICE) 3 2 1 LAN HOMI/DMI IN COMPONENT IN VIDEO PA PR L R ANTENNA IN AV IN 1 10 11 USB IN 2 USB IN 1 HDMI /DVI IN 4 HDMI /Audi - AV VIDEO AV IN 2

① Power Cord Socket

This TV operates on an AC power.

Caution: Never attempt to operate the TV on DC power.

② WIRELESS Control

Connect the Wireless Ready Dongle to the TV to control the external input devices connected to Wireless Media Box wirelessly.

③ RGB/DVI Audio Input

Connect the audio from a PC or DTV.

4 RGB IN Input

Connect the output from a PC.

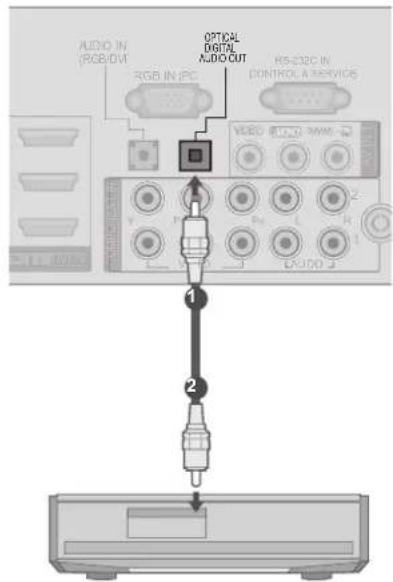

⑤ OPTICAL DIGITAL AUDIO OUT

Connect digital audio to various types of equipment.

Connect to a Digital Audio Component. Use an Optical audio cable.

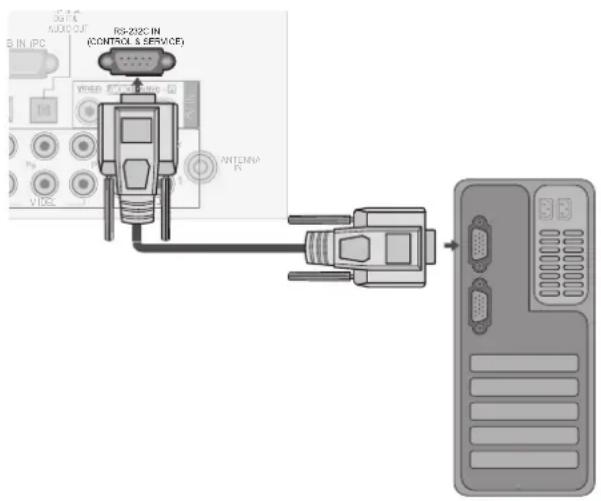

6 RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

This port is used for Service or Hotel mode.

⑦ Audio/Video Input

Connect audio/video output from an external device to these jacks.

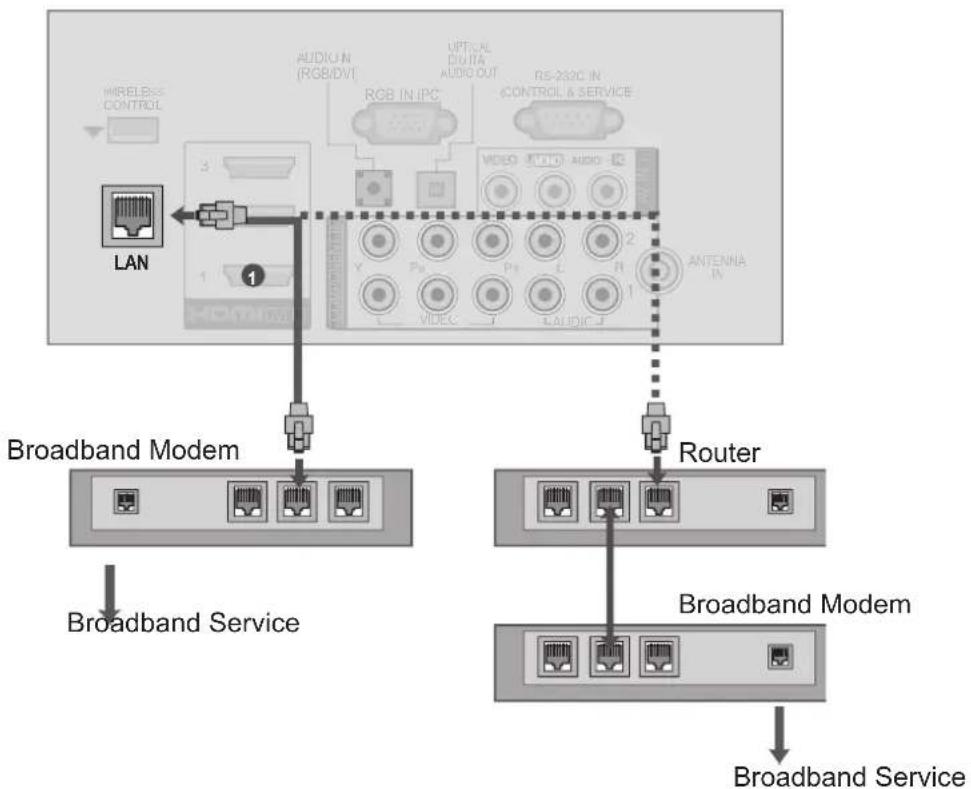

8 LAN

Network connection for AccuWeather,

Picasa, YouTube, etc.

Also used for video, photo and music files on a local network.

9 HDMI/DVI IN Input

Connect an HDMI signal to HDMI IN. Or DVI (VIDEO) signal to HDMI/DVI port with DVI to HDMI cable.

⑩ Component Input

Connect a component video/audio device to these jacks.

11 Antenna Input

Connect antenna or cable to this jack.

⑫ USB Input

Connect USB storage device to this jack.

PREPARATION

STAND INSTALLATION (only 50PK7\*\*\*, 50PK9\*\*\*)

■ Image shown may differ from your TV.

When assembling the desk type stand, check whether the bolt is fully tightened. (If not tightened fully, the product can tilt forward after the product installation.) If you tighten the bolt with excessive force, the bolt can deviate from abrasion of the tightening part of the bolt.

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Isometric line drawing of a rectangular electronic device with internal components, enclosed in a wavy boundary (no text or symbols)

② Set the Stand Base on even floor. Assemble the parts of the Stand Body with the Stand Base of the TV.

M4x14 Stand Body Stand Base

3 Assemble the parts of the Cable Management Clip with the Stand Body.

Cable Management Clip Stand Body

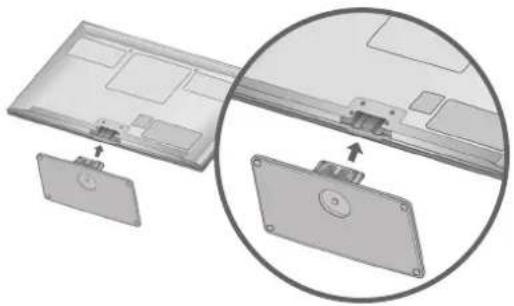

4 Assemble the TV as shown.

Diagram showing a device with a labeled component and its circular inset view of the internal components (no text or symbols present)

5 Fix the 4 bolts securely using the holes in the back of the TV.

3D CAD model of a mechanical assembly with mounting holes and a pin labeled M4x28 (no text or symbols on the component itself)

BACK COVER FOR WIRE ARRANGEMENT

■ Image shown may differ from your TV.

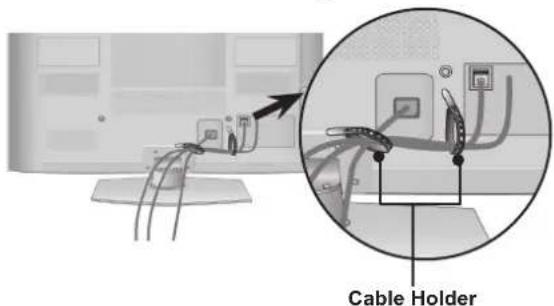

1 After connecting the cables as necessary, install Cable Holder as shown and bundle the cables.

In case of the LAN cable, install as shown to reduce the electromagnetic wave.

Cable Holder

2 Connect the cables as necessary. To connect additional equipment, see the External Equipment Setup section.

3D mechanical assembly diagram showing a bracket mounted on a base plate with a central component (no text or symbols)

3 Install the Cable Management Clip into the TV until clicking sound.

Diagram of a mechanical assembly with a cylindrical component mounted on a base, showing motion direction (no text or symbols)

NOTE

▶ Do not use the Cable Management Clip to lift the TV.

- If the TV is dropped, you may be injured or the TV may be damaged.

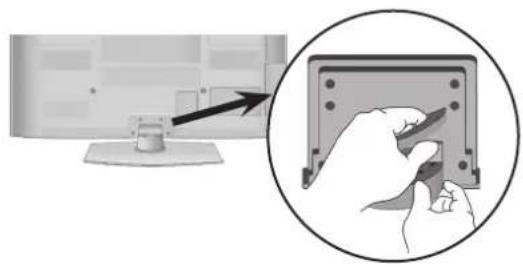

HOW TO REMOVE THE CABLE MANAGEMENT CLIP

■ Image shown may differ from your TV. Hold the Cable Management Clip with both hands and pull it backward as shown.

Illustration showing a computer monitor with a mouse and a magnified view of the screen device being inserted (no text or symbols present)

PREPARATION

NOT USING THE DESK-TYPE STAND

■ Image shown may differ from your TV. When installing the wall-mounted unit, use the protection cover.

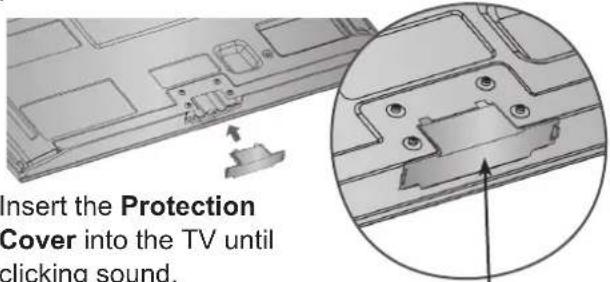

Insert the Protection Cover into the TV until clicking sound.

Protection Cover (Fix a Guide to the Outsides.)

Insert the Protection Cover into the TV until clicking sound.

SWIVEL STAND

■ Image shown may differ from your TV. After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to suit your viewing position.

Diagram of a mechanical component with angular and linear motion indicators (no text or symbols)

CAREFUL INSTALLATION ADVICE

■ You should purchase necessary components to fix the TV safety and secure to the wall on the market.
■ Position the TV close to the wall to avoid the possibility of it falling when pushed.
■ The instructions shown below are a safer way to set up the TV, by fixing it to the wall, avoiding the possibility of it falling forwards if pulled. This will prevent the TV from falling forward and causing injury. This will also prevent the TV from damage. Ensure that children do not climb or hang from the TV.

1 2

1 2

1 Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture. (If your TV has bolts in the eyebolts, loosen then bolts.)

* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

2 Secure the wall brackets with the bolts on the wall. Match the height of the bracket that is mounted on the wall.

Simple line drawing of a computer monitor with a vertical line and number 3, no text or symbols present

3 Use a sturdy rope to tie the product for alignment. It is safer to tie the rope so it becomes horizontal between the wall and the product.

NOTE

▶ When moving the TV undo the cords first.
▶ Use a platform or cabinet strong and large enough to support the size and weight of the TV.
▶ To use the TV safely make sure that the height of the bracket on the wall and on the TV is the same.

■ The TV can be installed in various ways such as on a wall, or on a desktop etc.
■ The TV is designed to be mounted horizontally.

EARTHING

Ensure that you connect the earth wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker.

Do not try to earth the TV by connecting it to telephone wires, lightening rods or gas pipes.

Power Supply Circuit breaker

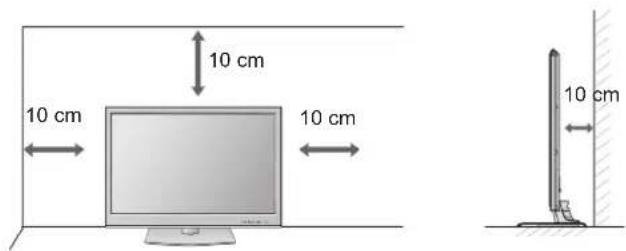

DESKTOP PEDESTAL INSTALLATION

■ Image shown may differ from your TV.

For adequate ventilation allow a clearance of 10 cm all around the TV.

10 cm 10 cm 10 cm 10 cm

WALL MOUNT: HORIZONTAL INSTALLATION

■ We recommend the use of a LG Brand wall mounting bracket when mounting the TV to a wall.
■ We recommend that you purchase a wall mounting bracket which supports VESA standard.
■ LG recommends that wall mounting be performed by a qualified professional installer.

NOTE

▶ Should Install wall mount on a solid wall perpendicular to the floor.
▶Should use a special wall mount, if you want to install it to ceiling or slanted wall.
The surface that wall mount is to be mounted on should be of sufficient strength to support the weight of TV set; e.g. concrete, natural rock, brick and hollow block.
▶Installing screw type and length depends on the wall mount used. Further information, refer to the instructions included with the mount.
▶ LG is not liable for any accidents or damage to property or TV due to incorrect installation:
- Where a non-compliant VESA wall mount is used.
- Incorrect fastening of screws to surface which may cause TV to fall and cause personal injury.
- Not following the recommended Installation method.

10 cm 10 cm 10 cm 10 cm A B

Model	VESA (A * B)	Standard Screw	Quantity
50PK7***	400 * 400	M6	4
60PK7***	600 * 400	M8	4
50PK9***	400 * 400	M6	4
60PK9***	600 * 400	M8	4

PREPARATION

REMOTE CONTROL KEY FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

(POWER) Switches the TV on from standby or off to standby. LIGHT You can turn the light of the remote control button (Only on or off. 50/60PK9**) ENERGY Adjust the Energy Saving mode of the TV.(► p.102) SAVING AV MODE It helps you select and set images and sounds when connecting AV devices.(► p.48) INPUT External input mode rotate in regular sequence. (► p.43) TV/RAD Selects Radio, TV and DTV channel. MENU Selects a menu. Clears all on-screen displays and returns to TV viewing from any menu.(► p.25) NetCast Select the desired NetCast menu source. (► p.52) (Bigpond, Weather info, Movie Online, Photo Album.) NetCast menu source can differ by country. Q. MENU Select the desired quick menu source. (Aspect Ratio, Clear Voice II , Picture Mode, Sound Mode, Audio Language, Sleep Timer, Skip Off/On, USB Device).(► p.24) THUMBSTICK Allows you to navigate the on-screen menus and (Up/Down/Left/Right) adjust the system settings to your preference. OK Accepts your selection or displays the current mode. BACK Allows the user to move return one step in an inter- active application, EPG or other user interaction function. EXIT Clears all on-screen displays and returns to TV viewing from any menu. GUIDE Shows programme guide.(► p.93) INFO ① Shows the present screen information.

ENERGY AV MODE INPUT LIGHT AV MODE INPUT/ENERGY/V SAVING TV/RAD 1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9 XYZ LIST 0 Q.VIEW MARK FAV CHAR/NUM P RATIO DELETE MUTE PAGE MENU NetCast Q.MENU < OK > BACK GUIDE EXIT 1 TEXT T.OPT SUBTITLE FREEZE ■ ▶ II INFO 0 to 9 number Selects a programme. button Selects numbered items in a menu. — (Space) Opens an empty space on the screen keyboard. LIST Displays the programme table. (▶ p.41) Q.VIEW Returns to the previously viewed programme. Coloured These buttons are used for teletext (on TELETEXT buttons models only), Programme edit. 1 TELETEXT These buttons are used for teletext. BUTTONS For further details, see the 'Teletext' section.(▶ p.137) SUBTITLE Recalls your preferred subtitle in digital mode. FREEZE Pause the present picture at the screen. (It doesn't work at USB Mode and Simplink.) The TV returns to normal viewing automatically if no signal is received or no operation is performed for 5 minutes. If you keep the screen in Freeze condition, the residual image can exist. * SIMPLINK See a list of AV devices connected to TV. When you toggle this button, the Simplink menu appears at the screen.(▶ p.45)

PREPARATION

ENERGY AV MODE INPUT SAVING LIGHT AV MODE INPUTENERG/EC TV/RAD 1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9 XYZ LIST 0 Q.VIEW MARK FAV CHAR/NUM RATIO P DELETE MUTE PAGE MENU NetCast Q.MENU OK > BACK GUIDE EXIT TEXT T.OPT SUBTITLE FREEZE INFO

VOLUME UP /DOWN Adjusts the volume.

MARK Select the input to apply the Picture Wizard settings. Mark and un-mark programmes in the USB menu.

FAV Displays the selected favourite programme.

CHAR/NUM Shifts the Character or Number for NetCast menu.

RATIO Selects your desired Aspect Ratio of picture. (▶ p.99)

DELETE Deletes the entered character when entering the character on the screen keyboard.

MUTE Switches the sound on or off.

Programme Selects a programme. UP/DOWN

PAGE UP/ DOWN Move from one full set of screen information to the next one.

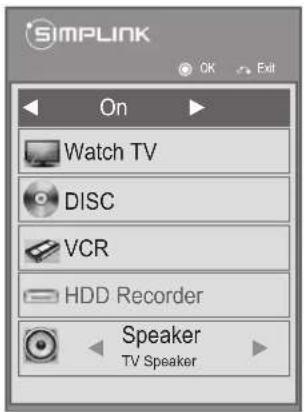

SIMPLINK / Controls SIMPLINK or MY MEDIA menu (Photo List, MY MEDIA Music List and Movie List).

Menu control buttons

Installing Batteries

■ Open the battery compartment cover on the back and install the batteries matching correct polarity (+with +,-with -).
■ Install two 1.5 V AAA batteries. Do not mix old or used batteries with new ones.
■ Close cover.
■ To remove the batteries, perform the installation actions in reverse.

EXTERNAL EQUIPMENT SETUP

■ To prevent damage do not connect to the mains outlet until all connections are made between the devices.

ANTENNA CONNECTION

■ For optimum picture quality, adjust antenna direction.
■ An antenna cable and converter are not supplied.

■ In poor signal areas, to achieve better picture quality it may be necessary to install a signal amplifier to the antenna as shown above.
■ If signal needs to be split for two TVs, use an antenna signal splitter for connection.

EXTERNAL EQUIPMENT SETUP

■ To avoid damaging any equipment, never plug in any power cord until you have finished connecting all equipment.
■ This section on EXTERNAL EQUIPMENT SETUP mainly uses diagrams for the 50/60 PK950.
■ Image shown may differ from your TV.

CONNECTING WITH A COMPONENT CABLE

This TV can receive Digital RF/Cable signals without an external digital set-top box. However, if you do receive Digital signals from a digital set-top box or other digital external device, refer to the diagram as shown below.

1 Connect the video outputs(Y, PB, PR) of the external equipment (digital set-top box, DVD, etc.) to the COMPONENT IN VIDEO jacks on the TV.
2 Connect the audio output of the external equipment (digital set-top box, DVD, etc.) to the COMPONENT IN AUDIO jacks on the TV.
3 Turn on the external equipment. (Refer to the external equipment's manual for operating instructions.)
4 Select the COMPONENT1 input source using the INPUT button on the remote control. If connected to COMPONENT IN 2, select COMPONENT2 input source.

COMPONENT IN Y Pb Pr L 2 R 1 ANTENNA IN VIDEO AUDIO 1 2 Y 2 2 L R

▶ HDMI Audio Supported format : Dolby Digital, PCM. DTS Audio format is not supported.

Signal Component HDMI
480i/576i O X
480p/576p O	O
720p/1080i	O	O
1080p	O(50 Hz / 60 Hz only)	O(24 Hz / 30 Hz / 50 Hz / 60 Hz)

Component Input ports

To achieve better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV	Y	P_B	P_R
Video output portson DVD player	Y	P_B	P_R
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

CONNECTING WITH AN HDMI CABLE

1 Connect the HDMI output of the external equipment (digital set-top box, DVD, etc.) to HDMI/DVI IN 1, HDMI/DVI IN 2, HDMI/DVI IN 3, HDMI/DVI IN 4 jack on the TV.
2 Turn on the external equipment. (Refer to the external equipment's manual for operating instructions.)
3 Select HDMI1, HDMI2, HDMI3, HDMI4 input source using the INPUT button on the remote control.

NOTE

▶ The TV can receive video and audio signals simultaneously when using an HDMI cable.
▶ If the DVD does not support Auto HDMI, you must set the output resolution appropriately.
▶ Check that your HDMI cable is High Speed HDMI Cable. If the HDMI cables are not High Speed HDMI Cable, flickering or no screen display can result. Please use the High Speed HDMI Cable.

WIRELESS CONTROL LAN (RGB/DVI) RGB IN (P) HOMIDVI IN COMPROMETER 1 HDMI-DTV OUTPUT

EXTERNAL EQUIPMENT SETUP

CONNECTING WITH AN HDMI TO DVI CABLE

1 Connect the digital set-top box or the DVI output of the PC to HDMI/DVI IN 1, HDMI/DVI IN 2, HDMI/DVI IN 3, HDMI/DVI IN 4 jack on the TV.
2 Connect the audio output of the digital set-top box or the PC audio output to the AUDIO IN (RGB/DVI) jack on the TV.
3 Turn on the digital set-top box or the PC and the TV. (Refer to the digital set-top box or the PC manual for operating instructions.)
4 Select HDMI1, HDMI2, HDMI3, HDMI4 input source using the INPUT button on the remote control.

AUDIO IN (RGB/DM) 3 2 1 HOMI MIN OPTUAL ON CAN ALABOULT RE-200CM CONTROL & SERVICE 1 2 DVI-DTV OUTPUT 1 R or DVHPC OUTPUT AUDIO

USB SETUP

1 Connect the USB device to the USB IN 1 or USB IN 2 jack on the TV.
2 After connecting the USB IN 1 or USB IN 2 jack, you use the USB function. (▶ p.60)

USB IN2 USB IN1 HDMI / DVI IN ① or Samsung BBox

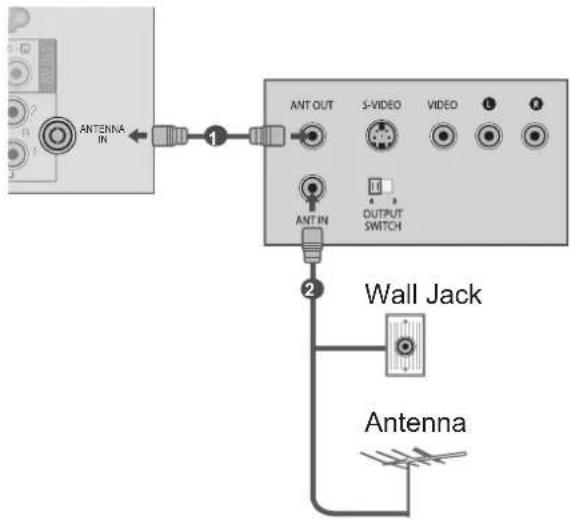

CONNECTING WITH AN RF CABLE

To avoid picture noise (interference), allow adequate distance between the VCR and TV.

1 Connect the ANT OUT socket of the VCR to the ANTENNA IN socket on the TV.
2 Connect the antenna cable to the ANT IN socket of the VCR.
3 Press the PLAY button on the VCR and match the appropriate channel between the TV and VCR for viewing.

ANTENNA IN 1 ANT OUT S-VIDEO VIDEO 1 1 ANT IN OUTPUT SWITCH 2 Wall Jack Antenna

CONNECTING WITH AN RCA CABLE

1 Connect the AUDIO/VIDEO jacks between TV and VCR or external equipment. Match the jack colours. (Video = yellow, Audio Left = white, and Audio Right = red)
2 Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual.) Or, Operate the corresponding external equipment. (Refer to external equipment operating guide.)
3 Select AV1, AV2 input source using the INPUT button on the remote control.

NOTE

▶ If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.

AVIN2 1 S-VIDEO VIDEO OUTPUT SWITCH ANT IN ANT OUT or VIDEO L R Camcorder Video Game Set

EXTERNAL EQUIPMENT SETUP

CONNECTING WITH A D-SUB 15 PIN CABLE

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

1 Connect the RGB output of the PC to the RGB IN (PC) jack on the TV.
2 Connect the PC audio output to the AUDIO IN (RGB/DVI) jack on the TV.
3 Turn on the PC and the TV
4 Select RGB input source using the INPUT button on the remote control.

WIREFLOWS CONTROL LAN AUDIO IN (RGB/DVI) RGB IN (PC) OPTICAL BUTTER AUDIO OUT RS-335C IN CONTROL & SERVICE VREF 1 2 3 4 5 6 7 8 9 AUDIO AUDIO RGB OUTPUT

DIGITAL AUDIO OUT SETUP

Sending the TV's audio signal to external audio equipment via the Digital Audio Output (Optical) port. If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL AUDIO OUT terminal on the back of TV to a Home Theater (or amp).

1 Connect one end of an optical cable to the TV Digital Audio (Optical) Output port.
2 Connect the other end of the optical cable to the digital audio (Optical) input on the audio equipment.
3 Set the "TV Speaker option - Off" in the AUDIO menu.(▶p.119). Refer to the external audio equipment instruction manual for operation.

CAUTION

▶ Do not look into the optical output port. Looking at the laser beam may damage your vision.

AUDIO IN (RGB/DVI) RGB IN (PC) OPTICAL DIGITAL AUDIO CUT RS-32C IN CONTROL SERVICE VIDEO R2 V P D L R 1 AUDIO 1 2

EXTERNAL EQUIPMENT WIRELESS CONNECTION

LG TVs with a Wireless Control port support the LG Wireless Media Box, which is sold separately. When you connect the Wireless Ready Dongle (included with the Wireless Media Box) to the TV, external devices can be connected to the LG Wireless Media Box and video and audio will be sent to the TV wirelessly.

After the wireless is connected, press the INPUT button to view the wireless input screen. Refer to the Wireless Media Box manual for operating instructions.

1 Connect the WIRELESS CONTROL jack of the Wireless Ready Dongle to the WIRELESS CONTROL jack on the TV.
2 Connect HDMI OUT jack of the Wireless Ready Dongle to the HDMI/DVI IN 1, HDMI/DVI IN 2, HDMI/DVI IN 3, HDMI/DVI IN 4 jack on the TV.

LG A01 A02 COM1 COM2 RGB HDMI1 HDMI2 HDMI3 HDMI4 AFELE38 OFF

LG Wireless Media Box

LG Wireless Ready Dongle

WIRELESS CONTROL LAN 3 2 1 AIDIO IN (RGB/DVI) RGB IN PC HDMI DVI IN Y Pa VII

NOTE

▶ WIRELESS CONTROL : Wireless Ready Dongle power supply and control usage.
▶ HDMI : Video/Audio signal is connected in Wireless Ready Dongle.

▶ When you connect to the Wireless Media Box (Separately sold product), you can watch the external device connected to the Wireless Media Box through wireless connection.
▶ When using the external device connected to the Wireless Media Box, some functions of the TV.
▶ In wireless external output, Real Cinema and Digital Noise Reduction functions are not supported.

EXTERNAL EQUIPMENT SETUP

SUPPORTED DISPLAY RESOLUTION

RGB-PC, HDMI/DVI-PC mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x400 31.469 70.08
640x480 31.469 59.94
800x600 35.156 56.25
800x600 37.879 60.31
1024x768 48.363 60.00
1280x768 47.693 59.992
1360x768 47.712 60.015
1280x1024 63.981 60.020
1920x1080 66.587 59.934

HDMI/DVI-DTV mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x480	31.47	59.94
	31.47	60
720x576 31.25 50
1280x720	37.5	50
	44.96	59.94
	45	60
1920x1080	33.72	59.94
	33.75	60
	28.125	50
	26.97	23.94
	27	24
	33.71	29.97
	33.75	30.00
	56.25	50
	67.432	59.939
	67.5	60

NOTE

• Avoid keeping a fixed image on the set's screen for prolonged periods of time. The fixed image may become permanently imprinted on the screen; use a screen saver when possible.
  There may be interference relating to resolution, vertical pattern, contrast or brightness in PC mode. Change the PC mode to another resolution or change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
  ▶ The synchronization input waveform for Horizontal and Vertical frequencies are separate.
  ▶ We recommend using 1020x1080, 60 Hz for the PC mode, this should provide the best picture quality.
  ▶ Connect the signal cable from the monitor output port of the PC to the RGB (PC) port of the TV or the signal cable from the HDMI output port of the PC to the HDMI IN (or HDMI/DVI IN) port on the TV.

▶ Connect the audio cable from the PC to the Audio input on the TV. (Audio cables are not included with the TV).
▶ If using a sound card, adjust PC sound as required.
▶ If the graphic card on the PC does not output analogue and digital RGB simultaneously, connect only one of either RGB or HDMI IN (or HDMI/DVI IN) to display the PC output on the TV.
▶ If the graphic card on the PC does output analogue and digital RGB simultaneously, set the TV to either RGB or HDMI; (the other mode is set to Plug and Play automatically by the TV.)
▶ DOS mode may not work depending on the video card if you use an HDMI to DVI cable.
▶ If you use too long an RGB-PC cable, there may be interference on the screen. We recommend using under 5m of cable. This provides the best picture quality.

SCREEN SETUP FOR PC MODE

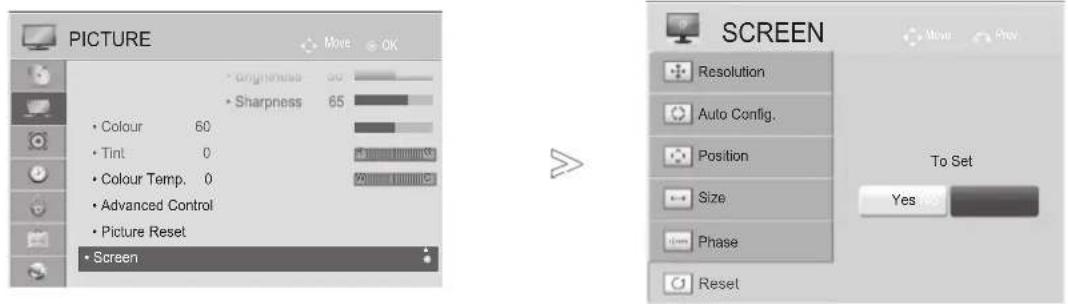

Screen Reset

Returns Position, Size and Phase to the factory default settings.

This function works in the following mode : RGB[PC].

PICTURE • Brightness 50 • Sharpness 65 • Colour 60 • Tint 0 • Colour Temp. 0 • Advanced Control • Picture Reset • Screen SCREEN Resolution Auto Config. Position Size Phase Reset To Set Yes

Select PICTURE.

Select Screen.

Select Reset.

Select Yes.

Run Reset.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

EXTERNAL EQUIPMENT SETUP

Auto Configure (RGB [PC] mode only)

Automatically adjusts the picture position and minimizes image instability. After adjustment, if the image is still not correct, your TV is functioning properly but needs further adjustment.

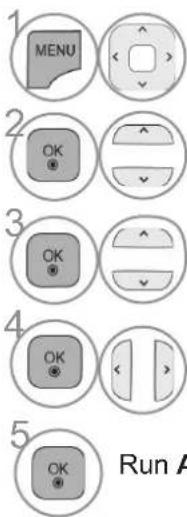

Auto configure

This function is for automatic adjustment of the screen position, size, and phase The displayed image will be unstable for a few seconds while the auto configuration is in progress.

PICTURE • Colour: 60 • Tint 0 • Colour Temp: 0 • Advanced Control • Picture Reset • Screen SCREEN • Resolution • Auto Config. • Position • Size • Phase • Reset • Auto Config. Yes No

1 MENU 2 OK 3 OK 4 OK 5 OK Run A

Select PICTURE.

Select Screen.

Select Auto Config.

Select Yes.

Run Auto Config.

• If the position of the image is still not correct, try Auto adjustment again.

• If picture needs to be adjusted again after Auto adjustment in RGB (PC), you can adjust the Position, Size or Phase.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

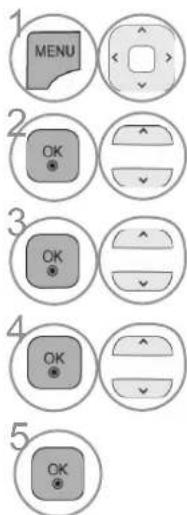

Selecting Resolution

To view a normal picture, match the resolution of RGB mode and selection of PC mode.

This function works in the following mode: RGB[PC]

PICTURE • Colour 60 • Tint 0 • Colour Temp. 0 • Advanced Control • Picture Reset • Screen 1024 x 768 1280 x 768 1360 x 768 Screen Resolution Auto Config. Position Size Phase Reset

1 MENU 2 OK 3 OK 4 OK 5

Select PICTURE.

Select Screen.

Select Resolution.

Select the desired resolution.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

EXTERNAL EQUIPMENT SETUP

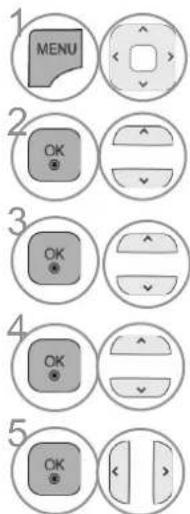

Adjustment for screen Position, Size, Phase

If the picture is not clear after auto adjustment and especially if characters are still trembling, adjust the picture position manually.

This function works in the following mode : RGB[PC].

PICTURE • Brightness 00 • Sharpness 65 • Colour 60 • Tint 0 • Colour Temp. 0 • Advanced Control • Picture Reset • Screen SCREEN Resolution Auto Config. Position Size Phase Reset

Select PICTURE.

Select Screen.

Select Position, Size or Phase.

Make appropriate adjustments.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

NETWORK SETUP

Wired Network Connection

This TV can be connected to a local area network (LAN) via the LAN port. After making the physical connection, the TV needs to be set up for network communication.

1 Connect the LAN port of the Modem or Router to the LAN port on the TV.
2 Select "Network Setting" in the NETWORK menu.
3 After connecting the LAN port, use the NetCast menu. For more information about NetCast setup and troubleshooting, visit http://lgknowledgebase.com. Search for NetCast.

CAUTION

▶ Do not connect a modular phone cable to the LAN port.
▶ Since there are various connection methods, please follow the specifications of your telecommunication carrier or internet service provider.

EXTERNAL EQUIPMENT SETUP

Wired Network Setup

If wired and wireless networks are both available, wired is the preferred method.

After making a physical connection, a small number of home networks may require the TV network settings to be adjusted.

For detail information, contact your internet provider or router manual.

Select NETWORK.

Select Network Setting.

Select Wired.

If you already set Network Setting: Select Resetting. The new connection settings resets the current network settings.

Select IP Auto Setting or IP Manual Setting.

When Selecting IP Manual Setting: IP addresses will need to be input manually.

Select OK.

■ This feature requires an always-on broadband internet connection.
■ You do not need to connect to a PC to use this function.
■ If Network Setting is not working, check your network conditions. Check the LAN cable and make sure your router has DHCP turned on if you wish to use the Auto Setting.
■ If the Network Setting is not completed, network may not operate normally.

- IP Auto Setting: Select it if there is a DHCP server on the local area network (LAN) via wired connection, the TV will automatically be allocated an IP address. If you're using a broadband router or broadband modem that has a DHCP (Dynamic Host Configuration Protocol) server function. The IP address will automatically be determined.

■ IP Manual Setting: Select it if there is no DHCP server on the network and you want to set the IP address manually.

EXTERNAL EQUIPMENT SETUP

NOTE

For more information about NetCast setup and troubleshooting, visit http://lgknowledgebase.com Search for NetCast.
▶ Use a standard LAN cable with this TV. Cat5 or better with a RJ45 connector.
▶ Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.
▶ Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.
▶ LG is not responsible for any malfunction of the TV and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.
▶ LG is not responsible for problems within your internet connection.
▶ Some content available through the network connection may not be compatible with the TV. If you have questions about such content, please contact the producer of the content.
▶ You may experience undesired results if the network connection speed does not meet the requirements of the content being accessed.
▶ Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.
▶ Any fees charged by an ISP including, without limitation, connection charges are your responsibility.
▶ A 10 Base-T or 100 Base-TX LAN port is required for connection to this TV. If your internet service does not allow for such a connection, you will not be able to connect the TV.
▶ A DSL modem is required to use DSL service and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this TV or you may be limited to the number of devices you can connect at the same time. (If your ISP limits sub-scription to one device, this TV may not be allowed to connect when a PC is already connected.)

The use of a “Router” may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.
The wireless network operates at 2.4 GHz radio frequencies that are also used by other household devices such as cordless telephone, Bluetooth® devices, microwave oven, and can be affected by interference from them. It can be interrupted by the device using 5 GHz radio frequencies. It is same device with LG wireless media box, cordless telephone, other Wi-Fi device.
▶ It may decrease the service speed using Wireless network by surrounding wireless condition.
▶ Turn off all unused network equipment in your local home network. Some devices may generate network traffic.
In some instances, placing the access point or wireless router higher up away from the floor may improve the reception.
The reception quality over wireless depends on many factors such as type of the access point, distance between the TV and access point, and the location of the TV.
▶ When connecting internet through the wired/wireless sharing machine, it may interrupt the connection because of the use limitation and confirmation of service company.
▶ To connect wireless AP, an AP that supports the wireless connection is necessary, and the wireless connection function of the AP needs to be activated. Please enquire to the AP supplier for the possibility of AP wireless connections.
▶ Please verify the security settings of AP SSID for wireless AP connection, and enquire to the AP supplier for the AP SSID security settings.
The TV can become slower or malfunction with wrong settings of network equipments (wired/wireless router, hub, etc). Please install correctly by referring to the manual of the equipment, and set the network.
▶ When AP is set to include 802.11n, and if Encryption is designated as WEP(64/128bit) or WPA(TKIP/AES), the connection may not be possible.
▶ There may be different connection methods according to the AP manufacturers.

Wireless Network Connection

The LG Wireless LAN for Broadband/DLNA Adaptor, allows the TV to connect to a wireless lan network.

The network configuration and connection method may vary depending on the equipment in use and the network environment. Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings.

USB IN2 USB IN1 HDMI / DVI4N VIDEO HDMI/DI4N USB IN1 USB IN1 W W W W W

1 Connect the "LG Wireless LAN for Broadband/DLNA Adaptor" to the USB IN 1 or USB IN 2 jack on the TV.
2 Select "Network Setting" in the NETWORK menu. After connecting, you can use the NetCast menu.

NOTE

For enjoying pictures, music, or video stored in the PC using the router, the use of wired port in the router is recommended.
▶ When the wireless port of the router is used, there may be restrictions for some functions.

EXTERNAL EQUIPMENT SETUP

Wireless Network Setup

Setting up the AP (Access Point) or the wireless router is required before connecting the TV to the network.

    J["If your AP is locked"] --> K["Inserting the security key"]
    K --> L["Insert the security key of AP."]
    L --> M["Insert 9-53 ASCII characters."]
    M --> N["OK"]
    N --> O["Cancel"]
    O --> P["Prev."]
    P --> Q["Exit"]

    R["Selecting AP"] --> S["Select AP you want to connect."]
    S --> T["Page 1/1"]
    T --> U["IPTIME"]
    U --> V["iptime"]
    V --> W["ASW"]
    W --> X["Network1"]
    X --> Y["Connecting with PIN mode"]
    Y --> Z["Next"]
    Z --> AA["Previous Exit"]

Select NETWORK.

Select Network Setting.

Select Wireless.

If you already set Network Setting: Select Resetting.

The new connection settings resets the current network settings.

Scan the all available AP (Access Point) or wireless routers within range and display them as a list.

Select an AP (Access Point) or wireless router on the list. (If your AP is locked, insert the security key of AP).

Input the security key of AP.

9 Repeat step 4-5 on P.14.

Select Setting from the AP list.

When a security code is already set

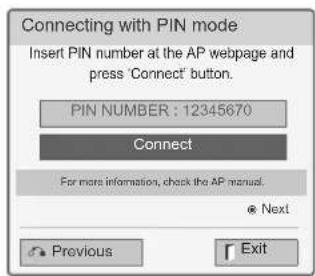

PIN (Personal Identification Number)

If you want to connect the AP (Access Point) or router with PIN, use this feature.

Selecting AP Select AP you want to connect. Page 1/1 IPTIME iptime ASW Network1 Connecting with PIN mode Access Point Search Next Exit Previous

Connecting with PIN mode Insert PIN number at the AP webpage and press 'Connect' button. PIN NUMBER : 12345670 Connect For more information, check the AP manual. Next Previous Exit

1 Repeat step 1-6 on P.18.

Connect the access point with PIN mode.

3 You can see the Network ID and Security Key on your TV screen. Enter the PIN number to your device.

Select Connect.

5 Repeat step 4-5 on P.14.

■ PIN number is the unique 8 digit number of the dongle.

EXTERNAL EQUIPMENT SETUP

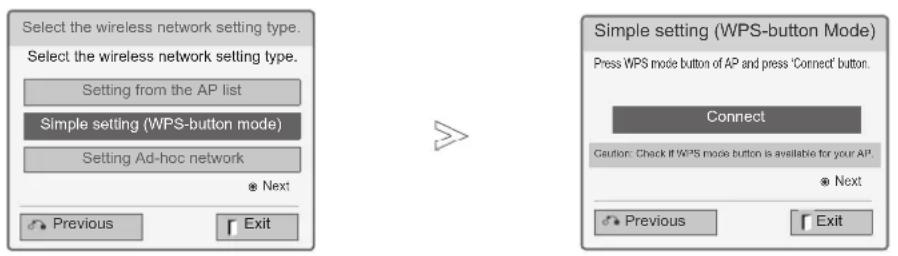

Simple setting (WPS-button mode)

If your access point or wireless router that supports PIN or WPS (Wi-Fi Protected Setup), it's available to use your access point or wireless router within 120 counts. You do not need to know the access point name (SSID: Service Set Identifier) and security code of your access point or wireless router.

Select the wireless network setting type. Select the wireless network setting type. Setting from the AP list Simple setting (WPS-button mode) Setting Ad-hoc network * Next Previous Exit Simple setting (WPS-button Mode) Press WPS mode button of AP and press 'Connect' button. Connect Caution: Check if WPS mode button is available for your AP. * Next Previous Exit

1 Repeat step 1-4 on P.18.

Select Simple setting (WPS Mode).

Select Connect.

4 Repeat step 4-5 on P.14.

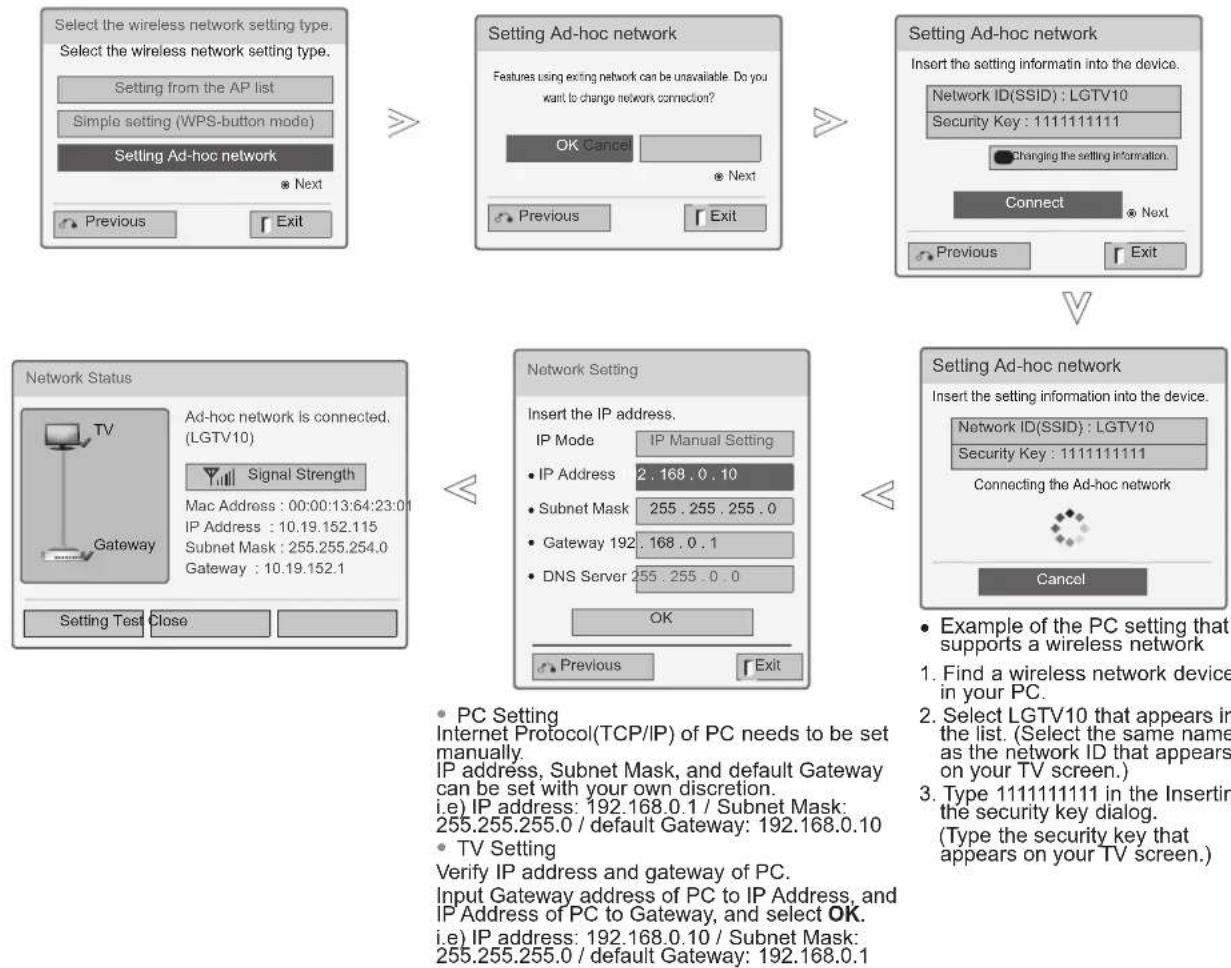

Ad-hoc Mode

This is the method of communicating directly with the machine to communicate without AP. This is the same as connecting two PCs with a cross cable.

- PC Setting Internet Protocol(TCP/IP) of PC needs to be set manually. IP address, Subnet Mask, and default Gateway can be set with your own discretion. i.e) IP address: 192.168.0.1 / Subnet Mask: 255.255.255.0 / default Gateway: 192.168.0.10 - TV Setting Verify IP address and gateway of PC. Input Gateway address of PC to IP Address, and IP Address of PC to Gateway, and select OK. i.e) IP address: 192.168.0.10 / Subnet Mask: 255.255.255.0 / default Gateway: 192.168.0.1

• Example of the PC setting that supports a wireless network
1. Find a wireless network device in your PC.
2. Select LGTV10 that appears in the list. (Select the same name as the network ID that appears on your TV screen.)
3. Type 111111111 in the Inserting the security key dialog. (Type the security key that appears on your TV screen.)

1 Repeat step 1-3 on P.18.

Select Setting Ad-hoc network.

Select OK.

Insert the IP address.
Network setting is completed. Select Close.

Select Connect to connect Ad-hoc network.

You can see the Network ID and Security Key on your TV screen.

Enter this Network ID and Security Key to your device. If a network may not operate, change the setting information using the RED button.

EXTERNAL EQUIPMENT SETUP

Network Status

Select NETWORK.

Select Network Status.

Check the Network Status.

■ Setting: Return to the network setting menu or wireless network setting type menu.
■ Test: Test the current network status after setting the network.
■ Close: Return to the previous menu.

WATCHING TV / PROGRAMME CONTROL

TURNING ON THE TV

When your TV is turned on, you will be able to use its features.

1

Firstly, connect the power cord correctly. At this stage, the TV switches to standby mode.

2

In standby mode to turn TV on, press the ⏻I, INPUT or P ∧ ∨ button on the TV or press the POWER, INPUT, P ∧ ∨ or NUMBER button on the remote control and the TV will switch on.

INITIALIZING SETUP

1

If the OSD (On Screen Display) is displayed on the screen after turning on the TV, you can adjust the Mode Setting, Country, Time Zone(Only Australia), Auto Tuning.

Note:

a. If you close without completing the initial setting, the Initial Setting menu can be displayed again.
b. Press the BACK button to change the current OSD to the previous OSD.
c. For those countries without confirmed DTV broadcasting standards, some DTV features might not work, depending on the DTV broadcasting environment.
d. "Home Use" mode is the optimal setting for home environments, and is the TV's default mode.
e. "Store Demo" mode is the optimal setting for store environments. If a user modifies image quality data, "Store Demo" mode initializes the product to the image quality set by us after a certain period of time.
f. The mode (Home Use, Store Demo) can be changed by executing Mode Setting in the OPTION menu.

PROGRAMME SELECTION

1

Press the P ^ ∨ or NUMBER buttons to select a programme number.

VOLUME ADJUSTMENT

1

Press the ↗ or - button to adjust the volume.

2

If you wish to switch the sound off, press the MUTE button.

You can cancel this function by pressing the MUTE, + , - or AV Mode button.

WATCHING TV / PROGRAMME CONTROL

QUICK MENU

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual. Q.Menu (Quick Menu) is a menu of features which users might use frequently.

Aspect Ratio: Selects your desired picture format.

For Zoom Setting, select 14:9, Zoom and Cinema Zoom in Ratio Menu. After completing Zoom Setting, the display goes back to Q.Menu.

Clear Voice II: By differentiating the human sound range from others, it helps users listen to human voices better.
Picture Mode : Selects your desired Picture Mode.
Sound Mode : It is a feature to automatically set the sound combination which it deems the best for the images being watched. Selects your desired Sound Mode.

(0) Audio Language : Selects the sound output.
Sleep Timer : Sets the sleep timer.
PR Skip Off/On : Selects the Skip Off/On.
USB Device : Selects "Eject" in order to eject USB device.

Display each menu.

Select your desired Source.

• Press the Q.MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

ON SCREEN MENUS SELECTION AND ADJUSTMENT

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

Display each menu.

Select a menu item.

Move to the pop up menu.

• Press the RED button, you can check the Customer Support menu.
• Press the GREEN button, you can check the Simple Manual menu.
• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SETUP PICTURE AUTO TUNING MANUAL TUNING PROGRAMME Edit

PICTURE Aspect Ratio : 16:9 Picture Wizard Energy Saving : Intelligent Sensor Picture Mode : Contrast 95 Brightness 50 Sharpness 65 Colour 60

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset

TIME Clock Off Time : Off On Time : Off Sleep Timer : Off

LOCK Set Password Lock System : Off Block Programme Parental Guidance: Blocking Off Input Block Key Lock : Off

OPTION Language(Language) Country : Australia Hard of Hearing( ISM Method : Normal Factory Reset Set ID : 1 Mode Setting : Home Use IR Blaster : Off

- For further information, refer to the optional "Wireless Media Box" manual for operating instructions.

WATCHING TV / PROGRAMME CONTROL

■ Image shown may differ from your TV.

NETWORK • Network Setting : Wired • Network Status : Internet is connected • Legal Notice

Input List Antenna USB1 USB2 AV1 AV2 Component1 Component2 HDMI1 HDMI2 HDMI3 HDMI4 Input Label Exit

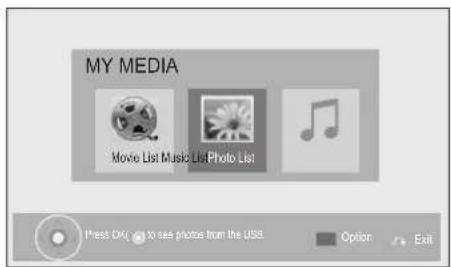

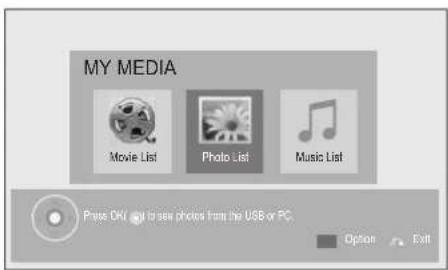

MY MEDIA Movie List Music List Photo List Press ONLY to see photos from the USS Option Exit

Game JUMP HOLE IN ONE WHACK A MOLE SUDOKU COOKING BURGER SAVING CRYSTAL INVADER URDEXT SURVIVAL Back Exit

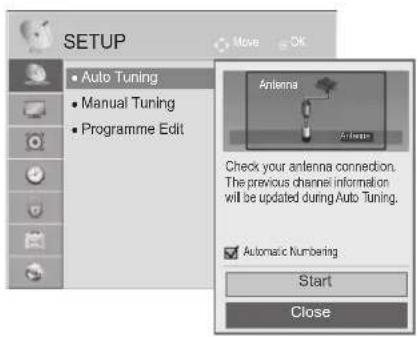

AUTO PROGRAMME TUNING

Use this to automatically find and store all available programmes.

When you start auto programming, all previously stored service information will be deleted.

The maximum number of programmes that can be stored is 200. But the number may differ slightly depending on broadcasting signals.

SETUP • Auto Tuning • Manual Tuning • Programme Edit

SETUP • Auto Tuning • Manual Tuning • Programme Edit Move OK Antenna Check your antenna connection. The previous channel information will be updated during Auto Tuning. ✓ Automatic Numbering Start Close

Select SETUP.

Select Auto Tuning.

Select Start.

Run Auto tuning.

• Use NUMBER buttons to input a 4-digit password in Lock System 'On'.

• If you wish to keep on auto tuning select Start using the ^ ∨ button. Then, press the OK button. Otherwise select Close.
  • Automatic Numbering: Decide whether to use the programme numbers as sent by broadcasting stations for tuning.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

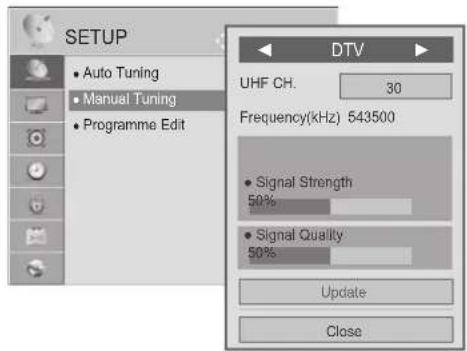

MANUAL PROGRAMME TUNING

(IN DIGITAL MODE)

Manual Tuning lets you manually add a programme to your programme list.

SETUP • Auto Tuning • Manual Tuning • Programme Edit

SETUP • Auto Tuning • Manual Tuning • Programme Edit DTV UHF CH. 30 Frequency(kHz) 543500 • Signal Strength 50% • Signal Quality 50% Update Close

Select SETUP.

Select Manual Tuning.

Select DTV.

Select the desired channel number.

Select update or add if signal present.

- Use NUMBER buttons to input a 4-digit password in Lock System 'On'.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

MANUAL PROGRAMME TUNING

(IN ANALOGUE MODE)

Manual Tuning lets you manually tune and arrange the stations in whatever order you desire.

SETUP • Auto Tuning • Manual Tuning • Programme Edit SETUP • Auto Tuning • Manual Tuning • Programme Edit TV • Storage 3 • System B/B • Band W/UHF • Channel 0 • Fine • Search • Name C 02 Store Close

Select SETUP.

Select Manual Tuning.

Select TV.

or

Select the desired programme number on.

Select a TV system.

Select V/UHF or Cable.

Select the desired channel number.

Commence searching.

Select Store.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

• Use NUMBER buttons to input a 4-digit password in Lock System 'On'.
  • BG : PAL B/G (New Zealand)

DK : PAL D/K (New Zealand)

I : PAL I/II (New Zealand)

B/B : Australia

• To store another channel, repeat steps 4 to 9.

WATCHING TV / PROGRAMME CONTROL

SETUP • Auto Tuning • Manual Tuning • Programme Edit

SETUP • Auto Tuning • Manual Tuning • Programme Edit TV • Storage 3 • System B/B • Band V/UHF • Channel 0 • Fine • Search • Name C 02 Store Close

■ Assigning a station name

You can assign a station name with five characters to each programme number.

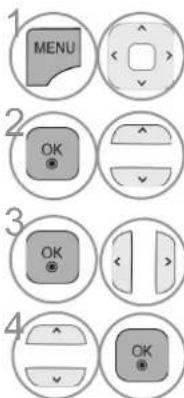

1 MENU 2 OK 3 OK 4

Select SETUP.

Select Manual Tuning.

Select TV

Select Name.

Select the position and make your choice of the second character, and so on.

You can use an the alphabet A to Z, the number 0 to 9, +/- , and blank.

Select Close.

Select Store.

■ Fine Tuning

Normally fine tuning is only necessary if reception is poor.

Select SETUP.

Select Manual Tuning.

Select TV

Select Fine.

Fine tune for the best picture and sound.

Select Store.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PROGRAMME EDIT

When a programme number is skipped, it means that you will be unable to select it using P ^ button during TV viewing.

If you wish to select the skipped programme, directly enter the programme number with the NUMBER buttons or select it in the Programme edit menu.

This function enables you to skip the stored programmes.

You can change the programme number using "Move" function, if "Automatic Numbering" is unchecked when you start Auto Tuning.

SETUP • Auto Tuning • Manual Tuning • Programme Edit Programme Edit Favourite Group : DTV RADIO TV 1 ABC TV Sydney 7 7 Guide 9 Nine Digital 10 ABC2 11 ABC TV 12 ABC HDTV 13 ABC TV 1 14 ABC TV 2 70 7 HD Digital 71 7 Digital 1 72 7 Digital 2 73 7 Digital 3 77 7 Guide 90 Nine Digital HD 99 Nine Guide 100 ABC TV 3 Pr. Change FAV Favourite Pr. QSMF Favourite Pr. Group Previous Page Change Block/Unblock Skip

Select SETUP.

Select Programme Edit.

Select a programme to be stored or skipped.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

IN DTV/RADIO MODE

■ Skipping a programme number

Select a programme number to be skipped.

BLUE

Turn the programme number to blue.

BLUE

Release.

• When programmes are to be skipped, the skipped programme shows in blue and these programmes will not be selected by the P ^ ∨ buttons during TV viewing.
• If you wish to select a skipped programme, directly enter the programme number with the NUMBER buttons or select it in the programme edit or EPG.

■ Locking a programme number

Select a programme number to be locked.

- It can be registered as Lock programme even when Lock System is turned Off.

YELLOW

Turn the programme number to yellow.

YELLOW

Release.

IN TV MODE

This function enables you to delete or skip the stored programmes.

You can also move some channels and use other programme numbers.

■ Deleting a programme

Select a programme number to be deleted.

RED

Turn the programme number to red.

- The selected programme is deleted, all the following programmes are shifted up one

■ Moving a programme

Select a programme number to be moved.

GREEN

Release.

Turn the programme number to green.

■ Skipping a programme number

Select a programme number to be skipped.

Turn the programme number to blue.

Release.

• When a programme number is skipped it means that you will be unable to select it using the P ^ v button during normal TV viewing.
• If you wish to select a skipped programme, directly enter the programme number with the NUMBER buttons or select it in the programme edit or EPG.

■ Locking a programme number

Select a programme number to be locked.

Turn the programme number to yellow.

Release.

- It can be registered as Lock programme even when Lock System is turned Off.

■ Selecting favourite programme

Favourite programmes is a convenient feature that lets you quickly scan up to programmes of your choice without having to wait for the TV to scan through all the in-between programmes.

Select your desired programme.

Add corresponding programme to Favourite list of current Favourite group.

Release.

WATCHING TV / PROGRAMME CONTROL

■ Selecting favourite programme group

Select your desired programme.

Display a pop-up window where Favourite group can be changed.

Select a Favourite group.

SOFTWARE UPDATE

You can update the TV with the latest software to enhance the product operation and/or add new features.

You can update the software by connecting the TV directly to the software update server.

The Software Update function may not work properly depending on your internet environment. In this case, you can obtain the latest software from the authorized LG Electronics Service Center then update your TV.

SETUP PICTURE AUDIO TIME LOCK OPTION NETWORK INPUT MY MEDIA GAME Press OK! to set programme settings. Customer Support Simple Manual Exit

Software Update Picture Test Sound Test Signal Test Product/Service Info. Network Test Close

Software Update • Current version 00.00.01 Check Update Version Close

Select Customer Support.

- Use the Check Update Version to update the latest software on the Network server manually.

Select Software Update.

Select On or Off.

- If you select On, a user confirm message box will be displayed to notify that new software is found.

Save.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

■ When setting "Software Update"

Occasionally, a transmission of updated digital software information will result in the following menu on the TV screen.

Software update is available. Would you like to download now? Yes No

Simple Update : for current update stream

A new software update is available at 00:00/0 00:00. Do you want to update the software when available? Yes No

Schedule Update : for scheduled update stream

When the Software Update menu is "Off", the message to change it to "On" appears.

When new Software is available when connected to Internet, the following message will be displayed.

Now software version is ready. Do you want to update it? Starting Update Remind me later

Download starts when "Yes" is selected. At this time, progressing pop-up window does not display.

Download progress status can be checked from Software Update menu.

Software Update Software downloading progress. Ver. 00.00.01 ▶ Ver.00.00.02 4% Check Update Version Close

TV is restarted when download is completed.

① Update is completed. Rebooting now.

• During Progress of a Software Update, please note the following:
  • Power to the TV must not be interrupted.
  • After Software Update, you can confirm the updated software version in Software Update menu.
• It may take hours to download the software, so make sure that the power stays on during the download.

  • The antenna must not be disconnected.
• The software is downloaded only in Standby mode or in MUX with Software Update Service, and stops when the power cord is unplugged or when viewing MUX without Software Update Service.
• When you return to Standby mode or MUX with Software Update Service, the software download will resume from where it stopped.

• You cannot open NetCast while the software is being updated.
• Do not release the Network connection during Update.

PICTURE/SOUND TEST

This function is a customer support function that can execute picture and sound tests.

Select Customer Support.

Select Picture Test or Sound Test.

Select Yes or No.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

DIAGNOSTICS

This function enables you to view information on the Manufacturer, Model/Type, Serial Number and Software Version.

This displays the information and signal strength of the tuned *MUX.

This displays the signal information and service name of the selected MUX.

(*MUX: A higher directory of channels in digital broadcasting (a single MUX contains multiple channels.))

SETUP PICTURE AUDIO TIME LOCK OPTION NETWORK INPUT MY MEDIA GAME Press OK! to set programme settings. Customer Support Simple Manual Exit

Software Update Picture Test Sound Test ✓ Signal Test Product/Service Info. Network Test Close

Engineering Diagnostics Manufacturer : LG Electronics Inc. Model/Type : 50PK950-AA Software Version : V01.03.00 Ch 30 Ch 34 Ch 36 Ch 38 Ch 54 Ch 60 Prev. Popup MENU Exit

Select Customer Support.

Select Signal Test.

Display Manufacturer, Model/Type, Serial Number and Software Version.

Display the information of Channel.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PRODUCT/SERVICE INFORMATION

This function is a customer support function that can see product/service information and customer service center information.

SETUP PICTURE AUDIO TIME LOCK OPTION NETWORK INPUT MY MEDIA GAME Press OK to set programme settings. Customer Support Simple Manual Exit Software Update Picture Test Sound Test Signal Test Product/Service Info. Network Test Close

RED Select Customer Support.

Select Product/Service Info.

Display Model/Type, Software version, Serial Number, Used time, Customer service center and Homepage.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

NETWORK TEST

Check the network status.

RED Select Customer Support.

Select Network Test.

Check the Network status.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

SIMPLE MANUAL

You can easily and effectively access the TV information by viewing a simple manual on the TV. During the Simple Manual operation, audio will be muted.

SETUP PICTURE AUDIO TIME LOCK OPTION NETWORK INPUT MY MEDIA GAME Press OK to set programme settings. Customer Support Simple Manual Exit

■ Image shown may differ from your TV.

Simple Manual Remote Control Description Contents Lists 1. Menu 2 Auto Tuning 3 Energy Saving 4 AV Mode 5 Clear Voice II 6 Picture Wizard 7 MY MEDIA Index Prev Next Auto Launching Exit

Select Simple Manual.

Select the part of the manual you want to see.

- Press the EXIT button to return to normal TV viewing.

SELECTING THE PROGRAMME LIST

You can check which programmes are stored in the memory by displaying the programme list.

Mini Glossary

Displayed when the Locked Programme.

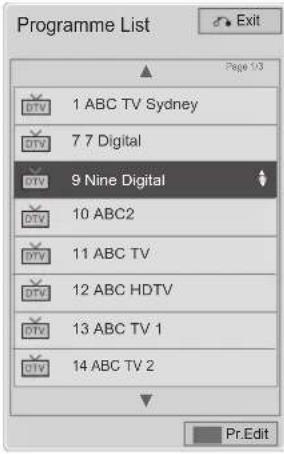

Programme List Exit Page 1/3 DTV 1 ABC TV Sydney DTV 7 7 Digital DTV 9 Nine Digital DTV 10 ABC2 DTV 11 ABC TV DTV 12 ABC HDTV DTV 13 ABC TV 1 DTV 14 ABC TV 2 Pr.Edit

■ Displaying programme LIST

Display the Programme List.

• You may find some blue programmes. These have been set up to be skipped by auto programming or in the programme edit mode.
• Some programmes with the channel number shown in the programme LIST indicate there is no station name assigned.

Turn the programme edit.

■ Selecting a programme in the programme list

Select a programme.

Switch to the chosen programme number.

The mode will be switched between TV, DTV, and Radio from the program you are currently watching.

WATCHING TV / PROGRAMME CONTROL

■ Paging through a programme list

Turn the pages.

Return to normal TV viewing.

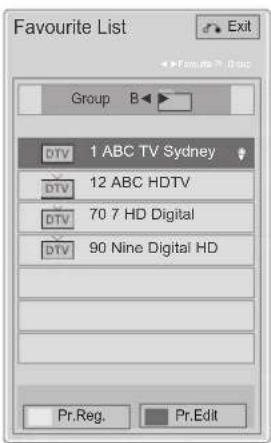

■ Displaying the favourite programmist

Favourite List Group B DTV 1 ABC TV Sydney DTV 12 ABC HDTV DTV 70 7 HD Digital DTV 90 Nine Digital HD Pr.Reg. Pr.Edit

Display the Favourite Programme List.

Turn the programme edit.

Current channel is registered/cancelled as preferred channel on currently selected Group.

Favourite group is changed.

INPUT LIST

HDMI and AV can be recognized by a detect pin and thus enabled only when an external device approves voltage.

By using TV/RAD button, you can move from External Input to RF Input and to the last watched programme in DTV/RADIO/TV mode.

■ Image shown may differ from your TV.

Input List Antenna USB1 USB2 AV1 AV2 Component1 Component2 RGB HDMI2 HDMI3 HDMI4HDMI1 Input Label Exit

Select the input source.

• Antenna : Select it when watching the DTV/RADIO/TV.
• USB : Select it when using USB depends on connector.
• AV : Select it when watching the VCR or external equipment.
• Component : Select it when using the DVD or the Digital set-top box depends on connector.
• RGB :Select it when using PC depends on connector.
• HDMI : Select it when using DVD, PC or Digital set-top box depend on connector.

WATCHING TV / PROGRAMME CONTROL

INPUT LABEL

Selects a label for each input source.

■ Image shown may differ from your TV.

Input List Antenna USB1 USB2 AV1 AV2 Component1 Component2 RGB HDMI1 HDMI2 HDMI3 HDMI4 Input Label Exit

Input Label AV1 AV2 Component1 Component2 RGB Close

Select Input Label.

Select the source.

Select the label.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SIMPLINK

This function operates only with devices with the SIMPLINK logo.

Please check the SIMPLINK logo.

This TV might not function properly when using it with other products with HDMI-CEC function.

This allows you to control and play other AV devices connected to the display through HDMI cable without additional cables and settings.

If you do not want SIMPLINK menu, select "Off".

SIMPLINK On Watch TV DISC VCR HDD Recorder Speaker TV Speaker

Display the SIMPLINK.

Select On or Off.

Save.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

Connecting to Home Theater with the SIMPLINK logo.

1 Connect the HDMI/DVI IN 1, HDMI/DVI IN 2, HDMI/DVI IN 3, HDMI/DVI IN 4 terminal on the back of the TV and the HDMI output terminal of the Home Theater using HDMI cables.
2 Connect the Digital Audio output terminal on the back of the TV and the Digital Audio input terminal of the Home Theater using optical cables.
3 Select Home Theater in the Speaker menu by pushing the SIMPLINK button.

▶ When you select or operate a media device with home theater function, the speaker automatically switches to home theater speaker (HT speaker).

NOTE

▶ Connect the HDMI/DVI IN or HDMI IN terminal of the TV to the terminal (HDMI terminal) of the SIMPLINK device with the HDMI cable.
▶ When you switch the Input source using the INPUT button on the remote control, you can stop the operation of a device controlled by SIMPLINK.

SIMPLINK Functions

Disc playback

Control connected AV devices by pressing the^ v < >, OK, ▶, ■, II, ◀◀ and ▶▶ buttons.

Direct Play

After connecting AV devices to the TV, you can directly control the devices and play media without additional settings.

Select AV device

Enables you to select one of the AV devices connected to the TV and operate it.

Power off all devices

When you switch off the TV, all connected devices are turned off.

Switch audio-out

Offers an easy way to switch audio-out.

Sync Power on

When the equipment with Simplink function connected HDMI terminal starts to play, The TV will change automatically to turn on mode.

* A device, which is connected to the TV through an HDMI cable but does not support SIMPLINK, does not provide this function.

Note: To operate SIMPLINK, an High Speed HDMI Cable with *CEC function should be used.

(*CEC: Consumer Electronics Control).

SIMPLINK Menu

Press the ^ v < >button and then OK button to select the desired SIMPLINK source.

① TV viewing : Switch to the previous TV programme regardless of the current mode.
② DISC playback : Select and play connected discs.

When multiple discs are available, the device type of discs are conveniently displayed at the bottom of the screen.

③ VCR playback : Play and control the connected VCR.
4 HDD Recordings playback : Play and control recordings stored in HDD.
5 Audio Out to Home theater/Audio Out to TV: Select Home theater or TV speaker for Audio Out.

SIMPLINK On Watch TV DISC VCR HDD Recorder Speaker TV Speaker Selected Device When a device is connected (displayed in bright colour) When device is not connected (displayed in gray)

• Home theater: Only one supported at a time
• DVD, Recorder: Up to four supported at a time.
• VCR: Only one supported at a time

WATCHING TV / PROGRAMME CONTROL

AV MODE

You can select the optimal images and sounds when connecting AV devices to external input.

Off Disables the AV MODE.

THxCinema Optimizes video and audio for watching movies.

Sport Optimizes video and audio for watching sports events.

Game Optimizes video and audio for playing games.

Press the AV MODE button repeatedly to select the desired source.

• If you select THxCinema in AV mode, THxCinema will be selected both for Picture Mode and Sound Mode in PICTURE menu and AUDIO menu respectively.
• If you select "Off" in AV mode, the picture and image which you initially set will be selected.

NOTE

THX Cinema : Operate to Cinema at the Movie, Photo which used an USB device.

INITIALIZING(RESET TO ORIGINAL FACTORY SETTINGS)

This function initializes all settings.

But the settings of Day and Night of the Picture Mode cannot be initialized.

It is useful to initialize the product or when you move to other city or country.

When the Factory Reset is completed, you must restart the Initializing setup.

When the Lock System menu is "On", the message to enter the password appears.

OPTION Language(Language) Country : Australia Hard of Hearing(1) ISM Method : Normal Factory Reset Set ID : 1 Mode Setting : Home Use IR Blaster : Off

OPTION Language(Language) Country : Australia Hard of Hearing( ISM Meth Factory R Set ID Mode Set IP Blaster All user settings and channel settings will be reset. Still Continue? Yes No

1 MENU 2 OK 3 OK 4 OK Start H

Select OPTION.

Select Factory Reset.

Select Yes.

Start Factory Reset.

- In Lock System "On", if you forget your password, press '0', '3', '2', '5' on the remote control handset.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

NETCAST

LEGAL NOTICE

NETWORK • Network Setting : Wired • Network Status : Internet is connected • Legal Notice

Legal Notice 01/03 page IMPORTANT NOTICE RELATING TO NETWORK SERVICE All content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorized by the content owner or service provider. Without limiting the foregoing, unless expressly authorized by the applicable content owner or service provider, you may not copy, upload, post, transmit, translate, sell, modify, create derivative works, or distribute in any manner of medium any content or services displayed through this device. YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT THE DEVICE AND ALL THIRD PARTY CONTENT AND SERVICES ARE PROVIDED AS IS WITHOUT WARRANTY OF ANY KIND. EITHER EXPRESS OR IMPLIED. LG ELECTRONICS EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO ANY CONTENT AND SERVICES, EITHER EXPRESS OR, IMPLIED, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, OF SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE Close

1 MENU 2 OK 3 OK

Select NETWORK.

Select Legal Notice.

Check Legal notice.

- Press the MENU/EXIT button to return to normal TV viewing.

IMPORTANT NOTICE RELATING TO NETWORK SERVICES

All content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorized by the content owner or service provider. Without limiting the foregoing, unless expressly authorized by the applicable content owner or service provider, you may not copy, upload, post, transmit, translate, sell, modify, create derivative works, or distribute in any manner or medium any content or services displayed through this device.

YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT THE DEVICE AND ALL THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED. LG ELECTRONICS EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO ANY CONTENT AND SERVICES, EITHER EXPRESS OR, IMPLIED, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, OF SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. LG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND DOES NOT WARRANT THAT THE DEVICE OR SERVICES WILL MEET YOUR REQUIREMENTS, OR THAT OPERATION OF THE DEVICE OR SERVICES WILL BE UNINTERRUPTED OR ERROR-FREE. UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL LG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR ANY OTHER DAMAGES ARISING OUT OF, ANY INFORMATION CONTAINED IN, OR ANY CONTENT OR SERVICE ACCESSED BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Third party services may be changed, suspended, removed, terminated or interrupted, or access may be disabled at any time, without notice, and LG makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which LG has no control. LG may impose limits on the use of or access to certain services or content, in any case and without notice or liability. LG expressly disclaims any responsibility or liability for any change, interruption, disabling, removal of or suspension of any content or service made available through this device.

LG is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.

NETCAST

NETCAST MENU

These services are provided by separate Content Provider.

Please visit the content providers web site for specific information on their services. (But, some content manual maybe not provide depending on Content Provider).

NetCast menu source can differ by country.

Bigpond Weather info Movie Online Photo Album Vanadzor, Currently at 7:05 AM Press Enter to enjoy YouTube Setup Exit

Select NETCAST menu option.

Enjoy the Weather info, Photo Album, Movie Online or Bigpond(Only Australia).

NOTE

The videos list searched from the TV may different with the list searched from a web browser on PC.
The settings of this TV do not affect the Movie Online's playback quality.
The playback videos may be paused, stopped or buffering occurring often depending on your broadband speed.
We recommend a minimum connection speed of 1.5 Mbps. For the best playback condition, a connection speed of 4.0 Mbps is required. Sometimes your broadband speed varies based on your ISP's network conditions. Contact your ISP if you have problems maintaining a fast connection that is reliable, or if you want to increase your connection speed. Many ISPs offer a variety of broadband speed options.
To view the owner's manual that provided by the Content Provider, visit our website at http://www.lg.com.
For service that requires log in, join the applicable service on the website using the PC and log in through the TV to enjoy various additional functionalities.
▶ When you set the city you want with Setup by pressing the red button, the background of NetCast will be set to the weather of the selected city.
▶ If there is no user action 2 minutes following freezing image or video on screen, the screensaver will activate itself preventing fixed image remaining on screen.

• Press the RED button to select Weather of area.
• Press the EXIT button to return to normal TV viewing.

Bigpond (Only Australia)

About BigPond Movies on NetCast

BigPond Movies is a service that allows you to watch video content on your TV using your Internet connection. Access Hollywood blockbusters, award-winning Australian films and a great selection of TV shows from BigPond Movies – without leaving your living room!

Getting started

Press the [NetCast] button on your remote control. On the main NetCast menu, select [BigPond Movies].

You should now be on the BigPond Movies menu screen. Use the following buttons on your remote to navigate the menu:

Scroll through menu options View selected menu option Return to NetCast Menu Return to regular TV viewing

You will need to register with BigPond Movies before renting a movie or TV show. All you need to join BigPond Movies is a valid e-mail address and credit card. Select the Join Now option from the BigPond Movies menu shown below. During the Join process, you will also need to enter a username, password and 4 digit PIN.

You can still browse movies and TV shows when you are not signed in.

■ Image shown may differ from your TV.

BIGPOND UNWETERED Monday 01:30 PM BigPond Movies TV Shows Join now to new Movies and TV shows or Sign In to manage your account. Join Now or Sign In My Remats

NETCAST

Choose from the following options on the BigPond Movies menu:

• Movies: View movies by category
- Television: View TV shows by category
- Sign in or join now: Create a BigPond Movies account for the first time or sign in to an existing account
- My Account: View and change account information (this option will only be displayed when you are signed in)
- My Rentals: View a list of your current rentals (this option will only be displayed when you are signed in)
• Search: Find movies and TV shows

Browse, Rent, and Watch Movies

■ Image shown may differ from your TV.

BIGPOND BigPond Movies Monday 91:09 PM Search Movies TV Sites

1. Select [Movies] or [TV Shows] from the BigPond Movies menu.
2. Browse categories using the up and down arrows on your remote, and browse through titles using the left and right arrows on your remote. When a title is highlighted, the price will appear in a window at the top right of the TV screen.
3. When you see a movie or TV show you want to watch, push [OK] to view the information screen including movie details, price and rental period.
4. Follow the [OK] prompts to complete the rental. Depending on your settings and the movie you have chosen, you may be asked to enter your PIN.
5. After your rental is confirmed, you will see 3 options: [Watch Now] allows you to watch the movie immediately. [Watch Later] adds the movie to your rental list for later viewing. [View Related Movies] adds the movie to your rental list and then lets you continue browsing through movies related to the one you have just purchased.

Use the buttons on the remote to control your viewing experience, just like when you watch a DVD. The buttons on the remote do the following:

Button(s) Operation
▶	(Play)
II	(Pause) To resume playing a paused movie, press (Play) again
■	(Stop) Stops the movie and displays your movie list
◀◀ / ▶▶	(Rewind) / (Fast forward) Pauses the movie and seeks forward or backward through the movie.

Need help?

For additional questions relating to your BigPond Movies service, please visit www.bigpond.com/lgtv.

Minimum Internet Requirements:

The LG BigPond Movies service requires a minimum data speed of 3.5MBps (ADSL 2, ADSL 2+, cable or FTTx) to function correctly. Please contact your Internet Service Provider or BigPond to upgrade or migrate your service.

Note: Movie and TV shows are unmetered for most BigPond Broadband members, as indicated with a green dot. Whenever you see the green dot, any content you download won't count towards your monthly usage total. Content charges may still apply. Unmetered sites don't apply online to dial-up, satellite and hourly plans.

NETCAST

MOVIE ONLINE

Movie Online is a video sharing website where users can upload, view, and share video clips.

Movie Online Screen Components

1 Movie Online menu
② Videos list

Home Featured Popular Most Viewed Search G.E.M. 18 Live 演唱会(3) - I Will Always Love You!! Getting 6205 Views Play now Videos Being Watched Now 1 2 Option NatCash Exit

RED

Set the option menu.

Return to NetCast menu.

Return to TV viewing.

NOTE

▶ When you press the Q.Menu button while the Movie Online video is playing in full mode, you can set the video options.

Movie Online Service menu

• Home: You can watch the popular video in real time.
- Featured: The featured videos list will be displayed.
- Popular: The best rated videos list from Movie Online server will be displayed.
- Most Viewed: The most viewed videos list will be displayed.
- Search: The keypad/keyboard menu will be displayed.
- History: The videos list that you previously played will be displayed. Maximum of 20 videos can be stored.
- Favorites: In sign-in status, this menu will be displayed the videos list that is arranged in the Movie Online server with your account (Some videos may not appear on the Favorites list, even if the videos are arranged in the server).
- Sign in (Sign Out): Displays the keypad/keyboard menu to sign in or returns to the sign-out status.

Using the remote control

■ Stops the video and displays related videos list.
II Pause the video while it is playing.
▶ Play the selected video.
	Skip the playback forward or backward.
	Set the option menu.
	Return to NetCast menu.
	Return to TV viewing.

NETCAST

WEATHER INFO

Weather info is the programme to view the weather of the city the user wants.

Weather info Screen Components

1 Weather info menu
② Weather list by city
3 Corresponding buttons on the remote control

Home London, United Kingdom Wednesday, January 13, 2019 Today We keep you covered! Late (1/14) Wed (1/15) Thu (1/16) Fri (1/17) Sat (1/18) Sun (1/19) Mon (1/20) + 3 + 2 + 3 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 3 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 2 + 3 + 4 + 5 + 6 + 7 + 8 + 9 + 10 + 11 + 12 + 13 + 14 + 15 + 16 + 17 + 18 + 19 + 20 + 21 + 22 + 23 + 24 + 25 + 26 + 27 + 28 + 29 + 30 + 31 + 32 + 33 + 34 + 35 + 36 + 37 + 38 + 39 + 40 + 41 + 42 + 43 + 44 + 45 + 46 + 47 + 48 + 49 + 50 + 51 + 52 + 53 + 54 + 55 + 56 + 57 + 58 + 59 + 60 + 61 + 62 + 63 + 64 + 65 + 66 + 67 + 68 + 69 + 70 + 71 + 72 + 73 + 74 + 75 + 76 + 77 + 78 + 79 + 80

RED

Change between Celsius and Fahrenheit.

Move the focus to the menu you want.

Select the focused menu.

Return to NetCast menu.

Return to TV viewing.

Weather info Service menu

• Home: The weather of selected city is displayed.
- Favorite City: Frequently checked cities can be registered to check the weather.

NOTE

▶By default, New York, London and Paris are registered and the user can add/delete cities from Favorite City.
▶LG is not responsible for the accuracy of the weather forecast.
▶ Applicable weather information can differ from the actual weather depending on the information provided by Weather info.

PHOTO ALBUM

Photo Album is an application that appreciates digital image files.

Photo Album Screen Components

1 Photo Album menu
② Photos list
3 Corresponding buttons on the remote control

Home Friends Search My Photos Sign In Featured Photos NetCast Exit

Select the desired photo.

The selected photo file is displayed.

Return to NetCast menu.

Return to TV viewing.

Photo Album Service menu

• Home: The featured photos list will be displayed.
- Friends: You can register users with the pictures you want as friends. You can add up to 10 friends.
- Search: The keypad/keyboard menu will be displayed.
- My Photos: You can view the pictures uploaded to the Web. This function can only be used when you sign in.
- Sign in (Sign Out): Displays the keypad/keyboard menu to sign in or returns to the sign-out status.

TO USE A USB OR PC DEVICE

WHEN CONNECTING A USB DEVICE

When you connect a USB device, this pop up menu is displayed, automatically.

"POP UP MENU" will not be displayed while the OSD including Menu, EPG or Schedule list is activated.

When the Pop Up menu appears, you can select Music List, Photo List or Movie List in the MY MEDIA menu. In USB device, you can not add a new folder or delete the existing folder.

After choosing the desired type of media, choose a device to open files from. The options are: USB device or DLNA.

1 Connect the USB device to the USB IN 1 or USB IN 2 jack on the TV.

USB IN1 USB IN2 or

2 Select Movie List, Photo List or Music List.

MY MEDIA Movie List Photo List Music List Press OK to see phones from the USB or PC Option Exit

3 OK Select the desired device.

4 BLUE Search other network device.

Please select the device. USB Label USB Label DLNA Device Selection Search Previous

- Press the BACK button to move to the previous menu screen.

- Only photo(JPEG), music (MP3) and movie(DAT, MPG, MPEG, VOB, AVI, DIVX, MP4, MKV, TS, TRP, TP, ASF, WMV) are supported.

When removing the USB device

Select the USB Device menu before removing the USB device.

Select USB Device.

Select Eject.

NOTE

■ Image shown may differ from your TV.

▶ In order to avoid losing the USB memory stick, use the USB connector(sold separately) to fix the USB memory stick to the USB connector holder of the TV. (Plasma TV only)

USB connector holder USB Input Port

USB Connector (sold separately)

- Fix the one end of the USB connector to the USB memory stick and the other end to the USB connector holder.

Precautions when using the USB device

▶ Only a USB storage device is recognizable.
▶ If the USB storage device is connected through a USB hub, the device is not recognizable.
▶ A USB storage device using an automatic recognition programme may not be recognized.
▶ A USB storage device which uses its own driver may not be recognized.
▶ The recognition speed of a USB storage device may depend on each device.
▶ Please do not turn off the TV or unplug the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.
▶ Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause the product to malfunction or fail to be played. Never forget to use only a USB storage device which has normal music files, image files or movie files.
▶ Please use only a USB storage device which was formatted as a FAT32 file system, NTFS file system provided with the Windows operating system. In case of a storage device formatted as a different utility programme which is not supported by Windows, it may not be recognized.
▶ Please connect power to a USB storage device(over5 A) which requires an external power supply. If not, the device may not be recognized.
▶ Please connect a USB storage device with the cable offered by the device maker.
▶ Some USB storage devices may not be supported or operated smoothly.
▶ File alignment method of USB storage device is similar to Window XP and filename can recognize up to 100 English characters.
▶ Be sure to back up important files since data stored in a USB memory device may be damaged. We will not be responsible for any data loss.
▶ If the USB HDD does not have an external power source, the USB device may not be detected. So be sure to connect the external power source. - Please use a power adaptor for an external power source. We do not guarantee an USB cable for an external power source.
▶ If your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can use up to 4 partitions or USB memory devices.
▶ If a USB memory device is connected to a USB multi-card reader, its volume data may not be detected.
▶ If the USB memory device does not work properly, disconnect and reconnect it.
▶ How fast a USB memory device is detected differs from device to device.
▶ If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when the TV is turned on.
The recommended capacity is 1 TB or less for a USB external hard disk and 32 GB or less for USB memory.
▶ Any device with more than the recommended capacity may not work properly.
▶ If a USB external hard disk with a "Energy Saving" function does not work, turn the hard disk off and on again to make it work properly.
▶ USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.
▶ Maximum of 999 folders or files can be recognized under one folder.
▶ If there are too many folders and files in one folder, it may not operate properly.

TO USE A USB OR PC DEVICE

DLNA

About DLNA

This TV is a DLNA Certified digital media product. It can display and play a movie, photo and music content from your DLNA server. The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through a wired or wireless network in the home. The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC running DLNA server software or other DLNA compatible device is connected to this TV, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

NOTE

The supplied Nero MediaHome 4 Essentials CD-ROM is a customized software edition only for sharing files and folders to this TV.
The supplied Nero MediaHome 4 Essentials software does not support following functions: Transcoding, Remote UI, TV control, Internet services and Apple iTunes
This manual explains operations with the English version of Nero MediaHome 4 Essentials as examples. Follow the explanation referring to the actual operations of your language version.
▶ If there are too many folders and files in one folder, it may not operate properly.
For the DLNA option, use the Nero MediaHome program that is provided with the TV. However, we cannot guarantee that third party programmes will work perfectly.

Installing Nero MediaHome 4 Essentials

Nero MediaHome 4 Essentials is easy to use DLNA server software for Windows.

Requirement PC system before you install Nero MediaHome 4 Essentials

■ Windows® XP (Service Pack 2 or higher), Windows Vista® (no Service Pack required),
Windows® XP Media Center Edition 2005 (Service Pack 2 or higher), Windows Server® 2003
■ Windows Vista® 64-bit edition (application runs in 32-bit mode)
■ Hard drive space: 200 MB hard drive space for a typical installation of Nero MediaHome standalone
■ 1.2 GHz Intel® Pentium® III or AMD Sempron™ 2200+ processors
■ Memory: 256 MB RAM
■ Graphics card with at least 32 MB video memory, minimum resolution of 800 x 600 pixels, and 16-bit color settings
■ Windows® Internet Explorer® 6.0 or higher
■ DirectX® 9.0c revision 30 (August 2006) or higher
■ Network environment: 100 Mb Ethernet, WLAN (IEEE 802.11 b/g/n) (IEEE 802.11 n: Except for Russia)

1 Start up your computer, and insert the Nero MediaHome 4 Essentials CD-ROM into your computer's CD-ROM drive.
An installation wizard will walk you through the quick and uncomplicated installation process.
2 Close all Microsoft Windows programmes and exit any anti-virus software that may be running.
3 Insert the Nero MediaHome 4 Essentials CD-ROM into your computer's CD-ROM drive.
4. Click Nero MediaHome 4 Essentials. The installation is prepared and the installation wizard appears.
5 Click the Next button to display the serial number input screen.
Click Next to go to the next step.
6 If you accept all conditions, click I accept the License Conditions check box and click Next. Installation is not possible without this agreement.
7 Click Typical and click Next. The installation process is started.
8 If you want to take part in the anonymous collection of data, select the check box and click the Next button.
9 Click the Exit button to complete the installation.

TO USE A USB OR PC DEVICE

Sharing files and folders

After installing Nero MediaHome, you must add folders you wish to share.

1 Double-click the Nero MediaHome 4 Essentials icon on the desktop.
2 Click Network icon on the left and define your network name in the Network name field. The Network name you enter will be recognized by your TV.
3 Click Shares icon on the left.
4 Click Local Folders tab on the Shared screen.
5 Click Add icon to open the Browse Folder window.
6 Select the folder containing the files you want to share. The selected folder is added to the list of shared folders.
7 Click Start Server icon to start the server.

NOTE

▶ If the shared folders or files are not displayed on the TV, click the folder on the Local Folders tab and click Rescan Folder at the More button.
▶ Visit www.nero.com for more information and software tools.

Playing back shared contents

You can display and play movie, photo and music content stored on your computer or other DLNA media servers.

1 Start the server on your computer or other device that connected on your home network.

Select MY MEDIA.

Select Movie List, Photo List or Music List.

Select the DLNA.

Depending on the media server, this TV may need to get the permission from the server.

If you want to re-scan available media server, press blue colour button.

NOTE

▶ To play the file on the media server, the TV and the media server must be connected to the same network.
▶Because the compatibility and available playback functions on the MY MEDIA menu are tested on the bundle DLNA server (Nero MediaHome 4 Essentials) environment, file requirements and playback functions on the MY MEDIA may differ depending on media servers.
The file requirements on this page are not always compatible. There may have some restrictions by file features and media server's ability.

Even the files that are not supported can be displayed in photo thumbnail or music thumbnail.

▶ Movie thumbnail is not supported in DLNA Movie.
▶ If there is an unplayable music file in the MY MEDIA menu, the TV will skip the file and play next file.
The file information indicated on the screen may not always correct for music and movie files in MY MEDIA menu.
This TV only supports movie subtitle files supplied by Nero MediaHome 4.
The subtitle file name and movie file name have to be the same and located at the same folder.
▶ If subtitle files have been added after a directory has been indexed already, the user has to remove and re-add the folder to the list of shares.
The playback and operating quality of the MY MEDIA function may be affected by your home network condition.
The files from removable media such as USB drive, DVD-drive etc. on your media server may not share properly.

▶When playing the Media through DLNA connection, it does not support the DivX file play which is protected by DRM.
▶ Up to 200 folders in one folder and 999 including folders and files can be recognized.
▶ If there are too many folders and files in one folder, it may not operate properly.

TO USE A USB OR PC DEVICE

MOVIE LIST

You can play movie files on a USB or PC storage device.

The movie list is activated once USB is detected. It is used when playing movie files on TV.

Displays the movies in the USB folder and supports Play.

Allows playback of all movies in the folder and user desired files.

It is a movie list that displays folder information and movie file.

The On Screen Display may be different from your TV. Images are an example to assist with the TV operation.

Movie(*.mpg/*.mpeg/*.dat/*.ts/*.trp/*.tp/*.vob/*.mp4/*.mov/*.mkv/*.dvix/*.avi/*.asf/*.wmv/*.avi(motion-jpeg)/*.mp4(motion-jpeg)/*.mkv(motion-jpeg))supporting file

Video format : DivX3.11, DivX4.12, DivX5.x, DivX6, Xvid1.00, Xvid1.01, Xvid1.02, Xvid1.03, Xvid1.10 beta-1/beta-2, Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC, VC1, JPEG, Sorenson H.263

Audio format : Dolby Digital, AAC, Mpeg, MP3, LPCM, HE-AAC, ADPCM, WMA

Bit rate : within 32 kbps to 320 kbps(MP3)

External Subtitle format : *.smi/*.srt/*.sub(MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/*.psb(PowerDivX)

Internal Subtitle format : only, XSUB (It is the subtitle format used in DivX6 files)

- Some user-created subtitles may not work properly.

- Some special characters are not supported in subtitles.

- HTML tags are not supported in subtitles.

- Subtitles in languages other than the supported languages are not available.

- Changing font and colour in subtitles is not supported.

- Subtitles in languages other than one specified are not supported.

• Video files with subtitle files of 1 MB or larger may not be played properly.

- The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio language is changed.

- A damaged movie file may not be played correctly, or some player functions may not be usable.

- Movie files produced with some encoders may not be played correctly.

- If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.

- HD videos with a maximum of 1920x1080@25/30P or 1280x720@50/60P are supported, depending on the frame.

- Videos with resolutions higher than 1920X1080@25/30P or 1280x720@50/60P may not work properly depending on the frame.

- Movie files other than the specified types and formats may not work properly.

- Max bitrate of playable movie file is 20 Mbps.

- We do not guarantee smooth playback of profiles encoded level 4.1 or higher in H.264/AVC.

• DTS Audio codec is not supported.

- A movie file more than 30 GB in file size is not supported for playback.

- A DivX movie file and its subtitle file must be located in the same folder.

- A video file name and its subtitle file name must be identical for it to be displayed.

- Playing a video via a USB connection that doesn't support high speed may not work properly.

- The movie file encoded by the GMC (Global Motion Compensation) and Qpel (Quarterpel Motion Estimation) is not supported.

- When you are watching the movie by Movie List function, you can adjust an image by Energy Saving and AV Mode key on the remote control. User setup for each image mode does not operate.

- Trick Mode does not support other functions than ▶▶ if video files do not have index information.

- When playing video file using network, the Trick mode is limited to 2-times speed.

• Video file names that contain special characters may not be playable.

Supported DivX file

File Extensions	A/V	Codec	Profile/Level Support	Explanation
.asf.wmv	Video	VC-1 Advanced Profile	Advanced Profile@Level 3 (e.g. 720p60, 1080i60, 1080p30)	Only streams compliant to SMPTE 421M VC-1 standard are supported.
		VC-1 Simple and Main Profiles	Simple Profile@Medium Level (e.g. CIF, QVGA), Main Profile@High Level (e.g. 1080p30)
	Audio	WMA Standard
		WMA 9 Professional
.divx.avi	Video	DivX3.11		Global motion compensation or quar-terpel motion esti-mation does not supported. Streams using this syntax are not supported.
		DivX4DivX5DivX6	Advanced Simple Profile (e.g. 720p/1080i)
		XViD
		H.264 / AVC	Main Profile@Level 4.1 High Profile@Level 4.1 (e.g. 720p60, 1080i60, 1080p30)
	Audio	MPEG-1Layer I, II MPEG-1 Layer III(MP3) Dolby Digital
.mp4.m4v	Video	H.264 / AVC	Main Profile@Level 4.1 High Profile@Level 4.1 (e.g. 720p60, 1080i60, 1080p30)	Global motion compensation or quarterpel motion estimation does not supported. Streams using this syntax are not supported.
		MPEG-4 Part 2	Advanced Simple Profile (e.g. 720p/1080i)
	Audio	AAC	AAC-LC and HE-AAC
.mkv	Video	H.264 / AVC	Main Profile@Level 4.1 High Profile@Level 4.1 (e.g. 720p60, 1080i60, 1080p30)	Most of the MKV content available is encoded by the open source x264 codec.
	Audio	AAC	AAC-LC and HE-AAC
		Dolby Digital
.ts.trp.tp	Video	H.264 / AVC	Main Profile@Level 4.1 High Profile@Level 4.1 (e.g. 720p60, 1080i60, 1080p30)
		MPEG-2	Main Profile@High Level(e.g. 720p60, 1080i60)
		VC-1	Simple Profile@Medium Level (e.g. CIF, QVGA) Main Profile@High Level (e.g. 1080p30) Advanced Profile@Level3 (e.g. 720p60, 1080i60, 1080p30)	Only streams compliant to SMPTE 421M VC-1 standard are supported.
	Audio	MPEG-1Layer I, II MPEG-1 Layer III(MP3) Dolby Digital
		AAC	AAC-LC and HE-AAC
.vob	Video	MPEG-1
		MPEG-2	Main Profile@High Level (e.g. 720p60, 1080i60)
	Audio	Dolby Digital MPEG-1Layer I, II DVD-LPCM
.mpg	Video	MPEG-1 MPEG-2	Main Profile@High Level (e.g. 720p60, 1080i60)	Only streams compliant configured properly for TS, PS or ES
	Audio	MPEG-1Layer I, II

TO USE A USB OR PC DEVICE

Screen Components

You can also adjust USB in the INPUT menu.

Select MY MEDIA.

Select Movie List.

1 Moves to upper level folder
② Current page/Total pages
③ Corresponding buttons on the remote control
④ Contents under the folder focused on ①
⑤ Current page/ total pages of contents under the folder focused on ①

Movie List US$1 External Drive1 Page 1/1 Page 1/4 Move Play Page Change MS30 Mark Change Device To Photo List Change Numbers Mark Mode Exit 3

- Some files may be displayed the preview image by icon only.

5

• Non-supported files are displayed the preview image by icon only.

5 !

• Abnormal files are displayed in the form of bitmap.

5 X

Movie Selection

■ When playing movie files

Movie List USB1 External Drive1 Page 1/1 Page 1/1 0.7.032 0.7 0.8 0.9 956.06 MOS E:360.29 Move Play Page Charge MMSY Mark Change Device To Photo List Charge Numbers Mark Mode Exit

Select the target folder or drive.

Select the desired movie title.

Movie files are played.

- Use the P ∧ ∨ button to navigation in the movie page.

Using the remote control

RED	Change device.
	Repeatedly, press the GREEN button to converted to Photo List->Music List.
	A method to view in 5 large thumbnail or simple list.
	Convert to Mark Mode.
	Return to normal TV viewing.
Press the PLAY (▶) button to return to normal playback.

TO USE A USB OR PC DEVICE

■ When selected movie files are played

Movie List Mark Mode USB1 External Drive1 Page 1/1 Page 1/2 01/02 03/03 05/04 07/05 09/06 10/07 12/08 Move Mark Page Change Work Mark Play Marked Mark All Unmark All Exit Mark Mode Exit

Select the target folder or drive.

Select the desired movie title.

Convert to Mark Mode.

Mark desired Movie file.

Marked movie file is played.

- When one or more movie files are marked, the marked movies will be played in sequence.

NOTE

▶ In the case of files not supported, a message regarding non-supported file is displayed.

Using the remote control

	Play the selected movie file.Once a movie file finishes playing, the next selected one will be played automatically.
	Mark all movie files on the screen.
	Deselect all marked movie files.
	Exit the Mark Mode.
	Return to normal TV viewing.

NOTE

▶ If you select "Yes" from OSD when playing the same file after the movie file has been stopped, it will restart where it stopped previously.
If continuous series files exist within the folder, the next file will automatically be played. But, this excludes cases when the Repeat function of Movie List Option is turned "On" (Refer to p. 72) or when set as Marked Play.

TO USE A USB OR PC DEVICE

Using the Movie List function, play

Choose options. Set Video Play. Set Video. Set Audio. Close 01:02:30 / 02:30:25 Option Hide Exit

Show the Option menu.

Select Set Video Play., Set Video. or Set Audio..

NOTE

▶ Option values changed in Movie List does not affect Photo List and Music List.
▶ Option value changed in Photo List and Music List are changed likewise in Photo List and Music List excluding Movie List.
▶ When replaying the video file after stopping, you can play from where it stopped previously.

Using the remote control

■ Stop the playing movie file.
▶ Press the PLAY (▶) button to return to normal playback.
II	During playback, press the Pause(II) button.■ Still screen is displayed.■ If no buttons are pressed on the remote control for 10 minutes after pausing, the TV returns to the playback state.■ Press the Paus(II) button and then use the FF(▶▶) button for slow motion.
◀◀/▶▶	When playing,repeatedly, press the REW(◀◀) button to speed up ◀◀(x2) -> ◀◀◀(x4) -> ◀◀◀◀(x8) -> ◀◀◀◀◀◀(x16) -> ◀◀◀◀◀◀◀(x32).repeatedly, press the FF(▶▶) button to speed up ▶▶(x2) -> ▶▶▶(x4) -> ▶▶▶▶(x8) -> ▶▶▶▶▶▶(x16) -> ▶▶▶▶▶▶▶(x32).■ Pressing these buttons repeatedly increases the fast forward/reverse speed.
	Show the Option menu.
	Hide the menu on the full-sized screen.■ To see the menu again on the full-sized screen, press OK button to display.
	Return to normal TV viewing.
< >	■ When using the<or> button during playback a cursor indicating the position can be viewed on the screen.
	Press the ENERGY SAVING button repeatedly to change the brightness of your screen.(Refer to p. 102)
	Press the AV MODE button repeatedly to select the desired source.(Refer to p. 48)

TO USE A USB OR PC DEVICE

■ When you select the Set Video Play,

Set Video Play. Picture Size Full Audio Language 1 Subtitle On Language English Code page Default Sync 0 Position 0 Size Normal Repeat On Previous

Select Picture Size, Audio Language, Subtitle or Repeat.

Make appropriate adjustments.

▶ Picture Size : Selects your desired picture format during movie play.
▶Audio Language : Changes the Language Group of the audio during movie play. Files with a single audio track cannot be selected.
▶ Subtitle : Turn on/off the external subtitle.
▶Language : Activated for SMI subtitle and can select the language within the subtitle.
▶ Code page : This function is not available in this model.
▶ Position : Changes the position of the subtitle either up or down during movie play.
▶Size : Selects your desired Subtitle size during movie play.
▶ Repeat : Turn on/off repeat function of movie playback. When turned on, the file within the folder will be played back repeatedly. Even when the repeated playback is turned off, it can run the playback if the file name is similar to the previous file.

NOTE

▶ The only language supported for external subtitles is English.
▶ Only 10,000 of sync blocks can be supported within the subtitle file.
▶ When playing a video, you can adjust the Picture Size by pressing the RATIO button.

■ When you select the Set Video,

■ Image shown may differ from your TV.

Set Video. Picture Mode • Contrast 100 • Brightness 50 • Sharpness 65 • Colour 60 • Tint 0 • Colour Temp. 0 • Noise Reduction Standard R G W G Low Picture Reset Previous

Select Picture Mode.

Make appropriate adjustments. (Refer to p. 103 to 110)

■ When you select the Set Audio,

Set Audio. Sound Mode Standard Auto Volume Off Clear Voice II Off Balance 0 L R Previous

Select Sound Mode, Auto Volume, Clear Voice II or Balance.

Make appropriate adjustments. (Refer to p. 114 to 118)

TO USE A USB OR PC DEVICE

PHOTO LIST

You can view photo files on USB or PC storage device.

The On Screen Display may be different from your TV. Images are an example to assist with the TV operation.

When you are watching the photo by the Photo List function, you can not change the picture mode.

PHOTO(*.JPEG) supporting file

Baseline : 64 x 64 to 15360 x 8640

Progressive : 64 x 64 to 1920 x 1440

• You can play JPEG files only.
  • Non-supported files are displayed in the form of predefined icon.
• An error message occurs for corrupted files or file formats that cannot be played.
• Corrupted image files may not be displayed properly.
• It may take some time to view high-resolution images in full screen.

Screen Components

You can also adjust USB in the INPUT menu.

Select MY MEDIA.

Select Photo List.

① Moves to upper level folder
② Current page/Total pages
③ Corresponding buttons on the remote control
④ Contents under the folder focused on ①
⑤ Current page/ total pages of contents under the folder focused on ①

Photo List USB1 External Drive1 Page 1/1 Page 1/1 5 4 3 Move View Page Change Work Mark Change Device To Music List Change Numbers Mark Mode Exit 3

Photo Selection

■ When playing photo files

Photo List USB1 External Drive1 Page 1/1 Page 1/1 041 02.00 04 05.06 07 C8 C9 C10 03.11 03.12 03.13 Move View Page Change MARK Mark Change Device To Music List Charge Numbers Mark Mode Exit

Select the target folder or drive.

Select the desired photos.

Photo files are displayed.

- Use the P^^ button to navigation in the photo page.

Using the remote control

	Change device.
	Repeatedly, press the GREEN button to converted to Music List->Movie List.
	A method to view in 5 large thumbnail or simple list.
	Convert to Mark Mode.
	Return to normal TV viewing.

TO USE A USB OR PC DEVICE

■ When selected photo files are displayed

Photo List Mark Mode USB1 External Drive1 Page 1/1 Page 2/1 Move Mark Page Change MARK Mark View Marked Mark All Unmark All Exit Mark Mode Exit

Select the target folder or drive.

Select the desired photos.

Convert to Mark Mode.

Mark desired photo file.

Marked photo file is displayed.

- When one or more photos are marked, you can view each marked photo or a slide show of the marked photos. If no photos are marked, you can view every individual photo in the folder or a slide show of all photos in the folder.

Using the remote control

RED	Display the selected photo file.
	Mark all photo files on the screen.
	Deselect all marked photo files.
	Exit the Mark Mode.
	Return to normal TV viewing.

How to view photo

Detailed operations are available on full-sized photo view screen.

Photo List USB1 External Drive1 Page 1/1 Page 1/1 USB1 External Drive1 Page 1/1 USB1 External Drive1 Page 1/1 USB1 External Drive1 Page 1/1 USB1 External Drive1 Page 1/1 USB1 External Drive1 Page 1/1 USB1 External Drive1 Page 1/1 USB1 External Drive1 Page 1/1 USB1 External Drive1 Page 1/1 SBM-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD-SPD- Move View Page Change MARK Mark Change Device To Music List Change Numbers Mark Mode Exit

V

01_a.jpg 2008/12/10 1920 x 1080 479 KB 2/13 Slideshow BGM CMERG Option Hide Exit

The aspect ratio of a photo may change the size of the photo displayed on the screen in full size. Press the EXIT button to move to the previous menu screen.

Select the target folder or drive.

Select the desired photos.

The selected photo is displayed in full size.

- Use the P ∧ ∨ button to navigation in the photo page.

• Press the EXIT button to go back to Photo List.
• Press the BACK button to make Help OSD disappear.

TO USE A USB OR PC DEVICE

01 a.jpg 2008/12/10 1920 x 1080 479 KB 2/13 Slideshow BGM OXENU Option Hide Exit

Select the

Slideshow,

BGM, Ⓧ (Rotate),

Option, Hide or

Exit.

▶ Slideshow : When no picture is selected, all photos in the current folder are displayed during slide show. If some photos are selected, those photos are displayed in a slide show.

■ Set the time interval of the slide show in Option.

▶ BGM (Background Music) : Listen to music while viewing photos in full size.

■ Set the BGM device and album in Options before using this function.
■ You can adjust Option by Q.MENU or MENU button on the remote control.

▶ (Rotate)otate photos.

■ Rotates the photo 90^ , 180^ , 270^ , 360^ clockwise.
It can not be rotate when the width of a picture is bigger than supported height.

/ : You can view the photo in Full or Original mode.

Press the ENERGY SAVING button repeatedly to increase the brightness of your screen.(Refer to p. 102)

▶ Option : Set values for Slide Speed and BGM.

■ Use ^ < >button and OK button to set values. Press OK to save the settings.
■ You cannot change BGM while BGM is playing.
■ You can only select the MP3 folder saved on the device that currently displays the photo.

▶ Hidelide the menu on the full-sized screen.

■ To see the menu again on the full-sized screen, press OK button to display.

Press the EXIT button to go back to Photo List.

• Use < >button to select the previous or next photo.
• Use < >button to select and control the menu on the full-sized screen.

Using the Photo List function

Choose options. Set Photo View. Set Video. Set Audio. Close 2/13 Slideshow BGM MENU Option Hide Exit

Show the Option menu.

Select Set Photo View., Set Video. or Set Audio..

NOTE

▶ Option values changed in Movie List does not affect Photo List and Music List.
▶ Option value changed in Photo List and Music List are changed likewise in Photo List and Music List excluding Movie List.

TO USE A USB OR PC DEVICE

■ When you select the Set Photo View,

Set Photo View. Slide Speed Fast BGM Drive1 Repeat On Random Off Previous

Select Slide Speed or BGM.

Make appropriate adjustments.

■ When you select the Set Video,
■ Image shown may differ from your TV.

Set Video. Picture Mode • Contrast 100 • Brightness 50 • Sharpness 50 • Colour 50 • Tint 0 • Colour Temp. W30 • Dynamic Contrast Photo Off Picture Reset Previous

Select Picture Mode.

Make appropriate adjustments. (Refer to p. 103 to 110)

■ When you select the Set Audio,

Set Audio. Sound Mode Standard Auto Volume Off Clear Voice II Off Balance 0 L R Previous

Select Sound Mode, Auto Volume, Clear Voice II or Balance.

Make appropriate adjustments. (Refer to p. 114 to 118)

TO USE A USB OR PC DEVICE

MUSIC LIST

You can play music files on USB or PC storage device.

Purchased music files(*.MP3) may contain copyright restrictions. Playback of these files may not be supported by this model.

Music file on your USB device can be played by this unit.

The On Screen Display may be different from your TV. Images are an example to assist with the TV operation.

MUSIC (*.MP3) supporting file

Bit rate 32 to 320

• Sampling rate MPEG1 Layer3 : 32 kHz, 44.1 kHz, 48 kHz
- Sampling rate MPEG2 Layer3 : 16 kHz, 22.05 kHz, 24 kHz

Screen Components

You can also adjust USB in the menu.

Select MY MEDIA.

Select Music List.

1 Preview: If any album jacket for the file(Album Art Image) exists, this jacket is displayed.

② Moves to upper level folder

③ Current page/Total pages

4 Corresponding buttons on the remote control

⑤ Contents under the folder focused on ①

⑥ Current page/ total pages of contents under the folder focused on ①

Music List USB1 External Drive1 Page 1/1 001 3001 00.43 02.600 04.45 081.3001 01.90 004 3004 02.57 065 3005 0:39 Page 1/1 Move Play Page Change Mark Mark Change Device To Movie List Change Numbers Mark Mode Exit

Music Selection

Music List Page 1/1 USB1 External Drive1 Page 1/2 001 - 8003 0043 005 - 8007 26:45 002.9003 01:30 004 - 8003 0037 006 - 8006 01:58 Move Play Page Change MARK Mark Change Device To Movie List Change Numbers Mark Mode Exit

■ When playing music files

Select the target folder or drive.

Select the desired music title.

Music files are played.

- Use the P ∧ ∨ button to navigate up/down in the music page.

Using the remote control

RED	Change device.
	Repeatedly, press the GREEN button to converted to Movie List->Photo List.
	A method to view in 5 large thumbnail or simple list.
	Convert to Mark Mode.
	Return to normal TV viewing.

TO USE A USB OR PC DEVICE

■ When selected music files are played

Music List Mark Mode USB1 External Dravet Page 1/1 Page 1/1 I01 - I02 I03 I04 - I05 I06 - I07 I08 - I09 I10 I11 I12 I13 I14 I15 I16 I17 I18 I19 I20 I21 I22 I23 I24 I25 I26 I27 Move Mark Page Change MARK Mark Play Marked Mark All Unmark All Exit Mark Mode Exit

Select the target folder or drive.

Select the desired music title.

Convert to Mark Mode.

Mark desired music file.

Marked music file is played.

• When one or more music files are marked, the marked music title will be played in sequence. For example, if you want to listen to only one music repeatedly, just mark the music only and play it. If no music is marked, all the music in the folder will be played in sequence.
• If you want to activate Random playback, you must set Option->Set audio play.->Random to On.

Using the remote control

	Play the selected music file.
	Mark all music files on the screen.
	Deselect all marked music files.
	Exit the Mark Mode.
	Return to normal TV viewing.

Using the Music List function, play

Music List 3 file(s) Marked USB1 External Drive1 Page 1/1 Page 1/1 Choose options. Set Audio Play. Set Audio. Close 001.5807 02:45 000.5507 04:45 000.5507 01:45 004.5804 02:37 005.5305 01:38 005. - Mad (Feat).mp3 Play with Photo 02:30 / 03:25 GNDN Option Hide Exit

Show the Option menu.

Select Set Audio Play. or Set Audio.

NOTE

▶ Option values changed in Movie List does not affect Photo List and Music List.
▶ Option value changed in Photo List and Music List are changed likewise in Photo List and Music List excluding Movie List.
▶ You can listen to the music only within the device currently played.

TO USE A USB OR PC DEVICE

Using the remote control

■ Stop the playing music file.
▶ Press the PLAY (▶) button to return to normal playback.
II	When you press the Pause(II) button while playing the file, the playback will be paused.When you press the Pause(II) button again while the playback is paused, it will resume the playback.
◀◀/▶▶	When playing,When you press the REW(◀◀) button, the previous music file will be played.When you press the FF(▶▶) button, the next music file will be played.
	Start playing the selected music files and then move to the Photo List.
[1HSC]	Press the ENERGY SAVING button repeatedly to increase the brightness of your screen.(Refer to p. 102)
or	Show the Option menu.
	■ When you press the Back button while the music is playing, the music player currently playing will be hidden and only the music list will be displayed.
	■ When you press the Exit button while the Music player is displayed, only the music will be stopped and the player will not return to normal TV viewing.■ When you press the Exit button while the music is stopped or while the music player is hidden, the player will return to normal TV viewing.
	■ When using the<or>button during playback a cursor indicating the position can be played.

■ When you select the Set Audio Play,

Set Audio Play. Repeat On Random Off Previous

Select Repeat or Random.

Make appropriate adjustments.

■ When you select the Set Audio,

Set Audio. Sound Mode Standard Auto Volume Off Clear Voice II Off Balance 0 L R Previous

Select Sound Mode, Auto Volume, Clear Voice II or Balance.

Make appropriate adjustments. (Refer to p. 114 to 118)

■ If you don't press any button for a while during the playing, the play information box (as shown in the below) will float as a screen saver.
■ The 'Screen Saver'?

Screen saver is to prevent screen pixel damage due to an fixed image remaining on the screen for a extended period of time.

1. B02.mp3

▶ 00:31 / 04:04

NOTE

▶ A damaged or corrupted music does not play but displays 00:00 in playtime.
▶ A music downloaded from a paid service with copyright protection does not start but displays inappropriate information in playtime.
▶ If you press OK, buttons, screen saver is stopped.
▶ The PLAY(▶), Pause(II), ■, ▶▶, ◀◀ buttons on the remote control are also available in this mode. ▶ You can use the ▶▶ button to select the next music and the ◀◀ button to select the previous music.

TO USE A USB OR PC DEVICE

DIVX REGISTRATION CODE

Confirm the DivX registration code number of the TV. Using the registration number, movies can be rented or purchased at www.divx.com/vod.

With a DivX registration code from other TV, playback of rented or purchased DivX file is not allowed. (Only DivX files matched with the registration code of the purchased TV are playable.)

MY MEDIA Movie List Photo List Music List Press OK! to see photos from the USB or PC Option Exit

You must register your device to play DivX protected videos. Registration code : ********** Register at http://vod.divx.com Close

Select MY MEDIA.

Select DivX Reg. Code.

Display DivX Reg. Code.

- Press the MENU/EXIT button to return to normal TV viewing.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ^® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

"DivX Certified to play DivX video up to HD 1080p, including premium content"

"Pat. 7,295,673; 7,460,688; 7,519,274"

NOTE

▶ Movie files are supported as follows

Resolution : under 1920x1080 WxH pixels

Frame rate : under 30 frames/sec(1920x1080), under 60 frames/sec(under 1280x720)

▶ Video CodeMPEG 1, MPEG 2, MPEG 4, H.264/AVC, DivX 3.11, DivX 4.12, DivX 5.x, DivX 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1, Xvid 1.10-beta2, JPEG, VC1, Sorenson H.263/H.264

▶The DRM file in DLNA server is not played when Movie List is in operation.

DEACTIVATION

The purpose of deactivation is to allow deactivation of devices for users who have activated all the available devices through the web-server and are blocked from activating more devices. DivX VOD allowed the consumer to activate up to 6 devices under one account, but to replace or deactivate any of those devices, the consumer had to contact DivX Support and request deletion. Now with this added feature, consumers will be able to deactivate the device themselves and hence better manage their DivX VOD devices.

MY MEDIA Movie List Music List Photo List Press OK to see photos from the USB or PC. Option Exit

Deregistration code : ****** Deregister at http://vod.divx.com Continue with registration? Yes No

Select MY MEDIA.

Select Deactivation.

Select Yes.

Display Deactivation.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

GAME

GAME

Allows you to enjoy the games installed on the TV.

SETUP PICTURE AUDIO TIME LOCK OPTION NETWORK INPUT MY MEDIA GAME Press OK Is set programme settings Customer Support Simple Manual Exit

Game JUMP HOLE IN ONE WHACK A MOLE SUDOKU COOKING BURGER SAVING CRYSTAL INVADER URGENT SURVIVAL Exit

Select GAME.

Select the desired game.

Enter the selected game mode.

- Press the EXIT button to return to normal TV viewing.

EPG(ELECTRONIC PROGRAMME GUIDE) (IN DIGITAL MODE)

(Except New Zealand)

This system has an Electronic Programme Guide (EPG) to help your navigation through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of these programme details will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies.

You must set the Clock in the Time menu, before using EPG function.

The EPG displays the programme details for 8 days.

DTV 9 Nine Digital The GARDEN GURUS SINGAPORE SPECIAL 17:00 18:00 16:3 576i The Garden Gurus Singapore Special Follow the Garden on a trip that will inspire, educate and enterain you in all aspects of gardening, culture and lifestyle. Join Naville Passmore, Trevor Cochrane, Melissa King and Sue McDougall as they showcase some outstanding Up Down

Shows current programme information

Displayed with a TV or DTV Programme. Displayed with a Teletext Programme.

Displayed with a Radio Programme. Displayed with a Subtitle Programme.

Displayed with a MHEG Programme. Displayed with a Scramble Programme.

Displayed with a HE-AAC Programme. Displayed with a Dolby Digital Programme.

Aspect ratio of broadcasting programme. Displayed with a Dolby Digital Plus Programme.

Aspect ratio of broadcasting programme. 576i/p, 720p, 1080i/p : Resolution of broadcasting programme

Broadcasted programme with the icon may not be displayed in Monitor Out depending on the information of the programme.

Shows next programme information.

Do you want to set a reminder for the selected programme? NATIONAL NINE NEWS SATURDAY DTV 9 Nine Digital 3 Mar. 2007 18:00- 18:30 Yes No Pr. Change Now Schedule NATIONAL NINE NEWS SATURDAY Jo Hall present's Melbourne's most comprehensive weekend news device with detailed sports and weather reports.

A pop-up window for remind settings appear.

Select Timer Remind setting mode.

EPG (ELECTRONIC PROGRAMME GUIDE)

SWITCH ON/OFF EPG

Switch on or off EPG.

SELECT A PROGRAMME

Select desired programme.

BUTTON FUNCTION IN NOW/NEXT GUIDE MODE

You can view a programme being broadcasted and one scheduled to follow.

Change EPG mode.

Enter Manual Timer mode.

Enter Schedule List mode.

When 'NOW' is selected, it is moved to selected programme and EPG disappears

When 'NEXT' is selected, a reservation pop-up window appears.

Select NOW or NEXT Programme.

Select the Broadcast Programme.

Page Up/Down.

Programme Guide The Wiggles Show 22 Dec. 2006 10:15 DTV 1 ABC TV Sydney 22 Dec. 2006 10:03 ~ 10:15 ALL NOW NEXT 1 ABC TV Sy The Wiggles Show Bob The Builder Special 10 ABC2 Franny's Feet.Wonderful... This Is Daniel Cook 11 ABC TV The Wiggles Show Bob The Builder Special 12 ABC HDTV The Wiggles Show Bob The Builder Special 13 ABC TV 1 Favourite INFO Information TV/RAD RADIOWatch/Schedule Mode Manual Timer Schedule List

Switch off EPG.

Select DTV or RADIO Programme.

Detail information on or off.

BUTTON FUNCTION IN 8 DAY GUIDE MODE

Change EPG mode.

Enter Date setting mode.

Enter Manual Timer mode.

Enter Schedule List mode.

When ‘Currently broadcasting programme’ is selected, it is moved to selected programme and EPG disappears

When ‘Future broadcasting programme’ is selected, a reservation pop-up window appears.

Select Programme.

Select the Broadcast Programme.

Programme Guide The Wiggles Show 22 Dec. 2006 - 10:15 DTV 1 ABC TV Sydney 22 Dec. 2006 10:03 ~ 10:15 ALL 10:30 11:00 1 ABC TV Sy Th... Bob The Builder Special ... | Dream - L Out Thons 10 ABC2 Fri... M... Sn... Tt... BTeled Bochbah ... 11 ABC TV The... Bob The Builder Special 12 ABC HDTV The... Bob The Builder Special ... | Dream - L Out Thons 13 ABC TV 1 FAV Favourite INFO Information TV/RAD RADIOWatch/Schedule Mode Date Manual Timer Schedule List

Page Up/Down.

or or

Switch off EPG.

Select DTV or RADIO Programme.

Detail information on or off.

BUTTON FUNCTION IN DATE CHANGE MODE

GREEN OK ✓ GUIDE

Switch off Date setting mode.

Change to the selected date.

Select a date.

Switch off Date setting mode.

or or

Switch off EPG.

Programme Guide The Wiggas Show DTV 1 ABC TV Sydney 22 Dec. 2006 10:03 - 10:15 ALL 18:30 19:00 19:30 Th... Bob The Builder Special ... | Dream - L | Out There 1 ABC TV Sy 10 ABC2 Fra... M... Sn... Til... Bill Abd... Buchbah ... 11 ABC TV The... Bob The Builder Special The... Bob The Builder Special ... | Dream - L | Out There 12 ABC HDTV 13 ABC TV 1 Date Change Date Exit

BUTTON FUNCTION IN EXTENDED DESCRIPTION BOX

The detail information on or off.

Text Up/Down.

Select Timer Remind setting mode.

Switch off EPG.

DTV 1 ABC TV Sydney 22 Dec. 2006 10:06 Bob The Builder Special Fri. 22 Dec. 2006 10:15 10:58 An old castle needs renovating and Bob the Builder's father in change! Bob's noble team, Sir Dig-a-lot, Sir Lift-a-lot, Lady Mix-a-lot & Sir Roll-a-lot, inspired by the tales of the Knights of Camelot Remind Use

EPG (ELECTRONIC PROGRAMME GUIDE)

BUTTON FUNCTION IN REMIND SETTING MODE

Sets only a start time for the reminder.

Switch off Manual Timer mode.

Change to Guide mode.

Change to Schedule List mode.

Move to the desired date.

Enter Repeat Option mode.

Select your desired Repeat Option.(Once/Daily/Weekly/Mon.\~Fri./Sat.\~Sun.)

Select Start Time and Programme.

Save Timer Remind.

Manual Timer Select the date to schedule. Wed 12 Aug 2008 12:45 Sun Mon Tue Wed Thu Fri 17 18 19 20 21 24 25 26 27 28 29 31 01 02 03 04 05 07 08 09 10 11 12 Once Daily Weekly (Fri.) Mon.~Fri. Close Move OK Exit Programme Guide Schedule List

Manual Timer Select the date to schedule. Wed. 12 Aug. 2009 13:48 Sun. Mon. Tue. Wed. Thu. Fri. Sat. Wed. 12 Aug. 2009 09 10 11 16 17 18 23 24 25 30 31 01 Select time to remind. Start Time Programme 10 09 DTV 1ABC TV... Close Schedule list Move OK Exit Programme Guide Schedule List

BUTTON FUNCTION IN SCHEDULE LIST MODE

If you've created a schedule list, a scheduled programme is displayed at the scheduled time even when you are watching a different programme at the time.

Change to Manual Timer mode.

Change to Guide mode.

Switch off Schedule List.

Select your desired Option(Modify/Delete/Delete All).

Select Schedule List.

Page Up/Down.

Schedule List Page1/1 Fri. 6 Apr. 2007 15:09 2007 04 Start Date Start Time Title 6 May 16:00 Friend1 6 May 18:00 Friend2 Friend2 16:00 Modify Modify Delete Delete All Close Move Modify/Delete P Page Change Exit Manual Timer Programme Guide

MHEG (MULTIMEDIA AND HYPERMEDIA INFORMATION CODING EXPERT GROUP) (IN DIGITAL MODE)

(Only New Zealand)

This feature is enabled only in New Zealand.

- In New Zealand, pressing the Guide key will display MHEG EPG provided by New Zealand on the screen.

This system has an MHEG(Multimedia and hypermedia information coding expert group) to help your navigation through all the possible viewing options.

DTV 1 TV ONE Good Morning 21:00 00:00 Show/Game Show 16.9 720p HE-AAC Sarah Bradley, Steve Gray and Brendon Pongia present the latest in fashion, the arts, entertainment, lifestyle and cooking, with regular and special guests. Sarah Bradley, Steve Gray and Brendon Pongia present the latest in fashion, the arts, entertainment, lifestyle and cooking, Up Down

Shows current programme information

Displayed with a TV or DTV Programme. Displayed with a Teletext Programme.

Displayed with a Radio Programme. Displayed 📄 in a Subtitle Programme.

Displayed with a MHEG Programme. Displayed with a Scramble Programme.

Displayed with a HE-AAC Programme. Displayed with a Dolby Digital Programme.

Aspect ratio of broadcasting programme. Displayed with a Dolby Digital PLUS Programme.

Aspect ratio of broadcasting programme. 576i/p, 720p, 1080i/p : Resolution of broadcasting programme

SWITCH ON MHEG

Switch on the MHEG.

SELECT A PROGRAMME

Preview the Broadcast Programme Information.

change to desired channel.

The MHEG will disappear after moving to a selected channel.

MHEG (MULTIMEDIA AND HYPERMEDIA INFORMATION) CODING EXPERT GROUP)(IN DIGITAL MODE)

BUTTON FUNCTION IN LISTING MODE

Select the Broadcast Programme Information.

Select Channel.

Change to Next Week or Prev Day.

Change to Next Day or Today.

The MHEG will disappear after moving to a selected channel.

Change to Now/Next mode.

Switch off MHEG.

Detail information on or off.

one Tue 12 Feb 2.30pm Ellen Prog Chnl Next Week OK Watch TV EPG/Guide Now/N

TV ONE, 2.32pm Emmy Award-winning comedian and writer, best-selling author, actor and television pioneer Ellen DeGeneres brings her unique brand of hilarity to daytime talk.

ONE Tue 19 Feb 2.30pm Ellen 3.30pm Whanau 3.40pm Te Karere 4.00pm Emmerdale 4.30pm ONE News At 4.30 4.55pm Mucking In 5.20pm Masterchef Goes Large 6.00pm ONE News At 6pm 7.00pm Close Up

TV ONE, 2.32pm

Emmy Award-winning comedian and writer, best-selling author, actor and television pioneer Ellen DeGeneres brings her unique brand of hilarity to daytime talk.

BUTTON FUNCTION IN NOW/NEXT MODE

You can view a channel being broadcasted and one scheduled to follow.

Select desired channel.

The MHEG will disappear after moving to a selected channel.

Change to Listing mode.

Switch off MHEG.

Detail information on or off.

What's on now/next. 2.33pm Tue 12 Feb 1 TV ONE Now 2.30pm Neighbours Next 3.00pm Jojo's Circus 2 TV2 Now 2.30pm Neighbours Next 3.00pm Jojo's Circus 3 TV3 Now 2.00pm Oprah Next 3.00pm Rugrats 4 C4 Now 2.00pm The Official NZ Top 40 Next 4.00pm Vodafone Select Live 5 Māori Television Now 12.00am News : Te Kaea Next 3.00pm Advice: Ask Your Auntie Chnl OK Watch TV EPG Listings freeview

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL

You can watch the screen in various picture formats; 16:9, Just Scan, Original, Full Wide, 4:3, 14:9, Zoom and Cinema Zoom.

If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on the screen and remain visible.

You can adjust the enlarge proportion using ^ ∨ button.

This function works in the following signal.

1 Q MENU 2 OK

Select Aspect Ratio.

Select the desired picture format.

- You can also adjust Aspect Ratio in the PICTURE menu.

- For Zoom Setting, select 14:9, Zoom and Cinema Zoom in Ratio Menu. After completing Zoom Setting, the display goes back to Q.Menu.

• 16:9

The following selection will allow you to adjust the picture horizontally, in linear proportion, to fill the entire screen(useful for viewing 4:3 formatted DVDs).

Black and white photo of a pool ball on a textured surface (no text or symbols visible)

- Just Scan

Following Selection will lead to you view the picture of best quality without loss of original picture in high resolution image.

Note : If there is noise in original Picture, You can see the noise at the edge.

Just Scan

• Original

When your TV receives a wide screen signal it will automatically change to the picture format broadcast.

Original

or

Original

• Full Wide

When TV receives the wide screen signal, it will lead you to adjust the picture horizontally or vertically, in a linear proportion, to fill the entire screen fully.

4:3 and 14:9 video is supported in full screen without any video distortion through DTV input.

Full Wide

or

Full Wide

PICTURE CONTROL

· 4:3

The following selection will allow you to view a picture with an original 4:3 aspect ratio, gray bars will appear on both the left and right of the screen.

Close-up of a ball with a pointed tip and rounded body, possibly a paddle or paddle (no text or symbols visible)

· 14:9

You can view a picture format of 14:9 or a general TV programme in the 14:9 mode. The 14:9 screen is viewed in the same way as in 4:3, but is moved to the up and down.

Close-up of a ball with white and gray stones on a textured surface (no text or symbols visible)

- Zoom

The following selection will allow you to view the picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped.

Black and white photo of a pool table with multiple balls on a gravel surface (no visible text or symbols)

- Cinema Zoom

Choose Cinema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or reducing the picture, the image may become distorted.

Close-up of a ball with three balls on a textured surface (no text or symbols visible)

◀ or ▶ button: Adjust enlarge proportion of Cinema Zoom. The adjustment range is 1 to 16.
▼ or ▲ button: Move the screen.

NOTE

▶ You can only select 4:3, 16:9 (Wide), 14:9, Zoom/Cinema Zoom in Component mode.
▶ You can only select 4:3, Original, 16:9 (Wide), 14:9, Zoom/Cinema Zoom in HDMI mode.
▶ You can only select 4:3, 16:9 (Wide) in RGB-PC, HDMI-PC mode only.
▶ In DTV/HDMI/Component (over 720p) mode, Just Scan is available.

PICTURE WIZARD

This feature lets you adjust the picture quality of the original image.

Use this to calibrate the screen quality by adjusting the Black and White Level etc. General users can calibrate the screen quality by easily following each stage.

When you adjust the image to Low, Recommended or High, you can see the changed result as an example.

In RGB-PC/HDMI-PC/DVI-PC mode, the changed Colour, Tint and H/V Sharpness values are not applied.

PICTURE Aspect Ratio : 16:9 Picture Wizard Energy Saving : Off Picture Mode : Standard Contrast 100 Brightness 50 Sharpness 65 Colour 60

Picture Wizard With Picture Wizard, you can adjust the picture quality of the original image.

1 MENU 2 OK

Select PICTURE.

Select Picture Wizard.

Adjust Standard(Black Level, White Level, Tint, Colour, Horizontal Sharpness, Vertical Sharpness) or Preferred(Black Level, White Level, Tint, Colour, Sharpness, Dynamic Contrast, Colour Temperature.)

Select input source to apply the settings.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PICTURE CONTROL

ENERGY SAVING

It reduces the TV's power consumption.

The default factory setting is adjusted to the comfortable level to be viewed at home.

You can increase the brightness of your screen by adjusting the Energy Saving level or by setting the Picture Mode.

When adjusting Energy Saving in MHEG mode, the Energy Saving setting is applied after MHEG is finished.

Selecting 'Screen Off' while tuned to a radio station channel will reduce power consumption.

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Intelligent Sensor • Picture Mode : Vivid • Contrast 100 • Brightness 50 • Sharpness 70 • Colour 70 PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Intelligent Sens • Picture Mode : Vivid • Contrast 10 • Brightness 5 • Sharpness 70 • Colour 70 Intelligent Sensor Off Minimum Medium Maximum Screen Off

Select PICTURE.

Select eEnergy Saving.

Select Intelligent Sensor, Off, Minimum, Medium, Maximum or Screen Off.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

• When you select Screen Off, the screen will be turned off in 3 seconds and Screen Off will start.

• If you adjust "Energy Saving-Intelligent Sensor", Sharpness, Colour, Colour Temperature feature will not work.
• You can also adjust this feature by selecting Energy Saving button on the remote control.

PRESET PICTURE SETTINGS

Picture Mode-Preset

Vivid Strengthen the contrast, brightness, colour and sharpness for vivid picture.

Standard The most general screen display status.

Optimizes power consumption.

THxCinema Optimizes video for watching movies.

THXBright Room This is the specification to optimize TV viewing in Bright Room.

Sport Optimizes video for watching sports events.

Game Optimizes video for playing games.

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : • Picture Mode : APS • Contrast 95 • Brightness 50 • Sharpness 65 • Colour 60

PICTURE Aspect Ratio : 16:9 Picture Wizard Energy Saving ; Intelligent Se Picture Mode : Contrast Brightness Sharpness Colour Vivid Standard Cinema Bright Room Sport Game Expert1 Expert2

Select PICTURE.

Select Picture Mode.

Select Vivid, Standard, APS ^ , THX Cinema, THX Bright Room, Sport or Game.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PICTURE CONTROL

• Picture Mode adjusts the TV for the best picture appearance. Select the preset value in the Picture Mode menu based on the programme category.
• When the Intelligent sensor function is on, the most suitable picture is automatically adjusted according to the surrounding conditions.
• You can also adjust Picture Mode in the Q. Menu.
• Intelligent Sensor: Adjusts picture according to the surrounding conditions.
• APS (Auto Power Saving): Maximize reducing the power consumption without hurting the picture quality.
• If you adjust "Picture ModeHX Cinema, IHX Bright Room", "Energy Saving-Intelligent Sensor, Minimum, Medium, Maximum" feature will not work.
• If you adjust “Picture Mode-APS”, “Energy Saving-Off, Minimum, Medium, Maximum” feature will not work.

- THxCinema: This is cinema quality mode to provide you the experience of watching a movie at home. The user will be able to enjoy the best level of satisfactory screen quality in any movie without any separate adjustments. Cinema expresses the optimal screen quality when it is darkest. When selecting THxCinema, THxBright Room Aspect ratio changes to Just scan.

- THX Cinema(Thomlinson Holman's Experiment) is the audio and video certification standard of THX established by George Lucas, who directed the movie Star Wars, and Thomlinson. This is the product to be certified in THX display area and guarantees screen quality that exceeds the display standard specification in both hardware and software.

MANUAL PICTURE ADJUSTMENT

Picture Mode-User option

Contrast

Adjusts the signal level between black and white in the picture. You may use Contrast when the bright part of the picture is saturated.

Brightness

Adjusts the base level of the signal in the picture.

Sharpness

Adjusts the level of crispness in the edges between the light and dark areas of the picture. The lower the level, the softer the image.

Colour

Adjusts intensity of all colours.

Tint

Adjusts the balance between red and green levels.

Colour Temp.

Adjust to left direction to make a picture reddish or adjust to right direction to make a picture bluish.

It is not available to use this function in "APS", IHX Cinema, IHX Bright Room"

PICTURE Aspect Ratio : 16:9 Picture Wizard Energy Saving : Intelligent Se Picture Mode : Contrast Brightness Sharpness Colour Vivid Standard Cinema Bright Room Sport Game Expert1 Expert2

1 MENU 2 OK 3 OK 4 OK 5 OK

Select PICTURE.

Select Picture Mode.

Select Vivid, Standard, Sport or Game.

Select Contrast, Brightness, Sharpness, Colour, Tint or Colour Temp..

Make appropriate adjustments.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

NOTE

▶ You cannot adjust colour, sharpness and tint in the RGB-PC/HDMI-PC mode.
▶ When the THX Cinema, THX Bright Room or Expert1/2 are selected, you can select Contrast, Brightness, H Sharpness, V Sharpness, Colour or Tint.

PICTURE CONTROL

PICTURE IMPROVEMENT TECHNOLOGY

You can calibrate the screen for each Picture Mode or set the video value according to the special video screen.

You can set the video value differently for each input.

To reset to the factory default screen after making adjustments to each video mode, execute the "Picture Reset" function for each Picture Mode.

Image shown may differ from your TV.

PICTURE • Colour 60 • Tint 0 • Colour Temp. 0 • Advanced Control • Picture Reset • Screen PICTURE • Colour • Tint • Colour Te • Advance • Screen • Dynamic Contrast • Dynamic Colour • Noise Reduction • Gamma • Black Level • Film Mode • Colour Gamut • High • Medium • Medium • Auto • Off • Wide Close

Select PICTURE.

Select Advanced Control.

Select your desired Source :

Dynamic Contrast, Dynamic Colour, Noise Reduction, Gamma, Black Level, Film Mode, Colour Gamut, Edge Enhancer or xvYCC. (Refer to p. 108 to 109)

Make appropriate adjustments.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

EXPERT PICTURE CONTROL

By segmenting categories, Expert1 and Expert2 provide more categories which users can set as they see fit, offering the optimal picture quality for users.

This may also be used to help a professional optimize the TV performance using specific videos.

Image shown may differ from your TV.

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off Picture Mode Vivid Standard Contr Bright Sharp Color IHX Cinema IHX Bright Room Sport Game Expert1 Expert2 PICTURE • Brightness H Sharpness V Sharpness Colour Tint • Expert Contr • Picture Rese • Screen Dynamic Contrast Noise Reduction Gamma Black Level Film Mode Colour Gamut Edge Enhancer xvYCC Expert Pattern Off Off Medium Auto Off Standard Off Auto Off Close

Select PICTURE.

Select Picture Mode.

Select ^iy Expert1 or ^iy Expert2.

Select Expert Control.

Select your desired Source.

Make appropriate adjustments.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PICTURE CONTROL

*This feature is not available for all models.

Dynamic Contrast(Off/Low/High)	■ Adjusts the contrast to keep it at the best level according to the brightness of the screen. The picture is improved by making bright parts brighter and dark parts darker.
Dynamic Colour(Off/Low/Medium/High )	■ Adjusts screen colours so that they look livelier, richer and clearer. This feature enhances hue, saturation and luminance so that red, blue, green and white look more vivid.
Noise Reduction(Off/Low/Medium/High/Auto (In Analogue mode only))	■ Reduces screen noise without compromising video quality.
Gamma(Low/Medium/High)	■ You can adjust brightness of dark area and middle gray level area of the picture.·Low: Makes dark and middle gray level area of the picture brighter.·Medium: Expresses original picture levels.·High: Makes dark and middle gray level area of the picture darker.■ Set up to Medium in TV modes. it's set up to disable.
Black Level(Low/High/Auto)	·Low: The picture of the screen gets darker.·High: The picture of the screen gets brighter.·Auto: Sets black level of the screen to High or Low automatically according to the input signal level.■ This function enables to select 'Low' or 'High' in the following mode: AV(NTSC-M), HDMI or Component. Otherwise, 'Black level' is set to 'Auto'.
Film Mode(On/Off)	■ You can watch a cinema-like video by eliminating judder effect.■ Uses this function when you watch film-originated movie contents.
Colour Gamut(Advanced Control/Expert Control)(Wide/Standard)	·Standard: Mode to use original colour area regardless of the display characteristics.·Wide: Mode to use maximum colour area of the TV display.·On the photo using a USB DEVICE, In case of picture mode is photo, The Details become Wide/sRGB
Edge Enhancer(On/Off)	■ Makes the edge of the picture clearer and distinctive.
xvYCC(Auto/off/on)	*This feature is not available for all models.■ This is the function to express richer colour.■ This function is enabled in "Picture mode - Cinema, Expert" when xvYCC signal is inputted through HDMI
Expert Pattern(Off/Pattern1/Pattern2)	■ This is the pattern necessary for checking the picture of Digital TV. This function is enabled in "Picture Mode - Expert" when you watch DTV.
Colour Filter(Off/Red/Green/Blue)	■ This is the function to filter the specific colours of the video.You can use the RGB filter to set colour saturation and hue accurately.
Colour Temperature(Medium/Warm/Cool)	This is the function to adjust the overall colour of the screen to the feeling you want.a. • Method : 2 Points• Pattern: Inner, Outer• Red/Green/Blue Contrast, Red/Green/Blue Brightness:The adjustment range is -50 to +50.b. • Method : 20 Point IRE• Pattern: Inner / Outer• IRE (Institute of Radio Engineers) is the unit to display the size of the video signal and can be set among 5, 10, 15 to 100. You can adjust Red, Green or Blue according to each setting.• Red/Green/Blue: The adjustment range is -50 to +50.
Colour Management System	■ As the tool used by the experts to make adjustments by using the test patterns, this does not affect other colours but can be used to selectively adjust the 6 colour areas (Red/Green/Blue/Cyan/Magenta/Yellow).Colour difference may not be distinctive even when you make the adjustments for the general video.■ Adjusts Red/Green/Blue/Yellow/Cyan/Magenta.• Red/Green/Blue/Yellow/Cyan, Magenta Colour : The adjustment range is -30 to +30.• Red/Green/Blue/Yellow/Cyan/Magenta Tint : The adjustment range is -30 to +30.■ This feature is disable in RGB-PC and HDMI (PC) mode.

PICTURE CONTROL

PICTURE RESET

Settings of the selected picture modes return to the default factory settings.

PICTURE • Brightness 30 • Sharpness 65 • Colour 60 • Tint 0 • Colour Temp. 0 • Advanced Control • Picture Reset • Screen PICTURE • Brightness 30 • Sharpness 65 • Color • Col • Poly • Adv • Picture • Screen All picture settings will be reset. Continue? Yes No

MENU OK OK OK Initiali

Select PICTURE.

Select Picture Reset.

Select Yes.

Initialize the adjusted value.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

IMAGE STICKING MINIMIZATION (ISM) METHOD

A frozen or still picture displayed on the screen for prolonged periods will result in a ghost image remaining even when you change the image. Avoid allowing a fixed image to remain on the screen for prolonged periods.

White Wash

White wash removes permanent images from the screen.

Note: An excessive permanent image may be impossible to clear entirely with White Wash.

Orbiter

Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid a permanent image on the screen, the screen will move every 2 minutes.

Colour Wash

The colour block with the screen moved a little. It is difficult to sense the afterimage occurred while the temporary afterimage is removed and the colour pattern is operating.

OPTION Language(Language) Country : Australia Hard of Hearing(1) ISM Method : Normal Factory Reset Set ID : 1 Mode Setting : Home Use IR Blaster : Off OPTION Language(Language) Country : Australia Hard of Hearing(1) ISM Method : Normal Factory Reset Set ID : 1 Mode Setting : Home Use IR Blaster : Off Normal Orbiter Colour Wash White Wash

1 MENU 2 OK 3 OK 4 OK Save.

Select OPTION.

Select ISM Method.

Select Normal, Orbiter, Colour Wash or White Wash.

Save.

- If you do not need this function, set Normal.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PICTURE CONTROL

MODE SETTING

We recommend setting the TV to "Home Use" mode for the best picture in your home environment.

"Store Demo" mode is an optimal setting for displaying at stores.

OPTION Language(Language) Country : Australia Hard of Hearing(1) ISM Method : Normal Factory Reset Set ID : 1 Mode Setting : Home Use IR Blaster : Off

OPTION Language(Language) Country : Australia Hard of Hearing( ISM Method : Norm Factory Reset Set ID : 1 Mode Setting : Home IR Blaster : Off Select the environment. Choose the setting mode you want. Select [Home Use] to use this TV at home. To use this TV at store, select [Store Demo]. Home Use Store Demo Demo Mode Off Close

1 MENU 2 OK 3 OK 4 OK Save.

Select OPTION.

Select Mode Setting.

Select Store Demo or Home Use.

Save.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

DEMO MODE

It is not possible to use Demo Mode in Home Use mode.

In Store Demo, Demo Mode is automatically set to On.

Once Demo Mode is set to Off in Store Demo, Demo Mode does not run and only the screen is reset.

The screen is reset automatically after 5 minutes in Demo Mode.

OPTION Language(Language) Country : Australia Hard of Hearing(1) ISM Method : Normal Factory Reset Set ID : 1 Mode Setting : Home Use IR Blaster : Off

OPTION Language(Language) Country : Australia Hard of Hearing( ISM Method : Norm Factory Reset Set ID : 1 Mode Setting : Home IR Blaster : Off Select the environment. Choose the setting mode you want. Select [Store Demo] to use this TV in store. To use this TV at home, select [Home Use]. Home Use Store Demo Demo Mode On Close

Select OPTION.

Select Mode Setting.

Select Store Demo.

Select On.

Return to TV viewing.

If you want to stop the demo, press any button. (except

for MUTE, ∠+ , - button)

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

AUTO VOLUME LEVELER

Auto Volume automatically remains on the same level of volume if you change programmes.

Because each broadcasting station has its own signal conditions, volume adjustment may be needed every time the channel is changed. This feature allows users to enjoy stable volume levels by making automatic adjustments for each programme.

If sound quality or volume is not at the level you want, it is recommended to use a separate home theater system or amp to cope with different user environments.

Select AUDIO.

Select Auto Volume.

Select On or Off.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

CLEAR VOICE II

By differentiating the human sound range from others, it helps users listen to human voices better.

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance • Sound Mode : Standard • Infinite Sound • Treble 50 • Bass 50 • Reset • Clear Voice II • Level 3 Close

Select AUDIO.

Select Clear Voice II.

Select On or Off.

• If you select "On" for Clear Voice II, Infinite Sound feature will not work.
• Select levels from '-6' to '+6'.

Adjustment for Clear Voice Level With selecting On

Select Level.

Make desired adjustment.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

You can select your preferred sound setting; Standard, Music, Cinema, Sport or Game and you can also adjust the Treble, Bass.

Sound Mode lets you enjoy the best sound without any Special adjustment as the TV sets the appropriate sound options based on the programme content.

Standard, Music, Cinema, Sport and Game are preset for optimum sound quality at the factory.

Standard Offers standard-quality sound.

Music Optimizes sound for listening to music.

Cinema Optimizes sound for watching movies.

Sport Optimizes sound for watching sports events.

Game Optimizes sound for playing games.

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance • Sound Mode : Standard • Infinite Sound • Treble • Bass • Reset Standard Music Cinema Sport Game

Select AUDIO.

- You can also adjust Sound Mode in the Q. Menu.

Select Sound Mode.

Select Standard, Music, Cinema, Sport or Game.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SOUND SETTING ADJUSTMENT -USER MODE

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard(User) • Infinite Sound : Off • Treble 50 • Bass 50 • Reset

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance • Sound Mode : Standard(Use) • Infinite Sound • Treble • Bass • Reset Standard(User) Music Cinema Sport Game

Select AUDIO.

Select Sound Mode.

Select Standard, Music, Cinema, Sport or Game.

Select Treble or Bass.

Set the desired sound level.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

INFINITE SOUND

Select this option to sound realistic.

Select AUDIO.

Select Infinite Sound.

Select On or Off.

Infinite Sound : Infinite Sound is a patented LG proprietary sound processing technology that strives immersive 5.1 surround sound impression with front two loudspeakers.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

BALANCE

You can adjust the sound balance of the speakers to preferred levels.

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance • Sound Mode : Standard • Infinite Sound • Treble 50 • Bass 50 • Reset Balance 0 Close

Select AUDIO.

Select Balance.

Make desired adjustment.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

You can adjust the TV internal speaker status.

In AV, COMPONENT, RGB and HDMI1 with HDMI to DVI cable, the TV speaker can be operational even when there is no video signal.

If you wish to use an external Hi-Fi system, turn off the TV's internal speakers.

AUDIO Sound Mode Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto

AUDIO Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto Off On

1 MENU 2 OK 3 OK

Select AUDIO.

Select TV Speaker.

Select On or Off.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

NOTE

▶ When the TV speaker is turned off while the Simplink home theater is operating, the sound output automatically switches to the Home theater speaker, but when the TV speaker is turned on, the sound output the TV speaker.
▶ Some menus in AUDIO are disabled when TV Speaker is set to Off.

SOUND & LANGUAGE CONTROL

DTV AUDIO SETTING (IN DIGITAL MODE ONLY)

When different audio types exist in an input signal, this function allows you to select the audio type you want.

AUDIO • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto AUDIO • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto Auto HE-AAC Dolby Digital+ Dolby Digital MPEG

Select AUDIO.

Select DTV Audio Setting.

Select Auto, HE-AAC, Dolby Digital +, Dolby Digital or MPEG.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

• Auto: Automatically outputs in the order HE-AAC > Dolby Digital+ > Dolby Digital > MPEG.
- HE-AAC, Dolby Digital +, Dolby Digital, MPEG: Allows users to select the audio type they want. ex) If MPEG is selected, MPEG is always outputted.
If MPEG is not supported, another audio type is set in that order.
• Refer to p. 127 to 128 (Audio Language Selection)

SELECTING DIGITAL AUDIO OUT

This function allows you to select your preferred Digital Audio Output.

The TV can only output Dolby Digital if a channel is broadcast with Dolby Digital audio.

When Dolby Digital is available, selecting Auto in the Digital Audio Out menu will set SPDIF(Sony Philips Digital InterFace) output to Dolby Digital.

If Auto is selected in the digital audio out menu when Dolby Digital is not available, SPDIF output will be PCM(Pulse-code modulation).

Even if both Dolby Digital and Audio language have been set in a channel which broadcast Dolby Digital Audio, only Dolby Digital will be played.

AUDIO • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto

AUDIO • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto Auto PCM

Select AUDIO.

Select Digital Audio Out.

Select Auto or PCM.

DOLBY.DIGITAL PLUS	Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• There is a possibility that when HDMI mode, some DVD players do not make SPDIF sound. At that time, set the output of the digital audio of the DVD player to PCM. (In HDMI, Dolby Digital Plus is not supported).

Item Audio Input Digital Audio output
Auto(Speaker On)	MPEGDolby DigitalDolby Digital PlusHE-AAC	PCMDolby DigitalDolby DigitalPCM
Auto(Speaker Off)	MPEGDolby DigitalDolby Digital PlusHE-AAC	PCMDolby DigitalDolby DigitalDolby Digital
PCM	All PCM

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

AUDIO RESET

Settings of the selected Sound Mode return to the default factory settings.

AUDIO • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto

AUDIO Sound Mode : Standard Infinite Sound : Off Digital Audio Out : P TV Speaker : On DTV Audio Setting : Auto All audio settings will be resetted. Continue? Yes No

Select AUDIO.

Select Reset.

Select Yes.

Initialize the adjusted value.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

I/II

STEREO/DUAL RECEPTION (IN ANALOGUE MODE ONLY)

When a programme is selected, the sound information for the station appears with the programme number and station name.

Select Audio.

Select the sound output.

Broadcast On Screen Display
Mono	MONO
Stereo	STEREO
Dual (Except for New Zealand)	DUAL I, DUAL II, DUAL I+II (Except for New Zealand)
NICAM (Only New Zealand) NICAM (Only New Zealand)

■ Mono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono. In mono reception, the clarity of sound is improved.

■ Language selection for dual language broadcast

If a programme can be received in two languages (dual language), you can switch to DUAL I, DUAL II or DUAL I+II.

DUAL I Sends the primary broadcast language to the loudspeakers.

DUAL II Sends the secondary broadcast language to the loudspeakers.

DUAL I+II Sends a separate language to each loudspeaker.

SOUND & LANGUAGE CONTROL

NICAM RECEPTION (IN ANALOGUE MODE ONLY)

(Except for New Zealand)

If the TV is equipped with a receiver for NICAM reception, high quality NICAM (Near Instantaneous Companding Audio Multiplex) digital sound can be received.

Sound output can be selected according to the type of broadcast received.

1

When NICAM mono is received, you can select NICAM MONO or FM MONO.

2

When NICAM stereo is received, you can select NICAM STEREO or FM MONO. If the stereo signal is weak, switch to FM MONO.

3

When NICAM dual is received, you can select NICAM DUAL I, NICAM DUAL II or NICAM DUAL I+II or FM MONO.

SPEAKER SOUND OUTPUT SELECTION

In AV, Component, RGB and HDMI mode, you can select output sound for the left and right loudspeakers.

Select the sound output.

L+R: Audio signal from audio L input is sent to the left loudspeaker and audio signal from audio R input is sent to the right loudspeaker.

L+L: Audio signal from audio L input is sent to left and right loudspeakers.

R+R: Audio signal from audio R input is sent to left and right loudspeakers.

SOUND & LANGUAGE CONTROL

COUNTRY SELECTION

The installation guide menu appears on the TV screen when it is switched on for the first time.

Select your desired language.

Select your country.

* If you want to change Country

Select OPTION.

Select Country.

Input a 4-digit password.

Be sure to remember this number!

Re-enter new password for confirm.

Select your country.

Save.

- If you forget your password, press '0', '3', '2', '5' on the remote control handset.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

NOTE

▶ If you do not finish the set-up Installation Guide by pressing BACK or if you time out on the OSD (On Screen Display) the installation menu will continuously appear until the set up is completed whenever the TV is switched on.
▶ If you select the wrong local country, teletext may not appear correctly on the screen and some problems may occur during teletext operation.
▶ DTV mode control buttons may not function based on country broadcasting circumstances.
In country that Digital broadcasting regulation isn't fixed, some DTV function may not work depending on digital broadcasting circumstances.

LANGUAGE SELECTION (IN DIGITAL MODE ONLY)

The Audio function allows selection of a preferred language.

If audio data in a selected language is not broadcast, the default language audio will be played.

Use the Subtitle function when two or more subtitle languages are broadcast. If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.

When the languages you selected as the primary for Audio Language and Subtitle Language and Teletext Language are not supported, you can select language in secondary category.

In Digital mode, use the teletext language function when two or more teletext languages are broadcast. If teletext data in a selected language is not broadcast, the default teletext language page will be displayed.

Select OPTION.

Select Language(Language).

Select Audio Language, Subtitle Language or Teletext Language.

Select your desired language.

Select OPTION.

Select Hard of Hearing(☐).

Select On or Off.

- Press the BACK button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

< Audio Language Selection >

▶ When two or more audio languages are broadcast, you can select the audio language.

Select Audio Language.

Select an audio language.

< Subtitle Language Selection >

▶ When two or more subtitle languages are broadcast, you can select the subtitle language with the SUBTITLE button on the remote control.
▶ Press the √ button to select a subtitle language.

• The audio/subtitles can be displayed in a simpler form with 1 to 3 characters broadcast by the service provider.
• When you select supplementary Audio (Audio for "Visual/Hearing Impaired") the TV may output a part of the Main audio.

Audio Language OSD Information

Display Status
N.A Not Available
[2360]	MPEG Audio
[K2CK]	Dolby Digital Audio
	Audio for “Visual Impaired”
[8236]	Audio for “Hearing Impaired”
	Dolby Digital Plus Audio
[7226]	HE-AAC Audio

Subtitle Language OSD Information

Display Status
N.A Not Available
[3YHS]	Teletext Subtitle
[HBKW]	Subtitle for "Hard of Hearing"

TIME SETTING

CLOCK SETUP

The clock is set automatically when receiving a digital signal in Auto mode. You can set the clock manually in Manual mode.

You must set the time correctly before using on/off timer function.

< Only Australia >

When you select a Time Zone city, the TV time is set by the time offset information based on Time Zone and GMT (Greenwich Mean Time) which is received with the broadcast signal and the time is set automatically by a digital signal.

Time Zone is activated only in Auto Mode.

TIME Clock Off Time : Off On Time : Off Sleep Timer : Off

TIME Clock Off Time On Time Sleep Timer Auto Date 3 Month Mar. Year 2008 Hour 16 Minute 09 Time Zone NSW/ACT GMT Close Only Australia

Select TIME.

Select Clock.

Select Auto or Manual.

Select either the year, month, date, time or Time Zone option.

Set the year, month, date, time or Time Zone option.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

TIME SETTING

AUTO ON/OFF TIME SETTING

The Off time function automatically switches the TV to standby at a preset time.

Two hours after the TV is switched on by the on time function it will automatically switch back to standby mode unless a button has been pressed.

The Off time function overrides the On time function if both are set to the same time.

The TV must be in standby mode for the On time to work.

TIME • Clock • Off Time : Off • On Time : Off • Sleep Timer : Off

TIME Clock Off Time On Time Sleep Timer 1 Mar 2007 16:09 Repeat On Hour 00 Minute 00 Input Antenna Programme TV1 Volume 30 Close

1 MENU 2 OK 3 OK 4 Select Mon. 5 6

Select TIME.

Select Off Time or On Time.

Select Repeat.

Select Off, Once, Daily, Mon. \~ Fri., Mon. \~ Sat., Sat. \~ Sun. or Sun..

Set the hour.

Set the minutes.

- To cancel On/Off Time function, select Off. - For On Time function only

Select Input.

he input source.

Set the programme.

Adjust volume level at switch-on.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SLEEP TIMER SETTING

You do not have to remember to switch the TV off before you go to sleep.

The sleep timer automatically switches the TV to standby after the preset time has elapsed.

Select Sleep Timer.

Select Off, 10, 20, 30, 60, 90, 120, 180 or 240 min.

• When you switch the TV off, the preset sleep timer is cancelled.
• You can also adjust Sleep Timer in the TIME menu.

PARENTAL CONTROL / RATINGS

SET PASSWORD & LOCK SYSTEM

Enter the password, press '0', '0', '0', '0' on the remote control handset.

If a channel is locked, enter the password to unlock it temporarily.

LOCK Set Password Lock System : Off Block Programme Parental Guidance : Blocking Off Input Block Key Lock : Off LOCK Set Password Lock System : Off Block Programme Parental Guidance : Blocking Off Input Block Key Lock : Off Off On

Select LOCK.

Select Lock System.

Select On.

Set the password.

Input a 4-digit password.

Be sure to remember this number!

Re-enter new password for confirm.

- If you forget your password, press '0', '3', '2', '5' on the remote control handset.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

BLOCK PROGRAMME

Blocks any programme that you do not want to watch or that you do not want your children to watch.

It is available to use this function in Lock System "On".

Enter a password to watch a blocked programme.

LOCK • Set Password • Lock System : On • Block Programme • Parental Guidance : Blocking Off • Input Block • Key Lock : Off

Programme Edit Favourite Group : DTV RADIO TV 1 ABC TV Sydney 7 7 Guide 9 Nine Digital 10 ABC2 11 ABC TV 12 ABC HDTV 13 ABC TV 1 14 ABC TV 2 70 7 HD Digital 71 7 Digital 1 72 7 Digital 2 73 7 Digital 3 77 7 Guide 90 Nine Digital HD 99 Nine Guide 100 ABC TV 3 Pr. Change Navigation Page Change Previous Block/Unblock

Select LOCK.

Select Lock System.

Select Block Programme.

Enter the Block Programme.

Select a programme to be locked.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PARENTAL CONTROL / RATINGS

PARENTAL CONTROL (IN DIGITAL MODE ONLY)

This function operates according to information from the broadcasting station. Therefore if the signal has incorrect information, this function does not operate.

A password is required to gain access to this menu.

This set is programmed to remember which option it was last set to even if you switch the set off.

Prevents children from watching certain adult's TV programmes, according to the ratings limit set.

Enter a password to watch a blocked programme.

Rating differs by country.

LOCK • Set Password • Lock System : On • Block Programme • Parental Guidance : Blocking Off • Input Block • Key Lock : Off LOCK • Set Password • Lock System : On • Block Program • Parental Guida • Input Block • Key Lock : Off Blocking Off : Permits all programmes Block All G PG M MA AV R Blocking Off

Select LOCK.

Select Lock System.

Select Parental Guidance

Make appropriate adjustments.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

EXTERNAL INPUT BLOCKING

Enables you to block an input.

It is available to use this function in Lock System "On".

■ Image shown may differ from your TV.

LOCK • Set Password • Lock System : On • Block Programme • Parental Guidance : Blocking Off • Input Block • Key Lock : Off

LOCK • Set Password • Lock System : On • Block Program • Parental Guida • Input Block • Key Lock : Off • AV1 • AV2 • Component1 • Component2 • RGB • HDMI1 • HDMI2 • HDMI3 • HDMI4 • Off Off Off Off Off Off Off Off Close

Select LOCK.

Select Lock System.

Select Input Block.

Select input source.

Select On or Off.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PARENTAL CONTROL / RATINGS

KEY LOCK

This feature can be used to prevent unauthorized viewing by locking out the front panel controls, so that it can only be used with the remote control.

This TV is programmed to remember which option it was last set to even if you turn the TV off.

LOCK • Set Password • Lock System : Off • Block Programme • Parental Guidance : Blocking Off • Input Block • Key Lock : Off

LOCK ■ Set Password ■ Lock System : Off ■ Block Programme ■ Parental Guidance : Blocking Off ■ Input Block ■ Key Lock : Off Off On

1 MENU 2 OK 3 OK

Select LOCK.

Select Key Lock.

Select On or Off.

• In Key Lock 'On', if the TV is turned off, press the / I, INPUT, P ^ ∨ button on the TV or POWER INPUT, P ^ ∨ or NUMBER buttons on the remote control then the set will be turned on.
• With the Key Lock On, the display ' 🔊 Key Lock On' appears on the screen if any button on the front panel is pressed while viewing the TV.

• When another OSD is displayed, '⚠ Key Lock On' will not operate.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

TELETEXT

This feature is not available in all countries.

Teletext is a free service broadcast by most TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics.

The teletext decoder of this TV can support the SIMPLE, TOP and FASTEXT systems. SIMPLE (standard teletext) consists of a number of pages which are selected by directly entering the corresponding page number. TOP and FASTEXT are more modern methods allowing quick and easy selection of teletext information.

SWITCH ON/OFF

Press the TEXT button to switch to teletext. The initial page or last page viewed appears on the screen.

Two page numbers, TV station name, date and time are displayed on the screen headline. The first page number indicates your selection, while the second shows the current page displayed.

Press the TEXT button to switch off teletext. The previous mode reappears.

1...@ 2 abc 3 dof 4 ghi 5 jd 6 mno 7 pgn 8 tuv 9 wyz LIST 0 Q VIEW + MARK FAV CHARNUM RATIO DELUTE MUTE P MENU Q MENU OK > BACK GUIDE EXIT TEXT TOPT SWITCH ■ ▶ II ← ←

SIMPLE TEXT

■ Page selection

① Enter the desired page number as a three digit number with the NUMBER buttons. If during selection you press a wrong number, you must complete the three digit number and then re-enter the correct page number.
2 The P ∧ ∨ button can be used to select the preceding or following page.

TELETEXT

TOP TEXT

The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow field denotes the next group and the blue field indicates the next block.

■ Block / group / page selection

①With the blue button you can progress from block to block.
② Use the yellow button to proceed to the next group with automatic overflow to the next block.
③ With the green button you can proceed to the next existing page with automatic overflow to the next group.
4 Alternatively the P ^ button can be used.
The red button returns to the previous selection. Alternatively the P ∨ button can be used.

■ Direct page selection

As with SIMPLE teletext mode, you can select a page by entering it as a three digit number using the NUMBER buttons in TOP mode.

FASTEXT

The teletext pages are colour coded along the bottom of the screen and are selected by pressing the corresponding coloured button.

■ Page selection

1 Press the T.OPT button and then use ∧ √button to select ≡i menu. Display the index page.
② You can select the pages which are colour coded along the bottom line with corresponding coloured buttons.
③ AS with SIMPLE teletext mode, you can select a page by entering its three digit page number with the NUMBER buttons in FASTEXT mode.
4 The P ∧ √button can be used to select the preceding or following page.

SPECIAL TELETEXT FUNCTIONS

■ Press the T. OPT button and then use ^ ∨ button to select the Text Option menu.

Index

Select the each index page.

■ Time

When viewing a TV programme, select this menu to display the time at the top right hand corner of the screen.

Text Option Index Time Hold Reveal Update Close

In the teletext mode, press this button to select a sub page number. The sub page number is displayed at the bottom of the screen. To hold or change the sub page, press the RED/GREEN, <> or NUMBER buttons.

■ Hold

Stops the automatic page change which will occur if a teletext page consists of 2 or more sub pages. The number of sub pages and the sub page displayed is, usually, shown on the screen below the time. When this menu is selected the stop symbol is displayed at the top left-hand corner of the screen and the automatic page change is inactive.

■ Reveal

Select this menu to display concealed information, such as solutions to riddles or puzzles.

■ Update

Displays the TV picture on the screen while waiting for a new teletext page. The display will appear at the top left hand corner of the screen. When the updated page is available then display will change to the page number. Select this menu again to view the updated teletext page.

DIGITAL TELETEXT

*This function works in New Zealand.

The TV gives you access to digital teletext which is greatly improved in various aspects such as text, graphics etc.

This digital teletext can access special digital teletext services and specific services which broadcast digital teletext.

TELETEXT WITHIN DIGITAL SERVICE

1 Press the numeric or P ∧ ∨ button to select a digital service which broadcasts digital teletext.
2 Follow the indications on digital teletext and move onto the next step by pressing TEXT, OK, ^√<>, RED, GREEN, YELLOW, BLUE or NUMBER buttons and etc.
3 To change digital teletext service, select a different service by the numeric or P ∧ ∨ button.

LIVE North London BBC NEWS 24 BBC News News headings and live events in video. News Multiscreen News Headlines Christmas Comedy Preview Big Read Vote NEWS SPORT WEATHER MAIN MENUING Press TEXT to exit 15:11 JOGGER S Suspect was to

TELETEXT IN DIGITAL SERVICE

1 Press the numeric or P ∧ ∨ button to select a certain service which broadcasts digital teletext.
2 Press the TEXT or coloured button to switch on teletext.
3 Follow the indications on digital teletext and move onto the next step by pressing OK, √ < >, RED, GREEN, YELLOW, BLUE or NUMBER buttons and so on.
4 Press the TEXT or colour button to switch off digital teletext and return to TV viewing.

Some services may allow you to access text services by pressing the RED button.

News : Main Headlines UK World Politics In Depth UK Regions Sci-Tech Health Community 15:13 09 Dec BBC News 24 Press BLUE to change section GO TO TV SHORTCUTS BACK MENU BBC

APPENDIX

TROUBLESHOOTING

The TV does not operate properly.

The remote control does not work	■ Check to see if there is any object between the TV and the remote control causing an obstruction. Ensure you are pointing the remote control directly at the TV.■ Ensure that the batteries are installed with correct polarity (+ to +, - to -).■ Install new batteries.
Power is suddenly turned off	■ Is the sleep timer set?■ Check the power control settings. Has the Power supply been interrupted.■ If the TV is switched on and there is no input signal, it will switch off automatically after 15 minutes.

The video function does not work.

No picture & No sound	■ Check whether the TV is switched on.■ Try another channel. The problem may be with the broadcast.■ Is the power cord inserted correctly into the mains?■ Check your antenna direction and/or location.■ Test the mains outlet by plugging another TV into the same outlet.
Picture appears slowly after switching on	■ This is normal, the image is muted during the TV startup process. Please contact your service centre, if the picture has not appeared after five minutes.
No or poor colour or poor picture	■ Adjust Colour in menu option.■ Allow a sufficient distance between the TV and the VCR.■ Try another channel. The problem may be with the broadcast.■ Are the video cables installed properly?■ Activate any function to restore the brightness of the picture.
Horizontal/vertical bars or picture shaking	■ Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	■ Station or cable channel experiencing problems, tune to another station.■ Station signal is weak, reposition the antenna to receive weaker stations.■ Check for sources of possible interference.
Lines or streaks in pictures	■ Check antenna (Change the position of the antenna).
No picture when connecting HDMI	■ Check that your HDMI cable is High Speed HDMI Cable. If the HDMI cables are not High Speed HDMI Cable, flickering or no screen display can result. Please use the High Speed HDMI Cable.

APPENDIX

The audio function does not work.
Picture OK & No sound	■ Press the+ or - button.■ Sound muted? Press MUTE button.■ Try another channel. The problem may be with the broadcast.■ Are the audio cables installed properly?
No output from one of the speakers	■ Adjust Balance in menu option.
Unusual sound from inside the TV	■ A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV.
No sound when connecting HDMI or USB	■ Check HDMI cable is High Speed HDMI Cable.■ Check USB cable over version 2.0.*This feature is not available for all models.

There is a problem in PC mode. (Only PC mode applied)
The signal is out of range(Invalid format)	■ Adjust resolution, horizontal frequency, or vertical frequency.■ Check the input source.
Vertical bar or stripe on background & Horizontal Noise & Incorrect position	■ Use Auto configure or adjust clock, phase, or H/V position. (Option)
Screen colour is unstable or single colour	■ Check the signal cable.■ Reinstall the PC video card.

There is a problem with PICTURE settings.
When the user changes the picture settings, the TV automatically converts back to the initial settings after a certain period of time.	■ It means that the TV is currently set toStore Demo mode.To switch toHome usemode you should do the followings:From the TV Menu, chooseOPTION -> ChooseMode Setting -> ChooseHome use.Now, you have completed switching to theHome usemode.

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can prolong the life of your new TV.

Caution: Be sure to switch the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

1 A good way to keep the dust off your screen for a while is to wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it is almost dry, and then use it to wipe the screen.
2 Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching on.

Cleaning the Cabinet

■ To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
■ Do not to use a wet cloth.

Extended Absence

CAUTION

▶ If you expect to leave your TV dormant for prolonged periods (such as a holiday), unplug the power cord to protect against possible damage from lightning or power surges.

APPENDIX

PRODUCT SPECIFICATIONS

MODELS		50PK9***	60PK9***
		50PK950-AA	60PK950-AA
Dimensions (Width x Height x Depth)	with stand	1190.0 mm x 804.5 mm x 294.5 mm 140	8.8 mm x 937.9 mm x 384.0 mm
	without stand	1190.0 mm x 737.0 mm x 52.4 mm 140	8.8 mm x 860.7 mm x 52.4 mm
Weight	with stand	34.8 kg	50.9 kg
	without stand	30.2 kg	43.3 kg
MODELS		50PK7***	60PK7***
		50PK750-AA	60PK750-AA
Dimensions (Width x Height x Depth)	with stand	1184.0 mm x 801.0 mm x 309.7 mm 140	2.8 mm x 934.3 mm x 384.0 mm
	without stand	1184.0 mm x 738.5 mm x 52.4 mm 140	2.8 mm x 866.8 mm x 52.4 mm
Weight	with stand	32.3 kg	50.3 kg
	without stand	29.9 kg	42.7 kg
CI Module Size (Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature	0 °C to 40 °C Less than 80 %
	Operating Humidity
	Storage Temperature	-20 °C to 60°C Less than 85 %
	Storage Humidity
Supported movie files		Refer to p. 66 to 67

		Digital TV Analogue TV
New Zealand	Television System	DVB-T PAL B/G	DK , I
	Program Coverage	UHF 21 to 69	BG : VHF/UHF 1 to 69, CATV 01 to 47I : VHF/UHF 1 to 69, CATV 01 to 47DK : VHF/UHF 1 to 69, CATV 01 to 47
Australia Television System		DVB-T PAL B/B
	Program Coverage	VHF 06 to 12,UHF 27 to 69	B/B : VHF/UHF 0 to 75, CATV : 2 to 44
	External Antenna Impedance	75 Ω 75 Ω

■ The specifications shown above may be changed without prior notice for quality improvement.
■ For the power supply and power consumption, refer to the label attached to the product.

IR CODES

This feature is not available for all models.

Code (Hexa) Function Note
95 Energy Saving R/C BUTTON
08 POWER R/C BUTTON(POWER ON/OFF)
0B INPUT	R/C BUTTON
79 RATIO	R/C BUTTON
F0 TV/RAD	R/C BUTTON
45 Q.MENU	R/C BUTTON
43 MENU	R/C BUTTON
AB GUIDE	R/C BUTTON
40	Up ( ^ )	R/C BUTTON
41	Down ( √)	R/C BUTTON
07	Left ( < )	R/C BUTTON
06	Right ( > )	R/C BUTTON
44	OK(◎)	R/C BUTTON
28 BACK	R/C BUTTON
5B EXIT	R/C BUTTON
AA INFO i	○ R/C BUTTON
30 AV MODE	R/C BUTTON
02	△+	R/C BUTTON
03	△-	R/C BUTTON
1E FAV	(MARK) (CHAR/NUM)	R/C BUTTON
09 MUTE	(DELETE)	R/C BUTTON
00	P ^	R/C BUTTON
01	P √	R/C BUTTON
10 to 19	Number Key 0 to 9	R/C BUTTON
53 LIST	R/C BUTTON
1A Q.VIEW	R/C BUTTON
72 RED Key	R/C BUTTON
71 GREEN Key	R/C BUTTON
63 YELLOW Key	R/C BUTTON
61 BLUE Key	R/C BUTTON
20 TEXT	R/C BUTTON
21 T.OPT(T.Option)	R/C BUTTON
39 SUBTITLE	R/C BUTTON
7E SIMPLINK	R/C BUTTON
B1	■	R/C BUTTON
B0	▶	R/C BUTTON
BA	II(FREEZE)	R/C BUTTON
8F	◀◀	R/C BUTTON
8E	▶▶	R/C BUTTON
59	NetCast	R/C BUTTON

APPENDIX

EXTERNAL CONTROL DEVICE SETUP

RS-232C Setup

Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product's functions externally.

Connect the serial port of the control device to the RS-232C jack on the product back panel.

Note: RS-232C connection cables are not supplied with the product.

SATE AUDIO RS-230C IN (CONTROL & SERVICE) VREF ANTenna R VDS I

Type of Connector; D-Sub 9-Pin Male

No. Pin Name

1	No connection
2	RXD (Receive data)
3	TXD (Transmit data)
4	DTR (DTE side ready)
5	GND
6	DSR (DCE side ready)
7	RTS (Ready to send)
8	CTS (Clear to send)
9	No Connection

① ⑤ ⑥ ⑨

RS-232C Configurations

7-Wire Configurations (Standard RS-232C cable)

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DSR

DSR 6 4 DTR

RTS 7 8 CTS

CTS 8 7 RTS

D-Sub 9 D-Sub 9

3-Wire Configurations(Not standard)

PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND	5 5	GNB
DTR	4 6	DTR
DSR	6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9

Set ID

Use this function to specify a set ID number.

Adjust Set ID to choose the desired TV ID number.

The adjustment range of SET ID is 1 to 99.

- Press the BACK button to move to the previous menu screen.

APPENDIX

Communication Parameters

■ Baud rate : 9600 bps(UART)
■ Data length : 8 bits
■ Parity : None
■ Stop bit : 1 bit
■ Communication code : ASCII code

■ Use a crossed (reverse) cable.

Command Reference List

	COMMAND1	COMMAND2	DATA(Hexadecimal)
01. Power	k	a 00 to 01
02. Aspect Ratio	k	c	Refer to p. 149
03. Screen Mute	k	d	Refer to p. 149
04. Volume Mute	k	e 00 to 01
05. Volume Control	k	f	00 to 64
06. Contrast	k	g 00 to 64
07. Brightness	k	h 00 to 64
08. Colour	k	i	00 to 64
09. Tint	k	j	00 to 64
10. Sharpness	k	k	00 to 64
11. OSD Select	k	l	00 to 01
12. Remote control lock mode	k	m	00 to 01
13. Treble	k	r	00 to 64
14. Bass	k	s	00 to 64
15. Balance	k	t	00 to 64
16. Colour Temperature	x	u 00 to 64
17. ISM Method	j	p	Refer to p. 151
18. Energy Saving	j	q 00 to 05
19. Auto Configuration	j	u	01
20. Tune Command	m	a	Refer to p. 151
21. Programme Add/Skip	m	b	00 to 01
22. Key	m	c	Key Code
23. Input select (Main)	x	b	Refer to p. 152

* Note : During USB operations such as Dvix or EMF, all commands except Power(ka) and Key(mc) are not executed and treated as NG.

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

* [Command 1] : First command to control the TV. (j, k, m or x)
* [Command 2] : Second command to control the TV.

* [Set ID] : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to 99. When selecting Set ID '0', every connected set is controlled.

Set ID is indicated as decimal (1 to 99) on menu and as Hexa decimal (0x0 to 0x63) on transmission/receiving protocol.

* [DATA] : To transmit command data.
Transmit 'FF' data to read status of command.

* [Cr] : Carriage Return ASCII code '0x0D'

* [ ] : ASCII code 'space (0x20)'

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.

Data 00: Illegal Code

01. Power (Command: k a)

▶ To control Power On/Off of the set.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off 01 : Power On

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

▶ To show Power On/Off.

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

* Similarly, if other functions transmit '0xFF' data based on this format, Acknowledgement data feed back presents status about each function.

* OK Ack., Error Ack. and other message may display on the screen when TV is power On.

02. Aspect Ratio Command: k c) (Main Picture Size)

▶ To adjust the screen format. (Main picture format) You can also adjust the screen format using the Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen (4:3)07 : 14:9

02 : Wide screen (16:9) 09 : Just Scan

* Full Wide is supported only of DTV.

03. Screen Mute (Command: k d)

▶ To select screen mute on/off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on) Video mute off

01 : Screen mute on (Picture off)

10 : Video mute on

Ack

[d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD.

04. Volume Mute (Command: k e)

▶ To control volume mute on/off.

You can also adjust mute using the MUTE button on remote control.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 00: Volume mute on (Volume off)

01 : Volume mute off (Volume on)

Ack

[e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

▶ To adjust volume.

You can also adjust volume with the VOLUME buttons on remote control.

Transmission

[k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping 1'. See page 151.

Ack

[f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

▶ To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping 1'. See page 151.

16 Ack

[g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

▶ To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping 1'. See page 151.

Ack

[h][ ][Set ID][ ][OK/NG][Data][x]

1. Colour (Command: k i)

▶ To adjust the screen colour.

You can also adjust colour in the PICTURE menu.

Transmission

[k][i][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping 1'. See page 151.

Ack

[i][ ][Set ID][ ][OK/NG][Data][x]

APPENDIX

09. Tint (Command: k j)

▶ To adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission

[k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64

* Refer to 'Real data mapping 1'. See page 151.

Ack

[j][ ][Set ID][ ][OK/NG][Data][x]

10. Sharpness (Command: k k)

▶ To adjust the screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission

[k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping 1'. See page 151.

Ack

[k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

▶ To select OSD (On Screen Display) on/off when controlling remotely.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Data 00: OSD off 01: OSD on

Ack

[1][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

▶ To lock the front panel controls on the monitor and remote control.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Data 00 : Lock off 01 : Lock on

Ack

[m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this mode. When main power is on/off, external control lock is released.

* In the standby mode, if key lock is on, TV will not turn on by power on key of IR & Local Key.

13. Treble (Command: k r)

▶ To adjust treble.

You can also adjust treble in the AUDIO menu.

Transmission

[k][r][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping 1'. See page 151.

Ack

[r][ ][Set ID][ ][OK/NG][Data][x]

You can also adjust bass in the AUDIO menu.

Transmission

[k][s][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping 1'. See page 151.

Ack

[s][ ][Set ID][ ][OK/NG][Data][x]

15. Balance (Command: k t)

▶ To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission

[k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping 1'. See page 151.

Ack

[t][ ][Set ID][ ][OK/NG][Data][x]

16. Colour Temperature (Command: x u)

▶ To adjust colour temperature. You can also adjust Colour Temperature in the PICTURE menu.

Transmission

[x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping 1'. See page 151.

Ack

[u][ ][Set ID][ ][OK/NG][Data][x]

17. ISM Method (Command: j p)

▶ To control the ISM method. You can also adjust ISM Method in OPTION menu.

Transmission

[i][p][ ][Set ID][ ][Data][Cr]

Data 02: Orbiter

04: White wash

08: Normal

20: Colour Wash

Ack

[p][ ][Set ID][ ][OK/NG][Data][x]

18. Energy Saving (Command: j q)

▶ To reduce the power consumption of the TV. You can also adjust Energy Saving in OPTION menu.

Transmission

[j][q][ ][Set ID][ ][Data][Cr]

Power Saving Function							Level				Description
7	6	5	4	3	2	1	0
0	0	0	0	Low		Power 0	0	0	0	Off
0	0	0	0	Low		Power 0	0	0	1	Minimum
0	0	0	0	Low		Power 0	0	1	0	Medium
0	0	0	0	Low		Power 0	0	1	1	Maximum
0	0	0	0	Low		Power 0	1	0	1	Screen Off
0	0	0	0	Low		Power 0	1	0	0

Ack

[q][ ][Set ID][ ][OK/NG][Data][x]

19. Auto Configure(Command: j u)

▶ To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode.

Transmission

[j][u][ ][Set ID][ ][Data][Cr]

Data 01: To set

Ack

[u][ ][Set ID][ ][OK/NG][Data][x]

20. Tune Command (Command: m a)

▶ Select channel to following physical number.

Transmission

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][Cr]

Data00 : High channel data

Data01: Low channel data

ex. No. 47 -> 00 2F (2FH)

No. 394 -> 01 8A (18AH),

DTV No. 0 -> Don't care

Data02: 0x00: AnalogueMain

0x10 : DTV Main

0x20 : Radio

Channel data range

Analogue - Min: 00 to Max: 63 (0 to 99)

Digital - Min: 00 to Max: 3E7 (0 to 999)

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

Data Min: 00 to Max: 7DH

21. Programme Add/Skip(Command: m b)

▶ To set skip status for the current Programme.

Transmission

[m][b][ ][Set ID][ ][Data][Cr]

Data 00:Skip 01:Add

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

* Real data mapping 1

▶ To send IR remote key code.

Transmission

[m][c][ ][Set ID][ ][Data][Cr]

Data Key code - Refer to page 151.

Ack

[c][ ][Set ID][ ][OK/NG][Data][x]

23. Input select (Command: x b)

(Main Picture Input)

▶ To select input source for main picture.

Transmission

[x][b][ ][Set ID][ ][Data][Cr]

Data Structure

MSB LSB

0 0	0 0 0	0 0 0
External Input Input Number

External Input Data
0 0	0 0			DTV
0 0	0 1			Analogue
0 0	1 0			AV
0 1	0 0			Component
0 1	1 0			RGB
1 0	0 0			HDMI

Input Number Data
0 0	0 0			Input1
0 0	0 1			Input2
0 0	1 0			Input3
0 0	1 1			Input4

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

OPEN SOURCE SOFTWARE NOTICE

The following GPL executables and LGPL, MPL libraries used in this product are subject to the GPL2.0/LGPL2.1/MPL1.1 License Agreements:

GPL EXECUTABLES:

Linux kernel 2.6, busybox, e2fsprogs, jfsutils, lzo, msdl-1.1, mtd-utils, ntpclient, procps, udhcpc

LGPL LIBRARIES:

Atk, cairo, directFB, ffmpeg, glib, GnuTLS, gtk+, iconv, libintl, libgcrypt, libgpg-error, libsoup, libusb, pango, uClibc, webkit

MPL LIBRARIES:

Nanox, spidermonkey

LG Electronics offers to provide source code to you on CD-ROM for a charge covering the cost of performing such distribution, such as the cost of media, shipping and handling upon e-mail request to LG Electronics : opensource@ lge.com

This offer is valid for a period of three (3) years from the date of the distribution of this product by LG Electronics.

You can obtain a copy of the GPL, LGPL, MPL licenses on the CD-ROM provided with this product.

Also you can obtain the translation of GPL, LGPL licenses from http://www.gnu.org/licenses/old-licenses/gpl-2.0-translations.html, http://www.gnu.org/licenses/old-licenses/lgpl-2.1-translations.html.

This product includes other open source software.

• boost C++: software developed by http://www.boost.org distributed under the Boost Software License, Version 1.0
  • c-ares : copyright © 1998 by the Massachusetts Institute of Technology
• expat:

■ copyright © 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper

■ copyright © 2001-2007 Expat maintainers.

• fontconfig: copyright © 2001, 2003 Keith Packard
• freetype: copyright © 2003 The FreeType Project (www.freetype.org).
• ICU: copyright © 1995-2008 International Business Machines Corporation and others.
• libcurl: copyright © 1996 - 2008, Daniel Stenberg.
• libjpeg: This software is based in part on the work of the Independent JPEG Group copyright © 1991 – 1998, Thomas G. Lane.
• libmng: copyright © 2000-2007 Gerard Juyn, Glenn Randers-Pehrson
• libpng: copyright © 1998-2008 Glenn Randers-Pehrson
• libupnp: copyright © 2000-2003 Intel Corporation
• libxml2 : copyright © 1998-2003 Daniel Veillard
• libxslt: copyright © 2001-2002 Daniel Veillard
• lua interpreter: copyright © 1994–2008 Lua.org, PUC-Rio
  • md5: copyright © 1991-2, RSA Data Security, Inc
• openSSL:

■ cryptographic software written by Eric Young.
■ software written by Tim Hudson.
■ software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org)

- pixman:

copyright © 1987, 1988, 1989, 1998 The Open Group

copyright © 1987, 1988, 1989 Digital Equipment Corporation

copyright © 1999, 2004, 2008 Keith Packard

APPENDIX

copyright © 2000 SuSE, Inc.

copyright © 2000 Keith Packard, member of The XFree86 Project, Inc.

copyright © 2004, 2005, 2007, 2008 Red Hat, Inc.

copyright © 2004 Nicholas Miell

copyright © 2005 Lars Knoll & Zack Rusin, Trolltech

copyright © 2005 Trolltech AS

copyright © 2007 Luca Barbato

copyright © 2008 Aaron Plattner, NVIDIA Corporation

copyright © 2008 Rodrigo Kumpera

copyright © 2008 André Tupinambá

copyright © 2008 Mozilla Corporation

copyright © 2008 Frederic Plourde

• portmap: copyright © 1983,1991 The Regents of the University of California.
• tiff: copyright © 1987, 1993, 1994 The Regents of the University of California.
• tinyxml: copyright © 2000-2006 Lee Thomason
• xyssl:
  ■ Copyright © 2006-2008 Christophe Devine
  ■ Copyright © 2009 Paul Bakker
• zlib: copyright © 1995-2005 Jean-loup Gailly and Mark Adler

All rights reserved.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

OPEN SOURCE LICENSE

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

APPENDIX

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

APPENDIX

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright (C)

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type 'show w'. This is free software, and you are welcome to redistribute it under certain conditions; type 'show c' for details.

The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w' and `show c'; they could even be mouse-clicks or menu items--whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compilers) written by James Hacker.

, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

APPENDIX

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification".)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.

d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

1. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

1. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

1. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.

APPENDIX

c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

1. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

1. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

3. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.
4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright (C)

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for tweaking knobs) written by James Random Hacker.

, 1 April 1990

Ty Coon, President of Vice

APPENDIX

MOZILLA PUBLIC LICENSE

Version 1.1

[EMPTY]

1. Definitions.

1.0.1. "Commercial Use" means distribution or otherwise making the Covered Code available to a third party.
1.1. "Contributor" means each entity that creates or contributes to the creation of Modifications.
1.2. "Contributor Version" means the combination of the Original Code, prior Modifications used by a Contributor, and the Modifications made by that particular Contributor.
1.3. "Covered Code" means the Original Code or Modifications or the combination of the Original Code and Modifications, in each case including portions thereof.
1.4. "Electronic Distribution Mechanism" means a mechanism generally accepted in the software development community for the electronic transfer of data.
1.5. "Executable" means Covered Code in any form other than Source Code.

1.6. "Initial Developer" means the individual or entity identified as the Initial Developer in the Source Code notice required by Exhibit A.

1.7. "Larger Work" means a work which combines Covered Code or portions thereof with code not governed by the terms of this License.

1.8. "License" means this document.

1.8.1. "Licensable" means having the right to grant, to the maximum extent possible, whether at the time of the initial grant or subsequently acquired, any and all of the rights conveyed herein.

1.9. "Modifications" means any addition to or deletion from the substance or structure of either the Original Code or any previous Modifications. When Covered Code is released as a series of files, a Modification is:

A. Any addition to or deletion from the contents of a file containing Original Code or previous Modifications.

B. Any new file that contains any part of the Original Code or previous Modifications.

1.10. "Original Code" means Source Code of computer software code which is described in the Source Code notice required by Exhibit A as Original Code, and which, at the time of its release under this License is not already Covered Code governed by this License.

1.10.1. "Patent Claims" means any patent claim(s), now owned or hereafter acquired, including without limitation, method, process, and apparatus claims, in any patent Licensable by grantor.

1.11. "Source Code" means the preferred form of the Covered Code for making modifications to it, including all modules it contains, plus any associated interface definition files, scripts used to control compilation and installation of an Executable, or source code differential comparisons against either the Original Code or another well known, available Covered Code of the Contributor's choice. The Source Code can be in a compressed or archival form, provided the appropriate decompression or de-archiving software is widely available for no charge.

1.12. "You" (or "Your") means an individual or a legal entity exercising rights under, and complying with all of the terms of, this License or a future version of this License issued under Section 6.1.

For legal entities, "You" includes any entity which controls, is controlled by, or is under common control with You. For purposes of this definition, "control" means (a) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (b) ownership of more than fifty percent (50%) of the outstanding shares or beneficial ownership of such entity.

2. Source Code License.

2.1. The Initial Developer Grant.

The Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive license, subject to third party intellectual property claims:

(a) under intellectual property rights (other than patent or trademark) Licensable by Initial Developer to use, reproduce, modify, display, perform, sublicense and distribute the Original Code (or portions thereof) with or without Modifications, and/or as part of a Larger Work; and

(b) under Patents Claims infringed by the making, using or selling of Original Code, to make, have made, use, practice, sell, and offer for sale, and/or otherwise dispose of the Original Code (or portions thereof).
(c) the licenses granted in this Section 2.1(a) and (b) are effective on the date Initial Developer first distributes Original Code under the terms of this License.
(d) Notwithstanding Section 2.1(b) above, no patent license is granted: 1) for code that You delete from the Original Code; 2) separate from the Original Code; or 3) for infringements caused by: i) the modification of the Original Code or ii) the combination of the Original Code with other software or devices.

2.2. Contributor Grant.

Subject to third party intellectual property claims, each Contributor hereby grants You a world-wide, royalty-free, non-exclusive license

(a) under intellectual property rights (other than patent or trademark) Licensable by Contributor, to use, reproduce, modify, display, perform, sublicense and distribute the Modifications created by such Contributor (or portions thereof) either on an unmodified basis, with other Modifications, as Covered Code and/or as part of a Larger Work; and
(b) under Patent Claims infringed by the making, using, or selling of Modifications made by that Contributor either alone and/or in combination with its Contributor Version (or portions of such combination), to make, use, sell, offer for sale, have made, and/or otherwise dispose of: 1) Modifications made by that Contributor (or portions thereof); and 2) the combination of Modifications made by that Contributor with its Contributor Version (or portions of such combination).
(c) the licenses granted in Sections 2.2(a) and 2.2(b) are effective on the date Contributor first makes Commercial Use of the Covered Code.
(d) Notwithstanding Section 2.2(b) above, no patent license is granted: 1) for any code that Contributor has deleted from the Contributor Version; 2) separate from the Contributor Version; 3) for infringements caused by: i) third party modifications of Contributor Version or ii) the combination of Modifications made by that Contributor with other software (except as part of the Contributor Version) or other devices; or 4) under Patent Claims infringed by Covered Code in the absence of Modifications made by that Contributor.

3. Distribution Obligations.

3.1. Application of License.

The Modifications which You create or to which You contribute are governed by the terms of this License, including without limitation Section 2.2. The Source Code version of Covered Code may be distributed only under the terms of this License or a future version of this License released under Section 6.1, and You must include a copy of this License with every copy of the Source Code You distribute. You may not offer or impose any terms on any Source Code version that alters or restricts the applicable version of this License or the recipients' rights hereunder. However, You may include an additional document offering the additional rights described in Section 3.5.

3.2. Availability of Source Code.

Any Modification which You create or to which You contribute must be made available in Source Code form under the terms of this License either on the same media as an Executable version or via an accepted Electronic Distribution Mechanism to anyone to whom you made an Executable version available; and if made available via Electronic Distribution Mechanism, must remain available for at least twelve (12) months after the date it initially became available, or at least six (6) months after a subsequent version of that particular Modification has been made available to such recipients. You are responsible for ensuring that the Source Code version remains available even if the

Electronic Distribution Mechanism is maintained by a third party.

3.3. Description of Modifications.

You must cause all Covered Code to which You contribute to contain a file documenting the changes You made to create that Covered Code and the date of any change. You must include a prominent statement that the Modification is derived, directly or indirectly, from Original Code provided by the Initial Developer and including the name of the Initial Developer in (a) the Source Code, and (b) in any notice in an Executable version or related documentation in which You describe the origin or ownership of the Covered Code.

3.4. Intellectual Property Matters

(a) Third Party Claims.

If Contributor has knowledge that a license under a third party's intellectual property rights is required to exercise the rights granted by such Contributor under Sections 2.1 or 2.2, Contributor must include a text file with the Source Code distribution titled "LEGAL" which describes the claim and the party making the claim in sufficient detail that a recipient will know whom to contact. If Contributor obtains such knowledge after the Modification is made available as described in Section 3.2, Contributor shall promptly modify the LEGAL file in all copies Contributor makes available thereafter and shall take other steps (such as notifying appropriate mailing lists or newsgroups) reasonably calculated to inform those who received the Covered Code that new knowledge has been obtained.

APPENDIX

(b) Contributor APIs.

If Contributor's Modifications include an application programming interface and Contributor has knowledge of patent licenses which are reasonably necessary to implement that API, Contributor must also include this information in the LEGAL file.

(c) Representations.

Contributor represents that, except as disclosed pursuant to Section 3.4(a) above, Contributor believes that Contributor's Modifications are Contributor's original creation(s) and/or Contributor has sufficient rights to grant the rights conveyed by this License.

3.5. Required Notices.

You must duplicate the notice in Exhibit A in each file of the Source Code. If it is not possible to put such notice in a particular Source Code file due to its structure, then You must include such notice in a location (such as a relevant directory) where a user would be likely to look for such a notice. If You created one or more Modification(s) You may add your name as a Contributor to the notice described in Exhibit A. You must also duplicate this License in any documentation for the Source Code where You describe recipients' rights or ownership rights relating to Covered Code. You may choose to offer, and to charge a fee for, warranty, support, indemnity or liability obligations to one or more recipients of Covered Code. However, You may do so only on Your own behalf, and not on behalf of the Initial Developer or any Contributor. You must make it absolutely clear than any such warranty, support, indemnity or liability obligation is offered by You alone, and You hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor as a result of warranty, support, indemnity or liability terms You offer.

3.6. Distribution of Executable Versions.

You may distribute Covered Code in Executable form only if the requirements of Section 3.1-3.5 have been met for that Covered Code, and if You include a notice stating that the Source Code version of the Covered Code is available under the terms of this License, including a description of how and where You have fulfilled the obligations of Section 3.2. The notice must be conspicuously included in any notice in an Executable version, related documentation or collateral in which You describe recipients' rights relating to the Covered Code. You may distribute the Executable version of Covered Code or ownership rights under a license of Your choice, which may contain terms different from this License, provided that You are in compliance with the terms of this License and that the license for the Executable version does not attempt to limit or alter the recipient's rights in the Source Code version from the rights set forth in this License. If You distribute the Executable version under a different license You must make it absolutely clear that any terms which differ from this License are offered by You alone, not by the Initial Developer or any Contributor. You hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor as a result of any such terms You offer.

3.7. Larger Works.

You may create a Larger Work by combining Covered Code with other code not governed by the terms of this License and distribute the Larger Work as a single product. In such a case, You must make sure the requirements of this License are fulfilled for the Covered Code.

1. Inability to Comply Due to Statute or Regulation.

If it is impossible for You to comply with any of the terms of this License with respect to some or all of the Covered Code due to statute, judicial order, or regulation then You must: (a) comply with the terms of this License to the maximum extent possible; and (b) describe the limitations and the code they affect. Such description must be included in the LEGAL file described in Section 3.4 and must be included with all distributions of the Source Code. Except to the extent prohibited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary skill to be able to understand it.

1. Application of this License.

This License applies to code to which the Initial Developer has attached the notice in Exhibit A and to related Covered Code.

1. Versions of the License.

6.1. New Versions.

Netscape Communications Corporation ("Netscape") may publish revised and/or new versions of the License from time to time. Each version will be given a distinguishing version number.

6.2. Effect of New Versions.

Once Covered Code has been published under a particular version of the License, You may always continue to use it under the terms of that version. You may also choose to use such Covered Code under the terms of any subsequent version of the License published by Netscape. No one other than Netscape has the right to modify the terms applicable to Covered Code created under this License.

6.3. Derivative Works.

If You create or use a modified version of this License (which you may only do in order to apply it to code which is not already Covered Code governed by this License), You must (a) rename Your license so that the phrases "Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL", "NPL" or any confusingly similar phrase do not appear in your license (except to note that your license differs from this License) and (b) otherwise make it clear that Your version of the license contains terms which differ from the Mozilla Public License and Netscape Public License. (Filling in the name of the Initial Developer, Original Code or Contributor in the notice described in Exhibit A shall not of themselves be deemed to be modifications of this License.)

7. DISCLAIMER OF WARRANTY.

COVERED CODE IS PROVIDED UNDER THIS LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE COVERED CODE IS FREE OF DEFECTS, MERCHANTABILITY, FIT FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE COVERED CODE IS WITH YOU. SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR ANY OTHER CONTRIBUTOR) ASSUME THE COST OF ANY NECESSARY SERVICING, REPAIR OR CORRECTION. THIS DISCLAIMER OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1. This License and the rights granted hereunder will terminate automatically if You fail to comply with terms herein and fail to cure such breach within 30 days of becoming aware of the breach. All sublicenses to the Covered Code which are properly granted shall survive any termination of this License. Provisions which, by their nature, must remain in effect beyond the termination of this License shall survive.
8.2. If You initiate litigation by asserting a patent infringement claim (excluding declaratory judgment actions) against Initial Developer or a Contributor (the Initial Developer or Contributor against whom You file such action is referred to as "Participant") alleging that:
(a) such Participant's Contributor Version directly or indirectly infringes any patent, then any and all rights granted by such Participant to You under Sections 2.1 and/or 2.2 of this License shall, upon 60 days notice from Participant terminate prospectively, unless if within 60 days after receipt of notice You either: (i) agree in writing to pay Participant a mutually agreeable reasonable royalty for Your past and future use of Modifications made by such Participant, or (ii) withdraw Your litigation claim with respect to the Contributor Version against such Participant. If within 60 days of notice, a reasonable royalty and payment arrangement are not mutually agreed upon in writing by the parties or the litigation claim is not withdrawn, the rights granted by Participant to You under Sections 2.1 and/or 2.2 automatically terminate at the expiration of the 60 day notice period specified above.
(b) any software, hardware, or device, other than such Participant's Contributor Version, directly or indirectly infringes any patent, then any rights granted to You by such Participant under Sections 2.1(b) and 2.2(b) are revoked effective as of the date You first made, used, sold, distributed, or had made, Modifications made by that Participant.
8.3. If You assert a patent infringement claim against Participant alleging that such Participant's Contributor Version directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the initiation of patent infringement litigation, then the reasonable value of the licenses granted by such Participant under Sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license.
8.4. In the event of termination under Sections 8.1 or 8.2 above, all end user license agreements (excluding distributors and resellers) which have been validly granted by You or any distributor hereunder prior to termination shall survive termination.

9. LIMITATION OF LIABILITY.

UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER TORT (INCLUDING NEGLIGENCE), CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY DISTRIBUTOR OF COVERED CODE, OR ANY SUPPLIER OF ANY OF SUCH PARTIES, BE LIABLE TO ANY PERSON FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS LIMITATION OF LIABILITY SHALL NOT APPLY TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULTING FROM SUCH PARTY'S NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS EXCLUSION AND LIMITATION MAY NOT APPLY TO YOU.

APPENDIX

10. U.S. GOVERNMENT END USERS.

The Covered Code is a "commercial item," as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of "commercial computer software" and "commercial computer software documentation," as such terms are used in 48 C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June 1995), all U.S. Government End Users acquire Covered Code with only those rights set forth herein.

11. MISCELLANEOUS.

This License represents the complete agreement concerning subject matter hereof. If any provision of this License is held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This License shall be governed by California law provisions (except to the extent applicable law, if any, provides otherwise), excluding its conflict-of-law provisions. With respect to disputes in which at least one party is a citizen of, or an entity chartered or registered to do business in the United States of America, any litigation relating to this License shall be subject to the jurisdiction of the Federal Courts of the Northern District of California, with venue lying in Santa Clara County, California, with the losing party responsible for costs, including without limitation, court costs and reasonable attorneys' fees and expenses. The application of the United Nations Convention on Contracts for the International Sale of Goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed against the drafter shall not apply to this License.

12. RESPONSIBILITY FOR CLAIMS.

As between Initial Developer and the Contributors, each party is responsible for claims and damages arising, directly or indirectly, out of its utilization of rights under this License and You agree to work with Initial Developer and Contributors to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to constitute any admission of liability.

13. MULTIPLE-LICENSED CODE.

Initial Developer may designate portions of the Covered Code as "Multiple-Licensed". "Multiple-Licensed" means that the Initial Developer permits you to utilize portions of the Covered Code under Your choice of the NPL or the alternative licenses, if any, specified by the Initial Developer in the file described in Exhibit A.

EXHIBIT A -Mozilla Public License.

The contents of this file are subject to the Mozilla Public License Version 1.1 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.mozilla.org/MPL/

Software distributed under the License is distributed on an "AS IS" basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the License for the specific language governing rights and limitations under the License.

The Original Code is ____.

The Initial Developer of the Original Code is ____. Portions created by ____ are Copyright (C) ____ ____. All Rights Reserved.

Contributor(s): ____.

Alternatively, the contents of this file may be used under the terms of the ____ license (the "[____] License"), in which case the provisions of [____] License are applicable instead of those above. If you wish to allow use of your version of this file only under the terms of the [____] License and not to allow others to use your version of this file under the MPL, indicate your decision by deleting the provisions above and replace them with the notice and other provisions required by the [____] License. If you do not delete the provisions above, a recipient may use your version of this file under either the MPL or the [____] License."

[NOTE: The text of this Exhibit A may differ slightly from the text of the notices in the Source Code files of the Original Code. You should use the text of this Exhibit A rather than the text found in the Original Code Source Code for Your Modifications.]

LG

Life's Good

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

Model :

Serial No.:

Digital Video

Broadcasting

Trade Mark of the DVB Digital Video

Broadcasting Project (1991 to 1996)
