Type de produit	Digital Camera
Brand	BenQ
Model	GH 700
Dimensions (approx.)	4.4 x 2.8 x 1.2 in (112 x 71 x 30 mm)
Weight (with battery)	Approx. 7.4 oz (210 g)
Power Supply	Rechargeable Li-ion battery (3.7V, 740mAh)
Effective Pixels	16 Megapixels
Optical Zoom	12.5x
Digital Zoom	4x (combined up to 50x)
Image Sensor	1/2.3-inch CMOS
Display	3.0-inch TFT LCD (460K dots)
Optical Stabilization	Yes, Lens-shift
Video Recording	720p HD (1280x720) at 30fps
Shutter Speed	1/2000 – 30 sec (depending on mode)
ISO Sensitivity	Auto, 100 – 3200
Storage Media	SD, SDHC, SDXC card (up to 64GB)
Battery Life (approx.)	220 shots per charge (CIPA standard)
Interface	USB 2.0, HDMI mini output
Cleaning Instructions	Wipe lens with soft dry cloth; avoid solvents
Water Resistance	Not water-resistant; keep dry
Spare Parts Available	Battery, charger, USB cable, strap

Frequently Asked Questions - GH 700 BENQ

How do I charge the battery for the GH 700?

Use the supplied USB cable and AC adapter. Connect to a USB port or wall outlet. The charging indicator turns off when fully charged.

What memory card is compatible with the BenQ GH 700?

The camera supports SD, SDHC, and SDXC cards up to 64GB. Format the card in the camera for best performance.

How to transfer photos to a computer?

Connect the camera via USB 2.0 cable. Turn the camera on, then select 'Mass Storage' mode. Alternatively, remove the card and use a card reader.

Can I record video with the BenQ GH 700?

Yes, the camera records 720p HD video at 30fps. Press the movie button to start/stop recording. Optical zoom is available during video.

How to set the date and time on the camera?

Go to the Settings menu (gear icon), select 'Date/Time', and adjust using the arrow buttons. The camera will use this for file naming.

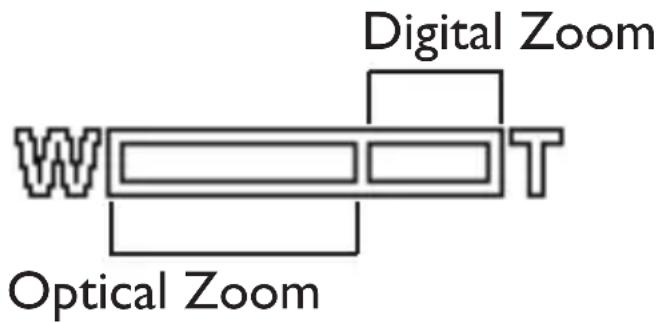

What is the maximum optical zoom?

The lens provides 12.5x optical zoom. Combined with 4x digital zoom, you can achieve up to 50x total zoom (digital may reduce quality).

How do I clean the lens?

Use a soft, lint-free cloth (e.g., microfiber). Gently wipe in a circular motion. Avoid liquids or compressed air, as they may damage the lens coating.

The camera does not turn on. What should I do?

Check that the battery is inserted correctly and charged. Try a different charged battery. If still not working, perform a reset by removing the battery for 30 seconds.

Is there a self-timer?

Yes, select the self-timer mode (10 sec or 2 sec) from the shooting menu. Press the shutter button halfway to focus, then fully to start the countdown.

How to update the firmware?

Check BenQ's support website for updates. Download the file to an SD card, insert into camera, and follow the on-screen instructions. Firmware updates may improve performance.

USER MANUAL GH 700 BENQ

Abstract halftone dot pattern with gradient transition from white to purple, no text or symbols present

Copyright

Copyright 2011 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

All other logos, products, or company names mentioned in this manual may be the registered trademarks or copyrights of their respective companies, and are used for informational purposes only.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BenQ Corporation to notify any person of such revision or changes.

This user manual aims to provide the most updated and accurate information to customers, and thus all contents may be modified from time to time without prior notice. Please visit http://www.benq.com for the latest version of this manual.

BenQ ecoFACTS

BenQ has been dedicated to the design and development of greener product as part of its aspiration to realize the ideal of the "Bringing Enjoyment 'N Quality to Life" corporate vision with the ultimate goal to achieve a low-carbon society. Besides meeting international regulatory requirement and standards pertaining to environmental management, BenQ has spared no efforts in pushing our initiatives further to incorporate life cycle design in the aspects of material selection, manufacturing, packaging, transportation, using and disposal of the products. BenQ ecoFACTS label lists key eco-friendly design highlights of each product, hoping to ensure that consumers make informed green choices at purchase. Check out BenQ's CSR Website at http://csr.BenQ.com/ for more details on BenQ's environmental commitments and achievements.

WEEE directive

WEEE

Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union.

This symbol on the product or on the packaging indicates that this can not be disposed of as household waste. You must dispose of your waste equipment and/or battery by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment and/or battery. For more information about recycling of this equipment and/or battery, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.

Battery

Recycling information: See http://www.benq.com/support/recycle for details.

CE Regulatory Notice

This devise is herewith confirmed to comply with the requirements set out in the Council Directives on the Approximation of the Laws of the Member States relating Electromagnetic Compatibility (2004/108/EC); the Low Voltage Directive (2006/95/EC); the Restriction of The Use of Certain Hazardous Substances in Electrical And Electronic Equipment Directive (2002/95/EC), Turkish EEE Directive; the Commission Regulation (EC) No 1275/2008 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to eco-design requirements for standby and off mode electric power consumption of electrical and electronic household and office equipment, and the Directive 2009/125/EC of the European parliament and of the council establishing a framework for the setting of eco-design requirements for energy-related products.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Safety warning and notice

Before operating the camera, please make sure that you read and fully understand the content in this section. If you ignore and violate all safety warning notices indicated in this section, the camera warranty may be void. Meanwhile, not only the camera but also you and all other people and things around you may be severely damaged, injured, or even placed in danger of death.

For your safety

• Keep the camera and its accessories out of the reach of babies, toddlers, and children. In particular, small parts such as memory cards and batteries could be easily dismantled and swallowed by them.
• Use only the original accessories to avoid possible risks to health and property, and thus meet all related legal regulations.
• Do not dismantle the camera under any circumstances.
• When using the flash, do not go too close to human eyes (particularly for babies, toddlers, and children) or animal eyes. Otherwise, when the flash fires, the light may cause damage to human eyes or irritate animals.
• Batteries could explode, for instance. All batteries can cause property damage, injury or burns if a conductive material such as jewelry, keys or beaded chains touch exposed terminals. The material may complete an electrical circuit and become quite hot. Exercise care in handling any batteries, particularly when placing it inside your pocket, purse, or other container with metal objects. Do not dispose of batteries in fire as they may explode.
• To prevent electric shock, do not attempt to disassemble or repair your camera by yourself.
• Some camera models accept non-rechargeable batteries. When using these batteries, do not charge them. Otherwise, dangers such as explosion and fire may occur.
• Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Warranty

• Warranty is void if damage or system failure occurred due to outside factors such as collision, fire, flood, dirt, sewage, earthquake, and other force majeure events as well as incorrect usage of electricity or use of non-original accessories.
• It is the sole responsibility of the user if problems (such as data loss and system failure) occurred due to non-factory installed software, parts, and/or non-original accessories.
• Do not change the camera. Any changes to the camera invalidate the warranty.

Taking care of your camera

• Always keep the camera in the accompanying leather case or pouch for better

protection against splashes, dust, and collision.

- The only way of replacing the battery and the memory card is to open the battery/card cover.

- Dispose of unwanted batteries and cameras as permitted by the laws in your countries.

- Water may cause a fire or electric shock. Therefore, store your camera in a dry place.

- If your camera becomes wet, wipe it with a dry cloth as soon as possible.

- Salt or seawater may cause severe camera damage.

- Do not drop, knock, or shake the camera. A rude behavior of using the camera may damage the internal electronic circuit board, deform the lens shape, or make the lens unretractable.

- Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the camera.

- Finger grease may be left on the camera lens and will result in unclear images or videos. To avoid this problem, be sure to clean the camera lens before taking pictures or recording videos. You should also clean the camera lens on a regular basis.

- If the lens is dirty, use a lens brush or soft cloth to clean the lens.

- Do not touch the lens with your fingers.

- If a foreign substance or water gets in your camera, please turn the power off immediately and disconnect the batteries. Next, remove the foreign substance or water and send it to the maintenance center.

- Whenever there is data in the internal memory or the external memory card, you should make a backup copy to a computer or disc. So, you can have a backup solution if data loss occurs.

- If the lens cannot retract into the camera, please replace the batteries first (usually this is because of drained batteries). Then the lens should retract automatically. If the lens still cannot retract, please contact your dealer.

• Under no circumstances should you push the lens back manually as this may damage the camera.
• All original accessories are designed only for use with this camera model you purchased. Do not use these accessories with other camera models or cameras of other brands to avoid unpredictable danger or damage.
• Before initial use of a memory card, always use the camera to format the card first.
• Remember to slide the write-protect tab (if available) to the unlock position. Otherwise, all data (if any) on the memory card is protected and the card cannot be edited or formatted.

Operating environment

- Do not use or store your camera in the environments listed below:

• Direct sunlight
• Dusty places
• Next to an air conditioner, electric heater or other heat sources
  • In a closed car that is in direct sunlight
• Unstable locations

- Do not use your camera outdoors when it is raining or snowing.

- Do not use your camera in or near water.

- The camera operating temperature is between 0 and 40 degrees Celsius. It is normal for the operating time to be shortened when the temperature is low.

- Storage at too high or low temperatures will also result in a gradual capacity loss. As a result, the operating time of your camera may be considerably reduced.

- It is normal for the camera to become warm during operation, because the camera casing might conduct heat.

Illustration of a hand holding a camera with warning symbol (no text or labels)

Do not hold the camera by excessive force. Plus, be sure to protect the camera from strong impacts.

Illustration of a person wearing a camera with straps, enclosed in a circular frame (no text or symbols)

To avoid accidental falling, please attach the neck strap to the camera and always put the camera around your neck.

If the batteries suddenly depleted and caused the lens fail to retract, please carefully protect the lens to avoid collision and insert batteries with full power ASAP..

Illustration of a hand holding a camera lens inside a circular frame (no text or symbols)

When the camera is not in use, always turn the power off. Plus, before storing the camera in its case, make sure the lens has retracted successfully and you put the lens cover back. If you do not intend to use the camera for a long time, please remove the batteries from the camera and store the batteries carefully.

Illustration of a person inside a circular frame with an exclamation mark and explosion symbol (no text or labels)

Keep your camera away from sharp objects and avoid collision.

Simple line drawing of a basket placed on top of a rectangular block, enclosed in a circle (no text or symbols)

When the camera is not in use, please place it in the pouch and a steady place. Plus, always keep your camera away from pressure to avoid possible damage.

Table of Contents

Touring the camera 12

Checking the package contents 12

Camera 13

Front and bottom views ....13

Rear view 14

Multifunctional buttons ....15

Preparing the camera for use 16

Attaching the strap ....16

Installing the batteries ....17

Installing an SD card ....19

Turning the Power On and Off 20

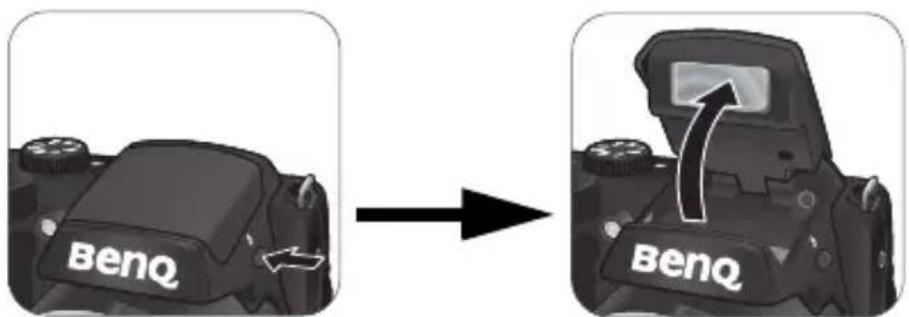

Opening the Flash 20

Initial setting 21

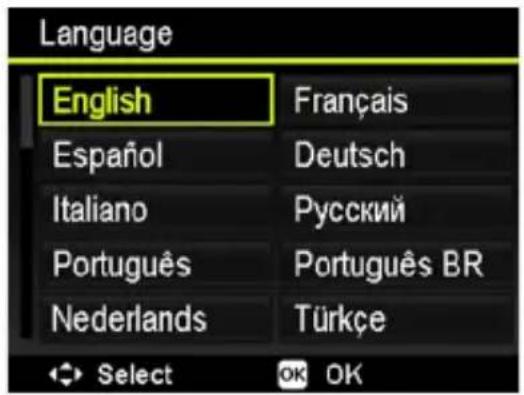

Setting language ......21

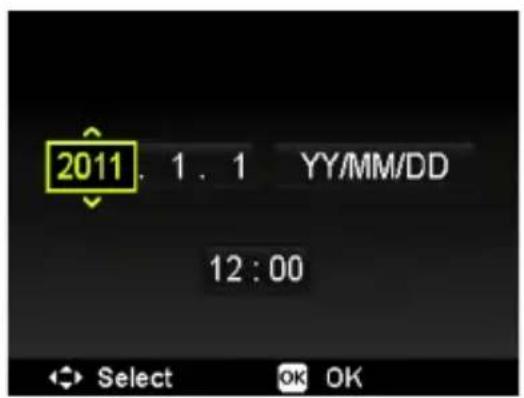

Setting date and time 21

Operating the camera 22

Capture mode 24

Flash mode 25

Using the Self-timer 26

Focus mode 27

Selecting the Shooting Mode ....28

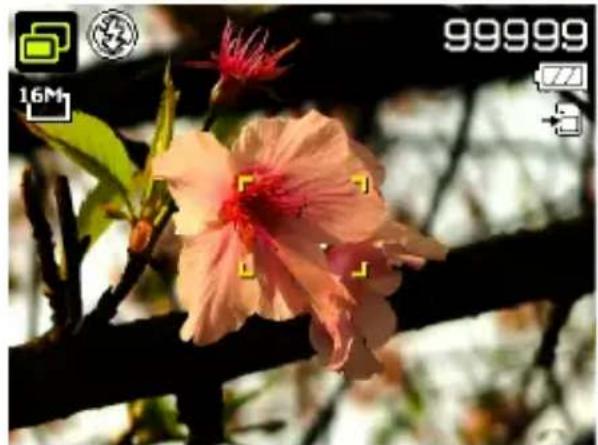

Using HDR mode 29

Using Continuous Shooting mode 29

High-speed Burst 30

Pre-shooting 31

Sporty Burst 120 / Sporty Burst 240 ....31

Smart Selector 31

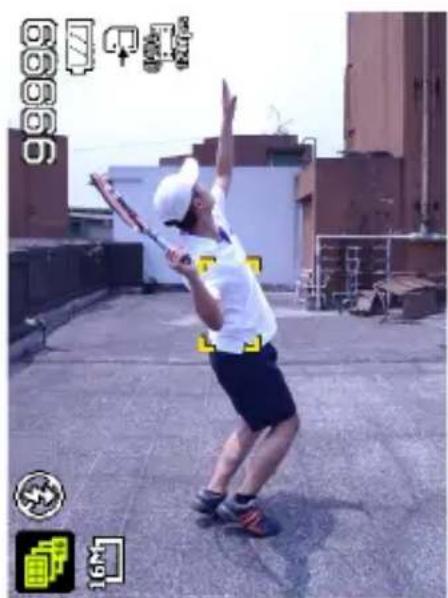

Multi-shot 16 ....32

Using Night Portrait mode ....33

Using Handheld Night Shot mode 33

Setting the Scene mode 33

Smile Capture 35

Blink Detection 35

Love Portrait 36

Using Intelligent Scene mode 36

Using Manual mode 36

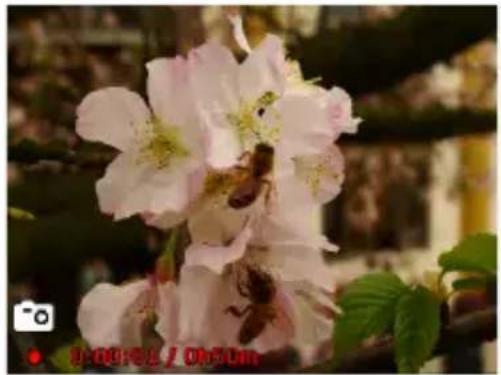

Recording Videos ....37

Using PIV function 37

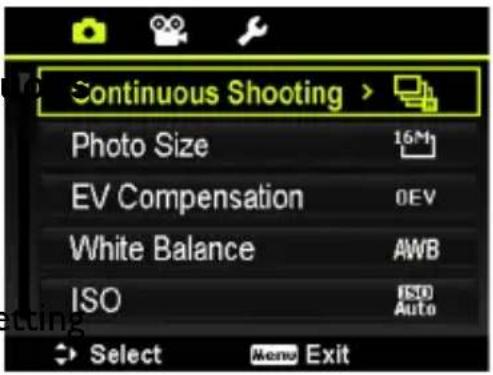

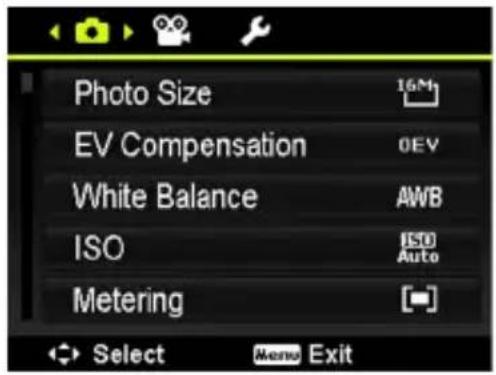

Using the Capture Menu 38

Photo size 38

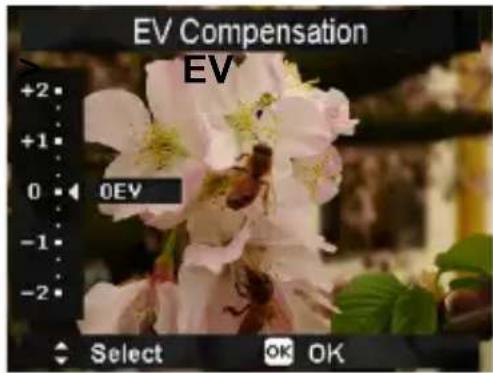

Setting EV 39

White Balance 39

ISO 40

Metering 41

AF Area 41

AF Lamp 42

Digital Zoom 42

Date Stamp 42

Auto Review 42

Stabilizer 43

Using the Movie Menu 43

Movie Mode 44

AF Mode 44

Wind Cut 44

Battery status 45

Other settings 45

Playback mode 48

Options for playback and editing 49

Enlarging an image 49

Trimming 49

Rotating an image 50

Viewing multiple files at a time 50

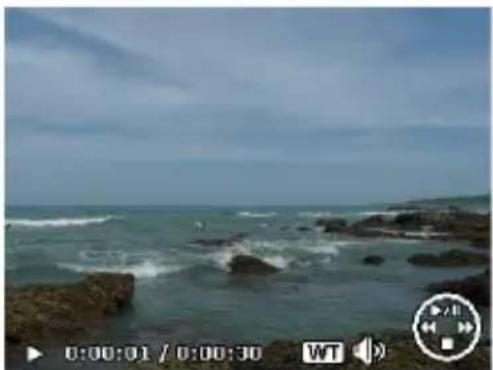

Playing back video clips 50

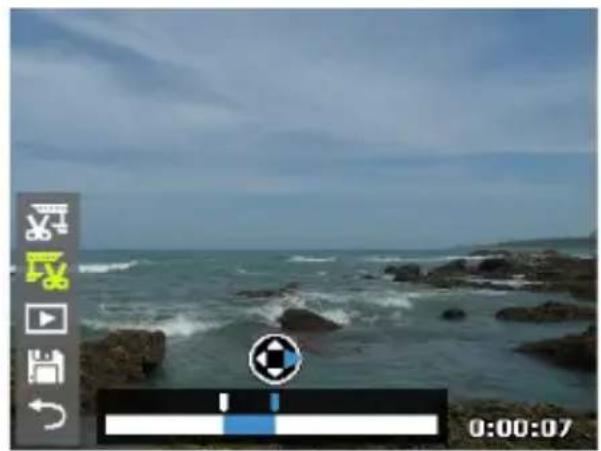

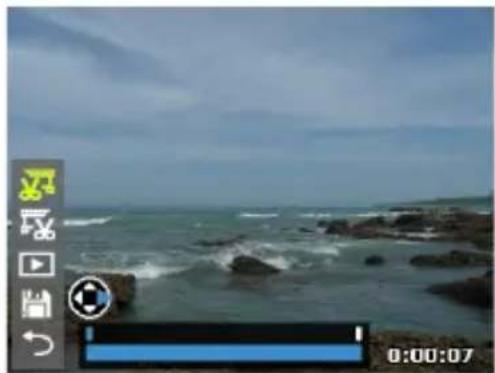

Using Movie Edit 51

Adjusting the playback volume 52

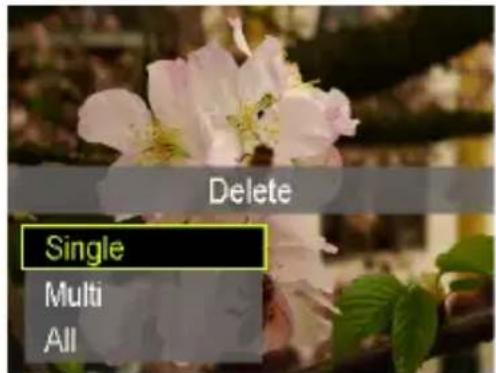

Deleting files 52

Slideshow 53

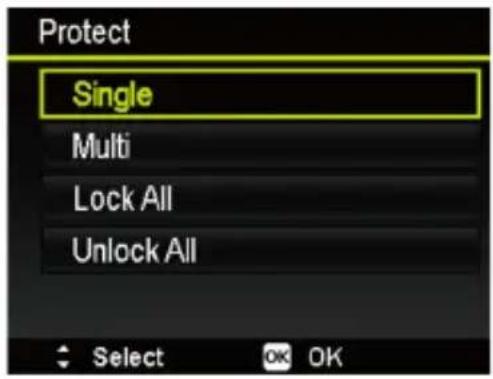

Protecting files 53

Voice memo 55

Resizing 55

DPOF 56

Copy 57

Movie Paste 58

Making connection 59

Bundled software 59

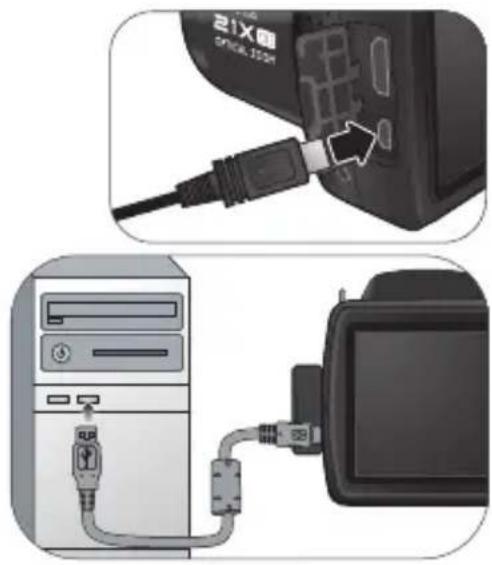

Connecting the camera to a computer 59

Connecting the camera to a TV 60

Printing images 61

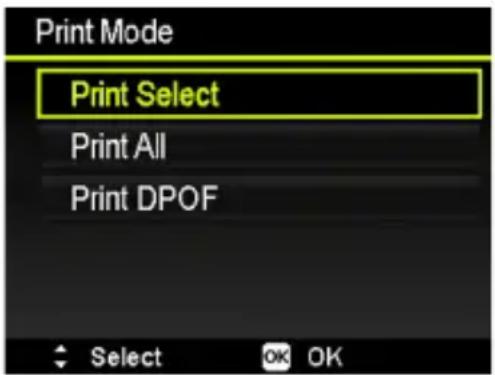

Printing with PictBridge 61

Troubleshooting and service information 64

Technical support 66

Specifications 67

Touring the camera

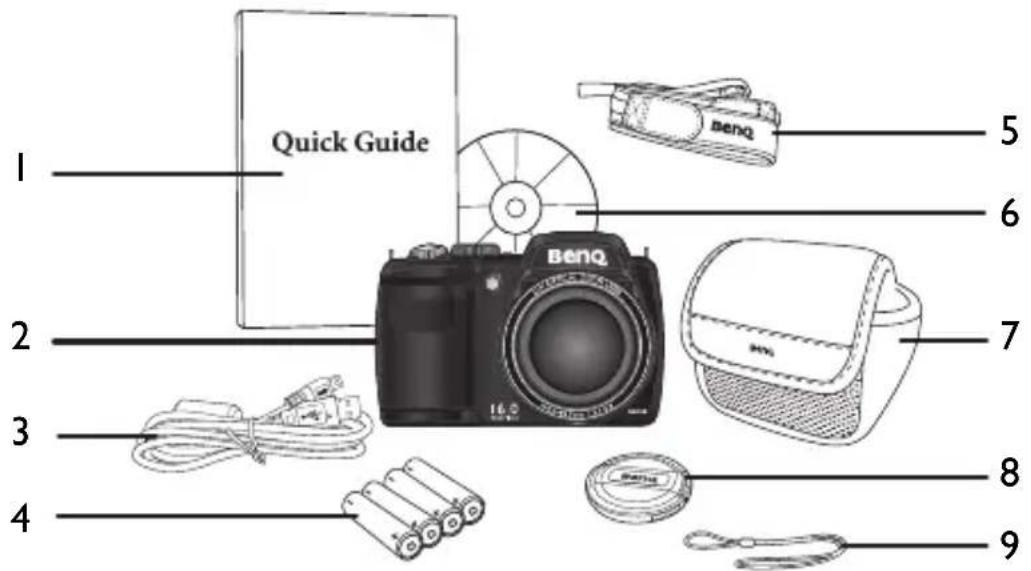

Checking the package contents

Carefully unpack your kit box and ensure that you have the following items.

I. Quick Guide
2. Digital camera
3. USB cable
4. AA battery x 4
5. Neck strap
6. Software & User Manual CD
7. Pouch (optional)
8. Lens cover
9. Lens strap

• All pictures, screen captures, and icons used in this manual are for illustration only. Actual and available products, accessories, as well as their appearance may vary depending on sales region.
• If any items are missing or damaged, contact your dealer.
• Save the packaging for future shipment or storage.

Camera

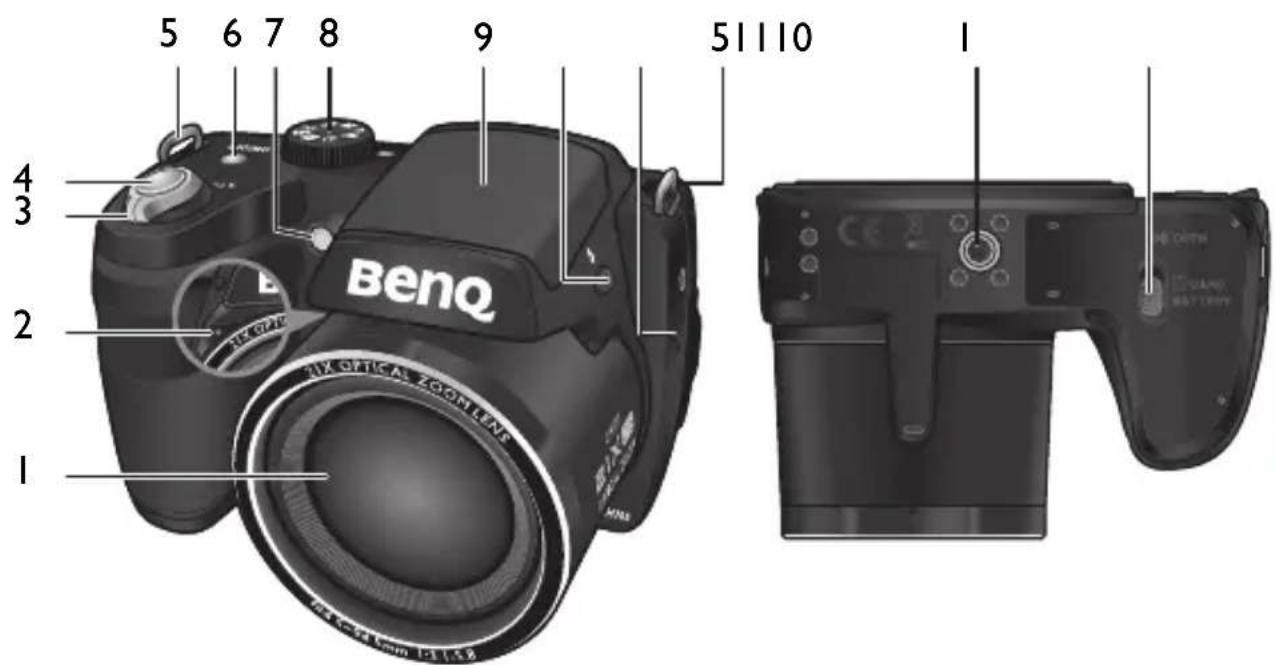

Front and bottom views

I. Lens
2. Stereo microphone
3. Zoom lever
4. Shutter button
5. Strap eyelet
6. Power button
7. AF Assist Lamp / Self-timer LED indicator

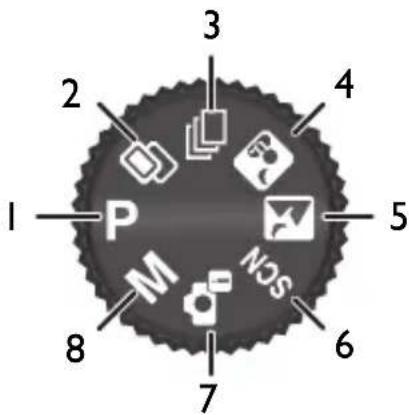

8. Mode dial
9. Flash
10. Flash button
II.Speaker
12.Tripod mount
13.Battery/card cover

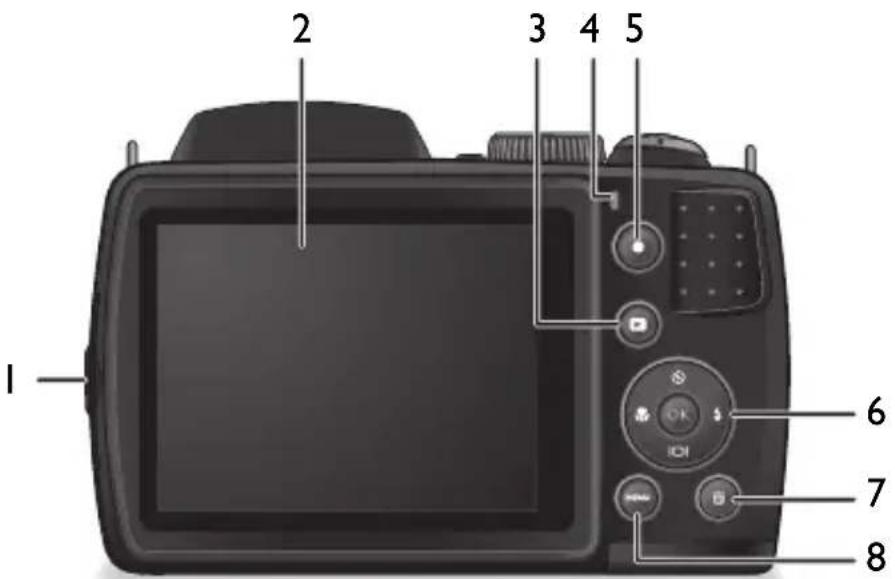

Rear view

I. USB / AV / HDMI port

1. LCD display

2. PLAYBACK button

1. Status LED

2. RECORD button

1. Multifunctional buttons (including a 4-way control and an ⬆kton)

2. Delete button

1. MENU button

MENU

LED Indicator

Indicator State Description
Status LED No	light The digital camera is off.
	Solid green • The digital camera is ready to capture images.• The digital camera is powering on, or is in the power-saving mode.
Status LED Blinking green • The digital camera cannot focus.• The digital camera is capturing a video clip.• The flash is charging, or the USB communication/transfer is in progress.
Self-timer LED Blinking red The self-timer function is activated.

• It is normal for the camera to become warm during operation, because the camera casing might conduct heat.
• The LCD display on this camera is manufactured with sophisticated technology, and more than 99.99% of the pixels on the LCD display meet standard specifications. Yet, it is possible that less than 0.01% of the pixels on the LCD display may have some light spots or show unusual colors. This is normal and does not indicate display malfunction, nor will this affect the pictures you take with the camera.
• The LCD monitor looks darker in strong sunlight or bright light. This is not a malfunction.
• To prevent your images from being blurred while pressing the Shutter button, always hold the camera steady. This is especially important when you are shooting under low lighting conditions, under which your camera may reduce the shutter speed to ensure your images are properly exposed.

Multifunctional buttons

You can choose camera settings by pressing the 4-way control or OK

I. Left/Focus:

• Scrolls left in menus.
• Toggles between different focus modes.

2. Up/Self-timer:

• Scrolls up in menus.
• Selects a self-timer mode. See "Using the Self-timer" on page 26 for details.
• Rotates an image. See "Rotating an image" on page 50 for details.

3. Right/Flash:

• Scrolls right in menus.
• Selects a flash mode.

4. Down/Display:

• Scrolls down in menus.

• Toggles between different display modes.

• : confirms a chosen setting.

Preparing the camera for use

This section will guide you on how to prepare the camera before its initial use.

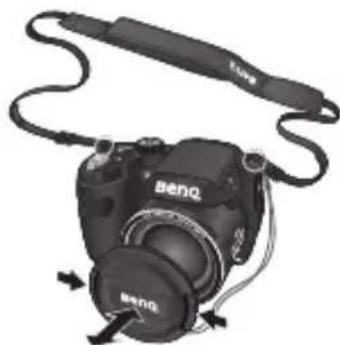

Attaching the strap

To attach the lens and neck straps to your camera, do the following:

I. Insert one end of the neck strap through the strap eyelet.

1. Route it through the buckle as the inner loop.

2. Route the other end of the neck strap to the other strap buckle to secure it.

Follow the above steps to attach the other side of the neck strap.

1. Insert one end of the lens strap through the strap eyelet. Make a loop to secure it.

2. Attach the other end of the lens strap on the lens cover.

Close-up of a black athletic harness with straps and straps (no text or symbols visible)

Close-up of a black leather buckle strap and belt (no text or symbols visible)

Close-up of a black athletic jacket with a strap and handle (no text or symbols visible)

Close-up of a black object with a metallic rope tied around it, no visible text or symbols

Close-up of a black BenQ ear cap with attached cable and directional arrows (no text or symbols on the device itself)

1. Once complete, make sure the straps are tight.

Black BenQ DSLR camera with attached strap and cable, no visible text or symbols on body

- Wrapping the strap around your neck is dangerous. Refrain children from playing with the strap.

- Remove the lens cover before using the camera.

Installing the batteries

Use only the specified batteries for the camera, and always turn off the camera before removing the batteries.

To install the batteries:

I. Push the button up and then slide the battery/card cover to the right to release and open it.

Close-up of a black digital camera with control buttons and a right-pointing arrow indicator (no text or symbols on the device itself)

1. Insert the batteries in the correct direction by matching the + - label on the battery slot.

Close-up of a battery pack with multiple charging cells and arrows indicating direction (no text or symbols visible)

1. Close the battery/card cover and then slide it to the left to lock it in place.

Close-up of a black digital camera with control buttons and an arrow pointing to the left side (no visible text or symbols)

To remove the batteries:

I. Push the button up and then slide the battery/card cover to the right to release and open it.
2. Remove the batteries.
3. Close the battery/card cover and then slide it to the left to lock it in place.

Close-up of a battery pack with multiple cylindrical batteries and plug heads (no visible text or symbols)

• Turn off the camera before removing the batteries.
• Use only the specified battery type. Using other types of batteries may damage the camera and invalidate the warranty.
• Ensure that the batteries are inserted into the product with correct polarity. Incorrect polarity may damage the camera or cause fire.
• Download all pictures and remove the batteries from the camera if you are going to store the camera for a long time.
  • The batteries may be warm after being used. This is normal and not a malfunction.
• When using the camera in a cold environment, keep the camera and its batteries warm by holding it inside your jacket or another warm protective environment.
• Please select the correct battery type before use (see "Battery Type" on page 47 for details).
  • High-capacity (such as 2500 mAh) rechargeable batteries are recommended.
  • Carbon-zinc batteries are not recommended.
  • The AA batteries that came with the camera are not rechargeable.
• Do not combine old and new batteries or batteries of different makes or types.
• Performance of alkaline batteries may vary greatly depending on the manufacturer. Choose a reliable brand.

Installing an SD card

The camera comes with internal memory for storing captured images, video clips, or audio files. You can also add an SD card to store more files.

To install an SD card:

I. Push the button up and then slide the battery/card cover to the right to release and open it.

Close-up of a black digital camera with control buttons and an arrow pointing to the right side (no visible text or symbols)

1. Insert an SD card in the correct direction.

Close-up of a camera module with a clip inserted into the lens (no visible text or symbols)

1. Close the battery/card cover and then slide it to the left to lock it in place.

Close-up of a black digital camera with control buttons and an arrow pointing to the left side (no visible text or symbols)

To remove an SD card:

I. Push the button up and then slide the battery/card cover to the right to release and open it.

1. Lightly press the edge of the memory card to eject.

2. Close the battery/card cover and then slide it to the left to lock it in place.

Before initial use of an SD card, please format the card first by pressing MENU

(✗) > Format > OK / ↘ > Yes > OK.

Turning the Power On and Off

Before turning on the camera, be sure to remove the lens cover. Otherwise, the lens will not be extended and the camera will beep four times.

There are two ways to turn on the camera:

- Press the Power button.

The zoom lens extends and the camera is turned on in Record mode.

- Press and hold

The camera is turned on in Playback mode, and the lens is not extended.

Opening the Flash

You need to manually open the flash before switching the flash mode.

To open the flash:

Press the Flash button to open it.

Do not use your hands to forcibly lift open the flash.

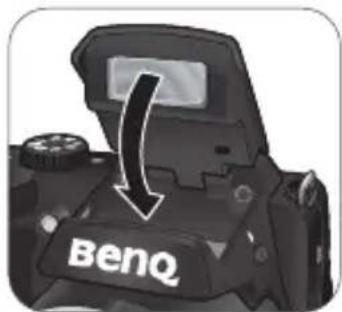

To close the flash:

Push down the flash to close it.

When the flash is closed, flash mode is automatically set to flash off.

Initial setting

You will be prompted to set up the language and the date and time when the camera is turned on for the first time.

Setting language

Selects the language version shown on the screen.

To select a language:

I. Press MEN(Step 1 is needed only after the initial setting is complete.)

1. Press or to locate Language, and then press OK.

2. Press , or to locate the language you want.

3. Press ⓊKset the language.

Setting date and time

When using the camera for the first time or when the battery has been removed from the camera for a long time, you need to set the date and time. The date and time is recorded when a video or image is captured.

To set date and time:

I. Press MEN (Step 1 is needed only after the initial setting is complete.)

1. Press on to locate Date & Time, and then press OK.

2. Press or to select date, time and date format. Press or to move to another column as needed.

3. Press ⓄKset the date and time.

Operating the camera

The procedure below is a general guideline for basic operation. It is particularly useful if you are new to the camera.

I. Press the Power button to turn the power on.
Be sure that you have removed the lens cover before turning on the camera.
2. Set the mode dial to per other desired shooting mode. See "Selecting the
Shooting Mode" on page 28 for details.

Remember to follow the on-screen display or slide the Zoom lever to for instructions (wherever available). Next, press the corresponding buttons to access and set more options. At any time, you can cancel the current operation by pressing MENU to return to your previous step.

1. If you need to use the flash for shooting, open the flash.

2. Use the Zoom lever to zoom-in/zoom-out on the subject.

3. Press the Shutter button halfway to set automatic focus.

- Once the focus is set, the focus frame color will turn from yellow (unfocused) to green (focused). If the focus frame color is red and you press the Shutter button down, it might result in a blurred photo.

1. Press the Shutter button down fully to capture the image.

2. To switch to Movie mode, press ●. The video recording automatically starts.

- While recording, use the Zoom lever to zoom-in/zoom-out on the subject. Press again to stop video recording.

1. To switch to Playback mode, press ▶. In Playback mode, you can view captured images or recorded videos.

- You can press 📋 or to view other images/videos, slide the Zoom lever to zoom-in on a captured image, or slide the Zoom lever to view 9-thumbail images on the screen.

• During zoom-in/out, there is a separator in the zoom bar between and . W For best image quality, it is recommended to use optical zoom only by keeping the magnification within and the separator.
• Flash is automatically turned off in the Movie mode.
• In Movie mode, the camera records both sound and video. The recording time is continuous, but recording will stop once the memory card space is full.
• At any time, you can press the Power button to turn off the camera.
• In Capture or Playback mode, press to select what information to show on the screen.

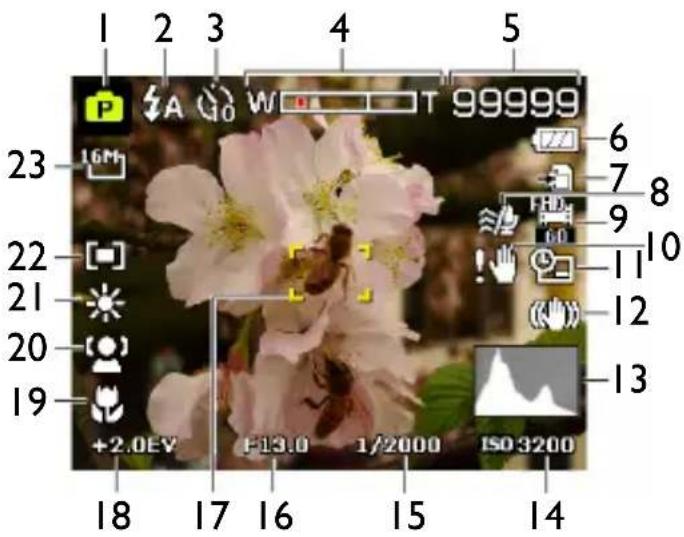

Capture mode

Item Description Page reference
1 Shooting mode 28
2	F I a s h	m o d e
3 Self-timer mode 26
4 Zoom status --
5 Number of shots available --
6 Battery status 45
7 Storage media --
8	W i n d C u t 4
9	M o v i e	s i z e
10	Camera shake warning	--
11	Date stamp	42
12	Stabilizer	43
13	Histogram	--
14	ISO	40
15	Shutter speed	--
16	Aperture value	--
17	AF area	41

2 5

4 4

Item	Description	Page reference
18 Exposure value (EV) 39
19		Focus
20 Face Tracking 41
21 White Balance 39
22 AE metering 41
23 Image size 38

- In Capture mode, press |0| to toggle among the 4 display modes (standard, complete, none, and rule of thirds).

- Use the rule of thirds display mode to improve your composition by placing subjects on at least one of the intersections of these 4 imaginary lines.

- While the Shutter button is pressed down halfway, the AF area color changes to green, camera shake warning (appears only if the camera itself detects possible shaking), aperture, shutter speed and ISO setting are also shown on the screen.

Flash mode

The flash offers additional light source (usually used in a low-light environment). You can capture an image using one of the following flash modes.

Icon Mode Description
#A		Auto Flash The flash fires automatically based on the photographic conditions.
#C		Auto Anti Red-eye Reduces the red-eye phenomenon when capturing natural-looking images of people and animals in low-light conditions. Be sure to ask the subject to look at the camera lens or get as close to the camera as possible. The flash fires automatically based on the photographic conditions.
#		Force On The flash always fires regardless of the surrounding lighting conditions. Select this mode when capturing images with high contrast (backlighting) and deep shadows.
Icon Mode Description
	Slow Sync Fires the flash immediately at the beginning of exposure with a longer shutter speed, so balanced ambient lighting of the foreground subject and background scene can be reached in a low-light environment.
	Force Off The flash does not fire. Select this mode when flash photography is prohibited, or when the distance to the subject is beyond the effective range of the flash.

To select a flash mode:

I. Set the mode dial to the desired shooting mode. See "Selecting the Shooting Mode" on page 28 for details.
2. Open the flash. See "Opening the Flash" on page 20 for details.
3. Press repeatedly until your desired flash mode is displayed on the LCD monitor.

• The flash mode is not available in Continuous Shooting, HDR, and Handheld Night Shot modes.
• The flash mode will remain at “Flash Off” if the flash does not open.
• When the flash is closed, flash mode is automatically set to flash off.

Using the Self-timer

This feature allows you to set the self-timer settings.

Icon Mode Description
	10-sec./2-sec. self-timer	Automatically takes a picture after 2 or 10-second delay. This mode is useful when you want to be part of the picture.
	Double Performs	delay and capture twice:Performs a 10-second delay, then captures the image.Performs another 2-second delay then captures the image again.
-- Off (Single) Takes one picture at a time.

To enable self-timer mode:

I. Set the mode dial to the desired shooting mode. See "Selecting the Shooting Mode" on page 28 for details.
2. Press repeatedly until your desired self-timer mode is displayed on the LCD monitor.

Focus mode

This feature allows you to define the focus type when capturing an image or a recording a video clip.

To select the focus mode:

I. Set the mode dial to the desired shooting mode. See "Selecting the Shooting Mode" on page 28 for details.
2. Press 🎨 repeatedly to toggle between Normal and Macro ( 👉). In addition, you can use Super Macro ( 👉S) if the subject is at a very close distance. To enable 🎨press . Then, steadily slide the zoom lever until the zoom indicator is roughly in the middle of the zoom bar.

If you want to take a close-up shot, set the focus mode to Macro or Super Macro.

Selecting the Shooting Mode

Rotate the mode dial to select one of the eight shooting modes:

No.	Icon Mode Description
1	Prog	The camera automatically configures the appropriate settings, so you can capture images with ease.
2	HDI	camera automatically increases the dynamic range on necessary portion of the image and enhances the details of dark areas. See "Using HDR mode" on page 29 for details.
3		C Shooting	Lets you capture a series of shots with a single press of the Shutter button. See "Using Handheld Night Shot mode" on page 33 for details.
4	Nigl	Portrait	Lets you capture night scenes and portraits clearly. See "Using Continuous Shooting mode" on page 29 for details.
5		H Night Shot	lets you capture photos in a low-light environment, such as in the evening or at night. See "Using Handheld Night Shot mode" on page 33 for details.

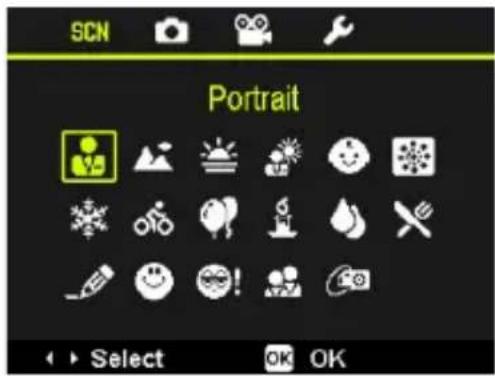

6	Scer	Mode	Lets you select the desired scene mode that suits your shooting environment. See "Setting the Scene mode" on page 33 for details.
7	Intel	Scene	The camera detects the shooting condition and automatically switches to the appropriate scene mode. See "Using Intelligent Scene mode" on page 36 for details.

No.	Icon Mode Description
8	Manual	Lets you set both aperture and shutter speed manually. See "Setting the Scene mode" on page 33 for details.

Using HDR mode

In this mode, the camera automatically enhances the shadow and highlights the details of an image.

I. Set the mode dial to

1. Press the Shutter button halfway to set automatic focus.
2. Press the Shutter button to capture an image.

Close-up of a peach blossoming branch with green leaves, captured in smartphone camera interface (no text or symbols on the flower or branch)

Before After

Close-up of pink blossoms on a tree branch with green leaves (no text or symbols visible)

The flash mode is automatically set to flash off.

Using Continuous Shooting mode

In this mode, you can take consecutive shots.

Icon Mode Description
	High-speed BurstPress and hold theShutterbutton to take continuous shots at 10fps (the maximum number of photos is 10).
	Pre-shooting The images are captured before fully pressing theShutterbutton. This feature begins by half pressing theShutterbutton, and continues when theShutterbutton is fully pressed.

Icon	Mode	Description
	Sporty Burst 120	Use this feature to capture 54 photos with at least 1/120 shutter speed with a press of the Shutter button.
	Sporty Burst 240	Use this feature to capture 54 photos with at least 1/240 shutter speed with a press of the Shutter button.
	Smart Selector Press and hold the Shutter button to take several shots of an image. When the Shutter button is released, ONLY the sharpest photo is saved and the others are erased automatically.
	Multi-shot 16 Press the Shutter button to take 16 shots at 30 fps and combines them as a single photo.

To select a continuous mode:

I. Set the mode dial to

1. To switch to another mode, press MENU

2. Press to select Contin Shooting.

3. Press OK, and then select a desired option.

4. Press MENU to confirm the set and exit the menu mode.

High-speed Burst

Captures a maximum of 10 photos continuously with a single press of the Shutter button.

I. Set the mode dial to

1. Press ▶ to select Continuous Shooting.

2. Press OK or ↘, and then select High-speed Burst.

3. Press MENU to exit the menu mode.

4. Press and hold the Shutter button to capture continuous shots. Shooting ends when the Shutter button is released or the maximum number of photos is reached.

Auto review appears directly on the screen after every shot is taken, even if [Auto Review] is set to off.

Pre-shooting

Captures continuous shots while the Shutter button is pressed halfway.

I. Set the mode dial to

1. Press MENU > |0| to select Continuous Shooting.

2. Press OK, and then select

Pre-shooting.

1. Press MENU

to exit the menu mode.

1. Press the Shutter button halfway to start capturing continuous shots, and continues when the Shutter button is fully pressed.

The camera captures up to 5 photos in a series (including up to 2 photos captured in pre-shooting cache).

Auto review appears directly on the screen after every shot is taken, even if [Auto Review] is set to off.

Sporty Burst 120 / Sporty Burst 240

Use both of these two features to capture 54 photos in IM with at least 1/120 shutter speed (1/240 shutter speed for Sporty Burst 240) per shot.

I. Set the mode dial to

1. Press > to select

Continuous Shooting.

1. Press OK or ↗, and then select Sporty Burst 120 or Sporty Burst 240.

2. Press MENU

to exit the menu mode.

1. Press the Shutter button to capture continuous shots. Shooting ends when the camera reaches the maximum number of photos.

Smart Selector

Captures a maximum of 5 photos continuously with a single press of the Shutter button. The camera ONLY saves the sharpest photo of the series.

I. Set the mode dial to

1. Press MENU > |0| to select Continuous Shooting.

2. Press OK or ↓, and then select Smart Selector.

3. Presk MENU to exit the menu mode.
4. Press and hold the Shutter button to capture continuous shots. Shooting ends when the Shutter button is released or reaches the maximum number of photos.
5. The camera only saves the sharpest photo, and the others are erased automatically.

Auto review appears directly on the screen after every shot is taken, even if [Auto Review] is set to off.

Multi-shot 16

Captures 16 shots at 30 fps and combines them on a single picture.

I. Set the mode dial to
2. Press MENU > |0|, and select Continuous Shooting.

1. Press OK, and then select Multi-shot 16.

2. Press OK to exit the menu mode.

3. Press the Shutter button to capture 16 shots.

The captured images are displayed as one 16-thumbnail photo.

Person performing a martial arts pose on a rooftop, wearing a white cap and black shorts, with no visible text or symbols.

Before After

Sequence of 16 black-and-white action photos showing a person performing a martial arts or archery stance on a paved surface, with brick buildings in the background (no text or symbols visible)

Sequence of 16 black-and-white action photos showing a person performing a martial arts or archery stance on a paved surface, with brick buildings in the background (no text or symbols visible)

• The image size is automatically set to 5M (2560 x 1920).
- Auto review appears directly on the screen after every shot is taken, even if [Auto Review] is set to off.

Using Night Portrait mode

Shoots night scenes and portraits clearly. Please keep the camera steady or use a tripod while using this mode.

I. Set the mode dial to

You can press MENU and select Night Portrait (by pressing OK) for Hand-held or Tripod option.

1. Press the Shutter button halfway to set automatic focus.
2. Press the Shutter button to capture an image.

Using Handheld Night Shot mode

Captures photos in a low-light environment, such as in the evening or at night.

I. Set the mode dial to

You can press MENU and select Night Scene (by pressing OK) for Hand-held or Tripod option.

1. Press the Shutter button halfway to set automatic focus.
2. Press the Shutter button to capture an image.

Setting the Scene mode

Select one of the following scene modes to fit your shooting condition.

Icon Mode Description
	Portrait Makes the subject (usually a person) stand out with smooth and natural-looking skin tones.
	Landscape Captures a scene in the distance with the focus area set to infinity and a lower aperture value. The maximum depth of view can also be achieved.
	Sunset Captures the warmth and atmosphere (represented by hue) of sunrise or sunset.
[GXST]	Backlight Increases exposure (by turning on the flash) when light illuminates the subject from behind.
Icon Mode		Description
	Kids Increases sensitivity and emphasizes children's skin tones.
[WSWT]	Fireworks Adds exposure time to shoot firework trails. Please keep the camera steady or use a tripod while using this mode.
	Snow Used under a very bright light environment such as snow scenes.
[XCSW]	Sports Uses a high shutter speed to capture objects in motion.
	Party Captures the party atmosphere usually under indoor light source.
	Candlelight Makes a picture look warm, and thus captures the mood under candle light source. Flash is always off.
[HSTA]	Flowing Water Uses a low shutter speed for motion blur. Please keep the camera steady or use a tripod while using this mode.
[WHV5]	Food Captures food by enhancing color brightness and giving more vivid colors.
[AGKD]	Text Improves clarity & contrast when taking a close-up picture of documents.
	Smile Capture Automatically takes a shot when a smile is detected.
	Blink Detection Warns of eye blinks if detected and lets you decide whether to save the image file.
	Love Portrait Takes a self portrait with at least two faces in a confined area.
	Self Portrait Takes a self portrait with at least one face in a confined area.

To select a scene mode:

I. Set the mode dial to SCN

1. Press > to enter the scene menu.

2. Press to select the desired scene mode.

3. Press OK confirm the setting.

Smile Capture

Captures an image when the subject smiles.

I. Set the mode dial to SCN

1. Press > to enter the scene menu.

2. Press to select Smile Capture.

3. Press OK confirm the setting.

4. The camera tracks the face of your subject (a white frame shows).

5. Once a smile is detected, the camera instantly takes a picture.

6. The camera continues to detect smiles and takes more pictures (Step 4 is repeated).

Face tracking (one face only) is always on in Smile Capture mode.

Blink Detection

Automatically detects blinking when you capture an image.

I. Set the mode dial to SCN

1. Press > to enter the scene menu.

2. Press to select Blink Detection.

3. Press ⓄK confirm the setting.

4. Press the Shutter button to capture an image. If blinking is detected, a warning message appears on the screen.

5. Press or to save or discard the image, and then press to confirm.

Love Portrait

Takes a self portrait of at least two faces.

I. Set the mode dial to .SCN
2. Press > to enter the scene menu.
3. Press to select Love Portrait.
4. Press ⓄKconfirm the setting.

1. Once faces are detected, the camera will automatically take a picture after a two-second countdown.

During the countdown, you can press the shutter to cancel the countdown. The camera will then start detecting faces again.

1. The camera continues to detect faces and takes more pictures by repeating Step 5. Face tracking will automatically stop if no faces are detected.

Using Intelligent Scene mode

Automatically selects the best scene mode from Portrait, Landscape, Macro, Backlight, Backlight Portrait, Night Scene, and Night Portrait.

I. Set the mode dial to .
2. Press the Shutter button halfway to set automatic focus. The selected shooting mode is displayed in the top left corner of the screen.
3. Press the Shutter button to capture an image.
4. The camera only saves the sharpest photo, and the others are erased automatically.

Auto review appears directly on the screen after every shot is taken, even if [Auto Review] is set to off.

Using Manual mode

You can choose the aperture value and shutter speed in Manual mode.

To adjust values in Manual mode:

I. Set the mode dial to M
2. PreOK .
3. Adjust the settings.

- Press or to adjust the aperture value.

- Press for to adjust the shutter speed.

1. Press ⓊKconfirm setting.

Recording Videos

You can record video with this camera. Set the movie settings before you start recording a video. See "Using the Movie Menu" on page 43 for details.

To record the video clip:

I. Press to start recording.
2. Use the Zoom lever to zoom in/out on the subject.
3. Press to stop the recording.

Close-up of a blooming pink flower with green leaves, no visible text or symbols

• The camera will automatically stop recording when the memory capacity is full.
• Recording a video at Full HD and HD mode requires a Class 4 or above SDHC card.
  • Digital zoom is not available while recording a video.

Using PIV function

During video recording, you can capture an image by pressing the Shutter button when icon appears on the screen. This feature is only applicable to videos with size of 1080p (30fps), 720p (30fps), or VGA (30fps).

• When the movie size is 1080p (30fps) or 720p (30fps), the capture photos are saved at 2304 x 1296 resolution.
• When the movie size is VGA (30fps), the capture photos are saved at 2304 × 1728 resolution.

Using the Capture Menu

Press to address more capture options. Depending on your settings, the displayed option icons in the Capture menu may vary.

I. PRESS < >

1. Press or to select a menu item.
2. Press OK to enter the submenu.
3. Press or to select the settings.
4. Press OK to save the setting and exit the menu mode.

Photo size

Icon Description Icon Description
	16 megapixels (4608 x 3456)	5 megapixels	(2592 x 1944)
	16 megapixels (4608 x 3456)	3 megapixels	(2048 x 1536)
	3:2 (14 megapixels; 4608 x 3072)	16:9	HD 16:9(1920 x 1080 in full HD format)
	8 megapixels (3264 x 2448)	VGA	VGA (640 x 480)

To select an image size:

I. Press MEN PhotoSize.
2. Press OK to enter the submenu.
3. Press or to select a setting.
4. Press OK confirm setting.

The ^16M and ^16M have different compression rate.

Setting EV

EV (Exposure Value) lightens or darkens the entire image. Adjust EV when the brightness between the subject and the background is not balanced, or when the subject occupies only a small part of the picture.

To select an EV:

1. MPess < > Compensation.

2. Press OK to enter the submenu.

3. Press or to adjust the setting.
4. Press OK confirm setting.

White Balance

Compensates for color temperatures in different lighting conditions, so white and other colors can display properly when you capture images.

Icon Mode Description
AWE	Auto Adjusts white balance automatically.
	Daylight	Used in bright daylight conditions.
	Cloudy	Used in twilight or shady conditions.
	Tungsten	Used when subjects lit by tungsten (incandescent) lighting.
1	Fluorescent_1 Fluorescent_2	Adjusts for fluorescent lighting. Corrects the green hue of fluorescent lighting. Ideal for indoor photos under fluorescent lighting without a flash.
	Manual	Used when you want to manually adjust white balance in a particular lighting condition.

To select White Balance:

I. MPEnJ < > > White Balance.

1. Press OK to enter the submenu.

2. Press or to select a white balance option. The preview result based on the currently selected white balance is shown on the screen. (When selecting the Manual mode, you must first point the camera at a blank sheet of white paper or something similar and press the Shutter button for the camera to detect proper colors.)

3. Press @Kconfirm setting.

ISO

ISO configures the camera sensitivity to light. The higher the ISO value, the brighter picture you can take in a low-light environment. Yet, you may see more noise in the picture as you increase the ISO value.

Icon Description
ISO Auto	Automatically sets the ISO value.
ISO 160 ISO 200	Equivalent to color ISO 160/200 film. Used for outdoor photography in bright sunlight.
ISO 400 ISO 800ISO ISO 1600 ISO 3200 ISO 6400	Equivalent to color ISO 400/800/1600/3200/6400 film. Use it in a low-light environment or where the flash light is not allowed.·ISO 6400/3200 for resolution of 3M/16:9/VGA under only

To select an ISO value:

I. Press MENUSO.
2. Press OK to enter the submenu.
3. Press or to select an ISO Value.
4. Press OK confirm setting.

Metering

Icon Mode Description
	Multi Detects the exposure based on multiple points in the subject area.
	Center Detects the exposure of the entire shooting screen, but gives more importance to the values near the center.
	Spot Detects the exposure based on the center spot in the subject area.

To select a metering option:

I. MPess < > > Metering.

1. Press OK to enter the submenu.
2. Press or to select a metering option.
3. Press ⓊKconfirm setting.

AF Area

This feature determines the area on which the camera focuses.

Icon Mode Description
	Face Priority Automatically detect faces and track faces continuously.
	Wide	Automatically select the focus area within the wide frame.
	Center The focus are is fixed on the center.

To set the AF Area:

I. MPEnJ < > > AF Area.

1. Press OK to enter the submenu.
2. Press on to an AF area option.
3. Press OK confirm setting.

AF Lamp

This feature allows you to add extra light when the lighting is insufficient while capturing images.

To enable the AF Lamp:

I. Press MENIAF Lamp.
2. Press OK to enter the submenu.
3. Press or to select Auto.
4. Press ⓊKconfirm setting.

Digital Zoom

The digital zoom enlarges or shrinks the image using a software process.

To enable the digital zoom:

I. Press MEN DigitalZoom.
2. Press OK to enter the submenu.
3. Press or to select On.
4. Press OK confirm setting.

Date Stamp

Imprints the date when a picture was taken on the picture itself.

To set the date stamp:

I. Press MENU Date Stamp.
2. Press OK to enter the submenu.
3. Press or to select Date, Date & Time, or Off.
4. Press OK confirm setting.

Auto Review

This feature displays a preview of the still image for 1 second right after capturing it.

To set the Auto Review:

I. Press MENU < > Auto Review.
2. Press OK to enter the submenu.
3. Press or to select On or Off.

1. Press OK confirm setting.

During auto review, half press the Shutter button to return to the capture mode.

Stabilizer

Reduces blur caused by camera vibration, and thus improves image quality and clearness.

To set the Stabilizer:

I. Press < > Stabilizer.

1. Press OK to enter the submenu.

2. Press or to select On or Off.

3. Press OK confirm setting.

When the battery power is low, the Stabilizer will be turned off automatically.

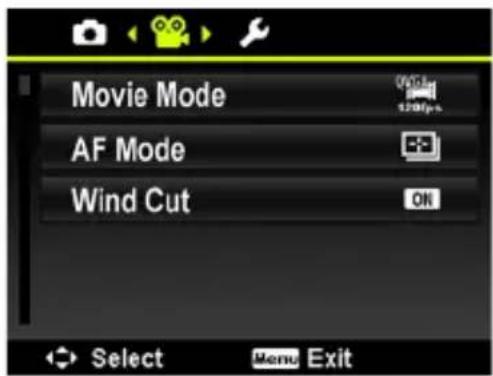

Using the Movie Menu

Press to access Movie menu options. Set the necessary settings before you start recording the video clip.

I. PRESS

1. Press or to select a menu item.

2. Press OK to enter the submenu.

3. Press or to select the settings.

4. Press OK to save the setting and exit the menu mode.

Movie Mode

Icon Description Icon Description
	Full HD 1080p (60 fps) VGAp (30fps)30fps
	Full HD 1080p (30 fps) QVGAp (120fps)120fps
	HD 720p (60 fps) QVGAp (240fps)240fps
	HD 720p (30 fps) -- --

To select a movie size:

I. Press MENMovieMode.
2. Press OK to enter the submenu.
3. Press or to select a setting.
4. Press ⓊKconfirm setting.

The Full HD and HD options are only available when an SDHC Class 4 or Class 6 card is inserted into the camera.

AF Mode

Use this feature to control the auto focus method in recording videos.

To set the AF mode:

I. Press MENIAF Moile.
2. Press OK to enter the submenu.
3. Press or to select Single AF or Full-time AP.
4. Press ⓊKconfirm setting.

Wind Cut

Use this feature to reduce wind noise during video recording.

To enable Wind Cut:

I. Press MEN>Wind out.
2. Press OK to enter the submenu.

1. Press or to select On.
2. Press OK confirm setting.

Battery status

Icon Description
	Battery power is full.
	Battery power remains adequate.
	Battery power is low.
	Battery power is very low. You should replace the battery ASAP.

Other settings

Press MENU, and then select an option.

Icon Mode	Description
Sounds [Startup] Set	a type of the start	startup sound.
	[Shutter]	Set the shutter sound on and off.
	[Beep Volume]	Adjust the volume.
Power Save	[1 min.]	For power conservation, the camera automatically enters the standby mode after it has been idle for a period of time. (Press any key to resume.)
	[3 min.]
	[5 min.]
	[Off]	The camera remains on when idle.
Date & Time	Set the date and time.
Language	Select a language for display menus and other information.
TV Settings TV Out	Switch the video	output according to different regional standards. Available settings: NTSC (for America, Japan, Taiwan, and others) and PAL (for China, Europe, Oceania, and others).
	HDMI Set an image resolution for HDMI output. The available settings vary depending on the TV Out setting.If the TV Out is set to NTSC, the available HDMI settings: Auto / 480p / 720p / 1080i / 1080p.If the TV Out is set to PAL, the available HDMI settings: Auto / 576p / 720p / 1080i / 1080p.
	TV Out should be set to either NTSC or PAL depending on your region. For details about which system should be used, check with your local authorities.
LCD Brightness	[Auto]	The LCD brightness is automatically set based on the surrounding environment.
	[Bright] The	LCD brightness is increased.
	[Normal]	The LCD brightness remains at the default value.
Startup Image	[On]	Activate the system startup image when you turn on the camera.
	[Off]	Disable the startup image function.
Format Formats the	internal memory or the memory card.
Battery Type		Select if the type of battery used in the camera is Alkaline.
		Select if the type of battery used in the camera is Ni-MH.
	[362T]	Select if the type of battery used in the camera is Lithium.
Reset All Resets the	entire menu and button operation settings to initial default.The following settings do not change after Reset All:Date & Time settingLanguage settingTV Out settingManual White Balance setting

Playback mode

Press to switch to Playback mode.

If the camera is turned off, you can directly switch to Playback mode by pressing and holding ▶.

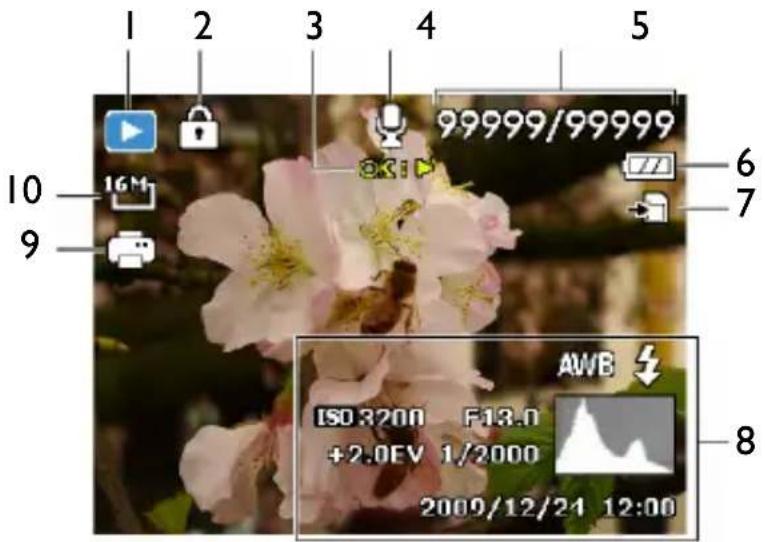

Item Description Page		reference
1	Indicates that the camera is in Playback mode.	--
2 Indicates that the file is protected and cannot be deleted.		53
3 Indicates key guide. Press the button to play the recorded video.		--
4 Indicates this file has a voice memo or the file is an audio file.		55
5 File number --
6 Battery status 45
7 Storage media --
8 Displays the recording information of the file. Press I0I to toggle between different displayed information.		--
9 Indicates the file is marked for printing. 56
10 Image size --

Options for playback and editing

When the camera is in Playback mode, press 🎨 or ↩ to view the next/previous recorded files. You can also select any of the following options.

Enlarging an image

Magnifies an image, so more details can be seen.

To enlarge an image:

I. Press to switch to Playback mode.
2. Press 🤒 to select the image you want to enlarge.
3. Slide the Zoom lever to zoom-in on a captured image. In Zoom mode, use the Zoom lever to adjust the zoom ratio.
4. Press , , or to move to the area you want to view.

Trimming

Crops part of an image file and saves it as another new file.

To trim an image:

I. Press to switch to Playback mode.
2. Press 🤒 to select the image you want to enlarge.
3. Slide the Zoom lever to zoom-in on a captured image. In Zoom mode, use the Zoom lever to adjust the zoom ratio.
4. Press , , or to locate the area you want to trim.
5. Press to trim the enlarged view.
6. Press 📍 or |0| to select Yes and press OK to confirm and save the image file.

The trimmed photos cannot be trimmed again.

Rotating an image

You can press to change the orientation of an image at 90 degrees clockwise at a time.

This function does not actually change the image, it just add a flag on orientation tag of the EXIF data and save it after each rotation.

Viewing multiple files at a time

Shows up to 9 files at a time on the screen.

To view multiple files:

I. Press to switch to Playback mode.
2. Slide the Zoom lever to which this mode, maximum 9 files (shown in

thumbnails) are displayed on the screen. Press

select a file, and then press OK view it in its normal viewing size.

If there are more than 9 thumbnails, a scroll bar appears on the screen.

Playing back video clips

View recorded video clips in the playback mode.

To view a video clip:

I. Press to switch to Playback mode.
2. Press to select the video clip you want to view.
3. Press OK start playing the video clip. - Press to stop the video clip, or press to pause it. Press again to resume.

Coastal scene with waves crashing against rocky shore under cloudy sky (no text or symbols visible)

• During video playback, press to fast forward or press to rewind.
• While pausing video playback, you can view the video frame by frame. Press to fast forward one frame, or press rewind one frame. Press and hold to

fast forward frame by frame continuously, or press and hold 📁 to rewind frame by frame continuously.

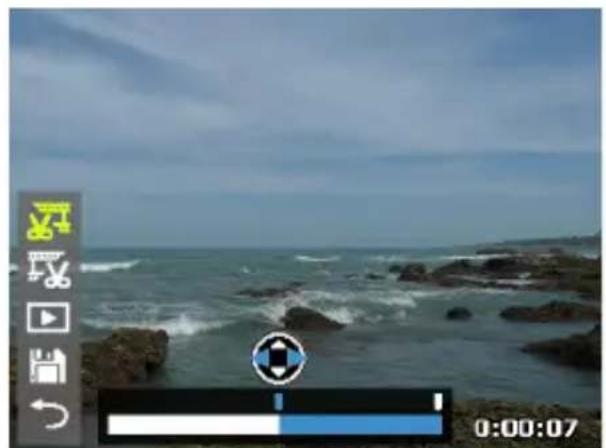

Using Movie Edit

When a video clip is paused, press to enter Movie Edit mode. An edit panel appears on the left side of the screen.

To edit the movie, do the following:

I. Press or to select:

• to set the start point to trim the beginning of the movie.
• to set the end point to trim the end of the movie.

Coastal scene with waves crashing against rocky shore under cloudy sky (no text or symbols visible)

1. Press how to set the movie time interval. The movie length must be at least more than 2 seconds.

Coastal scene with waves crashing against rocky shore under cloudy sky, no visible text or symbols

Coastal scene with waves crashing against rocky shore under cloudy sky, no visible text or symbols

Start Point End Point

1. To preview the video, press or to select and press . OK
2. To save the edited video, press 🙏 or to select and press . OK Select Save and press OK save the file.
3. To exit Movie Edit mode, press or to select and press . It returns to the video paused display screen.

The edited video clip will be saved as a separate file and it cannot be edited again.

Adjusting the playback volume

Increase or decrease the volume of video clips, audio clips, or voice memos.

To adjust the playback volume:

I. Press to switch to Playback mode.
2. Press 🤒 to select a video clip, audio clip, or voice memo that you want to play.
3. Start the file playback and adjust the volume.

• To increase the volume, slide theZoom lever to QT
  • To decrease the volume, slide the Zoom lever to W

The volume can only be set during playback, but not during rewind, fast forward, or pause.

Deleting files

Deletes selected or all files.

To delete a single file:

I. Press to switch to Playback mode.
2. Press 🤒 to select the file that you want to delete.
3. Press
4. Press or to select Single and press OK.
5. A confirmation message appears on the screen. Press 🤊 to select Yes and press OK confirm file deletion.
6. Repeat steps 2\~5 to delete other files.

In Capture mode, press

to delete that last recorded file.

To delete multiple files:

I. Press to switch to Playback mode.
2. Press
3. Press or to select Multi and press . OK The images are displayed in thumbnail view.

1. Press 🤒 to select the files that you want to delete and press or 😊

101 to mark the file for deletion. A ion appears on the marked files.

1. Press OK confirmation message appears on the screen. Press or to select Yes and press OK confirm deletion.

To delete all files:

I. Press to switch to Playback mode.

1. Press .

2. Press or to select All and press OK

3. A confirmation message appears on the screen. Press or to select Yes to confirm deletion.

Slideshow

Sets the time interval for presenting a series of captured image and video files (first frame only).

To play a slideshow:

I. Press to switch to Playback mode.

1. MPress < ▶ > > Slide Show.

2. Press OK to enter the submenu.

3. Change the slideshow settings.

- Press 🧑 or to select Interval, and press 🔒 or ↩ to set the transition interval between 1/3/5/10 seconds.

- Press 🎨 to select Repeat, and press 🔊 or ↩ to select whether you want to repeat the slideshow.

1. Press 🎨 or |0| to select Start and press OK to play the slideshow.

If you want to pause it at any time, press OKess again OKo resume playback. To stop the slideshow, press MENU.

Protecting files

Prevents selected files from accidental removal.

To protect a single file:

I. Press to switch to Playback mode.

1. Press 🤒 to select the file that you want to protect.

2. Press MENProte

3. Press OK to enter the submenu.

4. Press or to select Single and press OK.

5. A confirmation message appears on the screen. Press or to select Lock and press OK confirm file protection.

• A icon appears on the protected file.
• To unlock a protected file, select Unlock.

1. Repeat Steps 2\~6 to protect other files.

To protect multiple files:

I. Press to switch to Playback mode.
2. Press MENU < ▶ > Protect.
3. Press OK to enter the submenu.
4. Press or to select Multi and press OK The images are displayed in thumbnail view.
5. Press 🤒 to select the files that you want to protect and press or 😊 to mark the file for protection. A 📄 on appears on the marked files.

If the icon does not appear on the thumbnail images, this indicates the files are not protected.

1. Press 🔍Klock the selected files.

To protect all files:

I. Press to switch to Playback mode.
2. Press MENU ▶ Protect.
3. Press OK to enter the submenu.
4. Press or to select Lock All and press OK

1. A confirmation message appears on the screen. Press or to select Yes to confirm files protection.

You can remove the protection anytime by following the same procedure as shown above. Note that in Step 4 select Unlock All to unlock all files.

Voice memo

Inserts a voice annotation to an image file.

To record a voice memo:

I. Press to switch to Playback mode.

1. Press 🤒 to select the image you want to add a voice memo.

2. MPress ▶ > > Voice Memo.

3. Press OK to enter the submenu.

4. Press or to select Start and press OK start voice recording. During audio recording, select Stop and press OK to stop recording.

- The maximum audio recording time is 30 seconds.

- An Icon appears on the file that is attached with voice memo.

To play back a voice memo:

I. Press OK play the voice memo.

1. Press to pause the playback. Press again to resume the playback.

2. Press to stop the playback.

Resizing

Changes an image file to a smaller size, and overwrites the image file or saves it as another new file.

To resize an image:

I. Press to switch to Playback mode.

1. Press 🤒 to select the image you want to resize.

2. Press ▶ Resize. >

3. Press OK to enter the submenu.

4. Press or to select the target image size to which you want to reduce and press OK

5. A confirmation message appears on the screen. Press or to select Yes to confirm the change and save the image file.

• This function is only applicable to photos with 4:3 aspect ratio.
• The resize image is saved as a new file.
  • Each photo can only be resized once.

DPOF

The Digital Print Order Format (DPOF) setting allows you to select images on the memory card for printing and specify the number of print copies in advance using the camera. This is extremely convenient for sending the images to a photo developing service or for printing on a direct print function compatible printer.

To set up DPOF:

I. Press to switch to Playback mode.
2. Press MENUDPOF
3. Press OK to enter the submenu.
4. Press or to select Select Images and press OK set the DPOF setting on the selected image. The images are displayed in thumbnail view.
5. Press 🤒 to select the files that you want to mark for printing and press 🤒 or to specify the number of copies.

To view the selected file in full screen display, slide the Zoom lever to W. To switch back to thumbnail display, slide the Zoom lever to Q T.

1. Press ⓄKdefine the DPOF setting.

2. Press or to select Date, and press 📋 or ↩ to select whether you want to print the recording date/time.

3. Press 🧑 to select Info, and press 🔒 or ↩ to select whether you want to print the recording data (aperture value and shutter speed).

4. After all settings are complete, press 🔊 or |☐| to select Done and press OK.

To reset DPOF:

I. Press to switch to Playback mode.
2. MPress ▶ DPOF.
3. Press OK to enter the submenu.
4. Press or to select Reset and press OK clear all DPOF settings.

Copy

Copies files between internal memory and memory card.

This feature is only available if an unlocked memory card is inserted into the camera.

To copy the selected files:

I. Press to switch to Playback mode.
2. Press < ▶ > Copy.
3. Press OK to enter the submenu.
4. Choose the copy method, and press OK to continue.

• Copy to Card: copy all files stored in camera into the memory card.

• Copy to Camera: copy all files stored in the memory card into the camera's internal memory.

• Press 10 or Selected Images and press OK select the files that you want to copy.

The images are displayed in thumbnail view.

1. Press 🎨 or ↩ to select the files and press 🔕 or |○| to mark for copying, and press OK

To view the selected file in full screen display, slide the Zoom lever to Ⓦ. To switch back to thumbnail display, slide the Zoom lever to ⓊT.

1. A confirmation message appears on the screen. Press or to select Yes and press OK start copying the file.

To copy all files:

I. Press to switch to Playback mode.
2. Press MENCopy.
3. Press OK to enter the submenu.
4. Choose the copy method, and press OK to continue.
5. Press 10 or All Imagestand press OK
6. A confirmation message appears on the screen. Press or to select Yes and press OK start copying all files.

Movie Paste

Combines two videos that have the same specifications (movie size and frame rate) into one video.

To combine two video:

I. Press to switch to Playback mode.
2. Press to select the original (first) video.
3. Press MENMoviePaste.
4. Press OK to enter the submenu.

The videos with the same specifications as the original video are displayed in thumbnail view.

1. Press to select the second video and press or to mark it.

To view the selected file in full screen display, slide the Zoom lever to W. To switch back to thumbnail display, slide the Zoom lever to Q.T.

1. Press and a confirmation message appears on the screen.
2. Press or to select Yes and press OK merge the second video onto the end of the original (first) video.

• The total length of the combined videos cannot be longer than 30 minutes.
  • After combining the videos, the second video will be deleted.

Making connection

Bundled software

The camera offers the following programs on a CD.

ArcSoftMedialImpressionTM

Easily, creatively, and productively manage your multimedia files. Create your own movies or photo slide shows, and share your photo, video and music files easily through simple e-mail attachments or popular photo printing and video sharing websites.

To install these programs, see the information supplied with the CD.

Connecting the camera to a computer

You can connect the camera to a PC or notebook to transfer, view, print, or edit files.

To connect the camera to a computer:

I. Open the USB/AV port cover.
2. Connect the end of the smaller plug of the USB cable to the camera.
3. Turn on the camera.
4. Connect the other end of the USB cable to an available USB port on your computer.

1. Press or to select Computer and press OK.

2. Wait for the connection. A "PC Mode" message appears on the screen when the connection is established.

1. A Removable Disk icon appears in My Computer. Click this icon to access the files in your camera.

When connecting the camera to a computer, please use the original accessory of the USB cable to avoid possible system conflicts and damage to the camera.

Connecting the camera to a TV

You can play files in your camera on a TV using an HDMI cable or AV cable.

• Before connecting the camera to a TV, set the TV Out to match TV's video output format. See "TV Settings" on page 46 for details.
• For details on changing the input source of the TV, refer to the TV's user's manual.
• Some TVs may not recognize the video format (1080p, 30fps). Please check the user manual that came with the TV for more assistance.

To connect the camera to a TV using HDMI cable:

I. Turn on the camera.
2. Set the TV Out to match TV's video output format.
3. Connect the HDMI cable to the HDMI port on your camera.
4. Connect the other end of the HDMI cable to the TV's HDMI input port.
5. The LCD monitor turns black and all images and video clips are displayed on the TV.

Diagram showing a computer connected to a device via cable (no text or symbols visible)

Before connecting the HDMI cable to a TV, please turn on the camera first. The TV will not respond properly if you turn on the camera after the HDMI cable is connected.

To connect the camera to a TV using AV cable:

I. Open the USB/AV port cover.
2. Connect the TV and camera.

• Connect the end of the smaller plug of an AV cable to the camera.

• Connect the yellow video plug and the white audio plug of the AV cable to a video-input jack and an audio-input jack (left channel) on your TV.

• Turn on the TV, and then switch the input source of the TV to "AV".

• Turn on the camera.
• Follow the on-screen instructions to operate the camera via the TV.

Printing images

In addition to printing images by connecting the camera to a printer via a computer or bringing the memory card (if available) to a photo-processing center, you can choose to print using PictBridge.

Printing with PictBridge

You can directly print images by connecting your camera to a PictBridge-compatible printer without using a computer.

To print images from a PictBridge-compatible printer:

I. Open the USB/AV port cover.
2. Connect the end of the smaller plug of the USB cable to the camera.
3. Connect the other end of the USB cable to an available USB port on your printer.

Close-up of a black USB cable inserted into a device labeled '21X' (no readable text or symbols beyond branding)

1. Turn on the printer. Wait for a while until it finishes starting up and is ready to print.

2. Turn on the camera.

3. Press or to select Printer and press OK

4. Wait for the connection.

5. On Print Mode menu, select one of the following options:

6. Print Select: select to configure the printing settings on the selected image.

7. Print All: Select to print all images at a time.
8. Print DPOF: Select to print only the images with DPOF tag. See "DPOF" on page 56 for details.

To set the printing settings on the selected files:

I. On Print Mode menu, press 🔊 or |0| to select Print Select and press OK to select the files that you want to print. The images are displayed in thumbnail view.

1. Press to select the files that you want to mark for printing and press to specify the number of copies.

- To view the selected image in full screen display, slide the Zoom lever to Ⓦ. To switch back to thumbnail display, slide the Zoom lever to ⓊT. - The maximum number of copies is 99.

1. Press @Kenter the printer settings.

2. Press or to select desired paper size.
   Paper Size, and press 🎨 or ↩ to select the

3. Press 🚙 or to select desired print quality. Quality, and press 🚙 or ↩ to select the
4. Press 🧑 or to select Capture Date, and press 🏠 or ↩ to select whether you want to print the recording date/time.

- Press or to select Capture Info, and press or to select whether you want to print the recording data (aperture value and shutter speed).

1. After all settings are complete, press 🔒 or |☐| to select Print and press OK to start printing.

To set the printing settings on all files:

I. On Print Mode menu, press 🎨 or 📊 to select Print All and press OK to select the files that you want to print. The images are displayed in thumbnail view. All images are marked for printing and the number of printing copies is automatically set to 1.

1. Press 🤒 to view the files and press or to adjust the number of copies.

- To view the selected image in full screen display, slide the Zoom lever to W. To switch back to thumbnail display, slide the Zoom lever to Q T. - The maximum number of copies is 99.

1. Press @Kenter the printer settings and set the necessary settings.

2. After all settings are complete, press 🔊 or |☐| to select Print and press OK to start printing.

To print all files with DPOF tag:

I. On Print Mode menu, press 🎨 or |□| to select Print DPOF.

1. Press @Kenter the printer settings and set the necessary settings.

2. After all settings are complete, press or to select Print and press OK to start printing.

• The above procedure may vary depending on the printer type you are using.
• If you connect the camera to your printer while the printer is still starting up, the camera will be automatically turned off.
• Failure to follow the above procedure will make the camera show an error message. Please disconnect the camera and the camera will be automatically turned off.

Troubleshooting and service information

If your camera cannot operate normally, see the frequently encountered problems and solutions listed below. If the problem persists, contact your nearest service center or technical support.

Problem Cause Solution
The camera cannot power up.	There is no battery or the batteries are not inserted correctly.	Insert the batteries correctly.
	The batteries have no power.	Replace the batteries.
The battery power is draining quickly.	The external temperature is extremely low.	--
	Many shots are being captured in dark places, requiring a flash.	--
The batteries or camera is warm.	The camera or flash was used continuously over a long period of time.	--
The LCD screen is black.	The lens cover is on. Remove the lens cover.
No image is displayed on the screen and the camera beeped four times.	The lens cover is on. Remove the lens cover.
I cannot adjust the flash mode.	The flash is closed. Open the flash.
The flash does not fire.	The camera flash is turned off.	Set the flash to Auto Flash.
	The light source is sufficient.	--
Even though the flash fired, the image is dark.	The distance to the subject is greater than the flash's effective range.	Get closer to the subject and shoot.
The image is too bright or too dark.	The exposure is excessive or inadequate.	Reset exposure compensation.
I cannot format a memory card.	The memory card is write-protected.	Remove the write protection.
	End of the memory card life.	Insert a new memory card.
I cannot download images from the camera to my computer.	The free space on the hard disk of your computer is insufficient.	Ensure that the hard disk has enough space for running Windows and that the drive for loading image files has free space equal to or greater than the memory card in the camera.
	There is no power being supplied to the camera.	Replace the batteries.
Problem Cause Solution
The camera does not shoot even when pressing the Shutter button.	The batteries are running low.	Replace the batteries.
	The camera is not in Capture mode.	Switch to Capture mode.
	The Shutter button was not pressed all the way down.	Press the Shutter button all the way down.
	The internal memory or memory card does not have any free space.	Load a new card or delete unwanted files.
	The flash is recharging. Wait	until the flash mode icon, indicated on the screen, stops flashing.
	The camera does not recognize the memory card.	Format the memory card before the initial use or before using with another camera.
I cannot print images with PictBridge-compliant printers.	The camera is connected to the printer when the camera is powered off.	Connect the camera to the printer, turn on the camera, and then select Printer.

Technical support

For technical assistance, free driver updates, product information, and news releases, visit the following web site:

http://www.BenQ.com

Specifications

Sensor Sony 16 Mega Pixels, 1/2.3 inch BSI CMOS
Zoom Optical: 21X	Digital: Up to 5X (Preview) / Up to 10X (Playback)
Lens f = 4.5 (W) ~ 94.5 (T) mmF= 3.1 (W) ~ 5.8 (T)(f = 25 mm ~ 525 mm, 35 mm equivalent)
Focus Range Normal: W = 50 cm ~ Infinity; T = 500 cm ~ InfinityMacro: W = 2 cm ~ Infinity; T = 60 cm ~ InfinitySuper Macro: 1 cm (M) ~ Infinity
LCD 3.0" LCD 460k pixels
Image Resolution 16M / 3:2 / 8M / 5M / 3M / 16:9 / VGA
Movie Mode FHD 1080p (1920 x 1080) 60fps / HD 720p (1280 x 720)60fps / VGA (640 x 480) 30fpsQVGA (320 x 240) 240fps, Continuous recording with sound
Shutter Speed Auto: 1/2000 ~ 1 sec.Manual mode: 1/2000 ~ 15 sec.(Fireworks 2 sec.)
White Balance Auto / Daylight / Cloudy / Tungsten / Fluorescent H / Fluorescent L / Manual
Exposure -2.0 ~ +2.0 EV (0.3EV / step)
ISO Auto / 160 / 200 / 400 / 800 / 1600 / 3200 (3M or lower) / 6400 (3M or lower)
Flash Auto Flash / Auto Anti Red-eye / Forced On / Slow Sync / Forced Off
Drive mode Off / 10 sec. / 2 sec. / Double
Power Source CIPA approximately 400 (based on bundled AA Alkaline batteries); 580 based on Ni-MH batteries; 1000 based on Lithium batteries)
Storage Type Built-in approx. 85MB (+-5%)SD (up to 4GB) / SDHC (up to 32GB) / SDXC (> 32GB)
File Format Still Image	JPEG (EXIF 2.3 compatible); DCF compatible;Support DPOFVideo: MOVAudio: WAVSound: Stereo sound
Dimensions / Weight	112.5 x 75.9 x 63.4 mm370g (w/o batteries & SD card)
Interface Digital output	USB 2.0 compatibleAudio / Video output (NTSC/PAL/HDMI)PictBridge compatible
Accessories USB Cable	Software & User Manual CD / Quick Guide / Lens Cover / Lens Strap / Neck Strap / Pouch (optional) / Non-rechargeable AA BatteriesAvailable accessories depend on the actual items shipped and may vary from the list above.

All information, designs, and specifications are subject to change without prior notice.
