USER MANUAL XRS 9330 COBRA

The Cobra line of quality products includes:

CB Radios

microTALK® Radios

Radar/Laser Detectors

Safety Alert® Traffic Warning Systems

Handheld GPS Receivers

Mobile GPS Navigation Systems

HighGear® Accessories

CobraMarine™ VHF Marine Radios

CobraMarine™ Power Inverters

Accessories

For more information or to

der any of our provinces, please visit our website.

www.cobra.com

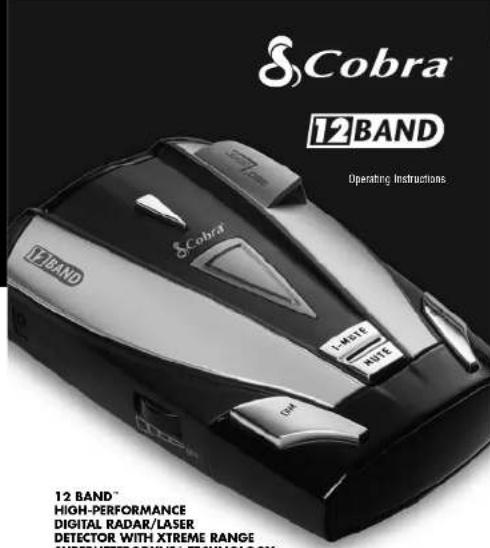

Cobra® 12BAND Operating Instructions 12 BAND™ HIGH-PERFORMANCE DIGITAL RADAR/LASER DETECTOR WITH XTREME RANGE SUPERHETROXYNE TECHNOLOGY

12 BAND

HIGH-PERFORMANCE

DIGITAL RADAR/LASER

DETECTOR WITH XTREME RANGE

SUPERHETERODYNE TECHNOLOGY

XRS 9330

Ferme, 2014

Nothing Comes Close to a Cobra ^1

English

Nothing Comes Close to a Cobra ^®

English

Important Information and Customer Assistance

Important Information

Federal Laws Governing the Use of Radar Detectors

It is not against federal law to receive radar transmissions with your Cobra radar-laser detector. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene the Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action.

Safety Alert

Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra Safety Alert transmitter is within range as defined by that product. Please call local tire and police departments to learn if coverage exists in your area.

Safe Driving

Motorists, as well as operators of emergency or service vehicles, are expected to exercise all due caution while using this product, and to obey all applicable traffic laws.

Security of Your Vehicle

Before leaving your vehicle, always remember to conceal your radar detector in order to reduce the possibility of break-in and theft.

Customer Assistance

Should you encounter any problems with this product, or not understand its many features, please refer to this owner's manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services:

For Assistance in the U.S.A.

Automated Help Desk English only. 24 hours a day. 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish, 8:00 a.m. to 6:00 p.m. Central Time Mon. through Fri. (except holidays) 773-889-3087 (phone).

Questions English and Spanish. Faxes can be received at 773-622-2269 (fax).

Technical Assistance English only: www.cobra.com (on-line. Frequently Asked Questions). English and Spanish. [e-mail] (e-mail).

For Assistance Outside the U.S.A.

Contact Your Local Dealer

(990) Cohen F. Erdnerles Corporation

Chicago, Illinois 20707 USA

507.507.501

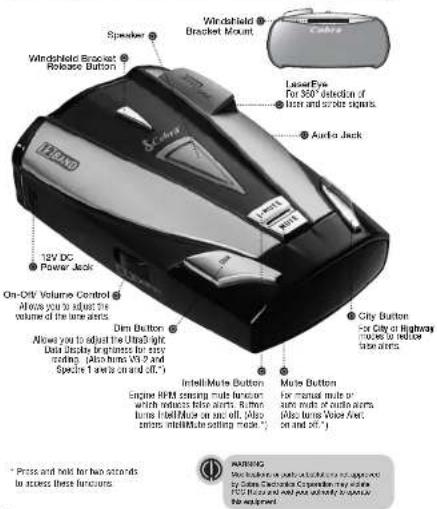

Controls, Indicators and Connections

Controls, Indicators and Connections

Windshield Bracket Mount Speaker LaserEye For 360° detection of laser and scroll signals Audio Jack 12V DC Power Jack On-Off Volume Control Allows you to adjust the volume of the lane alarms Dim Button Allows you to adjust the UltraLight Data Display, brightness for ease modating. Also turns V9.2 and Specise 1 area on and off.) Intell-Mute Button Engine RPMI sensing mini function which reduces false alerts. Button turns IntelMute on set off. Blue orange mini/mute-sensing mode.) Multi Button for manual mode or auto mode of audio alarms (Also turns Voice Alert. on and off.) Press and hold for two strands to access these functions.

Display and Product Features

Display

Radar, VG-2, ☑ Spectra 1, Signal Strength, IntellMute Indicator

Strope Indicators City/Highway

Mode Indicators Signal Strength

1 (weakest) x 5 (dumperstil

Product Features

Congratulations! You've made a smart choice by purchasing a high

performance radar/laser detector from Cobra. Just look at some of the

sophisticated features and capabilities you

Xtreme Range

Superheterodyne Technology

with super-fast sleep, it is empty. YRS provides extra detection when

ANS provides extra detection range and the best possible advance warning

to even the fastest radar guns

Detection and Separate Alert

Bacar signals (X, K, Ka and Ku bands.

with signal strength indicated).

laser signals. Safety Alert signals,

Stroke Alert signals, VG-2 signals

Spectre 1 signals

LaserEye

For 300° detection of laser and

stroke signals

Instant-On Ready

Detects radar guns with "instant-on"

(very fast) speed monitoring capabilities

Tone Alerts

With adjustable volume

This bucket describes the simple steps for mounting and setting up your detector.

It also provides helpful information about how radar and laser guns are used and how you can interest the birds you want.

How you can think that the items you have to

NOTE: In This Manual

When steady,

the display

be shown

When pin

the display

be shown:

X&Kwill

simulanco

when India

Ku detectio

Accessories Order Info

Ordering From U.S.A.

Call 773-850-3057 for pricing or visit www.oebra.com.

For Credit Card Orders

Call 773-859-3057 [Press one from the main menu] 8:00 a.m. to 8:00 p.m. Central Time,

Monday through Friday.

Make Check or Money Order Payable To

Coora Electronics, Ann: Accessories Dept.

Bath West Gill

To Order Online

Please visit our website: www.elell.com

Item #	Description
420-030-N-001	Straight 12V Power Cord
420-026-N-001	Coiled 12V Power Cord
545-139-N-001	Windshields Mounting Bracket
CLP-23	Dual Fuel Power Adapter

Nothing Comes Close to a October

Contents

Introduction

Important Information ...... A1

Customer Assistance .... 41 Controls, Indicators and Conceptions .... 42

Controls: Indicators and Conclusions 42 Disagree 43

Product Features A3

Your Detector

Installation 2

Getting Started....5

Settings ....

UltraScript Data Display Brightness

Muting an Nert 8

Auto Mute Mode 8

IntellMute 9

VG-2 and Spectro 1 Alert Audio Settings .... 12

N Bank and Nu Bank Detection 12 Detachment 19

Signals Detected 13

Audio Alerts 13

Visual Display 13

Instant-On Detection 16

Responding to Alerts 16 Understanding Report and Loan 17

Maintenance

Specifications 21

Warranty

Limited 1-Year Warranty 21

Customer Assistance

Product Service 22

Traditional Home/Healthcare .... 20 Optional Accessories .... 24

Options for Accessories .... 24 Order into .... 75

Nothing Comes Close to a Cobra

Installation

Installation

Where to Mount Your Unit

You will get optimum performance from your detector if you Mount it at a point approximately in the center of the vehicle, as low as possible on the front windshield without obstructing the unit's view of the road either to the front or rear. Make sure unit is level with the road. You can also mount it directly on the dashboard.

The unit's lens must not be blocked and the LaserEye should have a clear view out the back window to allow 360" detection.

Radar and laser signals pass through glass but not through other materials and objects. Objects that can block or weaken incoming signals include:

■ Windshield wiper blades
■ Mirrored sun screens
■ Dark tinting at the top of the windshield
■ Heated windshields currently available on some vehicles (Instaclear for Ford, Electriclear for GM.) Consult your dealer to see if you have this option.

Installation

Windshield Mounting

1. Attach the rubber cups to the bracket.
2. Make sure the rubber cups and your windshield are clean.
3. Push the bracket firmly onto the windshield.
4. Attach the detector to the bracket. Check the angle of the unit.
5. To adjust the angle if necessary, gently push or pull on the bracket to bend it, DO NOT use the detector to bend the bracket.
6. Plug the power cord into the detector.
7. Plug the cigarette lighter adapter on the power cord into your vehicle's cigarette lighter.

Nothing Comes Close to a Cobra

Installation

Dashboard Mounting

1. Place the detector on the dashboard to find a location where the unit has a clear, level view of the road. The angle can NOT be adjusted after mounting.
2. Remove the paper backing from one side of the hook-and-loop fastener.
3. Attach the pad to the dashboard at your chosen location and remove the other paper backing.
4. Attach the detector to the hook-and-loop fastener. You can not use and reattach the unit as often as you like.
6. Plug the power cord into the detector.
7. Plug the cigarette lighter adapter on the power cord into your vehicle's cigarette lighter.

Getting Started

Getting Started

Power Car X K Ke V S H On-Off/ Volume Control Potato color change (away from your)

To Turn On the Unit and Adjust the Audio Volume

Rotate the On-Off/Volume controlclockwise (awayfrom you).	Tonic	Visual Display
	Three beeps	Happears in the displayindicating that the poweris on.

NOTE

In some vehicles, power is supplied to the cigarette lighter even while the ignition is off. If this is the case with your vehicle, you should turn off or unplug your detector when parking for lengthy periods.

Settings

Settling

When changing the Settings on your detector, please keep in mind.

■ Buttons can have multiple functions.

■ All settings will be stored in memory when the power is

turned off and recalled when the power is turned back on.

Highway/City Mode

Setting your detector to City mode delays all X band audio alerts until the signal strength reaches Level 3. (A single beep will sound when the signal is first detected.) This will reduce false alerts while you are driving in, or near, urban areas where there are many sources for conflicting X band signals such as microwave towers and automatic door openers.

To change settings, follow the procedure listed below, which indicates what you will see and hear as you complete each step. The factory setting is Highway mode.

Highway Mode

City Motor

City Button Press and release

To Change From Highway Mode to City Mode

Press and release the City button.	Tone	Visual Display
	One beep	C appears in the display

To Change From City Mode Back to Highway Mode

Press and release the City button again.	Tone	Visual Display
	Two beeps	H appears in the display

Settings

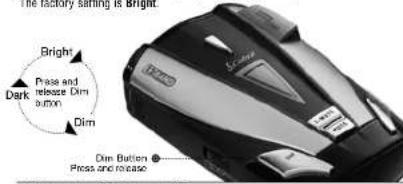

UltraBright Data Display Brightness

You can choose from three settings for Brightness of the display. You can cycle through the settings by repeatedly pushing the Dim button. The factory setting is Bright.

The laundry saving is bright. Bright Press and release Dim button Dim Dim Button Press and release

To Change the Brightness to Dim

Press and release the Dim button once.	Tone	Visual Display
	One beep	Display dims

To Change the Brightness to Dark

Press and release the Dim button again.	Tone	Visual Display
	One beep	Display remains dim (no visual alerts will be soon)

To Change the Brightness to Bright

Press and release the Dim button a third time.	Tone	Visual Display
	Two beeps	Display returns to full brightness

Settings

Muting an Alert

Your detector allows you to quickly turn off an audio Alert by momentarily pressing the Mute button. If you press the Mute button a second time during the Alert, the audio Alert will be turned back on.

Auto Mute Mode

Auto Mute will automatically reduce the audio volume of all alerts after four seconds for as long as the signal is detected. The factory setting for Auto Mute is on.

Close-up of a black and white industrial vacuum cleaner (no visible text or symbols)

To Turn Auto Mute Off

Press and release the Male button while no alert is occurring.	Tone	Visual Display
	One beep	None

To Turn Auto Mute On

Press and release the Muto button again while no alert is occurring.	Tone	Visual Display
	Two beeps	None

English

Settings

IntelliMute

IntelliMute is a unique new feature that allows you to avoid alerts you don't need to hear because you are stopped or moving slowly. By sensing the "news" (RPMs) of your angina, IntelliMute knows when you are at low speed and automatically mules alerts (except for strobe signals from emergency vehicles).

Before IntelliMute will work, you must set an activation point for your engine's revs (see page 11). Whenever the revs are below that point, IntelliMute will begin muting. The activation point will be stored in memory and recalled each time the power is turned on. The factory setting is IntelliMute off.

NOTE

IntellMute may not work with some vehicles because it cannot sense the engine's revs. In such cases, you can reduce unwanted audio alerts by using Auto Mute and City mode when appropriate.

InteRM.08 On

KK Ka V B C Interior Aute Button ⭕ Press and release

To Turn IntellMute Or

Press and release the IntelliMute button.	Tone	Visual Display
	Two beeps	Dot appears next to the large character on the right

To Turn IntellMute Off

Press and release the IntellIMuta button again.	Tone	Visual Display
	One beep	None

Nothing Comes Close to a Cobra

Settings

at to Remember While Using IntelliMute

IntelliMute works with both City and Auto Mute modes.

Whenever your engine revs are below the activation point, the dot next to the large character on the right side of the display will remain lit. Above the activation point, the dot will blink twice every two seconds.

If, for any reason, the unit stops sensing your engine's rays, Intellmate will indicate an error and automatically turn off. The rev point you set will be stored in the unit's memory when power is turned off and recalled each time the power is turned on.

NOTE

The rev point must be reset if you use your detector in a different vehicle.

NOTE

When initially choosing your intelligmate activation point, a setting of approximately 300 to 600 RPMs above idle is recommended. You can reset the activation point at any time to fit your individual preferences and driving style.

Setting the IntellMute Activation Point

Your detector must be installed in your vehicle

CAUTION

Do not attempt to set the rev point while driving.

Your vehicle should be parked and idling

IntellMute must be turned on before setting the activation point. You will hear a series of beeps as you follow the steps on page 11.

Settings

To Set the IntellMute Activation Point

Press and hold the IntelliMate button for two seconds.	Tone Visual Display
	Too beeps None
Rev your engine to the level you wish to set (recommend slightly above bills) and how revs steady for two seconds.	None	Three bars will flash in succession1 2 3- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
At the desired rev level, press and revise the IntelliMate button.	Three beeps	All three bars flash three times:1 2 3- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

NOTE

If the unit is unable to sense usable pulses within three seconds or if you do not set a new point within 20 seconds at beginning these steps, IntelMate will indicate an error and automatically turn off.

Tone	Visual Display
Four beeps	E appearsX K Ra V 8 E

Nothing Comes Close to a Cobra

Settings

VG-2 and Spectre 1 Alert Audio Settings

The detector is undetectable by police VG-2 and Spectre 1 radar detector detectors and will alert you when such a device is in use near your vehicle. During the alert, the unit continues to detect other signals. You can choose whether or not you want your unit to show VG-2 and Spectre 1 alerts. The factory setting is VG-2 and Spectre 1 alert off.

To Turn VG-2 and Spectre 1 Alerts On

While no signal is being detected, press and hold the Dim button for two seconds again.	Tone	Visual Display
	Two boeps	V will blink twice in the display

K Band and Ku Band Detection

To Turn K Band On and Off
While no signal is being detected, press and hold both the Dim and City buttons for two seconds.	Tone	Visual Display
	K On - Two beep	K will blink twice in the display
	K Off - One beep	K will blink once in the display

To Turn Ku Band On and Off

While no signal is being detected, press and hold the City button for two seconds again.	Tone	Visual Display
	Ku On = Two boeps	X and K will blink twice in the display
	Ku Off = One beep	X and K will blink once in the display

Detection

Detection

Signals Detected

The tables on the following pages show you the types of Signals your detector will detect, as well as the visual alerts it provides for each of them.

Audio Alerts

A distinctly different Alert tone is used for each type of signal detected (including separate tones for each laser signal). For X, K, Ka and Ku band radar signals, the tones will repeat faster as you approach the signal source. The repeat rate of the tones gives you useful information about the signal detected. (See responding to alerts on page 16.)

Visual Display

An indication of the type of signal detected will appear in the UltraBright data Display. During X, K, Ka and Ku alerts, a number will also appear, indicating the strength of the signal detected. (1 = weakest, 5 = strongest)

During lasar alerts the letter L will appear, instead of the signal strength indication.

During VG-2 or Spectre 1 alerts, the letter V will appear. It will be steady during VG-2 and blink during Spectre 1.

V3-2 Alert Signal Detected Spectra 1 Alert Signal Detected

During Safety Alert and Strobe Alert the letter S will appear. It will be steady during a Safety Alert and will blink during a Strobe Alert

Sarely Alert Signal Detected - Smoke Alert Signal Detected

Nothing Comes Close to a Cobra

Detection

Radar Signals and Visual Displays

Type of Signal Visual Display
X Band Radar X and Signal Strength

K Band Radar K and Signal Strength
Ka Band Radar	Ka and Signal Strength
Ku Band Radar	X K and Signal Strength

K Signal Detected

Ka Signal Detected

Ku Signal Detected

Laser Signals and Visual Displays

Type of Signal Visual Display
LTI 20-20' L is Steady

LTI Ultra-Lyle*	L is Steady
Kustom Signals ProLaser*	L is Steady
Kustom Signals ProLaser III*	L is Steady

Your detector provides 350 detection of these signals

Laser Signal Data

NOTE

Beep rate changes with different laser alerts.

Detection

Strobe Alert Signals and Visual Displays

Type of Signal Visual Display
3M Opticom or Tamar S Binks
Your detector provides 350° detection of this signal
Srobe Alert Signal Detected

Safety Alert Signals and Visual Displays

Type of Signal Visual Display
Emergency Vehicles S is Steady
Road Hazards \$ is Steady
Trains \$ is Steady

NOTE

There are different tones for each Safety Alert.

VG-2 and Spectre 1 Alert Signals and Visual Displays

Type of Signal Visual Display
Interceptor VG-2 V is Steady
Spectre 1 V Binks

NOTE

There are different lones for each alert.

Nothing Comes Close to a Cobra

Detection

Instant-On Detection

Your detector is designed to detect Instant-On speed monitoring signals, which can suddenly appear at full strength.

NOTE

You should take appropriate action

immediately whenever an instant-on alert is given.

Responding to Alerts

Description Interpretation		Recommended Response
Tone repeats slowly at first, then speeds up rapidly.	Probably police radar FULL	ALERT
Tone sounds one time only.	Probably a false alarm, but possibly pulsed radar, VG-2, or Spectre 1 nearby	Exercise caution
Tone instantly begins repeating rapidly.	Radar, VG-2, or Spectre 1 nearby has been activated suddenly	FULL ALERT
Tone repeats slowly as you approach a hill or bridge, then spaces up sharply as you reach it.	Probably police radar beyond the hill or bridge	FULL ALERT
Tone repeats slowly for a short period.	Probably a false alarm Exercise	Exercise caution
Any type of laser alert. Laser alerts are never false alarms		FULL ALERT
Any Safety Alert or Scrobe Alert.	You are nearing an emergency vehicle, railroad crossing, or road hazard (construction, accident, etc.)	Exercise caution

Understanding Radar and Laser

Understanding Radar and Laser

Radar Speed Monitoring Systems

Four band frequencies have been approved by the Federal Communications

ommission (FCC) for use by speed monitoring radar equipment:

X band 10.525 GHz

K band 24.150 GHz

Ka band 33.400 - 36.00 GHz

Ku band 13.435 GHz

Your detector detects signals in all four radar bands.

VG-2 and Spectre 1

VG-2 and Spectre 1 are "detector detectors" that work by detecting low-level signals emitted by most radar detectors. Your detector does not emit signals that can be detected by VG-2 or Spectre 1, but does detect VG-2 and Spectre 1 signals and will alert you when a device is in use near your vehicle, if you so choose.

Safety Alert Traffic Warning System

FCC-approved Safety Alert transmitters emit microwave radar signals that indicate the presence of a safety-related concern. Depending on the frequency of the signal emitted, it can indicate a speeding emergency vehicle or train, or a stationary road hazard.

Because these microwave signals are within the K band frequency, most conventional radar detectors will detect Safety Alert signals as standard K band radar. Your detector, however, is designed to differentiate between standard K band and Safety Alert signals, and give separate alerts for each

Safety Alert technology is relatively navy. Safety Alert transmitters can be found in limited numbers in all 50 states, but the number is growing. Depending on your location, you may not receive these alerts regularly and may often encounter emergency vehicles, trains and road hazards without being alerted. As the number of transmitters increases, these alerts will become more common.

When you receive such an alert, please watch for emergency vehicles ahead of you. on cross streets and behind you. If you see an emergency vehicle approaching, please pull over to the right side of the road and allow it to pass.

Nothing Comes Close to a Cobra

Understanding Radar and Laser

(No text)

Special strobes mounted on the light bars of authorized emergency vehicles (fire trucks, police cars, ambulances) automatically change traffic signals as the vehicle approaches an intersection. These strobes and the special strobe detectors located on the traffic signals, introduced fairly recently by 3M and Tomar, are already in use in more than 1000 cities nationwide. Cobra's exclusive Strobe Alert detector will detect these special strobes and give an emergency vehicle alert.

When you receive such an alert, please watch for an approaching emergency vehicle and pull over to allow it to pass. To inquire about coverage in your area, contact your local fire and police departments.

LIDAR (Laser)

The correct name for the technology that most people refer to as laser is actually LIDAR, which stands for Light Detection and Ranging. LIDAR operates much like radar. Its signal spreads out like a radar signal, though not as widely. Unlike radar, LIDAR must have a clear line of sight to its target vehicle throughout the entire measurement interval. Obstructions such as sign posts, utility poles, tree branches, etc., will prevent valid speed measurement.

Some common questions about LIDAR include:

■ Does weather have any affect on LIDAR? Yes. Rain, snow, smoke, fog, or airborne dust particles will reduce the effective range of LIDAR and can, if dense enough, prevent its operation.

■ Can LIDAR operate through glass?

Yes. Never LIDAR guns can obtain readings through most types of glass. However, the laser pulse also can be received through glass to trigger an alarm by your detector.

■ Can LIDAR operate while in motion?

No. Because LIDAR operates by line of sight, the person using it cannot drive the vehicle, aim and operate the gun all at the same time.

■ Is LIDAR legal to use? Yes. It is legal in all 50 states.

Maintenance

Maintenance

Maintenance of Your Radar Detector

Your detector is designed and built to give you years of trouble-free performance without the need for service. No routine Maintenance is required.

If your unit does not appear to be operating properly, please follow these troubleshooting steps:

■ Make sure the power cord is properly connected.
■ Make sure the socket of your vehicle's cigarette lighter is clean and free of corrosion.
■ Make sure the power cord's cigarette lighter adapter is firmly seated in your cigarette lighter.
- Check the power cord fuse. (Unscrew the ribbed end cap of the cigarette lighter adapter and examine the fuse. If required, replace it with a 2-amp fuse only.)

Specifications

Specifications
Band and Frequencies

Band	Frequencies
X Band	10.525	± 0.050	GHz
K Band	24.125	± 0.125	GHz
Safety Alert	24.070	± 0.010	GHz
Traffic Warning System	24.110	± 0.010	GHz
	24.190	± 0.010	GHz
	24.230	± 0.010	GHz
Ka Band	34.700	± 1.300	GHz
Ku Band	13.435	± 0.025	GHz
Laser	910	± 50	nm
Srobe	700	± 300	nm

Unit Dimensions and Weight

Dimensions* (H x W x D)	Weight*
1/8" x 25" x 45"	4.83 oz
(34 mm x 70 mm x 110 mm)	(137 g)

* Dimensions and weight measurements are approximate.

This radar detector is covered by one or more of the following U.S. patents, 5,497,148, 5,591,432, 5,012,585, 6,076,279, 6,091,148. Additional patents may be listed inside the product or pending.

English

Warranty

Limited 1-Year Warranty

For Products Purchased in the U.S.A.

Cobra Electronics Corporation warrants that its Cobra 12 Band Radar/Laser Detectors, and the component parts thereof, will be free of defects in workmanship and materials for period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A.

Cobra will, without charge, repair or replace, at its option, defective 12 Band Radar/Laser Detectors, products or component parts upon delivery to the Cobra Factory Service Department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra's expense, if the product is repaired or replaced under warranty.

This warranty gives you specific rights, and you may also have other rights which vary from state to state.

Exclusions: This limited warranty does not apply:

1. To any product damaged by accident.

2. In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs.

3. If the serial number has been altered, defaced or removed.

4. If the owner of the product resides outside the U.S.A.

All Implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

Product Service

Product Service

For any questions about operating or installing this new Cobra product, or if parts are missing...PLEASE CALL COBRA FIRST...do not return this product to the store! See customer assistance on page A1.

If this product should require factory service, please call Cobra first at 773-869-3087 BEFORE sending the product. This will ensure the fastest turnaround time on any repair.

If Cobra asks that the product be sent to its factory, the following must be furnished to have the product serviced and returned:

1. Send the complete unit, including power cord. (It is not necessary to include the mounting bracket.)
2. For warranty repair, enclose some form of proof-of-purchase, such as a photocopy or carbon copy of a sales receipt. If you send the original receipt, it cannot be returned.
3. Enclose a typed or clearly written description of the problem you are having with your unit, plus the name and address where you want the unit returned.
4. Pack the unit securely to prevent damage during transit. If possible, use the original packing materials.
5. Ship prepaid and insured using a traceable carrier such as United Parcel Service (UPS), Federal Express, or Priority mail with delivery confirmation. Ship to: Cobra Factory Service, Cobra Electronics Corporation, 6500 West Cortland Street, Chicago, IL 60707 U.S.A.
6. Please allow three to four weeks before contacting us about the status of your service. Call 773-889-3087 for assistance. If your unit is under warranty, it will either be repaired or replaced upon receipt, depending on the model. If your unit is out of warranty, you will receive a letter informing you of the repair or replacement charge.

Trademark Acknowledgement

Trademark Acknowledgement

Cobra®, 6 Band®, 9 Band®, DigilView®, EasySet®, Extra Sensory Detection®, IntelliShield®, LaserEye®, Nothing Comes Close to a Cobra® Safety Alert™ Traffic Warning System, Strobe Alert®, VG-2 Alert®, Xtreme Range Superhclerodync® and the snake design are registered trademarks of Cobra Electronics Corporation, USA.

Cobra Electronics Corporation™, 12 Band™, IntelliMute™, Revolution™ Series, ReadReady™, SmartPower™, Spectre Alert™, UltraBright™, and Voice Alert™ are trademarks of Cobra Electronics Corporation, USA.

Opticom™ is a trademark of 3M Corporation. Insteadaf® for Ford is a registered trademark of Ford Motor Company, Inc. Electricleaf® for GM is a registered trademark of General Motors Corporation. 20-20™ and Ultra-Lyte™ are trademarks of Laser Technology, Inc. ProLaser™ and ProLaser III™ are trademarks of Kustom Signals, Inc. Bee III™ and Pop™ are a trademarks of MPH Industries. Spectre™ is a trademark of Stalcar. Interceptor VG-2™ is a trademark of TechniSonic Industries LTD. Tamar® is a registered trademark of TOMAR Electronics, Inc.

Optional Accessories

Optional Accessories

You can find quality Cobra products and accessories at your local Cobra dealer, or in the U.S.A., you can order directly from Cobra. See ordering info on page 25.

Straight 12V DC Power Cord

Includes plug and fuse item # 420-030-N-001

Windshield Mounting Bracket

Includes suction cups Item # 545-139-N-001

Coiled 12V DC Power Cord

Includes plug and fuse Item # 420-028-N-001

Dual Port Power Adapter

Includes adjustable plug (up to 90) and fuse Item # CLP-2B

English
