BG6090-1 - Grill SMEG - Free user manual and instructions

Brand	Smeg
Model	BG6090-1
Product Type	Griddle (Grill Accessory)
Material	Cast iron
Cooking Surface	Ribbed with central slot
Max Usage Time	60 minutes per cooking session
Burner Setting	Max flame for up to 10 minutes, then reduce to minimum
Cleaning Method	Hand wash with warm water and mild detergent; use brush for cast iron; not dishwasher safe
First Use	Remove protective film and labels, rinse, dry, and lightly oil
Safety Features	Keep children away; use heat-resistant gloves; do not pour water on hot griddle; avoid overheating oils
Compatibility	Designed for use on gas hobs with rear top upstand or steel panel; can be used with oven simultaneously (max 60 min)
Usage Restrictions	Do not use more than one griddle at a time; do not use external timers or remote control
Disposal	Separate WEEE disposal; packaging recyclable
Included Accessories	None (griddle only)
Warranty	Refer to manufacturer

Frequently Asked Questions - BG6090-1 SMEG

How should I clean the griddle after use?

Clean while still warm using a brush for cast iron, warm water, and mild stainless steel detergent. Dry carefully. Never wash in dishwasher or soak immediately after use.

Can I use the griddle on any hob?

No, it must be used on a gas hob with rear top upstand or steel panel. It is not compatible with induction or electric hobs unless specified.

How long can I use the griddle continuously?

Maximum 60 minutes per session. After use, let the griddle cool for at least 60 minutes before reusing.

Why should I avoid pouring water on a hot griddle?

Pouring water on a hot griddle can cause thermal shock and damage the surface, and may also cause dangerous steam burns.

Can I use metal utensils on the griddle?

No, only use wooden or plastic utensils to avoid scratching the cast iron surface.

What is the first thing to do before using the griddle?

Remove any protective film and labels, rinse with water, dry thoroughly, and lightly oil the surface.

Is it safe to use the oven while the griddle is on the hob?

Yes, but only for a maximum of 60 minutes simultaneously, and follow the instructions in both manuals.

What should I do if food sticks to the griddle?

Use a cast iron brush and warm water to clean. Ensure the griddle is well-seasoned with oil before first use and after cleaning.

Can I use the griddle for more than 60 minutes if I turn burners low?

No, the griddle must not be used for more than 60 minutes in total, regardless of burner setting, to prevent overheating and damage.

How should I dispose of the griddle at end of life?

Do not dispose with household waste. Take it to a recycling center for electrical and electronic equipment, or return to retailer when purchasing a similar product.

USER MANUAL BG6090-1 SMEG

1.1 General safety instructions 12
1.2 Manufacturer liability 12
1.3 Purpose of the accessory 12
1.4 Disposal 12
1.5 This user manual 13
1.6 How to read the user manual 13

2 Description 14

2.1 Griddle 14

3 Use 15

3.1 Instructions 15
3.2 First use 15
3.3 Using the griddle 15

4 Cleaning 17

4.1 Instructions 17
4.2 Cleaning the accessory 17

We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities.

For further information on the product: www.smeg.com

1 Instructions

1.1 General safety instructions

Risk of personal injury

• This accessory gets very hot during use.
• Keep children under eight years of age at a safe distance if they are not constantly supervised.
  • Children must never play with the accessory.
• Never rest metallic objects such as knives, forks, spoons and lids on the accessory during use.
• The appliance must never be cleaned by unsupervised children.

Damage to the accessory

• Use wooden or plastic utensils.
• Do not use steam jets for cleaning the accessory.
• Never leave the accessory unattended during cooking operations where fats or oils could be released.

1.2 Manufacturer liability

The manufacturer declines all liability for damage to persons or property caused by:

• use of the accessory for purposes other than those envisaged;
  • Non-observance of the user manual provisions;
• tampering with any part of the accessory.

1.3 Purpose of the accessory

• This accessory is intended for cooking food in the home environment. Every other use is considered improper.
• This accessory may be used by children aged at least 8 and by people of reduced physical or mental capacity, or lacking in experience in the use of electrical appliances, provided that they are supervised or instructed by adults who are responsible for their safety.
• The accessory is not designed to operate with external timers or with remote-control systems.

1.4 Disposal

This accessory must be disposed of separately from other waste (Directives 2002/95/EC, 2002/ 96/EC, 2003/108/EC). The accessory does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives.

Instructions

Disposing of the accessory:

- Deliver the accessory to the appropriate recycling centre for electrical and electronic equipment waste, or return it to the retailer when purchasing an equivalent product, on a one for one basis.

Our products are packed in non-polluting and recyclable materials.

- Deliver the packing materials to the appropriate recycling centre.

Plastic packaging Danger of suffocation

• Do not leave the packaging or any part of it unattended.
• Do not let children play with the packaging plastic bags.

1.5 This user manual

This user manual is an integral part of the accessory and must therefore be kept in its entirety and in an accessible place for the whole working life of the accessory.

Read this user manual carefully before using the accessory.

1.6 How to read the user manual

This user manual uses the following reading conventions:

Instructions

General information on this user manual, on safety and final disposal.

Description

Description of the accessory and its accessories.

Use

Information on the use of the accessory and its accessories, cooking advice.

Cleaning

Information on correct cleaning of the accessory.

Safety instructions

Information

Advice

1. Sequence of instructions for use.

- Standalone instruction.

2 Description

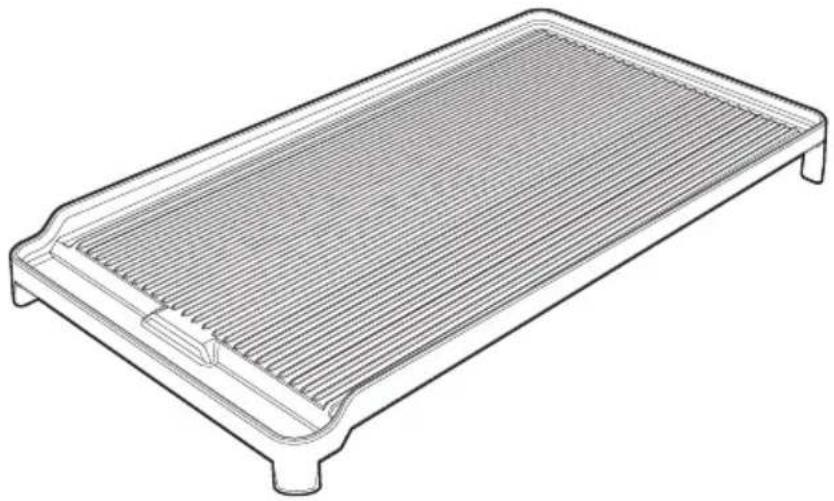

2.1 Griddle

Line drawing of a rectangular electronic component with slats and a central slot (no text or symbols)

Useful for grilling, gratinating or barbecue cooking, seeking to exalt the natural flavours and aromas of food ensuring light nourishment while preserving all nutritional elements.

3 Use

3.1 Instructions

High temperatures during use Danger of burns

• Protect your hands wearing heat resistant gloves when moving food.
• Do not pour water onto the hot griddle.
• Oils and fats could catch fire if overheated. Be very careful.

Improper use Risk of damage to surfaces

• The griddle should be placed inside the perimeter of the hob.
• The griddle must not be used for more than 60 minutes.
• The burners under the griddle can be lit at the same time to the maximum setting for no more than 10 minutes. After this time they should be set at the minimum setting.

3.2 First use

1. Remove any protective film from the outside or inside of the appliance, including accessories.
2. Remove any labels from the griddle.
3. Rinse, dry and lightly oil the griddle.

3.3 Using the griddle

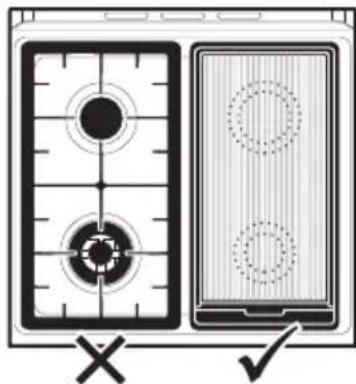

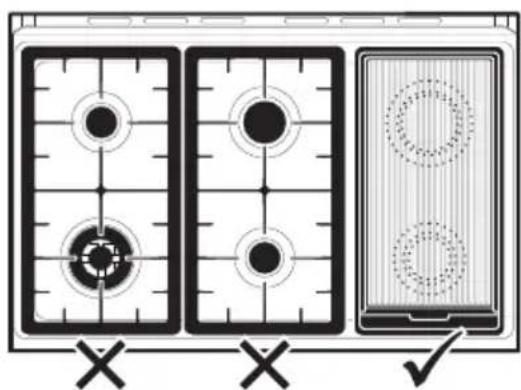

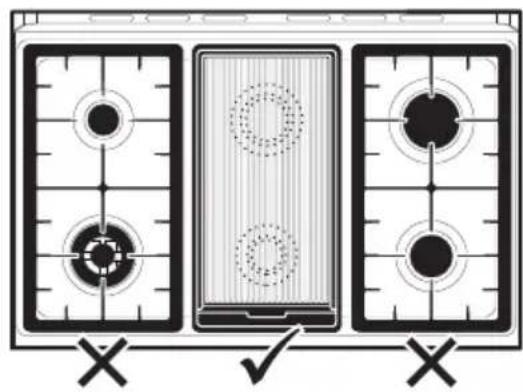

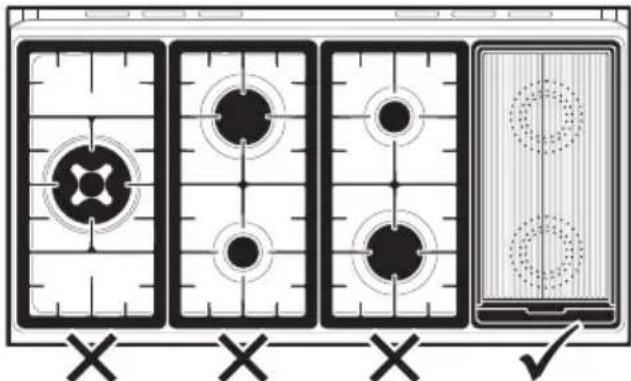

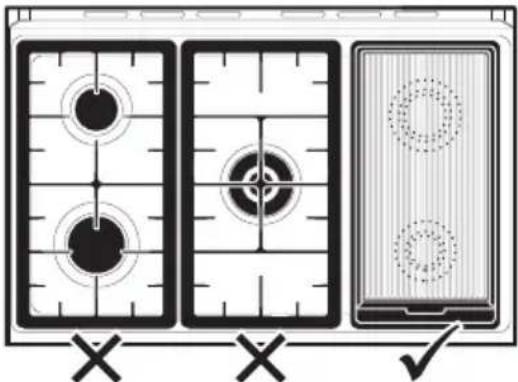

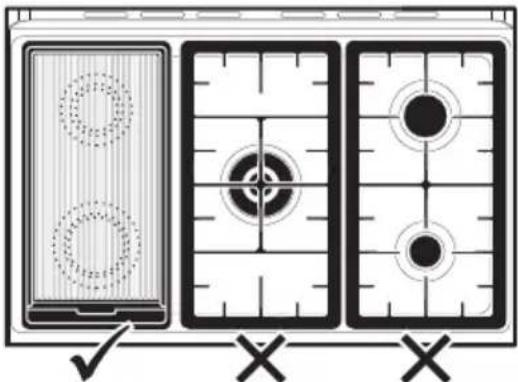

Improper use Risk of damage to surfaces

• It is not possible to use more than one griddle at the same time on the same appliance.
• The griddle should be positioned in place of the rack.
• The appliance the griddle is to be used on must be fitted with rear top upstand or steel panel.

Diagram of a three-panel device with circular components and cross marks, no text or symbols present

Use

Diagram showing two electronic devices with circular components and a cross mark, no text or symbols present.

- The burners under the plate can be lit at the same time to the maximum setting for no more than 10 minutes. After this time they should be set at the minimum setting.

The griddle must not, in any event, be used for more than 60 minutes.

- After use, the burners must be turned off and left to cool for at least 60 minutes. The oven or ovens in the appliance on which the griddle is used can be used together with the griddle for a maximum of 60 minutes, while also following the indications provided in the instruction booklet.

- The same precautions should be followed even if only one burner is being used.

• After use, wait at least 15 minutes before removing the griddle from the appliance.

4 Cleaning

4.1 Instructions

Improper use Risk of damage to surfaces

• Do not use steam jets to clean the appliance.
• Do not use cleaning products containing chlorine, ammonia or bleach on steel parts or parts with metallic finishes on the surface (e.g. anodizing, nickel- or chromium-plating).
• Do not use rough or abrasive materials
• Never wash in the dishwasher.

4.2 Cleaning the accessory

It is easier to clean the griddle when it is still warm.

• Use a brush for cast iron plates, warm water and a normal stainless-steel kitchen detergent.
• Dry it carefully.

Do not soak the griddle in water immediately after use. Wait for it to cool down.
