Product Type	Car Stereo with CD Receiver
Brand	Pioneer
Model	FH-S725BT
Dimensions (W x H x D)	178 x 50 x 160 mm (1-DIN)
Weight	Approx. 1.2 kg
Power Supply	12V DC (11-16V)
Maximum Power Output	50 W x 4
Continuous Power Output	22 W RMS x 4
Tuner	AM/FM with RDS
CD Playback	Yes (CD, CD-R, CD-RW)
Bluetooth Version	2.1 + EDR
Bluetooth Profiles	A2DP, AVRCP, HFP, HSP
USB Port	Front USB (1.5A charging)
AUX Input	Front 3.5 mm
Audio Equalizer	3-Band (High/Mid/Low)
Display	1-Line LCD with Multi-Color Illumination
Remote Control	Included
Steering Wheel Control	Compatible (adapter required)
Security	Detachable Faceplate
Supported Audio Formats	MP3, WMA, WAV, AAC
Hands-Free Calling	Yes with Built-in Microphone
Smartphone Integration	Pandora, Spotify Control via App
Maintenance	Clean with soft dry cloth
Installation	Disconnect battery before installation

Frequently Asked Questions - FH-S725BT PIONEER

How do I pair my phone via Bluetooth?

Turn on Bluetooth on your phone, press the SRC button to select Bluetooth source, then press and hold the BAND button until 'Pairing' appears. Select 'Pioneer FH-S725BT' from your phone's Bluetooth list and confirm.

Why is there no sound?

Check the volume level and ensure it is not muted. Verify that the speaker connections are secure and the fader/balance settings are centered. Also confirm that the correct source (e.g., CD, USB, Bluetooth) is selected.

How to reset the unit?

Press and hold the SRC/OFF button for more than 5 seconds. The unit will restart, clearing any temporary settings.

Can I play music from a USB drive?

Yes, insert a USB drive into the front USB port. The unit supports MP3, WMA, WAV, and AAC files. The drive must be formatted as FAT32.

How to set the clock?

Press the M.C. (multi-control) dial to enter the menu, rotate to select 'Clock', then press again. Rotate to set hour and minute. Press and hold to confirm.

The faceplate is stuck, what to do?

Gently pull the faceplate from the left side. If stuck, check for any debris on the contacts and clean with a dry cloth. Do not force it as it may break.

How to adjust sound settings?

While in a source, press the M.C. dial repeatedly to cycle through audio settings: bass, treble, balance, fader, and loudness. Rotate the dial to adjust each.

Does it support rear camera input?

No, this model does not have a rear camera input. It only provides front USB and AUX inputs.

How to update firmware?

Firmware updates are not user-serviceable. For updates, contact Pioneer customer support or visit an authorized service center.

What to do if the unit overheats?

Ensure adequate ventilation around the unit. If it overheats, turn off the unit and let it cool down. Check for blocked air vents. If problem persists, consult a professional.

USER MANUAL FH-S725BT PIONEER

Audio Adjustments 26

Settings 27

FUNCTION settings 28

AUDIO settings 29

SYSTEM settings.... 32

ILLUMINATION settings.... 35

MIXTRAX settings.... 36

MICROPHONE settings.... 37

Additional Information 38

About this manual:

- In the following instructions, a USB memory or USB audio player are referred to as "USB device".

Basic operation

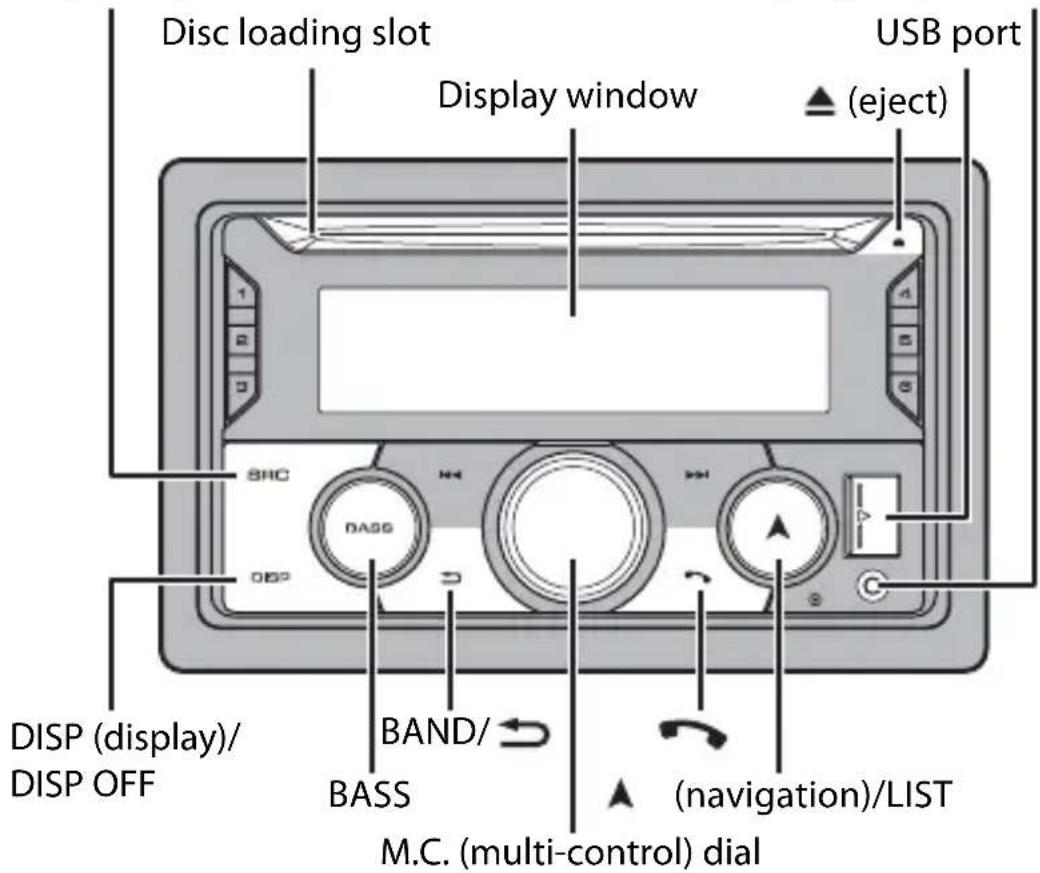

FH-S725BT

SRC (source)/OFF

AUX input jack (3.5 mm stereo jack)

Disc loading slot USB port Display window (eject) DISP (display)/ DISP OFF BAND/ BASS M.C. (multi-control) dial (navigation)/LIST

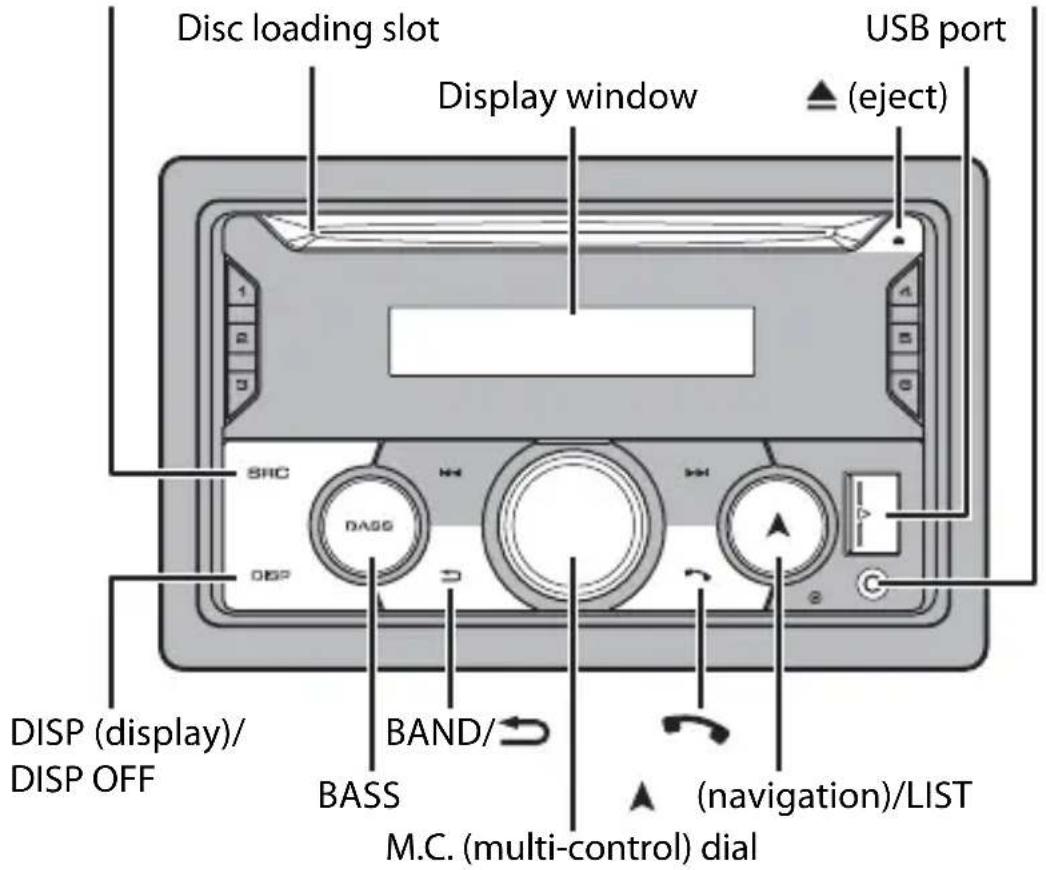

FH-S525BT

SRC (source)/OFF

AUX input jack (3.5 mm stereo jack)

Disc loading slot USB port Display window (eject) DISP (display)/ DISP OFF BAND/ BASS M.C. (multi-control) dial (navigation)/LIST

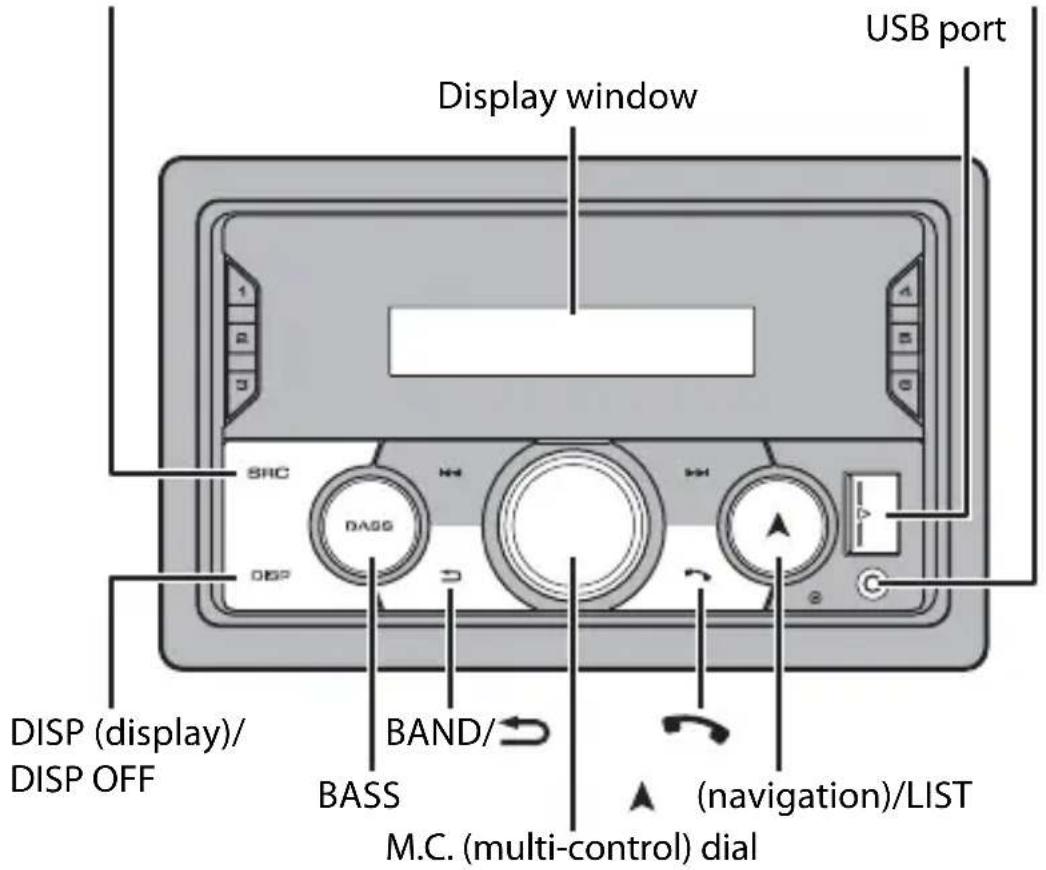

MVH-S425BT

SRC (source)/OFF

AUX input jack (3.5 mm stereo jack)

USB port Display window DSP (display)/ DISP OFF BAND/ BASS M.C. (multi-control) dial (navigation)/LIST

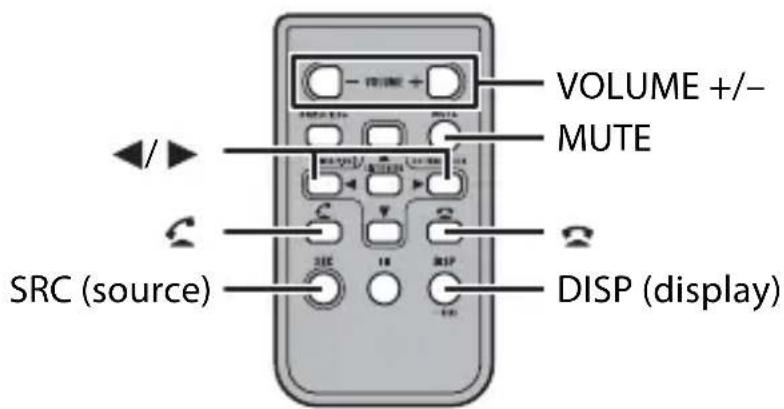

Remote Control

VOLUME +/- MUTE SRC (source) DISP (display)

Frequently used operations

The available buttons vary depending on the unit.

Purpose	Operation
	Head Unit Remote	Control
Turn on the power*	Press SRC/OFF to turn on the power. Press and hold SRC/OFF to turn off the power.	Press SRC to turn on the power. Press and hold SRC to turn off the power.
Adjust the volume	Turn the M.C. dial.	Press VOLUME + or -. Press MUTE to mute the unit. Press MUTE again or press VOLUME + or - to unmute.
Select a source	Press SRC/OFF repeatedly.	Press SRC repeatedly.
Change the display information	Press DISP/DISP OFF repeatedly. Press and hold DISP/DISP OFF to turn off the display information.	Press DISP repeatedly.
Return to the previous display/list	Press BAND/Press / to select the next/previous folder.
Return to the normal display from the menu	Press and hold BAND/
Change the display brightness	Press and hold BAND/
Answering a call Press any button. Press .
Ending a call Press .	Press .
Boost the bass level	Press BASS. • You can select the bass level ([HI] or [LOW]) in [D.BASS] (page 31).	-

* When this unit's blue/white lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off.

* Only for FH-S725BT
Display indication

Indication Description
➢	Appears when a lower tier of the menu or folder exists.
♪*	Appears when a Bluetooth audio player is connected to this unit by A2DP (Advanced Audio Distribution Profile) (page 15).
TP	Appears when a traffic program is received.
TA * Appears	when the TA (traffic announcements) function is set (page 28).
S.Rtrv * Appears when the sound retriever function is set (page 32).
BASS	Appears when the BASS function is activated.
	Appears when random/shuffle play is set (except when BT AUDIO is selected as the source).
	Appears when repeat play is set (except when BT AUDIO is selected as the source).
	Appears when a Bluetooth connection is made (page 15).
APP	Appears when a Pioneer Smart Sync connection is made (page 21).
PM * Appears when [CLOCK SET] is set to [12H] (page 32).
* Appears when the list menu is displayed.
	* Appears when a Bluetooth telephone is connected to this unit.Indicates the antenna level.
	* Appears when a second Bluetooth telephone is connected to this unit.
	* Appears when a Bluetooth telephone is connected to this unit.Indicates the battery level.
	* Appears when a device is being connected to the unit for charging.
	* Appears when a radio signal is received.Indicates the antenna level.

Resetting the microprocessor

The microprocessor must be reset in the following situations:

– Before using this unit for the first time after installation
- If the unit fails to operate properly
- When strange or incorrect messages appear on the display

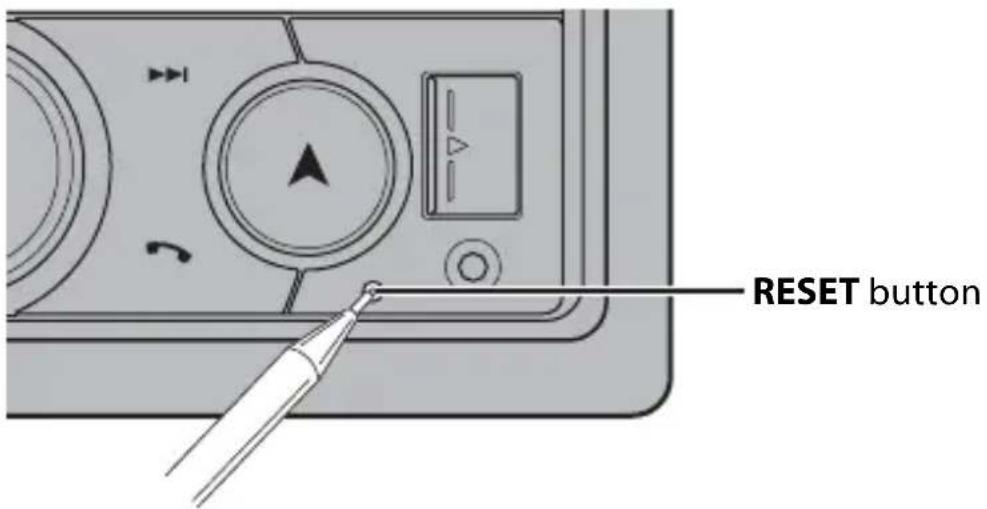

1 Press the RESET button with a pen tip or other pointed instrument.

RESET button

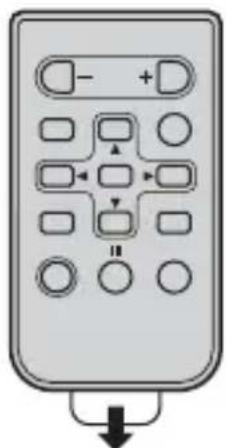

Preparing the remote control

Remove the insulation sheet before use.

Diagram of a remote control device with directional buttons and a downward arrow (no text or symbols)

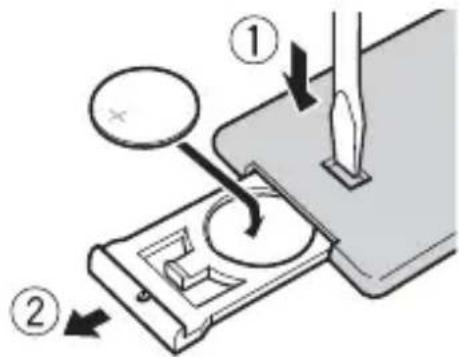

How to replace the battery

Diagram illustrating a sewing process with labeled steps ① and ②, showing a sewing machine setup.

Insert the CR2025 (3 V) battery with the plus (+) and minus (−) poles orientated properly.

WARNING

- Do not ingest the battery, Chemical Burn Hazard.

(The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

- Batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION

• There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.
• Do not handle or store the battery with metallic tools or objects.
• If the battery leaks, remove the battery and wipe the remote control completely clean. Then install a new battery.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.

Important

- Do not store the remote control in high temperatures or direct sunlight.

- Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal.

Setup menu

When you turn the ignition switch to ON after installation, the setup menu appears in the display.

WARNING

(Only for FH-S725BT)

Do not use the unit in standard mode when a speaker system for network mode is connected to the unit. Do not use the unit in network mode when a speaker system for standard mode is connected to the unit. This may cause damage to the speakers.

1 Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

Menu Item Description
LANGUAGE Select the language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display 1.
CLOCK SET Set the clock.
FM STEP Select the FM tuning step from 100 kHz or 50 kHz.
[100], [50]
AM STEP Select the AM tuning step from 10 kHz or 9 kHz.
[10], [9]
SPEAKER MODE (Only for FH-S725BT)	Switch between two operation modes: the 2-way network mode (NETWORK) and the standard mode (STANDARD) according to the connections you have established.After selecting the appropriate mode, turn the M.C. dial to select [YES], then press to confirm.You cannot complete the setup menu without setting the [SPEAKER MODE].

2[QUIT :YES] appears.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO], then press to confirm.

3 Press the M.C. dial to confirm the settings.

NOTE

These settings other than [SPEAKER MODE] can be made at any time from the SYSTEM settings (page 32) and INITIAL settings (page 10).

Canceling the demonstration display (DEMO OFF)

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [SYSTEM], then press to confirm.
3 Turn the M.C. dial to select [DEMO OFF], then press to confirm.
4 Turn the M.C. dial to select [YES], then press to confirm.

INITIAL settings

1 Press and hold SRC/OFF until the unit turns off.
2 Press the M.C. dial to display the main menu.
3 Turn the M.C. dial to select [INITIAL], then press to confirm.
4 Turn the M.C. dial to select an option, then press to confirm.

NOTE

The options vary depending on the unit.

Menu Item Description
FM STEP Select the FM tuning step from 100 kHz or 50 kHz.[100], [50]
AM STEP Select the AM [10], [9]	tuning step from 10 kHz or 9 kHz.
REAR-SP Select when the [FUL]	here is a full-range speaker connected to the rear speaker output leads.
[SW] Select when there is a subwoofer connected directly to the rear speaker output leads without any auxiliary amplifier.
SP-P/O MODE Select when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[REAR/SUB.W]
[SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[REAR/REAR] Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR].
SYSTEM UPDATE Select [SYSTEM INFO], [S/W UPDATE]	[SYSTEM INFO] to confirm the latest system information on the unit.Select [S/W UPDATE] to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website.
SYSTEM RESET Select [YES], [NO]	YES] to initialize the unit settings. The unit will be restarted automatically.

Radio

Receiving preset stations

1 Press SRC/OFF to select [RADIO].
2 Press BAND/ → to select the band from [FM1], [FM2], [FM3], [AM], [SW1] or [SW2].
3 Press a number button (1/ ^ to 6/ ⇌).

TIP

The /buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 29).

Best stations memory (BSM)

The six strongest stations are stored on the number buttons (1/∧ to 6/⇐).

1 After selecting the band, press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [FUNCTION], then press to confirm.
3 Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1 After selecting the band, press / to select a station. Press and hold / then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press /

NOTE

[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 29).

To store stations manually

1 While receiving the station you want to store, press and hold one of the number buttons (1/∧ to 6/⇐) until it stops flashing.

Using PTY functions

The unit searches for a station by PTY (program type) information.

1 Press and hold during FM reception.
2 Turn the M.C. dial to select a program type from [NEWS/INFO], [POPULAR], [CLASSICS] or [OTHERS].
3 Press the M.C. dial.
The unit begins to search for a station. When it is found, its program service name is displayed.

NOTES

• To cancel the search, press the M.C. dial.
• The program of some stations may differ from that indicated by the transmitted PTY.
• If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for about two seconds and then the tuner returns to the original station.

CD/USB/iPhone®/AUX

(iPhone source is not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 33).)

NOTES

• CD function is not available for MVH-S425BT.
• iPhone function is not available for FH-S525BT.

Playing back

Disconnect headphones from the device before connecting it to the unit.

CD

1 Insert a disc into the disc loading slot with the label side up.

To eject a disc, stop playback first then press ▲

USB devices (including Android™)/iPhone

1 Open the USB port cover.
2 Plug in the USB device/iPhone using an appropriate cable.

NOTE

To automatically switch to USB source when a USB device/iPhone is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 34).

CAUTION

Use a USB cable (sold separately) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

AOA connections

A device running Android OS 4.1 or later installed and also supports AOA (Android Open Accessory) 2.0 can be connected to the unit via AOA, using the cable supplied with the device.

NOTE

If you use an AOA connection, [APP CONTROL] needs to be set to [WIRED] (page 33) and [USB MTP] needs to be set to [OFF] (page 33) in the SYSTEM settings.

MTP connection

A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device, OS version or

the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV file formats and FLAC file formats, and cannot be used with the MIXTRAX function.

NOTE

If you use an MTP connection, [USB MTP] needs to be set to [ON] in the SYSTEM settings (page 33).

AUX

1 Insert the stereo mini plug into the AUX input jack.
2 Press SRC/OFF to select [AUX IN] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX IN] cannot be selected as a source (page 33).

Operations

You can make adjustments in the FUNCTION settings (page 28) (except for AUX IN/CD/USB source).

Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself.

Purpose Operation
Select a folder*1	Press 1/ ∧ or 2/ √.
Select a track/song (chapter) Press or .	|◀◀ ▶▶▶|
Fast forward or reverse*2 Press and hold or .	|◀◀ ▶▶▶|
Search for a file from a list (CD/USB only)	1 Press and hold ▲ to display the list.2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.
View a list of the files in the selected folder/ category*1	Press the M.C. dial when a folder/category is selected.
Play a song in the selected folder/ category*1	Press and hold the M.C. dial when a folder/ category is selected.
Repeat play Press 6/ .	↔
Random/shuffle play Press 5/ .	××
Pause/resume playback	Press 4/PAUSE.
Return to root folder (CD/USB only)*1	Press and hold 1/ ∧.
Switch between compressed audio and CD-DA (CD only)	Press BAND/ ↗.

*1 Compressed audio files only
*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct.

About MIXTRAX (USB/iPhone only)

The MIXTRAX function creates a non-stop mix of your music library, accompanied by illumination effects. For details on MIXTRAX settings, see page 36.

NOTES

• iPhone needs to be connected with Pioneer Smart Sync via USB for using this function (page 21).
• Depending on the file/song, sound effects may not be available.
• Turn the MIXTRAX function off if the illumination effects it produces interfere with driving.

1 Press 3/MIX to turn MIXTRAX on/off.

Bluetooth

Bluetooth connection

Important

If ten or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may not work properly.

TIP

The next connection to the unit is performed automatically if the Bluetooth device has been connected previously in the following steps.

1 Turn on the Bluetooth function of the device.

If you make a Bluetooth connection from the device, proceed to step 4.

2Press to display the [ADD DEVICE] setting.

The unit starts to search for available devices, then displays them in the device list.

• To cancel searching, press the M.C. dial.
• If the desired device is not in the list, select [RE-SEARCH].
• If there is no device available, [NOT FOUND] appears in the display.
• If there is already a connected device, the phone menu appears by pressing

3 Turn the M.C. dial to select a device from the device list, then press to confirm.

Press and hold the M.C. dial to switch the displayed device information between the Bluetooth device address and device name.

If you make a Bluetooth connection from the unit, proceed to step 5.

4Select the unit name shown in the device display.
5 Make sure the same 6-digit number appears on this unit and the device, then select [YES] if the 6-digit numbers displayed on this unit and the device are the same.

Bluetooth telephone

First, make a Bluetooth connection with the Bluetooth telephone (page 15). Up to two Bluetooth telephones can be connected simultaneously.

Important

• Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the vehicle's battery.
• Be sure to park your vehicle in a safe place and apply the parking brake before operation.

To make a phone call

1 Press to display the phone menu.
When two phones are connected, a phone name appears first then a phone menu will display. To switch to another phone, press again.
2 Turn the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to confirm. If you select [PHONE BOOK], proceed to step 4.
3 Turn the M.C. dial to select [MISSED], [DIALLED] or [RECEIVED], then press to confirm.
4 Turn the M.C. dial to select a name or phone number, then press to confirm. The phone call starts.

To answer an incoming call

1 Press any button when a call is received.

TIP

When two phones are connected to the unit via Bluetooth and there is an incoming call while one phone is being used for a call, a message will appear in the display. To answer that incoming call, you need to end the existing call.

Basic operations

Purpose Operation
End a call Press .
Reject an incoming call Press and hold when a call is received.
Switch between the current caller and a caller on hold	Press the M.C. dial.
Cancel a caller on hold Press and hold .
Adjust the volume of the caller's voice (When private mode is on, this function is not available.)	Turn the M.C. dial during the call.
Turn the private mode on or off	Press BAND/→ during the call.

To preset phone numbers

1 Select a phone number from a phone book or call history.
2 Press and hold one of the number buttons (1/∧ to 6/⇐).

The contact is stored in the selected preset number.

To make a call using a preset number, press one of the number buttons (1/ ∧ to 6/ ⇌), then press the M.C. dial, while the phone menu is displayed.

Voice recognition

(iPhone function is not available for FH-S525BT.)

This function is only available when an iPhone/Android device equipped with voice recognition is connected to the unit via Bluetooth.

1 Press and hold and then talk into the microphone to input voice commands.

To exit the voice recognition mode, press BAND/

NOTE

For details on the voice recognition features, refer to the manual supplied with your device.

TIP

When a Pioneer Smart Sync connection is made (page 21), you can also use the voice recognition function from Pioneer Smart Sync installed on your iPhone/Android device by pressing and holding

. For details on the voice recognition features, see the application's help section.

Phone menu

1 Press to display the phone menu.

Menu Item Description
RECENTS Display the missed call history.[MISSED]
[DIALLED] Display the dialed call history.
[RECEIVED] Display the received call history.
PHONE BOOK Display the contacts in your phone.
PRESET 1-6 Recall the preset phone numbers. You can also recall the preset phone numbers by pressing one of the number buttons (1/^ to 6/⇌) .
A.ANSR* Select [ON] to answer an incoming call automatically.[ON], [OFF]
PB INVT Invert the order of names in the phone book (name view).
DEVICELIST Display the list of paired Bluetooth devices. “*” appears on the device name when the Bluetooth connection is established. When no device is selected in the device list, this function is not available.
DEL DEVICE Delete the device information.[DELETE YES],[DELETE NO]
ADD DEVICE Register a new device.
DEV. INFO	Switch the device information on the display between the device name and Bluetooth device address.

* If two phones are connected, this function does not work on incoming calls that are received while one of the phones is being used for a call.

Bluetooth audio

Important

• Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels:
  – A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player.
• AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, select song, etc.
  • The sound of the Bluetooth audio player will be muted when the phone is in use.
• When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically.
• Depending on the type of Bluetooth audio player you have connected to this unit, operation and information displayed may vary based on availability and functionality.

1 Make a Bluetooth connection with the Bluetooth audio player.
2 Press SRC/OFF to select [BT AUDIO] as the source.
3 Press BAND/ → to start playback.

NOTE

You must reconnect the Bluetooth connection when the source is switched or the unit is turned off.

TIP

When more than two and up to five devices are registered to the unit via Bluetooth, you can switch the Bluetooth device by playing back songs on the device. By doing so, playing back a song from the Bluetooth device of each passenger is easily available. However, depending on the usage conditions, multiple connections may not be available and the audio files/songs may not be able to be played back properly.

Basic operations

You can make various adjustments in the FUNCTION settings (page 28).

Purpose Operation
Fast forward or reverse Press and hold or .	|◀◀ ▶▶▶|
Select a track Press or .	|◀◀ ▶▶▶|
Repeat play* Press 6/ .	↔
Random play* Press 5/ .	××
Pause/resume playback	Press 4/PAUSE.
Search for a file from a list	1 Press and hold ▲ to display a list.2 Turn the M.C. dial to select the desired folder name, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.

* Depending on the connected device, these operations may not be available.

Spotify®

(Not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 33).)

NOTE

iPhone function is not available for FH-S525BT.

Spotify is a music streaming distribution service not affiliated with Pioneer. More information is available at http://www.spotify.com.

The Spotify application is available for compatible smartphones, please visit https://support.spotify.com/ for the latest compatibility information. To enjoy Spotify as you drive, first download the Spotify app to your iPhone or Android device. You can download it on the iTunes® App Store® or Google Play™. Choose a free account or a paid Premium account, either in the app or at spotify.com. A Premium account gives you more features, like offline listening.

Important

• This product incorporates Spotify software which is subject to 3rd party licenses found here: www.spotify.com/connect/third-party-licenses.
• For information on the countries and regions where Spotify can be used, take a look at https://spotify.com/us/select-your-country/.

Listening to Spotify

Update the firmware of the Spotify application to the latest version before use.

1Connect this unit with the mobile device.

• iPhone via USB (page 13)
• iPhone/Android device via Bluetooth (page 15)

2 Press SRC/OFF to select [SPOTIFY].
3 Press and hold 1/∧ to display [APP CONTROL].
4 Turn the M.C. dial to select one of the below.

- Select [WIRED] for the USB connection.

- Select [BLUETOOTH] for the Bluetooth connection.

5 Press SRC/OFF to select [SPOTIFY].
6Launch the Spotify application on the mobile device and start playback.

NOTE

When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device.

Basic operations

You can make various adjustments in the FUNCTION settings (page 28).

NOTE

The available operations may vary according to the type of contents (track/album/artist/playlist/radio) you want to play.

Purpose Operation
Skip a track Press or .
Search for a track from a list	1 Press and hold ▲ to display the list.2 Turn the M.C. dial to select the desired category, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.
Pause/resume playback Press 4/PAUSE.
Thumbs Up (Only for radio) Press 1/.	^
Thumbs Down (Only for radio) Press 2/.	∨
Random play (Only for track/album/artist/playlist)	Press 5/XX.
Repeat play (Only for track/album/artist/playlist)	Press 6/⇌.
Start a radio channel based on the song currently being played.	1 Press and hold 5/XX to start a radio.2 Press the M.C. dial.• This function may not be available depending on the selected song.

NOTE

Some functions of Spotify may not be operated from the unit.

Using Pioneer Smart Sync/APP

NOTE

iPhone function is not available for FH-S525BT.

Pioneer Smart Sync is the application that intelligently brings your maps, messages, and music together in the vehicle.

You can operate the unit from Pioneer Smart Sync installed on an iPhone/Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit.

For details on what operations are available on the application, see the application's help section.

NOTE

The APP source is not available when a Pioneer Smart Sync connection is not made or [USB MTP] is set to [ON] in the SYSTEM settings (page 33).

WARNING

Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.

For iPhone users

This function is compatible with iOS 10.3 or later.

You can download Pioneer Smart Sync on iTunes App Store.

Download on the

App Store

For Android device users

For Bluetooth connections, this function is compatible with devices that have Android OS 5.0 or later installed.

For USB connections, this function is compatible with a phone that runs Android 5.0 or later up to 7.1.2 and also supports AOA (Android Open Accessory) 2.0. However, the compatibility depends on the smartphone.

You can download Pioneer Smart Sync on Google Play.

GET IT ON

Google Play

NOTE

Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version.

What kind of function does the application have?

Promoting the use of the unit

The interface of the unit can be evolved by using your iPhone/Android device.

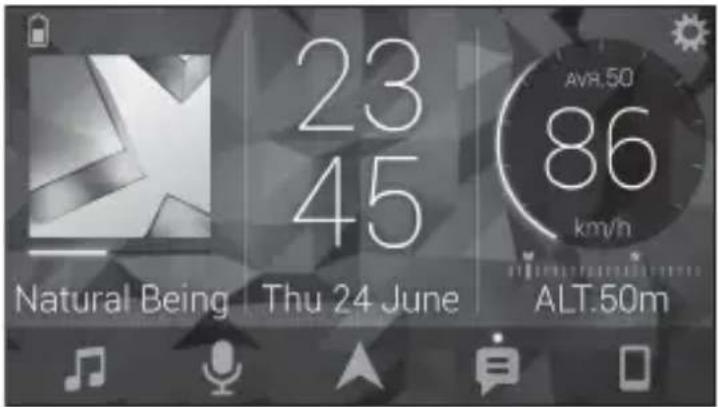

Image (example):

23 45 AVR.50 86 km/h Natural Being Thu 24 June ALT.50m

Examples:

• Selecting a source of the unit
• Listening to the music on your iPhone/Android device
• Controlling the sound field intuitively
• Setting the illumination color (Only for FH-S725BT)
• Controlling your connected Bluetooth device

Extending the functions of the unit by using the application

The following functions, which are unavailable on the unit alone, are available by making a Pioneer Smart Sync connection.

Menu Item (example) Description
Using a navigation application You can specify and start the navigation application installed on your device.
Message reading You can read messages received from the apps installed on your device.
31 Band EQ setting You can select an equalizer band from the 31-band graphic equalizer (13-band for not using the Pioneer Smart Sync connection).
Super "Todoroki" Sound You can boost the bass level more dynamically than when not using the Pioneer Smart Sync connection.
Easy Sound Fit You can perform the time alignment setting easily by selecting your vehicle type.
Theme setting (Only for FH-S725BT) You can set the wall paper and the theme color (display/keys/characters) at once.

NOTES

• Some functions may be restricted depending on the connection conditions with the application.
• The 31 Band EQ setting is converted into 13 bands when a music source from this product is engaged.

TIP

It is recommended to enter the search term "Pioneer Smart Sync" in the search field to search for the application.

Pioneer Smart Sync

Making a connection with Pioneer Smart Sync

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [SYSTEM], then press to confirm.
3 Turn the M.C. dial to select [APP CONTROL], then press to confirm.
4 Turn the M.C. dial to select one of the below.

• Select [WIRED] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection.

5 Turn the M.C. dial to select [AUTO APP CONN], then press to confirm.
6 Turn the M.C. dial to select [ON], then press to confirm.
7 Connect this unit with the mobile device.

• iPhone/Android device via USB (page 13)
• iPhone/Android device via Bluetooth (page 15)

Pioneer Smart Sync on the device starts automatically.

NOTE

Regardless of whether the [AUTO APP CONN] setting is set to [ON] or [OFF], you can also perform the following to start Pioneer Smart Sync.

• For devices other than the USB-connected Android device, press SRC/OFF to select any source and press and hold the M.C. dial.
• For iPhone, launch Pioneer Smart Sync on the mobile device.

NOTES

• When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device.
• If Pioneer Smart Sync has not been installed on your iPhone/Android device yet, a message that prompts you to install the application will appear on your iPhone/Android device (except for the Android device connected via Bluetooth). Select [OFF] in [AUTO APP CONN] to clear the message (page 34).

Listening to music on your device

1 Press SRC/OFF to select [APP].

Using the Karaoke Function

WARNING

• A driver should never sing with a microphone while driving. Doing so may result in an accident.
• Do not carelessly leave a microphone for preventing an accident.

CAUTION

It is extremely dangerous to allow the microphone lead to become wound around the steering column, brake pedal or shift lever, which may cause an accident. Be sure to install the microphone in such a way that it will not obstruct driving.

NOTES

• Use a commercially available dynamic mic and not the supplied microphone.
• This function is not available when the selected source is the following.
  -RADIO
  -AUXIN

1 Insert the stereo mini plug of your microphone into the AUX input jack.

2 Press the M.C. dial to display the main menu.
3 Turn the M.C. dial to select [MICROPHONE].
4 Press the M.C. dial to select [ON].

When the karaoke mode is activated, the volume on the unit is muted. Adjust the microphone volume on the [MIC VOL] setting.

To adjust the microphone volume

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [MICROPHONE], then press to confirm.
3 Turn the M.C. dial to select [MIC VOL].
4 Turn the M.C. dial to adjust the volume level.

NOTE

If howling occurs when using the microphone, keep the microphone away from the speaker or lower the microphone volume.

To reduce the level of the vocals in a song

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [MICROPHONE] then press to confirm.
3 Turn the M.C. dial to select [VOCAL].
4 Press the M.C. dial to select [OFF].

NOTE

Depending on the recording condition of songs, the level of vocals may not be reduced effectively.

Audio Adjustments

(Network mode is only available for FH-S725BT.)

You can also make various adjustments in the AUDIO settings (page 29).

Operation modes

This unit features two operation modes: network mode and standard mode. You can switch between modes as desired (page 10).

Network mode

You can create a 2-way + SW multi-amp and multi-speaker system with high range speaker, middle range speaker and subwoofer for reproduction of high, middle and low frequencies (bands).

Standard mode

You can create a 4-speaker system with front and rear speakers or front speakers and subwoofers, or a 6-speaker system with front and rear speakers and subwoofers.

Adjusting the cut-off frequency value and the slope value

You can adjust the cut-off frequency value and the slope value of each speaker. The following speakers can be adjusted.

Network mode:

[HIGH] (high-range speaker HPF), [MID HPF] (middle-range speaker HPF), [MID LPF] (middle-range speaker LPF), [SUBWOOFER]

Standard mode:

[FRONT], [REAR], [SUBWOOFER]

NOTE

[SUBWOOFER] can only be selected when [ON] is selected in [SUBWOOFER] (page 30).

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [AUDIO], then press to confirm.
3 Turn the M.C. dial to select [CROSSOVER], then press to confirm.
4 Turn the M.C. dial to select the speaker unit (filter) to be adjusted, then press to confirm.
5 Turn the M.C. dial to select [HPF] or [LPF] according to the speaker unit (filter), then press to confirm.
6 Turn the M.C. dial to select an appropriate cut-off frequency for the speaker unit (filter) selected in step 4, then press to confirm.

Network mode:

[1.25K] to [12.5K] (if you choose [HIGH] or [MID LPF]) [25] to [250] (if you choose [MID HPF] or [SUBWOOFER])

Standard mode:

[25HZ] to [250HZ]

7 Turn the M.C. dial to select an appropriate slope for the speaker unit (filter) selected in step 4.

Network mode:

[-6] to [-24] (if you choose [HIGH], [MID HPF] or [MID LPF]) [-12] to [-36] (if you choose [SUBWOOFER])

Standard mode:

[-6] to [-24] (if you choose [FRONT] or [REAR]) [-6] to [-36] (if you choose [SUBWOOFER])

Settings

You can adjust various settings in the main menu.

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• FUNCTION settings (page 28)
• AUDIO settings (page 29)
• SYSTEM settings (page 32)
• ILLUMINATION settings (page 35)

• MIXTRAX settings (page 36)
• MICROPHONE settings (page 37)

3 Turn the M.C. dial to select the options, then press to confirm.

NOTE

iPhone-related menu items in the following tables are not available for FH-S525BT.

FUNCTION settings

The menu items vary according to the source.

Menu Item Description

BSM

RADIO

Store the six strongest stations on the number buttons (1/∧ to 6/⇐) automatically.

REGIONAL

RADIO

[ON], [OFF] Limit the reception to the specific regional

programs when AF (alternative frequencies search) is selected. (Available only when FM band is selected.)

LOCAL

RADIO

FM: [OFF], [LV1], [LV2], [LV3], [LV4] Restrict the tuning station according to the AM/SW: [OFF], [LV1], [LV2] signal strength.

TA

RADIO

[ON], [OFF] Receive current traffic information if available.

(Available only when FM band is selected.)

AF

RADIO

[ON], [OFF] Allow the unit to return to a different frequency

providing the same station. (Available only when FM band is selected.)

NEWS

RADIO

[ON], [OFF] Interrupt the currently selected source with

news programs. (Available only when FM band is selected.)

ALARM

RADIO

[ON], [OFF] Interrupt the currently selected source with

emergency announcements. Select [OFF] to disable this function.

Menu Item Description
SEEK [MAN], [PCH] Assign or buttons to seek the stations one by one (manual tuning) or select a station from the preset channels.
SAVE SPOTIFY	Store the information about the song currently being played to your music list on Spotify.
UNSAVE SPOTIFY	Remove the song information stored in [SAVE].
SEL DEVICE iPhone BT AUDIO SPOTIFY	Connect a Bluetooth device in the list.
PLAY BT AUDIO	Start playback.
STOP BT AUDIO	Stop playback.

AUDIO settings

Network mode is only available for FH-S725BT.

NOTE

[CHK APP SETTG.] may be displayed when the setting is performed from Pioneer Smart Sync.

Menu Item Description
EQ SETTING[SUPER BASS], [POWERFUL],[DYNAMIC], [NATURAL], [VOCAL],[VIVID], [SET BY APP]*,[CUSTOM1], [CUSTOM2], [FLAT]* [SET BY APP] is displayed when the preset equalizer curve that is not available in the unit has been set from Pioneer Smart Sync.Select an equalizer band and level for further customizing.Equalizer band: [50HZ] to[12.5kHz]Equalizer level: [-6] to [+6]	Select or customize the equalizer curve.When you select a setting other than[CUSTOM1], [CUSTOM2] and [SET BY APP], you can also customize the equalizer curve by pressing and holding the M.C. dial, then store the customized equalizer curve in [CUSTOM1].
FADER*1*2 (Only for standard mode)	Adjust the front and rear speaker balance.
BALANCE	Adjust the left and right speaker balance.
SUBWOOFER[ON], [OFF] Set to [ON] when using a subwoofer speaker.
SUBWOOFER*3[NOR], [REV] Select the subwoofer phase.
SPEAKER LEVELNetwork mode: [HIGH L], [HIGH R], [MID L], [MID R], [SUBWOOFER]Standard mode: [FRONT L],[FRONT R], [REAR L], [REAR R],[SUBWOOFER]Output level: [-24] to [10]	Select a speaker unit (filter) and adjust the output level.Each value you have adjusted changes when you change the [POSITION] setting (page 31).
CROSSOVER	Select a speaker unit (filter) to adjust the HPF or LPF cut-off frequency and the slope for each speaker unit.For details on the [CROSSOVER] setting, see page 26.
POSITION
[OFF], [FRONT LEFT] (front seat left), [FRONT RIGHT] (front seat right), [FRONT] (front seats), [ALL]* * Only for standard mode	Select a listening position to adjust the speakers' output levels automatically and add a delay time that corresponds to the number and locations of occupied seats.
TIME ALGNMNT
[INITIAL], [OFF], [CUSTOM]	Select or customize the time alignment settings to reflect the distance between the listener's position and each speaker.
Select a type of speaker and adjust the speaker distance for further customizing in [CUSTOM].	Select [INITIAL] to initialize the setting value. Select [OFF] to reset all setting values to 0.
Network mode: [HIGH L], [HIGH R], [MID L], [MID R], [SUBWOOFER]	The [CUSTOM] setting is available when [FRONT LEFT] or [FRONT RIGHT] is selected in [POSITION] (page 31).
Standard mode: [FRONT L], [FRONT R], [REAR L], [REAR R], [SUBWOOFER]	The [CUSTOM] setting is not available when [OFF] is selected in [SUBWOOFER] (page 30).
Speaker distance (cm): [350] to [0.0]
SAVE SETTINGS
[YES], [NO] Save to later recall the following sound settings at their current values: [CROSSOVER], [SPEAKER LEVEL], [EQ SETTING], [POSITION], [TIME ALGNMNT], [D.BASS], [SUBWOOFER]. The settings that can be saved differ when a Pioneer Smart Sync connection is made.
LOAD SETTINGS	Load the sound settings, when you have already performed [SAVE SETTINGS].
D.BASS
[OFF], [LOW], [HI] Boost the bass level dynamically to offer an effect as if a subwoofer was added to the system.
LOUDNESS
[OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume.
SLA
[+4] to [-4] Adjust the volume level for each source except FM.Each of the below combinations are set to the same setting automatically.When making a USB connection, set USB, iPhone, APP, and SPOTIFY.When making a Bluetooth connection, set BT AUDIO, iPhone, APP, and SPOTIFY.
S.RTRV
[1] (effective for low compression rates), [2] (effective for high compression rates), [OFF]	Enhance compressed audio and restore rich sound.This setting is not available when [OFF] is selected in [VOCAL] in the MICROPHONE settings (page 37).

*1 Not available when [SW] is selected in [REAR-SP] in the INITIAL settings (page 11).

*2 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 11).

*3 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 11).

SYSTEM settings

You can also access to these menus when the unit is turned off.

Menu Item Description
LANGUAGE[ENG](English), [ESP](Spanish) Select the language to display the text information from a compressed audio file.
CLOCK SET[12H], [24H] Set the clock (page 9).This setting is not available when a Pioneer Smart Sync connection is made.
SCROLL SET[ONCE], [LOOP], [OFF] Select the way to scroll the text in the display window.
BEEP TONE[ON], [OFF] A beep can be heard when any button is pushed.Select [OFF] to disable this function.
Menu Item Description
INFO DISPLAY (Only for FH-S725BT)
[SPEANA/CLOCK], [LIVE FX/CLOCK], [CLOCK], [SPEANA],[LEVEL METER], [OFF]	Display the item on the sub information display.
INFO DISPLAY (Only for FH-S525BT/MVH-S425BT)
[SOURCE/SPEANA], [CLOCK/SPEANA], [SRC/LIVE FX], [CLOCK/LIVE FX], [SOURCE], [SPEANA],[OFF]	Display the item on the sub information display.When [SOURCE/SPEANA] or [CLOCK/SPEANA] is selected, display the antenna instead of the speana on the radio source.
AUTO PI
[ON], [OFF] Search for a different station with the same programming, even if using a preset station.
AUX
[ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit.This setting is not available when [ON] is selected in [MICROPHONE] in the MICROPHONE settings (page 37).
BT AUDIO
[ON], [OFF] Set the Bluetooth signal on/off.
SPOTIFY
[ON], [OFF] Set to [ON] when using the Spotify function.
BT MEM CLEAR
[YES], [NO] Clear the Bluetooth device data (device list, PIN code, call history, phone book, preset phone numbers) stored in the unit.[CLEARED] appears when data is successfully deleted.
APP CONTROL
[WIRED], [BLUETOOTH] Select the appropriate connection method according to your device.See page 34 for details on the connections for each device.
USB MTP
[ON], [OFF] Set to [ON] when using the MTP connection.The following sources are not available when the setting is set to [ON].APP, SPOTIFY, iPhone, and USB (AOA)
AUTO APP CONN[ON], [OFF] Select [ON] to automatically launch PioneerSmart Sync when the iPhone/Android device is connected to the unit.
S.REMOTE*1*2[OFF], [PIONEER], [PRESET] Select [PIONEER] or [PRESET] according to your wired remote control.
USB AUTO[ON], [OFF] Select [ON] to automatically switch to USB source when a USB device/iPhone is connected to the unit.Select [OFF] when a USB device/iPhone is being connected to the unit just for charging.

*1 Depending on your car, this function may not work properly. In this case, contact your dealer or an authorized PIONEER Service Station.

*2 Please use a commercially available wiring harness for each car model when [PRESET] mode is engaged, and use a commercially available adapter when in [PIONEER].

Information on the connections for each device

The available sources differ depending on the setting value.

Please set [APP CONTROL] according to the table for the source you want to use.

For details on Pioneer Smart Sync connection, see page 21.

NOTE

iPhone-related menu items in the following tables are not available for FH-S525BT.

When Pioneer Smart Sync connection is NOT performed

Setting Value Device	Device Available source(s)
[WIRED] iPhone iPhone	phone, SPOTIFY
	Android USB (AOA)
[BLUETOOTH] iPhone	iPhone, SPOTIFY
	Android SPOTIFY

When Pioneer Smart Sync connection is performed

Setting Value Device	Device Available source(s)
[WIRED] iPhone APP, SPOTIFY
Setting Value Device Available source(s)
[BLUETOOTH] iPhone	APP, SPOTIFY
	Android APP, SPOTIFY

ILLUMINATION settings

Menu Item Description
COLOR (Only for FH-S725BT)
[KEY COLOR], [DISP COLOR], [BOTH COLOR]	Select color for the keys/display of the unit from 12 preset colors, [SCAN] or [CUSTOM]*.• [SCAN]: Cycle through a variety of colors automatically.• [CUSTOM]*:1 Press and hold the M.C. dial until the color setting display appears.2Set the primary color (R (red)/G (green)/B (blue)) and brightness level ([0] to [60]).You cannot select a level below 10 for all three of R (red), G (green), B (blue) at the same time.You can also customize the preset colors. Select one of the preset colors, then press and hold the M.C. dial until the color setting display appears.* The CUSTOM setting is only available for [KEY COLOR] and [DISP COLOR].
DIM SETTING
[SYNC ILLUMI]*, [SYNC CLOCK], [MANUAL]* Only for FH-S725BT	Select the way to change the display brightness.
BRIGHTNESS (Only for FH-S725BT)
[KEY], [DISP] Select the brightness for the keys/display of the unit from [1] to [10].The available setting ranges differ depending on [DIM SETTING].
BRIGHTNESS (Only for FH-S525BT/MVH-S425BT)
[1] to [10] Change the display brightness.The available setting ranges differ depending on [DIM SETTING].
PHONE COLOR (Only for FH-S725BT)
	Select the key color when a call is received.
[FLASHING] Applies the color set by [KEY COLOR].• The illumination effect differs depending on the selection of [ON] or [OFF] in [ILLUMI FX].
[FLASH FX1] to [FLASH FX6] Cycle through a variety of colors automatically.
[OFF] No change in key color made.
ILLUMI FX (Only for FH-S725BT)
[ON], [OFF] The illumination effect can be seen when:–there is an incoming call when [FLASHING] is selected in [PHONE COLOR]–you are on a phone call–the message received on the device is being read when a Pioneer Smart Sync connection is made–a CD is inserted/ejectedThe illumination effect will activate when the ACC power is turned on/off regardless of this setting.

MIXTRAX settings

Menu Item Description
SHORT PLAYBCK[1.0 MIN], [1.5 MIN], [2.0 MIN],[2.5 MIN], [3.0 MIN], [OFF]	Select the length of the playback time.
FLASH AREA (Only for FH-S725BT)[KEY/DISPLAY], [KEY], [OFF] Select the area for the illumination effect.When [OFF] is selected, the color set under theILLUMINATION settings (page 35) is used as thedisplay color.
FLASH PATTERN (Only for FH-S725BT)
[SOUND LEVEL 1] to [SOUND LEVEL 6]	Change the illumination effect according to the sound and bass level.The flash pattern changes according to the sound level.
[LOW PASS 1] to [LOW PASS 6] The flash pattern changes according to the bass level.
[RANDOM1] The flash pattern changes randomly according to the sound level mode and low pass mode.
[RANDOM2] The flash pattern changes randomly according to the sound level mode.
[RANDOM3] The flash pattern changes randomly according to the low pass mode.
MIX PATTERN (Only for FH-S525BT/MVH-S425BT)
[SOUND LEVEL] Change the MIXTRAX special effects according to the audio level.The mix pattern changes according to the sound level.
[LOW PASS] The mix pattern changes according to the bass level.
[RANDOM] The mix pattern changes randomly according to the sound level mode and low pass mode.
DISPLAY FX
[ON], [OFF] Set the MIXTRAX special effects on/off.
CUT IN FX
[ON], [OFF] Turn the MIXTRAX sound effects on/off while manually changing the tracks.
MICROPHONE settings
Menu Item Description
MICROPHONE
[ON], [OFF] Set to [ON] when using the karaoke function.
MIC VOL Adjust the microphone volume.
VOCAL
[ON], [OFF] Set to [OFF] when reducing the level of the vocals in a song.

Additional Information

Troubleshooting

The display automatically returns to the normal display.

→No operations have been made for about 30 seconds. -Perform an operation.

The repeat play range changes unexpectedly.

→Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. –Select the repeat play range again.

A subfolder is not played back.

→Subfolders cannot be played when [FLD] (folder repeat) is selected. –Select another repeat play range.

The sound is intermittent.

→You are using a device, such as a cellular phone, that may cause audible interference. -Move electrical devices that may be causing the interference away from the unit.

The sound from the Bluetooth audio source is not played back.

→There is a call in progress on a Bluetooth-connected cellular phone. –The sound will be played back when the call is terminated.

→A Bluetooth-connected cellular phone is currently being operated. -Stop using the cellular phone.

→The connection between the unit and the cellular phone is not established correctly after a call made by a Bluetooth-connected cellular phone.

- Make a Bluetooth connection between the unit and the cellular phone again.

Error messages

Common

AMP ERROR

→This unit fails to operate or the speaker connection is incorrect. →The protective circuit is activated. - Check the speaker connection. - Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

NO XXXX (NO TITLE, for example)

→There is no embedded text information. – Switch the display or play another track/file.

CD player

ERROR-07, 11, 12, 17, 30

→The disc is dirty. –Clean the disc. →The disc is scratched. –Replace the disc.

ERROR-07, 10, 11, 12, 15, 17, 30, A0

→There is an electrical or mechanical error. –Turn the ignition switch OFF and back to ON, then back to the CD player.

ERROR-15

→The inserted disc is blank. -Replace the disc.

ERROR-23

→Unsupported CD format. -Replace the disc.

FORMAT READ

→Sometimes there is a delay between the start of playback and when you start to hear any sound.
- Wait until the message disappears and you hear sound.

NO AUDIO

→The inserted disc does not contain any playable files.
-Replace the disc.

SKIPPED

→The inserted disc contains DRM protected files.
–The protected files are skipped.

PROTECT

→All the files on the inserted disc are embedded with DRM.
-Replace the disc.

USB device/iPhone

FORMAT READ

→Sometimes there is a delay between the start of playback and when you start to hear any sound.

- Wait until the message disappears and you hear sound.

NO AUDIO

→There are no songs.
-Transfer the audio files to the USB device and connect.
→The connected USB device has security enabled.
–Follow the USB device instructions to disable the security.

SKIPPED

→The connected USB device contains DRM protected files.
–The protected files are skipped.

PROTECT

→All the files on the connected USB device are embedded with DRM.

-Replace the USB device.

N/A USB

→The connected USB device is not supported by this unit.
- Disconnect your device and replace it with a compatible USB device.

HUB ERROR

→The USB device connected via a USB hub is not supported by this unit.
-Connect the USB device directly to this unit using a USB cable.

CHECK USB

→The USB connector or USB cable has short-circuited.
- Check that the USB connector or USB cable is not caught in something or damaged.
→The connected USB device consumes more than maximum allowable current.
- Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.

ERROR-19

→Communication failed.
-Perform one of the following operations, then return to the USB source.
- Disconnect the USB device.
- Change to a different source.

→iPhone failure.

- Disconnect the cable from the iPhone. Once the iPhone's main menu is displayed, reconnect the iPhone and reset it.

ERROR-23

→USB device was not formatted properly.
-Format the USB device with FAT12, FAT16 or FAT32.

ERROR-16

→The iPhone firmware version is old.

-Update the iPhone version.

→iPhone failure.

- Disconnect the cable from the iPhone. Once the iPhone's main menu is displayed, reconnect the iPhone and reset it.

STOP

→There are no songs in the current list.

-Select a list that contains songs.

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found.

-Connect the unit and iPhone via Bluetooth (page 15).

CONN. FAILED PRESS BAND KEY TO RETRY

→Bluetooth connection with iPhone failed.

-Press BAND/ to m a connection again.

DISCONNECTED PRESS BAND KEY TO RETRY

→Bluetooth connection lost.

-Press BAND to m a connection again.

Bluetooth device

ERROR-10

→The power failed for the Bluetooth module of the unit.

–Turn the ignition switch OFF and back to ACC or ON.

APP

CONNECT APP

→Pioneer Smart Sync connection is not made.

- Make a connection with Pioneer Smart Sync (page 21).

Spotify

NOT FOUND

→The Spotify application has not started running yet.

-Start up the Spotify application.

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found.

-Connect the unit and the device via Bluetooth (page 15).

CONN. FAILED PRESS BAND KEY TO RETRY

→Bluetooth connection failed.

-Press BAND to make k connection again.

CHECK APP PRESS BAND KEY TO RETRY

k→Connection to the Spotify application failed.

-Press BAND/ to m a k connection again.

DISCONNECTED PRESS BAND KEY TO RETRY a

→Bluetooth connection lost.

-Press BAND to make k connection again.

CHECK APP

→An unknown error (including communication error) has occurred. –Follow the instructions that appear on the screen.

Compressed audio compatibility

- Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.

- The unit may not work properly depending on the application used to encode WMA files.

- There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.

CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.
• Do not leave discs or a USB storage device in any place that is subject to high temperatures.

WMA files

File extension .wma
Bit rate 48 kbps to 320	kbps(CBR), 48 kbps to 384kbps (VBR)
Sampling frequency 32	kHz, 44.1 kHz, 48kHz
Windows MediaTMAudio Professional,Lossless, Voice/DRMStream/Stream with video	Not compatible

MP3 files

File extension .mp3
Bit rate 8 kbps to 320 kbps(CBR), VBR
Sampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
Compatible ID3 tag version	1.0, 1.1, 2.2, 2.3, 2.4(ID3 tag Version 2.x is given priority over Version 1.x.)
M3u playlist Not compatible
MP3i (MP3 interactive), mp3 PRO	Not compatible

WAV files

- WAV file formats cannot be connected via MTP.

File extension .wav
Quantization bits 8 and	16 (LPCM)
Sampling frequency 16	kHz to 48 kHz (LPCM)

AAC files (FH-S725BT/MVH-S425BT only)

Compatible format AAC	encoded by iTunes
File extension .m4a
Sampling frequency 11.025 kHz to 48 kHz
Stereo Bit Rate 16 kbps	to 320 kbps, VBR
Apple Lossless Not compatible
AAC file bought from the iTunes Store (.m4p file extension)	Not compatible

FLAC files

• FLAC file formats cannot be connected via MTP.
• FLAC files may not be playable, depending on the encoder.

File extension .flac, .fla
Sampling frequency 8/1	1.025/12/16/22.05/24/32/44.1/48/96 kHz
Quantization bit rate 8/1	6/24 bit
Channel mode 1/2 ch

Disc (FH-S725BT/S525BT only)

- Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs.

folder hierarchy	to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 99
Playable files Up to 999
File system ISO 9660 Level 1 and 2, Romeo, Joliet
Multi-session playback	Compatible
Packet write data transfer	Not compatible

USB device

- There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 1	500
Playable files Up to 15	00
Playback of copyright-protected files	Not compatible
Partitioned USB device	Only the first partition can be played.

iPhone compatibility

This unit supports only the following iPhone models. Older versions may not be supported. Made for

-iPhone XR
-iPhone XS Max
-iPhone XS
-iPhone X
-iPhone 8
-iPhone 8 Plus
-iPhone 7
-iPhone 7 Plus
-iPhone SE
-iPhone 6s
-iPhone 6s Plus
-iPhone 6
-iPhone 6 Plus
-iPhone 5s

• Operations may vary depending on the generation and/or software version of the iPhone.
• Users of iPhone with the Lightning® Connector should use the Lightning to USB Cable (supplied with iPhone).
• Refer to the iPhone manuals for information about the file/format compatibility.
  • Audiobook, Podcast: Compatible

CAUTION

Pioneer accepts no responsibility for data lost on the iPhone, even if that data is lost while this unit is used.

Sequence of audio files

The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device.

Note that the hidden files in a USB device cannot be played back.

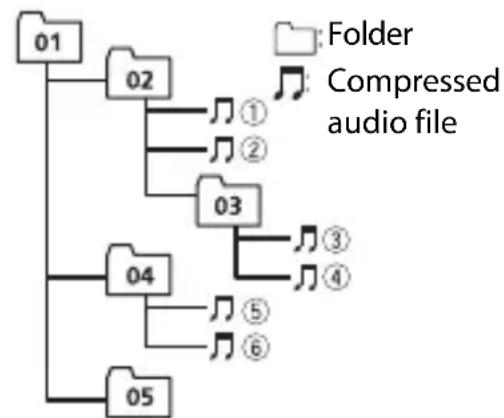

Example of a hierarchy

Level 1 Level 2 Level 3 Level 4

01 to 05: Folder number

① to :Playback sequence

Copyright and trademark

Bluetooth

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG,

Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.

iTunes

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

WMA

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

FLAC

Copyright © 2000-2009 Josh Coalson

Copyright © 2011-2014 Xiph.Org

Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

-Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

iPhone and Lightning

Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with an Apple product may affect wireless performance.

iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

Siri®

Works with Siri through the microphone.

Google™, Google Play, Android

Google, Google Play and Android are trademarks of Google LLC.

MIXTRAX

MIXTRAX is a trademark of the PIONEER CORPORATION.

Spotify®

SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. Compatible mobile digital devices and premium subscription required, where available, see https://www.spotify.com.

T-Kernel 2.0

This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org).

MP3

Copyright (C) 1998-2009 PacketVideo

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.

You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and limitations under the License.

Índice

Introducción.... 3

Radio.... 11

CD/USB/iPhone®/AUX.... 13

Bluetooth 16

Spotify ^® 20

Uso de Pioneer Smart Sync/APP.... 22

Diagram of a remote control panel with buttons and function keys (no text or symbols)

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows indicating movement or transformation.

23 45 AVR.50 86 km/h Natural Being Thu 24 June ALT.50m

Ejemplos:

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

-iPhone XR
-iPhone XS Max
-iPhone XS
-iPhone X
-iPhone 8
-iPhone 8 Plus
-iPhone 7
-iPhone 7 Plus
-iPhone SE
-iPhone 6s
- iPhone 6s Plus
-iPhone 6
-iPhone 6 Plus
-iPhone 5s

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation

Copyright (C) 1998-2009 PacketVideo

Botão RESET

Preparando o controle remoto

Diagram illustrating a sewing process with labeled steps ① and ②, showing a sewing machine's base and needle.

Insira a bateria CR2025 (3 V) com os polos positivo (+) e negativo (-) orientados corretamente.

ADVERTÊNCIA

23 45 AVR.50 86 km/h Natural Being | Thu 24 June | ALT.50m

Exemplos:

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation

Copyright (C) 1998-2009 PacketVideo

VOLUME +/ - MUTE SRC (來源) DISP (顯示)

常用操作

可用按鈕因裝置而異。

Diagram illustrating a sewing process with labeled steps ① and ②, showing a sewing machine's base and needle insertion.

23 45 AVR 50 86 km/h Natural Being Thu 24 June ALT.50m

範例:

ERROR-07, 11, 12, 17, 30

-iPhone XR
-iPhone XS Max
-iPhone XS
-iPhone X
-iPhone 8
-iPhone 8 Plus
-iPhone 7
-iPhone 7 Plus
-iPhone SE
-iPhone 6s
-iPhone 6s Plus
-iPhone 6
-iPhone 6 Plus
-iPhone 5s

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph. Org Foundation

Copyright (C) 1998-2009 PacketVideo

Copyright (C) 1998-2009 PacketVideo

Version 2.0 Apache License مرحص پوجب

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation

ERROR-07, 11, 12, 17, 30

القوص متسخ.

قم بتنظيف القرص.

القوص مخدوش.

قم باستبdeal القرص.

ERROR-07, 10, 11, 12, 15, 17, 30, A0

DIM SETTING
. اختر طريقة تغيير سطوع الشاشة.	.[SYNC CLOCK] ,*[SYNC ILLUMI][MANUAL]
	youth FH-S725BT *
	( youth FH-S725BT ) BRIGHTNESS
. [10] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1, 1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [1] [DISP] [KEY] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETTING] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SET t] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETtt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SET tt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETtt] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETitting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETting] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETts] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETti] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SET tet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtie] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SET Tet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETtet] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETTT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SET T] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETt] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SETT] [DIM SET<|content_end|>

AUTO APP CONN

تلقائيا عندما Pioneer Smart Sync [ON] اختر [ON] لتشغيل متصلا بالوحدة. iPhone/Android	[OFF].[ON]
	2*1*S.REMOTE
[PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [OFF]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [OVIDOR]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%
2*1*S.REMOTE
[PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%- [PIONEER]%- [PRESET]%
USB AUTO
[ON]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER]%- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [OVIDOR] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER]%- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [OVIDOR] %- [PionEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEERS] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %
1* وفقا لسيارتك، قد لا تعمل هذه الوظيفة بشكل صحيم. في هذه حالة، اتصل بوكيلك أو محطة خدمة - 1* ر的机会 دام طقم大宗商品 المتوفرة تجاريا لكل فودج سيارة في الوضع - [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [SIPARET] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] :- 1* ر的机会 دام طCM一小اك المتوفرة تجاريا لكل فودج سيارة في الوضع - [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEERS] %- [PIONEER] %- [PIONEER] %- [OVIDOR] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- (1)* ر的机会 دام طCM一小اك المتوفرة تجاريا لكل فودج سيارة في الوضع - [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONES] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] <- PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEERS, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PIONEER, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNON, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNON, - PNON, - PNON, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNon, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNN, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPOIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, - PPNIEN, 1* ر的机会 دام طCM一小اك المتوفرة تجاريا لكل فودج سيارة في الوضع - [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %-[PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN]%- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [PUNIEN] %- [OVIDOR] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %-[PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [OVIDOR] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONEER] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN]%- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [OVIDOR] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] :- PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, 1* ر的机会 دام طCM一小اك المتوفرة تجاريا لكل فودج سيارة في الوضع - [PIONEER] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [PIONIEN] %- [OVIDOR] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN]%- [PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PUNIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIENO] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] %-[PIONIEN] :- PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNon, - PNon, PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON ,- PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, - PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, – PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, - PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, - PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, & PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ PNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ pNON, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, ~ tPIONIEN, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNON, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNon, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, % pNINIEN, %.

[HI] ,[MID] ,[LOW] ,[OFF]

EQ SETTING

. [CUSTOM2] ,.[CUSTOM1] • [SET BY APP] و بالاحتفاظ ب Nicطالقprss M.C.	[POWERFUL] ,.[SUPER BASS] ,.[NATURAL] ,.[DYNAMIC] * [SET BY APP] ,.[VIVID] ,.[VOCAL] [FLAT] ,.[CUSTOM2] ,.[CUSTOM1] • [SET BY APP] * منحاني المعادل المضبوب مسبقا غير المتوفر Pioneer Smart في الوحدة من تطبيق .Sync
[CUSTOM1]	[SET BY APP] * منحاني المعادل المضبوب مسبقا غير المتوفر Pioneer Smart في الوحدة من تطبيق .Sync
	[12.5kHz] [50HZ] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50Hz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [50kHz] [5FADER] (الل充电القياني فقط)
. ضط تواز ن مکر صوت الاماني والخليي.
BALANCE
. ضط تواز ن مکر صوت الاماني والاماني.
SUBWOOFER
. ضط على [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON] [ON]	3*SUBWOOFER [REV] ,.[NOR]
SPEAKER LEVEL
. [-31 (Position)] [HIGH R] ,.[HIGH L] : [HIGH R] ,.[HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] :[HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : [HIGH L] : 26 (10) [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10]	. [-24 (-24) : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24] : [-24][10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10] [10]
CROSSOVER
. [-26 (31 (Position)] [CAPRIS, صوت (مرشع) وقىت عيل مستوي الإ candidates ] [CAPRIS, صوت (مرشع) لف (%م) وقىت عيل مستوي الإ candidates ] [CAPRIS, صوت (مرشع) لف (%م) وقىت عيل مستوي الإ candidates ] [CAPRIS, صوت (مرشع) لف (%م) وقىت عيل مستوي الإ candidates ] [CAPRIS, صوت (مرشع) لف (%م) وقىت عيل مستوي الإ candidates ].
ح عنصر القائمة
ال insignia المُحْضَّلَّة تلو Indigenous المُحْضَّلَّة (مُعَالِّةِ يُدُّوِيَة) أو اختيار محطة من الْقُنُوَاتِ الْمُضْبُّطَة مُسْبِقَا.	RADIO SEEK[PCH] ,[MAN]
الخَرَى (مُعَالِّةِ يُدُّوِيَة) أو اختيار محطة من الْقُنُوَاتِ الْمُضْبُّطَة مُسْبِقَا.	SPOTIFY SAVE
تحزين المعلومات الخاصة بالأغنية مشغلة حاليا إلى قائمة .Spotify المُوسِيقى على	SPOTIFY UNSAVE
. [SAVE] حذف معلومات الأغنية المخزنة في [	SPOTIFY UNSAVE
. Bluetooth توصيل جهاز في القائمة.	SPOTIFY BT AUDIO iPhone SEL DEVICE
. بده التشغيل.	BT AUDIO PLAY
. إِيقاف التشغيل.	BT AUDIO STOP

AUDIO إعدادات

23 45 Natural Being Thu 24 June ALT.50m AVR.50 86 km/h

Download on the App Store

.www.spotify.com/connect/third-party-licenses

.https://spotify.com/us/select-your-country/

Spotify ل الاستماع

.[SPOTIFY] ل baking OFF/SRC 5

6

acked SPOTIFY

acked Spotify

ملاحظة

Diagram of a remote control device with multiple function keys and a downward arrow (no text or symbols)

تحذیر

ق كيمياني.

ERROR-07, 11, 12, 17, 30

ديەك كثيف است.

ديسك را قيز کنید.

ERROR-07, 10, 11, 12, 15, 17, 30, A0

[HI]

[MID]

[LOW]

[OFF]

EQ SETTING

.30 [SUBWOOFER] [ON] در [SUBWOOFER]

23 45 Natural Being Thu 24 June ALT.50m AVR.50 86 km/h

Visit us on the World Wide Web at

https://global.pioneer/en/info/globalnetwork/

Pioneer Gulf.FZE

https://pioneer-mea.com/

Pioneer Electronics Australia. Pty.Ltd

https://www.pioneer.com.au/

Pioneer Electronics Asiacentre.Pte

https://www.pioneer.com.sg/

Pioneer (HK) Ltd.

http://www.pioneerhongkong.com.hk

Pioneer High Fidelity Taiwan Co., Ltd.

http://www.pioneer-twn.com.tw

Pioneer International Latin America S.A.

http://www.pioneer-latin.com

PIONEER CORPORATION

28-8, Honkomagome 2-chome, Bunkyo-ku,

Tokyo 113-0021, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A.

TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keelberglaan 1, B-9120 Melsele, Belgium/Belgique

TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

2 Jalan Kilang Barat, #07-01, Singapore 159346

TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202 Australia

TEL: [phone]

PIONEER ELECTRONICS DE MÉXICO S.A. DE C.V.

Blvd. Manuel Ávila Camacho 138, 10 piso

Col.Lomas de Chapultepec, México, D.F. 11000

Tel: [phone], Fax: [phone]

先锋股份有限公司

台北市內湖區瑞光路407號8樓

電話：886-(0)2-2657-3588

先鋒電子（香港）有限公司

香港九龍長沙灣道909號5樓

電話：852-2848-6488
