DEH-S720DAB - Car stereo PIONEER - Free user manual and instructions

Product type	Car stereo
Brand	Pioneer
Model	DEH-S720DAB
Chassis dimensions (W × H × D)	178 mm × 50 mm × 165 mm
Front panel dimensions (W × H × D)	188 mm × 58 mm × 17 mm
Weight	1 kg
Power supply	14.4 V DC (10.8 V to 15.1 V allowable), negative ground, max current consumption 10.0 A
Maximum output power	50 W × 4 channels/4 Ω (without subwoofer) or 50 W × 2 channels/4 Ω + 70 W × 1 channel/2 Ω (with subwoofer)
Continuous output power	22 W × 4 (50 Hz – 15,000 Hz, THD 5%, 4 Ω)
Load impedance	4 Ω (2 Ω to 8 Ω, 2 Ω for 1 channel)
Supported audio formats	CD-Audio, MP3, WMA, AAC, WAV, FLAC
Radio	FM (87.5 – 108 MHz), MW (531 – 1602 kHz), LW (153 – 281 kHz), DAB+ (Band III and L)
Connectivity	USB (front), AUX (3.5 mm input), Bluetooth 4.0, Spotify, Pioneer Smart Sync
Main features	RDS radio, DAB+ with time shift function, CD player, USB, AUX, Bluetooth audio and phone, Spotify, 13-band graphic equalizer, network and standard modes, customisable illumination
Sound settings	13-band equalizer, crossover, time alignment, fader/balance, subwoofer control, loudness, sound retriever
Maintenance	Clean with a soft, dry cloth. Remove the front panel for theft protection. Avoid exposure to direct sunlight and high temperatures.
Safety	Do not use in network mode with standard speakers and vice versa. Protection circuit against short circuits or overloads. Use only compliant devices.
Spare parts and repairability	Optional DAB antenna (AN-DAB1). For any repairs, contact an authorised Pioneer dealer.
General information	Bluetooth version 4.0, profiles A2DP and AVRCP. Compatible with iPhone (recent models) and Android via USB or Bluetooth. Software update possible.

Frequently Asked Questions - DEH-S720DAB PIONEER

How to connect my phone via Bluetooth?

Enable Bluetooth on your phone. On the car stereo, press to display the phone menu, then select ADD DEVICE. Turn the M.C. dial to choose your phone from the list and confirm. Follow the on-screen instructions to complete the pairing.

How to set the clock?

Press the M.C. dial to access the main menu, turn to select SYSTEM, then CLOCK SET. Turn the dial to set the hour, press to confirm, then set the minutes in the same way. Choose 12h or 24h format.

How to listen to DAB radio?

Ensure a DAB antenna (AN-DAB1) is connected. Press SRC/OFF to select DIGITAL RADIO. Use BAND/← to choose band D1, D2 or D3. Press ◀◀ or ▶▶ to search for stations.

How to reset the device?

Remove the front panel. With a pointed instrument (more than 8 mm), press the RESET button on the front panel. The device will restart and the initial setup menu will appear.

How to use the DAB time shift function?

During DAB reception, press and hold DISP to pause. Press and hold DAB to activate time shift mode, then use ◀◀ (rewind one minute) or ▶▶ (forward one minute) to adjust the playback point.

How to connect my iPhone via USB?

Open the USB port cover on the front of the car stereo. Connect your iPhone using the provided Lightning to USB cable. The unit automatically switches to the USB source if USB AUTO is enabled in the SYSTEM settings. Otherwise, press SRC/OFF to select the USB source.

How to adjust the equalizer?

Press the M.C. dial to display the main menu, select AUDIO, then EQ SETTING. Choose a preset curve (e.g. SUPER BASS) or customise by selecting CUSTOM1 or CUSTOM2. To customise, press and hold the M.C. dial and adjust each band (50 Hz to 12.5 kHz) in steps of -6 to +6 dB.

How to update the software?

Download the latest update from the Pioneer website. Copy the file to a USB drive formatted in FAT32. Plug the drive into the USB port. Press and hold SRC/OFF to turn off, then press again to turn on. In the main menu, select SYSTEM, then SYSTEM UPDATE, and choose S/W UPDATE to start the update.

How to use Spotify on the car stereo?

Connect your iPhone or Android via USB or Bluetooth. Press SRC/OFF to select SPOTIFY. If necessary, press and hold 1/∧ to choose the connection mode (WIRED for USB, BLUETOOTH for Bluetooth). Launch the Spotify app on your phone and start playback. Use the car stereo controls to navigate.

What types of audio files are playable via USB?

The car stereo supports MP3, WMA, AAC, WAV and FLAC files. The file system must be FAT12, FAT16 or FAT32. Folder hierarchy can be up to 8 levels, with a maximum of 1,500 folders and 15,000 files. DRM-protected files are not playable.

USER MANUAL DEH-S720DAB PIONEER

Digital Audio Broadcasting (DAB)......7

Radio....9

CD/USB/iPhone®/AUX.... 10

Bluetooth 12

Spotify ^® 16

Using Pioneer Smart Sync/APP 18

Audio Adjustments 22

Settings 23

FUNCTION settings 23

AUDIO settings 26

SYSTEM settings.... 28

ILLUMINATION settings.... 31

Additional Information 33

About this manual:

- In the following instructions, a USB memory or USB audio player are referred to as "USB device".

Getting Started

Basic operation

DEH-S720DAB

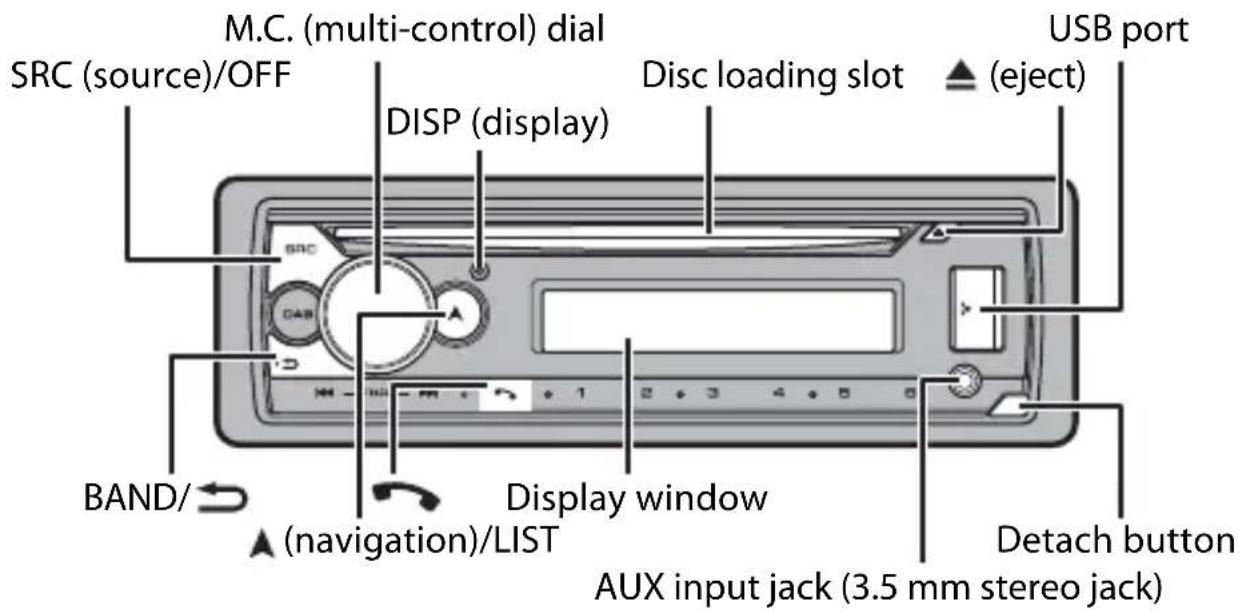

M.C. (multi-control) dial SRC (source)/OFF DISP (display) USB port Disc loading slot ▲ (eject) BAND/← ▲ (navigation)/LIST Display window Aux input jack (3.5 mm stereo jack) Detach button

Frequently used operations

Purpose Operation
Turn on the power* Press SRC/OFF to turn on the power. Press and hold SRC/OFF to turn off the power.
Adjust the volume Turn the M.C. dial.
Select a source Press SRC/OFF repeatedly.
Change the display information Press DISP repeatedly.
Return to the previous display/list Press BAND/. ➕
Return to the normal display from the menu	Press and hold BAND/. ➕.
Change the display brightness Press and hold BAND/. ➕
Answering a call Press any button.
Ending a call Press .

* When this unit's blue/white lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off.

Display indication

Indication Description
Appears when a lower tier of the menu or folder exists.
TP Appears when a traffic program is received.
BASS	Appears when the BASS function is activated.
	Appears when random/shuffle play is set (except when BT AUDIO is selected as the source).
	Appears when repeat play is set (except when BT AUDIO is selected as the source).
	Appears when a Bluetooth connection is made (page 12).
APP	Appears when a Pioneer Smart Sync connection is made (page 18).

Detaching the front panel

Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it.

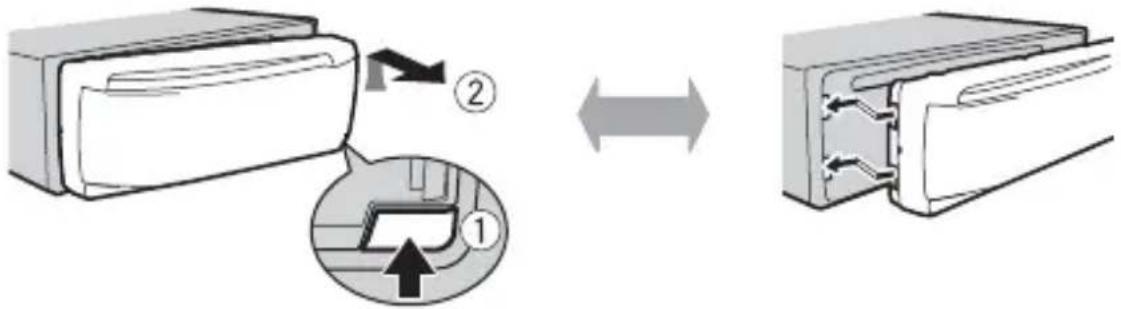

Detach Attach

Diagram illustrating the process of air conditioner unit insertion, showing step ① and step ② with directional arrows.

Important

• Avoid subjecting the front panel to excessive shock.
• Keep the front panel out of direct sunlight and high temperatures.
  • Always store the detached front panel in a protective case or bag.

Resetting the microprocessor

The microprocessor must be reset in the following situations: - Before using this unit for the first time after installation - If the unit fails to operate properly - When strange or incorrect messages appear on the display

1 Remove the front panel (page 4).

2 Press the RESET button with a pointed instrument longer than 8 mm.

Diagram of a device panel with a speaker icon and a screen, no text or symbols present

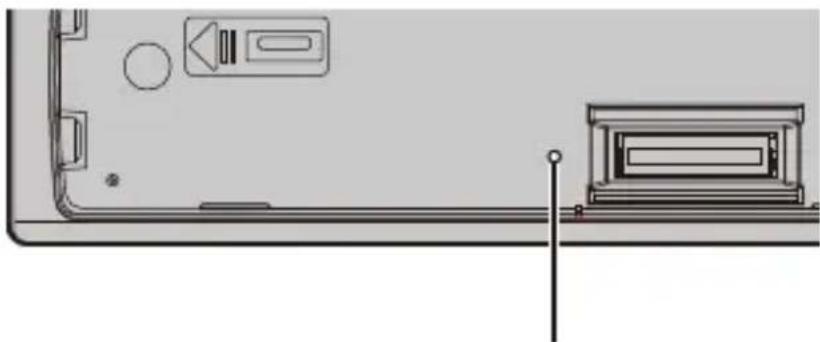

RESET button

Setup menu

When you turn the ignition switch to ON after installation, the setup menu appears in the display.

WARNING

Do not use the unit in standard mode when a speaker system for network mode is connected to the unit. Do not use the unit in network mode when a speaker system for standard mode is connected to the unit. This may cause damage to the speakers.

1 Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

Menu Item Description
LANGUAGE Select the language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display 1.
[ENG](English), [PYC](Russian), [TUR](Turkish), [FRA](French), [DEU](German)	compressed audio file.
CLOCK SET Set the clock.
	1 Turn the M.C. dial to adjust the hour, then press to confirm.The indicator moves to the minute setting automatically.2 Turn the M.C. dial to adjust the minute, then press to confirm.
FM STEP Select the FM tuning step from 100 kHz or 50 kHz.
[100], [50]
DAB ANT PW Supply power to a DAB antenna. Select this when using the optional DAB antenna (AN-DAB1, sold separately) with the unit.
[ON]
[OFF] No power is supplied to a DAB antenna. Select this when using a passive antenna with no booster.
SPEAKER MODE Switch[STANDARD],[NETWORK]	between two operation modes: the 2-way network mode (NETWORK) and the standard mode (STANDARD) according to the connections you have established. For details on operation modes, see page 22.After selecting the appropriate mode, turn the M.C. dial to select [YES], then press to confirm.You cannot complete the setup menu without setting the [SPEAKER MODE].Once the speaker mode is set, this setting cannot be changed unless the default settings of this product are restored. Restore the default settings to change the speaker mode setting (refer to SYSTEM RESET on page 7).When [NETWORK] is selected, the beep tone function is not available.

2[QUIT :YES] appears.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO], then press to confirm.

3 Press the M.C. dial to confirm the settings.

[UPDATING LIST] appears in the display and the service list will be updated.

NOTE

These settings other than [SPEAKER MODE] can be made at any time from the SYSTEM settings (page 28) and INITIAL settings (page 6).

Canceling the demonstration display (DEMO OFF)

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [SYSTEM], then press to confirm.
3 Turn the M.C. dial to select [DEMO OFF], then press to confirm.
4 Turn the M.C. dial to select [YES], then press to confirm.

INITIAL settings

1 Press and hold SRC/OFF until the unit turns off.
2 Press and hold SRC/OFF to display the main menu.
3 Turn the M.C. dial to select [INITIAL], then press to confirm.

4 Turn the M.C. dial to select an option, then press to confirm.

Menu Item Description
FM STEP Select the FM tuning step from 100 kHz or 50 kHz.[100], [50]
REAR-SP Select when the [FUL]	ere is a full-range speaker connected to the rear speaker output leads.
[SW] Select when there is a subwoofer connected directly to the rear speaker output leads without any auxiliary amplifier.
SYSTEM UPDATE Select [SYSTEM INFO], [S/W UPDATE]	[SYSTEM INFO] to confirm the latest system information on the unit.Select [S/W UPDATE] to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website.
DAB ANT PW Supply power to a DAB antenna. Select this when using the optional DAB antenna (AN-DAB1, sold separately) with the unit. [ON]
[OFF] No power is supplied to a DAB antenna. Select this when using a passive antenna with no booster.
SYSTEM RESET Select [YES], [NO]	YES] to initialize the unit settings. The unit will be restarted automatically.

Digital Audio Broadcasting (DAB)

To receive DAB signals, connect a DAB antenna (AN-DAB1) (sold separately) to the unit.

Seeking a service component/station

1 Press SRC/OFF to select [DIGITAL RADIO].
2 Press BAND/ ⇌ to select the band from [D1], [D2] or [D3].
3Press / to select a service component/station.

NOTE

Press and hold / then release to seek an available service. Scanning stops when the unit receives a service.

To select service component/station from service lists

1 During DAB reception, press and hold
Displays the list of all service components/stations. Press and hold ▲ again to search for a service component/station alphabetically.
2 Select a service component/station from the list you selected, then press the M.C. dial to confirm.

NOTE

You can update the service list by pressing DAB. To cancel updating, press DAB again.

Presetting service components/stations

To store service components/stations

1 While receiving the service component/station you want to store, press and hold one of the number buttons (1/∧ to 6/⇐) until it stops flashing.

To retrieve stored service components/stations

1 Select the band, then press a number button (1/∧ to 6/⇐).

Pause/Time shift functions

The unit stores recent broadcasts in the memory automatically. The memory capacity of this unit varies depending on the bit rate of the service component used. The approximate memory capacity is five minutes for 192 kbps.

To pause/resume

1 While receiving the service component, press and hold DISP.

To use the time shift function

1 While receiving the service component, press and hold DAB.
2 Press (skip back one minute)/ (skip forward one minute) to adjust the playback point.

Radio

The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations.

Receiving preset stations

1 Press SRC/OFF to select [RADIO].
2 Press BAND/ → to select the band from [FM1], [FM2], [FM3], [MW] or [LW].
3 Press a number button (1/∧ to 6/⇐).

TIP

The /buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 25).

Best stations memory (BSM)

The six strongest stations are stored on the number buttons (1/∧ to 6/⇐).

1 After selecting the band, press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [FUNCTION], then press to confirm.
3 Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1 After selecting the band, press / to select a station. Press and hold / then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press /

NOTE

[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 25).

To store stations manually

1 While receiving the station you want to store, press and hold one of the number buttons (1/∧ to 6/⇐) until it stops flashing.

Using PTY functions

The unit searches for a station by PTY (program type) information.

1 Press and hold during FM reception.
2 Turn the M.C. dial to select a program type from [NEWS/INFO], [POPULAR], [CLASSICS] or [OTHERS].
3 Press the M.C. dial.

The unit begins to search for a station. When it is found, its program service name is displayed.

NOTES

• To cancel the search, press the M.C. dial.
- The program of some stations may differ from that indicated by the transmitted PTY.
- If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for about two seconds and then the tuner returns to the original station.

CD/USB/iPhone®/AUX

(iPhone source is not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 29).)

Playing back

Disconnect headphones from the device before connecting it to the unit.

CD

1 Insert a disc into the disc loading slot with the label side up.

To eject a disc, stop playback first then press ▲

USB devices (including Android™)/iPhone

1 Open the USB port cover.
2 Plug in the USB device/iPhone using an appropriate cable.

NOTE

To automatically switch to USB source when a USB device/iPhone is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 30).

CAUTION

Use a USB cable (sold separately) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

AOA connections

A device running Android OS 4.1 or later installed and also supports AOA (Android Open Accessory) 2.0 can be connected to the unit via AOA, using the cable supplied with the device.

NOTE

If you use an AOA connection, [APP CONTROL] needs to be set to [WIRED] (page 29) and [USB MTP] needs to be set to [OFF] (page 29) in the SYSTEM settings.

MTP connection

A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device, OS version or the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV and FLAC file formats.

NOTE

If you use an MTP connection, [USB MTP] needs to be set to [ON] in the SYSTEM settings (page 29).

AUX

1 Insert the stereo mini plug into the AUX input jack.
2 Press SRC/OFF to select [AUX IN] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX IN] cannot be selected as a source (page 29).

Operations

You can make adjustments in the FUNCTION settings (page 23) (except for AUX IN/CD/USB source).

Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself.

*1 Compressed audio files only
*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct.

Purpose Operation
Select a folder*1	Press 1/ ∧ or 2/ ∨ .
Select a track/song (chapter) Press or .	|◀◀ ▶▶▶|
Fast forward or reverse*2 Press and hold or .	|◀◀ ▶▶▶|
Search for a file from a list (CD/USB only)	1 Press and hold ▲ to display the list.2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.
View a list of the files in the selected folder/ category*1	Press the M.C. dial when a folder/category is selected.
Play a song in the selected folder/ category*1	Press and hold the M.C. dial when a folder/ category is selected.
Repeat play Press 6/ .	↔
Random/shuffle play Press 5/ .	××
Pause/resume playback	Press 4/PAUSE.
Sound retriever*1	Press 3/S.Rtrv.[1]: Effective for low compression rates[2]: Effective for high compression rates
Return to root folder (CD/USB only)*1 Press and hold 1/ . ∧
Switch between compressed audio and CD-DA (CD only)	Press BAND/ ↗.

Bluetooth

Bluetooth connection

Important

If ten or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may not work properly.

TIP

The next connection to the unit is performed automatically if the Bluetooth device has been connected previously in the following steps.

1 Turn on the Bluetooth function of the device.

If you make a Bluetooth connection from the device, proceed to step 4.

2Press to display the [ADD DEVICE] setting.

The unit starts to search for available devices, then displays them in the device list.

• To cancel searching, press the M.C. dial.
• If the desired device is not in the list, select [RE-SEARCH].
• If there is no device available, [NOT FOUND] appears in the display.
• If there is already a connected device, the phone menu appears by pressing.

3 Turn the M.C. dial to select a device from the device list, then press to confirm.

Press and hold the M.C. dial to switch the displayed device information between the Bluetooth device address and device name.

If you make a Bluetooth connection from the unit, proceed to step 5.

4Select the unit name shown in the device display.

5 Make sure the same 6-digit number appears on this unit and the device, then select [YES] if the 6-digit numbers displayed on this unit and the device are the same.

Bluetooth telephone

First, make a Bluetooth connection with the Bluetooth telephone (page 12). Up to two Bluetooth telephones can be connected simultaneously.

Important

• Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the vehicle's battery.
• Be sure to park your vehicle in a safe place and apply the parking brake before operation.

To make a phone call

1 Press to display the phone menu.
When two phones are connected, a phone name appears first then a phone menu will display. To switch to another phone, press again.
2 Turn the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to confirm. If you select [PHONE BOOK], proceed to step 4.
3 Turn the M.C. dial to select [MISSED], [DIALLED] or [RECEIVED], then press to confirm.
4 Turn the M.C. dial to select a name or phone number, then press to confirm. The phone call starts.

To answer an incoming call

1 Press any button when a call is received.

TIP

When two phones are connected to the unit via Bluetooth and there is an incoming call while one phone is being used for a call, a message will appear in the display. To answer that incoming call, you need to end the existing call.

Basic operations

Purpose Operation
End a call Press .
Reject an incoming call Press and hold when a call is received.
Switch between the current caller and a caller on hold	Press the M.C. dial.
Cancel a caller on hold Press and hold .
Adjust the volume of the caller's voice (When private mode is on, this function is not available.)	Turn the M.C. dial during the call.
Turn the private mode on or off	Press BAND/ during the call.

To preset phone numbers

1 Select a phone number from a phone book or call history.
2 Press and hold one of the number buttons (1/∧ to 6/⇐).

The contact is stored in the selected preset number.

To make a call using a preset number, press one of the number buttons (1/ ∧ to 6/ ⇌), then press the M.C. dial, while the phone menu is displayed.

Voice recognition

This function is only available when an iPhone/Android device equipped with voice recognition is connected to the unit via Bluetooth.

1 Press and hold and then talk into the microphone to input voice commands.

To exit the voice recognition mode, press BAND/

NOTE

For details on the voice recognition features, refer to the manual supplied with your device.

TIP

When a Pioneer Smart Sync connection is made (page 18), you can also use the voice recognition function from Pioneer Smart Sync installed on your iPhone/Android device by pressing and holding 📞. For details on the voice recognition features, see the application's help section.

Phone menu

1 Press to display the phone menu.

Menu Item Description
RECENTS Display the missed call history.[MISSED]
[DIALLLED] Display the dialed call history.
[RECEIVED] Display the received call history.
PHONE BOOK Display the contacts in your phone.
PRESET 1-6 Recall the preset phone numbers. You can also recall the preset phone numbers by pressing one of the number buttons (1/^ to 6/⇌).
A.ANSR* Select [ON] to answer an incoming call automatically.[ON], [OFF]
PB INVT Invert the order of names in the phone book (name view).
DEVICELIST Display the list of paired Bluetooth devices. “*” appears on the device name when the Bluetooth connection is established.When no device is selected in the device list, this function is not available.
DEL DEVICE[DELETE YES],[DELETE NO]	Delete the device information.
ADD DEVICE	Register a new device.
DEV. INFO	Switch the device information on the display between the device name and Bluetooth device address.

* If two phones are connected, this function does not work on incoming calls that are received while one of the phones is being used for a call.

Bluetooth audio

Important

• Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels:
  – A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player.
• AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, select song, etc.

• The sound of the Bluetooth audio player will be muted when the phone is in use.

• When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically.

• Depending on the type of Bluetooth audio player you have connected to this unit, operation and information displayed may vary based on availability and functionality.

1 Make a Bluetooth connection with the Bluetooth audio player.

2 Press SRC/OFF to select [BT AUDIO] as the source.
3 Press BAND/ → to start playback.

NOTE

You must reconnect the Bluetooth connection when the source is switched or the unit is turned off.

TIP

When more than two and up to five devices are registered to the unit via Bluetooth, you can switch the Bluetooth device by playing back songs on the device. By doing so, playing back a song from the Bluetooth device of each passenger is easily available. However, depending on the usage conditions, multiple connections may not be available and the audio files/songs may not be able to be played back properly.

Basic operations

You can make various adjustments in the FUNCTION settings (page 23).

Purpose Operation
Fast forward or reverse Press and hold or .	|◀◀ ▶▶▶|
Select a track Press or .	|◀◀ ▶▶▶|
Repeat play* Press 6/ .	↔
Random play* Press 5/ .	××
Pause/resume playback	Press 4/PAUSE.
Search for a file from a list	1 Press and hold ▲ to display a list.2 Turn the M.C. dial to select the desired folder name, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.

* Depending on the connected device, these operations may not be available.

Spotify®

(Not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 29).) Spotify is a music streaming distribution service not affiliated with Pioneer. More information is available at http://www.spotify.com.

The Spotify application is available for compatible smartphones, please visit https://support.spotify.com/ for the latest compatibility information. To enjoy Spotify as you drive, first download the Spotify app to your iPhone or Android device. You can download it on the iTunes® App Store® or Google Play™. Choose a free account or a paid Premium account, either in the app or at spotify.com. A Premium account gives you more features, like offline listening.

Important

• This product incorporates Spotify software which is subject to 3rd party licenses found here: www.spotify.com/connect/third-party-licenses.
• For information on the countries and regions where Spotify can be used, take a look at https://spotify.com/us/select-your-country/.

Listening to Spotify

Update the firmware of the Spotify application to the latest version before use.

1Connect this unit with the mobile device.

• iPhone via USB (page 10)
• iPhone/Android device via Bluetooth (page 12)

2 Press SRC/OFF to select [SPOTIFY].
3 Press and hold 1/ to display [APP CONTROL].
4 Turn the M.C. dial to select one of the below.

- Select [WIRED] for the USB connection.

- Select [BLUETOOTH] for the Bluetooth connection.

5 Press SRC/OFF to select [SPOTIFY].
6Launch the Spotify application on the mobile device and start playback.

NOTE

When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device.

Basic operations

You can make various adjustments in the FUNCTION settings (page 23).

NOTE

The available operations may vary according to the type of contents (track/album/artist/playlist/radio) you want to play.

Purpose Operation
Skip a track Press or .
Search for a track from a list	1 Press and hold ▲ to display the list.2 Turn the M.C. dial to select the desired category, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.
Pause/resume playback Press 4/PAUSE.
Thumbs Up (Only for radio) Press 1/.	^
Thumbs Down (Only for radio) Press 2/.	∨
Random play (Only for track/album/artist/playlist)	Press 5/XX.
Repeat play (Only for track/album/artist/playlist)	Press 6/⇌.
Start a radio channel based on the song currently being played.	1 Press and hold 5/XX to start a radio.2 Press the M.C. dial.• This function may not be available depending on the selected song.

NOTE

Some functions of Spotify may not be operated from the unit.

Using Pioneer Smart Sync/APP

Pioneer Smart Sync is the application that intelligently brings your maps, messages, and music together in the vehicle.

You can operate the unit from Pioneer Smart Sync installed on an iPhone/Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit.

For details on what operations are available on the application, see the application's help section.

NOTE

The APP source is not available when a Pioneer Smart Sync connection is not made or [USB MTP] is set to [ON] in the SYSTEM settings (page 29).

WARNING

• Functions operated with a smartphone are merely tools available to the driver. The driver shall observe safe and sensible driving behavior under all circumstances.
• Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.

For iPhone users

This function is compatible with iOS 10.3 or later.

You can download Pioneer Smart Sync on iTunes App Store.

Download on the

App Store

For Android device users

For Bluetooth connections, this function is compatible with devices that have Android OS 5.0 or later installed.

For USB connections, this function is compatible with a phone that runs Android 5.0 or later up to 7.1.2 and also supports AOA (Android Open Accessory) 2.0. However, the compatibility depends on the smartphone.

You can download Pioneer Smart Sync on Google Play.

GET IT ON

Google Play

NOTE

Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version.

What kind of function does the application have?

Promoting the use of the unit

The interface of the unit can be evolved by using your iPhone/Android device.

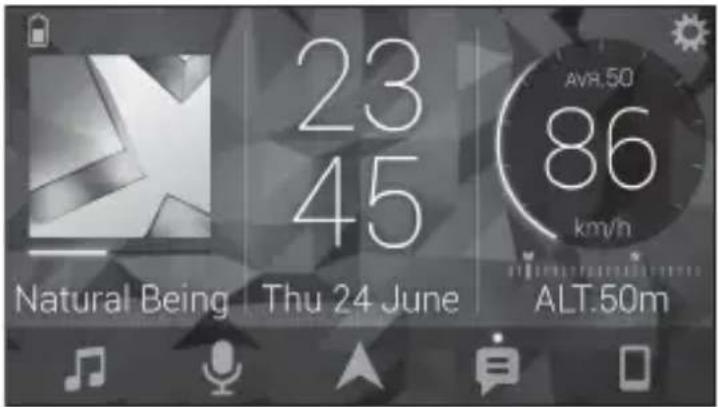

Image (example):

23 45 AVR.50 86 km/h Natural Being Thu 24 June ALT.50m

Examples:

• Selecting a source of the unit
• Listening to the music on your iPhone/Android device
• Controlling the sound field intuitively
• Setting the illumination colour
• Controlling your connected Bluetooth device

Extending the functions of the unit by using the application

The following functions, which are unavailable on the unit alone, are available by making a Pioneer Smart Sync connection.

Menu Item (example) Description
Using a navigation application You can specify and start the navigation application installed on your device.
Message reading You can read messages received from the apps installed on your device.
31 Band EQ setting You can select an equalizer band from the 31-band graphic equalizer (13-band for not using the Pioneer Smart Sync connection).
Super "Todoroki" Sound You can boost the bass level more dynamically than when not using the Pioneer Smart Sync connection.
Easy Sound Fit You can perform the time alignment setting easily by selecting your vehicle type.
Theme setting You can set the wall paper and the theme colour (display/keys/characters) at once.

NOTES

• Some functions may be restricted depending on the connection conditions with the application.
• The 31 Band EQ setting is converted into 13 bands when a music source from this product is engaged.

TIP

It is recommended to enter the search term "Pioneer Smart Sync" in the search field to search for the application.

Pioneer Smart Sync

Making a connection with Pioneer Smart Sync

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [SYSTEM], then press to confirm.
3 Turn the M.C. dial to select [APP CONTROL], then press to confirm.
4 Turn the M.C. dial to select one of the below.

• Select [WIRED] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection.

5 Turn the M.C. dial to select [AUTO APP CONN], then press to confirm.

6 Turn the M.C. dial to select [ON], then press to confirm.

7 Connect this unit with the mobile device.

• iPhone/Android device via USB (page 10)
• iPhone/Android device via Bluetooth (page 12)
  Pioneer Smart Sync on the device starts automatically.

NOTE

Regardless of whether the [AUTO APP CONN] setting is set to [ON] or [OFF], you can also perform the following to start Pioneer Smart Sync.

- For devices other than the USB-connected Android device, press SRC/OFF to select any source and press and hold the M.C. dial.

- For iPhone, launch Pioneer Smart Sync on the mobile device.

NOTES

• When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device.
• If Pioneer Smart Sync has not been installed on your iPhone/Android device yet, a message that prompts you to install the application will appear on your iPhone/Android device (except for the Android device connected via Bluetooth). Select [OFF] in [AUTO APP CONN] to clear the message (page 30).

Listening to music on your device

1 Press SRC/OFF to select [APP].

Audio Adjustments

You can also make various adjustments in the AUDIO settings (page 26).

Operation modes

This unit features two operation modes: network mode and standard mode. You can switch between modes as desired (page 6).

Network mode

You can create a 2-way + SW multi-amp and multi-speaker system with high range speaker, middle range speaker and subwoofer for reproduction of high, middle and low frequencies (bands).

Standard mode

You can create a 4-speaker system with front and rear speakers or front speakers and subwoofers, or a 6-speaker system with front and rear speakers and subwoofers.

Adjusting the cut-off frequency value and the slope value

You can adjust the cut-off frequency value and the slope value of each speaker. The following speakers can be adjusted.

Network mode:

[HIGH] (high-range speaker HPF), [MID HPF] (middle-range speaker HPF), [MID LPF] (middle-range speaker LPF), [SUBWOOFER]

Standard mode:

[FRONT], [REAR], [SUBWOOFER]

NOTE

[SUBWOOFER] can only be selected when [ON] is selected in [SUBWOOFER] (page 26).

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [AUDIO], then press to confirm.
3 Turn the M.C. dial to select [CROSSOVER], then press to confirm.

4 Turn the M.C. dial to select the speaker unit (filter) to be adjusted, then press to confirm.
5 Turn the M.C. dial to select [HPF] or [LPF] according to the speaker unit (filter), then press to confirm.
6 Turn the M.C. dial to select an appropriate cut-off frequency for the speaker unit (filter) selected in step 4, then press to confirm.

Network mode:

[1.25K] to [12.5K] (if you choose [HIGH] or [MID LPF])

[25] to [250] (if you choose [MID HPF] or [SUBWOOFER])

Standard mode:

[25HZ] to [250HZ]

7 Turn the M.C. dial to select an appropriate slope for the speaker unit (filter) selected in step 4.

Network mode:

[-6] to [-24] (if you choose [HIGH], [MID HPF] or [MID LPF])

[-12] to [-36] (if you choose [SUBWOOFER])

Standard mode:

[-6] to [-24] (if you choose [FRONT] or [REAR])

[-6] to [-36] (if you choose [SUBWOOFER])

Settings

You can adjust various settings in the main menu.

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• FUNCTION settings (page 23)

• AUDIO settings (page 26)

• SYSTEM settings (page 28)

• ILLUMINATION settings (page 31)

3 Turn the M.C. dial to select the options, then press to confirm.

FUNCTION settings

The menu items vary according to the source.

Menu Item Description
S.FOLLOW DAB[ON], [OFF] Search for another ensemble that supports the same service component/station with better reception. If no alternative service component/ station can be found or reception remains poor, the unit will automatically switch to an identical FM broadcast.
SOFT LINK*1*2 DAB[ON], [OFF] If the reception of the service component/ station being received becomes poor, the unit will automatically switch to a station with a similar broadcast.
PROGRAM TYPE DAB[NEWS/INFO], [POPULAR], [CLASSICS], [OTHERS]	Displays the program type information.
ENSEMBLE DAB	Displays the list of relevant ensembles.
FM SETTING RADIO[TALK], [STANDARD], [MUSIC] Match the sound quality level with the broadcast signal conditions of the FM band signal. (Available only when FM band is selected.)
BSM RADIO	Store the six strongest stations on the number buttons (1/ ∧ to 6/ ⇌) automatically.
REGIONAL RADIO[ON], [OFF] Limit the reception to the specific regional programs when AF (alternative frequencies search) is selected. (Available only when FM band is selected.)
LOCAL RADIOFM: [OFF], [LV1], [LV2], [LV3], [LV4] MW/LW: [OFF], [LV1], [LV2]	Restrict the tuning station according to the signal strength.
TA SETTING	DAB RADIO
[DAB+RDS TA] Receive current traffic information for DAB and RDS (DAB has priority) if available.
[RDS TA ONLY] Receive current traffic information for only RDS if available.
[TA OFF] Disables this function.
AF RADIO
[ON], [OFF] Allow the unit to retune to a different frequency providing the same station. (Available only when FM band is selected.)
NEWS RADIO
[ON], [OFF] Interrupt the currently selected source with news programs. (Available only when FM band is selected.)
SEEK RADIO
[MAN], [PCH] Assign or buttons to seek the stations one by one (manual tuning) or select a station from the preset channels.
SAVE SPOTIFY
Store the information about the song currently being played to your music list on Spotify.
UNSAVE SPOTIFY
Remove the song information stored in [SAVE].
SEL DEVICE iPhone BT AUDIO SPOTIFY
Connect a Bluetooth device in the list.
PLAY BT AUDIO
Start playback.
STOP BT AUDIO
Stop playback.

*1 Only available in areas where [SOFT LINK] function is supported.

*2 Not available when [S.FOLLOW] function is turned off.

AUDIO settings

NOTE

[CHK APP SETTG.] may be displayed when the setting is performed from Pioneer Smart Sync.

Menu Item Description

EQ SETTING

[SUPER BASS], [POWERFUL], [DYNAMIC], [NATURAL], [VOCAL], [VIVID], [SET BY APP]*, [CUSTOM1], [CUSTOM2], [FLAT] * [SET BY APP] is displayed when the preset equalizer curve that is not available in the unit has been set from Pioneer Smart Sync.

Select an equalizer band and level for further customising.

Equalizer band: [50HZ] to [12.5kHz]

Equalizer level: [-6] to [+6]

Select or customise the equalizer curve.

- When you select a setting other than [CUSTOM1], [CUSTOM2] and [SET BY APP], you can also customise the equalizer curve by pressing and holding the M.C. dial, then store the customised equalizer curve in [CUSTOM1].

FADER* (Only for standard mode)

Adjust the front and rear speaker balance.

BALANCE

Adjust the left and right speaker balance.

SUBWOOFER

[ON], [OFF] Set to [ON] when using a subwoofer speaker.

SUBWOOFER

[NOR], [REV] Select the subwoofer phase.

SPEAKER LEVEL

Network mode: [HIGH L], [HIGH R], [MID L], [MID R], [SUBWOOFER]

Standard mode: [FRONT L], [FRONT R], [REAR L], [REAR R], [SUBWOOFER]

Output level: [-24] to [10]

Select a speaker unit (filter) and adjust the output level.

• Each value you have adjusted changes when you change the [POSITION] setting (page 27).

Menu Item Description
CROSSOVER	Select a speaker unit (filter) to adjust the HPF or LPF cut-off frequency and the slope for each speaker unit.For details on the [CROSSOVER] setting, see page 22.
POSITION[OFF], [FRONT LEFT] (front seat left), [FRONT RIGHT] (front seat right), [FRONT] (front seats), [ALL]* * Only for standard mode	Select a listening position to adjust the speakers' output levels automatically and add a delay time that corresponds to the number and locations of occupied seats.
TIME ALGNMNT[INITIAL], [OFF], [CUSTOM]Select a type of speaker and adjust the speaker distance for further customising in [CUSTOM].Network mode: [HIGH L], [HIGH R], [MID L], [MID R], [SUBWOOFER]Standard mode: [FRONT L], [FRONT R], [REAR L], [REAR R], [SUBWOOFER]Speaker distance (cm): [350] to [0.0]	Select or customise the time alignment settings to reflect the distance between the listener's position and each speaker.Select [INITIAL] to initialize the setting value.Select [OFF] to reset all setting values to 0.The [CUSTOM] setting is available when [FRONT LEFT] or [FRONT RIGHT] is selected in [POSITION] (page 27).The [CUSTOM] setting is not available when [OFF] is selected in [SUBWOOFER] (page 26).
SAVE SETTINGS[YES], [NO] Save to later recall the following sound settingsat their current values: [CROSSOVER], [SPEAKER LEVEL], [EQ SETTING], [POSITION], [TIME ALGNMNT], [D.BASS], [SUBWOOFER].The settings that can be saved differ when a Pioneer Smart Sync connection is made.
LOAD SETTINGS	Load the sound settings, when you have already performed [SAVE SETTINGS].
D.BASS[OFF], [LOW], [HI] Boost the bass level dynamically to offer an effect as if a subwoofer was added to the system.
LOUDNESS[OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume.
SLA
[+4] to [-4] Adjust the volume level for each source except FM.Each of the below combinations are set to the same setting automatically.When making a USB connection, set USB, iPhone, APP, and SPOTIFY.When making a Bluetooth connection, set BT AUDIO, iPhone, APP, and SPOTIFY.
S.RTRV
[1] (effective for low compression rates), [2] (effective for high compression rates), [OFF]	Enhance compressed audio and restore rich sound.

* Not available when [SW] is selected in [REAR-SP] in the INITIAL settings (page 7).

SYSTEM settings

You can also access to these menus when the unit is turned off.

Menu Item Description
LANGUAGE[ENG](English), [PYC](Russian), [TUR](Turkish), [FRA](French), [DEU](German)	Select the language to display the text information from a compressed audio file.
CLOCK SET[12H], [24H] Set the clock (page 5).	This setting is not available when a Pioneer Smart Sync connection is made.
SCROLL SET[ONCE], [LOOP], [OFF] Select the way to scroll the text in the display window.
BEEP TONE (Only for standard mode)[ON], [OFF] A beep can be heard when any button is pushed.Select [OFF] to disable this function.
INFO DISPLAY
[SOURCE/SPEANA], [CLOCK/SPEANA], [SRC/LIVE FX], [CLOCK/LIVE FX], [SOURCE], [SPEANA], [OFF]	Display the item on the sub information display.When [SOURCE/SPEANA] or [CLOCK/SPEANA] is selected, display the antenna instead of the speana on the radio source.
AUTO PI
[ON], [OFF] Search for a different station with the same programming, even if using a preset station.
AUX
[ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit.
BT AUDIO
[ON], [OFF] Set the Bluetooth signal on/off.
SPOTIFY
[ON], [OFF] Set to [ON] when using the Spotify function.
PW SAVE*
[ON], [OFF] Reduce the battery power consumption.Turning on the source is the only operation allowed when this function is on.
BT MEM CLEAR
[YES], [NO] Clear the Bluetooth device data (device list, PIN code, call history, phone book, preset phone numbers) stored in the unit.[CLEARED] appears when data is successfully deleted.
APP CONTROL
[WIRED], [BLUETOOTH] Select the appropriate connection method according to your device.See page 30 for details on the connections for each device.
USB MTP
[ON], [OFF] Set to [ON] when using the MTP connection.The following sources are not available when the setting is set to [ON].APP, SPOTIFY, iPhone, and USB (AOA)

Menu Item Description

AUTO APP CONN

[ON], [OFF] Select [ON] to automatically launch Pioneer Smart Sync when the iPhone/Android device is connected to the unit.

USB AUTO

[ON], [OFF] Select [ON] to automatically switch to USB source when a USB device/iPhone is connected to the unit. Select [OFF] when a USB device/iPhone is being connected to the unit just for charging.

* [PW SAVE] is canceled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When [PW SAVE] is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle's ignition does not have an ACC (accessory) position.

Information on the connections for each device

The available sources differ depending on the setting value.

Please set [APP CONTROL] according to the table for the source you want to use.

For details on Pioneer Smart Sync connection, see page 18.

When Pioneer Smart Sync connection is NOT performed

Setting Value Device Available source(s)
[WIRED] iPhone iPhone	phone, SPOTIFY
	Android USB (AOA)
[BLUETOOTH] iPhone	iPhone, SPOTIFY
	Android SPOTIFY

When Pioneer Smart Sync connection is performed

Setting Value Device Available source(s)
[WIRED] iPhone APP, SPOTIFY
Android APP
[BLUETOOTH] iPhone APP, SPOTIFY
Android APP, SPOTIFY

ILLUMINATION settings

Menu Item Description

COLOUR

[KEY COLOUR], [DISP COLOUR], [BOTH COLOUR]

Select colour for the keys/display of the unit from 12 preset colours, [SCAN] or [CUSTOM]*.

• [SCAN]: Cycle through a variety of colours automatically.

- [CUSTOM]*:

1 Press and hold the M.C. dial until the colour setting display appears.

2Set the primary colour (R (red)/G (green)/B (blue)) and brightness level ([0] to [60]).

You cannot select a level below 10 for all three of R (red), G (green), B (blue) at the same time.

You can also customise the preset colours. Select one of the preset colours, then press and hold the M.C. dial until the colour setting display appears.

* The CUSTOM setting is only available for [KEY COLOUR] and [DISP COLOUR].

DIM SETTING

[SYNC ILLUMI], [SYNC CLOCK], [MANUAL]

Select the way to change the display brightness.

BRIGHTNESS

[KEY], [DISP] Select the brightness for the keys/display of the unit from [1] to [10].

The available setting ranges differ depending on [DIM SETTING].

PHONE COLOUR

Select the key colour when a call is received.

[FLASHING] Applies the colour set by [KEY COLOUR].

- The illumination effect differs depending on the selection of [ON] or [OFF] in [ILLUMI FX].

[FLASH FX1] to [FLASH FX6] Cycle through a variety of colours automatically.

[OFF] No change in key colour made.

Menu Item Description

ILLUMI FX

[ON], [OFF] The illumination effect can be seen when:

–there is an incoming call when [FLASHING] is selected in [PHONE COLOUR]
-you are on a phone call
-the message received on the device is being read when a Pioneer Smart Sync connection is made
-a CD is inserted/ejected
-the front panel is attached.
The illumination effect will activate when the ACC power is turned on/off regardless of this setting.

Additional Information

Troubleshooting

The display automatically returns to the normal display.

→No operations have been made for about 30 seconds. -Perform an operation.

The repeat play range changes unexpectedly.

→Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. –Select the repeat play range again.

A subfolder is not played back.

→Subfolders cannot be played when [FLD] (folder repeat) is selected. –Select another repeat play range.

The sound is intermittent.

→You are using a device, such as a cellular phone, that may cause audible interference. -Move electrical devices that may be causing the interference away from the unit.

The sound from the Bluetooth audio source is not played back.

→There is a call in progress on a Bluetooth-connected cellular phone. –The sound will be played back when the call is terminated.

→A Bluetooth-connected cellular phone is currently being operated. -Stop using the cellular phone.

→The connection between the unit and the cellular phone is not established correctly after a call made by a Bluetooth-connected cellular phone.

- Make a Bluetooth connection between the unit and the cellular phone again.

Error messages

Common

AMP ERROR

→This unit fails to operate or the speaker connection is incorrect. →The protective circuit is activated. - Check the speaker connection. - Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

NO XXXX (NO TITLE, for example)

→There is no embedded text information. - Switch the display or play another track/file.

DAB tuner

ANTENNA ERROR

→The antenna connection is incorrect. - Check the antenna connection. - Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

CD player

ERROR-07, 11, 12, 17, 30

→The disc is dirty. - Clean the disc. →The disc is scratched. -Replace the disc.

ERROR-07, 10, 11, 12, 15, 17, 30, A0

→There is an electrical or mechanical error.
-Turn the ignition switch OFF and back to ON, then back to the CD player.

ERROR-15

→The inserted disc is blank.
-Replace the disc.

ERROR-23

→Unsupported CD format.
-Replace the disc.

FORMAT READ

→Sometimes there is a delay between the start of playback and when you start to hear any sound.
- Wait until the message disappears and you hear sound.

NO AUDIO

→The inserted disc does not contain any playable files.
-Replace the disc.

SKIPPED

→The inserted disc contains DRM protected files.
–The protected files are skipped.

PROTECT

→All the files on the inserted disc are embedded with DRM.
-Replace the disc.

USB device/iPhone

FORMAT READ

→Sometimes there is a delay between the start of playback and when you start to hear any sound.
- Wait until the message disappears and you hear sound.

NO AUDIO

→There are no songs.

-Transfer the audio files to the USB device and connect.

→The connected USB device has security enabled.
-Follow the USB device instructions to disable the security.

SKIPPED

→The connected USB device contains DRM protected files.
–The protected files are skipped.

PROTECT

→All the files on the connected USB device are embedded with DRM.
-Replace the USB device.

N/A USB

→The connected USB device is not supported by this unit.
- Disconnect your device and replace it with a compatible USB device.

HUB ERROR

→The USB device connected via a USB hub is not supported by this unit.
-Connect the USB device directly to this unit using a USB cable.

CHECK USB

→The USB connector or USB cable has short-circuited.
- Check that the USB connector or USB cable is not caught in something or damaged.
→The connected USB device consumes more than maximum allowable current.
- Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.

ERROR-19

→Communication failed.
-Perform one of the following operations, then return to the USB source.
- Disconnect the USB device.

- Change to a different source.

→iPhone failure.

- Disconnect the cable from the iPhone. Once the iPhone's main menu is displayed, reconnect the iPhone and reset it.

ERROR-23

→USB device was not formatted properly. -Format the USB device with FAT12, FAT16 or FAT32.

ERROR-16

→The iPhone firmware version is old. - Update the iPhone version. →iPhone failure. - Disconnect the cable from the iPhone. Once the iPhone's main menu is displayed, reconnect the iPhone and reset it.

STOP

→There are no songs in the current list. -Select a list that contains songs.

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found. -Connect the unit and iPhone via Bluetooth (page 12).

CONN. FAILED PRESS BAND KEY TO RETRY

→Bluetooth connection with iPhone failed. -Press BAND to m a connection again.

DISCONNECTED PRESS BAND KEY TO RETRY

→Bluetooth connection lost. -Press BAND/ t o m a connection again.

Bluetooth device

ERROR-10

→The power failed for the Bluetooth module of the unit. –Turn the ignition switch OFF and back to ACC or ON.

APP

CONNECT APP

→Pioneer Smart Sync connection is not made. – Make a connection with Pioneer Smart Sync (page 18).

Spotify

NOT FOUND

→The Spotify application has not started running yet. -Start up the Spotify application.

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found. -Connect the unit and the device via Bluetooth (page 12).

CONN. FAILED PRESS BAND KEY TO RETRY

→Bluetooth connection failed. -Press BAND? t o m a k connection again.

^k CHECK APP PRESS BAND KEY TO RETRY

→Connection to the Spotify application failed. -Press BAND/ t o m a k connection again.

DISCONNECTED PRESS BAND KEY TO RETRY

→Bluetooth connection lost. -Press BAND/ t o m a k connection again.

CHECK APP

→An unknown error (including communication error) has occurred. –Follow the instructions that appear on the screen.

Handling guidelines

Discs and player

- Use only discs that feature either of the following two logos.

- Use 12-cm discs. - Use only conventional, fully circular discs. - The following types of discs cannot be used with this unit:

- DualDiscs - 8-cm discs: Attempts to use such discs with an adaptor may cause the unit to malfunction. - Oddly shaped discs - Discs other than CDs - Damaged discs, including discs that are cracked, chipped or warped - CD-R/RW discs that have not been finalized

- Do not write on or apply chemicals to the surface of the discs.

- To clean a CD, wipe the disc with a soft cloth outward from the center.

- Condensation may temporarily impair the player's performance. Let it rest for about one hour to adjust to a warmer temperature. Also, wipe any damp discs off with a soft cloth.

- When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.

- Do not attach commercially available labels or other materials to the discs. - The discs may warp making the disc unplayable. - The labels may come off during playback and prevent ejection of the discs, which may result in damage to the equipment.

USB storage device

• Connections via USB hubs are not supported.
• Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.
• Depending on the USB storage device, the following problems may occur.
  -Operations may vary.
• The storage device may not be recognized.
  – Files may not be played back properly.
• The device may cause audible interference when you are listening to the radio.

iPhone

• Do not leave the iPhone in places with high temperatures.
• Firmly secure the iPhone when driving. Do not let the iPhone fall onto the floor, where it may become jammed under the brake or accelerator pedal.
• Incompatible text saved on the iPhone will not be displayed by the unit.

Compressed audio compatibility

- Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.

- The unit may not work properly depending on the application used to encode WMA files.

- There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.

- Russian text to be displayed on this unit should be encoded in one of the following character sets:

- Unicode (UTF-8, UTF-16)

- A character set other than Unicode that is used in a Windows environment and is set to Russian in the multi-language setting

CAUTION

- Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.

- Do not leave discs or a USB storage device in any place that is subject to high temperatures.

WMA files

File extension .wma
Bit rate 48 kbps to 320	kbps(CBR), 48 kbps to 384kbps (VBR)
Sampling frequency 32	kHz, 44.1 kHz, 48kHz
Windows MediaTMAudio Professional,Lossless, Voice/DRMStream/Stream with video	Not compatible

MP3 files

File extension .mp3
Bit rate 8 kbps to 320 kbps(CBR), VBR

Sampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
Compatible ID3 tag version	1.0, 1.1, 2.2, 2.3, 2.4(ID3 tag Version 2.x is given priority over Version 1.x.)
M3u playlist Not compatible
MP3i (MP3 interactive), mp3 PRO	Not compatible

WAV files

- WAV file formats cannot be connected via MTP.

File extension .wav
Quantization bits 8 and	16 (LPCM)
Sampling frequency 16	kHz to 48 kHz (LPCM)

AAC files

Compatible format AAC	encoded by iTunes
File extension .m4a
Sampling frequency 11.025 kHz to 48 kHz
Stereo Bit Rate 16 kbps	to 320 kbps, VBR
Apple Lossless Not compatible
AAC file bought from the iTunes Store (.m4p file extension)	Not compatible

FLAC files

• FLAC file formats cannot be connected via MTP.
• FLAC files may not be playable, depending on the encoder.

File extension .flac, .fla
Sampling frequency 8/1	1.025/12/16/22.05/24/32/44.1/48/96 kHz
Quantization bit rate 8/1	6/24 bit
Channel mode 1/2 ch

Disc

- Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 99
Playable files Up to 999
File system ISO 9660 Level	1 and2, Romeo, Joliet
Multi-session playback	Compatible
Packet write data transfer	Not compatible

USB device

- There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 1	500
Playable files Up to 15	00
Playback of copyright-protected files	Not compatible
Partitioned USB device	Only the first partition can be played.

iPhone compatibility

This unit supports only the following iPhone models. Older versions may not be supported.

Made for

-iPhone XR
-iPhone XS Max
-iPhone XS
-iPhone X
-iPhone 8
-iPhone 8 Plus

-iPhone 7
-iPhone 7 Plus
-iPhone SE
-iPhone 6s
- iPhone 6s Plus
-iPhone 6
-iPhone 6 Plus
-iPhone 5s

• Operations may vary depending on the generation and/or software version of the iPhone.
• Users of iPhone with the Lightning® Connector should use the Lightning to USB Cable (supplied with iPhone).
• Refer to the iPhone manuals for information about the file/format compatibility.
  • Audiobook, Podcast: Compatible

CAUTION

Pioneer accepts no responsibility for data lost on the iPhone, even if that data is lost while this unit is used.

Sequence of audio files

The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device.

Note that the hidden files in a USB device cannot be played back.

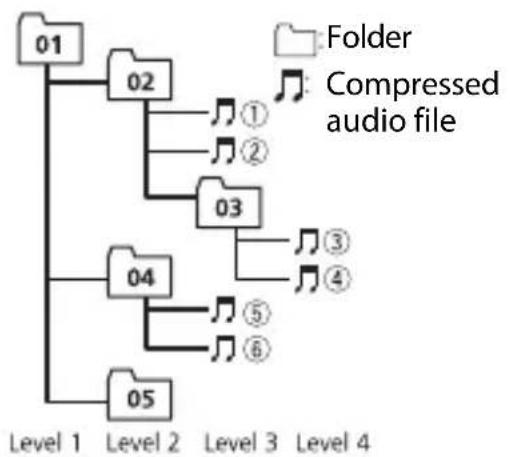

Example of a hierarchy

01 to 05: Folder number

① to :Playback sequence

Russian character chart

D: Display C: Character

Copyright and trademark

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.

iTunes

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

WMA

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

FLAC

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

-Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

-Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this

software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

iPhone and Lightning

Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with an Apple product may affect wireless performance.

iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

Siri®

Works with Siri through the microphone.

Google™, Google Play, Android

Google, Google Play and Android are trademarks of Google LLC.

Spotify®

SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. Compatible mobile digital devices and premium subscription required, where available, see https://www.spotify.com.

T-Kernel 2.0

This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org).

MP3

Copyright (C) 1998-2009 PacketVideo

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.

You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and limitations under the License.

Specifications

General

Power source: 14.4 V DC (10.8 V to 15.1 V allowable)

Grounding system: Negative type Maximum current consumption: 10.0 A

Dimensions (W × H × D):

DIN

Chassis: 178 mm × 50 mm × 165 mm

Nose: 188 mm × 58 mm × 17 mm D

Chassis: 178 mm × 50 mm × 165 mm

Nose: 170 mm × 46 mm × 17 mm

Weight: 1 kg

Audio

Maximum power output:

- 50 ~W × 4 ch / 4 (for no subwoofer)

- 50 ~W × 2 ch / 4 + 70 ~W × 1 ch / 2 (for subwoofer)

Continuous power output:

22 W × 4 (50 Hz to 15 000 Hz, 5 %

THD, 4 Ω load, both channels driven)

Load impedance: 4 Ω (4 Ω to 8 Ω (2 Ω for 1 ch) allowable)

Preout maximum output level: 2.0 V

Equalizer (13-Band Graphic Equalizer):

Frequency: 50 Hz/80 Hz/125 Hz/200

Hz/315 Hz/500 Hz/800 Hz/1.25 kHz/2

kHz/3.15 kHz/5 kHz/8 kHz/12.5 kHz

Gain: ±12 dB (2 dB step)

High pass filter (Standard mode):

Frequency: 25 Hz/31.5 Hz/40 Hz/50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Subwoofer/Low pass filter (Standard mode):

Frequency: 25 Hz/31.5 Hz/40 Hz/50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, -30 dB/oct, -36 dB/ oct, OFF

Gain: +10 dB to -24 dB (1 dB step)

Phase: Normal/Reverse

Speaker level (Standard mode):

+10 dB to -24 dB (1 dB step)

Time alignment (Standard mode):

0 cm to 350 cm (2.5 cm/Step)

High pass filter (HIGH) (Network mode):

Frequency: 1.25 kHz/1.6 kHz/2 kHz/

2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/

8 kHz/10 kHz/12.5 kHz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct

High pass filter (MID) (Network mode):

Frequency: 25 Hz/31.5 Hz/40 Hz/50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Low pass filter (MID) (Network mode):

Frequency: 1.25 kHz/1.6 kHz/2 kHz/

2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/

8 kHz/10 kHz/12.5 kHz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Subwoofer (Network mode):

Frequency: 25 Hz/31.5 Hz/40 Hz/50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -12 dB/oct, -18 dB/oct, -24 dB/

oct, -30 dB/oct, -36 dB/oct, OFF

Gain: +10 dB to -24 dB (1 dB step)

Phase: Normal/Reverse

Speaker level (Network mode):

+10 dB to -24 dB (1 dB step)

Time alignment (Network mode):

0 cm to 350 cm (2.5 cm/Step)

CD player

System: Compact disc audio system

Usable discs: Compact disc

Signal-to-noise ratio: 94 dB (1 kHz) (IEC-A network)

Number of channels: 2 (stereo)

MP3 decoding format: MPEG-1 & 2 Audio Layer 3

WMA decoding format: Ver. 7, 8, 9, 9.1, 9.2 (2 ch audio)

AAC decoding format: MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier)

WAV signal format: Linear PCM (Non-compressed)

USB

USB standard specification: USB 2.0 full speed

Maximum current supply: 1.5 A

USB Protocol:

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

File system: FAT12, FAT16, FAT32

MP3 decoding format: MPEG-1 & 2 Audio Layer 3

WMA decoding format: Ver. 7, 8, 9, 9.1, 9.2 (2 ch audio)

AAC decoding format: MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier)

FLAC decoding format: v1.2.1 (Free Lossless Audio Codec)

WAV signal format: Linear PCM (Non-compressed)

FM tuner

Frequency range: 87.5 MHz to 108.0 MHz

Usable sensitivity: 11 dBf (1.0 V/75 , mono, S/N: 30 dB)

Signal-to-noise ratio: 65 dB (IEC-A network)

MW tuner

Frequency range: 531 kHz to 1 602 kHz

Usable sensitivity: 25 μV (S/N: 20 dB)

Signal-to-noise ratio: 60 dB (IEC-A network)

LW tuner

Frequency range: 153 kHz to 281 kHz

Usable sensitivity: 28 μV (S/N: 20 dB)

Signal-to-noise ratio: 60 dB (IEC-A network)

DAB tuner

Frequency range (Band III): 174.928 MHz to 239.200 MHz (5 A to 13 F)

Frequency range (L Band): 1 452.960 MHz to 1 490.624 MHz (LA to LW)

Usable sensitivity (Band III): -100 dBm

Usable sensitivity (L Band): -100 dBm

Signal-to-noise ratio: 85 dB

Bluetooth

Version: Bluetooth 4.0 certified

Output power: +4 dBm Maximum (Power class 2)

BLE (Bluetooth Low Energy) Version: 4.0 certified

BLE (Bluetooth Low Energy) Output power: +3 dBm Maximum

Frequency band(s): 2 400 MHz to 2 483.5 MHz

Bluetooth profiles:

GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5

SPP (Serial Port Profile) 1.1

NOTE

Specifications and the design are subject to modifications without notice.

Table des matières

Mise en route.... 3

Radiodiffusion numérique (Digital Audio Broadcasting – DAB) .... 8

Radio....9

CD/USB/iPhone®/AUX 11

Bluetooth 14

Spotify ^® 18

Utiliser Pioneer Smart Sync/APP 20

Paramètres audio 24

Réglages.... 26

Réglages FUNCTION 26

Réglages AUDIO 28

Réglages SYSTEM.... 31

Réglages ILLUMINATION.... 34

Diagram illustrating the process of air conditioner unit with labeled parts and directional arrows

Important

Diagram of a device rear panel with a monitor and control panel, no text or symbols present

Bouton RESET

Menu de configuration

23 45 AVR.50 86 km/h Natural Being Thu 24 June ALT.50m

Exemples :

[CLASSICS], [OTHERS]

[SYNC ILLUMI], [SYNC CLOCK], [MANUAL]

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright © 2000-2009 Josh Coalson

Copyright © 2011-2014 Xiph.Org

Foundation

Copyright (C) 1998-2009 PacketVideo

Pente : -6 dB/oct, -12 dB/oct, -18 dB/ oct, -24 dB/oct, DÉSACTIVÉE

Caisson de graves/filtre passe-bas (mode standard) :

Pente : -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, DÉSACTIVÉE

Protocole USB : MSC (Mass Storage Class) MTP (Media Transfer Protocol) AOA (Android Open Accessory) 2.0

GAP (Generic Access Profile)

SDAP (Service Discovery Application

Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution

Profile)

AVRCP (Audio/Video Remote Control

Profile) 1.5

SPP (Serial Port Profile) 1.1

REMARQUE

Digital Audio Broadcasting (DAB)......8

Radio....9

CD/USB/iPhone®/AUX.... 11

Bluetooth 13

Spotify ^® 18

Utilizzare Pioneer Smart Sync/APP 20

Diagram illustrating the process of inserting air filters into a wall-mounted device, with labeled components and directional arrows.

Importante

Diagram of a device rear panel with a monitor and control panel, no text or symbols present

Pulsante RESET

Digital Audio Broadcasting (DAB)

Best stations memory (BSM)

23 45 AVR 50 86 km/h Natural Being Thu 24 June ALT.50m

Esempi:

[SYNC ILLUMI], [SYNC CLOCK], [MANUAL]

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation

Copyright (C) 1998-2009 PacketVideo

Dimensioni (L × A × P): DIN

Telaio: 178 mm × 50 mm × 165 mm

Testata: 188 mm × 58 mm × 17 mm D

Telaio: 178 mm × 50 mm × 165 mm

Testata: 170 mm × 46 mm × 17 mm

Peso: 1 kg

Audio

Potenza massima:

- 50 W × 4 canali/4 Ω (senza subwoofer)

- 50 W × 2 canali/4 Ω + 70 W × 1 canale/2 Ω (per il subwoofer)

Potenza continua:

Pendenza: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Pendenza: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, OFF

Pendenza: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct

Pendenza: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, OFF

Pendenza: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, OFF

Pendenza: -12 dB/oct, -18 dB/oct, -24

dB/oct, -30 dB/oct, -36 dB/oct, OFF

Specifica standard USB: USB 2.0 full speed

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

File system: FAT12, FAT16, FAT32

GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5

SPP (Serial Port Profile) 1.1

NOTA

Digital Audio Broadcasting (DAB)...... 8

Radio....9

CD/USB/iPhone®/AUX 11

Bluetooth 13

Spotify ^® 18

Uso de Pioneer Smart Sync/APP.... 20

Ajustes de audio 23

Ajustes.... 25

Ajustes de FUNCTION.... 25

Ajustes de AUDIO.... 27

Ajustes de SYSTEM.... 30

Ajustes de ILLUMINATION 33

Diagram illustrating the process of air conditioner unit with labeled parts and directional arrows

Importante

Diagram of a device panel with a speaker icon and control buttons, no text or symbols present

Botón RESET

Digital Audio Broadcasting (DAB)

23 45 AVR.50 86 km/h Natural Being | Thu 24 June | ALT.50m

Ejemplos:

[SYNC ILLUMI], [SYNC CLOCK], [MANUAL]

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation

Copyright (C) 1998-2009 PacketVideo

Pendiente: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, OFF

Pendiente: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, OFF

Pendiente: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct

Pendiente: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, OFF

Pendiente: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Subwoofer (Modo de red):

dB/oct, -30 dB/oct, -36 dB/oct, OFF

Diagram illustrating the process of inserting air conditioner into a door panel, with labeled steps 1 and 2.

Wichtig

Diagram of a device panel with a speaker icon and control panel, no text or symbols present

RESET-Taste

Einrichtungsmenü

23 45 AVR 50 86 km/h Natural Being Thu 24 June ALT.50m

Beispiele:

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright (C) 1998-2009 PacketVideo

Bluetooth-Profile: GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5

SPP (Serial Port Profile) 1.1

HINWEIS

Digital Audio Broadcasting (DAB)...... 8

Radio....9

CD/USB/iPhone®/AUX 11

Bluetooth 13

Spotify ^® 18

Diagram illustrating the process of inserting air conditioner into a door panel, with labeled steps ① and ②.

Belangrijk

Diagram of a device panel with a left-side control panel and a screen, no text or symbols present

RESET-knop

Instellingenmenu

Digital Audio Broadcasting (DAB)

Best stations memory (BSM)

Download on the App Store

23 45 AVR.50 86 km/h Natural Being | Thu 24 June ALT.50m

Voorbeelden:

[1.25K] tot [12.5K] (als u [HIGH] of [MID LPF] kiest)

[25] tot [250] (als u [MID HPF] of [SUBWOOFER] kiest)

Standaardmodus:

[25HZ] tot [250HZ]

ERROR-07, 11, 12, 17, 30

→De disc is vuil.

-Reinig de disc.

→De disc is bekrast.

ERROR-07, 10, 11, 12, 15, 17, 30, A0

-iPhone XR
-iPhone XS Max
-iPhone XS
-iPhone X
-iPhone 8
-iPhone 8 Plus

-iPhone 7
-iPhone 7 Plus
-iPhone SE
-iPhone 6s
-iPhone 6s Plus
-iPhone 6
-iPhone 6 Plus
-iPhone 5s

• Audiobook, Podcast: Compatibel

LET OP

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation

Copyright (C) 1998-2009 PacketVideo

Helling: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, UIT

Subwoofer/laagdoorlaatfilter (standaardmodus): Frequentie: 25 Hz / 31,5 Hz / 40 Hz / 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz / 160 Hz / 200 Hz / 250 Hz Helling: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, UIT Gain: +10 dB tot -24 dB (in stappen van 1 dB) Fase: Normaal/tegengesteld

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5

SPP (Serial Port Profile) 1.1

OPMERKING

Pioneer CarStereo-Pass

Please fill out immediately after purchase.

28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan

Корпорация Пайонир

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

2 Jalan Kilang Barat, #07-01, Singapore 159346 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202 Australia TEL: [phone]

PIONEER ELECTRONICS DE MÉXICO S.A. DE C.V.

BND. Manuel Ávila Camacho 138, 10 piso Col.Lomas de Chapultepec, México, D.F. 11000 Tel: [phone]. Fax: [phone]

先鋒股份有限公司
