Product Type	Portable Dry Case with Rechargeable Dehumidifier
Model	PDC24-BB
Brand	Ruggard
Inner Dimensions (H x W x D)	8 x 10.1 x 7.5 in (20.3 x 25.7 x 19 cm)
Outer Dimensions (H x W x D)	8.4 x 11.4 x 9.25 in (22.9 x 29 x 23.5 cm)
Volume	0.34 cu ft (9.6 L)
Weight (Case only)	2.8 lb (1.3 kg)
Weight (Case with dehumidifier)	3.6 lb (1.6 kg)
Weight (Case with dehumidifier and fabric insert)	3.86 lb (1.75 kg)
Dehumidifier Input Voltage	DC
Dehumidifier Power Supply	AC Adapter (included)
Charging Time	Up to 12 hours or until gels turn orange
Relative Humidity Reduction	Down to 25%
Gel Status Window	Orange = low saturation, Green = high saturation
Operating Principle	Silent, dripless, no fan or compressor
Optimal RH Range (40-50%)	Camcorders, cameras, lenses, telescopes, microscopes, etc.
Included Accessories	Foam liner, fabric insert, padded dividers (x2), shoulder strap, AC adapter
Shoulder Strap Length	Adjustable 35 to 58 in (89 to 147.3 cm)
Security Features	Security lock slot, rubber gasket seal
Warranty	90-day limited warranty
Certifications	Ruggard is a registered trademark of Gradus Group

Frequently Asked Questions - PDC24-BB Ruggard

How does the Ruggard PDC24-BB dehumidifier work?

The dehumidifier uses rechargeable silica gel that absorbs moisture from the air inside the case. The gel changes color from orange (dry) to green (saturated) to indicate moisture level. To regenerate, plug it into the AC adapter until the gel turns orange again.

How long does it take to charge the dehumidifier?

Charging can take up to 12 hours or until the gel status window shows orange. The power LED indicates when it is receiving power. Allow the unit to cool for 10-20 minutes before placing it in the case.

What is the optimal relative humidity level for storing camera equipment?

For most photographic and optical equipment like cameras, lenses, and telescopes, the recommended relative humidity level is between 40% and 50%.

Can I leave the dehumidifier inside the case while charging?

No. The dehumidifier becomes hot during charging. Always charge it outside the case in a well-ventilated area, and let it cool before placing it inside the case.

How do I know when the dehumidifier needs to be recharged?

The gel status window shows the saturation level. When the gel is green, it is saturated and needs recharging. When it is orange, it is dry and ready to use.

Can I use the case without the dehumidifier?

Yes, the case provides physical protection. However, without the dehumidifier, it will not actively reduce humidity. Using the dehumidifier is recommended to prevent mold and corrosion.

What items can I store in the Ruggard PDC24-BB?

You can store lenses, cameras, camcorders, telescopes, microscopes, endoscopes, film negatives, slides, disk drives, audio tapes, and other moisture-sensitive electronics.

How do I clean the dehumidifier?

Unplug and allow it to cool. Wipe the exterior with a dry, soft cloth. Do not immerse in water or use harsh cleaners, as this may damage the gel or electronics.

What does the warranty cover?

Ruggard offers a 90-day limited warranty against defects in materials and workmanship. It does not cover misuse, neglect, or accidental damage. Contact customer service for an RMA number to return defective products.

Is the dehumidifier safe for travel?

Yes, the case is portable with a handle and shoulder strap. However, ensure the dehumidifier is fully cooled and sealed inside. The case has a rubber gasket and security lock slot for safe transit.

USER MANUAL PDC24-BB Ruggard

Black and yellow portable electronic device with a small white breadboard and a coin on top (no visible text or symbols)

THANK YOU FOR CHOOSING RUGGARD.

The Ruggard Portable Dry Case protects your lenses, photographic and optical equipment, mobile electronics, and other valuables from excessive moisture. Using the included rechargeable dehumidifier, you can reduce the interior relative humidity to help prevent fungus and corrosion from damaging your gear. The case offers silent operation with no fan or compressor, and the unit is dripless, so there's no need for a water tray. Grab the case and bring it with you to your next location shoot, and keep your equipment sealed and protected against moisture-rich climates.

PRECAUTIONS

• Please read and follow these instructions, and keep this manual in a safe place.
• Keep this product away from children under 3 years old, as the small parts can pose a choking hazard.
• Keep this product away from direct sunlight and high-temperature heat sources.
• Do not cover the vents.
• Do not attempt to disassemble the unit.
• Do not drop or expose the dehumidifier to strong shocks.
• All images are for illustrative purposes only.

SPECIFICATIONS

PDC9-BRS

Dimensions(H × W × D)	Inner: 8 × 10.1 × 7.5 in. (20.3 × 25.7 × 19 cm)Outer: 8.4 × 11.4 × 9.25 in.(22.9 × 29 × 23.5 cm)
Volume	cu. ft. (9.6 L)
Weight	2.8 lb. (1.3 kg)Case with dehumidifier: 3.6 lb. (1.6 kg)Case, dehumidifier, and fabric insert:3.86 lb. (1.75 kg)

Dehumidifier

Input voltage	D V, 50/60 Hz
Relative humidity	to 25%
Input voltage	DC
Charging time
AC Adapter
Dimensions(H × W × D)	3.2 × 6.5 × 1.6 in.(8.1 × 16.4 × 4 cm)
Weight

Optimal Relative Humidity (RH) Levels

(RH) Level	Recommended Items
40%-50%	amcorders, cameras, lenses, telescopes, microscopes, endoscopes, compact discs, film negatives, film transparency/slides, microfilm, disk drives, audio tape

OVERVIEW

PDC9-BRS

1. Handle

1. Hygrometer: Displays relative humidity level.
2. Rubber gasket
3. Latch
4. Security lock slot
5. Shoulder strap mount

Also included

• Foam liner
• Fabric insert
• Padded dividers ( × 2 )
• Shoulder strap: Adjustable from 35 to 58 in. (89 to 147.3 cm)

OVERVIEW

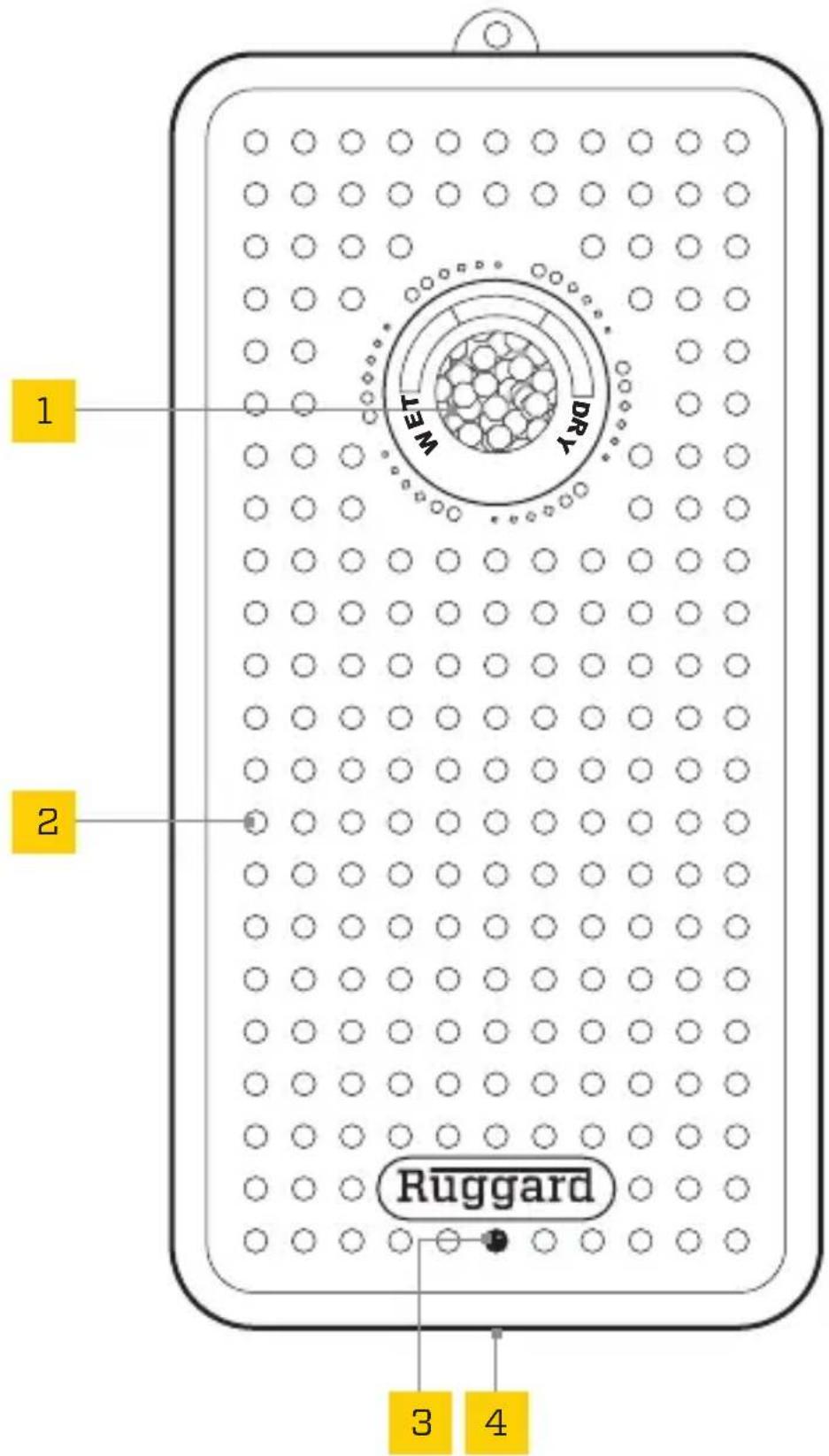

Dehumidifier

1. Gel status window: View the current moisture saturation level of the gels. Orange is low saturation, and green is high saturation. After completely charging the gels, let the dehumidifier cool for 10 to 20 minutes before use. Then, place it inside the Portable Dry Case along with the equipment you want to keep dry.

2. Air vents

1. Power LED: Shows that the dehumidifier is receiving power. Charging can last up to 12 hours or until the gels turn orange.

Warning! When the dehumidifier is plugged into an outlet for charging, the unit can become hot to the touch.

4. DC socket

Also included

- AC adapter

NINETY-DAY LIMITED WARRANTY

This Ruggard product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of ninety (90) days from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Ruggard Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Ruggard along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.ruggard.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

Ruggard is a registered trademark of the Gradus Group.

© 2021 Gradus Group LLC. All Rights Reserved.
