| Product Type | GPS Navigation System |
| Brand | Pioneer |
| Model | AVIC-6201NEX |
| Display Size | 6.2 inches |
| Display Type | WVGA Touchscreen |
| Dimensions (W x H x D) | 178 x 100 x 160 mm |
| Weight | 1.5 kg |
| Power Supply | 14.4 V DC |
| Navigation | Built-in GPS with voice guidance |
| Smartphone Integration | Apple CarPlay, Android Auto |
| Bluetooth | Hands-free calling and audio streaming |
| USB Ports | 1 x Front USB |
| Aux Input | 3.5 mm front auxiliary input |
| Radio | AM/FM with HD Radio and SiriusXM ready |
| Rear Camera Input | Compatible with rear view camera |
| Audio Playback | MP3, WMA, WAV, AAC, FLAC |
| Maintenance | Clean with soft, dry cloth |
| Safety | Professional installation recommended; do not disassemble |
| Spare Parts & Repairability | Contact Pioneer service center for repairs |
| General Information | Firmware updates available at pioneer.com |
Frequently Asked Questions - AVIC-6201NEX PIONEER
User questions about AVIC-6201NEX PIONEER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Gps in PDF format for free! Find your manual AVIC-6201NEX - PIONEER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AVIC-6201NEX by PIONEER.
USER MANUAL AVIC-6201NEX PIONEER
Operation Manual
Notice to all users:
This software requires that the product is properly connected to your vehicle's parking brake and depending on your vehicle, additional installation may be required. For more information, please contact your Authorized Pioneer Electronics retailer or call us at (800) 421-1404.
Be sure to read Important Information for the User first!
Important Information for the User includes the important information that you must understand before using this product.
Contents
Thank you for buying this Pioneer product. Please read through these instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this document in a safe place for future reference.
Important
The screens shown in the examples may differ from actual screens, which may be changed without notice for performance and function improvements.
■ Precaution......4
Notes on internal memory....4 About this manual....4 Use and care of the remote control....4
■ Basic operation......5

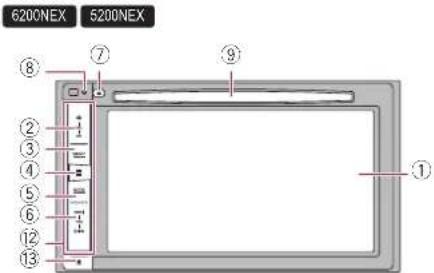

Checking part names and functions....5 Remote control....5 Protecting your product against theft....6 Notes on using the LCD panel....6 Adjusting the LCD panel angle....6 Inserting/ejecting/connecting media....6 On first-time startup....7 How to use the screens....8 Supported AV source....9 Displaying the AV operation screen....9 Selecting a source....9 Changing the display order of sources....9 Using the touch panel....9

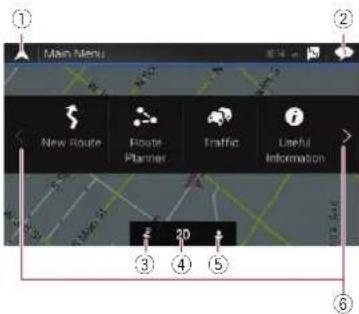

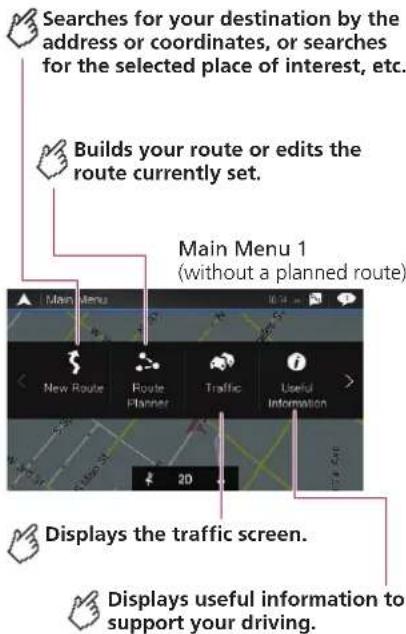

■ How to use the Navigation menu screen ....10
Operating the Navigation menu screen....11

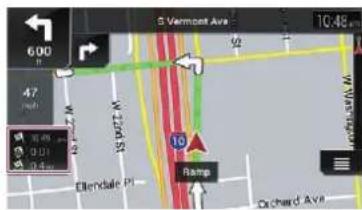

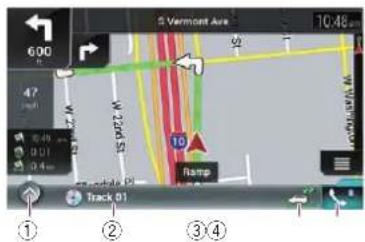

■ How to use the map......12

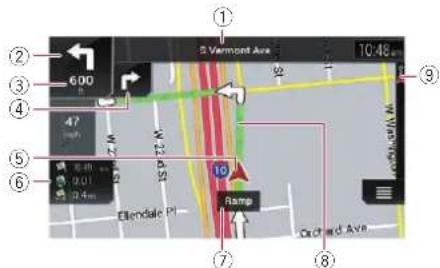

How to read the map screen....12 Operating the map screen....12 Understanding the route guidance....13 Browsing the data field....14
■ Searching for a destination....14
How to plan your route....14
Searching for a location by address....14

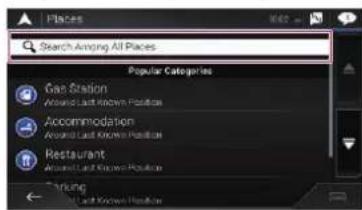

Searching for Points of Interest (POI)....15
Selecting a destination from stored locations....16
Selecting a destination from stored routes....16
Selecting a location you searched for recently....16
Searching for a location using "Combined Search"....16
Searching for a location by the coordinates....17
Searching for a location by scrolling the map....17

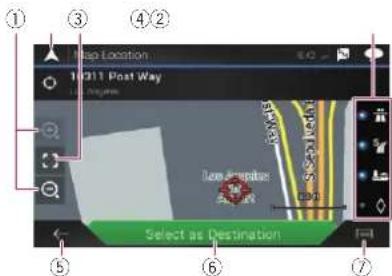

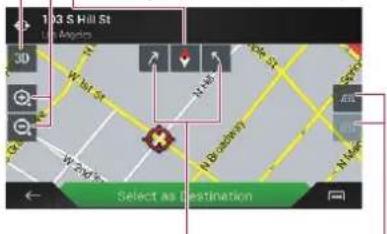

Using the "Map Location" screen....17

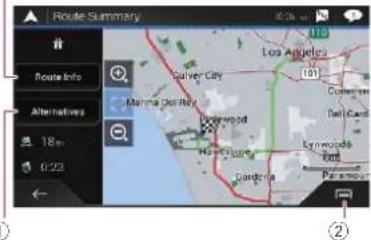

- Checking and modifying the current route......18
Modifying the route 18
■ Registering and editing locations and routes......20
Storing a location in "Saved Location"....20 Storing a route in "Saved Routes"....20 Editing the stored route....20 Deleting stored routes....20 Saving a location as an alert point....21

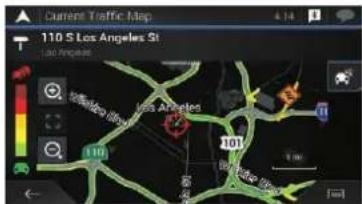

■ Receiving real-time traffic information (TMC)......21
Displaying the "Traffic Summary" screen....21 Viewing the traffic list....21 Checking the traffic incidents on the map....22 When traffic incidents occur on your route....22 Turning the traffic information on or off....22
- Checking useful information about your trip ....22
Displaying the "Useful Information" menu....22 Recording your travel history....23 Using the Trip Computer mode....23 Calculating the fuel consumption....23
■ Customizing preferences of the navigation .....24
Customizing the navigation settings....24 Information on each option of "Settings"....25 Setting the alert point warnings....28
Getting the map update....29 Expanding the use of the navigation functions ....29 Compatibility and connectivity....29
Bluetooth® connection ....30 Displaying the "Bluetooth" screen....30 Registering your Bluetooth devices....30 Connecting a registered Bluetooth device manually....31 Switching visibility....31 Entering the PIN code for Bluetooth wireless connection....31 Displaying the device information....31 Clearing the Bluetooth memory....31 Updating Bluetooth software....31 Displaying the Bluetooth software version....31

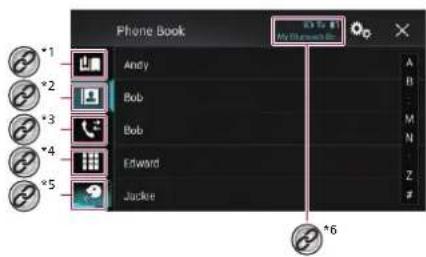

■ Hands-free phoning....32 Displaying the phone menu screen....32 Making a phone call....32 Receiving a phone call....32 Minimizing the dial confirmation screen....33 Changing the phone settings....33 Using the voice recognition function....33 Notes for hands-free phoning....33
■ Setup for iPod / iPhone or smartphone....34
The basic flow of iPod / iPhone or smartphone setup....34 Setting the device connection method....34 iPod / iPhone compatibility....34 Android™ device compatibility....34 Information on the connections and functions for each device....35

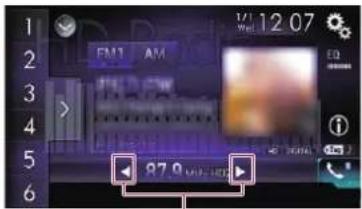

■ Radio ....37 Starting procedure....37 Storing the strongest broadcast frequencies....37 Displaying the "Radio settings" screen....37
■ HD Radio™ ....38 HD Radio stations....38 Starting procedure....39 Storing the strongest broadcast frequencies....39 Displaying the "Radio settings" screen....39

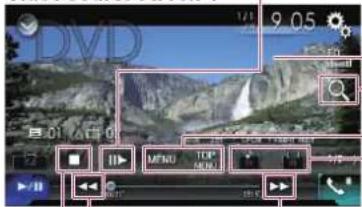

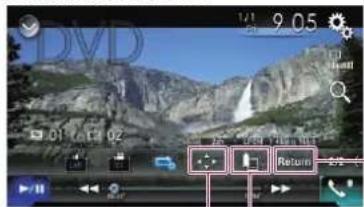

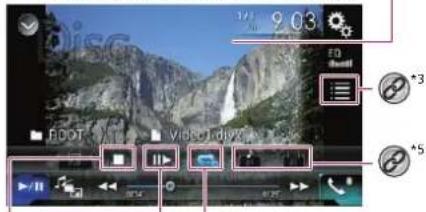

Disc....39

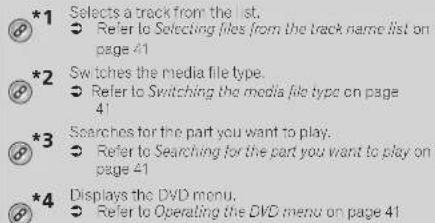

Starting procedure....41 Selecting files from the track name list....41 Switching the media file type....41 Searching for the part you want to play....41 Operating the DVD menu....41 Switching the subtitle/audio language....41 Operating the DVD menu using touch panel keys....42
■ Compressed files......42
Starting procedure (for Disc)....44 Starting procedure (for USB/SD)....44 Operations common to all file types....44 Audio file operations....44 Video file operations....45 Still image file operations....45

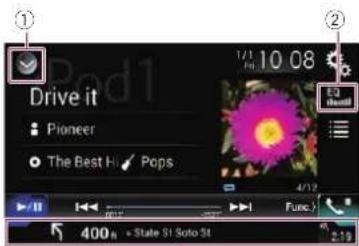

■ iPod ....45 Connecting your iPod....46 Starting procedure....47 Selecting song or video sources from the playlist screen....47 Using this product's iPod function from your iPod....47 Selecting a song from the list related to the song currently playing (link search)....47 Using Apple Music Radio....47
■ AppRadio Mode ....48 AppRadio Mode Compatibility ....48 Using AppRadio Mode ....48 Starting procedure ....48 Using the keyboard (for iPhone users) ....49 Adjusting the image size (for smartphone (Android) users) ....49 Using the audio mix function ....49
■ Apple CarPlay ....50 Using Apple CarPlay ....50 Starting procedure ....50 Setting the driving position ....50 Adjusting the volume ....50

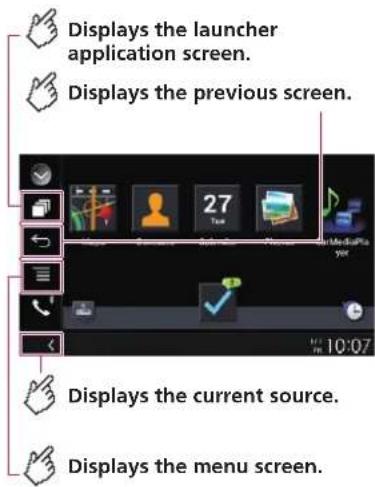

■ Android Auto™ ....51 Using Android Auto ....51 Starting procedure ....51 Setting the auto-launch function....51 Setting the driving position....51
Contents
Adjusting the volume....51
Pandora ^® 52

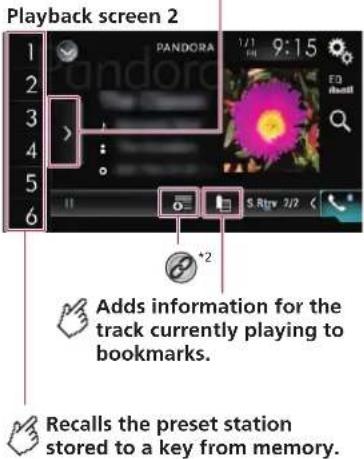

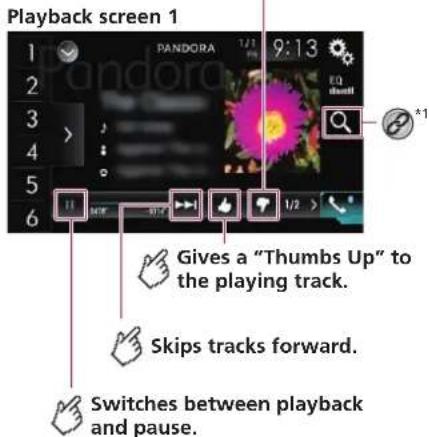

Using Pandora 53
Starting procedure 53
Selecting a Pandora station from the list......53
Adding a station 53
■ Bluetooth audio player....54
Starting procedure 54
Selecting files from the file name list....54

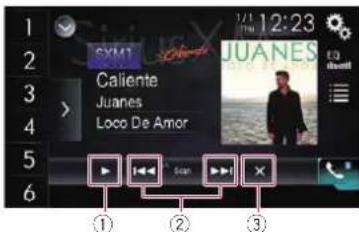

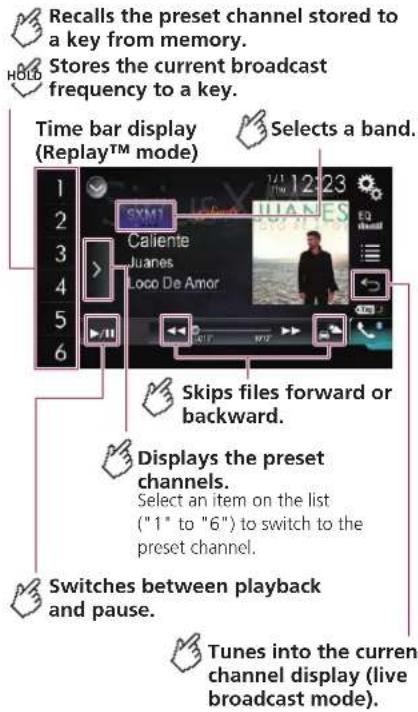

SiriusXM® Satellite Radio 55
SiriusXM tuner operations....55
Starting procedure 55
Subscribing to the SiriusXM Satellite Radio service....56
Selecting a channel from the category list .....56
Using TuneScan™ 56
Using TuneMix™ 56
Displaying the "SiriusXM Settings" screen.....56
Setting TuneStart" 56
Setting parental lock 56
Checking the update traffic and weather
information 57
Using SportsFlash ^* 57
Using the content alerts function ....57
Selecting teams for Game Alert ....58
Using Featured Favorites Band 58
Restoring the "SiriusXM Settings" to the
default....58
■ HDMI source......58
Starting procedure 58
■ AUX source....59
Starting procedure 59
Setting the video signal 59
■ AV input....59
Starting procedure (for AV source)....59
Starting procedure (for camera)....60
Setting the video signal 60

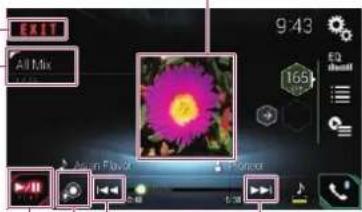

MIXTRAX 60
Using MIXTRAX....61
Starting procedure 61
Selecting an item from the list....61
Selecting songs not to be played....61
Displaying the "MIXTRAX Settings" screen....61
■iDatalink 62
Using iDatalink 62
Starting procedure 62
Using functions in Car Sources....62
Using functions in Car Features....62
Displaying the setting screen for iDatalink.....63
■ System settings......63

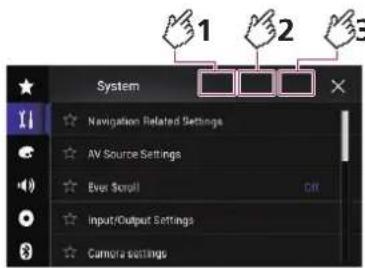

Displaying the "System" setting screen .....63
Setting the navigation information bar......63
Setting navigation screen interruption....63
Setting Bluetooth audio source activation .....63
Setting the ever scroll....64
Setting the beep tone 64

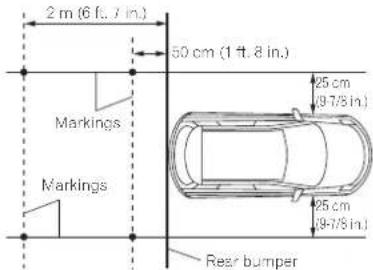

Setting the rear view camera....64
Setting the second camera 65
Setting the camera for Camera View mode....65
Setting the demo mode....65
Selecting the system language 65
Setting the keyboard language with the
application for iPhone....65
Adjusting the response positions of the touch
panel (touch panel calibration)....65
Setting the dimmer....66
Adjusting the picture 66
Displaying the firmware version....66
Displaying the open source licenses....67
Updating firmware 67
Checking sensor learning status and driving
status....67
Checking the connections of leads....67
■ Audio adjustments ......68
Displaying the "Audio" setting screen .....68
Using fader/balance adjustment....68
Switching sound muting/attenuation 68
Adjusting source levels 68
Setting the rear speaker output 68
Setting the subwoofer output....68
Adjusting the cutoff frequency value ....68
Selecting the listening position....68
Adjusting the speaker output levels finely.....69
Adjusting the time alignment 69
Using the equalizer 69
justing the equalizer curve automatically
(Auto EQ)....69
Theme menu .....71
Displaying the "Theme" setting screen .....71
Selecting the wallpaper....71
Setting the Illumination color....71
Selecting the theme color....71
Selecting the style of the clock....71
Changing the preinstalled splash screen .....71
Replicating the settings....72
■ Video settings....72
Setting up the video player 72
Setting the video signal for the rear view
camera 73
■Favorite menu....74
Creating a shortcut 74
Selecting a shortcut 74
Removing a shortcut....74
■ Other functions......74
Setting the time and date 74
Setting the "Sound Retriever" function....74
Changing the wide screen mode....74
Storing song information to an iPod (iTunes®)
Tagging)....74
Selecting the video for the rear display....75
Setting the anti-theft function 75
Restoring this product to the default
settings 76
■ Appendix....76
Troubleshooting 76
Error messages 77

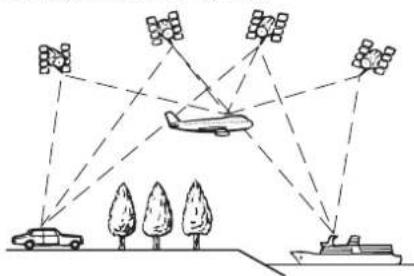

Positioning technology....80

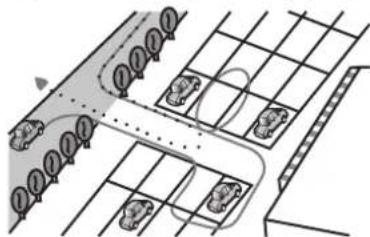

Handling large errors....81
Route setting information 84
Handling and care of discs 84
Playable discs....84
Detailed information for playable media......85
Bluetooth 87
SiriusXM® satellite radio....87
HD Radio™ Technology 88
SDHC 88
WMA/WMV 88
FLAG....88
DivX 88
AAC 88 Google, Google Play Androids 89
Google, Google Play, Android ^88
Android Auto 88
MIXTRAX....88
Detailed Information regarding connected iPod
devices....88
Using app-based connected content....89
Pandora ^® 89
HDMI 89
MHL 89
IVONA Text-to-Speech....89
Notice regarding video viewing....90
Notice regarding DVD-Video viewing....90
Notice regarding MP3 file usage....90
Notice regarding open source licenses....90
Map coverage 90
Using the LCD screen correctly....90
Specifications....90
Precaution
Notes on internal memory
Before removing the vehicle battery
If the battery is disconnected or discharged, the memory will be erased and must be reprogrammed.
- Some of the settings and recorded contents will not be reset.
Data subject to erasure
The information is erased by disconnecting the yellow lead from the battery (or removing the battery itself).
- Some of the settings and recorded contents will not be reset.
Resetting the microprocessor
CAUTION
Pressing the RESET button resets settings and recorded contents to the factory settings.
— Do not perform this operation when a device is connected to this product.
— Some of the settings and recorded contents will not be reset.
The microprocessor must be reset under the following conditions:
- Prior to using this product for the first time after installation. - If this product fails to operate properly.
- If there appears to be problems with the operation of the system.
- If your vehicle position is shown on the map with a significant positioning error.
1 Turn the ignition switch OFF.
2 Press the RESET button with a pen tip or other pointed implement.

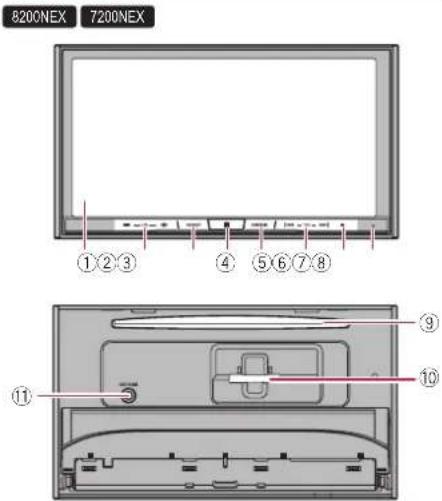

Refer to Checking part names and functions on page 5 Settings and recorded contents are reset to the factory settings.
About this manual
This manual uses diagrams of actual screens to describe operations. However, the screens on some products may not match those shown in this manual depending on the model used.
Meanings of Symbols Used in This Manual
| X0000BT | This indicates model name that are supported the described operations. |
| This indicates to touch an appropriate soft key on the touch screen. | |
| This indicates to touch and hold an appropriate soft key on the touch screen. | |
| This indicates that there is a reference or supplementary for the key or screen. |
Use and care of the remote control
Installing the battery
Slide the tray on the back of the remote control out and insert the battery with the plus (−) and minus (−) poles aligned properly.
- When using for the first time, pull out the film protruding from the tray.
WARNING
- Do not ingest the battery, Chemical Burn Hazard.
This product, including the supplied remote control, contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just two hours and can lead to death. - Keep new or used batteries out of the reach of children. If the battery is swallowed or placed inside any part of the body, consult a doctor immediately.
- If the battery compartment does not close securely, stop using the product and keep it away from children.
- Batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION
- Remove the battery if the remote control is not used for a month or longer.
There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type. - Do not handle the battery with metallic tools.
- Do not store the battery with metallic objects.
- If the battery leaks, wipe the remote control completely clean and install a new battery.
- When disposing of used batteries, comply with governmental regulations or environmental public institutions' rules that apply in your country/area.
- "Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. (Applicable to California, U.S.A.)"
Using the remote control
Point the remote control in the direction of the front panel to operate.
☐ The remote control may not function properly in direct sunlight.
CAUTION
- Do not store the remote control in high temperatures or direct sunlight.
- Do not let the remote control fall onto the floor, where it may become jammed under the brake or gas pedal.
Basic operation
Checking part names and functions
| 3 MAP button | Press to display the map screen.Press and hold to switch to the camera view mode.☐ This function is available only when "Back Camera Input" or "2nd Camera Input" is set to "On". | |
| 4 | ■ button | Press to display the top menu screen.Press and hold to activate the voice recognition function.⇨ Roter to Using the voice recognition function on page 33 |
| 5 MODE button | Press to switch between the Application screen and the AV operation screen.Press to turn the display off.☐ Press and hold to turn the display off when the Application screen is available.☐ When the display is turned off, touch the screen to revert to the original screen. | |
| 6 | TRK (▶◀◀) button | Press to return to the previous track (chapter) or go to the next track (chapter).Press and hold to perform fast reverse or fast forward.Press to answer or end a call. |
| 7 | ▲ button | |
| 8 RESET button | ⇨ Roter to Resetting the microprocessor on page 4 | |
| 9 D disc- loading sict | ⇨ Roter to Inserting and ejecting a disc on page 6 | |
| 10 SD card sict | ⇨ Refer to Inserting and ejecting an SD memory card on page 7 | |
| 11 Auto EQ microphone input jack | Use to connect a microphone for acoustical measurement (sold separately). | |
| 12 Detachable faceplate | ||
| 13 | ▲ button | Press to remove the detachable faceplate from this product. |
Remote control
8200NEX 6200NEX
| 1 | Volume (+/-) | |
| 2 | REAR SRC | Press to cycle through all the available rear sources. Press and hold to turn the rear source off. |
| 3 | SRC/OFF | Press to cycle through all the available front sources. Press and hold to turn the front source off. |
| 4 | Source mode select switch | Use to switch the source mode between the front source and the rear source. |
| 5 | Thumb pad | Use to select a menu on the DVD menu. |
| 6 | MUTE | |
| 7 | MENU | Press to display the DVD menu during DVD playback. |
| TOP MENU | Press to return to the top menu during DVD playback. | |
| 8 | RETURN | Press to return to the specified point and start playback from there. |
| 9 | ▶/II | Press to pause or resume playback. |
| ◀or ▶▶ | For audio: Press and hold to perform fast reverse or fast forward. For video: Press to perform fast reverse or fast forward. | |
| ◀or ▶▶ | Press to return to the previous track (chapter) or go to the next track (chapter). Press to answer or end a call. | |
| ■ | Press to stop playback. □ If you resume playback, playback will start from the point where you stopped. Touch the key again to stop playback completely. | |
Basic operation
| 10 | FOLDER/P.CH | Press to select the next or previous title or folder.Press to recall radio station frequencies assigned to preset channel keys.Press to answer or end a call. |
| 11 | AUDIO | Press to change the audio language during DVD playback. |
| SUBTITLE | Press to change the subtitle language during DVD playback. | |
| ANGLE | Press to change the viewing angle during DVD playback. | |
| 12 | BAND/ESC | Press to select the tuner band when tuner is selected as a source.Press to switch between media file types when playing the following types of data:DiscExternal storage device (USB, SD) |
7200NEX/5200NEX
The remote control CD-R38 (sold separately) is available.
- For details, refer to the remote control manual.
Protecting your product against theft
6200NEX 5200NEX
CAUTION
- Do not expose the detachable faceplate to excessive shock or disassemble it.
● Never grip the buttons tightly or use force when removing or attaching the detachable faceplate. - Keep the detachable faceplate out of reach of small
children to prevent them from placing it in their mouths. - After removing the detachable faceplate, keep it in a safe place so it is not scratched or damaged.
- Do not expose the detachable faceplate to direct sunlight and high temperatures.
- When removing or attaching the detachable faceplate, do so after turning off the ignition switch (ACC OFF).
Removing the detachable faceplate
1 Press the button.
2 Gently grip the bottom of the detachable face-plate and slowly pull it outward.
① Deacronale faceplate
Attaching the detachable faceplate
1 Slide the detachable faceplate all the way into this product.
2 Push the lower part of the detachable faceplate until you hear a click.
Notes on using the LCD panel
8200NEX 7200NEX
WARNING
- Keep hands and fingers clear of this product when opening, closing, or adjusting the LCD panel. Be especially cautious of children's hands and fingers.
- Do not use with the LCD panel left open. It may result in injury in the event of an accident.
CAUTION
- Do not open or close the LCD panel by force. It may cause a malfunction.
- Do not operate this product until the LCD panel has completely opened or closed, if this product is operated while the LCD panel is opening or closing, the LCD panel may stop at that angle for safety.
- Do not place a glass or can on the open LCD panel.
Adjusting the LCD panel angle
8200NEX 7200NEX
1 Press the button.
2 Touch +/- or to adjust the angle of the LCD panel.
3 Touch ✗.
Returns to the previous screen.
Inserting/ejecting/connecting media
CAUTION
- Do not insert anything other than a disc into the disc loading slot.
- Do not insert anything other than SD memory cards into the SD card slot.
- Ejecting an SD memory card during data transfer can damage the SD memory card. Be sure to eject the SD memory card by the procedure described in this manual.
- Do not press the ▲ button when an SD memory card is not fully inserted. Doing so may damage the card.
- Do not press the ▲ button before an SD memory card has been completely removed. Doing so may damage the card.
Inserting and ejecting a disc
Inserting a disc
8200NEX 7200NEX
1 Press the Button.
2 Touch ☐ to open the LCD panel.
3 Insert a disc into the disc-loading slot.
6200NEX 5200NEX
1 Insert a disc into the disc-loading slot.
Ejecting a disc
8200NEX 7200NEX
1 Press the Button.
2 Touch to open the LCD panel.
3 Remove the disc, and press the button.
6200NEX 5200NEX
1 Press the Button.
Basic operation
Inserting and ejecting an SD memory card
8200NEX 7200NEX
☐ This system is not compatible with the Multi Media Card (MMCI).
□ Compatibility with all SD memory cards is not guaranteed.
☐ This product may not achieve optimum performance with some SD memory cards.
Inserting an SD memory card
1 Press the Button.
2 Touch □ to open the LCD panel.
3 Insert an SD memory card into the SD card slot.
4 Press the button.
Ejecting an SD memory card
1 Press the button.
2 Touch ☐ to open the LCD panel.
3 Press the middle of the SD memory card gently until it clicks.
4 Pull the SD memory card out straight.
5 Press the button.
Plugging and unplugging a USB storage device
☐ This product may not achieve optimum performance with some USB storage devices.
□ Connection via a USB hub is not possible.
A USB cable is required for connection
1 Pull out the plug from the USB port of the USB cable.
2 Plug a USB storage device into the USB cable.
① USB cable
② USB storage device
☐ Check that no data is being accessed before pulling out the USB storage device.
On first-time startup
1 Start the engine to boot up the system.
The "Select Program Language" screen appears
7 From the second time on, the screen shown will differ depending on the previous conditions.
From the second time on, enter the password for the anti-theft function if the password entry screen appears.
2 Touch the language.
3 Touch →
The "Smartphone Setup" screen appears.
4 Touch the item.
Refer to Information on the connections and functions for each device on page 35
5 Touch →
The warning message screen appears.
6 Touch [OK].
The top menu screen appears.
On first-time startup of the navigation system
When you use the navigation function for the first time, an initial seluo process starts automatically. Follow the steps below.
☐ You can change the language later using [Regional] in the 'Settings' screen. Other settings can be restarted later using [Start Configuration Wizard] in the 'Settings' screen.
1 Press the button.
2 Touch or . NAVI
3 Touch the language that you want to use on the navigation screen, then touch [Select].
4 Read the terms carefully, checking the details, and then touch [Accept] if you agree to the conditions.
5 Touch [Next].
6 Touch the language that you want to use for voice guidance messages, then touch [Next].
7 If needed, modify the unit settings, then touch [Next].
8 If needed, modify the default route planning options, then touch [Next].
9 Touch [Activate], then [Next].
A message saying that the connected online features are activated appears if you activate these services right away.
Refer to "Connected Services" settings on page 28
10 Touch the connected services you want to use, then touch [Next].
The initial setup is now complete. The map screen appears and you can start using the navigation system.
Basic operation
How to use the screens
Application menu screen
Application operation screen
Map screen
Navigation menu screen
Time and date setting screen Setting menu screen

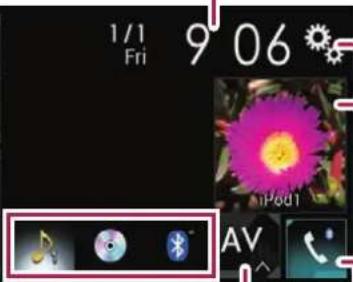

Top menu screen
Favorite source icons
AV operation screen
AV source selection screen
Phone menu screen
Basic operation
By pressing the button on any screen you can display the too menu screen.
☐ The character string "APPS" is replaced with "Apple CarPlay" when Apple CarPlay is running.
☐ 8200NEX/7200NEX The character string "APPS" is replaced with "Android Auto" when Android Auto is running.
☐ If you select "Power OFF" on the AV source selection screen, you can turn off almost all functions. The "Power OFF" mode is released in the following cases:
— An incoming cell is received.
— The rear view camera image is input when the vehicle reverses.
— A button on this product is pressed.
— The ignition switch is turned off (ACC ON), then turned on (ACC ON).
To protect this product from damage, the cooling fan may operate in "Power OFF" mode.
Supported AV source
You can play or use the following sources with this product. ● Radio (FM, AM) (*1)
- HD Radio (HD Radio "tunerj" (*2)
CD
- ROM (compressed audio or video files on discs)
DVD-Video
Video-CD
The following sources can be played back or used by connecting an auxiliary device.
USB
SD(*3)
Bod
- 50 - Fandero®
- Pandora - 2000th ^® studio
- Blueboth audio
SinusXM®Satellite Radio
• AV input (AV)
AUX
HDMI (*2)
Car Sources (DataLink)
7 (*1) 5200NEX
(2) 8200NEX/7200NEX/6200NEX
□ (*3) 8200NEX/7200NEX
Displaying the AV operation screen
1 Press the button.
2 Touch the AV operation key.
① AV operation key
The AV operation screen appears.
③
① Displays the source list.
② Recalls equalizer curves.
Refer to Using the equalizer on page 69
③ Shows the navigation information.
7 This is not dispaved for some sources.
- This is not displayed when "Navigation info window" is set
lo "Off"
- Refer to Setting the navigation information bar on page
63
Selecting a source
Source on the AV source selection screen
1 Display the AV source selection screen.
2 Touch the source icon.
□ When you select "Source OFF", the AV source is turned off.
Source on the source list
1 Display the source list.
Refer to Displaying the AV operation screen on page 9
2 Touch the source key.
When you select "Source OFF", the AV source is turned off.
Changing the display order of sources
Changing the display order of source icons
1 Display the AV source selection screen.
2 Touch and hold a source icon, and drag the icon to the desired position.
Changing the display order of source keys
1 Display the source list.
Refer to Displaying the AV operation screen on page 9
2 Touch
3 Drag the source key to the desired position.
Using the touch panel
You can operate this product by touching the keys on the screen directly with your fingers.
☐ To protect the LCD screen from damage, be sure to touch the screen only with your finger gently.
Basic operation How to use the
Common touch panel keys
- : Returns to the previous screen.
- : Doses the screen.
Operating list screens
① Touching an item on the list allows you to narrow down the options and proceed to the next operation.
② Appears when all characters are not displayed on the display area.
If you touch the key, the rest are scrolled for display.
③ Appears when items cannot be displayed on a single page. Drag the slider bar or the list to view any hidden items.
Operating the time bar
① You can change the playback point by dragging the key.
□ Playback time corresponding to the position of the key is displayed while dragging the key.
☐ This function is not available for some media or sources.
Switching the operation panel
1 Touch FuncOr . 1/2
The hidden function keys appears.
☐ This key does not appear for some AV sources.

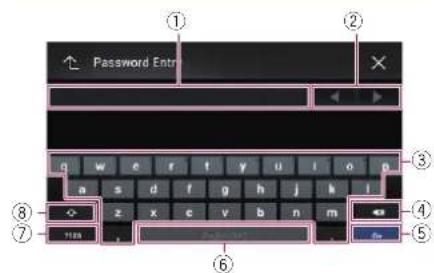

Operating the on-screen keyboard
① Displays the characters that are entered.
② Moves the cursor to the right or left for a number of characters equivalent to the number of touches.
③ Enters the characters in the text box.
④ De etes the input text to the left of the cursor one letter at a time. Touching and holding the key de etes the letters to the left of the cursor in rapid succession.
⑤ Confirms the entry and proceeds to the next step.
⑥ Enters a space.
⑦ Switches between alphabet and numbers/symbols.
⑧ Switches between capital and lower case letters.
Navigation menu screen
How to use the Navigation menu screen
Configures the navigation-related settings.
You can also access the "SyncTool" screen from this menu.
Main Menu 2
(without a planned route)
Displays information about your navigation system.
The version information, or licenses can be displayed, for example.
5200NEX
The traffic features of [Traffic] can be used when the online traffic feature is available.
Operating the Navigation menu screen
1 Press the MAP button.
2 Touch
Other items
You will also see the following keys when you are navigating without a planned route.
① Returns to the map screen.
② Displays notifications that contain important information.
③ Displays the location that you saved as a favorite.
④ Switches among 2D, 3D, and 2D North up view modes.
⑤ Displays the 'User Profiles' screen where you can create new profiles or edit the existing profiles. If multiple drivers are using this product, they can create their own profiles with their own settings. If you see a new profile, this product restarts so that the new settings can take effect.
⑥ Displays the previous or next page of the navigation menu. If there is no next or previous page, this item is grayed out.
- The upper right corner of the screen is used for AVICSYNC App connection.
- Be sure road Expanding the use of the navigation functions (page 29) before using the AVICSYNC function.

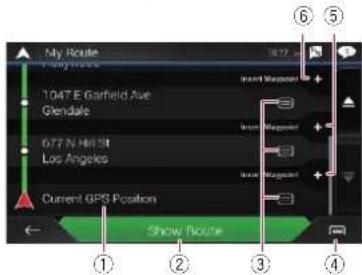

When you are navigating a planned route, the following route-related keys are available.
②①
③
④
⑤
① Aods a waypoint.

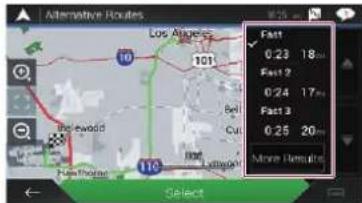

② Displays route allernal ves. parts of the route to avoid, or specific roads in your planned route to avoid.
③ Suspends and resumes the route guidance.
④ Displays the route in its full length on the map, and displays route parameters and route alternatives.
⑤ Deletes your route or removes a waypoint.
How to use the map
Most of the information provided by your navigation system can be seen on the map. You need to become familiar with how information appears on the map.
How to read the map screen
☐ The following informal on marked with an asterisk (*) appears only when a route is set.
☐ Depending on the conditions and settings, some items may not be displayed.
(1) Shows the number and name of the street to be used (or next guidance point).*
② Shows the next guidance point (maneuver).* The type of the event (turn, traffic circle, exiting freeway, etc.) is displayed.
Refer to Frequently shown route events on page 13
③ Shows the distance to the next guidance point (maneuver).*
④ Shows the maneuver after the next maneuver.*
(5) Indicates the current location of your vehicle. The apex of the triangular mark indicates your orientation and the display moves automatically as you drive.
□ When there is no GPS position, the triangular mark is transparent. It shows your last known position.
⑥ Displays the data field.
(7) Shows the name of the street (or city) that your vehicle is traveling on (or in).
⑧ Indicates the current route.
The route currently set is highlighted in color on the map.
⑨ Indicates the progress to the final destination.
AV information bar
AV information is displayed at the bottom of the map screen.
① Touch to display the AV source list.
② Shows the current status of AV source briefly.
③ You can turn on or off the communication between the
AVICSYNC App and the navigation system by touching the key.
☐ This setting is always turned on when you use the AVICSYNC App on an iPod/iPhone (the setting cannot be changed).
④ Touch to display the phone menu screen.
- Refer to Displaying the phone menu screen on page 32
Operating the map screen
Changing the scale of the map manually
By default, even if the map scale is changed on the scrolled map, it will return to the preset scale (according to the setting in "Viewpoint" of the "Navigation Map" settings) when the current position map is displayed. If you change the scale of the current position map, perform the following procedure.
1 Press the MAP button and touch ≡.
2 Touch □, and then touch [Settings].
3 Touch [Navigation Map], and then [Map Display].
4 Touch [Viewpoint].
5 Drag the pop-up window and touch [Manual].
6 Press the MAP button.
7 Touch 🔒 or 🔒
Smart Zoom
Your navigation system features "Smart Zoom" that works in two ways:
- When the route is set: When approaching a turn, "Smart Zoom" will zoom in and raise the view angle to enable you to easily recognize your maneuver at the next junction. If the next turn is at a distance, it will zoom out and lower the view angle to be flat so you can see the road in front of you.
- When the route is not set: "Smart Zoom" will zoom in if you drive slowly and zoom out when you drive at high speed.
Switching between 2D, 3D, and 2D North up views
You can switch how the map is displayed. For 2D map view mode, you can select between "Heading up" and "North up".
- Heading up: The map display always shows the vehicle's direction as proceeding toward the top of the screen.
- North up: The map display always has north at the top of the screen.
- The map orientation is fixed at "Heading up" when the 3D map screen is displayed.
1 Press the MAP button.
2 Touch
3 Touch the following key.
Each time you touch the key the setting changes.
| 2D | Indicates 2D Heading up view mode is currently selected. |
| 3D | Indicates 3D Heading up view mode is currently selected. |
| 2D | Indicates 2D North up view mode is currently selected. |
☐ There is a limit to map scaling in 3D map view mode. If the map scale is zoomed out further, the map is zoomed out in 2D map.
How to use the map
Scrolling the map to the position you want to see
1 Press the MAP button.
2 Touch anywhere on the map or touch and drag the map in the desired direction to scroll.
If you place the cursor on the desired location, a brief overview about the location will appear at the top of the screen, showing the street name and other information for the location;
3 Touch
The map returns to the current position.
If you press the MAP button, the map returns to the current position.
Control keys on the scrolled map
Changes the map view mode.
The current map mode is shown on the control key.
Zooms in or out on the map. You can also zoom out or in by pinching or expanding the map.
Cancels map rotation.
Map screen (scrolled map)
Rotates the map clockwise or counterclockwise.
Tilts the map angle up or down.
You can change the vertical view angle of the map in 3D mode only.
Understanding the route guidance
Once the route guidance begins, the system provides various guices by voice, text indications and signs.
Frequently shown route events
The following are some examples of the maneuvers that are displayed.
 | Turn left, turn right, turn back. | |
 | Go left on the traffic circle, 3rd exit (next maneuver). | |
 | Enter traffic circle (maneuver after the next maneuver). | |
| [2X10] | Freeway entrance or freeway exit. | |
| [CTS6] | Board ferry or leave ferry. | |
| [5ZWS] | Approaching the destination or a waypoint. | |
Lane information
When navigating on multi lane roads, you will need to make sure to take the proper lane for the recommended route.
Signposts
Signs are displayed at the top of the map.
Junction view
If you are approaching a complex intersection, the map is replaced with a 3D view of the junction.
How to use the map Searching for a
☐ If the data for these items is not contained in the map data, the information is not available even if there are signs on the actual road.
When you set "Offer Freeway Services" to "on", the icon appears while you are driving on freeways. Touch the icon to open the details of the next few exits or service stations. In addition, touch an item to show its location on the map. You can set it as a waypoint easily.
Browsing the data field
The data fields are different when you are navigating a route and when you have no specified destination. For example, the data field provides the following information.
- When the route is set:
Distance to final destination, time needed to reach the final destination and estimated arrival time are shown.
- When the route is not set;
Direction or altitude is shown.
Touching and holding the field allows you to display the setting screen for the field.
Refer to Data Fields on page 27
The estimated time of arrival is an ideal value calculated based on the speed limit value set in "Max. Speed" of vehicle lyce setting and the actual driving speed. The estimated time of arrival is only a reference value, and does not guarantee arrival at that time.
Refer to "Route Preferences" settings on page 25
destination
CAUTION
For safety reasons, these route setting functions are not available while your vehicle is in motion. To enable these functions, you must stop in a safe place and put on the parking brake.
Some information regarding traffic regulations depends on the time when the route calculation is performed. Thus, the information may not correspond with a certain traffic regulation when your vehicle actually passes through the location in question. Also, the information on the traffic regulations provided applies for a passenger vehicle, and not for a truck or other delivery vehicles. Always follow the actual traffic regulations when driving.
[Destination from Phone] and [Online Search] on the "New Route to..." screen can be used when the AVICSYNC App connection is established.
- Be sure read Expanding the use of the navigation functions (page 29) before using the AVICSYNC function.
How to plan your route
The following is a summary of the route setting procedure.
1 Search for a destination using various methods on the [New Route] menu.
The location you searched for appears on the 'Map Location' screen.
2 Touch [Select as Destination].
Refer to Using the "Map Location" screen on page 17 The "Route Summary" screen appears and countdown begins. When the countdown ends, the guidance automatically starts. If you touch the screen anywhere during the countdown, the countdown stops and the screen will stay as it is.
Refer to Checking route information and preferences on page 19
3 Touch [Start Navigation].
Your navigation system starts the route guidance.
Refer to Understanding the route guidance on page 13
Searching for a location by address
The most frequently used function is the address search in which the address is specified and the location is searched.
Searching for a destination
☐ Depending on the search results, some steps may be skipped.
1 Press the MAP button and touch ≡.
2 Touch [New Route].
3 Touch [Address].
4 Touch the following text box and set the destination you are looking for.
Country:
By default, your navigation system proposes the country where you are.
If you want to change the area to search set another country.
City or ZIP code
By default, your navigation system proposes the city/town where you are. You can select the city/town using its postal code instead of its name.
Street
If the street name is not available, touch Go to City and select the city/town. This way the center of the selected city/town becomes the destination of the route.
- Select House Number or Intersection
This item will be displayed after you have set a street. If the house number is not available, touch [Go to Street] and select the street. This way the center of the selected street becomes the destination of the route.
After you touch the selected address to finish the address search, the searched location appears on the map screen.
5 Touch [Select as Destination], and then touch [Start Navigation].
Your navigation system starts the route guidance.
Searching for Points of Interest (POI)
Information about various facilities (Points Of Interest – POI), such as gas stations, parking lots or restaurants, is available. You can search for a POI by selecting the category (or entering the POI Name).
Searching for POIs using preset categories
The preset search allows you to quickly find the most frequently selected types of POIs.
1 Press the MAP button and touch ≡.
2 Touch [New Route].
3 Touch [Places].
The oreset search categories are as follows.
Gas Station
Accommodation
Restaurant
Parking
When a route is not set, POIs are searched for around the current position.
☐ When the current position is not available either (no GPS signal), POIs are searched for around the last known position.
☐ When a route is set, "Gas Station" and "Restaurant" are searched for along the route, and "Accommodation" and "Parking" are searched for around the destination.
4 Touch the category.
5 Touch the POI.
The searched location appears on the map screen.
- If you touch, you can sort the results or show the locations of all facilities on the map.
6 Touch [Select as Destination], and then touch [Start Navigation].
Your navigation system starts the route guidance.
Searching for POIs by categories or directly from the name of the facilities
You can search for POIs by their categories and subcategories. You can also search for POIs by their names in each of their categories.
1 Press the MAP button and touch ≡.
2 Touch [New Route].
3 Touch [Places].
4 Touch [Search Among All Places].
5 Touch [Around Here] and then select the area in which the POIs should be searched for.
Category View:
You can select whether or not PCI categories are displayed.
Around Here:
Searches around the current position. Or, around the last known position if the current position is not available. (The results will be listed in order of the distance from this position.)
In a City
Searches for a place within a selected city/town. (The results will be listed in order of the distance from the center of the selected city/town.)
• Around Destination
Searches for a place around the destination of the current route. (The results will be listed in order of the distance from the destination.)
☐ This key is active only when the route is set
Along Route
Searches along the current route, and not around a point already set. This is useful when searching for a stopover that results in a minimal delour, such as searching for gas stations or restaurants. (The results will be listed in order of the length of the necessary delour.)
This key is active only when the route is set
6 Select one of the categories, subcategories or brands to narrow down the places.
■ If you touch [Search by Name], you can search for POIs by their names.
7 Touch the POI.
The searched location appears on the map screen.
- If you touch, you can change the sort method of the results.
8 Touch [Select as Destination], and then touch [Start Navigation].
Your navigation system starts the route guidance.
Searching for a destination
Searching for providers nearby that offer emergency or roadside assistance services
Important
Never use this product to route to hospitals, police stations or similar facilities in an emergency. Stop using any functions relating to the hands-free phone and please call the appropriate emergency number.
You can search for locations that provide emergency or roadside assistance in the surrounding areas.
☐ This information does not necessarily correspond to actual information. Utilize the information for your reference.
1 Press the MAP button and touch ≡.
2 Touch [Useful Information].
3 Touch [Help Nearby].
The presel search categories are as follows.
Car Repair
Health
Police
Gas Station
4 Touch the category.
5 Touch the POI.
The searched location appears on the map screen
■ If you touch you can change the sort method of the results.
6 Touch [Select as Destination], and then touch [Start Navigation].
Your navigation system starts the route guidance.
Selecting a destination from stored locations
Storing locations you visit frequently saves time and effort. Selecting an item from the list provides an easy way to specify the position.
The list of saved locations contains two preset categories: Home and Work.
This function is available if locations have been registered in "Saved Location".
Refer to Storing a location in "Saved Location" on page 20
1 Press the MAP button and touch
2 Touch [New Route].
3 Touch [Saved Location].
- If you touch and then [Edit], you can edit the details of saved locations.
4 Touch the entry.
The searched location appears on the map screen.
5 Touch [Select as Destination], and then touch [Start Navigation].
Your navigation system starts the route guidance.
Selecting a destination from stored routes
Storing routes you use frequently saves time and effort.
This function is not available if no routes have been registered in "Saved Routes".
Refer to Storing a route in "Saved Routes" on page 20
1 Press the MAP button and touch
2 Touch [New Route].
3 Touch ▶ to show the next page.
4 Touch [Saved Routes].
5 Touch the entry.
☐ You can add waypoints or change the final destination on the "Route Planner" screen.
Refer to Building a route using "Route Planner" on page 18
6 Touch [Show Route], and then touch [Start Navigation].
Your navigation system starts the route guidance.
Selecting a location you searched for recently
The places that were previously set as destinations or waypoints have been automatically stored in 'History'.
History
1 Press the MAP button and touch ≡.
2 Touch [New Route].
3 Touch ▶ to show the next page.
4 Touch [History].
5 Touch the entry.
The searched location appears on the map screen.
6 Touch [Select as Destination], and then touch [Start Navigation]. Your navigation system starts the route guidance.
Smart History
Smart History suggests these previously used locations as destinations based on your navigation habits, using parameters like the current time of day, the day of week, and the current location. Smart History items are shown in the "New Route to..." screen for easy access.
Searching for a location using "Combined Search"
The "Combined Search" feature lets you quickly find a place by its name and search area.
☐ The "Combined Search" function also searches your stored data.
1 Press the MAP button and touch ≡.
2 Touch [New Route].
3 Touch [Combined Search].
Searching for a destination
4 Touch the right text box to enter the country and city/town.
5 Enter the name, address, or category of the destination to the left text box, then touch 🔒
6 Touch the entry.
The searched location appears on the map screen.
7 Touch the right of the list to narrow down the search results.
■ If you touch a map data provider logo, you can narrow down the list of results by showing the results from the provider.
8 Touch [Select as Destination], and then touch [Start Navigation].
Your navigation system starts the route guidance.
Searching for a location by the coordinates
1 Press the MAP button and touch ≡.
2 Touch [New Route].
3 Touch ▶ to show the next page.
4 Touch [Coordinates].
5 Enter the latitude value and touch [OK].
☐ When a value is already entered in the text field, delete the value first.
☐ You can change the display format of the latitude and longitude to any of the following formats: decimal degrees, degrees and decimal minutes; or degrees, minutes and decimal seconds.
- When entering the coordinates in UTM format, touch [then [UTM Coordinates].
6 Enter the longitude value and touch [Go!].
When a value is already entered in the text field, delete the value first.
The searched location appears on the map screen.
7 Touch [Select as Destination], and then touch [Start Navigation].
Your navigation system starts the route guidance.
Searching for a location by scrolling the map
Specifying a location after scrolling the map enables you to set the position as a destination or waypoint
1 Press the MAP button.
2 Touch and drag the screen to scroll the map.
3 Touch the location that you want to select as your destination.
The cursor appears.
4 Touch [Select as Destination], and then touch [Start Navigation].
Your navigation system starts the route guidance.
Using the "Map Location" screen
Once a location is searched, the "Map Location" screen appears. You can select some options for the route or displayed map location before route calculation.
☐ If you touch the map, the cursor is placed at that position. Also, you can scroll the map by dragging the map.
① Zoom in/zoom out
☐ You can also pinch or expand the map to zoom in or out.
② Cancels the "Map Location" screen and displays the map of the current position.
③ Returns the cursor to the initial position and the map scale to the initial scale.
④ Shows the route setting preferences for route calculation. Touch the keys to activate or deactivate the preference.
| Calculates the route prioritizing the use of freeways when the key is activated. | |
| Calculates the route prioritizing the use of per-use charged toll roads when the key is activated. | |
| Calculates the route prioritizing the use of ferries when the key is activated. | |
| Calculates the route prioritizing the use of car pool and HOV lanes when the key is activated. |
⑤ Returns to the previous screen.
⑥ Sets the cursor position to your destination (or waypoint).
⑦ Displays the shortcuts.
• Detailed Information
Shows the detailed information of the point
- Save Location:
Saves the displayed location as your favorite location. The saved location can be easily recalled later.
- Places Around Cursor
Searches for POIs around the displayed location, Touch the POI to show the "Map Location" screen, and also set the POI as the destination (or waypoint).
Checking and modifying the current route
Modifying the route
When navigation is already started, there are several ways to modify the current route. The following sections describe some of those options.
Building a route using "Route Planner"
The "Route Planner" (or "My Route") feature lets you build your route using the list of destinations.
Editing the list allows you to plan your route easily.
Once you set the route, you can edit your route using the menu displayed as "My Route".
1 Press the MAP button and touch ≡.
2 Touch [Route Planner] or [My Route].
3 Touch one of the options.
① Starting position (The current vehicle position is set as default and [Current GPS Position] is displayed.)
Refer to Changing the starting position on page 18
② Calculates the route and shows the "Route Summary" screen.
③ Displays the options for the location.
- Move Up/Move Down:
Edils the order you want to visit the locations.
Delete
Deletes the destination or waypoint.
Save Location
Stores the location in "Saved Location"
Refer to Storing a location in "Saved Location" on page 20
Change:
Changes the destination or waypoint to another location.
• Show on Map
Shows the selected location on the map.
④ Displays the shortcuts.
Delete All
Deletes all waypoints and the destination. Touch
|Continue Without Route to cancel the planned route.
Optimize Waypoints:
Changes the order of waypoints automatically so that the route can be easily traveled. (If the resulting order is the same as the current order, this option is invalid.)
Optimize Route
Changes the order of all waypoints and the destination automatically so that the route can be easily traveled. (If the resulting order is the same as the current order, this option is invalid.)
⑤ Inserts a new waypoint.
⑥ Aods a new destination and changes the current destination to the last waypoint.
Changing the starting position
The starting position for route can be changed from the current position.
1 Press the MAP button and touch ≡.
2 Touch [Route Planner] or [My Route].
3 Touch [Current GPS Position].
4 Touch [Set Start Point] or [Change Start Point] and then touch [OK].
5 Search for a location.
6 Touch [Set Start Point] or [Change Start Point].
The selected position is set as the starting position for route calculation.
7 Touch [Show Route] or [Continue Without Route].
The system starts route recalculation after [Show Route] is touched, and then the "Route Summary" screen appears. After [Start Navigation] is touched, your navigation system starts the route guidance.
After [Continue Without Route] is touched, the current position map appears.
Restoring the current position as the starting position
1 Press the MAP button and touch ≡.
2 Touch [Route Planner] or [My Route].
3 Touch [Current GPS Position].
4 Touch [Back to GPS Position] and then touch [Delete Start Point].
The starting position for route calculation returns to the current position,
Adding waypoints
1 Press the MAP button and touch ≡.
2 Touch [Add Waypoint].
3 Search for a location.
4 Touch [Select as Waypoint].
The route is recalculated, and the "Route Summary" screen appears. (When the waypoint is already set, the "My Route" screen appears. Touch [Show Route] and proceed to the next stop.)
5 Touch [Start Navigation].
Your navigation system starts the route guidance.
Checking route alternatives
You can select another route and compare different route alternatives.
1 Press the MAP button and touch ≡.
2 Touch [Detours & Alternatives].
3 Touch [Alternative Routes].
4 Touch any of the route calculate conditions.
You can see the approximate time required and total distance of selected route alternatives. Touch any of the route alternatives to see it on the map.
☐ If more than three route alternatives have been found, [More Results] appears. Touch [More Results] to show the other routes.
Checking and modifying the current route
- For information about route calculation conditions, refer to Route Planning Method on page 25
5 Touch [Select].
The selected route is applied as your current route.
Checking detour routes
You can check for delour routes that avoid the selected sections or streets, or that avoid the road ahead. You can also check for alternative routes.
1 Press the MAP button and touch ≡.
2 Touch [Detours & Alternatives].
3 Touch one of the options.
Alternative Routes
Shows the alternative routes. Refer to Checking route alternatives on page '8
- Avoid Special Sections:
Shows the route avoiding certain sections. Touch the list item to select the section you want to avoid. The distance and time difference, suggested route, current route, and the sect on avoided are shown. Touch [Accept] to apply the suggested route.
- Avoid Specific Road:
Shows the route avoiding certain road. Touch the list item to select the road you want to avoid. Distance and time difference, suggested route, current route, section avoided are shown. Touch [Accept] to apply the suggested route.
- Avoid Road Ahead
Shows the route avoiding the road ahead. Touch [+] or [-] to set the distance you want to avoid. Touch [Avoid] to apply the suggested route.
- Restore Original Route:
Cancels the route with avoidances and restores the previous route. ☐ The route sel by [Alternative Routes] cannot be canceled.
Checking route information and preferences
Once you set the route, you can check a summary of the current route.
1 Press the MAP button and touch ≡.
2 Touch [Route Summary].
3 Touch one of the options.
③
The conditions of the displayed route is shown in the upper left by icon. The total length of the route and approximate required time for the route in the lower left.
☐ You can scroll the map by dragging the map.
① Shows alternative routes.
Refer to Checking route alternatives on page 18
② Displays the shortcuts.
Route Preferences:
Shows the route setting preferences. If you change the preferences, the route is recalculated.
Itinerary
Shows all transit points in detail. Touch a transit point to show its position on the map. If you touch [Avoid] on the map screen, the route is recalculated avoiding the transit point (as much as possible).
Save Route:
Saves the displayed route. The saved route can be recalled later.
- Places Along Route
Searches for POIs along the displayed route. Touch the POI to show the 'Map Location' screen, and also set the POI as a waypoint.
Simulation:
You can run a simulation of the navigation for the current route, as a demonstration.
Refer to Watching the simulation of the route on page 19
③ Shows the information for a transit point on the route. Touching the items allows you to see the location on the map. Touch [Avoid] and [Accept] to set the location as a location to avoid.
Canceling the current route guidance
If you no longer need to travel to your destination, follow the steps below to cancel the route guidance.
1 Press the MAP button and touch ☐.
2 Touch [Cancel Route] or [Delete Waypoint].
3 Touch one of the options.
If there are no waypoints on the route, touch [Cancel Route] to cancel the route.
If there are waypoints on the route, touch [Cancel Route] to cancel the route. Touch [Delete Waypoint] to delete only the nearest waypoint. In such case, the route is recalculated.
Watching the simulation of the route
You can run a simulation of the navigation for the current route, as a demonstration.
1 Set a route to your destination.
- Refer to Searching for a destination on page 14
2 Press the MAP button and touch ≡.
3 Touch [Route Summary], and then touch ☐
4 Touch [Simulation].
The simulation starts from the starting point of the route, and using a realistic speed, it leads you through the whole recommended route.
■ Touch [Close] to stop the simulation.
Registering and editing locations and routes
Storing a location in "Saved Location"
Storing your favorite locations in "Saved Location" allows you to save the time and effort used on re-entering this information. "Saved Location" can include your home location, workplace, and places you have already registered.
Storing your home and your work-place location
You can store one home location and one workplace location.
1 Press the MAP button and touch ≡.
2 Touch [New Route], and then [Saved Location]. You can also display the 'Saved Location' screen by touching on the bottom of the screen when the navigation menu is displayed.
3 Touch [Home] or [Work] and then touch [OK]. ☐ When you have already stored your home or workplace, touch [Home] or [Work] to show the location on the "Map Location" screen.
4 Search for a location.
Refer to Searching for a destination on page 14
5 Touch [Add to Saved Locations]. The cursor position has been stored.
Storing your favorite locations
You can store a frequently visited location (such as a relative's home) to allow easy routing.
1 Press the MAP button and touch ≡.
2 Touch [New Route], and then [Saved Location]. You can also display the "Saved Location" screen by touching on the bottom of the screen when the navigation menu is displayed.
3 Touch [Add Location].
4 Search for a location.
Refer to Searching for a destination on page 12
5 Touch [Add to Saved Locations].
6 Enter the name if needed and then touch
The cursor position has been stored.
In the on-screen keyboard, touching 📄 enfoles you to store the location as your home or workplace location.
Editing stored locations
Stored locations can be edited.
Switching to the edit mode
1 Press the MAP button and touch ≡.
2 Touch [New Route], and then [Saved Location].
3 Touch □, and then touch [Edit].
The "Select Location to Edit" screen appears.
Renaming stored locations
1 Switch to the edit mode.
Refer to Switching to the edit mode on page 20
2 Touch the item you want to rename and touch [Rename].
7 "Home" and "Work" cannot be renamed. The location can be set again.
3 Enter the name and then touch
4 Touch [Done].
Deleting stored locations
1 Switch to the edit mode.
Refer to Switching to the edit mode on page 20
2 Touch the item you want to delete and touch [Delete].
- "Home" and "Work" cannot be deleted. The location can be set again.
7 If you touch 📄 then touch [Delete All], all entries (including the home and workplace locations) can be deleted.
A message will appear asking you to confirm the deletion.
3 Touch [OK].
4 Touch [Done].
Storing a route in "Saved Routes"
Storing your favorite routes in "Saved Routes" allows you to save the time and effort used on re-entering this information.
1 Set a route to your destination.
Refer to Searching for a destination on page 14
2 Press the MAP button and touch ≡.
3 Touch [Route Summary], and then touch ☐
4 Touch [Save Route].
5 Enter the name if needed and then touch √.
Editing the stored route
Stored routes can be edited.
Renaming stored routes
1 Press the MAP button and touch ≡.
2 Touch [New Route], and then >.
3 Touch [Saved Routes].
4 Touch ☐, and then touch [Edit].
5 Touch the item you want to rename and touch [Rename].
6 Enter the name and then touch. √
7 Touch [Done].
Deleting stored routes
1 Press the MAP button and touch ≡.
2 Touch [New Route], and then ▶.
3 Touch [Saved Routes].
4 Touch ☐ and then touch [Edit].
5 Touch the item you want to delete and touch [Delete].
☐ If you touch and then touch [Delete All], all entries can be deleted.
6 Touch [Delete].
Registering and editing locations and routes
Saving a location as an alert point
Important
The warning for road safety cameras (like speed cameras) is disabled when you are in certain countries where warnings for road safety cameras are prohibited. However, you are fully responsible for ensuring that this feature is legal in the country where you intend to use it.
You can save any map location (such as a school zone or railroad crossing) as an alert point.
☐ To use this function, activate the warnings beforehand and set the alert types.
Refer to "Warnings" settings on page 26
1 Press the MAP button.
2 Scroll the map and select a location. The cursor appears at the selected point.
3 Touch ☐.
4 Touch [Add Alert Points].
5 Set the necessary parameters.
- Alert Type:
Sets the type of the alert point. - Speed Limit: Sets the speed limit for this alert point (if applicable).
- Direction: Sets the direction from which you expect the alert to come from.
6 Touch [Save].
Editing the stored alert points
Stored alert points can be edited.
1 Press the MAP button.
2 Scroll the map and move the cursor over the stored alert point, and then touch ☐
3 Touch [Edit Alert Points].
4 Set the necessary parameters.
■ If you touch and then touch [Delete], the selected alert point will be deleted.
5 Touch [Edit].
Receiving real-time traffic information (TMC)
The Traffic Message Channel (TMC) provides real-time traffic reports. If the navigation system is equipped with the TMC feature, you can check the traffic reports and information received.
☐ The online function in "Traffic" can be used if you connect an iPhone or a smartphone that has the AVICSYNC App installed.
- Be sure read Expanding the use of the navigation functions (page 29) before using the AVICSYNC function.
5200NEX
The traffic information feature can be used when the online traffic feature is available.
Displaying the "Traffic Summary" screen
1 Press the MAP button and touch ≡.
2 Touch [Traffic].
The "Traffic Summary" screen appears.
Viewing the traffic list
Traffic information is displayed on screen in a list. This allows you to check how many traffic incidents have occurred, the locations, and the distance from your current position.
1 Display the "Traffic Summary" screen.
Refer to Displaying the "Traffic Summary" screen on page 21
2 Touch [Traffic Events].
A list with traffic information that has been received is shown. The list is sorted by distance from your current position. Places
Receiving real-time traffic information (TMC)
(street names) where incidents have occurred are displayed on the list.
☐ If a route is set, relevant events for your current route are shown in the upper section of the list.
Touching the desired item allows you to check its position on the map. Touchor to show the previous or next event.
Checking the traffic incidents on the map
Traffic event information can be displayed on the map.
1 Display the "Traffic Summary" screen.
Refer to Displaying the "Traffic Summary" screen on page 21
2 Touch [Traffic Map].
![Current Traffic Map 110 S Los Angeles St Los Angeles 110 Los Angeles 101 [km] [km]](/content/2026/05/761307/images/208d4229e4199fe08f9eebe55b03cc06bf70ee97d43efcb592777e0fce5c30a1.jpg)
Road segments affected by traffic incidents are displayed in an alternate color on the map, and small symbols above the road show the nature of the incident. The traffic congestion lines indicate the degree of the congestion by color.
When traffic incidents occur on your route
The notification icon shows the status of traffic information reception.
1 Touch the relevant traffic event icon on the map.
①
① Traffic notification icon
| Indicates that there are no traffic incidents in your coverage area. | |
| Indicates that information on traffic incidents are being received. | |
| Indicates that there are no significant traffic incidents on your route. | |
| Indicates that there are significant traffic incidents on your route. The icon shows the type of the next traffic incident. |
You can check the details of the traffic incidents. Touch the relevant event to display the location on the map.
Turning the traffic information on or off
The traffic information feature is turned on by default. To enable or disable the TMC feature, perform the following procedure.
If you turn the traffic information feature off, [Traffic] on the navigation menu disappears.
1 Press the MAP button and touch ≡.
2 Touch ▶, and then touch [Settings].
3 Touch ▶, and then touch [Traffic].
4 Touch [Traffic] to turn the switch on or off.
Checking useful information about your trip
Displaying the "Useful Information" menu
The "Useful Information" menu contains various information to support your driving.
☐ To use the online functions ("Parking", "Weather" and "Fuel Prices"), the appropriate content installation must be installed in the navigation system and a connection with an iPhone or a smartphone that has the AVICSYNC App installed must be established.
- Be sure read Expanding the use of the navigation functions (page 29) before using the AVICSYNC function.
1 Press the MAP button and touch ≡.
2 Touch [Useful Information].
The "Useful Information" screen appears.
Information on each option in the "Useful Information" menu
Parking:
Checks for parking lots near your current location.
Refer to the manual for AVICSYNC on our website
Fuel Prices
Displays recent gas prices of gas stations near the current.
location, along the current route, or in the town.
Refer to the manual for AVICSYNC on our website
Weather:
Checks the weather forecast for your current location, along your route, around your destination, as well as for your saved locations.
Refer to the manual for AVICSYNC on our website
• Where Am I?
Displays a special screen with Information about the current position and a key to search for nearby emergency or roadside assistance services.
To save the current position as a "Saved Location" destination, touch
Refer to Storing a location in "Saved Location" on page 20
Help Nearby
Checks for POIs in your surroundings.
The preset search categories are as follows.
— Car Repair:
— Health:
Police
Gas Station:
Checking useful information about your trip
- Trip Monitor
Checks the statistical data of your trios (for example, start time, end time, average speed, etc.).
Refer to Recording your travel history on page 23
• GPS Information
Displays the GPS information screen with satellite position and signal strength information.
Fuel Consumption
You can estimate the fuel cost to your destination by entering the fuel consumption information in the navigation system.
Refer to Calculating the fuel consumption on page 23
Recording your travel history
Activating the trip logger enables you to record your driving history (hereinafter called "Trip log"). You can review your trip log later.
☐ The trip logger is set so that it can be started manually by default. You can change the settings of this function in order to save the log automatically.
Refer to "Trip Monitor" settings on page 28
Activating trip logger temporarily
One-time activation is useful if you want to create a log only for a particular trip.
1 Display the "Useful Information" menu.
- Refer to Displaying the "Useful Information" menu on page 22
2 Touch [Trip Monitor].
A list of trip logs already recorded appears. A blank list appears if you have not recorded any trip logs yet.
3 Touch [Start New Recording].
The trip logger is activated. The touch key changes to [Stop Recording]. Touching [Stop Recording] allows you to deactivate the trip logger.
If there is not enough space in the built-in memory, the oldest trip log will be overwritten by the new one.
If you want the system to always activate the trip logger whenever the GPS signal is available, turn on "Enable Auto-Saving".
Refer to Setting the trip logger on page 23
Browsing the trip log
1 Record the trip log.
2 Display the "Useful Information" menu.
Refer to Displaying the "Useful Information" menu on page 22
3 Touch [Trip Monitor].
To export all trip logs, touch Export All].
4 Touch any of the items to see the details.
To display the trip log on the map, touch [Visible on Map] to tick the check box.
Touching☐ allows you to view the shortcuts and enables you to use the following functions.
• View on Map
Shows the trip log on the map screen.
- Export Track Log
Exports the track log currently selected to an external storage device.
Setting the trip logger
1 Record the trip log.
2 Display the "Useful Information" menu.
Refer to Displaying the "Useful Information" menu on page 22
3 Touch [Trip Monitor].
4 Touch ☐ and then touch [Trip Monitor Settings].
5 Touch any of the items to change the settings.
- Enable Auto-Saving
Sets whether automatic trip ogging is activated or not.
Save Track Log:
Track logs, the sequence of the positions given by the GPS receiver, can be saved together with trip logs. You can activate the track logger whenever the trip logger is activated.
☐ "Trip Database Size" indicates the current data size of the trip log (track log included).
Editing a trip log
1 Display the "Useful Information" menu.
Refer to Displaying the "Useful Information" menu on page 22
2 Touch [Trip Monitor].
3 Touch □ and then touch [Edit].
4 Touch any of the items to edit.
Delete:
Deletes the trip log.
- Rename:
Renames the trip log.
Change Color
Changes the color by selecting another color from the color table.
☐ If you touch and then touch [Delete All], all entries can be deleted.
5 Touch [Done].
Using the Trip Computer mode
In the trip computer screen, the information received from the GPS receiver and your vehicle is displayed like a meter for a vehicle.
1 Press the MAP button.
2 Touch the data field key.
If you touch [Trip Summary], the details of the current trip are displayed. Touch [Save Trip] to store the current trip log.
☐ If you press the MAP button, you can return to the map screen.
Calculating the fuel consumption
The fuel consumption monitor helps you keep track of the fuel consumption of your car even if you do not use the navigation system for all your journeys. Set the initial odometer value and then record the distance driven and the amount of fuel whenever you fill up your car. You can also set reminders for regular car maintenance.
These calculations are based only on the information that you provide and not on any data from the vehicle. The fuel mileage displayed is only a reference value, and does not guarantee that the fuel mileage displayed can be obtained.
Checking useful information about your trip
Setting the initial odometer value
Before you use the fuel consumption feature, enter the initial odometer value from which you want to start measuring the mileage.
1 Display the "Useful Information" menu.
Refer to Displaying the "Useful Information" menu on page 22
2 Touch [Fuel Consumption].
3 Touch [Initial Odometer Value].
4 Enter the initial odometer value and then touch √.
The initial odometer value has been set.
Entering the fuel consumption information
To calculate the fuel consumption for the distance you have traveled, enter the distance driven and the amount of fuel whenever you fill up your car.
1 Display the "Useful Information" menu.
Refer to Displaying the "Useful Information" menu on page 22
2 Touch [Fuel Consumption].
3 Touch [Add].
4 Touch [Current Odometer Value] and then enter the current odometer value.
5 Touch [Gas Amount] to enter the amount of fuel pumped this time.
6 Touch [Gas Price / Unit] to enter the fuel unit price this time.
7 Touch [Add].
8 Touch [Done].
☐ To delete an entry, touch 📄 display the shortcut for deletion.
Setting the car maintenance schedule
1 Display the "Useful Information" menu.
Refer to Displaying the "Useful Information" menu on page 22
2 Touch [Fuel Consumption].
3 Touch ☐.
4 Touch [Maintenance Schedule].
5 Touch [Add] or the one of entries.
6 Enter the name, date, and mileage for the reminder.
7 Touch [Done].
To delete an entry, touch [icon] display the shortcut for deletion.
Customizing preferences of the navigation
Customizing the navigation settings
You can configure the navigation settings, and modify the behavior of this system.
1 Press the MAP button and touch ☐.
2 Touch ▶, and then touch [Settings]. The "Settings" screen appears.
- Route Preferences:
Sets the type of vehicle you are driving, the road types used in route planning, and the route planning method.
Refer to "Route Preferences" settings on page 25
Sound:
Adjusts the different sound volumes and changes the voice guidance profile.
Refer to "Sound" settings on page 26
Warnings:
Enables or disables warnings and sets up the warning function.
Refer to "Warnings" settings on page 26
Navigation Map:
Fine-tunes the appearance of the map screen and adjusts how the software helps you navigate with different kinds of route-related information on the map screen.
Refer to "Navigation Map" settings on page 27
Regional
Changes the voice guidance language, the application language, and measurement units.
Refer to "Regional" settings on page 27
Display
Sets separate themes for daytime and nighttime use, adjusts the display backlight, and enables or disables menu animations.
Refer to "Display" settings on page 28
Traffic:
Enables or disables the traffic information feature.
Refer to "Traffic" settings on page 28
Weather
Enables or disables the online weather forecast option and the automatic download of weather information.
Refer to the manual for AVICSYNC on our website
Fuel:
Enables or disables the online gas price option and sets up the gas type.
Customizing preferences of the navigation
- Refer to the manual for AVICSYNC on our website - Trip Monitor: Turns automatic trip log saving on or off and checks the current size of the trip database. - Refer to "Trip Monitor" settings on page 28 - AVICSYNC Displays the connection method for AVICSYNC. The setting value is fixed. Use this product as it is. - Connected Services: Enables or disables the connected services. - Refer to "Connected Services" settings on page 28 - Start Configuration Wizard: Modifies the basic software parameters used during the initial setup process. - SyncTool: Starts the synchronization tool, which makes it possible to update your maps. - Refer to Getting the map update on page 29
Restoring the default settings
You can restore settings or recorded content to the default settings.
1 Press the MAP button and touch ≡.
2 Touch ▶, and then touch [Settings].
3 Touch
4 Touch [Reset All Settings].
5 Touch [OK].
The recorded contents are cleared.
☐ If you touch [Factory Reset] on the shortcut, all data relevant to navigation (including the items in saved locations and histories) are deleted and all settings are reset to their factory defaults.
Information on each option of "Settings"
"Route Preferences" settings
Vehicle
You can set the type of vehicle you will be using on the route. ☐ The route is planned based on the selected vehicle types. Route planning can also be configured to incorporate dimension, weight, and freight hazard restrictions for maps that contain such data.
To enhance the route accuracy, correctly select a vehicle type that is similar to the condition of your vehicle. ● Car: — Maneuver restrictions and directional constraints are taken into account when planning a route. — Roads are used only if access for cars is allowed. — Private roads and resident-only roads are used only if they are inevitable to reach the destination. — Walkways are excluded from routes. ● Emergency: — All maneuvers available at intersections are taken into account. — Directional constraints are taken into account in the same way as travel in the opposite direction is allowed at low speeds. — Only private roads that need to be used to access the destination are included. — Walkways are excluded from routes.
- Bus: - Maneuver restrictions and directional constraints are taken into account when planning a route. - Roads are used only if access for buses is allowed. - Private roads, resident only roads and walkways are excluded from routes.
- Taxi: — Maneuver restrictions and directional constraints are taken into account when planning a route. — Roads are used only if access for taxis is allowed. — Private roads, resident-only roads and walkways are excluded from routes.
- Truck — Maneuver restrictions and directional constraints are taken into account when planning a route. — Only roads that allow truck access are included. — Private roads, resilient-only roads and walkways are excluded from routes. — U-turns are not used in routes (turning around on a divided road is not considered a U-turn for the purpose of this system). ☐ To edit the name and estimated maximum speed of the selected vehicle profile, touch ☐ ☐ To add a new vehicle profile, touch [Add Profile]. Then select one of the vehicle types and set the name and estimated maximum speed.
Route Planning Method
You can change the route planning method. Route calculation can be optimized for different situations and vehicle types by changing the planning method. The route planning method types are as follows.
Fast
Calculates a route with the shortest travel time to your destination as a priority. Usually the best selection for fast and standard cars.
- Easy Results in a route with fewer turns and no difficult maneuvers. With this option, you can make this system to lake. For example, the freeway instead of a series of smaller roads or streets. - Short Calculates a route with the shortest distance to your destination as a priority. Usually practical for slower vehicles. Rarely practical to use to search for shorter routes for normal vehicles regardless of the speed. - Economical Calculates a route that is quick and saves fuel.
Navigation Mode

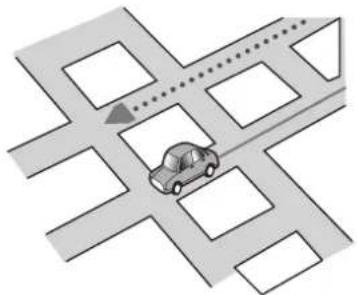

You can enable or disable off-road navigation.
- On-road The route is planned towards the destination along the roads on the map. - Off-road The route is planned towards the destination in a straight line, not along the roads on the map.
Highways
When this function is turned off, the route is calculated prioritizing the avoidance of freeways. This function is useful when you want to avoid freeways when you are driving a slow car or you are towing another vehicle.
Period Charge
When this function is turned off, the route is calculated prioritizing the avoidance of toll roads. This function is useful when you want to avoid toll roads with restricted time access that require you to purchase a separate pass or vignette to extend the length of time allotted for use. ☐ This option can be enabled or disabled separately from the pre-use toll road usage option.
Per-use Toll
When this function is turned off, the route is calculated prioritizing the avoidance of per-use charged toll roads. This function is useful when you want to avoid toll roads where there is a per-use charge.
Ferries
When this function is turned off, the route is calculated prioritizing the avoidance of ferries.
Customizing preferences of the navigation
Car Shuttle Trains
When this function is turned off, the route is calculated prioritising the avoidance of car shuttle trains. Car shuttle trains are used to transport vehicles for relatively short distances and they usually connect places that are not easily accessible by road.
Carpool Lanes
When this function is turned off, the route is calculated prioritizing the avoidance of carpool and HOV lanes. ☐ The navigation system avoids carpool and HOV lanes by default.
Unpaved Roads
When this function is turned off, the route is calculated prioritizing the avoidance of unpaved roads. ☐ The navigation system avoids unpaved roads by default.
"Sound" settings
☐ The following settings marked with an asterisk (*) are enabled only when a TTS voice is selected for the voice language.
Voice
You can adjust the volume of the guidance sounds (verbal instructions).
Alert Beeps
You can adjust the volume of the non-verbal alert sounds (beeps).
Ding
You can turn off the attention tone that precedes the verbal instructions or adjust its volume.
Voice Guidance
You can enable or disable voice guidance. ☐ This function is enabled by default.
Announce Streets and Roads in Native Language Area\*
You can select whether to have the navigation system announce the street names in the native language of the area, only the road numbers, or only the maneuvers.
Announce Streets and Roads in Foreign Language Area\*
You can select whether to have the navigation system read the street names in a foreign country, only the road numbers, or only the maneuvers.
Early Indication of Maneuvers
You can select whether you want an immediate announcement for the next maneuver or to receive the information when the maneuver is near.
Verbosity Level
You can set the verbosity of the voice instructions: how much information is given and how often the prompts occur.
- Minimal: Voice instructions are given once right before the next maneuver.
● Medium: Voice instructions are given once as the vehicle approaches the next maneuver and it is repeated right before the maneuver. - Verbose: Voice instructions are given once relatively far from the next maneuver, it is repeated as the vehicle approaches the next maneuver, and it is repeated again right before the actual maneuver.
Announce Route Summary\*
You can select whether to have the navigation system announce by voice a quick summary of the route whenever a route is calculated.
Announce Country Info\*
When you cross country borders, this navigation system can read out information about the country you have just entered. This function is not effective if the map coverage of your navigation system is only one country (technically, there is no country border data).
Announce Traffic Info\*
You can select whether to have the navigation system announce by voice the traffic information whenever a traffic incident on your route is received.
Announce System Messages\*
When a system message appears, this navigation system can read out the message.
"Warnings" settings
Important
This system is able to warn you if you exceed the current speed limit. This information may not be available for your region (ask your local dealer), or may not be fully correct for all roads on the map.
- You are liable for ensuring that using this feature is legal in the country where you intend to use it.
Speed Warning
- Warn When Speeding
You can select whether you want to receive visible and/or audible warnings.
The following alert types are available:
— Audio and Visual: When selected, audible and visible warnings will go off when you exceed the speed limit.
— Visual: When selected, visible warnings will go off when you exceed the speed limit.
— Disabled: When selected, no warnings will go off.
• Speed Limit Always Visible
You can select whether you want to see the speed limit sign on the map all the time. When you set the speed limit to always be visible, the color of the speed limit sign changes when you exceed the speed limit.
• Outside Cities: \*\*\*% of the Speed Limit
You can receive a warning when you reach the set percentage of the speed limit in rural areas.
● Within Cities: \*\*\*% of the Speed Limit
You can receive a warning when you reach the set percentage of the speed limit in urban areas.
Alert Points
This setting allows you to receive a warning when approaching alert points like school zones or railroad crossings.
Refer to Setting the alert point warnings on page 28
Warning Road Signs
Maps may contain driver alert information. Touch this key to turn on or off these warnings and to set the distance from the hazard to receive the warning at. These can be set individually for the different warning types.
Customizing preferences of the navigation
"Navigation Map" settings
Map Display
You can see the effect when you change a setting.
• Viewpoint
You can adjust the basic zoom and tilt levels to your needs. Some preset levels are available. If you select "Manual", you can store adjusted map scales and view angles.
Color Mode
You can switch between daytime and nighttime color modes or let the software switch between the two modes automatically a few minutes before sunrise and a few minutes after sunset.
Day Map Color
You can select the color scheme used in the daytime map.
Night Map Color
You can select the color scheme used in nighttime map.
Landmarks
This setting shows or hides 3D landmarks which are 3D artistic or block representations of prominent or well-known objects.
6200NEX/5200NEX
This function becomes effective only when the additional map data is installed.
• Buildings
This setting shows or hides 3D city models which are 3D artistic or block representations of complete city building data containing actual building sizes and actual positions on the map.
6200NEX/5200NEX
This function becomes effective only when the additional map data is installed.
3D Terrain
This setting shows or hides the 3D elevation of the surrounding terrain.
Track Logs
You can turn on or off track log saving which saves the sequence of the locations you go through on your journeys.
Place Markers
You can select which POI icons to show on the map while navigating.
☐ When a large number of POI icons exist on a map display, maps and POI icons become hard to see. To maintain map and POI visibility, reduce the displayed categories as much as possible.
Data Fields
You can choose to have different values displayed for when navigating a route to a select destination and for when just cruising around without any particular destination.
Refer to Browsing the data field on page 14
"First", "Second" and "Third" selects items displayed in the data fields shown when the route exists. "Without Route" selects the items displayed in the data fields shown when a route does not exist.
Route Progress Bar
You can turn on the route progress bar to display the current route as a straight line located on the right side of the map. The arrow represents your current position and moves up the line as you travel along the route.
Offer Freeway Services
You may need to stop by a gas station or a restaurant during your journey.
Refer to Frequently shown route events on page 13
Services Displayed
You can select the service types displayed for the freeway exits or service stations. Choose from the POI categories.
Automatic Overview
When selected, the map zooms out to show an overview of the surrounding area if the next route event (maneuver) is far. When you gel close to the event, the map returns to the normal map view.
Signposts
Whenever adequate information is available, lane information on similar to the real ones on road signs above the road is displayed at the top of the map. You can turn this feature on or off.
Junction View
If you are approaching a freeway exit or a complex intersection and the necessary information is available, the map is replaced with a 3D view of the junction.
Tunnel View
When entering tunnels, the surface roads and buildings can be distracting. This feature shows a generic picture of a tunnel instead of the map. A top-down overview of the tunnel and remaining distance are also displayed.
Offer Congestion Detour on Highways
When you slow down while driving on a freeway due to a traffic congestion, this navigation system offers you a delcur using the next exit. The message shows you the distance to the exit and the difference in the distance and estimated time compared to the original route. You can choose from one of the following options:
- Touch [Dismiss] or just ignore the message if you want to keep the original route.
- Touch [Preview] to see an overview of the original route and the detour to make the decision. You can accept the detour as shown in the preview, or increase the freeway segment bypassed before accepting.
- Turn to the suggested new direction and the route will be automatically recalculated.
Offer Real Time Alternative Routes
Alternative routes can be suggested when driving on normal roads. This navigation system will select a different turn in the upcoming intersection and offer you a different route for the next section of the route. You cannot, however, modify the offered detour.
Offer Parking Around Destination
Parking at the destination may not be easy to find in city areas. As you approach the destination, this navigation system can offer parking category places near your destination. Touch to open a top-down map with the destination and the offered parking places. The route is calculated by selecting one of the parking places.
Offer Hints Upon Detour
If you leave the recommended route and suddenly exit the freeway, this navigation system offers different alternatives near the exit like gas stations or restaurants. Also, if there are eclidab e parts of the original route ahead (like a tunnel, a toll road or a ferry), you will find them in the list in case you want to bypass them with the help of this navigation system.
"Regional" settings
Language
This key displays the current language of the user interface. By touching the key, you can select a new language from the list of available languages. This system will restart if you change this setting.
Voice Language
This key displays the current voice guidance profile. By touching the key, you can select a new voice guidance language from the list of available languages and speakers. Touch any of these keys to hear a sample voice prompt.
Units and Formats
You can set the various units to be used by this system.
Customizing preferences of the navigation
This system may not support all the listed units in some voice guidance languages.
Distance
The unit of distance can be changed.
Fuel Economy
The unit of fuel mileage can be changed.
Weight
The unit of weight can be changed.
• Temperature
The unit of temperature can be changed.
• Coordinate Display Format
The format of the coordinates can be changed.
Currency
The currency unit can be set.
Time Zone
By default, the time zone is taken from the map information and adjusted according to your current location.
• Automatic Time Zone
The time zone setting changes automatically.
- Manual Time Zone
The present setting value for the time difference and daylight saving time that you set are used.
- Manual Time Zone if Auto Unavailable
The time zone setting changes automatically if automatic change is available. Otherwise, the present setting value that you set is used.
• Manual Time Zone in Current Zone
The present setting value that you set are used in the current lime zone. If your vehicle moves to another lime zone, the time zone setting changes automatically.
☐ If a setting other than "Automatic Time Zone" is selected, "Time Zone" (the option to set the time difference manually) and "Daylight Saving Time" (the option to turn on or off daylight saving time) can also be set.
"Display" settings
Menu Animations
When animation is turned on, the keys on the menus and keyboard screens appear in an animated way. Screen transitions are also animated.
Day Skin Theme
You can select the style and colors of the navigation menu used in the daytime.
Night Skin Theme
You can select the style and colors of the navigation menu used in the nighttime.
"Traffic" settings
Traffic
You can set to enable or disable the TMC receiver that can receive real-time traffic information.
Data Source
You can select what data source you want to use for receiving real-time traffic information. [Online] is available only if the device is enabled.
Use Traffic Info
You can select whether to have traffic incidents be taken into consideration when the route is calculated.
Show Traffic Info
You can select whether to show icons relevant to traffic incidents and lines indicating the traffic flow on the map.
Off
No traffic icons or lines indicating the traffic flow are shown.
Color
Only the line relevant traffic incidents are shown on the map.
Color And Icon
Icons for the relevant traffic incidents and lines indicating the traffic flow are shown on the map.
Show Free Traffic Flow As Well
You can select whether to receive information on smooth traffic flow.
Offer Detour if it Saves at Least
You can set the minimum time to be saved when having the system suggest a delour route. If the estimated time saved by the planned delour avoiding the traffic incidents is more than the set time, the system suggests the new delour route. Otherwise, the new route is not suggested.
Confirm Detours Manually
You can enable or disable the manual confirmation of every recalculation.
"Trip Monitor" settings
Enable Auto-Saving
Refer to Setting the trip logger on page 23
Save Track Log
Refer to Setting the trip logger on page 23
"Connected Services" settings
You can use the "Connected Services" settings to enable or disable connected online features.
Refer to Expanding the use of the navigation functions on page 29
Online Traffic
You can enable or disable the online traffic service.
Online Weather
You can enable or disable the online weather forecast service.
Online Parking
You can enable or disable the online parking service.
Online Fuel Prices
You can enable or disable the online gas price service.
Online Search
You can enable or disable the online search service.
Setting the alert point warnings
Important
The warning for road safety cameras (like speed cameras) is disabled when you are in certain countries where warnings for road safety cameras are prohibited. However, you are fully responsible for ensuring that this feature is legal in the country where you intend to use it.
You can set an alert for the different alert point categories, individually.
1 Press the MAP button and touch ≡.
2 Touch ▶, and then touch [Settings].
Customizing preferences of the navigation
3 Touch [Warnings].
4 Touch [Alert Points].
5 Touch [Alert Point Warnings] to turn it on.
6 Touch the item you want to set.
- Alert Types
Sets the type of alert point.
• Speed Camera Types
Sets the type of speed camera.
7 Touch any of the items to change the setting.
8 Touch [Warning Type] and then touch one of the options.
The following alert types are available:
- Disabled: The system does not warn you of the alert points for this category.
• Audio and Visual
You will receive audible and visible warnings while you are approaching the points in this category.
- Visual: You will receive a visible warning while you are approaching the points in this category.
☐ If you select "Audio and Visual" in the warning type setting, you can change the reception timing of the audio alert. If you select "Only When Speeding", the audio alert is only played when you exceed the given speed limit. If you select "When Approaching", the audio alert is always played when approaching one of these alert points. In order to draw your attention, the alert is different when you exceed the speed limit.
Getting the map update
You can update existing content, purchase additional maps and activate extra services on your product. To update the content, download the update on your USB memory storage by using the computer to which the Navilextras Toolbox is installed. Then, transfer the data from connected USB memory storage to your navigation system by using 'SyncTool' on this product.
☐ For details, access the following URL and refer to "HOW TO UPDATE?" GUIDE. http://pioneer.naviextras.com
Expanding the use of the navigation functions
You can expand the use of the navigation functions to iPhone or smartphones if you connect an iPhone or a smartphone (Android) that has the AVICSYNC App installed.
Be sure to read before you use AVICSYNC function
Important
- Premium services for AVICSYNC require a paid subscription in order to be used, and not all services are available in all countries. Please refer to our website for more details.
- Please be aware that you may be charged additional roaming charges by your cellular provider if you use connected services while abroad.
- If the Data Plan for your iPhone or smartphone (Android) does not provide for unlimited data usage, additional charges from your carrier may apply for accessing app-based connected content via networks other than Wi-Fi.
The information which is sent by content provider, such as search results, regulations, prices, etc. may not necessarily correspond to the actual condition. Utilise the information for your reference. - To ensure compatibility, always use the latest version of the AVICSYNC App.
- If the downloaded data is large, it may take some time for the data to be transferred to your in-car navigation system via the AVICSYNC App. In such cases, you can also synchronize the content using Navlextras Toolbox on your computer and the "SyncTool" menu of the in-car navigation instead.
Limitations:
- Access to app-based connected content will depend on the availability of cellular and/or Wi-Fi network coverage for the purpose of allowing your smartphone to connect to the Internet.
● Service availability may be geographically limited to the region. Consult the connected content service provider for additional information.
● Ability of this product to access connected content is subject to change without notice and could be affected
by any of the following; compatibility issues with future firmware versions of smartphone; compatibility issues with future versions of the connected content application(s) for the smartphone; changes to or discontinuation of the connected Content application(s) or service by its provider.
- Pioneer is not liable for any issues that may arise from incorrect or flawed app-based content.
- The content and functionality of the supported applications are the responsibility of the App providers.
What is the AVICSYNC App?
The AVICSYNC App is a dynamic companion app that you can use to connect your iPhone or smartphone to a compatible Pioneer navigation system.
Once linked, the navigation system communicates with your iPhone or smartphone to share information such as contacts, navigation history, planned routes, POI favorites, and even where you parked your vehicle.
With the AVICSYNC App, your navigation receiver can also access Premium connected services such as real-time local search and weather data lookup to ensure that you'll have all the information you need to reach your desired destination. As new content data becomes available, you can use the
AVICSYNC App to review, purchase, download, and transfer updated content directly to the compatible Pioneer navigation system.
In addition to augmenting your Pioneer in-dash navigation experience, AVICSYNC App also works as a standalone navigation app. This means that you'll always have access to Pioneer's accurate turn-by-turn navigation, even when you're not in your vehicle.
Access our website to check further details for the AVICSYNC App.
For U.S.A
http://www.pioneerelectronics.com/AVICSYNC For Canada
http://www.pioneerelectronics.ca/AVICSYNC
☐ To use the AVICSYNC App as a standalone navigation apo, a periodical connection between your in-car navigat on system and an iPhone or a smartphone (Android) that has the AVICSYNC App installed is required.
Compatibility and connectivity
You need to install the free AVICSYNC App to your iPhone or smartphone (Android). To use the AVICSYNC App function, both iPhone or smartphone (Android) compatibility with the AVICSYNC App and connectivity with the navigation system are required.
Customizing preferences of the navigation
AVICSYNC compatibility
AVICSYNC is available for the following models.
Depending on the software version of the iPhone and Android, it may not be compatible with this product. For latest compatibility with this product and AVICSYNC App refer to the information on our website.
iPhone models
- iPhone 8 Plus: OS 8.x
- iPhone 6: iOS 8.x
- iPhone 5s: iOS 7.x, 8.x
- iPhone 5c: iOS 7 x 8 x
- iPhone 5: iOS 7 x 8 x
- iPhone 3, iOS 7x, 8x
- iPhone 4, iOS 7x, 8x
- iPhone 4S, iOS 7.x, 8.x
- iPhone 4: iOS 6.x
Smartphone (Android) models
SAMSUNG
• Galaxy Grand Prime: Android 4.4.4
Galaxy S2: Android 4.1.2
• Galaxy S3: Android 4.1.2.4.3
Galaxy S4: Android 4.2.4.4.9
Galaxy SE: Android 4.0.3
Galaxy 50, Android 4.6.3
Galaxy 50, Android 4.6.9
Galaxy 56: Android 5.0.2
Galaxy Note II: Android 4.1.1
Galaxy Note III: Android 4.4.2
Galaxy Tap 2: Android 4.0.3
Galaxy Tab 3: Android 4.2.2
LG
Nexus 5: Android 4.4.2. 4.4.4. 5.0
ASUS
Nexus 7 (2013): Android 4.3
Motorola
- Metc G: Android 4.4.4
Preparations before using the AVICSYNC function
1 Download the AVICSYNC App from the App Store or Google Play and install the app to your iPhone or smartphone (Android).
To find AVICSYNC App, access the App Store or Google Play and enter "AVICSYNC" in the search box.
2 Start the AVICSYNC App on your iPhone or smartphone (Android).
3 Connect your iPhone or smartphone (Android) to the navigation system via Bluetooth or USB cable connection.
For details of the Bluetooth connection, refer to Bluetooth connection on page 30.
- For details of the USB connections, refer to the Installation Manual.
4 Press the MAP button and touch ≡.
5 Touch 📋 on the navigation menu.
6 Touch [Associate New Phone].
7 Touch the iPhone or smartphone (Android) that you want to associate with the navigation system and then touch [Associate].
8 Accept the association on your iPhone or smartphone (Android).
Once the association is established, your iPhone or smartphone (Android) is automatically associated when you connect your iPhone or smartphone (Android) to the navigation system.
9 Purchase connected services via the AVICSYNC App.
10 Display the navigation menu and then touch [Settings].
11 Touch [Connected Services].
12 Touch the service that you want to activate.
The menus for the connected service are activated.
- For details on the operations and features of the AVICSYNC, refer to the manual on our website.
Bluetooth® connection
Displaying the "Bluetooth" screen
1 Press the button.
2 Touch Ⓞ, and then Ⓞ.
Registering your Bluetooth devices
1 Activate the Bluetooth wireless technology on your devices.
2 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
3 Touch [Connection].
4 Touch Q.
The system searches for Bluetooth devices waiting for a connection and displays them in the list if a device is found.
5 Touch the Bluetooth device name.
After the device is successfully registered, a Bluetooth connection is established by the system. Once the connection is established, the device name is displayed on the list.
If three devices are already paired, "Memory Full" is displayed. Delete a paired device first.
Refer to Deleting a registered device on page 31
☐ If your device supports SSP (Secure Simple Pairing), a six-digit number appears on the display of this product. Touch Yes] to pair the device.
☐ If a PIN code input is required, enter a PIN code. (The default PIN code is "0000").
Refer to Entering the PIN code for Bluetooth wireless connection on page 31
☐ The Bluetooth connection can be also made by detecting this product from the Bluetooth device. Before registration, make sure that "Visibility" in the "Bluetooth" menu is set to "On". For details on a Bluetooth device operations, refer to the operating instructions supplied with the Bluetooth device.
Refer to Switching visibility on page 31
Bluetooth® connection
Setting Bluetooth device auto connection
This function connects the last connected Bluetooth device to this product with the Hands-Free Profile automatically as soon as the devices is less than a few meters apart. The default setting is "On".
1 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
2 Touch [Auto Connect] to switch "On" or "Off".
Deleting a registered device
CAUTION
Never turn this product off while the paired Bluetooth device is being deleted.
1 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
2 Touch [Connection].
3 Touch
4 Touch [Yes].
Connecting a registered Bluetooth device manually
Connect the Bluetooth device manually in the following cases:
- Two or more B betoolh devices are registered, and you want to manually select the device to be used.
- You want to reconnect a disconnected Bluetooth device.
- Connection cannot be established automatically for some reason.
1 Activate the Bluetooth wireless technology on your devices.
2 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
3 Touch [Connection].
4 Touch the name of the device.
To disconnect the device, touch the name of the connected device in the list.
Switching visibility
This function sets whether or not to make this product visible to the other device.
The default setting is 'On'
1 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
2 Touch [Visibility] to switch "On" or "Off".
Entering the PIN code for Bluetooth wireless connection
To connect your Bluetooth device to this product, you need to enter a PIN code.
The default PIN code is "0000"
1 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
2 Touch [PIN Code Input].
3 Touch [0] to [9] to input the pin code (up to 8 digits).
4 Touch
Displaying the device information
1 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
2 Touch [Device Information].
The device name and address of the Bluetooth device on this product are displayed.
Clearing the Bluetooth memory
CAUTION
Never turn this product off while the Bluetooth memory is being cleared.
1 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
2 Touch [Bluetooth Memory Clear].
3 Touch [Clear].
4 Touch [OK].
Updating Bluetooth software
This function is used to update this product with the latest Bluetooth software. For details on Bluetooth software and updating, refer to our website.
☐ This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
☐ The source is turned off and the Bluetooth connection is disconnected before the process starts.
☐ You need to store the version update file to the USB storage device in advance.
CAUTION
Never turn this product off and never disconnect the phone while the software is being updated.
1 Connect the USB storage device stored the version update file to this product.
- Refer to Plugging and unplugging a USB storage device on page 7
2 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
3 Touch [BT Software Update].
4 Touch [Start].
Follow the on-screen instructions to finish updating the Bluetooth software.
Displaying the Bluetooth software version
If this product fails to operate properly, you may need to consult your dealer for repair.
In such cases, perform the following procedure to check the software version on this product.
1 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
2 Touch [Bluetooth Version Information].
The version of this product's Bluetooth module appears.
Hands-free phoning
- *1 Switches to the preset dial screen.
Refer to Using the presel dial lists on page 32
2 Switches to the phone book list. Refer to Calling a number in the phone book on page 32
*3 Switches to the missed, received and dialed call lists. Refer to Dialing from the history on page 32
*4 Switches the mode to enter the phone number directly.
Refer to Direct dialing on page 32
*5 Switches to the voice recognition function.
Refer to Using the voice recognition function on page 33 - *6 The following items are displayed.
Name of the current cellular phone - List number of the current cellular phone indicates that a Bluetooth telephone is connected.
- Recept on status of the current cellular phone
● Battery status of the current cellular phone
Displaying the phone menu screen
1 Press the button.
2 Touch
Making a phone call
You can make a phone call in many different ways.
To end the call, touch
Direct dialing
1 Display the phone menu screen.
Refer to Displaying the phone menu screen on page 32
2 Touch
3 Touch the number keys to enter the phone number.
4 Touch to make a call.
The dial screen appears and dieing starts.
Calling a number in the phone book
- The contacts on your phone will be automatically transferred to this product when the phone is connected.
1 Display the phone menu screen.
Refer to Displaying the phone menu screen on page 32
2 Touch
3 Touch the desired name on the list.
4 Touch the phone number.
The dial screen appears and dialing starts.
Dialing from the history
1 Display the phone menu screen.
Refer to Displaying the phone menu screen on page 32
2 Touch
3 Touch the item to switch the history list.
The following items are available:
• : Received call list
- : Delled call list
- : pressed call list
4 Touch the desired entry on the list to make a call.
The dial screen appears and clailing starts.
Using the preset dial lists
Registering a phone number
You can easily store up to six phone numbers per device as presets.
1 Display the phone menu screen.
Refer to Displaying the phone menu screen on page 32
2 Touch 📄 or 📃.
On the "Phone Book" screen, touch the desired name to display the contact's phone number.
3 Touch
Dialing from the preset dial list
1 Display the phone menu screen.
- Refer to Displaying the phone menu screen on page 32
2 Touch
3 Touch the desired entry on the list to make a call.
The dial screen appears and dialing starts.
Deleting a phone number
1 Display the phone menu screen.
Refer to Displaying the phone menu screen on page 32
2 Touch
3 Touch 园.
4 Touch [Yes].
Receiving a phone call
To end the call, touch
1 Touch to answer the call.
- If you touch while getting a call waiting, you can switch to the talking person.
■ Touch to reject the call.
To use this function you need to connect your cellular phone to this product via Bluetooth in advance.
Refer to Bluetooth * connection on page 30
CAUTION
I or your safety, avoid talking on the phone as much as possible while driving.
Hands-free phoning
Minimizing the dial confirmation screen
☐ The dial confirmation screen cannot be minimized on the AV operation screen.
☐ AV sources cannot be selected even if the dial confirmation screen is minimized while talking on the phone or receiving an incoming call.
1 Touch
- Touch 📁 to display the dial confirmation screen again.
Changing the phone settings
Setting auto answering
You can select whether or not to answer a call automatically. The default setting is "Off".
1 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
2 Touch [Auto Answer] to switch "On" or "Off".
Switching the ring tone
You can select whether or not to use this product's ring tone. The default setting is "On".
1 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
2 Touch [Ring Tone] to switch "On" or "Off".
Inverting names in the phone book
You can use this function to change the order of the first and last names in the phone book.
1 Display the "Bluetooth" screen.
Refer to Displaying the "Bluetooth" screen on page 30
2 Touch [Invert Name].
3 Touch [Yes].
Setting the private mode
During a conversation, you can switch to private mode (talk directly on your cellular phone).
1 Touch 📄 or to turn private mode on or off.
Adjusting the other party's listening volume
This product can be adjusted to the other party's listening volume.
7 Settings can be stored for each device.
1 Touch 🖼 to switch between the three volume levels.
Using the voice recognition function
You can use the voice recognition function of iPhone or smartphone.
When an iPhone running iOS 6.1 or higher is used, Siri Eyes Free Mode is available with this product.
For using this function with a smartphone, the device must be compatible with Android Auto. For using the voice recognition function with a smartphone, launch Android Auto beforehand.
Refer to Using Android Auto on page 51
1 Display the phone menu screen.
Refer to Displaying the phone menu screen on page 32
2 Touch
The voice recognition function launches and the voice control screen appears.
You can also launch the voice recognition function by pressing and holding the button.
Notes for hands-free phoning
General notes
- Connection to all cellular phones featuring Bluelcoth wireless technology is not guaranteed.
- The line-of-sight distance between this product and your cellular phone must be 10 meters or less when sending and receiving voice and data via Bluetooth technology. However, the actual transmission distance may be shorter than the estimated distance, depending on the usage environment.
- With some cellular phones, the ring sound may not be output from the speakers.
- If private mode is selected on the cellular phone, hands-free phoning may be disabled.
Registration and connection
- Cellular phone operations vary depending on the type of cellular phone. Refer to the instruction manual that came with your cellular phone for detailed instructions.
- When phone book transfer does not work, disconnect your phone and then perform pairing again from your phone to this product.
Making and receiving calls
- You may hear a noise in the following situations:
— When you answer the phone using the button on the phone.
— When the person on the other end of the line hangs up the phone.
- If the person on the other end of the line cannot hear the conversation due to an echo, decrease the volume level for hands-free phoning.
- With some cellular phones, even after you press the accept button on the cellular phone when a call comes in, hands-free phoring may not be performed.
- The registered name will appear if the phone number is already registered in the phone book. When the same phone number is registered under different names, only the phone number will be displayed.
The received call and the dialed number histories
- You cannot make a call to the entry of an unknown user (no phone number) in the received call history.
- If calls are made by operating your cellular phone, no history data will be recorded in this product.
Phone book transfers
- If there are more than 800 phone book entries on your cellular phone, not all entries may download completely.
- Depending on the phone, this product may not display the phone book correctly.
- If the phone book in the phone contains image data, the phone book may not be transferred correctly.
● Depending on the cellular phone, phone book transfer may not be available.
Setup for iPod / iPhone or smartphone
When using an iPod / iPhone or a smartphone with this product, configure the settings of this product according to the device to be connected.
This sect on describes the settings required for each device.
The basic flow of iPod / iPhone or smartphone setup
① Select the method for connecting your device.
② Refer to Setting the device connection method on page 34
② Connect your device to this product.
1. Refer to the installation Manual
③ If necessary, connect your device to this product via Bluetooth connection.
U Refer to Bluetooth ^® connection on page 30
Setting the device connection method
To use the iPhone or smartphone on this product, select the method for connecting your device.
Settings are required according to the connected device.
1 Display the "System" setting screen.
2 Touch [Input/Output Settings].
3 Touch [Smartphone Setup].
4 Configure the following settings.
Device: Select the device to be connected.
Connection : Select the connection method.
Refer to Information on the connections and functions for each device on page 25.
☐ The setting will change after the following processes are automatically executed.
— The source is turned off.
— AppRadio Mode is exited.
— The smartphone connection (USB and Bluelcoth) is disconnected.
☐ The setting may not be operable right after it is changed.
iPod / iPhone compatibility
This product supports only the following iPod / iPhone models and iPod / iPhone software versions. Others may not work correctly.
1 iPhone 4, 4s. 5, 5c. 5s, 6, 6. Plus: iOS 7.0 or later.
J iPhone 3GS: iOS 6.0.1
iPod touch (4th, 5th generation): iOS 6.0.1
1 iPod touch (3rd generation): iOS 5.1.1
iPod touch (2nd generation); iOS 4.2.1
iPod classic 160GB (2009): Ver. 2.0.4
1 iPod classic 160GB (2008): Ver. 2.0.1
1 iPod classic 80GB: Ver. 1.1.2
1 iPod nano (7th generation)
1 iPod nano (6th generation): Ver. 1.2
1 iPod nano (5th generation): Ver. 1.0.2
↓ iPod nano (4th generation): Ver. 1.0.4
1 iPod nano (3rd generation): Ver. 1.1.3
7 You can connect and control an iPod / iPhone compatible with this product by using separately sold connector cables.
7 Operation methods may vary depending on the iPod / iPhone model and the software version.
☐ Depending on the software version of the iPod / iPhone, it may not be compatible with this product.
1 For details about iPod / iPhone compatibility with this product, refer to the information on our website.
This manual applies to the following iPod / iPhone models.
iPod / iPhone with a 30-pin connector
iPhone 3GS, 4, 4s
1 iPod touch 2nd, 3rd, 4th general on
iPod classic 80GB, 160GB
iPod nano 3rd, 4th, 5th, 6th generation
iPod / iPhone with a Lightning connector
1 iPhone 6, 6 Plus
1 iPhone b, bc, bs
1 iPod touch 5th generation
1 iPod nano 7th generation
Android ^™ device compatibility
Operation methods may vary depending on the Android device and the software version of the Android OS.
☐ Depending on the version of the Android OS, it may not be compatible with this product.
- Compatibility with all Android devices is not guaranteed.
1 For details about Android device compatibility with this product, refer to the information on our website.
Setup for iPod / iPhone or smartphone
Information on the connections and functions for each device
The settings and cables required for connecting each device, and the available sources are as follows.
| iPod / iPhone with a 30-pin connector | ||||
| Device connection method When connecting via Bluetooth When connecting via CD-IU201V (sold separately) | separately) | When connecting via CD-IU201S (sold separately) | ||
| Smartphone Setup Device iPhone/iPod iPhone/iPod iPhone/iPod | ||||
| Connection Bluetooth USB1 USB1 | ||||
| Bluetooth connection Bluetooth connection is required. — — | ||||
| Connection requirement | — | Connect to USB port 1 for using Pandora or AVICSYNC App. | Connect to USB port 1 for using Pandora, AppRadio Mode, or AVICSYNC App. | |
| Available sources iPod (audio) — | √ | √ | ||
| iPod (video) — | √ | √ | ||
| Pandora | √ √ √ | |||
| AppRadio Mode | — | — | √ | |
| AVICSYNC App | √ √ √ | |||
| iPod / iPhone with a Lightning connector | |||||
| Device connection method When connecting via Bluetooth When connecting via CD-IU52 (sold separately) | 8200NEX/7200NEX/6200NEXWhen connecting via the following cables:CD-IU202 (sold separately)CD-IU52 (sold separately)Lightning Digital AV Adapter (sold separately) | 5200NEXWhen connecting via the following cables:CD-IU202AV (sold separately)CD-IU52 (sold separately)Lightning to VGA Adapter (sold separately) | |||
| Smartphone Setup | Device | iPhone/iPod | iPhone/iPod | iPhone/iPod | iPhone/iPod |
| Connection | Bluetooth | USB1 | Digital AV adapter | VGA Adapter | |
| Apple CarPlay | — | On (*2)/Off | — | — | |
| Bluetooth connection | Bluetooth connection is required. | — | Bluetooth connection is required. | Bluetooth connection is required. | |
| Connection requirement | — Connect to USB port 1 for using | Apple CarPlay, Pandora or AVICSYNC App. | — | — | |
Setup for iPod / iPhone or smartphone
iPod / iPhone with a Lightning connector
| Available sources iPod (audio) — | √ | — (*1) — (*1) | |||
| iPod (video) — — (*') — (*1) | |||||
| Pandora | √ √ √ √ | ||||
| AppRadio Mode | — | — | √ | ||
| Apple CarPlay | — | √ (*3) | — | ||
| AVICSYNC App | √ √ √ √ | ||||
(*1) Use AppRadio Mode to play music or videos on an iPod / iPhone. For using AppRadio Mode, install the CarMediaPlayer app on your iPod / iPhone.
For details about the CarMediaPlayer, refer to the information on our website.
Refer to the CarMediaPlayer manual for more information.
(*2) Select "On" for 'Apple CarPlay' for using Apple CarPlay.
(*3) Available only when an Apple CarPlay-compatible device is connected.
Android device
| Device connection method | When connecting via Bluetooth | 8200NEX/7200NEXWhen connecting via CD-MU200 (sold separately) | 8200NEX/7200NEX/6200NEXWhen connecting via CD-AH200 (sold separately) | |
| Smartphone Setup Device O | Others Others Others | |||
| Connection | Bluetooth / — (*5) | USB2 HDMI | ||
| Android Auto | — On (*1)/Off — | |||
| Bluetooth connection | Bluetooth connection is required. | Bluetooth connection is required for using Pandora or Android Auto. | Bluetooth connection is required. | |
| Connection requirement | — | Connect to USB port 2 for using Android Auto or AVICSYNC App. | — | |
| Available sources | Pandora | √ (*5) | √ (*5) | √ (*5) |
| AppRadio Mode | — | — | √ | |
| Android Auto | — | √ (*2)(*3) | — | |
| AVICSYNC App | √ (*4) | √ (*4) | √ (*4) | |
(*1) Select "On" for "Android Auto" for using Android Auto.
(*2) Available only when an Android Auto-compatible device is connected.
(*3) The AVICSYNC App function automatically turns off when an Android Auto-compatible device is connected with this product for the first time. From the next time a compatible device is connected,
Android Auto cannot be used while the AVICSYNC App function is on.
(*4) Turn on the AVICSYNC App function for using AVICSYNC App
(*5) Not available when the AVICSYNC App function is turned on.
(*6) 5200NEX

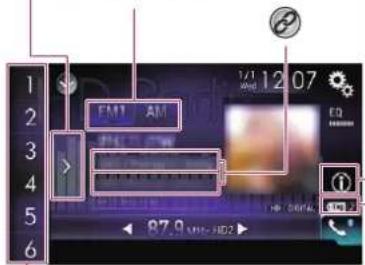

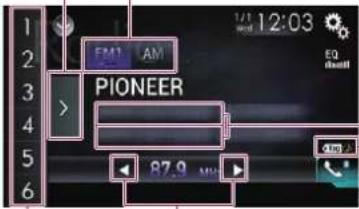

Radio
5200NEX
Displays the preset channel list.
Select an item on the list ("1" to "6") to switch to the preset channel.
Selects the FM1, FM2, FM3 or AM band.
Performs manual tuning.
Performs seek tuning or non stop seek tuning.
Releasing the key in a few seconds, skips to the nearest station from the current frequency. Keeping holding the key for a long seconds, performs non stop seek tuning.
Recalls the preset channel stored to a key from memory.
Stores the current broadcast frequency to a key.
iTunes® tagging indicator and iTunes® tagging song status indicator
Stores song information to an iPod.
- Refer to Storing song information to an iPod (iTunes Tagging) on page 74
By pressing the button, can also switch the preset channels.
By pressing and holding the button release, you can also perform seek tuning.
Starting procedure
1 Display the AV source selection screen.
2 Touch [Radio].
Storing the strongest broadcast frequencies
The BSM (best stations memory) function automatically stores the six strongest broadcast frequencies under the preset tuning keys "1" to "6".
☐ Storing broadcast frequencies with BSM may replace those you have already saved.
Previously stored broadcast frequencies may remain stored if the number of frequencies stored has not reached the limit.
1 Touch the preset channel list display key.
2 Touch to begin a search.
The six strongest broadcast frequencies will be stored under the preset tuning keys in the order of their signal strength.
■ Touch [Cancel] to cancel the storage process.
Displaying the "Radio settings" screen
1 Display the "System" setting screen.
2 Touch [AV Source Settings].
3 Touch [Radio Settings].
Tuning into strong frequencies
Local seek tuning allows you to only tune into those radio stations with sufficiently strong signals.
The default setting is "Off"
☐ This setting is available only when "Radio" is selected as the source.
1 Display the "Radio Settings" screen.
Refer to Displaying the "Radio settings" screen on page 37
2 Touch [Local].
3 Touch the item.
Off
Turns the seek tuning setting off.
Level1 to Level4
Sets the level of sensitivity for FM to Level1 to Level4 (for AM Level1 or Level2).
☐ The FM "Level4" (AM "Level2") setting allows you to receive the only stations with the strongest signals.
HD Radio™
8200NEX 7200NEX 6200NEX
Switches the text display between the main channel and sub channels.
Displays the preset channel list. Select an item on the list ("1" to "6") to switch to the preset channel.
Selects the FM1, FM2, FM3 or AM band.
Recalls the preset channel stored to a key from memory. Stores the current broadcast frequency to a key.
iTunes® tagging indicator and iTunes® tagging song status indicator
Performs manual tuning. Performs seek tuning or non stop seek tuning.
Releasing the key in a few seconds, skips to the nearest station from the current frequency.
Keeping holding the key for a long seconds, performs non stop seek tuning.
Stores song information to an iPod.
Refer to Storing song information to an iPod (iTunes Tagging) on page 74
By pressing the ▶◀◀◀◀▶▶▶ can also switch the preset channels.
7 By pressing and holding the button-up release, you can also perform seek tuning.
HD Radio stations
HD Radio stations offer high quality audio and data services. HD Radio stations are brought to you by your local FM or AM stations.
HD Radio stations feature the following:
• High quality audio
FM multicasting
Data service
Digital Sound
Digital, CD quality sound. HD Radio Technology enables local radio stations to broadcast a clean digital signal. AM sounds like today's FM and FM sounds like a CD.
PSD
Program Service Data: Contributes to the superior user experience of HD Radio Technology. Presents song name, artist station IDs, HD2/HD3 Channel Guide, and other relevant data streams.
HD2/HD3
Adjacent to traditional main stations are extra local FM channels. These HD2/HD3 Channels provide new, original music as well as deep cuts into traditional genre.
iTunes Tagging
iTunes® Tagging provides you the opportunity to discover a wide range of content and the means to "tag" that content for later review and purchase from the iTunes® Store.
HD Radio™
Artist Experience
Visual information related to content being played on your HD Radio receiver, such as Album Art, historical photographs, still art from live broadcasts, among other related content.
Starting procedure
1 Display the AV source selection screen.
2 Touch [HD Radio].
Storing the strongest broadcast frequencies
The BSM (best stations memory) function automatically stores the six strongest broadcast frequencies under the preset tuning keys "1" to "6".
□ Storing broadcast frequencies with BSM may replace those you have already saved.
☐ Previously stored broadcast frequencies may remain stored if the number of frequencies stored has not reached the limit.
1 Touch the preset channel list display key.
2 Touch to begin a search.
The six strongest broadcast frequencies will be stored under the preset tuning keys in the order of their signal strength.
- Touch [Cancel] to cancel the storage process.
Displaying the "Radio settings" screen
1 Display the "System" setting screen.
2 Touch [AV Source Settings].
3 Touch [Radio Settings].
Tuning into strong frequencies
Local seek tuning allows you to only tune into those radio stations with sufficiently strong signals. The default setting is "Off".
This setting is available only when "HD Radio" is selected as the source.
1 Display the "Radio Settings" screen.
- Refer to Displaying the "Radio settings" screen on page 39
2 Touch [Local].
3 Touch the item.
- Off.
Turns the seek tuning setting off.
- Level1 to Level4:
Sets the level of sensitivity for PM to Level1 to Level4 (for AM Level1 or Level2).
The I'M 'Level4' (AM 'Level2') setting allows you to receive the only stations with the strongest signals.
Switching the seek mode
You can select the method of seek tuning. The default setting is "Seek All".
This setting is available only when "HD Radio" is selected as the source.
1 Display the "Radio Settings" screen.
Refer to Displaying the "Radio settings" screen on page 39
2 Touch [Seek] to select an item.
- Seek All:
Seeks stations from both analog and digital broadcasting.
- Seek HD:
Only seeks stations from digital broadcasting.
Switching the reception mode
You can set whether the tuner automatically switches to the analog broadcast of the same frequency level when reception of a digital broadcast becomes weak.
The default setting is "On".
This setting is available only when "HD Radio" is selected as the source.
1 Display the "Radio Settings" screen.
Refer to Displaying the "Radio settings" screen on page 39
2 Touch [Blending] to switch "On" or "Off".
Disc

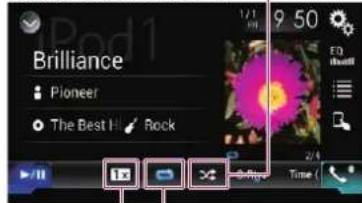

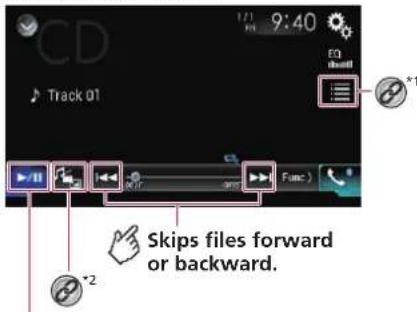

Audio source screen 1
Switches between playback and pause.
Disc
Plays tracks in random order.
This function is available for music CD.
: Does not play tracks in random order.
Plays all tracks in random order.
Audio source screen 2
Sets a repeat play range.
: Repeats the current disc.
: Repeats the current track.
Hides the touch panel keys.
To display again the keys, touch
anywhere on the screen.
Performs frame-by-frame playback.
Performs slow-motion playback.
Each time you touch ▶ it changes the speed in four steps in the following order: 1/16 → 1/8 → 1/4 → 1/2
Video source screen 1
Performs fast reverse or fast forward.
Touch again to change play back the speed.
Stops playback.

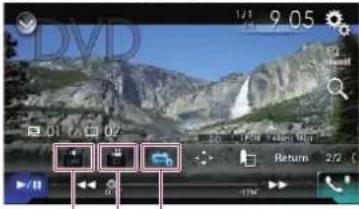

Video source screen 2
Sets a repeat play range.
: Repeats all files.
: Repeats the current chapter.
: Repeats the current title.
Changes the viewing angle (Multi-angle).
This function is available for DVDs featuring multi-angle recordings.
Selects the audio output from [L+R], [Left], [Right], [Mix].
This function is available for Video-CDs and DVDs recorded with LPCM audio.
Disc
Video source screen 2
Resumes playback (Bookmark).
This function is available for DVD-Video. You can memorize one point as a Bookmark for a disc (up to five discs). To clear the bookmark on the disc, touch and hold this key.
Returns and begins playback from the specified point.
This function is available for DVD-Video and Video-CDs featuring PBC (playback control).
Switches the subtitle/audio language.
- Refer to Switching the subtitle/audio language on page 41
Displays the DVD menu keypad.
- Refer to Operating the DVD menu using touch panel keys on page 42
By pressing the ◀◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◀ ◄ ◄ ◄ ◄ ◄ ◄ ◄ ◄ ◄ ◄ ◄ ◄ ◄
7 By pressing and holding the ▶◀◀◀▶▶▶ can also perform fast reverse or fast forward.
☐ If a Video-CD with PBC On s being played, ▶PBCOn.
☐ You can set the screen size for the video image.
→ Refer to Changing the wide screen mode on page 14
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe pace and apply the parking brake.
Starting procedure
You can play a normal music CD, Video-CD or DVD-Video using the built-in drive of this product.
1 Insert the disc.
Refer to inserting and ejecting a disc on page 6. The source changes and then playback will start.
☐ If the disc is already set, select [Disc] as the playing source.
Selecting files from the track name list
1 Touch
2 Touch a track on the list to play back.
Switching the media file type
When playing a digital media containing a mixture of various media file types you can switch between media file types to play.
1 Touch
2 Touch the item.
Music:
Switches the media file type to music (compressed audio).
Video
Switches the media file type to video.
CD-DA:
Switches the media file type to CD (audio data (CD-DA)).
Searching for the part you want to play
☐ For DVD Videos, you can select [Title], [Chapter] or [10Key].
☐ For Video-CDs, you can select Track or [10Key] (PBC only).
1 Touch Q.
2 Touch [Title], [Chapter], [10Key], or [Track].
3 Touch [0] to [9] to input the desired number.
4 Touch ☐ to start playback from the number you registered.
Operating the DVD menu
You can operate the DVD menu by touching the menu item on the screen directly.
☐ This function may not work properly with some DVD disc content. In that case, use touch panel keys to operate the DVD menu.
1 Touch TIP or MENU.
2 Touch the menu item.
Switching the subtitle/audio language
1 Touch or
• :Changes the subtitle language.
• : Changes the audio language.
☐ You can specify the desired language as the default subtitle/audio languages.
Refer to Setting the top priority languages on page 72
Disc Compressed
es
Operating the DVD menu using touch panel keys
If items on the DVD menu appear, the touch panel keys may overlay them. If so, select an item using those touch panel keys.
1 Touch
2 Touch ▶, ▶or ▲ to select the menu item.
3 Touch
The way to display the menu differs depending on the disc.
- If you touch the touch panel keys disappear and the icon is displayed.

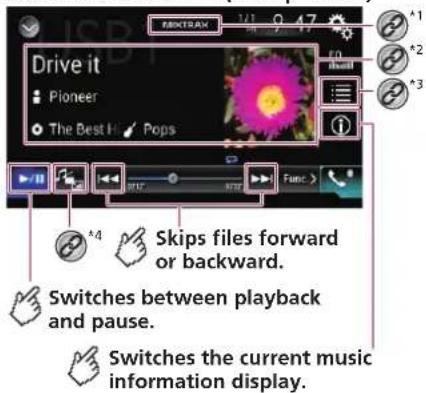

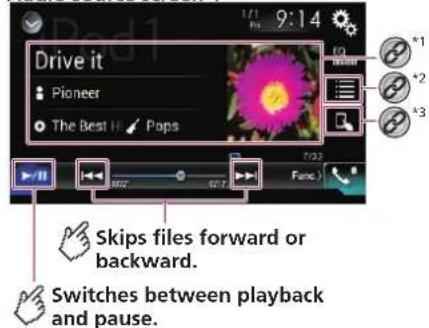

Audio source screen 1 (Example: USB)
Plays files in random order.
☐: Does not play files in random order.
: Plays all files within the repeat range in random order.
Audio source screen 2 (Example: USB)
Compressed files
Hides the touch panel keys.
To display again the keys, touch anywhere on the screen.
Video source screen (Example: Disc)

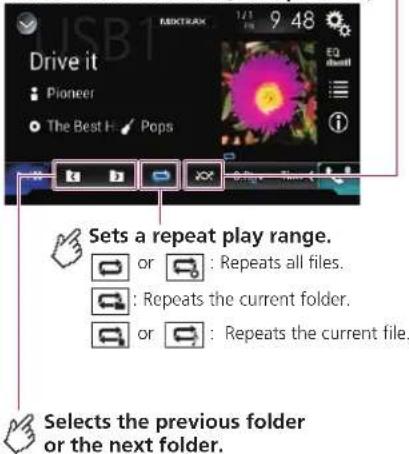

Sets a repeat play range.
or : Repeats all files.
: Repeats the current folder.
: Repeats the current file.
Performs frame-by-frame playback.
This function is available only for compressed video files stored on a disc.
Performs slow-motion playback.
Stops playback.

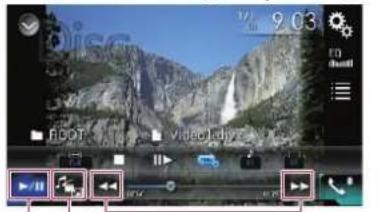

Video source screen (Example: Disc)
Performs fast reverse or fast forward.
Touch again to change the playback speed.
Switches between playback and pause.
Hides the touch panel keys.
To display again the keys, touch anywhere on the screen.
Rotates the displayed picture 90° clockwise.
Selects the previous or next folder.

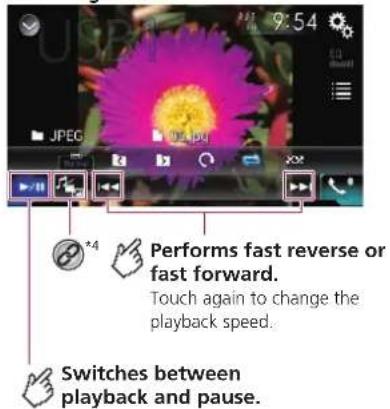

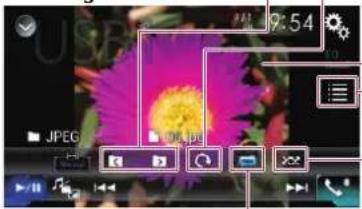

Still image screen
Sets a repeat play range.
: Repeats all files.
: Repeats the current folder.
Plays files in random order.
Does not play files in random order.
Plays all files in the current repeat play range in random order.
Compressed files
Still image screen

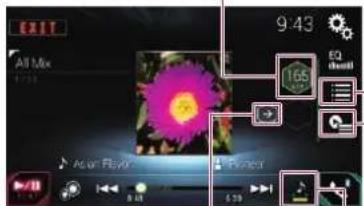

Displays the MIXTRAX screen.
Refer to MIXTRAX on page 60
Displays the link search screen.
☐ This function is available for the external storage device (USB, SD) only.
Refer to Selecting a song from the list related to the song currently playing (link search) on page 45
Selects a file from the list.
Refer to Selecting files from the file name list on page 44
☐ When you play compressed audio files stored in an external storage device (USB, SD), you can search for a file using Music Browse.
Refer to Selecting a file by Music Browse on page 44
Switches the media file type.
- Refer to Switching the media file type on page 44
Switches the subtitle/audio language.
This function is available only for compressed video files stored on a disc.
Refer to Switching the subtitle/audio language on page 45
You can play compressed audio, compressed video or still image files stored in a disc or an external storage device (USB, SD) using the built-in drive of this product.
Refer to Media compatibility chart on page 86
7 Depending on the model used, the SD source is not available.
- Refer to Supported AV source on page 9
7 By pressing the ◀◀◀◀◀▶▶, can also skip files forward or backward.
By pressing and holding the 🐘hello→the audio or video file, you can perform fast reverse or fast forward.
By pressing and holding the 📄 📋 📋 📋 the still image file, you can search through 10 JPEG files at a time. If the file currently being played is the first or last file in the folder, the search is not performed.
JPEG images are not displayed in the rear display.
You can set the screen size for the video and JPEG images.
Refer to Changing the wide screen mode on page 74
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe place and apply the parking brake.
Starting procedure (for Disc)
1 Insert the disc.
Refer to inserting and ejecting a disc on page 6
☐ If the disc is already set, select [Disc] as the playing source.
Starting procedure (for USB/SD)
1 Insert the SD memory card into the SD card slot or plug the USB storage device into the USB connector.
Refer to Inserting and ejecting an SD memory card on page 7
Refer to Plugging and unplugging a USB storage device on page 7
2 Display the AV source selection screen.
3 Touch [USB] or [SD].
□ Play back is performed in order of folder numbers. Folders are skipped if they contain no playable files.
Operations common to all file types
Selecting files from the file name list
You can find files or folders to play back using the file name or folder name list.
1 Touch
2 Touch a file on the list to play back.
- Touching a folder on the list shows its contents. You can play a file on the list by touching it.
Switching the media file type
When playing a digital media containing a mixture of various media file types you can switch between media file types to play.
1 Touch
2 Touch the item.
Music:
Switches the media file type to music (compressed audio).
Video:
Switches the media file type to video.
CD-DA
Switches the media file type to CD (audio data (CD-DA)).
Switches the media file type to still image (JPEG data).
Audio file operations
Selecting a file by Music Browse
You can select files to play back using the category list if the files contain tag information.
Compressed files iPod
This function is available for the external storage device (USB, SD) only.
1 Touch
2 Touch the "Tag" tab.
3 Touch the desired category to display the file list.
4 Touch the item.
Refine the item until the desired song title or file name is displayed on the list.
5 Touch the desired song title or file name to play back.
Selecting a song from the list related to the song currently playing (link search)
☐ This function is available for the external storage device (USB, SD) only.
☐ If you touch the artwork, the list of songs in the album is displayed.
1 Touch song information to open the list of songs.
2 Touch the song to play back.
Video file operations
Switching the subtitle/audio language
1 Touch
• : changes the subtitle language
• : changes the audio language.
☐ You can specify the desired language as the default subtitle/
audio languages.
Refer to Setting the top priority languages on page 12
Still image file operations
Setting the slideshow interval
JPEG files can be viewed as a slideshow on this product. In this setting, the interval between each image can be set. The default setting is "10sec".
This setting is available during playback of the JPEG files.
1 Display the "Video Setup" screen.
2 Touch [Time Per Photo Slide].
3 Touch the item.
The following items are available:
5sec, 10sec, 15sec Manual
Audio source screen 1
iPod
Changes the audiobook speed.
× 1 : Normal playback
× 2 : Fast playback
×1/2 : Slow-motion playback
Sets the shuffle play.
: Plays randomly songs or videos within the selected list.
: Plays album randomly.
Audio source screen 2
Sets a repeat play range.
: Repeats all in the selected list. : Repeats the current song or video.
Hides the touch panel keys.
To display again the keys, touch anywhere on the screen.

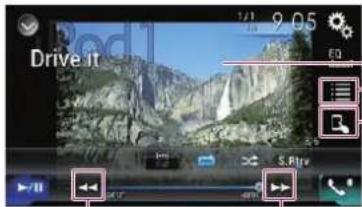

Video source screen
Performs fast reverse or fast forward.
Apple Music Radio screen
Skips tracks forward.
Displays the pop-up menu for Apple Music Radio.
tches between playback pause.
Displays the link search screen
Refer to Selecting a song from the list related to the song currently playing (link search) on page 45
Selects a song or video from the list. - Refer to Selecting song or video sources from the playlist screen on page 47
Switches the control mode to "App Mode". Refer to Using this product's iPod function from your iPod on page 47
By pressing the □◀◀▶▶▶▶ can also skip files/chapters forward or backward.
— Skipping backward is not available while playing Apple Music Radio.
By pressing and holding the ▶◀◀◀◀▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>
— This function is not available while playing Apple Music Radio.
☐ You can set the screen size for the video image.
Refer to Changing the wide screen mode on page 74
☐ The audiobook speed icon does not change when using this function with an iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, or iPod touch (5tr generation).
The setting changes as follows when the icon is touched, even though the icon does not change.
Faster—Slower—Normal—Faster...
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe place and apply the parking brake.
Connecting your iPod
When connecting an iPod to this product, select the method for connecting your device. Settings are required according to the connected device.
Refer to Setup for iPod / iPhone or smartphone on page 34
□ The available sources vary depending on the selected method for connecting your device.
Refer to information on the connections and functions for each device on page 35
☐ Depending on the generation or version of the iPod, some functions may not be available.
The video image of the iPod may have no se if the rear display outputs the video image. When noise is produced in the video image of the iPod, turn off the output setting of the rear display.
iPod
Refer to Selecting the video for the rear display on page 75
Starting procedure
☐ When connecting an iPhone or iPod touch, quit all applications before connecting the device.
1 Connect your iPod.
Refer to Connecting your iPod on page 46
2 Display the AV source selection screen.
3 Touch [iPod].
Selecting song or video sources from the playlist screen
You can search for the song, video, or radio stations you want to play from the playlist screen.
1 Touch
2 Touch 📄 or 📅 switch the music or video category list.
☐ The video category list icon is not available when using iPod function with an iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, or iPod touch (5th generation).
3 Touch the category.
☐ If you use English as the system language, the alphabet search function is available. Touch the initial search bar to use this function.
4 Touch the title of the list.
5 Start playback of the selected list.
☐ You can play playlists created with the MusicSphere application. The application is available on our website.
Using this product's iPod function from your iPod
You can control this product's iPod function from the iPod on "App Mode". The application screen of the iPod can be displayed on this product, and the music files and video files are played back with this product.
This function is not available when using iPod function with an iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, or iPod touch (5th general on).
☐ While this function is in use, the iPod will not turn off even if the ignition key is turned off. Operate the iPod to turn off the power.
1 Touch
2 Operate the connected iPod to select a video or song and play.
Some functions are still accessible from this product even if the control mode is set to "App Mode". However, the operation will depend on your applications.
■ Touch 📋 to switch the control mode.
Selecting a song from the list related to the song currently playing (link search)
7 If you touch the artwork, the list of songs in the album is displayed.
7 This function is not available while playing Apple Music Radio.
1 Touch song information to open the list of songs.
2 Touch the song to play back.
Using Apple Music Radio
Important
Apple Music Radio may not be available in your country or region.
For details about Apple Music, visit the following site: http://www.apple.com/music/
This function is only available when using iPod function with an iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, or iPod touch (5th generation).
1 Touch
2 Touch
3 Touch [Radio].
Playing back songs similar to the current song
You can listen to songs similar to the song currently being played.
1 Touch ★.
2 Touch [Play More Like This].
☐ When the menu item is not active, the function is not available for the current song.
☐ If you touch [Play More Like This] when the menu item is highlighted, the function will turn off.
Setting the current song not to be played back again
You can set the current song not to be played back again.
1 Touch ★.
2 Touch [Never Play This Song].
When the menu item is not active, the function is not available for the current song.
If you touch [Never Play This Song] when the menu item is highlighted, the function will turn off.
Adding the current song to the wish list
You can add the current song to the wish list for easy access to the song later.
1 Touch ★.
2 Touch [Add to iTunes Wish List].
If the song is already in the wish list, [Remove from iTunes Wish List] is displayed. If you touch this key, the song will be removed from the wish list.
AppRadio Mode
Press the button twice to de the App control side bar.
Press the button twice again to display it again.
□ are not available depending on the type of
device.
WARNING
Certain uses of an iPhone or a smartphone may not be legal while driving in your jurisdiction, so you must be aware of and obey any such restrictions.
It in doubt as to a particular function, only perform it while the car is parked.
No feature should be used unless it is safe to do so under the driving conditions you are experiencing.
AppRadio Mode Compatibility
5200NEX
AppRadio Mode is only available on an iPhone.
iPhone models
- iPhone 4, 4s, 5, 5c, 5s, 6, 6 Plus
- iPod touch (4th, 5th generation)
Smartphone (Android) models
- For details about Android device compatibility with this product, refer to the information on our website.
Using AppRadio Mode
You can control applications for an iPhone or a smartphone directly from the screen (AppRadio Mode).
In AppRadio Mode, you can operate applications with finger gestures such as tapping, dragging, scrolling or flicking on the screen of this product.
Important
- To use AppRadio Mode, install the AppRadio app on the iPhone or smartphone in advance. For details about the AppRadio app, visit the following site: For U.S.A. http://www.pioneerelectronics.com/AppRadioMode For Canada
http://www.pioneerelectronics.ca/AppRadioMode
- Be sure to read Using app-based connected content before you perform this operation.
Refer to Using app-based connected content on page 59
- Content and functionality of compatible applications are the responsibility of the App providers.
- In AppRadio Mode, usage is limited while driving, with availability of functions and content determined by the App providers.
- AppRadio Mode allows access to applications other than those listed, subject to limitations while driving.
● PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-PIONEER) APPS AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE INFORMATION.
In this chapter, iPhone and iPod touch will be referred to as "iPhone".
The compatible finger gestures vary depending on the application for an iPhone or a smartphone.
□ Even though an application is not compatible with AppRadio Mode, depending on the application an image may be displayed. But you can not operate the application.
Starting procedure
When connecting an iPhone or a smartphone to this product, select the method for connecting your device. Settings are required according to the connected device.
Refer to Setup for iPod/iPhone or smartphone on page 34
☐ Touch the desired application icon after the AppRadio app is launched.
After the desired application is launched, the application operation screen appears.
☐ If you connect your device while an AppRadio Mode compatible application is already running, the application operation screen will appear on this product.
□ Press the □llon to go back to the top menu screen.
For iPhone users
□ When you use an iPhone with a Lightning connector, connect the iPhone to this product via Bluetooth wireless technology and unlock the iPhone in advance.
Refer to Registering your Bluetooth devices on page 30
1 Connect your iPhone.
Refer to the Installation Manual
2 Press the button.
3 Touch [APPS].
☐ When you use an iPhone with a 30-pin connector, messages appear on the screen of this product and your iPhone. Proceed to the next step.
☐ When you use an iPhone with a Lightning connector, the AppRadio app is launched, and the AppRadio Mode screen (Application menu screen) appears after this step. In such a case, the following steps are not required.
4 Use your iPhone to launch the application.
The AppRadio app is launched.
5 Touch [OK] on the screen of this product.
The AppRadio Mode screen (Application menu screen) appears.
For smartphone (Android) users
8200NEX 7200NEX 6200NEX
1 Register your smartphone and connect it to this product via Bluetooth wireless technology.
Refer to Registering your Bluetooth devices on page 30
2 Unlock your smartphone and connect it to this product.
Refer to the Installation Manual
3 Press the button.
4 Touch [APPS].
AppRadio Mode
The AppRadio app is launched, and the AppRadio Mode screen (Application menu screen) appears.
Using the keyboard (for iPhone users)
When you tap the text input area of an application for iPhone, a keyboard will be displayed on the screen. You can input the desired text directly from this product.
This function may not be available depending on your iPhone.
☐ This function is only available in AppRadio Mode on the iPhone.
CAUTION
For your safety, the keyboard functionality is only available when the vehicle is stopped and the parking brake is engaged.
1 Set the keyboard language.
Refer to Setting the keyboard language with the application for iPhone on page 65
2 Start up AppRadio Mode.
Refer to Starting procedure on page 48
3 Touch the text input area on the application operation screen.
A keyboard for entering text appears.
Adjusting the image size (for smartphone (Android) users)
8200NEX 7200NEX 6200NEX
Black dots may appear on the screen when using AppRadio Mode with an Android device connected to this product.
☐ This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
☐ This function can be set when your Android device is able to enter AppRadio Mode.
☐ The setting screen automatically appears in the following cases:
— When entering AppRadio Mode after a Bluetooth connection using SPP (Serial Port Profile) has been established.
— When a Bluetooth connection using SPP (Serial Port Profile) has been established in AppRadio Mode.
1 Display the "System" setting screen.
2 Touch [Input/Output Settings].
3 Touch [AppRadio Video Adjustment].
4 Touch [OK].
5 Touch ▶, ▶ or ▶ to adjust the line to fit smartphone image size.
6 Touch [Preview].
7 Touch [OK].
■ If you want to adjust the setting again from the beginning, touch [RESET].
Using the audio mix function
You can output audio mixing AV source and an application for iPhone or smartphone when AppRadio Mode is used.
Depending on the application or the AV source, this function may not be available.
☐ When the audio mix function is set to on, the voice guidance of the navigation system is not output. To output the voice guidance of the navigation system, set the audio mix function to off.
1 Start up AppRadio Mode.
Refer to Starting procedure on page 48
2 Press the VOL (+/-) button.

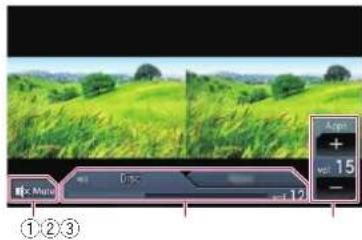

The audio mix menu will be displayed on the screen.
The audio mix menu is displayed for four seconds. If the screen disappears, press the VOL (+/-) button again. The screen reappears.
The AV operation screen and the Application screen can be switched by pressing the MODE button.
① Touch to mute. Touch again to unmule.
② Sets whether to switch the sound mix function on or off.
- Left tab:
The audio mix function is enabled (mix on) and the App volume is displayed.
Right tab:
The audio mix function is disabled (mix off).
The right tab is not displayed on the AV operation screen.
③ Adjusts the application audio volume.
☐ The Apo volume is not displayed when the right tab is selected.
☐ You cannot adjust the volume of the main sound on the screen. Press the VOL (+/-) button to adjust the volume of the main sound.
Apple CarPlay
You can control applications for an Phone directly from the screen (Apple CarPlay).
In Apple CarPlay, you can operate applications with finger gestures such as tapping, dragging, scrolling or flicking on the screen of this product.
This function is only available when using iPod function with an iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, or iPhone 5.
WARNING
Certain uses of an iPhone may not be legal while driving in your jurisdiction, so you must be aware of and obey any such restrictions.
If in doubt as to a particular function, only perform it while the car is parked.
No feature should be used unless it is safe to do so under the driving conditions you are experiencing.
Using Apple CarPlay
Important
Apple CarPlay may not be available in your country or region. For details about Apple CarPlay, visit the following site:
http://www.apple.com/ios/carplay
- Content and functionality of compatible applications are the responsibility of the App providers.
- In Apple CarPlay, usage is limited while driving, with availability of functions and content determined by the App providers.
- Apple CarPlay allows access to applications other than those listed, subject to limitations while driving.
- PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-PIONEER) APPS AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE INFORMATION.
☐ The compatible finger gestures vary depending on the application for an iPhone.
Starting procedure
When connecting an Apple CarPlay-compatible device to this product, select the method for connecting your device. Settings are required according to the connected device.
Refer to Setup for iPod / iPhone or smartphone on page 34
To achieve optimum usability of Apple CarPlay, set the driving position setting correctly according to the vehicle.
Refer to Setting the driving position on page 50
You can adjust the guidance volume and alert sound volume separately from the main sound volume when Apple CarPlay is used.
Refer to Adjusting the volume on page 50
1 Connect an Apple CarPlay-compatible device to this product via USB.
Refer to the Installation Manual.
The Application menu screen appears
☐ If an Apple CarPlay-compatible device has been connected and another screen is displayed, touch [Apple CarPlay] on the top menu screen to display the Application menu screen.
☐ The Bluetooth connection with the Apple CarPlay-compatible device will be terminated automatically if Apple CarPlay is turned on. While Apple CarPlay is turned on, only a Bluetooth audio connection will be possible for devices other than the device connected via Apple CarPlay.
Hands-free phoning via Bluetooth wireless technology is not available while Apple CarPlay is on, if Apple CarPlay is turned on during a call on a cellular phone other than the Apple CarPlay compatible device, the Bluetooth connection will be terminated after the call ends.
☐ The route guidance by the internal navigation system will stop automatically if the route guidance function in Apple CarPlay is launched.
Setting the driving position
To achieve optimum usability of Apple CarPlay, set the driving position setting correctly according to the vehicle. The default setting is "Left".
1 Display the "System" setting screen.
2 Touch [Driving Position].
3 Touch the item.
• Left:
Select for a left-hand drive vehicle.
Right:
Select for a right-hand drive vehicle. The setting will be applied the next time an Apple CarPlay-compatible device is connected to this product.
Adjusting the volume
You can adjust the guidance volume and alert sound volume separately from the main sound volume when Apple CarPlay is used.
1 Start up Apple CarPlay.
Refer to Starting procedure on page 50
2 Press the VOL (+/-) button.
The volume menu will be displayed on the screen. ☐ The volume menu is displayed for four seconds. If the menu disappears, press the VOL (+/-) button again. The menu reappears.
① Touch to mute. Touch again to unmute.
② Displays the main sound volume.
- You cannot adjust the volume of the main sound on the screen. Press the VOL (+/-) button to adjust the volume of the main sound.
③ Adjusts the guidance volume and alert sound volume.
☐ Each touch of [+] or [-] increases or decreases the volume level.
Android Auto™
8200NEX 7200NEX
You can control applications for a smartphone directly from the screen (Android Auto).
In Android Auto, you can operate applications with finger gestures such as tapping, dragging, scrolling or flicking on the screen of this product.
☐ Android devices running Android 9.0 or higher are compatible with Android Auto.
WARNING
Certain uses of a smartphone may not be legal while driving in your jurisdiction, so you must be aware of and obey any such restrictions.
If in doubt as to a particular function, only perform it while the car is parked.
No feature should be used unless it is safe to do so under the driving conditions you are experiencing.
Using Android Auto
Important
Android Auto may not be available in your country or region. For details about Android Auto, please refer to the Google support site.
http://support.google.com/androidauto
- Content and functionality of compatible applications are the responsibility of the App providers.
- In Android Auto, usage is limited while driving, with availability of functions and content determined by the App providers.
- Android Auto allows access to applications other than those listed, subject to limitations while driving.
● PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-PIONEER) APPS AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE INFORMATION.
The compatible finger gestures vary depending on the application for a smartphone.
Starting procedure
When connecting an Android Auto-compatible device to this product, select the method for connecting your device. Settings are required according to the connected device.
Refer to Setup for iPod / iPhone or smartphone on page 34
To achieve optimum usability of Android Auto, set the driving position setting correctly according to the vehicle. Refer to Setting the driving position on page 51
☐ You can adjust the guidance volume and alert sound volume separately from the main sound volume when Android Auto is used.
- Refer to Adjusting the volume on page 51 - If the auto-launch function is set, Android Auto will launch automatically as soon as a connection to an Android Auto compatible device is established. - Refer to Setting the auto-launch function on page 51
1 Connect an Android Auto-compatible device to this product via USB.
Refer to the Installation Manual.
2 Press the button.
3 Touch [Android Auto].
A Bluetooth connection with the Android Auto-compatible device will automatically be established and a Bluetooth connection with any other device will be terminated.
☐ If three devices are already paired, the message confirming whether to delete the registered device is displayed. If you want to delete the device, touch [Agree]. If you want to delete other device, touch [BT Settings] and delete the device manually.
- Refer to Registering your Bluetooth devices on page 30
If Android Auto is turned on during a call on a cellular phone other than the Android Auto-compatible device, the Bluetooth connection will switch to the Android Auto-compatible device after the call ends.
Setting the auto-launch function
It this function is set to on, Android Auto will launch automatically when an Android Auto-compatible device is connected to this product.
The default setting is "On"
☐ Android Auto will launch automatically only when "Smartphone Setup" is correctly set for using Android Auto and an Android Auto-compatible device is correctly connected to this product.
1 Display the "System" setting screen.
2 Touch [Android Auto Auto-launch] to switch "On" or "Off".
Setting the driving position
To achieve optimum usability of Android Auto, set the driving position setting correctly according to the vehicle. The default setting is "Left".
1 Display the "System" setting screen.
2 Touch [Driving Position].
3 Touch the item.
• Left:
Select for a left-hand drive vehicle.
Right:
Select for a right-hand drive vehicle. The setting will be applied the next time an Android Auto compatible device is connected to this product.
Adjusting the volume
You can adjust the guidance volume and alert sound volume separately from the main sound volume when Android Auto is used.
1 Start up Android Auto.
Refer to Starting procedure on page 51
2 Press the VOL (+/-) button.
The volume menu will be displayed on the screen.
☐ The volume menu is displayed for four seconds. If the menu disappears, press the VOL (+/-) button again. The menu reappears.
① Touch to mute. Touch again to unmute.
② Displays the main sound volume.
Android Auto™
☐ You cannot adjust the volume of the main sound on the screen. Press the VOL (+/-) button to adjust the volume of the main sound.
③ Adjusts the guidance volume and alert sound volume.
☐ Each touch of (+) or (−) increases or decreases the volume level.
Pandora®
Gives a "Thumbs Down" to the playing track and skips to the next track.
Displays the preset station list. Select an item on the list ("1" to "6") to switch to the preset station.
HOLD Stores the current station to a key.
Preset stations can be stored for each user (up to 10 users). If the preset stations for 10 users are already stored, the preset stations for the user who has not accessed their preset stations for the longest period of time will be automatically deleted for a new user.
Selects a Pandora station from the list.
Refer to Selecting a Pandora station from the list on page 53
Creates a new station.
Refer to Adding a station on page 53
Pandora®
By pressing the when, you can skip songs forward.
□ and are not available when using a shared station.
WARNING
Certain uses of an iPhone or a smartphone may not be legal while driving in your jurisdiction, so you must be aware of and obey any such restrictions.
It in doubt as to a particular function, only perform it while the car is parked.
No feature should be used unless it is safe to do so under the driving conditions you are experiencing.
Using Pandora
You can enjoy Pandora by connecting an iPhone or a smartphone that has the Pandora application installed.
Important
- Requirements to access Pandora using Pioneer car audio/video
Refer to Setup for iPod / iPhone or smartphone on page 34 - Please update the firmware of the Pandora application to the latest version before use. Download it from the iTunes App Store or Google Play.
- Create a free or a paid account online. You can create the account in the Pandora application from your iPhone or smartphone, or from the website (http://www.pandora.com/account/register).
To use the Pandora service, you need to connect to the Internet via 3G, FEDGE, LTE (4G) or Wi-Fi network. If the data plan for your iPhone or smartphone does not provide for unlimited data usage, additional charges from your carrier may apply.
Limitations:
● Depending on the availability of the Internet, you may not be able to receive the Pandora service.
The Pandora service is subject to change without notice. The service could be affected by any of the following: firmware version of the iPhone or smartphone, firmware version of the Pandora application, changes to the Pandora music service.
- Certain functions of the Pandora service are not available when accessing the service through Pioneer car audio/video products.
They include, but are not limited to the following: creating new stations, deleting stations, sending information about current stations, buying tracks from iTunes App Store or
Google Play, viewing additional text information, logging in to Panocora, adjusting Cell Network Audio Quality.
- Pandora internet radio is a music service not affiliated with Pioneer. More information is available at http://www.pandora.com
- The Pandora mobile application is available for most iPhone and smartphone, please visit http://www.pandora.com/everywhere/mobile for the latest compatibility information.
Starting procedure
When connecting an iPhone or a smartphone to this product, select the method for connecting your device. Settings are required according to the connected device.
Refer to Setup for iPod / iPhone or smartphone on page 34
You can use the Pandora service by connecting an iPhone via USB, Bluetooth, or HDMI and Bluetooth.
Refer to the Installation Manual
Refer to Registering your Bluetooth devices on page 30
☐ If you use a smartphone, connect via Bluetooth, or HDMI and Bluetooth.
Refer to the Installation Manual
Refer to Registering your Bluetooth devices on page 30
1 Unlock and connect your device.
2 Display the AV source selection screen.
3 Touch [Pandora].
Selecting a Pandora station from the list
1 Touch
● switches to the station list.
● switches to the genre list.
- Plays only one track based on particular musical characteristics from several shuffled stations.
• : Petes the station
A-Z: Sorts the items in the list alphabetically.
Date: Sorts the items in the list in the order of the dates.
7 Shared stations are indicated by .
Bluetooth audio player
Playback screen 1
Skips files forward or backward.
Plays files in random order.
Playback screen 2
Switches between playback and pause.
Selects a file from the list.
Refer to Selecting files from the file name list on page 54
☐ Depending on the Bluetooth audio player connected to this product, the available operations with this product may be limited to the following two levels: — A2DP (Advanced Audio Distribution Profile): Only playing back songs on your audio player is possible.
— A2DP and AVRCP (Audio/Video Remote Control Profile): Playing back, pausing, selecting songs, etc., are possible.
Depending on the Bluetooth audio player connected to this product, some functions may not be available.
While you are listening to songs on your Bluetooth device, please refrain from operating the phone function as much as possible. If you try operating, the signal may cause noise for song playback.
When you are talking on the Bluetooth device connected to this product via Bluetooth, it may pause playback.
7 By pressing the button, you can also skip files forward or backward.
By pressing and holding the ▶◀◀◀▶su can also perform fast reverse or fast forward.
Starting procedure
Before using the Bluetooth audio player, register and connect the device to this product.
Refer to Registering your Bluetooth devices on page 30
1 Pull out the connecting cable for using AppRadio Mode.
☐ You cannot use Bluetooth audio player when the connecting cable for using AppRadio Mode is connected.
2 Display the "System" setting screen.
3 Touch [AV Source Settings].
4 Confirm that "Bluetooth Audio" is turned on.
5 Display the AV source selection screen.
6 Touch [Bluetooth Audio].
Selecting files from the file name list
☐ This function is available only when the AVRCP version of the Bluetooth device is 1.4 or higher.
1 Touch
2 Touch a file or a folder on the list to play back.
SiriusXM® Satellite Radio
iTunes® tagging indicator and iTunes® tagging song status indicator
By pressing the action button, you can also move the preset channels up or down on the current channel screen, and skip files forward or backward on the play time indicator screen.
By pressing and holding the button you can also move channels up or down on the current channel screen, and perform fast reverse or fast forward on the play time indicator screen.
☐ "RADIO ID" is displayed when Channel 0 is selected.

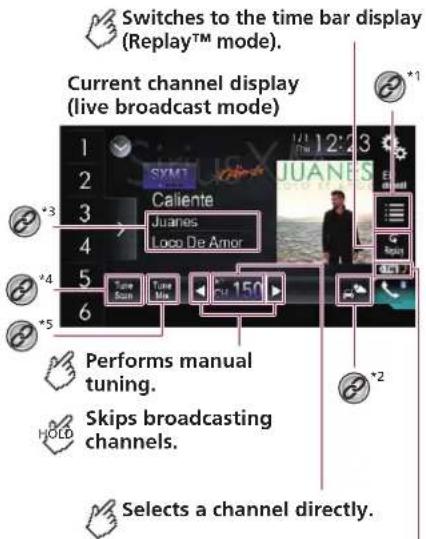

SiriusXM tuner operations
Only SiriusXM® brings you more of what you love to listen to all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Connect Vehicle Tuner and Subscription are required. For more information, visit the website (www.siriusxm.com).
☐ You can use this product to control a SiriusXM Connect Vehicle Tuner (solo separately).
- For information on how to install the SiriusXM Connect Vehicle Tuner, consult the installation guide included with the tuner.
Starting procedure
1 Display the AV source selection screen.
2 Touch [SiriusXM].
SiriusXM® Satellite Radio
Subscribing to the SiriusXM Satellite Radio service
1 Select SiriusXM as the source.
Refer to Starting procedure on page
You should be able to tune in to Channel 1. If you cannot get Channel 1, ensure that your SiriusXM Connect Vehicle Tuner is installed correctly.
2 Switch to Channel 0 and check the Radio ID.
You will need this number to activate your subscription.
Note that the SiriusXM Radio ID does not include the letters I, O, S or F.
3 Activate the service either online or by phone.
☐ In the USA, you can activate online or by calling SiriusXM Listener care:
- Visit the website
www.siriusxm.com/activatenow
Call SiriusXM Listener Care at 1-866-635-2349
For Canadian Subscriptions, please contact:
- Visit the website
www.siriusxm.ca/activatexm
Call XM customer Care at 1-877-439-9677
The SiriusXM satellites will send an activation message to your tuner. When the tuner has received the message, "Subscription Updated" is displayed.
The activation process usually takes 10 to 15 minutes but may take longer. Do not turn off this product while the activation message is displayed.

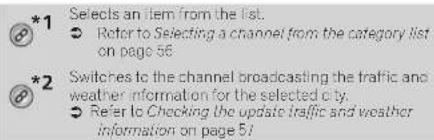

Selecting a channel from the category list
☐ The types of categories available depend on the types of channels available.
☐ It may take time to display the channel list depending on the SiriusXM reception condition.
1 Touch
2 Touch the category name.
3 Touch the desired channel.
- If you touch [you can switch between list types. The displayed list switches in the following order.
Channel Name—Artist Name—Song Title—Content Info
- If you touch You can scan each channel in the selected category.
Using TuneScan™
When you activate the TuneScan™ feature, you will hear a few seconds of the songs, which have not been listened to, from each of the music channels stored as presets on the current band.
When fewer than two music channels are stored as presets, you cannot perform scan tuning.
TuneScan™ may take a few minutes to become available after the product is turned on or the preset band is changed.
1 Touch
① Continues playing the current scanning song or channel. ② Skips to the previous/next song during TuneScan™ or to the previous/next channel during category scan.
③ Cancels scan play.
Using TuneMix™
TuneMix™ plays a unique blend of songs from music channels stored in the current SiriusXM Preset Band.
☐ SXV500 or later SiriusXM Connect vehicle tuner (sold separately) is required to use this function.
7 When fewer than two music channels are stored as presets, you cannot perform TuneMix™.
The locked channel cannot be used for the TuneMix ^™ until you clear the password.
1 Touch
- To cancel TuneMix™, touch the key again.
Displaying the "SiriusXM Settings" screen
1 Display the "System" setting screen.
2 Touch [AV Source Settings].
3 Touch [SiriusXM Settings].
Setting TuneStart™
Automat cally start songs from the beginning when you tune to one of your preset channels in the current preset band when TuneStart ^TM is turned on. The default setting is "On".
1 Display the "SiriusXM Settings" screen.
Refer to Displaying the "SiriusXM Settings" screen on page 56
2 Touch [Tune Start] to switch "On" or "Off".
Setting parental lock
The Parental Control feature allows you to limit access to any SiriusXM channels, including those with mature content. When enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels. The default passcode is '0000'.
Setting the passcode
1 Display the "SiriusXM Settings" screen.
Refer to Displaying the "SiriusXM Settings" screen on page 56
2 Touch [Parental Control].
3 Enter the passcode.
4 Touch
5 Touch [Edit Code].
6 Enter the passcode you want to set.
7 Touch
SiriusXM® Satellite Radio
Locking the channel
1 Display the "SiriusXM Settings" screen.
Refer to Displaying the "SiriusXM Settings" screen on page 56
2 Touch [Parental Control].
3 Enter the current passcode.
4 Touch
5 Touch the channel.
appears and the channel is locked.
- When you touch the locked channel, the channel is unlocked.
- When you touch [Clear All], all locked channels are unlocked.
Checking the update traffic and weather information
Traffic & Weather Now™ allows you to access the latest traffic and weather report whenever you want to hear it.
☐ SXV300 or later SinusXM Connect vehicle tuner (sold separately) is required to use this function.
To use this function, select the city in advance. Refer to Selecting the city for Traffic & Weather Now™ on page 57
1 Touch
● Grayed out: traffic and weather broadcast for your market is not yet available.
- With green dot: latest report available but not listened to yet. - White: latest report available to hear again.
- To cancel Traffic & Weather Now ", touch
Selecting the city for Traffic & Weather Now™
1 Display the "SiriusXM Settings" screen.
Refer to Displaying the "SiriusXM Settings" screen on page 60
2 Touch [City Setting].
3 Touch the city.
Using SportsFlash™
SportsFlash® will notify you when a big play happens during a game with one of your favorite sports teams. You can select whether or not to hear the play. In addition, you can select whether to continue listening to the notified game or to return to the previous channel you were listening to. ☐ SXV500 or later SiriusXM Connect vehicle tuner (sold separately) is required to use this function.
This function is available only when "SportsFlash" is set to "On".
Refer to Setting SportsFlash™ on page 5/
To use this function, before the game starts select the teams you want to follow. Up to 50 teams can be registered as the target of SportsFlash™.
Refer to Selecting teams for SportsFlash \~ on page 57
1 Touch [Play] to listen to the notified channel. To return to the original channel, touch \$ within five minutes after the channel is switched.
7 Touch [Ignore] to slay tuned to the current channel.
7 Touch [Cancel] to cancel notifications regarding the game.
Setting SportsFlash™
The default setting is "On".
1 Display the "SiriusXM Settings" screen.
Refer to Displaying the "SiriusXM Settings" screen on page 56
2 Touch [SportsFlash] to switch "On" or "Off".
Selecting teams for SportsFlash™
To display "SportsFlash List" at all times, "SportsFlash" needs to be set to "On".
Refer to Setting SportsFlash™ on page 57
1 Display the "SiriusXM Settings" screen.
- Refer to Displaying the "SiriusXM Settings" screen on page 56
2 Touch [SportsFlash List].
3 Touch [Edit List].
4 Select a league.
5 Select a team.
■ You can touch an item again to deselect it.
■ If you want to remove all the teams you have set, touch the [Clear All].
Setting of priorities
If you set numerous favorite teams, you can receive alerts for up to five favorite teams in the order in which data are received. You can set the order of priority for up to five teams, if more than six teams are set as favorite teams.
1 Touch [Prioritize] on the team selection screen.
2 Select the high priority five teams from the selected favorite teams.
Using the content alerts function
The song titles, artist names, and your favorite sport teams to which you are listening can be memorized to an alert list. When a program that matches a keyword memorized to the alert list is broadcast, a beep sounds and a message is displayed.
☐ You can register up to 50 keywords in the alert list.
- Refer to Memorizing the current contents on page 57
☐ You can enable or disable alerts by setting the alert function. → Refer to Setting the alert function on page 57
☐ The radio will display an alert message when a matching artist, song or team is found on another channel. Touch [Jump] to switch to the channel. If you touch [Stay], the channel will not switch.

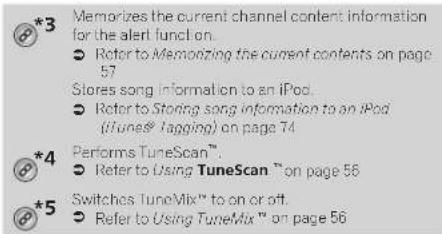

Memorizing the current contents
1 On the current channel content information area, touch the item for which you want an alert.
2 Touch [Set Alert] for artist or song, or touch [Team1] or [Team2] for game.
Setting the alert function
1 Display the "SiriusXM Settings" screen.
- Refer to Displaying the "SiriusXM Settings" screen on page 56
2 Touch [Alert List].
3 Touch the artist name, song title or team. The alert setting is enabled.
- Touch [Alert On] or [Alert Off] to activate or deactivate the alert function.
SiriusXM® Satellite Radio
- Touch [Delete All] to delete all items memorized to the alert list.
- If you touch and hold the list item, you can delete the item from the list.
Selecting teams for Game Alert
This product can notify you when games involving your favorite sports teams are about to start.
1 Display the "SiriusXM Settings" screen.
Refer to Displaying the "SiriusXM Settings" screen on page 56
2 Touch [Team Settings].
3 Select a league.
4 Select a team.
Using Featured Favorites Band
Featured Favorites are groups of channels that are created by the SiriusXM Programming department allowing you to discover new channels.
I featured favorite channels are dynamic and can change often, allowing you to discover new channels.
If this function is turned on, "Featured" will be available as a band selection.
- Refer to Setting the Featured Favorites function on page 58
The featured seasonal theme will be automatically updated. You can set whether to be notified of the update.
- Refer to Setting Featured Band Update Message on page 58
Setting the Featured Favorites function
The default setting is "On".
1 Display the "SiriusXM Settings" screen.
Refer to Displaying the "SiriusXM Settings" screen on page 56
2 Touch [Featured Favorites] to switch "On" or "Off".
Setting Featured Band Update Message
You can set whether to be notified when the featured seasonal theme is updated. The default selling is "On".
1 Display the "SiriusXM Settings" screen.
Refer to Displaying the "SiriusXM Settings" screen on page 58
2 Touch [Featured Band Update Messages] to switch "On" or "Off".
Restoring the "SiriusXM Settings" to the default
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
CAUTION
Do not turn off the engine while restoring the settings.
1 Display the "SiriusXM Settings" screen.
- Refer to Displaying the "SiriusXM Settings" screen on page 56
2 Touch [SiriusXM Reset].
3 Touch [Restore].
☐ The source is turned off and the Bluetooth connection is disconnected before the process starts.

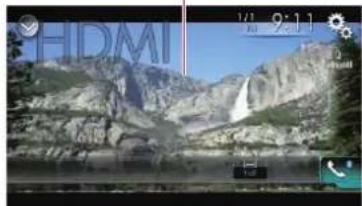

HDMI source
8200NEX 7200NEX 6200NEX
Hides the touch panel keys. To display again the keys, touch anywhere on the screen.
- Refer to the Installation Manual.
☐ You can set the screen size for the video image.
Refer to Changing the wide screen mode on page 74
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe place and apply the parking brake.
Starting procedure
1 Display the AV source selection screen.
2 Touch [HDMI].
AUX source AV input
Hides the touch panel keys.
To display again the keys, touch anywhere on the screen.
Switches between the video input and the sound input.
☐ A Mini-jack AV cable (CD-RM10) (so'd separately) is required for connection.
Refer to the installation Manual.
☐ You can set the screen size for the video image.
- Refer to Changing the wide screen mode on page 74
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe place and apply the parking brake.
Starting procedure
You can display the video image output by the device connected to video input.
1 Display the "System" setting screen.
2 Touch [Input/Output Settings].
3 Confirm that "AUX Input" is turned on.
4 Display the AV source selection screen.
5 Touch [AUX].
Setting the video signal
When you connect this product to an AUX equipment, select the suitable video signal setting.
The default setting is "Auto".
You can operate this function only for the video signal input into the AUX input.
1 Display the "Video Setup" screen.
2 Touch [Video Signal Setting].
3 Touch [AUX].
4 Touch the item.
The following items are available:
Auto, PAL, NTSC, PAL-M, PAL-N, SECAM.
Hides the touch panel keys.
To display again the keys, touch anywhere on the screen.
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe place and apply the parking brake.
Starting procedure (for AV source)
You can display the video image output by the device connected to video input.
- Refer to the Installation Manual.
1 Display the "System" setting screen.
2 Touch [Input/Output Settings].
3 Touch [AV Input].
4 Touch [Source].
☐ If "Source" is selected, "2nd Camera Input" is automatically set to "Off".
Refer to Selling the second camera activation on page 65
5 Display the AV source selection screen.
AV input MIXTRAX
6 Touch [AV].
Starting procedure (for camera)
You can display the image output by the camera connected to video input.
Refer to the Installation Manual
1 Display the "System" setting screen.
2 Touch [Input/Output Settings].
3 Touch [AV Input].
4 Touch [Camera].
5 Display the AV source selection screen.
6 Touch [Camera View].
When the camera view of both the rear view cameras and 2nd camera are available, the key to switch the display appears. Touch this key to switch the display between the rear view image and 2nd camera image.
Setting the video signal
When you connect this product to an AV equipment, select the suitable video signal setting.
The default selling is "Auto".
☐ You can operate this function only for the video signal input into the AV input.
1 Display the "Video Setup" screen.
2 Touch [Video Signal Setting].
3 Touch [AV].
4 Touch the item.
The following items are available:
Auto, PAL, NTSC, PAL-M, PAL-N, SECAM.
Exits the MIXTRAX screen.
Displays the LinkGate screen.
Touch the desired item. Songs related to the selected item are played.
Selects a track.
Turns on or off the MIXTRAX original visual display.
Switches between playback and pause.
Displays the item selected on the LinkGate screen or item selection screen.
MIXTRAX
Specifies the BPM.
Sets to the original BPM (Beats Per Minute).
Specifies the playback portion.
Plays back a middle portion.
Plays back a long portion.
Plays back a short portion.
Selects an item from the list
- Refer to Selecting an item from the list on page 61
Selects songs not to be played
Refer to Selecting songs not to be played on page 61
Using MIXTRAX
MIXTRAX is original technology for creating non-stop mixes of selections from your audio library, complete with DJ effects that make them sound.
☐ FLAC files are skipped during MIXTRAX playback.
Starting procedure
1 Insert the SD memory card into the SD card slot or plug the USB storage device into the USB connector.
- Refer to Inserting and electing an SD memory card on page 7
- Refer to Plugging and unplugging a USB storage device on page 7
2 Display the AV source selection screen.
3 Touch [USB] or [SD].
4 Touch [MIXTRAX].
Selecting an item from the list
You can specify an item to play songs related to it.
1 Touch
The following lists are available:
• plays the mix pattern list.
• Displays the tag list.
• plays the file list.
2 Touch an item in the list.
Selecting songs not to be played
You can select items or songs not to be played.
1 Touch
2 Touch
3 Touch the category.
4 Touch the box on the left of the item or song that you do not want to play.
Displaying the "MIXTRAX Settings" screen
1 Display the "System" setting screen.
2 Touch [AV Source Settings].
3 Touch [MIXTRAX Settings].
Setting the flash pattern
The flashing color changes with the changes in the sound and bass levels.
The default setting is "Sound1".
1 Display the "MIXTRAX Settings" screen.
Refer to Displaying the "MIXTRAX Settings" screen on page 61
2 Touch [Flash Pattern].
3 Touch the item.
Sound1 to Sound6:
The flash pattern changes according to the sound level
L-Pass1 to L-Pass6
The flash pattern changes according to the bass level.
• Random1:
The flash pattern changes randomly according to the sound level mode and low pass mode.
Random2:
The flash pattern changes randomly according to the sound level mode.
Random3:
The flash pattern changes randomly according to the low pass mode.
Off
The flash pattern does not flash.
iDatalink

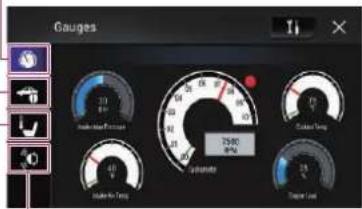

Displays the Vehicle Information screen.
Displays the Gauges screen.
Car Features screen (Example: Gauges)
Displays the Parking Assist screen.
Displays the Climate screen.
Using iDatalink
By connecting the optional iDatalink adapter, you can access the satellite radio source provided for the vehicle and the vehicle information can be displayed on this product.
Important
- For details about vehicle models that are compatible with the iDataLink adapter, refer to the information on our website.
- For information on installing the iDatalink adapter, refer to the install guide of the iDatalink adapter.
- After installing the iDatalink adapter, be sure to check the operations.
● Functions and displays vary depending on the vehicle model. For details of the functions available for each model, refer to the information on our website. - Please note that the device number of this product and a computer with internet access are required to program
your Maestro RR module. For troubleshooting information about IDatalink functions, visit the following website. http://maestro.idatalink.com/support
Limitations:
- The iDatalink list screen can be scrolled up or down by page.
- It is possible to retain many OEM systems such as steering wheel controls, warning chimes, driver safety systems, voice-controlled Bluetooth hands-free phone, media players and satellite radios. It is also possible to add visual screens such as gauges, vehicle information, climate control and parking assist. However, an additional interface module is required to access these features. Since the type of module varies depending on the vehicle model, please search for your vehicle at the following URL to determine what features are available for each module. Remember to select the correct radio model for accurate results.
http://maestro.idatalink.com/
- The data are transmitted to this product from your vehicle system via the connected I/Datalink adapter. Therefore, the actual data contents displayed on your product may be different from the contents on the screen described in this manual.
- When information on your vehicle or on the devices of your vehicle is sent from the iDatalink Maestro module, a screen notifying you of such information may poo up.
Activating iDatalink Maestro
Before using and/or connecting the iDataLink Maestro adapter, you will need to first flash the Maestro RR module with the appropriate vehicle and head unit firmware.
http://maestro.idatalink.com/
1 Find the device number (12 alphanumeric characters) on the label on the packaging of this product or on this product itself.
Device number input is required for updating the IDatalink Maestro module. Take a note of the device number as necessary.
☐ You can also check the device number on the "Firmware Information" screen of this product.
☑ Refer to Displaying the firmware version on page 66
2 Access the following website and follow the on-screen directions to configure the desired firmware.
☐ When the serial number input is required, please input the device number of this product.
3 Install the vehicle/head unit specific firmware on your iDatalink Maestro module.
For details, please refer to Datalink Maestro website.
4 Connect this product to iDatalink Maestro, and then install this product to the vehicle.
Refer to the Installation Manual. The iData link function will be active
Starting procedure
1 Connect the iDatalink Maestro adapter.
Refer to the Installation Manual.
2 Display the AV source selection screen.
3 Touch [Car Sources] or [Car Features].
☐ If you touch | Car Sources|, the source select menu appears.
- Refer to Using functions in Car Sources on page 62
If you touch [Car Features], the vehicle features menu appears.
- Refer to Using functions in Car Features on page 62
Using functions in Car Sources
Almost operations are very similar to the built-in AV sources of this product. For details of the operations, refer to the related pages.
USB/iPod operations
Refer to Compressed files on page 42.
SiriusXM tuner operations
Refer to SiriusXM® Satellite Radio on page 55
Bluetooth Audio operations
Refer to Bluetooth audio player on page 54
Hands-free phone operations
Refer to Hands-free phoning on page 32.
Using functions in Car Features
You can check and operate the following screens.
Gauges screen
iDatalink System settings
Vehicle Information screen
Climate screen
Parking Assist screen
Displaying the setting screen for iDatalink
Functions and displays vary depending on the connected type of iDataLink adapter and the vehicle model.
1 Display the "System" setting screen.
2 Touch [OEM Settings].
Displaying the "System" setting screen
1 Press the button.
2 Touch Ⓞ, and then ⌘.
Setting the navigation information bar
You can set whether to display the guidance information of the navigation on the AV operation screen.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Navigation Related Settings].
3 Touch [Navigation info window] to switch "On" or "Off".
Setting navigation screen interruption
You can set whether to automatically switch to the navigation screen from the AV screen or the application screen when your vehicle approaches a guidance point such as an intersection.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Navigation Related Settings].
3 Touch [AV/App Guide Mode] to switch "On" or "Off".
Setting Bluetooth audio source activation
The default setting is "On"
1 Display the "System" setting screen.
- Rotor to Displaying the "System" setting screen on page 63
2 Touch [AV Source Settings].
3 Touch [Bluetooth Audio] to switch "On" or "Off".
System settings
Setting the ever scroll
When "Ever Scroll" is set to "On", the recorded text information scrolls continuously in the display while the vehicle is stopped. The default setting is "Off".
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Ever Scroll] to switch "On" or "Off".
Setting the beep tone
The default setting is "On".
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Beep Tone] to switch "On" or "Off".
Setting the rear view camera
A separately sold rear view camera (e.g. ND-BC8) is required for utilizing the rear view camera function. (For details, consult your dealer.)
Rear view camera
This product features a function that automatically switches to the full-screen image of the rear view camera installed on your vehicle, when the shift lever is in the REVERSE (R) position.
Camera View mode also allows you to check what is behind you while driving.
Camera for Camera View mode
Camera View can be displayed at all times. Please note that with this setting, the camera image is not resized to fit, and that a portion of what is seen by the camera is not viewable. To display the camera image, touch [Camera View] on the AV source selection screen.
- Refer to Source on the AV source selection screen on page 9
To set the rear view camera as the camera for Camera View mode, set "Back Camera Input" to "On".
☐ When using the 2nd camera, set "AV Input" to "Camera"
CAUTION
Check to make sure settings for rear view camera displays a mirror reversed image.
Immediately verify whether the display charges to a rear view camera image when the shift lever is moved to REVERSE (R) from another position.
When the screen changes to full-screen rear view camera image during normal driving, switch to the opposite setting in "Reverse Gear Setting".
If you touch 📋 the camera image is displayed, the displayed image will turn off temporarily.
☐ When the camera view of both the rear view camera and 2nd camera are available, the key to switch the display appears. Touch this key to switch the display between the rear view image and 2nd camera image.
Setting rear view camera activation
The default setting is "Off"
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 83
2 Touch [Camera settings].
3 Touch [Back Camera Input] to switch "On" or "Off".
Setting the polarity of the rear view camera
The default setting is "Battery"
1 Display the "System" setting screen.
- Refer to Displaying the "System" setting screen on page 63
2 Touch [Camera settings].
3 Touch [Reverse Gear Setting].
Battery
The polarity of the connected lead is positive.
Ground
The polarity of the connected lead is negative.
7 If no camera connection is made and the camera polarity setting is wrong, a black screen is displayed as the rear view camera image immediately after startup. In such a case, press and hold the MAP button to release the rear view camera screen and then change the camera polarity setting to "Battery"
Setting the reversed image display for the rear view image
You can set whether to reverse the rear view camera images to be displayed on the front screen. The default setting is "Off"
☐ This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
☐ This function is available when "Back Camera Input" is set to "On".
Refer to Setting rear view camera activation on page 64
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Camera settings].
3 Touch [Back Camera: Reverse Video] to switch "On" or "Off".
Setting the parking assist guidelines
Displaying the parking assist guidelines
You can set whether to display the parking assist guidelines on the rear view camera images when backing up your vehicle. The default setting is "Off".
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Camera settings].
3 Touch [Parking Assist Guide] to switch "On" or "Off".
Adjusting the parking assist guidelines
CAUTION
- When adjusting the guidelines, be sure to park the vehicle in a safe place and apply the parking brake.
- Before getting out of the car to place the markings, be sure to turn the ignition switch off (ACC OFF).
- The range projected by the rear view camera is limited. Also, the vehicle width and distance guidelines displayed on the rear view camera image may differ from the actual vehicle width and distance. (The guidelines are straight lines.)
- The image quality may deteriorate depending on the usage environment, such as at night or in dark surroundings.
1 Park your vehicle in a safe place and apply the parking brake.
System settings
2 Using packing tape or similar, place markings as follows.
3 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
4 Touch [Camera settings].
5 Touch [Parking Assist Guide Adjust].
6 Set the guidelines by dragging the four points. Adjust the guidelines so that the guidelines can be overlaid to the markings.
□ Touch ▲ ▼/▲/▲▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>
Setting the second camera
You can view images of the second camera (a front camera etc.) on the screen of this product.
Setting the second camera activation
The default setting is "Off"
☐ This function is synchronized with "AV Input" setting.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Camera settings].
3 Touch [2nd Camera Input] to switch "On" or "Off".
Setting the reversed image
The default setting is "Off".
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
This function is available when 'AV Input' is set to 'Camera' or '2nd Camera Input' is set to 'On'.
1 Display the "System" setting screen.
- Refer to Displaying the "System" setting screen on page 63
2 Touch [Camera settings].
3 Touch [2nd Camera: Reverse video] to switch "On" or "Off".
Setting the camera for Camera View mode
To display Camera View at all times, "Camera View" needs to be set to "On". (The same mode is turned on when [icon] is touched on the camera view screen. The setting value is synchronized.) The default setting is "Off".
To set the rear view camera as the camera for Camera View mode, set "Back Camera Input" to "On".
Refer to Setting rear view camera activation on page 64
When using the second camera, set "AV Input" to "Camera" or "2nd Camera Input" to "On" (both settings are synchronized).
Refer to Setting the second camera on page 65
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Camera settings].
3 Touch [Camera View] to switch "On" or "Off".
☐ You can also turn this function on by touching [Camera View] on the AV source selection screen or in the source list.
Setting the demo mode
The default setting is "On".
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Demo Mode] to switch "On" or "Off".
Selecting the system language
- If the embedded language and the selected language setting are not the same, text information may not display properly.
- Some characters may not be displayed properly.
1 Display the "System" setting screen. - Refer to Displaying the "System" setting screen on page 63
2 Touch [System Language].
3 Touch the language.
Setting the keyboard language with the application for iPhone
You can use the keyboard in AppRadio Mode by setting the language of the keyboard for iPhone.
☐ This function is only available in AppRadio Mode on the iPhone.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Keyboard].
3 Touch the language.
Adjusting the response positions of the touch panel (touch panel calibration)
7200NEX 6200NEX 5200NEX
If you feel that the touch panel keys on the screen deviate from the actual positions that respond to your touch, adjust the response positions of the touch panel screen.
☐ This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
☐ Do not use sharp pointed tools such as a ballpoint or mechanical pen, which could damage the screen.
☐ Do not turn off the engine while saving the adjusted position data.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Touch Panel Calibration].
System settings
3 Touch two corners of the screen along the arrows, and then touch the centers of two + marks at the same time twice.
4 Press the Button.
The adjustment results are saved.
5 Press the Button once again. Proceed to 16-point adjustment.
6 Gently touch the center of the "+" mark displayed on the screen.
The target indicates the order.
- When you press the button, the previous adjustment position returns.
- When you press and hold the button, the adjustment is canceled.
7 Press and hold the button. The adjustment results are saved.
Setting the dimmer
Setting the dimmer trigger
The default setting is "Auto".
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Dimmer Settings].
3 Touch [Dimmer Trigger].
4 Touch the item.
Auto:
Switches the dimmer to on or off automatically according to your vehicle's headlight turning on or off.
- Manual:
Switches the dimmer to on or off manually.
Time:
Switches the dimmer to on or off at the time you adjusted.
Setting the dimmer duration in day or night
The default setting is "Day".
You can use this function when "Dimmer Trigger" is set to "Manual".
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [Dimmer Settings].
3 Touch [Day/Night] to switch the following items.
Day
Turns the dimmer function to off.
Night:
Turns the dimmer function to on.
Setting the dimmer duration optional
You can adjust the time that the dimmer is turned on or off. The default setting is 18:00-6:00 (6:00 PM-6:00 AM).
☐ You can use this function when "Dimmer Trigger" is set to "Time".
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
1 Display the "System" setting screen.
- Refer to Displaying the "System" setting screen on page 63
2 Touch [Dimmer Settings].
3 Touch [Dimmer Duration].
4 Drag the cursors to set the dimmer duration.
- You can also set the dimmer duration touching or ▶
☐ The time display of the dimmer duration adjusting bar is depending on the clock display setting.
Refer to Setting the time and date on page 74
Adjusting the picture
You can adjust the picture for each source and rear view camera.
CAUTION
For safety reasons, you cannot use some of these functions while your vehicle is in motion. To enable these functions, you must stop in a safe place and apply the parking brake.
1 Display the screen you want to adjust.
2 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
3 Touch [Picture Adjustment].
4 Touch the item to select the function to be adjusted.
Brigh
Adjusts the black intensity. (24 to +24)
- Contrast:
Adjusts the contrast. (-24 to +24)
Color
Adjusts the color saturation. (-24 to -24)
Hue:
Adjusts the tone of color (which color is emphasized, red or green). (-24 to +24)
Dimmer Level:
Adjusts the brightness of the display. (-1 to +48)
Temperature
Adjusts the color temperature, resulting in a better white balance. (-3 to +3)
☐ With some pictures, you cannot adjust "Hue" and "Color".
- When you touch [Rear View] or [2nd Camera], the mode changes to the selected camera mode. By touching [Source], [Navi] or [Apps], you can return to the selected mode.
☐ The adjustments of "Brightness", "Contrast" and "Dimmer Level" are stored separately for the on/off status of the dimmer function. These are switched automatically depending on whether the dimmer function is on or off.
The picture adjustment may not be available with some rear view cameras.
☐ The setting contents can be memorized separately.
Displaying the firmware version
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [System Information].
3 Touch [Firmware Information].
System settings
Displaying the open source licenses
You can check the open source licenses of the functions that this product is equipped with.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [System Information].
3 Touch [Firmware Information].
4 Touch [License].
Updating firmware
CAUTION
- The external storage device for upcating must contain only the correct update file.
- Never turn this product off, eject the SD memory card or disconnect the USB storage device while the firmware is being updated.
- You can only update the firmware when the vehicle is stopped and the parking brake is engaged.
1 Download the firmware update files into your computer.
2 Connect a blank (formatted) storage device to your computer, and then locate the correct update file and copy it onto the storage device.
3 Set the external storage device to this product.
Refer to inserting and ejecting an SD memory card on page
Refer to Plugging and unplugging a USB storage device on page 7
4 Turn the source off.
Refer to Selecting a source on page 9
5 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
6 Touch [System Information].
7 Touch [Firmware Update].
8 Touch [Continue] to display the data transfer mode.
Follow the on-screen instructions to finish updating the firmware.
If an error message appears on the screen, touch the display and perform the above stops again.
Checking sensor learning status and driving status
You can check the sensor learning status, such as the degree of learning. You can also check the current sensor values and the total number of speed pulses.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [System Information].
3 Touch [3D Calibration Status].
Clearing the status
You can delete the earned results stored in the sensor.
1 Display the "3D Calibration Status" screen.
2 Touch [Distance] or [Speed Pulse], and then touch [Yes].
3 Touch [Learning] and then touch [Reset All].
7 Touch [Reset All] to reset the sensor after changing the installation position or angle.
7 If you touch [Reset Distance], all learned results stored in 'Distance' are cleared.
Checking the connections of leads
Check that the loads are properly connected between this product and vehicle.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 83
2 Touch [System Information].
3 Touch [Connection Status].
GPS Antenna
Displays the connection status of the GPS antenna ("OK" or "NOK") and the reception sensitivity.
☐ If reception is poor, please change the installation position of the GPS antenna.
- Positioning Status
Displays the positioning status (3D positioning, 2D positioning, or no positioning), the number of satellites used for positioning (orange), and the number of satellites whose signal has been received (yellow). If signals from more than three satellites are received, the current location can be measured.
Refer to Positioning technology on page 80
- Installation
Indicates whether the installation position of this product is correct or not. If installed correctly, "OK" appears. When this product is installed at an extreme angle exceeding the limitation of the installing angle, "NOK(Inst. Angle)" will be displayed, if the installation of this product is continually changed and it is not firmly fixed into place, "NOK(Vibration)" will be displayed.
Speed Pulse
The speed pulse value detected by this product is shown.
- Illumination
Displays the status of headlights or small lamps of the vehicle.
- Back Signal
When the shift lever is shifted to "R" (reverse position), the signal switches to "High" or "Low". The signal displayed will vary depending on the vehicle.
iDataLink
Displays the status of the optional iDalalink adapter.
Audio adjustments
Displaying the "Audio" setting screen
1 Press the button.
2 Touch ⚙, and then 📞.
Using fader/balance adjustment
1 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
2 Touch [Fader/Balance].
☐ Only the balance can be adjusted when "On" is selected in "Rear Speaker". Touch [Balance] and skip to step 4.
Refer to Setting the rear speaker output on page 68.
3 Touch ▲ or □ adjust the front/rear speaker balance.
☐ Sel "Front" and "Rear" to "0" when using a dual speaker system.
4 Touch ▶ or ▶ adjust the left/right speaker balance.
- You can also set the value by dragging the point on the displayed table.
Switching sound muting/attenuation
You can automatically mute or attenuate the AV source volume and the iPhone or smartphone application volume when the navigation outputs the guidance voice. The default setting is "ATT".
1 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
2 Touch [Mute Level].
3 Touch the item.
ATT
The volume becomes 20 dB lower than the current volume.
Mute
The volume becomes 0.
Off:
The volume does not change.
Adjusting source levels
SLA (source level adjustment) lets you adjust the volume level of each source to prevent radical changes in volume when switching between sources.
Settings are based on the FM tuner volume level, which remains unchanged.
This function is not available when the FM tuner is selected as the AV source.
1 Compare the FM tuner volume level with the level of the source.
2 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
3 Touch [Source Level Adjuster].
4 Touch ▲ or to adjust the source volume.
If you directly touch the area where the cursor can be moved the SLA setting will be changed to the value of the touched point.
☐ “+4” to “-4” is displayed as the source volume is increased or decreased.
The default setting is "0"
Setting the rear speaker output
A rear speaker output of this product can be turned on or off. The default setting is "On".
1 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
2 Touch [Rear Speaker] to switch "On" or "Off".
☐ If "Off" is selected, the rear speaker adjustment is not available in "Speaker Level", "Time Alignment" and "Crossover".
Setting the subwoofer output
This product is equipped with a subwoofer output mechanism, which can be turned on or off. The default setting is "On".
1 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
2 Touch [Subwoofer] to switch "On" or "Off".
☐ If "Off" is selected, the rear speaker adjustment is not available in "Speaker Level", "Time Alignment" and "Crossover".
Adjusting the cutoff frequency value
You can adjust the cutoff frequency value of each speaker. The following speakers can be adjusted:
Front, Rear, Subwoofer
☐ "Rear" is available only when "Rear Speaker" is set to "On"
Refer to Setting the rear speaker output on page 68
☐ "Subwoofer" is available only when "Subwoofer" is set to "On".
Refer to Setting the subwoofer output on page 68
1 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
2 Touch [Crossover] or [Subwoofer Settings].
3 Touch [<] or [>] to switch the speaker.
4 Drag the graph line to set the cutoff position.
5 Drag the lowest point of the graph to set the cutoff slope.
☐ The following items can also be set.
- Switches the subwoofer phase between normal and reverse position.
LPF/HPF
Switches the LPF/HPF setting to "On" or "Off". When it is turned off, the high-pass filter or low-pass filter of each speaker can also be turned on by touching the graph lines.
Selecting the listening position
You can select a listening position that you want to make as the center of sound effects. The default setting is "Off".
1 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
2 Touch [Listening Position].
3 Touch the desired position to change the listening position.
The following items are available: Off, Front-L, Front-R, Front. All.
Audio adjustments
Adjusting the speaker output levels finely
Fine adjustments of the speaker output level can be made by listening to audio output.
1 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
2 Touch [Speaker Level].
3 Touch [<] or [>] to select the listening position if necessary.
The following items are available:
Off, Front-L, Front-R, Front, All
☐ The default setting is "Off"
☐ If you change the setting for the listening position, the output levels of all the speakers will change according to the setting.
4 Touch [<] or [>] to adjust the speaker output level.
☐ “-24” dB to “10” dB is displayed as the level to be corrected is increased or decreased.
The following items are available:
Front Left, Front Right, Rear Left, Rear Right, Subwoofer
☐ If the Auto EQ measurement has been done, the result of the Auto EQ measurement will be applied by touching [Apply Auto EQ] (the results are also applied to some settings simultaneously).
Adjusting the time alignment
By adjusting the distance from each speaker to the listening position, time alignment is able to correct the time required for sound to reach the listening position.
1 Measure the distance between the head of the listener and each speaker unit.
2 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
3 Touch [Time Alignment].
4 Touch [<] or [>] to select the listening position if necessary.
The following items are available:
Off, Front-L, Front-R, Front, All
The default setting is "Off"
If you change the listening position setting, the distance value of all the speakers will change in conjunction with the setting.
5 Touch [<] or [>] to input the distance between the selected speaker and the listening position.
The following items are available:
Front Left, Front Right, Rear Left, Rear Right, Subwoofer
7 You can input the value between 0 inch and 200 inch.
☐ The distance can be adjusted manually only when the listening position setting is set to "Front-L" or "Front-R".
☐ If the Auto EQ measurement has been done, the result of the Auto EQ measurement will be applied by touching [Apply Auto EQ] (the results are also applied to some settings simultaneously).
- If you touch [TA On], the time alignment is turned off mandatorily.
Using the equalizer
Recalling equalizer curves
There are multiple equalizer curves that you can easily recall at any time. The equalizer curves you can recall are as follows:
S.Bass, Powerful, Natural, Vocal, Flat, Custom1 and Custom2 The default setting is "Powerful".
1 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
2 Touch [Graphic EQ].
3 Touch the equalizer curve name.
Customizing the equalizer curves
☐ If the preset equalizer curve other than "Custom1" or "Custom2" is modified, the equalizer curve settings in "Custom1" will be overwritten.
☐ If the equalizer curve stored in "Custom1" or "Custom2" is modified, each stored curve will be overwritten.
1 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
2 Touch [Graphic EQ].
3 Select a curve that you want to use as the basis of customizing.
4 Touch the frequency for which you want to adjust the level.
☐ If you touch "Custom1" or "Custom2", recall the equalizer curve currently stored in "Custom1" or "Custom2".
☐ If you trail a finger across the bars of multiple equalizer bands, the equalizer curve settings will be set to the value of the louched point on each bar.
Setting the auto-adjusted equalizer
You can set the auto-adjusted equalizer to suit the vehicle's acoustics. To use this function, the Auto HQ measurement must be done in advance.
- Refer to Adjusting the equalizer curve automatically (Auto EQ) on page 69
The default setting is "Off".
1 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
2 Touch [Auto EQ&TA] to switch "On" or "Off".
Adjusting the equalizer curve automatically (Auto EQ)
By measuring the vehicle's acoustics, the equalizer curve can be adjusted automatically to suit the vehicle interior.
WARNING
A loud lone (noise) may be emitted from the speakers when measuring the vehicle's acoustics. Never perform Auto EQ measurement while driving.
CAUTION
- Thoroughly check the conditions before performing Auto EO, as the speakers may be damaged if this is performed under the following conditions:
— When the speakers are incorrectly connected. (For example, when a rear speaker is connected as a subwoofer output.)
— When a speaker is connected to a power amo delivering output higher than the speaker's maximum input power capability. - If a microphone for acoustical measurement (sold separately) is not placed in an appropriate location, the measurement tone may become loud and measurement may take a long time, resulting in battery drainage. Be sure to place the microphone in the specified location.
Before operating the Auto EQ function
- Perform Auto EQ in as quiet a place as possible, with the vehicle engine and air conditioning switched off. Also, cut
Audio adjustments
power to car phones or cellular phones in the vehicle, or remove them in advance. Surrounding sounds may prevent correct measurement of the vehicle's acoustics.
- Be sure to use the microphone for acoustical measurement (sold separately). Using another microphone may prevent measurement, or result in incorrect measurement of the vehicle's acoustics.
- To perform Auto EQ, the front speakers must be connected.
- When this product is connected to a power amp with input level control, Auto EQ may be impossible if the power amp's input level is set below the standard level.
- When this product is connected to a power amp with an LPF (low pass filter), turn the LPF off before performing Auto EQ. Also, set the cut-off frequency for the built-in LPF of an active subwoofer to the highest frequency.
- The distance has been calculated by a computer to provide optimum delay to ensure accurate results. Do not change this value.
— The reflected sound within the vehicle is strong and delays occur.
— The LPF on active subwoofers or external amps delay the lower sounds.
- If an error occurs during measurement, check the following before measuring the vehicle's acoustics.
— Front speakers (left/right)
— Rear speakers (left/right)
— Noise
— Microphone for acoustical measurement (sold separately)
— Low battery
Performing Auto EQ
CAUTION
Do not turn off the engine while the measurement is in progress.
☐ Auto EQ changes the audio settings as follows: — The fader/balance settings return to the center position.
Refer to Using lader/balance adjustment on page 68 — "Mute Level" is set to "Off".
Refer to Switching sound muting/attenuation on page 68
☐ Previous settings for Auto EQ will be overwritten.
1 Stop the vehicle in a quiet place, close all the doors, windows and sun roof, and then turn the engine off.
If the engine is left running, engine noise may prevent correct Auto EQ.
☐ If driving restrictions are detected during measurement, measurement is canceled.
2 Fix the microphone for acoustical measurement (sold separately) in the center of the headrest of the driver's seat, facing forward.
The Auto EQ may differ depending on where you place the microphone. If desired, place the microphone on the front passenger seat and perform Auto EQ.
3 Disconnect the iPhone or smartphone device.
4 Turn on the ignition switch (ACC ON).
If the vehicle's air conditioner or heater is turned on, turn it off.
5 Turn the source off.
Refer to Selecting a source on page 9
6 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
7 Touch [A-EQ&TA Measurement].
8 Connect the microphone for acoustical measurement (sold separately) with this product.
8200NEX 7200NEX
Plug the microphone into the auto EQ microphone input jack on this product.
Refer to Checking part names and functions on page 5
6200NEX 5200NEX
Plug the microphone into the AUX input jack on the back panel of this product.
Refer to the Installation Manual.
☐ Use an extension cable (sold separately) if the cord of the Microphone (sold separately) is not long enough.
9 Touch [Front Left] or [Front Right] to select the current listening position.
10 Touch [Start].
A 10-second countdown starts.
The Bluetooth connection is disconnected before the process starts.
11 Exit the vehicle and keep the doors closed until the countdown finishes.
When the countdown finishes, a measurement tone (noise) is emitted from the speakers and the Auto EQ measurement begins.
12 Wait until the measurement is completed. When Auto EQ is completed, a message is displayed.
☐ The measurement time varies depending on the type of vehicle.
■ To stop the measurement, touch [Stop].
13 Store the microphone carefully in the glove compartment or another safe place.
If the microphone is subjected to direct sunlight for an extended period, high temperatures may cause distortion, color change or malfunction.
Using the automatic sound levelizer
During driving, noise in the car changes according to the driving speed and road conditions, ASL (automatic sound levelizer) monitors such varying noise and automatically increases the volume level, if this noise becomes greater. The sensitivity (variation of volume level to noise level) of ASL can be set to one of five levels.
1 Display the "Audio" setting screen.
Refer to Displaying the "Audio" setting screen on page 68
2 Touch [ASL].
3 Touch the desired level.
Theme menu
Displaying the "Theme" setting screen
1 Press the button.
2 Touch ⚙, and then ⚙.
Selecting the wallpaper
The wallpaper can be selected from some preset items. Furthermore, you can set your original pictures.
1 Display the "Theme" screen.
Refer to Displaying the "Theme" setting screen on page 71
2 Touch [Background].
3 Touch [Home] or [AV] to switch the screen displays.
The setting contents can be memorized separately for the AV operation screen and the top menu screen.
4 Touch the item.
- Presel displays: Selects the desired presel background display.
- System): Displays the background display image imported from the external storage device.
Refer to Changing to the wallpaper stored on the external storage device on page 71 - Hides the background display.
Changing to the wallpaper stored on the external storage device
CAUTION
Do not turn off the engine while importing an image from the external storage device.
☐ Background display image must be used within the following formats.
— JPEG image files (.jpg or .jpeg)
— Allowable data size is 10 MB or smaller
— Allowable image size is 4 000 pixels × 4 000 pixels or smaller
1 Set the external storage device.
- Refer to inserting and ejecting an SD memory card on page 7
Refer to Plugging and unplugging a USB storage device on page 1
2 Display the "Theme" screen.
Refer to Displaying the "Theme" setting screen on page 71
3 Touch [Background].
4 Touch
5 Touch the desired external storage device.
6 Touch the image.
Setting the illumination color
The illumination color can be selected from some preset colors. Furthermore, the illumination can be switched between these colors in order.
Selecting the color from the preset colors
You can select an illumination color from the color list.
1 Display the "Theme" screen.
- Refer to Displaying the "Theme" setting screen on page 71
2 Touch [Illumination].
3 Touch the color.
Colored keys: Selects the desired preset color.
- custom): Displays the screen to customize the illumination color.
Refer to Croating a user defined color on page 71
- (inbow): Shifts gradually between the preset colors in sequence.
Creating a user-defined color
You can create a user-defined color. The created color is stored, and you can select the color when setting the illumination color the next time.
1 Display the "Theme" screen.
- Refer to Displaying the "Theme" setting screen on page 71
2 Touch [Illumination].
3 Touch
4 Drag the color bar to adjust the color tone.
- You can also adjust the color tone by touching or ▶
5 Touch and hold [Memo] to store the customized color in the memory.
The customized color is stored in the memory.
The set color will be recalled from the memory the next time you touch the same key.
Selecting the theme color
1 Display the "Theme" screen.
Refer to Displaying the "Theme" setting screen on page 71
2 Touch [Theme].
3 Touch the color.
- You can preview the top menu screen or the AV operation screen by touching [Home] or [AV] respectively.
Selecting the style of the clock
1 Display the "Theme" screen.
Refer to Displaying the "Theme" setting screen on page 71
2 Touch [Clock].
3 Touch the item.
- Preset images: Selects the desired preset style for the clock.
- Hides the clock display
Changing the preinstalled splash screen
You can change the splash screen to other images pre installed in this product.
1 Display the "Theme" screen.
Refer to Displaying the "Theme" setting screen on page 71
2 Touch [Splash Screen].
3 Touch the item.
- Preset images: Selects the desired preset splash screen image.
- (custom): Displays the splash screen image imported from the external storage device.
- Refer to Changing to the splash screen stored on the external storage device on page 72
Theme menu Video settings
Changing to the splash screen stored on the external storage device
CAUTION
Do not turn off the engine while importing an image from the external storage device.
1 Set the external storage device.
- Refer to inserting and ejecting an SD memory card on page 7
- Refer to Plugging and unplugging a USB storage device on page 7
2 Display the "Theme" screen.
Refer to Displaying the "Theme" setting screen on page 71
3 Touch [Splash Screen].
4 Touch
5 Touch the desired external storage device.
6 Touch the image.
Replicating the settings
You can export settings you have made on the "Theme" screen to an external storage device. Also, you can import them from an external storage device.
CAUTION
Do not turn off the engine while exporting or importing the settings.
☐ If multiple external storage devices that include available data are connected to this product, the order of priority for the targets that the "Theme" settings are exported to or imported from is as follows:
8200NEX 7200NEX
① SD memory card
② USB storage device (USB port 1)
③ USB storage device (USB port 2)
6200NEX 5200NEX
① USB storage device (USB port 1) ② USB storage device (USB port 2)
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
Exporting "Theme" settings
1 Set the external storage device.
Refer to Inserting and ejecting an SD memory card on page
- Refer to Plugging and unplugging a USB storage device on page 7
2 Display the "Theme" screen.
Refer to Displaying the "Theme" setting screen on page 71
3 Touch [Export].
4 Touch the item you want to export.
The following items are available:
Illumination, Theme, Splash Screen, Select All
5 Touch [Export].
Importing "Theme" settings
1 Set the external storage device.
Refer to inserting and ejecting an SD memory card on page 1
- Refer to Plugging and unplugging a USB storage device on page 7
A message confirming whether to import the stored setting data appears.
2 Touch [Import].
Setting up the video player
This selling is available only when "Disc" is selected as the source.
Displaying the "DVD/DivX Setup" screen
1 Press the button.
2 Touch Ⓞ, and then Ⓞ.
3 Touch [DVD/DivX Setup].
Setting the top-priority languages
You can assign the top-priority language to the top-priority sub-titles, audio and menu in initial playback. If the selected language is recorded on the disc, subtitles, audio and menu are displayed or output in that language.
1 Display the "DVD/DivX Setup" screen
Refer to Displaying the "DVD/DivX Setup" screen on page 72
2 Touch [Subtitle Language], [Audio Language] or [Menu Language].
3 Touch the desired language.
When you select "Others", a language code input screen is shown. Input the four-digit code of the desired language then touch ☐
☐ You can switch the language by touching the switch languages key during playback.
☐ The setting made here will not be affected even if the language is switched during playback using the appropriate key.
Setting the angle icon display
The angle icon can be set so it appears on scenes where the angle can be switched. The default setting is "On".
1 Display the "DVD/DivX Setup" screen
Refer to Displaying the "DVD/DivX Setup" screen on page 72
2 Touch [Multi Angle] to switch "On" or "Off".
Video settings
Setting the aspect ratio
There are two kinds of displays. A wide screen display has a width-to-height ratio (TV aspect) of 16:9, while a regular display has a TV aspect of 4:3. If you use a regular rear display with a TV aspect of 4:3, you can set the aspect ratio suitable for your rear display. (We recommend use of this function only when you want to fit the aspect ratio to the rear display.) The default setting is "16:9".
1 Display the "DVD/DivX Setup" screen
Refer to Displaying the "DVD/DivX Setup" screen on page 72
2 Touch [TV Aspect].
3 Touch the item.
16:9 Displays the wide screen image (16:9) as it is (initial setting).
Letter Box: Makes the image in the shape of a letterbox with black bands on the top and bottom of the screen.
Pan Scan: Cuts the image short on the right and left sides of the screen.
□ When playing discs that do not have a panscan system, the disc is played back with "Letter Box" even if you select the "Pan Scan" setting. Confirm whether the disc package bears the 16-19 L8 mark.
☐ The TV aspect ratio cannot be changed for some discs. For details, refer to the disc's instructions.
Setting parental lock
Some DVD-Video discs let you use parental lock to set restrictions so that children cannot watch violent or adult-oriented scenes. You can set the parental lock level in steps as desired.
When you set a parental lock level and then play a disc featuring parental lock, code number input indications may be displayed. In this case, playback will begin when the correct code number is input.
1 Display the "DVD/DivX Setup" screen
Refer to Displaying the "DVD/DivX Setup" screen on page 72
2 Touch [Parental].
3 Touch [0] to [9] to input a four-digit code number.
4 Touch ↙.
5 Touch any number between [1] to [8] to select the desired level.
The lower the level is set, the tighter the restriction is applied.
The default setting is "8".
6 Touch ↻.
7 We recommend to keep a record of your code number in case you forget it.
The parental lock level is recorded on the disc. You can confirm it by looking at the disc package, the included literature or the disc itself. You cannot use parental lock with discs that do not feature a recorded parental lock level.
7 With some discs, parental lock operates to skip certain scenes only, after which normal playback resumes. For details, refer to the disc's instructions.
Displaying your DivX VOD registration code
If you want to play DivX® VOD (video on demand) content on this product, you must first register this product with your DivX VOD content provider. You do this by generating a DivX VOD registration code, which you submit to your provider.
- Keep a record of the code as you will need it when you register this product to the DivX VOD provider.
1 Display the "DVD/DivX Setup" screen
Refer to Displaying the "DVD/DivX Setup" screen on page 72
2 Touch [DivX® VOD].
☐ If a registration code has already been activated, it cannot be displayed.
3 Touch [Registration Code].
Your 10-digit registration code is displayed.
7 Make a note of the code as you will need it when you deregis- ter from a DivX VOD provider.
Displaying your DivX VOD deregistration code
A registration code registered with a deregistration code can be deleted.
1 Display the "DVD/DivX Setup" screen
Refer to Displaying the "DVD/DivX Setup" screen on page 72
2 Touch [DivX® VOD].
3 Touch [Deregistration Code].
Your 8-digit deregistration code is displayed.
☐ Make a note of the code as you will need it when you coregister from a DivX VOD provider.
Automatic playback of DVDs
When a DVD disc with a DVD menu is inserted, this product will cancel the menu automatically and start playback from the first chapter of the first title.
The default setting is "Off"
☐ Some DVDs may not operate properly. If this function is not fully operable, turn this function on off and start playback.
1 Display the "DVD/DivX Setup" screen
Refer to Displaying the "DVD/DivX Setup" screen on page 72
2 Touch [DVD Auto Play] to switch "On" or "Off".
Setting the video signal for the rear view camera
When you connect a rear view camera to this product, select the suitable video signal selling.
The default setting is "Auto"
☐ You can operate this function only for the video signal input into the AV input.
1 Display the "Video Setup" screen.
2 Touch [Video Signal Setting].
3 Touch [Camera].
4 Touch the item.
The following items are available:
Auto PAL, NTSC. PAL-M. PAL-N. SECAM
Favorite menu Oth
Registering your favorite menu items in shortcuts allows you to quickly jump to the registered menu screen by a simple touch on the "Favorites" screen.
☐ Up to 12 menu items can be registered in the favorite menu.
Creating a shortcut
1 Display the setting menu screen.
2 Touch the star icon of the menu item.
The star icon for the selected menu is filled in.
- To cancel the registration, touch the star icon in the menu column again.
Selecting a shortcut
1 Display the "Favorites" screen.
2 Touch the menu item.
Removing a shortcut
1 Display the "Favorites" screen.
2 Touch the favorite menu column.
The selected menu item is removed from the "Favorites" screen.
- You can also remove a shortcut by touching the registered menu column.
functions
Setting the time and date
1 Touch the current time on the screen.
2 Touch one of the items to adjust.
7 You can change the time display format to "12hour" (default) or "24hour".
You can change the order of date display format: Day month, Month day.
Setting the "Sound Retriever" function
The "Sound Retriever" function automatically enhances compressed audio and restores rich sound. The default setting is "Mode1".
1 Touch S.Rto switch the settings.
S.Rtrv (Mode1), S.Rtrv (Mode2): Activates the "Sound Retriever" function.
Mode2 has a stronger effect than Mode1
S.Rtry (Off): Deactivates the "Sound Retriever" function
Changing the wide screen mode
The default setting is "Full", and for JPEG images is "Normal".
☐ JPEG can be set to either "Normal" or "Trimming" in wide screen mode.
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
1 Touch the screen display mode key.
2 Touch the desired mode.
Full:
A 4:3 picture is enlarged in the horizontal direction only, enabling you to enjoy an image without any omissions.
Zoom:
A 4:3 picture is enlarged in the same proportion both vertically and horizontally.
Normal
A 4:3 picture is displayed normally, without changing its proportion.
- Trimming
An image is displayed across the entire screen with the horizontal-to-vertical ratio left as is. If the screen ratio differs from the image, the image may be displayed partly cut off either at the top/bottom or sides.
- Different settings can be stored for each video source.
☐ When a video is viewed in a wide screen mode that does not match its original aspect ratio, it may appear different.
The video image will appear coarser when viewed in "Zoom" mode.
Storing song information to an iPod (iTunes® Tagging)
You can store song information to the iPod when this product receives song information. The songs will appear in a playlist called "Tagged playlist" in iTunes the next time you synchronize your iPod. You can directly buy the songs via iTunes.
☐ The iTunes ^® lagging function is available when the song information is available.
This function is available for the following iPod models:
iPhone 3G, 3GS, 4, 4s
iPod touch 1st, 2nd, 3rd, 4th generation
iPod classic 1st, 2nd generation
The version of iTunes must be 7.4 or higher.
Other functions
(1) 5200NEX
☐ (*2) 8200NEX/7200NEX/6200NEX
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch [AV Source Settings].
3 Touch [Tag Forwarding] to select the USB port you use.
4 Tune into the broadcast station.
Radio (*1)
→ Refer to Radio on page 37
HD Radio(*2)
Refer to HD Radio™ on page 38
SiriusXM
Refer to SiriusXM® Satellite Radio on page 55
5 Touch the song information.
HD Radio(*2)
The song title or artist name
SiriusXM
The artist name, song title, category name or content text. The information on the song on air is stored in this product. When the information is acquired, turns off and displayed.
☐ The song information for up to 50 songs can be stored in this product.
6 Connect your iPod.
The song information is transferred to your iPod.
When your iPod is already connected, the song information will be transferred directly to your iPod every time you touch the song information.
Selecting the video for the rear display
You can choose either to show the same image as the front screen or to show the selected source on the rear display.
☐ Video tiles on the external storage device are not available as a source for the rear display when |Apple CarPlay| is activated in [Smartphone Setup].
8200NEX/7200NEX
☐ Video files on the external storage device are not available as a source for the rear display when [Android Auto] is activated in [Smartphone Setup].
1 Display the AV source selection screen.
2 Touch [Rear].
3 Touch the source you want to show on the rear display.
Mirror
The video on the front screen of this product is output to the rear display. — Not all videos or sounds can be output to the rear display.
DVD/CD
The video and sound of a disc are output to the rear display. — Compatible video types are DVD-V, Video CD, DivX, MPEG-1, MPEG-2, and MPEG-4 only.
USB/iPod1
The video and sound of the USB storage device or iPod are output to the rear display.
— The port that supports the rear display will only be LSB port 1. — Compatible file types are MP-G-4, H.264, WMV, MKV, and FLV only.
SD ^*
The video and sound of the SD memory cards are output to the rear display. — Compatible file types are MPEG-4, H.264, WMV, MKV, and FLV only.
AV
The video and/or sound of the AV input source are output to the rear display. — The video image and sound are output only when "AV Input" is set to "Source".
- Refer to Starting procedure (for AV source) on page 59.
Source OFF
Nothing is output to the rear display.
7 (*1) 8200NEX/7200NEX
Setting the anti-theft function
You can set a password for this product. If the back-up load is cut after the password is set, this product prompts for the password at the time of next boot up.
Important
If you forgot your password, contact the nearest authorized Pioneer Service Station.
Setting the password
1 Display the "System" setting screen.
- Refer to Displaying the "System" setting screen on page 63
2 Touch ⚙1, followed by ⚙2, and then touch and hold ⚙3.
3 Touch [Set Password].
4 Enter the password.
☐ 5 to '6 characters can be entered for a password.
5 Touch [Go].
6 Enter a password hint.
□ Up to 40 characters can be entered for a hint.
7 Touch [Go].
If you want to change the password currently set, enter the current password and then enter the new one.
8 Check the password, and then touch [OK].
Deleting the password
The current password and password hint can be deleted.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
2 Touch ⚙¹, followed by ⚙², and then touch and hold ⚙³.
Refer to Setting the password on page 75.
3 Touch [Clear Password].
Other functions Ap
endix
4 Touch [Yes].
5 Touch [OK].
6 Enter the current password.
7 Touch [Go].
A message indicating that the security setting is canceled appears.
Restoring this product to the default settings
You can restore settings or recorded content to the default settings. Various methods are used to clear user data.
Method 1: Remove the vehicle battery
☐ Some of the settings and recorded contents will not be reset.
Method 2: Restore the default settings from the "System" menu
Refer to Restoring the default settings on page 16.
Method 3: Press the RESET button
Refer to Resetting the microprocessor on page 4
Some of the settings and recorded contents will not be reset.
Restoring the default settings
CAUTION
Do not turn off the engine while restoring the settings.
2 Touch [AV Source Settings].
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
1 Display the "System" setting screen.
Refer to Displaying the "System" setting screen on page 63
3 Touch [Restore Settings].
A message confirming whether to initialize the settings appears.
4 Touch the item you want to initialize.
- All Settings
Almost all settings or recorded content returns to the default.
• Audio Settings
☐ This setting is available when the source is turned off.
Theme Settings
- Bluetooth Settings
5 Touch [Restore].
Troubleshooting
If you have problems operating this product, refer to this section. The most common problems are listed below, along with likely causes and solutions. If a solution to your problem cannot be found here, contact your dealer or the nearest authorized Pioneer service facility.
Common problems
A black screen is displayed, and operation is not possible using the touch panel keys.
→ "Power OFF" mode is on.
— Press any button on this product to release the mode.
→ The rear view camera image is displayed with no camera connection and the wrong camera polarity setting.
— Press and hold the MAP button to release the rear view camera screen and then change the camera polarity setting to "Battery".
Problems with the AV screen
CD or DVD playback is not possible.
→ The disc is inserted upside down.
— Insert the disc with the label upward.
→ The disc is dirty.
— Clean the disc
→ The disc is cracked or otherwise damaged.
— Insert a normal, round disc.
→ The files on the disc are in an irregular file format.
— Check the file format.
→ The disc format cannot be played back.
— Replace the disc.
→ The loaded disc is a type this product cannot play.
— Check what type of disc it is.
The screen is covered by a caution message and the video cannot be shown.
→ The parking brake lead is not connected or the parking brake is not applied.
— Connect the parking brake lead correctly, and apply the parking brake.
→ The parking brake interlock is activated. — Park your vehicle in a safe place and apply the parking brake.
No video output from the connected equipment.
→ The "AV Input" or "AUX Input" setting is incorrect. — Correct the settings.
The audio or video skips.
→ This product is not firmly secured.
— Secure this product firmly.
No sounds are produced. The volume level will not rise.
→ Cables are not connected correctly.
— Connect the cables correctly.
→ The system is performing still, slow motion, or frame-by-frame playback with DVD-Video.
— There is no sound during still, slow motion, or frame-by-frame playback with DVD-Video.
→ The system is paused or performing fast reverse or forward during the disc playback.
— For the media other than music CD (CD-DA), there is no sound on fast reverse or forward.
The icon ⊙ is displayed, and operation is impossible.
→ The operation is not compatible with the video configuration. — The operation is not possible. (For example, the DVD playing does not feature that angle, audio system, subtitle language, etc.)
The picture stops (pauses) and this product cannot be operated.
→ The reading of data is impossible during disc playback. — Stop playback once, then restart.
The picture is stretched, with an incorrect aspect ratio.
→ The aspect setting is incorrect for the display. — Select the appropriate setting for that image.
A parental lock message is displayed and DVD playback is not possible.
→ The parental lock is on. — Turn the parental lock off or change the level.
The parental lock for DVD playback cannot be canceled. → The code number is incorrect.
— Input the correct code number.
The DVD video is not played back with the audio/subtitle language specified in "DVD/DivX Setup".
→ The DVD does not support the language selected in "DVD/DivX Setup".
— Playback in the selected language is not possible if the language selected in "DVD/DivX Setup" is not recorded on the disc.
Appendix
The picture is extremely unclear/distorted and dark during playback.
→ The disc features a signal to prompt copying. (Some discs may have this.)
— Since this product is compatible with the copy guard analog copy protect system, the picture may suffer from horizontal stripes or other imperfections when a disc with that kind of protection signal is viewed on some displays. This is not a malfunction.
iPod cannot be operated.
→ The iPod is frozen.
— Reconnect the iPod with the USB Interface cable for iPod/iPhone.
— Update the iPod software version.
→ An error has occurred.
— Reconnect the iPod with the USB interface cable for iPod/iPhone.
Park your vehicle in a safe place, and then turn off the ignition switch (ACC OFF). Subsequently, turn the ignition switch to on (ACC ON) again.
— Update the iPod software version.
→ Cables are no connected correctly.
— Connect the cables correctly.
Sound from the iPod cannot be heard.
→ The audio output, direct on may switch automatically when the Bluetooth and USB connections are used at the same time.
— Use the iPod to change the audio output direction.
Problems with the phone screen
Dialing is impossible because the touch panel keys for dialing are inactive.
→ Your phone is out of range for service.
Reloy after re-entering the range for service.
→ The connection between the cellular phone and this product cannot be established.
— Perform the connection process.
Problems with the Application screen
A black screen is displayed.
→ While operating an application, the application was ended on the smartphone side.
Press the button to display the top menu screen.
→ The smartphone OS may be awaiting screen operation.
— Stop the vehicle in a safe place and check the screen on the smartphone.
The screen is displayed, but operation does not work at all.
→ An error has occurred.
— Park your vehicle in a safe place, and then turn off the ignition switch (ACC OFF). Subsequently, turn the ignition switch to on (ACC ON) again.
— When an Android device is connected, disconnect the Bluetooth connection from this product and then reconnect it.
The smartphone was not charged.
→ Charging stopped because the temperature of the smartphone rose due to prolonged use of the smartphone during charging.
— Disconnect the smartphone from the cable, and wait until the smartphone cools down.
→ More battery power was consumed than was gained from charging.
— This problem may be resolved by stopping any unnecessary services on the smartphone.
The status of the vehicle for the forward and backward directions are reversed.
→ Since part of the vehicle status is sent to the connected device when you use the Android Auto function, this problem occurs when the reverse gear polarity setting of this product is incorrect.
— Check the polarity and re-select the correct setting.
Error messages
When problems occur with this product, an error message appears on the display. Refer to the table below to denote the problem, then take the suggested corrective action. If the error persists, record the error message and contact your dealer or your nearest Pioneer service center.
Common
AMP Error
→ This product falls to operate or the speaker connection is incorrect; the protective circuit is activated.
— Check the speaker connection. If the message fails to disappear even after the engine is switched off/on, contact your dealer or an authorized Pioneer Service Station for assistance.
TEMP
→ The temperature of this product is outside the normal operating range.
Wait until this product returns to a temperature within the normal operating limits.
Product overheat. System will be shut down automatically in 1 minute. Restart the product by ACC-Off/On may fix this problem. If this message keeps showing up, it is possible that some problem occurred in the product.
→ The temperature is too high for this product to operate. — Follow the instructions displayed on the screen. If this does not solve the problem, contact your dealer or an authorized Pioneer Station for assistance.
Positioning is not possible due to the hardware. Please
contact your dealer or Pioneer service center.
→ The location display is not possible due to hardware failure. — Contact your dealer or an authorized Pioneer Station for assistance.
No GPS antenna. Check connection.
→ GPS reception is lost.
— Check the antenna connection. If the message fails to disappear even after the engine is switched off/on, contact your dealer or an authorized Pioneer Station for assistance.
GPS antenna problem detected. Contact dealer or service center.
GPS antenna lead is short-circuiled.
— Contact your dealer or an authorized Pioneer Station for assistance.
Calibration will start, but may be inaccurate without speed pulse.
The speed pulse sensor is not connected correctly.
— Contact your dealer or an authorized Pioneer Station for assistance.
Sensor error. Please contact your dealer or Pioneer Service Center.
→ An error has occurred with the sensor.
— Contact your dealer or an authorized Pioneer Station for assistance.
Detected unusual speed pulses.
→ The speed pulse cannot be detected correctly.
— Contact your dealer or an authorized Pioneer Station for assistance.
Detected changes in the installation angle or position. The in-dash receiver is updating the sensor learning data.
→ Changes in the installation angle or position are detected. — Wait until the sensor learning finishes.
Speed pulse wire is not connected. The system will operate in simple hybrid mode.
→ Speed pulse wire is not connected.
— The speed pulse cannot be detected if the speed pulse wire is not connected correctly.
Appendix
Pandora
Error-19
(Communication error occurred.)
→ Communication failed
— Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it.
Skip limit reached.
→ Skip limit reached.
— Do not exceed the skip limit.
— Pandora limits the total number of skips per hour.
Please sign in to your Pandora account
→ You are not logged in to the Pandora application.
— Please log in to the Pandora application.
Incompatible USB
→ The connected USB storage device is not supported by this product.
- Disconnect your device and replace it with a compatible USB storage device.
Check Application
→ The Pandora application used on your device is not supported by this product.
— Disconnect your device and update the application and then reconnect the device.
Check USB
→ The USB connector or USB cable has short-circuited.
— Check that the USB connector or USB cable is not caught in something or damaged.
→ The connected USB storage device consumes more than maximum allowable current.
— Disconnect the USB storage device and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect a compliant USB storage device.
Cannot play music due to licensing restrictions.
→ The Pandora application is accessed/relocated from outside the licensing region.
— Access Pandora from within the licensing region.
SiriusXM Satellite Radio
Check Antenna
→ The antenna connection is incorrect.
— Check the antenna connection. If the message fails to disappear even after the engine is switched off/on, contact your dealer or the nearest authorized Pioneer service center for assistance.
Check Tuner
→ The SiriusXM Connect Vehicle Tuner connect on is incorrect. — Check the tuner connection and battery voltage. If the message fails to a disappear even after the engine is switched off/on, contact your dealer or the nearest authorized Pioneer service center for assistance.
No Signal
→ The SiriusXM Connect Vehicle Tuner is having difficulty receiving the SiriusXM satellite signal. — Verify that your vehicle is outdoors with a clear view of the southern sky. — Verify that: the SiriusXM magnetic mount antenna is mounted on a metal surface on the outside of the vehicle. — Move the SiriusXM antenna away from any obstructions.
No Content
→ TuneScan" is not available.
— Perform the operation with another preset channel.
Channel Not Available
→ The channel that you have requested is not a valid SiriusXM channel. — Check the SiriusXM channel lineup.
Subscription Updated Press Enter to Continue
→ This product has detected a change in your SiriusXM subscription status. — Touch [Enter] to clear the message.
Channel Not Subscribed. Call SiriusXM to Subscribe.
→ The channel that you have requested is not included in your SiriusXM subscription package. — Check the content of your SiriusXM subscription package
Channel Locked Please Enter the Lock Code
→ Locked by the radio Parental Control feature — Release the channel lock.
Artist Unavailable
→ The alert memo function is not available. — Perform the operation with another channel.
Song Unavailable
→ The alert memo function is not available. — Perform the operation with another channel.
Team Unavailable
→ The alert memo function is not available. — Perform the operation with another channel.
Alert Memory Full You can manage alert memory in the alert list
→ The memory is full.
— Clear the alert list.
Memory Full
→ The memory has become full while playback was paused. — Resume playback.
Memory Nearly Full
→ The memory has become nearly full while playback was paused. — Resume playback.
No qualified TuneMix music channels in this band.
→ There are no qualified TuneMix™ channels in this band. — Requires two or more qualified music channels to be stored as presets in the current band.
Disc
Error-02-XX/FF-FF
→ The disc is dirty.
Clean the disc.
→ The disc is scratched.
- Replace the disc.
→ The disc is loaded upside down.
Check that the disc is loaded correctly.
→ There is an electrical or mechanical error. — Press the RESET button.
Different Region Disc
→ The disc does not have the same region number as this product. — Replace the DVD with one bearing the correct region number.
Unplayable Disc
→ This type of disc cannot be played on this product. — Replace the disc with one that can be played on this product.
Unplayable File
→ This type of file cannot be played on this product — Select a file that can be played.
Skipped
→ The inserted disc contains DRM protected files. — The protected files are skipped.
Protect
→ All the files on the inserted disc are embedded with DRM. — Replace the disc.
This DivX rental has expired.
→ The inserted disc contains expired DivX VOD content. — Select a file that can be played.
Video resolution not supported
→ Files that cannot be played on this product are included in the file. — Select a file that can be played.
Appendix
Unable to write to flash memory.
→ The playback history for VOD contents cannot be saved for some reason.
— Retry
the message appears frequently, consult your dealer
Your device is not authorized to play this DivX protected video.
→ This product's DivX registration code has not been authorized by the DivX VOD contents provider.
— Register this product to the DivX VOD contents provider.
Video frame rate not supported
→ DivX file's frame rate is more than 30 fps. — Select a file that can be played.
Audio Format not supported
→ This type of file is not supported on this product.
— Select a file that can be played.
External storage device (USB, SD)
Error-02-9X/-DX
→ Communication failed.
— Turn the ignition switch OFF and back ON.
— Disconnect the USB storage device.
— Change to a different source. Then, return to the USB storage device.
Unplayable File
→ This type of file cannot be played on this product.
— Select a file that can be played.
→ Security for the connected external storage device (USB, SD) is enabled.
— Follow the external storage device (USB, SD) instructions to disable security.
Skipped
→ The connected external storage device (USB, SD) contains DRM protected files.
— The protected files are skipped.
Protect
→ All the files on the connected external storage device (USB, SD) are embedded with DRM.
— Replace the external storage device (USB, SD).
Incompatible USB
→ The connected USB storage device is not supported by this product.
— Disconnect your device and replace it with a compatible USB storage device.
Incompatible SD
→ The SD memory card is not supported by this product. — Remove your device and replace it with a compatible SD memory card. — Format the SD memory card. It is recommended that you use SD Formalter for formatting SD memory cards.
Check USB
→ The USB connector or USB cable has short circuited. — Check that the USB connector or USB cable is not caught in something or damaged.
→ The connected USB storage device consumes more than maximum allowable current. — Disconnect the USB storage device and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect a compliant USB storage device.
HUB Error
→ The connected USB hub is not supported by this product. Directly connect the USB storage device to this product.
No Response
→ This product cannot recognize the connected USB storage device. — Disconnect the device and replace it with another USB storage device.
Video resolution not supported
→ Files that cannot be played on this product are included in the file. — Select a file that can be played.
USB1 was disconnected for device protection. Do not re-insert this USB memory into the unit. Press reset to restart USB memory.
(USB2 was disconnected for device protection. Do not re-insert this USB memory into the unit. Press reset to restart USB memory.)
→ The USB connector or USB cable is short-circuited. — Check that the USB connector or USB cable is not caught in something or damaged.
→ The connected USB storage device consumes more than maximum allowable current. — Disconnect the USB storage device and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect a compliant USB storage device.
→ The USB interface cable for iPod/iPhone is short-circutted. — Confirm that the USB interface cable for iPod/iPhone or USB cable is not caught in something or damaged.
Audio Format not supported
→ This type of file is not supported on this product. — Select a file that can be played.
iPod
Error-02-6X/-9X/-DX
→ iPod failure,
— Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it.
Error-02-67
→ The iPod firmware version is old. — Update the iPod version.
iTunes tagging
Error-8D
→ Built-in FLASH ROM encountered an error. — Turn the ignition switch to OFF and then to ON.
Tag store failed.
→ Tag information cannot be stored in this product. — Try again.
Already stored.
→ This tag information is already stored in memory. — Tag information can only be saved once for any given song. Tag information cannot be saved for the same song more than once.
Memory full. Connect iPod.
→ The tag information is successfully stored. The flash memory of this product has become full. — The tag information on this product is transferred to the iPod automatically when an iPod is connected.
Memory full. Tags not stored. Connect iPod.
→ This product's flash memory used as the temporary storage area is full. — The tag information on this product is transferred to the iPod automatically when an iPod is connected.
iPod full. Tags not transferred.
→ Memory used for tag information on the iPod is full. — Synchronize the iPod with iTunes and clean up the tagged playlist.
Tag transfer failed. Reconnect your iPod.
→ This product's tag information cannot transfer to the iPod. — Check the iPod and try again.
Appendix
Apple CarPlay
Attempting to connect to Apple CarPlay.
→ Communication failed and the system is trying to connect.
→ Wait for a while. Then, perform the actions below if the error
message is still displayed.
— Restart the iPhone.
— Disconnect the cable from the iPhone, and then connect the iPhone again after a few seconds.
— Turn the ignition switch to OFF and then to ON.
If the error message is still displayed after performing the above act on, please contact your dealer or an authorized Pioneer Service Station.
Bluetooth
Error-10
→ The power failed for the Bluetooth module of this product.
— Turn the ignition switch to OFF and then to ON
If the error message is still displayed after performing the above act on, please contact your dealer or an authorized Pioneer Service Station.
Android Auto
Android Auto has stopped
→ The connected device is not compatible with Android Auto.
— Check if the device is compatible with Android Auto.
→ The startup of Android Auto failed for some reasons.
— Disconnect the cable from the smartphone, and then connect the smartphone again after a few seconds.
— Restart the smartphone.
— Turn the ignition switch to OFF and then to ON
If the error message is still displayed after performing the above act on, please contact your dealer or an authorized Pioneer Service Station.
→ The time set in this product is not correct.
— Check if GPS signals are received and the time is correctly set.
Bluetooth pairing failed. Please pair your Android phone manually.
→ The Bluetooth pairing failed for some reasons.
— Pair this product with the device manually.
Android Auto cannot connect right now. When it is safe to do so, please check your Android phone.
→ The default settings are displayed on the screen of the Android Auto-compatible device or images are not output from the Android Auto-compatible device.
— Park your vehicle in a safe place, and follow the instructions displayed on the screen. If the error message is still displayed after performing a on-screen instructions, please reconnect the device.
Positioning technology
Positioning by GPS
The Global Positioning System (GPS) uses a network of satellites orbiting the Earth. Each of the satellites, which orbit at a height of 68,930,000 feet (21,000 km), continually broadcasts radio signals giving time and position information. This ensures that signals from at least three can be picked up from any open area on the ground's surface.
The accuracy of the GPS information depends on how good the reception is. When the signals are strong and reception is good, GPS can determine latitude, longitude and altitude for accurate positioning in three dimensions. But if signal quality is poor, only two dimensions, latitude and longitude, can be obtained and positioning errors are somewhat greater.
Positioning by dead reckoning
The built-in sensor in the navigation system also calculates your position. The current location is measured by detecting driving distance with the speed pulse, the turning direction with the gyro sensor and inclination of the road with the G sensor.
The built-in sensor can even calculate changes of alt tude, and correct the discrepancies in the distance traveled caused by driving along winding roads or up slopes.
If you use this navigation system with connecting the speed pulse, the system will become more accurate than no connection of speed pulse. So you connect the speed pulse without fail to get the accuracy of positioning.
The position of the speed detection circuit vary depending on the vehicle model. For details, consult your authorized Pioneer dealer or an installation professional.
Appendix
☐ Some types of vehicles may not output a speed signal while driving at just a few kilometers per hour. In such a case, the current location of your vehicle may not be displayed correctly while in traffic congestion or in a parking lot.
How do GPS and dead reckoning work together?
For maximum accuracy, your navigation system continually compares GPS data with your estimated position as calculated from the data of built-in sensor. However, it only the data from the built-in sensor is available for a long period, positioning errors are gradually compounded until the estimated position becomes unreliable. For this reason, whenever GPS signals are available, they are matched with the data of the built-in sensor and used to correct it for improved accuracy.
☐ If you use chains on your wheels for winter driving or put on the spare wheel, errors may suddenly increase because of difference in wheel diameter. Initialize the sensor status and it may recover the accuracy to normal condition.
- For details, refer to Clearing the status on page 67.
Map matching
As mentioned, the positioning systems used by this navigation system are susceptible to certain errors. Their calculations may, on occasion, place you in a location on the map where no road exists. In this situation, the processing system understands that vehicles travel only on roads, and can correct your position by adjusting it to a nearby road. This is called map matching. With map matching
Positioning errors are kept to a minimum by combining GPS, dead reckoning and map matching. However, in some situations, these functions may not work properly, and the error may become bigger.
When positioning by GPS is impossible
● GPS positioning is disabled if signals cannot be received from more than two GPS satellites.
- In some driving conditions, signals from GPS sale lines may not reach your vehicle. In this case, it is impossible for the system to use GPS positioning.
In tunnels or enclosed parking garages
Under elevated roads or similar structures
When driving among high buildings
When driving through a dense forest or tall trees
- If a car phone or cellular phone is used near the GPS antenna, GPS recept on may be lost temporarily.
- Do not cover the GPS antenna with spray paint or car wax, because this may block the reception of GPS signals. Snow buildup can also degrade the signals, so keep the antenna clear.
☐ If a GPS signal has not been received for a long time, your vehicle's actual position and the current posit on mark on the map may diverge considerably or may not be updated. In such case, once GPS reception is restored, accuracy will be recovered.
Conditions likely to cause noticeable positioning errors
For various reasons, such as the state of the road you are traveling on and the reception status of the GPS signal, the actual position of your vehicle may differ from the position displayed on the map screen.
- If you make a slight turn.
Appendix
- If you drive in zigzags.
Appendix
- If trees or other obstacles block the GPS signals for a considerable period.
- If you drive very slowly, or in a start-and-stop manner, as in a traffic congestion.
Appendix
Route setting information
Route search specifications
Your navigation system sets a route to your destination by applying certain built-in rules to the map data. This section provides some useful information about how a route is set.
CAUTION
When a route is calculated, the route and voice guidance for the route are automatically set. Also, for day or time traffic regulations, only information about traffic regulations applicable at the time when the route was calculated is considered. One-way streets and street closures may not be taken into consideration. For example, if a street is open during the morning only, but you arrive later, it would be against the traffic regulations so you cannot drive along the set route. When driving, please follow the actual traffic signs. Also, the system may not know some traffic regulations.
- The calculated route is one example of the route to your destination decided by the navigation system while taking the type of streets or traffic regulations into account. It is not necessarily an optimum route. (In some cases, you may not be able to set the streets you want to take. If you need to take a certain street, see a waypoint on that street.)
- If the destination is too far, there may be instances where the route cannot be set. (If you want to set a long-distance route going across several areas, set waypoints along the way.)
- During voice guidance, turns and intersections from the freeway are announced. However, if you pass intersections, turns, and other guidance points in rapid succession, some may delay or not be announced.
It is possible that guidance may direct you off a freeway and then back on again. - In some cases, the route may require you to travel in the opposite direction to your current heading. In such cases, you are instructed to turn around, so please turn around safely by following the actual traffic rules.
- In some cases, a route may begin on the opposite side of a railway or river from your actual current location. If this happens, drive towards your destination for a while, and try route calculation again.
- When there is a traffic congestion ahead, a detour route may not be suggested if driving through the traffic congestion would still be better than taking the delour.
- There may be instances when the starting point, the waypoint and the destination point are not on the highlighted route.
● The number of traffic circle exits displayed on the screen may differ from the actual number of roads.
Route highlighting
- Once set, the route is highlighted in bright color on the map. - The immediate vicinity of your starting point and destination may not be highlighted, and neither will areas with particularly complex road layouts. Consequently, the route may appear to be cut off on the display, but voice guidance will continue.
Auto reroute function
- If you deviate from the set route, the system will re-calculate the route from that point so that you remain on track to the destination.
- This function may not work under certain conditions.
Handling and care of discs
Some basic precautions are necessary when handling your discs.
Built-in drive and care
- Use only conventional, fully circular discs. Do not use shaped discs.
- Do not use cracked, chipped, warped, or otherwise damaged discs as they may damage the built-in drive.
- Use 12-cm discs. Do not use 8-cm discs or an adapter for 8-cm discs.
- When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.
- Do not attach labels, write on or apply chemicals to the surface of the discs.
- Do not attach commercially available labels or other materials to the discs.
● To clean a disc, wipe it with a soft cloth, moving outward from the center.
- Condensation may temporarily impair the built-in drive's performance.
- Playback of discs may not be possible because of disc characteristics, disc format, recorded application, playback environment, storage conditions and so on.
● Road shocks may interrupt disc playback.
- Read the precautions for cases before using them.
Ambient conditions for playing a disc
- At extremely high temperatures, a temperature cutout protects this product by switching it off automatically.
- Despite our careful design of the product, small scratches that do not affect actual operation may appear on the disc surface as a result of mechanical wear, ambient conditions for use or handling of the disc. This is not a sign of the malfunction of this product. Consider it to be normal wear and lear.
playable discs
DVD-Video
■ is trademark of DVD Format/Logo Licensing Corporation.
- It is not possible to play DVD-Audio discs. This DVD drive may not be able to play all discs bearing the marks shown above.
CD
AVCHD recorded discs
This unit is not compatible with discs recorded in AVCHD (Advanced Video Codec High Definition) format. Do not insert AVCHD discs. If inserted, the disc may not be ejected.
Appendix
Playing DualDisc
- DualDiscs are two-sided discs that have a recordable CD for audio on one side and a recordable DVD for video on the other.
- Playback of the DVD side is possible with this product. However, since the CD side of DualDiscs is not physically compatible with the general CD standard, it may not be possible to play the CD side with this product.
- Frequent loading and ejecting of a DualDisc may result in scratches to the disc
- Serious scratches can lead to playback problems on this product. In some cases, a DualDisc may become stuck in the disc-loading slot and will not eject. To prevent this, we recommend you refrain from using DualDisc with this product.
- Please refer to the manufacturer for more detailed information about DualDiscs.
Dolby Digital
This product will down-mix Doloy Digital signals internally and the sound will be output in stereo.
☐ Manufactured under license from Dolby Laboratories, Dolby and the double-D symbol are trademarks of Dolby Laboratories.
DOLBY. DIGITAL
Detailed information for playable media
Compatibility
Common notes about disc compatibility
- Certain functions of this product may not be available for some discs.
- Compatibility with all discs is not guaranteed.
It is not possible to play back DVD-RAM discs.
- Playback of discs may become impossible with direct exposure to sunlight, high temperatures, or depending on the storage conditions in the vehicle.
DVD-Video discs
- DVD-Video discs that have incompatible region numbers cannot be played on this DVD drive. The region number of the player can be found on this product's chassis.
DVD-R/DVD-RW/DVD-R SL (Single Layer)/DVD-R DL (Dual Layer) discs
● Untinalized o'scs which have been recorded with the Video format (video mode) cannot be played back.
● Discs which have been recorded with the Video Recording format (VR mode) cannot be played back.
- DVD-R DL (Dual Layer) discs which have been recorded with Layer Jump recording cannot be played back.
- For detailed information about recording mode, please contact the manufacturer of media, recorders, or writing software.
CD-R/CD-RW discs
● Untinalized discs cannot be played back.
- It may not be possible to playback CD-R/CD-RW discs recorded on a music CD recorder or a computer because of disc characteristics, scratches or dirt on the disc, or dirt, scratches or compensation on the lens of the built-in drive.
- Playback of discs recorded on a computer may not be possible, depending on the recording device, writing software, their settings, and other environmental factors.
- Please record with the correct format. (For details, please contact manufacturer of media, recorders, or writing software.)
- Titles and other text information recorded on a CD-R/CD-RW disc may not be displayed by this product (in the case of audio data (CD-DA)).
- Read the precautions with CD-R/CD-RW discs before using them.
Common notes about the external storage device (USB, SD)
- Do not leave the external storage device (USB, SD) in any location with high temperatures.
- Depending on the kind of the external storage device (USB, SD) you use, this product may not recognize the storage device or files may not be played back properly.
- The text information of some audio and video files may not be correctly displayed.
- File extensions must be used properly.
- There may be a slight delay when starting playback of files on an external storage device (USB, SD) with complex folder hierarchies.
● Operations may vary depending on the kind of an external storage device (USB, SD).
- It may not be possible to play some music files from SD or USB because of file characteristics, file format, recorded application, playback environment, storage conditions, and so on.
● Copyright protected files cannot be played back.
SD memory cards
- For details about SD memory card compatibility with this product, refer to Specifications on page 90
- Some SD memory cards may not be recognized by this unit even if the SD memory cards can be recognized by a computer. Formatting the SD memory cards using a dedicated formatter may resolve the problem. SD memory cards formatted using the standard formatting function on a computer do not comply with the SD standard. Problems such as that these cards cannot be read or written could occur. It is recommended that you use a dedicated formatter to avoid such problems. All of the data stored on an SD memory card will be deleted when the card is formatted. Back up any needed data beforehand as necessary. A dedicated formatter for SD memory cards can be obtained from the following site.
https://www.sdcard.org/
● This product is not compatible with the Multi Media Card (MMC).
USB storage devices
- For details about USB storage device compatibility with this product, refer to Specifications on page 90.
- Protocol: bulk
- You cannot connect a USB storage device to this product via a USB hub.
- Partitioned USB storage device is not compatible with this product.
- Firmly secure the USB storage device when driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or gas pedal.
- There may be a slight delay when starting playback of audio files encoded with image data.
- Some USB storage devices connected to this product may generate noise on the radio.
- Do not connect anything other than the USB storage device.
- For a USB storage device that plays music files alone, the playback or search sequence with this product may be different from that of the device.
Common notes about DivX files
- Only DivX files downloaded from DivX partner sites are guaranteed for proper operation. Unauthorized DivX files may not operate properly.
Appendix
- DRM rental files cannot be operated until playing back is started.
- This product corresponds to a DivX file display of up to 1590 minutes 43 seconds. Search operations beyond this time limit are prohibited.
- DivX VOD file playback requires supplying the ID code of this product to the DivX VOD provider. Regarding the ID code, refer to Displaying your DivX VOD registration code on page 73.
- For details on the Divx video versions that can be played on this product, refer to Specifications on page 90.
For more details about DivX, visit the following site http://www.divx.com/
DivX subtitle files
- Srt format subtitle files with the extension ".srt" can be used. - Only one subtitle file can be used for each DivX file. Multiple subtitle files cannot be associated.
- Subtitle files that are named with the same character string as the DivX file before the extension are associated with the DivX file. The character strings before the extension must be exactly the same. However, if there is only one DivX file and one subtitle file in a single folder, the files are associated even if the file names are not the same.
- The subtitle file must be stored in the same folder as the DivX file.
- Up to 255 subtitle files may be used. Any more subtitle files will not be recognized.
- Up to 64 characters can be used for the name of the subtitle file, including the extension. If more than 64 characters are used for the file name, the subtitle file may not be recognized.
- The character code for the sublit e file should comply with ISO 8859-1. Using characters other than ISO 8859-1 may cause the characters to be displayed incorrectly.
- The subtitles may not be displayed correctly if the displayed characters in the subtitle file include control code.
- For materials that use a high transfer rate, the subtitles and video may not be completely synchronized.
- If multiple subtilies are programmed to display within a very short time frame, such as 0.1 seconds, the subtilies may not be displayed at the correct time.
Media compatibility chart
General
Files may not be played back properly depending on the environment in which the file was created or on the contents of the file.
This product may not play back files, depending on the application used to encode the files.
This product may not operate correctly, depending on the application used to encode WMA files.
Depending on the version of Windows Media Player used to encode WMA files, album names and other text information may not be correctly displayed.
There may be a slight delay when starting playback of audio files encoded with image data.
This product is not compatible with packet write data transfer.
This product can recognize up to 32 characters, beginning with the first character, including extension for the file and folder name. Depending on the display area, this product may try to display them with a reduced font size. However, the maximum number of the characters that you can display varies according to the width of each character, and of the display area.
☐ Folder selection sequence or other operations may be altered, depending on the encoding or writing software.
Regardless of the length of blank section between the songs of original recording, compressed audio discs play with a short pause between songs.
☐ Maximum playback time of audio file stored in the disc: 60 h
☐ Maximum playback time of audio file stored on an external storage device (USB, SD): 7.5 h (450 minutes)
This product assigns folder numbers. The user cannot assign folder numbers.
CD-R/-RW
File system: ISO9660 level 1.ISO9660 level 2.Romeo, Joliet.UDF 1.02/1.50/2.00/2.01/2.50
Maximum number of folders: 700 Maximum number of files: 999
Playable file types: MP3, WMA, AAC, DivX, MPEG1, MPEG2, MPEG4
DVD-R/-R SL/-R DL/ DVD-RW
File system: ISO9660 level 1.ISO9660 level 2.Romeo, Joliet.UDI 1.02/1.50/2.00/2.01/2.50
Maximum number of folders: 700 Maximum number of files: 3 500
Playable file types: MP3, WMA, AAC, DivX, MPEG1, MPEG2, MPEG4
USB storage device/SD memory card
File system: FAT16/FAT32/NIFS
Maximum number of folders: 1500
Maximum number of files: 15 000
Playable file types: MP3, WMA, AAC, WAV, FLAC, H.264, MPFG-2, MPFG-4, WMV, FLV, MKV, JPEG
MP3 compatibility
Ver. 2.x of ID3 tag is prioritized when both Ver. 1.x and Ver. 2.x exist.
This product is not compatible with the following: MP3i (MP3 Interactive), mp3 PRO, mSu playlist
CD-R/-RW, DVD-R/-R SL/-R DL/DVD-RW
File extension: .mp3
Bil rate: 8 kops to 320 kops (CBR). VBR
Sampling frequency: 16 kHz to 49 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
IDS tag: IDS tag Ver. 1.0, 1.1, 2.2, 2.3
USB storage device/SD memory card
File extension: .mp2, .mp3, .m2a, .mka
Bit rate: 8 kops to 320 kops (CBR). VBR
Sampling frequency: 8 kHz to 48 kHz
ID5 tag: ID3 tag Ver. 1.0, 1.1, 2.2, 2.3, 2.4
WMA compatibility
This product is not compatible with the following: Windows Media™ Audio 9 Professional, Lossless, Voice
CD-R/-RW, DVD-R/-R SL/-R DL/DVD-RW
File extension: .wma
Bit rate: 5 kops to 320 kops (CBR). VBR
Sampling frequency: 8 kHz to 48 kHz
USB storage device/SD memory card
File extension: .wma
Bit rate: 5 kops to 320 kops (CBR). VBR
Sampling frequency: 8 kHz to 48 kHz
WAV compatibility
The sampling frequency shown in the display may be rounded.
- WAV files on the CD-R/-RW, DVD-R/-RW/-R SL/-R DL cannot be played.
USB storage device/SD memory card
File extension: .wav
Formal: Linear PCM (LPCM)
Sampling frequency: 16 kHz to 48 kHz
Quantization bits: 8 bits and 16 bits
AAC compatibility
This product plays back AAC files encoded by iTunes.
CD-R/-RW, DVD-R/-R SL/-R DL/DVD-RW
File extension: .m4a
Bit rate: 8 kops to 320 kops (CBR)
Sampling frequency: 8 kHz to 44.1 kHz
Appendix
USB storage device/SD memory card
File extension: aac, .adls, .mka, .m4a
Bit rate: 8 kbps to 320 kbps (CBR)
Sampling frequency: 8 kHz to 48 kHz
FLAC compatibility
FLAC files on the CD-R/-RW. DVD-R/-RW/-R SL/-R DL cannot be played.
USB storage device/SD memory card
File extension: flac, .ogg
Bit rate: 8 kbps, 16 kbps, 24 kbps
Sampling frequency: 8 kHz to 48 kHz
DivX compatibility
This product is not compatible with the following: DivX Ultra format, DivX files without video data, DivX files encoded with LPCM (Linear PCM) audio codec
Depending on the file information on composition, such as the number of audio streams, there may be a slight delay in the start of playback on discs.
If a file contains more than 4 GB, playback stops before the end.
Some special operations may be prohibited because of the composition of DivX files.
- Files with high transfer rates may not be played back correctly. The standard transfer rate is 4 Mbps for CDs and 10.08 Mbps for DVDs.
DivX files on the external storage device (USB, SD) cannot be played.
CD-R/-RW, DVD-R/-R SL/-R DL/DVD-RW
File extension: .avl/divx
Profile (D vX version): Home Theater Ver. 3.11/Ver. 4.x/Ver. 5.x/Ver. 6.x
Compatible audio codec: MP3, Dolby Digital
Bit rate (MP3): 8 kbps to 320 kbps (CBR), VBR
Sampling frequency (MP3): 16 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
Maximum image size: 720 pixels × 576 pixels
Maximum file size: 4 GB
Audio and video files compatibility (USB, SD)
- Files may not be able to be played back depending on the bit rate.
Only USB storage devices can play back VOB files.
.avi
Compatible video codec: MPEG-4/H.264/H.263/Xy/d
Compatible audio codec: Linear PCM (LPCM)/MP3/AAC
Maximum resolution: 720 pixels × 480 pixels
Maximum frame rate: 30 fps
Maximum file size: 4 GB
Maximum playback time: 150 minutes
.mp4
Compatible video codec: MPEG-4/11.264/11.263
Compatible audio codec: MP3/AAC
Maximum resolution: 720 pixels × 480 pixels
Maximum frame rate: 30 fps
Maximum file size: 4 GB
Maximum playback time: 150 minutes
.3gp
Compatible video codec: MPEG-4/11.264/11.263
Compatible audio codec: AAC
Maximum resolution: 720 pixels × 480 pixels
Maximum frame rate: 30 fps
Maximum file size: 4 GB
Maximum playback time: 150 minutes
.mkv
Compatible audio codec: MPEG-4/H.264/VC-1/Xvid
Compatible audio codec: MP3/AAC/Vorbis
Maximum resolution: 720 pixels × 480 pixels
Maximum frame rate: 30 fps
Maximum file size: 4 GB
Maximum playback time: 150 minutes
.mov
Compatible video codec: MPFG-4/H.264/H.263
Compatible audio codec: MP3/AAC
Maximum resolution: 720 pixels × 480 pixels
Maximum frame rate: 30 fps
Maximum file size: 4 GB
Maximum playback time: 150 minutes
.f4v
Compatible video codec: H.264/H.263
Compatible audio codec: MP3/AAC
Maximum resolution: 720 pixels × 480 pixels
Maximum frame rate: 30 fps
Maximum file size: 4 GB
Maximum playback time: 150 minutes
.wmv
Compatible video codec: WMV/VC-1
Compatible audio codec: WMA
Maximum resolution: 720 pixels × 480 pixels
Maximum frame rate: 30 fps
Maximum file size: 4 GB
Maximum playback time: 150 minutes
.asf
Compatible video codec: WMV/VC-1
Compatible audio codec: WMA
Maximum resolution: 720 pixels × 480 pixels
Maximum frame rate: 30 fps
Maximum file size: 4 GB
Maximum playback time: 150 minutes
.flv
Compatible video codec: H.264
Compatible audio codec: MP3/AAC
Maximum resolution: 720 pixels × 480 pixels
Maximum frame rate: 30 fps
Maximum file size: 4 GB
Maximum playback time: 150 minutes
.vob
Compatible video codec: H.264/MPEG-2
Compatible audio codec: Linear PCM (LPCM)/MP3/AAC
Maximum resolution: 720 pixels × 450 pixels
Maximum frame rate: 30 fps
Maximum file size: 4 GB
Maximum playback time: 150 minutes
Bluetooth
Bluetooth®
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.
SiriusXM® satellite radio
((SiriusXm))
READY
Appendix
Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio, Inc. All rights reserved.
HD Radio™ Technology
HD Radio Technology manufactured under license from iBiquity Digital Corporation, U.S. and Foreign Patents, HD Radio "and the HD, HD Radio, and "Arc" logos are proprietary trademarks of iBiquity Digital Corp.
SDHC
SDHC Logo is a trademark of SD-3C, LLC.
WMA/WMV
Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
☐ This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.
FLAC
Copyright © 2000-2009 Josh Coalsen
Copyright © 2011-2013 Xich.Org Foundation
Red distribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
— Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
— Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
— Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSOLENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
DivX
DIVX
DivX Certified devices have been tested for high-quality DivXe (.divx, .avi) video playback. When you see the DivX logo, you know you have the freedom to play your favorite DivX movies. DivXe, DivX Certified and associated logos are trademarks of DivX, LLC and are used under license.
This DivX Certified® device has passed rigorous testing to ensure it plays DivX® video.
To play purchased DivX movies, first register your device at vod. divx.com. Find your registration code in the DivX VOD section of your device setup menu.
Refer to Displaying your DivX VOD registration code on page 73
AAC
AAC is short for Advanced Audio Coding and refers to an audio compression technology standard used with MPEG-2 and MPEG-4. Several applications can be used to encode AAC files, but file formats and extensions differ depending on the application which is used to encode. This unit plays back AAC files enclosed by if unos.
Google, Google Play, Android™
Google, Google Play and Android are trademarks of Google Inc.
Android Auto
androidauto
Android Auto is a trademark of Google Inc.
MIXTRAX
MIXTRAX is a trademark of PIONEER CORPORATION.
Detailed information regarding connected iPod devices
- Pioneer accepts no responsibility for data lost from an iPod, even if that data is lost while using this product. Please back up your iPod data regularly.
- Do not leave the iPod in direct sunlight for extended amounts of time. Extended exposure to direct sunlight can result in iPod malfunction due to the resulting high temperature.
- Do not leave the iPod in any location with high temperatures.
- Firmly secure the iPod when driving. Do not let the iPod fall onto the floor, where it may become jammed under the brake or gas pedal.
- For details, refer to the iPod manuals.
iPhone and iPod
Made for
iPod
iPhone
"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Appendix
Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are trace marks of Apple Inc., registered in the U.S. and other countries.
Lightning
Lightning is a trademark of Apple Inc.
App Store
App Store is a service mark of Apple Inc.
iOS
iOS is a trademark on which Cisco holds the trademark right in the US and certain other countries.
iTunes
iTunes is a trademark of Apple Inc., registered in the U.S. and other countries.
Apple Music
Apple Music is a trademark of Apple Inc., registered in the U.S. and other countries.
Apple CarPlay
Works with Apple CarPlay
Apple CarPlay is a trademark of Apple Inc. Use of the Apple CarPlay logo means that a vehicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that the use of this product with iPhone or iPod may affect wireless performance.
Using app-based connected content
Important
Requirements to access app-based connected content services using this product:
- Latest version of the Pioneer compatible connected content application(s) for the smartphone, available from the service provider, downloaded to your smartphone.
- A current account with the content service provider.
- Smartphone Data Plan.
Note: if the Data Plan for your smartphone does not provide for unlimited data usage, additional charges from your carrier may apply for accessing apo-based connected content via 3G, EDGE and/or LTE (4G) networks.
- Connection to the Internet via 3G, EDGE, LTE (4G) or Wi-Fi network.
- Optional Pioneer adapter cable connecting your iPhone to this product.
Limitations:
- Access to app-based connected content will depend on the availability of cellular and/or Wi-Fi network coverage for the purpose of allowing your smartphone to connect to the Internet.
- Service availability may be geographically limited to the region. Consult the connected content service provider for additional information.
- Ability of this product to access connected content is subject to change without notice and could be affected by any of the following: compatibility issues with future firmware versions of smartphone; compatibility issues with future versions of the connected content application(s) for the smartphone; changes lo or discontinuation of the connected Content application(s) or service by its provider.
- Pioneer is not liable for any issues that may arise from incorrect or flawed apo-based content.
- The content and functionality of the supported applications are the responsibility of the Aop providers.
- In AppRadio Mode. Apple CarPlay and Android Auto, functionality through the product is limited while driving, with available functions determined by the App providers.
- Availability of AppRadio Mode, Apple CarPlay and Android Auto functionalities is determined by the App provider, and not determined by Pioneer.
- AppRadio Mode, Apple CarPlay and Android Auto allow access to applications other than those listed (subject to limitations while driving), but the extent to which content
can be used is determined by the App providers.
Pandora®
Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Usco with permission.
Pandora is only available in certain countries. Please visit http://www.pandora.com/legal for more information.
HDMI
HIGH-DEFINITION MULTIMEDIA INTERFACE
The terms HDMI and HDMI High Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
MHL
MHL, the MHL Logo, and Mobile High-Definition Link are trademarks or registered trademarks of MHI, LLC in the United States and other countries.
IVONA Text-to-Speech
An Amazon Company
Appendix
Notice regarding video viewing
Remember that use of this system for commercial or public viewing purposes may constitute an infringement on the author's rights as protected by the Copyright Law.
Notice regarding DVD-Video viewing
This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Roy Corporation. Reverse engineering and disassembly are prohibited.
Notice regarding MP3 file usage
Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue generating) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay audio or audio on demand applications. An independent license for such use is required. For details, please visit http://www.mp3/licensing.com.
Notice regarding open source licenses
For details about the open source licenses for the functions that this product is equipped with, please visit http://www.css-pioneer.com/car/mulimedia/
Map coverage
For details about the map coverage of this product, refer to the information on our website.
Using the LCD screen correctly
Handling the LCD screen
- When the LCD screen is subjected to direct sunlight for a long period of time, it will become very hot, resulting in
possible damage to the LCD screen. When not using this product, avoid exposing it to direct sunlight as much as possible.
● The LCD screen should be used with n the temperature ranges shown in Specifications on page 90.
- Do not use the LCD screen at temperatures higher or lower than the operating temperature range, because the LCD screen may not operate normally and could be damaged.
- The LCD screen is exposed in order to increase its visibility within the vehicle. Please do not press strongly on it as this may damage it.
- Do not push the LCD screen with excessive force as this may scratch it.
- Never touch the LCD screen with anything besides your finger when operating the touch panel functions. The LCD screen can scratch easily.
Liquid crystal display (LCD) screen
- If the LCD screen is near the vent of an air conditioner, make sure that air from the air conditioner is not blowing on it. Heal from the heater may break the LCD screen, and cool air from the cooler may cause moisture to form inside this product, resulting in possible damage.
- Small black dots or white dots (bright dots) may appear on the LCD screen. These are due to the characteristics of the LCD screen and do not indicate a malfunction.
● The LCD screen will be difficult to see if it is exposed to direct sunlight. - When using a cellular phone, keep the antenna of the cellular phone away from the LCD screen to prevent disruption of the video in the form of disturbances such as spots or colored stripes.
Maintaining the LCD screen
- When removing dust from or cleaning the LCD screen, first turn this product off and then wipe the screen with a soft dry cloth.
- When wiping the LCD screen, take care not to scratch the surface. Do not use harsh or abrasive chemical cleaners.
LED (light-emitting diode) backlight
A light emitting diode is used inside the display to illuminate the LCD screen.
- At low temperatures, using the LED backlight may increase image lag and degrade the image quality because of the characteristics of the LCD screen. Image quality will improve with an increase in temperature.
- The product lifetime of the LED backlight is more than 10,000 hours. However, it may decrease if used in high temperatures.
- If the LED backlight reaches the end of its product lifetime, the screen will become dimmer and the image will no longer be visible. In that case, please consult your dealer or the nearest authorized Pioneer Service Station.
Specifications
General
Rated power source....14.4 V DC (10.8 V to 15.1 V allowable)
Grounding system....Negative type Maximum current consumption ....10.0 A Dimensions (W × H × D):
8200NEX
Chassis....178 mm × 100 mm × 164 mm (7 in. × 3-7/8 in. × 6-1/2 in.) Nose....171 mm × 97 mm × 21 mm (6-3/4 in. × 3-7/8 in. × 7/8 in.)
7200NEX
Chassis....178 mm × 100 mm × 164 mm (7 in. × 3-7/8 in. × 6-1/2 in.) Nose....171 mm × 97 mm × 20 mm (6-3/4 in. × 3-7/8 in. × 13/16 in.)
6200NEX/5200NEX
Chassis....178 mm × 100 mm × 164 mm (7 in. × 3-7/8 in. × 6-1/2 in.) Nose ....170 mm × 97 mm × 8 mm (6-3/4in. × 3-7/8in. × 3/8in.)
8200NEX:7200NEX
Weight....2.1 kg (4.6 lbs)
6200NEX/5200NEX
Weight....1.8 kg (4 bs)
8200NEX
NAND flash memory....16 GB
7200NEX/6200NEX/5200NEX
NAND flash memory....8 GB
Navigation
GPS receiver:
System....L1, C/Code GPS SPS (Standard Positioning Service)
Reception system.....50-channel multi-channel reception system Reception frequency.....1 575.42 MHz Sensitivity.....-140 dBm (typ)
Position update frequency.....Approx. once per second GPS antenna:
Appendix
Antenna....Micro strip flat antenna/right-handed helical polarization
Antenna cable .... 3.55 m (11 fl, 7 in.) Dimensions (W × H × D).... 33 mm × 14.7 mm × 36 mm (1-1/4 in. × 1/2 in. × 1-3/8 in.)
Weight 73.7 g (0.2 lbs)
Display
8200NEX/7200NEX
Screen size/aspect ratio ..... 6.95 inch wide/16:9 (effective display area: 156.6 mm × 81.6 mm) (6-1/8 in. × 3-1/4 in.)
6200NEX/5200NEX
Screen size/aspect ratio...6.2 inch wide/16:9 (effective display area: 136.2 mm × 72 mm) (5-3/8 in. × 2-7/8 in.)
Pixels 1152000 (2400 × 480) Display method TFT Active matrix driving
Color system.....PAL/NTSC/PAL-M/PAL-N/SECAM compatible Durable temperature range:
Power off 4°F to -176°F
Audio
Maximum power output ....50 W × 4 Continuous power output ....22 W × 4 (50 Hz to 15 kHz, 5 %THD, 4 Q LOAD, Both Channels Driven)
Load impedance ....4 Ω (4 Ω to 8 Ω allowable) Precut output level (max) ....4.0 V Equalizer (13-Band Graphic Equalizer):
Frequency ..... 50 Hz/80 Hz/125 Hz/200 Hz/315 Hz/500 Hz/800 Hz /1.25 kHz/2 kHz/3.15 kHz/5 kHz/8 kHz/12.5 kHz
Gain ....+12 dB HFE:
Frequency ..... 50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz Slope ..... 6 dB/oct. -12 dB/oct. -18 dB/oct Subwoofer (mono):
Frequency ..... 50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz Slope ..... 6 dB/oct, -12 dB/oct, -18 dB/oct Gain ..... -24 dB to +10 dB Phase ..... Norma./Reverse
Time alignment 0 to 200 step (1 inch/step)
DVD drive
System .....DVD-Video, VCD, CD, MP3, WMA, AAC, DivX, MPEG player
Region number ....1 Useable discs ....DVD-VIDEO, VIDEO-CD, CD, CD-R, CD-RW, DVD-R, DVD-RW, DVD-RDL
Frequency response.....5 Hz to 44 000 Hz (with DVD, at sampling frequency 96 kHz)
Signal-to-noise ratio .... 96 dB (1 kHz) (IHF-A network) (RCA level) Output level:
Video 1.0 Vp-p/75 Ω (-0.2 V)
Number of channels....2 (stereo)
MP3 decoding format....MPEG-1,2 & 2.5 Audio Layer 3
WMA decoding format ...Ver.7, 8, 9 (2 ch audio) (Windows Media Player)
AAC decoding formal .....MPEG-4 AAC (iTunes encoded only): .m4a (Ver. 11 and earlier)
DivX decoding format .....Home Theater Ver.3.11, Ver.4.X, Ver.b.X Ver.6.X : .avi, divx
MPEG video decoding format ....MPEG-1: mog, mpeg, dat MPEG-2 PS: mpg, mpeg
MPEG-4 Part2 (Visual), MS MPEG-4 Ver.3: avi
USB
USB standard spec .... USB 1.1, USB 2.0 High speed Max current supply .... 1.6 A
USB Class .....MSC (Mass Storage Class) device, iPod (AudioClass, HID Class) device
File system....FAT16, FAT32, NTFS
MP3 ceoding format ....MPEG-1/Layer 1, MPEG-1/Layer 2, MPEG-1/Layer 3, MPEG-2/Layer 1, MPEG-2/Layer 2, MPEG-2/Layer 3, MPEG-2.5/Layer 3
WMA decoding format ....WMA10 Std, WMA10 Pro, WMAG Lossless
AAC decoding format ......MPEG-2 AAC-LC, MPEG-4 AAC-LC
WAV signal format ....Linear PCM
FLAC decoding format .....Ver. 1.3.0 (Free Lossless Audio Codec
H.264 video decoding format ...... Base Line Profile, Main Profile, High Profile
WMV video decoding format.....VC-1 SP/MP/AP, WMV 7/8
MPEG4 video decoding format ..Simple Profile, Advanced Simple Profile (except GMC)
JPEG decoding format ...... JPEG
SD
8200NEX/7200NEX
Compatible physical format....Version 2.0
File system....FAT16, FAT32, NTFS
MP3 decoding format ....MPEG-1/Layer 1, MPEG-1/Layer 2, MPEG-1/Layer 3, MPEG-2/Layer 1, MPEG-2/Layer 2, MPEG-2/Layer 3, MPEG-2.5/Layer 3
WMA decoding format ....WMA10 Std, WMA10 Pro, WMA9 Lossless
AAC decoding format ......MPEG-2 AAC-LC. MPEG-4 AAC-LC
WAV signal format ....Linear PCM
FLAC decoding format .....Ver. 1.3.0 (Free Lossless Audio Codec)
H.264 video decoding format ...... Base Line Profile, Main Profile, High Profile
WMV video decoding format.... VC-1 SP/MP/AP, WMV 7/8
MPEG4 video decoding format ..Simple Profile, Advanced Simple
Profile (except GMC)
JPEG decoding format ...... JPEG
Bluetooth
Version Bluetooth 3.0 + EDR certified
Output power....+4 dBm Max.
(Power class 2)
Frequency band 2400 MHz to 2483.5 MHz
FM tuner
Frequency range 87.9 MHz to 107.9 MHz Usable sensitivity 11 dBf (0.8μV/75 Ω, mono S/N: 30 dB)
8200NEX/7200NEX/6200NEX
Signal-to-noise ratio 50 dB (digital broadcasting)
(IHF-A network)
Signal-to-noise ratio 72 dB (analog broadcasting)
(IHF-A network)
AM tuner
Frequency range 530 kHz to 1710 kHz
Usable sensitivity 25 μV (S/N; 20 dB)
8200NEX/7200NEX/6200NEX
Signal-to-noise ratio 80 dB (digital broadcasting)
(IHF-A network)
Signal-to-noise ratio 62 dB (analog broadcasting)
(IHF-A network)
CEA2006 Specifications
Power output .... 14 W RMS × 4 Channels (4 Ω and ≤ 1% THD-N)
S/N ratio 91 cBA (reference: 1 W into 4 Ω)
- Specifications and design are subject to possible modification
tions without notice due to improvements.
