Important Usage Instructions

WARNING!

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING!

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK AND TO REDUCE ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.

CAUTION:

DISCONNECT THE MAINS PLUG FROM THE SUPPLY SOCKET WHEN NOT IN USE.

CA-570 identification plate is located on the bottom.

Thank you for purchasing the Canon MVX350i/MVX330i/MVX300. Please read this manual carefully before you use the camcorder and retain it for future reference.

Change the display language before you begin (76).

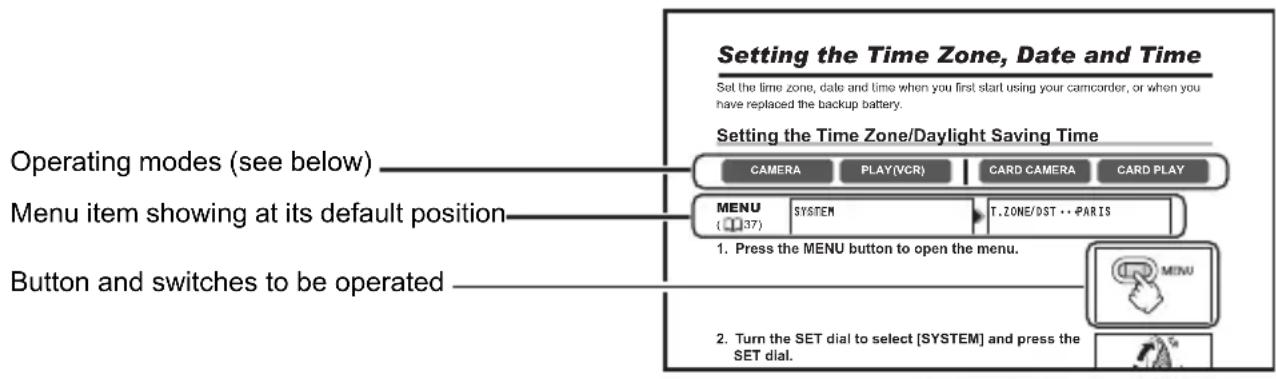

Symbols and References Used in This Manual

○ Precautions related to the camcorder operation.
○ Additional topics that complement the basic operating procedures.
○ ☐ Reference page number.
○ Capital letters are used to refer to buttons on the camcorder or the wireless controller.
☐ [ ] are used to refer to menu items displayed on the screen.
- “Screen” refers to the LCD and the viewfinder screen.
Please note that the illustrations mainly refer to the MVX350i.

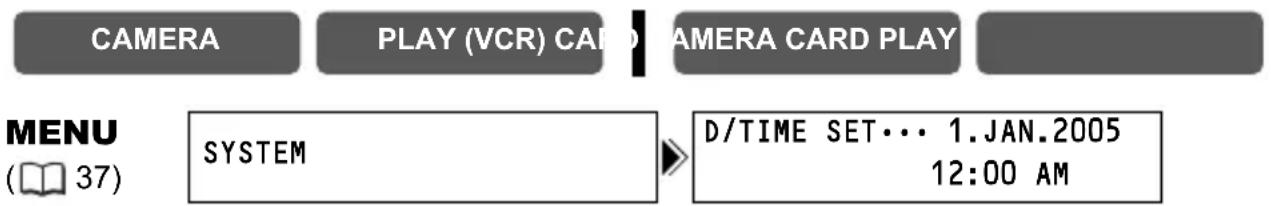

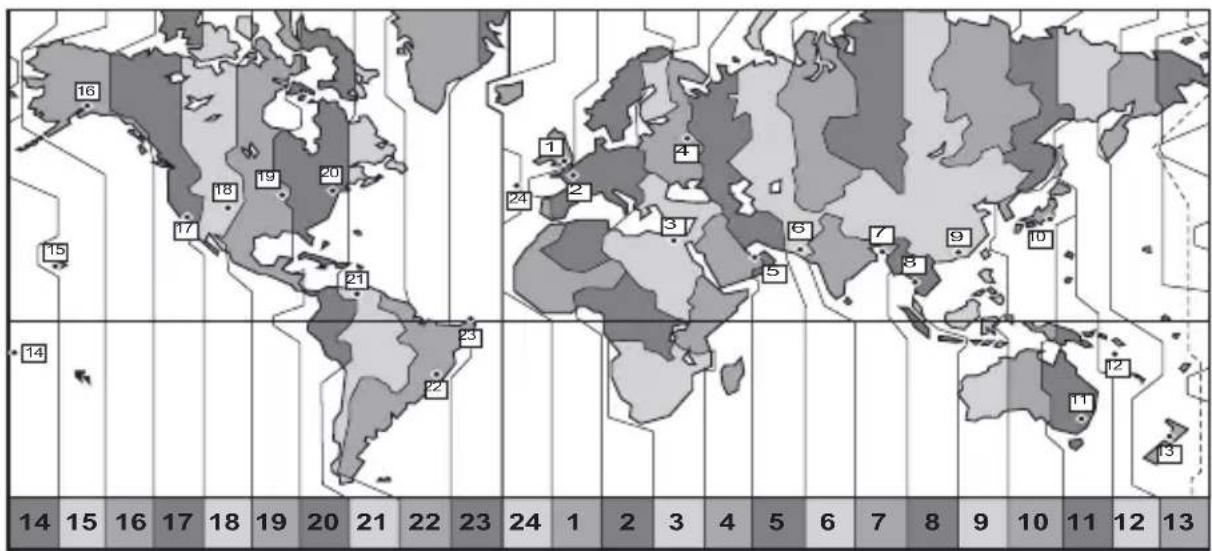

Setting the Time Zone, Date and Time Set the time zone, date and time when you first start using your camcorder, or when you have replaced the backup battery. Setting the Time Zone/Daylight Saving Time CAMERA PLAY(VCR) CARD CAMERA CARD PLAY MENU (37) SYSTEM T.ZONE/DST...PARIS 1. Press the MENU button to open the menu. 2. Turn the SET dial to select [SYSTEM] and press the SET dial.

About the Operating Modes

The operating modes are determined by the position of the POWER switch and the TAPE/CARD switch.

Operating Mode POWER Switch TAPE/CARD Switch
CAMERA CAMERA (TAPE)
PLAY (VCR) PLAY (VCR) (TAPE)
CARD CAMERA	CAMERA	(CARD)
CARD PLAY	PLAY (VCR)	(CARD)

CAMERA

CAMERA

: Function can be used in this mode.

: Function cannot be used in this mode.

Trademark Acknowledgments

• is a trademark.
• is a trademark.
• Wind ^® is a registered trademark of Microsoft Corporation in the United States and/or other countries.
  • Macintosh and Mac OS are trademarks of Apple Computer, Inc., registered in the United States and other countries.
• Other names and products not mentioned above may be registered trademarks or trademarks of their respective companies.

Introduction

Using this Manual ....3

Checking Supplied Accessories 6

Components Guide....7

Basic Functions

Preparations

Preparing the Power Supply....11

Loading/Unloading a Cassette 14

Installing the Backup Battery 15

Preparing the Camcorder 16

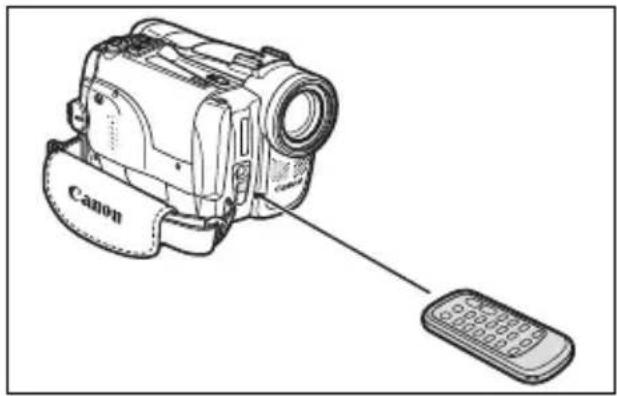

Using the Wireless Controller 18

Adjusting the LCD Screen 19

Setting the Time Zone, Date and Time....20

Recording

Recording Movies on a Tape 23

Zooming....28

Tips for Making Better Videos....30

Playback

Playing Back a Tape 31

Adjusting the Volume....33

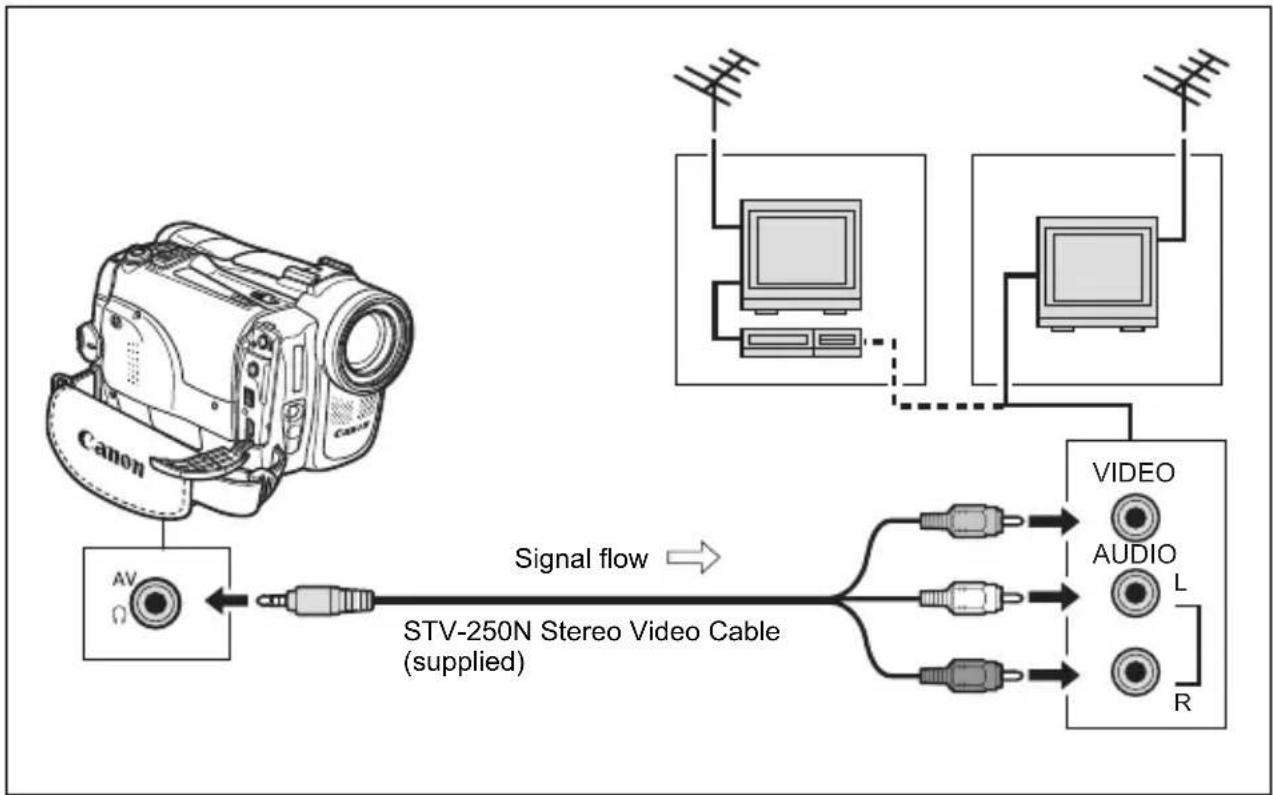

Playing Back on a TV Screen....34

Advanced Functions

Menus and Settings....37

Recording

Using the Recording Programs 45

Using the Night Modes 48

Skin Detail Function....50

Adjusting Exposure Manually 51

Adjusting the Focus Manually....52

Setting the White Balance 54

Setting the Shutter Speed....56

Using the Self-Timer....58

Changing the Recording Mode (SP/LP) 59

Audio Recording 60

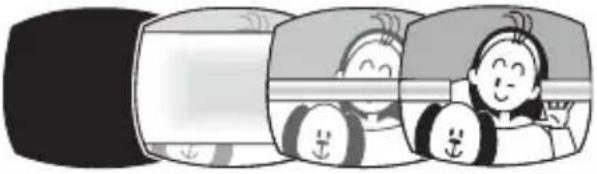

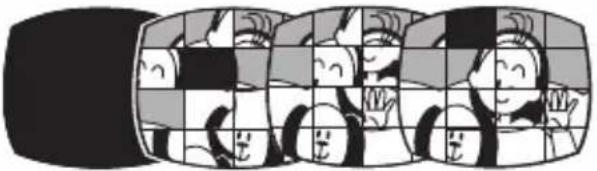

Using Digital Effects....62

Widescreen TV Recording (16:9) 68

Playback

Magnifying the Image 69

Displaying the Data Code....70

End Search....72

Returning to a Pre-marked Position 73

Date Search....74

Other Functions

Customizing the Camcorder 75

Changing the Display Language 76

Other Camcorder Settings....77

Editing

Recording to a VCR or Digital Video Device ....79

MVX350i/MVX330i Recording from Analog Video Devices (VCR, TV or Camcorder)....81

MVX350i/MVX330i Recording from Digital Video Devices (DV Dubbing) .....82

MVX350i/MVX330i Converting Analog Signals into Digital Signals (Analog-Digital Converter) 84

Audio Dubbing 86

Transferring Video Recordings to a Computer (IEEE1394)......89

Using a Memory Card

Inserting and Removing a Memory Card....90

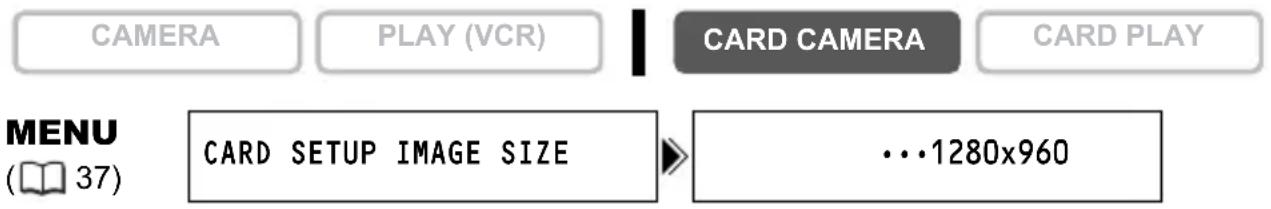

Selecting the Image Quality/Size....91

File Numbers 93

Recording Still Images on a Memory Card 94

MVX350i/MVX330i Using the Flash 98

Reviewing a Still Image Right after Recording 100

Recording Motion JPEG Movies on a Memory Card....101

Selecting the Focusing Point ....104

Selecting the Drive Mode ....105

Recording Panoramic Images (Stitch Assist Mode) 107

Playing Back a Memory Card 109

Protecting Images.... 111

Erasing Images....112

Combining Images (Card Mix)....113

Formatting a Memory Card....117

Creating a Start-up Image 118

Direct Printing

Printing Still Images....119

Selecting the Print Settings 123

Trimming Settings....128

Printing with Print Order Settings 129

Transferring Images

Transferring Memory Card Images to a Computer ....131

Direct Transfer Windows OS only 132

Selecting Images for Transfer (Transfer Order)....135

Additional Information

About the NETWORK Mode (DV Messenger Version2)....136

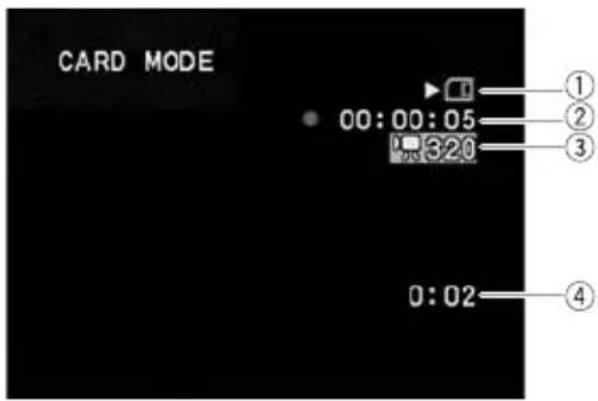

Screen Displays....137

List of Messages....140

Maintenance/Others 144

Troubleshooting....150

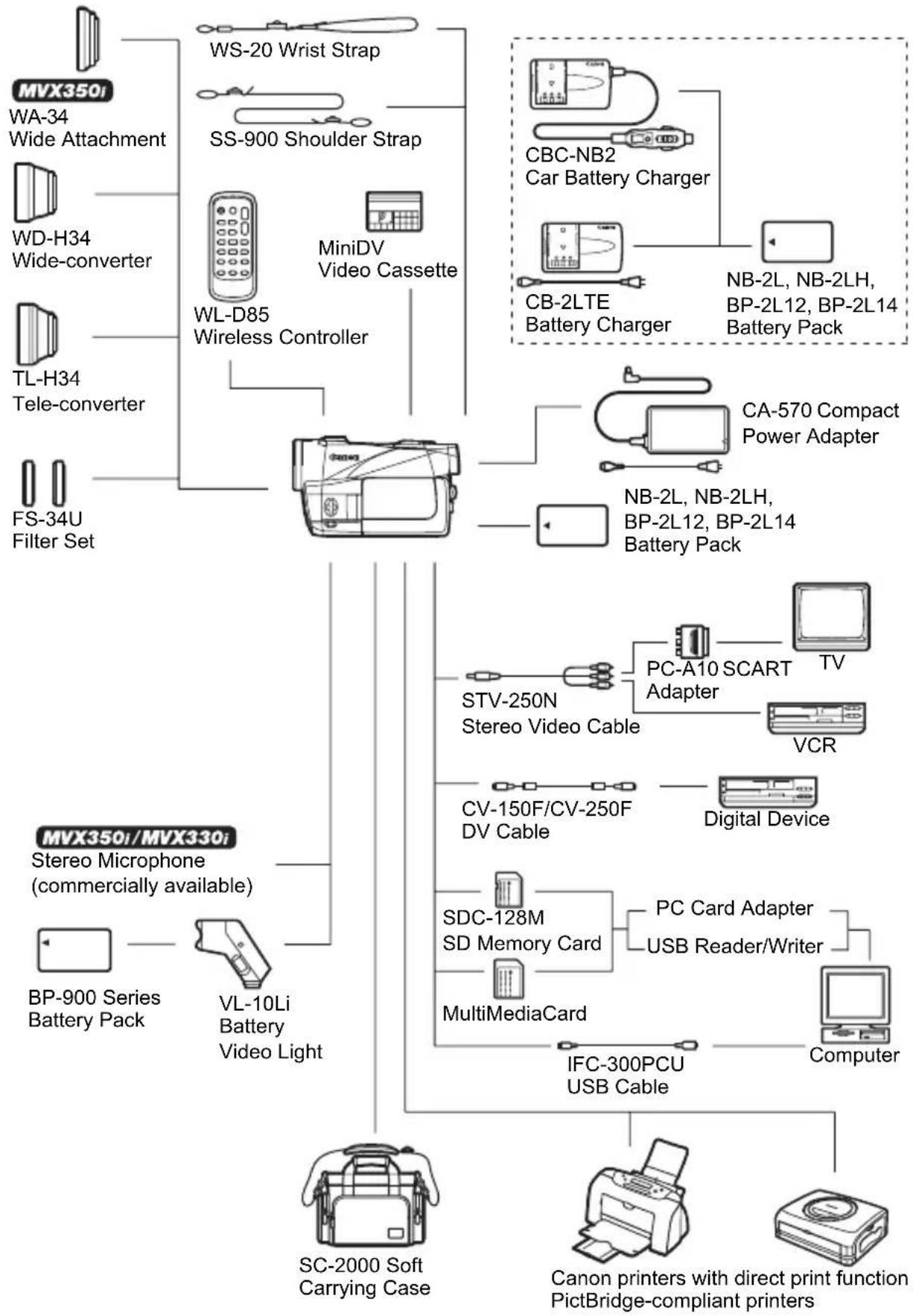

System Diagram (Availability differs from area to area) 154

Optional Accessories....155

Specifications....157

Index....159

Checking Supplied Accessories

CA-570 Compact Power Adapter(incl. power cord)	NB-2LH Battery Pack Lithium Button Battery CR1616		WL-D85 Wireless Controller

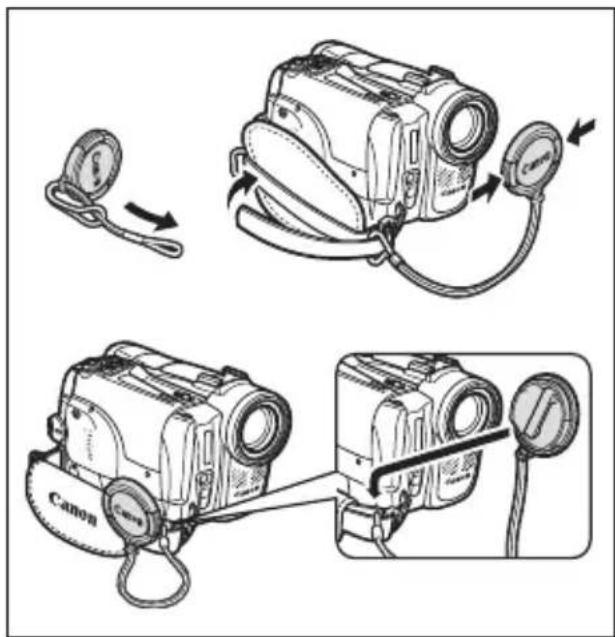

Lithium Button Battery CR2025 for Wireless Controller	Lens Cap and Lens Cap Cord	SS-900 Shoulder Strap ST	TV-250N Stereo Video Cable
PC-A10 SCART Adapter*	IFC-300PCU USB Cable	SDC-8M SD Memory Card	DIGITAL VIDEO SOLUTION DISK For Windows For Macintosh

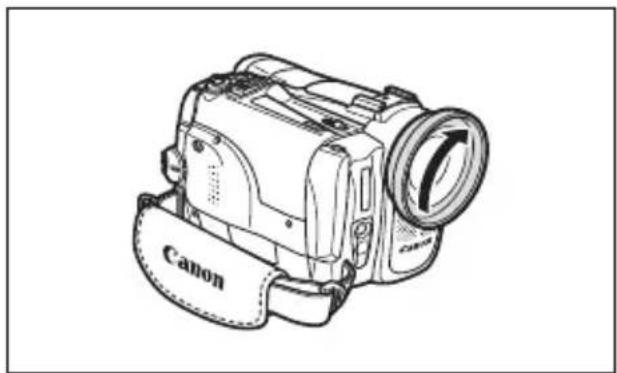

MVX350iWA-34 Wide Attachment

*Europe only.

MVX350i/MVX330i/MVX300

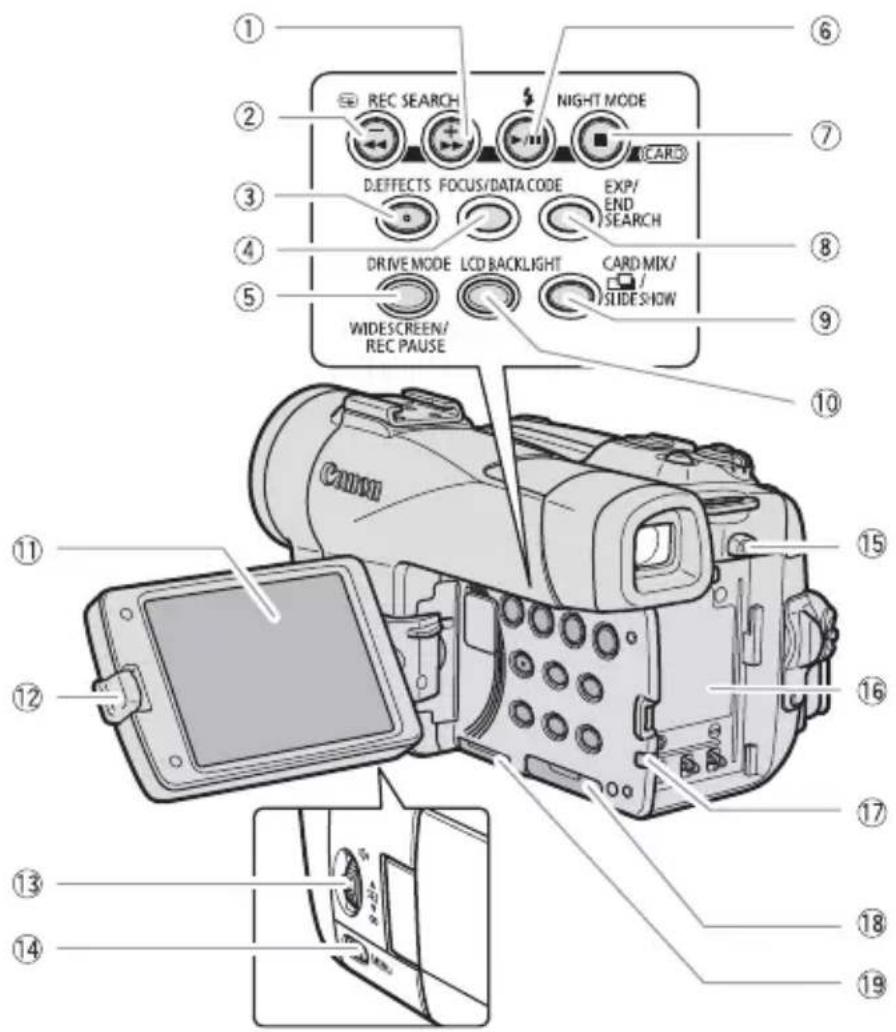

Diagram of a digital camera with numbered labels pointing to key functions such as REC SEARCH, NIGHT MODE, and DRIVE MODE.

① REC SEARCH + button (27) /
▶ (fast forward) button (32) /
CARD + button (109)

② REC SEARCH – button (27) / (record review) button (27) /

◀◀ (rewind) button (31) /

CARD - button (109)

③ D.EFFECTS button (62) OPEN button (23)

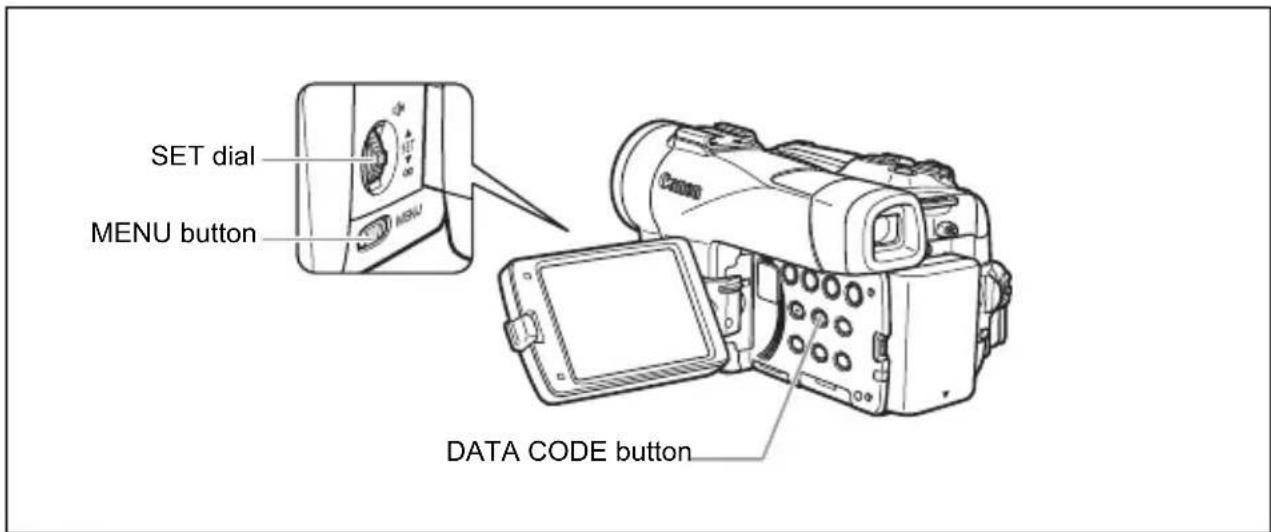

④ FOCUS button (52) / DATA CODE button (70)

⑤ DRIVE MODE button (105) / WIDESCREEN button (68) REC PAUSE button* (81)

⑥ (flash) button* (98) / ▶/ (play/pause) button (31)

⑦ NIGHT MODE button (48) / ■ (stop) button (31)

⑧ EXP button (51)/
END SEARCH button (72)
⑨ CARD MIX button (113) /
□(stitch assist) button (107) /
SLIDE SHOW button (110)

⑩ LCD BACKLIGHT button ( 19)

⑪ LCD screen ( 19)

⑫

⑬ SET dial (37)

⑭ MENU button (37)

⑮ BATTERY RELEASE button (11)

⑯ Battery attachment unit (11)/ Serial number

⑰ CHARGE indicator (11) / Card access indicator (94)

⑱ Memory card slot ( 90)

⑲ Backup battery compartment (15)

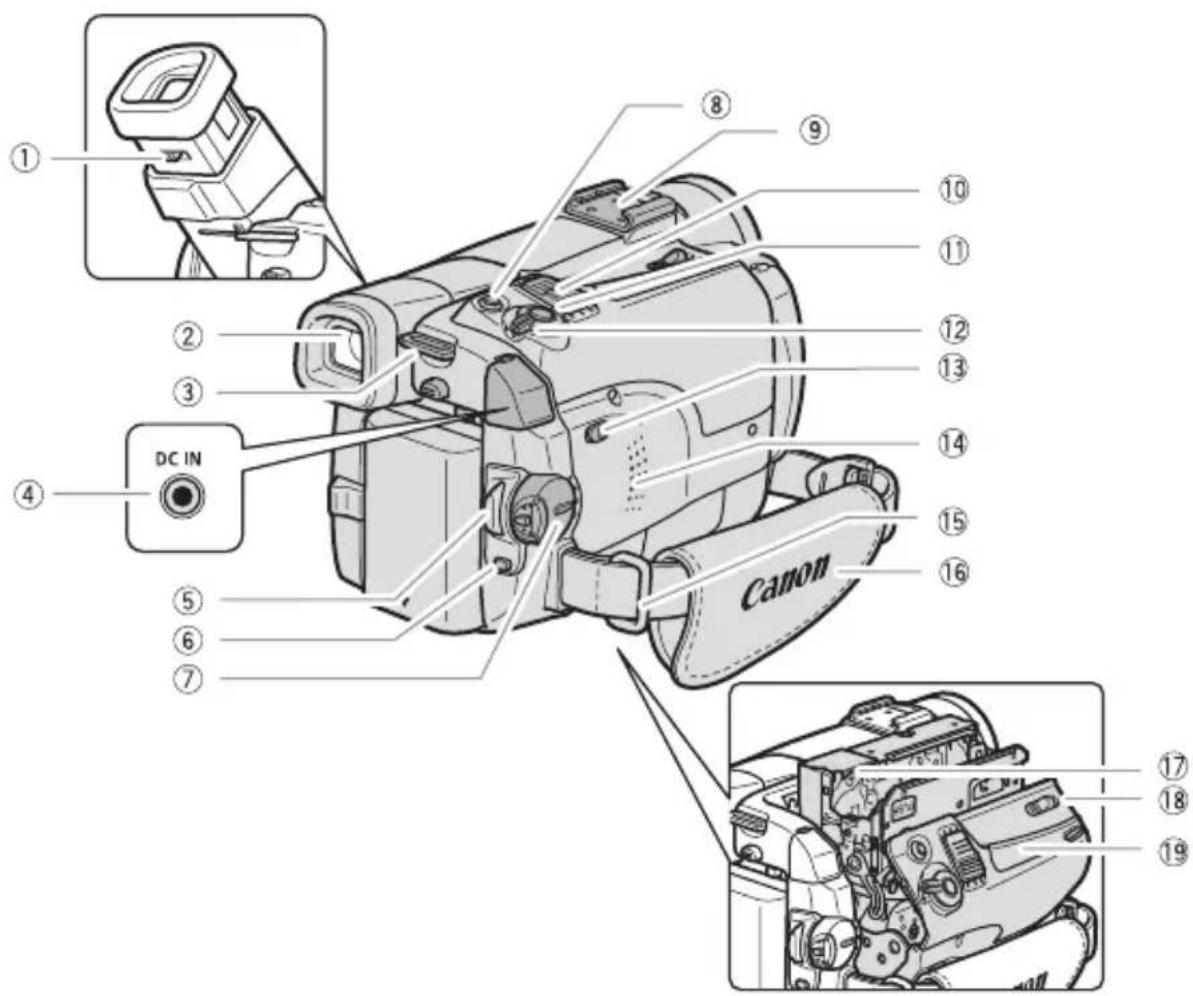

① ② ③ ④ DC IN ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰

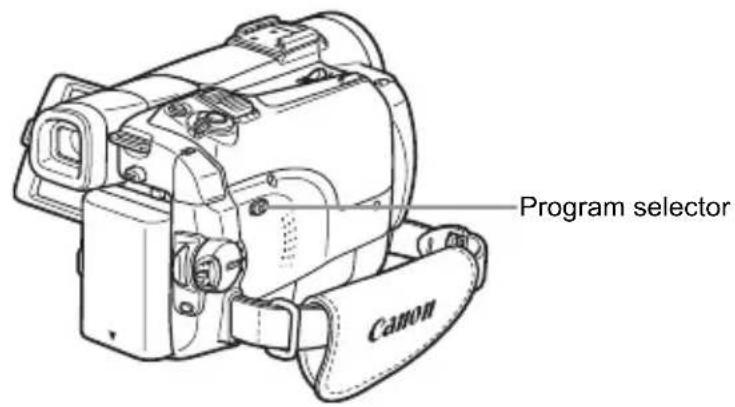

1 Dioptric adjustment lever ( 16) Program selector ( 45)
2 Viewfinder ( 16)	EASY Easy recording
3 Strap mount ( 17)	Program AE
4 DC IN terminal ( 11) Speaker ( 33)	14
5 Start/stop button ( 23, 101) Strap mount ( 17)	15
6 UNLOCK button ( 136) Grip belt (	16 16)
7 Power switch ( 3, 136) Cassette compartment ( 14)
8 (print/share) button ( 120, 132) OPEN/EJECT
9 Accessory shoe ( 61) Cassette compartment cover ( 14)
10 Zoom lever ( 28)
11 PHOTO button ( 94)
12 TAPE/CARD switch ( 3)Using a tapeUsing a memory card

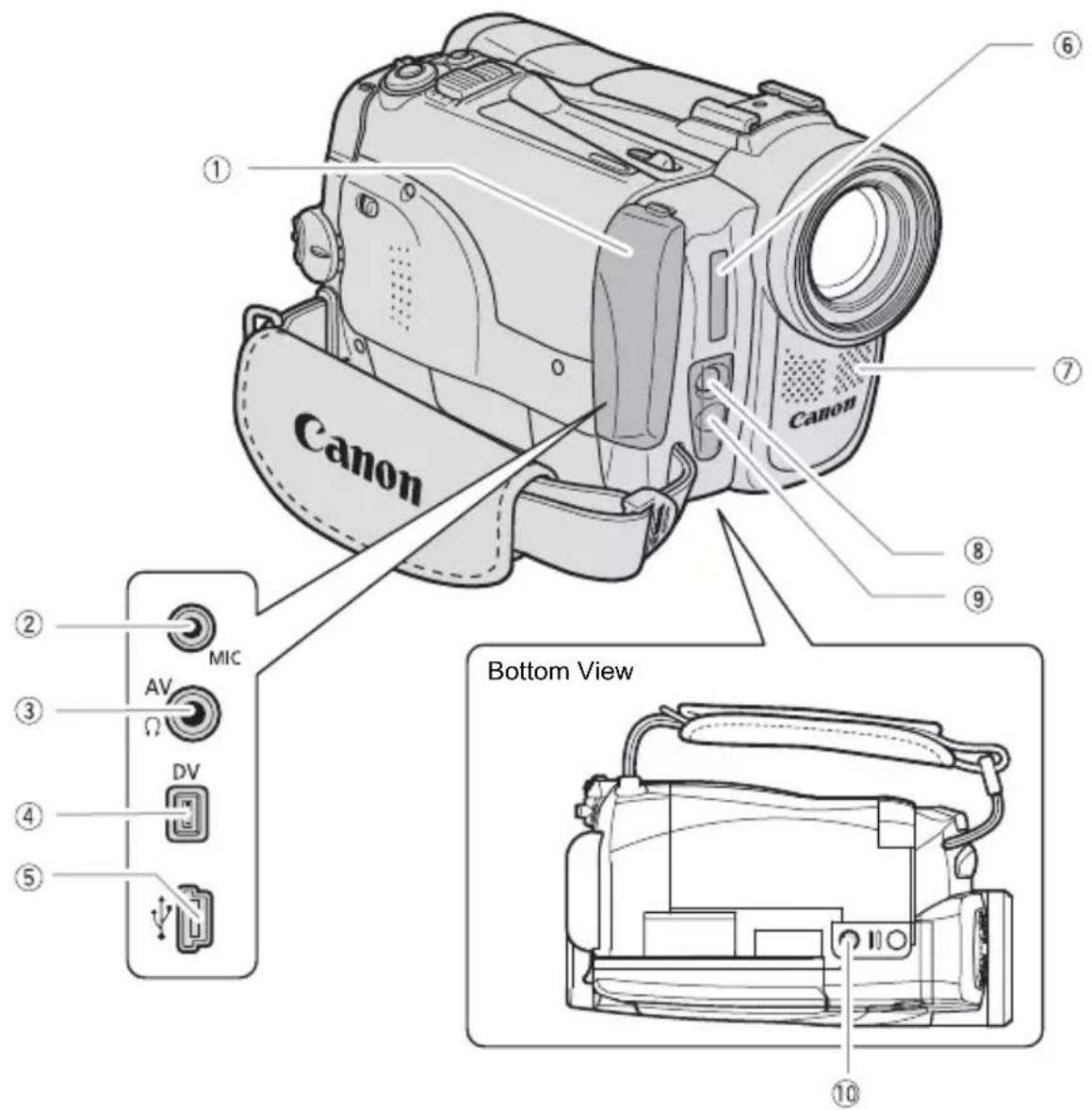

① Canon ② MIC AV Ω DV ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Bottom View ⑩

① Terminal cover Stereo microphone

② MIC terminal* (61) Mini video light

③ AV terminal (34) /

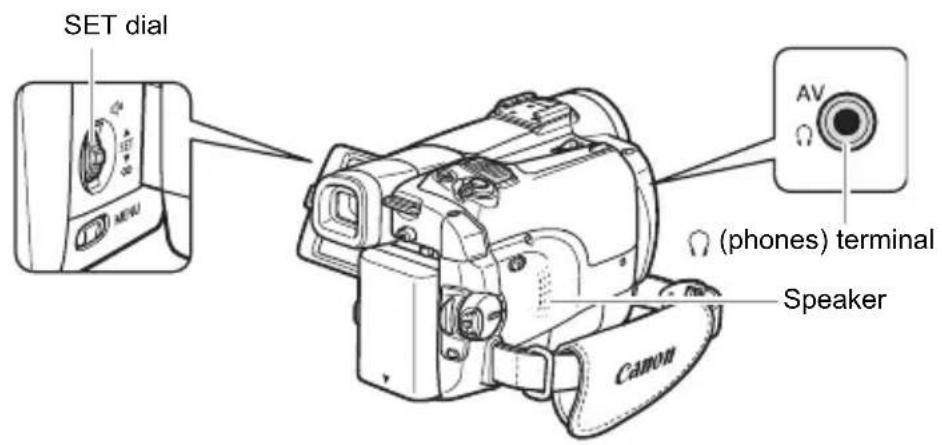

(phones) terminal (33, 60)

④ DV terminal (79, 89) Remote sensor (18)

⑤ USB terminal (119, 131) Tripod socket (30)

⑥ Flash* (98)

⑦

8 MVX3501

(assist lamp) (48)

MVX330i Assist lamp (48)

⑨

[NO TEXT]

10

[NO TEXT]

* MVX350i/MVX330i only.

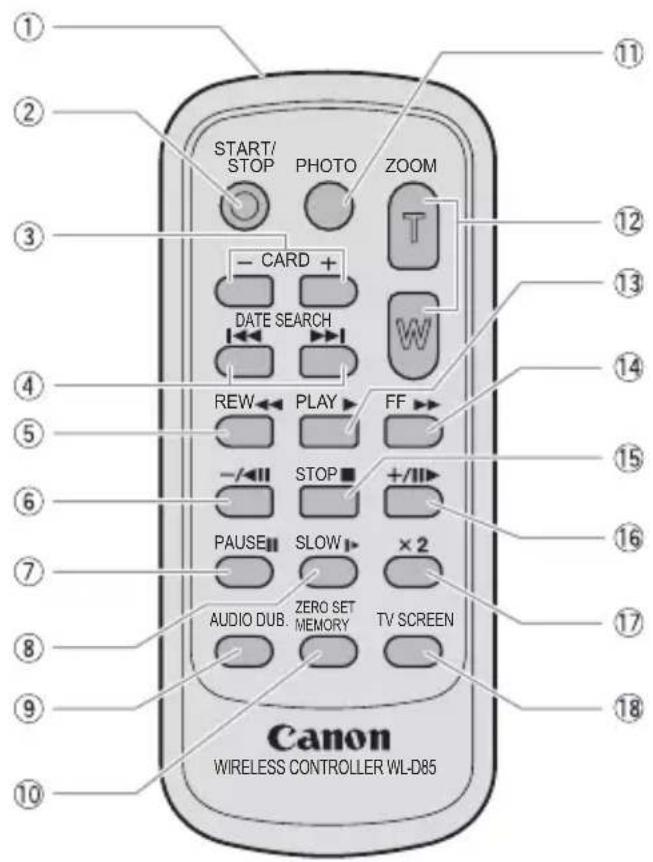

START/ STOP PHOTO ZOOM CARD + DATE SEARCH REW PLAY FF -/<||> STOP +/||> PAUSE SLOW ×2 AUDIO DUB: ZERO SET MEMORY TV SCREEN Canon WIRELESS CONTROLLER WL-D85

1 Transmitter ZERO SET MEMORY button ( 73)	10		10
2 START/STOP button ( 23, 101) PHOTO button ( 94)	11	11
3 CARD -/+ buttons ( 109) Zoom buttons ( 28)	12	12
4 DATE SEARCH / buttons ( 74) PLAY button ( 31)	13	13
5 REW button ( 31) FF button ( 32)	14	14
6 -/ button ( 32) STOP button (	15	15	15 31)
7 PAUSE button ( 32) +/ button ( 32)	16	16	16
8 SLOW button ( 32)	17 × 2 button ( 32)
9 AUDIO DUB. button ( 86)	18 V SCREEN button ( 137)

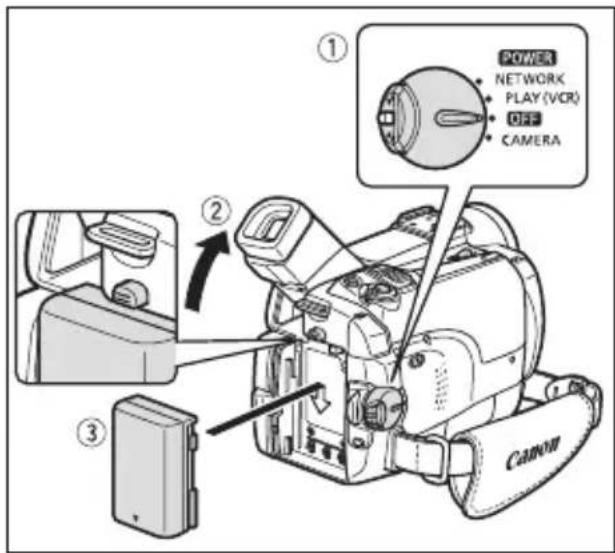

Attaching the Battery Pack

1. Turn the POWER switch to OFF.
2. Move the viewfinder upward.

3. Attach the battery pack to the camcorder.

4. Remove the terminal cover of the battery pack.

5. Press lightly and slide it in the direction of the arrow until it clicks.

POWER NETWORK PLAY (VCR) OFF CAMERA ① ② ③ CANON

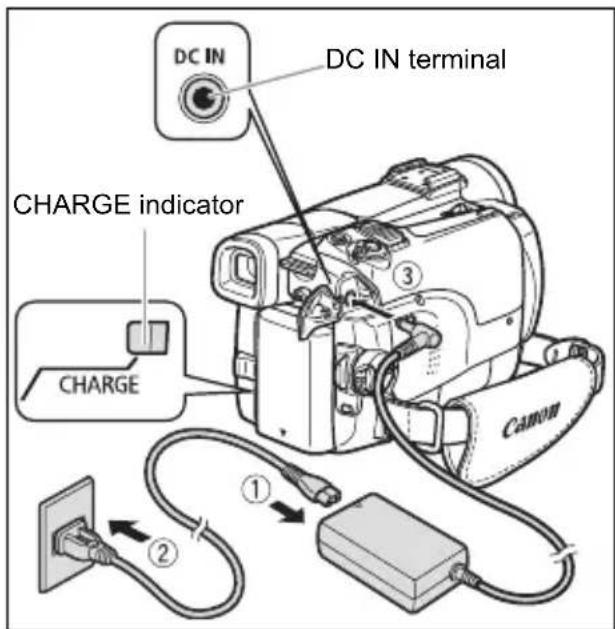

Charging the Battery Pack

1. Connect the power cord to the adapter.
2. Plug the power cord into a power outlet.
3. Connect the power adapter to the camcorder's DC IN terminal.

The CHARGE indicator starts flashing. It glows steadily when charging is complete.

1. When charging is complete, disconnect the power adapter from the camcorder. Unplug the power cord from the power outlet and disconnect it from the adapter.
2. Remove the battery pack after use.

DC IN DC IN terminal CHARGE indicator CHARGE ① ②

Press the BATTERY RELEASE button to remove the battery.

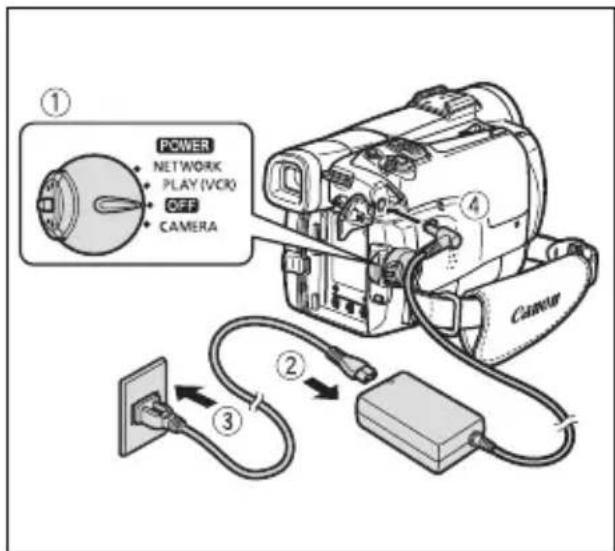

Using a Household Power Source

Connect to a household power source to use the camcorder without worrying about the battery power. You can keep the battery pack attached; the battery power will not be consumed.

1. Turn the POWER switch to OFF.
2. Connect the power cord to the power adapter.
3. Plug the power cord into a power outlet.
4. Connect the power adapter to the camcorder's DC IN terminal.

① POWER NETWORK PLAY (V/CR) OFF CAMERA ② ③ ④ Camera

Turn off the camcorder before connecting or disconnecting the power adapter.
If the adapter is used close to a TV, it may cause picture interference. Move the adapter away from the TV or the antenna cable.
Do not connect any products that are not expressly recommended to the camcorder's DC IN terminal or to the power adapter.
- You may hear some noise from the power adapter during use. This is not a malfunction.
Do not disconnect and reconnect the power cord while charging a battery pack. Charging may stop. The battery pack may not be charged correctly even if the CHARGE indicator glows steady. The battery pack may also not be charged correctly when a power outage occurs during charging. Remove the battery pack and attach it back to the camcorder.

When the power adapter or battery pack is defective, the CHARGE indicator flashes rapidly (at about 2 flashes/second) and charging stops.

The CHARGE indicator informs you about the charge status. 0-50%: Flashes once every second More than 50%: Flashes twice every second 100%: Glows steadily

○ Charging, Recording and Playback Times

Below times are approximate and vary according to the charging, recording or playback conditions.

Typical Recording Time*

* Approximate times for recording with repeated operations such as start/stop, zooming, power on/off. Actual time may be shorter.

We recommend charging the battery pack in temperatures between 10 °C and 30 °C (50°F and 86°F). Outside the temperature range of 0 °C to 40 °C (32°F to 104°F), the CHARGE indicator flashes rapidly and charging stops.
○ A lithium ion battery pack can be charged at any charge state. Unlike conventional battery packs, you do not need to completely use or discharge it before charging.
We recommend that you prepare battery packs 2 to 3 times longer than you think you might need.
To conserve battery power, turn off the camcorder instead of leaving it in record pause mode.

Loading/Unloading a Cassette

Use only videocassettes marked with the "logo.

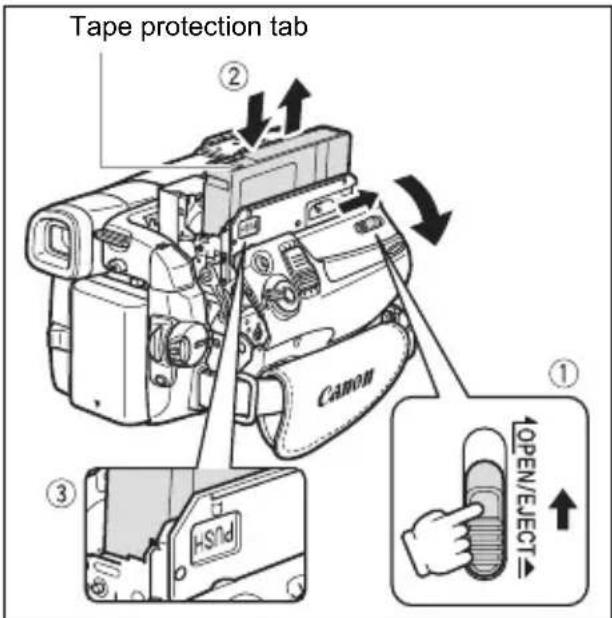

1. Slide the OPEN/EJECT switch and open the cassette compartment cover.

The cassette compartment opens automatically.

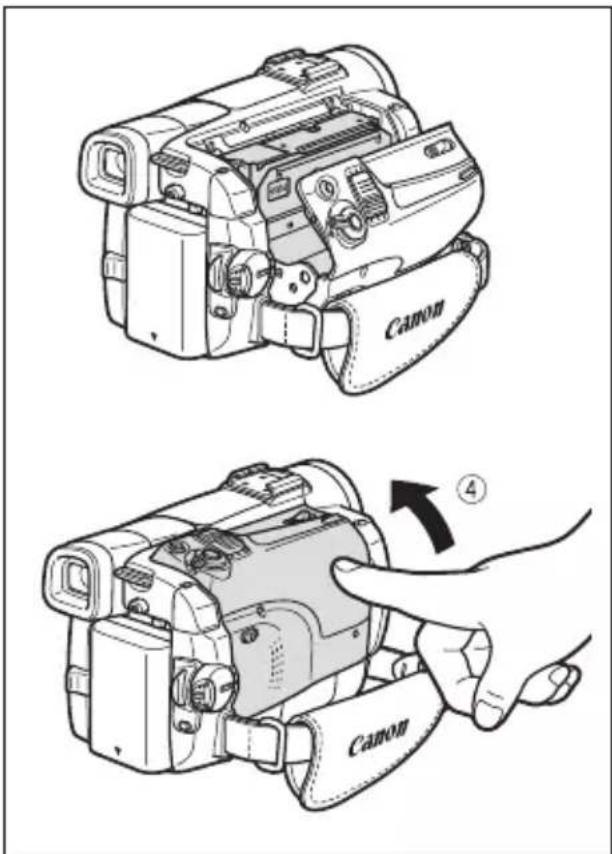

1. Load/unload the cassette.

2. Load the cassette with the window facing the grip belt.

3. Unload the cassette by pulling it straight out.

4. Press the mark on the cassette compartment until it clicks.

5. Wait for the cassette compartment to retract automatically and close the cassette compartment cover.

Tape protection tab ② Canon ① ③ OPEN/EJECT▲

Canon Canon

Do not interfere with the cassette compartment while it is opening or closing automatically, or attempt to close the cover before the cassette compartment has fully retracted.
○ Be careful not to get your fingers caught in the cassette compartment cover.

If the camcorder is connected to a power source, cassettes can be loaded/unloaded even if the POWER switch is set to OFF.

Installing the Backup Battery

The backup battery (lithium button battery CR1616) allows the camcorder to retain date, time (☐ 20) and other camcorder settings while the power source is disconnected. Connect a power source to the camcorder when replacing the backup battery to retain the settings.

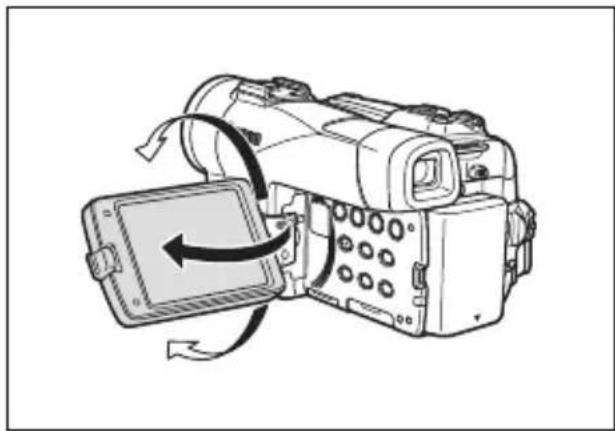

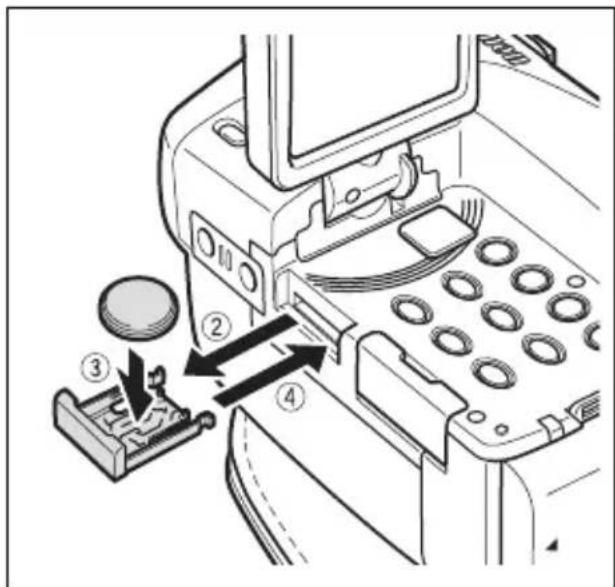

1. Press the OPEN button to open the LCD panel.
2. Pull out the battery holder.
3. Place the lithium battery with the + side facing downward into the battery holder.

1. Insert the battery holder.
2. Close the LCD panel.

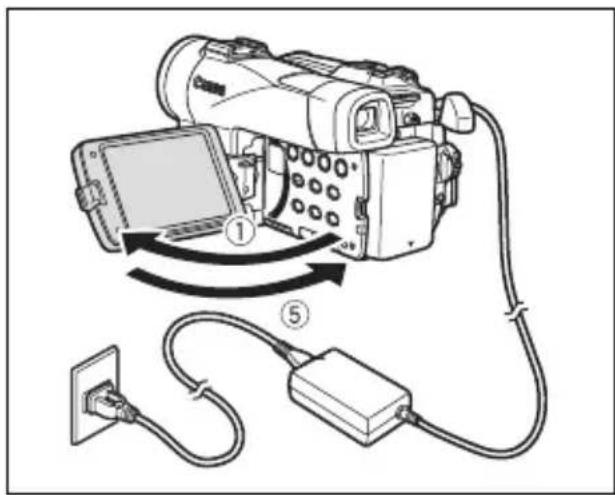

Diagram showing a digital camera connected to a power outlet via cable, with labeled components and directional arrows indicating connection.

Diagram of a device's internal components with numbered parts, likely illustrating a mechanical or electronic assembly.

The backup battery has a life span of about a year. “” flashes in red to inform you that it needs to be replaced.

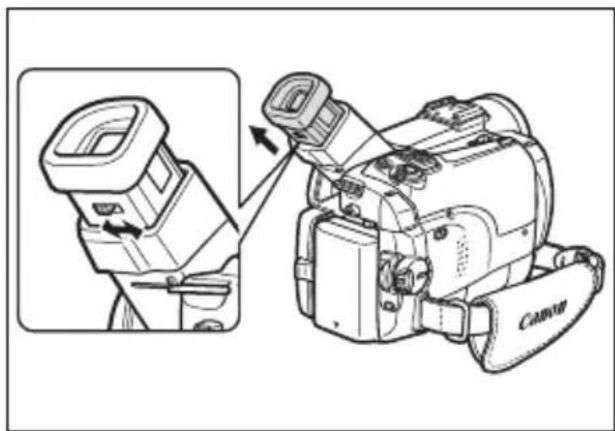

Adjusting the Viewfinder (Dioptric Adjustment)

1. Turn on the camcorder and keep the LCD panel closed.
2. Pull out the viewfinder.
3. Adjust the dioptric adjustment lever.
4. Push the viewfinder back in.

Technical diagram of a Canon motor assembly with labeled parts and directional arrows indicating assembly steps

Attaching the Lens Cap

1. Attach the cord to the lens cap.
2. Pass the grip belt through the loop on the cord.

Press the buttons on the lens cap when attaching/removing it. Hook the lens cap on the grip belt while you are recording, and place it over the lens when you have finished.

Diagram illustrating camera setup with Canon device and pressure gauge, showing motion of movement from left to right.

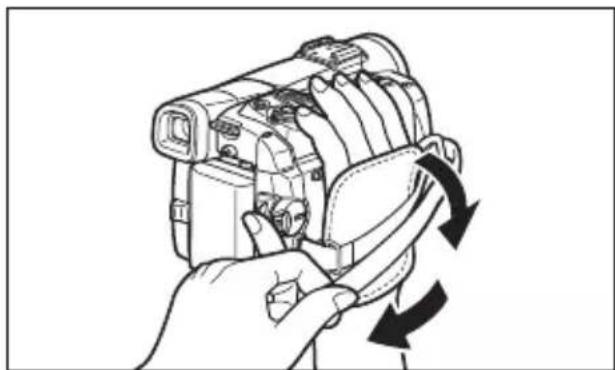

Fastening the Grip Belt

Hold the camcorder with your right hand and adjust the belt with your left.

Adjust the grip belt so that you can reach the zoom lever with your index finger, and the start/stop button with your thumb.

Illustration of a hand holding a camera with a curved arrow indicating rotation (no text or symbols)

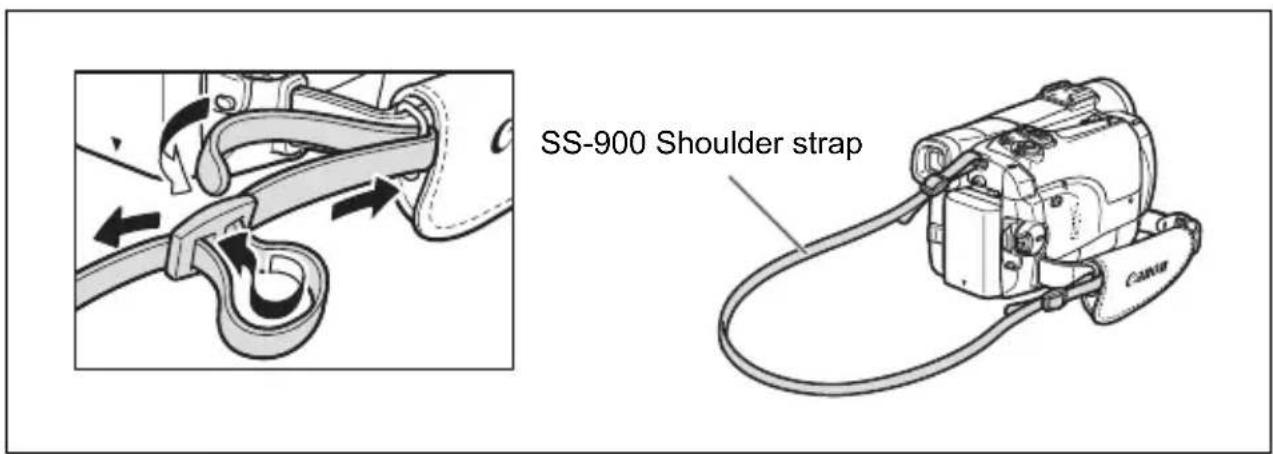

Attaching the Shoulder Strap

Pass the ends through the strap mount and adjust the length of the strap.

SS-900 Shoulder strap

MVX350i Mounting the Wide Attachment

The WA-34 Wide Attachment gives you a wide perspective for indoor shots or panoramic views (0.7x). The wide attachment is for use at maximum wide-angle.

Screw the wide attachment fully into the lens filter thread.

Line drawing of a Canon digital camera with lens and cover (no text or symbols on body)

Do not look directly at the sun or other strong light sources through the wide attachment. It could damage your eyesight.
○ If you zoom to telephoto, the picture will not be in focus.
The wide attachment may obstruct the remote sensor (the range of the wireless controller narrows), or may cause a shadow to appear on the picture when recording with the assist lamp.
- Filters cannot be used with the wide attachment.
If dust accumulates on the wide attachment or on the camcorder lens, clean both lenses gently with a blower brush.
Do not touch the lens to avoid smudges and fingerprints.
○ Do not store the wide attachment in a humid place as it may mold.

Using the Wireless Controller

Point it at the camcorder's remote sensor when you press the buttons.

Line drawing of a Canon mobile phone connected to a remote control (no text or symbols on device)

Inserting the Battery

The wireless controller operates with a lithium button battery CR2025.

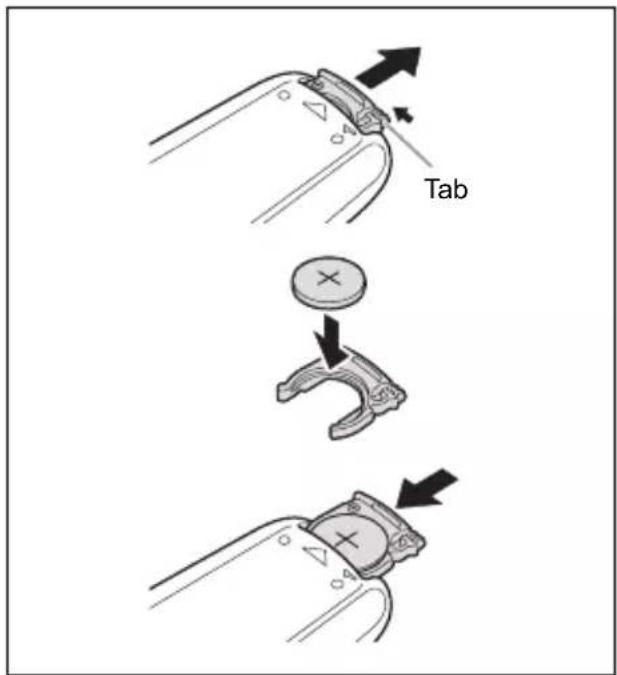

1. Press the tab in the direction of the arrow and pull out the battery holder.
2. Place the lithium button battery with the + side facing up.
3. Insert the battery holder.

Tab

The wireless controller may not work properly when the remote sensor is subjected to strong light sources or direct sunlight.
○ If the wireless controller does not work, check if the remote sensor is set to [OFF] (77).
When the camcorder cannot be operated with the wireless controller, or when it can only be operated in very close range, replace the battery.

Rotating the LCD Screen

Press the OPEN button and open the LCD panel 90 degrees.

• You can rotate the panel downward by 90 degrees.
• You can rotate the panel by 180 degrees toward the lens.

Line drawing of a digital camera with an open screen and directional arrows indicating motion (no text or symbols)

LCD Backlight

You can switch the brightness of the LCD screen between normal and bright by pressing the LCD BACKLIGHT button. This is useful for outdoor recordings.

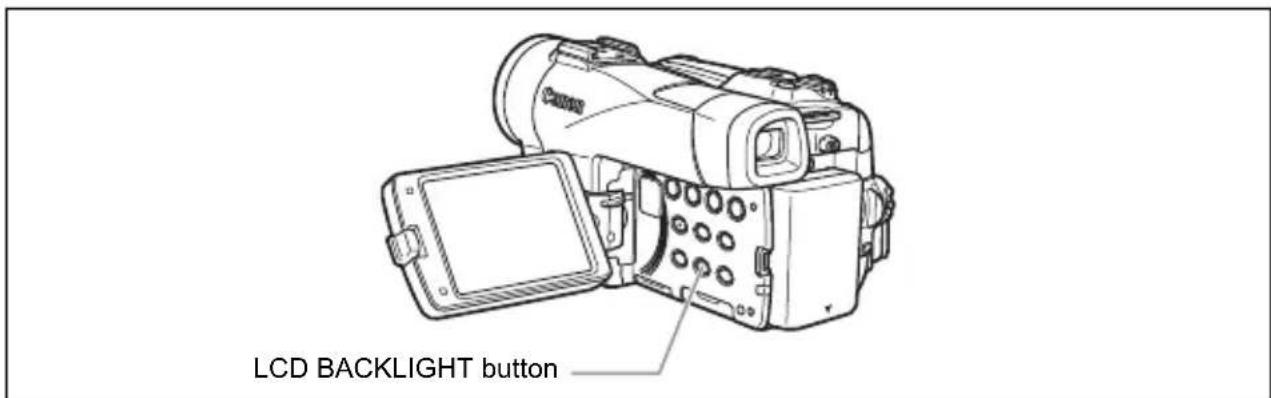

LCD BACKLIGHT button

Press the LCD BACKLIGHT button.

• This setting does not affect the brightness of the recording or the viewfinder screen.
  When using a battery pack, the camcorder retains the setting even if you change the position of the POWER switch.
  O The battery usage time shortens when the LCD screen is set brighter (☐ 13).

Setting the Time Zone, Date and Time

Set the time zone, date and time when you first start using your camcorder, or when you have replaced the backup battery.

Setting the Time Zone/Daylight Saving Time

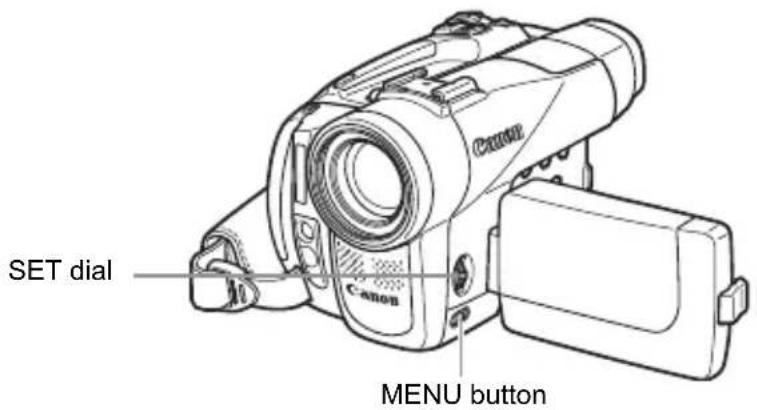

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37) SYSTEM T.ZONE/DST ...PARIS

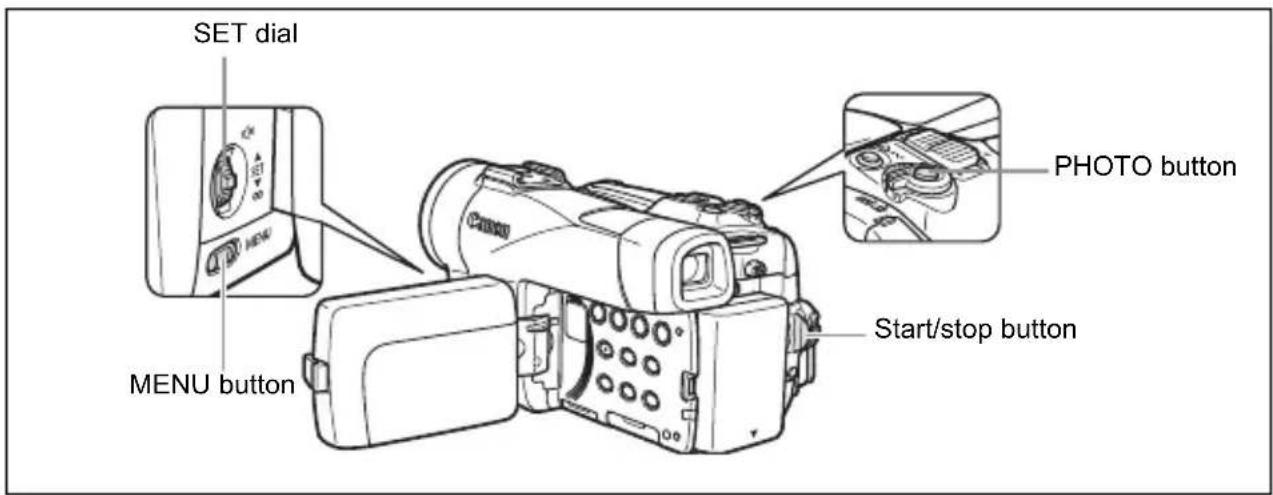

1. Press the MENU button to open the menu.

MENU

1. Turn the SET dial to select [SYSTEM] and press the SET dial.
2. Turn the SET dial to select [T.ZONE/DST] and press the SET dial.

The time zone setting appears (see table on the next page). The default setting is Paris.

φ SET 8

1. Turn the SET dial to select the setting option that represents your time zone and press the SET dial.

To adjust for daylight saving time, select the time zone with the next to the area.

Setting the Date and Time

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU (37) SYSTEM D/TIME SET... 1.JAN.2005 12:00 AM

1. Turn the SET dial to select [D/TIME SET] and press the SET dial.

The year display starts to flash.

1. Turn the SET dial to select the year, and press the SET dial.

2. The next part of the display starts flashing.

3. Set the month, day, hours and minutes in the same way.

Q SET

7. Press the MENU button to close the menu and to start the clock.

MENU

E

World map with numbered regions and a numerical scale below, likely representing geographic or regional data points.

No.	Time zone No. Time zone
1	LONDON WELLGTN (Wellington)	13
2	PARIS SAMOA	14
3	CAIRO HONOLU. (Honolulu)	15
4	MOSCOW ANCHOR. (Anchorage)	16
5	DUBAI L.A. (Los Angeles)	17
6	KARACHI DENVER	18
7	DACCA CHICAGO	19
8	BANGKOK N.Y. (New York)	20
9	H. KONG (Hong Kong) CARACAS	21
10	TOKYO RIO (Rio de Janeiro)	22
11	SYDNEY	23	FERNAN. (Fernando de Noronha)
12	SOLOMON	24	AZORES

Once you have set time zone, date and time, you do not need to reset the clock each time you travel to another time zone. Just set the time zone to the one of your destination, and the camcorder automatically adjusts the clock.

Displaying Date and Time during Recording

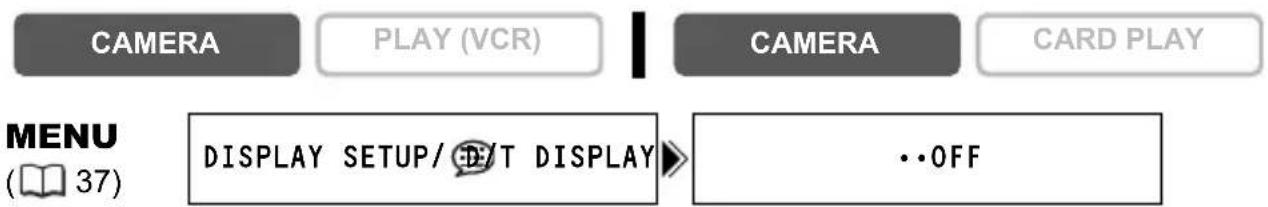

You can display the date and time in the lower left corner of the screen.

CAMERA PLAY (VCR) CAMERA CARD PLAY MENU ( 37 ) DISPLAY SETUP/ D/T DISPLAY ••OFF

1. Press the MENU button to open the menu.

MENU

1. Turn the SET dial to select [DISPLAY SETUP/ ] and press the SET dial.

2. Turn the SET dial to select [D/T DISPLAY] and press the SET dial.

3. Turn the SET dial to select [ON].

4. Press the MENU button to close the menu.

Diagram showing a device with directional arrows and labeled 'SET' and 'V', likely illustrating a system or control mechanism.

MENU

Recording Movies on a Tape

Before You Begin Recording

Make a test recording first to check if the camcorder operates correctly. If necessary, clean the video heads (145).

Recording

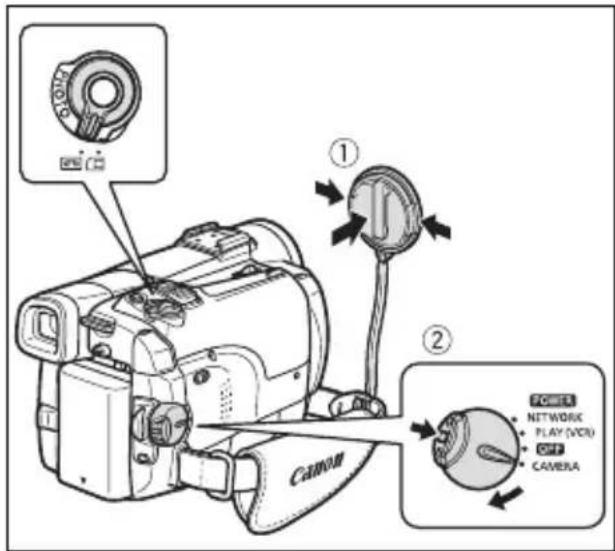

1. Remove the lens cap.
2. Set the camcorder to CAMERA mode.

Set the POWER switch to CAMERA and the TAPE/CARD switch to 📞

① ② POWER NETWORK PLAY (VER) OFF CAMERA

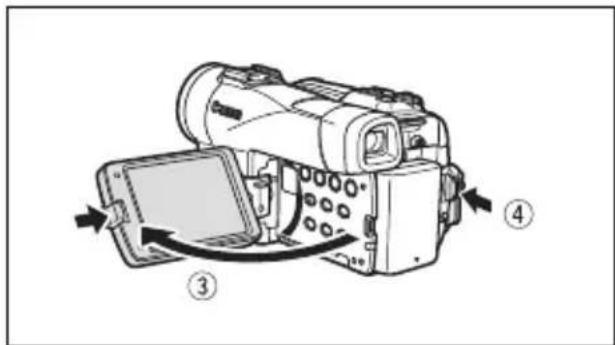

1. Push the OPEN button at the LCD panel and open the LCD panel.
2. Press the start/stop button to begin recording.

Press the start/stop button again to pause recording.

Diagram of a digital camera with labeled parts including a screen, lens, and buttons

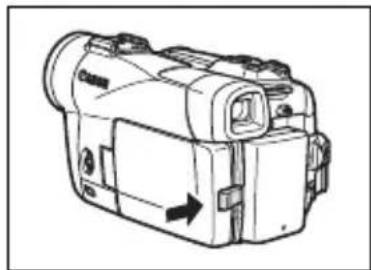

When You Have Finished Recording

1. Turn the POWER switch to OFF.
2. Close the LCD panel.
3. Replace the lens cap.
4. Unload the cassette.
5. Disconnect the power source.

Line drawing of a Canon digital camera with an arrow indicating left side (no text or symbols present)

About the LCD and viewfinder screen: The screens are produced with extremely high-precision manufacturing techniques, with more than 99.99% of the pixels operating to specification. Less than 0.01% of the pixels may occasionally misfire or appear as black or green dots. This has no effect on the recorded image and does not constitute a malfunction.
The camcorder will shut off after 5 minutes when left in record pause mode to protect tape and video heads. "AUTO POWER OFF" appears 20 seconds before shutoff. To continue recording, turn the POWER switch to OFF and then back to CAMERA.
- Wait until the tape counter stops completely before you start recording.
When you do not remove the cassette, you can record the next scene without producing any noise or blank sections between the recordings even if you turn the camcorder off.
- Bright light may make it difficult to use the LCD screen. In such case, use the viewfinder instead.
When recording near loud sounds (such as fireworks, drums or concerts), sound may become distorted or may be recorded not in the actual sound level. This is not a malfunction.

Allowing the Subject to Monitor the LCD Screen

You can rotate the LCD panel so that the screen faces in the same direction as the lens. The viewfinder switches on allowing you to use the viewfinder while the subject can monitor the screen.

The image appears mirror reversed (LCD MIRROR ON). However, you can choose to display the image as it is being recorded (LCD MIRROR OFF).

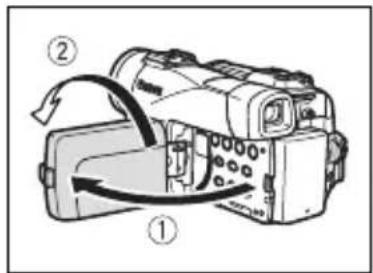

Diagram of a digital camera with labeled parts and directional arrows indicating motion or movement.

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

MENU

37)

DISPLAY SETUP/±CD MIRROR

...ON

1. Press the MENU button to open the menu.

MENU

1. Turn the SET dial to select [DISPLAY SETUP/] and press the SET dial.

2. Turn the SET dial to select [LCD MIRROR] and press the SET dial.

3. Turn the SET dial to select [OFF].

4. Press the MENU button to close the menu.

NO SET 8

When [LCD MIRROR] is set to [ON], only tape or card operation and self-timer displays appear on the LCD screen (all displays appear on the viewfinder screen).

Screen Displays during Recording

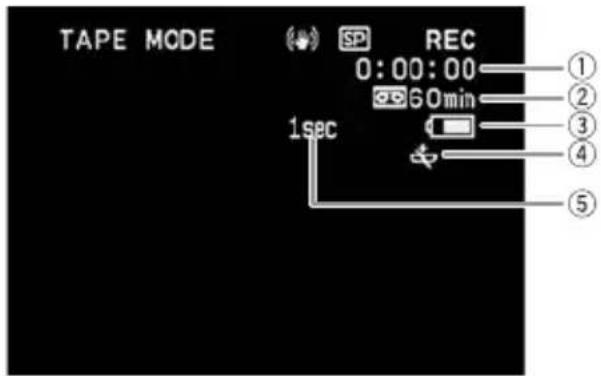

TAPE MODE SP REC 0:00:00 60min 1sec ① ② ③ ④ ⑤

① Time Code

Indicates the recording time in hours, minutes and seconds.

②Remaining tape

Indicates the remaining time of the tape in minutes. "moves during recording. "END" flashes when the tape reaches the end.

• When the time left is less than 15 seconds, the remaining tape time may not appear.
• Depending on the type of the tape, the indication may not be displayed correctly.

③ Remaining battery charge

The battery symbol indicates the charge status of the battery pack.

• “” starts flashing in red when the battery pack is empty.
• When you attach an empty battery pack, the power may turn off without displaying “ ”
• The actual battery charge may not be indicated accurately depending on the condition under which battery pack and camcorder are used.

④ When “” flashes

“”flashes in red when the lithium button battery is not installed, or when it needs replacing.

⑤ Recording reminder

The camcorder counts from 1 to 10 seconds when you start recording. This is helpful to avoid scenes that are too short.

Reviewing and Searching when Recording

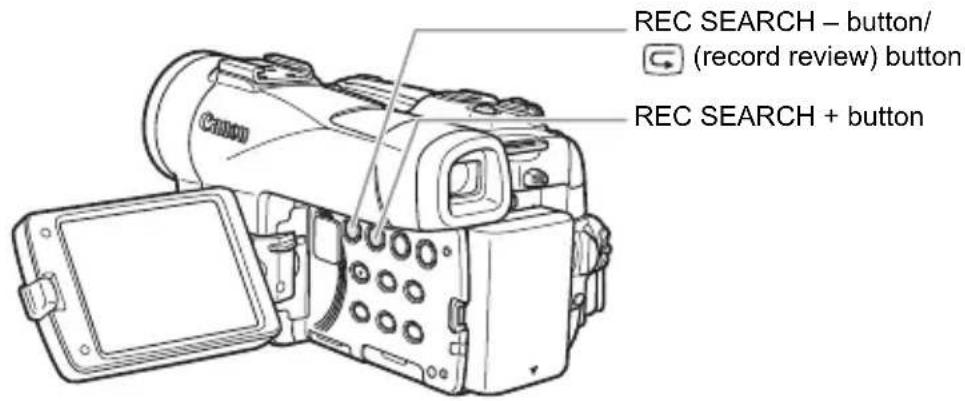

REC SEARCH – button/ (record review) button REC SEARCH + button

Record Review

CAMERA

PLAY (VCR) CARD CAMERA CARD PLAY

In record pause mode, this function allows you to review the last few seconds of your recording to check if it has been recorded properly.

Press and release the (record review) button.

The camcorder rewinds the tape, plays back the last few seconds, and returns to record pause mode.

Hand icon showing a hand pressing a button with an arrow and minus sign, indicating left-click or navigation control.

Record Search

CAMERA

PLAY (VCR) CARD CAMERA CARD PLAY

In record pause mode, this function allows you to play back the tape (forward or reverse) to locate the point where you wish to begin recording.

Press and hold the REC SEARCH + button (forward) or - button (reverse).

• Release the button at the point you wish to begin recording.
• The camcorder returns to record pause mode.

REC SEARCH

The camcorder is equipped with optical zoom and digital zoom.

Zoom lever Canon

Optical Zoom

MVX350i	MVX330i/MVX300
20x optical zoom 18x optical zoom

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

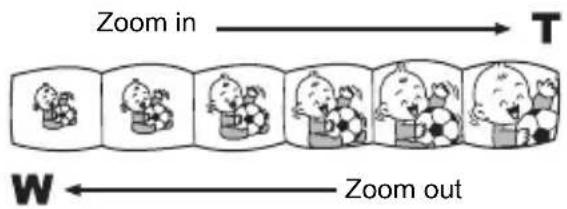

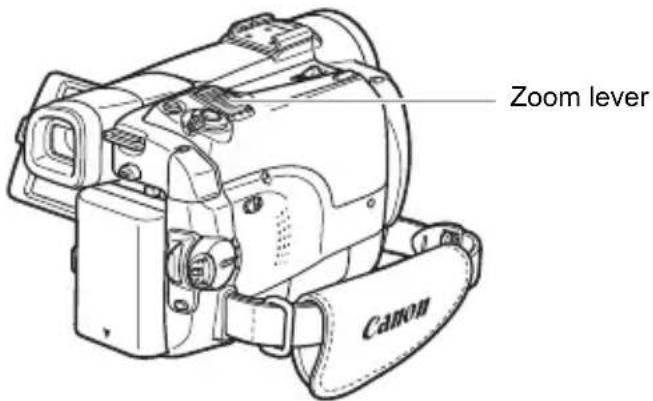

Move the zoom lever toward W to zoom out (wide-angle). Move it toward T to zoom in (telephoto).

Press the zoom lever slightly for a slow zoom. Press harder for a faster zoom.

W-T

• You can also use the T and W buttons on the wireless controller. However, you cannot control the zoom speed.
  The zoom speed is slightly faster in record pause mode.
  Keep at least 1 m (3.3 ft.) to the subject. At wide-angle, you can focus on a subject as close as 1 cm (0.39 in.).

Digital Zoom

When the digital zoom is activated, the camcorder automatically switches between optical and digital zoom. With digital zoom, image resolution becomes lower the more you zoom in.

MVX350i	MVX330i/MVX300
80x/400x digital zoom 72x/360x digital zoom(80x in CARD CAMERA mode) (72x in CARD CAMERA mode)

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

MENU

(37)

CAMERA SETUP D.ZOOM

. . . . . . . . OFF

1. Press the MENU button to open the menu.

2. Turn the SET dial to select [CAMERA SETUP] and press the SET dial.

3. Turn the SET dial to select [D.ZOOM] and press the SET dial.
4. Turn the SET dial to select a setting option.
5. Press the MENU button to close the menu.

MENU

Φ S

MENU

• Digital zoom cannot be used in the night modes.
  Digital zoom cannot be used in Stitch Assist mode, or when the multi-image screen is selected.
  A zoom indicator appears for 4 seconds. It extends in light blue when the digital zoom is set to 80x (MVX350i) or 72x (MVX330i/MVX300), and extends further in dark blue when set to 400x (MVX350i) or 360x (MVX330i/MVX300).

E

Recording

Basic Functions

Tips for Making Better Videos

Holding the Camcorder

For maximum stability, grip the camcorder in your right hand and keep your right elbow pressed against your body. If necessary, support the camcorder with your left hand. Be careful that your fingers do not touch the microphone or lens.

For More Stability

Lean against a wall Put the camcorder on a table

Cartoon illustration of a person sitting at a table with a dog and a book, no text or symbols present

Lie on your elbow Kneel on one knee Use a tripod

Cartoon illustration of a person lying on the ground holding a book (no text or symbols visible)

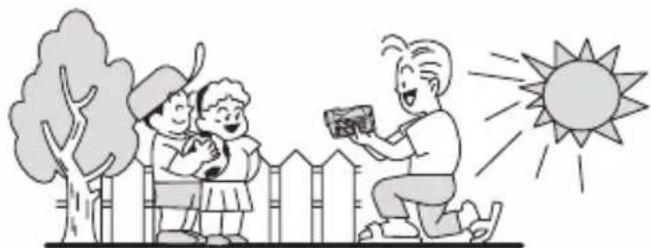

Lighting

When recording outdoors, we recommend recording with the sun at your back.

Illustration of a family outdoors under a bright sun, with trees and a fence in the background (no text or symbols)

When using a tripod, do not leave the viewfinder exposed to direct sunlight as it may melt (due to concentration of the light by the lens).

Do not use tripods with fastening screws longer than 5.5 mm (0.2 in.) as it may damage the camcorder.

Technical line drawing of a mechanical component with no visible text or symbols

If the playback picture is distorted, clean the video heads using a Canon Head Cleaning Cassette or a commercially available digital video head-cleaning cassette ( 145).

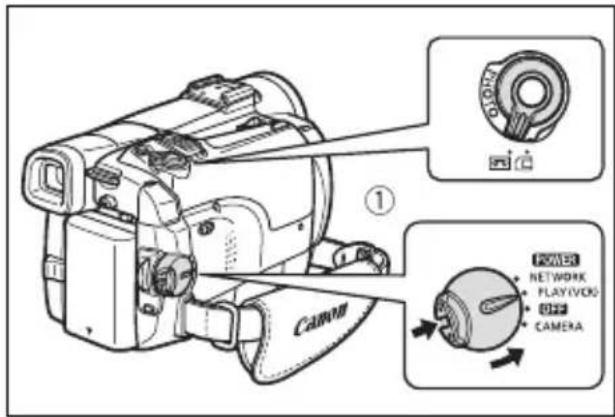

1. Set the camcorder to PLAY (VCR) mode.

Set the POWER switch to PLAY (VCR) and the TAPE/CARD switch to 📞

① CAMO POWER NETWORK PLAY/COVER OFF CAMERA

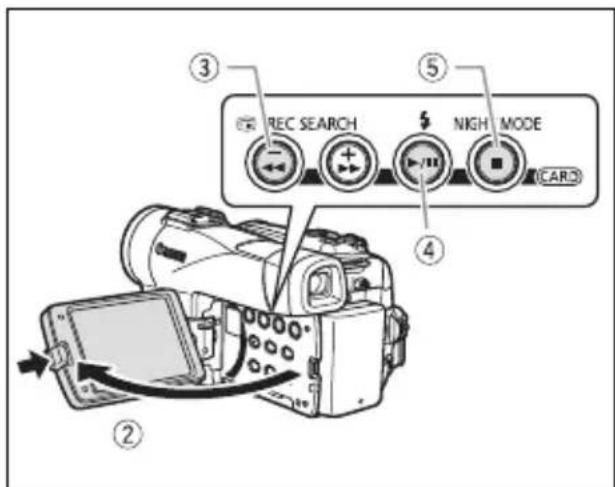

1. Open the LCD panel.

2. Press the button to rewind the tape.

3. Press the ▶ button to begin playback.

4. Press the button to stop playback.

③ REC SEARCH NIGHT MODE CARD ④ ②

To use the viewfinder, close the LCD panel.

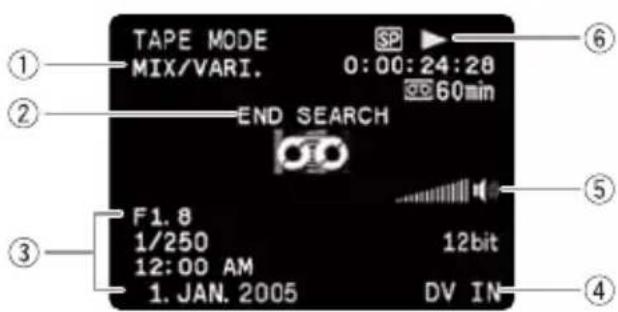

About the screen display: During playback, the time code gives the hours, minutes, seconds and frames. The remaining tape time may not appear when the time left is less than 15 seconds.

Special Playback Modes

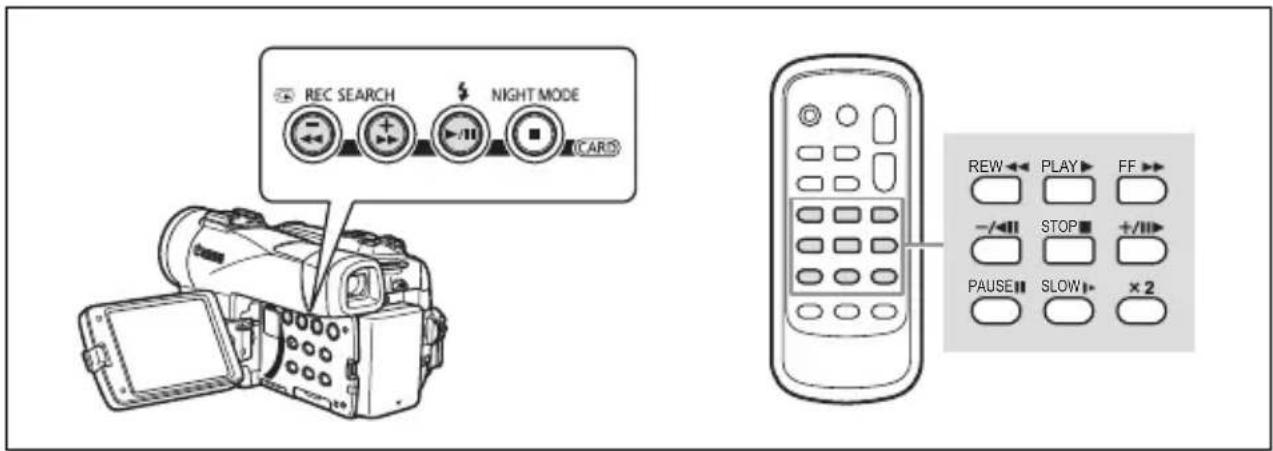

REC SEARCH NIGHT MODE CARIS REW←← PLAY→ FF→ -/-←← STOP →+/-→ PAUSE←← SLOW→ × 2

▶/1(Playback Pause)

To pause playback, press the ▶ button during normal playback.

▶▶ (Fast Forward Playback) / ◀◀ (Rewind Playback)

Plays back the tape at 11.5 times normal speed (forward or reverse). Press and hold the button during normal playback or fast forward.

-/ Reverse Playback)

Press the button on the wireless controller during normal playback. Press the (play) button to return to normal playback.

+/I (Frame Advance) / -/ (Frame Reverse)

Plays back frame-by-frame. Press the button on the wireless controller repeatedly during playback pause. Press and hold it to play back continuous frame advance/frame reverse.

SLOW ▶(Slow Forward)/(Slow Reverse)

Plays back at about 1/3 normal speed. Press the button on the wireless controller during normal or reverse playback. Press the (play) button to return to normal playback.

x2 (Forward x2 Playback)/(Reverse x2 Playback)

Plays back at 2 times normal speed. Press the button on the wireless controller during normal or reverse playback. Press the play button to return to normal playback.

There is no sound during special playback.
The picture may become distorted during some special playback modes.
The camcorder stops the tape automatically after 5 minutes in playback pause mode to protect tape and video heads.

Adjusting the Volume

When you use the LCD screen for playback, the camcorder plays back the sound via built-in speaker. The speaker does not sound when you close the LCD panel. Use headphones when using the viewfinder.

SET dial AV (phones) terminal Speaker Canon

When Using Headphones

The headphones terminal also serves as AV terminal. Headphones can only be used when “()” is displayed on the screen. If not, change the setting following the procedure below.

CAMERA

PLAY (VCR) CAI

AMERA CARD PLAY

MENU

VCR SETUP AV/PHONES

Open the menu and select [VCR SETUP]. Select [AV/PHONES ☐], set it to [PHONES ☐] and close the menu.

The speaker does not sound when "7" is displayed.

Do not connect headphones unless ^7 " is displayed as it produces noise.

Adjusting the Volume

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

Turn the SET dial up to increase the volume, and down to lower the volume.

• A volume bar appears for 2 seconds.
- You can turn off the volume completely by turning the SET dial down until [OFF] appears. Turn the SET dial up to increase the volume again.

Playing Back on a TV Screen

The AV terminal also serves as headphones terminal. When “” is displayed on the screen, change the setting following the procedure below.

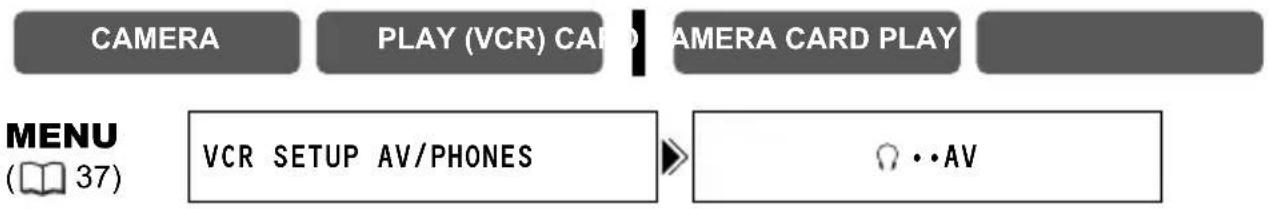

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37) VCR SETUP AV/PHONES AV ••AV

Open the menu and select [VCR SETUP]. Select [AV/PHONES ☐], set it to [AV] and close the menu.

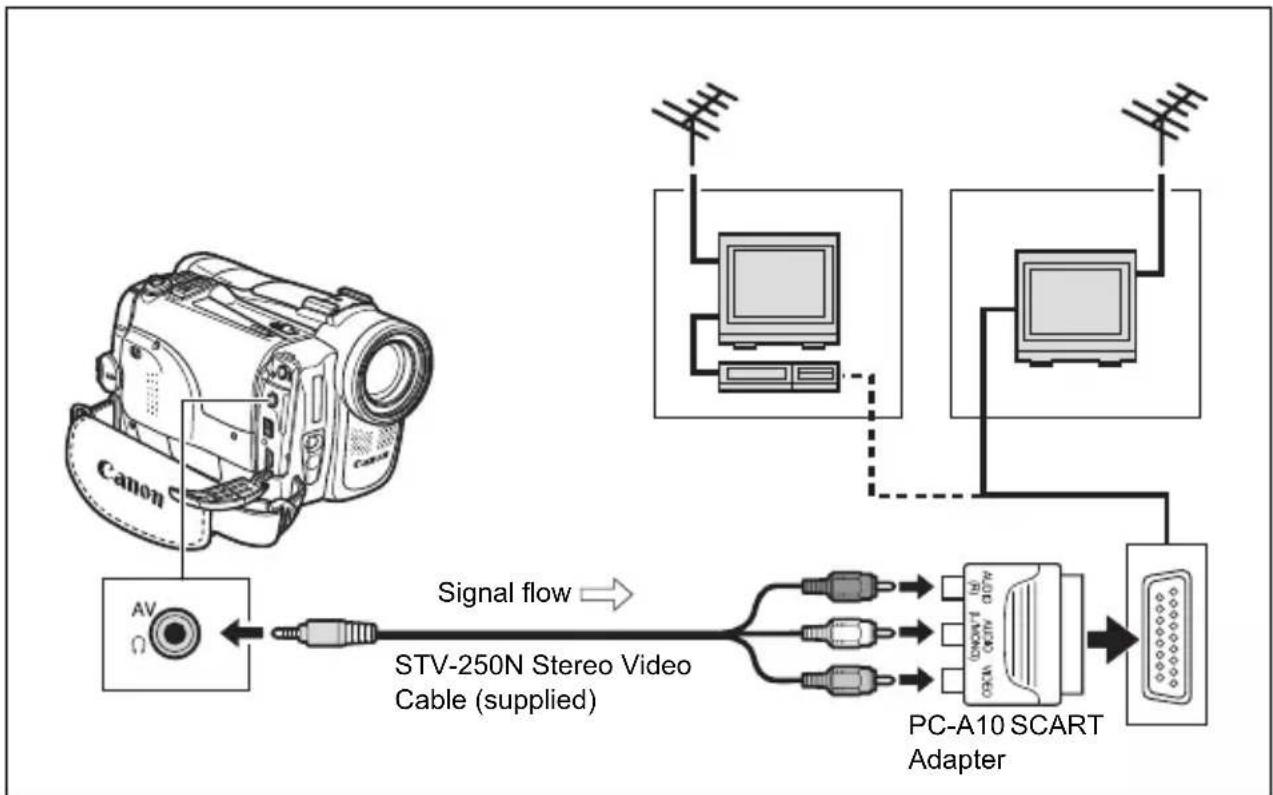

TVs with SCART Terminal

Refer also to the TV or VCR instruction manual.

1. Turn off all devices before starting the connections.
2. Connect the PC-A10 SCART Adapter to the TV or VCR's terminals.
3. Connect the STV-250N Stereo Video Cable to the camcorder's AV terminal and the audio terminals on the SCART Adapter.

Connect the white plug to the white AUDIO terminal L (left), and the red plug to the red AUDIO terminal R (right) and the yellow plug to the yellow VIDEO terminal.

1. If connecting to a TV, set the input selector to VIDEO. If connecting to a VCR, set the input selector to LINE.

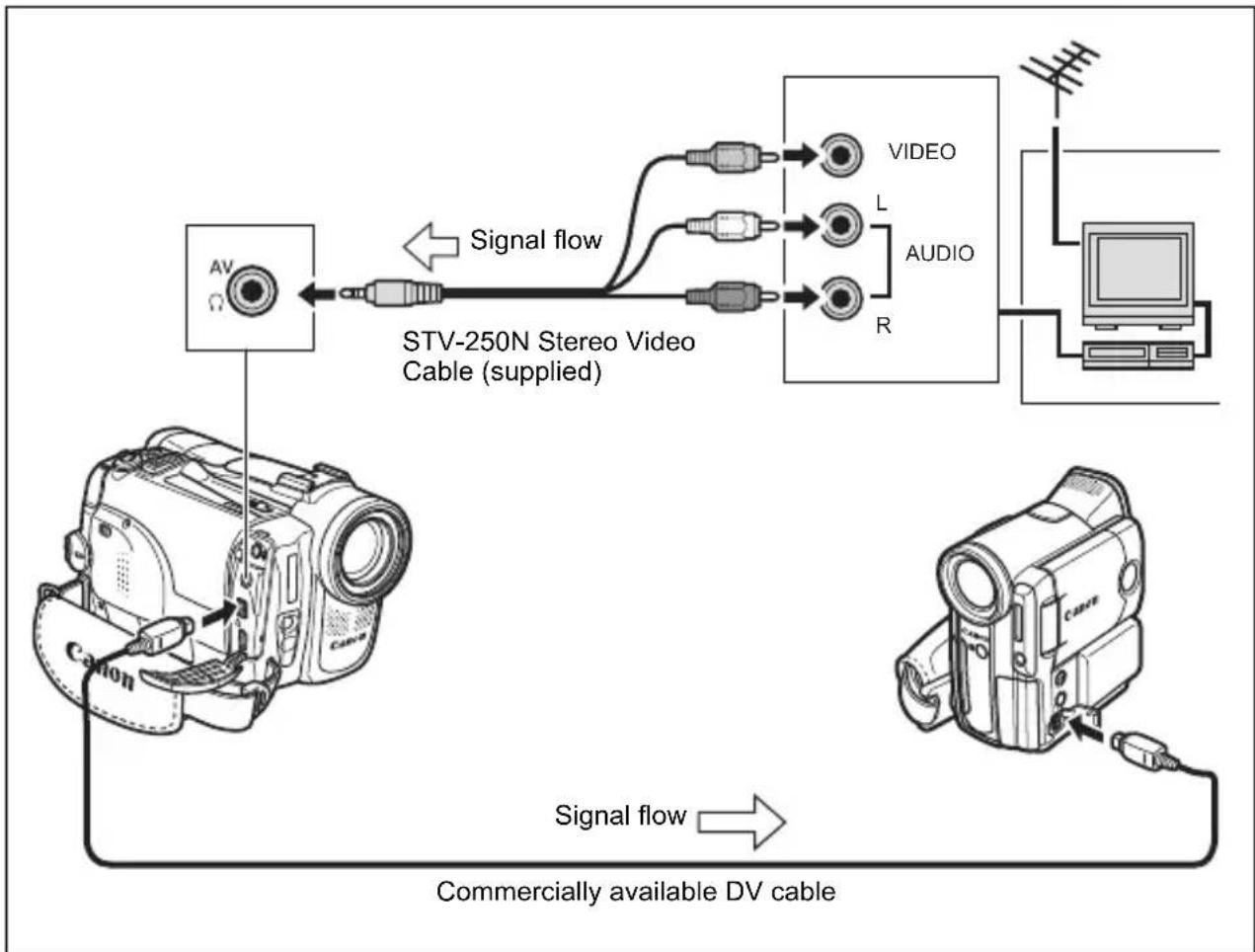

TVs with Audio/Video Terminals

Refer also to the TV or VCR instruction manual.

1. Turn off all devices before starting the connections.
2. Connect the STV-250N Stereo Video Cable to the camcorder's AV terminal and the audio/video terminals on the TV/VCR.

Connect the white plug to the white audio terminal L (left), the red plug to the red audio terminal R (right) and the yellow plug to the yellow video terminal VIDEO.

1. If connecting to a TV, set the input selector to VIDEO. If connecting to a VCR, set the input selector to LINE.

We recommend powering the camcorder from a household power source.

Selecting the Audio Output Channel

You can select the output channels when playing back a tape with audio recorded on two channels.

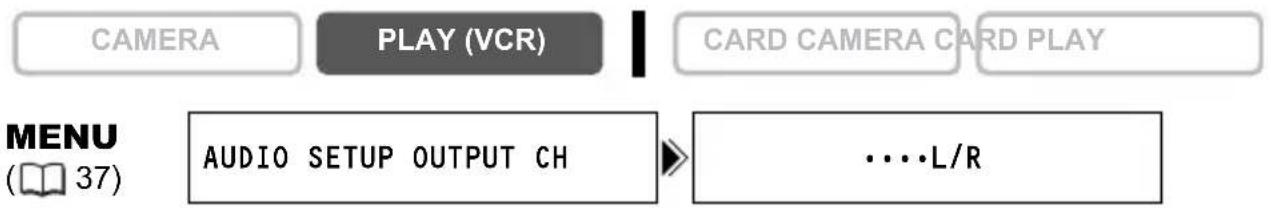

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU AUDIO SETUP OUTPUT CH ....L/R

1. Press the MENU button to open the menu.

MENU

1. Turn the SET dial to select [AUDIO SETUP] and press the SET dial.

2. Turn the SET dial to select [OUTPUT CH] and press the SET dial.

Diagram showing airflow around a device with labeled arrows and scale indicator '8'

1. Turn the SET dial to select a setting option.

• L/R: Stereo: L+R channels, Bilingual: Main+Sub.
• L/L: Stereo: L channel, Bilingual: Main.
• R/R: Stereo: R channel, Bilingual: Sub.

1. Press the MENU button to close the menu.

MENU

The setting resets to the L/R setting when you turn the camcorder off.

Menus and Settings

Many of the camcorder's advanced functions are selected from menus that appear on the screen.

SET dial Canon MENU button

Selecting Menus and Settings

1. Press the MENU button to open the menu.

MENU

1. Turn the SET dial to select a submenu and press the SET dial.

2. Turn the SET dial to select a menu item and press the SET dial.

Φ1 SE7 8

1. Turn the SET dial to select a setting option.

2. Press the MENU button to close the menu.

When setting the white balance, shutter speed or language, press the SET dial first before pressing the MENU button.

MENU

○ Pressing the MENU button at any time closes the menu.

- Items that are not available appear in purple.

Menu and Default Settings

Default settings are shown in boldface.

CAMERA MENU

CAMERA

PLAY (VCR) CARD CAMERA CARD PLAY

Submenu Menu Item Setting Options				☐
D.EFFECT SETUP CARD MIX				113
	D.E.SELECT OFF, FADER, EFFECT, MULTI-S			62
	FADER TYPE FADE-T, WIPE, CORNER, JUMP, FLIP, PUZZLE, ZIGZAG, BEAM, TIDE
	EFFECT TYPE ART, BLACK&WHITE, SEPIA, MOSAIC, BALL, CUBE, WAVE, COLOR MASK, MIRROR
	M.S.SPEED MANUAL, FAST, MODERATE, SLOW
	M.S.SPLIT 4, 9, 16
CAMERA SETUP	SHUTTER	AUTO, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000		56
	A.SL SHUTTER ON, OFF			57
	D.ZOOM	MVX350i	MVX330i/MVX300	29
		OFF, 80X, 400X	OFF, 72X, 360X
	IMG STAB	ON, OFF		78
	WHITE BAL.	AUTO, SET ☐, INDOOR ☐, OUTDOOR ☐		54
	AF AST LAMP	AUTO, OFF		99

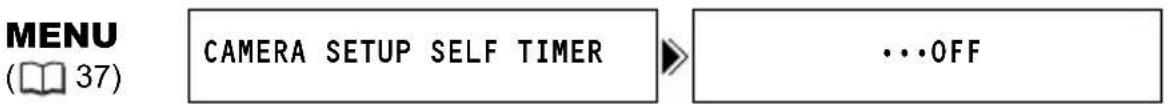

	SELF TIMER	ON ☐, OFF		58
	NIGHT MODE *	☐ NIGHT, ☐ NIGHT+, ☐ S.NIGHT		48
	SKIN DETAIL	SOFT, NORMAL		50
	STILL I.REC	OFF, ☐ FINE, ☐ NORMAL		96
VCR SETUP	REC MODE	SP, LP		59
	AV/PHONES	AV, PHONES		60
AUDIO SETUP WIND	SCREEN AUTO, OFF			61
	AUDIO MODE	16bit, 12bit		60
	☐ VOLUME			60

* MVX350i/MVX330i only.

Submenu Menu Item Setting Options
DISPLAY SETUP/ BR	GHTNESS		77
	LCD MIRROR ON, OFF		25
	TV SCREEN ON, OFF		137
	D/T DISPLAY ON, OFF		22
	LANGUAGE See list of languages.		76
	DATE FORMAT		76
	DEMO MODE ON, OFF		78
SYSTEM WL.REMOTE ON, OFF			77
		BEEP ON, OFF
		T.ZONE/DST See list of time zones.	20
		D/TIME SET	20
MY CAMERA S-UP SOUND OFF, DEFAULT, MY SOUND			75
				SHTR SOUND
				OPER.SOUND
				SELF-T SOUND

PLAY (VCR) MENU

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

Submenu Menu Item Setting Options
D.EFFECT SETUP D.	E.SELECT OFF, FADER	EFFECT, MULTI-S	62
	FADER TYPE FADE-T	WIPE, CORNER, JUMP, FLIP, PUZZLE, ZIGZAG, BEAM, TIDE
	EFFECT TYPE ART, BL	LACK&WHITE, SEPIA, MOSAIC, BALL, CUBE, WAVE, COLOR MASK, MIRROR
	M.S.SPEED MANUAL,	FAST, MODERATE, SLOW
	M.S.SPLIT 4, 9, 16
VCR SETUP REC MODE* SP, LP			59
		AV/PHONES AV, PHONES	34
		AVDV *	0 N ,
AUDIO SETUP	OUTPUT CH	L/R, L/L, R/R	36
	AUDIO DUB*	AUDIO IN, MIC. IN	86
	WIND SCREEN AUTO,	OFF	61
	AUDIO MODE*	16bit, 12bit	60
	12bit AUDIO	STEREO1, STEREO2, MIX/FIXED, MIX/VARI.	88
	MIX BALANCE		88
CARD SETUP IMG QUALITY SUPER FINE, FINE, NORMAL			91
			92
			93
DISPLAY SETUP/∅	BRIGHTNESS		77

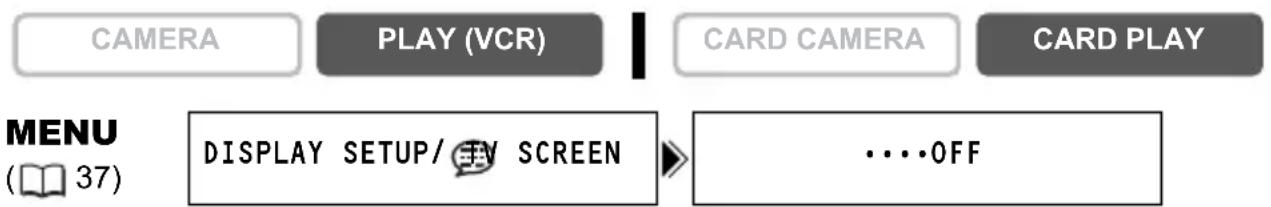

	TV SCREEN	ON, OFF	137
	DISPLAYS ON, OFF	ON, OFF	137
	6SEC.DATE	ON, OFF	71

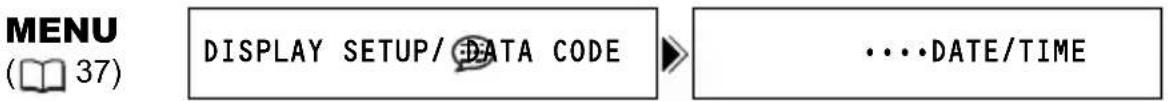

	DATA CODE	DATE/TIME, CAMERA DATA, CAM.& D/T	70
	D/TIME SEL. DATE, TIME	DATE & TIME	70
	LANGUAGE∅	See list of languages.	76
	DATE FORMAT		76

* MVX350i/MVX330i only.

Submenu Menu Item Setting Options			☐
SYSTEM WL.REMOTE	ON, OFF		77
	BEEP ON, OFF		77
	T.ZONE/DST See list of time zones.		20
	D/TIME SET		20
MY CAMERA S-UP SOUND	SOUND OFF, DEFAULT,	MY SOUND	75
	SHTR SOUND
	OPER.SOUND
	SELF-T SOUND

E

CARD CAMERA MENU

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

Submenu Menu Item Setting Options
D.EFFECT SETUP EFFECT OFF, BLACK&WHITE				65
CAMERA SETUP SHUTTER AUTO, 1/50, 1/120, 1/250				56
A.SL SHUTTER ON, OFF				57
D.ZOOM	MVX350!	MVX330!/MVX300		29
	OFF, 80X OFF, 72X
WHITE BAL. AUTO, SET , INDOOR OUTDOOR				54
AF AST LAMP AUTO, OFF				99
FOCUS PRI. ON, OFF				104
SELF TIMER ON , OFF				58
ND AUTO, OFF				95
NIGHT MODE*	NIGHT, NIGHT+, S.NIGHT			48
SKIN DETAIL	SOFT, NORMAL			50

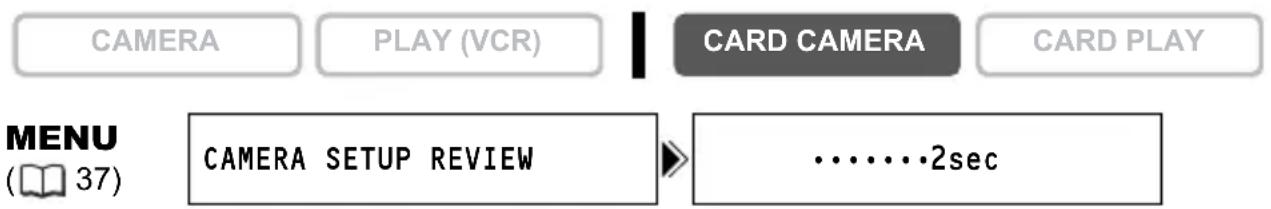

REVIEW	OFF, 2sec, 4sec, 6sec, 8sec, 10sec			100
CARD SETUP IMG QUALITY SUPER FINE, FINE, NORMAL				91
IMAGE SIZE 1280x960, 640x480				91
MOVIE SIZE 320x240, 160x120				92
FILE NOS.	RESET, CONTINUOUS			93
VCR SETUP AV/PHONES AV, PHONES				60
AUDIO SETUP WIND SCREEN AUTO, OFF				61
VOLUME				60
DISPLAY SETUP/ BRIGHTNESS				77
LCD MIRROR ON, OFF				25
TV SCREEN ON, OFF				137
D/T DISPLAY ON, OFF				22
LANGUAGE See list of languages.				76
DATE FORMAT				76
DEMO MODE ON, OFF				78

*MVX350i/MVX330i only.

Submenu Menu Item Setting Options			☐
SYSTEM WL.REMOTE	ON, OFF		77
	BEEP ON, OFF		77
	T.ZONE/DST See list of time zones.		20
	D/TIME SET		20
MY CAMERA S-UP SOUND	SOUND OFF, DEFAULT,	MY SOUND	75
	SHTR SOUND
	OPER.SOUND
	SELF-T SOUND

E

CARD PLAY MENU

CAMERA

PLAY (VCR) CARD/CAMERA

CARD PLAY

Submenu Menu Item Setting Options
CARD OPERATIONS(Single Image Display)	PRINT ORDERSALL ERASE	NO, YES	130
	TRANS.ORDERSALL ERASE	NO, YES	135
	IMAGE ERASE CANCEL, SINGLE, ALL		112
	FORMAT CANCEL, EXECUTE		117
CARD OPERATIONS(Index Screen)	→ PROTECT		111
	→ PRINT ORDER		129
	→ TRANSFER ORDER		135
VCR SETUP AV/PHONES AV, PHONES		Ω	34
DISPLAY SETUP/ BRIGHTNESS			77
			TV SCREEN ON, OFF
			DISPLAYS ON, OFFPLAYBK>
			D/TIME SEL. DATE, TIME, DATE & TIME
			LANGUAGE See list of languages.
			DATE FORMAT
SYSTEM WL.REMOTE ON, OFF		ΦΦ	77
			BEEP ON, OFF
			T.ZONE/DST See list of time zones.
			D/TIME SET

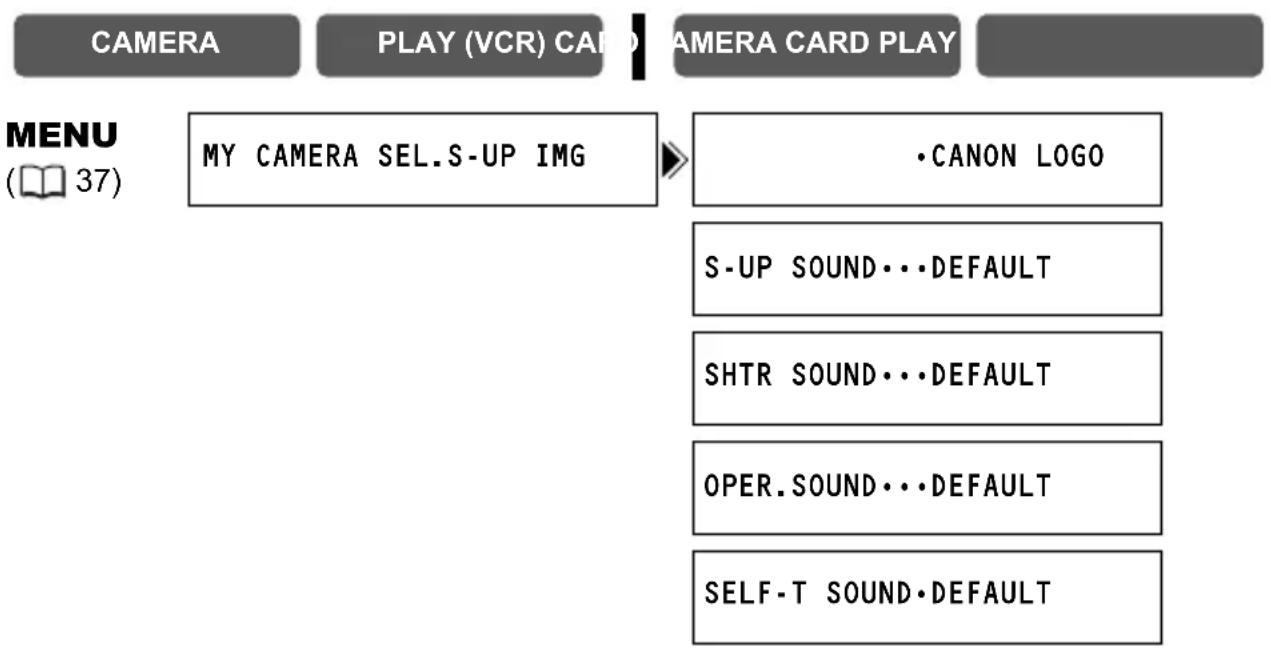

MY CAMERA CREATER START-UP IMAGE			118
			SEL.S-UP IMG
			S-UP SOUND
			SHTR SOUND
			OPER.SOUND
			SELF-T SOUND
→ PRINT	Appears when connecting a printer with direct print function.		130

Using the Recording Programs

□ Easy Recording Program

The camcorder adjusts focus, exposure and other settings automatically, allowing you to just point and shoot.

Black-and-white photo of three children playing on outdoor equipment (no visible text or symbols)

Program AE Modes

Auto

The camcorder adjusts focus, exposure and other settings automatically. However, you have the option of adjusting the settings manually.

Sports

Use this mode to record sports scenes (such as tennis or golf) or moving objects (such as roller coasters).

Portrait

Use this mode to give accent to your subject by blurring the background or foreground. The blur effect increases the more you zoom to telephoto.

Spotlight

Use this mode to record spotlit scenes or fireworks.

Sand & Snow

Use this mode in bright places such as a sunny beach or ski resort. It prevents the subject from being underexposed.

Low Light

Use this mode to record in dimly lit places.

Black-and-white photo of a child crouching with two pigs in the background (no text or symbols visible)

Two people playing on a beach with a soccer ball in the air (no visible text or symbols)

Black-and-white photo of a smiling girl with short hair, wearing a striped top, against a blurred background (no text or symbols visible)

Black-and-white photo of a person in traditional attire standing under a large arch, with buildings and a clock-like symbol in the corner (no readable text)

Black-and-white photo of two children playing on a sandy beach, one crouching and the other sitting (no visible text or symbols)

Black-and-white photo of two people seated at a table with food and drinks, in an indoor setting with city lights in the background (no visible text or symbols)

Program selector Canon

Availability of Functions in Each Mode:

Recording Program
Image Stabilizer *	×
Focus (A)	×
White Balance (A)	×
Shutter Speed (A) (A)	×	○
Exposure Lock	×
Digital Effects	×
Card Mix	×

○: Available ✗Not available A: Auto setting

Shaded area: Can be used only in CAMERA mode.

* The setting is automatically set to ON.

Selecting the Easy Recording Program

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

Set the program selector to EASY.

"EASY" appears.

P EASY

Selecting the Program AE Mode

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

1. Set the program selector to .P

2. Press the SET dial.

A list of the program AE modes appears.

3. Select a mode and press the SET dial.

The symbol of the mode appears on the upper left corner of the screen.

P EASY

Φ4 8 SET

8 9

The setting resets to the Auto mode when you change the position of the program selector.
Do not change the mode during recording as the brightness of the image may change abruptly.
- Sports/Portrait mode: The picture may not appear smooth when played back.

- Sand & Snow mode: - The subject may become overexposed in dark surroundings. Check the image on the screen. - The picture may not appear smooth when played back.

- Low Light mode: - Moving subjects may leave a trailing afterimage. - Picture quality may not be as good as in other modes. - The camcorder may have difficulty to focus automatically.

Using the Night Modes

LIGHT Allows you to	record in dark places where lights cannot be used, without sacrificing color.
MVX350i/MVX330iNIGHT+	The assist lamp lights up and stays on, allowing you to record in dark places without sacrificing color.
MVX350i/MVX330iS. NIGHT	Allows you to record in very dark places without sacrificing color.The assist lamp lights up automatically responding to the surrounding brightness.

Night cityscape with illuminated skyscrapers reflected in water, featuring a crescent moon in the sky (no text or symbols visible)

Night Mode

Black-and-white photo of a newborn baby lying on her back, no visible text or symbols

MVX3501/MVX3301

Night+ Mode

Super Night Mode

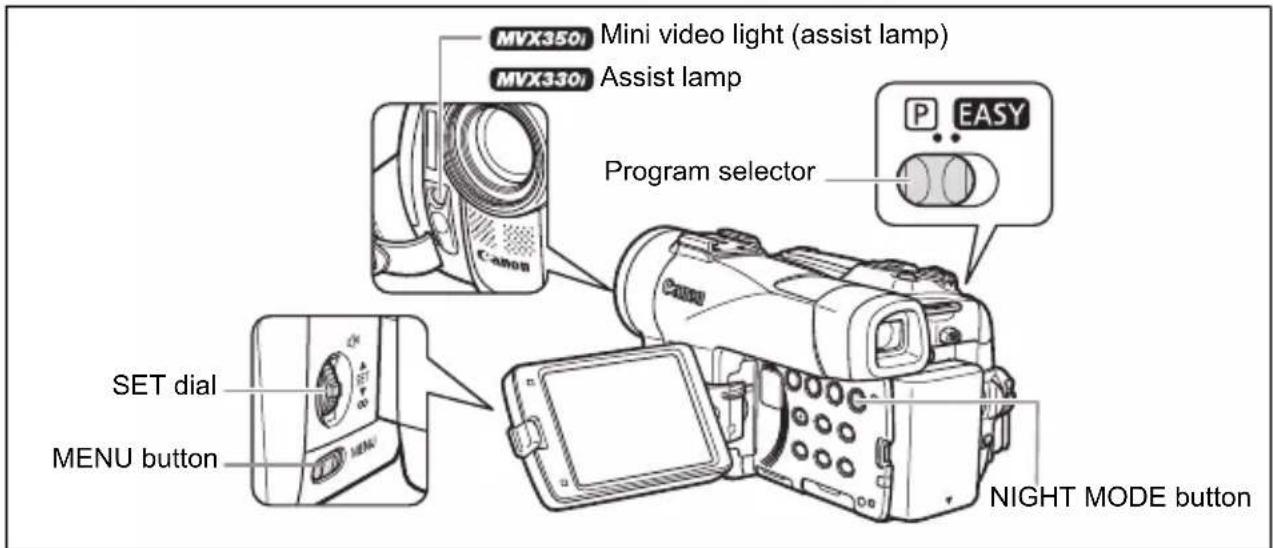

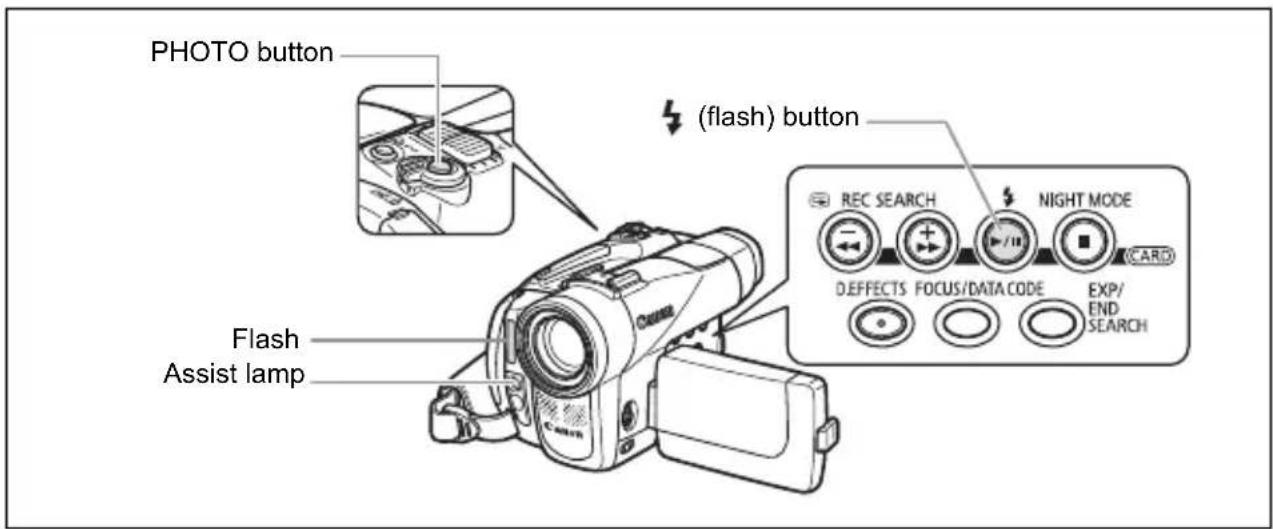

MVX350i Mini video light (assist lamp) MVX330i Assist lamp Program selector P EASY SET dial MENU button NIGHT MODE button

CAMERA
PLAY (VCR)
CARD CAMERA
CARD PLAY

MVX350i/MVX330i

MENU

37)

CAMERA SETUP NIGHT MODE

NIGHT+

1. Set the program selector to .P

2. Open the menu and select [CAMERA SETUP]. Select [NIGHT MODE], select a setting option and close the menu.

3. Press the NIGHT MODE button.

4. The symbol of the selected mode appears on the screen.

5. Pressing the NIGHT MODE button again resets the camcorder to the Auto mode.

MVX300

1. Set the program selector to .P

2. Press the NIGHT MODE button.

• " Appears.
• Pressing the NIGHT MODE button again resets the camcorder to the Auto mode.

MVX350i

Do not point the mini video light at persons while they are driving.
○ Do not look at the mini video light for a long time.
- Do not use the mini video light close to people's eyes.

○ Moving subjects may leave a trailing afterimage.
○ Picture quality may not be as good as in other modes.
○ White points may appear on the screen.
- Autofocus may not work as well as in other modes. In such case, adjust the focus manually.
- Digital zoom and multi-image screen cannot be used while a night mode is activated.
The program AE mode cannot be changed while a night mode is activated.

E

Skin Detail Function

When shooting close-ups of people, the camcorder automatically softens details to reduce the appearance of skin imperfections for a more complimentary appearance.

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

MENU

37)

CAMERA SETUP SKIN DETAIL

• • NORMAL

Open the menu and select [CAMERA SETUP]. Select [SKIN DETAIL], set it to [SOFT] and close the menu.

○ Skin detail function cannot be used when the program selector is set to EASY.
☐ [SKIN DETAIL] resets to [NORMAL] when you change the position of the POWER switch or the program selector.
To obtain the best effect, use this function when recording a person in close-up. Note that areas similar to the skin color may lack in detail.

Adjusting Exposure Manually

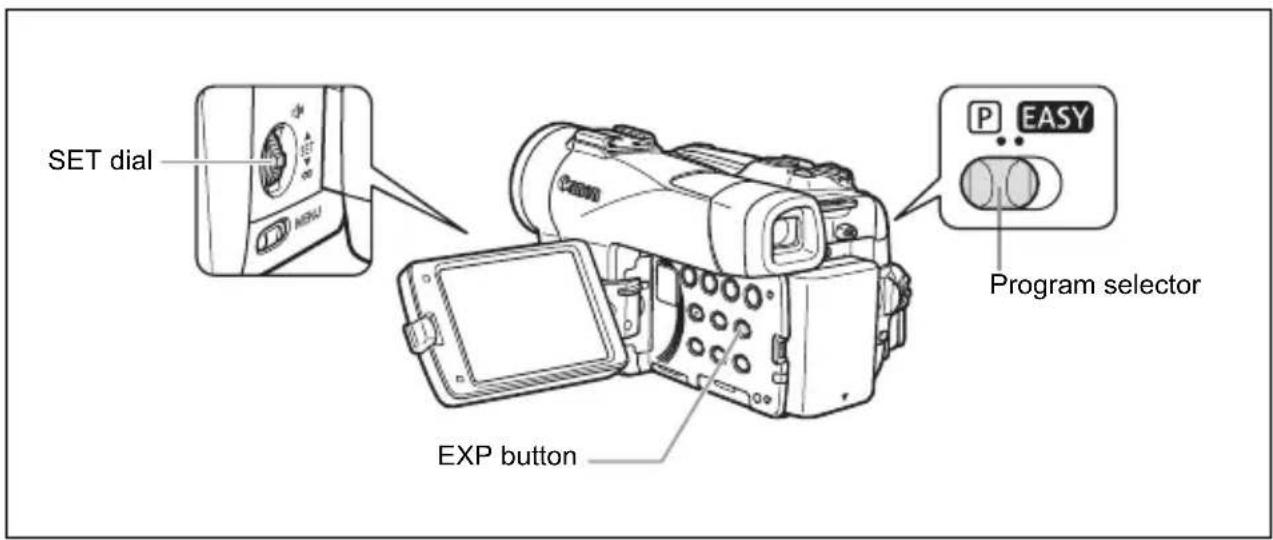

SET dial EXP button Program selector P EASY

Exposure Lock

You can lock the exposure when recording in situations where the lighting may change suddenly to control the brightness of the image.

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

1. Set the program selector to .P

P EASY

1. Press the EXP button.

2. "E. LOCK ±0" appears on the screen.

3. When you operate the zoom during exposure lock, the brightness of the image may change.

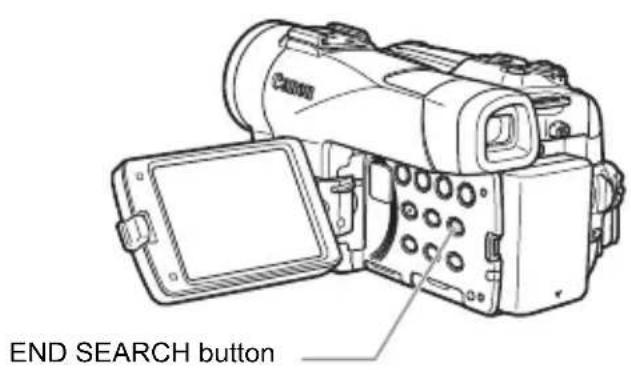

EXP/ END SEARCH

Exposure Adjustment

When the exposure is locked, you can adjust it manually to handle difficult lighting conditions. The camcorder's iris can be set to any position from fully closed to fully open.

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

Turn the SET dial to adjust the brightness of the image.

The adjustment range depends on the brightness at the time you locked the exposure.

E

Recording

Advanced Functions

Adjusting the Focus Manually

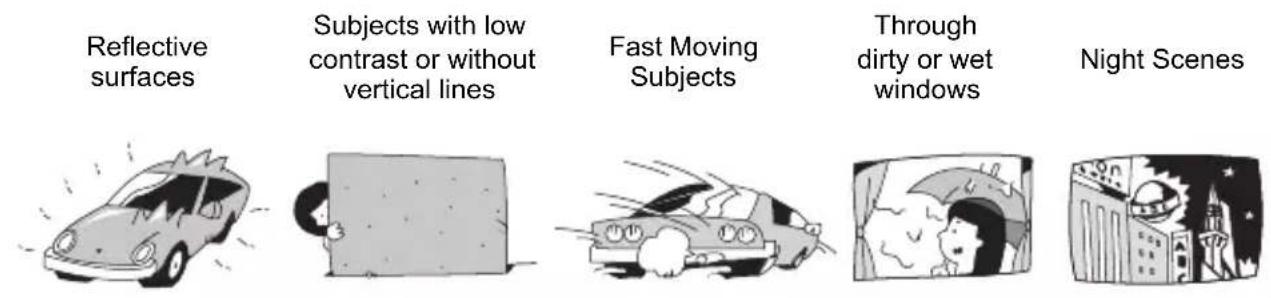

Autofocus may not work well on the following subjects. In such case, focus manually.

Reflective surfaces Subjects with low contrast or without vertical lines Fast Moving Subjects Through dirty or wet windows Night Scenes

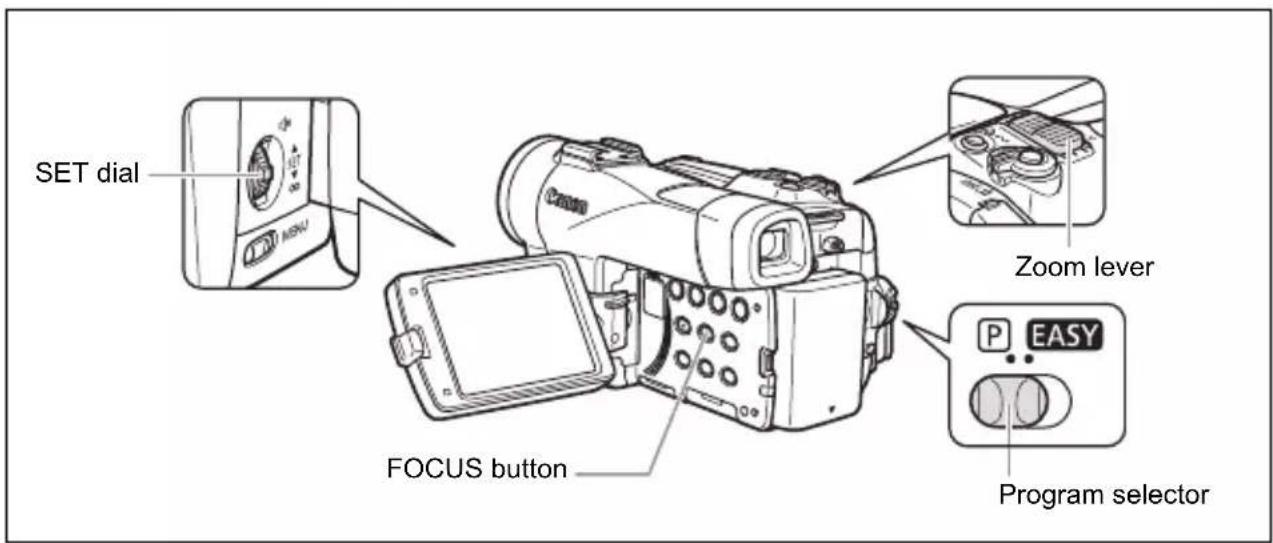

SET dial MENU FOCUS button Zoom lever P EASY Program selector

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY

1. Set the program selector to .P

P EASY

1. Adjust the zoom.

When you operate the zoom after adjusting the focus, the subject may not stay in focus. Adjust the zoom before the focus.

W-T

1. Press the FOCUS button.

"MF" appears.

FOCUS/DATA CODE

1. Turn the SET dial to adjust the focus.

- Turn the SET dial up or down until the image appears focused.

- Press the FOCUS button to return to autofocus.

The setting resets to autofocus when you switch the program selector to EASY.

- Readjust the focus when you have turned off the camcorder.

Infinity Focus

Use this function when you wish to focus on faraway subjects such as mountains or fireworks.

Press the FOCUS button more than 2 seconds after step 2 in Adjusting the Focus Manually.

"MF appears.

When you operate the zoom or turn the SET dial, “” disappears and the camcorder changes to manual focus.

Setting the White Balance

You can use the preset modes to reproduce colors more accurately, or set a custom white balance to obtain the optimal setting.

AUTO Auto white balance
SET Use the custom	white balance setting to make white subjects appear white under colored lighting.
INDOOR Use this mode for recording under changing lighting condition, video lights or sodium lamps.
OUTDOOR Use this mode for recording night scenes, fireworks, sunrise or sunset.

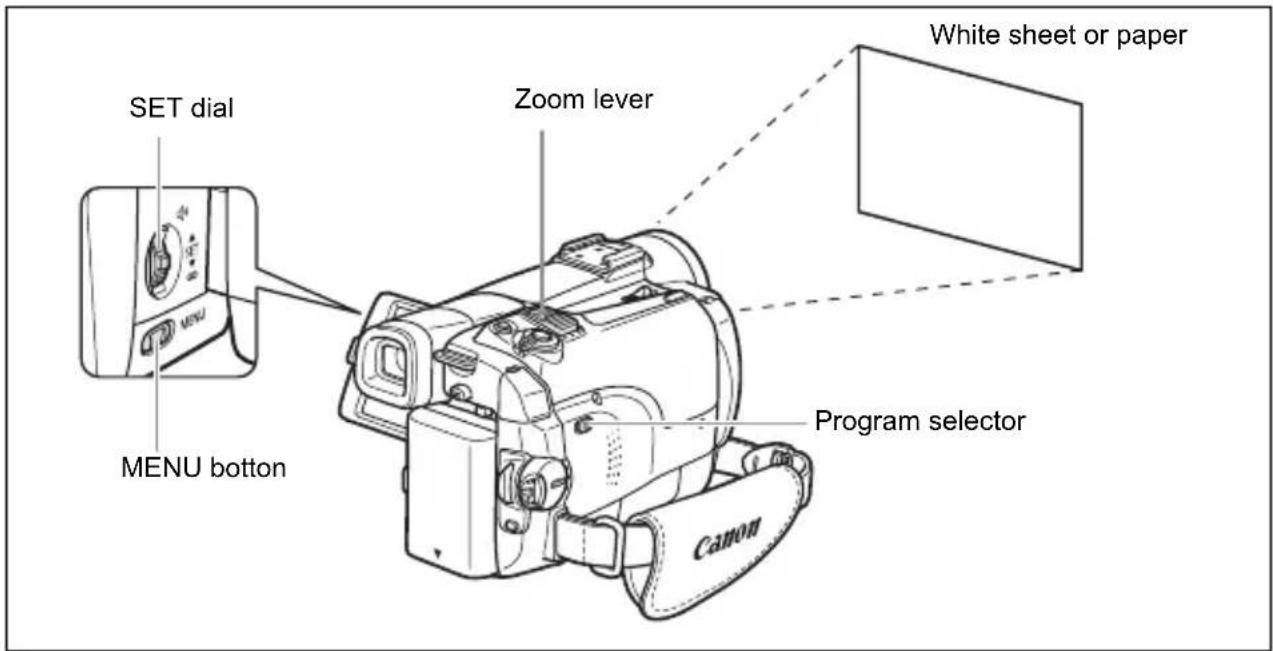

SET dial MENU MENU bottom Zoom lever White sheet or paper Program selector Canon

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY

MENU

37)

CAMERA SETUP WHITE BAL.

···AUTO

1. Set the program selector to 📄

2. For custom white balance: Point the camcorder at a white object and zoom in until it fills the whole screen.

Keep the camcorder zoomed at the white object until step 3 is completed.

1. Open the menu and select [CAMERA SETUP]. Select [WHITE BAL.], select a setting option and close the menu.

When you have selected [SET]: “” flashes and stops flashing when settings is complete.

○ Use the auto setting for normal outdoor scenes.
When the program selector is set to EASY, white balance is preset to [AUTO].
The camcorder retains the custom white balance setting even if you turn it off. However, it resets to [AUTO] when you change the position of the TAPE/CARD switch.
When you have set the custom white balance:

• Depending on the light source, “ ” may keep flashing. The result will still be better than with the auto setting.
• Reset the white balance when the lighting condition changes.
• Turn off the digital zoom.

○ Custom white balance may provide better results in the following cases:

• Changing lighting conditions
• Close-ups
• Subjects in a single color (sky, sea or forest)
• Under mercury lamps or certain types of fluorescent lights

You can adjust the shutter speed manually to make stable shots of fast moving subjects.

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

MENU

37)

CAMERA SETUP SHUTTER

·······AUTO

1. Set the program selector to ☐
2. Set the program AE mode to the (Auto) mode.
3. Open the menu and select [CAMERA SETUP].
4. Select [SHUTTER].
5. Select the shutter speed and press the SET dial.

CAMERA Mode CARD CAMERA Mode

AUTO AUTO
1/50 1/50
1/120 1/120
1/250 1/250
1/500
1/1000
1/2000

6. Close the menu.

☐ If the shutter speed is set to 1/500 or higher in CAMERA mode and you switch to CARD CAMERA mode, it automatically changes to 1/250.
Do not point the camcorder directly at the sun when the shutter speed is set to 1/1000 or higher.
- The image may flicker when recording with high shutter speeds.
- The setting resets to the auto setting when you switch the program selector to EASY, or change the program AE mode.
- Guidelines for Recording with High Shutter Speeds:
- Outdoor sports such as golf or tennis: 1/2000
- Moving objects such as cars or roller coasters: 1/1000, 1/500 or 1/250
- Indoor sports such as basketball: 1/120

Auto Slow Shutter

In Easy Recording mode and when [SHUTTER] is set to [AUTO] in Auto mode, the camcorder uses shutter speeds down to 1/25 in CAMERA mode and 1/12.5 in CARD CAMERA mode. This allows you to record brightly in places with insufficient lighting. However, you can set the camcorder not to use a slow shutter speed.

E

CAMERA

PLAY (VCR)

CARD CAMERA*

CARD PLAY

* MVX350i/MVX330i

Only when the flash mode is set to (flash off).

MENU

37)

CAMERA SETUP A.SL SHUTTER

• ON

Open the menu and select [CAMERA SETUP]. Select [A.SL SHUTTER], set it to [OFF] and close the menu.

When set to [ON], moving subjects may leave a trailing afterimage.
The camcorder retains the setting separately in CAMERA and CARD CAMERA mode.
- The setting cannot be changed when exposure is locked.
If (camcorder shake warning) appears in CARD CAMERA mode, stabilize the camcorder, for example, by mounting it on a tripod or placing it on a table.

The self-timer can be used for recording movies and still images.

SET dial MENU button PHOTO button Start/stop button

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY

MENU ( 37) CAMERA SETUP SELF TIMER ...OFF

1. Open the menu and select [CAMERA SETUP]. Select [SELF TIMER], set it to [ON] and close the menu.

“”appears.

1. Press the start/stop button.

2. The camcorder starts recording after a 10-second countdown (2 seconds when using the wireless controller). The count down appears on the screen.
   • To record a still image, press the PHOTO button (94).

To cancel the self-timer, set [SELF TIMER] to [OFF]. Once the countdown has begun, you can also press the start/stop button (when recording movies) or the PHOTO button (when recording still image) to cancel the self-timer.
The self-timer will be canceled when you turn off the camcorder.

Changing the Recording Mode (SP|LP)

You can choose between SP (standard play) and LP (long play). LP extends the tape usage by 1.5 times.

CAMERA

PLAY (VCR) \*

CARD CAMERA CARD PLAY

* MVX350i/MVX330i only.

MENU

37)

VCR SETUP REC MODE

SP

To change to LP mode, open the menu and select [VCR SETUP]. Select [REC MODE], set it to [LP] and close the menu.

○ Tapes recorded in LP mode cannot be used for audio dubbing.
○ Depending on the nature and usage condition of the tape, picture and sound recorded in LP mode may be distorted. We recommend using the SP mode for important recordings.

☐ If you record in both SP and LP modes on the same tape, the playback picture may become distorted and the time code may not be written correctly.
If you play back a tape that has been recorded in LP mode with another digital device on this camcorder, or vice versa, picture and sound may become distorted.

Changing the Audio Mode

You can record sound in two audio modes—16-bit and 12-bit. The 12-bit mode records sound on two channels (stereo 1), leaving 2 channels free (stereo 2) for adding new sound later. Select the 16-bit mode for higher sound quality.

CAMERA

PLAY (VCR) *

CARD CAMERA CARD PLAY

* MVX350i/MVX330i only.

MENU

37)

AUDIO SETUP AUDIO MODE

...12bit

Open the menu and select [AUDIO SETUP]. Select [AUDIO MODE], set it to [16bit] and close the menu.

"16bit" appears for approximately 4 seconds.

Using Headphones during Recording

The headphones terminal also serves as AV terminal. Headphones can only be used when “☐” is displayed on the screen. If not, change the setting following the procedure below.

CAMERA PLAY

(VCR) CARD CAMER

CARD PLAY

MENU

37)

VCR SETUP AV/PHONES

Ω··AV

Open the menu and select [VCR SETUP]. Select [AV/PHONES ☐], set it to [PHONES ☐] and close the menu.

Adjusting the Headphone Volume

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

MENU

37)

AUDIO SETUP VOLUME

Open the menu and select [AUDIO SETUP]. Select [VOLUME], adjust the volume with the SET dial and close the menu.

You can turn off the volume completely by turning the SET dial down until [OFF] appears. Turn the SET dial up to increase the volume again.

Wind Screen

The camcorder reduces wind noise automatically. However, you can turn off the wind screen when recording indoors, or when you want the microphone to be as sensitive as possible.

CAMERA PLAY (VCR) CARD CAMER

CARD PLAY

* Only when [AUDIO DI B.] is set to [MIC.IN].

MENU

37)

Open the menu and select [AUDIO SETUP]. Select [WIND SCREEN], set it to [OFF] and close the menu.

"WS U:appears when you turn the wind screen off.

The wind screen function can only be used with the built-in microphone.

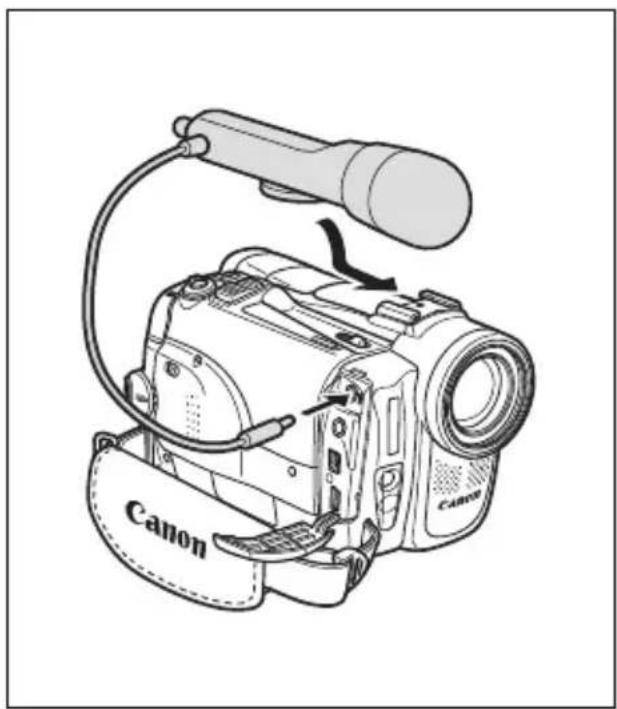

MVX350i/MVX330i Recording with an External Microphone

You can attach a commercially available microphone equipped with an accessory shoe.

Refer also to the instruction manual of the microphone.

1. Attach the microphone to the accessory shoe.
2. When using a commercially available microphone, connect it to the MIC terminal.

Line drawing of a Canon digital camera with attached lens and strap (no text or symbols)

When recording in silent places, the built-in microphone may pick up the motor noise of the camcorder. In such case, we recommend using an external microphone.
When using a commercially available microphone:

- Use a microphone with built-in power supply (condenser microphone). Almost all stereo microphones with a plug diameter of 3.5 mm (0.14 in.) can be connected. The audio level may differ from that of the built-in microphone.

- Long microphones may appear on the screen.

E

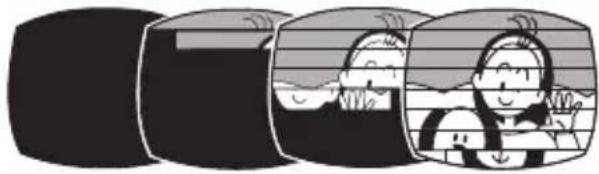

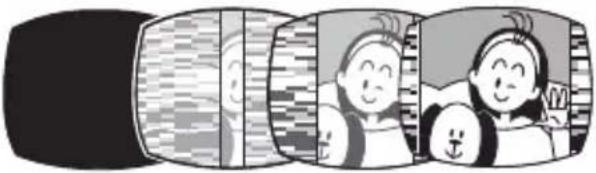

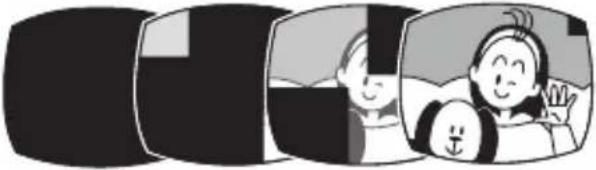

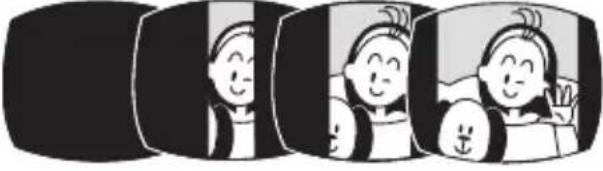

Faders (64)

Begin or end scenes with a fade to or from black.

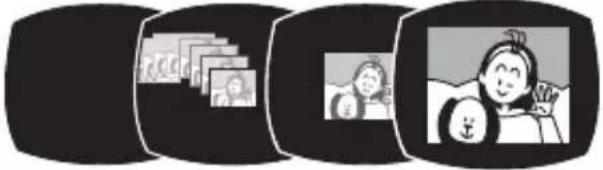

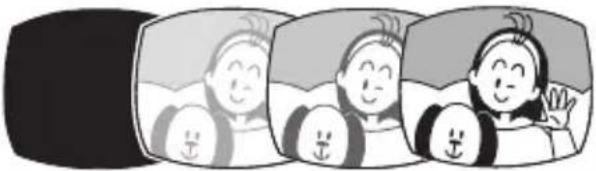

Fade Trigger (FADE-T) Wipe (WIPE)
Corner Wipe (CORNER) Jump (JUMP)

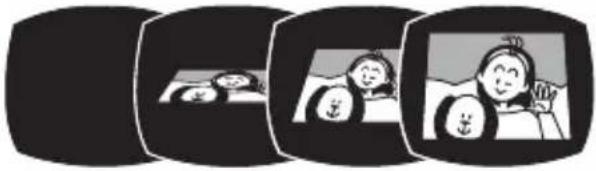

Flip (FLIP) Puzzle (PUZZLE)
Zigzag (ZIGZAG) Beam (BEAM)
Tide (TIDE)

Effects (65)

Add flavor to your recordings.

Art (ART) Black and White	(BLACK & WHITE)	Sepia (SEPIA)
Mosaic (MOSAIC) Ball (BALL) Cube (CUBE)
Wave (WAVE) Color Mask (COLOR MASK)		[Mirror (MIRROR)

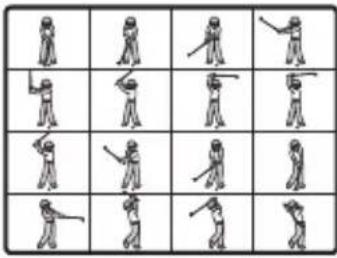

Multi-Image Screen (66)

Captures moving subjects in 4, 9 or 16 sequences of still images and displays them at one time. Sound will be recorded normally.

4 Sequences 9 Sequences

16 Sequences

Availability of Digital Effects by Operating Modes:

	CAMERA		PLAY (VCR) CARD	CARD CAMERA CARD	PLAY
	Movies	Still Images
Faders	○	×	○	×	×
Effects *	○	×	○	○	×
Multi-image screen	○	×	○	×	×

○: Available ✗Not available

*: Black and White only.

Selecting a Fader

In CAMERA mode, set the program selector to 📄

CAMERA PLAY (VCR)

1. Open the menu and select [D.EFFECT SETUP].
2. Select [D.E.SELECT] and set it to [FADER].
3. Select [FADER TYPE], select a setting option and close the menu.

The name of the selected fader flashes.

CARD CAMERA CARD PLAY

MENU SET 00

CAMERA mode:

1. Fade in: In record pause mode, press the D.EFFECTS button and begin recording by pressing the start/stop button.

Fade out: During recording, press the D.EFFECTS button and pause recording by pressing the start/stop button.

D.EFFECTS

The fader can be activated/deactivated by pressing the D.EFFECTS button.

PLAY (VCR) mode:

1. Fade in: In playback pause mode, press the D.EFFECTS button and begin playback by pressing the ▶/|| button.

Fade out: During playback, press the D.EFFECTS button and pause playback by pressing the ▶ ▶ button.

D.EFFECTS

The fader can be activated/deactivated by pressing the D.EFFECTS button.

Selecting an Effect

In CAMERA mode, set the program selector to 📄

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

1. Open the menu and select [D.EFFECT SETUP].
2. Select [D.E.SELECT] and set it to [EFFECT].
3. Select [EFFECT TYPE], select a setting option and close the menu.

The name of the selected effect flashes.

1. Press the D.EFFECTS button.

• The name of the selected effect stops flashing.
- The effect can be activated/deactivated by pressing the D.EFFECTS button.

MENU

D.EFFECTS

Selecting an Effect in CARD CAMERA Mode

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

1. Open the menu and select [D.EFFECT SETUP]. Select [EFFECT], set it to [BLACK&WHITE] and close the menu.

"BLK&WHT" flashes.

MENU

1. Press the D.EFFECTS button.

2. "BLK&WHT" stops flashing.

3. The effect can be activated/deactivated by pressing the D.EFFECTS button.

D.EFFECTS

Using the Multi-Image Screen

You can operate the multi-image screen only in the following playback modes:

• When [M.S.SPEED] is set to [MANUAL]: Playback pause, slow forward/reverse playback
• When [M.S.SPEED] is set to [FAST], [MODERATE] or [SLOW]: Playback pause In CAMERA mode, set the program selector to 📄

CAMERA PLAY (VCR)

1. Open the menu and select [D.EFFECT SETUP].
2. Select [D.E.SELECT] and set it to [MULTI-S].
3. Select [M.S.SPEED] and select the transition speed.

Following transition speeds can be selected: fast (every 4 frames), moderate (every 6 frames ^ ), slow (every 8 frames ^ ).

* In Low Light mode: moderate (every 8 frames), slow (every 12 frames).

MENU SET

1. Select [M.S.SPLIT], select the number of sequences and close the menu.

"MULTI-S" flashes.

1. Press the D.EFFECTS button.

- MANUAL: Images will be captured each time you press the D.EFFECTS button. The blue frame indicating the next sequence disappears after the last image. Pressing the D.EFFECTS button for more than 1 second cancels the images one after another.

D.EFFECTS

- FAST, MODERATE, SLOW: The set number of images will be captured at the set speed. To cancel the multi-image screen, press the D.EFFECTS button.

1. Press the start/stop button to begin recording.

The multi-image screen is recorded on the tape.

Turn off the digital effect when you do not use it.
☐ The camcorder retains the setting even if you turn it off or change the program AE mode.
- The image quality may be slightly lower with digital effects.
○ Digital effects cannot be used in the following cases:

- When the program selector is set to EASY.

- During DV dubbing.

- Faders cannot be used when Card Mix is activated.

About the multi-image screen:

- The multi-image screen cannot be used in the following cases:

• In the night modes.
• When the widescreen mode is selected.
• When Card Mix is activated.

In PLAY (VCR) mode: Pressing any tape operation button (such as play or pause), or performing date search cancels the multi-image screen.

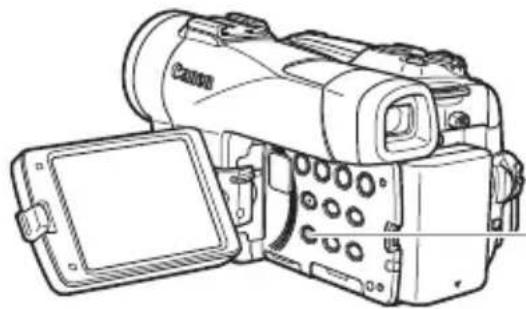

The camcorder uses the full width of the CCD providing high-resolution 16:9 recording.

Line drawing of a Canon digital camera with open lid and screen (no text or symbols)

WIDESCREEN button

CAMERA

PLAY (VCR) CARD CAMERA CARD PLAY

Press the WIDESCREEN button.

• "vappears.
- The LCD screen switches to the "letterbox" display. The picture on the viewfinder appears horizontally squeezed.

DRIVE MODE

WIDESCREEN/
REC PAUSE

When you turn off the image stabilizer, you will get a larger horizontal angle of view.
The multi-image screen cannot be used when the widescreen mode is selected.
Simultaneous recording on a memory card cannot be used when the widescreen mode is selected.
If you play back a widescreen recording on a normal TV, the image appears horizontally squeezed.

Magnifying the Image

The playback image can be magnified up to 5 times.

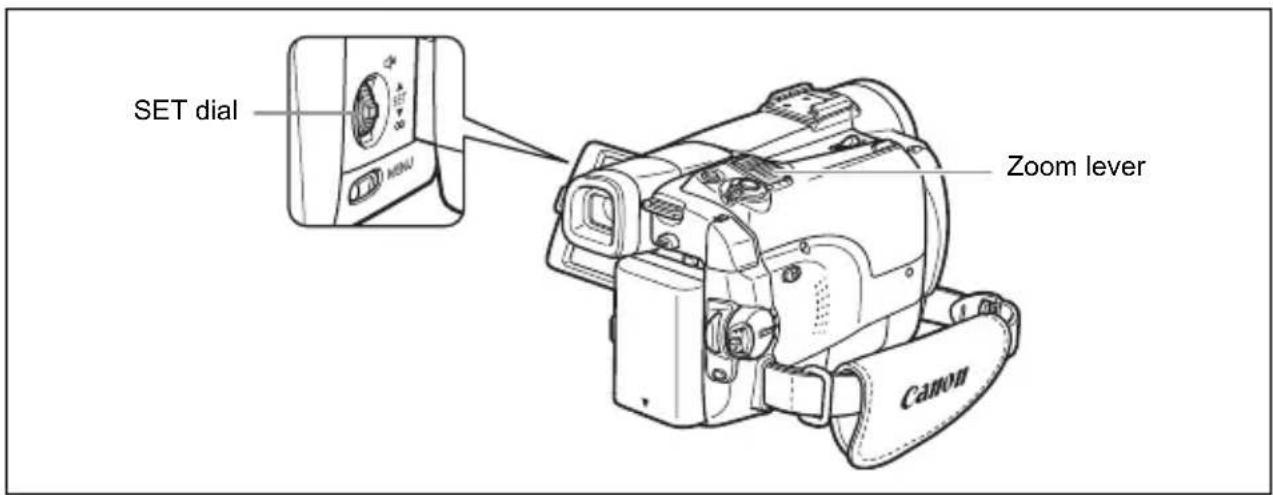

SET dial MENU Zoom lever Canon

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

1. Move the zoom lever toward T.

• The image is magnified by 2 times.
- A frame appears indicating the position of the magnified area.
- To further enlarge the image, move the zoom lever toward T. To shrink the image below 2 times magnification, move the zoom lever toward W.

W-T

2. Select the magnified area with the SET dial.

• Turn the SET dial to move the image to the right and left, or up and down. Pressing the SET dial switches between the directions.
• To cancel the magnification, move the zoom lever toward W until the frame disappears.

Diagram showing a device with directional arrows and a labeled 'SET' section, likely indicating a setup or control mechanism.

Movies played back from a memory card cannot be magnified.

Displaying the Data Code

The camcorder maintains a data code containing recording date and time and other camera data such as shutter speed and exposure (f-stop). When you play back a tape, you can display the data code and select the data code combination you wish to display.

SET dial MENU button DATA CODE button

Selecting the Date/Time Display Combination

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY

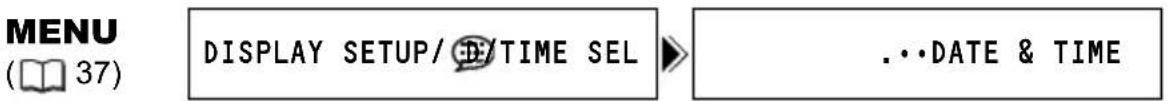

MENU ( 37) DISPLAY SETUP/ TIME SEL ...DATE & TIME

Open the menu and select [DISPLAY SETUP/]Select [D/TIME SEL.], set it to [DATE] or [TIME] and close the menu.

Selecting the Data Code Display Combination

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY

MENU ( 37) DISPLAY SETUP/DATA CODE ...DATE/TIME

Open the menu and select [DISPLAY SETUP/Select [DATA CODE], set it to [CAMERA DATA] or [CAM. & D/T] and close the menu.

Displaying the Data Code

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

Press the DATA CODE button.

The data code will not display the next time you turn on the camcorder.
○ Only date and time appear in CARD PLAY mode.

Six-Second Auto Date

Date and time appear for 6 seconds when you begin playback, or to indicate that date or time zone has changed.

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

MENU

37)

DISPLAY SETUP/6SEC.DATE

...OFF

Open the menu and select [DISPLAY SETUP/Select [6SEC.DATE], set it to [ON] and close the menu.

End Search

When you have played back a tape, you can use this function to locate the end of the last recorded scene.

END SEARCH button

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

In stop mode, press the END SEARCH button.

• "END SEARCH" appears.
• The camcorder rewinds/fast forwards the tape, plays back the last few seconds of the recording and stops the tape.
• Pressing the button again cancels the search.

○ End search cannot be used once you unload the cassette.
○ End search may not work properly if a blank section exists on the tape.
- You cannot use end search to locate the editing end of audio dubbing.

Returning to a Pre-marked Position

If you wish to return to a particular scene later, mark the point with the zero set memory and the tape will stop at that point when you rewind/fast forward the tape.

This function is operated with the wireless controller.

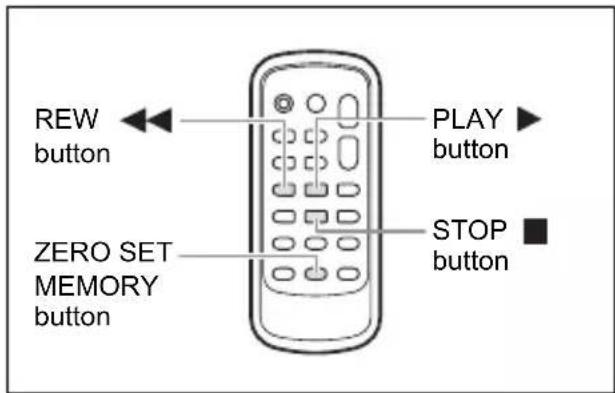

REW button PLAY button ZERO SET MEMORY button STOP button

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

1. Press the ZERO SET MEMORY button at the point you wish to return to later.

• "0:00:00 Appears.
• To cancel, press the ZERO SET MEMORY button again.

2. When you have finished playback, rewind the tape.

• “RTN” appears.
• The tape stops automatically at "0:00:00".
• The tape counter changes to time code.

PAUSE SLOW 1 ×2 AUDIO DUE MEMORY X2 SCREEN

The zero set memory may not function correctly when the time code has not been recorded consecutively.

Date Search

You can locate the change of the date/time zone with the date search function.

This function is operated with the wireless controller.

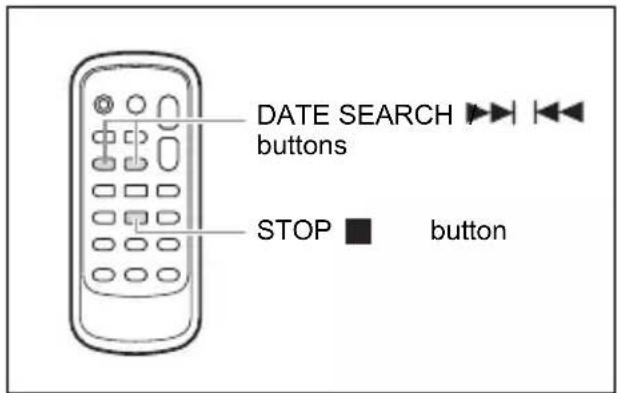

DATE SEARCH buttons STOP ■ button

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

Press the ▶ or button to begin searching.

• Press more than once to search for further date changes (up to 10 times).
• Press the STOP button to stop searching.

CARD DATE SEARCH REW PLAY FF STOP

○ A recording of longer than a minute per date/area is required.
Date search may not function if the data code is not correctly displayed.

Customizing the Camcorder

You can personalize your camcorder by customizing the start-up image and the sound it makes for start-up, shutter, operation and self-timer (collectively called the My Camera settings).

Changing the My Camera Settings

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37 ) MY CAMERA SEL.S-UP IMG • CANON LOGO S-UP SOUND...DEFAULT SHTR SOUND...DEFAULT OPER.SOUND...DEFAULT SELF-T SOUND•DEFAULT

1. Open the menu and select [MY CAMERA].
2. Select the menu item you wish to change.

When selecting a start-up image, set the camcorder to CARD PLAY mode.

1. Select a setting option and close the menu.

☐ You can save your original images, or the images and sounds contained in the supplied software (ZoomBrowser EX for Windows or ImageBrowser for Macintosh) to the setting options [MY IMAGE] and [MY SOUND]. For details, refer to the Digital Video Software Instruction Manual.
- You can also create original start-up images (118).

Changing the Display Language

The language used for screen display and menu items can be changed. The available set of languages varies depending on the region. Follow the procedure below to check which set of languages are provided with your camcorder.

Language Set A(e.g. Europe)	Language Set B(e.g. Asia, Australia)
English, German, Spanish, French, Italian, Russian, Simplified Chinese, Japanese	English, Simplified Chinese, Traditional Chinese, Korean

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY

MENU

(37)

DISPLAY SETUP/ LANGUAGE

...ENGLISH

To change the display language, open the menu and select [DISPLAY SETUP/Select [LANGUAGE], select a language and close the menu.

If you have mistakenly changed the language, follow the mark next to the menu item to change the setting.

The displays "and " at the bottom of the screen refer to the button names on the camcorder and will not change when you change the language.

Changing the Date Format

You can select between three date formats. For example, [1. JAN. 2005], [JAN. 1, 2005] and [2005. 1. 1].

CAMERA

PLAY (VCR) CA

AMERA CARD PLAY

MENU

(37)

DISPLAY SETUP/ DATE FORMAT

.. 1.JAN.2005

Open the menu and select [DISPLAY SETUP/]Select [DATE FORMAT], select a format and close the menu.

Beep

You will hear a beep upon camcorder operations such as power on/off, start/stop, self-timer countdown, and unusual conditions of the camcorder.

If you turn off the beep, all camcorder sounds including the ones of the My Camera settings will be turned off.

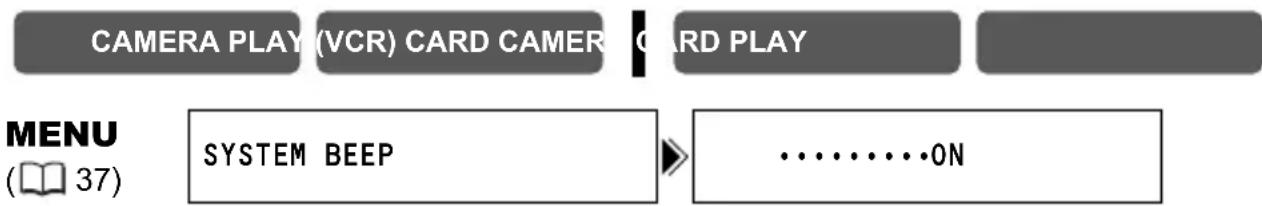

CAMERA PLAY (VCR) CARD CAMER CARD PLAY MENU ( 37 ) SYSTEM BEEP ....ON

To turn the beep off, open the menu and select [SYSTEM]. Select [BEEP], set it to [OFF] and close the menu.

Adjusting the Brightness of the LCD Screen

CAMERA PLAY (VCR) CARD AMERA CARD PLAY

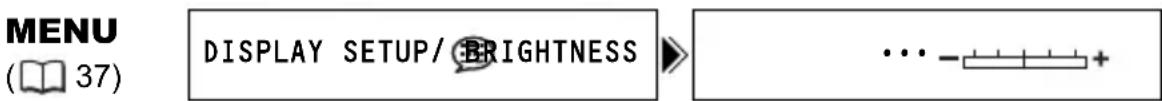

MENU (37) DISPLAY SETUP/ BRIGHTNESS ... - +

Open the menu and select [DISPLAY SETUP/Select [BRIGHTNESS], adjust the brightness level and close the menu.

Changing the brightness of the LCD screen does not affect that of the viewfinder or the recordings.

Turning the Remote Sensor Off

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY

Open the menu and select [SYSTEM]. Select [WL.REMOTE], set it to [OFF] and close the menu.

“”appears.

Turning Off the Image Stabilizer

The image stabilizer compensates for camcorder shake even at full telephoto. It tries to compensate for horizontal movements; therefore, you may decide to turn it off when you mount the camcorder on a tripod.

CAMERA

PLAY (VCR) CARD CAMERA CARD PLAY

MENU

37)

CAMERA SETUP IMG STAB

Open the menu and select [CAMERA SETUP]. Select [IMG STAB] set it to [OFF] and close the menu.

“”disappears.

The image stabilizer cannot be turned off when the program selector is set to EASY.
The image stabilizer is designed to compensate a normal degree of camcorder shake.
The image stabilizer might not be as effective when using the night modes.

Demonstration Mode

The demonstration mode displays the camcorder's main features. It starts automatically when you leave the camcorder turned on without loading a recording media for more than 5 minutes. However, you can set the camcorder not to start the demonstration mode.

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

MENU

37)

DISPLAY SETUP/ DEMO MODE

...ON

Open the menu and select [DISPLAY SETUP/]Select [DEMO MODE], set it to [OFF] and close the menu.

To cancel the demo mode once it has begun, press any button, turn off the camcorder or load a recording media.

Recording to a VCR or Digital Video Device

You can copy your recordings by connecting the camcorder to a VCR or a digital video device. If you connect a digital video device, you can copy recordings with virtually no generation loss in image and sound quality.

Connecting the Devices

① Connecting a VCR

See Playing Back on a TV Screen ( 3 4 ) .

② Connecting a Digital Video Device

Refer also to the instruction manual of the digital video device.

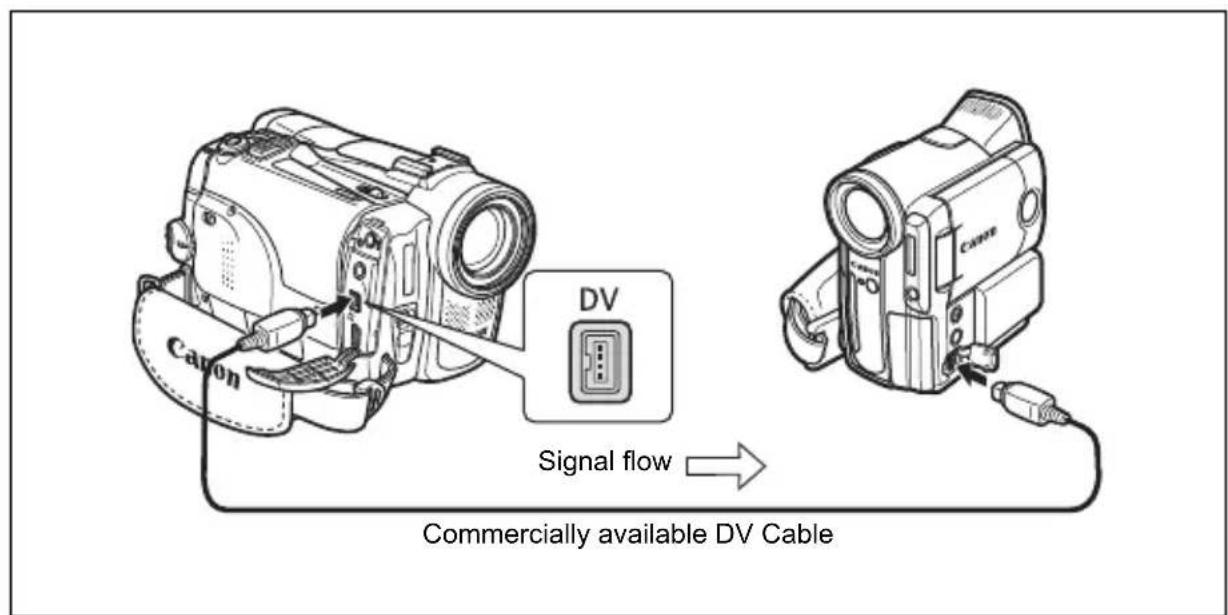

DV Signal flow → Commercially available DV Cable

Recording

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

1. Set the camcorder to PLAY (VCR) mode and load a recorded cassette. If you are connecting via AV terminal, check the setting (34).

2. Connected device: Load a blank cassette and set the device to record pause mode.

3. Locate the scene you wish to copy and pause playback shortly before the scene.

4. Play back the tape.

5. Connected device: Begin recording when the scene you wish to copy appears. Stop recording when copying is complete.

6. Stop playback.

When connecting a VCR, the quality of the edited tape will be slightly lower than that of the original.
When connecting a digital video device:

- If the picture does not appear, reconnect the DV cable or turn the camcorder off and back on again.

- Proper operation cannot be guaranteed for all digital video devices equipped with a DV terminal. If operation does not work, use the AV terminal.

We recommend powering the camcorder from a household power source.

MVX350i/MVX330i Recording from Analog Video Devices (VCR, TV or Camcorder)

You can record videos or TV programs from a VCR or analog camcorder on the tape in the camcorder.

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

1. Connect the camcorder to the analog video device.

See Playing Back on a TV Screen ( 3 4 ) .

1. Set the camcorder to PLAY (VCR) mode and load a blank cassette.

2. Connected device: Load the recorded cassette.

3. Press the REC PAUSE button.

In record pause mode and during recording, you can check the picture on the screen.

1. Connected device: Play back the tape.

2. Press the ▶ button when the scene you wish to record appears.

Recording starts.

DRIVE MODE WIDESCREEN/ REC PAUSE

Hand pressing a button with a lightning bolt symbol (no text or numbers present)

1. Press the button to stop recording.

2. Press the ▶ button to pause recording.

3. Press the ▶ button again to restart recording.

4. Connected device: Stop playback.

NIGHT MODE

• Headphones cannot be used during analog line-in recording.
  When connecting to a TV/Video with SCART terminal, use a SCART adapter with input capability (commercially available). The supplied SCART Adapter PC-A10 is for output only.
  ○ Depending on the signal sent from the connected device, dubbing may not work properly (e.g. signals that include copyright protective signals or anomalous signals such as ghost signals).

We recommend powering the camcorder from a household power source.

MVX350i/MVX330i Recording from Digital Video Devices (DV Dubbing)

You can record from other digital video devices equipped with a DV terminal with virtually no loss in picture and sound quality.

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

1. Connect the camcorder to the digital video device.

See Connecting a Digital Video Device ( 7 9 ) .

1. Set the camcorder to PLAY (VCR) mode and load a blank cassette.

Make sure that [AVDV] is set to [OFF] (85).

1. Connected device: Load the recorded cassette.

2. Press the REC PAUSE button.

In record pause mode and during recording, you can check the picture on the screen.

1. Connected Device: Play back the tape.

2. Press the ▶ button when the scene you wish to record appears.

Recording starts.

DRIVE MODE WIDESCREEN/ REC PAUSE

Hand pressing a button with a lightning bolt symbol (no text or numbers present)

1. Press the button to stop recording.

2. Press the ▶ button to pause recording.

3. Press the ▶ button again to restart recording.

4. Connected Device: Stop playback.

NIGHT MODE

Blank sections may be recorded as anomalous picture.
If the picture does not appear, reconnect the DV cable or turn the camcorder off and back on again.
- You can only record signals from devices with the BY logo recording in SD system in SP or LP format (note that signals from identically shaped terminals may be of different format 152).

We recommend powering the camcorder from a household power source.

Concerning Copyright

Copyright Precaution

Certain pre-recorded video tapes, films and other materials, as well as some television programs are copyrighted. Unauthorised recording of these materials may violate copyright protection laws.

Copyright Signals

During playback: If you try to play back a tape that contains copyright control signals for protection of software, "COPYRIGHT PROTECTED PLAYBACK IS RESTRICTED" appears for a few seconds and the camcorder displays a blank blue screen. You cannot playback the contents of the tape.

During recording: If you try to record from software that contains copyright control signals for protection of software, "COPYRIGHT PROTECTED DUBBING RESTRICTED" appears. You cannot record the contents of the software.

You cannot record copyright protection signals to a tape using this camcorder.

MVX350i/MVX330i Converting Analog Signals into Digital Signals (Analog-Digital Converter)

By connecting the camcorder to a VCR or 8mm video camcorder, you can convert analog video/audio signals to digital signals and output the digital signals via the DV terminal. The DV terminal serves as output terminal only.

Connecting the Devices

Turn off all devices before starting the connections. Unload the tape from the camcorder. Refer also to the instruction manual of the connected device.

Turning On the Analog-Digital Converter

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

MENU

37)

VCR SETUP AV DV

. . . . . . . . . . OFF

Open the menu and select [VCR SETUP]. Select [AV DV], set it to [ON] and close the menu.

• Headphones cannot be used during analog-digital conversion.
  ○ Depending on the signal sent from the connected device, the conversion from analog to digital signals might not work properly (e.g., signals that include copyright protective signals or anomalous signals such as ghost signals).
  When connecting to a TV/Video with SCART terminal, use a SCART adapter with input capability (commercially available). The supplied SCART Adapter PC-A10 is for output only.
  For normal use, set [AVDV] to [OFF]. If it is set to [ON], digital signals cannot be input via the camcorder's DV terminal.
  ○ Depending on the software and the specifications of your computer, you may not be able to transfer converted signals via the DV terminal.

We recommend powering the camcorder from a household power source.

You can add sound with the built-in microphone. With the MVX350i/MVX330i, you can also add sound from audio devices or with an external microphone.

This function is operated with the wireless controller.

MVX350i/MVX330i Connecting

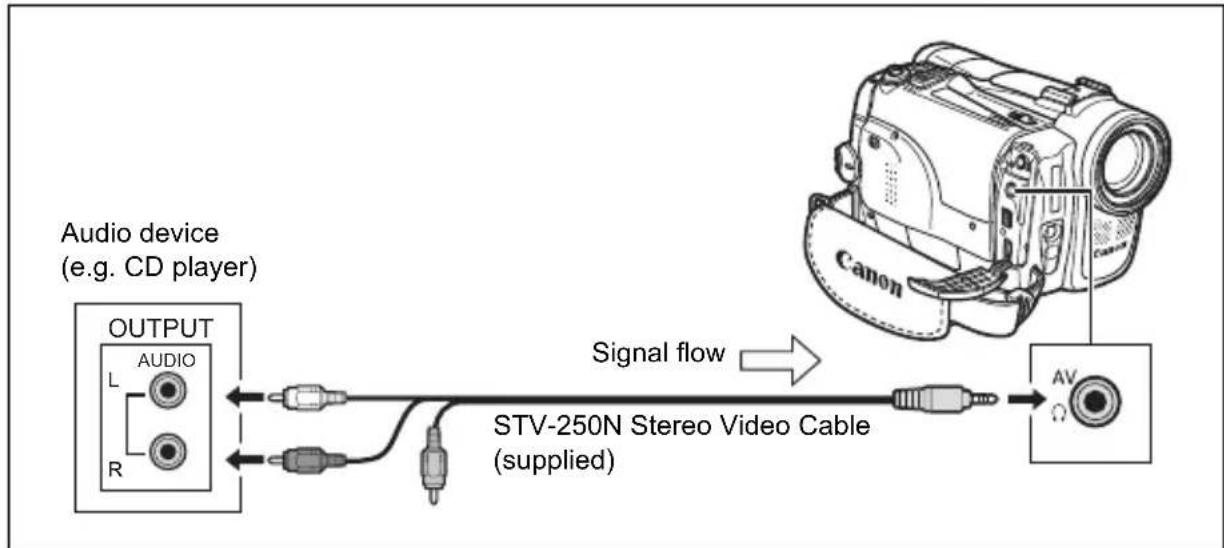

① Connecting an Audio Device

Refer also to the instruction manual of the connected device.

② Connecting a Microphone

See Recording with an External Microphone (61).

Dubbing

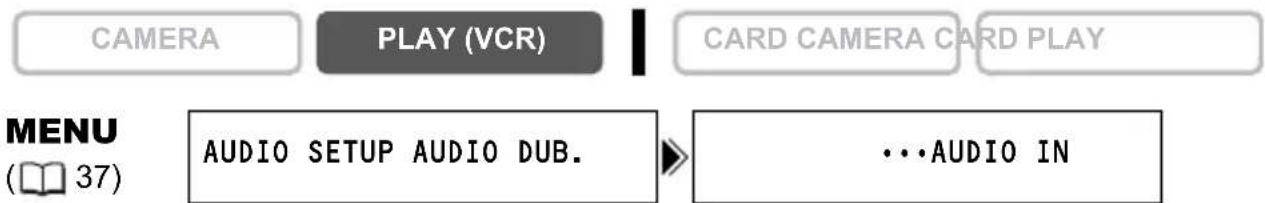

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37 ) AUDIO SETUP AUDIO DUB. ···AUDIO IN

1. Set the camcorder to PLAY (VCR) mode and load a recorded cassette. Use a tape recorded in SP, 12-bit mode with this camcorder.
2. Open the menu and select [AUDIO SETUP]. Select [AUDIO DUB.], set it to [AUDIO IN] or [MIC.IN] and close the menu.
3. Locate the scene you wish to start audio dubbing.
4. Press the PAUSE button on the wireless controller.

-401 STOP +700 PAUSE SLOW ×2 AUDIO DUE MEMORY TY SCREEN

5. Press the AUDIO DUB. button on the wireless controller.

"AUDIO DUB." and "appear.

PAUSE SLOW X 2 AUDIO DUE ZENED SET TICKY TY SCREEN

6. Press the PAUSE button on the wireless controller to begin dubbing.

• Audio device Begin playback.
- Microphone: Speak into the microphone.

-400 STOP 4/10 PAUSE SLOW ×2 AUDIO DUE NEW CNT TV SCREEN

7. Press the STOP button on the wireless controller to stop dubbing.

MVX350i/MVX330i Audio device: Stop playback.

-400 STOP +70 PAUSE SLOW 2 ×2 AUDIO DUE. ZERO SET RENEW TV SCREEN

Use only tapes recorded in SP mode 12-bit audio sound with this camcorder. Audio dubbing will stop if the tape has a blank section or a section recorded in LP mode or 16-bit mode.
When using the built-in microphone, do not connect any devices to the MIC terminal.
- You cannot use the DV terminal for audio dubbing.
If you add sound to a tape not recorded with this camcorder, sound quality may decrease.
○ Sound quality may decrease when you add sound to the same scene for more than 3 times.

• You can check the picture on the LCD screen.
  ○ Where you connect an audio device, check the sound via built-in speaker or audio device.
  When you use a microphone, you can check the picture on a TV connected via the AV terminal and the sound via headphones connected to the TV.
  Set the zero set memory at the end of the scene you wish to dub audio. The camcorder will automatically stop audio dubbing at that point.

Playing Back the Added Sound

You can select to play back Stereo 1 (original sound), Stereo 2 (added sound), or adjust the balance of both sounds.

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

MENU

37)

AUDIO SETUP 12bit AUDIO

•••STERE01

1. Open the menu and select [AUDIO SETUP]. Select [12bit AUDIO], select a setting and close the menu.

• STEREO1: Plays back the original sound.
• STEREO2: Plays back the added sound.
- MIX/FIXED: Plays back Stereo 1 and Stereo 2 in the same level.
- MIX/VARI.: Plays back Stereo 1 and Stereo 2. The mix balance can be adjusted.

1. If you have selected [MIX/VARI.], adjust the mix level: Open the menu and select [AUDIO SETUP]. Select [MIX BALANCE], adjust the balance with the SET dial and close the menu.

Turn the SET dial down to increase the volume of Stereo 1 and up to increase the volume of Stereo 2.

The camcorder resets to [STEREO1] when you turn the camcorder off. However, the mix balance is memorized by the camcorder.

Transferring Video Recordings to a Computer (IEEE1394)

You can transfer recordings to a computer equipped with a IEEE1394 (DV) terminal or IEEE1394 capture board. Use the editing software supplied with your computer/capture board to transfer video recording from tape to computer. Refer to the instruction manual of the software. A driver is preinstalled on Windows operating systems later than Windows 98 Second Edition and Mac operating systems later than Mac OS 9, and will be installed automatically.

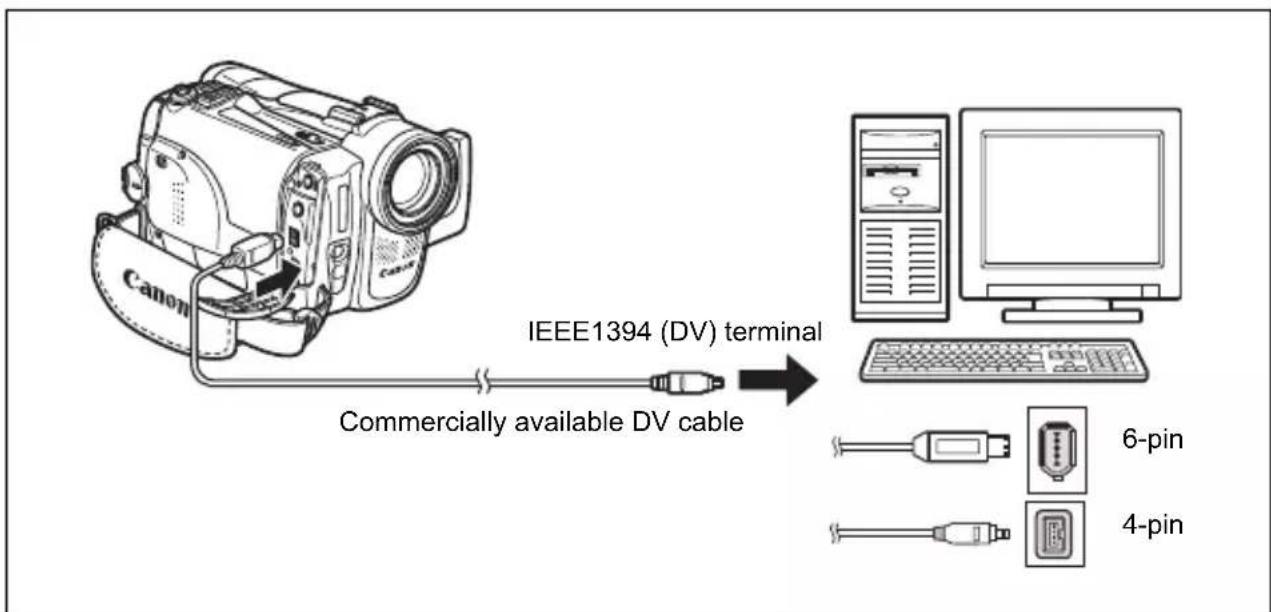

Canon IEEE1394 (DV) terminal Commercially available DV cable 6-pin 4-pin

Operation may not work correctly depending on the software and the specifications/settings of your computer.

If the computer freezes while you have connected the camcorder, disconnect and reconnect the DV cable. If the problem persists, disconnect the interface cable, turn off camcorder and computer, turn camcorder and computer back on and reconnect them.

Before connecting the camcorder to the computer using a DV cable, make sure that camcorder and computer are not connected with a USB cable, and that no other 1394 device is connected to the computer.

We recommend powering the camcorder from a household power source while it is connected to the computer.

○ Refer also to the instruction manual of the computer.

Inserting and Removing a Memory Card

You can use SD Memory Cards or commercially available MultiMediaCards with this camcorder. The SD Memory Card has a protect switch to prevent accidental erasure.

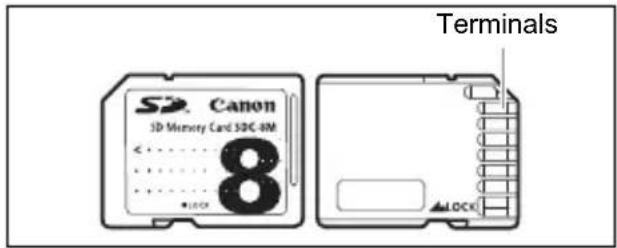

Canon 3D Memory Card SDC-4M 8 Terminals

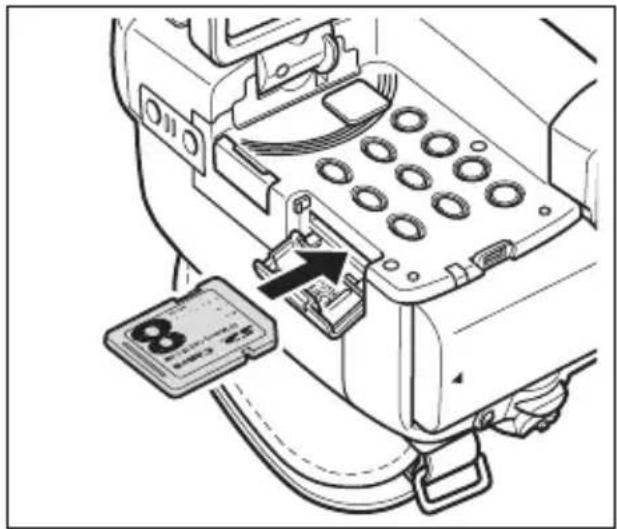

Inserting the Card

1. Turn off the camcorder.
2. Open the cover.
3. Insert the memory card all the way into the memory card slot.
4. Close the cover.

Do not close the cover forcefully without having the card correctly inserted.

Diagram of a device's internal components, including a card slot and a switch, with no visible text or symbols.

Removing the Card

Do not forcefully remove the memory card without first pushing it in.

1. Turn off the camcorder.

Make sure that the card access indicator is not flashing before you turn off the camcorder.

1. Open the cover.
2. Push the memory card to release it. Remove the memory card.
3. Close the cover.

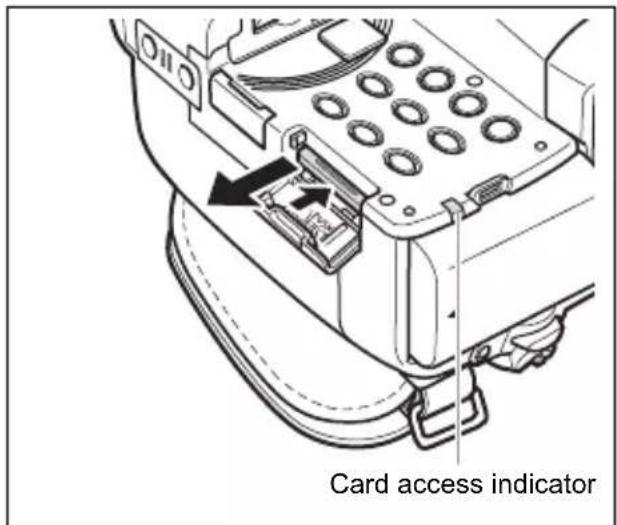

Card access indicator

This camcorder is compatible with SD Memory Cards or MultiMediaCards only. Do not use any other types of memory cards.
○ Proper operation cannot be guaranteed for all memory cards.
Turn off the camcorder before inserting or removing the memory card. Otherwise, it may result in data damage.
If you use memory cards other than the supplied one, make sure to format them with the camcorder (117).

Changing the Still Image Quality

You can choose from Superfine, Fine and Normal.

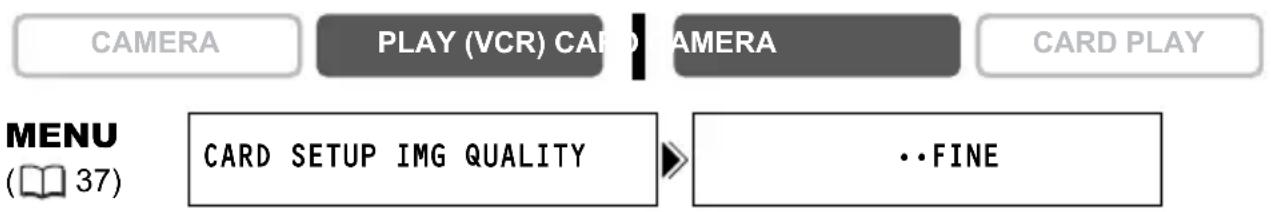

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37) CARD SETUP IMG QUALITY ••FINE

Open the menu and select [CARD SETUP]. Select [IMG QUALITY], set it to [SUPER FINE] or [NORMAL] and close the menu.

Changing the Still Image Size

You can choose from 1280 x 960 pixels and 640 x 480 pixels.

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37) CARD SETUP IMAGE SIZE ...1280x960

Open the menu and select [CARD SETUP]. Select [IMAGE SIZE], set it to [640x480] and close the menu.

• Still images are recorded with JPEG (Joint Photographic Experts Group) compression.
  ○ Estimated Capacity of an 8 MB Memory Card:

Image Size Image Quality	1280 x 960 640 x 480
	No. of Images	File Size per Image	No. of Images	File Size per Image
Superfine 6 850 KB 34	175 KB
Fine 10 550 KB 50 120 KB
Normal 18 300 KB 84 65 KB

These figures are approximate. They vary according to the recording condition and the subject.

Changing the Movie Size

You can choose between 320 x 240 pixels and 160 x 120 pixels.

CAMERA

PLAY (VCR) CAI

AMERA

CARD PLAY

MENU

CARD SETUP MOVIE SIZE...320x240

Open the menu and select [CARD SETUP]. Select [MOVIE SIZE], set it to [160x120] and close the menu.

○ Movies are recorded with Motion JPEG compression.
Maximum recording time on a 8 MB SD Memory Card:

Image Size	Recording Time (8 MB)	File Size per Second
320 x 240 approx.	20 sec. 250 KB/sec.
160 x 120 approx.	50 sec. 120 KB/sec.

File Numbers

Images are automatically assigned file numbers from 0101 to 9900 and stored in folders containing up to 100 images. Folders are assigned numbers from 101 to 998.

You can choose to use consecutive file numbers (CONTINUOUS) or to reset the file number each time a different memory card is inserted (RESET). We recommend setting the file numbers to CONTINUOUS.

RESET The file number	will be reset each time a new memory card is inserted. If the memory card already contains image files, the consecutive file number will be assigned.
CONTINUOUS The ca	mcorder memorizes the file number of the last image and assigns the consecutive file number to the next image, even when a new memory card is inserted. (If a higher file number already exists on the memory card, the consecutive number will be assigned.) There will be no duplication of file numbers. This is useful for organizing images on a computer.

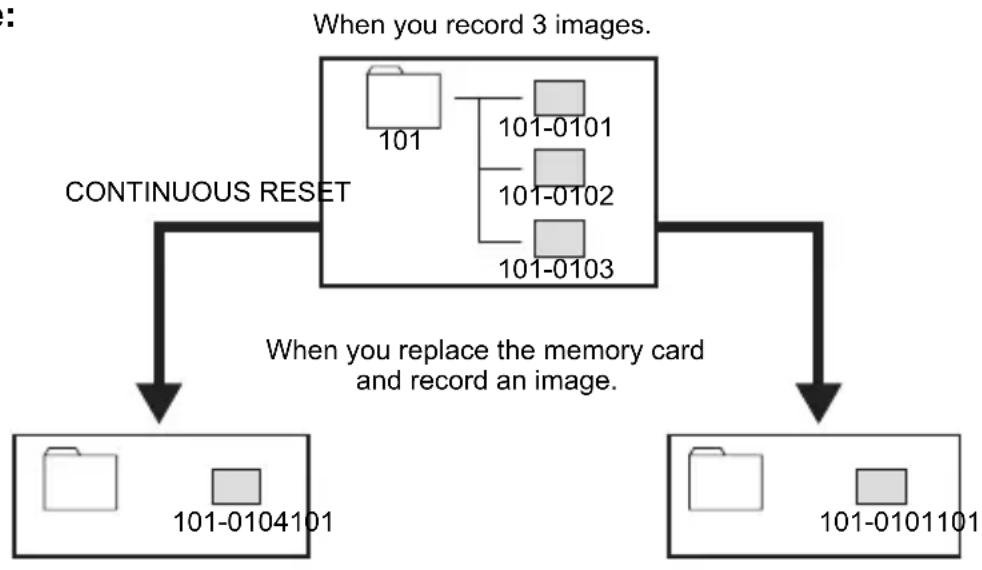

Example:

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY

MENU

CARD SETUP FILE NOS.

•••CONTINUOUS

To change the setting, open the menu and select [CARD SETUP]. Select [FILE NOS.], set it to [RESET] and close the menu.

Recording Still Images on a Memory Card

You can record still images with the camcorder, from a tape in the camcorder or from devices connected via the DV terminal or AV terminal. You can also record a still image on the memory card while you record a movie on the tape.

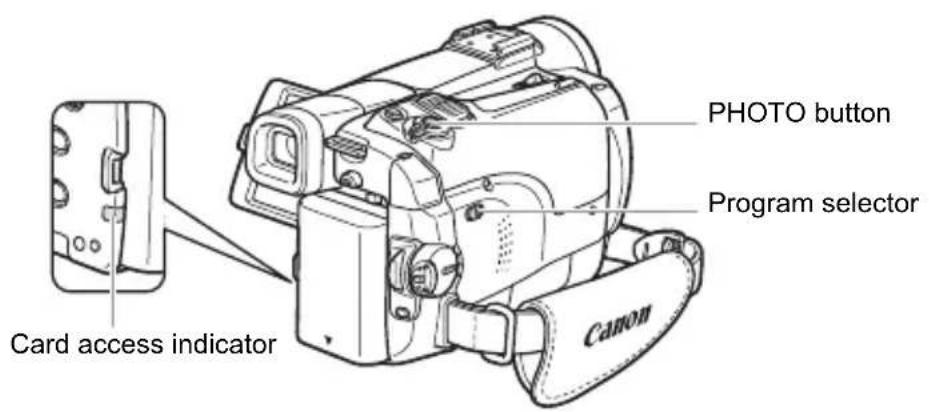

PHOTO button Program selector Card access indicator Canon

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

1. Set the camcorder to CARD CAMERA mode.

A white focusing frame appears in the center of the screen. The camcorder will focus on the subject in the center of the screen. To change the focusing point, see Selecting the Focusing Point (104).

2. Press the PHOTO button halfway.

• and focusing frame turn green when focus is adjusted. The beep sounds twice. The picture may appear out of focus for a moment while the camcorder is focusing.

- Exposure is locked.

- When you press the PHOTO button on the wireless controller, recording starts immediately.

Diagram of a car intake manifold with a hand pointing to the intake (no text or symbols present)

3. Press the PHOTO button fully.

• and focusing frame disappear and you hear a shutter sound.

- The card access indicator flashes and the card access display appears.

- The still image shown on the screen will be recorded on the memory card.

Mechanical component diagram showing a hand pressing a button with an arrow indicating motion (no text or symbols present)

Do not turn off the camcorder, change the position of the TAPE/CARD switch, disconnect the power source, open the memory card cover or remove the memory card while the card access indicator is flashing. Doing so could result in data damage.

When you are using a SD Memory Card, make sure that the protect switch is set to allow recording.

○ Depending on the number of images on the memory card (Windows: more than 1800 images; Macintosh: more than 1000 images), you may not be able to download images to a computer. In such case, use a PC card reader.
- Connection to a PictBridge compliant printer will not work when the memory card contains more than 1800 images. For best performance, we recommend to keep the number of images on the memory card less than 100.
When the subject is too bright, the ND filter turns on automatically ("ND" appears on the screen). If it is still too bright, "OVEREXP" starts flashing. In such case, use the optional FS-34U ND filter. If you wish to turn off the ND filter: Open the menu and select [CAMERA SETUP]. Select [ND], set it to [OFF] and close the menu.
When the Focus-Priority mode is set to [ON]:

When you press the PHOTO button fully before and focusing frame turn green, it may take up to 2* seconds until focus is adjusted and the still image can be recorded to the memory card.

* Up to 4 seconds in the Low Light and the night modes.

If the subject is not suitable for autofocus, the focusing frame turns yellow and locks the focus. Adjust the focus manually with the SET dial.

When the Focus-Priority mode is set to [OFF]:

No focusing frame appears.

In step 2, ☐urns green, and focus and exposure are locked.

The camcorder shuts off when you do not operate it for 5 minutes to save power. "AUTO POWER OFF" appears 20 seconds before shutoff. To continue recording, turn the POWER switch to OFF and then back to CAMERA.

Screen Displays during Still Image Recording

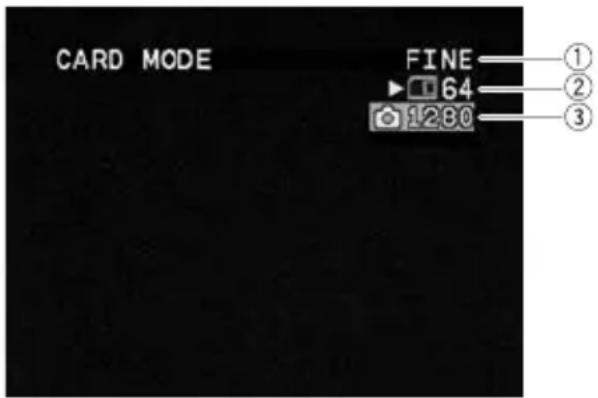

CARD MODE FINE 64 1280 ① ② ③

① Still Image Quality

Indicates the image quality of the still image.

② Remaining Card Capacity for Still Images

flashing in red: No card in green: 6 or more images
☐ in yellow: 1 to 5 images
☐ in red: No more images

• The indication may not decrease even though a recording has been made, or may decrease by 2 images at once.
• All indicators are displayed in green when a memory card is played back.

“” Card Access Display

Indicates that the camcorder is writing on the memory card.

③ Image Size

Indicates the still image size.

Recording a Still Image on a Memory Card While Recording Movies on a Tape

When you are recording a movie on a tape, you can record the same picture as a still image on the memory card. Select the image quality from normal or fine.

CAMERA

PLAY (VCR) CARD CAMERA CARD PLAY

MENU

37)

CAMERA SETUP STILL I.REC

••OFF

1. Open the menu and select [CAMERA SETUP]. Select [STILL I.REC], set it to [FINE] or [NORMAL] and close the menu.
2. While you are recording a movie, press the PHOTO button.

• The size of the still image will be 640 x 480.
  The quality of the still image is slightly lower than a still image recorded in CARD CAMERA mode.

The still image cannot be recorded on a memory card when a fader, effect or the multi-image screen is activated.
- The still image cannot be recorded on a memory card when the widescreen mode is selected.
☐ "appears when you press the PHOTO button when [STILL I.REC] is set to [OFF].

Recording from a Tape in the Camcorder

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

1. Play back the tape.

2. Press the PHOTO button halfway when the scene you wish to record appears.

3. The camcorder pauses playback. The remaining image capacity and other information appear.

4. When you press the PHOTO button on the wireless controller, recording starts immediately.

5. Press the PHOTO button fully.

6. The card access indicator flashes.

7. You can also record a still image by pressing the PHOTO button fully when the tape is in playback pause mode.

MVX350i/MVX330i Recording from Other Video Devices

You can record images from devices connected via the AV terminal (analog line-in function), or via the DV terminal as still images on a memory card. For connecting instructions, refer to page 34 and 79.

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

1. Set the camcorder to PLAY (VCR) mode.

• If a cassette is loaded, make sure that the tape is stopped.
• When recording via the AV terminal, make sure that "AV DV" is displayed on the screen. When recording via the DV terminal, make sure that "AV DV" is not displayed. Change the setting as necessary (85).

2. Connected device: Load a recorded cassette and play back the tape.

3. Press the PHOTO button halfway when the scene you wish to record appears.

• The still image, remaining image capacity and other information appear.
• When you press the PHOTO button on the wireless controller, recording starts immediately.

4. Press the PHOTO button fully.

The card access indicator flashes.

When recording from a tape in the camcorder or other video devices:
- A still image recorded from an image in widescreen mode will be vertically compressed.
- The data code of the still image will reflect the date and time it has been recorded on the memory card.
- The size of the still image will be 640 x 480. The still image quality can be selected.
When connecting with a DV cable, make sure that no USB cable is connected to the camcorder.

You can use the built-in flash for recording still images in dark places. The flash is equipped with the red-eye reduction mode.

PHOTO button (flash) button Flash Assist lamp REC SEARCH NIGHT MODE CARD DEFFECTS FOCUS/DATA CODE EXP/ END SEARCH

Selecting the Flash Mode

A (auto) The flash fires automatically according to the brightness of the subject.

( red-eye reduction, auto) The flash fires automatically according to the brightness of the subject and the assist lamp lights up to reduce the red-eye effect.

( flash on) The flash always fires.

( flash off) The flash does not fire. Use this setting in places where flash photography is prohibited.

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

Press the ♣(flash) button.

• The setting changes with each press of the button.
• The symbol of the selected flash mode appears on the screen.
  “”disappears after 4 seconds.

Hand pressing a button with a lightning bolt symbol (no text or numbers present)

Recording with Flash

1. Press the PHOTO button halfway.

• “” appears in green.
- In CAMERA mode, the flash can be used in record pause mode when [STILL I.REC] is set to [FINE] or

[N O R M A L] .

Mechanical component diagram showing a hand pressing a button with an arrow indicating direction (no text or symbols present)

2. Press the PHOTO button fully.

The flash fires.

Diagram of a car engine intake manifold with a hand pointing to the intake (no text or symbols present)

E

Do not fire the flash close to people's eyes.
Do not fire the flash at persons while they are driving.
Do not fire the flash with the flash bulb covered with your hand.
The practical range of the flash is approx. 1 to 2 m (3.3 to 6.6 ft.). The range depends upon the recording condition.
The range of the flash decreases in continuous shooting mode.
A pre-flash is fired to obtain the subject's exposure data to adjust the main flash to the optimal intensity (flash exposure compensation).
For the red-eye reduction mode to be effective, the subject needs to look at the assist lamp. The degree of reduction depends upon the distance and on each individual.
- The flash will not fire in the following cases:

- When you press the EXP button in (auto) or (red-eye reduction, auto) mode.

- When recording movies on a tape.

- When [STILL I.REC] is set to [OFF] in CAMERA mode.

- When a shutter speed of 1/2000 is set in (auto) or (red-eye reduction, auto) and in CAMERA mode.

- When the multi-image screen is selected.

- During auto exposure bracketing.

- When an abnormality occurs during charging.

When (flash on) is selected and a shutter speed of 1/2000 is set in CAMERA mode, the shutter speed becomes set to 1/1000 and the flash fires.
We recommend not using the flash when the wide attachment (supplied with the MVX350i), the optional Wide-converter or Tele-converter is attached. Their shadows appear on the screen.
The flash mode cannot be selected when exposure is locked, or after the first still image in Stitch Assist mode.
The red-eye reduction mode cannot be used in stitch assist mode.
About the AF-Assist Lamp:

While the PHOTO button is pressed halfway, the assist lamp may light up as AF-assist lamp responding to the brightness of the subject to enable the camcorder to focus more accurately.

- The camcorder may not be able to focus even though the AF-assist lamp is lighting.

- The AF-assist lamp lights up brightly. Consider turning off the AF-assist lamp in public places such as in restaurants or theaters.

Reviewing a Still Image Right after Recording

You can select to display a still image for 2, 4, 6, 8 or 10 seconds after it has been recorded.

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37) CAMERA SETUP REVIEW ............2sec

Open the menu and select [CAMERA SETUP]. Select [REVIEW], select a setting option and close the menu.

A still image is displayed as long as you hold the PHOTO button after recording.
The FILE OPER. menu appears when you press the SET dial while you are reviewing a still image, or when you press the SET dial right after recording. In this menu, you can protect (111) or erase (112) the image.
☐ [REVIEW] cannot be selected when (continuous shooting), (high-speed continuous shooting) or (auto exposure bracketing) is selected.

Recording Motion JPEG Movies on a Memory Card

You can record Motion JPEG movies with the camcorder or from a tape in the camcorder. With the MVX350i/MVX330i, you can also record from devices connected via the DV terminal or the AV terminal. The sound of a movie recorded on a memory card will be monaural.

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

1. Press the start/stop button to begin recording.

With SD Memory Cards up to 512 MB, you can record until "CARD FULL" appears (approx. 33 minutes in 320 x 240 with a 512 MB SD Memory Card). With MultiMediaCards, the recording time is limited to 10 sec. in 320 x 240 pixels and 30 sec. in 160 x 120 pixels.

Illustration of a hand pressing a button on a device labeled 'UNLOCK' (no other text or symbols)

2. Press the start/stop button to stop recording.

Do not turn off the camcorder, change the position of the TAPE/CARD switch, disconnect the power source, open the memory card cover or remove the memory card while the card access indicator is flashing. Doing so could result in data damage.
When you are using a SD Memory Card, make sure that the protect switch is set to allow recording.
- Do not load/unload a cassette during recording.

We recommend using a Canon SD Memory Card, or a SD Memory Card with a transfer rate of more than 2 MB/sec., right after you have formatted it with this camcorder. With memory cards not formatted with this camcorder, or when recording/erasing has been repeatedly performed, the writing speed may be lower and recording may stop.

• You can select the focusing point when recording a movie on the memory card
• Users of Windows XP: When you plan to connect the camcorder to a computer using a USB cable, keep the length of one movie shorter than approx. 12 min. in 320 x 240 and 35 min. in 160 x 120.
  The recording time varies according to the movie size, the recoding condition and the subjects.

Screen Displays during Movie Recording

CARD MODE 00:00:05 320 0:02 ① ② ③ ④

① Card Access Display

“”appears and “” moves to indicate that the camcorder is writing on the memory card.

② Movie recording time

Indicates the recording time of the movie.

③ Image Size

Indicates the movie size.

④ Remaining Card Capacity for Movies

Indicates the remaining time in hours and minutes. At less than 1 minute, the remaining time will be displayed in 10 second-steps, at less than 10 seconds in 1 second-steps.

- The indication varies depending on the recording condition. The actual remaining time may be longer or shorter than indicated.

Recording from a Tape in the Camcorder

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

1. Play back the tape.
2. Press the start/stop button when the scene you wish to record appears.
3. Press the start/stop button to stop recording.

MVX350i/MVX330i Recording from Other Video Devices

You can record movies from devices connected via the AV terminal (analog line-in function), or via the DV terminal on a memory card. For connecting instructions, refer to page 34 and 79.

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

1. Set the camcorder to PLAY (VCR) mode.

2. If a cassette is loaded, make sure the tape is stopped.

3. When recording via the AV terminal, make sure that "AV DV" is displayed on the screen. When recording via the DV terminal, make sure that "AV DV" is not displayed. Change the setting as necessary (85).

4. Connected device: Load a recorded cassette and play back the tape.

5. Press the start/stop button when the scene you wish to record appears.
6. Press the start/stop button to stop recording.

When recording from a tape in the camcorder or other video devices:

A movie recorded from an image in widescreen mode will be vertically compressed.
- The data code of the movie will reflect the date and time it has been recorded on the memory card.

Selecting the Focusing Point

The subject you wish to record is not always in the center of the screen. In the Focus-Priority mode, you can choose from one of three focusing points to automatically put the subject you wish into sharp focus.

When the program selector is set to EASY, the Focus-Priority becomes set to ON (only the center focusing point is available).

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

1. Set the program selector to 📄

2. Turn the SET dial to display all focusing frames.

Three focusing frames appear on the screen, one of it in green.

3. Turn the SET dial to select the focusing point.

Turn the SET dial up to select the frame to the right, down to select the frame to the left.

The focusing frame gives an indication of the focusing point. Depending on the size of the subject or the distance, the camcorder may focus outside the frame.
When you operate the zoom lever, the frames other than the selected one disappear.
The focusing point can be selected only when Focus-Priority is set to [ON] in CARD CAMERA mode.
The focusing point returns to the center if you turn off the camcorder, change from CARD CAMERA mode or move the program selector to EASY.
- The focusing point cannot be selected in the following cases:

• When using the digital zoom.
• When exposure is locked.
• In Stitch Assist mode.

Turning Off the Focus-Priority Mode

Turn off the Focus-Priority mode if you wish to put timing ahead of focus.

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

MENU

(37)

CAMERA SETUP FOCUS PRI.

...ON

Open the menu and select [CAMERA SETUP]. Select [FOCUS PRI.], set it to [OFF] and close the menu.

Selecting the Drive Mode

Continuous Shooting	Captures a quick series of still images while you press the PHOTO button. For the number of frames per second, refer to the following table.
High-Speed Continuous Shooting
AEB (Auto Exposure Bracketing)	The camcorder records a still image in three different exposures (dark, normal, light in 1/2 EV steps), allowing you to choose the perfect exposed shot.
Single Records a single still image when you press the PHOTO button.

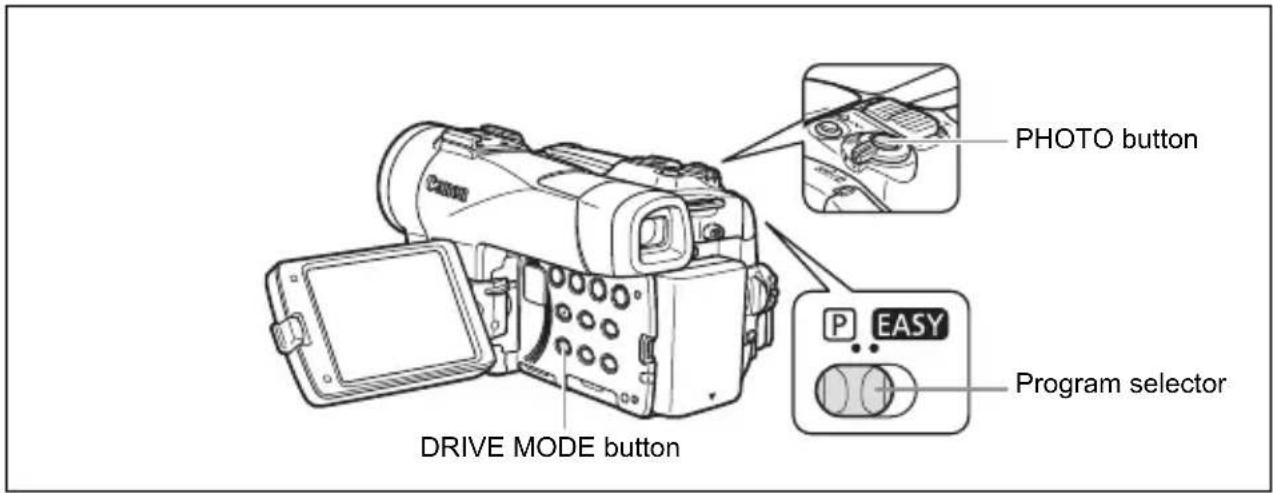

PHOTO button DRIVE MODE button EASY Program selector

Changing the Drive Mode

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

1. Set the program selector to 📄
2. Press the DRIVE MODE button to switch between the drive modes.

The setting changes with each press of the button.

Continuous Shooting/High-Speed Continuous Shooting

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

Press and hold the PHOTO button.

A series of still images will be recorded as long as you hold the PHOTO button.

○ Maximum number of continuous shots at one time:

Still Image Size	Frames per Second		Maximum Number of Continuous Shots
	Normal speed High speed
1280 x 960 3 frames	5 frames 10 images
640 x 480 3 frames	5 frames 60 images

These figures are approximate and vary with the recording conditions and subjects. Sufficient space on the memory card is required. Continuous shooting stops when card is full.

The number of frames per second will be lower when 📄 (camcorder shake warning) is displayed on the screen.

In normal and high-speed continuous shooting mode, images are captured at 2 frames/second when using the flash.

Auto Exposure Bracketing

CAMERA

PLAY (VCR)

CARD CAMERA

CARD PLAY

Press the PHOTO button.

Three still images in different exposures are recorded to the memory card.

Make sure that there is sufficient space on the memory card.

Recording Panoramic Images (Stitch Assist Mode)

You can shoot a series of overlapping images and merge them into one large panoramic scene using the supplied software (PhotoStitch) on a computer.

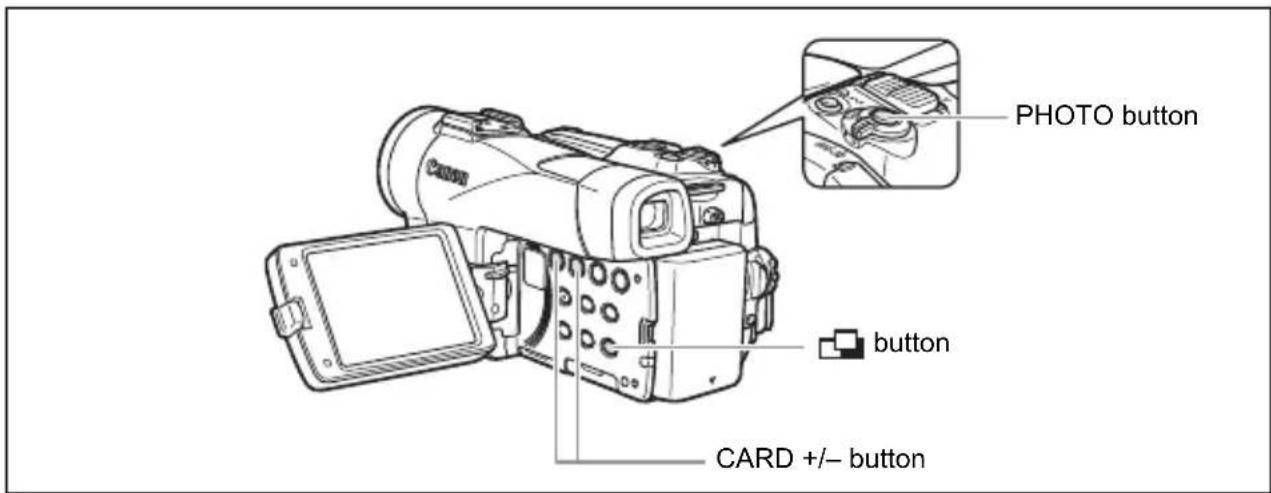

PHOTO button button CARD +/- button

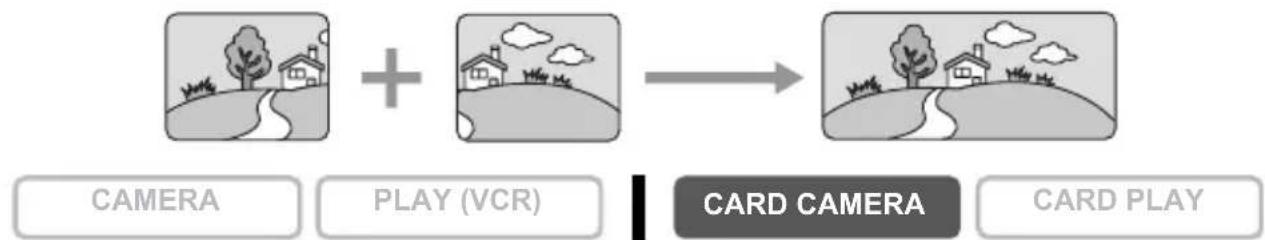

When Recording in Stitch Assist Mode:

PhotoStitch detects the overlapping portion of adjoining images and merges them. Try to include a distinctive item (landmark, etc.) in the overlapping portion.

1. Press the button.

CARD MIX/ / SLIDE SHOW

1. Select the direction with the CARD +/- button.

CARD + button: clockwise. CARD - button: counterclockwise.

REC SEARCH

1. Select the program AE mode and zoom on the subject.

Adjust focus and exposure manually as necessary. Once the sequence has started, you cannot change the program AE mode, exposure, zoom or focus.

1. Press the PHOTO button to record the first image.

Direction and number of recorded images appear.

Mechanical component diagram showing a hand pressing a button with an arrow indicating motion (no text or symbols present)

5. Record the second image so that it overlaps a portion of the first image.

• Minor discrepancies in the overlapped area can be corrected with the software.
• You can retake an image by pressing the CARD +/- button to return to the previous image.
• A maximum of 26 images can be recorded.

6. Press the button after the last image.

For details on how to merge these images, refer to the Digital Video Software Instruction Manual.

CARD MIX/ / SLIDE SHOW

○ Compose each image so that it overlaps 30 to 50% of the adjoining image. Try to keep the vertical misalignment within 10%.
Do not include a moving subject in the overlapping portion.
Do not try to stitch images that include both distant and close subjects. They may appear warped or doubled up.

Playing Back a Memory Card

You can display a single image, 6 at one time (index screen ☐10), or one after another (slide show ☐10). Use the Card Jump function to quickly locate an image without displaying them one by one (☐10).

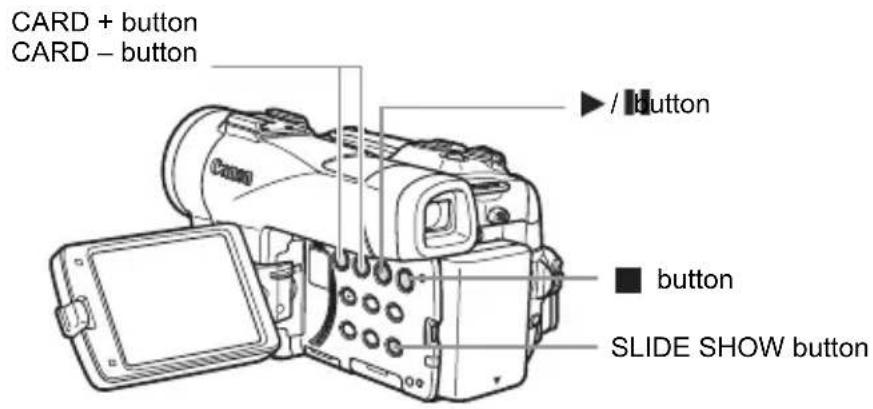

CARD + button CARD - button ▶ / / button ■ button SLIDE SHOW button

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

1. Set the camcorder to CARD PLAY mode.

2. Press the CARD +/- button to move between images.

3. To play back a movie, press the ▶ button.

4. The first scene appears as a still image when playback is complete.

5. Pressing the ▶ button during playback pauses the playback. Press the ▶ button again to restart playback.
6. Pressing the button displays the first scene of the movie.
7. Press the CARD +/- button (or the REW /FF button on the wireless controller) for 8x fast forward/fast rewind playback.

REC SEARCH

Hand pressing a button with a lightning bolt symbol (no text or numbers present)

Images not recorded with this camcorder, uploaded from a computer (except the sample images 115), edited on a computer and images whose file names have been changed may not be played back correctly.
Do not turn off the camcorder, change the position of the TAPE/CARD switch, disconnect the power source, open the memory card cover or remove the memory card while the card access indicator is flashing. Doing so could result in data damage.

Slide Show

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

1. Press the SLIDE SHOW button.

Images are played back one after another.

1. Press the SLIDE SHOW button to stop the slide show.

CARD MIX/ / SLIDE SHOW

Index Screen

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

1. Move the zoom lever toward W.

2. Up to 6 images appear.

3. With movies, the index screen can only be started when the first scene is displayed as a still image.

W-T

1. Turn the SET dial to select an image.

2. Move the “ ” to the image you wish to view.

3. You can switch between the index pages by pressing the CARD + or CARD - button.

ω₀ SET ω₀

1. Move the zoom lever toward T.

The index screen is canceled and the selected image is displayed.

W-T

Card Jump Function

You can locate images without displaying them one by one. The number in the upper right of the screen indicates the image number of the current image by the total number of images.

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

Press and hold the CARD + or CARD - button.

• When you release the button, the image of the displayed image number appears.
• With movies, the card jump function can only be started when the first scene is displayed as a still image.

REC SEARCH

You can protect important images from accidental erasure when displaying a single image or index screen.

If a memory card is formatted, all still images and movies, even protected ones, will be erased permanently.

Movies can only be protected when the first scene is displayed as a still image.

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

1. Select the image you wish to protect.
2. Press the SET dial to open the FILE OPER. menu.

In CARD CAMERA mode, the menu appears when you press the SET dial while you are reviewing a still image, or when you press the SET dial right after recording.

1. Select [PROTECT].

2. “” appears and now the image cannot be erased.

3. To cancel the protection, press the SET dial.

4. Select [ ◀RETURN] to close the menu.

Protecting during Index Screen Display

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

MENU

37)

CARD OPERATIONS PROTECT

1. Move the zoom lever toward W.

2. Up to 6 images appear.

3. Select the image you wish to protect.

4. Open the menu and select [CARD OPERATIONS]. Select [ → Oπ PROTECT] and press the SET dial.

5. “” appears on the image.

6. To cancel the protection, press the SET dial.

7. Close the menu.

You can erase images singly or all at once.

Be careful when erasing images. Erased images cannot be recovered.

○ Protected images cannot be erased.

○ Movies can only be erased when the first scene is displayed as a still image.

Erasing a Single Image

CAMERA

PLAY (VCR)

CARD CAMERA CARD PLAY

1. Select the image you wish to erase.
2. Press the SET dial to open the FILE OPER. menu.

In CARD CAMERA mode, the menu appears when you press the SET dial while you are reviewing a still image, or when you press the SET dial right after recording.

1. Select [IMAGE ERASE].

2. "ERASE THIS IMAGE?", [NO] and [YES] appears.

3. If an image is protected, [YES] appears in purple.

4. Select [YES].

The image is erased and the previous image appears.

1. Select [ ◀RETURN] to close the menu.

Erasing a Single Image/All Images

CAMERA

PLAY (VCR) CARD/CAMERA

CARD PLAY

MENU

37)

CARD OPERATIONS IMAGE ERAS

1. Open the menu and select [CARD OPERATIONS].
2. Select [IMAGE ERASE].

3. Select [SINGLE] or [ALL].

4. When erasing a single image: "ERASE THIS IMAGE?", [NO] and [YES] appears. If an image is protected, [YES] appears in purple.

5. When erasing all images: "ERASE ALL IMAGES? [EXCEPT FOR IMAGES]", [NO] and [YES] appears.

6. Select [YES] and close the menu.

7. When erasing a single image: The image is erased and the previous image appears. To erase another image, select the image with the CARD +/- button and select [YES].

8. When erasing all images: All still images or movies with exception of the protected ones are erased.

Combining Images (Card Mix)

You can produce effects not possible with just a tape with the Card Mix function. Choose one of the sample images provided on the supplied DIGITAL VIDEO SOLUTION DISK (such as picture frames, backgrounds and animations) and combine it with the live video recording.

Card Chroma Key (CARD CHROMA)

Combines frames with your recordings. The live video recording will appear in place of the blue area of the card mix image.

Mix level adjustment: blue area of the still image.

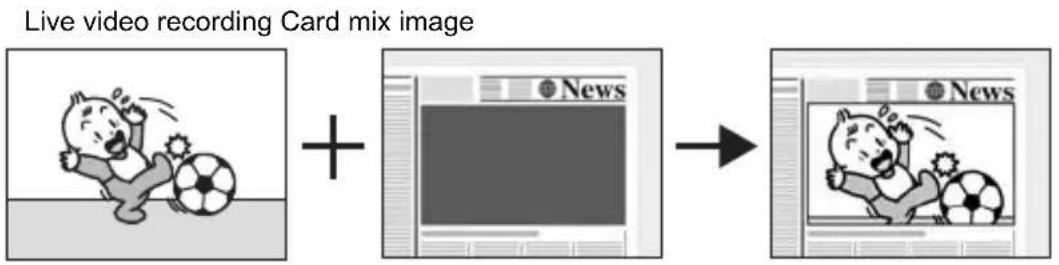

Live video recording Card mix image + News → News

Card Luminance Key (CARD LUMI.)

Combines illustrations or title with your recordings. The live video recording will appear in place of the light area of the card mix image.

Mix level adjustment: light area of the still image.

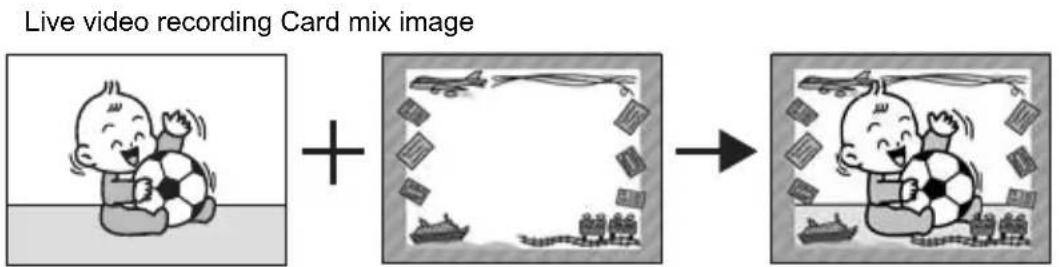

Live video recording Card mix image

Camera Chroma Key (CAM. CHROMA)

Combines backgrounds with your recordings. Record your subject in front of a blue curtain, and the subject not blue will be superimposed on the card mix image.

Mix level adjustment: blue area of the live video recording.

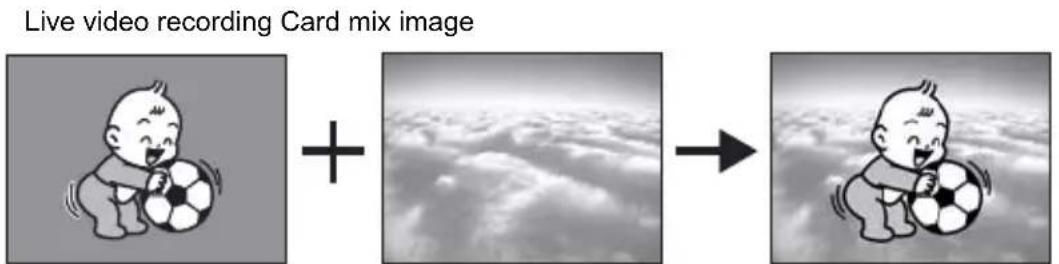

Live video recording Card mix image

Card Animation (C. ANIMATION)

Combines animations with your recordings. You can choose from 3 types of card animation effects.

• Corner: Animation appears on the upper left and the lower right corner of the screen.
- Straight: Animation appears on the top and bottom of the screen and moves to the right and left.
- Random: Animation moves randomly in the display.

Mix level adjustment: blue area of the card animation image.

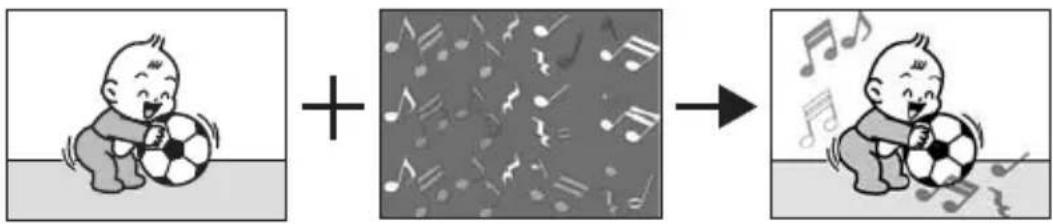

Live video recording Card mix image

Illustration showing a baby playing soccer with musical notes, followed by a group of children playing soccer with musical notes and the same ball.

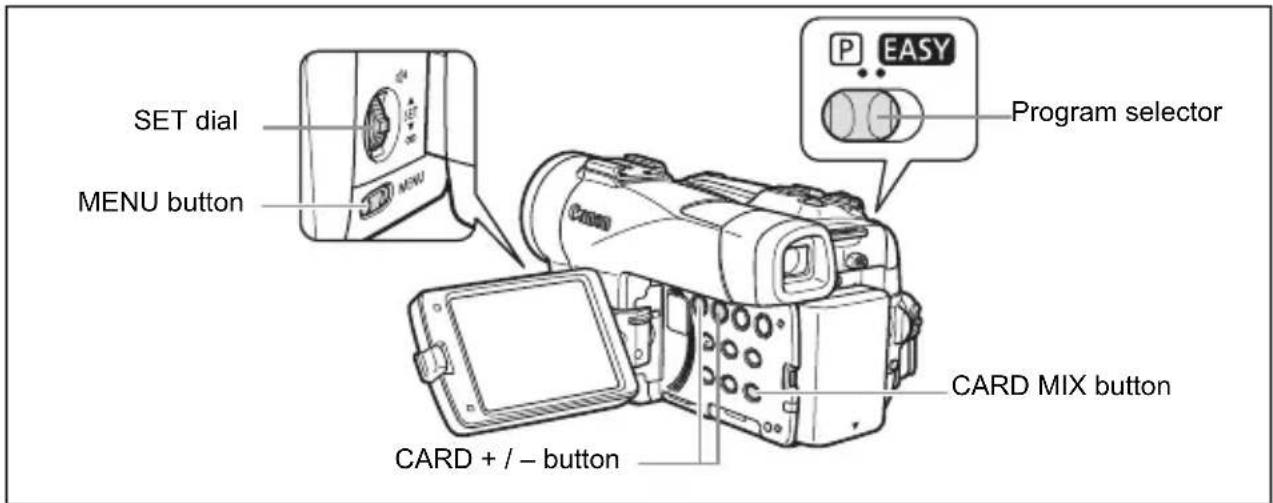

SET dial MENU button Program selector CARD MIX button CARD + / - button

Selecting the Card Mix Effect

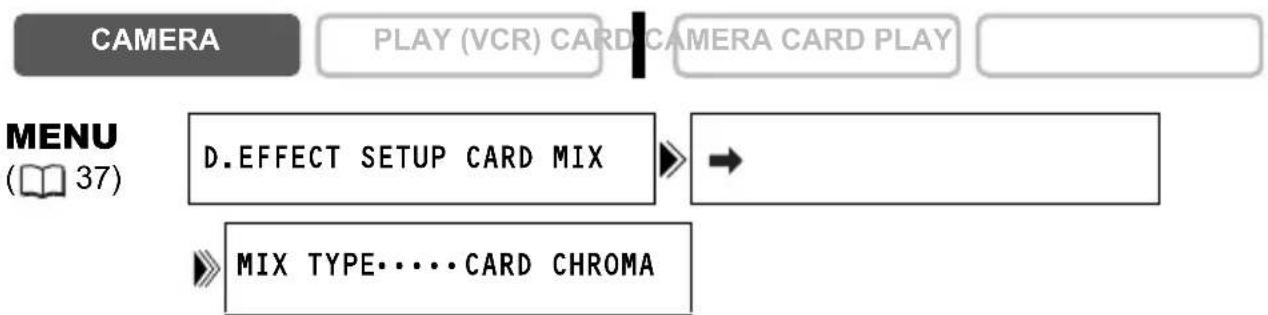

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37 ) D.EFFECT SETUP CARD MIX MIX TYPE....CARD CHROMA

1. Upload a sample image from the DIGITAL VIDEO SOLUTION DISK to the memory card in the camcorder.

Refer to Adding Still Images from Your Computer to the Memory Card in the Digital Video Software Instruction Manual.

1. Set the program selector to 📄

2. Open the menu and select [D.EFFECT SETUP].

3. Select [ CARD MIX].

The card mix menu appears.

1. Select the image you wish to combine with the CARD +/- button.

2. Select [MIX TYPE].

[CARD CHROMA], [CARD LUMI.], [CAM.CHROMA] and [C.ANIMATION] appears.

1. Select the mix type matching the sample image you have selected.

- The screen shows the combined image.

- When you have selected [C.ANIMATION], select [ANIMAT.TYPE] and select between [CORNER], [STRAIGHT] and [RANDOM].

1. To adjust the mix level, select [MIX LEVEL] and adjust it with the SET dial.

2. Close the menu.

"CARD MIX" flashes.

1. Press the CARD MIX button.

2. "CARD MIX" stops flashing.
   • The combined image appears.

○ Card mix cannot be used when [STILL I.REC] is set to [FINE] or

[N O R M A L] .

Movies recorded on a memory card cannot be combined with camcorder recordings.

Sample Images

Below are some sample images provided on the supplied DIGITAL VIDEO SOLUTION DISK.

Card Chroma Key

Simple illustration of a starry night sky with stars and clouds, no text or symbols present

Abstract grayscale illustration of a symmetrical, curved shape with radiating lines and scattered dots (no text or symbols)

Stylized cartoon-style illustration of a spiky, flame-like shape with cloud-like elements around it (no text or symbols)

Simple line drawing of a stylized hat with ribbed pattern (no text or symbols)

Simple line drawing of a pendant with a circular head (no text or symbols)

Card Luminance Key

Simple line drawing of a heart shape with a flowing ribbon (no text or symbols)

Two stylized human figures with sparkles above their heads, no text or symbols present

Abstract geometric pattern with stacked white rectangles on a gray background (no text or symbols)

Simple decorative frame with leaf-like border and central rectangular shape (no text or symbols)

Decorative border frame with fish, boat, and envelope (no text or symbols)

Camera Chroma Key

Black and white photo of a rocky cliffside with water spray and scattered debris (no visible text or symbols)

Aerial view of clouds with no visible text or symbols

Card Animation

Grid of white snowflake patterns on a gray background (no text or symbols)

Abstract pattern of repeating circular and gear-like shapes on a dark background (no text or symbols)

Grid of white abstract shapes on a gray background, no text or symbols present

Grid of 16 identical grayscale images showing abstract shapes, no text or symbols present

Abstract pattern of musical notes and dots on a dark background (no text or symbols)

The sample images provided on the supplied DIGITAL VIDEO SOLUTION DISK are intended only for the personal use with this camcorder. Do not use these sample images for other purposes.

PhotoEssentials – Royalty Free Stock Photography

The PhotoEssentials suite of royalty-free images on CD-ROM features premium quality assignment photography and is ideally suited for use in advertising, brochures, reports, multimedia, websites, books, packaging and more.

For more information, please visit their website www.photoessentials.com

Format new memory cards, or when you get the message "CARD ERROR". You can also format a memory card to erase all data recorded on it.

○ Formatting a memory card erases all data, including protected images.
○ Images erased by formatting cannot be recovered.
☐ If you use a memory card other than the supplied one, format it with the camcorder.

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

MENU

37)

CARD OPERATIONS FORMAT

1. Open the menu and select [CARD OPERATIONS].
2. Select [FORMAT].

[CANCEL] and [EXECUTE] appears.

1. Select [EXECUTE].

[ALL DATA WILL BE ERASED. FORMAT THIS CARD?], [NO] and [YES] appears.

1. Select [YES] and close the menu.

2. Formatting starts.

3. Selecting [NO] brings you back to step 3.

You can create a start-up image using a still image on the memory card.

CAMERA

PLAY (VCR) CARD/CAMERA

CARD PLAY

MENU

37)

MY CAMERA CREATE START-UP


1. Select a still image with the CARD +/- buttons.
2. Open the menu and select [MY CAMERA].
3. Select [CREATE START-UP IMAGE].

[SET THIS AS START-UP IMAGE?], [YES] and [NO] appears.

1. Select [YES].

[OVERWRITE MY IMAGE?], [NO] and [YES] appears.

1. Select [YES].

The still image will be saved, and the image that was saved to [MY IMAGE] is erased.

Retain the original data of the still image you have set as the start-up image on your computer or removable disk.

Printing Still Images

You can print still images by connecting the camcorder to a printer with direct print function. You can also use the print order settings for direct printing (129).

Following printers can be connected to your camcorder:

Canon Printers Pict	Bridge compliant SELPHY CP series printer*/Bubble Jet Printers (PIXMA series/SELPHY DS series)
	Bubble Jet Direct compatible Bubble Jet Printer
	CP-10/CP-100 CP-Printer
PictBridge compliant non-Canon Printer

*Includes the CP-330/CP-220/CP-300/CP-200.

If your CP-300 is not PictBridge compliant (does not carry the PictBridge logo), upgrade the printer firmware following the instructions on below website to enable use with this camcorder.

http://www.canon.co.jp/Imaging/cp300/cp300_firmware-e.html If you cannot access the website, please contact:

For Europe: A local Canon distributor listed in the Canon European Warranty System List included in the CP-300 kit.
For other regions: Canon Customer Support Help Desk listed in the Canon Customer Support Leaflet included in the CP-300 kit.

Connecting the Printer to the Camcorder

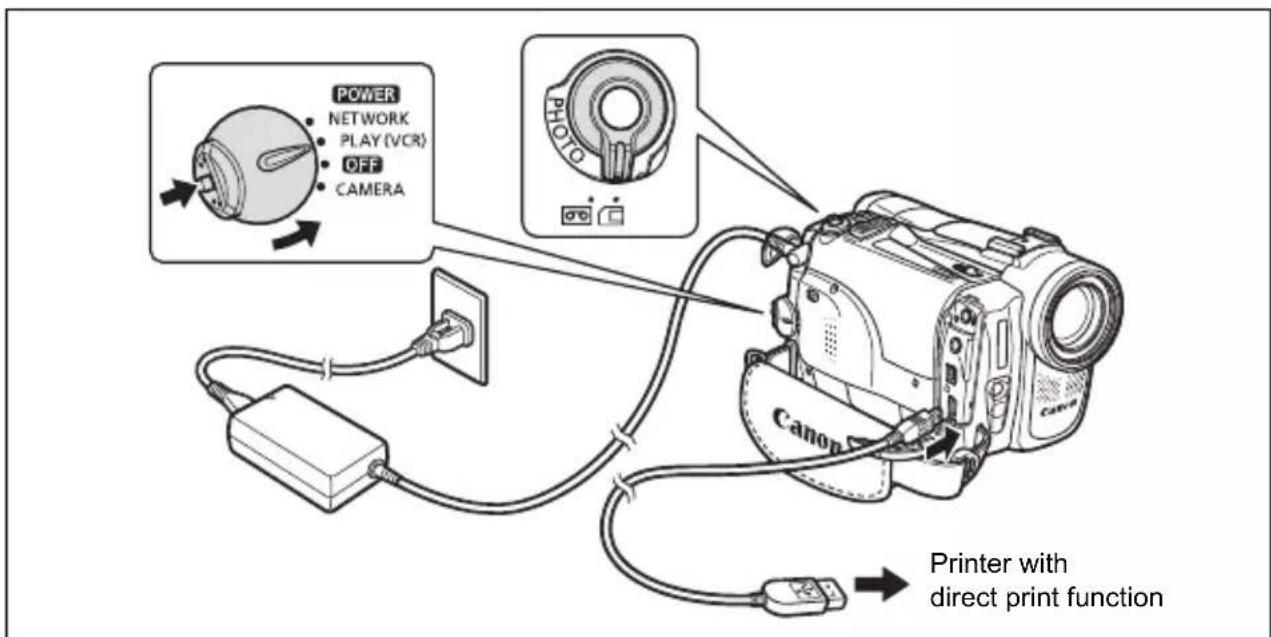

POWER NETWORK PLAY (VCR) OFF CAMERA Canon Printer with direct print function

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

1. Turn off the camcorder and insert a memory card that contains still images.

2. Turn on the printer.

3. Set the camcorder to CARD PLAY mode.

4. Connect the camcorder to the printer using the cable.

• appears and changes to , or when the printer is properly connected to the camcorder. (Does not appear with movies, or still images that cannot be played back with the camcorder.)

- The (print/share) button lights up and the current print setting will be displayed for approx. 6 seconds.

- continues to flash (for more than 1 minute) or if , SET B SET V SET does not appear, the camcorder is not correctly connected to the printer. In such case, disconnect the cable from camcorder and printer, turn off camcorder and printer, turn both back on and reconnect the camcorder to the printer.

Do not connect the camcorder to a printer when the camcorder is set to a mode other than the CARD PLAY mode.

○ Refer to the instruction manual of each printer for information on which interface cable to use with the camcorder.

The Canon CP-Printers CP-10 and CP-100 are supplied with two direct interface cables. Use the cable with the USB logo on the connector (DIF-100).

We recommend powering the camcorder from a household power source.

○ Refer also to the instruction manual of the respective printer.

The print setting menu may differ slightly depending on the connected printer.

Printing with the □(Print/Share) Button

You can print an image without changing the settings by simply pressing the (print/share) button.

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

1. Select the still image you wish to print with the CARD +/- button.

REC SEARCH

1. Press the (print/share) button.

2. Printing starts. The button flashes and glows steadily when printing is complete.

3. If you wish to continue printing, select another still image with the CARD +/- button.

Hand pressing a circular button with concentric rings, no text or symbols present

Printing after Selecting the Print Settings

You can select the number of copies and other settings for printing. The setting options vary depending on your printer model.

CAMERA

PLAY (VCR) CARD/CAMERA

CARD PLAY

1. Press the SET dial.

• The print setting menu appears.
• Depending on the printer, the message "BUSY." may appear before the camcorder displays the print setting menu.

8 10 20

2. Select the print settings (123).

3. Turn the SET dial to select [PRINT] and press the SET dial.

• Printing starts. The print setting menu disappears when printing is complete.
• If you wish to continue printing, select another still image with the CARD +/- button.

- Observe the following precautions during printing, otherwise printing may not be performed correctly.

• Do not turn off the camcorder or the printer.
• Do not change the position of the TAPE/CARD switch.
• Do not detach the cable.
• Do not open the memory card cover or remove the memory card.

Images not recorded with this camcorder, uploaded from a computer, edited on a computer and images whose file names have been changed may not be printed correctly.
- If the message "BUSY." does not disappear, disconnect the cable from camcorder and printer and reconnect the camcorder to the printer.

○ Cancel Printing

Press the SET dial during printing. A confirmation dialog appears. Select [OK] and press the SET dial.

• Canon Printer: Printing stops even if it is incomplete and the paper is fed through.
• Canon CP-Printer CP-10/CP-100: A print in progress cannot be stopped. Printing stops when the current print is finished, and the remaining prints are canceled.

○ Printing Errors

If an error occurs during the printing process, an error message appears (142).

- Canon Printer: Resolve the error. When printing does not resume automatically, select [CONTINUE] and press the SET dial. If [CONTINUE] cannot be selected, select [STOP], press the SET dial and retry printing. Refer also to the printer manual for details.

• Canon CP-Printer CP-10/CP-100: Select [STOP] or [RESUME] and press the SET dial. (The [RESUME] setting may not appear with some error messages. In that case, select [STOP].) Refer also to the printer manual for details.

• If the error still persists and printing does not restart, follow below procedure:

• Disconnect the cable.

• Turn the POWER switch of the camcorder to OFF and back to PLAY (VCR).
• Reconnect the cable.

When you have finished printing:

1. Disconnect the cable from the camcorder and printer.
2. Turn off the camcorder.

Selecting the Print Settings

The procedure for selecting the number of copies is common to all printers. Other print setting procedures vary depending on your printer model. Check which icon appears in the upper left corner of the camcorder screen after connecting, and refer to the relevant pages accordingly.

123 125

[NO TEXT]

[NO TEXT]

Selecting the Number of Copies

A maximum of 99 copies can be selected for one still image.

1. In the print setting menu, turn the SET dial to select (COPIES) and press the SET dial.

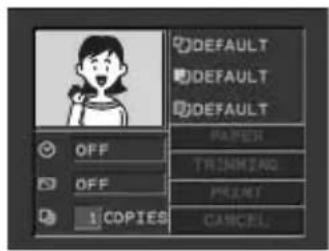

DEFAULT DEFAULT DEFAULT OFF OFF 1 CDPIES PAPERS TRIMMIZING PRINT CANCEL

1. Turn the SET dial to select the number of copies and press the SET dial.

DEFAULT DEFAULT DEFAULT PAPER TRIMMING PRINT CANCEL OFF OFF 3 COPIES

Setting the Print Style

PAPER P	PAPER SIZE Available paper sizes vary depending on the printer model.
	PAPER TYPE PHOTO, FAST PHOTO, DEFAULT
	PAGE LAYOUT BORDERLESS, BORDERED, DEFAULT, 8-UP
( date print) ON, OFF, DEFAULT
(print effect) ON, OFF, VIVID, NR, VIVID+NR, DEFAULT

Print setting options and [DEFAULT] settings vary depending on the printer model. For details, refer to the instruction manual of your printer.
☐ [BORDERED]: The image area remains relatively unchanged from the recorded image when it is printed. [BORDERLESS]/[8-UP]: The center portion of the recorded image is printed at an enlarged size. The image's top, bottom and sides may be cropped slightly.
☐ [8-UP] can be selected when using card size paper (5.3 x 8.6 cm) with CP Printers.
Date print cannot be selected with the CP Printers CP-200 and CP-300.
☐ [VIVID], [VIVID+NR] and [NR] can be selected with Canon Bubble Jet Printers.
With CP Printers, make sure to select the paper size of the attached paper cassette.

Paper Settings

1. In the print setting menu, turn the SET dial to select [PAPER] and press the SET dial.

DEFAULT DEFAULT DEFAULT PAPER THIS MINDING PRESENT CNCOS OFF OFF 1 COPIES

1. Turn the SET dial to select the paper size and press the SET dial.

Select the paper size of the paper set in your printer.

9x13cm 13x18cm 10x14.8cm 8.9x25.4cm A4 DEFAULT MEN CANCEL SET NEXT

1. Turn the SET dial to select the paper type and press the SET dial.

Select the paper type of the paper set in your printer.

PAPER TYPE PHOTO FAST PHOTO DEFAULT MENU PREVIOUS SET NEXT

1. Turn the SET dial to select a layout option and press the SET dial.

PAGE LAYOUT BORDERLESS BORDERED DEFAULT MEN PREVIOUS SET OK

Including the Date in the Print

1. In the print setting menu, turn the SET dial to select ⏻ (date) and press the SET dial.

DEFAULT DEFAULT DEFAULT OFF OFF 1 COPIES PROFESSIONS TRIMINGS PHYSICS CANCEL

1. Turn the SET dial to select a date print option and press the SET dial.

DEFAULT DEFAULT DEFAULT ON OFF 1 COPIES PAPERS TRIMMING PRINT CANCEL

Setting the Print Effect (Image Optimize)

This function uses the camcorder's recording information to optimize the image data, yielding high quality prints.

1. In the print setting menu, turn the SET dial to select 📋 (print effect) and press the SET dial.

DEFAULT DEFAULT DEFAULT OFF OFF 1 COPIES PAPER TRIMMING PRINT CANDI

1. Turn the SET dial to select a setting and press the SET dial.

DEFAULT DEFAULT DEFAULT OFF ON 1 COPIES PAPERS TRIMMING PRINT CAMER

Setting the Print Style

PAPER CARD #1*, CARD #2*,		CARD #3*, LTR, A4For details on paper type, refer to the Bubble Jet Printer User Guide.
BORDERS B	ORDERLESS Prints right to the edges of the page.
	BORDERED Prints with a border.

* Recommended paper size

[BORDERED]: The image area remains relatively unchanged from the recorded image when it is printed. [BORDERLESS]: The center portion of the recorded image is printed at an enlarged size. The image's top, bottom and sides may be cropped slightly.

1. In the print setting menu, turn the SET dial to select [STYLE] and press the SET dial.

CARD#1 BORDERED STYLE THINKLE 1 COPIES PRINT CANCEL

1. Make sure that (PAPER) is selected and press the SET dial.

STYLE D PAPER CARD#1 MENU

3. Turn the SET dial to select the paper size and press the SET dial.

• Select the paper size of the paper set in your printer.
• Pressing the MENU button brings you back to the print settings menu.

STYLE PAPER LTR MENU

4. Turn the SET dial to select (BORDERS) and press the SET dial.

STYLE BORDERS BORDERED MENU

5. Turn the SET dial to select a borders option and press the SET dial.

Pressing the MENU button brings you back to the print settings menu.

STYLE BORDERS BORDERLESS MENU

Setting the Print Style

IMAGE STAN	NDARD Prints 1 still image per page.
	MULTIPLE Prints 8 copies of the same still image on one page.
BORDERS B	ORDERLESS Prints right to the edges of the page.
	BORDERED Prints with a border.

☐ [BORDERED]: The image area remains relatively unchanged from the recorded image when it is printed. [BORDERLESS]/[MULTIPLE]: The center portion of the recorded image is printed at an enlarged size. The image's top, bottom and sides may be cropped slightly.
☐ [MULTIPLE] can only be selected when printing on card size paper.
☐ [BORDERS] can only be selected when [IMAGE] is set to [STANDARD].

1. In the print setting menu, turn the SET dial to select [STYLE] and press the SET dial.

STANDARD BORDERED STYLE TRIMING 1 COPTES PRINT CANCEL

Selecting the Image Style

1. Make sure that IMAGE) is selected and press the SET dial.

STYLE IMAGE STANDARD MEN

1. Turn the SET dial to select the image style and press the SET dial.

Pressing the MENU button brings you back to the print settings menu.

STYLE IMAGE STANDARD MENU

Selecting the Borders

1. Turn the SET dial to select (BORDERS) and press the SET dial.

STYLE BORDERS BORDERED MEN

1. Turn the SET dial to select a borders option and press the SET dial.

Pressing the MENU button brings you back to the print settings menu.

STYLE BORDERS BORDERLESS MENU

Set the print style before you start with the trimming settings.

1. In the print setting menu, turn the SET dial to select [TRIMMING] and press the SET dial.

The trimming frame appears.

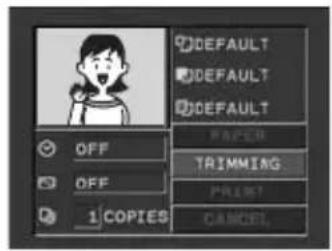

DEFAULT DEFAULT DEFAULT PAPER TRIMMING PRINT CANCEL OFF OFF 1 COPIES

2. Change the size of the trimming frame.

• Move the zoom lever toward T to shrink the frame, and toward W to enlarge the frame.
• To cancel the trimming settings, move the zoom lever toward W until the trimming frame disappears.

Cartoon illustration of a smiling girl waving, with no visible text or symbols

3. Move the trimming frame.

• Turn the SET dial to move the frame. Press the SET dial to switch between the directions (up/down or right/left).
• Pressing the MENU button brings you back to the print settings menu.

Cartoon illustration of a smiling girl waving, displayed within a video player interface (no text or symbols on the girl or frame)

About the color of the trimming frame (Canon CP-Printers only):

• White: No trimming settings.
• Green: Recommended trimming size. (The trimming frame may not appear in green depending on the image size, paper size or borders settings.)
• Red: The image is magnified beyond recommended size. The image will be printed coarsely.

○ The trimming setting applies only to one image.
- The trimming setting is canceled with the following operations:

- When you turn off the camcorder.

- When you disconnect the interface cable.

- When you expand the trimming frame beyond its maximum size.

Printing with Print Order Settings

You can select still images for printing and set the number of copies. These print order settings are compatible with the Digital Print Order Format (DPOF) standards and can be used for printing on DPOF compatible printers (119). A maximum of 200 still images can be selected.

Selecting Still Images for Printing (Print Order)

Do not connect a USB or DV cable to the camcorder while setting the print orders.

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

1. Select the still image you wish to print.
2. Press the SET dial to open the FILE OPER. menu.
3. Select [PRINT ORDR].

4. Select the number of copies.

5. “”appears on the image.

6. To cancel the print order, set the number of copies to 0.

7. Select [RETURN] to close the menu.

Selecting in Index Screen Display

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

MENU

(37)

CARD OPERATIONS PRINT ORDE

1. Move the zoom lever toward W.

2. Up to 6 images appear.

3. Select the image you wish to print.

4. Open the menu and select [CARD OPERATIONS]. Select [PRINT ORDER].

5. Press the SET dial and set the number of copies with the SET dial.

6. “”appears on the image.

7. To cancel the print order, set the number of copies to 0.

8. Close the menu.

Erasing All Print Orders

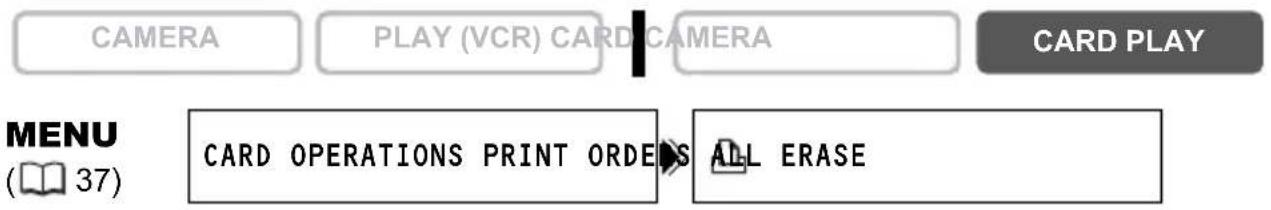

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37) CARD OPERATIONS PRINT ORDES ALL ERASE

1. Open the menu and select [CARD OPERATIONS].
2. Select [ PRINT ORDERS ALL ERASE].

"ERASE ALL PRINT ORDERS?", [NO] and [YES] appears.

1. Select [YES].

All "disappear.

1. Close the menu.

Printing

MENU

(37)

PRINT

1. Connect the printer to the camcorder (119).
2. Open the menu and select [PRINT].

• The print setting menu appears.
- "SET PRINT ORDER" appears, when you connect a printer with direct print function and select [PRINT] without having set the print order.

1. Make sure that [PRINT] is selected and press the SET dial.

Printing starts. The print setting menu disappears when printing is complete.

○ Depending on the connected printer, you can select style or paper settings before step 3.
○ Cancel Printing/Printing Errors (122)
○ Restarting Printing

Open the CARD PLAY menu and select [PRINT]. Select [RESUME] in the print setting menu and press the SET dial. The remaining images will be printed.

Printing cannot be restarted in the following cases:

• When you change the print order settings.
• When you delete a still image with print order settings.

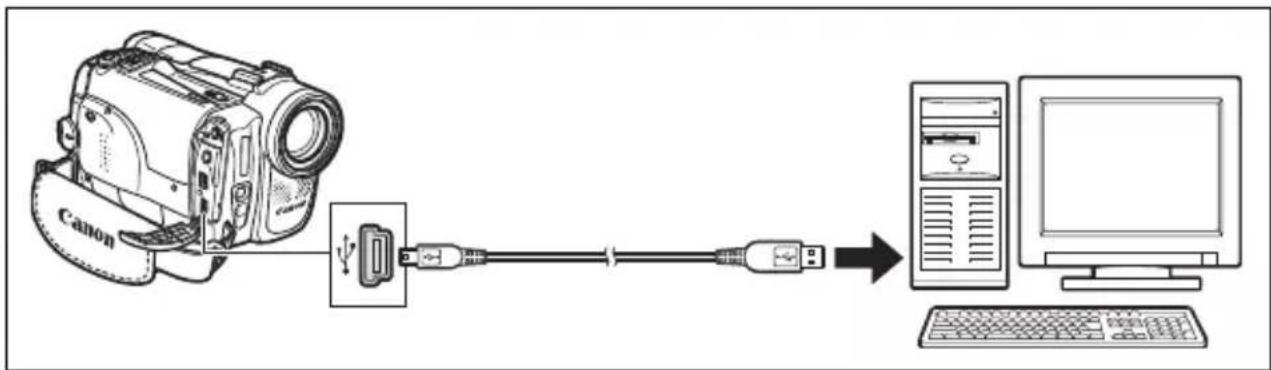

Transferring Memory Card Images to a Computer

E

With the supplied USB cable and Digital Video Software, you can browse and archive images or arrange still images for printout. For details, refer to the Digital Video Software Instruction Manual.

Users of Windows OS can also transfer images to the computer by simply pressing the (print/share) button (132).

Canon

Do not disconnect the USB cable, open the memory card cover, remove the memory card, change the position of the TAPE/CARD switch or turn off the camcorder and computer while data is being transferred to the computer (while the camcorder's card access indicator is flashing). Doing so may damage the memory card's data.
Operation may not work correctly depending on the software and the specifications/settings of your computer.
The image files on your memory card and the image files saved on the hard disk drive of your computer are valuable, original data files. If you wish to use image files on your computer, make copies of them first, and use the copied file, retaining the original.
○ Make sure that camcorder and computer are not connected with a DV cable before connecting the camcorder to the computer using the USB cable. Otherwise, the computer may not operate properly.

We recommend powering the camcorder from a household power source while it is connected to the computer.
○ Refer also to the computer instruction manual.
○ Users of Windows XP and Mac OS X:

Your camcorder is equipped with the standard Picture Transfer Protocol (PTP) allowing you to download still images (JPEG only) by simply connecting the camcorder to a computer via USB cable without installing the software from the DIGITAL VIDEO SOLUTION DISK.

You can transfer images to the computer with the (print/share) button.

	ALL IMAGES... Transfers all images to the computer.
	NEW IMAGES... Transfers only those images that have not yet been transferred to the computer.
	TRANSFER ORDERS... Transfers images with transfer orders to the computer.
	SELECT & TRANSFER... Allows you to select an image and transfers the selected image to the computer.
	WALLPAPER... Allows you to select a still image and transfers the selected image to the computer as wallpaper.

Preparations

The first time you connect the camcorder to the computer, you need to install the software and set the auto-launch setting.

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

1. Install the supplied Digital Video Software.

See Installing the Software in the Digital Video Software Instruction Manual.

1. Set the camcorder to CARD PLAY mode.

2. Connect the camcorder to the computer using the USB cable.

See Connecting the Camcorder to a Computer in the Digital Video Software Instruction Manual.

1. Set the auto-launch setting.

• See Starting CameraWindow in the Digital Video Software Instruction Manual.
- The direct transfer menu appears on the camcorder screen and the button lights up.

From the second time on, you only need to connect the camcorder to the computer to transfer images.

Transferring All Images, New Images or Images with Transfer Orders

To transfer images with transfer order, you need to set the transfer orders (135).

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

1. Turn the SET dial to select [ALL IMAGES], [NEW IMAGES] or [TRANSFER ORDERS].

2. Press the button.

• The images are transferred to the computer and displayed in the Main Window of ZoomBrowser EX.
• The camcorder displays the transfer menu when transfer is complete.

- To cancel transfer, turn the SET dial to select [CANCEL] and press the SET dial, or press the MENU button.

DIRECT TRANSFER ALL IMAGES... NEW IMAGES... TRANSFER ORDERS... SELECT & TRANSFER... WALLPAPER...

Transferring a Selected Image

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

1. Turn the SET dial to select [SELECT & TRANSFER].

2. Press the button.

3. Select the image you wish to transfer with the CARD+/- button.

DIRECT TRANSFER ALL IMAGES... NEW IMAGES... TRANSFER ORDERS... SELECT & TRANSFER... WALLPAPER...

4. Press the button.

• The selected image is transferred to the computer and displayed in the Main Window of ZoomBrowser EX.
• To continue transferring, select another image with the CARD+/- button.
• Pressing the MENU button brings you back to the transfer menu.

Transferring a Still Image as Wallpaper

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

1. Turn the SET dial to select [WALLPAPER].

2. Press the button.

3. Select the still image you wish to transfer as wallpaper with the CARD +/- button.

4. Press the button.

• The selected image is transferred to the computer and displayed on the desktop.
• Pressing the MENU button brings you back to the transfer menu.

DIRECT TRANSFER ALL IMAGES... NEW IMAGES... TRANSFER ORDERS... SELECT & TRANSFER... WALLPAPER...

Do not change the operating mode while the camcorder is connected to a computer.
○ Only JPEG compressed still images and Motion JPEG compressed movies can be transferred.

• You can press the SET dial in place of the button. With [ALC IMAGES], [NEW IMAGES] or [TRANSFER ORDERS], a confirmation message appears. Turn the SET dial to select [OK] and press the SET dial.
  When transferring with the button, the camcorder retains the transfer setting even if you turn it off or change the position of the TAPE/CARD switch. When you have selected [SELECT & TRANSFER] or [WALPAPER], the screen to select a still image appears. Press the MENU button to display the direct transfer menu.
  When the protect switch of the SD Memory Card is activated during image transfer, the images will not be marked as "already transferred", and will be transferred again when you select [NEW IMAGES] later.

Selecting Images for Transfer (Transfer Order)

You can select images for transfer to the computer. These transfer settings are compatible with the Digital Print Order Format (DPOF) standards. A maximum of 200 images can be selected.

Do not connect a USB or DV cable to the camcorder while setting the transfer orders.

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

1. Select the image you wish to transfer.
2. Press the SET dial to open the FILE OPER. menu.

3. Select [TRANS.ORDER] and press the SET dial.

4. “” appears on the image.

5. To cancel the transfer order, press the SET dial again.

6. Select [ RETURN] to close the menu.

Selecting in Index Screen Display

CAMERA

PLAY (VCR) CARD/CAMERA

CARD PLAY

MENU

37)

CARD OPERATIONS

TRANSFER ORDER

1. Move the zoom lever toward W.

Up to 6 images appear.

1. Open the menu and select [CARD OPERATIONS]. Select [TRANSFER ORDER].
2. Press the SET dial on the image you wish to transfer.

• “” appears on the image.
- To cancel the transfer order, press the SET dial again.

1. Close the menu.

Erasing All Transfer Orders

CAMERA

PLAY (VCR) CARD CAMERA

CARD PLAY

MENU

37)

CARD OPERATIONS TRANS.ORDEPS

ERASE

1. Open the menu and select [CARD OPERATIONS].
2. SELECT [TRANS.ORDERS ALL ERASE].

"ERASE ALL TRANSFER ORDERS?", [NO] and [YES] appears.

1. Select [YES].

All "disappear.

1. Close the menu.

About the NETWORK Mode

(DV Messenger Version2)

With the Windows XP dedicated DV Network Software (DV Messenger), you can operate your camcorder from the computer, perform videoconferences using the camcorder or remotely access the camcorder at home using the Internet.

Download the DV Messenger and the DV Network Software Instruction Manual from the following homepage. Refer to the DV Network Software Instruction Manual for details.

www.canon-europe.com/DVmessenger

www.canon.com.au/products/cameras.html

www.canon.com.cn/down/static/driverflistview.html

www.canon-asia.com

Preparations

1. Install DV Messenger.

2. Connect the power adapter to the camcorder.

3. Press the UNLOCK button and turn the POWER switch to NETWORK.

POWER NETWORK PLAY (VCR) OFF CAMERA UNLOCK

1. Connect the camcorder to the computer using a DV cable.

- "NETWORK MODE" appears on the camcorder screen.

1. Start DV Messenger.

NETWORK MODE

Before connecting the camcorder to the computer using a DV cable, make sure that camcorder and computer are not connected with a USB cable, and that no other 1394 device is connected to the computer.

- In NETWORK mode, the camcorder can only be operated from the computer, except for the following functions:

• When the DV Messenger [CAMERA] control panel is displayed: Zoom and focus (when DV Messenger set to autofocus)
• When the DV Messenger [VCR] control panel is displayed: Volume adjustment of the built-in speaker

- Following functions cannot be used with DV Messenger.

• Image stabilizer
• Digital zoom
• MVX350i/MVX330i F

- The camcorder cannot be operated with the wireless controller.

S

Hiding the Displays on the LCD Screen

You can hide the displays on the LCD screen to have a clear screen for playback.

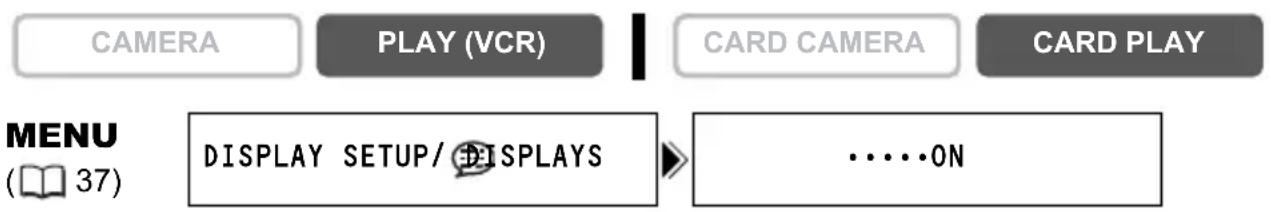

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37 ) DISPLAY SETUP/ DISPLAYS ...ON

Open the menu and select [DISPLAY SETUP/Select [DISPLAYS], set it to [OFF ] and close the menu.

• Warning messages still appear, and the data code appears if turned on.
• The displays appear while a playback image is magnified or a digital effect is activated.
• Tape operation displays appear for 2 seconds.
• Displays cannot be hidden on the index screen.

Hiding/Showing the Displays on the TV Screen

When you connect a TV for recording, you can select to hide the camcorder displays on the TV screen. For playback, you can show the camcorder displays on the TV screen.

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37) DISPLAY SETUP/ TV SCREEN ...ON

Open the menu and select [DISPLAY SETUP/]Select [TV SCREEN], set it to [OFF] and close the menu.

The displays disappear from the TV screen.

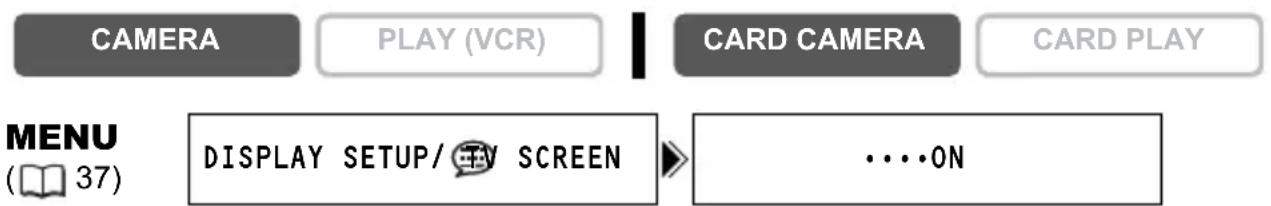

CAMERA PLAY (VCR) CARD CAMERA CARD PLAY MENU ( 37 ) DISPLAY SETUP/ TV SCREEN ...OFF

Open the menu and select [DISPLAY SETUP/Select [TV SCREEN], set it to [ON] and close the menu.

The displays appear on the TV screen.

Screen Displays during Recording/Playback

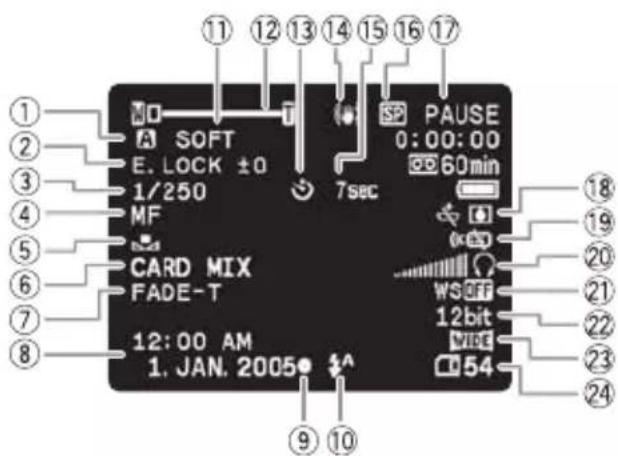

CAMERA Mode (see also ☐26)

1 2 SOFT E. LOCK ±0 1/250 MF CARD MIX FADE-T 12:00 AM 1. JAN. 2005 7sec PAUSE 0:00:00 60min WSOFF 12bit MICE 54 18 19 20 21 22 23 24 9 10

①
② Exposure (51) Remote sensor (
③ Shutter speed (56) Headphones (60)
④ Manual focus (52) Wind screen (61)
⑤ White balance (54) Audio mode (
⑥ Card mix (113) Widescreen mode (68)
⑧ Date and time (20) (96)

⑦ Digital effects (☐ 62) Remaining card capacity for still images

⑨ AF/AE locked during still image recording ( 9 4 )
⑩ Flash* (98)
⑪ Skin detail (50)
⑫ Zoom (28)
⑬ Self-timer (58)
⑭ Image stabilizer ( 78)
⑮ Self-timer countdown (58)
⑯ Recording mode (59)
⑰ Tape operation
⑱ Backup battery (15) /
Condensation warning (145)Program AE (45)
⑲ 77)
⑳
②1
②2 60)
②3

* MVX350i/MVX330i only.

PLAY (VCR) Mode

TAPE MODE MIX/VARI. SP 0:00:24:28 60min END SEARCH F1.8 1/250 12:00 AM 1. JAN. 2005 12bit DV IN ① ② ③ ④ ⑤ ⑥

① 12 bit audio (88)
② End search ( 72) /
Date search (74) /
Audio dubbing (86)
③ Data code (70)
④ DV connection* (82)
⑤ Volume level of speaker or headphones
(□3 3 )

⑥ REC PAUSE STOP EJECT FF REW

Fast forward playback/ rewind playback ( \$2 )
x2 x2 x2 playback (32)
x1/x1:x1 playback (32)
/ : Slow playback ( 32)
||►/◄||: Frame advance playback/frame reverse playback (32)

▶ ||/|| ◀: Playback pause (32)

▶/◀: Date search (74)

RTN ▶/ ◀ RTN:

Zero set memory (78)

- / - ||: Audio dubbing (86)

* MVX350i/MVX330i only.

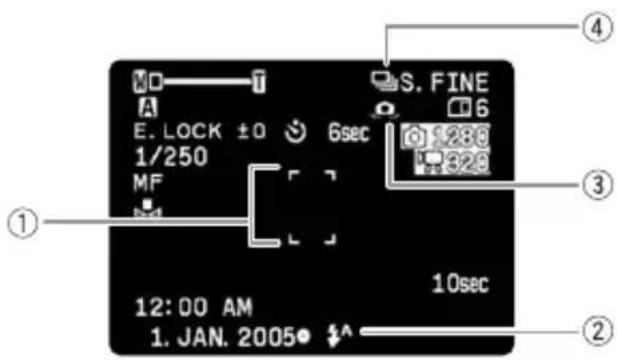

CARD CAMERA Mode (see also ☐102)

E. LOCK ±0 1/250 MF 12:00 AM 1. JAN. 2005 6sec S. FINE 1280 320 10sec

* MVX350i/MVX330i only.

① Focusing frame (104)
② Flash ^* (98)
③ Camcorder shake warning (57)
④ Drive mode ( 105)

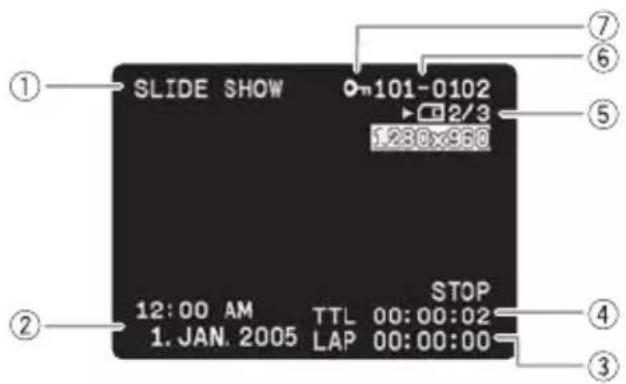

CARD PLAY Mode

SLIDE SHOW 12:00 AM TTL 00:00:02 1. JAN. 2005 LAP 00:00:00 STOP 1280x968 7 6 5 4 3

① Slide show (110)
② Data code (70)
③ Lap time
④ Length of the movie
⑤ Current image/total images
⑥ File number (93)
⑦ Protect mark (111)

Message Explanation		☐
SET THE TIME ZONE, DATE AND TIME	You have not set the time zone, date and time. This message appears each time you turn the power on until you set the time zone, date and time.	20
CHANGE THE BATTERY PACK	Battery pack is exhausted. Replace or charge the battery pack.	11
THE TAPE IS SET FOR ERASURE PREVENTION	Cassette is protected. Replace the cassette or change the position of the protect switch.	148
REMOVE THE CASSETTE	Camcorder stopped operating to protect the tape. Unload and reload the cassette.	14
CHECK THE INPUT DV cable	able or USB cable is not connected, or the connected digital device is turned off.	84
CONDENSATION HAS BEEN DETECTED	Condensation has been detected in the camcorder.	145
TAPE END Tape reached the end. Rewind the tape or replace the cassette. -
CHECK THE CASSETTE [REC MODE]	You attempted to perform audio dubbing on a tape recorded in a mode other than the SP mode.	86
CHECK THE CASSETTE [AUDIO MODE]	You attempted to perform audio dubbing on a tape recorded in 16-bit or 12-bit 4-channel sound.	86
CHECK THE CASSETTE [BLANK]	You attempted to perform audio dubbing on a tape with a blank section.	86
WRONG FORMAT PLAYBACK NOT POSSIBLE	You attempted to play back a tape recorded in HD format.	-
CHECK THE CASSETTE [WRONG FORMAT]	You attempted to perform audio dubbing on a tape recorded in HD format.	-
HEADS DIRTY, USE CLEANING CASSETTE	Video heads are dirty. Clean the video heads.	145
COPYRIGHT PROTECTED PLAYBACK IS RESTRICTED	You attempted to play back a copyright protected tape.	83
COPYRIGHT PROTECTED DUBBING RESTRICTED	You attempted to dub a copyright protected tape. May also appear when an anomalous signal is received during analog line-in recording, or during analog-digital conversion of a copyright protected tape.	83

Memory Card Related Messages

Message Explanation
NO CARD Memory card not	is inserted into the camcorder.	90
THE CARD IS SET FOR ERASURE PREVENTION	SD Memory Card is set for erasure prevention. Replace the card or change the position of the protect switch.	90
NO IMAGES No images are	recorded on the memory card. –
CARD ERROR A memory	card error occurred. The camcorder cannot record or play back the image.The error may be temporary. If the message disappears after 4 seconds and “flashes red, turn the camcorder off, remove the card and reinsert the card. If “changes to green, you can continue recording/playback.	–
CARD FULL No remaining	capacity on the memory card. Replace with another card or erase images.	–
NAMING ERROR File or folder number has reached the maximum value.		93
UNIDENTIFIABLE IMAGE	Image is not recorded with JPEG compression or with a compression not compatible with the camcorder, or the image file is corrupted.	-
TRANSFER ORDER ERROR	You attempted to set more than 200 transfer orders.	135
CANNOT TRANSFER! You	attempted to transfer a movie file as wallpaper.	133
THIS IMAGE CANNOT BE RECORDED	Some analog images cannot be recorded on the memory card depending on the signal.	-
THIS IMAGE CANNOT BE USED AS START-UP IMAGE	You attempted to use an image recorded with another camcorder, recorded with a compression not compatible with this camcorder, or that has been edited on a computer.	118
TOO MANY STILL IMAGES DISCONNECT USB CABLE	Disconnect the USB cable and decrease the number of still images on the memory card to less than 1800. If a dialog appeared on the computer screen, close it. Reconnect the USB cable.	-

E

Direct Print Related Messages

Following messages may appear on the camcorder screen. On printers equipped with an operation panel or printer that can be connected to a TV, an error number or message displays on the panel or TV monitor. Refer to the printer manual for the remedies corresponding to the error numbers or messages.

Message Explanation
PAPER ERROR There is a	problem with the paper.Wrong paper size is inserted, the ink cannot be used with the selected paper or paper output tray is open.
NO PAPER Paper is not cor	rectly inserted or there is no paper. If the printer is equipped with a photo paper cassette, specify the paper feed location using the Paper Feed switch.
PAPER JAM The paper jam	med during printing. Select [STOP] to cancel printing.After removing the paper, set some paper again and press the resume button on the printer.
PAPER HAS BEEN CHANGED	Paper size has been changed between print setting and start of printing.
MEDIA TYPE ERROR You	attempted to use a paper size/type that is not supported by the printer.
INCOMPATIBLE PAPER SIZE	You attempted to print on paper that cannot be used with the camcorder.
INK ERROR There is a pro	blem with the ink.
NO INK The ink cartridge is	not inserted or is out of ink.
LOW INK LEVEL The ink car	cartridge needs to be replaced soon. Select [CONTINUE] to restart printing.
INK CASSETTE ERROR T	here is a problem with the ink cassette.
PAPER AND INK DO NOT MATCH	The ink cannot be used with the selected paper type.
WASTE TANK FULL Waste	tank is full. Select [CONTINUE] to restart printing. Consult your dealer or a Canon Service Center listed in the Contact List provided with the printer or the printer manual to replace the waste tank (waste ink absorber).
FILE ERROR You attempted	to print an image that was recorded with another camcorder, with a different compression, or was edited on a computer.
CANNOT PRINT! You attem	pted to print an image that was recorded with another camcorder, with a different compression, or was edited on a computer.
COULD NOT PRINT X IMAGES	You attempted to use the print order settings to print X images that were recorded with another camcorder, with a different compression or were edited on a computer.
SET PRINT ORDER You	attempted to print an image from the CARD PLAY menu [PRINT] without having set the print order.
PRINT ORDER ERROR	You attempted to set more than 200 still images in the print order.
CANNOT TRIM	You attempted to trim an image that was recorded with another camcorder.
READJUST TRIMMING	You changed the print style after you set the trimming settings.
PRINTER ERRORPRINT ERROR Cancel printing	Cancel printing. Turn off the printer and turn it back on. Check the printer status. If the error persists, consult your dealer or a Canon Service Center listed in the Contact List provided with the printer or the printer manual., disconnect the USB cable and turn off the printer. After a while, turn the printer back on and reconnect the USB cable. Check the printer status. If the error persists, consult your dealer or a Canon Service Center listed in the Contact List provided with the printer or the printer manual.When you are printing using the button, check the print settings.
HARDWARE ERROR Cancel printing. Turn off the printer and turn it back on. Check the printer status. If the printer is equipped with a battery, it might be exhausted. In such case, turn off the printer, replace the battery and turn it back on. If the error persists, consult your dealer or a Canon Service Center listed in the Contact List provided with the printer or the printer manual.
RECHARGE THE PRINTER BATTERY	The printer battery is depleted.
COMMUNICATION ERROR	The printer is experiencing a data transmission error. Cancel printing, disconnect the USB cable and turn off the printer. After a while, turn the printer back on and reconnect the USB cable. When you are printing using the button, check the print settings.Or, you attempted to print from a memory card that contains a large number of images. Reduce the number of images.
CHECK PRINT SETTINGS	The print setting cannot be used for printing with the button.
PRINTER IN USE The printer is in use. Check the printer status.
PRINTER WARMING UP Printer is warming up. If the message does not disappear after a few seconds, check the printer status.
PAPER LEVER ERROR Paper lever error occurred. Adjust the paper selection lever to the proper position.
PRINTER COVER OPEN Close the printer cover securely.
NO PRINTHEAD No print head is installed in the printer or print head is defect. Refer to the instruction manual of your printer.

E

Camcorder Handling Precautions

• Do not carry the camcorder by the LCD panel or viewfinder.
  Do not leave the camcorder in places subject to high temperatures, such as a sun-heated car, and high humidity.
  Do not use the camcorder near strong electric or magnetic fields such as above TVs, near plasma TVs or mobile phones.
  Do not point the lens or viewfinder at strong light sources. Do not leave the camcorder pointed at a bright subject.
  Do not use the camcorder in dusty or sandy places. Dust or sand getting inside the cassette or camcorder may cause damage. Dust and sand can also damage the lens. Attach the lens cap after use.
  The camcorder is not waterproof. Water, mud or salt getting inside the cassette or camcorder may cause damage.
• Be careful of heat generated by lighting equipment.
  Do not disassemble the camcorder. If the camcorder does not function properly, consult qualified service personnel.
• Handle the camcorder with care. Do not subject the camcorder to shocks or vibration as this may cause damage.
• Avoid sudden changes in temperature. Moving the camcorder rapidly between hot and cold temperatures may cause condensation to form on its internal surfaces ( 145).

Storage

☐ If you do not intend to use the camcorder for a long time, store it in a place free of dust, in low humidity, and at temperatures not higher than 30 °C ( 86 °F ).
- After storage, check the functions of your camcorder to make sure that the camcorder is still working properly.

Cleaning

Camcorder Body and Lens

- Use a soft, dry cloth to clean the camcorder body and lens. Never use chemically treated cloth or volatile solvents such as paint thinner.

LCD Screen

○ Clean the LCD screen using a commercially available cleaning cloth for glasses.
- Condensation may form on the surface of the screen when the temperature changes suddenly. Wipe it with a soft dry cloth.
- At cold temperatures, the screen may be darker than usual. This is not a malfunction. The screen returns to normal when the camcorder warms up.

Viewfinder

- Clean the viewfinder screen using a blower brush or a commercially available cleaning cloth for glasses.

Video Heads

When the message "HEADS DIRTY, USE CLEANING CASSETTE" appears, or when the playback picture becomes distorted, the video heads need to be cleaned.
To maintain the best picture quality, we recommend cleaning the video heads frequently with the Canon DVM-CL Digital Video Head Cleaning Cassette or a commercially available dry cleaning cassette.
☐ Tapes already recorded with dirty video heads may not be played back correctly even when you clean the video heads.
Do not use wet type cleaning cassettes as this may damage the camcorder.

Condensation

Moving the camcorder rapidly between hot and cold temperature may cause condensation (water droplets) to form on its internal surfaces. Stop using the camcorder if condensation is detected. Continued use may damage the camcorder.

Condensation may form in the following cases:

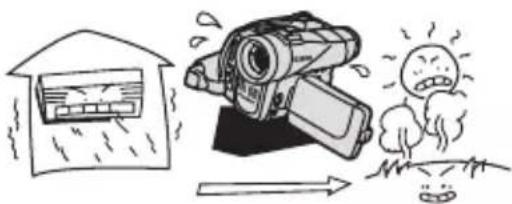

When the camcorder is moved from an air-conditioned room to warm, humid place

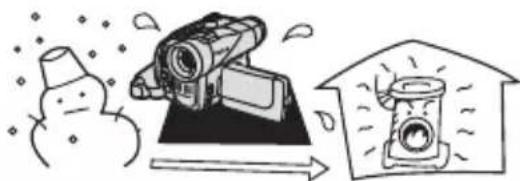

When the camcorder is moved from a cold place to a warm room

Illustration of a cartoon-style house with smoke and a gun, accompanied by a sad sun emerging from ground (no text or symbols)

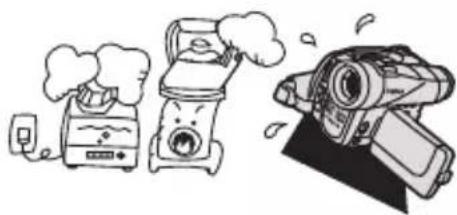

When the camcorder is left in a humid room

Illustration of a megaphone emitting smoke from a snowman, with a separate view of a cylindrical device inside a house (no text or symbols)

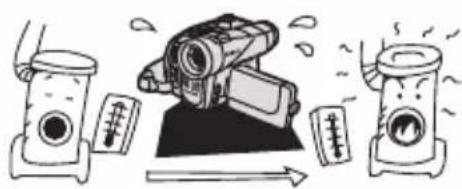

When a cold room is heated rapidly

Illustration of three kitchen appliances: a toaster, a blender with smoke, and a digital camera (no text or symbols)

Illustration of a portable radio emitting sound waves from two speakers (no text or symbols)

How to avoid condensation:

○ Unload the cassette, place the camcorder in an airtight plastic bag and let it adjust to temperature changes slowly before removing it from the bag.

When condensation is detected:

The camcorder stops operating and the warning message "CONDENSATION HAS BEEN DETECTED" appears for approx. 4 seconds and "starts flashing.
If a cassette is loaded, the warning message "REMOVE THE CASSETTE" appears and "starts flashing. Remove the cassette immediately and leave the cassette compartment open. Leaving the cassette in the camcorder may damage the tape."
○ A cassette cannot be loaded when condensation is detected.

E

Resuming use:

- It takes about 1 hour until the water droplets evaporate. After the condensation warning stops flashing, wait for 1 more hour before resuming use.

Battery Pack Handling Precautions

DANGER!

Treat the battery pack with care.

• Keep it away from fire (or it might explode).
• Do not expose the battery pack to temperature higher than 60^ (140 °F). Do not leave it near a heater or inside a car in hot weather.
• Do not try to disassemble or modify it.
• Do not drop or knock it.

• Do not get it wet.

• Charged battery packs continue to discharge naturally. Therefore, charge them on the day of use, or the day before, to ensure a full charge.

• Attach the terminal cover whenever a battery pack is not in use. Contact to metallic objects may cause a short circuit and damage the battery pack.
• Dirty terminals may cause a poor contact between the battery pack and the camcorder. Wipe the terminals with a soft cloth.
• Since storing a charged battery pack for a long time (about 1 year) can shorten its lifecycle or affect performance, we recommend to discharge the battery pack fully and to store it in a dry place at temperatures no higher than 30^ ( 86^ ). If you do not use the battery pack for long periods, charge and discharge it fully at least once a year. If you have more than 1 battery pack, perform these precautions at the same time for all battery packs.
  ○ Replace the battery pack if the usable time after full charge diminishes substantially at normal temperatures.
  Although the battery pack's operating temperature range is from 0 °C to 40 °C (32 °F to 104 °F), the optimal range is from 10 °C to 30 °C (56 °F to 86 °F). At cold temperatures, performance will temporarily decline. Warm it in your pocket before use.

About the battery terminal cover

The battery terminal cover has a [ ]-shaped hole. This is useful when you wish to differentiate between charged and uncharged battery packs. For example, with charged battery packs, attach the terminal cover so that the [ ]-shaped hole shows the blue label.

Back side of the battery pack

Pure electrical circuit lines without any symbols

Terminal cover attached Charged Uncharged

Simple rectangular outline with a small gray rectangle at the center (no text or symbols)

Simple line drawing of a rectangular box with a small square cutout on the side (no text or symbols)

WARNING!

- The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100 °C (212°F) or incinerate the battery.

CR1616:

- Replace the battery with a CR1616 made by Panasonic, Hitachi Maxell, Sony, Toshiba, Varta or Renata. Use of other batteries may present a risk of fire or explosion.

CR2025:

- Replace the battery with a CR2025 made by Panasonic, Hitachi Maxell, Sony, Sanyo, or with Duracell2025. Use of other batteries may present a risk of fire or explosion.

- The used battery should be returned to the supplier for safe disposal.

• Do not pick up the battery using tweezers or other metal tools as this will cause a short circuit.
  ○ Wipe the battery with a clean dry cloth to ensure proper contact.
  Keep the battery out of reach of children. If it is swallowed, seek medical assistance immediately. The battery case may break and the battery fluids may damage stomach and intestines.
  ○ Do not disassemble, heat or immerse the battery in water to avoid the risk of explosion.

Cassette Handling Precautions

• Rewind tapes after use. If the tape becomes slack and damaged, it may cause picture and sound distortion.
• Return cassettes in the case and store them upright.
• Do not leave the cassette in the camcorder after use.
• Do not use spliced tapes or nonstandard cassettes as they may damage the camcorder.
  Do not use tapes that have been jammed as video heads may become dirty.
• Do not insert anything into the small holes of the cassette, or cover them with cellophane tape.
  ○ Handle cassettes with care. Do not drop or subject them to severe impact as this may damage the cassettes.
• Rewind tapes from time to time if they are stored for a long time.
  With cassettes equipped with a memory function, metal plated terminals may become dirty with use. Clean the terminals with a cotton swab after about 10 times of loading/unloading. The memory function is not supported by the camcorder.

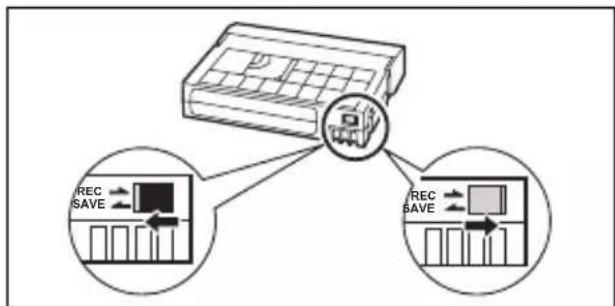

Protecting Tapes from Accidental Erasure

To protect your recordings from accidental erasure, slide the tab on the cassette to SAVE or ERASE OFF.

If you load a protected cassette in CAMERA mode, the message "THE TAPE IS SET FOR ERASURE PREVENTION" appears for approx. 4 seconds and "starts flashing. If you wish to record on that cassette, change the position of the tab.

Memory Card Handling Precautions

Format new memory cards with the camcorder. Memory cards formatted with other devices such as a computer may not operate correctly.
We recommend saving backups of memory card images on your computer's hard drive or other external memory device. Image data may be corrupted or lost due to memory card defects or exposure to static electricity. Canon Inc. makes no warranties for corrupted or lost data.
Do not turn off the camcorder, disconnect the power source, open the memory card cover or remove the memory card while the card access indicator is flashing.
Do not use memory cards in places subject to strong magnetic fields.
Do not leave memory cards in places subject to high humidity and high temperature.
○ Do not disassemble memory cards.
Do not bend, drop, or subject memory cards to shocks and do not expose them to water.
○ Moving a memory card rapidly between hot and cold temperatures may cause condensation to form on its external and internal surfaces. If condensation forms on the card, put it aside until the droplets have evaporated completely.
Do not touch or expose the terminals to dust or dirt.
- Check the direction before inserting the memory card. Forcing a memory card backwards into the slot may damage the memory card or the camcorder.
Do not remove the label from the memory card, or affix other labels on the memory card.

Using the Camcorder Abroad

Power Sources

You can use the compact power adapter to operate the camcorder and to charge battery packs in any country with power supply between 100 and 240 V AC, 50/60 Hz. Consult the Canon Service Center for information on plug adapters for overseas use.

Playback on a TV Screen

You can only play back your recordings on TVs with PAL system. The PAL system is used in the following countries/areas:

Algeria, Australia, Austria, Bangladesh, Belgium, Brunei, China, Denmark, Finland, Germany, Hong Kong Special Administrative Region, Iceland, India, Indonesia, Ireland, Italy, Jordan, Kenya, Kuwait, Liberia, Malaysia, Malta, Mozambique, the Netherlands, New Zealand, North Korea, Norway, Oman, Pakistan, Portugal, Qatar, Sierra Leone, Singapore, South Africa, Spain, Sri Lanka, Swaziland, Sweden, Switzerland, Tanzania, Thailand, Turkey, Uganda, United Arab Emirates, United Kingdom, Yemen, former Yugoslavia, Zambia.

E

If you have a problem with your camcorder, refer to this checklist. Consult your dealer or a Canon Service Center if the problem persists.

Power Source

Problem Cause Solution
Camcorder will not turn on. Battery pack is exhausted. Replace	or charge the battery pack.	11
	Battery pack is not correctly attached.	Attach the battery pack correctly.	11
The camcorder switches off by itself.	Battery pack is exhausted. Replace or charge the battery pack.	11
	Power save function has been activated.	Turn on the camcorder.	23
Cassette compartment will not open.	Battery pack is exhausted. Replace or charge the battery pack.	11
	Cassette compartment cover is not fully open.	Open the cassette compartment cover fully.	14
Cassette compartment stopped during loading/unloading.	Battery pack is exhausted. Replace or charge the battery pack.	11
LCD/viewfinder switches on and off.	Battery pack is exhausted. Replace or charge the battery pack.	11
Battery pack will not charge. Battery packs will not charge outside the temperature range of 0 °C and 40°C (32°F and 104°F).	Charge the battery pack in temperatures between 0 °C and 40 °C (32°F and 104°F).	-
	Battery packs become hot with use and may not charge.	Wait until the battery pack temperature is below 40 °C (104 °F) and retry charging.	-
	The battery pack is damaged. Use a different battery pack. -

Recording/Playback

Problem Cause Solution
Buttons will not work. Camcorder	er is not turned on. Turn on the camcorder.		23
	Cassette is not loaded. Load a cassette.		14
“” flashes on the screen. Cassette is not loaded. Load a cassette.			14
“” flashes on the screen. Battery pack is exhausted. Replace or charge the battery pack.			11
“” flashes on the screen.	Condensation is detected.	See reference page.	145
“REMOVE THE CASSETTE” appears on the screen.	Camcorder stopped operating to protect the tape.	Unload and reload the cassette.	14
The wireless controller will not work.	[WL.REMOTE] is set to [OFF] in the menu.	Set [WL.REMOTE] to [ON] in the menu.	77
	The battery of the wireless controller is exhausted.	Replace the battery.	18

Recording

Problem Cause Solution
“flashes red on the screen.	The camcorder malfunctions.	Consult a Canon Service Center.	-
Image will not appear on the screen.	Camcorder is not set to CAMERA mode.	Set the camcorder to CAMERA mode.	23
“SET THE TIME ZONE, DATE AND TIME” appears on the screen.	Time zone, date and time are not set.	Set the time zone, date and time.	20
	Backup battery is exhausted.	Replace the backup battery and reset the time zone, date and time.	15
	Battery pack is inserted the wrong way.	Insert the backup battery with the + side facing outward and set the time zone, date and time.	15
Pressing the start/stop button will not start recording.	Camcorder is turned off. Turn on the power.		23
	Cassette is not loaded. Load a cassette.		14
	Tape reached the end (“END” flashes on the screen).	Rewind the tape or replace the cassette.	14
	Cassette is protected (“flashes on the screen).	Change the position of the protect switch.	148
	Camcorder is set to a mode other than the CAMERA mode.	Set the camcorder to CAMERA mode.	23
Camcorder will not focus. Auto focus does not work on that subject.		Focus manually.	52
		Viewfinder is not adjusted. Adjust the viewfinder with the dioptric adjustment lever.	16
		Lens is dirty. Clean the lens.	145
A vertical light bar appears on the screen.	Bright light in a dark scene may cause a vertical light bar (smear) to appear. This is not a malfunction.	---	-
Viewfinder picture is blurred. Viewfinder is not adjusted. Adjust the viewfinder with the dioptric adjustment lever.			16
Sound is distorted or recorded in a lower volume than the actual volume.	When recording near loud sound (such as fireworks, drums or concerts), sound may become distorted or may not be recorded in the actual sound level. This is not a malfunction.	---	-

E

Playback

Problem Cause Solution
Pressing the playback button does not start playback.	Camcorder is turned off, or is not set to PLAY (VCR) mode.	Set the camcorder to PLAY (VCR) mode.	31
	The TAPE/CARD switch is set to CARD.	Set the TAPE/CARD switch to TAPE.	31
	Cassette is not loaded. Load a	cassette.	14
	Tape reached the end ("END" flashes on the screen).	Rewind the tape.	31
Image will not appear on the TV screen.	[AV/PHONES] is set to [PHONES] in the menu.	Set [AV/PHONES] to [AV] in the menu.	34
	[AV BV] is set to [ON] in the menu.	Set [AV BV] to [OFF] in the menu.	85
Tape is running, but image will not appear on the TV screen.	TV/VIDEO selector on the TV is not set to VIDEO.	Set the selector to VIDEO.	34
	Video heads are dirty. Clean the video heads.		145
	You attempted to play back or dub copyright protected tape.	Stop playback/dubbing. -
No sound from the built-in speaker.	Speaker volume is turned off.	Adjust the volume with the SET dial.	33
Noise comes out of the headphones.	[AV/PHONES] is set to [AV] in the menu.	Set [AV/PHONES] to [PHONES] in the menu.	33

Editing

Problem Cause Solution
Dubbing via the camcorder's DV terminal does not work.	[AV BV] is set to [ON] in the menu.	Set [AV BV] to [OFF] in the menu.	85
	Wrong signal format. Dubbing may work via the AV terminal.Refer also to the instruction manual of the connected device.		-

Memory Card Operation

Problem Cause Solution			☐
Memory card cannot be inserted.	Memory card was not facing the correct direction.	Turn the memory card over and reinsert it.	90
Memory card cannot be recorded.	Memory card is full. Replace the	memory card or erase images.	90
	Memory card is not formatted.	Format the memory card.	117
	Memory card is not inserted.	Insert a memory card.	90
	File number reached maximum value.	Set [FILE NOS.] to [RESET] in the menu and insert a new memory card.	93
	SD Memory Card is protected.	Change the position of the protect switch.	90
Memory card cannot be played back.	Camcorder is not set to CARD PLAY mode.	Set the camcorder to CARD PLAY mode.	109
	Memory card is not inserted.	Insert a memory card.	90
Image cannot be erased. Image	is protected. Cancel the protection.		111
	SD memory card is protected.	Change the position of the protect switch.	90
“flashes red. Card error occurred. Turn off the camcorder.		Remove and reinsert the memory card. Format the memory card if flashing persists.	117

Printing

Problem Cause Solution
The printer is not operating even though camcorder and printer are correctly connected.	The camcorder is set to NETWORK mode.	1. Set the camcorder to CARD PLAY mode.2. Disconnect and reconnect the USB cable.3. Turn off the printer and turn it back on.	-

E

Optional Accessories

Use of genuine Canon accessories is recommended.

This product is designed to achieve excellent performance when used with genuine Canon accessories. Canon shall not be liable for any damage to this product and/or accidents such as fire, etc., caused by the malfunction of non-genuine Canon accessories (e.g., a leakage and/or explosion of a battery pack). Please note that this warranty does not apply to repairs arising out of the malfunction of non-genuine Canon accessories, although you may request such repairs on a chargeable basis.

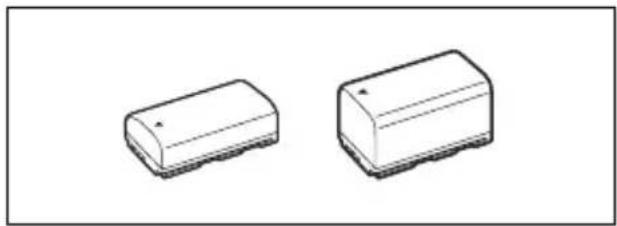

Battery Packs

When you need extra battery packs, select from the following: NB-2L, NB-2LH, BP-2L12, BP-2L14.

Two rectangular electronic components with rounded ends, shown in isometric line drawing without any text or symbols.

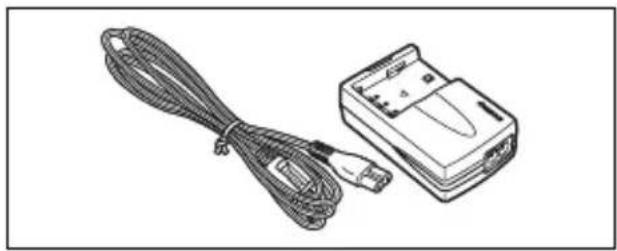

CB-2LTE Battery Charger

Use the battery charger for charging the battery packs.

Illustration of a cable and a rectangular device with connectors (no text or symbols)

Battery Pack Charging Time
NB-2LH 90 min.
NB-2L 80 min.
BP-2L12 150 min.
BP-2L14 170 min.

Charging time varies according to the charging condition.

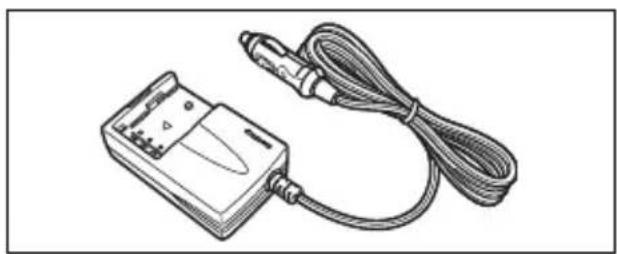

CBC-NB2 Car Battery Charger

Use the car battery charger to charge battery packs on the move. The car battery cable plugs into your car's cigarette lighter and runs off a 12-24 V DC negative ground battery.

Line drawing of a handheld electronic device with a coiled cable (no text or symbols visible)

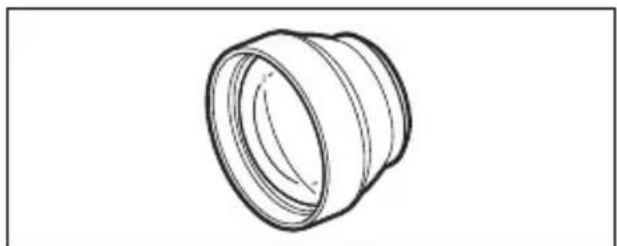

TL-H34 Tele-converter

This Tele-converter lens increases the focal length of the camcorder lens by a factor of 1.5.

• The image stabilizer is not as effective when the Tele-converter is attached.
• The minimum focusing distance with the TL-H34 is 2.5 ~m (8.2 ft.); 2.5 ~cm (0.98 in.) at maximum wide angle.
• When the/teleconverter is attached, a shadow may appear in the picture when you record with flash or assist lamp.

Line drawing of a cylindrical mechanical component (no text or symbols)

Technical line drawing of a mechanical component with concentric cylindrical sections (no text or symbols)

E

WD-H34 Wide-converter

This lens decreases focal length by a factor of 0.7, giving you a wide perspective for indoor shots or panoramic views.

- When the Wide 30i

converter is attached, a shadow may

appear in the picture when you record with flash or assist lamp.

Technical line drawing of a mechanical component with concentric rings (no text or symbols)

FS-34U Filter Set

Neutral density and MC protector filters help you to control difficult lighting conditions.

Two identical cylindrical rings, one with hatching and the other with a diagonal line (no text or symbols)

VL-10Li Battery Video Light

This compact yet powerful video light can be used for both indoor and outdoor shooting. It attaches to the SA-1 Adapter Bracket and is powered by BP-900 series battery packs.

- Approximate usage time: BP-915: 60 min., BP-930: 120 min., BP-945: 170 min.

- BP-900 series battery packs are charged with the CA-920 Compact Power Adapter or CH-910 Dual Battery Charger/Holder.

Line drawing of a mechanical device with internal components (no text or symbols)

WS-20 Wrist Strap

Use this for extra additional protection for active shooting.

Line drawing of a mechanical tool or probe with a handle and threaded end (no text or symbols)

SC-2000 Soft Carrying Case

A handy camcorder bag with padded compartments and plenty of space for accessories.

Line drawing of a portable medical bag with straps and handle (no text or symbols)

This mark identifies genuine Canon video accessories. When you use Canon video equipment, we recommend Canon-brand accessories or products bearing the same mark.

CANON GENUINE ACCESSORY GENUINE

MVX350i/MVX330i/MVX300

System

Video Recording System	2 rotary heads, helical scanning DV system (consumer digital VCR SD system), digital component recording
Audio Recording System PCM digital sound: 16 bit (48 kHz/2 ch); 12 bit (32 kHz/4 ch)
Television System CCIR standard (625 lines, 50 fields) PAL colour signal
Image Sensor 1/4.5-inch CCD, approx. 1,330,000 pixelsEffective pixels: tape: approx. 860,000 pixelscard: approx. 1,230,000 pixels
Tape Format Videocassettes bearing the “MiniDV” mark.
Tape Speed SP: 18.83 mm/s, LP: 12.57 mm/s
Maximum Recording Time (80 min. cassette)	SP: 80 min., LP: 120 min.
Fast Forward/Rewind Time Approx. 2 min. 20 sec. (with a 60 min. cassette)
LCD Screen 2.5-inch. TFT color, approx. 123,000 pixels
Viewfinder 0.33-inch. TFT color, approx. 113,000 pixels
Microphone Stereo electret condenser microphone
Lens MVX350i: f=3.5-70 mm, f/1.8-3.5, 20x power zoom35mm equivalent:Tape: 4:3 recording: 45.4-908 mm16:9 recording (image stabilizer ON): 44.6-892 mm16:9 recording (image stabilizer OFF): 41.3-826 mmCard: 37.9-758 mmMVX330i/MVX300:f=3.5-63 mm, f/1.8-3.4, 18x power zoom35mm equivalent:Tape: 4:3 recording: 45.4-817 mm16:9 recording (image stabilizer ON): 44.6-803 mm16:9 recording (image stabilizer OFF): 41.3-743 mmCard: 37.9-682 mm

Lens Configuration 10 elements in 8 groups
Filter Diameter 34 mm
AF System TTL autofocus, manual focusing possible
Minimum Focusing Distance	1 m (3.3 ft.); 1 cm (0.39 in.) on maximum wide angle
White Balance	Auto white balance, pre-set white balance (indoor, outdoor) or custom white balance
Minimum Illumination	1.5 lx (using the Night mode)
Recommended Illumination	More than 100 lx
Image Stabilization	Electronic

Memory Card

Recording Media	SD Memory Card, MultiMediaCard
Number of Recording Pixels	Still image: 1280 x 960, 640 x 480 pixelsMovie: 320 x 240, 160 x 120 pixels, 12.5 frames/sec.
File Format	Design rule for Camera File System (DCF), Exif 2.2* compliant, DPOF compliant* This camcorder supports Exif 2.2 (also called “Exif Print”). Exif Print is a standard for enhancing the communication between camcorders and printers. By connecting to an Exif Print-compliant printer, the camcorder’s image data at the time of shooting is used and optimized, yielding extremely high quality prints.
Image Compression Method	Still image: JPEG (compression: Super Fine, Fine, Normal)Movie: Video data: Motion JPEG, Audio data: WAVE (monaural)

Input/Output Terminals

AV Terminal ∅3.5 mm minijack
	Video: 1 Vp-p/75 ohms unbalancedAudio output: -10 dBV (47 kohm load)/3 kohms or lessAudio input: -10 dBV/40 kohms or more
DV Terminal Special 4-pin connector (IEEE 1394 compliant)
MIC Terminal(MVX350i/MVX330i)	∅3.5 mm stereo mini-jack-57 dBV (with 600 ohm mic)/5 kohms or more
Headphone Terminal ∅3.5 mm stereo mini-jack
USB Terminal mini-B

Power/Others

Power supply (rated) 7.4 V DC
Power consumption (AF on)	2.6W (using viewfinder), 3.2W (using LCD screen normal brightness)
Operating temperature 0 – 40 °C (32 – 104 °F)
Dimensions (W x H x D)	72 x 78 x 131 mm (2.8 x 3.1 x 5.2 in.) excluding protrusions
Weight (camcorder body only) 500 g (1.1 lb.)

CA-570 Compact Power Adapter

Power supply 100 – 240 V AC, 50/60 Hz
Power consumption 17W
Rated output 8.4 V DC, 1.5 A
Operating temperature 0 – 40 °C (32 – 104°F)
Dimensions 52 x 90 x 29 mm (2.1 x 3.5 x 1.1 in.)
Weight	135 g (4.8 oz.)

NB-2LH Battery Pack

Battery type	Rechargeable Lithium Ion Battery
Rated voltage	7.4 V DC
Operating temperature 0 – 40 °C (32 – 104°F)
Battery capacity	720 mAh
Dimensions 33.3 x 16.2 x 45.2 mm (1.3 x 0.64 x 1.8 in.)
Weight	43 g (1.5 oz.)

SDC-8M SD Memory Card

Capacity	8 MB
Interface	SD Memory Card standard
Operating temperature 0 – 40 °C (32 – 104°F)
Dimensions 32 x 24 x 2.1 mm (1.3 x 0.94 x 0.08 in.)
Weight	2 g (0.07 oz.)

Weight and dimensions are approximate. Errors and omissions excepted. Subject to change without notice.

12bit audio 88

16:9 widescreen 68

6-second auto date 71

A

Abroad, using the camcorder ..... 149

Accessories 6, 155

AF-assist lamp 99

Analog line-in 81

Analog-digital converter 84

Assist lamp 48

Audio dubbing 86

Audio mode 60

Auto 45

Auto Exposure Bracketing ..... 106

Autofocus 52

AV/headphones terminal ..... 33, 34

AV-DV 84

B

Backlight 19

Backup battery 15

Battery charger 155

Battery pack 11

Beep 77

Brightness 77

C

Card jump 110

Card mix 113

Computer 89,131

Condensation 145

Continuous shooting 105

Copyright signals 83

D

Data code 70

Date and time 20

Date format 76

Date search 74

Demo mode 78

Digital effects 62

Digital zoom 29

Direct print function 119

Direct transfer 132

Drive mode 105

DV dubbing 82

DV terminal 79,89

E

Easy recording 45

Effects 63

End search 72

Erasing images 112

Exposure 51

F

Faders 62

Fast forward 32

File numbers 93

Flash 98

Focusing 52

Focusing point 104

Focus-Priority 104

Formatting 117

G

Grip belt 16

H

Headphones 33,60

I

Image quality 91

Image stabilizer 78

Index screen 110

Infinity focus 53

L

Language 76

LCD Backlight 19

LCD mirror mode 25

LCD screen 19

Lens cap 16

Low light mode 45

LP mode 59

M

Maintenance 144

Manual focus 52

Memory card 90

Menus 37

MIC terminal 61

Microphone 61

Mini video light 48

Movie size 92

Multi-image screen 63

MultiMediaCard 90

My Camera settings 75

N

ND filter 95

NETWORK Mode 136

Night mode 48

Night+ mode 48

0

Operating Mode 3

Output channel 36

P

Playback - Memory card 109

Playback pause 32

Playback- Tape 31

Portrait mode 45

Power adapter 11

Print order 129

Program AE 45

Protect 111

R

Record review 27

Record search 27

Recording movies (memory card) ... 101

Recording movies (tape) 23

Recording programs 45

Recording still images (memory card) . 94

Remote sensor 77

Review 100

Rewind 31

s

Sample images 115

Sand & Snow mode 45

Screen displays 137

SD Memory Card 90

Self-timer 58

Shoulder strap 17

Shutter speed 56

Skin detail 50

Slide show 110

SP mode 59

Speaker 33

Sports mode 45

Spotlight mode 45

Still image quality 91

Still image size 91

Stitch Assist mode 107

Super Night mode 48

T

Tape protection 148

Time code 26

Time zone 20

Transfer order 135

Tripod 30

Troubleshooting 150

TV Screen 137

U

USB terminal 119, 131

V

Video heads 145

Video light 156

Videocassettes 14

Viewfinder 16

W

White balance 54

Wide attachment 17

Widescreen 68

Wind screen 61

Wireless controller 18

z

Zero set memory 73

Zooming 28

MEMO

MEMO

Canon

CANON INC.

Canon Europa N.V.

P.O. Box 2262, 1180 EG Amstelveen, the Netherlands

Canon UK Ltd.

CCI Service Centre, Unit 130

Centennial Park, Borehamwood, Hertfordshire, WD6 3SE, England

Telephone [phone]

Canon Australia Pty. Ltd.

Info-Line: 131383

www.canon.com.au

Canon New Zealand Ltd.

Customer Care: [phone]

www.canon.co.nz

Canon Singapore Pte. Ltd

1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632

Tel: [phone]

Fax: [phone]

Canon Hongkong Company Ltd

19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong

Canon Latin America, Inc.

Sales & Enquiries: 703 Waterford Way Suite 400 Miami, FL 33126 USA

Printed on 100% reused paper.

Abstract pattern of horizontal black and white stripes (no text or symbols)
