USER MANUAL Casiotone CT-S100 CASIO

Preparing a Power Supply Turning Power On or Off Connecting Headphones (Sold Separately)

Selecting a Musical Instrument Tone

Changing the Pitch in Semitone Steps (TRANSPOSE)

Fine Tuning (Tuning) Enabling and Disabling Sustain (SUSTAIN)

Saving and Loading Instrument Settings (MY SETUP)

Playing a Built-in Song Playing with a Rhythm Backing

Configuring Function Settings

Included and Optional Accessories

Use only accessories that are specified for use with this Digital Keyboard.

Use of unauthorized accessories creates the risk of fire, electric shock, and personal injury.

NOTE

- You can get information about accessories that are sold separately for this product from the CASIO catalog available from your retailer, and from the CASIO website at the URL or QR code below. https://support.casio.com/global/en/emi/manual/CT-S100/

About Music Score data

You can download music score data as a PDF file from the CASIO website, which you can access using the URL or QR code below. You will then be able to view music scores on your smart device. You can jump from the PDF file table of contents directly to the music score you want, and you can print out scores as needed.

https://support.casio.com/global/en/emi/manual/CT-S100/

• Any reproduction of the contents of this manual, either in part or its entirety, is prohibited. Except for your own, personal use, any other use of the contents of this manual without the consent of CASIO is prohibited under copyright laws.
• IN NO EVENT SHALL CASIO BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS MANUAL OR PRODUCT, EVEN IF CASIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
• The contents of this manual are subject to change without notice.
• The actual appearance of the product may be different from that shown in the illustrations in this User's Guide.
• Company and product names used in this manual may be registered trademarks of others.

Contents

General Guide EN-3

Getting Ready to Play EN-4

Preparing a Power Supply .... EN-4

Preparing the Music Stand ..... E N - 5

Connecting Headphones (Sold Separately) ..... EN-5

Playing on the Keyboard EN-6

Turning Power On or Off. EN-6

Adjusting the Volume Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . E N - 7

Using the Metronome ..... EN-7

Listening to Demo Play ..... EN-8

Controlling the Sound of a Performance EN-9

Selecting a Musical Instrument Tone ..... EN-9

Enabling and Disabling Sustain (SUSTAIN) ..... EN-10

Adding Reverb to Notes (REVERB)....EN-10

Changing the Pitch in Semitone Steps (TRANSPOSE) ...... EN-10

Fine Tuning (Tuning).... EN-11

Saving and Loading Instrument Settings (MY SETUP) EN-11

Saving to MY SETUP .... EN-11

Recalling From MY SETUP..... EN-12

Playing a Built-in Song EN-12

Songs ...... EN-12

Selecting a Song to Play..... E N - 1 2

Practicing a Song Part .... EN-14

Sounding a Count in Time with a Song..... EN-14

Playing with a Rhythm Backing EN-15

Rhythm EN-15

Playing a Rhythm.... EN-15

Inserting a Fill-in Phrase ..... EN-16

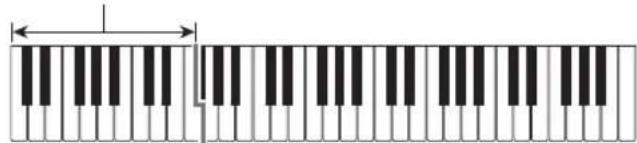

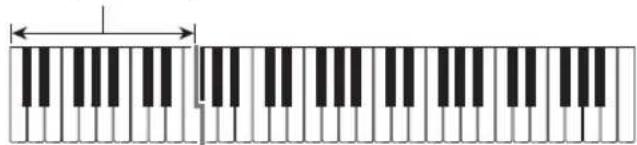

Fingering a Chord to Play a Rhythm Accompaniment...... EN-17

Connecting with External Devices EN-19

Connecting to a computer and Using MIDI ..... EN-19

Connecting with Audio Equipment ..... EN-20

Configuring Function Settings EN-21

Configuring Settings ...... EN-21

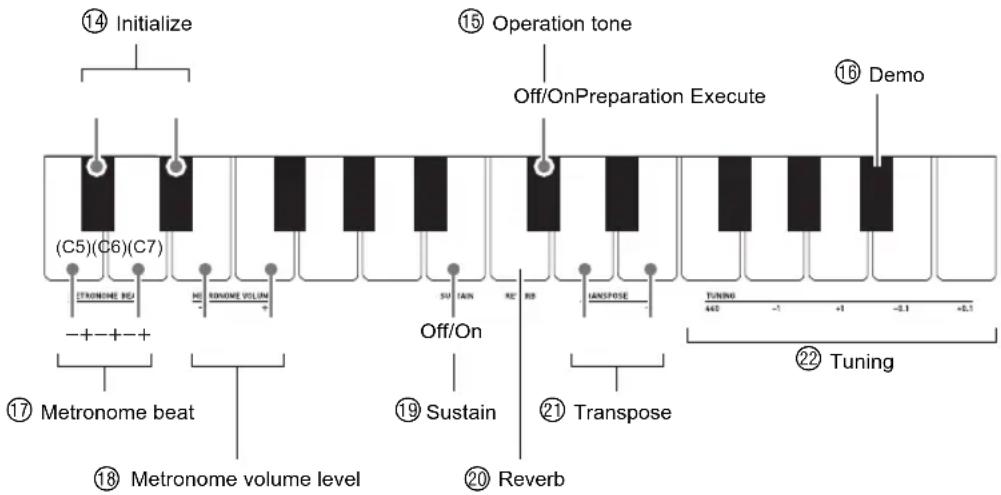

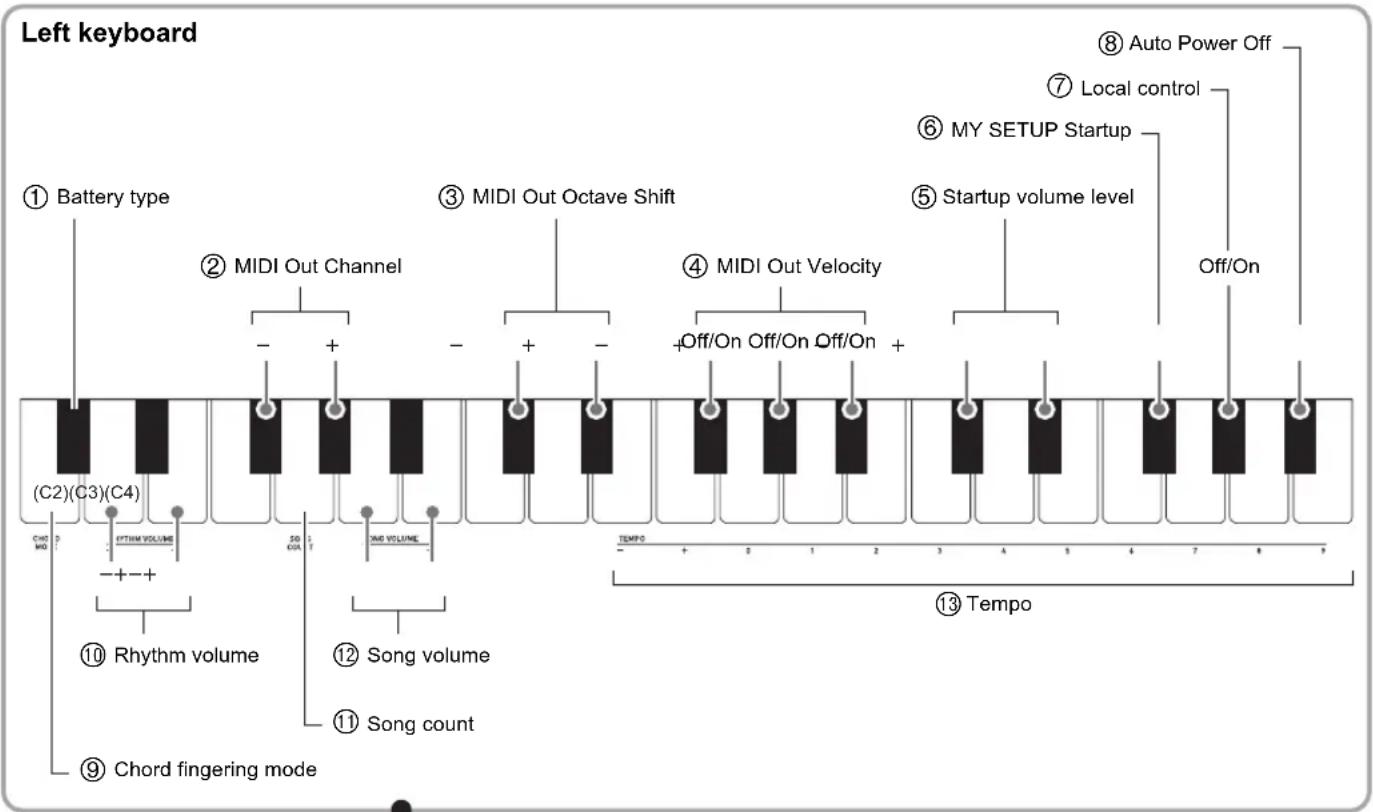

Keyboard Keys Used for Configuring Settings . . . EN-22

Setting Item List EN-23

Reference EN-26

Troubleshooting....EN-26

Product Specifications .....EN-28

Tone List.....EN-30

Drum Assignment List.....EN-32

Song List.....EN-33

Rhythm List.....EN-34

Fingering Guide .....EN-35

Chord Example List ....EN-36

MIDI Implementation Chart

General Guide

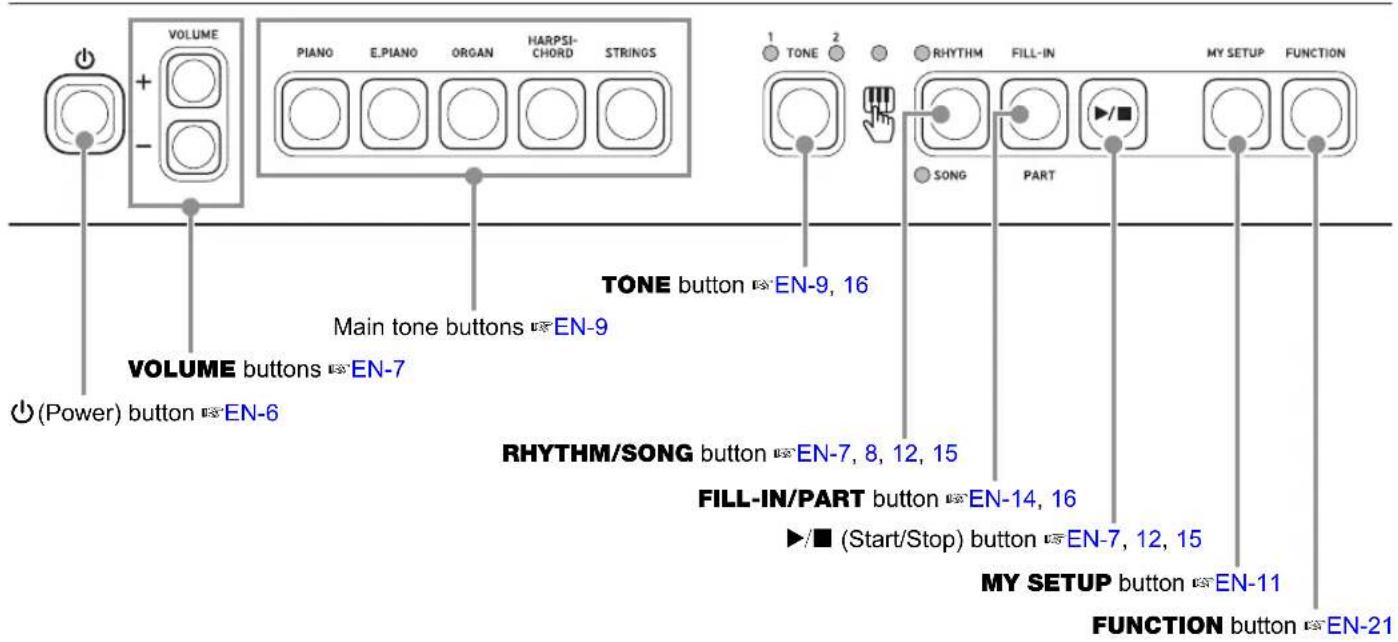

■Front Panel

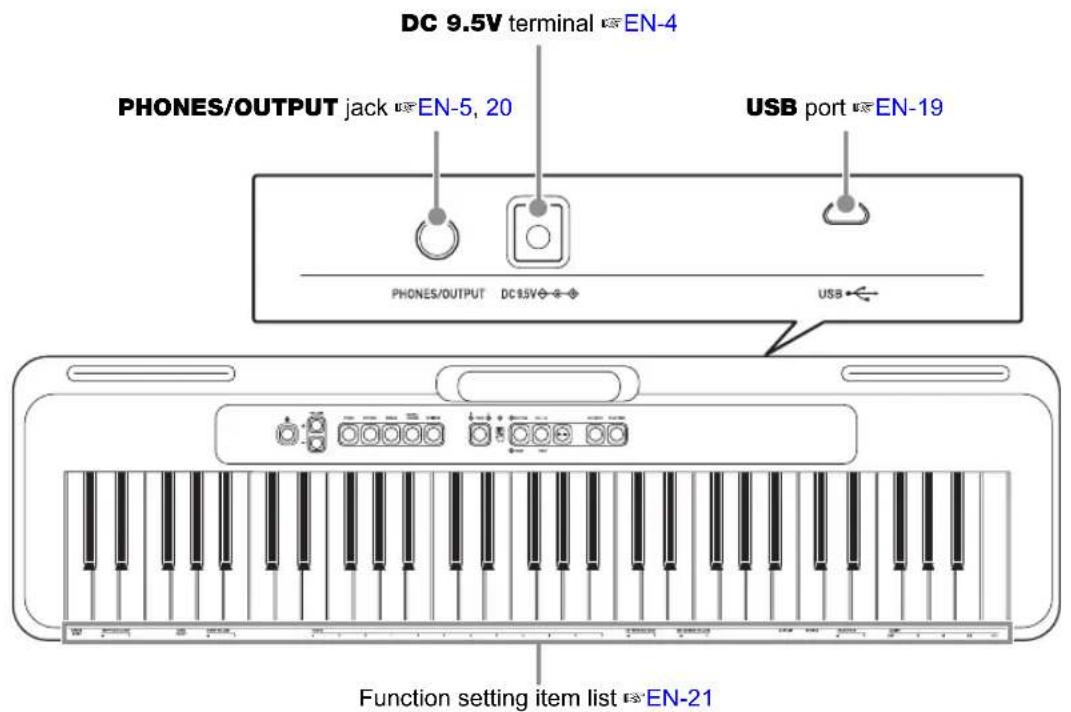

■Back

• The numbers to the right of the symbol are reference page numbers.

Getting Ready to Play

Preparing a Power Supply

Though either an AC adaptor or batteries can be used for power, use of AC adaptor power is normally recommended.

Using the AC Adaptor

Use only the AC adaptor (JEITA Standard with unified polarity plug) specified for this Digital Keyboard. Use of a different type of AC adaptor can cause malfunction.

AC Adaptor Type: AD-E95100L

Household power outlet

IMPORTANT!

• Be sure to turn off Digital Keyboard power before connecting or disconnecting the AC adaptor.
• The AC adaptor becomes warm to the touch after very long use. This is normal and does not indicate malfunction.
• To prevent breaking of the wire, take care to avoid putting any type of load on the power cord.

No twisting No pulling No wrapping

- Never insert metal, pencils, or any other objects into the DC 9.5V terminal. Doing so creates the risk of accident.

Using Batteries for Power

IMPORTANT!

• Be sure to turn off power before loading batteries.
• Use commercially available AA-size alkaline batteries or AA-size rechargeable nickel metal hydride batteries.
• Low battery power can cause abnormal operation. If this happens, replace batteries with new ones. If you are using rechargeable batteries, charge them.

■Batteries

Note the precautions below when using rechargeable batteries.

• Use Panasonic Group AA-size eneloop rechargeable batteries. Do not use any other type of batteries.
• Use only the specified charger to charge batteries.
• Rechargeable batteries must be removed from the product for charging.
• For information about using eneloop batteries or their specified charger, be sure to read the user documentation and precautions that come with each item, and use them only as directed.

Be sure to replace batteries at least once a year, even if there is no indication of low battery power. Dead rechargeable batteries (eneloop) in particular may deteriorate if they are left in the product. Remove rechargeable batteries from the product as soon as possible after they go dead.

1. Open the battery cover on the back of the Digital Keyboard.

Pure technical line drawing of a mechanical component with no text or symbols

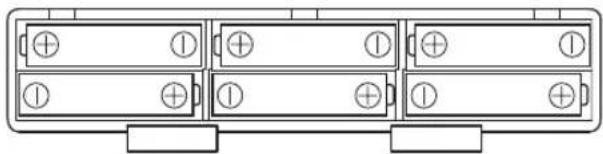

1. Load six AA-size batteries into the battery compartment.

Load batteries with their positive (+) and negative (−) ends facing correctly.

Pure electrical circuit lines without any symbols

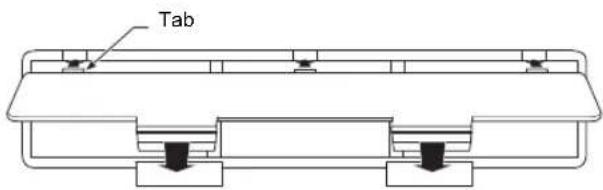

1. Insert the tabs of the battery cover into the holes, and close the cover.

- Configure the setting below to specify the type of batteries you loaded.

■Configuring the Battery Type Setting

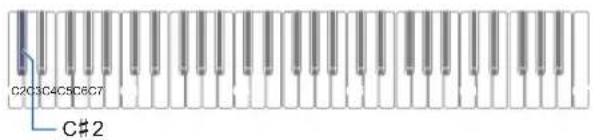

1. While holding down FUNCTION, press the C#2 keyboard key.

• Each press of the C#2 keyboard key sounds a tone that lets you know what setting (alkaline batteries or nickel metal hydride batteries) was selected. One tone: Alkaline batteries Two tones: Rechargeable nickel metal hydride batteries

- The keyboard input LED is lit while FUNCTION is depressed.

2. Release FUNCTION to exit the setting operation.

■Low Battery Indication

Flashing TONE LEDs indicate low battery power. When this happens, replace the batteries with new ones.

IMPORTANT!

- Continued use with low batteries may cause power to turn off suddenly. This can cause stored data to be corrupted or lost.

Preparing the Music Stand

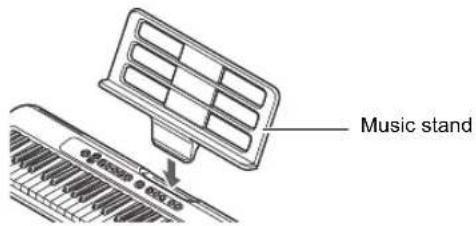

Insert the music stand into the handle of the Digital Keyboard.

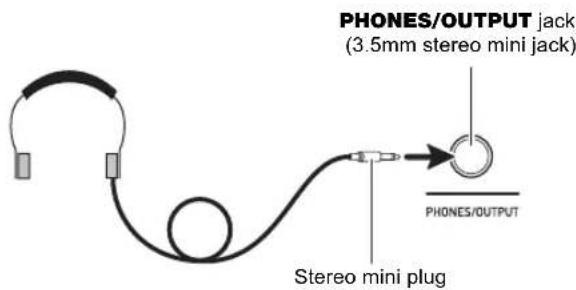

Connecting Headphones (Sold Separately)

Plugging in headphones cuts off output from the built-in speakers, which means you can practice playing even late at night without disturbing others.

- Be sure to turn down the Digital Keyboard volume level before connecting headphones.

NOTE

- Headphones do not come with the Digital Keyboard. - Use separately sold or commercially available headphones.

IMPORTANT!

- Do not listen to output over headphones at very high volume levels for long periods. Doing so creates the risk of hearing damage. - If the plug of the headphones does not match the PHONES/OUTPUT jack, use a commercially available adapter plug. - If you are using headphones that require an adapter plug, make sure you do not leave the adapter plugged in when removing the headphones.

Playing on the Keyboard

Turning Power On or Off

1. Press ⏻ (Power).

This turns on power.

- To turn off power, long-press ⏻ (Power) until the LED goes out.

2. Play something on the keyboard.

IMPORTANT!

- Turning off power normally causes the tone and rhythm number and other settings to return to their initial defaults. However, the settings below are remembered.

• MIDI Out Channel
• MIDI Out Octave Shift
• MIDI Out Velocity
• Startup volume level
• MY SETUP Startup
• Auto Power Off
• Battery type

Auto Power Off

While Auto Power Off is enabled, Digital Keyboard power will turn off automatically after about 30 minutes of non-operation.

NOTE

• Auto Power Off is disabled while a song is playing.

■Disabling Auto Power Off

You can disable Auto Power Off to ensure that power does not turn off automatically during a concert, etc.

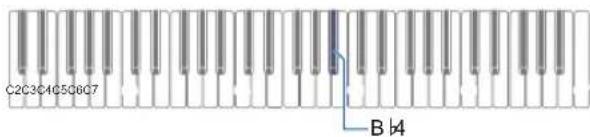

1. While holding down FUNCTION, press the Bb4 keyboard key.

• Each press of the Bb4 keyboard key sounds a tone that lets you know what setting (on or off) was selected.

High tone: On (enabled)

Low tone: Off (disabled)

- The keyboard input LED is lit while FUNCTION is depressed.

2. After disabling Auto Power Off, release FUNCTION.

Adjusting the Volume Level

1. Use the VOLUME + and - buttons to adjust the volume level.

• The setting range is 0 to 10.
- Holding down either button scrolls the setting value.

Specifying the Power On Volume Level

You can use the procedure below to specify the volume level that is applied when the Digital Keyboard is turned on.

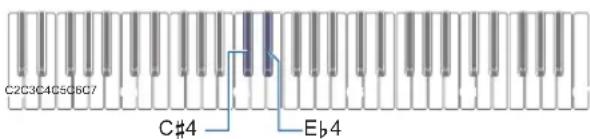

1. While holding down FUNCTION, press the C#4 or Eb4 keyboard key to adjust the volume level setting.

• You can change the volume value within a range of 1 to 10.
• Pressing the C#4 keyboard key lowers the volume level, while pressing Eb4 raises it.
• To return the setting to its initial default, press the C#4 and Eb4 keyboard keys at the same time.
• The keyboard input LED is lit while FUNCTION is depressed.

2. Release FUNCTION to exit the setting operation.

Using the Metronome

The metronome lets you play and practice along with a steady beat to help keep you on tempo. You can also set a tempo that is suitable for your practice.

Start/Stop

1. Press RHYTHM/SONG a number of times until the LED goes out.
2. Press ▶/■.

This starts the metronome.

1. Press ▶/■ again to stop the metronome.

Changing the Metronome Tempo

Use the procedure below to change the tempo of the metronome.

1. Start the metronome.
2. While holding down FUNCTION, use the TEMPO keyboard keys to specify a tempo value.

• You can specify a tempo value in the range of 20 to 255.
• Each press of the – or + keyboard key raises or lowers the tempo by 1. Holding down either button scrolls the setting value.
• You can also use the TEMPO value input keys (0 to 9) to enter a specific tempo value.
• Input three digits as the tempo value. Example: To set a tempo of 20, input “0→2→0”.
• To return the setting to its initial default, press the – and + keyboard keys at the same time.
• The keyboard input LED is lit while FUNCTION is depressed.

3. Release FUNCTION to exit the setting operation.

Specifying the Metronome Sound and Beats Per Measure

You can use the procedure below to configure a setting that sounds a chime on the first beat of each measure, and a click for the remaining beats.

• Available settings are Off, or a value of 1 to 16 beats.

1. Start the metronome.

2. While holding down FUNCTION, use the METRONOME BEAT – and + keyboard keys to change the beat.

• Selecting Off (0) disables the chime. Use this setting when you want to practice without worrying about the first beat of each measure.
• To return the setting to its initial default, press the – and + keyboard keys at the same time.

• The keyboard input LED is lit while FUNCTION is depressed.

• Release FUNCTION to exit the setting operation.

Changing the Metronome Sound Volume Level

1. Start the metronome.

2. While holding down FUNCTION, use the METRONOME VOLUME – and + keyboard keys to change the volume level.

• You can specify a volume value from 0 to 10.
• To return the setting to its initial default, press the – and + keyboard keys at the same time.

• The keyboard input LED is lit while FUNCTION is depressed.

• Release FUNCTION to exit the setting operation.

Listening to Demo Play

You can use Demo Play to play built-in songs in sequence.

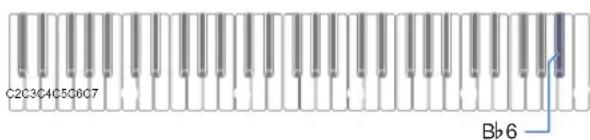

1. While holding down FUNCTION, press the Bb6 keyboard key.

This starts song number "1".

• This causes the SONG LED to light.
- For information about how to change the demo song, see the "Selecting a Demo Song" (page EN-8).
- The keyboard input LED is lit while FUNCTION is depressed.

1. Release FUNCTION.

2. To exit Demo Play, hold down FUNCTION as you press the B♭6 keyboard key again, or press ▶/■.

Selecting a Demo Song

You can use the procedure below to change the song played by Demo Play.

1. While holding down RHYTHM/SONG, press one of the keyboard keys.

This starts Demo Play of the song you selected.

• Each of the keyboard keys has a song assigned to it. For a list of song titles, see the "Song List" (page EN-33).

• The keyboard input LED is lit while RHYTHM/SONG is depressed.

• Release RHYTHM/SONG to exit the setting operation.

Controlling the Sound of a Performance

Selecting a Musical Instrument Tone

Your Digital Keyboard lets you select tones for a wide variety of musical instrument sounds, including violin, flute, orchestra, and more. Dedicated buttons give you instant access to the main tones (piano, organ, etc.) Even the same song sounds different when the instrument type is changed.

Selecting One of the Main Tones

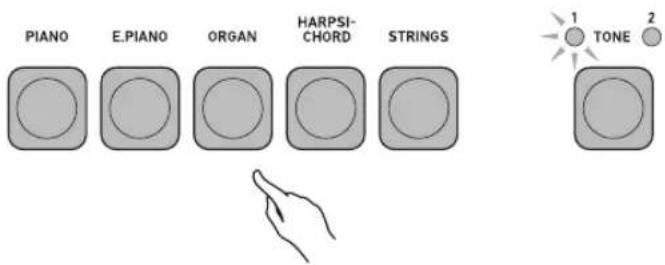

1. Press one of the main tone buttons: PIANO, E.PIANO, ORGAN, HARPSICHORD, STRINGS.

• This causes the TONE 1 LED to light.

2. To toggle between tone variations, press TONE.

• Each press of TONE toggles between TONE 1 (TONE 1 LED lit, TONE 2 LED unlit) and TONE 2 (TONE 2 LED lit, TONE 1 LED unlit).

Selecting a Tone

1. Press TONE to select the tone group you want.

• Each press of TONE toggles between Group 1 (TONE 1 LED lit, TONE 2 LED unlit) and Group 2 (TONE 2 LED lit, TONE 1 LED unlit).

- When you select a group, keep TONE depressed as you continue with step 2, below.

2. While holding down TONE, press one of the keyboard keys.

This sounds the selected tone.

- Each of the keyboard keys has a tone assigned to it. For tone information, see the "Tone List" (page EN-30).

3. Release TONE to exit the setting operation.

NOTE

- Selecting a drum set tone causes various percussion instruments to be assigned to keyboard keys.

■Tone Groups

Tones are divided into two groups: Group 1 and Group 2. After selecting the group that includes the tone you want to use, use the keyboard keys to select the tone.

Enabling and Disabling Sustain (SUSTAIN)

While sustain is enabled, notes are sustained longer when keyboard keys are released.

1. While holding down FUNCTION, press the SUSTAIN keyboard key.

This turns on sustain.

• Each press of the SUSTAIN keyboard key sounds a tone that lets you know what setting (on or off) was selected.

High tone: On (enabled)

Low tone: Off (disabled)

- The keyboard input LED is lit while FUNCTION is depressed.

2. Release FUNCTION to exit the setting operation.

Adding Reverb to Notes (REVERB)

You can use the procedure below to add reverb to the notes you play.

1. While holding down FUNCTION, press the REVERB keyboard key to select a reverb type.

- You can specify a reverb value in the range of 1 to 4.

• Each press of the REVERB keyboard key sounds a tone that lets you know what setting was selected.

One low tone: Off (disabled)

One high tone: 1

Two high tones: 2

Three high tones: 3

Four high tones: 4

- The keyboard input LED is lit while FUNCTION is depressed.

2. Release FUNCTION to exit the setting operation.

Changing the Pitch in Semitone Steps (TRANSPOSE)

Transpose lets you raise or lower the overall pitch in semitone steps. You can use this feature to raise or lower the key to make it easier to play a piece written in a difficult key, or to adjust to a key that better matches a vocalist, another musical instrument, etc.

1. While holding down FUNCTION, use the TRANSPOSE keyboard keys to change the transpose setting.

• The setting range is one octave up (+12 semitones) and down (-12 semitones).
• Pressing the – keyboard key lowers the pitch in semitone units, while pressing the + key raises the pitch in semitone units.
• To return the setting to its initial default, press the – and + keyboard keys at the same time.
• The keyboard input LED is lit while FUNCTION is depressed.

2. Release FUNCTION to exit the setting operation.

Fine Tuning (Tuning)

You can use the procedure below to adjust the overall pitch by changing the frequency of A4. (0.1Hz units)

1. While holding down FUNCTION, use the TUNING keyboard keys below to adjust tuning.

440: Sets the A4 frequency to 440.0 Hz.

-1: Lowers the A4 frequency 1.0Hz.
+1: Raises the A4 frequency 1.0Hz.
-0.1: Lowers the A4 frequency 0.1Hz.
+0.1: Raises the A4 frequency 0.1Hz.

- You can specify a frequency in the range of 415.5 to 465.9 Hz.

- The keyboard input LED is lit while FUNCTION is depressed.

2. Release FUNCTION to exit the setting operation.

Saving and Loading Instrument Settings (MY SETUP)

You can use MY SETUP to save the setup (tone, rhythm, and other settings) of the Digital Keyboard. You can recall a saved setup when you need it to perform a particular song, etc.

Saving to MY SETUP

1. Long-press MY SETUP.

Your setup is saved when you hear an operation complete tone.

Savable Settings

You can use MY SETUP to save the items below.

• The function you are using (Tone, Rhythm, Song)

• Tempo
• Tone number
• Metronome beat
  • Metronome volume level
• Sustain
• Rhythm number
• Song number
• Practice part
• Count
• Transpose
• Reverb
• Pedal
• Chord fingering mode
  • Rhythm volume level
• Song volume level
• Tuning

Recalling From MY SETUP

1. Press MY SETUP.

Your setup is saved when you hear an input tone.

MY SETUP

Enabling MY SETUP Power On

Use the procedure below to enable MY SETUP power on, which causes the MY SETUP settings to be applied whenever power is turned on.

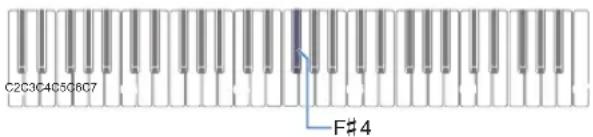

1. While holding down FUNCTION, press the F#4 keyboard key to enable MY SETUP power on.

• Each press of the F#4 keyboard key sounds a tone that lets you know what setting (on or off) was selected.

High tone: On (enabled)

Low tone: Off (disabled)

- The keyboard input LED is lit while FUNCTION is depressed.

2. Release FUNCTION to exit the setting operation.

Playing a Built-in Song

Songs

With this Digital Keyboard, the term "song" is used to refer to a musical piece. You can listen to the built-in songs for your own enjoyment, or you can play along with them for practice.

Selecting a Song to Play

Starting or Stopping Song Play

1. Press RHYTHM/SONG a number of times until the SONG LED is lit.

2. While holding down RHYTHM/SONG, press one of the keyboard keys.

This starts playback of the song you selected.

• Each keyboard key has a song assigned to it. For a list of songs, see the "Song List" (page EN-33).
• The keyboard input LED is lit while RHYTHM/SONG is depressed.

3. Release RHYTHM/SONG.

4. Press ▶/■ to stop the song.

5. To resume the previously playing song, press ▶/■ again.

NOTE

- Starting to use the Song Function while the metronome is sounding or a rhythm is playing will cause the ongoing operation to stop.

Changing a Song's Tempo (Speed) Adjusting the Song Volume Level

You can use the procedure below to change the tempo (speed) and slow down playback to practice difficult passages, etc.

1. Select the song whose tempo you want to change with the Song Function.
2. While holding down FUNCTION, use the TEMPO keyboard keys to specify a tempo value.

• You can specify a tempo value in the range of 20 to 255.
• Each press of the – or + keyboard key raises or lowers the tempo by 1. Holding down either button scrolls the setting value.
• You can also use the TEMPO value input keys (0 to 9) to enter a specific tempo value.
• Input three digits as the tempo value. Example: To set a tempo of 20, input “0→2→0”.
• To return to the recommended setting for the current song, press the – and + keyboard keys at the same time.
• Changing the song number returns the song to its recommended tempo.

• The keyboard input LED is lit while FUNCTION is depressed.

• Release FUNCTION to exit the setting operation.

Use the procedure below to adjust the balance between the volume levels of song play and what you play on the keyboard.

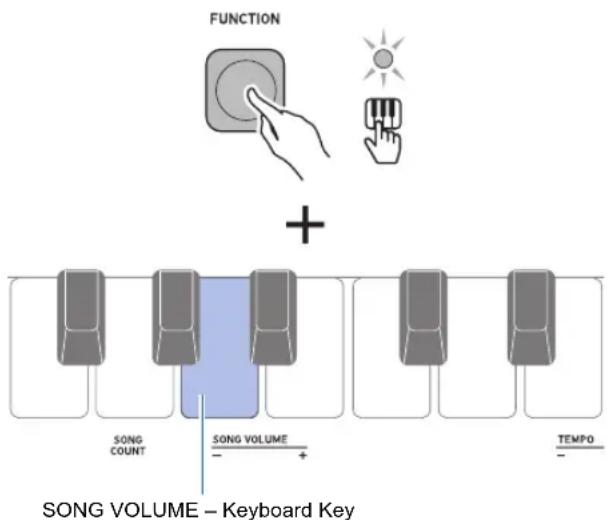

1. While holding down FUNCTION, use the SONG VOLUME – and + keyboard keys to adjust the volume level.

• You can change the volume value within a range of 1 to 10.
• To return the setting to its initial default, press the – and + keyboard keys at the same time.

• The keyboard input LED is lit while FUNCTION is depressed.

• Release FUNCTION to exit the setting operation.

Practicing a Song Part

You can turn off the right-hand part or the left-hand part of a song you are playing and practice along with the remaining part. Use this when you feel that a song is initially too difficult for you to play with both hands at the same time.

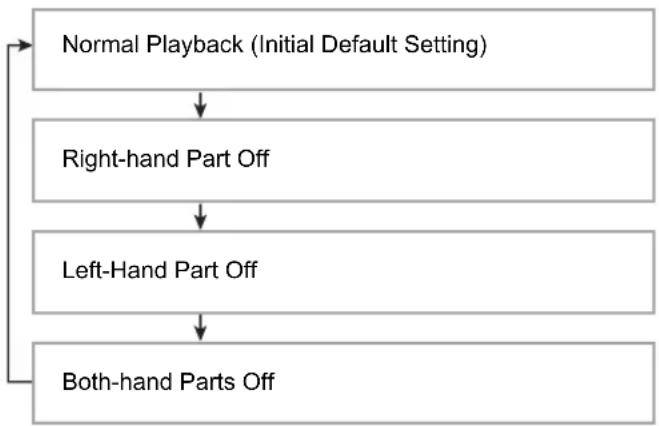

1. While a song is playing or stopped, press FILL-IN/PART.

Each press of FILL-IN/PART cycles through the settings shown below.

- A tone sounds to let you know which playback part is selected.

One low tone: Off (all parts sound)

One high tone: Right-hand part off

Two high tones: Left-hand part off

Three high tones: Both-hand parts off

Sounding a Count in Time with a Song

You can configure count settings to sound a count in time with a song and to sound a pre-count before a song starts.

Configuring Count Settings

1. While song play is stopped, hold down FUNCTION as you press the SONG COUNT keyboard key to specify a count setting.

• Each press of the SONG COUNT keyboard key sounds a tone that lets you know what setting was selected.

One low tone: Off (disabled)

One high tone: Count

Two high tones: Pre-count

- The keyboard input LED is lit while FUNCTION is depressed.

2. Release FUNCTION.

3. Press ▶/■ to start playback.

- Playback starts in accordance with the count type you selected.

Count: A count sounds throughout song playback.

Pre-count: A count sound at the beginning of the song, before actual playback starts.

- To turn off a count, stop the song and repeat step 1 of this procedure until you hear one low tone.

Playing with a Rhythm Backing

You can use the procedures in this section to select the rhythm you want, and then automatically play accompaniments to suit it simply by playing chords with your left hand. It's like having a personal backup group along with you wherever you go.

NOTE

- Auto Accompaniments are made up of the parts (instruments) below.

– Rhythm (percussion)
– Bass (bass instruments)
– Harmony (other instruments)

You can have only the rhythm part play, or you can have all three parts play at the same time.

Rhythm

The rhythm part is the foundation of each Auto Accompaniment. Your Digital Keyboard comes with a variety of built-in rhythms, including 8-beat and waltz. Use the procedure below to play the basic rhythm part.

Playing a Rhythm

1. Press RHYTHM/SONG a number of times until the RHYTHM LED is lit.

1. While holding down RHYTHM/SONG, press one of the keyboard keys.

This starts playback of the rhythm you selected.

• Each of the keyboard keys has a rhythm assigned to it. For information about rhythms, see the "Rhythm List" (page EN-34).

• The keyboard input LED is lit while RHYTHM/SONG is depressed.

• Release RHYTHM/SONG.

• To stop playback, press ▶/■.
• To resume the previously playing rhythm, press ▶/■ again.

Changing the Tempo of a Rhythm

Use the procedure below to change tempo to a speed that suits you.

1. Select the rhythm whose tempo you want to change with the Rhythm Function.
2. While holding down FUNCTION, use the TEMPO keyboard keys to specify a tempo value.

• You can specify a tempo value in the range of 20 to 255.
• Each press of the – or + keyboard key raises or lowers the tempo by 1. Holding down either button scrolls the setting value.
• You can also use the TEMPO value input keys (0 to 9) to enter a specific tempo value.
• Input three digits as the tempo value. Example: To set a tempo of 20, input “0→2→0”.
• To return to the recommended value, press the – and + keyboard keys at the same time.

• The keyboard input LED is lit while FUNCTION is depressed.

• Release FUNCTION to exit the setting operation.

Changing the Volume Level of a Rhythm

Use the procedure below to adjust the balance between the volume levels of keyboard play and the rhythm.

1. While holding down FUNCTION, use the RHYTHM VOLUME – and + keyboard keys to adjust the volume level.

• You can change the volume value within a range of 1 to 10.
• To return the setting to its initial default, press the RHYTHM VOLUME – and + keyboard keys at the same time.
• The keyboard input LED is lit while FUNCTION is depressed.

2. Release FUNCTION to exit the setting operation.

Changing the Keyboard Tone While a Rhythm is Playing

1. While a rhythm is playing, use TONE to select the tone group you want.

• Each press of TONE toggles between Group 1 (TONE 1 LED lit, TONE 2 LED unlit) and Group 2 (TONE 2 LED lit, TONE 1 LED unlit).

- When you select a group, keep TONE depressed as you continue with step 2, below.

2. While holding down TONE, press one of the keyboard keys.

This sounds the selected tone.

- Each of the keyboard keys has a tone assigned to it. For tone information, see the "Tone List" (page EN-30).

3. Release TONE to exit the setting operation.

Inserting a Fill-in Phrase

A "fill-in" is a short phrase played where you want to change the mood of a piece. A fill-in pattern can be used to create a link between two melodies or as an accent.

1. While a rhythm is playing, press FILL-IN/PART.

This inserts a fill-in phrase that plays to the end of the measure. The RHYTHM LED flashes while the fill-in phrase is sounding.

• To continue play of the fill-in phrase through the following measure, keep FILL-IN/PART depressed.
• If you press FILL-IN/PART while a rhythm is stopped, the fill-in phrase will be put into standby and played when the rhythm is started.
  In this case, you can cancel fill-in phrase standby by pressing the FILL-IN/PART button again before starting the rhythm.

Fingering a Chord to Play a Rhythm Accompaniment

Playing a chord with your left hand automatically adds bass and harmony accompaniment parts to the currently selected rhythm. It is just like having your own personal back up group on call.

1. Start the rhythm.
2. Play something on the accompaniment keyboard.

This starts the accompaniment, sounding the bass, harmony, and other non-rhythm instruments.

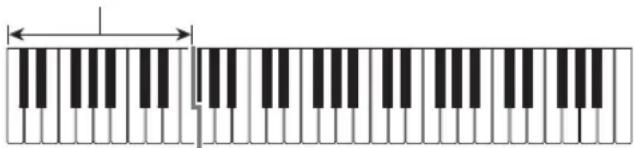

Accompaniment keyboard

Pure diagram of piano keys without any text, numbers, or symbols

NOTE

• Playing a chord while rhythm play is stopped will cause rhythm and accompaniment to start at the same time.
• Play other chords with your left hand as you play the melody with your right hand.
• To stop the rhythm, press ▶/■.

Selecting a Chord Fingering Mode

You can select from among the six chord fingering modes below.

• CASIO CHORD
• FINGERED 1
• FINGERED2
• FINGERED ON BASS
• FINGERED ASSIST
• FULL RANGE CHORD

1. While holding down FUNCTION, use the CHORD MODE keyboard keys to specify a chord fingering mode.

• Each press of the CHORD MODE keyboard key sounds a tone that lets you know what setting was selected.

One low tone: Off

One high tone: CASIO CHORD

Two high tones: FINGERED 1

Three high tones: FINGERED 2

Four high tones: FINGERED ON BASS

Five high tones: FINGERED ASSIST

Six high tones: FULL RANGE CHORD

- The keyboard input LED is lit while FUNCTION is depressed.

1. Release FUNCTION to exit the setting operation.

■CASIO CHORD

With CASIO CHORD, you can use simplified fingerings to play the four types of chords described below.

Accompaniment keyboard

Pure diagram of piano keys without any text, numbers, or symbols

Chord Type Example
Major ChordsLetters above the accompaniment keyboard indicate the name of the chord assigned to each key.Accompaniment keyboard keys marked with the same chord name play exactly the same chord.	C (C Major)
Minor ChordsPress the key that corresponds to the major chord, while also pressing one other accompaniment area key to the right.	Cm (C Minor)
Seventh ChordsPress the key that corresponds to the major chord, while also pressing two other accompaniment area keys to the right.	C7 (C Seventh)
Minor Seventh ChordsPress the key that corresponds to the major chord, while also pressing three other accompaniment area keys to the right.	Cm7(C Minor Seventh)

NOTE

- When playing a minor, seventh, or minor seventh chord on the accompaniment keyboard, it makes no difference whether the additional keys you press are black or white.

■FINGERED

With this chord fingering mode, you play chords on the accompaniment keyboard using their normal chord fingerings. Note that some chords can also be formed using abbreviated fingerings of one or two keys. For information about the types of chords you can finger and their fingerings, see the "Fingering Guide" (page EN-35).

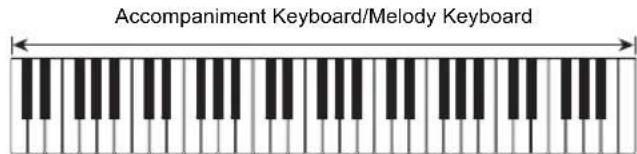

Accompaniment keyboard

Pure diagram of piano keys without any text, numbers, or symbols

●FINGERED 1

Play the component notes of the chord on the keyboard.

●FINGERED 2

Unlike FINGERED 1, 6th input is not possible with this mode.

●FINGERED ON BASS

Play the component notes of the chord on the keyboard. This mode allows input of fraction chords with the lowest keyboard note as the base note.

●FINGERED ASSIST

In addition to FINGERED 1 input, you can also use the fingerings below to play the three chord types.

Minor Chords (Cm)	One keyboard key for the base note and the nearest black key to the left.
Seventh Chords (C7)	One keyboard key for the base note and the nearest white key to the left.
Minor Seventh Chords (Cm7)	One keyboard key for the base note and the nearest black key and white key to the left.

■FULL RANGE CHORD

With this chord fingering mode, you can use the full range of the keyboard to play chords and the melody.

Connecting with External Devices

Connecting to a computer and Using MIDI

You can connect the Digital Keyboard to a computer and exchange MIDI data between them. You can record Digital Keyboard play using computer music software, and use the Digital Keyboard to play data sent to it from the computer.

■Minimum Computer System Requirements

The following shows the minimum computer system requirements for sending and receiving MIDI data. Be sure to check your computer system setup before trying to install the driver.

●Supported Operating Systems

Windows 7*1

Windows 8.1*2

Windows 10*3

- Never connect the Digital Keyboard to a computer running an operating system that is not one of those above. Doing so can cause malfunction of the computer.

NOTE

- For the latest news about supported operating systems, visit the website at the URL or QR code below. https://support.casio.com/global/en/emi/manual/CT-S100/

■Connecting to a Computer

IMPORTANT!

- Incorrect connections can make data exchange impossible. Be sure to follow the steps of the procedure below.

1. Turn off the Digital Keyboard and then start up your computer.

- Do not start up the music software on your computer yet!

2. Use a commercially available USB cable to connect the Digital Keyboard to your computer.

- Use a USB 2.0 or 1.1 A-MicroB connector type USB cable that supports data communication.

Digital Keyboard USB port (Micro-B)

3. Turn on the Digital Keyboard.

- If this is the first time you are connecting, the driver required to transfer data will automatically be installed on your computer.

4. Start up commercially available music software on your computer.

5. Use the settings of your computer's commercially available music software to select "CASIO USB-MIDI" as the MIDI device.

- For information about how to select the MIDI device, refer to the user documentation that comes with the music software you are using.

IMPORTANT!

• Be sure to turn on the Digital Keyboard before starting up your computer's music software.
• Data send/receive cannot be performed while a song is playing (page EN-12).

NOTE

• Once you are able to connect successfully, you can leave the USB cable connected when you turn off your computer and/or Digital Keyboard.
• For detailed specifications and connections that apply to MIDI data communication by this Digital Keyboard, see the latest support information provided on the website at the URL or QR code below. https://support.casio.com/global/en/emi/manual/CT-S100/

■Configuring MIDI Settings

For information about the MIDI settings below, refer to the "Setting Item List" (page EN-23).

• MIDI Out Channel
  • MIDI Out Octave Shift
• MIDI Out Velocity
• Local Control

Connecting with Audio Equipment

You can connect the Digital Keyboard to a commercially available stereo system or amplifier, or to a recording device.

You can also use the Digital Keyboard to sound output from a portable audio player or another device, and use that as backing for your keyboard play.

■Sounding Digital Keyboard Output on an External Device

Connection requires commercially available connecting cords, supplied by you.

- The connecting cord should have a stereo mini plug on one end and a plug that matches the configuration of the input jack of the external device on the other end.

IMPORTANT!

• Turn off the external device and the Digital Keyboard before connecting them. Before turning power on or off, turn down the volume level of the Digital Keyboard and external devices.
  • After connecting, turn on the Digital Keyboard first and then the external device.
• If Digital Keyboard notes are distorted when they are sounded on an external audio device, lower the Digital Keyboard's volume level.

Digital Keyboard PHONES/OUTPUT jack (3.5mm stereo mini jack)

Configuring Function Settings

You can use FUNCTION in combination with keyboard keys to configure various settings.

Configuring Settings

1. Find the item whose setting you want to change in the table under "Setting Item List" (pages EN-23 and 24) and note its details.
2. Use the information under "Keyboard Keys Used for Configuring Settings" on page EN-22 to find the location of the keyboard keys for configuring the setting you want.

3. While holding down FUNCTION, use the keyboard key or keys you looked up in step 2 of this procedure to configure the setting you want.

4. The keyboard input LED is lit while FUNCTION is depressed.

5. A tone will sound after the setting is configured.

Example: To lower the song volume by pressing the SONG VOLUME – keyboard key

1. Release FUNCTION to exit the setting operation.

NOTE

- You can configure a setting to disable the tone that sounds in step 3 of this procedure.

For more information, see “⑮ Operation Tone” in the table under “Setting Item List” (pages EN-23 and 24).

Keyboard Keys Used for Configuring Settings

- The circled numbers (① through ②) correspond to the numbers in the table under “Setting Item List” (pages EN-23 and 24).

Overall

Right keyboard
        U["Off/OnPreparation Execute"]
        V["Demo"]
    end

Setting Item List

Item Setting	Options Description Remarks
1 Battery type Alkaline, Nickel metal hydride		Specifies the type of batteries being used.	Each press of the keyboard key sounds a tone that lets you know what setting was selected.One tone: AlkalineTwo tones: Nickel metal hydride
2 MIDI Out Channel	1 to 16 Specifies the channel to output MIDI messages.		To return the setting to its initial default, press – and + at the same time.
3 MIDI Out Octave shift	-3 to 0 to +3 Specifies, in octave units, the note message key number for MIDI Out.		To return the setting to its initial default, press – and + at the same time.
4 MIDI Out Velocity	Off, 1 to 127 Specifies the velocity of the note on message for MIDI Out.
5 Startup volume level	1 to 10 Specifies the power on volume level.		To return the setting to its initial default, press – and + at the same time.
6 MY SETUP Startup	Off, On Enables/disables configuration of MY SETUP settings when power is turned on.
7 Local control Off,	On Mutes (Off)/unmutes (On) the Digital Keyboard sound output of your keyboard play.
8 Auto Power Off	Off, On	Enables/disables Auto Power Off.	Each press of the keyboard key sounds a tone that lets you know what setting was selected.High tone: On (enabled)Low tone: Off (disabled)
9 Chord fingering mode	Off,CASIO CHORD,FINGERED 1,FINGERED 2,FINGERED ON BASS,FINGERED ASSIST,FULL RANGE CHORD	Specifies the chord fingering mode.	Each press of the keyboard key sounds a tone that lets you know what setting was selected.One low tone: OffOne high tone: CASIO CHORDTwo high tones: FINGERED 1Three high tones: FINGERED 2Four high tones: FINGERED ON BASSFive high tones: FINGERED ASSISTSix high tones: FULL RANGE CHORD
10 Rhythm volume	0 to 10	Adjusts the rhythm volume level.	To return the setting to its initial default, press – and + at the same time.
11 Song count	Off, Count, Pre-count	Can be used to sound a count in time with song playback.	Each press of the keyboard key sounds a tone that lets you know what setting was selected.One low tone: Off (disabled)One high tone: CountTwo high tones: Pre-count
12 Song volume	0 to 10	Adjusts the song volume level.	To return the setting to its initial default, press – and + at the same time.
13 Tempo	20 to 255	Changes the tempo.	To return the setting to its initial default or recommended setting, press – and + at the same time.
14 Initialize		Returns all settings to their factory defaults.
Item	Setting Options	Description	Remarks
15 Operation tone Off, On When this setting is	disabled (Off),a tone does not sound when akeyboard key is pressed whileFUNCTIONis depressed.
16 Demo Plays the Demo Song.
17 Metronome beat	Off, 1 to 16	Changes the metronome beat.	To return the setting to its initial default, press – and + at the same time.
18 Metronome volume level	0 to 10 Changes the metronome volume level.	Level.	To return the setting to its initial default, press – and + at the same time.
19 Sustain Off, On W	When enabled, sustains notes to produce rich resonance.	• Each press of the keyboard key sounds a tone that lets you know what setting was selected.High tone: On (enabled)Low tone: Off (disabled)
20 Reverb Off, 1 to 4	Specifies the type of reverb to be applied.	• Each press of the keyboard key sounds a tone that lets you know what setting was selected.One low tone: Off (disabled)One high tone: 1Two high tones: 2Three high tones: 3Four high tones: 4
21 Transpose –12 to	0 to +12 The transpose feature raises or lowers the overall pitch in semitone steps.You can use this feature to raise or lower the key to make it easier to play a piece written in a difficult key, or to adjust to a key that better matches a vocalist, another musical instrument, etc.	• To return the setting to its initial default, press – and + at the same time.
22 Tuning	415.5Hz to 440.0Hz to 465.9Hz	Fine tunes the overall pitch by changing the frequency of A4 in 0.1Hz units.

IMPORTANT!

• Turning power off and back on again returns tone and other settings to their initial defaults (page EN-6).

• The settings below are retained even when power is turned off.

• MIDI Out Channel

• MIDI Out Octave Shift
• MIDI Out Velocity
• Startup volume level
• MY SETUP Startup
• Auto Power Off
• Battery type

Returning Settings to Their Initial Factory Defaults

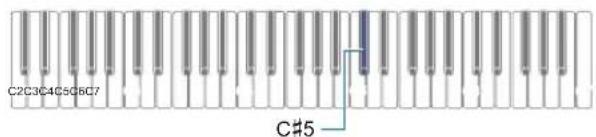

1. While holding down FUNCTION, press the C#5 keyboard key.

A tone will sound to indicate that initialization is about to be performed. Keep FUNCTION depressed at this time.

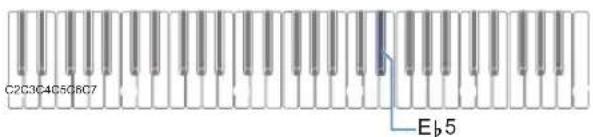

2. Keeping FUNCTION depressed, press the Eb5 keyboard key to start initialization.

A tone will sound when initialization is complete. The Digital Keyboard will be turned off and then back on again.

- The keyboard input LED is lit while FUNCTION is depressed.

3. Release FUNCTION to exit the operation.

Troubleshooting

Symptom Required Action
Included Accessories
I can't find included items during unpacking.	Carefully check inside all of the packing materials.
Power Requirements
Power does not turn on.	Check the AC adaptor or make sure that the batteries are facing correctly (page EN-4).Replace the batteries with new ones. Or use AC adaptor power (page EN-4).
The Digital Keyboard suddenly turns off after outputting a loud sound.	Replace the batteries with new ones. Or use AC adaptor power (page EN-4).
The Digital Keyboard suddenly powers down after about 30 minutes.	Disable Auto Power Off (page EN-6).
Sound
Nothing happens when I press a keyboard key.	Adjust the volume level (page EN-7).Check if something is plugged into the PHONES/OUTPUT jack on the back of the Digital Keyboard.Try turning the Digital Keyboard off and then back on again (page EN-6) to initialize settings.
Nothing happens or notes do not play normally when I play on the accompaniment (left-side) keyboard.	Select "Off" for the Chord Mode setting (page EN-17) to disable chord input with the accompaniment keyboard.
Nothing happens when I start an Auto Accompaniment.	Check and adjust the rhythm volume level (page EN-16).Try turning the Digital Keyboard off and then back on again (page EN-6) to initialize settings.
Nothing happens when I start playing a song's Auto Accompaniment.	It takes a little time after you press the button until the song starts to play. Wait for the song to start.Check and adjust the song volume level (page EN-13).Try turning the Digital Keyboard off and then back on again (page EN-6) to initialize settings.
The metronome does not sound.	Check and adjust the metronome volume level (page EN-8).Try turning the Digital Keyboard off and then back on again (page EN-6) to initialize settings.
Notes keep sounding, without stopping.	Try turning the Digital Keyboard off and then back on again (page EN-6) to initialize settings.Replace the batteries with new ones. Or use AC adaptor power (page EN-4).
Some notes are cut off while they are playing.	Notes are cut off whenever the number of notes being sounded exceeds the maximum polyphony value of 32 (16 for some tones). This does not indicate malfunction.
The volume level or tone setting I configured has changed.	Adjust the volume level (page EN-7).Try turning the Digital Keyboard off and then back on again (page EN-6) to initialize settings.Replace the batteries with new ones. Or use AC adaptor power (page EN-4).
With certain volume levels and tones, the sound of notes played in one keyboard range will sound different from those played in another keyboard range.	This is due to system limitations and does not indicate malfunction.
With some tones, octaves do not change at the far ends of the keyboard.	This is due to system limitations and does not indicate malfunction.

	Symptom Required Action
	The pitch of the notes does not match other accompanying instruments or notes sound strange when played along with other instruments.	·Check and adjust the transpose setting (page EN-10) and tuning setting (page EN-11).·Try turning the Digital Keyboard off and then back on again (page EN-6) to initialize settings.
	The reverb of notes seems to change suddenly.	·Check and adjust the reverb setting (page EN-10).·Try turning the Digital Keyboard off and then back on again (page EN-6) to initialize settings.
Connecting to a computer
	I can't perform MIDI data transfers.	·Check to make sure that the USB cable is connected to the Digital Keyboard and computer, and that the correct device is selected with your computer's music software (page EN-19).·Turn off the Digital Keyboard and then exit the music software on your computer. Next, turn the Digital Keyboard back on and then restart the music software on your computer.

Product Specifications

Model CT-S100
Keyboard 61 keys
Maximum Polyphony 32 notes
Tones
Preset Tones 122 preset tones, Main tone buttons
Effects Reverb (4 types, Off)
Metronome
Beat Off, 1 to 16 beats
Tempo 20 to 255
Song Bank
Preset Songs 60 songs
Part Off Left hand, right hand, both hands
Auto Accompaniment
Preset Rhythms 61 types, chord input mode switching
Demo Play Looped play of all built-in Song Bank songs (60 songs)
Function Volume Adjustment Metronome, Rhythm, Song
Other Functions
Transpose ±1 octave (-12 to 0 to +12 semitones)
Tuning	A4 = 415.5 to 465.9 Hz (Initial Default: 440.0 Hz)
MIDI	16 multi-timbre received, GM Level 1 standard
Jacks
USB Port	Micro-B
PHONES/OUTPUT jack	Stereo mini jack (3.5mm)
AC adaptor terminal	9.5V DC
Power Requirements	2-Way Power
Batteries	6 AA-size alkaline batteries or AA-size rechargeable nickel metal hydride batteries
Continuous operation	Approximately 16 hours (alkaline batteries), approximately 13 hours (rechargeable nickel metal hydride batteries)*
	Actual battery life may be shorter depending on battery type, performance style, or operation environment.
AC Adaptor	AD-E95100L (JEITA Standard, with unified polarity plug)
Auto Power Off	After approximately 30 minutes of non-operation, Can be disabled.
Speakers	13cm × 6cm (oval) × 2 (Output: 2.0W + 2.0W)
Power Consumption	9.5V --- 5.5W
Dimensions	93.0 (W) × 25.6 (D) × 7.3 (H) cm (36 5/8 × 10 1/16 × 2 7/8 inch)
Weight Approximately 3.3kg (7.3 lbs) (Excluding batteries)

* Measured values while using eneloop batteries.
eneloop is a trademark of Panasonic Corporation.

- Specifications and designs are subject to change without notice.

AC Adaptor Handling Precautions

Model: AD-E95100L

1. Read these instructions.
2. Keep these instructions on hand.
3. Heed all warnings.

4. Follow all instructions.

5. Do not use this product near water.

6. Clean only with a dry cloth.

7. Do not install near radiators, heat registers, stoves, or any other source of heat (including amplifiers).

8. Use only attachments and accessories specified by the manufacturer.

9. Refer all servicing to qualified service personnel. Servicing is required after any of the following occurs: when the product is damaged, when the power supply cord or plug is damaged, when liquid is spilled into the product, when a foreign object falls into the product, when the product is exposed to rain or moisture, when the product does not operate normally, when the product is dropped.

10. Do not allow the product to be exposed to dripping or splashing liquid. Do not place any object containing liquid on the product.

11. Do not allow the electrical load output to exceed the label rating.

12. Make sure the surrounding area is dry before plugging into a power source.

13. Make sure the product is oriented correctly.

14. Unplug the product during lightning storms or when you do not plan to use it for a long time.

15. Do not allow product ventilation openings to become blocked. Install the product in accordance with the manufacturer's instructions.

16. Take care the power cord is located where it will not be stepped upon or bent severely, particularly in locations close to plugs and convenience receptacles, and in locations where it exits from the product.

17. The AC adaptor should be plugged into a power outlet as close to the product as possible to allow immediate disconnection of the plug in case of emergency.

The symbol below is an alert indicating un-insulated hazardous voltage inside the product's enclosure, which may be sufficient to constitute the risk of electric shock to users.

The symbol below is an alert indicating the presence of important operating and maintenance (servicing) instructions in the documentation that accompanies the product.

Tone List

Tone 1
No. *1 Tone Name			Program Change	Bank Select MSB
MAIN TONE 1
1 C2 GRAND PIANO 000 000
2	C	#2 ELEC.PIANO 1 004 000
3 D2 DRAWBAR ORGAN 016 000
4	E	b2 H A R P S I	C H O R D
5	E2	STRINGS	048	000
PIANO/E.PIANO
6	F2	HONKY-TONK	003	000
7	F#2	ELEC.GRAND PIANO	002	000
8	G2	60'S E.PIANO	004	005
9	Ab2	CHORUS E.PIANO	004	009
10	A2	SYNTH-STR.E.PIANO	004	003
11	Bb2	SYNTH-VOICE & E.PIANO	004	010
12	B2	CLAVI	007	000
CHROMATIC PERC.
13	C3	CELESTA	008	000
14	C#3	GLOCKENSPIEL	009	002
15	D3	MUSIC BOX	010	000
16	Eb3	VIBRAPHONE	011	000
17	E3	MARIMBA	012	000
18	F3	TUBULAR BELL	014 000
ORGAN
19	F#3	PERC.ORGAN	017	000
20	G3	ROCK ORGAN	018	000
21	Ab3	CHAPEL ORGAN	019	008
22	A3	REED ORGAN	020	000
23	Bb3	ACCORDION	021	000
24	B3	HARMONICA	022	000
25	C4 BANDONEON		023 000
GUITAR
26	C#4 NYLON STR.GUITAR 024 002
27	D4	STEEL STR.GUITAR	025	002
28	Eb4	JAZZ GUITAR	026	002
29	E4	CLEAN GUITAR	027	002
30	F4	MUTE GUITAR 028 002
31	F#4	DISTORTION GUITAR	030	002
BASS
32	G4	ACOUSTIC BASS	032	002
33	Ab4	FINGERED BASS	033	002
34	A4	PICKED BASS	034	002
35	Bb4	FRETLESS BASS	035	002
36	B4	SAW SYNTH-BASS	038	002
37	C5 SQUARE SYNTH-BASS		039	002
STR/ORCHESTRA
38	C#5	VIOLIN	040	000
39	D5	VIOLA	041	000
40	Eb5	CELLO	042	002
41	E5	CONTRABASS	043	002
42	F5	PIZZICATO STRINGS	045	000
43	F#5	HARP	046	000
44	G5 TIMPANI		047	000
ENSEMBLE
45	Ab5	SYNTH-STRINGS	050	000
46	A5	CHOIR AAHS	052	000
47	Bb5	SYNTH-VOICE	054	000
48	B5	ORCHESTRA HIT	055	000

Tone 1
No. *1 Tone Name			Program Change	Bank Select MSB
BRASS
49	C6	TRUMPET	056	000
50	C#6	TROMBONE	057	002
51	D6	TUBA	058	002
0 520	€b6	FORENCH BIORN	060	000
53	E6	BRASS	061	000
54	F6	SYNTH-BRASS	062	000
REED
55	F#6	SOPRANO SAX	064	000
56	G6	ALTO SAX	065	000
57	Ab6	TENOR SAX	066	001
58	A6	BARITONE SAX	067	002
59	Bb6	OBOE	068	000
60	B6	CLARINET	071	000
PIPE
61	C7	PICCOLO	072	002

*1 Keyboard Key Note Name

Tone 2
No.	*1 Tone Name		Program Change	Bank Select MSB
MAIN TONE 2
62 C	2 BRIGHT	PIANO 001 000
63 C	#2 ELEC	PIANO 2 005 000
64 D	2 PIPE ORGAN 019 000
65 E	2 HARP	SICHORD & STRINGS 006 001
66	E2	SLOW STRINGS	049	000
PIPE
67	F2	FLUTE	073	000
68 F	#2 RECORDER	074 000
69	G2	BOTTLE BLOW	076	000
70 A	2 WHISTLE	078 000
71	A2	OCARINA	079	000
SYNTH-LEAD
72	Bb2	SQUARE LEAD	080	000
73 B	2 SAW LEAD	081 000
74	C3	VOICE LEAD	085	000
75 C	#3 FIFTH LEAD	086 000
76	D3	BASS+LEAD	087	000
77 E	3 DANCE SQUARE LEAD	080 048
78 E	3 DANCE SYNC SQUARE LEAD 080 049
79	F3 DANCE SAW LEAD		081 048
80	F#3	DANCE SYNC SAW LEAD	081	049
81 G	3 DANCE SAW BASS	087 048
SYNTH-PAD
82	Ab3	FANTASY	088	000
83	A3	WARM PAD	089	000
84	Bb3	POLYSYNTH	090	000
85	B3	SPACE CHOIR	091	000
86 C	4 METAL PAD	093 000
87	C#4	HALO PAD	094	000
88 D	4 RAIN DROP	096 000
89	Eb4	SOUND TRACK	097	000
90 E	4 CRYST AL	098 000
91	F4	ATMOSPHERE	099	000
92	F#4	BRIGHTNESS	100	000
93	G4	SF	103	000
94	Ab4	DANCE SAW PAD	090	048
95	A4	DANCE SQUARE PAD	090	049
INDIAN
96	Bb4	SITAR 1	104	002
97 B	4 SITAR 2	104 003
98	C5	TANPURA 1	104	032
99	C#5	TANPURA 2	104	033
100	D5	HARMONIUM 1	020	032
101	Eb5 HARMONIUM 2 020 033
102	E5	SHANAI 1	111	002
103	F5 SHANAI 2	111 003
104	F#5	SANTUR 1	015	003
105	G5 SAN TUR 2		015	004
106	Ab5	TABLA	116	016
ETHNIC
107	A5	BANJO	105	000
108	Bb5	SHAMISEN	106	000
109	B5	KOTO	107	000
110	C6 BAGP IPE	109 000
111	C#6	FIDDLE	110	000

Tone 2
No. *1 Tone Name			Program Change	Bank Select MSB
VARIOUS
112 D6 TINKLE BELL 112 000
113 Eb6 STEEL DRUMS 114 000
114	E6	SYNTH-DRUM	118	000
115 F6 STRIN GS PIANO 000			008
116	F#6	BASS/PIANO	000	009
117 G6 SE 1			120	002
118	Ab6	SE 2	122	002
DRUM SET
119	A6	STANDARD SET	000	120
120	Bb6	DANCE SET	029	120
121 B6 BRUS H SET 040			120
122 C7 INDIAN SET 049			120

*1 Keyboard Key Note Name

Drum Assignment List

Key Note No.			DRUMS SET NAME
			STANDARD SET DANCE SET			INDIAN SETBRUSH SET
C-1		0
		1
D-1		2
		3
E-1		4
		5
F-1		6
		7
G-1		8
		9
A-1		10
		11
B-1		12
		13
D0		14
		15
E0		16
		17
F0		18
		19
G0		20
		21
A0		22
		23
B0		24
		25
C1		26
		27
D1		28
		29
F1		30
		31
G1		32
		33
A1		34
		35
B1		36	Standard Kick 1	Synth Kick 1	Brush Kick 1	←
		37	Slide Stick	←	←	←
D2		38	Standard Snare 1	Synth Snare 1	Brush Snare 1	←
		39	Standard Hand Clap	Synth Hand Clap	Brush Slap	←
E2		40	Standard Snaro 2	Synth Snaro 2	Brush Snaro 2	←
F2		41	Low Tom 2	Synth Low Tom 2	Brush Low Tom 2	←
		42	Closed Hi-Hat	←	←	←
G2		43	Low Tom 1	Synth Low Tom 1	Brush Low Tom 1	←
		44	Pedal Hi-Hat	←	←	←
A2		45	Mid Tom 2	Synth Mid Tom 2	Brush Mid Tom 2	←
		46	Open Hi-Hat	←	←	←
B2		47	Mid Tom 1	Synth Mid Tom 1	Brush Mid Tom 1	←
C3		48	High Tom 2	Synth High Tom 2	Brush High Tom 2	←
		49	Crash Cymbal 1	←	←	←
D3		50	High Tom 1	Synth High Tom 1	Brush High Tom 1	←
		51	Ride Cymbal 1	←	←	←
E3		52	Chinese Cymbal	←	←	←
F3		53	Ride Bell	←	←	←
		54	Tambourine	←	←	←
G3		55	Splash Cymbal	←	←	←
		56	Cowed	←	←	←
A3		57	Crash Cymbal 2	←	←	←
B3		58	Vibradap	←	←	←
		59	Ride Cymbal 2	←	←	←
C4		60	High Bongo	←	←	←
		61	Low Bongo	←	←	←
D4		62	Mute High Conga	←	←	←
		63	Open High Conga	←	←	←
E4		64	Open Low Conga	←	←	←
F4		65	High Tambaio	←	←	←
		66	Low Timbole	←	←	←
G4		67	High Agogo	←	←	←
		68	Low Agogo	←	←	←
A4		69	Cabasa	←	←	←
		70	Maracas	←	←	←
B4		71	Short High Whistle	←	←	Table Go
		72	Long Low Whistle	←	←	Table Ka
C5		73	Short Guiro	←	←	Table Ts
		74	Long Guiro	←	←	Table Na
D5		75	Claves	←	←	Table Tun
E5		76	High Wood Block	←	←	←
F5		77	Low Wood Block	←	←	←
		78	Muto Cuica	←	←	←
G5		79	Open Cuica	←	←	←
		80	Mute Triangio	←	←	←
A5		81	Open Triangle	←	←	←
		82	Shaker	←	←	←
B5		83	Cheer Short	Dance Kick 1
C6		84	Cheer	Dance Kick 2
		85	Cheer Long	Dance Q
D6		86	Cheer Ficks Out	Dance Snare 1
		87	Explotion 1	Dance Clap
E6		88	Explotion 2	Dance Shaine 2
F6		89		Hip-Hop Close Hat
		90		Noise Rise
G6		91
		92
A6		93
		94
B6		95
		96
C7		97
		98
D7		99
		100
E7		101
		102
F7		103
		104
A7		105
		106
B7		107
		108
C8		109
		110
D8		111
		112
E8		113
		114
F8		115
		116
A8		117
		118
B8		119
		120
C9		121
		122
D9		123
		124
E9		125
		126
F9		127

• “←” indicates a key is assigned the same tones as it is for STANDARD SET.

Song List

No. #1 Title
PIANO/CLASSICS
1 C2 FÜR ELISE
2	C	#2 VALSE op.64 no.1 "PETIT CHIEN"
3 D2 TURKISH MARCH (MOZART)
4	E	#2 TRÄUMEREI
5 E2 ETUDE op.10 no.3 "CHANSON DE L'ADIEU"
6 F2 LIEBESTRÄUME no.3
7 F#2 NOCT URNE op.9 no.2 (CHOPIN)
8 G2 CANON (PACHELBEL)
9 A#2 MARY HAD A LITTLE LAMB
10 A2 LE CYGNE FROM "LE CARNAVAL DES ANIMAUX"
11 B#2 AIR FROM "SUITE no.3"
12 B2 SPRING FROM "THE FOUR SEASONS"
13 C3 HUNGARIAN DANCES no.5
14	C#3 MINUET IN G MAJOR
15 D3 GAVOTTE (GOSSEC)
16 E#3 ARABESQUE (BURGMÜLLER)
17 E3 DECK THE HALL
18 F3 ODE TO JOY
19 F#3 AVE MARIA (GOUNOD)
20 G3 PRELUDE op.28 no.7 (CHOPIN)
21	Ab3	GOING HOME FROM "FROM THE NEW WORLD"
22 A3 SONATA op.27 no.2 "MOONLIGHT" 1st Mov.
23 B#3 THE ENTERTAINER
24 B3 FRÖHLICHER LANDMANN
25 C4 LA CHEVALERESQUE
26	C#4 JESUS BLEIBET MEINE FREUDE
27 D4 MARCH FROM "THE NUTCRACKER"
28 E#4 CHANSON DU TOREADOR FROM "CARMEN"
29 E4 INVENTIONEN no.1
30 F4 PRAELUDIUM no.1 (J.S.BACH)

EVENT
31 F	#4 SILENT NIGHT
32 G	4 JINGLE BELLS
33 A	b4 WE WISH YOU A MERRY CHRISTMAS
34 A	4 JOY TO THE WORLD
35 B	b4 O CHRISTMAS TREE

WORLD
36 B4 WHEN THE SAINTS GO MARCHING IN
37 C5 GREENSLEEVES
38	C#5 ANNIE LAURIE
39 D5 AMAZING GRACE
40 E5 TWINKLE TWINKLE LITTLE STAR
41 E5 GRANDFATHER'S CLOCK
42 F5 ON TOP OF OLD SMOKEY
43 F#5 COME BIRDS
44 G5 DID YOU EVER SEE A LASSIE?
45 A5 DANNY BOY
46 A5 MY BONNIE
47 B5 HOME SWEET HOME
48 B5 AURA LEE
49 C6 ALOHA OE
50	C#6 LONDON BRIDGE
51 D6 UNDER THE SPREADING CHESTNUT TREE
52 E6 SIPPIN' CIDER THROUGH A STRAW
53 E6 BEAUTIFUL DREAMER
54 F6 MY DARLING CLEMENTINE
55 F#6 LITTLE BROWN JUG
56 G6 YANKEE DOODLE
57 A6 I'VE BEEN WORKING ON THE RAILROAD

No. 11 Title

58 A6 OH! SUSANNA

59 B6 TURKEY IN THE STRAW

60 B6 FURUSATO

*1 Keyboard Key Note Name

Rhythm List

No. 11 Rhythm name
8 BEAT
1 C2 STRAIGHT 8 BEAT
2	C	#2 8 B E A T
16 BEAT
3 D2 16 BEAT
4 E2 16 BEAT SHUFFLE
BALLAD
5 E2 16 BEAT BALLAD
6 F2 POP BALLAD
7 F2 6/8 BALLAD
DANCE
8 G2 DISCO POP
9	A	>2 MODERN R&B
POPS
10 A2 POP
11 B2 POP ROCK
ROCK
12 B2 STRAIGHT ROCK
13 C3 SHUFFLE ROCK
14	C#3	SLOW ROCK
15 D3 ROCK	WALTZ
JAZZ
16	Eb3	BIG BAND
17 E3 SLOW	SWING
18 F3 JAZZ	WALTZ
19 F#3 FOX	TROT
EUROPEAN
20 G3 POLKA
21 Ab3 WALTZ 1
22	A3	VIENNESE WALTZ
23	Bb3	TANGO
24 B3 MARCH
LATIN
25 C4 BOSSA NOVA
26 C#4 SAMBA
27 D4 MAMBO
28 Eb4 SALSA
29 E4 REGGAE
30 F4 POP REGGAE
31 F#4 SKA
32 G4 CUMBIA
INDIAN
33 Ab4 BHANGRA
34 A4 DADRA
35 Bb4 GARBA
36 B4 KEHARWA
37 C5 TEEN TAAL
38 C#5 DANDIYA
39 D5 BHAJAN
40 Eb5 INDIAN POP 1
41 E5 INDIAN POP 2
42 F5 QAWWALI
43 F#5 KERALA
44 G5 RAJASTHANI

No. *1 Rhythm name

WORLD
AMERICAN
45 Ab5 COUNTRY BALLAD
46 A5 BLUEGRASS
47 Bb5 DIXIE
48 B5 TEX-MEX
49 C6 FAST GOSPEL
50 C#6 HAWAIIAN
EASTERN EUROPEAN
51 D6 RUSSIAN CHANSON
ARABIC
52 Eb6 ADANI
CHINESE
53 E6 JIANGNAN
54 F6 DONGBEIYANGGE
55 F#6 JINGJU
56 G6 HUANGMEIXI
57 Ab6 MIAOZU
58 A6 XINJIANG
VARIOUS
59 Bb6 STRING QUARTET
PIANO RHYTHMS
60 B6 ARPEGGIO
61 C7 WALTZ 2

*1 Keyboard Key Note Name

Fingering Guide

■FINGERED 1, FINGERED 2 Chords

C
Cm
Cdim
Caug *3
C>5
Csus4 *3
Csus2 *3
C7
Cm7 *3
CM7
CmM7
Cdim7 *3
CdimM7
C7<5 *3
Cm7<5 *3
CM7<5
Caug7
CaugM7
C7sus4
C6 *1 *3
Cm6 *2 *3

Cadd9
Cmadd9
C69 *3
Cm69 *3

*1 With FINGERED 2, interpreted as Am7.
*2 With FINGERED 2, interpreted as Am ^7 .
*3 Inverted form not supported in some cases.
*4 These fingerings are special fingerings for Digital Keyboard chord input, and so they are not suitable for normal keyboard play.

■FINGERED ON BASS, FULL RANGE CHORD

In addition to the chords that can be fingered with FINGERED 1 and FINGERED 2, the chords below also are recognized.

^\#C · · · ^\#C · · ^bC · · ^bC · ^\#mC · ·

^\#mC · · ^bmC · · ^amC · · ^\#dimC ·

· ^\#dimC · · ^bdimC · · · 7C · ^b7C

7C · 7C · ^bM7C · ^\#m7^b5C · 7C · 7C · ^aadd9C

NOTE

• With FINGERED ON BASS, the lowest note fingered is interpreted as the base note. Inverted forms are not supported.
• With FULL RANGE CHORD, when the lowest note fingered is a certain distance from the neighboring note, the chord is interpreted as a fraction chord.
• Unlike FINGERED 1, 2, and FINGERED ON BASS, FULL RANGE CHORD requires pressing of at least three keys to form a chord.

Chord Example List

*1*2	C	C#/ (D^b)	D	(D#/ E^b)	E	F
M
m
dim
aug
sus4
sus2
7
m7
M7
m7^b5
7^b5
7sus4
add9
madd9
mM7
dim7
69
6
m6

*1 Root *2 Chord Type
- Since the chord input range is limited, this model may not support some of the chords shown above.

*1*2	F#/( G^b )	G	( G^# )/ A^b	A	( A^# )/ B^b	B
M
m
dim
aug
sus4
sus2
7
m7
M7
m7^b5
7^b5
7sus4
add9
madd9
mM7
dim7
69
6
m6

*1 Root *2 Chord Type
- Since the chord input range is limited, this model may not support some of the chords shown above.

Model: CT-S100 Version : 1.0
MIDI Implementation Chart

Function Transmitted Recognized Remarks
Basic Channel	Default Changed	1 1 - 16	1 - 16 1 - 16
Mode	Default Messages Altered	Mode 3 X * * * * * * *	Mode 3 X * * * * * * *
Note Number	True voice	0 - 127 * * * * * * *	0 - 127 0 - 127 *1
Velocity	Note ON Note OFF	O 9nH v = 1 - 127 X 8nH v = 64	O 9nH v = 1 - 127 X 9nH v = 0, 8nH v =**	**: no relation
After Touch	Key's Ch's	X X	X O
Pitch Bender		X	O
Control Change	0 1 5 6, 38 7 10 11 64 65 6667	O X X X X X X XX	O O O O *2 O O O O OO	Bank select Modulation Portamento Time Data entry LSB/MSB Volume Pan Expression Hold 1 Portamento Switch SostenutoSoft pedal
	71	X	O	Filter resonance
	72	O	O	Release time
	73	X	O	Attack time
	74	X	O	Brightness
	84	X	O	Portamento Control
	91	X	O	Reverb send level
	100, 101	X	O *2	RPN LSB/MSB
Program Change	True #	O	O
		* * * * * * *	0 - 127
Exclusive		O *2	O *2
System Common	Song Pos	X	X
	Song Sel	X	X
	Tune	X	X
System Real Time	Clock	X	X
	Commands	X	X
Aux Messages	All sound off	X	O
	Reset all controller	O	O
	Local ON/OFF	X	X
	All notes OFF	O	O
	Active Sense	X	O
	System Reset	X	X
Remarks		*1: Depends on tone.*2: For details about RPN and system exclusive messages, see MIDI Implementation athttps://support.casio.com/global/en/emi/manual/CT-S100/

O: Yes

X: No

Mode 2 : OMNI ON, MONO Mode 4 : OMNI OFF, MONO

CASIO®
