Type	Motorcycle
Brand	BMW
Model	K 1600 GT (2020)
Engine displacement	1649 cc, inline-6, liquid-cooled
Max power	118 kW (160 hp) at 7750 rpm
Max torque	175 Nm at 5250 rpm
Transmission	6-speed constant mesh
Fuel tank capacity	26.5 L
Seat height	810 mm
Weight (wet)	Approx. 343 kg
Electronic immobilizer (EWS)	134 kHz transponder, FCC Part 15 compliant
Keyless Ride	434.42 MHz, 10 mW max power
Tire Pressure Control (RDC)	433.895 - 433.945 MHz, <10 mW e.r.p.
Intelligent Emergency Call	GSM bands 880-915, 1710-1785, 1920-1980 MHz
Anti-theft alarm (DWA)	433.05-434.79 MHz, 10 mW e.r.p.
Radio Data System (RDS)	FM radio with RDS
Key battery type	Button cell (replaceable, same voltage/size)
Maintenance - washing	Use mild detergent, avoid high-pressure washers
Safety features	Emergency stop switch, ABS, traction control
Certifications	FCC, IC, CE, R&TTE, EMC

Frequently Asked Questions - K 1600 GT (2020) BMW

How do I replace the battery in the vehicle key?

Use a button cell of the same voltage, size, and specification. Dispose of old battery properly. Keep out of reach of children.

What is the tire pressure monitoring system frequency?

The system operates at 433.895 - 433.945 MHz with output power <10 mW e.r.p.

How does the electronic immobilizer work?

The ring aerial around the ignition switch exchanges a 134 kHz signal with the transponder in the key to authorize startup.

Can I pair a new keyless ride remote?

Contact a BMW dealer. The system operates at 434.42 MHz and requires authorized programming.

What maintenance is recommended for the motorcycle?

Regularly check brake fluid, tire pressure, and chain tension. Wash with mild detergent and avoid pressure washers.

How do I use the emergency stop switch?

Press the emergency stop switch (labeled 'Nouzový vypínač') to immediately stop the engine in an emergency.

What radio frequency bands does the intelligent emergency call use?

It uses GSM bands: 880-915 MHz, 1710-1785 MHz, and 1920-1980 MHz.

How do I clean the motorcycle?

Use mild soap and water. Do not use high-pressure washers as they can damage components.

What should I do if the anti-theft alarm is triggered?

Use the keyless ride remote or insert the key to deactivate the alarm. The alarm operates at 433.05-434.79 MHz.

Where can I find the full EU declaration of conformity?

Visit the manufacturer's website: for EWS at becom.at, for keyless ride at huf-group.com/eudoc, for RDC at tpmseuroshop.com, etc.

USER MANUAL K 1600 GT (2020) BMW

Údaje o vozidlu

CELKOVÝ POHLED SHORA

POZOR

1 Nouzový vypínač

VAROVÁNÍ

Přímý výběr:

Vynulování hodnot:

Automatic mode - Off:

- Spust'te motor.

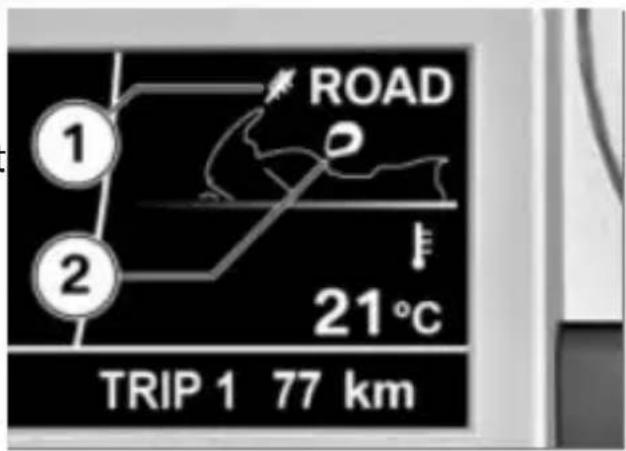

JÍZDNÍ REŽIM

Radio Data System (RDS)

VAROVÁNÍ

VAROVÁNÍ

VAROVÁNÍ

POZOR

POZOR

POZOR

POZOR

POZOR

UPOZORNĚNÍ

• Odpojte konektor 3.

• Odpojte konektor 2.

POZOR

POZOR

1 40 A

Elektronika motoru

2 Neobsazeno

• Otočte klíč v zámku kufru do polohy RELEASE.
  » Vyskočí rukojeť.

• Vložte krytku 2.

Ovládání navigace

OŠETŘUJÍCÍ PROSTŘEDKY

MYTÍ MOTOCYKLU

Declaration of Conformity

Radio equipment electronic immobiliser (EWS)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 134 kHz (Transponder: TMS37145 / TypeDST80, TMS3705 Transponder Base Station IC) Output Power : 50 dBμV/m

Manufacturer and Address

Hereby, BECOM Electronics GmbH declares that the radio equipment type EWS4 is in compliance with Directive 2014/53/EU53 The full text of the EU declaration of conformity is available at the following internet address: http://www.becom.at/de/download/

Greece

Hereby, BECOM Electronics GmbH declares that the radio equipment type EWS4 is in compliance with Directive 2014/53/EU53

The full text of the EU declaration of conformity is available at the following internet address: http://www.becom.at/de/download/

Italy

Ring aerial in the ignition switch

To verify the authorization of the ignition key, the electronic immobilizer exchanges information with the ignition key via the ring aerial.

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly

approved by the party responsible for compliance could void the user's authority to operate the equipment.

Certifications Remote Control for central locking system

Česky

Hereby, Meta System S.p.A., declares that this PF240009 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Español

Product name: TX BMW

MR FCC ID: P3O98400

IC:4429A - TXBMWMR

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly

approved by the party responsible for compliance could void the user's authority to operate the equipment.

Declaration Of Conformity

R&TTE Declaration Of Conformity (DoC)

C€0470

We:

Meta System S.p.A.

with the address:

Via Majakovskij 10 b/c/d/e 42124 Reggio Emilia -Italy

Declare

Under own responsibility that the product:

TX BMW MR

To which this declaration relates is in conformity with the essential requirements and other relevant requirements of the R&TTE Directive (1999/5/EC).

This product is in conformity with the following standards:

Health & Safety (art.3.1)

EMC (art.3.2) Spectrum

Human exposure

EN 60950-1

ETSI EN 301 489-1/-3

ETSI EN 300 220 - 2

EN 62311

According to Directive 1999/5/

CE Reggio Emilia, 14/07/2010

Technical

Director Lasagni

Cesare

Declaration of Conformity

Radio equipment Keyless Ride

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency band: 434,42 MHz Maximum Transmission Power: 10 mW

Manufacturer and Address

Manufacturer: Huf Hülsbeck & Fürst GmbH & Co. KG Adress: Steeger Str. 17, 42551 Velbert, Germany

Bülgarski

Hereby, Huf Hülsbeck & Fürst GmbH & Co. KG declares that the radio equipment type HUF5750 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.huf-group.com/eudoc

Español

USA, Canada:

Product name: BMW Keyless Ride ID Device FCC ID: YGOHUF5750 IC: 4008C-HUF5750

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Canada:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

USA:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Argentina:

Declaration Of Conformity

We declare under our responsibility that the product

BMW Keyless Ride ID Device (Model: HUF5750)

camplies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose. Applied Standards:

1. Health and safety requirements contained in article 3 (1) a)

- EN 60950-1:2006+A11:2009+A1:2010+A12:2011; Information technology equipment-Safety

1. Protection requirements with respect to electromagnetic compatibility article 3 (1) b)

- EN 301 489-1 (V1 .9.2, 09/2011 ), Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services;

Part 1: Common technical requirements

- EN 301 489-3 (V1.4.1, 08/2002) Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for short range devices (SRD) operating on frequencies between 9 kHz and 40 GHz

1. Means of the efficient use of the radio frequency spectrum article 3 (2)

- EN 300 220-1 & -2 (V2.4.1, 05/2012), electromagnetic compatibility and radio spectrum matters (ERM); Short range devices (SRD); Radio equipment tobe used in the 25 MHz to 1000 MHz frequency range with power levels ranging up to 500 mW;

Part 1: Technical characteristics and test methods.

Part 2: Harmonized EN covering essential requirements under article 3.2 of the R&TIE directive

The product is labeled with the CE marking:

CE

Velbert, October 15 ^th , 2013

Benjamin A. Müller

Product Development Systems

Car Access and Immobilization -

Steeger Straße 17, D-42551

Velbert

Declaration of Conformity

Radio equipment tyre pressure control (RDC)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 433.895 - 433.945 MHz

Output Power: <10 mW e.r.p.

Manufacturer and Address

Manufacturer: Schrader Electronics Ltd.

Adress: Technology Park, Antrim, N. Ireland BT41 1QS, United Kingdom

Austria

http://www.tpmseuroshop.com/documents/declaration_conformities

Belgium

http://www.tpmseuroshop.com/documents/declaration_conformities

Cyprus

Hereby, Schrader Electronics Ltd. declares that the radio equipment type BC5A4 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.tpmseuroshop.com/documents/declaration_conformities

Greece

Hereby, Schrader Electronics Ltd. declares that the radio equipment type BC5A4 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.tpmseuroshop.com/documents/declaration_conformities

Italy

http://www.tpmseuroshop.com/documents/declaration_conformities

Malta

B'dan, Schrader Electronics Ltd., niddikjara li dan it-tip ta' taghmir tar-radju BC5A4 huwa konformi mad-Direttiva 2014/53/UE.

www.tpmseuroshop.com/documents/

declaration_conformities

Netherlands

Certification Tire Pressure Control (TPC)

FCC ID: MRXBC54MA4

IC: 2546A-BC54MA4

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

FCC ID: MRXBC5A4

IC: 2546A-BC5A4

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

Declaration of Conformity

Radio equipment intelligent emergency call

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Antenna internal:

Frequency Band: 880 MHz - 915 MHz

Radiated Power [TRP]: < 22 dBm Not acessable by user:

Frequency Band: 1710 MHz - 1785 MHz

Radiated Power [TRP]: < 26 dBm

Frequency Band: 1920 MHz - 1980 MHz

Radiated Power [TRP]: < 22 dBm

Frequency Band: 880 MHz - 915 MHz

Radiated Power [TRP]: < 23 dBm

Manufacturer and Address

Manufacturer:

Robert Bosch Car Multimedia GmbH

Adress: Robert Bosch Str. 200, 31139 Hildesheim, GERMANY

Austria

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type TPM E-CALL EU is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Greece

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type TPM E-CALL EU is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Italy

Declaration of Conformity

Radio equipment anti-theft alarm (DWA)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 433.05-434.79 MHz

Output Power: 10 mW e.r.p.

Manufacturer and Address

Manufacturer: Meta System S.p.A.

Adress: Via Galimberti 5 42124 Reggio Emilia - Italy

Austria

Hereby, Meta System S.p.A. declares that the radio equipment type TXBMWMR is in compliance with Directive 2014/53/E63 The full text of the EU declaration of conformity is available at the following internet address: https://docs.metasystem.it/

Greece

Hereby, Meta System S.p.A. declares that the radio equipment type TXBMWMR is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://docs.metasystem.it/

Italy

Declaration of Conformity

EMC directive 2014/30/EU

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Measurements according to EN55014 and ECE-R10 Rev. 5

Manufacturer and Address

Manufacturer: speedsignal GmbH Adress: Carl-von-Ossietzky-Str. 3, 83043 Bad Aibling, Germany

Austria

Hereby, Speedsignal GmbH declares that the radio equipment type 9443643 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.speedsignal.de/zertifikate

Greece

Hereby, Speedsignal GmbH declares that the radio equipment type 9443643 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.speedsignal.de/zertifikate

Italy

Radio Data System RDS, 103

Rám

Please note the following in addition to the information provided in the Owner's Handbook.

WARNING

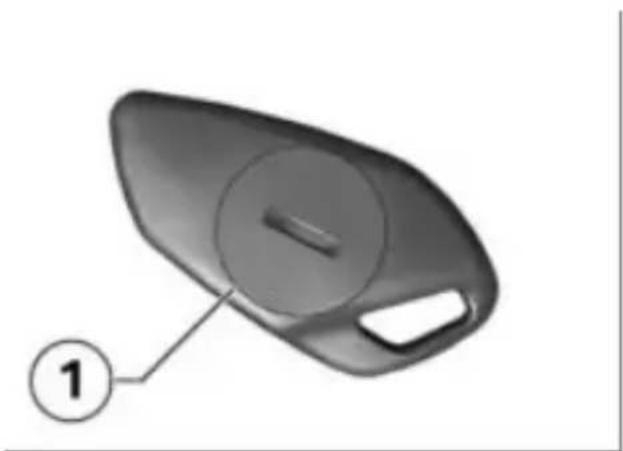

The battery inside the vehicle key is a button cell. Batteries or button cells can be swallowed, causing serious or even fatal injuries within two hours, e.g. due to internal burns or cauterisations. There is a danger of injury or danger to life. Keep vehicle keys and batteries out of the reach of children. Seek medical assistance immediately if you suspect that a battery or button cell has been swallowed or has got into a part of the body.

NOTE

Using unsuitable batteries in a vehicle key can damage the vehicle key. There is a risk of material damage. Discharged batteries should only ever be replaced with batteries of the same voltage, same size and same specification.

Not to be reproduced, wholly or in part, without written permission from BMW AG, Munich.

Order No.: 01 40 9 831 840

12.2020

Printed on environmentally friendly paper, bleached without chlorine, suitable for recycling.
