USER MANUAL CAT100AU Blustream

COAX IN OPT IN L/R OUT COAX OUT OPT OUT

TX CAT OUT RX ==5V 1A CAT IN L/R OUT COAX OPT

CAT100AU

User Manual

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Contents

Introduction 03

Features 03

Panel Descriptions 04

Specifications 05

Package Contents 05

Maintenance 05

Certifications 05

Schematic 06

Installer Notes 07

Introduction

Our CAT100AU Audio over CAT5e/6 extender transmits audio signals up to a distance of 300m (192kHz signals up to 100m). This plug and play device will accept both optical and coaxial digital inputs and includes a built in DAC (Digital to Analogue Audio Converter) to enable use of the stereo left / right audio output.

FEATURES:

• Extends optical audio over Cat5/6 cable up to 300m*
• Digital signal extension supports coaxial digital audio over Cat5/6 cable up to 300m*
• Both optical and coaxial digital audio can be distributed simultaneously
• Converts S/PDIF optical or coaxial digital PCM audio (selectable) to analogue stereo left / right audio output
  • Supports LPCM, DTS, Dolby Digital and Dolby Digital Plus when used as a straight digital in / digital out extender
  • Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit resolution
  • Ultra low jitter and high fidelity design
  • Supports PoC (Power over Cable) to power transmitter from receiver end
• Plug-and-play
• Small compact size

*CAT100AU supports distances of up to: 192K - 100m, 96K - 150m 48K - 300m

Panel Descriptions

TX Front Panel

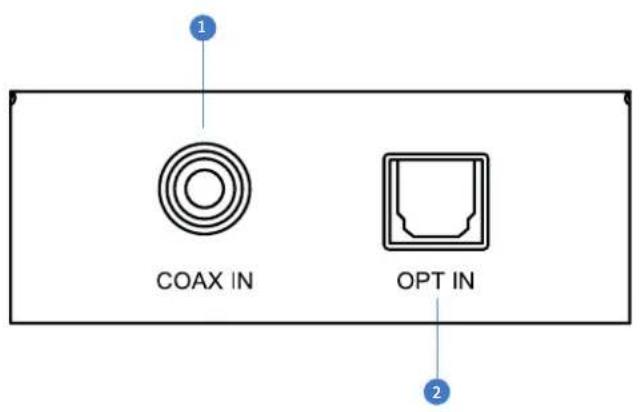

COAX IN OPT IN

1 Coaxial digital input
2 Optical digital input

TX Back Panel

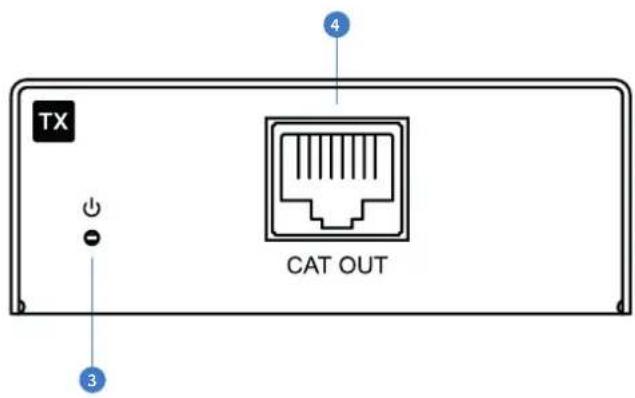

TX 4 CAT OUT 3

3 Power LED indicator – Displays the status of the power of the unit
4 Cat5e/6 RJ45 output

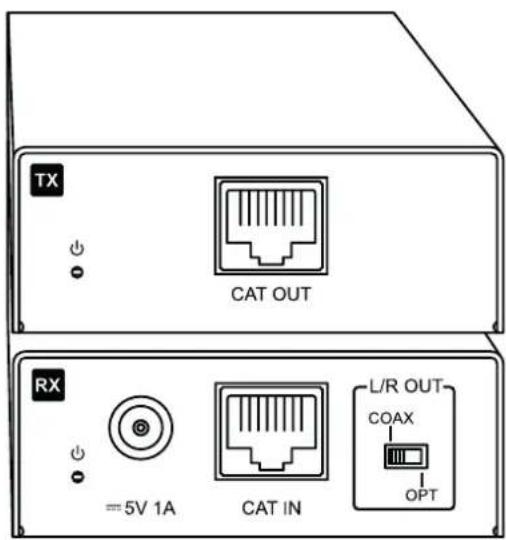

RX Front Panel

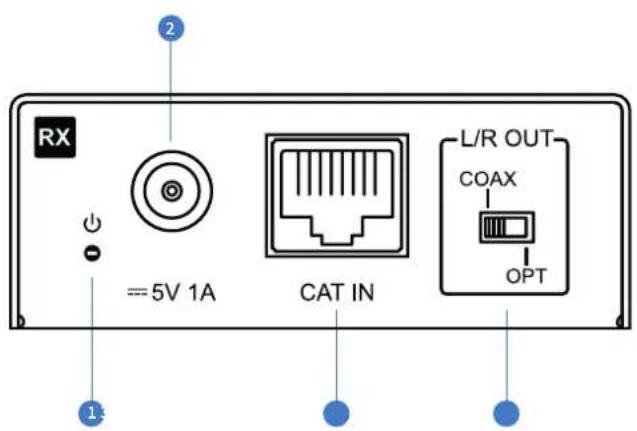

RX ==5V 1A CAT IN L/R OUT COAX OPT 1k

Power LED indicator – Displays the status of the power of the unit
2 Power port – Use supplied 5V/1A DC adaptor
3 Cat5e/6 RJ45 input
4 DAC input selection – Switch between Optical and Coaxial digital input to be converted to Analogue L/R audio output*

*L/R output supports 2ch PCM audio only

RX Back Panel

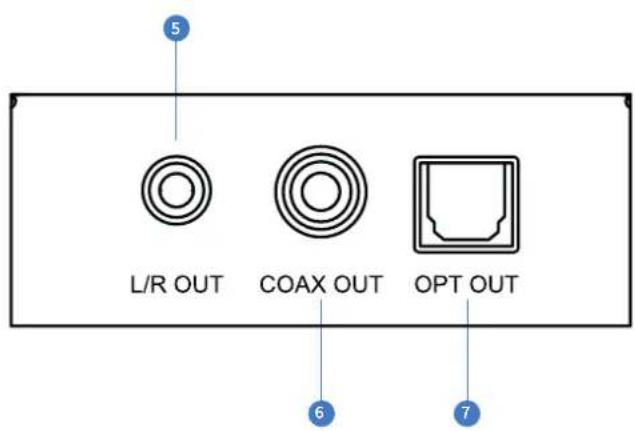

5 L/R OUT COAX OUT OPT OUT 6 7

5 Analogue L/R audio output - 3.5mm stereo audio jack
6 Coaxial digital output
7 Optical digital output

Specifications

CAT100AU-TX

Audio Input Connectors: 1 x S/PDIF Optical audio & 1 x Coaxial digital

Output Connectors: 1 x RJ45

CAT100AU-RX

Input Connectors: 1 x RJ45 & 5V/1A DC

Output Connectors: 1 x S/PDIF Optical audio, 1 x Coaxial digital & 1 x Analogue left / right - 3.5mm stereo audio jack

Casing Dimensions (W x D x H): 65mm x 70mm x 25mm

Dimensions Including Connections (W x D x H): 65mm x 80mm x 25mm

Shipping Weight: 0.4kg

Operating Temperature: 32^ F to 104^ F ( 0^ C to 40^ C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Power Supply: 5V/1A DC

Package Contents

- 1 x CAT100AU-TX

- 1 x CAT100AU-RX

- 1 x 5V/1A DC Power Supply

- 2 x Mounting Kits

- 1x User Manual

Maintenance

Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.

Certifications

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION - changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CANADA, INDUSTRY CANADA (IC) NOTICES

This Class B digital apparatus complies with Canadian ICES-003.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
