Product Type	PC Case (Mid-Tower)
Model	Panzer Evo RGB
Brand	Cougar
Dimensions (approx.)	500 x 230 x 520 mm (19.7 x 9.1 x 20.5 in)
Weight (approx.)	12 kg (26.5 lbs)
Motherboard Support	E-ATX, ATX, Micro-ATX, Mini-ITX
Power Supply Type	ATX (not included)
GPU Clearance	Up to 390 mm (double slot, up to 4 cards)
Fan Support	Max 8 fans (3x front 140/120mm, 2x top 140mm/3x 120mm, 1x rear 120mm, 1x bottom 140/120mm, optional)
Radiator Support	Up to 4 radiators (front, top, bottom, rear)
Drive Bays	2x 3.5" (compatible with 2.5"), 2x 2.5"
I/O Ports	USB 3.0, USB 2.0, HD Audio
RGB Support	COUGAR RGB Core Box with remote control (100 effects, 18 LEDs per fan)
Fan Controller	Built-in (supports up to 7 fans via splitters, max 1A total)
Panel Material	Tempered glass (front, top, side)
Maintenance	Removable dust filters (top/front), cleaning cloth included
Accessories Included	Screws, standoffs, cable ties, fan splitter, headphone hook, cleaning cloth
Warranty & Support	Contact Cougar USA: [phone] or www.cougargaming.com
Country of Origin	Made in China

Frequently Asked Questions - Panzer Evo RGB Cougar

What motherboard sizes does the Cougar Panzer Evo RGB support?

It supports up to E-ATX, as well as ATX, Micro-ATX, and Mini-ITX.

How many fans can be installed in this case?

You can install up to 8 fans: 3x front (140/120mm), 2x top (140mm) or 3x top (120mm), 1x rear (120mm RGB PWM included), and 1x bottom (140/120mm).

What is the maximum GPU length supported?

The case supports graphics cards up to 390mm in length, accommodating up to four double-slot cards.

How do I control the RGB lighting?

Use the included COUGAR RGB Core Box with a remote control. It offers 100 lighting effects and 18 LEDs per fan. You can also connect to a motherboard's addressable RGB header.

Does it support water cooling radiators?

Yes, it supports up to four radiators: front, top, bottom, and rear. Please check clearance for specific sizes.

What power supply type is required?

A standard ATX power supply is required (not included). The case has a dedicated PSU cover.

How many drive bays are available?

There are 2x 3.5-inch HDD trays (also compatible with 2.5-inch) and 2x 2.5-inch SSD trays.

How do I clean the tempered glass panels?

Use the included cleaning cloth. Avoid abrasive cleaners; a soft, damp cloth is recommended to prevent scratches.

Can I use PWM fans with the built-in controller?

The fan controller is designed for non-PWM fans. PWM fans (like the included Vortex RGB) are controlled by the motherboard automatically.

Where can I find the manual and support?

Visit www.cougargaming.com or contact Cougar USA at [phone]. The manual is also available for download on notice-facile.com.

USER MANUAL Panzer Evo RGB Cougar

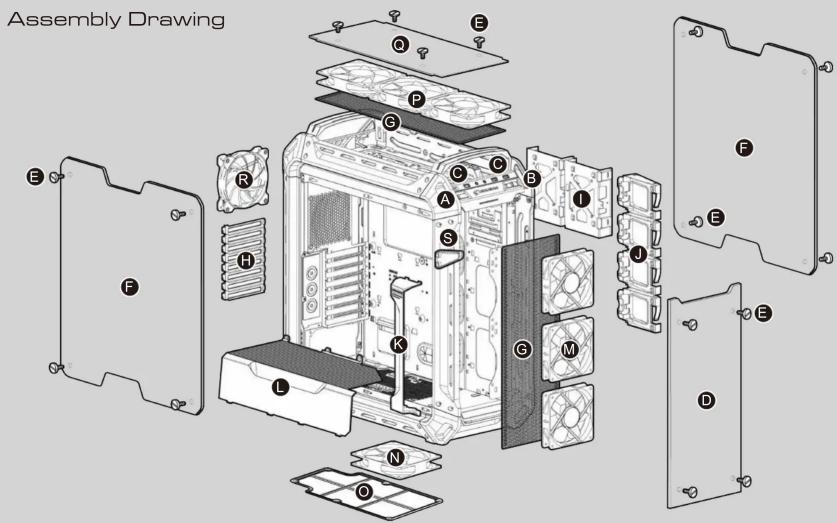

PANZER

A Power button / Reset button
B Fan controller
USB 3.0 / USB 2.0 / HD audio ports
D Tempered glass front panel
E Tool-less screw
F Tempered glass side panel
G Fan filter
H Vented slot cover
3.5" HDD trays (compatible with 2.5" HDD/SSD)
J 2.5" HDD trays
K Air Guide
L Power supply cover
3 x 140/120mm fans for front panel
1×140/120mm fan for bottom panel
(optional, purchased separately)
Air filter on bottom cover to prevent dust from entering the power supply.
2 x 140mm / 3 x 120mm fans for top panel
- (optional, purchased separately)
Q Tempered glass top panel
1 x 120mm RGB PWM fan for rear panel
S Headphone book

ENGLISH

PANZER EVO THE CRYSTALLINE TITANI

• Four tempered glass covers (front/topner/night) • Support for six different motherboard form factors (up to E-ATX)

- Up to four double slot 390mm graphics cards - Up to eight fans and four water cooling radiat

• COUGAR RGB Core Box included: Control your COUGAR RGB fans and LED strips with remote control!

* COUGAR Vortex RGB PWM fans included, with 18 LEDs per fan and 100 lighting effects

DEUTSCH

PANZER EVO DER KRISTALLENE TITAN

6.1.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100

Wireless controller

Specifications may vary based on different regions

5.1

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Interior view of a computer case with labeled components (no text or symbols visible)

Interior view of a computer case with labeled components (no text or symbols visible)

RIGHT SIDE

1 Removing the air guide

② Installing/Removing the power supply cover

3 Installing an internal 3.5" HDD

4 Installing an internal 2.5" device

Installing a fan filter (top / front)

Installing the headphone hook

Installing a water cooler (top)

Installing a water cooler (front) Installing the fro

/O connector Setting up fan control
Through the use of splitters (2 included, 3 maximum), up to 7 fans can be connected

Technical diagram of an electronic device casing with internal components and mounting holes (no text or labels)

RIGHT SIDE

⚠️ Fan cable max current loading is 1A

ACCESSORY KIT

1		Power Supply Screws	X 4
2		MBD/HDD screws	X 16
3		SSD screws	X 20
4		Stand-off	X 2
5		Short fan screws	X 16
6		Headphone hook screws	X 2
7		Shockproof rubber washers for top fans	X 4
8		Cable Ties	X 4
9		Water cooling orifices	X 3
10		Headphone hook	X 1
11		Fan connection splitter	X 2
12		Cleaning cloth	X 1
