XS Wireless Digital - Receiver SENNHEISER - Free user manual and instructions

Product Type	Digital Wireless Receiver
Brand	Sennheiser
Model	XS Wireless Digital
Dimensions (without antenna)	63 × 76 × 20 mm
Weight	125 g (without batteries)
Power Supply	2 AA batteries (1.5V) or USB-C (5V, 1A)
Battery Life	Up to 15 hours (with alkaline batteries)
Frequency Range	2.4 GHz ISM band
Audio Frequency Response	100 – 15,000 Hz
Dynamic Range	≥ 100 dB
Outputs	3.5 mm headphone jack, 6.3 mm (1/4") balanced jack
Display	OLED display with battery status and signal strength
Pairing	Automatic pairing via button press
Operating Range	Up to 75 m (line of sight)
Simultaneous Channels	Up to 10 receivers in the same area
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use solvents.
Safety Warnings	Keep away from water and extreme temperatures. Use only specified batteries.
Spare Parts / Repair	Contact Sennheiser service for replaceable parts. The battery compartment is user-accessible.
General Information	Designed for mobile use with transmitters like the XSW-D clip-on or handheld.

Frequently Asked Questions - XS Wireless Digital SENNHEISER

How do I pair the receiver with a transmitter?

Turn on both devices. Press the sync button on the receiver, then press the sync button on the transmitter within 10 seconds. They will automatically connect.

What batteries does the receiver use?

The receiver uses two AA batteries (alkaline recommended) or can be powered via a USB-C connection (5V, 1A).

How long do the batteries last?

With alkaline batteries, the receiver operates up to 15 hours. Battery life may vary depending on usage and settings.

Can I use multiple receivers at the same time?

Yes, you can use up to 10 receivers simultaneously in the same area without interference.

What is the operating range of the receiver?

The wireless range is up to 75 meters (line of sight). Walls and obstacles may reduce the range.

How do I clean the receiver?

Use a dry, soft cloth to wipe the surface. Do not use alcohol, solvents, or abrasive cleaners.

What audio outputs are available?

The receiver has a 3.5mm headphone output for monitoring and a 6.3mm (1/4') balanced jack for connecting to mixers or speakers.

Can I charge the receiver via USB while using batteries?

Yes, when USB-C is connected, the receiver will run on USB power and preserve battery life. Batteries are not charged via USB.

The receiver shows no signal. What should I do?

Ensure both devices are turned on and paired. Check that the transmitter is not muted. Move closer, or try re-pairing by pressing the sync buttons.

Is the receiver compatible with other Sennheiser transmitters?

The XS Wireless Digital receiver is designed to work with XS Wireless Digital transmitters (e.g., XSW-D clip-on, handheld, or instrument). It may not be compatible with other series.

USER MANUAL XS Wireless Digital SENNHEISER

Transmitter and receiver identification Labels for wireless link

Transmitters (TX) Receivers (RX)

XSW Digital - Model: TX 63

XSW Digital - Model: RX 63

XSW Digital - Model: TX 35 XSW Digital

- Model: RX 35

XSW Digital - Model: TX XLR

XSW Digital - Model: RX XLR

identification

Portable Lavalier Set / Portable Interview Set / Portable ENG Set

Illustration of a DSLR camera with attached cable, no text or symbols visible

Pedalboard Set

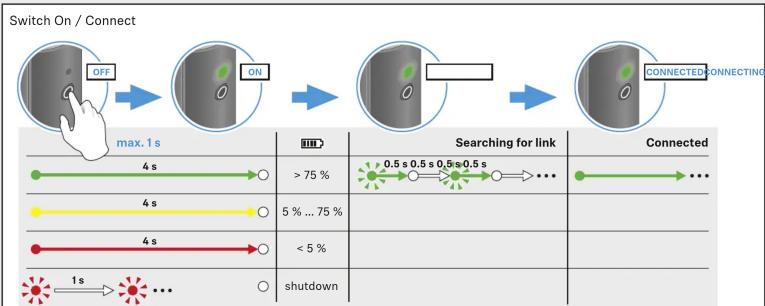

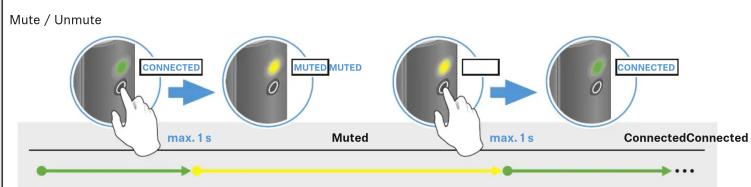


Sennheiser Documentation App

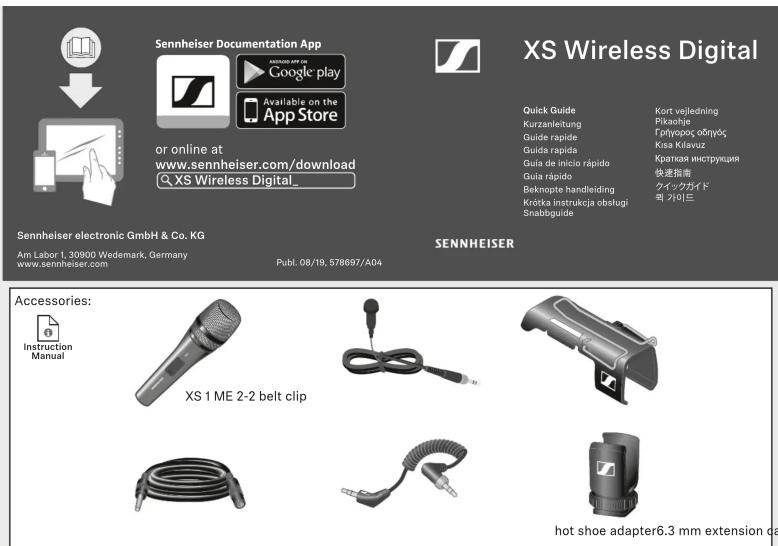

Instruction manual | Bedienungsanleitung | Notice d'emploi | Istruzioni per l'uso | Instrucciones de manejo | Manual de instruções | Gebruiksaanwijzing | Instrukcja obsługi | Bruksanvisning | Betjeningsvejledning | Käyttöhohe | Öbnyíček leitourpýiac | Kullanim kilavuzu | Инструкция по эксплуатации | 使用说明书 | 取扱説明書 | 사용 설명서 | or online at www.sennheiser.com/download X8.Wireless Digital_

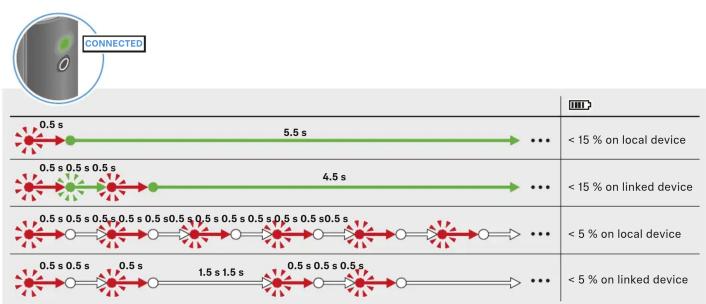

Battery status during operation

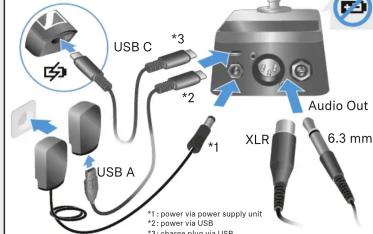

Charging

Pairing
    note right of A: 'Nearly out of range'
    classDef red fill:#fff,stroke:#000;
    classDef blue fill:#fff,stroke:#000;
    class B,C,D red
    class C Error blue
    class D Error red
