Product Type	Analog Mixing Console
Model	XENYX QX1832USB
Brand	Behringer
Channels	18 inputs (10 mono + 4 stereo)
Buses	3 (Main L/R, Sub 1-2, Monitor/FX)
Dimensions (W x D x H)	16.9 x 14.6 x 1.5 in (430 x 370 x 38 mm)
Weight	10.4 lbs (4.7 kg)
Power Supply	100-240 V~, 50-60 Hz, 40 W
Power Consumption	40 W
Microphone Preamps	XENYX, 8 mono channels with +48V phantom power
Compressors	Built-in channel compressors (COMP knob) on mono channels
Equalization	3-band (High, Mid, Low) with semi-parametric mid (variable 100 Hz - 8 kHz)
Multi-FX Processor	KLARK TEKNIK 24-bit DSP with 100 presets
USB Audio Interface	USB 2.0 Type B, stereo in/out, 16-bit/48 kHz
Wireless Option	USB input for Behringer ULM wireless microphones
Main Outputs	2 x XLR balanced
Monitor Outputs	1 x TRS (MON SEND/OUT)
Aux Sends	2 x TRS (AUX 1 SEND, FX/AUX 2 SEND)
Aux Returns	2 x TRS (AUX 1 RETURN, FX/AUX 2 RETURN)
Graphic EQ	7-band on mono subgroup
Voice Canceller	Yes (karaoke mode)
Phantom Power	+48 V switched for all XLR inputs
Maintenance	Clean with a dry cloth; do not use liquids
Safety	Follow all safety instructions; do not expose to rain or moisture
Spare Parts / Repairability	Refer to qualified service personnel; no user-serviceable parts inside

Frequently Asked Questions - XENYX QX1832USB BEHRINGER

How do I set the gain for a channel on the XENYX QX1832USB?

Press the channel's SOLO button, then select PFL mode via the MODE button. While singing or playing, turn the GAIN knob until the VU meter reaches 0 dB on the loudest peaks. Alternatively, use the LEVEL SET LED: adjust GAIN until the LED lights steadily.

How can I add effects to a channel?

Turn the FX knob on the desired channel up halfway. Then adjust the FX SEND fader to send signal to the internal processor. Select an effect using the PROGRAM knob (press to confirm). Adjust the FX AUX RETURN fader to blend the effect into the mix.

How do I connect the mixer to a computer via USB?

Connect a USB cable from the mixer's USB Type B port to your computer. The mixer will appear as a stereo audio device. Use the USB/2-TR RTN fader (or source buttons on QX1832USB) to control playback and recording levels.

What is the phantom power switch for and when should I use it?

The PHANTOM ON switch provides +48V to all XLR microphone inputs. Use it with condenser microphones that require external power. Dynamic microphones do not need phantom power; enabling it will not harm them but is unnecessary.

How do I use the Voice Canceller feature?

Plug an audio source (e.g., from a phone) into the 2-TRACK RCA inputs. Press the VOICE CANCELLER button. This filters out vocal frequencies, turning the mixer into a karaoke machine. Adjust the signal level using the USB/2-TR RTN fader.

Can I use wireless microphones with this mixer?

Yes, the QX1832USB has a USB wireless input that accepts a Behringer ULM receiver. Connect the receiver, and the wireless mic signal will be available on channels without a wired mic connected. The wireless range is up to 250 feet.

How do I set up a monitor mix?

Use the MON knob on each channel to send signal to the MON SEND/OUT jack. Adjust the MON SEND fader to control overall monitor level. Connect a powered speaker or amplifier to the MON OUT jack.

What does the COMP knob do?

The COMP knob adjusts the amount of compression on the channel. Compression reduces the dynamic range by attenuating loud peaks. This helps maintain consistent volume and can add punch to vocals or instruments.

How do I record audio from the mixer to a computer?

Connect the mixer to your computer via USB. In your recording software, select the mixer as the audio input. Use the USB/2-TR TO MAIN button to route the mix to USB while muting the recording signal from the main outputs if desired.

What should I do if the CLIP LED lights up constantly?

Reduce the GAIN on that channel. If the CLIP LED remains lit, lower the channel fader. Constant clipping can cause distortion. Your goal is to have the CLIP LED flash only occasionally on peaks.

USER MANUAL XENYX QX1832USB BEHRINGER

Quick Start Guide

(Check out behringer.com for Full Manual)

Black-and-white collage of eight black-and-white photos showing a musician performing on stage, keyboard, microphone, stage with spotlights, and a singer celebrating at a concert (no visible text or symbols)

XENYX

QX1832 USB/QX1222USB

Premium 18/16-Input 3/2 and 2/2-Bus Mixer with XENYX Mic Preamps & Compressors, KLARK TEKNIK Multi-FX Processor, Wireless Option and USB/Audio Interface

2 XUNYX QX185QLEBQX1ZZLSE Quick Start Pulse 3

EN

ES

EN Important Safety Instructions

Terminal marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. the only high quality professional speaker cables with 15" TS or twist lacking plugs are installed. All other installation or modification should be performed only by qualified personnel.

This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure—voltage that may be sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.

Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel.

Caution To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as wares, shall be placed on the apparatus.

Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel.

1. Read these instructions.

2. Keep these instructions

3. Herdall warnings.

4. Followall instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

1. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

2. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one winter than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsores outlet.

3. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they eat from the apparatus.

4. Use only attachments/accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart'apparatus combination to avoid

injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug in damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. The apparatus shall be connected to a MUNS socket outlet with a protective earthing connection.

4. Where the MAFS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

LEGAL DISCLAIMER

TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANTED. PERBINDER, KLARK TERRICK, MIDKS, BUDUER, AND TURBSOUND ARE PART OF THE MUSIC GROUP (MUSIC GROUP COM). ALL TRADEARDS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. MUSIC GROUP ACCEPTS NO LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED BY ANY PERSON WHO RELIES EITHER WHOLLY OR IN PART UP ON ANY DESCRIPTION, PHOTOGRAPH OR STATEMENT CONTAINED HEREIN. COLORS AND SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCE. MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORIZED FULLIERS AND RESELLERS ONLY FULLILLERS AND RESSELLERS ARE NOT AGENTS OF MUSIC GROUP AND HAVE ABSOLUTELY NO AUTHORITY

TO BIND MUSIC GROUP BY ANY EXPRESS OR IMPLIED UNDERDRAWING OR REPRESENTATION. THIS MANUAL IS COPYRIGHTED, NO PART OF THIS MANUAL MAY BE REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRONIC OR MECHANICAL, INCLUDING PHOTOCOPYING AND RECORDING OF ANY KIND. FOR ANY PURPOSE, WITHOUT THE EXPRESS WRITTEN PERMISSION OF MUSIC GROUP I LTD.

ALL RIGHTS RESERVED. © 2013 MUSK Group IP Ltd. Trident Chambers, Wickhams Cay, P.O. Box 146, Road Town, Tortola, British Virgin Islands.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding MUSIC Group's Limited Warranty, please see complete details online at www.music-group.com/warranty.

ES

RESERVADOS TOODS LOS DERECHOS. © 2013 MUSIC Group IP Ltd. Trident Chambers, Wickhams Cay, P.O. Box 146, Road Town, Tortola, British Virgin Islands

GARANTÍA LIMITADA

ALLERECHTE VORBERHALTER. © 2013 MUSIC Group IP Ltd. Tricent Chambers, Wickhams Coy, P.O. Box 146, Road Town, Tortola, British Virgin Islands

BESCHRÄNKTE GARANTIE

Fandor and Chaudan, 1960, 2015.

12 13XENYX QX1852USB/QX1222USB Quick Start Guide

XENYX QX1832USB/QX1222USB Controls

FN Step 2: Controls
Paso 2: Controles
Etape 2 : Réglages
Schritt 2: Regler
PT Passo 2: Controles

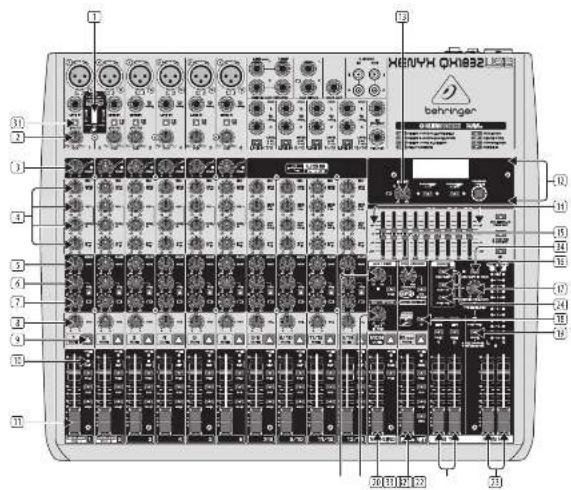

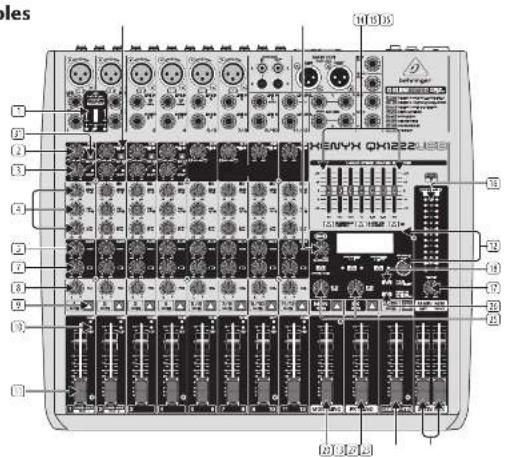

XENYX QX1832USB/QX1222USB Controls

Step 2: Controls

① USB wireless input accepts a USB receiver for use with BEHRINGER ULM wireless microphones.

[2] GAIN knob adjusts the sensitivity of the MIC and/or LINE inputs.

[3] COMP knob adjusts the amount of compression effect on the channel.

EQ knobs adjust the high, mid and low frequencies of the channel. Adjust the FREQ knob on the QX1832USB to select the specific frequency adjusted by the MID knob.

MON knob adjusts how much of the channel's signal routes to the MON SEND/OUT jack.

AUX 1 knob (QX1832USB only) adjusts how much of the channel's signal routes to the AUX 1 jack. Press the PRE button when using AUX 1 as an extra monitor send.

⑦ FX knob adjusts how much of the channel's signal routes to the internal multi-FX processor or the AUX SEND 2/FX SEND jack.

[8] PAN/BAL knob positions the channel in the stereo field.

MUTE button mutes the channel.

(10) CLIP LED lights when the channel signal overloads.

☐ CHANNEL FADER adjusts the channel volume.

MULTI-FX PROCESSOR adds a selected sound effect to any channels whose FX knob is turned up. See the Multi-FX Processor section for details.

FX SEND knob/fader adjusts the amount of signal sent to the internal multi-FX processor or an external effects processor via the FX SEND jack.

14 GRAPHIC EQ adjusts specific frequencies in the sound spectrum.

(15) XPQ SURROUND knob adjusts the amount of stereo enhancement on the mix. Press the XPQ TO MAIN button to activate the effect.

(16) VU METER displays the MAIN OUTPUT signal level.

17 PHONES/CTRL ROOM knob adjusts the headphone or studio monitor (QX1832USB) volume.

☐ VOICE CANCELLER button filters out vocal frequencies from audio plugged into the 2-TRACK INPUT, enabling your mixer to act as a karaoke machine.

MODE button (OK1832USB only); determines whether the channels' SOLO button operates as 'Solo in Place' (button out) or 'Pre-Fader Listen' (button in). PFL is preferred for gain setting purposes.

MON SEND fader adjusts the amount of signal sent to a monitor speaker via the MON OUT jack.

FX/AUX2 RET fader (QX1832USB only) adjusts the amount of internal or external effects included in the mix.

☑ SUB 1-2 faders (QX1832USB only) adjust the output of the SUB OUTPUT jacks.

(3) MAIN MIX faders adjust the overall output of the mixer.

(24) SOURCE buttons (QX1832USB only) route the USB/2-TR, SUB 1-2, and MAIN MIX to the PHONES and CONTROL ROOM jacks.

FX TO MON and FX TO MAIN knobs {QX1222USB only} adjust the amount of signal from the internal multi-FX processor or an external effects processor that is included in the main or monitor mix.

☐ STANDBY button (QX1222USB only) mutes all microphone channels.

[27] USB/2-TR RTN fader (QX1222USB only) adjusts the level of the 2-track RCA inputs or USB input.

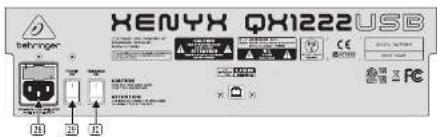

AC IN accepts the included power cable for connection to a mains outlet.

POWER ON switch turns the mixer on and off.

(5) PHANTOM ON switch sends 48 V to the XLR inputs for use with condenser microphones.

☐ LOW CUT button eliminates unwanted low frequencies from the channel.

[32] AUX 1 SEND knob (QX1832USB) adjusts the level of the AUX 1 signal sent to an effects processor or monitor speaker.

26 AUX 1 RETURN knob (QX1832USB) adjusts the level of the signal returning from an effects processor to the AUX 1 RETURN jacks.

USB/2-TR TO MAIN button (Q01832USB) routes the USB and 2-Track playback to the MAIN MIX and mutes the USB/2-TR OUT recording signal.

LEVEL SET LED (QX1222USB only) is used for setting the correct input level of the channel. See the Gain Setting section for more details.

ES Paso 2: Controles

[2] MAIN MIX faders adjust the overall output of the mixer.

XENYX QX1832USB/QX1222USB Getting started

Step 3: Getting started
13 Paso 3: Puesta en marcha
Etape 3 : Mise en oeuvre
Schritt 3: Erste Schritte
Passo 3: Primeiros Passos

[4] Make sure the power to all devices is turned off

1. Connect all the appropriate power, audio and USB cables to the mixer.

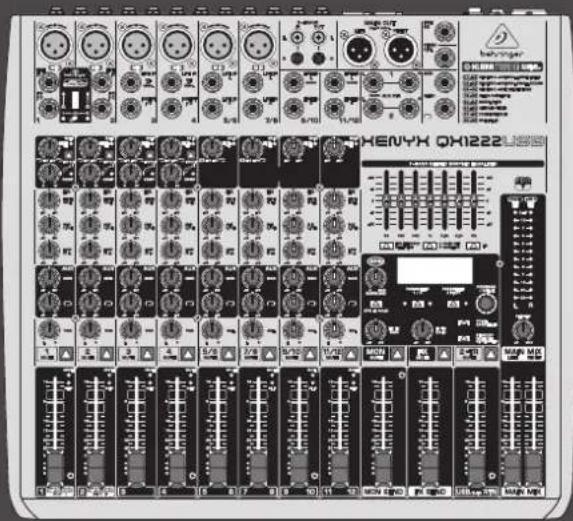

Set all controls as shown above (EQ and PAN/BAI centered, GRAPHIC EQ sliders centered, all others down/off).

Set the GAIN for each channel. See the Gain Setting section for details.

[14] With the MAIN MIX faders and PHONES/CTRL ROOM, knob all the way down, turn your PA system or powered monitors on.

[3] Slowly raise the MAIN MIX faders or PHONES/CIRL ROOM knob to 0 or to desired level.

On the OK1832USB, press the MAIN button on each channel to assign the channel to the MAIN MIX.

(10) Adjust the relative level of various microphones and instruments by raising each CHANNEL FADER.

Adjust the left-right position of a channel in the stereo held if necessary by turning the channel's PAN or BAL knob.

Adjust the COMP knob to add compression to an input if necessary.

For live applications, adjust the overall output from the mixer to the power amp or powered speakers by MAIN MIX fader. If the red CLIP LEDs VETER light, lower the MAIN MIX fader.

XENYX QX1832USB/QX1222USB Getting started

Step 3: Getting started
15 Paso 3: Puesta en marcha
FR Etape 3 : Mise en oeuvre
Schritt 3: Erste Schritte
PT Passo 3: Primeiros Passos

Use the channel MON knobs and MON SEND fader to send the channel signals to a monitor speaker connected to END/OUT jack.

14 Use the channel FX knobs and FX SEND fader/knob to send the channel signals to an effects processor connected to the FX SEND jack. Connect the returning signal from the processor to the AUX RETURN jacks.

Press the Channel 1 SOLO button. Press the MODE button next to the

'VU METER to allow the METER to operate e-fader listen; mode.

② Sing, speak or play at a normal level through the microphone or instrument connected to Channel 1.

While singing or playing, turn Channel 1's GAIN control. The VII METER

will display the signal level. Set the ol so that the loudest peaks reach 0 on the Press the Channel 1 SOLO button again,

Repeat steps 1-3 for any other channels that will be used. For stereo

channels 7/8 through 13/14, start with the +4/-10 button out. If the signal is too low to register on the 10 meters, press the button in to boost the signal.

E Raise Channel 1's fader to 0. Sing, speak or play at a normal level

through the microphone or instrument connected to Channel 1.

While singing or playing, turn Channel 1's GAIN control until the

Channel 1 CLIP LED flashes occasionally, but not constantly. The yellow LEVEL SET LED next to the GAIN knob will also light when sufficient signal is present.

① Repeat steps 1 and 2 for devices connected to channels 2-12.

☑ Your mixer has a built-in processor. Follow these steps to add an effect to one or more channels.

1 Tum the FX knob up half way on each channel to which you would like to add an effect.

2 Tum the FX AUX SEND and FX AUX RETURN knots/faders to 0. You may adjust them later.

3 Scroll through the effects by turning the PROGRAM knob. The preset name will flash in the display. Press the PROGRAM knob to select the effect.

4 Adjust parameter 1 and 2: • After you have selected a preset (step 3), press the PARAM 1/2 button to enter Edit Mode. The LED on the left side of the PARAM 1/2 button will light to indicate parameter 1 is active.

- Turn the PROGRAM knob to adjust the parameter.

• After 4 seconds of inactivity, the mixer exits Edit Mode. You can also press the PROGRAM knob to manually exit Edit Mode.

- Repeat the steps, using PARAM 1/2 button to select parameter 2 for editing.

- After you have selected a preset, press the PARAM 3/TAP button to enter Edit Mode. Depending on the parameter for the selected effect, the LED will either indicate the A/B value status of the parameter, or blink to show the current BPM/temps.

- Press the PARAM 3/TAP button to change the parameter A/B status, or press several times in rhythm to set a new BPM/tempo if applicable.

- After 4 seconds of inactivity, the mixer exits Edit Mode. You can also press the PROGRAM knob to manually exit Edit Mode.

6 [RU] Readjust each channel's FX knob to make sure the right amount of effect is added. If the OL (overload) meter segment lights in the display, turn the FX AUX SEND knob/fader down.

7 The FX FOOTSW(itch) jack accepts a one-button footswitch for FX bypass, and dual footswitch for

bypass and PARAM 3/TAP adjustment (A/B select or tap tempo).

#	Preset Name	Param. 1	Range	Param. 2	Range	Param. 3/TAP	Range(LED indication)
20 - 23 MODULATION
21	CHORUS	Depth	20 to +30	LDC Spind	10 to 120	LDC Subchain	THOMC (pt),500 (pt)
21	FLAMBER	Depth	-20 to -20	Resistance	-100 to +100	Mod Tempo	5 to 300(mlst, pt tempo)
22	PHASUR	Depth	30 to +30	Resistance	1 to 50	Mod Tempo	5 to 400(mlst, pt tempo)
23	AUTO-FAN / FROVOLD	Depth	-100 to +100	LFD Waveform	Triangle, Ramp, Square	Mod Tempo	5 to 400(mlst, pt tempo)
24 - 26 DETUNE / PITCH
24	CHEMIE	Distance	-50 to +90	Probeisy	2 to 300	Bamping	DARK (pt),7BDO (pt)
25	POTCH DIFFER 1	Noise Shift	-12 to +12	Probeisy	2 to 300	Deluxe	0 to 120 (pt)
26	POTCH DIFFER 2(200A)	Rute Shift A	-12 to +12	Noise Shift B	12 to +12	Screen Spread	BABYANG (pt),7BDE (pt)
27 - 29 COMBIN FA
27	DELAY + CHORUS	Delay<>Chorus Balance	-5 to +50	Chorus Deposit	-20 to -30	Delay Tempo	75 to 500(mlst, pt tempo)
28	DELAY + RIVERB	Delay<>Reverb Balance	5 to +50	Reverb Delay	1.0 to 5.00	Delay Tempo	75 to 500(mlst, pt tempo)
29	CHORUS + RIVERB	Chorus<>Reverb Balance	5 to +50	Reverb Delay	1.0 to 5.00	Chorus Depth	SOFT (pt),7DEPT (pt)
30 - 32 SPECIAL FA
31	YELLOW PASS ROUTER	Depth	20 to -30	Resistance	1 to 32	LFD Tempo	5 to 400(mlst, pt tempo)
31	TALIBOR	Named 1	A, E, I, O, U	Named 2	A, E, I, O, U	LFD Tempo	5 to 300(mlst, pt tempo)
32	CURRY STORAGE UNIT	Detected	1 to 100	Iron Cut Fiber	50 to 500 U	Stamping	DARK (pt),7RDT (pt)

EN

Specifications

ES

QX1832U5B QX1222U5B

Meme inputs
Microphone inputs 0.000% We current	6
Input 0 connector, balanced, discrete input current Mic E.L.N. (20 Hz - 20 MHz)
g 0.0 source mixture-13 dB / -13 dB /-weighted
g 500 source mixture-13 dB / -13 dB /-weighted
g 1000 source mixture-13 dB / -13 dB /-weighted
Frequency response (-1 dB)	<10 Hz - 150 dB / 1 dB
Frequency response (-2 dB)	<10 Hz - 200 dB / 5 dB
Gain range - 12 dB to -90 dB
Max. input level - 12 dB to +10 dB gain
Impairance 1 dB retained
Signal to max rate	10 dB / 115 dB / weighted (10 dBm/s + 12 dB gain)	12 dB / 110 dB / weighted (10 dBm/s + 22 dB gain)
Definition 1100=100.000% / 0.000% /-weighted
Phasmon power supplyable = 48V

Line Inuit

Type of TRS connector, balance
Importance	25 kΩ balanced, 10 Ω units mixed
Gain range	-10 dB to +40 dB
Max. input level	30 dB

Frequency Response (Mlc In → Main Out)

<10 Hz, 160 MHz	±1 dB
Stereo Inputs
Type	4 kHz 185 converter, balanced	4 kHz 185 converter, unbalanced
Impulse	25 kHz balanced, 10 kHz balanced
Gain range	20-50 to +20 dB
Rise input level	+2 dB

Type	R/correct
Importance	1000
Not input level	427 dB

2-track In	Equalizer 3-band semi-parametric
Low	50Hz / ± 15dB
N/d	Variable 100Hz - 8Hz / ± 15dB	2.5MHz / ± 15dB
I/ign	12kHz / ± 15dB

Equalizer f-band Fixed

Low	80Hz/±15dB	—
Low mid	300Hz/±15dB	—
High mid	2MHz/±15dB	—
High	12MHz/±15dB	—

ChannelInserts

Type 5* TIS corrector, unbalanced
Not input level	+22dBc
AUX Seads
Type	2 x 4* TIS corrector, unbalanced
Importance	123 p
Not output level	+22dBc

QX1832USB QX1222USB

AUX Returns
Type	2 x 1⁄4 TRS corrrentor, balanced	2 x 1⁄4 TRS corrrentor, arbitolated
impedance	20x5 balanced, 10.14x1 balanced
Max. output level	+22.00x
Main Outputs
Type	32X balanced
impedance	240X balanced, 10.51x1 balanced
Max. output level	+28.00x
Control Room Output
Type 32" TRS corrrentor, balanced
impedance	1.70 x
Max. output level	+22.00x

Phones Output

Type 53 TRI connector, unbalanced
impedance	250
Two output load	+21 dBtu / (50.11) - 25 dBtu
2-Track Out
Type	RCA connector
impedance	1 kPa
Two output load	+22 dBtu
DSP
Type	KJ498 100000
Converter	24-bit Sigma Beta
	64°28'28 times oversampling
Sampling rate	40/Hz

Topclass input

Wireless Signal
250 range	Receipts signals from 2 independent Trichinger (LM max)
Main Max System Data (Hexcel)
Main max S <= channel factor = -	-100 dB / -105 dB weighted	-105 dB / -102 dB weighted
Main max S Full, channel factor = -	-80 dB / -91 dB weighted	-80 dB / -83 dB weighted
Main max S Full, channel factor = 0.15	-97 dB / -92 dB weighted	-97 dB / -83 dB weighted

Power Supply

Units range	100 - 240 V~, 50-60 Hz
Power consumption (kW)	40 W
Input (V) - 240 V~;50-60 Hz	T 1.6 kA 350 V
Output range	Standard IEC metering

1

USB
Connector	Type b
Audio	Stereo in/out
Connector	16-bit
Sample rate	48 MHz

Physical/Wake

Dimensions (M x D x)	16.9 x 14.6 x 1.5130 x 370 x 50 mm	14.6 x 13.3 x 1.5370 x 338 x 90 mm
Watts	10.4 lbs: 4.7 kg	8.5 lbs: 3.8 kg

DSP
Tipo	PLATR TERM
Conserved	24-bit Sigma Delta
	64/128 years oversampling
Data to amortisation	40 Hz

Entrada sem fio
USB danje	Jardia sinai provenientes de 2 microfumesBehringer U.N. interdependentes
Dados do Sistema do Mia Principal (Rudel)

Micrincipol β →,tendered canal β →	100 dB / 100 dBA weighted	100 dB / 102.5BA weighted
Micrincipol β-1dB,tendered canal β →	-35 dB / -91 dBA weighted	-36 dB / -88 dBA weighted
Micrincipol β-1dB,tendered canal β-1dB	-51 dB / -82 dBA weighted	-51 dB / -83 dBA weighted

Other important information

Important Information

Informations Importantes

Responsible Party Name: MUSIC Group Services US Inc.

Address: 18912 North Creek Parkway,

Suite 200 Bothell, WA 98011,

USA

Phone/Fax No.: Phone: [phone]

Fax:[phone]

XENYX QX1832USB/QX1222USB

complies with the FCC rules as mentioned in the following paragraph:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the PCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Important information:

Changes or modifications to the equipment not expressly approved by MUSIC Group can void the user's authority to use the equipment.

Black-and-white photo of a smiling woman making a hand gesture with both hands (no text or symbols visible)

We Hear You
