Brand	Brennenstuhl
Model	HL2 DA 61 M3H2
Product Type	6+1 LED Rechargeable Multi-Function Light
LED Type (Front)	6x SMD
LED Type (Head)	1x CREE
Luminous Flux (Front)	300 lumens
Luminous Flux (Head)	100 lumens
Battery Type	Integrated Li-ion
Battery Voltage / Capacity	3.7 V / 2.2 Ah
Charging Input	Micro USB, 5 V DC, limited to 1 A
Charging Time	4 hours
Operating Time (Front)	3 hours
Operating Time (Head)	10 hours
Protection Class	IP20
Temperature Range	-10°C to +40°C
Switch	Front push button: toggle top/front/all off
Charging Indicator	Red (charging), Green (fully charged)
Mounting Features	Rotating hook and magnets
Included Accessories	USB charging cable
Safety Notes	Do not look directly at light; do not use in explosive atmospheres; only use tested USB source
Disposal	Battery must be disposed of separately from household waste
Operation During Charging	Yes
Battery Maintenance	Charge every 3 months if not used

Frequently Asked Questions - HL2 DA 61 M3H2 BRENNENSTUHL

How do I charge the HL2 DA 61 M3H2 light?

Use the included micro USB cable to connect the light to a tested USB power source (e.g., charger, computer) with a maximum 5V output. The charging indicator will show red while charging and green when fully charged. Charging time is approximately 4 hours.

How do I operate the light?

The front switch controls the light. Push once: top LED on; push twice: front LEDs on; push three times: all LEDs off.

Can I use the light while it is charging?

Yes, the product can be used during charging.

What are the battery specifications?

The integrated Li-ion battery has a voltage of 3.7 V and a capacity of 2.2 Ah. Operating time is 3 hours for the front LEDs and 10 hours for the head LED.

Is the light waterproof?

No, the light has protection class IP20, which means it is not protected against water ingress. Avoid exposure to rain or moisture.

How do I know when the battery is fully charged?

The charging indicator changes from red to green when the battery is fully charged.

What should I do if the light is not working?

First, ensure the battery is charged. If the light still does not work, check the USB cable and power source. Do not open the device; contact a qualified electrician or the service department listed on the manufacturer's website.

Can I replace the battery?

The battery is integrated and not user-replaceable. For disposal, follow local regulations for rechargeable batteries.

How do I mount or hang the light?

The light features a rotating hook for hanging and magnets for attachment to metal surfaces.

How should I store the light if not used for a long time?

If the light is not used for an extended period, it is recommended to charge the battery every 3 months to maintain battery health.

USER MANUAL HL2 DA 61 M3H2 BRENNENSTUHL

Line drawing of two USB cables with a labeled connector (no text or symbols beyond the number 8)

AUFLADEN DES AKKUS

Instructions For Use 6+1 LED Rechargeable Multi-Function Light HL2 DA 61 M3H2

SAFETY INFORMATION

• Read the operating instructions carefully before using the lamp.
• Never use the lamp if damaged - danger to life!
  Contact a qualified electrician or the service department listed.
• Do not look directly at the lamp.
• Do not open the device.
• Do not use the lamp in potentially explosive atmospheres – danger to life!
• Only used a tested USB power source to charge the batteries.

OPERATION:

• Drain the battery completely and recharge before using the lamp for the first time.
• Front switch ①:
  Push once: top LED On/ push twice: front LEDs On/ push three times: all LEDs Off.
  • The product can be used during charging.
• Battery indicator ⑤: red during charging, green when the battery is fully charged.
• If the lamp is not used for an extended period of time, it is recommended that the battery be charged every 3 months.

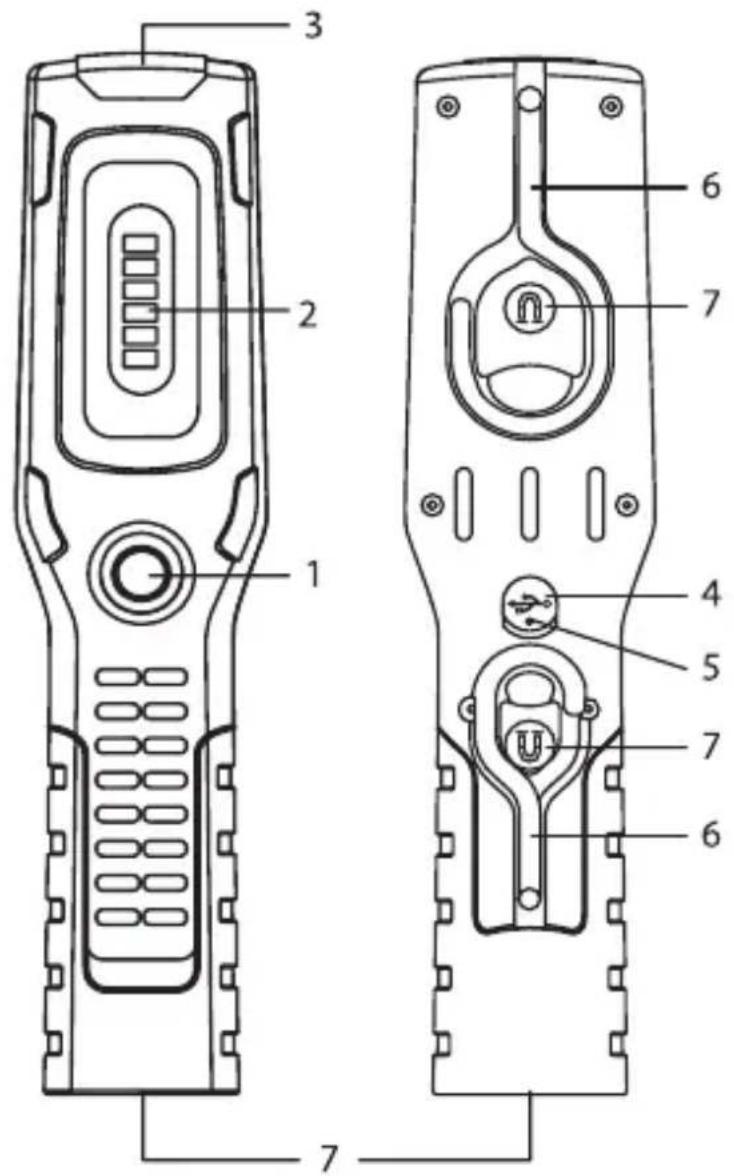

OVERVIEW OF THE CONTROLS:

① On/Off switch
② LEDs front
③ LED lamp head
4 Charging port
⑤ Charging indicator (red/green)
6 Rotating hook
⑦ Magnets
8 USB charging cable

Line drawing of two USB connectors with a labeled cable (no text or symbols beyond the number 8)

CHARGING THE BATTERY

Only charge your battery using a USB cable.

Only use a tested USB power source (e.g. charger, computer) with a maximum 5V output voltage:

Connection: USB source - USB charging cable ⑧ - Charging port ④

SPECIFICATIONS:

LEDs:	Front 6x SMD, head 1x CREE
Flux:	Front 300 lm, head 100 lm
Battery:	Integrated, Li-ion 3.7 V / 2.2 Ah
Charging input:	Micro USB 5 V DC, limited internally to 1 A
Operating time:	Front 3 hrs, head 10 hrs
Charging time:	4 hrs
Protection class:	IP 20
Temperature range:	-10°C – +40°C

Batteries and accumulators must not be disposed of in the household waste!

As a consumer, you are legally obliged to hand in all batteries and accumulators at a collection point in your community/urban district or in the trade, so that they can be disposed of in an environmentally friendly manner, otherwise there are possible risks to the environment and human health.

Manufacturer

Please visit the Service/FAQ section of our homepage,

www.brennenstuhl.com, for more information.

FR

Line drawing of two USB connectors with a labeled cable (no text or symbols beyond the number 8)

RECHARGER LA BATTERIE

Line drawing of two USB cable connectors with a labeled connector (no text or symbols beyond the number 8)

DE BATTERIJ OPLADEN

Line drawing of two USB connectors with a labeled cable (no text or symbols beyond the number 8)

CARICARE LA BATTERIA

Line drawing of two USB connectors with a cable, no text or symbols present

LADDNING AV BATTERIET

Diagram of two USB connectors with a labeled cable (8), no text or symbols present

CARGAR LA BATERÍA

Line drawing of two USB cables with a labeled connector (no text or symbols beyond the number 8)

ŁADOWANIE AKUMULATORA

Line drawing of two USB connectors with a labeled cable (no text or symbols present)

NABÍJENÍ AKUMULÁTORŮ

Line drawing of two USB connectors with a labeled cable (no text or symbols beyond the number 8)

A AKKUMULÁTOR FELTÖLTÉSE

Illustration of two USB cables with a labeled connector (no text or symbols beyond the number 8)

AKÜNÜN ŞARJ EDILMESI

Line drawing of two USB connectors with a labeled cable (no text or symbols beyond the number 8)

AKUN LATAUS

Line drawing of two USB connectors with a labeled cable (no text or symbols beyond the number 8)

Line drawing of two USB cable connectors with a labeled connector (no text or symbols beyond the number 8)

Diagram of two USB connectors with a labeled cable (8), no text or symbols present

Line drawing of two USB connectors with a labeled cable (no text or symbols beyond the number 8)

NABÍJANIE AKUMULÁTOROV
